The Programmers Guide contains information on how to use BlackTie. This document provides a detailed look at the design and operation of BlackTie. It describes the architecture and the interaction of components within this architecture.
This guide is most relevant to engineers who are responsible for developing using BlackTie. Although this guide is specifically intended for service developers, it will be useful to anyone who would like to gain an understanding of transactions and how they function.
This guide assumes a basic familiarity with Java service development and object-oriented programming. A fundamental level of understanding in the following areas will also be useful:
General understanding of the APIs, components, and objects that are present in Java applications.
A general understanding of the Windows and UNIX operating systems.
BlackTie supports all three of the buffer types defined in the XATMI specification.
Namely these are:
X_OCTET
X_COMMON
X_C_TYPE
BlackTie also supports the Nested Buffer Format described below.
The X_OCTET buffer type operates exactly as per is defined within Chapter 9 of the specification with the following points of interest:
A non-zero size MUST be provided to tpalloc and tprealloc calls
The entire buffer is initialized to \0 (NULL) prior to returning to the client
For our implementation of these buffer types we have required the user to configure the structure of the buffer in the btconfig.xml
Nested Buffer Format is defined in a xsd schema file, such as employee.xsd:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_processing_instruction"><?xml version="1.0"?></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:schema</span><span class="xml_plain"> </span><span class="xml_attribute_name">xmlns:xsd</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"http://www.w3.org/2001/XMLSchema"</span><span class="xml_plain"> </span><span class="xml_attribute_name">xmlns</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"http://www.jboss.org/blacktie"</span><span class="xml_plain"> </span><span class="xml_attribute_name">targetNamespace</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"http://www.jboss.org/blacktie"</span><span class="xml_plain"> </span><span class="xml_attribute_name">elementFormDefault</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"qualified"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:element</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employee"</span><span class="xml_plain"> </span><span class="xml_attribute_name">type</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employee_type"</span><span class="xml_tag_symbols">/></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:complexType</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employees_type"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:sequence</span><span class="xml_plain"> </span><span class="xml_attribute_name">minOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"0"</span><span class="xml_plain"> </span><span class="xml_attribute_name">maxOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"unbounded"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:element</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employee"</span><span class="xml_plain"> </span><span class="xml_attribute_name">type</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employee_type"</span><span class="xml_tag_symbols">/></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:sequence</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:complexType</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:complexType</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"employee_type"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:choice</span><span class="xml_plain"> </span><span class="xml_attribute_name">minOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"0"</span><span class="xml_plain"> </span><span class="xml_attribute_name">maxOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"unbounded"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:element</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"name"</span><span class="xml_plain"> </span><span class="xml_attribute_name">minOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"0"</span><span class="xml_plain"> </span><span class="xml_attribute_name">maxOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"unbounded"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:simpleType</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:restriction</span><span class="xml_plain"> </span><span class="xml_attribute_name">base</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"xsd:string"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:maxLength</span><span class="xml_plain"> </span><span class="xml_attribute_name">value</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"8"</span><span class="xml_tag_symbols">/></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:restriction</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:simpleType</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:element</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">xsd:element</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"id"</span><span class="xml_plain"> </span><span class="xml_attribute_name">minOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"0"</span><span class="xml_plain"> </span><span class="xml_attribute_name">maxOccurs</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"unbounded"</span><span class="xml_plain"> </span><span class="xml_attribute_name">type</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"xsd:long"</span><span class="xml_plain"> </span><span class="xml_attribute_name">default</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"0"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:element</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:choice</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:complexType</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">xsd:schema</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
All xsd schema files should been placed in buffers directory.
Get a nested buffer in blacktie, you should use
<!-- <br/> --><span class="java_type">char</span><!-- <br/> --><span class="java_operator">*</span><!-- <br/> --><span class="java_plain"> buffer </span><!-- <br/> --><span class="java_operator">=</span><!-- <br/> --><span class="java_plain"> tpalloc</span><!-- <br/> --><span class="java_separator">(</span><!-- <br/> --><span class="java_literal">"BT_NBF"</span><!-- <br/> --><span class="java_separator">,</span><!-- <br/> --><span class="java_plain"> </span><!-- <br/> --><span class="java_literal">"<buffer_name>"</span><!-- <br/> --><span class="java_separator">,</span><!-- <br/> --><span class="java_plain"> </span><!-- <br/> --><span class="java_literal">0</span><!-- <br/> --><span class="java_separator">);</span><!-- <br/> --><span class="java_plain"> </span><!-- <br/> --><span class="java_operator">//</span><!-- <br/> --><span class="java_plain"> in C</span><!-- <br/> --><span class="java_operator">++</span> <!-- --><br/><span class="java_plain">BT_NBF buffer </span><span class="java_operator">=</span><span class="java_plain"> </span><span class="java_separator">(</span><span class="java_plain">BT_NBF</span><span class="java_separator">)</span><span class="java_plain"> connection</span><span class="java_separator">.</span><span class="java_plain">tpalloc</span><span class="java_separator">(</span><span class="java_literal">"BT_NBF"</span><span class="java_separator">,</span><span class="java_plain"> </span><span class="java_literal">"<buffer_name>"</span><span class="java_separator">,</span><span class="java_plain"> </span><span class="java_literal">0</span><span class="java_separator">);</span><span class="java_plain"> </span><span class="java_operator">//</span><span class="java_plain"> in </span><span class="java_type">Java</span>
After that, the following options are available:
add a new attribute in buffer
int btaddattribute(char** buf, char* attributeId, char* attributeValue, int len); // in C++
retrieve a set attribute
int btgetattribute(char* buf, char* attributeId, int attributeIndex, char* attributeValue, int* len); // in C++
set an existing attribute
int btsetattribute(char** buf, char* attributeId, int attributeIndex, char* attributeValue, int len); // in C++
remove an existing attribute
int btdelattribute(char* buf, char* attributeId, int attributeIndex); // in C++
e.g.
<!-- C++ : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="cpp_comment">// add a attribute in buffer</span><br /> <span class="cpp_type">char</span><span class="cpp_plain"> name</span><span class="cpp_separator">[</span><span class="cpp_literal">16</span><span class="cpp_separator">];</span><span class="cpp_plain"></span><br /> <span class="cpp_type">char</span><span class="cpp_plain"> </span><span class="cpp_keyword">value</span><span class="cpp_separator">[</span><span class="cpp_literal">16</span><span class="cpp_separator">];</span><span class="cpp_plain"></span><br /> <span class="cpp_type">int</span><span class="cpp_plain"> len </span><span class="cpp_operator">=</span><span class="cpp_plain"> </span><span class="cpp_literal">16</span><span class="cpp_separator">;</span><span class="cpp_plain"></span><br /> <span class="cpp_plain"></span><br /> <span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_plain"> buf </span><span class="cpp_operator">=</span><span class="cpp_plain"> tpalloc</span><span class="cpp_separator">((</span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_separator">)</span><span class="cpp_plain"> </span><span class="cpp_literal">"BT_NBF"</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_separator">(</span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_separator">)</span><span class="cpp_plain"> </span><span class="cpp_literal">"employee"</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_literal">0</span><span class="cpp_separator">);</span><span class="cpp_plain"></span><br /> <span class="cpp_plain">strcpy</span><span class="cpp_separator">(</span><span class="cpp_plain">name</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_literal">"test"</span><span class="cpp_separator">);</span><span class="cpp_plain"></span><br /> <span class="cpp_plain"></span><br /> <span class="cpp_plain">rc </span><span class="cpp_operator">=</span><span class="cpp_plain"> btaddattribute</span><span class="cpp_separator">(</span><span class="cpp_operator">&</span><span class="cpp_plain">buf</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_separator">(</span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_separator">)</span><span class="cpp_plain"> </span><span class="cpp_literal">"name"</span><span class="cpp_separator">,</span><span class="cpp_plain"> name</span><span class="cpp_separator">,</span><span class="cpp_plain"> strlen</span><span class="cpp_separator">(</span><span class="cpp_plain">name</span><span class="cpp_separator">));</span><span class="cpp_plain"></span><br /> <span class="cpp_plain">rc </span><span class="cpp_operator">=</span><span class="cpp_plain"> btgetattribute</span><span class="cpp_separator">(</span><span class="cpp_plain">buf</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_separator">(</span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_separator">)</span><span class="cpp_plain"> </span><span class="cpp_literal">"name"</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_literal">0</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_separator">(</span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_separator">)</span><span class="cpp_plain"> </span><span class="cpp_keyword">value</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_operator">&</span><span class="cpp_plain">len</span><span class="cpp_separator">);</span><span class="cpp_plain"></span><br /> <span class="cpp_plain"></span><br /> <span class="cpp_plain">strcmp</span><span class="cpp_separator">(</span><span class="cpp_keyword">value</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_literal">"test"</span><span class="cpp_separator">);</span><span class="cpp_plain"></span><br />
more quickstarts can be founded under <BLACKTIE_HOME>/quickstart/nbf, and this quickstart also runs as part of the run_all_quickstarts script.
This article should explain how to work with the Blacktie framework in order to develop your own XATMI services and clients. We will discuss how to run the code generation tool along with how to provide the configuration files that are required on the client and server side.
The provided <BLACKTIE_BIN_DIR>/setenv.[sh|bat] should be executed to put the build tools in the environment.
Install Visual V++ 2008 Express Edition (only used to provide the compiler and linker on Windows)
The PATH environment variable will need the runtime DLLs in it
C:\Program Files\Microsoft Visual Studio
9.0\VC\redist\Debug_NonRedist\x86\Microsoft.VC90.DebugCRT
The PATH environment variable will also need the VC++ tools in it
C:\Program Files\Microsoft Visual Studio
9.0\VC\vcvarsall.bat
Each of the following configuration files must be present at runtime inorder for Blacktie servers or clients to operate correctly
btconfig.xml (this file although of the same structure, the content will be different for windows and for linux)
The schemas that these files must validate against are in <BLACKTIE_BIN_DIR>/schemas/xsd, you can read more about providing configuration here.
When building clients or servers using the provided ANT script you will need to make sure you have set the environment in the manner indicated in <BLACKTIE_BIN_DIR>/setenv.[sh|bat]
An example run configuration for the code generation tool would then look like:
<BLACKTIE_BIN_DIR>/bin/generate_server.<sh|bat> -Dserver.includes=BarService.c -Dservice.names=BAR
<BLACKTIE_BIN_DIR>/bin/generate_client.<sh|bat> -Dclient.includes=client.c
The following are the requirements to run the generated server and client:
The LD_LIBRARY_PATH or PATH must be set to include the <BLACKTIE_BIN_DIR>/lib folder (done by setenv.[sh|bat]
The commands must be executed from the directory relative to where the configuration files exist
Assuming the pre-requisites are adhered to all that must be done is to execute
server[.exe] -c [configuration_dir] -i [unique_id]
and then
client[.exe]
(if the client is not in the location of the
configuration files you
need to set the environment variable
BLACKTIE_CONFIGURATION_DIR
.
Here a service is defined as a unit of business logic that implements the tpservice(SVCINFO) method as defined in the XATMI specification section 3.3.
In BlackTie services are broadly categorised as either:
Administrative
User defined
Each server exposes a single XATMI service that is built into the server executable and is exposed for the lifespan of the server. It is not intended to be accessed directly by the programmer although this is possible, instead however the results of the service are typically aggregated by a central Java domain-level XATMI administrative service.
The name of the service is not user defined although can be predicted:
<SERVER_NAME>_ADMIN_<SERVER_ID>
User defined services are not allowed to be configured with a name with _ADMIN in them
The name of the service again is not user defined although can be predicted from the domain name:
<DOMAIN_NAME>_ADMIN
All user defined service names must be declared within the constraints defined in the XATMI specification plus several constraints imposed by BlackTie:
Service names must be 128 characters or less
Servers may not contain overlapping service names, e.g. server 1 and server 2 cannot define service A
Service names may not use the reserved keyword _ADMIN_ in their name
The service must be defined in the btconfig.xml
The service may optionally be customized in the btconfig.xml
The same function for the same service is expected at each server
tpadvertise and tpunadvertise operate on the local service state, they are not used to (un)advertise the service at a domain wide level
If a service is not thread safe, it is important to set the SIZE for the SERVICE in the btconfig.xml file to 1
Starting from release blacktie-3_0_0 we have added two methods called btenqueue and btdequeue to simplify sending and receiving message. The M1 release supports transactional sends and the M2 release will support transactional receives.
This page will be updated soon to reflect the change.
XATMI (http://www.opengroup.org/pubs/catalog/c506.htm) is a standard which specifies how to connect clients to services. A client is a program that requests services to be performed. A service is a program that performs a specific application function on behalf of clients. In XATMI there are two types of service:
Request/response services receive a single request and produce at most a single response to the request. The request is the application data sent from the client to the service. The service processes the request and returns application data to the client by means of at most one response;
Conversational services are invoked by means of a connection request from the client. Once the connection is established and the service invoked, the client and the service can exchange data in an application-specific manner until the service returns, whereupon the connection is logically terminated.
However this model breaks down if there is no service currently running that can handle the client request. The latest release of BlackTie includes an enhancement (to XATMI) that facilitates the queuing of client requests such that the request can be processed at a later time when an appropriate service becomes available.
In XATMI message payloads are obtained using the following call:
<!-- C++ : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="cpp_type">char</span><span class="cpp_plain"> </span><span class="cpp_operator">*</span><span class="cpp_plain"> tpalloc</span><span class="cpp_separator">(</span><span class="cpp_type">char</span><span class="cpp_plain"> </span><span class="cpp_operator">*</span><span class="cpp_plain">type</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_type">char</span><span class="cpp_plain"> </span><span class="cpp_operator">*</span><span class="cpp_plain">subtype</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_type">long</span><span class="cpp_plain"> size</span><span class="cpp_separator">)</span><span class="cpp_plain"></span><br />
To take advantage of the new BlackTie feature you will need to pass an extra parameter to the XATMI buffer allocation routine:
<!-- C++ : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_plain"> btalloc</span><span class="cpp_separator">(</span><span class="cpp_plain">msg_opts_t</span><span class="cpp_operator">*</span><span class="cpp_plain"> ctrl</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_plain"> type</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_type">char</span><span class="cpp_operator">*</span><span class="cpp_plain"> subtype</span><span class="cpp_separator">,</span><span class="cpp_plain"> </span><span class="cpp_type">long</span><span class="cpp_plain"> size</span><span class="cpp_separator">);</span><span class="cpp_plain"></span><br />
The resulting buffer can be used to make service requests with the following restrictions:
the client must use the asynchronous request/response model, i.e. it must use tpacall.
the client must not expect a response, i.e. it must set the TPNOREPLY flag.
it must not have any outstanding transaction.
[Currently we are using the extra parameter to control the priority of message delivery though we could, in the future, add other features to give the client more control over the mechanism].
And that's it, now when the requested service is brought on-line the queued requests will be made available to its' service routine. The latest BlackTie release (http://www.jboss.org/blacktie/downloads.html) includes an quickstart showing this feature in action. Unpack the release and look at the REAME in the quickstarts/xatmi/queues directory.
There are two BlackTie specific config requirements to ensure that requests are queued even when the target server is unavailable;
the SERVICE definition in btconfig.xml must set the "externally-managed-destination" attribute to true;
you must deploy a JMS queue named BTR_[service name] to the application server (the XML file containing this queue definition must end with the suffix -service.xml)
Internally BlackTie uses JMS queues to connect services with clients. Normally when a server calls tpadvertise a queue is created and clients may then connect with the server via that queue. However, no such server is running in the scenario we are discussing and this is the reason the queue needs to be deployed before running the client.
So, for example, if the service name is TestOne then deploy a queue called BTR_TestOne to the JBoss deploy directory using an XML file containing the following:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_processing_instruction"><?xml version="1.0" encoding="UTF-8"?></span><span class="xml_plain"></span><br /> <span class="xml_plain"></span><br /> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">mbean</span><span class="xml_plain"> </span><span class="xml_attribute_name">code</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"org.jboss.jms.server.destination.QueueService"</span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"jboss.messaging.destination:service=Queue,name=BTR_TestOne"</span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_attribute_name">xmbean-dd</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"xmdesc/Queue-xmbean.xml"</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">depends</span><span class="xml_plain"> </span><span class="xml_attribute_name">optional-attribute-name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"ServerPeer"</span><span class="xml_tag_symbols">></span><span class="xml_plain">jboss.messaging:service=ServerPeer</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">depends</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">depends</span><span class="xml_tag_symbols">></span><span class="xml_plain">jboss.messaging:service=PostOffice</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">depends</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">mbean</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
Basically, topics are used to burst out messages to multiple XATMI services that do not necessarily expect a reponse.
If it helps, you might consider using topics for things like stock ticker updates where the receiver is not required to notify the sender that they have received the ticker.
To config a SERVIECE use topics, you could set type to 'topic', for example:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">SERVICES</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">SERVICE</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">'foo'</span><span class="xml_plain"> </span><span class="xml_attribute_name">type</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">'topic'</span><span class="xml_tag_symbols">/></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">SERVICES</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
clients do not need to configure the list of services in their btconfig.xml, they will need to try to connect to the queue first, then, the topic (unless they have the destination is configured in their btconfig.xml).
tpacalls to topics MUST have TPNOREPLY set. If the client tpacalls a topic without TPNOREPLY we should fail the call. It also means tpcalls should fail too.
And there is a intention that externally-managed-destination is set to true as there are multiple receivers.
You can get more information about these in quickstarts/xatmi/topics.
BLACKTIE_SCHEMA_DIR: the directory which contains all xsd schema files.
BLACKTIE_CONFIGURATION_DIR: the directory which contains all config files. If not assigned, current directory will be used.
We need btconfig.xml for all servers and client, and individual <SERVICE>.xml for all services.
The latest schemas for all configuration can be found at: http://www.jboss.org/blacktie/docs/index.html
The btconfig.xml is the most significant runtime configuration file for BlackTie. The content of its structure is defined and validated against the btconfig.xsd file which ships with each version of BlackTie.
ipv6 note
It is important to note that if you are using the quickstart btconfig.xml files and you are using ipv6 you will most likely need to change the word localhost to localhost4. Ways to check if this is neccesary are:
In your hosts file is the entry for localhost 127.0.0.1 or ::1
If you telnet to localhost does it start with "Trying ::1..."
The configuration includes:
DOMAIN: A user defined name for the domain
VERSION: The version of BlackTie software that is allowed to operate in this domain
MACHINES: The list of machines and paths to executables
SERVERS: The list of servers
SERVER: A server configuration element
MACHINE-REF: A reference to the machne
SERVICES: The list of services at a server
SERVICE: The key attributes of this element are: advertised - should the server automatically launch this service, function_name - the C function name (NOTE: Must be declspec(dllexport) exported on win32), java_class_name - the fully qualified class of the service for java Services
LIBRARY_NAME: The name of the .so or .dll library that exports the symbol, this is restricted by the mandatory "configuration" attribute which will restrict this XA_RESOURCE to the BLACKTIE_CONFIGURATION environment variable/-c parameter
SIZE: The number of dispatcher threads to handle requests
XA_RESOURCES: The list of configured XA resources available at any client/server in this domain
XA_RESOURCE: A configuration of XA_RESOURCE, note that the "configuration" attribute will restrict this XA_RESOURCE to the BLACKTIE_CONFIGURATION environment variable/-c parameter
ORB: The configuration to connect to the transaction service
MQ: The configuration to connect to the message broker
JMX: The url of the JMX agent
ENV_VARIABLES: Special key/value pairs can be specified here, known ENV_VARIABLEs are defined below, note that the "configuration" attribute will restrict this XA_RESOURCE to the BLACKTIE_CONFIGURATION environment variable/-c parameter
BUFFERS: The buffer configuration.
More information on services is available Chapter 4, Services .
The list of ENV_VARIABLES that are supported is:
LOG4CXXCONFIG is used for logging
RC_LOG_NAME The name of the recovery log file
JMXURL The URL to use to connect to the JMX kernel
QueueReaperInterval: The period of time in seconds to wait before assuming a service has disconnected and pruning its queue
More information on buffer configuration is available Chapter 3, Using Buffers with BlackTie .
The wiki contains the latest instructions for running BlackTie, the relevant article can be found here: http://community.jboss.org/wiki/DeployingBlacktie
The docs for the ImR are locted at
http://www.dre.vanderbilt.edu/Doxygen/Stable/tao/implrepo_service/usersguide.html
and
http://www.dre.vanderbilt.edu/~schmidt/DOC_ROOT/TAO/docs/implrepo/index.html
The build instructions on the WIKI includes a step on building the TAO Implementation repository (it is essentially cd $ACE_ROOT/ACEXML && make; cd $TAO_ROOT/orbsvcs/ImplRepo_Service; make)
Make sure the ImR executable is on your path:
export PATH=$PATH:$TAO_ROOT/orbsvcs/ImplRepo_Service
ImplRepo_Service -o locator.ior -d -x
locator.ior is the name of the file that the ImR uses to store server records.
Servers that create persistent IORs embed the location of the ImR into the IORs it creates. On each host where we need to run a server we need to start an 'activator' which in turn knows how to contact the ImR:
ImR_Activator ImplRepoService=file://locator.ior &
(Question: if the ImR_Activator and ImplRepo_Service are running on different hosts which startup option do we need to use to enable the activator to find the ImR?)
The ImR can start servers on demand - if a client has an IOR that embeds the ImR location then the ImR knows how to start the required server. You can add servers using the tao_imr executable by specifying the comand line to start server. (Note that there is also an option to start servers whenever the ImR is started).
For example, to start our quickstarts:
tao_imr -ORBInitRef ImplRepoService=file://locator.ior add
ATMI_RM_202 -c
"./server -c linux" -w
"/home/mmusgrov/blacktie/trunk/atmibroker-xatmi/src/quickstart/txfooapp"
-e
LD_LIBRARY_PATH="/home/mmusgrov/blacktie/releases/blacktie-1.0-MR6-SNAPSHOT/lib:.:/usr/local/product/11.1.0/db_1/lib:/home/mmusgrov/blacktie/trunk/atmibroker-tx/target/cxx/test/lib:/home/mmusgrov/blacktie/util/ACE+TAO-5.7.1/ACE_wrappers/lib"
-e
BLACKTIE_SCHEMA_DIR="/home/mmusgrov/blacktie/releases/blacktie-1.0-MR6-SNAPSHOT/schemas/xsd"
(where ATMI_RM_202 is a unique name for the server) or we could supply shell or batch files to simplify the command.
The unique name for the server must correspond to the name of a POA running in the server (this is a limitation of the TAO orb).
I use a single POA for recovery (created in
XAResourceManagerFactory::create_poa
) and use the environment
variable BLACKTIE_SERVER_NAME for the name
of this poa. We must use
the same name when starting servers via the
ImR.
The
BLACKTIE_SERVER_NAME
environment variable is defined by
concatenating domain, server and
serverid (see
AtmiBrokerServer::serverinit
).
To manually start this server use tao_imr command providing it with the name of the server we just added:
tao_imr -ORBInitRef ImplRepoService=file://locator.ior start ATMI_RM_202
The server needs to know that is should use an ImR. To do this we need to update the btconfig.xml file and add:
-ORBUseImR 1
to the ORBOPT environment variable. For example:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">ENV_VARIABLE</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">NAME</span><span class="xml_tag_symbols">></span><span class="xml_plain">ORBOPT</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">NAME</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">VALUE</span><span class="xml_tag_symbols">></span><span class="xml_plain">-ORBUseImR 1 -ORBInitRef</span><br /> <span class="xml_plain"> NameService=corbaloc::localhost:3528/NameService</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">VALUE</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">ENV_VARIABLE</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
We can run multiple ImRs. I/We still need to investigate how this works. Here's a quote from the TAO docs:
"One or more Implementation Repositories will be stored in additional profiles in the IOR. Other Implementation Repositories can also be located by multicasting (on a default multicast group) the server name of the Persistent Object the client is interested in. The default multicast group and default port of the Implementation Repository can be overridden through command line options or environment variables.
In most cases, one Implementation Repository will be enough. For redundancy, several Implementation Repositories can be specified."
If you want to run blacktie server and client on a different host, such as run blacktie server on linux and run blacktie client on windows.
update Name Service running in JBoss AS
edit JBOSS_HOME/server/all/conf/jacorb.properties chanage ORBInitRef.NameService=corbaloc::localhost:3528/JBoss/Naming/root to ORBInitRef.NameService=corbaloc::YOUR_HOST_IPADDR:3528/JBoss/Naming/root
uncomment #OAIAddr, and add OAIAddr=YOUR_HOST_IPADDR
Note: I tried to use 0.0.0.0, but it does not work. JBoss runs OK, but both blacktie server and client are running errors with CORBA::TRANSIENT.
update btconfig.xml to use corbaloc::YOUR_HOST_IPADDR:3528/NameService
Make sure firewall doesn't block the packages
run.sh | bat -c all on linux or windows as usual.
run server on linux and run client on windows
Now we use JBoss AS 5.1.GA and HornetQ 2.1.2 Final
copy jboss-as-hornetq-int.jar to $JBOSS_HOME/common/lib
copy hornetq-deployers-jboss-beans.xml to $JBOSS_HOME/server/all-with-hornetq/deployers
cd jbossesb-version/install
update deployment.properties to point to JBossAS installation.
org.jboss.esb.server.home=/home/zhfeng/tools/jboss-5.1.0.GA org.jboss.esb.server.config=all-with-hornetq
update build.xml and add hornetq.sar to the messaging providers to detect.
<available property="hornetq.present" file="${deploy.dir}/hornetq.sar"/>
ant deploy
deploy esb to jbossas
cd ${BLACKTIE_HOME}/quickstart/cbr mvn install
generate server and client
# BUILD THE CBR TestOne SERVER generate_server -Dservice.names=CBR_TestOne -Dserver.includes=TestOneService.c -Dserver.name=server_one mv server server_one # BUILD THE CBR TestTwo SERVER generate_server -Dservice.names=CBR_TestTwo -Dserver.includes=TestTwoService.c -Dserver.name=server_two mv server server_two # BUILD CLIENT generate_client -Dclient.includes=client.c
start server_one and server_two
btadmin startup
running client
This quickstart has three services: CBR_Request, CBR_TestOne and CBRTestTwo. All tpcall messages that send to CBR_Rquest will been routed by xpath ruler.
#created on: Nov 8, 2006 package com.jboss.soa.esb.routing.cbr #list any import classes here. import org.jboss.soa.esb.message.Message; import org.jboss.soa.esb.message.format.MessageType; expander XPathLanguage.dsl #declare any global variables here global java.util.List destinations; rule "Routing Rule using XPATH" when xpathGreaterThan expr "/blacktie:employee/blacktie:id", "1000" use namespaces "blacktie=http://www.jboss.org/blacktie" then Log : "TestOne"; Destination : "testone"; end rule "Routing Rule using XPATH less" when xpathLessThan expr "/blacktie:employee/blacktie:id", "1000" use namespaces "blacktie=http://www.jboss.org/blacktie" then Log : "TestTwo"; Destination : "testtwo"; end
The Section 7.1, “BlackTie Administration Functions” are exposed through a both a JMX MBean and a Java XATMI service deployed into JBoss AS, configured the same btconfig.xml of the domain it is administering
Each BlackTie server exposes the same administration service, registered during AtmiBrokerServer startup
Queue administration for the AtmiBrokerAdmin service is performed through a separate Java XATMI service
stompconnectservice: BlacktieStompAdministrationService
Administration is facilitated graphically from a JBoss AS RHQ administration console plugin
getSoftwareVersion:
Retrieve the software version of the domain
getServerList:
Retrieve the full list of servers
listRunningServers:
Discover running servers
To achieve this, the administration routings lists all the queues locally for the appearance of the string ADMIN
Note servers connected to other JBoss AS instances will not be discoverable
reloadDomain:
Halt servers, update configuration, restart
This causes reloadServer to be called on all running instances
pauseDomain:
This calls pauseServer for each server
servers which connect to the domain which it is paused are paused automatically
resumeDomain:
This calls resumeDomain for each server
Paused servers which reconnect after the domain is resumed will resume automatically
getServersStatus:
This method looks in the btconfig.xml for the list of servers and returns an HTML structure to describe the status of the servers in the domain, if there are no servers running, than instances would not be returned
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">servers</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain">[SERVER_NAME]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">instances</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">instance</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">id</span><span class="xml_tag_symbols">></span><span class="xml_plain">[ID]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">id</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">status</span><span class="xml_tag_symbols">></span><span class="xml_plain">[STATUS]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">status</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">instance</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">instances</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">servers</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
[SERVER_NAME] is a arbitrary length character string
[ID] is a server id
[STATUS] is equal to 0 (Idle) or 1 (Running)
getServiceCounter (service name):
Retrieves the counter for a service from all servers
listRunningInstanceIds (server name):
Get the list of ids of currently running servers
serverdone:
Calls server_sigint_handler_callback
Returns 1
reloadServer:
requires an external shell script to repeatedly start server processes dependent upon exit status of server
If the server exits with the reloadServer code, then an svn update on the configuration is issued and the server restarts
advertise (service name):
Does not allow advertise of <SERVER>_ADMIN_<ID>
Calls advertiseByAdmin (don't need the function pointer)
Returns 1
unadvertise (service name):
Suppresses unadvertise of <SERVER>_ADMIN_<ID>
Calls tpunadvertise
Returns 1
pauseServer:
Stop all currently running services
Record which services were paused
A call to tpadvertise will now place a service in the paused status
A call to tpunadvertise will allow unadvertisement of the service
resumeServer:
Start the list of paused services
counter (serviceName):
Calls getServiceMessageCounter
Returns a 16 length buffer
First byte is the number 1
Remaining 15 bytes contains a long
status [optional service name]:
Calls getServiceStatus
Returns an HTML structure ServiceStatus
First byte of the response is the number 1
Remaining bytes contains the ServiceStatus
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain">[SERVER_NAME]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">services</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">service</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain">[SERVICE_NAME]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">name</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"><</span><span class="xml_tag_name">status</span><span class="xml_tag_symbols">></span><span class="xml_plain">[STATUS]</span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">status</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">service</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_plain"> </span><span class="xml_tag_symbols"></</span><span class="xml_tag_name">services</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br /> <span class="xml_tag_symbols"></</span><span class="xml_tag_name">server</span><span class="xml_tag_symbols">></span><span class="xml_plain"></span><br />
[SERVICE_NAME] is a 15 character length name
[STATUS] is equal to 0 (unadvertised) or 1 (advertised)
In a typical BlackTie installation the transaction service will be running in the JBoss Application server where you installed the stomp connect service. In such a setup basic transaction management information is exposed by the native transaction service running in the AS. For example to enable statistics open the JBossTS property file located at:
$JBOSS_HOME/server/<server>/conf/jbossts-properties.xml
and set the enableStatistics property to YES:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_tag_symbols"><</span><span class="xml_tag_name">property</span><span class="xml_plain"> </span><span class="xml_attribute_name">name</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"com.arjuna.ats.arjuna.coordinator.enableStatistics"</span><span class="xml_plain"> </span><span class="xml_attribute_name">value</span><span class="xml_tag_symbols">=</span><span class="xml_attribute_value">"YES"</span><span class="xml_tag_symbols">/></span><span class="xml_plain"></span><br />
The statistics are then available via any standard JMX browser or programatically via JMX. The object name of the MBean that maintains the stats is:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_plain">jboss.management.local:J2EEServer=Local,j2eeType=JTAResource,name=TransactionManager</span><br />
If you are using the web based JBossAS jmx console then look for the name
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_plain">J2EEServer=Local,j2eeType=JTAResource,name=TransactionManager</span><br />
in the section called jboss.management.local
In the jmx console some extra transaction information is also exposed as a service with the following name:
<!-- XML : generated by JHighlight v1.0 (http://jhighlight.dev.java.net) --> <span class="xml_plain">service=TransactionManager</span><br />
The statistics are global to the application server. We would like to provide similar information on a per BlackTie domain and per BlackTie server basis in a future release.

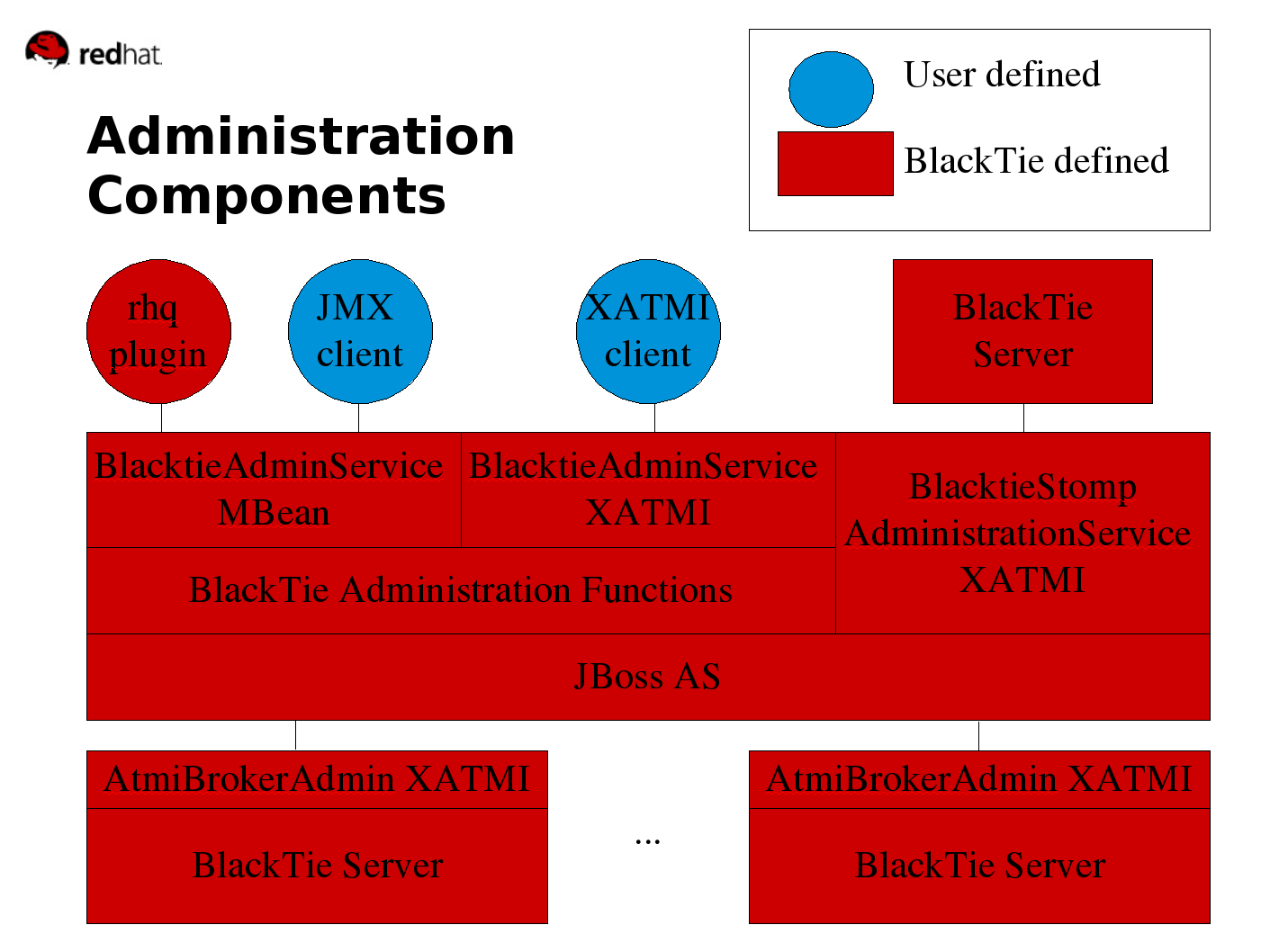

Defined in stompconnectservice:BlacktieAdminServiceXATMI
Contains the same functionality as the JMX bean
The XATMI service is accessed by:
User defined XATMI administration clients
Defined in the module: stompconnectservice:BlacktieAdminServiceMBean
The JMX bean is accessed by either:
blacktie-rhq-plugin
Custom JMX administration programs
The BlackTie administration services marshal calls to this raw administration service deployed in each server
The service is bound with a well known name:
<SERVER_NAME>_ADMIN_>SERVER_ID>
Each server exposes the administration service for the duration of its lifespan
Clients (typically the BlackTie administration services) are able to invoke a standard XATMI service with a structured command
Command structure is (note the trailing comma's):
<command>,[<arg1>,<arg2>,....]
copy <BLACKTIE_BIN_DIR>/blacktie-admin-services/blacktie-rhq-plugin-<VERSION>.jar to <JBOSS_HOME>/server/all/deploy/admin-console.war/plugins
restart jboss as
open http://localhost:8080/admin-console, now you can find 'Blacktie Domains'
start a server in <BLACKTIE_BIN_DIR>/quickstart/xatmi/foo following with README
navigate to "Blacktie Domains" -> "fooapp" -> "Servers" -> "default", you can click "Control"
there is a operation named 'shutdown', and you can click the button. You should type in server id which used to start quickstart server, e.g if you start quickstart server with command 'server -c linux -i 1' , and you should type in '1'
other operations such like 'listServiceStatus', 'getServiceCounter', 'advertise' and 'unadvertise'. you could type in a SERVICE NAME, e.g if you want to unadvertise service BAR in server 1, you should click operation 'unadvertise' and type '1' in id also type 'BAR' in service.
The following commands are supported by BlackTie:
Table 7.1. Commands
Command |
Description |
---|---|
Section 7.6.2, “btadmin” |
The btadmin command is used to administer the BlackTie serve process from the command line |
Section 7.6.3, “generate_server” |
The generate_server command is used to build a BlackTie server |
Section 7.6.4, “generate_client” |
The generate_client command is used to build a client application linked against the BlackTie libraries |
The btadmin command is used to perform command line administration of the BlackTie server processes. In a well configured environment, the btadmin tool can be launched in either interactive mode (by ommitting a command) or in non-interactive mode by issues a command, for example: "btadmin startup". For the list of commands type: "help"
You must have called
<BLACKTIE_HOME>/setenv.[sh|bat]
You must, either set
BLACKTIE_CONFIGURATION_DIR
to
the directory containing a btconfig.xml for the domain that you
wish to
administer or ensure a valid btconfig.xml is in the working
directory
Table 7.2. btadmin commands
Command |
Description |
---|---|
version |
Print out the version of BlackTie that is linked against |
startup [<serverName>] |
Start the server, optionally constrained by the serverName |
pauseDomain |
Pause the domain |
advertise <serverName> <serviceName> |
Advertise the service indicated by the name at the server |
help [command] |
Get help on a command |
getServersStatus |
The status of the running servers |
unadvertise <serverName> <serviceName> |
Unadvertise the service at the specified server |
resumeDomain |
Resume the domain |
listRunningServers |
List all running servers in the domain |
quit |
Shutdown the btadmin tool, a no-op for a non-interactive btadmin shell |
listRunningInstanceIds <serverName> |
List the running instance ids of a specific server |
listServiceStatus <serverName> <serviceName> |
List the status of the service running on a particular server group |
shutdown [<serverName> [<serverId>]] |
Shutdown items in the domain, optionally constrained by a server name and (again, optionally) a serverId |
The generate_server command is used to create a standalone BlackTie server application linking the user code against the BlackTie runtime libraries.
generate_server <-Dservice.names=service[,service2,...]> <-Dserver.includes="source1[ source2 ..."]> <-Dx.inc.dir="directory"> <-Dx.inc.dir2="directory2"> <-Dx.lib.dir="directory" -Dx.libs="library[ library2]"> <-Dx.lib.dir2="directory2"> <-Dx.libs2="library[ library2]"> <-Dx.define="symbol1[,symbol2]">
Table 7.3. generate_server parameter
Parameter |
Description |
---|---|
-Dservice.names=service[,service2,...] |
This is the comma seperated list of services that should be advertised at boottime that were not coded in a DLL export compatible manner and as such cannot be registered for advertised in the btconfig.xml |
-Dserver.includes="source1[ source2 ..."] |
The list of files that should be compiled into this server |
-Dx.inc.dir="directory" |
A single additional directory for including |
-Dx.lib.dir="directory" |
A single additional directory for linking against |
-Dx.libs="library[ library2]" |
A space seperated list of libraries to link against in the lib dir |
-Dx.inc.dir2="directory" |
A second additional directory to include headers from |
-Dx.lib.dir2="directory" |
A second additional directory to include libraries from |
-Dx.libs2="library[ library2]" |
The list of libraries to include from the second library directory |
-Dx.define="symbol1[,symbol2]" |
The comma-seperated list of addtional pre-processor symbols to define |
To link against the Oracle database
On Linux:
generate_server -Dservice.names=BAR -Dserver.includes="request.c ora.c DbService.c" -Dx.inc.dir="$ORACLE_HOME/rdbms/public" -Dx.lib.dir="$ORACLE_HOME/lib" -Dx.libs="occi clntsh" -Dx.define="ORACLE"
On Windows:
generate_server -Dservice.names=BAR -Dserver.includes="request.c ora.c DbService.c" -Dx.inc.dir="%ORACLE_HOME%\OCI\include" -Dx.lib.dir="%ORACLE_HOME%\OCI\lib\MSVC" -Dx.libs="oci" -Dx.define="ORACLE"
The generate_client command is used to create a standalone client application linking the user code against the BlackTie runtime libraries.
generate_client <-Dclient.includes="source1[ source2 ..."]> <-Dx.inc.dir="directory" > <-Dx.inc.dir2="directory2"> <-Dx.lib.dir="directory" -Dx.libs="library[ library2]"> <-Dx.lib.dir2="directory2"> <-Dx.libs2="library[ library2]"> <-Dx.define="symbol1[,symbol2]">
Table 7.4. generate_client parameter
Parameter |
Description |
---|---|
-Dclient.includes="source1[ source2 ..."] |
The list of files that should be compiled into this client |
-Dx.inc.dir="directory" |
A single additional directory for including |
-Dx.lib.dir="directory" |
A single additional directory for linking against |
-Dx.libs="library[ library2]" |
A space seperated list of libraries to link against in the lib dir |
-Dx.inc.dir2="directory" |
A second additional directory to include headers from |
-Dx.lib.dir2="directory" |
A second additional directory to include libraries from |
-Dx.libs2="library[ library2]" |
The list of libraries to include from the second library directory |
-Dx.define="symbol1[,symbol2]" |
The comma-seperated list of addtional pre-processor symbols to define |
To create a client which links against the Oracle database.
On Linux:
generate_client -Dclient.includes="client.c request.c ora.c cutil.c" -Dx.inc.dir="$ORACLE_HOME/rdbms/public" -Dx.lib.dir="$ORACLE_HOME/lib" -Dx.libs="occi clntsh" -Dx.define="ORACLE"
On Windows:
generate_client -Dclient.includes="client.c request.c ora.c cutil.c" -Dx.inc.dir="%ORACLE_HOME%\OCI\include" -Dx.lib.dir="%ORACLE_HOME%\OCI\lib\MSVC" -Dx.libs="oci" -Dx.define="ORACLE"
