HIBERNATE - Relational Persistence for Idiomatic Java

The first thing we need to do is to set up the development environment. We will be using the "standard layout" advocated by alot of build tools such as Maven. Maven, in particular, has a good resource describing this layout. As this tutorial is to be a web application, we will be creating and making use of src/main/java, src/main/resources and src/main/webapp directories.

We will be using Maven in this tutorial, taking advantage of its transitive dependency management capabilities as well as the ability of many IDEs to automatically set up a project for us based on the maven descriptor.

<project xmlns="http://maven.apache.org/POM/4.0.0"

         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">



    <modelVersion>4.0.0</modelVersion>



    <groupId>org.hibernate.tutorials</groupId>

    <artifactId>hibernate-tutorial</artifactId>

    <version>1.0.0-SNAPSHOT</version>

    <name>First Hibernate Tutorial</name>



    <build>

         <!-- we dont want the version to be part of the generated war file name -->

         <finalName>${artifactId}</finalName>

    </build>



    <dependencies>

        <dependency>

            <groupId>org.hibernate</groupId>

            <artifactId>hibernate-core</artifactId>

        </dependency>



        <!-- Because this is a web app, we also have a dependency on the servlet api. -->

        <dependency>

            <groupId>javax.servlet</groupId>

            <artifactId>servlet-api</artifactId>

        </dependency>



        <!-- Hibernate uses slf4j for logging, for our purposes here use the simple backend -->

        <dependency>

            <groupId>org.slf4j</groupId>

            <artifactId>slf4j-simple</artifactId>

        </dependency>



        <!-- Hibernate gives you a choice of bytecode providers between cglib and javassist -->

        <dependency>

            <groupId>javassist</groupId>

            <artifactId>javassist</artifactId>

        </dependency>

    </dependencies>



</project>

Save this file as pom.xml in the project root directory.

Next, we create a class that represents the event we want to store in the database; it is a simple JavaBean class with some properties:

package org.hibernate.tutorial.domain;


import java.util.Date;


public class Event {

    private Long id;


    private String title;

    private Date date;


    public Event() {}


    public Long getId() {

        return id;

    }


    private void setId(Long id) {

        this.id = id;

    }


    public Date getDate() {

        return date;

    }


    public void setDate(Date date) {

        this.date = date;

    }


    public String getTitle() {

        return title;

    }


    public void setTitle(String title) {

        this.title = title;

    }

}

This class uses standard JavaBean naming conventions for property getter and setter methods, as well as private visibility for the fields. Although this is the recommended design, it is not required. Hibernate can also access fields directly, the benefit of accessor methods is robustness for refactoring.

The id property holds a unique identifier value for a particular event. All persistent entity classes (there are less important dependent classes as well) will need such an identifier property if we want to use the full feature set of Hibernate. In fact, most applications, especially web applications, need to distinguish objects by identifier, so you should consider this a feature rather than a limitation. However, we usually do not manipulate the identity of an object, hence the setter method should be private. Only Hibernate will assign identifiers when an object is saved. Hibernate can access public, private, and protected accessor methods, as well as public, private and protected fields directly. The choice is up to you and you can match it to fit your application design.

The no-argument constructor is a requirement for all persistent classes; Hibernate has to create objects for you, using Java Reflection. The constructor can be private, however package or public visibility is required for runtime proxy generation and efficient data retrieval without bytecode instrumentation.

Save this file to the src/main/java/org/hibernate/tutorial/domain directory.

Hibernate muss darüber informiert werden, wie Objekte der persistenten Klasse geladen und gespeichert werden sollen. Hier wird die "Mapping"-Datei von Hibernate benötigt. Diese Datei informiert Hibernate darüber, auf welche Tabelle in der Datenbank zugegriffen werden soll und welche Spalten dieser Tabelle verwendet werden sollen.

Die Grundstruktur einer Mapping-Datei sieht wie folgt aus:

<?xml version="1.0"?>

<!DOCTYPE hibernate-mapping PUBLIC

        "-//Hibernate/Hibernate Mapping DTD 3.0//EN"

        "http://www.hibernate.org/dtd/hibernate-mapping-3.0.dtd">



<hibernate-mapping package="org.hibernate.tutorial.domain">

[...]

</hibernate-mapping

>

Hibernate DTD is sophisticated. You can use it for auto-completion of XML mapping elements and attributes in your editor or IDE. Opening up the DTD file in your text editor is the easiest way to get an overview of all elements and attributes, and to view the defaults, as well as some comments. Hibernate will not load the DTD file from the web, but first look it up from the classpath of the application. The DTD file is included in hibernate-core.jar (it is also included in the hibernate3.jar, if using the distribution bundle).

Between the two hibernate-mapping tags, include a class element. All persistent entity classes (again, there might be dependent classes later on, which are not first-class entities) need a mapping to a table in the SQL database:

<hibernate-mapping package="org.hibernate.tutorial.domain">



    <class name="Event" table="EVENTS">



    </class>



</hibernate-mapping>

So far we have told Hibernate how to persist and load object of class Event to the table EVENTS. Each instance is now represented by a row in that table. Now we can continue by mapping the unique identifier property to the tables primary key. As we do not want to care about handling this identifier, we configure Hibernate's identifier generation strategy for a surrogate primary key column:

<hibernate-mapping package="org.hibernate.tutorial.domain">



    <class name="Event" table="EVENTS">

        <id name="id" column="EVENT_ID">

            <generator class="native"/>

        </id>

    </class>



</hibernate-mapping>

The id element is the declaration of the identifier property. The name="id" mapping attribute declares the name of the JavaBean property and tells Hibernate to use the getId() and setId() methods to access the property. The column attribute tells Hibernate which column of the EVENTS table holds the primary key value.

The nested generator element specifies the identifier generation strategy (aka how are identifier values generated?). In this case we choose native, which offers a level of portability depending on the configured database dialect. Hibernate supports database generated, globally unique, as well as application assigned, identifiers. Identifier value generation is also one of Hibernate's many extension points and you can plugin in your own strategy.

Lastly, we need to tell Hibernate about the remaining entity class properties. By default, no properties of the class are considered persistent:

<hibernate-mapping package="org.hibernate.tutorial.domain">



    <class name="Event" table="EVENTS">

        <id name="id" column="EVENT_ID">

            <generator class="native"/>

        </id>

        <property name="date" type="timestamp" column="EVENT_DATE"/>

        <property name="title"/>

    </class>



</hibernate-mapping>

Similar to the id element, the name attribute of the property element tells Hibernate which getter and setter methods to use. In this case, Hibernate will search for getDate(), setDate(), getTitle() and setTitle() methods.

The title mapping also lacks a type attribute. The types declared and used in the mapping files are not Java data types; they are not SQL database types either. These types are called Hibernate mapping types, converters which can translate from Java to SQL data types and vice versa. Again, Hibernate will try to determine the correct conversion and mapping type itself if the type attribute is not present in the mapping. In some cases this automatic detection using Reflection on the Java class might not have the default you expect or need. This is the case with the date property. Hibernate cannot know if the property, which is of java.util.Date, should map to a SQL date, timestamp, or time column. Full date and time information is preserved by mapping the property with a timestamp converter.

Save this mapping file as src/main/resources/org/hibernate/tutorial/domain/Event.hbm.xml.

At this point, you should have the persistent class and its mapping file in place. It is now time to configure Hibernate. First let's set up HSQLDB to run in "server mode"

We will utilize the Maven exec plugin to launch the HSQLDB server by running: mvn exec:java -Dexec.mainClass="org.hsqldb.Server" -Dexec.args="-database.0 file:target/data/tutorial" You will see it start up and bind to a TCP/IP socket; this is where our application will connect later. If you want to start with a fresh database during this tutorial, shutdown HSQLDB, delete all files in the target/data directory, and start HSQLDB again.

Hibernate will be connecting to the database on behalf of your application, so it needs to know how to obtain connections. For this tutorial we will be using a standalone connection pool (as opposed to a javax.sql.DataSource). Hibernate comes with support for two third-party open source JDBC connection pools: c3p0 and proxool. However, we will be using the Hibernate built-in connection pool for this tutorial.

For Hibernate's configuration, we can use a simple hibernate.properties file, a more sophisticated hibernate.cfg.xml file, or even complete programmatic setup. Most users prefer the XML configuration file:

<?xml version='1.0' encoding='utf-8'?>

<!DOCTYPE hibernate-configuration PUBLIC

        "-//Hibernate/Hibernate Configuration DTD 3.0//EN"

        "http://www.hibernate.org/dtd/hibernate-configuration-3.0.dtd">



<hibernate-configuration>



    <session-factory>



        <!-- Database connection settings -->

        <property name="connection.driver_class"

>org.hsqldb.jdbcDriver</property>

        <property name="connection.url"

>jdbc:hsqldb:hsql://localhost</property>

        <property name="connection.username"

>sa</property>

        <property name="connection.password"

></property>



        <!-- JDBC connection pool (use the built-in) -->

        <property name="connection.pool_size"

>1</property>



        <!-- SQL dialect -->

        <property name="dialect"

>org.hibernate.dialect.HSQLDialect</property>



        <!-- Enable Hibernate's automatic session context management -->

        <property name="current_session_context_class"

>thread</property>



        <!-- Disable the second-level cache  -->

        <property name="cache.provider_class"

>org.hibernate.cache.NoCacheProvider</property>



        <!-- Echo all executed SQL to stdout -->

        <property name="show_sql"

>true</property>



        <!-- Drop and re-create the database schema on startup -->

        <property name="hbm2ddl.auto"

>update</property>



        <mapping resource="org/hibernate/tutorial/domain/Event.hbm.xml"/>



    </session-factory>



</hibernate-configuration

>

You configure Hibernate's SessionFactory. SessionFactory is a global factory responsible for a particular database. If you have several databases, for easier startup you should use several <session-factory> configurations in several configuration files.

The first four property elements contain the necessary configuration for the JDBC connection. The dialect property element specifies the particular SQL variant Hibernate generates.

Hibernate's automatic session management for persistence contexts is particularly useful in this context. The hbm2ddl.auto option turns on automatic generation of database schemas directly into the database. This can also be turned off by removing the configuration option, or redirected to a file with the help of the SchemaExport Ant task. Finally, add the mapping file(s) for persistent classes to the configuration.

Save this file as hibernate.cfg.xml into the src/main/resources directory.

We will now build the tutorial with Maven. You will need to have Maven installed; it is available from the Maven download page. Maven will read the /pom.xml file we created earlier and know how to perform some basic project tasks. First, lets run the compile goal to make sure we can compile everything so far:

[hibernateTutorial]$ mvn compile
[INFO] Scanning for projects...
[INFO] ------------------------------------------------------------------------
[INFO] Building First Hibernate Tutorial
[INFO]    task-segment: [compile]
[INFO] ------------------------------------------------------------------------
[INFO] [resources:resources]
[INFO] Using default encoding to copy filtered resources.
[INFO] [compiler:compile]
[INFO] Compiling 1 source file to /home/steve/projects/sandbox/hibernateTutorial/target/classes
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESSFUL
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 2 seconds
[INFO] Finished at: Tue Jun 09 12:25:25 CDT 2009
[INFO] Final Memory: 5M/547M
[INFO] ------------------------------------------------------------------------

It is time to load and store some Event objects, but first you have to complete the setup with some infrastructure code. You have to startup Hibernate by building a global org.hibernate.SessionFactory object and storing it somewhere for easy access in application code. A org.hibernate.SessionFactory is used to obtain org.hibernate.Session instances. A org.hibernate.Session represents a single-threaded unit of work. The org.hibernate.SessionFactory is a thread-safe global object that is instantiated once.

We will create a HibernateUtil helper class that takes care of startup and makes accessing the org.hibernate.SessionFactory more convenient.

package org.hibernate.tutorial.util;


import org.hibernate.SessionFactory;

import org.hibernate.cfg.Configuration;


public class HibernateUtil {


    private static final SessionFactory sessionFactory = buildSessionFactory();


    private static SessionFactory buildSessionFactory() {

        try {

            // Create the SessionFactory from hibernate.cfg.xml

            return new Configuration().configure().buildSessionFactory();

        }

        catch (Throwable ex) {

            // Make sure you log the exception, as it might be swallowed

            System.err.println("Initial SessionFactory creation failed." + ex);

            throw new ExceptionInInitializerError(ex);

        }

    }


    public static SessionFactory getSessionFactory() {

        return sessionFactory;

    }


}

Save this code as src/main/java/org/hibernate/tutorial/util/HibernateUtil.java

This class not only produces the global org.hibernate.SessionFactory reference in its static initializer; it also hides the fact that it uses a static singleton. We might just as well have looked up the org.hibernate.SessionFactory reference from JNDI in an application server or any other location for that matter.

If you give the org.hibernate.SessionFactory a name in your configuration, Hibernate will try to bind it to JNDI under that name after it has been built. Another, better option is to use a JMX deployment and let the JMX-capable container instantiate and bind a HibernateService to JNDI. Such advanced options are discussed later.

You now need to configure a logging system. Hibernate uses commons logging and provides two choices: Log4j and JDK 1.4 logging. Most developers prefer Log4j: copy log4j.properties from the Hibernate distribution in the etc/ directory to your src directory, next to hibernate.cfg.xml. If you prefer to have more verbose output than that provided in the example configuration, you can change the settings. By default, only the Hibernate startup message is shown on stdout.

The tutorial infrastructure is complete and you are now ready to do some real work with Hibernate.

We are now ready to start doing some real work with Hibernate. Let's start by writing an EventManager class with a main() method:

package org.hibernate.tutorial;


import org.hibernate.Session;


import java.util.*;


import org.hibernate.tutorial.domain.Event;

import org.hibernate.tutorial.util.HibernateUtil;


public class EventManager {


    public static void main(String[] args) {

        EventManager mgr = new EventManager();


        if (args[0].equals("store")) {

            mgr.createAndStoreEvent("My Event", new Date());

        }


        HibernateUtil.getSessionFactory().close();

    }


    private void createAndStoreEvent(String title, Date theDate) {

        Session session = HibernateUtil.getSessionFactory().getCurrentSession();

        session.beginTransaction();


        Event theEvent = new Event();

        theEvent.setTitle(title);

        theEvent.setDate(theDate);

        session.save(theEvent);


        session.getTransaction().commit();

    }


}

In createAndStoreEvent() we created a new Event object and handed it over to Hibernate. At that point, Hibernate takes care of the SQL and executes an INSERT on the database.

A org.hibernate.Session is designed to represent a single unit of work (a single atomic piece of work to be performed). For now we will keep things simple and assume a one-to-one granularity between a Hibernate org.hibernate.Session and a database transaction. To shield our code from the actual underlying transaction system we use the Hibernate org.hibernate.Transaction API. In this particular case we are using JDBC-based transactional semantics, but it could also run with JTA.

What does sessionFactory.getCurrentSession() do? First, you can call it as many times and anywhere you like once you get hold of your org.hibernate.SessionFactory. The getCurrentSession() method always returns the "current" unit of work. Remember that we switched the configuration option for this mechanism to "thread" in our src/main/resources/hibernate.cfg.xml? Due to that setting, the context of a current unit of work is bound to the current Java thread that executes the application.

A org.hibernate.Session begins when the first call to getCurrentSession() is made for the current thread. It is then bound by Hibernate to the current thread. When the transaction ends, either through commit or rollback, Hibernate automatically unbinds the org.hibernate.Session from the thread and closes it for you. If you call getCurrentSession() again, you get a new org.hibernate.Session and can start a new unit of work.

Related to the unit of work scope, should the Hibernate org.hibernate.Session be used to execute one or several database operations? The above example uses one org.hibernate.Session for one operation. However this is pure coincidence; the example is just not complex enough to show any other approach. The scope of a Hibernate org.hibernate.Session is flexible but you should never design your application to use a new Hibernate org.hibernate.Session for every database operation. Even though it is used in the following examples, consider session-per-operation an anti-pattern. A real web application is shown later in the tutorial which will help illustrate this.

See Kapitel 13, Transactions and Concurrency for more information about transaction handling and demarcation. The previous example also skipped any error handling and rollback.

To run this, we will make use of the Maven exec plugin to call our class with the necessary classpath setup: mvn exec:java -Dexec.mainClass="org.hibernate.tutorial.EventManager" -Dexec.args="store"

You should see Hibernate starting up and, depending on your configuration, lots of log output. Towards the end, the following line will be displayed:

[java] Hibernate: insert into EVENTS (EVENT_DATE, title, EVENT_ID) values (?, ?, ?)

This is the INSERT executed by Hibernate.

To list stored events an option is added to the main method:

        if (args[0].equals("store")) {

            mgr.createAndStoreEvent("My Event", new Date());

        }

        else if (args[0].equals("list")) {

            List events = mgr.listEvents();

            for (int i = 0; i < events.size(); i++) {

                Event theEvent = (Event) events.get(i);

                System.out.println(

                        "Event: " + theEvent.getTitle() + " Time: " + theEvent.getDate()

                );

            }

        }

A new listEvents() method is also added:

    private List listEvents() {

        Session session = HibernateUtil.getSessionFactory().getCurrentSession();

        session.beginTransaction();

        List result = session.createQuery("from Event").list();

        session.getTransaction().commit();

        return result;

    }

Here, we are using a Hibernate Query Language (HQL) query to load all existing Event objects from the database. Hibernate will generate the appropriate SQL, send it to the database and populate Event objects with the data. You can create more complex queries with HQL. See Kapitel 16, HQL: Die "Hibernate Query Language" for more information.

Now we can call our new functionality, again using the Maven exec plugin: mvn exec:java -Dexec.mainClass="org.hibernate.tutorial.EventManager" -Dexec.args="list"

The first cut of the Person class looks like this:

package org.hibernate.tutorial.domain;


public class Person {


    private Long id;

    private int age;

    private String firstname;

    private String lastname;


    public Person() {}


    // Accessor methods for all properties, private setter for 'id'


}

Save this to a file named src/main/java/org/hibernate/tutorial/domain/Person.java

Next, create the new mapping file as src/main/resources/org/hibernate/tutorial/domain/Person.hbm.xml

<hibernate-mapping package="org.hibernate.tutorial.domain">



    <class name="Person" table="PERSON">

        <id name="id" column="PERSON_ID">

            <generator class="native"/>

        </id>

        <property name="age"/>

        <property name="firstname"/>

        <property name="lastname"/>

    </class>



</hibernate-mapping>

Anschließend fügen Sie dann das neue Mapping der Konfiguration von Hibernate hinzu:

<mapping resource="org/hibernate/tutorial/domain/Event.hbm.xml"/>

<mapping resource="org/hibernate/tutorial/domain/Person.hbm.xml"/>

Create an association between these two entities. Persons can participate in events, and events have participants. The design questions you have to deal with are: directionality, multiplicity, and collection behavior.

By adding a collection of events to the Person class, you can easily navigate to the events for a particular person, without executing an explicit query - by calling Person#getEvents. Multi-valued associations are represented in Hibernate by one of the Java Collection Framework contracts; here we choose a java.util.Set because the collection will not contain duplicate elements and the ordering is not relevant to our examples:

public class Person {


    private Set events = new HashSet();


    public Set getEvents() {

        return events;

    }


    public void setEvents(Set events) {

        this.events = events;

    }

}

Before mapping this association, let's consider the other side. We could just keep this unidirectional or create another collection on the Event, if we wanted to be able to navigate it from both directions. This is not necessary, from a functional perspective. You can always execute an explicit query to retrieve the participants for a particular event. This is a design choice left to you, but what is clear from this discussion is the multiplicity of the association: "many" valued on both sides is called a many-to-many association. Hence, we use Hibernate's many-to-many mapping:

<class name="Person" table="PERSON">

    <id name="id" column="PERSON_ID">

        <generator class="native"/>

    </id>

    <property name="age"/>

    <property name="firstname"/>

    <property name="lastname"/>



    <set name="events" table="PERSON_EVENT">

        <key column="PERSON_ID"/>

        <many-to-many column="EVENT_ID" class="Event"/>

    </set>



</class>

Hibernate supports a broad range of collection mappings, a set being most common. For a many-to-many association, or n:m entity relationship, an association table is required. Each row in this table represents a link between a person and an event. The table name is decalred using the table attribute of the set element. The identifier column name in the association, for the person side, is defined with the key element, the column name for the event's side with the column attribute of the many-to-many. You also have to tell Hibernate the class of the objects in your collection (the class on the other side of the collection of references).

Das Datenbankschema für dieses Mapping lautet daher:

    _____________        __________________
   |             |      |                  |       _____________
   |   EVENTS    |      |   PERSON_EVENT   |      |             |
   |_____________|      |__________________|      |    PERSON   |
   |             |      |                  |      |_____________|
   | *EVENT_ID   | <--> | *EVENT_ID        |      |             |
   |  EVENT_DATE |      | *PERSON_ID       | <--> | *PERSON_ID  |
   |  TITLE      |      |__________________|      |  AGE        |
   |_____________|                                |  FIRSTNAME  |
                                                  |  LASTNAME   |
                                                  |_____________|


Now we will bring some people and events together in a new method in EventManager:

    private void addPersonToEvent(Long personId, Long eventId) {

        Session session = HibernateUtil.getSessionFactory().getCurrentSession();

        session.beginTransaction();


        Person aPerson = (Person) session.load(Person.class, personId);

        Event anEvent = (Event) session.load(Event.class, eventId);

        aPerson.getEvents().add(anEvent);


        session.getTransaction().commit();

    }

After loading a Person and an Event, simply modify the collection using the normal collection methods. There is no explicit call to update() or save(); Hibernate automatically detects that the collection has been modified and needs to be updated. This is called automatic dirty checking. You can also try it by modifying the name or the date property of any of your objects. As long as they are in persistent state, that is, bound to a particular Hibernate org.hibernate.Session, Hibernate monitors any changes and executes SQL in a write-behind fashion. The process of synchronizing the memory state with the database, usually only at the end of a unit of work, is called flushing. In our code, the unit of work ends with a commit, or rollback, of the database transaction.

You can load person and event in different units of work. Or you can modify an object outside of a org.hibernate.Session, when it is not in persistent state (if it was persistent before, this state is called detached). You can even modify a collection when it is detached:

    private void addPersonToEvent(Long personId, Long eventId) {

        Session session = HibernateUtil.getSessionFactory().getCurrentSession();

        session.beginTransaction();


        Person aPerson = (Person) session

                .createQuery("select p from Person p left join fetch p.events where p.id = :pid")

                .setParameter("pid", personId)

                .uniqueResult(); // Eager fetch the collection so we can use it detached

        Event anEvent = (Event) session.load(Event.class, eventId);


        session.getTransaction().commit();


        // End of first unit of work


        aPerson.getEvents().add(anEvent); // aPerson (and its collection) is detached


        // Begin second unit of work


        Session session2 = HibernateUtil.getSessionFactory().getCurrentSession();

        session2.beginTransaction();

        session2.update(aPerson); // Reattachment of aPerson


        session2.getTransaction().commit();

    }

The call to update makes a detached object persistent again by binding it to a new unit of work, so any modifications you made to it while detached can be saved to the database. This includes any modifications (additions/deletions) you made to a collection of that entity object.

This is not much use in our example, but it is an important concept you can incorporate into your own application. Complete this exercise by adding a new action to the main method of the EventManager and call it from the command line. If you need the identifiers of a person and an event - the save() method returns it (you might have to modify some of the previous methods to return that identifier):

        else if (args[0].equals("addpersontoevent")) {

            Long eventId = mgr.createAndStoreEvent("My Event", new Date());

            Long personId = mgr.createAndStorePerson("Foo", "Bar");

            mgr.addPersonToEvent(personId, eventId);

            System.out.println("Added person " + personId + " to event " + eventId);

        }

This is an example of an association between two equally important classes : two entities. As mentioned earlier, there are other classes and types in a typical model, usually "less important". Some you have already seen, like an int or a java.lang.String. We call these classes value types, and their instances depend on a particular entity. Instances of these types do not have their own identity, nor are they shared between entities. Two persons do not reference the same firstname object, even if they have the same first name. Value types cannot only be found in the JDK , but you can also write dependent classes yourself such as an Address or MonetaryAmount class. In fact, in a Hibernate application all JDK classes are considered value types.

You can also design a collection of value types. This is conceptually different from a collection of references to other entities, but looks almost the same in Java.

Let's add a collection of email addresses to the Person entity. This will be represented as a java.util.Set of java.lang.String instances:

    private Set emailAddresses = new HashSet();


    public Set getEmailAddresses() {

        return emailAddresses;

    }


    public void setEmailAddresses(Set emailAddresses) {

        this.emailAddresses = emailAddresses;

    }

The mapping of this Set is as follows:

        <set name="emailAddresses" table="PERSON_EMAIL_ADDR">

            <key column="PERSON_ID"/>

            <element type="string" column="EMAIL_ADDR"/>

        </set>

The difference compared with the earlier mapping is the use of the element part which tells Hibernate that the collection does not contain references to another entity, but is rather a collection whose elements are values types, here specifically of type string. The lowercase name tells you it is a Hibernate mapping type/converter. Again the table attribute of the set element determines the table name for the collection. The key element defines the foreign-key column name in the collection table. The column attribute in the element element defines the column name where the email address values will actually be stored.

Here is the updated schema:

  _____________        __________________
 |             |      |                  |       _____________
 |   EVENTS    |      |   PERSON_EVENT   |      |             |       ___________________
 |_____________|      |__________________|      |    PERSON   |      |                   |
 |             |      |                  |      |_____________|      | PERSON_EMAIL_ADDR |
 | *EVENT_ID   | <--> | *EVENT_ID        |      |             |      |___________________|
 |  EVENT_DATE |      | *PERSON_ID       | <--> | *PERSON_ID  | <--> |  *PERSON_ID       |
 |  TITLE      |      |__________________|      |  AGE        |      |  *EMAIL_ADDR      |
 |_____________|                                |  FIRSTNAME  |      |___________________|
                                                |  LASTNAME   |
                                                |_____________|


You can see that the primary key of the collection table is in fact a composite key that uses both columns. This also implies that there cannot be duplicate email addresses per person, which is exactly the semantics we need for a set in Java.

You can now try to add elements to this collection, just like we did before by linking persons and events. It is the same code in Java:

    private void addEmailToPerson(Long personId, String emailAddress) {

        Session session = HibernateUtil.getSessionFactory().getCurrentSession();

        session.beginTransaction();


        Person aPerson = (Person) session.load(Person.class, personId);

        // adding to the emailAddress collection might trigger a lazy load of the collection

        aPerson.getEmailAddresses().add(emailAddress);


        session.getTransaction().commit();

    }

This time we did not use a fetch query to initialize the collection. Monitor the SQL log and try to optimize this with an eager fetch.

Next you will map a bi-directional association. You will make the association between person and event work from both sides in Java. The database schema does not change, so you will still have many-to-many multiplicity.

First, add a collection of participants to the Event class:

    private Set participants = new HashSet();


    public Set getParticipants() {

        return participants;

    }


    public void setParticipants(Set participants) {

        this.participants = participants;

    }

Now map this side of the association in Event.hbm.xml.

        <set name="participants" table="PERSON_EVENT" inverse="true">

            <key column="EVENT_ID"/>

            <many-to-many column="PERSON_ID" class="Person"/>

        </set

>

These are normal set mappings in both mapping documents. Notice that the column names in key and many-to-many swap in both mapping documents. The most important addition here is the inverse="true" attribute in the set element of the Event's collection mapping.

What this means is that Hibernate should take the other side, the Person class, when it needs to find out information about the link between the two. This will be a lot easier to understand once you see how the bi-directional link between our two entities is created.

First, keep in mind that Hibernate does not affect normal Java semantics. How did we create a link between a Person and an Event in the unidirectional example? You add an instance of Event to the collection of event references, of an instance of Person. If you want to make this link bi-directional, you have to do the same on the other side by adding a Person reference to the collection in an Event. This process of "setting the link on both sides" is absolutely necessary with bi-directional links.

Many developers program defensively and create link management methods to correctly set both sides (for example, in Person):

    protected Set getEvents() {

        return events;

    }


    protected void setEvents(Set events) {

        this.events = events;

    }


    public void addToEvent(Event event) {

        this.getEvents().add(event);

        event.getParticipants().add(this);

    }


    public void removeFromEvent(Event event) {

        this.getEvents().remove(event);

        event.getParticipants().remove(this);

    }

The get and set methods for the collection are now protected. This allows classes in the same package and subclasses to still access the methods, but prevents everybody else from altering the collections directly. Repeat the steps for the collection on the other side.

What about the inverse mapping attribute? For you, and for Java, a bi-directional link is simply a matter of setting the references on both sides correctly. Hibernate, however, does not have enough information to correctly arrange SQL INSERT and UPDATE statements (to avoid constraint violations). Making one side of the association inverse tells Hibernate to consider it a mirror of the other side. That is all that is necessary for Hibernate to resolve any issues that arise when transforming a directional navigation model to a SQL database schema. The rules are straightforward: all bi-directional associations need one side as inverse. In a one-to-many association it has to be the many-side, and in many-to-many association you can select either side.

First we need create our basic processing servlet. Since our servlet only handles HTTP GET requests, we will only implement the doGet() method:

package org.hibernate.tutorial.web;


// Imports


public class EventManagerServlet extends HttpServlet {


    protected void doGet(

            HttpServletRequest request,

            HttpServletResponse response) throws ServletException, IOException {


        SimpleDateFormat dateFormatter = new SimpleDateFormat( "dd.MM.yyyy" );


        try {

            // Begin unit of work

            HibernateUtil.getSessionFactory().getCurrentSession().beginTransaction();


            // Process request and render page...


            // End unit of work

            HibernateUtil.getSessionFactory().getCurrentSession().getTransaction().commit();

        }

        catch (Exception ex) {

            HibernateUtil.getSessionFactory().getCurrentSession().getTransaction().rollback();

            if ( ServletException.class.isInstance( ex ) ) {

                throw ( ServletException ) ex;

            }

            else {

                throw new ServletException( ex );

            }

        }

    }


}

Save this servlet as src/main/java/org/hibernate/tutorial/web/EventManagerServlet.java

The pattern applied here is called session-per-request. When a request hits the servlet, a new Hibernate Session is opened through the first call to getCurrentSession() on the SessionFactory. A database transaction is then started. All data access occurs inside a transaction irrespective of whether the data is read or written. Do not use the auto-commit mode in applications.

Verwenden Sie keine neue Hibernate Session für jeden Datenbankvorgang. Verwenden Sie eine Hibernate Session, die die gesamte Anfrage umfasst. Verwenden Sie getCurrentSession(), damit diese automatisch an den aktuellen Java-Thread gebunden wird.

Next, the possible actions of the request are processed and the response HTML is rendered. We will get to that part soon.

Finally, the unit of work ends when processing and rendering are complete. If any problems occurred during processing or rendering, an exception will be thrown and the database transaction rolled back. This completes the session-per-request pattern. Instead of the transaction demarcation code in every servlet, you could also write a servlet filter. See the Hibernate website and Wiki for more information about this pattern called Open Session in View. You will need it as soon as you consider rendering your view in JSP, not in a servlet.

Now you can implement the processing of the request and the rendering of the page.

        // Write HTML header

        PrintWriter out = response.getWriter();

        out.println("<html><head><title>Event Manager</title></head><body>");


        // Handle actions

        if ( "store".equals(request.getParameter("action")) ) {


            String eventTitle = request.getParameter("eventTitle");

            String eventDate = request.getParameter("eventDate");


            if ( "".equals(eventTitle) || "".equals(eventDate) ) {

                out.println("<b><i>Please enter event title and date.</i></b>");

            }

            else {

                createAndStoreEvent(eventTitle, dateFormatter.parse(eventDate));

                out.println("<b><i>Added event.</i></b>");

            }

        }


        // Print page

       printEventForm(out);

       listEvents(out, dateFormatter);


       // Write HTML footer

       out.println("</body></html>");

       out.flush();

       out.close();

This coding style, with a mix of Java and HTML, would not scale in a more complex application-keep in mind that we are only illustrating basic Hibernate concepts in this tutorial. The code prints an HTML header and a footer. Inside this page, an HTML form for event entry and a list of all events in the database are printed. The first method is trivial and only outputs HTML:

    private void printEventForm(PrintWriter out) {

        out.println("<h2>Add new event:</h2>");

        out.println("<form>");

        out.println("Title: <input name='eventTitle' length='50'/><br/>");

        out.println("Date (e.g. 24.12.2009): <input name='eventDate' length='10'/><br/>");

        out.println("<input type='submit' name='action' value='store'/>");

        out.println("</form>");

    }

Die listEvents() Methode verwendet die an den aktuellen Thread gebundene Hibernate Session bei der Ausführung einer Abfrage:

    private void listEvents(PrintWriter out, SimpleDateFormat dateFormatter) {


        List result = HibernateUtil.getSessionFactory()

                .getCurrentSession().createCriteria(Event.class).list();

        if (result.size() > 0) {

            out.println("<h2>Events in database:</h2>");

            out.println("<table border='1'>");

            out.println("<tr>");

            out.println("<th>Event title</th>");

            out.println("<th>Event date</th>");

            out.println("</tr>");

            Iterator it = result.iterator();

            while (it.hasNext()) {

                Event event = (Event) it.next();

                out.println("<tr>");

                out.println("<td>" + event.getTitle() + "</td>");

                out.println("<td>" + dateFormatter.format(event.getDate()) + "</td>");

                out.println("</tr>");

            }

            out.println("</table>");

        }

    }

Zuletzt wird die store-Vorgang zur createAndStoreEvent()-Methode gesendet, die ebenfalls die Session des aktuellen Threads verwendet:

    protected void createAndStoreEvent(String title, Date theDate) {

        Event theEvent = new Event();

        theEvent.setTitle(title);

        theEvent.setDate(theDate);


        HibernateUtil.getSessionFactory()

                .getCurrentSession().save(theEvent);

    }

The servlet is now complete. A request to the servlet will be processed in a single Session and Transaction. As earlier in the standalone application, Hibernate can automatically bind these objects to the current thread of execution. This gives you the freedom to layer your code and access the SessionFactory in any way you like. Usually you would use a more sophisticated design and move the data access code into data access objects (the DAO pattern). See the Hibernate Wiki for more examples.

To deploy this application for testing we must create a Web ARchive (WAR). First we must define the WAR descriptor as src/main/webapp/WEB-INF/web.xml

<?xml version="1.0" encoding="UTF-8"?>

<web-app version="2.4"

    xmlns="http://java.sun.com/xml/ns/j2ee"

    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd">



    <servlet>

        <servlet-name>Event Manager</servlet-name>

        <servlet-class>org.hibernate.tutorial.web.EventManagerServlet</servlet-class>

    </servlet>



    <servlet-mapping>

        <servlet-name>Event Manager</servlet-name>

        <url-pattern>/eventmanager</url-pattern>

    </servlet-mapping>

</web-app>

To build and deploy call mvn package in your project directory and copy the hibernate-tutorial.war file into your Tomcat webapps directory.

Wenn das Deployment erfolgt ist und Tomcat ausgeführt wird, greifen Sie mittels http://localhost:8080/hibernate-tutorial/eventmanager auf die Anwendung zu. Sehen Sie im Protokoll von Tomcat nach, ob Hibernate initialisiert wird, wenn die erste Anfrage bei Ihrem Servlet eingeht (das statische Initialisierungsprogramm in HibernateUtil wird aufgerufen), und prüfen Sie die detaillierte Ausgabe nach Ausnahmen.

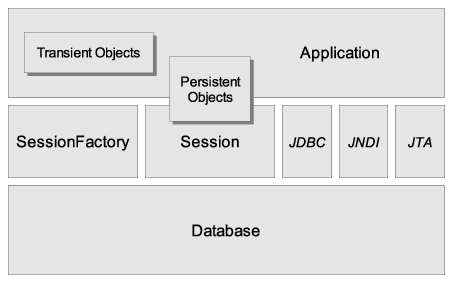

The "minimal" architecture has the application manage its own JDBC connections and provide those connections to Hibernate; additionally the application manages transactions for itself. This approach uses a minimal subset of Hibernate APIs.

The "comprehensive" architecture abstracts the application away from the underlying JDBC/JTA APIs and allows Hibernate to manage the details.

Here are quick discussions about some of the API objects depicted in the preceding diagrams (you will see them again in more detail in later chapters).

Always set the hibernate.dialect property to the correct org.hibernate.dialect.Dialect subclass for your database. If you specify a dialect, Hibernate will use sensible defaults for some of the other properties listed above. This means that you will not have to specify them manually.

If your database supports ANSI, Oracle or Sybase style outer joins, outer join fetching will often increase performance by limiting the number of round trips to and from the database. This is, however, at the cost of possibly more work performed by the database itself. Outer join fetching allows a whole graph of objects connected by many-to-one, one-to-many, many-to-many and one-to-one associations to be retrieved in a single SQL SELECT.

Outer join fetching can be disabled globally by setting the property hibernate.max_fetch_depth to 0. A setting of 1 or higher enables outer join fetching for one-to-one and many-to-one associations that have been mapped with fetch="join".

See Abschnitt 21.1, „Abrufstrategien“ for more information.

Oracle limits the size of byte arrays that can be passed to and/or from its JDBC driver. If you wish to use large instances of binary or serializable type, you should enable hibernate.jdbc.use_streams_for_binary. This is a system-level setting only.

The properties prefixed by hibernate.cache allow you to use a process or cluster scoped second-level cache system with Hibernate. See the Abschnitt 21.2, „Das Cache der zweiten Ebene“ for more information.

You can define new Hibernate query tokens using hibernate.query.substitutions. For example:

hibernate.query.substitutions true=1, false=0

This would cause the tokens true and false to be translated to integer literals in the generated SQL.

hibernate.query.substitutions toLowercase=LOWER

This would allow you to rename the SQL LOWER function.

If you enable hibernate.generate_statistics, Hibernate exposes a number of metrics that are useful when tuning a running system via SessionFactory.getStatistics(). Hibernate can even be configured to expose these statistics via JMX. Read the Javadoc of the interfaces in org.hibernate.stats for more information.

The Hibernate Session API is independent of any transaction demarcation system in your architecture. If you let Hibernate use JDBC directly through a connection pool, you can begin and end your transactions by calling the JDBC API. If you run in a J2EE application server, you might want to use bean-managed transactions and call the JTA API and UserTransaction when needed.

Um Ihren Code zwischen diesen beiden (und anderen) Umgebungen übertragbar zu halten, empfehlen wir das optionale Hibernate Transaction-API, welches das zu Grunde liegende System wrappt und verbirgt. Sie müssen eine Factory-Klasse für Transaction-Instanzen bestimmen, indem Sie die Hibernate Konfigurationseigenschaft hibernate.transaction.factory_class einstellen.

There are three standard, or built-in, choices:

You can also define your own transaction strategies (for a CORBA transaction service, for example).

Some features in Hibernate (i.e., the second level cache, Contextual Sessions with JTA, etc.) require access to the JTA TransactionManager in a managed environment. In an application server, since J2EE does not standardize a single mechanism, you have to specify how Hibernate should obtain a reference to the TransactionManager:

A JNDI-bound Hibernate SessionFactory can simplify the lookup function of the factory and create new Sessions. This is not, however, related to a JNDI bound Datasource; both simply use the same registry.

If you wish to have the SessionFactory bound to a JNDI namespace, specify a name (e.g. java:hibernate/SessionFactory) using the property hibernate.session_factory_name. If this property is omitted, the SessionFactory will not be bound to JNDI. This is especially useful in environments with a read-only JNDI default implementation (in Tomcat, for example).

Beim Binden der SessionFactory an JNDI, wird Hibernate die Werte von hibernate.jndi.url, hibernate.jndi.class verwenden, um einen Anfangskontext zu initiieren. Werden diese nicht festgelegt, so wird der Standard InitialContext verwendet.

Hibernate will automatically place the SessionFactory in JNDI after you call cfg.buildSessionFactory(). This means you will have this call in some startup code, or utility class in your application, unless you use JMX deployment with the HibernateService (this is discussed later in greater detail).

If you use a JNDI SessionFactory, an EJB or any other class, you can obtain the SessionFactory using a JNDI lookup.

It is recommended that you bind the SessionFactory to JNDI in a managed environment and use a static singleton otherwise. To shield your application code from these details, we also recommend to hide the actual lookup code for a SessionFactory in a helper class, such as HibernateUtil.getSessionFactory(). Note that such a class is also a convenient way to startup Hibernate—see chapter 1.

The easiest way to handle Sessions and transactions is Hibernate's automatic "current" Session management. For a discussion of contextual sessions see Abschnitt 2.3, „Contextual sessions“. Using the "jta" session context, if there is no Hibernate Session associated with the current JTA transaction, one will be started and associated with that JTA transaction the first time you call sessionFactory.getCurrentSession(). The Sessions retrieved via getCurrentSession() in the "jta" context are set to automatically flush before the transaction completes, close after the transaction completes, and aggressively release JDBC connections after each statement. This allows the Sessions to be managed by the life cycle of the JTA transaction to which it is associated, keeping user code clean of such management concerns. Your code can either use JTA programmatically through UserTransaction, or (recommended for portable code) use the Hibernate Transaction API to set transaction boundaries. If you run in an EJB container, declarative transaction demarcation with CMT is preferred.

The line cfg.buildSessionFactory() still has to be executed somewhere to get a SessionFactory into JNDI. You can do this either in a static initializer block, like the one in HibernateUtil, or you can deploy Hibernate as a managed service.

Hibernate is distributed with org.hibernate.jmx.HibernateService for deployment on an application server with JMX capabilities, such as JBoss AS. The actual deployment and configuration is vendor-specific. Here is an example jboss-service.xml for JBoss 4.0.x:

<?xml version="1.0"?>

<server>



<mbean code="org.hibernate.jmx.HibernateService"

    name="jboss.jca:service=HibernateFactory,name=HibernateFactory">



    <!-- Required services -->

    <depends>jboss.jca:service=RARDeployer</depends>

    <depends>jboss.jca:service=LocalTxCM,name=HsqlDS</depends>



    <!-- Bind the Hibernate service to JNDI -->

    <attribute name="JndiName">java:/hibernate/SessionFactory</attribute>



    <!-- Datasource settings -->

    <attribute name="Datasource">java:HsqlDS</attribute>

    <attribute name="Dialect">org.hibernate.dialect.HSQLDialect</attribute>



    <!-- Transaction integration -->

    <attribute name="TransactionStrategy">

        org.hibernate.transaction.JTATransactionFactory</attribute>

    <attribute name="TransactionManagerLookupStrategy">

        org.hibernate.transaction.JBossTransactionManagerLookup</attribute>

    <attribute name="FlushBeforeCompletionEnabled">true</attribute>

    <attribute name="AutoCloseSessionEnabled">true</attribute>



    <!-- Fetching options -->

    <attribute name="MaximumFetchDepth">5</attribute>



    <!-- Second-level caching -->

    <attribute name="SecondLevelCacheEnabled">true</attribute>

    <attribute name="CacheProviderClass">org.hibernate.cache.EhCacheProvider</attribute>

    <attribute name="QueryCacheEnabled">true</attribute>



    <!-- Logging -->

    <attribute name="ShowSqlEnabled">true</attribute>



    <!-- Mapping files -->

    <attribute name="MapResources">auction/Item.hbm.xml,auction/Category.hbm.xml</attribute>



</mbean>



</server>

This file is deployed in a directory called META-INF and packaged in a JAR file with the extension .sar (service archive). You also need to package Hibernate, its required third-party libraries, your compiled persistent classes, as well as your mapping files in the same archive. Your enterprise beans (usually session beans) can be kept in their own JAR file, but you can include this EJB JAR file in the main service archive to get a single (hot-)deployable unit. Consult the JBoss AS documentation for more information about JMX service and EJB deployment.
