Registry Configuration

By: Kurt Stam (kurt.stam@jboss.com)

JBoss ESB JBoss Labs Home Page: http://labs.jboss.com/portal/jbossesb

JBoss ESB Developer Community Forums: http://www.jboss.com/index.html?module=bb&op=viewforum&f=220

########################################################################

# JBoss, Home of Professional Open Source

# by the @authors tag. See the copyright.txt in the distribution for a

# full listing of individual contributors.

# This is free software; you can redistribute it and/or modify it

# under the terms of the GNU Lesser General Public License as

# published by the Free Software Foundation; either version 2.1 of

# the License, or (at your option) any later version.

# This software is distributed in the hope that it will be useful,

# but WITHOUT ANY WARRANTY; without even the implied warranty of

# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU

# Lesser General Public License for more details.

# You should have received a copy of the GNU Lesser General Public

# License along with this software; if not, write to the Free

# Software Foundation, Inc., 51 Franklin St, Fifth Floor, Boston, MA

# 02110-1301 USA, or see the FSF site: http://www.fsf.org.

########################################################################

1. Configuring the Registry

The JBossESB Registry architecture allows for many ways to configure the ESB to use either a Registry or Repository. By default the we use a JAXR implementation (Scout) and a UDDI (jUDDI), in an embedded way.

The following properties can be used to configure the JBossESB Registry. In the jbossesb-properties.xml there is section called 'registry':

</properties>

In short, the properties are

org.jboss.soa.esb.registry.implementationClass, a class that implements the jbossesb Registry interface. We have provided one implementation (JAXRRegistry interface).
org.jboss.soa.esb.registry.factoryClass, the class name of the JAXR ConnectionFactory implementation.
org.jboss.soa.esb.registry.queryManagerURI, the URI used by JAXR to query.
org.jboss.soa.esb.registry.lifeCycleManagerURI, the URI used by JAXR to edit.
org.jboss.soa.esb.registry.user, the user used for edits.
org.jboss.soa.esb.registry.password, the password to go along with the user.
org.jboss.soa.esb.scout.proxy.transportClass, the name of the class used by scout to do the transport from scout to the UDDI.

1.1 The components involved

The registry can be configured in many ways. Figure 1 shows a blue print of all the registry components. From the top down we can see that the JBossESB funnels all interaction with the registry through the Registry Interface. By default it then calls into a JAXR implementation of this interface. The JAXR API needs an implementation, which by default is Scout. The Scout JAXR implementation calls into a jUDDI registry. However there are many other configuration options.

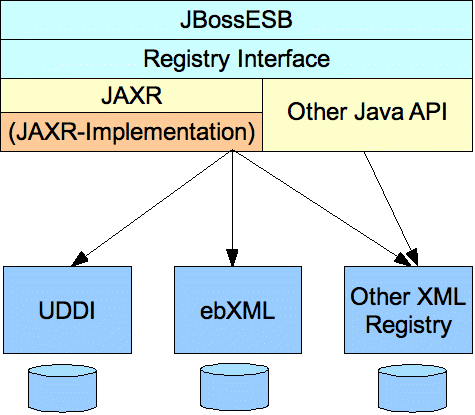

Figure 1. Blue print of the Registry component architecture.

1.2 The Registry Implementation Class

Property: org.jboss.soa.esb.registry.implementationClass

By default we use the JAXR API. The JAXR API is a convenient API since it allows us to connect any kind of XML based registry or repository. However, if for example you want to use Systinet's Java API you can do that by writing your own SystinetRegistryImplentation class and referencing it in this property.

1.3 Using JAXR

Propery: org.jboss.soa.esb.registry.factoryClass

If you decided to use JAXR then you will have to pick which JAXR implementation to use. This property is used to configure that class. By default we use Scout and therefore it is set to the scout factory 'org.apache.ws.scout.registry.ConnectionFactoryImpl'. The next step is to tell the JAXR implementation the location of the registry or repository for querying and updating, which is done by setting the org.jboss.soa.esb.registry.queryManagerURI, and org.jboss.soa.esb.registry.lifeCycleManagerURI respectively, along with the username (org.jboss.soa.esb.registry.user) and password (org.jboss.soa.esb.registry.password) for the UDDI.

1.4 Using Scout and jUDDI

Property: org.jboss.soa.esb.scout.proxy.transportClass

When using Scout and jUDDI there is an additonal parameter that one can set. This is the transport class that should be used for communication between Scout and jUDDI. Thus far there are 4 implementations of this class which are based on SOAP, SAAJ, RMI and Local (embedded java). Note that when you change the transport, you will also have to change the query and lifecycle URIs. For example:

SOAP

queryManagerURI http://localhost:8080/juddi/inquiry

lifeCycleManagerURI http://localhost:8080/juddi/publish

transportClass org.apache.ws.scout.transport.AxisTransport

RMI

queryManagerURI jnp://localhost:1099/InquiryService?org.apache.juddi.registry.rmi.Inquiry#inquire

lifeCycleManagerURI jnp://localhost:1099/PublishService?org.apache.juddi.registry.rmi.Publish#publish

transportClass org.apache.ws.scout.transport.RMITransport

Local

queryManagerURI org.apache.juddi.registry.local.InquiryService#inquire

lifeCycleManagerURI org.apache.juddi.registry.local.PublishService#publish

transportClass org.apache.ws.scout.transport.LocalTransport

For jUDDI we have two requirements that need to be fulfilled:

access to the juddi database. You will need to create a schema in your database, and add the jbossesb publisher. The product/install/jUDDI-registry directory contains db create scripts for you favority database.
juddi.properties. The configuration of jUDDI itself. If you do not use a datasource you need to take special care to set the following properties:

juddi.isUseDataSource=false

juddi.jdbcDriver=com.mysql.jdbc.Driver

juddi.jdbcUrl=jdbc:mysql://localhost/juddi

juddi.jdbcUsername=juddi

juddi.jdbcPassword=juddi

if you do use a datasource you need something like

juddi.isUseDataSource=true

juddi.dataSource=java:comp/env/jdbc/juddiDB

2 Some configuration examples

As mentioned before, by default the JBossESB is configured to use the JAXR API using Scout as its implementation and jUDDI as the registry. Here are some example how you can use deploy this combo.

2.1 Embedded

All ESB components (with components we really mean JVMs in this case) can embed the registry and they all can connect to the same database (or different once if that makes sense).

Figure 2. Embedded jUDDI.

Properties example:

</properties>

2.2 RMI using the juddi.war

Deploy a version of the jUDDI that brings up an RMI service. The JBossESB comes with a juddi.war in the product/install/jUDDI-registry directory. This war brings up the regular webservices but also an RMI service. Along with the juddi.war you need to deploy a datasource which points to your jUDDI database. An example file is supplied for mysql.

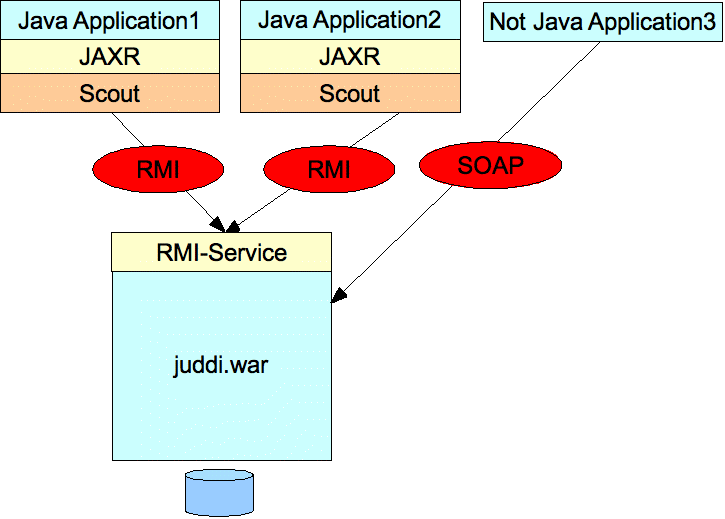

Figure 3. RMI using the juddi.war

Properties example:

The juddi.war is configured to bring up a RMI Service, which is triggered by the following setting in the web.xml

<servlet-name>RegisterServicesWithJNDI</servlet-name>

<servlet-class>org.apache.juddi.registry.rmi.RegistrationService</servlet-class>

<load-on-startup>1</load-on-startup>

</servlet>

Make sure to include -for example- the following JNDI settings in your juddi.properties:

# JNDI settings (used by RMITransport)

java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory

java.naming.provider.url=jnp://localhost:1099

java.naming.factory.url.pkgs=org.jboss.naming

Note that the RMI clients need to have the scout-client.jar in their classpath.

2.3 RMI using your own JNDI Registration of the RMI Service

If you don't want to deploy the juddi.war you can setup one of the ESB components that runs in the the same JVM as jUDDI to register the RMI service.While the other applications need to be configured to use RMI.

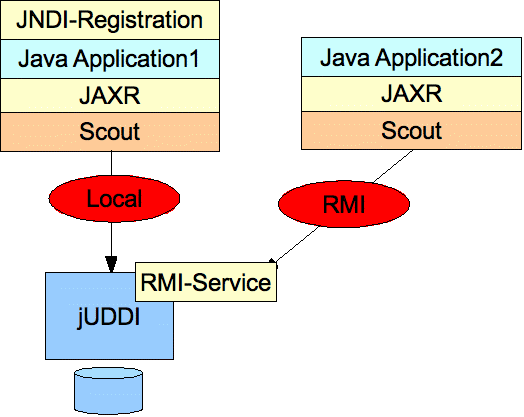

Figure 4. RMI using your own JNDI registration

Properties example: For application 1 you need need the Local settings:

</properties>

while for application2 you need the RMI settings:

Where the hostname of the queryManagerURI and lifeCycleManagerURI need to point to the hostname on which jUDDI is running (which would be where application1 is running). Obviously application1 needs to have access to a naming service. To do the registration process you need to do something like:

//Getting the JNDI setting from the config

String factoryInitial = Config.getStringProperty(

Properties env = new Properties();

env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_INITIAL,factoryInitial);

env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_PROVIDER_URL, providerURL);

env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_URL_PKGS, factoryURLPkgs);

log.info("Creating Initial Context using: \n"

+ RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_INITIAL + "=" + factoryInitial + "\n"

+ RegistryEngine.PROPNAME_JAVA_NAMING_PROVIDER_URL + "=" + providerURL + "\n"

+ RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_URL_PKGS + "=" + factoryURLPkgs + "\n");

InitialContext context = new InitialContext(env);

Inquiry inquiry = new InquiryService();

log.info("Setting " + INQUIRY_SERVICE + ", " + inquiry.getClass().getName());

mInquery = inquiry;

context.bind(INQUIRY_SERVICE, inquiry);

Publish publish = new PublishService();

log.info("Setting " + PUBLISH_SERVICE + ", " + publish.getClass().getName());

mPublish = publish;

context.bind(PUBLISH_SERVICE, publish);

2.4 SOAP

Finally, you can make the communication between Scout and jUDDI SOAP based. Again you need to deploy the juddi.war and configure the datasource. You probably want to shutdown the RMI service by commenting out the RegisterServicesWithJNDI servlet in the web.xml.

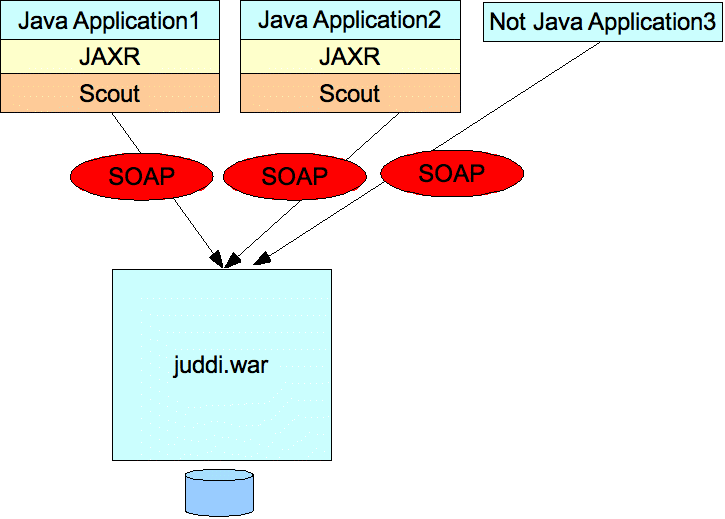

Figure 5. SOAP.

Properties example:

2.5 SAAJ

JBoss 4.0.x comes with scout and juddi. If you run in clustered mode ('all'). It brings up the jUDDI registry to which you can communicate using SAAJ. This is an untested feature.

3.Scout and jUDDI pitfalls

Make sure to put our version of the jaxr-api-1.0.jar, scout-0.7rc2-embedded.jar and the juddi-embedded.jar first. Other versions of these libraries are present in the JbossAS libraries and they are, for the time being, incompatible. This should get resolved in future release of the Application Server.
If you use RMI you need the juddi-client.jar.
Make sure the jbossesb-properties.xml file is on the classpath and read or else the registry will try to instantiate classes with the name of 'null'.
Make sure you have a juddi.properties file on your classpath for jUDDI to configure itself.
Make sure to read the README in the product/install/jUDDI-registry directory.

4. More Information

For more information see the wiki http://labs.jboss.com/wiki/JudyEvaluation
JBossESB user forum: http://www.jboss.com/index.html?module=bb&op=viewforum&f=246
