Configuration

Standalone server

If you wish to run the JBossESB server on the same machine as JBossAS, then you should look at the Configuring Multiple JBoss Instances On One Machine Wiki page.

JBossESB JMS Providers

The JBossESB supports a number of JMS providers. Currently we have successfully test JBossMQ, ActiveMQ and Websphere MQ Series (version 5.3 and 6.0). At this time we know of no reasons why other JMS implementations should not also work, but have not been able to verify this.

  1. This section is not intended as a replacement for the configuration documentation that comes with the supported JMS implementations. For advanced capabilities, such as clustering and management, you should consult that documentation as well.

How can I configure them?

JMSListeners and JMSGateways can be configured to listen to a Queue or Topic. For this you can use the following parameters in their configuration (jbossesb-listener.xml and jbossesb-gateway.xml): jndi-URL, jndi-context-factory, jndi-pkg-prefix, connection-factory, destination-type and destination-name. Furthermore you will need to add the client jms jars of the JMS-provider you want to use to the classpath.

In the following sections we will assume that your JMS provider runs on 'localhost', that the connection-factory is 'ConnectionFactory', that we are listenening to a destination-type 'queue' and that it's name is 'queue/A'.

  1. Each JMSListener and JMSGateway can be configured to use it's own JMS provider, so you can use more then one provider in your deployment.

When using JMS, JBossESB utilizes a connection pool to improve performance. By default the size of this pool is set to 20, but can be over-ridden by setting the org.jboss.soa.esb.jms.connectionPool property in the transports section of the JBossESB configuration file. Likewise, if a session cannot be obtained initially, JBossESB will keep retrying for up to 30 seconds before giving up. This time can be configured using the org.jboss.soa.esb.jms.sessionSleep property.

JBossMQ or JBossMessaging

The settings for JBossMQ and JBossMessaging are identical and you should set the parameters to:

jndi-URL="localhost”

jndi-context-factory="org.jnp.interfaces.NamingContextFactory"

connection-factory="ConnectionFactory"

destination-type="queue"

destination-name="queue/A"

For JBossMQ you should have

jbossmq-client.jar,

In your classpath. Not that this jar is included in jbossall-client.jar, which can be found in lib/ext. For JbossMessaging it should be

jboss-messaging-client.jar

While -for now- the JBossMQ is the default JMS provider in JBossAS, you can also use JBoss Messaging. Instructions for installing JBoss Messaging can be found on the project website.

http://labs.jboss.com/jbossmessaging/docs/userguide-1.4.0.GA/html/installation.html

JBoss Messaging Clustering configuration

Configuring JBoss Messaging in a clustered setup gives you loadbalancing and failover for JMS. Since this capability has changed between different versions of JBoss Messaging and may continue to do so, you should consult the relevant JBoss Messaging documentation, e.g., http://labs.jboss.com/file-access/default/members/jbossmessaging/freezone/docs/userguide-1.4.0.SP1/html_single/index.html#conf.connectionfactory.attributes.loadbalancingfactory

ActiveMQ

For ActiveMQ you should set the parameters to:

jndi-URL="tcp://localhost:61616”

jndi-context-factory="org.apache.activemq.jndi.ActiveMQInitialContextFactory"

connection-factory="ConnectionFactory"

destination-type="queue"

destination-name="queue/A"

In your classpath you should have

activemq-core-4.x

backport-util-concurrent-2.1.jar

Both jars can be found in lib/ext/jms/activemq. We tested with version 4.1.0-incubator.

Websphere MQ Series

For Websphere MQ Series you should set the parameters to:

jndi-URL="localhost:1414/SYSTEM.DEF.SVRCONN”

jndi-context-factory="com.ibm.mq.jms.context.WMQInitialContextFactory"

connection-factory="ConnectionFactory"

destination-type="queue"

destination-name="QUEUEA"

  1. Websphere likes all CAPS queue names and no slashes (QUEUEA), and the name of the Queue Manager in MQ should match what the value of 'connection-factory' is (or bind this name to JNDI). In our case we created a Queue Manager named “ConnectionFactory”.

On your classpath you should have

com.ibm.mq.pcf.jar

mqcontext.jar

and the client jars:

com.ibm.mq.jar

com.ibm.mqjms.jar

Please note that the client jars differ between MQ 5.3 and MQ 6.0. However the 6.0 jars should be backward compatible. The jars are not open source, and are therefor not provided by us. You will have to obtain them from your WAS and MQ installs.

Also note that you may get the following exception when running MQ 6.0, which can be fixed by adding the user that runs the jbossesb to the mqm group:

Note that for MQ 6.0:

Message: Unable to get a MQ series Queue Manager or Queue Connection. Reason: failed to create connection --javax.jms. JMSSecurityException: MQJMS2013: invalid security authentication supplied for MQQueueManager

Explanation: There is a problem with user permissions or access.

Tip: Make sure the user accessing MQ Queue Manager is part of the mqm group.

Oracle AQ

For Oracle AQ you should set the parameters to:

connection-factory=”QueueConnectionFactory”


and use the following properties:

<property name="java.naming.factory.initial" value="org.jboss.soa.esb.oracle.aq.AQInitialContextFactory"/>

<property name="java.naming.oracle.aq.user" value="<user>"/>

<property name="java.naming.oracle.aq.password" value="<pw>"/>

<property name="java.naming.oracle.aq.server" value="<server>"/>

<property name="java.naming.oracle.aq.instance" value="<instance>"/>

<property name="java.naming.oracle.aq.schema" value="<schema>"/>

<property name="java.naming.oracle.aq.port" value="1521"/>

<property name="java.naming.oracle.aq.driver" value="thin"/>



You may notice the reference to the InitialContext factory. You only need this is if you want to avoid OracelAQ to register its queues with an LDAP. The AqinitialContextFactory references code in a plugin jar that you can find in the plugins/org.jboss.soa.esb.oracle.aq directory. The jar is called org.jboss.soa.esb.oracle.aq-4.2.jar and you will have to deploy it to the jbossesb.sar/lib directory.

Note that when creating a Queue in Oracle AQ make sure to select a payload type of SYS AQ$_JMS_MESSAGE.

For a sample you can check the samples/quickstarts/helloworld_action/oracle-aq directory for an example jboss-esb.xml configuration file.

Tibco EMS

For Tibco EMS you should set the parameters to:

jndi-URL="tcp://localhost:7222”

jndi-context-factory=”com.tibco.tibjms.naming.TibjmsInitialContextFactory"

connection-factory="QueueConnectionFactory"

destination-type="queue"

destination-name="<queue-name>"

In your classpath you should have the client jars that ship with Tibco EMS, which are found in the tibco/ems/clients/java dir.

jaxp.jar, jndi.jar, tibcrypt.jar, tibjmsapps.jar, tibrvjms.jar,

jms.jar, jta-spec1_0_1.jar, tibjmsadmin.jar, tibjms.jar

We tested with version 4.4.1.

Database Configuration

The ESB uses database for persisting Registry services, and the Message-Store.

Database scripts for each of these can be found under:

Service Registry: ESB_ROOT/install/juddi-registry/sql

Message-Store: ESB_ROOT/services/jbossesb/src/main/resources/message-store-sql

A few database types and their scripts are provided, and you should be able to easily create one for your particular database (if you do, please contribute it back to us).

For the Message-Store you will need to also update the data-source setting properties in the main ESB config file jbossesb-properties.xml. The following are settings you will need to change, based on the connection information appropriate to your environment – these settings are found in the DBSTORE section of the file.

As long as there is script for your database the ESB will auto-create the schema's on startup. By default JBossESB is configured to use a JEE DataSource.

<properties name="dbstore">

<property name="org.jboss.soa.esb.persistence.db.conn.manager" value="org.jboss.soa.esb.persistence.manager.J2eeConnectionManager"/>

<!-- this property is only used if using the j2ee connection manager -->

<property name="org.jboss.soa.esb.persistence.db.datasource.name" value="java:/JBossESBDS"/>

</properties>

When running from the standalone bootstrapper use:


<properties name="dbstore">

<!-- connection manager type -->

<property name="org.jboss.soa.esb.persistence.db.conn.manager" value="org.jboss.soa.esb.persistence.manager.StandaloneConnectionManager"/>

<property name="org.jboss.soa.esb.persistence.db.conn.manager"

<property name="org.jboss.soa.esb.persistence.db.connection.url" value="jdbc:hsqldb:hsql://localhost:9001/jbossesb"/>

<property name="org.jboss.soa.esb.persistence.db.jdbc.driver" value="org.hsqldb.jdbcDriver"/>

<property name="org.jboss.soa.esb.persistence.db.user" value="sa"/>

<property name="org.jboss.soa.esb.persistence.db.pwd" value=""/>

<property name="org.jboss.soa.esb.persistence.db.pool.initial.size" value="2"/>

<property name="org.jboss.soa.esb.persistence.db.pool.min.size" value="2"/>

<property name="org.jboss.soa.esb.persistence.db.pool.max.size" value="5"/>

<property name="org.jboss.soa.esb.persistence.db.pool.test.table" value="pooltest"/>

<property name="org.jboss.soa.esb.persistence.db.pool.timeout.millis" value="5000"/>

</properties>






Property

Setting


org.jboss.soa.esb.persistence.db.conn.manager

the db connection manager.


org.jboss.soa.esb.persistence.db.datasource.name

The datasource name (used for JNDI lookup)

org.jboss.soa.esb.persistence.db.connection.url


this is the db connection url for your database.

org.jboss.soa.esb.persistence.db.jdbc.driver

JDBC Driver

org.jboss.soa.esb.persistence.db.user

db user

org.jboss.soa.esb.persistence.db.pwd

db password

org.jboss.soa.esb.persistence.db.pool.initial.size

initial size of db connection pool

org.jboss.soa.esb.persistence.db.pool.min.size

minimum size of db connection pool

org.jboss.soa.esb.persistence.db.pool.max.size

maximum size of db connection pool

org.jboss.soa.esb.persistence.db.pool.test.table

A table name (created dynamically by pool manager) to test for valid connections in the pool

org.jboss.soa.esb.persistence.db.pool.timeout.millis

timeout period to wait for connection requests from pool


The Service Registry database information is contained in the juddi.properties file. You should consult the Service Registry section of this document for more detailed information on what settings and their values and how they effect the behavior of the ESB.

JBoss server comes with a pre-installed hypersonic database (HSQLDB). The database can only be accessed in the same JVM. The data-source definition can be found in the jbossesb.sar/message-store-ds.xml.

  1. Use of HSQLDB for production is not recommended.

Using a JSR-170 Message Store

JBossESB allows for multiple message store implementations via a plugin-based architecture. As an alternative to the default database message store, a JSR-170 (Java content repository) message store may be used. The JCR implementation included with JBossESB is Apache Jackrabbit. To enable the JCR message store, add the following property to the "core" section of jbossesb-properties.xml in the root of the jboss-esb.sar:


<property name="org.jboss.soa.esb.persistence.base.plugin.jcr"

value="org.jboss.internal.soa.esb.persistence.format.jcr.JCRMessageStorePlugin"/>



This adds the JCR plugin to the list of available message stores. The JCR message store can use an existing repository via JNDI or can create a standalone instance locally on the application server. The following list of properties should be added in the "dbstore" section of jbossesb-properties.xml to configure repository access:


<property name="org.jboss.soa.esb.persistence.jcr.jndi.path" value="jcr"/>

<property name="org.jboss.soa.esb.persistence.jcr.username" value="username"/>

<property name="org.jboss.soa.esb.persistence.jcr.password" value="password"/>

<property name="org.jboss.soa.esb.persistence.jcr.root.node.path"

value="JBossESB/MessageStore"/>



An easy test for whether the JCR message store is configured properly is to add the org.jboss.soa.esb.actions.persistence.StoreJCRMessage action onto an existing service. The action will attempt to store the current message to the JCR store.

Message Tracing

It is possible to trace any and all Messages sent through JBossESB. This may be important for a number of reasons, including audit trail and debugging. In order to trace Messages you should ensure that they are uniquely identified using the MessageID field of the Message header: as mentioned in the Programmers Guide, this is the only way in which Messages can be uniquely identified within the ESB.

By default, JBossESB components (e.g., gateways, ServiceInvoker and load balancing) log all interactions with Messages through standard logger messages. Such log messages will contain the entire header information associated with the Message which will enable correlation across multiple JBossESB instances. You can identify these messages by looking for the following in your output:

header: [ To: EPR: PortReference < <wsa:Address ftp://foo.bar/> >, From: null, ReplyTo: EPR: PortReference < <wsa:Address http://bar.foo/> >, FaultTo: null, Action: urn:dowork, MessageID: urn:foo/bar/1234, RelatesTo: null ]

Furthermore, you can enable a logging MetaData Filter, whose only role is to issue log messages whenever a Message is either input to an ESB component, or output from it. This filter, org.jboss.internal.soa.esb.message.filter.TraceFilter, can be placed within the Filter section of the JBossESB configuration file, in conjunction with any other filters: it has no effect on the input or output Message. Whenever a Message passes through this filter, you will see the following log at info level:

TraceFilter.onOutput ( header: [ To: EPR: PortReference < <wsa:Address ftp://foo.bar/> >, From: null, ReplyTo: EPR: PortReference < <wsa:Address http://bar.foo/> >, FaultTo: null, Action: urn:dowork, MessageID: urn:foo/bar/1234, RelatesTo: null ] )

TraceFilter.onInput ( header: [ To: EPR: PortReference < <wsa:Address ftp://foo.bar/> >, From: null, ReplyTo: EPR: PortReference < <wsa:Address http://bar.foo/> >, FaultTo: null, Action: urn:dowork, MessageID: urn:foo/bar/1234, RelatesTo: null ] )

TraceFilter will only log if the property org.jboss.soa.esb.messagetrace is set to on/ON (the default setting is off/OFF). By default, if enabled it will log all Messages that pass through it. However, for finer grained control you may enable finer grained control over which Messages are logged and which are ignored. To do this make sure that the property org.jboss.soa.esb.permessagetrace is set to on/ON (the default is off/OFF). Once enabled, those Messages with a Property of org.jboss.soa.esb.message.unloggable set to yes/YES will be ignored by this filter.

Clustering and Fail-over support

With JBossESB 4.2, there is now support for fail-over of stateless services. You should consult the Programmers Guide for further details, but the pertinent issues to note are:

Registry

At the heart of all JBossESB deployments is the registry. This is fully described elsewhere in the Registry Guide, where configuration information is also discussed. However, it is worth noting the following:



Configuring Web Service Integration

JBoss ESB 4.3 GA exposes Webservice Endpoints for through the SOAPProcessor action. This action integrates the JBoss Webservices v2.x container into JBossESB, allowing you to invoke JBossWS Endpoints over any channel supported by JBossESB. See the Programmers Guide for more details.

The SOAPProcessor action requires JBossWS 2.0.1.SP2 (native) to to be properly installed on your JBoss Application Server (v4.2.x.GA).

Default ReplyTo EPR

JBossESB uses Endpoint References (EPRs) to address messages to/from services. As described in the Programmers Guide, messages have headers that contain recipient addresses, sequence numbers (for message correlation) and optional addresses for replies, faults etc. Because the recommended interaction pattern for within JBossESB is based on one-way message exchange, responses to messages are not necessarily automatic: it is application dependent as to whether or not a sender expects a response.

As such, a reply address (EPR) is an optional part of the header routing information and applications should be setting this value if necessary. However, in the case where a response is required and the reply EPR (ReplyTo EPR) has not been set, JBossESB supports default values for each type of transport. Some of these ReplyTo defaults require system administrators to configure JBossESB correctly.



ServiceBinding Manager

If you wish to run multiple ESB servers on the same machine, you may want to use JBoss ServiceBinding Manager. The binding manager allows you to centralize port configuration for all of the instances you will be running. The ESB server ships with a sample bindings file in docs/examples/binding-manager/sample-bindings.xml. Chapter Ten of the Jboss appplication server documentation contains instructions on how to set up the ServiceBinding manager. Two notes :

Monitoring and Management

There are a number of options for monitoring and managing your ESB server. Shipping with the ESB are a number of useful JMX MBeans that help administrators monitor the performance of their server.

Under the jboss.esb domain, you should see the following MBean types :



Additionally, jms domain MBeans show statistics for message queues, which is useful information when debugging or determining performance.



Monitoring and Management Console

JBossESB has its own monitoring and management console for ESB related properties (http://localhost:8080/jbossesb). The Monitoring and Management Console is covered in-depth in its own help documentation (docs/governance/Monitoring.pdf).





Alerts

    The JBoss Web Console is a utility within both the JBoss AS and the JBoss ESB Server that is capable of monitoring and sending alerts based off of JMX MBean properties. You can use this functionality to receive alerts for ESB-related events – such as the DeadLetterService counter reaching a certain threshold.

1) Configure ./deploy/mail-service.xml with your SMTP settings.

2) Change ./deploy/monitoring-service.xml – uncomment the EmailAlertListener section and add appropriate header related information.

3) Create a file ./deploy to serve as your monitor MBean.

File: ./deploy/DeadLetterQueue_Monitor-service.xml

<?xml version="1.0" encoding="UTF-8"?>

<server>

<mbean code="org.jboss.monitor.ThresholdMonitor"

name="jboss.monitor:service=ESBDLQMonitor">

<attribute name="MonitorName">ESB DeadLetterQueue Monitor</attribute>

<attribute name="ObservedObject">jboss.esb:category=MessageCounter,deployment=jbossesb.esb,service-name=DeadLetterService</attribute>

<attribute name="ObservedAttribute">overall service message count</attribute>

<attribute name="Threshold">4</attribute>

<attribute name="CompareTo">-1</attribute>

<attribute name="Period">1000</attribute>

<attribute name="Enabled">true</attribute>

<depends-list optional-attribute-name="AlertListeners">

<depends-list-element>jboss.alerts:service=ConsoleAlertListener</depends-list-element>

<depends-list-element>jboss.alerts:service=EmailAlertListener</depends-list-element>

</depends-list>

<depends>jboss.esb:deployment=jbossesb.esb</depends>

</mbean>

</server>



This MBean will serve as a monitor, and once the DeadLetterService counter reaches 5, it will send an e-mail to the address(es) specified in the monitoring-service.xml. Note that the alert is only sent once – once the threshold has been reached. If you want to be alerted again once resetting the counter, you can reset the alerted flag on your monitoring service MBean (in this case jboss.monitor:service=ESBDLQMonitor).

For more details on how to use the JBoss Web Console monitoring, please see the Wiki pages.

Hot Deployment

Server mode

JBossAS as well as the JBossESB-Server are always checking the 'deploy' directory for new files to deploy. So we're really talking about hot redeployment. So here is what you have to do to make it redeploy an existing deployment for the different components.

1. sar files

The jbossesb.sar is hot deployable. It will redeploy when

2. esb files

Any *.esb archive will redeploy when

Our actions have lifecycle support, so upon hot deployment it goes down gracefully, finishes active requests, and does not accept any more incoming messages until it is back up. All of this can be done by simply redeploying the .esb archive. If you want to update just one action, you can use groovy scripting to modify an action at runtime (see the groovy QuickStart).

3. rule files

There are two options to refresh rule files (drl or dsl)

4. transformation files

There are two options to refresh transformation files

When using jBPM new Business Process Definitions can be deployed. From within the jBBPM eclipse plugin you can deploy a new definition to the jbpm database. New process instances will get the new version, in flight processes will finish their life cycle on the previous definitions. For details please see the documentation on jBPM.


Standalone (bootstrap) mode.

The bootstrapper does not deploy esb archives. You can only have one jboss-esb.xml configuration file per node. It will monitor the timestamp on this file and it will reread the configuration if a change occurs. To updates rules you will have to use the 'ruleReload', to update transformation you need to send out a Smooks JMS notification using the esb-console. And finally to update BPDs you can follow the same process mentioned above.



Contract Publishing

Overview

Integrating to certain ESB endpoints may require information about that endpoint and the operations it supports. This is particularly the case for Webservice endpoints exposed via the SOAPProcessor action (see Message Action Guide).

Contract” Application

For this purpose, we bundle the “Contract” application with the ESB1. This application is installed by default with the ESB (after running “ant deploy” from the install directory of the distro)2.

It can be accessed through the following URL:

http://localhost:8080/contract/

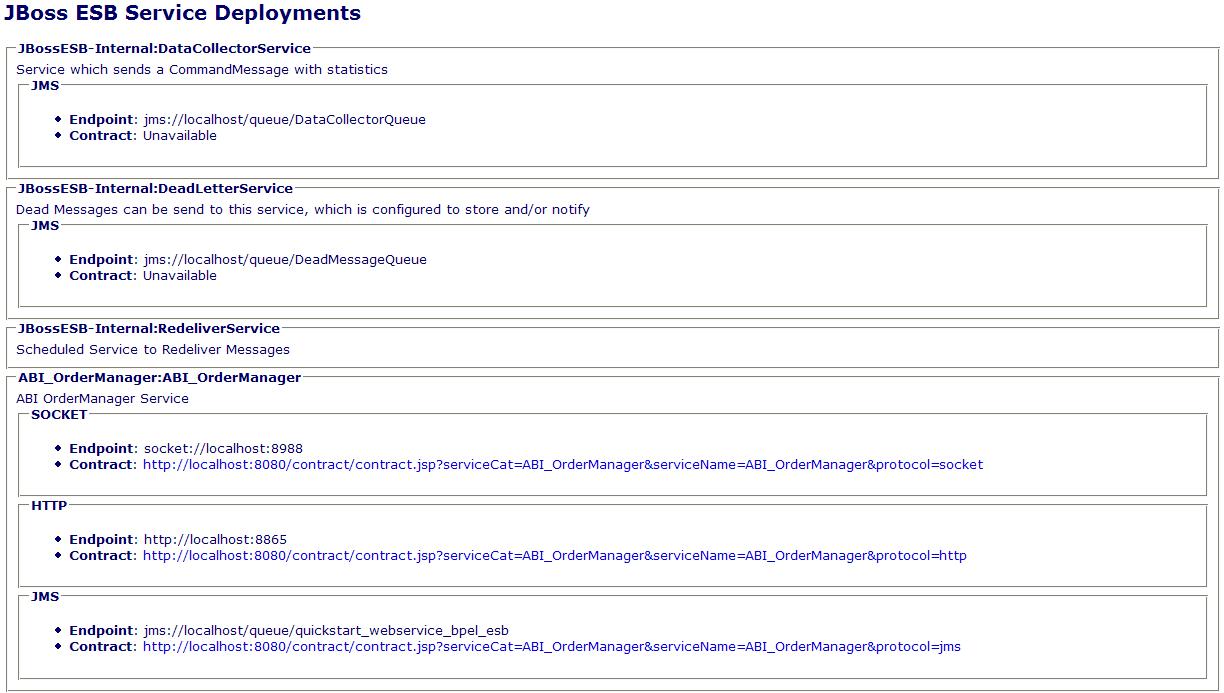

The following is a screenshot of this application.




As you can see, it groups the endpoint according to Service with which they are associated (servicing). Another thing you'll notice is how some of them have an active “Contract” hyperlink. The ones visible here are for Webservice endpoints exposed via the SOAPProcessor. This hyperlink links off to the WSDL.

Publishing a Contract from an Action

JBossESB discovers endpoint contracts based on the action pipeline that's configured on a Service. It looks for the first action in the pipeline that publishes contract information. If none of the actions publish contract information, then the Contract application just displays “Unavailable” on Contract for that endpoint.

An Action publishes contract information by being annotated with the org.jboss.internal.soa.esb.publish.Publish annotation as follows (using the SOAPProcessor as an example):



@Publish(WebserviceContractPublisher.class)
public class SOAPProcessor extends AbstractActionPipelineProcessor {
    ...
}



See the SOAPProcessor code as an example.

You then need to implement a “ContractPublisher” (org.jboss.soa.esb.actions.soap.ContractPublisher), which just requires implementation of a single method:



public ContractInfo getContractInfo(EPR epr);



See the WebserviceContractPublisher code as an example.





jBPM Console

Overview

The jBPM Web Console is deployed by default as part of jbpm.esb and can be found at http://localhost:8080/jbpm-console/. Please refer to the jBPM documentation for information regarding the console.


Index

Configuring Databases

Background 10

Configuring JMS

ActiveMQ 8, 9

JBossMQ 7

Legacy 7

WebSphere MQ 10




1NOTE: This application is only being offered as a Technical Preview. It will be superseded in a later release.

2Note that the Contract application is also bundled inside the JBossESB Console. If you are deploying the console, you will first need to undeploy the default Contract application. Just remove contract.war from the default/deploy folder of your ESB/App Server.

JBESB-AG-5/22/08
