The goal of JBoss Messaging is simple and uncompromising; to bring unrivalled levels of performance and reliability to messaging, and to be the fastest, best featured and most scalable multi-protocol messaging system.
Why use JBoss Messaging? Here are just a few of the reasons:
100% open source software.
Written in Java. Runs on any platform with a J2SE 5.0 JDK, that's everything from Windows desktops to IBM mainframes.
Superb performance. Our class beating high performance journal provides persistent messaging performance at rates normally seen for non persistent messaging, our non persistent messaging performance rocks the boat too.
Full feature set. All the features you'd expect in any serious messaging system, and others you won't find anywhere else.
Elegant POJO based design with minimal third party dependencies. Run JBoss Messaging stand-alone, run it in integrated in your favourite JEE application server, or run it embedded inside your own product.
Seamless high availabilty. We provide server replication and completely transparent client failover so you don't have to worry about coding your client specially for an HA environment.
Hugely flexible clustering. Create clusters of servers that know how to load balance messages. Link geographically distributed clusters over unreliable connections to form a global network. Configure routing of messages in a highly flexible way.
JBoss Messaging is an asynchronous messaging system, an example of Message Oriented Middleware , we'll just call them messaging systems in the remainder of this book.
We'll first present a brief overview of what kind of things messaging systems do and and where they're useful, and the kind of concepts you'll hear about in the messaging world.
If you're already familiar with what a messaging system is and what it's capable of, then you can skip this chapter.
Messaging systems allow you to loosely couple heteregenous systems together, whilst typically providing reliability, transactions, and many other features.
Unlike systems based on a Remote Procedure Call (RPC) pattern, messaging systems primarily use an asynchronous message passing pattern with no tight relationship between requests and responses. Most messaging systems also support a request-response mode but this is not a primary feature of messaging systems.
Designing systems to be asynchronous from end-to-end allows you to really take advantage of your hardware resources, minimizing the amount of threads blocking on IO operations, and to use your network bandwidth to its full capacity. With an RPC approach you have to wait for a response for each request you make so are limited by the network round trip time, or latency of your network. With an asynchronous system you can pipeline flows of messages in different directions, so are limited by the network bandwidth not the latency. This typically allows you to create much higher performance applications.
Messaging systems decouple the senders of messages from the consumers of messages. The senders and consumers of messages are completely independent and know nothing of each other. This allows you to create flexible, loosely coupled systems.
Often, large enterprises use a messaging system to implement a message bus which loosely couples heterogeneous systems together. Message buses often form the core of an Enterprise Service Bus. (ESB). Using a message bus to de-couple disparate systems can allow the system to grow and adapt. It also allows more flexibility add new systems or retire old ones since they don't have brittle dependencies on each other.
Messaging systems normally support two main styles of asynchronous messaging: message queue messaging (also known as point-to-point messaging) and publish subscribe messaging. We'll summarise them briefly here:
With this type of messaging you send a message to a queue. The message is then typically persisted to provide a guarantee of delivery, then some time later the messaging system delivers the message to a consumer. The consumer then processes the message and when it is done, it acknowledges the message. Once the message is acknowledged it disappears from the queue and is not available to be delivered again. If the system crashes before the messaging server receives an acknowledgement from the consumer, then on recovery, the message will be available to be delivered to a consumer again.
With point-to-point messaging, there can be many consumers on the queue but a particular message will only ever be consumed by a maximum of one of them. Senders (also known as producers) to the queue are completely decoupled from receivers (also known as consumers) of the queue - they do not know of each others existence.
A classic example of point to point messaging would be an order queue in a company's book ordering system. Each order is represented as a message which is sent to the order queue. There are many front end ordering systems which send orders to the order queue. When a message arrives on the queue it is persisted - this ensures that if the server crashes the order is not lost. There are many consumers on the order queue - each representing an instance of an order processing component - these can be on different physical machines but consuming from the same queue. The messaging system delivers each message to one and only one of the ordering processing components. Different messages can be processed by order processors, but a single order is only processed by one order processor - this ensures orders aren't processed twice.
As an order processor receives a message, it fulfills the order, sends order information to the warehouse system and then updates the order database with the order details. Once it's done that it acknowledges the message to tell the server that the order message is done and can be forgotten about. Often the send to the warehouse system, update in database and acknowledgement will be completed in a single transaction to ensure ACID properties.
With publish-subscribe messaging many senders can send messages to an entity on the server, often called a topic (e.g. in the JMS world).
There can be many subscriptions on a topic, each subscription receives a copy of each message sent to the topic. This differs from the message queue pattern where each message is only consumed by a single consumer.
Subscriptions can optionally be durable which means they retain a copy of each message sent to the topic until the subscriber consumes it.
An example of publish-subscribe messaging would be a news feed. As news articles are created by different editors around the world they are sent to a news feed topic. There are many subscribers around the world who are interested in receiving news items - each one creates a subscription and the messaging system ensures that a copy of each news message is delivered to each subscription.
A key feature of most messaging systems is reliable messaging. With reliable messaging the server gives a guarantee that the message will be delivered once and only once to each consumer of a queue or each durable subscription of a topic, even in the event of system failure. This is crucial for many businesses, you don't want your orders fulfilled more than once or your orders to be lost.
In other cases you may not care about a once and only once delivery guarantee and are happy to cope with duplicate deliveries. The messaging system allows you to configure which delivery guarantees you require.
Messaging systems typically support the sending and acknowledgement of multiple messages in a single local transaction. JBoss Messaging also supports the sending and acknowledgement of message as part of a large global transaction - using the Java mapping of XA, JTA.
Messages are either durable or non durable. Durable messages will persisted in permanent storage and will survive server failure. Non durable messages will not survive server failure or restart. Examples of durable messages might be orders or trades, where they cannot be lost. An example of a non durable message might be a stock price update. This is transitory and there's no need for it to survive a restart.
How do client applications interact with messaging systems in order to send and consume messages?
Several messaging systems provide their own proprietary APIs with which the client communicates with the messaging system.
There are also some standard ways of operating with messaging systems and some emerging standards in this space.
Let's take a brief look at these:
JMS is part of Sun's JEE specification. It's a Java API that encapsulates both message queue and publish-subscribe messaging patterns. JMS is a lowest common denominator specification - i.e. it was created to encapsulate common functionality of the already existing messaging systems that were available at the time of its creation.
JMS is a very popular API and is implemented by most messaging systems. JMS is only available to clients running Java.
JMS does not define a standard wire format - it only defines a programmatic API so JMS clients and servers from different vendors cannot interoperate since they will most likely use the vendor's own internal wire protocol.
JBoss Messaging provides a fully compliant JMS 1.1 API.
Many systems provide their own programmatic API for which to interact with the messaging system. The advantage of this it allows the full set of system functionality to be exposed to the client application. API's like JMS are not normally rich enough to expose all the extra features that most messaging systems provide.
JBoss Messaging provides its own core client API for clients to use if they wish to have access to functionality over and above that accessible via the JMS API.
STOMP is a very simple protocol for interoperating with messaging systems. It defines a wire format, so theoretically any STOMP client can work with any messaging system that supports STOMP. STOMP clients are available in many different programming languages.
JBoss Messaging can be used by any STOMP client when using the StompConnect broker which translates the STOMP protocol to the JMS API.
JBoss Messaging will be shortly implementing the STOMP protocol on the broker, thus avoiding having to use StompConnect.
AMQP is an emerging standard for interoperable messaging. It also defines a wire format, so any AMQP client can work with any messaging system that supports AMQP. AMQP clients are available in many different programming languages.
JBoss Messaging will shortly be implementing AMQP.
REST approaches to messaging are showing a lot interest recently. With a REST approach messaging resources are manipulated as resources defined by a URI and typically using a simple set of operations on those resources, e.g. PUT, POST, GET etc. REST approaches to messaging often use HTTP as their underlying protocol.
The advantage of a REST approach with HTTP is in its simplicity and the fact the internet is already tuned to deal with HTTP optimally.
JBoss Messaging will shortly be implementing REST.
High Availability (HA) means that the system should remain operational after failure of one or more of the servers. The degree of support for HA varies between various messaging systems.
Some messaging systems require you to deal with server side failure by writing some client side code which gets called on event of server failure, and in which you are supposed to recreate your connections to another server.
JBoss Messaging provides 100% transparent failover where you don't have have to write any special client side code to deal with failure. On failover JBoss Messaging will automatically fail over your client connections to another server, and your client sessions can continue as if nothing happened.
For more information on HA, please see Chapter 37, High Availability and Failover.
Many messaging systems allow you to create groups of messaging servers called clusters. Clusters allow the load of sending and consuming messages to be spread over many servers. This allows your system to be able scale horizontally by adding new servers to the cluster.
Degrees of support for clusters varies between messaging systems, with some systems having fairly basic clusters with the cluster members being hardly aware of each other.
JBoss Messaging provides very configurable state of the art clustering where messages can be intelligently load balanced between the servers in the cluster, according to the number of consumers on each node, and whether they are ready for messages.
JBoss Messaging also has the ability to automatically redistribute messages between nodes of a cluster to prevent starvation on any particular node.
For full details on clustering, please see Chapter 36, Clusters.
Some messaging systems allow isolated clusters or single nodes to be bridged together, typically over unreliable connections like a wide area network (WAN).
A bridge normally consumes from a queue on one server and forwards messages to another queue on a different server. Bridges cope with unreliable connections, automatically reconnecting when the connections becomes available again.
JBoss Messaging bridges can be configured with filter expressions to only forward certain messages, and transformation can also be hooked in.
JBoss Messaging also allows routing between queues to be configured in server side configuration. This allows complex routing networks to be set up forwarding or copying messages from one destination to another, forming a global network of interconnected brokers.
For more information please see Chapter 34, Core Bridges and Chapter 33, Diverting and Splitting Message Flows.
In this section we will give an overview of the JBoss Messaging high level architecture.
JBoss Messaging core is designed simply as set of Plain Old Java Objects (POJOs).
We've also designed it to have as few dependencies on external jars as possible. In fact, JBoss Messaging core has zero dependencies on any jars other than the standard JDK classes!
This allows JBoss Messaging to be easily embedded in your own project, or instantiated in any dependency injection framework such as JBoss Microcontainer, Spring or Google Guice.
A JBoss Messaging server has its own high performance persistent journal, which it uses for message and other persistence.
Using a high performance journal allows outrageous persistence message performance, something not achievable when using a relational database for persistence.
JBoss Messaging clients, potentially on different physical machines interact with the JBoss Messaging server. JBoss Messaging currently provides two APIs for messaging at the client side:
Core client API. This is a simple intuitive Java API that allows the full set of messaging functionality without some of the complexities of JMS.
JMS client API. The standard JMS API is available at the client side.
JMS semantics are implemented by a thin JMS facade layer on the client side.
The JBoss Messaging server does not speak JMS and in fact does not know anything about JMS, it's a protocol agnostic messaging server designed to be used with multiple different protocols.
When a user uses the JMS API on the client side, all JMS interactions are translated into operations on the JBoss Messaging core client API before being transferred over the wire using the JBoss Messaging wire format.
The server always just deals with core API interactions.
A schematic illustrating this relationship is shown in figure 3.1 below:
Figure 3.1 shows two user applications interacting with a JBoss Messaging server. User Application 1 is using the JMS API, while User Application 2 is using the core client API directly.
You can see from the diagram that the JMS API is implemented by a thin facade layer on the client side.
JBoss Messaging core is designed as a set of simple POJOs so if you have an application that requires messaging functionality internally but you don't want to expose that as a messaging server you can directly instantiate and embed messaging servers in your own application.
For more information on embedding JBoss Messaging, see Chapter 41, Embedding JBoss Messaging.
JBoss Messaging provides its own fully functional Java Connector Architecture (JCA) adaptor which enables it to be integrated easily into any JEE compliant application server or servlet engine.
JEE application servers provide Message Driven Beans (MDBs), which are a special type of Enterprise Java Beans (EJBs) that can process messages from sources such as JMS systems or mail systems.
Probably the most common use of an MDB is to consume messages from a JMS messaging system.
According to the JEE specification, a JEE application server uses a JCA adapter to integrate with a JMS messaging system so it can consume messages for MDBs.
However, the JCA adapter is not only used by the JEE application server for consuming messages via MDBs, it is also used when sending message to the JMS messaging system e.g. from inside an EJB or servlet.
When integrating with a JMS messaging system from inside a JEE application server it is always recommended that this is done via a JCA adaptor.
The application server's JCA service provides extra functionality such as connection pooling and automatic transaction enlistment, which are desirable when using messaging, say, from inside an EJB. It is possible to talk to a JMS messaging system directly from an EJB, MDB or servlet without going through a JCA adapter, but this is not recommended since you will not be able to take advantage of the JCA features, such as caching of JMS sessions, which can result in poor performance.

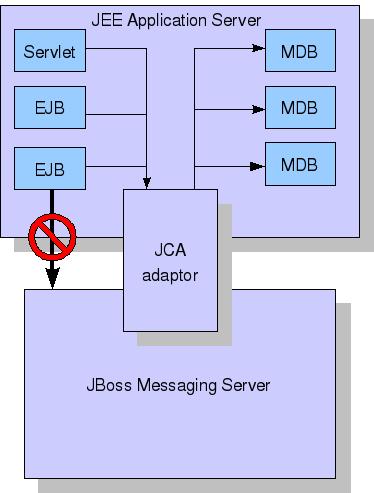

Figure 3.2 below shows a JEE application server integrating with a JBoss Messaging server via the JBoss Messaging JCA adaptor. Note that all communication between EJB sessions or entity beans and Message Driven beans go through the adaptor and not directly to JBoss Messaging.
The large arrow with the prohibited sign shows an EJB session bean talking directly to the JBoss Messaging server. This is not recommended as you'll most likely end up creating a new connection and session every time you want to interact from the EJB, which is an anti-pattern.
For more information on using the JCA adaptor, please see Chapter 31, Application Server Integration and Java EE.
JBoss Messaging can also be deployed as a stand-alone server. This means a fully independent messaging server not dependent on a JEE application server.
The standard stand-alone messaging server configuration comprises a core messaging server, a JMS service and a JNDI service.
The role of the JMS Service is to deploy any JMS Queues, Topics and ConnectionFactory instances from any server side jbm-jms.xml configuration files. It also provides a simple management API for creating and destroying Queues, Topics and ConnectionFactory instances which can be accessed via JMX or the connection. It is a separate service to the JBoss Messaging core server, since the core server is JMS agnostic. If you don't want to deploy any JMS Queues, Topics and ConnectionFactory instances via server side XML configuration and don't require a JMS management API on the server side then you can disable this service.
We also include a JNDI server since JNDI is a common requirement when using JMS to lookup Queues, Topics and ConnectionFactory instances. If you do not require JNDI then this service can also be disabled. JBoss Messaging allows you to programmatically create JMS and core objects directly on the client side as opposed to looking them up from JNDI, so a JNDI server is not always a requirement.
The stand-alone server configuration uses JBoss Microcontainer to instantiate and enforce dependencies between the components. JBoss Microcontainer is a very lightweight POJO bootstrapper.

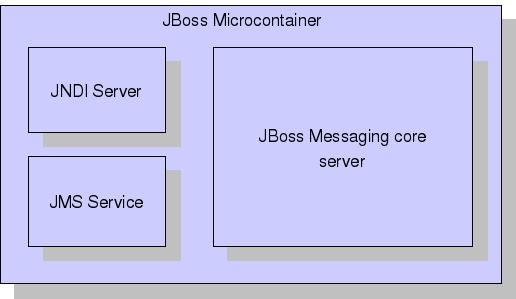

The stand-alone server architecture is shown in figure 3.3 below:
For more information on server configuration files see Section 45.1, “Server Configuration”. $
This chapter will familiarise you with how to use the JBoss Messaging server.
We'll show where it is, how to start and stop it, and we'll describe the directory layout and what all the files are and what they do.
For the remainder of this chapter when we talk about the JBoss Messaging server we mean the JBoss Messaging standalone server, in its default configuration with a JMS Service and JNDI service enabled.
When running embedded in JBoss Application Server the layout may be slightly different but by-and-large will be the same.
In the distribution you will find a directory called bin.
cd into that directory and you'll find a unix/linux script called run.sh and a windows batch file called run.bat
To run on Unix/Linux type ./run.sh
To run on Windows type run.bat
These scripts are very simple and basically just set-up the classpath and some JVM parameters and start the JBoss Microcontainer. The Microcontainer is a light weight container used to deploy the JBoss Messaging POJO's
To stop the server you'll also find a unix/linux script stop.sh and a windows batch file run.bat
To run on Unix/Linux type ./stop.sh
To run on Windows type stop.bat
Please note that JBoss Messaging requires a Java 5 or later JDK to run. We recommend running on Java 6.
Both the run and the stop scripts use the config under config/stand-alone/non-clustered by default. The configuration can be changed by running ./run.sh ../config/stand-alone/clustered or another config of your choosing. This is the same for the stop script and the windows bat files.
The run scripts run.sh and run.bat set some JVM settings for tuning running on Java 6 and choosing the garbage collection policy. We recommend using a parallel garbage collection algorithm to smooth out latency and minimises large GC pauses.
By default JBoss Messaging runs in a maximum of 1GB of RAM. To increase the memory settings change the -Xms and -Xmx memory settings as you would for any Java program.
If you wish to add any more JVM arguments or tune the existing ones, the run scripts are the place to do it.
JBoss Messaging looks for its configuration files on the Java classpath.
The scripts run.sh and run.bat specify the classpath when calling Java to run the server.
In the distribution, the run scripts will add the non clustered configuration directory to the classpath. This is a directory which contains a set of configuration files for running the JBoss Messaging server in a basic non-clustered configuration. In the distribution this directory is config/stand-alone/non-clustered/ from the root of the distribution.
The distribution contains several standard configuration sets for running:
Non clustered stand-alone.
Clustered stand-alone
Non clustered in JBoss Application Server
Clustered in JBoss Application Server
You can of course create your own configuration and specify any configuration directory when running the run script.
Just make sure the directory is on the classpath and JBoss Messaging will search there when starting up.
If you're using the Asynchronous IO Journal on Linux, you need to specify java.library.path as a property on your Java options. This is done automatically in the run.sh script.
If you don't specify java.library.path at your Java options then the JVM will use the environment variable LD_LIBRARY_PATH.
JBoss Messaging also takes a couple of Java system properties on the command line for configuring logging properties
JBoss Messaging uses JDK logging to minimise dependencies on other logging systems. JDK logging can then be configured to delegate to some other framework, e.g. log4j if that's what you prefer.
For more information on configuring logging, please see Chapter 40, Logging.
The configuration directory is specified on the classpath in the run scripts run.sh and run.bat This directory can contain the following files.
jbm-jboss-beans.xml. This is the JBoss Microcontainer beans file which defines what beans the Microcontainer should create and what dependencies to enforce between them. Remember that JBoss Messaging is just a set of POJOs. In the stand-alone server, it's the JBoss Microcontainer which instantiates these POJOs and enforces dependencies between them and other beans. Please see Section 4.8, “The main configuration file.” for more information on this file.
jbm-configuration.xml. This is the main JBoss Messaging configuration file. All the parameters in this file are described in Chapter 45, Configuration Reference.
jbm-queues.xml. This file contains predefined queues, queue settings and security settings. The file is optional - all this configuration can also live in jbm-configuration.xml. In fact, the default configuration sets do not have a jbm.queues.xml file. The purpose of allowing queues to be configured in these files is to allow you to manage your queue configuration over many files instead of being forced to maintain it in a single file. There can be many jbm-queues.xml files on the classpath. All will be loaded if found.
jbm-users.xml JBoss Messaging ships with a security manager implementation which obtains user credentials from the jbm-users.xml file. This file contains user, password and role information. For more information on security ,please see Chapter 30, Security.
jbm-jms.xml The distro configuration by default includes a server side JMS service which mainly deploys JMS Queues, Topics and ConnectionFactorys from this file into JNDI. If you're not using JMS, or you don't need to deploy JMS objects on the server side, then you don't need this file. For more information on using JMS, please see Chapter 5, Using JMS.
logging.properties This is used to configure the logging handlers used by the Java logger. For more information on configuring logging, please see Chapter 40, Logging.
log4j.xml This is the Log4j configuration if the Log4j handler is configured.
Note
The property file-deployment-enabled in the jbm-configuration.xml configuration when set to false mans that the other configuration files are not loaded. This is true by default.
It is also possible to use system property substitution in all the configuration files. by replacing a value with the name of a system property. Here is an example of this with a connector configuration:
<connector name="netty">
<factory-class>org.jboss.messaging.integration.transports.netty.NettyConnectorFactory</factory-class>
<param key="jbm.remoting.netty.host" value="${jbm.remoting.netty.host:localhost}" type="String"/>
<param key="jbm.remoting.netty.port" value="${jbm.remoting.netty.port:5445}" type="Integer"/>
</connector>here you can see we have replaced 2 values with system properties jbm.remoting.netty.host and jbm.remoting.netty.port. These values will be replaced by the value found in the system property if there is one, if not they default back to localhost or 5445 respectively. It is also possible to not supply a default. i.e. ${jbm.remoting.netty.host}, however the system property must be supplied in that case.
The stand-alone server is basically a set of POJOs which are instantiated by the light weight JBoss Microcontainer engine.
Note
A beans file is also needed when the server is deployed in the JBoss Application Server but this will deploy a slightly different set of objects since the Application Server will already have things like security etc deployed.
Let's take a look at an example beans file from the stand-alone server:
<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="urn:jboss:bean-deployer:2.0">
<bean name="Naming" class="org.jnp.server.NamingBeanImpl"/>
<!-- JNDI server. Disable this if you don't want JNDI -->
<bean name="JNDIServer" class="org.jnp.server.Main">
<property name="namingInfo">
<inject bean="Naming"/>
</property>
<property name="port">1099</property>
<property name="bindAddress">localhost</property>
<property name="rmiPort">1098</property>
<property name="rmiBindAddress">localhost</property>
</bean>
<!-- MBean server -->
<bean name="MBeanServer" class="javax.management.MBeanServer">
<constructor factoryClass="java.lang.management.ManagementFactory"
factoryMethod="getPlatformMBeanServer"/>
</bean>
<!-- The core configuration -->
<bean name="Configuration" class="org.jboss.messaging.core.config.impl.FileConfiguration">
</bean>
<!-- The security manager -->
<bean name="JBMSecurityManager"
class="org.jboss.messaging.core.security.impl.JBMSecurityManagerImpl">
<start ignored="true"/>
<stop ignored="true"/>
</bean>
<!-- The core server -->
<bean name="MessagingServer" class="org.jboss.messaging.core.server.impl.MessagingServerImpl">
<start ignored="true"/>
<stop ignored="true"/>
<constructor>
<parameter>
<inject bean="Configuration"/>
</parameter>
<parameter>
<inject bean="MBeanServer"/>
</parameter>
<parameter>
<inject bean="JBMSecurityManager"/>
</parameter>
</constructor>
</bean>
<!-- The JMS server -->
<bean name="JMSServerManager"
class="org.jboss.messaging.jms.server.impl.JMSServerManagerImpl">
<constructor>
<parameter>
<inject bean="MessagingServer"/>
</parameter>
</constructor>
</bean>
</deployment>
We can see that, as well as the core JBoss Messaging server, the stand-alone server instantiates various different POJOs, lets look at them in turn:
JNDIServer
Many clients like to look up JMS Objects from JNDI so we provide a JNDI server for them to do that. If you don't need JNDI this can be commented out or removed.
MBeanServer
In order to provide a JMX management interface a JMS MBean server is necessary in which to register the management objects. Normally this is just the default platform MBean server available in the JVM instance. If you don't want to provide a JMX management interface this can be commented out or removed.
Configuration
The messaging server is configured with a Configuration object. In the default stand-alone set-up it uses a FileConfiguration object which knows to read configuration information from the file system. In different configurations such as embedded you might want to provide configuration information from somewhere else.
Security Manager. The security manager used by the messaging server is pluggable. The default one used just reads user-role information from the jbm-users.xml file on disk. However it can be replaced by a JAAS security manager, or when running inside JBoss Application Server it can be configured to use the JBoss AS security manager for tight integration with JBoss AS security. If you've disabled security altogether you can remove this too.
MessagingServer
This is the core server. It's where 99% of the magic happens
JMSServerManager
This deploys any JMS Objects such as JMS Queues, Topics and ConnectionFactory instances from jbm-jms.xml files on the disk. It also provides a simple management API for manipulating JMS Objects. On the whole it just translates and delegates its work to the core server. If you don't need to deploy JMS Queues, Topics and ConnectionFactorys from server side configuration and don't require the JMS management interface this can be disabled.
The configuration for the JBoss Messaging core server is contained in jbm-configuration.xml. This is what the FileConfiguration bean uses to configure the messaging server.
There are many attributes which you can configure JBoss Messaging. In most cases the defaults will do fine, in fact every attribute can be defaulted which means a file with a single empty configuration element is a valid configuration file. The different configuration will be explained throughout the manual or you can refer to the configuration reference here.
Although JBoss Messaging provides a JMS agnostic messaging API, many users will be more comfortable using JMS.
JMS is a very popular API standard for messaging, and most messaging systems provide a JMS API. If you are completely new to JMS we suggest you following the Sun JMS tutorial - a full JMS tutorial is out of scope for this guide.
JBoss Messaging also ships with a wide range of examples, many of which demonstrate JMS API usage. A good place to start would be to play around with the simple JMS Queue and Topic example, but we also provide examples for many other parts of the JMS API. A full description of the examples is available in Chapter 9, Examples.
In this section we'll go through the main steps in configuring the server for JMS and creating a simple JMS program. We'll also show how to configure and use JNDI, and also how to use JMS with JBoss Messaging without using any JNDI.
For this chapter we're going to use a very simple ordering system as our example. It's a somewhat contrived example because of its extreme simplicity, but it serves to demonstrate the very basics of setting up and using JMS.
We will have a single JMS Queue called OrderQueue, and we will have a single MessageProducer sending an order message to the queue and a single MessageConsumer consuming the order message from the queue.
The queue will be a durable queue, i.e. it will survive a server restart or crash. We also want to predeploy the queue, i.e. specify the queue in the server JMS configuration so it's created automatically without us having to explicitly create it from the client.
The file jbm-jms.xml on the server classpath contains any JMS Queue, Topic and ConnectionFactory instances that we wish to create and make available to lookup via the JNDI.
A JMS ConnectionFactory object is used by the client to make connections to the server. It knows the location of the server it is connecting to, as well as many other configuration parameters. In most cases the defaults will be acceptable.
We'll deploy a single JMS Queue and a single JMS Connection Factory instance on the server for this example but there are no limits to the number of Queues, Topics and Connection Factory instances you can deploy from the file. Here's our configuration:
<configuration xmlns="urn:jboss:messaging"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:jboss:messaging ../schemas/jbm-jms.xsd ">
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
</connection-factory>
<queue name="OrderQueue">
<entry name="queues/OrderQueue"/>
</queue>
</configuration>
We deploy one ConnectionFactory called ConnectionFactory and bind it in just one place in JNDI as given by the entry element. ConnectionFactory instances can be bound in many places in JNDI if you require.
Note
The JMS connection factory references a connector called netty. This is a reference to a connector object deployed in the main core configuration file jbm-configuration.xml which defines the transport and parameters used to actually connect to the server.
When using JNDI from the client side you need to specify a set of JNDI properties which tell the JNDI client where to locate the JNDI server, amongst other things. These are often specified in a file called jndi.properties on the client classpath, or you can specify them directly when creating the JNDI initial context. A full JNDI tutorial is outside the scope of this document, please see the Sun JNDI tutorial for more information on how to use JNDI.
For talking to the JBoss JNDI Server, the jndi properties will look something like this:
java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory
java.naming.provider.url=jnp://myhost:1099
java.naming.factory.url.pkgs=org.jboss.naming:org.jnp.interfaces
Where myhost is the hostname or IP address of the JNDI server. 1099 is the port used by the JNDI server and may vary depending on how you have configured your JNDI server.
In the default standalone configuration, JNDI server ports are configured in the jbm-jboss-beans.xml file where the JNDIServer bean is confgured, here's a snippet from the file:
<bean name="JNDIServer" class="org.jnp.server.Main">
<property name="namingInfo">
<inject bean="Naming"/>
</property>
<property name="port">1099</property>
<property name="bindAddress">localhost</property>
<property name="rmiPort">1098</property>
<property name="rmiBindAddress">localhost</property>
</bean>
Note
If you want your JNDI server to be available to non local clients make sure you change it's bind address to something other than localhost!
Here's the code for the example:
First we'll create a JNDI initial context from which to lookup our JMS objects:
InitialContect ic = new InitialContext();
Now we'll look up the connection factory:
ConnectionFactory cf = (ConnectionFactory)ic.lookup("/ConnectionFactory");And look up the Queue:
Queue orderQueue = (Queue)ic.lookup("/queues/OrderQueue");Next we create a JMS connection using the connection factory:
Connection connection = cf.createConnection();
And we create a non transacted JMS Session, with AUTO_ACKNOWLEDGE acknowledge mode:
Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
We create a MessageProducer that will send orders to the queue:
MessageProducer producer = session.createProducer(orderQueue);
And we create a MessageConsumer which will consume orders from the queue:
MessageConsumer consumer = session.createConsumer(orderQueue);
We make sure we start the connection, or delivery won't occur on it:
connection.start();
We create a simple TextMessage and send it:
TextMessage message = session.createTextMessage("This is an order");
producer.send(message);And we consume the message:
TextMessage receivedMessage = (TextMessage)consumer.receive();
System.out.println("Got order: " + receivedMessage.getText());
It's as simple as that. For a wide range of working JMS examples please see the examples directory in the distribution.
Although it's a very common JMS usage pattern to lookup JMS Administered Objects (that's JMS Queues, Topics and Connection Factories) from JNDI, in some cases a JNDI server is not available and you still want to use JMS, or you just think "Why do I need JNDI? Why can't I just instantiate these objects directly?"
With JBoss Messaging you can do exactly that. JBoss Messaging supports the direct instantiation of JMS Queue, Topic and Connection Factory instances, so you don't have to use JNDI at all.
For a full working example of direct instantiation please see the JMS examples in Chapter 9, Examples.
Here's our simple example, rewritten to not use JNDI at all:
We create the JMS ConnectionFactory object directly, note we need to provide connection parameters and specify which transport we are using, for more information on connectors please see Chapter 14, Configuring the Transport.
TransportConfiguration transportConfiguration =
new TransportConfiguration(NettyConnectorFactory.class.getName());
ConnectionFactory cf = new JBossConnectionFactory();
We create the JMS Queue Object directly:
Queue orderQueue = new JBossQueue("OrderQueue");Next we create a JMS connection using the connection factory:
Connection connection = cf.createConnection();
And we create a non transacted JMS Session, with AUTO_ACKNOWLEDGE acknowledge mode:
Session session = connection.createSession(false, Session.AUTO_ACKNOWLEDGE);
We create a MessageProducer that will send orders to the queue:
MessageProducer producer = session.createProducer(orderQueue);
And we create a MessageConsumer which will consume orders from the queue:
MessageConsumer consumer = session.createConsumer(orderQueue);
We make sure we start the connection, or delivery won't occur on it:
connection.start();
We create a simple TextMessage and send it:
TextMessage message = session.createTextMessage("This is an order");
producer.send(message);And we consume the message:
TextMessage receivedMessage = (TextMessage)consumer.receive();
System.out.println("Got order: " + receivedMessage.getText());
This represents the client id for a JMS client and is needed for creating durable subscriptions. It is possible to configure this on the connection factory and can be set via the client-id element. Any connection created by this connection factory will have this set as its client id.
When the JMS acknowledge mode is set to DUPS_OK it is possible to configure the consumer so that it sends the acknowledgements in batches rather that one at a time, saving valuable bandwidth. This can be configured via the connection factory via the dups-ok-batch-size element and is set in bytes. The default is 1024 * 1024.
When receiving messages in a transaction it is possible to configure the consumer to send acknowledgements in batches rather than individually saving valuable bandwidth. This can be configured on the connection factory via the transaction-batch-size element and is set in bytes. The default is 1024 * 1024.
JBoss Messaging core is a completely JMS-agnostic messaging system with its own core API.
If you don't want to use JMS you can use the core API directly. The core API provides all the functionality of JMS but without much of the complexity. It also provides features that are not normally available using JMS.
Some of the core messaging concepts are similar to JMS concepts, but core messaging concepts differ in some ways. In general the core messaging API is simpler than the JMS API, since we remove distinctions between queues, topics and subscriptions. We'll discuss each of the major core messaging concepts in turn, but to see the API in detail, please consult the Javadoc.
A message is the unit of data which is sent between clients and servers.
A message has a body which is effectively a byte[], it also has a set of properties which are key-value pairs. Each property key is a string and property values can be of type integer, long, short, byte, byte[], String, double, float or boolean.
A message has a destination which represents the address it is being sent to. When the message arrives on the server it is routed to any queues that are bound to the address. An address may have many queues bound to it or even none.
Messages can be either durable or non durable. Durable messages in a durable queue will survive a server crash or restart. Non durable messages will never survive a server crash or restart.
Messages can be specified with a priority value between 0 and 9. 0 represents the highest priority and 9 represents the lowest. JBoss Messaging will attempt to deliver higher priority messages before lower priority ones.
Messages can be specified with an optional expiry time. JBoss Messaging will not deliver messages after its expiry time has been exceeded.
Messages also have an optional timestamp which represents the time the message was sent.
A server maintains a mapping between an address and a set of queues. Zero or more queues can be bound to a single address. Each queue can be bound with an optional message filter. When a message is routed to an address it is routed to the set of queues bound to the message's destination address. If any of the queues are bound with a filter expression, then the message will only be routed to the subset of bound queues which match that filter expression.
Note
In core, there is no concept of a Topic, Topic is a JMS only term. Instead, in core, we just deal with addresses and queues.
For example, a JMS topic would implemented by a single address to which many queues are bound. Each queue represents a subscription of the topic. A JMS Queue would be implemented as a single address to which one queue is bound - that queue represents the JMS queue.
Queues can be durable, meaning the messages they contain survive a server crash or restart, as long as the messages in them are durable. Non durable queues do not survive a server restart or crash even if the messages they contain are durable.
Queues can also be temporary, meaning they are automatically deleted when the client connection is closed, if they are not explicitly deleted before that.
Queues can be bound with an optional filter expression. If a filter expression is supplied then the server will only route messages that match that filter expression to any queues bound to the address.
Many queues can be bound to a single address. A particular queue is only bound to a maximum of one address.
Clients use ClientSessionFactory instances to create ClientSession instances. ClientSessionFactory instances know how to connect to the server to create sessions, and are configurable with many settings.
A client uses a ClientSession for consuming and producing messages and for grouping them in transactions. ClientSession instances can support both transactional and non transactional semantics and also provide an XAResource interface so messaging operations can be performed as part of a JTA transaction.
ClientSession instances group ClientConsumers and ClientProducers.
Clients use ClientConsumer instances to consume messages from a queue. Core Messaging supports both synchronous and asynchronous message consumption semantics. ClientConsumer instances can be configured with an optional filter expression and will only consume messages which match that expression.
Here's a very simple program using the core messaging API to send and receive a message:
ClientSessionFactory nettyFactory = new ClientSessionFactoryImpl(
new TransportConfiguration(
InVMConnectorFactory.class.getName()));
ClientSession session = nettyFactory.createSession();
session.createQueue("example", "example", true);
ClientProducer producer = session.createProducer("example");
ClientMessage message = session.createClientMessage(true);
message.getBody().writeString("Hello");
producer.send(message);
session.start();
ClientConsumer consumer = session.createConsumer("example");
ClientMessage msgReceived = consumer.receive();
System.out.println("message = " + msgReceived.getBody().readString());
session.close();This chapter describes how JMS destinations are mapped to JBoss Messaging core queues.
JBoss Messaging core is JMS-agnostic. It does not have any concept of a JMS topic. A JMS topic is implemented in core as an address (the topic name) with zero or more queues bound to it. Each queue bound to that address represents a topic subscription. Likewise, a JMS queue is implemented as an address (the JMS queue name) with one single queue bound to it which represents the JMS queue.
By convention, all JMS queues map to core queues where the core queue name has the string jms.queue. prepended to it. E.g. the JMS queue with the name "orders.europe" would map to the core queue with the name "jms.queue.orders.europe". The address at which the core queue is bound is also given by the core queue name.
For JMS topics the address at which the queues that represent the subscriptions are bound is given by prepending the string "jms.topic." to the name of the JMS topic. E.g. the JMS topic with name "news.europe" would map to the core address "jms.topic.news.europe"
In other words if you send a JMS message to a JMS queue with name "orders.europe" it will get routed on the server to any core queues bound to the address "jms.queue.orders.europe". If you send a JMS message to a JMS topic with name "news.europe" it will get routed on the server to any core queues bound to the address "jms.topic.news.europe".
If you want to configure settings for a JMS Queue with the name "orders.europe", you need to configure the corresponding core queue "jms.queue.orders.europe":
<!-- expired messages in JMS Queue "orders.europe"
will be sent to the JMS Queue "expiry.europe" -->
<address-setting match="jms.queue.orders.europe">
<expiry-address>jms.queue.expiry.europe</expiry-address>
...
</address-setting>
In this chapter we explain which jars you need on the Java classpath of a JBoss Messaging client application. This depends on various factors including whether you're using just core, JMS, JNDI or Netty. We explain which jars are needed in each case.
Note
All the jars mentioned here can be found in the lib directory of the JBoss Messaging distribution. Be sure you only use the jars from the correct version of the release, you must not mix and match versions of jars from different JBoss Messaging versions.
If you're using just a pure JBoss Messaging core client (i.e. no JMS) then you need jbm-core-client.jar on your client classpath.
If you're using a Netty transport then you will also netty netty.jar and jbm-transports.jar.
If you're using JMS on the client side, then you will need jbm-core-client.jar, jbm-jms-client.jar and jbm-jms-api.jar. Note that jbm-jms-api.jar just contains Java EE API interface classes needed for the javax.jms.* classes, so if you already have a jar with these interface classes on your classpath you won't need it.
If you're using a Netty transport then you will also netty netty.jar and jbm-transports.jar.
The JBoss Messaging distribution comes with a wide variety of run out-of-the-box examples demonstrating many of the features.
The examples are available in the distribution, in the examples directory. Examples are split into JMS and core examples. JMS examples show how a particular feature can be used by a normal JMS client. Core examples show how the equivalent feature can be used by a core messaging client.
A set of Java EE examples are also provided which need the JBoss Application Server installed to be able to run.
To run a JMS example, simply cd into the appropriate example directory and type ant.
You will need to have Apache 1.7.0 or later ant installed on your system with the ant bin directory on your path.
Here's a listing of the examples with a brief description.
JBoss Messaging implements fully transparent automatic failover of connections from a live to backup node, this requires no special coding for failover, and is described in a different example. Automatic failover requires server replication.
However, JBoss Messaging also supports Application-Layer failover, useful in the case that replication is not enabled on the server side.
With Application-Layer failover, it's up to the application to register a JMS ExceptionListener with JBoss Messaging which will be called by JBoss Messaging in the event that connection failure is detected.
The code in the ExceptionListener then recreates the JMS connection, session, etc on another node and the application can continue.
Application-layer failover is an alternative approach to High Availability (HA). Application-layer failover differs from automatic failover in that some client side coding is required in order to implement this. Also, with Application-layer failover, since the old session object dies and a new one is created, any uncommitted work in the old session will be lost, and any unacknowledged messages might be redelivered.
The automatic-failover example demonstrates two servers coupled as a live-backup pair for high availability (HA), and a client connection transparently failing over from live to backup when the live server is crashed.
JBoss Messaging implements seamless, transparent failover of client connections between live and backup servers. This is implemented by the replication of state between live and backup nodes. When replication is configured and a live node crashes, the client connections can carry on as if nothing happened and carry on sending and consuming messages.
The reconnect-same-node example demonstrates how JBoss Messaging connections can be configured to be resilient to temporary network failures.
In the case of a network failure being detected, either as a result of a failure to read/write to the connection, or the failure of a pong to arrive back from the server in good time after a ping is sent, instead of failing the connection immediately and notifying any user ExceptionListener objects, JBoss Messaging can be configured to automatically retry the connection, and reconnect to the server when it becomes available again across the network.
The browser example shows you how to use a JMS QueueBrowser with JBoss Messaging.
Queues are a standard part of JMS, please consult the JMS 1.1 specification for full details.
A QueueBrowser is used to look at messages on the queue without removing them. It can scan the entire content of a queue or only messages matching a message selector.
The bridge example demonstrates a core bridge deployed on one server, which consumes messages from a local queue and forwards them to an address on a second server.
Core bridges are used to create message flows between any two JBoss Messaging servers which are remotely separated. Core bridges are resilient and will cope with temporary connection failure allowing them to be an ideal choice for forwarding over unreliable connections, e.g. a WAN.
The client-kickoff example shows how to terminate client connections given an IP address using the JMX management API.
The client-side-load-balancing example demonstrates how subsequent connections created from a JMS ConnectionFactory can be created to different nodes of the cluster. In other words it demonstrates how JBoss Messaging does client side load balancing of connections across the cluster.
The clustered-queue example demonstrates a JMS queue deployed on two different nodes. The two nodes are configured to form a cluster. We then create a consumer for the queue on each node, and we create a producer on only one of the nodes. We then send some messages via the producer, and we verify that both consumers receive the sent messages in a round-robin fashio.
The clustered-standalone example demonstrates how to configure and starts 3 cluster nodes on the same machine to form a cluster. A subscriber for a JMS topic is created on each node, and we create a producer on only one of the nodes. We then send some messages via the producer, and we verify that the 3 subscribers receive all the sent messages.
The clustered-topic example demonstrates a JMS topic deployed on two different nodes. The two nodes are configured to form a cluster. We then create a subscriber on the topic on each node, and we create a producer on only one of the nodes. We then send some messages via the producer, and we verify that both subscribers receive all the sent messages.
The dead-letter example shows you how to define and deal with dead letter messages. Messages can be delivered unsuccessfully (e.g. if the transacted session used to consume them is rolled back).
Such a message goes back to the JMS destination ready to be redelivered. However, this means it is possible for a message to be delivered again and again without any success and remain in the destination, clogging the system.
To prevent this, messaging systems define dead letter messages: after a specified unsuccessful delivery attempts, the message is removed from the destination and put instead in a dead letter destination where they can be consumed for further investigation.
The delayed-redelivery example demonstrates how JBoss Messaging can be configured to provide a delayed redelivery in the case a message needs to be redelivered.
Delaying redelivery can often be useful in the case that clients regularly fail or roll-back. Without a delayed redelivery, the system can get into a "thrashing" state, with delivery being attempted, the client rolling back, and delivery being re-attempted in quick succession, using up valuable CPU and network resources.
JBoss Messaging diverts allow messages to be transparently "diverted" from one address to another with just some simple configuration defined on the server side.
The durable-subscription example shows you how to use a durable subscription with JBoss Messaging. Durable subscriptions are a standard part of JMS, please consult the JMS 1.1 specification for full details.
Unlike non-durable subscriptions, the key function of durable subscriptions is that the messages contained in them persist longer than the lifetime of the subscriber - i.e. they will accumulate messages sent to the topic even if there is no active subscriber on them. They will also survive server restarts. Note that for the messages to be persisted, the messages sent to them must be marked as persistent messages.
The embedded example shows how to embed the JBoss Messaging Server within your own code.
The http-transport example shows you how to configure JBoss Messaging to use the HTTP protocol as its transport layer.
Usually, JMS Objects such as ConnectionFactory, Queue and Topic instances are looked up from JNDI before being used by the client code. This objects are called "administered objects" in JMS terminology.
However, in some cases a JNDI server may not be available or desired. To come to the rescue JBoss Messaging also supports the direct instantiation of these administered objects on the client side so you don't have to use JNDI for JMS.
JBoss Messaging allows an application to use an interceptor to hook into the messaging system. Interceptors allow you to handle various message events in JBoss Messaging.
The jaas example shows you how to configure JBoss Messaging to use JAAS for security. JBoss Messaging can leverage JAAS to delegate user authentication and authorization to existing security infrastructure.
The large-message example shows you how to send and receive very large messages with JBoss Messaging. JBoss Messaging supports the sending and receiving of huge messages, much larger than can fit in available RAM on the client or server. Effectively the only limit to message size is the amount of disk space you have on the server.
Large messages are persisted on the server so they can survive a server restart. In other words JBoss Messaging doesn't just do a simple socket stream from the sender to the consumer.
The last-value-queue example shows you how to define and deal with last-value queues. Last-Value queues are special queues which discard any messages when a newer message with the same value for a well-defined last-value property is put in the queue. In other words, a last-value queue only retains the last value.
A typical example for last-value queue is for stock prices, where you are only interested by the latest value for a particular stock.
The clustered-queue example demonstrates a JMS queue deployed on two different nodes. The two nodes are configured to form a cluster.
We then create a consumer on the queue on each node, and we create a producer on only one of the nodes. We then send some messages via the producer, and we verify that both consumers receive the sent messages in a round-robin fashion.
In other words, JBoss Messaging load balances the sent messages across all consumers on the cluster
The management example shows how to manage JBoss Messaging using JMS Messages to invoke management operations on the server.
The management-notification example shows how to receive management notifications from JBoss Messaging using JMS messages. JBoss Messaging servers emit management notifications when events of interest occur (consumers are created or closed, destinations are created or deleted, security authentication fails, etc.).
With JBoss Messaging you can specify a maximum consume rate at which a JMS MessageConsumer will consume messages. This can be specified when creating or deploying the connection factory.
If this value is specified then JBoss Messaging will ensure that messages are never consumed at a rate higher than the specified rate. This is a form of consumer throttling.
The message-counters example shows you how to use message counters to obtain message information for a JMS queue.
The expiry example shows you how to define and deal with message expiration. Messages can be retained in the messaging system for a limited period of time before being removed. JMS specification states that clients should not receive messages that have been expired (but it does not guarantee this will not happen).
JBoss Messaging can assign an expiry destination to a given queue so that when messages are expired, they are removed from the queue and sent to the expiry destination. These "expired" messages can later be consumed from the expiry destination for further inspection.
The message-group example shows you how to configure and use message groups with JBoss Messaging. Message groups allow you to pin messages so they are only consumed by a single consumer. Message groups are sets of messages that has the following characteristics:
Messages in a message group share the same group id, i.e. they have same JMSXGroupID string property values
The consumer that receives the first message of a group will receive all the messages that belongs to the group
The producer-rte-limit example demonstrates how, with JBoss Messaging, you can specify a maximum send rate at which a JMS message producer will send messages.
Message Priority carries the delivery preference of messages.
It can be retrieved by the message's standard header field 'JMSPriority' as defined in JMS specification version 1.1.
The value is of type integer, ranging from 0 (the lowest) to 9 (the highest). When messages are being delivered, their priorities will effect their order of delivery. Messages of higher priorities will likely be delivered before those of lower priorities.
Messages of equal priorities are delivered in the natural order of their arrival at their destinations. Please consult the JMS 1.1 specification for full details.
The queue-message-redistribution example demonstrates message redistribution between queues with the same name deployed in different nodes of a cluster.
By default, JBoss Messaging consumers buffer messages from the server in a client side buffer before you actually receive them on the client side. This improves performance since otherwise every time you called receive() or had processed the last message in a MessageListener onMessage() method, the JBoss Messaging client would have to go the server to request the next message, which would then get sent to the client side, if one was available.
This would involve a network round trip for every message and really reduce performance. Therefore, by default, JBoss Messaging pre-fetches messages into a buffer on each consumer.
In some case buffering is not desirable, and JBoss Messaging allows it to be switched off. This example demonstrates that.
The paging example shows how JBoss Messaging can support huge queues even when the server is running in limited RAM. It does this by transparently paging messages to disk, and depaging them when they are required.
Standard JMS supports three acknowledgement modes: AUTO_ACKNOWLEDGE, CLIENT_ACKNOWLEDGE, and DUPS_OK_ACKNOWLEDGE. For a full description on these modes please consult the JMS specification, or any JMS tutorial.
All of these standard modes involve sending acknowledgements from the client to the server. However in some cases, you really don't mind losing messages in event of failure, so it would make sense to acknowledge the message on the server before delivering it to the client. This example demonstrates how JBoss Messaging allows this with an extra acknowledgement mode.
The queue-selector example shows you how to selectively consume messages using message selectors with queue consumers.
The scheduled-message example shows you how to send a scheduled message to a JMS Queue with JBoss Messaging. Scheduled messages won't get delivered until a specified time in the future.
The security example shows you how configure and use role based queue security with JBoss Messaging.
The send-acknowledgements example shows you how to use JBoss Messaging's advanced asynchronous send acknowledgements feature to obtain acknowledgement from the server that sends have been received and processed in a separate stream to the sent messages.
The static-selector example shows you how to configure a JBoss Messaging core queue with static message selectors (filters).
The static-selector-jms example shows you how to configure a JBoss Messaging queue with static message selectors (filters) using JMS.
The ssl-enabled shows you how to configure SSL with JBoss Messaging to send and receive message.
The symmetric-cluster example demonstrates a symmetric cluster set-up with JBoss Messaging.
JBoss Messaging has extremely flexible clustering which allows you to set-up servers in many different topologies. The most common topology that you'll perhaps be familiar with if you are used to application server clustering is a symmetric cluster.
With a symmetric cluster, the cluster is homogeneous, i.e. each node is configured the same as every other node, and every node is connected to every other node in the cluster.
JBoss Messaging supports topic hierarchies. With a topic hierarchy you can register a subscriber with a wild-card and that subscriber will receive any messages sent to an address that matches the wild card.
The topic-selector-example1 example shows you how to send message to a JMS Topic, and subscribe them using selectors with JBoss Messaging.
The topic-selector-example1 example shows you how to selectively consume messages using message selectors with topic consumers.
The transactional example shows you how to use a transactional Session with JBoss Messaging.
The xa-heuristic example shows you how to make an XA heuristic decision through JBoss Messaging Management Interface. A heuristic decision is a unilateral decision to commit or rollback an XA transaction branch after it has been prepared.
The xa-receive example shows you how message receiving behaves in an XA transaction in JBoss Messaging.
The xa-send example shows you how message sending behaves in an XA transaction in JBoss Messaging.
To run a core example, simply cd into the appropriate example directory and type ant
Most of the Java EE examples can be run the following way. simply cd into the appropriate example directory an type ant deploy. This will create a new JBoss AS profile and start the server. When the server is started from a different window type ant run to run the example. Some examples require further steps, please refer to the examples documentation for further instructions.
This example demonstrates how to configure several properties on the JBoss Messaging JCA resource adaptor.
JBoss Messaging allows the routing of messages via wildcard addresses.
If a consumer is created with an address of say queue.news.# then it will receive any messages sent to addresses that match this, for instance queue.news.europe or queue.news.usa or queue.news.usa.sport. This allows a consumer to consume messages which are sent to a hierarchy of addresses, rather than the consumer having to specify a specific address.
Note
In JMS terminology this allows "topic hierarchies" to be created.
To enable this functionality set the property wild-card-routing-enabled in the jbm-configuration.xml file to true. This is true by default.
For more information on the wild card syntax take a look at Chapter 11, Understanding the JBoss Messaging Wildcard Syntax chapter, also see Section 9.1.49, “Topic Hierarchy”.
JBoss Messaging uses a specific syntax for representing wildcards in security settings, address settings and when creating consumers.
The syntax is similar to that used by AMQP.
A JBoss Messaging wildcard expression contains words delimited by the character '.' (full stop).
The special characters '#' and '*' also have special meaning and can take the place of a word.
The character '#' means 'match any sequence of zero or more words'.
The character '*' means 'match a single word'.
So the wildcard 'news.europe.#' would match 'news.europe', 'news.europe.sport', 'news.europe.politics', and 'news.europe.politics.regional' but would not match 'news.usa', 'news.usa.sport' nor 'entertainment'.
The wildcard 'news.*' would match 'news.europe', but not 'news.europe.sport'.
The wildcard 'news.*.sport' would match 'news.europe.sport' and also 'news.usa.sport', but not 'news.europe.politics'.
JBoss Messaging provides a powerful filter language based on a subset of the SQL 92 expression syntax.
It is the same as the syntax used for JMS selectors, but the predefined identifiers are different. For documentation on JMS selector syntax please the JMS javadoc for javax.jms.Message.
Filter expressions are used in several places in JBossMessaging
Predefined Queues. When pre-defining a queue, either in jbm-configuration.xml or jbm-jms.xml a filter expression can be defined for a queue. Only messages that match the filter expression will enter the queue.
Core bridges can be defined with an optional filter expression, only matching messages will be bridged (see Chapter 34, Core Bridges).
Diverts can be defined with an optional filter expression, only matching messages will be diverted (see Chapter 33, Diverting and Splitting Message Flows).
Filter are also used programmatically when creating consumers, queues and in several places as described in Chapter 29, Management.
There are some differences between JMS selector expressions and JBoss Messaging core filter expressions. Whereas JMS selector expressions operate on a JMS message, JBoss Messaging core filter expressions operate on a core message.
The following identifiers can be used in a core filter expressions to refer to attributes of the core message in an expression:
JBMPriority. To refer to the priority of a message. Message priorities are integers with valid values from 0 - 9. 0 is the lowest priority and 9 is the highest. E.g. JBMPriority = 3 AND animal = 'aardvark'
JBMExpiration. To refer to the expiration time of a message. The value is a long integer.
JBMDurable. To refer to whether a message is durable or not. The value is a string with valid values: DURABLE or NON_DURABLE.
JBMTimestamp. The timestamp of when the message was created. The value is a long integer.
JBMSize. The size of a message in bytes. The value is an integer.
Any other identifiers used in core filter expressions will be assumed to be properties of the message.
In this chapter we will describe how persistence works with JBoss Messaging and how to configure it.
JBoss Messaging ships with a high performance journal. This journal has been implemented by the JBoss Messaging team with a view to providing high performance in a messaging system. Since JBoss Messaging handles its own persistence, rather than relying on a database or other 3rd party persistence engine, we have been able to tune the journal to gain optimal performance for the persistence of messages and transactions.
A JBoss Messaging journal is an append only journal. It consists of a set of files on disk. Each file is pre-created to a fixed size and initially filled with padding. As operations are performed on the server, e.g. add message, update message, delete message, records are appended to the journal. When one journal file is full we move to the next one.
Because records are only appended, i.e. added to the end of the journal we minimise disk head movement, i.e. we minimise random access operations.
Making the file size configurable means that an optimal size can be chosen, i.e. making each file fit on a disk cylinder. Modern disk topologies are complex and we are not in control over which cylinder(s) the file is mapped onto so this is not an exact science. But by minimising the number of disk cylinders the file is using, we can minimise the amount of disk head movement, since an entire disk cylinder is accessible simply by the disk rotating - the head does not have to move.
As delete records are added to the journal, JBoss Messaging has a sophisticated file garbage collection algorithm which can determine if a particular journal file is needed any more - i.e. has all it's data been deleted in the same or other files. If so, the file can be reclaimed and re-used.
JBoss Messaging also has a compaction algorithm which removes dead space from the journal and compresses up the data so it takes up less files on disk.
The journal also fully supports transactional operation if required, supporting both local and XA transactions.
The majority of the journal is written in Java, however we abstract out the interaction with the actual file system to allow different pluggable implementations. We ship JBoss Messaging with two implementations:
Java NIO.
The first implementation uses standard Java NIO to interface with the file system. This provides very good performance and runs on any platform where there's a JDK.
The second implementation uses a thin native code wrapper to talk to the Linux asynchronous IO library (AIO). In a highly concurrent environment, AIO can provide better overall persistent throughput since it does not require each individual transaction boundary to be synced to disk. Most disks can only support a limited number of syncs per second, so a syncing approach does not scale well when the number of concurrent transactions needed to be committed grows too large. With AIO, JBoss Messaging will be called back when the data has made it to disk, allowing us to avoid explicit syncs altogether and simply send back confirmation of completion when AIO informs us that the data has been persisted.
The AIO journal is only available when running Linux kernel 2.6 or later and after having installed libaio (if it's not already installed). For instructions on how to install libaio please see Section 13.3, “Installing AIO”.
For more information on libaio please see Chapter 38, Libaio Native Libraries.
libaio is part of the kernel project.
The standard JBoss Messaging core server uses two instances of the journal:
Bindings journal.
This journal is used to store bindings related data. That includes the set of queues that are deployed on the server and their attributes. It also stores data such as id sequence counters.
The bindings journal is always a NIO journal as it is typically low throughput compared to the message journal.
Message journal.
This journal instance stores all message related data, including the message themselves and also duplicate id caches.
By default JBoss Messaging will try and use an AIO journal. If AIO is not available, e.g. the platform is not Linux with the correct kernel version or AIO has not been installed then it will automatically fall back to using Java NIO which is available on any Java platform.
For large messages, JBoss Messaging persists them outside the message journal. This is discussed in Chapter 22, Large Messages.
JBoss Messaging also pages messages to disk in low memory situations. This is discussed in Chapter 23, Paging.
If no persistence is required at all, JBoss Messaging can also be configured not to persist any data at all to storage as discussed in Section 13.4, “Configuring JBoss Messaging for Zero Persistence”.
The bindings journal is configured using the following attributes in jbm-configuration.xml
bindings-directory
This is the directory in which the bindings journal lives. The default value is data/bindings.
create-bindings-dir
If this is set to true then the bindings directory will be automatically created at the location specified in bindings-directory if it does not already exist. The default value is true
The message journal is configured using the following attributes in jbm-configuration.xml
This is the directory in which the message journal lives. The default value is data/journal.
For the best performance, we recommend the journal is located on its own physical volume in order to minimise disk head movement. If the journal is on a volume which is shared with other processes which might be writing other files (e.g. bindings journal, database, or transaction coordinator) then the disk head may well be moving rapidly between these files as it writes them, thus reducing performance.
When the message journal is stored on a SAN we recommend each journal instance that is stored on the SAN is given its own LUN (logical unit).
If this is set to true then the journal directory will be automatically created at the location specified in journal-directory if it does not already exist. The default value is true
Valid values are NIO or ASYNCIO.
Choosing NIO chooses the Java NIO journal. Choosing AIO chooses the Linux asynchronous IO journal. If you choose AIO but are not running Linux or you do not have libaio installed then JBoss Messaging will detect this and automatically fall back to using NIO.
If this is set to true then JBoss Messaging will wait for all transaction data to be persisted to disk on a commit before sending a commit response OK back to the client. The default value is true.
journal-sync-non-transactional
If this is set to true then JBoss Messaging will wait for any non transactional data to be persisted to disk on a send before sending the response back to the client. The default value for this is false.
The size of each journal file in bytes. The default value for this is 10485760 bytes (10MiB).
The minimum number of files the journal will maintain. When JBoss Messaging starts and there is no initial message data, JBoss Messaging will pre-create journal-min-files number of files.
Creating journal files and filling them with padding is a fairly expensive operation and we want to minimise doing this at run-time as files get filled. By precreating files, as one is filled the journal can immediately resume with the next one without pausing to create it.
Depending on how much data you expect your queues to contain at steady state you should tune this number of files to match that total amount of data.
When using an AIO journal, write requests are queued up before being submitted to AIO for execution. Then when AIO has completed them it calls JBoss Messaging back. This parameter controls the maximum number of write requests that can be in the AIO queue at any one time. If the queue becomes full then writes will block until space is freed up. This parameter has no meaning when using the NIO journal.
The default value for this is 500.
Flush period on the internal AIO timed buffer, configured in nano seconds. For performance reasons we buffer data before submitting it to the kernel in a single batch. This parameter determines the maximum amount of time to wait before flushing the buffer, if it does not get full by itself in that time.
The default value for this paramater is 20000 nano seconds (i.e. 20 microseconds).
If this is set to true, the internal buffers are flushed right away when a sync request is performed. Sync requests are performed on transactions if journal-sync-transactional is true, or on sending regular messages if journalsync-non-transactional is true.
JBoss Messaging was made to scale up to hundreds of producers. We try to use most of the hardware resources by scheduling multiple writes and syncs in a single OS call.
However in some use cases it may be better to not wait any data and just flush and write to the OS right away. For example if you have a single producer writing small transactions. On this case it would be better to always flush-on-sync.
The default value for this parameter is false.
The size of the timed buffer on AIO. The default value is 128KiB.
The Java NIO journal gives great performance, but If you are running JBoss Messaging using Linux Kernel 2.6 or later, we highly recommend you use the AIO journal for the best persistence performance especially under high concurrency.
It's not possible to use the AIO journal under other operating systems or earlier versions of the Linux kernel.
If you are running Linux kernel 2.6 or later and don't already have libaio installed, you can easily install it using the following steps:
Using yum, (e.g. on Fedora or Red Hat Enterprise Linux):
sudo yum install libaio
Using aptitude, (e.g. on Ubuntu or Debian system):
sudo apt-get install libaio
In some situations, zero persistence is sometimes required for a messaging system. Configuring JBoss Messaging to perform zero persistence is straightforward. Simply set the parameter persistence-enabled in jbm-configuration.xml to false.
Please note that if you set this parameter to false, then zero persistence will occur. That means no bindings data, message data, large message data, duplicate id caches or paging data will be persisted.
JBoss Messaging has a fully pluggable and highly flexible transport layer and defines its own Service Provider Interface (SPI) to make plugging in a new transport provider relatively straightforward.
In this chapter we'll describe the concepts required for understanding JBoss Messaging transports and where and how they're configured.
One of the most important concepts in JBoss Messaging transports is the acceptor. Let's dive straight in and take a look at an acceptor defined in xml in the configuration file jbm-configuration.xml.
<acceptors>
<acceptor name="netty">
<factory-class>
org.jboss.messaging.integration.transports.netty.NettyAcceptorFactory
</factory-class>
<param key="jbm.remoting.netty.port" value="5446" type="Integer"/>
</acceptor>
</acceptors>
Acceptors are always defined inside an acceptors element. There can be one or more acceptors defined in the acceptors element. There's no upper limit to the number of acceptors per server.
Each acceptor defines a way in which connections can be made to the JBoss Messaging server.
In the above example we're defining an acceptor that uses Netty to listen for connections at port 5446.
The acceptor element contains a sub-element factory-class, this element defines the factory used to create acceptor instances. In this case we're using Netty to listen for connections so we use the Netty implementation of an AcceptorFactory to do this. Basically, the factory-class element determines which pluggable transport we're going to use to do the actual listening.
The acceptor element can also be configured with zero or more param sub-elements. Each param element defines a key-value pair. These key-value pairs are used to configure the specific transport, the set of valid key-value pairs depends on the specific transport be used and are passed straight through to the underlying transport.
Examples of key-value pairs for a particular transport would be, say, to configure the IP address to bind to, or the port to listen at.
Keys are always strings and values can be of type Long, Integer, String or Boolean.
Whereas acceptors are used on the server to define how we accept connections, connectors are used by a client to define how it connects to a server.
Let's look at a connector defined in our jbm-configuration.xml file:
<connectors>
<connector name="netty">
<factory-class>
org.jboss.messaging.integration.transports.netty.NettyConnectorFactory
</factory-class>
<param key="jbm.remoting.netty.port" value="5446" type="Integer"/>
</connector>
</connectors>
Connectors can be defined inside an connectors element. There can be one or more connectors defined in the connectors element. There's no upper limit to the number of connectors per server.
You make ask yourself, if connectors are used by the client to make connections then why are they defined on the server? There are a couple of reasons for this:
Sometimes the server acts as a client itself when it connects to another server, for example when one server is bridged to another, or when a server takes part in a cluster. In this cases the server needs to know how to connect to other servers. That's defined by connectors.
If you're using JMS and the server side JMS service to instantiate JMS ConnectionFactory instances and bind them in JNDI, then when creating the JBossConnectionFactory it needs to know what server that connection factory will create connections to.
That's defined by the connector-ref element in the jbm-jms.xmlfile on the server side. Let's take a look at a snipped from a jbm-jms.xml file that shows a JMS connection factory that references our netty connector defined in our jbm-configuration.xml file:
<connection-factory name="ConnectionFactory"> <connector-ref connector-name="netty"/> <entries> <entry name="ConnectionFactory"/> <entry name="XAConnectionFactory"/> </entries> </connection-factory>
How do we configure a core ClientSessionFactory with the information that it needs to connect with a server?
Connectors are also used indirectly when directly configuring a core ClientSessionFactory to directly talk to a server. Although in this case there's no need to define such a connector in the server side configuration, instead we just create the parameters and tell the ClientSessionFactory which connector factory to use.
Here's an example of creating a ClientSessionFactory which will connect directly to the acceptor we defined earlier in this chapter, it uses the standard Netty TCP transport and will try and connect on port 5446 to localhost (default):
Map<String, Object> connectionParams = new HashMap<String, Object>();
connectionParams.put(org.jboss.messaging.integration.transports.netty.PORT_PROP_NAME,
5446);
TransportConfiguration transportConfiguration =
new TransportConfiguration(
"org.jboss.messaging.integration.transports.netty.NettyConnectorFactory",
connectionParams);
ClientSessionFactory sessionFactory = new ClientSessionFactory(transportConfiguration);
ClientSession session = sessionFactory.createSession(...);
etc
Similarly, if you're using JMS, you can configure the JMS connection factory directly on the client side without having to define a connector on the server side or define a connection factory in jbm-jms.xml:
Map<String, Object> connectionParams = new HashMap<String, Object>();
connectionParams.put(org.jboss.messaging.integration.transports.netty.PORT_PROP_NAME, 5446);
TransportConfiguration transportConfiguration =
new TransportConfiguration(
"org.jboss.messaging.integration.transports.netty.NettyConnectorFactory",
connectionParams);
ConnectionFactory connectionFactory = new JBossConnectionFactory(transportConfiguration);
Connection jmsConnection = connectionFactory.createConnection();
etc
Out of the box, JBoss Messaging currently uses Netty, a high performance low level network library.
Our Netty transport can be configured in several different ways; to use old (blocking) Java IO, or NIO (non-blocking), also to use straightforward TCP sockets, SSL, or to tunnel over HTTP or HTTPS, on top of that we also provide a servlet transport.
We believe this caters for the vast majority of transport requirements.
Netty TCP is a simple unencrypted TCP sockets based transport. Netty TCP can be configured to use old blocking Java IO or non blocking Java NIO. We recommend you use the default Java NIO for better scalability.
If you're running connections across an untrusted network please bear in mind this transport is unencrypted. You may want to look at the SSL or HTTPS configurations.
With the Netty TCP transport all connections are initiated from the client side. I.e. the server does not initiate any connections to the client. This works well with firewall policies that typically only allow connections to be initiated in one direction.
All the valid Netty transport keys are defined in the class org.jboss.messaging.integration.transports.netty.TransportConstants. The parameters can be used either with acceptors or connectors. The following parameters can be used to configure Netty for simple TCP:
jbm.remoting.netty.usenio. If this is true then Java non blocking NIO will be used. If set to false than old blocking Java IO will be used.
We highly recommend that you use non blocking Java NIO. Java NIO does not maintain a thread per connection so can scale to many more concurrent connections than with old blocking IO. We recommend the usage of Java 6 for NIO and the best scalability. The default value for this property is true.
jbm.remoting.netty.host. This specified the host name or ip address to connect to (when configuring a connector) or to listen on (when configuring an acceptor). The default value for this property is localhost. Note that if you want your servers accessible from other nodes, don't bind to localhost!
jbm.remoting.netty.port. This specified the port to connect to (when configuring a connector) or to listen on (when configuring an acceptor). The default value for this property is 5445.
jbm.remoting.netty.tcpnodelay. If this is true then Nagle's algorithm will be enabled. The default value for this property is true.
jbm.remoting.netty.tcpsendbuffersize. This parameter determines the size of the TCP send buffer in bytes. The default value for this property is 32768 bytes (32KiB).
TCP buffer sizes should be tuned according to the bandwidth and latency of your network. Here's a good link that explains the theory behind this.
In summary TCP send/receive buffer sizes should be calculated as:
buffer_size = bandwidth * RTT.Where bandwidth is in bytes per second and network round trip time (RTT) is in seconds. RTT can be easily measured using the ping utility.
For fast networks you may want to increase the buffer sizes from the defaults.
jbm.remoting.netty.tcpreceivebuffersize. This parameter determines the size of the TCP receive buffer in bytes. The default value for this property is 32768 bytes (32KiB).
Netty SSL is similar to the Netty TCP transport but it provides additional security by encrypting TCP connections using the Secure Sockets Layer SSL
Please see the examples for a full working example of using Netty SSL.
Netty SSL uses all the same properties as Netty TCP but adds the following additional properties:
jbm.remoting.netty.sslenabled. Must be true to enable SSL.
jbm.remoting.netty.keystorepath. This is the path to the SSL key store on the client which holds the client certificates.
jbm.remoting.netty.keystorepassword. This is the password for the client certificate key store on the client.
jbm.remoting.netty.truststorepath. This is the path to the trusted client certificate store on the server.
jbm.remoting.netty.truststorepassword. This is the password to the trusted client certificate store on the server.
Netty HTTP tunnels packets over the HTTP protocol. It can be useful in scenarios where firewalls only allow HTTP traffice to pass.
Please see the examples for a full working example of using Netty HTTP.
Netty HTTP uses the same properties as Netty TCP but adds the following additional properties:
jbm.remoting.netty.httpenabled. Must be true to enable HTTP.
jbm.remoting.netty.httpclientidletime. How long a client can be idle before sending an empty http request to keep the connection alive
jbm.remoting.netty.httpclientidlescanperiod. How often, in milliseconds, to scan for idle clients
jbm.remoting.netty.httpresponsetime. How long the server can wait before sending an empty http response to keep the connection alive
jbm.remoting.netty.httpserverscanperiod. How often, in milliseconds, to scan for clients needing responses
jbm.remoting.netty.httprequiressessionid. If true the client will wait after the first call to receive a session id. Used the http connector is connecting to servlet acceptor (not recommended)
We also provide a Netty servlet transport for use with JBoss Messaging. The servlet transport allows JBoss Messaging traffic to be tunneled over HTTP to a servlet running in a servlet engine which then redirects it to an in-VM JBoss Messaging server.
The servlet transport differs from the Netty HTTP transport in that, with the HTTP transport JBoss Messaging effectively acts a web server listening for HTTP traffic on, e.g. port 80 or 8080, whereas with the servlet transport JBM traffic is proxied through a servlet engine which may already be serving web site or other applications. This allows JBoss Messaging to be used where corporate policies may only allow a single web server listening on an HTTP port, and this needs to serve all applications including messaging.
Please see the examples for a full working example of the servlet transport being used.
To configure a servlet engine to work the Netty Servlet transport we need to do the following things:
Deploy the servlet. Here's an example web.xml describing a web application that uses the servlet:
<?xml version="1.0" encoding="UTF-8"?> <web-app> <context-param> <param-name>serverChannelName</param-name> <param-value>org.jboss.jbm</param-value> </context-param> <context-param> <param-name>streaming</param-name> <param-value>true</param-value> </context-param> <context-param> <param-name>reconnectTimeout</param-name> <param-value>3000</param-value> </context-param> <listener> <listener-class> org.jboss.netty.channel.socket.http.HttpTunnelingSessionListener </listener-class> </listener> <listener> <listener-class> org.jboss.netty.channel.socket.http.HttpTunnelingContextListener </listener-class> </listener> <servlet> <servlet-name>NettyServlet</servlet-name> <servlet-class> org.jboss.netty.channel.socket.http.HttpTunnelingServlet </servlet-class> </servlet> <servlet-mapping> <servlet-name>NettyServlet</servlet-name> <url-pattern>/JBMServlet</url-pattern> </servlet-mapping> </web-app>We also need to add a special Netty invm acceptor on the server side configuration.
Here's a snippet from the jbm-configuration.xml file showing that acceptor being defined:
<acceptors> <acceptor name="netty-invm"> <factory-class> org.jboss.messaging.integration.transports.netty.NettyAcceptorFactory </factory-class> <param key="jbm.remoting.netty.useinvm" value="true" type="Boolean"/> <param key="jbm.remoting.netty.host" value="org.jboss.jbm" type="String"/> </acceptor> </acceptors>Lastly we need a connector for the client, this again will be configured in the jbm-configuration.xml file as such:
<connectors> <connector name="netty-servlet"> <factory-class> org.jboss.messaging.integration.transports.netty.NettyConnectorFactory </factory-class> <param key="jbm.remoting.netty.host" value="localhost" type="String"/> <param key="jbm.remoting.netty.port" value="8080" type="Integer"/> <param key="jbm.remoting.netty.useservlet" value="true" type="Boolean"/> <param key="jbm.remoting.netty.servletpath" value="/messaging/JBMServlet" type="String"/> </connector> </connectors>
Heres a list of the context params and what they are used for
serverChannelName - This is the name of the netty acceptor that the servlet will forward its packets too. You can see it matches the name of the jbm.remoting.netty.host param.
streaming - set to true means that all packets will be streamed as one continuous request rather than one request per packet.
reconnectTimeout - How long in milliseconds the servlet will await for the client to reconnect after a connection being closed by the web server
The servlet pattern configured in the web.xml is the path of the URL that is used. The connector param jbm.remoting.netty.servletpath on the connector config must match this using the application context of the web app if there is one.
In this section we will discuss connection time-to-live (TTL) and explain how JBoss Messaging deals with crashed clients and clients which have exited without cleanly closing their resources. We'll also discuss how JBoss Messaging multiplexes several sessions on a single connection.
Before a JBoss Messaging client application exits it is considered good practice that it should close its resources in a controlled manner, using a finally block.
Here's an example of a well behaved core client application closing its session and session factory in a finally block:
ClientSessionFactory sf = null;
ClientSession session = null;
try
{
sf = new ClientSessionFactoryImpl(...);
session = sf.createSession(...);
... do some stuff with the session...
}
finally
{
if (session != null)
{
session.close();
}
if (sf != null)
{
sf.close();
}
}
And here's an example of a well behaved JMS client application:
Connection jmsConnection = null;
try
{
ConnectionFactory jmsConnectionFactory = new JBossConnectionFactory(...);
jmsConnection = jmsConnectionFactory.createConnection();
... do some stuff with the connection...
}
finally
{
if (connection != null)
{
connection.close();
}
}
Unfortunately users don't always write well behaved applications, and sometimes clients just crash so they don't have a chance to clean up their resources!
If this occurs then it can leave server side resources, like sessions, hanging on the server. If these were not removed they would cause a resource leak on the server and over time this result in the server running out of memory or other resources.
We have to balance the requirement for cleaning up dead client resources with the fact that sometimes the network between the client and the server can fail and then come back, allowing the client to reconnect. JBoss Messaging supports client reconnection, so we don't want to clean up "dead" server side resources too soon or this will prevent any client from reconnecting, as it won't be able to find its old sessions on the server.
JBoss Messaging makes all of this configurable. For each ClientSessionFactory we define a connection TTL. Basically, the TTL determines how long the server will keep a connection alive in the absence of any data arriving from the client. If the client is idle it will automatically send "ping" packets periodically to prevent the server from closing it down. If the server doesn't receive any packets on a connection for the connection TTL time, then it will automatically close all the sessions on the server that relate to that connection.
If you're using JMS, the connection TTL is defined by the ConnectionTTL attribute on a JBossConnectionFactory instance, or if you're deploying JMS connection factory instances direct into JNDI on the server side, you can specify it in the xml config, using the parameter connection-ttl.
The default value for connection ttl is 300000ms, i.e. 5 minutes. A value of -1 for ConnectionTTL means the server will never time out the connection on the server side.
If you do not wish clients to be able to specify their own connection TTL, you can override all values used by a global value set on the server side. This can be done by specifying the connection-ttl-override attribute in the server side configuration. The default value for connection-ttl-override is -1 which means "do not override" (i.e. let clients use their own values).
In the previous section we discussed how the client sends pings to the server and how "dead" connection resources are cleaned up by the server. There's also another reason for pinging, and that's for the client to be able to detect that the server or network has failed.
As long as the client is receiving packets from the server it will consider the connection to be still alive. If the connection is idle the server will periodically send packets to the client to prevent the client from thinking the connection is dead.
If the client does not receive any packets for client-failure-check-period milliseconds then it will consider the connection failed and will either initiate failover, or call any FailureListener instances (or ExceptionListener instances if you are using JMS) depending on how it has been configured.
If you're using JMS it's defined by the ClientFailureCheckPeriod attribute on a JBossConnectionFactory instance, or if you're deploying JMS connection factory instances direct into JNDI on the server side, you can specify it in the jbm-jms.xml configuration file, using the parameter client-failure-check-period.
The default value for client failure check period is 5000ms, i.e. 5 seconds. A value of -1 means the client will never fail the connection on the client side if no data is received from the server. Typically this is much lower than connection TTL to allow clients to reconnect in case of transitory failure.
Each ClientSessionFactory creates connections on demand to the same server as you create sessions. Each instance will create up to a maximum of maxConnections connections to the same server. Subsequent sessions will use one of the already created connections in a round-robin fashion.
To illustrate this, let's say maxConnections is set to 8. The first eight sessions that you create will have a new underlying connection created for them, the next eight you create will use one of the previously created connections.
The default value for maxConnections is 8, if you prefer you can set it to a lower value so each factory maintains only one underlying connection. We choose a default value of 8 because on the server side each packet read from a particular connection is read serially by the same thread, so, if all traffic from the clients sessions is multiplexed on the same connection it will all be processed by the same thread on the server, which might not be a good use of cores on the server. By choosing 8 then different sessions traffic from the same client can be processed by different cores. If you have many different clients then this may not be relevant anyway.
To change the value of maxConnections simply use the setter method on the ClientSessionFactory immediately after constructing it, or if you are using JMS use the setter on the JBossConnectionFactory or specify the max-connections parameter in the connection factory xml configuration in jbm-jms.xml.
JBoss Messaging has its own Resource Manager for handling the lifespan of XA transactions. When a transaction is started the resource manager is notified and keeps a record of the transaction and its current state. It is possible in some cases for a transaction to be started but the forgotten about. Maybe the client died and never came back. If this happens then the transaction will just sit there indefinitely.
To cope with this JBoss Messaging can, if configured, scan for old transactions and rollback any it finds. The default for this is 60000 milliseconds (1 minute), i.e. any transactions older than 60 seconds are removed, however this can be changed by editing the transaction-timeout property in jbm-configuration.xml. The property transaction-timeout-scan-period configures how often, in milliseconds, to scan for old transactions.
Flow control is used to limit the flow of data between a client and server, or a server and a server in order to prevent the client or server being overwhelmed with data.
This controls the flow of data between the server and the client as the client consumes messages. For performance reasons clients normally buffer messages before delivering to the consumer via the receive() method or asynchronously via a message listener. If the consumer cannot process messages as fast as they are being delivered and stored in the internal buffer, then you could end up with a situation where messages just keep building up and are not processed for a long time.
By default, JBoss Messaging consumers buffer messages from the server in a client side buffer before the client consumes them. This improves performance: otherwise every time the client consumes a message, JBoss Messaging would have to go the server to request the next message. In turn, this message would then get sent to the client side, if one was available.
A network round trip would be involved for every message and considerably reduce performance.
To prevent this, JBoss Messaging pre-fetches messages into a buffer on each consumer. The total maximum size of messages (in bytes) that will be buffered on each consumer is determined by the consumer-window-size parameter.
By default, the consumer-window-size is set to 1 MiB (1024 * 1024 bytes).
The value can be:
-1 for an unbounded buffer
0 to not buffer any messages. See Section 9.1.33, “No Consumer Buffering” for working example of a consumer with no buffering.
>0 for a buffer with the given maximum size in bytes.
Setting the consumer window size can considerably improve performance depending on the messaging use case. As an example, let's consider the two extremes:
- Fast consumers
Fast consumers can process messages as fast as they consume them (or even faster)
To allow fast consumers, set the consumer-window-size to -1. This will allow unbounded message buffering on the client side.
Use this setting with caution: it can overflow the client memory if the consumer is not able to process messages as fast as it receives them.
- Slow consumers
Slow consumers takes significant time to process each message and it is desirable to prevent buffering messages on the client side so that they can be delivered to another consumer instead.
Consider a situation where a queue has 2 consumers 1 of which is very slow. Messages are delivered in a round robin fashion to both consumers, the fast consumer processes all of its messages very quickly until its buffer is empty. At this point there are still messages awaiting to be processed by the slow consumer which could be being consumed by the other consumer.
To allow slow consumers, set the consumer-window-size to 0 (for no buffer at all). This will prevent the slow consumer from buffering any messages on the client side. Messages will remain on the server side ready to be consumed by other consumers.
Most of the consumers cannot be clearly identified as fast or slow consumers but are in-between. In that case, setting the value of consumer-window-size to optimize performance depends on the messaging use case and requires benchmarks to find the optimal value, but a value of 1MiB is fine in most cases.
If JBoss Messaging Core API is used, the consumer window size is specified by ClientSessionFactory.setConsumerWindowSize() method and some of the ClientSession.createConsumer() methods.
if JNDI is used to look up the connection factory, the consumer window size is configured in jbm-jms.xml:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty-connector"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<!-- Set the consumer window size to 0 to have *no* buffer on the client side -->
<consumer-window-size>0</consumer-window-size>
</connection-factory>
If the connection factory is directly instantiated, the consumer window size is specified by JBossConnectionFactory.setConsumerWindowSize() method.
Please see Section 9.1.33, “No Consumer Buffering” for an example which shows how to configure JBoss Messaging to prevent consumer buffering when dealing with slow consumers.
It is also possible to control the rate at which a consumer can consumer messages. This is a form of throttling and can be used to make sure that a consumer never consumes messages at a rate faster than the rate specified.
The rate must be a positive integer to enable and is the maximum desired message consumption rate specified in units of messages per second. Setting this to -1 disables rate limited flow control. The default value is -1.
Please see Section 9.1.26, “Message Consumer Rate Limiting” for a working example of limiting consumer rate.
If the JBoss Messaging core API is being used the rate can be set via the ClientSessionFactory.setConsumerMaxRate(int consumerMaxRate) method or alternatively via some of the ClientSession.createConsumer() methods.
If JNDI is used to look up the connection factory, the max rate can be configured in jbm-jms.xml:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty-connector"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<!-- We limit consumers created on this connection factory to consume messages
at a maximum rate
of 10 messages per sec -->
<consumer-max-rate>10</consumer-max-rate>
</connection-factory>If the connection factory is directly instantiated, the max rate size can be set via the JBossConnectionFactory.setConsumerMaxRate(int consumerMaxRate) method.
Note
Rate limited flow control can be used in conjunction with window based flow control. Rate limited flow control only effects how many messages a client can consume in a second and not how many messages are in its buffer. So if you had a slow rate limit and a high window based limit the clients internal buffer would soon fill up with messages.
Please see Section 9.1.26, “Message Consumer Rate Limiting” for an example which shows how to configure JBoss Messaging to prevent consumer buffering when dealing with slow consumers.
JBoss Messaging also can limit the amount of data sent from a client to a server to prevent the server being overwhelmed.
JBoss Messaging clients maintain a buffer of commands that have been sent to the server, thus provides a form of flow control. Please see Chapter 18, Command Buffering for more information on this.
JBoss Messaging also allows the rate a producer can emit message to be limited, in units of messages per second. By specifying such a rate, JBoss Messaging will ensure that producer never produces messages at a rate higher than that specified.
The rate must be a positive integer to enable and is the maximum desired message consumption rate specified in units of messages per second. Setting this to -1 disables rate limited flow control. The default value is -1.
Please see the Section 9.1.30, “Message Producer Rate Limiting” for a working example of limiting producer rate.
If the JBoss Messaging core API is being used the rate can be set via the ClientSessionFactory.setProducerMaxRate(int consumerMaxRate) method or alternatively via some of the ClientSession.createProducer() methods.
If JNDI is used to look up the connection factory, the max rate can be configured in jbm-jms.xml:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty-connector"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<!-- We limit producers created on this connection factory to produce messages
at a maximum rate
of 10 messages per sec -->
<producer-max-rate>10</producer-max-rate>
</connection-factory>If the connection factory is directly instantiated, the max rate size can be set via the JBossConnectionFactory.setProducerMaxRate(int consumerMaxRate) method.
As JBoss Messaging clients send commands to their servers they store each sent command in an in-memory buffer. In the case that connection failure occurs and the client subsequently reconnects to the same server or fails over onto a replica server, as part of the reconnection protocol the server informs the client during reconnection with the id of the last command it successfully received from that client.
If the client has sent more commands than were received before failover it can replay any sent commands from its buffer so that the client and server can reconcile their states.
The size of this buffer is configured by the ProducerWindowSize parameter, when the server has received ProducerWindowSize bytes of commands and processed them it will send back a command confirmation to the client, and the client can then free up space in the buffer.
If you are using JMS and you're using the JMS service on the server to load your JMS connection factory instances into JNDI then this parameter can be configured in jbm-jms.xml using the element producer-window-size a. If you're using JMS but not using JNDI then you can set these values directly on the JBossConnectionFactory instance using the appropriate setter method.
If you're using core you can set these values directly on the ClientSessionFactory instance using the appropriate setter method.
The send window is specified in bytes, and has a default value of 1MiB.
When the send buffer becomes full, any attempts to send more commands from the client will block until the client receives a confirmation from the server and clears out the buffer. Because of the blocking, the command buffer performs a type of flow control, preventing the client from overwhelming the server with commands.
Setting this parameter to -1 disables any flow control on sending.
When committing or rolling back a transaction with JBoss Messaging, the request to commit or rollback is sent to the server, and the call will block on the client side until a response has been received from the server that the commit or rollback was executed.
When the commit or rollback is received on the server, it will be committed to the journal, and depending on the value of the parameter journal-sync-transactional the server will ensure that the commit or rollback is durably persisted to storage before sending the response back to the client. If this parameter has the value false then commit or rollback may not actually get persisted to storage until some time after the response has been sent to the client. In event of server failure this may mean the commit or rollback never gets persisted to storage. The default value of this parameter is true so the client can be sure all transaction commits or rollbacks have been persisted to storage by the time the call to commit or rollback returns.
Setting this parameter to false can improve performance at the expense of some loss of transaction durability.
This parameter is set in jbm-configuration.xml
If you are sending messages to a server using a non transacted session, JBoss Messaging can be configured to block the call to send until the message has definitely reached the server, and a response has been sent back to the client. This can be configured individually for persistent and non-persistent messages, and is determined by the following two parameters:
BlockOnPersistentSend. If this is set to true then all calls to send for persistent messages on non transacted sessions will block until the message has reached the server, and a response has been sent back. The default value is false.
BlockOnNonPersistentSend. If this is set to true then all calls to send for non-persistent messages on non transacted sessions will block until the message has reached the server, and a response has been sent back. The default value is false.
Setting block on sends to true can reduce performance since each send requires a network round trip before the next send can be performed. This means the performance of sending messages will be limited by the network round trip time (RTT) of your network, rather than the bandwidth of your network. For better performance we recommend either batching many messages sends together in a transaction since with a transactional session, only the commit / rollback blocks not every send, or, using JBoss Messaging's advanced asynchronous send acknowledgements feature described in Section 19.4, “Asynchronous Send Acknowledgements”.
If you are using JMS and you're using the JMS service on the server to load your JMS connection factory instances into JNDI then these parameters can be configured in jbm-jms.xml using the elements block-on-persistent-send and block-on-non-persistent-send. If you're using JMS but not using JNDI then you can set these values directly on the JBossConnectionFactory instance using the appropriate setter methods.
If you're using core you can set these values directly on the ClientSessionFactory instance using the appropriate setter methods.
When the server receives a message sent from a non transactional session, and that message is persistent and the message is routed to at least one durable queue, then the server will persist the message in permanent storage. If the journal parameter journal-sync-non-transactional is set to true the server will not send a response back to the client until the message has been persisted and the server has a guarantee that the data has been persisted to disk. The default value for this parameter is false.
If you are acknowledging the delivery of a message at the client side using a non transacted session, JBoss Messaging can be configured to block the call to acknowledge until the acknowledge has definitely reached the server, and a response has been sent back to the client. This is configured with the parameter BlockOnAcknowledge. If this is set to true then all calls to acknowledge on non transacted sessions will block until the acknowledge has reached the server, and a response has been sent back. You might want to set this to true if you want to implement a strict at most once delivery policy. The default value is false
If you are using a non transacted session but want a guarantee that every message sent to the server has reached it, then, as discussed in Section 19.2, “Guarantees of Non Transactional Message Sends”, you can configure JBoss Messaging to block the call to send until the server has received the message, persisted it and sent back a response. This works well but has a severe performance penalty - each call to send needs to block for at least the time of a network round trip (RTT) - the performance of sending is thus limited by the latency of the network, not limited by the network bandwidth.
Let's do a little bit of maths to see how severe that is. We'll consider a standard 1Gib ethernet network with a network round trip between the server and the client of 0.25 ms.
With a RTT of 0.25 ms, the client can send at most 1000/ 0.25 = 4000 messages per second if it blocks on each message send.
If each message is < 1500 bytes and a standard 1500 bytes MTU size is used on the network, then a 1GiB network has a theoretical upper limit of (1024 * 1024 * 1024 / 8) / 1500 = 89478 messages per second if messages are sent without blocking! These figures aren't an exact science but you can clearly see that being limited by network RTT can have serious effect on performance.
To remedy this, JBoss Messaging provides an advanced new feature called asynchronous send acknowledgements. With this feature, JBoss Messaging can be configured to send messages without blocking in one direction and asynchronously getting acknowledgement from the server that the messages were received in a separate stream. By de-coupling the send from the acknowledgement of the send, the system is not limited by the network RTT, but is limited by the network bandwidth. Consequently better throughput can be achieved than is possible using a blocking approach, while at the same time having absolute guarantees that messages have successfully reached the server.
To use the feature using the core API, you implement the interface org.jboss.messaging.core.client.SendAcknowledgementHandler and set a handler instance on your ClientSession.
Then, you just send messages as normal using your ClientSession, and as messages reach the server, the server will send back an acknowledgment of the send asynchronously, and some time later you are informed at the client side by JBoss Messaging calling your handler's sendAcknowledged(ClientMessage message) method, passing in a reference to the message that was sent.
Please see Section 9.1.42, “Send Acknowledgements” for a full working example.
Messages can be delivered unsuccessfully (e.g. if the transacted session used to consume them is rolled back). Such a message goes back to its queue ready to be redelivered. However, this means it is possible for a message to be delivered again and again without any success and remain in the queue, clogging the system.
There are 2 ways to deal with these undelivered messages:
Delayed redelivery.
It is possible to delay messages redelivery to let the client some time to recover from transient failures and not overload its network or CPU resources
Dead Letter Address.
It is also possible to configure a dead letter address so that after a specified number of unsuccessful deliveries, messages are removed from the queue and will not be delivered again
Both options can be combined for maximum flexibility.
Delaying redelivery can often be useful in the case that clients regularly fail or rollback. Without a delayed redelivery, the system can get into a "thrashing" state, with delivery being attempted, the client rolling back, and delivery being re-attempted ad infinitum in quick succession, consuming valuable CPU and network resources.
Delayed redelivery is defined in the address-setting configuration:
<!-- delay redelivery of messages for 5s -->
<address-setting match="jms.queue.exampleQueue">
<redelivery-delay>5000</redelivery-delay>
</address-setting>
If a redelivery-delay is specified, JBoss Messaging will wait this delay before redelivering the messages
By default, there is no redelivery delay (redelivery-delayis set to 0).
Address wildcards can be used to configure redelivery delay for a set of addresses (see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
See Section 9.1.12, “Delayed Redelivery” for an example which shows how delayed redelivery is configured and used with JMS.
To prevent a client infinitely receiving the same undelivered message (regardless of what is causing the unsuccessful deliveries), messaging systems define dead letter messages: after a specified unsuccessful delivery attempts, the message is removed from the queue and send instead to a dead letter address.
Any dead letter messages can then be diverted to queue(s) where they can later be perused by the system administrator for action to be taken.
JBoss Messaging's addresses can be assigned a dead letter address. Once the messages have be unsuccessfully delivered for a given number of attempts, they are removed from the queue and sent to the dead letter address. These dead letter messages can later be consumed for further inspection.
Dead letter address is defined in the address-setting configuration:
<!-- undelivered messages in exampleQueue will be sent to the dead letter address
deadLetterQueue after 3 unsuccessful delivery attempts
-->
<address-setting match="jms.queue.exampleQueue">
<dead-letter-address>jms.queue.deadLetterQueue</dead-letter-address>
<max-delivery-attempts>3</max-delivery-attempts>
</address-setting>
If a dead-letter-address is not specified, messages will removed after max-delivery-attempts unsuccessful attempts.
By default, messages are redelivered 10 times at the maximum. Set max-delivery-attempts to -1 for infinite redeliveries.
For example, a dead letter can be set globally for a set of matching addresses and you can set max-delivery-attempts to -1 for a specific address setting to allow infinite redeliveries only for this address.
Address wildcards can be used to configure dead letter settings for a set of addresses (see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
Dead letter messages which are consumed from a dead letter address have the following property:
_JBM_ORIG_DESTINATION
a String property containing the original destination of the dead letter message
See Section 9.1.11, “Dead Letter” for an example which shows how dead letter is configured and used with JMS.
In normal use, JBoss Messaging does not update delivery count persistently until a message is rolled back (i.e. the delivery count is not updated before the message is delivered to the consumer). In most messaging use cases, the messages are consumed, acknowledged and forgotten as soon as they are consumed. In these cases, updating the delivery count persistently before delivering the message would add an extra persistent step for each message delivered, implying a significant performance penalty.
However, if the delivery count is not updated persistently before the message delivery happens, in the event of a server crash, messages might have been delivered but that will not have been reflected in the delivery count. During the recovery phase, the server will not have knowledge of that and will deliver the message with redelivered set to false while it should be true.
As this behavior breaks strict JMS semantics, JBoss Messaging allows to persist delivery count before message delivery but disabled it by default for performance implications.
To enable it, set persist-delivery-count-before-delivery to true in jbm-configuration.xml:
<persist-delivery-count-before-delivery>true</persist-delivery-count-before-delivery>
Messages can be set with an optional time to live when sending them. Such messages will be retained in the messaging system until their time to live is reached.
JBoss Messaging's addresses can be assigned a expiry address so that, when messages are expired, they are removed from the queue and sent to the expiry address. Many different queues can be bound to an expiry address. These expired messages can later be consumed for further inspection.
Using JBoss Messaging Core API, you can set an expiration time directly on the message:
// message will expire in 5000ms from now
message.setExpiration(System.currentTimeMillis() + 5000);
JMS MessageProducer allows to set a TimeToLive for the messages it sent:
// messages sent by this producer will be retained for 5s (5000ms) before expiration
producer.setTimeToLive(5000);
Expired messages which are consumed from an expiry address have the following properties:
_JBM_ORIG_DESTINATION
a String property containing the original destination of the expired message
_JBM_ACTUAL_EXPIRY
a Long property containing the actual expiration time of the expired message
Expiry address are defined in the address-setting configuration:
<!-- expired messages in exampleQueue will be sent to the expiry address expiryQueue -->
<address-setting match="jms.queue.exampleQueue">
<expiry-address>jms.queue.expiryQueue</expiry-address>
</address-setting>
If messages are expired and no expiry address is specified, messages are simply removed from the queue. Address wildcards can be used to configure expiry address for a set of addresses (see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
A reaper thread is periodically inspecting the queues to check if messages have expired.
The reaper thread can be configured with the following properties in jbm-configuration.xml
message-expiry-scan-period
How often the queues will be scanned to detect expired messages (in milliseconds, default is 30000ms)
message-expiry-thread-priority
The reaper thread priority (it must be between 0 and 9, 9 being the highest priority, default is 3)
See Section 9.1.28, “Message Expiration” for an example which shows how message expiry is configured and used with JMS.
JBoss Messaging supports sending and receiving of huge messages, even when the client and server are running with limited memory. The only limit to the size of a message that can be sent or consumed is the amount of disk space you have available. We have tested sending and consuming messages up to 8 GiB in size with a client and server running in just 50MiB of RAM!
To send a large message, the user can set an InputStream on a message body, and when that message is sent, JBoss Messaging will read the InputStream. A FileInputStream could be used for example to send a huge message from a huge file on disk.
As the InputStream is read the data is sent to the server as a stream of fragments. The server persists these fragments to disk as it receives them and when the time comes to deliver them to a consumer they are read back of the disk, also in fragments and sent down the wire. When the consumer receives a large message it initially receives just the message with an empty body, it can then set an OutputStream on the message to stream the huge message body to a file on disk or elsewhere. At no time is the entire message body stored fully in memory, either on the client or the server.
Large messages are stored on a disk directory on the server side, as configured on the main configuration file.
The configuration property large-messages-directory specifies where large messages are stored.
<configuration xmlns="urn:jboss:messaging"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:jboss:messaging /schema/jbm-configuration.xsd">
...
<large-message-directory> *** type any folder you choose *** </large-message-directory>
...
</configurationBy default the large message directory is data/largemessages
For the best performance we recommend large messages directory is stored on a different physical volume to the message journal or paging directory.
Any message large than a certain size is considered a large message. Large messages will be split up and sent in fragments. This is determined by the parameter min-large-message-size
The default value is 100KiB.
If the JBoss Messaging Core API is used, the minimal large message size is specified by ClientSessionFactory.setMinLargeMessageSize.
ClientSessionFactory factory =
new ClientSessionFactoryImpl(new
TransportConfiguration(NettyConnectorFactory.class.getName()), null);
factory.setMinLargeMessageSize(25 * 1024);Section 14.3, “Configuring the transport directly from the client side.” will provide more information on how to instantiate the session factory.
If JNDI is used to look up the connection factory, the minimum large message size is specified in jbm-jms.xml
...
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty"/>
<entries>
<entry name="ConnectionFactory"/>
<entry name="XAConnectionFactory"/>
</entries>
<min-large-message-size>250000</min-large-message-size>
</connection-factory>
...If the connection factory is being instantiated directly, the minimum large message size is specified by JBossConnectionFactory.setMinLargeMessageSize.
JBoss Messaging supports setting the body of messages using input and output streams (java.lang.io)
These streams are then used directly for sending (input streams) and receiving (output streams) messages.
When receiving messages there are 2 ways to deal with the output stream you may choose to block while the output stream is recovered using the method ClientMessage.saveOutputStream or alternatively using the method ClientMessage.setOutputstream which will asynchronously write the message to the stream. If you choose the latter the consumer must be kept alive until the message has been fully received.
You can use any kind of stream you like. The most common use case is to send files stored in your disk, but you could also send things like JDBC Blobs, SocketInputStream, things you recovered from HTTPRequests etc. Anything as long as it implements java.io.InputStream for sending messages or java.io.OutputStream for receiving them.
The following table shows a list of methods available at ClientMessage which are also available through JMS by the use of object properties.
Table 22.1. org.jboss.messaging.core.client.ClientMessage API
| Name | Description | JMS Equivalent Property |
|---|---|---|
| setBodyInputStream(InputStream) | Set the InputStream used to read a message body when sending it. | JMS_JBM_InputStream |
| setOutputStream(OutputStream) | Set the OutputStream that will receive the body of a message. This method does not block. | JMS_JBM_OutputStream |
| saveOutputStream(OutputStream) | Save the body of the message to the OutputStream. It will block until the entire content is transferred to the OutputStream. | JMS_JBM_SaveStream |
To set the output stream when receiving a core message:
...
ClientMessage msg = consumer.receive(...);
// This will block here until the stream was transferred
msg.saveOutputStream(someOutputStream);
ClientMessage msg2 = consumer.receive(...);
// This will not wait the transfer to finish
msg.setOutputStream(someOtherOutputStream);
...
Set the input stream when sending a core message:
...
ClientMessage msg = session.createMessage();
msg.setInputStream(dataInputStream);
...
When using JMS, JBoss Messaging maps the streaming methods on the core API (see Table 22.1, “org.jboss.messaging.core.client.ClientMessage API”) by setting object properties . You can use the method Message.setObjectProperty to set the input and output streams.
The InputStream can be defined through the JMS Object Property JMS_JBM_InputStream on messages being sent:
BytesMessage message = session.createBytesMessage();
FileInputStream fileInputStream = new FileInputStream(fileInput);
BufferedInputStream bufferedInput = new BufferedInputStream(fileInputStream);
message.setObjectProperty("JMS_JBM_InputStream", bufferedInput);
someProducer.send(message);The OutputStream can be set through the JMS Object Property JMS_JBM_SaveStream on messages being received in a blocking way.
BytesMessage messageReceived = (BytesMessage)messageConsumer.receive(120000);
File outputFile = new File("huge_message_received.dat");
FileOutputStream fileOutputStream = new FileOutputStream(outputFile);
BufferedOutputStream bufferedOutput = new BufferedOutputStream(fileOutputStream);
// This will block until the entire content is saved on disk
messageReceived.setObjectProperty("JMS_JBM_SaveStream", bufferedOutput);
Setting the OutputStream could also be done in a non blocking way using the property JMS_JBM_InputStream.
// This won't wait the stream to finish. You need to keep the consumer active.
messageReceived.setObjectProperty("JMS_JBM_InputStream", bufferedOutput);
Note
When using JMS, Streaming large messages are only supported on StreamMessage and BytesMessage.
If you choose not to use the InputStream or OutputStream capability of JBoss Messaging You could still access the data directly in an alternative fashion.
On the Core API just get the bytes of the body as you normally would.
ClientMessage msg = consumer.receive();
byte[] bytes = new byte[1024];
for (int i = 0 ; i < msg.getBodySize(); i += bytes.length)
{
msg.getBody().readBytes(bytes);
// Whatever you want to do with the bytes
}If using JMS API, BytesMessage and StreamMessage also supports it transparently.
BytesMessage rm = (BytesMessage)cons.receive(10000);
byte data[] = new byte[1024];
for (int i = 0; i < rm.getBodyLength(); i += 1024)
{
int numberOfBytes = rm.readBytes(data);
// Do whatever you want with the data
} JBoss Messaging supports large messages of type TextMessage, ObjectMessage and MapMessage transparently. However those types of message will require a full reconstruction in memory in order to work properly.
For example: You may choose to send a 1MiB String over a TextMessage. When you read the message Java will need to parse the body of the message back into a String, so you need to have enough memory to allocate your large messages when using those types. If you use BytesMessage or StreamMessage this restriction won't apply.
As large messages are broken into smaller packets the fragmented packets are delivered individually from server to client. The message fragments are not kept in memory so once they are delivered it is not possible to resend them.
As a result resending a large messages after consumption will not work as seen on this example:
BytesMessage bm = (BytesMessage)cons.receive(1000);
bm.setObjectProperty("JMS_JBM_SaveStream", bufferedOutput);
/// This will not work! The body streaming is already gone!
someOtherProducer.send(bm); // resending the message to another destination; Please see Section 9.1.21, “Large Message” for an example which shows how large message is configured and used with JMS.
JBoss Messaging transparently supports huge queues containing millions of messages while the server is running with limited memory.
In such a situation it's not possible to store all of the queues in memory at any one time, so JBoss Messaging transparently pages messages into and out of memory as they are needed, thus allowing massive queues with a low memory footprint.
JBoss Messaging will start paging messages to disk, when either a) the size of the queue reaches a total configured maximum size or b) The total size of all queues reaches a configured maximum size.
These two modes of operation are called Address Paging Mode and Global Paging Mode .
Messages are stored per address on the file system. Each address has an individual folder where messages are stored in multiple files (page files). Each file will contain messages up to a max configured size. (page-size-bytes). When reading page-files all messages on the page-file are read, routed and the file is deleted as soon as the messages are recovered.
JBoss Messaging goes into global paging mode when the total memory used by all queues reaches a configured maximum value, determined by paging-max-global-size-bytes.
These messages are depaged back into memory once enough memory (global-page-size) has been freed up.
Global paging parameters are specified on the main configuration file.
<configuration xmlns="urn:jboss:messaging" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="urn:jboss:messaging /schema/jbm-configuration.xsd"> ... <paging-max-global-size-bytes>20485760</paging-max-global-size-bytes> <global-page-size>1048576</global-page-size> ...
Table 23.1. Paging Configuration Parameters
| Property Name | Description | Default |
|---|---|---|
| paging-directory | Where page files are stored. JBoss Messaging will create one folder for each address being paged under this configured location. | data/paging |
| paging-max-global-size-bytes | JBoss Messaging enters into global page mode as soon as the total memory consumed by messages hits this value. | -1 (disabled) |
| global-page-size | The standard size of a page-file. JBoss Messaging will only read messages when there is enough space to read at least one page file, determined by this value. | 10MiB (10 * 1024 * 1024 bytes) |
It is also possible to configure paging at the address level. As soon as messages delivered to an address exceed the configured size, that address alone goes into page mode.
Address level configuration is done at the address settings.
<address-settings>
<address-setting match="jms.someaddress">
<max-size-bytes>-1</max-size-bytes>
<page-size-bytes>10485760</page-size-bytes>
<drop-messages-when-full>10485760</drop-messages-when-full>
</address-setting>
</address-settings>
This is the list of available parameters on the address settings.
Table 23.2. Paging Address Settings
| Property Name | Description | Default |
|---|---|---|
| max-size | What's the max memory the address could have before entering on page mode. | -1 (disabled) |
| page-size-bytes | The size of each page file used on the paging system | 10MiB (10 * 1024 * 1024 bytes) |
| drop-messages-when-full | if true, messages are dropped instead of paged when used-memory is greater than max-size | false |
When a message is routed to an address that has multiple queues bound to it, e.g. a JMS subscription, there is only 1 copy of the message in memory. Each queue only deals with a reference to this. Because of this the memory is only freed up once all queues referencing the message have delivered it. This means that if not all queues deliver the message we can end up in a state where messages to not get delivered.
For example:
An address has 10 queues
One of the queues does not deliver its messages (maybe because of a slow consumer).
Messages continually arrive at the address and paging is started.
The other 9 queues are empty even though messages have been sent.
In this example we have to wait until the last queue has delivered some of its messages before we depage and the other queues finally receive some more messages.
See Section 9.1.34, “Paging” for an example which shows how to use paging with JBoss Messaging.
Queue attributes can be set in one of two ways. Either by configuring them using the configuration file or by using the core API. This chapter will explain how to configure each attribute and what effect the attribute has.
Queues can be predefined via configuration at a core level or at a JMS level. Firstly lets look at a JMS level.
The following shows a queue predefined in the jbm-jms.xml configuration file.
<queue name="selectorQueue">
<entry name="/queue/selectorQueue"/>
<selector string="color='red'"/>
<durable>true</durable>
</queue>This name attribute of queue defines the name of the queue. When we do this at a jms level we follow a naming convention so the actual name of the core queue will be jms.queue.selectorQueue.
The entry element configures the name that will be used to bind the queue to JNDI. This is a mandatory element and the queue can contain multiple of these to bind the same queue to different names.
The selector element defines what JMS message selector the predefined queue will have. Only messages that match the selector will be added to the queue. This is an optional element with a default of null when omitted.
The durable element specifies whether the queue will be persisted. This again is optional and defaults to true if omitted.
Secondly a queue can be predefined at a core level in the jbm-configuration.xml file. The following is an example.
<queues>
<queue name="jms.queue.selectorQueue">
<address>jms.queue.selectorQueue</address>
<filter string="color='red'"/>
<durable>true</durable>
</queue>
</queues>This is very similar to the JMS configuration, with 3 real differences which are.
The name attribute of queue is the actual name used for the queue with no naming convention as in JMS.
The address element defines what address is used for routing messages.
There is no entry element.
The filter uses the Core filter syntax (described in Chapter 12, Filter Expressions), not the JMS selector syntax.
Queues can also be created using the core API or the management API.
For the core API, queues can be created via the org.jboss.messaging.core.client.ClientSession interface. There are multiple createQueue methods that support setting all of the previously mentioned attributes. There is one extra attribute that can be set via this API which is temporary. setting this to true means that the queue will be deleted once the session is disconnected.
Take a look at Chapter 29, Management for a description of the management API for creating queues.
There are some attributes that are defined against a queue rather than a specific queue. Here an example of an address-setting entry that would be found in the jbm-configuration.xml file.
<address-settings>
<address-setting match="jms.queue.exampleQueue">
<dead-letter-address>jms.queue.deadLetterQueue</dead-letter-address>
<max-delivery-attempts>3</max-delivery-attempts>
<redelivery-delay>5000</redelivery-delay>
<expiry-address>jms.queue.expiryQueue</expiry-address>
<last-value-queue>true</last-value-queue>
<distribution-policy-class>org.jboss.messaging.core.server.impl.GroupingRoundRobinDistributor</distribution-policy-class>
<max-size-bytes>100000</max-size-bytes>
<page-size-bytes>20000</page-size-bytes>
<redistribution-delay>0</redistribution-delay>
</address-setting>
</address-settings>These are explained fully throughout the user manual, howvere here is a breif description with a link to the appropriate chapter if available.
max-delivery-attempts defines how many time a cancelled message can be redelivered before sending to the dead-letter-address. A full explanation can be found here.
redelivery-delay defines how long to wait before attempting redelivery of a cancelled message. see here.
expiry-address defines where to send a message that has expired. see here.
last-value-queue defines whether a queue only uses last values or not. see here.
distribution-policy-class define the class to use for distribution of messages by a queue to consumers. By default this is org.jboss.messaging.core.server.impl.RoundRobinDistributor.
max-size-bytes and page-size-bytes are used to set paging on an address. This is explained here.
redistribution-delay defines how long to wait when the last consumer is closed on a queue before redistributing any messages. see here.
Scheduled messages differ from normal messages in that they won't be delivered until a specified time in the future, at the earliest.
To do this, a special property is set on the message before sending it.
The property name used to identify a scheduled message is "_JBM_SCHED_DELIVERY" (or the constant MessageImpl.HDR_SCHEDULED_DELIVERY_TIME).
The specified value must be a long corresponding to the time the message must be delivered (in milliseconds). An example of sending a scheduled message using the JMS API is as follows.
TextMessage message =
session.createTextMessage("This is a scheduled message message which will be delivered
in 5 sec.");
message.setLongProperty("_JBM_SCHED_DELIVERY", System.currentTimeMillis() + 5000);
producer.send(message);
...
// message will not be received immediately but 5 seconds later
TextMessage messageReceived = (TextMessage) consumer.receive();
Scheduled messages can also be sent using the core API, by setting the same property on the core message before sending.
See Section 9.1.40, “Scheduled Message” for an example which shows how scheduled messages can be used with JMS.
Last-Value queues are special queues which discard any messages when a newer message with the same value for a well-defined Last-Value property is put in the queue. In other words, a Last-Value queue only retains the last value.
A typical example for Last-Value queue is for stock prices, where you are only interested by the latest value for a particular stock.
Last-value queues are defined in the address-setting configuration:
<address-setting match="jms.queue.lastValueQueue">
<last-value-queue>true</last-value-queue>
</address-setting>
By default, last-value-queue is false. Address wildcards can be used to configure Last-Value queues for a set of addresses (see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
The property name used to identify the last value is "_JBM_LVQ_NAME" (or the constant MessageImpl.HDR_LAST_VALUE_NAME from the Core API).
For example, if two messages with the same value for the Last-Value property are sent to a Last-Value queue, only the latest message will be kept in the queue:
// send 1st message with Last-Value property set to STOCK_NAME
TextMessage message =
session.createTextMessage("1st message with Last-Value property set");
message.setStringProperty("_JBM_LVQ_NAME", "STOCK_NAME");
producer.send(message);
// send 2nd message with Last-Value property set to STOCK_NAME
message =
session.createTextMessage("2nd message with Last-Value property set");
message.setStringProperty("_JBM_LVQ_NAME", "STOCK_NAME");
producer.send(message);
...
// only the 2nd message will be received: it is the latest with
// the Last-Value property set
TextMessage messageReceived = (TextMessage)messageConsumer.receive(5000);
System.out.format("Received message: %s\n", messageReceived.getText());
See Section 9.1.22, “Last-Value Queue” for an example which shows how last value queues are configured and used with JMS.
Message groups are sets of messages that has the following characteristics:
Messages in a message group share the same group id, i.e. they have same group identifier property (JMSXGroupID for JMS, _JBM_GROUP_ID for JBoss Messaging Core API).
Messages in a message group are always consumed by the same consumer, even if there are many consumers on a queue. They pin all messages with the same group id to the same consumer. If that consumer closes another consumer is chosen and will receive all messages with the same group id.
Message grouping must be enabled in the address-setting configuration by using a specific distribution-policy-class:
<address-setting match="jms.queue.exampleQueue">
<distribution-policy-class>
org.jboss.messaging.core.server.impl.GroupingRoundRobinDistributor
</distribution-policy-class>
</address-setting>
By default, distribution-policy-class is set to org.jboss.messaging.core.server.impl.RoundRobinDistributor and message groups will not be handled by the queue. Address wildcards can be used to configure the distribution policy for a set of addresses (see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
The property name used to identify the message group is "_JBM_GROUP_ID"" (or the constant MessageImpl.HDR_GROUP_ID). Alternatively, you can set autogroup to true on the SessionFactory which will pick a random unique id.
The property name used to identify the message group is JMSXGroupID.
Within the same group, messages can also set a JMSXGroupSeq int property (starting at 1).
// send 2 messages in the same group to ensure the same
// consumer will receive both
Message message = ...
message.setStringProperty("JMSXGroupID", "Group-0");
message.setIntProperty("JMSXGroupSeq", 1);
producer.send(message);
message = ...
message.setStringProperty("JMSXGroupID", "Group-0");
message.setIntProperty("JMSXGroupSeq", 2);
producer.send(message);
Alternatively, you can set autogroup to true on the JBossConnectonFactory which will pick a random unique id. This can also be set in the jbm-jms.xml file like this:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty-connector"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<autogroup>true</autogroup>
</connection-factory>See Section 9.1.29, “Message Group” for an example which shows how message groups are configured and used with JMS.
JMS specifies 3 acknowledgement modes:
AUTO_ACKNOWLEDGE
CLIENT_ACKNOWLEDGE
DUPS_OK_ACKNOWLEDGE
The acknowledgement modes all involve sending acknowledgements from the client to the server. However, in the case where you can afford to lose messages in event of failure, it would make sense to acknowledge the message on the server before delivering it to the client.
The disadvantage of acknowledging on the server before delivery is that the message will be lost if the system crashes after acknowledging the message on the server but before it is delivered to the client. In that case, the message is lost and will not be recovered when the system restart.
Depending on your messaging case, pre-acknowledgement mode can avoid extra network traffic and CPU at the cost of coping with message loss.
An example of a use case for pre-acknowledgement is for stock price update messages. With these messages it might be reasonable to lose a message in event of crash, since the next price update message will arrive soon, overriding the previous price.
This can be configured in the jbm-jms.xml file on the connection factory like this:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty-connector"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<pre-acknowledge>true</pre-acknowledge>
</connection-factory>Alternatively use pre-acknowledgement mode using the JMS API, create a JMS Session with the JBossSession.PRE_ACKNOWLEDGE constant.
// messages will be acknowledge on the server *before* being delivered to the client
Session session = connection.createSession(false, JBossSession.PRE_ACKNOWLEDGE);
Or you can set pre-acknowledge directly on the JBossConnectionFactory instance using the setter method.
To use pre-acknowledgement mode using the core API you can set it directly on the ClientSessionFactory instance using the setter method.
See Section 9.1.35, “Pre-Acknowledge” for an example which shows how to use pre-acknowledgement mode with with JMS.
JBoss Messaging has an extensive management API that allows a user to modify a server configuration, create new resources (e.g. JMS queues and topics), inspect these resources (e.g. how many messages are currently held in a queue) and interact with it (e.g. to remove messages from a queue). All the operations allows a client to manage JBoss Messaging. It also allows clients to subscribe to management notifications.
There are 3 ways to manage JBoss Messaging:
Using JMX -- JMX is the standard way to manage Java applications
Using the core API -- management operations are sent to JBoss Messaging server using core messages
Using the JMS API -- management operations are sent to JBoss Messaging server using JMS messages
Although there are 3 different ways to manage JBoss Messaging each API supports the same functionality. If it is possible to manage a resource using JMX it is also possible to achieve the same result using Core messages or JMS messages.
This choice depends on your requirements, your application settings and your environment to decide which way suits you best.
Regardless of the way you invoke management operations, the management API is the same.
For each managed resource, there exists a Java interface describing what can be invoked for this type of resource.
JBoss Messaging exposes its managed resources in 2 packages:
Core resources are located in the org.jboss.messaging.core.management package
JMS resources are located in the org.jboss.messaging.jms.server.management package
The way to invoke a management operations depends whether JMX, core messages, or JMS messages are used.
JBoss Messaging defines a core management API to manage core resources. For full details of the API please consult the javadoc. In summary:
Creating, deploying and destroying queues
Core queues can be created or destroyed using the management operations createQueue() or deployQueue() or destroyQueue())on the MessagingServerControl (with the ObjectName org.jboss.messaging:module=Core,type=Server or the resource name core.server)
createQueue will fail if the queue already exists while deployQueue will do nothing.
Listing and closing remote connections
Client's remote addresses can be retrieved using listRemoteAddresses(). It is also possible to close the connections associated with a remote address using the closeConnectionsForAddress() method.
Alternatively, connection IDs can be listed using listConnectionIDs() and all the sessions for a given connection ID can be listed using listSessions().
Transaction heuristic operations
In case of a server crash, when the server restarts, it it possible that some transaction requires manual intervention. The listPreparedTransactions() method lists the transactions which are in the prepared states (the transactions are represented as opaque Base64 Strings.) To commit or rollback a given prepared transaction, the commitPreparedTransaction() or rollbackPreparedTransaction() method can be used to resolve heuristic transactions.
Enabling and resetting Message counters
Message counters can be enabled or disabled using the enableMessageCounters() or disableMessageCounters() method. To reset message counters, it is possible to invoke resetAllMessageCounters() and resetAllMessageCounterHistories() methods.
Retrieving the server configuration and attributes
The MessagingServerControl exposes JBoss Messaging server configuration through all its attributes (e.g. getVersion() method to retrieve the server's version, etc.)
Core addresses can be managed using the AddressControl class (with the ObjectName org.jboss.messaging:module=Core,type=Address,name="<the address name>" or the resource name core.address.<the address name>).
Modifying roles and permissions for an address
You can add or remove roles associated to a queue using the addRole() or. removeRole() methods. You can list all the roles associated to the queue with the getRoles() method
The bulk of the core management API deals with core queues. The QueueControl class defines the Core queue management operations (with the ObjectName org.jboss.messaging:module=Core,type=Queue,address="<the bound address>",name="<the queue name>" or the resource name core.queue.<the queue name>).
Most of the management operations on queues take either a single message ID (e.g. to remove a single message) or a filter (e.g. to expire all messages with a given property.)
Expiring, sending to a dead letter address and moving messages
Messages can be expired from a queue by using the expireMessages() method. If an expiry address is defined, messages will be be sent to it, otherwise they are discarded. The queue's expiry address can be set with the setExpiryAddress() method.
Messages can also be sent to a dead letter address with the sendMessagesToDeadLetterAddress() method. It returns the number of messages which are sent to the dead letter address. If a dead letter address is not defined, message are removed from the queue and discarded. The queue's dead letter address can be set with the setDeadLetterAddress() method.
Messages can also be moved from a queue to another queue by using the moveMatchingMessages() method.
Listing and removing messages
Messages can be listed from a queue by using the listMessages() method which returns an array of Map, one Map for each message.
Messages can also be removed from the queue by using the removeMatchingMessages() method which returns a boolean for the single message ID variant or the number of removed messages for the filter variant.
Counting messages
The number of messages in a queue is returned by the getMessageCount() method. Alternatively, the countMessages() will return the number of messages in the queue which match a given filter
Changing message priority
The message priority can be changed by using the changeMessagesPriority() method which returns a boolean for the single message ID variant or the number of updated messages for the filter variant.
Message counters
Message counters can be listed for a queue with the listMessageCounter() and listMessageCounterHistory() methods (see Section 29.7, “Message Counters”). The message counters can also be reset for a single queue using the resetMessageCounter() method.
Retrieving the queue attributes
The QueueControl exposes Core queue settings through its attributes (e.g. getFilter() to retrieve the queue's filter if it was created with one, isDurable() to know wether the queue is durable or not, etc.)
JBoss Messaging allows to start and stop its remote resources (acceptors, diverts, bridges, etc.) so that a server can be taken off line for a given period of time without stopping it completely (e.g. if other management operations must be performed such as resolving heuristic transactions). These resources are:
Acceptors
They can be started or stopped using the start() or. stop() method on the AcceptorControl class (with the ObjectName org.jboss.messaging:module=Core,type=Acceptor,name="<the acceptor name>" or the resource name core.acceptor.<the address name>). The acceptors parameters can be retrieved using the AcceptorControl attributes (see Section 14.1, “Understanding Acceptors”)
Diverts
They can be started or stopped using the start() or stop() method on the DivertControl class (with the ObjectName org.jboss.messaging:module=Core,type=Divert,name=<the divert name> or the resource name core.divert.<the divert name>). Diverts parameters can be retrieved using the DivertControl attributes (see Chapter 33, Diverting and Splitting Message Flows)
Bridges
They can be started or stopped using the start() (resp. stop()) method on the BridgeControl class (with the ObjectName org.jboss.messaging:module=Core,type=Bridge,name="<the bridge name>" or the resource name core.bridge.<the bridge name>). Bridges parameters can be retrieved using the BridgeControl attributes (see Chapter 34, Core Bridges)
Broadcast groups
They can be started or stopped using the start() or stop() method on the BroadcastGroupControl class (with the ObjectName org.jboss.messaging:module=Core,type=BroadcastGroup,name="<the broadcast group name>" or the resource name core.broadcastgroup.<the broadcast group name>). Broadcast groups parameters can be retrieved using the BroadcastGroupControl attributes (see Section 36.2.1, “Broadcast Groups”)
Discovery groups
They can be started or stopped using the start() or stop() method on the DiscoveryGroupControl class (with the ObjectName org.jboss.messaging:module=Core,type=DiscoveryGroup,name="<the discovery group name>" or the resource name core.discovery.<the discovery group name>). Discovery groups parameters can be retrieved using the DiscoveryGroupControl attributes (see Section 36.2.2, “Discovery Groups”)
Cluster connections
They can be started or stopped using the start() or stop() method on the ClusterConnectionControl class (with the ObjectName org.jboss.messaging:module=Core,type=ClusterConnection,name="<the cluster connection name>" or the resource name core.clusterconnection.<the cluster connection name>). Cluster connections parameters can be retrieved using the ClusterConnectionControl attributes (see Section 36.3.1, “Configuring Cluster Connections”)
JBoss Messaging defines a JMS Management API to manage JMS administrated objects (i.e. JMS queues, topics and connection factories).
JMS Resources (connection factories and destinations) can be created using the JMSServerControl class (with the ObjectName org.jboss.messaging:module=JMS,type=Server or the resource name jms.server).
Creating/destroying connection factories
JMS connection factories can be created or destroyed using the createConnectionFactory() methods or destroyConnectionFactory() methods. These connection factories are bound to JNDI so that JMS clients can look them up
Creating/destroying queues
JMS queues can be created or destroyed using the createQueue() methods or destroyQueue() methods. These queues are bound to JNDI so that JMS clients can look them up
Creating/destroying topics
JMS topics can be created or destroyed using the createTopic() or destroyTopic() methods. These topics are bound to JNDI so that JMS clients can look them up
Listing and closing remote connections
JMS Clients remote addresses can be retrieved using listRemoteAddresses(). It is also possible to close the connections associated with a remote address using the closeConnectionsForAddress() method.
Alternatively, connection IDs can be listed using listConnectionIDs() and all the sessions for a given connection ID can be listed using listSessions().
JMS Connection Factories can be managed using the ConnectionFactoryControl class (with the ObjectName org.jboss.messaging:module=JMS,type=ConnectionFactory,name="<the connection factory name>" or the resource name jms.connectionfactory.<the connection factory name>).
Retrieving connection factory attributes
The ConnectionFactoryControl exposes JMS ConnectionFactory configuration through its attributes (e.g. getConsumerWindowSize() to retrieve the consumer window size for flow control, isBlockOnNonPersistentSend() to know wether the producers created from the connection factory will block or not when sending non-persistent messages, etc.)
JMS queues can be managed using the JMSQueueControl class (with the ObjectName org.jboss.messaging:module=JMS,type=Queue,name="<the queue name>" or the resource name jms.queue.<the queue name>).
The management operations on a JMS queue are very similar to the operations on a core queue.
Expiring, sending to a dead letter address and moving messages
Messages can be expired from a queue by using the expireMessages() method. If an expiry address is defined, messages will be be sent to it, otherwise they are discarded. The queue's expiry address can be set with the setExpiryAddress() method.
Messages can also be sent to a dead letter address with the sendMessagesToDeadLetterAddress() method. It returns the number of messages which are sent to the dead letter address. If a dead letter address is not defined, message are removed from the queue and discarded. The queue's dead letter address can be set with the setDeadLetterAddress() method.
Messages can also be moved from a queue to another queue by using the moveMatchingMessages() method.
Listing and removing messages
Messages can be listed from a queue by using the listMessages() method which returns an array of Map, one Map for each message.
Messages can also be removed from the queue by using the removeMatchingMessages() method which returns a boolean for the single message ID variant or the number of removed messages for the filter variant.
Counting messages
The number of messages in a queue is returned by the getMessageCount() method. Alternatively, the countMessages() will return the number of messages in the queue which match a given filter
Changing message priority
The message priority can be changed by using the changeMessagesPriority() method which returns a boolean for the single message ID variant or the number of updated messages for the filter variant.
Message counters
Message counters can be listed for a queue with the listMessageCounter() and listMessageCounterHistory() methods (see Section 29.7, “Message Counters”)
Retrieving the queue attributes
The JMSQueueControl exposes JMS queue settings through its attributes (e.g. isTemporary() to know wether the queue is temporary or not, isDurable() to know wether the queue is durable or not, etc.)
JMS Topics can be managed using the TopicControl class (with the ObjectName org.jboss.messaging:module=JMS,type=Topic,name="<the topic name>" or the resource name jms.topic.<the topic name>).
Listing subscriptions and messages
JMS topics subscriptions can be listed using the listAllSubscriptions(), listDurableSubscriptions(), listNonDurableSubscriptions() methods. These methods return arrays of Object representing the subscriptions information (subscription name, client ID, durability, message count, etc.). It is also possible to list the JMS messages for a given subscription with the listMessagesForSubscription() method.
Dropping subscriptions
Durable subscriptions can be dropped from the topic using the dropDurableSubscription() method.
Counting subscriptions messages
The countMessagesForSubscription() method can be used to know the number of messages held for a given subscription (with an optional message selector to know the number of messages matching the selector)
JBoss Messaging can be managed using JMX.
The management API is exposed by JBoss Messaging using MBeans interfaces. JBoss Messaging registers its resources with the domain org.jboss.messaging.
For example, the ObjectName to manage a JMS Queue exampleQueue is:
org.jboss.messaging:module=JMS,type=Queue,name="exampleQueue"
and the MBean is:
org.jboss.messaging.jms.server.management.JMSQueueControl
The MBean's ObjectName are built using the helper class org.jboss.messaging.core.management.ObjectNames. You can also use jconsole to find the ObjectName of the MBeans you want to manage.
Managing JBoss Messaging using JMX is identical to management of any Java Applications using JMX. It can be done by reflection or by creating proxies of the MBeans.
By default, JMX is enabled to manage JBoss Messaging. It can be disabled by setting jmx-management-enabled to false in jbm-configuration.xml:
<!-- false to disable JMX management for JBoss Messaging -->
<jmx-management-enabled>false</jmx-management-enabled>
If JMX is enabled, JBoss Messaging can be managed locally using jconsole. Remote connections to JMX are not enabled by default for security reasons. Please refer to Java Management guide to configure the server for remote management (system properties must be set in run.sh or run.bat scripts).
By default, JBoss Messaging uses the Java Virtual Machine's Platform MBeanServer to register its MBeans. This is configured in JBoss Microcontainer Beans file (see Section 4.7, “JBoss Microcontainer Beans File”):
<!-- MBeanServer -->
<bean name="MBeanServer" class="javax.management.MBeanServer">
<constructor factoryClass="java.lang.management.ManagementFactory"
factoryMethod="getPlatformMBeanServer" />
</bean>
See Section 9.1.20, “JMX Management” for an example which shows how to use a remote connection to JMX and MBean proxies to manage JBoss Messaging.
The core management API in JBoss Messaging is called by sending Core messages to a special address, the management address.
Management messages are regular Core messages with well-known properties that the server needs to understand to interact with the management API:
The name of the managed resource
The name of the management operation
The parameters of the management operation
When such a management message is sent to the management address, JBoss Messaging server will handle it, extract the information, invoke the operation on the managed resources and send a management reply to the management message's reply-to address (specified by ClientMessageImpl.REPLYTO_HEADER_NAME).
A ClientConsumer can be used to consume the management reply and retrieve the result of the operation (if any) stored in the reply's body. For portability, results are returned as a JSON String rather than Java Serialization (the org.jboss.messaging.core.client.management.impl.ManagementHelper can be used to convert the JSON string to Java objects).
These steps can be simplified to make it easier to invoke management operations using Core messages:
Create a ClientRequestor to send messages to the management address and receive replies
Create a ClientMessage
Use the helper class org.jboss.messaging.core.client.management.impl.ManagementHelper to fill the message with the management properties
Send the message using the ClientRequestor
Use the helper class org.jboss.messaging.core.client.management.impl.ManagementHelper to retrieve the operation result from the management reply
For example, to find out the number of messages in the core queue exampleQueue:
ClientSession session = ...
ClientRequestor requestor = new ClientRequestor(session, "jbm.management");
ClientMessage message = session.createClientMessage(false);
ManagementHelper.putAttribute(message, "core.queue.exampleQueue", "MessageCount");
ClientMessage reply = requestor.request(m);
int count = (Integer) ManagementHelper.getResult(reply);
System.out.println("There are " + count + " messages in exampleQueue");
Management operation name and parameters must conform to the Java interfaces defined in the management packages.
Names of the resources are built using the helper class org.jboss.messaging.core.management.ResourceNames and are straightforward (core.queue.exampleQueue for the Core Queue exampleQueue, jms.topic.exampleTopic for the JMS Topic exampleTopic, etc.).
The management address to send management messages is configured in jbm-configuration.xml:
<management-address>jbm.management</management-address>
By default, the address is jbm.management.
The management address requires a special user permission manage to be able to receive and handle management messages. This is also configured in jbm-configuration.xml:
<!-- users with the admin role will be allowed to manage -->
<!-- JBoss Messaging using management messages -->
<security-setting match="jbm.management">
<permission type="manage" roles="admin" />
</security-setting>
Using JMS messages to manage JBoss Messaging is very similar to using core API.
An important difference is that JMS requires a JMS queue to send the messages to (instead of an address for the core API).
The management queue is a special queue and needs to be instantiated directly by the client:
Queue managementQueue = new JBossQueue("jbm.management", "jbm.management");
All the other steps are the same than for the Core API but they use JMS API instead:
create a QueueRequestor to send messages to the management address and receive replies
create a Message
use the helper class org.jboss.messaging.jms.server.management.impl.JMSManagementHelper to fill the message with the management properties
send the message using the QueueRequestor
use the helper class org.jboss.messaging.jms.server.management.impl.JMSManagementHelper to retrieve the operation result from the management reply
For example, to know the number of messages in the JMS queue exampleQueue:
Queue managementQueue = new JBossQueue("jbm.management", "jbm.management");
QueueSession session = ...
QueueRequestor requestor = new QueueRequestor(session, managementQueue);
connection.start();
Message message = session.createMessage();
JMSManagementHelper.putAttribute(message, "jms.queue.exampleQueue", "MessageCount");
Message reply = requestor.request(message);
int count = (Integer)JMSManagementHelper.getResult(reply);
System.out.println("There are " + count + " messages in exampleQueue");
Whether JMS or the core API is used for management, the configuration steps are the same (see Section 29.3.1, “Configuring Core Management”).
See Section 9.1.24, “Management” for an example which shows how to use JMS messages to manage JBoss Messaging server.
JBoss Messaging allows replication of a live server to a backup server. This impacts management as resources created on the live server (e.g. a core address) must also be created on the backup server. Otherwise, when failover occurs, the backup server will not be able to handle messages sent to this address since its resources will have been created on the live server only and not on the backup.
JBoss Messaging replicates management operations regardless of the management API used (JMX, Core messages, JMS messages). Any management operation invoked on a live server will also be invoked on its backup server to ensure a proper replication of resources and state. For example, you only need to manage the live server: if a queue is created on the live server, JBoss Messaging will ensure that the same resource will also be created on the backup server.
If core or JMS messages are used to invoke management operations, replication is handled automatically by JBoss Messaging.
To allow this management replication with JMX, JBoss Messaging defines management cluster credentials: this special user/password must be shared by all nodes. To configure it, change the value in jbm-configuration.xml:
<management-cluster-user>JBM.MANAGEMENT.ADMIN.USER</management-cluster-user>
<management-cluster-password>CHANGE ME!!</management-cluster-password>
It is strongly suggested to change these values from their default. If they are not changed from the default, JBoss Messaging will detect this and pester you with a warning on every start-up.
JBoss Messaging internally uses Core messages to replicate management operations between the live and backup server when JMX is used. By default, there is a timeout of 5s (5000ms) to send a management request from the live server to the backup server and wait for a reply. If a reply is not received before the timeout is hit, JBoss Messaging considers the replication has failed. This timeout can be configured in jbm-configuration.xml:
<management-request-timeout>5000</management-request-timeout>
JBoss Messaging emits notifications to inform listeners of potentially interesting events (creation of new resources, security violation, etc.).
These notifications can be received by 3 different ways:
JMX notifications
Core messages
JMS messages
If JMX is enabled (see Section 29.2.1, “Configuring JMX”), JMX notifications can be received by subscribing to 2 MBeans:
org.jboss.messaging:module=Core,type=Server for notifications on Core resources
org.jboss.messaging:module=JMS,type=Server for notifications on JMS resources
JBoss Messaging defines a special management notification address. Core queues can be bound to this address so that clients will receive management notifications as Core messages
A Core client which wants to receive management notifications must create a core queue bound to the management notification address. It can then receive the notifications from its queue.
Notifications messages are regular core messages with additional properties corresponding to the notification (its type, when it occurred, the resources which were concerned, etc.).
Since notifications are regular core messages, it is possible to use message selectors to filter out notifications and receives only a subset of all the notifications emitted by the server.
the management notification address to receive management notifications is configured in jbm-configuration.xml:
<management-notification-address>jbm.notifications</management-notification-address>
By default, the address is jbm.notifications.
JBoss Messaging's notifications can also be received using JMS messages.
It is similar to receiving notifications using Core API but an important difference is that JMS requires a JMS Destination to receive the messages (preferably a Topic):
Topic notificationsTopic = new JBossTopic("jbm.notifications", "jbm.notifications");
Once the notification topic is created, you can receive messages from it or set a MessageListener:
Topic notificationsTopic = new JBossTopic("jbm.notifications", "jbm.notifications");
Session session = ...
MessageConsumer notificationConsumer = session.createConsumer(notificationsTopic);
notificationConsumer.setMessageListener(new MessageListener()
{
public void onMessage(Message notif)
{
System.out.println("------------------------");
System.out.println("Received notification:");
try
{
Enumeration propertyNames = notif.getPropertyNames();
while (propertyNames.hasMoreElements())
{
String propertyName = (String)propertyNames.nextElement();
System.out.format(" %s: %s\n", propertyName, notif.getObjectProperty(propertyName));
}
}
catch (JMSException e)
{
}
System.out.println("------------------------");
}
});
See Section 9.1.25, “Management Notification” for an example which shows how to use a JMS MessageListener to receive management notifications from JBoss Messaging server.
Message counters can be used to obtain information on queues over time as JBoss Messaging keeps a history on queue metrics.
They can be used to show trends on queues. For example, using the management API, it would be possible to query the number of messages in a queue at regular interval. However, this would not be enough to know if the queue is used: the number of messages can remain constant because nobody is sending or receiving messages from the queue or because there are as many messages sent to the queue than messages consumed from it. The number of messages in the queue remains the same in both cases but its use is widely different.
Message counters gives additional information about the queues:
count
The total number of messages added to the queue since the server was started
countDelta
the number of messages added to the queue since the last message counter update
depth
The current number of messages in the queue
depthDelta
The overall number of messages added/removed from the queue since the last message counter update. For example, if depthDelta is equal to -10 this means that overall 10 messages have been removed from the queue (e.g. 2 messages were added and 12 were removed)
lastAddTimestamp
The timestamp of the last time a message was added to the queue
udpateTimestamp
The timestamp of the last message counter update
By default, message counters are disabled as it might have a small negative effect on memory (the metrics are kept in memory) and CPU (the queues are sampled at regular interval).
To enable message counters, you can set it to true in jbm-configuration.xml:
<message-counter-enabled>true</message-counter-enabled>
Message counters keeps a history of the queue metrics (10 days by default) and samples all the queues at regular interval (10 seconds by default). If message counters are enabled, these values should be configured to suit your messaging use case in jbm-configuration.xml:
<!-- keep history for a week -->
<message-counter-max-day-history>7</message-counter-max-day-history>
<!-- sample the queues every minute (60000ms) -->
<message-counter-sample-period>60000</message-counter-sample-period>
Message counters can be retrieved using the Management API. For example, to retrieve message counters on a JMS Queue using JMX:
// retrieve a connection to JBoss Messaging's MBeanServer
MBeanServerConnection mbsc = ...
JMSQueueControlMBean queueControl = (JMSQueueControl)MBeanServerInvocationHandler.newProxyInstance(mbsc,
on,
JMSQueueControl.class,
false);
// message counters are retrieved as a JSON String
String counters = queueControl.listMessageCounter();
// use the MessageCounterInfo helper class to manipulate message counters more easily
MessageCounterInfo messageCounter = MessageCounterInfo.fromJSON(counters);
System.out.format("%s message(s) in the queue (since last sample: %s)\n",
counter.getDepth(),
counter.getDepthDelta());
See Section 9.1.27, “Message Counter” for an example which shows how to use message counters to retrieve information on a JMS Queue.
This chapter describes how security works with JBoss Messaging and how you can configure it. To disable security completely simply set the security-enabled property to false in the jbm-configuration.xml file.
For performance reasons security is cached and invalidated every so long. To change this period set the property security-invalidation-interval, which is in milliseconds. The default is 10000 ms.
JBoss Messaging contains a flexible role-based security model for applying security to queues, based on their addresses.
As explained in Chapter 6, Using Core, JBoss Messaging core consists mainly of sets of queues bound to addresses. A message is sent to an address and the server looks up the set of queues that are bound to that address, the server then routes the message to those set of queues.
JBoss Messaging allows sets of permissions to be defined against the queues based on their address. An exact match on the address can be used or a wildcard match can be used using the wildcard characters '#' and '*'.
Seven different permissions can be given to the set of queues which match the address. Those permissions are:
createDurableQueue. This permission allows the user to create a durable queue under matching addresses.
deleteDurableQueue. This permission allows the user to delete a durable queue under matching addresses.
createTempQueue. This permission allows the user to create a temporary queue under matching addresses.
deleteTempQueue. This permission allows the user to delete a temporarry queue under matching addresses.
send. This permission allows the user to send a message to matching addresses.
consume. This permission allows the user to consume a message from a queue bound to matching addresses.
manage. This permission allows the user to invoke management operations by sending management messages to the management address.
For each permission, a list of roles who are granted that permission is specified. If the user has any of those roles, he/she will be granted that permission for that set of addresses.
Let's take a simple example, here's a security block from jbm-configuration.xml or jbm-queues.xml file:
<security-setting match="globalqueues.europe.#">
<permission type="createDurableQueue" roles="admin"/>
<permission type="deleteDurableQueue" roles="admin"/>
<permission type="createTempQueue" roles="admin, guest, europe-users"/>
<permission type="deleteTempQueue" roles="admin, guest, europe-users"/>
<permission type="send" roles="admin, europe-users"/>
<permission type="consume" roles="admin, europe-users"/>
</security-setting>
The '#' character signifies "any sequence of words". Words are delimited by the '.' character. For a full description of the wildcard syntax please see Chapter 11, Understanding the JBoss Messaging Wildcard Syntax. The above security block applies to any address that starts with the string "globalqueues.europe.":
Only users who have the admin role can create or delete durable queues bound to an address that starts with the string "globalqueues.europe."
Only users who have the admin role can create or delete durable queues bound to an address that starts with the string "globalqueues.europe."
Any users with the roles admin, guest, or europe-users can create or delete temporary queues bound to an address that starts with the string "globalqueues.europe."
Any users with the roles admin or europe-users can send messages to these addresses or consume messages from queues bound to an address that starts with the string "globalqueues.europe."
The mapping between a user and what roles they have is handled by the security manager. JBoss Messaging ships with a user manager that reads user credentials from a file on disk, and can also plug into JAAS or JBoss Application Server security.
For more information on configuring the security manager, please see Section 30.4, “Changing the security manager”.
There can be zero or more security-setting elements in each xml file. Where more than one match applies to a set of addresses the more specific match takes precedence.
Let's look at an example of that, here's another security-setting block:
<security-setting match="globalqueues.europe.orders.#">
<permission type="send" roles="europe-users"/>
<permission type="consume" roles="europe-users"/>
</security-setting>
In this security-setting block the match 'globalqueues.europe.orders.#' is more specific than the previous match 'globalqueues.europe.#'. So any addresses which match 'globalqueues.europe.orders.#' will take their security settings only from the latter security-setting block.
Note that settings are not inherited from the former block. All the settings will be taken from the more specific matching block, so for the address 'globalqueues.europe.orders.plastics' the only permissions that exist are send and consume for the role europe-users. The permissions createDurableQueue, deleteDurableQueue, createTempQueue, deleteTempQueue are not inherited from the other security-setting block.
By not inheriting permissions, it allows you to effectively deny permissions in more specific security-setting blocks by simply not specifying them. Otherwise it would not be possible to deny permissions in sub-groups of addresses.
When messaging clients are connected to servers, or servers are connected to other servers (e.g. via bridges) over an untrusted network then JBoss Messaging allows that traffic to be encrypted using the Secure Sockets Layer (SSL) transport.
For more information on configuring the SSL transport, please see Chapter 14, Configuring the Transport.
JBoss Messaging ships with a security manager implementation that reads user credentials, i.e. user names, passwords and role information from an xml file on the classpath called jbm-users.xml. This is the default security manager.
If you wish to use this security manager, then users, passwords and roles can easily be added into this file.
Let's take a look at an example file:
<configuration xmlns="urn:jboss:messaging"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:jboss:messaging ../schemas/jbm-users.xsd ">
<defaultuser name="guest" password="guest">
<role name="guest"/>
</defaultuser>
<user name="tim" password="marmite">
<role name="admin"/>
</user>
<user name="andy" password="doner_kebab">
<role name="admin"/>
<role name="guest"/>
</user>
<user name="jeff" password="camembert">
<role name="europe-users"/>
<role name="guest"/>
</user>
</configuration>
The first thing to note is the element default-user. This defines what user will be assumed when the client does not specify a username/password when creating a session. In this case they will be the user guest and have the role also called guest. Multiple roles can be specified for a default user.
We then have three more users, the user tim has the role admin. The user andy has the roles admin and guest, and the user jeff has the roles europe-users and guest.
If you do not want to use the default security manager then you can specify a different one by editing the jbm-jboss-beans.xml file and changing the class for the JBMSecurityManager bean.
Let's take a look at a snippet from the default beans file:
<bean name="JBMSecurityManager"
class="org.jboss.messaging.core.security.impl.JBMSecurityManagerImpl">
<start ignored="true"/>
<stop ignored="true"/>
</bean>
The class org.jboss.messaging.core.security.impl.JBMSecurityManagerImpl is the default security manager that reads used by the standalone server.
JBoss Messaging ships with two other security manager implementations you can use off-the-shelf; one a JAAS security manager and another for integrating with JBoss Application Sever security, alternatively you could write your own implementation by implementing the org.jboss.messaging.core.security.SecurityManager interface, and specifying the classname of your implementation in the jbm-jboss-beans.xml file.
These two implementations are discussed in the next two sections.
JAAS stands for 'Java Authentication and Authorization Service' and is a standard part of the Java platform. It provides a common API for security authentication and authorization, allowing you to plugin your pre-built implementations.
To configure the JAAS security manager to work with your pre-built JAAS infrastructure you need to specify the security manager as a JAASSecurityManager in the beans file. Here's an example:
<bean name="JBMSecurityManager"
class="org.jboss.messaging.integration.security.JAASSecurityManager">
<start ignored="true"/>
<stop ignored="true"/>
<property name="ConfigurationName">org.jboss.jms.example.ExampleLoginModule</property>
<property name="Configuration">
<inject bean="ExampleConfiguration"/>
</property>
<property name="CallbackHandler">
<inject bean="ExampleCallbackHandler"/>
</property>
</bean>
Note that you need to feed the JAAS security manager with three properties:
ConfigurationName: the name of the LoginModule implementation that JAAS must use
Configuration: the Configuration implementation used by JAAS
CallbackHandler: the CallbackHandler implementation to use if user interaction are required
See Section 9.1.19, “JAAS” for an example which shows how JBoss Messaging can be configured to use JAAS.
The JBoss AS security manager is used when running JBoss Messaging inside the JBoss Application server. This allows tight integration with the JBoss Application Server's security model.
The class name of this security manager is org.jboss.messaging.integration.security.JBossASSecurityManager
Take a look at one of the default jbm-jboss-beans.xml files for JBoss Application Server that are bundled in the distribution for an example of how this is configured.
In order for cluster connections to work correctly, each node in the cluster must register for management notifications from other nodes. To do this they must perform these actions as a user with a role that has admin permissions on the management addresses.
This password should always be changed from its default after installation. Please see Chapter 29, Management for instructions on how to do this.
JBoss Messaging can be easily installed in JBoss Application Server 5.1 or JBoss Enterprise Application Platform 5.1 or later. For details on installing JBoss Messaging in the JBoss Application Server refer to quick-start guide.
JBoss Messaging can also be integrated with any other JEE compliant application server by using the JBoss Messaging JCA adapter.
This section explains the basics behind configuring the different JEE components in the AS.
The Java Connector Architecture (JCA) Adapter is what allows JBM to be integrated with JEE components such as MDB's and EJB's. It configures how components such as MDB's consume messages from the JBM server and also how components such as EJB's or Servlet's can send messages.
The JBM JCA adapter is deployed via the jms-ra.rar archive. The configuration of the Adapter is found in this archive under META-INF/ra.xml.
The configuration will look something like the following:
<resourceadapter>
<resourceadapter-class>org.jboss.messaging.ra.JBMResourceAdapter</resourceadapter-class>
<config-property>
<description>The transport type</description>
<config-property-name>ConnectorClassName</config-property-name>
<config-property-type>java.lang.String</config-property-type>
<config-property-value>org.jboss.messaging.core.remoting.impl.invm.InVMConnectorF
actory</config-property-value>
</config-property>
<config-property>
<description>The transport configuration. These values must be in the form of key=val;key=val;</description>
<config-property-name>ConnectionParameters</config-property-name>
<config-property-type>java.lang.String</config-property-type>
<config-property-value>jbm.remoting.invm.serverid=0</config-property-value>
</config-property>
<config-property>
<description>Use XA methods to obtain connections?</description>
<config-property-name>UseXA</config-property-name>
<config-property-type>java.lang.Boolean</config-property-type>
<config-property-value>true</config-property-value>
</config-property>
<outbound-resourceadapter>
<connection-definition>
<managedconnectionfactory-class>org.jboss.messaging.ra.JBMManagedConnection
Factory</managedconnectionfactory-class>
<config-property>
<description>The default session type</description>
<config-property-name>SessionDefaultType</config-property-name>
<config-property-type>java.lang.String</config-property-type>
<config-property-value>javax.jms.Queue</config-property-value>
</config-property>
<config-property>
<description>Try to obtain a lock within specified number of seconds; less
than or equal to 0 disable this functionality</description>
<config-property-name>UseTryLock</config-property-name>
<config-property-type>java.lang.Integer</config-property-type>
<config-property-value>0</config-property-value>
</config-property>
<connectionfactory-interface>org.jboss.messaging.ra.JBMConnectionFactory
</connectionfactory-interface>
<connectionfactory-impl-class>org.jboss.messaging.ra.JBMConnectionFactoryImpl
</connectionfactory-impl-class>
<connection-interface>javax.jms.Session</connection-interface>
<connection-impl-class>org.jboss.messaging.ra.JBMSession
</connection-impl-class>
</connection-definition>
<transaction-support>XATransaction</transaction-support>
<authentication-mechanism>
<authentication-mechanism-type>BasicPassword
</authentication-mechanism-type>
<credential-interface>javax.resource.spi.security.PasswordCredential
</credential-interface>
</authentication-mechanism>
<reauthentication-support>false</reauthentication-support>
</outbound-resourceadapter>
<inbound-resourceadapter>
<messageadapter>
<messagelistener>
<messagelistener-type>javax.jms.MessageListener</messagelistener-type>
<activationspec>
<activationspec-class>org.jboss.messaging.ra.inflow.JBMActivationSpec
</activationspec-class>
<required-config-property>
<config-property-name>destination</config-property-name>
</required-config-property>
</activationspec>
</messagelistener>
</messageadapter>
</inbound-resourceadapter>
</resourceadapter>There are 3 main parts to this configuration.
A set of global properties for the Adapter
The configuration for the outbound part of the adapter. This is used for creating JMS resources within EE components.
The configuration of the inbound part of the adapter. This is used for controlling the consumption of messages via MDB's.
The first element you see is resourceadapter-class which should be left unchanged. This is the JBM resource adapter class.
After that there is a list of configuration properties. This will be where most of the configuration is done. The first 2 configure the transport used by the adapter and the rest configure the connection itself.
The following table explains what each property is for.
Table 31.1. Global Configuration Properties
| Property Name | Property Type | Property Description |
|---|---|---|
| ConnectorClassName | String | The Connector class name see Chapter 14, Configuring the Transport for info on available connectors |
| ConnectionParameters | String | The transport configuration. These values must be in the form of key=val;key=val; and will be specific to the connector used |
| UseXA | boolean | True will enable XA transactions |
| UserName | String | The user name to use when making a connection |
| Password | String | The password to use when making a connection |
| BackUpTransportType | String | The back up transport to use on failure. |
| TransportConfiguration | String | The back up transport configuration |
| DiscoveryGroupAddress | String | The discovery group address to use to autodetect a server |
| DiscoveryGroupPort | integer | The port to use for discovery |
| DiscoveryRefreshTimeout | long | The timeout, in milli seconds, to refresh. |
| DiscoveryInitialWaitTimeout | long | The initial time to wait for discovery. |
| LoadBalancingPolicyClassName | String | The load balancing policy class to use. |
| PingPeriod | long | The period, in milliseconds, to ping the server for failure. |
| ConnectionTTL | long | The time to live for the connection. |
| CallTimeout | long | the call timeout, in milli seconds, for each packet sent. |
| DupsOKBatchSize | integer | The batch size of message acks to use if Dups ok is used. |
continued..
| TransactionBatchSize | integer | The batch size to use for sending messages within a transaction |
| ConsumerWindowSize | integer | The window size for the consumers internal buffer. |
| ConsumerMaxRate | integer | The max rate a consumer can receive. |
| ProducerWindowSize | integer | The window size for the sending of messages. |
| ProducerMaxRate | integer | The max rate a producer can send messages. |
| MinLargeMessageSize | integer | The size a message can be, in bytes, before it is sent as a multi part large message. |
| BlockOnAcknowledge | boolean | If true then block on acknowledge of messages. |
| BlockOnNonPersistentSend | boolean | If true then block when sending non persistent messages |
| BlockOnPersistentSend | boolean | If true then block when sending persistent messages |
| AutoGroup | boolean | If true then auto group messages |
| MaxConnections | integer | The max number of connections. |
| PreAcknowledge | boolean | Whether to pre acknowledge messages before sending to consumer |
| RetryInterval | long | How long to wait , in milli seconds, before retrying a failed connection |
| RetryIntervalMultiplier | double | Used for calculating the retry interval |
| FailoverOnServerShutdown | boolean | If true client will reconnect to another server if available |
| ClientID | String | The client ID of the connection |
The outbound configuration should remain unchanged as they define connection factories that are used by Java EE components. These Connection Factories can be defined inside a configuration file that matches the name *-ds.xml. You'll find a default jms-ds.xml configuration under the messaging.sar directory in the Jboss AS deployment. The connection factories defined in the config file inherit their properties from the main ra.xml configuration but can also be overridden, the following example show how to define one.
Please note that this configuration only applies to install the JBM resource adapter in the JBoss Application Server. If you are using another JEE application server please refer to your application servers documentation for how to do this.
<tx-connection-factory>
<jndi-name>RemoteJmsXA</jndi-name>
<xa-transaction/>
<rar-name>jms-ra.rar</rar-name>
<connection-definition>org.jboss.messaging.ra.JBMConnectionFactory
</connection-definition>
<config-property name="SessionDefaultType" type="String">javax.jms.Topic
</config-property>
<config-property name="ConnectorClassName" type="String">
org.jboss.messaging.integration.transports.netty.NettyConnectorFactory
</config-property>
<config-property name="ConnectionParameters" type="String">
jbm.remoting.netty.port=5445</config-property>
<max-pool-size>20</max-pool-size>
</tx-connection-factory>In this example the connection factory will be bound to JNDI with the name RemoteJmsXA and can be looked up in the usual way using JNDI or defined within the EJB or MDB as such:
@Resource(mappedName="java:RemoteJmsXA") private ConnectionFactory connectionFactory;
The config-property elements are what over rides those in the ra.xml config.
The inbound configuration should again remain unchanged. This controls what forwards messages onto MDB's. It is possible to override properties on the MDB by adding an activation configuration to the MDB itself. This could be used to configure the MDB to consume from a different server. The next section demonstrates over riding the configuration.
Once the JCA Connector is configured, as shown previously, the MDB's can be configured to consume messages from the MDB server.
This is best done by using the MessageDriven tag on the MDB itself. The following shows an example.
@MessageDriven(name = "MessageMDBExample",
activationConfig =
{
@ActivationConfigProperty(propertyName = "destinationType",
propertyValue = "javax.jms.Queue"),
@ActivationConfigProperty(propertyName = "destination",
propertyValue = "queue/testQueue"),
@ActivationConfigProperty(propertyName = "acknowledgeMode",
propertyValue = "Auto-acknowledge"),
@ActivationConfigProperty(propertyName = "ConnectorClassName",
propertyValue =
"org.jboss.messaging.integration.transports.netty.NettyConnectorFactory"),
@ActivationConfigProperty(propertyName = "ConnectionParameters",
propertyValue = "jbm.remoting.netty.port=5545")
})
public class MDBRemoteExample implements MessageListener
{
public void onMessage(Message message)
{
try
{
//Step 9. We know the client is sending a text message so we cast
TextMessage tm = (TextMessage)message;
//Step 10. get the text from the message.
String text = tm.getText();
System.out.println("message " + text + " received");
}
catch (Exception e)
{
e.printStackTrace();
}
}
}In this example we have configured the MDB to consume from the queue named queue/testQueue. It is also possible to override properties for the inbound resource adapter here is well. Here the MDB is configured to connect to a different server.
It is also possible to define these properties in the web.xml deployment descriptor. Refer to the JBoss AS documentation on how to do this.
If you are using JNDI to look-up JMS queues, topics and connection factories from a cluster of servers, it is likely you will want to use HA-JNDI so that your JNDI look-ups will continue to work if one or more of the servers in the cluster fail.
HA-JNDI is a JBoss Application Server service which allows you to use JNDI from clients without them having to know the exact JNDI connection details of every server in the cluster. This service is only available if using a cluster of JBoss Application Server instances.
To use it use the following properties when connecting to JNDI.
Hashtable<String, String> jndiParameters = new Hashtable<String, String>();
jndiParameters.put("java.naming.factory.initial",
"org.jnp.interfaces.NamingContextFactory");
jndiParameters.put("java.naming.factory.url.pkgs=",
"org.jboss.naming:org.jnp.interfaces");
initialContext = new InitialContext(jndiParameters);For more information on using HA-JNDI see the JBoss Application Server clustering documentation
JBoss Messaging includes a fully functional message bridge.
The function of the bridge is to consume messages from a source queue or topic, and send them to a target queue or topic, typically on a different server.
The source and target servers do not have to be in the same cluster which makes bridging suitable for reliably sending messages from one cluster to another, for instance across a WAN, and where the connection may be unreliable.
A bridge is deployed inside a JBoss AS instance. The instance can be the same instance as either the source or target server. Or could be on a third, separate JBoss AS instance.
The bridge can also be used to bridge messages from other non JBoss Messaging JMS servers, as long as they are JMS 1.1 compliant.
Note
Don't confuse a JMS bridge with a core bridge. A JMS bridge can be used to bridge any two JMS 1.1 compliant JMS providers and uses the JMS API. A core bridge (described in Chapter 34, Core Bridges) is used to bridge any two JBoss Messaging instances and uses the core API. Always use a core bridge if you can in preference to a JMS bridge. The core bridge will typically provide better performance than a JMS bridge. Also the core bridge can provide once and only once delivery guarantees without using XA.
The bridge has built-in resilience to failure so if the source or target server connection is lost, e.g. due to network failure, the bridge will retry connecting to the source and/or target until they come back online. When it comes back online it will resume operation as normal.
The bridge can be configured with an optional JMS selector, so it will only consume messages matching that JMS selector
It can be configured to consume from a queue or a topic. When it consumes from a topic it can be configured to consume using a non durable or durable subscription
The bridge is deployed by the JBoss Micro Container via a beans configuration file. This would typically be deployed inside the JBoss Application Server and the following example shows an example of a beans file that bridges 2 destinations which are actually on the same server.
<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="urn:jboss:bean-deployer:2.0">
<bean name="JMSBridge" class="org.jboss.messaging.jms.bridge.impl.JMSBridgeImpl">
<!-- JBoss Messaging must be started before the bridge -->
<depends>MessagingServer</depends>
<constructor>
<!-- Source ConnectionFactory Factory -->
<parameter>
<inject bean="SourceCFF"/>
</parameter>
<!-- Target ConnectionFactory Factory -->
<parameter>
<inject bean="TargetCFF"/>
</parameter>
<!-- Source DestinationFactory -->
<parameter>
<inject bean="SourceDestinationFactory"/>
</parameter>
<!-- Target DestinationFactory -->
<parameter>
<inject bean="TargetDestinationFactory"/>
</parameter>
<!-- Source User Name (no username here) -->
<parameter><null /></parameter>
<!-- Source Password (no password here)-->
<parameter><null /></parameter>
<!-- Target User Name (no username here)-->
<parameter><null /></parameter>
<!-- Target Password (no password here)-->
<parameter><null /></parameter>
<!-- Selector -->
<parameter><null /></parameter>
<!-- Failure Retry Interval (in ms) -->
<parameter>5000</parameter>
<!-- Max Retries -->
<parameter>10</parameter>
<!-- Quality Of Service -->
<parameter>ONCE_AND_ONLY_ONCE</parameter>
<!-- Max Batch Size -->
<parameter>1</parameter>
<!-- Max Batch Time (-1 means infinite) -->
<parameter>-1</parameter>
<!-- Subscription name (no subscription name here)-->
<parameter><null /></parameter>
<!-- Client ID (no client ID here)-->
<parameter><null /></parameter>
<!-- Add MessageID In Header -->
<parameter>true</parameter>
</constructor>
<property name="transactionManager">
<inject bean="RealTransactionManager"/>
</property>
</bean>
<!-- SourceCFF describes the ConnectionFactory used to connect to the
source destination -->
<bean name="SourceCFF"
class="org.jboss.messaging.jms.bridge.impl.JNDIConnectionFactoryFactory">
<constructor>
<parameter>
<inject bean="JNDI" />
</parameter>
<parameter>/ConnectionFactory</parameter>
</constructor>
</bean>
<!-- TargetCFF describes the ConnectionFactory used to connect to the
target destination -->
<bean name="TargetCFF"
class="org.jboss.messaging.jms.bridge.impl.JNDIConnectionFactoryFactory">
<constructor>
<parameter>
<inject bean="JNDI" />
</parameter>
<parameter>/ConnectionFactory</parameter>
</constructor>
</bean>
<!-- SourceDestinationFactory describes the Destination used as the source -->
<bean name="SourceDestinationFactory"
class="org.jboss.messaging.jms.bridge.impl.JNDIDestinationFactory">
<constructor>
<parameter>
<inject bean="JNDI" />
</parameter>
<parameter>/queue/source</parameter>
</constructor>
</bean>
<!-- TargetDestinationFactory describes the Destination used as the target -->
<bean name="TargetDestinationFactory"
class="org.jboss.messaging.jms.bridge.impl.JNDIDestinationFactory">
<constructor>
<parameter>
<inject bean="JNDI" />
</parameter>
<parameter>/queue/target</parameter>
</constructor>
</bean>
<!-- JNDI is a Hashtable containing the JNDI properties required -->
<!-- to connect to the sources and targets JMS resrouces -->
<bean name="JNDI" class="java.util.Hashtable">
<constructor class="java.util.Map">
<map class="java.util.Hashtable" keyClass="String"
valueClass="String">
<entry>
<key>java.naming.factory.initial</key>
<value>org.jnp.interfaces.NamingContextFactory</value>
</entry>
<entry>
<key>java.naming.provider.url</key>
<value>jnp://localhost:1099</value>
</entry>
<entry>
<key>java.naming.factory.url.pkgs</key>
<value>org.jboss.naming:org.jnp.interfaces"</value>
</entry>
</map>
</constructor>
</bean>
</deployment>The main bean deployed is the JMSBridge bean. The bean is configurable by the parameters passed to its constructor.
Note
To let a parameter be unspecified (for example, if the authentication is anonymous or no message selector is provided), use <null /> for the unspecified parameter value.
Source Connection Factory Factory
This injects the SourceCFF bean (also defined in the beans file). This bean is used to create the source ConnectionFactory
Target Connection Factory Factory
This injects the TargetCFF bean (also defined in the beans file). This bean is used to create the target ConnectionFactory
Source Destination Factory Factory
This injects the SourceDestinationFactory bean (also defined in the beans file). This bean is used to create the source Destination
Target Destination Factory Factory
This injects the TargetDestinationFactory bean (also defined in the beans file). This bean is used to create the target Destination
Source User Name
this parameter is the username for creating the source connection
Source Password
this parameter is the parameter for creating the source connection
Target User Name
this parameter is the username for creating the target connection
Target Password
this parameter is the password for creating the target connection
Selector
This represents a JMS selector expression used for consuming messages from the source destination. Only messages that match the selector expression will be bridged from the source to the target destination
Note
Ut is always more efficient to apply selectors on source topic subscriptions to source queue consumersThe selector expression must follow the JMS selector syntax
Failure Retry Interval
This represents the amount of time in ms to wait between trying to recreate connections to the source or target servers when the bridge has detected they have failed
Max Retries
This represents the number of times to attempt to recreate connections to the source or target servers when the bridge has detected they have failed. The bridge will give up after trying this number of times. -1 represents 'try forever'
Quality Of Service
This parameter represents the desired quality of service mode
Possible values are:
AT_MOST_ONCE
DUPLICATES_OK
ONCE_AND_ONLY_ONCE
See Section 31.4.4, “Quality Of Service” for a explanation of these modes.
Max Batch Size
This represents the maximum number of messages to consume from the source destination before sending them in a batch to the target destination. Its value must >= 1
Max Batch Time
This represents the maximum number of milliseconds to wait before sending a batch to target, even if the number of messages consumed has not reached MaxBatchSize. Its value must be -1 to represent 'wait forever', or >= 1 to specify an actual time
Subscription Name
If the source destination represents a topic, and you want to consume from the topic using a durable subscription then this parameter represents the durable subscription name
Client ID
If the source destination represents a topic, and you want to consume from the topic using a durable subscription then this attribute represents the the JMS client ID to use when creating/looking up the durable subscription
Add MessageID In Header
If true, then the original message's message ID will be appended in the message sent to the destination in the header JBM_BRIDGE_MSG_ID_LIST. If the message is bridged more than once, each message ID will be appended. This enables a distributed request-response pattern to be used
Note
when you receive the message you can send back a response using the correlation id of the first message id, so when the original sender gets it back it will be able to correlate it.
The source and target connection factory factories are used to create the connection factory used to create the connection for the source or target server.
The configuration example above uses the default implementation provided by JBoss Messaging that looks up the connection factory using JNDI. For other Application Servers or JMS providers a new implementation may have to be provided. This can easily be done by implementing the interface org.jboss.messaging.jms.bridge.ConnectionFactoryFactory.
Again, similarly, these are used to create or lookup up the destinations.
In the configuration example above, we have used the default provided by JBoss Messaging that looks up the destination using JNDI.
A new implementation can be provided by implementing org.jboss.messaging.jms.bridge.DestinationFactory interface.
The quality of service modes used by the bridge are described here in more detail.
With this QoS mode messages will reach the destination from the source at most once. The messages are consumed from the source and acknowledged before sending to the destination. Therefore there is a possibility that if failure occurs between removing them from the source and them arriving at the destination they could be lost. Hence delivery will occur at most once.
This mode is available for both persistent and non persistent messages.
With this QoS mode, the messages are consumed from the source and then acknowledged after they have been successfully sent to the destination. Therefore there is a possibility that if failure occurs after sending to the destination but before acknowledging them, they could be sent again when the system recovers. I.e. the destination might receive duplicates after a failure.
This mode is available for both persistent and non persistent messages.
This QoS mode ensures messages will reach the destination from the source once and only once. (Sometimes this mode is known as "exactly once"). If both the source and the destination are on the same JBoss Messaging server instance then this can be achieved by sending and acknowledging the messages in the same local transaction. If the source and destination are on different servers this is achieved by enlisting the sending and consuming sessions in a JTA transaction. The JTA transaction is controlled by JBoss Transactions JTA * implementation which is a fully recovering transaction manager, thus providing a very high degree of durability. If JTA is required then both supplied connection factories need to be XAConnectionFactory implementations. This is likely to be the slowest mode since it requires extra persistence for the transaction logging.
This mode is only available for persistent messages.
Note
For a specific application it may possible to provide once and only once semantics without using the ONCE_AND_ONLY_ONCE QoS level. This can be done by using the DUPLICATES_OK mode and then checking for duplicates at the destination and discarding them. Some JMS servers provide automatic duplicate message detection functionality, or this may be possible to implement on the application level by maintaining a cache of received message ids on disk and comparing received messages to them. The cache would only be valid for a certain period of time so this approach is not as watertight as using ONCE_AND_ONLY_ONCE but may be a good choice depending on your specific application.
Please see Section 9.3.4, “JMS Bridge” which shows how to configure and use a JMS Bridge to send messages to the source destination and consume them from the target destination.
XA recovery deals with system or application failures to ensure that of a transaction are applied consistently to all resources affected by the transaction, even if any of the application processes or the machine hosting them crash or lose network connectivity. For more information on XA Recovery,please refer to JBoss Transactions.
When JBoss Messaging is integrated with JBoss AS, it can take advantage of JBoss Transactions to provide recovery of messaging resources. If messages are involved in a XA transaction, in the event of a server crash, the recovery manager will ensure that the transactions are recovered and the messages will either be committed or rolled back (depending on the transaction outcome) when the server is restarted.
To enable JBoss Messagings XA Recovery, the following property must be added to the jta section of conf/jbossts-properties.xml of JBoss AS profiles:
<properties depends="arjuna" name="jta">
...
<property name="com.arjuna.ats.jta.recovery.XAResourceRecovery.JBMESSAGING1"
value="org.jboss.messaging.jms.server.recovery.MessagingXAResourceRecovery;java:/XAConnectionFactory"/>
</properties>
This informs the recovery manager that it can recovers JBoss Messaging XA Resources using the XAConnectionFactory bound to java:/XAConnectionFactory in JNDI. A ConnectionFactory must have been configured with this JNDI name in jbm-jms.xml (see Section 5.2, “JMS Server Configuration”).
See Section 9.3.7, “XA Recovery” which shows how to configure XA Recovery and recover messages after a server crash.
JBoss Messaging clients can be configured to automatically reconnect to the server in the event that a failure is detected in the connection between the client and the server. If the client successfully reconnects, and the server still has a record of the clients session (i.e. the server was not restarted) then the client will transparently re-attach to the session and it will be able to resume as if nothing had happened.
Client reconnection is also used internally by components such as core bridges to allow them to reconnect to their target servers.
Client reconnection is configured using the following parameters:
retry-interval. This optional parameter determines the period in milliseconds between subsequent reconnection attempts, if the connection to the target server has failed. The default value is 2000 milliseconds.
retry-interval-multiplier. This optional parameter determines determines a multiplier to apply to the time since the last retry to compute the time to the next retry.
This allows you to implement an exponential backoff between retry attempts.
Let's take an example:
If we set retry-interval to 1000 ms and we set retry-interval-multiplier to 2.0, then, if the first reconnect attempt fails, we will wait 1000 ms then 2000 ms then 4000 ms between subsequent reconnection attempts.
The default value is 1.0 meaning each reconnect attempt is spaced at equal intervals.
reconnect-attempts. This optional parameter determines the total number of reconnect attempts the bridge will make before giving up and shutting down. A value of -1 signifies an unlimited number of attempts. The default value is -1.
If you're using JMS, and you're using the JMS Service on the server to load your JMS connection factory instances directly into JNDI, then you can specify these parameters in the xml configuration in jbm-jms.xml, for example:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty"/>
<entries>
<entry name="ConnectionFactory"/>
<entry name="XAConnectionFactory"/>
</entries>
<retry-interval>1000</retry-interval>
<retry-interval-multiplier>1.5</retry-interval-multiplier>
<reconnect-attempts>1000</reconnect-attempts>
</connection-factory>
If you're using JMS, but instantiating your JMS connection factory directly, you can specify the parameters using the appropriate setter methods on the JBossConnectionFactory immediately after creating it.
If you're using the core API and instantiating the ClientSessionFactory instance directly you can also specify the parameters using the appropriate setter methods on the ClientSessionFactory immediately after creating it.
If your client does manage to reconnect but the session is no longer available on the server, for instance if the server has been restarted or it has timed out, then the client won't be able to re-attach, and any ExceptionListener or FailureListener instances registered on the connection or session will be called.
JBoss Messaging allows you to configure objects called diverts with some simple server configuration.
Diverts allow you to transparently divert messages routed to one address to some other address, without making any changes to any client application logic.
Diverts can be exclusive, meaning that that the message is diverted to the new address, and does not go to the old address at all, or they can be non-exclusive which means the message continues to go the old address, and a copy of it is also sent to the new address. Non-exclusive diverts can therefore be used for splitting message flows, e.g. there may be a requirement to monitor every order sent to an order queue.
Diverts can also be configured to have an optional message filter. If specified then only messages that match the filter will be diverted.
Diverts can also be configured to apply a Transformer. If specified, all diverted messages will have the opportunity of being transformed by the Transformer.
A divert will only divert a message to an address on the same server, however, if you want to divert to an address on a different server, a common pattern would be to divert to a local store-and-forward queue, then set up a bridge which consumes from that queue and forwards to an address on a different server.
Diverts are therefore a very sophisticated concept, which when combined with bridges can be used to create interesting and complex routings. The set of diverts on a server can be thought of as a type of routing table for messages. Combining diverts with bridges allows you to create a distributed network of reliable routing connections between multiple geographically distributed servers, creating your global messaging mesh.
Diverts are defined as xml in the jbm-configuration.xml file. There can be zero or more diverts in the file.
Please see Section 9.1.13, “Divert” for a full working example showing you how to configure and use diverts.
Let's take a look at some divert examples:
Let's take a look at an exclusive divert. An exclusive divert diverts all matching messages that are routed to the old address to the new address. Matching messages do not get routed to the old address.
Here's some example xml configuration for an exclusive divert, it's taken from the divert example:
<divert name="prices-divert">
<address>jms.topic.priceUpdates</address>
<forwarding-address>jms.queue.priceForwarding</forwarding-address>
<filter string="office='New York'"/>
<transformer-class-name>
org.jboss.jms.example.AddForwardingTimeTransformer
</transformer-class-name>
<exclusive>true</exclusive>
</divert>
We define a divert called 'prices-divert' that will divert any messages sent to the address 'jms.topic.priceUpdates' (this corresponds to any messages sent to a JMS Topic called 'priceUpdates') to another local address 'jms.queue.priceForwarding' (this corresponds to a local JMS queue called 'priceForwarding'
We also specify a message filter string so only messages with the message property office with value New York will get diverted, all other messages will continue to be routed to the normal address. The filter string is optional, if not specified then all messages will be considered matched.
In this example a transformer class is specified. Again this is optional, and if specified the transformer will be executed for each matching message. This allows you to change the messages body or properties before it is diverted. In this example the transformer simply adds a header that records the time the divert happened.
This example is actually diverting messages to a local store and forward queue, which is configured with a bridge which forwards the message to an address on another JBoss Messaging server. Please see the example for more details.
Now we'll take a look at a non-exclusive divert. Non exclusive diverts are the same as exclusive diverts, but they only forward a copy of the message to the new address. The original message continues to the old address
You can therefore think of non-exclusive diverts as splitting a message flow.
Non exclusive diverts can be configured in the same was as exclusive diverts with an optional filter and transformer, here's an example non-exclusive divert, again from the divert example:
<divert name="order-divert">
<address>jms.queue.orders</address>
<forwarding-address>jms.topic.spyTopic</forwarding-address>
<exclusive>false</exclusive>
</divert>
The above divert example takes a copy of every message sent to the address 'jms.queue.orders' (Which corresponds to a JMS Queue called 'orders') and sends it to a local address called 'jms.topic.SpyTopic' (which corresponds to a JMS Topic called 'SpyTopic').
The function of a bridge is to consume messages from a source queue, and forward them to a target address, typically on a different JBoss Messaging server.
The source and target servers do not have to be in the same cluster which makes bridging suitable for reliably sending messages from one cluster to another, for instance across a WAN, and where the connection may be unreliable.
The bridge has built in resilience to failure so if the target server connection is lost, e.g. due to network failure, the bridge will retry connecting to the target until it comes back online. When it comes back online it will resume operation as normal.
In summary, bridges are a way to reliably connect two separate JBoss Messaging servers together. With a core bridge both source and target servers must be JBoss Messaging servers.
Bridges can be configured provide once and only once delivery guarantees even in the event of the failure of the source or the target server. They do this by using duplicate detection (described in Chapter 35, Duplicate Message Detection).
Note
Although they have similar function, don't confuse core bridges with JMS bridges!
Core bridges are for linking a JBoss Messaging node with another JBoss Messaging node and do not use the JMS API. A JMS Bridge is used for linking any two JMS 1.1 compliant JMS providers. So, a JMS Bridge could be used for bridging to or from different JMS compliant messaging system. It's always preferable to use a core bridge if you can. Core bridges use duplicate detection to provide once and only once guarantees. To provide the same guarantee using a JMS bridge you would have to use XA which has a higher overhead and is more complex to configure.
Bridges are configured in jbm-configuration.xml. Let's kick off with an example (this is actually from the bridge example):
<bridge name="my-bridge">
<queue-name>jms.queue.sausage-factory</queue-name>
<forwarding-address>jms.queue.mincing-machine</forwarding-address>
<filter-string="name='aardvark'"/>
<transformer-class-name>
org.jboss.jms.example.HatColourChangeTransformer
</transformer-class-name>
<retry-interval>1000</retry-interval>
<retry-interval-multiplier>1.0</retry-interval-multiplier>
<reconnect-attempts>-1</reconnect-attempts>
<failover-on-server-shutdown>false</failover-on-server-shutdown>
<use-duplicate-detection>true</use-duplicate-detection>
<connector-ref connector-name="remote-connector"
backup-connector-name="backup-remote-connector"/>
</bridge>
Please also note that in order for bridges to be deployed on a server, the clustered attribute needs to be set to true in jbm-configuration.xml.
In the above example we have shown all the parameters its possible to configure for a bridge. In practice you might use many of the defaults so it won't be necessary to specify them all explicitly.
Let's take a look at all the parameters in turn:
name attribute. All bridges must have a unique name in the server.
queue-name. This is the unique name of the local queue that the bridge consumes from, it's a mandatory parameter.
The queue must already exist by the time the bridge is instantiated at start-up.
Note
If you're using JMS then normally the JMS configuration jbm-jms.xml is loaded after the core configuration file jbm-configuration.xml is loaded. If your bridge is consuming from a JMS queue then you'll need to make sure the JMS queue is also deployed as a core queue in the core configuration. Take a look at the bridge example for an example of how this is done.
forwarding-address. This is the address on the target server that the message will be forwarded to. If a forwarding address is not specified then the original destination of the message will be retained.
filter-string. An optional filter string can be supplied. If specified then only messages which match the filter expression specified in the filter string will be forwarded. The filter string follows the JBoss Messaging filter expression syntax described in Chapter 12, Filter Expressions.
transformer-class-name. An optional transformer-class-name can be specified. This is the name of a user-defined class which implements the org.jboss.messaging.core.server.cluster.Transformer interface.
If this is specified then the transformer's transform() method will be invoked with the message before it is forwarded. This gives you the opportunity to transform the message's header or body before forwarding it.
retry-interval. This optional parameter determines the period in milliseconds between subsequent reconnection attempts, if the connection to the target server has failed. The default value is 2000milliseconds.
retry-interval-multiplier. This optional parameter determines determines a multiplier to apply to the time since the last retry to compute the time to the next retry.
This allows you to implement an exponential backoff between retry attempts.
Let's take an example:
If we set retry-intervalto 1000 ms and we set retry-interval-multiplier to 2.0, then, if the first reconnect attempt fails, we will wait 1000 ms then 2000 ms then 4000 ms between subsequent reconnection attempts.
The default value is 1.0 meaning each reconnect attempt is spaced at equal intervals.
reconnect-attempts. This optional parameter determines the total number of reconnect attempts the bridge will make before giving up and shutting down. A value of -1 signifies an unlimited number of attempts. The default value is -1.
failover-on-server-shutdown. This optional parameter determines whether the bridge will attempt to failover onto a backup server (if specified) when the target server is cleanly shutdown rather than crashed.
The bridge connector can specify both a live and a backup server, if it specifies a backup server and this parameter is set to true then if the target server is cleanly shutdown the bridge connection will attempt to failover onto its backup. If the bridge connector has no backup server configured then this parameter has no effect.
Sometimes you want a bridge configured with a live and a backup target server, but you don't want to failover to the backup if the live server is simply taken down temporarily for maintenance, this is when this parameter comes in handy.
The default value for this parameter is false.
use-duplicate-detection. This optional parameter determines whether the bridge will automatically insert a duplicate id property into each message that it forwards.
Doing so, allows the target server to perform duplicate detection on messages it receives from the source server. If the connection fails or server crashes, then, when the bridge resumes it will resend unacknowledged messages. This might result in duplicate messages being sent to the target server. By enabling duplicate detection allows these duplicates to be screened out and ignored.
This allows the bridge to provide a once and only once delivery guarantee without using heavyweight methods such as XA (see Chapter 35, Duplicate Message Detection for more information).
The default value for this parameter is true.
connector-ref. This mandatory parameter determines which connector pair the bridge will use to actually make the connection to the target server.
A connector encapsulates knowledge of what transport to use (TCP, SSL, HTTP etc) as well as the server connection parameters (host, port etc). For more information about what connectors are and how to configure them, please see Chapter 14, Configuring the Transport.
The connector-ref element can be configured with two attributes:
connector-name. This references the name of a connector defined in the core configuration file jbm-configuration.xml. The bridge will use this connector to make its connection to the target server. This attribute is mandatory.
backup-connector-name. This optional parameter also references the name of a connector defined in the core configuration file jbm-configuration.xml. It represents the connector that the bridge will fail-over onto if it detects the live server connection has failed. If this is specified and failover-on-server-shutdown is set to true then it will also attempt failover onto this connector if the live target server is cleanly shut-down.
JBoss Messaging includes powerful automatic duplicate message detection, filtering out duplicate messages without you having to code your own fiddly duplicate detection logic at the application level. This chapter will explain what duplicate detection is, how JBoss Messaging uses it and how and where to configure it.
When sending messages from a client to a server, or indeed from a server to another server, if the target server or connection fails sometime after sending the message, but before the sender receives a response that the send (or commit) was processed successfully then the sender cannot know for sure if the message was sent successfully to the address.
If the target server or connection failed after the send was received and processed but before the response was sent back then the message will have been sent to the address successfully, but if the target server or connection failed before the send was received and finished processing then it will not have been sent to the address successfully. From the senders point of view it's not possible to distinguish these two cases.
When the server recovers this leaves the client in a difficult situation. It knows the target server failed, but it does not know if the last message reached its destination ok. If it decides to resend the last message, then that could result in a duplicate message being sent to the address. If each message was an order or a trade then this could result in the order being fulfilled twice or the trade being double booked. This is clearly not a desirable situation.
Sending the message(s) in a transaction does not help out either. If the server or connection fails while the transaction commit is being processed it is also indeterminate whether the transaction was successfully committed or not!
To solve these issues JBoss Messaging provides automatic duplicate messages detection for messages sent to addresses.
Enabling duplicate message detection for sent messages is simple: you just need to set a special property on the message to a unique value. You can create the value however you like, as long as it is unique. When the target server receives the message it will check if that property is set, if it is, then it will check in its in memory cache if it has already received a message with that value of the header. If it has received a message with the same value before then it will ignore the message.
Note
Using duplicate detection to move messages between nodes can give you the same once and only once delivery guarantees as if you were using an XA transaction to consume messages from source and send them to the target, but with less overhead and much easier configuration than using XA.
If you're sending messages in a transaction then you don't have to set the property for every message you send in that transaction, you only need to set it once in the transaction. If the server detects a duplicate message for any message in the transaction, then it will ignore the entire transaction.
The name of the property that you set is given by the value of org.jboss.messaging.core.message.impl.HDR_DUPLICATE_DETECTION_ID, which is _JBM_DUPL_ID
The value of the property can be of type byte[] or SimpleString if you're using the core API. If you're using JMS it must be a String, and it's valid should be unique. An easy way of generating a unique id is by generating a UUID.
Here's an example of setting the property using the core API:
...
ClientMessage message = session.createClientMessage(true);
SimpleString myUniqueID = "This is my unique id"; // Could use a UUID for this
message.setStringProperty(HDR_DUPLICATE_DETECTION_ID, myUniqueID);
...
And here's an example using the JMS API:
...
Message jmsMessage = session.createMessage();
String myUniqueID = "This is my unique id"; // Could use a UUID for this
message.setStringProperty(HDR_DUPLICATE_DETECTION_ID.toString(), myUniqueID);
...
The server maintains caches of received values of the org.jboss.messaging.core.message.impl.HDR_DUPLICATE_DETECTION_ID property sent to each address. Each address has its own distinct cache.
The cache is a circular fixed size cache. If the cache has a maximum size of n elements, then the n + 1th id stored will overwrite the 0th element in the cache.
The maximum size of the cache is configured by the parameter id-cache-size in jbm-configuration.xml, the default value is 2000 elements.
The caches can also be configured to persist to disk or not. This is configured by the parameter persist-id-cache, also in jbm-configuration.xml. If this is set to true then each id will be persisted to permanent storage as they are received. The default value for this parameter is true.
Note
When choosing a size of the duplicate id cache be sure to set it to a larger enough size so if you resend messages all the previously sent ones are in the cache not having been overwritten.
Core bridges can configured to automatically add a unique duplicate id value (if there isn't already one in the message) before forwarding the message to it's target. This ensures that if the target server crashes or the connection is interrupted and the bridge resends the message, then if it has already been received by the target server, it will be ignored.
To configure a core bridge to add the duplicate id header, simply set the use-duplicate-detection to true when configuring a bridge in jbm-configuration.xml.
The default value for this parameter is true.
For more information on core bridges and how to configure them, please see Chapter 34, Core Bridges.
Cluster connections internally use core bridges to move messages reliable between nodes of the cluster. Consequently they can also be configured to insert the duplicate id header for each message they move using their internal bridges.
To configure a cluster connection to add the duplicate id header, simply set the use-duplicate-detection to true when configuring a cluster connection in jbm-configuration.xml.
The default value for this parameter is true.
For more information on cluster connections and how to configure them, please see Chapter 36, Clusters.
JBoss Messaging also uses duplicate detection when paging messages to storage. This is so when a message is depaged from storage and server failure occurs, we do not end up depaging the message more than once which could result in duplicate delivery.
For more information on paging and how to configure it, please see Chapter 23, Paging.
JBoss Messaging clusters allow groups of JBoss Messaging servers to be grouped together in order to share message processing load. Each active node in the cluster is an active JBoss Messaging server which manages its own messages and handles its own connections. A server must be configured to be clustered, you will need to set the clustered element in the jbm-configuration.xml configuration file to true, this is false by default.
The cluster is formed by each node declaring cluster connections to other nodes in the core configuration file jbm-configuration.xml. When a node forms a cluster connection to another node, internally it creates a core bridge (as described in Chapter 34, Core Bridges) connection between it and the other node, this is done transparently behind the scenes - you don't have to declare an explicit bridge for each node. These cluster connections allow messages to flow between the nodes of the cluster to balance load.
Nodes can be connected together to form a cluster in many different topologies, we will discuss a couple of the more common topologies later in this chapter.
We'll also discuss client side load balancing, where we can balance client connections across the nodes of the cluster, and we'll consider message redistribution where JBoss Messaging will redistribute messages between nodes to avoid starvation.
Another important part of clustering is server discovery where servers can broadcast their connection details so clients or other servers can connect to them with the minimum of configuration.
Server discovery is a mechanism by which servers can broadcast their connection settings across the network. This is useful for two purposes:
Discovery by messaging clients. A messaging client wants to be able to connect to the servers of the cluster without having specific knowledge of which servers in the cluster are up at any one time. Messaging clients can be initialised with an explicit list of the servers in a cluster, but this is not flexible or maintainable as servers are added or removed from the cluster.
Discovery by other servers. Servers in a cluster want to be able to create cluster connections to each other without having prior knowledge of all the other servers in the cluster.
Server discovery uses UDP multicast to broadcast server connection settings. If UDP is disabled on your network you won't be able to use this, and will have to specify servers explicitly when setting up a cluster or using a messaging client.
A broadcast group is the means by which a server broadcasts connectors over the network. A connector defines a way in which a client (or other server) can make connections to the server. For more information on what a connector is, please see Chapter 14, Configuring the Transport.
The broadcast group takes a set of connector pairs, each connector pair contains connection settings for a live and (optional) backup server and broadcasts them on the network. It also defines the UDP address and port settings.
Broadcast groups are defined in the server configuration file jbm-configuration.xml. There can be many broadcast groups per JBoss Messaging server. All broadcast groups must be defined in a broadcast-groups element.
Let's take a look at an example broadcast group from jbm-configuration.xml:
<broadcast-groups>
<broadcast-group name="my-broadcast-group">
<local-bind-port>54321</local-bind-port>
<group-address>231.7.7.7</group-address>
<group-port>9876</group-port>
<broadcast-period>1000</broadcast-period>
<connector-ref connector-name="netty-connector"
backup-connector-name="backup-connector"/>
</broadcast-group>
</broadcast-groups>Some of the broadcast group parameters are optional and you'll normally use the defaults, but we specify them all in the above example for clarity. Let's discuss each one in turn:
name attribute. Each broadcast group in the server must have a unique name.
local-bind-address. This is the local bind address that the datagram socket is bound to. If you have multiple network interfaces on your server, you would specify which one you wish to use for broadcasts by setting this property. If this property is not specified then the socket will be bound to the wildcard address, an IP address chosen by the kernel.
local-bind-port. If you want to specify a local port to which the datagram socket is bound you can specify it here. Normally you would just use the default value of -1 which signifies that an anonymous port should be used.
group-address. This is the multicast address to which the data will be broadcast. It is a class D IP address in the range 224.0.0.0 to 239.255.255.255, inclusive. The address 224.0.0.0 is reserved and is not available for use. This parameter is mandatory.
group-port. This is the UDP port number used for broadcasting. This parameter is mandatory.
broadcast-period. This is the period in milliseconds between consecutive broadcasts. This parameter is optional, the default value is 1000 milliseconds.
connector-ref. This specifies the connector and optional backup connector that will be broadcasted (see Chapter 14, Configuring the Transport for more information on connectors). The connector to be broadcasted is specified by the connector-name attribute, and the backup connector to be broadcasted is specified by the backup-connector attribute. The backup-connector attribute is optional.
While the broadcast group defines who connector information is broadcast from a server, a discovery group defines how connector information is received from a multicast address.
A discovery group maintains a list of connector pairs - one for each broadcast by a different server. As it receives broadcasts on the multicast group address from a particular server it updates its entry in the list for that server.
If it has not received a broadcast from a particular server for a length of time it will remove that server's entry from its list.
Discovery groups are used in two places in JBoss Messaging:
By cluster connections so they know what other servers in the cluster they should make connections to.
By messaging clients so they can discovery what servers in the cluster that they can connect to.
For cluster connections, discovery groups are defined in the server side configuration file jbm-configuration.xml. All discovery groups must be defined inside a discovery-groups element. There can be many discovery groups defined by JBoss Messaging server. Let's look at an example:
<discovery-groups>
<discovery-group name="my-discovery-group">
<group-address>231.7.7.7</group-address>
<group-port>9876</group-port>
<refresh-timeout>10000</refresh-timeout>
</discovery-group>
</discovery-groups>We'll consider each parameter of the discovery group:
name attribute. Each discovery group must have a unique name per server.
group-address. This is the multicast ip address of the group to listen on. It should match the group-address in the broadcast group that you wish to listen from. This parameter is mandatory.
group-port. This is the UDP port of the multicast group. It should match the group-port in the broadcast group that you wish to listen from. This parameter is mandatory.
refresh-timeout. This is the period the discovery group waits after receiving the last broadcast from a particular server before removing that servers connector pair entry from its list. You would normally set this to a value significantly higher than the broadcast-period on the broadcast group otherwise servers might intermittently disappear from the list even though they are still broadcasting due to slight differences in timing. This parameter is optional, the default value is 10000 milliseconds (10 seconds).
Let's discuss how to configure a JBoss Messaging client to use discovery to discover a list of servers to which it can connect. The way to do this differs depending on whether you're using JMS or the core API.
If you're using JMS and you're also using the JMS Service on the server to load your JMS connection factory instances into JNDI, then you can specify which discovery group to use for your JMS connection factory in the server side xml configuration jbm-jms.xml. Let's take a look at an example:
<connection-factory name="ConnectionFactory">
<discovery-group-ref discovery-group-name="my-discovery-group"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
</connection-factory>The element discovery-group-ref specifies the name of a discovery group defined in jbm-configuration.xml.
When this connection factory is downloaded from JNDI by a client application and JMS connections are created from it, those connections will be load-balanced across the list of servers that the discovery group maintains by listening on the multicast address specified in the discovery group configuration.
If you're using JMS, but you're not using JNDI to lookup a connection factory - you're instantiating the JMS connection factory directly then you can specify the discovery group parameters directly when creating the JMS connection factory. Here's an example:
final String groupAddress = "231.7.7.7";
final int groupPort = 9876;
ConnectionFactory jmsConnectionFactory =
new JBossConnectionFactory(groupAddress, groupPort);
Connection jmsConnection1 = jmsConnectionFactory.createConnection();
Connection jmsConnection2 = jmsConnectionFactory.createConnection();The refresh-timeout can be set directly on the connection factory by using the setter method setDiscoveryRefreshTimeout() if you want to change the default value.
There is also a further parameter settable on the connection factory using the setter method setInitialWaitTimeout(). If the connection factory is used immediately after creation then it may not have had enough time to received broadcasts from all the nodes in the cluster. On first usage, the connection factory will make sure it waits this long since creation before creating the first connection. The default value for this parameter is 2000 milliseconds.
If you're using the core API to directly instantiate ClientSessionFactory instances, then you can specify the discovery group parameters directly when creating the session factory. Here's an example:final String groupAddress = "231.7.7.7"; final int groupPort = 9876; SessionFactory factory = new ClientSessionFactoryImpl(groupAddress, groupPort); ClientSession session1 = factory.createClientSession(...); ClientSession session2 = factory.createClientSession(...);
The refresh-timeout can be set directly on the session factory by using the setter method setDiscoveryRefreshTimeout() if you want to change the default value.
There is also a further parameter settable on the session factory using the setter method setInitialWaitTimeout(). If the session factory is used immediately after creation then it may not have had enough time to received broadcasts from all the nodes in the cluster. On first usage, the session factory will make sure it waits this long since creation before creating the first session. The default value for this parameter is 2000 milliseconds.
If cluster connections are defined between nodes of a cluster, then JBoss Messaging will load balance messages arriving from at a particular node from a client.
Let's take a simple example of a cluster of four nodes A, B, C, and D arranged in a symmetric cluster (described in Section 36.7.1, “Symmetric cluster”). We have a queue called OrderQueue deployed on each node of the cluster.
We have client Ca connected to node A, sending orders to the server. We have also have order processor clients Pa, Pb, Pc, and Pd connected to each of the nodes A, B, C, D. If no cluster connection was defined on node A, then as order messages arrive on node A they will all end up in the OrderQueue on node A, so will only get consumed by the order processor client attached to node A, Pa.
If we define a cluster connection on node A, then as ordered messages arrive on node A instead of all of them going into the local OrderQueue instance, they are distributed in a round-robin fashion between all the nodes of the cluster. The messages are forwarded from the receiving node to other nodes of the cluster. This is all done on the server side, the client maintains a single connection to node A.
For example, messages arriving on node A might be distributed in the following order between the nodes: B, D, C, A, B, D, C, A, B, D. The exact order depends on the order the nodes started up, but the algorithm used is round robin.
JBoss Messaging cluster connections can be configured to always blindly load balance messages in a round robin fashion irrespective of whether there are any matching consumers on other nodes, but they can be a bit cleverer than that and also be configured to only distribute to other nodes if they have matching consumers. We'll look at both these cases in turn with some examples, but first we'll discuss configuring cluster connections in general.
Cluster connections group servers into clusters so that messages can be load balanced between the nodes of the cluster. Let's take a look at a typical cluster connection. Cluster connections are always defined in jbm-configuration.xml inside a cluster-connection element. There can be zero or more cluster connections defined per JBoss Messaging server.
<cluster-connections>
<cluster-connection name="my-cluster">
<address>jms</address>
<retry-interval>500</retry-interval>
<use-duplicate-detection>true</use-duplicate-detection>
<forward-when-no-consumers>false</forward-when-no-consumers>
<max-hops>1</max-hops>
<discovery-group-ref discovery-group-name="my-discovery-group"/>
</cluster-connection>
</cluster-connections>
In the above cluster connection all parameters have been explicitly specified. In practice you might use the defaults for some.
address. Each cluster connection only applies to messages sent to an address that starts with this value.
In this case, this cluster connection will load balance messages sent to address that start with jms. This cluster connection, will, in effect apply to all JMS queue and topic subscriptions since they map to core queues that start with the substring "jms".
The address can be any value and you can have many cluster connections with different values of address, simultaneously balancing messages for those addresses, potentially to different clusters of servers. By having multiple cluster connections on different addresses a single JBoss Messaging Server can effectively take part in multiple clusters simultaneously.
By careful not to have multiple cluster connections with overlapping values of address, e.g. "europe" and "europe.news" since this could result in the same messages being distributed between more than one cluster connection, possibly resulting in duplicate deliveries.
This parameter is mandatory.
retry-interval. We mentioned before that, internally, cluster connections cause bridges to be created between the nodes of the cluster. If the cluster connection is created and the target node has not been started, or say, is being rebooted, then the cluster connections from other nodes will retry connecting to the target until it comes back up, in the same way as a bridge does.
This parameter determines the interval in milliseconds between retry attempts. It has the same meaning as the retry-interval on a bridge (as described in Chapter 34, Core Bridges).
This parameter is optional and its default value is 500 milliseconds.
use-duplicate-detection. Internally cluster connections use bridges to link the nodes, and bridges can be configured to add a duplicate id property in each message that is forwarded. If the target node of the bridge crashes and then recovers, messages might be resent from the source node. By enabling duplicate detection any duplicate messages will be filtered out and ignored on receipt at the target node.
This parameter has the same meaning as use-duplicate-detection on a bridge. For more information on duplicate detection, please see Chapter 35, Duplicate Message Detection.
This parameter is optional and has a default value of true.
forward-when-no-consumers. This parameter determines whether messages will be distributed round robin between other nodes of the cluster irrespective of whether there are matching or indeed any consumers on other nodes.
If this is set to true then each incoming message will be round robin'd even though the same queues on the other nodes of the cluster may have no consumers at all, or they may have consumers that have non matching message filters (selectors). Note that JBoss Messaging will not forward messages to other nodes if there are no queues of the same name on the other nodes, even if this parameter is set to true.
If this is set to false then JBoss Messaging will only forward messages to other nodes of the cluster if the address to which they are being forwarded has queues which have consumers, and if those consumers have message filters (selectors) at least one of those selectors must match the message.
This parameter is optional, the default value is false.
max-hops. When a cluster connection decides the set of nodes to which it might load balance a message, those nodes do not have to be directly connected to it via a cluster connection. JBoss Messaging can be configured to also load balance messages to nodes which might be connected to it only indirectly with other JBoss Messaging servers as intermediates in a chain.
This allows JBoss Messaging to be configured in more complex topologies and still provide message load balancing. We'll discuss this more later in this chapter.
The default value for this parameter is 1, which means messages are only load balanced to other JBoss Messaging serves which are directly connected to this server. This parameter is optional.
discovery-group-ref. This parameter determines which discovery group is used to obtain the list of other servers in the cluster that this cluster connection will make connections to.
With JBoss Messaging client-side connection load balancing, subsequent client connections created using a single factory can be made to different nodes of the cluster. This allows connections to spread smoothly across the nodes of a cluster and not be "clumped" on any particular node.
The load balancing policy to be used by the client factory is configurable. JBoss Messaging provides two out-of-the-box load balancing policies and you can also implement your own and use that.
The out-of-the-box policies are
Round Robin. With this policy the first node is chosen randomly then each subsequent node is chosen sequentially in the same order.
For example nodes might be chosen in the order B, C, D, A, B, C, D, A, B or D, A, B, C, A, B, C, D, A or C, D, A, B, C, D, A, B, C, D, A.
Random. With this policy each node is chosen randomly.
You can also implement your own policy by implementing the interface org.jboss.messaging.core.client.ConnectionLoadBalancingPolicy
Specifying which load balancing policy to use differs whether you are using JMS or the core API. If you don't specify a policy then the default will be used which is org.jboss.messaging.core.client.impl.RoundRobinConnectionLoadBalancingPolicy.
If you're using JMS, and you're using JNDI on the server to put your JMS connection factories into JNDI, then you can specify the load balancing policy directly in the jbm-jms.xml configuration file on the server as follows:
<connection-factory name="ConnectionFactory">
<discovery-group-ref discovery-group-name="my-discovery-group"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
<connection-load-balancing-policy-class-name>
org.jboss.messaging.core.client.impl.RandomConnectionLoadBalancingPolicy
</connection-load-balancing-policy-class-name>
</connection-factory>
The above example would deploy a JMS connection factory that uses the random connection load balancing policy.
If you're using JMS but you're instantiating your connection factory directly on the client side then you can set the load balancing policy using the setter on the JBossConnectionFactory before using it:
ConnectionFactory jmsConnectionFactory = new JBossConnectionFactory(...);
jmsConnectionFactory.setLoadBalancingPolicyClassName("com.acme.MyLoadBalancingPolicy");
If you're using the core API, you can set the load balancing policy directly on the ClientSessionFactory instance you are using:
ClientSessionFactory factory = new ClientSessionFactoryImpl(...);
factory.setLoadBalancingPolicyClassName("com.acme.MyLoadBalancingPolicy");
The set of servers over which the factory load balances can be determined in one of two ways:
Specifying servers explicitly
Using discovery.
Sometimes UDP is not enabled on a network so it's not possible to use UDP server discovery for clients to discover the list of servers in the cluster, or for servers to discover what other servers are in the cluster.
In this case, the list of servers in the cluster can be specified explicitly on each node and on the client side. Let's look at how we do this:
This differs depending on whether you're using JMS or the Core API
If you're using JMS, and you're using the JMS Service to load your JMS connection factory instances directly into JNDI on the server, then you can specify the list of servers in the server side configuration file jbm-jms.xml. Let's take a look at an example:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="my-connector1"
backup-connector-name="my-backup-connector1"/>
<connector-ref connector-name="my-connector2"
backup-connector-name="my-backup-connector2"/>
<connector-ref connector-name="my-connector3"
backup-connector-name="my-backup-connector3"/>
<entries>
<entry name="ConnectionFactory"/>
</entries>
</connection-factory>The connection-factory element can contain zero or more connector-ref elements, each one of which specifies a connector-name attribute and an optional backup-connector-name attribute. The connector-name attribute references a connector defined in jbm-configuration.xml which will be used as a live connector. The backup-connector-name is optional, and if specified it also references a connector defined in jbm-configuration.xml. For more information on connectors please see Chapter 14, Configuring the Transport.
The connection factory thus maintains a list of [connector, backup connector] pairs, these pairs are then used by the client connection load balancing policy on the client side when creating connections to the cluster.
If you're using JMS but you're not using JNDI then you can also specify the list of [connector, backup connector] pairs directly when instantiating the JBossConnectionFactory, here's an example:
List<Pair<TransportConfiguration, TransportConfiguration>> serverList =
new ArrayList<Pair<TransportConfiguration, TransportConfiguration>>();
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC0, backupTC0));
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC1, backupTC1));
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC2, backupTC2));
ConnectionFactory jmsConnectionFactory = new JBossConnectionFactory(serverList);
Connection jmsConnection1 = jmsConnectionFactory.createConnection();
Connection jmsConnection2 = jmsConnectionFactory.createConnection();In the above snippet we create a list of pairs of TransportConfiguration objects. Each TransportConfiguration object contains knowledge of how to make a connection to a specific server.
A JBossConnectionFactory instance is then created passing the list of servers in the constructor. Any connections subsequently created by this factory will create connections according to the client connection load balancing policy applied to that list of servers.
If you're using the core API you can also specify the list of servers directly when creating the ClientSessionFactory instance. Here's an example:
List<Pair<TransportConfiguration, TransportConfiguration>> serverList =
new ArrayList<Pair<TransportConfiguration, TransportConfiguration>>();
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC0, backupTC0));
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC1, backupTC1));
serverList.add(new Pair<TransportConfiguration,
TransportConfiguration>(liveTC2, backupTC2));
ClientSessionFactory factory = new ClientSessionFactoryImpl(serverList);
ClientSession sesison1 = factory.createClientSession(...);
ClientSession session2 = factory.createClientSession(...);In the above snippet we create a list of pairs of TransportConfiguration objects. Each TransportConfiguration object contains knowledge of how to make a connection to a specific server. For more information on this, please see Chapter 14, Configuring the Transport.
A ClientSessionFactoryImpl instance is then created passing the list of servers in the constructor. Any sessions subsequently created by this factory will create sessions according to the client connection load balancing policy applied to that list of servers.
Let's take a look at an example where each cluster connection is defined for a symmetric cluster, but we're not using discovery for each node to discover its neighbours, instead we'll configure each cluster connection to have explicit knowledge of all the other nodes in the cluster.
Here's an example cluster connection definition showing that:
<cluster-connections>
<cluster-connection name="my-explicit-cluster">
<address>jms</address>
<connector-ref connector-name="my-connector1"
backup-connector-name="my-backup-connector1"/>
<connector-ref connector-name="my-connector2"
backup-connector-name="my-backup-connector2"/>
<connector-ref connector-name="my-connector3"
backup-connector-name="my-backup-connector3"/>
</cluster-connection>
</cluster-connections>The cluster-connection element can contain zero or more connector-ref elements, each one of which specifies a connector-name attribute and an optional backup-connector-name attribute. The connector-name attribute references a connector defined in jbm-configuration.xml which will be used as a live connector. The backup-connector-name is optional, and if specified it also references a connector defined in jbm-configuration.xml. For more information on connectors please see Chapter 14, Configuring the Transport.
Another important part of clustering is message redistribution. Earlier we learned how server side message load balancing round robins messages across the cluster. If forward-when-no-consumers is false, then messages won't be forwarded to nodes which don't have matching consumers, this is great and ensures that messages don't arrive on a queue which has no consumers to consume them, however there is a situation it doesn't solve: What happens if the consumers on a queue close after the messages have been sent to the node? If there are no consumers on the queue the message won't get consumed and we have a starvation situation.
This is where message redistribution comes in. With message redistribution JBoss Messaging can be configured to automatically redistribute messages from queues which have no consumers back to other nodes in the cluster which do have matching consumers.
Message redistribution can be configured to kick in immediately after the last consumer on a queue is closed, or to wait a configurable delay after the last consumer on a queue is closed before redistributing. By default message redistribution is disabled.
Message redistribution can be configured on a per address basis, by specifying the redistribution delay in the address settings, for more information on configuring address settings, please see Chapter 24, Queue Attributes.
Here's an address settings snippet from jbm-configuration.xml showing how message redistribution is enabled for a set of queues:
<address-settings>
<address-setting match="jms.#">
<redistribution-delay>0</redistribution-delay>
</address-setting>
</address-settings>The above address-settings block would set a redistribution-delay of 0 for any queue which is bound to an address that starts with "jms.". All JMS queues and topic subscriptions are bound to addresses that start with "jms.", so the above would enable instant (no delay) redistribution for all JMS queues and topic subscriptions.
The attribute match can be an exact match or it can be a string that conforms to the JBoss Messaging wildcard syntax (described in Chapter 11, Understanding the JBoss Messaging Wildcard Syntax).
The element redistribution-delay defines the delay in milliseconds after the last consumer is closed on a queue before redistributing messages from that queue to other nodes of the cluster which do have matching consumers. A delay of zero means the messages will be immediately redistributed. A value of -1 signifies that messages will never be redistributed. The default value is -1.
It often makes sense to introduce a delay before redistributing as it's a common case that a consumer closes but another one quickly is created on the same queue, in such a case you probably don't want to redistribute immediately since the new consumer will arrive shortly.
JBoss Messaging clusters can be connected together in many different topologies, let's consider the two most common ones here
A symmetric cluster is probably the most common cluster topology, and you'll be familiar with if you've had experience of JBoss Application Server clustering.
With a symmetric cluster every node in the cluster is connected to every other node in the cluster. In other words every node in the cluster is no more than one hop away from every other node.
To form a symmetric cluster every node in the cluster defines a cluster connection with the attribute max-hops set to 1. Typically the cluster connection will use server discovery in order to know what other servers in the cluster it should connect to, although it is possible to explicitly define each target server too in the cluster connection if, for example, UDP is not available on your network.
With a symmetric cluster each node knows about all the queues that exist on all the other nodes and what consumers they have. With this knowledge it can determine how to load balance and redistribute messages around the nodes.
With a chain cluster, each node in the cluster is not connected to every node in the cluster directly, instead the nodes form a chain with a node on each end of the chain and all other nodes just connecting to the previous and next nodes in the chain.
An example of this would be a three node chain consisting of nodes A, B and C. Node A is hosted in one network and has many producer clients connected to it sending order messages. Due to corporate policy, the order consumer clients need to be hosted in a different network, and that network is only accessible via a third network. In this setup node B acts as a mediator with no producers or consumers on it. Any messages arriving on node A will be forwarded to node B, which will in turn forward them to node C where they can get consumed. Node A does not need to directly connect to C, but all the nodes can still act as a part of the cluster.
To set up a cluster in this way, node A would define a cluster connection that connects to node B, and node B would define a cluster connection that connects to node C. In this case we only want cluster connections in one direction since we're only moving messages from node A->B->C and never from C->B->A.
For this topology we would set max-hops to 2. With a value of 2 the knowledge of what queues and consumers that exist on node C would be propagated from node C to node B to node A. Node A would then know to distribute messages to node B when they arrive, even though node B has no consumers itself, it would know that a further hop away is node C which does have consumers.
We define high availability as the ability for the system to continue functioning after failure of one or more of the servers. A part of high availability is failover which we define as the ability for client connections to migrate from one server to another in event of server failure so client applications can continue to operate.
JBoss Messaging provides high availability by replicating servers in pairs. It also provides both 100% transparent client failover and application-level client failover.
JBoss Messaging allows pairs of servers to be linked together as live - backup pairs. In this release there is a single backup server for each live server. Backup servers are not operational until failover occurs. In later releases we will most likely support replication onto multiple backup servers.
When a live - backup pair is configured, JBoss Messaging ensures that the live server state is replicated to the backup server. Replicated state includes session state, and also global state such as the set of queues and addresses on the server.
When a client fails over from live to backup server, the backup server will already have the correct global and session state, so the client will be able to resume its session(s) on the backup server as if nothing happened.
Replication is performed in an asynchronous fashion between live and backup server. Data is replicated one way in a stream, and responses that the data has reached the backup is returned in another stream. By pipelining replications and responses to replications in separate streams allows replication throughput to be much higher than if we synchronously replicated data and waited for a response serially in an RPC manner before replicating the next piece of data.
First, on the live server, in jbm-configuration.xml configure the live server with knowledge of its backup server. This is done by specifying a backup-connector-ref element. This element references a connector, also specified on the live server which contains knowledge of how to connect to the backup server. Here's a snippet from jbm-configuration.xml showing a live server configured with a backup server:
<backup-connector-ref connector-name="backup-connector"/>
<!-- Connectors -->
<connectors>
...
<!-- This connector specifies how to connect to the backup server -->
<connector name="backup-connector">
<factory-class>
org.jboss.messaging.integration.transports.netty.NettyConnectorFactory
</factory-class>
<param key="jbm.remoting.netty.port" value="5445" type="Integer"/>
</connector>
</connectors>Secondly, on the backup server, also in jbm-configuration.xml , the element backup must be set to true. I.e. :
<backup>true</backup>
In order for live - backup pairs to operate properly, they must be identical replicas. This means you cannot just use any backup server that's previously been used for other purposes as a backup server, since it will have different data in its persistent storage. If you try to do so you will receive an exception in the logs and the server will fail to start.
To create a backup server for a live server that's already been used for other purposes, it's necessary to copy the data directory from the live server to the backup server. This means the backup server will have an identical persistent store to the backup server.
Similarly when a client fails over from a live server Lto a backup server B, the server Lbecomes invalid since, from that point on, the data on L and B may diverge. After such a failure, at the next available opportunity the B server should be taken down, and its data directory copied back to the L server. Live and backup servers can then be restarted. In this release of JBoss Messaging we do not provide any automatic facility for re-assigning a backup node with a live node while it is running.
For a backup server to function correctly it's also important that it has the same set of bridges, predefined queues, cluster connections, broadcast groups and discovery groups as defined on the live node. The easiest way to ensure this is just to copy the entire server side configuration from live to backup and just make the changes as specified in the previous section.
If a live server fails, as client connections failover from the live node to the backup, they do so at a rate determined by the client, and it might be the case that some client connections never fail over.
Different client connections may have different consumers on the same queue(s). The queue on the backup will wait for all its consumers to reattach before activating delivery on itself. If all connections have not reattached with this timeout then the queue will activate regardless.
This param is defined in jbm-configuration.xml using the setting queue-activation-timeout. It's default value is 30000 milliseconds.
JBoss Messaging clients can be configured with knowledge of live and backup servers, so that in event of connection failure of the client - live server connection, the client will detect this and reconnect its sessions to the backup server. Because of server replication, then backup server will already have those sessions in the same state they were left on the live server and the client will be able to reconnect them and resume them 100% transparently as if nothing happened.
For automatic failover JBoss Messaging requires zero coding of special failover code on the client or server. This differs from other messaging systems which intrusively require you to code special failover handling code. JBoss Messaging automatic failover preserves all your normal JMS or core API semantics and allows your client code to continue 100% uninterrupted on event of connection failure and failover from a live to a backup server.
JBoss Messaging clients detect connection failure when it has not received packets from the server within the time given by client-failure-check-period as explained in section Chapter 15, Dead Connections and Session Multiplexing. If the client does not receive data in good time, it will assume the connection has failed and attempt failover.
JBoss Messaging clients can be configured with the list of live-backup server pairs in a number of different ways. They can be configured explicitly or probably the most common way of doing this is to use server discovery for the client to automatically discover the list. For full details on how to configure clients please see Section 36.2, “Server discovery”.
Sometimes you want a client to failover onto a backup server even if the live server is just cleanly shutdown rather than having crashed or the connection failed. To configure this you can set the property FailoverOnServerShutdown to false either on the JBossConnectionFactory if you're using JMS or in the jbm-jms.xml file when you define the connection factory, or if using core by setting the property directly on the ClientSessionFactoryImpl instance after creation. The default value for this property is false, this means that by default JBoss Messaging clients will not failover to a backup server if the live server is simply shutdown cleanly.
For a fully functional example of automatic failover, please see Section 9.1.2, “Automatic (Transparent) Failover”.
In some cases you may not want automatic client failover, and prefer to handle any connection failure yourself, and code your own manually reconnection logic in your own failure handler. We define this as application-level failover, since the failover is handled at the user application level.
If all your clients use application-level failover then you do not need server replication on the server side, and should disabled this. Server replication has some performance overhead and should be disabled if it is not required. To disable server replication simply do not specify a backup-connector element for each live server.
To implement application-level failover, if you're using JMS then you need to code an ExceptionListener class on the JMS connection. The ExceptionListener will be called by JBoss Messaging in the event that connection failure is detected. In your ExceptionListener you would close your old JMS connections, potentially look up new connection factory instances from JNDI and creating new connections. In this case you may well be using HA-JNDI [link] to ensure that the new connection factory is looked up from a different server.
For a working example of application-level failover, please see Section 9.1.1, “Application-Layer Failover”.
If you are using the core API, then the procedure is very similar: you would code a FailureListener on your core ClientSession instances.
JBoss Messaging distributes a native library, used as a bridge between JBoss Messaging and linux libaio.
libaio is a library, developed as part of the linux kernel project. With libaio we submit writes to the operating system where they are processed asynchronously. Some time later the OS will call our code back when they have been processed.
These are the native libraries distributed by JBoss Messaging:
libJBMLibAIO32.so - x86 32 bits
libJBMLibAIO64.so - x86 64 bits
libJBMLibAIO_ia64.so - Itanium 64 bits
When using libaio, JBoss Messaging will aways try loading these files as long as they are on the library path.
Case you are using Linux on a platform other than x86_32, x86_64 or IA64 (Itanium), (for example IBM POWER) you may need to compile the native library, since we do not distribute binaries for those platforms with the release.
Note
At the moment the native layer is only available on Linux. If you are in a platform other than Linux the native compilation will not work
The native library uses autoconf what makes the compilation process easy, however you need to install extra packages as a requirement for compilation:
gcc - C Compiler
gcc-c++ or g++ - Extension to gcc with support for C++
autoconf - Tool for automating native build process
make - Plain old make
automake - Tool for automating make generation
libtool - Tool for link editing native libraries
libaio - library to disk asynchronous IO kernel functions
libaio-dev - Compilation support for libaio
A full JDK installed with the environment variable JAVA_HOME set to its location
To perform this installation on RHEL or Fedora, you can simply type this at a command line:
sudo yum install automake libtool autoconf gcc-g++ gcc libaio libaio-dev make
Or on debian systems:
sudo apt-get install automake libtool autoconf gcc-g++ gcc libaio libaio-dev make
Note
You could find a slight variation of the package names depending on the version and linux distribution. (for example gcc-c++ on Fedora versus g++ on Debian systems)
In the distribution, in the native-src directory, execute the shell script bootstrap. This script will invoke automake and make what will create all the make files and the native library.
someUser@someBox:/messaging-distribution/native-src$ ./bootstrap checking for a BSD-compatible install... /usr/bin/install -c checking whether build environment is sane... yes checking for a thread-safe mkdir -p... /bin/mkdir -p ... configure: creating ./config.status config.status: creating Makefile config.status: creating ./src/Makefile config.status: creating config.h config.status: config.h is unchanged config.status: executing depfiles commands config.status: executing libtool commands ...
The produced library will be at ./native-src/src/.libs/libJBMLibAIO.so. Simply move that file over bin on the distribution or the place you have chosen on the library path.
If you want to perform changes on the JBoss Messaging libaio code, you could just call make directly at the native-src directory.
This chapter describes how JBoss Messaging uses and pools threads and how you can manage them.
First we'll discuss how threads are managed and used on the server side, then we'll look at the client side.
Each JBoss Messaging Server maintains a single thread pool for general use, and a scheduled thread pool for scheduled use. A Java scheduled thread pool cannot be configured to use a standard thread pool, otherwise we could use a single thread pool for both scheduled and non scheduled activity.
There are also a small number of other places where threads are used directly, we'll discuss each in turn.
The server scheduled thread pool is used for most activities on the server side that require running periodically or with delays. It maps internally to a java.util.concurrent.ScheduledThreadPoolExecutor instance.
The maximum number of thread used by this pool is configure in jbm-configuration.xml with the scheduled-thread-pool-max-size parameter. The default value is 5 threads. A small number of threads is usually sufficient for this pool.
This general purpose thread pool is used for most asynchronous actions on the server side. It maps internally to a java.util.concurrent.ThreadPoolExecutor instance.
The maximum number of thread used by this pool is configure in jbm-configuration.xml with the thread-pool-max-size parameter.
If a value of -1 is used this signifies that the thread pool has no upper bound and new threads will be created on demand if there are enough threads available to satisfy a request. If activity later subsides then threads are timed-out and closed.
If a value of n where nis a positive integer greater than zero is used this signifies that the thread pool is bounded. If more requests come in and there are no free threads in the pool and the pool is full then requests will block until a thread becomes available. It is recommended that a bounded thread pool is used with caution since it can lead to dead-lock situations if the upper bound is chosen to be too low.
The default value for thread-pool-max-size is -1, i.e. the thread pool is unbounded.
See the J2SE javadoc for more information on unbounded (cached), and bounded (fixed) thread pools.
A single thread is also used on the server side to scan for expired messages in queues. We cannot use either of the thread pools for this since this thread needs to run at its own configurable priority.
For more information on configuring the reaper, please see Chapter 21, Message Expiry.
Asynchronous IO has a thread pool for receiving and dispatching events out of the native layer. You will find it on a thread dump with the prefix JBM-AIO-poller-pool. JBoss Messaging uses one thread per opened file on the journal (there is usually one).
There is also a single thread used to invoke writes on libaio. We do that to avoid context switching on libaio what would cause performance issues. You will find this thread on a thread dump with the prefix JBM-AIO-writer-pool.
On the client side, JBoss Messaging maintains a single static scheduled thread pool and a single static general thread pool for use by all clients using the same classloader in that JVM instance.
The static scheduled thread pool has a maximum size of 2 threads, and the general purpose thread pool has an unbounded maximum size.
If required JBoss Messaging can also be configured so that each ClientSessionFactory instance does not use these static pools but instead maintains its own scheduled and general purpose pool. Any sessions created from that ClientSessionFactory will use those pools instead.
To configure a ClientSessionFactory instance to use its own pools, simply use the appropriate setter methods immediately after creation, for example:
ClientSessionFactory myFactory = new ClientSessionFactory(...); myFactory.setUseGlobalPools(false); myFactory.setScheduledThreadPoolMaxSize(10); myFactory.setThreadPoolMaxSize(-1);
If you're using the JMS API, you can set the same parameters directly on the JBossConnectionFactory instance, for example:
JBossConnectionFactory myFactory = new JBossConnectionFactory(...); myFactory.setUseGlobalPools(false); myFactory.setScheduledThreadPoolMaxSize(10); myFactory.setThreadPoolMaxSize(-1);
If you're using JNDI to instantiate JBossConnectionFactory instances, you can also set these parameters in the jbm-jms.xml file where you describe your connection factory, for example:
<connection-factory name="ConnectionFactory">
<connector-ref connector-name="netty"/>
<entries>
<entry name="ConnectionFactory"/>
<entry name="XAConnectionFactory"/>
</entries>
<use-global-pools>false</use-global-pools>
<scheduled-thread-pool-max-size>10</scheduled-thread-pool-max-size>
<thread-pool-max-size>-1</thread-pool-max-size>
</connection-factory>JBM uses standard JDK logging, (a.k.a Java-Util-Logging: JUL), for all its logging. This means we have no dependencies on any third party logging framework. Users can provide their own logging handler to use or alternatively use the log4j handler supplied by JBoss Messaging.
The handlers are configured via the JUL logging.properties file. This default location for this file is under the lib directory found in the Java home directory but it can be overridden by setting the java.util.logging.config.file system property to point to the appropriate logging.properties file. The standalone JBM server does this and the logging.properties file can be found under the config directory of the JBM installation.
By default the standalone server is configured to use the standard console handler and a file handler that logs to bin/logs/messaging.log.
Because some of the third party components used to bootstrap JBoss Messaging, i.e. the Microcontainer, use the JBoss Logging framework we have supplied a plugin class that redirects this to the JUL logger. This is set via a system property, -Dorg.jboss.logging.Logger.pluginClass=org.jboss.messaging.integration.logging.JBMLoggerPlugin. This is only needed when starting the standalone server and is set in the run script. This is not a problem if you are embedding JBoss Messaging in your own code as the Microcontainer won't be being used.
JBoss Messaging supplies a JUL Log4j handler that can be used instead of the defaults. To use this simply edit the logging.properties file as such:
handlers=org.jboss.messaging.integration.logging.Log4jLoggerHandler
You will also need to download the Log4j jars and place them in the lib directory and also provide a log4j configuration and place it on the appropriate config directory, i.e. config/common.
JBoss Messaging is designed as set of simple Plain Old Java Objects (POJOs). This means JBoss Messaging can be instantiated and run in any dependency injection framework such as JBoss Microcontainer, Spring or Google Guice. It also means that if you have an application that could use messaging functionality internally, then it can directly instantiate JBoss Messaging clients and servers in its own application code to perform that functionality. We call this embedding JBoss Messaging.
Examples of applications that might want to do this include any application that needs very high performance, transactional, persistent messaging but doesn't want the hassle of writing it all from scratch.
Embedding JBM can be done in very few easy steps. Instantiate the configuration object, instantiate the server, start it, and you have a JBoss Messaging running in your virtual machine. It's as simple and easy as that.
You can follow this step-by-step guide:
Create the configuration object - this contains configuration information for a JBoss Messaging server. If you want to configure it from a file on the classpath, use FileConfigurationImpl
import org.jboss.messaging.core.config.Configuration; import org.jboss.messaging.core.config.impl.FileConfiguration; ... Configuration config = new FileConfiguration(); config.setConfigurationUrl(urlToYourconfigfile); config.start();
If you don't need to support a configuration file, just use ConfigurationImpl and change the config parameters accordingly, such as adding acceptors.
The acceptors are configured through ConfigurationImpl. Just add the NettyAcceptorFactory on the transports the same way you would through the main configuration file.
import org.jboss.messaging.core.config.Configuration;
import org.jboss.messaging.core.config.impl.ConfigurationImpl;
...
Configuration config = new ConfigurationImpl();
HashSet<TransportConfiguration> transports = new HashSet<TransportConfiguration>();
transports.add(new TransportConfiguration(NettyAcceptorFactory.class.getName()));
transports.add(new TransportConfiguration(InVMAcceptorFactory.class.getName()));
config.setAcceptorConfigurations(transports);You need to instantiate and start JBoss Messaging server. The class org.jboss.messaging.core.serverMessaging has a few static methods for creating servers with common configurations.
import org.jboss.messaging.core.server.Messaging; import org.jboss.messaging.core.server.MessagingServer; ... MessagingServer server = Messaging.newMessagingServer(config); server.start();
You also have the option of instantiating MessagingServerImpl directly:
MessagingServer server =
new MessagingServerImpl(config);
server.start();You may also choose to use a dependency injection framework such as JBoss Micro Container™ or Spring Framework™.
JBoss Messaging standalone uses JBoss Micro Container as the injection framework. JBMBootstrapServer and jbm-jboss-beans.xml which are part of the JBoss Messaging distribution provide a very complete implementation of what's needed to bootstrap the server using JBoss Micro Container.
When using JBoss Micro Container, you need to provide a XML declaring the MessagingServer and Configuration object, you can also inject a security manager and a MBean server if you want, but those are optional.
A very basic XML Bean declaration for the JBoss Micro Container would be:
<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="urn:jboss:bean-deployer:2.0">
<!-- The core configuration -->
<bean name="Configuration"
class="org.jboss.messaging.core.config.impl.FileConfiguration">
</bean>
<!-- The core server -->
<bean name="MessagingServer"
class="org.jboss.messaging.core.server.impl.MessagingServerImpl">
<constructor>
<parameter>
<inject bean="Configuration"/>
</parameter>
</constructor>
</bean>
</deployment>JBMBootstrapServer provides an easy encapsulation of JBoss Micro Container.
JBMBootstrapServer bootStrap =
new JBMBootstrapServer(new String[] {"jbm-jboss-beans.xml"});
bootStrap.run();To connect clients to JBoss Messaging you just create the factories as normal:
If using the core API, just create the ClientSessionFactory and use the regular core API.
ClientSessionFactory nettyFactory = new ClientSessionFactoryImpl(
new TransportConfiguration(
InVMConnectorFactory.class.getName()));
ClientSession session = factory.createSession();
session.createQueue("example", "example", true);
ClientProducer producer = session.createProducer("example");
ClientMessage message = session.createClientMessage(true);
message.getBody().writeString("Hello");
producer.send(message);
session.start();
ClientConsumer consumer = session.createConsumer("example");
ClientMessage msgReceived = consumer.receive();
System.out.println("message = " + msgReceived.getBody().readString());
session.close();Connection on an Embedded JBoss Messaging through JMS is also simple. Just instantiate JBossConnectionFactory directly. The following example illustrates that.
JBossConnectionFactory cf =
new JBossConnectionFactory(
new TransportConfiguration(InVMConnectorFactory.class.getName()));
Connection conn = cf.createConnection();
conn.start();
Session sess = conn.createSession(true, Session.SESSION_TRANSACTED);
MessageProducer prod = sess.createProducer(queue);
TextMessage msg = sess.createTextMessage("Hello!");
prod.send(msg);
sess.commit();
MessageConsumer consumer = sess.createConsumer(queue);
TextMessage txtmsg = (TextMessage)consumer.receive();
System.out.println("Msg = " + txtmsg.getText());
sess.commit();
conn.close();Please see Section 9.2.1, “Embedded” for an example which shows how to setup and run JBoss Messaging embedded with JMS.
JBoss Messaging supports interceptors to intercept packets entering and leaving the server. Any supplied interceptors would be called for any packet entering or leaving the server, this allows custom code to be executed, e.g. for auditing packets, filtering or other reasons. Interceptors can change the packets they intercept.
A interceptor must implement the Interceptor interface:
package org.jboss.messaging.core.remoting;
public interface Interceptor
{
boolean intercept(Packet packet, RemotingConnection connection)
throws MessagingException;
}
The returned boolean value is important:
if true is returned, the process continues normally
if false is returned, the process is aborted, no other interceptors will be called and the packet will not be handled by the server at all.
The interceptors are configured in jbm-configuration.xml:
<remoting-interceptors>
<class-name>org.jboss.jms.example.LoginInterceptor</class-name>
<class-name>org.jboss.jms.example.AdditionalPropertyInterceptor</class-name>
</remoting-interceptors>
The interceptors classes (and their dependencies) must be added to the server classpath to be properly instantiated and called.
See Section 9.1.18, “Interceptor” for an example which shows how to use interceptors to add properties to a message on the server.
Stomp is a wire protocol that allows Stomp clients to communicate with Stomp Brokers. StompConnect is a server that can act as a Stomp broker and proxy the Stomp protocol to the standard JMS API. Consequently, using StompConnect it is possible to turn JBM into a Stomp Broker and use any of the available stomp clients. These include clients written in C, C++, c# and .net etc.
To run StompConnect first start the JBoss Messaging server and make sure that it is using JNDI.
Stomp requires the file jndi.properties to be available on the classpath. This should look something like:
java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory java.naming.provider.url=jnp://localhost:1099 java.naming.factory.url.pkgs=org.jboss.naming:org.jnp.interfaces
Make sure this file is in the classpath along with the StompConnect jar and the JBoss Messaging jars and simply run java org.codehaus.stomp.jms.Main.
JBoss Messaging will shortly be implementing the Stomp protocol directly, so you won't have to use StompConnect to be able to use JBoss Messaging with Stomp clients.
In this chapter we'll discuss how to tune JBoss Messaging for optimum performance.
Minimum number of journal files. Set journal-min-files to a number of files that would fit your average sustainable rate. If you see new files being created on the journal data directory too often, i.e. lots of data is being persisted, you need to increase the minimal number of files, this way the journal would reuse more files instead of creating new data files.
Journal file size. The journal file size should be aligned to the capacity of a cylinder on the disk. The default value 10MiB should be enough on most systems.
Use AIO journal. If using Linux, try to keep your journal type as AIO.
journal-aio-flush-on-sync. If you don't have many producers in your system you may consider setting journal-aio-flush-on-sync to true. JBoss Messaging by default is optimized by the case where you have many producers. We try to combine multiple writes in a single OS operation. However if that's not your case setting this option to true will give you a performance boost.
On the other hand when you have multiple producers, keeping journal-aio-flush-on-sync set to false. This will make your system flush multiple syncs in a single OS call making your system scale much better.
There are a few areas where some tweaks can be done if you are using the JMS API
Disable message id. Use the setDisableMessageID() method on the MessageProducer class to disable message ids if you don't need them. This decreases the size of the message and also avoids the overhead of creating a unique ID.
Disable message timestamp. Use the setDisableMessageTimeStamp() method on the MessageProducer class to disable message timestamps if you don't need them. Again this makes the message smaller.
Avoid ObjectMessage. ObjectMessage is convenient but it comes at a cost. The body of a ObjectMessage uses Java serialization to serialize it to bytes. The Java serialized form of even small objects is very verbose so takes up a lot of space on the wire, also Java serialization is slow compared to customer marshalling techniques. Only use ObjectMessage if you really can't use one of the other message types, i.e. if you really don't know the type of the payload until run-time.
Avoid AUTO_ACKNOWLEDGE. AUTO_ACKNOWLEDGE mode requires an acknowledgement to be sent from the server for each message received on the client, this means more traffic on the network. If you can, use DUPS_OK_ACKNOWLEDGE or use CLIENT_ACKNOWLEDGE or a transacted session and batch up many acknowledgements with one acknowledge/commit.
Avoid persistent messages. By default JMS messages are persistent. If you don't really need persistent messages then set them to be non persistent. Persistent messages incur a lot more overhead in persisting them to storage.
There are various other places in JBoss Messaging where we can perform some tuning:
Use Asynchronous Send Acknowledgements. If you need to send persistent messages non transactionally and you need a guarantee that they have reached the server by the time the call to send() returns, don't set persistent messages to be sent blocking, instead use asynchronous send acknowledgements to get your acknowledgements of send back in a separate stream, see Chapter 19, Guarantees of Transactional and Non-Transactional Sends and Asynchronous Send Acknowledgements for more information on this.
Use pre-acknowledge mode. With pre-acknowledge mode, messages are acknowledged before they are sent to the client. This reduces the amount of acknowledgment traffic on the wire. For more information on this, see Chapter 28, Pre-Acknowledge Mode.
Disable security. You may get a small performance boost by disabling security by setting the security-enabled parameter to false in jbm-configuration.xml.
Disable persistence. If you don't need message persistence, turn it off altogether by setting persistence-enabled to false in jbm-configuration.xml.
Sync transactions lazily. Setting journal-sync-transactional to false in jbm-configuration.xml can give you better transactional persistent performance at the expense of some possibility of loss of transactions on failure. See Chapter 19, Guarantees of Transactional and Non-Transactional Sends and Asynchronous Send Acknowledgements for more information.
Use the core API not JMS. Using the JMS API you will have slightly lower performance than using the core API, since all JMS operations need to be translated into core operations before the server can handle them.
Enable Nagle's algorithm. If you are sending many small messages, such that more than one can fit in a single IP packet thus providing better performance. This is done by setting jbm.remoting.netty.tcpnodelay to false with the Netty transports. See Chapter 14, Configuring the Transport for more information on this.
TCP buffer sizes. If you have a fast network and fast machines you may get a performance boost by increasing the TCP send and receive buffer sizes. See the Chapter 14, Configuring the Transport for more information on this.
Increase limit on file handles on the server. If you expect a lot of concurrent connections on your servers, or if clients are rapidly opening and closing connections, you should make sure the user running the server has permission to create sufficient file handles.
This varies from operating system to operating system. On Linux systems you can increase the number of allowable open file handles in the file /etc/security/limits.conf e.g. add the lines
serveruser soft nofile 20000 serveruser hard nofile 20000This would allow up to 20000 file handles to be open by the user serveruser.
We highly recommend you use the latest Java 6 JVM, especially in the area of networking many improvements have been made since Java 5. We test internally using the Sun JVM, so some of these tunings won't apply to JDKs from other providers (e.g. IBM or JRockit)
Garbage collection. For smooth server operation we recommend using a parallel garbage collection algorithm, e.g. using the JVM argument -XX:+UseParallelGC on Sun JDKs.
Memory settings. Give as much memory as you can to the server. JBoss Messaging can run in low memory by using paging (described in Chapter 23, Paging) but if it can run with all queues in RAM this will improve performance. The amount of memory you require will depend on the size and number of your queues and the size and number of your messages. Use the JVM arguments -Xms and -Xmx to set server available RAM. We recommend setting them to the same high value.
Aggressive options. Different JVMs provide different sets of JVM tuning parameters, for the Sun Hotspot JVM the full list of options is available here. We recommend at least using -XX:+AggressiveOpts and -XX:+UseFastAccessorMethods. You may get some mileage with the other tuning parameters depending on your OS platform and application usage patterns.
Re-use connections / sessions / consumers / producers. Probably the most common messaging anti-pattern we see is users who create a new connection/session/producer for every message they send or every message they consume. This is a poor use of resources. These objects take time to create and may involve several network round trips. Always re-use them.
Note
Some popular libraries such as the Spring JMS Template are known to use these anti-patterns. If you're using Spring JMS Template and you're getting poor performance you know why. Don't blame JBoss Messaging!
Avoid fat messages. Verbose formats such as XML take up a lot of space on the wire and performance will suffer as result. Avoid XML in message bodies if you can.
Avoid many selectors on a queue. Another common anti-pattern is a single queue which has many consumers, each one with a distinct message selector. As messages come into the queue they will typically only match one of the consumers. This does not normally give good performance since as new consumers are added the entire queue has to be scanned for matching messages.
This anti-pattern can normally be avoided by instead using a topic with many durable subscriptions, each subscription defines a message selector. With topic subscriptions the selector expression is evaluated by JBoss Messaging before the message goes into the subscription, so no scanning is involved.
Don't create temporary queues for each request. This common anti-pattern involves the temporary queue request-response pattern. With the temporary queue request-response pattern a message is sent to a target and a reply-to header is set with the address of a local temporary queue. When the recipient receives the message they process it then send back a response to the address specified in the reply-to. A common mistake made with this pattern is to create a new temporary queue on each message sent. This will drastically reduce performance. Instead the temporary queue should be re-used for many requests.
This section is a quick index for looking up configuration. Click on the element name to go to the specific chapter.
This is the main core server configuration file.
Table 45.1. Server Configuration
| Element Name | Element Type | Description | Default |
|---|---|---|---|
| backup | Boolean | true means that this server is a backup to another node in the cluster | false |
| backup-connector-ref | String | the name of the remoting connector to connect to the backup node | |
| bindings-directory | String | the directory to store the persisted bindings to | data/bindings |
| clustered | Boolean | true means that the server is clustered | false |
| connection-ttl-override | Long | if set, this will override how long (in ms) to keep a connection alive without receiving a ping. | -1 |
| create-bindings-dir | Boolean | true means that the server will create the bindings directory on start up | true |
| create-journal-dir | Boolean | true means that the journal directory will be created | true |
| file-deployment-enabled | Boolean | true means that the server will load configuration from the configuration files | true |
| global-page-size | Long | the standard size (in bytes) of a page-file. JBoss Messaging will only read messages when there is enough space to read at least one page file, determined by this value. | 10 * 1024 * 1024 |
| id-cache-size | Integer | the size of the cache for pre creating message id's | 2000 |
| journal-aio-buffer-size | Long | The size of the internal buffer on AIO. | 128 KiB |
| journal-aio-buffer-timeout | Long | The timeout (in nanoseconds) used to flush internal buffers. | 20000 |
| journal-aio-flush-on-sync | Boolean | If true, transactions will ignore timeouts and be persisted immediately | False |
| journal-directory | String | the directory to store the journal files in | data/journal |
| journal-file-size | Long | the size (in bytes) of each journal file | 128 * 1024 |
| journal-max-aio | Integer | the maximum number of write requests that can be in the AIO queue at any one time | 500 |
| journal-min-files | Integer | how many journal files to pre-create | 2 |
| journal-sync-transactional | Boolean | if true wait for transaction data to be synchronized to the journal before returning response to client | true |
| journal-sync-non-transactional | Boolean | if true wait for non transaction data to be synced to the journal before returning response to client. | false |
| journal-type | ASYNCIO|NIO | the type of journal to use | ASYNCIO |
| jmx-management-enabled | Boolean | true means that the management API is available via JMX | true |
| large-messages-directory | String | the directory to store large messages | data/largemessages |
| management-address | String | the name of the management address to send management messages to | jbm.management |
| management-cluster-user | String | the user used to for replicating management operations between clustered nodes | JBM.MANAGEMENT.ADMIN.USER |
| management-cluster-password | String | the password used to for replicating management operations between clustered nodes | CHANGE ME!! |
| management-notification-address | String | the name of the address that consumers bind to receive management notifications | jbm.notifications |
| management-request-timeout | Long | how long (in ms) to wait for a reply to a management request | 5000 |
| message-counter-enabled | Boolean | true means that message counters are enabled | false |
| message-counter-max-day-history | Integer | how many days to keep message counter history | 10 |
| message-counter-sample-period | Long | the sample period (in ms) to use for message counters | 10000 |
| message-expiry-scan-period | Long | how often (in ms) to scan for expired messages | 30000 |
| message-expiry-thread-priority | Integer | the priority of the thread expiring messages | 3 |
| paging-directory | String | the directory to store paged messages in | data/paging |
| paging-max-global-size-bytes | Long | JBoss Messaging enters into global page mode as soon as the total memory consumed by messages hits this value (in bytes) | -1 |
| persist-delivery-count-before-delivery | Boolean | true means that the delivery count is persisted before delivery. False means that this only happens after a message has been cancelled. | false |
| persistence-enabled | Boolean | true means that the server will use the file based journal for persistence. | true |
| persist-id-cache | Boolean | true means that id's are persisted to the journal | true |
| queue-activation-timeout | Long | after failover occurs, this timeout specifies how long (in ms) to wait for consumers to re-attach before starting delivery | 30000 |
| scheduled-thread-pool-max-size | Integer | the number of threads that the main scheduled thread pool has. | 5 |
| security-enabled | Boolean | true means that security is enabled | true |
| security-invalidation-interval | Long | how long (in ms) to wait before invalidating the security cache | 10000 |
| thread-pool-max-size | Integer | the number of threads that the main thread pool has. -1 means no limit | -1 |
| transaction-timeout | Long | how long (in ms) before a transaction can be removed from the resource manager after create time | 60000 |
| transaction-timeout-scan-period | Long | how often (in ms) to scan for timeout transactions | 1000 |
| wild-card-routing-enabled | Boolean | true means that the server supports wild card routing | true |
| acceptors | Acceptor | a list of remoting acceptors to create | |
| broadcast-groups | BroadcastGroup | a list of broadcast groups to create | |
| connectors | Connector | a list of remoting connectors configurations to create | |
| discovery-groups | DiscoveryGroup | a list of discovery groups to create | |
| diverts | Divert | a list of diverts to use | |
| divert.name (attribute) | String | a unique name for the divert - mandatory | |
| divert.routing-name | String | the routing name for the divert - mandatory | |
| divert.address | String | the address this divert will divert from - mandatory | |
| divert.forwarding-address | String | the forwarding address for the divert - mandatory | |
| divert.exclusive | Boolean | is this divert exclusive? | false |
| divert.filter | String | an optional core filter expression | null |
| divert.transformer-class-name | String | an optional class name of a transformer | |
| queues | Queue | a list of pre configured queues to create | |
| queues.name (attribute) | String | unique name of this queue | |
| queues.address | String | address for this queue - mandatory | |
| queues.filter | String | optional core filter expression for this queue | null |
| queues.durable | Boolean | is this queue durable? | true |
| bridges | Bridge | a list of bridges to create | |
| bridges.name (attribute) | String | unique name for this bridge | |
| bridges.queue-name | String | name of queue that this bridge consumes from - mandatory | |
| bridges.forwarding-address | String | address to forward to. If omitted original destination is used | null |
| bridges.filter | String | optional core filter expression | null |
| bridges.transformer-class-name | String | optional name of transformer class | null |
| bridges.retry-interval | Long | period (in ms) between successive retries | 2000 ms |
| bridges.retry-interval-multiplier | Double | multiplier to apply to successive retry intervals | 1.0 |
| bridges.reconnect-attempts | Integer | maximum number of retry attempts, -1 signifies infinite | -1 |
| bridges.failover-on-server-shutdown | Boolean | should failover be prompted if target server is cleanly shutdown? | false |
| bridges.use-duplicate-detection | Boolean | should duplicate detection headers be inserted in forwarded messages? | true |
| bridges.discovery-group-ref | String | name of discovery group used by this bridge | null |
| bridges.connector-ref.connector-name (attribute) | String | name of connector to use for live connection | |
| bridges.connector-ref.backup-connector-name (attribute) | String | optional name of connector to use for backup connection | null |
| cluster-connections | ClusterConnection | a list of cluster connections | |
| cluster-connections.name (attribute) | String | unique name for this cluster connection | |
| cluster-connections.address | String | name of address this cluster connection applies to | |
| cluster-connections.forward-when-no-consumers | Boolean | should messages be load balanced if there are no matching consumers on target? | false |
| cluster-connections.max-hops | Integer | maximum number of hops cluster topology is propagated | 1 |
| cluster-connections.retry-interval | Long | period (in ms) between successive retries | 2000 |
| cluster-connections.use-duplicate-detection | Boolean | should duplicate detection headers be inserted in forwarded messages? | true |
| cluster-connections.discovery-group-ref | String | name of discovery group used by this bridge | null |
| cluster-connections.connector-ref.connector-name (attribute) | String | name of connector to use for live connection | |
| cluster-connections.connector-ref.backup-connector-name (attribute) | String | optional name of connector to use for backup connection | null |
| security-settings | SecuritySetting | a list of security settings | |
| security-settings.match (attribute) | String | the string to use for matching security against an address | |
| security-settings.permission | Security Permission | a permision to add to the address | |
| security-settings.permission.type (attribute) | Permission Type | the type of permission | |
| security-settings.permission.roles (attribute) | Roles | a comma-separated list of roles to apply the permission to | |
| address-settings | AddressSetting | a list of address settings | |
| address-settings.dead-letter-address | String | the address to send dead messages too | |
| address-settings.max-delivery-attempts | Integer | how many times to attempt to deliver a message before sending to dead letter address | 10 |
| address-settings.expiry-address | String | the address to send expired messages too | |
| address-settings.redelivery-delay | Long | the time (in ms) to wait before redelivering a cancelled message. | 0 |
| address-settings.last-value-queue | boolean | whether to treat the queue as a last value queue | false |
| address-settings.distribution-policy-class | String | the class to use for distributing messages to a consumer | RoundRobinDistributor |
| address-settings.page-size-bytes | Long | the page size (in bytes) to use for an address | 10 * 1024 * 1024 |
| address-settings.max-size-bytes | Long | the maximum size (in bytes) to use in paging for an address | -1 |
| address-settings.redistribution-delay | Long | how long (in ms) to wait after the last consumer is closed on a queue before redistributing messages. | -1 |
This is the configuration file used by the server side JMS service to load JMS Queues, Topics and Connection Factories.
Table 45.2. JMS Server Configuration
| Element Name | Element Type | Description | Default |
|---|---|---|---|
| connection-factory | ConnectionFactory | a list of connection factories to create and add to JNDI | |
| connection-factory.auto-group | Boolean | whether or not message grouping is automatically used | false |
| connection-factory.block-on-acknowledge | Boolean | whether or not messages are acknowledged synchronously | false |
| connection-factory.block-on-non-persistent-send | Boolean | whether or not non persistent messages are sent synchronously | false |
| connection-factory.block-on-persistent-send | Boolean | whether or not persistent messages are sent synchronously | false |
| connection-factory.call-timeout | Long | the timeout (in ms) for remote calls | 30000 |
| connection-factory.client-failure-check-period | Long | the period (in ms) after which the client will consider the connection failed after not receiving packets from the server | 5000 |
| connection-factory.client-id | String | the pre-configured client ID for the connection factory | null |
| connection-factory.connection-load-balancing-policy-class-name | String | the name of the load balancing class | org.jboss.messaging.core.client.impl.RoundRobinConnectionLoadBalancingPolicy |
| connection-factory.connection-ttl | Long | the time to live (in ms) for connections | 5 * 60000 |
| connection-factory.consumer-max-rate | Integer | the fastest rate a consumer may consume messages per second | -1 |
| connection-factory.consumer-window-size | Integer | the window size (in bytes) for consumer flow control | 1024 * 1024 |
| connection-factory.discovery-initial-wait-timeout | Long | the initial time to wait (in ms) for discovery groups to wait for broadcasts | 2000 |
| connection-factory.dups-ok-batch-size | Integer | the batch size (in bytes) between acknowledgements when using DUPS_OK_ACKNOWLEDGE mode | 1024 * 1024 |
| connection-factory.failover-on-server-shutdown | Boolean | whether or not to failover on server shutdown | false |
| connection-factory.max-connections | Integer | the maximum number of connections per factory | 8 |
| connection-factory.min-large-message-size | Integer | the size (in bytes) before a message is treated as large | 100 * 1024 |
| connection-factory.pre-acknowledge | Boolean | whether messages are pre acknowledged by the server before sending | false |
| connection-factory.producer-max-rate | Integer | the maximum rate of messages per second that can be sent | -1 |
| connection-factory.producer-window-size | Integer | the window size (in bytes) for sending messages | 1024 * 1024 |
| connection-factory.reconnect-attempts | Integer | maximum number of retry attempts, -1 signifies infinite | 0 |
| connection-factory.retry-interval | Long | the time (in ms) to retry a connection after failing | 2000 |
| connection-factory.retry-interval-multiplier | Double | multiplier to apply to successive retry intervals | 1d |
| connection-factory.scheduled-thread-pool-max-size | Integer | the size of the scheduled thread pool | 2 |
| connection-factory.thread-pool-max-size | Integer | the size of the thread pool | -1 |
| connection-factory.transaction-batch-size | Integer | the batch size (in bytes) between acknowledgements when using a transactional session | 1024 * 1024 |
| connection-factory.use-global-pools | Boolean | whether or not to use a global thread pool for threads | true |
| queue | Queue | a queue to create and add to JNDI | |
| queue.name (attribute) | String | unique name of the queue | |
| queue.entry | String | context where the queue will be bound in JNDI (there can be many) | |
| queue.durable | Boolean | is the queue durable? | true |
| queue.filter | String | optional filter expression for the queue | |
| topic | Topic | a topic to create and add to JNDI | |
| topic.name (attribute) | String | unique name of the topic | |
| topic.entry | String | context where the topic will be bound in JNDI (there can be many) |
The JBoss Messaging project page is here. You can download any releases from there.
If you have any user questions please use our user forum
If you have development related questions, please use our development forum
Pop in and chat to us in our IRC channel
JBoss Messaging Subversion TRUNK is here
All our release tags are here
Red Hat kindly employs developers to work full time on JBoss Messaging, the motley crew are:
Tim Fox (project lead)
Howard Gao
Jeff Mesnil
Clebert Suconic
Andy Taylor
