JBoss Remoting Guide

JBossRemoting 2.4.0.GA is an incremental release, with dozens of bug fixes and several new features:

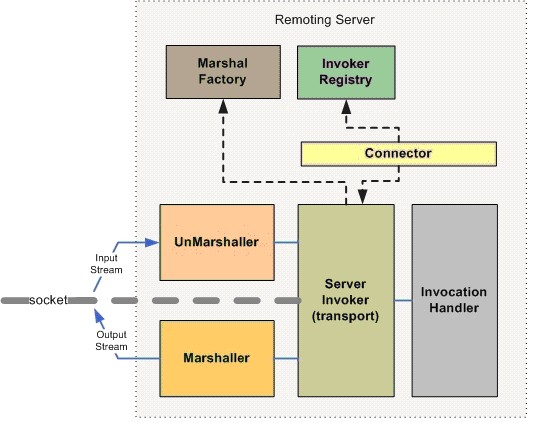

The heart of the server side is the Connector, and it is through the Connector that the server side of a transport is configured. The central goals of configuration on the server side are to establish a server invoker and supply it with a set of invocation handlers. Only one invoker can be declared per Connector. Although declaring an invocation handler is not required, it should only be omitted in the case of declaring a callback server that will not receive direct invocations, but only callback messages. Otherwise client invocations can not be processed. The invocation handler is the only interface that is required by the remoting framework for a user to implement and will be what the remoting framework calls upon when receiving invocations.

There are two general approaches to server side configuration: programmatic and declarative. A variety of programmatic techniques work in any environment, including the JBoss Application Server (JBossAS). Moreover, JBossAS adds the option of declarative configuration. In particular, the SARDeployer (see The JBoss 4 Application Server Guide on the labs.jboss.org web site) can read information from a *-service.xml file and use it to configure MBeans such as Connectors.

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientLeasePeriod=10000&timeout=120000";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
Connector connector = new Connector(locator);
connector.create();
SampleInvocationHandler invocationHandler = new SampleInvocationHandler();
connector.addInvocationHandler("sample", invocationHandler);
connector.start();

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientLeasePeriod=10000";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "120000");
config.put(ServerInvoker.SERVER_SOCKET_FACTORY, new MyServerSocketFactory());
Connector connector = new Connector(locator, config);
connector.create();
SampleInvocationHandler invocationHandler = new SampleInvocationHandler();
connector.addInvocationHandler("sample", invocationHandler);
connector.start();

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientLeasePeriod=10000";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "120000");
Connector connector = new Connector(locator, config);
connector.create();
ServerInvoker serverInvoker = connector.getServerInvoker();
ServerSocketFactory ssf = new MyServerSocketFactory();
serverInvoker.setServerSocketFactory(ssf);
SampleInvocationHandler invocationHandler = new SampleInvocationHandler();
connector.addInvocationHandler("sample", invocationHandler);
connector.start();

HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "120000");
Connector connector = new Connector(config);

// Set xml configuration element.
StringBuffer buf = new StringBuffer();
buf.append("<?xml version=\"1.0\"?>\n");
buf.append("<config>");
buf.append("   <invoker transport=\"socket\">");
buf.append("      <attribute name=\"serverBindAddress\">test.somedomain.com</attribute>");
buf.append("      <attribute name=\"serverBindPort\">8084</attribute>");
buf.append("      <attribute name=\"clientLeasePeriod\">10000</attribute>");
buf.append("   </invoker>");
buf.append("   <handlers>");
buf.append("      <handler subsystem=\"mock\">");
buf.append("         org.jboss.remoting.transport.mock.SampleInvocationHandler");
buf.append("      </handler>");
buf.append("   </handlers>");
buf.append("</config>");

ByteArrayInputStream bais = new ByteArrayInputStream(buf.toString().getBytes());
Document xml = DocumentBuilderFactory.newInstance().newDocumentBuilder().parse(bais);
connector.setConfiguration(xml.getDocumentElement());

connector.create();
connector.start();

HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "120000");
Connector connector = new Connector(config);

// Create ServerConfiguration object for socket transport
ServerConfiguration serverConfig = new ServerConfiguration("socket");

// Add invokerLocatorParameters (applicable to client and server)
Map locatorConfig = new HashMap();
locatorConfig.put("serverBindAddress", "test.somedomain.com");
locatorConfig.put("serverBindPort", "8084");
serverConfig.setInvokerLocatorParameters(locatorConfig);

// Add serverParameters (applicable to server)
Map serverParameters = new HashMap();
locatorConfig.put("clientLeasePeriod", "10000");
serverConfig.setServerParameters(serverParameters);

// Add invocation handlers
Map handlers = new HashMap();
handlers.put("mock", "org.jboss.remoting.transport.mock.SampleInvocationHandler");
serverConfig.setInvocationHandlers(handlers);

connector.setServerConfiguration(serverConfig);
connector.create();
connector.start();

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">
   <attribute name="InvokerLocator">
      <![CDATA[socket://test.somedomain.com:8084]]>
   </attribute>
   <attribute name="Configuration">
      <config>
         <handlers>
            <handler subsystem="mock">
               org.jboss.remoting.transport.mock.MockServerInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
</mbean>

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>

         <invoker transport="socket">
            <attribute name="numAcceptThreads">1</attribute>
            <attribute name="maxPoolSize">303</attribute>
            <attribute name="clientMaxPoolSize" isParam="true">304</attribute>
            <attribute name="socketTimeout">60000</attribute>
            <attribute name="serverBindAddress">192.168.0.82</attribute>
            <attribute name="serverBindPort">6666</attribute>
            <attribute name="clientConnectAddress">216.23.33.2</attribute>
            <attribute name="clientConnectPort">7777</attribute>
            <attribute name="enableTcpNoDelay" isParam="true">false</attribute>
            <attribute name="backlog">200</attribute>
         </invoker>

         <handlers>
            <handler subsystem="mock">
               org.jboss.remoting.transport.mock.MockServerInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>

</mbean>

<attribute name="InvokerLocator">
   <![CDATA[socket://test.somedomain.com:8084/foo/bar]]>
</attribute>

<attribute name="Configuration">
   <config>
      <invoker transport="socket">
         <attribute name="serverBindAddress">test.somedomain.com</attribute>
         <attribute name="serverBindPort">8084</attribute>
         <attribute name="path">foo/bar</attribute>
      </invoker>
      ...

<?xml version="1.0" encoding="UTF-8"?>
<deployment xmlns="urn:jboss:bean-deployer:2.0">

   <bean name="remoting:invocationHandler"
         class="org.jboss.remoting.transport.mock.SampleInvocationHandler"/>

   <bean name="remoting:serverConfiguration"
         class="org.jboss.remoting.ServerConfiguration">
      <constructor>
         <parameter>socket</parameter>
      </constructor>
      <property name="invokerLocatorParameters">
         <map keyClass="java.lang.String" valueClass="java.lang.String">
            <entry>
               <key>serverBindAddress</key>
               <value>test.somedomain.com</value>
            </entry>
            <entry>
               <key>serverBindPort</key>
               <value>8084</value>
            </entry>
         </map>
      </property>
      <property name="serverParameters">
         <map keyClass="java.lang.String" valueClass="java.lang.String">
            <entry>
               <key>clientLeasePeriod</key>
               <value>10000</value>
            </entry>
         </map>
      </property>
      <property name="invocationHandlers">
         <map keyClass="java.lang.String"
              valueClass="org.jboss.remoting.ServerInvocationHandler">
            <entry>
               <key>mock</key>
               <value><inject bean="remoting:invocationHandler"/></value>
            </entry>
         </map>
      </property>
   </bean>

   <bean name="remoting:connector" class="org.jboss.remoting.transport.Connector">
      <property name="serverConfiguration">
         <inject bean="remoting:serverConfiguration"/>
      </property>
   </bean>

</deployment>

Invoker configuration on the client side parallels configuration on the server side, with the exception that (1) it operates in a simpler environment (in particular, it does not assume the presence of an MBeanServer) and (2) it does not support a declarative option. However, it does support versions of the first three server side programmatic options, with the Client class playing the central role played by the Connector class on the server side.

Again, the most straightforward form of configuration is to put the configuration parameters on the InvokerLocator. For example, the fragment

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientMaxPoolSize=10&timeout=360000";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
Client client = new Client(locator);
client.connect();

creates a Client using the socket transport to connect to a server on host test.somedomain.com, listening on port 8084. It also passes in two parameters, "clientMaxPoolSize" and "timeout", that will be used by the client invoker.

It is also possible to use configuration maps on the client side. The following code fragment accomplishes all that the previous fragment does, but it passes one parameter by way of the InvokerLocator and passes the other by way of a configuration map. It also passes in a non-string object, a SocketFactory:

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientMaxPoolSize=10";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "360000");
config.put(Remoting.CUSTOM_SOCKET_FACTORY, new MySocketFactory());
Client client = new Client(locator, config);
client.connect();

Note that the value of ServerInvoker.TIMEOUT is "timeout", and the value of Remoting.CUSTOM_SOCKET_FACTORY is "customSocketFactory". These configuration map keys are discussed throughout the chapter and accumulated in section Configuration by properties. Also, socket factory configuration is covered in Socket factories and server socket factories.

Finally, a third programmatic option is available for those configuration properties which happen to be settable client invoker properties. In the following fragment, the client invoker is obtained from the Client and a SocketFactory is passed to it by way of a setter method:

String locatorURI = "socket://test.somedomain.com:8084";
String params = "/?clientMaxPoolSize=10";
locatorURI += params;
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put(ServerInvoker.TIMEOUT, "360000");
Client client = new Client(locator, config);
client.connect();
SocketFactory sf = new MySocketFactory();
ClientInvoker clientInvoker = client.getInvoker();
clientInvoker.setSocketFactory(sf);


Note. The Client creates the client invoker during the call to Client.connect(), so this option only works after that method has been called.

Note. Preference is given to values in the InvokerLocator. For example, in

String locatorURI = "socket://test.somedomain.com:8084/?clientMaxPoolSize=10";
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put("clientMaxPoolSize", "20");
Client client = new Client(locator, config);


the value of the variable clientMaxPoolSize would be set to 10. As of release 2.5.2, that behavior can be reversed by setting the parameter org.jboss.remoting.Remoting.CONFIG_OVERRIDES_LOCATOR (actual value "configOverridesLocator") to true. As always, in determining the value of the variable configOverridesLocator, preference is given to the InvokerLocator. But if the value of "configOverridesLocator" is set to true in the InvokerLocator, or if "configOverridesLocator" is absent from the InvokerLocator but it is set to "true" in the configuration map, then preference will be given to values in the configuration map. For example, in

String locatorURI = "socket://test.somedomain.com:8084/?clientMaxPoolSize=10";
InvokerLocator locator = new InvokerLocator(locatorURI);
HashMap config = new HashMap();
config.put("clientMaxPoolSize", "20");
config.put("configOverridesLocator", "true");
Client client = new Client(locator, config);


the value of the variable clientMaxPoolSize would be set to 20.

A number of transport independent features are introduced in Remoting version 2.4.

socket://10.32.4.2&192.168.4.2:6500

socket://multihome/?homes=10.32.4.2:6500!192.168.4.2:6500

socket://multihome:6500/?homes=10.32.4.2!192.168.4.2

socket://multihome:6500/?homes=10.32.4.2!192.168.4.2:6501

socket://multihome/?homes=10.32.4.2:6500!192.168.4.2:6501
       &connecthomes=10.32.42.2:7500!192.168.42.2:7501

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="socket">

            <attribute name="homes">
               <home>10.32.4.2:6500</home>
               <home>192.168.4.2:6501</home>
            </attribute>
            <attribute name="connecthomes">
               <connecthome>10.32.42.2:7500</connecthome>
               <connecthome>192.168.42.2:7501</connecthome>
            </attribute>

         </invoker>
         <handlers>
            ...
         </handlers>
      </config>
   </attribute>
</mbean>

Connector connector = new Connector();

// Create ServerConfiguration object for socket transport
ServerConfiguration serverConfig = new ServerConfiguration("socket");

// Add invokerLocatorParameters (applicable to client and server)
Map locatorConfig = new HashMap();

locatorConfig.put("homes", "10.32.4.2:6500!192.168.4.2:6501");
locatorConfig.put("connecthomes", "10.32.42.2:7500!192.168.42.2:7501");

serverConfig.setInvokerLocatorParameters(locatorConfig);

// Add invocation handlers
...

connector.setServerConfiguration(serverConfig);
connector.create();
connector.start();

public interface SocketCreationListener
{
   /**
    * Called when a socket has been created.
    *
    * @param socket socket that has been created
    * @param source SocketFactory or ServerSocket that created the socket
    * @throws IOException
    */
   void socketCreated(Socket socket, Object source) throws IOException;
}

public InetAddress getAddressSeenByServer() throws Throwable

public Object invoke(InvocationRequest invocation throws Throwable
{
   ...
   InetAddress address = invocation.getRequestPayload().get(Remoting.CLIENT_ADDRESS);
   ...
}

socket://[::1]:3333/?timeout=10000
socket://[::]:4444/?timeout=10000
socket://[::ffff:127.0.0.1]:5555/?timeout=10000
socket://[fe80::205:9aff:fe3c:7800%7]:6666/?timeout=10000
socket://multihome/?homes=[fe80::205:9aff:fe3c:7800%7]:7777![fe80::214:22ff:feef:68bb%4]:8888

InvokerLocator locator = new InvokerLocator("socket://127.0.0.1:5555");
Client client1 = new Client(locator);
Client client2 = new Client(locator);

InvokerLocator locator =
        new InvokerLocator("socket://127.0.0.1:5555/?invokerDestructionDelay=5000");
Client client = new Client(locator);
client.connect();
...
client.disconnect();

The following configuration properties are common to all the current server invokers.

serverBindAddress - The address on which the server binds to listen for requests. The default is an empty value which indicates the server should be bound to the host provided by the locator url, or if this value is null, the local host as provided by InetAddress.getLocalHost() .

serverBindPort - The port to listen for requests on. A value of 0 or less indicates that a free anonymous port should be chosen.

maxNumThreadsOneway - specifies the maximum number of threads to be used within the thread pool for accepting one way invocations on the server side. This property will only be used in the case that the default thread pool is used. If a custom thread pool is set, this property will have no meaning. This property can also be retrieved or set programmatically via the MaxNumberOfOnewayThreads property.

onewayThreadPool - specifies either the fully qualified class name for a class that implements the org.jboss.util.threadpool.ThreadPool interface or the JMX ObjectName for an MBean that implements the org.jboss.util.threadpool.ThreadPool interface. This will replace the default org.jboss.util.threadpool.BasicThreadPool used by the server invoker.

Note that this value will NOT be retrieved until the first one-way (server side) invocation is made. So if the configuration is invalid, will not be detected until this first call is made. The thread pool can also be accessed or set via the OnewayThreadPool property programmatically.

Important to note that the default thread pool used for the one-way invocations on the server side will block the calling thread if all the threads in the pool are in use until one is released.

There are some configurations which will impact the invoker client. These will be communicated to the client invoker via parameters in the Locator URI. These configurations can not be changed during runtime, so can only be set up upon initial configuration of the server invoker on the server side. The following is a list of these and their effects.

clientConnectPort - the port the client will use to connect to the remoting server. This would be needed in the case that the client will be going through a router that forwards requests made externally to a different port internally.

clientConnectAddress - the ip or hostname the client will use to connect to the remoting server. This would be needed in the case that the client will be going through a router that forwards requests made externally to a different ip or host internally.

If no client connect address or server bind address specified, will use the local host's address (via InetAddress.getLocalHost().getHostAddress() ).

Note The role played by "clientConnectAddress" and "clientConnectPort" deserves some further elaboration. When a server is set up, it is either given an InvokerLocator explicitly, or it is given enough information in an MBean XML file or a ServerConfiguration POJO from which to construct an InvokerLocator, and a client uses the host field and port field in the InvokerLocator to determine how to connect to the server. It follows that if an explicit InvokerLocator is passed to the server, then the host and port fields are either given explicitly or are generated, so there is no need for "clientConnectAddress" or "clientConnectPort" fields. However, if the server is configured by way of an MBean XML file or a ServerConfiguration, and no explicit InvokerLocator is specified, then the "clientConnectAddress" and "clientConnectPort" parameters can be used to specify the host and port fields in the InvokerLocator. If they are omitted, then the host and port fields will be derived from the values of the "serverBindAddress" and "serverBindPort" parameters (or generated, if those fields are omitted). Therefore, there is a role for the "clientConnectAddress" and "clientConnectPort" parameters only if clients are meant to connect to a host and port different than the bind host and bind port. Such a situation might occur in the presence of a translating firewall between the client and the server.

If the serverBindAddress property is set, the server invoker will bind to that address. Otherwise, it will, with one exception, use the address in the InvokerLocator (if there is one). The exception is the case in which the clientConnectAddress property is set, which indicates that the adddess in the InvokerLocator is not the real address of the server's host. In that case, and in the case that there is no address in the InvokerLocator, the server will bind to the address of the local host, as determined by the call

InetAddress.getLocalHost().getHostAddress();

In other words, the logic is

if (serverBindAddress is set)
   use it
else if (the host is present in the InvokerLocator and clientConnectAddress is not set)
   use host from InvokerLocator
else
   use local host address

If the serverBindPort property is set, it will be used. If this value is 0 or a negative number, then the next available port will be found and used. If the serverBindPort property is not set, but the clientConnectPort property is set, then the next available port will be found and used. If neither the serverBindPort nor the clientConnectPort is set, then the port specified in the original InvokerLocator will be used. If this is 0 or a negative number, then the next available port will be found and used. In the case that the next available port is used because either the serverBindPort or the original InvokerLocator port value was either 0 or negative, the InvokerLocator will be updated to reflect the new port value.

Note. In the case that a bind port isn't specified, the utility class org.jboss.remoting.transport.PortUtil is used to supply an available port. By default, it will look for a port in the range 1024 to 65535, inclusively. As of release 2.5.2, PortUtil can be configured to search a smaller range by setting the values PortUtil.MIN_PORT (actual value "minPort") and / or PortUtil.MAX_PORT (actual value "maxPort") in the InvokerLocator, a configuration map, an MBean XML file, or a ServerConfiguration object. The range is static; that is, whenever "minPort" or "maxPort" are set, they affect all subsequent calls in the JVM. Note that PortUtil will apply a new "minPort" value only if it is greater than the current value, and it will apply a new "maxPort" value only if it is less than the current value. And it will never apply a new value when the result would be such that the value of "maxPort" would be less than the value of "minPort".

The Socket transport is one of the more complicated invokers mainly because allows the highest degree of configuration. To better understand how changes to configuration properties for the Socket invoker (both client and server) will impact performance and scalability, will discuss the implementation and how it works in detail.

Supports all the configuration attributes as the Socket Invoker. The main difference is that the SSL Socket Invoker uses an SSLServerSocket by default, created by an SSLServerSocketFactory. See section Socket factories and server socket factories for more information.

registryPort - the port on which to create the RMI registry. The default is 3455. This also needs to have the isParam attribute set to true.

Note. The RMI server invoker creates a socket factory and passes it to a client invoker along with the RMI stub, so the socket factory must be serializable. Therefore, if a socket factory is passed in to the server invoker by one of the methods discussed in section Socket factories and server socket factories, then the user is responsible for supplying a serializable socket factory.

Note. Prior to Remoting version 2.4, the RMI transport performed marshalling and unmarshalling only in the client to server direction. As of version 2.4, it will use a marshaller and unmarshaller in the server to client direction, as well. Moreover, marshalling and unmarshalling in the client to server direction has been made more efficient, which results in the transmission of a different sequence of bytes. In case a version 2.4 release of Remoting needs to communicate with an older version, it is possible to request the original marshalling behavior by setting the parameter org.jboss.remoting.transport.rmi.RMIServerInvoker.RMI_ONEWAY_MARSHALLING (actual value "rmiOnewayMarshalling") to "true".

This is essentially identical to the RMI invoker, except that it creates SSL socket and server socket factories by default.

Note. The SSL RMI server invoker creates a socket factory and passes it to a client invoker along with the RMI stub, so the socket factory must be serializable. If the SSL RMI server invoker is allowed to create an SSLSocketFactory from SSL parameters, as discussed in section Socket factories and server socket factories, it will take care to create a serializable socket factory. However, if a socket factory is passed in to the server invoker (also discussed in section Socket factories and server socket factories), then the user is responsible for supplying a serializable socket factory. See sslrmi below for more information.

The HTTP server invoker implementation is based on the Coyote HTTP/1.1 Connector Tomcat component, which is supplied by the JBossWeb implementation, in jbossweb.jar.

Note. Prior to release 2.5.0.GA, Remoting also was compatible with the Apache implementation of Tomcat, which is no longer the case. Since JBossWeb requires jdk 1.5 or above, it follows that the HTTP transport in Remoting 2.5.0.GA and above has the same requirement.

The coyote Connector supports GET, POST, HEAD, OPTIONS, and HEAD method types and keep-alive, and most any configuration allowed for Tomcat can be configured for the remoting HTTP server invoker. For more information on the configuration attributes available for the Tomcat connectors, please refer to http://tomcat.apache.org/tomcat-5.5-doc/config/http.html. http://tomcat.apache.org/tomcat-5.5-doc/config/http.html So for example, if wanted to set the maximum number of threads to be used to accept incoming http requests, would use the 'maxThreads' attribute. The only exception when should use remoting configuration over the Tomcat configuration is for attribute 'address' (use serverBindAddress instead) and attribute 'port' (use serverBindPort instead).

Note: The http invoker no longer has the configuration attributes 'maxNumThreadsHTTP' or 'HTTPThreadPool' as thread pooling is now handled within the Tomcat connectors, which does not expose external API for setting these.

A feature introduced in Remoting version 2.4 is the ability to configure HTTPClientInvoker to make multiple attempts to complete an invocation. The feature is invoked by setting parameter HTTPClientInvoker.NUMBER_OF_CALL_ATTEMPTS (actual value "numberOfCallAttempts") to the desired integer. The parameter can be configured in the InvokerLocator or in the configuration map passed to the Client. The default value is 1.

Since the remoting HTTP server invoker implementation is using Tomcat connectors, is possible to swap out the Tomcat protocol implementations being used. By default, the protocol being used is org.apache.coyote.http11.Http11Protocol. However, it is possible to switch to use the org.apache.coyote.http11.Http11AprProtocol protocol, which is based on the Apache Portable Runtime (see http://www.jboss.org/file-access/default/members/jbossweb/freezone/docs/2.1.0/apr.html for more details). If want to use the APR implementation, simply put the tcnative-1.dll (or tcnative-1.so) on the system path so can be loaded. The JBossWeb native libraries, which include tcnative-1.dll/tcnative-1.so, may be downloaded from http://www.jboss.org/jbossweb/.

Client request headers

The HTTP Invoker allows for some of the properties to be passed as request headers from client caller. The following are possible http headers and what they mean:

sessionId - is the remoting session id to identify the client caller. If this is not passed, the HTTP server invoker will try to create a session id based on information that is passed. Note, this means if the sessionId is not passed as part of the header, there is no guarantee that the sessionId supplied to the invocation handler will always indicate the request from the same client.

subsystem - the subsystem to call upon (which invoker handler to call upon). If there is more than one handler per Connector, this will need to be set (otherwise will just use the only one available).

These request headers are set automatically when using a remoting client, but if using another client to send request to the HTTP server invoker, may want to add these headers.

Response headers

If a request on the HTTP transport is made with the org.jboss.remoting.Client method

public Object invoke(Object param, Map metadata) throws Throwable

then org.jboss.remoting.transport.http.HTTPClientInvoker returns the HTTP response headers in a map in metadata, associated with the key org.jboss.remoting.transport.http.HTTPMetadataConstants.RESPONSE_HEADERS (actual value "ResponseHeaders"). For example, the response header "Date" can be retrieved as follows:

Object payload = ... ;
HashMap metadata = new HashMap();
client.invoke(payload, metadata);
Map responseHeaders = (Map) metadata.get(HTTPMetadataConstants.RESPONSE_HEADERS);
String date = (String) responseHeaders.get("Date");

CR/LF in HTTP transport

By default, the HTTP transport uses org.jboss.remoting.marshal.http.HTTPMarshaller and org.jboss.remoting.marshal.http.HTTPUnMarshaller to marshal and unmarshal invocations and responses. Prior to Remoting version 2.4, HTTPUnMarshaller stripped CR/LF characters. As of version 2.4, the default behavior remains the same, but it is possible to change the behavior, on the client and the server, by setting the parameter HTTPUnMarshaller.PRESERVE_LINES (actual value "preserveLines") to "true".

Supports all the configuration attributes as the HTTP Invoker, plus the following:

SSLImplementation - Sets the Tomcat SSLImplementation to use. This should always be org.jboss.remoting.transport.coyote.ssl.RemotingSSLImplementation.

The main difference with the HTTP invoker is that the HTTPS Invoker uses an SSLServerSocket by default, created by an SSLServerSocketFactory. See section Socket factories and server socket factories for more information.

This section covers configuration specific to the HTTP Client Invoker only and is NOT related to HTTP(S) invoker configuration on the server side (via service xml).

proxy

There are a few ways in which to enable http proxy using the HTTP client invoker. The first is simply to add the following properties to the metadata Map passed on the Client's invoke() method: http.proxyHost and http.proxyPort.

An example would be:

Map metadata = new HashMap();
...

// proxy info
metadata.put("http.proxyHost", "ginger");
metadata.put("http.proxyPort", "80");

...

response = client.invoke(payload, metadata);

The http.proxyPort property is not required and if not present, will use default of 80. Note: setting the proxy config in this way can ONLY be done if using JDK 1.5 or higher.

The other way to enable use of an http proxy server from the HTTP client invoker is to set the following system properties (either via System.setProperty() method call or via JVM arguments): http.proxyHost, http.proxyPort, and proxySet.

An example would be setting the following JVM arguments:

-Dhttp.proxyHost=ginger -Dhttp.proxyPort=80 -DproxySet=true

Note: when testing with Apache 2.0.48 (mod_proxy and mod_proxy_http), all of the properties above were required.

Setting the system properties can be used for JDK 1.4 and higher. However, will not be able to specify proxy server per remoting client if use system properties..

Basic authentication - direct and via proxy

The HTTP client invoker also has support for BASIC authentication for both proxied and non-proxied invocations. For proxied invocations, the following properties need to be set: http.proxy.username and http.proxy.password.

For non-proxied invocations, the following properties need to be set: http.basic.username and http.basic.password.

For setting either proxied or non-proxied properties, can be done via the metadata map or system properties (see setting proxy properties above for how to). However, for authentication properties, values set in the metadata Map will take precedence over those set within the system properties.

Note: Only the proxy authentication has been tested using Apache 2.0.48; non-proxied authentication has not.

Since there are many different ways to do proxies and authentication in this great world of web, not all possible configurations have been tested (or even supported). If you find a particular problem or see that a particular implementation is not supported, please enter an issue in Jira (http://jira.jboss.com) under the JBossRemoting project, as this is where bugs and feature requests belong. If after reading the documentation have unanswered questions about how to use these features, please post them to the remoting forum ( http://www.jboss.org/index.html?module=bb&op=viewforum&f=222 ).

Host name verification

During the SSL handshake when making client calls using https transport, if the URL's hostname and the server's identification hostname mismatch, a javax.net.ssl.HostnameVerifier implementation will be called to determine if this connection should be allowed. The default implementation will not allow this, but it is possible to override the default behavior

One option is to use the key HTTPSClientInvoker.HOSTNAME_VERIFIER (actual value "hostnameVerifier") to supply the name of a class that implements the javax.net.ssl.HostnameVerifier interface, passing it either in the metadata map supplied with an invocation or in the configuration map supplied when the HTTPSClientInvoker was created. If the key appears in both maps, the value in the metadata map takes precedence.

In the absence of an explicitly declared HostnameVerifier, another way to configure the hostname verification behavior is to declare that all host names are acceptable, which can be accomplished by setting the HTTPSClientInvoker.IGNORE_HTTPS_HOST property (actual value "org.jboss.security.ignoreHttpsHost") to true. In order of increasing precedence, the property may be set (1) as a system property, (2) in the configuration map supplied when the HTTPSClientInvoker was created, or in the metadata map supplied with an invocation.

Finally, in the absence of both an explicitly declared HostnameVerifier and an explicit directive to ignore host names, an HTTPSClientInvoker will check to see if its SocketFactory is an instance of org.jboss.remoting.security.CustomSSLSocketFactory and, if so, if authentication has been turned off. If that is the case, host names will be ignored. See Section Socket factories and server socket factories for more information about SocketFactory configuration.

The servlet invoker is a server invoker implementation that uses a servlet running within a web container to accept initial client invocation requests. The servlet request is then passed on to the servlet invoker for processing.

The deployment for this particular server invoker is a little different than the other server invokers since a web deployment is also required. To start, the servlet invoker will need to be configured and deployed. This can be done by adding the Connector MBean service to an existing service xml or creating a new one. The following is an example of how to declare a Connector that uses the servlet invoker:

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Servlet"
       display-name="Servlet transport Connector">

   <attribute name="InvokerLocator">
      servlet://localhost:8080/servlet-invoker/ServerInvokerServlet
   </attribute>

   <attribute name="Configuration">
      <config>
         <handlers>
            <handler subsystem="test">
               org.jboss.test.remoting.transport.web.WebInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
</mbean>

An important point of configuration to note is that the value for the InvokerLocator attribute is the exact url used to access the servlet for the servlet invoker (more on how to define this below), with the exception of the protocol being servlet instead of http. This is important if using automatic discovery, as this is the locator url that will be discovered and used by clients to connect to this server invoker.

The next step is to configure and deploy the servlet that fronts the servlet invoker. The pre-built deployment file for this servlet is the servlet-invoker.war file (which can be found in lib directory of the release distribution or under the output/lib/ directory if doing a source build). By default, it is actually an exploded war, so the servlet-invoker.war is actually a directory so that can be more easily configured (feel free to zip up into an actual war file if prefer). In the WEB-INF directory is located the web.xml file. This is a standard web configuration file and should look like:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE web-app PUBLIC
   "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
   "http://java.sun.com/dtd/web-app_2_3.dtd">

<web-app>
   <servlet>
      <servlet-name>ServerInvokerServlet</servlet-name>
      <description>
         The ServerInvokerServlet receives requests via HTTP protocol from
         within a web container and passes it onto the ServletServerInvoker
         for processing.
      </description>
      <servlet-class>
         org.jboss.remoting.transport.servlet.web.ServerInvokerServlet
      </servlet-class>
      <init-param>
         <param-name>invokerName</param-name>
         <param-value>jboss.remoting:service=invoker,transport=servlet</param-value>
         <description>The servlet server invoker</description>
         <!--
         <param-name>locatorUrl</param-name>
         <param-value>
            servlet://localhost:8080/servlet-invoker/ServerInvokerServlet
         </param-value>
         <description>The servlet server invoker locator url</description>
         -->
      </init-param>
      <load-on-startup>1</load-on-startup>
   </servlet>
   <servlet-mapping>
      <servlet-name>ServerInvokerServlet</servlet-name>
      <url-pattern>/ServerInvokerServlet/*</url-pattern>
   </servlet-mapping>
</web-app>

There are two ways in which the servlet can obtain a reference to the servlet server invoker it needs to pass its request onto. The first is by using the param 'invokerName', as is shown above. The value for this should be the JMX ObjectName for the servlet server invoker that was deployed as a service mbean (see service xml above). The other way is to provide a param 'locatorUrl' with a value that matches the locator url of the servlet server invoker to use. In this case, will use the InvokerRegistry to find the server invoker instead of using JMX, which is useful if not deploying server invoker as a mbean service or if want to run in web container other than the JBoss application server. Note, one or the other param is required. If both are provided, the 'locatorUrl' param take precedence.

This file can be changed to meet any web requirements you might have, such as adding security (see sslservlet) or changing the actual url context that the servlet maps to. If the url that the servlet maps to is changed, will need to change the value for the InvokerLocator in the Connector configuration mentioned above.

Note. Prior to Remoting version 2.4, org.jboss.remoting.transport.servlet.ServletServerInvoker generated a single MBean ObjectName for representing ServletServerInvokers as MBeans, which meant that an MBeanServer could be aware of only a single ServletServerInvoker MBean. As of version 2.4, that restriction has been eliminated.

Note. Prior to Remoting version 2.4, when org.jboss.remoting.transport.servlet.web.ServerInvokerServlet retrieved an MBeanServer, it looked only for an MBeanServer whose default domain was "jboss". As of version 2.4, the default domain can be configured by adding an "mbeanServer" init-param element to the web.xml file. If the "mbeanServer" value is set to "*platform*" and jdk 1.5 or greater is in use, ServerInvokerServlet will retrieve the platform MBeanServer by calling java.lang.management.ManagementFactory.getPlatformMBeanServer(). In the absence of a configured default domain, ServerInvokerServlet will still use "jboss" as the default domain.

The SSL Servlet Invoker is exactly the same as its parent, Servlet Invoker, with the exception that it uses the protocol of 'sslservlet'. On the server side it is deployed exactly the same as a servlet invoker would be but requires setting up ssl within the web container (i.e. enabling the ssl connector within Tomcat's server.xml). This will usually require specifing a different port as well.

An example of the mbean service xml for deploying the ssl servlet server invoker would be:

<?xml version="1.0" encoding="UTF-8"?>
<server>
   <mbean code="org.jboss.remoting.transport.Connector"
          name="jboss.remoting:service=Connector,transport=SSLServlet"
          display-name="SSL Servlet transport Connector">

      <attribute name="InvokerLocator">
         sslservlet://localhost:8443/servlet-invoker/ServerInvokerServlet
      </attribute>
      <attribute name="Configuration">
         <config>
            <handlers>
               <handler subsystem="test">
                  org.jboss.test.remoting.transport.web.WebInvocationHandler
               </handler>
            </handlers>
         </config>
      </attribute>
   </mbean>
</server>

An example of servlet-invoker.war/WEB-INF/web.xml for the ssl server invoker servlet would be:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE web-app PUBLIC
    "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
    "http://java.sun.com/dtd/web-app_2_3.dtd">

<web-app>
   <servlet>
      <servlet-name>ServerInvokerServlet</servlet-name>
      <description>
         The ServerInvokerServlet receives requests via HTTP protocol from
         within a web container and passes it onto the ServletServerInvoker
         for processing.
      </description>
      <servlet-class>
         org.jboss.remoting.transport.servlet.web.ServerInvokerServlet
      </servlet-class>
      <init-param>
         <param-name>locatorUrl</param-name>
         <param-value>
            sslservlet://localhost:8443/servlet-invoker/ServerInvokerServlet
         </param-value>
         <description>The servlet server invoker locator url</description>
      </init-param>
      <load-on-startup>1</load-on-startup>
   </servlet>
   <servlet-mapping>
      <servlet-name>ServerInvokerServlet</servlet-name>
      <url-pattern>/ServerInvokerServlet/*</url-pattern>
   </servlet-mapping>
</web-app>

Web based clients, meaning remoting clients that call on web based remoting servers (i.e. http, https, servlet, and sslservlet) have special needs when it comes to handling exceptions that come from the servers they are calling on. The main reason for this is that depending on what type of server they are calling on, they might receive the error in different formats.

By default, web based clients will throw an exception when the response code from the server is greater than 400. The exact exception type thrown will depend on the type of web server the client is interacting with. If it is a JBoss Remoting server (http or https server invoker), the exception thrown will be the one originally generated on the server side. If the server is not a JBoss Remoting server (e.g. JBossAS, Tomcat, Apache Web Server, etc.), the exception thrown will be org.jboss.test.remoting.transport.http.WebServerError. The WebServerError's message will be the error html returned by the web server. Throwing an exception may be turned off with the parameter HTTPMetadataConstants.NO_THROW_ON_ERROR (actual text value "NoThrowOnError") set to "true". This parameter may be passed in the InvokerLocator or configuration map when the org.jboss.remoting.Client is created, or it may be included in the metadata map passed to

public Object invoke(Object param, Map metadata) throws Throwable;

This will cause the http client invoker to not throw an exception, but instead return the data from the web server error stream. In the case that the data returned from this error stream is of type java.lang.String (i.e. is error html), it will be wrapped in a WebServerError and returned as this type. The raw data from the web server can the be retrieved by getting the WebServerError's message.

Note. Prior to Remoting version 2.4, the servlet transport returned a simple error message in the event of an error on the server side. As of version 2.4, the discussion about exception handling applies to the servlet and sslservlet transports as well. The original behavior of returning an error message can be requested by configuring the server with the parameter org.jboss.remoting.transport.http.HTTPMetadataConstants.DONT_RETURN_EXCEPTION (actual value "dont-return-exception") set to "true".

As of Remoting version 2.4, the multiplex transport is deprecated and will no longer be supported.

As of Remoting version 2.4, the sslmultiplex transport is deprecated and will no longer be supported.

The bisocket transport, like the multiplex transport, is a bidirectional transport that can function in the presence of restrictions that would prevent a unidirectional transport like socket or http from creating a server to client push callback connection. (See Section Callbacks for more information about callbacks and bidirectional and unidirectional transports.) For example, security restrictions could prevent the application from opening a ServerSocket on the client, or firewall restrictions could prevent the server from contacting a ServerSocket even if it were possible to create one.

5.4.17.2. Details

Using the bisocket transport certainly does not require understanding its implementation details, but some further information is presented in this section for those who might be interested.

In the following discussion, the client side client invoker and the server side server invoker will be referred to simply as "client invoker" and "server invoker." The callback client invoker and callback server invoker will be explicitly identified as such.

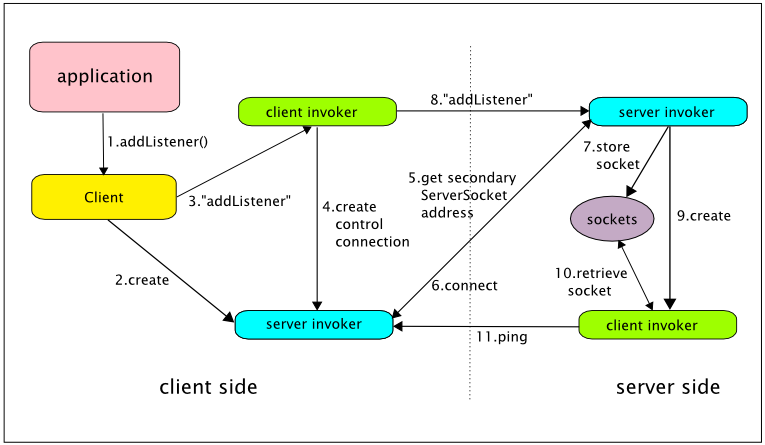

The following sequence of events occurs in the course of creating a control connection. For simplicity it is assumed that the Client and Connector have already been created, and that the callback server is created implicitly by the Client. These events are illustrated in Figure 5.1.

1. The application calls Client.addListener().
2. The Client creates a callback Connector and the callback server invoker registers itself in a static map.
3. The Client sends an "addListener" message to the server invoker by way of the client invoker.
4. The client invoker intercepts the "addListener" message, which tells it that a callback server is being created. It retrieves the callback server invoker from the static map and tells it to create a control connection for the callback connection that is being constructed.
5. The callback server invoker sends an internal message to the server invoker requesting the address and port of the secondary ServerSocket
6. The callback server invoker connects to the secondary ServerSocket to create a Socket for the control connection. If it has not already done so, the callback server invoker creates a TimerTask which will monitor the state of all of its control connections. (Note that if the callback Connector is created explicitly, it could have multiple InvokerCallbackHandlers registered with it.)
7. On the server side, the Socket just created by the secondary ServerSocket is stored in a static map, awaiting the creation of the callback client invoker.
8. The client invoker transmits the "addListener" message to the server invoker.
9. The server invoker creates a callback client invoker.
10. The callback client invoker retrieves the waiting socket and uses it for the control connection.
11. The callback client invoker begins pinging on the control connection.

Figure 5.1. Creating a control connection.

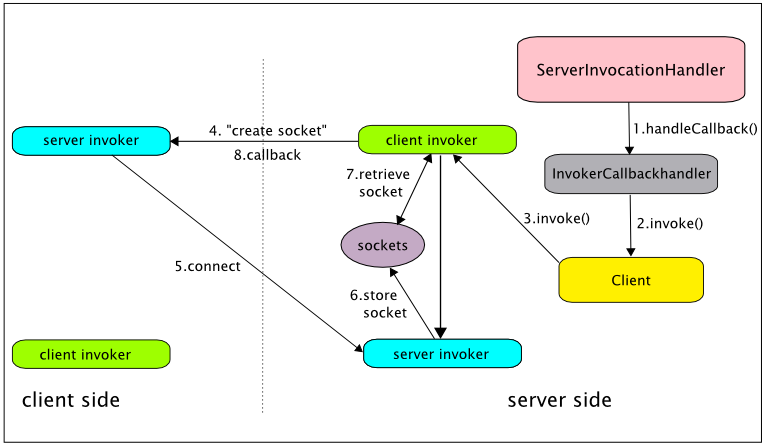

The following sequence of events occurs in the course of creating a connection for the callback client invoker to use for sending callbacks. It is illustrated in Figure 5.2.

1. The ServerInvocationHandler calls InvokerCallbackHandler.handleCallback().
2. The InvocationCallbackHandler calls invoke() on the callback Client.
3. The Client calls invoke() on the callback client invoker.
4. If there are no connections in its connection pool, the callback client invoker sends a message on the control connection asking the callback server invoker to connect to the server side secondary ServerSocket. It then waits for the Socket to appear in a static map.
5. The callback server invoker receives the request and calls upon either a Socket constructor or a SocketFactory to create a new Socket. It passes the new Socket to a worker thread to process subsequent callback invocations.
6. The secondary ServerSocket creates a new Socket, which is placed in a static map.
7. The callback client invoker retrieves the new Socket
8. The callback client uses the new Socket to transmit a callback, and adds the new connection to its connection pool for later use.

Figure 5.2. Creating a callback connection.

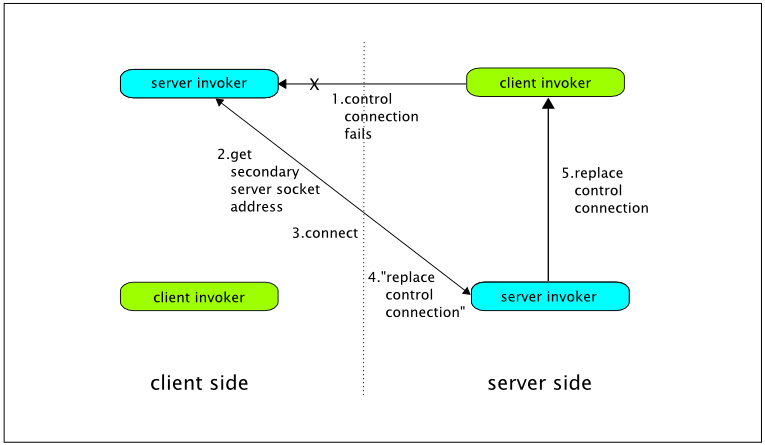

The following sequence of events occurs when a control connection fails. It is illustrated in Figure 5.3.

1. The callback server invoker notices that a ping has not been received during the control connection's current window.
2. The callback server invoker reacquires the host and port of the secondary ServerSocket, just in case it has changed.
3. The callback server invoker calls on a Socket constructor or SocketFactory to create a new Socket.
4. The callback server invoker sends an internal message on the new connection directing the server to replace the current control connection with the new connection.
5. After the secondary ServerSocket creates a new Socket, the Socket is passed directly to the client invoker in a method that replaces the old control connection with a new one.

Figure 5.3. Replacing a failed control connection.

The SSL bisocket transport has the same relation to the bisocket transport as the SSL socket transport has to the socket transport. That is, it uses an SSLServerSocket and creates SSLSockets by default. See Section Socket factories and server socket factories for more information.

SSL bisocket transport supports all the configuration attributes supported by the bisocket transport.

Although this section covers callback configuration, it will be useful to begin with a little general information about callbacks within Remoting. In addition to the ordinary remote method invocation model, in which invocation results are returned synchronously, Remoting also supports an invocation model in which the server asynchronously generates information to be returned to the client.

There are two models for callbacks, push callbacks and pull callbacks. In the push model, the client registers a client side callback server with the target server. When the target server has a callback to deliver, it will call on the callback server directly and send the callback message. The other model, pull callbacks, allows the client to call on the target server to collect the callback messages waiting for it.

public void addListener(InvokerCallbackHandler callbackHandler);

public void handleCallback(Callback callback) throws HandleCallbackException;

public void handleCallbackOneway(Callback callback) throws HandleCallbackException;

public void handleCallbackOneway(Callback callback, boolean serverSide)
        throws HandleCallbackException;

public void invokeOneway(Object param, Map sendPayload, boolean clientSide) throws Throwable;

public interface CallbackListener
{
   /**
    * @param callbackHandler InvokerCallbackHandler that handled this callback
    * @param callbackId id of callback being acknowledged
    * @param response either (1) response sent with acknowledgement or (2) null
    */
   void acknowledgeCallback(
           InvokerCallbackHandler callbackHandler, Object callbackId, Object response);
}

public int acknowledgeCallback(
        InvokerCallbackHandler callbackHandler, Callback callback) throws Throwable;

public int acknowledgeCallback(
        InvokerCallbackHandler callbackHandler, Callback callback, Object response) throws Throwable;

public int acknowledgeCallbacks(
        InvokerCallbackHandler callbackHandler, List callbacks) throws Throwable;

public int acknowledgeCallbacks(
        InvokerCallbackHandler callbackHandler, List callbacks, List responses) throws Throwable;

There are several ways in which callback handlers can be configured. The main distinction in type of callback setup is whether the callbacks will be push (asynchronous) or pull (synchronous) callbacks.

public void addListener(
        InvokerCallbackHandler) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackHandler, InvokerLocator clientLocator) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackHandler,  InvokerLocator clientLocator,
        Object callbackHandlerObject) throws Throwable;

public List getCallbacks(InvokerCallbackHandler callbackHandler) throws Throwable

public List getCallbacks(
        InvokerCallbackHandler callbackHandler, Map metadata) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackHandler, InvokerLocator clientLocator) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackHandler,InvokerLocator clientLocator,
        Object callbackHandlerObject) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject) throws Throwable;

public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject, boolean serverToClient) throws Throwable;

InvokerCallbackHandler callbackHandler = new SampleCallbackHandler();
client.addListener(callbackHandler, new HashMap(), null, true);
client.addListener(callbackHandler, new HashMap(), null, true);

public Set getCallbackConnectors(InvokerCallbackHandler callbackHandler);

InvokerCallbackHandler callbackHandler1 = new SampleCallbackHandler();
client.addListener(callbackHandler1, new HashMap(), null, true);
Set callbackConnectors = client.getCallbackConnectors(callbackHandler1);
Connector callbackConnector = (Connector) callbackConnectors.iterator().next();
InvokerCallbackHandler callbackHandler2 = new SampleCallbackHandler();
client.addListener(callbackHandler2, callbackConnector.getLocator());

InvokerCallbackHandler callbackHandler1 = new SampleCallbackHandler();
client.addListener(callbackHandler1, new HashMap(), null, true);
Set callbackConnectors = client.getCallbackConnectors(callbackHandler1);
Connector callbackConnector = (Connector) callbackConnectors.iterator().next();
client.addListener(callbackHandler1, callbackConnector.getLocator());

Callback connections are torn down through a call to the method

public void removeListener(InvokerCallbackHandler callbackHandler) throws Throwable;

in the org.jboss.remoting.Client class. A Client can unregister only those InvokerCallbackHandlers that it originally registered.

It is good practice to eliminate callback connections when they are no longer needed. For example, callback Connectors can, depending on the transport, occupy TCP ports, and CallbackPollers will continue to poll as long as a connection exists.

All callback store configuration will need to be defined within the server invoker configuration, since the server invoker is the parent that creates the callback stores as needed (when client registers for pull callbacks). Example service xml files are included below.

The following general callback store parameters may be configured. They are defined as constants in the org.jboss.callback.ServerInvokerCallbackHandler class.

CALLBACK_MEM_CEILING (actual value is "callbackMemCeiling"): the percentage of free memory available before callbacks will be persisted. If the memory heap allocated has reached its maximum value and the percent of free memory available is less than the callbackMemCeiling, this will trigger persisting of the callback message. The default value is 20.

Note: The calculations for this is not always accurate. The reason is that total memory used is usually less than the max allowed. Thus, the amount of free memory is relative to the total amount allocated at that point in time. It is not until the total amount of memory allocated is equal to the max it will be allowed to allocate. At this point, the amount of free memory becomes relevant. Therefore, if the memory percentage ceiling is high, it might not trigger until after free memory percentage is well below the ceiling.

CALLBACK_STORE_KEY (actual value is "callbackStore"): specifies the callback store to be used. The value can be either an MBean ObjectName or a fully qualified class name. If using class name, the callback store implementation must have a void constructor. The default is to use the NullCallbackStore.

The following parameters specific to CallbackStore can be configured via the invoker configuration as well. They are defined as constants in the CallbackStore class.

FILE_PATH_KEY (actual value is "StoreFilePath"): indicates to which directory to write the callback objects. The default value is the property value of 'jboss.server.data.dir' and if this is not set, then will be 'data'. Will then append 'remoting' and the callback client's session id. An example would be 'data\remoting\5c4o05l-9jijyx-e5b6xyph-1-e5b6xyph-2'.

FILE_SUFFIX_KEY (actual value is "StoreFileSuffix"): indicates the file suffix to use for the callback objects written to disk. The default value is 'ser'.

Sample service configuration

Socket transport with callback store specified by class name and memory ceiling set to 30%:

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="socket">
            <attribute name="callbackStore">
               org.jboss.remoting.callback.CallbackStore
            </attribute>
            <attribute name="callbackMemCeiling">30</attribute>
         </invoker>
         <handlers>
            <handler subsystem="test">
               org.jboss.remoting.callback.pull.memory.CallbackInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
</mbean>

Socket transport with callback store specified by MBean ObjectName and declaration of CallbackStore as service:

<mbean code="org.jboss.remoting.callback.CallbackStore"
       name="jboss.remoting:service=CallbackStore,type=Serializable"
       display-name="Persisted Callback Store">

   <!-- the directory to store the persisted callbacks into -->
   <attribute name="StoreFilePath">callback_store</attribute>
   <!-- the file suffix to use for each callback persisted to disk -->
   <attribute name="StoreFileSuffix">cbk</attribute>
</mbean>

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="socket">
            <attribute name="callbackStore">
               jboss.remoting:service=CallbackStore,type=Serializable
            </attribute>
         </invoker>
         <handlers>
            <handler subsystem="test">
               org.jboss.remoting.callback.pull.memory.CallbackInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
</mbean>

Socket transport with callback store specified by class name and the callback store's file path and file suffix defined:

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="socket">
            <attribute name="callbackStore">
               org.jboss.remoting.callback.CallbackStore
            </attribute>
            <attribute name="StoreFilePath">callback</attribute>
            <attribute name="StoreFileSuffix">cst</attribute>
         </invoker>
         <handlers>
            <handler subsystem="test">
               org.jboss.remoting.callback.pull.memory.CallbackInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
</mbean>

Since performing callbacks can sometimes fail, due to network errors or errors produced by the client callback handler, there needs to be a mechanism for managing exceptions when delivering callbacks. This is handled via use of the org.jboss.remoting.callback.CallbackErrorHandler interface. Implementations of this interface can be registered with the Connector to control the behavior when callback exceptions occur.

The implementation of the CallbackErrorHandler interface can be specified by setting the 'callbackErrorHandler' attribute to either the ObjectName of an MBean instance of the CallbackErrorHandler which is already running and registered with the MBeanServer, or can just specify the fully qualified class name of the CallbackErrorHandler implementation (which will be constructed on the fly and must have a void parameter constructor). The full server invoker configuration will be passed along to the CallbackErrorHandler, so if want to add extra configuration information in the invoker's configuration for the callback error handler, it will be available. If no callback error handler is specified via configuration, org.jboss.remoting.callback.DefaultCallbackErrorHandler will be used by default. This implementation will allow up to 5 exceptions to occur when trying to deliver a callback message from the server to the registered callback listener client (regardless of what the cause of the exception is, so could be because could not connect or could be because the client actually threw a valid exception). After the DefaultCallbackErrorHandler receives its fifth exception, it will remove the callback listener from the server invoker handler and shut down the callback listener proxy on the server side. The number of exceptions the DefaultCallbackErrorHandler will allow before removing the listener can by configured by the 'callbackErrorsAllowed' attribute.

Note. As of Remoting version 2.4, an org.jboss.remoting.callback.ServerInvokerCallbackHandler, which manages both push and pull callbacks on the server side, can register to be informed of a failure on the connection to the client that it is servicing. In particular, if there is a lease registered for the connection for that particular client, then the ServerInvokerCallbackHandler can be registered as a org.jboss.remoting.ConnectionListener for that lease. The default behavior is to do the registration, but the parameter org.jboss.remoting.ServerInvoker.REGISTER_CALLBACK_LISTENER (actual value "registerCallbackListener") may be set to "false" to prevent registration. If leasing is enabled and registration is turned on, a ServerInvokerCallbackHandler will shut itself down upon being informed of a connection failure. For more information about leasing, see Network Connection Monitoring.

All server invokers use server sockets, and it makes sense, therefore, to be able to configure server invokers with server socket factories. It is also true, though less obvious. that server invokers create sockets (other than by way of server sockets). When a server invoker makes a push callback to a client, it creates a client invoker, which creates a socket. Moreover, some server invokers, e.g., the RMI server invoker, have their own idiosyncratic uses for socket factories. Remoting offers a number of ways of configuring socket factories and server socket factories, and these apply to all transports (except for the servlet invokers).

On the client side it is possible to configure socket factories for client invokers and to configure server socket factories for callback server invokers. Configuration on the client side is largely the same as configuration on the server side, with the exception that no MBeanServer is assumed to be present, and the Client has no facilities for parsing xml documents.

Everything in the previous two sections applies to configuring socket and server socket factories in any environment, including inside the JBoss Application Server (JBossAS), but JBossAS adds some new options. In particular, the SARDeployer (see The JBoss 4 Application Server Guide on the labs.jboss.org web site) can read information from a *-service.xml file, as discussed above in the section "General Connector and Invoker configuration," and use it to configure MBeans such as Connectors.

An example of a service xml that covers all the different transport and service configurations can be found within the example-service.xml file under the etc directory of the JBoss Remoting distribution.

The server socket factory to be used by a server invoker can be set via configuration within the service xml. To do this, the serverSocketFactory attribute will need to be set as a sub-element of the invoker element (this cannot be done if just specifying the invoker configuration using the InvokerLocator attribute). The attribute value must be either

An example of the first case would be:

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=Socket"
       display-name="Socket transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="sslsocket">
            <attribute name="serverSocketFactory">
               jboss.remoting:service=ServerSocketFactory,type=SSL
            </attribute>
            <attribute name="numAcceptThreads">1</attribute>
            ...

The serverSocketFactory attribute is processed as follows:

The JBossRemoting project provides an implementation of the ServerSocketFactoryMBean that can be used and should provide most of the customization features that would be needed. More on this implementation later.

Note that these two options correspond exactly to options 4 and 5 in section Server socket factories (on the server side), which is how these two new options are implemented.

Timing considerations. If a Connector is accessed by way of the MBeanServer, then most of the options for configuring the server socket factory discussed in Server socket factories are irrelevant since ConnectorMBean does not expose methods for using them. However, when a Connector that is registered with an MBeanServer creates a server invoker during a call to Connector.create(), it also registers the server invoker with the same MBeanServer, which means that the server invoker is accessible by way of its ObjectName, which has the form

jboss.remoting:service=invoker,transport=socket,host=www.jboss.com,port=8765

for example, followed by additional parameter=value pairs. (See the jmx-console for a running instance of JBossAS at http://localhost:8080/jmx-console/ to see examples of server invoker ObjectNames.) Now, if another MBean is configured in a *-service.xml file to be dependent on the server invoker MBean, e.g.

<mbean code="org.jboss.BlueMonkey" name="jboss.remoting:bluemonkey,name=diamond">
   <depends optional-attribute-name="serverInvoker">
      jboss.remoting:service=invoker,transport=socket,host=www.jboss.com,port=8765
   </depends>
</mbean>

then org.jboss.BlueMonkey.create() will have access to the designated server invoker after the invoker has been created but before it has been started, which means that ServerInvoker.setServerSocketFactory() will be effective. (See the The JBoss 4 Application Server Guide, Chapter 2, for more information about the life cycle of JBoss MBeans.)

As described in sections Declarative configuration: MBeans and Declarative configuration: POJOs, the declarative xml files used by the Application Server can be used to configure the client by way of the parameters included in the InvokerLocator. However, a peculiarity in the way socket factories are created on the client restricts the parameters taken into consideration to those passed in the configuration map passed to the org.jboss.remoting.Client constructor. The following two parameters, introduced in releases 2.4.0.SP1 and 2.5.2, respectively, eliminate that restriction.

org.jboss.remoting.Remoting.SOCKET_FACTORY_NAME (actual value is 'socketFactory') - key for giving the name of the socket factory class to be used by clients.

org.jboss.remoting.Remoting.USE_ALL_SOCKET_FACTORY_PARAMS (actual value is 'useAllSocketFactoryParams') - key for indicating that all socket factory parameters in the InvokerLocator should be used by clients.

Note that the parameter org.jboss.remoting.Remoting.CONFIG_OVERRIDES_LOCATOR (actual value "configOverridesLocator"), described in section org.jboss.remoting.Remoting, is also relevant.

Every Remoting transport uses Sockets, but the creation and management of the Sockets is generally inaccessible from the application code. Remoting has a hook that can provide access to Sockets, in the form of a listener interface in the org.jboss.remoting.socketfactory package:

public interface SocketCreationListener
{
   /**
    * Called when a socket has been created.
    *
    * @param socket socket that has been created
    * @param source SocketFactory or ServerSocket that created the socket
    * @throws IOException
    */
   void socketCreated(Socket socket, Object source) throws IOException;
}

Socket creation listeners can be registered to be informed every time a socket is created by a SocketFactory or ServerSocket. The mechanisms for registering listeners are the usual ones, e.g., by putting them in configuration maps passed to client and server invokers. (See Section General transport configuration for a general discussion of parameter configuration in Remoting.) In any case they should be associated with one of the following keys from org.jboss.remoting.Remoting:

/**
 * Key for the configuration map passed to a Client or Connector to indicate
 * a socket creation listener for sockets created by a SocketFactory.
 */
public static final String SOCKET_CREATION_CLIENT_LISTENER = "socketCreationClientListener";

/**
 * Key for the configuration map passed to a Client or Connector to indicate
 * a socket creation listener for sockets created by a ServerSocket.
 */
public static final String SOCKET_CREATION_SERVER_LISTENER = "socketCreationServerListener";

The value associated with either of these keys can be an actual object, or, to facilitate configuration by InvokerLocator or xml, it can be the name of a class that implements SocketCreationListener and has a default constructor

Note that client and server invokers always use the respective keys SOCKET_CREATION_CLIENT_LISTENER and SOCKET_CREATION_SERVER_LISTENER, whether they are on the client side or server side. For example, a callback client invoker would be configured by putting a listener with the key SOCKET_CREATION_CLIENT_LISTENER in the configuration map passed to the server side Connector, which will find its way to the callback client invoker when a callback handler is registered.

The creation listener facility currently is supported by the following transports: bisocket, sslbisocket, https, rmi, sslrmi, socket, and sslsocket. It is not supported by http because HttpURLConnection does not expose its socket factory (though HttpsURLConnection does). It is not supported by the servlet transport because invocations with the servlet transport go through a servlet container, which is outside the scope of Remoting.

There are now four transports that support SSL: https, sslrmi, and sslsocket (plus sslservlet, which is not relevant here). All of the preceding discussion applies to each of these, and, moreover, they are all extensions of their non-ssl counterparts, so only some ssl specific information will be added here.

https

Configuration of the https transport is a bit different from that of the other transports since the implementation is based off the Tomcat connectors. One difference is that, in order to use SSL connections, the SSLImplementation attribute must be set and must always have the value org.jboss.remoting.transport.coyote.ssl.RemotingSSLImplementation. The SSLImplementation is used by the Tomcat connector to create ServerSocketFactorys, and RemotingSSLImplementation presents Tomcat with the ServerSocketFactory configured according to the options described above.

An example of setting up https via service.xml configuration would be:

<mbean code="org.jboss.remoting.transport.Connector"
       name="jboss.remoting:service=Connector,transport=HTTPS"
       display-name="HTTPS transport Connector">

   <attribute name="Configuration">
      <config>
         <invoker transport="https">
            <attribute name="serverSocketFactory">
               jboss.remoting:service=ServerSocketFactory,type=SSL
            </attribute>
            <attribute name="SSLImplementation">
               org.jboss.remoting.transport.coyote.ssl.RemotingSSLImplementation
            </attribute>
            <attribute name="serverBindAddress">${jboss.bind.address}</attribute>
            <attribute name="serverBindPort">6669</attribute>
         </invoker>
         <handlers>
            <handler subsystem="mock">
               org.jboss.test.remoting.transport.mock.MockServerInvocationHandler
            </handler>
         </handlers>
      </config>
   </attribute>
   <!-- This depends is included because need to make sure
        this mbean is running before configure invoker. -->
   <depends>jboss.remoting:service=ServerSocketFactory,type=SSL</depends>
</mbean>

See section SSLServerSocketFactoryService below for a discussion of the "jboss.remoting:service=ServerSocketFactory,type=SSL" MBean that appears in this configuration element.

Note that the configuration for SSL support only works when using the java based http processor and not with the APR based transport. See section HTTP Invoker for more information on using the APR based transport.

sslrmi

The extra twist in the sslrmi invoker is that the server invoker creates the (client) socket factory and packages it with its own stub, from which it follows that the socket factory must be serializable. If the sslrmi server invoker is allowed to create an SSLSocketFactory from SSL parameters, it will take care to create a serializable socket factory. In particular, the server invoker creates a copy of org.jboss.remoting.transport.rmi.ssl.SerializableSSLClientSocketFactory, which is essentially just a holder for the configuration map passed to the server invoker, with any parameters removed which concern trust store and key store configuration. On the client side, when an sslrmi client invoker is created, it stores its own configuration map in a static variable which the transferred SerializableSSLClientSocketFactory can retrieve and merge with the configuration information it brought with it from the server. In particular, if a socket factory is explicitly passed to the client invoker, then SerializableSSLClientSocketFactory will use it. If not, then SerializableSSLClientSocketFactory will use any key store and trust store information passed to the client to create and configure a socket factory.

Note. If instead of using SerializableSSLClientSocketFactory, a socket factory is passed in to the server invoker by one of the methods discussed above, then the user is responsible for supplying a serializable socket factory.

sslsocket

In addition to the various configuration options discussed above, the sslsocket transport exposes the

public void setServerSocketFactory(ServerSocketFactory serverSocketFactory)

method as a JMX operation.

Also, the sslsocket server invoker inherits from the socket server invoker a method with signature

public void setNewServerSocketFactory(ServerSocketFactory serverSocketFactory)

which supports dynamic replacement of server socket factories. The principal motivation for this facility is to be able to swap in a new SSLServerSocketFactory configured with an updated keystore.

Throughout this section reference has been made to SSL socket factory and server socket factory configuration parameters. This subsection will introduce these parameters in the context of configuring org.jboss.remoting.security.SSLSocketBuilder, Remoting's flexible, highly customizable master factory for creating socket and server socket factories. It can be used programmatically on both the client and server side, and it is also a service MBean, so it can be configured and started from within a service xml in a JBossAS environment.

Once a SSLSocketBuilder has been constructed and configured, a call to its method createSSLServerSocketFactory() will return a custom instance of a SSLServerSocketFactory, and a call to createSSLSocketFactory() will return a custom instance of SSLSocketFactory.

There are two modes in which the SSLSocketBuilder can be run. The first is the default mode where all that is needed is to declare the SSLSocketBuilder and set the system properties javax.net.ssl.keyStore and javax.net.ssl.keyStorePassword. This will use the JVM vendor's default configuration for creating the SSL server socket factory.

In order to customize any of the SSL properties, the first requirement is that the default mode is turned off. This is IMPORTANT because otherwise, if the default mode is not explicitly turned off, all other settings will be IGNORED, even if they are explicitly set. To turn off the default mode via service xml configuration, set the UseSSLServerSocketFactory attribute to false. This can also be done programmatically by calling the setUseSSLServerSocketFactory() and passing false as the parameter value.

There are two ways to configure a SSLSocketBuilder

The configuration properties for SSLSocketBuilderare as follows. Note that in the "key name" column, the name in capital letters (e.g., REMOTING_CLIENT_AUTH_MODE) is a handy constant in the SSLSocketBuilder class with the value given in parentheses (e.g. "org.jboss.remoting.clientAuthMode"). It is the latter that should be used for declarative configuration in, for example, MBean descriptors.

Note. If any of the attributes KeyStoreURL, KeyStorePassword, KeyStoreType, TrustStoreURL, TrustStorePassword, or TrustStoreType are left unconfigured, SSLSocketBuilder will also examine the corresponding standard SSL system properties "javax.net.ssl.keyStore", "javax.net.ssl.keyStorePassword", "javax.net.ssl.keyStoreType", "javax.net.ssl.trustStore", "javax.net.ssl.trustStorePassword", "javax.net.ssl.trustStoreType". In the cases of KeyStoreType and TrustStoreType, SSLSocketBuilder will then go on to use default values after checking the system properties.

The following is an example of configuring a SSLSocketBuilder and using it to create a custom SSLSocketFactory:

protected SSLSocketFactory getSocketFactory() throws Exception
{
   HashMap config = new HashMap();
   config.put(SSLSocketBuilder.REMOTING_KEY_STORE_TYPE, "JKS");
   String keyStoreFilePath = getKeystoreFilePath();
   config.put(SSLSocketBuilder.REMOTING_KEY_STORE_FILE_PATH, keyStoreFilePath);
   config.put(SSLSocketBuilder.REMOTING_KEY_STORE_PASSWORD, "unit-tests-server");
   config.put(SSLSocketBuilder.REMOTING_SSL_PROTOCOL, "SSL");
   SSLSocketBuilder builder = new SSLSocketBuilder(config);
   builder.setUseSSLSocketFactory(false);
   return builder.createSSLSocketFactory();
}

More examples of configuring SSLSocketBuilder can be found in the class FactoryConfigSSLSample in the package org.jboss.remoting.samples.config.factories.

The following is an example of configuring SSLSocketBuilder in a *-service.xml file:

<!-- This service is used to build the SSL Server socket factory -->
<!-- This will be where all the store/trust information will be set. -->
<!-- If do not need to make any custom configurations, no extra attributes -->
<!-- need to be set for the SSLSocketBuilder and just need to set the -->
<!-- javax.net.ssl.keyStore and javax.net.ssl.keyStorePassword system properties. -->
<!-- This can be done by just adding something like the following to the run -->
<!-- script for JBoss -->
<!-- (this one is for run.bat): -->
<!-- set JAVA_OPTS=-Djavax.net.ssl.keyStore=.keystore -->
<!-- -Djavax.net.ssl.keyStorePassword=opensource %JAVA_OPTS% -->
<!-- Otherwise, if want to customize the attributes for SSLSocketBuilder, -->
<!-- will need to uncomment them below. -->
<mbean code="org.jboss.remoting.security.SSLSocketBuilder"
       name="jboss.remoting:service=SocketBuilder,type=SSL"
       display-name="SSL Server Socket Factory Builder">
   <!-- IMPORTANT - If making ANY customizations, this MUST be set to false. -->
   <!-- Otherwise, will used default settings and the following attributes will be ignored. -->
   <attribute name="UseSSLServerSocketFactory">false</attribute>
   <!-- This is the url string to the key store to use -->
   <attribute name="KeyStoreURL">.keystore</attribute>
   <!-- The password for the key store -->
   <attribute name="KeyStorePassword">opensource</attribute>
   <!-- The password for the keys (will use KeystorePassword if this is not set explicitly. -->
   <attribute name="KeyPassword">opensource</attribute>
   <!-- The protocol for the SSLContext. Default is TLS. -->
   <attribute name="SecureSocketProtocol">TLS</attribute>
   <!-- The algorithm for the key manager factory. Default is SunX509. -->
   <attribute name="KeyManagementAlgorithm">SunX509</attribute>
   <!-- The type to be used for the key store. -->
   <!-- Defaults to JKS. Some acceptable values are JKS (Java Keystore - Sun's keystore format), -->
   <!-- JCEKS (Java Cryptography Extension keystore - More secure version of JKS), and -->
   <!-- PKCS12 (Public-Key Cryptography Standards #12 keystore - RSA's Personal Information Exchange Syntax Standard). -->
   <!-- These are not case sensitive. -->
   <attribute name="KeyStoreType">JKS</attribute>
</mbean>

It is also possible to set the default socket factory to be used when not using customized settings (meaning UseSSLSocketFactory property value is true, which is the default). This can be done by setting system property of org.jboss.remoting.defaultSocketFactory to the fully qualified class name of the javax.net.SocketFactory implementation to use. Will then call the getDefault() method on that implementation to get the SocketFactory instance to use.

Although any server socket factory can be set for the various transports, there is a customizable server socket factory service provided within JBossRemoting that supports SSL. This is the org.jboss.remoting.security.SSLServerSocketFactoryService class. The SSLServerSocketFactoryService class extends the javax.net.ServerSocketFactory class and also implements the SSLServerSocketFactoryServiceMBean interface (so that it can be set using the socketServerFactory attribute described previously). Other than providing the proper interfaces, this class is a simple wrapper around the org.jboss.remoting.security.SSLSocketBuilder class.

The following is an example of configuring SSLServerSocketFactoryService in a *-service.xml file. Note that it depends on the SSLSocketBuilder MBean defined in the xml fragment above:

<!-- This service provides the exact same API as the ServerSocketFactory, so -->
<!-- can be set as an attribute of that type on any MBean requiring an ServerSocketFactory. -->
<mbean code="org.jboss.remoting.security.SSLServerSocketFactoryService"
       name="jboss.remoting:service=ServerSocketFactory,type=SSL"
       display-name="SSL Server Socket Factory">
   <depends optional-attribute-name="SSLSocketBuilder"
            proxy-type="attribute">jboss.remoting:service=SocketBuilder,type=SSL</depends>
</mbean>

Since we are talking about keystores and truststores, this section will quickly go over how to quickly generate a test keystore and truststore for testing. This is not intended to be a full security overview, just an example of how I originally created mine for testing.

To get started, will need to create key store and trust store.

Generating key entry into keystore:

C:\tmp\ssl>keytool -genkey -alias remoting -keyalg RSA
Enter keystore password: opensource
What is your first and last name?
[Unknown]: Tom Elrod
What is the name of your organizational unit?
[Unknown]: Development
What is the name of your organization?
[Unknown]: JBoss Inc
What is the name of your City or Locality?
[Unknown]: Atlanta
What is the name of your State or Province?
[Unknown]: GA
What is the two-letter country code for this unit?
[Unknown]: US
Is CN=Tom Elrod, OU=Development, O=JBoss Inc, L=Atlanta, ST=GA, C=US correct?
[no]: yes

Enter key password for <remoting>
(RETURN if same as keystore password):

Since did not specify the -keystore filename parameter, created the keystore in $HOME/.keystore (or C:\Documents and Settings\Tom\.keystore).

Export the RSA certificate (without the private key)

C:\tmp\ssl>keytool -export -alias remoting -file remoting.cer
Enter keystore password: opensource
Certificate stored in file <remoting.cer>

Import the RSE certificate into a new truststore file.

C:\tmp\ssl>keytool -import -alias remoting -keystore .truststore -file remoting.cer
Enter keystore password: opensource
Owner: CN=Tom Elrod, OU=Development, O=JBoss Inc, L=Atlanta, ST=GA, C=US
Issuer: CN=Tom Elrod, OU=Development, O=JBoss Inc, L=Atlanta, ST=GA, C=US
Serial number: 426f1ee3
Valid from: Wed Apr 27 01:10:59 EDT 2005 until: Tue Jul 26 01:10:59 EDT 2005
Certificate fingerprints:
MD5: CF:D0:A8:7D:20:49:30:67:44:03:98:5F:8E:01:4A:6A
SHA1: C6:76:3B:6C:79:3B:8D:FD:FB:4F:33:3B:25:C9:01:9D:50:BF:9F:8A
Trust this certificate? [no]: yes
Certificate was added to keystore

Now have two files, .keystore for the server and .truststore for the client.

Common errors when using server socket factory:

javax.net.ssl.SSLException: No available certificate corresponds to the SSL cipher suites
                            which are enabled.

The 'javax.net.ssl.keyStore' system property has not been set and are using the default SSLServerSocketFactory.

java.net.SocketException: Default SSL context init failed: Cannot recover key

The 'javax.net.ssl.keyStorePassword' system property has not been set and are using the default SSLServerSocketFactory.

java.io.IOException: Can not create SSL Server Socket Factory due to the url to the key store
                     not being set.

The default SSLServerSocketFactory is NOT being used (so custom configuration for the server socket factory) and the key store url has not been set.

java.lang.IllegalArgumentException: password can't be null

The default SSLServerSocketFactory is NOT being used (so custom configuration for the server socket factory) and the key store password has not been set.

As with all configuration parameters, there are several avenues for specifying parameter values. See Section General transport configuration for a general discussion of parameter configuration in Remoting. The transport independent key for setting timeouts is "timeout", also available as org.jboss.remoting.ServerInvoker.TIMEOUT. All server invokers also have the getter/setter methods

public int getTimeout();

public void setTimeout(int timeout);

where the values are given in milliseconds. The default timeout value is 60000 for server invokers.

As of version 2.4, all Remoting transports offer a per invocation transport facility, which allows a timeout value to be set for a particular invocation, overriding the client invoker's previously configured timeout value. The per invocation timeout is set by passing the String representation of the timeout value in the invocation's metadata map, using the key "timeout". For example,

HashMap metadata = new HashMap();
metadata.put("timeout", "2000");
client.invoke("testInvocation", metadata);

will allow approximately 2 seconds for this particular invocation, after which the timeout value will be reset to its previously configured value.

Each transport handles per invocation timeouts a little differently. More details are given below.

SERVER_BIND_ADDRESS (actual value is 'jboss.bind.address') - indicates the system property key for bind address that should be used.

BIND_BY_HOST (actual value is 'remoting.bind_by_host') - indicates the system property key for if the local bind address should be by host name (e.g. InetAddress.getLocalHost().getHostName()) or if should be by IP (e.g. InetAddress.getLocalHost().getHostAddress()). The default is 'True', meaning will will use local host name. This configuration only applies when the initial bind address is 0.0.0.0 (or InvokerLocator.ANY).

DATATYPE (actual value is 'datatype') - indicates the marshalling datatype that should be used for a particular invoker. Each invoker has its own default marshaller and unmarshaller based on default datatype. For examle, the socket transport has a default datatype of 'serializable', which is automatically registered with the MarshalFactory and associated by default with org.jboss.remoting.marshal.serializable.SerializableMarshaller and org.jboss.remoting.marshal.serializable.SerializableUnMarshaller. The marshaller and unmarshaller used by an invoker can be overriden by setting the 'datatype' parameter within the LocatorInvoker. For example, could use a locator url of:

socket://myhost:6500/?datatype=test

which would cause the socket invoker to use the marshaller and unmarshaller registered with the MarshalFactory under the datatype 'test'. Of course, this requires that the marshaller and unmarshaller implementations to be used have already been registered with the MarshalFactory (otherwise will get an exception).

SERIALIZATIONTYPE (actual value is 'serializationtype') - indicates the serialization implementation to use. Currently, the only possible values are 'java' and 'jboss'. Java serialization is the default. Setting to 'jboss' will cause JBoss Serialization to be used. In implementation, this equates to the parameter that will be passed to the SerializationStreamFactory.getManagerInstance() method. This configuration can be set as an invoker locator url parameter (e.g. socket://myhost:5400/?serializationtype=jboss) or as an entry to the configuration Map passed when constructing a remoting client or server.

MARSHALLER (actual value is 'marshaller') - used to indicate which marshaller implementation should be used by the invoker. This is an override for whatever the invoker's default implementation is. This can be set as a parameter of the invoker locator url (e.g. socket://myhost:6500/?marshaller=org.jboss.test.remoting.marshall.dynamic.remote.http.TestMarshaller). Using this configuration requires that the value be the fully qualified classname of the marshaller implementation to use (which must be on the classpath, have a void constructor, and implement the org.jboss.remoting.marshal.Marshaller interface).

UNMARSHALLER (actual value is 'unmarshaller') - used to indicate which unmarshaller implementation should be used by the invoker. This is an override for whatever the invoker's default implementation is. This can be set as a parameter of the invoker locator url (e.g. socket://myhost:6500/?unmarshaller=org.jboss.test.remoting.marshall.dynamic.remote.http.TestUnMarshaller). Using this configuration requires that the value be the fully qualified classname of the unmarshaller implementation to use (which must be on the classpath, have a void constructor, and implement the org.jboss.remotng.marshal.UnMarshaller interface).

LOADER_PORT (actual value is 'loaderport') - indicates the port number where the class loader server resides. This can be used when is possible that a client may not have particular classes locally and would want to load them from the server dynamically. This property can be set as a parameter to the invoker locator url. A clasic example of when this might be used would be in conjunction with using custom marshalling. For example, if have configured a server to use custom marshaller and unmarshaller that the client will not have access to, could create a invoker locator such as:

socket://myhost:6500/?datatype=test&loaderport=6501&
        marshaller=org.jboss.test.remoting.marshall.dynamic.remote.http.TestMarshaller&
        unmarshaller=org.jboss.test.remoting.marshall.dynamic.remote.http.TestUnMarshaller

When the client invoker begins to make an invocation, will try to look up marshaller and unmarshaller based on type ('test' in this case) and when can not find a registry entry for it, will try to load the TestMarshaller and TestUnMarshaller from the classpath. When the classes can not be found locally, will make a call to the loader server (on port 6501) to load the classes locally. Once they are retrieved from the server, will be registered locally, so is a one time only event (as next time will be found in the registry).

This can work for loading any remote server classes, but requires the loaderport be included in the invoker locator url.

BYVALUE (actual value is 'byvalue') - indicates if when making local invocations (meaning client and server invoker exists within same jvm), the marshalling will be done by value, instead of the default, by reference. Using this configuration, the marshalling will actually perform a clone of the object instance (see org.jboss.remoting.serialization.SerializationManager.createMarshalledValueForClone()). Value for this property should be of type String and be either 'true' or 'false'. In releases prior to 2.0.0, using this configuration setting would have forced invokers to be remote, which can now be done via FORCE_REMOTE config (see below).

FORCE_REMOTE (actual value is 'force_remote') - indicates if when making local invocations (meaning client and server invoker exists within same jvm), the remote invokers should be used instead of local invoker. Is equivalent to making invocations as though client and server were in different jvms). Value for this property should be of type String and be either 'true' or 'false'.

CLIENT_LEASE (actual value is 'leasing') - indicates if client should try to automatically establish a lease with the server. Is false by default. Value for this property should be of type String and be either 'true' or 'false'.

CLIENT_LEASE_PERIOD (actual value is 'lease_period') - defines what the client lease period should be in the case that server side leasing is turned on. Value for this parameter key should be the number of milliseconds to wait before each client lease renewal and must be greater than zero in order to be recognized. If this property is not set (and CLIENT_LEASE is), will use the lease period as specified by the server.

RAW (actual value is 'rawPayload') - key to use for the metadata Map passed when making an invoke() call and wish for the invocation payload to be sent as is and not wrapped within a remoting invocation request object. This should be used when want to make direct calls on systems outside of remoting (e.g. making an http POST request to a web service).

ENABLE_LEASE (actual value is 'enableLease') - key for the configuration map passed to the Client constructor to indicate that client should make initial request to establish lease with server. The value for this should be either a String that java.lang.Boolean can evaluate or a java.lang.Boolean. By default, leasing is turned off, so this property would be used to turn on leasing for the client.

HANDSHAKE_COMPLETED_LISTENER (actual value is 'handshakeCompletedListener') - key for the configuration map passed to the Client constructor providing a ssl javax.net.ssl.HandshakeCompletedListener implementation, which will be called on when ssl handshake completed with server.

USE_ALL_PARAMS (actual value is 'useAllParameters') - used by org.jboss.remoting.ConnectionValidator and org.jboss.remoting.callback.CallbackPoller to determine if configuration parameters should be retrieved from the InvokerLocator or the Client's configuration map.

The following three configuration properties are only useful when using one of the following Client methods:

public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject) throws Throwable
public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject, boolean serverToClient) throws Throwable

CALLBACK_SERVER_PROTOCOL (actual value is 'callbackServerProtocol') - key for the configuration when adding a callback handler and internal callback server connector is created. The value should be the transport protocol to be used. By default will use the same protocol as being used by this client (e.g. http, socket, rmi, etc.).

CALLBACK_SERVER_HOST (actual value is 'callbackServerHost') - key for the configuration when adding a callback handler and internal callback server connector is created. The value should be the host name to be used. By default will use the result of calling InetAddress.getLocalHost().getHostAddress().

CALLBACK_SERVER_PORT (actual value is 'callbackServerPort') - key for the configuration when adding a callback handler and internal callback server connector is created. The value should be the port to be used. By default will find a random unused port.

Bean properties (meaning have getter/setter):

SessionId - session id used when making invocations on server invokers. There is a default unique id automatically generated for each Client instance, so unless you have a good reason to set this, do not set this.

Subsystem - the subsystem being used when routing invocation requests on the server side. Specifing a subsystem is only needed when server has multiple handlers registered (which will each have their own associated subsystem). Best if specified using Client constructor.

MaxNumberOfThreads - the maximum number of threads to use within client pool for one way invocations on the client side (meaning oneway invocation is handled by thread in this pool and user's call returns immediately) Default value is MAX_NUM_ONEWAY_THREADS (whose value is 10).

OnewayThreadPool - the thread pool being used for making one way invocations on the client side. If one has not been specifically set via configuration or call to set it, will always return instance of org.jboss.util.threadpool.BasicThreadPool.

SocketFactory - instance of javax.net.SocketFactory, which can only be set on the Client before the connect() method has been called. Otherwise, a runtime exception will be thrown.

Marshaller - the marshaller implementation that should be used by the client invoker (transport). This overrides the client's default marshaller (or any set within configuration).

UnMarshaller - the unmarshaller implementation that should be used by the client invoker (transport). This overrides the client's default unmarshaller (or any set within configuration).

CUSTOM_SERVER_SOCKET_FACTORY (actual value is 'customServerSocketFactory') - key for the configuration map passed to a Connector to indicate the server socket factory to be used. This will override the creation of any other socket factory. Value must be an instance of javax.net.ServerSocketFactory.

CUSTOM_SOCKET_FACTORY (actual value is 'customSocketFactory') - key for the configuration map passed to a Client to indicate the socket factory to be used. Value must be instance of javax.net.SocketFactory.

SOCKET_FACTORY_CLASS_NAME (actual value is 'socketFactoryClassName') - key for the configuration map passed to a Client to indicate the classname of the socket factory to be used. Value should be fully qualified classname of class that is an instance of javax.net.SocketFactory and has a void constructor. This property will not be used if CUSTOM_SOCKET_FACTORY is also set.

SOCKET_CREATION_CLIENT_LISTENER (actual value is "socketCreationClientListener") - key for the configuration map passed to a Client or Connector to indicate a socket creation listener for sockets created by a SocketFactory.

SOCKET_CREATION_SERVER_LISTENER (actual value is "socketCreationServerListener") - key for the configuration map passed to a Client or Connector to indicate a socket creation listener for sockets created by a ServerSocket.

CLIENT_ADDRESS (actual value is "clientAddress") - key with which host address of client will be associated in InvocationRequest request payload.

REMOTING_VERSION (actual value is "remotingVersion") - key for configuring Remoting wire version.

SKIP_ACCESS_CONTROL (actual value is "skipAccessControl") - key for telling Remoting to execute security sensitive code outside of java.security.AccessController.doPrivileged() calls..

CONFIG_OVERRIDES_LOCATOR (actual value is "configOverridesLocator") - key for indicating that parameter values found in the configuration map passed to an org.jboss.remoting.Client constructor should take precedence over values found in the InvokerLocator.

USE_CLIENT_CONNECTION_IDENTITY (actual value "useClientConnectionIdentity") - tells Remoting to adhere to the new "connection identity" semantics described in Chapter Network Connection Monitoring.

PASS_CONFIG_MAP_TO_MARSHAL_FACTORY (actual value "passConfigMapToMarshalFactory") - if set to "true", tells clients and servers to take parameters for configuring marshallers and unmarshallers from the configuration map passed to Clients and Connectors in addition to the parameters in the InvokerLocator.

MAX_NUM_ONEWAY_THREADS_KEY (actual value is 'maxNumThreadsOneway') - key for the maximum number of threads to be used in the thread pool for one way invocations (server side). This property is only used when the default oneway thread pool is used.

ONEWAY_THREAD_POOL_CLASS_KEY (actual value is 'onewayThreadPool') - key for setting the setting the oneway thread pool to use. The value used with this key will first be checked to see if is a JMX ObjectName and if so, try to look up associated mbean for the ObjectName given and cast to type org.jboss.util.threadpool.ThreadPoolMBean (via MBeanServerInvocationHandler.newProxyInstance()). If the value is not a JMX ObjectName, will assume is a fully qualified classname and load the coresponding class and create a new instance of it (which will require it to have a void constructor). The newly created instance will then be cast to type of org.jboss.util.threadpool.ThreadPool.

SERVER_BIND_ADDRESS_KEY (actual value is 'serverBindAddress') - key for setting the address the server invoker should bind to. The value can be either host name or IP.

CLIENT_CONNECT_ADDRESS_KEY (actual value is 'clientConnectAddress') - key for setting the address the client invoker should connecto to. This should be used when client will be connecting to server from outside the server's network and the external address is different from that of the internal address the server invoker will bind to (e.g. using NAT to expose different external address). This will mostly be useful when client uses remoting detection to discover remoting servers. The value can be either host name or IP.

SERVER_BIND_PORT_KEY (actual value is 'serverBindPort') - key for setting the port the server invoker should bind to. If the value supplied is less than or equal to zero, the server invoker will randomly choose a free port to use.

CLIENT_CONNECT_PORT_KEY (actual value is 'clientConnectPort') - key for setting the port the client invoker should connect to. This should be used when client will be connecting to server from outside the server's network and the external port is different from that of the internal port the server invoker will bind to (e.g. using NAT to expose different port routing). This will be mostly useful when client uses remoting detection to discover remoting servers.

CLIENT_LEASE_PERIOD (actual value is 'clientLeasePeriod') - key used for setting the amount of time (in milliseconds) that a client should renew its lease. If this value is not set, the default of five seconds (see DEFAULT_CLIENT_LEASE_PERIOD), will be used. This value will also be what is given to the client when it initially queries server for leasing information.

TIMEOUT (actual value is 'timeout') - key for setting the timeout value (in milliseconds) for socket connections.

SERVER_SOCKET_FACTORY (actual value is 'serverSocketFactory') - key for setting the value for the server socket factory to be used by the server invoker. The value can be either a JMX Object name, in which case will lookup the mbean and create a proxy to it with type of org.jboss.remoting.security.ServerSocketFactoryMBean (via MBeanServerInvocationHandler.newProxyInstance()), or, if not a JMX ObjectName, will assume is the fully qualified classname to the implementation to be used and will load the class and create a new instance of it (which requires it to have a void constructor). The instance will then be cast to type javax.net.ServerSocketFactory.

BLOCKING_MODE (actual value is "blockingMode"): if set to ServerInvoker.BLOCKING (actual value "blocking"), org.jboss.remoting.Client.getCallbacks() will do blocking pull callbacks and CallbackPoller will do blocking polled callbacks; if set to ServerInvoker.NONBLOCKING (actual value "nonblocking"), Client.getCallbacks() will do non-blocking pull callbacks and CallbackPoller will do non-blocking polled callbacks.

BLOCKING_TIMEOUT (actual value is "blockingTimeout"): the timeout value used for blocking callback.

REGISTER_CALLBACK_LISTENER (actual value is "registerCallbackListener"): determines if org.jboss.remoting.callback.ServerInvokerCallbackHandlers should register as org.jboss.remoting.ConnectionListeners with leases. The default value is "true".

Bean properties (meaning have getter/setter):

ServerSocketFactory - implementation of javax.net.ServerSocketFactory to be used by the server invoker. This takes precedence over any other configuration for the server socket factory.

Timeout - timeout (in milliseconds) for socket connection. If set after create() method called, this value will override value set by TIMEOUT key.

LeasePeriod - the amount of time (in milliseconds) that a client should renew its lease. If this value is not set, the default of five seconds (see DEFAULT_CLIENT_LEASE_PERIOD), will be used. This value will also be what is given to the client when it initially queries server for leasing information. If set after create() method called, this value will override value set by CLIENT_LEASE_PERIOD key.

MaxNumberOfOnewayThreads - the maximum number of threads to be used in the thread pool for one way invocations (server side). This property is only used when the default oneway thread pool is used. If set after create() method called, this value will override value set by MAX_NUM_ONEWAY_THREADS_KEY key.

OnewayThreadPool - the oneway thread pool to use.

CALLBACK_POLL_PERIOD (actual value is 'callbackPollPeriod') - key for setting the frequency (in milliseconds) in which Client's internal callback poller should poll server for waiting callbacks. The default value is five seconds.

CALLBACK_SCHEDULE_MODE (actual value is "scheduleMode"): may be set to either CallbackPoller.SCHEDULE_FIXED_RATE (actual value "scheduleFixedRate") or CallbackPoller.SCHEDULE_FIXED_DELAY (actual value "scheduleFixedDelay"). In either case, polling will take place at approximately regular intervals, but in the former case the scheduler will attempt to perform each poll CALLBACK_POLL_PERIOD milliseconds after the previous attempt, and in the latter case the scheduler will attempt to schedule polling so that the average interval will be approximately CALLBACK_POLL_PERIOD milliseconds. CallbackPoller.SCHEDULE_FIXED_RATE is the default.

REPORT_STATISTICS (actual value is "reportStatistics"): The presence of this key in metadata, regardless of its value, will cause the CallbackPoller to print statistics that might be useful for configuring the other parameters..

SYNCHRONIZED_SHUTDOWN (actual value is "doSynchronizedShutdown"): if set to "true", CallbackPoller.stop() will wait for Client.getCallbacks() to return, and if set to "false" it will not wait. For blocking polled callbacks, the default value is "false" and for non-blocking polled callbacks, the default value is "true".

MAX_ERROR_COUNT (actual value is "maxErrorCount"): determines the maximum number of errors that may be experienced during polling before CallbackPoller will shut itself down. The default value is "5".

CallbackPoller configuration is only necessary when using one of the following Client methods:

public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject) throws Throwable
public void addListener(
        InvokerCallbackHandler callbackhandler, Map metadata,
        Object callbackHandlerObject, boolean serverToClient) throws Throwable

The keys should be among the entries in the metadata Map passed. This will also only apply when the underlying transport is uni-directional (e.g. socket, http, rmi). Bi-directional transports will not need to poll.

FILE_PATH_KEY (actual value is 'StoreFilePath') - key for setting the directory in which to write the callback objects. The default value is the property value of 'jboss.server.data.dir' and if this is not set, then will be 'data'. Will then append 'remoting' and the callback client's session id. An example would be 'data\remoting\5c4o05l-9jijyx-e5b6xyph-1-e5b6xyph-2'.

FILE_SUFFIX_KEY (actual value is 'StoreFileSuffix') - key for setting the file suffix to use for the callback objects written to disk. The default value is 'ser'.

CALLBACK_ERRORS_ALLOWED (actual value is 'callbackErrorsAllowed') - key for setting the number of callback exceptions that will be allowed when calling on org.jboss.remoting.callback.InvokerCallbackHandler.handleCallback(Callback callback) before cleaning up the callback listener. This only applies to push callback. The default if this property is not set is five.

CALLBACK_STORE_KEY (actual value is 'callbackStore') - key for specifing the callback store to be used. The value can be either a JMX ObjectName or a fully qualified class name; either way, must implement org.jboss.remoting.SerializableStore. If using class name, the callback store implementation must have a void constructor. The default is to use the org.jboss.remoting.callback.NullCallbackStore.

CALLBACK_ERROR_HANDLER_KEY (actual value is 'callbackErrorHandler') - key for specifing the callback exception handler to be used. The value can be either a JMX ObjectName or a fully qualified class name, either way, must implement org.jboss.remoting.callback.CallbackErrorHandler. If using class name, the callback exception handler implementation must have a void constructor. The default is to use org.jboss.remoting.callback.DefaultCallbackErrorHandler.

CALLBACK_MEM_CEILING (actual value is 'callbackMemCeiling') - key for specifying the percentage of free memory available before callbacks will be persisted. If the memory heap allocated has reached its maximum value and the percent of free memory available is less than the callbackMemCeiling, this will trigger persisting of the callback message. The default value is 20.

CALLBACK_TIMEOUT (actual value is 'callbackTimeout') - key for specifying the timeout to be used for doing push callbacks. In the absence of ServerInvokerCallbackHandler.CALLBACK_TIMEOUT, the timeout value configured for the Connector will be used.

Bean properties (meaning have getter/setter):

SubContextName - sub context name under which detection messages will be bound and looked up.

PRESERVE_LINES (actual value is "preserveLines"): the key used to turn on or off HTTPUnMarshaller's behavior of stripping CR/LF characters.

IS_CALLBACK_SERVER (actual value is "isCallbackServer"): when a bisocket server invoker receives this parameter with a value of true, it avoids the creation of a ServerSocket. Therefore, IS_CALLBACK_SERVER should be used on the client side for the creation of a callback server. The default value is false.

PING_FREQUENCY (actual value is "pingFrequency"): The server side uses this value to determine the interval, in milliseconds, between pings that it will send on the control connection. The client side uses this value to calculate the window in which it must receive pings on the control connection. In particular, the window is ping frequency * ping window factor. See also the definition of PING_WINDOW_FACTOR. The default value is 5000.

PING_WINDOW_FACTOR (actual value is "pingWindowFactor"): The client side uses this value to calculate the window in which it must receive pings on the control connection. In particular, the window is ping frequency * ping window factor. See also the definition of PING_FREQUENCY. The default value is 2.

MAX_RETRIES (actual value is "maxRetries"): This parameter is relevant only on the client side, where the BisocketClientInvoker uses it to govern the number of attempts it should make to get the address and port of the secondary ServerSocket, and the BisocketServerInvoker uses it to govern the number of attempts it should make to create both ordinary and control sockets. The default value is 10.

SECONDARY_BIND_PORT (actual value is "secondaryBindPort"): The server side uses this parameter to determine the bind port for the secondary ServerSocket.

SECONDARY_BIND_PORTS (actual value is "secondaryBindPorts"): The server side uses this parameter to determine the bind ports for the secondary ServerSockets in a multihome server.

SECONDARY_CONNECT_PORT (actual value is "secondaryConnectPort"): The server side uses this parameter to determine the connect port used by the client side to connect to the secondary ServerSocket.

SECONDARY_CONNECT_PORTS (actual value is "secondaryConnectPorts"): The server side uses this parameter to determine the connect ports used by the client side to connect to the secondary ServerSockets in a multihome server.

NUMBER_OF_CALL_ATTEMPTS (actual value is "numberOfCallAttempts"): This parameter is relevant only on the client side, where it determines the maximum number of attempts that will be made to complete an invocation. The default value is 1.

UNMARSHAL_NULL_STREAM (actual value is "unmarshalNullStream") - key indicating if org.jboss.remoting.transport.http.HTTPClientInvoker should make the call to UnMarshaller.read() when the InputStream is null. The default value is "true".

The following are keys to use to get corresponding values from the Map returned from call to org.jboss.remoting.InvocationRequest.getRequestPayload() within a org.jboss.remoting.ServerInvocationHandler implementation. For example:

public Object invoke(InvocationRequest invocation) throws Throwable
{
   Map headers = invocation.getRequestPayload();
   ...

where variable 'headers' will contain entries for the following keys.

METHODTYPE (actual value is 'MethodType') - key for getting the method type used by client in http request. This will be populated within the Map returned from call to org.jboss.remoting.InvocationRequest.getRequestPayload() within a org.jboss.remoting.ServerInvocationHandler implementation. For example:

public Object invoke(InvocationRequest invocation) throws Throwable
{
   Map headers = invocation.getRequestPayload();
   String methodType = (String) headers.get(HTTPMetadataConstants.METHODTYPE);
   if(methodType != null)
   {
      if(methodType.equals("GET"))
      ...

PATH (actual value is 'Path') - key for getting the path from the url request from the calling client. This will be populated within the Map returned from call to org.jboss.remoting.InvocationRequest.getRequestPayload() within a org.jboss.remoting.ServerInvocationHandler implementation. For example:

public Object invoke(InvocationRequest invocation) throws Throwable
{
   Map headers = invocation.getRequestPayload();
   String path = (String) headers.get(HTTPMetadataConstants.PATH);
   ...

HTTPVERSION (actual value is 'HttpVersion') - key for getting the HTTP version from the calling client request (e.g. HTTP/1.1).

RESPONSE_CODE (actual value is 'ResponseCode') - key for getting and setting the HTTP response code. Will be used as key to get the response code from metadata Map passed to the Client's invoke() method after the invocation has been made. For example:

Map metadata = new HashMap();
Object response = remotingClient.invoke(myPayloadObject, metadata);
Integer responseCode = (Integer) metadata.get(HTTPMetadataConstants.RESPONSE_CODE);

Will be used as key to put the response code in the return payload map from invocation handler. For example:

public Object invoke(InvocationRequest invocation) throws Throwable
{
   Map responseHeaders = invocation.getReturnPayload();
   responseHeaders.put(HTTPMetadataConstants.RESPONSE_CODE, new Integer(202));

RESPONSE_CODE_MESSAGE (actual value is 'ResponseCodeMessage') - key for getting and setting the HTTP response code message. Will be used as the key to get the response code message from metadata Map passed to the Client's invoke() method after the invocation has been made. For example:

Map metadata = new HashMap();
Object response = remotingClient.invoke(myPayloadObject, metadata);
String responseCodeMessage = (String) metadata.get(HTTPMetadataConstants.RESPONSE_CODE_MESSAGE);

Will be used as key to put the response code message in the return payload map from invocation handler. For example:

public Object invoke(InvocationRequest invocation) throws Throwable
{
   Map responseHeaders = invocation.getReturnPayload();
   responseHeaders.put(
           HTTPMetadataConstants.RESPONSE_CODE_MESSAGE,
           "Custom response code and message from remoting server");

RESPONSE_HEADERS (actual value is 'ResponseHeaders') - key for returning the value of java.net.URLConnection.getHeaderFields(). In other words, a map containing all of the response headers is stored in the metadata map. For example,

Object payload = ... ;
HashMap metadata = new HashMap();
client.invoke(payload, metadata);
Map responseHeaders = (Map) metadata.get(HTTPMetadataConstants.RESPONSE_HEADERS);

NO_THROW_ON_ERROR (actual value is 'NoThrowOnError') - key indicating if http client invoker (for transports http, https, servlet, and sslservlet) should throw an exception if the server response code is equal to or greater than 400. Unless set to true, the client invoker will by default throw either the exception that originated on the server (if using remoting server) or throw a org.jboss.remoting.transport.http.WebServerError, whose message will be the error html returned from the web server.

DONT_RETURN_EXCEPTION (actual value is 'dont-return-exception') - key indicating if org.jboss.remoting.transport.servlet.ServletServerInvoker should revert to the orginal error handling behavior of returning an error message.

USE_REMOTING_CONTENT_TYPE (actual value is 'useRemotingContentType') - key indicating if org.jboss.remoting.marshal.http.HTTPUnMarshaller should determine that it is reading a String by using the "content-type" return header (if set to "false") or the "remotingContentType" header if set to "true". The default value is "false", to avoid introducing any inconsistent behavior between versions, but, if the org.jboss.remoting.ServerInvocationHandler sets the content-type return header, then this parameter should be set to "true".

For every http client request made from remoting client, a remoting version and remoting specific user agent will be set as a request property. The request property key for the remoting version will be 'JBoss-Remoting-Version' and the value will be set based on return from call to Version.getDefaultVersion(). The 'User-Agent' request property value will be set to the evaluation of '"JBossRemoting - " + Version.VERSION'.

IGNORE_HTTPS_HOST (actual value is 'org.jboss.security.ignoreHttpsHost') - key indicating if the http client invoker (for transports https and sslservlet) should ignore host name verification (meaning will not check for URL's hostname and server's identification hostname mismatch during handshaking). By default, if this not set to true, standard hostname verification will be performed.

HOSTNAME_VERIFIER (actual value is 'hostnameVerifier') - key indicating the hostname verifier that should be used by the http client invoker. The value should be the fully qualified classname of class that implements javax.net.ssl.HostnameVerifier and has a void constructor.

REGISTRY_PORT_KEY (actual value is 'registryPort') - the port on which to create the RMI registry. The default is 3455. This also needs to have the isParam attribute set to true.

RMI_ONEWAY_MARSHALLING (actual value is 'rmiOnewayMarshalling') - if set to "true" will cause the RMI transport to use the original client to server marshalling behavior.

UNWRAP_SINGLETON_ARRAYS (actual value is 'unwrapSingletonArrays') - If the map returned by javax.servlet.http.HttpServletRequest.getParameterMap() maps a String key to an array of length one, the value in the array will be extracted and associated with the key.

TCP_NODELAY_FLAG (actual value is 'enableTcpNoDelay') - can be either true or false and will indicate if client socket should have TCP_NODELAY turned on or off. TCP_NODELAY is for a specific purpose; to disable the Nagle buffering algorithm. It should only be set for applications that send frequent small bursts of information without getting an immediate response; where timely delivery of data is required (the canonical example is mouse movements). The default is false.

MAX_POOL_SIZE_FLAG (actual value is 'clientMaxPoolSize') - the client side maximum number of threads. The default is 50.

CLIENT_SOCKET_CLASS_FLAG (actual value is 'clientSocketClass') - specifies the fully qualified class name for the custom SocketWrapper implementation to use on the client. Note, will need to make sure this is marked as a client parameter (using the 'isParam' attribute). Making this change will not affect the marshaller/unmarshaller that is used, which may also be a requirement.

USE_ONEWAY_CONNECTION_TIMEOUT (actual value "useOnewayConnectionTimeout") - indicates if, during a client side oneway invocation, MicroSocketClientInvoker should wait for a version byte from the server, which prevents the anomalous behavior described in JBREM-706 "In socket transport, prevent client side oneway invocations from artificially reducing concurrency". The default value is "true".

EVICTABILITY_TIMEOUT (actual value "evictabilityTimeout") - indicates the number of milliseconds during which a server thread waiting for the next invocation will not be preemptible.

CONTINUE_AFTER_TIMEOUT (actual value "continueAfterTimeout") - indicates what a server thread should do after experiencing a java.net.SocketTimeoutException. If set to "true", or if JBossSerialization is being used, the server thread will continue to wait for an invocation; otherwise, it will return itself to the thread pool.

CHECK_CONNECTION_KEY (actual value is 'socket.check_connection') - key for indicating if socket invoker should continue to keep socket connection between client and server open after invocations by sending a ping on the connection before being re-used. The default for this is false.

SERVER_SOCKET_CLASS_FLAG (actual value is 'serverSocketClass') - specifies the fully qualified class name for the custom SocketWrapper implementation to use on the server.

Bean properties (meaning have getter/setter):

ImmediateShutdown - a flag for indicating that SocketServerInvoker should shut down all of its ServerThreads immediately instead of waiting for any current invocations to finish.

WRITE_TIMEOUT (actual value is 'writeTimeout') - key for configuring the "write timeout" facility. If set to a value greater than 0, then a write operation that does not complete within the configured number of milliseconds will be terminated and the socket will be closed. The default value is -1.

There are many ways in which to expose a remote interface to a java object. Some require a complex framework API based on a standard specification and some require new technologies like annotations and AOP. Each of these have their own benefits. JBoss Remoting transporters provide the same behavior via a simple API without the need for any of the newer technologies.

When boiled down, transporters take a plain old java object (POJO) and expose a remote proxy to it via JBoss Remoting. Dynamic proxies and reflection are used to make the typed method calls on that target POJO. Since JBoss Remoting is used, can select from a number of different network transports (i.e. rmi, http, socket, etc.), including support for SSL. Even clustering features can be included.

How it works

In this section will discuss how remoting transporters can be used, some requirments for usage, and a little detail on the implementation. For greater breath on usage, please review the transporter samples as most use cases are covered there.

To start, will need to have a plain old java object that implements one or more interfaces that want to expose for remote method invocation. Then will need to create a org.jboss.remoting.transporter.TransporterServer to wrap around it, so that can be exposed remotely. This can be done in one of two basic ways. The first is to use a static createTransporterServer() method of the TransporterServer class. There are many of these create methods, but all basically do that same thing in that they take a remoting locator and target pojo and will return a TransporterServer instance that has been started and ready to receive remote invocations (see javadoc for TransporterServer for all the different static createTransporterServer() methods). The other way to create a TransporterServer for the target pojo is to construct an instance of it. This provides a little more flexibility as are able to control more aspects of the TransporterServer, such as when it will be started.

When a TransporterServer is created, it will create a remoting Connector using the locator provided. It will generate a server invocation handler that wraps the target pojo provided and use reflection to make the calls on it based on the invocations it receives from clients. By default, the subsystem underwhich the server invocation handler is registered is the interface class name for which the target pojo is exposing. If the target implements multiple interfaces, and a specific one to use is not specified, all the interfaces will be registered as subsystems for the same server invocation handler. Whenever no long want the target pojo to receive remote method invocations, will need to call the stop() method on the TransporterServer for the target pojo (this is very important, as otherwise will never be released from memory and will continue to consume network and memory resources).

On the client side, in order to be able to call on the target pojo remotely, will need to use the org.jboss.remoting.transporter.TransporterClient. Unlike the TransporterServer, can only use the static create methods of the TransporterClient (this is because the return to the static create method is a typed dynamic proxy). The static method to call on the TransportClient is createTransporterClient(), where will pass the locator to find the target pojo (same as one used when creating the TransporterServer) and the interface for the target pojo that want to make remote method invocations on. The return from this create call will be a dynamic proxy which you can cast to to same interface type supplied. At that point, can make typed method invocations on the returned object, which will then make the remote invocations under the covers. Note that can have multiple transporter clients to the same target pojo, each using different interface types for making calls.

When no longer need to make invocations on the target pojo, the resources associated with the remoting client will need to be cleaned up. This is done by calling the destroyTransporterClient() method of the TransporterClient. This is important to remember to do, as will otherwise leave network resources active even though not in use.

One of the features of using remoting transporters is location transparency. By this mean that client proxies returned by the TransporterClient can be passed over the network. For example, can have a target pojo that returns from a method call a client proxy (that it created using the TransporterClient) in which the client can call on directly as well. See the transporter proxy sample code to see how this can be done.

Another nice feature when using transporters is the ability to cluster. To be more specific, can create multiple target pojos using the TransporterServer in clustered mode and then use the TransporterClient in clustered mode to create a client proxy that will discover the location of the target pojos are wanting to call on. Will also provide automatic, seemless failover of remote method invocations in the case that a particular target pojo instance fails. However, note that only provide invocation failover and does not take into account state transfer between target pojos (would need addition of JBoss Cache or some other state synchronization tool).

The simple transporter example (found in org.jboss.remoting.samples.transporter.simple package) demonstrates a very simple example of how to use the transporters to expose a plain old java object for remote method invocations.

In this simple transporter example, will be taking a class that formats a java.util.Date into a simple String representation and exposing it so can call on the remotely. The target object in this case, org.jboss.remoting.samples.transporter.simple.DateProcessorImpl, implements the org.jboss.remoting.samples.transporter.simple.DateProcessor interfaces (as shown below):

public interface DateProcessor
{
   public String formatDate(Date dateToConvert);
}


public class DateProcessorImpl implements DateProcessor
{
   public String formatDate(Date dateToConvert)
   {
      DateFormat dateFormat = DateFormat.getDateInstance(DateFormat.MEDIUM);
      return dateFormat.format(dateToConvert);
   }
}

This is then exposed using the TransporterServer by the org.jboss.remoting.samples.transporter.simple.Server class.

public class Server
{
   public static void main(String[] args) throws Exception
   {
      TransporterServer server = TransporterServer.createTransporterServer("socket://localhost:5400", new DateProcessorImpl(), DateProcessor.class.getName());
      Thread.sleep(10000);
      server.stop();
   }
}

The Server class simply creates a TransporterServer by indicating the locator url would like to use for the remoting server, a newly created instance of DataProcessorImpl, and the interface type would like to expose remotely. The TransporterServer returned from the createTransporterServer call is live and ready to receive incoming method invocation requests. Will then wait 10 seconds for a request, then stop the server.

Next need to have client to make the remote invocation. This can be found within org.jboss.remoting.samples.transporter.simple.Client.

public class Client
{
   public static void main(String[] args) throws Exception
   {
      DateProcessor dateProcessor = (DateProcessor) TransporterClient.createTransporterClient("socket://localhost:5400", DateProcessor.class);
      String formattedDate = dateProcessor.formatDate(new Date());
      System.out.println("Current date: " + formattedDate);
   }
}

In the Client class, create a TransporterClient which can be cast to the desired type, which is DataProcessor in this case. In calling the createTransporterClient, need to specify the locator ulr (same as was used for the TransporterServer), and the interface type will be calling on for the target pojo. Once have the DateProcessor variable, will make the call to formatDate() and pass a newly created Date object. The return will be a formated String of the date passed.

To run this example, can run the Server and then the Client. Or can go to the examples directory and run the ant target 'run-transporter-simple-server' and then in another window run the ant target 'run-transporter-simple-client'. For example:

ant run-transporter-simple-server

and then:

ant run-transporter-simple-client

The output from the client window should look similar to:

Current date: Jul 31, 2006

The basic transporter example (found in org.jboss.remoting.samples.transporter.basic package) illustrates how to build a simple transporter for making remote invocations on plain old java objects.

In this basic transporter example, will be using a few domain objects; Customer and Address, which are just data objects.

public class Customer implements Serializable
{
   private String firstName = null;
   private String lastName = null;
   private Address addr = null;
   private int customerId = -1;

   public String getFirstName()
   {
      return firstName;
   }

   public void setFirstName(String firstName)
   {
      this.firstName = firstName;
   }

   public String getLastName()
   {
      return lastName;
   }

   public void setLastName(String lastName)
   {
      this.lastName = lastName;
   }

   public Address getAddr()
   {
      return addr;
   }

   public void setAddr(Address addr)
   {
      this.addr = addr;
   }

   public int getCustomerId()
   {
      return customerId;
   }

   public void setCustomerId(int customerId)
   {
      this.customerId = customerId;
   }

   public String toString()
   {
      StringBuffer buffer = new StringBuffer();
      buffer.append("\nCustomer:\n");
      buffer.append("customer id: " + customerId + "\n");
      buffer.append("first name: " + firstName + "\n");
      buffer.append("last name: " + lastName + "\n");
      buffer.append("street: " + addr.getStreet() + "\n");
      buffer.append("city: " + addr.getCity() + "\n");
      buffer.append("state: " + addr.getState() + "\n");
      buffer.append("zip: " + addr.getZip() + "\n");

      return buffer.toString();
   }
}

public class Address implements Serializable
{
   private String street = null;
   private String city = null;
   private String state = null;
   private int zip = -1;

   public String getStreet()
   {
      return street;
   }

   public void setStreet(String street)
   {
      this.street = street;
   }

   public String getCity()
   {
      return city;
   }

   public void setCity(String city)
   {
      this.city = city;
   }

   public String getState()
   {
      return state;
   }

   public void setState(String state)
   {
      this.state = state;
   }

   public int getZip()
   {
      return zip;
   }

   public void setZip(int zip)
   {
      this.zip = zip;
   }
}

Next comes the POJO that we want to expose a remote proxy for, which is CustomerProcessorImpl class. This implementation has one method to process a Customer object. It also implements the CustomerProcessor interface.

public class CustomerProcessorImpl implements CustomerProcessor
{
   /**
    * Takes the customer passed, and if not null and customer id
    * is less than 0, will create a new random id and set it.
    * The customer object returned will be the modified customer
    * object passed.
    *
    * @param customer
    * @return
    */
   public Customer processCustomer(Customer customer)
   {
      if(customer != null && customer.getCustomerId() < 0)
      {
         customer.setCustomerId(new Random().nextInt(1000));
      }
      System.out.println("processed customer with new id of " + customer.getCustomerId());
      return customer;
   }
}

public interface CustomerProcessor
{
   /**
    * Process a customer object.  Implementors
    * should ensure that the customer object
    * passed as parameter should have its internal
    * state changed somehow and returned.
    *
    * @param customer
    * @return
    */
   public Customer processCustomer(Customer customer);
}

So far, nothing special, just plain old java objects. Next need to create the server component that will listen for remote request to invoke on the target POJO. This is where the transporter comes in.

public class Server
{
   private String locatorURI = "socket://localhost:5400";
   private TransporterServer server = null;

   public void start() throws Exception
   {
      server = TransporterServer.createTransporterServer(locatorURI, new CustomerProcessorImpl());
   }

   public void stop()
   {
      if(server != null)
      {
         server.stop();
      }
   }

   public static void main(String[] args)
   {
      Server server = new Server();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

The Server class is a pretty simple one. It calls the TransporterServer factory method to create the server component for the CustomerProcessorImpl instance using the specified remoting locator information.

The TransporterServer returned from the createTransporterServer() call will be a running instance of a remoting server using the socket transport that is bound to localhost and listening for remote requests on port 5400. The requests that come in will be forwarded to the remoting handler which will convert them into direct method calls on the target POJO, CustomerProcessorImpl in this case, using reflection.

The TransporterServer has a start() and stop() method exposed to control when to start and stop the running of the remoting server. The start() method is called automatically within the createTransporterServer() method, so is ready to receive requests upon the return of this method. The stop() method, however, needs to be called explicitly when no longer wish to receive remote calls on the target POJO.

Next up is the client side. This is represented by the Client class.

public class Client
{
   private String locatorURI = "socket://localhost:5400";

   public void makeClientCall() throws Exception
   {
      Customer customer = createCustomer();

      CustomerProcessor customerProcessor = (CustomerProcessor) TransporterClient.createTransporterClient(locatorURI, CustomerProcessor.class);

      System.out.println("Customer to be processed: " + customer);
      Customer processedCustomer = customerProcessor.processCustomer(customer);
      System.out.println("Customer is now: " + processedCustomer);

      TransporterClient.destroyTransporterClient(customerProcessor);
   }

   private Customer createCustomer()
   {
      Customer cust = new Customer();
      cust.setFirstName("Bob");
      cust.setLastName("Smith");
      Address addr = new Address();
      addr.setStreet("101 Oak Street");
      addr.setCity("Atlanata");
      addr.setState("GA");
      addr.setZip(30249);
      cust.setAddr(addr);

      return cust;
   }

   public static void main(String[] args)
   {
      Client client = new Client();
      try
      {
         client.makeClientCall();
      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
   }
}

The Client class is also pretty simple. It creates a new Customer object instance, creates the remote proxy to the CustomerProcessor, and then calls on the CustomerProcessor to process its new Customer instance.

To get the remote proxy for the CustomerProcessor, all that is required is to call the TransporterClient's method createTransporterClient() method and pass the locator uri and the type of the remote proxy (and explicitly cast the return to that type). This will create a dynamic proxy for the specified type, CustomerProcessor in this case, which is backed by a remoting client which in turn makes the calls to the remote POJO's remoting server. Once the call to createTransportClient() has returned, the remoting client has already made its connection to the remoting server and is ready to make calls (will throw an exception if it could not connect to the specified remoting server).

When finished making calls on the remote POJO proxy, will need to explicitly destroy the client by calling destroyTransporterClient() and pass the remote proxy instance. This allows the remoting client to disconnect from the POJO's remoting server and clean up any network resources previously used.

To run this example, can run the Server and then the Client. Or can go to the examples directory and run the ant target 'run-transporter-basic-server' and then in another window run the ant target 'run-transporter-basic-client'. For example:

ant run-transporter-basic-server

and then:

ant run-transporter-basic-client

The output from the Client console should be similar to:

Customer to be processed:
Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanata
state: GA
zip: 30249

Customer is now:
Customer:
customer id: 204
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanata
state: GA
zip: 30249

and the output from the Server class should be similar to:

processed customer with new id of 204

The output shows that the Customer instance created on the client was sent to the server where it was processed (by setting the customer id to 204) and returned to the client (and printed out showing that the customer id was set to 204).

The transporter serialization example (found in org.jboss.remoting.samples.transporter.serialization package) is very similar to the previous basic example, except in this one, the domain objects being sent over the wire will NOT be Serializable. This is accomplished via the use of JBoss Serialization. This can be useful when don't know which domain objects you may be using in remote calls or if adding ability for remote calls on legacy code.

To start, there are a few more domain objects: Order, OrderProcessor, and OrderProcessorImpl. These will use some of the domain objects from the previous example as well, such as Customer.

public class Order
{
   private int orderId = -1;
   private boolean isProcessed = false;
   private Customer customer = null;
   private List items = null;


   public int getOrderId()
   {
      return orderId;
   }

   public void setOrderId(int orderId)
   {
      this.orderId = orderId;
   }

   public boolean isProcessed()
   {
      return isProcessed;
   }

   public void setProcessed(boolean processed)
   {
      isProcessed = processed;
   }

   public Customer getCustomer()
   {
      return customer;
   }

   public void setCustomer(Customer customer)
   {
      this.customer = customer;
   }

   public List getItems()
   {
      return items;
   }

   public void setItems(List items)
   {
      this.items = items;
   }

   public String toString()
   {
      StringBuffer buffer = new StringBuffer();
      buffer.append("\nOrder:\n");
      buffer.append("\nIs processed: " + isProcessed);
      buffer.append("\nOrder id: " + orderId);
      buffer.append(customer.toString());

      buffer.append("\nItems ordered:");
      Iterator itr = items.iterator();
      while(itr.hasNext())
      {
         buffer.append("\n" + itr.next().toString());
      }

      return buffer.toString();
   }
}

public class OrderProcessorImpl implements OrderProcessor
{
   private CustomerProcessor customerProcessor = null;

   public OrderProcessorImpl()
   {
      customerProcessor = new CustomerProcessorImpl();
   }

   public Order processOrder(Order order)
   {
      System.out.println("Incoming order to process from customer.\n" + order.getCustomer());

      // has this customer been processed?
      if(order.getCustomer().getCustomerId() < 0)
      {
         order.setCustomer(customerProcessor.processCustomer(order.getCustomer()));
      }

      List items = order.getItems();
      System.out.println("Items ordered:");
      Iterator itr = items.iterator();
      while(itr.hasNext())
      {
         System.out.println(itr.next());
      }

      order.setOrderId(new Random().nextInt(1000));
      order.setProcessed(true);

      System.out.println("Order processed.  Order id now: " + order.getOrderId());
      return order;
   }
}

public interface OrderProcessor
{
   public Order processOrder(Order order);
}

The OrderProcessorImpl will take orders, via the processOrder() method, check that the customer for the order has been processed, and if not have the customer processor process the new customer. Then will place the order, which means will just set the order id and processed attribute to true.

The most important point to this example is that the Order class does NOT implement java.io.Serializable.

Now onto the Server class. This is just like the previous Server class in the basic example with one main difference: the locatorURI value.

public class Server
{
   private String locatorURI = "socket://localhost:5400/?serializationtype=jboss";
   private TransporterServer server = null;

   public void start() throws Exception
   {
      server = TransporterServer.createTransporterServer(locatorURI, new OrderProcessorImpl());
   }

   public void stop()
   {
      if(server != null)
      {
         server.stop();
      }
   }

   public static void main(String[] args)
   {
      Server server = new Server();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

The addition of serializationtype=jboss tells the remoting framework to use JBoss Serialization in place of the standard java serialization.

On the client side, there is the Client class, just as in the previous basic example.

public class Client
{
   private String locatorURI = "socket://localhost:5400/?serializationtype=jboss";

   public void makeClientCall() throws Exception
   {
      Order order = createOrder();

      OrderProcessor orderProcessor = (OrderProcessor) TransporterClient.createTransporterClient(locatorURI, OrderProcessor.class);

      System.out.println("Order to be processed: " + order);
      Order changedOrder = orderProcessor.processOrder(order);
      System.out.println("Order now processed " + changedOrder);

      TransporterClient.destroyTransporterClient(orderProcessor);

   }

   private Order createOrder()
   {
      Order order = new Order();
      Customer customer = createCustomer();
      order.setCustomer(customer);

      List items = new ArrayList();
      items.add("Xbox 360");
      items.add("Wireless controller");
      items.add("Ghost Recon 3");

      order.setItems(items);

      return order;
   }

   private Customer createCustomer()
   {
      Customer cust = new Customer();
      cust.setFirstName("Bob");
      cust.setLastName("Smith");
      Address addr = new Address();
      addr.setStreet("101 Oak Street");
      addr.setCity("Atlanata");
      addr.setState("GA");
      addr.setZip(30249);
      cust.setAddr(addr);

      return cust;
   }

   public static void main(String[] args)
   {
      Client client = new Client();
      try
      {
         client.makeClientCall();
      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
   }
}

Again, the biggest difference to note is that have added serializationtype=jboss to the locator uri.

Note: Running this example requires JDK 1.5.

To run this example, can run the Server and then the Client. Or can go to the examples directory and run the ant target 'ant run-transporter-serialization-server' and then in another window run the ant target 'ant run-transporter-serialization-client'. For example:

ant run-transporter-serialization-server

and then:

ant run-transporter-serialization-client

When the server and client are run the output for the Client class is:

Order to be processed:
Order:

Is processed: false
Order id: -1
Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanata
state: GA
zip: 30249

Items ordered:
Xbox 360
Wireless controller
Ghost Recon 3
Order now processed
Order:

Is processed: true
Order id: 221
Customer:
customer id: 861
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanata
state: GA
zip: 30249

Items ordered:
Xbox 360
Wireless controller
Ghost Recon 3

The client output shows the printout of the newly created order before calling the OrderProcessor and then the processed order afterwards. Noticed that the processed order has its customer's id set, its order id set and the processed attribute is set to true.

And the output from the Server is:

Incoming order to process from customer.

Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanata
state: GA
zip: 30249

processed customer with new id of 861
Items ordered:
Xbox 360
Wireless controller
Ghost Recon 3
Order processed.  Order id now: 221

The server output shows the printout of the customer before being processed and then the order while being processed.

In the previous examples, there has been one and only one target POJO to make calls upon. If that target POJO was not available, the client call would fail. In the transporter clustered example (found in org.jboss.remoting.samples.transporter.clustered package), will show how to use the transporter in clustered mode so that if one target POJO becomes unavailable, the client call can be seamlessly failed over to another available target POJO on the network, regardless of network transport type.

This example uses the domain objects from the first, basic example, so only need to cover the client and server code. For this example, there are three different server classes. The first class is the SocketServer class, which is the exact same as the Server class in the basic example, except for the call to the TransportServer's createTransportServer() method.

public class SocketServer
{
   public static String locatorURI = "socket://localhost:5400";
   private TransporterServer server = null;

   public void start() throws Exception
   {
      server = TransporterServer.createTransporterServer(getLocatorURI(), new CustomerProcessorImpl(),
                                                         CustomerProcessor.class.getName(), true);
   }

   protected String getLocatorURI()
   {
      return locatorURI;
   }

   public void stop()
   {
      if(server != null)
      {
         server.stop();
      }
   }

   public static void main(String[] args)
   {
      SocketServer server = new SocketServer();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

Notice that are now calling on the TransportServer to create a server with the locator uri and target POJO (CustomerProcessorImpl) as before, but have also added the interface type of the target POJO (CustomerProcessor) and that want clustering turned on (via the last true parameter).

The interface type of the target POJO is needed because this will be used as the subsystem within the remoting server for the target POJO. The subsystem value will be what the client uses to determine if discovered remoting server is for the target POJO they are looking for.

The second server class is the RMIServer class. The RMIServer class extends the SocketServer class and uses a different locator uri to specify rmi as the transport protocol and a different port (5500).

public class RMIServer extends SocketServer
{
   private String localLocatorURI = "rmi://localhost:5500";

   protected String getLocatorURI()
   {
      return localLocatorURI;
   }

   public static void main(String[] args)
   {
      SocketServer server = new RMIServer();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

The last server class is the HTTPServer class. The HTTPServer class also extends the SocketServer class and specifies http as the transport protocol and 5600 as the port to listen for requests on.

public class HTTPServer extends SocketServer
{
   private String localLocatorURI = "http://localhost:5600";

   protected String getLocatorURI()
   {
      return localLocatorURI;
   }

   public static void main(String[] args)
   {
      SocketServer server = new HTTPServer();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

On the client side, there is only the Client class. This class is very similar to the one from the basic example. The main exceptions are (1) the addition of a TransporterClient call to create a transporter client and (2) the fact that it continually loops, making calls on its customerProcessor variable to process customers. This is done so that when we run the client, we can kill the different servers and see that the client continues to loop making its calls without any exceptions or errors.

public class Client
{
   private String locatorURI = SocketServer.locatorURI;

   private CustomerProcessor customerProcessor = null;

   public void makeClientCall() throws Exception
   {
      Customer customer = createCustomer();

      System.out.println("Customer to be processed: " + customer);
      Customer processedCustomer = customerProcessor.processCustomer(customer);
      System.out.println("Customer is now: " + processedCustomer);

      //TransporterClient.destroyTransporterClient(customerProcessor);
   }

   public void getCustomerProcessor() throws Exception
   {
      customerProcessor = (CustomerProcessor) TransporterClient.createTransporterClient(locatorURI, CustomerProcessor.class, true);
   }

   private Customer createCustomer()
   {
      Customer cust = new Customer();
      cust.setFirstName("Bob");
      cust.setLastName("Smith");
      Address addr = new Address();
      addr.setStreet("101 Oak Street");
      addr.setCity("Atlanata");
      addr.setState("GA");
      addr.setZip(30249);
      cust.setAddr(addr);

      return cust;
   }

   public static void main(String[] args)
   {
      Client client = new Client();
      try
      {
         client.getCustomerProcessor();
         while(true)
         {
            try
            {
               client.makeClientCall();
               Thread.currentThread().sleep(5000);
            }
            catch(Exception e)
            {
               e.printStackTrace();
            }
         }
      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
   }
}

The first item of note is that the locator uri from the SocketServer class is being used. Technically, this is not required as once the clustered TransporterClient is started, it will start to discover the remoting servers that exist on the network. However, this process can take several seconds to occur, so unless it is known that no calls will be made on the remote proxy right away, it is best to bootstrap with a known target server.

Can also see that in the main() method, the first call on the Client instance is to getCustomerProcessor(). This method will call the TransporterClient's createTransporterClient() method and passes the locator uri for the target POJO server, the type of POJO's remote proxy, and that clustering should be enabled.

After getting the customer processor remote proxy, will continually loop making calls using the remote proxy (via the processCustomer() method on the customerProcessor variable).

To run this example, all the servers need to be started (by running the SocketServer, RMIServer, and HTTPServer classes). Then run the Client class. This can be done via ant targets as well. So for example, could open four console windows and enter the ant targets as follows:

ant run-transporter-clustered-socket-server

ant run-transporter-clustered-http-server

ant run-transporter-clustered-rmi-server

ant run-transporter-clustered-client

Once the client starts running, should start to see output logged to the SocketServer, since this is the one used to bootstrap. This output would look like:

processed customer with new id of 378
processed customer with new id of 487
processed customer with new id of 980

Once the SocketServer instance has received a few calls, kill this instance. The next time the client makes a call on its remote proxy, which happens every five seconds, it should fail over to another one of the servers (and will see similar output on that server instance). After that server has received a few calls, kill it and should see it fail over once again to the last server instance that is still running. Then, if kill that server instance, will see a CannotConnectException and stack trace similar to the following:

...
org.jboss.remoting.CannotConnectException: Can not connect http client invoker.
 at org.jboss.remoting.transport.http.HTTPClientInvoker.useHttpURLConnection(HTTPClientInvoker.java:147)
 at org.jboss.remoting.transport.http.HTTPClientInvoker.transport(HTTPClientInvoker.java:56)
 at org.jboss.remoting.RemoteClientInvoker.invoke(RemoteClientInvoker.java:112)
 at org.jboss.remoting.Client.invoke(Client.java:226)
 at org.jboss.remoting.Client.invoke(Client.java:189)
 at org.jboss.remoting.Client.invoke(Client.java:174)
 at org.jboss.remoting.transporter.TransporterClient.invoke(TransporterClient.java:219)
 at $Proxy0.processCustomer(Unknown Source)
 at org.jboss.remoting.samples.transporter3.client.Client.makeClientCall(Client.java:29)
 at org.jboss.remoting.samples.transporter3.client.Client.main(Client.java:64)
 at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
 at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
 at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
 at java.lang.reflect.Method.invoke(Method.java:585)
 at com.intellij.rt.execution.application.AppMain.main(AppMain.java:86)
Caused by: java.net.ConnectException: Connection refused: connect
 at java.net.PlainSocketImpl.socketConnect(Native Method)
 at java.net.PlainSocketImpl.doConnect(PlainSocketImpl.java:333)
 at java.net.PlainSocketImpl.connectToAddress(PlainSocketImpl.java:195)
 at java.net.PlainSocketImpl.connect(PlainSocketImpl.java:182)
 at java.net.Socket.connect(Socket.java:507)
 at java.net.Socket.connect(Socket.java:457)
 at sun.net.NetworkClient.doConnect(NetworkClient.java:157)
 at sun.net.www.http.HttpClient.openServer(HttpClient.java:365)
 at sun.net.www.http.HttpClient.openServer(HttpClient.java:477)
 at sun.net.www.http.HttpClient.<init>(HttpClient.java:214)
 at sun.net.www.http.HttpClient.New(HttpClient.java:287)
 at sun.net.www.http.HttpClient.New(HttpClient.java:299)
 at sun.net.www.protocol.http.HttpURLConnection.getNewHttpClient(HttpURLConnection.java:792)
 at sun.net.www.protocol.http.HttpURLConnection.plainConnect(HttpURLConnection.java:744)
 at sun.net.www.protocol.http.HttpURLConnection.connect(HttpURLConnection.java:669)
 at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(HttpURLConnection.java:836)
 at org.jboss.remoting.transport.http.HTTPClientInvoker.useHttpURLConnection(HTTPClientInvoker.java:117)
 ... 14 more

since there are no target servers left to make calls on. Notice that earlier in the client output there were no errors while was failing over to the different servers as they were being killed.

Because the CannotConnectException is being caught within the while loop, the client will continue to try calling the remote proxy and getting this exception. Now re-run any of the previously killed servers and will see that the client will discover that server instance and begin to successfully call on that server. The output should look something like:

...
 at sun.net.www.protocol.http.HttpURLConnection.connect(HttpURLConnection.java:669)
 at sun.net.www.protocol.http.HttpURLConnection.getOutputStream(HttpURLConnection.java:836)
 at org.jboss.remoting.transport.http.HTTPClientInvoker.useHttpURLConnection(HTTPClientInvoker.java:117)
 ... 14 more

Customer to be processed:
Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Stree
city: Atlanata
state: null
zip: 30249

Customer is now:
Customer:
customer id: 633
first name: Bob
last name: Smith
street: 101 Oak Stree
city: Atlanata
state: null
zip: 30249

...

The multiple transporter example (found in org.jboss.remoting.samples.transporter.multiple package) shows how can have a multiple target pojos exposed via the same TransporterServer. In this example, will be two pojos being exposed, CustomerProcessorImpl and AccountProcessorImpl. Since the domain objects for this example is similar to the others discussed in previous examples, will just focus on the server and client code. On the server side, need to create the TransporterServer so that will included both of the target pojos.

public class Server
{
   private String locatorURI = "socket://localhost:5400";
   private TransporterServer server = null;

   public void start() throws Exception
   {
      server = TransporterServer.createTransporterServer(locatorURI, new CustomerProcessorImpl(), CustomerProcessor.class.getName());
      server.addHandler(new AccountProcessorImpl(), AccountProcessor.class.getName());
   }

   public void stop()
   {
      if(server != null)
      {
         server.stop();
      }
   }

   public static void main(String[] args)
   {
      Server server = new Server();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch(Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

The TransporterServer is created with the CustomerProcessorImpl as the inital target pojo. Now that have a live TransporterServer, can add other pojos as targets. This is done using the addHandler() method where the target pojo instance is passed and then the interface type to be exposed as.

Next have the Client that makes the call to both pojos.

public class Client
{
   private String locatorURI = "socket://localhost:5400";

   public void makeClientCall() throws Exception
   {
      Customer customer = createCustomer();

      CustomerProcessor customerProcessor = (CustomerProcessor) TransporterClient.createTransporterClient(locatorURI, CustomerProcessor.class);

      System.out.println("Customer to be processed: " + customer);
      Customer processedCustomer = customerProcessor.processCustomer(customer);
      System.out.println("Customer is now: " + processedCustomer);

      AccountProcessor accountProcessor = (AccountProcessor) TransporterClient.createTransporterClient(locatorURI, AccountProcessor.class);

      System.out.println("Asking for a new account to be created for customer.");
      Account account = accountProcessor.createAccount(processedCustomer);
      System.out.println("New account: " + account);

      TransporterClient.destroyTransporterClient(customerProcessor);
      TransporterClient.destroyTransporterClient(accountProcessor);

   }

   private Customer createCustomer()
   {
      Customer cust = new Customer();
      cust.setFirstName("Bob");
      cust.setLastName("Smith");
      Address addr = new Address();
      addr.setStreet("101 Oak Street");
      addr.setCity("Atlanta");
      addr.setState("GA");
      addr.setZip(30249);
      cust.setAddr(addr);

      return cust;
   }

   public static void main(String[] args)
   {
      org.jboss.remoting.samples.transporter.multiple.client.Client client = new org.jboss.remoting.samples.transporter.multiple.client.Client();
      try
      {
         client.makeClientCall();
      }
      catch (Exception e)
      {
         e.printStackTrace();
      }
   }


}

Notice that TransporterClients are created for each target pojo want to call upon, they just happen to share the same locator uri. These are independant instances so need to both be destroyed on their own when finished with them.

To run this example, run the Server class and then the Client class. This can be done via ant targets 'run-transporter-multiple-server' and then 'run-transporter-multiple-client'. For example:

ant run-transporter-multiple-server

and then:

ant run-transporter-multiple-client

The output for the server should look similar to:

processed customer with new id of 980
Created new account with account number: 1 and for customer:

Customer:
customer id: 980
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

and the output from the client should look similar to:

Customer to be processed:
Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

Customer is now:
Customer:
customer id: 980
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

Asking for a new account to be created for customer.
New account: Account - account number: 1
Customer:
Customer:
customer id: 980
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

The proxy transporter example (found in org.jboss.remoting.samples.transporter.proxy package) shows how can have a TransporterClient sent over the network and called upon. In this example, will have a target pojo, CustomerProcessorImpl which itself creates a TransporterClient to another target pojo, Customer, and return it as response to a method invocation.

To start, will look at the initial target pojo, CustomerProcessorImpl.

public class CustomerProcessorImpl implements CustomerProcessor
{
   private String locatorURI = "socket://localhost:5401";

   /**
    * Takes the customer passed, and if not null and customer id
    * is less than 0, will create a new random id and set it.
    * The customer object returned will be the modified customer
    * object passed.
    *
    * @param customer
    * @return
    */
   public ICustomer processCustomer(Customer customer)
   {
      if (customer != null && customer.getCustomerId() < 0)
      {
         customer.setCustomerId(new Random().nextInt(1000));
      }

      ICustomer customerProxy = null;
      try
      {
         TransporterServer server = TransporterServer.createTransporterServer(locatorURI, customer, ICustomer.class.getName());
         customerProxy = (ICustomer) TransporterClient.createTransporterClient(locatorURI, ICustomer.class);
      }
      catch (Exception e)
      {
         e.printStackTrace();
      }

      System.out.println("processed customer with new id of " + customerProxy.getCustomerId());
      return customerProxy;
   }

}

Notice that the processCustomer() method will take a Customer object and set customer id on it. Then it will create a TransporterServer for that customer instance and also create a TransporterClient for the same instance and return that TransporterClient proxy as the return to the processCustomer() method.

Next will look at the Customer class. It is a basic data object in that is really just stores the customer data.

public class Customer implements Serializable, ICustomer
{
   private String firstName = null;
   private String lastName = null;
   private Address addr = null;
   private int customerId = -1;

   public String getFirstName()
   {
      return firstName;
   }

   public void setFirstName(String firstName)
   {
      this.firstName = firstName;
   }

   public String getLastName()
   {
      return lastName;
   }

   public void setLastName(String lastName)
   {
      this.lastName = lastName;
   }

   public Address getAddr()
   {
      return addr;
   }

   public void setAddr(Address addr)
   {
      this.addr = addr;
   }

   public int getCustomerId()
   {
      return customerId;
   }

   public void setCustomerId(int customerId)
   {
      this.customerId = customerId;
   }

   public String toString()
   {
      System.out.println("Customer.toString() being called.");
      StringBuffer buffer = new StringBuffer();
      buffer.append("\nCustomer:\n");
      buffer.append("customer id: " + customerId + "\n");
      buffer.append("first name: " + firstName + "\n");
      buffer.append("last name: " + lastName + "\n");
      buffer.append("street: " + addr.getStreet() + "\n");
      buffer.append("city: " + addr.getCity() + "\n");
      buffer.append("state: " + addr.getState() + "\n");
      buffer.append("zip: " + addr.getZip() + "\n");

      return buffer.toString();
   }


}

Notice the toString() method and how it prints out to the standard out when being called. This will be important when the sample is run later.

Now if look at the Server class, will see is a standard setup like have seen in previous samples.

public class Server
{
   private String locatorURI = "socket://localhost:5400";
   private TransporterServer server = null;

   public void start() throws Exception
   {
      server = TransporterServer.createTransporterServer(locatorURI, new CustomerProcessorImpl(), CustomerProcessor.class.getName());
   }

   public void stop()
   {
      if (server != null)
      {
         server.stop();
      }
   }

   public static void main(String[] args)
   {
      Server server = new Server();
      try
      {
         server.start();

         Thread.currentThread().sleep(60000);

      }
      catch (Exception e)
      {
         e.printStackTrace();
      }
      finally
      {
         server.stop();
      }
   }
}

It is creating a TransporterServer for the CustomerProcessImpl upon being started and will wait 60 seconds for invocations.

Next is the Client class.

public class Client
{
   private String locatorURI = "socket://localhost:5400";

   public void makeClientCall() throws Exception
   {
      Customer customer = createCustomer();

      CustomerProcessor customerProcessor = (CustomerProcessor) TransporterClient.createTransporterClient(locatorURI, CustomerProcessor.class);

      System.out.println("Customer to be processed: " + customer);
      ICustomer processedCustomer = customerProcessor.processCustomer(customer);
      // processedCustomer returned is actually a proxy to the Customer instnace
      // that lives on the server.  So when print it out below, will actually
      // be calling back to the server to get the string (vi toString() call).
      // Notice the output of 'Customer.toString() being called.' on the server side.
      System.out.println("Customer is now: " + processedCustomer);

      TransporterClient.destroyTransporterClient(customerProcessor);


   }

   private Customer createCustomer()
   {
      Customer cust = new Customer();
      cust.setFirstName("Bob");
      cust.setLastName("Smith");
      Address addr = new Address();
      addr.setStreet("101 Oak Street");
      addr.setCity("Atlanta");
      addr.setState("GA");
      addr.setZip(30249);
      cust.setAddr(addr);

      return cust;
   }

   public static void main(String[] args)
   {
      Client client = new Client();
      try
      {
         client.makeClientCall();
      }
      catch (Exception e)
      {
         e.printStackTrace();
      }
   }


}

The client class looks similar to the other example seen in that it creates a TransporterClient for the CustomerProcessor and calls on it to process the customer. Will then call on the ICustomer instance returned from the processCustomer() method call and call toString() on it (in the system out call).

To run this example, run the Server class and then the Client class. This can be done via ant targets 'run-transporter-proxy-server' and then 'run-transporter-proxy-client'. For example:

ant run-transporter-proxy-server

ant then:

ant run-transporter-proxy-client

The output for the client should look similar to:

Customer.toString() being called.
Customer to be processed:
Customer:
customer id: -1
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

Customer is now:
Customer:
customer id: 418
first name: Bob
last name: Smith
street: 101 Oak Street
city: Atlanta
state: GA
zip: 30249

The first line is the print out from calling the Customer's toString() method that was created to be passed to the CustomerProcessor's processCustomer() method. Then the contents of the Customer object before being processed. Then have the print out of the customer after has been processed. Notice that when the ICustomer object instance is printed out the second time, do not see the 'Customer.toString() being called'. This is because that code is no longer being executed in the client vm, but instead is a remote call to the customer instance living on the server (remember, the processCustomer() method returned a TransporterClient proxy to the customer living on the server side).

Now, if look at output from the server will look similar to:

processed customer with new id of 418
Customer.toString() being called.

Notice that the 'Customer.toString() being called.' printed out at the end. This is the result of the client's call to print out the contents of the customer object returned from the processCustomer() method, which actually lives within the server vm.

This example has shown how can pass around TransporterClient proxies to target pojos. However, when doing this, is important to understand where the code is actually being executed as there are consequences to being remote verse local, which need to be understood.

The complex transporter example (found in org.jboss.remoting.samples.transporter.complex package) is based off a test case a user, Milt Grinberg, provided (thanks Milt). The example is similar to the previous examples, except in this case involves matching Doctors and Patients using the ProviderInterface and provides a more complex sample in which to demonstrate how to use transporters.

This example requires JDK 1.5 to run, since is using JBoss Serialization (and non-serialized data objects). To run this example, run the Server class and then the Client class. This can be done via ant targets 'run-transporter-complex-server' and then 'run-transporter-complex-client' as well. For example:

ant run-transporter-complex-server

and then:

ant run-transporter-complex-client

The output for the client should look similar to:

*** Have a new patient that needs a doctor.  The patient is:

Patient:
   Name: Bill Gates
   Ailment - Type: financial, Description: Money coming out the wazoo.

*** Looking for doctor that can help our patient...

*** Found doctor for our patient.  Doctor found is:
Doctor:
   Name: Andy Jones
   Specialty: financial
   Patients:

Patient:
   Name: Larry Ellison
   Ailment - Type: null, Description: null
   Doctor - Name: Andy Jones

Patient:
   Name: Steve Jobs
   Ailment - Type: null, Description: null
   Doctor - Name: Andy Jones

Patient:
   Name: Bill Gates
   Ailment - Type: financial, Description: Money coming out the wazoo.

*** Set doctor as patient's doctor.  Patient info is now:

Patient:
   Name: Bill Gates
   Ailment - Type: financial, Description: Money coming out the wazoo.
   Doctor - Name: Andy Jones

*** Have a new patient that we need to find a doctor for (remember, the previous one retired and there are no others)
*** Could not find doctor for patient.  This is an expected exception when there are not doctors available.
org.jboss.remoting.samples.transporter.complex.NoDoctorAvailableException: No doctor available for ailment 'financial'
 at org.jboss.remoting.RemoteClientInvoker.invoke(RemoteClientInvoker.java:183)
 at org.jboss.remoting.Client.invoke(Client.java:325)
 at org.jboss.remoting.Client.invoke(Client.java:288)
 at org.jboss.remoting.Client.invoke(Client.java:273)
 at org.jboss.remoting.transporter.TransporterClient.invoke(TransporterClient.java:237)
 at $Proxy0.findDoctor(Unknown Source)
 at org.jboss.remoting.samples.transporter.complex.client.Client.makeClientCall(Client.java:72)
 at org.jboss.remoting.samples.transporter.complex.client.Client.main(Client.java:90)
 at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
 at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
 at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
 at java.lang.reflect.Method.invoke(Method.java:585)
 at com.intellij.rt.execution.application.AppMain.main(AppMain.java:86)

From the output see the creation of a new patient, Bill Gates, and the attempt to find a doctor that specializes in his ailment. For Mr. Gates, we were able to find a doctor, Andy Jones, and can see that he has been added to the list of Dr. Jones' patients. Then we have Dr. Jones retire. Then we create a new patient and try to find an available doctor for the same ailment. Since Dr. Jones has retired, and there are no other doctors that specialize in that particular ailment, an exception is thrown. This is as expected.

Release Notes - JBoss Remoting - Version 2.5.2.SP2 (Flounder)

Bug

* [JBREM-1164] - Remoting shouldn't require IPv6 addresses to be surrounded by brackets

* [JBREM-1166] - Possible race condition in ConnectionValidator

* [JBREM-1168] - CoyoteInvoker.normalize() should handle empty URLs

* [JBREM-1172] - SSLSocketBuilder should allow keystore and truststore URLs to be "NONE"

* [JBREM-1175] - URL-component-based InvokerLocator constructor generates incorrect locator string under IPv6

* [JBREM-1176] - Fix classloader leak caused by client invoker destruction delay facility

Release

* [JBREM-1178] - Release 2.5.2.SP2

Task

* [JBREM-1165] - Reduce log level of "received new control socket for unrecognized listenerId" message

* [JBREM-1174] - Update jars to match EAP 5.0.1

* [JBREM-1177] - Assure version compatibility with earlier versions of Remoting

Release Notes - JBoss Remoting - Version 2.5.2 (Flounder)

Bug

* [JBREM-1077] - Fix problem in CompressingMarshaller

* [JBREM-1105] - DefaultLoadBalancer doesn't use all available server (if there are x servers available it uses x-1 of these)

* [JBREM-1121] - Client SocketFactory should be configurable by InvokerLocator

* [JBREM-1125] - Test for IllegalStateException when calling Timer.schedule()

* [JBREM-1133] - CLONE [JBREM-1129] - Eliminate nondeterminism in Lease updates

* [JBREM-1137] - New jnpserver requires wrapping call to new InitialContext() in PrivilegedExceptionAction

* [JBREM-1145] - HTTPUnMarshaller shouldn't use the value of content-type to determine the type of an object

* [JBREM-1147] - BisocketClientInvoker.createSocket() in callback mode should check for replaced control socket

* [JBREM-1150] - Lease should update client list if PING invocation has same time as previous PING

* [JBREM-1154] - Client.connect() should throw an exception when Lease creation fails

* [JBREM-1159] - Version compatibility problem with leasing

Feature request

* [JBREM-1102] - Make configuration map available to MarshalFactory

* [JBREM-1120] - Add a socket write timeout facility

* [JBREM-1123] - SocketServerInvoker needs an immediate shutdown option

* [JBREM-1124] - Invokers need option for configuration map parameters to override InvokerLocator parameters

* [JBREM-1132] - CLONE [JBREM-1128] - Introduce connection identity concept

* [JBREM-1139] - Modify PortUtil to allow a configurable range for MIN_UNPRIVILEGED_PORT and MAX_LEGAL_PORT.

* [JBREM-1146] - Treat IOException("Connection reset by peer") as a retriable exception

Release

* [JBREM-1135] - Release 2.5.2

Task

* [JBREM-1134] - Assure version compatibility with earlier versions of Remoting

* [JBREM-1136] - Update jars to match AS 5.1.0

* [JBREM-1142] - Clarify use of "clientConnectAddress" in RemotingGuide

* [JBREM-1151] - Correct dependency discussion in Chapter 4 of Remoting Guide

* [JBREM-1155] - Assure version compatibility with earlier versions of Remoting

* [JBREM-1158] - Update jars to match AS 5.2.0.Beta2

Release Notes - JBoss Remoting - Version 2.5.1 (Flounder)

Bug

* [JBREM-992] - Can't restart a Connector that uses SocketServerInvoker

* [JBREM-1069] - Make ConnectorValidator configure ping period correctly

* [JBREM-1070] - Fix deadlock in ConnectionValidator

* [JBREM-1071] - IllegalStateException in ConnectorValidator.run()

* [JBREM-1072] - Synchronize access to static maps in MarshalFactory

* [JBREM-1076] - SocketServerInvoker.processInvocation() should return if running == false

* [JBREM-1081] - Fix NPE in ServerInvokerCallbackHandler

* [JBREM-1083] - Each Client creates a new invokerDestructionTimer

* [JBREM-1088] - MicroSocketClientInvoker(InvokerLocator locator, Map configuration) ctor - not propagating exceptions (only message is wrapped)

* [JBREM-1099] - Make MulticastDetector detection message send buffer size configurable

* [JBREM-1109] - Eliminate race in MicroRemoteClientInvoker.getDataType()

* [JBREM-1111] - CLONE [JBREM-851] - In LeasePinger replace Timer if it has shut down

* [JBREM-1112] - Potential race between ConnectionValidator and ConnectionListener upon connection failure

* [JBREM-1113] - ServerInvokerCallbackHandlers leak when client doesn't shut down

Feature request

* [JBREM-1082] - Allow ConnectionValidator to access InvokerLocator parameters

* [JBREM-1084] - Allow CallbackPoller to access Client and InvokerLocator parameters

* [JBREM-1102] - Make configuration map available to MarshalFactory

* [JBREM-1114] - Update servlet transport to support JBossMessaging

Release

* [JBREM-1118] - Release 2.5.1

Task

* [JBREM-139] - need automated test for servlet server invoker

* [JBREM-1085] - Reduce log level of ServerSocketWrapper.close() log messages

* [JBREM-1103] - correct javadoc for Client.invokeOneway()

* [JBREM-1104] - Identity.get() should create a more meaningful RuntimeException message

* [JBREM-1108] - Warn against making ConnectionValidator.validatorPingPeriod shorter than ConnectionValidator.validatorPingTimeout

* [JBREM-1110] - InvokerLocator.getParameters() should not return null

* [JBREM-1115] - Update jars to match AS 5.1.0.CR1

* [JBREM-1117] - Assure version compatibility with earlier versions of Remoting

Release Notes - JBoss Remoting - Version 2.5.0.SP2 (Flounder)

Bug

* [JBREM-1050] - HTTPClientInvoker does not support BASIC authentication for proxies when use of proxy is configured by system properties

* [JBREM-1055] - ConnectionValidator.run() should have a sanity test to prevent calls from application code

* [JBREM-1056] - Fix race condition in InvokerRegistry

* [JBREM-1058] - SocketServerInvoker is missing a privileged block

Release

* [JBREM-1053] - Release 2.5.0.SP2

Task

* [JBREM-1057] - Fix duplicate chapers in Remoting Guide

* [JBREM-1067] - Update dependencies to conform to Application Server 5.0.0.GA

* [JBREM-1068] - Assure version compatibility with earlier versions of Remoting

Release Notes - JBoss Remoting - Version 2.5.0.SP1 (Flounder)

Bug

* [JBREM-1044] - Old version of org.apache.tomcat.util.net.SocketStatus screws up JBossWeb

* [JBREM-1045] - ServerInvokerCallbackHandler can suffer deadlock when used with BlockingCallbackStore

* [JBREM-1046] - HTTPClientInvoker throws NullPointerException when HttpURLConnection.getInputStream() returns null

* [JBREM-1051] - CLONE [JBREM-1050] - HTTPClientInvoker does not support BASIC authentication for proxies when use of proxy is configured by system properties

Release

* [JBREM-1048] - Release 2.5.0.SP1

Task

* [JBREM-1047] - Assure version compatibility with earlier versions of Remoting

* [JBREM-1049] - Remove old versions of jboss-remoting.jar from distribution zip file

Release Notes - JBoss Remoting - Version 2.5.0.GA (Flounder)

Bug

* [JBREM-1027] - CoyoteInvoker should pass URL query in InvocationRequest

* [JBREM-1028] - JavaSerializationManager should clear ObjectOutputStream internal tables

Release

* [JBREM-1030] - Release 2.5.0.GA

Task

* [JBREM-1029] - Assure version compatibility with earlier versions of Remoting

* [JBREM-1033] - Upgrade jars to versions in JBossAS 5.0.0.CR2

* [JBREM-1034] - Assure version compatibility with earlier versions of Remoting

Sub-task

* [JBREM-1032] - Upgrade to the latest jboss-common-core 2.2.8.GA

Release Notes - JBoss Remoting - Version 2.4.0.SP2 (Pinto)

Bug

* [JBREM-1027] - CoyoteInvoker should pass URL query in InvocationRequest

* [JBREM-1028] - JavaSerializationManager should clear ObjectOutputStream internal tables

Release

* [JBREM-1030] - Release 2.4.0.SP2

Task

* [JBREM-1029] - Assure version compatibility with earlier versions of Remoting

Release Notes - JBoss Remoting - Version 2.4.0.SP1 (Pinto)

Bug

* [JBREM-302] - remote dynamic marshall loading not working on linux

* [JBREM-925] - SSLSocketBuilder config attribute names out of sync with docs

* [JBREM-990] - CLONE [JBREM-960] - Remoting configured with Servlet invoker can return misleading Exceptions when Servlet path is incorrect

* [JBREM-991] - Investigate MulticastDetector message flood

* [JBREM-1000] - CLONE [JBREM-962] - Remote classloading does not work with Isolated EARs

* [JBREM-1005] - Prevent build up of cancelled TimerTasks in bisocket transport

* [JBREM-1006] - SOA MTOM bug points to bug in Remoting codebase

* [JBREM-1019] - RemotingClassLoader needs option to delegate to user class loader before parent

* [JBREM-1022] - Fix misleading javadoc in InvokerLocator

* [JBREM-1023] - Dynamic marshalling fails with JBossSerialization

Feature Request

* [JBREM-996] - CLONE [JBREM-971] - Enhance server-side connection error handling so certain (potentially revealing) socket-related exceptins are not discarded

* [JBREM-997] - CLONE [JBREM-970] - Enhance client-side error reporting so a misspelled truststore file name required by SSL can be easily spotted

* [JBREM-1012] - CLONE [JBREM-1010] - Add feature to declaratively turn on leasing for 2.4.0

* [JBREM-1015] - CLONE [JBREM-1014] - Support injection of socket factory class name into AbstractInvoker

Release

* [JBREM-1025] - Release 2.4.0.SP1

Task

* [JBREM-999] - Make sure all fixes on 2.2 branch are ported to 2.x branch.

* [JBREM-1017] - Improve socket timeout log message

* [JBREM-1024] - Assure version compatibility with earlier versions of Remoting

Release Notes - JBoss Remoting - Version 2.4.0.GA (Pinto)

Bug

* [JBREM-936] - CLONE [JBREM-915] - NullPointerException in InvokerLocator

* [JBREM-938] - CLONE [JBREM-937] - Callback BisocketServerInvoker should reuse available ServerThreads

* [JBREM-952] - CLONE [JBREM-944] - Fix race in ConnectionNotifier

* [JBREM-980] - ServerInvokerServlet should retrieve ServletServerInvoker based on updated InvokerLocator

Feature Request

* [JBREM-773] - Create bisocket sample code

* [JBREM-970] - Enhance client-side error reporting so a misspelled truststore file name required by SSL can be easily spotted

* [JBREM-971] - Enhance server-side connection error handling so certain (potentially revealing) socket-related exceptins are not discarded

* [JBREM-979] - Add invocation retry facility to http transport

* [JBREM-983] - Legacy XML configuration should support multihome feature

Release

* [JBREM-987] - Release 2.4.0.GA

Task

* [JBREM-238] - JBossRemoting testsuite needs to generate artificats in the output folder

* [JBREM-599] - remoting doc does not cover enabling or configuring leasing from the client side

* [JBREM-816] - Add instructions to Remoting Guide for overriding a transport or create a new transport

* [JBREM-840] - Update Remoting Guide for release 2.4.0

* [JBREM-920] - Create build.xml target to run test suite with a Security Manager

* [JBREM-930] - Fix chronic testsuite failures

* [JBREM-964] - Make InvocationFailureException extend java.rmi.MarshalException

* [JBREM-975] - Make sure all fixes on 2.2 branch are applied to 2.x branch

* [JBREM-976] - CLONE [JBREM-912] - Remove stacktrace when SSLSocketBuilder.createSSLSocketFactory() fails

* [JBREM-977] - Wrap MBean proxies in security conscious wrappers

* [JBREM-978] - Put code subject to a security manager in privileged blocks, part 2

* [JBREM-982] - Performance testing

* [JBREM-984] - Run soak test

* [JBREM-985] - Assure version compatibility with earlier versions of Remoting

* [JBREM-986] - Make configurable time MicroSocketClientInvoker should wait to get connection from pool

* [JBREM-989] - Move reference to javax.servlet.ServletException out of SecurityUtility

Release Notes - JBoss Remoting - Version 2.4.0.CR2 (Pinto)

Bug

* [JBREM-947] - ConnectionValidator hangs when server dies

* [JBREM-951] - CLONE [JBREM-942] - A deadlock encountered on ConnectionValidator

* [JBREM-955] - CLONE [JBREM-954] - InterruptException should not be rethrown as CannotConnectionException

* [JBREM-956] - Make LeasePinger timeout separately configurable

* [JBREM-966] - CLONE [JBREM-965] - Fix PortUtil.getRandomStartingPort()

Release

* [JBREM-968] - Release 2.4.0.CR2

Task

* [JBREM-934] - Put code subject to a security manager in privileged blocks

* [JBREM-953] - CLONE [JBREM-945] - Allow ServerThread to keep running after SocketTImeoutException

* [JBREM-967] - Assure version compatibility with earlier versions of Remoting

* [JBREM-969] - Run soak test

Release Notes - JBoss Remoting - Version 2.4.0.CR1 (Pinto)

Bug

* [JBREM-167] - RMI Invoker does not use true remoting marshalling/unmarshalling

* [JBREM-677] - Compression marshalling fails intermittently.

* [JBREM-810] - coyote.RequestMap not storing all request properties in the Map.Entry set

* [JBREM-826] - JBoss Remoting logs at ERROR and WARN in many places

* [JBREM-844] - Put instance variable "isRemotingUserAgent" on stack in CoyoteInvoker

* [JBREM-901] - can't start NetworkRegistry if hostname is not resolvable

* [JBREM-924] - Compilation errors in non ISO-8859-1 systems

* [JBREM-927] - Adjust content length when CompressingUnMarshaller wraps HTTPUnMarshaller

* [JBREM-932] - Check remaining time in MicroSocketClientInvoker per invocation timeout facility

* [JBREM-933] - Fix memory leak in RemotingRMIClientSocketFactory

Feature Request

* [JBREM-665] - Need better error reporting of response marshalling errors

* [JBREM-764] - Wire version should be configurable per client or server

Release

* [JBREM-935] - Release 2.4.0.CR1

Task

* [JBREM-698] - Update Remoting Marshaller/UnMarshallers to implement PreferredStreamMarshaller/PreferredStreamUnMarshaller interfaces.

* [JBREM-716] - Reduce log output from test suite

* [JBREM-825] - Verify that CoyoteInvoker works with Apache Portable Runtime

* [JBREM-876] - Get Remoting testsuite to run in hudson

* [JBREM-899] - Verify sslservlet transport works with jbossweb

* [JBREM-923] - Assure version compatibility with earlier versions of Remoting

* [JBREM-931] - Create and run soak test

Release Notes - JBoss Remoting - Version 2.4.0.Beta2 (Pinto)

Bug

* [JBREM-739] - Fix java serialization leak.

* [JBREM-864] - CLONE -ServerInvoker#getMBeanObjectName() returns invalid ObjectName if host value is IPv6 [JBREM-823]

* [JBREM-877] - New Socket Connection is being Created for Every Client Request to the Server

* [JBREM-900] - ClassCastExceptions when two apps in jboss make concurrent calls to a remote jboss

* [JBREM-909] - Connector.stop() cannot find invoker MBean when bind address is 0.0.0.0

* [JBREM-911] - Check out thread leak

Feature Request

* [JBREM-703] - allow for total configuration of socket via socket invoker

* [JBREM-865] - CLONE -Verify IPv6 addresses are handled correctly [JBREM-852]

Release

* [JBREM-922] - Release 2.4.0.Beta2

Task

* [JBREM-510] - SSLSocketBuilder should require a SocketFactory in server mode to have a keystore.

* [JBREM-518] - Remove HTTPServerInvoker

* [JBREM-521] - Organize configuration of client side socket/server socket factories and server side socket/server socket factories.

* [JBREM-522] - When Client.addListener() creates a callback Connector for an SSL transport, the SSLServerSocket should be put in client mode.

* [JBREM-753] - Assure version compatibility with earlier versions of Remoting

* [JBREM-809] - Verify that the behavior of the HTTPUnMarshaller re stripping CR and LF characters is correct

* [JBREM-842] - Deprecate multiplex transport

Release Notes - JBoss Remoting - Version 2.4.0.Beta1 (Pinto)

Bug

* [JBREM-166] - JMXConnectorServer will not start if using rmi invoker elsewhere

* [JBREM-645] - Need to cleanup locatorURI parsing

* [JBREM-653] - allow user to set content-type for http responses

* [JBREM-675] - Problems with Servlet invoker

* [JBREM-717] - servlet invoker illegal state exception not serializable

* [JBREM-731] - Address of secondary server socket should be acquired each time a control connection is created.

* [JBREM-732] - When server terminates and has clients, when the server comes back up clients that survived, can't connect. Connection refused when trying to connect the control socket.

* [JBREM-743] - For polling callback handler, org.jboss.remoting.Client.addListener() should create only one CallbackPoller per InvokerCallbackHandler

* [JBREM-745] - client unable to send if server recycles

* [JBREM-747] - org.jboss.remoting.transport.Connector should unregister server invoker from MBeanServer

* [JBREM-748] - BisocketClientInvoker should guard agains scheduling on an expired Timer

* [JBREM-750] - Logger in HTTPClientInvoker should be static.

* [JBREM-751] - Eliminate unnecessary "Unable to process control connection:" message from BisocketServerInvoker

* [JBREM-752] - SSLSocket runs into BindException

* [JBREM-754] - Reset timeout on each use of HttpURLConnection

* [JBREM-761] - NPE in BisocketServerInvoker$ControlConnectionThread

* [JBREM-766] - Guard against "spurious wakeup" from Thread.sleep()

* [JBREM-769] - Sucky error message when identity creation fails

* [JBREM-771] - MicroSocketClientInvoker can experience socket leaks

* [JBREM-772] - MicroRemoteClientInvoker.establishLease() creates two LeasePinger TimerTasks

* [JBREM-774] - BisocketClientInvoker.replaceControlSocket() and handleDisconnect() should close control socket

* [JBREM-775] - MicroSocketClientInvoker.initPool() should omit pool from log message

* [JBREM-778] - BisocketServerInvoker.start() creates a new static Timer each time

* [JBREM-779] - BisocketClientInvoker should guard agains scheduling on an expired Timer, part 2

* [JBREM-784] - Use separate maps for control sockets and ordinary sockets in BisocketClientInvoker

* [JBREM-785] - BisocketClientInvoker.transport() inadvertently uses listenerId member variable

* [JBREM-786] - stale sockets can be gotten from pool even with current rety logic

* [JBREM-787] - Move network i/o in BisocketClientInvoker constructor to handleConnect()

* [JBREM-788] - Access to BisocketClientInvoker static maps should be synchronized in handleDisconnect()

* [JBREM-790] - NPE in BisocketClientInvoker$PingTimerTask

* [JBREM-793] - Lease should synchronize access to client map

* [JBREM-794] - LeasePinger.addClient() should not create a new LeaseTimerTask if none currently exists

* [JBREM-806] - In HTTPClientInvoker remove newlines and carriage returns from Base64 encoded user names and passwords

* [JBREM-811] - Privileged Block to create Class Loader

* [JBREM-813] - ServletServerInvoker should return an exception instead of just an error message

* [JBREM-820] - Fix race in ServerInvokerCallbackHandler.handleCallback()

* [JBREM-821] - JBoss Remoting fails under load

* [JBREM-822] - Avoid deadlock when Connector shuts down while callback client invoker is in handleConnect()

* [JBREM-838] - allow user to set content-type for http responses (part 2: ServletServerInvoker)

* [JBREM-843] - MicroSocketClientInvoker can miscount number of active sockets

* [JBREM-846] - Fix race in JNIDDetector

* [JBREM-851] - In LeasePinger and TimerUtil replace Timer if it has shut down

* [JBREM-853] - ServletServerInvoker should not put null URL path in metadata map

* [JBREM-863] - CLONE -Infinite loop in BisocketClientInvoker.createSocket [JBREM-845]

* [JBREM-866] - CLONE -Eliminate delay in MicroSocketClientInvoker.getConnection() [JBREM-860]

* [JBREM-870] - CLONE -MaxPoolSize value should be used in key to MicroSocketClientInvoker.connectionPools [JBREM-858]

* [JBREM-874] - CLONE -HTTP Client invoker doesn't throw exceptions when using the sslservlet protocol [JBREM-871]

* [JBREM-887] - ServerInvokerrCallbackHandler.createCallbackErrorHandler() inadvertently references callbackStore

* [JBREM-888] - Client side connection exception is not thrown on the client side when the lease times out

* [JBREM-890] - Fix thread pool eviction in socket transport

* [JBREM-895] - MicroSocketClientInvoker.transport() must check for timeout after invocation attempt.

Feature Request

* [JBREM-298] - Need ability to add transport specific info to invocation payload

* [JBREM-643] - configuration for multi-homed server invokers

* [JBREM-701] - add timeout config per client invocation for transports not descended from socket transport

* [JBREM-728] - Improve access to HTTP response headers

* [JBREM-746] - need to be able to tell ServerInvokerServlet to use the platform MBean server

* [JBREM-749] - BisocketServerInvoker: Make configurable the address and port of secondary server socket

* [JBREM-755] - Make ConnectorValidator parameters configurable

* [JBREM-756] - CallbackPoller should shut down if too many errors occur.

* [JBREM-757] - Implement quick Client.removeListener() for polled callbacks.

* [JBREM-758] - Associate remote socket address with the invocation

* [JBREM-765] - Add a separate timeout parameter for callback clients

* [JBREM-792] - Provide to the client local address of a TCP/IP connection, as seen from the server

* [JBREM-797] - BisocketClientInvoker.PingTimerTask should terminate more gracefully

* [JBREM-798] - Implement quick Client.removeListener() for polled callbacks, part 2

* [JBREM-799] - Add a separate timeout parameter for callback clients, part 2

* [JBREM-804] - Enable HTTPClientInvoker to accept NO_THROW_ON_ERROR configuration by way of InvokerLocator

* [JBREM-868] - CLONE -Update build.xml to allow jdk 1.5 compiler to target JVM version 1.4 (JBREM-855)

* [JBREM-875] - CLONE -Have ServerInvokerCallbackHandler register as connection listener [JBREM-873]

* [JBREM-891] - ConnectionValidator should report if lease has expired

Release

* [JBREM-801] - Release 2.4.0.Beta1

Task

* [JBREM-63] - Get rid of the legacy configuration that embeds xml parsing

* [JBREM-228] - clustering

* [JBREM-557] - need to include all the transports within the tests.versioning ant target

* [JBREM-641] - re-implement the callback polling for http transport to reduce latency

* [JBREM-687] - allow binding to 0.0.0.0

* [JBREM-706] - In socket transport, prevent client side oneway invocations from artificially reducing concurrency

* [JBREM-710] - Correct occasional failures of org.jboss.test.remoting.transport.socket.load.SocketLoadTestCase

* [JBREM-713] - Check if jbossweb can replace tomcat jars for the http server invoker

* [JBREM-715] - Don't log error for exception thrown by application in org.jboss.remoting.transport.socket.ServerThread.

* [JBREM-730] - JNDIDetector should use rebind() instead of bind() to add new local detection messages

* [JBREM-733] - When org.jboss.remoting.Client.addListener() creates a Connector, it should pass in InvokerLocator parameters with configuration map.

* [JBREM-734] - BisocketClientInvoker constructor should get parameters from InvokerLocator as well as configuration map.

* [JBREM-735] - BisocketClientInvoker.PingTimerTask should try multiple times to send ping.

* [JBREM-741] - Eliminate unnecessary log.warn() in BisocketServerInvoker

* [JBREM-760] - Change port for shutdown tests.

* [JBREM-767] - Avoid deadlock in callback BisocketClientInvoker when timeout == 0

* [JBREM-768] - Fix ShutdownTestCase failures

* [JBREM-777] - Add quiet="true" in clean task of build.xml

* [JBREM-782] - Remove network i/o from synch block in ServerInvokerCallbackHandler.getCallbackHandler()

* [JBREM-783] - Remove network i/o from synch blocks that establish and terminate LeasePingers

* [JBREM-800] - Adjust timout values to avoid cruisecontrol failures

* [JBREM-807] - Fix failing org.jboss.test.remoting.transport.<transport>.shutdown tests

Release Notes - JBoss Remoting - Version 2.2.0.GA (Bluto)

** Bug * [JBREM-721] - Fix memory leaks in bisocket transport and LeasePinger

* [JBREM-722] - BisocketClientInvoker should start pinging on control connection without waiting for call to createsocket()

* [JBREM-725] - NPE in BisocketServeInvoker::createControlConnection

* [JBREM-726] - BisocketServerInvoker control connection creation needs to be in loop

** Feature Request

* [JBREM-705] - Separate the http invoker and web container dependency

* [JBREM-727] - Make Client's implicitly created Connectors accessible

** Task * [JBREM-634] - update doc on callbacks

* [JBREM-724] - Update build.xml to create bisocket transport jars

Release Notes - JBoss Remoting - Version 2.2.0.Beta1 (Bluto)

** Bug * [JBREM-581] - can not do connection validation with ssl transport (only impacts detection)

* [JBREM-600] - org.jboss.test.remoting.lease.multiplex.MultiplexLeaseTestCase fails

* [JBREM-623] - need reset() call added back to JavaSerializationManager.sendObject() method

* [JBREM-642] - Socket.setReuseAddress() in MicroSocketClientInvoker invocation is ignored

* [JBREM-648] - Client.disconnect without clearing ConnectionListeners will cause NPEs

* [JBREM-651] - Array class loading problem under jdk6

* [JBREM-654] - a NullPointerException occures and is not handled in SocketServerInvoker and MultiplexServerInvoker

* [JBREM-655] - rename server thread when new socket connection comes in

* [JBREM-656] - Creating a client inside a ConnectionListener might lead into Lease reference counting problems

* [JBREM-658] - bug in oneway thread pool under heavy load

* [JBREM-659] - Java 6 and ClassLoader.loadClass()

* [JBREM-670] - Remove equals() and hashCode() from org.jboss.remoting.transport.rmi.RemotingRMIClientSocketFactory.

* [JBREM-671] - serlvet invoker no longer supports leasing

* [JBREM-683] - ByValueInvocationTestCase is broken

* [JBREM-685] - A server needs redundant information to detect a one way invocation

* [JBREM-690] - Once the socket of a callback server timeouts, it starts to silently discard traffic

* [JBREM-697] - Horg.jboss.remoting.transport.rmi.RemotingRMIClientSocketFactory.ComparableHolder should use InetAddress for host.

* [JBREM-700] - NPE in AbstractDetector

* [JBREM-704] - BisocketServerInvoker inadvertently logs "got listener: null" as INFO

* [JBREM-708] - Correct org.jboss.remoting.Client.readExternal()

* [JBREM-711] - ChunkedTestCase and Chuncked2TestCase failing

* [JBREM-712] - HTTPInvokerProxyTestCase failing

* [JBREM-723] - BisocketClientInvoker.transport() needs to distinguish between push and pull callback connections

** Feature Request

* [JBREM-525] - Automatically set HostnameVerifier in HTTPSClientInvoker to allow all hosts if authorization is turned off.

* [JBREM-598] - add timeout config per client invocation

* [JBREM-618] - Support CallbackPoller configuration.

* [JBREM-640] - Implement an asynchronous method for handling callbacks.

* [JBREM-650] - Create bidirectional transport

* [JBREM-657] - Implement versions of Client.removeListener() and Client.disconnect() which do not write to a broken server.

* [JBREM-660] - create local transport

* [JBREM-664] - Fix misleading InvalidConfigurationException

* [JBREM-692] - Let marshallers/unmarshallers construct their preferred streams.

* [JBREM-720] - Need to expose create method for TransporterClient that passes load balancing policy

** Task

* [JBREM-274] - add callback methods to the Client API

* [JBREM-369] - For Connectors that support callbacks on SSL connections, there should be a unified means of configuring SSLServerSocket and callback Client SSLSocket.s.

* [JBREM-453] - Send the pre-release jar to the messaging team for testing

* [JBREM-614] - Client.invoke() should check isConnected().

* [JBREM-631] - Fix org.jboss.test.remoting.transport.socket.connection.SocketConnectionCheckTestCase and SocketConnectionTestCase failures.

* [JBREM-635] - Remove misleading error message from HTTPUnMarshaller.

* [JBREM-636] - Remove ServerInvokerCallbackHandler's dependence on initial InvocationRequest for listerner id.

* [JBREM-637] - add tomcat jar to component-info.xml for remoting release

* [JBREM-644] - Reduce unit test logging output.

* [JBREM-647] - Initialize Client configuration map to empty HashMap.

* [JBREM-663] - Put org.jboss.remoting.LeasePinger on separate thread.

* [JBREM-669] - Client.removeListener() should catch exception and continue if invocation to server fails.

* [JBREM-674] - add test case for client exiting correctly

* [JBREM-693] - Make sure "bisocket" can fully replace "socket" as Messaging's default transport

* [JBREM-695] - RemotingRMIClientSocketFactory.createSocket() should return a socket even if a RMIClientInvoker has not been registered.

* [JBREM-702] - http.basic.password should allow for empty passwords

* [JBREM-707] - Fix handling of OPTIONS invocations in CoyoteInvoker

* [JBREM-709] - Fix occasional failures of org.jboss.test.remoting.lease.socket.multiple.SocketLeaseTestCase

* [JBREM-719] - Fix spelling of ServerInvokerCallbackHandler.REMOTING_ACKNOWLEDGES_PUSH_CALLBACKS

Release Notes - JBoss Remoting - Version 2.2.0.Alpha6

** Bug * [JBREM-662] - Failed ClientInvoker not cleaned up properly

* [JBREM-673] - Use of java.util.Timer recently added and not set to daemon, so applications not exiting

* [JBREM-683] - ByValueInvocationTestCase is broken

** Feature Request

* [JBREM-678] - Sending an one-way invocation into a server invoker that is not started should generate a warning in logs

* [JBREM-679] - Add the possibility to obtain ConnectionValidator's ping period from a Client

* [JBREM-680] - An invocation into a "broken" client should throw a subclass of IOException

** Task

* [JBREM-676] - TimerTasks run by TimerUtil should have a chance to clean up if TimerUtil.destroy() is called.

Release Notes - JBoss Remoting - Version 2.2.0.Alpha5

** Bug

* [JBREM-666] - Broken or malicious clients can lock up the remoting server

* [JBREM-667] - Worker thread names are confusing

** Feature Request

* [JBREM-668] - jrunit should allow TRACE level logging

Release Notes - JBoss Remoting - Version 2.2.0.Alpha4

** Bug

* [JBREM-649] - Concurrent exceptions on Lease when connecting/disconnecting new Clients

Release Notes - JBoss Remoting - Version 2.2.0.Alpha3 (Bluto)

** Bug

* [JBREM-594] - invoker not torn down upon connector startup error

* [JBREM-596] - Lease stops working if the First Client using the same Locator is closed

* [JBREM-602] - If LeasePeriod is not set and if enableLease==true leasePeriod assumes negative value

* [JBREM-610] - Prevent org.jboss.remoting.callback.CallbackPoller from delivering callbacks out of order.

* [JBREM-611] - Initializing Client.sessionId outside constructor leads to java.lang.NoClassDefFoundError in certain circumstances

* [JBREM-615] - If CallbackStore.add() is called twice quickly, System.currentTimeMillis() might not change, leading to duplicate file names.

* [JBREM-616] - Deletion of callback files in getNext() is not synchronized, allowing callbacks to be returned multiple times.

* [JBREM-619] - In SocketServerInvoker.run() and MultiplexServerInvoker().run, guarantee ServerSocketRefresh thread terminates.

* [JBREM-622] - InvokerLocator already exists for listener

* [JBREM-625] - MicroSocketClientInvoker should decrement count of used sockets when a socket is discarded.

* [JBREM-629] - NPE in sending notification of lost client

** Feature Request

* [JBREM-419] - Invokers Encryption

* [JBREM-429] - Create JBossSerialization MarshalledValue more optimized for RemoteCalls

* [JBREM-548] - Support one way invocations with no response

* [JBREM-597] - Allow access to underlying stream in marshaller with socket transport

* [JBREM-604] - allow socket server invoker to accept third party requests

* [JBREM-605] - Inform a server side listener that a callback has been delivered.

* [JBREM-607] - Add idle timeout setting for invoker threads

* [JBREM-609] - Support nonserializable callbacks in CallbackStore

** Task

* [JBREM-562] - publish performance benchmarks

* [JBREM-601] - Integrate http with messaging

* [JBREM-612] - Verify push callback connection with multiplex transport shares client to server connection.

* [JBREM-613] - ServerInvoker.InvalidStateException should be a static class.

* [JBREM-617] - CallbackPoller should have its own thread.

* [JBREM-620] - If HTTPClientInvoker receives an Exception in an InvocationRespose, it should throw it instead of creating a new Exception.

* [JBREM-621] - http transport should behave more like other transports.

* [JBREM-624] - Add JBoss EULA

* [JBREM-627] - Fix org.jboss.test.remoting.transport.multiplex.MultiplexInvokerShutdownTestCase failure.

* [JBREM-630] - Fix client/server race in org.jboss.test.remoting.transport.multiplex.LateClientShutdownTestCase.

* [JBREM-632] - Modify src/etc/log4j.xml to allow DEBUG level logging for org.jboss.remoting loggers in jrunit test cases.

Release Notes - JBoss Remoting - Version 2.0.0.GA (Boon)

** Bug

* [JBREM-568] - SSLSocketBuilderMBean does not have matching getter/setter attribute types

* [JBREM-569] - HTTP(S) proxy broken

* [JBREM-576] - deadlock with socket invoker

* [JBREM-579] - transporter does not handle reflection conversion for primitive types

* [JBREM-580] - detection can not be used with ssl based transports

* [JBREM-586] - socket client invoker connection pooling not bounded

* [JBREM-590] - SSL client socket invoker does not use configuration map for SSLSocketBuilder

** Feature Request

* [JBREM-564] - Default client socket factory configured by a system property

* [JBREM-575] - local client invoker should convert itself to remote client invoker when being serialized

** Task

* [JBREM-570] - Change log in ConnectionValidator to be debug instead of warn when not able to ping server

* [JBREM-571] - fix/cleanup doc

* [JBREM-574] - Write SSL info for virtual sockets and server sockets in toString()

* [JBREM-578] - add spring remoting to performance benchmark tests

* [JBREM-582] - remove System.out.println and printStackTrace calls

* [JBREM-583] - Fix ConcurrentModificationException in MultiplexingManager.notifySocketsOfException()

* [JBREM-584] - Get org.jboss.test.remoting.performance.spring.rmi.SpringRMIPerformanceTestCase to run with multiple clients and callback handlers

* [JBREM-587] - ClientConfigurationCallbackConnectorTestCase(jboss_serialization) failure.

* [JBREM-593] - Synchronize client and server in org.jboss.test.remoting.transport.multiplex.LateClientShutdownTestCase

Release Notes - JBoss Remoting - Version 2.0.0.CR1 (Boon)

** Bug

* [JBREM-303] - org.jboss.test.remoting.transport.multiplex.BasicSocketTestCase(jboss_serialization) failure

* [JBREM-387] - classloading problem - using wrong classloader

* [JBREM-468] - No connection possible after an illegitimate attempt

* [JBREM-484] - AbstractDetector.checkInvokerServer() is probably broken

* [JBREM-494] - ClientDisconnectedException does not have serial version UID

* [JBREM-495] - classes that do not have serial version UID

* [JBREM-500] - ServerThread never dies

* [JBREM-502] - not getting REMOVED notification from registry for intra-VM detection

* [JBREM-503] - NPE in abstract detector

* [JBREM-506] - StreamHandler throws index out of bounds exception

* [JBREM-508] - serialization exception with mustang

* [JBREM-519] - StreamServer never shuts down the server

* [JBREM-526] - TimeUtil not using daemon thread

* [JBREM-528] - ConcurrentModificationException when checking for dead servers (AbstractDetector)

* [JBREM-530] - Detection heartbeat requires small timeout (for dead server detection)

* [JBREM-534] - multiplex client cannot re-connect to server after it has died and then been re-started

* [JBREM-537] - org.jboss.test.remoting.transport.rmi.ssl.handshake.RMIInvokerTestCase(java_serialization) - failing

* [JBREM-541] - null pointer when receiving detection message

* [JBREM-545] - setting of the bind address within MulticastDetector not working

* [JBREM-546] - InvokerLocator.equals is broken

* [JBREM-552] - cannot init cause of ClassCastException

* [JBREM-553] - deadlock when disconnecting

* [JBREM-556] - versioning tests failing

* [JBREM-561] - http chuncked test cases failing under jdk 1.5

** Feature Request

* [JBREM-427] - SSL Connection: load a new keystore at runtime

* [JBREM-430] - transporter needs to be customizable

* [JBREM-461] - Better documentation for sslmultiplex

* [JBREM-491] - need to implement using ssl client mode for push callbacks for all transports

* [JBREM-492] - would like an API to indicate if a transport requires SSL configuration

* [JBREM-499] - need indication if invoker is secured by ssl

* [JBREM-501] - give descriptive names to threads

* [JBREM-504] - some synch blocks in AbstractDetector could change

* [JBREM-520] - Organize configuring of ServerSocketFactory's and callback SocketFactory's.

* [JBREM-527] - Allow user to pass Connector to be used for stream server

* [JBREM-532] - need synchronous call from detector client to get all remoting servers on network

* [JBREM-539] - add sslservlet procotol

* [JBREM-544] - http client invoker (for http, https, servlet, and sslservlet) needs to handle exceptions in same manner as other transport implementations

** Task

* [JBREM-21] - Add stress tests

* [JBREM-218] - investigate why jrunit report on cruisecontrol inaccurate

* [JBREM-311] - need required library matrix

* [JBREM-320] - optimize pass by value within remoting

* [JBREM-321] - performance tuning

* [JBREM-368] - Configure SSLSockets and SSLServerSockets used in callbacks to be in server mode and client mode, respectively.

* [JBREM-383] - Document new versioning for remoting

* [JBREM-384] - correct manifest to comply with new standard

* [JBREM-390] - finish multiplex

* [JBREM-412] - Remoting Guide lacks left margin

* [JBREM-423] - document how remoting identity works and how to configure

* [JBREM-428] - add the samples/transporter/multiple/ to the distribution build (think may be there by default) and update the docs

* [JBREM-434] - fix configuration data within document (socketTimeout should be timeout)

* [JBREM-435] - break out remoting jars (serialization)

* [JBREM-442] - need full doc on how socket invoker works (connection pooling, etc.)

* [JBREM-447] - convert static transporter factory methods into constructor calls

* [JBREM-452] - Send the pre-release jar to the messaging team for testing

* [JBREM-454] - cache socket wrapper classes

* [JBREM-477] - remove Client.setInvoker() and Client.getInvoker() methods

* [JBREM-487] - Eliminate possible synchronization problem in InvokerRegistry

* [JBREM-490] - consolidate the remoting security related classes

* [JBREM-493] - Update version of jboss serialization being used

* [JBREM-496] - restructure service providers for remoting

* [JBREM-497] - change InvokerLocator to respect hostname over ip address

* [JBREM-498] - change logging on cleaning up failed detection

* [JBREM-507] - need to make configuration properties consistent

* [JBREM-509] - Fix call to super() in ServerInvoker's two argument constructor.

* [JBREM-511] - Allow HTTPSClientInvoker to create a HostnameVerifier from classname.

* [JBREM-513] - Create SSL version of RMI transport.

* [JBREM-514] - Fix potential NullPointerException in SSLSocketClientInvoker.createSocket().

* [JBREM-516] - add very simple transporter sample

* [JBREM-517] - HTTPServerInvoker needs to be deprecated

* [JBREM-523] - connection pool on socket client invoker needs to be bound

* [JBREM-524] - Clean up MicrosocketClientInvoker code

* [JBREM-529] - Need to be able to reuse socket connections after move to TIME_WAIT state

* [JBREM-533] - remove external http GET test

* [JBREM-535] - add config to force use of remote invoker instead of local

* [JBREM-536] - turn off host verification when doing push callback from server using same ssl config as server

* [JBREM-538] - update remoting dist build to break out transports into individual jars

* [JBREM-540] - need to make servlet-invoker.war part of remoting distribution

* [JBREM-542] - change how remoting servlet finds servlet invoker

* [JBREM-543] - fix servlet invoker error handling to be more like that of the http invoker

* [JBREM-547] - need test case for exposing multiple interfaces for transporter server target pojo

* [JBREM-551] - org.jboss.test.remoting.transport.multiplex.MultiplexInvokerTestCase(java_serialization) failure

* [JBREM-555] - fix connection validator to not require extra thread to execute ping every time

* [JBREM-558] - Break master.xml documentation into chapter files

* [JBREM-559] - update doc for 2.0.0.CR1 release

* [JBREM-560] - InvokerGroupTestCase(java_serialization) failure

* [JBREM-563] - Multiplex ClientConfigurationCallbackConnectorTestCase(jboss_serialization) failure

Release Notes - JBoss Remoting - Version 2.0.0.Beta2 (Boon)

** Bug

* [JBREM-304] - org.jboss.test.remoting.transport.multiplex.MultiplexInvokerTestCase(java_serialization) fails

* [JBREM-371] - HTTPClientInvoker does not pass an ObjectOutputStream to the marshaller

* [JBREM-405] - NPE when calling stop() twice on MulticastDetector

* [JBREM-406] - StringIndexOutOfBoundsException in InvokerLocator

* [JBREM-408] - client lease updates broken on server side

* [JBREM-409] - Invocations fail when the pool exhausts and under heavy load

* [JBREM-414] - JNDI detection failing

* [JBREM-418] - ObjectInputStreamWithClassLoader can't handle primitives

* [JBREM-426] - keyStorePath and keyStorePassword being printed to standard out

* [JBREM-432] - TransporterClient missing serialVersionUID

* [JBREM-440] - CallbackStore.getNext() won't necessarily get the oldest one

* [JBREM-441] - DefaultCallbackErrorHandler.setConfig needs to avoid NPE

* [JBREM-449] - Failure Information lost in RemotingSSLSocketFactory

* [JBREM-450] - ClassNotFoundException for class array type during deserialization

* [JBREM-464] - ssl socket invoker not using ssl server socket factory

* [JBREM-467] - NPE when calling Client.removeConnectionListener()

* [JBREM-470] - javax.net.ssl.SSLException: No available certificate corresponds to the SSL cipher suites

* [JBREM-472] - Misspelled serialization type generates obscure NPE

* [JBREM-479] - ClientConfigurationMapTestCase failure

* [JBREM-482] - client invoker configuration lost after first time invoker is created

** Feature Request

* [JBREM-312] - make TransporterClient so can be sent over network as dynamic proxy

* [JBREM-363] - make callbacks easier with richer API for registering for callbacks

* [JBREM-411] - Add chunked streaming support to the HTTP invoker

* [JBREM-413] - Transporter server should allow multiple pojo targets

* [JBREM-422] - Add plugable load balancing policy to transporter client

* [JBREM-425] - Add support for setting the HTTP invoker content encoding that is accepted

* [JBREM-431] - transporter server should automatically expose all interfaces implemented as subsystems

* [JBREM-439] - StreamInvocationHandler.handleStream should throw Throwable for consistency

* [JBREM-469] - Enable HTTP polling

* [JBREM-471] - need better InvokerLocator.equals() implementation

* [JBREM-481] - Changing StringUtilBuffer creation on JBossSerialization

** Task

* [JBREM-299] - MultiplexInvokerTestCase failure

* [JBREM-314] - need org.jboss.test.pooled.test.SSLSocketsUnitTestCase for remoting

* [JBREM-328] - change lease ping to be HEAD instead of POST for http transport

* [JBREM-362] - convert Connector to be standard mbean instead of xmbean

* [JBREM-365] - set default user agent header in http client invoker

* [JBREM-366] - clean up client invoker tracking within InvokerRegistry

* [JBREM-367] - set live server socket factory on Connector

* [JBREM-370] - add changes from 1.4.1 release to master.xml doc

* [JBREM-377] - need to convert ConnectionValidator to use TimerQueue

* [JBREM-379] - need to update jboss-serialization jar being used

* [JBREM-380] - change ConnectionValidator to only notify once of failure

* [JBREM-382] - disable lease ping for local invoker

* [JBREM-415] - sync bug fixes with pooled invoker and socket invoker

* [JBREM-420] - JNDI Detector should not need a connector when running in client mode

* [JBREM-421] - remote stream handler api inconsistent with regular handler

* [JBREM-436] - Extend MultiplexingInputStream with readInt() to avoid creating a MultiplexingDataInputStream in VirtualSocket.connect() and elsewhere.

* [JBREM-437] - Eliminate "verify connect" phase from virtual socket connection protocol.

* [JBREM-443] - add HandshakeCompletedListener support to ssl multiplex

* [JBREM-451] - Send the pre-release jar to the messaging team for testing

* [JBREM-455] - checking of socket connection is not really needed

* [JBREM-456] - block callback handling when callback store full

* [JBREM-460] - createSocket() in SSLSocketClientInvoker and SSLMultiplexClientInvoker should not assume SocketFactory has been created.

* [JBREM-465] - property setting on the client from locator parameters and config map

* [JBREM-476] - make externalization of Client match original instance state

* [JBREM-478] - fix local client invoker handling of disconnected server invokers

* [JBREM-483] - remove LocalLeaseTestCase

* [JBREM-485] - use the ClientInvokerHolder to contain the reference counting instead of having to use clientInvokerCounter

* [JBREM-486] - Fix ConcurrentModificationException in org.jboss.test.remoting.transport.mock.MockServerInvocationHandler

Release Notes - JBoss Remoting - Version 2.0.0.Beta1

** Bug

* [JBREM-372] - memory leak on server side leasing

* [JBREM-376] - problem versioning with not using connection checking

* [JBREM-378] - client connection checking not working

** Feature Request

* [JBREM-340] - Strong version compatibility guarantee

** Task

* [JBREM-374] - single thread the leasing timer

Release Notes - JBoss Remoting - Version 1.4.4.GA

** Bug

* [JBREM-426] - keyStorePath and keyStorePassword being printed to standard out

Release Notes - JBoss Remoting - Version 1.4.3.GA

** Bug

* [JBREM-418] - ObjectInputStreamWithClassLoader can't handle primitives

Release Notes - JBoss Remoting - Version 1.4.2 final

** Feature Request

* [JBREM-429] - Create JBossSerialization MarshalledValue more optimized for RemoteCalls

Release Notes - JBoss Remoting - Version 1.4.1 final

** Feature Request

* [JBREM-310] - Ability to turn connection checking off

* [JBREM-325] - move IMarshalledValue from jboss-commons to jboss-remoting.jar

** Bug

* [JBREM-313] - client lease does not work if client and server in same VM (using local invoker)

* [JBREM-317] - HTTPClientInvoker conect sends gratuitous POST

* [JBREM-341] - Client ping interval must be lease than lease period

* [JBREM-343] - Exceptions on connection closing

* [JBREM-345] - problem using client address and port

* [JBREM-346] - fix ConcurrentModificationException in cleanup of MultiplexServerInvoker

* [JBREM-350] - ConcurrentModificationException in InvokerRegistry

* [JBREM-361] - Race condition in invoking on Client

** Task

* [JBREM-2] - sample-bindings.xml does not have entry for remoting

* [JBREM-220] - clean up remoting wiki

* [JBREM-316] - Maintain tomcat originated code under the ASF license.

* [JBREM-319] - ability to inject socket factory by classname or instance in all remoting transports

* [JBREM-323] - client lease config changes

* [JBREM-329] - create global transport config for timeout

* [JBREM-330] - create socket server factory based off of configuration properties

* [JBREM-335] - Client.invoke() should pass configuration map to InvokerRegistry.createClientInvoker().

* [JBREM-336] - InvokerRegistry doesn't purge InvokerLocators from static Set registeredLocators.

* [JBREM-337] - PortUtil.findFreePort() should return ports only between 1024 and 65535.

* [JBREM-342] - Thread usage for timers and lease functionality

* [JBREM-354] - ServerInvokerCallbackHandler should make its subsystem accessible.

* [JBREM-356] - ServerInvoker should destroy its callback handlers.

* [JBREM-359] - MultiplexInvokerConfigTestCase should execute MultiplexInvokerConfigTestServer instead of MultiplexInvokerTestServer.

Release Notes - JBoss Remoting - Version 1.4.0 final

** Feature Request

* [JBREM-91] - UIL2 type transport (duplex calling of same socket)

* [JBREM-117] - clean up callback client after several failures delivering callbacks

* [JBREM-138] - HTTP/Servlet invokers require content length to be set

* [JBREM-229] - Remove dependency on ThreadLocal for SerializationManagers and pluggable serialization

* [JBREM-233] - Server side exception listeners for client connections

* [JBREM-257] - Append client stack trace to thrown remote exception

* [JBREM-261] - Integration with IMarshalledValue from JBossCommons

* [JBREM-278] - remoting detection needs ability to accept detection of server invoker running locally

* [JBREM-280] - no way to add path to invoker uri when using complex configuration

** Bug

* [JBREM-41] - problem using localhost/127.0.0.1

* [JBREM-115] - http server invoker does not wait to finish processing on stop

* [JBREM-223] - Broken Pipe if client don't do any calls before the timeout value

* [JBREM-224] - java.net.SocketTimeoutException when socket timeout on the keep alive

* [JBREM-231] - bug in invoker locator when there are no params (NPE)

* [JBREM-234] - StreamCorruptedException in DTM testcase

* [JBREM-240] - TestUtil does not always give free port for server

* [JBREM-243] - socket client invoker sharing pooled connections

* [JBREM-250] - InvokerLocator doesn't support URL in IPv6 format (ex: socket://3000::117:5400/)

* [JBREM-251] - transporter passes method signature based on concrete object and not the parameter type

* [JBREM-256] - NullPointer in MarshallerLoaderHandler.java:69

* [JBREM-259] - Unmarshalling of server response is not using caller's classloader

* [JBREM-271] - http client invoker needs to explicitly set the content type if not provided

* [JBREM-277] - error shutting down coyote invoker when using APR protocol

* [JBREM-281] - getting random port for connectors is not reliable

* [JBREM-282] - ServletServerInvoker not working with depployed for use as ejb invoker

* [JBREM-286] - Socket server does not clean up server threads on shutdown

* [JBREM-289] - PortUtil only checking for free ports on localhost

** Task

* [JBREM-7] - Add more tests for local invoker

* [JBREM-121] - improve connection failure callback

* [JBREM-126] - add tests for client vs. server address bindings

* [JBREM-195] - Performance optimization

* [JBREM-199] - remoting clients required to include servlet-api.jar

* [JBREM-207] - clean up build file

* [JBREM-214] - multiplex performance tests getting out of memory error

* [JBREM-215] - re-write http transport/handler documentation

* [JBREM-216] - Need to add new samples to example build in distro

* [JBREM-217] - create samples documentation

* [JBREM-219] - move remoting site to jboss labs

* [JBREM-226] - Release JBoss Remoting 1.4.0 final

* [JBREM-230] - create interface for marshallers to implement for swapping out serialization impl

* [JBREM-235] - add new header to source files

* [JBREM-239] - Update the LGPL headers

* [JBREM-242] - Subclass multiplex invoker from socket invoker.

* [JBREM-249] - http invoker (tomcat connector) documentation

* [JBREM-253] - Convert http server invoker implementation to use tomcat connector and protocols

* [JBREM-255] - HTTPClientInvoker not setting response code or message

* [JBREM-275] - fix package error in examle-service.xml

* [JBREM-276] - transporter does not throw original exception from server implementation

* [JBREM-279] - socket server invoker spits out error messages on shutdown when is not needed

* [JBREM-287] - need to complete javadoc for all user classes/interfaces

* [JBREM-288] - update example-service.xml with new configurations

** Reactor Event

* [JBREM-241] - Refactor SocketServerInvoker so that can be subclassed by MultiplexServerInvoker

Release Notes - JBoss Remoting - Version 1.4.0 beta

** Feature Request

* [JBREM-28] - Marshaller for non serializable objects

* [JBREM-40] - Compression marshaller/unmarshaller

* [JBREM-120] - config for using hostname in locator url instead of ip

* [JBREM-140] - can not set response headers from invocation handlers

* [JBREM-148] - support pluggable object serialization packages

* [JBREM-175] - Remove Dependencies to Server Classes from UnifiedInvoker

* [JBREM-180] - add plugable serialization

* [JBREM-187] - Better HTTP 1.1 stack support for HTTP invoker

* [JBREM-201] - Remove dependency from JBossSerialization

** Bug

* [JBREM-127] - RMI Invoker will not bind to specified address

* [JBREM-192] - distro contains samples in src and examples directory

* [JBREM-193] - HTTPClientInvoker doesn't call getErrorStream() on HttpURLConnection when an error response code is returned

* [JBREM-194] - multiplex performance tests hang

* [JBREM-202] - getUnmarshaller always calls Class.forName operation for creating Unmarshallers

* [JBREM-203] - rmi server invoker hangs if custom unmarshaller

* [JBREM-205] - Spurious java.net.SocketException: Connection reset error logging

* [JBREM-210] - InvokerLocator should be insensitive to parameter order

** Task

* [JBREM-9] - Fix performance tests

* [JBREM-33] - Add GET support within HTTP server invoker

* [JBREM-145] - convert user guide from MS word doc to docbook

* [JBREM-182] - Socket timeout too short (and better error message)

* [JBREM-183] - keep alive support for http invoker

* [JBREM-196] - reducde the number of retries for socket client invoker

* [JBREM-204] - create complex remoting example using dynamic proxy to endpoint

* [JBREM-212] - create transporter implementation

* [JBREM-213] - allow config of ignoring https host validation (ssl) via metadata

** Patch

* [JBREM-152] - NullPointerException in SocketServerInvoker.stop() at line 185.

* [JBREM-153] - LocalClientInvoker's outlive their useful lifetime, causing anomalous behavior

Release Notes - JBoss Remoting - Version 1.2.1 final

** Feature Request

* [JBREM-161] - Upgrade JRunit to Beta 2

** Bug

* [JBREM-147] - Invalid reuse of target location

* [JBREM-163] - NPE in Mutlicast Detector

* [JBREM-164] - HTTP Invoker unable to send large amounts of data

* [JBREM-176] - Correct inheritance structure for detectors

* [JBREM-177] - configuration attribute spelled incorrectly in ServerInvokerMBean

* [JBREM-178] - SocketServerInvoker hanging on Linux

* [JBREM-179] - socket timeout not being set properly

** Task

* [JBREM-156] - Better exception handling within socket server invoker

* [JBREM-158] - Clean up test cases

* [JBREM-162] - add version to the remoting jar

Release Notes - JBoss Remoting - Version 1.2.0 final

** Feature Request

* [JBREM-8] - Ability to stream files via remoting

* [JBREM-22] - Manipulation of the client proxy interceptor stack

* [JBREM-24] - Allow for specific network interface bindings

* [JBREM-27] - Support for HTTP/HTTPS proxy

* [JBREM-35] - Servlet Invoker - counterpart to HTTP Invoker (runs within web container)

* [JBREM-43] - custom socket factories

* [JBREM-46] - Connection failure callback

* [JBREM-87] - Add handler metadata to detection messages

* [JBREM-93] - Callback handler returning a generic Object

* [JBREM-94] - callback server specific implementation

* [JBREM-109] - Add support for JaasSecurityDomain within SSL support

* [JBREM-122] - need log4j.xml in examples

** Bug

* [JBREM-58] - Bug with multiple callback handler registered with same server

* [JBREM-64] - Need MarshalFactory to produce new instance per get request

* [JBREM-84] - Duplicate Connector shutdown using same server invoker

* [JBREM-92] - in-VM push callbacks don't work

* [JBREM-97] - Won't compile under JDK 1.5

* [JBREM-108] - can not set bind address and port for rmi and http(s)

* [JBREM-114] - getting callbacks for a callback handler always returns null

* [JBREM-125] - can not configure transport, port, or host for the stream server

* [JBREM-131] - invoker registry not update if server invoker changes locator

* [JBREM-134] - can not remove callback listeners from multiple callback servers

* [JBREM-137] - Invalid RemoteClientInvoker reference maintained by InvokerRegistry after invoker disconnect()

* [JBREM-141] - bug connecting client invoker when client detects that previously used one is disconnected

* [JBREM-143] - NetworkRegistry should not be required for detector to run on server side

** Task

* [JBREM-11] - Create seperate JBoss Remoting module in CVS

* [JBREM-20] - break out remoting into two seperate projects

* [JBREM-34] - Need to add configuration properties for HTTP server invoker

* [JBREM-39] - start connector on new thread

* [JBREM-55] - Clean up Callback implementation

* [JBREM-57] - Remove use of InvokerRequest in favor of Callback object

* [JBREM-62] - update UnifiedInvoker to use remote marshall loading

* [JBREM-67] - Add ability to set ThreadPool via configuration

* [JBREM-98] - remove isDebugEnabled() within code as is now depricated

* [JBREM-101] - Fix serialization versioning between releases of remoting

* [JBREM-104] - Release JBossRemoting 1.1.0

* [JBREM-110] - create jboss-remoting-client.jar

* [JBREM-113] - Convert remote tests to use JRunit instead of distributed test framework

* [JBREM-123] - update detection samples

* [JBREM-128] - standardize address and port binding configuration for all transports

* [JBREM-130] - updated wiki for checkout and build

* [JBREM-132] - write test case for JBREM-131

* [JBREM-133] - Document use of Client (as a session object)

* [JBREM-135] - Remove ClientInvokerAdapter

** Reactor Event

* [JBREM-65] - move callback specific classes into new callback package

* [JBREM-111] - pass socket's output/inputstream directly to marshaller/unmarshaller

Release Notes - JBoss Remoting - Version 1.0.2 final

** Bug

* [JBREM-36] - performance tests fail for http transports

* [JBREM-66] - Race condition on startup

* [JBREM-82] - Bad warning in Connector.

* [JBREM-88] - HTTP invoker only binds to localhost

* [JBREM-89] - HTTPUnMarshaller finishing read early

* [JBREM-90] - HTTP header values not being picked up on the http invoker server

** Task

* [JBREM-70] - Clean up build.xml. Fix .classpath and .project for eclipse

* [JBREM-83] - Updated Invocation marshalling to support standard payloads

Release Notes - JBoss Remoting - Version 1.0.1 final

** Feature Request

* [JBREM-54] - Need access to HTTP response headers

** Bug

* [JBREM-1] - Thread.currentThread().getContextClassLoader() is wrong

* [JBREM-31] - Exception handling in http server invoker

* [JBREM-32] - HTTP Invoker - check for threading issues

* [JBREM-50] - Need ability to set socket timeout on socket client invoker

* [JBREM-59] - Pull callback collection is unbounded - possible Out of Memory

* [JBREM-60] - Incorrect usage of debug level logging

* [JBREM-61] - Possible RMI exception semantic regression

** Task

* [JBREM-15] - merge UnifiedInvoker from remoting branch

* [JBREM-30] - Better integration for registering invokers with MBeanServe

* [JBREM-37] - backport to 4.0 branch before 1.0.1 final release

* [JBREM-56] - Add Callback object instead of using InvokerRequest

** Reactor Event

* [JBREM-51] - defining marshaller on remoting client

Release Notes - JBoss Remoting - Version 1.0.1 beta

** Bug

* [JBREM-19] - Try to reconnect on connection failure within socket invoker

* [JBREM-25] - Deadlock in InvokerRegistry

** Feature Request

* [JBREM-12] - Support for call by value

* [JBREM-26] - Ability to use MBeans as handlers

** Task

* [JBREM-3] - Fix Asyn invokers - currently not operable

* [JBREM-4] - Added test for throwing exception on server side

* [JBREM-5] - Socket invokers needs to be fixed

* [JBREM-16] - Finish HTTP Invoker

* [JBREM-17] - Add CannotConnectException to all transports

* [JBREM-18] - Backport remoting from HEAD to 4.0 branch

** Reactor Event

* [JBREM-23] - Refactor Connector so can configure transports

* [JBREM-29] - Over load invoke() method in Client so metadata not required
