The XTS Development Guide explains how to add resilience to distributed business processes based on web services, making them reliable in the event of system or network failures. It covers installation, administration, and development of transactional web services.

The JBoss Application Server implements Web Services Transactions standards using XTS (XML Transaction Service). XTS supports development and deployment of transaction-aware web services. It also enables web service clients to create and manage web service transactions from which transactional web services can be invoked. XTS ensures that the client and web services achieve consistent outcomes even if the systems on which they are running crash or temporarily lose network connectivity.

XTS is compliant with the WS-Coordination, WS-Atomic Transaction, and WS-Business Activity specifications. The implementation supports web services and clients which are based on the JaxWS standard. XTS is itself implemented using services based on JaxWS. While this guide discusses many Web Services standards like SOAP and WSDL, it does not attempt to address all of their fundamental constructs. However, basic concepts are provided where necessary.

The XML Transaction Service (XTS) component of JBoss Transaction Service supports the coordination of private and public Web Services in a business transaction. Therefore, to understand XTS, you must be familiar with Web Services, and also understand something about transactions. This chapter introduces XTS and provides a brief overview of the technologies that form the Web Services standard. Additionally, this chapter explores some of the fundamentals of transactioning technology and how it can be applied to Web Services. Much of the content presented in this chapter is detailed throughout this guide. However, only overview information about Web Services is provided. If you are new to creating Web services, please see consult your Web Services platform documentation.

JBoss Transaction Service provides the XTS component as a transaction solution for Web Services. Using XTS, business partners can coordinate complex business transactions in a controlled and reliable manner. The XTS API supports a transactional coordination model based on the WS-Coordination, WS-Atomic Transaction, and WS-Business Activity specifications.

JBoss Transaction Service implements versions 1.0, 1.1, and 1.2 of these three specifications. Version specifications are available from http://www.oasis-open.org/specs/.


The 1.0, 1.1, and 1.2 specifications only differ in a small number of details. The rest of this document employs version 1.1 of these specifications when providing explanations and example code. On the few occasions where the modifications required to adapt these to the 1.1 specifications are not obvious, an explanatory note is provided.

Web Services are modular, reusable software components that are created by exposing business functionality through a Web service interface. Web Services communicate directly with other Web Services using standards-based technologies such as SOAP and HTTP. These standards-based communication technologies enable customers, suppliers, and trading partners to access Web Services, independent of hardware operating system, or programming environment. The result is a vastly improved collaboration environment as compared to today's EDI and business-to-business (B2B) solutions, an environment where businesses can expose their current and future business applications as Web Services that can be easily discovered and accessed by external partners.

Web Services, by themselves, are not fault-tolerant. In fact, some of the reasons that the Web Services model is an attractive development solution are also the same reasons that service-based applications may have drawbacks.

Properties of Web Services

  • Application components that are exposed as Web Services may be owned by third parties, which provides benefits in terms of cost of maintenance, but drawbacks in terms of having exclusive control over their behavior.

  • Web Services are usually remotely located, increasing risk of failure due to increased network travel for invocations.

Applications that have high dependability requirements need a method of minimizing the effects of errors that may occur when an application consumes Web Services. One method of safeguarding against such failures is to interact with an application’s Web Services within the context of a transaction. A transaction is a unit of work which is completed entirely, or in the case of failures is reversed to some agreed consistent state. The goal, in the event of a failure, is normally to appear as if the work had never occurred in the first place. With XTS, transactions can span multiple Web Services, meaning that work performed across multiple enterprises can be managed with transactional support.

XTS allows you to create transactions that drive complex business processes, spanning multiple Web Services. Current Web Services standards do not address the requirements for a high-level coordination of services. This is because in today’s Web Services applications, which use single request/receive interactions, coordination is typically not a problem. However, for applications that engage multiple services among multiple business partners, coordinating and controlling the resulting interactions is essential. This becomes even more apparent when you realize that you generally have little in the way of formal guarantees when interacting with third-party Web Services.

XTS provides the infrastructure for coordinating services during a business process. By organizing processes as transactions, business partners can collaborate on complex business interactions in a reliable manner, insuring the integrity of their data - usually represented by multiple changes to a database – but without the usual overheads and drawbacks of directly exposing traditional transaction-processing engines directly onto the web. An Evening On the Town demonstrates how an application may manage service-based processes as transactions:

An Evening On the Town

The application in question allows a user to plan a social evening. This application is responsible for reserving a table at a restaurant, and reserving tickets to a show. Both activities are paid for using a credit card. In this example, each service represents exposed Web Services provided by different service providers. XTS is used to envelop the interactions between the theater and restaurant services into a single (potentially) long-running business transaction. The business transaction must insure that seats are reserved both at the restaurant and the theater. If one event fails the user has the ability to decline both events, thus returning both services back to their original state. If both events are successful, the user’s credit card is charged and both seats are booked. As you may expect, the interaction between the services must be controlled in a reliable manner over a period of time. In addition, management must span several third-party services that are remotely deployed.

Without the backing of a transaction, an undesirable outcome may occur. For example, the user credit card may be charged, even if one or both of the bookings fail.

An Evening On the Town describes the situations where XTS excels at supporting business processes across multiple enterprises. This example is further refined throughout this guide, and appears as a standard demonstrator (including source code) with the XTS distribution.


This chapter deals with the theory of transactional Web Services. If you are familiar with these principles, consider this chapter a reference.

Transactions have emerged as the dominant paradigm for coordinating interactions between parties in a distributed system, and in particular to manage applications that require concurrent access to shared data. Much of the JBoss Transaction Service Web Service API is based on contemporary transaction APIs whose familiarity will enhance developer productivity and lessen the learning curve. While the following section provides the essential information that you should know before starting to use XTS for building transactional Web Services, it should not be treated as a definitive reference to all transactional technology.

A transaction is a unit of work that encapsulates multiple database actions such that that either all the encapsulated actions fail or all succeed.

Transactions ensure data integrity when an application interacts with multiple datasources.

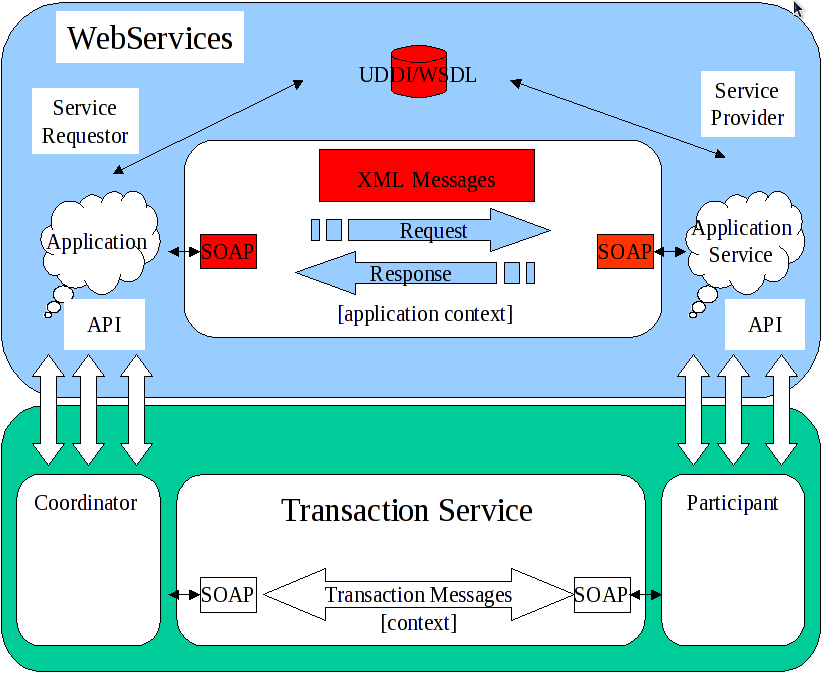

The main components involved in using and defining transactional Web Services using XTS are illustrated in Figure 3.1, “Components Involved in an XTS Transaction”.

Figure 3.1. Components Involved in an XTS Transaction

Every transaction is associated with a coordinator, which is responsible for governing the outcome of the transaction. When a client begins a Web Service transaction it posts a create request to a coordination service, which creates the coordinator and returns its details to the client. This service may be located in its own container or may be colocated with the application client or with one of the transactional web services for improved performance. The coordination service is typically responsible for managing many transactions in parallel, so each coordinator is identified by a unique transaction identifier.

The coordinator is responsible for ensuring that the web services invoked by the client arrive at a consistent outcome. When the client asks the coordinator to complete the transaction, the coordinator ensures that each web service is ready to confirm any provisional changes it has made within the scope of the transaction. It then asks them all to make their changes permanent. If any of the web services indicates a problem at the confirmation stage, the coordinator ensures that all web services reject their provisional changes, reverting to the state before the transaction started. The coordinator also reverts all changes if the client asks it to cancel the transaction.

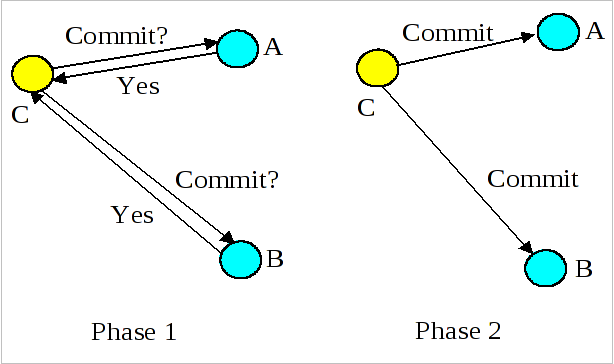

The negotiation between the coordinator and the web services is organized to ensure that all services will make their changes permanent, or all of them will revert to the previous state, even if the coordinator or one of the web services crashes part of the way through the transaction."

Besides the two-phase commit protocol, traditional transaction processing systems employ an additional protocol, often referred to as the synchronization protocol. With the original ACID properties, Durability is important when state changes need to be available despite failures. Applications interact with a persistence store of some kind, such as a database, and this interaction can impose a significant overhead, because disk access is much slower to access than main computer memory.

One solution to the problem disk access time is to cache the state in main memory and only operate on the cache for the duration of a transaction. Unfortunately, this solution needs a way to flush the state back to the persistent store before the transaction terminates, or risk losing the full ACID properties. This is what the synchronization protocol does, with Synchronization Participants.

Synchronizations are informed that a transaction is about to commit. At that point, they can flush cached state, which might be used to improve performance of an application, to a durable representation prior to the transaction committing. The synchronizations are then informed about when the transaction completes and its completion state.

The synchronization protocol does not have the same failure requirements as the traditional two-phase commit protocol. For example, Synchronization participants do not need the ability to recover in the event of failures, because any failure before the two-phase commit protocol completes cause the transaction to roll back, and failures after it completes have no effect on the data which the Synchronization participants are responsible for.

There are several variants to the standard two-phase commit protocol that are worth knowing about, because they can have an impact on performance and failure recovery. Table 3.1, “Variants to the Two-Phase Commit Protocol” gives more information about each one.

Table 3.1. Variants to the Two-Phase Commit Protocol



Presumed Abort

If a transaction is going to roll back, the coordinator may record this information locally and tell all enlisted participants. Failure to contact a participant has no effect on the transaction outcome. The coordinator is informing participants only as a courtesy. Once all participants have been contacted, the information about the transaction can be removed. If a subsequent request for the status of the transaction occurs, no information will be available and the requester can assume that the transaction has aborted. This optimization has the benefit that no information about participants need be made persistent until the transaction has progressed to the end of the prepare phase and decided to commit, since any failure prior to this point is assumed to be an abort of the transaction.


If only a single participant is involved in the transaction, the coordinator does not need to drive it through the prepare phase. Thus, the participant is told to commit, and the coordinator does not need to record information about the decision, since the outcome of the transaction is the responsibility of the participant.


When a participant is asked to prepare, it can indicate to the coordinator that no information or data that it controls has been modified during the transaction. Such a participant does not need to be informed about the outcome of the transaction since the fate of the participant has no affect on the transaction. Therefore, a read-only participant can be omitted from the second phase of the commit protocol.


The WS-Atomic Transaction protocol does not support the one-phase commit optimization.

In order to guarantee atomicity, the two-phase commit protocol is blocking. As a result of failures, participants may remain blocked for an indefinite period of time, even if failure recovery mechanisms exist. Some applications and participants cannot tolerate this blocking.

To break this blocking nature, participants that are past the prepare phase are allowed to make autonomous decisions about whether to commit or rollback. Such a participant must record its decision, so that it can complete the original transaction if it eventually gets a request to do so. If the coordinator eventually informs the participant of the transaction outcome, and it is the same as the choice the participant made, no conflict exists. If the decisions of the participant and coordinator are different, the situation is referred to as a non-atomic outcome, and more specifically as a heuristic outcome.

Resolving and reporting heuristic outcomes to the application is usually the domain of complex, manually driven system administration tools, because attempting an automatic resolution requires semantic information about the nature of participants involved in the transactions.

Precisely when a participant makes a heuristic decision depends on the specific implementation. Likewise, the choice the participant makes about whether to commit or to roll back depends upon the implementation, and possibly the application and the environment in which it finds itself. The possible heuristic outcomes are discussed in Table 3.2, “Heuristic Outcomes”.

Heuristic decisions should be used with care and only in exceptional circumstances, since the decision may possibly differ from that determined by the transaction service. This type of difference can lead to a loss of integrity in the system. Try to avoid needing to perform resolution of heuristics, either by working with services and participants that do not cause heuristics, or by using a transaction service that provides assistance in the resolution process.

Interposition is a scoping mechanism which allows coordination of a transaction to be delegated across a hierarchy of coordinators. See Figure 3.4, “Interpositions” for a graphical representation of this concept.

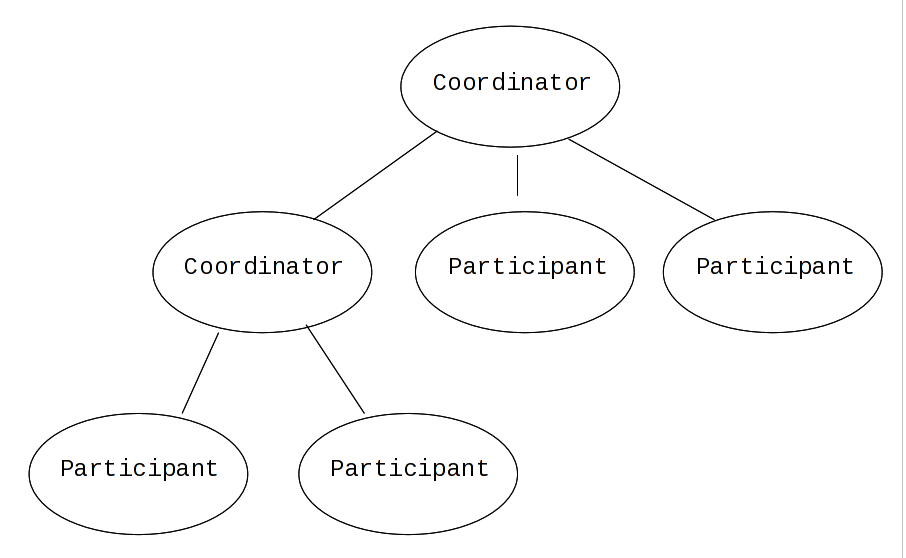

Figure 3.4. Interpositions

Interposition is particularly useful for Web Services transactions, as a way of limiting the amount of network traffic required for coordination. For example, if communications between the top-level coordinator and a web service are slow because of network traffic or distance, the web service might benefit from executing in a subordinate transaction which employs a local coordinator service. In Figure 3.4, “Interpositions”,to prepare, the top-level coordinator only needs to send one prepare message to the subordinate coordinator, and receive one prepared or aborted reply. The subordinate coordinator forwards a prepare locally to each participant and combines the results to decide whether to send a single prepared or aborted reply.

Many component technologies offer mechanisms for coordinating ACID transactions based on two-phase commit semantics. Some of these are CORBA/OTS, JTS/JTA, and MTS/MSDTC. ACID transactions are not suitable for all Web Services transactions, as explained in Reasons ACID is Not Suitable for Web Services.

This section discusses fundamental concepts associated with the WS-Coordination, WS-Atomic Transaction and WS-Business Activity protocols, as defined in each protocol's specification. Foundational information about these protocols is important to understanding the remaining material covered in this guide.


If you are familiar with the WS-Coordination, WS-Atomic Transaction, and WS-Business Activity specifications you may only need to skim this chapter.

In general terms, coordination is the act of one entity,known as the coordinator, disseminating information to a number of participants for some domain-specific reason. This reason could be to reach consensus on a decision by a distributed transaction protocol, or to guarantee that all participants obtain a specific message, such as in a reliable multicast environment. When parties are being coordinated, information, known as the coordination context, is propagated to tie together operations which are logically part of the same coordinated work or activity. This context information may flow with normal application messages, or may be an explicit part of a message exchange. It is specific to the type of coordination being performed.

The fundamental idea underpinning WS-Coordination (WS-C) is that a coordination infrastructure is needed in a Web Services environment. The WS-C specification defines a framework that allows different coordination protocols to be plugged in to coordinate work between clients, services, and participants, as shown in Figure 4.1, “WS-C Architecture”.

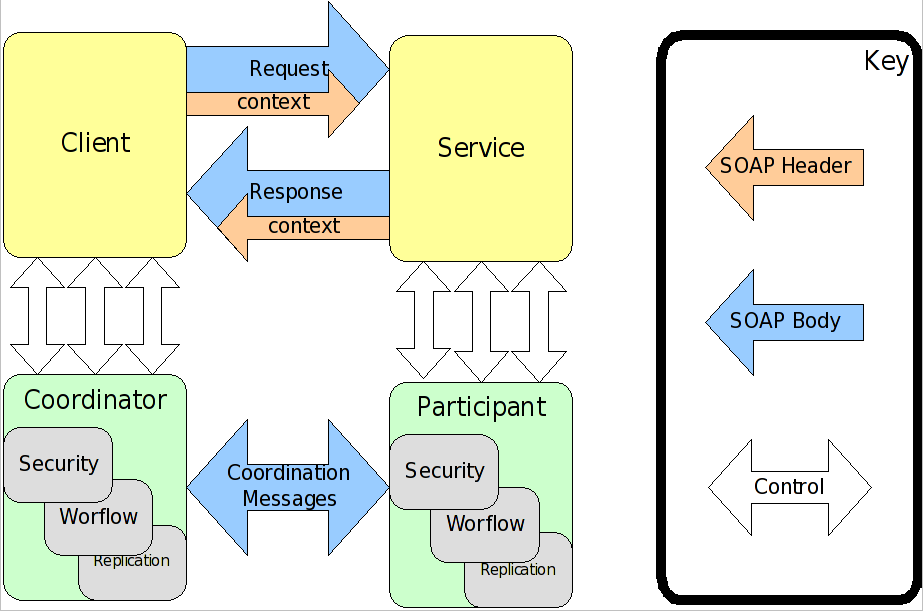

Figure 4.1. WS-C Architecture

Whatever coordination protocol is used, and in whatever domain it is deployed, the same generic requirements are present.

The first three of the points in Generic Requirements for WS-C are the direct responsibility of WS-C, while the fourth is the responsibility of a third-party entity. The third-party entity is usually the client component of the overall application. These four WS-C roles and their relationships are shown in Figure 4.2, “Four Roles in WS-C”.

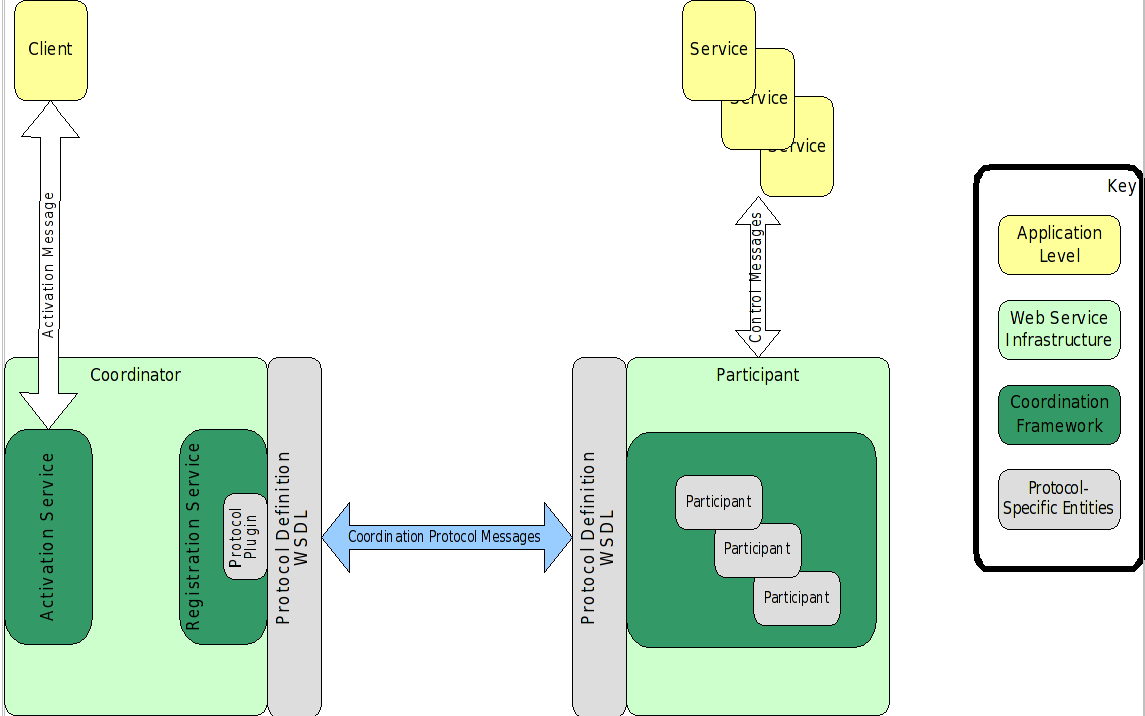

Figure 4.2. Four Roles in WS-C

The context returned by the activation service includes the URL of a Registration Service. When a web service receieves a service request accompanied by a transaction context, it contacts the Registration Service to enroll as a participant in the transaction. The registration request includes a participant protocol defining the role the web service wishes to take in the transaction. Depending upon the coordination protocol, more than one choice of participant protocol may be available.

Like the activation service, the registration service assumes synchronous communication. Thus, the service WSDL exposes a single port declaring a Register operation. This operation takes an input specifying the details of the participant which is to be registered, including the participant protocol type. It returns a corresponding output response.

Once a participant is registered with a coordinator through the registration service, it receives coordination messages from the coordinator. Typical messages include such things as “prepare to complete” and “complete” messages, if a two-phase protocol is used. Where the coordinator’s protocol supports it, participants can also send messages back to the coordinator.


The 1.0 Registration Coordinator service employs an asynchronous message exchange comprised of two one way messages, so a Registration Requester service is also necessary

WS-Transaction (WS-T) comprises the pair of transaction coordination protocols, WS-Atomic Transaction (WS-AT) and WS-Business Activity (WS-BA), which utilize the coordination framework provided by WS-Coordination (WS-C).

WS-Transactions was developed to unify existing traditional transaction processing systems, allowing them to communicate reliably with one another without changes to the systems' own function.

WS-Transaction is layered upon the WS-Coordination protocol, as shown in as shown in Figure 4.3, “WS-Coordination, WS-Transaction, and WS-Business Activity”.

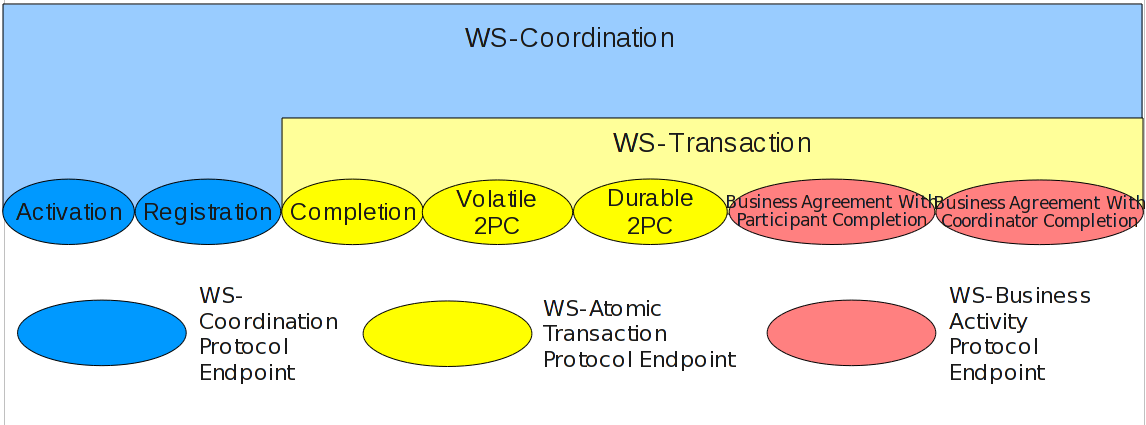

Figure 4.3. WS-Coordination, WS-Transaction, and WS-Business Activity

WS-C provides a generic framework for specific coordination protocols, like WS-Transaction, used in a modular fashion. WS-C provides only context management, allowing contexts to be created and activities to be registered with those contexts. WS-Transaction leverages the context management framework provided by WS-C in two ways.

  1. It extends the WS-C context to create a transaction context.

  2. It augments the activation and registration services with a number of additional services (Completion, Volatile2PC, Durable2PC, BusinessAgreementWithParticipantCompletion, and BusinessAgreementWithCoordinatorCompletion) and two protocol message sets (one for each of the transaction models supported in WS-Transaction), to build a fully-fledged transaction coordinator on top of the WS-C protocol infrastructure.

  3. An important aspect of WS-Transaction that differs from traditional transaction protocols is that a synchronous request/response model is not assumed. Sequences of one way messages are used to implement communications between the client/participant and the coordination services appropriate to the transaction's coordination and participant protocols. This is significant because it means that the client and participant containers must deploy XTS service endpoints to receive messages from the coordinator service.

    This requirement is visible in the details of the Register and RegisterResponse messages declared in the Registration Service WSDL in Example 4.2, “Registration ServiceWSDL Interface”. The Register message contains the URL of an endpoint in the client or web service container. This URL is used when a WS-Transaction coordination service wishes to dispatch a message to the clinet or web service. Similarly, the RegisterResponse message contains a URL iendtifying an endpoint for the protocol-specific WS-Transaction coordination service for which the client/web service is registered, allowing messages to be addressed to the transaction coordinator.

WS-Transaction distnguishes the transaction-aware web service in its role executing business-logic, from the web service acting as a participant in the transaction, communicating with and responding to its transaction coordinator. Transaction-aware web services deal with application clients using business-level protocols, while the participant handles the underlying WS-Transaction protocols, as shown in Figure 4.4, “WS-Transaction Global View”.

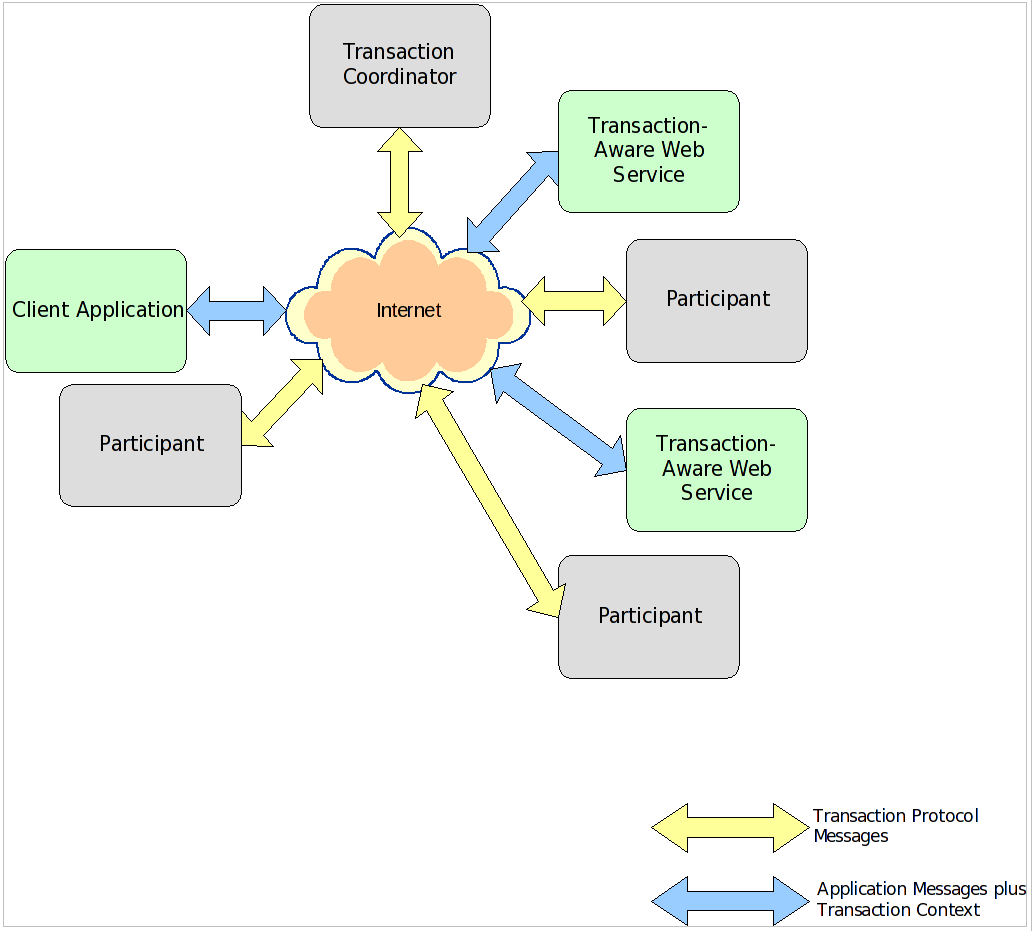

Figure 4.4. WS-Transaction Global View

A transaction-aware web service encapsulates the business logic or work that needs to be conducted within the scope of a transaction. This work cannot be confirmed by the application unless the transaction also commits. Thus, control is ultimately removed from the application and given to the transaction.

The participant is the entity that, under the dictates of the transaction coordinator, controls the outcome of the work performed by the transaction-aware Web service. In Figure 4.4, “WS-Transaction Global View”, each web service is shown with one associated participant that manages the transaction protocol messages on behalf of its web service. Figure 4.5, “WS-Transaction Web Services and Participants”, however, shows a close-up view of a single web service, and a client application with their associated participants.

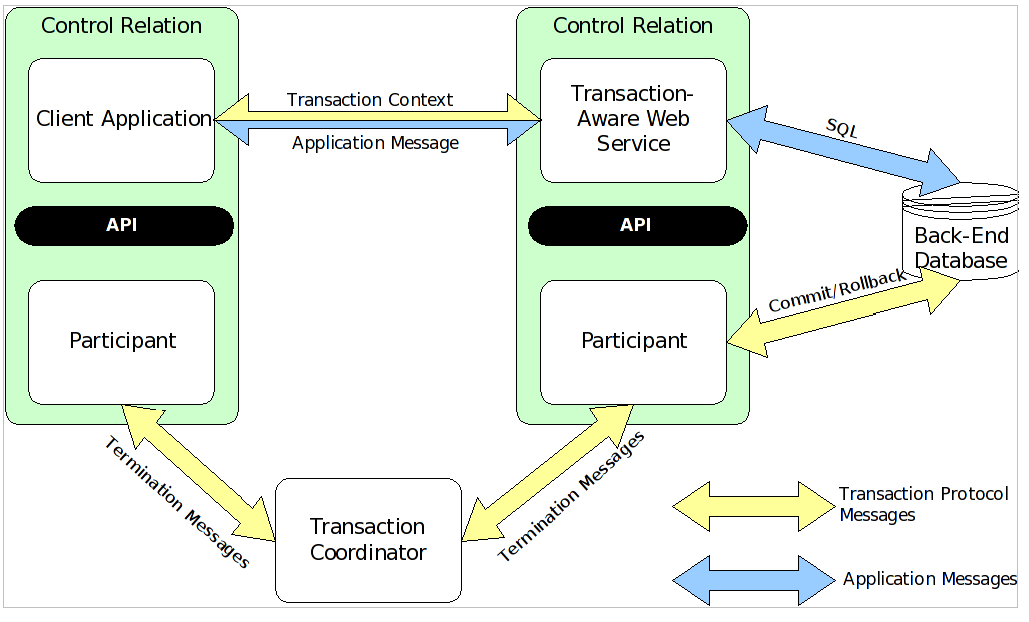

Figure 4.5. WS-Transaction Web Services and Participants

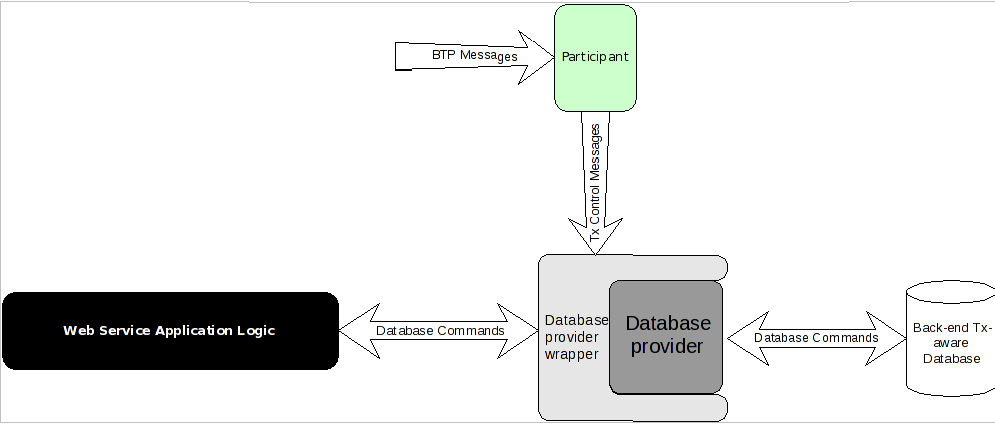

The transaction-aware web service employs a back end database accessed via a JDBC driver, which sends SQL statements to the database for processing. However, those statements should only commit if the enclosing web service transaction does. For this to work, the web service must employ transaction bridging. Transaction bridging registers a participant with the coordinator for the web service transaction and creates a matching XA transaction within which it can invoke the driver to make tentative changes to the database. The web service ensures that service requests associated with a specific web service transaction are executed in the scope of the corresponding XA transaction, grouping changes common to a given transaction while isolating changes belonging to different transactions. The participant responds to prepare, commit, or rollback requests associated from the web service transaction coordinator by forwarding the same operations to the underlying XA transaction coordinator, ensuring that the local outcome in the database corresponds with the global outcome of the web service transaction as a whole.

Things are less complex for the client. Through its API, the client application registers a participant with the transaction, and uses this participant to control termination of the transaction.

It has been established that traditional transaction models are not appropriate for Web Services. No one specific protocol is likely to be sufficient, given the wide range of situations where Web service transactions are likely to be used. The WS-Transaction specification proposes two distinct models, where each supports the semantics of a particular kind of B2B interaction.

The following discussion presents the interactions between the client, web service and the transaction coordinator in great detail for expository purposes only. Most of this activity happens automatically behind the scenes. The actual APIs used to initiate and complete a transaction and to register a participant and drive it through the commit or abort process are described in Chapter 8, The XTS API.

An atomic transaction (AT) is similar to traditional ACID transactions, and is designed to support short-duration interactions where ACID semantics are appropriate. Within the scope of an AT, web services typically employ bridging to allow them to access XA resources, such as databases and message queues, under the control of the web service transaction. When the transaction terminates, the participant propagates the outcome decision of the AT to the XA resources, and the appropriate commit or rollback actions are taken by each.

All services and associated participants are expected to provide ACID semantics, and it is expected that any use of atomic transactions occurs in environments and situations where ACID is appropriate. Usually, this environment is a trusted domain, over short durations.

Procedure 4.1. Atomic Transaction Process

  1. To begin an atomic transaction, the client application first locates a WS-C Activation Coordinator web service that supports WS-Transaction.

  2. The client sends a WS-C CreateCoordinationContext message to the service, specifying http://schemas.xmlsoap.org/ws/2004/10/wsat as its coordination type.

  3. The client receives an appropriate WS-Transaction context from the activation service.

  4. The response to the CreateCoordinationContext message, the transaction context, has its CoordinationType element set to the WS-Atomic Transaction namespace, http://schemas.xmlsoap.org/ws/2004/10/wsat. It also contains a reference to the atomic transaction coordinator endpoint, the WS-C Registration Service, where participants can be enlisted.

  5. The client normally proceeds to invoke Web Services and complete the transaction, either committing all the changes made by the web services, or rolling them back. In order to be able to drive this completion activity, the client must register itself as a participant for the Completion protocol, by sending a Register message to the Registration Service whose endpoint was returned in the Coordination Context.

  6. Once registered for Completion, the client application then interacts with Web Services to accomplish its business-level work. With each invocation of a business Web service, the client inserts the transaction context into a SOAP header block, such that each invocation is implicitly scoped by the transaction. The toolkits that support WS-Atomic Transaction-aware Web Services provide facilities to correlate contexts found in SOAP header blocks with back-end operations. This ensures that modifications made by the Web service are done within the scope of the same transaction as the client and subject to commit or rollback by the transaction coordinator.

  7. Once all the necessary application-level work is complete, the client can terminate the transaction, with the intent of making any changes to the service state permanent. The completion participant instructs the coordinator to try to commit or roll back the transaction. When the commit or roll-back operation completes, a status is returned to the participant to indicate the outcome of the transaction.

Although this description of the completion protocol seems straightforward, it hides the fact that in order to resolve the transaction to an outcome, several other participant protocols need to be followed.


The first of these protocols is the optional Volatile2PC (2PC is an abbreviation referring to the two-phase commit). The Volatile2PC protocol is the WS-Atomic Transaction equivalent of the synchronization protocol discussed earlier. It is typically executed where a Web service needs to flush volatile (cached) state, which may be used to improve performance of an application, to a database prior to the transaction committing. Once flushed, the data is controlled by a two-phase aware participant.

When the completion participant initiates a commit operation, all Volatile2PC participants are informed that the transaction is about to complete, via the prepare message. The participants can respond with one of three messages: prepared, aborted, or readonly. A failure at this stage causes the transaction to roll back.


The next protocol in the WS-Atomic Transaction is Durable2PC. The Durable2PC protocol is at the core of WS-Atomic Transaction. It brings about the necessary consensus between participants in a transaction, so the transaction can safely be terminated.

The Durable2PC protocol ensures atomicity between participants, and is based on the classic technique of two-phase commit with presumed abort.

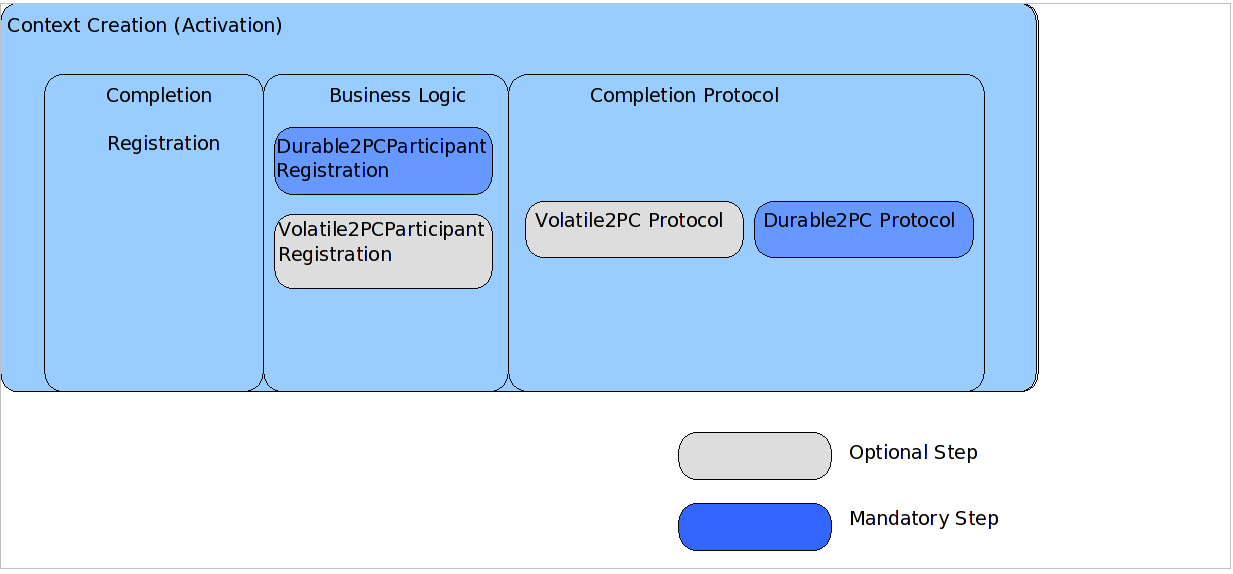

Figure 4.6, “WS-Atomic Two-Phase Participant State Transitions” shows the state transitions of a WS-Atomic Transaction and the message exchanges between coordinator and participant. Messages generated by the coordinator are represented by solid lines, while the participants' messages use dashed lines.

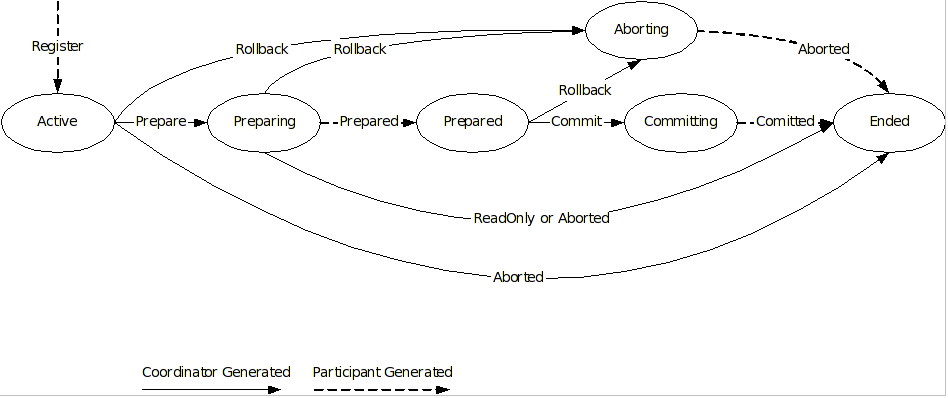

Figure 4.6. WS-Atomic Two-Phase Participant State Transitions

Once the Durable2PC protocol completes, the Completion protocol that originally began the termination of the transaction can complete, and inform the client application whether the transaction was committed or rolled back. Additionally, the Volatile2PC protocol may complete.

Like the prepare phase of Volatile2PC, the final phase is optional and can be used to inform participants about the transaction's completion, so that they can release resources such as database connections.

Any registered Volatile2PC participants are invoked after the transaction terminates, and are informed about the transaction's completion state by the coordinator. Since the transaction has terminated, any failures of participants at this stage are ignored, since they have no impact on outcomes.

Figure 4.7, “” illustrates the intricate interweaving of individual protocols comprising the AT as a whole.

Figure 4.7.

Most B2B applications require transactional support in order to guarantee consistent outcome and correct execution. These applications often involve long-running computations, loosely coupled systems, and components that do not share data, location, or administration. It is difficult to incorporate atomic transactions within such architectures.

For example, an online bookshop may reserve books for an individual for a specific period of time. However, if the individual does not purchase the books within that period, they become available again for purchase by other customers. Because it is not possible to have an infinite supply of stock, some online shops may seem, from the user's perspective, to reserve items for them, while actually allow others to preempt the reservation. A user may discover, to his disappointment, that the item is no longer available.

A Business Activity (BA) is designed specifically for these kinds of long-duration interactions, where it is impossible or impractical to exclusively lock resources.

The key to BA is that how services do their work and provide compensation mechanisms is not the responsibility of the WS-BA specification. It is delegated to the service provider.

The WS-BA defines a protocol for Web Services-based applications to enable existing business processing and work-flow systems to wrap their proprietary mechanisms and interoperate across implementations and business boundaries.

Unlike the WS-AT protocol model, where participants inform the coordinator of their state only when asked, a child activity within a BA can specify its outcome to the coordinator directly, without waiting for a request. A participant may choose to exit the activity or may notify the coordinator of a failure at any point. This feature is useful when tasks fail, since the notification can be used to modify the goals and drive processing forward, without the need to wait until the end of the transaction to identify failures. A well-designed Business Activity should be proactive.

The BA protocols employ a compensation-based transaction model. When a participant in a business activity completes its work, it may choose to exit the activity. This choice does not allow any subsequent rollback. Alternatively, the participant can complete its activity, signaling to the coordinator that the work it has done can be compensated if, at some later point, another participant notifies a failure to the coordinator. In this latter case, the coordinator asks each non-exited participant to compensate for the failure, giving them the opportunity to execute whatever compensating action they consider appropriate. For instance, participant might credit a bank account which it previously debited. If all participants exit or complete without failure, the coordinator notifies each completed participant that the activity has been closed.

Underpinning all of this are three fundamental assumptions, detailed in Assumptions of WS-BA.

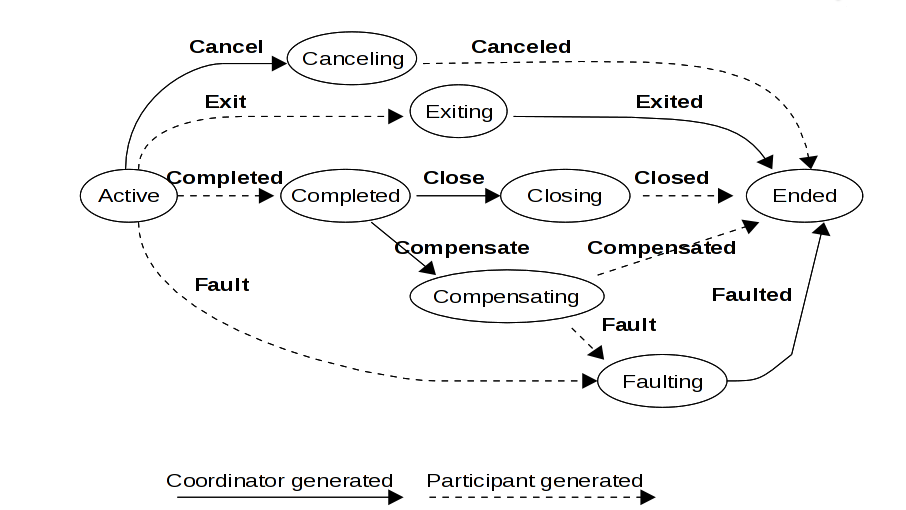

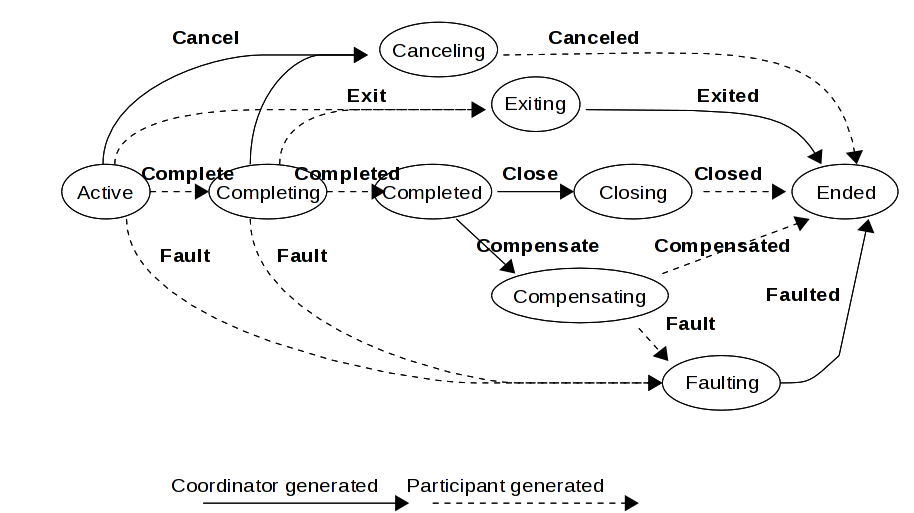

The BA model has two participant protocols: BusinessAgreementWithParticipantCompletion and BusinessAgreementWithCoordinatorCompletion. Unlike the AT protocols which are driven from the coordinator down to participants, this protocol takes the opposite approach.

The advantage of the BA model, compared to the AT model, is that is allows the participation of services that cannot lock resources for extended periods.

While the full ACID semantics are not maintained by a BA, consistency can still be maintained through compensation. The task of writing correct compensating actions to preserve overall system consistency is the responsibility of the developers of the individual services under control of the BA. Such compensations may use backward error recovery, but forward recovery is more common.

Figure 4.8, “” shows the state transitions of a WS-BA BusinessAgreementWithParticipantCompletion participant and the message exchanges between coordinator and participant. Messages generated by the coordinator are shown with solid lines, while the participants' messages are illustrated with dashed lines.

Figure 4.8.

Figure 4.9, “” shows the state transitions of a WS-BA BusinessAgreementWithCoordinatorCompletion participant and the message exchanges between coordinator and participant. Messages generated by the coordinator are shown with solid lines, while the participants' messages are illustrated with dashed lines.

Figure 4.9.

Application messages are the requests and responses sent between parties, that constitute the work of a business process. Any such messages are considered opaque by XTS, and there is no mandatory message format, protocol binding, or encoding style. This means that you are free to use any appropriate Web Services protocol. In XTS, the transaction context is propagated within the headers of SOAP messages.

XTS ships with support for service developers building WS-Transactions-aware services on the JBoss Application Server. Interceptors are provided for automatic context handling at both client and service, which significantly simplifies development, allowing you to concentrate on writing the business logic without being sidetracked by the transactional infrastructure. The interceptors add and remove context elements to application messages, without altering the semantics of the messages themselves. Any service which understands what to do with a WS-C context can use it. Services which are not aware of WS-C, WS-Atomic Transaction and WS-Business Activity can ignore the context. XTS manages contexts without user intervention.

There are two aspects to a client application using XTS, the transaction declaration aspects, and the business logic. The business logic includes the invocation of Web Services.

Transaction declaration aspects are handled automatically with the XTS client API. This API provides simple transaction directives such as begin, commit, and rollback, which the client application can use to initialize, manage, and terminate transactions. Internally, this API uses SOAP to invoke operations on the various WS-C, WS-AT and WS-BA services, in order to create a coordinator and drive the transaction to completion.

XTS does not require the client application to use a specific API to perform invocations on transactional Web Services. The client is free to use any appropriate API to send SOAP messages to the server and receive SOAP responses. The only requirements imposed on the client are:

In order to achieve this, the client must insert details of the current XTS context into the headers of outgoing SOAP messages, and extract the context details from the headers of incoming messages and associate the context with the current thread. To simplify this process, the XTS module includes handlers which can perform this task automatically. These handlers are designed to work with JAX-WS clients.

The two parts to implementing a Web service using XTS are the transaction management and the business logic.

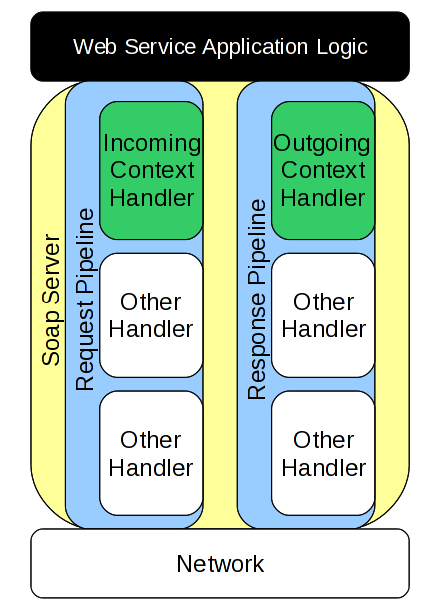

The bulk of the transaction management aspects are organized in a clear and easy-to-implement model by means of the XTS’s Participant API, provides a structured model for negotiation between the web service and the transaction coordinator. It allows the web service to manage its own local transactional data, in accordance with the needs of the business logic, while ensuring that its activities are in step with those of the client and other services involved in the transaction. Internally, this API uses SOAP to invokes operations on the various WS-C, WS-AT and WS-BA services, to drive the transaction to completion.

A transactional Web service must ensure that a service invocation is included in the appropriate transaction. This usually only affects the operation of the participants and has no impact on the operation of the rest of the Web service. XTS simplifies this task and decouples it from the business logic, in much the same way as for transactional clientsAdd an xref. XTS provides a handler which detects and extracts the context details from the headers in incoming SOAP headers, and associates the web service thread with the transaction. The handler clears this association when dispatching SOAP responses, and writes the context into the outgoing message headers. This is shown in Figure 5.1, “Context Handlers Registered with the SOAP Server”.

The service side handlers for JAX-WS come in two different versions. The normal handler resumes any transaction identified by an incoming context when the service is invoked, and suspends this transaction when the service call completes. The alternative handler is used to interpose a local coordinator. The first time an incoming parent context is seen, the local coordinator service creates a subordinate transaction, which is resumed before the web service is called. The handler ensures that this subordinate transaction is resumed each time the service is invoked with the same parent context. When the subordinate transaction completes, the association between the parent transaction and its subordinate is cleared.


The subordinate service side handler is only able to interpose a subordinate coordinator for an Atomic Transaction.


JAX-RPC is provided for the 1.0 implementation only.

The sample application features some simple transactional Web services, a client application, deployment metadata files and a build script. The application is designed to introduce some of the key features of the XML Transaction component of Narayana and help you get started with writing your own transactional Web services applications.

The application is based around a simple booking scenario. The services provide the ability to transactionally reserve resources, whilst the client provides an interface to select the nature and quantity of the reservations. The chosen application domain is services for a night out.

The server components consist of three Web services (Restaurant, Theatre, Taxi) which offer transactional booking services. These services each expose a GUI with state information and an event trace log.

The client side of the application is a servlet which allows the user to select the required reservations and then books a night out by making invocations on each of the services within the scope of a Web Services transaction.

The demo is implemented in two versions. The standard version exposes the services as JaxWS service endpoints. The client obtains service endpoint proxies from JaxWS and uses them to invoke the remote service methods. This version of the demo employs the XTS 1.1 protocol implementation. The alternative implementation demonstrates how to invoke legacy services. It uses JaxRPC to invoke the remote methods of services exposed as classes implementing the Remote interface.

Full source code for the services and the client is included, along with a Maven script for building and deploying the code. The following step of this trail map will show you how to deploy and run the application.

To run the sample application, you must compile the source code; bundle it, along with the required metadata files, into appropriate deployment constructs and then deploy these into the application container. This process is somewhat involved, but fortunately is completely automated by an Maven build script.

To proceed, you will need to install Maven to take advantage of the supplied build file.

Deploying into JBoss AS7.

n.b. the JaxRPC based version of the demo can be built and deployed by substituting target 'deploy' in the commands listed above with the alternative target 'deployrpc'

Using the application

Business activities are an extended transaction model designed to support long running business processes. Unlike traditional atomic transactions, business activities typically use a compensation model to support the reversal of previously performed work in the event of transaction cancellation (rollback). This makes them more suitable for long duration processes and inter-enterprise coordination. However, it also requires the relaxation of traditional ACID properties, particularly isolation.

The programming of business activities can involve more effort than is required for atomic transactions, as less infrastructure is typically available. For example, the XA support found in many enterprise databases handles the necessary locking, 2PC and other functions transparently, allowing databases to be used in atomic transactions with minimal programmer effort. However, equivalent support for business activities, particularly with regard to compensation logic, must be added to the code of each new application by the programmer.

The demonstration application illustrates one possible approach to creating services for use in business activities. It shows how to create a transaction participant that can expose existing business logic, originally intended for use in atomic transactions, as a service suitable for use in a business activity. This is a particularly common scenario for enterprises seeking to reuse existing logic by packaging it for use as a component in the composition of workflow type processes.

To use the Business Activity transaction type in the sample application, simply select it from the pull down menu at the top of the client interface. Notice that the client applications show the reservation resources as booked (committed) even before the transaction is terminated, subsequently performing a compensating transaction to reverse this effect if the transaction is cancelled.

You can begin experimenting with the XML Transaction component of Narayana by editing the sample application source code, which is heavily commented to assist your understanding. The source code can be found in the <DEMO_HOME>/src directory. Deployment descriptors for the application can be found iin directory <DEMO_HOME>/dd. (corresponding files for the JaxRPC implementation are in directories <DEMO_HOME>/srcrpc and <DEMO_HOME>/ddrpc).

It is structured as follows:

The participant is the entity that performs the work pertaining to transaction management on behalf of the business services involved in an application. The Web service (in the example code, a theater booking system) contains some business logic to reserve a seat and inquire about availability, but it needs to be supported by something that maintains information in a durable manner. Typically this is a database, but it could be a file system, NVRAM, or other storage mechanism.

Although the service may talk to the back-end database directly, it cannot commit or undo any changes, since committing and rolling back are ultimately under the control of a transaction. For the transaction to exercise this control, it must communicate with the database. In XTS, participant does this communication, as shown in Figure 7.1, “Transactions, Participants, and Back-End Transaction Control”.

All Atomic Transaction participants are instances of the Section, “Durable2PCParticipant” or Section, “Volatile2PCParticipant”.

A Durable2PCParticipant supports the WS-Atomic Transaction Durable2PC protocol with the signatures listed in Durable2PCParticipant Signatures, as per the com.arjuna.wst11.Durable2Participant interface.

Durable2PCParticipant Signatures


The participant should perform any work necessary, so that it can either commit or roll back the work performed by the Web service under the scope of the transaction. The implementation is free to do whatever it needs to in order to fulfill the implicit contract between it and the coordinator.

The participant indicates whether it can prepare by returning an instance of the com.arjuna.wst11.Vote, with one of three values.

  • ReadOnly indicates that the participant does not need to be informed of the transaction outcome, because it did not update any state information.

  • Prepared indicates that the participant is ready to commit or roll back, depending on the final transaction outcome. Sufficient state updates have been made persistent to accomplish this.

  • Aborted indicates that the participant has aborted and the transaction should also attempt to do so.


The participant should make its work permanent. How it accomplishes this depends upon its implementation. For instance, in the theater example, the reservation of the ticket is committed. If commit processing cannot complete, the participant should throw a SystemException error, potentially leading to a heuristic outcome for the transaction.


The participant should undo its work. If rollback processing cannot complete, the participant should throw a SystemException error, potentially leading to a heuristic outcome for the transaction.


This method has been deprecated and is slated to be removed from XTS in the future.


In rare cases when recovering from a system crash, it may be impossible to complete or roll back a previously prepared participant, causing the error operation to be invoked.

This participant supports the WS-Atomic Transaction Volatile2PC protocol with the signatures listed in Volatile2PCParticipant Signatures, as per the com.arjuna.wst11.Volatile2Participant interface.

Volatile2PCParticipant Signatures


The participant should perform any work necessary to flush any volatile data created by the Web service under the scope of the transaction, to the system store. The implementation is free to do whatever it needs to in order to fulfill the implicit contract between it and the coordinator.

The participant indicates whether it can prepare by returning an instance of the com.arjuna.wst11.Vote, with one of three values.

  • ReadOnly indicates that the participant does not need to be informed of the transaction outcome, because it did not change any state information during the life of the transaction.

  • Prepared indicates that the participant wants to be notified of the final transaction outcome via a call to commit or rollback.

  • Aborted indicates that the participant has aborted and the transaction should also attempt to do so.


The participant should perform any cleanup activities required, in response to a successful transaction commit. These cleanup activities depend upon its implementation. For instance, it may flush cached backup copies of data modified during the transaction. In the unlikely event that commit processing cannot complete, the participant should throw a SystemException error. This will not affect the outcome of the transaction but will cause an error to be logged. This method may not be called if a crash occurs during commit processing.


The participant should perform any cleanup activities required, in response to a transaction abort. In the unlikely event that rollback processing cannot complete, the participant should throw a SystemException error. This will not affect the outcome of the transaction but will cause an error to be logged. This method may not be called if a crash occurs during commit processing.


This method is deprecated and will be removed in a future release of XTS.


This method should never be called, since volatile participants are not involved in recovery processing.

All Business Activity participants are instances one or the other of the interfaces described in Section, “BusinessAgreementWithParticipantCompletion” or Section, “BusinessAgreementWithCoordinatorCompletion” interface.

The BusinessAgreementWithParticipantCompletion interface supports the WS-Transactions BusinessAgreementWithParticipantCompletion protocol with the signatures listed in BusinessAgreementWithParticipantCompletion Signatures, as per interface com.arjuna.wst11.BusinessAgreementWithParticipantCompletionParticipant.

The BusinessAgreementWithCoordinatorCompletion participant supports the WS-Transactions BusinessAgreementWithCoordinatorCompletion protocol with the signatures listed in BusinessAgreementWithCoordinatorCompletion Signatures, as per the com.arjuna.wst11.BusinessAgreementWithCoordinatorCompletionParticipant interface.

In order for the Business Activity protocol to work correctly, the participants must be able to autonomously notify the coordinator about changes in their status. Unlike the Atomic Transaction protocol, where all interactions between the coordinator and participants are instigated by the coordinator when the transaction terminates, the BAParticipantManager interaction pattern requires the participant to be able to talk to the coordinator at any time during the lifetime of the business activity.

Whenever a participant is registered with a business activity, it receives a handle on the coordinator. This handle is an instance of interface com.arjuna.wst11.BAParticipantManager with the methods listed in BAParticipantManager Methods.

The participant provides the plumbing that drives the transactional aspects of the service. This section discusses the specifics of Participant programming and usage.

Transactional web services and transactional clients are deployed by placing them in the application server deploy directory alongside the XTS service archive (SAR). The SAR exports all the client and web service API classes needed to manage transactions and enroll and manage participant web services. It provides implementations of all the WS-C and WS-T coordination services, not just the coordinator services. In particular, it exposes the client and web service participant endpoints which are needed to receive incoming messages originating from the coordinator.

Normally, a transactional application client and the transaction web service it invokes will be deployed in different application servers. As long as the XTS SAR is deployed to each of these containers XTS will transparently route coordination messages from clients or web services to their coordinator and vice versa. When the the client begins a transaction by default it creates a context using the coordination services in its local container. The context holds a reference to the local Registration Service which means that any web services enlisted in the transaction enrol with the cooridnation services in the same container."

The coordinator does not need to reside in the same container as the client application. By configuring the client deployment appropriately it is possible to use the coordinator services co-located with one of the web services or even to use services deployed in a separate, dedicated container. See Chapter 8 Stand-Alone Coordination for details of how to configure a coordinator located in a different container to the client.

During JBoss Application Server startup, you should only deploy a transactional web service or transactional client after the XTS services are available. Declare this dependency in a jboss-beans.xml file located in the META-INF directory of the web service or client deployment. Example 7.1, “Example jboss-beans.xml” shows one way of declaring this dependency.

After the XTS service starts, it creates an instance of the application class org.my.ServiceBean by calling its start method. During JBoss Application Server shutdown, XTS stops the same instance by calling its stop method, prior to shutting down the XTS Service.

This chapter discusses the XTS API. You can use this information to write client and server applications which consume transactional Web Services and coordinate back-end systems.

com.arjuna.mw.wst11.UserTransaction is the class that clients typically employ. Before a client can begin a new atomic transaction, it must first obtain a UserTransaction from the UserTransactionFactory. This class isolates the user from the underlying protocol-specific aspects of the XTS implementation. A UserTransaction does not represent a specific transaction. Instead, it provides access to an implicit per-thread transaction context, similar to the UserTransaction in the JTA specification. All of the UserTransaction methods implicitly act on the current thread of control.

Defines the interaction between a transactional web service and the underlying transaction service implementation. A TransactionManager does not represent a specific transaction. Instead, it provides access to an implicit per-thread transaction context.



Returns a TxContext for the current transaction, or null if there is no context. Use the currentTransaction method to determine whether a web service has been invoked from within an existing transaction. You can also use the returned value to enable multiple threads to execute within the scope of the same transaction. Calling the currentTransaction method does not disassociate the current thread from the transaction.


Dissociates a thread from any transaction. This enables a thread to do work that is not associated with a specific transaction.

The suspend method returns a TxContext instance, which is a handle on the transaction.


Associates or re-associates a thread with a transaction, using its TxContext. Prior to association or re-association, the thread is disassociated from any transaction with which it may be currently associated. If the TxContext is null, then the thread is associated with no transaction. In this way, the result is the same as if the suspend method were used instead.


Enroll the specified participant with the current transaction, causing it to participate in the Volatile2PC protocol. You must pass a unique identifier for the participant.


Enroll the specified participant with the current transaction, causing it to participate in the Durable2PC protocol. You must pass a unique identifier for the participant.

com.arjuna.wst11.UserBusinessActivity is the class that most clients employ. A client begins a new business activity by first obtaining a UserBusinessActivity from the UserBusinessActivityFactory. This class isolates them from the underlying protocol-specific aspects of the XTS implementation. A UserBusinessActivity does not represent a specific business activity. Instead, it provides access to an implicit per-thread activity. Therefore, all of the UserBusinessActivity methods implicitly act on the current thread of control.



Begins a new activity, associating it with the invoking thread.


First, all Coordinator Completion participants enlisted in the activity are requested to complete the activity. Next all participants, whether they enlisted for Coordinator or Participant Completion, are requested to close the activity. If any of the Coordinator Completion participants fails to complete at the first stage then all completed participants are asked to compensate the activity while any remaining uncompleted participants are requested to cancel the activity.


Terminates the business activity. All Participant Completion participants enlisted in the activity which have already completed are requested to compensate the activity. All uncompleted Participant Completion participants and all Coordinator Completion participants are requested to cancel the activity.

com.arjuna.mw.wst11.BusinessActivityManager is the class that web services typically employ. Defines how a web service interacts with the underlying business activity service implementation. A BusinessActivityManager does not represent a specific activity. Instead, it provides access to an implicit per-thread activity.



Returns the TxContext for the current business activity, or NULL if there is no TxContext. The returned value can be used to enable multiple threads to execute within the scope of the same business activity. Calling the currenTransaction method does not dissociate the current thread from its activity.


Dissociates a thread from any current business activity, so that it can perform work not associated with a specific activity. The suspend method returns a TxContext instance, which is a handle on the activity. The thread is then no longer associated with any activity.


Associates or re-associates a thread with a business activity, using its TxContext. Before associating or re-associating the thread, it is disassociated from any business activity with which it is currently associated. If the TxContext is NULL, the thread is disassociated with all business activities, as though the suspend method were called.


Enroll the specified participant with current business activity, causing it to participate in the BusinessAgreementWithParticipantCompletion protocol. A unique identifier for the participant is also required.

The return value is an instance of BAParticipantManager which can be used to notify the coordinator of changes in the participant state. In particular, since the participant is enlisted for the Participant Completion protcol it is expected to call the completed method of this returned instance when it has completed all the work it expects to do in this activity and has made all its changes permanent. Alternatively, if the participant does not need to perform any compensation actions should some other participant fail it can leave the activity by calling the exit method of the returned BAParticipantManager instance.


Enroll the specified participant with current activity, causing it to participate in the BusinessAgreementWithCoordinatorCompletion protocol. A unique identifier for the participant is also required.

The return value is an instance of BAParticipantManager which can be used to notify the coordinator of changes in the participant state. Note that in this case it is an error to call the completed method of this returned instance. With the Coordinator Completion protocol the participant is expected to wait until its completed method is called before it makes all its changes permanent. Alternatively, if the participant determiens that it has no changes to make, it can leave the activity by calling the exit method of the returned BAParticipantManager instance.

The XTS service is deployed as a JBoss service archive (SAR). The version of the service archive provided with the Transaction Service implements version 1.1 of the WS-C, WS-AT and WS-BA services. You can rebuild the XTS service archive to include both the 1.0 and 1.1 implementations and deploy them side by side. See the service archive build script for for further details.

The release service archive obtains coordination contexts from the Activation Coordinator service running on the deployed host. Therefore, WS-AT transactions or WS-BA activities created by a locally-deployed client application are supplied with a context which identifies the Registration Service running on the client's machine. Any Web Services invoked by the client are coordinated by the Transaction Protocol services running on the client's host. This is the case whether the Web Services are running locally or remotely. Such a configuration is called local coordination.

You can reconfigure this setting globally for all clients, causing context creation requests to be redirected to an Activation Coordinator Service running on a remote host. Normally, the rest of the coordination process is executed from the remote host. This configuration is called stand-alone coordination.

The XTS service archive used to deploy XTS to the JBoss Application Server includes a bean configuration file, xts-jboss-beans.xml, in its META-INF directory. This file specifies configuration values which the JBoss Application Server injects into the beans, and which define the XTS runtime configuration when it starts the XTS service. The location of the XTS coordinator is defined by values injected into the WSCEnvironmentBean. Example 9.1, “Example xts-jboss-beans.xml configuration settings” shows a fragment of this file which details serveral possible configuration options.

Example 9.1. Example xts-jboss-beans.xml configuration settings

<bean name="XTS:WSCEnvironmentBean" class="org.jboss.jbossts.xts.environment.WSCEnvironmentBean">
  <constructor factoryClass="org.jboss.jbossts.xts.environment.XTSPropertyManager"
  <!-- we need the bind address and port from jboss web -->
  . . .
      if you want to use a coordinator running in a remote JVM then you can
      simply configure the URL. This will also be necessary if you are using
      a non-JBoss coordination service.
      <property name="coordinatorURL11">
      if you are using a remote JBoss XTS coordinator you can just redefine
      the scheme, address, port or path to the desired value and the ones
      left undefined will be defaulted to use the standard XTS coordinator
      URL elements. So, for example if your XTS coordinator services is
      deployed in another AS on host myhost.myorg.com you only need to define
      property coordinatorAddress11 to have value myhost.myorg.com and the
      coordinator address used by clients will be
      http://myhost.myorg.com:8080/ws-c11/ActivationService n.b. if the remote
      machine is using JBoss XTS then you won't want to redefine the port
      unless you have monkeyed around with the port config in the remote AS. also
      you won't need to change the path unless you have tweaked the deployment
      descriptor to relocate the XTS services.

      <property name="coordinatorScheme11">
      <property name="coordinatorAddress11">
      <property name="coordinatorPort11">
      <property name="coordinatorPath11">

The simplest way to configure a stand-alone coordinator is to provide a complete URL for the remote coordinator. The example shows how the bean property with name coordinatorURL11 would be configured with value

You can also specify the individual elements of the URL using the properties coordinatorScheme11, coordinatorAddress11, and so forth. These values only apply when the coordinatorURL11 is not set. The URL is constructed by combining the specified values with default values for any missing elements. This is particularly useful for two specific use cases.

  1. The first case is where the client is expected to use an XTS coordinator deployed in another JBoss Application Server. If, for example, this JBoss Application Server is bound to address, setting property coordinatorAddress11 to is normally all that is required to configure the coordinator URL to idenitfy the remote JBoss Application Server's coordination service. If the Web service on the remote JBoss Application Server were reset to9090 then it would also be necessary to set property coordinatorPort11 to this value.

  2. The second common use case is where communications between client and coordinator, and between participant and coordinator, must use secure connections. If property coordinatorScheme11 is set to value https, the client's request to begin a transaction is sent to the coordinator service over a secure https connection. The XTS coordinator and participant services will ensure that all subsequent communications between coordinator and client or coordinator and web services also employ secure https connections. Note that this requires configuring the trust stores in the JBoss Application Server running the client, coordinator and participant web services with appropriate trust certificates.

If none of the above properties is specified, the coordinator URL uses the http scheme. The coordinator address and port are obtained from the host address and port configured for the JBoss Web service. These default to localhost and 8080, respectively. The URL path takes the value shown in Example 9.1, “Example xts-jboss-beans.xml configuration settings”.

You can configure the bean properties defined above by setting System properties on the Java command line. This is useful in pre-deployment testing. So, for example, command line option -Dorg.jboss.jbossts.xts11.coordinator.address= resets property coordinatorAddress11. System properties do not override property values configured in the configuration file. The following table identifies the System properties which can be configured.


The property names have been abbreviated in order to fit into the table. They should each start with prefix org.jboss.jbossts.xts11.coordinator.

A key requirement of a transaction service is to be resilient to a system crash by a host running a participant, as well as the host running the transaction coordination services. Crashes which happen before a transaction terminates or before a business activity completes are relatively easy to accommodate. The transaction service and participants can adopt a presumed abort policy.

Crash recovery is more complex if the crash happens during a transaction commit operation, or between completing and closing a business activity. The transaction service must ensure as far as possible that participants arrive at a consistent outcome for the transaction.

On the rare occasions where such a consensus cannot be reached, the transaction service must log and report transaction failures.

XTS includes support for automatic recovery of WS-AT and WS-BA transactions, if either or both of the coordinator and participant hosts crashes. The XTS recovery manager begins execution on coordinator and participant hosts when the XTS service restarts. On a coordinator host, the recovery manager detects any WS-AT transactions which have prepared but not committed, as well as any WS-BA transactions which have completed but not yet closed. It ensures that all their participants are rolled forward in the first case, or closed in the second.

On a participant host, the recovery manager detects any prepared WS-AT participants which have not responded to a transaction rollback, and any completed WS-BA participants which have not yet responded to an activity cancel request, and ensures that the former are rolled back and the latter are compensated. The recovery service also allows for recovery of subordinate WS-AT transactions and their participants if a crash occurs on a host where an interposed WS-AT coordinator has been employed.

The WS-AT coordination service tracks the status of each participant in a transaction as the transaction progresses through its two-phase commit. When all participants have been sent a prepare message and have responded with a prepared message, the coordinator writes a log record storing each participant's details, indicating that the transaction is ready to complete. If the coordinator service crashes after this point has been reached, completion of the two-phase commit protocol is still guaranteed, by reading the log file after reboot and sending a commit message to each participant. Once all participants have responded to the commit with a committed message, the coordinator can safely delete the log entry.

Since the prepared messages returned by the participants imply that they are ready to commit their provisional changes and make them permanent, this type of recovery is safe. Additionally, the coordinator does not need to account for any commit messages which may have been sent before the crash, or resend messages if it crashes several times. The XTS participant implementation is resilient to redelivery of the commit messages. If the participant has implemented the recovery functions described in Section, “WS-AT Participant Crash Recovery APIs”, the coordinator can guarantee delivery of commit messages if both it crashes, and one or more of the participant service hosts also crash, at the same time.

If the coordination service crashes before the prepare phase completes, the presumed abort protocol ensures that participants are rolled back. After system restart, the coordination service has the information about about all the transactions which could have entered the commit phase before the reboot, since they have entries in the log. It also knows about any active transactions started after the reboot. If a participant is waiting for a response, after sending its prepared message, it automatically re sends the prepared message at regular intervals. When the coordinator detects a transaction which is not active and has no entry in the log file after the reboot, it instructs the participant to abort, ensuring that the web service gets a chance to roll back any provisional state changes it made on behalf of the transaction.

A web service may decide to unilaterally commit or roll back provisional changes associated with a given participant, if configured to time out after a specified length of time without a response. In this situation, the the web service should record this action and log a message to persistent storage. When the participant receives a request to commit or roll back, it should throw an exception if its unilateral decision action does not match the requested action. The coordinator detects the exception and logs a message marking the outcome as heuristic. It also saves the state of the transaction permanently in the transaction log, to be inspected and reconciled by an administrator.

WS-AT participants associated with a transactional web service do not need to be involved in crash recovery if the Web service's host machine crashes before the participant is told to prepare. The coordinator will assume that the transaction has aborted, and the Web service can discard any information associated with unprepared transactions when it reboots.

When a participant is told to prepare, the Web service is expected to save to persistent storage the transactional state it needs to commit or roll back the transaction. The specific information it needs to save is dependent on the implementation and business logic of the Web Service. However, the participant must save this state before returning a Prepared vote from the prepare call. If the participant cannot save the required state, or there is some other problem servicing the request made by the client, it must return an Aborted vote.

The XTS participant services running on a Web Service's host machine cooperate with the Web service implementation to facilitate participant crash recovery. These participant services are responsible for calling the participant's prepare, commit, and rollback methods. The XTS implementation tracks the local state of every enlisted participant. If the prepare call returns a Prepared vote, the XTS implementation ensures that the participant state is logged to the local transaction log before forwarding a prepared message to the coordinator.

A participant log record contains information identifying the participant, its transaction, and its coordinator. This is enough information to allow the rebooted XTS implementation to reinstate the participant as active and to continue communication with the coordinator, as though the participant had been enlisted and driven to the prepared state. However, a participant instance is still necessary for the commit or rollback process to continue.

Full recovery requires the log record to contain information needed by the Web service which enlisted the participant. This information must allow it to recreate an equivalent participant instance, which can continue the commit process to completion, or roll it back if some other Web Service fails to prepare. This information might be as simple as a String key which the participant can use to locate the data it made persistent before returning its Prepared vote. It may be as complex as a serialized object tree containing the original participant instance and other objects created by the Web service.

If a participant instance implements the relevant interface, the XTS implementation will append this participant recovery state to its log record before writing it to persistent storage. In the event of a crash, the participant recovery state is retrieved from the log and passed to the Web Service which created it. The Web Service uses this state to create a new participant, which the XTS implementation uses to drive the transaction to completion. Log records are only deleted after the participant's commit or rollback method is called.

When a Business Activity participant web service completes its work, it may want to save the information which will be required later to close or compensate actions performed during the activity. The XTS implementation automatically acquires this information from the participant as part of the completion process and writes it to a participant log record. This ensures that the information can be restored and used to recreate a copy of the participant even if the web service container crashes between the complete and close or compensate operations.

For a Participant Completion participant, this information is acquired when the web service invokes the completed method of the BAParticipantManager instance returned from the call which enlisted the participant. For a Coordinator Completion participant this occurs immediately after the call to it's completed method returns. This assumes that the completed method does not throw an exception or call the participant manager's cannotComplete or fail method.

A participant may signal that it is capable of performing recovery processing, by implementing the java.lang.Serializable interface. An alternative is to implement the Example 10.1, “PersistableATParticipant Interface”.

If a participant implements the Serializable interface, the XTS participant services implementation uses the serialization API to create a version of the participant which can be appended to the participant log entry. If it implements the PersistableATParticipant interface, the XTS participant services implementation call the getRecoveryState method to obtain the state to be appended to the participant log entry.

If neither of these APIs is implemented, the XTS implementation logs a warning message and proceeds without saving any recovery state. In the event of a crash on the host machine for the Web service during commit, the transaction cannot be recovered and a heuristic outcome may occur. This outcome is logged on the host running the coordinator services.

A Web service must register with the XTS implementation when it is deployed, and unregister when it is undeployed, in order to participate in recovery processing. Registration is performed using class XTSATRecoveryManager defined in package org.jboss.jbossts.xts.recovery.participant.at.

The Web service must provide an implementation of interface XTSBARecoveryModule in package org.jboss.jbossts.xts.recovery.participant.ba, as an argument to the register and unregister calls. This instance identifies saved participant recovery records and recreates new, recovered participant instances:

If a participant's recovery state was saved using serialization, the recovery module's deserialize method is called to recreate the participant. Normally, the recovery module is required to read, cast, and return an object from the supplied input stream. If a participant's recovery state was saved using the PersistableATParticipant interface, the recovery module's recreate method is called to recreate the participant from the byte array it provided when the state was saved.

The XTS implementation cannot identify which participants belong to which recovery modules. A module only needs to return a participant instance if the recovery state belongs to the module's Web service. If the participant was created by another Web service, the module should return null. The participant identifier, which is supplied as argument to the deserialize or recreate method, is the identifier used by the Web service when the original participant was enlisted in the transaction. Web Services participating in recovery processing should ensure that participant identifiers are unique per service. If a module recognizes that a participant identifier belongs to its Web service, but cannot recreate the participant, it should throw an exception. This situation might arise if the service cannot associate the participant with any transactional information which is specific to the business logic.

Even if a module relies on serialization to create the participant recovery state saved by the XTS implementation, it still must be registered by the application. The deserialization operation must employ a class loader capable of loading classes specific to the Web service. XTS fulfills this requirement by devolving responsibility for the deserialize operation to the recovery module.

The WS-BA coordination service implementation tracks the status of each participant in an activity as the activity progresses through completion and closure. A transition point occurs during closure, once all CoordinatorCompletion participants receive a complete message and respond with a completed message. At this point, all ParticipantCompletion participants should have sent a completed message. The coordinator writes a log record storing the details of each participant, and indicating that the transaction is ready to close. If the coordinator service crashes after the log record is written, the close operation is still guaranteed to be successful. The coordinator checks the log after the system reboots and re sends a close message to all participants. After all participants respond to the close with a closed message, the coordinator can safely delete the log entry.

The coordinator does not need to account for any close messages sent before the crash, nor resend messages if it crashes several times. The XTS participant implementation is resilient to redelivery of close messages. Assuming that the participant has implemented the recovery functions described below, the coordinator can even guarantee delivery of close messages if both it, and one or more of the participant service hosts, crash simultaneously.

If the coordination service crashes before it has written the log record, it does not need to explicitly compensate any completed participants. The presumed abort protocol ensures that all completed participants are eventually sent a compensate message. Recovery must be initiated from the participant side.

A log record does not need to be written when an activity is being canceled. If a participant does not respond to a cancel or compensate request, the coordinator logs a warning and continues. The combination of the presumed abort protocol and participant-led recovery ensures that all participants eventually get canceled or compensated, as appropriate, even if the participant host crashes.

If a completed participant does not detect a response from its coordinator after resending its completed response a suitable number of times, it switches to sending getstatus messages, to determine whether the coordinator still knows about it. If a crash occurs before writing the log record, the coordinator has no record of the participant when the coordinator restarts, and the getstatus request returns a fault. The participant recovery manager automatically compensates the participant in this situation, just as if the activity had been canceled by the client.

After a participant crash, the participant recovery manager detects the log entries for each completed participant. It sends getstatus messages to each participant's coordinator host, to determine whether the activity still exists. If the coordinator has not crashed and the activity is still running, the participant switches back to resending completed messages, and waits for a close or compensate response. If the coordinator has also crashed or the activity has been canceled, the participant is automatically canceled.

A Web service must register with the XTS implementation when it is deployed, and unregister when it is undeployed, so it can take part in recovery processing.

Registration is performed using the XTSBARecoveryManager, defined in the org.jboss.jbossts.xts.recovery.participant.ba package.

The Web service must provide an implementation of the XTSBARecoveryModule in the org.jboss.jbossts.xts.recovery.participant.ba, as an argument to the register and unregister calls. This instance identifies saved participant recovery records and recreates new, recovered participant instances:

If a participant's recovery state was saved using serialization, one of the recovery module's deserialize methods is called, so that it can recreate the participant. Which method to use depends on whether the saved participant implemented the ParticipantCompletion protocol or the CoordinatorCompletion protocol. Normally, the recovery module reads, casts and returns an object from the supplied input stream. If a participant's recovery state was saved using the PersistableBAParticipant interface, one of the recovery module's recreate methods is called, so that it can recreate the participant from the byte array provided when the state was saved. The method to use depends on which protocol the saved participant implemented.

The XTS implementation does not track which participants belong to which recovery modules. A module is only expected to return a participant instance if it can identify that the recovery state belongs to its Web service. If the participant was created by some other Web service, the module should return null. The participant identifier supplied as an argument to the deserialize or recreate calls is the identifier used by the Web service when the original participant was enlisted in the transaction. Web Services which participate in recovery processing should ensure that the participant identifiers they employ are unique per service. If a module recognizes a participant identifier as belonging to its Web service, but cannot recreate the participant, it throws an exception. This situation might arise if the service cannot associate the participant with any transactional information specific to business logic.

A module must be registered by the application, even when it relies upon serialization to create the participant recovery state saved by the XTS implementation. The deserialization operation must employ a class loader capable of loading Web service-specific classes. The XTS implementation achieves this by delegating responsibility for the deserialize operation to the recovery module.

When a BA participant completes, it is expected to commit changes to the web service state made during the activity. The web service usually also needs to persist these changes to a local storage device. This leaves open a window where the persisted changes may not be guarded with the necessary compensation information. The web service container may crash after the changes to the service state have been written but before the XTS implementation is able to acquire the recovery state and write a recovery log record for the participant. Participants may close this window by employing a two phase update to the local store used to persist the web service state.

A participant which needs to persist changes to local web service state should implement interface ConfirmCompletedParticipant in package com.arjuna.wst11. This signals to the XTS implementation that it expects confirmation after a successful write of the participant recovery record, allowing it to roll forward provisionally persisted changes to the web service state. Delivery of this confirmation can be guaranteed even if the web service container crashes after writing the participant log record. Conversely, if a recovery record cannot be written because of a fault or a crash prior to writing, the provisional changes can be guaranteed to be rolled back.

When the participant is ready to complete, it should prepare its persistent changes by temporarily locking access to the relevant state in the local store and writing the changed data to disk, retaining both the old and new versions of the service state. For a Participant Completion participant, this prepare operation should be done just before calling the participant manager's completed method. For a Coordinator Completion participant, it should be done just before returning from the call to the participant's completed method. After writing the participant log record, the XTS implementation calls the participant's confirmCompleted method, providing value true as the argument. The participant should respond by installing the provisional state changes and releasing any locks. If the log record cannot be written, the XTS implementation calls the participant's confirmCompleted method, providing value false as the argument. The participant should respond by restoring the original state values and releasing any locks.

If a crash occurs before the call to confirmCompleted, the application's recovery module can make sure that the provisional changes to the web service state are rolled forward or rolled back as appropriate. The web service must identify all provisional writes to persistent state before it starts serving new requests or processing recovered participants. It must reobtain any locks required to ensure that the state is not changed by new transactions. When the recovery module recovers a participant from the log, its compensation information is available. If the participant still has prepared changes, the recovery code must call confirmCompleted, passing value true. This allows the participant to finish the complete operation. The XTS implementation then forwards a completed message to the coordinator, ensuring that the participant is subsequently notified either to close or to compensate. At the end of the first recovery scan, the recovery module may find some prepared changes on disk which are still unaccounted for. This means that the participant recovery record is not available. The recovery module should restore the original state values and release any locks. The XTS implementation responds to coordinator requests regarding the participant with an unknown participant fault, forcing the activity as a whole to be rolled back.

The basic building blocks of a transactional Web Services application include the application itself, the Web services that the application consumes, the Transaction Manager, and the transaction participants which support those Web services. Although it is likely that different developers will be responsible for each piece, the concepts are presented here so that you can see the whole picture. Often, developers produce services, or applications that consume services, and system administrators run the transaction-management infrastructure.

The JBossTS XTS component consists of a number of .jar files containing the application’s class files, plus Web service (.war) files which expose the necessary services. These components are typically included in an application's Enterprise Archive (.ear) file during application development, as this simplifies deployment of the transaction infrastructure. For production, you can install the Transaction Manager as an application in its own right, allowing for centralized configuration and management at the server level, independent of specific applications. The demonstration application shipped with JBossTS provides a sample deployment descriptor illustrating how the Transaction Manager components can be included in an application.

JBossTS 4.x uses fixed endpoints for its underlying protocol communication. Therefore, problems may arise if you deploy multiple applications using JBossTS to the same server concurrently. If you need to deploy several transactional applications in the same server, you must deploy the Transaction Manger as a separate application, rather than embedding it within the development of individual applications.

The coordinator/ directory in the JBossTS installation can assist in the configuration and deployment of a stand-alone transaction manager.

Procedure 12.1. Using the coordinator/ diretory to configure and deploy a stand-alone transaction manager

  1. Install JBossTS 4.15.

  2. Use a separate application server installation for the coordinator. This installation can be on a separate machine. To set this up on JBoss Application Server, see http://www.yorku.ca/dkha/jboss/docs/MultipleInstances.htm for more information.

  3. Install Ant 1.4 or later.


    A separate application server installation must be used, separate from the one that clients and services are deployed into, to prevent conflicts between the various JBossTS components.

  4. Edit the build.xml included in the coordinator/ directory, to point to the application server installation where the transaction coordinator will be deployed and the location of the JBossTS installation. The files ws-c_jaxm_web-app.xml and ws-t_jaxm_web-app.xml in the dd/ subdirectory of coordinator/ are the deployment descriptors for the WS-C and WS-T war files. These files contain templated URLs. During the build phase, ant will substitute the hostname and port values you specify in the build.xml into these files.

  5. Run ant, with one of targets deploy-weblogic, deploy-jboss, or deploy-webmethods, to create and deploy a new coordinator into the correct application server installation.

  6. Finally, point your client at the required coordinator. To do this, generate the demo application. specifying the port and hostname of the coordinator.

In general, changing the contents of the various deployment descriptors used by JBossTS is not necessary. However, if you do need to modify them they are all included in the coordinator module.

Not all JBossTS components have ready access to the information in the deployment descriptors. Therefore, if you modify the JNDI names used by any of the WS-C or WS-T deployment descriptors, you may need to inform other JBossTS components at runtime, by setting an appropriate property in the wstx.xml configuration file.

Revision History
Revision 0Mon Jul 12 2010Misty Stanley-Jones
Initial creation of book by publican
