The XTS Development Guide explains how to add resilience to distributed business processes based on web services, making them reliable in the event of system or network failures. It covers installation, administration, and development of transactional web services.
The JBoss Application Server implements Web Services Transactions standards using XTS (XML Transaction Service). XTS supports development and deployment of transaction-aware web services. It also enables web service clients to create and manage web service transactions from which transactional web services can be invoked. XTS ensures that the client and web services achieve consistent outcomes even if the systems on which they are running crash or temporarily lose network connectivity.
XTS is compliant with the WS-Coordination, WS-Atomic Transaction, and WS-Business Activity specifications. The implementation supports web services and clients which are based on the JaxWS standard. XTS is itself implemented using services based on JaxWS. While this guide discusses many Web Services standards like SOAP and WSDL, it does not attempt to address all of their fundamental constructs. However, basic concepts are provided where necessary.
This guide is most relevant for application developers and Web service developers who are interested in building applications and Web services that are transaction-aware. It is also useful for system analysts and project managers who are unfamiliar with transactions as they pertain to Web services.
JBoss Transaction Service uses the Java programming language and this manual assumes that you are familiar with programming in Java. Additional helpful skills are outlined in Prerequisite Skills for XTS Developers.
Prerequisite Skills for XTS Developers
A Working knowledge of Web Services, including XML, SOAP, and WSDL
A general understanding of transactions
A general understanding of WS-Coordination, WS-Atomic Transaction and WS-Business Activity protocols
This guide presents overview information for all of the above. However, to aid in understanding the Web Services component of JBoss Transaction Service, the WS-C[1], WS-Atomic Transaction[2], and WS-Business Activity[3] specifications are discussed in great detail.
The XML Transaction Service (XTS) component of JBoss Transaction Service supports the coordination of private and public Web Services in a business transaction. Therefore, to understand XTS, you must be familiar with Web Services, and also understand something about transactions. This chapter introduces XTS and provides a brief overview of the technologies that form the Web Services standard. Additionally, this chapter explores some of the fundamentals of transactioning technology and how it can be applied to Web Services. Much of the content presented in this chapter is detailed throughout this guide. However, only overview information about Web Services is provided. If you are new to creating Web services, please see consult your Web Services platform documentation.
JBoss Transaction Service provides the XTS component as a transaction solution for Web Services. Using XTS, business partners can coordinate complex business transactions in a controlled and reliable manner. The XTS API supports a transactional coordination model based on the WS-Coordination, WS-Atomic Transaction, and WS-Business Activity specifications.
Protocols Included in XTS
WS-Coordination (WS-C) is a generic coordination framework developed by IBM, Microsoft and BEA.
WS-Atomic Transaction (WS-AT) and WS-Business Activity (WS-BA) together comprise the WS-Transaction (WS-T) transaction protocols that utilize this framework.
JBoss Transaction Service implements versions 1.1, and 1.2 of these three specifications. Version specifications are available from http://www.oasis-open.org/specs/.
Note
The 1.1, and 1.2 specifications only differ in a small number of details. The rest of this document employs version 1.1 of these specifications when providing explanations and example code. On the few occasions where the modifications required to adapt these to the 1.1 specifications are not obvious, an explanatory note is provided.
Web Services are modular, reusable software components that are created by exposing business functionality through a Web service interface. Web Services communicate directly with other Web Services using standards-based technologies such as SOAP and HTTP. These standards-based communication technologies enable customers, suppliers, and trading partners to access Web Services, independent of hardware operating system, or programming environment. The result is a vastly improved collaboration environment as compared to today's EDI and business-to-business (B2B) solutions, an environment where businesses can expose their current and future business applications as Web Services that can be easily discovered and accessed by external partners.
Web Services, by themselves, are not fault-tolerant. In fact, some of the reasons that the Web Services model is an attractive development solution are also the same reasons that service-based applications may have drawbacks.
Properties of Web Services
Application components that are exposed as Web Services may be owned by third parties, which provides benefits in terms of cost of maintenance, but drawbacks in terms of having exclusive control over their behavior.
Web Services are usually remotely located, increasing risk of failure due to increased network travel for invocations.
Applications that have high dependability requirements need a method of minimizing the effects of errors that may occur when an application consumes Web Services. One method of safeguarding against such failures is to interact with an application’s Web Services within the context of a transaction. A transaction is a unit of work which is completed entirely, or in the case of failures is reversed to some agreed consistent state. The goal, in the event of a failure, is normally to appear as if the work had never occurred in the first place. With XTS, transactions can span multiple Web Services, meaning that work performed across multiple enterprises can be managed with transactional support.
XTS allows you to create transactions that drive complex business processes, spanning multiple Web Services. Current Web Services standards do not address the requirements for a high-level coordination of services. This is because in today’s Web Services applications, which use single request/receive interactions, coordination is typically not a problem. However, for applications that engage multiple services among multiple business partners, coordinating and controlling the resulting interactions is essential. This becomes even more apparent when you realize that you generally have little in the way of formal guarantees when interacting with third-party Web Services.
XTS provides the infrastructure for coordinating services during a business process. By organizing processes as transactions, business partners can collaborate on complex business interactions in a reliable manner, insuring the integrity of their data - usually represented by multiple changes to a database – but without the usual overheads and drawbacks of directly exposing traditional transaction-processing engines directly onto the web. An Evening On the Town demonstrates how an application may manage service-based processes as transactions:
An Evening On the Town
The application in question allows a user to plan a social evening. This application is responsible for reserving a table at a restaurant, and reserving tickets to a show. Both activities are paid for using a credit card. In this example, each service represents exposed Web Services provided by different service providers. XTS is used to envelop the interactions between the theater and restaurant services into a single (potentially) long-running business transaction. The business transaction must insure that seats are reserved both at the restaurant and the theater. If one event fails the user has the ability to decline both events, thus returning both services back to their original state. If both events are successful, the user’s credit card is charged and both seats are booked. As you may expect, the interaction between the services must be controlled in a reliable manner over a period of time. In addition, management must span several third-party services that are remotely deployed.
Without the backing of a transaction, an undesirable outcome may occur. For example, the user credit card may be charged, even if one or both of the bookings fail.
An Evening On the Town describes the situations where XTS excels at supporting business processes across multiple enterprises. This example is further refined throughout this guide, and appears as a standard demonstrator (including source code) with the XTS distribution.
The WS-Coordination, WS-Atomic Transaction, and WS-Business Activity protocols are based on one-way interactions of entities rather than traditional synchronous request/response RPC-style interactions. One group of entities, called transaction participants, invoke operations on other entities, such as the transaction coordinator, in order to return responses to requests. The programming model is based on peer-to-peer relationships, with the result that all services, whether they are participants, coordinators or clients, must have an active component that allows them to receive unsolicited messages.
In XTS, the active component is achieved through deployment of JaxWS endpoints. Each XTS endpoint that is reachable through SOAP/XML is published via JaxWS, without developer intevention. The only requirement is that transactional client applications and transactional web services must reside within a domain capable of hosting JaxWS endpoints, such as an application server. JBoss Application Server can provide this functionality.
SOAP has emerged as the de facto message format for XML-based communication in the Web Services arena. It is a lightweight protocol that allows the user to define the content of a message and to provide hints as to how recipients should process that message.
Web Services Description Language (WSDL) is an XML-based language used to define Web service interfaces. An application that consumes a Web service parses the service’s WSDL document to discover the location of the service, the operations that the service supports, the protocol bindings the service supports (SOAP, HTTP, etc), and how to access them. For each operation, WSDL describes the format that the client must follow.
XTS, which is the Web Services component of JBoss Transaction Service, provides WS-AT and WS-BA support for Web
Services hosted on the JBoss Application Server. The module is packaged as a Service Archive (.sar)
located in $JBOSS_HOME/docs/examples/transactions/
Procedure 3.1. Starting JBoss Application Server with XTS Enabled
Change to the JBoss Application Server directory:
cd $JBOSS_HOMECopy the example XTS configuration into the configs directory:
cp docs/examples/configs/standalone-xts.xmlStart JBoss Application Server, specifying the xts configuration:
Linux:
bin/standalone.sh --server-config=standalone-xts.xmlWindows:
bin\standalone.bat --server-config=standalone-xts.xml
There are two aspects to a client application using XTS, the transaction declaration aspects, and the business logic. The business logic includes the invocation of Web Services.
Transaction declaration aspects are handled automatically with the XTS client API. This API provides simple
transaction directives such as begin, commit, and
rollback, which the client application can use to initialize, manage, and terminate
transactions. Internally, this API uses SOAP to invoke operations on the various WS-C, WS-AT and WS-BA services,
in order to create a coordinator and drive the transaction to completion.
A client uses the UserTransactionFactory and UserTransaction classes to
create and manage WS-AT transactions. These classes provide a simple API which operates in a manner similar to the
JTA API. A WS-AT transaction is started and associated with the client thread by calling the
begin method of the UserTransaction class. The transaction can be
committed by calling the commit method, and rolled back by calling the
rollback method.
More complex transaction management, such as suspension and resumption of transactions, is supported by the
TransactionManagerFactory and TransactionManager classes.
Full details of the WS-AT APIs are provided in Chapter 6, The XTS API.
A client creates and manages Business Activities using the UserBusinessActivityFactory and
UserBusinessActivity classes. A WS-BA activity is started and associated with the client
thread by calling the begin method of the UserBusinessActivity
class. A client can terminate a business activity by calling the close method, and cancel it
by calling the cancel method.
If any of the Web Services invoked by the client register for the
BusinessActivityWithCoordinatorCompletion protocol, the client can call the
completed method before calling the close method, to notify the
services that it has finished making service invocations in the current activity.
More complex business activity management, such as suspension and resumption of business activities, is supported by
the BusinessActivityManagerFactory and BusinessActivityManager classes.
Full details of the WS-AT APIs are provided in Chapter 6, The XTS API.
XTS does not require the client application to use a specific API to perform invocations on transactional Web Services. The client is free to use any appropriate API to send SOAP messages to the server and receive SOAP responses. The only requirements imposed on the client are:
It must forward details of the current transaction to the server when invoking a web service.
It must process any responses from the server in the context of the correct transaction.
In order to achieve this, the client must insert details of the current XTS context into the headers of outgoing SOAP messages, and extract the context details from the headers of incoming messages and associate the context with the current thread. To simplify this process, the XTS module includes handlers which can perform this task automatically. These handlers are designed to work with JAX-WS clients.
Note
If you choose to use a different SOAP client/server infrastructure for business service invocations, you must provide for header processing. XTS only provides interceptors for or JAX-WS.
In order to register the JAX-WS client-side context handler, the client application uses the APIs provided by the
javax.xml.ws.BindingProvider and javax.xml.ws.Binding classes, to
install a handler chain on the service proxy which is used to invoke the remote endpoint. See Example 3.1, “JAX-WS Client Context Handlers Configuration”
for an example.
Example 3.1. JAX-WS Client Context Handlers Configuration
MyService order = service.getPort(portName, MyService.class);
BindingProvider bindingProvider = (BindingProvider) order;
List<Handler> handlers = new ArrayList<Handler>(1);
handlers.add(new JaxWSHeaderContextProcessor());
bindingProvider.getBinding().setHandlerChain(handlers);
The two parts to implementing a Web service using XTS are the transaction management and the business logic.
The bulk of the transaction management aspects are organized in a clear and easy-to-implement model by means of the XTS’s Participant API, provides a structured model for negotiation between the web service and the transaction coordinator. It allows the web service to manage its own local transactional data, in accordance with the needs of the business logic, while ensuring that its activities are in step with those of the client and other services involved in the transaction. Internally, this API uses SOAP to invokes operations on the various WS-C, WS-AT and WS-BA services, to drive the transaction to completion.
A participant is a software entity which is driven by the transaction manager on behalf of a Web service. When a web service wants to participate in a particular transaction, it must enroll a participant to act as a proxy for the service in subsequent negotiations with the coordinator. The participant implements an API appropriate to the type of transaction it is enrolled in, and the participant model selected when it is enrolled. For example, a Durable2PC participant, as part of a WS-Atomic Transaction, implements the Durable2PCParticipant interface. The use of participants allows the transactional control management aspects of the Web service to be factored into the participant implementation, while staying separate from the the rest of the Web service's business logic and private transactional data management.
The creation of participants is not trivial, since they ultimately reflect the state of a Web service’s back-end
processing facilities, an aspect normally associated with an enterprise’s own IT infrastructure. Implementations must
use one of the following interfaces, depending upon the protocol it will participate within:
com.arjuna.wst11.Durable2PCParticipant,
com.arjuna.wst11.Volatile2PCParticipant,
com.arjuna.wst11.BusinessAgreementWithParticipantCompletionParticipant, or
com.arjuna.wst11.BusinessAgreementWithCoordinatorCompletionParticipant.
A full description of XTS’s participant features is provided in Fix me.
A transactional Web service must ensure that a service invocation is included in the appropriate transaction. This usually only affects the operation of the participants and has no impact on the operation of the rest of the Web service. XTS simplifies this task and decouples it from the business logic, in much the same way as for transactional clientsAdd an xref. XTS provides a handler which detects and extracts the context details from the headers in incoming SOAP headers, and associates the web service thread with the transaction. The handler clears this association when dispatching SOAP responses, and writes the context into the outgoing message headers. This is shown in Figure 3.1, “Context Handlers Registered with the SOAP Server”.
The service side handlers for JAX-WS come in two different versions. The normal handler resumes any transaction identified by an incoming context when the service is invoked, and suspends this transaction when the service call completes. The alternative handler is used to interpose a local coordinator. The first time an incoming parent context is seen, the local coordinator service creates a subordinate transaction, which is resumed before the web service is called. The handler ensures that this subordinate transaction is resumed each time the service is invoked with the same parent context. When the subordinate transaction completes, the association between the parent transaction and its subordinate is cleared.
Note
The subordinate service side handler is only able to interpose a subordinate coordinator for an Atomic Transaction.
To register the JAX-WS server-side context handler with the deployed Web Services, you must install a handler chain
on the Server Endpoint Implementation class. The endpoint implementation class annotation, which is the one
annotated with a javax.jws.WebService, must be supplemented with a
javax.jws.HandlerChain annotation which identifies a handler configuration file deployed
with the application. Please refer to the example application configuration file located at
dd/jboss/context-handlers.xml and the endpoint implementation classes located in
src/com/jboss/jbosstm/xts/demo/services for an example.
When registering a normal JAX-WS service context handler, you must instantiate the
com.arjuna.mw.wst11.service.JaxWSHeaderContextProcessor class. If you need coordinator
interposition, employ the com.arjuna.mw.wst11.service.JaxWSSubordinateHeaderContextProcessor
instead.
This chapter gives a high-level overview of each of the major software pieces used by the Web Services transactions component of JBoss Transaction Service. The Web Services transaction manager provided by JBoss Transaction Service is the hub of the architecture and is the only piece of software that user-level software does not bind to directly. XTS provides header-processing infrastructure for use with Web Services transactions contexts for both client applications and Web Services. XTS provides a simple interface for developing transaction participants, along with the necessary document-handling code.
This chapter is only an overview, and does not address the more difficult and subtle aspects of programming Web Services. For fuller explanations of the components, please continue reading.
The sample application features some simple transactional Web services, a client application, deployment metadata files and a build script. The application is designed to introduce some of the key features of the XML Transaction component of Narayana and help you get started with writing your own transactional Web services applications.
The application is based around a simple booking scenario. The services provide the ability to transactionally reserve resources, whilst the client provides an interface to select the nature and quantity of the reservations. The chosen application domain is services for a night out.
The server components consist of three Web services (Restaurant, Theatre, Taxi) which offer transactional booking services. These services each expose a GUI with state information and an event trace log.
The client side of the application is a servlet which allows the user to select the required reservations and then books a night out by making invocations on each of the services within the scope of a Web Services transaction.
Full source code for the services and the client is included, along with a Maven script for building and deploying the code. The following step of this trail map will show you how to deploy and run the application.
You should have the following content in an XTS install of Narayana:
lib/xts/: jar files for the Narayana components and their 3rd party prerequisites.
bin/ws*war: pre built J2EE web applications for the product components.
In addition, you will require a Web services platform on which to deploy and run the product. This release of the XML Transaction component of Narayana is designed to run within JBoss.
This release has been tested on JBoss 7.1.1.Final.
To compile, deploy and run the sample application we also recommend using Java SDK 1.6 and Apache Maven 3.0.3 or later. If you do not already have these, you can download them from java website and the Maven website.
To run the sample application, you must compile the source code; bundle it, along with the required metadata files, into appropriate deployment constructs and then deploy these into the application container. This process is somewhat involved, but fortunately is completely automated by an Maven build script.
To proceed, you will need to install Maven to take advantage of the supplied build file.
Deploying into JBoss AS7.
Install AS7
cp docs/examples/configs/standalone-xts.xml standalone/configuration/
Run AS7 using the XTS profile: ./bin/standalone.sh -c standalone-xts.xml
Set environment variable
JBOSS_HOMEto point to the root directory of your JBoss installation.Edit the
<DEMO_HOME>/jboss.propertiesfile, replacing theJBOSS_HOSTNAMEandJBOSS_PORTwith the bind address and port used by your JBoss server and Jboss Web listener. ReplaceJBOSS_URLSTUBwith a path used as the location for the demo application web services.Compile the application source under
<DEMO_HOME>, build the application archive file and deploy it into JBoss deploy directory by typing 'build.sh jboss clean deploy' on Unix or 'build.bat jboss clean deploy' on WindowsRun the application server by using the standalone.sh or standalone.bat command.
Invoke the demo client by browsing the URL (e.g.):
http://hostname:port/xts-demo/
Using the application
When invoked, the client will attempt to begin a transaction, reserve theatre tickets, a restaurant table and a taxi according to the parameters you have selected, then commit the transaction. It will log each step of its activity to the console window. As the transaction proceeds, each of the Web Services will pop up a window of its own in which its state and activity log can be seen. Some events in the service code are also logged to the console.
The three server applications support a manual transaction control mode which you can use to simulate transaction failures. Use the Change Mode button on the server GUIs. Notice that the client throws an exception if the transaction is rolled back. [ Note: The manual commit mode overrides the normal availability checks in the services, so overbooking may occur. ]
The following pages explain the two transaction models available in the XML Transaction , Atomic Transactions and Business Activities. Reading the following pages will help you understand the events taking place within the sample application.
Atomic transactions are the classical transaction type found in most enterprise data systems, such as relational databases. Atomic transactions typically exhibit ACID properties (Atomic, Consistent, Isolated and Durable). This is usually achieved by the transactions holding locks on data, particularly during transaction resolution through the two phase commit protocol (2PC). In J2EE applications, such transactions are normally managed through the JTA interface, or implicitly by the application container in the case of e.g. certain EJB configurations. Because of their lock based nature, atomic transactions are best suited to short lived operations within the enterprise.
Long lived transactions can exhibit poor concurrency when holding locks for a prolonged period. For the same reason, use of lock based transactions for inter-enterprise integration is avoided due to the possibility of denial of service situations based on incorrect lock management. The next section of the trail map explains how these problems can be addressed through the use of an extended transaction model, Business Activities.
To use the Atomic Transaction transaction type in the sample application, simply select it from the pull down menu at the top of the client interface. Notice that the server applications show the reservation resources (e.g. seats, tables) passing though a lifecycle involving the initial state (free), reserved (locked) and booked (committed).
Business activities are an extended transaction model designed to support long running business processes. Unlike traditional atomic transactions, business activities typically use a compensation model to support the reversal of previously performed work in the event of transaction cancellation (rollback). This makes them more suitable for long duration processes and inter-enterprise coordination. However, it also requires the relaxation of traditional ACID properties, particularly isolation.
The programming of business activities can involve more effort than is required for atomic transactions, as less infrastructure is typically available. For example, the XA support found in many enterprise databases handles the necessary locking, 2PC and other functions transparently, allowing databases to be used in atomic transactions with minimal programmer effort. However, equivalent support for business activities, particularly with regard to compensation logic, must be added to the code of each new application by the programmer.
The demonstration application illustrates one possible approach to creating services for use in business activities. It shows how to create a transaction participant that can expose existing business logic, originally intended for use in atomic transactions, as a service suitable for use in a business activity. This is a particularly common scenario for enterprises seeking to reuse existing logic by packaging it for use as a component in the composition of workflow type processes.
To use the Business Activity transaction type in the sample application, simply select it from the pull down menu at the top of the client interface. Notice that the client applications show the reservation resources as booked (committed) even before the transaction is terminated, subsequently performing a compensating transaction to reverse this effect if the transaction is cancelled.
You can begin experimenting with the XML Transaction component of Narayana by editing the sample application source code, which is heavily commented to assist your understanding. The source code can be found in the <DEMO_HOME>/src directory. Deployment descriptors for the application can be found iin directory <DEMO_HOME>/dd.
It is structured as follows:
com/jboss/jbosstm/xts/demo/
client/BasicClient.java:
A servlet that processes the form input and runs either an Atomic Transaction (AT) or Business Activity (BA) to make the bookings.
This servlet uses the JBossWS JaxWS implementation as the SOAP transport library.
Method configureClientHandler installs the JBoss handler on the JaxWS service endpoint proxies. This ensurs that the client's AT or BA transaction context is propagated to the web services when their remote methods are invoked.
restaurant/* :
JaxWS client interfaces for accessing the remote restaurant web services via JaxWS service proxies.
taxi/* :
JaxWS client interfaces for accessing the remote taxi web services via JaxWS service proxies.
theatre/* :
JaxWS client interfaces for accessing the remote theatre web services via JaxWS service proxies.
services/[restuarant|taxi|theatre]/* :
JaxWS service endpoint implementation classes
Each of these three Web services has similar structure, featuring a *Manager.java class (the transactional business logic, knowing nothing of Web services), a *View.java file (the GUI component, largely tool generated), and the files that expose the business logic as transactional JaxWS Web services.
In the filenames, AT denotes Atomic Transaction, whilst BA is for Business Activities.
The *ServiceAT/BA.java file is the business interface, whilst the *Participant.java file has the transaction management code.
The *ServiceAT/BA classes expose their JaxWS SEI methods using '
javax.jws.WebService' and 'javax.jws.WebMethod' annotations.A '
javax.jws.HandlerChain' annotation identifies a handler chain deployment descriptor file deployed with the demo applciation. This decriptor configures the services with handlers that run SEI method invocations in the transaction context propagated from the client.
A collection of links to additional background reading material on Web services coordination and transactions is also avaialble on the Narayana site: http://www.jboss.org/jbosstm
The participant is the entity that performs the work pertaining to transaction management on behalf of the business services involved in an application. The Web service (in the example code, a theater booking system) contains some business logic to reserve a seat and inquire about availability, but it needs to be supported by something that maintains information in a durable manner. Typically this is a database, but it could be a file system, NVRAM, or other storage mechanism.

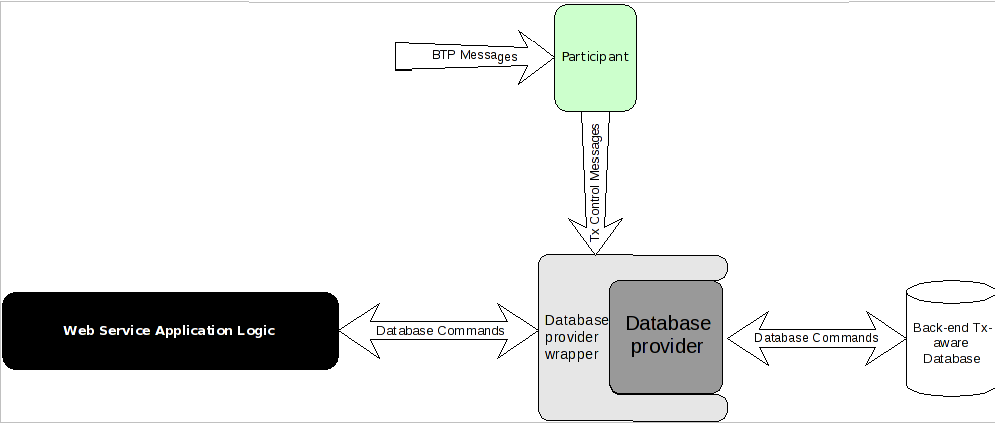

Although the service may talk to the back-end database directly, it cannot commit or undo any changes, since committing and rolling back are ultimately under the control of a transaction. For the transaction to exercise this control, it must communicate with the database. In XTS, participant does this communication, as shown in Figure 5.1, “Transactions, Participants, and Back-End Transaction Control”.
All Atomic Transaction participants are instances of the Section 5.1.1.1, “Durable2PCParticipant” or Section 5.1.1.2, “Volatile2PCParticipant”.
A Durable2PCParticipant supports the WS-Atomic Transaction Durable2PC protocol with the signatures listed in
Durable2PCParticipant Signatures, as per the
com.arjuna.wst11.Durable2Participant interface.
Durable2PCParticipant Signatures
prepareThe participant should perform any work necessary, so that it can either commit or roll back the work performed by the Web service under the scope of the transaction. The implementation is free to do whatever it needs to in order to fulfill the implicit contract between it and the coordinator.
The participant indicates whether it can
prepareby returning an instance of thecom.arjuna.wst11.Vote, with one of three values.ReadOnlyindicates that the participant does not need to be informed of the transaction outcome, because it did not update any state information.Preparedindicates that the participant is ready to commit or roll back, depending on the final transaction outcome. Sufficient state updates have been made persistent to accomplish this.Abortedindicates that the participant has aborted and the transaction should also attempt to do so.
commitThe participant should make its work permanent. How it accomplishes this depends upon its implementation. For instance, in the theater example, the reservation of the ticket is committed. If commit processing cannot complete, the participant should throw a
SystemExceptionerror, potentially leading to a heuristic outcome for the transaction.rollbackThe participant should undo its work. If rollback processing cannot complete, the participant should throw a
SystemExceptionerror, potentially leading to a heuristic outcome for the transaction.unknownThis method has been deprecated and is slated to be removed from XTS in the future.
errorIn rare cases when recovering from a system crash, it may be impossible to complete or roll back a previously prepared participant, causing the
erroroperation to be invoked.
This participant supports the WS-Atomic Transaction Volatile2PC protocol with the signatures listed in Volatile2PCParticipant Signatures, as per the
com.arjuna.wst11.Volatile2Participant interface.
Volatile2PCParticipant Signatures
prepareThe participant should perform any work necessary to flush any volatile data created by the Web service under the scope of the transaction, to the system store. The implementation is free to do whatever it needs to in order to fulfill the implicit contract between it and the coordinator.
The participant indicates whether it can
prepareby returning an instance of thecom.arjuna.wst11.Vote, with one of three values.ReadOnlyindicates that the participant does not need to be informed of the transaction outcome, because it did not change any state information during the life of the transaction.Preparedindicates that the participant wants to be notified of the final transaction outcome via a call tocommitorrollback.Abortedindicates that the participant has aborted and the transaction should also attempt to do so.
- commit
The participant should perform any cleanup activities required, in response to a successful transaction commit. These cleanup activities depend upon its implementation. For instance, it may flush cached backup copies of data modified during the transaction. In the unlikely event that commit processing cannot complete, the participant should throw a
SystemExceptionerror. This will not affect the outcome of the transaction but will cause an error to be logged. This method may not be called if a crash occurs during commit processing.- rollback
The participant should perform any cleanup activities required, in response to a transaction abort. In the unlikely event that rollback processing cannot complete, the participant should throw a
SystemExceptionerror. This will not affect the outcome of the transaction but will cause an error to be logged. This method may not be called if a crash occurs during commit processing.- unknown
This method is deprecated and will be removed in a future release of XTS.
- error
This method should never be called, since volatile participants are not involved in recovery processing.
All Business Activity participants are instances one or the other of the interfaces described in Section 5.1.2.1, “BusinessAgreementWithParticipantCompletion” or Section 5.1.2.2, “BusinessAgreementWithCoordinatorCompletion” interface.
The BusinessAgreementWithParticipantCompletion interface supports the
WS-Transactions BusinessAgreementWithParticipantCompletion protocol with the
signatures listed in BusinessAgreementWithParticipantCompletion Signatures, as per interface
com.arjuna.wst11.BusinessAgreementWithParticipantCompletionParticipant.
BusinessAgreementWithParticipantCompletion Signatures
closeThe transaction has completed successfully. The participant has previously informed the coordinator that it was ready to complete.
cancelThe transaction has canceled, and the participant should undo any work. The participant cannot have informed the coordinator that it has completed.
compensateThe transaction has canceled. The participant previously informed the coordinator that it had finished work but could compensate later if required, and it is now requested to do so. If compensation cannot be performed, the participant should throw a
FaultedExceptionerror, potentially leading to a heuristic outcome for the transaction. If compensation processing cannot complete because of a transient condition then the participant should throw aSystemExceptionerror, in which case the compensation action may be retried or the transaction may finish with a heuristic outcome.statusReturn the status of the participant.
unknownThis method is deprecated and will be removed a future XTS release.
- error
In rare cases when recovering from a system crash, it may be impossible to compensate a previously-completed participant. In such cases the
erroroperation is invoked.
The BusinessAgreementWithCoordinatorCompletion participant supports the WS-Transactions
BusinessAgreementWithCoordinatorCompletion protocol with the signatures listed in
BusinessAgreementWithCoordinatorCompletion Signatures, as per the
com.arjuna.wst11.BusinessAgreementWithCoordinatorCompletionParticipant
interface.
BusinessAgreementWithCoordinatorCompletion Signatures
closeThe transaction completed successfully. The participant previously informed the coordinator that it was ready to complete.
cancelThe transaction canceled, and the participant should undo any work.
compensateThe transaction canceled. The participant previously informed the coordinator that it had finished work but could compensate later if required, and it is now requested to do so. In the unlikely event that compensation cannot be performed the participant should throw a
FaultedExceptionerror, potentially leading to a heuristic outcome for the transaction. If compensation processing cannot complete because of a transient condition, the participant should throw aSystemExceptionerror, in which case the compensation action may be retried or the transaction may finish with a heuristic outcome.completeThe coordinator is informing the participant all work it needs to do within the scope of this business activity has been completed and that it should make permananent any provisional changes it has made.
statusReturns the status of the participant.
unknownThis method is deprecated and will be removed in a future release of XTS.
errorIn rare cases when recovering from a system crash, it may be impossible to compensate a previously completed participant. In such cases, the
errormethod is invoked.
In order for the Business Activity protocol to work correctly, the participants must be able to autonomously notify the coordinator about changes in their status. Unlike the Atomic Transaction protocol, where all interactions between the coordinator and participants are instigated by the coordinator when the transaction terminates, the BAParticipantManager interaction pattern requires the participant to be able to talk to the coordinator at any time during the lifetime of the business activity.
Whenever a participant is registered with a business activity, it receives a handle on the coordinator. This handle is an instance of interface com.arjuna.wst11.BAParticipantManager with the methods listed in BAParticipantManager Methods.
BAParticipantManager Methods
exitThe participant uses the method
exitto inform the coordinator that is has left the activity. It will not be informed when and how the business activity terminates. This method may only be invoked while the participant is in theactivestate (or thecompletingstate, in the case of a participant registered for theParticipantCompletionprotocol). If it is called when the participant is in any other state, aWrongStateExceptionerror is thrown. Anexitdoes not stop the activity as a whole from subsequently being closed or canceled/compensated, but only ensures that the exited participant is no longer involved in completion, close or compensation of the activity.completedThe participant has completed its work, but wishes to continue in the business activity, so that it will eventually be informed when, and how, the activity terminates. The participant may later be asked to compensate for the work it has done or learn that the activity has been closed.
faultThe participant encountered an error during normal activation and has done whatever it can to compensate the activity. The
faultmethod places the business activity into a mandatorycancel-onlymode. The faulted participant is no longer involved in completion, close or compensation of the activity.
The participant provides the plumbing that drives the transactional aspects of the service. This section discusses the specifics of Participant programming and usage.
Implementing a participant is a relatively straightforward task. However, depending on the complexity of the transactional infrastructure that the participant needs to manage, the task can vary greatly in complexity and scope. Your implementation needs to implement one of the interfaces found under com.arjuna.wst11.
Transactional web services and transactional clients are regular Java EE applications and can be deployed into the application server in the same way as any other Java EE application. The XTS Subsystem exports all the client and web service API classes needed to manage transactions and enroll and manage participant web services. It provides implementations of all the WS-C and WS-T coordination services, not just the coordinator services. In particular, it exposes the client and web service participant endpoints which are needed to receive incoming messages originating from the coordinator.
Normally, a transactional application client and the transaction web service it invokes will be deployed in different application servers. As long as the XTS is enabled on each of these containers XTS will transparently route coordination messages from clients or web services to their coordinator and vice versa. When the the client begins a transaction by default it creates a context using the coordination services in its local container. The context holds a reference to the local Registration Service which means that any web services enlisted in the transaction enrol with the cooridnation services in the same container."
The coordinator does not need to reside in the same container as the client application. By configuring the client deployment appropriately it is possible to use the coordinator services co-located with one of the web services or even to use services deployed in a separate, dedicated container. See Chapter 8 Stand-Alone Coordination for details of how to configure a coordinator located in a different container to the client.
Warning
In previous releases, XTS applications were deployed using the appropriate XTS and Transaction Manager
.jar, .war, and configuration files bundled with the
application. This deployment method is no longer supported in the JBoss Application Server.
This chapter discusses the XTS API. You can use this information to write client and server applications which consume transactional Web Services and coordinate back-end systems.
During the two-phase commit protocol, a participant is asked to vote on whether it can prepare to confirm the work
that it controls. It must return an instance of one of the subtypes of
com.arjuna.wst11.Vote listed in Subclasses of com.arjuna.wst11.Vote.
Subclasses of com.arjuna.wst11.Vote
- Prepared
Indicates that the participant can can prepare if the coordinator requests it. Nothing has been committed, because the participant does not know the final outcome of the transaction.
- Aborted
The participant cannot prepare, and has rolled back. The participant should not expect to get a second phase message.
- ReadOnly
The participant has not made any changes to state, and it does not need to know the final outcome of the transaction. Essentially the participant is resigning from the transaction.
Example 6.1. Example Implementation of 2PC Participant's prepare Method
public Vote prepare () throws WrongStateException, SystemException
{
// Some participant logic here
if(/* some condition based on the outcome of the business logic */)
{
// Vote to confirm
return new com.arjuna.wst.Prepared();
}
else if(/*another condition based on the outcome of the business logic*/)
{
// Resign
return new com.arjuna.wst.ReadOnly();
}
else
{
// Vote to cancel
return new com.arjuna.wst.Aborted();
}
}
com.arjuna.mw.wst11.TxContext is an opaque representation of a transaction context. It returns one of two possible values, as listed in TxContext Return Values.
com.arjuna.mw.wst11.UserTransaction is the class that clients typically employ. Before a
client can begin a new atomic transaction, it must first obtain a UserTransaction from the
UserTransactionFactory. This class isolates the user from the underlying protocol-specific
aspects of the XTS implementation. A UserTransaction does not represent a specific
transaction. Instead, it provides access to an implicit per-thread transaction context, similar to the
UserTransaction in the JTA specification. All of the UserTransaction
methods implicitly act on the current thread of control.
userTransaction Methods
- begin
Used to begin a new transaction and associate it with the invoking thread.
Parameters
- timeout
This optional parameter, measured in milliseconds, specifies a time interval after which the newly created transaction may be automatically rolled back by the coordinator
Exceptions
WrongStateExceptionA transaction is already associated with the thread.
- commit
Volatile2PC and Durable2PC participants enrolled in the transaction are requested first to prepare and then to commit their changes. If any of the participants fails to prepare in the first phase then all other participants are requested to abort.
Exceptions
UnknownTransactionExceptionNo transaction is associated with the invoking thread.
TransactionRolledBackExceptionThe transaction was rolled back either because of a timeout or because a participant was unable to commit.
- rollback
Terminates the transaction. Upon completion, the
rollbackmethod disassociates the transaction from the current leaving it unassociated with any transactions.Exceptions
UnknownTransactionExceptionNo transaction is associated with the invoking thread.
Call the getUserTransaction method to obtain a Section 6.1.3, “UserTransaction”
instance from a UserTransactionFactory.
Defines the interaction between a transactional web service and the underlying transaction service implementation. A
TransactionManager does not represent a specific transaction. Instead, it provides access to
an implicit per-thread transaction context.
Methods
currentTransactionReturns a
TxContextfor the current transaction, or null if there is no context. Use thecurrentTransactionmethod to determine whether a web service has been invoked from within an existing transaction. You can also use the returned value to enable multiple threads to execute within the scope of the same transaction. Calling thecurrentTransactionmethod does not disassociate the current thread from the transaction.suspendDissociates a thread from any transaction. This enables a thread to do work that is not associated with a specific transaction.
The
suspendmethod returns aTxContextinstance, which is a handle on the transaction.resumeAssociates or re-associates a thread with a transaction, using its
TxContext. Prior to association or re-association, the thread is disassociated from any transaction with which it may be currently associated. If theTxContextis null, then the thread is associated with no transaction. In this way, the result is the same as if thesuspendmethod were used instead.Parameters
- txContext
A TxContext instance as return by
suspend, identifying the transaction to be resumed.
Exceptions
UnknownTransactionExceptionThe transaction referred to by the
TxContextis invalid in the scope of the invoking thread.
enlistForVolitaleTwoPhaseEnroll the specified participant with the current transaction, causing it to participate in the Volatile2PC protocol. You must pass a unique identifier for the participant.
Parameters
- participant
An implementation of interface Volatile2PCParticipant whose prepare, commit and abort methods are called when the corresponding coordinator message is received.
- id
A unique identifier for the participant. The value of this String should differ for each enlisted participant. It should also be possible for a given identifier to determine that the participant belongs to the enlisting web service rather than some other web service deployed to the same container.
Exceptions
- UnknownTransactionException
No transaction is associated with the invoking thread.
WrongStateExceptionThe transaction is not in a state that allows participants to be enrolled. For instance, it may be in the process of terminating.
enlistForDurableTwoPhaseEnroll the specified participant with the current transaction, causing it to participate in the Durable2PC protocol. You must pass a unique identifier for the participant.
Exceptions
- UnknownTransactionException
No transaction is associated with the invoking thread.
WrongStateExceptionThe transaction is not in a state that allows participants to be enrolled. For instance, it may be in the process of terminating.
Use the getTransactionManager method to obtain a Section 6.1.5, “TransactionManager”
from a TransactionManagerFactory.
Previous implementations of XTS locate the Business Activity Protocol classes in the com.arjuna.mw.wst package. In the current implementation, these classes are located in the com.arjuna.mw.wst11 package.
com.arjuna.wst11.UserBusinessActivity is the class that most clients employ. A client begins a
new business activity by first obtaining a UserBusinessActivity from the
UserBusinessActivityFactory. This class isolates them from the underlying protocol-specific
aspects of the XTS implementation. A UserBusinessActivity does not represent a specific business activity. Instead,
it provides access to an implicit per-thread activity. Therefore, all of the
UserBusinessActivity methods implicitly act on the current thread of control.
Methods
beginBegins a new activity, associating it with the invoking thread.
Parameters
- timeout
The interval, in milliseconds, after which an activity times out. Optional.
Exceptions
WrongStateExceptionThe thread is already associated with a business activity.
closeFirst, all Coordinator Completion participants enlisted in the activity are requested to complete the activity. Next all participants, whether they enlisted for Coordinator or Participant Completion, are requested to close the activity. If any of the Coordinator Completion participants fails to complete at the first stage then all completed participants are asked to compensate the activity while any remaining uncompleted participants are requested to cancel the activity.
Exceptions
- UnknownTransactionException
No activity is associated with the invoking thread.
- TransactionRolledBackException
The activity has been cancelled because one of the Coordinator Completion participants failed to complete. This exception may also thrown if one of the Participant Completion participants has not completed before the client calls close.
- cancel
Terminates the business activity. All Participant Completion participants enlisted in the activity which have already completed are requested to compensate the activity. All uncompleted Participant Completion participants and all Coordinator Completion participants are requested to cancel the activity.
Exceptions
UnknownTransactionExceptionNo activity is associated with the invoking thread. Any participants that previous completed are directed to compensate their work.
Use the getuserbusinessActivity method to obtain a Section 6.2.2, “UserBusinessActivity” instance from a userBusinessActivityFactory.
com.arjuna.mw.wst11.BusinessActivityManager is the class that web services typically
employ. Defines how a web service interacts with the underlying business activity service implementation. A
BusinessActivityManager does not represent a specific activity. Instead, it provides access to
an implicit per-thread activity.
Methods
currentTransactionReturns the
TxContextfor the current business activity, orNULLif there is noTxContext. The returned value can be used to enable multiple threads to execute within the scope of the same business activity. Calling thecurrenTransactionmethod does not dissociate the current thread from its activity.suspendDissociates a thread from any current business activity, so that it can perform work not associated with a specific activity. The
suspendmethod returns aTxContextinstance, which is a handle on the activity. The thread is then no longer associated with any activity.resumeAssociates or re-associates a thread with a business activity, using its
TxContext. Before associating or re-associating the thread, it is disassociated from any business activity with which it is currently associated. If theTxContextisNULL, the thread is disassociated with all business activities, as though thesuspendmethod were called.Parameters
- txContext
A TxContext instance as returned by
suspend, identifying the transaction to be resumed.
Exceptions
UnknownTransactionExceptionThe business activity to which the
TxContextrefers is invalid in the scope of the invoking thread.
enlistForBusinessAgreementWithParticipantCompletionEnroll the specified participant with current business activity, causing it to participate in the
BusinessAgreementWithParticipantCompletionprotocol. A unique identifier for the participant is also required.The return value is an instance of BAParticipantManager which can be used to notify the coordinator of changes in the participant state. In particular, since the participant is enlisted for the Participant Completion protcol it is expected to call the completed method of this returned instance when it has completed all the work it expects to do in this activity and has made all its changes permanent. Alternatively, if the participant does not need to perform any compensation actions should some other participant fail it can leave the activity by calling the exit method of the returned BAParticipantManager instance.
Parameters
- participant
An implementation of interface
BusinessAgreementWithParticipantCompletionParticipantwhoseclose,cancel, andcompensatemethods are called when the corresponding coordinator message is received.- id
A unique identifier for the participant. The value of this String should differ for each enlisted participant. It should also be possible for a given identifier to determine that the participant belongs to the enlisting web service rather than some other web service deployed to the same container.
Exceptions
- UnknownTransactionException
No transaction is associated with the invoking thread.
- WrongStateException
The transaction is not in a state where new participants may be enrolled, as when it is terminating.
enlistForBusinessAgreementWithCoordinatorCompletionEnroll the specified participant with current activity, causing it to participate in the
BusinessAgreementWithCoordinatorCompletionprotocol. A unique identifier for the participant is also required.The return value is an instance of
BAParticipantManagerwhich can be used to notify the coordinator of changes in the participant state. Note that in this case it is an error to call thecompletedmethod of this returned instance. With the Coordinator Completion protocol the participant is expected to wait until itscompletedmethod is called before it makes all its changes permanent. Alternatively, if the participant determiens that it has no changes to make, it can leave the activity by calling theexitmethod of the returnedBAParticipantManagerinstance.Parameters
- participant
An implementation of interface BusinessAgreementWithCoordinatorCompletionParticipant whose completed, close, cancel and compensate methods are called when the corresponding coordinator message is received.
- id
A unique identifier for the participant. The value of this String should differ for each enlisted participant. It should also be possible for a given identifier to determine that the participant belongs to the enlisting web service rather than some other web service deployed to the same container.
Exceptions
- UnknownTransactionException
No transaction is associated with the invoking thread.
- WrongStateException
The transaction is not in a state where new participants may be enrolled, as when it is terminating.
Use the getBusinessActivityManager method to obtain a Section 6.2.4, “BusinessActivityManager” instance from a BusinessActivityManagerFactory.
By default, coordination contexts are obtained from the local coordinator. Therefore, WS-AT transactions or WS-BA activities created by a locally-deployed client application are supplied with a context which identifies the Registration Service running on the client's machine. Any Web Services invoked by the client are coordinated by the Transaction Protocol services running on the client's host. This is the case whether the Web Services are running locally or remotely. Such a configuration is called local coordination.
You can reconfigure this setting globally for all clients, causing context creation requests to be redirected to an Activation Coordinator Service running on a remote host. Normally, the rest of the coordination process is executed from the remote host. This configuration is called stand-alone coordination.
Reasons for Choosing a Stand-Alone Coordinator
Efficiency: if a client application invokes Web Services on a remote JBoss Application Server, coordinating the transaction from the remote server might be more efficient, since the protocol-specific messages between the coordinator and the participants do not need to travel over the network.
Reliability: if the coordinator service runs on a dedicated host, there is no danger of failing applications or services affecting the coordinator and causing failures for unrelated transactions.
A third reason might be to use a coordination service provided by a third party vendor.
The simplest way to configure a stand-alone coordinator is to provide a complete URL for the remote
coordinator. This can be done by changing the 'url' property of the 'xts-environment' element of the
XTS Subsystem configuration in the standalone-xts.xml. Example 7.1, “Example standalone-xts.xml configuration settings”
shows the snippet of XML that you should change.
Example 7.1. Example standalone-xts.xml configuration settings
<?xml version='1.0' encoding='UTF-8'?>
<server xmlns="urn:jboss:domain:1.4">
. . .
<subsystem xmlns="urn:jboss:domain:xts:1.0">
<xts-environment url="http://${jboss.bind.address:127.0.0.1}:8080/ws-c11/ActivationService"/>
</subsystem>
</server>
The XTS module (modules/system/layers/base/org/jboss/xts/main/jbossxts-${XTS_VERSION}.jar)
in the JBoss Application Server includes a configuration file,
xts-properties.xml, in the root of the jar. These properties can be edited and then
re-packaged in the jar. The changes will take affect on next boot of the JBoss Application Server.
Example 7.2, “Example xts-properties.xml configuration settings”
shows a fragment of this file which details the options for changing the coordinator URL.
Example 7.2. Example xts-properties.xml configuration settings
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE properties SYSTEM "http://java.sun.com/dtd/properties.dtd">
<properties>
. . .
<!-- coordinator URL
the following entries are used in the client container only to
identify the URL used to address the ActivationCoordinator service.
This is the XTS service which is contacted when a begin operation
is invoked to start a WS-AT or WS-BA transaction.
If a full URL is provide then it will be used as given.
Otherwise a URL will be constructed using any URL components
such as scheme, host etc which have been specified as properties
and defaulting any remaining unspecified properties.
if no URL or components are specified the URL defaults to that
of the local coordinator service.
-->
<!-- 1.1 properties : only set if you want to use a non-local coordinator
-->
<!--
<entry key="org.jboss.jbossts.xts11.coordinatorURL">http://localhost:8080/ws-c11/ActivationService</entry>
<entry key="org.jboss.jbossts.xts11.coordinator.scheme">http</entry>
<entry key="org.jboss.jbossts.xts11.coordinator.address">localhost</entry>
<entry key="org.jboss.jbossts.xts11.coordinator.port">8080</entry>
<entry key="org.jboss.jbossts.xts11.coordinator.path">ws-c11/ActivationService</entry>
-->
</properties>
You can also specify the individual elements of the URL using the properties
coordinator.scheme, coordinator.address, and so forth. These values only
apply when the coordinator.url is not set. The URL is constructed by combining the specified
values with default values for any missing elements. This is particularly useful for two specific use cases.
The first case is where the client is expected to use an XTS coordinator deployed in another JBoss Application Server. If, for example, this JBoss Application Server is bound to address
10.0.1.99, setting propertycoordinator.addressto10.0.1.99is normally all that is required to configure the coordinator URL to identity the remote JBoss Application Server's coordination service. If the Web service on the remote JBoss Application Server were reset to9090then it would also be necessary to set propertycoordinator.portto this value.The second common use case is where communications between client and coordinator, and between participant and coordinator, must use secure connections. If property
coordinator.schemeis set to valuehttps, the client's request to begin a transaction is sent to the coordinator service over a secure https connection. The XTS coordinator and participant services will ensure that all subsequent communications between coordinator and client or coordinator and web services also employ secure https connections. Note that this requires configuring the trust stores in the JBoss Application Server running the client, coordinator and participant web services with appropriate trust certificates.
Note
The property names have been abbreviated in order to fit into the table. They should each start with prefix
org.jboss.jbossts.xts11.coordinator.
Table 7.1. Command-Line Options Passed with the -D Parameter, Ordered by Priority
Category | Property | Format |
|---|---|---|
Absolute URL |
| |
Coordinator Scheme, Host, Port, and Path |
|
|
A key requirement of a transaction service is to be resilient to a system crash by a host running a participant, as well as the host running the transaction coordination services. Crashes which happen before a transaction terminates or before a business activity completes are relatively easy to accommodate. The transaction service and participants can adopt a presumed abort policy.
Procedure 8.1. Presumed Abort Policy
If the coordinator crashes, it can assume that any transaction it does not know about is invalid, and reject a participant request which refers to such a transaction.
If the participant crashes, it can forget any provisional changes it has made, and reject any request from the coordinator service to prepare a transaction or complete a business activity.
Crash recovery is more complex if the crash happens during a transaction commit operation, or between completing and closing a business activity. The transaction service must ensure as far as possible that participants arrive at a consistent outcome for the transaction.
- WS-AT Transaction
The transaction needs to commit all provisional changes or roll them all back to the state before the transaction started.
- WS-Business Activity Transaction
All participants need to close the activity or cancel the activity, and run any required compensating actions.
On the rare occasions where such a consensus cannot be reached, the transaction service must log and report transaction failures.
XTS includes support for automatic recovery of WS-AT and WS-BA transactions, if either or both of the coordinator and participant hosts crashes. The XTS recovery manager begins execution on coordinator and participant hosts when the XTS service restarts. On a coordinator host, the recovery manager detects any WS-AT transactions which have prepared but not committed, as well as any WS-BA transactions which have completed but not yet closed. It ensures that all their participants are rolled forward in the first case, or closed in the second.
On a participant host, the recovery manager detects any prepared WS-AT participants which have not responded to a transaction rollback, and any completed WS-BA participants which have not yet responded to an activity cancel request, and ensures that the former are rolled back and the latter are compensated. The recovery service also allows for recovery of subordinate WS-AT transactions and their participants if a crash occurs on a host where an interposed WS-AT coordinator has been employed.
The WS-AT coordination service tracks the status of each participant in a transaction as the transaction
progresses through its two-phase commit. When all participants have been sent a prepare
message and have responded with a prepared message, the coordinator writes a log record
storing each participant's details, indicating that the transaction is ready to complete. If the coordinator
service crashes after this point has been reached, completion of the two-phase commit protocol is still
guaranteed, by reading the log file after reboot and sending a commit message to each
participant. Once all participants have responded to the commit with a
committed message, the coordinator can safely delete the log entry.
Since the prepared messages returned by the participants imply that they are ready to
commit their provisional changes and make them permanent, this type of recovery is safe. Additionally, the
coordinator does not need to account for any commit messages which may have been sent before the crash, or
resend messages if it crashes several times. The XTS participant implementation is resilient to redelivery of
the commit messages. If the participant has implemented the recovery functions
described in Section 8.1.2.1, “WS-AT Participant Crash Recovery APIs”, the coordinator can guarantee delivery of
commit messages if both it crashes, and one or more of the participant service hosts
also crash, at the same time.
If the coordination service crashes before the prepare phase completes, the presumed
abort protocol ensures that participants are rolled back. After system restart, the coordination service has the
information about about all the transactions which could have entered the commit phase
before the reboot, since they have entries in the log. It also knows about any active transactions started after
the reboot. If a participant is waiting for a response, after sending its prepared
message, it automatically re sends the prepared message at regular intervals. When the
coordinator detects a transaction which is not active and has no entry in the log file after the reboot, it
instructs the participant to abort, ensuring that the web service gets a chance to roll back any provisional
state changes it made on behalf of the transaction.
A web service may decide to unilaterally commit or roll back provisional changes associated with a given participant, if configured to time out after a specified length of time without a response. In this situation, the the web service should record this action and log a message to persistent storage. When the participant receives a request to commit or roll back, it should throw an exception if its unilateral decision action does not match the requested action. The coordinator detects the exception and logs a message marking the outcome as heuristic. It also saves the state of the transaction permanently in the transaction log, to be inspected and reconciled by an administrator.
WS-AT participants associated with a transactional web service do not need to be involved in crash recovery if the Web service's host machine crashes before the participant is told to prepare. The coordinator will assume that the transaction has aborted, and the Web service can discard any information associated with unprepared transactions when it reboots.
When a participant is told to prepare, the Web service is expected to save to
persistent storage the transactional state it needs to commit or roll back the transaction. The specific
information it needs to save is dependent on the implementation and business logic of the Web Service. However,
the participant must save this state before returning a Prepared vote from the
prepare call. If the participant cannot save the required state, or there is some other
problem servicing the request made by the client, it must return an Aborted vote.
The XTS participant services running on a Web Service's host machine cooperate with the Web service
implementation to facilitate participant crash recovery. These participant services are responsible for calling
the participant's prepare, commit, and
rollback methods. The XTS implementation tracks the local state of every enlisted
participant. If the prepare call returns a Prepared vote, the
XTS implementation ensures that the participant state is logged to the local transaction log before forwarding a
prepared message to the coordinator.
A participant log record contains information identifying the participant, its transaction, and its coordinator. This is enough information to allow the rebooted XTS implementation to reinstate the participant as active and to continue communication with the coordinator, as though the participant had been enlisted and driven to the prepared state. However, a participant instance is still necessary for the commit or rollback process to continue.
Full recovery requires the log record to contain information needed by the Web service which enlisted the
participant. This information must allow it to recreate an equivalent participant instance, which can continue
the commit process to completion, or roll it back if some other Web Service fails to
prepare. This information might be as simple as a String key which the participant can
use to locate the data it made persistent before returning its Prepared vote. It may be as complex as a
serialized object tree containing the original participant instance and other objects created by the Web
service.
If a participant instance implements the relevant interface, the XTS implementation will append this participant
recovery state to its log record before writing it to persistent storage. In the event of a crash, the
participant recovery state is retrieved from the log and passed to the Web Service which created it. The Web
Service uses this state to create a new participant, which the XTS implementation uses to drive the transaction
to completion. Log records are only deleted after the participant's commit or
rollback method is called.
Warning
If a crash happens just before or just after a commit method is called, a
commit or rollback method may be called twice.
When a Business Activity participant web service completes its work, it may want to save the information which will be required later to close or compensate actions performed during the activity. The XTS implementation automatically acquires this information from the participant as part of the completion process and writes it to a participant log record. This ensures that the information can be restored and used to recreate a copy of the participant even if the web service container crashes between the complete and close or compensate operations.
For a Participant Completion participant, this information is acquired when the web service invokes the
completed method of the BAParticipantManager instance
returned from the call which enlisted the participant. For a Coordinator Completion participant this occurs
immediately after the call to it's completed method returns. This assumes that the
completed method does not throw an exception or call the participant manager's
cannotComplete or fail method.
A participant may signal that it is capable of performing recovery processing, by implementing the
java.lang.Serializable interface. An alternative is to implement the Example 8.1, “PersistableATParticipant
Interface”.
Example 8.1. PersistableATParticipant
Interface
public interface PersistableATParticipant
{
byte[] getRecoveryState() throws Exception;
}
If a participant implements the Serializable interface, the XTS participant
services implementation uses the serialization API to create a version of the participant which can be
appended to the participant log entry. If it implements the
PersistableATParticipant interface, the XTS participant services
implementation call the getRecoveryState method to obtain the state to be appended
to the participant log entry.
If neither of these APIs is implemented, the XTS implementation logs a warning message and proceeds without saving any recovery state. In the event of a crash on the host machine for the Web service during commit, the transaction cannot be recovered and a heuristic outcome may occur. This outcome is logged on the host running the coordinator services.
A Web service must register with the XTS implementation when it is deployed, and unregister when it is
undeployed, in order to participate in recovery processing. Registration is performed using class
XTSATRecoveryManager defined in package
org.jboss.jbossts.xts.recovery.participant.at.
Example 8.2. Registering for Recovery
public abstract class XTSATRecoveryManager {
. . .
public static XTSATRecoveryManager getRecoveryManager() ;
public void registerRecoveryModule(XTSATRecoveryModule module);
public abstract void unregisterRecoveryModule(XTSATRecoveryModule module)
throws NoSuchElementException;
. . .
}
The Web service must provide an implementation of interface
XTSBARecoveryModule in package
org.jboss.jbossts.xts.recovery.participant.ba, as an argument to the
register and unregister calls. This instance identifies
saved participant recovery records and recreates new, recovered participant instances:
Example 8.3. XTSBARecoveryModule
Interface
public interface XTSATRecoveryModule
{
public Durable2PCParticipant
deserialize(String id, ObjectInputStream stream)
throws Exception;
public Durable2PCParticipant
recreate(String id, byte[] recoveryState)
throws Exception;
public void endScan();
}
If a participant's recovery state was saved using serialization, the recovery module's
deserialize method is called to recreate the participant. Normally, the recovery
module is required to read, cast, and return an object from the supplied input stream. If a participant's
recovery state was saved using the PersistableATParticipant interface, the
recovery module's recreate method is called to recreate the participant from the
byte array it provided when the state was saved.
The XTS implementation cannot identify which participants belong to which recovery modules. A module only
needs to return a participant instance if the recovery state belongs to the module's Web service. If the
participant was created by another Web service, the module should return null. The
participant identifier, which is supplied as argument to the deserialize or
recreate method, is the identifier used by the Web service when the original
participant was enlisted in the transaction. Web Services participating in recovery processing should ensure
that participant identifiers are unique per service. If a module recognizes that a participant identifier
belongs to its Web service, but cannot recreate the participant, it should throw an exception. This
situation might arise if the service cannot associate the participant with any transactional information
which is specific to the business logic.
Even if a module relies on serialization to create the participant recovery state saved by the XTS
implementation, it still must be registered by the application. The deserialization
operation must employ a class loader capable of loading classes specific to the Web service. XTS fulfills
this requirement by devolving responsibility for the deserialize operation to the
recovery module.
The WS-BA coordination service implementation tracks the status of each participant in an activity as the
activity progresses through completion and closure. A transition point occurs during closure, once all
CoordinatorCompletion participants receive a complete message
and respond with a completed message. At this point, all
ParticipantCompletion participants should have sent a
completed message. The coordinator writes a log record storing the details of each
participant, and indicating that the transaction is ready to close. If the coordinator service crashes after the
log record is written, the close operation is still guaranteed to be successful. The
coordinator checks the log after the system reboots and re sends a close message to all
participants. After all participants respond to the close with a
closed message, the coordinator can safely delete the log entry.
The coordinator does not need to account for any close messages sent before the crash,
nor resend messages if it crashes several times. The XTS participant implementation is resilient to redelivery
of close messages. Assuming that the participant has implemented the recovery functions
described below, the coordinator can even guarantee delivery of close messages if both
it, and one or more of the participant service hosts, crash simultaneously.
If the coordination service crashes before it has written the log record, it does not need to explicitly
compensate any completed participants. The presumed abort protocol ensures that all completed
participants are eventually sent a compensate message. Recovery must be initiated from
the participant side.
A log record does not need to be written when an activity is being canceled. If a participant does not respond
to a cancel or compensate request, the coordinator logs a
warning and continues. The combination of the presumed abort protocol and participant-led
recovery ensures that all participants eventually get canceled or compensated, as appropriate, even if the
participant host crashes.
If a completed participant does not detect a response from its coordinator after resending its
completed response a suitable number of times, it switches to sending
getstatus messages, to determine whether the coordinator still knows about it. If a
crash occurs before writing the log record, the coordinator has no record of the participant when the
coordinator restarts, and the getstatus request returns a fault. The participant
recovery manager automatically compensates the participant in this situation, just as if the activity had been
canceled by the client.
After a participant crash, the participant recovery manager detects the log entries for each completed
participant. It sends getstatus messages to each participant's coordinator host, to
determine whether the activity still exists. If the coordinator has not crashed and the activity is still
running, the participant switches back to resending completed messages, and waits for a
close or compensate response. If the coordinator has also
crashed or the activity has been canceled, the participant is automatically canceled.
A participant may signal that it is capable of performing recovery processing, by implementing the
java.lang.Serializable interface. An alternative is to implement the Example 8.4, “PersistableBAParticipant Interface”.
Example 8.4. PersistableBAParticipant Interface
public interface PersistableBAParticipant
{
byte[] getRecoveryState() throws Exception;
}
If a participant implements the Serializable interface, the XTS participant
services implementation uses the serialization API to create a version of the participant which can be
appended to the participant log entry. If the participant implements the
PersistableBAParticipant, the XTS participant services implementation call the
getRecoveryState method to obtain the state, which is appended to the participant log
entry.
If neither of these APIs is implemented, the XTS implementation logs a warning message and proceeds without saving any recovery state. If the Web service's host machine crashes while the activity is being closed, the activity cannot be recovered and a heuristic outcome will probably be logged on the coordinator's host machine. If the activity is canceled, the participant is not compensated and the coordinator host machine may log a heuristic outcome for the activity.
A Web service must register with the XTS implementation when it is deployed, and unregister when it is undeployed, so it can take part in recovery processing.
Registration is performed using the XTSBARecoveryManager, defined in the
org.jboss.jbossts.xts.recovery.participant.ba package.
Example 8.5. XTSBARecoveryManager Class
public abstract class XTSBARecoveryManager {
. . .
public static XTSBARecoveryManager getRecoveryManager() ;
public void registerRecoveryModule(XTSBARecoveryModule module);
public abstract void unregisterRecoveryModule(XTSBARecoveryModule module)
throws NoSuchElementException;
. . .
}
The Web service must provide an implementation of the XTSBARecoveryModule in the
org.jboss.jbossts.xts.recovery.participant.ba, as an argument to the
register and unregister calls. This instance identifies
saved participant recovery records and recreates new, recovered participant instances:
Example 8.6. XTSBARecoveryModule Interface
public interface XTSBARecoveryModule
{
public BusinessAgreementWithParticipantCompletionParticipant
deserializeParticipantCompletionParticipant(String id,
ObjectInputStream stream)
throws Exception;
public BusinessAgreementWithParticipantCompletionParticipant
recreateParticipantCompletionParticipant(String id,
byte[] recoveryState)
throws Exception;
public BusinessAgreementWithCoordinatorCompletionParticipant
deserializeCoordinatorCompletionParticipant(String id,
ObjectInputStream stream)
throws Exception;
public BusinessAgreementWithCoordinatorCompletionParticipant
recreateCoordinatorCompletionParticipant(String id,
byte[] recoveryState)
throws Exception;
public void endScan();
}
If a participant's recovery state was saved using serialization, one of the recovery module's
deserialize methods is called, so that it can recreate the participant. Which method
to use depends on whether the saved participant implemented the ParticipantCompletion
protocol or the CoordinatorCompletion protocol. Normally, the recovery module reads,
casts and returns an object from the supplied input stream. If a participant's recovery state was saved using
the PersistableBAParticipant interface, one of the recovery module's
recreate methods is called, so that it can recreate the participant from the byte
array provided when the state was saved. The method to use depends on which protocol the saved participant
implemented.
The XTS implementation does not track which participants belong to which recovery modules. A module is only
expected to return a participant instance if it can identify that the recovery state belongs to its Web
service. If the participant was created by some other Web service, the module should return
null. The participant identifier supplied as an argument to the
deserialize or recreate calls is the identifier used by the
Web service when the original participant was enlisted in the transaction. Web Services which participate in
recovery processing should ensure that the participant identifiers they employ are unique per service. If a
module recognizes a participant identifier as belonging to its Web service, but cannot recreate the
participant, it throws an exception. This situation might arise if the service cannot associate the
participant with any transactional information specific to business logic.
A module must be registered by the application, even when it relies upon serialization to create the
participant recovery state saved by the XTS implementation. The deserialization
operation must employ a class loader capable of loading Web service-specific classes. The XTS implementation
achieves this by delegating responsibility for the deserialize operation to the
recovery module.
When a BA participant completes, it is expected to commit changes to the web service state made during the activity. The web service usually also needs to persist these changes to a local storage device. This leaves open a window where the persisted changes may not be guarded with the necessary compensation information. The web service container may crash after the changes to the service state have been written but before the XTS implementation is able to acquire the recovery state and write a recovery log record for the participant. Participants may close this window by employing a two phase update to the local store used to persist the web service state.
A participant which needs to persist changes to local web service state should implement interface
ConfirmCompletedParticipant in package com.arjuna.wst11. This
signals to the XTS implementation that it expects confirmation after a successful write of the participant
recovery record, allowing it to roll forward provisionally persisted changes to the web service
state. Delivery of this confirmation can be guaranteed even if the web service container crashes after
writing the participant log record. Conversely, if a recovery record cannot be written because of a fault or
a crash prior to writing, the provisional changes can be guaranteed to be rolled back.
Example 8.7. ConfirmCompletedParticipant
Interface
public interface ConfirmCompletedParticipant
{
public void confirmCompleted(boolean confirmed);
}
When the participant is ready to complete, it should prepare its persistent changes by temporarily locking
access to the relevant state in the local store and writing the changed data to disk, retaining both the old
and new versions of the service state. For a Participant Completion participant, this prepare operation should
be done just before calling the participant manager's completed method. For a
Coordinator Completion participant, it should be done just before returning from the call to the participant's
completed method. After writing the participant log record, the XTS implementation
calls the participant's confirmCompleted method, providing value
true as the argument. The participant should respond by installing the provisional state
changes and releasing any locks. If the log record cannot be written, the XTS implementation calls the
participant's confirmCompleted method, providing value false as
the argument. The participant should respond by restoring the original state values and releasing any locks.
If a crash occurs before the call to confirmCompleted, the application's recovery
module can make sure that the provisional changes to the web service state are rolled forward or rolled back
as appropriate. The web service must identify all provisional writes to persistent state before it starts
serving new requests or processing recovered participants. It must reobtain any locks required to ensure that
the state is not changed by new transactions. When the recovery module recovers a participant from the log,
its compensation information is available. If the participant still has prepared changes, the recovery code
must call confirmCompleted, passing value true. This allows the participant to finish
the complete operation. The XTS implementation then forwards a
completed message to the coordinator, ensuring that the participant is subsequently
notified either to close or to compensate. At the end of the first recovery scan, the recovery module may find
some prepared changes on disk which are still unaccounted for. This means that the participant recovery record
is not available. The recovery module should restore the original state values and release any locks. The XTS
implementation responds to coordinator requests regarding the participant with an unknown
participant fault, forcing the activity as a whole to be rolled back.
The basic building blocks of a transactional Web Services application include the application itself, the Web services that the application consumes, the Transaction Manager, and the transaction participants which support those Web services. Although it is likely that different developers will be responsible for each piece, the concepts are presented here so that you can see the whole picture. Often, developers produce services, or applications that consume services, and system administrators run the transaction-management infrastructure.
The transaction manager is a Web service which coordinates JBossTS transactions. It is the only software component in JBossTS that is designed to be run directly as a network service, rather than to support end-user code. The transaction manager runs as a JAXM request/response Web service.
Note
When starting up an application server instance that has JBossTS transaction manager deployed within it, you may see various “error” messages in the console or log. For example 16:53:38,850 ERROR [STDERR] Message Listener Service: started, message listener jndi name activationcoordinator". These are for information purposes only and are not actual errors.
You can configure the Transaction Manager and related infrastructure by using two properties files.
The standalone-xts.xml file contains the common configuration options. More advanced options
can be configured in the xts-properties.xml.
Note
The XTS module (modules/system/layers/base/org/jboss/xts/main/jbossxts-${XTS_VERSION}.jar)
in the JBoss Application Server includes the configuration file,
xts-properties.xml, in the root of the jar. These properties can be edited and then
re-packaged in the jar. The changes will take affect on next boot of the JBoss Application Server.
