Chapter 6. The Repository Example

6.1. Running the repository example
6.2. ModeShape connectors
6.3. Reviewing the example repository application
6.4. What's next

Chapter 4 walked through the process of downloading and building the examples, while the previous chapter showed how to run the sequencer example and walked through the code. In this chapter, we'll run the repository example and walk through that example code to see what it's doing.

The repository example consists of a client application that sets up three ModeShape repositories (named "Cars", "Airplanes", and "UFOs") and a federated repository ("Vehicles") that dynamically federates the information from the other three repositories. The client application allows you to interactively navigate each of these repositories just as you would navigate the directory structure on a file system.

This collection of repositories is shown in the following figure:


The "Cars" repository is an in-memory repository (using the In-Memory repository connector), the "Aircraft" repository is a JPA repository (using an in-memory HSQL database using the JPA repository connector), and the "UFOs" repository is a file system repository (using the File System repository connector). The federated "Vehicles" repository content is federated from the other repositories and cached into the "Cache" repository. This is shown in the following figure:

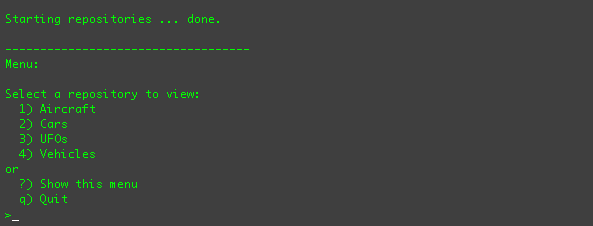

To run the client application, go to the examples/repository/target/modeshape-example-repositories-basic.dir/ directory and type ./run.sh. You should see the command-line client and its menus in your terminal:


From this menu, you can see the list of repositories, select one, and navigate through that repository in a manner similar to a *nix command-line shell (although the client itself uses the JCR API to interact with the repositories). Here are some of the commands you can use:


Note

The first time you access any repository, the application is automatically logging you in to ModeShape's JAAS-based security system. To make the application easier to use, it always logs in with the "jsmith" as the username and "secret" as the password. This matches what is configured in the "jaas.conf.xml" and "users.properties" files. If you want to confirm that the security feature is working, change the password in target/modeshape-example-repositories-basic.dir/users.properties to something else and re-run the application. After you select a repository and try to view a directory with 'ls', you will get a LoginException!

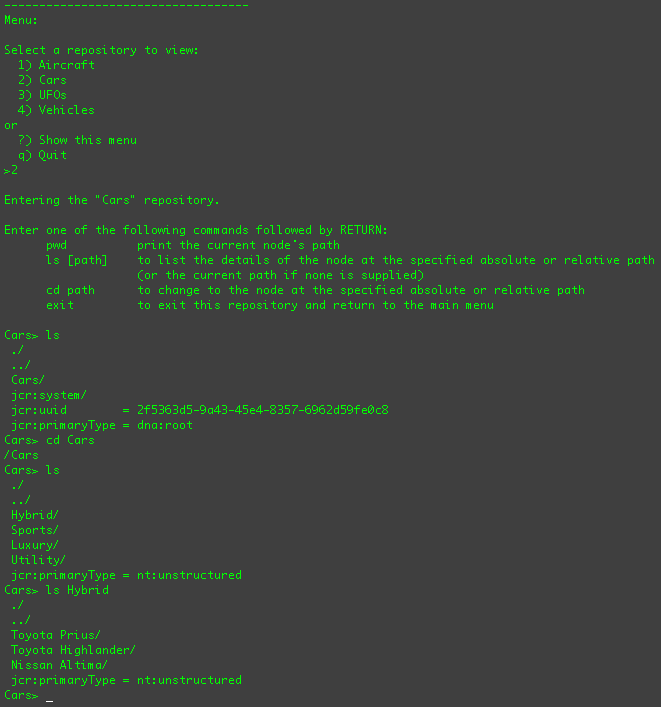

If you were to select the "Cars" repository and use some of the commands, you should see something similar to:


You can also choose to navigate the "Vehicles" repository, which projects the "Cars" repository content under the /Vehicles/Cars node, the "Airplanes" content under the /Vehicles/Airplanes branch, the "UFOs" content under the /Vehicles/UFOs branch, and the "Configuration" content under /modeshape:system.

Try using the client to walk the different repositories. And while this is a contrived application, it does demonstrate the use of ModeShape to federate repositories and provide access through JCR.

As mentioned in the Introduction, one of the capabilities of ModeShape is to provide access through JCR to different kinds of repositories and storage systems. Your applications work with the JCR API, but through ModeShape you're able to accesses the content from where the information exists - not just a single purpose-built repository. This is fundamentally what makes ModeShape different.

How does ModeShape do this? At the heart of ModeShape and it's JCR implementation is a simple connector system that is designed around creating and accessing graphs. The ModeShape JCR implementation actually just sits on top of a single repository source, which it uses to access of the repositories content.


That single repository connector could access:

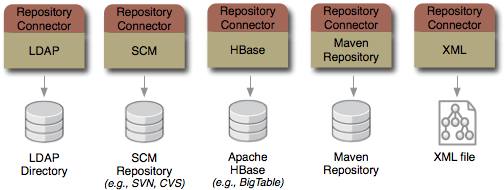

And the ModeShape project has plans to create other connectors, too. For instance, we're going to build a connector to other JCR repositories. And another to access existing databases so that some or all of the existing data (in whatever structure) can be accessed through JCR. Of course, if we don't have a connector to suit your needs, you can write your own.


Before we go further, let's define some terminology regarding connectors.

As an example, consider that we want ModeShape to give us access through JCR to the schema information contained in a relational database. We first have to develop a connector that allows us to interact with relational databases using JDBC. That connector would contain a JdbcMetadataSource Java class that implements RepositorySource, and that has all of the various JavaBean properties for setting the name of the driver class, URL, username, password, and other properties. If we add a JavaBean property defining the JNDI name, our connector could look in JNDI to find a JDBC DataSource instance, perhaps already configured to use connection pools.

Note

Of course, before you develop a connector, you should probably check the list of connectors ModeShape already provides out of the box. With this latest release, ModeShape already includes this JDBC metadata connector! And we're always interested in new connectors and new contributors, so please consider developing your custom connector as part of ModeShape.

So with this very high-level summary, let's dive a little deeper and look at the repository example.

Recall that the example repository application consists of a client application that sets up a repository service and the repositories defined in a configuration repository, allowing the user to pick a repository and interactively navigate the selected repository. Several repositories are set up, including several standalone repositories and one federated repository that dynamically federates the content from the other repositories.

The example is comprised of 2 classes and 1 interface, located in the src/main/java directory:

  org/modeshape/example/repositories/ConsoleInput.java
                                    /RepositoryClient.java
                                    /UserInterface.java


RepositoryClient is the class that contains the main application. It uses an instance of the UserInterface interface to methods that will be called at runtime to obtain information about the files that are imported into the standalone repositories and the JAAS CallbackHandler implementation that will be used by JAAS to collect the authentication information. Finally, the ConsoleInput is an implementation of this that creates a text user interface, allowing the user to operate the client from the command-line. We can easily create a graphical implementation of UserInterface at a later date, or we can also create a mock implementation for testing purposes that simulates a user entering data. This allows us to check the behavior of the client automatically using conventional JUnit test cases, as demonstrated by the code in the src/test/java directory:

  org/modeshape/example/sequencers/RepositoryClientTest.java
                                  /RepositoryClientUsingJcrTest.java


If we look at the RepositoryClient code, there are a handful of methods that encapsulate the various activities.

The main(String[] argv) method is of course the method that is executed when the application is run. This code creates the ModeShape configuration by loading it from a file.



// Set up the JAAS provider (IDTrust) and a policy file (which defines the "modeshape-jcr" login config name)
IDTrustConfiguration idtrustConfig = new IDTrustConfiguration();
try {
    idtrustConfig.config("security/jaas.conf.xml");
} catch (Exception ex) {
    throw new IllegalStateException(ex);
}
// Now configure the repository client component ...
RepositoryClient client = new RepositoryClient();
for (String arg : args) {
    arg = arg.trim();
    if (arg.equals("--api=jcr")) client.setApi(Api.JCR);
    if (arg.equals("--api=modeshape")) client.setApi(Api.ModeShape);
    if (arg.equals("--jaas")) client.setJaasContextName(JAAS_LOGIN_CONTEXT_NAME);
    if (arg.startsWith("--jaas=") && arg.length() > 7) client.setJaasContextName(arg.substring(7).trim());
}
// And have it use a ConsoleInput user interface ...
client.setUserInterface(new ConsoleInput(client, args));


The first block sets up the JAAS provider to be the IDTrust library and a policy file that defines the "modeshape-jcr" JAAS configuration.

The second block of code instantiates the RepositoryClient and passes in some options determined from the command-line. It then sets the user interface (which then executes its behavior, which we'll see below).

The startRepositories() method builds the JcrEngine component from the configuration, starts the engine, and obtains the JCR javax.jcr.Repository instance that the client will use. Note that the client has not yet obtained a javax.jcr.Session instance, since this will be done each time the client needs to access content from the repository. (This is actually a common practice according to the JCR specification, since Sessions are lightweight.)



public void startRepositories() throws IOException, SAXException {
    if (engine != null) return; // already started
    // Load the configuration from a file, as provided by the user interface ...
    JcrConfiguration configuration = new JcrConfiguration();
    configuration.loadFrom(userInterface.getRepositoryConfiguration());
    // Now create the JCR engine ...
    engine = configuration.build();
    engine.start();
    ...
    // For this example, we're using a couple of in-memory repositories (including one for the
    // configuration repository). Normally, these would exist already and would simply be accessed.
    // But in this example, we're going to populate these repositories here by importing from files.
    // First do the configuration repository ...
    String location = this.userInterface.getLocationOfRepositoryFiles();
    // Now import the content for the two in-memory repositories ...
    Graph cars = engine.getGraph("Cars");
    cars.importXmlFrom(location + "/cars.xml").into("/");
    Graph aircraft = engine.getGraph("Aircraft");
    aircraft.importXmlFrom(location + "/aircraft.xml").into("/");
}


This method does a number of different things. First, it checks to make sure the repositories are not already running; if so the method just returns. Then, it creates a ModeShape JcrConfiguration instance and loads the configuration from a file provided by the user interface. It then creates the JcrEngine from the configuration and starts it. Finally, it obtains the location of the content files from the user interface, and imports them into the "Cars" and "Aircraft" repositories. Again, this is done to keep the example simple.

The shutdown() method of the example then logs out and requests that the JcrEngine instance shut down and, since that may take a few moments (if there are any ongoing operations or enqueued activities) awaits for it to complete the shutdown.



public void shutdown() throws InterruptedException, LoginException {
    logout();
    if (engine == null) return;
    try {
        // Tell the engine to shut down, and then wait up to 5 seconds for it to complete...
        engine.shutdown();
        engine.awaitTermination(5, TimeUnit.SECONDS);
    } finally {
        engine = null;
    }
}


A few of the other methods in the RepositoryClient class deal with the JAAS LoginContext. When needed, the client will authenticate the user (by asking the user interface for a callback handler that will be called when the authentication information is needed). The resulting authenticated LoginContext is wrapped by a custom javax.jcr.Credentials implementation. As long as the Credentials implementation has a getLoginContext() method that returns a LoginContext object, ModeShape's repository implementation will use that context to create the javax.jcr.Session. (Of course, the javax.jcr.SimpleCredentials can also be used to create a Session, and ModeShape will then attempt to use JAAS to authenticate the user given by the credentials.)

The getNodeInfo(...) method of the example is what is called when the properties and children of a particular node are requested by the user interface. (In the console user interface, this happens when the user navigates the graph structure.) There are really two different behaviors to this method, depending upon whether the JCR API is to be used or whether the ModeShape Graph API is to be used. The portion that uses JCR is shown below:



JcrRepository jcrRepository = engine.getRepository(sourceName);
Session session = null;
if (loginContext != null) {
    // Could also use SimpleCredentials(username,password) too
    Credentials credentials = new JaasCredentials(loginContext);
    session = jcrRepository.login(credentials);
} else {
    session = jcrRepository.login();
}
try {
    // Make the path relative to the root by removing the leading slash(es) ...
    pathToNode = pathToNode.replaceAll("^/+", "");
    // Get the node by path ...
    Node root = session.getRootNode();
    Node node = root;
    if (pathToNode.length() != 0) {
        if (!pathToNode.endsWith("]")) pathToNode = pathToNode + "[1]";
        node = pathToNode.equals("") ? root : root.getNode(pathToNode);
    }
    // Now populate the properties and children ...
    if (properties != null) {
        for (PropertyIterator iter = node.getProperties(); iter.hasNext();) {
            javax.jcr.Property property = iter.nextProperty();
            Object[] values = null;
            // Must call either 'getValue()' or 'getValues()' depending upon # of values
            if (property.getDefinition().isMultiple()) {
                Value[] jcrValues = property.getValues();
                values = new String[jcrValues.length];
                for (int i = 0; i < jcrValues.length; i++) {
                    values[i] = jcrValues[i].getString();
                }
            } else {
                values = new Object[] {property.getValue().getString()};
            }
            properties.put(property.getName(), values);
        }
    }
    if (children != null) {
        // Figure out which children need same-name sibling indexes ...
        Set<String> sameNameSiblings = new HashSet<String>();
        for (NodeIterator iter = node.getNodes(); iter.hasNext();) {
            javax.jcr.Node child = iter.nextNode();
            if (child.getIndex() > 1) sameNameSiblings.add(child.getName());
        }
        for (NodeIterator iter = node.getNodes(); iter.hasNext();) {
            javax.jcr.Node child = iter.nextNode();
            String name = child.getName();
            if (sameNameSiblings.contains(name)) name = name + "[" + child.getIndex() + "]";
            children.add(name);
        }
    }
} catch (javax.jcr.ItemNotFoundException e) {
    return false;
} catch (javax.jcr.PathNotFoundException e) {
    return false;
} finally {
    if (session != null) session.logout();
}


This code is literally just using the standard JCR API. First, it obtains a javax.jcr.Session instance (using the available LoginContext), finds the desired javax.jcr.Node, copies the properties and names of the children into collections supplied by the caller via method parameters, and finally logs out of the session.

The ModeShape Graph API is actually an internal API used within the different components of ModeShape (including the connector and sequencer frameworks), and provides low-level access to the exact same content. Though we do not recommend using this API in your client applications, if you need to write a connector or sequencer, you may need to know how to use the Graph API. Here is the portion of the getNodeInfo(...) method that does the exact same operation as the JCR code shown above:



// Use the ModeShape Graph API to read the properties and children of the node ...
ExecutionContext context = loginContext != null ? this.context.create(loginContext) : this.context;
Graph graph = engine.getGraph(context, sourceName);
graph.useWorkspace("default");
org.modeshape.graph.Node node = graph.getNodeAt(pathToNode);
if (properties != null) {
    // Now copy the properties into the map provided as a method parameter ...
    for (Property property : node.getProperties()) {
        String name = property.getName().getString(context.getNamespaceRegistry());
        properties.put(name, property.getValuesAsArray());
    }
}
if (children != null) {
    // And copy the names of the children into the list provided as a method parameter ...
    for (Location child : node.getChildren()) {
        String name = child.getPath().getLastSegment().getString(context.getNamespaceRegistry());
        children.add(name);
    }
}


Note that this code is significantly shorter than the equivalent code based upon the JCR API. This is in part because the Graph API doesn't have the notion of a stateful session. But some of it also is simply because the Graph API design requires less code to do the same kinds of operations.

None of the other methods in the RepositoryClient really do anything with ModeShape or JCR per se. Instead, they really facilitate interaction with the user interface.

If we look at the ConsoleInput constructor, it starts the repository and a thread for the user interface. At this point, the constructor returns, but the main application continues under the user interface thread. When the user requests to quit, the user interface thread also shuts down the JCR repository.



public ConsoleInput( SequencerClient client ) {
  try {
      client.startRepositories();
      System.out.println(getMenu());
      Thread eventThread = new Thread(new Runnable() {
          private boolean quit = false;
          public void run() {
              try {
                  while (!quit) {
                      // Display the prompt and process the requested operation ...
                  }
              } finally {
                  try {
                      // Terminate ...
                      client.shutdown();
                  } catch (Exception err) {
                      System.out.println("Error shutting down repository: "
                                         + err.getLocalizedMessage());
                      err.printStackTrace(System.err);
                  }
              }
          }
      });
      eventThread.start();
  } catch (Exception err) {
      System.out.println("Error: " + err.getLocalizedMessage());
      err.printStackTrace(System.err);
  }
}


At this point, we've reviewed all of the interesting code in the example application related to ModeShape. However, feel free to play with the application, trying different things.

This chapter walked through running the repository example and looked at the example code. This example allowed you to walk through multiple repositories, including one whose content was federated from multiple other repositories. This was a very simplistic example that only took a few minutes to run.

In the next chapter we'll wrap up by summarizing what we've learned about ModeShape and provide information about where you can find out more about ModeShape.
