org.jboss.netty.channel.socket
Interface DatagramChannelConfig

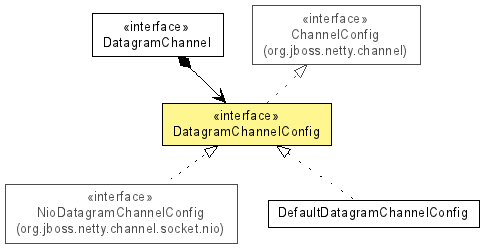

All Superinterfaces:
ChannelConfig
All Known Subinterfaces:
NioDatagramChannelConfig
All Known Implementing Classes:
DefaultDatagramChannelConfig

public interface DatagramChannelConfig
extends ChannelConfig

A ChannelConfig for a DatagramChannel.

Available options

In addition to the options provided by ChannelConfig, DatagramChannelConfig allows the following options in the option map:
NameAssociated setter method
"broadcast"setBroadcast(boolean)
"interface"setInterface(InetAddress)
"loopbackModeDisabled"setLoopbackModeDisabled(boolean)
"networkInterface"setNetworkInterface(NetworkInterface)
"reuseAddress"setReuseAddress(boolean)
"receiveBufferSize"setReceiveBufferSize(int)
"receiveBufferSizePredictor"setReceiveBufferSizePredictor(ReceiveBufferSizePredictor)
"receiveBufferSizePredictorFactory"setReceiveBufferSizePredictorFactory(ReceiveBufferSizePredictorFactory)
"sendBufferSize"setSendBufferSize(int)
"timeToLive"setTimeToLive(int)
"trafficClass"setTrafficClass(int)

Version:
$Rev: 2080 $, $Date: 2010-01-26 18:04:19 +0900 (Tue, 26 Jan 2010) $
Author:
The Netty Project, Trustin Lee

Method Summary
 InetAddress getInterface()
          Gets the address of the network interface used for multicast packets.
 NetworkInterface getNetworkInterface()
          Gets the network interface for outgoing multicast datagrams sent on the DatagramChannel.
 int getReceiveBufferSize()
          Gets the SO_RCVBUF option.
 ReceiveBufferSizePredictor getReceiveBufferSizePredictor()
          Returns the ReceiveBufferSizePredictor which predicts the number of readable bytes in the socket receive buffer.
 ReceiveBufferSizePredictorFactory getReceiveBufferSizePredictorFactory()
          Returns the ReceiveBufferSizePredictorFactory which creates a new ReceiveBufferSizePredictor when a new channel is created and no ReceiveBufferSizePredictor was set.
 int getSendBufferSize()
          Gets the SO_SNDBUF option.
 int getTimeToLive()
          Gets the default time-to-live for multicast packets sent out on the socket.
 int getTrafficClass()
          Gets the traffic class.
 boolean isBroadcast()
          Gets the SO_BROADCAST option.
 boolean isLoopbackModeDisabled()
          Gets the setting for local loopback of multicast datagrams.
 boolean isReuseAddress()
          Gets the SO_REUSEADDR option.
 void setBroadcast(boolean broadcast)
          Sets the SO_BROADCAST option.
 void setInterface(InetAddress interfaceAddress)
          Sets the address of the network interface used for multicast packets.
 void setLoopbackModeDisabled(boolean loopbackModeDisabled)
          Sets the setting for local loopback of multicast datagrams.
 void setNetworkInterface(NetworkInterface networkInterface)
          Sets the network interface for outgoing multicast datagrams sent on the DatagramChannel.
 void setReceiveBufferSize(int receiveBufferSize)
          Gets the SO_RCVBUF option.
 void setReceiveBufferSizePredictor(ReceiveBufferSizePredictor predictor)
          Sets the ReceiveBufferSizePredictor which predicts the number of readable bytes in the socket receive buffer.
 void setReceiveBufferSizePredictorFactory(ReceiveBufferSizePredictorFactory predictorFactory)
          Sets the ReceiveBufferSizePredictor which creates a new ReceiveBufferSizePredictor when a new channel is created and no ReceiveBufferSizePredictor was set.
 void setReuseAddress(boolean reuseAddress)
          Sets the SO_REUSEADDR option.
 void setSendBufferSize(int sendBufferSize)
          Sets the SO_SNDBUF option.
 void setTimeToLive(int ttl)
          Sets the default time-to-live for multicast packets sent out on the DatagramChannel in order to control the scope of the multicasts.
 void setTrafficClass(int trafficClass)
          Sets the traffic class as specified in DatagramSocket.setTrafficClass(int).

Methods inherited from interface org.jboss.netty.channel.ChannelConfig
getBufferFactory, getConnectTimeoutMillis, getPipelineFactory, setBufferFactory, setConnectTimeoutMillis, setOption, setOptions, setPipelineFactory


Method Detail

getSendBufferSize

int getSendBufferSize()
Gets the SO_SNDBUF option.


setSendBufferSize

void setSendBufferSize(int sendBufferSize)
Sets the SO_SNDBUF option.


getReceiveBufferSize

int getReceiveBufferSize()
Gets the SO_RCVBUF option.


setReceiveBufferSize

void setReceiveBufferSize(int receiveBufferSize)
Gets the SO_RCVBUF option.


getTrafficClass

int getTrafficClass()
Gets the traffic class.


setTrafficClass

void setTrafficClass(int trafficClass)
Sets the traffic class as specified in DatagramSocket.setTrafficClass(int).


isReuseAddress

boolean isReuseAddress()
Gets the SO_REUSEADDR option.


setReuseAddress

void setReuseAddress(boolean reuseAddress)
Sets the SO_REUSEADDR option.


isBroadcast

boolean isBroadcast()
Gets the SO_BROADCAST option.


setBroadcast

void setBroadcast(boolean broadcast)
Sets the SO_BROADCAST option.


isLoopbackModeDisabled

boolean isLoopbackModeDisabled()
Gets the setting for local loopback of multicast datagrams.

Returns:
true if and only if the loopback mode has been disabled

setLoopbackModeDisabled

void setLoopbackModeDisabled(boolean loopbackModeDisabled)
Sets the setting for local loopback of multicast datagrams.

Parameters:
loopbackModeDisabled - true if and only if the loopback mode has been disabled

getTimeToLive

int getTimeToLive()
Gets the default time-to-live for multicast packets sent out on the socket.


setTimeToLive

void setTimeToLive(int ttl)
Sets the default time-to-live for multicast packets sent out on the DatagramChannel in order to control the scope of the multicasts.


getInterface

InetAddress getInterface()
Gets the address of the network interface used for multicast packets.


setInterface

void setInterface(InetAddress interfaceAddress)
Sets the address of the network interface used for multicast packets.


getNetworkInterface

NetworkInterface getNetworkInterface()
Gets the network interface for outgoing multicast datagrams sent on the DatagramChannel.


setNetworkInterface

void setNetworkInterface(NetworkInterface networkInterface)
Sets the network interface for outgoing multicast datagrams sent on the DatagramChannel.


getReceiveBufferSizePredictor

ReceiveBufferSizePredictor getReceiveBufferSizePredictor()
Returns the ReceiveBufferSizePredictor which predicts the number of readable bytes in the socket receive buffer. The default predictor is FixedReceiveBufferSizePredictor(768).


setReceiveBufferSizePredictor

void setReceiveBufferSizePredictor(ReceiveBufferSizePredictor predictor)
Sets the ReceiveBufferSizePredictor which predicts the number of readable bytes in the socket receive buffer. The default predictor is FixedReceiveBufferSizePredictor(768).


getReceiveBufferSizePredictorFactory

ReceiveBufferSizePredictorFactory getReceiveBufferSizePredictorFactory()
Returns the ReceiveBufferSizePredictorFactory which creates a new ReceiveBufferSizePredictor when a new channel is created and no ReceiveBufferSizePredictor was set. If no predictor was set for the channel, setReceiveBufferSizePredictor(ReceiveBufferSizePredictor) will be called with the new predictor. The default factory is FixedReceiveBufferSizePredictorFactory(768).


setReceiveBufferSizePredictorFactory

void setReceiveBufferSizePredictorFactory(ReceiveBufferSizePredictorFactory predictorFactory)
Sets the ReceiveBufferSizePredictor which creates a new ReceiveBufferSizePredictor when a new channel is created and no ReceiveBufferSizePredictor was set. If no predictor was set for the channel, setReceiveBufferSizePredictor(ReceiveBufferSizePredictor) will be called with the new predictor. The default factory is FixedReceiveBufferSizePredictorFactory(768).
