The DTGov project layers Design Time Governance functionality on top of an S-RAMP repository. These two projects work together to provide the following:
This guide will discuss the various pieces of functionality provided by DTGov and how to configure and use them.
In addition to a general framework for triggering business workflows based on changes to artifacts in the S-RAMP repository, the DTGov project focuses on the following specific Governance Use Cases:
This guide will not only discuss the generic governance capabilities provided by the DTGov project, but also the specific Use-Cases listed above.
The DTGov application is written in Java. To get started make sure your system has the following:
This Getting Started guide assumes you do not already have Overlord S-RAMP installed.
First, we recommend you download the following:
Next, you must follow these steps to install and configure the application:
Some psuedo-shell code that might help
mkdir ~/overlord cd ~/overlord # Download JBoss EAP 6.1 (jboss-eap-6.1.0.zip) # From - http://www.jboss.org/jbossas/downloads # Download the ModeShape EAP distro (modeshape-3.2.0.Final-jbosseap-61-dist.zip) # From - http://www.jboss.org/modeshape/downloads/downloads3-2-0-final.html # Download S-RAMP distribution (s-ramp-0.3.0.Final.zip) # From - http://www.jboss.org/overlord/downloads/sramp unzip s-ramp-0.3.0.Final.zip cp jboss-eap-6.1.0.zip s-ramp-0.3.0.Final cp modeshape-3.2.0.Final-jbosseap-61-dist.zip s-ramp-0.3.0.Final cd s-ramp-0.3.0.Final ant install cd .. mv s-ramp-0.3.0.Final/target dtgov-1.0.0.Final cp jboss-eap-6.1.0.zip dtgov-1.0.0.Final cd dtgov-1.0.0.Final ant install # Start JBoss (target/jboss-eap-6.1/bin/standalone.sh) - wait for startup to complete ant seed cd data mvn package
Now that everything is installed and running, you should be able to verify that everything is working by logging in to the S-RAMP Browser UI and verifying that you can see the DTGov seed data.
http://localhost:8080/s-ramp-ui (admin/overlord)

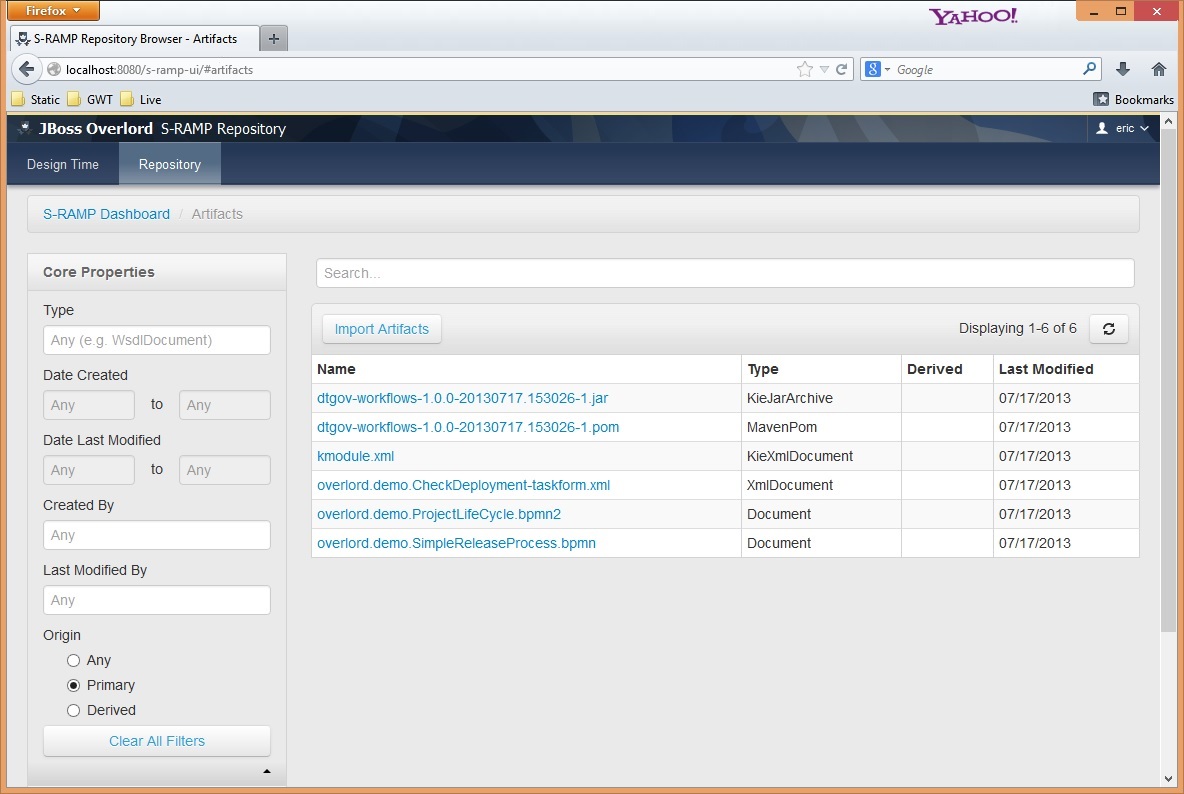

You should see something like this:
It’s all installed, running, and checked? Now it’s time to use the software! This guide will explain advanced configuration and usage, but you can get started by logging in to the DTGov User Interface:
http://localhost:8080/dtgov-ui (admin/overlord)
It’s likely that users will need to customize the system based on their organization’s specific work processes. The Configuring and Governance Workflows chapters should be helpful in describing how to customize the system.
DTGov has two configurations that can be modified to suit a particular deployment and business. Specifically, the back-end DTGov system (dtgov.war) has a configuration file as does the User Interface (dtgov-ui.war). This chapter describes these two configuration files so that users can configure DTGov for their particular deployment environment and organization’s unique business processes.
The configuration of the back-end system can be modified by making changes to an external configuration file found in the application server’s configuration directory. In JBoss EAP the configuration file can be found here:
jboss-eap/standalone/configuration/dtgov.properties
The location of this file can be overridden by setting the following system property to be the full path to a properties file anywhere on the server’s file system:
governance.file.name
This configuration file is used to control a number of settings, listed and described in the following section.
# S-RAMP Connection details sramp.repo.url sramp.repo.auth.provider sramp.repo.user sramp.repo.password sramp.repo.validating sramp.repo.auth.saml.issuer sramp.repo.auth.saml.service # Location of the DTGov WAR governance.url # Frequency with which to poll S-RAMP for query matches governance.query.interval # Location in JNDI of the email service governance.jndi.email.reference # "From" information to use when sending email (domain and address) governance.email.domain governance.email.from # RHQ connection info rhq.rest.user rhq.rest.password rhq.base.url # BPM connection info governance.bpm.user governance.bpm.password governance.bpm.url # JAAS user used to invoke DTGov provided services governance.user governance.password # Deployment targets configured for the DTGov deployment service governance.targets # Mapping of S-RAMP query to governance workflow governance.queries # Location of the DTGov UI dtgov.ui.url # S-RAMP s-ramp-wagon dtgov.s-ramp-wagon.snapshots dtgov.s-ramp-wagon.releases # DTGov Workflow maven info dtgov.workflows.group dtgov.workflows.name dtgov.workflows.version dtgov.workflows.package
In particular, the governance.targets and governance.queries configuration properties bear additional explanation. Please see the Governance Workflows chapter for more information on how to use these properties to configure the DTGov Deployment Service and the Governance Workflow Queries, respectively.
The DTGov user interface can also be configured for a specific deployment and business environment. The configuration of the UI can be modified by making changes to an external configuration file found in the application server’s configuration directory. In JBoss EAP the configuration file can be found here:
jboss-eap/standalone/configuration/dtgov-ui.properties
The location of this file can be overridden by setting the following system property to be the full path to a properties file anywhere on the server’s file system:
dtgov-ui.config.file.name
This configuration file is used to control a number of settings, listed and described in the following section.
# S-RAMP API connection endpoint dtgov-ui.s-ramp.atom-api.endpoint # What kind of authentication to use (class name) dtgov-ui.s-ramp.atom-api.authentication.provider # Only used when the provider is basic auth dtgov-ui.s-ramp.atom-api.authentication.basic.username dtgov-ui.s-ramp.atom-api.authentication.basic.password # Only used when the provider is SAML bearer token auth dtgov-ui.s-ramp.atom-api.authentication.saml.issuer dtgov-ui.s-ramp.atom-api.authentication.saml.service # Whether to validate the S-RAMP connection dtgov-ui.s-ramp.atom-api.validating # Task API connection endpoint dtgov-ui.task-api.endpoint # Implementation of a task client dtgov-ui.task-client.class # Authentication to use when invoking the task API dtgov-ui.task-api.authentication.provider # Only used when using basic auth dtgov-ui.task-api.authentication.basic.username dtgov-ui.task-api.authentication.basic.password # Only used when using saml bearer token auth dtgov-ui.task-api.authentication.saml.issuer dtgov-ui.task-api.authentication.saml.service # Deployment lifecycle base classifier dtgov-ui.deployment-lifecycle.classifiers.base dtgov-ui.deployment-lifecycle.classifiers.initial # Classifier to use when querying for all deployments dtgov-ui.deployment-lifecycle.classifiers.all dtgov-ui.deployment-lifecycle.classifiers.in-progress # This next one is a prefix for any property that will indicate a possible classifier stage that # should be displayed in the UI. In the dtgov ui configuration file, multiple properties would # be specified that begin with this prefix and have a value of the format {label}:{classifier} dtgov-ui.deployment-lifecycle.classifiers.stage # And another one that is a prefix for any property that will indicate a possible deployment type # that should be displayed in the UI. In the dtgov ui configuration file, multiple properties would # be specified that begin with this prefix and have a value of the format {label}:{type} dtgov-ui.deployment-lifecycle.types # S-RAMP UI integration properties dtgov-ui.s-ramp-browser.url-base
In particular, the dtgov-ui.deployment-lifecycle.classifiers.stage and dtgov-ui.deployment-lifecycle.types properties require further explanation. See the following sections for details.
The DTGov user interface has a page that allows users to see a list of all deployments being tracked. That page allows the user to filter the list of deployments based on the environments in which the deployment is…deployed. In other words, the UI page allows the user to show only the deployments that are currently deployed in, for example, the DEV environment. Since different organizations have different numbers and names for these environments, the actual filter options are configurable. An example will prove useful:
dtgov-ui.deployment-lifecycle.classifiers.stage.dev=Development:http://www.jboss.org/overlord/deployment-status.owl#InDev dtgov-ui.deployment-lifecycle.classifiers.stage.qa=QA:http://www.jboss.org/overlord/deployment-status.owl#InQa dtgov-ui.deployment-lifecycle.classifiers.stage.stage=Staging:http://www.jboss.org/overlord/deployment-status.owl#InStage dtgov-ui.deployment-lifecycle.classifiers.stage.prod=Production:http://www.jboss.org/overlord/deployment-status.owl#InProd
If the above configuration is used (in the dtgov-ui.properties file) then the UI will show four possible environments that the user can use to filter deployments (dev, qa, stage, prod). The format for the value of each entry is:
Label : Classifier
The Label will be shown in the UI (in the filter drop-down) and the Classifier will be used when performing the S-RAMP query to retrieve the filtered list of deployments.
The DTGov user interface’s deployment listing page also allows users to filter by the type of deployment (Java Web Application, SwitchYard Application, etc). Since different organizations will likely work with varying technologies, the Deployment Type filter is configurable. For example:
dtgov-ui.deployment-lifecycle.types.switchyard=SwitchYard Application:ext/SwitchYardApplication dtgov-ui.deployment-lifecycle.types.jar=Java Archive:ext/JavaArchive dtgov-ui.deployment-lifecycle.types.war=Java Web Application:ext/JavaWebApplication
In the above example, the user would be able to filter by SwitchYard Application, Java Archive, and Java Web Application. The format for each entry is:
Label : S-RAMP Artifact Type
The Label will be shown in the UI (in the filter drop-down) and the S-RAMP Artifact Type will be used when performing the S-RAMP query to retrieve the filtered list of deployments.
Note: the list of Deployment Types is also used in the Add Deployment dialog when adding a new deployment. In this case, the S-RAMP Artifact Type is used when adding the deployment to the repository.
This configuration works in conjuction with the Deployment Service described in the Deployment Management chapter of this guide. The classifiers specified when configuring Deployment Targets should be represented here.
DTGov integrates tightly with a compliant S-RAMP repository, and it is recommended that the Overlord S-RAMP implementation is used. The S-RAMP repository is used as the storage mechanism for all artifacts that DTGov is interested in (e.g. Deployments). This chapter describes this integration as well as how it is configured.
DTGov is integrated with S-RAMP via the Atom based REST API that all S-RAMP repositories expose. The repository is leveraged in a number of ways, including:
A number of configuration properties drive the integration between DTGov and S-RAMP. In particular note that the DTGov back-end and the DTGov User Interface each have their own separate configuration. This is because the back-end and UI are separate applications that can be independently deployed.
# S-RAMP Connection details sramp.repo.url sramp.repo.auth.provider sramp.repo.user sramp.repo.password sramp.repo.validating sramp.repo.auth.saml.issuer sramp.repo.auth.saml.service
# S-RAMP API connection endpoint dtgov-ui.s-ramp.atom-api.endpoint dtgov-ui.s-ramp.atom-api.authentication.provider dtgov-ui.s-ramp.atom-api.authentication.basic.username dtgov-ui.s-ramp.atom-api.authentication.basic.password dtgov-ui.s-ramp.atom-api.authentication.saml.issuer dtgov-ui.s-ramp.atom-api.authentication.saml.service dtgov-ui.s-ramp.atom-api.validating
Here is an example of how the back-end configuration might look:
sramp.repo.url=http://localhost:8080/s-ramp-server/ sramp.repo.auth.provider=org.overlord.sramp.governance.auth.BasicAuthenticationProvider sramp.repo.user=dtgov sramp.repo.password=DTG_PASSWORD sramp.repo.validating=true
The above configuration uses BASIC authentication when connecting to the S-RAMP repository. It will connect to S-RAMP on localhost (port 8080).
The user interface configuration might look something like this:
dtgov-ui.s-ramp.atom-api.endpoint=http://localhost:8080/s-ramp-server dtgov-ui.s-ramp.atom-api.authentication.provider=org.overlord.dtgov.ui.server.services.sramp.SAMLBearerTokenAuthenticationProvider dtgov-ui.s-ramp.atom-api.authentication.saml.issuer=/dtgov-ui dtgov-ui.s-ramp.atom-api.authentication.saml.service=/s-ramp-server dtgov-ui.s-ramp.atom-api.validating=true
The above configuration connects to S-RAMP on localhost (port 8080) and uses SAML bearer token authentication.
Both the UI and the back-end support pluggable authentication mechanisms. Out of the box DTGov provides implementations for BASIC authentication and SAML Bearer Token authentication. If the S-RAMP repository is protected by some alternative form of authentication, another implementation of the authentication provider can be created. In both cases, the authentication provider must implement the following interface:
org.overlord.sramp.client.auth.AuthenticationProvider
The DTGov back-end provides the following authentication provider implementations:
The DTGov user interface provides the following authentication provider implementations:
One of the most important features of the Overlord: DTGov software is the ability to trigger Governance Workflows based on changes detected in the S-RAMP repository. This chapter discusses this functionality, including:
Overlord: DTGov integrates tightly with the jBPM business process management system. This allows DTGov to utilize any business process that is compatible with jBPM 6. The tooling available to author jBPM compatible business processes is varied and extensive (and is outside the scope of this document). One possibility is using the Eclipse based BPM tools. Another alternative is using the web based Drools authoring tools.
For additional information about how to create jBPM processes, please consult the jBPM and Drools documentation.
All of the workflows and supporting files (images, task forms, etc) should be bundled together into a KIE archive. A KIE archive is simply a JAR with a particular structure assumed by jBPM. For example, your archive file structure might look something like this:
META-INF/kmodule.xml SRAMPPackage/HttpClientWorkDefinitions.wid SRAMPPackage/com.mybusiness.deploy.EARLifeCycle.bpmn2 SRAMPPackage/com.mybusiness.deploy.WARLifeCycle.bpmn2 SRAMPPackage/com.mybusiness.validate.NewSchemaReview.bpmn2 SRAMPPackage/run-build-install.png SRAMPPackage/user-properties.png SRAMPPackage/audio-input-microphone-3.png
What are all these files?
The kmodule.xml file is a jBPM artifact (it makes this a Kie Archive rather than just a plain old JAR file). This file should have the following content:
<?xml version="1.0" encoding="UTF-8"?> <kmodule xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="https://raw.github.com/droolsjbpm/droolsjbpm-knowledge/master/kie-api/src/main/resources/org/kie/api/kmodule.xsd" xmlns="http://jboss.org/kie/6.0.0/kmodule" > <kbase name="SRAMPPackage"> <ksession name="ksessionSRAMP"/> </kbase> </kmodule>
Next, there is a folder in the archive that maps to the kbase element found in the kmodule.xml file. This folder contains all of the business process resources, primarily the BPMN2 files. There is a file called HttpClientWorkDefinitions.wid which contains the custom work items used by Governance Workflows. It might look something like this:
import org.drools.process.core.datatype.impl.type.StringDataType; [ // the HttpClient work item [ "name" : "HttpClientDeploy", "parameters" : [ "Url" : new StringDataType(), "Method" : new StringDataType(), "Uuid" : new StringDataType(), "Target" : new StringDataType() ], "displayName" : "Deploy", "icon" : "run-build-install.png", ], // the HttpClient work item [ "name" : "HttpClientNotify", "parameters" : [ "Url" : new StringDataType(), "DTGovUrl" : new StringDataType(), "Method" : new StringDataType(), "Uuid" : new StringDataType(), "Target" : new StringDataType(), "Group" : new StringDataType(), ], "displayName" : "Notify", "icon" : "audio-input-microphone-3.png", ], // the HttpClient work item [ "name" : "HttpClientUpdateMetaData", "parameters" : [ "Url" : new StringDataType(), "Method" : new StringDataType(), "Name" : new StringDataType(), "Value" : new StringDataType(), "Uuid" : new StringDataType(), ], "displayName" : "UpdateMetaData", "icon" : "user-properties.png", ] ]
This file also refers to some images files (useful for BPMN editors) which are also included in the package.
Once the workflows are built, they must be deployed into the S-RAMP repository so that the embedded version of jBPM can find them properly. It is recommended that the S-RAMP maven integration is used to do this. The best way is to put all of the business process resouces into a simple JAR style maven project. Then use the S-RAMP maven integration to mvn deploy the project directly into S-RAMP. Please see the Overlord: S-RAMP documentation for details on how this works. The result should be that your Governance workflow JAR (Kie Archive) is uploaded to the S-RAMP repository, complete with relevant maven properties set.
The embedded jBPM engine will pick up the Governance Workflows by pulling the Kie Archive out of the S-RAMP repository and using the content it finds within. It’s worth noting that the maven information of the Kie Archive can be configured in the DTGov back end configuration file (dtgov.properties). The following properties control exactly what Kie Archive artifact the embedded jBPM engine will grab from S-RAMP:
dtgov.workflows.group=com.mybusiness dtgov.workflows.name=governance-workflows dtgov.workflows.version=1.0.7 dtgov.workflows.package=SRAMPPackage
In order to make it a little easier to author interesting Governance Workflows, DTGov provides a set of useful Governance Services. A list of these services follows:
These services can be invoked by using the work items defined above in the HttpClientWorkDefinitions.wid file.
Note: more information about the Deployment Service can be found in the Deployment Management chapter of this guide.
Currently the only way to trigger the execution of a Governance Workflow is by configuring an S-RAMP query that will be used to monitor the S-RAMP repository for interesting changes. When changes are discovered, a new instance of the configured workflow is created and invoked. This section of the guide describes how to configure these query triggers.
All query triggers are defined in the Governance configuration file (dtgov.properties). The following is an example of this configuration:
governance.queries=/s-ramp/ext/JavaEnterpriseApplication[@maven.artifactId]|com.mybusiness.deploy.EARLifeCycle.bpmn2|DeploymentUrl={governance.url}/rest/deploy/{target}/{uuid}::NotificationUrl={governance.url}/rest/notify/email/{group}/deployed/{target}/{uuid} governance.queries=/s-ramp/xsd/XsdDocument|com.mybusiness.validate.NewSchemaReview.bpmn2|NotificationUrl={governance.url}/rest/notify/email/{group}/deployed/{target}/{uuid}::UpdateMetaDataUrl={governance.url}/rest/update/{name}/{value}/{uuid}
In the above example, two queries have been configured. The first is a query that will trigger the EARLifeCycle process whenever an EAR artifact is added to the repository. Note that only EAR artifacts added from Maven are targetted. The process will be passed two parameters:
The second query will trigger the NewSchemaReview process whenever a new XML Schema document is added to the repository. This process will be passed two parameters:
Overlord: DTgov uses an embedded version of jBPM by default. However, human tasks can easily be included in Governance Workflows because the Task Inbox is integrated directly into the DTGov User Interface. Out of the box, this functionality should work seamlessly. However, it is possible to integrate a separate task system by providing an alternative (custom) Task API implementation.
Simply put, the Task API system used by the DTGov user interface can be swapped out by setting the following property in the DTGov UI configuration file (dtgov-ui.properties):
dtgov-ui.task-client.class
This property must point to a fully qualified Java class that implements the following interface:
org.overlord.dtgov.ui.server.services.tasks.ITaskClient
Of course, any Governance Workflows that create Human Task instances must also point to the alternate task system. That configuration is out of the scope of this guide.
One of the most useful services provided by the Overlord: DTGov system is the Deployment Service. This is a service that makes it possible to deploy a binary artifact stored in the S-RAMP repository into a target runtime environment such as JBoss EAP. This Deployment Service can easily be invoked from a Governance Workflow and is often included as part of a Deployment Lifecycle business process.
Invoking the Deployment Service from a Governance Workflow should be a simple matter of using the HttpClientDeploy task defined in the HttpClientWorkDefinitions.wid file as described in the Governance Workflows chapter of this guide. Within a BPMN2 process, the XML markup might look something like this:
<bpmn2:task id="Task_1" drools:taskName="HttpClientDeploy" drools:displayName="Deploy" drools:icon="run-build-install.png" name="Deploy to DEV"> <bpmn2:incoming>bpmn20:SequenceFlow_9</bpmn2:incoming> <bpmn2:outgoing>bpmn20:SequenceFlow_10</bpmn2:outgoing> <bpmn2:ioSpecification id="_InputOutputSpecification_10"> <bpmn2:dataInput id="_DataInput_47" itemSubjectRef="__NameInputItem" name="Url"/> <bpmn2:dataInput id="_DataInput_48" itemSubjectRef="__NameInputItem" name="Method"/> <bpmn2:dataInput id="_DataInput_49" itemSubjectRef="__NameInputItem" name="Uuid"/> <bpmn2:dataInput id="_DataInput_50" itemSubjectRef="__NameInputItem" name="Target"/> <bpmn2:inputSet id="_InputSet_10" name="Input Set 10"> <bpmn2:dataInputRefs>_DataInput_47</bpmn2:dataInputRefs> <bpmn2:dataInputRefs>_DataInput_48</bpmn2:dataInputRefs> <bpmn2:dataInputRefs>_DataInput_49</bpmn2:dataInputRefs> <bpmn2:dataInputRefs>_DataInput_50</bpmn2:dataInputRefs> </bpmn2:inputSet> </bpmn2:ioSpecification> <bpmn2:dataInputAssociation id="_DataInputAssociation_47"> <bpmn2:sourceRef>DeploymentUrl</bpmn2:sourceRef> <bpmn2:targetRef>_DataInput_47</bpmn2:targetRef> </bpmn2:dataInputAssociation> <bpmn2:dataInputAssociation id="_DataInputAssociation_48"> <bpmn2:targetRef>_DataInput_48</bpmn2:targetRef> <bpmn2:assignment id="Assignment_1"> <bpmn2:from xsi:type="bpmn2:tFormalExpression" id="FormalExpression_16">POST</bpmn2:from> <bpmn2:to xsi:type="bpmn2:tFormalExpression" id="FormalExpression_17">_DataInput_48</bpmn2:to> </bpmn2:assignment> </bpmn2:dataInputAssociation> <bpmn2:dataInputAssociation id="_DataInputAssociation_49"> <bpmn2:sourceRef>ArtifactUuid</bpmn2:sourceRef> <bpmn2:targetRef>_DataInput_49</bpmn2:targetRef> </bpmn2:dataInputAssociation> <bpmn2:dataInputAssociation id="_DataInputAssociation_50"> <bpmn2:targetRef>_DataInput_50</bpmn2:targetRef> <bpmn2:assignment id="Assignment_14"> <bpmn2:from xsi:type="bpmn2:tFormalExpression" id="FormalExpression_17">dev</bpmn2:from> <bpmn2:to xsi:type="bpmn2:tFormalExpression" id="FormalExpression_18">_DataInput_50</bpmn2:to> </bpmn2:assignment> </bpmn2:dataInputAssociation> </bpmn2:task>
The above task uses the DeploymentUrl and ArtifactUuid parameters that were passed in to the business process when it was invoked. It populates the inputs required by HttpClientDeploy including an input parameter named Target. The Target parameter maps to a configured Deployment Target. The target is a logical name and corresponds to a physical runtime environment configured in the DTGov configuration file (dtgov.properties). See the next section for details.
In order to make logical Deployment Targets available they must be configured in the DTGov configuration file. Typically an organization would configure three or four Deployment Targets, including:
Of course, any number of targets can be configured. Here is an example of how to configure the above four targets in the DTGov configuration file:
governance.targets= dev|http://www.jboss.org/overlord/deployment-status.owl#InDev|copy|/tmp/dev/jbossas7/standalone/deployments governance.targets= qa|http://www.jboss.org/overlord/deployment-status.owl#InQa|copy|/tmp/qa/jbossas7/standalone/deployments governance.targets=stage|http://www.jboss.org/overlord/deployment-status.owl#InStage|copy|/tmp/stage/jbossas7/standalone/deployments governance.targets= prod|http://www.jboss.org/overlord/deployment-status.owl#InProd|copy|/tmp/prod/jbossas7/standalone/deployments
The format of each target is as follows:
LogicalName|Classifier|DeploymentType|TypeSpecificParams
Depending on the type of the deployment, additional parameters may be required. In the example above, the copy deployment type requires a folder on the server, which is where it will copy the deployment artifact.
Here are some examples of how to use the other deployment types:
governance.targets= rhq_example |#Example|rhq|{rhq.user}::{rhq.password}::{rhq.baseUrl} governance.targets= cli_example |#Example|as_cli|asuser::aspassword::ashost::asport governance.targets= maven_example|#Example|maven|scp://m2.example.com/m2/snapshot-repository::false::true
Whenever the Deployment Service is used to deploy an artifact from the repository, it also annotates that artifact with relevant undeployment information. This annotation takes the form of another artifact in the repository of type ext/UndeploymentInformation. The annotation artifact will have a relationship named describesDeployment pointing from it back to the deployment artifact it annotates.
This undeployment information is used whenever an artifact needs to be undeployed. Undeploy of an artifact happens when a new version of that artifact is being deployed to a particular environment (deployment target). When this happens, the old version (whichever version is currently deployed in that environment) is undeployed in preparation of the new deployment.
Once the artifact is undeployed, its undeployment information artifact is deleted from the repository and any relevant classifier associated with the target environment is removed from the deployment artifact.
Note: please see the Configuring DTGov chapter for information about how to coordinate the configuration of the Deployment Service with the configuration of the DTGov User Interface (the Deployment Management UI).
