RiftSaw 2.1.0.Final

This chapter provides details of the pre-requisites for using the RiftSaw BPEL project, and how to install the engine into a JBossAS environment.

The examples distributed with RiftSaw are split into two categories, quickstarts that are pure BPEL that can run directly in the JBossAS server, and ESB based examples that require JBossESB. If you only want to use the pure BPEL examples, then JBossESB will not be required.

To de-install the RiftSaw distribution,

This chapter provides a getting started guide to the examples. Further information on the individual examples can be found in the samples folder.

If using the Eclipse BPEL editor, bundled with JBoss Tools, then you can import the quickstart samples as Eclipse BPEL projects, by selecting the import menu item on the left navigation panel in Eclipse, and choosing the General->Existing Projects into Workspace option. Then select the individual sample you wish to import, or alternatively select the ${RiftSaw}/samples/quickstart folder to select multiple (or all) samples for import. Please see the RiftSaw User Guide for information on how to deploy the BPEL samples to the server.

Before deploying any of the examples, you need to start the JBossAS server and ensure that RiftSaw has been installed. This can be achieved by testing whether the BPEL Console (as discussed in the User Guide) is available.

The BPEL example we are going to try out is the simple 'hello world' example. This is located in the ${RiftSaw}/samples/quickstarts/hello_world folder.

The first step is to deploy the example to the running JBossAS server. This is achieved using the following command:

Or by using any SOAP client, such as SOAPUI (available from http://www.soapui.org/).

The WSDL definition is located in the bpel folder, and can be used to initialise the SOAPUI client. The service location is: http://localhost:8080/Quickstart_hello_worldWS.

An example message can be found in the messages subfolder.

When the message is submitted to the BPEL process, the response received is:

If you then wish to modify the example and deploy a new version, you will need to either update the 'version' property within the build.xml, or specify the version when performing the command, e.g.

and similarly when undeploying,

This quickstart example demonstrates how an ESB service can directly invoke a BPEL process running inside RiftSaw, as long as RiftSaw and the ESB are co-located in the same JVM, and the invoked BPEL process is deployed to the RiftSaw instance running co-located with the JBossESB.

The example that we are going to use is located in the ${RiftSaw}/samples/esb/bpel_helloworld folder. Also note that the quickstart described in the preceding section, located in the ${RiftSaw}/samples/quickstarts/hello_world must still be deployed. If this example is not deployed, then please follow the instructions in the previous section to deploy the example.

The next step is to deploy the ESB service that will invoke this "hello world" BPEL process. This is achieved by performing the following command in the ${RiftSaw}/samples/esb/bpel_helloworld folder:

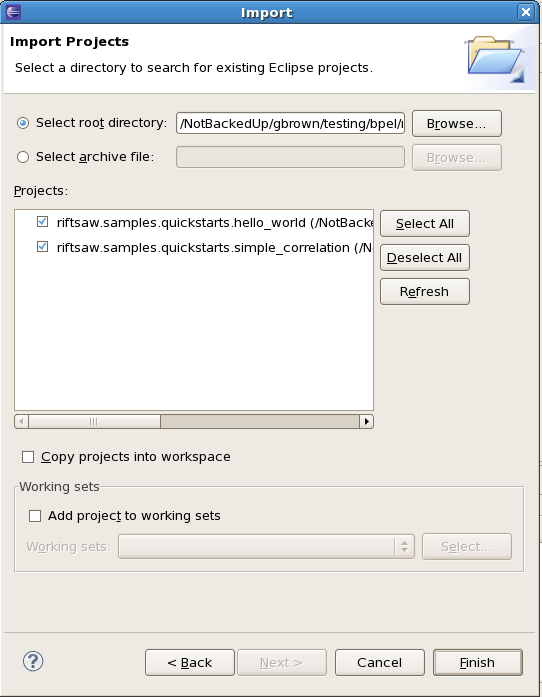

The quickstart examples, provided with the RiftSaw distribution, can be imported into an Eclipse environment as BPEL2.0 projects. This enables the BPEL and WSDL to be viewed using Eclipse based editors. Please see the JBoss Tools project for access to appropriate versions of these tools that work with the RiftSaw runtime engine.

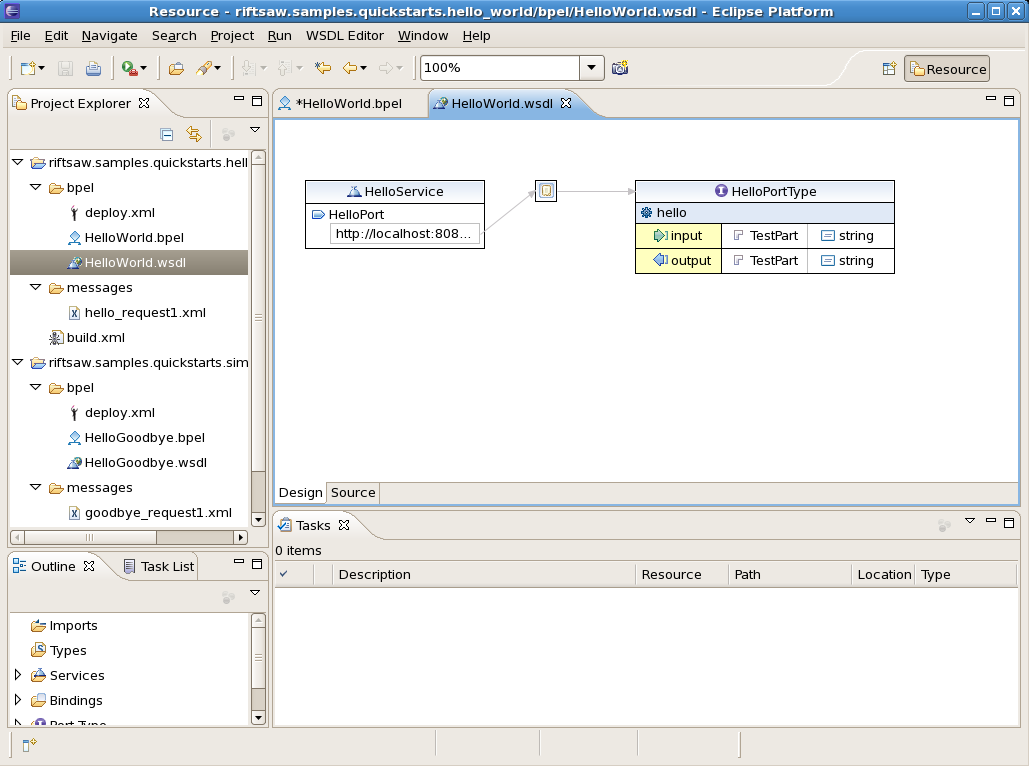

Once imported, the BPEL and WSDL artifacts can be viewed by double-clicking the appropriate files.
