This is the User Guide for the RiftSaw BPEL process engine.
RiftSaw provides a JBoss AS integration for the Apache ODE BPEL engine. For detailed information on executing BPEL processes within Apache ODE, we would refer the reader to the Apache ODE website and documentation.
In addition to the ability to run the Apache ODE engine within JBoss AS, the RiftSaw project also provides a GWT based administration console, replaces the Axis2 based transport with JBossWS (which can be configured to use Apache CXF), and provides tighter integration with JBossESB.
This section provides an overview of the BPEL Console. The console provides the ability to view:
- The process definitions deployed to the BPEL engine
- The process instances executing in the BPEL engine
- The execution history of a process
- The history instances query
The BPEL console can be located using the URL: http://localhost:8080/bpel-console.
The first screen that is presented is the login screen:
The default username is admin with password password.
The Access Control mechanism used by the admin console is configured
in the $deployFolder/bpel-console/bpel-identity.sar/META-INF/jboss-service.xml.
The JAAS login module is initially set to use a property file based
access mechanism, but can be replaced to use any appropriate alternative
implementation.
The users for the default mechanism are configured in the property file
$deployFolder/bpel-console/bpel-identity.sar/bpel-users.properties.
The entries in this file represent username=password.
The user roles for the default mechanism are configured in the property file
$deployFolder/bpel-console/bpel-identity.sar/bpel-roles.properties.
The entries in this file represent username=role. The
only role of interest currently is administrator.
Once logged in, the 'Manage Instances' tab shows the currently deployed BPEL processes and their versions.
When a process definition is selected (Open), the list of active process instances for that process definition (and version) will be displayed in the bottom panel.
There is only one active version at a time. If you open a process definition the active version will be chosen by default. Sometimes you need to manage instances of a retired version (i.e. to terminate running instances). In that case the button More - Change Version allows you to select a different version of that process.
The Execution History allows you to inspect the BPAF history data associated with a process. You can specify a timespan and whether or not you'd like to see failed/terminated instances included in the chart.
The chart has various keyboard bindings to browse through the displayed execution data:
| Keyboard and Mouse Commands | |||
|---|---|---|---|
| Up Arrow | Zoom In | Down Arrow | Zoom Out |
| Left Arrow | Half-Page Left | Right Arrow | Half-Page Right |
| Page-Up | Page Left | Page-Down | Page Right |
| TAB | Next Focus | Shift-TAB | Previous Focus |
| HOME | Max Zoom Out | ENTER | Max Zoom In to Focus |
| Mouse Drag | Scroll Chart | Shift Mouse Drag | Drag Select/Zoom |
| Mouse Wheel Up/Z | Zoom In | Mouse Wheel Down/X | Zoom Out |
| Backspace/Back Button | Back | Right Mouse Button | Context Menu |
| Left Click | Set Focus | Double Click | Max Zoom In to Focus |
You need to explicitly enable history logging for a particular process through the 'deploy.xml' file and for the BPEL engine in general through the 'bpel.properties' file. In order to record history data, set the 'process-events' option for a particular process and make sure the 'org.jboss.soa.bpel.console.bpaf.BPAFLogAdapter' is enabled.
Process configuration example (deploy.xml):
<deploy xmlns="http://www.apache.org/ode/schemas/dd/2007/03"
xmlns:bpl="http://www.jboss.org/bpel/examples"
xmlns:intf="http://www.jboss.org/bpel/examples/wsdl">
<process name="bpl:HelloGoodbye">
<active>true</active>
<process-events generate="all"/>
<provide partnerLink="helloGoodbyePartnerLink">
<service name="intf:HelloGoodbyeService" port="HelloGoodbyePort"/>
</provide>
</process>
</deploy>
When a process instance is selected, its details will be displayed in the Execution Details panel. The Instance Data button will also become enabled, allowing further detail about the process to be displayed. Likewise the Execution Path button opens the related instance execution graph.
The View tab shows the instance execution graph, while the Source tab below shows all activity events.
Once a process instance is finished, could be 'COMPLETED', 'FAILD' or 'TERMINATED', you could search it through the History Query tab window as following:
You need to choose the Process Definition and the Process Status from the list box. You could also input the correlation key, start time and end time as criteria to search the history instances. below is the search result.
On the History Instances List, when you double click a specific row, it will pop up a window that shows all of execution events that happened during this process instance execution.
Note
Please be noted that you have to explicitly enable the history logging in order to use the History Query functionality.When a process definition is initially deployed (i.e. the first version of the process), it automatically becomes the active process definition. If that BPEL process definition is subsequently change and redeployed, then the previous version is retired, and the new version becomes the active version.
The only difference between an active and retired process definition is that a retired process definition can no longer create new process instances. However if there are current process instances associated with the retired process definition version, then these will continue to execute.
On some occasions, the administrator may wish to change which version of a process definition is considered the active version. Or they may simply want to retire the currently active process definition, so that no more process instances can be created, only allowing the already running process instances to continue until completed.
To change the status of a process definition, the administrator should select the Runtime tab from the lefthand panel, and then select the Deployments option. This will show the process definitions, their versions and their current status (active or retired).
To change a particular version from retired to active, simply select the retired version and press the Activate button in the bottom right.
To retire a currently active process definition, simply select the particular version and then press the Retire button in the bottom right.
Note
If you deploy a process definition version into RiftSaw server, the previous version of that process definition will go to 'retire' process automatically. Also please noted that if you undeploy a process, the associated endpoints get deactivated only if it doesn't have any previous version of that process.
When RiftSaw has been installed within the JBossAS environment, there is a property file
located at ${JBossAS}/server/default/deploy/riftsaw.sar/bpel.properties.
This property file contains a number of properties that are specific to ODE, and if interested in these properties, then you should refer to the ODE documentation. Only one point to note, the name of the property in this file maybe prefixed with bpel., however in the ODE documentation the prefix would be ode..
This section will present the properties that are specific to RiftSaw.
| bpel.uddi.* | These properties relate to the UDDI support, which is discussed in a subsequent chapter. |
| bpel.jaxws.client.initializer.impl | This property is automatically set upon installation, based on the JAXWS stack being used. This value should not be changed. |
| bpel.ws.stableInterface (default false) | This property determines whether the Web Service interface, associated with a BPEL process, will be updated when a new version of the BPEL process is deployed. The benefit of setting this to false is that changes to the WSDL will be made active with the BPEL process. However the issue is that during the transition between the interfaces, the web service will momentarily be unavailble - which may cause heavily used services to reject requests. By setting this value to true, then the web service will remain available while the BPEL process is updated, however any changes in the WSDL will not be made available. |
| bpel.event.listeners (org.jboss.soa.bpel.console.bpaf.BPAFLogAdapter) | Enables the BPAF logging used by the console to display the process execution history. |
Apache ODE generates a set of events on the process running. below is the steps for you to enable it. for more detail information on this, please consult the ODE's Execution events guide.
-
In deploy.xml, adding
<process-events generate="all"/>. -
Adding following two properties in the
bpel.properties.bpel.event.listeners=org.apache.ode.bpel.common.evt.DebugBpelEventListener debugeventlistener.dumpToStdOut=on
By registering the DebugBpelEventListener, it will use the log's DEBUG level for the BpelEvent information. By setting the
debugeventlistener.dumpToStdOut=on, it will render the information on the console as well.
We've also provided an out-of-box example to demonstrate the adding a custom listener. Please see the bpel_event_listener example for more information.
If an active process definition is undeployed, any active process instances will be terminated. If this is not desired behaviour, then the administrator should first retire the process definition (version) using the BPEL console, and then when all active process instances for the version have completed, it can be safely undeployed.
So below is the recommended steps for safely undeploy processes.
- Check if the processes have any active process instances.
- If it has unfinished process instances, retire the process in BPEL Console first.
- Undeploy the processes only if they don't have any active process instances.
If your process or outer web services that needs to support UTF-8 encoding, below is the steps that you need take.
- Make sure your database use the UTF-8 encoding as default.
- Adding following two properties to support the UTF-8 encoding in hibernate.
hibernate.connection.useUnicode=true hibernate.connection.characterEncoding=UTF-8
This section outlines the mechanisms that can be used to deploy a BPEL process to RiftSaw BPEL engine running within a JBoss AS server.
The direct deployment approach is demonstrated using an Ant script in each of the quickstart examples. For example,
<!-- Import the base Ant build script... -->
<property file="../../../install/deployment.properties" />
<property name="version" value="1" />
<property name="server.dir" value="${org.jboss.as.home}/server/${org.jboss.as.config}"/>
<property name="conf.dir" value="${server.dir}/conf"/>
<property name="deploy.dir" value="${server.dir}/deploy"/>
<property name="server.lib.dir" value="${server.dir}/lib"/>
<property name="sample.jar.name" value="${ant.project.name}-${version}.jar" />
<target name="deploy">
<echo>Deploy ${ant.project.name}</echo>
<jar basedir="bpel" destfile="${deploy.dir}/${sample.jar.name}" />
</target>
<target name="undeploy">
<echo>Undeploy ${ant.project.name}</echo>
<delete file="${deploy.dir}/${sample.jar.name}" />
</target>
This excerpt from the Ant build file for the hello_world quickstart example shows that deploying a RiftSaw BPEL process using Ant is very straightforward. The main points of interest are:
-
It is necessary to identify the location of the JBoss AS server in which
the BPEL process will be deployed. This is achieved in this example by
referring to the
deployment.propertiesfile that has been configured in the RiftSaw distribution (install folder). -
If a versioned approach is being used, so that multiple versions of the
same BPEL process may be deployed at one time, then the name of the
archive (jar) containing the BPEL process (and associated artifacts)
has a version number suffix. This would need to be manually incremented
for each distinct version of the BPEL process being deployed.
Warning
Currently the version must be specified as a single integer value. Non-numeric values, such as versions expressed in a major.minor.incremental (maven style), will result in an exception when deployed to the server.
-
The next step is to define the deploy target, which
will create the BPEL process archive, using the contents of the bpel
sub-folder in this case, and store it within the JBoss AS
server's
deployfolder. -
The final step is to define the undeploy target,
which simply removes the BPEL process archive from the JBoss AS
server's
deployfolder.
This section will explain how to deploy an Eclipse BPEL project to the RiftSaw BPEL engine running in a JBossAS server.
The first step is to create or import the Eclipse BPEL project. In this case we are going to
import an existing project from the ${RiftSaw}/samples/quickstart/hello_world
folder. This can be achieved by selecting the Import ... menu item associated
with the lefthand navigator panel in Eclipse, and then select the
General->Existing Projects into Workspace entry and press the
Next button.

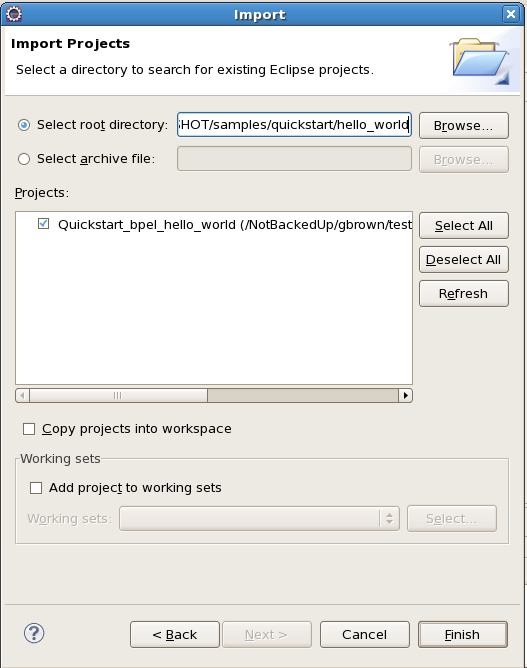

Then press the Browse button and navigate to the
hello_world quickstart folder. Once located, press the Finish
button.
Once the project has been imported, you can inspect the contents, such as the BPEL process and WSDL description.
The next step is to create a server configuration for the JBoss AS environment in which the RiftSaw BPEL engine has previously been installed. From the Eclipse Java EE perspective, the Server tab should be visible in the lower region of the Eclipse window. If this view is not present, then go to the Window->Show Views->Servers menu item to open the view explicitly.
In the Servers view, right click and select the New->Server menu item.
Select the appropriate JBoss AS version, and then press Finish.
Before being able to deploy an example, we should start the new server. This can be achieved by right clicking on the server in the Servers tab, and selecting the Start menu item. The output from the server will be displayed in the Console tab.
Once the server has been started, right click on the server entry again, and select the Add and Remove ... menu item.
Select the Quickstart_bpel_hello_world project, press the Add button and the press the Finish button. This will cause the project to be deployed to the server.
Once the project has been deployed, it will show up as an entry below the server in the Servers tab.
The final step is to test the deployed BPEL process. In this example, we can do this
using the ant script provided with the quickstart sample. Right
click on the build.xml file in the root folder of the project,
and select the Run As->Ant Build ... menu item. NOTE: It is important
to select the menu item with the "...", as this provides a dialog
window to enable you to select which ant target you wish to perform.
Deselect the deploy target, and select the runtest target, before pressing the Run button. This was send a test 'hello' message to the server, and then display the response in the Console tab.
If you now want to update the BPEL process, select the assignHelloMesg node in the diagram, and select the Properties view. On the left of the view is a vertical list of tabs. Select the Details tab. Then select the "Expression to Variable" from the list, and update the concat function's second parameter - for example to add 'UPDATED' to the text.
Once the update has been saved, go to the Server View and select the Full Publish option from the menu associated with the Quickstart_bpel_hello_world project. This will cause the project to be re-deployed to the RiftSaw server.
The final step is to then re-run the 'runtest' target within the build.xml
file, to send a new request, and view the response. The response should now be modified
according to the changes you made in the BPEL process.
If you expand the deployed project node, in the Server View, you will see that both of the deployed versions are shown. The older version is retained as there may still be BPEL process instances using that version of the process. If you right-click on each of the child nodes, you will see that it is also possible to undeploy the specific versions. However, if you explicitly undeploy a version, then any remaining active process instances for that version will be terminated.
You can then use the menu associated with the project, contained in the Server View, to undeploy the project (using the Add and Remove ... menu item) and finally use the menu associated with the server itself to Stop the server.
Apache ODE provides the means to customise certain properties, associated with a
BPEL endpoint, by specifying the properties in a file with an extension of
.endpoint.
For information on the properties that can be specified in this file, please see the Apache ODE documentation, located at: http://ode.apache.org/endpoint-configuration.html.
Note
RiftSaw currently only supports the following properties: mex.timeout
This section explains how to deploy these .endpoint
files as part of a RiftSaw deployment.
Apache ODE supports two locations for finding these .endpoint
files. A 'global' configuration folder, which by default is
ode/WEB-INF/conf, and a process deployment specific
location, which is ode/WEB-INF/processes/$your_process.
Properties associated with the 'global' configuration override any property
values provided in the process specific location.
RiftSaw currently does not support a 'global' configuration location, so it will only obtain the configuration files from the deployed BPEL bundle. More specifically, from the root location within the BPEL deployment unit, along side the BPEL deployment descriptor.
So, for example, if you place a file called test.endpoint
in the ${RiftSaw}/samples/quickstart/hello_world/bpelContent
folder, with the following content:
# 3 minutes mex.timeout=180000
then once deployed, the helloworld example could wait up to a maximum of 3 minutes to respond.
To test this out, edit the hello_world.bpel and insert
a wait activity before the response - similar to the
following:
<wait>
<for>'PT150S'</for>
</wait>
This will wait 2 minutes 30 seconds before responding, which is 30 seconds
more than the default timeout, but still within the new timeout period
specified within the test.endpoint file. If you then
wish to try forcing the timeout to occur, simply increase the wait
duration to 3 minutes 30 seconds, and resubmit the test message using the
ant runtest command.
This section outlines the mechanisms that are available for configuring the web service stack used in providing the web service for a BPEL process, as well as invoking external web services from a BPEL process.
JAX-WS is a standard Java API for client and server support of web services. The JAX-WS handler mechanism can be used by a client or server (i.e. the web service) to invoke a user specified class whenever a message (or fault) is sent or received. The handler is therefore installed into the message pipeline, and can manipulate the message header or body as required.
The handlers are usually installed either programmatically, or through a HandlerChain annotation on the Java interface representing the Web Service. However, in the case of a BPEL process deployed to RiftSaw, the JAX-WS service (representing the web service associated with the BPEL process) is dynamically created on deployment.
Therefore to associate the configuration of a JAX-WS handler chain with
the Web Service dynamically created to support the BPEL process, the
user must place a file called jws_handler.xml alongside
the BPEL process definition and deployment descriptor.
The following provides an example of the XML configuration associated with
the jws_handler.xml file. This particular example is used by the
service_handler quickstart sample.
<handler-chains xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee">
<handler-chain>
<handler>
<handler-name>JAXWSHandler</handler-name>
<handler-class>org.jboss.soa.bpel.examples.jaxws.JAXWSHandler</handler-class>
<init-param>
<param-name>TestParam</param-name>
<param-value>TestValue</param-value>
</init-param>
</handler>
</handler-chain>
</handler-chains>
The format of this file is the standard JAX-WS handler chain configuration. One or more handler elements can be specified, with each handler defining a name and class. The handler configuration can optionally provide initialization parameters that are passed to the init method on the handler implementation.
Note
This mechanism only installs JAX-WS handlers on the 'provider' web service. It is not currently possible to configure JAX-WS handlers for the client endpoints that invoke external web services from a BPEL process.
An example of this mechanism can be found in the service_handler quickstart sample.
RiftSaw integrates with JBossWS, using the JAX-WS standard API, to support the following web service stacks: JBossWS native and Apache CXF. This section explains how RiftSaw deployed BPEL processes can include additional configuration specifically applicable to the Apache CXF web service stack - and is therefore only relevant if the JBossAS application server has been configured to use this stack. See the Getting Started Guide for information on how to switch to the Apache CXF stack when installing RiftSaw.
This section will explain how web service endpoints, whether server (i.e. representing the BPEL process) or client (i.e. being used to invoke external web services), are configured using the Apache CXF configuration format. It will also discuss reasons why you may wish to do this additional CXF specific configuration. However, for further information on how to configure CXF, and the features that it offers, the reader is referred to the Apache CXF website http://cxf.apache.org.
To create a CXF configuration that will be used by the RiftSaw web service provider
(i.e. the server), it is simply a case of placing a file called
jbossws-cxf.xml into the root folder of the BPEL deployment
(along side the deployment descriptor).
This is the same filename as used by jbossws-cxf, when deploying a web service based on the use of JAXWS annotations. An example of the file content is:
<beans
xmlns='http://www.springframework.org/schema/beans'
xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance'
xmlns:beans='http://www.springframework.org/schema/beans'
xmlns:jaxws='http://cxf.apache.org/jaxws'
xsi:schemaLocation='http://cxf.apache.org/core
http://cxf.apache.org/schemas/core.xsd
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.0.xsd
http://cxf.apache.org/jaxws
http://cxf.apache.org/schemas/jaxws.xsd'>
<bean id="UsernameTokenSign_Request"
class="org.apache.cxf.ws.security.wss4j.WSS4JInInterceptor">
<constructor-arg>
<map>
<entry key="action" value="UsernameToken Timestamp Signature"/>
<entry key="passwordType" value="PasswordDigest"/>
<entry key="user" value="serverx509v1"/>
<entry key="passwordCallbackClass"
value="org.jboss.test.ws.jaxws.samples.wsse.ServerUsernamePasswordCallback"/>
<entry key="signaturePropFile" value="etc/Server_SignVerf.properties"/>
<entry key="signatureKeyIdentifier" value="DirectReference"/>
</map>
</constructor-arg>
</bean>
<bean id="UsernameTokenSign_Response"
class="org.apache.cxf.ws.security.wss4j.WSS4JOutInterceptor">
<constructor-arg>
<map>
<entry key="action" value="UsernameToken Timestamp Signature"/>
<entry key="passwordType" value="PasswordText"/>
<entry key="user" value="serverx509v1"/>
<entry key="passwordCallbackClass"
value="org.jboss.test.ws.jaxws.samples.wsse.ServerUsernamePasswordCallback"/>
<entry key="signaturePropFile" value="etc/Server_Decrypt.properties"/>
<entry key="signatureKeyIdentifier" value="DirectReference"/>
<entry key="signatureParts"
value="{Element}{http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd}Timestamp;{Element}{http://schemas.xmlsoap.org/soap/envelope/}Body"/>
</map>
</constructor-arg>
</bean>
<jaxws:endpoint
id='SecureHelloWorldWS'
address='http://@jboss.bind.address@:8080/Quickstart_bpel_secure_serviceWS'
implementor='@provider@'>
<jaxws:inInterceptors>
<ref bean="UsernameTokenSign_Request"/>
<bean class="org.apache.cxf.binding.soap.saaj.SAAJInInterceptor"/>
</jaxws:inInterceptors>
<jaxws:outInterceptors>
<ref bean="UsernameTokenSign_Response"/>
<bean class="org.apache.cxf.binding.soap.saaj.SAAJOutInterceptor"/>
</jaxws:outInterceptors>
</jaxws:endpoint>
</beans>
This example configures the web service to use username token and digital signature authentication.
Note
The jaxws:endpoint element has an attribute called implementor that defines the Java class implementing the JAXWS service. RiftSaw dynamically creates this class, and therefore it is important that the attribute is set to the value @provider@ to enable the dynamically created Java class to be correctly configured during deployment.
When configuring client endpoints, representing web services invoked by a BPEL process, the configuration is currently separated into different files on a per port basis - similar to the approach used by the Axis2 ODE integration.
The file name is of the form jbossws-cxf-{portname_local_part}.xml,
where the portname_local_part represents the local part of
the portname of the web service being invoked. For example, if the WSDL for the invoked
web service is:
<definitions name='SecureHelloWorldWSService'
targetNamespace='http://secure_invoke/helloworld' .... >
<portType name='SecureHelloWorld'>
...
</portType>
<service name='SecureHelloWorldWSService'>
<port name='SecureHelloWorldPort' ... >
...
</port>
</service>
</definitions>
then the CXF configuration file would be jbossws-cxf-SecureHelloWorldPort.xml.
The CXF configuration information within this file is associated with the CXF bus. For example:
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:cxf="http://cxf.apache.org/core"
xmlns:wsa="http://cxf.apache.org/ws/addressing"
xmlns:http="http://cxf.apache.org/transports/http/configuration"
xmlns:wsrm-policy="http://schemas.xmlsoap.org/ws/2005/02/rm/policy"
xmlns:wsrm-mgr="http://cxf.apache.org/ws/rm/manager"
xmlns:beans='http://www.springframework.org/schema/beans'
xmlns:jaxws='http://cxf.apache.org/jaxws'
xmlns:ns1='http://secure_invoke/helloworld'
xsi:schemaLocation="
http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd
http://cxf.apache.org/transports/http/configuration http://cxf.apache.org/schemas/configuration/http-conf.xsd
http://schemas.xmlsoap.org/ws/2005/02/rm/policy http://schemas.xmlsoap.org/ws/2005/02/rm/wsrm-policy.xsd
http://cxf.apache.org/ws/rm/manager http://cxf.apache.org/schemas/configuration/wsrm-manager.xsd
http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd">
<bean id="UsernameTokenSign_Request"
class="org.apache.cxf.ws.security.wss4j.WSS4JOutInterceptor" >
<constructor-arg>
<map>
<entry key="action" value="UsernameToken Timestamp Signature"/>
<entry key="passwordType" value="PasswordDigest"/>
<entry key="user" value="clientx509v1"/>
<entry key="passwordCallbackClass"
value="org.jboss.test.ws.jaxws.samples.wsse.ClientUsernamePasswordCallback"/>
<entry key="signaturePropFile" value="etc/Client_Sign.properties"/>
<entry key="signatureKeyIdentifier" value="DirectReference"/>
<entry key="signatureParts"
value="{Element}{http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd}Timestamp;{Element}{http://schemas.xmlsoap.org/soap/envelope/}Body"/>
</map>
</constructor-arg>
</bean>
<bean id="UsernameTokenSign_Response"
class="org.apache.cxf.ws.security.wss4j.WSS4JInInterceptor" >
<constructor-arg>
<map>
<entry key="action" value="UsernameToken Timestamp Signature"/>
<entry key="passwordType" value="PasswordText"/>
<entry key="user" value="serverx509v1"/>
<entry key="passwordCallbackClass"
value="org.jboss.test.ws.jaxws.samples.wsse.ClientUsernamePasswordCallback"/>
<entry key="signaturePropFile" value="etc/Client_Encrypt.properties"/>
<entry key="signatureKeyIdentifier" value="DirectReference"/>
</map>
</constructor-arg>
</bean>
<cxf:bus>
<cxf:outInterceptors>
<ref bean="UsernameTokenSign_Request"/>
<bean class="org.apache.cxf.binding.soap.saaj.SAAJOutInterceptor"/>
</cxf:outInterceptors>
<cxf:inInterceptors>
<ref bean="UsernameTokenSign_Response"/>
<bean class="org.apache.cxf.binding.soap.saaj.SAAJInInterceptor"/>
</cxf:inInterceptors>
</cxf:bus>
</beans>
This example configures the web service client to use username token and digital signature authentication.
When a BPEL process is deployed, it results in a web service being created to represent the service endpoint, based on a WSDL description included with the deployed process. If the WSDL is displayed, using the endpoint URL of the service (with the ?wsdl suffix), then the <soap:address> by default will be associated with the host bind address of the server (as defined in the ${jboss.bind.address} property).
To change this default address, for example if wanting to present the web service via a firewall that has a different host address, then you will need to refer to the JBossWS documentation.
As an example, jbossws-native-3.2.2.GA uses a configuration file
(${jbossas}/server/default/deployers/jbossws.deployer/META-INF/stack-agnostic-jboss-beans.xml)
to define this information. The bean WSServerConfig has a
property called webServiceHost that can be used to define the
value to be used.
The integration of a UDDI client into the RiftSaw runtime codebase allows for the auto-registration of BPEL services to an UDDI registry upon deployment of the service. The registration process uses the jUDDI-3 client libraries which are capable of communicating to any UDDI v3 complaint registry.
Upon deployment both the Service and its BindingTemplate (EndPoint information) are registered, and a partnerLinkChannel is created for each partnerLink. UDDI lookup will obtain the WSDL Endpoint from the UDDI and access this URL to obtain the WSDL straight from the Service. Upon undeployment the BindingTemplate is removed from the UDDI Registry.
By default RiftSaw uses the jUDDI client libraries of JBossESB/SOA-P, and the client configuration is found in the deploy/jbossesb.sar/esb.juddi.client.xml. Both the name of the ClerkManager and the Clerk itself are specified in the bpel.properties file.
Table 5.1. The UDDI related properties in the bpel.properties
| attribute | type (default) | description |
|---|---|---|
| bpel.uddi.registration | boolean (true) | If set to 'false', the UDDI integration is turned off. The RiftSaw installation process sets this value to 'true' only if the jbossesb-registry.sar is detected containing a jUDDI v3 registry. In all other case it is defaulted to false. |
| bpel.webservice.secure | boolean (false) | The UDDI Registration process registers an WSDL AccessPoint in the BindingTemplate for the BPEL Service it is registering. The BPEL server exposes the service WSDL Endpoint on the WS stack (Currently we support JBossWS and CXF), if your WS stack is configured to a use a secure (https) protocol, then you need to switch this setting to 'true'. Note that this setting is used during the registration process only. |
| bpel.uddi.client.impl | String (org.jboss.soa.bpel.uddi.UDDIRegistrationImpl) | Name of the class that implements the org.jboss.soa.bpel.runtime.engine.ode.UDDIRegistration interface. |
| bpel.uddi.clerk.config | String (not used by default) |
Defines the path to the bpel.uddi.client.xml config file. This can be left commented out if
you want to use the riftsaw.sar/META-INF/riftsaw.uddi.xml. However in that case a
bpel.uddi.clerk.manager needs to be defined.
|
| bpel.uddi.clerk.manager | String (riftsaw-manager) |
Defines the ClerkManager name that will be used if the bpel.uddi.clerk.config is left commented out.
This value should correspond to the name of the manager
in the riftsaw.uddi.xml. Note that if the bpel.uddi.clerk.config is defined, the
setting of the bpel.uddi.clerk.manager is ignored.
|
| bpel.uddi.clerk | String (BPEL_clerk) |
Defines the Clerk name that will be used. This value should correspond to the name of the clerk
in the riftsaw.uddi.xml. By default this is set to 'BPEL_clerk'.
|
| bpel.uddi.lookup | boolean (true) | If set to true, the creating process of the partner channel will do a lookup by serviceName in the UDDI, and Endpoint(s) is retrieved. This process makes it easier to move process deployment around within your server farm, without having to update the partnerlink WSDL files in your BPEL process deployments. If more then one EndPoint (BindingTemplate) is found default policy the ServiceLocator uses a 'PolicyLocalFirst'. Please see the jUDDI v3 documentation for more details and on how to switch to the 'PolicyRoundRobin' or a custom Policy. Note that it is still a requirement to deploy the initial partnerlink WSDL file for each partnerLink. |
When RiftSaw is deployed to JBossAS-5.1.0, jUDDI v3 is not installed, and therefore the UDDI integration is turned off (bpel.uddi.registration=false).
When RiftSaw is deployed to SOA-P-5.1.0 (or JBossESB 4.10 or higher) UDDI integration is
turned on and the bpel.uddi.client.impl is set to
org.jboss.soa.bpel.uddi.UDDIRegistrationImpl.
The riftsaw.sar/META-INF/riftsaw.uddi.xml is used, with manager name 'riftsaw-manager'.
The jUDDI registry is seeded with initial setup data. The riftsaw install process adds 3
seed files to the jbossesb-registry.sar/juddi_custom_install_data directory. The
files are riftsaw_Publisher.xml, riftsaw_BusinessEntity and riftsaw_tModels.
The seed data is loaded only if the registry is empty. Thus if you had already started jboss-esb before
installing riftsaw, you will need to clean the jUDDI database to trigger the loading of the newly added
seed data, or you can add the entities manually before starting riftsaw. Alternatively, in SOA-P-5.x, the
jbossesb-registry.sar/esb.juddi.xml contains a property
juddi.seed.always which can be set to "true". This means that that it
is always trying to load the root seed data on startup of the server. It is recommended
to turn this value to "false" once you are content with the UDDI Seed Data.
Upon deployment of a BPEL process, the process information is registered to the UDDI registry according to the BPEL4WS OASIS technote (Using BPEL4WS in a UDDI registry Technote). For more details please see the jUDDI v3 documentation.
If a BPEL service invokes another BPEL service or WebService EndPoint in general, Riftsaw performs a lookup by serviceQName and portName (obtained from the WSDL). The result is stored in a client-side ServiceCache. This ensures that the lookup is nice and fast. To prevent the client-side cache to return stale information, the cache is automatically invalidated by the UDDI registry using the Subscription API whenever changes occur in the registry. For more details please see the jUDDI v3 documentation.
Other UDDI v3 compliant registries can be used. The UDDIv3 spec requires
communication using the UDDI WebServices (rather than the InVM Transport used by default).
To set up SOAP based communication specify the JAXWS-Transport,
in the riftsaw.sar/META-INF/riftsaw.uddi.xml configuration
file. Note that when using JAXWS-Transport the UDDI server should be hosted out-of-process, as it must
be up during server startup and shutdown. For more details please see the jUDDI v3 documentation.
This section outlines the support provided for the direct integration between RiftSaw and JBossESB.
Bi-directional loose integration is available through the use of web services. For example, an ESB action may invoke a BPEL process running within RiftSaw by invoking the appropriate web service represented by a WSDL interface. Similarly, a BPEL process can invoke an ESB managed service that is capable of presenting itself as a web service.
However this section will describe how integration between RiftSaw and JBossESB actions can be achieved without the use of web services (i.e. WSDL and SOAP).
The BPELInvoke ESB action can be used within a jboss-esb.xml to request an invocation on a BPEL process running inside RiftSaw. The only constraints are that RiftSaw is installed within the same Java VM and that the requested BPEL process must have been deployed to the local RiftSaw engine.
The following example illustrates the BPELInvoke ESB action being used as part of the bpel_helloworld sample.
<action name="action2" class="org.jboss.soa.esb.actions.bpel.BPELInvoke">
<property name="service" value="{http://www.jboss.org/bpel/examples/wsdl}HelloService"/>
<property name="port" value="HelloPort" />
<property name="operation" value="hello" />
<property name="requestPartName" value="TestPart" />
<property name="responsePartName" value="TestPart" />
</action>
The ESB action class is org.jboss.soa.esb.actions.bpel.BPELInvoke.
The properties for this ESB action are:
service
This property is mandatory, and defines the service name registered in the WSDL associated with the deployed BPEL process.
port
This property is optional, and defines the port name registered in the WSDL associated with the deployed BPEL process. This parameter is only required if port specific endpoint configuration information has been registered as part of the BPEL process deployment.
operation
This property is mandatory, and represents the WSDL operation that is being invoked.
requestPartName
This optional property can be used to define the WSDL message part that the inbound ESB message content should be mapped to. This property should be used where the ESB message does not already represent a multi-part message.
responsePartName
This optional property can be used to extract the content of a response multi-part WSDL message, and place this in the ESB message being passed to the next ESB action in the pipeline. If this property is not defined, then the complete multi-part message value will be placed in the ESB message.
abortOnFault
This optional property can be used to indicate whether a fault, generated during the invocation of a BPEL process, should be treated as a message (when the value of this property is 'false'), or as an exception that will abort the ESB service. The default value is 'true', causing the ESB service to abort.
This ESB action supports inbound messages with content defined as either:
DOM
If the message content is a DOM document or element, then this can either be used as the complete multi-part message, or as the content of a message part defined using the requestPartName property.
If the message content is a DOM text node, then this can ONLY be used if a multi-part name has been defined in the requestPartName property.
Java String
If the message content is a string representation of an XML document, then the requestPartName is optional. If not specified, then the document must represent the multipart message.
If the message content is a string that does not represent an XML document, then the requestPartName must be specified.
When the message content represents the complete multipart message, this must be defined as a top level element (whose name is irrelevant) with immediate child elements that represent each of the multiple parts of the message. Each of these elements must then have a single element/node, that represents the value of the named part.
<message>
<TestPart>
Hello World
</TestPart>
</message>
This shows an example of a multipart message structure. The top element (i.e. message) is unimportant. The elements at the next level represent the part names - in this case there is only a single part, with name TestPart. The value of this part is defined as a text node, with value "Hello World". However this could have been an element representing the root node of a more complex XML value.
The following diagram illustrates the inter-relationship of the JBossESB bpel_helloworld quickstart and the RiftSaw BPEL process configuration files.
The normal response from a WSDL operation will be returned from the BPELInvoke ESB action as a normal message and placed on the action pipeline ready for processing by the next ESB action, or alternatively if no further actions have been defined, then returned back to the service client.
Faults, associated with a WSDL operation, are handled slightly differently. Depending on configuration it is possible to receive the fault as an ESB message or for the fault to be treated as an exception which aborts the action pipeline. The configuration property used to determine which behaviour is used is called abortOnFault. The default value for this property is "true". As an example, from the loan fault quickstart sample,
<action name="action2" class="org.jboss.soa.esb.actions.bpel.BPELInvoke">
<property name="service" value="{http://example.com/loan-approval/wsdl/}loanService"/>
<property name="operation" value="request" />
<property name="abortOnFault" value="true" />
</action>
A WSDL fault has two relevant pieces of information, the fault type (or code) and the fault details. These are both returned in specific parts of ESB message's body.
-
Fault code (as javax.xml.namespace.QName)
ESB message body part: org.jboss.soa.esb.message.fault.detail.code
This body part identifies the specific WSDL fault returned by the BPEL process, associated with the WSDL operation that was invoked.
Warning
The specific version of the QName used by the JBoss server is from the stax-api.jar found in the server's lib/endorsed directory. If the client does not also include this jar in a folder that is in its endorsed directories, then a class version exception will occur when this ESB message part is accessed. -
Fault code (as textual representation of QName)
ESB message body part: org.jboss.soa.bpel.message.fault.detail.code
This body part will return the textual representation of the QName for the fault code. The textual representation is of the form "{namespace}localpart" and can be converted back into a QName using the javax.xml.namespace.QName.valueOf(String) method.
-
Fault details
ESB message body part: org.jboss.soa.esb.message.fault.detail.detail
This body part will contain the textual representation of the message content associated with the fault.
If the ESB service uses PicketLink to obtain a SAML token, then this assertion can be passed to the invoked BPEL process, using the requestSAMLPartName property.
<action name="action2" class="org.jboss.soa.esb.actions.bpel.BPELInvoke">
<property name="service" value="{http://simple_invoke/helloworld}HelloHeaderWSService"/>
<property name="operation" value="sayHi" />
<property name="requestPartName" value="sayHello" />
<property name="responsePartName" value="sayHelloResponse" />
<property name="requestSAMLPartName" value="Security" />
</action>
The part name identified by the requestSAMLPartName must be defined as a WS-Security Security element, e.g.
<part name="Security" element="wsse:Security"
xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd" />
To enable riftsaw to work in a clustered environment, all of the nodes within the cluster must be configured to use a shared database. This is to ensure all of the nodes have access to the shared information concerning the persistent state of process instances.
For the cluster to work correctly, it will also be necessary to employ a load balancer to distribute the incoming SOAP requests appropriately across all of the nodes in the server, as shown in the following diagram.
There are two ways to install a clustered version of riftsaw. The first approach is to simply
set the org.jboss.as.config property in the
${RiftSaw}/install/deployment.properties file to all
before deploying riftsaw into the JBossAS server.
However, if a different JBossAS config profile needs to be used, then it will be necessary to explicitly indicating that clustering is required. This is achieved by setting the system property clustering.support to true, e.g.
ant deploy -Dclustering.support=true ....)
Note
The riftsaw clustering support depends on the JBossAS Clustering HAPartitionService service, so please be sure that you have this service started if you use some customized config profile for JBossAS.
Deploying a BPEL process into a clustered environment is different from deploying it into a single server.
You have to copy your BPEL artifact (say hello_world.jar) into a farm folder. This is
a special folder that the server uses to share deployable components across the nodes within the cluster.
For example, the default farm folder in JBossAS is located here:
${JBossAS}/server/all/farm.
This is a list of Restful services that are used by the bpel console.
| Method | Path | Description | Consumes | Produces |
|---|---|---|---|---|
| Server Info(General REST server information) | ||||
| GET | /gwt-console-server/rs/server/status | */* | application/json | |
| GET | /gwt-console-server/rs/server/resources/{project} | */* | text/html | |
| Process Management(Process related data.) | ||||
| GET | /gwt-console-server/rs/process/definitions | */* | application/json | |
| GET | /gwt-console-server/rs/process/definition/{id}/instances | */* | application/json | |
| GET | /gwt-console-server/rs/process/instance/{id}/dataset | */* | text/xml | |
| POST | /gwt-console-server/rs/process/instance/{id}/end/{result} | */* | application/json | |
| GET | /gwt-console-server/rs/process/definition/{id}/image | */* | image/* | |
| GET | /gwt-console-server/rs/process/definition/{id}/image/{instance} | */* | image/* | |
| Process Engine(Process runtime state) | ||||
| GET | /gwt-console-server/rs/engine/deployments | */* | application/json | |
| Process History(Process History Service) | ||||
| GET | /gwt-console-server/rs//history/definition/{id}/instances | */* | applications/json | |
| GET | /gwt-console-server/rs//history/definitions | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instancekeys | */* | application/json | |
| GET | /gwt-console-server/rs//history/instance/{id}/activities | */* | application/json | |
| GET | /gwt-console-server/rs//history/instance/{id}/events | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instances/completed | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instances/failed | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instances/terminated | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instances/chart/completed | */* | application/json | |
| GET | /gwt-console-server/rs//history/definition/{id}/instances/chart/failed | */* | application/json | |
The RiftSaw database schema has been changed between 2.0.0.Final and 2.1.0.Final, please refer to this wiki page for the upgrade detail information.
