Chapter 29. Seam JSF controls

29.1.1. Navigation Controls
29.1.2. Converters and Validators
29.1.3. Formatting
29.1.4. Seam Text
29.1.5. Dropdowns
29.1.6. Other

29.2. Annotations

Seam includes a number of JSF controls that are useful for working with Seam. These are intended to complement the built-in JSF controls, and controls from other third-party libraries. We recommend JBoss RichFaces, and Apache MyFaces Trinidad tag libraries for use with Seam. We do not recommend the use of the Tomahawk tag library.

29.1. Tags

To use these tags, define the "s" namespace in your page as follows (facelets only):


<html xmlns="http://www.w3.org/1999/xhtml"

      xmlns:s="http://jboss.com/products/seam/taglib">

The ui example demonstrates the use of a number of these tags.

29.1.1. Navigation Controls

29.1.1.1. `<s:button>`

A button that supports invocation of an action with control over conversation propagation. Does not submit the form.

value — the label.
action — a method binding that specified the action listener.
view — the JSF view id to link to.
fragment — the fragment identifier to link to.
disabled — is the link disabled?
propagation — determines the conversation propagation style: begin, join, nest, none or end.
pageflow — a pageflow definition to begin. (This is only useful when propagation="begin" or propagation="join" is used).


<s:button id="cancel"

          value="Cancel"

          action="#{hotelBooking.cancel}"/>

You can specify both view and action on <s:link />. In this case, the action wil be called once the redirect to the specified view has occured.

29.1.1.2. `<s:conversationId>`

Add the conversation id to JSF link or button (e.g. <h:commandLink /> , <s:button />).

29.1.1.3. `<s:taskId>`

Add the task id to an output link (or similar JSF control), when the task is available via #{task}.

29.1.1.4. `<s:link>`

A link that supports invocation of an action with control over conversation propagation. Does not submit the form.

value — the label.
action — a method binding that specified the action listener.
view — the JSF view id to link to.
fragment — the fragment identifier to link to.
disabled — is the link disabled?
propagation — determines the conversation propagation style: begin, join, nest, none or end.
pageflow — a pageflow definition to begin. (This is only useful when using propagation="begin" or propagation="join".)


<s:link id="register" view="/register.xhtml"

        value="Register New User"/>

You can specify both view and action on <s:link />. In this case, the action will be called once the redirect to the specified view has occured.

29.1.1.5. `<s:conversationPropagation>`

Customize the conversation propagation for a command link or button (or similar JSF control). Facelets only.

type — determines the conversation propagation style: begin, join, nest, none or end.
pageflow — a pageflow definition to begin. (This is only useful when using propagation="begin" or propagation="join".)


<h:commandButton value="Apply" action="#{personHome.update}">

   <s:conversationPropagation type="join" />

</h:commandButton>

29.1.1.6. `<s:defaultAction>`

Specify the default action to run when the form is submitted using the enter key.

Currently you can only nest it inside buttons (e.g. <h:commandButton />, <a:commandButton /> or <tr:commandButton />).

You must specify an id on the action source. You can only have one default action per form.


<h:commandButton id="foo" value="Foo" action="#{manager.foo}">

   <s:defaultAction />

</h:commandButton>

29.1.2. Converters and Validators

29.1.2.1. `<s:convertDateTime>`

Perform date or time conversions in the Seam timezone.


<h:outputText value="#{item.orderDate}">

   <s:convertDateTime type="both" dateStyle="full"/>

</h:outputText>

29.1.2.2. `<s:convertEntity>`

Assigns an entity converter to the current component. This is primarily useful for radio button and dropdown controls.

The converter works with any managed entity which has an @Id annotation - either simple or composite.

Configuration

You must use Seam managed transactions (see Section 9.2, “Seam managed transactions”) with <s:convertEntity />.

If your Managed Persistence Context isn't called entityManager, then you need to set it in components.xml:


<component name="org.jboss.seam.ui.EntityConverter">

   <property name="entityManager">#{em}</property>

</component>

If you are using a Managed Hibernate Session then you need to set it in components.xml:


<component name="org.jboss.seam.ui.EntityConverter">

   <property name="session">#{hibernateSession}</property>

</component>

If you want to use more than one entity manager with the entity converter, you can create a copy of the entity converter for each entity manager in components.xml:


<component name="myEntityConverter" class="org.jboss.seam.ui.converter.EntityConverter">

   <property name="entityManager">#{em}</property>

</component>


<h:selectOneMenu value="#{person.continent}">

   <s:selectItems value="#{continents.resultList}" var="continent"

                  label="#{continent.name}" />

   <f:converter converterId="myEntityConverter" />

</h:selectOneMenu>

Usage


<h:selectOneMenu value="#{person.continent}" required="true">

   <s:selectItems value="#{continents.resultList}" var="continent"

                  label="#{continent.name}"

                  noSelectionLabel="Please Select..."/>

   <s:convertEntity />

</h:selectOneMenu>

29.1.2.3. `<s:convertEnum>`

Assigns an enum converter to the current component. This is primarily useful for radio button and dropdown controls.


<h:selectOneMenu value="#{person.honorific}">

   <s:selectItems value="#{honorifics}" var="honorific"

                 label="#{honorific.label}"

                 noSelectionLabel="Please select" />

   <s:convertEnum />

</h:selectOneMenu>

29.1.2.4. `<s:validate>`

A non-visual control, validates a JSF input field against the bound property using Hibernate Validator.


<h:inputText id="userName" required="true"

             value="#{customer.userName}">

  <s:validate />

</h:inputText>

<h:message for="userName" styleClass="error" />

29.1.2.5. `<s:validateAll>`

A non-visual control, validates all child JSF input fields against their bound properties using Hibernate Validator.


<s:validateAll>

  <div class="entry">

    <h:outputLabel for="username">Username:</h:outputLabel>

    <h:inputText id="username" value="#{user.username}"

                 required="true"/>

    <h:message for="username" styleClass="error" />

  </div>

  <div class="entry">

    <h:outputLabel for="password">Password:</h:outputLabel>

    <h:inputSecret id="password" value="#{user.password}"

                   required="true"/>

    <h:message for="password" styleClass="error" />

  </div>

  <div class="entry">

    <h:outputLabel for="verify">Verify Password:</h:outputLabel>

    <h:inputSecret id="verify" value="#{register.verify}"

                   required="true"/>

    <h:message for="verify" styleClass="error" />

  </div>

</s:validateAll>

29.1.3. Formatting

29.1.3.1. `<s:decorate>`

"Decorate" a JSF input field when validation fails or when required="true" is set.

template — the facelets template to use to decorate the component

#{invalid} and #{required} are available inside s:decorate; #{required} evaluates to true if you have set the input component being decorated as required, and #{invalid} evaluates to true if a validation error occurs.


<s:decorate template="edit.xhtml">

   <ui:define name="label">Country:</ui:define>

      <h:inputText value="#{location.country}" required="true"/>

   </s:decorate>


<ui:composition xmlns="http://www.w3.org/1999/xhtml"

   xmlns:ui="http://java.sun.com/jsf/facelets"

   xmlns:h="http://java.sun.com/jsf/html"

   xmlns:f="http://java.sun.com/jsf/core"

   xmlns:s="http://jboss.com/products/seam/taglib">



   <div>



      <s:label styleClass="#{invalid?'error':''}">

         <ui:insert name="label"/>

         <s:span styleClass="required" rendered="#{required}">*</s:span>

      </s:label>



      <span class="#{invalid?'error':''}">

         <s:validateAll>

            <ui:insert/>

         </s:validateAll>

      </span>



      <s:message styleClass="error"/>



   </div>



</ui:composition>

29.1.3.2. `<s:div>`

Render a HTML <div>.


<s:div rendered="#{selectedMember == null}">

   Sorry, but this member does not exist.

</s:div>

29.1.3.3. `<s:span>`

Render a HTML <span>.


<s:span styleClass="required" rendered="#{required}">*</s:span>

29.1.3.4. `<s:fragment>`

A non-rendering component useful for enabling/disabling rendering of it's children.


<s:fragment rendered="#{auction.highBidder ne null}">

   Current bid:

</s:fragment>

29.1.3.5. `<s:label>`

"Decorate" a JSF input field with the label. The label is placed inside the HTML <label> tag, and is associated with the nearest JSF input component. It is often used with <s:decorate>.

style — The control's style
styleClass — The control's style class


<s:label styleClass="label">

  Country:

</s:label>

<h:inputText value="#{location.country}" required="true"/>

29.1.3.6. `<s:message>`

"Decorate" a JSF input field with the validation error message.


<f:facet name="afterInvalidField">

  <s:span>

    &#160;Error:&#160;

    <s:message/>

  </s:span>

</f:facet>

29.1.4. Seam Text

29.1.4.1. `<s:validateFormattedText>`

Checks that the submitted value is valid Seam Text

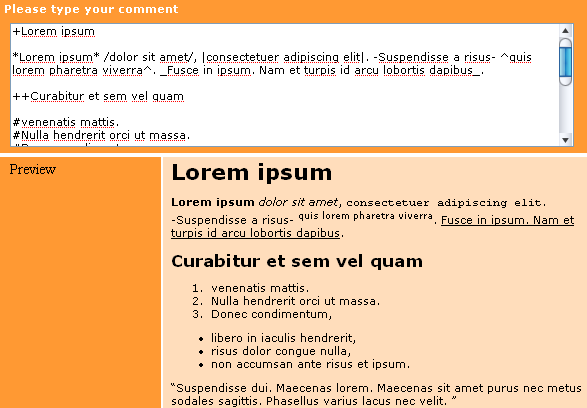

29.1.4.2. `<s:formattedText>`

Outputs Seam Text, a rich text markup useful for blogs, wikis and other applications that might use rich text. See the Seam Text chapter for full usage.

value — an EL expression specifying the rich text markup to render.


<s:formattedText value="#{blog.text}"/>

29.1.5. Dropdowns

29.1.5.1. `<s:enumItem>`

Creates a SelectItem from an enum value.

enumValue — the string representation of the enum value.
label — the label to be used when rendering the SelectItem.


<h:selectOneRadio id="radioList"

                  layout="lineDirection"

                  value="#{newPayment.paymentFrequency}">

   <s:convertEnum />

   <s:enumItem enumValue="ONCE"         label="Only Once" />

   <s:enumItem enumValue="EVERY_MINUTE" label="Every Minute" />

   <s:enumItem enumValue="HOURLY"       label="Every Hour" />

   <s:enumItem enumValue="DAILY"        label="Every Day" />

   <s:enumItem enumValue="WEEKLY"       label="Every Week" />

</h:selectOneRadio>

29.1.5.2. `<s:selectItems>`

Creates a List<SelectItem> from a List, Set, DataModel or Array.

value — an EL expression specifying the data that backs the List<SelectItem>
var— defines the name of the local variable that holds the current object during iteration
label — the label to be used when rendering the SelectItem. Can reference the var variable.
itemValue — Value to return to the server if this option is selected. Optional, by default the var object is used. Can reference the var variable.
disabled — if true the SelectItem will be rendered disabled. Can reference the var variable.
noSelectionLabel — specifies the (optional) label to place at the top of list (if required="true" is also specified then selecting this value will cause a validation error).
hideNoSelectionLabel — if true, the noSelectionLabel will be hidden when a value is selected


<h:selectOneMenu value="#{person.age}"

                 converter="ageConverter">

  <s:selectItems value="#{ages}" var="age" label="#{age}" />

</h:selectOneMenu>

29.1.6. Other

29.1.6.1. `<s:cache>`

Cache the rendered page fragment using JBoss Cache. Note that <s:cache> actually uses the instance of JBoss Cache managed by the built-in pojoCache component.

key — the key to cache rendered content, often a value expression. For example, if we were caching a page fragment that displays a document, we might use key="Document-#{document.id}".
enabled — a value expression that determines if the cache should be used.
region — a JBoss Cache node to use (different nodes can have different expiry policies).


<s:cache key="entry-#{blogEntry.id}" region="pageFragments">

  <div class="blogEntry">

    <h3>#{blogEntry.title}</h3>

    <div>

      <s:formattedText value="#{blogEntry.body}"/>

    </div>

    <p>

      [Posted on&#160;

      <h:outputText value="#{blogEntry.date}">

        <f:convertDateTime timezone="#{blog.timeZone}" locale="#{blog.locale}"

                           type="both"/>

      </h:outputText>]

    </p>

  </div>

</s:cache>

29.1.6.2. `<s:fileUpload>`

Renders a file upload control. This control must be used within a form with an encoding type of multipart/form-data, i.e:


<h:form enctype="multipart/form-data">

For multipart requests, the Seam Multipart servlet filter must also be configured in web.xml:


<filter>

  <filter-name>Seam Filter</filter-name>

  <filter-class>org.jboss.seam.servlet.SeamFilter</filter-class>

</filter>



<filter-mapping>

  <filter-name>Seam Filter</filter-name>

  <url-pattern>/*</url-pattern>

</filter-mapping>

Configuration

The following configuration options for multipart requests may be configured in components.xml:

createTempFiles — if this option is set to true, uploaded files are streamed to a temporary file instead of in memory.
maxRequestSize — the maximum size of a file upload request, in bytes.

Here's an example:


<component class="org.jboss.seam.web.MultipartFilter">

  <property name="createTempFiles">true</property>

  <property name="maxRequestSize">1000000</property>

</component>

data — this value binding receives the binary file data. The receiving field should be declared as a byte[] or InputStream (required).
contentType — this value binding receives the file's content type (optional).
fileName — this value binding receives the filename (optional).
fileSize — this value binding receives the file size (optional).
accept — a comma-separated list of content types to accept, may not be supported by the browser. E.g. "images/png,images/jpg", "images/*".
style — The control's style
styleClass — The control's style class


<s:fileUpload id="picture" data="#{register.picture}"

              accept="image/png"

              contentType="#{register.pictureContentType}" />

29.1.6.3. `<s:graphicImage>`

An extended <h:graphicImage> that allows the image to be created in a Seam Component; further transforms can be applied to the image.

All attributes for <h:graphicImage> are supported, as well as:

value — image to display. Can be a path String (loaded from the classpath), a byte[], a java.io.File, a java.io.InputStream or a java.net.URL. Currently supported image formats are image/png, image/jpeg and image/gif.
fileName — if not specified the served image will have a generated file name. If you want to name your file, you should specify it here. This name should be unique

Transformations

To apply a transform to the image, you would nest a tag specifying the transform to apply. Seam currently supports these transforms:

<s:transformImageSize>

width — new width of the image
height — new height of the image
maintainRatio — if true, and one of width/height are specified, the image will be resized with the dimension not specified being calculated to maintain the aspect ratio.
factor — scale the image by the given factor

<s:transformImageBlur>

radius — perform a convolution blur with the given radius

<s:transformImageType>

contentType — alter the type of the image to either image/jpeg or image/png

It's easy to create your own transform - create a UIComponent which implements org.jboss.seam.ui.graphicImage.ImageTransform. Inside the applyTransform()method use image.getBufferedImage() to get the original image and image.setBufferedImage() to set your transformed image. Transforms are applied in the order specified in the view.


<s:graphicImage rendered="#{auction.image ne null}"

                value="#{auction.image.data}">

  <s:transformImageSize width="200" maintainRatio="true"/>

</s:graphicImage>

29.1.6.4. `<s:remote>`

Generates the Javascript stubs required to use Seam Remoting.

include — a comma-separated list of the component names (or fully qualified class names)for which to generate Seam Remoting Javascript stubs. See Chapter 22, Remoting for more details.

Usage


<s:remote include="customerAction,accountAction,com.acme.MyBean"/>

29.2. Annotations

Seam also provides annotations to allow you to use Seam components as JSF converters and validators:

@Converter

@Name("itemConverter")

   @BypassInterceptors

   @Converter

   public class ItemConverter implements Converter {



     @Transactional

     public Object getAsObject(FacesContext context, UIComponent cmp, String value) {

       EntityManager entityManager = (EntityManager) Component.getInstance("entityManager");

       entityManager.joinTransaction();

       // Do the conversion

     }



     public String getAsString(FacesContext context, UIComponent cmp, Object value) {

       // Do the conversion

     }



   }


<h:inputText value="#{shop.item}" converter="itemConverter" />

Registers the Seam component as a JSF converter. Shown here is a converter which is able to access the JPA EntityManager inside a JTA transaction, when converting the value back to it's object representation.

@Validator

@Name("itemValidator")

   @BypassInterceptors

   @Validator

   public class ItemValidator implements Validator {



     public void validate(FacesContext context, UIComponent cmp, Object value)

       throws ValidatorException {

       ItemController ItemController = (ItemController) Component.getInstance("itemController");

       return itemController.validate(value);

     }



     }


<h:inputText value="#{shop.item}" validator="itemValidator" />

Registers the Seam component as a JSF validator. Shown here is a validator which injects another Seam component; the injected component is used to validate the value.
