Chapter 8. Struts Project Verification

This section covers the Struts project verification functionality provided by JBoss Tools.

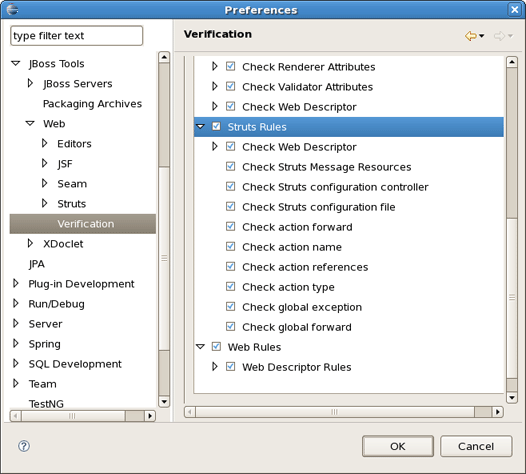

To configure Struts project verification select WindowPreferences from the menu bar, select JBoss ToolsWebVerification from the Preferences dialog box, and then expand the Struts Rules node.

Struts Rules

Figure 8.1. Struts Rules

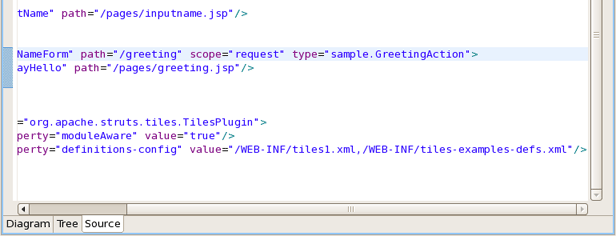

Suppose you are working in the Source viewer for a Struts configuration file as shown below:

Struts Configuration File

Figure 8.2. Struts Configuration File

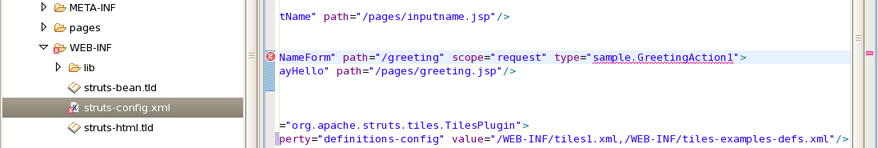

While typing a class name or entering it from the graphical editor, you might make a minor typo (like "sample.GreetingAction1" instead of "sample.GreetingAction"). After saving the file, it is verified to make sure everything is correct and finds the error shown below:

Error Reporting

Figure 8.3. Error Reporting


Notice that the Package Explorer View shows a marked folder and a marked file to indicate where the error is.

You can place the cursor over the line with the error to view a detailed error message:

Error Message

Figure 8.4. Error Message

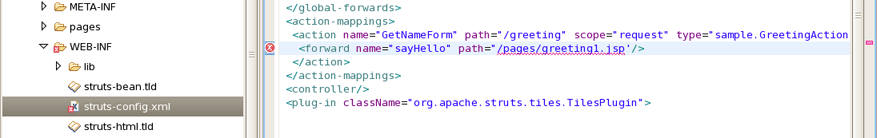

The verification process also checks to make sure you have specified the correct JSP page for the forward:

JSP Page Verification

Figure 8.5. JSP Page Verification


Once you place the cursor over the line, you can see the error message:

Error Message

Figure 8.6. Error Message

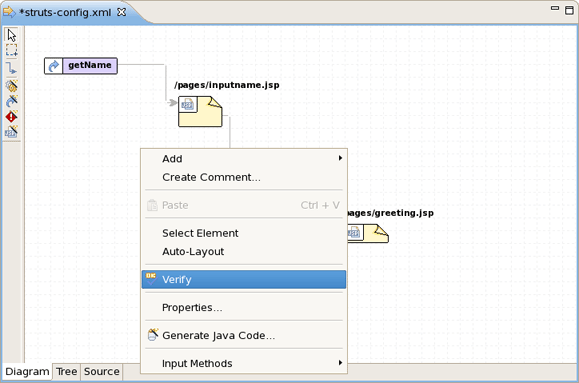

You can always invoke the verification process by switching to the Diagram viewer, right-clicking and selecting Verify from the context menu:

Verify Command

Figure 8.7. Verify Command
