Editors


More ESB 4.7 Changes

Bringing the ESB Editor in line with ESB 4.7 required some additional changes since CR1. These changes include:

  • Removing the outdated SmooksTransformer action from the list of Transformation actions (JBIDE-5472).
  • Adding a list of possible values to the BPMProcessor for the Command property: NewProcessInstanceCommand, StartProcessCommand, and CancelProcessInstanceCommand (JBIDE-5489).
  • Linking the Smooks Editor to other properties such as wsdlTransform for the SOAP Proxy action (JBIDE-5492) where Smooks files are referenced.
  • Adding missing properties to the FTP Listener (JBIDE-5547), JBR Listener, JBR Bus, and JBR Provider (JBIDE-5548), EJBAction (JBIDE-5552).

Easier Way to Create ESB Action Classes

We've made it easier to create custom ESB actions in the editor.

  1. New class wizard is customized: its title is "New ESB Action" instead of "New Java Class".
  2. Wizard New | Other | ESB | ESB Action is added as requested in description - it creates ESB action java class rather than action element in esb.xml.
  3. New Custom Action wizard in ESB editor reuses this action when link on 'class' attribute is invoked.

Related Jira


Ability to Add Targets to a Notifier list

For example, a NotificationList for an error notifier (see page 119 of Progammer's Reference for ESB 4.7) has a list of Target elements, each with its own class and properties list. You can now define those notifier targets and set their requisite properties in the eidtor.

Related Jira

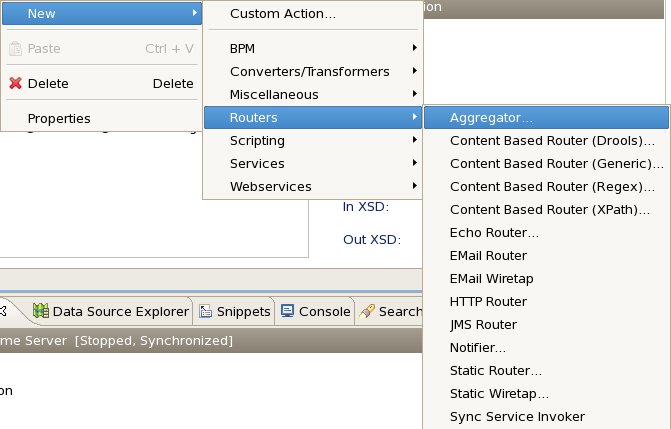

New Router Actions Added to List

Support has been added for the EchoRouter (JBIDE-5637), XPathRouter (JBIDE-5625), RegexRouter (JBIDE-5626), and variations of the Content-Based Router - Drools, Generic, Regex, and XPath (JBIDE-5627).
