JSR-299 has recently changed its name from "Web Beans" to "Java Contexts and Dependency Injection". The reference guide still refers to JSR-299 as "Web Beans" and the JSR-299 Reference Implementation as the "Web Beans RI". Other documentation, blogs, forum posts etc. may use the new nomenclature, including the new name for the JSR-299 Reference Implementation - "Web Beans".
You'll also find that some of the more recent functionality to be specified is missing (such as producer fields, realization, asynchronous events, XML mapping of EE resources).
The Web Beans (JSR-299) specification defines a set of services for the Java EE environment that makes applications much easier to develop. Web Beans layers an enhanced lifecycle and interaction model over existing Java component types including JavaBeans and Enterprise Java Beans. As a complement to the traditional Java EE programming model, the Web Beans services provide:
an improved lifecycle for stateful components, bound to well-defined contexts,
a typesafe approach to dependency injection,
interaction via an event notification facility, and
a better approach to binding interceptors to components, along with a new kind of interceptor, called a decorator, that is more appropriate for use in solving business problems.
Dependency injection, together with contextual lifecycle management, saves the user of an unfamiliar API from having to ask and answer the following questions:
what is the lifecycle of this object?
how many simultaneous clients can it have?
is it multithreaded?
where can I get one from?
do I need to explicitly destroy it?
where should I keep my reference to it when I'm not using it directly?
how can I add an indirection layer, so that the implementation of this object can vary at deployment time?
how should I go about sharing this object between other objects?
A Web Bean specifies only the type and semantics of other Web Beans it depends upon. It need not be aware of the actual lifecycle, concrete implementation, threading model or other clients of any Web Bean it depends upon. Even better, the concrete implementation, lifecycle and threading model of a Web Bean it depends upon may vary according to the deployment scenario, without affecting any client.
Events, interceptors and decorators enhance the loose-coupling that is inherent in this model:
event notifications decouple event producers from event consumers,
interceptors decouple technical concerns from business logic, and
decorators allow business concerns to be compartmentalized.
Most importantly, Web Beans provides all these facilities in a typesafe way. Web Beans never uses string-based identifiers to determine how collaborating objects fit together. And XML, though it remains an option, is rarely used. Instead, Web Beans uses the typing information that is already available in the Java object model, together with a new pattern, called binding annotations, to wire together Web Beans, their dependencies, their interceptors and decorators and their event consumers.
The Web Beans services are general and apply to the following types of components that exist in the Java EE environment:
all JavaBeans,
all EJBs, and
all Servlets.
Web Beans even provides the necessary integration points so that other kinds of components defined by future Java EE specifications or by non-standard frameworks may be cleanly integrated with Web Beans, take advantage of the Web Beans services, and interact with any other kind of Web Bean.
Web Beans was influenced by a number of existing Java frameworks, including Seam, Guice and Spring. However, Web Beans has its own very distinct character: more typesafe than Seam, more stateful and less XML-centric than Spring, more web and enterprise-application capable than Guice.
Most importantly, Web Beans is a JCP standard that integrates cleanly with Java EE, and with any Java SE environment where embeddable EJB Lite is available.
Table of Contents
So you're already keen to get started writing your first Web Bean? Or perhaps you're skeptical, wondering what kinds of hoops the Web Beans specification will make you jump through! The good news is that you've probably already written and used hundreds, perhaps thousands of Web Beans. You might not even remember the first Web Bean you wrote.
With certain, very special exceptions, every Java class with a constructor that accepts no parameters is a Web Bean. That includes every JavaBean. Furthermore, every EJB 3-style session bean is a Web Bean. Sure, the JavaBeans and EJBs you've been writing every day have not been able to take advantage of the new services defined by the Web Beans specification, but you'll be able to use every one of them as Web Beans injecting them into other Web Beans, configuring them via the Web Beans XML configuration facility, even adding interceptors and decorators to them without touching your existing code.
Suppose that we have two existing Java classes, that we've been using for years in various applications. The first class parses a string into a list of sentences:
public class SentenceParser {
public List<String> parse(String text) { ... }
}
The second existing class is a stateless session bean front-end for an external system that is able to translate sentences from one language to another:
@Stateless
public class SentenceTranslator implements Translator {
public String translate(String sentence) { ... }
}
Where Translator
is the local interface:
@Local
public interface Translator {
public String translate(String sentence);
}
Unfortunately, we don't have a preexisting class that translates whole text documents. So let's write a Web Bean that does this job:
public class TextTranslator {
private SentenceParser sentenceParser;
private Translator sentenceTranslator;
@Initializer
TextTranslator(SentenceParser sentenceParser, Translator sentenceTranslator) {
this.sentenceParser = sentenceParser;
this.sentenceTranslator = sentenceTranslator;
}
public String translate(String text) {
StringBuilder sb = new StringBuilder();
for (String sentence: sentenceParser.parse(text)) {
sb.append(sentenceTranslator.translate(sentence));
}
return sb.toString();
}
}
We may obtain an instance of TextTranslator
by
injecting it into a Web Bean, Servlet or EJB:
@Initializer
public setTextTranslator(TextTranslator textTranslator) {
this.textTranslator = textTranslator;
}
Alternatively, we may obtain an instance by directly calling a method of the Web Bean manager:
TextTranslator tt = manager.getInstanceByType(TextTranslator.class);
But wait: TextTranslator
does not have a constructor
with no parameters! Is it still a Web Bean? Well, a class that does not have a
constructor with no parameters can still be a Web Bean if it has a constructor
annotated @Initializer
.
As you've guessed, the @Initializer
annotation has
something to do with dependency injection! @Initializer
may be applied to a constructor or method of a Web Bean, and tells the
Web Bean manager to call that constructor or method when instantiating the
Web Bean. The Web Bean manager will inject other Web Beans to the parameters
of the constructor or method.
At system initialization time, the Web Bean manager must validate that
exactly one Web Bean exists which satisfies each injection point. In our example,
if no implementation of Translator
available if the
SentenceTranslator
EJB was not deployed the Web Bean
manager would throw an UnsatisfiedDependencyException
. If
more than one implementation of Translator
was available,
the Web Bean manager would throw an
AmbiguousDependencyException
.
So what, exactly, is a Web Bean?
A Web Bean is an application class that contains business logic. A Web Bean may be called directly from Java code, or it may be invoked via Unified EL. A Web Bean may access transactional resources. Dependencies between Web Beans are managed automatically by the Web Bean manager. Most Web Beans are stateful and contextual. The lifecycle of a Web Bean is always managed by the Web Bean manager.
Let's back up a second. What does it really mean to be "contextual"? Since Web Beans may be stateful, it matters which bean instance I have. Unlike a stateless component model (for example, stateless session beans) or a singleton component model (such as servlets, or singleton beans), different clients of a Web Bean see the Web Bean in different states. The client-visible state depends upon which instance of the Web Bean the client has a reference to.
However, like a stateless or singleton model, but unlike stateful session beans, the client does not control the lifecycle of the instance by explicitly creating and destroying it. Instead, the scope of the Web Bean determines:
the lifecycle of each instance of the Web Bean and
which clients share a reference to a particular instance of the Web Bean.
For a given thread in a Web Beans application, there may be an active context associated with the scope of the Web Bean. This context may be unique to the thread (for example, if the Web Bean is request scoped), or it may be shared with certain other threads (for example, if the Web Bean is session scoped) or even all other threads (if it is application scoped).
Clients (for example, other Web Beans) executing in the same context will see the same instance of the Web Bean. But clients in a different context will see a different instance.
One great advantage of the contextual model is that it allows stateful Web Beans to be treated like services! The client need not concern itself with managing the lifecycle of the Web Bean it is using, nor does it even need to know what that lifecyle is. Web Beans interact by passing messages, and the Web Bean implementations define the lifecycle of their own state. The Web Beans are loosely coupled because:
they interact via well-defined public APIs
their lifecycles are completely decoupled
We can replace one Web Bean with a different Web Bean that implements the same API and has a different lifecycle (a different scope) without affecting the other Web Bean implementation. In fact, Web Beans defines a sophisticated facility for overriding Web Bean implementations at deployment time, as we will see in Section 4.2, “Deployment types”.
Note that not all clients of a Web Bean are Web Beans. Other objects such as Servlets or Message-Driven Beans which are by nature not injectable, contextual objects may also obtain references to Web Beans by injection.
Enough hand-waving. More formally, according to the spec:
A Web Bean comprises:
A (nonempty) set of API types
A (nonempty) set of binding annotation types
A scope
A deployment type
Optionally, a Web Bean name
A set of interceptor binding types
A Web Bean implementation
Let's see what some of these terms mean, to the Web Bean developer.
Web Beans usually acquire references to other Web Beans via dependency injection. Any injected attribute specifies a "contract" that must be satisfied by the Web Bean to be injected. The contract is:
an API type, together with
a set of binding types.
An API is a user-defined class or interface. (If the Web Bean is an
EJB session bean, the API type is the @Local
interface or
bean-class local view). A binding type represents some client-visible semantic
that is satisfied by some implementations of the API and not by others.
Binding types are represented by user-defined annotations that are
themselves annotated @BindingType
. For example, the following
injection point has API type PaymentProcessor
and binding
type @CreditCard
:
@CreditCard PaymentProcessor paymentProcessor
If no binding type is explicitly specified at an injection point, the
default binding type @Current
is assumed.
For each injection point, the Web Bean manager searches for a Web Bean which satisfies the contract (implements the API, and has all the binding types), and injects that Web Bean.
The following Web Bean has the binding type @CreditCard
and implements the API type PaymentProcessor
. It could
therefore be injected to the example injection point:
@CreditCard
public class CreditCardPaymentProcessor
implements PaymentProcessor { ... }
If a Web Bean does not explicitly specify a set of binding types, it has
exactly one binding type: the default binding type @Current
.
Web Beans defines a sophisticated but intuitive resolution algorithm that helps the container decide what to do if there is more than one Web Bean that satisfies a particular contract. We'll get into the details in Chapter 4, Dependency injection.
Deployment types let us classify our Web Beans by
deployment scenario. A deployment type is an annotation that represents a particular
deployment scenario, for example @Mock
, @Staging
or @AustralianTaxLaw
. We apply the annotation to Web Beans which
should be deployed in that scenario. A deployment type allows a whole set of Web Beans
to be conditionally deployed, with a just single line of configuration.
Many Web Beans just use the default deployment type @Production
,
in which case no deployment type need be explicitly specified. All three Web Bean
in our example have the deployment type @Production
.
In a testing environment, we might want to replace the SentenceTranslator
Web Bean with a "mock object":
@Mock
public class MockSentenceTranslator implements Translator {
public String translate(String sentence) {
return "Lorem ipsum dolor sit amet";
}
}
We would enable the deployment type @Mock
in our testing
environment, to indicate that MockSentenceTranslator
and any other
Web Bean annotated @Mock
should be used.
We'll talk more about this unique and powerful feature in Section 4.2, “Deployment types”.
The scope defines the lifecycle and visibility of instances of the Web Bean. The Web Beans context model is extensible, accommodating arbitrary scopes. However, certain important scopes are built-in to the specification, and provided by the Web Bean manager. A scope is represented by an annotation type.
For example, any web application may have session scoped Web Beans:
@SessionScoped
public class ShoppingCart { ... }
An instance of a session scoped Web Bean is bound to a user session and is shared by all requests that execute in the context of that session.
By default, Web Beans belong to a special scope called the dependent pseudo-scope. Web Beans with this scope are pure dependent objects of the object into which they are injected, and their lifecycle is bound to the lifecycle of that object.
We'll talk more about scopes in Chapter 5, Scopes and contexts.
A Web Bean may have a name, allowing it to be used in Unified EL expressions. It's easy to specify the name of a Web Bean:
@SessionScoped @Named("cart")
public class ShoppingCart { ... }
Now we can easily use the Web Bean in any JSF or JSP page:
<h:dataTable value="#{cart.lineItems}" var="item"> .... </h:dataTable>
It's even easier to just let the name be defaulted by the Web Bean manager:
@SessionScoped @Named
public class ShoppingCart { ... }
In this case, the name defaults to shoppingCart
the
unqualified class name, with the first character changed to lowercase.
Web Beans supports the interceptor functionality defined by EJB 3, not only for EJB beans, but also for plain Java classes. In addition, Web Beans provides a new approach to binding interceptors to EJB beans and other Web Beans.
It remains possible to directly specify the interceptor class via
use of the @Interceptors
annotation:
@SessionScoped
@Interceptors(TransactionInterceptor.class)
public class ShoppingCart { ... }
However, it is more elegant, and better practice, to indirect the interceptor binding through an interceptor binding type:
@SessionScoped @Transactional
public class ShoppingCart { ... }
We'll discuss Web Beans interceptors and decorators in Chapter 7, Interceptors and Chapter 8, Decorators.
We've already seen that JavaBeans, EJBs and some other Java classes can be Web Beans. But exactly what kinds of objects are Web Beans?
The Web Beans specification says that a concrete Java class is a simple Web Bean if:
it is not an EE container-managed component, like an EJB, a Servlet or a JPA entity,
it is not a non-static static inner class,
it is not a parameterized type, and
it has a constructor with no parameters, or a constructor annotated
@Initializer
.
Thus, almost every JavaBean is a simple Web Bean.
Every interface implemented directly or indirectly by a simple Web Bean is an API type of the simple Web Bean. The class and its superclasses are also API types.
The specification says that all EJB 3-style session and singleton beans are enterprise Web Beans. Message driven beans are not Web Beans since they are not intended to be injected into other objects but they can take advantage of most of the functionality of Web Beans, including dependency injection and interceptors.
Every local interface of an enterprise Web Bean that does not have a wildcard type parameter or type variable, and every one of its superinterfaces, is an API type of the enterprise Web Bean. If the EJB bean has a bean class local view, the bean class, and every one of its superclasses, is also an API type.
Stateful session beans should declare a remove method with no parameters
or a remove method annotated @Destructor
. The Web Bean
manager calls this method to destroy the stateful session bean instance at the
end of its lifecycle. This method is called the destructor
method of the enterprise Web Bean.
@Stateful @SessionScoped
public class ShoppingCart {
...
@Remove
public void destroy() {}
}
So when should we use an enterprise Web Bean instead of a simple Web Bean? Well, whenever we need the advanced enterprise services offered by EJB, such as:
method-level transaction management and security,
concurrency management,
instance-level passivation for stateful session beans and instance-pooling for stateless session beans,
remote and web service invocation, and
timers and asynchronous methods,
we should use an enterprise Web Bean. When we don't need any of these things, a simple Web Bean will serve just fine.
Many Web Beans (including any session or application scoped Web Bean) are available for concurrent access. Therefore, the concurrency management provided by EJB 3.1 is especially useful. Most session and application scoped Web Beans should be EJBs.
Web Beans which hold references to heavy-weight resources, or hold a lot
of internal state benefit from the advanced container-managed lifecycle defined
by the EJB @Stateless
/@Stateful
/@Singleton
model, with its support for passivation and instance pooling.
Finally, it's usually obvious when method-level transaction management, method-level security, timers, remote methods or asynchronous methods are needed.
It's usually easy to start with simple Web Bean, and then turn it into an
EJB, just by adding an annotation: @Stateless
,
@Stateful
or @Singleton
.
A producer method is a method that is called by the Web Bean manager to obtain an instance of the Web Bean when no instance exists in the current context. A producer method lets the application take full control of the instantiation process, instead of leaving instantiation to the Web Bean manager. For example:
@ApplicationScoped
public class Generator {
private Random random = new Random( System.currentTimeMillis() );
@Produces @Random int next() {
return random.nextInt(100);
}
}
The result of a producer method is injected just like any other Web Bean.
@Random int randomNumber
The method return type and all interfaces it extends/implements directly or indirectly are API types of the producer method. If the return type is a class, all superclasses are also API types.
Some producer methods return objects that require explicit destruction:
@Produces @RequestScoped Connection connect(User user) {
return createConnection( user.getId(), user.getPassword() );
}
These producer methods may define matching disposal methods:
void close(@Disposes Connection connection) {
connection.close();
}
This disposal method is called automatically by the Web Bean manager at the end of the request.
We'll talk much more about producer methods in Chapter 6, Producer methods.
Finally, a JMS queue or topic can be a Web Bean. Web Beans relieves the developer from the tedium of managing the lifecycles of all the various JMS objects required to send messages to queues and topics. We'll discuss JMS endpoints in Section 13.4, “JMS endpoints”.
Let's illustrate these ideas with a full example. We're going to implement user login/logout for an application that uses JSF. First, we'll define a Web Bean to hold the username and password entered during login:
@Named @RequestScoped
public class Credentials {
private String username;
private String password;
public String getUsername() { return username; }
public void setUsername(String username) { this.username = username; }
public String getPassword() { return password; }
public void setPassword(String password) { this.password = password; }
}
This Web Bean is bound to the login prompt in the following JSF form:
<h:form>
<h:panelGrid columns="2" rendered="#{!login.loggedIn}">
<h:outputLabel for="username">Username:</h:outputLabel>
<h:inputText id="username" value="#{credentials.username}"/>
<h:outputLabel for="password">Password:</h:outputLabel>
<h:inputText id="password" value="#{credentials.password}"/>
</h:panelGrid>
<h:commandButton value="Login" action="#{login.login}" rendered="#{!login.loggedIn}"/>
<h:commandButton value="Logout" acion="#{login.logout}" rendered="#{login.loggedIn}"/>
</h:form>
The actual work is done by a session scoped Web Bean that maintains
information about the currently logged-in user and exposes the User
entity to other Web Beans:
@SessionScoped @Named
public class Login {
@Current Credentials credentials;
@PersistenceContext EntityManager userDatabase;
private User user;
public void login() {
List<User> results = userDatabase.createQuery(
"select u from User u where u.username=:username and u.password=:password")
.setParameter("username", credentials.getUsername())
.setParameter("password", credentials.getPassword())
.getResultList();
if ( !results.isEmpty() ) {
user = results.get(0);
}
}
public void logout() {
user = null;
}
public boolean isLoggedIn() {
return user!=null;
}
@Produces @LoggedIn User getCurrentUser() {
return user;
}
}
Of course, @LoggedIn
is a binding annotation:
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD})
@BindingType
public @interface LoggedIn {}
Now, any other Web Bean can easily inject the current user:
public class DocumentEditor {
@Current Document document;
@LoggedIn User currentUser;
@PersistenceContext EntityManager docDatabase;
public void save() {
document.setCreatedBy(currentUser);
docDatabase.persist(document);
}
}
Hopefully, this example gives a flavor of the Web Bean programming model. In the next chapter, we'll explore Web Beans dependency injection in greater depth.
The Web Beans is being developed at the Seam project. You can download the latest developer release of Web Beans from the the downloads page.
Web Beans comes with a two deployable example applications:
webbeans-numberguess
, a war example, containing only
simple beans, and webbeans-translator
an ear example,
containing enterprise beans. There are also two variations on the
numberguess example, the tomcat example (suitable for deployment to
Tomcat) and the jsf2 example, which you can use if you are running JSF2.
To run the examples you'll need the following:
the latest release of Web Beans,
JBoss AS 5.0.1.GA, or
Apache Tomcat 6.0.x, and
Ant 1.7.0.
You'll need to download JBoss AS 5.0.1.GA from jboss.org, and unzip it. For example:
$ cd /Applications $ unzip ~/jboss-5.0.1.GA.zip
Next, download Web Beans from seamframework.org, and unzip it. For example
$ cd ~/ $ unzip ~/webbeans-$VERSION.zip
Next, we need to tell Web Beans where JBoss is located. Edit
jboss-as/build.properties
and set the
jboss.home
property. For example:
jboss.home=/Applications/jboss-5.0.1.GA
To install Web Beans, you'll need Ant 1.7.0 installed, and the
ANT_HOME
environment variable set. For example:
JBoss 5.1.0 comes with Web Beans built in, so there is no need to update the server.
$ unzip apache-ant-1.7.0.zip $ export ANT_HOME=~/apache-ant-1.7.0
Then, you can install the update. The update script will use Maven to download Web Beans automatically.
$ cd webbeans-$VERSION/jboss-as $ ant update
Now, you're ready to deploy your first example!
The build scripts for the examples offer a number of targets for JBoss AS, these are:
ant restart
- deploy the example in exploded
format
ant explode
- update an exploded example, without
restarting the deployment
ant deploy
- deploy the example in compressed jar format
ant undeploy
- remove the example from the server
ant clean
- clean the example
To deploy the numberguess example:
$ cd examples/numberguess ant deploy
Start JBoss AS:
$ /Application/jboss-5.0.0.GA/bin/run.sh
If you use Windows, use the run.bat
script.
Wait for the application to deploy, and enjoy hours of fun at http://localhost:8080/webbeans-numberguess!
Web Beans includes a second simple example that will translate your text into Latin. The numberguess example is a war example, and uses only simple beans; the translator example is an ear example, and includes enterprise beans, packaged in an EJB module. To try it out:
$ cd examples/translator ant deploy
Wait for the application to deploy, and visit http://localhost:8080/webbeans-translator!
You'll need to download Tomcat 6.0.18 or later from tomcat.apache.org, and unzip it. For example:
$ cd /Applications $ unzip ~/apache-tomcat-6.0.18.zip
Next, download Web Beans from seamframework.org, and unzip it. For example
$ cd ~/ $ unzip ~/webbeans-$VERSION.zip
Next, we need to tell Web Beans where Tomcat is located. Edit
jboss-as/build.properties
and set the
tomcat.home
property. For example:
tomcat.home=/Applications/apache-tomcat-6.0.18
The build scripts for the examples offer a number of targets for Tomcat, these are:
ant tomcat.restart
- deploy the example in exploded
format
ant tomcat.explode
- update an exploded example, without
restarting the deployment
ant tomcat.deploy
- deploy the example in compressed jar format
ant tomcat.undeploy
- remove the example from the server
ant tomcat.clean
- clean the example
To deploy the numberguess example for tomcat:
$ cd examples/tomcat ant tomcat.deploy
Start Tomcat:
$ /Applications/apache-tomcat-6.0.18/bin/startup.sh
If you use Windows, use the startup.bat
script.
Wait for the application to deploy, and enjoy hours of fun at http://localhost:8080/webbeans-numberguess!
In the numberguess application you get given 10 attempts to guess a number between 1 and 100. After each attempt, you will be told whether you are too high, or too low.
The numberguess example is comprised of a number of Web Beans, configuration files, and Facelet JSF pages, packaged as a war. Let's start with the configuration files.
All the configuration files for this example are located in
WEB-INF/
, which is stored in
WebContent
in the source tree. First, we have
faces-config.xml
, in which we tell JSF to use
Facelets:
<?xml version='1.0' encoding='UTF-8'?>
<faces-config version="1.2"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-facesconfig_1_2.xsd">
<application>
<view-handler>com.sun.facelets.FaceletViewHandler</view-handler>
</application>
</faces-config>
There is an empty web-beans.xml
file, which marks
this application as a Web Beans application.
Finally there is web.xml
:
<?xml version="1.0" encoding="UTF-8"?> <web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"> <display-name>Web Beans Numbergues example</display-name> <!-- JSF --> <servlet> <servlet-name>Faces Servlet</servlet-name> <servlet-class>javax.faces.webapp.FacesServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>Faces Servlet</servlet-name> <url-pattern>*.jsf</url-pattern> </servlet-mapping> <context-param> <param-name>javax.faces.DEFAULT_SUFFIX</param-name> <param-value>.xhtml</param-value> </context-param> <session-config> <session-timeout>10</session-timeout> </session-config> </web-app>
Enable and load the JSF servlet | |
Configure requests to | |
Tell JSF that we will be giving our source files (facelets) an
extension of | |
Configure a session timeout of 10 minutes |
Whilst this demo is a JSF demo, you can use Web Beans with any Servlet based web framework.
Let's take a look at the Facelet view:
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml" xmlns:ui="http://java.sun.com/jsf/facelets" xmlns:h="http://java.sun.com/jsf/html" xmlns:f="http://java.sun.com/jsf/core" xmlns:s="http://jboss.com/products/seam/taglib"> <ui:composition template="template.xhtml"> <ui:define name="content"> <h1>Guess a number...</h1> <h:form id="NumberGuessMain"> <div style="color: red"> <h:messages id="messages" globalOnly="false"/> <h:outputText id="Higher" value="Higher!" rendered="#{game.number gt game.guess and game.guess ne 0}"/> <h:outputText id="Lower" value="Lower!" rendered="#{game.number lt game.guess and game.guess ne 0}"/> </div> <div> I'm thinking of a number between #{game.smallest} and #{game.biggest}. You have #{game.remainingGuesses} guesses. </div> <div> Your guess: <h:inputText id="inputGuess" value="#{game.guess}" required="true" size="3" disabled="#{game.number eq game.guess}"> <f:validateLongRange maximum="#{game.biggest}" minimum="#{game.smallest}"/> </h:inputText> <h:commandButton id="GuessButton" value="Guess" action="#{game.check}" disabled="#{game.number eq game.guess}"/> </div> <div> <h:commandButton id="RestartButton" value="Reset" action="#{game.reset}" immediate="true" /> </div> </h:form> </ui:define> </ui:composition> </html>
Facelets is a templating language for JSF, here we are wrapping our page in a template which defines the header. | |
There are a number of messages which can be sent to the user, "Higher!", "Lower!" and "Correct!" | |
As the user guesses, the range of numbers they can guess gets smaller - this sentance changes to make sure they know what range to guess in. | |
This input field is bound to a Web Bean, using the value expression. | |
A range validator is used to make sure the user doesn't accidentally input a number outside of the range in which they can guess - if the validator wasn't here, the user might use up a guess on an out of range number. | |
And, of course, there must be a way for the user to send their guess to the server. Here we bind to an action method on the Web Bean. |
The example exists of 4 classes, the first two of which are binding
types. First, there is the @Random
binding type,
used for injecting a random number:
@Target( { TYPE, METHOD, PARAMETER, FIELD })
@Retention(RUNTIME)
@Documented
@BindingType
public @interface Random {}
There is also the @MaxNumber
binding type, used for
injecting the maximum number that can be injected:
@Target( { TYPE, METHOD, PARAMETER, FIELD })
@Retention(RUNTIME)
@Documented
@BindingType
public @interface MaxNumber {}
The Generator
class is responsible for creating the
random number, via a producer method. It also exposes the maximum
possible number via a producer method:
@ApplicationScoped
public class Generator {
private java.util.Random random = new java.util.Random( System.currentTimeMillis() );
private int maxNumber = 100;
java.util.Random getRandom()
{
return random;
}
@Produces @Random int next() {
return getRandom().nextInt(maxNumber);
}
@Produces @MaxNumber int getMaxNumber()
{
return maxNumber;
}
}
You'll notice that the Generator
is application
scoped; therefore we don't get a different random each time.
The final Web Bean in the application is the session scoped
Game
.
You'll note that we've used the @Named
annotation, so that we can use the bean through EL in the JSF page.
Finally, we've used constructor injection to initialize the game with
a random number. And of course, we need to tell the player when they've
won, so we give feedback with a FacesMessage
.
package org.jboss.webbeans.examples.numberguess;
import javax.annotation.PostConstruct;
import javax.faces.application.FacesMessage;
import javax.faces.context.FacesContext;
import javax.webbeans.AnnotationLiteral;
import javax.webbeans.Current;
import javax.webbeans.Initializer;
import javax.webbeans.Named;
import javax.webbeans.SessionScoped;
import javax.webbeans.manager.Manager;
@Named
@SessionScoped
public class Game
{
private int number;
private int guess;
private int smallest;
private int biggest;
private int remainingGuesses;
@Current Manager manager;
public Game()
{
}
@Initializer
Game(@MaxNumber int maxNumber)
{
this.biggest = maxNumber;
}
public int getNumber()
{
return number;
}
public int getGuess()
{
return guess;
}
public void setGuess(int guess)
{
this.guess = guess;
}
public int getSmallest()
{
return smallest;
}
public int getBiggest()
{
return biggest;
}
public int getRemainingGuesses()
{
return remainingGuesses;
}
public String check()
{
if (guess>number)
{
biggest = guess - 1;
}
if (guess<number)
{
smallest = guess + 1;
}
if (guess == number)
{
FacesContext.getCurrentInstance().addMessage(null, new FacesMessage("Correct!"));
}
remainingGuesses--;
return null;
}
@PostConstruct
public void reset()
{
this.smallest = 0;
this.guess = 0;
this.remainingGuesses = 10;
this.number = manager.getInstanceByType(Integer.class, new AnnotationLiteral<Random>(){});
}
}
The numberguess for Tomcat differs in a couple of ways. Firstly,
Web Beans should be deployed as a Web Application library in
WEB-INF/lib
. For your convenience we provide a
single jar suitable for running Web Beans in any servlet container
webbeans-servlet.jar
.
Of course, you must also include JSF and EL, as well common
annotations (jsr250-api.jar
) which a JEE server
includes by default.
Secondly, we need to explicitly specify the servlet listener
(used to boot Web Beans, and control it's interaction with requests)
in web.xml
:
<listener> <listener-class>org.jboss.webbeans.environment.servlet.Listener</listener-class> </listener>
Whilst JSR-299 specifies integration with Java ServerFaces, Web Beans allows you to inject into Wicket components, and also allows you to use a conversation context with Wicket. In this section, we'll walk you through the Wicket version of the numberguess example.
You may want to review the Wicket documentation at http://wicket.apache.org/.
Like the previous example, the Wicket WebBeans examples make use of
the webbeans-servlet
module. The use of the
Jetty servlet container
is common in the Wicket community, and is chosen here as the
runtime container in order to facilitate comparison between the
standard Wicket examples and these examples, and also to show how
the webbeans-servlet integration is not dependent upon Tomcat as the
servlet container.
These examples make use of the Eclipse IDE; instructions are also given to deploy the application from the command line.
To generate an Eclipse project from the example:
cd examples/wicket/numberguess mvn -Pjetty eclipse:eclipse
Then, from eclipse, choose File -> Import -> General -> Existing Projects into Workspace,
select the root directory of the numberguess example, and click
finish. Note that if you do not intend to run the example with jetty from
within eclipse, omit the "-Pjetty." This will create a project in your

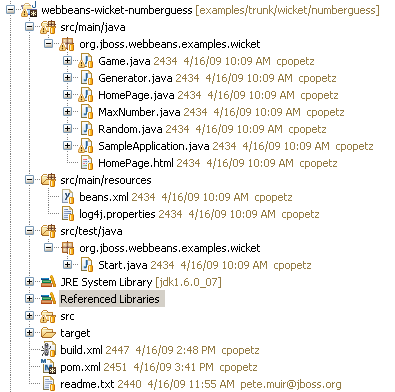

workspace called webbeans-wicket-numberguess
This project follows the wicket-quickstart
approach of creating an instance of Jetty in the
Start
class. So running the example is as
simple as right-clicking on that Start class in
src/test/java
in the
Package Explorer and choosing
Run as Java Application. You should
see console output related to Jetty starting up; then visit able
http://localhost:8080
to view the app. To
debug choose Debug as Java Application.
This example can also be deployed from the command line in a
(similar to the other examples). Assuming you have set up the
build.properties
file in the
examples
directory to specify the location of
JBoss AS or Tomcat, as previously described, you can run
ant deploy
from the
examples/wicket/numberguess
directory, and
access the application at
http://localhost:8080/webbeans-numberguess-wicket
.
JSF uses Unified EL expressions to bind view layer components in JSP or Facelet views to beans, Wicket defines it's components in Java. The markup is plain html with a one-to-one mapping between html elements and the view components. All view logic, including binding of components to models and controlling the response of view actions, is handled in Java. The integration of Web Beans with Wicket takes advantage of the same binding annotations used in your business layer to provide injection into your WebPage subclass (or into other custom wicket component subclasses).
The code in the wicket numberguess example is very similar to the JSF-based numberguess example. The business layer is identical!
Differences are:
Each wicket application must have a
WebApplication
subclass, In our case,
our application class is
SampleApplication
:
public class SampleApplication extends WebBeansApplication { @Override public Class getHomePage() { return HomePage.class; } }
This class specifies which page wicket should treat as our
home page, in our case, HomePage.class
In HomePage
we see typical wicket code
to set up page elements. The bit that is interesting is
the injection of the Game
bean:
@Current Game game;
The Game
bean is can then be used, for
example, by the code for submitting a guess:
final Component guessButton = new AjaxButton("GuessButton") { protected void onSubmit(AjaxRequestTarget target, Form form) { if (game.check()) {
All injections may be serialized; actual storage of the bean is managed by JSR-299. Note that Wicket components, like the HomePage and it subcomponents, are not JSR-299 beans.
Wicket components allow injection, but they
cannot use interceptors, decorators
and lifecycle callbacks such as
@PostConstruct
or
@Initializer
methods.
The example uses AJAX for processing of button events, and dynamically hides buttons that are no longer relevant, for example when the user has won the game.
In order to activate wicket for this webapp, the Wicket filter is added to web.xml, and our application class is specified:
<filter> <filter-name>wicket.numberguess-example</filter-name> <filter-class>org.apache.wicket.protocol.http.WicketFilter</filter-class> <init-param> <param-name>applicationClassName</param-name> <param-value>org.jboss.webbeans.examples.wicket.SampleApplication</param-value> </init-param> </filter> <filter-mapping> <filter-name>wicket.numberguess-example</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <listener> <listener-class>org.jboss.webbeans.environment.servlet.Listener</listener-class> </listener>
Note that the servlet listener is also added, as in the Tomcat example, in order to boostrap Web Beans when Jetty starts, and to hook Web Beans into the Jetty servlet request and session lifecycles.
This example can be found in the
examples/se/numberguess
folder of the Web
Beans distribution.
To run this example:
Open a command line/terminal window in the
examples/se/numberguess
directory
Ensure that Maven 2 is installed and in your PATH
Ensure that the JAVA_HOME
environment
variable is pointing to your JDK installation
execute the following command
mvn -Drun
There is an empty beans.xml
file in the root
package (src/main/resources/beans.xml
), which
marks this application as a Web Beans application.
The game's main logic is located in Game.java
.
Here is the code for that class, highlighting the changes made
from the web application version:
@ApplicationScoped
public class Game implements Serializable
{
private int number;
private int guess;
private int smallest;
@MaxNumber
private int maxNumber;
private int biggest;
private int remainingGuesses;
private boolean validNumberRange = true;
@Current Generator rndGenerator;
...
public boolean isValidNumberRange()
{
return validNumberRange;
}
public boolean isGameWon()
{
return guess == number;
}
public boolean isGameLost()
{
return guess != number && remainingGuesses <= 0;
}
public boolean check()
{
boolean result = false;
if ( checkNewNumberRangeIsValid() )
{
if ( guess > number )
{
biggest = guess - 1;
}
if ( guess < number )
{
smallest = guess + 1;
}
if ( guess == number )
{
result = true;
}
remainingGuesses--;
}
return result;
}
private boolean checkNewNumberRangeIsValid()
{
return validNumberRange = ( ( guess >= smallest ) && ( guess <= biggest ) );
}
@PostConstruct
public void reset()
{
this.smallest = 0;
...
this.number = rndGenerator.next();
}
}
The bean is application scoped instead of session scoped, since an instance of the application represents a single 'session'. | |
The bean is not named, since it doesn't need to be accessed via EL | |
There is no JSF
This allows the Swing UI to query the state of the game,
which it does indirectly via a class called
| |
Validation of user input is performed during the
| |
The |
The MessageGenerator
class depends on the
current instance of Game
, and queries its
state in order to determine the appropriate messages to provide
as the prompt for the user's next guess and the response to the
previous guess. The code for MessageGenerator
is as follows:
public class MessageGenerator
{
@Current Game game;
public String getChallengeMessage()
{
StringBuilder challengeMsg = new StringBuilder( "I'm thinking of a number between " );
challengeMsg.append( game.getSmallest() );
challengeMsg.append( " and " );
challengeMsg.append( game.getBiggest() );
challengeMsg.append( ". Can you guess what it is?" );
return challengeMsg.toString();
}
public String getResultMessage()
{
if ( game.isGameWon() )
{
return "You guess it! The number was " + game.getNumber();
} else if ( game.isGameLost() )
{
return "You are fail! The number was " + game.getNumber();
} else if ( ! game.isValidNumberRange() )
{
return "Invalid number range!";
} else if ( game.getRemainingGuesses() == Game.MAX_NUM_GUESSES )
{
return "What is your first guess?";
} else
{
String direction = null;
if ( game.getGuess() < game.getNumber() )
{
direction = "Higher";
} else
{
direction = "Lower";
}
return direction + "! You have " + game.getRemainingGuesses() + " guesses left.";
}
}
}
The instance of | |
The | |
And again to determine whether to congratulate, console or encourage the user to continue. |
Finally we come to the NumberGuessFrame
class
which provides the Swing front end to our guessing game.
public class NumberGuessFrame extends javax.swing.JFrame
{
private @Current Game game;
private @Current MessageGenerator msgGenerator;
public void start( @Observes @Deployed Manager manager )
{
java.awt.EventQueue.invokeLater( new Runnable()
{
public void run()
{
initComponents();
setVisible( true );
}
} );
}
private void initComponents() {
buttonPanel = new javax.swing.JPanel();
mainMsgPanel = new javax.swing.JPanel();
mainLabel = new javax.swing.JLabel();
messageLabel = new javax.swing.JLabel();
guessText = new javax.swing.JTextField();
...
mainLabel.setText(msgGenerator.getChallengeMessage());
mainMsgPanel.add(mainLabel);
messageLabel.setText(msgGenerator.getResultMessage());
mainMsgPanel.add(messageLabel);
...
}
private void guessButtonActionPerformed( java.awt.event.ActionEvent evt )
{
int guess = Integer.parseInt(guessText.getText());
game.setGuess( guess );
game.check();
refreshUI();
}
private void replayBtnActionPerformed( java.awt.event.ActionEvent evt )
{
game.reset();
refreshUI();
}
private void refreshUI()
{
mainLabel.setText( msgGenerator.getChallengeMessage() );
messageLabel.setText( msgGenerator.getResultMessage() );
guessText.setText( "" );
guessesLeftBar.setValue( game.getRemainingGuesses() );
guessText.requestFocus();
}
// swing components
private javax.swing.JPanel borderPanel;
...
private javax.swing.JButton replayBtn;
}
The injected instance of the game (logic and state). | |
The injected message generator for UI messages. | |
This application is started in the usual Web Beans SE way,
by observing the | |
This method initialises all of the Swing components. Note
the use of the | |
| |
| |
|
The translator example will take any sentences you enter, and translate them to Latin.
The translator example is built as an ear, and contains EJBs. As a result, it's structure is more complex than the numberguess example.
EJB 3.1 and Jave EE 6 allow you to package EJBs in a war, which will make this structure much simpler!
First, let's take a look at the ear aggregator, which is located in
webbeans-translator-ear
module. Maven automatically
generates the application.xml
for us:
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-ear-plugin</artifactId>
<configuration>
<modules>
<webModule>
<groupId>org.jboss.webbeans.examples.translator</groupId>
<artifactId>webbeans-translator-war</artifactId>
<contextRoot>/webbeans-translator</contextRoot>
</webModule>
</modules>
</configuration>
</plugin>
Here we set the context path, which gives us a nice url (http://localhost:8080/webbeans-translator).
If you aren't using Maven to generate these files, you would need
META-INF/application.xml
:
<?xml version="1.0" encoding="UTF-8"?>
<application xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/application_5.xsd"
version="5">
<display-name>webbeans-translator-ear</display-name>
<description>Ear Example for the reference implementation of JSR 299: Web Beans</description>
<module>
<web>
<web-uri>webbeans-translator.war</web-uri>
<context-root>/webbeans-translator</context-root>
</web>
</module>
<module>
<ejb>webbeans-translator.jar</ejb>
</module>
</application>
Next, lets look at the war. Just as in the numberguess example, we have
a faces-config.xml
(to enable Facelets) and a
web.xml
(to enable JSF) in
WebContent/WEB-INF
.
More intersting is the facelet used to translate text. Just as in the numberguess example we have a template, which surrounds the form (ommitted here for brevity):
<h:form id="NumberGuessMain">
<table>
<tr align="center" style="font-weight: bold" >
<td>
Your text
</td>
<td>
Translation
</td>
</tr>
<tr>
<td>
<h:inputTextarea id="text" value="#{translator.text}" required="true" rows="5" cols="80" />
</td>
<td>
<h:outputText value="#{translator.translatedText}" />
</td>
</tr>
</table>
<div>
<h:commandButton id="button" value="Translate" action="#{translator.translate}"/>
</div>
</h:form>
The user can enter some text in the lefthand textarea, and hit the translate button to see the result to the right.
Finally, let's look at the ejb module,
webbeans-translator-ejb
.
In src/main/resources/META-INF
there is just an
empty web-beans.xml
, used to mark the archive as
containing Web Beans.
We've saved the most interesting bit to last, the code! The project has
two simple beans, SentenceParser
and
TextTranslator
and two enterprise beans,
TranslatorControllerBean
and
SentenceTranslator
. You should be getting quite
familiar with what a Web Bean looks like by now, so we'll just
highlight the most interesting bits here.
Both SentenceParser
and
TextTranslator
are dependent beans, and
TextTranslator
uses constructor initialization:
public class TextTranslator {
private SentenceParser sentenceParser;
private Translator sentenceTranslator;
@Initializer
TextTranslator(SentenceParser sentenceParser, Translator sentenceTranslator)
{
this.sentenceParser = sentenceParser;
this.sentenceTranslator = sentenceTranslator;
TextTranslator
is a stateless bean (with a local
business interface), where the magic happens - of course, we couldn't
develop a full translator, but we gave it a good go!
Finally, there is UI orientated controller, that collects the text from the user, and dispatches it to the translator. This is a request scoped, named, stateful session bean, which injects the translator.
@Stateful
@RequestScoped
@Named("translator")
public class TranslatorControllerBean implements TranslatorController
{
@Current TextTranslator translator;
The bean also has getters and setters for all the fields on the page.
As this is a stateful session bean, we have to have a remove method:
@Remove
public void remove()
{
}
The Web Beans manager will call the remove method for you when the bean is destroyed; in this case at the end of the request.
That concludes our short tour of the Web Beans examples. For more on Web Beans , or to help out, please visit http://www.seamframework.org/WebBeans/Development.
We need help in all areas - bug fixing, writing new features, writing examples and translating this reference guide.
Web Beans supports three primary mechanisms for dependency injection:
Constructor parameter injection:
public class Checkout {
private final ShoppingCart cart;
@Initializer
public Checkout(ShoppingCart cart) {
this.cart = cart;
}
}
Initializer method parameter injection:
public class Checkout {
private ShoppingCart cart;
@Initializer
void setShoppingCart(ShoppingCart cart) {
this.cart = cart;
}
}
And direct field injection:
public class Checkout {
private @Current ShoppingCart cart;
}
Dependency injection always occurs when the Web Bean instance is first instantiated.
First, the Web Bean manager calls the Web Bean constructor, to obtain an instance of the Web Bean.
Next, the Web Bean manager initializes the values of all injected fields of the Web Bean.
Next, the Web Bean manager calls all initializer methods of Web Bean.
Finally, the @PostConstruct
method of the Web
Bean, if any, is called.
Constructor parameter injection is not supported for EJB beans, since the EJB is instantiated by the EJB container, not the Web Bean manager.
Parameters of constructors and initializer methods need not be explicitly
annotated when the default binding type @Current
applies.
Injected fields, however, must specify a binding type, even
when the default binding type applies. If the field does not specify a binding
type, it will not be injected.
Producer methods also support parameter injection:
@Produces Checkout createCheckout(ShoppingCart cart) {
return new Checkout(cart);
}
Finally, observer methods (which we'll meet in Chapter 9, Events), disposal methods and destructor methods all support parameter injection.
The Web Beans specification defines a procedure, called the typesafe
resolution algorithm, that the Web Bean manager follows when identifying
the Web Bean to inject to an injection point. This algorithm looks complex at first,
but once you understand it, it's really quite intuitive. Typesafe resolution is
performed at system initialization time, which means that the manager will inform
the user immediately if a Web Bean's dependencies cannot be satisfied, by throwing
a UnsatisfiedDependencyException
or
AmbiguousDependencyException
.
The purpose of this algorithm is to allow multiple Web Beans to implement the same API type and either:
allow the client to select which implementation it requires using binding annotations,
allow the application deployer to select which implementation is appropriate for a particular deployment, without changes to the client, by enabling or disabling deployment types, or
allow one implementation of an API to override another implementation of the same API at deployment time, without changes to the client, using deployment type precedence.
Let's explore how the Web Beans manager determines a Web Bean to be injected.
If we have more than one Web Bean that implements a particular API type, the
injection point can specify exactly which Web Bean should be injected using a binding
annotation. For example, there might be two implementations of
PaymentProcessor
:
@PayByCheque
public class ChequePaymentProcessor implements PaymentProcessor {
public void process(Payment payment) { ... }
}
@PayByCreditCard
public class CreditCardPaymentProcessor implements PaymentProcessor {
public void process(Payment payment) { ... }
}
Where @PayByCheque
and @PayByCreditCard
are binding annotations:
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
@BindingType
public @interface PayByCheque {}
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
@BindingType
public @interface PayByCreditCard {}
A client Web Bean developer uses the binding annotation to specify exactly which Web Bean should be injected.
Using field injection:
@PayByCheque PaymentProcessor chequePaymentProcessor;
@PayByCreditCard PaymentProcessor creditCardPaymentProcessor;
Using initializer method injection:
@Initializer
public void setPaymentProcessors(@PayByCheque PaymentProcessor chequePaymentProcessor,
@PayByCreditCard PaymentProcessor creditCardPaymentProcessor) {
this.chequePaymentProcessor = chequePaymentProcessor;
this.creditCardPaymentProcessor = creditCardPaymentProcessor;
}
Or using constructor injection:
@Initializer
public Checkout(@PayByCheque PaymentProcessor chequePaymentProcessor,
@PayByCreditCard PaymentProcessor creditCardPaymentProcessor) {
this.chequePaymentProcessor = chequePaymentProcessor;
this.creditCardPaymentProcessor = creditCardPaymentProcessor;
}
Binding annotations may have members:
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
@BindingType
public @interface PayBy {
PaymentType value();
}
In which case, the member value is significant:
@PayBy(CHEQUE) PaymentProcessor chequePaymentProcessor;
@PayBy(CREDIT_CARD) PaymentProcessor creditCardPaymentProcessor;
You can tell the Web Bean manager to ignore a member of a binding annotation
type by annotating the member @NonBinding
.
An injection point may even specify multiple binding annotations:
@Asynchronous @PayByCheque PaymentProcessor paymentProcessor
In this case, only a Web Bean which has both binding annotations would be eligible for injection.
Even producer methods may specify binding annotations:
@Produces
@Asynchronous @PayByCheque
PaymentProcessor createAsyncPaymentProcessor(@PayByCheque PaymentProcessor processor) {
return new AsynchronousPaymentProcessor(processor);
}
Web Beans defines a binding type @Current
that is the
default binding type for any injection point or Web Bean that does not explicitly
specify a binding type.
There are two common circumstances in which it is necessary to explicitly
specify @Current
:
on a field, in order to declare it as an injected field with the default binding type, and
on a Web Bean which has another binding type in addition to the default binding type.
All Web Beans have a deployment type. Each deployment type identifies a set of Web Beans that should be conditionally installed in some deployments of the system.
For example, we could define a deployment type named @Mock
,
which would identify Web Beans that should only be installed when the system executes
inside an integration testing environment:
@Retention(RUNTIME)
@Target({TYPE, METHOD})
@DeploymentType
public @interface Mock {}
Suppose we had some Web Bean that interacted with an external system to process payments:
public class ExternalPaymentProcessor {
public void process(Payment p) {
...
}
}
Since this Web Bean does not explicitly specify a deployment type, it has the
default deployment type @Production
.
For integration or unit testing, the external system is slow or unavailable. So we would create a mock object:
@Mock
public class MockPaymentProcessor implements PaymentProcessor {
@Override
public void process(Payment p) {
p.setSuccessful(true);
}
}
But how does the Web Bean manager determine which implementation to use in a particular deployment?
Web Beans defines two built-in deployment types: @Production
and @Standard
. By default, only Web Beans with the built-in deployment
types are enabled when the system is deployed. We can identify additional deployment
types to be enabled in a particular deployment by listing them in
web-beans.xml
.
Going back to our example, when we deploy our integration tests, we want all
our @Mock
objects to be installed:
<WebBeans>
<Deploy>
<Standard/>
<Production/>
<test:Mock/>
</Deploy>
</WebBeans>
Now the Web Bean manager will identify and install all Web Beans annotated
@Production
, @Standard
or @Mock
at deployment time.
The deployment type @Standard
is used only for certain
special Web Beans defined by the Web Beans specification. We can't use it for
our own Web Beans, and we can't disable it.
The deployment type @Production
is the default deployment
type for Web Beans which don't explicitly declare a deployment type, and may be
disabled.
If you've been paying attention, you're probably wondering how the Web Bean
manager decides which implementation ExternalPaymentProcessor
or MockPaymentProcessor
to choose. Consider what happens when
the manager encounters this injection point:
@Current PaymentProcessor paymentProcessor
There are now two Web Beans which satisfy the PaymentProcessor
contract. Of course, we can't use a binding annotation to disambiguate, since binding
annotations are hard-coded into the source at the injection point, and we want the
manager to be able to decide at deployment time!
The solution to this problem is that each deployment type has a different
precedence. The precedence of the deployment types is determined
by the order in which they appear in web-beans.xml
. In our example,
@Mock
appears later than @Production
so it
has a higher precedence.
Whenever the manager discovers that more than one Web Bean could satisfy the
contract (API type plus binding annotations) specified by an injection point, it
considers the relative precedence of the Web Beans. If one has a higher precedence
than the others, it chooses the higher precedence Web Bean to inject. So, in our example,
the Web Bean manager will inject MockPaymentProcessor
when executing
in our integration testing environment (which is exactly what we want).
It's interesting to compare this facility to today's popular manager architectures. Various "lightweight" containers also allow conditional deployment of classes that exist in the classpath, but the classes that are to be deployed must be explicity, individually, listed in configuration code or in some XML configuration file. Web Beans does support Web Bean definition and configuration via XML, but in the common case where no complex configuration is required, deployment types allow a whole set of Web Beans to be enabled with a single line of XML. Meanwhile, a developer browsing the code can easily identify what deployment scenarios the Web Bean will be used in.
Deployment types are useful for all kinds of things, here's some examples:
@Mock
and @Staging
deployment types
for testing
@AustralianTaxLaw
for site-specific Web Beans
@SeamFramework
, @Guice
for third-party
frameworks which build on Web Beans
@Standard
for standard Web Beans defined by the Web Beans
specification
I'm sure you can think of more applications...
The typesafe resolution algorithm fails when, after considering the binding annotations and and deployment types of all Web Beans that implement the API type of an injection point, the Web Bean manager is unable to identify exactly one Web Bean to inject.
It's usually easy to fix an UnsatisfiedDependencyException
or
AmbiguousDependencyException
.
To fix an UnsatisfiedDependencyException
, simply provide
a Web Bean which implements the API type and has the binding types of the injection
point or enable the deployment type of a Web Bean that already implements the
API type and has the binding types.
To fix an AmbiguousDependencyException
, introduce a
binding type to distinguish between the two implementations of the API type,
or change the deployment type of one of the implementations so that the Web
Bean manager can use deployment type precedence to choose between them. An
AmbiguousDependencyException
can only occur if two Web Beans
share a binding type and have exactly the same deployment type.
There's one more issue you need to be aware of when using dependency injection in Web Beans.
Clients of an injected Web Bean do not usually hold a direct reference to a Web Bean instance.
Imagine that a Web Bean bound to the application scope held a direct reference to a Web Bean bound to the request scope. The application scoped Web Bean is shared between many different requests. However, each request should see a different instance of the request scoped Web bean!
Now imagine that a Web Bean bound to the session scope held a direct reference to a Web Bean bound to the application scope. From time to time, the session context is serialized to disk in order to use memory more efficiently. However, the application scoped Web Bean instance should not be serialized along with the session scoped Web Bean!
Therefore, unless a Web Bean has the default scope @Dependent
,
the Web Bean manager must indirect all injected references to the Web Bean through a
proxy object. This client proxy is responsible for ensuring that
the Web Bean instance that receives a method invocation is the instance that is
associated with the current context. The client proxy also allows Web Beans bound
to contexts such as the session context to be serialized to disk without recursively
serializing other injected Web Beans.
Unfortunately, due to limitations of the Java language, some Java types cannot
be proxied by the Web Bean manager. Therefore, the Web Bean manager throws an
UnproxyableDependencyException
if the type of an injection point
cannot be proxied.
The following Java types cannot be proxied by the Web Bean manager:
classes which are declared final
or have a
final
method,
classes which have no non-private constructor with no parameters, and
arrays and primitive types.
It's usually very easy to fix an UnproxyableDependencyException
.
Simply add a constructor with no parameters to the injected class, introduce an interface,
or change the scope of the injected Web Bean to @Dependent
.
The application may obtain an instance of the interface Manager
by injection:
@Current Manager manager;
The Manager
object provides a set of methods for obtaining a
Web Bean instance programatically.
PaymentProcessor p = manager.getInstanceByType(PaymentProcessor.class);
Binding annotations may be specified by subclassing the helper class
AnnotationLiteral
, since it is otherwise difficult to instantiate an
annotation type in Java.
PaymentProcessor p = manager.getInstanceByType(PaymentProcessor.class,
new AnnotationLiteral<CreditCard>(){});
If the binding type has an annotation member, we can't use an anonymous subclass of
AnnotationLiteral
instead we'll need to create a named subclass:
abstract class CreditCardBinding
extends AnnotationLiteral<CreditCard>
implements CreditCard {}
PaymentProcessor p = manager.getInstanceByType(PaymentProcessor.class,
new CreditCardBinding() {
public void value() { return paymentType; }
} );
Enterprise Web Beans support all the lifecycle callbacks defined by the EJB
specification: @PostConstruct
, @PreDestroy
,
@PrePassivate
and @PostActivate
.
Simple Web Beans support only the @PostConstruct
and
@PreDestroy
callbacks.
Both enterprise and simple Web Beans support the use of @Resource
,
@EJB
and @PersistenceContext
for injection of Java
EE resources, EJBs and JPA persistence contexts, respectively. Simple Web Beans do not
support the use of @PersistenceContext(type=EXTENDED)
.
The @PostConstruct
callback always occurs after all dependencies
have been injected.
There are certain kinds of dependent objects Web Beans with scope
@Dependent
that need to know something about the object or injection
point into which they are injected in order to be able to do what they do. For example:
The log category for a Logger
depends upon the class of the object
that owns it.
Injection of a HTTP parameter or header value depends upon what parameter or header name was specified at the injection point.
Injection of the result of an EL expression evaluation depends upon the expression that was specified at the injection point.
A Web Bean with scope @Dependent
may inject an instance of
InjectionPoint
and access metadata relating to the injection point to which
it belongs.
Let's look at an example. The following code is verbose, and vulnerable to refactoring problems:
Logger log = Logger.getLogger(MyClass.class.getName());
This clever little producer method lets you inject a JDK Logger
without
explicitly specifying the log category:
class LogFactory {
@Produces Logger createLogger(InjectionPoint injectionPoint) {
return Logger.getLogger(injectionPoint.getMember().getDeclaringClass().getName());
}
}
We can now write:
@Current Logger log;
Not convinced? Then here's a second example. To inject HTTP parameters, we need to define a binding type:
@BindingType
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
public @interface HttpParam {
@NonBinding public String value();
}
We would use this binding type at injection points as follows:
@HttpParam("username") String username;
@HttpParam("password") String password;
The following producer method does the work:
class HttpParams
@Produces @HttpParam("")
String getParamValue(ServletRequest request, InjectionPoint ip) {
return request.getParameter(ip.getAnnotation(HttpParam.class).value());
}
}
(Note that the value()
member of the HttpParam
annotation is ignored by the Web Bean manager since it is annotated @NonBinding.
)
The Web Bean manager provides a built-in Web Bean that implements the
InjectionPoint
interface:
public interface InjectionPoint {
public Object getInstance();
public Bean<?> getBean();
public Member getMember():
public <T extends Annotation> T getAnnotation(Class<T> annotation);
public Set<T extends Annotation> getAnnotations();
}
So far, we've seen a few examples of scope type annotations. The scope of a Web Bean determines the lifecycle of instances of the Web Bean. The scope also determines which clients refer to which instances of the Web Bean. According to the Web Beans specification, a scope determines:
When a new instance of any Web Bean with that scope is created
When an existing instance of any Web Bean with that scope is destroyed
Which injected references refer to any instance of a Web Bean with that scope
For example, if we have a session scoped Web Bean, CurrentUser
,
all Web Beans that are called in the context of the same HttpSession
will see the same instance of CurrentUser
. This instance will be
automatically created the first time a CurrentUser
is needed in that
session, and automatically destroyed when the session ends.
Web Beans features an extensible context model. It is possible to define new scopes by creating a new scope type annotation:
@Retention(RUNTIME)
@Target({TYPE, METHOD})
@ScopeType
public @interface ClusterScoped {}
Of course, that's the easy part of the job. For this scope type to be useful, we
will also need to define a Context
object that implements the scope!
Implementing a Context
is usually a very technical task, intended for
framework development only.
We can apply a scope type annotation to a Web Bean implementation class to specify the scope of the Web Bean:
@ClusterScoped
public class SecondLevelCache { ... }
Usually, you'll use one of Web Beans' built-in scopes.
Web Beans defines four built-in scopes:
@RequestScoped
@SessionScoped
@ApplicationScoped
@ConversationScoped
For a web application that uses Web Beans:
any servlet request has access to active request, session and application scopes, and, additionally
any JSF request has access to an active conversation scope.
The request and application scopes are also active:
during invocations of EJB remote methods,
during EJB timeouts,
during message delivery to a message-driven bean, and
during web service invocations.
If the application tries to invoke a Web Bean with a scope that does not have
an active context, a ContextNotActiveException
is thrown by the
Web Bean manager at runtime.
Three of the four built-in scopes should be extremely familiar to every Java EE developer, so let's not waste time discussing them here. One of the scopes, however, is new.
The Web Beans conversation scope is a bit like the traditional session scope in that it holds state associated with a user of the system, and spans multiple requests to the server. However, unlike the session scope, the conversation scope:
is demarcated explicitly by the application, and
holds state associated with a particular web browser tab in a JSF application.
A conversation represents a task, a unit of work from the point of view of the user. The conversation context holds state associated with what the user is currently working on. If the user is doing multiple things at the same time, there are multiple conversations.
The conversation context is active during any JSF request. However, most conversations are destroyed at the end of the request. If a conversation should hold state across multiple requests, it must be explicitly promoted to a long-running conversation.
Web Beans provides a built-in Web Bean for controlling the lifecyle of conversations in a JSF application. This Web Bean may be obtained by injection:
@Current Conversation conversation;
To promote the conversation associated with the current request to a
long-running conversation, call the begin()
method from
application code. To schedule the current long-running conversation context
for destruction at the end of the current request, call end()
.
In the following example, a conversation-scoped Web Bean controls the conversation with which it is associated:
@ConversationScoped @Stateful
public class OrderBuilder {
private Order order;
private @Current Conversation conversation;
private @PersistenceContext(type=EXTENDED) EntityManager em;
@Produces public Order getOrder() {
return order;
}
public Order createOrder() {
order = new Order();
conversation.begin();
return order;
}
public void addLineItem(Product product, int quantity) {
order.add( new LineItem(product, quantity) );
}
public void saveOrder(Order order) {
em.persist(order);
conversation.end();
}
@Remove
public void destroy() {}
}
This Web Bean is able to control its own lifecycle through use of the
Conversation
API. But some other Web Beans have a lifecycle
which depends completely upon another object.
The conversation context automatically propagates with any JSF faces request (JSF form submission). It does not automatically propagate with non-faces requests, for example, navigation via a link.
We can force the conversation to propagate with a non-faces request
by including the unique identifier of the conversation as a request
parameter. The Web Beans specification reserves the request parameter named
cid
for this use. The unique identifier of the conversation
may be obtained from the Conversation
object, which has
the Web Beans name conversation
.
Therefore, the following link propagates the conversation:
<a href="/addProduct.jsp?cid=#{conversation.id}">Add Product</a>
The Web Bean manager is also required to propagate conversations across any redirect, even if the conversation is not marked long-running. This makes it very easy to implement the common POST-then-redirect pattern, without resort to fragile constructs such as a "flash" object. In this case, the Web Bean manager automatically adds a request parameter to the redirect URL.
The Web Bean manager is permitted to destroy a conversation and all state held in its context at any time in order to preserve resources. A Web Bean manager implementation will normally do this on the basis of some kind of timeout though this is not required by the Web Beans specification. The timeout is the period of inactivity before the conversation is destroyed.
The Conversation
object provides a method to set
the timeout. This is a hint to the Web Bean manager, which is free to ignore
the setting.
conversation.setTimeout(timeoutInMillis);
In addition to the four built-in scopes, Web Beans features the so-called dependent pseudo-scope. This is the default scope for a Web Bean which does not explicitly declare a scope type.
For example, this Web Bean has the scope type @Dependent
:
public class Calculator { ... }
When an injection point of a Web Bean resolves to a dependent Web Bean, a new instance of the dependent Web Bean is created every time the first Web Bean is instantiated. Instances of dependent Web Beans are never shared between different Web Beans or different injection points. They are dependent objects of some other Web Bean instance.
Dependent Web Bean instances are destroyed when the instance they depend upon is destroyed.
Web Beans makes it easy to obtain a dependent instance of a Java class or EJB bean, even if the class or EJB bean is already declared as a Web Bean with some other scope type.
The built-in @New
binding annotation allows
implicit definition of a dependent Web Bean at an injection point.
Suppose we declare the following injected field:
@New Calculator calculator;
Then a Web Bean with scope @Dependent
, binding type
@New
, API type Calculator
, implementation class
Calculator
and deployment type @Standard
is
implicitly defined.
This is true even if Calculator
is already
declared with a different scope type, for example:
@ConversationScoped
public class Calculator { ... }
So the following injected attributes each get a different instance of
Calculator
:
public class PaymentCalc {
@Current Calculator calculator;
@New Calculator newCalculator;
}
The calculator
field has a conversation-scoped instance
of Calculator
injected. The newCalculator
field has a new instance of Calculator
injected, with a lifecycle
that is bound to the owning PaymentCalc
.
This feature is particularly useful with producer methods, as we'll see in the next chapter.
Producer methods let us overcome certain limitations that arise when the Web Bean manager, instead of the application, is responsible for instantiating objects. They're also the easiest way to integrate objects which are not Web Beans into the Web Beans environment. (We'll meet a second approach in Chapter 12, Defining Web Beans using XML.)
According to the spec:
A Web Beans producer method acts as a source of objects to be injected, where:
the objects to be injected are not required to be instances of Web Beans,
the concrete type of the objects to be injected may vary at runtime or
the objects require some custom initialization that is not performed by the Web Bean constructor
For example, producer methods let us:
expose a JPA entity as a Web Bean,
expose any JDK class as a Web Bean,
define multiple Web Beans, with different scopes or initialization, for the same implementation class, or
vary the implementation of an API type at runtime.
In particular, producer methods let us use runtime polymorphism with Web Beans. As we've seen, deployment types are a powerful solution to the problem of deployment-time polymorphism. But once the system is deployed, the Web Bean implementation is fixed. A producer method has no such limitation:
@SessionScoped
public class Preferences {
private PaymentStrategyType paymentStrategy;
...
@Produces @Preferred
public PaymentStrategy getPaymentStrategy() {
switch (paymentStrategy) {
case CREDIT_CARD: return new CreditCardPaymentStrategy();
case CHEQUE: return new ChequePaymentStrategy();
case PAYPAL: return new PayPalPaymentStrategy();
default: return null;
}
}
}
Consider an injection point:
@Preferred PaymentStrategy paymentStrat;
This injection point has the same type and binding annotations as the producer method, so it resolves to the producer method using the usual Web Beans injection rules. The producer method will be called by the Web Bean manager to obtain an instance to service this injection point.
.The scope of the producer method defaults to @Dependent
, and so
it will be called every time the Web Bean manager injects this field
or any other field that resolves to the same producer method. Thus, there could be
multiple instances of the PaymentStrategy
object for each user session.
To change this behavior, we can add a @SessionScoped
annotation
to the method.
@Produces @Preferred @SessionScoped
public PaymentStrategy getPaymentStrategy() {
...
}
Now, when the producer method is called, the returned PaymentStrategy
will be bound to the session context. The producer method won't be called again in the same
session.
There's one potential problem with the code above. The implementations of
CreditCardPaymentStrategy
are instantiated using the Java
new
operator. Objects instantiated directly by the application
can't take advantage of dependency injection and don't have interceptors.
If this isn't what we want we can use dependency injection into the producer method to obtain Web Bean instances:
@Produces @Preferred @SessionScoped
public PaymentStrategy getPaymentStrategy(CreditCardPaymentStrategy ccps,
ChequePaymentStrategy cps,
PayPalPaymentStrategy ppps) {
switch (paymentStrategy) {
case CREDIT_CARD: return ccps;
case CHEQUE: return cps;
case PAYPAL: return ppps;
default: return null;
}
}
Wait, what if CreditCardPaymentStrategy
is a request scoped
Web Bean? Then the producer method has the effect of "promoting" the current request
scoped instance into session scope. This is almost certainly a bug! The request
scoped object will be destroyed by the Web Bean manager before the session ends, but
the reference to the object will be left "hanging" in the session scope. This error
will not be detected by the Web Bean manager, so please take
extra care when returning Web Bean instances from producer methods!
There's at least three ways we could go about fixing this bug. We could change
the scope of the CreditCardPaymentStrategy
implementation, but this
would affect other clients of that Web Bean. A better option would be to change the
scope of the producer method to @Dependent
or
@RequestScoped
.
But a more common solution is to use the special @New
binding
annotation.
Consider the following producer method:
@Produces @Preferred @SessionScoped
public PaymentStrategy getPaymentStrategy(@New CreditCardPaymentStrategy ccps,
@New ChequePaymentStrategy cps,
@New PayPalPaymentStrategy ppps) {
switch (paymentStrategy) {
case CREDIT_CARD: return ccps;
case CHEQUE: return cps;
case PAYPAL: return ppps;
default: return null;
}
}
Then a new dependent instance of
CreditCardPaymentStrategy
will be created, passed to the producer
method, returned by the producer method and finally bound to the session context. The
dependent object won't be destroyed until the Preferences
object is
destroyed, at the end of the session.
The first major theme of Web Beans is loose coupling. We've already seen three means of achieving loose coupling:
deployment types enable deployment time polymorphism,
producer methods enable runtime polymorphism, and
contextual lifecycle management decouples Web Bean lifecycles.
These techniques serve to enable loose coupling of client and server. The client is no longer tightly bound to an implementation of an API, nor is it required to manage the lifecycle of the server object. This approach lets stateful objects interact as if they were services.
Loose coupling makes a system more dynamic. The system can respond to change in a well-defined manner. In the past, frameworks that attempted to provide the facilities listed above invariably did it by sacrificing type safety. Web Beans is the first technology that achieves this level of loose coupling in a typesafe way.
Web Beans provides three extra important facilities that further the goal of loose coupling:
interceptors decouple technical concerns from business logic,
decorators may be used to decouple some business concerns, and
event notifications decouple event producers from event consumers.
Let's explore interceptors first.
Table of Contents
Web Beans re-uses the basic interceptor architecture of EJB 3.0, extending the functionality in two directions:
Any Web Bean may have interceptors, not just session beans.
Web Beans features a more sophisticated annotation-based approach to binding interceptors to Web Beans.
The EJB specification defines two kinds of interception points:
business method interception, and
lifecycle callback interception.
A business method interceptor applies to invocations of methods of the Web Bean by clients of the Web Bean:
public class TransactionInterceptor {
@AroundInvoke public Object manageTransaction(InvocationContext ctx) { ... }
}
A lifecycle callback interceptor applies to invocations of lifecycle callbacks by the container:
public class DependencyInjectionInterceptor {
@PostConstruct public void injectDependencies(InvocationContext ctx) { ... }
}
An interceptor class may intercept both lifecycle callbacks and business methods.
Suppose we want to declare that some of our Web Beans are transactional. The first thing we need is an interceptor binding annotation to specify exactly which Web Beans we're interested in:
@InterceptorBindingType
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Transactional {}
Now we can easily specify that our ShoppingCart
is a
transactional object:
@Transactional
public class ShoppingCart { ... }
Or, if we prefer, we can specify that just one method is transactional:
public class ShoppingCart {
@Transactional public void checkout() { ... }
}
That's great, but somewhere along the line we're going to have to actually
implement the interceptor that provides this transaction management aspect. All
we need to do is create a standard EJB interceptor, and annotate it
@Interceptor
and @Transactional
.
@Transactional @Interceptor
public class TransactionInterceptor {
@AroundInvoke public Object manageTransaction(InvocationContext ctx) { ... }
}
All Web Beans interceptors are simple Web Beans, and can take advantage of dependency injection and contextual lifecycle management.
@ApplicationScoped @Transactional @Interceptor
public class TransactionInterceptor {
@Resource Transaction transaction;
@AroundInvoke public Object manageTransaction(InvocationContext ctx) { ... }
}
Multiple interceptors may use the same interceptor binding type.
Finally, we need to enable our interceptor in
web-beans.xml
.
<Interceptors>
<tx:TransactionInterceptor/>
</Interceptors>
Whoah! Why the angle bracket stew?
Well, the XML declaration solves two problems:
it enables us to specify a total ordering for all the interceptors in our system, ensuring deterministic behavior, and
it lets us enable or disable interceptor classes at deployment time.
For example, we could specify that our security interceptor runs before our
TransactionInterceptor
.
<Interceptors>
<sx:SecurityInterceptor/>
<tx:TransactionInterceptor/>
</Interceptors>
Or we could turn them both off in our test environment!
Suppose we want to add some extra information to our @Transactional
annotation:
@InterceptorBindingType
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Transactional {
boolean requiresNew() default false;
}
Web Beans will use the value of requiresNew
to choose between
two different interceptors, TransactionInterceptor
and
RequiresNewTransactionInterceptor
.
@Transactional(requiresNew=true) @Interceptor
public class RequiresNewTransactionInterceptor {
@AroundInvoke public Object manageTransaction(InvocationContext ctx) { ... }
}
Now we can use RequiresNewTransactionInterceptor
like this:
@Transactional(requiresNew=true)
public class ShoppingCart { ... }
But what if we only have one interceptor and we want the manager to ignore the
value of requiresNew
when binding interceptors? We can use the
@NonBinding
annotation:
@InterceptorBindingType
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Secure {
@NonBinding String[] rolesAllowed() default {};
}
Usually we use combinations of interceptor bindings types to bind multiple
interceptors to a Web Bean. For example, the following declaration would be used
to bind TransactionInterceptor
and
SecurityInterceptor
to the same Web Bean:
@Secure(rolesAllowed="admin") @Transactional
public class ShoppingCart { ... }
However, in very complex cases, an interceptor itself may specify some combination of interceptor binding types:
@Transactional @Secure @Interceptor
public class TransactionalSecureInterceptor { ... }
Then this interceptor could be bound to the checkout()
method using any one of the following combinations:
public class ShoppingCart {
@Transactional @Secure public void checkout() { ... }
}
@Secure
public class ShoppingCart {
@Transactional public void checkout() { ... }
}
@Transactionl
public class ShoppingCart {
@Secure public void checkout() { ... }
}
@Transactional @Secure
public class ShoppingCart {
public void checkout() { ... }
}
One limitation of the Java language support for annotations is the lack of annotation inheritance. Really, annotations should have reuse built in, to allow this kind of thing to work:
public @interface Action extends Transactional, Secure { ... }
Well, fortunately, Web Beans works around this missing feature of Java. We may annotate one interceptor binding type with other interceptor binding types. The interceptor bindings are transitive any Web Bean with the first interceptor binding inherits the interceptor bindings declared as meta-annotations.
@Transactional @Secure
@InterceptorBindingType
@Target(TYPE)
@Retention(RUNTIME)
public @interface Action { ... }
Any Web Bean annotated @Action
will be bound to both
TransactionInterceptor
and SecurityInterceptor
.
(And even TransactionalSecureInterceptor
, if it exists.)
The @Interceptors
annotation defined by the EJB specification
is supported for both enterprise and simple Web Beans, for example:
@Interceptors({TransactionInterceptor.class, SecurityInterceptor.class})
public class ShoppingCart {
public void checkout() { ... }
}
However, this approach suffers the following drawbacks:
the interceptor implementation is hardcoded in business code,
interceptors may not be easily disabled at deployment time, and
the interceptor ordering is non-global it is determined by the order in which interceptors are listed at the class level.
Therefore, we recommend the use of Web Beans-style interceptor bindings.
Interceptors are a powerful way to capture and separate concerns which are orthogonal to the type system. Any interceptor is able to intercept invocations of any Java type. This makes them perfect for solving technical concerns such as transaction management and security. However, by nature, interceptors are unaware of the actual semantics of the events they intercept. Thus, interceptors aren't an appropriate tool for separating business-related concerns.
The reverse is true of decorators. A decorator intercepts invocations only for a certain Java interface, and is therefore aware of all the semantics attached to that interface. This makes decorators a perfect tool for modeling some kinds of business concerns. It also means that a decorator doesn't have the generality of an interceptor. Decorators aren't able to solve technical concerns that cut across many disparate types.
Suppose we have an interface that represents accounts:
public interface Account {
public BigDecimal getBalance();
public User getOwner();
public void withdraw(BigDecimal amount);
public void deposit(BigDecimal amount);
}
Several different Web Beans in our system implement the
Account
interface. However, we have a common legal
requirement that, for any kind of account, large transactions must be
recorded by the system in a special log. This is a perfect job for a
decorator.
A decorator is a simple Web Bean that implements the type it
decorates and is annotated @Decorator
.
@Decorator
public abstract class LargeTransactionDecorator
implements Account {
@Decorates Account account;
@PersistenceContext EntityManager em;
public void withdraw(BigDecimal amount) {
account.withdraw(amount);
if ( amount.compareTo(LARGE_AMOUNT)>0 ) {
em.persist( new LoggedWithdrawl(amount) );
}
}
public void deposit(BigDecimal amount);
account.deposit(amount);
if ( amount.compareTo(LARGE_AMOUNT)>0 ) {
em.persist( new LoggedDeposit(amount) );
}
}
}
Unlike other simple Web Beans, a decorator may be an abstract class. If there's nothing special the decorator needs to do for a particular method of the decorated interface, you don't need to implement that method.
All decorators have a delegate attribute. The type and binding types of the delegate attribute determine which Web Beans the decorator is bound to. The delegate attribute type must implement or extend all interfaces implemented by the decorator.
This delegate attribute specifies that the decorator is bound to
all Web Beans that implement Account
:
@Decorates Account account;
A delegate attribute may specify a binding annotation. Then the decorator will only be bound to Web Beans with the same binding.
@Decorates @Foreign Account account;
A decorator is bound to any Web Bean which:
has the type of the delegate attribute as an API type, and
has all binding types that are declared by the delegate attribute.
The decorator may invoke the delegate attribute, which has much the same
effect as calling InvocationContext.proceed()
from an
interceptor.
We need to enable our decorator in
web-beans.xml
.
<Decorators>
<myapp:LargeTransactionDecorator/>
</Decorators>
This declaration serves the same purpose for decorators that the
<Interceptors>
declaration serves for interceptors:
it enables us to specify a total ordering for all decorators in our system, ensuring deterministic behavior, and
it lets us enable or disable decorator classes at deployment time.
Interceptors for a method are called before decorators that apply to that method.
The Web Beans event notification facility allows Web Beans to interact in a totally decoupled manner. Event producers raise events that are then delivered to event observers by the Web Bean manager. This basic schema might sound like the familiar observer/observable pattern, but there are a couple of twists:
not only are event producers decoupled from observers; observers are completely decoupled from producers,
observers can specify a combination of "selectors" to narrow the set of event notifications they will receive, and
observers can be notified immediately, or can specify that delivery of the event should be delayed until the end of the current transaction
An observer method is a method of a Web Bean with a
parameter annotated @Observes
.
public void onAnyDocumentEvent(@Observes Document document) { ... }
The annotated parameter is called the event parameter. The type of the event parameter is the observed event type. Observer methods may also specify "selectors", which are just instances of Web Beans binding types. When a binding type is used as an event selector, it is called an event binding type.
@BindingType
@Target({PARAMETER, FIELD})
@Retention(RUNTIME)
public @interface Updated { ... }
We specify the event bindings of the observer method by annotating the event parameter:
public void afterDocumentUpdate(@Observes @Updated Document document) { ... }
An observer method need not specify any event bindings in this case it is interested in all events of a particular type. If it does specify event bindings, it is only interested in events which also have those event bindings.
The observer method may have additional parameters, which are injected according to the usual Web Beans method parameter injection semantics:
public void afterDocumentUpdate(@Observes @Updated Document document, User user) { ... }
The event producer may obtain an event notifier object by injection:
@Observable Event<Document> documentEvent
The @Observable
annotation implicitly defines a Web Bean
with scope @Dependent
and deployment type @Standard
,
with an implementation provided by the Web Bean manager.
A producer raises events by calling the fire()
method
of the Event
interface, passing an event object:
documentEvent.fire(document);
An event object may be an instance of any Java class that has no type variables or wildcard type parameters. The event will be delivered to every observer method that:
has an event parameter to which the event object is assignable, and
specifies no event bindings.
The Web Bean manager simply calls all the observer methods, passing
the event object as the value of the event parameter. If any observer method
throws an exception, the Web Bean manager stops calling observer methods, and
the exception is rethrown by the fire()
method.
To specify a "selector", the event producer may pass an instance of the event
binding type to the fire()
method:
documentEvent.fire( document, new AnnotationLiteral<Updated>(){} );
The helper class AnnotationLiteral
makes it possible to
instantiate binding types inline, since this is otherwise difficult to do in Java.
The event will be delivered to every observer method that:
has an event parameter to which the event object is assignable, and
does not specify any event binding except for the
event bindings passed to fire()
.
Alternatively, event bindings may be specified by annotating the event notifier injection point:
@Observable @Updated Event<Document> documentUpdatedEvent
Then every event fired via this instance of Event
has
the annotated event binding. The event will be delivered to every observer method
that:
has an event parameter to which the event object is assignable, and
does not specify any event binding except for the
event bindings passed to fire()
or the annotated event
bindings of the event notifier injection point.
It's often useful to register an event observer dynamically. The application
may implement the Observer
interface and register an instance
with an event notifier by calling the observe()
method.
documentEvent.observe( new Observer<Document>() { public void notify(Document doc) { ... } } );
Event binding types may be specified by the event notifier injection point or by
passing event binding type instances to the observe()
method:
documentEvent.observe( new Observer<Document>() { public void notify(Document doc) { ... } },
new AnnotationLiteral<Updated>(){} );
An event binding type may have annotation members:
@BindingType
@Target({PARAMETER, FIELD})
@Retention(RUNTIME)
public @interface Role {
RoleType value();
}
The member value is used to narrow the messages delivered to the observer:
public void adminLoggedIn(@Observes @Role(ADMIN) LoggedIn event) { ... }
Event binding type members may be specified statically by the event producer, via annotations at the event notifier injection point:
@Observable @Role(ADMIN) Event<LoggedIn> LoggedInEvent;}}
Alternatively, the value of the event binding type member may be determined dynamically
by the event producer. We start by writing an abstract subclass of AnnotationLiteral
:
abstract class RoleBinding
extends AnnotationLiteral<Role>
implements Role {}
The event producer passes an instance of this class to fire()
:
documentEvent.fire( document, new RoleBinding() { public void value() { return user.getRole(); } } );
Event binding types may be combined, for example:
@Observable @Blog Event<Document> blogEvent;
...
if (document.isBlog()) blogEvent.fire(document, new AnnotationLiteral<Updated>(){});
When this event occurs, all of the following observer methods will be notified:
public void afterBlogUpdate(@Observes @Updated @Blog Document document) { ... }
public void afterDocumentUpdate(@Observes @Updated Document document) { ... }
public void onAnyBlogEvent(@Observes @Blog Document document) { ... }
public void onAnyDocumentEvent(@Observes Document document) { ... }}}
Transactional observers receive their event notifications during the before or
after completion phase of the transaction in which the event was raised. For example,
the following observer method needs to refresh a query result set that is cached in
the application context, but only when transactions that update the
Category
tree succeed:
public void refreshCategoryTree(@AfterTransactionSuccess @Observes CategoryUpdateEvent event) { ... }
There are three kinds of transactional observers:
@AfterTransactionSuccess
observers are called during
the after completion phase of the transaction, but only if the transaction completes
successfully
@AfterTransactionFailure
observers are called during
the after completion phase of the transaction, but only if the transaction fails to
complete successfully
@AfterTransactionCompletion
observers are called
during the after completion phase of the transaction
@BeforeTransactionCompletion
observers are called
during the before completion phase of the transaction
Transactional observers are very important in a stateful object model like Web Beans, because state is often held for longer than a single atomic transaction.
Imagine that we have cached a JPA query result set in the application scope:
@ApplicationScoped @Singleton
public class Catalog {
@PersistenceContext EntityManager em;
List<Product> products;
@Produces @Catalog
List<Product> getCatalog() {
if (products==null) {
products = em.createQuery("select p from Product p where p.deleted = false")
.getResultList();
}
return products;
}
}
From time to time, a Product
is created or deleted. When this
occurs, we need to refresh the Product
catalog. But we should wait
until after the transaction completes successfully before performing
this refresh!
The Web Bean that creates and deletes Product
s could raise
events, for example:
@Stateless
public class ProductManager {
@PersistenceContext EntityManager em;
@Observable Event<Product> productEvent;
public void delete(Product product) {
em.delete(product);
productEvent.fire(product, new AnnotationLiteral<Deleted>(){});
}
public void persist(Product product) {
em.persist(product);
productEvent.fire(product, new AnnotationLiteral<Created>(){});
}
...
}
And now Catalog
can observe the events after successful
completion of the transaction:
@ApplicationScoped @Singleton
public class Catalog {
...
void addProduct(@AfterTransactionSuccess @Observes @Created Product product) {
products.add(product);
}
void addProduct(@AfterTransactionSuccess @Observes @Deleted Product product) {
products.remove(product);
}
}
The second major theme of Web Beans is strong typing. The information about the dependencies, interceptors and decorators of a Web Bean, and the information about event consumers for an event producer, is contained in typesafe Java constructs that may be validated by the compiler.
You don't see string-based identifiers in Web Beans code, not because the framework is hiding them from you using clever defaulting rules so-called "configuration by convention" but because there are simply no strings there to begin with!
The obvious benefit of this approach is that any IDE can provide autocompletion, validation and refactoring without the need for special tooling. But there is a second, less-immediately-obvious, benefit. It turns out that when you start thinking of identifying objects, events or interceptors via annotations instead of names, you have an opportunity to lift the semantic level of your code.
Web Beans encourages you develop annotations that model concepts, for example,
@Asynchronous
,
@Mock
,
@Secure
or
@Updated
,
instead of using compound names like
asyncPaymentProcessor
,
mockPaymentProcessor
,
SecurityInterceptor
or
DocumentUpdatedEvent
.
The annotations are reusable. They help describe common qualities of disparate parts of the system. They help us categorize and understand our code. They help us deal with common concerns in a common way. They make our code more literate and more understandable.
Web Beans stereotypes take this idea a step further. A stereotype models a common role in your application architecture. It encapsulates various properties of the role, including scope, interceptor bindings, deployment type, etc, into a single reusable package.
Even Web Beans XML metadata is strongly typed! There's no compiler for XML, so Web Beans takes advantage of XML schemas to validate the Java types and attributes that appear in XML. This approach turns out to make the XML more literate, just like annotations made our Java code more literate.
We're now ready to meet some more advanced features of Web Beans. Bear in mind that these features exist to make our code both easier to validate and more understandable. Most of the time you don't ever really need to use these features, but if you use them wisely, you'll come to appreciate their power.
Table of Contents
According to the Web Beans specification:
In many systems, use of architectural patterns produces a set of recurring Web Bean roles. A stereotype allows a framework developer to identify such a role and declare some common metadata for Web Beans with that role in a central place.
A stereotype encapsulates any combination of:
a default deployment type,
a default scope type,
a restriction upon the Web Bean scope,
a requirement that the Web Bean implement or extend a certain type, and
a set of interceptor binding annotations.
A stereotype may also specify that all Web Beans with the stereotype have defaulted Web Bean names.
A Web Bean may declare zero, one or multiple stereotypes.
A stereotype is a Java annotation type. This stereotype identifies action classes in some MVC framework:
@Retention(RUNTIME)
@Target(TYPE)
@Stereotype
public @interface Action {}
We use the stereotype by applying the annotation to a Web Bean.
@Action
public class LoginAction { ... }
A stereotype may specify a default scope and/or default deployment
type for Web Beans with that stereotype. For example, if the deployment
type @WebTier
identifies Web Beans that should only
be deployed when the system executes as a web application, we might
specify the following defaults for action classes:
@Retention(RUNTIME)
@Target(TYPE)
@RequestScoped
@WebTier
@Stereotype
public @interface Action {}
Of course, a particular action may still override these defaults if necessary:
@Dependent @Mock @Action
public class MockLoginAction { ... }
If we want to force all actions to a particular scope, we can do that too.
Suppose that we wish to prevent actions from declaring certain scopes. Web Beans lets us explicitly specify the set of allowed scopes for Web Beans with a certain stereotype. For example:
@Retention(RUNTIME)
@Target(TYPE)
@RequestScoped
@WebTier
@Stereotype(supportedScopes=RequestScoped.class)
public @interface Action {}
If a particular action class attempts to specify a scope other than the Web Beans request scope, an exception will be thrown by the Web Bean manager at initialization time.
We can also force all Web Bean with a certain stereotype to implement an interface or extend a class:
@Retention(RUNTIME)
@Target(TYPE)
@RequestScoped
@WebTier
@Stereotype(requiredTypes=AbstractAction.class)
public @interface Action {}
If a particular action class does not extend the class
AbstractAction
, an exception will be thrown by the
Web Bean manager at initialization time.
A stereotype may specify a set of interceptor bindings to be inherited by all Web Beans with that stereotype.
@Retention(RUNTIME)
@Target(TYPE)
@RequestScoped
@Transactional(requiresNew=true)
@Secure
@WebTier
@Stereotype
public @interface Action {}
This helps us get technical concerns even further away from the business code!
Finally, we can specify that all Web Beans with a certain stereotype
have a Web Bean name, defaulted by the Web Bean manager. Actions are often
referenced in JSP pages, so they're a perfect use case for this feature.
All we need to do is add an empty @Named
annotation:
@Retention(RUNTIME)
@Target(TYPE)
@RequestScoped
@Transactional(requiresNew=true)
@Secure
@Named
@WebTier
@Stereotype
public @interface Action {}
Now, LoginAction
will have the name
loginAction
.
We've already met two standard stereotypes defined by the Web Beans
specification: @Interceptor
and @Decorator
.
Web Beans defines one further standard stereotype:
@Named
@RequestScoped
@Stereotype
@Target({TYPE, METHOD})
@Retention(RUNTIME)
public @interface Model {}
This stereotype is intended for use with JSF. Instead of using JSF
managed beans, just annotate a Web Bean @Model
, and
use it directly in your JSF page.
We've already seen how the Web Beans dependency injection model lets
us override the implementation of an API at deployment
time. For example, the following enterprise Web Bean provides an implementation
of the API PaymentProcessor
in production:
@CreditCard @Stateless
public class CreditCardPaymentProcessor
implements PaymentProcessor {
...
}
But in our staging environment, we override that implementation of
PaymentProcessor
with a different Web Bean:
@CreditCard @Stateless @Staging
public class StagingCreditCardPaymentProcessor
implements PaymentProcessor {
...
}
What we've tried to do with StagingCreditCardPaymentProcessor
is to completely replace AsyncPaymentProcessor
in a particular
deployment of the system. In that deployment, the deployment type @Staging
would have a higher priority than the default deployment type @Production
,
and therefore clients with the following injection point:
@CreditCard PaymentProcessor ccpp
Would receive an instance of StagingCreditCardPaymentProcessor
.
Unfortunately, there are several traps we can easily fall into:
the higher-priority Web Bean may not implement all the API types of the Web Bean that it attempts to override,
the higher-priority Web Bean may not declare all the binding types of the Web Bean that it attempts to override,
the higher-priority Web Bean might not have the same name as the Web Bean that it attempts to override, or
the Web Bean that it attempts to override might declare a producer method, disposal method or observer method.
In each of these cases, the Web Bean that we tried to override could still be called at runtime. Therefore, overriding is somewhat prone to developer error.
Web Beans provides a special feature, called specialization, that helps the developer avoid these traps. Specialization looks a little esoteric at first, but it's easy to use in practice, and you'll really appreciate the extra security it provides.
Specialization is a feature that is specific to simple and enterprise Web Beans. To make use of specialization, the higher-priority Web Bean must:
be a direct subclass of the Web Bean it overrides, and
be a simple Web Bean if the Web Bean it overrides is a simple Web Bean or an enterprise Web Bean if the Web Bean it overrides is an enterprise Web Bean, and
be annotated @Specializes
.
@Stateless @Staging @Specializes
public class StagingCreditCardPaymentProcessor
extends CreditCardPaymentProcessor {
...
}
We say that the higher-priority Web Bean specializes its superclass.
When specialization is used:
the binding types of the superclass are automatically inherited by the
Web Bean annotated @Specializes
, and
the Web Bean name of the superclass is automatically inherited by the
Web Bean annotated @Specializes
, and
producer methods, disposal methods and observer methods declared by the
superclass are called upon an instance of the Web Bean annotated
@Specializes
.
In our example, the binding type @CreditCard
of
CreditCardPaymentProcessor
is inherited by
StagingCreditCardPaymentProcessor
.
Furthermore, the Web Bean manager will validate that:
all API types of the superclass are API types of the Web Bean
annotated @Specializes
(all local interfaces
of the superclass enterprise bean are also local interfaces of the
subclass),
the deployment type of the Web Bean annotated
@Specializes
has a higher precedence than the
deployment type of the superclass, and
there is no other enabled Web Bean that also specializes the superclass.
If any of these conditions are violated, the Web Bean manager throws an exception at initialization time.
Therefore, we can be certain that the superclass will never
be called in any deployment of the system where the Web Bean annotated
@Specializes
is deployed and enabled.
So far, we've seen plenty of examples of Web Beans declared using annotations. However, there are a couple of occasions when we can't use annotations to define the Web Bean:
when the implementation class comes from some preexisting library, or
when there should be multiple Web Beans with the same implementation class.
In either of these cases, Web Beans gives us two options:
write a producer method, or
declare the Web Bean using XML.
Many frameworks use XML to provide metadata relating to Java classes. However, Web Beans uses a very different approach to specifying the names of Java classes, fields or methods to most other frameworks. Instead of writing class and member names as the string values of XML elements and attributes, Web Beans lets you use the class or member name as the name of the XML element.
The advantage of this approach is that you can write an XML schema that prevents spelling errors in your XML document. It's even possible for a tool to generate the XML schema automatically from the compiled Java code. Or, an integrated development environment could perform the same validation without the need for the explicit intermediate generation step.
For each Java package, Web Beans defines a corresponding XML namespace. The
namespace is formed by prepending urn:java:
to the Java package
name. For the package com.mydomain.myapp
, the XML namespace is
urn:java:com.mydomain.myapp
.
Java types belonging to a package are referred to using an XML element in the namespace corresponding to the package. The name of the element is the name of the Java type. Fields and methods of the type are specified by child elements in the same namespace. If the type is an annotation, members are specified by attributes of the element.
For example, the element <util:Date/>
in the following
XML fragment refers to the class java.util.Date
:
<WebBeans xmlns="urn:java:javax.webbeans"
xmlns:util="urn:java:java.util">
<util:Date/>
</WebBeans>
And this is all the code we need to declare that Date
is
a simple Web Bean! An instance of Date
may now be injected by
any other Web Bean:
@Current Date date
We can declare the scope, deployment type and interceptor binding types using direct child elements of the Web Bean declaration:
<myapp:ShoppingCart>
<SessionScoped/>
<myfwk:Transactional requiresNew="true"/>
<myfwk:Secure/>
</myapp:ShoppingCart>
We use exactly the same approach to specify names and binding type:
<util:Date>
<Named>currentTime</Named>
</util:Date>
<util:Date>
<SessionScoped/>
<myapp:Login/>
<Named>loginTime</Named>
</util:Date>
<util:Date>
<ApplicationScoped/>
<myapp:SystemStart/>
<Named>systemStartTime</Named>
</util:Date>
Where @Login
and @SystemStart
are
binding annotations types.
@Current Date currentTime;
@Login Date loginTime;
@SystemStart Date systemStartTime;
As usual, a Web Bean may support multiple binding types:
<myapp:AsynchronousChequePaymentProcessor>
<myapp:PayByCheque/>
<myapp:Asynchronous/>
</myapp:AsynchronousChequePaymentProcessor>
Interceptors and decorators are just simple Web Beans, so they may be declared just like any other simple Web Bean:
<myfwk:TransactionInterceptor>
<Interceptor/>
<myfwk:Transactional/>
</myfwk:TransactionInterceptor>
Web Beans lets us define a Web Bean at an injection point. For example:
<myapp:System>
<ApplicationScoped/>
<myapp:admin>
<myapp:Name>
<myapp:firstname>Gavin</myapp:firstname>
<myapp:lastname>King</myapp:lastname>
<myapp:email>gavin@hibernate.org</myapp:email>
</myapp:Name>
</myapp:admin>
</myapp:System>
The <Name>
element declares a simple Web Bean of
scope @Dependent
and class Name
, with a
set of initial field values. This Web Bean has a special, container-generated
binding and is therefore injectable only to the specific injection point at
which it is declared.
This simple but powerful feature allows the Web Beans XML format to be used to specify whole graphs of Java objects. It's not quite a full databinding solution, but it's close!
If we want our XML document format to be authored by people who aren't Java developers, or who don't have access to our code, we need to provide a schema. There's nothing specific to Web Beans about writing or using the schema.
<WebBeans xmlns="urn:java:javax.webbeans"
xmlns:myapp="urn:java:com.mydomain.myapp"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="urn:java:javax.webbeans http://java.sun.com/jee/web-beans-1.0.xsd
urn:java:com.mydomain.myapp http://mydomain.com/xsd/myapp-1.2.xsd">
<myapp:System>
...
</myapp:System>
</WebBeans>
Writing an XML schema is quite tedious. Therefore, the Web Beans RI project will provide a tool which automatically generates the XML schema from compiled Java code.
The third theme of Web Beans is integration. Web Beans was designed to work in concert with other technologies, helping the application developer fit the other technologies together. Web Beans is an open technology. It forms a part of the Java EE ecosystem, and is itself the foundation for a new ecosystem of portable extensions and integration with existing frameworks and technologies.
We've already seen how Web Beans helps integrate EJB and JSF, allowing EJBs to be bound directly to JSF pages. That's just the beginning. Web Beans offers the same potential to diverse other technologies, such as Business Process Management engines, other Web Frameworks, and third-party component models. The Java EE platform will never be able to standardize all the interesting technologies that are used in the world of Java application development, but Web Beans makes it easier to use the technologies which are not yet part of the platform seamlessly within the Java EE environment.
We're about to see how to take full advantage of the Java EE platform in an application that uses Web Beans. We'll also briefly meet a set of SPIs that are provided to support portable extensions to Web Beans. You might not ever need to use these SPIs directly, but it's nice to know they are there if you need them. Most importantly, you'll take advantage of them indirectly, every time you use a third-party extension.
Table of Contents
Web Beans is fully integrated into the Java EE environment. Web Beans have access to Java EE resources and JPA persistence contexts. They may be used in Unified EL expressions in JSF and JSP pages. They may even be injected into some objects, such as Servlets and Message-Driven Beans, which are not Web Beans.
All simple and enterprise Web Beans may take advantage of Java EE dependency
injection using @Resource
, @EJB
and
@PersistenceContext
. We've already seen a couple of examples of
this, though we didn't pay much attention at the time:
@Transactional @Interceptor
public class TransactionInterceptor {
@Resource Transaction transaction;
@AroundInvoke public Object manageTransaction(InvocationContext ctx) { ... }
}
@SessionScoped
public class Login {
@Current Credentials credentials;
@PersistenceContext EntityManager userDatabase;
...
}
The Java EE @PostConstruct
and
@PreDestroy
callbacks are also supported for all simple
and enterprise Web Beans. The @PostConstruct
method is
called after all injection has been performed.
There is one restriction to be aware of here:
@PersistenceContext(type=EXTENDED)
is not supported
for simple Web Beans.
It's easy to use a Web Bean from a Servlet in Java EE 6. Simply inject the Web Bean using Web Beans field or initializer method injection.
public class Login extends HttpServlet {
@Current Credentials credentials;
@Current Login login;
@Override
public void service(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
credentials.setUsername( request.getAttribute("username") ):
credentials.setPassword( request.getAttribute("password") ):
login.login();
if ( login.isLoggedIn() ) {
response.sendRedirect("/home.jsp");
}
else {
response.sendRedirect("/loginError.jsp");
}
}
}
The Web Beans client proxy takes care of routing method invocations from
the Servlet to the correct instances of Credentials
and
Login
for the current request and HTTP session.
Web Beans injection applies to all EJBs, even when they aren't under the
control of the Web Bean manager (if they were obtained by direct JNDI lookup,
or injection using @EJB
, for example. In particular, you can
use Web Beans injection in Message-Driven Beans, which are not considered Web
Beans because you can't inject them.
You can even use Web Beans interceptor bindings for Message-Driven Beans.
@Transactional @MessageDriven
public class ProcessOrder implements MessageListener {
@Current Inventory inventory;
@PersistenceContext EntityManager em;
public void onMessage(Message message) {
...
}
}
Thus, receiving messages is super-easy in a Web Beans environment. But
beware that there is no session or conversation context available when a message
is delivered to a Message-Driven Bean. Only @RequestScoped
and
@ApplicationScoped
Web Beans are available.
It's also easy to send messages using Web Beans.
Sending messages using JMS can be quite complex, because of the number of
different objects you need to deal with. For queues we have Queue
,
QueueConnectionFactory
, QueueConnection
,
QueueSession
and QueueSender
. For topics we
have Topic
, TopicConnectionFactory
,
TopicConnection
, TopicSession
and
TopicPublisher
. Each of these objects has its own lifecycle and
threading model that we need to worry about.
Web Beans takes care of all this for us. All we need to do is declare the
queue or topic in web-beans.xml
, specifying an associated
binding type and connection factory.
<Queue>
<destination>java:comp/env/jms/OrderQueue</destination>
<connectionFactory>java:comp/env/jms/QueueConnectionFactory</connectionFactory>
<myapp:OrderProcessor/>
</Queue>
<Topic>
<destination>java:comp/env/jms/StockPrices</destination>
<connectionFactory>java:comp/env/jms/TopicConnectionFactory</connectionFactory>
<myapp:StockPrices/>
</Topic>
Now we can just inject the Queue
,
QueueConnection
, QueueSession
or
QueueSender
for a queue, or the Topic
,
TopicConnection
, TopicSession
or
TopicPublisher
for a topic.
@OrderProcessor QueueSender orderSender;
@OrderProcessor QueueSession orderSession;
public void sendMessage() {
MapMessage msg = orderSession.createMapMessage();
...
orderSender.send(msg);
}
@StockPrices TopicPublisher pricePublisher;
@StockPrices TopicSession priceSession;
public void sendMessage(String price) {
pricePublisher.send( priceSession.createTextMessage(price) );
}
The lifecycle of the injected JMS objects is completely controlled by the Web Bean manager.
Web Beans doesn't define any special deployment archive. You can package
Web Beans in JARs, EJB-JARs or WARs any deployment location in the application
classpath. However, each archive that contains Web Beans must include a file named
web-beans.xml
in the META-INF
or
WEB-INF
directory. The file may be empty. Web Beans deployed in
archives that do not have a web-beans.xml
file will not be available
for use in the application.
For Java SE execution, Web Beans may be deployed in any location in which
EJBs may be deployed for execution by the embeddable EJB Lite container. Again,
each location must contain a web-beans.xml
file.
Web Beans is intended to be a platform for frameworks, extensions and integration with other technologies. Therefore, Web Beans exposes a set of SPIs for the use of developers of portable extensions to Web Beans. For example, the following kinds of extensions were envisaged by the designers of Web Beans:
integration with Business Process Management engines,
integration with third-party frameworks such as Spring, Seam, GWT or Wicket, and
new technology based upon the Web Beans programming model.
The nerve center for extending Web Beans is the Manager
object.
The Manager
interface lets us register and obtain
Web Beans, interceptors, decorators, observers and contexts programatically.
public interface Manager
{
public <T> Set<Bean<T>> resolveByType(Class<T> type, Annotation... bindings);
public <T> Set<Bean<T>> resolveByType(TypeLiteral<T> apiType,
Annotation... bindings);
public <T> T getInstanceByType(Class<T> type, Annotation... bindings);
public <T> T getInstanceByType(TypeLiteral<T> type,
Annotation... bindings);
public Set<Bean<?>> resolveByName(String name);
public Object getInstanceByName(String name);
public <T> T getInstance(Bean<T> bean);
public void fireEvent(Object event, Annotation... bindings);
public Context getContext(Class<? extends Annotation> scopeType);
public Manager addContext(Context context);
public Manager addBean(Bean<?> bean);
public Manager addInterceptor(Interceptor interceptor);
public Manager addDecorator(Decorator decorator);
public <T> Manager addObserver(Observer<T> observer, Class<T> eventType,
Annotation... bindings);
public <T> Manager addObserver(Observer<T> observer, TypeLiteral<T> eventType,
Annotation... bindings);
public <T> Manager removeObserver(Observer<T> observer, Class<T> eventType,
Annotation... bindings);
public <T> Manager removeObserver(Observer<T> observer,
TypeLiteral<T> eventType, Annotation... bindings);
public <T> Set<Observer<T>> resolveObservers(T event, Annotation... bindings);
public List<Interceptor> resolveInterceptors(InterceptionType type,
Annotation... interceptorBindings);
public List<Decorator> resolveDecorators(Set<Class<?>> types,
Annotation... bindings);
}
We can obtain an instance of Manager
via injection:
@Current Manager manager
Instances of the abstract class Bean
represent
Web Beans. There is an instance of Bean
registered
with the Manager
object for every Web Bean in the
application.
public abstract class Bean<T> {
private final Manager manager;
protected Bean(Manager manager) {
this.manager=manager;
}
protected Manager getManager() {
return manager;
}
public abstract Set<Class> getTypes();
public abstract Set<Annotation> getBindingTypes();
public abstract Class<? extends Annotation> getScopeType();
public abstract Class<? extends Annotation> getDeploymentType();
public abstract String getName();
public abstract boolean isSerializable();
public abstract boolean isNullable();
public abstract T create();
public abstract void destroy(T instance);
}
It's possible to extend the Bean
class and
register instances by calling Manager.addBean()
to
provide support for new kinds of Web Beans, beyond those defined by the
Web Beans specification (simple and enterprise Web Beans, producer
methods and JMS endpoints). For example, we could use the
Bean
class to allow objects managed by another framework
to be injected into Web Beans.
There are two subclasses of Bean
defined by the
Web Beans specification: Interceptor
and
Decorator
.
The Context
interface supports addition of new
scopes to Web Beans, or extension of the built-in scopes to new environments.
public interface Context {
public Class<? extends Annotation> getScopeType();
public <T> T get(Bean<T> bean, boolean create);
boolean isActive();
}
For example, we might implement Context
to add a
business process scope to Web Beans, or to add support for the conversation
scope to an application that uses Wicket.
Because Web Beans is so new, there's not yet a lot of information available online.
Of course, the Web Beans specification is the best source of more
information about Web Beans. The spec is about 100 pages long, only
twice the length of this article, and almost as readable. But, of course,
it covers many details that we've skipped over. The spec is available
from http://jcp.org/en/jsr/detail?id=299
.
The Web Beans Reference implementation is being developed at
http://seamframework.org/WebBeans
. The RI development
team and the Web Beans spec lead blog at http://in.relation.to
.
This article is substantially based upon a series of blog entries published
there.
Web Beans is the reference implementation of JSR-299, and is used by JBoss AS and Glassfish to provide JSR-299 services for Java Enterprise Edition applications. Web Beans also goes beyond the environments and APIs defined by the JSR-299 specification and provides support for a number of other environments (such as a servlet container such as Tomcat, or Java SE) and additional APIs and modules (such as logging, XSD generation for the JSR-299 XML deployment descriptors).
If you want to get started quickly using Web Beans with JBoss AS or Tomcat and experiment with one of the examples, take a look at Chapter 3, Getting started with Web Beans, the Reference Implementation of JSR-299. Otherwise read on for a exhaustive discussion of using Web Beans in all the environments and application servers it supports, as well the Web Beans extensions.
No special configuration of your application, beyond adding either
META-INF/beans.xml
or
WEB-INF/beans.xml
is needed.
If you are using JBoss AS 5.0.1.GA then you'll need to install Web
Beans as an extra. First we need to tell Web Beans where JBoss is located. Edit
jboss-as/build.properties
and set the
jboss.home
property. For example:
jboss.home=/Applications/jboss-5.0.1.GA
Now we can install Web Beans:
$ cd webbeans-$VERSION/jboss-as $ ant update
A new deployer,
webbeans.deployer
is added to JBoss AS. This adds supports for
JSR-299 deployments to JBoss AS, and allows Web Beans to query the
EJB3 container and discover which EJBs are installed in your
application.
Web Beans is built into all releases of JBoss AS from 5.1 onwards.
Web Beans can be used in any Servlet container such as Tomcat 6.0 or Jetty 6.1.
Web Beans doesn't support deploying session beans, injection using
@EJB
, or
@PersistenceContext
or using transactional events
in Servlet containers.
Web Beans should be used as a web application library in a servlet
container. You should place webbeans-servlet.jar
in
WEB-INF/lib
. webbeans-serv;et.jar
is an "uber-jar" provided for your convenience. Instead, you could use
its component jars:
jsr299-api.jar
webbeans-api.jar
webbeans-spi.jar
webbeans-core.jar
webbeans-logging.jar
webbeans-servlet-int.jar
javassist.jar
dom4j.jar
You also need to explicitly specify the servlet listener (used to
boot Web Beans, and control its interaction with requests) in
web.xml
:
<listener> <listener-class>org.jboss.webbeans.environment.servlet.Listener</listener-class> </listener>
Tomcat has a read-only JNDI, so Web Beans can't automatically bind
the Manager. To bind the Manager into JNDI, you should add the
following to your META-INF/context.xml
:
<Resource name="app/Manager" auth="Container" type="javax.inject.manager.Manager" factory="org.jboss.webbeans.resources.ManagerObjectFactory"/>
and make it available to your deployment by adding this to
web.xml
:
<resource-env-ref> <resource-env-ref-name> app/Manager </resource-env-ref-name> <resource-env-ref-type> javax.inject.manager.Manager </resource-env-ref-type> </resource-env-ref>
Tomcat only allows you to bind entries to
java:comp/env
, so the Manager will be available
at java:comp/env/app/Manager
Web Beans also supports Servlet injection in Tomcat. To enable this,
place the webbeans-tomcat-support.jar
in
$TOMCAT_HOME/lib
, and add the following to your
META-INF/context.xml
:
<Listener className="org.jboss.webbeans.environment.tomcat.WebBeansLifecycleListener" />
Apart from improved integration of the Enterprise Java stack, Web Beans also provides a state of the art typesafe, stateful dependency injection framework. This is useful in a wide range of application types, enterprise or otherwise. To facilitate this, Web Beans provides a simple means for executing in the Java Standard Edition environment independently of any Enterprise Edition features.
When executing in the SE environment the following features of Web Beans are available:
Simple Web Beans (POJOs)
Typesafe Dependency Injection
Application and Dependent Contexts
Binding Types
Stereotypes
Typesafe Event Model
To make life easy for developers Web Beans provides a special module with a
main method which will boot the Web Beans manager,
automatically registering all simple Web Beans found on the classpath.
This eliminates the need for application developers to write any
bootstrapping code. The entry point for a Web Beans SE applications
is a simple Web Bean which observes the standard @Deployed
Manager
event. The command line paramters can be
injected using either of the following:
@Parameters List<String> params;
@Parameters String[] paramsArray; // useful for compatability with existing classes
Here's an example of a simple Web Beans SE application:
@ApplicationScoped
public class HelloWorld
{
@Parameters List<String> parameters;
public void printHello( @Observes @Deployed Manager manager )
{
System.out.println( "Hello " + parameters.get(0) );
}
}
Web Beans SE applications are started by running the following main method.
java org.jboss.webbeans.environments.se.StartMain <args>
If you need to do any custom initialization of the Web Beans manager,
for example registering custom contexts or initializing resources for
your beans you can do so in response to the @Initialized Manager
event. The following example registers a custom context:
public class PerformSetup
{
public void setup( @Observes @Initialized Manager manager )
{
manager.addContext( ThreadContext.INSTANCE );
}
}
The command line parameters do not become available for injection
until the @Deployed Manager
event is fired. If you
need access to the parameters during initialization you can do so via the
public static String getParameters()
method in
StartMain
.
These modules are usable on any JSR-299 implementation, not just Web Beans!
Adding logging to your application is now even easier with simple injection of a logger object into any JSR-299 bean. Simply annotate a org.jboss.webbeans.log.Log type member with @Logger and an appropriate logger object will be injected into any instance of the bean.
public class Checkout {
import org.jboss.webbeans.annotation.Logger;
import org.jboss.webbeans.log.Log;
@Logger
private Log log;
void invoiceItems() {
ShoppingCart cart;
. . .
log.debug("Items invoiced for {0}", cart);
}
}
The example shows how objects can be interpolated into a message. This interpolation is done using java.text.MessageFormat, so see the JavaDoc for that class for more details. In this case, the ShoppingCart should have implemented the toString() method to produce a human readable value that is meaningful in messages. Normally, this call would have involved evaluating cart.toString() with String concatenation to produce a single String argument. Thus it was necessary to surround the call with an if-statement using the condition log.isDebugEnabled() to avoid the expensive String concatenation if the message was not actually going to be used. However, when using @Logger injected logging, the conditional test can be left out since the object arguments are not evaluated unless the message is going to be logged.
You can add the Web Beans Logger to your project by including
webbeans-logger.jar and webbeans-logging.jar to your project.
Alternatively, express a dependency on the
org.jboss.webbeans:webbeans-logger
Maven
artifact.
If you are using Web Beans as your JSR-299 implementation, there is
no need to include webbeans-logging.jar
as it's
already included.
Each wicket application must have a
WebApplication
subclass; Web Beans provides, for
your utility, a subclass of this which sets up the Wicket/JSR-299
integration. You should subclass
org.jboss.webbeans.wicket.WebBeansApplication
.
If you would prefer not to subclass
WebBeansApplication
, you can manually add a
(small!) number of overrides and listeners to your own
WebApplication
subclass. The javadocs of
WebBeansApplication
detail this.
For example:
public class SampleApplication extends WebBeansApplication { @Override public Class getHomePage() { return HomePage.class; } }
The conversation scope can be used in Web Beans with the Apache
Wicket web framework, through the webbeans-wicket
module. This module takes care of:
Setting up the conversation context at the beginning of a Wicket request, and tearing it down afterwards
Storing the id of any long-running conversation in Wicket's metadata when the page response is complete
Activating the correct long-running conversation based upon which page is being accessed
Propagating the conversation context for any long-running conversation to new pages
As JSF applications, a conversation
always exists for any request, but its
lifetime is only that of the current request unless it is
marked as long-running. For Wicket
applications this is accomplished as in JSF applications, by
injecting the @Current Conversation
and
then invoking conversation.begin()
.
Likewise, conversations are ended with
conversation.end()
When a conversation is marked as long-running, the id of that
conversation will be stored in Wicket's metadata for the current
page. If a new page is created and set as the response target
through setResponsePage
, this new page will
also participate in this conversation. This occurs for both
directly instantiated pages
(setResponsePage(new OtherPage())
), as well as
for bookmarkable pages created with
setResponsePage(OtherPage.class)
where
OtherPage.class
is mounted as bookmarkable
from your WebApplication
subclass (or through
annotations). In the latter case, because the new page instance
is not created until after a redirect, the conversation id will
be propagated through a request parameter, and then stored in
page metadata after the redirect.
Currently Web Beans only runs in JBoss AS 5; integrating the RI into other EE environments (for example another application server like Glassfish), into a servlet container (like Tomcat), or with an Embedded EJB3.1 implementation is fairly easy. In this Appendix we will briefly discuss the steps needed.
The Web Beans SPI is located in the webbeans-spi
module, and packaged as webbeans-spi.jar
. Some
SPIs are optional, if you need to override the default behavior,
others are required.
All interfaces in the SPI support the decorator pattern and provide a
Forwarding
class located in the
helpers
sub package. Additional, commonly used,
utility classes, and standard implementations are also located in the
helpers
sub package.
/**
* Gets list of all classes in classpath archives with META-INF/beans.xml (or
* for WARs WEB-INF/beans.xml) files
*
* @return An iterable over the classes
*/
public Iterable<Class<?>> discoverWebBeanClasses();
/**
* Gets a list of all deployment descriptors in the app classpath
*
* @return An iterable over the beans.xml files
*/
public Iterable<URL> discoverWebBeansXml();
The discovery of Web Bean classes and beans.xml
files is self-explanatory (the algorithm is described in Section 11.1
of the JSR-299 specification, and isn't repeated here).
Web Beans will run without an EJB container; in this case you don't need to implement the EJB SPI.
Web Beans also delegates EJB3 bean discovery to the container
so that it doesn't have to scan for EJB3 annotations or parse
ejb-jar.xml
. For each EJB in the application an
EJBDescriptor should be discovered:
public interface EjbDescriptor<T>
{
/**
* Gets the EJB type
*
* @return The EJB Bean class
*/
public Class<T> getType();
/**
* Gets the local business interfaces of the EJB
*
* @return An iterator over the local business interfaces
*/
public Iterable<BusinessInterfaceDescriptor<?>> getLocalBusinessInterfaces();
/**
* Gets the remote business interfaces of the EJB
*
* @return An iterator over the remote business interfaces
*/
public Iterable<BusinessInterfaceDescriptor<?>> getRemoteBusinessInterfaces();
/**
* Get the remove methods of the EJB
*
* @return An iterator over the remove methods
*/
public Iterable<Method> getRemoveMethods();
/**
* Indicates if the bean is stateless
*
* @return True if stateless, false otherwise
*/
public boolean isStateless();
/**
* Indicates if the bean is a EJB 3.1 Singleton
*
* @return True if the bean is a singleton, false otherwise
*/
public boolean isSingleton();
/**
* Indicates if the EJB is stateful
*
* @return True if the bean is stateful, false otherwise
*/
public boolean isStateful();
/**
* Indicates if the EJB is and MDB
*
* @return True if the bean is an MDB, false otherwise
*/
public boolean isMessageDriven();
/**
* Gets the EJB name
*
* @return The name
*/
public String getEjbName();
The EjbDescriptor
is fairly self-explanatory,
and should return the relevant metadata as defined in the EJB
specification. In addition to these two interfaces, there is
BusinessInterfaceDescriptor
which represents a
local business interface (encapsulating the interface class and
jndi name used to look up an instance of the EJB).
The resolution of @EJB
(for injection into simple
beans), the resolution of local EJBs (for backing session beans) and
remote EJBs (for injection as a Java EE resource) is delegated to
the container. You must provide an implementation of
org.jboss.webbeans.ejb.spi.EjbServices
which
provides these operations. For resolving the @EJB
injection point, Web Beans will provide the
InjectionPoint
; for resolving local EJBs, the
EjbDescriptor
will be provided, and for remote
EJBs the jndiName
, mappedName
,
or ejbLink
will be provided.
When resolving local EJBs (used to back session beans) a wrapper
(SessionObjectReference
) around the EJB reference
is returned. This wrapper allows Web Beans to request a reference
that implements the given business interface, and, in the case of
SFSBs, request the removal of the EJB from the container.
Just as EJB resolution is delegated to the container, resolution of
@PersistenceContext
for injection into simple
beans (with the InjectionPoint
provided),
and resolution of persistence contexts and persistence units (with
the unitName
provided) for injection as a Java EE
resource is delegated to the container.
To allow JPA integration, the JpaServices
interface should be implemented.
Web Beans also needs to know what entities are in a deployment (so
that they aren't managed by Web Beans). An implementation that
detects entities through @Entity
and
orm.xml
is provided by default. If you want to
provide support for a entities defined by a JPA provider (such as
Hibernate's .hbm.xml
you can wrap or replace the
default implementation.
EntityDiscovery delegate = bootstrap.getServices().get(EntityDiscovery.class);
Web Beans must delegate JTA activities to the container. The SPI
provides a couple hooks to easily achieve this with the
TransactionServices
interface.
public interface TransactionServices
{
/**
* Possible status conditions for a transaction. This can be used by SPI
* providers to keep track for which status an observer is used.
*/
public static enum Status
{
ALL, SUCCESS, FAILURE
}
/**
* Registers a synchronization object with the currently executing
* transaction.
*
* @see javax.transaction.Synchronization
* @param synchronizedObserver
*/
public void registerSynchronization(Synchronization synchronizedObserver);
/**
* Queries the status of the current execution to see if a transaction is
* currently active.
*
* @return true if a transaction is active
*/
public boolean isTransactionActive();
}
The enumeration Status
is a convenience for
implementors to be able to keep track of whether a synchronization
is supposed to notify an observer only when the transaction is
successful, or after a failure, or regardless of the status of the
transaction.
Any javax.transaction.Synchronization
implementation may be passed to the
registerSynchronization()
method and the SPI
implementation should immediately register the synchronization with
the JTA transaction manager used for the EJBs.
To make it easier to determine whether or not a transaction is
currently active for the requesting thread, the
isTransactionActive()
method can be used. The SPI
implementation should query the same JTA transaction manager used
for the EJBs.
A number of JMS operations are not container specific, and so should
be provided via the SPI JmsServices
.
JMS does not specify how to obtain a
ConnectionFactory
so the SPI provides a method
which should be used to look up a factory. Web Beans also delegates
Destination
lookup to the container via the SPI.
The resolution of @Resource
(for injection into simple
beans) and the resolution of resources (for injection as a Java EE
resource) is delegated to the container. You must provide an
implementation of ResourceServices
which
provides these operations. For resolving the
@Resource
injection, Web Beans will provide the
InjectionPoint
; and for Java EE resources, the
jndiName
or mappedName
will be
provided.
The resolution of web service references (for injection as a Java EE
resource) is delegated to the container. You must provide an
implementation of WebServices
whichprovides this
operation. For resolving the Java EE resource, the
jndiName
or mappedName
will be
provided.
Web Beans uses a map like structure to store bean instances -
org.jboss.webbeans.context.api.BeanStore
. You may
find
org.jboss.webbeans.context.api.helpers.ConcurrentHashMapBeanStore
useful.
Web Beans expects the Application Server or other container to
provide the storage for each application's context. The
org.jboss.webbeans.context.api.BeanStore
should
be implemented to provide an application scoped storage.
The org.jboss.webbeans.bootstrap.api.Bootstrap
interface defines the bootstrap for Web Beans. To boot Web Beans,
you must obtain an instance of
org.jboss.webbeans.bootstrap.WebBeansBootstrap
(which implements Boostrap
), tell it about the
SPIs in use, and then request the container start.
The bootstrap is split into phases, bootstrap initialization and boot and shutdown. Initialization will create a manager, and add the standard (specification defined) contexts. Bootstrap will discover EJBs, classes and XML; add beans defined using annotations; add beans defined using XML; and validate all beans.
The bootstrap supports multiple environments. An environment is
defined by an implementation of the Environment
interface. A number of standard envrionments are built in as the
enumeration Environments
. Different environments
require different services to be present (for example servlet
doesn't require transaction, EJB or JPA services). By default an
EE environment is assumed, but you can adjust the environment by
calling bootstrap.setEnvironment()
.
Web Beans uses a generic-typed service registry to allow services to
be registered. All services implement the Service
interface. The service registry allows services to be added and
retrieved.
To initialize the bootstrap you call
Bootstrap.initialize()
. Before calling
initialize()
, you must register any services
required by your environment. You can do this by calling
bootstrap.getServices().add(JpaServices.class, new MyJpaServices())
.
You must also provide the application context bean store.
Having called initialize()
, the
Manager
can be obtained by calling
Bootstrap.getManager()
.
To boot the container you call Bootstrap.boot()
.
To shutdown the container you call
Bootstrap.shutdown()
or
webBeansManager.shutdown()
. This allows the
container to perform any cleanup operations needed.
Web Beans delegates all JNDI operations to the container through the SPI.
A number of the SPI interface require JNDI lookup, and the class
AbstractResourceServices
provides JNDI/Java EE
spec compliant lookup methods.
Web Beans needs to load classes and resources from the classpath at
various times. By default, they are loaded from the Thread Context
ClassLoader if available, if not the same classloader that was used
to load Web Beans, however this may not be correct for some
environments. If this is case, you can implement
org.jboss.webbeans.spi.ResourceLoader
:
public interface ResourceLoader {
/**
* Creates a class from a given FQCN
*
* @param name The name of the clsas
* @return The class
*/
public Class<?> classForName(String name);
/**
* Gets a resource as a URL by name
*
* @param name The name of the resource
* @return An URL to the resource
*/
public URL getResource(String name);
/**
* Gets resources as URLs by name
*
* @param name The name of the resource
* @return An iterable reference to the URLS
*/
public Iterable<URL> getResources(String name);
}
Java EE / Servlet does not provide any hooks which can be used to provide injection into Servlets, so Web Beans provides an API to allow the container to request JSR-299 injection for a Servlet.
To be compliant with JSR-299, the container should request servlet injection for each newly instantiated servlet after the constructor returns and before the servlet is placed into service.
To perform injection on a servlet call
WebBeansManager.injectServlet()
. The manager
can be obtained from Bootstrap.getManager()
.
There are a number of requirements that the Web Beans RI places on the container for correct functioning that fall outside implementation of APIs
If you are integrating the Web Beans RI into an environment that supports deployment of multiple applications, you must enable, automatically, or through user configuation, classloader isolation for each Web Beans application.
If you are integrating the Web Beans into a Servlet
environment you must register
org.jboss.webbeans.servlet.WebBeansListener
as a Servlet listener, either automatically, or through user
configuration, for each Web Beans application which uses
Servlet.
If you are integrating the Web Beans into a JSF
environment you must register
org.jboss.webbeans.jsf.WebBeansPhaseListener
as a phase listener, and
org.jboss.webbeans.el.WebBeansELREsolver
as
an EL resolver, either automatically, or through user
configuration, for each Web Beans application which uses
JSF.
If you are integrating the Web Beans into a JSF environment
you must register
org.jboss.webbeans.servlet.ConversationPropagationFilter
as a Servlet listener, either automatically, or through user
configuration, for each Web Beans application which uses
JSF. This filter can be registered for all Servlet deployment
safely.
Web Beans only supports JSF 1.2 and above.
If you are integrating the Web Beans into an EJB
environment you must register
org.jboss.webbeans.ejb.SessionBeanInterceptor
as a EJB interceptor for all EJBs in the application, either
automatically, or through user configuration, for each Web
Beans application which uses enterprise beans.
You must register the SessionBeanInterceptor
as the inner most interceptor in the stack for all EJBs.
webbeans-core.jar
If you are integrating the Web Beans into an environment that
supports deployment of applications, you must insert the
webbeans-core.jar
into the applications
isolated classloader. It cannot be loaded from a shared
classloader.
You should bind a Reference
to the Manager
ObjectFactory
into JNDI at
java:app/Manager
. The type should be
javax.inject.manager.Manager
and the
factory class is
org.jboss.webbeans.resources.ManagerObjectFactory
