Example Code

This section cites code from Social Portlets example project from the Quickstarts Collection. There is a portlet for showing last few statuses from your Facebook Wall, portlet for showing list of your circles (and who is in) on Google+ or portlet for showing your user account details from Twitter.

Retrieving the Access Token

To retrieve the access token of the current user, we are leveraging OAuthProvider API. In Social Portlets Quickstart, there is OAuthProviderFilter portlet filter. Its main task is to retrieve access token of the current user for a given social network and save this access token into the RequestContext bean. Alternative flows result in one of the following messages:

• OAuth provider is not enabled in portal configuration

• User is not logged

• User's access token does not exists

• User's access token is invalid or expired

These messages are presented by error.jsp or token.jsp. Note that in case that the access token is unavailable or invalid, the token.jsp will show a link, which can be followed by the user to link his GateIn Portal account with the given social network. Once linked, user will gain the access token.

The message when access token is not available

The configuration of OAuthPortletFilter in portlet.xml looks like this:Code Snippet error: Unable to retrieve the URL: https://github.com/gatein/gatein-portal-quickstart/raw/master/social-portlets/src/main/webapp/WEB-INF/portlet.xml status code: 404.

The mapping looks like this:Code Snippet error: Unable to retrieve the URL: https://github.com/gatein/gatein-portal-quickstart/raw/master/social-portlets/src/main/webapp/WEB-INF/portlet.xml status code: 404.

The above listing says that all portlets with the name starting with "Facebook" are handled by this filter. There is a similar configuration and mapping there also for Google+ and Twitter.

All portlets in Social Portlets Quickstart extend the AbstractSocialPortlet. It is a subclass of the standard portlet API's GenericPortlet. It contains some basic functionality and helper methods useful for all social portlets. One of them is handling the action to redirect to the Social login:Code Snippet error: Unable to retrieve the URL: https://github.com/gatein/gatein-portal-quickstart/raw/master/social-portlets/src/main/java/org/gatein/security/oauth/portlet/AbstractSocialPortlet.java status code: 404.

If customScope is null GateIn Portal will ask just for scopes configured in configuration.properties. Otherwise, the GateIn Portal will ask for this scope in addition to scopes from configuration.properties. This allows portlets to ask for more scopes then just scopes from configuration.properties.

Example: In configuration.properties, Facebook is enabled only with the default scope email as decribed Facebook integration docs. But in FacebookStatusUpdatePortlet, we want to be able to publish messages on Facebook Wall. For this purpose, an access token with scope publish_message will be necessary. Therefore, before the user will be able to publish a message on his Facebook Wall, the portlet will inform him that the present scope is insufficient and ask him to widen the scope as shown below

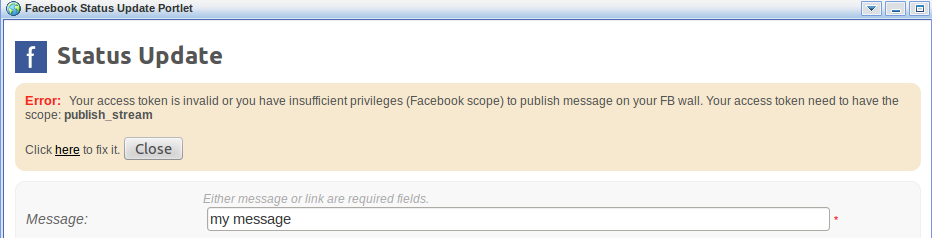

Message when access token doesn't have sufficient scope

Following the link will start a new OAuth2 flow: the user will be redirected to Facebook and where he will be asked to permit the publish_message scope. After that, the user will be able to publish messages. Hence, portlets can ask for wider scope on demand in cases when they really need it.

Note that we use CDI to store the access token. The RequestContext class is annotated as @RequestScoped. Therefore, each portlet contains only logic specific to its purpose and it does not need to care for retrieving the access token.

Facebook

There are three portlets to demonstrate a basic integration with Facebook:

• FacebookUserInfoPortlet – a simple portlet showing some details of the the current user's profile on Facebook, such as first name, last name, username, e-mail and the picture of the user.

• FacebookFriendsPortlet – this is a more advanced portlet showing friends of the current user and their pictures. It also supports pagination (only 10 friends are on screen, but you can switch to different page size to see more friends). When clicking a friend, the portlet displays the last few status messages from the given friend's Facebook Wall.

• FacebookStatusUpdatePortlet – Portlet, which is able to publish messages to the Wall of the current user.

All 3 portlets leverage the 3rd party library RestFB, which provides the capability to send requests to Facebook Graph API and convert JSON responses to plain Java objects (POJOs). To decouple logic from the UI and handle error situations, we prepared a helper class FacebookClientWrapper. It offers a bunch of methods to retrieve objects from Facebook Graph API and it converts them to POJOs or beans defined by us. Those can then be dispatched by PortletRequestDispatcher to JSP pages which handle the HTML markup rendering.

Our portlets are using just a small subset of Facebook Graph API. You are free to use the whole spectrum of Graph API operations in your own portlets. The complete documentation of Graph API is available on Facebook Developers.

Google+

There are three example portlets for showing integration with Google+:

• GoogleUserInfoPortlet – a simple portlet which shows some details about the current user from Google+, such as first name, last name, e-mail and the picture of the user. See https://developers.google.com/accounts/docs/OAuth2WebServer#callinganapi for more details.

• GoogleFriendsPortlet – a simple portlet for displaying Google+ friends and their photos. It supports pagination (only 10 friends are displayed on screen each time). See https://developers.google.com/+/api/latest/people/list for details.

• GoogleActivitiesPortlet – a simple portlet for displaying latest activities from Google+ Stream (the same thing is called "Wall" on Facebook) of the current user. See https://developers.google.com/+/api/latest/activities/list for details.

Those portlets leverage Google SDK libraries. GoogleUserInfoPortlet leverages Google OAuth2 API library and it uses an Oauth2 object to call the operation. GoogleFriendsPortlet and GoogleActivitiesPortlet leverage Google+ API library and they use Plus object to call the operations. Portlets have available access token and they obtain needed object via call to oauthProvider.getAuthorizedAPIObject as described in OAuth section of Portal API.

Twitter

There is only one simple portlet for Twitter: TwitterPortlet. It shows some details about the current user, such as his picture, his last tweet, number of followers, etc.

TwitterPortlet leverages Twitter4J library to interact with Twitter. Given that the access token is available, the portlet demonstrates how to obtain the Twitter client object from Twitter4J library through calling oauthProvider.getAuthorizedAPIObject() as described in OAuth section of the Portal API documentation.

Configuration and Deployment Descriptors

Further Steps

After having understood the parts relevant to you from the above, it is time to build and deploy the project, import the portlets and add some of them to a page so that you can test their functionality.
