JBoss Community Archive (Read Only)

Infinispan 6.0

Infinispan REST Server

Introduction

This server provides easy to use RESTful HTTP access to the Infinispan data grid, build on RESTEasy. This application is delivered (currently) as a war, which you can deploy to a servlet container (as many instances as you need).

Configuration

Out of the box, Infinispan will create and use a new LOCAL mode cache. To set a custom configuration:

  1. Unzip the REST WAR file (or use an exploded deployment)

  2. Create an Infinispan configuration XML file and name this infinispan.xml

  3. Place this file in infinispan-server-rest.war/WEB-INF/classes

Alternatively, you could:

  1. Unzip the REST WAR file (or use an exploded deployment)

  2. Create an Infinispan configuration XML file, call it whatever you want and place it wherever you want

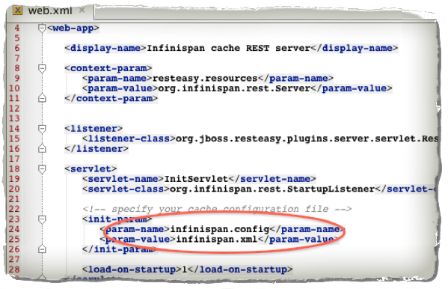

  3. Edit infinispan-server-rest.war/WEB-INF/web.xml and look for the infinispan.config init-param. Change the value of this init-param to the full path to your Infinispan configuration.

images/author/download/attachments/5439600/WebXmlInfinispanConfig.png

Please note that the REST server only allows interaction with either the default cache (named ___defaultcache) or one of the named caches in the configuration file. This is because the REST server starts the default and pre-defined caches on startup in order to provide consistent behaivor.

Warning

Creation of new named caches on the fly is not supported.

As a result, if you don't use a custom configuration file, you'll only be able to interact with the default cache. To interact with more caches, use a configuration file with the desired named caches.

Accessing Data - via URLs

HTTP PUT and POST methods are used to place data in the cache, with URLs to address the cache name and key(s) - the data being the body of the request (the data can be anything you like). It is important that a Content-Type header is set. GET/HEAD are used to retrieve data Please see here for the details. Other headers are used to control the cache settings and behaviour (detailed in that link).

Client side code

Part of the point of a RESTful service is that you don't need to have tightly coupled client libraries/bindings. All you need is a HTTP client library. For Java, Apache HTTP Commons Client works just fine (and is used in the integration tests), or you can use java.net API.

Ruby client code:

# Shows how to interact with Infinispan REST api from ruby.
# No special libraries, just standard net/http
#
# Author: Michael Neale
#
require 'net/http'

http = Net::HTTP.new('localhost', 8080)

#Create new entry
http.post('/infinispan/rest/MyData/MyKey', 'DATA HERE', {"Content-Type" => "text/plain"})

#get it back
puts http.get('/infinispan/rest/MyData/MyKey').body

#use PUT to overwrite
http.put('/infinispan/rest/MyData/MyKey', 'MORE DATA', {"Content-Type" => "text/plain"})

#and remove...
http.delete('/infinispan/rest/MyData/MyKey')

#Create binary data like this... just the same...
http.put('/infinispan/rest/MyImages/Image.png', File.read('/Users/michaelneale/logo.png'), {"Content-Type" => "image/png"})


#and if you want to do json...
require 'rubygems'
require 'json'

#now for fun, lets do some JSON !
data = {:name => "michael", :age => 42 }
http.put('/infinispan/rest/Users/data/0', data.to_json, {"Content-Type" => "application/json"})

Python client code:

# Sample python code using the standard http lib only
#

import httplib


#putting data in
conn = httplib.HTTPConnection("localhost:8080")
data = "SOME DATA HERE \!" #could be string, or a file...
conn.request("POST", "/infinispan/rest/Bucket/0", data, {"Content-Type": "text/plain"})
response = conn.getresponse()
print response.status

#getting data out
import httplib
conn = httplib.HTTPConnection("localhost:8080")
conn.request("GET", "/infinispan/rest/Bucket/0")
response = conn.getresponse()
print response.status
print response.read()

Java client code:

import java.io.BufferedReader;
import java.io.IOException;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;
import java.net.HttpURLConnection;
import java.net.URL;

/**
 * Rest example accessing Infinispan Cache.
 * @author Samuel Tauil (samuel@redhat.com)
 *
 */
public class RestExample {

   /**
    * Method that puts a String value in cache.
    * @param urlServerAddress
    * @param value
    * @throws IOException
    */
   public void putMethod(String urlServerAddress, String value) throws IOException {
      System.out.println("----------------------------------------");
      System.out.println("Executing PUT");
      System.out.println("----------------------------------------");
      URL address = new URL(urlServerAddress);
      System.out.println("executing request " + urlServerAddress);
      HttpURLConnection connection = (HttpURLConnection) address.openConnection();
      System.out.println("Executing put method of value: " + value);
      connection.setRequestMethod("PUT");
      connection.setRequestProperty("Content-Type", "text/plain");
      connection.setDoOutput(true);

      OutputStreamWriter outputStreamWriter = new OutputStreamWriter(connection.getOutputStream());
      outputStreamWriter.write(value);

      connection.connect();
      outputStreamWriter.flush();

      System.out.println("----------------------------------------");
      System.out.println(connection.getResponseCode() + " " + connection.getResponseMessage());
      System.out.println("----------------------------------------");

      connection.disconnect();
   }

   /**
    * Method that gets an value by a key in url as param value.
    * @param urlServerAddress
    * @return String value
    * @throws IOException
    */
   public String getMethod(String urlServerAddress) throws IOException {
      String line = new String();
      StringBuilder stringBuilder = new StringBuilder();

      System.out.println("----------------------------------------");
      System.out.println("Executing GET");
      System.out.println("----------------------------------------");

      URL address = new URL(urlServerAddress);
      System.out.println("executing request " + urlServerAddress);

      HttpURLConnection connection = (HttpURLConnection) address.openConnection();
      connection.setRequestMethod("GET");
      connection.setRequestProperty("Content-Type", "text/plain");
      connection.setDoOutput(true);

      BufferedReader  bufferedReader = new BufferedReader(new InputStreamReader(connection.getInputStream()));

      connection.connect();

      while ((line = bufferedReader.readLine()) \!= null) {
         stringBuilder.append(line + '\n');
      }

      System.out.println("Executing get method of value: " + stringBuilder.toString());

      System.out.println("----------------------------------------");
      System.out.println(connection.getResponseCode() + " " + connection.getResponseMessage());
      System.out.println("----------------------------------------");

      connection.disconnect();

      return stringBuilder.toString();
   }

   /**
    * Main method example.
    * @param args
    * @throws IOException
    */
   public static void main(String\[\] args) throws IOException {
      //Attention to the cache name "cacheX" it was configured in xml file with tag <namedCache name="cacheX">
      RestExample restExample = new RestExample();
      restExample.putMethod("http://localhost:8080/infinispan/rest/cacheX/1", "Infinispan REST Test");
      restExample.getMethod("http://localhost:8080/infinispan/rest/cacheX/1");
   }
}

Future:

  • Sample persistence options to make this a long term data grid

  • Query and indexing (of known MIME types, and JSON, XML etc)

  • Returning both lists of buckets + entries as <link> relations (where it makes sense)

  • Monitoring of stats via Web interface

  • (optional: WADL?)
