Clustering modes


Infinispan can be configured to be either local (standalone) or clustered. If in a cluster, the cache can be configured to replicate changes to all nodes, to invalidate changes across nodes and finally to be used in distributed mode - state changes are replicated to a small subset of nodes enough to be fault tolerant but not to many nodes to prevent scalability.

Local Mode

While Infinispan is particularly interesting in clustered mode, it also offers a very capable local mode, where it acts as a simple, in-memory data cache similar to JBoss Cache and EHCache. But why would one use a local cache rather than a map? Caches offer a lot of features over and above a simple map, including write-through and write-behind caching to persist data, eviction of entries to prevent running out of memory, and support for expirable entries. Infinispan, specifically, is built around a high-performance, read-biased data container which uses modern techniques like MVCC locking - which buys you non-blocking, thread-safe reads even when concurrent writes are taking place. Infinispan also makes heavy use of compare-and-swap and other lock-free algorithms, making it ideal for high-throughput, multi-CPU/multi-core environments. Further, Infinispan's Cache API extends the JDK's ConcurrentMap - making migration from a map to Infinispan trivial. For more details refer to Non-clustered, LOCAL mode section.

Replicated Mode

Replication is a simple clustered mode where cache instances automatically discover neighboring instances on other JVMs on the same local network, and form a cluster. Entries added to any of these cache instances will be replicated to all other cache instances in the cluster, and can be retrieved locally from any instance. This clustered mode provides a quick and easy way to share state across a cluster, however replication practically only performs well in small clusters (under 10 servers), due to the number of replication messages that need to happen - as the cluster size increases. Infinispan can be configured to use UDP multicast which mitigates this problem to some degree.

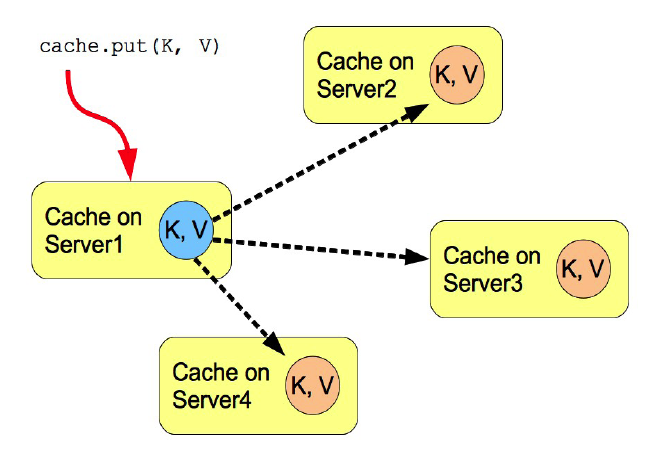

                                                        Figure 1. Replication mode

Replication can be synchronous or asynchronous. Use of either one of the options is application dependent. Synchronous replication blocks the caller (e.g. on a put() ) until the modifications have been replicated successfully to all nodes in a cluster. Asynchronous replication performs replication in the background (the put() returns immediately). Infinispan offers a replication queue, where modifications are replicated periodically (i.e. interval-based), or when the queue size exceeds a number of elements, or a combination thereof. A replication queue can therefore offer much higher performance as the actual replication is performed by a background thread.

Asynchronous replication is faster (no caller blocking), because synchronous replication requires acknowledgments from all nodes in a cluster that they received and applied the modification successfully (round-trip time). However, when a synchronous replication returns successfully, the caller knows for sure that all modifications have been applied to all cache instances, whereas this is not be the case with asynchronous replication. With asynchronous replication, errors are simply written to a log. Even when using transactions, a transaction may succeed but replication may not succeed on all cache instances.

Invalidation Mode

Invalidation is a clustered mode that does not actually share any data at all, but simply aims to remove data that may be stale from remote caches. This cache mode only makes sense if you have another, permanent store for your data such as a database and are only using Infinispan as an optimization in a read-heavy system, to prevent hitting the database every time you need some state. If a cache is configured for invalidation rather than replication, every time data is changed in a cache other caches in the cluster receive a message informing them that their data is now stale and should be evicted from memory.

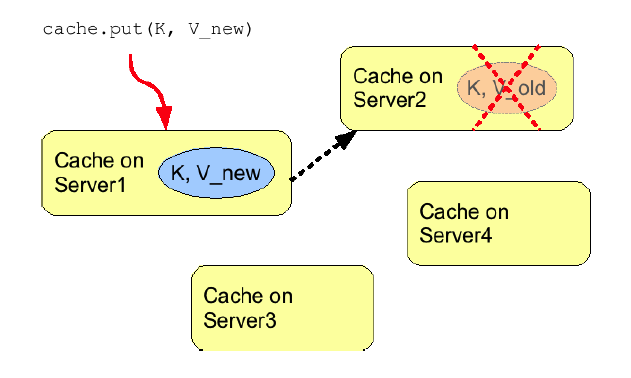

                                                            Figure 2. Invalidation mode

Invalidation, when used with a shared cache loader would cause remote caches to refer to the shared cache loader to retrieve modified data. The benefit of this is twofold: network traffic is minimized as invalidation messages are very small compared to replicating updated data, and also that other caches in the cluster look up modified data in a lazy manner, only when needed.

Invalidation messages are sent after each modification (no transactions or batches), or at the end of a transaction or batch, upon successful commit. This is usually more efficient as invalidation messages can be optimized for the transaction as a whole rather than on a per-modification basis.

Invalidation too can be synchronous or asynchronous, and just as in the case of replication, synchronous invalidation blocks until all caches in the cluster receive invalidation messages and have evicted stale data while asynchronous invalidation works in a 'fire-and-forget' mode, where invalidation messages are broadcast but doesn't block and wait for responses.

Distribution Mode

Distribution is a powerful clustering mode which allows Infinispan to scale linearly as more servers are added to the cluster. Distribution makes use of a consistent hash algorithm to determine where in a cluster entries should be stored. Hashing algorithm is configured with the number of copies each cache entry should be maintained cluster-wide. Number of copies represents the tradeoff between performance and durability of data. The more copies you maintain, the lower performance will be, but also the lower the risk of losing data due to server outages. Regardless of how many copies are maintained, distribution still scales linearly and this is key to Infinispan scalability. Another feature of the consistent hash algorithm is that it is deterministic in locating entries without resorting to multicasting requests or maintaining expensive metadata. Doing a PUT would result in at most num_copies remote calls, and doing a GET anywhere in the cluster would result in at most 1 remote call. In reality, num_copies remote calls are made even for a GET, but these are done in parallel and as soon as any one of these returns, the entry is passed back to the caller.

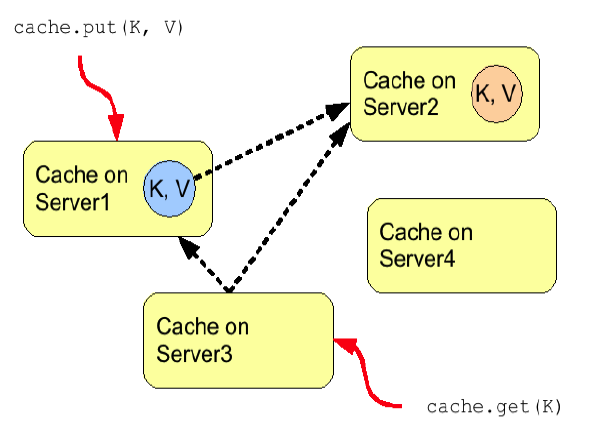

                                                       Figure 3. Distribution mode

L1 Caching

To prevent repeated remote calls when doing multiple GETs, L1 caching can be enabled. L1 caching places remotely received values in a near cache for a short period of time (configurable) so repeated lookups would not result in remote calls. In the above diagram, if L1 was enabled, a subsequent GET for the same key on Server3 would not result in any remote calls.

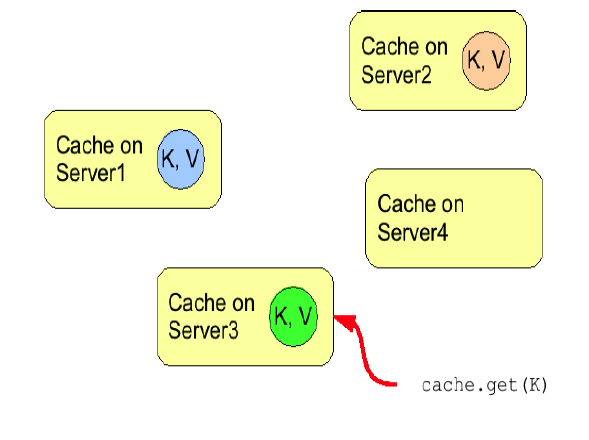

                                                            Figure 4. L1 caching

L1 caching is not free though. Enabling it comes at a cost, and this cost is that every time a key is updated, an invalidation message needs to be multicast to ensure nodes with the entry in L1 invalidates the entry. L1 caching causes the requesting node to cache the retrieved entry locally and listen for changes to the key on the wire. L1-cached entries are given an internal expiry to control memory usage. Enabling L1 will improve performance for repeated reads of non-local keys, but will increase memory consumption to some degree. It offers a nice tradeoff between the "read-mostly" performance of an invalidated data grid with the scalability of a distributed one. Is L1 caching right for you? The correct approach is to benchmark your application with and without L1 enabled and see what works best for your access pattern.

Looking for Buddy Replication?  Buddy Replication - from JBoss Cache - does not exist in Infinispan.  See this blog article which discusses the reasons why Buddy Replication was not implemented in Infinispan, and how the same effects can be achieved using Infinispan -
<a href="http://infinispan.blogspot.com/2009/08/distribution-instead-of-buddy.html">http://infinispan.blogspot.com/2009/08/distribution-instead-of-buddy.html</a>
