Getting Started - JBoss OSGi

Content

This chapter takes you through the first steps of getting JBoss OSGi and provides the initial pointers to get up and running.

Download the Distribution

Starting from WildFly-8.0.0.Alpha3, OSGi support is not part of WildFly any more. JBoss OSGi project provides examples, documentation and the subsystem that adds OSGi functionality to WildFly.

JBoss OSGi is distributed as an IzPack installer archive. The links to the installer are available on the project homepage.

WildFly can be downloaded from the WildFly download area.

Running the Installer

To run the Project Distribution installer execute the following command:

java -jar jboss-osgi-installer-2.1.0.jar

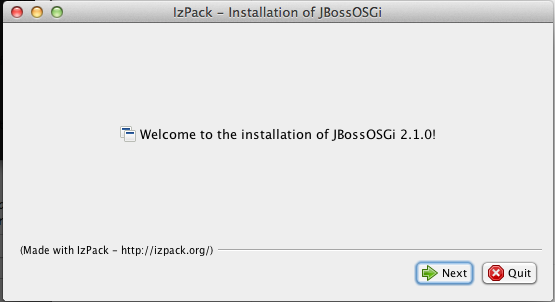

The installer first shows a welcome screen

images/author/download/attachments/4784849/izpack01-welcome.png

Then you select the installation path for the JBoss OSGi distribution. This is the directory where you find binaries, sources, examples and documentation.

images/author/download/attachments/4784849/izpack05-installpath.png

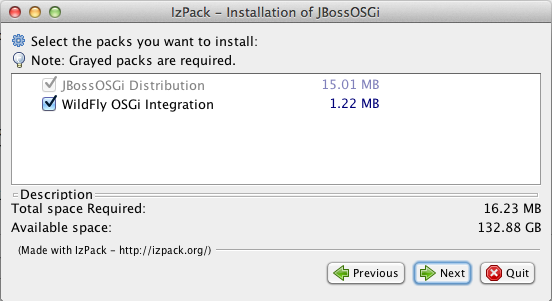

You can then select whether you want to install the OSGi subsystem into an existing WildFly build

images/author/download/attachments/4784849/izpack06-selectpack.png

Activating the Subsystem

By default the OSGi subsystem is activated lazily. It means that the framework will not start up unless you deploy an OSGi bundle. You can activate the OSGi subsystem explicitly by setting the activation property to 'eager'

<subsystem xmlns="urn:jboss:domain:osgi:1.2" activation="eager">

It is also not part of the default configuration. Instead you can use the provided standalone-osgi.xml configuration.

When you start up WildFly you should see something like this

[tdiesler@localhost wildfly-8.0.0.Alpha3]$ bin/standalone.sh -c standalone-osgi.xml
=========================================================================

  JBoss Bootstrap Environment

  JBOSS_HOME: /Users/tdiesler/git/wildfly-8.0.0.Alpha3/build/target/wildfly-8.0.0.Alpha3

  JAVA: /Library/Java/JavaVirtualMachines/jdk1.7.0_25.jdk/Contents/Home/bin/java

  JAVA_OPTS:  ...

=========================================================================

12:56:31,829 INFO  [org.jboss.modules] (main) JBoss Modules version 1.2.4.Final
12:56:32,081 INFO  [org.jboss.msc] (main) JBoss MSC version 1.2.0.Beta1
12:56:32,160 INFO  [org.jboss.as] JBAS015899: WildFly 8.0.0.Alpha3 "WildFly" starting
...
12:56:34,741 INFO  [org.jboss.osgi.framework] JBOSGI011006: OSGi Framework - 3.0.2.Final
12:56:34,991 INFO  [org.jboss.osgi.framework] JBOSGI011001: Bundle installed: org.apache.felix.log:1.0.1
12:56:34,994 INFO  [org.jboss.osgi.framework] JBOSGI011001: Bundle installed: jboss-osgi-logging:1.0.0
12:56:34,998 INFO  [org.jboss.osgi.framework] JBOSGI011001: Bundle installed: org.apache.felix.configadmin:1.6.0
...
12:56:35,303 INFO  [org.jboss.osgi.framework] JBOSGI011011: Starting bundles for start level: 1
12:56:35,328 INFO  [org.jboss.osgi.framework] JBOSGI011002: Bundle started: org.apache.felix.log:1.0.0
12:56:35,342 INFO  [org.jboss.osgi.framework] JBOSGI011002: Bundle started: jboss-osgi-logging:1.0.0
12:56:35,377 INFO  [org.jboss.osgi.framework] JBOSGI011002: Bundle started: org.apache.felix.configadmin:1.2.8
...
12:56:35,709 INFO  [org.jboss.osgi.framework] JBOSGI011000: OSGi Framework started
12:56:35,769 INFO  [org.jboss.as] JBAS015874: WildFly 8.0.0.Alpha2 "WildFly" started in 4379ms

12:46:39,491 INFO  [org.jboss.modules] (main) JBoss Modules version 1.2.4.Final
12:46:39,714 INFO  [org.jboss.msc] (main) JBoss MSC version 1.2.0.Beta2
...
12:46:41,417 INFO  [org.jboss.osgi.framework] (MSC service thread 1-1) JBOSGI011006: OSGi Framework - 3.0.2.Final
12:46:42,153 INFO  [org.jboss.osgi.framework] (MSC service thread 1-3) JBOSGI011001: Bundle installed: org.apache.felix.log:1.0.1
12:46:42,157 INFO  [org.jboss.osgi.framework] (MSC service thread 1-3) JBOSGI011001: Bundle installed: jboss-osgi-logging:1.0.0
12:46:42,161 INFO  [org.jboss.osgi.framework] (MSC service thread 1-3) JBOSGI011001: Bundle installed: org.apache.felix.configadmin:1.6.0
12:46:42,164 INFO  [org.jboss.osgi.framework] (MSC service thread 1-3) JBOSGI011001: Bundle installed: jbosgi-wildfly-configadmin:2.1.0
...
12:46:42,255 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011011: Starting bundles for start level: 1
12:46:42,258 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: jbosgi-wildfly-http:2.1.0
12:46:42,258 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: jbosgi-wildfly-jpa:2.1.0
12:46:42,270 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: org.apache.felix.log:1.0.1
12:46:42,283 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: jboss-osgi-logging:1.0.0
12:46:42,308 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: org.apache.felix.configadmin:1.6.0
12:46:42,319 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011002: Bundle started: jbosgi-wildfly-configadmin:2.1.0
12:46:42,320 INFO  [org.jboss.osgi.framework] (MSC service thread 1-6) JBOSGI011000: OSGi Framework started
...
12:46:42,373 INFO  [org.jboss.as] (Controller Boot Thread) JBAS015874: WildFly 8.0.0.Alpha3 "WildFly" started in 3197ms

Provided Examples

The JBoss OSGi project distribution comes with a number of examples that you can build and run in an OSGi standalone environment (i.e. without WildFly integration).

blueprint - Basic Blueprint Container examples
configadmin - Configuration Admin example
core - Simple OSGi examples (start here)
ds - Declarative Services examples
eventadmin - Event Admin examples
jmx - Standard and extended JMX examples

Additional to that there are a number of integration examples that document and verify the WildFly integration

cdi - CDI integration examples
ear - Bundles in enterprise archives examples
ejb3 - EJB3 integration examples
http - HttpService examples
interceptor - Intercept and process bundle metadata
jaxb - XML binding examples
jaxp - SAX/DOM parser examples
jaxrs - REST integration examples
jaxws - WebService integration examples
jndi - Naming integration examples
jpa - Persistence integration examples
jta - Transaction integration examples
resource - Resource injection examples
webapp - WebApplication (WAR) examples

For more information on these examples, see the Provided Examples section.

Bundle Deployment

Bundle Deployment from the command-line is supported through the CLI console and through the web-based Management Console.

It is also possible to deploy bundles by dropping them in the deployments folder. This will automatically resolve and start the bundle when possible. Bundles can be started explicitly through the CLI or the web console.

When a bundle is installed and started, messages like the following can be seen from the server console.

$ bin/standalone.sh -c standalone-osgi.xml
...
13:53:53,742 INFO  [org.jboss.as.server.deployment] JBAS015876: Starting deployment of "org.apache.felix.eventadmin.jar"
13:53:54,196 INFO  [org.jboss.osgi.framework] JBOSGI011001: Bundle installed: org.apache.felix.eventadmin:1.3.0
13:53:54,309 INFO  [org.jboss.osgi.framework] JBOSGI011002: Bundle started: org.apache.felix.eventadmin:1.3.0
13:53:54,354 INFO  [org.jboss.as.server] JBAS018559: Deployed "org.apache.felix.eventadmin.jar"

Managing installed Bundles

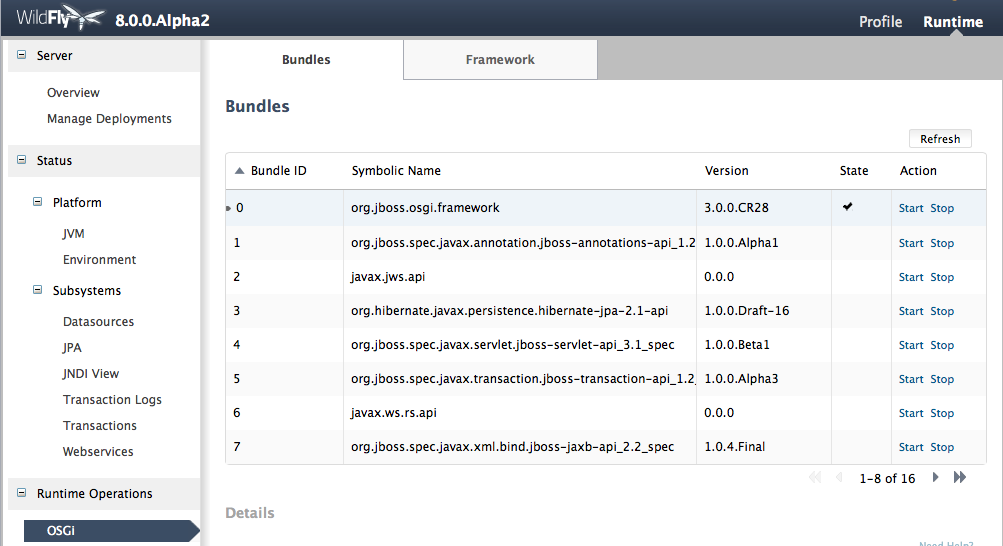

WildFly comes with a Web Console. After startup you can point your browser to http://localhost:9990/console.

images/author/download/attachments/4784849/webconsole.png

The Web Console can be used to install, start, stop and uninstall bundles. Additionally, the web console can be used to activate the framework and manage the current framework Start Level.

Felix Web Console

For more detailed management operations you can also install the Felix Web Console

In WildFly 8.x you add this capability

<capability name="org.apache.felix:org.apache.felix.webconsole:3.1.8" startlevel="1"/>

The console is then accessible on: http://localhost:8080/system/console
