The ModeShape project provides an RHQ plugin for use in the Administrative Console available in JBossAS. The console is accessible at http://{host}:{port}/admin-console.

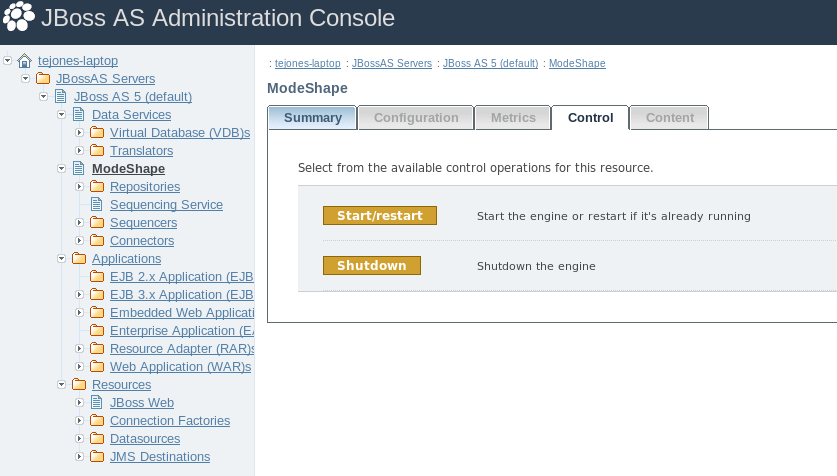

ModeShape Administration Console
The ModeShape Administration Console is a web based administrative and monitoring tool for ModeShape. ModeShape's Administration Console is built using the RHQ library and adds an additional plugin into the Embedded JOPR application already available in the JBoss AS.
What can be managed and/or monitored?
-
The ModeShape Engine
-
Repositories
-
The Sequencing Service
-
Sequencers
-
Connectors
Configuration
While you cannot directly configure ModeShape through the Administration Console, the configuration properties are displayed for several ModeShape components including:
-
Repositories
-
Sequencers
-
Connectors
Metrics
The following table describes the metrics that are available on ModeShape.
|
Target |
Metric |
Description |
|
Repository |
# of Active Sessions |
The number of JCR sessions that are currently active. |
|
Sequencing Service |
Number Of Nodes Sequenced |
The number of nodes sequenced. |
|
Sequencing Service |
Number Of Nodes Skipped |
The number of nodes that were skipped because no sequencers applied. |
|
Connectors |
Total Connections in Use |
The number of connections in use. |
Control (Operations)
The following table describes the operations that are available on ModeShape.
|
Target |
Operation |
Description |
|
ModeShape Engine |
Start/Restart |
Start the engine or restart if it's already running. |
|
ModeShape Engine |
Shutdown |
Stop the engine. |
|
Sequencing Service |
Number Of Nodes Sequenced |
The number of nodes sequenced. |
|
Sequencing Service |
Number Of Nodes Skipped |
The number of nodes that were skipped because no sequencers applied. |
|
Connectors |
Ping |
Ping the connector to test availability |
