Introduction

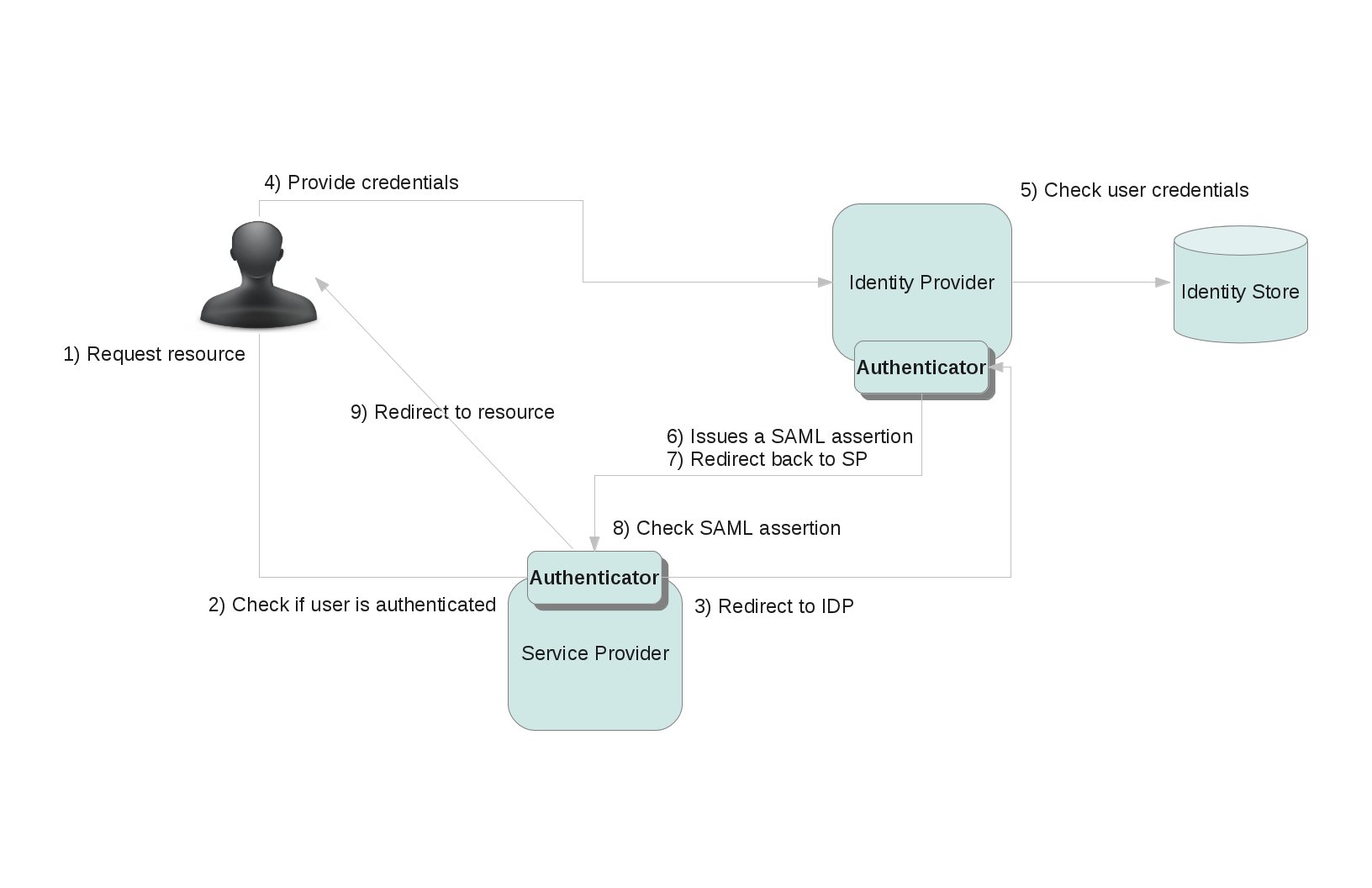

PicketLink Service Providers Authenticators are important components responsible for the authentication of users using the SAML Assertion previously issued by an Identity Provider.

They are responsible for intercepting each request made to an application, checking if a SAML assertion is present in the request, validating its signature and executing SAML specific validations and creating a security context for the user in the requested application.

Configuring an Authenthicator for a Service Provider

The PicketLink Authenticator is basically a Tomcat Valve (org.apache.catalina.authenticator.FormAuthenticator). The only thing you need to do is change the valves configuration for your application.

This configuration changes for each supported binding.

<?xml version="1.0" encoding="UTF-8"?>
<jboss-web>
	<security-domain>sp</security-domain>
	<context-root>employee</context-root>
	<valve>
	    <class-name>org.picketlink.identity.federation.bindings.tomcat.sp.ServiceProviderAuthenticator</class-name>
	</valve>
</jboss-web>

<?xml version="1.0" encoding="UTF-8"?>
<Context>
    <Valve className="org.picketlink.identity.federation.bindings.tomcat.sp.ServiceProviderAuthenticator" />
</Context>

<?xml version="1.0" encoding="UTF-8"?>
<Context>
    <Valve className="org.picketlink.identity.federation.bindings.tomcat.sp.ServiceProviderAuthenticator" />
</Context>

Built-in Authenticators

PicketLink provides default implementations for Service Provider Authenticators. The list bellow shows all the available implementations:
