• Below are some ideas of what the rhq ui may look like to a user with a given perspective. Notice that these include some additional widgets to the core rhq ui, but also leverage the extension points described in Perspectives - Extension Points .

Idea of how a particular JBoss user might see the UI:

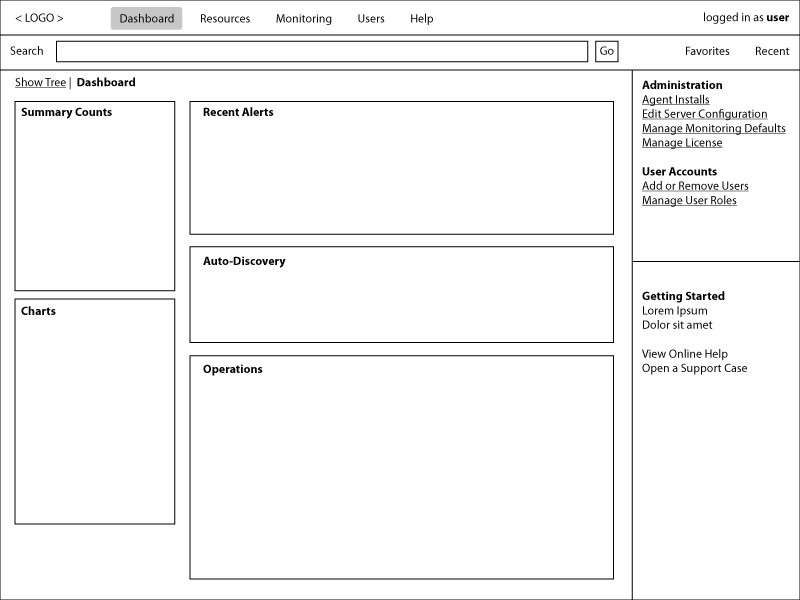

Idea of how a particular JBoss user might see the UI - Dashboard:

A higher fidelity of what the new rhq ui could look like, with perspectives and some changes to the core ui:

Another variant of the hifi mockup, no tree:

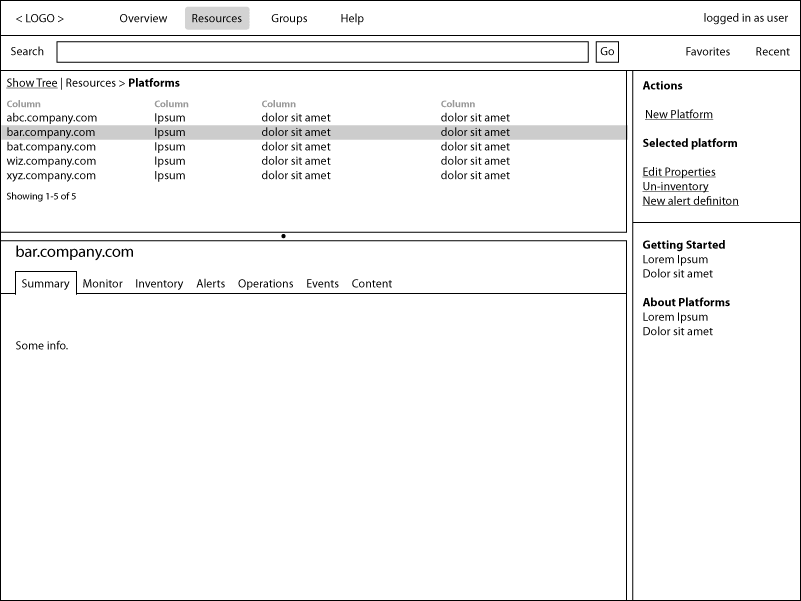

Core UI changes and extension points annotated (see notes below):

1. Core UI change - add powerful search as primary part of the UI

2. Core UI change - Breadcrumb and tree toggle - allow user to see where they are at all times, ability to use tree on demand

3. Core UI change - List view of selected parent item (per breadcrumb). Keep the user in context

4. Core UI change - simplified banner in details section for selected child item.

5. Core UI change - Actions panel on right side.

6. Extension point - removed admin menu, added Monitoring menu

7. Extension point - new tab Audit History

8. Extension point - Actions specific to a user in this role are shown.
