Benchmark report
Summary

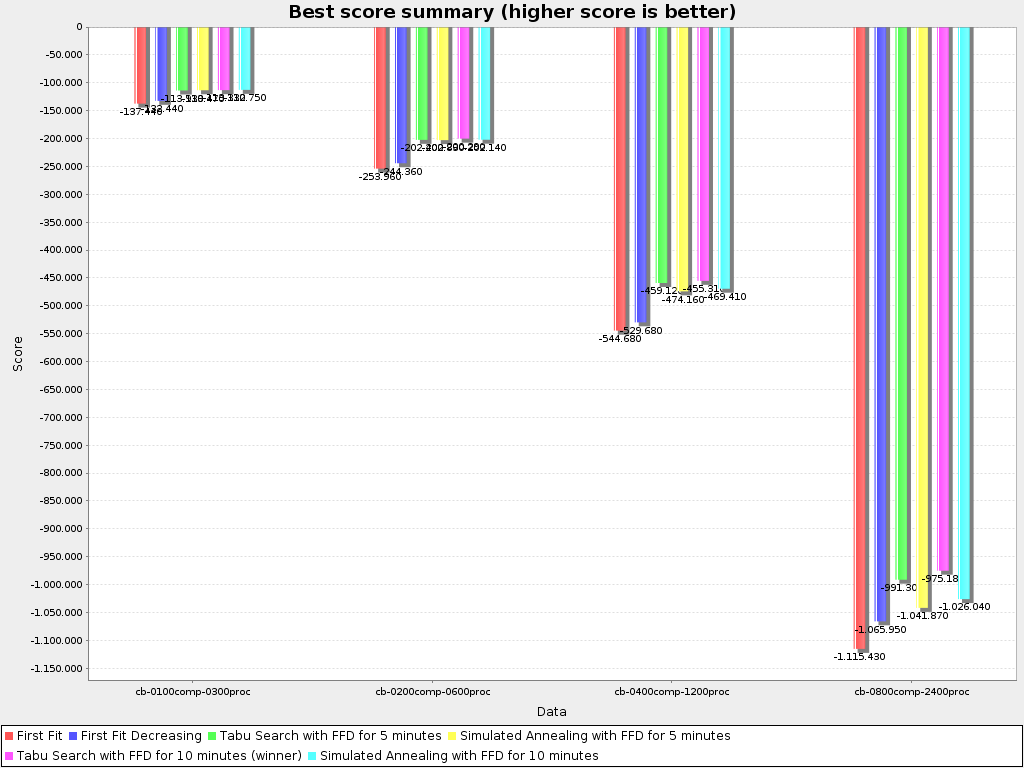

Best score summary
| Solver | cb-0100comp-0300proc | cb-0200comp-0600proc | cb-0400comp-1200proc | cb-0800comp-2400proc | Average | Ranking |
|---|---|---|---|---|---|---|
| First Fit | 0hard/-137440soft | 0hard/-253960soft | 0hard/-544680soft | 0hard/-1115430soft | 0hard/-512878soft | 5 |
| First Fit Decreasing | 0hard/-132440soft | 0hard/-244360soft | 0hard/-529680soft | 0hard/-1065950soft | 0hard/-493108soft | 4 |
| Tabu Search with FFD for 5 minutes | 0hard/-113930soft | 0hard/-202400soft | 0hard/-459120soft | 0hard/-991300soft | 0hard/-441688soft | 1 |
| Simulated Annealing with FFD for 5 minutes | 0hard/-113470soft | 0hard/-202830soft | 0hard/-474160soft | 0hard/-1041870soft | 0hard/-458083soft | 3 |
| Tabu Search with FFD for 10 minutes | 0hard/-113330soft | 0hard/-200290soft | 0hard/-455310soft | 0hard/-975180soft | 0hard/-436028soft | 0 |
| Simulated Annealing with FFD for 10 minutes | 0hard/-112750soft | 0hard/-202140soft | 0hard/-469410soft | 0hard/-1026040soft | 0hard/-452585soft | 2 |

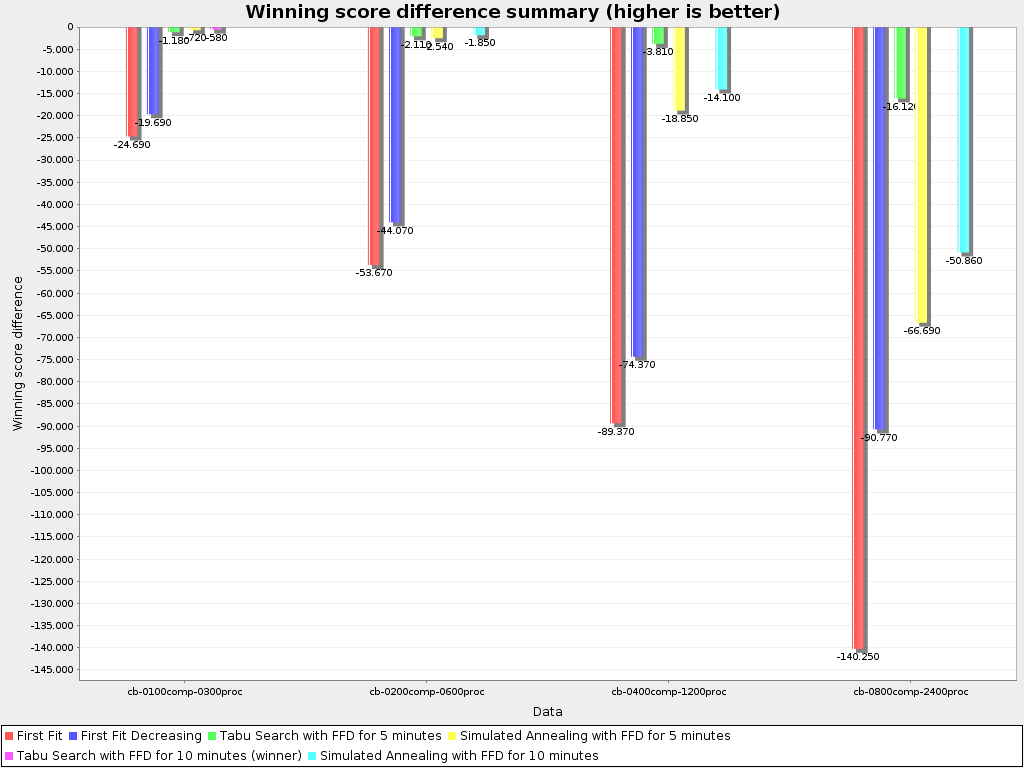

Winning score difference summary chart

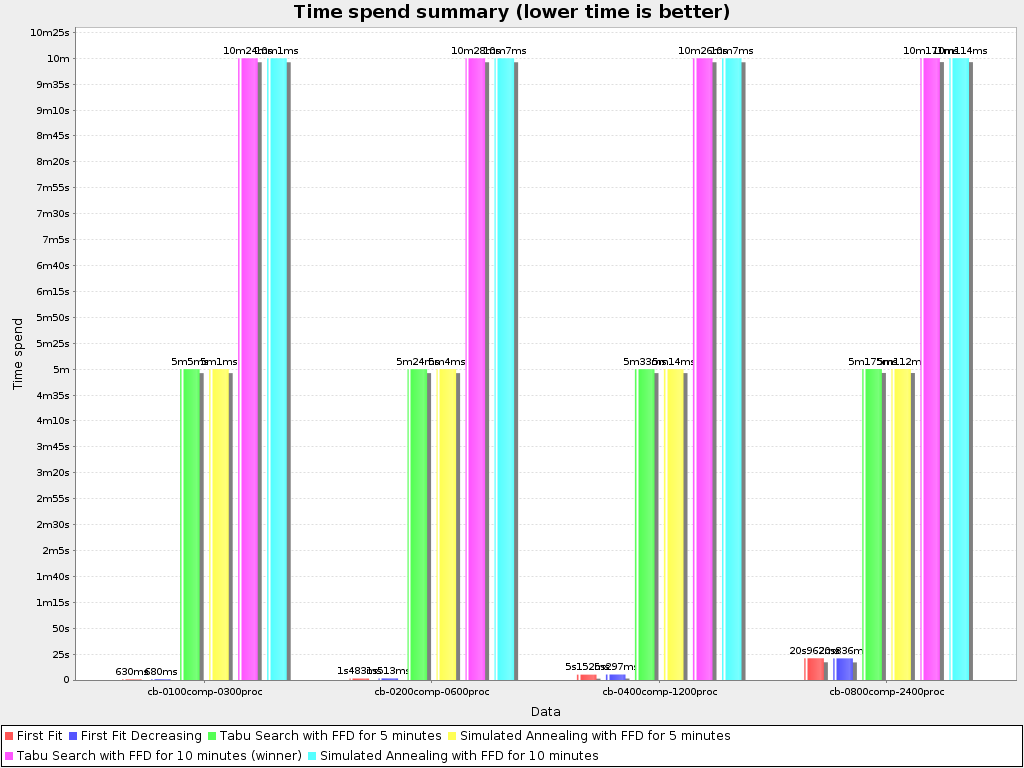

Time spend summary chart
| Solver | cb-0100comp-0300proc | cb-0200comp-0600proc | cb-0400comp-1200proc | cb-0800comp-2400proc |
|---|---|---|---|---|
| First Fit | 630 ms | 1.483 ms | 5.152 ms | 20.962 ms |
| First Fit Decreasing | 680 ms | 1.513 ms | 5.297 ms | 20.836 ms |
| Tabu Search with FFD for 5 minutes | 300.005 ms | 300.024 ms | 300.033 ms | 300.175 ms |
| Simulated Annealing with FFD for 5 minutes | 300.001 ms | 300.004 ms | 300.014 ms | 300.112 ms |
| Tabu Search with FFD for 10 minutes | 600.024 ms | 600.028 ms | 600.026 ms | 600.171 ms |
| Simulated Annealing with FFD for 10 minutes | 600.001 ms | 600.007 ms | 600.007 ms | 600.114 ms |

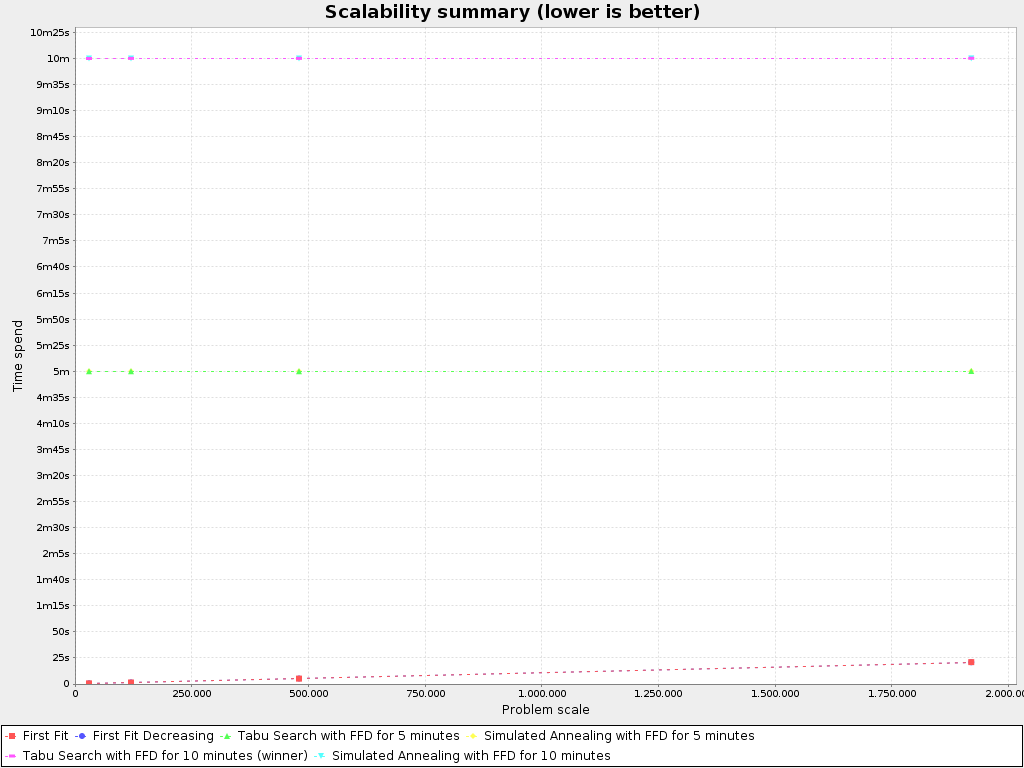

Scalability summary chart

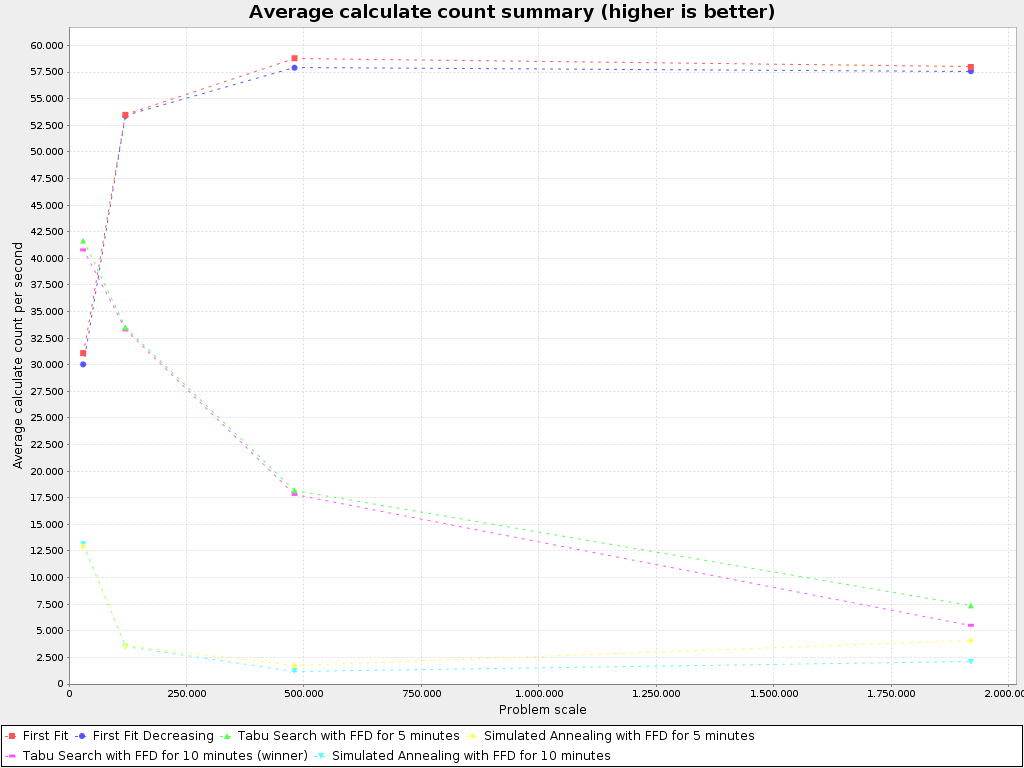

Average calculate count summary
| Solver | cb-0100comp-0300proc | cb-0200comp-0600proc | cb-0400comp-1200proc | cb-0800comp-2400proc |
|---|---|---|---|---|
| First Fit | 31.082/sec | 53.471/sec | 58.789/sec | 57.974/sec |
| First Fit Decreasing | 30.029/sec | 53.373/sec | 57.894/sec | 57.576/sec |
| Tabu Search with FFD for 5 minutes | 41.657/sec | 33.517/sec | 18.203/sec | 7.387/sec |
| Simulated Annealing with FFD for 5 minutes | 12.901/sec | 3.586/sec | 1.728/sec | 4.076/sec |
| Tabu Search with FFD for 10 minutes | 40.789/sec | 33.262/sec | 17.815/sec | 5.524/sec |
| Simulated Annealing with FFD for 10 minutes | 13.126/sec | 3.514/sec | 1.217/sec | 2.081/sec |
Problem benchmarks

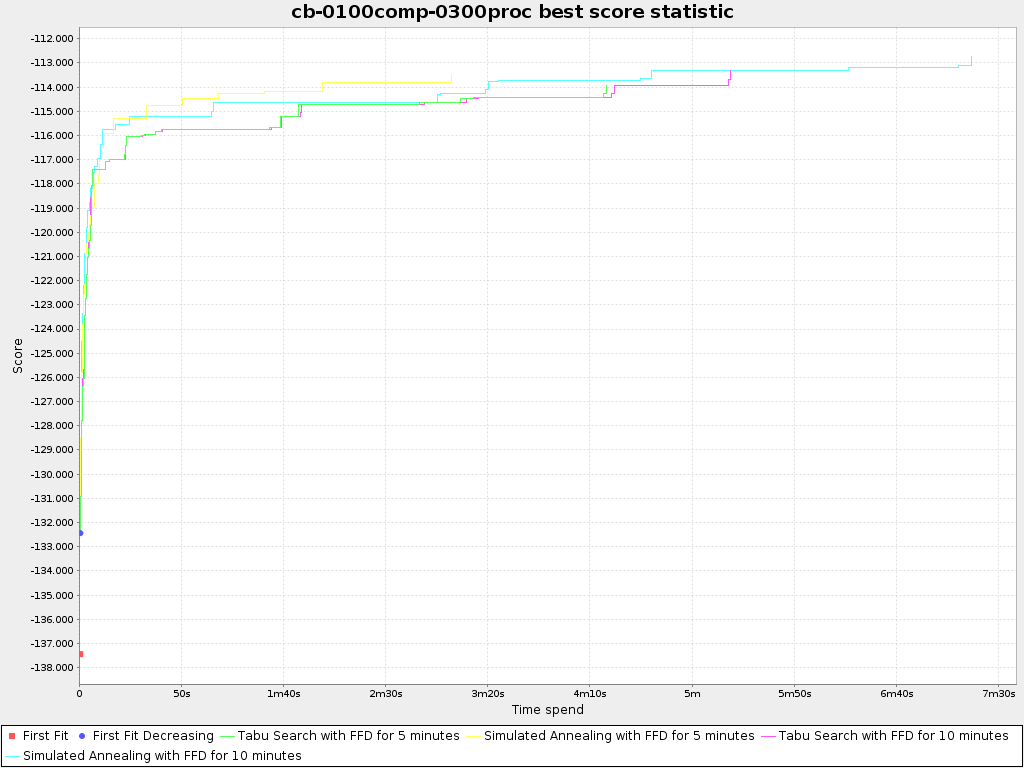

cb-0100comp-0300proc

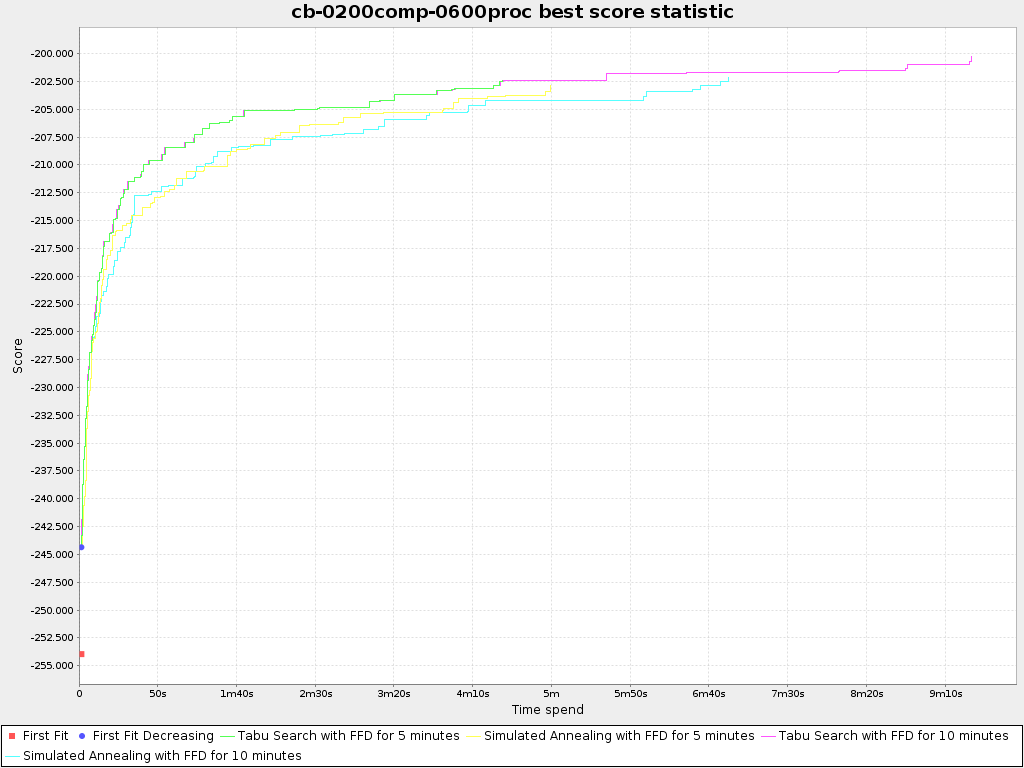

cb-0200comp-0600proc

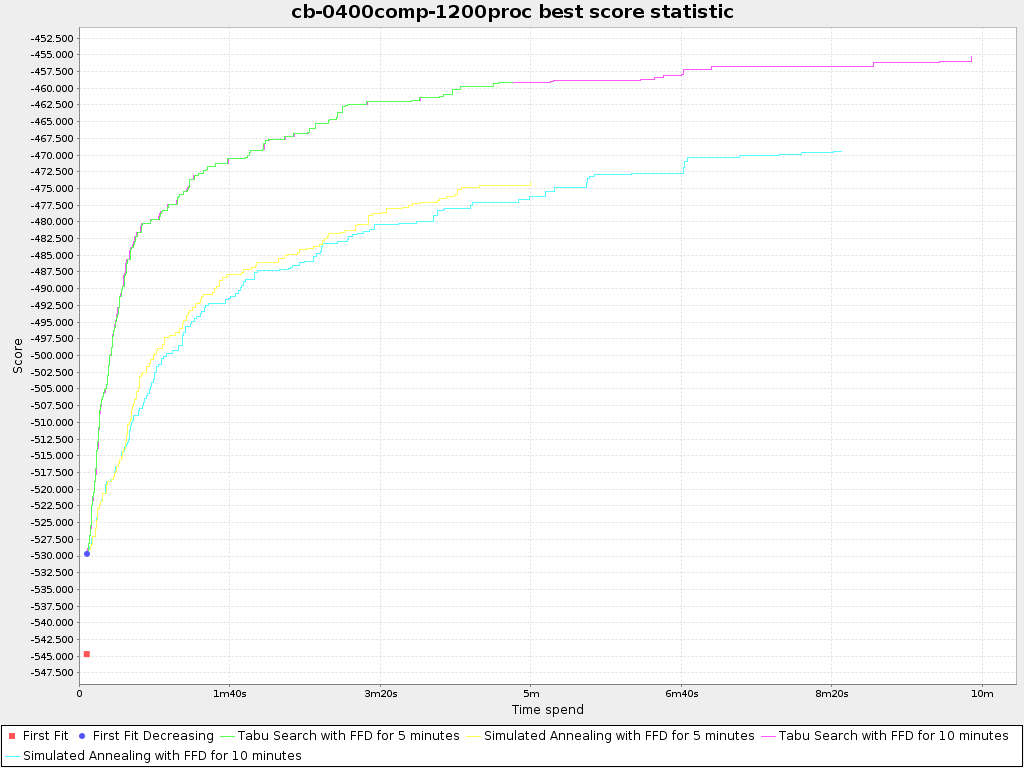

cb-0400comp-1200proc

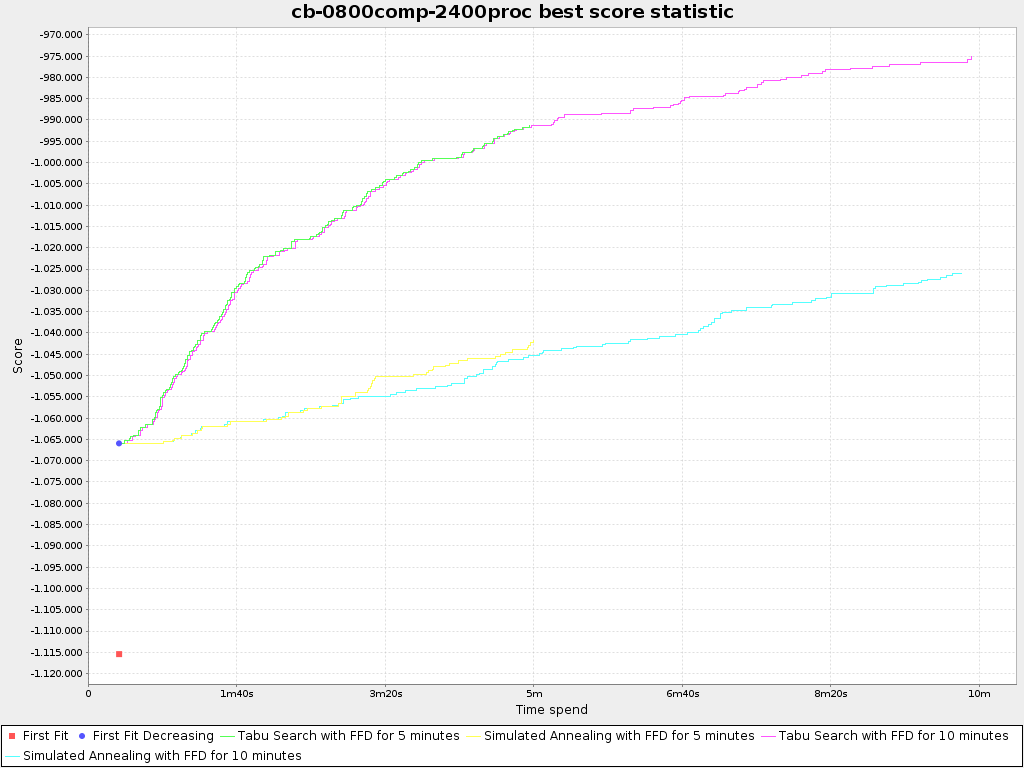

cb-0800comp-2400proc
Solver benchmarks
First Fit
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination/>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
</solver>
First Fit Decreasing
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination/>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
</solver>
Tabu Search with FFD for 5 minutes
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination>
<maximumMinutesSpend>5</maximumMinutesSpend>
</termination>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
<localSearch>
<termination/>
<selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudComputerChangeMoveFactory</moveFactoryClass>
</selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudProcessSwapMoveFactory</moveFactoryClass>
</selector>
</selector>
<acceptor>
<planningEntityTabuSize>7</planningEntityTabuSize>
</acceptor>
<forager>
<deciderScoreComparatorFactory/>
<minimalAcceptedSelection>1000</minimalAcceptedSelection>
</forager>
</localSearch>
</solver>
Simulated Annealing with FFD for 5 minutes
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination>
<maximumMinutesSpend>5</maximumMinutesSpend>
</termination>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
<localSearch>
<termination/>
<selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudComputerChangeMoveFactory</moveFactoryClass>
</selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudProcessSwapMoveFactory</moveFactoryClass>
</selector>
</selector>
<acceptor>
<simulatedAnnealingStartingTemperature>0hard/400soft</simulatedAnnealingStartingTemperature>
</acceptor>
<forager>
<deciderScoreComparatorFactory/>
<minimalAcceptedSelection>4</minimalAcceptedSelection>
</forager>
</localSearch>
</solver>
Tabu Search with FFD for 10 minutes
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination>
<maximumMinutesSpend>10</maximumMinutesSpend>
</termination>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
<localSearch>
<termination/>
<selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudComputerChangeMoveFactory</moveFactoryClass>
</selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudProcessSwapMoveFactory</moveFactoryClass>
</selector>
</selector>
<acceptor>
<planningEntityTabuSize>7</planningEntityTabuSize>
</acceptor>
<forager>
<deciderScoreComparatorFactory/>
<minimalAcceptedSelection>1000</minimalAcceptedSelection>
</forager>
</localSearch>
</solver>
Simulated Annealing with FFD for 10 minutes
<solver>
<solutionClass>org.drools.planner.examples.cloudbalancing.domain.CloudBalance</solutionClass>
<planningEntityClass>org.drools.planner.examples.cloudbalancing.domain.CloudProcess</planningEntityClass>
<scoreDirectorFactory>
<scoreDefinitionType>HARD_AND_SOFT</scoreDefinitionType>
<scoreDrl>/org/drools/planner/examples/cloudbalancing/solver/cloudBalancingScoreRules.drl</scoreDrl>
</scoreDirectorFactory>
<termination>
<maximumMinutesSpend>10</maximumMinutesSpend>
</termination>
<constructionHeuristic>
<termination/>
<constructionHeuristicType>FIRST_FIT_DECREASING</constructionHeuristicType>
<constructionHeuristicPickEarlyType>FIRST_LAST_STEP_SCORE_EQUAL_OR_IMPROVING</constructionHeuristicPickEarlyType>
</constructionHeuristic>
<localSearch>
<termination/>
<selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudComputerChangeMoveFactory</moveFactoryClass>
</selector>
<selector>
<moveFactoryClass>org.drools.planner.examples.cloudbalancing.solver.move.factory.CloudProcessSwapMoveFactory</moveFactoryClass>
</selector>
</selector>
<acceptor>
<simulatedAnnealingStartingTemperature>0hard/400soft</simulatedAnnealingStartingTemperature>
</acceptor>
<forager>
<deciderScoreComparatorFactory/>
<minimalAcceptedSelection>4</minimalAcceptedSelection>
</forager>
</localSearch>
</solver>
Benchmark information
| startingTimestamp | 13-mei-2012 14:47:08 |
|---|---|
| parallelBenchmarkCount | 2 |
| warmUpTimeMillisSpend | 30.000 |
| failureCount | 0 |
| plannerVersion | Unjarred development snapshot |
