Preface
Full text search engines like Apache Lucene are very powerful technologies to add efficient free text search capabilities to applications. However, Lucene suffers several mismatches when dealing with object domain models. Amongst other things indexes have to be kept up to date and mismatches between index structure and domain model as well as query mismatches have to be avoided.
Hibernate Search addresses these shortcomings - it indexes your domain model with the help of a few annotations, takes care of database/index synchronization and brings back regular managed objects from free text queries. To achieve this Hibernate Search is combining the power of Hibernate and Apache Lucene.
Since version 5.6 Hibernate Search sports an experimental integration with Elasticsearch.
Elasticsearch is built on Apache Lucene so we can now expose very similar features, making most
of this reference documentation a valid guide to both approaches.
For details specific to Elasticsearch, jump to Integration with Elasticsearch.
The other sections of this guide will assume you’re using Lucene without the Elasticsearch indirection.
1. Getting started
Welcome to Hibernate Search. The following chapter will guide you through the initial steps required to integrate Hibernate Search into an existing Hibernate ORM enabled application. In case you are a Hibernate new timer we recommend you start here.
1.1. System Requirements
Java Runtime |
Requires Java version 8 or greater. You can download a Java Runtime for Windows/Linux/Solaris here. |
Hibernate Search |
|
Hibernate ORM |
You will need
|
JPA 2.1 |
Hibernate Search can be used without JPA but the following instructions will use JPA annotations for basic
entity configuration ( |
1.2. Migration notes
If you are upgrading an existing application from an earlier version of Hibernate Search to the latest release, make sure to check the out the migration guide.
1.3. Required libraries
The Hibernate Search library is split in several modules to allow you to pick the minimal set of dependencies you need. It requires Apache Lucene, Hibernate ORM and some standard APIs such as the Java Persistence API and the Java Transactions API. Other dependencies are optional, providing additional integration points. To get the correct jar files on your classpath we highly recommend to use a dependency manager such as Maven, or similar tools such as Gradle or Ivy. These alternatives are also able to consume the artifacts from the Using Maven section.
1.3.1. Using Maven
The Hibernate Search artifacts can be found in Maven’s Central Repository but are released first in the JBoss Maven Repository. See also the Maven Getting Started wiki page to use the JBoss repository.
All you have to add to your pom.xml is:
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-search-orm</artifactId>
<version>5.9.3.Final</version>
</dependency><!-- Infinispan integration: -->
<dependency>
<groupId>org.infinispan</groupId>
<artifactId>infinispan-directory-provider</artifactId>
<version>9.0.1.Final</version>
</dependency>Only the hibernate-search-orm dependency is mandatory. infinispan-directory-provider is only required if you want to use Infinispan to store the Lucene indexes.
1.3.2. Manual library management
You can download zip bundles from Sourceforge containing all needed Hibernate Search dependencies. This includes - among others - the latest compatible version of Hibernate ORM. However, only the essential parts you need to start experimenting with are included. You will probably need to combine this with downloads from the other projects, for example the Hibernate ORM distribution on Sourceforge also provides the modules to enable caching or use a connection pool.
1.4. Deploying on WildFly
If you are creating an application to be deployed on WildFly you’re lucky: Hibernate Search is included in the application server. This means that you don’t need to package it along with your application, unless you want to use a different version than the one included. Since WildFly version 10 the embedded version of Hibernate Search is automatically activated when your application uses it. See Hibernate Search as a WildFly module for details.
If you want to use another version than the one included in WildFly, have a look at Hibernate Search as a WildFly module.
1.5. Configuration
Once you have added all required dependencies to your application you have to add a couple of
properties to your Hibernate configuration file.
If you are using Hibernate directly this can be done in hibernate.properties or hibernate.cfg.xml.
If you are using Hibernate via JPA you can also add the properties to persistence.xml.
The good news is that for standard use most properties offer a sensible default.
An example persistence.xml configuration could look like this:
hibernate.properties, hibernate.cfg.xml or persistence.xml...
<property name="hibernate.search.default.directory_provider"
value="filesystem"/>
<property name="hibernate.search.default.indexBase"
value="/var/lucene/indexes"/>
...First you have to tell Hibernate Search which DirectoryProvider to use. This can be achieved by
setting the hibernate.search.default.directory_provider property. Apache Lucene has the notion
of a Directory to store the index files. Hibernate Search handles the initialization and
configuration of a Lucene Directory instance via a DirectoryProvider. In this tutorial we will
use a a directory provider which stores the index on the file system. This will give us the ability to
inspect the Lucene indexes created by Hibernate Search (eg via
Luke). Once you have a working configuration you can start
experimenting with other directory providers (see Directory configuration).
You also have to specify the default base directory for all indexes via
hibernate.search.default.indexBase. This defines the path where indexes are stored.
Let’s assume that your application contains the Hibernate managed classes example.Book and
example.Author and you want to add free text search capabilities to your application in order to
search the books contained in your database.
package example;
...
@Entity
public class Book {
@Id
@GeneratedValue
private Integer id;
private String title;
private String subtitle;
@ManyToMany
private Set<Author> authors = new HashSet<Author>();
private Date publicationDate;
public Book() {}
// standard getters/setters follow
...
}package example;
...
@Entity
public class Author {
@Id
@GeneratedValue
private Integer id;
private String name;
public Author() {}
// standard getters/setters follow
...
}To achieve this you have to add a few annotations to the Book and Author class. The first annotation
@Indexed marks Book as indexable. By design Hibernate Search needs to store an untokenized id in
the index to ensure index uniqueness for a given entity (for now don’t worry if you don’t know what
untokenized means, it will soon be clear).
Next you have to mark the fields you want to make searchable. Let’s start with title and
subtitle and annotate both with @Field. The parameter index=Index.YES will ensure that the
text will be indexed, while analyze=Analyze.YES ensures that the text will be analyzed using the
default Lucene analyzer. Usually, analyzing or tokenizing means chunking a sentence into individual
words and potentially excluding common words like "a" or "the". We will talk more about analyzers a
little later on.
The third parameter we specify is store=Store.NO, which ensures that the actual data
will not be stored in the index.
Whether data is stored in the index or not has nothing to do with the ability to search for it.
It is not necessary to store fields in the index to allow Lucene to search for them: the benefit of
storing them is the ability to retrieve them via projections (see Projection).
Without projections, Hibernate Search will per default execute a Lucene query in order to find the database identifiers of the entities matching the query criteria and use these identifiers to retrieve managed objects from the database. The decision for or against projection has to be made on a case by case basis.
Note that index=Index.YES, analyze=Analyze.YES and store=Store.NO are the default values for
these parameters and could be omitted.
After this short look under the hood let’s go back to annotating the Book class. Another annotation
we have not yet discussed is @DateBridge. This annotation is one of the built-in field bridges in
Hibernate Search. The Lucene index is mostly string based, with special support for encoding numbers.
Hibernate Search must convert the data types of the indexed fields to their respective Lucene
encoding and vice versa. A range of predefined bridges is provided for this purpose, including the
DateBridge which will convert a java.util.Date into a numeric value (a long) with the
specified resolution. For more details see Built-in bridges.
This leaves us with @IndexedEmbedded. This annotation is used to index associated entities
(@ManyToMany, @*ToOne, @Embedded and @ElementCollection) as part of the owning entity.
This is needed since a Lucene index document is a flat data structure which does not know anything
about object relations.
To ensure that the author names will be searchable you have to make sure that the names are indexed
as part of the book itself. On top of @IndexedEmbedded you will also have to mark the fields of
the associated entity you want to have included in the index with @Field.
For more details see Embedded and associated objects.
These settings should be sufficient for now. For more details on entity mapping refer to Mapping an entity.
package example;
...
@Entity
@Indexed
public class Book {
@Id
@GeneratedValue
private Integer id;
@Field(index=Index.YES, analyze=Analyze.YES, store=Store.NO)
private String title;
@Field(index=Index.YES, analyze=Analyze.YES, store=Store.NO)
private String subtitle;
@Field(index = Index.YES, analyze=Analyze.NO, store = Store.YES)
@DateBridge(resolution = Resolution.DAY)
private Date publicationDate;
@IndexedEmbedded
@ManyToMany
private Set<Author> authors = new HashSet<Author>();
public Book() {
}
// standard getters/setters follow here
...
}@Entity
public class Author {
@Id
@GeneratedValue
private Integer id;
@Field
private String name;
public Author() {
}
// standard getters/setters follow here
...
}1.6. Indexing
Hibernate Search will transparently index every entity persisted, updated or removed through Hibernate ORM. However, you have to create an initial Lucene index for the data already present in your database. Once you have added the above properties and annotations it is time to trigger an initial batch index of your books. You can achieve this by using one of the following code snippets (see also Rebuilding the whole index):
FullTextSession fullTextSession = Search.getFullTextSession(session);
fullTextSession.createIndexer().startAndWait();EntityManager em = entityManagerFactory.createEntityManager();
FullTextEntityManager fullTextEntityManager = Search.getFullTextEntityManager(em);
fullTextEntityManager.createIndexer().startAndWait();After executing the above code, you should be able to see a Lucene index under /var/lucene/indexes/example.Book
(or based on a different path depending how you configured the property hibernate.search.default.directory_provider).
Go ahead an inspect this index with Luke: it will help you to understand how Hibernate Search works.
1.7. Searching
Now it is time to execute a first search. The general approach is to create a Lucene query, either
via the Lucene API (Building a Lucene query using the Lucene API) or via the Hibernate Search query DSL
(Building a Lucene query with the Hibernate Search query DSL), and then wrap this query into a org.hibernate.Query in order to get all the
functionality one is used to from the Hibernate API. The following code will prepare a query against
the indexed fields, execute it and return a list of Book instances.
FullTextSession fullTextSession = Search.getFullTextSession(session);
Transaction tx = fullTextSession.beginTransaction();
// create native Lucene query using the query DSL
// alternatively you can write the Lucene query using the Lucene query parser
// or the Lucene programmatic API. The Hibernate Search DSL is recommended though
QueryBuilder qb = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
org.apache.lucene.search.Query query = qb
.keyword()
.onFields("title", "subtitle", "authors.name")
.matching("Java rocks!")
.createQuery();
// wrap Lucene query in a org.hibernate.Query
org.hibernate.Query hibQuery =
fullTextSession.createFullTextQuery(query, Book.class);
// execute search
List result = hibQuery.list();
tx.commit();
session.close();EntityManager em = entityManagerFactory.createEntityManager();
FullTextEntityManager fullTextEntityManager =
org.hibernate.search.jpa.Search.getFullTextEntityManager(em);
em.getTransaction().begin();
// create native Lucene query using the query DSL
// alternatively you can write the Lucene query using the Lucene query parser
// or the Lucene programmatic API. The Hibernate Search DSL is recommended though
QueryBuilder qb = fullTextEntityManager.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
org.apache.lucene.search.Query query = qb
.keyword()
.onFields("title", "subtitle", "authors.name")
.matching("Java rocks!")
.createQuery();
// wrap Lucene query in a javax.persistence.Query
javax.persistence.Query persistenceQuery =
fullTextEntityManager.createFullTextQuery(query, Book.class);
// execute search
List result = persistenceQuery.getResultList();
em.getTransaction().commit();
em.close();1.8. Analyzer
Let’s make things a little more interesting now. Assume that one of your indexed book entities has the title "Refactoring: Improving the Design of Existing Code" and you want to get hits for all of the following queries: "refactor", "refactors", "refactored" and "refactoring". In Lucene this can be achieved by choosing an analyzer class which applies word stemming during the indexing as well as the search process. Hibernate Search offers several ways to configure the analyzer to be used (see Default analyzer and analyzer by class):
-
Setting the
hibernate.search.analyzerproperty in the configuration file. The specified class will then be the default analyzer. -
Setting the
@Analyzerannotation at the entity level. -
Setting the
@Analyzerannotation at the field level.
When using the @Analyzer annotation one can either specify the fully qualified classname of the
analyzer to use or one can refer to an analyzer definition defined by the @AnalyzerDef annotation.
In the latter case the analyzer framework with its factories approach is utilized.
To find out more about the factory classes available you can either browse the Lucene JavaDoc or read the corresponding section on the Solr Wiki.
You can use @AnalyzerDef on any:
-
@Indexedentity regardless of where the analyzer is applied to; -
parent class of an
@Indexedentity; -
package-info.java of a package containing an
@Indexedentity.
This implies that analyzer definitions are global and their names must be unique.
The @AnalyzerDef is a repeatable annotation, so you can declare multiple analyzer
definitions on each of these types.
|
Why the reference to the Apache Solr wiki? The analyzer factory framework was originally created in the Apache Solr project. Most of these implementations have been moved to Apache Lucene, but the documentation for these additional analyzers can still be found in the Solr Wiki. You might find other documentation referring to the "Solr Analyzer Framework"; just remember you don’t need to depend on Apache Solr anymore: the required classes are part of the core Lucene distribution. |
In the example below a StandardTokenizerFactory is used followed by two filter factories,
LowerCaseFilterFactory and SnowballPorterFilterFactory. The standard tokenizer splits words at
punctuation characters and hyphens.
It is a good general purpose tokenizer.
For indexing email addresses or internet hostnames it is not the best fit as it would split them up.
You may either make use of Lucene’s ClassicTokenizerFactory in such cases or implement a custom tokenizer and factory.
The lowercase filter converts to lowercase the letters in each token
whereas the snowball filter finally applies language specific stemming.
Generally, when using the Analyzer Framework you have to start with a tokenizer followed by an arbitrary number of filters.
@AnalyzerDef and the Analyzer Framework to define and use an analyzer@Entity
@Indexed
@AnalyzerDef(name = "customanalyzer",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = SnowballPorterFilterFactory.class, params = {
@Parameter(name = "language", value = "English")
})
})
public class Book {
@Id
@GeneratedValue
@DocumentId
private Integer id;
@Field
@Analyzer(definition = "customanalyzer")
private String title;
@Field
@Analyzer(definition = "customanalyzer")
private String subtitle;
@IndexedEmbedded
@ManyToMany
private Set<Author> authors = new HashSet<Author>();
@Field(index = Index.YES, analyze = Analyze.NO, store = Store.YES)
@DateBridge(resolution = Resolution.DAY)
private Date publicationDate;
public Book() {
}
// standard getters/setters follow here
...
}Using @AnalyzerDef only defines an Analyzer, you still have to apply it to entities and or
properties using @Analyzer. Like in the above example the customanalyzer is defined but not
applied on the entity: it’s applied on the title and subtitle properties only. An analyzer
definition is global, so you can define it on any entity and reuse the definition on other entities.
1.9. What’s next
The above paragraphs helped you getting an overview of Hibernate Search. The next step after this tutorial is to get more familiar with the overall architecture of Hibernate Search (Architecture) and explore the basic features in more detail. Two topics which were only briefly touched in this tutorial were analyzer configuration (Default analyzer and analyzer by class) and field bridges (Bridges). Both are important features required for more fine-grained indexing. More advanced topics cover clustering (JMS Master/Slave back end, Infinispan Directory configuration) and large index handling (Sharding indexes).
2. Architecture
2.1. Overview
Hibernate Search consists of an indexing component as well as an index search component. Both are backed by Apache Lucene.
Each time an entity is inserted, updated or removed in/from the database, Hibernate Search keeps track of this event (through the Hibernate event system) and schedules an index update. All these updates are handled without you having to interact with the Apache Lucene APIs directly (see Enabling Hibernate Search and automatic indexing). Instead, the interaction with the underlying Lucene indexes is handled via so called IndexManagers.
Each Lucene index is managed by one index manager which is uniquely identified by name. In most cases there is also a one to one relationship between an indexed entity and a single IndexManager. The exceptions are the use cases of index sharding and index sharing. The former can be applied when the index for a single entity becomes too big and indexing operations are slowing down the application. In this case a single entity is indexed into multiple indexes each with its own index manager (see Sharding indexes). The latter, index sharing, is the ability to index multiple entities into the same Lucene index (see Sharing indexes).
The index manager abstracts from the specific index configuration. In the case of the default index manager this includes details about the selected backend, the configured reader strategy and the chosen DirectoryProvider. These components will be discussed in greater detail later on. It is recommended that you start with the default index manager which uses different Lucene Directory types to manage the indexes (see Directory configuration). You can, however, also provide your own IndexManager implementation (see Configuring the IndexManager).
Once the index is created, you can search for entities and return lists of managed entities saving
you the tedious object to Lucene Document mapping. The same persistence context is shared between
Hibernate and Hibernate Search. As a matter of fact, the FullTextSession is built on top of the
Hibernate Session so that the application code can use the unified org.hibernate.Query or
javax.persistence.Query APIs exactly the same way a HQL, JPA-QL or native query would do.
To be more efficient Hibernate Search batches the write interactions with the Lucene index. This batching is the responsibility of the Worker. There are currently two types of batching. Outside a transaction, the index update operation is executed right after the actual database operation. This is really a no batching setup. In the case of an ongoing transaction, the index update operation is scheduled for the transaction commit phase and discarded in case of transaction rollback. The batching scope is the transaction. There are two immediate benefits:
-
Performance: Lucene indexing works better when operation are executed in batch.
-
ACIDity: The work executed has the same scoping as the one executed by the database transaction and is executed if and only if the transaction is committed. This is not ACID in the strict sense of it, but ACID behavior is rarely useful for full text search indexes since they can be rebuilt from the source at any time.
You can think of those two batch modes (no scope vs transactional) as the equivalent of the (infamous) autocommit vs transactional behavior. From a performance perspective, the in transaction mode is recommended. The scoping choice is made transparently. Hibernate Search detects the presence of a transaction and adjust the scoping (see Worker configuration).
|
It is recommended - for both your database and Hibernate Search - to execute your operations in a transaction, be it JDBC or JTA. |
|
Hibernate Search works perfectly fine in the Hibernate / EntityManager long conversation pattern aka. atomic conversation. |
2.2. Backend
Hibernate Search offers the ability to let the batched work be processed by different backends.
Several backends are provided out of the box and you have the option to plug in your own. It is
important to understand that in this context backend encompasses more than just the configuration
option hibernate.search.default.worker.backend. This property just specifies an implementation of
the BackendQueueProcessor interface (or the Backend interface, see the configuration options)
which is a part of a backend configuration. In most cases,
however, additional configuration settings are needed to successfully configure a specific backend
setup, like for example the JMS backend.
2.2.1. Lucene

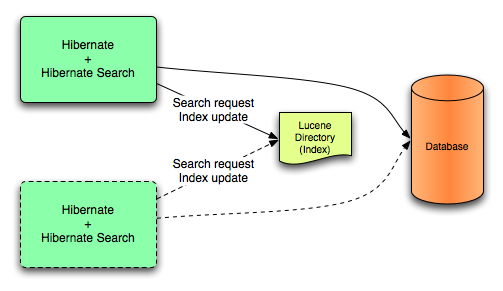

In this mode, all index update operations applied on a given node (JVM) will be executed to the Lucene directories (through the directory providers) by the same node. This mode is typically used in non clustered environment or in clustered environments where the directory store is shared.
This mode targets non clustered applications, or clustered applications where the Directory is taking care of the locking strategy.
The main advantage is simplicity and immediate visibility of the changes in Lucene queries (a requirement in some applications).
An alternative backend viable for non-clustered and non-shared index configurations is the near- real-time backend.
2.2.2. JMS
All index update operations applied on a given node are sent to a JMS queue. A unique reader will then process the queue and update the master index. The master index is then replicated on a regular basis to the slave copies. This is known as the master/slaves pattern. The master is the sole responsible for updating the Lucene index. The slaves can accept read as well as write operations. However, while they process the read operations on their local index copy, they will delegate the update operations to the master.
This mode targets clustered environments where throughput is critical, and index update delays are affordable. Reliability is ensured by the JMS provider and by having the slaves working on a local copy of the index.
The JMS integration can be transactional. With this backend (and currently only this backend) you can have Hibernate Search send the indexing work into the queue within the same transaction applying changes to the relational database. This option requires you to use an XA transaction.
By default this backend’s transactional capabilities are disabled: messages will be enqueued as a post-transaction event, consistently with other backends. To change this configuration see also Worker configuration.
2.2.3. JGroups
The JGroups based backend works similar to the JMS one and is designed after the same master/slaves pattern. However, instead of JMS, the JGroups toolkit is used as a replication mechanism. This backend can be used as an alternative to JMS when response time is critical, but i.e. JNDI service is not available.
Note that while JMS can usually be configured to use persistent queues, JGroups talks directly to other nodes over network. Message delivery to other reachable nodes is guaranteed, but if no master node is available, index operations are silently discarded. This backend can be configured to use asynchronous messages, or to wait for each indexing operation to be completed on the remote node before returning.
The JGroups backend can be configured with static master or slave roles, or can be setup to perform an auto-election of the master. This mode is particularly useful to have the system automatically pick a new master in case of failure, but during a reelection process some indexing operations might be lost. For this reason this mode is not suited for use cases requiring strong consistency guarantees. When configured to perform an automatic election, the master node is defined as an hash on the index name: the role is therefore possibly different for each index or shard.
2.2.4. Elasticsearch
In this mode, the index is not on the application server, but in an Elasticsearch cluster. Update operations are sent to the cluster and executed remotely, and so are search queries.
This mode allows to easily set up a clustered application, without the advanced configuration required by the JMS and JGroups modes.
More information can be found in the Elasticsearch integration section.
2.3. Reader strategy
When executing a query, Hibernate Search interacts with the Apache Lucene indexes through a reader strategy. Choosing a reader strategy will depend on the profile of the application (frequent updates, read mostly, asynchronous index update etc). See also Reader strategy configuration
2.3.1. shared
With this strategy, Hibernate Search will share the same IndexReader, for a given Lucene index, across multiple queries and threads provided that the IndexReader is still up-to-date. If the IndexReader is not up-to-date, a new one is opened and provided. Each IndexReader is made of several SegmentReaders. This strategy only reopens segments that have been modified or created after last opening and shares the already loaded segments from the previous instance. This approach is quite efficient and guarantees that each query is run on the most recent index snapshot; the drawback is that for every query the strategy will have to verify if the IndexReader is still fresh, and if not perform a refresh; such a refresh is typically a cheap operation but if you have a significant amount of writes and queries happening concurrently then one of the other strategies might be preferred. This strategy is the default.
The name of this strategy is shared.
2.3.2. not-shared
Every time a query is executed, a Lucene IndexReader is opened. This strategy is not efficient since opening and warming up an IndexReader can be a relatively expensive operation, but is very simple code. Use it as an example implementation if you’re interested to learn about Hibernate Search internals or want to extend it.
The name of this strategy is not-shared.
2.3.3. async
This implementation keeps an IndexReader open and ready to be used by all queries, while a background thread periodically verifies if there is need to open a fresh one, replaces the active one and disposes the outdated one. The frequency of checks - and refreshing - of this background thread is configurable, but defaults to 5000 milliseconds. The drawback of this design is that queries are effectively run on an index snapshot which might be approximately 5 seconds out of date (assuming the refresh period is not reconfigured); the benefit is that if your application writes frequently to the index, the query performance will be more consistent.
The name of this strategy is async.
3. Configuration
3.1. Enabling Hibernate Search and automatic indexing
Let’s start with the most basic configuration question - how do I enable Hibernate Search?
3.1.1. Enabling Hibernate Search
The good news is that Hibernate Search is enabled out of the box when detected on the classpath by
Hibernate ORM. If, for some reason you need to disable it, set
hibernate.search.autoregister_listeners to false. Note that there is no performance penalty
when the listeners are enabled but no entities are annotated as indexed.
3.1.2. Automatic indexing
By default, every time an object is inserted, updated or deleted through Hibernate, Hibernate Search updates the according Lucene index. It is sometimes desirable to disable that features if either your index is read-only or if index updates are done in a batch way (see Rebuilding the whole index).
To disable event based indexing, set
hibernate.search.indexing_strategy = manual|
In most case, the JMS backend provides the best of both world, a lightweight event based system keeps track of all changes in the system, and the heavyweight indexing process is done by a separate process or machine. |
3.2. Configuring the IndexManager
The role of the index manager component is described in Architecture. Hibernate Search provides two possible implementations for this interface to choose from.
-
directory-based: the default implementation which uses the Lucene Directory abstraction to manage index files. -
near-real-time: avoid flushing writes to disk at each commit. This index manager is also Directory based, but also makes uses of Lucene’s NRT functionality.
To select an alternative you specify the property:
hibernate.search.[default|<indexname>].indexmanager = near-real-time3.2.1. directory-based
The default IndexManager implementation. This is the one mostly referred to in this documentation. It is highly configurable and allows you to select different settings for the reader strategy, back ends and directory providers. Refer to Directory configuration, Worker configuration and Reader strategy configuration for more details.
3.2.2. near-real-time
The NRTIndexManager is an extension of the default IndexManager, leveraging the Lucene NRT (Near
Real Time) features for extreme low latency index writes. As a trade-off it requires a non-clustered
and non-shared index. In other words, it will ignore configuration settings for alternative back
ends other than lucene and will acquire exclusive write locks on the Directory.
To achieve this low latency writes, the IndexWriter will not flush every change to disk. Queries will be allowed to read updated state from the unflushed index writer buffers; the downside of this strategy is that if the application crashes or the IndexWriter is otherwise killed you’ll have to rebuild the indexes as some updates might be lost.
Because of these downsides, and because a master node in cluster can be configured for good performance as well, the NRT configuration is only recommended for non clustered websites with a limited amount of data.
3.2.3. Custom
It is also possible to configure a custom IndexManager implementation by specifying the fully qualified class name of your custom implementation. This implementation must have a no-argument constructor:
hibernate.search.[default|<indexname>].indexmanager = my.corp.myapp.CustomIndexManager
|
Your custom index manager implementation doesn’t need to use the same components as the default implementations. For example, you can delegate to a remote indexing service which doesn’t expose a Directory interface. |
3.3. Directory configuration
As we have seen in Configuring the IndexManager the default index manager uses Lucene’s notion of a Directory to store the index files. The Directory implementation can be customized and Lucene comes bundled with a file system and an in-memory implementation. DirectoryProvider is the Hibernate Search abstraction around a Lucene Directory and handles the configuration and the initialization of the underlying Lucene resources. List of built-in DirectoryProvider shows the list of the directory providers available in Hibernate Search together with their corresponding options.
To configure your DirectoryProvider you have to understand that each indexed entity is associated to a Lucene index (except of the case where multiple entities share the same index - Sharing indexes). The name of the index is given by the index property of the @Indexed annotation. If the index property is not specified the fully qualified name of the indexed class will be used as name (recommended).
Knowing the index name, you can configure the directory provider and any additional options by using
the prefix hibernate.search.<indexname>. The name default (hibernate.search.default) is
reserved and can be used to define properties which apply to all indexes.
Configuring directory providers shows how hibernate.search.default.directory_provider
is used to set the default directory provider to be the filesystem one. hibernate.search.default.indexBase
sets then the default base directory for the indexes. As a result the index for the entity Status is
created in /usr/lucene/indexes/org.hibernate.example.Status.
The index for the Rule entity, however, is using an in-memory directory, because the default
directory provider for this entity is overridden by the property
hibernate.search.Rules.directory_provider.
Finally the Action entity uses a custom directory provider CustomDirectoryProvider specified via
hibernate.search.Actions.directory_provider.
package org.hibernate.example;
@Indexed
public class Status { ... }
@Indexed(index="Rules")
public class Rule { ... }
@Indexed(index="Actions")
public class Action { ... }hibernate.search.default.directory_provider = filesystem hibernate.search.default.indexBase = /usr/lucene/indexes hibernate.search.Rules.directory_provider = local-heap hibernate.search.Actions.directory_provider = com.acme.hibernate.CustomDirectoryProvider
|
Using the described configuration scheme you can easily define common rules like the directory provider and base directory, and override those defaults later on on a per index basis. |
| Name and description | Properties |
|---|---|
local-heap: Directory using the local JVM heap. Local heap directories and all contained indexes are lost when the JVM shuts down. This option is only provided for use in testing configurations with small (trivial) indexes and low concurrency, where it could slightly improve performance. In setups requiring larger indexes and/or high concurrency, a file system based directory (see below) will achieve better performance. The directory will be uniquely identified (in the same deployment unit) by the |
none |
filesystem: File system based directory. The directory used will be <indexBase>/<indexName> |
|
filesystem-master: File system based directory. Like The recommended value for the refresh period is (at least) 50% higher that the time to copy the information (default 3600 seconds - 60 minutes). Note that the copy is based on an incremental copy mechanism reducing the average copy time. DirectoryProvider typically used on the master node in a JMS back end cluster. |
|
filesystem-slave: File system based directory. Like The recommended value for the refresh period is (at least) 50% higher that the time to copy the information (default 3600 seconds - 60 minutes). Note that the copy is based on an incremental copy mechanism reducing the average copy time. If a copy is still in progress when refresh period elapses, the second copy operation will be skipped. DirectoryProvider typically used on slave nodes using a JMS back end. |
|
infinispan: Infinispan based directory. Use it to store the index in a distributed grid, making index changes visible to all elements of the cluster very quickly. Also see Infinispan Directory configuration for additional requirements and configuration settings. Infinispan needs a global configuration and additional dependencies; the settings defined here apply to each different index. |
|
|
If the built-in directory providers do not fit your needs, you can write your own directory provider
by implementing the |
3.3.1. Infinispan Directory configuration
Infinispan is a distributed, scalable, cloud friendly data grid platform, which Hibernate Search can use to store the Lucene index. Your application can benefits in this case from Infinispan’s distribution capabilities making index updates available on all nodes with short latency.
This section describes how to configure Hibernate Search to use an Infinispan Lucene Directory.
When using an Infinispan Directory the index is stored in memory and shared across multiple nodes. It is considered a single directory distributed across all participating nodes: if a node updates the index, all other nodes are updated as well. Updates on one node can be immediately searched for in the whole cluster.
The default configuration replicates all data which defines the index across all nodes, thus consuming a significant amount of memory but providing the best query performance. For large indexes it’s suggested to enable data distribution, so that each piece of information is replicated to a subset of all cluster members. The distribution option will reduce the amount of memory required for each node but is less efficient as it will cause high network usage among the nodes.
It is also possible to offload part or most information to a CacheStore, such as plain filesystem,
Amazon S3, Cassandra, MongoDB or standard relational databases. You can configure it to have a
CacheStore on each node or have a single centralized one shared by each node.
A popular choice is to use a replicated index aiming to keep the whole index in memory, combined with
a CacheStore as safety valve in case the index gets larger than expected.
See the Infinispan documentation for all Infinispan configuration options.
Requirements
To use the Infinispan directory via Maven, add the following dependencies:
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-search-orm</artifactId>
<version>5.9.3.Final</version>
</dependency>
<dependency>
<groupId>org.infinispan</groupId>
<artifactId>infinispan-directory-provider</artifactId>
<version>9.0.1.Final</version>
</dependency>|
This dependency changed in Hibernate Search version 5.2. Previously the DirectoryProvider was provided by the Hibernate Search project and had Maven coordinates 'org.hibernate:hibernate-search-infinispan', but the Infinispan team is now maintaining this extension point so since this version please use the Maven definition as in the previous example. The version printed above was the latest known compatible at the time of publishing this Hibernate Search version: it’s possible that more recently improved versions of Infinispan have been published which are compatible with this same Hibernate Search version. |
Architecture
Even when using an Infinispan directory it’s still recommended to use the JMS Master/Slave or
JGroups backend, because in Infinispan all nodes will share the same index and it is likely that
IndexWriter instances being active on different nodes will try to acquire the lock on the same
index. So instead of sending updates directly to the index, send it to a JMS queue or JGroups
channel and have a single node apply all changes on behalf of all other nodes.
Configuring a non-default backend is not a requirement but a performance optimization as locks are enabled to have a single node writing.
To configure a JMS slave only the backend must be replaced, the directory provider must be set to
infinispan; set the same directory provider on the master, they will connect without the need to
setup the copy job across nodes. Using the JGroups backend is very similar - just combine the
backend configuration with the infinispan directory provider.
Infinispan Configuration
The most simple configuration only requires to enable the backend:
hibernate.search.[default|<indexname>].directory_provider = infinispanThat’s all what is needed to get a cluster-replicated index, but the default configuration does not enable any form of permanent persistence for the index; to enable such a feature an Infinispan configuration file should be provided.
To use Infinispan, Hibernate Search requires a CacheManager; it can lookup and reuse an existing CacheManager, via JNDI, or start and manage a new one. In the latter case Hibernate Search will start and stop it ( closing occurs when the Hibernate SessionFactory is closed).
To use and existing CacheManager via JNDI (optional parameter):
hibernate.search.infinispan.cachemanager_jndiname = [jndiname]To start a new CacheManager from a configuration file (optional parameter):
hibernate.search.infinispan.configuration_resourcename = [infinispan configuration filename]If both parameters are defined, JNDI will have priority. If none of these is defined, Hibernate
Search will use the default Infinispan configuration included in infinispan-directory-provider.jar.
This configuration should work fine in most cases but does not store the index in a persistent cache
store.
As mentioned in List of built-in DirectoryProvider, each index makes use of three caches, so three
different caches should be configured as shown in the default-hibernatesearch-infinispan.xml
provided in the infinispan-directory-provider.jar. Several indexes can share the same caches.
Infinispan relies on JGroups for its networking functionality, so unless you are using Infinispan on a single node, an Infinispan configuration file will refer to a JGroups configuration file. This coupling is not always practical and we provide a property to override the used JGroups configuration file:
hibernate.search.infinispan.configuration.transport_override_resourcename = jgroups-ec2.xmlThis allows to just switch the JGroups configuration while keeping the rest of the Infinispan configuration.
The file jgroups-ec2.xml used in the example above is one of the several JGroups configurations
included in Infinispan. It is a good starting point to run on Amazon EC2 networks. For more details
and examples see usage of pre-configured JGroups stacks
in the Infinispan configuration guide.
3.4. Worker configuration
It is possible to refine how Hibernate Search interacts with Lucene through the worker configuration. There exist several architectural components and possible extension points. Let’s have a closer look.
First there is a Worker. An implementation of the Worker interface is responsible for receiving all entity changes, queuing them by context and applying them once a context ends. The most intuitive context, especially in connection with ORM, is the transaction. For this reason Hibernate Search will per default use the TransactionalWorker to scope all changes per transaction. One can, however, imagine a scenario where the context depends for example on the number of entity changes or some other application (lifecycle) events. For this reason the Worker implementation is configurable as shown in Scope configuration.
Property |
Description |
hibernate.search.worker.scope |
The fully qualified class name of the
Worker implementation to use. If this
property is not set, empty or |
hibernate.search.default.worker.* |
All configuration properties prefixed with
|
hibernate.search.worker.enlist_in_transaction |
Defaults to |
Once a context ends it is time to prepare and apply the index changes. This can be done synchronously or asynchronously from within a new thread. Synchronous updates have the advantage that the index is at all times in sync with the databases. Asynchronous updates, on the other hand, can help to minimize the user response time. The drawback is potential discrepancies between database and index states. Lets look at the configuration options shown in Execution configuration.
|
The following options can be different on each index; in fact they need the indexName prefix or use
|
Property |
Description |
hibernate.search.<indexName>.worker.execution |
|
So far all work is done within the same Virtual Machine (VM), no matter which execution mode. The total amount of work has not changed for the single VM. Luckily there is a better approach, namely delegation. It is possible to send the indexing work to a different server by configuring hibernate.search.default.worker.backend - see Backend configuration. Again this option can be configured differently for each index.
Property |
Description |
hibernate.search.<indexName>.worker.backend |
You can also specify the fully qualified name of a class implementing Please note that instances of |
Property |
Description |
hibernate.search.<indexName>.worker.jms.connection_factory |
Mandatory for the JMS back end. Defines the JNDI name to
lookup the JMS connection factory from ( |
hibernate.search.<indexName>.worker.jms.queue |
Mandatory for the JMS back end. Defines the JNDI name to lookup the JMS queue from. The queue will be used to post work messages. |
hibernate.search.<indexName>.worker.jms.login |
Optional for the JMS slaves. Use it when your queue requires login credentials to define your login. |
hibernate.search.<indexName>.worker.jms.login |
Optional for the JMS slaves. Use it when your queue requires login credentials to define your password. |
Since these components use JNDI, don’t forget to configure the Hibernate ORM properties for the initial context lookup.
Property |
Description |
hibernate.jndi.class |
Name of the javax.naming.InitialContext implementation class to use |
hibernate.jndi.url |
Name of the JNDI InitialContext connection url |
See also the JNDI configuration in Hibernate ORM.
|
As you probably noticed, some of the shown properties are correlated which means that not all combinations of property values make sense. In fact you can end up with a non-functional configuration. This is especially true for the case that you provide your own implementations of some of the shown interfaces. Make sure to study the existing code before you write your own Worker or BackendQueueProcessor implementation. |
3.4.1. JMS Master/Slave back end
This section describes in greater detail how to configure the Master/Slave Hibernate Search architecture.
JMS back end configuration.
Slave nodes
Every index update operation is sent to a JMS queue. Index querying operations are executed on a local index copy.
### slave configuration ## DirectoryProvider # (remote) master location hibernate.search.default.sourceBase = /mnt/mastervolume/lucenedirs/mastercopy # local copy location hibernate.search.default.indexBase = /Users/prod/lucenedirs # refresh every half hour hibernate.search.default.refresh = 1800 # appropriate directory provider hibernate.search.default.directory_provider = filesystem-slave ## Backend configuration hibernate.search.default.worker.backend = jms hibernate.search.default.worker.jms.connection_factory = /ConnectionFactory hibernate.search.default.worker.jms.queue = queue/hibernatesearch #optionally authentication credentials: hibernate.search.default.worker.jms.login = myname hibernate.search.default.worker.jms.password = wonttellyou #optional jndi configuration (check your JMS provider for more information) ## Enqueue indexing tasks within an XA transaction with the database (optional) hibernate.search.worker.enlist_in_transaction = true
The enlist_in_transaction option can be enabled if you need strict guarantees of
indexing work to be stored in the queue within the same transaction of the database
changes, however this will require both the RDBMs datasource and the JMS queue to be XA enabled.
Make sure to use a XA JMS queue and that your database supports XA as we are talking about coordinated transactional systems.
The default for enlist_in_transaction is false as often it is desirable to not have
the database transaction fail in case there are issues with indexing.
It is possible to apply compensating operations to the index by implementing a custom
ErrorHandler (see Exception handling), or simply re-synchronize the whole index
state by starting the MassIndexer (see Using a MassIndexer.
|
A file system local copy is recommended for faster search results. |
Master node
Every index update operation is taken from a JMS queue and executed. The master index is copied on a regular basis.
### master configuration ## DirectoryProvider # (remote) master location where information is copied to hibernate.search.default.sourceBase = /mnt/mastervolume/lucenedirs/mastercopy # local master location hibernate.search.default.indexBase = /Users/prod/lucenedirs # refresh every half hour hibernate.search.default.refresh = 1800 # appropriate directory provider hibernate.search.default.directory_provider = filesystem-master ## Backend configuration #The backend is not set: use the default one which is 'local'
|
It is recommended that the refresh period be higher than the expected copy time; if a copy operation is still being performed when the next refresh triggers, the second refresh is skipped: it’s safe to set this value low even when the copy time is not known. |
In addition to the Hibernate Search framework configuration, a Message Driven Bean has to be written and set up to process the index works queue through JMS.
import javax.ejb.ActivationConfigProperty;
import javax.ejb.MessageDriven;
import javax.jms.MessageListener;
import javax.persistence.EntityManagerFactory;
import javax.persistence.PersistenceUnit;
import org.hibernate.search.backend.jms.spi.AbstractJMSHibernateSearchController;
import org.hibernate.search.orm.spi.SearchIntegratorHelper;
import org.hibernate.search.spi.SearchIntegrator;
@MessageDriven(activationConfig = {
@ActivationConfigProperty(propertyName="destinationType",
propertyValue="javax.jms.Queue"),
@ActivationConfigProperty(propertyName="destination",
propertyValue="queue/hibernatesearch")
} )
public class MDBSearchController extends AbstractJMSHibernateSearchController
implements MessageListener {
@PersistenceUnit EntityManagerFactory emf;
@Override
protected SearchIntegrator getSearchIntegrator() {
return SearchIntegratorHelper.extractFromEntityManagerFactory( emf );
}
}This example inherits from the abstract JMS controller class available in the Hibernate Search
source code and implements a JavaEE MDB. This implementation is given as an example and can be
adjusted to make use of non Java EE Message Driven Beans.
Essentially what you need to do is to connect the specific JMS Queue with the SearchFactory
instance of the EntityManager.
As an advanced alternative, you can implement your own logic by not extending AbstractJMSHibernateSearchController
but rather to use it as an implementation example.
3.4.2. JGroups Master/Slave back end
This section describes how to configure the JGroups Master/Slave back end. The master and slave roles are similar to what is illustrated in JMS Master/Slave back end, only a different backend (hibernate.search.default.worker.backend) needs to be set.
A specific backend can be configured to act either as a slave using jgroupsSlave, as a master
using jgroupsMaster, or can automatically switch between the roles as needed by using jgroups.
|
Either you specify a single |
All backends configured to use JGroups share the same channel. The JGroups JChannel is the main communication link across all nodes participating in the same cluster group; since it is convenient to have just one channel shared across all backends, the Channel configuration properties are not defined on a per-worker section but are defined globally. See JGroups channel configuration.
Table JGroups backend configuration properties contains all configuration options which can be set
independently on each index backend. These apply to all three variants of the backend:
jgroupsSlave, jgroupsMaster, jgroups. It is very unlikely that you need to change any of these
from their defaults.
Property |
Description |
hibernate.search.<indexName>.jgroups.block_waiting_ack |
Set to either |
hibernate.search.<indexName>.jgroups.messages_timeout |
The timeout of waiting for a single command to be
acknowledged and executed when
|
hibernate.search.<indexName>.jgroups.delegate_backend |
The master node receiving indexing operations forwards
them to a standard backend to be performed. Defaults to
|
Slave nodes
Every index update operation is sent through a JGroups channel to the master node. Index querying
operations are executed on a local index copy. Enabling the JGroups worker only makes sure the index
operations are sent to the master, you still have to synchronize configuring an appropriate
directory (See filesystem-master, filesystem-slave or infinispan options in Directory configuration).
### slave configuration hibernate.search.default.worker.backend = jgroupsSlave
Master node
Every index update operation is taken from a JGroups channel and executed. The master index is copied on a regular basis.
### master configuration hibernate.search.default.worker.backend = jgroupsMaster
Automatic master election
|
This feature is considered experimental. In particular during a re-election process there is a small window of time in which indexing requests could be lost. |
In this mode the different nodes will autonomously elect a master node. When a master fails, a new node is elected automatically.
When setting this backend it is expected that all Hibernate Search instances in the same cluster use
the same backend for each specific index: this configuration is an alternative to the static
jgroupsMaster and jgroupsSlave approach so make sure to not mix them.
To synchronize the indexes in this configuration avoid filesystem-master and filesystem-slave
directory providers as their behaviour can not be switched dynamically; use the Infinispan
Directory instead, which has no need for different configurations on each instance and allows
dynamic switching of writers; see also Infinispan Directory configuration.
### automatic configuration hibernate.search.default.worker.backend = jgroups
|
Should you use The dynamic |
JGroups channel configuration
Configuring the JGroups channel essentially entails specifying the transport in terms of a network protocol stack. To configure the JGroups transport, point the configuration property hibernate.search.services.jgroups.configurationFile to a JGroups configuration file; this can be either a file path or a Java resource name.
|
If no property is explicitly specified it is assumed that the JGroups default configuration file
|
The default cluster name is Hibernate Search Cluster which can be configured as seen in JGroups cluster name configuration.
hibernate.search.services.jgroups.clusterName = My-Custom-Cluster-Id
The cluster name is what identifies a group: by changing the name you can run different clusters in the same network in isolation.
JGroups channel instance injection
For programmatic configurations, one additional option is available to configure the JGroups
channel: to pass an existing channel instance to Hibernate Search directly using the property
hibernate.search.services.jgroups.providedChannel, as shown in the following example.
import org.hibernate.search.backend.impl.jgroups.JGroupsChannelProvider;
org.jgroups.JChannel channel = ...
Map<String,String> properties = new HashMap<String,String)(1);
properties.put( JGroupsChannelProvider.CHANNEL_INJECT, channel );
EntityManagerFactory emf = Persistence.createEntityManagerFactory( "userPU", properties );3.5. Reader strategy configuration
The different reader strategies are described in Reader strategy. Out of the box strategies are:
-
shared: share index readers across several queries. This strategy is very efficient. -
not-shared: create an index reader for each individual query. Very simple implementation. -
async: only opens a new index reader periodically. This is the most efficient implementation, but queries might return out of date values.
The default reader strategy is shared.
You can pick the reader strategy by changing the .reader.strategy configuration property,
scoped to the "default" index or to a specific index.
For example:
hibernate.search.[default|<indexname>].reader.strategy = async hibernate.search.[default|<indexname>].reader.async_refresh_period_ms = 8000
Adding the above properties switches to the async strategy, and configures it to refresh
the index reader each 8 seconds.
Alternatively you can use a custom implementation of a org.hibernate.search.indexes.spi.ReaderProvider:
hibernate.search.[default|<indexname>].reader.strategy = my.corp.myapp.CustomReaderProvider
where my.corp.myapp.CustomReaderProvider is the custom strategy implementation.
3.6. Serialization
When using clustering features, Hibernate Search needs to find an implementation of the
SerializationProvider service on the classpath.
An implementation of the service based on Apache Avro can be found using the following GAV coordinates:
org.hibernate:hibernate-search-serialization-avro:5.9.3.Final
You can add the coordinates to your pom file or download all the required dependecies and add them to your classpath. Hibernate Search will find the service implementation without any additional configuration.
Alternatively, you can create a custom service implementation:
package example.provider.serializer
import org.hibernate.search.indexes.serialization.spi.Deserializer;
import org.hibernate.search.indexes.serialization.spi.SerializationProvider;
import org.hibernate.search.indexes.serialization.spi.Serializer;
public class ExampleOfSerializationProvider implements SerializationProvider {
@Override
public Serializer getSerializer() {
Serializer serializer = ...
return serializer;
}
@Override
public Deserializer getDeserializer() {
Deserializer deserializer = ...
return deserializer;
}
}Hibernate Search uses the Java ServiceLoader mechanism to transparently discover services. In this case you will add the following file in your classpath:
/META-INF/services/org.hibernate.search.indexes.serialization.spi.SerializationProvider
example.provider.serializer.ExampleOfSerializationProvider
You will find more details about services in the section Using external services.
3.7. Exception handling
Hibernate Search allows you to configure how exceptions are handled during the indexing process. If no configuration is provided then exceptions are logged to the log output by default. It is possible to explicitly declare the exception logging mechanism as seen below:
hibernate.search.error_handler = log
The default exception handling occurs for both synchronous and asynchronous indexing. Hibernate Search provides an easy mechanism to override the default error handling implementation.
In order to provide your own implementation you must implement the ErrorHandler interface, which provides the handle(ErrorContext context) method. ErrorContext provides a reference to the primary LuceneWork instance, the underlying exception and any subsequent LuceneWork instances that could not be processed due to the primary exception.
public interface ErrorContext {
List<LuceneWork> getFailingOperations();
LuceneWork getOperationAtFault();
Throwable getThrowable();
boolean hasErrors();
}To register this error handler with Hibernate Search you must declare the fully qualified classname of your ErrorHandler implementation in the configuration properties:
hibernate.search.error_handler = CustomerErrorHandler
Alternatively, an ErrorHandler instance may be passed via the configuration value map used when bootstrapping Hibernate Search programmatically.
3.8. Lucene configuration
Even though Hibernate Search will try to shield you as much as possible from Lucene specifics, there are several Lucene specifics which can be directly configured, either for performance reasons or for satisfying a specific use case. The following sections discuss these configuration options.
3.8.1. Tuning indexing performance
Hibernate Search allows you to tune the Lucene indexing performance by specifying a set of
parameters which are passed through to underlying Lucene IndexWriter such as mergeFactor,
maxMergeDocs and maxBufferedDocs. You can specify these parameters either as default values
applying for all indexes, on a per index basis, or even per shard.
There are several low level IndexWriter settings which can be tuned for different use cases.
These parameters are grouped by the indexwriter keyword:
hibernate.search.[default|<indexname>].indexwriter.<parameter_name>
If no value is set for an indexwriter value in a specific shard configuration, Hibernate Search
will look at the index section, then at the default section.
hibernate.search.Animals.2.indexwriter.max_merge_docs = 10 hibernate.search.Animals.2.indexwriter.merge_factor = 20 hibernate.search.Animals.2.indexwriter.max_buffered_docs = default hibernate.search.default.indexwriter.max_merge_docs = 100 hibernate.search.default.indexwriter.ram_buffer_size = 64
The configuration in Example performance option configuration will result in these settings applied on the second shard of the Animal index:
-
max_merge_docs= 10 -
merge_factor= 20 -
ram_buffer_size= 64MB -
max_buffered_docs= Lucene default
All other values will use the defaults defined in Lucene.
The default for all values is to leave them at Lucene’s own default. The values listed in
List of indexing performance and behavior properties depend for this reason on the version of Lucene you are using.
The values shown are relative to version 2.4. For more information about Lucene indexing performance,
please refer to the Lucene documentation.
| Property | Description | Default Value |
|---|---|---|
hibernate.search.[default|<indexname>].exclusive_index_use |
Set to |
|
hibernate.search.[default|<indexname>].max_queue_length |
Each index has a separate "pipeline" which contains the updates to be applied to the index.
When this queue is full adding more operations to the queue becomes a blocking operation. Configuring
this setting doesn’t make much sense unless the |
|
hibernate.search.[default|<indexname>].index_flush_interval |
The interval in milliseconds between flushes
of write operations to the index storage. Ignored unless |
|
hibernate.search.[default|<indexname>].indexwriter.max_buffered_delete_terms |
Determines the minimal number of delete terms required before the buffered in-memory delete terms are applied and flushed. If there are documents buffered in memory at the time, they are merged and a new segment is created. |
Disabled (flushes by RAM usage) |
hibernate.search.[default|<indexname>].indexwriter.max_buffered_docs |
Controls the amount of documents buffered in memory during indexing. The bigger the more RAM is consumed. |
Disabled (flushes by RAM usage) |
hibernate.search.[default|<indexname>].indexwriter.max_merge_docs |
Defines the largest number of documents allowed in a segment. Smaller values perform better on frequently changing indexes, larger values provide better search performance if the index does not change often. |
Unlimited (Integer.MAX_VALUE) |
hibernate.search.[default|<indexname>].indexwriter.merge_factor |
Controls segment merge frequency and size. Determines how often segment indexes are merged when insertion occurs. With smaller values, less RAM is used while indexing, and searches on unoptimized indexes are faster, but indexing speed is slower. With larger values, more RAM is used during indexing, and while searches on unoptimized indexes are slower, indexing is faster. Thus larger values (> 10) are best for batch index creation, and smaller values (< 10) for indexes that are interactively maintained. The value must not be lower than 2. |
10 |
hibernate.search.[default|<indexname>].indexwriter.merge_min_size |
Controls segment merge frequency and size. Segments smaller than this size (in MB) are always
considered for the next segment merge operation.
Setting this too large might result in expensive merge operations, even tough they are less frequent.
See also |
0 MB (actually ~1K) |
hibernate.search.[default|<indexname>].indexwriter.merge_max_size |
Controls segment merge frequency and size. Segments larger than this size (in MB) are never merged
in bigger segments. This helps reduce memory requirements and avoids some merging operations at the
cost of optimal search speed. When optimizing an index this value is ignored.
See also |
Unlimited |
hibernate.search.[default|<indexname>].indexwriter.merge_max_optimize_size |
Controls segment merge frequency and size. Segments larger than this size (in MB) are not merged
in bigger segments even when optimizing the index (see |
Unlimited |
hibernate.search.[default|<indexname>].indexwriter.merge_calibrate_by_deletes |
Controls segment merge frequency and size. Set to |
|
hibernate.search.[default|<indexname>].indexwriter.ram_buffer_size |
Controls the amount of RAM in MB dedicated to document buffers. When used together max_buffered_docs a flush occurs for whichever event happens first. Generally for faster indexing performance it’s best to flush by RAM usage instead of document count and use as large a RAM buffer as you can. |
16 MB |
hibernate.search.enable_dirty_check |
Not all entity changes require an update of the Lucene index. If all of the updated entity
properties (dirty properties) are not indexed Hibernate Search will skip the re-indexing work.
Disable this option if you use a custom |
true |
hibernate.search.[default|<indexname>].indexwriter.infostream |
Enable low level trace information about Lucene’s internal components. Will cause significant performance degradation: should only be used for troubleshooting purposes. |
false |
|
When your architecture permits it, always keep
|
|
To tune the indexing speed it might be useful to time the object loading from database in isolation
from the writes to the index. To achieve this set the hibernate.search.[default|<indexname>].worker.backend blackhole The recommended approach is to focus first on optimizing the object loading by enabling the |
|
The |
Control segment size
The options merge_max_size, merge_max_optimize_size, merge_calibrate_by_deletes
give you control on the maximum size of the segments being created, but you need to understand how
they affect file sizes. If you need to hard limit the size, consider that merging a segment is about
adding it together with another existing segment to form a larger one, so you might want to set the
max_size for merge operations to less than half of your hard limit. Also segments might
initially be generated larger than your expected size at first creation time: before they are ever
merged. A segment is never created much larger than ram_buffer_size, but the threshold is
checked as an estimate.
Example:
//to be fairly confident no files grow above 15MB, use: hibernate.search.default.indexwriter.ram_buffer_size = 10 hibernate.search.default.indexwriter.merge_max_optimize_size = 7 hibernate.search.default.indexwriter.merge_max_size = 7
|
When using the Infinispan Directory to cluster indexes make sure that your segments are smaller than
the |
Troubleshooting: enable Lucene’s Infostream
Apache Lucene allows to log a very detailed trace log from its internals using a feature called "infostream". To access these details, Hibernate Search can be configured to capture this internal trace from Apache Lucene and redirect it to your logger.
-
Enable
TRACElevel logging for the categoryorg.hibernate.search.backend.lucene.infostream -
Activate the feature on the index you want to inspect:
hibernate.search.[default|<indexname>].indexwriter.infostream=true
Keep in mind that this feature has a performance cost, and although most logger frameworks allow the TRACE level to be reconfigured at runtime,
enabling the infostream property will slow you down even if the logger is disabled.
3.8.2. LockFactory configuration
Lucene Directorys have default locking strategies which work generally good enough for most cases, but it’s possible to specify for each index managed by Hibernate Search a specific LockingFactory you want to use. This is generally not needed but could be useful.
Some of these locking strategies require a filesystem-level lock.
They may be used with the local-heap directory provider,
but in this case the indexBase configuration option
(usually not needed when using a local-heap directory provider)
must be specified to point to a filesystem location where the lock marker files will be stored.
To select a locking factory, set the hibernate.search.<index>.locking_strategy option to
one of simple, native, single or none. Alternatively set it to the fully qualified name of
an implementation of org.hibernate.search.store.LockFactoryProvider.
| name | Class | Description |
|---|---|---|
simple |
org.apache.lucene.store.SimpleFSLockFactory |
Safe implementation based on Java’s File API, it marks the usage of the index by creating a marker file. If for some reason you had to kill your application, you will need to remove this file before restarting it. |
native |
org.apache.lucene.store.NativeFSLockFactory |
As does This implementation has known problems on NFS, avoid it on network shares.
|
single |
org.apache.lucene.store.SingleInstanceLockFactory |
This LockFactory doesn’t use a file marker but is a Java object lock held in memory; therefore it’s possible to use it only when you are sure the index is not going to be shared by any other process. This is the default implementation for the |
none |
org.apache.lucene.store.NoLockFactory |
All changes to this index are not coordinated by any lock; test your application carefully and make sure you know what it means. |
Configuration example:
hibernate.search.default.locking_strategy = simple hibernate.search.Animals.locking_strategy = native hibernate.search.Books.locking_strategy = org.custom.components.MyLockingFactory
The Infinispan Directory uses a custom implementation; it’s still possible to override it but make sure you understand how that will work, especially with clustered indexes.
3.8.3. Index format compatibility
While Hibernate Search strives to offer a backwards compatible API making it easy to port your application to newer versions, it still delegates to Apache Lucene to handle the index writing and searching. This creates a dependency to the Lucene index format. The Lucene developers of course attempt to keep a stable index format, but sometimes a change in the format can not be avoided. In those cases you either have to re-index all your data or use an index upgrade tool. Sometimes Lucene is also able to read the old format so you don’t need to take specific actions (besides making backup of your index).
While an index format incompatibility is a rare event, it can happen more often that Lucene’s Analyzer implementations might slightly change its behavior. This can lead to a poor recall score, possibly missing many hits from the results.
Hibernate Search exposes a configuration property hibernate.search.lucene_version which
instructs the analyzers and other Lucene classes to conform to their behavior as defined in an
(older) specific version of Lucene. See also org.apache.lucene.util.Version contained in the
lucene-core.jar. Depending on the specific version of Lucene you’re using you might have different
options available. When this option is not specified, Hibernate Search will instruct Lucene to use
the default version, which is usually the best option for new projects. Still it’s recommended to
define the version you’re using explicitly in the configuration so that when you happen to upgrade
Lucene the analyzers will not change behavior. You can then choose to update this value at a later
time, when you for example have the chance to rebuild the index from scratch.
hibernate.search.lucene_version = LUCENE_47
This option is global for the configured SearchFactory and affects all Lucene APIs having such a parameter, as this should be applied consistently. So if you are also making use of Lucene bypassing Hibernate Search, make sure to apply the same value too.
3.9. Metadata API
After looking at all these different configuration options, it is time to have a look at an API
which allows you to programmatically access parts of the configuration. Via the metadata API you can
determine the indexed types and also how they are mapped (see Mapping entities to the index structure) to the index
structure. The entry point into this API is the SearchFactory. It offers two methods, namely
getIndexedTypes() and getIndexedTypeDescriptor(Class<?>). The former returns a set of all
indexed type, where as the latter allows to retrieve a so called IndexedTypeDescriptorfor a given
type. This descriptor allows you determine whether the type is indexed at all and, if so, whether
the index is for example sharded or not (see Sharding indexes). It also allows you to
determine the static boost of the type (see Static index time boosting) as well as its dynamic
boost strategy (see Dynamic index time boosting). Most importantly, however, you get information about
the indexed properties and generated Lucene Document fields. This is exposed via PropertyDescriptors
respectively FieldDescriptors. The easiest way to get to know the API is to explore it via the IDE
or its javadocs.
|
All descriptor instances of the metadata API are read only. They do not allow to change any runtime configuration. |
3.10. Hibernate Search as a WildFly module
Hibernate Search is included in the WildFly application server, and since WildFly 10 the module is automatically activated (added to the classpath of your deployment) if you are using Hibernate ORM and have any indexed entities.
WildFly 11 includes an older version of Hibernate Search; if you want to use that then you won’t need to download anything else and you can stop reading this chapter; however you might miss out on several new features and improvements.
When deciding to use the older version make sure to read the version of this guide matching the version of Hibernate Search included in your application server: this guide applies to 5.9.3.Final exclusively.
We strongly suggest using the latest version. Doing so is not much harder: provision a WildFly server using the dedicated tool,
and set the wildfly.jpa.hibernate.search.module property in your persistence.xml to the chosen version.
Further details are provided below.
|
The modules distributed by Hibernate Search WildFly 11 includes older versions of Hibernate Search dependencies, so in order to update Hibernate Search, you will need to upgrade the dependencies as well, otherwise your application will not start. Fortunately, there are tools to automate this for you: see Update and select the latest Hibernate Search version in WildFly for more information. |
3.10.1. Use the Hibernate Search version included in WildFly
The activation of the Hibernate Search modules in WildFly is automatic, provided you’re having at least one
entity annotated with org.hibernate.search.annotations.Indexed.
You can control this behaviour of the JPA subsystem explicitly; for example to make sure Hibernate Search
and Apache Lucene classes are available to your application even though you haven’t annotated any entity,
set the following property in your persistence.xml:
wildfly.jpa.hibernate.search.module=org.hibernate.search.orm:main3.10.2. Update and select the latest Hibernate Search version in WildFly
To use an updated version of Hibernate Search within WildFly, you will need to follow two steps:
-
Provision a WildFly server with an updated version of Hibernate Search, either via Maven or via another tool.
-
Select the updated Hibernate Search version
Server provisioning via Maven
Maven users can use the wildfly-server-provisioning-maven-plugin
to create a custom WildFly server including the Hibernate Search modules:
<plugins>
<plugin>
<groupId>org.wildfly.build</groupId>
<artifactId>wildfly-server-provisioning-maven-plugin</artifactId>
<version>1.2.6.Final</version>
<executions>
<execution>
<id>server-provisioning</id>
<goals>
<goal>build</goal>
</goals>
<phase>compile</phase>
<configuration>
<config-file>server-provisioning.xml</config-file>
<server-name>wildfly-with-updated-hibernate-search</server-name>
</configuration>
</execution>
</executions>
</plugin>You will also need a server-provisioning.xml in the root of your project:
<server-provisioning xmlns="urn:wildfly:server-provisioning:1.1">
<feature-packs>
<feature-pack
groupId="org.hibernate"
artifactId="hibernate-search-jbossmodules-orm"
version="5.9.3.Final"/>
<feature-pack
groupId="org.wildfly"
artifactId="wildfly-feature-pack"
version="11.0.0.Final" />
</feature-packs>
</server-provisioning>This will populate the server with the Hibernate Search ORM integration, along with an updated version of every required module: the Hibernate Search engine, Lucene, Hibernate ORM, …
You may want to also include other, optional modules.
If so, check out the list of available feature packs
and add a <feature-pack> markup with the coordinates of the feature pack you want.
|
Depending on the WildFly feature pack you chose, some transitive dependencies may not be available in Maven Central. In that case, you should set up the JBoss Nexus repository. |
Server provisioning via other build tools
The provisioning tools have been developed mainly for Maven users, but there are options for users of other build tools too.
Gradle users can use the org.wildfly.build.provision plugin, available on the official Gradle plugin portal.
Both the Maven and the Gradle plugins are just thin wrappers invoking a standalone provisioning library, so you could also integrate this library with any other JVM based tool.
See also WildFly provisioning build tools.
Selecting the updated Hibernate ORM/Hibernate Search versions in WildFly
Next you will need to make sure the JPA subsystem of WildFly provides you with the version you have chosen, instead of the default version bundled with the application server.
First, you will have to select the updated version of Hibernate ORM.
If you followed the instructions above,
the server will include just the right version of Hibernate ORM: 5.2.17.Final.
You just need to select it by setting the following property in your persistence.xml:
jboss.as.jpa.providerModule=org.hibernate:5.2Then select the updated version of Hibernate Search by setting this other property:
wildfly.jpa.hibernate.search.module=org.hibernate.search.orm:5.9.3.FinalSetting these properties will also prevent WildFly to pollute your classpath with the older copies of Hibernate ORM and Hibernate Search which are included in the server.
|
For more information about configuring Hibernate ORM and Hibernate Search in WildFly, see: |
3.10.3. List of the Hibernate Search WildFly/JBoss feature packs
Engine feature pack
This feature pack includes all the main modules:
-
org.hibernate.search.engine, for projects depending on the internal indexing engine that don’t require other dependencies to Hibernate.
-
org.hibernate.search.backend-jms, in case you want to use the JMS backend described in JMS Architecture.
Several more modules are included but you should not need to refer to the other ones directly.
The feature pack is published on the JBoss Nexus repository and Maven Central as org.hibernate:hibernate-search-jbossmodules-engine:5.9.3.Final:zip.
ORM feature pack
This feature pack includes the following modules:
-
org.hibernate.search.orm, for users of Hibernate Search with Hibernate ORM.
-
org.hibernate.search.jsr352, to use the JSR-352 integration.
The feature pack is published on the JBoss Nexus repository and Maven Central as org.hibernate:hibernate-search-jbossmodules-orm:5.9.3.Final:zip.
Elasticsearch feature pack
This feature pack includes the module org.hibernate.search.elasticsearch, to use the Elasticsearch integration.
The feature pack is published on the JBoss Nexus repository and Maven Central as org.hibernate:hibernate-search-jbossmodules-elasticsearch:5.9.3.Final:zip.
Elasticsearch-AWS feature pack
This package includes an internal module enabling the AWS authentication mechanism when connecting to an Elasticsearch cluster.
The feature pack is published on the JBoss Nexus repository and Maven Central as org.hibernate:hibernate-search-jbossmodules-elasticsearch-aws:5.9.3.Final:zip.
3.10.4. More about modules
More information about the modules configuration in WildFly can be found in the Class Loading in WildFly wiki.
|
Modular classloading is a feature of JBoss EAP 7 as well, but if you are using JBoss EAP, you’re reading the wrong version of the user guide! JBoss EAP subscriptions include official support for Hibernate Search and come with a different edition of this guide specifically tailored for EAP users. |
3.10.5. Using Apache Tika and other extensions with modules for WildFly
Apache Tika requires additional dependencies depending on the media formats you need. Since it is not practical to package all possible extensions you might possibly need into Hibernate Search modules, we leave it up to our users to define an "org.apache.tika" module where you can add any extensions you might need.
This version of Hibernate Search expects Apache Tika version 1.4 so the module should be defined as:
<module xmlns="urn:jboss:module:1.1" name="org.apache.tika" slot="1.4">Include Apache Tika 1.4 and any extensions and dependencies from Tika that you might need in the module.
Next, you need to have your application depend on this same module as well:
Dependencies: org.apache.tika:1.43.10.6. Using Infinispan with Hibernate Search on WildFly
If you are updating the version of Hibernate Search in WildFly as described in the previous paragraph,
you might need to update Infinispan as well.
The process is very similar: download the modules from
Infinispan project downloads, picking a compatible version,
and decompress the modules into the modules directory of your WildFly installation.
4. Mapping entities to the index structure
4.1. Mapping an entity
In Getting started you have already seen that all the metadata information needed to index entities is described through annotations. There is no need for XML mapping files. You can still use Hibernate mapping files for the basic Hibernate configuration, but the Hibernate Search specific configuration has to be expressed via annotations.
|
There is no XML configuration available for Hibernate Search but we provide a programmatic mapping API that elegantly replaces this kind of deployment form (see Programmatic API for more information). If you want to contribute the XML mapping implementation, see HSEARCH-210. |
4.1.1. Basic mapping
Lets start with the most commonly used annotations when mapping an entity.
@Indexed
Foremost you must declare a persistent class as indexable by annotating the class with @Indexed.
All entities not annotated with @Indexed will be ignored by the indexing process.
@Indexed@Entity
@Indexed
public class Essay {
...
}You can optionally specify the Indexed.index attribute to change the default name of the index.
For more information regarding index naming see Directory configuration.
You can also specify an optional indexing interceptor. For more information see conditional indexing.
@Field
For each property of your entity, you have the ability to describe whether and how it
will be indexed. Adding the @Field annotation declares a property as indexed and allows you to
configure various aspects of the indexing process. Without @Field the property is ignored by
the indexing process.
|
Hibernate Search tries to determine the best way to convert your property to an indexable value automatically.
See Built-in bridges for more information about how property values are converted by default,
and see the |
The following attributes of the @Field annotation help you control the indexing outcome:
-
name: describes under which name the property should be stored in the Lucene Document. The default value is the property name following the JavaBeans convention (in particular it is de-capitalized). -
store: describes whether or not the property is stored in the Lucene index. You can store the valueStore.YES(consuming more space in the index but allowing projection), store it in a compressed wayStore.COMPRESS(this does consume more CPU), or avoid any storageStore.NO(this is the default value). When a property is stored, you can retrieve its original value from the Lucene Document. Storing the property has no impact on whether the value is searchable or not. -
index: describes whether the property is indexed or not. The different values areIndex.NO(no indexing, meaning the value cannot be found by a query),Index.YES(the element gets indexed and is searchable). The default value isIndex.YES.Index.NOcan be useful for cases where a property is not required to be searchable, but needed for projection.Index.NOin combination withAnalyze.YESorNorms.YESis not useful, since analyze and norms require the property to be indexed -
analyze: determines whether the property is analyzed (Analyze.YES) or not (Analyze.NO). The default value isAnalyze.YES.Whether or not you want to analyze a property depends on whether you wish to search the element as is, or by the words it contains. It make sense to analyze a text field, but probably not a date field.
Fields used for faceting must not be analyzed.
Fields used for sorting can be analyzed, but must not be tokenized, so you should rather use normalizers on those fields.
-
norms: describes whether index time scoring information should be stored (Norms.YES) or not (Norms.NO). Not storing the norms can save a considerable amount of memory, but index time boosting (in particular) will not be available in this case. The default value isNorms.YES. -
termVector: describes collections of term-frequency pairs. This attribute enables the storing of the term vectors within the documents during indexing. The default value isTermVector.NO.The different values of this attribute are:
Value Definition TermVector.YESStore the term vectors of each document. This produces two synchronized arrays, one contains document terms and the other contains the term’s frequency.
TermVector.NODo not store term vectors.
TermVector.WITH_OFFSETSStore the term vector and token offset information. This is the same as
TermVector.YESplus it contains the starting and ending offset position information for the terms.TermVector.WITH_POSITIONSStore the term vector and token position information. This is the same as
TermVector.YESplus it contains the ordinal positions of each occurrence of a term in a document.TermVector.WITH_POSITION_OFFSETSStore the term vector, token position and offset information. This is a combination of the
YES,WITH_OFFSETSandWITH_POSITIONS. -
indexNullAs: Per default null values are ignored and not indexed. However, usingindexNullAsyou can specify a string which will be inserted as token for the null value. Per default this value is set toorg.hibernate.search.annotations.Field.DO_NOT_INDEX_NULLindicating that null values should not be indexed. You can set this value toDEFAULT_NULL_TOKENto indicate that a default null token should be used. This default null token can be specified in the configuration usinghibernate.search.default_null_token. If this property is not set the string_null_will be used as default. When the field is of a Numeric Type (see @NumericField), the token will be encoded as the respective numeric type: theindexNullAsvalue needs to be set to a value which can be parsed into a number of the matching type, for example "-1".When
indexNullAsis used, it is important to use the chosen null token in search queries (see Querying) in order to find null values. It is also advisable to use this feature only with un-analyzed fields (analyze=Analyze.NO).When implementing a custom
FieldBridgeorTwoWayFieldBridgeit is up to the developer to handle the indexing of null values (see JavaDocs ofLuceneOptions.indexNullAs()). -
boost: Refer to section about boosting -
bridge: Refer to section about field bridges
@NumericField
@NumericField is a companion annotation to @Field. It can be specified in the
same scope as @Field, but only on properties of numeric type like byte, short, int, long, double and float
(and their respective Java wrapper types). It allows to define a custom precisionStep for the
numeric encoding of the property value.
@NumericField accepts the following parameters:
| Value | Definition |
|---|---|
|
(Optional) Specify the name of of the related |
|
(Optional) Change the way that the Trie structure is
stored in the index. Smaller |
Lucene supports the numeric types: Double, Long, Integer and Float. For properties of types
Byte and Short, an Integer field will be used in the index. Other numeric types
should use the default string encoding (via @Field), unless the application can deal with a
potential loss in precision, in which case a custom TwoWayFieldBridge can be used. See
Defining a custom FieldBridge for BigDecimal.
BigDecimalpublic class BigDecimalNumericFieldBridge implements TwoWayFieldBridge {
private static final BigDecimal storeFactor = BigDecimal.valueOf( 100 );
@Override
public void set(String name, Object value, Document document, LuceneOptions luceneOptions) {
if ( value != null ) {
BigDecimal decimalValue = (BigDecimal) value;
Long indexedValue = decimalValue.multiply( storeFactor ).longValue();
luceneOptions.addNumericFieldToDocument( name, indexedValue, document );
}
}
@Override
public Object get(String name, Document document) {
String fromLucene = document.get( name );
BigDecimal storedBigDecimal = new BigDecimal( fromLucene );
return storedBigDecimal.divide( storeFactor );
}
@Override
public String objectToString(Object object) {
return object.toString();
}
}You would use this custom bridge like seen in Use of BigDecimalNumericFieldBridge. In this
case three annotations are used - @Field, @NumericField and @FieldBridge. @Field is required
to mark the property for being indexed (a standalone @NumericField is never allowed).
BigDecimalNumericFieldBridge@Entity
@Indexed
public class Item {
@Id
@GeneratedValue
private int id;
@Field
@NumericField
@FieldBridge(impl = BigDecimalNumericFieldBridge.class)
private BigDecimal price;
public int getId() {
return id;
}
public BigDecimal getPrice() {
return price;
}
public void setPrice(BigDecimal price) {
this.price = price;
}
}Alternatively, you can define the type of this field directly from the bridge
by implementing MetadataProvidingFieldBridge, as shown in Defining a custom FieldBridge for BigDecimal and implementing MetadataProvidingFieldBridge
Then the @NumericField annotation will not be needed anymore when using the bridge.
BigDecimal and implementing MetadataProvidingFieldBridgepublic class BigDecimalNumericFieldBridge implements MetadataProvidingFieldBridge, TwoWayFieldBridge {
private static final BigDecimal storeFactor = BigDecimal.valueOf( 100 );
@Override
public void set(String name, Object value, Document document, LuceneOptions luceneOptions) {
if ( value != null ) {
BigDecimal decimalValue = (BigDecimal) value;
Long indexedValue = decimalValue.multiply( storeFactor ).longValue();
luceneOptions.addNumericFieldToDocument( name, indexedValue, document );
}
}
@Override
public Object get(String name, Document document) {
String fromLucene = document.get( name );
BigDecimal storedBigDecimal = new BigDecimal( fromLucene );
return storedBigDecimal.divide( storeFactor );
}
@Override
public String objectToString(Object object) {
return object.toString();
}
@Override
public void configureFieldMetadata(String name, FieldMetadataBuilder builder) {
builder.field( name, FieldType.LONG );
}
}|
The |
@SortableField
As of Lucene 5 (and thus Hibernate Search 5.5) it is highly recommended to create a so-called "doc value field"
for each field to sort on. Hibernate Search provides the @SortableField annotation for that purpose.
This is an extension annotation to @Field and marks a field as sortable (internally, the required doc value
field will be added to the index).
@SortableField@Entity
@Indexed
public class Book {
@Id
@GeneratedValue
private int id;
@Field(name="Abstract", analyze=Analyze.NO)
@SortableField
private String summary;
// ...
}If there is a single @Field declared for a given property, @SortableField implicitly applies to this field.
In case several fields exist for a single property, the @Field to be marked as sortable can be specified
via @SortableField#forField().
Several sortable fields can be defined as the @SortableField annotation is repeatable.
|
The field to be marked as sortable must not be tokenized, so you should either disable analysis on this field, or use a normalizer. |
Note that sorting also works if a property is not explicitly marked with @SortableField. This has negative runtime
performance and memory consumption implications, though. Therefore it is highly recommended to explicitly mark each
field to be used for sorting.
Should you want to make a property sortable but not searchable, still an @Field needs to be declared (so its field
bridge configuration can be inherited). It can be marked with store = Store.NO and index = Index.NO, causing
only the doc value field required for sorting to be added, but not a regular index field.
Fields added through class-level bridges or custom field-level bridges (when not using the default field name) cannot
be marked as sortable by means of the @SortableField annotation. Instead the field bridge itself has to add the
required doc value fields, in addition to the document fields it adds. Furthermore such bridge needs to implement the
MetadataProvidingFieldBridge interface which defines a method configureFieldMetadata() for marking the fields
created by this bridge as sortable:
/***
* Custom field bridge for a Map property which creates sortable fields
* with the values of two keys from the map.
*/
public class MyClassBridge implements MetadataProvidingFieldBridge {
@Override
public void set(String name, Object value,
Document document, LuceneOptions luceneOps) {
Map<String, String> map = (Map<String, String>) value;
String firstName = map.get( "firstName" );
String lastName = map.get( "lastName" );
// add regular document fields
luceneOps.addFieldToDocument( name + "_firstName", lastName, document );
luceneOps.addFieldToDocument( name + "_lastName", lastName, document );
// add doc value fields to allow for sorting
document.addSortedDocValuesFieldToDocument( name + "_firstName", firstName );
document.addSortedDocValuesFieldToDocument( name + "_lastName", lastName );
}
@Override
public void configureFieldMetadata(String name, FieldMetadataBuilder builder) {
builder
.field( name + "_firstName", FieldType.STRING )
.sortable( true )
.field( name + "_lastName", FieldType.STRING )
.sortable( true );
}
}The meta-data configured through configureFieldMetadata() will be used for sort validation upon query execution. The
name passed to the method is the default field name also passed to set(). It needs to be used consistently with
set(), e.g. as a prefix for all custom fields added.
|
The |
Flagging uncovered sorts
By default Hibernate Search will raise an exception when running a query with sorts not covered by the sortable fields configured as described above.
You thus can optionally advice Hibernate Search to transparently create an uninverting index reader when detecting uncovered sorts. Note that while this allows to execute the query, relying on index uninverting negatively impacts performance.
To do so, specify the following option:
hibernate.search.index_uninverting_allowed = trueFor instance you may leave this to the default (false) during testing to identify the sortable fields required for your queries
and set it to true in production environments to fall back to index uninverting for uncovered sorts accidentally left over.
Document identifier: @DocumentId or @Id
Finally, the document identifier is a special field used by Hibernate Search to ensure there will only ever be one document per entity in the index, and to identify documents when they should be deleted. By design, a document identifier has to be stored and must not be tokenized. It is also always string encoded, even if the id is a number.
|
We strongly suggest avoiding to sort on the id field as it will lead to erratic behaviors.
If you want to sort on your document id,
we suggest declaring another field specifically for sorting using the |
If you use JPA and if you mapped a property with @Id,
Hibernate Search will use this entity identifier as a document identifier by default.
Using the ORM entity identifier as document identifier takes advantage of the @Id annotation:
the document identifier will be the id property.
@Entity
@Indexed
public class Essay {
...
@Id
public Long getId() { return id; }
...
}If you don’t use JPA, or if you need to set your document ID to some other property than the entity ID,
you can use the @DocumentId annotation.
This annotation also allows to set the document identifier field name explicitly.
Specifying the document identifier explicitly takes advantage of the @DocumentId annotation:
the document identifier will be generated from the orderNumber property and stored into the id_order_number field.
@Entity
@Indexed
public class Order {
...
@Id
@GeneratedValue
public Long getId() { return id; }
@DocumentId(name = "id_order_number")
@NaturalId
public String orderNumber;
...
}Supported identifier types
By default, Hibernate Search can handle document identifiers
of any type mentioned in the Built-in bridges section.
For those types, you will not have anything more to do than selecting a property using @Id or @DocumentId.
If your identifier has a different type, for instance because you are using a JPA @EmbeddedId,
you will have to write a custom two-way bridge and apply it using the @FieldBridge annotation on your property
as explained further down.
4.1.2. Mapping properties multiple times
Sometimes one has to map a property multiple times per index, with slightly different indexing
strategies. For example, sorting a query by field requires the field to be un-analyzed. If one wants
to search by words in this property and still sort it, one need to index it twice - once analyzed
and once un-analyzed.
The @Field is repeatable, wich allows to achieve this goal.
Alternatively you can use the legacy, explicit plural form @Fields.
@Field repeatedly to map a property multiple times@Entity
@Indexed(index = "Book")
public class Book {
@Field
@Field(name = "summary_forSort", analyze = Analyze.NO, store = Store.YES)
@SortableField(forField = "summary_forSort")
public String getSummary() {
return summary;
}
// ...
}In Using @Field repeatedly to map a property multiple times the field summary is indexed twice, once as summary in a
tokenized way, and once as summary_forSort in an un-tokenized way.
@Field supports two attributes which are particularly useful when the annotation is repeated:
-
analyzer: defines a@Analyzerannotation per field rather than per property -
normalizer: defines a@Normalizerannotation for the given field, instead of an analyzer.analyzerandnormalizerare mutually exclusive: you can only use one of the two. -
bridge: defines a@FieldBridgeannotation per field rather than per property
See below for more information about analyzers/normalizers and field bridges.
4.1.3. Embedded and associated objects
Associated objects as well as embedded objects can be indexed as part of the root entity index. This is useful if you expect to search a given entity based on properties of the associated objects.
In the example Indexing associations the aim is to return places where the associated
city is Atlanta (in Lucene query parser language, it would translate into address.city:Atlanta).
All place fields are added to the Place index, but also the address related fields address.street,
and address.city will be added and made queryable. The embedded object id,
address.id, is not added per default. To include it you need to also set
@IndexedEmbedded(includeEmbeddedObjectId=true, …).
|
Only actual indexed fields (properties annotated with |
@Entity
@Indexed
public class Place {
@Id
@GeneratedValue
private Long id;
@Field
private String name;
@OneToOne(cascade = { CascadeType.PERSIST, CascadeType.REMOVE })
@IndexedEmbedded
private Address address;
....
}@Entity
public class Address {
@Id
@GeneratedValue
private Long id;
@Field
private String street;
@Field
private String city;
@ContainedIn
@OneToMany(mappedBy="address")
private Set<Place> places;
...
}Be careful. Because the data is de-normalized in the Lucene index when using the @IndexedEmbedded
technique, Hibernate Search needs to be aware of any change in the Place object and any change in
the Address object to keep the index up to date. To make sure the Place Lucene document is updated
when it’s Address changes, you need to mark the other side of the bidirectional relationship with
@ContainedIn.
|
|
Let’s make Indexing associations a bit more complex by nesting @IndexedEmbedded as seen
in Nested usage of @IndexedEmbedded and @ContainedIn.
@IndexedEmbedded and @ContainedIn@Entity
@Indexed
public class Place {
@Id
@GeneratedValue
private Long id;
@Field
private String name;
@OneToOne(cascade = { CascadeType.PERSIST, CascadeType.REMOVE })
@IndexedEmbedded
private Address address;
// ...
}@Entity
public class Address {
@Id
@GeneratedValue
private Long id;
@Field
private String street;
@Field
private String city;
@IndexedEmbedded(depth = 1, prefix = "ownedBy_")
private Owner ownedBy;
@ContainedIn
@OneToMany(mappedBy="address")
private Set<Place> places;
// ...
}@Embeddable
public class Owner {
@Field
private String name;
// ...
}As you can see, any @*ToMany, @*ToOne or @Embedded attribute can be annotated with
@IndexedEmbedded. The attributes of the associated class will then be added to the main entity
index. In Nested usage of @IndexedEmbedded and @ContainedIn the index will contain the following fields
-
id -
name -
address.street -
address.city -
address.ownedBy_name
The default prefix is propertyName., following the traditional object navigation convention. You
can override it using the prefix attribute as it is shown on the ownedBy property.
|
The prefix cannot be set to the empty string. |
The depth property is necessary when the object graph contains a cyclic dependency of classes (not
instances). For example, if Owner points to Place. Hibernate Search will stop including indexed
embedded attributes after reaching the expected depth (or the object graph boundaries are reached).
A class having a self reference is an example of cyclic dependency. In our example, because depth
is set to 1, any @IndexedEmbedded attribute in Owner (if any) will be ignored.
Using @IndexedEmbedded for object associations allows you to express queries (using Lucene’s query
syntax) such as:
-
Return places where name contains JBoss and where address city is Atlanta. In Lucene query this would be
+name:jboss +address.city:atlanta
-
Return places where name contains JBoss and where owner’s name contain Joe. In Lucene query this would be
+name:jboss +address.ownedBy_name:joe
In a way it mimics the relational join operation in a more efficient way (at the cost of data duplication). Remember that, out of the box, Lucene indexes have no notion of association, the join operation is simply non-existent. It might help to keep the relational model normalized while benefiting from the full text index speed and feature richness.
|
An associated object can itself (but does not have to) be |
When @IndexedEmbedded points to an entity, the association has to be directional and the other side
has to be annotated with @ContainedIn. If not, Hibernate Search has
no way to update the root index when the associated entity is updated (in our example, a Place
index document has to be updated when the associated Address instance is updated).
Sometimes, the object type annotated by @IndexedEmbedded is not the object type targeted by
Hibernate and Hibernate Search. This is especially the case when interfaces are used in lieu of
their implementation. For this reason you can override the object type targeted by Hibernate Search
using the targetElement parameter.
targetElement property of @IndexedEmbedded@Entity
@Indexed
public class Address {
@Id
@GeneratedValue
private Long id;
@Field
private String street;
@IndexedEmbedded(depth = 1, prefix = "ownedBy_", targetElement = Owner.class)
@Target(Owner.class)
private Person ownedBy;
// ...
}@Embeddable
public class Owner implements Person { ... }Limiting object embedding to specific paths
The @IndexedEmbedded annotation provides also an attribute includePaths which can be used as an
alternative to depth, or in combination with it.
When using only depth all indexed fields of the embedded type will be added recursively at the same
depth; this makes it harder to pick only a specific path without adding all other fields as well,
which might not be needed.
To avoid unnecessarily loading and indexing entities you can specify exactly which paths are needed.
A typical application might need different depths for different paths, or in other words it might
need to specify paths explicitly, as shown in Using the includePaths property of @IndexedEmbedded
includePaths property of @IndexedEmbedded@Entity
@Indexed
public class Person {
@Id
public int getId() {
return id;
}
@Field
public String getName() {
return name;
}
@Field
public String getSurname() {
return surname;
}
@OneToMany
@IndexedEmbedded(includePaths = { "name" })
public Set<Person> getParents() {
return parents;
}
@ContainedIn
@ManyToOne
public Human getChild() {
return child;
}
// ... other fields omittedUsing a mapping as in Using the includePaths property of @IndexedEmbedded, you would be able to search on a Person by
name and/or surname, and/or the name of the parent. It will not index the surname of the
parent, so searching on parent’s surnames will not be possible but speeds up indexing, saves space
and improve overall performance.
The @IndexedEmbedded.includePaths will include the specified paths in addition to what you would
index normally specifying a limited value for depth. Using includePaths with a undefined (default)
value for depth is equivalent to setting depth=0: only the included paths are indexed.
includePaths property of @IndexedEmbedded@Entity
@Indexed
public class Human {
@Id
public int getId() {
return id;
}
@Field
public String getName() {
return name;
}
@Field
public String getSurname() {
return surname;
}
@OneToMany
@IndexedEmbedded(depth = 2, includePaths = { "parents.parents.name" })
public Set<Human> getParents() {
return parents;
}
@ContainedIn
@ManyToOne
public Human getChild() {
return child;
}
// ... other fields omittedIn Using the includePaths property of @IndexedEmbedded, every human will have it’s name and surname attributes
indexed. The name and surname of parents will be indexed too, recursively up to second line because
of the depth attribute. It will be possible to search by name or surname, of the person directly,
his parents or of his grand parents. Beyond the second level, we will in addition index one more
level but only the name, not the surname.
This results in the following fields in the index:
-
id- as primary key -
_hibernate_class- stores entity type -
name- as direct field -
surname- as direct field -
parents.name- as embedded field at depth 1 -
parents.surname- as embedded field at depth 1 -
parents.parents.name- as embedded field at depth 2 -
parents.parents.surname- as embedded field at depth 2 -
parents.parents.parents.name- as additional path as specified by includePaths. The firstparents.is inferred from the field name, the remaining path is the attribute of includePaths
|
You can explicitly include the id of the embedded object using |
|
Having explicit control of the indexed paths might be easier if you’re designing your application by defining the needed queries first, as at that point you might know exactly which fields you need, and which other fields are unnecessary to implement your use case. |
Indexing null embeddeds
Per default null values are ignored and not indexed. However, using indexNullAs you can specify that a field should be added when the embedded is null, with a value of your choice.
Per default indexNullAs is set to org.hibernate.search.annotations.IndexedEmbedded.DO_NOT_INDEX_NULL, indicating that null values should not be indexed. You can set this value to IndexedEmbedded.DEFAULT_NULL_TOKEN to indicate that a default null token should be used. This default null token can be specified in the configuration using hibernate.search.default_null_token. If this property is not set the string _null_ will be used as default.
The field name used when indexing null values depend on the prefix:
-
if the
prefixis not set, the field name will be the Java property name -
if the
prefixis set, the field name will be the prefix with the trailing dot (if any) removed. For instance with the prefixmy_embedded., the null field name will bemy_embedded(without dot).
|
When |
4.1.4. Associated objects: building a dependency graph with @ContainedIn
While @ContainedIn is often seen as the counterpart of @IndexedEmbedded, it can also be used
on its own to build an indexing dependency graph.
When an entity is reindexed, all the entities pointed by @ContainedIn are also going to be
reindexed.
4.2. Boosting
Lucene has the notion of boosting which allows you to give certain documents or fields more or less importance than others. Lucene differentiates between index and search time boosting. The following sections show you how you can achieve index time boosting using Hibernate Search.
4.2.1. Static index time boosting
|
Index-time boosting is deprecated: support for this approach will be removed in Apache Lucene since version 7. We recommend to use query-time boosting instead: see Querying. |
To define a static boost value for an indexed class or property you can use the @Boost annotation.
You can use this annotation within @Field or specify it directly on method or class level.
@Boost@Entity
@Indexed
@Boost(1.7f)
public class Essay {
...
@Id
@DocumentId
public Long getId() { return id; }
@Field(name="Abstract", store=Store.YES, boost=@Boost(2f))
@Boost(1.5f)
public String getSummary() { return summary; }
@Lob
@Field(boost=@Boost(1.2f))
public String getText() { return text; }
@Field
public String getISBN() { return isbn; }
}In Different ways of using @Boost, Essay’s probability to reach the top of the search list will be multiplied by
1.7. The summary field will be 3.0 (2 * 1.5, because @Field.boost and @Boost on a property are
cumulative) more important than the isbn field. The text field will be 1.2 times more important than
the isbn field. Note that this explanation is wrong in strictest terms, but it is simple and close
enough to reality for all practical purposes. Please check the Lucene documentation or the excellent
Lucene In Action from Otis Gospodnetic and Erik Hatcher.
4.2.2. Dynamic index time boosting
|
Index-time boosting is deprecated: support for this approach will be removed in Apache Lucene since version 7. We recommend to use query-time boosting instead: see Querying. If query-time boosting is not enough for your use case, you can implement dynamic boosting using a custom similarity (advanced use). |
The @Boost annotation used in Static index time boosting defines a static boost factor which
is independent of the state of of the indexed entity at runtime. However, there are use cases in
which the boost factor may depend on the actual state of the entity. In this case you can use the
@DynamicBoost annotation together with an accompanying custom BoostStrategy.
public enum PersonType {
NORMAL,
VIP
}@Entity
@Indexed
@DynamicBoost(impl = VIPBoostStrategy.class)
public class Person {
private PersonType type;
// ...
}public class VIPBoostStrategy implements BoostStrategy {
public float defineBoost(Object value) {
Person person = ( Person ) value;
if ( person.getType().equals( PersonType.VIP ) ) {
return 2.0f;
}
else {
return 1.0f;
}
}
}In Dynamic boost example a dynamic boost is defined on class level specifying
VIPBoostStrategy as implementation of the BoostStrategy interface to be used at indexing time. You
can place the @DynamicBoost either at class or field level. Depending on the placement of the
annotation either the whole entity is passed to the defineBoost method or just the annotated
field/property value. It’s up to you to cast the passed object to the correct type. In the example
all indexed values of a VIP person would be double as important as the values of a normal person.
|
The specified |
Of course you can mix and match @Boost and @DynamicBoost annotations in your entity. All
defined boost factors are cumulative.
4.3. Analysis
Analysis is the process of converting text into single terms (words) and can be considered as one of the key features of a fulltext search engine. Lucene uses the concept of Analyzers to control this process. In the following section we cover the multiple ways Hibernate Search offers to configure the analyzers.
4.3.1. Default analyzer and analyzer by class
The default analyzer class used to index tokenized fields is configurable through the
hibernate.search.analyzer property. The default value for this property is
org.apache.lucene.analysis.standard.StandardAnalyzer.
You can also define the analyzer class per entity, property and even per @Field (useful when
multiple fields are indexed from a single property).
@Entity
@Indexed
@Analyzer(impl = EntityAnalyzer.class)
public class MyEntity {
@Id
@GeneratedValue
@DocumentId
private Integer id;
@Field
private String name;
@Field
@Analyzer(impl = PropertyAnalyzer.class)
private String summary;
@Field(analyzer = @Analyzer(impl = FieldAnalyzer.class)
private String body;
...
}In this example, EntityAnalyzer is used to index all tokenized properties (eg. name), except
summary and body which are indexed with PropertyAnalyzer and FieldAnalyzer respectively.
|
Mixing different analyzers in the same entity is most of the time a bad practice. It makes query
building more complex and results less predictable (for the novice), especially if you are using a
|
4.3.2. Named analyzers
Analyzers can become quite complex to deal with. For this reason Hibernate Search introduces the
notion of analyzer definitions. An analyzer definition can be reused by many @Analyzer declarations
and is composed of:
-
a name: the unique string used to refer to the definition
-
a list of char filters: each char filter is responsible to pre-process input characters before the tokenization. Char filters can add, change or remove characters; one common usage is for characters normalization
-
a tokenizer: responsible for tokenizing the input stream into individual words
-
a list of filters: each filter is responsible to remove, modify or sometimes even add words into the stream provided by the tokenizer
This separation of tasks - a list of char filters, and a tokenizer followed by a list of filters - allows for easy reuse of each individual component and let you build your customized analyzer in a very flexible way (just like Lego). Generally speaking the char filters do some pre-processing in the character input, then the Tokenizer starts the tokenizing process by turning the character input into tokens which are then further processed by the TokenFilters. Hibernate Search supports this infrastructure by utilizing the advanced analyzers provided by Lucene; this is often referred to as the Analyzer Framework.
|
Filters and char filters are applied in the order they are mentioned in the analyzer definition. Order matters! |
|
Some of the analyzers and filters will require additional dependencies. For example to use the
snowball stemmer you have to also include the Prior to Hibernate Search 5 it was required to add the Apache Solr dependency to your project as well; this is no longer required. |
Analyzer definition through annotations
The first way to define analyzers is by applying @AnalyzerDef annotations to your indexed classes.
Which class you choose to put the annotation on does not matter: the definitions are globally scoped,
so you will be able to reference them from any entity mapping.
Let’s have a look at a concrete example now - Analyzer definition using the @AnalyzerDef annotation. First a char filter is defined by its factory. In our example, a mapping char filter is used, and will replace characters in the input based on the rules specified in the mapping file. Next a tokenizer is defined. This example uses the standard tokenizer. Last but not least, a list of filters is defined by their factories. In our example, the StopFilter filter is built reading the dedicated words property file. The filter is also expected to ignore case.
@AnalyzerDef(name="customanalyzer",
charFilters = {
@CharFilterDef(factory = MappingCharFilterFactory.class, params = {
@Parameter(name = "mapping",
value = "org/hibernate/search/test/analyzer/mapping-chars.properties")
})
},
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = ASCIIFoldingFilterFactory.class),
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = StopFilterFactory.class, params = {
@Parameter(name="words",
value= "org/hibernate/search/test/analyzer/stoplist.properties" ),
@Parameter(name="ignoreCase", value="true")
})
})
public class Team {
// ...
}Programmatic analyzer definition
The other way to define analyzers is programmatically.
You can of course use the programmatic mapping API to do so,
but an easier way may be to use the hibernate.search.lucene.analysis_definition_provider
configuration property.
This property can be set to the fully-qualified name of a class with a public, no-arg constructor in your application.
This class must either implement org.hibernate.search.analyzer.definition.LuceneAnalysisDefinitionProvider directly
or expose a @Factory-annotated method that returns such implementation.
|
This feature is considered experimental. The builder in particular could be altered in the future. |
public static class CustomAnalyzerProvider implements LuceneAnalysisDefinitionProvider {
@Override
public void register(LuceneAnalyzerDefinitionRegistryBuilder builder) {
builder
.analyzer( "myAnalyzer" )
.tokenizer( StandardTokenizerFactory.class )
.charFilter( MappingCharFilterFactory.class )
.param( "mapping", "org/hibernate/search/test/analyzer/mapping-chars.properties" )
.tokenFilter( ASCIIFoldingFilterFactory.class )
.tokenFilter( LowerCaseFilterFactory.class )
.tokenFilter( StopFilterFactory.class )
.param( "mapping", "org/hibernate/search/test/analyzer/stoplist.properties" )
.param( "ignoreCase", "true" );
}
}Referencing named analyzers
Once defined, an analyzer definition can be reused by an @Analyzer declaration as seen in
Referencing an analyzer by name.
@Entity
@Indexed
@AnalyzerDef(name="customanalyzer", ... )
public class Team {
@Id
@DocumentId
@GeneratedValue
private Integer id;
@Field
private String name;
@Field
private String location;
@Field
@Analyzer(definition = "customanalyzer")
private String description;
}Analyzer definitions are also available by their name in the SearchFactory
which is quite useful when building queries.
Analyzer analyzer = fullTextSession.getSearchFactory().getAnalyzer("customanalyzer");Fields in queries should be analyzed with the same analyzer used to index the field so that they speak a common "language": the same tokens are reused between the query and the indexing process. This rule has some exceptions but is true most of the time. Respect it unless you know what you are doing.
Normalizers
Analyzers are great when you need to search in text documents,
but what if you want to sort the analyzed text?
Then you’re in for a bit of trouble, because analyzed text is multi-valued:
when indexing a book with the title "Refactoring: Improving the Design of Existing Code",
the analyzed title is in fact the (unordered) set {"refactoring", "improving", "design", "existing", "code"}.
If you tried to sort on the title after such an analysis, any of those words could be used,
so your book could end up in the D’s (because of "design"), or in the R’s (because of "refactoring"),
or in the E’s, etc.
So in the end, you probably don’t want your fields to be tokenized when you sort on those fields. Normalizers solve exactly this issue: they are analyzers, but without a tokenizer, and with some runtime checks that prevent the analysis to produce multiple tokens, thereby ensuring your sorts will always be consistent.
Hibernate Search provides normalizer equivalent for relevant analyzer annotations:
@Normalizer, @NormalizerDef, @NormalizerDefs.
As with analyzer, you can use implementations directly
(for instance @Normalizer(impl = MyCollactionKeyAnalyzer.class))
or named normalizers (for instance @Normalizer(definition = "myNormalizer")
with @NormalizerDef(filters = @TokenFilterDef(factory = LowerCaseFilterFactory.class)).
|
You cannot define a "class-level", "property-level", or a "default" normalizer:
each field requiring normalization must be assigned a normalizer explicitly
using |
Available analysis components
Apache Lucene comes with a lot of useful default char filters, tokenizers and filters. You can find a complete list of char filter factories, tokenizer factories and filter factories at http://wiki.apache.org/solr/AnalyzersTokenizersTokenFilters. Let’s check a few of them.
| Factory | Description | Parameters | Additional dependencies |
|---|---|---|---|
|
Replaces one or more characters with one or more characters, based on mappings specified in the resource file |
|
|
|
Remove HTML standard tags, keeping the text |
none |
|
| Factory | Description | Parameters | Additional dependencies |
|---|---|---|---|
|
Use the Lucene StandardTokenizer |
none |
|
|
Remove HTML tags, keep the text and pass it to a
|
none |
|
|
Breaks text at the specified regular expression pattern. |
group: says which pattern group to extract into tokens |
|
| Factory | Description | Parameters | Additional dependencies |
|---|---|---|---|
|
Remove dots from acronyms and 's from words |
none |
|
|
Lowercases all words |
none |
|
|
Remove words (tokens) matching a list of stop words |
|
|
|
Reduces a word to it’s root in a given language. (eg. protect, protects, protection share the same root). Using such a filter allows searches matching related words. |
|
|
|
Remove accents for languages like French |
none |
|
|
Inserts phonetically similar tokens into the token stream |
|
|
|
Converts each token into its
|
|
|
We recommend to check out the implementations of org.apache.lucene.analysis.util.TokenizerFactory
and org.apache.lucene.analysis.util.TokenFilterFactory in your IDE to see the implementations
available.
4.3.3. Dynamic analyzer selection
So far all the introduced ways to specify an analyzer were static. However, there are use cases
where it is useful to select an analyzer depending on the current state of the entity to be indexed,
for example in a multilingual applications. For an BlogEntry class for example the analyzer could
depend on the language property of the entry. Depending on this property the correct language
specific stemmer should be chosen to index the actual text.
To enable this dynamic analyzer selection Hibernate Search introduces the @AnalyzerDiscriminator
annotation. Usage of @AnalyzerDiscriminator demonstrates the usage of this annotation.
@AnalyzerDiscriminator@Entity
@Indexed
@AnalyzerDef(name = "en",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = EnglishPorterFilterFactory.class
)
})
@AnalyzerDef(name = "de",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = GermanStemFilterFactory.class)
})
public class BlogEntry {
@Id
@GeneratedValue
@DocumentId
private Integer id;
@Field
@AnalyzerDiscriminator(impl = LanguageDiscriminator.class)
private String language;
@Field
private String text;
private Set<BlogEntry> references;
// standard getter/setter
// ...
}public class LanguageDiscriminator implements Discriminator {
public String getAnalyzerDefinitionName(Object value, Object entity, String field) {
if ( value == null || !( entity instanceof Article ) ) {
return null;
}
return (String) value;
}
}The prerequisite for using @AnalyzerDiscriminator is that all analyzers which are going to be used
dynamically are predefined as named analyzers. If this is the case, one can place the
@AnalyzerDiscriminator annotation either on the class or on a specific property of the entity for
which to dynamically select an analyzer. Via the impl parameter of the @AnalyzerDiscriminator you
specify a concrete implementation of the Discriminator interface. It is up to you to provide an
implementation for this interface. The only method you have to implement is
getAnalyzerDefinitionName() which gets called for each field added to the Lucene document. The
entity which is getting indexed is also passed to the interface method. The value parameter is
only set if the AnalyzerDiscriminator is placed on property level instead of class level. In this
case the value represents the current value of this property.
An implementation of the Discriminator interface has to return the name of an existing analyzer
definition or null if the default analyzer should not be overridden.
Usage of @AnalyzerDiscriminator assumes that the language parameter is either 'de' or 'en' which matches the
name of an analyzer.
|
There is no equivalent of |
4.3.4. Retrieving an analyzer
In some situations retrieving analyzers can be handy. For example, if your domain model makes use of multiple analyzers (maybe to benefit from stemming, use phonetic approximation and so on), you need to make sure to use the same analyzers when you build your query.
|
This rule can be broken but you need a good reason for it. If you are unsure, use the same analyzers. If you use the Hibernate Search query DSL (see Building a Lucene query with the Hibernate Search query DSL), you don’t have to think about it. The query DSL does use the right analyzer transparently for you. |
Whether you are using the Lucene programmatic API or the Lucene query parser, you can retrieve the scoped analyzer for a given entity. A scoped analyzer is an analyzer which applies the right analyzers depending on the field indexed. Remember, multiple analyzers can be defined on a given entity each one working on an individual field. A scoped analyzer unifies all these analyzers into a context-aware analyzer. While the theory seems a bit complex, using the right analyzer in a query is very easy.
org.apache.lucene.queryparser.classic.QueryParser parser = new QueryParser(
"title",
fullTextSession.getSearchFactory().getAnalyzer( Song.class )
);
org.apache.lucene.search.Query luceneQuery =
parser.parse( "title:sky Or title_stemmed:diamond" );
org.hibernate.Query fullTextQuery =
fullTextSession.createFullTextQuery( luceneQuery, Song.class );
List result = fullTextQuery.list(); //return a list of managed objectsIn the example above, the song title is indexed in two fields: the standard analyzer is used in the
field title and a stemming analyzer is used in the field title_stemmed. By using the
analyzer provided by the search factory, the query uses the appropriate analyzer depending on the
field targeted.
|
You can also retrieve named analyzers by their definition name using
|
4.4. Bridges
When discussing the basic mapping for an entity one important fact was so far disregarded. In Lucene
all index fields have to be represented as strings. All entity properties annotated with @Field
have to be converted to strings to be indexed. The reason we have not mentioned it so far is, that
for most of your properties Hibernate Search does the translation job for you thanks to a set of
built-in bridges. However, in some cases you need a more fine grained control over the translation
process.
4.4.1. Built-in bridges
Hibernate Search comes bundled with a set of built-in bridges between a Java property type and its full text representation.
null-
Per default
nullelements are not indexed. Lucene does not supportnullelements. However, in some situation it can be useful to insert a custom token representing thenullvalue. See @Field for more information. java.lang.String-
Strings are indexed as they are.
boolean,Boolean-
Are converted into their string representation and indexed.
char,Character-
Are converted into their string representation and indexed.
int,Integer,long,Long,float,Float,double,Double-
Are per default indexed numerically using a Trie structure which allows for efficient range queries and sorting, resulting in better query response times. You need to use a
NumericRangeQueryto search for values. See also @Field and @NumericField.
|
Prior to Hibernate Search 5, numeric field encoding was only chosen if explicitly requested via To avoid numeric encoding you can explicitly specify a non numeric field bridge via |
byte,Byte,short,Short-
Are converted into their string representation and indexed. They will only be encoded in numeric fields if explicitly marked with the
@NumericFieldannotation (see @NumericField). BigInteger,BigDecimal-
Are converted into their string representation and indexed. Note that in this form the values cannot be compared by Lucene using for example a
TermRangeQuery. For that the string representation would need to be padded. An alternative using numeric encoding with a potential loss in precision can be seen in Defining a custom FieldBridge forBigDecimal. java.util.Date,java.util.Calendar-
Dates are indexed as
longvalue representing the number of milliseconds since January 1, 1970, 00:00:00 GMT. You shouldn’t really bother with the internal format. It is important, however, to query a numerically indexed date via aNumericRangeQuery.Usually, storing the date up to the millisecond is not necessary.
@DateBridgeand@CalendarBridgeallow to define the appropriate resolution you are willing to store in the index.@Entity @Indexed public class Meeting { @Field(analyze=Analyze.NO) @DateBridge(resolution=Resolution.MINUTE) private Date date; // ...You can also choose to encode the date as string using the
encoding=EncodingType.STRINGof@DateBridgeand@CalendarBridge. In this case the dates are stored in the format yyyyMMddHHmmssSSS (using GMT time).The default date bridge uses Lucene’s
DateToolsto convert fromDateorCalendarto its indexed value. This means that all dates are expressed in GMT time. If your requirements are to store dates in a fixed time zone you have to implement a custom date bridge. java.time.Year-
converts the year to the integer representation.
java.time.Duration-
converts the duration to the total length in nanoseconds.
java.time.Instant-
converts the instant to the number of milliseconds from Epoch. Note that these values are indexed with a precision to the millisecond.
|
Note that it must be possible to convert the |
LocalDate,LocalTime,LocalDateTime,MonthDay,OffsetDateTime,OffsetTime,Period,YearMonth,ZoneDateTime,ZoneId,ZoneOffset-
the bridges for these classes in the
java.timepackage store the values as string padded with 0 when required to allow sorting. java.net.URI,java.net.URL-
URIandURLare converted to their string representation java.lang.Class-
Classes are converted to their fully qualified class name. The thread context classloader is used when the class is rehydrated
4.4.2. Tika bridge
Hibernate Search allows you to extract text from various document types using the built-in
TikaBridge which utilizes Apache Tika to extract text and metadata
from the provided documents. The @TikaBridge annotation can be used with String, URI, byte[] or
java.sql.Blob properties. In the case of String and URI the bridge interprets the values are file
paths and tries to open a file to parse the document. In the case of byte[] and Blob the values are
directly passed to Tika for parsing.
Tika uses metadata as in- and output of the parsing process and it also allows to provide additional
context information. This process is described in
Parser interface.
The Hibernate Search Tika bridge allows you to make use of these additional
configuration options by providing two interfaces in conjunction with TikaBridge. The first
interface is the TikaParseContextProvider. It allows you to create a custom ParseContext for the
document parsing. The second interface is TikaMetadataProcessor which has two methods -
prepareMetadata() and set(String, Object, Document, LuceneOptions, Metadata metadata). The former
allows to add additional metadata to the parsing process (for example the file name) and the latter
allows you to index metadata discovered during the parsing process.
|
Sortable fields with Tika
If you want to add multiple fields in your Like |
TikaParseContextProvider as well as TikaMetadataProcessor implementation classes can both be
specified as parameters on the TikaBridge annotation.
@Entity
@Indexed
public class Song {
@Id
@GeneratedValue
long id;
@Field
@TikaBridge(metadataProcessor = Mp3TikaMetadataProcessor.class)
String mp3FileName;
// ...
}QueryBuilder queryBuilder = fullTextSession.getSearchFactory()
.buildQueryBuilder()
.forEntity( Song.class )
.get();
Query query = queryBuilder.keyword()
.onField( "mp3FileName" )
.ignoreFieldBridge() //mandatory
.matching( "Apes" )
.createQuery();
List result = fullTextSession.createFullTextQuery( query ).list();In the Example mapping with Apache Tika the property mp3FileName represents a path to an MP3 file; the
headers of this file will be indexed and so the performed query will be able to match the MP3
metadata.
|
|
|
To use the |
4.4.3. Custom bridges
Sometimes, the built-in bridges of Hibernate Search do not cover some of your property types, or the
String representation used by the bridge does not meet your requirements. The following paragraphs
describe several solutions to this problem.
StringBridge
The simplest custom solution is to give Hibernate Search an implementation of your expected Object
to String bridge. To do so you need to implement the org.hibernate.search.bridge.StringBridge
interface. All implementations have to be thread-safe as they are used concurrently.
StringBridge implementation/**
* Padding Integer bridge.
* All numbers will be padded with 0 to match 5 digits
*
* @author Emmanuel Bernard
*/
public class PaddedIntegerBridge implements StringBridge {
private int padding = 5;
public String objectToString(Object object) {
String rawInteger = ((Integer) object).toString();
if (rawInteger.length() > padding)
throw new IllegalArgumentException("Number too big to be padded");
StringBuilder paddedInteger = new StringBuilder();
for (int padIndex = rawInteger.length(); padIndex < padding; padIndex++) {
paddedInteger.append('0');
}
return paddedInteger.append( rawInteger ).toString();
}
}Given the string bridge defined in Custom StringBridge implementation, any property or field can use
this bridge thanks to the @FieldBridge annotation:
@FieldBridge(impl = PaddedIntegerBridge.class)
private Integer length;Parameterized bridge
Parameters can also be passed to the bridge implementation making it more flexible.
Passing parameters to your bridge implementation implements a ParameterizedBridge interface and parameters are
passed through the @FieldBridge annotation.
public class PaddedIntegerBridge implements StringBridge, ParameterizedBridge {
public static String PADDING_PROPERTY = "padding";
private int padding = 5; //default
public void setParameterValues(Map<String,String> parameters) {
String padding = parameters.get( PADDING_PROPERTY );
if (padding != null) this.padding = Integer.parseInt( padding );
}
public String objectToString(Object object) {
String rawInteger = ((Integer) object).toString();
if (rawInteger.length() > padding)
throw new IllegalArgumentException("Number too big to be padded");
StringBuilder paddedInteger = new StringBuilder( );
for (int padIndex = rawInteger.length(); padIndex < padding; padIndex++) {
paddedInteger.append('0');
}
return paddedInteger.append(rawInteger).toString();
}
}//on the property:
@FieldBridge(impl = PaddedIntegerBridge.class,
params = @Parameter(name="padding", value="10")
)
private Integer length;The ParameterizedBridge interface can be implemented by StringBridge, TwoWayStringBridge,
FieldBridge implementations.
All implementations have to be thread-safe, but the parameters are set during initialization and no special care is required at this stage.
Type aware bridge
It is sometimes useful to get the type the bridge is applied on:
-
the return type of the property for field/getter-level bridges
-
the class type for class-level bridges
An example is a bridge that deals with enums in a custom fashion but needs to access the actual enum
type. Any bridge implementing AppliedOnTypeAwareBridge will get the type the bridge is applied on
injected. Like parameters, the type injected needs no particular care with regard to thread-safety.
FieldBridge
Some use cases require more than a simple object to string translation when mapping a property to a
Lucene index. To give you the greatest possible flexibility you can also implement a bridge as a
FieldBridge. This interface gives you a property value and let you map it the way you want in your
Lucene Document. You can for example store a property in two different document fields. The
interface is very similar in its concept to the Hibernate ORM UserTypes.
/**
* Store the date in 3 different fields - year, month, day - to ease the creation of RangeQuery per
* year, month or day (eg get all the elements of December for the last 5 years).
* @author Emmanuel Bernard
*/
public class DateSplitBridge implements FieldBridge {
private final static TimeZone GMT = TimeZone.getTimeZone("GMT");
public void set(String name, Object value, Document document,
LuceneOptions luceneOptions) {
Date date = (Date) value;
Calendar cal = GregorianCalendar.getInstance(GMT);
cal.setTime(date);
int year = cal.get(Calendar.YEAR);
int month = cal.get(Calendar.MONTH) + 1;
int day = cal.get(Calendar.DAY_OF_MONTH);
// set year
luceneOptions.addFieldToDocument(
name + ".year",
String.valueOf( year ),
document );
// set month and pad it if needed
luceneOptions.addFieldToDocument(
name + ".month",
month < 10 ? "0" : "" + String.valueOf( month ),
document );
// set day and pad it if needed
luceneOptions.addFieldToDocument(
name + ".day",
day < 10 ? "0" : "" + String.valueOf( day ),
document );
}
}//property
@FieldBridge(impl = DateSplitBridge.class)
private Date date;In Implementing the FieldBridge interface the fields are not added directly to Document. Instead the addition is
delegated to the LuceneOptions helper; this helper will apply the options you have selected on
@Field, like Store or TermVector, or apply the chosen @Boost value. It is especially useful
to encapsulate the complexity of COMPRESS implementations. Even though it is recommended to
delegate to LuceneOptions to add fields to the Document, nothing stops you from editing the
Document directly and ignore the LuceneOptions in case you need to.
|
Classes like |
ClassBridge
It is sometimes useful to combine more than one property of a given entity and index this
combination in a specific way into the Lucene index. The @ClassBridge and @ClassBridges
annotations can be defined at class level (as opposed to the property level). In this case the
custom field bridge implementation receives the entity instance as the value parameter instead of a
particular property. Though not shown in Implementing a class bridge, @ClassBridge supports the
termVector attribute discussed in section Basic mapping.
@Entity
@Indexed
@ClassBridge(name="branchnetwork",
store=Store.YES,
impl = CatFieldsClassBridge.class,
params = @Parameter( name="sepChar", value=" " ) )
public class Department {
private int id;
private String network;
private String branchHead;
private String branch;
private Integer maxEmployees
// ...
}public class CatFieldsClassBridge implements FieldBridge, ParameterizedBridge {
private String sepChar;
public void setParameterValues(Map parameters) {
this.sepChar = (String) parameters.get( "sepChar" );
}
public void set(
String name, Object value, Document document, LuceneOptions luceneOptions) {
// In this particular class the name of the new field was passed
// from the name field of the ClassBridge Annotation. This is not
// a requirement. It just works that way in this instance. The
// actual name could be supplied by hard coding it below.
Department dep = (Department) value;
String fieldValue1 = dep.getBranch();
if ( fieldValue1 == null ) {
fieldValue1 = "";
}
String fieldValue2 = dep.getNetwork();
if ( fieldValue2 == null ) {
fieldValue2 = "";
}
String fieldValue = fieldValue1 + sepChar + fieldValue2;
Field field = new Field( name, fieldValue, luceneOptions.getStore(),
luceneOptions.getIndex(), luceneOptions.getTermVector() );
field.setBoost( luceneOptions.getBoost() );
document.add( field );
}
}In this example, the particular CatFieldsClassBridge is applied to the department instance, the
field bridge then concatenate both branch and network and index the concatenation.
Two-way bridge
If you expect to retrieve values from the index (for example when using projections), you need to use what Hibernate Search calls "two-way bridges". Bridges applied to document identifiers in particular must be two-way bridges.
Those bridges are applied to your model using the @FieldBridge annotation just like any other bridge,
but their implementation is slightly different.
The simpler two-way bridge interface, TwoWayStringBridge, is similar to StringBridge but exposes two methods:
-
The
String objectToString(Object)method transforms the property value into a String. This allows Hibernate Search to generate the value of the field when indexing. The method is also used to generate search queries when filtering on the field. -
The
Object stringToObject(String)method transforms the value stored in the index back into the value of the associated entity property. This allows Hibernate Search to fetch a value when projecting. In the case of document identifiers, it also allows to load entities from index documents when fetching search results.
TwoWayStringBridge usable for id propertiespublic class PaddedIntegerBridge implements TwoWayStringBridge, ParameterizedBridge {
public static String PADDING_PROPERTY = "padding";
private int padding = 5; //default
public void setParameterValues(Map parameters) {
Object padding = parameters.get(PADDING_PROPERTY);
if (padding != null) this.padding = (Integer) padding;
}
public String objectToString(Object object) {
String rawInteger = ((Integer) object).toString();
if (rawInteger.length() > padding)
throw new IllegalArgumentException("Number too big to be padded");
StringBuilder paddedInteger = new StringBuilder();
for (int padIndex = rawInteger.length(); padIndex < padding ; padIndex++) {
paddedInteger.append('0');
}
return paddedInteger.append(rawInteger).toString();
}
public Object stringToObject(String stringValue) {
return new Integer(stringValue);
}
}//On an id property:
@DocumentId
@FieldBridge(impl = PaddedIntegerBridge.class,
params = @Parameter(name="padding", value="10")
private Integer id;The more powerful TwoWayFieldBridge interface allows you to store more than one field into the index,
which can be useful for composite properties, but is more complex to implement:
-
The
void set(String name, Object value, Document document, LuceneOptions luceneOptions)method transforms the property value into one or several fields. This allows Hibernate Search to generate the document when indexing. -
The
Object get(String name, Document document)method transforms the value stored in the index back into the value of the associated entity property. This allows Hibernate Search to fetch a value when projecting. In the case of document identifiers, it also allows to load entities from index documents when fetching search results. -
The
String objectToString(Object)method transforms the property value into a String. The method is used to generate search queries when filtering on the main field (the field whose name is passed to theget/setmethods).
|
It is important for the two-way process to be idempotent, i.e.:
Also, in order for
|
4.4.4. BridgeProvider: associate a bridge to a given return type
Custom field bridges are very flexible, but it can be tedious and error prone to apply the same
custom @FieldBridge annotation every time a property of a given type is present in your domain
model. That is what BridgeProviders are for.
Let’s imagine that you have a type Currency in your application and that you want to apply your very
own CurrencyFieldBridge every time an indexed property returns Currency. You can do it the hard way:
@FieldBridge for a type the hard way@Entity @Indexed
public class User {
@FieldBridge(impl=CurrencyFieldBridge.class)
public Currency getDefaultCurrency();
// ...
}
@Entity @Indexed
public class Account {
@FieldBridge(impl=CurrencyFieldBridge.class)
public Currency getCurrency();
// ...
}
// continue to add @FieldBridge(impl=CurrencyFieldBridge.class) everywhere Currency isOr you can write your own BridgeProvider implementation for Currency.
BridgeProviderpublic class CurrencyBridgeProvider implements BridgeProvider {
//needs a default no-arg constructor
@Override
public FieldBridge provideFieldBridge(BridgeContext bridgeProviderContext) {
if ( bridgeProviderContext.getReturnType().equals( Currency.class ) ) {
return CurrencyFieldBridge.INSTANCE;
}
return null;
}
}# service file named META-INF/services/org.hibernate.search.bridge.spi.BridgeProvider com.acme.myapps.hibernatesearch.CurrencyBridgeProvider
You need to implement BridgeProvider and create a service file named
META-INF/services/org.hibernate.search.bridge.spi.BridgeProvider. This file must contain the fully
qualified class name(s) of the BridgeProvider implementations. This is the classic Service Loader
discovery mechanism.
Now, any indexed property of type Currency will use CurrencyFieldBridge automatically.
@FieldBridge is no longer needed@Entity @Indexed
public class User {
@Field
public Currency getDefaultCurrency();
// ...
}
@Entity @Indexed
public class Account {
@Field
public Currency getCurrency();
// ...
}
//CurrencyFieldBridge is applied automatically everywhere Currency is found on an indexed propertyA few more things you need to know:
-
a
BridgeProvidermust have a no-arg constructor -
if a
BridgeProvideronly returnsFieldBridgeinstances if it is meaningful for the calling context. Null otherwise. In our example, the return type must beCurrencyto be meaningful to our provider. -
if two or more bridge providers return a
FieldBridgeinstance for a given return type, an exception will be raised.
|
What is a calling context
A calling context is represented by the |
4.5. Conditional indexing
In some situations, you want to index an entity only when it is in a given state, for example:
-
only index blog entries marked as published
-
no longer index invoices when they are marked archived
This serves both functional and technical needs. You don’t want your blog readers to find your draft entries and filtering them off the query is a bit annoying. Very few of your entities are actually required to be indexed and you want to limit indexing overhead and keep indexes small and fast.
Hibernate Search lets you intercept entity indexing operations and override them. It is quite simple:
-
Write an
EntityIndexingInterceptorclass with your entity state based logic -
Mark the entity as intercepted by this implementation
Let’s look at the blog example at Index blog entries only when they are published and remove them when they are in a different state
/**
* Only index blog when it is in published state
*
* @author Emmanuel Bernard <emmanuel@hibernate.org>
*/
public class IndexWhenPublishedInterceptor implements EntityIndexingInterceptor<Blog> {
@Override
public IndexingOverride onAdd(Blog entity) {
if (entity.getStatus() == BlogStatus.PUBLISHED) {
return IndexingOverride.APPLY_DEFAULT;
}
return IndexingOverride.SKIP;
}
@Override
public IndexingOverride onUpdate(Blog entity) {
if (entity.getStatus() == BlogStatus.PUBLISHED) {
return IndexingOverride.UPDATE;
}
return IndexingOverride.REMOVE;
}
@Override
public IndexingOverride onDelete(Blog entity) {
return IndexingOverride.APPLY_DEFAULT;
}
@Override
public IndexingOverride onCollectionUpdate(Blog entity) {
return onUpdate(entity);
}
}@Entity
@Indexed(interceptor=IndexWhenPublishedInterceptor.class)
public class Blog {
@Id
@GeneratedValue
public Integer getId() { return id; }
public void setId(Integer id) { this.id = id; }
private Integer id;
@Field
public String getTitle() { return title; }
public void setTitle(String title) { this.title = title; }
private String title;
public BlogStatus getStatus() { return status; }
public void setStatus(BlogStatus status) { this.status = status; }
private BlogStatus status;
// ...
}We mark the Blog entity with @Indexed.interceptor. As you can see, IndexWhenPublishedInterceptor
implements EntityIndexingInterceptor and accepts Blog entities (it could have accepted super classes
as well - for example Object if you create a generic interceptor.
You can react to several planned indexing events:
-
when an entity is added to your datastore
-
when an entity is updated in your datastore
-
when an entity is deleted from your datastore
-
when a collection own by this entity is updated in your datastore
For each occurring event you can respond with one of the following actions:
-
APPLY_DEFAULT: that’s the basic operation that lets Hibernate Search update the index as expected - creating, updating or removing the document -
SKIP: ask Hibernate Search to not do anything to the index for this event - data will not be created, updated or removed from the index in any way -
REMOVE: ask Hibernate Search to remove indexing data about this entity - you can safely ask forREMOVEeven if the entity has not yet been indexed -
UPDATE: ask Hibernate Search to either index or update the index for this entity - it is safe to ask forUPDATEeven if the entity has never been indexed
|
Be careful, not every combination makes sense: for example, asking to |
By default, no interceptor is applied on an entity. You have to explicitly define an interceptor via
the @Indexed annotation (see @Indexed) or programmatically (see
Programmatic API). This class and all its subclasses will then be intercepted.
You can stop or change the interceptor used in a subclass by overriding @Indexed.interceptor.
Hibernate Search provides DontInterceptEntityInterceptor which will explicitly not intercept any call.
This is useful to reset interception within a class hierarchy.
|
Dirty checking optimization is disabled when interceptors are used. Dirty checking optimization does check what has changed in an entity and only triggers an index update if indexed properties are changed. The reason is simple, your interceptor might depend on a non indexed property which would be ignored by this optimization. |
|
An |
4.6. Providing your own id
You can provide your own id for Hibernate Search if you are extending the internals. You will have
to generate a unique value so it can be given to Lucene to be indexed. This will have to be given to
Hibernate Search when you create an org.hibernate.search.Work object - the document id is required
in the constructor.
4.6.1. The ProvidedId annotation
Unlike @DocumentId which is applied on field level, @ProvidedId is used on the class level.
Optionally you can specify your own bridge implementation using the bridge property. Also, if you
annotate a class with @ProvidedId, your subclasses will also get the annotation - but it is not done
by using the java.lang.annotations.@Inherited. Be sure however, to not use this annotation with
@DocumentId as your system will break.
@ProvidedId(bridge = org.my.own.package.MyCustomBridge)
@Indexed
public class MyClass{
@Field
String MyString;
...
}4.7. Programmatic API
Although the recommended approach for mapping indexed entities is to use annotations, it is sometimes more convenient to use a different approach:
-
the same entity is mapped differently depending on deployment needs (customization for clients)
-
some automation process requires the dynamic mapping of many entities sharing common traits
While it has been a popular demand in the past, the Hibernate team never found the idea of an XML alternative to annotations appealing due to its heavy duplication, lack of code refactoring safety, because it did not cover all the use case spectrum and because we are in the 21st century :)
The idea of a programmatic API was much more appealing and has now become a reality. You can programmatically define your mapping using a programmatic API: you define entities and fields as indexable by using mapping classes which effectively mirror the annotation concepts in Hibernate Search. Note that fan(s) of XML approach can design their own schema and use the programmatic API to create the mapping while parsing the XML stream.
In order to use the programmatic model you must first construct a SearchMapping object which you can
do in two ways:
-
directly
-
via a factory
You can pass the SearchMapping object directly via the property key
hibernate.search.model_mapping or the constant Environment.MODEL_MAPPING. Use the
Configuration API or the Map passed to the JPA Persistence bootstrap methods.
SearchMapping mapping = new SearchMapping();
// ... configure mapping
Configuration config = new Configuration();
config.getProperties().put( Environment.MODEL_MAPPING, mapping );
SessionFactory sf = config.buildSessionFactory();SearchMapping mapping = new SearchMapping();
// ... configure mapping
Map props = new HashMap();
props.put( Environment.MODEL_MAPPING, mapping );
EntityManagerFactory emf = Persistence.createEntityManagerFactory( "userPU", props );Alternatively, you can create a factory class (ie hosting a method annotated with @Factory) whose
factory method returns the SearchMapping object. The factory class must have a no-arg constructor
and its fully qualified class name is passed to the property key
hibernate.search.model_mapping or its type-safe representation Environment.MODEL_MAPPING. This
approach is useful when you do not necessarily control the bootstrap process like in a Java EE, CDI
or Spring Framework container.
public class MyAppSearchMappingFactory {
@Factory
public SearchMapping getSearchMapping() {
SearchMapping mapping = new SearchMapping();
mapping
.analyzerDef( "ngram", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( NGramFilterFactory.class )
.param( "minGramSize", "3" )
.param( "maxGramSize", "3" );
return mapping;
}
}<persistence ...>
<persistence-unit name="users">
...
<properties>
<property name="hibernate.search.model_mapping"
value="com.acme.MyAppSearchMappingFactory"/>
</properties>
</persistence-unit>
</persistence>The SearchMapping is the root object which contains all the necessary indexable entities and fields.
From there, the SearchMapping object exposes a fluent (and thus intuitive) API to express your
mappings: it contextually exposes the relevant mapping options in a type-safe way. Just let your IDE
auto-completion feature guide you through.
Today, the programmatic API cannot be used on a class annotated with Hibernate Search annotations,
chose one approach or the other. Also note that the same default values apply in annotations and the
programmatic API. For example, the @Field.name is defaulted to the property name and does not have
to be set.
Each core concept of the programmatic API has a corresponding example to depict how the same definition would look using annotation. Therefore seeing an annotation example of the programmatic approach should give you a clear picture of what Hibernate Search will build with the marked entities and associated properties.
4.7.1. Mapping an entity as indexable
The first concept of the programmatic API is to define an entity as indexable. Using the annotation
approach a user would mark the entity as @Indexed, the following example demonstrates how to
programmatically achieve this.
SearchMapping mapping = new SearchMapping();
mapping.entity(Address.class)
.indexed()
.indexName("Address_Index") //optional
.interceptor(IndexWhenPublishedInterceptor.class); //optional
cfg.getProperties().put("hibernate.search.model_mapping", mapping);As you can see you must first create a SearchMapping object which is the root object that is then
passed to the Configuration object as property. You must declare an entity and if you wish to make
that entity as indexable then you must call the indexed() method. The indexed() method has an
optional indexName(String indexName) which can be used to change the default index name that is
created by Hibernate Search. Likewise, an interceptor(Class<? extends EntityIndexedInterceptor>)
is available. Using the annotation model the above can be achieved as:
@Entity
@Indexed(index="Address_Index", interceptor=IndexWhenPublishedInterceptor.class)
public class Address {
// ...
}4.7.2. Adding DocumentId to indexed entity
To set a property as a document id:
SearchMapping mapping = new SearchMapping();
mapping.entity(Address.class).indexed()
.property("addressId", ElementType.FIELD) //field access
.documentId()
.name("id");
cfg.getProperties().put( "hibernate.search.model_mapping", mapping);The above is equivalent to annotating a property in the entity as @DocumentId as seen in the
following example:
@DocumentId annotation definition@Entity
@Indexed
public class Address {
@Id
@GeneratedValue
@DocumentId(name="id")
private Long addressId;
// ...
}4.7.3. Defining analyzers
Analyzers can be programmatically defined using the
analyzerDef(String analyzerDef, Class<? extends TokenizerFactory> tokenizerFactory) method. This
method also enables you to define filters for the analyzer definition. Each filter that you define
can optionally take in parameters as seen in the following example :
SearchMapping mapping = new SearchMapping();
mapping
.analyzerDef( "ngram", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( NGramFilterFactory.class )
.param( "minGramSize", "3" )
.param( "maxGramSize", "3" )
.analyzerDef( "en", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( EnglishPorterFilterFactory.class )
.analyzerDef( "de", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( GermanStemFilterFactory.class )
.entity(Address.class).indexed()
.property("addressId", ElementType.METHOD) //getter access
.documentId()
.name("id");
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The analyzer mapping defined above is equivalent to the annotation model using @AnalyzerDef:
@Indexed
@Entity
@AnalyzerDef(name = "ngram",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = NGramFilterFactory.class,
params = {
@Parameter(name = "minGramSize",value = "3"),
@Parameter(name = "maxGramSize",value = "3")
})
})
@AnalyzerDef(name = "en",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = EnglishPorterFilterFactory.class)
})
@AnalyzerDef(name = "de",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = GermanStemFilterFactory.class)
})
public class Address {
// ...
}4.7.4. Defining normalizers
Similarly to analyzers, normalizers can be programmatically defined using the
normalizerDef(String name) method.
SearchMapping mapping = new SearchMapping();
mapping
.normalizerDef( "lowercase" )
.filter( ASCIIFoldingFilterFactory.class )
.filter( LowerCaseFilterFactory.class )
.normalizerDef( "charmapping" )
.charFilter( MappingChar.class )
.param( "mapping", "com/example/myapplication/lucene/mapping.properties" )
.entity(Address.class).indexed()
.property("addressId", ElementType.METHOD) //getter access
.documentId()
.name("id");
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );4.7.5. Defining full text filter definitions
The programmatic API provides easy mechanism for defining full text filter definitions which is
available via @FullTextFilterDef (see Filters). The next example
depicts the creation of full text filter definition using the fullTextFilterDef method.
SearchMapping mapping = new SearchMapping();
mapping
.analyzerDef( "en", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( EnglishPorterFilterFactory.class )
.fullTextFilterDef("security", SecurityFilterFactory.class)
.cache(FilterCacheModeType.INSTANCE_ONLY)
.entity(Address.class)
.indexed()
.property("addressId", ElementType.METHOD)
.documentId()
.name("id")
.property("street1", ElementType.METHOD)
.field()
.analyzer("en")
.store(Store.YES)
.field()
.name("address_data")
.analyzer("en")
.store(Store.NO);
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The previous example can effectively been seen as annotating your entity with @FullTextFilterDef
like below:
@Entity
@Indexed
@AnalyzerDef(name = "en",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = EnglishPorterFilterFactory.class)
})
@FullTextFilterDef(name = "security", impl = SecurityFilterFactory.class, cache = FilterCacheModeType.INSTANCE_ONLY)
public class Address {
@Id
@GeneratedValue
@DocumentId(name="id")
public Long getAddressId() {...};
@Field(store=Store.YES, analyzer=@Analyzer(definition="en"))
@Field(name="address_data", analyzer=@Analyzer(definition="en"))
public String getAddress1() {...};
// ...
}4.7.6. Defining fields for indexing
When defining fields for indexing using the programmatic API, call field() on the
property(String propertyName, ElementType elementType) method. From field() you can specify
the name, index, store, bridge, analyzer and normalizer parameters,
as well as make the field sortable using .sortableField().
SearchMapping mapping = new SearchMapping();
mapping
.analyzerDef( "en", StandardTokenizerFactory.class )
.filter( LowerCaseFilterFactory.class )
.filter( EnglishPorterFilterFactory.class )
.normalizerDef( "lowercase" )
.filter( ASCIIFoldingFilterFactory.class )
.filter( LowerCaseFilterFactory.class )
.entity(Address.class).indexed()
.property("addressId", ElementType.METHOD)
.documentId()
.name("id")
.property("street1", ElementType.METHOD)
.field()
.analyzer("en")
.store(Store.YES)
.field()
.name("address_data")
.analyzer("en")
.field()
.name("address_sort")
.sortableField()
.normalizer("lowercase");
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The above example of marking fields as indexable is equivalent to defining fields using @Field as
seen below:
@Entity
@Indexed
@AnalyzerDef(name = "en",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class),
filters = {
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = EnglishPorterFilterFactory.class)
})
@NormalizerDef(name = "lowercase",
filters = {
@TokenFilterDef(factory = ASCIIFoldingFilterFactory.class),
@TokenFilterDef(factory = LowerCaseFilterFactory.class)
}
)
public class Address {
@Id
@GeneratedValue
@DocumentId(name="id")
private Long getAddressId() {...};
@Field(store=Store.YES, analyzer=@Analyzer(definition="en"))
@Field(name="address_data", analyzer=@Analyzer(definition="en"))
@Field(name="address_sort", normalizer=@Normalizer(definition="lowercase"))
@SortableField(forField="address_sort")
public String getAddress1() {...}
// ...
}|
When using a programmatic mapping for a given type |
4.7.7. Programmatically defining embedded entities
In this section you will see how to programmatically define entities to be embedded into the indexed
entity similar to using the @IndexedEmbedded model. In order to define this you must mark the
property as indexEmbedded. There is the option to add a prefix to the embedded entity definition
which can be done by calling prefix as seen in the example below:
SearchMapping mapping = new SearchMapping();
mapping
.entity(ProductCatalog.class)
.indexed()
.property("catalogId", ElementType.METHOD)
.documentId()
.name("id")
.property("title", ElementType.METHOD)
.field()
.index(Index.YES)
.store(Store.NO)
.property("description", ElementType.METHOD)
.field()
.index(Index.YES)
.store(Store.NO)
.property("items", ElementType.METHOD)
.indexEmbedded()
.prefix("catalog.items"); //optional
cfg.getProperties().put( "hibernate.search.model_mapping", mapping )The next example shows the same definition using annotation (@IndexedEmbedded):
@IndexedEmbedded@Entity
@Indexed
public class ProductCatalog {
@Id
@GeneratedValue
@DocumentId(name="id")
public Long getCatalogId() {...}
@Field
public String getTitle() {...}
@Field
public String getDescription();
@OneToMany(fetch = FetchType.LAZY)
@IndexColumn(name = "list_position")
@Cascade(org.hibernate.annotations.CascadeType.ALL)
@IndexedEmbedded(prefix="catalog.items")
public List<Item> getItems() {...}
// ...
}4.7.8. Contained In definition
@ContainedIn can be defined as seen in the example below:
containedInSearchMapping mapping = new SearchMapping();
mapping
.entity(ProductCatalog.class)
.indexed()
.property("catalogId", ElementType.METHOD)
.documentId()
.property("title", ElementType.METHOD)
.field()
.property("description", ElementType.METHOD)
.field()
.property("items", ElementType.METHOD)
.indexEmbedded()
.entity(Item.class)
.property("description", ElementType.METHOD)
.field()
.property("productCatalog", ElementType.METHOD)
.containedIn();
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );This is equivalent to defining @ContainedIn in your entity:
@ContainedIn@Entity
@Indexed
public class ProductCatalog {
@Id
@GeneratedValue
@DocumentId
public Long getCatalogId() {...}
@Field
public String getTitle() {...}
@Field
public String getDescription() {...}
@OneToMany(fetch = FetchType.LAZY)
@IndexColumn(name = "list_position")
@Cascade(org.hibernate.annotations.CascadeType.ALL)
@IndexedEmbedded
private List<Item> getItems() {...}
// ...
}@Entity
public class Item {
@Id
@GeneratedValue
private Long itemId;
@Field
public String getDescription() {...}
@ManyToOne( cascade = { CascadeType.PERSIST, CascadeType.REMOVE } )
@ContainedIn
public ProductCatalog getProductCatalog() {...}
// ...
}4.7.9. Date/Calendar Bridge
In order to define a calendar or date bridge mapping, call the dateBridge(Resolution resolution) or
calendarBridge(Resolution resolution) methods after you have defined a field() in the SearchMapping
hierarchy.
SearchMapping mapping = new SearchMapping();
mapping
.entity(Address.class)
.indexed()
.property("addressId", ElementType.FIELD)
.documentId()
.property("street1", ElementType.FIELD()
.field()
.property("createdOn", ElementType.FIELD)
.field()
.dateBridge(Resolution.DAY)
.property("lastUpdated", ElementType.FIELD)
.calendarBridge(Resolution.DAY);
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );See below for defining the above using @CalendarBridge and @DateBridge:
@CalendarBridge and @DateBridge definition@Entity
@Indexed
public class Address {
@Id
@GeneratedValue
@DocumentId
private Long addressId;
@Field
private String address1;
@Field
@DateBridge(resolution=Resolution.DAY)
private Date createdOn;
@CalendarBridge(resolution=Resolution.DAY)
private Calendar lastUpdated;
// ...
}4.7.10. Declaring bridges
It is possible to associate bridges to programmatically defined fields. When you define a field()
programmatically you can use the bridge(Class<?> impl) to associate a FieldBridge implementation
class. The bridge method also provides optional methods to include any parameters required for the
bridge class. The below shows an example of programmatically defining a bridge:
SearchMapping mapping = new SearchMapping();
mapping
.entity(Address.class)
.indexed()
.property("addressId", ElementType.FIELD)
.documentId()
.property("street1", ElementType.FIELD)
.field()
.field()
.name("street1_abridged")
.bridge( ConcatStringBridge.class )
.param( "size", "4" );
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The above can equally be defined using annotations, as seen in the next example.
@Entity
@Indexed
public class Address {
@Id
@GeneratedValue
@DocumentId(name="id")
private Long addressId;
@Field
@Field(name="street1_abridged",
bridge = @FieldBridge( impl = ConcatStringBridge.class,
params = @Parameter( name="size", value="4" ))
private String address1;
// ...
}4.7.11. Mapping class bridge
You can define class bridges on entities programmatically. This is shown in the next example:
SearchMapping mapping = new SearchMapping();
mapping
.entity(Departments.class)
.classBridge(CatDeptsFieldsClassBridge.class)
.name("branchnetwork")
.index(Index.YES)
.store(Store.YES)
.param("sepChar", " ")
.classBridge(EquipmentType.class)
.name("equiptype")
.index(Index.YES)
.store(Store.YES)
.param("C", "Cisco")
.param("D", "D-Link")
.param("K", "Kingston")
.param("3", "3Com")
.indexed();
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The above is similar to using @ClassBridge as seen in the next example:
@ClassBridge@Entity
@Indexed
@ClassBridge(name="branchnetwork",
store= Store.YES,
impl = CatDeptsFieldsClassBridge.class,
params = @Parameter( name="sepChar", value=" " ) ),
@ClassBridge(name="equiptype",
store= Store.YES,
impl = EquipmentType.class,
params = {@Parameter( name="C", value="Cisco" ),
@Parameter( name="D", value="D-Link" ),
@Parameter( name="K", value="Kingston" ),
@Parameter( name="3", value="3Com" )
})
public class Departments {
// ...
}4.7.12. Mapping dynamic boost
|
Index-time boosting is deprecated: support for this approach will be removed in Apache Lucene since version 7. We recommend to use query-time boosting instead: see Querying. If query-time boosting is not enough for your use case, you can implement dynamic boosting using a custom similarity (advanced use). |
You can apply a dynamic boost factor on either a field or a whole entity:
dynamicBoost mapping using programmatic modelSearchMapping mapping = new SearchMapping();
mapping
.entity(DynamicBoostedDescLibrary.class)
.indexed()
.dynamicBoost(CustomBoostStrategy.class)
.property("libraryId", ElementType.FIELD)
.documentId().name("id")
.property("name", ElementType.FIELD)
.dynamicBoost(CustomFieldBoostStrategy.class);
.field()
.store(Store.YES)
cfg.getProperties().put( "hibernate.search.model_mapping", mapping );The next example shows the equivalent mapping using the @DynamicBoost annotation:
@DynamicBoost@Entity
@Indexed
@DynamicBoost(impl = CustomBoostStrategy.class)
public class DynamicBoostedDescriptionLibrary {
@Id
@GeneratedValue
@DocumentId
private int id;
private float dynScore;
@Field(store = Store.YES)
@DynamicBoost(impl = CustomFieldBoostStrategy.class)
private String name;
public DynamicBoostedDescriptionLibrary() {
dynScore = 1.0f;
}
// ...
}5. Querying
The second most important capability of Hibernate Search is the ability to execute Lucene queries and retrieve entities managed by a Hibernate session. The search provides the power of Lucene without leaving the Hibernate paradigm, giving another dimension to the Hibernate classic search mechanisms (HQL, Criteria query, native SQL query).
Preparing and executing a query consists of four simple steps:
-
Creating a
FullTextSession -
Creating a Lucene query either via the Hibernate Search query DSL (recommended) or by utilizing the Lucene query API
-
Wrapping the Lucene query using an
org.hibernate.Query -
Executing the search by calling for example
list()orscroll()
To access the querying facilities, you have to use a FullTextSession. This Search specific session
wraps a regular org.hibernate.Session in order to provide query and indexing capabilities.
Session session = sessionFactory.openSession();
//...
FullTextSession fullTextSession = Search.getFullTextSession(session);Once you have a FullTextSession you have two options to build the full-text query: the Hibernate
Search query DSL or the native Lucene query.
If you use the Hibernate Search query DSL, it will look like this:
QueryBuilder b = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Myth.class).get();
org.apache.lucene.search.Query luceneQuery =
b.keyword()
.onField("history").boostedTo(3)
.matching("storm")
.createQuery();
org.hibernate.Query fullTextQuery = fullTextSession.createFullTextQuery(luceneQuery);
List result = fullTextQuery.list(); //return a list of managed objectsYou can alternatively write your Lucene query either using the Lucene query parser or Lucene programmatic API.
SearchFactory searchFactory = fullTextSession.getSearchFactory();
org.apache.lucene.queryparser.classic.QueryParser parser =
new QueryParser("title", searchFactory.getAnalyzer(Myth.class));
try {
org.apache.lucene.search.Query luceneQuery = parser.parse("history:storm^3");
}
catch (ParseException e) {
//handle parsing failure
}
org.hibernate.Query fullTextQuery = fullTextSession.createFullTextQuery(luceneQuery);
List result = fullTextQuery.list(); //return a list of managed objects|
The Hibernate query built on top of the Lucene query is a regular |
In case you are using the Java Persistence APIs of Hibernate, the same extensions exist:
EntityManager em = entityManagerFactory.createEntityManager();
FullTextEntityManager fullTextEntityManager =
org.hibernate.search.jpa.Search.getFullTextEntityManager(em);
// ...
QueryBuilder b = fullTextEntityManager.getSearchFactory()
.buildQueryBuilder().forEntity( Myth.class ).get();
org.apache.lucene.search.Query luceneQuery =
b.keyword()
.onField("history").boostedTo(3)
.matching("storm")
.createQuery();
javax.persistence.Query fullTextQuery =
fullTextEntityManager.createFullTextQuery( luceneQuery );
List result = fullTextQuery.getResultList(); //return a list of managed objects|
The following examples we will use the Hibernate APIs but the same example can be easily rewritten with the Java Persistence API by just adjusting the way the FullTextQuery is retrieved. |
5.1. Building queries
Hibernate Search queries are built on top of Lucene queries which gives you total freedom on the type of Lucene query you want to execute. However, once built, Hibernate Search wraps further query processing using org.hibernate.Query as your primary query manipulation API.
5.1.1. Building a Lucene query using the Lucene API
Using the Lucene API, you have several options. You can use the query parser (fine for simple queries) or the Lucene programmatic API (for more complex use cases). It is out of the scope of this documentation on how to exactly build a Lucene query. Please refer to the online Lucene documentation or get hold of a copy of Lucene In Action or Hibernate Search in Action.
5.1.2. Building a Lucene query with the Hibernate Search query DSL
Writing full-text queries with the Lucene programmatic API is quite complex. It’s even more complex to understand the code once written. Besides the inherent API complexity, you have to remember to convert your parameters to their string equivalent as well as make sure to apply the correct analyzer to the right field (a ngram analyzer will for example use several ngrams as the tokens for a given word and should be searched as such).
The Hibernate Search query DSL makes use of a style of API called a fluent API. This API has a few key characteristics:
-
it has meaningful method names making a succession of operations reads almost like English
-
it limits the options offered to what makes sense in a given context (thanks to strong typing and IDE auto-completion).
-
it often uses the chaining method pattern
-
it’s easy to use and even easier to read
Let’s see how to use the API. You first need to create a query builder that is attached to a given
indexed entity type. This QueryBuilder will know what analyzer to use and what field bridge to
apply. You can create several QueryBuilder instances (one for each entity type involved in the root
of your query). You get the QueryBuilder from the SearchFactory.
QueryBuilder mythQB = searchFactory.buildQueryBuilder().forEntity( Myth.class ).get();You can also override the analyzer used for a given field or fields. This is rarely needed and should be avoided unless you know what you are doing.
QueryBuilder mythQB = searchFactory.buildQueryBuilder()
.forEntity( Myth.class )
.overridesForField("history","stem_analyzer_definition")
.get();Using the query builder, you can then build queries. It is important to realize that the end result of a QueryBuilder is a Lucene query. For this reason you can easily mix and match queries generated via Lucene’s query parser or Query objects you have assembled with the Lucene programmatic API and use them with the Hibernate Search DSL. Just in case the DSL is missing some features.
Keyword queries
Let’s start with the most basic use case - searching for a specific word:
Query luceneQuery = mythQB.keyword().onField("history").matching("storm").createQuery();keyword() means that you are trying to find a specific word. onField() specifies in which Lucene
field to look. matching() tells what to look for. And finally createQuery() creates the Lucene
query object. A lot is going on with this line of code.
-
The value storm is passed through the
historyFieldBridge: it does not matter here but you will see that it’s quite handy when dealing with numbers or dates. -
The field bridge value is then passed to the analyzer used to index the field
history. This ensures that the query uses the same term transformation than the indexing (lower case, n-gram, stemming and so on). If the analyzing process generates several terms for a given word, a boolean query is used with theSHOULDlogic (roughly anORlogic).
We make the example a little more advanced now and have a look at how to search a field that uses ngram analyzers. ngram analyzers index succession of ngrams of your words which helps to recover from user typos. For example the 3-grams of the word hibernate are hib, ibe, ber, rna, nat, ate.
@AnalyzerDef(name = "ngram",
tokenizer = @TokenizerDef(factory = StandardTokenizerFactory.class ),
filters = {
@TokenFilterDef(factory = StandardFilterFactory.class),
@TokenFilterDef(factory = LowerCaseFilterFactory.class),
@TokenFilterDef(factory = StopFilterFactory.class),
@TokenFilterDef(factory = NGramFilterFactory.class,
params = {
@Parameter(name = "minGramSize", value = "3"),
@Parameter(name = "maxGramSize", value = "3") } )
}
)
@Entity
@Indexed
public class Myth {
@Field(analyzer=@Analyzer(definition="ngram")
public String getName() { return name; }
public String setName(String name) { this.name = name; }
private String name;
...
}
Query luceneQuery = mythQb.keyword().onField("name").matching("Sisiphus")
.createQuery();The matching word "Sisiphus" will be lower-cased and then split into 3-grams: sis, isi, sip, phu,
hus. Each of these n-gram will be part of the query. We will then be able to find the Sysiphus myth
(with a y). All that is transparently done for you.
|
If for some reason you do not want a specific field to use the field bridge or the analyzer you can
call the |
To search for multiple possible words in the same field, simply add them all in the matching clause.
//search document with storm or lightning in their history
Query luceneQuery =
mythQB.keyword().onField("history").matching("storm lightning").createQuery();To search the same word on multiple fields, use the onFields method.
Query luceneQuery = mythQB
.keyword()
.onFields("history","description","name")
.matching("storm")
.createQuery();Sometimes, one field should be treated differently from another field even if searching the same term, you can use the andField() method for that.
Query luceneQuery = mythQB.keyword()
.onField("history")
.andField("name")
.boostedTo(5f)
.andField("description")
.matching("storm")
.createQuery();In the previous example, only field name is boosted to 5.
Simple Query String queries
Simple Query String queries use the Lucene SimpleQueryParser, presented as a "parser for
human-entered queries". The point of this parser is to be a very simple lenient state machine
to parse queries entered by your end users.
The parser is capable to transform keyword "some phrase" -keywordidontwant fuzzy~ prefix*
into a Lucene query, giving your users a little more power (phrase queries, fuzzy queries,
boolean operators…).
The lenient part is important as it will try to build the best possible query without throwing a parsing exception, even if the query is not what we would consider syntactically correct.
Another nice feature is that it allows to search on multiple fields. You basically end up establishing the following contract with Lucene:
-
users will enter a search query (more or less syntactically correct)
-
it will search on the fields you have specified (and you can also specify a specific boost for each field)
-
you can enable each of the features that you want to expose to the users (i.e. you can enable the phrase queries but not the boolean operators)
-
building the query won’t throw an exception
|
Even if we are talking about Lucene queries here, this feature is also supported by our Elasticsearch integration. |
Here are a couple of examples introducing the features of our Simple Query String support one at a time.
The query below is the most simple form of Simple Query String query. It simply returns documents
whose history field contains storm:
Query luceneQuery = mythQB
.simpleQueryString()
.onField("history")
.matching("storm")
.createQuery();By default, a Simple Query String query uses the OR operator if the operator is not explicitly defined.
If you prefer using the AND operator as default, you can add the withAndAsDefaultOperator flag.
The following query returns results containing storm AND tree:
Query luceneQuery = mythQB
.simpleQueryString()
.onField("history")
.withAndAsDefaultOperator()
.matching("storm tree")
.createQuery();It is also possible to search on several fields at the same time, meaning you can search for the presence
of keywords in e.g. name, history or description, potentially with different boosts:
Query luceneQuery = mythQB
.simpleQueryString()
.onField("name")
.boostedTo(5f)
.andFields("history", "description")
.boostedTo(2f)
.withAndAsDefaultOperator()
.matching("storm tree")
.createQuery();The above query returns results containing storm and tree either in name, history or description.
The syntax supported by the SimpleQueryParser includes the following operators:
-
boolean (AND using
+, OR using|, NOT using-) -
prefix (
prefix*) -
phrase (
"some phrase") -
precedence (using parentheses)
-
fuzzy (
fuzy~2) -
near operator for phrase queries (
"war peace"~3).
The query below will also return results containing storms or sturm.
Query luceneQuery = mythQB
.simpleQueryString()
.onFields("name", "history", "description")
.matching("storm~2")
.createQuery();The query below will return results containing war and either peace or harmony:
Query luceneQuery = mythQB
.simpleQueryString()
.onFields("name", "history", "description")
.matching("war + (peace | harmony)")
.createQuery();And, finally, the following query will return results containing exactly the phrase storm and tree in either
name, history or description:
Query luceneQuery = mythQB
.simpleQueryString()
.onFields("name", "history", "description")
.matching("\"storm and tree\"")
.createQuery();Fuzzy queries
To execute a fuzzy query (based on the Levenshtein distance algorithm), start like a keyword query
and add the fuzzy flag.
Query luceneQuery = mythQB
.keyword()
.fuzzy()
.withThreshold(.8f)
.withPrefixLength(1)
.onField("history")
.matching("starm")
.createQuery();threshold is the limit above which two terms are considering matching. It’s a decimal between 0 and
1 and defaults to 0.5. prefixLength is the length of the prefix ignored by the "fuzzyness": while
it defaults to 0, a non zero value is recommended for indexes containing a huge amount of distinct
terms.
Wildcard queries
You can also execute wildcard queries (queries where some of parts of the word are unknown).
The character ? represents a single character and * represents any character sequence.
Note that for performance purposes, it is recommended that the query does not start with either ? or *.
Query luceneQuery = mythQB
.keyword()
.wildcard()
.onField("history")
.matching("sto*")
.createQuery();|
Wildcard queries do not apply the analyzer on the matching terms. Otherwise the risk of |
Phrase queries
So far we have been looking for words or sets of words, you can also search exact or approximate
sentences. Use phrase() to do so.
Query luceneQuery = mythQB
.phrase()
.onField("history")
.sentence("Thou shalt not kill")
.createQuery();You can search approximate sentences by adding a slop factor. The slop factor represents the number of other words permitted in the sentence: this works like a within or near operator
Query luceneQuery = mythQB
.phrase()
.withSlop(3)
.onField("history")
.sentence("Thou kill")
.createQuery();Range queries
After looking at all these query examples for searching for to a given word, it is time to introduce range queries (on numbers, dates, strings etc). A range query searches for a value in between given boundaries (included or not) or for a value below or above a given boundary (included or not).
//look for 0 <= starred < 3
Query luceneQuery = mythQB
.range()
.onField("starred")
.from(0).to(3).excludeLimit()
.createQuery();
//look for myths strictly BC
Date beforeChrist = ...;
Query luceneQuery = mythQB
.range()
.onField("creationDate")
.below(beforeChrist).excludeLimit()
.createQuery();Spatial (or geolocation) queries
This set of queries has its own chapter, check out Spatial.
More Like This queries
Have you ever looked at an article or document and thought: "I want to find more like this"? Have you ever appreciated an e-commerce website that gives you similar articles to the one you are exploring?
More Like This queries are achieving just that. You feed it an entity (or its identifier) and Hibernate Search returns the list of entities that are similar.
|
How does it work?
For each (selected) field of the targeted entity, we look at the most meaningful terms. Then we
create a query matching the most meaningful terms per field. This is a slight variation compared to
the original Lucene |
The query DSL API should be self explaining. Let’s look at some usage examples.
QueryBuilder qb = fullTextSession.getSearchFactory()
.buildQueryBuilder()
.forEntity( Coffee.class )
.get();
Query mltQuery = qb
.moreLikeThis()
.comparingAllFields()
.toEntityWithId( coffeeId )
.createQuery();
List<Object[]> results = (List<Object[]>) fullTextSession
.createFullTextQuery( mltQuery, Coffee.class )
.setProjection( ProjectionConstants.THIS, ProjectionConstants.SCORE )
.list();This first example takes the id of an Coffee entity and finds the matching coffees across all fields. To be fair, this is not across all fields. To be included in the More Like This query, fields need to store term vectors or the actual field value. Id fields (of the root entity as well as embedded entities) and numeric fields are excluded. The latter exclusion might change in future versions.
Looking at the Coffee class, the following fields are considered: name as it is stored,
description as it stores the term vector. id and internalDescription are excluded.
@Entity @Indexed
public class Coffee {
@Id @GeneratedValue
public Integer getId() { return id; }
@Field(termVector = TermVector.NO, store = Store.YES)
public String getName() { return name; }
@Field(termVector = TermVector.YES)
public String getSummary() { return summary; }
@Column(length = 2000)
@Field(termVector = TermVector.YES)
public String getDescription() { return description; }
public int getIntensity() { return intensity; }
// Not stored nor term vector, i.e. cannot be used for More Like This
@Field
public String getInternalDescription() { return internalDescription; }
// ...
}In the example above we used projection to retrieve the relative score of each element. We might use the score to only display the results for which the score is high enough.
|
For best performance and best results, store the term vectors for the fields you want to include in a More Like This query. |
Often, you are only interested in a few key fields to find similar entities. Plus some fields are more important than others and should be boosted.
Query mltQuery = qb
.moreLikeThis()
.comparingField("summary").boostedTo(10f)
.andField("description")
.toEntityWithId( coffeeId )
.createQuery();In this example, we look for similar entities by summary and description. But similar summaries are more important than similar descriptions. This is a critical tool to make More Like This meaningful for your data set.
Instead of providing the entity id, you can pass the full entity object. If the entity contains the identifier, we will use it to find the term vectors or field values. This means that we will compare the entity state as stored in the Lucene index. If the identifier cannot be retrieved (for example if the entity has not been persisted yet), we will look at each of the entity properties to find the most meaningful terms. The latter is slower and won’t give the best results - avoid it if possible.
Here is how you pass the entity instance you want to compare with:
Coffee coffee = ...; //managed entity from somewhere
Query mltQuery = qb
.moreLikeThis()
.comparingField("summary").boostedTo(10f)
.andField("description")
.toEntity( coffee )
.createQuery();|
By default, the results contain at the top the entity you are comparing with. This is particularly useful to compare relative scores. If you don’t need it, you can exclude it. |
Query mltQuery = qb
.moreLikeThis()
.excludeEntityUsedForComparison()
.comparingField("summary").boostedTo(10f)
.andField("description")
.toEntity( coffee )
.createQuery();You can ask Hibernate Search to give a higher score to the very similar entities and downgrade the
score of mildly similar entities. We do that by boosting each meaningful terms by their individual
overall score. Start with a boost factor of 1 and adjust from there.
Query mltQuery = qb
.moreLikeThis()
.favorSignificantTermsWithFactor(1f)
.comparingField("summary").boostedTo(10f)
.andField("description")
.toEntity( coffee )
.createQuery();Remember, more like this is a very subjective meaning and will vary depending on your data and the rules of your domain. With the various options offered, Hibernate Search arms you with the tools to adjust this weapon. Make sure to continuously test the results against your data set.
Combining queries
You can combine queries to create more complex queries. The following aggregation operators are available:
-
SHOULD: the query should contain the matching elements of the subquery -
MUST: the query must contain the matching elements of the subquery -
MUST NOT: the query must not contain the matching elements of the subquery
These aggregations have a similar effect as the classic boolean operators AND, OR and NOT,
but have different names to emphasise that they will have an impact on scoring.
For example the SHOULD operator between two queries will have an effect similar to the boolean OR:
if either of the two combined queries matches the entry, the entry will be included in the match;
though the entries which match both queries will have an higher score than those which only match one of them.
The sub-queries can be any Lucene query including a boolean query itself.
AND query: the must method.Query combinedQuery = querybuilder
.bool()
.must( queryA )
.must( queryB )
.createQuery();OR query: the should method.Query combinedQuery = querybuilder
.bool()
.should( queryA )
.should( queryB )
.createQuery();not modifier to a must.Query combinedQuery = querybuilder
.bool()
.must( queryA )
.must( queryB ).not()
.createQuery();Let’s look at a few more practical examples; note how the querybuilder usage can be nested and how 'should', 'must', and 'not' can be combined in many ways:
//look for popular modern myths that are not urban
Date twentiethCentury = ...;
Query luceneQuery = mythQB
.bool()
.must( mythQB.keyword().onField("description").matching("urban").createQuery() )
.not()
.must( mythQB.range().onField("starred").above(4).createQuery() )
.must( mythQB
.range()
.onField("creationDate")
.above(twentiethCentury)
.createQuery() )
.createQuery();
//look for popular myths that are preferably urban
Query luceneQuery = mythQB
.bool()
.should( mythQB.keyword().onField("description").matching("urban").createQuery() )
.must( mythQB.range().onField("starred").above(4).createQuery() )
.createQuery();
//look for all myths except religious ones
Query luceneQuery = mythQB
.all()
.except( monthQb
.keyword()
.onField( "description_stem" )
.matching( "religion" )
.createQuery()
)
.createQuery();Query options
We already have seen several query options in the previous example, but lets summarize again the options for query types and fields:
-
boostedTo(on query type and on field): boost the whole query or the specific field to a given factor -
withConstantScore(on query): all results matching the query have a constant score equals to the boost -
filteredBy(Filter)(on query): filter query results using the Filter instance -
ignoreAnalyzer(on field): ignore the analyzer (or normalizer) when processing this field -
ignoreFieldBridge(on field): ignore field bridge when processing this field
Let’s check out an example using some of these options
Query luceneQuery = mythQB
.bool()
.should( mythQB.keyword().onField("description").matching("urban").createQuery() )
.should( mythQB
.keyword()
.onField("name")
.boostedTo(3)
.ignoreAnalyzer()
.matching("urban").createQuery() )
.must( mythQB
.range()
.boostedTo(5).withConstantScore()
.onField("starred").above(4).createQuery() )
.createQuery();As you can see, the Hibernate Search query DSL is an easy to use and easy to read query API and by accepting and producing Lucene queries, you can easily incorporate query types not (yet) supported by the DSL. Please give us feedback!
5.1.3. Building a Hibernate Search query
So far we only covered the process of how to create your Lucene query (see Building queries). However, this is only the first step in the chain of actions. Let’s now see how to build the Hibernate Search query from the Lucene query.
Generality
Once the Lucene query is built, it needs to be wrapped into an Hibernate Query. If not specified otherwise, the query will be executed against all indexed entities, potentially returning all types of indexed classes.
FullTextSession fullTextSession = Search.getFullTextSession( session );
org.hibernate.Query fullTextQuery = fullTextSession.createFullTextQuery( luceneQuery );It is advised, from a performance point of view, to restrict the returned types:
fullTextQuery = fullTextSession
.createFullTextQuery(luceneQuery, Customer.class);
// or
fullTextQuery = fullTextSession
.createFullTextQuery(luceneQuery, Item.class, Actor.class);In Filtering the search result by entity type the first example returns only matching Customer instances,
the second returns matching Actor and Item instances. The type restriction is fully polymorphic
which means that if there are two indexed subclasses Salesman and Customer of the baseclass
Person, it is possible to just specify Person.class in order to filter on result types.
Pagination
Out of performance reasons it is recommended to restrict the number of returned objects per query. In fact is a very common use case anyway that the user navigates from one page to an other. The way to define pagination is exactly the way you would define pagination in a plain HQL or Criteria query.
org.hibernate.Query fullTextQuery =
fullTextSession.createFullTextQuery(luceneQuery, Customer.class);
fullTextQuery.setFirstResult(15); //start from the 15th element
fullTextQuery.setMaxResults(10); //return 10 elements|
It is still possible to get the total number of matching elements regardless of the pagination via fulltextQuery.getResultSize() |
Sorting
Apache Lucene provides a very flexible and powerful way to sort results. While the default sorting (by relevance) is appropriate most of the time, it can be interesting to sort by one or several other properties.
In order to do so, you will have to build a Lucene Sort object, which can be done by using either the Hibernate Search sort DSL or the native Lucene SortField class.
If you use the Hibernate Search sort DSL, it will look like this:
SortQueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
Query luceneQuery = /* ... */;
FullTextQuery query = s.createFullTextQuery( luceneQuery, Book.class );
Sort sort = builder
.sort()
.byField("author").desc() // Descending order
.andByField("title") // Default order (ascending)
.createSort();
query.setSort(sort);
List results = query.list();|
If you use the Sort DSL (like in the example above) to target fields indexed through custom |
Alternatively, you may build your sort using the Lucene SortField class directly. Then you will have to always specify the sort field type manually.
SortFullTextQuery query = s.createFullTextQuery( luceneQuery, Book.class );
org.apache.lucene.search.Sort sort = new Sort(
new SortField("author", SortField.Type.STRING),
new SortField("title", SortField.Type.STRING));
query.setSort(sort);
List results = query.list();|
Be aware that fields used for sorting must not be tokenized (see @Field). Also they should
be marked as sortable field using the |
Handling missing values
By default, Hibernate Search will expect every document to contain exactly one value for the given sort fields. If it’s not the case, you may decide whether documents with missing values will end up in first or last position in the result list:
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
Query luceneQuery = /* ... */;
FullTextQuery query = s.createFullTextQuery( luceneQuery, Book.class );
Sort sort = builder
.sort()
.byField("author")
.onMissingValue().sortFirst()
.andByField("title")
.createSort();
query.setSort(sort);
List results = query.list();For numeric fields (and only numeric fields), you may even provide a default value to be used in case it’s missing:
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
Query luceneQuery = /* ... */;
FullTextQuery query = s.createFullTextQuery( luceneQuery, Book.class );
Sort sort = builder
.sort()
.byField("authorId")
.onMissingValue().use(42L) // Assume the ID is 42 when it's missing
.andByField("title")
.createSort();
query.setSort(sort);
List results = query.list();|
The |
Using native sorts within the sort DSL
If you happen to find a sorting feature that is supported by Lucene, but not yet implemented in Hibernate Search sort DSL. If so, you may still use the DSL to mix a native SortField with DSL-defined sorts:
SortFieldsQueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
Query luceneQuery = /* ... */;
FullTextQuery query = s.createFullTextQuery( luceneQuery, Book.class );
SortField complexSortField = /* ... */;
Sort sort = builder
.sort()
.byField("author")
.andByNative(complexSortField)
.createSort();
query.setSort(sort);
List results = query.list();Fetching strategy
When you restrict the return types to one class, Hibernate Search loads the objects using a single query. It also respects the static fetching strategy defined in your domain model.
It is often useful, however, to refine the fetching strategy for a specific use case.
Criteria criteria =
s.createCriteria(Book.class).setFetchMode("authors", FetchMode.JOIN);
s.createFullTextQuery(luceneQuery).setCriteriaQuery(criteria);In this example, the query will return all Books matching the luceneQuery. The authors collection will be loaded from the same query using an SQL outer join.
When defining a criteria query, it is not necessary to restrict the returned entity types when creating the Hibernate Search query from the full text session: the type is guessed from the criteria query itself.
|
Only fetch mode can be adjusted, refrain from applying any other restriction. While it is known to
work as of Hibernate Search 4, using restriction (ie a where clause) on your Criteria query should
be avoided when possible. |
|
You cannot use setCriteriaQuery if more than one entity type is expected to be returned. |
Projection
For some use cases, returning the domain object (including its associations) is overkill. Only a small subset of the properties is necessary. Hibernate Search allows you to return a subset of properties:
org.hibernate.search.FullTextQuery query =
s.createFullTextQuery(luceneQuery, Book.class);
query.setProjection("id", "summary", "body", "mainAuthor.name");
List results = query.list();
Object[] firstResult = (Object[]) results.get(0);
Integer id = firstResult[0];
String summary = firstResult[1];
String body = firstResult[2];
String authorName = firstResult[3];Hibernate Search extracts the properties from the Lucene index and convert them back to their object
representation, returning a list of Object[]. Projections avoid a potential database round trip
(useful if the query response time is critical). However, it also has several constraints:
-
the properties projected must be stored in the index (
@Field(store=Store.YES)), which increases the index size -
the properties projected must use a
FieldBridgeimplementing org.hibernate.search.bridge.TwoWayFieldBridge ororg.hibernate.search.bridge.TwoWayStringBridge, the latter being the simpler version. -
you can only project simple properties of the indexed entity or its embedded associations. This means you cannot project a whole embedded entity.
-
projection does not work on collections or maps which are indexed via
@IndexedEmbedded
Projection is also useful for another kind of use case. Lucene can provide metadata information about the results. By using some special projection constants, the projection mechanism can retrieve this metadata:
org.hibernate.search.FullTextQuery query =
s.createFullTextQuery(luceneQuery, Book.class);
query.setProjection(
FullTextQuery.SCORE,
FullTextQuery.THIS,
"mainAuthor.name" );
List results = query.list();
Object[] firstResult = (Object[]) results.get(0);
float score = firstResult[0];
Book book = firstResult[1];
String authorName = firstResult[2];You can mix and match regular fields and projection constants. Here is the list of the available constants:
-
FullTextQuery.THIS: returns the initialized and managed entity (as a non projected query would have done). -
FullTextQuery.DOCUMENT: returns the Lucene Document related to the object projected. -
FullTextQuery.OBJECT_CLASS: returns the class of the indexed entity. -
FullTextQuery.SCORE: returns the document score in the query. Scores are handy to compare one result against an other for a given query but are useless when comparing the result of different queries. -
FullTextQuery.ID: the id property value of the projected object. -
FullTextQuery.DOCUMENT_ID: the Lucene document id. Careful, Lucene document id can change overtime between two different IndexReader opening. -
FullTextQuery.EXPLANATION: returns the Lucene Explanation object for the matching object/document in the given query. Do not use if you retrieve a lot of data. Running explanation typically is as costly as running the whole Lucene query per matching element. Make sure you use projection!
Customizing object initialization strategies
By default, Hibernate Search uses the most appropriate strategy to initialize entities matching your full text query. It executes one (or several) queries to retrieve the required entities. This is the best approach to minimize database round trips in a scenario where none / few of the retrieved entities are present in the persistence context (ie the session) or the second level cache.
If most of your entities are present in the second level cache, you can force Hibernate Search to look into the cache before retrieving an object from the database.
FullTextQuery query = session.createFullTextQuery(luceneQuery, User.class);
query.initializeObjectWith(
ObjectLookupMethod.SECOND_LEVEL_CACHE,
DatabaseRetrievalMethod.QUERY
);ObjectLookupMethod defines the strategy used to check if an object is easily accessible (without
database round trip). Other options are:
-
ObjectLookupMethod.PERSISTENCE_CONTEXT: useful if most of the matching entities are already in the persistence context (ie loaded in the Session or EntityManager) -
ObjectLookupMethod.SECOND_LEVEL_CACHE: check first the persistence context and then the second-level cache.
|
Note that to search in the second-level cache, several settings must be in place:
|
|
Avoid using |
You can also customize how objects are loaded from the database (if not found before). Use
DatabaseRetrievalMethod for that:
-
QUERY(default): use a (set of) queries to load several objects in batch. This is usually the best approach. -
FIND_BY_ID: load objects one by one using theSession.getorEntityManager.findsemantic. This might be useful if batch-size is set on the entity (in which case, entities will be loaded in batch by Hibernate Core). QUERY should be preferred almost all the time.
The defaults for both methods, the object lookup as well as the database retrieval can also be
configured via configuration properties. This way you don’t have to specify your preferred methods on
each query creation. The property names are hibernate.search.query.object_lookup_method
and hibernate.search.query.database_retrieval_method respectively. As value use the name of the
method (upper- or lowercase). For example:
hibernate.search.query.object_lookup_method = second_level_cache
hibernate.search.query.database_retrieval_method = queryLimiting the time of a query
You can limit the time a query takes in Hibernate Search in two ways:
-
raise an exception when the limit is reached
-
limit to the number of results retrieved when the time limit is raised
Raise an exception on time limit
You can decide to stop a query if when it takes more than a predefined amount of time. Note that this is a best effort basis but if Hibernate Search still has significant work to do and if we are beyond the time limit, a QueryTimeoutException will be raised (org.hibernate.QueryTimeoutException or javax.persistence.QueryTimeoutException depending on your programmatic API).
To define the limit when using the native Hibernate APIs, use one of the following approaches
Query luceneQuery = ...;
FullTextQuery query = fullTextSession.createFullTextQuery(luceneQuery, User.class);
//define the timeout in seconds
query.setTimeout(5);
//alternatively, define the timeout in any given time unit
query.setTimeout(450, TimeUnit.MILLISECONDS);
try {
query.list();
}
catch (org.hibernate.QueryTimeoutException e) {
//do something, too slow
}Likewise getResultSize(), iterate() and scroll() honor the timeout but only until the end of
the method call. That simply means that the methods of Iterable or the ScrollableResults ignore the
timeout.
|
|
When using JPA, simply use the standard way of limiting query execution time.
Query luceneQuery = ...;
FullTextQuery query = fullTextEM.createFullTextQuery(luceneQuery, User.class);
//define the timeout in milliseconds
query.setHint( "javax.persistence.query.timeout", 450 );
try {
query.getResultList();
}
catch (javax.persistence.QueryTimeoutException e) {
//do something, too slow
}|
Remember, this is a best effort approach and does not guarantee to stop exactly on the specified timeout. |
Limit the number of results when the time limit is reached
Alternatively, you can return the number of results which have already been fetched by the time the limit is reached. Note that only the Lucene part of the query is influenced by this limit. It is possible that, if you retrieve managed object, it takes longer to fetch these objects.
|
This approach is not compatible with the setTimeout approach. |
To define this soft limit, use the following approach
Query luceneQuery = ...;
FullTextQuery query = fullTextSession.createFullTextQuery(luceneQuery, User.class);
//define the timeout in seconds
query.limitExecutionTimeTo(500, TimeUnit.MILLISECONDS);
List results = query.list();Likewise getResultSize(), iterate() and scroll() honor the time limit but only until the end
of the method call. That simply means that the methods of Iterable or the ScrollableResults ignore
the timeout.
You can determine if the results have been partially loaded by invoking the hasPartialResults
method.
Query luceneQuery = ...;
FullTextQuery query = fullTextSession.createFullTextQuery(luceneQuery, User.class);
//define the timeout in seconds
query.limitExecutionTimeTo(500, TimeUnit.MILLISECONDS);
List results = query.list();
if ( query.hasPartialResults() ) {
displayWarningToUser();
}If you use the JPA API, limitExecutionTimeTo and hasPartialResults are also available to you.
5.2. Retrieving the results
Once the Hibernate Search query is built, executing it is in no way different than executing a HQL
or Criteria query. The same paradigm and object semantic applies. All the common operations are
available: list(), uniqueResult(), iterate(), scroll().
5.2.1. Performance considerations
If you expect a reasonable number of results (for example using pagination) and expect to work on
all of them, list() or uniqueResult() are recommended. list() work best if the entity batch-size
is set up properly. Note that Hibernate Search has to process all Lucene Hits elements (within the
pagination) when using list() , uniqueResult() and iterate().
If you wish to minimize Lucene document loading, scroll() is more appropriate. Don’t forget to close
the ScrollableResults object when you’re done, since it keeps Lucene resources. If you expect to use
scroll, but wish to load objects in batch, you can use query.setFetchSize(). When an object is
accessed, and if not already loaded, Hibernate Search will load the next fetchSize objects in one
pass.
|
Pagination is preferred over scrolling. |
5.2.2. Result size
It is sometimes useful to know the total number of matching documents:
-
for the Google-like feature "1-10 of about 888,000,000"
-
to implement a fast pagination navigation
-
to implement a multi step search engine (adding approximation if the restricted query return no or not enough results)
Of course it would be too costly to retrieve all the matching documents. Hibernate Search allows you to retrieve the total number of matching documents regardless of the pagination parameters. Even more interesting, you can retrieve the number of matching elements without triggering a single object load.
org.hibernate.search.FullTextQuery query =
s.createFullTextQuery(luceneQuery, Book.class);
//return the number of matching books without loading a single one
assert 3245 == query.getResultSize();
org.hibernate.search.FullTextQuery query =
s.createFullTextQuery(luceneQuery, Book.class);
query.setMaxResult(10);
List results = query.list();
//return the total number of matching books regardless of pagination
assert 3245 == query.getResultSize();|
Like Google, the number of results is an approximation if the index is not fully up-to-date with the database (asynchronous cluster for example). |
5.2.3. ResultTransformer
As seen in Projection projection results are returns as Object arrays. This data structure is not always matching the application needs. In this cases It is possible to apply a ResultTransformer which post query execution can build the needed data structure:
org.hibernate.search.FullTextQuery query =
s.createFullTextQuery(luceneQuery, Book.class);
query.setProjection("title", "mainAuthor.name");
query.setResultTransformer(
new StaticAliasToBeanResultTransformer(
BookView.class,
"title",
"author" )
);
ListBookView>; results = (List<BookView>) query.list();
for (BookView view : results) {
log.info("Book: " + view.getTitle() + ", " + view.getAuthor());
}Examples of ResultTransformer implementations can be found in the Hibernate Core codebase.
5.2.4. Understanding results
You will find yourself sometimes puzzled by a result showing up in a query or a result not showing up in a query. Luke is a great tool to understand those mysteries. However, Hibernate Search also gives you access to the Lucene Explanation object for a given result (in a given query). This class is considered fairly advanced to Lucene users but can provide a good understanding of the scoring of an object. You have two ways to access the Explanation object for a given result:
-
Use the fullTextQuery.explain(int) method
-
Use projection
The first approach takes a document id as a parameter and return the Explanation object. The
document id can be retrieved using projection and the FullTextQuery.DOCUMENT_ID constant.
|
The Document id has nothing to do with the entity id. Do not mess up these two notions. |
In the second approach you project the Explanation object using the FullTextQuery.EXPLANATION
constant.
FullTextQuery ftQuery = s.createFullTextQuery( luceneQuery, Dvd.class )
.setProjection(
FullTextQuery.DOCUMENT_ID,
FullTextQuery.EXPLANATION,
FullTextQuery.THIS );
@SuppressWarnings("unchecked") List<Object[]> results = ftQuery.list();
for (Object[] result : results) {
Explanation e = (Explanation) result[1];
display( e.toString() );
}Be careful, building the explanation object is quite expensive, it is roughly as expensive as running the Lucene query again. Don’t do it if you don’t need the object
5.3. Filters
5.3.1. Full-text filters
Apache Lucene has a powerful feature that allows to filter query results according to a custom filtering process. This is a very powerful way to apply additional data restrictions, especially since filters can be cached and reused. Some interesting use cases are:
-
security
-
temporal data (eg. view only last month’s data)
-
population filter (eg. search limited to a given category)
-
and many more
Hibernate Search pushes the concept further by introducing the notion of parameterizable named filters which are transparently cached. For people familiar with the notion of Hibernate Core filters, the API is very similar:
fullTextQuery = s.createFullTextQuery(query, Driver.class);
fullTextQuery.enableFullTextFilter("bestDriver");
fullTextQuery.enableFullTextFilter("security").setParameter("login", "andre");
fullTextQuery.list(); //returns only best drivers where andre has credentialsIn this example we enabled two filters on top of the query. You can enable (or disable) as many filters as you like.
Declaring filters is done through the @FullTextFilterDef annotation.
You can use one or more @FullTextFilterDef on any:
*@Indexed entity regardless of the query the filter is later applied to
* Parent class of an @Indexed entity
* package-info.java of a package containing an @Indexed entity
This implies that filter definitions are global and their names must be unique.
A SearchException is thrown in case two different @FullTextFilterDef annotations
with the same name are defined. Each named filter has to
specify a way to retrieve the actual filter implementation.
@Entity
@Indexed
@FullTextFilterDef(name = "bestDriver", impl = BestDriversFilterFactory.class)
@FullTextFilterDef(name = "security", impl = SecurityFilterFactory.class)
public class Driver { ... }public class BestDriversFilterFactory {
@org.hibernate.search.annotations.Factory
public Query create() {
return new TermQuery( new Term( "score", "5" ) );
}
}BestDriversFilterFactory is an example of a simple Lucene filter which reduces the result set to drivers
whose score is 5.
In this example we use the factory pattern: the class assigned to @FullTextFilterDef.impl is a factory class,
and the actual filter will be returned by a @Factory annotated, no-argument method on this class.
Make sure the factory has a public constructor which does not require any parameter.
Alternatively, you can assign to @FullTextFilterDef.impl the exact type of your filter,
i.e. a class extending org.apache.lucene.search.Query.
The class will still have to provide a public, no-argument constructor.
|
In previous versions of Hibernate Search, filters had to extend the This is still supported, but the Thus, it is advisable to convert your existing filters and filter factories
so as not to rely on the |
Named filters come in handy where parameters have to be passed to the filter. For example a security filter might want to know which security level you want to apply:
fullTextQuery = s.createFullTextQuery(query, Driver.class);
fullTextQuery.enableFullTextFilter("security").setParameter("level", 5);Each parameter must have an associated setter on either the filter or filter factory of the targeted named filter definition.
public class SecurityFilterFactory {
private Integer level;
/**
* injected parameter
*/
public void setLevel(Integer level) {
this.level = level;
}
@Factory
public Query getFilter() {
return new TermQuery( new Term( "level", level.toString() ) );
}
}Filters will be cached once created, based on all their parameter names and values.
Caching happens using a combination of
hard and soft references to allow disposal of memory when needed. The hard reference cache keeps
track of the most recently used filters and transforms the ones least used to SoftReferences when
needed. Once the limit of the hard reference cache is reached additional filters are cached as
SoftReferences. To adjust the size of the hard reference cache, use
hibernate.search.filter.cache_strategy.size (defaults to 128). For advanced use of filter
caching, you can implement your own FilterCachingStrategy. The classname is defined by
hibernate.search.filter.cache_strategy.
This filter caching mechanism should not be confused with caching the actual filter results. In
Lucene it is common practice to wrap filters using the IndexReader around a CachingWrapperQuery.
The wrapper will cache the set of matching documents to
avoid expensive re-computation. It is important to mention that the computed set of matching documents is only
cachable for the same IndexReader instance, because the reader effectively represents the state of
the index at the moment it was opened. The document list cannot change within an opened
IndexReader. A different/new IndexReader instance, however, works potentially on a different set
of documents (either from a different index or simply because the index has changed), hence the
filter result has to be recomputed.
Hibernate Search also helps with this aspect of caching. Per default the cache flag of
@FullTextFilterDef is set to FilterCacheModeType.INSTANCE_AND_DOCIDSETRESULTS which will
automatically cache the filter instance as well as wrap the specified filter around a Hibernate
specific implementation of CachingWrapperQuery. In contrast to Lucene’s version of this class
SoftReferences are used together with a hard reference count (see discussion about filter cache).
The hard reference count can be adjusted using hibernate.search.filter.cache_docidresults.size
(defaults to 5). The wrapping behavior can be controlled using the @FullTextFilterDef.cache
parameter. There are three different values for this parameter:
| Value | Definition |
|---|---|
FilterCacheModeType.NONE |
No filter instance and no result is cached by Hibernate Search. For every filter call, a new filter instance is created. This setting might be useful for rapidly changing data sets or heavily memory constrained environments. |
FilterCacheModeType.INSTANCE_ONLY |
The filter instance is cached and reused across concurrent filter calls. Filter results are not cached. This setting is useful when a filter uses its own specific caching mechanism or the filter results change dynamically due to application specific events making filter results caching in both cases unnecessary. |
FilterCacheModeType.INSTANCE_AND_DOCIDSETRESULTS |
Both the filter instance and the filter results are cached. This is the default value. |
Last but not least - why should filters be cached? There are two areas where filter caching shines:
-
the system does not update the targeted entity index often (in other words, the IndexReader is reused a lot)
-
the filter’s result is expensive to compute (compared to the time spent to execute the query)
5.3.2. Using filters in a sharded environment
It is possible, in a sharded environment to execute queries on a subset of the available shards. This can be done in two steps:
-
create a sharding strategy that does select a subset of IndexManagers depending on some filter configuration
-
activate the proper filter at query time
Let’s first look at an example of sharding strategy that query on a specific customer shard if the customer filter is activated.
public class CustomerShardingStrategy implements IndexShardingStrategy {
// stored IndexManagers in a array indexed by customerID
private IndexManager[] indexManagers;
public void initialize(Properties properties, IndexManager[] indexManagers) {
this.indexManagers = indexManagers;
}
public IndexManager[] getIndexManagersForAllShards() {
return indexManagers;
}
public IndexManager getIndexManagerForAddition(
Class<?> entity, Serializable id, String idInString, Document document) {
Integer customerID = Integer.parseInt(document.getFieldable("customerID").stringValue());
return indexManagers[customerID];
}
public IndexManager[] getIndexManagersForDeletion(
Class<?> entity, Serializable id, String idInString) {
return getIndexManagersForAllShards();
}
/**
* Optimization; don't search ALL shards and union the results; in this case, we
* can be certain that all the data for a particular customer Filter is in a single
* shard; simply return that shard by customerID.
*/
public IndexManager[] getIndexManagersForQuery(
FullTextFilterImplementor[] filters) {
FullTextFilter filter = getCustomerFilter(filters, "customer");
if (filter == null) {
return getIndexManagersForAllShards();
}
else {
return new IndexManager[] { indexManagers[Integer.parseInt(
filter.getParameter("customerID").toString())] };
}
}
private FullTextFilter getCustomerFilter(FullTextFilterImplementor[] filters, String name) {
for (FullTextFilterImplementor filter: filters) {
if (filter.getName().equals(name)) return filter;
}
return null;
}
}In this example, if the filter named customer is present, we make sure to only use the shard
dedicated to this customer. Otherwise, we return all shards. A given Sharding strategy can react to
one or more filters and depends on their parameters.
The second step is simply to activate the filter at query time. While the filter can be a regular
filter (as defined in Full-text filters) which also filters Lucene results after the query, you can
make use of a special filter that will only be passed to the sharding strategy and otherwise ignored
for the rest of the query. Simply use the ShardSensitiveOnlyFilter class when declaring your filter.
@Entity @Indexed
@FullTextFilterDef(name="customer", impl=ShardSensitiveOnlyFilter.class)
public class Customer {
// ...
}FullTextQuery query = ftEm.createFullTextQuery(luceneQuery, Customer.class);
query.enableFulltextFilter("customer").setParameter("CustomerID", 5);
@SuppressWarnings("unchecked")
List<Customer> results = query.getResultList();Note that by using the ShardSensitiveOnlyFilter, you do not have to implement any Lucene filter.
Using filters and sharding strategy reacting to these filters is recommended to speed up queries in
a sharded environment.
5.3.3. Hibernate ORM filters
Hibernate ORM filters, enabled using org.hibernate.Session.enableFilter(String),
will only work partially when combined with a full-text query.
The filtered entities will be excluded from the results, but:
-
the result size returned by
FullTextQuery.getResultSize()will ignore the filters (it will return the size before applying the filters); -
if you use paging, the
setFirstResultandsetMaxResultsmodifiers will be applied before the filters, leading to some result pages being smaller thanmaxResults(or even empty) even though they are not the last.
These limitations are necessary to keep performance at a reasonable level. If they are not acceptable for your use case, you should use full-text filters in your full-text queries.
5.4. Faceting
Faceted search is a technique which allows to divide the results of a query into multiple categories. This categorization includes the calculation of hit counts for each category and the ability to further restrict search results based on these facets (categories). Facets Example on Amazon shows a faceting example. The search for 'Hibernate Search' results in fifteen hits which are displayed on the main part of the page. The navigation bar on the left, however, shows the categoryComputers & Internet with its subcategories Programming, Computer Science, Databases, Software, Web Development, Networking and Home Computing. For each of these subcategories the number of books is shown matching the main search criteria and belonging to the respective subcategory. This division of the category Computers & Internet is one facet of this search. Another one is for example the average customer review rating.
In Hibernate Search the classes QueryBuilder and FullTextQuery are the entry point to the faceting
API. The former allows to create faceting requests whereas the latter gives access to the so called
FacetManager. With the help of the FacetManager faceting requests can be applied on a query and
selected facets can be added to an existing query in order to refine search results. The following
sections will describe the faceting process in more detail. The examples will use the entity Cd as
shown in Example entity for faceting:
@Entity
@Indexed
public class Cd {
@Id
@GeneratedValue
private int id;
@Field,
private String name;
@Field(analyze = Analyze.NO)
@Facet
private int price;
@Field(analyze = Analyze.NO)
@DateBridge(resolution = Resolution.YEAR)
@Facet
private Date releaseYear;
@Field(analyze = Analyze.NO)
@Facet
private String label;
// setter/getter
// ...In order to facet on a given indexed field, the field needs to be configured with the @Facet
annotation. Also, the field itself cannot be analyzed.
@Facet contains a name and forField parameter. The name is arbitrary and used to identify
the facet. Per default it matches the field name it belongs to. forField is relevant in case the
property is mapped to multiple fields using @Field multiple times, as it is a repeatable annotation.
In this case forField can be used to identify the index field to which it applies.
Both @Field and @Facet are repeatable annotations.
Last but not least, @Facet contains a
encoding parameter. Usually, Hibernate Search automatically selects the encoding:
-
String fields are encoded as
FacetEncodingType.STRING -
byte,short,int,long(including corresponding wrapper types) andDateasFacetEncodingType.LONG -
and
floatanddouble(including corresponding wrapper types) asFacetEncodingType.DOUBLE
In some cases it can make sense, however, to explicitly set the encoding.
Discrete faceting requests for example only work for string encoded
facets. In order to use a discrete facet for numbers the encoding must be explicitly set to
FacetEncodingType.STRING.
|
Pre Hibernate Search 5.2 there was no need to explicitly use a |
5.4.1. Creating a faceting request
The first step towards a faceted search is to create the FacetingRequest. Currently two types of
faceting requests are supported. The first type is called discrete faceting and the second type
range faceting request.
Discrete faceting request
In the case of a discrete faceting request, you start with giving the request a unique name. This name will later be used to retrieve the facet values (see Interpreting a Facet result). Then you need to specify on which index field you want to categorize on and which faceting options to apply. An example for a discrete faceting request can be seen in Creating a discrete faceting request:
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(Cd.class).get();
FacetingRequest labelFacetingRequest = builder.facet()
.name("labelFacetRequest")
.onField("label")
.discrete()
.orderedBy(FacetSortOrder.COUNT_DESC)
.includeZeroCounts(false)
.maxFacetCount(3)
.createFacetingRequest();When executing this faceting request a Facet instance will be created for each discrete value for
the indexed field label. The Facet instance will record the actual field value including how often
this particular field value occurs within the original query results. Parameters orderedBy,
includeZeroCounts and maxFacetCount are optional and can be applied on any faceting request.
Parameter orderedBy allows to specify in which order the created facets will be returned. The
default is FacetSortOrder.COUNT_DESC, but you can also sort on the field value. Parameter
includeZeroCount determines whether facets with a count of 0 will be included in the result (by
default they are not) and maxFacetCount allows to limit the maximum amount of facets returned.
|
There are several preconditions an indexed field has to meet in order to categorize (facet) on it:
When you need conflicting options, we suggest to index the property twice and use the appropriate field depending on the use case: |
Creating a range faceting request
The creation of a range faceting request is similar. We also start with a name for the request and
the field to facet on. Then we have to specify ranges for the field values. A range faceting request
can be seen in Creating a range faceting request. There, three different price ranges are specified. below
and above can only be specified once, but you can specify as many from - to ranges as you want.
For each range boundary you can also specify via excludeLimit whether it is included into the range
or not.
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder()
.forEntity(Cd.class)
.get();
FacetingRequest priceFacetingRequest = builder.facet()
.name("priceFaceting")
.onField("price_facet")
.range()
.below(1000)
.from(1001).to(1500)
.above(1500).excludeLimit()
.createFacetingRequest();5.4.2. Setting the facet sort order
The result of applying a faceting request is a list of Facet instances as seen in
Applying a faceting request. The order within the list is given by the FacetSortOrder parameter
specified via orderedBy when creating the faceting request. The default value is
FacetSortOrder.COUNT_DESC, meaning facets are ordered by their count in descending order (highest
count first). Other values are COUNT_ASC, FIELD_VALUE and RANGE_DEFINITION_ORDER. COUNT_ASC
returns the facets in ascending count order whereas FIELD_VALUE will return them in alphabetical
order of the facet/category value (see Interpreting a Facet result).
RANGE_DEFINITION_ORDER only applies for range faceting request and returns the facets in the same
order in which the ranges are defined. For Creating a range faceting request this would mean the facet for
the range of below 1000 would be returned first, followed by the facet for the range 1001 to 1500
and finally the facet for above 1500.
5.4.3. Applying a faceting request
In Creating a faceting request we have seen how to create a faceting request. Now it is
time to apply it on a query. The key is the FacetManager which can be retrieved via the
FullTextQuery (see Applying a faceting request).
// create a fulltext query
Query luceneQuery = builder.all().createQuery(); // match all query
FullTextQuery fullTextQuery = fullTextSession.createFullTextQuery(luceneQuery, Cd.class);
// retrieve facet manager and apply faceting request
FacetManager facetManager = fullTextQuery.getFacetManager();
facetManager.enableFaceting(priceFacetingRequest);
// get the list of Cds
List<Cd> cds = fullTextQuery.list();
...
// retrieve the faceting results
List<Facet> facets = facetManager.getFacets("priceFaceting");
...You need to enable the faceting request before you execute the query. You do that via
facetManager.enableFaceting(<facetName>). You can enable as many faceting requests as you
like. Then you execute the query and retrieve the facet results for a given request via
facetManager.getFacets(<facetname>). For each request you will get a list of Facet instances.
Facet requests stay active and get applied to the fulltext query until they are either explicitly
disabled via disableFaceting(<facetName>) or the query is discarded.
5.4.4. Interpreting a Facet result
Each facet request results in a list of Facet instances. Each instance represents one facet/category
value. In the CD example (Creating a discrete faceting request) where we want to categorize on the CD
labels, there would for example be a Facet for each of the record labels Universal, Sony and Warner.
Facet API shows the API of Facet.
public interface Facet {
/**
* @return the faceting name this {@code Facet} belongs to.
*
* @see org.hibernate.search.query.facet.FacetingRequest#getFacetingName()
*/
String getFacetingName();
/**
* Return the {@code Document} field name this facet is targeting.
* The field needs to be indexed with {@code Analyze.NO}.
*
* @return the {@code Document} field name this facet is targeting.
*/
String getFieldName();
/**
* @return the value of this facet. In case of a discrete facet it is the actual
* {@code Document} field value. In case of a range query the value is a
* string representation of the range.
*/
String getValue();
/**
* @return the facet count.
*/
int getCount();
/**
* @return a Lucene {@link Query} which can be executed to retrieve all
* documents matching the value of this facet.
*/
Query getFacetQuery();
}getFacetingName() and getFieldName() are returning the facet request name and the targeted document
field name as specified by the underlying FacetRequest. For example "Creating a discrete faceting request"
that would be labelFacetRequest and label respectively.
The interesting information is provided by getValue() and getCount().
The former is the actual facet/category value, for example a concrete record label
like Universal. The latter returns the count for this value. To stick with the example again, the
count value tells you how many Cds are released under the Universal label. Last but not least,
getFacetQuery() returns a Lucene query which can be used to retrieve the entities counted in this
facet.
5.4.5. Restricting query results
A common use case for faceting is a "drill-down" functionality which allows you to narrow your
original search by applying a given facet on it. To do this, you can apply any of the returned
Facet instances as additional criteria on your original query via FacetSelection. FacetSelection
is available via the FacetManager and allow you to select a facet as query criteria (selectFacets),
remove a facet restriction (deselectFacets), remove all facet restrictions (clearSelectedFacets) and
retrieve all currently selected facets (getSelectedFacets). Restricting query results via the application of a FacetSelection
shows an example.
FacetSelection// create a fulltext query
Query luceneQuery = builder.all().createQuery(); // match all query
FullTextQuery fullTextQuery = fullTextSession.createFullTextQuery( luceneQuery, clazz );
// retrieve facet manager and apply faceting request
FacetManager facetManager = fullTextQuery.getFacetManager();
facetManager.enableFaceting( priceFacetingRequest );
// get the list of Cd
List<Cd> cds = fullTextQuery.list();
assertTrue(cds.size() == 10);
// retrieve the faceting results
List<Facet> facets = facetManager.getFacets( "priceFaceting" );
assertTrue(facets.get(0).getCount() == 2)
// apply first facet as additional search criteria
FacetSelection facetSelection = facetManager.getFacetGroup( "priceFaceting" );
facetSelection.selectFacets( facets.get( 0 ) );
// re-execute the query
cds = fullTextQuery.list();
assertTrue(cds.size() == 2);Per default selected facets are combined via disjunction (OR). In case a field has multiple values,
like a potential Cd.artists association, you can also use conjunction (AND) for the facet selection.
FacetSelectionFacetSelection facetSelection = facetManager.getFacetGroup( "artistsFaceting" );
facetSelection.selectFacets( FacetCombine.AND, facets.get( 0 ), facets.get( 1 ) );5.5. Optimizing the query process
Query performance depends on several criteria:
-
the Lucene query itself: read the literature on this subject.
-
the number of loaded objects: use pagination and / or index projection (if needed).
-
the way Hibernate Search interacts with the Lucene readers: defines the appropriate Reader strategy.
5.5.1. Logging executed search queries
Knowing the executed search queries is vital when working on performance optimizations. This is especially the case if your application accepts queries passed in by the user or e.g. dynamically builds queries using the Hibernate Search query DSL.
In order to log all search queries executed by Hibernate Search, enable DEBUG logging for the log
category org.hibernate.search.fulltext_query.
6. Manual index changes
As Hibernate core applies changes to the Database, Hibernate Search detects these changes and will update the index automatically (unless the EventListeners are disabled). Sometimes changes are made to the database without using Hibernate, as when backup is restored or your data is otherwise affected; for these cases Hibernate Search exposes the Manual Index APIs to explicitly update or remove a single entity from the index, or rebuild the index for the whole database, or remove all references to a specific type.
All these methods affect the Lucene Index only, no changes are applied to the Database.
6.1. Adding instances to the index
Using FullTextSession.index(T entity) you can directly add or update a specific object instance to
the index. If this entity was already indexed, then the index will be updated. Changes to the index
are only applied at transaction commit.
FullTextSession.index(T entity)FullTextSession fullTextSession = Search.getFullTextSession(session);
Transaction tx = fullTextSession.beginTransaction();
Object customer = fullTextSession.load( Customer.class, 8 );
fullTextSession.index(customer);
tx.commit(); //index only updated at commit timeIn case you want to add all instances for a type, or for all indexed types, the recommended approach is to use a MassIndexer: see Using a MassIndexer for more details.
The method FullTextSession.index(T entity) is considered an explicit indexing operation, so any
registered EntityIndexingInterceptor won’t be applied in this case. For more information on
EntityIndexingInterceptor see Conditional indexing.
6.2. Deleting instances from the index
It is equally possible to remove an entity or all entities of a given type from a Lucene index
without the need to physically remove them from the database. This operation is named purging and is
also done through the FullTextSession.
FullTextSession fullTextSession = Search.getFullTextSession(session);
Transaction tx = fullTextSession.beginTransaction();
for (Customer customer : customers) {
fullTextSession.purge( Customer.class, customer.getId() );
}
tx.commit(); //index is updated at commit timePurging will remove the entity with the given id from the Lucene index but will not touch the database.
If you need to remove all entities of a given type, you can use the purgeAll method. This operation removes all entities of the type passed as a parameter as well as all its subtypes.
FullTextSession fullTextSession = Search.getFullTextSession(session);
Transaction tx = fullTextSession.beginTransaction();
fullTextSession.purgeAll( Customer.class );
//optionally optimize the index
//fullTextSession.getSearchFactory().optimize( Customer.class );
tx.commit(); //index changes are applied at commit timeAs in the previous example, it is suggested to optimize the index after many purge operation to actually free the used space.
As is the case with method FullTextSession.index(T entity), also purge and purgeAll are
considered explicit indexing operations: any registered EntityIndexingInterceptor won’t be
applied. For more information on EntityIndexingInterceptor see
Conditional indexing.
|
Methods index, purge and purgeAll are available on FullTextEntityManager as well. |
|
All manual indexing methods (index, purge and purgeAll) only affect the index, not the database, nevertheless they are transactional and as such they won’t be applied until the transaction is successfully committed, or you make use of flushToIndexes. |
6.3. Rebuilding the whole index
If you change the entity mapping to the index, chances are that the whole index needs to be updated; for example if you decide to index an existing field using a different analyzer you’ll need to rebuild the index for affected types. Also if the Database is replaced (like restored from a backup, imported from a legacy system) you’ll want to be able to rebuild the index from existing data. Hibernate Search provides two main strategies to choose from:
-
Using
FullTextSession.flushToIndexes()periodically, while using FullTextSession.index() on all entities. -
Use a MassIndexer.
|
When you change the entity mapping to the index, if you don’t know whether the changes require a full reindexing or not, you can follow this rule of thumb:
|
6.3.1. Using flushToIndexes()
This strategy consists in removing the existing index and then adding all entities back to the index
using FullTextSession.purgeAll() and FullTextSession.index(), however there are some memory and
efficiency constraints. For maximum efficiency Hibernate Search batches index operations and executes
them at commit time. If you expect to index a lot of data you need to be careful about memory
consumption since all documents are kept in a queue until the transaction commit. You can
potentially face an OutOfMemoryException if you don’t empty the queue periodically: to do this you
can use fullTextSession.flushToIndexes(). Every time fullTextSession.flushToIndexes() is called (or
if the transaction is committed), the batch queue is processed applying all index changes. Be aware
that, once flushed, the changes cannot be rolled back.
fullTextSession.setFlushMode(FlushMode.MANUAL);
fullTextSession.setCacheMode(CacheMode.IGNORE);
transaction = fullTextSession.beginTransaction();
//Scrollable results will avoid loading too many objects in memory
ScrollableResults results = fullTextSession.createCriteria( Email.class )
.setFetchSize(BATCH_SIZE)
.scroll(ScrollMode.FORWARD_ONLY);
int index = 0;
while(results.next()) {
index++;
fullTextSession.index(results.get(0)); //index each element
if (index % BATCH_SIZE == 0) {
fullTextSession.flushToIndexes(); //apply changes to indexes
fullTextSession.clear(); //free memory since the queue is processed
}
}
transaction.commit();Try to use a batch size that guarantees that your application will not run out of memory: with a bigger batch size objects are fetched faster from database but more memory is needed.
6.3.2. Using a MassIndexer
Hibernate Search’s MassIndexer uses several parallel threads to rebuild the index; you can optionally select which entities need to be reloaded or have it reindex all entities. This approach is optimized for best performance but requires to set the application in maintenance mode: making queries to the index is not recommended when a MassIndexer is busy.
fullTextSession.createIndexer().startAndWait();This will rebuild the index, deleting it and then reloading all entities from the database. Although it’s simple to use, some tweaking is recommended to speed up the process: there are several parameters configurable.
|
During the progress of a MassIndexer the content of the index is undefined! If a query is performed while the MassIndexer is working most likely some results will be missing. |
fullTextSession
.createIndexer( User.class )
.batchSizeToLoadObjects( 25 )
.cacheMode( CacheMode.NORMAL )
.threadsToLoadObjects( 12 )
.idFetchSize( 150 )
.transactionTimeout( 1800 )
.progressMonitor( monitor ) //a MassIndexerProgressMonitor implementation
.startAndWait();This will rebuild the index of all User instances (and subtypes), and will create 12 parallel
threads to load the User instances using batches of 25 objects per query; these same 12 threads will
also need to process indexed embedded relations and custom FieldBridges or ClassBridges, to finally
output a Lucene document. In this conversion process these threads are likely going to need to
trigger lazy loading of additional attributes, so you will probably need a high number of threads
working in parallel. When run in a JTA environment such as the WildFly application server, the mass
indexer will use a timeout of 1800 seconds (= 30 minutes) for its transactions. Configure a timeout
value which is long enough to load and index all entities of the type with the most instances,
taking into account the configured batch size and number of threads to load objects. Note that
these transactions are read-only, so choosing a substantially large value should pose no problem in
general.
As of Hibernate Search 4.4.0, instead of indexing all the types in parallel, the MassIndexer is
configured by default to index only one type in parallel. It prevents resource exhaustion especially
database connections and usually does not slow down the indexing. You can however configure this
behavior using MassIndexer.typesToIndexInParallel(int threadsToIndexObjects):
fullTextSession
.createIndexer( User.class, Customer.class )
.typesToIndexInParallel( 2 )
.batchSizeToLoadObjects( 25 )
.cacheMode( CacheMode.NORMAL )
.threadsToLoadObjects( 5 )
.idFetchSize( 150 )
.progressMonitor( monitor ) //a MassIndexerProgressMonitor implementation
.startAndWait();Generally we suggest to leave cacheMode to CacheMode.IGNORE (the default), as in most reindexing
situations the cache will be a useless additional overhead; it might be useful to enable some other
CacheMode depending on your data: it could increase performance if the main entity is relating to
enum-like data included in the index.
|
The MassIndexer was designed for speed and is unaware of transactions, so there is no need to begin one or committing. Also because it is not transactional it is not recommended to let users use the system during its processing, as it is unlikely people will be able to find results and the system load might be too high anyway. |
MassIndexer using threads and JDBC connections
The MassIndexer was designed to finish the re-indexing task as quickly as possible, but this requires a bit of care in its configuration to behave fairly with your server resources.
There is a simple formula to understand how the different options applied to the MassIndexer affect the number of used worker threads and connections: each thread will require a JDBC connection.
threads = typesToIndexInParallel * (threadsToLoadObjects + 1); required JDBC connections = threads;
Let’s see some suggestions for a roughly sane tuning starting point:
-
Option
typesToIndexInParallelshould probably be a low value, like 1 or 2, depending on how much of your CPUs have spare cycles and how slow a database round trip will be. -
Before tuning a parallel run, experiment with options to tune your primary indexed entities in isolation.
-
Making
threadsToLoadObjectshigher increases the pre-loading rate for the picked entities from the database, but also increases memory usage and the pressure on the threads working on subsequent indexing. -
Increasing parallelism usually helps as the bottleneck usually is the latency to the database connection: it’s probably worth it to experiment with values significantly higher than the number of actual cores available, but make sure your database can handle all the multiple requests.
-
This advice might not apply to you: always measure the effects! We’re providing this as a means to help you understand how these options are related.
|
Running the MassIndexer with many threads will require many connections to the database. If you don’t have a sufficiently large connection pool, the MassIndexer itself and/or your other applications could starve being unable to serve other requests: make sure you size your connection pool accordingly to the options as explained in the above paragraph. |
|
The "sweet spot" of number of threads to achieve best performance is highly dependent on your overall architecture, database design and even data values. All internal thread groups have meaningful names so they should be easily identified with most diagnostic tools, including simply thread dumps. |
Using a custom MassIndexer implementation
The provided MassIndexer is quite general purpose, and while we believe it’s a robust approach, you might be able to squeeze some better performance by writing a custom implementation. To run your own MassIndexer instead of using the one shipped with Hibernate Search you have to:
-
create an implementation of the
org.hibernate.search.spi.MassIndexerFactoryinterface; -
set the property
hibernate.search.massindexer.factoryclasswith the qualified class name of the factory implementation.
package org.myproject
import org.hibernate.search.spi.MassIndexerFactory
// ...
public class CustomIndexerFactory implements MassIndexerFactory {
public void initialize(Properties properties) {
}
public MassIndexer createMassIndexer(...) {
return new CustomIndexer();
}
}hibernate.search.massindexer.factoryclass = org.myproject.CustomIndexerFactory
6.3.3. Useful parameters for batch indexing
Other parameters which affect indexing time and memory consumption are:
-
hibernate.search.[default|<indexname>].exclusive_index_use -
hibernate.search.[default|<indexname>].indexwriter.max_buffered_docs -
hibernate.search.[default|<indexname>].indexwriter.max_merge_docs -
hibernate.search.[default|<indexname>].indexwriter.merge_factor -
hibernate.search.[default|<indexname>].indexwriter.merge_min_size -
hibernate.search.[default|<indexname>].indexwriter.merge_max_size -
hibernate.search.[default|<indexname>].indexwriter.merge_max_optimize_size -
hibernate.search.[default|<indexname>].indexwriter.merge_calibrate_by_deletes -
hibernate.search.[default|<indexname>].indexwriter.ram_buffer_size
Previous versions also had a max_field_length but this was removed from Lucene, it’s possible
to obtain a similar effect by using a LimitTokenCountAnalyzer.
All .indexwriter parameters are Lucene specific and Hibernate Search is just passing these
parameters through - see Tuning indexing performance for more details.
The MassIndexer uses a forward only scrollable result to iterate on the primary keys to be loaded,
but MySQL’s JDBC driver will load all values in memory; to avoid this "optimization" set
idFetchSize to Integer.MIN_VALUE.
6.4. Integration with JSR-352
The integration with JSR-352, Batch Applications for the Java Platform, is in development. We do think we have the basics covered and we are looking for feedback.
Hibernate Search provides a JSR-352 job to perform mass indexing. It covers not only the existing functionality of the mass indexer described above, but also benefits from some powerful standard features of the Java Batch Platform (JSR-352), such as failure recovery using checkpoints, chunk oriented processing, and parallel execution. This batch job accepts different entity type(s) as input, loads the relevant entities from the database, then rebuilds the full-text index from these.
However, it requires a batch runtime for the execution. Please notice that we don’t provide any batch runtime, you are free to choose one that fits you needs, e.g. the default batch runtime embedded in your Java EE container. We provide full integration to the JBeret implementation (see how to configure it here). As for other implementations, they can also be used, but will require a bit more configuration on your side.
Properties jobProps = MassIndexingJob
.parameters()
.forEntity( MyEntity.class )
.build();
long executionId = BatchRuntime
.getJobOperator()
.start( MassIndexingJob.NAME, jobProps );6.4.1. Job Parameters
| Parameter Name | Builder Method | Requirement | Default value | Description |
|---|---|---|---|---|
|
|
Required |
- |
The entity types to index in this job execution, comma-separated. |
|
|
Optional |
True |
Specify whether the existing index should be purged at the beginning of the job. This operation takes place before indexing. |
|
|
Optional |
True |
Specify whether the mass indexer should be optimized at the beginning of the job. This operation takes place after the purge operation and before indexing. |
|
|
Optional |
True |
Specify whether the mass indexer should be optimized at the end of the job. This operation takes place after indexing. |
|
|
Optional |
|
Specify the Hibernate |
|
|
Optional |
1000 |
Specifies the fetch size to be used when loading primary keys. Some databases
accept special values, for example MySQL might benefit from using |
|
|
Optional |
The value of |
Specifies the fetch size to be used when loading entities from database. Some databases
accept special values, for example MySQL might benefit from using |
|
|
Optional |
- |
Use HQL / JPQL to index entities of a target entity type. Your query should contain only one entity type. Mixing this approach with the criteria restriction is not allowed. Please notice that there’s no query validation for your input. See Indexing mode for more detail and limitations. |
|
|
Optional |
- |
Add criterion to construct a customized selection of mass-indexing under the criteria approach. You can call this method multiple times to add multiple criteria: only entities matching every criterion will be indexed. However, mixing this approach with the HQL restriction is not allowed. See Indexing mode for more detail and limitations. |
|
|
Optional |
- |
The maximum number of results to load per entity type. This parameter let you define a threshold
value to avoid loading too many entities accidentally. The value defined must be greater than 0.
The parameter is not used by default. It is equivalent to keyword |
|
|
Optional |
20,000 |
The maximum number of rows to process per partition. The value defined must be greater than 0, and
equal to or greater than the value of |
|
|
Optional |
The number of partitions |
The maximum number of threads to use for processing the job. Note the batch runtime cannot guarantee the request number of threads are available; it will use as many as it can up to the request maximum. |
|
|
Optional |
2,000, or the value of |
The number of entities to process before triggering a checkpoint. The value defined must be greater
than 0, and equal to or less than the value of |
|
|
Optional |
200, or the value of |
The number of entities to process before clearing the session. The value defined must be greater
than 0, and equal to or less than the value of |
|
|
Required if there’s more than one persistence unit |
- |
The string that will identify the |
|
|
- |
- |
6.4.2. Indexing mode
The mass indexing job allows you to define your own entities to be indexed — you can start a full indexing or a partial indexing through 3 different methods: selecting the desired entity types, using HQL, or using Hibernate criteria.
// full indexing
Properties jobProps1 = MassIndexingJob
.parameters()
.forEntity( MyClass.class )
.build();
// partial indexing using HQL
Properties jobProps2 = MassIndexingJob
.parameters()
.forEntity( MyClass.class )
.restrictedBy( "select c from MyClass c where c.name in ( 'Foo', 'Bar' )" )
.build();
// partial indexing using Criteria
Properties jobProps3 = MassIndexingJob
.parameters()
.forEntity( MyClass.class )
.restrictedBy( Restrictions.in( "name", "Foo", "Bar" ) )
.build();While the full indexing is useful when you perform the very first indexing, or after extensive changes to your whole database, it may also be time consuming. If your want to reindex only part of your data, you need to add restrictions using HQL or criteria: they help you to define a customized selection, and only the entities inside that selection will be indexed. A typical use-case is to index the new entities appeared since yesterday.
Note that, as detailed below, some features may not be supported depending on the indexing mode.
| Indexing mode | Scope | Parallel Indexing |
|---|---|---|
Full Indexation |
All entities |
Supported |
Criteria |
Some entities |
Supported |
HQL |
Some entities |
Not supported |
|
When using the HQL mode, there isn’t any query validation before the job’s start. If the query is invalid, the job will start and fail. Also, parallel indexing is disabled in HQL mode, because our current parallelism implementations relies on selection order, which might not be provided by the HQL given by user. Because of those limitations, we suggest you use this approach only for indexing small numbers of entities, and only if you know that no entities matching the query will be created during indexing. |
6.4.3. Parallel indexing
For better performance, indexing is performed in parallel using multiple threads. The set of entities to index is split into multiple partitions. Each thread processes one partition at a time.
The following section will explain how to tune the parallel execution.
|
The "sweet spot" of number of threads, fetch size, partition size, etc. to achieve best performance is highly dependent on your overall architecture, database design and even data values. You should experiment with these settings to find out what’s best in your particular case. |
Threads
The maximum number of threads used by the job execution is defined through method maxThreads().
Within the N threads given, there’s 1 thread reserved for the core, so only N - 1 threads are
available for different partitions. If N = 1, the program will work, and all batch elements will run
in the same thread. The default number of threads used in Hibernate Search is 10. You can overwrite
it with your preferred number.
MassIndexingJob.parameters()
.maxThreads( 5 )
...|
Note that the batch runtime cannot guarantee the requested number of threads are available, it will use as many as possible up to the requested maximum (JSR352 v1.0 Final Release, page 34). Note also that all batch jobs share the same thread pool, so it’s not always a good idea to execute jobs concurrently. |
Rows per partition
Each partition consists of a fixed number of elements to index. You may tune exactly how many elements
a partition will hold with rowsPerPartition.
MassIndexingJob.parameters()
.rowsPerPartition( 5000 )
...|
This property has nothing to do with "chunk size", which is how many elements are processed together between each write. That aspect of processing is addressed by chunking. Instead, Please see the Chunking section to see how to tune chunking. |
When rowsPerPartition is low, there will be many small partitions,
so processing threads will be less likely to starve (stay idle because there’s no more partition to process),
but on the other hand you will only be able to take advantage of a small fetch size,
which will increase the number of database accesses.
Also, due to the failure recovery mechanisms, there is some overhead in starting a new partition,
so with an unnecessarily large number of partitions, this overhead will add up.
When rowsPerPartition is high, there will be a few big partitions,
so you will be able to take advantage of a higher chunk size,
and thus a higher fetch size,
which will reduce the number of database accesses,
and the overhead of starting a new partition will be less noticeable,
but on the other hand you may not use all the threads available.
|
Each partition deals with one root entity type, so two different entity types will never run under the same partition. |
6.4.4. Chunking and session clearing
The mass indexing job supports restart a suspended or failed job more or less from where it stopped.
This is made possible by splitting each partition in several consecutive chunks of entities, and saving process information in a checkpoint at the end of each chunk. When a job is restarted, it will resume from the last checkpoint.
The size of each chunk is determined by the checkpointInterval parameter.
MassIndexingJob.parameters()
.checkpointInterval( 1000 )
...But the size of a chunk is not only about saving progress, it is also about performance:
-
a new Hibernate session is opened for each chunk;
-
a new transaction is started for each chunk;
-
inside a chunk, the session is cleared periodically according to the
sessionClearIntervalparameter, which must thereby be smaller than (or equal to) the chunk size; -
documents are flushed to the index at the end of each chunk.
|
In general the checkpoint interval should be small compared to the number of rows per partition. Indeed, due to the failure recovery mechanism, the elements before the first checkpoint of each partition will take longer to process than the other, so in a 1000-element partition, having a 100-element checkpoint interval will be faster than having a 1000-element checkpoint interval. On the other hand, chunks shouldn’t be too small in absolute terms. Performing a checkpoint means your JSR-352 runtime will write information about the progress of the job execution to its persistent storage, which also has a cost. Also, a new transaction and session are created for each chunk which doesn’t come for free, and implies that setting the fetch size to a value higher than the chunk size is pointless. Finally, the index flush performed at the end of each chunk is an expensive operation that involves a global lock, which essentially means that the less you do it, the faster indexing will be. Thus having a 1-element checkpoint interval is definitely not a good idea. |
6.4.5. Selecting the persistence unit (EntityManagerFactory)
|
Regardless of how the entity manager factory is retrieved, you must make sure that the entity manager factory used by the mass indexer will stay open during the whole mass indexing process. |
JBeret
If your JSR-352 runtime is JBeret (used in WildFly in particular),
you can use CDI to retrieve the EntityManagerFactory.
Unless you use an already packaged hibernate-search-jsr352 module for your application container,
this will require you to add the hibernate-search-jsr352-jberet jar to your classpath.
If you use only one persistence unit, the mass indexer will be able to access your database automatically without any special configuration.
If you want to use multiple persistence units, you will have to register the EntityManagerFactories
as beans in the CDI context.
Note that entity manager factories will probably not be considered as beans by default, in which case
you will have to register them yourself. You may use an application-scoped bean to do so:
@ApplicationScoped
public class EntityManagerFactoriesProducer {
@PersistenceUnit(unitName = "db1")
private EntityManagerFactory db1Factory;
@PersistenceUnit(unitName = "db2")
private EntityManagerFactory db2Factory;
@Produces
@Singleton
@Named("db1") // The name to use when referencing the bean
public EntityManagerFactory createEntityManagerFactoryForDb1() {
return db1Factory;
}
@Produces
@Singleton
@Named("db2") // The name to use when referencing the bean
public EntityManagerFactory createEntityManagerFactoryForDb2() {
return db2Factory;
}
}Once the entity manager factories are registered in the CDI context, you can instruct the mass
indexer to use one in particular by naming it using the entityManagerReference parameter.
|
Due to limitations of the CDI APIs, it is not currently possible to reference an entity manager factory by its persistence unit name when using the mass indexer with CDI. |
Other DI-enabled JSR-352 implementations
If you want to use a different JSR-352 implementation that happens to allow dependency injection,
you can use hibernate-search-jsr352-core under the following conditions:
-
You must map the following two scope annotations to the relevant scope in the dependency injection mechanism:
-
org.hibernate.search.jsr352.inject.scope.spi.HibernateSearchJobScoped -
org.hibernate.search.jsr352.inject.scope.spi.HibernateSearchPartitionScoped
-
-
You must make sure that the dependency injection mechanism will register all injection-annotated classes (
@Named, …) from thehibernate-search-jsr352-coremodule in the dependency injection context. For instance this can be achieved in Spring DI using the@ComponentScanannotation. -
You must register a single bean in the dependency injection context that will implement the
EntityManagerFactoryRegistryinterface.
Plain Java environment (no dependency injection at all)
The following will work only if your JSR-352 runtime does not support dependency injection at all,
i.e. it ignores @Inject annotations in batch artifacts.
This is the case for JBatch in Java SE mode, for instance.
If you use only one persistence unit,
the mass indexer will be able to access your database automatically without any special configuration:
you only have to make sure to create the EntityManagerFactory (or SessionFactory)
in your application before launching the mass indexer.
If you want to use multiple persistence units, you will have to add two parameters when launching the mass indexer:
-
entityManagerFactoryReference: this is the string that will identify theEntityManagerFactory. -
entityManagerFactoryNamespace: this allows to select how you want to reference theEntityManagerFactory. Possible values are:-
persistence-unit-name(the default): use the persistence unit name defined inpersistence.xml. -
session-factory-name: use the session factory name defined in the Hibernate configuration by thehibernate.session_factory_nameconfiguration property.
-
|
If you set the |
7. Index Optimization
This section explains some low level tricks to keep your indexes at peak performance. We cover some Lucene details which in most cases you don’t have to know about: Hibernate Search will handle these operations optimally and transparently in most cases without the need for further configuration. Still, it is good to know that there are ways to configure the behavior, if the need arises.
The index is physically stored in several smaller segments. Each segment is immutable and represents a generation of index writes. Index segments are periodically compacted, both to merge smaller segments and to remove stale entries; this merging process happens constantly in the background and can be tuned with the options specified in Tuning indexing performance, but you can also define policies to fully run index optimizations when it is most suited for your specific workload.
With older versions of Lucene it was important to frequently optimize the index to maintain good performance, but with current Lucene versions this doesn’t apply anymore. The benefit of explicit optimization is very low, and in certain cases even counter-productive. During an explicit optimization the whole index is processed and rewritten inflicting a significant performance cost. Optimization is for this reason a double-edged sword.
Another reason to avoid optimizing the index too often is that an optimization will, as a side effect, invalidate cached filters and field caches and internal buffers need to be refreshed.
|
Optimizing the index is often not needed, does not benefit write (update) performance at all, and is a slow operation: make sure you need it before activating it. |
Of course optimizing the index does not only present drawbacks: after the optimization process is completed and new IndexReader instances have loaded their buffers, queries will perform at peak performance and you will have reclaimed all disk space potentially used by stale entries.
It is recommended to not schedule any optimization, but if you wish to perform it periodically you should run it:
-
on an idle system or when the searches are less frequent
-
after a lot of index modifications
When using a MassIndexer (see Using a MassIndexer) it will optimize involved indexes by default at the start and at the end of processing; you can change this behavior by using MassIndexer.optimizeAfterPurge and MassIndexer.optimizeOnFinish respectively. The initial optimization is actually very cheap as it is performed on an empty index: its purpose is to release the storage space occupied by the old index.
7.1. Automatic optimization
While in most cases this is not needed, Hibernate Search can automatically optimize an index after:
-
a certain amount of write operations
-
or after a certain amount of transactions
The configuration for automatic index optimization can be defined on a global level or per index:
hibernate.search.default.optimizer.operation_limit.max = 1000 hibernate.search.default.optimizer.transaction_limit.max = 100 hibernate.search.Animal.optimizer.transaction_limit.max = 50
With the above example an optimization will be triggered to the Animal index as soon as either:
-
the number of additions and deletions reaches 1000
-
the number of transactions reaches 50 (hibernate.search.Animal.optimizer.transaction_limit.max having priority over hibernate.search.default.optimizer.transaction_limit.max)
If none of these parameters are defined, no optimization is processed automatically.
The default implementation of OptimizerStrategy can be overridden by implementing
org.hibernate.search.store.optimization.OptimizerStrategy and setting the
optimizer.implementation property to the fully qualified name of your implementation. This
implementation must implement the interface, be a public class and have a public constructor taking
no arguments.
hibernate.search.default.optimizer.implementation = com.acme.worlddomination.SmartOptimizer hibernate.search.default.optimizer.SomeOption = CustomConfigurationValue hibernate.search.humans.optimizer.implementation = default
The keyword default can be used to select the Hibernate Search default implementation; all
properties after the .optimizer key separator will be passed to the implementation’s initialize
method at start.
7.2. Manual optimization
You can programmatically optimize (defragment) a Lucene index from Hibernate Search through the SearchFactory:
FullTextSession fullTextSession = Search.getFullTextSession(regularSession);
SearchFactory searchFactory = fullTextSession.getSearchFactory();
searchFactory.optimize(Order.class);
// or
searchFactory.optimize();The first example optimizes the Lucene index holding Orders; the second, optimizes all indexes.
|
|
7.3. Adjusting optimization
The Lucene index is constantly being merged in the background to keep a good balance between write and read performance; in a sense this is a form of background optimization which is always applied.
The following match attributes of Lucene’s IndexWriter and are commonly used to tune how often merging occurs and how aggressive it is applied. They are exposed by Hibernate Search via:
-
hibernate.search.[default|<indexname>].indexwriter.max_buffered_docs -
hibernate.search.[default|<indexname>].indexwriter.max_merge_docs -
hibernate.search.[default|<indexname>].indexwriter.merge_factor -
hibernate.search.[default|<indexname>].indexwriter.ram_buffer_size
See Tuning indexing performance for a description of these properties.
8. Monitoring
Hibernate Search offers access to a Statistics object via SearchFactory.getStatistics().
It allows you for example to determine which classes are indexed and how many entities are in the index.
This information is always available. However, by specifying the
hibernate.search.generate_statistics property in your configuration you can also collect total
and average Lucene query and object loading timings.
8.1. JMX
You can also enable access to the statistics via JMX.
Setting the property hibernate.search.jmx_enabled will automatically register the StatisticsInfoMBean.
Depending on your the configuration the IndexControlMBean and IndexingProgressMonitorMBean will also be
registered. In case you are having more than one JMX enabled Hibernate Search instance running
within a single JVM, you should also set hibernate.search.jmx_bean_suffix to a different value for
each of the instances. The specified suffix will be used to distinguish between the different MBean
instances. Let’s have a closer look at the mentioned MBeans.
|
If you want to access your JMX beans remotely via JConsole make sure to set the system property
|
8.1.1. StatisticsInfoMBean
This MBean gives you access to Statistics object as described in the previous section.
8.1.2. IndexControlMBean
This MBean allows to build, optimize and purge the index for a given entity. Indexing occurs via the
mass indexing API (see Using a MassIndexer). A requirement for this bean to be
registered in JMX is, that the Hibernate SessionFactory is bound to JNDI via the
hibernate.session_factory_name property. Refer to the Hibernate Core manual for more
information on how to configure JNDI.
8.1.3. IndexingProgressMonitorMBean
This MBean is an implementation MassIndexerProgressMonitor interface.
If hibernate.search.jmx_enabled is enabled and the mass indexer API is used the indexing progress
can be followed via this bean. The bean will only be bound to JMX while indexing is in progress.
Once indexing is completed the MBean is not longer available.
9. Spatial
With the spatial extensions you can combine full-text queries with distance restrictions, filter results based on distances or sort results on such a distance criteria.
The spatial support of Hibernate Search has the following goals:
-
Enable spatial search on entities: find entities within x km from a given location (latitude, longitude) on Earth
-
Provide an easy way to enable spatial indexing via expressive annotations
-
Provide a simple way for querying
-
Hide geographical complexity
For example, you might search for restaurants somewhere in a 2 km radius around your office.
In order to use the spatial extensions for an indexed entity, you need to add the @Spatial
annotation (org.hibernate.search.annotations.Spatial) and specify one or more sets of coordinates.
9.1. Enable indexing of Spatial Coordinates
There are different techniques to index point coordinates. Hibernate Search Spatial offers a choice between two strategies:
-
index as numbers
-
index as labeled spatial hashes
We will now describe both methods, so you can make a suitable choice. You can pick a different strategy for each set of
coordinates. The strategy is selected by specifying the spatialMode attribute of the @Spatial annotation.
9.1.1. Indexing coordinates for range queries
When setting the @Spatial.spatialMode attribute to SpatialMode.RANGE (which is the default)
coordinates are indexed as numeric fields, so that range queries can be performed to narrow down the
initial area of interest.
Pros:
-
Is quick on small data sets (< 100k entities)
-
Is very simple: straightforward to debug/analyze
-
Impact on index size is moderate
Cons:
-
Poor performance on large data sets
-
Poor performance if your data set is distributed across the whole world (for example when indexing points of interest in the United States, in Europe and in Asia, large areas collide because they share the same latitude. The latitude range query returns large amounts of data that need to be cross checked with those returned by the longitude range).
To index your entities for range querying you have to:
-
add the
@Spatialannotation on your entity -
add the
@Latitudeand@Longitudeannotations on your properties representing the coordinates; these must be of typeDouble
import org.hibernate.search.annotations.*;
@Entity
@Indexed
@Spatial
public class Hotel {
@Latitude
Double latitude
@Longitude
Double longitude
// ...9.1.2. Indexing coordinates in a grid with spatial hashes
When setting @Spatial.spatialMode to SpatialMode.HASH the coordinates are encoded in several fields
representing different zoom levels. Each box for each level is labeled so coordinates are assigned
matching labels for each zoom level. This results in a grid encoding of labels called spatial
hashes.
Pros :
-
Good performance even with large data sets
-
World wide data distribution independent
Cons :
-
Index size is larger: need to encode multiple labels per pair of coordinates
To index your entities you have to:
-
add the
@Spatialannotation on the entity with theSpatialModeset to GRID : @Spatial(spatialMode = SpatialMode.HASH) -
add the
@Latitudeand@Longitudeannotations on the properties representing your coordinates; these must be of typeDouble
@Spatial(spatialMode = SpatialMode.HASH)
@Indexed
@Entity
public class Hotel {
@Latitude
Double latitude;
@Longitude
Double longitude;
// ...9.1.3. Implementing the Coordinates interface
Instead of using the @Latitude and @Longitude annotations you can choose to implement the
org.hibernate.search.spatial.Coordinates interface.
import org.hibernate.search.annotations.*;
import org.hibernate.search.spatial.Coordinates;
@Entity
@Indexed
@Spatial
public class Song implements Coordinates {
@Id long id;
double latitude;
double longitude;
// ...
@Override
Double getLatitude() {
return latitude;
}
@Override
Double getLongitude() {
return longitude;
}
// ...As we will see in the section Multiple Coordinate pairs, an entity can have multiple @Spatial annotations;
when having the entity implement Coordinates, the implemented methods refer to the default @Spatial annotation with
the default pair of coordinates.
|
The default (field) name in case |
An alternative is to use properties implementing the Coordinates interface; this way you can have
multiple Spatial instances:
@Entity
@Indexed
public class Event {
@Id
Integer id;
@Field(store = Store.YES)
String name;
double latitude;
double longitude;
@Spatial(spatialMode = SpatialMode.HASH)
public Coordinates getLocation() {
return new Coordinates() {
@Override
public Double getLatitude() {
return latitude;
}
@Override
public Double getLongitude() {
return longitude;
}
};
}
// ...When using this form the @Spatial.name automatically defaults to the property name. In the above case to location.
9.2. Performing Spatial Queries
You can use the Hibernate Search query DSL to build a query to search around a pair of coordinates (latitude, longitude)
or around a bean implementing the Coordinates interface.
As with any full-text query, the spatial query creation flow looks like:
-
retrieve a
QueryBuilderfrom theSearchFactory -
use the DSL to build a spatial query, defining search center and radius
-
optionally combine the resulting
Querywith other filters -
call the
createFullTextQuery()and use the resulting query like any standard Hibernate or JPA query
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity( Hotel.class ).get();
org.apache.lucene.search.Query luceneQuery = builder
.spatial()
.within( radius, Unit.KM )
.ofLatitude( centerLatitude )
.andLongitude( centerLongitude )
.createQuery();
org.hibernate.Query hibQuery = fullTextSession
.createFullTextQuery( luceneQuery, Hotel.class );
List results = hibQuery.list();|
In the above example we did not explicitly specify the field name to use. The default coordinates field name was used implicitly. To target an alternative pair of coordinates at query time, we need to specify the field name as well. See Multiple Coordinate pairs. |
A fully working example can be found in the test-suite of the source code.
Refer to SpatialIndexingTest.testSpatialAnnotationOnClassLevel() and its corresponding Hotel test class.
Alternatively to passing separate latitude and longitude values, you can also pass an instance implementing the
Coordinates interface:
Coordinates coordinates = Point.fromDegrees(24d, 31.5d);
Query query = builder
.spatial()
.within( 51, Unit.KM )
.ofCoordinates( coordinates )
.createQuery();
List results = fullTextSession.createFullTextQuery( query, POI.class ).list();9.2.1. Returning distance to query point in the search results
Returning distance to the center in the results
To retrieve the actual distance values (in kilometers) you need to use projection (see Projection):
double centerLatitude = 24.0d;
double centerLongitude= 32.0d;
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity(POI.class).get();
org.apache.lucene.search.Query luceneQuery = builder
.spatial()
.onField("location")
.within(100, Unit.KM)
.ofLatitude(centerLatitude)
.andLongitude(centerLongitude)
.createQuery();
FullTextQuery hibQuery = fullTextSession.createFullTextQuery(luceneQuery, POI.class);
hibQuery.setProjection(FullTextQuery.SPATIAL_DISTANCE, FullTextQuery.THIS);
hibQuery.setSpatialParameters(centerLatitude, centerLongitude, "location");
List results = hibQuery.list();-
Use
FullTextQuery.setProjectionwithFullTextQuery.SPATIAL_DISTANCEas one of the projected fields. -
Call
FullTextQuery.setSpatialParameterswith the latitude, longitude and the name of the spatial field used to build the spatial query. Note that using coordinates different than the center used for the query will have unexpected results.
|
The default (field) name in case |
|
Distance projection and null values
When a spatial field on an entity has a |
Sorting by distance
To sort the results by distance to the center of the search you will have to build a Sort instance
using Hibernate Search sort DSL:
double centerLatitude = 24.0d;
double centerLongitude = 32.0d;
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity( POI.class ).get();
org.apache.lucene.search.Query luceneQuery = builder
.spatial()
.onField("location")
.within(100, Unit.KM)
.ofLatitude(centerLatitude)
.andLongitude(centerLongitude)
.createQuery();
FullTextQuery hibQuery = fullTextSession.createFullTextQuery(luceneQuery, POI.class);
List results = query.list();
Sort distanceSort = qb
.sort()
.byDistance()
.onField("location")
.fromLatitude(centerLatitude)
.andLongitude(centerLongitude)
.createSort();
hibQuery.setSort(distanceSort);The sort must be constructed using the same coordinates on the same spatial field used to build the spatial query, otherwise the sorting will occur with another center than the query. This repetition is needed to allow you to define Queries with any tool.
|
Sorting and null values
When a spatial field on an entity has a
|
Alternatively, you may also use a DistanceSortField directly, as it was done before the introduction of Hibernate Search sort DSL:
double centerLatitude = 24.0d;
double centerLongitude = 32.0d;
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity( POI.class ).get();
org.apache.lucene.search.Query luceneQuery = builder
.spatial()
.onField("location")
.within(100, Unit.KM)
.ofLatitude(centerLatitude)
.andLongitude(centerLongitude)
.createQuery();
FullTextQuery hibQuery = fullTextSession.createFullTextQuery(luceneQuery, POI.class);
Sort distanceSort = new Sort(
new DistanceSortField(centerLatitude, centerLongitude, "location"));
hibQuery.setSort(distanceSort);9.3. Multiple Coordinate pairs
You can associate multiple pairs of coordinates to the same entity, as long as each pair is
uniquely identified by using a different name.
This is achieved by stacking multiple @Spatial annotations and specifying the name attribute
on the individual @Spatial annotation.
At most one of them will be allowed to use the default name.
import org.hibernate.search.annotations.*;
@Entity
@Indexed
@Spatial
@Spatial(name="work", spatialMode = SpatialMode.HASH)
public class UserEx {
@Id
Integer id;
@Latitude
Double homeLatitude;
@Longitude
Double homeLongitude;
@Latitude(of="work")
Double workLatitude;
@Longitude(of="work")
Double workLongitude;To target an alternative pair of coordinates at query time, we need to specify the pair by name using onField(String):
QueryBuilder builder = fullTextSession.getSearchFactory()
.buildQueryBuilder().forEntity( UserEx.class ).get();
org.apache.lucene.search.Query luceneQuery = builder
.spatial()
.onField( "work" )
.within( radius, Unit.KM )
.ofLatitude( centerLatitude )
.andLongitude( centerLongitude )
.createQuery();
org.hibernate.Query hibQuery = fullTextSession.createFullTextQuery( luceneQuery,
Hotel.class );
List results = hibQuery.list();9.4. Insight: implementation details of spatial hashes indexing
The following chapter is meant to provide a technical insight in spatial hash (grid) indexing. It discusses how coordinates are mapped to the index and how queries are implemented.
9.4.1. At indexing level
When Hibernate Search indexes an entity annotated with @Spatial, it instantiates a
SpatialFieldBridge to transform the latitude and longitude fields accessed via the Coordinates
interface to the multiple index fields stored in the Lucene index.
Principle of the spatial index: the spatial index used in Hibernate Search is a grid based spatial index where grid ids are hashes derived from latitude and longitude.
To make computations easier the latitude and longitude field values will be projected into a flat coordinate system with the help of a sinusoidal projection. Origin value space is :
[-90 → +90],]-180 →; 180]
for latitude,longitude coordinates and projected space is:
]-pi → +pi],[-pi/2 → +pi/2]
for Cartesian x,y coordinates (beware of fields order inversion: x is longitude and y is latitude).
The index is divided into n levels labeled from 0 to n-1.
At the level 0 the projected space is the whole Earth. At the level 1 the projected space is divided into 4 rectangles (called boxes as in bounding box):
[-pi,-pi/2]→[0,0], [-pi,0]→[0,+pi/2], [0,-pi/2]→[+pi,0] and [0,0]→[+pi,+pi/2]
At level n+1 each box of level n is divided into 4 new boxes and so on. The numbers of boxes at a given level is 4^n.
Each box is given an id, in this format: [Box index on the X axis]|[Box index on the Y axis]. To calculate the index of a box on an axis we divide the axis range in 2^n slots and find the slot the box belongs to. At the n level the indexes on an axis are from -(2^n)/2 to (2^n)/2. For instance, the 5th level has 4^5 = 1024 boxes with 32 indexes on each axis (32x32 is 1024) and the box of Id "0|8" is covering the [0,8/32*pi/2]→[1/32*pi,9/32*pi/2] rectangle is projected space.
Beware! The boxes are rectangles in projected space but the related area on Earth is not rectangular!
Now that we have all these boxes at all these levels, we index points "into" them.
For a point (lat,long) we calculate its projection (x,y) and then we calculate for each level of the spatial index, the ids of the boxes it belongs to.
At each level the point is in one and only one box. For points on the edges the box are considered exclusive n the left side and inclusive on the right i-e ]start,end] (the points are normalized before projection to [-90,+90],]-180,+180]).
We store in the Lucene document corresponding to the entity to index one field for each level of the spatial hash grid. The field is named: HSSI[n]. [spatial index fields name] is given either by the parameter at class level annotation or derived from the name of the spatial annotated method of the entity, HSSI stands for Hibernate Search Spatial Index and n is the level of the spatial hashes grid.
We also store the latitude and longitude as a numeric field under [spatial index fields name]_HSSI_Latitude and [spatial index fields name]_HSSI_Longitude fields. They will be used to filter precisely results by distance in the second stage of the search.
9.4.2. At search level
Now that we have all these fields, what are they used for?
When you ask for a spatial search by providing a search discus (center+radius) we will calculate the box ids that do cover the search discus in the projected space, fetch all the documents that belong to these boxes (thus narrowing the number of documents for which we will have to calculate distance to the center) and then filter this subset with a real distance calculation. This is called two level spatial filtering.
Step 1: Compute the best spatial hashes grid level for the search discus
For a given search radius there is an optimal hash grid level where the number of boxes to retrieve shall be minimal without bringing back to many documents (level 0 has only 1 box but retrieve all documents). The optimal hash grid level is the maximum level where the width of each box is larger than the search area. Near the equator line where projection deformation is minimal, this will lead to the retrieval of at most 4 boxes. Towards the poles where the deformation is more significant, it might need to examine more boxes but as the sinusoidal projection has a simple Tissot’s indicatrix (see Sinusoidal projection) in populated areas, the overhead is minimal.
Step 2: Compute ids of the corresponding covering boxes at that level
Now that we have chosen the optimal level, we can compute the ids of the boxes covering the search discus (which is not a discus in projected space anymore).
This is done by org.hibernate.search.spatial.impl.SpatialHelper.getSpatialHashCellsIds(Point center,
double radius, int spatialHashLevel)
It will calculate the bounding box of the search discus and then call
org.hibernate.search.spatial.impl.SpatialHelper.getSpatialHashCellsIds(Point lowerLeft, Point
upperRight, int spatialHashLevel) that will do the actual computation. If the bounding box crosses
the meridian line it will cut the search in two and make two calls to getSpatialHashCellsIds(Point
lowerLeft, Point upperRight, int spatialHashLevel) with left and right parts of the box.
There are some geo related hacks (search radius too large, search radius crossing the poles) that
are handled in bounding box computations done by Rectangle.fromBoundingCircle(Coordinates center,
double radius) (see http://janmatuschek.de/LatitudeLongitudeBoundingCoordinates for reference on
those subjects).
The SpatialHelper.getSpatialHashCellsIds(Point lowerLeft, Point upperRight, int spatialHashLevel)
project the defining points of the bounding box and compute the boxes they belong to. It returns all
the box Ids between the lower left to the upper right corners, thus covering the area.
Step 3: Lucene index lookup
The query is built with theses Ids searching for documents having a HSSI[n] (n the level found at Step 1) field valued with one of the ids of Step 2.
See also the implementation of org.hibernate.search.spatial.impl.SpatialHashFilter.
This query will return all documents in the boxes covering the projected bounding box of the search discus. So it is too large and needs refining. But we have narrowed the distance calculation problems to a subset of our data.
10. Advanced features
In this final chapter we are offering a smörgåsbord of tips and tricks which might become useful as you dive deeper and deeper into Hibernate Search.
10.1. Accessing the SearchFactory
The SearchFactory object keeps track of the underlying Lucene resources for Hibernate Search. It is
a convenient way to access Lucene natively. The SearchFactory can be accessed from a
FullTextSession:
SearchFactoryFullTextSession fullTextSession = Search.getFullTextSession(regularSession);
SearchFactory searchFactory = fullTextSession.getSearchFactory();10.2. Accessing the SearchIntegrator
The interface SearchIntegrator gives access to advanced functionality and internals of Hibernate Search;
these are typically only useful to integrate Hibernate Search with other libraries.
These are called SPI - Service Provide Interface - to better differentiate them from normal APIs.
You can recognize them by noticing an spi element in the package name, such as in org.hibernate.search.spi.SearchIntegrator.
You can access the SearchIntegrator SPI using the SearchFactory (Accessing the SearchFactory),
or by extracting the instance from the Hibernate native SessionFactory or the JPA EntityManagerFactory as in the following examples:
SearchIntegrator from a SearchFactorySearchIntegrator si = searchFactory.unwrap(SearchIntegrator.class);SearchIntegrator from a SessionFactorySearchIntegrator si = org.hibernate.search.orm.spi.SearchIntegratorHelper.extractFromSessionFactory( sf );SearchIntegrator from an EntityManagerFactorySearchIntegrator si = org.hibernate.search.orm.spi.SearchIntegratorHelper.extractFromEntityManagerFactory( emf );10.3. Using an IndexReader
Queries in Lucene are executed on an IndexReader. Hibernate Search caches index readers to maximize
performance and implements other strategies to retrieve updated IndexReaders in order to minimize IO
operations. Your code can access these cached resources, but you have to follow some "good citizen"
rules.
IndexReaderIndexReader reader = searchFactory.getIndexReaderAccessor().open(Order.class);
try {
//perform read-only operations on the reader
}
finally {
searchFactory.getIndexReaderAccessor().close(reader);
}In this example the SearchFactory figures out which indexes are needed to query this entity. Using
the configured ReaderProvider (described in Reader strategy) on each index,
it returns a compound IndexReader on top of all involved indexes. Because this IndexReader is
shared amongst several clients, you must adhere to the following rules:
-
Never call
indexReader.close(), but always callreaderProvider.closeReader(reader), using a finally block. -
Don’t use this
IndexReaderfor modification operations: it’s a read-only instace, you would get an exception.
Aside from those rules, you can use the IndexReader freely, especially to do native Lucene queries.
Using this shared IndexReaders will be more efficient than by opening one directly from - for
example - the filesystem.
As an alternative to the method open(Class… types) you can use open(String… indexNames)
in this case you pass in one or more index names; using this strategy you can also select a subset
of the indexes for any indexed type if sharding is used.
IndexReader by index namesIndexReader reader = searchFactory
.getIndexReaderAccessor()
.open("Products.1", "Products.3");10.4. Accessing a Lucene Directory
A Directory is the most common abstraction used by Lucene to represent the index storage; Hibernate Search doesn’t interact directly with a Lucene Directory but abstracts these interactions via an IndexManager: an index does not necessarily need to be implemented by a Directory.
If you are certain that your index is represented as a Directory and need to access it, you can get
a reference to the Directory via the IndexManager. You will have to cast the IndexManager instance
to a DirectoryBasedIndexManager and then use getDirectoryProvider().getDirectory() to get a
reference to the underlying Directory. This is not recommended, if you need low level access to the
index using Lucene APIs we suggest to see Using an IndexReader instead.
10.5. Sharding indexes
In some cases it can be useful to split (shard) the data into several Lucene indexes. There are two main use use cases:
-
A single index is so big that index update times are slowing the application down. In this case static sharding can be used to split the data into a pre-defined number of shards.
-
Data is naturally segmented by customer, region, language or other application parameter and the index should be split according to these segments. This is a use case for dynamic sharding.
|
By default sharding is not enabled. |
10.5.1. Static sharding
To enable static sharding set the hibernate.search.<indexName>.sharding_strategy.nbr_of_shards property as seen in Enabling index sharding.
hibernate.search.[default|<indexName>].sharding_strategy.nbr_of_shards = 5
The default sharding strategy which gets enabled by setting this property, splits the data according to the hash value of the document id (generated by the FieldBridge). This ensures a fairly balanced sharding. You can replace the default strategy by implementing a custom IndexShardingStrategy. To use your custom strategy you have to set the hibernate.search.[default|<indexName>].sharding_strategy property to the fully qualified class name of your custom IndexShardingStrategy.
hibernate.search.[default|<indexName>].sharding_strategy = my.custom.RandomShardingStrategy
10.5.2. Dynamic sharding
Dynamic sharding allows you to manage the shards yourself and even create new shards on the fly. To do so you need to implement the interface ShardIdentifierProvider and set the hibernate.search.[default|<indexName>].sharding_strategy property to the fully qualified name of this class. Note that instead of implementing the interface directly, you should rather derive your implementation from org.hibernate.search.store.ShardIdentifierProviderTemplate which provides a basic implementation. Let’s look at Custom ShardIdentifierProvider for an example.
public static class AnimalShardIdentifierProvider extends ShardIdentifierProviderTemplate {
@Override
public String getShardIdentifier(Class<?> entityType, Serializable id,
String idAsString, Document document) {
if (entityType.equals(Animal.class)) {
String typeValue = document.getField("type").stringValue();
addShard(typeValue);
return typeValue;
}
throw new RuntimeException("Animal expected but found " + entityType);
}
@Override
protected Set<String> loadInitialShardNames(Properties properties, BuildContext buildContext) {
ServiceManager serviceManager = buildContext.getServiceManager();
SessionFactory sessionFactory = serviceManager.requestService(
HibernateSessionFactoryService.class).getSessionFactory();
Session session = sessionFactory.openSession();
try {
Criteria initialShardsCriteria = session.createCriteria(Animal.class);
initialShardsCriteria.setProjection(Projections.distinct(Property.forName("type")));
List<String> initialTypes = initialShardsCriteria.list();
return new HashSet<String>(initialTypes);
}
finally {
session.close();
}
}
}The are several things happening in AnimalShardIdentifierProvider. First off its purpose is to
create one shard per animal type (e.g. mammal, insect, etc.). It does so by inspecting the class
type and the Lucene document passed to the getShardIdentifier() method. It extracts the type field
from the document and uses it as shard name. getShardIdentifier() is called for every addition to
the index and a new shard will be created with every new animal type encountered. The base class
ShardIdentifierProviderTemplate maintains a set with all known shards to which any identifier must
be added by calling addShard().
It is important to understand that Hibernate Search cannot know which shards already exist when the
application starts. When using ShardIdentifierProviderTemplate as base class of a
ShardIdentifierProvider implementation, the initial set of shard identifiers must be returned by the
loadInitialShardNames() method. How this is done will depend on the use case. However, a common case
in combination with Hibernate ORM is that the initial shard set is defined by the distinct
values of a given database column. Custom ShardIdentifierProvider shows how to handle
such a case. AnimalShardIdentifierProvider makes in its loadInitialShardNames() implementation use
of a service called HibernateSessionFactoryService (see also Using external services) which is
available within an ORM environment. It allows to request a Hibernate SessionFactory instance which
can be used to run a Criteria query in order to determine the initial set of shard identifiers.
Last but not least, the ShardIdentifierProvider also allows for optimizing searches by selecting
which shard to run a query against. By activating a filter (see Using filters in a sharded environment), a sharding
strategy can select a subset of the shards used to answer a query (getShardIdentifiersForQuery(),
not shown in the example) and thus speed up the query execution.
|
This ShardIdentifierProvider is considered experimental. We might need to apply some changes to the defined method signatures to accommodate for unforeseen use cases. Please provide feedback if you have ideas, or just to let us know how you’re using this API. |
10.6. Sharing indexes
It is technically possible to store the information of more than one entity into a single Lucene index. There are two ways to accomplish this:
-
Configuring the underlying directory providers to point to the same physical index directory. In practice, you set the property
hibernate.search.[fully qualified entity name].indexNameto the same value. As an example, let’s use the same index (directory) for theFurnitureandAnimalentities. We just setindexNamefor both entities to "Animal". Both entities will then be stored in the Animal directory:
hibernate.search.org.hibernate.search.test.shards.Furniture.indexName = Animal hibernate.search.org.hibernate.search.test.shards.Animal.indexName = Animal
-
Setting the @Indexed annotation’s index attribute of the entities you want to merge to the same value. If we again wanted all Furniture instances to be indexed in the Animal index along with all instances of Animal we would specify @Indexed(index="Animal") on both Animal and Furniture classes.
|
This is only presented here so that you know the option is available. There is really not much benefit in sharing indexes. |
10.7. Using external services
A Service in Hibernate Search is a class implementing the interface
org.hibernate.search.engine.service.spi.Service and providing a default no-arg constructor.
Theoretically that’s all that is needed to request a given service type from the Hibernate Search
ServiceManager. In practice you want probably want to add some service life cycle methods
(implement Startable and Stoppable) as well as actual methods providing some functionality.
Hibernate Search uses the service approach to decouple different components of the system. Let’s have a closer look at services and how they are used.
10.7.1. Using a Service
Many of of the pluggable contracts of Hibernate Search can use services. Services are accessible via
the BuildContext interface as in the following example.
public CustomDirectoryProvider implements DirectoryProvider<RAMDirectory> {
private ServiceManager serviceManager;
private ClassLoaderService classLoaderService;
public void initialize(
String directoryProviderName,
Properties properties,
BuildContext context) {
//get a reference to the ServiceManager
this.serviceManager = context.getServiceManager();
}
public void start() {
//get the current ClassLoaderService
classLoaderService = serviceManager.requestService(ClassLoaderService.class);
}
public RAMDirectory getDirectory() {
//use the ClassLoaderService
}
public stop() {
//make sure to release all services
serviceManager.releaseService(ClassLoaderService.class);
}
}When you request a service, an instance of the requested service type is returned to you.
Make sure release the service via ServiceManager.releaseService once you don’t need it
anymore. Note that the service can be released in the DirectoryProvider.stop method if
the DirectoryProvider uses the service during its lifetime or could be released right away
if the service is only needed during initialization time.
10.7.2. Implementing a Service
To implement a service, you need to create an interface which identifies it and extends
org.hibernate.search.engine.service.spi.Service. You can then add additional methods to your service
interface as needed.
Naturally you will also need to provide an implementation of your service interface. This
implementation must have a public no-arg constructor. Optionally your service can also
implement the life cycle methods org.hibernate.search.engine.service.spi.Startable
and/or org.hibernate.search.engine.service.spi.Stoppable. These methods will be called by the
ServiceManager when the service is created respectively the last reference to a requested service
is released.
Services are retrieved from the ServiceManager.requestService using the Class object of the
interface you define as a key.
Managed services
To transparently discover services Hibernate Search uses the Java ServiceLoader mechanism. This means
you need to add a service file to your jar under /META-INF/services/ named after the fully qualified
classname of your service interface. The content of the file contains the fully qualified
classname of your service implementation.
/META-INF/services/org.infinispan.hibernate.search.spi.CacheManagerService
org.infinispan.hibernate.search.impl.DefaultCacheManagerService
|
Hibernate Search only supports a single service implementation of a given service. There is no mechanism to select between multiple versions of a service. It is an error to have multiple jars defining each a different implementation for the same service. If you want to override the implementation of a already existing service at runtime you will need to look at Provided services. |
Provided services
|
Provided services are usually used by frameworks integrating with Hibernate Search and not by library users themselves. |
As an alternative to manages services, a service can be provided by the environment bootstrapping
Hibernate Search. For example, Infinispan which uses Hibernate Search as its internal search engine,
passes the CacheContainer to Hibernate Search.
In this case, the CacheContainer instance is not managed by Hibernate Search and the start/stop
methods defined by optional Stoppable and Startable interfaces will be ignored.
A Service implementation which is only used as a Provided Service doesn’t need to have a public constructor taking no arguments.
|
Provided services have priority over managed services. If a provided service is registered with the
same |
The provided services are passed to Hibernate Search via the SearchConfiguration interface: as
implementor of method getProvidedServices you can return a Map of all services you need to
provide.
|
When implementing a custom |
10.8. Customizing Lucene’s scoring formula
Lucene allows the user to customize its scoring formula by extending org.apache.lucene.search.similarities.Similarity. The abstract methods defined in this class match the factors of the following formula calculating the score of query q for document d:
score(q,d) = coord(q,d) · queryNorm(q) · ∑ ~t in q~ ( tf(t in d) · idf(t) 2 · t.getBoost() · norm(t,d) )
| Factor | Description |
|---|---|
tf(t ind) |
Term frequency factor for the term (t) in the document (d). |
idf(t) |
Inverse document frequency of the term. |
coord(q,d) |
Score factor based on how many of the query terms are found in the specified document. |
queryNorm(q) |
Normalizing factor used to make scores between queries comparable. |
t.getBoost() |
Field boost. |
norm(t,d) |
Encapsulates a few (indexing time) boost and length factors. |
It is beyond the scope of this manual to explain this formula in more detail. Please refer to Similarity’s Javadocs for more information.
Hibernate Search provides two ways to modify Lucene’s similarity calculation.
First you can set the default similarity by specifying the fully specified classname of your Similarity implementation using the property hibernate.search.similarity. The default value is org.apache.lucene.search.similarities.ClassicSimilarity.
Secondly, you can override the similarity used for a specific index by setting the similarity
property for this index (see Directory configuration for more information about index
configuration):
hibernate.search.[default|<indexname>].similarity = my.custom.Similarity
As an example, let’s assume it is not important how often a term appears in a document. Documents
with a single occurrence of the term should be scored the same as documents with multiple
occurrences. In this case your custom implementation of the method tf(float freq) should return 1.0.
|
When two entities share the same index they must declare the same Similarity implementation. |
10.9. Multi-tenancy
10.9.1. What is multi-tenancy?
The term multi-tenancy in general is applied to software development to indicate an architecture in which a single running instance of an application simultaneously serves multiple clients (tenants). Isolating information (data, customizations, etc) pertaining to the various tenants is a particular challenge in these systems. This includes the data owned by each tenant stored in the database. You will find more details on how to enable multi-tenancy with Hibernate in the Hibernate ORM developer’s guide.
10.9.2. Using a tenant-aware FullTextSession
Hibernate Search supports multi-tenancy on top of Hibernate ORM, it stores the tenant identifier in the document and automatically filters the query results.
The FullTextSession will be bound to the specific tenant ("client-A" in the example)
and the mass indexer will only index the entities associated to that tenant identifier.
Session session = getSessionFactory()
.withOptions()
.tenantIdentifier( "client-A" )
.openSession();
FullTextSession session = Search.getFullTextSession( session );The use of a tenant identifier will have the following effects:
-
Every document saved or updated in the index will have an additional field
__HSearch_TenantIdcontaining the tenant identifier. -
Every search will be filtered using the tenant identifier.
-
The MassIndexer (see Using a MassIndexer) will only affect the currently selected tenant.
Note that not using a tenant will return all the matching results for all the tenants in the index.
11. Integration with Elasticsearch
11.1. Status
|
This feature is a work in progress. Make sure to read the Limitations section! |
The integration with Elasticsearch is in development and should be considered experimental. We do think we have the basics covered and we are looking for feedback.
Patches can be sent as pull requests to the Github repository, but also general feedback, suggestions and questions are very welcome. To get in touch or find other interesting links for contributors, see the Community page of the Hibernate website.
11.2. Goal of the Elasticsearch integration
The goal of integrating with Elasticsearch is to allow Hibernate Search users to benefit from the full-text capabilities integrated with Hibernate ORM but replacing the local Lucene based index with a remote Elasticsearch service.
There could be various reasons to prefer this over an "embedded Lucene" approach:
-
wish to separate the service running your application from the Search service (Microservices)
-
benefit from Elasticsearch’s out of the box horizontal scalability and high availability features
-
integrate with an existing Elasticsearch cluster
-
explore the data updated by an Hibernate powered application using the Elasticsearch dashboard integrations such as Kibana
There are a couple of drawbacks compared to the embedded Lucene approach though:
-
incur a performance penalty of remote RPCs both for index updates and to run queries
-
need to manage an additional service
-
possibly need to buy and manage additional servers
Which solution is best will depend on the specific needs of your system and your organization.
|
Why not use Elasticsearch directly?
The #1 reason is that Hibernate Search integrates perfectly with Hibernate ORM. All changes done to your objects will trigger the necessary index changes transparently.
There is no more paradigm shift in your code. You are working on Hibernate ORM managed objects, doing your queries on object properties with a nice Java DSL. |
11.3. Getting started and configuration
To experiment with the Elasticsearch integration you will have to download Elasticsearch and run it: Hibernate Search connects to an Elasticsearch node but does not provide one.
One option is to use the Elasticsearch Docker image.
11.3.1. Elasticsearch version
Hibernate Search expects an Elasticsearch cluster running version 2.x or 5.x. The version running on your cluster will be automatically detected on startup, and Hibernate Search will adapt based on the detected version.
The targeted version is mostly transparent to Hibernate Search users, but there are a few differences in how Hibernate Search behaves depending on the Elasticsearch version that may affect you. The following table details those differences.
| 2.x | 5.0/5.1 | 5.2+ | |
|---|---|---|---|
Configuration required for purges |
None |
||
Datatype used for String fields in Elasticsearch |
|
|
|
Not implemented |
Implemented |
||
Implementation of |
|
|
|
Configuration required for spatial projections without a spatial sort |
None |
||
|
The testsuite of Hibernate Search runs against Elasticsearch 5.6.7 by default. |
Upgrading Elasticsearch
When upgrading your Elasticsearch cluster, some administrative tasks are still required on your cluster: Hibernate Search will not take care of those.
On top of that, there are some fundamental differences between some versions of Elasticsearch, and for that reason, some upgrades will require you to delete your indexes manually and reindex your data.
The upgrades that require such changes are the following:
-
upgrading from 2.x to 5.x, because Hibernate Search does not support the
stringdatatype on Elasticsearch 5.x; -
upgrading from 5.0/5.1 to 5.2+ if you used normalizers, because Hibernate Search normalizers are mapped to native Elasticsearch normalizers starting from Elasticsearch 5.2, thereby changing the datatype of fields using normalizers from
texttokeyword.
11.3.2. Dependencies in your Java application
In addition to the usual dependencies like Hibernate ORM and Hibernate Search,
you will need the new hibernate-search-elasticsearch jar.
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-search-elasticsearch</artifactId>
<version>5.9.3.Final</version>
</dependency>If you use Amazon’s proprietary IAM authentication through request signing to access Elasticsearch,
you will need an additional dependency to handle authentication:
hibernate-search-elasticsearch-aws.
<dependency>
<groupId>org.hibernate</groupId>
<artifactId>hibernate-search-elasticsearch-aws</artifactId>
<version>5.9.3.Final</version>
</dependency>11.3.3. Elasticsearch configuration
Hibernate Search can work with an Elasticsearch server without altering its configuration.
However some features offered by Hibernate Search require specific configuration:
-
on Elasticsearch 2.x only (not necessary on 5.x): if you want to be able to use the Hibernate Search MassIndexer with
purgeAllOnStartenabled - it is enabled by default -, or to useFullTextSession.purge()orFullTextSession.purgeAll(), install thedelete-by-queryplugin -
on Elasticsearch 2.x only (not necessary on 5.x): if you want to retrieve the distance in a geolocation query, enable the
lang-groovyplugin, see Elasticsearch Spatial queries -
if you want to use paging (as opposed to scrolling) on result sets larger than 10000 elements (for instance access the 10001st result), you may increase the value of the
index.max_result_windowproperty (default is 10000).
11.3.4. Hibernate Search configuration
Configuration is minimal.
Add the configuration properties to your persistence.xml or where you put the rest of your Hibernate Search configuration.
- Select Elasticsearch as the backend
-
hibernate.search.default.indexmanager elasticsearch - Hostname and port for Elasticsearch
-
hibernate.search.default.elasticsearch.host http://127.0.0.1:9200(default)You may also select multiple hosts (separated by whitespace characters), so that they are assigned requests in turns (load balancing):
hibernate.search.default.elasticsearch.host http://es1.mycompany.com:9200 http://es2.mycompany.com:9200In the example above, the first request will go to
es1, the second toes2, the third toes1, and so on.Also note having multiple hosts will enable failover: if one node happens to fail to serve a request (timeout, server error, invalid HTTP response, …), the same request will be sent to the next one; if the second request is served without error, the failure will be blamed on the node and no error will be reported to the application.
The failover feature will also be enabled when you only have one configured host but other hosts have been added thanks to automatic discovery (see below).
- Optional path prefix of the Elasticsearch instance
-
hibernate.search.default.elasticsearch.path_prefix /my/pathIn a typical Elasticsearch setup, it should not be set.
Use the path prefix if your Elasticsearch instance is located at a specific context path i.e. is, for instance, hosted at http://localhost/my/elasticsearch/.
The path prefix setting is global so your Elasticsearch cluster configuration must be consistent in this matter.
- Username for Elasticsearch connection
-
hibernate.search.default.elasticsearch.username ironman(default is empty, meaning anonymous access) - Password for Elasticsearch connection
-
hibernate.search.default.elasticsearch.password j@rV1s(default is empty)If you use HTTP instead of HTTPS in any of the Elasticsearch host URLs (see above), your password will be transmitted in clear text over the network.
- Select the index creation strategy
-
hibernate.search.default.elasticsearch.index_schema_management_strategy CREATE(default)Let’s see the options for the
index_schema_management_strategyproperty:Value Definition noneThe index, its mappings and the analyzer definitions will not be created, deleted nor altered. Hibernate Search will not even check that the index already exists.
validateThe index, its existing mappings and analyzer definitions will be checked to be compatible with the metamodel of your application. The index, its mappings and analyzer definitions will not be created, deleted nor altered.
updateThe index, its mappings and analyzer definitions will be created, existing mappings will be updated if there are no conflicts. Caution: if analyzer definitions have to be updated, the index will be closed automatically during the update.
createThe default: an existing index will not be altered, a missing index will be created along with their mappings and analyzer definitions.
drop-and-createIndexes will be deleted if existing and then created along with their mappings and analyzer definitions to match the requirements of your appllication. This will delete all content from the indexes! Useful during development.
drop-and-create-and-dropSimilar to
drop-and-createbut will also delete the index at shutdown. Commonly used for tests.Since Elasticsearch on Amazon Web Services (AWS) does not support the
_close/_openoperations, theupdatestrategy will fail when trying to update analyzer definitions on an AWS Elasticsearch cluster.The only workaround is to avoid the
updatestrategy on AWS.Strategies in production environmentsIt is strongly recommended to use either
noneorvalidatein a production environment.The alternatives
drop-and-createanddrop-and-create-and-dropare obviously unsuitable in this context unless you want to reindex everything upon every startup, andupdatemay leave your mapping half-updated in case of conflict.To be precise, if your mapping changed in an incompatible way, such as a field having its type changed, updating the mapping may be impossible without manual intervention. In this case, the
updatestrategy will prevent Hibernate Search from starting, but it may already have successfully updated the mappings for another index, making a rollback difficult.When updating analyzer definitions Hibernate Search will temporarily stop the affected indexes during the update. This means the
updatestrategy should be used with caution when multiple clients use Elasticsearch indexes managed by Hibernate Search: those clients should be synchronized in such a way that while Hibernate Search is starting, no other client needs to access the index.For these reasons, migrating your mapping on a live cluster should be properly planned within the deployment process.
Mapping validation is as permissive as possible. Fields or mappings that are unknown to Hibernate Search will be ignored, and settings that are more powerful than required (e.g. a field annotated with
@Field(index = Index.NO)in Search but marked as"index": analyzedin Elasticsearch) will be deemed valid.One exception: date formats must match exactly the formats specified by Hibernate Search, due to implementation constraints.
- Maximum time to wait for the successful execution of a request to the Elasticsearch server before failing (in ms)
-
hibernate.search.default.elasticsearch.request_timeout 60000(default)The execution time of a request includes the time needed to establish a connection, to send the request, and to receive the whole response, optionally retrying in case of node failures.
- Maximum time to wait for a connection to the Elasticsearch server before failing (in ms)
-
hibernate.search.default.elasticsearch.connection_timeout 3000(default) - Maximum time to wait for a response from the Elasticsearch server before failing (in ms)
-
hibernate.search.default.elasticsearch.read_timeout 60000(default) - Maximum number of simultaneous connections to the Elasticsearch cluster
-
hibernate.search.default.elasticsearch.max_total_connection 20(default) - Maximum number of simultaneous connections to a single Elasticsearch server
-
hibernate.search.default.elasticsearch.max_total_connection_per_route 2(default) - Whether to enable automatic discovery of servers in the Elasticsearch cluster (
trueorfalse) -
hibernate.search.default.elasticsearch.discovery.enabled false(default)When using automatic discovery, the Elasticsearch client will periodically probe for new nodes in the cluster, and will add those to the server list (see
hostabove). Similarly, the client will periodically check whether registered servers still respond, and will remove them from the server list if they don’t. - Time interval between two executions of the automatic discovery (in seconds)
-
hibernate.search.default.elasticsearch.discovery.refresh_interval 10(default)This setting will only be taken into account if automatic discovery is enabled (see above).
- Scheme to use when connecting to automatically discovered nodes (
httporhttps) -
hibernate.search.default.elasticsearch.discovery.default_scheme http(default)This setting will only be taken into account if automatic discovery is enabled (see above).
- Maximum time to wait for the indexes to become available before failing (in ms)
-
hibernate.search.default.elasticsearch.index_management_wait_timeout 10000(default)This setting is ignored when the
NONEstrategy is selected, since the index will not be checked on startup (see above).This value must be lower than the read timeout (see above).
- Status an index must at least have in order for Hibernate Search to work with it (one of "green", "yellow" or "red")
-
hibernate.search.default.elasticsearch.required_index_status green(default)Only operate if the index is at this level or safer. In development, set this value to
yellowif the number of nodes started is below the number of expected replicas. - Whether to perform an explicit refresh after a set of operations has been executed against a specific index (
trueorfalse) -
hibernate.search.default.elasticsearch.refresh_after_write false(default)This is useful in unit tests to ensure that a write is visible by a query immediately without delay. This keeps unit tests simpler. You should not rely on the synchronous behaviour for your production code except in rare cases as Elasticsearch is optimised for asynchronous writes: leave at
falsefor optimal performance. - When scrolling, the minimum number of previous results kept in memory at any time
-
hibernate.search.elasticsearch.scroll_backtracking_window_size 10000(default) - When scrolling, the number of results fetched by each Elasticsearch call
-
hibernate.search.elasticsearch.scroll_fetch_size 1000(default) - When scrolling, the maximum duration
ScrollableResultswill be usable if no other results are fetched from Elasticsearch, in seconds -
hibernate.search.elasticsearch.scroll_timeout 60(default) - The behavior with respect to dynamically added fields in the Elasticsearch mapping
-
hibernate.search.default.elasticsearch.dynamic_mapping strict(default)Possible values are:
-
true: Add unknown fields to the schema dynamically -
false: Ignore unknown fields -
strict: Throw an exception on unknown fieldsThis setting may be overridden in custom field bridges on a per-field basis: see Dynamic mapping.
-
- Whether JSON included in logs should be pretty-printed (indented, with line breaks) (
trueorfalse) -
hibernate.search.elasticsearch.log.json_pretty_printing false(default)
|
Properties prefixed with
This excludes properties related to the internal Elasticsearch client, which at the moment is common to every index manager (but this will change in a future version).
Excluded properties are |
Authentication on Amazon Web Services
Amazon’s proprietary IAM authentication through request signing requires additional dependencies. With these dependencies, you will be able to use the following configuration options.
- Enable or disable AWS request signing
-
hibernate.search.default.elasticsearch.aws.signing.enabled false(default)The value must be either
trueorfalse. - AWS access key
-
hibernate.search.default.elasticsearch.aws.access_key AKIDEXAMPLEThis property has no default and must be provided for the AWS authentication to work.
- AWS secret key
-
hibernate.search.default.elasticsearch.aws.secret_key wJalrXUtnFEMI/K7MDENG+bPxRfiCYEXAMPLEKEYThis property has no default and must be provided for the AWS authentication to work.
- AWS region
-
hibernate.search.default.elasticsearch.aws.region us-east-1This property has no default and must be provided for the AWS authentication to work.
Should you need help with finding the correct values to use, please refer to the AWS documentation on security credentials and regions.
|
Setting these AWS-specific configuration properties is not enough to enable the Elasticsearch integration:
you should also have a look at the main configuration properties,
most notably |
11.4. Mapping and indexing
Like in Lucene embedded mode, indexes are transparently updated when you create or update entities mapped to Hibernate Search. Simply use familiar annotations from Mapping entities to the index structure.
The name of the index will be the lowercased name provided to @Indexed (non qualified class name by default).
Hibernate Search will map the fully qualified class name to the Elasticsearch type.
11.4.1. Annotation specificities
Field.indexNullAs
The org.hibernate.search.annotations.Field annotation allows you to provide a replacement value for null properties through the indexNullAs attribute (see @Field), but this value must be provided as a string.
In order for your value to be understood by Hibernate Search (and Elasticsearch), the provided string must follow one of those formats:
-
For string values, no particular format is required.
-
For numeric values, use formats accepted by
Double.parseDouble,Integer.parseInteger, etc., depending on the actual type of your field. -
For booleans, use either
trueorfalse. -
For dates (
java.util.Calendar,java.util.Date,java.time.*), use the ISO-8601 format.The full format is
yyyy-MM-dd’T’HH:mm:ss.nZ[ZZZ](for instance2016-11-26T16:41:00.006+01:00[CET]). Please keep in mind that part of this format must be left out depending on the type of your field, though. For ajava.time.LocalDateTimefield, for instance, the provided string must not include the zone offset (+01:00) or the zone ID ([UTC]), because those don’t make sense.Even when they make sense for the type of your field, the time and time zone may be omitted (if omitted, the time zone will be interpreted as the default JVM time zone).
Index-time boosting
The org.hibernate.search.annotations.DynamicBoost annotation is not (and cannot be)
supported with Elasticsearch, because the platform lacks per-document, index-time boosting capabilities.
The @Boost annotation will work, but since it’s deprecated
we suggest to use query-time boosting instead: see Querying.
11.4.2. Analyzers
| Analyzers are treated differently than in Lucene embedded mode. |
Built-in or server-defined analyzers
Using the definition attribute in the @Analyzer annotation, you can refer to the name of the
built-in Elasticsearch analyzer, or custom analyzers already registered on your Elasticsearch instances.
More information on analyzers, in particular those already built in Elasticsearch, can be found in the Elasticsearch documentation.
# Custom analyzer
index.analysis:
analyzer.custom-analyzer:
type: custom
tokenizer: standard
filter: [custom-filter, lowercase]
filter.custom-filter:
type : stop
stopwords : [test1, close]From there, you can use the custom analyzers by name in your entity mappings.
@Entity
@Indexed(index = "tweet")
public class Tweet {
@Id
@GeneratedValue
private Integer id;
@Field
@Analyzer(definition = "english") // Elasticsearch built-in analyzer
private String englishTweet;
@Field
@Analyzer(definition = "whitespace") // Elasticsearch built-in analyzer
private String whitespaceTweet;
@Field(name = "tweetNotAnalyzed", analyzer = Analyze.NO, store = Store.YES)
// Custom analyzer:
@Field(
name = "tweetWithCustom",
analyzer = @Analyzer(definition = "custom-analyzer")
)
private String multipleTweets;
}You may also reference a built-in Lucene analyzer implementation using the @Analyzer.impl attribute:
Hibernate Search will translate the implementation to an equivalent Elasticsearch built-in type, if possible.
|
Using the This feature is designed to help migrating an application that already used Hibernate Search, moving from an embedded Lucene instance to an Elasticsearch cluster. |
@Entity
@Indexed(index = "tweet")
public class Tweet {
@Id
@GeneratedValue
private Integer id;
@Field
@Analyzer(impl = EnglishAnalyzer.class) // Elasticsearch built-in "english" analyzer
private String englishTweet;
@Field
@Analyzer(impl = WhitespaceAnalyzer.class) // Elasticsearch built-in "whitespace" analyzer
private String whitespaceTweet;
}Custom analyzers using the @AnalyzerDef annotation
You can also define analyzers within your Hibernate Search mapping using the @AnalyzerDef annotation,
like you would do with an embedded Lucene instance.
When Hibernate Search creates the Elasticsearch indexes, the relevant definitions will then be automatically added as a
custom analyzer
in the index settings.
Two different approaches allow you to define your analyzers with Elasticsearch.
The first, recommended approach is to use the factories provided by the hibernate-search-elasticsearch module:
-
org.hibernate.search.elasticsearch.analyzer.ElasticsearchCharFilterFactory -
org.hibernate.search.elasticsearch.analyzer.ElasticsearchTokenFilterFactory -
org.hibernate.search.elasticsearch.analyzer.ElasticsearchTokenizerFactory
Those classes can be passed to the factory attribute of
the @CharFilterDef, @TokenFilterDef and @TokenizerDef annotations.
The params attribute may be used to define the type parameter and any other parameter
accepted by Elasticsearch for this type.
The parameter values will be interpreted as JSON. The parser is not strict, though:
-
quotes around strings may be left out in some cases, as when a string only contains letters.
-
when quotes are required (e.g. your string may be interpreted as a number, and you don’t want that), you may use single quotes instead of double quotes (which are painful to write in Java).
|
You may use the |
Elasticsearch*Factory types@Entity
@Indexed(index = "tweet")
@AnalyzerDef(
name = "tweet_analyzer",
charFilters = {
@CharFilterDef(
name = "custom_html_strip",
factory = ElasticsearchCharFilterFactory.class,
params = {
@Parameter(name = "type", value = "'html_strip'"),
// One can use Json arrays
@Parameter(name = "escaped_tags", value = "['br', 'p']")
}
),
@CharFilterDef(
name = "p_br_as_space",
factory = ElasticsearchCharFilterFactory.class,
params = {
@Parameter(name = "type", value = "'pattern_replace'"),
@Parameter(name = "pattern", value = "'<p/?>|<br/?>'"),
@Parameter(name = "replacement", value = "' '"),
@Parameter(name = "tags", value = "'CASE_INSENSITIVE'")
}
)
},
tokenizer = @TokenizerDef(
factory = ElasticsearchTokenizerFactory.class,
params = {
@Parameter(name = "type", value = "'whitespace'"),
}
)
)
public class Tweet {
@Id
@GeneratedValue
private Integer id;
@Field
@Analyzer(definition = "tweet_analyzer")
private String content;
}The second approach is to configure everything as if you were using Lucene: use the Lucene factories, their parameter names, and format the parameter values as required in Lucene. Hibernate Search will automatically convert these definitions to the Elasticsearch equivalent.
|
Referencing Lucene factories is not recommended with Elasticsearch because it will never allow you to take full advantage of Elasticsearch analysis capabilities. Here are the known limitations of the automatic translation:
Therefore, Lucene factories should only be referenced within analyzer definitions when migrating an application that already used Hibernate Search, moving from an embedded Lucene instance to an Elasticsearch cluster. |
@Entity
@Indexed(index = "tweet")
@AnalyzerDef(
name = "tweet_analyzer",
charFilters = {
@CharFilterDef(
name = "custom_html_strip",
factory = HTMLStripCharFilterFactory.class,
params = {
@Parameter(name = "escapedTags", value = "br,p")
}
),
@CharFilterDef(
name = "p_br_as_space",
factory = PatternReplaceCharFilterFactory.class,
params = {
@Parameter(name = "pattern", value = "<p/?>|<br/?>"),
@Parameter(name = "replacement", value = " ")
}
)
},
tokenizer = @TokenizerDef(
factory = WhitespaceTokenizerFactory.class
)
)
public class Tweet {
@Id
@GeneratedValue
private Integer id;
@Field
@Analyzer(definition = "tweet_analyzer")
private String content;
}Custom analyzers using a definition provider
As with Lucene, you can define analyzers programmatically.
In the case of Elasticsearch, this requires to set the
hibernate.search.elasticsearch.analysis_definition_provider configuration property.
The property can be set to the fully-qualified name of a class with a public, no-arg constructor in your application.
This class must either implement org.hibernate.search.elasticsearch.analyzer.definition.ElasticsearchAnalysisDefinitionProvider directly
or expose a @Factory-annotated method that returns such implementation.
Elasticsearch*Factory typespublic static class CustomAnalyzerProvider implements ElasticsearchAnalysisDefinitionProvider {
@Override
public void register(ElasticsearchAnalysisDefinitionRegistryBuilder builder) {
builder.analyzer( "tweet_analyzer" )
.withTokenizer( "whitespace" )
.withCharFilters( "custom_html_strip" )
.withCharFilters( "p_br_as_space" );
builder.charFilter( "custom_html_strip" )
.type( "html_strip" )
.param( "escaped_tags", "br", "p" );
builder.charFilter( "p_br_as_space" )
.type( "pattern_replace" )
.param( "pattern", "<p/?>|<br/?>" )
.param( "replacement", " " )
.param( "tags", "CASE_INSENSITIVE" );
}
}Normalizers
Depending on the Elasticsearch version you’re using, normalizers will be handled differently:
-
On version 5.2 and above, Elasticsearch supports normalizers natively and thus Hibernate Search normalizers will be translated directly to Elasticsearch normalizers.
-
On version 5.1 and below, Elasticsearch does not support normalizers natively, thus Hibernate Search normalizers will be translated to Elasticsearch analyzers with a keyword tokenizer.
|
On Elasticsearch 5.1 and below, the fact that normalizers are translated to Elasticsearch analyzers means in particular that no normalizer definition should have the same name as an analyzer definition. |
All the features mentioned above for analyzers are also available when using normalizers:
-
They can be defined using Lucene factories with
@NormalizerDef, which will be translated to the equivalent types in Elasticsearch. -
They can be defined using the special factories
ElasticsearchCharFilterFactoryandElasticsearchTokenFilterFactorywith@NormalizerDef. -
They can be defined using an
ElasticsearchAnalysisDefinitionProvider(usebuilder.normalizer(name)). -
The definitions can be referenced using
@Field(normalizer = @Normalizer(definition = "myDefinition"))
11.4.3. Field bridges
Built-in field bridges
The default field bridges are the same as those mentioned in the main documentation, with the following exceptions.
|
You can refer to the Elasticsearch documentation for a description of date formats. |
boolean,Boolean-
are converted to native JSON booleans.
Date,Calendar-
are converted to the Elasticsearch
datetype with the default format (strict_date_optional_time||epoch_millis). Instant-
are converted to the Elasticsearch
datetype with the default format (strict_date_optional_time||epoch_millis). LocalDate-
are converted to the Elasticsearch
datetype with formatstrict_date||yyyyyyyyy-MM-dd. LocalDateTime-
are converted to the Elasticsearch
datetype with formatstrict_date_hour_minute_second_fraction||yyyyyyyyy-MM-dd’T’HH:mm:ss.SSSSSSSSS. LocalTime-
are converted to the Elasticsearch
datetype with formatstrict_hour_minute_second_fraction. OffsetDateTime-
are converted to the Elasticsearch
datetype with formatstrict_date_time||yyyyyyyyy-MM-dd’T’HH:mm:ss.SSSSSSSSSZ. OffsetTime-
are converted to the Elasticsearch
datetype with formatstrict_time. ZonedDateTime-
are converted to the Elasticsearch
datetype with formatyyyy-MM-dd’T’HH:mm:ss.SSSZZ'['ZZZ']'||yyyyyyyyy-MM-dd’T’HH:mm:ss.SSSSSSSSSZZ'['ZZZ']'. Year-
are converted to the Elasticsearch
datetype with formatstrict_year||yyyyyyyyy. YearMonth-
are converted to the Elasticsearch
datetype with formatstrict_year_month||yyyyyyyyy-MM. MonthDay-
are converted to the Elasticsearch
datetype with format--MM-dd.
Custom field bridges
You can write custom field bridges and class bridges.
For class bridges and field bridges creating multiple fields,
make sure to make your bridge implementation also implement the MetadataProvidingFieldBridge contract.
public static class FirstAndMiddleNamesFieldBridge implements MetadataProvidingFieldBridge {
@Override
public void set(String name, Object value, Document document, LuceneOptions luceneOptions) {
Explorer explorer = (Explorer) value;
String firstName = explorer.getFirstName();
luceneOptions.addFieldToDocument( name + "_firstName", firstName, document );
document.add( new SortedDocValuesField( name + "_firstName", new BytesRef( firstName ) ) );
String middleName = explorer.getMiddleName();
luceneOptions.addFieldToDocument( name + "_middleName", middleName, document );
document.add( new SortedDocValuesField( name + "_middleName", new BytesRef( middleName ) ) );
}
@Override
public void configureFieldMetadata(String name, FieldMetadataBuilder builder) {
builder
.field( name + "_firstName", FieldType.STRING )
.sortable( true )
.field( name + "_middleName", FieldType.STRING )
.sortable( true );
}
}|
This interface and |
Sub-fields
When your MetadataProvidingFieldBridge registers a field whose name is the name of an existing field,
with a dot and another string appended, like name + ".mySubField",
Hibernate Search will translate it as an object with a property mySubField
in the JSON document sent to Elasticsearch.
As a result, sub-fields can only have a parent field with the OBJECT type:
obviously, Elasticsearch would reject a String or an Integer with mySubField property.
So every time a field named foo.bar is registered,
its parent field foo must be registered with the OBJECT type, as in the following example.
Not doing so will result in errors when Hibernate Search generates the Elasticsearch schema.
@Override
public void configureFieldMetadata(String name, FieldMetadataBuilder builder) {
builder
.field( name, FieldType.OBJECT )
.field( name + ".firstName", FieldType.STRING )
.sortable( true )
.field( name + ".middleName", FieldType.STRING )
.sortable( true );
}Dynamic mapping
By default Hibernate Search (or, more accurately, the Elasticsearch schema generated by Hibernate Search)
will not allow custom bridges to create fields that weren’t
previously registered through the configureFieldMetadata method.
If you don’t know in advance the name of the fields created by your custom bridge,
you can enable "dynamic mapping" globally or per-index through a configuration option,
or you can do it on a per-field basis using the FieldMetadataCreationContext.mappedOn method
and the org.hibernate.search.elasticsearch.bridge.spi.Elasticsearch extension:
@Override
public void configureFieldMetadata(String name, FieldMetadataBuilder builder) {
builder
.field( name, FieldType.OBJECT )
.mappedOn( Elasticsearch.class )
.dynamic( DynamicType.TRUE ); // Will allow to index fields named <name>.foo, <name>.bar, etc.
}|
Dynamic mapping involves Elasticsearch guessing the type and attributes of fields automatically, and has its own limitations. See the Elasticsearch documentation for more information. |
11.5. Queries
You can write queries like you usually do in Hibernate Search: native Lucene queries and DSL queries (see Querying). We do automatically translate the most common types of Apache Lucene queries and all queries generated by the Hibernate Search DSL except more like this (see below).
|
Unsupported Query DSL features
Queries written via the DSL work. Open a JIRA otherwise. The notable exception is more like this queries. Hibernate Search has a more advanced algorithm than Lucene (or Elasticsearch/Solr) which is not easily portable with what Elasticsearch exposes. If you need this feature, contact us. |
On top of translating Lucene queries, you can directly create Elasticsearch queries by using either its String format or a JSON format:
FullTextEntityManager fullTextEm = Search.getFullTextEntityManager(entityManager);
QueryDescriptor query = ElasticsearchQueries.fromQueryString("title:tales");
List<?> result = fullTextEm.createFullTextQuery(query, ComicBook.class).getResultList();FullTextEntityManager fullTextEm = Search.getFullTextEntityManager(entityManager);
QueryDescriptor query = ElasticsearchQueries.fromJson(
"{ 'query': { 'match' : { 'lastName' : 'Brand' } } }");
List<?> result = fullTextEm.createFullTextQuery(query, GolfPlayer.class).getResultList();|
Date/time in native Elasticsearch queries
By default Elasticsearch interprets the date/time strings lacking the time zone as if they were represented using the UTC time zone. If overlooked, this can cause your native Elasticsearch queries to be completely off. The simplest way to avoid issues is to always explicitly provide time zone IDs or offsets when building native Elasticsearch queries. This may be achieved either by directly adding the time zone ID or offset in date strings, or by using the |
|
Simple query string queries and analyzers
The simple query string DSL is supported by the Elasticsearch integration. In the general case, your query will automatically use the analyzers defined in the schema but be aware that, in the advanced case when you want to override the analyzer used, Elasticsearch only supports overriding the analyzer globally. Thus, when overriding the analyzer, it must be consistent across all the queried fields. |
11.5.1. Spatial queries
The Elasticsearch integration supports spatial queries by using either the DSL or native Elasticsearch queries.
For regular usage, there are no particular requirements for spatial support.
|
On Elasticsearch 2.x only (not necessary on 5.x), if you want to calculate the distance from your entities to a point without sorting by the distance to this point, you need to enable the Groovy plugin by adding the following snippet to your Elasticsearch configuration: Enabling Groovy support in your elasticsearch.yml
script.engine.groovy.inline.search: true |
11.5.2. Paging and scrolling
You may handle large result sets in two different ways, with different limitations.
For (relatively) smaller result sets, you may use the traditional offset/limit querying provided by the FullTextQuery interfaces: setFirstResult(int) and setMaxResults(int).
Limitations:
-
This will only get you as far as the 10000 first documents, i.e. when requesting a window that includes documents beyond the 10000th result, Elasticsearch will return an error. If you want to raise this limit, see the
index.max_result_windowproperty in Elasticsearch’s settings.
If your result set is bigger, you may take advantage of scrolling by using the scroll method on org.hibernate.search.FullTextQuery.
Limitations:
-
This method is not available in
org.hibernate.search.jpa.FullTextQuery. -
The Elasticsearch implementation has poor performance when an offset has been defined (i.e.
setFirstResult(int)has been called on the query before callingscroll()). This is because Elasticsearch does not provide such feature, thus Hibernate Search has to scroll through every previous result under the hood. -
The Elasticsearch implementation allows only limited backtracking. Calling
scrollableResults.setRowNumber(4)when currently positioned at index1006, for example, may result in aSearchExceptionbeing thrown, because only 1000 previous elements had been kept in memory. You may work this around by tweaking the property:hibernate.search.elasticsearch.scroll_backtracking_window_size(see Elasticsearch integration configuration). -
The
ScrollableResultswill become stale and unusable after a given period of time spent without fetching results from Elasticsearch. You may work this around by tweaking two properties:hibernate.search.elasticsearch.scroll_timeoutandhibernate.search.elasticsearch.scroll_fetch_size(see Elasticsearch integration configuration). Typically, you will solve timeout issues by reducing the fetch size and/or increasing the timeout limit, but this will also increase the performance hit on Elasticsearch.
11.5.3. Sorting
Sorting is performed the same way as with the Lucene backend.
If you happen to need an advanced Elasticsearch sorting feature that is not natively supported in SortField or in Hibernate Search sort DSL, you may still create a sort from JSON, and even mix it with DSL-defined sorts:
FullTextEntityManager fullTextEm = Search.getFullTextEntityManager(entityManager);
org.hibernate.search.query.dsl.QueryBuilder queryBuilder =
fullTextEm.getSearchFactory()
.buildQueryBuilder().forEntity(Book.class).get();
Query luceneQuery = /* ... use the query builder as explained in tje Querying section ... */;
FullTextQuery query = fullTextEm.createFullTextQuery( luceneQuery, Book.class );
Sort sort = queryBuilder.sort()
.byNative("authors.name", "{'order':'asc', 'mode': 'min'}")
.andByField("title")
.createSort();
query.setSort(sort);
List results = query.getResultList();11.5.4. Projections
All fields are stored by Elasticsearch in the JSON document it indexes,
there is no specific need to mark fields as stored when you want to project them.
The downside is that to project a field, Elasticsearch needs to read the whole JSON document.
If you want to avoid that, use the Store.YES marker.
You can also retrieve the full JSON document by using org.hibernate.search.elasticsearch.ElasticsearchProjectionConstants.SOURCE.
FullTextEntityManager fullTextEm = Search.getFullTextEntityManager(entityManager);
FullTextQuery query = fullTextEm.createFullTextQuery(
qb.keyword()
.onField( "tags" )
.matching( "round-based" )
.createQuery(),
VideoGame.class
)
.setProjection( ElasticsearchProjectionConstants.SCORE, ElasticsearchProjectionConstants.SOURCE );
Object[] projection = (Object[]) query.getSingleResult();If you’re looking for information about execution time, you may also use org.hibernate.search.elasticsearch.ElasticsearchProjectionConstants.TOOK and org.hibernate.search.elasticsearch.ElasticsearchProjectionConstants.TIMED_OUT:
FullTextEntityManager fullTextEm = Search.getFullTextEntityManager(entityManager);
FullTextQuery query = fullTextEm.createFullTextQuery(
qb.keyword()
.onField( "tags" )
.matching( "round-based" )
.createQuery(),
VideoGame.class
)
.setProjection(
ElasticsearchProjectionConstants.SOURCE,
ElasticsearchProjectionConstants.TOOK,
ElasticsearchProjectionConstants.TIMED_OUT
);
Object[] projection = (Object[]) query.getSingleResult();
Integer took = (Integer) projection[1]; // Execution time (milliseconds)
Boolean timedOut = (Boolean) projection[2]; // Whether the query timed out11.5.5. Filters
The Elasticsearch integration supports the definition of full text filters.
Your filters need to implement the ElasticsearchFilter interface.
public class DriversMatchingNameElasticsearchFilter implements ElasticsearchFilter {
private String name;
public DriversMatchingNameElasticsearchFilter() {
}
public void setName(String name) {
this.name = name;
}
@Override
public String getJsonFilter() {
return "{ 'term': { 'name': '" + name + "' } }";
}
}You can then declare the filter in your entity.
@Entity
@Indexed
@FullTextFilterDef(name = "namedDriver",
impl = DriversMatchingNameElasticsearchFilter.class)
public class Driver {
@Id
@DocumentId
private int id;
@Field(analyze = Analyze.YES)
private String name;
// ...
}From then you can use it as usual.
FullTextQuery ftQuery = /* ... */;
ftQuery.enableFullTextFilter( "namedDriver" ).setParameter( "name", "liz" );For static filters, you can simply extend the SimpleElasticsearchFilter and provide an Elasticsearch filter in JSON form.
11.6. Index optimization
The optimization features documented in Index Optimization are only partially implemented. That kind of optimization is rarely needed with recent versions of Lucene (on which Elasticsearch is based), but some of it is still provided for the very specific case of indexes meant to stay read-only for a long period of time:
-
The automatic optimization is not implemented and most probably never will be.
-
The manual optimization (
searchFactory.optimize()) is implemented.
11.6.1. Logging executed requests
Search queries are logged to the org.hibernate.search.fulltext_query category at DEBUG level,
as when using an embedded Lucene instance (the query format is Elasticsearch’s, though).
In addition, you can enable the logging of every single request sent to the Elasticsearch cluster
by enabling DEBUG logging for the log category org.hibernate.search.elasticsearch.request.
The logs will include, in particular, the HTTP method, path, query parameters, execution time and response status.
At DEBUG level, the request body and response body will be omitted;
use the TRACE level to also print out the request body and response body.
|
By default, JSON in logs will be printed inline, without indent.
If you wish the JSON to be pretty-printed, use the
|
11.7. Limitations
Not everything is implemented yet.
At the time of writing this, the following features are known to not work yet; feel free to check the JIRA links to get updates:
-
Query timeouts: HSEARCH-2399
-
MoreLikeThis queries: HSEARCH-2395
-
@IndexedEmbedded.indexNullAs: HSEARCH-2389 -
@AnalyzerDiscriminator: HSEARCH-2428 -
Dynamic sharding: HSEARCH-2725
-
Mixing Lucene based indexes and Elasticsearch based indexes (partial support is implemented though)
-
Hibernate Search does not make use of nested objects nor parent child relationship mapping HSEARCH-2263. This is largely mitigated by the fact that Hibernate Search does the denormalization itself and maintain data consistency when nested objects are updated.
-
There is room for improvements in the performances of the MassIndexer implementation
-
Our new Elasticsearch integration module does not work in OSGi environments. If you need this, please vote for: HSEARCH-2524.
11.8. Specific versions of Elasticsearch to avoid
We might occasionally hit issues in specific versions of Elasticsearch. This is not the right place to track Elasticsearch defects but we’ll do our best to track specific issues which affect compatibility with Hibernate Search.
-
Mapping
java.time.ZonedDateTimewon’t work with Elasticsearch 2.4.1 because of a JodaTime bug affecting Elasticsearch: HSEARCH-2414.Solution: Upgrade to Elasticsearch 2.4.2 or later.
11.9. Acknowledgment
More information about Elasticsearch can be found on the Elasticsearch website and its reference documentation.
12. Further reading
Last but not least, a few pointers to further information. We highly recommend you to get a copy of Hibernate Search in Action. This excellent book covers Hibernate Search in much more depth than this online documentation can and has a great range of additional examples. If you want to increase your knowledge of Lucene we recommend Lucene in Action (Second Edition).
Because Hibernate Search’s functionality is tightly coupled to Hibernate ORM it is a good idea to understand Hibernate. Start with the online documentation or get hold of a copy of Java Persistence with Hibernate, Second Edition.
If you have any further questions regarding Hibernate Search or want to share some of your use cases have a look at the Hibernate Search Wiki and the Hibernate Search Forum. We are looking forward hearing from you.
In case you would like to report a bug use the Hibernate Search JIRA instance. Feedback is always welcome!
13. Credits
The full list of contributors to Hibernate Search can be found in the copyright.txt file in the Hibernate Search sources,
available in particular in our git repository.
The following contributors have been involved in this documentation:
-
Emmanuel Bernard
-
Hardy Ferentschik
-
Gustavo Fernandes
-
Sanne Grinovero
-
Mincong Huang
-
Nabeel Ali Memon
-
Gunnar Morling
-
Yoann Rodière
-
Guillaume Smet
