The JBoss 4 Application Server J2EE Reference

The instrumentation level defines the requirements for implementing JMX manageable resources. A JMX manageable resource can be virtually anything, including applications, service components, devices, and so on. The manageable resource exposes a Java object or wrapper that describes its manageable features, which makes the resource instrumented so that it can be managed by JMX-compliant applications.

The user provides the instrumentation of a given resource using one or more managed beans, or MBeans. There are four varieties of MBean implementations: standard, dynamic, model, and open. The differences between the various MBean types is discussed in Managed Beans or MBeans.

The instrumentation level also specifies a notification mechanism. The purpose of the notification mechanism is to allow MBeans to communicate changes with their environment. This is similar to the JavaBean property change notification mechanism, and can be used for attribute change notifications, state change notifications, and so on.

The agent level defines the requirements for implementing agents. Agents are responsible for controlling and exposing the managed resources that are registered with the agent. By default, management agents are located on the same hosts as their resources. This collocation is not a requirement.

The agent requirements make use of the instrumentation level to define a standard MBeanServer management agent, supporting services, and a communications connector. JBoss provides both an html adaptor as well as an RMI adaptor.

The JMX agent can be located in the hardware that hosts the JMX manageable resources when a Java Virtual Machine (JVM) is available. This is how the JBoss server uses the MBeanServer. A JMX agent does not need to know which resources it will serve. JMX manageable resources may use any JMX agent that offers the services it requires.

Managers interact with an agent's MBeans through a protocol adaptor or connector, as described in the Section 1.1.3, “Distributed Services Level” in the next section. The agent does not need to know anything about the connectors or management applications that interact with the agent and its MBeans.

The JMX specification notes that a complete definition of the distributed services level is beyond the scope of the initial version of the JMX specification. This was indicated by the component boxes with the horizontal lines in Figure 1.2, “The Relationship between the components of the JMX architecture”. The general purpose of this level is to define the interfaces required for implementing JMX management applications or managers. The following points highlight the intended functionality of the distributed services level as discussed in the current JMX specification.

It is intended that the distributed services level components will allow for cooperative management of networks of agents and their resources. These components can be expanded to provide a complete management application.

This section offers an overview of the instrumentation and agent level components. The instrumentation level components include the following:

The agent level components include:

JBoss employs a class loading architecture that facilitates sharing of classes across deployment units and hot deployment of services and applications. Before discussing the JBoss specific class loading model, we need to understand the nature of Java's type system and how class loaders fit in.

Class loading is a fundamental part of all server architectures. Arbitrary services and their supporting classes must be loaded into the server framework. This can be problematic due to the strongly typed nature of Java. Most developers know that the type of a class in Java is a function of the fully qualified name of the class. However the type is also a function of the java.lang.ClassLoader that is used to define that class. This additional qualification of type is necessary to ensure that environments in which classes may be loaded from arbitrary locations would be type-safe.

However, in a dynamic environment like an application server, and especially JBoss with its support for hot deployment are that class cast exceptions, linkage errors and illegal access errors can show up in ways not seen in more static class loading contexts. Let's take a look at the meaning of each of these exceptions and how they can happen.

ArrayList array = new ArrayList();
array.add(new URL("file:/tmp"));
String url = (String) array.get(0);

java.lang.ClassCastException: java.net.URL
at org.jboss.book.jmx.ex0.ExCCEa.main(Ex1CCE.java:16)

package org.jboss.book.jmx.ex0;

import java.io.File;
import java.net.URL;
import java.net.URLClassLoader;
import java.lang.reflect.Method;

import org.apache.log4j.Logger;

import org.jboss.util.ChapterExRepository;
import org.jboss.util.Debug;

/**
 * An example of a ClassCastException that
 * results from classes loaded through
 * different class loaders.
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExCCEc
{
    public static void main(String[] args) throws Exception
    {
        ChapterExRepository.init(ExCCEc.class);

        String chapDir = System.getProperty("chapter.dir");
        Logger ucl0Log = Logger.getLogger("UCL0");
        File jar0 = new File(chapDir+"/j0.jar");
        ucl0Log.info("jar0 path: "+jar0.toString());
        URL[] cp0 = {jar0.toURL()};
        URLClassLoader ucl0 = new URLClassLoader(cp0);
        Thread.currentThread().setContextClassLoader(ucl0);
        Class objClass = ucl0.loadClass("org.jboss.book.jmx.ex0.ExObj");
        StringBuffer buffer = new
            StringBuffer("ExObj Info");
        Debug.displayClassInfo(objClass, buffer, false);
        ucl0Log.info(buffer.toString());
        Object value = objClass.newInstance();

        File jar1 = new File(chapDir+"/j0.jar");
        Logger ucl1Log = Logger.getLogger("UCL1");
        ucl1Log.info("jar1 path: "+jar1.toString());
        URL[] cp1 = {jar1.toURL()};
        URLClassLoader ucl1 = new URLClassLoader(cp1);
        Thread.currentThread().setContextClassLoader(ucl1);
        Class ctxClass2 = ucl1.loadClass("org.jboss.book.jmx.ex0.ExCtx");
        buffer.setLength(0);
        buffer.append("ExCtx Info");
        Debug.displayClassInfo(ctxClass2, buffer, false);
        ucl1Log.info(buffer.toString());
        Object ctx2 = ctxClass2.newInstance();

        try {
            Class[] types = {Object.class};
            Method useValue =
                ctxClass2.getMethod("useValue", types);
            Object[] margs = {value};
            useValue.invoke(ctx2, margs);
        } catch(Exception e) {
            ucl1Log.error("Failed to invoke ExCtx.useValue", e);
            throw e;
        }
    }
}

package org.jboss.book.jmx.ex0;

import java.io.IOException;
import org.apache.log4j.Logger;
import org.jboss.util.Debug;

/**
 * A classes used to demonstrate various class
 * loading issues
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExCtx
{
    ExObj value;

    public ExCtx()
        throws IOException
    {
        value = new ExObj();
        Logger log = Logger.getLogger(ExCtx.class);
        StringBuffer buffer = new StringBuffer("ctor.ExObj");
        Debug.displayClassInfo(value.getClass(), buffer, false);
        log.info(buffer.toString());
        ExObj2 obj2 = value.ivar;
        buffer.setLength(0);
        buffer = new StringBuffer("ctor.ExObj.ivar");
        Debug.displayClassInfo(obj2.getClass(), buffer, false);
        log.info(buffer.toString());
    }

    public Object getValue()
    {
        return value;
    }

    public void useValue(Object obj)
        throws Exception
    {
        Logger log = Logger.getLogger(ExCtx.class);
        StringBuffer buffer = new
            StringBuffer("useValue2.arg class");
        Debug.displayClassInfo(obj.getClass(), buffer, false);
        log.info(buffer.toString());
        buffer.setLength(0);
        buffer.append("useValue2.ExObj class");
        Debug.displayClassInfo(ExObj.class, buffer, false);
        log.info(buffer.toString());
        ExObj ex = (ExObj) obj;
    }

    void pkgUseValue(Object obj)
        throws Exception
    {
        Logger log = Logger.getLogger(ExCtx.class);
        log.info("In pkgUseValue");
    }
}

package org.jboss.book.jmx.ex0;

import java.io.Serializable;

/**
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExObj
    implements Serializable
{
    public ExObj2 ivar = new ExObj2();
}

package org.jboss.book.jmx.ex0;

import java.io.Serializable;

/**
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExObj2
    implements Serializable
{
}

[examples]$ jar -tf output/jmx/j0.jar
...
org/jboss/book/jmx/ex0/ExCtx.class
org/jboss/book/jmx/ex0/ExObj.class
org/jboss/book/jmx/ex0/ExObj2.class

[examples]$ ant -Dchap=jmx -Dex=0c run-example
...
     [java] java.lang.reflect.InvocationTargetException
     [java]     at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
     [java]     at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
     [java]     at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl
                .java:25)
     [java]     at java.lang.reflect.Method.invoke(Method.java:585)
     [java]     at org.jboss.book.jmx.ex0.ExCCEc.main(ExCCEc.java:58)
     [java] Caused by: java.lang.ClassCastException: org.jboss.book.jmx.ex0.ExObj
     [java]     at org.jboss.book.jmx.ex0.ExCtx.useValue(ExCtx.java:44)
     [java]     ... 5 more

[INFO,UCL0] ExObj Info
org.jboss.book.jmx.ex0.ExObj(f8968f).ClassLoader=java.net.URLClassLoader@2611a7
..java.net.URLClassLoader@2611a7
....file:/Users/orb/proj/jboss/jboss-docs/jbossas/j2ee/examples/output/jmx/j0.jar
++++CodeSource: (file:/Users/orb/proj/jboss/jboss-docs/jbossas/j2ee/examples/output/
                 jmx/j0.jar <no signer certificates>)
Implemented Interfaces:
++interface java.io.Serializable(41b571)
++++ClassLoader: null
++++Null CodeSource
[INFO,ExCtx] useValue2.ExObj class
org.jboss.book.jmx.ex0.ExObj(bc8e1e).ClassLoader=java.net.URLClassLoader@6bd8ea
..java.net.URLClassLoader@6bd8ea
....file:/Users/orb/proj/jboss/jboss-docs/jbossas/j2ee/examples/output/jmx/j0.jar
++++CodeSource: (file:/Users/orb/proj/jboss/jboss-docs/jbossas/j2ee/examples/output/
                 jmx/j0.jar <no signer certificates>)
Implemented Interfaces:
++interface java.io.Serializable(41b571)
++++ClassLoader: null
++++Null CodeSource

package org.jboss.book.jmx.ex0;

import java.io.File;
import java.net.URL;
import java.net.URLClassLoader;
import java.lang.reflect.Method;

import org.apache.log4j.Logger;

import org.jboss.util.ChapterExRepository;
import org.jboss.util.Debug;

/**
 * An example of IllegalAccessExceptions due to
 * classes loaded by two class loaders.
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExIAEd
{
    public static void main(String[] args) throws Exception
    {
	ChapterExRepository.init(ExIAEd.class);

	String chapDir = System.getProperty("chapter.dir");
	Logger ucl0Log = Logger.getLogger("UCL0");
	File jar0 = new File(chapDir+"/j0.jar");
	ucl0Log.info("jar0 path: "+jar0.toString());
	URL[] cp0 = {jar0.toURL()};
	URLClassLoader ucl0 = new URLClassLoader(cp0);
	Thread.currentThread().setContextClassLoader(ucl0);

	StringBuffer buffer = new
	    StringBuffer("ExIAEd Info");
	Debug.displayClassInfo(ExIAEd.class, buffer, false);
	ucl0Log.info(buffer.toString());

	Class ctxClass1 = ucl0.loadClass("org.jboss.book.jmx.ex0.ExCtx");
	buffer.setLength(0);
	buffer.append("ExCtx Info");
	Debug.displayClassInfo(ctxClass1, buffer, false);
	ucl0Log.info(buffer.toString());
	Object ctx0 = ctxClass1.newInstance();

	try {
	    Class[] types = {Object.class};
	    Method useValue =
		ctxClass1.getDeclaredMethod("pkgUseValue", types);
	    Object[] margs = {null};
	    useValue.invoke(ctx0, margs);
	} catch(Exception e) {
	    ucl0Log.error("Failed to invoke ExCtx.pkgUseValue", e);
	}
    }
}

[examples]$ ant -Dchap=jmx -Dex=0d run-example
Buildfile: build.xml
...
[java] java.lang.IllegalAccessException: Class org.jboss.book.jmx.ex0.ExIAEd
  can not access a member of class org.jboss.book.jmx.ex0.ExCtx with modifiers ""
[java]     at sun.reflect.Reflection.ensureMemberAccess(Reflection.java:65)
[java]     at java.lang.reflect.Method.invoke(Method.java:578)
[java]     at org.jboss.book.jmx.ex0.ExIAEd.main(ExIAEd.java:48)

[INFO,UCL0] ExIAEd Info
org.jboss.book.jmx.ex0.ExIAEd(7808b9).ClassLoader=sun.misc.Launcher$AppClassLoader@a9c85c
..sun.misc.Launcher$AppClassLoader@a9c85c
...
[INFO,UCL0] ExCtx Info
org.jboss.book.jmx.ex0.ExCtx(64c34e).ClassLoader=java.net.URLClassLoader@a9c85c
..java.net.URLClassLoader@5d88a
...

class <C,L1> {
    void f() {
        <Spoofed, L1>L1x = <Delegated, L2>L2
        x.secret_value = 1; // Should not be allowed
    }
}

class <Delegated,L2> {
    static <Spoofed, L2>L3 g() {...}
    }
}

class <Spoofed, L1> {
    public int secret_value;
}

class <Spoofed, L2> {
    private int secret_value;
}

package org.jboss.book.jmx.ex0;
import java.io.File;
import java.net.URL;

import org.apache.log4j.Logger;
import org.jboss.util.ChapterExRepository;
import org.jboss.util.Debug;

/**
 * An example of a LinkageError due to classes being defined by more
 * than one class loader in a non-standard class loading environment.
 *
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class ExLE
{
    public static void main(String[] args)
	throws Exception
    {
        ChapterExRepository.init(ExLE.class);

        String chapDir = System.getProperty("chapter.dir");
        Logger ucl0Log = Logger.getLogger("UCL0");
        File jar0 = new File(chapDir+"/j0.jar");
        ucl0Log.info("jar0 path: "+jar0.toString());
        URL[] cp0 = {jar0.toURL()};
        Ex0URLClassLoader ucl0 = new Ex0URLClassLoader(cp0);
        Thread.currentThread().setContextClassLoader(ucl0);
        Class ctxClass1  = ucl0.loadClass("org.jboss.book.jmx.ex0.ExCtx");
        Class obj2Class1 = ucl0.loadClass("org.jboss.book.jmx.ex0.ExObj2");
        StringBuffer buffer = new StringBuffer("ExCtx Info");
        Debug.displayClassInfo(ctxClass1, buffer, false);
        ucl0Log.info(buffer.toString());
        buffer.setLength(0);
        buffer.append("ExObj2 Info, UCL0");
        Debug.displayClassInfo(obj2Class1, buffer, false);
        ucl0Log.info(buffer.toString());

        File jar1 = new File(chapDir+"/j1.jar");
        Logger ucl1Log = Logger.getLogger("UCL1");
        ucl1Log.info("jar1 path: "+jar1.toString());
        URL[] cp1 = {jar1.toURL()};
        Ex0URLClassLoader ucl1 = new Ex0URLClassLoader(cp1);
        Class obj2Class2 = ucl1.loadClass("org.jboss.book.jmx.ex0.ExObj2");
        buffer.setLength(0);
        buffer.append("ExObj2 Info, UCL1");
        Debug.displayClassInfo(obj2Class2, buffer, false);
        ucl1Log.info(buffer.toString());

        ucl0.setDelegate(ucl1);
        try {
            ucl0Log.info("Try ExCtx.newInstance()");
            Object ctx0 = ctxClass1.newInstance();
            ucl0Log.info("ExCtx.ctor succeeded, ctx0: "+ctx0);
        } catch(Throwable e) {
            ucl0Log.error("ExCtx.ctor failed", e);
        }
    }
}

package org.jboss.book.jmx.ex0;

import java.net.URLClassLoader;
import java.net.URL;

import org.apache.log4j.Logger;

/**
 * A custom class loader that overrides the standard parent delegation
 * model
 *
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class Ex0URLClassLoader extends URLClassLoader
{
    private static Logger log = Logger.getLogger(Ex0URLClassLoader.class);
    private Ex0URLClassLoader delegate;

    public Ex0URLClassLoader(URL[] urls)
    {
        super(urls);
    }

    void setDelegate(Ex0URLClassLoader delegate)
    {
        this.delegate = delegate;
    }

    protected synchronized Class loadClass(String name, boolean resolve)
        throws ClassNotFoundException
    {
        Class clazz = null;
        if (delegate != null) {
            log.debug(Integer.toHexString(hashCode()) +
		      "; Asking delegate to loadClass: " + name);
            clazz = delegate.loadClass(name, resolve);
            log.debug(Integer.toHexString(hashCode()) +
		      "; Delegate returned: "+clazz);
        } else {
            log.debug(Integer.toHexString(hashCode()) +
		      "; Asking super to loadClass: "+name);
            clazz = super.loadClass(name, resolve);
            log.debug(Integer.toHexString(hashCode()) +
		      "; Super returned: "+clazz);
        }
        return clazz;
    }

    protected Class findClass(String name)
        throws ClassNotFoundException
    {
        Class clazz = null;
        log.debug(Integer.toHexString(hashCode()) +
		  "; Asking super to findClass: "+name);
        clazz = super.findClass(name);
        log.debug(Integer.toHexString(hashCode()) +
		  "; Super returned: "+clazz);
        return clazz;
    }
}

public ExCtx()
    throws IOException
{
    value = new ExObj();
    Logger log = Logger.getLogger(ExCtx.class);
    StringBuffer buffer = new StringBuffer("ctor.ExObj");
    Debug.displayClassInfo(value.getClass(), buffer, false);
    log.info(buffer.toString());
    ExObj2 obj2 = value.ivar;
    buffer.setLength(0);
    buffer = new StringBuffer("ctor.ExObj.ivar");
    Debug.displayClassInfo(obj2.getClass(), buffer, false);
    log.info(buffer.toString());
}

[examples]$ ant -Dchap=jmx -Dex=0e run-example
Buildfile: build.xml
...
[java] java.lang.LinkageError: loader constraints violated when linking
           org/jboss/book/jmx/ex0/ExObj2 class
[java]     at org.jboss.book.jmx.ex0.ExCtx.<init>(ExCtx.java:24)
[java]     at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
[java]     at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessor
           Impl.java:39)
[java]     at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructor
           AccessorImpl.java:27)
[java]     at java.lang.reflect.Constructor.newInstance(Constructor.java:494)
[java]     at java.lang.Class.newInstance0(Class.java:350)
[java]     at java.lang.Class.newInstance(Class.java:303)
[java]     at org.jboss.book.jmx.ex0.ExLE.main(ExLE.java:53)

Class clazz =...;
StringBuffer results = new StringBuffer();

ClassLoader cl = clazz.getClassLoader();
results.append("\n" + clazz.getName() + "(" +
               Integer.toHexString(clazz.hashCode()) + ").ClassLoader=" + cl);
ClassLoader parent = cl;

while (parent != null) {
    results.append("\n.."+parent);
    URL[] urls = getClassLoaderURLs(parent);

    int length = urls != null ? urls.length : 0;
    for(int u = 0; u < length; u ++) {
	results.append("\n...."+urls[u]);
    }

    if (showParentClassLoaders == false) {
	break;
    }
    if (parent != null) {
	parent = parent.getParent();
    }
}

CodeSource clazzCS = clazz.getProtectionDomain().getCodeSource();
if (clazzCS != null) {
    results.append("\n++++CodeSource: "+clazzCS);
} else {
    results.append("\n++++Null CodeSource");
}

<appender name="UCL" class="org.apache.log4j.FileAppender">
    <param name="File" value="${jboss.server.home.dir}/log/ucl.log"/>
    <param name="Append" value="false"/>
    <layout class="org.apache.log4j.PatternLayout">
        <param name="ConversionPattern" value="[%r,%c{1},%t] %m%n"/>
    </layout>
</appender>

<category name="org.jboss.mx.loading" additivity="false">
    <priority value="TRACE" class="org.jboss.logging.XLevel"/>
    <appender-ref ref="UCL"/>
</category>

1.2.2.4. Inside the JBoss Class Loading Architecture

Now that we have the role of class loaders in the Java type system defined, let's take a look at the JBoss class loading architecture. Figure 1.3, “The core JBoss class loading components”.

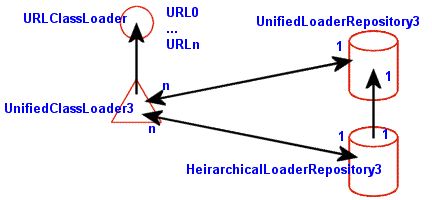

Figure 1.3. The core JBoss class loading components

The central component is the org.jboss.mx.loading.UnifiedClassLoader3 (UCL) class loader. This is an extension of the standard java.net.URLClassLoader that overrides the standard parent delegation model to use a shared repository of classes and resources. This shared repository is the org.jboss.mx.loading.UnifiedLoaderRepository3. Every UCL is associated with a single UnifiedLoaderRepository3, and a UnifiedLoaderRepository3 typically has many UCLs. A UCL may have multiple URLs associated with it for class and resource loading. Deployers use the top-level deployment's UCL as a shared class loader and all deployment archives are assigned to this class loader. We will talk about the JBoss deployers and their interaction with the class loading system in more detail latter in Section 1.4.2, “JBoss MBean Services”.

When a UCL is asked to load a class, it first looks to the repository cache it is associated with to see if the class has already been loaded. Only if the class does not exist in the repository will it be loaded into the repository by the UCL. By default, there is a single UnifiedLoaderRepository3 shared across all UCL instances. This means the UCLs form a single flat class loader namespace. The complete sequence of steps that occur when a UnfiedClassLoader3.loadClass(String, boolean) method is called is:

1. Check the UnifiedLoaderRepository3 classes cache associated with the UnifiedClassLoader3. If the class is found in the cache it is returned.

2. Else, ask the UnfiedClassLoader3 if it can load the class. This is essentially a call to the superclass URLClassLoader.loadClass(String, boolean) method to see if the class is among the URLs associated with the class loader, or visible to the parent class loader. If the class is found it is placed into the repository classes cache and returned.

3. Else, the repository is queried for all UCLs that are capable of providing the class based on the repository package name to UCL map. When a UCL is added to a repository an association between the package names available in the URLs associated with the UCL is made, and a mapping from package names to the UCLs with classes in the package is updated. This allows for a quick determination of which UCLs are capable of loading the class. The UCLs are then queried for the requested class in the order in which the UCLs were added to the repository. If a UCL is found that can load the class it is returned, else a java.lang.ClassNotFoundException is thrown.

1.2.2.4.1. Viewing Classes in the Loader Repository

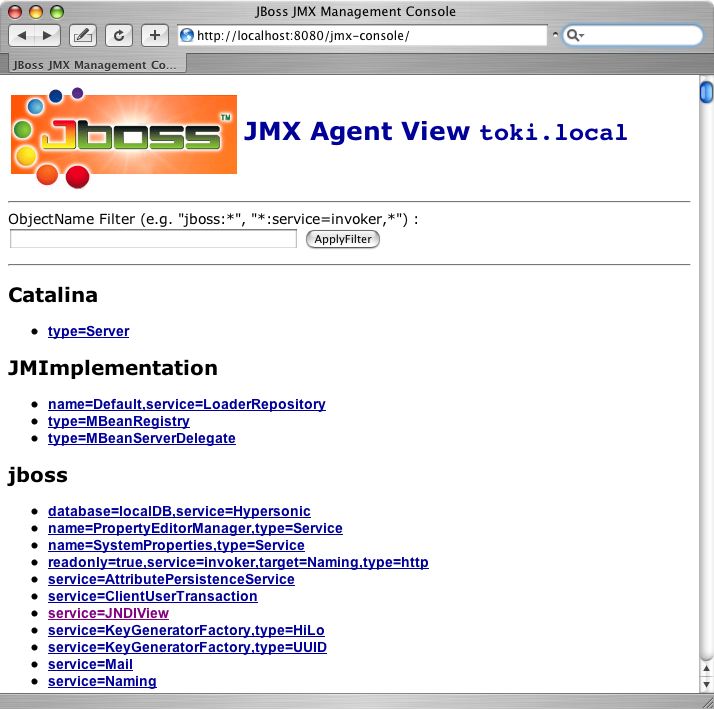

Another useful source of information on classes is the UnifiedLoaderRepository itself. This is an MBean that contains operations to display class and package information. The default repository is located under a standard JMX name of JMImplementation:name=Default,service=LoaderRepository, and its MBean can be accessed via the JMX console by following its link from the front page. The JMX console view of this MBean is shown in Figure 1.4, “The default class LoaderRepository MBean view in the JMX console”.

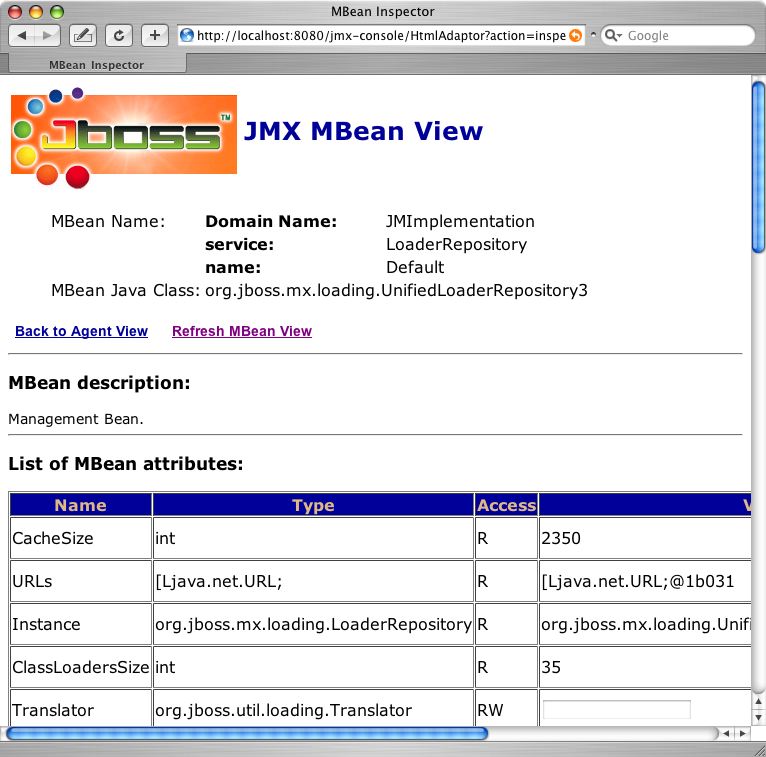

Figure 1.4. The default class LoaderRepository MBean view in the JMX console

Two useful operations you will find here are getPackageClassLoaders(String) and displayClassInfo(String). The getPackageClassLoaders operation returns a set of class loaders that have been indexed to contain classes or resources for the given package name. The package name must have a trailing period. If you type in the package name org.jboss.ejb., the following information is displayed:

[org.jboss.mx.loading.UnifiedClassLoader3@e26ae7{
  url=file:/private/tmp/jboss-4.0.1/server/default/tmp/deploy/tmp11895jboss-service.xml,
  addedOrder=2}]

This is the string representation of the set. It shows one UnifiedClassLoader3 instance with a primary URL pointing to the jboss-service.xml descriptor. This is the second class loader added to the repository (shown by addedOrder=2). It is the class loader that owns all of the JARs in the lib directory of the server configuration (e.g., server/default/lib).

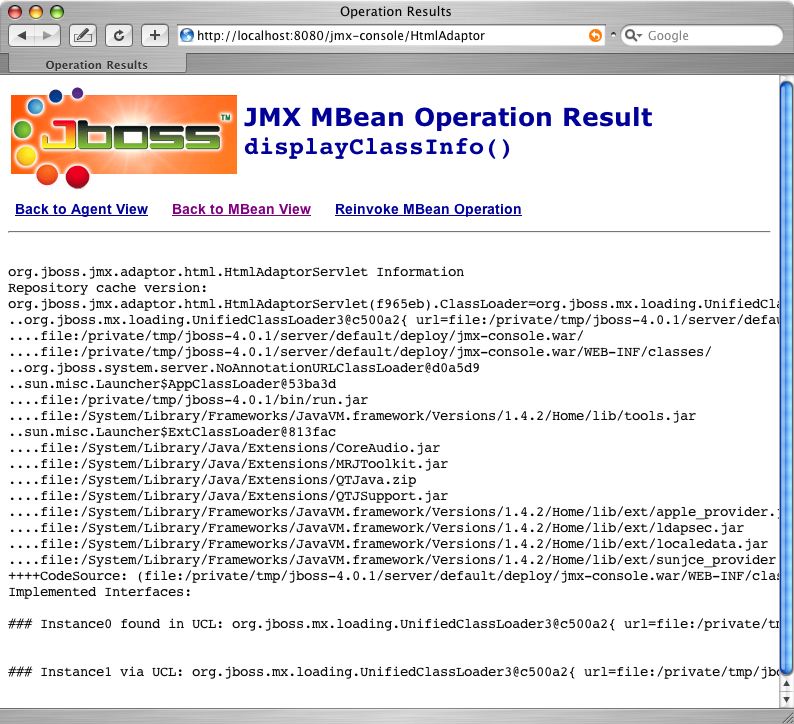

The view the information for a given class, use the displayClassInfo operation, passing in the fully qualified name of the class to view. For example, if we use org.jboss.jmx.adaptor.html.HtmlAdaptorServlet which is from the package we just looked at, the following description is displayed:

The information is a dump of the information for the Class instance in the loader repository if one has been loaded, followed by the class loaders that are seen to have the class file available. If a class is seen to have more than one class loader associated with it, then there is the potential for class loading related errors.

1.2.2.4.2. Scoping Classes

If you need to deploy multiple versions of an application you need to use deployment based scoping. With deployment based scoping, each deployment creates its own class loader repository in the form of a HeirarchicalLoaderRepository3 that looks first to the UnifiedClassLoader3 instances of the deployment units included in the EAR before delegating to the default UnifiedLoaderRepository3. To enable an EAR specific loader repository, you need to create a META-INF/jboss-app.xml descriptor as shown in Example 1.9, “An example jboss-app.xml descriptor for enabled scoped class loading at the EAR level.”.

Example 1.9. An example jboss-app.xml descriptor for enabled scoped class loading at the EAR level.

<jboss-app>
    <loader-repository>some.dot.com:loader=webtest.ear</loader-repository>
</jboss-app>

The value of the loader-repository element is the JMX object name to assign to the repository created for the EAR. This must be unique and valid JMX ObjectName, but the actual name is not important.

1.2.2.4.3. The Complete Class Loading Model

The previous discussion of the core class loading components introduced the custom UnifiedClassLoader3 and UnifiedLoaderRepository3 classes that form a shared class loading space. The complete class loading picture must also include the parent class loader used by UnifiedClassLoader3s as well as class loaders introduced for scoping and other specialty class loading purposes. Figure 1.5, “A complete class loader view” shows an outline of the class hierarchy that would exist for an EAR deployment containing EJBs and WARs.

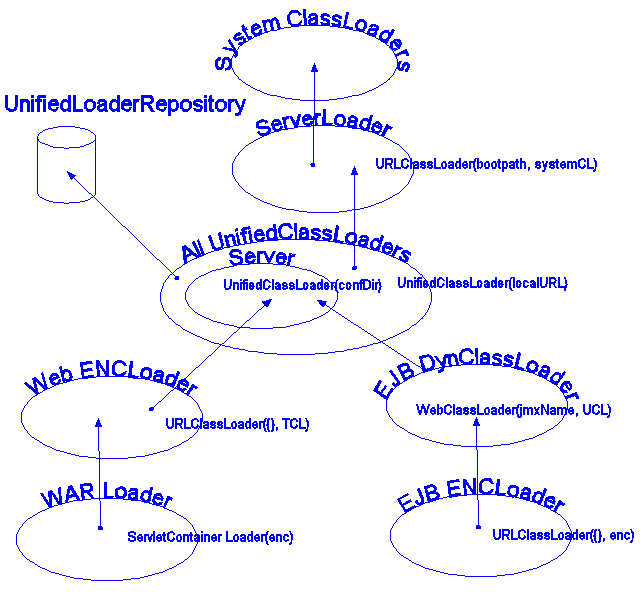

Figure 1.5. A complete class loader view

The following points apply to this figure:

• System ClassLoaders: The System ClassLoaders node refers to either the thread context class loader (TCL) of the VM main thread or of the thread of the application that is loading the JBoss server if it is embedded.

• ServerLoader: The ServerLoader node refers to the a URLClassLoader that delegates to the System ClassLoaders and contains the following boot URLs:

  • All URLs referenced via the jboss.boot.library.list system property. These are path specifications relative to the libraryURL defined by the jboss.lib.url property. If there is no jboss.lib.url property specified, it defaults to jboss.home.url + /lib/. If there is no jboss.boot.library property specified, it defaults to jaxp.jar, log4j-boot.jar, jboss-common.jar, and jboss-system.jar.

  • The JAXP JAR which is either crimson.jar or xerces.jar depending on the -j option to the Main entry point. The default is crimson.jar.

  • The JBoss JMX jar and GNU regex jar, jboss-jmx.jar and gnu-regexp.jar.

  • Oswego concurrency classes JAR, concurrent.jar

  • Any JARs specified as libraries via -L command line options

  • Any other JARs or directories specified via -C command line options

• Server: The Server node represent a collection of UCLs created by the org.jboss.system.server.Server interface implementation. The default implementation creates UCLs for the patchDir entries as well as the server conf directory. The last UCL created is set as the JBoss main thread context class loader. This will be combined into a single UCL now that multiple URLs per UCL are supported.

• All UnifiedClassLoader3s: The All UnifiedClassLoader3 node represents the UCLs created by deployers. This covers EARs, jars, WARs, SARs and directories seen by the deployment scanner as well as JARs referenced by their manifests and any nested deployment units they may contain. This is a flat namespace and there should not be multiple instances of a class in different deployment JARs. If there are, only the first loaded will be used and the results may not be as expected. There is a mechanism for scoping visibility based on EAR deployment units that we discussed in Section 1.2.2.4.2, “Scoping Classes”. Use this mechanism if you need to deploy multiple versions of a class in a given JBoss server.

• EJB DynClassLoader: The EJB DynClassLoader node is a subclass of URLClassLoader that is used to provide RMI dynamic class loading via the simple HTTP WebService. It specifies an empty URL[] and delegates to the TCL as its parent class loader. If the WebService is configured to allow system level classes to be loaded, all classes in the UnifiedLoaderRepository3 as well as the system classpath are available via HTTP.

• EJB ENCLoader: The EJB ENCLoader node is a URLClassLoader that exists only to provide a unique context for an EJB deployment's java:comp JNDI context. It specifies an empty URL[] and delegates to the EJB DynClassLoader as its parent class loader.

• Web ENCLoader: The Web ENCLoader node is a URLClassLoader that exists only to provide a unique context for a web deployment's java:comp JNDI context. It specifies an empty URL[] and delegates to the TCL as its parent class loader.

• WAR Loader: The WAR Loader is a servlet container specific classloader that delegates to the Web ENCLoader as its parent class loader. The default behavior is to load from its parent class loader and then the WAR WEB-INF classes and lib directories. If the servlet 2.3 class loading model is enabled it will first load from the its WEB-INF directories and then the parent class loader.

In its current form there are some advantages and disadvantages to the JBoss class loading architecture. Advantages include:

• Classes do not need to be replicated across deployment units in order to have access to them.

• Many future possibilities including novel partitioning of the repositories into domains, dependency and conflict detection, etc.

Disadvantages include:

• Existing deployments may need to be repackaged to avoid duplicate classes. Duplication of classes in a loader repository can lead to class cast exceptions and linkage errors depending on how the classes are loaded.

• Deployments that depend on different versions of a given class need to be isolated in separate EARs and a unique HeirarchicalLoaderRepository3 defined using a jboss-app.xml descriptor.

XMBeans are the JBoss JMX implementation version of the JMX model MBean. XMBeans have the richness of the dynamic MBean metadata without the tedious programming required by a direct implementation of the DynamicMBean interface. The JBoss model MBean implementation allows one to specify the management interface of a component through a XML descriptor, hence the X in XMBean. In addition to providing a simple mechanism for describing the metadata required for a dynamic MBean, XMBeans also allow for the specification of attribute persistence, caching behavior, and even advanced customizations like the MBean implementation interceptors. The high level elements of the jboss_xmbean_1_2.dtd for the XMBean descriptor is given in Figure 1.6, “The JBoss 1.0 XMBean DTD Overview (jboss_xmbean_1_2.dtd)”.

Figure 1.6. The JBoss 1.0 XMBean DTD Overview (jboss_xmbean_1_2.dtd)

The mbean element is the root element of the document containing the required elements for describing the management interface of one MBean (constructors, attributes, operations and notifications). It also includes an optional description element, which can be used to describe the purpose of the MBean, as well as an optional descriptors element which allows for persistence policy specification, attribute caching, etc.

1.2.3.1. Descriptors

The descriptors element contains all the descriptors for a containing element, as subelements. The descriptors suggested in the JMX specification as well as those used by JBoss have predefined elements and attributes, whereas custom descriptors have a generic descriptor element with name and value attributes as show in Figure 1.7, “ The descriptors element content model”.

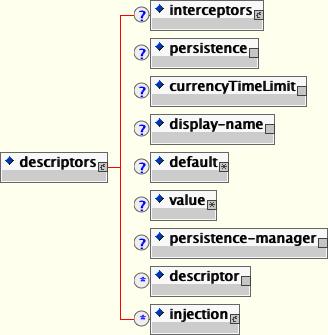

Figure 1.7.  The descriptors element content model

The key descriptors child elements include:

• interceptors: The interceptors element specifies a customized stack of interceptors that will be used in place of the default stack. Currently this is only used when specified at the MBean level, but it could define a custom attribute or operation level interceptor stack in the future. The content of the interceptors element specifies a custom interceptor stack. If no interceptors element is specified the standard ModelMBean interceptors will be used. The standard interceptors are:

  • org.jboss.mx.interceptor.PersistenceInterceptor

  • org.jboss.mx.interceptor.MBeanAttributeInterceptor

  • org.jboss.mx.interceptor.ObjectReferenceInterceptor

  When specifying a custom interceptor stack you would typically include the standard interceptors along with your own unless you are replacing the corresponding standard interceptor.

  Each interceptor element content value specifies the fully qualified class name of the interceptor implementation. The class must implement the org.jboss.mx.interceptor.Interceptor interface. The interceptor class must also have either a no-arg constructor, or a constructor that accepts a javax.management.MBeanInfo.

  The interceptor elements may have any number of attributes that correspond to JavaBean style properties on the interceptor class implementation. For each interceptor element attribute specified, the interceptor class is queried for a matching setter method. The attribute value is converted to the true type of the interceptor class property using the java.beans.PropertyEditor associated with the type. It is an error to specify an attribute for which there is no setter or PropertyEditor.

• persistence: The persistence element allows the specification of the persistPolicy, persistPeriod, persistLocation, and persistName persistence attributes suggested by the JMX specification. The persistence element attributes are:

  • persistPolicy: The persistPolicy attribute defines when attributes should be persisted and its value must be one of

    • Never: attribute values are transient values that are never persisted

    • OnUpdate: attribute values are persisted whenever they are updated

    • OnTimer: attribute values are persisted based on the time given by the persistPeriod.

    • NoMoreOftenThan: attribute values are persisted when updated but no more often than the persistPeriod.

  • persistPeriod: The persistPeriod attribute gives the update frequency in milliseconds if the perisitPolicy attribute is NoMoreOftenThan or OnTimer.

  • persistLocation: The persistLocation attribute specifies the location of the persistence store. Its form depends on the JMX persistence implementation. Currently this should refer to a directory into which the attributes will be serialized if using the default JBoss persistence manager.

  • persistName: The persistName attribute can be used in conjunction with the persistLocation attribute to further qualify the persistent store location. For a directory persistLocation the persistName specifies the file to which the attributes are stored within the directory.

• currencyTimeLimit: The currencyTimeLimit element specifies the time in seconds that a cached value of an attribute remains valid. Its value attribute gives the time in seconds. A value of 0 indicates that an attribute value should always be retrieved from the MBean and never cached. A value of -1 indicates that a cache value is always valid.

• display-name: The display-name element specifies the human friendly name of an item.

• default: The default element specifies a default value to use when a field has not been set. Note that this value is not written to the MBean on startup as is the case with the jboss-service.xml attribute element content value. Rather, the default value is used only if there is no attribute accessor defined, and there is no value element defined.

• value: The value element specifies a management attribute's current value. Unlike the default element, the value element is written through to the MBean on startup provided there is a setter method available.

• persistence-manager: The persistence-manager element gives the name of a class to use as the persistence manager. The value attribute specifies the class name that supplies the org.jboss.mx.persistence.PersistenceManager interface implementation. The only implementation currently supplied by JBoss is the org.jboss.mx.persistence.ObjectStreamPersistenceManager which serializes the ModelMBeanInfo content to a file using Java serialization.

• descriptor: The descriptor element specifies an arbitrary descriptor not known to JBoss. Its name attribute specifies the type of the descriptor and its value attribute specifies the descriptor value. The descriptor element allows for the attachment of arbitrary management metadata.

• injection: The injection element describes an injection point for receiving information from the microkernel. Each injection point specifies the type and the set method to use to inject the information into the resource. The injection element supports type attributes:

  • id: The id attribute specifies the injection point type. The current injection point types are:

    • MBeanServerType: An MBeanServerType injection point receives a reference to the MBeanServer that the XMBean is registered with.

    • MBeanInfoType: An MBeanInfoType injection point receives a reference to the XMBean ModelMBeanInfo metadata.

    • ObjectNameType: The ObjectName injection point receives the ObjectName that the XMBean is registered under.

• setMethod: The setMethod attribute gives the name of the method used to set the injection value on the resource. The set method should accept values of the type corresponding to the injection point type.

Note that any of the constructor, attribute, operation or notification elements may have a descriptors element to specify the specification defined descriptors as well as arbitrary extension descriptor settings.

1.2.3.3. The Constructors

The constructor element(s) specifies the constructors available for creating an instance of the managed object. The constructor element and its content model are shown in Figure 1.8, “The XMBean constructor element and its content model”.

Figure 1.8. The XMBean constructor element and its content model

The key child elements are:

• description: A description of the constructor.

• name: The name of the constructor, which must be the same as the implementation class.

• parameter: The parameter element describes a constructor parameter. The parameter element has the following attributes:

  • description: An optional description of the parameter.

  • name: The required variable name of the parameter.

  • type: The required fully qualified class name of the parameter type.

• descriptors: Any descriptors to associate with the constructor metadata.

1.2.3.4. The Attributes

The attribute element(s) specifies the management attributes exposed by the MBean. The attribute element and its content model are shown in Figure 1.9, “The XMBean attribute element and its content model”.

Figure 1.9. The XMBean attribute element and its content model

The attribute element supported attributes include:

• access: The optional access attribute defines the read/write access modes of an attribute. It must be one of:

  • read-only: The attribute may only be read.

  • write-only: The attribute may only be written.

  • read-write: The attribute is both readable and writable. This is the implied default.

• getMethod: The getMethod attribute defines the name of the method which reads the named attribute. This must be specified if the managed attribute should be obtained from the MBean instance.

• setMethod: The setMethod attribute defines the name of the method which writes the named attribute. This must be specified if the managed attribute should be obtained from the MBean instance.

The key child elements of the attribute element include:

• description: A description of the attribute.

• name: The name of the attribute as would be used in the MBeanServer.getAttribute() operation.

• type: The fully qualified class name of the attribute type.

• descriptors: Any additional descriptors that affect the attribute persistence, caching, default value, etc.

1.2.3.5. The Operations

The management operations exposed by the XMBean are specified via one or more operation elements. The operation element and its content model are shown in Figure 1.10, “The XMBean operation element and its content model”.

Figure 1.10. The XMBean operation element and its content model

The impact attribute defines the impact of executing the operation and must be one of:

• ACTION: The operation changes the state of the MBean component (write operation)

• INFO: The operation should not alter the state of the MBean component (read operation).

• ACTION_INFO: The operation behaves like a read/write operation.

The child elements are:

• description: This element specifies a human readable description of the operation.

• name: This element contains the operation's name

• parameter: This element describes the operation's signature.

• return-type: This element contains a fully qualified class name of the return type from this operation. If not specified, it defaults to void.

• descriptors: Any descriptors to associate with the operation metadata.

1.2.3.6. Notifications

The notification element(s) describes the management notifications that may be emitted by the XMBean. The notification element and its content model is shown in Figure 1.11, “The XMBean notification element and content model”.

Figure 1.11. The XMBean notification element and content model

The child elements are:

• description: This element gives a human readable description of the notification.

• name: This element contains the fully qualified name of the notification class.

• notification-type: This element contains the dot-separated notification type string.

• descriptors: Any descriptors to associate with the notification metadata.

JBoss comes with its own implementation of a JMX HTML adaptor that allows one to view the server's MBeans using a standard web browser. The default URL for the console web application is http://localhost:8080/jmx-console/. If you browse this location you will see something similar to that presented in Figure 1.12, “The JBoss JMX console web application agent view”.

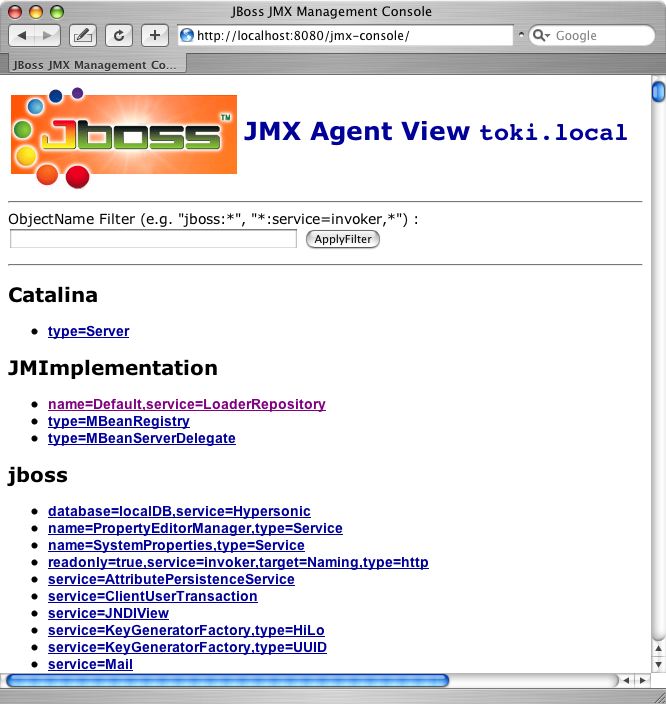

Figure 1.12. The JBoss JMX console web application agent view

The top view is called the agent view and it provides a listing of all MBeans registered with the MBeanServer sorted by the domain portion of the MBean's ObjectName. Under each domain are the MBeans under that domain. When you select one of the MBeans you will be taken to the MBean view. This allows one to view and edit an MBean's attributes as well as invoke operations. As an example, Figure 1.13, “The MBean view for the "jboss.system:type=Server" MBean” shows the MBean view for the jboss.system:type=Server MBean.

Figure 1.13. The MBean view for the "jboss.system:type=Server" MBean

The source code for the JMX console web application is located in the varia module under the src/main/org/jboss/jmx directory. Its web pages are located under varia/src/resources/jmx. The application is a simple MVC servlet with JSP views that utilize the MBeanServer.

1.3.1.1. Securing the JMX Console

Since the JMX console web application is just a standard servlet, it may be secured using standard J2EE role based security. The jmx-console.war that is deployed as an unpacked WAR that includes template settings for quickly enabling simple username and password based access restrictions. If you look at the jmx-console.war in the server/default/deploy directory you will find the web.xml and jboss-web.xml descriptors in the WEB-INF directory. The jmx-console-roles.properties and jmx-console-users.properties files are located in the server/default/conf/props directory.

By uncommenting the security sections of the web.xml and jboss-web.xml descriptors as shown in Example 1.10, “The jmx-console.war web.xml descriptors with the security elements uncommented.”, you enable HTTP basic authentication that restricts access to the JMX Console application to the user admin with password admin. The username and password are determined by the admin=admin line in the jmx-console-users.properties file.

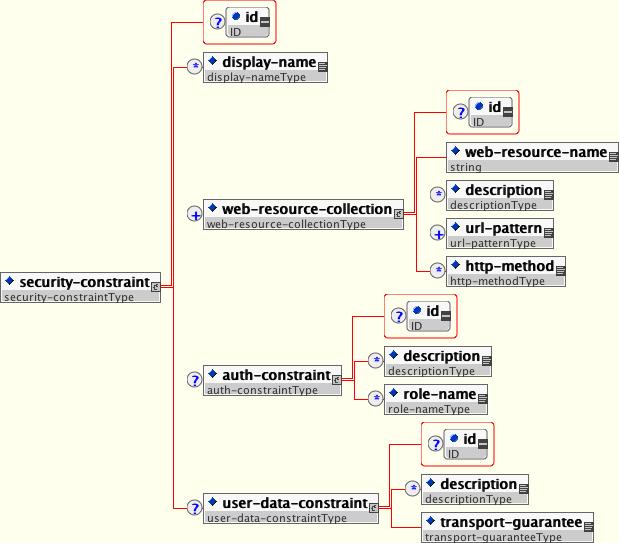

Example 1.10. The jmx-console.war web.xml descriptors with the security elements uncommented.

<?xml version="1.0"?>
<!DOCTYPE web-app PUBLIC
          "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
          "http://java.sun.com/dtd/web-app_2_3.dtd">
<web-app>
    <!-- ... -->

    <!-- A security constraint that restricts access to the HTML JMX console
         to users with the role JBossAdmin. Edit the roles to what you want and
         uncomment the WEB-INF/jboss-web.xml/security-domain element to enable
         secured access to the HTML JMX console.
    -->
    <security-constraint>
        <web-resource-collection>
            <web-resource-name>HtmlAdaptor</web-resource-name>
            <description> An example security config that only allows users with
                the role JBossAdmin to access the HTML JMX console web
                application </description>
            <url-pattern>/*</url-pattern>
            <http-method>GET</http-method>
            <http-method>POST</http-method>
        </web-resource-collection>
        <auth-constraint>
            <role-name>JBossAdmin</role-name>
        </auth-constraint>
    </security-constraint>
    <login-config>
        <auth-method>BASIC</auth-method>
        <realm-name>JBoss JMX Console</realm-name>
    </login-config>
    <security-role>
        <role-name>JBossAdmin</role-name>
    </security-role>
</web-app>

Example 1.11. The jmx-console.war jboss-web.xml descriptors with the security elements uncommented.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE jboss-web
    PUBLIC "-//JBoss//DTD Web Application 2.3//EN"
    "http://www.jboss.org/j2ee/dtd/jboss-web_3_0.dtd">
<jboss-web>
    <!--
        Uncomment the security-domain to enable security. You will
        need to edit the htmladaptor login configuration to setup the
        login modules used to authentication users.
    -->
    <security-domain>java:/jaas/jmx-console</security-domain>
</jboss-web>

Make these changes and then when you try to access the JMX Console URL. You will see a dialog similar to that shown in Figure 1.14, “The JMX Console basic HTTP login dialog.”.

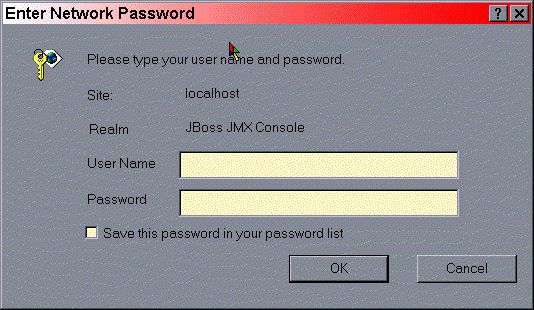

Figure 1.14. The JMX Console basic HTTP login dialog.

You probably to use the properties files for securing access to the JMX console application. To see how to properly configure the security settings of web applications see Chapter 7, Security on JBoss.

JBoss supplies an RMI interface for connecting to the JMX MBeanServer. This interface is org.jboss.jmx.adaptor.rmi.RMIAdaptor. The RMIAdaptor interface is bound into JNDI in the default location of jmx/invoker/RMIAdaptor as well as jmx/rmi/RMIAdaptor for backwards compatibility with older clients.

Example 1.12, “ A JMX client that uses the RMIAdaptor” shows a client that makes use of the RMIAdaptor interface to query the MBeanInfo for the JNDIView MBean. It also invokes the MBean's list(boolean) method and displays the result.

public class JMXBrowser
{
    /**
     * @param args the command line arguments
     */
    public static void main(String[] args) throws Exception
    {
        InitialContext ic = new InitialContext();
        RMIAdaptor server = (RMIAdaptor) ic.lookup("jmx/invoker/RMIAdaptor");

        // Get the MBeanInfo for the JNDIView MBean
        ObjectName name = new ObjectName("jboss:service=JNDIView");
        MBeanInfo  info = server.getMBeanInfo(name);
        System.out.println("JNDIView Class: " + info.getClassName());

        MBeanOperationInfo[] opInfo = info.getOperations();
        System.out.println("JNDIView Operations: ");
        for(int o = 0; o < opInfo.length; o ++) {
            MBeanOperationInfo op = opInfo[o];

            String returnType = op.getReturnType();
            String opName     = op.getName();
            System.out.print(" + " + returnType + " " + opName + "(");

            MBeanParameterInfo[] params = op.getSignature();
            for(int p = 0; p < params.length; p++)  {
                MBeanParameterInfo paramInfo = params[p];

                String pname = paramInfo.getName();
                String type  = paramInfo.getType();

                if (pname.equals(type)) {
                    System.out.print(type);
                } else {
                    System.out.print(type + " " + name);
                }

                if (p < params.length-1) {
                    System.out.print(',');
                }
            }
            System.out.println(")");
        }

        // Invoke the list(boolean) op
        String[] sig    = {"boolean"};
        Object[] opArgs = {Boolean.TRUE};
        Object   result = server.invoke(name, "list", opArgs, sig);

        System.out.println("JNDIView.list(true) output:\n"+result);
    }
}

To test the client access using the RMIAdaptor, run the following:

[examples]$ ant -Dchap=jmx -Dex=4 run-example
...

run-example4:
     [java] JNDIView Class: org.jboss.mx.modelmbean.XMBean
     [java] JNDIView Operations:
     [java]  + java.lang.String list(boolean jboss:service=JNDIView)
     [java]  + java.lang.String listXML()
     [java]  + void create()
     [java]  + void start()
     [java]  + void stop()
     [java]  + void destroy()
     [java]  + void jbossInternalLifecycle(java.lang.String jboss:service=JNDIView)
     [java]  + java.lang.String getName()
     [java]  + int getState()
     [java]  + java.lang.String getStateString()

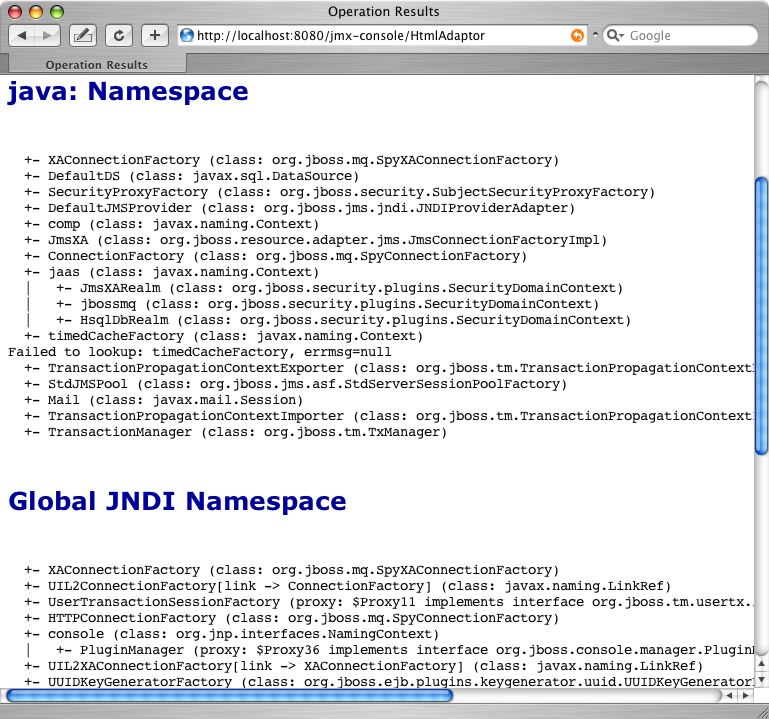

     [java] JNDIView.list(true) output:
     [java] <h1>java: Namespace</h1>
     [java] <pre>
     [java]   +- XAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
     [java]   +- DefaultDS (class: javax.sql.DataSource)
     [java]   +- SecurityProxyFactory (class: org.jboss.security.SubjectSecurityProxyFactory)
     [java]   +- DefaultJMSProvider (class: org.jboss.jms.jndi.JNDIProviderAdapter)
     [java]   +- comp (class: javax.naming.Context)
     [java]   +- JmsXA (class: org.jboss.resource.adapter.jms.JmsConnectionFactoryImpl)
     [java]   +- ConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
     [java]   +- jaas (class: javax.naming.Context)
     [java]   |   +- JmsXARealm (class: org.jboss.security.plugins.SecurityDomainContext)
     [java]   |   +- jbossmq (class: org.jboss.security.plugins.SecurityDomainContext)
     [java]   |   +- HsqlDbRealm (class: org.jboss.security.plugins.SecurityDomainContext)
     [java]   +- timedCacheFactory (class: javax.naming.Context)
     [java] Failed to lookup: timedCacheFactory, errmsg=null
     [java]   +- TransactionPropagationContextExporter (class: org.jboss.tm.TransactionPropag
ationContextFactory)
     [java]   +- StdJMSPool (class: org.jboss.jms.asf.StdServerSessionPoolFactory)
     [java]   +- Mail (class: javax.mail.Session)
     [java]   +- TransactionPropagationContextImporter (class: org.jboss.tm.TransactionPropag
ationContextImporter)
     [java]   +- TransactionManager (class: org.jboss.tm.TxManager)
     [java] </pre>
     [java] <h1>Global JNDI Namespace</h1>
     [java] <pre>
     [java]   +- XAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
     [java]   +- UIL2ConnectionFactory[link -> ConnectionFactory] (class: javax.naming.Lin
kRef)
     [java]   +- UserTransactionSessionFactory (proxy: $Proxy11 implements interface org.jbos
s.tm.usertx.interfaces.UserTransactionSessionFactory)
     [java]   +- HTTPConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
     [java]   +- console (class: org.jnp.interfaces.NamingContext)
     [java]   |   +- PluginManager (proxy: $Proxy36 implements interface org.jboss.console.ma
nager.PluginManagerMBean)
     [java]   +- UIL2XAConnectionFactory[link -> XAConnectionFactory] (class: javax.naming
.LinkRef)
     [java]   +- UUIDKeyGeneratorFactory (class: org.jboss.ejb.plugins.keygenerator.uuid.UUID
KeyGeneratorFactory)
     [java]   +- HTTPXAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
     [java]   +- topic (class: org.jnp.interfaces.NamingContext)
     [java]   |   +- testDurableTopic (class: org.jboss.mq.SpyTopic)
     [java]   |   +- testTopic (class: org.jboss.mq.SpyTopic)
     [java]   |   +- securedTopic (class: org.jboss.mq.SpyTopic)
     [java]   +- queue (class: org.jnp.interfaces.NamingContext)
     [java]   |   +- A (class: org.jboss.mq.SpyQueue)
     [java]   |   +- testQueue (class: org.jboss.mq.SpyQueue)
     [java]   |   +- ex (class: org.jboss.mq.SpyQueue)
     [java]   |   +- DLQ (class: org.jboss.mq.SpyQueue)
     [java]   |   +- D (class: org.jboss.mq.SpyQueue)
     [java]   |   +- C (class: org.jboss.mq.SpyQueue)
     [java]   |   +- B (class: org.jboss.mq.SpyQueue)
     [java]   +- ConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
     [java]   +- UserTransaction (class: org.jboss.tm.usertx.client.ClientUserTransaction)
     [java]   +- jmx (class: org.jnp.interfaces.NamingContext)
     [java]   |   +- invoker (class: org.jnp.interfaces.NamingContext)
     [java]   |   |   +- RMIAdaptor (proxy: $Proxy35 implements interface org.jboss.jmx.adapt
or.rmi.RMIAdaptor,interface org.jboss.jmx.adaptor.rmi.RMIAdaptorExt)
     [java]   |   +- rmi (class: org.jnp.interfaces.NamingContext)
     [java]   |   |   +- RMIAdaptor[link -> jmx/invoker/RMIAdaptor] (class: javax.naming.L
inkRef)
     [java]   +- HiLoKeyGeneratorFactory (class: org.jboss.ejb.plugins.keygenerator.hilo.HiLo
KeyGeneratorFactory)
     [java]   +- UILXAConnectionFactory[link -> XAConnectionFactory] (class: javax.naming.
LinkRef)
     [java]   +- UILConnectionFactory[link -> ConnectionFactory] (class: javax.naming.Link
Ref)
     [java] </pre>

JBoss provides a simple command line tool that allows for interaction with a remote JMX server instance. This tool is called twiddle (for twiddling bits via JMX) and is located in the bin directory of the distribution. Twiddle is a command execution tool, not a general command shell. It is run using either the twiddle.sh or twiddle.bat scripts, and passing in a -h(--help) argument provides the basic syntax, and --help-commands shows what you can do with the tool:

[bin]$ ./twiddle.sh -h
A JMX client to 'twiddle' with a remote JBoss server.

usage: twiddle.sh [options] <command> [command_arguments]

options:
    -h, --help                Show this help message
        --help-commands       Show a list of commands
    -H=<command>              Show command specific help
    -c=command.properties     Specify the command.properties file to use
    -D<name>[=<value>]        Set a system property
    --                        Stop processing options
    -s, --server=<url>        The JNDI URL of the remote server
    -a, --adapter=<name>      The JNDI name of the RMI adapter to use
    -q, --quiet               Be somewhat more quiet

[bin]$ ./twiddle.sh -s toki serverinfo -d jboss
[bin]$ ./twiddle.sh -s toki:1099 serverinfo -d jboss

[bin]$ ./twiddle.sh -s toki -a jmx/rmi/RMIAdaptor serverinfo -d jboss

[bin]$ ./twiddle.sh -H serverinfo
Get information about the MBean server

usage: serverinfo [options]

options:
    -d, --domain    Get the default domain
    -c, --count     Get the MBean count
    -l, --list      List the MBeans
    --              Stop processing options
[bin]$ ./twiddle.sh --server=toki serverinfo --count
460
[bin]$ ./twiddle.sh --server=toki serverinfo --domain
jboss

[bin]$ ./twiddle.sh -H query
Query the server for a list of matching MBeans

usage: query [options] <query>
options:
    -c, --count    Display the matching MBean count
    --             Stop processing options
Examples:
 query all mbeans: query '*:*'
 query all mbeans in the jboss.j2ee domain: query 'jboss.j2ee:*'
[bin]$ ./twiddle.sh -s toki query 'jboss:service=invoker,*'
jboss:readonly=true,service=invoker,target=Naming,type=http
jboss:service=invoker,type=jrmp
jboss:service=invoker,type=local
jboss:service=invoker,type=pooled
jboss:service=invoker,type=http
jboss:service=invoker,target=Naming,type=http

[bin]$ ./twiddle.sh -H get
Get the values of one or more MBean attributes

usage: get [options] <name> [<attr>+]
  If no attribute names are given all readable attributes are retrieved
options:
    --noprefix    Do not display attribute name prefixes
    --            Stop processing options
[bin]$ ./twiddle.sh get jboss:service=invoker,type=jrmp RMIObjectPort StateString
RMIObjectPort=4444
StateString=Started
[bin]$ ./twiddle.sh get jboss:service=invoker,type=jrmp
ServerAddress=0.0.0.0
RMIClientSocketFactoryBean=null
StateString=Started
State=3
RMIServerSocketFactoryBean=org.jboss.net.sockets.DefaultSocketFactory@ad093076
EnableClassCaching=false
SecurityDomain=null
RMIServerSocketFactory=null
Backlog=200
RMIObjectPort=4444
Name=JRMPInvoker
RMIClientSocketFactory=null

[bin]$ ./twiddle.sh -H info
Get the metadata for an MBean

usage: info <mbean-name>
  Use '*' to query for all attributes
[bin]$ Description: Management Bean.
+++ Attributes:
 Name: ServerAddress
 Type: java.lang.String
 Access: rw
 Name: RMIClientSocketFactoryBean
 Type: java.rmi.server.RMIClientSocketFactory
 Access: rw
 Name: StateString
 Type: java.lang.String
 Access: r-
 Name: State
 Type: int
 Access: r-
 Name: RMIServerSocketFactoryBean
 Type: java.rmi.server.RMIServerSocketFactory
 Access: rw
 Name: EnableClassCaching
 Type: boolean
 Access: rw
 Name: SecurityDomain
 Type: java.lang.String
 Access: rw
 Name: RMIServerSocketFactory
 Type: java.lang.String
 Access: rw
 Name: Backlog
 Type: int
 Access: rw
 Name: RMIObjectPort
 Type: int
 Access: rw
 Name: Name
 Type: java.lang.String
 Access: r-
 Name: RMIClientSocketFactory
 Type: java.lang.String
 Access: rw
+++ Operations:
 void start()
 void jbossInternalLifecycle(java.lang.String java.lang.String)
 void create()
 void stop()
 void destroy()

[bin]$ ./twiddle.sh -H invoke
Invoke an operation on an MBean

usage: invoke [options] <query> <operation> (<arg>)*

options:
    -q, --query-type[=<type>]    Treat object name as a query
    --                           Stop processing options

query type:
    f[irst]    Only invoke on the first matching name [default]
    a[ll]      Invoke on all matching names

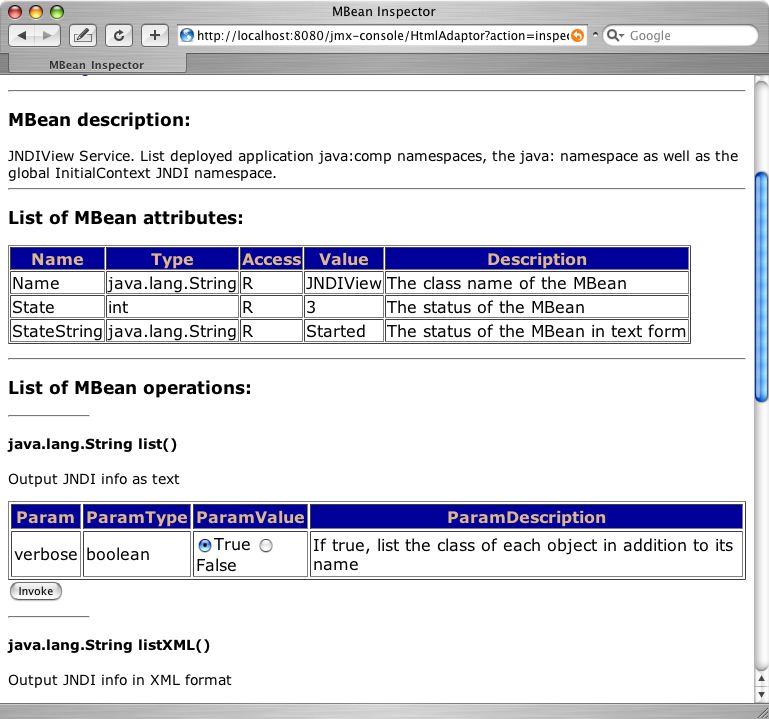

[bin]$ ./twiddle.sh invoke jboss:service=JNDIView list true
<h1>java: Namespace</h1>
<pre>
  +- XAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
  +- DefaultDS (class: javax.sql.DataSource)
  +- SecurityProxyFactory (class: org.jboss.security.SubjectSecurityProxyFactory)
  +- DefaultJMSProvider (class: org.jboss.jms.jndi.JNDIProviderAdapter)
  +- comp (class: javax.naming.Context)
  +- JmsXA (class: org.jboss.resource.adapter.jms.JmsConnectionFactoryImpl)
  +- ConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
  +- jaas (class: javax.naming.Context)
  |   +- JmsXARealm (class: org.jboss.security.plugins.SecurityDomainContext)
  |   +- jbossmq (class: org.jboss.security.plugins.SecurityDomainContext)
  |   +- HsqlDbRealm (class: org.jboss.security.plugins.SecurityDomainContext)
  +- timedCacheFactory (class: javax.naming.Context)
Failed to lookup: timedCacheFactory, errmsg=null
  +- TransactionPropagationContextExporter (class: org.jboss.tm.TransactionPropagationContext
Factory)
  +- StdJMSPool (class: org.jboss.jms.asf.StdServerSessionPoolFactory)
  +- Mail (class: javax.mail.Session)
  +- TransactionPropagationContextImporter (class: org.jboss.tm.TransactionPropagationContext
Importer)
  +- TransactionManager (class: org.jboss.tm.TxManager)
</pre>
<h1>Global JNDI Namespace</h1>
<pre>
  +- XAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
  +- UIL2ConnectionFactory[link -> ConnectionFactory] (class: javax.naming.LinkRef)
  +- UserTransactionSessionFactory (proxy: $Proxy11 implements interface org.jboss.tm.usertx.
interfaces.UserTransactionSessionFactory)
  +- HTTPConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
  +- console (class: org.jnp.interfaces.NamingContext)
  |   +- PluginManager (proxy: $Proxy36 implements interface org.jboss.console.manager.Plugin
ManagerMBean)
  +- UIL2XAConnectionFactory[link -> XAConnectionFactory] (class: javax.naming.LinkRef)
  +- UUIDKeyGeneratorFactory (class: org.jboss.ejb.plugins.keygenerator.uuid.UUIDKeyGenerator
Factory)
  +- HTTPXAConnectionFactory (class: org.jboss.mq.SpyXAConnectionFactory)
  +- topic (class: org.jnp.interfaces.NamingContext)
  |   +- testDurableTopic (class: org.jboss.mq.SpyTopic)
  |   +- testTopic (class: org.jboss.mq.SpyTopic)
  |   +- securedTopic (class: org.jboss.mq.SpyTopic)
  +- queue (class: org.jnp.interfaces.NamingContext)
  |   +- A (class: org.jboss.mq.SpyQueue)
  |   +- testQueue (class: org.jboss.mq.SpyQueue)
  |   +- ex (class: org.jboss.mq.SpyQueue)
  |   +- DLQ (class: org.jboss.mq.SpyQueue)
  |   +- D (class: org.jboss.mq.SpyQueue)
  |   +- C (class: org.jboss.mq.SpyQueue)
  |   +- B (class: org.jboss.mq.SpyQueue)
  +- ConnectionFactory (class: org.jboss.mq.SpyConnectionFactory)
  +- UserTransaction (class: org.jboss.tm.usertx.client.ClientUserTransaction)
  +- jmx (class: org.jnp.interfaces.NamingContext)
  |   +- invoker (class: org.jnp.interfaces.NamingContext)
  |   |   +- RMIAdaptor (proxy: $Proxy35 implements interface org.jboss.jmx.adaptor.rmi.RMIAd
aptor,interface org.jboss.jmx.adaptor.rmi.RMIAdaptorExt)
  |   +- rmi (class: org.jnp.interfaces.NamingContext)
  |   |   +- RMIAdaptor[link -> jmx/invoker/RMIAdaptor] (class: javax.naming.LinkRef)
  +- HiLoKeyGeneratorFactory (class: org.jboss.ejb.plugins.keygenerator.hilo.HiLoKeyGenerator
Factory)
  +- UILXAConnectionFactory[link -> XAConnectionFactory] (class: javax.naming.LinkRef)
  +- UILConnectionFactory[link -> ConnectionFactory] (class: javax.naming.LinkRef)
</pre>

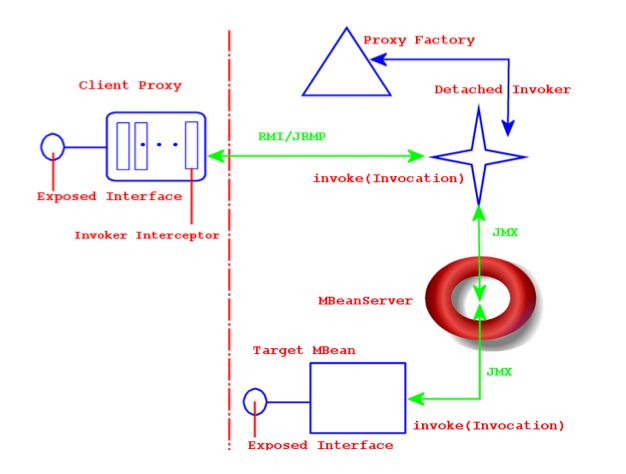

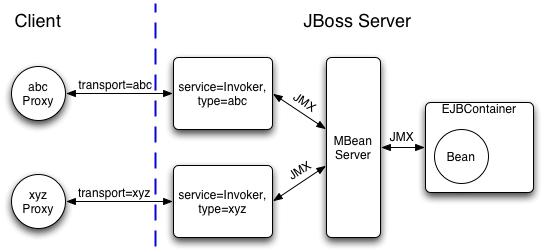

With the detached invokers and a somewhat generalized proxy factory capability, you can really talk to the JMX server using the InvokerAdaptorService and a proxy factory service to expose an RMIAdaptor or similar interface over your protocol of choice. We will introduce the detached invoker notion along with proxy factories in Section 1.6, “Remote Access to Services, Detached Invokers”. See Section 1.6.1, “A Detached Invoker Example, the MBeanServer Invoker Adaptor Service” for an example of an invoker service that allows one to access the MBean server using to the RMIAdaptor interface over any protocol for which a proxy factory service exists.

In this section we will describe the JBoss server startup process. A summary of the steps that occur during the JBoss server startup sequence is:

The JBoss server starts out as nothing more than a container for the JMX MBean server, and then loads its personality based on the services defined in the jboss-service.xml MBean configuration file from the named configuration set passed to the server on the command line. Because MBeans define the functionality of a JBoss server instance, it is important to understand how the core JBoss MBeans are written, and how you should integrate your existing services into JBoss using MBeans. This is the topic of the next section.

As we have seen, JBoss relies on JMX to load in the MBean services that make up a given server instance's personality. All of the bundled functionality provided with the standard JBoss distribution is based on MBeans. The best way to add services to the JBoss server is to write your own JMX MBeans.

There are two classes of MBeans: those that are independent of JBoss services, and those that are dependent on JBoss services. MBeans that are independent of JBoss services are the trivial case. They can be written per the JMX specification and added to a JBoss server by adding an mbean tag to the deploy/user-service.xml file. Writing an MBean that relies on a JBoss service such as naming requires you to follow the JBoss service pattern. The JBoss MBean service pattern consists of a set of life cycle operations that provide state change notifications. The notifications inform an MBean service when it can create, start, stop, and destroy itself. The management of the MBean service life cycle is the responsibility of three JBoss MBeans: SARDeployer, ServiceConfigurator and ServiceController.

1.4.2.1. The SARDeployer MBean

JBoss manages the deployment of its MBean services via a custom MBean that loads an XML variation of the standard JMX MLet configuration file. This custom MBean is implemented in the org.jboss.deployment.SARDeployer class. The SARDeployer MBean is loaded when JBoss starts up as part of the bootstrap process. The SAR acronym stands for service archive.

The SARDeployer handles services archives. A service archive can be either a jar that ends with a .sar suffix and contains a META-INF/jboss-service.xml descriptor, or a standalone XML descriptor with a naming pattern that matches *-service.xml. The DTD for the service descriptor is jboss-service_4.0.dtd and is shown in Figure 1.15, “The DTD for the MBean service descriptor parsed by the SARDeployer”.

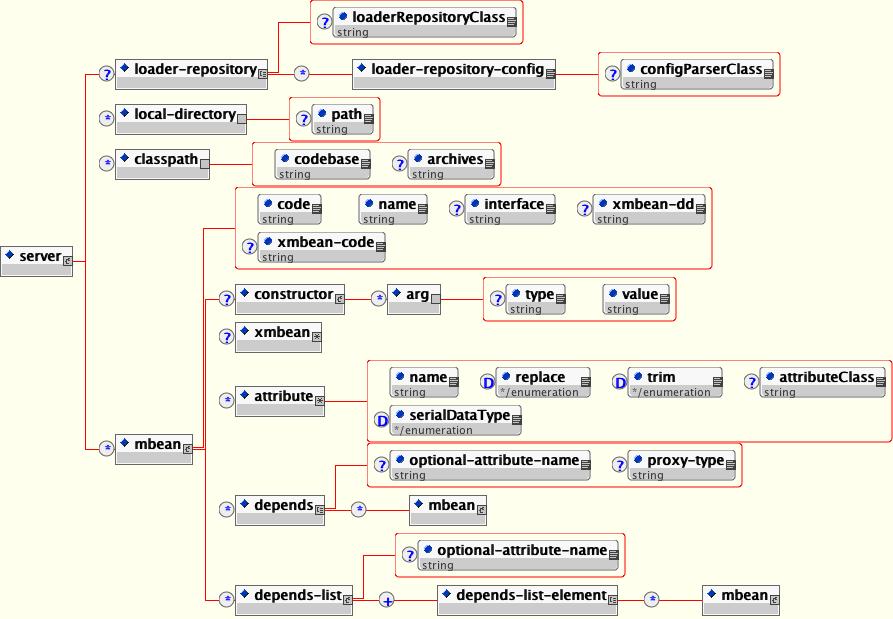

Figure 1.15. The DTD for the MBean service descriptor parsed by the SARDeployer

The elements of the DTD are:

• loader-repository: This element specifies the name of the UnifiedLoaderRepository MBean to use for the SAR to provide SAR level scoping of classes deployed in the sar. It is a unique JMX ObjectName string. It may also specify an arbitrary configuration by including a loader-repository-config element. The optional loaderRepositoryClass attribute specifies the fully qualified name of the loader repository implementation class. It defaults to org.jboss.mx.loading.HeirachicalLoaderRepository3.

  • loader-repository-config: This optional element specifies an arbitrary configuration that may be used to configure the loadRepositoryClass. The optional configParserClass attribute gives the fully qualified name of the org.jboss.mx.loading.LoaderRepositoryFactory.LoaderRepositoryConfigParser implementation to use to parse the loader-repository-config content.

• local-directory: This element specifies a path within the deployment archive that should be copied to the server/<config>/db directory for use by the MBean. The path attribute is the name of an entry within the deployment archive.

• classpath: This element specifies one or more external JARs that should be deployed with the MBean(s). The optional archives attribute specifies a comma separated list of the JAR names to load, or the * wild card to signify that all jars should be loaded. The wild card only works with file URLs, and http URLs if the web server supports the WEBDAV protocol. The codebase attribute specifies the URL from which the JARs specified in the archive attribute should be loaded. If the codebase is a path rather than a URL string, the full URL is built by treating the codebase value as a path relative to the JBoss distribution server/<config> directory. The order of JARs specified in the archives as well as the ordering across multiple classpath element is used as the classpath ordering of the JARs. Therefore, if you have patches or inconsistent versions of classes that require a certain ordering, use this feature to ensure the correct ordering.

• mbean: This element specifies an MBean service. The required code attribute gives the fully qualified name of the MBean implementation class. The required name attribute gives the JMX ObjectName of the MBean. The optional xmbean-dd attribute specifies the path to the XMBean resource if this MBean service uses the JBoss XMBean descriptor to define a Model MBean management interface.

  • constructor: The constructor element defines a non-default constructor to use when instantiating the MBean The arg element specify the constructor arguments in the order of the constructor signature. Each arg has a type and value attribute.

  • attribute: Each attribute element specifies a name/value pair of the attribute of the MBean. The name of the attribute is given by the name attribute, and the attribute element body gives the value. The body may be a text representation of the value, or an arbitrary element and child elements if the type of the MBean attribute is org.w3c.dom.Element. For text values, the text is converted to the attribute type using the JavaBean java.beans.PropertyEditor mechanism.

  • server/mbean/depends and server/mbean/depends-list: these elements specify a dependency from the MBean using the element to the MBean(s) named by the depends or depends-list elements. Section 1.4.2.4, “Specifying Service Dependencies”. Note that the dependency value can be another mbean element which defines a nested mbean.

MBean attribute values don't need to be hardcoded literal strings. Service files may contain references to system properties using the ${name} notation, where name is the name of a Java system property. The value of this system property, as would be returned from the call System.getProperty("name"). Multiple properties can be specified separated by commas like ${name1,name2,name3}. If there is no system property named name1, name2 will be tried and then name3. This allows multiple levels of substitution to be used. Finally, a default value can be added using a colon separator. The substitution ${name:default value} would substitute the the text "default value" if the system property name didn't exist. If none of the listed properties exist and no default value is given, no substitution will occur.

When the SARDeployer is asked to deploy a service performs several steps. Figure 1.16, “A sequence diagram highlighting the main activities performed by the SARDeployer to start a JBoss MBean service” is a sequence diagram that shows the init through start phases of a service.

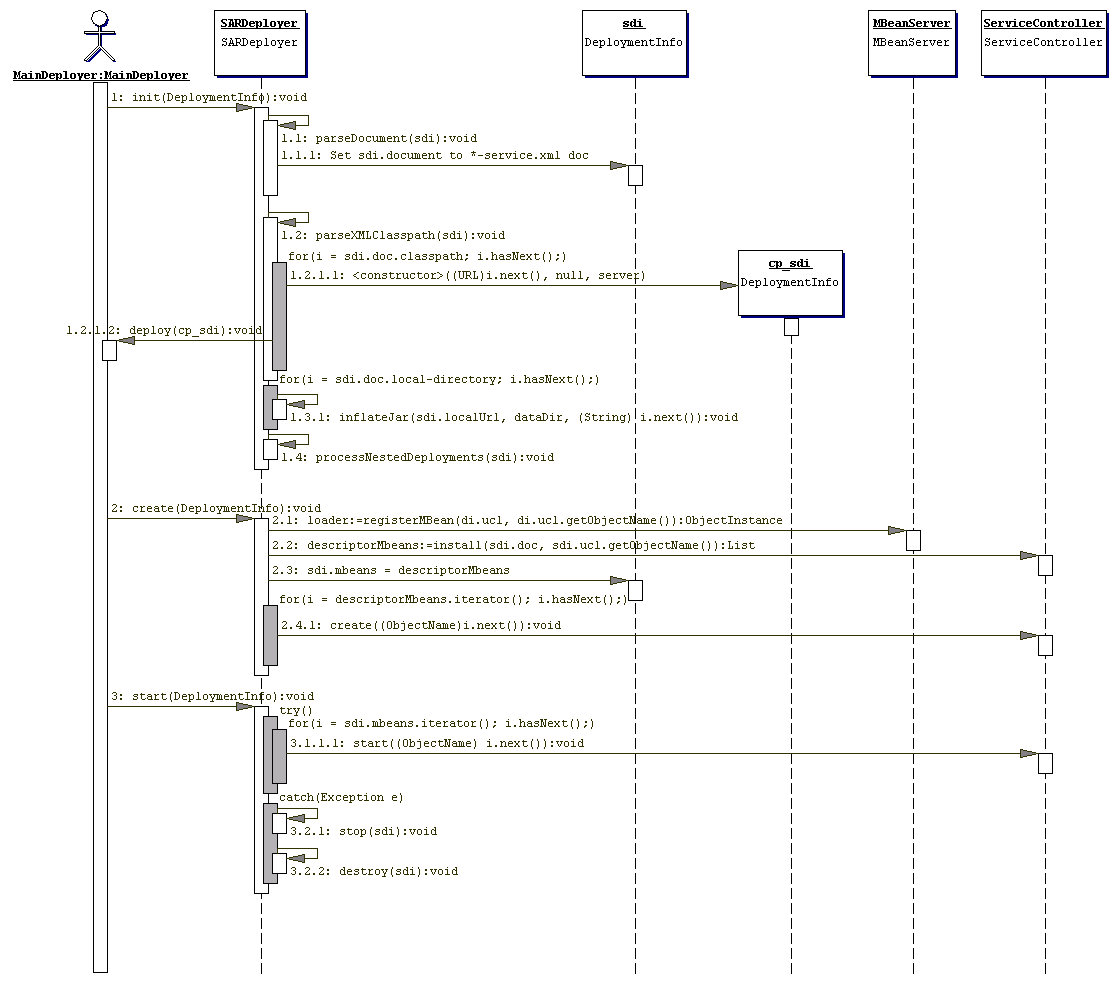

Figure 1.16. A sequence diagram highlighting the main activities performed by the SARDeployer to start a JBoss MBean service

In Figure 1.16, “A sequence diagram highlighting the main activities performed by the SARDeployer to start a JBoss MBean service” the following is illustrated:

• Methods prefixed with 1.1 correspond to the load and parse of the XML service descriptor.

• Methods prefixed with 1.2 correspond to processing each classpath element in the service descriptor to create an independent deployment that makes the jar or directory available through a UnifiedClassLoader registered with the unified loader repository.

• Methods prefixed with 1.3 correspond to processing each local-directory element in the service descriptor. This does a copy of the SAR elements specified in the path attribute to the server/<config>/db directory.

• Method 1.4. Process each deployable unit nested in the service a child deployment is created and added to the service deployment info subdeployment list.

• Method 2.1. The UnifiedClassLoader of the SAR deployment unit is registered with the MBean Server so that is can be used for loading of the SAR MBeans.

• Method 2.2. For each MBean element in the descriptor, create an instance and initialize its attributes with the values given in the service descriptor. This is done by calling the ServiceController.install method.

• Method 2.4.1. For each MBean instance created, obtain its JMX ObjectName and ask the ServiceController to handle the create step of the service life cycle. The ServiceController handles the dependencies of the MBean service. Only if the service's dependencies are satisfied is the service create method invoked.

• Methods prefixed with 3.1 correspond to the start of each MBean service defined in the service descriptor. For each MBean instance created, obtain its JMX ObjectName and ask the ServiceController to handle the start step of the service life cycle. The ServiceController handles the dependencies of the MBean service. Only if the service's dependencies are satisfied is the service start method invoked.

package org.jboss.system;
public interface Service
{
    public void create() throws Exception;
    public void start() throws Exception;
    public void stop();
    public void destroy();
}

1.4.2.3. The ServiceController MBean

JBoss manages dependencies between MBeans via the org.jboss.system.ServiceController custom MBean. The SARDeployer delegates to the ServiceController when initializing, creating, starting, stopping and destroying MBean services. Figure 1.17, “The interaction between the SARDeployer and ServiceController to start a service” shows a sequence diagram that highlights interaction between the SARDeployer and ServiceController.

Figure 1.17. The interaction between the SARDeployer and ServiceController to start a service

The ServiceController MBean has four key methods for the management of the service life cycle: create, start, stop and destroy.

1.4.2.3.1. The create(ObjectName) method

The create(ObjectName) method is called whenever an event occurs that affects the named services state. This could be triggered by an explicit invocation by the SARDeployer, a notification of a new class, or another service reaching its created state.

When a service's create method is called, all services on which the service depends have also had their create method invoked. This gives an MBean an opportunity to check that required MBeans or resources exist. A service cannot utilize other MBean services at this point, as most JBoss MBean services do not become fully functional until they have been started via their start method. Because of this, service implementations often do not implement create in favor of just the start method because that is the first point at which the service can be fully functional.

1.4.2.3.2. The start(ObjectName) method

The start(ObjectName) method is called whenever an event occurs that affects the named services state. This could be triggered by an explicit invocation by the SARDeployer, a notification of a new class, or another service reaching its started state.

When a service's start method is called, all services on which the service depends have also had their start method invoked. Receipt of a start method invocation signals a service to become fully operational since all services upon which the service depends have been created and started.

1.4.2.3.3. The stop(ObjectName) method

The stop(ObjectName) method is called whenever an event occurs that affects the named services state. This could be triggered by an explicit invocation by the SARDeployer, notification of a class removal, or a service on which other services depend reaching its stopped state.

1.4.2.3.4. The destroy(ObjectName) method

The destroy(ObjectName) method is called whenever an event occurs that affects the named services state. This could be triggered by an explicit invocation by the SARDeployer, notification of a class removal, or a service on which other services depend reaching its destroyed state.

Service implementations often do not implement destroy in favor of simply implementing the stop method, or neither stop nor destroy if the service has no state or resources that need cleanup.

<mbean code="org.jboss.mq.server.jmx.Topic"
       name="jms.topic:service=Topic,name=testTopic">
    <!-- Declare a dependency on the "jboss.mq:service=DestinationManager" and
         bind this name to the DestinationManager attribute -->
    <depends optional-attribute-name="DestinationManager">
        jboss.mq:service=DestinationManager
    </depends>

    <!-- Declare a dependency on the "jboss.mq:service=SecurityManager" and
         bind this name to the SecurityManager attribute -->
    <depends optional-attribute-name="SecurityManager">
        jboss.mq:service=SecurityManager
    </depends>

    <!-- ... -->

    <!-- Declare a dependency on the
         "jboss.mq:service=CacheManager" without
         any binding of the name to an attribute-->
    <depends>jboss.mq:service=CacheManager</depends>
</mbean>

<mbean code="org.jboss.mq.server.jmx.TopicMgr"
       name="jboss.mq.destination:service=TopicMgr">
    <!-- Declare a dependency on the given topic destination mbeans and
         bind these names to the Topics attribute -->
    <depends-list optional-attribute-name="Topics">
        <depends-list-element>jms.topic:service=Topic,name=A</depends-list-element>
        <depends-list-element>jms.topic:service=Topic,name=B</depends-list-element>
        <depends-list-element>jms.topic:service=Topic,name=C</depends-list-element>
    </depends-list>
</mbean>

<mbean code="org.jboss.resource.connectionmanager.LocalTxConnectionManager"
       name="jboss.jca:service=LocalTxCM,name=hsqldbDS">
    <depends optional-attribute-name="ManagedConnectionFactoryName">
        <!--embedded mbean-->
        <mbean code="org.jboss.resource.connectionmanager.RARDeployment"
               name="jboss.jca:service=LocalTxDS,name=hsqldbDS">
            <attribute name="JndiName">DefaultDS</attribute>
            <attribute name="ManagedConnectionFactoryProperties">
                <properties>
                    <config-property name="ConnectionURL"
                                     type="java.lang.String">
                        jdbc:hsqldb:hsql://localhost:1476
                    </config-property>
                    <config-property name="DriverClass" type="java.lang.String">
                        org.hsqldb.jdbcDriver
                    </config-property>
                    <config-property name="UserName" type="java.lang.String">
                        sa
                    </config-property>
                    <config-property name="Password" type="java.lang.String"/>
                </properties>
            </attribute>
            <!-- ... -->
        </mbean>
    </depends>
    <!-- ... -->
</mbean>

Writing a custom MBean service that integrates into the JBoss server requires the use of the org.jboss.system.Service interface pattern if the custom service is dependent on other services. When a custom MBean depends on other MBean services you cannot perform any service dependent initialization in any of the javax.management.MBeanRegistration interface methods since JMX has no dependency notion. Instead, you must manage dependency state using the Service interface create and/or start methods. You can do this using any one of the following approaches:

Which approach you choose depends on whether or not you want your code to be coupled to JBoss specific code. If you don't, then you would use the first approach. If you don't care about dependencies on JBoss classes, the simplest approach is to have your MBean interface extend from org.jboss.system.ServiceMBean and your MBean implementation class extend from the abstract org.jboss.system.ServiceMBeanSupport class. This class implements the org.jboss.system.ServiceMBean interface. ServiceMBeanSupport provides implementations of the create, start, stop, and destroy methods that integrate logging and JBoss service state management tracking. Each method delegates any subclass specific work to createService, startService, stopService, and destroyService methods respectively. When subclassing ServiceMBeanSupport, you would override one or more of the createService, startService, stopService, and destroyService methods as required

package org.jboss.book.jmx.ex1;

// The JNDIMap MBean interface
import javax.naming.NamingException;

public interface JNDIMapMBean
{
    public String getJndiName();
    public void setJndiName(String jndiName) throws NamingException;
    public void start() throws Exception;
    public void stop() throws Exception;
}

package org.jboss.book.jmx.ex1;

// The JNDIMap MBean implementation
import java.util.HashMap;
import javax.naming.InitialContext;
import javax.naming.Name;
import javax.naming.NamingException;
import org.jboss.naming.NonSerializableFactory;

public class JNDIMap implements JNDIMapMBean
{
    private String jndiName;
    private HashMap contextMap = new HashMap();
    private boolean started;

    public String getJndiName()
    {
        return jndiName;
    }
    public void setJndiName(String jndiName) throws NamingException
    {
        String oldName = this.jndiName;
        this.jndiName = jndiName;
        if (started) {
            unbind(oldName);
            try {
                rebind();
            } catch(Exception e) {
                NamingException ne = new NamingException("Failedto update jndiName");
                ne.setRootCause(e);
                throw ne;
            }
        }
    }

    public void start() throws Exception
    {
        started = true;
        rebind();
    }

    public void stop()
    {
        started = false;
        unbind(jndiName);
    }

    private void rebind() throws NamingException
    {
        InitialContext rootCtx = new InitialContext();
        Name fullName = rootCtx.getNameParser("").parse(jndiName);
        System.out.println("fullName="+fullName);
        NonSerializableFactory.rebind(fullName, contextMap, true);
    }

    private void unbind(String jndiName)
    {
        try {
            InitialContext rootCtx = new InitialContext();
            rootCtx.unbind(jndiName);
            NonSerializableFactory.unbind(jndiName);
        } catch(NamingException e) {
            e.printStackTrace();
        }
    }
}

package org.jboss.book.jmx.ex2;

// The JNDIMap MBean interface
import javax.naming.NamingException;

public interface JNDIMapMBean extends org.jboss.system.ServiceMBean
{
    public String getJndiName();
    public void setJndiName(String jndiName) throws NamingException;
}

package org.jboss.book.jmx.ex2;
// The JNDIMap MBean implementation
import java.util.HashMap;
import javax.naming.InitialContext;
import javax.naming.Name;
import javax.naming.NamingException;
import org.jboss.naming.NonSerializableFactory;

public class JNDIMap extends org.jboss.system.ServiceMBeanSupport
    implements JNDIMapMBean
{
    private String jndiName;
    private HashMap contextMap = new HashMap();

    public String getJndiName()
    {
        return jndiName;
    }

    public void setJndiName(String jndiName)
        throws NamingException
    {
        String oldName = this.jndiName;
        this.jndiName = jndiName;
        if (super.getState() == STARTED) {
            unbind(oldName);
            try {
                rebind();
            } catch(Exception e) {
                NamingException ne = new NamingException("Failed to update jndiName");
                ne.setRootCause(e);
                throw ne;
            }
        }
    }

    public void startService() throws Exception
    {
        rebind();
    }

    public void stopService()
    {
        unbind(jndiName);
    }

    private void rebind() throws NamingException
    {
        InitialContext rootCtx = new InitialContext();
        Name fullName = rootCtx.getNameParser("").parse(jndiName);
        log.info("fullName="+fullName);
        NonSerializableFactory.rebind(fullName, contextMap, true);
    }

    private void unbind(String jndiName)
    {
        try {
            InitialContext rootCtx = new InitialContext();
            rootCtx.unbind(jndiName);
            NonSerializableFactory.unbind(jndiName);
        } catch(NamingException e) {
            log.error("Failed to unbind map", e);
        }
    }
}

<!-- The SAR META-INF/jboss-service.xml descriptor -->
<server>
    <mbean code="org.jboss.book.jmx.ex1.JNDIMap"
           name="chap2.ex1:service=JNDIMap">
        <attribute name="JndiName">inmemory/maps/MapTest</attribute>
        <depends>jboss:service=Naming</depends>
    </mbean>
</server>

// Sample lookup code
InitialContext ctx = new InitialContext();
HashMap map = (HashMap) ctx.lookup("inmemory/maps/MapTest");

1.4.3.2. XMBean Examples

In this section we will develop a variation of the JNDIMap MBean introduced in the preceding section that exposes its management metadata using the JBoss XMBean framework. Our core managed component will be exactly the same core code from the JNDIMap class, but it will not implement any specific management related interface. We will illustrate the following capabilities not possible with a standard MBean:

• The ability to add rich descriptions to attribute and operations

• The ability to expose notification information

• The ability to add persistence of attributes

• The ability to add custom interceptors for security and remote access through a typed interface

1.4.3.2.1. Version 1, The Annotated JNDIMap XMBean

Let's start with a simple XMBean variation of the standard MBean version of the JNDIMap that adds the descriptive information about the attributes and operations and their arguments. The following listing shows the jboss-service.xml descriptor and the jndimap-xmbean1.xml XMBean descriptor. The source can be found in the src/main/org/jboss/book/jmx/xmbean directory of the book examples.

<?xml version='1.0' encoding='UTF-8' ?>
<!DOCTYPE server PUBLIC
                     "-//JBoss//DTD MBean Service 3.2//EN"
                     "http://www.jboss.org/j2ee/dtd/jboss-service_3_2.dtd">
<server>
    <mbean code="org.jboss.book.jmx.xmbean.JNDIMap"
           name="chap2.xmbean:service=JNDIMap"
           xmbean-dd="META-INF/jndimap-xmbean.xml">
        <attribute name="JndiName">inmemory/maps/MapTest</attribute>
        <depends>jboss:service=Naming</depends>
    </mbean>
</server>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mbean PUBLIC
          "-//JBoss//DTD JBOSS XMBEAN 1.0//EN"
          "http://www.jboss.org/j2ee/dtd/jboss_xmbean_1_0.dtd">
<mbean>
    <description>The JNDIMap XMBean Example Version 1</description>
    <descriptors>
        <persistence persistPolicy="Never" persistPeriod="10"
            persistLocation="data/JNDIMap.data" persistName="JNDIMap"/>
        <currencyTimeLimit value="10"/>
        <state-action-on-update value="keep-running"/>
    </descriptors>
    <class>org.jboss.test.jmx.xmbean.JNDIMap</class>
    <constructor>
        <description>The default constructor</description>
        <name>JNDIMap</name>
    </constructor>
    <!-- Attributes -->
    <attribute access="read-write" getMethod="getJndiName" setMethod="setJndiName">
        <description>
            The location in JNDI where the Map we manage will be bound
        </description>
        <name>JndiName</name>
        <type>java.lang.String</type>
        <descriptors>
            <default value="inmemory/maps/MapTest"/>
        </descriptors>
    </attribute>
    <attribute access="read-write" getMethod="getInitialValues"
               setMethod="setInitialValues">
        <description>The array of initial values that will be placed into the
            map associated with the service. The array is a collection of
            key,value pairs with elements[0,2,4,...2n] being the keys and
            elements [1,3,5,...,2n+1] the associated values. The
            "[Ljava.lang.String;" type signature is the VM representation of the
            java.lang.String[] type. </description>
        <name>InitialValues</name>
        <type>[Ljava.lang.String;</type>
        <descriptors>
            <default value="key0,value0"/>
        </descriptors>
    </attribute>
    <!-- Operations -->
    <operation>
        <description>The start lifecycle operation</description>
        <name>start</name>
    </operation>
    <operation>
        <description>The stop lifecycle operation</description>
        <name>stop</name>
    </operation>
    <operation impact="ACTION">
        <description>Put a value into the map</description>
        <name>put</name>
        <parameter>
            <description>The key the value will be store under</description>
            <name>key</name>
            <type>java.lang.Object</type>
        </parameter>
        <parameter>
            <description>The value to place into the map</description>
            <name>value</name>
            <type>java.lang.Object</type>
        </parameter>
    </operation>
    <operation impact="INFO">
        <description>Get a value from the map</description>
        <name>get</name>
        <parameter>
            <description>The key to lookup in the map</description>
            <name>get</name>
            <type>java.lang.Object</type>
        </parameter>
        <return-type>java.lang.Object</return-type>
    </operation>
    <!-- Notifications -->
    <notification>
        <description>The notification sent whenever a value is get into the map
            managed by the service</description>
        <name>javax.management.Notification</name>
        <notification-type>org.jboss.book.jmx.xmbean.JNDIMap.get</notification-type>
    </notification>
    <notification>
        <description>The notification sent whenever a value is put into the map
            managed by the service</description>
        <name>javax.management.Notification</name>
        <notification-type>org.jboss.book.jmx.xmbean.JNDIMap.put</notification-type>
    </notification>
</mbean>

You can build, deploy and test the XMBean as follows:

[examples]$ ant -Dchap=jmx -Dex=xmbean1 run-example
...
run-examplexmbean1:
     [java] JNDIMap Class: org.jboss.mx.modelmbean.XMBean
     [java] JNDIMap Operations:
     [java]  + void start()
     [java]  + void stop()
     [java]  + void put(java.lang.Object chap2.xmbean:service=JNDIMap,java.lang.Object
                        chap2.xmbean:service=JNDIMap)
     [java]  + java.lang.Object get(java.lang.Object chap2.xmbean:service=JNDIMap)
     [java] name=chap2.xmbean:service=JNDIMap
     [java] listener=org.jboss.book.jmx.xmbean.TestXMBean1$Listener@f38cf0
     [java] key=key0, value=value0
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:
            service=JNDIMap][type=org.jboss.book.jmx.xmbean.JNDIMap.put][message=]
     [java] JNDIMap.put(key1, value1) successful
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:
            service=JNDIMap][type=org.jboss.book.jmx.xmbean.JNDIMap.get][message=]
     [java] JNDIMap.get(key0): null
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:
            service=JNDIMap][type=org.jboss.book.jmx.xmbean.JNDIMap.get][message=]
     [java] JNDIMap.get(key1): value1
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:
            service=JNDIMap][type=org.jboss.book.jmx.xmbean.JNDIMap.put][message=]
     [java] handleNotification, event: javax.management.AttributeChangeNotification[source
            =chap2.xmbean:service=JNDIMap][type=jmx.attribute.change][message=InitialValues
            changed from javax.management.Attribute@82a72a to
            javax.management.Attribute@acdb96]

The functionality is largely the same as the Standard MBean with the notable exception of the JMX notifications. A Standard MBean has no way of declaring that it will emit notifications. An XMBean may declare the notifications it emits using notification elements as is shown in the version 1 descriptor. We see the notifications from the get and put operations on the test client console output. Note that there is also an jmx.attribute.change notification emitted when the InitialValues attribute was changed. This is because the ModelMBean interface extends the ModelMBeanNotificationBroadcaster which supports AttributeChangeNotificationListeners.

The other major difference between the Standard and XMBean versions of JNDIMap is the descriptive metadata. Look at the chap2.xmbean:service=JNDIMap in the JMX Console, and you will see the attributes section as shown in Figure 1.18, “The Version 1 JNDIMapXMBean jmx-console view”.

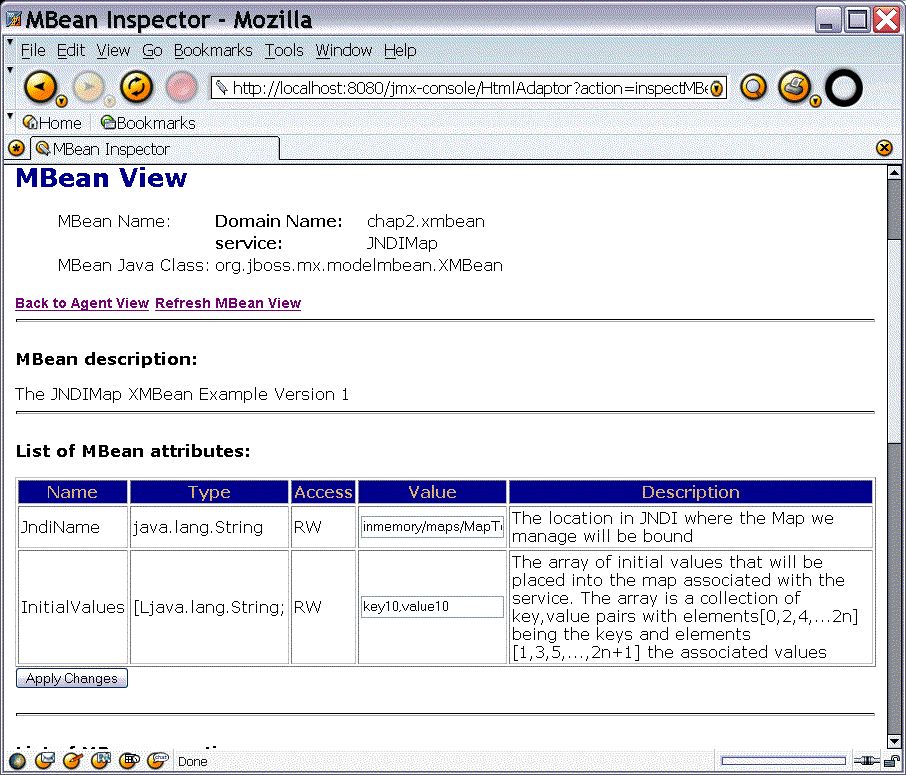

Figure 1.18. The Version 1 JNDIMapXMBean jmx-console view

Notice that the JMX Console now displays the full attribute description as specified in the XMBean descriptor rather than MBean Attribute text seen in standard MBean implementations. Scroll down to the operations and you will also see that these now also have nice descriptions of their function and parameters.

1.4.3.2.2. Version 2, Adding Persistence to the JNDIMap XMBean

In version 2 of the XMBean we add support for persistence of the XMBean attributes. The updated XMBean deployment descriptor is given below.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mbean PUBLIC
          "-//JBoss//DTD JBOSS XMBEAN 1.0//EN"
          "http://www.jboss.org/j2ee/dtd/jboss_xmbean_1_0.dtd">
<mbean>
    <description>The JNDIMap XMBean Example Version 2</description>
    <descriptors>
        <persistence persistPolicy="OnUpdate" persistPeriod="10"
            persistLocation="${jboss.server.data.dir}" persistName="JNDIMap.ser"/>
        <currencyTimeLimit value="10"/>
        <state-action-on-update value="keep-running"/>
        <persistence-manager value="org.jboss.mx.persistence.ObjectStreamPersistenceManager"/>
    </descriptors>   <class>org.jboss.test.jmx.xmbean.JNDIMap</class>
    <constructor>
        <description>The default constructor</description>
        <name>JNDIMap</name>
    </constructor>
    <!-- Attributes -->
    <attribute access="read-write" getMethod="getJndiName" setMethod="setJndiName">
        <description>
            The location in JNDI where the Map we manage will be bound
        </description>
        <name>JndiName</name>
        <type>java.lang.String</type>
        <descriptors>
            <default value="inmemory/maps/MapTest"/>
        </descriptors>
    </attribute>
    <attribute access="read-write" getMethod="getInitialValues"
               setMethod="setInitialValues">
        <description>The array of initial values that will be placed into the
            map associated with the service. The array is a collection of
            key,value pairs with elements[0,2,4,...2n] being the keys and
            elements [1,3,5,...,2n+1] the associated values</description>
        <name>InitialValues</name>
        <type>[Ljava.lang.String;</type>
        <descriptors>
            <default value="key0,value0"/>
        </descriptors>
    </attribute>
    <!-- Operations -->
    <operation>
        <description>The start lifecycle operation</description>
        <name>start</name>
    </operation>
    <operation>
        <description>The stop lifecycle operation</description>
        <name>stop</name>
    </operation>
    <operation impact="ACTION">
        <description>Put a value into the nap</description>
        <name>put</name>
        <parameter>
            <description>The key the value will be store under</description>
            <name>key</name>
            <type>java.lang.Object</type>
        </parameter>
        <parameter>
            <description>The value to place into the map</description>
            <name>value</name>
            <type>java.lang.Object</type>
        </parameter>
    </operation>
    <operation impact="INFO">
        <description>Get a value from the map</description>
        <name>get</name>
        <parameter>
            <description>The key to lookup in the map</description>
            <name>get</name>
            <type>java.lang.Object</type>
        </parameter>
        <return-type>java.lang.Object</return-type>
    </operation>
    <!-- Notifications -->
    <notification>
        <description>The notification sent whenever a value is get into the map
            managed by the service</description>
        <name>javax.management.Notification</name>
        <notification-type>org.jboss.book.jmx.xmbean.JNDIMap.get</notification-type>
    </notification>
    <notification>
        <description>The notification sent whenever a value is put into the map
            managed by the service</description>
        <name>javax.management.Notification</name>
        <notification-type>org.jboss.book.jmx.xmbean.JNDIMap.put</notification-type>
    </notification>
</mbean>

Build, deploy and test the version 2 XMBean as follows:

[examples]$ ant -Dchap=jmx -Dex=xmbean2 -Djboss.deploy.conf=rmi-adaptor run-example
...
run-examplexmbean2:
     [java] JNDIMap Class: org.jboss.mx.modelmbean.XMBean
     [java] JNDIMap Operations:
     [java]  + void start()
     [java]  + void stop()
     [java]  + void put(java.lang.Object chap2.xmbean:service=JNDIMap,java.lang.Object cha
p2.xmbean:service=JNDIMap)
     [java]  + java.lang.Object get(java.lang.Object chap2.xmbean:service=JNDIMap)
     [java]  + java.lang.String getJndiName()
     [java]  + void setJndiName(java.lang.String chap2.xmbean:service=JNDIMap)
     [java]  + [Ljava.lang.String; getInitialValues()
     [java]  + void setInitialValues([Ljava.lang.String; chap2.xmbean:service=JNDIMap)
     [java] handleNotification, event: null
     [java] key=key10, value=value10
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.chap2.xmbean.JNDIMap.put,sequenceNumber=7,timeStamp=10986326
93716,message=null,userData=null]
     [java] JNDIMap.put(key1, value1) successful
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.chap2.xmbean.JNDIMap.get,sequenceNumber=8,timeStamp=10986326
93857,message=null,userData=null]
     [java] JNDIMap.get(key0): null
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.chap2.xmbean.JNDIMap.get,sequenceNumber=9,timeStamp=10986326
93896,message=null,userData=null]
     [java] JNDIMap.get(key1): value1
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.chap2.xmbean.JNDIMap.put,sequenceNumber=10,timeStamp=1098632
693925,message=null,userData=null]

There is nothing manifestly different about this version of the XMBean at this point because we have done nothing to test that changes to attribute value are actually persisted. Perform this test by running example xmbean2a several times:

[examples] ant -Dchap=jmx -Dex=xmbean2a run-example
...
     [java] InitialValues.length=2
     [java] key=key10, value=value10

[examples] ant -Dchap=jmx -Dex=xmbean2a run-example
...
     [java] InitialValues.length=4
     [java] key=key10, value=value10
     [java] key=key2, value=value2



[examples] ant -Dchap=jmx -Dex=xmbean2a run-example
...
     [java] InitialValues.length=6
     [java] key=key10, value=value10
     [java] key=key2, value=value2
     [java] key=key3, value=value3

The org.jboss.book.jmx.xmbean.TestXMBeanRestart used in this example obtains the current InitialValues attribute setting, and then adds another key/value pair to it. The client code is shown below.

package org.jboss.book.jmx.xmbean;

import javax.management.Attribute;
import javax.management.ObjectName;
import javax.naming.InitialContext;

import org.jboss.jmx.adaptor.rmi.RMIAdaptor;

/**
 *  A client that demonstrates the persistence of the xmbean
 *  attributes. Every time it run it looks up the InitialValues
 *  attribute, prints it out and then adds a new key/value to the
 *  list.
 *
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */
public class TestXMBeanRestart
{
    /**
     * @param args the command line arguments
     */
    public static void main(String[] args) throws Exception
    {
	InitialContext ic = new InitialContext();
	RMIAdaptor server = (RMIAdaptor) ic.lookup("jmx/rmi/RMIAdaptor");

	// Get the InitialValues attribute
	ObjectName name = new ObjectName("chap2.xmbean:service=JNDIMap");
	String[] initialValues = (String[])
	    server.getAttribute(name, "InitialValues");
	System.out.println("InitialValues.length="+initialValues.length);
	int length = initialValues.length;
	for (int n = 0; n < length; n += 2) {
	    String key = initialValues[n];
	    String value = initialValues[n+1];

	    System.out.println("key="+key+", value="+value);
	}
	// Add a new key/value pair
	String[] newInitialValues = new String[length+2];
	System.arraycopy(initialValues, 0, newInitialValues,
			 0, length);
	newInitialValues[length] = "key"+(length/2+1);
	newInitialValues[length+1] = "value"+(length/2+1);

	Attribute ivalues = new
	    Attribute("InitialValues", newInitialValues);
	server.setAttribute(name, ivalues);
    }
}

At this point you may even shutdown the JBoss server, restart it and then rerun the initial example to see if the changes are persisted across server restarts:

[examples]$ ant -Dchap=jmx -Dex=xmbean2 run-example
...

run-examplexmbean2:
     [java] JNDIMap Class: org.jboss.mx.modelmbean.XMBean
     [java] JNDIMap Operations:
     [java]  + void start()
     [java]  + void stop()
     [java]  + void put(java.lang.Object chap2.xmbean:service=JNDIMap,java.lang.Object cha
p2.xmbean:service=JNDIMap)
     [java]  + java.lang.Object get(java.lang.Object chap2.xmbean:service=JNDIMap)
     [java]  + java.lang.String getJndiName()
     [java]  + void setJndiName(java.lang.String chap2.xmbean:service=JNDIMap)
     [java]  + [Ljava.lang.String; getInitialValues()
     [java]  + void setInitialValues([Ljava.lang.String; chap2.xmbean:service=JNDIMap)
     [java] handleNotification, event: null
     [java] key=key10, value=value10
     [java] key=key2, value=value2
     [java] key=key3, value=value3
     [java] key=key4, value=value4
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.put,sequenceNumber=3,timeStamp=10986
33664712,message=null,userData=null]
     [java] JNDIMap.put(key1, value1) successful
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.get,sequenceNumber=4,timeStamp=10986
33664821,message=null,userData=null]
     [java] JNDIMap.get(key0): null
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.get,sequenceNumber=5,timeStamp=10986
33664860,message=null,userData=null]
     [java] JNDIMap.get(key1): value1
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.put,sequenceNumber=6,timeStamp=10986
33664877,message=null,userData=null]
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.put,sequenceNumber=7,timeStamp=10986
33664895,message=null,userData=null]
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.put,sequenceNumber=8,timeStamp=10986
33664899,message=null,userData=null]
     [java] handleNotification, event: javax.management.Notification[source=chap2.xmbean:s
ervice=JNDIMap,type=org.jboss.book.jmx.xmbean.JNDIMap.put,sequenceNumber=9,timeStamp=10986
33665614,message=null,userData=null]

You see that the last InitialValues attribute setting is in fact visible.

We have seen how to manage dependencies using the service descriptor depends and depends-list tags. The deployment ordering supported by the deployment scanners provides a coarse-grained dependency management in that there is an order to deployments. If dependencies are consistent with the deployment packages then this is a simpler mechanism than having to enumerate the explicit MBean-MBean dependencies. By writing your own filters you can change the coarse grained ordering performed by the deployment scanner.

When a component archive is deployed, its nested deployment units are processed in a depth first ordering. Structuring of components into an archive hierarchy is yet another way to manage deployment ordering.You will need to explicitly state your MBean dependencies if your packaging structure does not happen to resolve the dependencies. Let's consider an example component deployment that consists of an MBean that uses an EJB. Here is the structure of the example EAR.

output/jmx/jmx-ex3.ear
+- META-INF/MANIFEST.MF
+- META-INF/jboss-app.xml
+- jmx-ex3.jar (archive) [EJB jar]
| +- META-INF/MANIFEST.MF
| +- META-INF/ejb-jar.xml
| +- org/jboss/book/jmx/ex3/EchoBean.class
| +- org/jboss/book/jmx/ex3/EchoLocal.class
| +- org/jboss/book/jmx/ex3/EchoLocalHome.class
+- jmx-ex3.sar (archive) [MBean sar]
| +- META-INF/MANIFEST.MF
| +- META-INF/jboss-service.xml
| +- org/jboss/book/jmx/ex3/EjbMBeanAdaptor.class
+- META-INF/application.xml

The EAR contains a jmx-ex3.jar and jmx-ex3.sar. The jmx-ex3.jar is the EJB archive and the jmx-ex3.sar is the MBean service archive. We have implemented the service as a Dynamic MBean to provide an illustration of their use.

package org.jboss.book.jmx.ex3;

import java.lang.reflect.Method;
import javax.ejb.CreateException;
import javax.management.Attribute;
import javax.management.AttributeList;
import javax.management.AttributeNotFoundException;
import javax.management.DynamicMBean;
import javax.management.InvalidAttributeValueException;
import javax.management.JMRuntimeException;
import javax.management.MBeanAttributeInfo;
import javax.management.MBeanConstructorInfo;
import javax.management.MBeanInfo;
import javax.management.MBeanNotificationInfo;
import javax.management.MBeanOperationInfo;
import javax.management.MBeanException;
import javax.management.MBeanServer;
import javax.management.ObjectName;
import javax.management.ReflectionException;
import javax.naming.InitialContext;
import javax.naming.NamingException;

import org.jboss.system.ServiceMBeanSupport;

/**
 *  An example of a DynamicMBean that exposes select attributes and
 *  operations of an EJB as an MBean.
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */
public class EjbMBeanAdaptor extends ServiceMBeanSupport
    implements DynamicMBean
{
    private String helloPrefix;
    private String ejbJndiName;
    private EchoLocalHome home;

    /** These are the mbean attributes we expose
     */
    private MBeanAttributeInfo[] attributes = {
        new MBeanAttributeInfo("HelloPrefix", "java.lang.String",
                               "The prefix message to append to the session echo reply",
                               true, // isReadable
                               true, // isWritable
                               false), // isIs
        new MBeanAttributeInfo("EjbJndiName", "java.lang.String",
                               "The JNDI name of the session bean local home",
                               true, // isReadable
                               true, // isWritable
                               false) // isIs
    };

    /**
     * These are the mbean operations we expose
     */
    private MBeanOperationInfo[] operations;

    /**
     * We override this method to setup our echo operation info. It
     * could also be done in a ctor.
     */
    public ObjectName preRegister(MBeanServer server,
                                  ObjectName name)
        throws Exception
    {
        log.info("preRegister notification seen");

        operations = new MBeanOperationInfo[5];

        Class thisClass = getClass();
        Class[] parameterTypes = {String.class};
        Method echoMethod =
            thisClass.getMethod("echo", parameterTypes);
        String desc = "The echo op invokes the session bean echo method and"
            + " returns its value prefixed with the helloPrefix attribute value";
        operations[0] = new MBeanOperationInfo(desc, echoMethod);

        // Add the Service interface operations from our super class
        parameterTypes = new Class[0];
        Method createMethod =
            thisClass.getMethod("create", parameterTypes);
        operations[1] = new MBeanOperationInfo("The
                JBoss Service.create", createMethod);
        Method startMethod =
            thisClass.getMethod("start", parameterTypes);
        operations[2] = new MBeanOperationInfo("The
                JBoss Service.start", startMethod);
        Method stopMethod =
            thisClass.getMethod("stop", parameterTypes);
        operations[3] = new MBeanOperationInfo("The
                JBoss Service.stop", startMethod);
        Method destroyMethod =
            thisClass.getMethod("destroy", parameterTypes);
        operations[4] = new MBeanOperationInfo("The
                JBoss Service.destroy", startMethod);
        return name;
    }


    // --- Begin ServiceMBeanSupport overides
    protected void createService() throws Exception
    {
        log.info("Notified of create state");
    }

    protected void startService() throws Exception
    {
        log.info("Notified of start state");
        InitialContext ctx = new InitialContext();
        home = (EchoLocalHome) ctx.lookup(ejbJndiName);
    }

    protected void stopService()
    {
        log.info("Notified of stop state");
    }

    // --- End ServiceMBeanSupport overides

    public String getHelloPrefix()
    {
        return helloPrefix;
    }
    public void setHelloPrefix(String helloPrefix)
    {
        this.helloPrefix = helloPrefix;
    }

    public String getEjbJndiName()
    {
        return ejbJndiName;
    }
    public void setEjbJndiName(String ejbJndiName)
    {
        this.ejbJndiName = ejbJndiName;
    }

    public String echo(String arg)
        throws CreateException, NamingException
    {
        log.debug("Lookup EchoLocalHome@"+ejbJndiName);
        EchoLocal bean = home.create();
        String echo = helloPrefix + bean.echo(arg);
        return echo;
    }

    // --- Begin DynamicMBean interface methods
    /**
     *  Returns the management interface that describes this dynamic
     *  resource.  It is the responsibility of the implementation to
     *  make sure the description is accurate.
     *
     * @return the management interface descriptor.
     */
    public MBeanInfo getMBeanInfo()
    {
        String classname = getClass().getName();
        String description = "This is an MBean that uses a session bean in the"
            + " implementation of its echo operation.";
        MBeanInfo[] constructors = null;
        MBeanNotificationInfo[] notifications = null;
        MBeanInfo mbeanInfo = new MBeanInfo(classname,
                                            description, attributes,
                                            constructors, operations,
                                            notifications);
        // Log when this is called so we know when in the
        lifecycle this is used
            Throwable trace = new Throwable("getMBeanInfo trace");
        log.info("Don't panic, just a stack
                trace", trace);
        return mbeanInfo;
    }

    /**
     *  Returns the value of the attribute with the name matching the
     *  passed string.
     *
     * @param attribute the name of the attribute.
     * @return the value of the attribute.
     * @exception AttributeNotFoundException when there is no such
     * attribute.
     * @exception MBeanException wraps any error thrown by the
     * resource when
     * getting the attribute.
     * @exception ReflectionException wraps any error invoking the
     * resource.
     */
    public Object getAttribute(String attribute)
        throws AttributeNotFoundException,
               MBeanException,
               ReflectionException
    {
        Object value = null;
        if (attribute.equals("HelloPrefix")) {
            value = getHelloPrefix();
        } else if(attribute.equals("EjbJndiName")) {
            value = getEjbJndiName();
        } else {
            throw new AttributeNotFoundException("Unknown
                attribute("+attribute+") requested");
        }
        return value;
    }

    /**
     * Returns the values of the attributes with names matching the
     * passed string array.
     *
     * @param attributes the names of the attribute.
     * @return an {@link AttributeList AttributeList} of name
     * and value pairs.
     */
    public AttributeList getAttributes(String[] attributes)
    {
        AttributeList values = new AttributeList();
        for (int a = 0; a < attributes.length; a++) {
            String name = attributes[a];
            try {
                Object value = getAttribute(name);
                Attribute attr = new Attribute(name, value);
                values.add(attr);
            } catch(Exception e) {
                log.error("Failed to find attribute: "+name, e);
            }
        }
        return values;
    }

    /**
     *  Sets the value of an attribute. The attribute and new value
     *  are passed in the name value pair {@link Attribute
     *  Attribute}.
     *
     * @see javax.management.Attribute
     *
     * @param attribute the name and new value of the attribute.
     * @exception AttributeNotFoundException when there is no such
     * attribute.
     * @exception InvalidAttributeValueException when the new value
     * cannot be converted to the type of the attribute.
     * @exception MBeanException wraps any error thrown by the
     * resource when setting the new value.
     * @exception ReflectionException wraps any error invoking the
     * resource.
     */
    public void setAttribute(Attribute attribute)
        throws AttributeNotFoundException,
               InvalidAttributeValueException,
               MBeanException,
               ReflectionException
    {
        String name = attribute.getName();
        if (name.equals("HelloPrefix")) {
            String value = attribute.getValue().toString();
            setHelloPrefix(value);
        } else if(name.equals("EjbJndiName")) {
            String value = attribute.getValue().toString();
            setEjbJndiName(value);
        } else {
            throw new AttributeNotFoundException("Unknown attribute("+name+") requested");
        }
    }

    /**
     * Sets the values of the attributes passed as an
     * {@link AttributeList AttributeList} of name and new
     * value pairs.
     *
     * @param attributes the name an new value pairs.
     * @return an {@link AttributeList AttributeList} of name and
     * value pairs that were actually set.
     */
    public AttributeList setAttributes(AttributeList attributes)
    {
        AttributeList setAttributes = new AttributeList();
        for(int a = 0; a < attributes.size(); a++) {
            Attribute attr = (Attribute) attributes.get(a);
            try {
                setAttribute(attr);
                setAttributes.add(attr);
            } catch(Exception ignore) {
            }
        }
        return setAttributes;
    }

    /**
     *  Invokes a resource operation.
     *
     *  @param actionName the name of the operation to perform.
     *  @param params the parameters to pass to the operation.
     *  @param signature the signartures of the parameters.
     *  @return the result of the operation.
     *  @exception MBeanException wraps any error thrown by the
     *  resource when performing the operation.
     *  @exception ReflectionException wraps any error invoking the
     *  resource.
     */
    public Object invoke(String actionName, Object[] params,
                         String[] signature)
        throws MBeanException,
               ReflectionException
    {
        Object rtnValue = null;
        log.debug("Begin invoke, actionName="+actionName);
        try {
            if (actionName.equals("echo")) {
                String arg = (String) params[0];
                rtnValue = echo(arg);
                log.debug("Result: "+rtnValue);
            } else if (actionName.equals("create")) {
                super.create();
            } else if (actionName.equals("start")) {
                super.start();
            } else if (actionName.equals("stop")) {
                super.stop();
            } else if (actionName.equals("destroy")) {
                super.destroy();
            } else {
                throw new JMRuntimeException("Invalid state,
                don't know about op="+actionName);
            }
        } catch(Exception e) {
            throw new ReflectionException(e, "echo failed");
        }


        log.debug("End invoke, actionName="+actionName);
        return rtnValue;
    }

    // --- End DynamicMBean interface methods

}

Believe it or not, this is a very trivial MBean. The vast majority of the code is there to provide the MBean metadata and handle the callbacks from the MBean Server. This is required because a Dynamic MBean is free to expose whatever management interface it wants. A Dynamic MBean can in fact change its management interface at runtime simply by returning different metadata from the getMBeanInfo method. Of course, some clients may not be happy with such a dynamic object, but the MBean Server will do nothing to prevent a Dynamic MBean from changing its interface.

There are two points to this example. First, demonstrate how an MBean can depend on an EJB for some of its functionality and second, how to create MBeans with dynamic management interfaces. If we were to write a standard MBean with a static interface for this example it would look like the following.

public interface EjbMBeanAdaptorMBean
{
    public String getHelloPrefix();
    public void setHelloPrefix(String prefix);
    public String getEjbJndiName();
    public void setEjbJndiName(String jndiName);
    public String echo(String arg) throws CreateException, NamingException;
    public void create() throws Exception;
    public void start() throws Exception;
    public void stop();
    public void destroy();
}

Moving to lines 67-83, this is where the MBean operation metadata is constructed. The echo(String), create(), start(), stop() and destroy() operations are defined by obtaining the corresponding java.lang.reflect.Method object and adding a description. Let's go through the code and discuss where this interface implementation exists and how the MBean uses the EJB. Beginning with lines 40-51, the two MBeanAttributeInfo instances created define the attributes of the MBean. These attributes correspond to the getHelloPrefix/setHelloPrefix and getEjbJndiName/setEjbJndiName of the static interface. One thing to note in terms of why one might want to use a Dynamic MBean is that you have the ability to associate descriptive text with the attribute metadata. This is not something you can do with a static interface.

Lines 88-103 correspond to the JBoss service life cycle callbacks. Since we are subclassing the ServiceMBeanSupport utility class, we override the createService, startService, and stopService template callbacks rather than the create, start, and stop methods of the service interface. Note that we cannot attempt to lookup the EchoLocalHome interface of the EJB we make use of until the startService method. Any attempt to access the home interface in an earlier life cycle method would result in the name not being found in JNDI because the EJB container had not gotten to the point of binding the home interfaces. Because of this dependency we will need to specify that the MBean service depends on the EchoLocal EJB container to ensure that the service is not started before the EJB container is started. We will see this dependency specification when we look at the service descriptor.

Lines 105-121 are the HelloPrefix and EjbJndiName attribute accessors implementations. These are invoked in response to getAttribute/setAttribute invocations made through the MBean Server.

Lines 123-130 correspond to the echo(String) operation implementation. This method invokes the EchoLocal.echo(String) EJB method. The local bean interface is created using the EchoLocalHome that was obtained in the startService method.

The remainder of the class makes up the Dynamic MBean interface implementation. Lines 133-152 correspond to the MBean metadata accessor callback. This method returns a description of the MBean management interface in the form of the javax.management.MBeanInfo object. This is made up of a description, the MBeanAttributeInfo and MBeanOperationInfo metadata created earlier, as well as constructor and notification information. This MBean does not need any special constructors or notifications so this information is null.

Lines 154-258 handle the attribute access requests. This is rather tedious and error prone code so a toolkit or infrastructure that helps generate these methods should be used. A Model MBean framework based on XML called XBeans is currently being investigated in JBoss. Other than this, no other Dynamic MBean frameworks currently exist.

Lines 260-310 correspond to the operation invocation dispatch entry point. Here the request operation action name is checked against those the MBean handles and the appropriate method is invoked.

The jboss-service.xml descriptor for the MBean is given below. The dependency on the EJB container MBean is highlighted in bold. The format of the EJB container MBean ObjectName is: "jboss.j2ee:service=EJB,jndiName=" + <home-jndi-name> where the <home-jndi-name> is the EJB home interface JNDI name.

<server>
    <mbean code="org.jboss.book.jmx.ex3.EjbMBeanAdaptor"
           name="jboss.book:service=EjbMBeanAdaptor">
        <attribute name="HelloPrefix">AdaptorPrefix</attribute>
        <attribute name="EjbJndiName">local/chap2.EchoBean</attribute>
        <depends>jboss.j2ee:service=EJB,jndiName=local/chap2.EchoBean</depends>
    </mbean>
</server>

Deploy the example ear by running:

[examples]$ ant -Dchap=jmx -Dex=3 run-example

On the server console there will be messages similar to the following:

14:57:12,906 INFO  [EARDeployer] Init J2EE application: file:/private/tmp/jboss-4.0.1/server/
default/deploy/chap2-ex3.ear
14:57:13,044 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,088 INFO  [EjbMBeanAdaptor] preRegister notification seen
14:57:13,093 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,117 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,140 WARN  [EjbMBeanAdaptor] Unexcepted error accessing MBeanInfo for null
java.lang.NullPointerException
  at org.jboss.system.ServiceMBeanSupport.postRegister(ServiceMBeanSupport.java:418)
...
14:57:13,203 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,232 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,420 INFO  [EjbModule] Deploying Chap2EchoInfoBean
14:57:13,443 INFO  [EjbModule] Deploying chap2.EchoBean
14:57:13,488 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,542 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,558 INFO  [EjbMBeanAdaptor] Begin invoke, actionName=create
14:57:13,560 INFO  [EjbMBeanAdaptor] Notified of create state
14:57:13,562 INFO  [EjbMBeanAdaptor] End invoke, actionName=create
14:57:13,604 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
...
14:57:13,621 INFO  [EjbMBeanAdaptor] Don't panic, just a stack trace
java.lang.Throwable: getMBeanInfo trace
  at org.jboss.book.jmx.ex3.EjbMBeanAdaptor.getMBeanInfo(EjbMBeanAdaptor.java:153)
14:57:13,641 INFO  [EjbMBeanAdaptor] Begin invoke, actionName=getState
14:57:13,942 INFO  [EjbMBeanAdaptor] Begin invoke, actionName=start
14:57:13,944 INFO  [EjbMBeanAdaptor] Notified of start state
14:57:13,951 INFO  [EjbMBeanAdaptor] Testing Echo
14:57:13,983 INFO  [EchoBean] echo, info=echo info, arg=, arg=startService
14:57:13,986 INFO  [EjbMBeanAdaptor] echo(startService) = startService
14:57:13,988 INFO  [EjbMBeanAdaptor] End invoke, actionName=start
14:57:13,991 INFO  [EJBDeployer] Deployed: file:/tmp/jboss-4.0.5.GA/server/default/tmp/deploy
/tmp60550jmx-ex3.ear-contents/jmx-ex3.jar
14:57:14,075 INFO  [EARDeployer] Started J2EE application: ...

The stack traces are not exceptions. They are traces coming from the EjbMBeanAdaptor code to demonstrate that clients ask for the MBean interface when they want to discover the MBean's capabilities. Notice that the EJB container (lines with [EjbModule]) is started before the example MBean (lines with [EjbMBeanAdaptor]).

Now, let's invoke the echo method using the JMX console web application. Go to the JMX Console (http://localhost:8080/jmx-console) and find the service=EjbMBeanAdaptor in the jboss.book domain. Click on the link and scroll down to the echo operation section. The view should be like that shown in Figure 1.19, “The EjbMBeanAdaptor MBean operations JMX console view”.

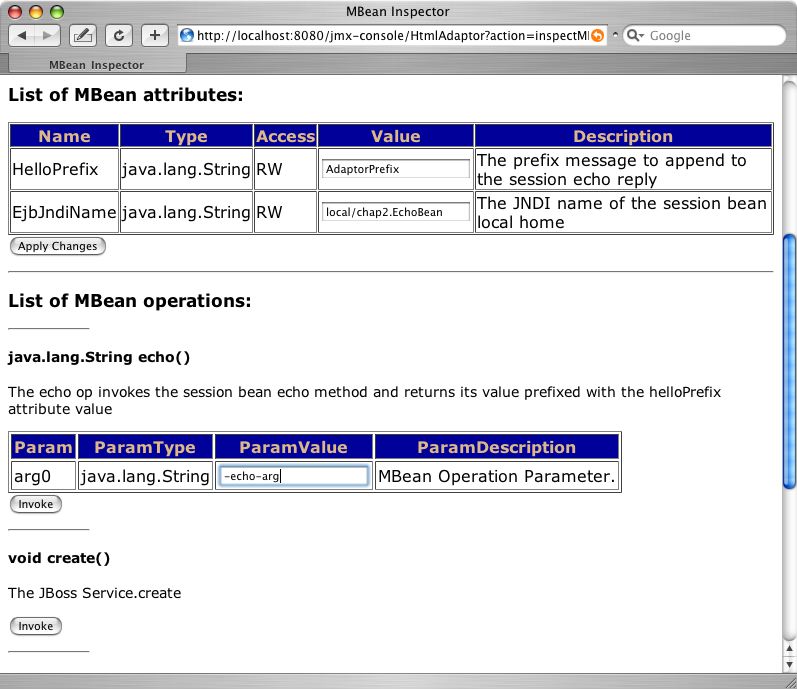

Figure 1.19. The EjbMBeanAdaptor MBean operations JMX console view

As shown, we have already entered an argument string of -echo-arg into the ParamValue text field. Press the Invoke button and a result string of AdaptorPrefix-echo-arg is displayed on the results page. The server console will show several stack traces from the various metadata queries issues by the JMX console and the MBean invoke method debugging lines:

10:51:48,671 INFO [EjbMBeanAdaptor] Begin invoke, actionName=echo
10:51:48,671 INFO [EjbMBeanAdaptor] Lookup EchoLocalHome@local/chap2.EchoBean
10:51:48,687 INFO [EchoBean] echo, info=echo info, arg=, arg=-echo-arg
10:51:48,687 INFO [EjbMBeanAdaptor] Result: AdaptorPrefix-echo-arg
10:51:48,687 INFO [EjbMBeanAdaptor] End invoke, actionName=echo

Deployers are the mechanism by which components are brought into a JBoss server. Deployers are also the creators of the majority of UCL instances, and the primary creator is the MainDeployer. The MainDeployer creates the UCL for a deployment early on during its init method. The UCL is created by calling the DeploymentInfo.createClassLoaders() method. Only the topmost DeploymentInfo will actually create a UCL. All subdeployments will add their class paths to their parent DeploymentInfo UCL. Every deployment does have a standalone URLClassLoader that uses the deployment URL as its path. This is used to localize the loading of resources such as deployment descriptors. Figure 1.20, “An illustration of the class loaders involved with an EAR deployment” provides an illustration of the interaction between Deployers, DeploymentInfos and class loaders.

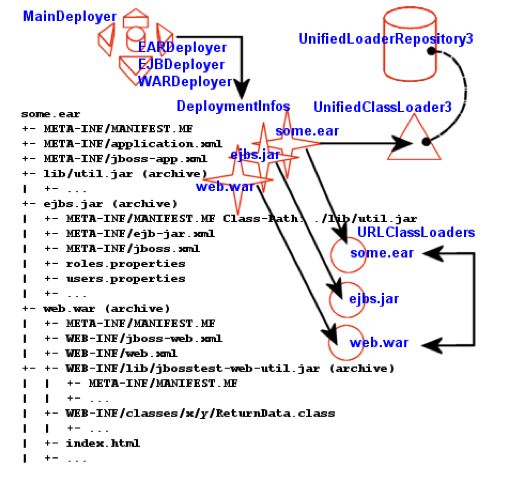

Figure 1.20. An illustration of the class loaders involved with an EAR deployment

The figure illustrates an EAR deployment with EJB and WAR subdeployments. The EJB deployment references the lib/util.jar utility jar via its manifest. The WAR includes classes in its WEB-INF/classes directory as well as the WEB-INF/lib/jbosstest-web-util.jar. Each deployment has a DeploymentInfo instance that has a URLClassLoader pointing to the deployment archive. The DeploymentInfo associated with some.ear is the only one to have a UCL created. The ejbs.jar and web.war DeploymentInfos add their deployment archive to the some.ear UCL classpath, and share this UCL as their deployment UCL. The EJBDeployer also adds any manifest jars to the EAR UCL.

The WARDeployer behaves differently than other deployers in that it only adds its WAR archive to the DeploymentInfo UCL classpath. The loading of classes from the WAR WEB-INF/classes and WEB-INF/lib locations is handled by the servlet container class loader. The servlet container class loaders delegate to the WAR DeploymentInfo UCL as their parent class loader, but the server container class loader is not part of the JBoss class loader repository. Therefore, classes inside of a WAR are not visible to other components. Classes that need to be shared between web application components and other components such as EJBs, and MBeans need to be loaded into the shared class loader repository either by including the classes into a SAR or EJB deployment, or by referencing a jar containing the shared classes through a manifest Class-Path entry. In the case of a SAR, the SAR classpath element in the service deployment serves the same purpose as a JAR manifest Class-Path.

In the section on connecting to the JMX server we mentioned that there was a service that allows one to access the javax.management.MBeanServer via any protocol using an invoker service. In this section we present the org.jboss.jmx.connector.invoker.InvokerAdaptorService and its configuration for access via RMI/JRMP as an example of the steps required to provide remote access to an MBean service.

The InvokerAdaptorService is a simple MBean service that only exists to fulfill the target MBean role in the detached invoker pattern.

package org.jboss.jmx.connector.invoker;
public interface InvokerAdaptorServiceMBean
    extends org.jboss.system.ServiceMBean
{
    Class getExportedInterface();
    void setExportedInterface(Class exportedInterface);

    Object invoke(org.jboss.invocation.Invocation invocation)
        throws Exception;
}

package org.jboss.jmx.connector.invoker;

import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.lang.reflect.UndeclaredThrowableException;
import java.util.Collections;
import java.util.HashMap;
import java.util.Map;

import javax.management.MBeanServer;
import javax.management.ObjectName;

import org.jboss.invocation.Invocation;
import org.jboss.invocation.MarshalledInvocation;
import org.jboss.mx.server.ServerConstants;
import org.jboss.system.ServiceMBeanSupport;
import org.jboss.system.Registry;

public class InvokerAdaptorService
    extends ServiceMBeanSupport
    implements InvokerAdaptorServiceMBean, ServerConstants
{
    private static ObjectName mbeanRegistry;

    static {
        try {
            mbeanRegistry = new ObjectName(MBEAN_REGISTRY);
        } catch (Exception e) {
            throw new RuntimeException(e.toString());
        }
    }

    private Map marshalledInvocationMapping = new HashMap();
    private Class exportedInterface;

    public Class getExportedInterface()
    {
        return exportedInterface;
    }

    public void setExportedInterface(Class exportedInterface)
    {
        this.exportedInterface = exportedInterface;
    }

    protected void startService()
        throws Exception
    {
        // Build the interface method map
        Method[] methods = exportedInterface.getMethods();
        HashMap tmpMap = new HashMap(methods.length);
        for (int m = 0; m < methods.length; m ++) {
            Method method = methods[m];
            Long hash = new Long(MarshalledInvocation.calculateHash(method));
            tmpMap.put(hash, method);
        }

        marshalledInvocationMapping = Collections.unmodifiableMap(tmpMap);
        // Place our ObjectName hash into the Registry so invokers can
        // resolve it
        Registry.bind(new Integer(serviceName.hashCode()), serviceName);
    }

    protected void stopService()
        throws Exception
    {
        Registry.unbind(new Integer(serviceName.hashCode()));
    }


    public Object invoke(Invocation invocation)
        throws Exception
    {
        // Make sure we have the correct classloader before unmarshalling
        Thread thread = Thread.currentThread();
        ClassLoader oldCL = thread.getContextClassLoader();

        // Get the MBean this operation applies to
        ClassLoader newCL = null;
        ObjectName objectName = (ObjectName)
            invocation.getValue("JMX_OBJECT_NAME");
        if (objectName != null) {
            // Obtain the ClassLoader associated with the MBean deployment
            newCL = (ClassLoader)
                server.invoke(mbeanRegistry, "getValue",
                              new Object[] { objectName, CLASSLOADER },
                              new String[] { ObjectName.class.getName(),
                                             "java.lang.String" });
        }

        if (newCL != null && newCL != oldCL) {
            thread.setContextClassLoader(newCL);
        }

        try {
            // Set the method hash to Method mapping
            if (invocation instanceof MarshalledInvocation) {
                MarshalledInvocation mi = (MarshalledInvocation) invocation;
                mi.setMethodMap(marshalledInvocationMapping);
            }

            // Invoke the MBeanServer method via reflection
            Method method = invocation.getMethod();
            Object[] args = invocation.getArguments();
            Object value = null;
            try {
                String name = method.getName();
                Class[] sig = method.getParameterTypes();
                Method mbeanServerMethod =
                    MBeanServer.class.getMethod(name, sig);
                value = mbeanServerMethod.invoke(server, args);
            } catch(InvocationTargetException e) {
                Throwable t = e.getTargetException();
                if (t instanceof Exception) {
                    throw (Exception) t;
                } else {
                    throw new UndeclaredThrowableException(t, method.toString());
                }
            }

            return value;
        } finally {
            if (newCL != null && newCL != oldCL) {
                thread.setContextClassLoader(oldCL);
            }
        }
    }
}

Let's go through the key details of this service. The InvokerAdaptorServiceMBean Standard MBean interface of the InvokerAdaptorService has a single ExportedInterface attribute and a single invoke(Invocation) operation. The ExportedInterface attribute allows customization of the type of interface the service exposes to clients. This has to be compatible with the MBeanServer class in terms of method name and signature. The invoke(Invocation) operation is the required entry point that target MBean services must expose to participate in the detached invoker pattern. This operation is invoked by the detached invoker services that have been configured to provide access to the InvokerAdaptorService.

Lines 54-64 of the InvokerAdaptorService build the HashMap<Long, Method> of the ExportedInterface Class using the org.jboss.invocation.MarshalledInvocation.calculateHash(Method) utility method. Because java.lang.reflect.Method instances are not serializable, a MarshalledInvocation version of the non-serializable Invocation class is used to marshall the invocation between the client and server. The MarshalledInvocation replaces the Method instances with their corresponding hash representation. On the server side, the MarshalledInvocation must be told what the hash to Method mapping is.

Line 64 creates a mapping between the InvokerAdaptorService service name and its hash code representation. This is used by detached invokers to determine what the target MBean ObjectName of an Invocation is. When the target MBean name is store in the Invocation, its store as its hashCode because ObjectNames are relatively expensive objects to create. The org.jboss.system.Registry is a global map like construct that invokers use to store the hash code to ObjectName mappings in.

Lines 77-93 obtain the name of the MBean on which the MBeanServer operation is being performed and lookup the class loader associated with the MBean's SAR deployment. This information is available via the org.jboss.mx.server.registry.BasicMBeanRegistry, a JBoss JMX implementation specific class. It is generally necessary for an MBean to establish the correct class loading context because the detached invoker protocol layer may not have access to the class loaders needed to unmarshall the types associated with an invocation.

Lines 101-105 install the ExposedInterface class method hash to method mapping if the invocation argument is of type MarshalledInvocation. The method mapping calculated previously at lines 54-62 is used here.

Lines 107-114 perform a second mapping from the ExposedInterface Method to the matching method of the MBeanServer class. The InvokerServiceAdaptor decouples the ExposedInterface from the MBeanServer class in that it allows an arbitrary interface. This is needed on one hand because the standard java.lang.reflect.Proxy class can only proxy interfaces. It also allows one to only expose a subset of the MBeanServer methods and add transport specific exceptions like java.rmi.RemoteException to the ExposedInterface method signatures.

Line 115 dispatches the MBeanServer method invocation to the MBeanServer instance to which the InvokerAdaptorService was deployed. The server instance variable is inherited from the ServiceMBeanSupport superclass.

Lines 117-124 handle any exceptions coming from the reflective invocation including the unwrapping of any declared exception thrown by the invocation.

Line 126 is the return of the successful MBeanServer method invocation result.

Note that the InvokerAdaptorService MBean does not deal directly with any transport specific details. There is the calculation of the method hash to Method mapping, but this is a transport independent detail.

Now let's take a look at how the InvokerAdaptorService may be used to expose the same org.jboss.jmx.adaptor.rmi.RMIAdaptor interface via RMI/JRMP as seen in Connecting to JMX Using RMI. We will start by presenting the proxy factory and InvokerAdaptorService configurations found in the default setup in the jmx-invoker-adaptor-service.sar deployment. Example 1.17, “The default jmx-invoker-adaptor-server.sar jboss-service.xml deployment descriptor” shows the jboss-service.xml descriptor for this deployment.

<server>
    <!-- The JRMP invoker proxy configuration for the InvokerAdaptorService -->
    <mbean code="org.jboss.invocation.jrmp.server.JRMPProxyFactory"
           name="jboss.jmx:type=adaptor,name=Invoker,protocol=jrmp,service=proxyFactory">
        <!-- Use the standard JRMPInvoker from conf/jboss-service.xml -->
        <attribute name="InvokerName">jboss:service=invoker,type=jrmp</attribute>
        <!-- The target MBean is the InvokerAdaptorService configured below -->
        <attribute name="TargetName">jboss.jmx:type=adaptor,name=Invoker</attribute>
        <!-- Where to bind the RMIAdaptor proxy -->
        <attribute name="JndiName">jmx/invoker/RMIAdaptor</attribute>
        <!-- The RMI compabitle MBeanServer interface -->
        <attribute name="ExportedInterface">org.jboss.jmx.adaptor.rmi.RMIAdaptor</attribute>
        <attribute name="ClientInterceptors">
            <iterceptors>
                <interceptor>org.jboss.proxy.ClientMethodInterceptor</interceptor>
                <interceptor>
                    org.jboss.jmx.connector.invoker.client.InvokerAdaptorClientInterceptor
                </interceptor>
                <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
            </iterceptors>
        </attribute>
        <depends>jboss:service=invoker,type=jrmp</depends>
    </mbean>
    <!-- This is the service that handles the RMIAdaptor invocations by routing
         them to the MBeanServer the service is deployed under. -->
    <mbean code="org.jboss.jmx.connector.invoker.InvokerAdaptorService"
           name="jboss.jmx:type=adaptor,name=Invoker">
        <attribute name="ExportedInterface">org.jboss.jmx.adaptor.rmi.RMIAdaptor</attribute>
    </mbean>
</server>

The first MBean, org.jboss.invocation.jrmp.server.JRMPProxyFactory, is the proxy factory MBean service that creates proxies for the RMI/JRMP protocol. The configuration of this service as shown in Example 1.17, “The default jmx-invoker-adaptor-server.sar jboss-service.xml deployment descriptor” states that the JRMPInvoker will be used as the detached invoker, the InvokerAdaptorService is the target mbean to which requests will be forwarded, that the proxy will expose the RMIAdaptor interface, the proxy will be bound into JNDI under the name jmx/invoker/RMIAdaptor, and the proxy will contain 3 interceptors: ClientMethodInterceptor, InvokerAdaptorClientInterceptor, InvokerInterceptor. The configuration of the InvokerAdaptorService simply sets the RMIAdaptor interface that the service is exposing.

The last piece of the configuration for exposing the InvokerAdaptorService via RMI/JRMP is the detached invoker. The detached invoker we will use is the standard RMI/JRMP invoker used by the EJB containers for home and remote invocations, and this is the org.jboss.invocation.jrmp.server.JRMPInvoker MBean service configured in the conf/jboss-service.xml descriptor. That we can use the same service instance emphasizes the detached nature of the invokers. The JRMPInvoker simply acts as the RMI/JRMP endpoint for all RMI/JRMP proxies regardless of the interface(s) the proxies expose or the service the proxies utilize.

The notion of a name is of fundamental importance in JNDI. The naming system determines the syntax that the name must follow. The syntax of the naming system allows the user to parse string representations of names into its components. A name is used with a naming system to locate objects. In the simplest sense, a naming system is just a collection of objects with unique names. To locate an object in a naming system you provide a name to the naming system, and the naming system returns the object store under the name.

As an example, consider the Unix file system's naming convention. Each file is named from its path relative to the root of the file system, with each component in the path separated by the forward slash character ("/"). The file's path is ordered from left to right. The pathname/usr/jboss/readme.txt, for example, names a file readme.txt in the directory jboss, under the directory usr, located in the root of the file system. JBoss naming uses a UNIX-style namespace as its naming convention.

The javax.naming.Name interface represents a generic name as an ordered sequence of components. It can be a composite name (one that spans multiple namespaces), or a compound name (one that is used within a single hierarchical naming system). The components of a name are numbered. The indexes of a name with N components range from 0 up to, but not including, N. The most significant component is at index 0. An empty name has no components.

A composite name is a sequence of component names that span multiple namespaces. An example of a composite name would be the hostname and file combination commonly used with UNIX commands like scp. For example, the following command copies localfile.txt to the file remotefile.txt in the tmp directory on host ahost.someorg.org:

scp localfile.txt ahost.someorg.org:/tmp/remotefile.txt

A compound name is derived from a hierarchical namespace. Each component in a compound name is an atomic name, meaning a string that cannot be parsed into smaller components. A file pathname in the UNIX file system is an example of a compound name. ahost.someorg.org:/tmp/remotefile.txt is a composite name that spans the DNS and UNIX file system namespaces. The components of the composite name are ahost.someorg.org and /tmp/remotefile.txt. A component is a string name from the namespace of a naming system. If the component comes from a hierarchical namespace, that component can be further parsed into its atomic parts by using the javax.naming.CompoundName class. The JNDI API provides the javax.naming.CompositeName class as the implementation of the Name interface for composite names.

The javax.naming.Context interface is the primary interface for interacting with a naming service. The Context interface represents a set of name-to-object bindings. Every context has an associated naming convention that determines how the context parses string names into javax.naming.Name instances. To create a name to object binding you invoke the bind method of a Context and specify a name and an object as arguments. The object can later be retrieved using its name using the Context lookup method. A Context will typically provide operations for binding a name to an object, unbinding a name, and obtaining a listing of all name-to-object bindings. The object you bind into a Context can itself be of type Context . The Context object that is bound is referred to as a subcontext of the Context on which the bind method was invoked.

As an example, consider a file directory with a pathname /usr, which is a context in the UNIX file system. A file directory named relative to another file directory is a subcontext (commonly referred to as a subdirectory). A file directory with a pathname /usr/jboss names a jboss context that is a subcontext of usr. In another example, a DNS domain, such as org, is a context. A DNS domain named relative to another DNS domain is another example of a subcontext. In the DNS domain jboss.org, the DNS domain jboss is a subcontext of org because DNS names are parsed right to left.

### JBossNS properties
java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory
java.naming.provider.url=jnp://localhost:1099
java.naming.factory.url.pkgs=org.jboss.naming:org.jnp.interfaces

The most commonly used factory is the org.jnp.interfaces.NamingContextFactory implementation. Its properties include:

When a client creates an InitialContext with these JBossNS properties available, the org.jnp.interfaces.NamingContextFactory object is used to create the Context instance that will be used in subsequent operations. The NamingContextFactory is the JBossNS implementation of the javax.naming.spi.InitialContextFactory interface. When the NamingContextFactory class is asked to create a Context, it creates an org.jnp.interfaces.NamingContext instance with the InitialContext environment and name of the context in the global JNDI namespace. It is the NamingContext instance that actually performs the task of connecting to the JBossNS server, and implements the Context interface. The Context.PROVIDER_URL information from the environment indicates from which server to obtain a NamingServer RMI reference.

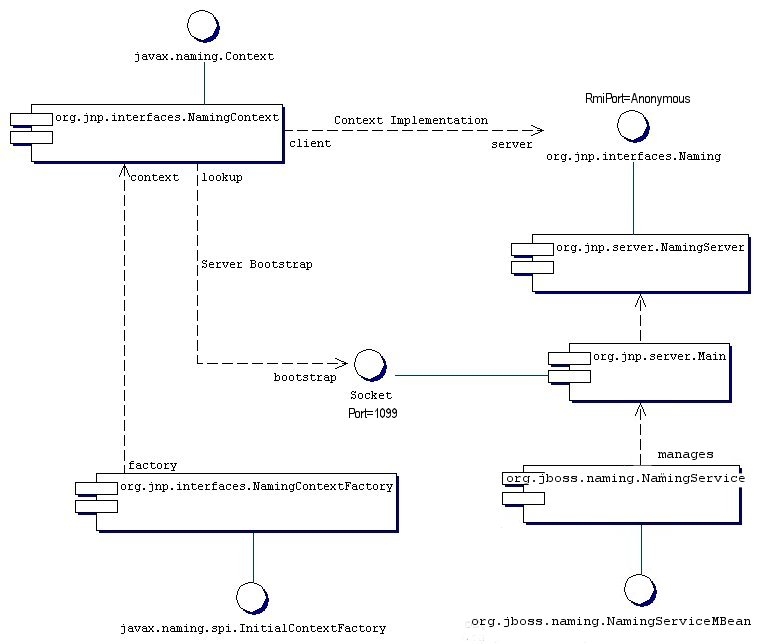

The association of the NamingContext instance to a NamingServer instance is done in a lazy fashion on the first Context operation that is performed. When a Context operation is performed and the NamingContext has no NamingServer associated with it, it looks to see if its environment properties define a Context.PROVIDER_URL. A Context.PROVIDER_URL defines the host and port of the JBossNS server the Context is to use. If there is a provider URL, the NamingContext first checks to see if a Naming instance keyed by the host and port pair has already been created by checking a NamingContext class static map. It simply uses the existing Naming instance if one for the host port pair has already been obtained. If no Naming instance has been created for the given host and port, the NamingContext connects to the host and port using a java.net.Socket, and retrieves a Naming RMI stub from the server by reading a java.rmi.MarshalledObject from the socket and invoking its get method. The newly obtained Naming instance is cached in the NamingContext server map under the host and port pair. If no provider URL was specified in the JNDI environment associated with the context, the NamingContext simply uses the in VM Naming instance set by the Main MBean.

The NamingContext implementation of the Context interface delegates all operations to the Naming instance associated with the NamingContext. The NamingServer class that implements the Naming interface uses a java.util.Hashtable as the Context store. There is one unique NamingServer instance for each distinct JNDI Name for a given JBossNS server. There are zero or more transient NamingContext instances active at any given moment that refers to a NamingServer instance. The purpose of the NamingContext is to act as a Context to the Naming interface adaptor that manages translation of the JNDI names passed to the NamingContext . Because a JNDI name can be relative or a URL, it needs to be converted into an absolute name in the context of the JBossNS server to which it refers. This translation is a key function of the NamingContext.

This version of the InitialContextFactory implementation is a simple extension of the jnp version which differs from the jnp version in that it stores the last configuration passed to its InitialContextFactory.getInitialContext(Hashtable env) method in a public thread local variable. This is used by EJB handles and other JNDI sensitive objects like the UserTransaction factory to keep track of the JNDI context that was in effect when they were created. If you want this environment to be bound to the object even after its serialized across vm boundaries, then you should the org.jboss.naming.NamingContextFactory. If you want the environment that is defined in the current VM jndi.properties or system properties, then you should use the org.jnp.interfaces.NamingContextFactory version.

When running in a clustered JBoss environment, you can choose not to specify a Context.PROVIDER_URL value and let the client query the network for available naming services. This only works with JBoss servers running with the all configuration, or an equivalent configuration that has org.jboss.ha.framework.server.ClusterPartition and org.jboss.ha.jndi.HANamingService services deployed. The discovery process consists of sending a multicast request packet to the discovery address/port and waiting for any node to respond. The response is a HA-RMI version of the Naming interface. The following InitialContext proerties affect the discovery configuration:

The JNDI naming service can be accessed over HTTP. From a JNDI client's perspective this is a transparent change as they continue to use the JNDI Context interface. Operations through the Context interface are translated into HTTP posts to a servlet that passes the request to the NamingService using its JMX invoke operation. Advantages of using HTTP as the access protocol include better access through firewalls and proxies setup to allow HTTP, as well as the ability to secure access to the JNDI service using standard servlet role based security.

To access JNDI over HTTP you use the org.jboss.naming.HttpNamingContextFactory as the factory implementation. The complete set of support InitialContext environment properties for this factory are:

The JNDI Context implementation returned by the HttpNamingContextFactory is a proxy that delegates invocations made on it to a bridge servlet which forwards the invocation to the NamingService through the JMX bus and marshalls the reply back over HTTP. The proxy needs to know what the URL of the bridge servlet is in order to operate. This value may have been bound on the server side if the JBoss web server has a well known public interface. If the JBoss web server is sitting behind one or more firewalls or proxies, the proxy cannot know what URL is required. In this case, the proxy will be associated with a system property value that must be set in the client VM. For more information on the operation of JNDI over HTTP see Section 2.4.1, “Accessing JNDI over HTTP”.

JAAS is the preferred method for authenticating a remote client to JBoss. However, for simplicity and to ease the migration from other application server environment that do not use JAAS, JBoss alows you the security credentials to be passed through the InitialContext. JAAS is still used under the covers, but there is no manifest use of the JAAS interfaces in the client application.

The factory class that provides this capability is the org.jboss.security.jndi.LoginInitialContextFactory. The complete set of support InitialContext environment properties for this factory are:

When using Sun's CosNaming it is necessary to use a different naming context factory from the default. CosNaming looks for the ORB in JNDI instead of using the the ORB configured in deploy/iiop-service.xml?. It is neccessary to set the global context factory to org.jboss.iiop.naming.ORBInitialContextFactory, which sets the ORB to JBoss's ORB. This is done in the conf/jndi.propeties file:

# DO NOT EDIT THIS FILE UNLESS YOU KNOW WHAT YOU ARE DOING
#
java.naming.factory.initial=org.jboss.iiop.naming.ORBInitialContextFactory
java.naming.factory.url.pkgs=org.jboss.naming:org.jnp.interfaces


It is also necessary to use ORBInitialContextFactory when using CosNaming in an application client.

This capability is provided by http-invoker.sar. The structure of the http-invoker.sar is:

http-invoker.sar
+- META-INF/jboss-service.xml
+- invoker.war
| +- WEB-INF/jboss-web.xml
| +- WEB-INF/classes/org/jboss/invocation/http/servlet/InvokerServlet.class
| +- WEB-INF/classes/org/jboss/invocation/http/servlet/NamingFactoryServlet.class
| +- WEB-INF/classes/org/jboss/invocation/http/servlet/ReadOnlyAccessFilter.class
| +- WEB-INF/classes/roles.properties
| +- WEB-INF/classes/users.properties
| +- WEB-INF/web.xml
| +- META-INF/MANIFEST.MF
+- META-INF/MANIFEST.MF

The jboss-service.xml descriptor defines the HttpInvoker and HttpInvokerHA MBeans. These services handle the routing of methods invocations that are sent via HTTP to the appropriate target MBean on the JMX bus.

The http-invoker.war web application contains servlets that handle the details of the HTTP transport. The NamingFactoryServlet handles creation requests for the JBoss JNDI naming service javax.naming.Context implementation. The InvokerServlet handles invocations made by RMI/HTTP clients. The ReadOnlyAccessFilter allows one to secure the JNDI naming service while making a single JNDI context available for read-only access by unauthenticated clients.

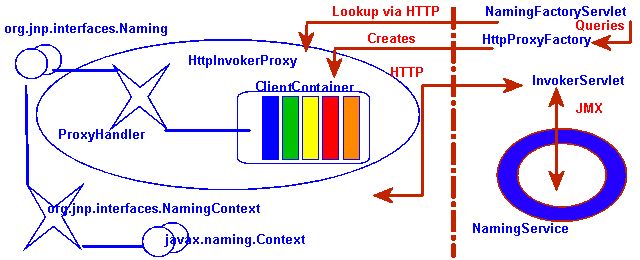

Figure 2.2. The HTTP invoker proxy/server structure for a JNDI Context

Before looking at the configurations let's look at the operation of the http-invoker services. Figure 2.2, “The HTTP invoker proxy/server structure for a JNDI Context” shows a logical view of the structure of a JBoss JNDI proxy and its relationship to the JBoss server side components of the http-invoker. The proxy is obtained from the NamingFactoryServlet using an InitialContext with the Context.INITIAL_CONTEXT_FACTORY property set to org.jboss.naming.HttpNamingContextFactory, and the Context.PROVIDER_URL property set to the HTTP URL of the NamingFactoryServlet. The resulting proxy is embedded in an org.jnp.interfaces.NamingContext instance that provides the Context interface implementation.

The proxy is an instance of org.jboss.invocation.http.interfaces.HttpInvokerProxy, and implements the org.jnp.interfaces.Naming interface. Internally the HttpInvokerProxy contains an invoker that marshalls the Naming interface method invocations to the InvokerServlet via HTTP posts. The InvokerServlet translates these posts into JMX invocations to the NamingService, and returns the invocation response back to the proxy in the HTTP post reponse.

There are several configuration values that need to be set to tie all of these components together and Figure 2.3, “The relationship between configuration files and JNDI/HTTP component” illustrates the relationship between configuration files and the corresponding components.

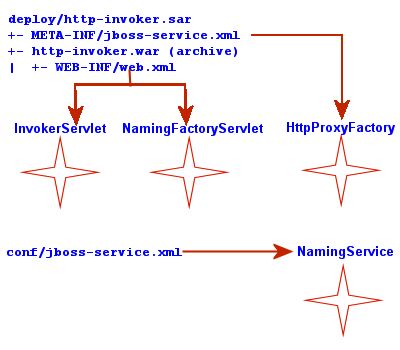

Figure 2.3. The relationship between configuration files and JNDI/HTTP component

The http-invoker.sar/META-INF/jboss-service.xml descriptor defines the HttpProxyFactory that creates the HttpInvokerProxy for the NamingService. The attributes that need to be configured for the HttpProxyFactory include:

The http-invoker.sar/invoker.war/WEB-INF/web.xml descriptor defines the mappings of the NamingFactoryServlet and InvokerServlet along with their initialzation parameters. The configuration of the NamingFactoryServlet relevant to JNDI/HTTP is the JNDIFactory entry which defines:

The configuration of the InvokerServlet relevant to JNDI/HTTP is the JMXInvokerServlet which defines:

To be able to access JNDI over HTTP/SSL you need to enable an SSL connector on the web container. The details of this are covered in the Integrating Servlet Containers for Tomcat. We will demonstrate the use of HTTPS with a simple example client that uses an HTTPS URL as the JNDI provider URL. We will provide an SSL connector configuration for the example, so unless you are interested in the details of the SSL connector setup, the example is self contained.

We also provide a configuration of the HttpProxyFactory setup to use an HTTPS URL. The following example shows the section of the http-invoker.sar jboss-service.xml descriptor that the example installs to provide this configuration. All that has changed relative to the standard HTTP configuration are the InvokerURLPrefix and InvokerURLSuffix attributes, which setup an HTTPS URL using the 8443 port.

<!-- Expose the Naming service interface via HTTPS -->
<mbean code="org.jboss.invocation.http.server.HttpProxyFactory"
       name="jboss:service=invoker,type=https,target=Naming">
    <!-- The Naming service we are proxying -->
    <attribute name="InvokerName">jboss:service=Naming</attribute>
    <!-- Compose the invoker URL from the cluster node address -->
    <attribute name="InvokerURLPrefix">https://</attribute>
    <attribute name="InvokerURLSuffix">:8443/invoker/JMXInvokerServlet </attribute>
    <attribute name="UseHostName">true</attribute>
    <attribute name="ExportedInterface">org.jnp.interfaces.Naming </attribute>
    <attribute name="JndiName"/>
    <attribute name="ClientInterceptors">
        <interceptors>
            <interceptor>org.jboss.proxy.ClientMethodInterceptor </interceptor>
            <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
            <interceptor>org.jboss.naming.interceptors.ExceptionInterceptor </interceptor>
            <interceptor>org.jboss.invocation.InvokerInterceptor </interceptor>
        </interceptors>
    </attribute>
</mbean>

At a minimum, a JNDI client using HTTPS requires setting up a HTTPS URL protocol handler. We will be using the Java Secure Socket Extension (JSSE) for HTTPS. The JSSE documentation does a good job of describing what is necessary to use HTTPS, and the following steps were needed to configure the example client shown in Example 2.2, “A JNDI client that uses HTTPS as the transport”:

package org.jboss.chap3.ex1;

import java.security.Security;
import java.util.Properties;
import javax.naming.Context;
import javax.naming.InitialContext;

public class ExClient
{
    public static void main(String args[]) throws Exception
    {
        Properties env = new Properties();
        env.setProperty(Context.INITIAL_CONTEXT_FACTORY,
                        "org.jboss.naming.HttpNamingContextFactory");
        env.setProperty(Context.PROVIDER_URL,
                        "https://localhost:8443/invoker/JNDIFactorySSL");

        Context ctx = new InitialContext(env);
        System.out.println("Created InitialContext, env=" + env);

        Object data = ctx.lookup("jmx/invoker/RMIAdaptor");
        System.out.println("lookup(jmx/invoker/RMIAdaptor): " + data);
    }
}

To test the client, first build the chapter 3 example to create the chap3 configuration fileset.

[examples]$ ant -Dchap=naming config

Next, start the JBoss server using the naming configuration fileset:

[bin]$ sh run.sh -c naming

And finally, run the ExClient using:

[examples]$ ant -Dchap=naming -Dex=1 run-example
...
run-example1:
     [java] Created InitialContext, env={java.naming.provider.url=https://localhost:8443/invo
ker/JNDIFactorySSL, java.naming.factory.initial=org.jboss.naming.HttpNamingContextFactory}
     [java] lookup(jmx/invoker/RMIAdaptor): org.jboss.invocation.jrmp.interfaces.JRMPInvokerP
roxy@cac3fa

One benefit to accessing JNDI over HTTP is that it is easy to secure access to the JNDI InitialContext factory as well as the naming operations using standard web declarative security. This is possible because the server side handling of the JNDI/HTTP transport is implemented with two servlets. These servlets are included in the http-invoker.sar/invoker.war directory found in the default and all configuration deploy directories as shown previously. To enable secured access to JNDI you need to edit the invoker.war/WEB-INF/web.xml descriptor and remove all unsecured servlet mappings. For example, the web.xml descriptor shown in Example 2.3, “ An example web.xml descriptor for secured access to the JNDI servlets” only allows access to the invoker.war servlets if the user has been authenticated and has a role of HttpInvoker.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE web-app PUBLIC
          "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
          "http://java.sun.com/dtd/web-app_2_3.dtd">
<web-app>
    <!-- ### Servlets -->
    <servlet>
        <servlet-name>JMXInvokerServlet</servlet-name>
        <servlet-class>
            org.jboss.invocation.http.servlet.InvokerServlet
        </servlet-class>
        <load-on-startup>1</load-on-startup>
    </servlet>   <servlet>
        <servlet-name>JNDIFactory</servlet-name>
        <servlet-class>
            org.jboss.invocation.http.servlet.NamingFactoryServlet
        </servlet-class>
        <init-param>
            <param-name>namingProxyMBean</param-name>
            <param-value>jboss:service=invoker,type=http,target=Naming</param-value>
        </init-param>
        <init-param>
            <param-name>proxyAttribute</param-name>
            <param-value>Proxy</param-value>
        </init-param>
        <load-on-startup>2</load-on-startup>
    </servlet>
    <!-- ### Servlet Mappings -->
    <servlet-mapping>
        <servlet-name>JNDIFactory</servlet-name>
        <url-pattern>/restricted/JNDIFactory/*</url-pattern>
    </servlet-mapping>
    <servlet-mapping>
        <servlet-name>JMXInvokerServlet</servlet-name>
        <url-pattern>/restricted/JMXInvokerServlet/*</url-pattern>
    </servlet-mapping>   <security-constraint>
        <web-resource-collection>
            <web-resource-name>HttpInvokers</web-resource-name>
            <description>An example security config that only allows users with
                the role HttpInvoker to access the HTTP invoker servlets </description>
            <url-pattern>/restricted/*</url-pattern>
            <http-method>GET</http-method>
            <http-method>POST</http-method>
        </web-resource-collection>
        <auth-constraint>
            <role-name>HttpInvoker</role-name>
        </auth-constraint>
    </security-constraint>

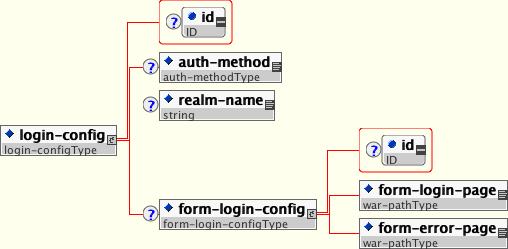

    <login-config>
        <auth-method>BASIC</auth-method>
        <realm-name>JBoss HTTP Invoker</realm-name>
    </login-config>   <security-role>
        <role-name>HttpInvoker</role-name>
    </security-role>
</web-app>

The web.xml descriptor only defines which sevlets are secured, and which roles are allowed to access the secured servlets. You must additionally define the security domain that will handle the authentication and authorization for the war. This is done through the jboss-web.xml descriptor, and an example that uses the http-invoker security domain is given below.

<jboss-web>
    <security-domain>java:/jaas/http-invoker</security-domain>
</jboss-web>

The security-domain element defines the name of the security domain that will be used for the JAAS login module configuration used for authentication and authorization. See Section 7.1.6, “Enabling Declarative Security in JBoss” for additional details on the meaning and configuration of the security domain name.

Another feature available for the JNDI/HTTP naming service is the ability to define a context that can be accessed by unauthenticated users in read-only mode. This can be important for services used by the authentication layer. For example, the SRPLoginModule needs to lookup the SRP server interface used to perform authentication. We'll now walk through how read-only JNDI works in JBoss.

First, the ReadOnlyJNDIFactory is declared in invoker.sar/WEB-INF/web.xml. It will be mapped to /invoker/ReadOnlyJNDIFactory.

<servlet>
    <servlet-name>ReadOnlyJNDIFactory</servlet-name>
    <description>A servlet that exposes the JBoss JNDI Naming service stub
          through http, but only for a single read-only context. The return content
          is serialized MarshalledValue containg the org.jnp.interfaces.Naming
          stub.
    </description>
    <servlet-class>org.jboss.invocation.http.servlet.NamingFactoryServlet</servlet-class>
    <init-param>
        <param-name>namingProxyMBean</param-name>
        <param-value>jboss:service=invoker,type=http,target=Naming,readonly=true</param-value>
    </init-param>
    <init-param>
        <param-name>proxyAttribute</param-name>
        <param-value>Proxy</param-value>
    </init-param>
    <load-on-startup>2</load-on-startup>
</servlet>

<!-- ... -->

<servlet-mapping>
    <servlet-name>ReadOnlyJNDIFactory</servlet-name>
    <url-pattern>/ReadOnlyJNDIFactory/*</url-pattern>
</servlet-mapping>

The factory only provides a JNDI stub which needs to be connected to an invoker. Here the invoker is jboss:service=invoker,type=http,target=Naming,readonly=true. This invoker is declared in the http-invoker.sar/META-INF/jboss-service.xml file.

   <mbean code="org.jboss.invocation.http.server.HttpProxyFactory"
      name="jboss:service=invoker,type=http,target=Naming,readonly=true">
      <attribute name="InvokerName">jboss:service=Naming</attribute>
      <attribute name="InvokerURLPrefix">http://</attribute>
      <attribute name="InvokerURLSuffix">:8080/invoker/readonly/JMXInvokerServlet</attribute>
      <attribute name="UseHostName">true</attribute>
      <attribute name="ExportedInterface">org.jnp.interfaces.Naming</attribute>
      <attribute name="JndiName"></attribute>
      <attribute name="ClientInterceptors">
          <interceptors>
             <interceptor>org.jboss.proxy.ClientMethodInterceptor</interceptor>
             <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
             <interceptor>org.jboss.naming.interceptors.ExceptionInterceptor</interceptor>
             <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
          </interceptors>
      </attribute>
   </mbean>

The proxy on the client side needs to talk back to a specific invoker servlet on the server side. The configuration here has the actual invocations going to /invoker/readonly/JMXInvokerServlet. This is actually the standard JMXInvokerServlet with a read-only filter attached.

    <filter>
        <filter-name>ReadOnlyAccessFilter</filter-name>
        <filter-class>org.jboss.invocation.http.servlet.ReadOnlyAccessFilter</filter-class>
        <init-param>
            <param-name>readOnlyContext</param-name>
            <param-value>readonly</param-value>
            <description>The top level JNDI context the filter will enforce
                read-only access on. If specified only Context.lookup operations
                will be allowed on this context. Another other operations or
                lookups on any other context will fail. Do not associate this
                filter with the JMXInvokerServlets if you want unrestricted
                access. </description>
        </init-param>
        <init-param>
            <param-name>invokerName</param-name>
            <param-value>jboss:service=Naming</param-value>
            <description>The JMX ObjectName of the naming service mbean </description>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>ReadOnlyAccessFilter</filter-name>
        <url-pattern>/readonly/*</url-pattern>
    </filter-mapping>

    <!-- ... -->
    <!-- A mapping for the JMXInvokerServlet that only allows invocations
            of lookups under a read-only context. This is enforced by the
            ReadOnlyAccessFilter
            -->
    <servlet-mapping>
        <servlet-name>JMXInvokerServlet</servlet-name>
        <url-pattern>/readonly/JMXInvokerServlet/*</url-pattern>
    </servlet-mapping>

The readOnlyContext parameter is set to readonly which means that when you access JBoss through the ReadOnlyJNDIFactory, you will only be able to access data in the readonly context. Here is a code fragment that illustrates the usage:

Properties env = new Properties();
env.setProperty(Context.INITIAL_CONTEXT_FACTORY,
                "org.jboss.naming.HttpNamingContextFactory");
env.setProperty(Context.PROVIDER_URL,
                "http://localhost:8080/invoker/ReadOnlyJNDIFactory");

Context ctx2 = new InitialContext(env);
Object data = ctx2.lookup("readonly/data");

Attempts to look up any objects outside of the readonly context will fail. Note that JBoss doesn't ship with any data in the readonly context, so the readonly context won't be bound usable unless you create it.

The JNDI binding manager service allows you to quickly bind objects into JNDI for use by application code. The MBean class for the binding service is org.jboss.naming.JNDIBindingServiceMgr. It has a single attribute, BindingsConfig, which accepts an XML document that conforms to the jndi-binding-service_1_0.xsd schema. The content of the BindingsConfig attribute is unmarshalled using the JBossXB framework. The following is an MBean definition that shows the most basic form usage of the JNDI binding manager service.

<mbean code="org.jboss.naming.JNDIBindingServiceMgr"
       name="jboss.tests:name=example1">
    <attribute name="BindingsConfig" serialDataType="jbxb">
        <jndi:bindings xmlns:xs="http://www.w3.org/2001/XMLSchema-instance"
                       xmlns:jndi="urn:jboss:jndi-binding-service"
                       xs:schemaLocation="urn:jboss:jndi-binding-service resource:jndi-binding-service_1_0.xsd">
            <jndi:binding name="bindexample/message">
                <jndi:value trim="true">
                    Hello, JNDI!
                </jndi:value>
            </jndi:binding>
        </jndi:bindings>
    </attribute>
</mbean>

This binds the text string "Hello, JNDI!" under the JNDI name bindexample/message. An application would look up the value just as it would for any other JNDI value. The trim attribute specifies that leading and trailing whitespace should be ignored. The use of the attribute here is purely for illustrative purposes as the default value is true.

InitialContext ctx  = new InitialContext();
String         text = (String) ctx.lookup("bindexample/message");

String values themselves are not that interesting. If a JavaBeans property editor is available, the desired class name can be specified using the type attribute

<jndi:binding name="urls/jboss-home">
    <jndi:value type="java.net.URL">http://www.jboss.org</jndi:value>
</jndi:binding>

The editor attribute can be used to specify a particular property editor to use.

<jndi:binding name="hosts/localhost">
    <jndi:value editor="org.jboss.util.propertyeditor.InetAddressEditor">
        127.0.0.1
    </jndi:value>
</jndi:binding>

For more complicated structures, any JBossXB-ready schema may be used. The following example shows how a java.util.Properties object would be mapped.

<jndi:binding name="maps/testProps">
    <java:properties xmlns:java="urn:jboss:java-properties"
                     xmlns:xs="http://www.w3.org/2001/XMLSchema-instance"
                     xs:schemaLocation="urn:jboss:java-properties resource:java-properties_1_0.xsd">
        <java:property>
            <java:key>key1</java:key>
            <java:value>value1</java:value>
        </java:property>
        <java:property>
            <java:key>key2</java:key>
            <java:value>value2</java:value>
        </java:property>
    </java:properties>
</jndi:binding>

For more information on JBossXB, see the JBossXB wiki page.

The NamingAlias MBean is a simple utility service that allows you to create an alias in the form of a JNDI javax.naming.LinkRef from one JNDI name to another. This is similar to a symbolic link in the UNIX file system. To an alias you add a configuration of the NamingAlias MBean to the jboss-service.xml configuration file. The configurable attributes of the NamingAlias service are as follows:

The following example provides a mapping of the JNDI name QueueConnectionFactory to the name ConnectionFactory.

<mbean code="org.jboss.naming.NamingAlias"
       name="jboss.mq:service=NamingAlias,fromName=QueueConnectionFactory">
    <attribute name="ToName">ConnectionFactory</attribute>
    <attribute name="FromName">QueueConnectionFactory</attribute>
</mbean>

The ExternalContext MBean allows you to federate external JNDI contexts into the JBoss server JNDI namespace. The term external refers to any naming service external to the JBossNS naming service running inside of the JBoss server VM. You can incorporate LDAP servers, file systems, DNS servers, and so on, even if the JNDI provider root context is not serializable. The federation can be made available to remote clients if the naming service supports remote access.

To incorporate an external JNDI naming service, you have to add a configuration of the ExternalContext MBean service to the jboss-service.xml configuration file. The configurable attributes of the ExternalContext service are as follows:

The MBean definition below shows a binding to an external LDAP context into the JBoss JNDI namespace under the name external/ldap/jboss.

<!-- Bind a remote LDAP server -->
<mbean code="org.jboss.naming.ExternalContext"
       name="jboss.jndi:service=ExternalContext,jndiName=external/ldap/jboss">
    <attribute name="JndiName">external/ldap/jboss</attribute>
    <attribute name="Properties">
        java.naming.factory.initial=com.sun.jndi.ldap.LdapCtxFactory
        java.naming.provider.url=ldap://ldaphost.jboss.org:389/o=jboss.org
        java.naming.security.principal=cn=Directory Manager
        java.naming.security.authentication=simple
        java.naming.security.credentials=secret
    </attribute>
    <attribute name="InitialContext"> javax.naming.ldap.InitialLdapContext </attribute>
    <attribute name="RemoteAccess">true</attribute>
</mbean>

With this configuration, you can access the external LDAP context located at ldap://ldaphost.jboss.org:389/o=jboss.org from within the JBoss VM using the following code fragment:

InitialContext iniCtx = new InitialContext();
LdapContext ldapCtx = iniCtx.lookup("external/ldap/jboss");

Using the same code fragment outside of the JBoss server VM will work in this case because the RemoteAccess property was set to true. If it were set to false, it would not work because the remote client would receive a Reference object with an ObjectFactory that would not be able to recreate the external IntialContext

<!-- Bind the /usr/local file system directory  -->
<mbean code="org.jboss.naming.ExternalContext"
       name="jboss.jndi:service=ExternalContext,jndiName=external/fs/usr/local">
    <attribute name="JndiName">external/fs/usr/local</attribute>
    <attribute name="Properties">
        java.naming.factory.initial=com.sun.jndi.fscontext.RefFSContextFactory
        java.naming.provider.url=file:///usr/local
    </attribute>
    <attribute name="InitialContext">javax.naming.IntialContext</attribute>
</mbean>

This configuration describes binding a local file system directory /usr/local into the JBoss JNDI namespace under the name external/fs/usr/local.

With this configuration, you can access the external file system context located at file:///usr/local from within the JBoss VM using the following code fragment:

InitialContext iniCtx = new InitialContext();
                Context ldapCtx = iniCtx.lookup("external/fs/usr/local");

Note that the use the Sun JNDI service providers, which must be downloaded from http://java.sun.com/products/jndi/serviceproviders.html. The provider JARs should be placed in the server configuration lib directory.

The JNDIView MBean allows the user to view the JNDI namespace tree as it exists in the JBoss server using the JMX agent view interface. To view the JBoss JNDI namespace using the JNDIView MBean, you connect to the JMX Agent View using the http interface. The default settings put this at http://localhost:8080/jmx-console/. On this page you will see a section that lists the registered MBeans sortyed by domain. It should look something like that shown in Figure 2.4, “The JMX Console view of the configured JBoss MBeans”.

Figure 2.4. The JMX Console view of the configured JBoss MBeans

Selecting the JNDIView link takes you to the JNDIView MBean view, which will have a list of the JNDIView MBean operations. This view should look similar to that shown in Figure 2.5, “The JMX Console view of the JNDIView MBean”.

Figure 2.5. The JMX Console view of the JNDIView MBean

The list operation dumps out the JBoss server JNDI namespace as an HTML page using a simple text view. As an example, invoking the list operation produces the view shown in Figure 2.6, “The JMX Console view of the JNDIView list operation output”.

Figure 2.6. The JMX Console view of the JNDIView list operation output

JNDI is used as the API for externalizing a great deal of information from an application component. The JNDI name that the application component uses to access the information is declared in the standard ejb-jar.xml deployment descriptor for EJB components, and the standard web.xml deployment descriptor for Web components. Several different types of information may be stored in and retrieved from JNDI including:

Each type of deployment descriptor element has a JNDI usage convention with regard to the name of the JNDI context under which the information is bound. Also, in addition to the standard deploymentdescriptor element, there is a JBoss server specific deployment descriptor element that maps the JNDI name as used by the application component to the deployment environment JNDI name.

<!-- ... -->
<session>
    <ejb-name>ASessionBean</ejb-name>
    <!-- ... -->
    <env-entry>
        <description>The maximum number of tax exemptions allowed </description>
        <env-entry-name>maxExemptions</env-entry-name>
        <env-entry-type>java.lang.Integer</env-entry-type>
        <env-entry-value>15</env-entry-value>
    </env-entry>
    <env-entry>
        <description>The tax rate </description>
        <env-entry-name>taxRate</env-entry-name>
        <env-entry-type>java.lang.Float</env-entry-type>
        <env-entry-value>0.23</env-entry-value>
    </env-entry>
</session>
<!-- ... -->

InitialContext iniCtx = new InitialContext();
Context envCtx = (Context) iniCtx.lookup("java:comp/env");
Integer maxExemptions = (Integer) envCtx.lookup("maxExemptions");
Float taxRate = (Float) envCtx.lookup("taxRate");

<!-- ... -->
<session>
    <ejb-name>ShoppingCartBean</ejb-name>
    <!-- ...-->
</session>

<session>
    <ejb-name>ProductBeanUser</ejb-name>
    <!--...-->
    <ejb-ref>
        <description>This is a reference to the store products entity </description>
        <ejb-ref-name>ejb/ProductHome</ejb-ref-name>
        <ejb-ref-type>Entity</ejb-ref-type>
        <home>org.jboss.store.ejb.ProductHome</home>
        <remote> org.jboss.store.ejb.Product</remote>
    </ejb-ref>

</session>

<session>
    <ejb-ref>
        <ejb-name>ShoppingCartUser</ejb-name>
        <!--...-->
        <ejb-ref-name>ejb/ShoppingCartHome</ejb-ref-name>
        <ejb-ref-type>Session</ejb-ref-type>
        <home>org.jboss.store.ejb.ShoppingCartHome</home>
        <remote> org.jboss.store.ejb.ShoppingCart</remote>
        <ejb-link>ShoppingCartBean</ejb-link>
    </ejb-ref>
</session>

<entity>
    <description>The Product entity bean </description>
    <ejb-name>ProductBean</ejb-name>
    <!--...-->
</entity>

<!--...-->

InitialContext iniCtx = new InitialContext();
Context ejbCtx = (Context) iniCtx.lookup("java:comp/env/ejb");
ShoppingCartHome home = (ShoppingCartHome) ejbCtx.lookup("ShoppingCartHome");

<!-- ... -->
<session>
    <ejb-name>ProductBeanUser</ejb-name>
    <ejb-ref>
        <ejb-ref-name>ejb/ProductHome</ejb-ref-name>
        <jndi-name>jboss/store/ProductHome</jndi-name>
    </ejb-ref>
</session>

<entity>
    <ejb-name>ProductBean</ejb-name>
    <jndi-name>jboss/store/ProductHome</jndi-name>
     <!-- ... -->
</entity>
<!-- ... -->

    <!-- ... -->
    <session>
        <ejb-name>Probe</ejb-name>
        <home>org.jboss.test.perf.interfaces.ProbeHome</home>
        <remote>org.jboss.test.perf.interfaces.Probe</remote>
        <local-home>org.jboss.test.perf.interfaces.ProbeLocalHome</local-home>
        <local>org.jboss.test.perf.interfaces.ProbeLocal</local>
        <ejb-class>org.jboss.test.perf.ejb.ProbeBean</ejb-class>
        <session-type>Stateless</session-type>
        <transaction-type>Bean</transaction-type>
    </session>
    <session>
        <ejb-name>PerfTestSession</ejb-name>
        <home>org.jboss.test.perf.interfaces.PerfTestSessionHome</home>
        <remote>org.jboss.test.perf.interfaces.PerfTestSession</remote>
        <ejb-class>org.jboss.test.perf.ejb.PerfTestSessionBean</ejb-class>
        <session-type>Stateless</session-type>
        <transaction-type>Container</transaction-type>
        <ejb-ref>
            <ejb-ref-name>ejb/ProbeHome</ejb-ref-name>
            <ejb-ref-type>Session</ejb-ref-type>
            <home>org.jboss.test.perf.interfaces.SessionHome</home>
            <remote>org.jboss.test.perf.interfaces.Session</remote>
            <ejb-link>Probe</ejb-link>
        </ejb-ref>
        <ejb-local-ref>
            <ejb-ref-name>ejb/ProbeLocalHome</ejb-ref-name>
            <ejb-ref-type>Session</ejb-ref-type>
            <local-home>org.jboss.test.perf.interfaces.ProbeLocalHome</local-home>
            <local>org.jboss.test.perf.interfaces.ProbeLocal</local>
            <ejb-link>Probe</ejb-link>
        </ejb-local-ref>
    </session>
    <!-- ... -->

InitialContext iniCtx = new InitialContext();
Context ejbCtx = (Context) iniCtx.lookup("java:comp/env/ejb");
ProbeLocalHome home = (ProbeLocalHome) ejbCtx.lookup("ProbeLocalHome");

<web>
    <!-- ... -->
    <servlet>
        <servlet-name>AServlet</servlet-name>
        <!-- ... -->
    </servlet>
    <!-- ... -->
    <!-- JDBC DataSources (java:comp/env/jdbc) -->
    <resource-ref>
        <description>The default DS</description>
        <res-ref-name>jdbc/DefaultDS</res-ref-name>
        <res-type>javax.sql.DataSource</res-type>
        <res-auth>Container</res-auth>
    </resource-ref>
    <!-- JavaMail Connection Factories (java:comp/env/mail) -->
    <resource-ref>
        <description>Default Mail</description>
        <res-ref-name>mail/DefaultMail</res-ref-name>
        <res-type>javax.mail.Session</res-type>
        <res-auth>Container</res-auth>
    </resource-ref>
    <!-- JMS Connection Factories (java:comp/env/jms) -->
    <resource-ref>
        <description>Default QueueFactory</description>
        <res-ref-name>jms/QueueFactory</res-ref-name>
        <res-type>javax.jms.QueueConnectionFactory</res-type>
        <res-auth>Container</res-auth>
    </resource-ref>
<web>

Context initCtx = new InitialContext();
javax.mail.Session s = (javax.mail.Session)
initCtx.lookup("java:comp/env/mail/DefaultMail");

<jboss-web>
    <!-- ... -->
    <resource-ref>
        <res-ref-name>jdbc/DefaultDS</res-ref-name>
        <res-type>javax.sql.DataSource</res-type>
        <jndi-name>java:/DefaultDS</jndi-name>
    </resource-ref>
    <resource-ref>
        <res-ref-name>mail/DefaultMail</res-ref-name>
        <res-type>javax.mail.Session</res-type>
        <jndi-name>java:/Mail</jndi-name>
    </resource-ref>
    <resource-ref>
        <res-ref-name>jms/QueueFactory</res-ref-name>
        <res-type>javax.jms.QueueConnectionFactory</res-type>
        <jndi-name>QueueConnectionFactory</jndi-name>
    </resource-ref>
    <!-- ... -->
</jboss-web>

<session>
    <ejb-name>MyBean</ejb-name>
    <!-- ... -->
    <resource-env-ref>
        <description>This is a reference to a JMS queue used in the
            processing of Stock info
        </description>
        <resource-env-ref-name>jms/StockInfo</resource-env-ref-name>
        <resource-env-ref-type>javax.jms.Queue</resource-env-ref-type>
    </resource-env-ref>
    <!-- ... -->
</session>

InitialContext iniCtx = new InitialContext();
javax.jms.Queue q = (javax.jms.Queue)
envCtx.lookup("java:comp/env/jms/StockInfo");

<session>
    <ejb-name>MyBean</ejb-name>
    <!-- ... -->
    <resource-env-ref>
        <resource-env-ref-name>jms/StockInfo</resource-env-ref-name>
        <jndi-name>queue/StockInfoQueue</jndi-name>
    </resource-env-ref>
    <!-- ... -->
</session>

Transactional isolation is usually implemented by locking whatever is accessed in a transaction. There are two different approaches to transactional locking: Pessimistic locking and optimistic locking.

The disadvantage of pessimistic locking is that a resource is locked from the time it is first accessed in a transaction until the transaction is finished, making it inaccessible to other transactions during that time. If most transactions simply look at the resource and never change it, an exclusive lock may be overkill as it may cause lock contention, and optimistic locking may be a better approach. With pessimistic locking, locks are applied in a fail-safe way. In the banking application example, an account is locked as soon as it is accessed in a transaction. Attempts to use the account in other transactions while it is locked will either result in the other process being delayed until the account lock is released, or that the process transaction will be rolled back. The lock exists until the transaction has either been committed or rolled back.

With optimistic locking, a resource is not actually locked when it is first is accessed by a transaction. Instead, the state of the resource at the time when it would have been locked with the pessimistic locking approach is saved. Other transactions are able to concurrently access to the resource and the possibility of conflicting changes is possible. At commit time, when the resource is about to be updated in persistent storage, the state of the resource is read from storage again and compared to the state that was saved when the resource was first accessed in the transaction. If the two states differ, a conflicting update was made, and the transaction will be rolled back.

In the banking application example, the amount of an account is saved when the account is first accessed in a transaction. If the transaction changes the account amount, the amount is read from the store again just before the amount is about to be updated. If the amount has changed since the transaction began, the transaction will fail itself, otherwise the new amount is written to persistent storage.

There are a number of participants in a distributed transaction. These include:

When a transaction is about to be committed, it is the responsibility of the transaction manager to ensure that either all of it is committed, or that all of is rolled back. If only a single recoverable resource is involved in the transaction, the task of the transaction manager is simple: It just has to tell the resource to commit the changes to stable storage.

When more than one recoverable resource is involved in the transaction, management of the commit gets more complicated. Simply asking each of the recoverable resources to commit changes to stable storage is not enough to maintain the atomic property of the transaction. The reason for this is that if one recoverable resource has committed and another fails to commit, part of the transaction would be committed and the other part rolled back.

To get around this problem, the two-phase XA protocol is used. The XA protocol involves an extra prepare phase before the actual commit phase. Before asking any of the recoverable resources to commit the changes, the transaction manager asks all the recoverable resources to prepare to commit. When a recoverable resource indicates it is prepared to commit the transaction, it has ensured that it can commit the transaction. The resource is still able to rollback the transaction if necessary as well.

So the first phase consists of the transaction manager asking all the recoverable resources to prepare to commit. If any of the recoverable resources fails to prepare, the transaction will be rolled back. But if all recoverable resources indicate they were able to prepare to commit, the second phase of the XA protocol begins. This consists of the transaction manager asking all the recoverable resources to commit the transaction. Because all the recoverable resources have indicated they are prepared, this step cannot fail.

In a distributed environment communications failures can happen. If communication between the transaction manager and a recoverable resource is not possible for an extended period of time, the recoverable resource may decide to unilaterally commit or rollback changes done in the context of a transaction. Such a decision is called a heuristic decision. It is one of the worst errors that may happen in a transaction system, as it can lead to parts of the transaction being committed while other parts are rolled back, thus violating the atomicity property of transaction and possibly leading to data integrity corruption.

Because of the dangers of heuristic exceptions, a recoverable resource that makes a heuristic decision is required to maintain all information about the decision in stable storage until the transaction manager tells it to forget about the heuristic decision. The actual data about the heuristic decision that is saved in stable storage depends on the type of recoverable resource and is not standardized. The idea is that a system manager can look at the data, and possibly edit the resource to correct any data integrity problems.

There are several different kinds of heuristic exceptions defined by the JTA. The javax.transaction.HeuristicCommitException is thrown when a recoverable resource is asked to rollback to report that a heuristic decision was made and that all relevant updates have been committed. On the opposite end is the javax.transaction.HeuristicRollbackException, which is thrown by a recoverable resource when it is asked to commit to indicate that a heuristic decision was made and that all relevant updates have been rolled back.

The javax.transaction.HeuristicMixedException is the worst heuristic exception. It is thrown to indicate that parts of the transaction were committed, while other parts were rolled back. The transaction manager throws this exception when some recoverable resources did a heuristic commit, while other recoverable resources did a heuristic rollback.

In JTA, the identity of transactions is encapsulated in objects implementing the javax.transaction.xa.Xid interface. The transaction ID is an aggregate of three parts:

Transaction branches are used to identify different parts of the same global transaction. Whenever the transaction manager involves a new recoverable resource in a transaction it creates a new transaction branch.

A transaction manager has to implement the Java Transaction API to be easily integrated with JBoss. As almost everything in JBoss, the transaction manager is managed as an MBean. Like all JBoss services, it should implement org.jboss.system.ServiceMBean to ensure proper life-cycle management.

The primary requirement of the transaction manager service on startup is that it binds its implementation of the three required interfaces into JNDI. These interfaces and their JNDI locations are:

Establishing these JNDI bindings is all the transaction manager service needs to do to install its implementation as the JBoss server transaction manager.

JBoss is by default configured to use the fast in-VM transaction manager. This transaction manager is very fast, but does have two limitations.

The corresponding default transaction manager MBean service is the org.jboss.tm.TransactionManagerService MBean. It has two configurable attributes:

The JTA javax.transaction.UserTransaction interface allows applications to explicitly control transactions. For enterprise session beans that manage transaction themselves (BMT), a UserTransaction can be obtained by calling the getUserTransaction method on the bean context object, javax.ejb.SessionContext.

The ClientUserTransactionService MBean publishes a UserTransaction implementation under the JNDI name UserTransaction. When the UserTransaction is obtained with a JNDI lookup from a external client, a very simple UserTransaction suitable for thin clients is returned. This UserTransaction implementation only controls the transactions on the server the UserTransaction object was obtained from. Local transactional work done in the client is not done within the transactions started by this UserTransaction object.

When a UserTransaction object is obtained by looking up JNDI name UserTransaction in the same virtual machine as JBoss, a simple interface to the JTA TransactionManager is returned. This is suitable for web components running in web containers embedded in JBoss. When components are deployed in an embedded web server, the deployer will make a JNDI link from the standard java:comp/UserTransaction ENC name to the global UserTransaction binding so that the web components can lookup the UserTranaction instance under JNDI name as specified by the J2EE.

Note: For BMT beans, do not obtain the UserTransaction interface using a JNDI lookup. Doing this violates the EJB specification, and the returned UserTransaction object does not have the hooks the EJB container needs to make important checks.

To specify the EJB invocation transport and the client proxy interceptor stack, you need to define an invoker-proxy-binding in either the EJB JAR META-INF/jboss.xml descriptor, or the server standardjboss.xml descriptor. There are several default invoker-proxy-bindings defined in the standardjboss.xml descriptor for the various default EJB container configurations and the standard RMI/JRMP and RMI/IIOP transport protocols. The current default proxy configurations are:

To introduce a new protocol binding, or customize the proxy factory, or the client side interceptor stack, requires defining a new invoker-proxy-binding. The full invoker-proxy-binding DTD fragment for the specification of the proxy configuration is given in Figure 4.2, “The invoker-proxy-binding schema”.

Figure 4.2. The invoker-proxy-binding schema

The invoker-proxy-binding child elements are:

For the RMI/JRMP specific proxy factories, org.jboss.proxy.ejb.ProxyFactory and org.jboss.proxy.ejb.ProxyFactoryHA the following elements apply:

The following proxy-factory-config is for an entity bean accessed over RMI.

<proxy-factory-config>
    <client-interceptors>
        <home>
            <interceptor>org.jboss.proxy.ejb.HomeInterceptor</interceptor>
            <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
            <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
            <interceptor call-by-value="false">
                org.jboss.invocation.InvokerInterceptor
            </interceptor>
            <interceptor call-by-value="true">
                org.jboss.invocation.MarshallingInvokerInterceptor
            </interceptor>
        </home>
        <bean>
            <interceptor>org.jboss.proxy.ejb.EntityInterceptor</interceptor>
            <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
            <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
            <interceptor call-by-value="false">
                org.jboss.invocation.InvokerInterceptor
            </interceptor>
            <interceptor call-by-value="true">
                org.jboss.invocation.MarshallingInvokerInterceptor
            </interceptor>
        </bean>
        <list-entity>
            <interceptor>org.jboss.proxy.ejb.ListEntityInterceptor</interceptor>
            <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
            <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
            <interceptor call-by-value="false">
                org.jboss.invocation.InvokerInterceptor
            </interceptor>
            <interceptor call-by-value="true">
                org.jboss.invocation.MarshallingInvokerInterceptor
            </interceptor>
        </list-entity>
    </client-interceptors>
</proxy-factory-config>

For the RMI/IIOP specific proxy factory, org.jboss.proxy.ejb.IORFactory, the following elements apply:

The following shows a proxy-factory-config for EJBs accessed over IIOP.

<proxy-factory-config>
    <web-class-loader>org.jboss.iiop.WebCL</web-class-loader>
    <poa>per-servant</poa>
    <register-ejbs-in-jnp-context>true</register-ejbs-in-jnp-context>
    <jnp-context>iiop</jnp-context>
</proxy-factory-config>

For the JMS specific proxy factory, org.jboss.ejb.plugins.jms.JMSContainerInvoker, the following elements apply:

Example 4.2, “A sample JMSContainerInvoker proxy-factory-config” gives a sample proxy-factory-config fragment taken from the standardjboss.xml descriptor.

<proxy-factory-config>
    <JMSProviderAdapterJNDI>DefaultJMSProvider</JMSProviderAdapterJNDI>
    <ServerSessionPoolFactoryJNDI>StdJMSPool</ServerSessionPoolFactoryJNDI>
    <MinimumSize>1</MinimumSize>
    <MaximumSize>15</MaximumSize>
    <KeepAliveMillis>30000</KeepAliveMillis>
    <MaxMessages>1</MaxMessages>
    <MDBConfig>
        <ReconnectIntervalSec>10</ReconnectIntervalSec>
        <DLQConfig>
            <DestinationQueue>queue/DLQ</DestinationQueue>
            <MaxTimesRedelivered>10</MaxTimesRedelivered>
            <TimeToLive>0</TimeToLive>
        </DLQConfig>
    </MDBConfig>
</proxy-factory-config>

We looked at the detached invoker architecture in the context of exposing RMI compatible interfaces of MBean services earlier. Here we will look at how detached invokers are used to expose the EJB container home and bean interfaces to clients. The generic view of the invoker architecture is presented in Figure 4.3, “The transport invoker server side architecture”.

Figure 4.3. The transport invoker server side architecture

For each type of home proxy there is a binding to an invoker and its associated transport protocol. A container may have multiple invocation protocols active simultaneously. In the jboss.xml file, an invoker-proxy-binding-name maps to an invoker-proxy-binding/name element. At the container-configuration level this specifies the default invoker that will be used for EJBs deployed to the container. At the bean level, the invoker-bindings specify one or more invokers to use with the EJB container MBean.

When one specifies multiple invokers for a given EJB deployment, the home proxy must be given a unique JNDI binding location. This is specified by the invoker/jndi-name element value. Another issue when multiple invokers exist for an EJB is how to handle remote homes or interfaces obtained when the EJB calls other beans. Any such interfaces need to use the same invoker used to call the outer EJB in order for the resulting remote homes and interfaces to be compatible with the proxy the client has initiated the call through. The invoker/ejb-ref elements allow one to map from a protocol independent ENC ejb-ref to the home proxy binding for ejb-ref target EJB home that matches the referencing invoker type.

An example of using a custom JRMPInvoker MBean that enables compressed sockets for session beans can be found in the org.jboss.test.jrmp package of the testsuite. The following example illustrates the custom JRMPInvoker configuration and its mapping to a stateless session bean.

<server>
    <mbean code="org.jboss.invocation.jrmp.server.JRMPInvoker"
          name="jboss:service=invoker,type=jrmp,socketType=CompressionSocketFactory">
        <attribute name="RMIObjectPort">4445</attribute>
        <attribute name="RMIClientSocketFactory">
            org.jboss.test.jrmp.ejb.CompressionClientSocketFactory
        </attribute>
        <attribute name="RMIServerSocketFactory">
            org.jboss.test.jrmp.ejb.CompressionServerSocketFactory
        </attribute>
</mbean>
                </server>

Here the default JRMPInvoker has been customized to bind to port 4445 and to use custom socket factories that enable compression at the transport level.

<?xml version="1.0"?>
<!DOCTYPE jboss PUBLIC
          "-//JBoss//DTD JBOSS 3.2//EN"
          "http://www.jboss.org/j2ee/dtd/jboss_3_2.dtd">
<!-- The jboss.xml descriptor for the jrmp-comp.jar ejb unit -->
<jboss>
    <enterprise-beans>
        <session>
            <ejb-name>StatelessSession</ejb-name>
            <configuration-name>Standard Stateless SessionBean</configuration-name>
            <invoker-bindings>
                <invoker>
                    <invoker-proxy-binding-name>
                        stateless-compression-invoker
                    </invoker-proxy-binding-name>
                    <jndi-name>jrmp-compressed/StatelessSession</jndi-name>
                </invoker>
            </invoker-bindings>
        </session>
    </enterprise-beans>

    <invoker-proxy-bindings>
        <invoker-proxy-binding>
            <name>stateless-compression-invoker</name>
            <invoker-mbean>
                jboss:service=invoker,type=jrmp,socketType=CompressionSocketFactory
            </invoker-mbean>
            <proxy-factory>org.jboss.proxy.ejb.ProxyFactory</proxy-factory>
            <proxy-factory-config>
                <client-interceptors>
                    <home>
                        <interceptor>org.jboss.proxy.ejb.HomeInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </home>
                    <bean>
                        <interceptor>
                            org.jboss.proxy.ejb.StatelessSessionInterceptor
                        </interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </bean>
                </client-interceptors>
            </proxy-factory-config>
        </invoker-proxy-binding>
    </invoker-proxy-bindings>
</jboss>

The StatelessSession EJB invoker-bindings settings specify that the stateless-compression-invoker will be used with the home interface bound under the JNDI name jrmp-compressed/StatelessSession. The stateless-compression-invoker is linked to the custom JRMP invoker we just declared.

The following example, org.jboss.test.hello testsuite package, is an example of using the HttpInvoker to configure a stateless session bean to use the RMI/HTTP protocol.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE jboss PUBLIC
          "-//JBoss//DTD JBOSS 3.2//EN"
          "http://www.jboss.org/j2ee/dtd/jboss_3_2.dtd">
<jboss>
    <enterprise-beans>
        <session>
            <ejb-name>HelloWorldViaHTTP</ejb-name>
            <jndi-name>helloworld/HelloHTTP</jndi-name>
            <invoker-bindings>
                <invoker>
                    <invoker-proxy-binding-name>
                        stateless-http-invoker
                    </invoker-proxy-binding-name>
                </invoker>
            </invoker-bindings>
        </session>
    </enterprise-beans>
    <invoker-proxy-bindings>
        <!-- A custom invoker for RMI/HTTP -->
        <invoker-proxy-binding>
            <name>stateless-http-invoker</name>
            <invoker-mbean>jboss:service=invoker,type=http</invoker-mbean>
            <proxy-factory>org.jboss.proxy.ejb.ProxyFactory</proxy-factory>
            <proxy-factory-config>
                <client-interceptors>
                    <home>
                        <interceptor>org.jboss.proxy.ejb.HomeInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </home>
                    <bean>
                        <interceptor>
                            org.jboss.proxy.ejb.StatelessSessionInterceptor
                        </interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </bean>
                </client-interceptors>
            </proxy-factory-config>
        </invoker-proxy-binding>
    </invoker-proxy-bindings>
</jboss>

Here a custom invoker-proxy-binding named stateless-http-invoker is defined. It uses the HttpInvoker MBean as the detached invoker. The jboss:service=invoker,type=http name is the default name of the HttpInvoker MBean as found in the http-invoker.sar/META-INF/jboss-service.xml descriptor, and its service descriptor fragment is show here:

<!-- The HTTP invoker service configuration -->
<mbean code="org.jboss.invocation.http.server.HttpInvoker"
       name="jboss:service=invoker,type=http">
    <!-- Use a URL of the form http://<hostname>:8080/invoker/EJBInvokerServlet
         where <hostname> is InetAddress.getHostname value on which the server
         is running. -->
    <attribute name="InvokerURLPrefix">http://</attribute>
    <attribute name="InvokerURLSuffix">:8080/invoker/EJBInvokerServlet</attribute>
    <attribute name="UseHostName">true</attribute>
</mbean>

The client proxy posts the EJB invocation content to the EJBInvokerServlet URL specified in the HttpInvoker service configuration.

The org.jboss.invocation.jrmp.server.JRMPInvokerHA service is an extension of the JRMPInvoker that is a cluster aware invoker. The JRMPInvokerHA fully supports all of the attributes of the JRMPInvoker. This means that customized bindings of the port, interface and socket transport are available to clustered RMI/JRMP as well. For additional information on the clustering architecture and the implementation of the HA RMI proxies see the JBoss Clustering docs.

The RMI/HTTP layer allows for software load balancing of the invocations in a clustered environment. An HA capable extension of the HTTP invoker has been added that borrows much of its functionality from the HA-RMI/JRMP clustering.

To enable HA-RMI/HTTP you need to configure the invokers for the EJB container. This is done through either a jboss.xml descriptor, or the standardjboss.xml descriptor. Example 4.3, “A jboss.xml stateless session configuration for HA-RMI/HTTP” shows is an example of a stateless session configuration taken from the org.jboss.test.hello testsuite package.

<jboss>
    <enterprise-beans>
        <session>
            <ejb-name>HelloWorldViaClusteredHTTP</ejb-name>
            <jndi-name>helloworld/HelloHA-HTTP</jndi-name>
            <invoker-bindings>
                <invoker>
                    <invoker-proxy-binding-name>
                        stateless-httpHA-invoker
                    </invoker-proxy-binding-name>
                </invoker>
            </invoker-bindings>
            <clustered>true</clustered>
        </session>
    </enterprise-beans>
    <invoker-proxy-bindings>
        <invoker-proxy-binding>
            <name>stateless-httpHA-invoker</name>
            <invoker-mbean>jboss:service=invoker,type=httpHA</invoker-mbean>
            <proxy-factory>org.jboss.proxy.ejb.ProxyFactoryHA</proxy-factory>
            <proxy-factory-config>
                <client-interceptors>
                    <home>
                        <interceptor>org.jboss.proxy.ejb.HomeInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </home>
                    <bean>
                        <interceptor>
                            org.jboss.proxy.ejb.StatelessSessionInterceptor
                        </interceptor>
                        <interceptor>org.jboss.proxy.SecurityInterceptor</interceptor>
                        <interceptor>org.jboss.proxy.TransactionInterceptor</interceptor>
                        <interceptor>org.jboss.invocation.InvokerInterceptor</interceptor>
                    </bean>
                </client-interceptors>
            </proxy-factory-config>
        </invoker-proxy-binding>
    </invoker-proxy-bindings>
</jboss>

The stateless-httpHA-invoker invoker-proxy-binding references the jboss:service=invoker,type=httpHA invoker service. This service would be configured as shown below.

<mbean code="org.jboss.invocation.http.server.HttpInvokerHA"
       name="jboss:service=invoker,type=httpHA">
    <!-- Use a URL of the form
         http://<hostname>:8080/invoker/EJBInvokerHAServlet
         where <hostname> is InetAddress.getHostname value on which the server
         is running.
    -->
    <attribute name="InvokerURLPrefix">http://</attribute>
    <attribute name="InvokerURLSuffix">:8080/invoker/EJBInvokerHAServlet</attribute>
    <attribute name="UseHostName">true</attribute>
</mbean>

The URL used by the invoker proxy is the EJBInvokerHAServlet mapping as deployed on the cluster node. The HttpInvokerHA instances across the cluster form a collection of candidate http URLs that are made available to the client side proxy for failover and/or load balancing.

The org.jboss.ejb.EJBDeployer MBean is responsible for the creation of EJB containers. Given an EJB JAR that is ready for deployment, the EJBDeployer will create and initialize the necessary EJB containers, one for each type of EJB. The configurable attributes of the EJBDeployer are:

The deployer contains two central methods: deploy and undeploy. The deploy method takes a URL, which either points to an EJB JAR, or to a directory whose structure is the same as a valid EJB JAR (which is convenient for development purposes). Once a deployment has been made, it can be undeployed by calling undeploy on the same URL. A call to deploy with an already deployed URL will cause an undeploy, followed by deployment of the URL. JBoss has support for full re-deployment of both implementation and interface classes, and will reload any changed classes. This will allow you to develop and update EJBs without ever stopping a running server.

During the deployment of the EJB JAR the EJBDeployer and its associated classes perform three main functions, verify the EJBs, create a container for each unique EJB, initialize the container with the deployment configuration information. We will talk about each function in the following sections.

4.3.1.3. Container configuration information

JBoss externalizes most if not all of the setup of the EJB containers using an XML file that conforms to the jboss_4_0.dtd. The section DTD that relates to container configuration information is shown in Figure 4.4, “The jboss_4_0 DTD elements related to container configuration.”.

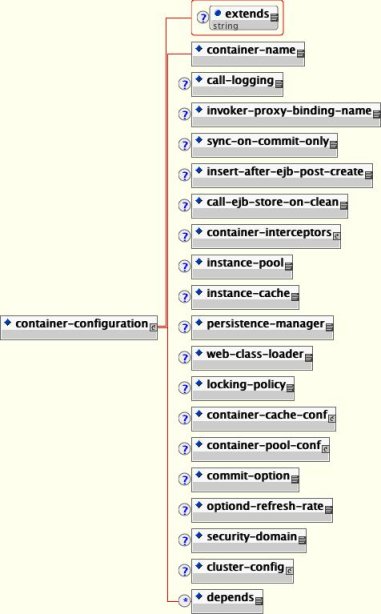

Figure 4.4. The jboss_4_0 DTD elements related to container configuration.

The container-configuration element and its subelements specify container configuration settings for a type of container as given by the container-name element. Each configuration specifies information such as the default invoker type, the container interceptor makeup, instance caches/pools and their sizes, persistence manager, security, and so on. Because this is a large amount of information that requires a detailed understanding of the JBoss container architecture, JBoss ships with a standard configuration for the four types of EJBs. This configuration file is called standardjboss.xml and it is located in the conf directory of any configuration file set that uses EJBs. The following is a sample of container-configuration from standardjboss.xml.

<container-configuration>
    <container-name>Standard CMP 2.x EntityBean</container-name>
    <call-logging>false</call-logging>
    <invoker-proxy-binding-name>entity-rmi-invoker</invoker-proxy-binding-name>
    <sync-on-commit-only>false</sync-on-commit-only>
    <insert-after-ejb-post-create>false</insert-after-ejb-post-create>
    <call-ejb-store-on-clean>true</call-ejb-store-on-clean>
    <container-interceptors>
        <interceptor>org.jboss.ejb.plugins.ProxyFactoryFinderInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.LogInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.SecurityInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.TxInterceptorCMT</interceptor>
        <interceptor>org.jboss.ejb.plugins.CallValidationInterceptor</interceptor>
        <interceptor metricsEnabled="true">
            org.jboss.ejb.plugins.MetricsInterceptor
        </interceptor>
        <interceptor>org.jboss.ejb.plugins.EntityCreationInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.EntityLockInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.EntityInstanceInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.EntityReentranceInterceptor</interceptor>
        <interceptor>
             org.jboss.resource.connectionmanager.CachedConnectionInterceptor
        </interceptor>
        <interceptor>org.jboss.ejb.plugins.EntitySynchronizationInterceptor</interceptor>
        <interceptor>org.jboss.ejb.plugins.cmp.jdbc.JDBCRelationInterceptor</interceptor>
    </container-interceptors>
    <instance-pool>org.jboss.ejb.plugins.EntityInstancePool</instance-pool>
    <instance-cache>org.jboss.ejb.plugins.InvalidableEntityInstanceCache</instance-cache>
    <persistence-manager>org.jboss.ejb.plugins.cmp.jdbc.JDBCStoreManager</persistence-manager>
    <locking-policy>org.jboss.ejb.plugins.lock.QueuedPessimisticEJBLock</locking-policy>
    <container-cache-conf>
        <cache-policy>org.jboss.ejb.plugins.LRUEnterpriseContextCachePolicy</cache-policy>
        <cache-policy-conf>
            <min-capacity>50</min-capacity>
            <max-capacity>1000000</max-capacity>
            <overager-period>300</overager-period>
            <max-bean-age>600</max-bean-age>
            <resizer-period>400</resizer-period>
            <max-cache-miss-period>60</max-cache-miss-period>
            <min-cache-miss-period>1</min-cache-miss-period>
            <cache-load-factor>0.75</cache-load-factor>
        </cache-policy-conf>
    </container-cache-conf>
    <container-pool-conf>
        <MaximumSize>100</MaximumSize>
    </container-pool-conf>
    <commit-option>B</commit-option>
</container-configuration>

These two examples demonstrate how extensive the container configuration options are. The container configuration information can be specified at two levels. The first is in the standardjboss.xml file contained in the configuration file set directory. The second is at the EJB JAR level. By placing a jboss.xml file in the EJB JAR META-INF directory, you can specify either overrides for container configurations in the standardjboss.xml file, or entirely new named container configurations. This provides great flexibility in the configuration of containers. As you have seen, all container configuration attributes have been externalized and as such are easily modifiable. Knowledgeable developers can even implement specialized container components, such as instance pools or caches, and easily integrate them with the standard container configurations to optimize behavior for a particular application or environment.

How an EJB deployment chooses its container configuration is based on the explicit or implict jboss/enterprise-beans/<type>/configuration-name element. The configuration-name element is a link to a container-configurations/container-configuration element in Figure 4.4, “The jboss_4_0 DTD elements related to container configuration.”. It specifies which container configuration to use for the referring EJB. The link is from a configuration-name element to a container-name element.

You are able to specify container configurations per class of EJB by including a container-configuration element in the EJB definition. Typically one does not define completely new container configurations, although this is supported. The typical usage of a jboss.xml level container-configuration is to override one or more aspects of a container-configuration coming from the standardjboss.xml descriptor. This is done by specifying container-configuration that references the name of an existing standardjboss.xml container-configuration/container-name as the value for the container-configuration/extends attribute. The following example shows an example of defining a new Secured Stateless SessionBean configuration that is an extension of the Standard Stateless SessionBean configuration.

<?xml version="1.0"?>
<jboss>
    <enterprise-beans>
        <session>
            <ejb-name>EchoBean</ejb-name>
            <configuration-name>Secured Stateless SessionBean</configuration-name>
            <!-- ... -->
        </session>
    </enterprise-beans>
    <container-configurations>
        <container-configuration extends="Standard Stateless SessionBean">
            <container-name>Secured Stateless SessionBean</container-name>
            <!-- Override the container security domain -->
            <security-domain>java:/jaas/my-security-domain</security-domain>
        </container-configuration>
    </container-configurations>
</jboss>

If an EJB does not provide a container configuration specification in the deployment unit EJB JAR, the container factory chooses a container configuration from the standardjboss.xml descriptor based on the type of the EJB. So, in reality there is an implicit configuration-name element for every type of EJB, and the mappings from the EJB type to default container configuration name are as follows:

• container-managed persistence entity version 2.0 = Standard CMP 2.x EntityBean

• container-managed persistence entity version 1.1 = Standard CMP EntityBean

• bean-managed persistence entity = Standard BMP EntityBean

• stateless session = Standard Stateless SessionBean

• stateful session = Standard Stateful SessionBean

• message driven = Standard Message Driven Bean

It is not necessary to indicate which container configuration an EJB is using if you want to use the default based on the bean type. It probably provides for a more self-contained descriptor to include the configuration-name element, but this is purely a matter of style.

Now that you know how to specify which container configuration an EJB is using and can define a deployment unit level override, we now will look at the container-configuration child elements in the following sections. A number of the elements specify interface class implementations whose configuration is affected by other elements, so before starting in on the configuration elements you need to understand the org.jboss.metadata.XmlLoadable interface.

The XmlLoadable interface is a simple interface that consists of a single method. The interface definition is:

import org.w3c.dom.Element;
public interface XmlLoadable
{
    public void importXml(Element element) throws Exception;
}

Classes implement this interface to allow their configuration to be specified via an XML document fragment. The root element of the document fragment is what would be passed to the importXml method. You will see a few examples of this as the container configuration elements are described in the following sections.

4.3.1.3.1. The container-name element

The container-name element specifies a unique name for a given configuration. EJBs link to a particular container configuration by setting their configuration-name element to the value of the container-name for the container configuration.

4.3.1.3.2. The call-logging element

The call-logging element expects a boolean (true or false) as its value to indicate whether or not the LogInterceptor should log method calls to a container. This is somewhat obsolete with the change to log4j, which provides a fine-grained logging API.

4.3.1.3.3. The invoker-proxy-binding-name element

The invoker-proxy-binding-name element specifies the name of the default invoker to use. In the absence of a bean level invoker-bindings specification, the invoker-proxy-binding whose name matches the invoker-proxy-binding-name element value will be used to create home and remote proxies.

4.3.1.3.4. The sync-on-commit-only element

This configures a performance optimization that will cause entity bean state to be synchronized with the database only at commit time. Normally the state of all the beans in a transaction would need to be synchronized when an finder method is called or when an remove method is called, for example.

4.3.1.3.5. insert-after-ejb-post-create

This is another entity bean optimization which cause the database insert command for a new entity bean to be delayed until the ejbPostCreate method is called. This allows normal CMP fields as well as CMR fields to be set in a single insert, instead of the default insert followed by an update, which allows removes the requirement for relation ship fields to allow null values.

4.3.1.3.6. call-ejb-store-on-clean

By the specification the container is required to call ejbStore method on an entity bean instance when transaction commits even if the instance was not modified in the transaction. Setting this to false will cause JBoss to only call ejbStore for dirty objects.

4.3.1.3.7. The container-interceptors Element

The container-interceptors element specifies one or more interceptor elements that are to be configured as the method interceptor chain for the container. The value of the interceptor element is a fully qualified class name of an org.jboss.ejb.Interceptor interface implementation. The container interceptors form a linked-list structure through which EJB method invocations pass. The first interceptor in the chain is invoked when the MBeanServer passes a method invocation to the container. The last interceptor invokes the business method on the bean. We will discuss the Interceptor interface latter in this chapter when we talk about the container plugin framework. Generally, care must be taken when changing an existing standard EJB interceptor configuration as the EJB contract regarding security, transactions, persistence, and thread safety derive from the interceptors.

4.3.1.3.8. The instance-pool element

The instance-pool element specifies the fully qualified class name of an org.jboss.ejb.InstancePool interface implementation to use as the container InstancePool. We will discuss the InstancePool interface in detail latter in this chapter when we talk about the container plugin framework.

4.3.1.3.9. The container-pool-conf element

The container-pool-conf is passed to the InstancePool implementation class given by the instance-pool element if it implements the XmlLoadable interface. All current JBoss InstancePool implementations derive from the org.jboss.ejb.plugins.AbstractInstancePool class which provides support for elements shown in Figure 4.5, “The container-pool-conf element DTD”.

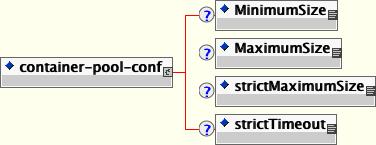

Figure 4.5. The container-pool-conf element DTD

• MinimumSize: The MinimumSize element gives the minimum number of instances to keep in the pool, although JBoss does not currently seed an InstancePool to the MinimumSize value.

• MaximumSize: The MaximumSize specifies the maximum number of pool instances that are allowed. The default use of MaximumSize may not be what you expect. The pool MaximumSize is the maximum number of EJB instances that are kept available, but additional instances can be created if the number of concurrent requests exceeds the MaximumSize value.

• strictMaximumSize: If you want to limit the maximum concurrency of an EJB to the pool MaximumSize, you need to set the strictMaximumSize element to true. When strictMaximumSize is true, only MaximumSize EJB instances may be active. When there are MaximumSize active instances, any subsequent requests will be blocked until an instance is freed back to the pool. The default value for strictMaximumSize is false.

• strictTimeout: How long a request blocks waiting for an instance pool object is controlled by the strictTimeout element. The strictTimeout defines the time in milliseconds to wait for an instance to be returned to the pool when there are MaximumSize active instances. A value less than or equal to 0 will mean not to wait at all. When a request times out waiting for an instance a java.rmi.ServerException is generated and the call aborted. This is parsed as a Long so the maximum possible wait time is 9,223,372,036,854,775,807 or about 292,471,208 years, and this is the default value.

4.3.1.3.10. The instance-cache element

The instance-cache element specifies the fully qualified class name of the org.jboss.ejb.InstanceCache interface implementation. This element is only meaningful for entity and stateful session beans as these are the only EJB types that have an associated identity. We will discuss the InstanceCache interface in detail latter in this chapter when we talk about the container plugin framework.

4.3.1.3.11. The container-cache-conf element

The container-cache-conf element is passed to the InstanceCache implementation if it supports the XmlLoadable interface. All current JBoss InstanceCache implementations derive from the org.jboss.ejb.plugins.AbstractInstanceCache class which provides support for the XmlLoadable interface and uses the cache-policy child element as the fully qualified class name of an org.jboss.util.CachePolicy implementation that is used as the instance cache store. The cache-policy-conf child element is passed to the CachePolicy implementation if it supports the XmlLoadable interface. If it does not, the cache-policy-conf will silently be ignored.

There are two JBoss implementations of CachePolicy used by the standardjboss.xml configuration that support the current array of cache-policy-conf child elements. The classes are org.jboss.ejb.plugins.LRUEnterpriseContextCachePolicy and org.jboss.ejb.plugins.LRUStatefulContextCachePolicy. The LRUEnterpriseContextCachePolicy is used by entity bean containers while the LRUStatefulContextCachePolicy is used by stateful session bean containers. Both cache policies support the following cache-policy-conf child elements, shown in Figure 4.6, “The container-cache-conf element DTD”.

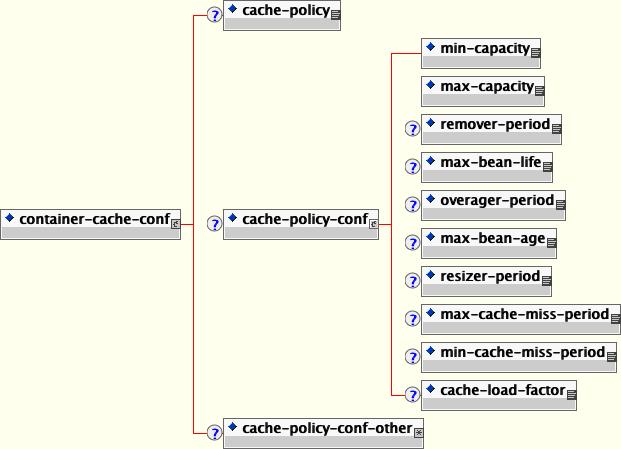

Figure 4.6. The container-cache-conf element DTD

• min-capacity: specifies the minimum capacity of this cache

• max-capacity: specifies the maximum capacity of the cache, which cannot be less than min-capacity.

• overager-period: specifies the period in seconds between runs of the overager task. The purpose of the overager task is to see if the cache contains beans with an age greater than the max-bean-age element value. Any beans meeting this criterion will be passivated.

• max-bean-age: specifies the maximum period of inactivity in seconds a bean can have before it will be passivated by the overager process.

• resizer-period: specifies the period in seconds between runs of the resizer task. The purpose of the resizer task is to contract or expand the cache capacity based on the remaining three element values in the following way. When the resizer task executes it checks the current period between cache misses, and if the period is less than the min-cache-miss-period value the cache is expanded up to the max-capacity value using the cache-load-factor. If instead the period between cache misses is greater than the max-cache-miss-period value the cache is contracted using the cache-load-factor.

• max-cache-miss-period: specifies the time period in seconds in which a cache miss should signal that the cache capacity be contracted. It is equivalent to the minimum miss rate that will be tolerated before the cache is contracted.

• min-cache-miss-period: specifies the time period in seconds in which a cache miss should signal that the cache capacity be expanded. It is equivalent to the maximum miss rate that will be tolerated before the cache is expanded.

• cache-load-factor: specifies the factor by which the cache capacity is contracted and expanded. The factor should be less than 1. When the cache is contracted the capacity is reduced so that the current ratio of beans to cache capacity is equal to the cache-load-factor value. When the cache is expanded the new capacity is determined as current-capacity * 1/cache-load-factor. The actual expansion factor may be as high as 2 based on an internal algorithm based on the number of cache misses. The higher the cache miss rate the closer the true expansion factor will be to 2.

The LRUStatefulContextCachePolicy also supports the remaining child elements:

• remover-period: specifies the period in seconds between runs of the remover task. The remover task removes passivated beans that have not been accessed in more than max-bean-life seconds. This task prevents stateful session beans that were not removed by users from filling up the passivation store.

• max-bean-life: specifies the maximum period of inactivity in seconds that a bean can exist before being removed from the passivation store.

An alternative cache policy implementation is the org.jboss.ejb.plugins.NoPassivationCachePolicy class, which simply never passivates instances. It uses an in-memory HashMap implementation that never discards instances unless they are explicitly removed. This class does not support any of the cache-policy-conf configuration elements.

4.3.1.3.12. The persistence-manager element

The persistence-manager element value specifies the fully qualified class name of the persistence manager implementation. The type of the implementation depends on the type of EJB. For stateful session beans it must be an implementation of the org.jboss.ejb.StatefulSessionPersistenceManager interface. For BMP entity beans it must be an implementation of the org.jboss.ejb.EntityPersistenceManager interface, while for CMP entity beans it must be an implementation of the org.jboss.ejb.EntityPersistenceStore interface.

4.3.1.3.13. The web-class-loader Element

The web-class-loader element specifies a subclass of org.jboss.web.WebClassLoader that is used in conjunction with the WebService MBean to allow dynamic loading of resources and classes from deployed ears, EJB JARs and WARs. A WebClassLoader is associated with a Container and must have an org.jboss.mx.loading.UnifiedClassLoader as its parent. It overrides the getURLs() method to return a different set of URLs for remote loading than what is used for local loading.

WebClaossLoader has two methods meant to be overridden by subclasses: getKey() and getBytes(). The latter is a no-op in this implementation and should be overridden by subclasses with bytecode generation ability, such as the classloader used by the iiop module.

WebClassLoader subclasses must have a constructor with the same signature as the WebClassLoader(ObjectName containerName, UnifiedClassLoader parent) constructor.

4.3.1.3.14. The locking-policy element

The locking-policy element gives the fully qualified class name of the EJB lock implementation to use. This class must implement the org.jboss.ejb.BeanLock interface. The current JBoss versions include:

• org.jboss.ejb.plugins.lock.QueuedPessimisticEJBLock: an implementation that holds threads awaiting the transactional lock to be freed in a fair FIFO queue. Non-transactional threads are also put into this wait queue as well. This class pops the next waiting transaction from the queue and notifies only those threads waiting associated with that transaction. The QueuedPessimisticEJBLock is the current default used by the standard configurations.

• org.jboss.ejb.plugins.lock.QueuedPessimisticEJBLockNoADE: This behaves the same as the QueuedPessimisticEJBLock except that deadlock detection is disabled.

• org.jboss.ejb.plugins.lock.SimpleReadWriteEJBLock: This lock allows multiple read locks concurrently. Once a writer has requested the lock, future read-lock requests whose transactions do not already have the read lock will block until all writers are done; then all the waiting readers will concurrently go (depending on the reentrant setting / methodLock). A reader who promotes gets first crack at the write lock, ahead of other waiting writers. If there is already a reader that is promoting, we throw an inconsistent read exception. Of course, writers have to wait for all read-locks to release before taking the write lock.

• org.jboss.ejb.plugins.lock.NoLock: an anti-locking policy used with the instance per transaction container configurations.

Locking and deadlock detection will be discussed in more detail in Section 4.4, “Entity Bean Locking and Deadlock Detection”.

4.3.1.3.15. The commit-option and optiond-refresh-rate elements

The commit-option value specifies the EJB entity bean persistent storage commit option. It must be one of A, B, C or D.

• A: the container caches the beans state between transactions. This option assumes that the container is the only user accessing the persistent store. This assumption allows the container to synchronize the in-memory state from the persistent storage only when absolutely necessary. This occurs before the first business method executes on a found bean or after the bean is passivated and reactivated to serve another business method. This behavior is independent of whether the business method executes inside a transaction context.

• B: the container caches the bean state between transactions. However, unlike option A the container does not assume exclusive access to the persistent store. Therefore, the container will synchronize the in-memory state at the beginning of each transaction. Thus, business methods executing in a transaction context don't see much benefit from the container caching the bean, whereas business methods executing outside a transaction context (transaction attributes Never, NotSupported or Supports) access the cached (and potentially invalid) state of the bean.

• C: the container does not cache bean instances. The in-memory state must be synchronized on every transaction start. For business methods executing outside a transaction the synchronization is still performed, but the ejbLoad executes in the same transaction context as that of the caller.

• D: is a JBoss-specific commit option which is not described in the EJB specification. It is a lazy read scheme where bean state is cached between transactions as with option A, but the state is periodically resynchronized with that of the persistent store. The default time between reloads is 30 seconds, but may configured using the optiond-refresh-rate element.

4.3.1.3.16. The security-domain element

The security-domain element specifies the JNDI name of the object that implements the org.jboss.security.AuthenticationManager and org.jboss.security.RealmMapping interfaces. It is more typical to specify the security-domain under the jboss root element so that all EJBs in a given deployment are secured in the same manner. However, it is possible to configure the security domain for each bean configuration. The details of the security manager interfaces and configuring the security layer are discussed in Chapter 7, Security on JBoss.

4.3.1.3.17. cluster-config

The cluster-config element allows to specify cluster specific settings for all EJBs that use the container configuration. Specficiation of the cluster configuration may be done at the container configuration level or at the individual EJB deployment level.

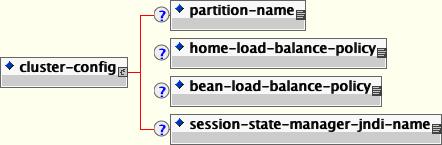

Figure 4.7. The cluster-config and related elements

• partition-name: The partition-name element indicates where to find the org.jboss.ha.framework.interfaces.HAPartition interface to be used by the container to exchange clustering information. This is not the full JNDI name under which HAPartition is bound. Rather, it should correspond to the PartitionName attribute of the ClusterPartitionMBean service that is managing the desired cluster. The actual JNDI name of the HAPartition binding will be formed by appending /HASessionState/ to the partition-name value. The default value is DefaultPartition.

• home-load-balance-policy: The home-load-balance-policy element indicates the Java class name to be used to load balance calls made on the home proxy. The class must implement the org.jboss.ha.framework.interface.LoadBalancePolicy interface. The default policy is org.jboss.ha.framework.interfaces.RoundRobin.

• bean-load-balance-policy: The bean-load-balance-policy element indicates the java class name to be used to load balance calls in the bean proxy. The class must implement the org.jboss.ha.framework.interface.LoadBalancePolicy interface. For entity beans and stateful session beans, the default is org.jboss.ha.framework.interfaces.FirstAvailavble. For stateless session beans, org.jboss.ha.framework.interfaces.RoundRobin.

• session-state-manager-jndi-name: The session-state-manager-jndi-name element indicates the name of the org.jboss.ha.framework.interfaces.HASessionState to be used by the container as a backend for state session management in the cluster. Unlike the partition-name element, this is a JNDI name under which the HASessionState implementation is bound. The default location used is /HASessionState/Default.

4.3.1.3.18. The depends element

The depends element gives a JMX ObjectName of a service on which the container or EJB depends. Specification of explicit dependencies on other services avoids having to rely on the deployment order being after the required services are started.

The JBoss EJB container uses a framework pattern that allows one to change implementations of various aspects of the container behavior. The container itself does not perform any significant work other than connecting the various behavioral components together. Implementations of the behavioral components are referred to as plugins, because you can plug in a new implementation by changing a container configuration. Examples of plug-in behavior you may want to change include persistence management, object pooling, object caching, container invokers and interceptors. There are four subclasses of the org.jboss.ejb.Container class, each one implementing a particular bean type:

The EJB containers delegate much of their behavior to components known as container plug-ins. The interfaces that make up the container plugin points include the following:

The container's main responsibility is to manage its plug-ins. This means ensuring that the plug-ins have all the information they need to implement their functionality.

public interface ContainerPlugin
    extends Service, AllowedOperationsFlags
{
    /**
     * This callback is set by the container so that the plugin
     * may access its container
     *
     * @param con the container which owns the plugin
     */
    public void setContainer(Container con);
}

import org.jboss.invocation.Invocation;

public interface Interceptor
    extends ContainerPlugin
{
    public void setNext(Interceptor interceptor);
    public Interceptor getNext();
    public Object invokeHome(Invocation mi) throws Exception;
    public Object invoke(Invocation mi) throws Exception;
}

public interface InstancePool
    extends ContainerPlugin
{
    /**
     * Get an instance without identity. Can be used
     * by finders and create-methods, or stateless beans
     *
     * @return Context /w instance
     * @exception RemoteException
     */
    public EnterpriseContext get() throws Exception;

    /** Return an anonymous instance after invocation.
     *
     * @param ctx
     */
    public void free(EnterpriseContext ctx);

    /**
     * Discard an anonymous instance after invocation.
     * This is called if the instance should not be reused,
     * perhaps due to some exception being thrown from it.
     *
     * @param ctx
     */
    public void discard(EnterpriseContext ctx);

    /**
     * Return the size of the pool.
     *
     * @return the size of the pool.
     */
    public int getCurrentSize();

    /**
     * Get the maximum size of the pool.
     *
     * @return the size of the pool.
     */
    public int getMaxSize();
}

public interface InstanceCache
    extends ContainerPlugin
{
    /**
     * Gets a bean instance from this cache given the identity.
     * This method may involve activation if the instance is not
     * in the cache.
     * Implementation should have O(1) complexity.
     * This method is never called for stateless session beans.
     *
     * @param id the primary key of the bean
     * @return the EnterpriseContext related to the given id
     * @exception RemoteException in case of illegal calls
     * (concurrent / reentrant), NoSuchObjectException if
     * the bean cannot be found.
     * @see #release
     */
    public EnterpriseContext get(Object id)
	throws RemoteException, NoSuchObjectException;

    /**
     * Inserts an active bean instance after creation or activation.
     * Implementation should guarantee proper locking and O(1) complexity.
     *
     * @param ctx the EnterpriseContext to insert in the cache
     * @see #remove
     */
    public void insert(EnterpriseContext ctx);

    /**
     * Releases the given bean instance from this cache.
     * This method may passivate the bean to get it out of the cache.
     * Implementation should return almost immediately leaving the
     * passivation to be executed by another thread.
     *
     * @param ctx the EnterpriseContext to release
     * @see #get
     */
    public void release(EnterpriseContext ctx);

    /**
     * Removes a bean instance from this cache given the identity.
     * Implementation should have O(1) complexity and guarantee
     * proper locking.
     *
     * @param id the pimary key of the bean
     * @see #insert
     */
    public void remove(Object id);

    /**
     * Checks whether an instance corresponding to a particular
     * id is active
     *
     * @param id the pimary key of the bean
     * @see #insert
     */
    public boolean isActive(Object id);
}

public interface EntityPersistenceManager
    extends ContainerPlugin
{
    /**
     * Returns a new instance of the bean class or a subclass of the
     * bean class.
     *
     * @return the new instance
     */
    Object createBeanClassInstance() throws Exception;

    /**
     * This method is called whenever an entity is to be created. The
     * persistence manager is responsible for calling the ejbCreate method
     * on the instance and to handle the results properly wrt the persistent
     * store.
     *
     * @param m the create method in the home interface that was
     * called
     * @param args any create parameters
     * @param instance the instance being used for this create call
     */
    void createEntity(Method m,
		      Object[] args,
		      EntityEnterpriseContext instance)
	throws Exception;

    /**
     * This method is called whenever an entity is to be created. The
     * persistence manager is responsible for calling the ejbPostCreate method
     * on the instance and to handle the results properly wrt the persistent
     * store.
     *
     * @param m the create method in the home interface that was
     * called
     * @param args any create parameters
     * @param instance the instance being used for this create call
     */
    void postCreateEntity(Method m,
			  Object[] args,
			  EntityEnterpriseContext instance)
	throws Exception;

    /**
     * This method is called when single entities are to be found. The
     * persistence manager must find out whether the wanted instance is
     * available in the persistence store, and if so it shall use the
     * ContainerInvoker plugin to create an EJBObject to the instance, which
     * is to be returned as result.
     *
     * @param finderMethod the find method in the home interface that was
     * called
     * @param args any finder parameters
     * @param instance the instance to use for the finder call
     * @return an EJBObject representing the found entity
     */
    Object findEntity(Method finderMethod,
		      Object[] args,
		      EntityEnterpriseContext instance)
	throws Exception;

    /**
     * This method is called when collections of entities are to be
     * found. The persistence manager must find out whether the wanted
     * instances are available in the persistence store, and if so it
     * shall use the ContainerInvoker plugin to create EJBObjects to
     * the instances, which are to be returned as result.
     *
     * @param finderMethod the find method in the home interface that was
     * called
     * @param args any finder parameters
     * @param instance the instance to use for the finder call
     * @return an EJBObject collection representing the found
     * entities
     */
    Collection findEntities(Method finderMethod,
			    Object[] args,
			    EntityEnterpriseContext instance)
                     throws Exception;

    /**
     * This method is called when an entity shall be activated. The
     * persistence manager must call the ejbActivate method on the
     * instance.
     *
     * @param instance the instance to use for the activation
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void activateEntity(EntityEnterpriseContext instance)
	throws RemoteException;

    /**
     * This method is called whenever an entity shall be load from the
     * underlying storage. The persistence manager must load the state
     * from the underlying storage and then call ejbLoad on the
     * supplied instance.
     *
     * @param instance the instance to synchronize
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void loadEntity(EntityEnterpriseContext instance)
	throws RemoteException;

    /**
     * This method is used to determine if an entity should be stored.
     *
     * @param instance the instance to check
     * @return true, if the entity has been modified
     * @throws Exception thrown if some system exception occurs
     */
    boolean isModified(EntityEnterpriseContext instance) throws Exception;

    /**
     * This method is called whenever an entity shall be stored to the
     * underlying storage. The persistence manager must call ejbStore
     * on the supplied instance and then store the state to the
     * underlying storage.
     *
     * @param instance the instance to synchronize
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void storeEntity(EntityEnterpriseContext instance)
	throws RemoteException;

    /**
     * This method is called when an entity shall be passivate. The
     * persistence manager must call the ejbPassivate method on the
     * instance.
     *
     * @param instance the instance to passivate
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void passivateEntity(EntityEnterpriseContext instance)
	throws RemoteException;

    /**
     * This method is called when an entity shall be removed from the
     * underlying storage. The persistence manager must call ejbRemove
     * on the instance and then remove its state from the underlying
     * storage.
     *
     * @param instance the instance to remove
     *
     * @throws RemoteException thrown if some system exception occurs
     * @throws RemoveException thrown if the instance could not be removed
     */
    void removeEntity(EntityEnterpriseContext instance)
	throws RemoteException, RemoveException;
}

public interface EntityPersistenceStore
    extends ContainerPlugin
{
    /**
     * Returns a new instance of the bean class or a subclass of the
     * bean class.
     *
     * @return the new instance
     *
     * @throws Exception
     */
    Object createBeanClassInstance()
        throws Exception;

    /**
     * Initializes the instance context.
     *
     * <p>This method is called before createEntity, and should
     * reset the value of all cmpFields to 0 or null.
     *
     * @param ctx
     *
     * @throws RemoteException
     */
    void initEntity(EntityEnterpriseContext ctx);

    /**
     * This method is called whenever an entity is to be created.  The
     * persistence manager is responsible for handling the results
     * properly wrt the persistent store.
     *
     * @param m the create method in the home interface that was
     * called
     * @param args any create parameters
     * @param instance the instance being used for this create call
     * @return The primary key computed by CMP PM or null for BMP
     *
     * @throws Exception
     */
    Object createEntity(Method m,
			Object[] args,
			EntityEnterpriseContext instance)
        throws Exception;

    /**
     * This method is called when single entities are to be found. The
     * persistence manager must find out whether the wanted instance
     * is available in the persistence store, if so it returns the
     * primary key of the object.
     *
     * @param finderMethod the find method in the home interface that was
     * called
     * @param args any finder parameters
     * @param instance the instance to use for the finder call
     * @return a primary key representing the found entity
     *
     * @throws RemoteException thrown if some system exception occurs
     * @throws FinderException thrown if some heuristic problem occurs
     */
    Object findEntity(Method finderMethod,
		      Object[] args,
		      EntityEnterpriseContext instance)
        throws Exception;

    /**
     * This method is called when collections of entities are to be
     * found. The persistence manager must find out whether the wanted
     * instances are available in the persistence store, and if so it
     * must return a collection of primaryKeys.
     *
     * @param finderMethod the find method in the home interface that was
     * called
     * @param args any finder parameters
     * @param instance the instance to use for the finder call
     * @return an primary key collection representing the found
     * entities
     *
     * @throws RemoteException thrown if some system exception occurs
     * @throws FinderException thrown if some heuristic problem occurs
     */
    Collection findEntities(Method finderMethod,
			    Object[] args,
			    EntityEnterpriseContext instance)
        throws Exception;

    /**
     * This method is called when an entity shall be activated.
     *
     * <p>With the PersistenceManager factorization most EJB
     * calls should not exists However this calls permits us to
     * introduce optimizations in the persistence store. Particularly
     * the context has a "PersistenceContext" that a PersistenceStore
     * can use (JAWS does for smart updates) and this is as good a
     * callback as any other to set it up.
     * @param instance the instance to use for the activation
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void activateEntity(EntityEnterpriseContext instance)
        throws RemoteException;

    /**
     * This method is called whenever an entity shall be load from the
     * underlying storage. The persistence manager must load the state
     * from the underlying storage and then call ejbLoad on the
     * supplied instance.
     *
     * @param instance the instance to synchronize
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void loadEntity(EntityEnterpriseContext instance)
        throws RemoteException;

    /**
     * This method is used to determine if an entity should be stored.
     *
     * @param instance the instance to check
     * @return true, if the entity has been modified
     * @throws Exception thrown if some system exception occurs
     */
    boolean isModified(EntityEnterpriseContext instance)
        throws Exception;

    /**
     * This method is called whenever an entity shall be stored to the
     * underlying storage. The persistence manager must call ejbStore
     * on the supplied instance and then store the state to the
     * underlying storage.
     *
     * @param instance the instance to synchronize
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void storeEntity(EntityEnterpriseContext instance)
        throws RemoteException;

    /**
     * This method is called when an entity shall be passivate. The
     * persistence manager must call the ejbPassivate method on the
     * instance.
     *
     * <p>See the activate discussion for the reason for
     * exposing EJB callback * calls to the store.
     *
     * @param instance the instance to passivate
     *
     * @throws RemoteException thrown if some system exception occurs
     */
    void passivateEntity(EntityEnterpriseContext instance)
        throws RemoteException;

    /**
     * This method is called when an entity shall be removed from the
     * underlying storage. The persistence manager must call ejbRemove
     * on the instance and then remove its state from the underlying
     * storage.
     *
     * @param instance the instance to remove
     *
     * @throws RemoteException thrown if some system exception occurs
     * @throws RemoveException thrown if the instance could not be removed
     */
    void removeEntity(EntityEnterpriseContext instance)
        throws RemoteException, RemoveException;
}

public interface StatefulSessionPersistenceManager
    extends ContainerPlugin
{
    public void createSession(Method m, Object[] args,
			      StatefulSessionEnterpriseContext ctx)
	throws Exception;

    public void activateSession(StatefulSessionEnterpriseContext ctx)
	throws RemoteException;

    public void passivateSession(StatefulSessionEnterpriseContext ctx)
	throws RemoteException;

    public void removeSession(StatefulSessionEnterpriseContext ctx)
	throws RemoteException, RemoveException;

    public void removePassivated(Object key);
}

Locking is about protecting the integrity of your data. Sometimes you need to be sure that only one user can update critical data at one time. Sometimes, access to sensitive objects in your system need to be serialized so that data is not corrupted by concurrent reads and writes. Databases traditionally provide this sort of functionality with transactional scopes and table and row locking facilities.

Entity beans are a great way to provide an object-oriented interface to relational data. Beyond that, they can improve performance by taking the load off of the database through caching and delaying updates until absolutely needed so that the database efficiency can be maximized. But, with caching, data integrity is a problem, so some form of application server level locking is needed for entity beans to provide the transaction isolation properties that you are used to with traditional databases.

With the default configuration of JBoss there is only one active instance of a given entity bean in memory at one time. This applies for every cache configuration and every type of commit-option. The lifecycle for this instance is different for every commit-option though.

When a bean is marked for passivation, the bean is placed in a passivation queue. Each entity bean container has a passivation thread that periodically passivates beans that have been placed in the passivation queue. A bean is pulled out of the passivation queue and reused if the application requests access to a bean of the same primary key.

On an exception or transaction rollback, the entity bean instance is thrown out of cache entirely. It is not put into the passivation queue and is not reused by an instance pool. Except for the passivation queue, there is no entity bean instance pooling.

Entity bean locking is totally decoupled from the entity bean instance. The logic for locking is totally isolated and managed in a separate lock object. Because there is only one allowed instance of a given entity bean active at one time, JBoss employs two types of locks to ensure data integrity and to conform to the EJB spec.

We saw that the basic entity bean lifecycle and behavior is defined by the container configuration defined in standardjboss.xml descriptor. Let's look at the container-interceptors definition for the Standard CMP 2.x EntityBean configuration.

<container-interceptors>
    <interceptor>org.jboss.ejb.plugins.ProxyFactoryFinderInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.LogInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.SecurityInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.TxInterceptorCMT</interceptor>
    <interceptor>org.jboss.ejb.plugins.CallValidationInterceptor</interceptor>
    <interceptor metricsEnabled="true">org.jboss.ejb.plugins.MetricsInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.EntityCreationInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.EntityLockInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.EntityInstanceInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.EntityReentranceInterceptor</interceptor>
    <interceptor>org.jboss.resource.connectionmanager.CachedConnectionInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.EntitySynchronizationInterceptor</interceptor>
    <interceptor>org.jboss.ejb.plugins.cmp.jdbc.JDBCRelationInterceptor</interceptor>
</container-interceptors>

The interceptors shown above define most of the behavior of the entity bean. Below is an explanation of the interceptors that are relevant to this section.

Finding deadlock problems and resolving them is the topic of this section. We will describe what deadlocking MBeans, how you can detect it within your application, and how you can resolve deadlocks. Deadlock can occur when two or more threads have locks on shared resources. Figure 4.8, “Deadlock definition example” illustrates a simple deadlock scenario. Here, Thread 1 has the lock for Bean A, and Thread 2 has the lock for Bean B. At a later time, Thread 1 tries to lock Bean B and blocks because Thread 2 has it. Likewise, as Thread 2 tries to lock A it also blocks because Thread 1 has the lock. At this point both threads are deadlocked waiting for access to the resource already locked by the other thread.

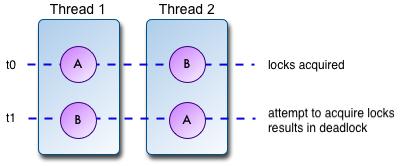

Figure 4.8. Deadlock definition example

The default locking policy of JBoss is to lock an Entity bean when an invocation occurs in the context of a transaction until the transaction completes. Because of this, it is very easy to encounter deadlock if you have long running transactions that access many entity beans, or if you are not careful about ordering the access to them. Various techniques and advanced configurations can be used to avoid deadlocking problems. They are discussed later in this section.

try {
    // ...
} catch (RemoteException ex) {
    Throwable cause = null;
    RemoteException rex = ex;
    while (rex.detail != null) {
        cause = rex.detail;
        if (cause instanceof ApplicationDeadlockException) {
	        // ... We have deadlock, force a retry of the transaction.
            break;
        }
        if (cause instanceof RemoteException) {
            rex = (RemoteException)cause;
        }
    }
}

<mbean code="org.jboss.monitor.EntityLockMonitor"
       name="jboss.monitor:name=EntityLockMonitor"/>

The default locking behavior of entity beans can cause deadlock. Since access to an entity bean locks the bean into the transaction, this also can present a huge performance/throughput problem for your application. This section walks through various techniques and configurations that you can use to optimize performance and reduce the possibility of deadlock.

<jboss>
    <enterprise-beans>
        <entity>
            <ejb-name>MyEntityBean</ejb-name>
            <jndi-name>MyEntityHomeRemote</jndi-name>
            <read-only>True</read-only>
        </entity>
    </enterprise-beans>
</jboss>

<jboss>
    <enterprise-beans>
        <entity>
            <ejb-name>nextgen.EnterpriseEntity</ejb-name>
            <jndi-name>nextgen.EnterpriseEntity</jndi-name>
            <method-attributes>
                <method>
                    <method-name>get*</method-name>
                    <read-only>true</read-only>
                </method>
                <method>
                    <method-name>anotherReadOnlyMethod</method-name>
                    <read-only>true</read-only>
                </method>
            </method-attributes>
        </entity>
    </enterprise-beans>
</jboss>

<jboss>
    <enterprise-beans>
        <entity>
            <ejb-name>MyCMP2Bean</ejb-name>
            <jndi-name>MyCMP2</jndi-name>
            <configuration-name>
                Instance Per Transaction CMP 2.x EntityBean
            </configuration-name>
        </entity>
        <entity>
            <ejb-name>MyBMPBean</ejb-name>
            <jndi-name>MyBMP</jndi-name>
            <configuration-name>
                Instance Per Transaction BMP EntityBean
            </configuration-name>
        </entity>
    </enterprise-beans>
</jboss>

Currently there is no distributed locking capability for entity beans within the cluster. This functionality has been delegated to the database and must be supported by the application developer. For clustered entity beans, it is suggested to use commit-option B or C in combination with a row locking mechanism. For CMP, there is a row-locking configuration option. This option will use a SQL select for update when the bean is loaded from the database. With commit-option B or C, this implements a transactional lock that can be used across the cluster. For BMP, you must explicitly implement the select for update invocation within the BMP's ejbLoad method.

This section will describe some common locking problems and their solution.

Let's start out with a point-to-point (P2P) example. In the P2P model, a sender delivers messages to a queue and a single receiver pulls the message off of the queue. The receiver does not need to be listening to the queue at the time the message is sent. Example 5.1, “A P2P JMS client example” shows a complete P2P example that sends a javax.jms.TextMessage to the queue queue/testQueue and asynchronously receives the message from the same queue.

package org.jboss.book.jms.ex1;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueReceiver;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

import EDU.oswego.cs.dl.util.concurrent.CountDown;
import org.apache.log4j.Logger;
import org.jboss.util.ChapterExRepository;

/**
 * A complete JMS client example program that sends a
 * TextMessage to a Queue and asynchronously receives the
 * message from the same Queue.
 *
 * @author  Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class SendRecvClient
{
    static Logger log;
    static CountDown done = new CountDown(1);

    QueueConnection conn;
    QueueSession session;
    Queue que;

    public static class ExListener
        implements MessageListener
    {
        public void onMessage(Message msg)
        {
            done.release();
            TextMessage tm = (TextMessage) msg;
            try {
                log.info("onMessage, recv text=" + tm.getText());
            } catch(Throwable t) {
                t.printStackTrace();
            }
        }
    }

    public void setupPTP()
        throws JMSException,
               NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");
        QueueConnectionFactory qcf = (QueueConnectionFactory) tmp;
        conn = qcf.createQueueConnection();
        que = (Queue) iniCtx.lookup("queue/testQueue");
        session = conn.createQueueSession(false,
                                          QueueSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void sendRecvAsync(String text)
        throws JMSException,
               NamingException
    {
        log.info("Begin sendRecvAsync");
        // Setup the PTP connection, session
        setupPTP();

        // Set the async listener
        QueueReceiver recv = session.createReceiver(que);
        recv.setMessageListener(new ExListener());

        // Send a text msg
        QueueSender send = session.createSender(que);
        TextMessage tm = session.createTextMessage(text);
        send.send(tm);
        log.info("sendRecvAsync, sent text=" + tm.getText());
        send.close();
        log.info("End sendRecvAsync");
    }

    public void stop()
        throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[])
        throws Exception
    {
        ChapterExRepository.init(SendRecvClient.class);
        log = Logger.getLogger("SendRecvClient");

        log.info("Begin SendRecvClient, now=" + System.currentTimeMillis());
        SendRecvClient client = new SendRecvClient();
        client.sendRecvAsync("A text msg");
        client.done.acquire();
        client.stop();
        log.info("End SendRecvClient");
        System.exit(0);
    }
}

The client may be run using the following command line:

[examples]$ ant -Dchap=jms -Dex=1p2p run-example
...
run-example1p2p:
     [java] [INFO,SendRecvClient] Begin SendRecvClient, now=1102808673386
     [java] [INFO,SendRecvClient] Begin sendRecvAsync
     [java] [INFO,SendRecvClient] onMessage, recv text=A text msg
     [java] [INFO,SendRecvClient] sendRecvAsync, sent text=A text msg
     [java] [INFO,SendRecvClient] End sendRecvAsync
     [java] [INFO,SendRecvClient] End SendRecvClient

The JMS publish/subscribe (Pub-Sub) message model is a one-to-many model. A publisher sends a message to a topic and all active subscribers of the topic receive the message. Subscribers that are not actively listening to the topic will miss the published message. shows a complete JMS client that sends a javax.jms.TextMessage to a topic and asynchronously receives the message from the same topic.

package org.jboss.book.jms.ex1;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Topic;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;
import javax.jms.TopicPublisher;
import javax.jms.TopicSubscriber;
import javax.jms.TopicSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

import EDU.oswego.cs.dl.util.concurrent.CountDown;

/**
 *  A complete JMS client example program that sends a TextMessage to
 *  a Topic and asynchronously receives the message from the same
 *  Topic.
 *
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */

public class TopicSendRecvClient
{
    static CountDown done = new CountDown(1);
    TopicConnection conn = null;
    TopicSession session = null;
    Topic topic = null;

    public static class ExListener implements MessageListener
    {
        public void onMessage(Message msg)
        {
            done.release();
            TextMessage tm = (TextMessage) msg;
            try {
                System.out.println("onMessage, recv text=" + tm.getText());
            } catch(Throwable t) {
                t.printStackTrace();
            }
        }
    }

    public void setupPubSub()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");
        TopicConnectionFactory tcf = (TopicConnectionFactory) tmp;
        conn = tcf.createTopicConnection();
        topic = (Topic) iniCtx.lookup("topic/testTopic");
        session = conn.createTopicSession(false,
                                          TopicSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void sendRecvAsync(String text)
        throws JMSException, NamingException
    {
        System.out.println("Begin sendRecvAsync");
        // Setup the PubSub connection, session
        setupPubSub();
        // Set the async listener

        TopicSubscriber recv = session.createSubscriber(topic);
        recv.setMessageListener(new ExListener());
        // Send a text msg
        TopicPublisher send = session.createPublisher(topic);
        TextMessage tm = session.createTextMessage(text);
        send.publish(tm);
        System.out.println("sendRecvAsync, sent text=" + tm.getText());
        send.close();
        System.out.println("End sendRecvAsync");
    }

    public void stop() throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[]) throws Exception
    {
        System.out.println("Begin TopicSendRecvClient, now=" +
                           System.currentTimeMillis());
        TopicSendRecvClient client = new TopicSendRecvClient();
        client.sendRecvAsync("A text msg, now="+System.currentTimeMillis());
        client.done.acquire();
        client.stop();
        System.out.println("End TopicSendRecvClient");
        System.exit(0);
    }

}

The client may be run using the following command line:

[examples]$ ant -Dchap=jms -Dex=1ps run-example
...
run-example1ps:
     [java] Begin TopicSendRecvClient, now=1102809427043
     [java] Begin sendRecvAsync
     [java] onMessage, recv text=A text msg, now=1102809427071
     [java] sendRecvAsync, sent text=A text msg, now=1102809427071
     [java] End sendRecvAsync
     [java] End TopicSendRecvClient

Now let's break the publisher and subscribers into separate programs to demonstrate that subscribers only receive messages while they are listening to a topic. Example 5.3, “A JMS publisher client” shows a variation of the previous pub-sub client that only publishes messages to the topic/testTopic topic. The subscriber only client is shown in Example 5.3, “A JMS publisher client”.

package org.jboss.book.jms.ex1;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Topic;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;
import javax.jms.TopicPublisher;
import javax.jms.TopicSlistubscriber;
import javax.jms.TopicSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

/**
 *  A JMS client example program that sends a TextMessage to a Topic
 *
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */
public class TopicSendClient
{
    TopicConnection conn = null;
    TopicSession session = null;
    Topic topic = null;

    public void setupPubSub()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");
        TopicConnectionFactory tcf = (TopicConnectionFactory) tmp;
        conn = tcf.createTopicConnection();
        topic = (Topic) iniCtx.lookup("topic/testTopic");
        session = conn.createTopicSession(false,
                                          TopicSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void sendAsync(String text)
        throws JMSException, NamingException
    {
        System.out.println("Begin sendAsync");
        // Setup the pub/sub connection, session
        setupPubSub();
        // Send a text msg
        TopicPublisher send = session.createPublisher(topic);
        TextMessage tm = session.createTextMessage(text);
        send.publish(tm);
        System.out.println("sendAsync, sent text=" +  tm.getText());
        send.close();
        System.out.println("End sendAsync");
    }

    public void stop()
        throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[])
        throws Exception
    {
        System.out.println("Begin TopicSendClient, now=" +
		                   System.currentTimeMillis());
        TopicSendClient client = new TopicSendClient();
	    client.sendAsync("A text msg, now="+System.currentTimeMillis());
        client.stop();
        System.out.println("End TopicSendClient");
        System.exit(0);
    }

}

package org.jboss.book.jms.ex1;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Topic;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;
import javax.jms.TopicPublisher;
import javax.jms.TopicSubscriber;
import javax.jms.TopicSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

/**
 * A JMS client example program that synchronously receives a message a Topic
 *
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class TopicRecvClient
{
    TopicConnection conn = null;
    TopicSession session = null;
    Topic topic = null;

    public void setupPubSub()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");
        TopicConnectionFactory tcf = (TopicConnectionFactory) tmp;
        conn = tcf.createTopicConnection();
        topic = (Topic) iniCtx.lookup("topic/testTopic");
        session = conn.createTopicSession(false,
                                          TopicSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void recvSync()
        throws JMSException, NamingException
    {
        System.out.println("Begin recvSync");
        // Setup the pub/sub connection, session
        setupPubSub();

        // Wait upto 5 seconds for the message
        TopicSubscriber recv = session.createSubscriber(topic);
        Message msg = recv.receive(5000);
        if (msg == null) {
            System.out.println("Timed out waiting for msg");
        } else {
            System.out.println("TopicSubscriber.recv, msgt="+msg);
        }
    }

    public void stop()
        throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[])
        throws Exception
    {
        System.out.println("Begin TopicRecvClient, now=" +
                           System.currentTimeMillis());
        TopicRecvClient client = new TopicRecvClient();
        client.recvSync();
        client.stop();
        System.out.println("End TopicRecvClient");
        System.exit(0);
    }

}

Run the TopicSendClient followed by the TopicRecvClient as follows:

[examples]$ ant -Dchap=jms -Dex=1ps2 run-example
...
run-example1ps2:
     [java] Begin TopicSendClient, now=1102810007899
     [java] Begin sendAsync
     [java] sendAsync, sent text=A text msg, now=1102810007909
     [java] End sendAsync
     [java] End TopicSendClient
     [java] Begin TopicRecvClient, now=1102810011524
     [java] Begin recvSync
     [java] Timed out waiting for msg
     [java] End TopicRecvClient

The output shows that the topic subscriber client (TopicRecvClient) fails to receive the message sent by the publisher due to a timeout.

JMS supports a messaging model that is a cross between the P2P and pub-sub models. When a pub-sub client wants to receive all messages posted to the topic it subscribes to even when it is not actively listening to the topic, the client may achieve this behavior using a durable topic. Let's look at a variation of the preceding subscriber client that uses a durable topic to ensure that it receives all messages, include those published when the client is not listening to the topic. Example 5.5, “A durable topic JMS client example” shows the durable topic client with the key differences between the Example 5.4, “A JMS subscriber client” client highlighted in bold.

package org.jboss.book.jms.ex1;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Topic;
import javax.jms.TopicConnection;
import javax.jms.TopicConnectionFactory;
import javax.jms.TopicPublisher;
import javax.jms.TopicSubscriber;
import javax.jms.TopicSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

/**
 *  A JMS client example program that synchronously receives a message a Topic
 *
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */
public class DurableTopicRecvClient
{
    TopicConnection conn = null;
    TopicSession session = null;
    Topic topic = null;

    public void setupPubSub()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");

        TopicConnectionFactory tcf = (TopicConnectionFactory) tmp;
        conn = tcf.createTopicConnection("john", "needle");
        topic = (Topic) iniCtx.lookup("topic/testTopic");

        session = conn.createTopicSession(false,
                                          TopicSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void recvSync()
        throws JMSException, NamingException
    {
        System.out.println("Begin recvSync");
        // Setup the pub/sub connection, session
        setupPubSub();
        // Wait upto 5 seconds for the message
        TopicSubscriber recv = session.createDurableSubscriber(topic, "jms-ex1dtps");
        Message msg = recv.receive(5000);
        if (msg == null) {
            System.out.println("Timed out waiting for msg");
        } else {
            System.out.println("DurableTopicRecvClient.recv, msgt=" + msg);
        }
    }

    public void stop()
        throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[])
        throws Exception
    {
        System.out.println("Begin DurableTopicRecvClient, now=" +
                           System.currentTimeMillis());
        DurableTopicRecvClient client = new DurableTopicRecvClient();
        client.recvSync();
        client.stop();
        System.out.println("End DurableTopicRecvClient");
        System.exit(0);
    }

}

Now run the previous topic publisher with the durable topic subscriber as follows:

[examples]$ ant -Dchap=jms -Dex=1psdt run-example
...
run-example1psdt:
     [java] Begin DurableTopicSetup
     [java] End DurableTopicSetup
     [java] Begin TopicSendClient, now=1102899834273
     [java] Begin sendAsync
     [java] sendAsync, sent text=A text msg, now=1102899834345
     [java] End sendAsync
     [java] End TopicSendClient
     [java] Begin DurableTopicRecvClient, now=1102899840043
     [java] Begin recvSync
     [java] DurableTopicRecvClient.recv, msgt=SpyTextMessage {
     [java] Header {
     [java]    jmsDestination  : TOPIC.testTopic.DurableSubscription[
               clientId=DurableSubscriberExample name=jms-ex1dtps selector=null]
     [java]    jmsDeliveryMode : 2
     [java]    jmsExpiration   : 0
     [java]    jmsPriority     : 4
     [java]    jmsMessageID    : ID:3-11028998375501
     [java]    jmsTimeStamp    : 1102899837550
     [java]    jmsCorrelationID: null
     [java]    jmsReplyTo      : null
     [java]    jmsType         : null
     [java]    jmsRedelivered  : false
     [java]    jmsProperties   : {}
     [java]    jmsPropReadWrite: false
     [java]    msgReadOnly     : true
     [java]    producerClientId: ID:3
     [java] }
     [java] Body {
     [java]    text            :A text msg, now=1102899834345
     [java] }
     [java] }
     [java] End DurableTopicRecvClient

Items of note for the durable topic example include:

Example 5.6, “A TextMessage processing MDB” shows an message driven bean (MDB) that transforms the TextMessages it receives and sends the transformed messages to the queue found in the incoming message JMSReplyTo header.

package org.jboss.book.jms.ex2;

import javax.ejb.MessageDrivenBean;
import javax.ejb.MessageDrivenContext;
import javax.ejb.EJBException;
import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

/**
 * An MDB that transforms the TextMessages it receives and send the
 * transformed messages to the Queue found in the incoming message
 * JMSReplyTo header.
 *
 * @author Scott.Stark@jboss.org
 * @version $Revision: 1.2 $
 */
public class TextMDB
    implements MessageDrivenBean, MessageListener
{
    private MessageDrivenContext ctx = null;
    private QueueConnection conn;
    private QueueSession session;

    public TextMDB()
    {
        System.out.println("TextMDB.ctor, this="+hashCode());
    }

    public void setMessageDrivenContext(MessageDrivenContext ctx)
    {
        this.ctx = ctx;
        System.out.println("TextMDB.setMessageDrivenContext, this=" +
                           hashCode());
    }

    public void ejbCreate()
    {
        System.out.println("TextMDB.ejbCreate, this="+hashCode());
        try {
            setupPTP();
        } catch (Exception e) {
            throw new EJBException("Failed to init TextMDB", e);
        }
    }

    public void ejbRemove()
    {
        System.out.println("TextMDB.ejbRemove, this="+hashCode());
        ctx = null;
        try {
            if (session != null) {
                session.close();
            }
            if (conn != null) {
                conn.close();
            }
        } catch(JMSException e) {
            e.printStackTrace();
        }
    }

    public void onMessage(Message msg)
    {
        System.out.println("TextMDB.onMessage, this="+hashCode());
        try {
            TextMessage tm = (TextMessage) msg;
            String text = tm.getText() + "processed by: "+hashCode();
            Queue dest = (Queue) msg.getJMSReplyTo();
            sendReply(text, dest);
        } catch(Throwable t) {
            t.printStackTrace();
        }
    }

    private void setupPTP()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("java:comp/env/jms/QCF");
        QueueConnectionFactory qcf = (QueueConnectionFactory) tmp;
        conn = qcf.createQueueConnection();
        session = conn.createQueueSession(false,
                                          QueueSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    private void sendReply(String text, Queue dest)
        throws JMSException
    {
        System.out.println("TextMDB.sendReply, this=" +
                           hashCode() + ", dest="+dest);
        QueueSender sender = session.createSender(dest);
        TextMessage tm = session.createTextMessage(text);
        sender.send(tm);
        sender.close();
    }
}

The MDB ejb-jar.xml and jboss.xml deployment descriptors are shown in Example 5.7, “The MDB ejb-jar.xml descriptor” and Example 5.8, “The MDB jboss.xml descriptor”.

<?xml version="1.0"?>
<!DOCTYPE ejb-jar PUBLIC
          "-//Sun Microsystems, Inc.//DTD Enterprise JavaBeans 2.0//EN"
          "http://java.sun.com/dtd/ejb-jar_2_0.dtd">
<ejb-jar>
    <enterprise-beans>
        <message-driven>
            <ejb-name>TextMDB</ejb-name>
            <ejb-class>org.jboss.book.jms.ex2.TextMDB</ejb-class>
            <transaction-type>Container</transaction-type>
            <acknowledge-mode>AUTO_ACKNOWLEDGE</acknowledge-mode>
            <message-driven-destination>
                <destination-type>javax.jms.Queue</destination-type>
            </message-driven-destination>
            <res-ref-name>jms/QCF</res-ref-name>
            <resource-ref>
                <res-type>javax.jms.QueueConnectionFactory</res-type>
                <res-auth>Container</res-auth>
            </resource-ref>
        </message-driven>
    </enterprise-beans>
</ejb-jar>

<?xml version="1.0"?>
<jboss>
    <enterprise-beans>
        <message-driven>
            <ejb-name>TextMDB</ejb-name>
            <destination-jndi-name>queue/B</destination-jndi-name>
            <resource-ref>
                <res-ref-name>jms/QCF</res-ref-name>
                <jndi-name>ConnectionFactory</jndi-name>
            </resource-ref>
        </message-driven>
    </enterprise-beans>
</jboss>

Example 5.9, “A JMS client that interacts with the TextMDB” shows a variation of the P2P client that sends several messages to the queue/B destination and asynchronously receives the messages as modified by TextMDB from queue A.

package org.jboss.book.jms.ex2;

import javax.jms.JMSException;
import javax.jms.Message;
import javax.jms.MessageListener;
import javax.jms.Queue;
import javax.jms.QueueConnection;
import javax.jms.QueueConnectionFactory;
import javax.jms.QueueReceiver;
import javax.jms.QueueSender;
import javax.jms.QueueSession;
import javax.jms.TextMessage;
import javax.naming.InitialContext;
import javax.naming.NamingException;

import EDU.oswego.cs.dl.util.concurrent.CountDown;

/**
 *  A complete JMS client example program that sends N TextMessages to
 *  a Queue B and asynchronously receives the messages as modified by
 *  TextMDB from Queue A.
 *
 *  @author Scott.Stark@jboss.org
 *  @version $Revision: 1.2 $
 */
public class SendRecvClient
{
    static final int N = 10;
    static CountDown done = new CountDown(N);

    QueueConnection conn;
    QueueSession session;
    Queue queA;
    Queue queB;

    public static class ExListener
        implements MessageListener
    {
        public void onMessage(Message msg)
        {
            done.release();
            TextMessage tm = (TextMessage) msg;
            try {
                System.out.println("onMessage, recv text="+tm.getText());
            } catch(Throwable t) {
                t.printStackTrace();
            }
        }
    }

    public void setupPTP()
        throws JMSException, NamingException
    {
        InitialContext iniCtx = new InitialContext();
        Object tmp = iniCtx.lookup("ConnectionFactory");
        QueueConnectionFactory qcf = (QueueConnectionFactory) tmp;
        conn = qcf.createQueueConnection();
        queA = (Queue) iniCtx.lookup("queue/A");
        queB = (Queue) iniCtx.lookup("queue/B");
        session = conn.createQueueSession(false,
                                          QueueSession.AUTO_ACKNOWLEDGE);
        conn.start();
    }

    public void sendRecvAsync(String textBase)
        throws JMSException, NamingException, InterruptedException
    {
        System.out.println("Begin sendRecvAsync");

        // Setup the PTP connection, session
        setupPTP();

        // Set the async listener for queA
        QueueReceiver recv = session.createReceiver(queA);
        recv.setMessageListener(new ExListener());

        // Send a few text msgs to queB
        QueueSender send = session.createSender(queB);

        for(int m = 0; m < 10; m ++) {
            TextMessage tm = session.createTextMessage(textBase+"#"+m);
            tm.setJMSReplyTo(queA);
            send.send(tm);
            System.out.println("sendRecvAsync, sent text=" + tm.getText());
        }
        System.out.println("End sendRecvAsync");
    }

    public void stop()
        throws JMSException
    {
        conn.stop();
        session.close();
        conn.close();
    }

    public static void main(String args[])
        throws Exception
    {
        System.out.println("Begin SendRecvClient,now=" +
                           System.currentTimeMillis());
        SendRecvClient client = new SendRecvClient();
        client.sendRecvAsync("A text msg");
        client.done.acquire();
        client.stop();
        System.exit(0);
        System.out.println("End SendRecvClient");
    }

}

Run the client as follows:

[examples]$ ant -Dchap=jms -Dex=2 run-example
...
run-example2:
...
     [java] Begin SendRecvClient, now=1102900541558
     [java] Begin sendRecvAsync
     [java] sendRecvAsync, sent text=A text msg#0
     [java] sendRecvAsync, sent text=A text msg#1
     [java] sendRecvAsync, sent text=A text msg#2
     [java] sendRecvAsync, sent text=A text msg#3
     [java] sendRecvAsync, sent text=A text msg#4
     [java] sendRecvAsync, sent text=A text msg#5
     [java] sendRecvAsync, sent text=A text msg#6
     [java] sendRecvAsync, sent text=A text msg#7
     [java] sendRecvAsync, sent text=A text msg#8
     [java] sendRecvAsync, sent text=A text msg#9
     [java] End sendRecvAsync
     [java] onMessage, recv text=A text msg#0processed by: 12855623
     [java] onMessage, recv text=A text msg#5processed by: 9399816
     [java] onMessage, recv text=A text msg#9processed by: 6598158
     [java] onMessage, recv text=A text msg#3processed by: 8153998
     [java] onMessage, recv text=A text msg#4processed by: 10118602
     [java] onMessage, recv text=A text msg#2processed by: 1792333
     [java] onMessage, recv text=A text msg#7processed by: 14251014
     [java] onMessage, recv text=A text msg#1processed by: 10775981
     [java] onMessage, recv text=A text msg#8processed by: 6056676
     [java] onMessage, recv text=A text msg#6processed by: 15679078

The corresponding JBoss server console output is:

19:15:40,232 INFO  [EjbModule] Deploying TextMDB
19:15:41,498 INFO  [EJBDeployer] Deployed: file:/jboss-4.0.5.GA/server/default/deploy/
  jms-ex2.jar
19:15:45,606 INFO  [TextMDB] TextMDB.ctor, this=10775981
19:15:45,620 INFO  [TextMDB] TextMDB.ctor, this=1792333
19:15:45,627 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=10775981
19:15:45,638 INFO  [TextMDB] TextMDB.ejbCreate, this=10775981
19:15:45,640 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=1792333
19:15:45,640 INFO  [TextMDB] TextMDB.ejbCreate, this=1792333
19:15:45,649 INFO  [TextMDB] TextMDB.ctor, this=12855623
19:15:45,658 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=12855623
19:15:45,661 INFO  [TextMDB] TextMDB.ejbCreate, this=12855623
19:15:45,742 INFO  [TextMDB] TextMDB.ctor, this=8153998
19:15:45,744 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=8153998
19:15:45,744 INFO  [TextMDB] TextMDB.ejbCreate, this=8153998
19:15:45,763 INFO  [TextMDB] TextMDB.ctor, this=10118602
19:15:45,764 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=10118602
19:15:45,764 INFO  [TextMDB] TextMDB.ejbCreate, this=10118602
19:15:45,777 INFO  [TextMDB] TextMDB.ctor, this=9399816
19:15:45,779 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=9399816
19:15:45,779 INFO  [TextMDB] TextMDB.ejbCreate, this=9399816
19:15:45,792 INFO  [TextMDB] TextMDB.ctor, this=15679078
19:15:45,798 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=15679078
19:15:45,799 INFO  [TextMDB] TextMDB.ejbCreate, this=15679078
19:15:45,815 INFO  [TextMDB] TextMDB.ctor, this=14251014
19:15:45,816 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=14251014
19:15:45,817 INFO  [TextMDB] TextMDB.ejbCreate, this=14251014
19:15:45,829 INFO  [TextMDB] TextMDB.ctor, this=6056676
19:15:45,831 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=6056676
19:15:45,864 INFO  [TextMDB] TextMDB.ctor, this=6598158
19:15:45,903 INFO  [TextMDB] TextMDB.ejbCreate, this=6056676
19:15:45,906 INFO  [TextMDB] TextMDB.setMessageDrivenContext, this=6598158
19:15:45,906 INFO  [TextMDB] TextMDB.ejbCreate, this=6598158
19:15:46,236 INFO  [TextMDB] TextMDB.onMessage, this=12855623
19:15:46,238 INFO  [TextMDB] TextMDB.sendReply, this=12855623, dest=QUEUE.A
19:15:46,734 INFO  [TextMDB] TextMDB.onMessage, this=9399816
19:15:46,736 INFO  [TextMDB] TextMDB.onMessage, this=8153998
19:15:46,737 INFO  [TextMDB] TextMDB.onMessage, this=6598158
19:15:46,768 INFO  [TextMDB] TextMDB.sendReply, this=9399816, dest=QUEUE.A
19:15:46,768 INFO  [TextMDB] TextMDB.sendReply, this=6598158, dest=QUEUE.A
19:15:46,774 INFO  [TextMDB] TextMDB.sendReply, this=8153998, dest=QUEUE.A
19:15:46,903 INFO  [TextMDB] TextMDB.onMessage, this=10118602
19:15:46,904 INFO  [TextMDB] TextMDB.sendReply, this=10118602, dest=QUEUE.A
19:15:46,927 INFO  [TextMDB] TextMDB.onMessage, this=1792333
19:15:46,928 INFO  [TextMDB] TextMDB.sendReply, this=1792333, dest=QUEUE.A
19:15:47,002 INFO  [TextMDB] TextMDB.onMessage, this=14251014
19:15:47,007 INFO  [TextMDB] TextMDB.sendReply, this=14251014, dest=QUEUE.A
19:15:47,051 INFO  [TextMDB] TextMDB.onMessage, this=10775981
19:15:47,051 INFO  [TextMDB] TextMDB.sendReply, this=10775981, dest=QUEUE.A
19:15:47,060 INFO  [TextMDB] TextMDB.onMessage, this=6056676
19:15:47,061 INFO  [TextMDB] TextMDB.sendReply, this=6056676, dest=QUEUE.A
19:15:47,064 INFO  [TextMDB] TextMDB.onMessage, this=15679078
19:15:47,065 INFO  [TextMDB] TextMDB.sendReply, this=15679078, dest=QUEUE.A

Items of note in this example include:

The Invocation Layer (IL) services are responsible for handling the communication protocols that clients use to send and receive messages. JBossMQ can support running different types of Invocation Layers concurrently. All Invocation Layers support bidirectional communication which allows clients to send and receive messages concurrently. ILs only handle the transport details of messaging. They delegate messages to the JMS server JMX gateway service known as the invoker. This is similar to how the detached invokers expose the EJB container via different transports.

Each IL service binds a JMS connection factory to a specific location in the JNDI tree. Clients choose the protocol they wish to use by the JNDI location used to obtain the JMS connection factory. JBossMQ currently has several different invocation layers.

The JBossMQ SecurityManager is the service that enforces an access control list to guard access to your destinations. This subsystem works closely with the StateManager service.

The DestinationManager can be thought as being the central service in JBossMQ. It keeps track of all the destinations that have been created on the server. It also keeps track of the other key services such as the MessageCache, StateManager, and PersistenceManager.

Messages created in the server are passed to the MessageCache for memory management. JVM memory usage goes up as messages are added to a destination that does not have any receivers. These messages are held in the main memory until the receiver picks them up. If the MessageCache notices that the JVM memory usage starts passing the defined limits, the MessageCache starts moving those messages from memory to persistent storage on disk. The MessageCache uses a least recently used (LRU) algorithm to determine which messages should go to disk.

The StateManager (SM) is in charge of keeping track of who is allowed to log into the server and what their durable subscriptions are.

The PersistenceManager (PM) is used by a destination to store messages marked as being persistent. JBossMQ has several different implementations of the persistent manager, but only one can be enabled per server instance. You should enable the persistence manager that best matches your requirements.

A destination is the object on the JBossMQ server that clients use to send and receive messages. There are two types of destination objects, Queues and Topics. References to the destinations created by JBossMQ are stored in JNDI.

The org.jboss.mq.il.jvm.JVMServerILService MBean is used to configure the JVM IL. The configurable attributes are as follows:

The org.jboss.mq.il.uil2.UILServerILService is used to configure the UIL2 IL. The configurable attributes are as follows:

<mbean code="org.jboss.mq.il.uil2.UILServerILService"
    name="jboss.mq:service=InvocationLayer,type=HTTPSUIL2">
    <depends optional-attribute-name="Invoker">jboss.mq:service=Invoker</depends>
    <attribute name="ConnectionFactoryJNDIRef">SSLConnectionFactory</attribute>
    <attribute name="XAConnectionFactoryJNDIRef">SSLXAConnectionFactory</attribute>

    <!-- ... -->

    <!-- SSL Socket Factories -->
    <attribute name="ClientSocketFactory">
        org.jboss.security.ssl.ClientSocketFactory
    </attribute>
    <attribute name="ServerSocketFactory">
        org.jboss.security.ssl.DomainServerSocketFactory
    </attribute>
    <!-- Security domain - see below -->
    <attribute name="SecurityDomain">java:/jaas/SSL</attribute>
</mbean>

<!-- Configures the keystore on the "SSL" security domain
     This mbean is better placed in conf/jboss-service.xml where it
     can be used by other services, but it will work from anywhere.
     Use keytool from the sdk to create the keystore. -->

<mbean code="org.jboss.security.plugins.JaasSecurityDomain"
       name="jboss.security:service=JaasSecurityDomain,domain=SSL">
    <!-- This must correlate with the java:/jaas/SSL above -->
    <constructor>
        <arg type="java.lang.String" value="SSL"/>
    </constructor>
    <!-- The location of the keystore resource: loads from the
         classpath and the server conf dir is a good default -->
    <attribute name="KeyStoreURL">resource:uil2.keystore</attribute>
    <attribute name="KeyStorePass">changeme</attribute>
</mbean>

The org.jboss.mq.il.http.HTTPServerILService is used to manage the HTTP/S IL. This IL allows for the use of the JMS service over HTTP or HTTPS connections. The relies on the servlet deployed in the deploy/jms/jbossmq-httpil.sar to handle the HTTP traffic. The configurable attributes are as follows:

The org.jboss.mq.server.jmx.Invoker is used to pass IL requests down to the destination manager service through an interceptor stack. The configurable attributes are as follows:
