3.4. Physical object cache mapping model

The previous sections describe the logical object mapping model. In this section, we will explain the physical mapping model, that is, how do we map the POJO into Core Cache for transactional state replication. However, it should be noted that the physical structure of the cache is purely an internal implementation detail, it should not be treated as an API as it may change in future releases. This information is provided solely to aid in better understanding the mapping process in POJO Cache.

When an object is first attached in POJO Cache, the Core Cache node representation is created in a special internal area. The Id fqn that is passed to attach() is used to create an empty node that references the internal node. Future references to the same object will point to the same internal node location, and that node will remain until all such references have been removed (detached).

The example below demonstrates the mapping of the Person object under id "pojo/joe" and "pojo/mary" as metioned in previous sections. It is created from a two node replication group where one node is a Beanshell window and the other node is a Swing Gui window (shown here). For clarity, multiple snapshots were taken to highlight the mapping process.

The first figure illustrates the first step of the mapping approach. From the bottom of the figure, it can be seen that the PojoReference field under pojo/joe is pointing to an internal location, /__JBossInternal__/5c4o12-lpaf5g-esl49n5e-1-esl49n5o-2. That is, under the user-specified Id string, we store only an indirect reference to the internal area. Please note that Mary has a similar reference.

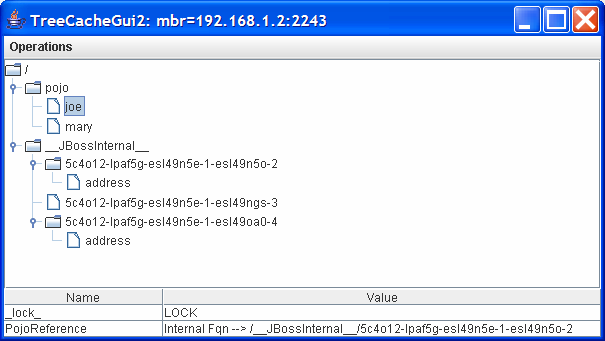

Object cache mapping for Joe

Figure 3.4. Object cache mapping for Joe

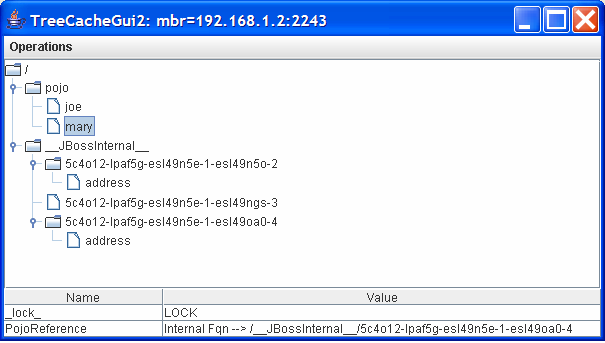

Object cache mapping for Mary

Figure 3.5. Object cache mapping for Mary

Then by clicking on the referenced internal node (from the following figure), it can seen that the primitive fields for Joe are stored there. E.g., Age is 41 and Name is Joe Black. And similarly for Mary as well.

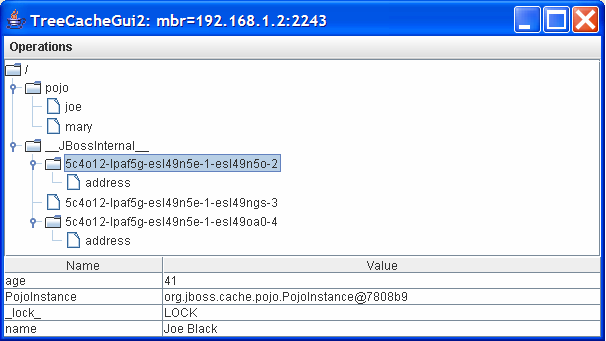

Object cache mapping for internal node Joe

Figure 3.6. Object cache mapping for internal node Joe

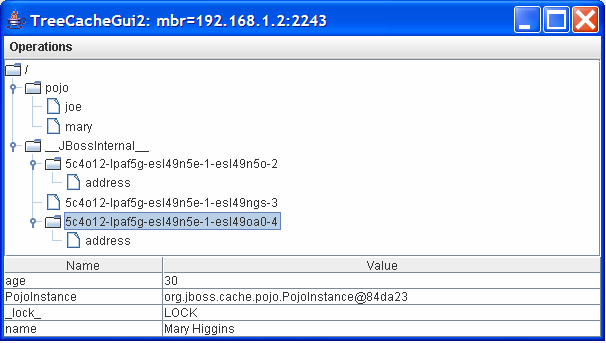

Object cache mapping for internal node Mary

Figure 3.7. Object cache mapping for internal node Mary

Under the /__JBossInternal__/5c4o12-lpaf5g-esl49n5e-1-esl49n5o-2, it can be seen that there is an Address node. Clicking on the Address node shows that it references another internal location: /__JBossInternal__/5c4o12-lpaf5g-esl49n5e-1-esl49ngs-3 as shown in the following figure. Then by the same token, the Address node under /__JBossInternal__/5c4o12-lpaf5g-esl49n5e-1-esl49na0-4 points to the same address reference. That is, both Joe and Mary share the same Address reference.

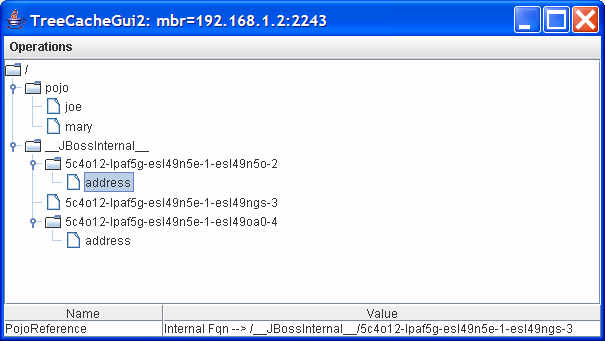

Object cache mapping: Joe's internal address

Figure 3.8. Object cache mapping: Joe's internal address

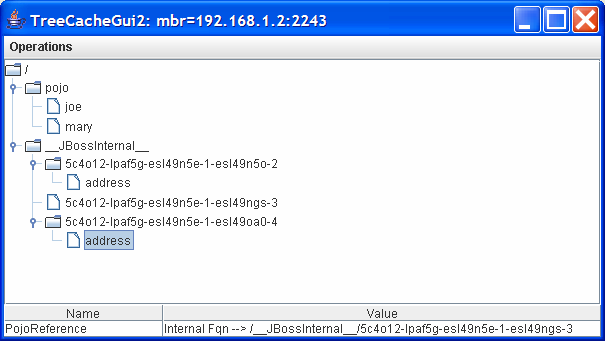

Object cache mapping: Mary's internal address

Figure 3.9. Object cache mapping: Mary's internal address

Finally, the /__JBossInternal__/5c4o12-lpaf5g-esl49n5e-1-esl49ngs-3 node contains the various various primitive fields of Address, e.g., Street, Zip, and City. This is illustrated in the following figure.

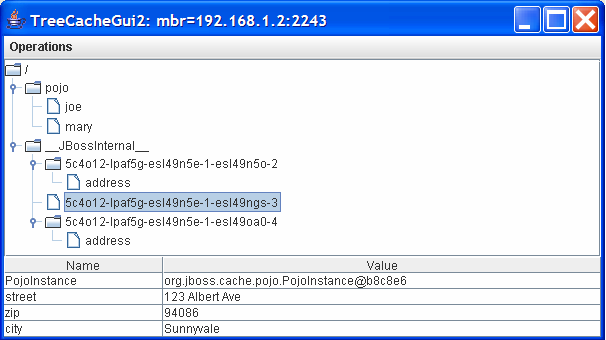

Object cache mapping: Address fields

Figure 3.10. Object cache mapping: Address fields
