The core of JBossESB is Rosetta, an ESB that has been in commercial deployment at a mission critical site for over 3 years. The architectCommitted revision 28034. Figure of Rosetta is shown below.

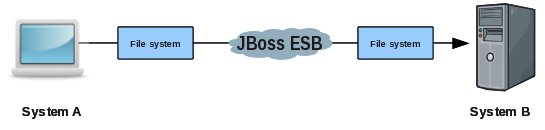

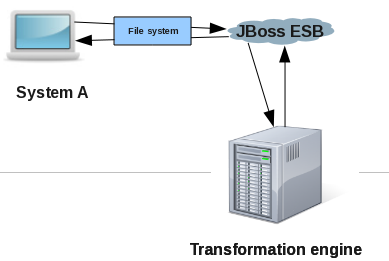

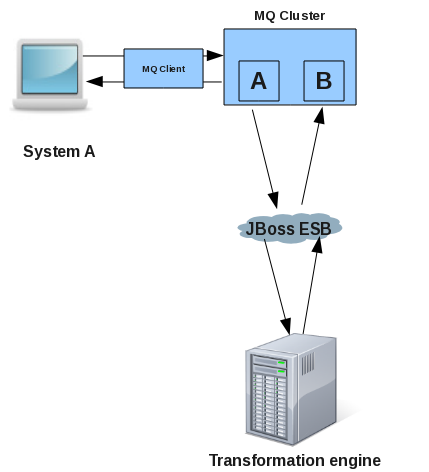

There are many reasons why users may want disparate applications, services and components to interoperate, e.g., leveraging legacy systems in new deployments. Furthermore, such interactions between these entities may occur both synchronously or asynchronously. As with most ESBs, Rosetta was developed to facilitate such deployments, but providing an infrastructure and set of tools that could:

  • Be easily configured to work with a wide variety of transport mechanisms (e.g., email and JMS).

  • Offer a general purpose object repository.

  • Enable pluggable data transformation mechanisms.

  • Support logging of interactions.

To date, Rosetta has been used in mission critical deployments using Oracle Financials. The multi platform environment included an IBM mainframe running z/OS, DB2 and Oracle databases hosted in the mainframe and in smaller servers, with additional Windows and Linux servers and a myriad of third party applications that offered dissimilar entry points for interoperation. It used JMS and MQSeries for asynchronous messaging and Postgress for object storage. Interoperation with third parties outside of the corporation’s IT infrastructure was made possible using IBM MQSeries, FTP servers offering entry points to pick up and deposit files to/from the outside world and attachments in e-mail messages to ‘well known’ e-mail accounts.

As we shall see when examining the JBossESB core, which is based on Rosetta, the challenge was to provide a set of tools and a methodology that would make it simple to isolate business logic from transport and triggering mechanisms, to log business and processing events that flowed through the framework and to allow flexible plug ins of ad hoc business logic and data transformations. Emphasis was placed on ensuring that it is possible (and simple) for future users to replace/extend the standard base classes that come with the framework (and are used for the toolset), and to trigger their own ‘action classes’ that can be unaware of transport and triggering mechanisms.


Within JBossESB source we have two trees: org.jboss.internal.soa.esb and org.jboss.soa.esb. You should limit your use of anything within the org.jboss.internal.soa.esb package because the contents are subject to change without notice. Alternatively anything within the org.jboss.soa.esb is covered by our deprecation policy.

Rosetta is built on four core architectural components:

These capabilities are offered through a set of business classes, adapters and processors, which will be described in detail later. Interactions between clients and services are supported via a range of different approaches, including JMS, flat-file system and email.

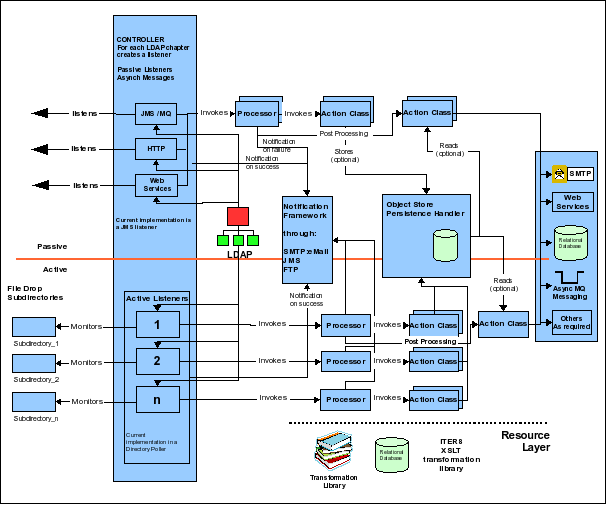

A typical JBossESB deployment is shown below. We shall return to this diagram in subsequent sections.

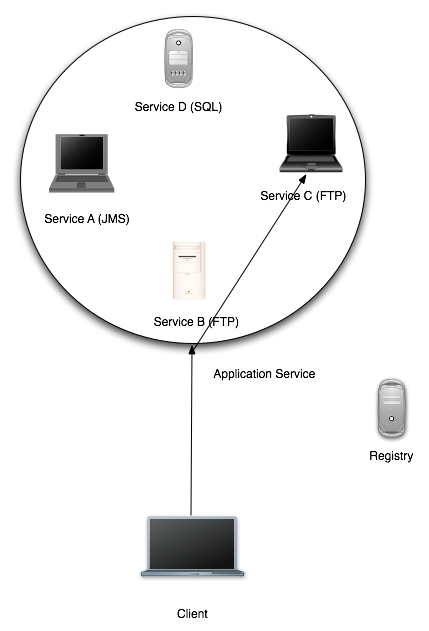

In the following chapters we shall look at the various components within JBossESB and show how they interact and can be used to develop SOA-based applications.

In keeping with SOA principles, everything within JBossESB is considered to be either a service or a message. Services encapsulate the business logic or points of integration with legacy systems. Messages are the way in which clients and services communicate with each other.

In the following sections we shall look at how Services and Messages are supported within JBossESB.

A “Service” in JBossESB is defined as a list of “Action” classes that process an ESB Message in a sequential manner (see below). This list of Action classes is referred to as an “Action Pipeline”. A Service can define a list of “Listeners”, which act as inbound routers for the Service, routing messages to the Action Pipeline.

The following is a very simple JBossESB configuration that defines a single Service that simply prints the contents of the ESB Message to the console.

<?xml version = "1.0" encoding = "UTF-8"?>
<jbossesb xmlns="http://anonsvn.labs.jboss.com/labs/jbossesb/trunk/product/etc/schemas/xml/jbossesb-1.0.1.xsd" invmScope="GLOBAL">

    <service category="Retail" name="ShoeStore" description="Acme Shoe Store Service">
            <action name="println" class="org.jboss.soa.esb.actions.SystemPrintln" />


As you can see from the above example, a Service has “category” and “name” attributes. When JBossESB deploys the Service, it uses these attributes to register the Service endpoints (listeners) in the Service Registry (see Registry Guide). Clients can invoke the Service using the ServiceInvoker as follows.

ServiceInvoker invoker = new ServiceInvoker(Retail, ShoeStore);

Message message = MessageFactory.getInstance().getMessage();
message.getBody().add(Hi there!);

The ServiceInvoker uses the Service Registry (see ServicesGuide) to lookup the available Endpoint addresses for the “Retail:ShoeStore” Service. It takes care of all the transport details of getting the message from the Client to one of the available Service Endpoints (JMS, FTP, HTTP etc), hiding all of the lower level details from the Client.

The Endpoint addresses made available to the ServiceInvoker will depend on the list of listeners configured on the Service such as JMS, FTP or HTTP. No listeners are configured on the Service in the above example, but its InVM listener has been enabled using invmScope="GLOBAL"1. (The InVM transport is a new feature since JBossESB 4.3 that provides communication between services running on the same JVM. The section on "InVM Transport" contains more information about this feature.) To add additional Endpoints for the Service, we need to explicitly add listener configurations on the Service. JBossESB supports two forms of listener configuration:

The following is an example of how a JMS Gateway listener can be added to the above ShoeStore Service.

<?xml version = "1.0" encoding = "UTF-8"?>
<jbossesb xmlns="http://anonsvn.labs.jboss.com/labs/jbossesb/
    <jms-provider name="JBossMQ" connection-factory="ConnectionFactory">
        <jms-bus busid="shoeStoreJMSGateway">
            <jms-message-filter dest-type="QUEUE" dest-name="queue/shoeStoreJMSGateway"/>

    <service category="Retail" name="ShoeStore" description="Acme Shoe Store Service"
    <jms-listener name="shoeStoreJMSGateway" busidref="shoeStoreJMSGateway"
            <action name="println" class="org.jboss.soa.esb.actions.SystemPrintln" />


In the above configuration, we added a bus <providers> section to the configuration. This is where we configure the transport level details for Endpoints. In this case we added a <jms-provider> section that defines a single <jms-bus> for the Shoe Store JMS Queue. This bus is then referenced in the <jms-listener> defined on the Shoe Store Service. The Shoe Store is now invocable via two Endpoints – the InVM Endpoint and the JMS Gateway Endpoint. The ServiceInvoker will always use a Service's local InVM Endpoint, if available, in preference to other Endpoint types.

All interactions between clients and services within JBossESB occur through the exchange of Messages. In order to encourage loose coupling we recommend a message-exchange pattern based on one-way messages, i.e., requests and responses are independent messages, correlated where necessary by the infrastructure or application. Applications constructed in this way are less brittle and can be more tolerant of failures, giving developers more flexibility in their deployment and message delivery requirements.

To ensure loose coupling of services and develop SOA applications, it is necessary to:

In order to use a one-way message delivery pattern with requests and responses, it is obviously necessary to encode information about where responses should be sent. That information may be present in the message body (the payload) and hence dealt with solely by the application, or part of the initial request message and typically dealt with by the ESB infrastructure.

Therefore, central to the ESB is the notion of a message, whose structure is similar to that found in SOAP:

<xs:complexType name="Envelope">
    <xs:attribute ref="Header" use="required"/>
    <xs:attribute ref="Context" use="required"/>
    <xs:attribute ref="Body" use="required"/>
    <xs:attribute ref="Attachment" use="optional"/>
    <xs:attribute ref="Properties" use="optional"/>
    <xs:attribute ref="Fault" use="optional"/>

Pictorially the basic structure of the Message can be represented as shown below. In the rest of this section we shall examine each of these components in more detail.

In UML, the Message structure can be represented as:

Each message is an implementation of the org.jboss.soa.esb.message.Message interface. Within that package are interfaces for the various fields within the Message as shown below:

public interface Message

    public Header getHeader ();
    public Context getContext ();
    public Body getBody ();
    public Fault getFault ();
    public Attachment getAttachment ();
    public URI getType ();
    public Properties getProperties ();
    public Message copy () throws Exception;


In JBossESB, Attachments and Properties are not treated differently from the Body. The general concepts they embody are currently being re-evaluated and may change significantly in future releases. As such, we recommend developers do not use Attachments.

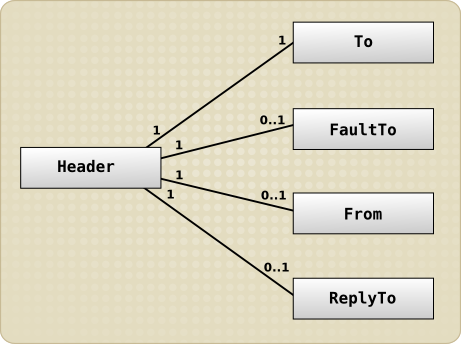

The Header contains routing and addressing information for this message. As we saw earlier, JBossESB uses an addressing scheme based on the WS-Addressing standard from W3C. We shall discuss the org.jboss.soa.esb.addressing.Call class in the next section.

public interface Header

    public Call getCall ();
    public void setCall (Call call);

The Context contains session related information, such as transaction or security contexts.


The 4.x release of JBossESB does not support user-enhanced Contexts. This will be a feature of the 5.0 release.

The Body typically contains the payload of the message. It may contain a list of Objects of arbitrary types. How these objects are serialized to/from the message body when it is transmitted is up to the specific Object type.


You should be extremely careful about sending Serialized objects within the Body: not everything that can be Serialized will necessarily be meaningful at the receiver, e.g., database connections.

public interface Body

  public static final String DEFAULT_LOCATION =
    public void add (String name, Object value);
    public Object get (String name);
    public byte[] getContents();
    public void add (Object value);
    public Object get ();
    public Object remove (String name);
    public void replace (Body b);
    public void merge (Body b);
  public String[] getNames ();

A Body can be used to convey arbitrary information types and arbitrary numbers of each type, i.e., it is not necessary to restrict yourself to sending and receiving single data items within a Body.


The byte array component of the Body was deprecated in JBossESB 4.2.1. If you wish to continue using a byte array in conjunction with other data stored in the Body, then simply use add with a unique name. If your clients and services want to agree on a location for a byte array, then you can use the one that JBossESB uses: ByteBody.BYTES_LOCATION.


The default named Object (DEFAULT_LOCATION) should be used with care so that multiple services or Actions do not overwrite each other's data.

The Fault can be used to convey error information. The information is represented within the Body.

public interface Fault
	public URI getCode ();
	public void setCode (URI code);
	public String getReason ();
	public void setReason (String reason);
	public Throwable getCause ();
	public void setCause (Throwable ex);


In JBossESB, Attachments and Properties are not treated differently from the Body. The general concepts they embody are currently being re-evaluated and may change significantly in future releases. As such, we recommend developers do not use Attachments or Properties.

A set of message properties, which can be used to define additional meta-data for the message.

public interface Properties

    public Object getProperty(String name);
    public Object getProperty(String name, Object defaultVal);
    public Object setProperty(String name, Object value);
    public Object remove(String name);
    public int size();
    public String[] getNames();


JBossESB does not implement Properties as java.util.Properties for the same reason Web Services stacks do not: it places restrictions on the types of clients and services that can used. If you need to send java.util.Properties then you can embed them within the current abstraction.

Messages may contain attachments that do not appear in the main payload body. For example, imagines, drawings, binary document formats, zip files etc. The Attachment interface supports both named and unnamed attachments.

public interface Attachment

    Object get(String name);
    Object put(String name, Object value);
    Object remove(String name);
    String[] getNames();
    Object itemAt (int index) throws IndexOutOfBoundsException;
    Object removeItemAt (int index) throws IndexOutOfBoundsException
    Object replaceItemAt(int index, Object value)
    throws IndexOutOfBoundsException;
    void addItem        (Object value);
    void addItemAt  (int index, Object value)
                                    throws IndexOutOfBoundsException;
    public int getUnnamedCount();
    public int getNamedCount();

Attachments may be used for a number of reasons (some of which have been outlined above). At a minimum, they may be used to more logically structure your message and improve performance of large messages, e.g., by streaming the attachments between endpoints.


At present JBossESB does not support specifying other encoding mechanisms for the Message or attachment streaming. This will be added in later releases and where appropriate will be tied in to the SOAP-with-attachments delivery mechanism. Therefore, currently attachments are treated in the same way as named objects within the Body.

Given that there are attachments, properties, and named objects, you may be wondering where should you put your payload? The answer is fairly straightforward:

  • As a service developer, you define the contract that clients use in order to interact with your service. As part of that contract, you will specify both functional and non-functional aspects of the service, e.g., that it is an airline reservation service (functional) and that it is transactional (non-functional). You'll also define the operations (messages) that the service can understand. As part of the message definition, you stipulate the format (e.g., Java Serialized message versus XML) and the content (e.g., transaction context, seat number, customer name etc.) When defining the content, you can specify where in the Message your service will expect to find the payload. That can be in the form of attachments or specific named objects (even the default named object if you so wish). It is entirely up to the service developer to determine. The only restrictions are that objects and attachments must be globally uniquely named, or one service (or Action) may inadvertently pick up a partial payload meant for another if the same Message Body is forwarded across multiple hops.

  • As a service users, you obtain the contract definition about the service (e.g., through UDDI or out-of-band communication) and this will define where in the message the payload must go. Information placed in other locations will likely be ignored and result in incorrect operation of the service.


There is more information about how to define your Message payload in the Message Payload section of this document.

Although you can manipulate the contents of a Message Body directly in terms of bytes or name/value pairs, it is often more natural to use one of the following predefined Message structures, which are simply different views onto the data contained in the underlying Body.

As well as the basic Body interface, JBossESB supports the following interfaces, which are extensions on the basic Body interface:

You can create Messages that have Body implementations based on one of these specific interfaces through the XMLMessageFactory or SerializedMessageFactory classes. The need for two different factories is explained in the section on Message Formats, which is described later in the document.

For each of the various Body types, you will find an associated create method (e.g., createTextBody) that allows you to create and initialize a Message of the specific type. Once created, the Message can be manipulated directly through the raw Body or via the specific interface. If the Message is transmitted to a recipient, then the Body structure will be maintained, e.g., it can be manipulated as a TextBody.

The XMLMessageFactory and SerializedMessageFactory are more convenient ways in which to work with Messages than the MessageFactory and associated classes, which are described in the following sections.

As we saw above, the Header of a Message contains a reference to the org.jboss.soa.esb.addressing.Call class:

public class Call

    public Call ();
    public Call (EPR epr);
    public Call (Call copy);
    public void setTo (EPR epr);
    public EPR getTo () throws URISyntaxException;
    public void setFrom (EPR from);
    public EPR getFrom () throws URISyntaxException;
    public void setReplyTo (EPR replyTo);
    public EPR getReplyTo () throws URISyntaxException;
    public void setFaultTo (EPR uri);
    public EPR getFaultTo () throws URISyntaxException;
    public void setRelatesTo (URI uri);
    public URI getRelatesTo () throws URISyntaxException;
    public void copy();
    public void setAction (URI uri);
    public URI getAction () throws URISyntaxException;
    public final boolean empty();
    public void setMessageID (URI uri);
    public URI getMessageID () throws URISyntaxException;
    public String toString();
    public String stringForum();
    public boolean valid();
    public void copy (Call from);

The properties below support both one way and request reply interaction patterns:

Table 3.1. org.jboss.soa.esb.addressing.Call Properties

ToEPRYesThe address of the intended receiver of this message.
FromEPRNoReference of the endpoint where the message originated from.
ReplyToEPRNoAn endpoint reference that identifies the intended receiver for replies to this message. If a reply is expected, a message must contain a [ReplyTo]. The sender must use the contents of the [ReplyTo] to formulate the reply message. If the [ReplyTo] is absent, the contents of the [From] may be used to formulate a message to the source. This property may be absent if the message has no meaningful reply. If this property is present, the [MessageID] property is required.
FaultToEPRNoAn endpoint reference that identifies the intended receiver for faults related to this message. When formulating a fault message the sender must use the contents of the [FaultTo] of the message being replied to to formulate the fault message. If the [FaultTo] is absent, the sender may use the contents of the [ReplyTo] to formulate the fault message. If both the [FaultTo] and [ReplyTo] are absent, the sender may use the contents of the [From] to formulate the fault message. This property may be absent if the sender cannot receive fault messages (e.g., is a one-way application message). If this property is present, the [MessageID] property is required.
ActionURIYes An identifier that uniquely (and opaquely) identifies the semantics implied by this message.
MessageIDURIDepends A URI that uniquely identifies this message in time and space. No two messages with a distinct application intent may share a [MessageID] property. A message may be retransmitted for any purpose including communications failure and may use the same [MessageID] property. The value of this property is an opaque URI whose interpretation beyond equivalence is not defined. If a reply is expected, this property must be present.

The relationship between the Header and the various EPRs can be illustrated as follows in UML:

When working with Messages, you should consider the role of the header when developing and using your clients and services. For example, if you require a synchronous interaction pattern based on request/response, you will be expected to set the ReplyTo field, or a default EPR will be used; even with request/response, the response need not go back to the original sender, if you so choose. Likewise, when sending one-way messages (no response), you should not set the ReplyTo field because it will be ignored.


Please see details on the LogicalEPR.


Users should not rely on the internal formats of EPR directly because they are specific to implementations of the API. There is no guarantee the format will remain the same for them.


The Message Header is formed in conjunction with the Message by the creator and is immutable once transmitted between endpoints. Although the interfaces allow the recipient to modify the individual values, JBossESB will ignore such modifications. In future releases it is likely that such modifications will be disallowed by the API as well for improved clarity. These rules are laid down in the WS-Addressing standards.

From an application/service perspective the message payload is a combination of the Body and Attachments. In this section we shall give an overview of best practices when constructing and using the message payload.

The UML representation of the payload is shown below:

More complex content may be added through the add method, which supports named Objects. Using <name, Object> pairs allows for a finer granularity of data access. The type of Objects that can be added to the Body can be arbitrary: they do not need to be Java Serializable. However, in the case where non-Serializable Objects are added, it is necessary to provide JBossESB with the ability to marshal/unmarshal the Message when it flows across the network. See the section of Message Formats for more details.

If no name is supplied to set or get, then the default name defined by DEFAULT_LOCATION will be used.

It is easiest to work with the Message Body through the named Object approach. One can add, remove and inspect individual data items within the Message payload without having to decode the entire Body. Furthermore, one can combine named Objects with the byte array within the payload.

Internally to an ESB component, the message is a collection of Java objects. However, messages need to be serialized for a number of reasons, e.g., transmitted between address spaces (processes) or saved to a persistent datastore for auditing or debugging purposes. The external representation of a message may be influenced by the environment in which the ESB is deployed. Therefore, JBossESB does not impose a specific normalized message format, but supports a range of them.

All implementations of the org.jboss.soa.esb.message.Message interface are obtained from the org.jboss.soa.esb.message.format.MessageFactory class:

Message serialization implementations are uniquely identified by a URI. The type of implementation required may be specified when requesting a new instance, or the configured default implementation may be used. Currently JBossESB provides two implementations, which are defined in the org.jboss.soa.esb.message.format.MessageType class:

  • MessageType.JBOSS_XML: this uses an XML representation of the Message on the wire. The schema for the message is defined in the message.xsd within the schemas directory. The URI is urn:jboss/esb/message/type/JBOSS_XML.

  • MessageType.JAVA_SERIALIZED: this implementation requires that all components of a Message are Serializable. It obviously requires that recipients of this type of Message have sufficient information (the Java classes) to be able to de-serialize the Message. The URI is urn:jboss/esb/message/type/JAVA_SERIALIZED.


You should be wary about using the JAVA_SERIALIZED version of the Message format because it more easily ties your applications to specific service implementations, i.e., it breaks loose coupling.

Other Message implementations may be provided at runtime through the org.jboss.soa.esb.message.format.MessagePlugin:

public interface MessagePlugin

    public static final String MESSAGE_PLUGIN =
    public Object createBodyType(Message msg, String type);
    public Message getMessage ();
    public URI getType ();

Each plug-in must uniquely identify the type of Message implementation it provides (via getMessage), using the getType method. Plug-in implementations must be identified to the system via the jbossesb-properties.xml file using property names with the org.jboss.soa.esb.message.format.plugin extension.


The default Message type is JBOSS_XML. However, this can be changed by setting the property org.jboss.soa.esb.message.default.uri to the desired URI.

As mentioned previously, JBossESB supports two serialized message formats: MessageType.JBOSS_XML and MessageType.JAVA_SERIALIZED. In the following sections we shall look at each of these formats in more detail.


This implementation requires that all contents are Java Serializable. Any attempt to add a non-Serializable object to the Message will result in a IllegalParameterException being thrown.

It also requires that all contents be Java-serializable. Any attempt to add a non-serializable object to the Message will result in an IllegalParameterException being thrown.

The URI for it is urn:jboss/esb/message/type/JAVA_SERIALIZED.


This implementation uses an XML representation of the Message on the wire. The schema for the message is defined in the message.xsd within the schemas directory. Arbitrary objects may be added to the Message, i.e., they do not have to be Serializable. Therefore, it may be necessary to provide a mechanism to marshal/unmarshal such objects to/from XML when the Message needs to be serialized. This support can be provided through the org.jboss.soa.esb.message.format.xml.marshal.MarshalUnmarshalPlugin:

public interface MarshalUnmarshalPlugin

    public static final String MARSHAL_UNMARSHAL_PLUGIN =
    public boolean canPack(final Object value);
    public boolean marshal (Element doc, Object param)
                                            throws MarshalException;
    public Object unmarshal (Element doc) throws UnmarshalException;
    public URI type ();

Plug-ins can be registered with the system through the jbossesb-properties.xml configuration file. They should have attribute names that start with the MARSHAL_UNMARSHAL_PLUGIN. When packing objects in XML, JBossESB runs through the list of registered plug-ins until it finds one that can deal with the object type (or faults). When packing, the name (type) of the plug-in that packed the object is also attached to facilitate unpacking at the Message receiver.

Now that we have looked at the concepts behind services and Messages, we shall examine how to construct services using the framework provided by Rosetta in the following Chapter.

Notifiers are the way in which success or error information may be propagated to ESB-unaware endpoints. You should not use Notifiers for communicating with ESB-aware endpoints. This may mean that you cannot have ESB-aware and ESB-unaware endpoints listening on the same channel. Consider using Couriers or the ServiceInvoker within your Actions if you want to communicate with ESB-aware endpoints.

Not all ESB-aware transports are supported for Notifiers (and vice versa). Notifiers are deliberately simple in what they allow to be transported: either a byte[] or a String (obtained by calling toString() on the payload).

As outlined above, the responsibility of a listener is to act as a message delivery endpoint and to deliver messages to an “Action Processing Pipeline”. Each listener configuration needs to supply information for:

<?xml version = "1.0" encoding = "UTF-8"?>
<jbossesb xmlns="http://anonsvn.labs.jboss.com/labs/jbossesb/trunk/product/etc/schemas/xml/jbossesb-1.0.1.xsd" parameterReloadSecs="5">

  <jms-provider name="JBossMQ"
    <jms-bus busid="quickstartGwChannel">
      <jms-message-filter dest-type="QUEUE"
    <jms-bus busid="quickstartEsbChannel">
      <jms-message-filter dest-type="QUEUE"
  <service category="FirstServiceESB"
    name="SimpleListener" description="Hello World">
      <jms-listener name="JMS-Gateway"
        busidref="quickstartGwChannel" maxThreads="1"
      <jms-listener name="helloWorld"
        busidref="quickstartEsbChannel" maxThreads="1"/>

      <action name="action1" class="org.jboss.soa.esb.samples.
        process="displayMessage" />
      <action name="notificationAction"
        <property name="okMethod" value="notifyOK" />
        <property name="notification-details">
          <NotificationList type="ok">
            <target class="NotifyConsole"/>
          <NotificationList type="err">
            <target class="NotifyConsole"/>


This example configuration will instantiate a listener object (jms-listener attribute) that will wait for incoming ESB Messages, serialized within a javax.jms.ObjectMessage, and will deliver each incoming message to an ActionProcessingPipeline consiting of two steps (<action> elements):

The following trivial action class will prove useful for debugging your XML action configuration

public class MyJMSListenerAction
        ConfigTree _config;
        public MyJMSListenerAction(ConfigTree config) { _config = config; }

        public Message process (Message message) throws Exception
            return message;

Action classes are the main way in which ESB users can tailor the framework to their specific needs. The ActionProcessingPipeline class will expect any action class to provide at least the following:

Optional public callback methods that take a Message argument will be used for notification of the result of the specific step of the processing pipeline (see items 5 and 6 below).

The org.jboss,soa.esb.listeners.message.ActionProcessingPipeline class will perform the following steps for all steps configured using <action> elements:

  1. Instantiate an object of the class specified in the 'class' attribute with a constructor that takes a single argument of type ConfigTree

  2. Analyze contents of the 'process' attribute.

    Contents can be a comma separated list of public method names of the instantiated class (step 1), each of which must take a single argument of type Message, and return a Message object that will be passed to the next step in the pipeline

    If the 'process' attribute is not present, the pipeline will assume a single processing method called “process”

    Using a list of method names in a single <action> element has some advantages compared to using successive <action> elements, as the action class is instantiated once, and methods will be invoked on the same instance of the class. This reduces overhead and allows for state information to be kept in the instance objects.

    This approach is useful for user supplied (new) action classes, but the other alternative (list of <action> elements) continues to be a way of reusing other existing action classes.

  3. Sequentially invoke each method in the list using the Message returned by the previous step

  4. If the value returned by any step is null the pipeline will stop processing immediately.

  5. Callback method for success in each <action> element: If the list of methods in the 'process' attribute was executed successfully, the pipeline will analyze contents of the 'okMethod' attribute. If none is specified, processing will continue with the next <action> element. If a method name is provided in the 'okMethod' attribute, it will be invoked using the Message returned by the last method in step 3. If the pipeline succeeds then the okMethod notification will be called on all handlers from the last one back to the initial one.

  6. Callback method for failure in each <action> element: If an Exception occurs then the exceptionMethod notification will be called on all handlers from the current (failing) handler back to the initial handler. At present time, if no exceptionMethod was specified, the only output will be the logged error. If an ActionProcessingFaultException is thrown from any process method then an error message will be returned as per the rules defined in the next section. The contents of the error message will either be whatever is returned from the getFaultMessage of the exception, or a default Fault containing the information within the original exception.

Action classes supplied by users to tailor behaviour of the ESB to their specific needs, might need extra run time configuration (for example the Notifier class in the XML above needs the <NotificationList> child element). Each <action> element will utilize the attributes mentioned above and will ignore any other attributes and optional child elements. These will be however passed through to the action class constructor in the require ConfigTree argument. Each action class will be instantiated with it's corresponding <action> element and thus does not see (in fact must not see) sibling action elements.

Actions are triggered by the arrival of a Message. The specific Action implementation is expected to know where the data resides within a Message. Because a Service may be implemented using an arbitrary number of Actions, it is possible that a single input Message could contain information on behalf of more than one Action. In which case it is incumbent on the Action developer to choose one or more unique locations within the Message Body for its data and communicate this to the Service consumers.

Furthermore, because Actions may be chained together it is possible that an Action earlier in the chain modifies the original input Message, or replaces it entirely.

If Actions share data within an input Message and each one modifies the information as it flows through the chain, by default we recommend retaining the original information so that Actions further down the chain still have access to it. Obviously there may be situations where this is either not possible or would be unwise. Within JBossESB, Actions that modify the input data can place this within the org.jboss.soa.esb.actions.post named Body location. This means that if there are N Actions in the chain, Action N can find the original data where it would normally look, or if Action N-1 modified the data then N will find it within the other specified location. To further facilitate Action chaining, Action N can see if Action N-2 modified the data by looking in the org.jboss.soa.esb.actions.pre named Body location.

When processing an action chain, it is possible that errors may occur. Such errors should be thrown as exceptions from the Action pipeline, thus terminating the processing of the pipeline. As mentioned earlier, a Fault Message may be returned within an ActionProcessingFaultException. If it is important for information about errors to be returned to the sender (or some intermediary) then the FaultTo EPR should be set. If this is not set, then JBossESB will attempt to deliver error messages based on the ReplyTo EPR and, if that is also not set, the From EPR. If none of these EPRs has been set, then error information will be logged locally.

Error messages of various types can be returned from the Action implementations. However, JBossESB supports the following “system” error messages, all of which may be identified by the mentioned URI in the message Fault, in the case that an exception is thrown and no application specific Fault Message is present:

If an exception is thrown within your Action chain, then it will be propagated back to the client within a FaultMessageException, which is re-thrown from the Courier or ServiceInvoker classes. This exception, which is also thrown whenever a Fault message is received, will contain the Fault code and reason, as well as any propagated exception.

As a message flows through the ESB it may be useful to attach meta-data to it, such as the time it entered the ESB and the time it left. Furthermore, it may be necessary to dynamically augment the message; for example, adding transaction or security information. Both of these capabilities are supported in JBossESB through the filter mechanism, for both gateway and ESB nodes.

The class org.jboss.soa.esb.filter.InputOutputFilter has two methods:

Filters are defined in the filters section of the jbossesb-properties.xml file (typically located in the jbossesb.sar archive) using the property org.jboss.soa.esb.filter.<number>, where <number> can be any value and is used to indicate the order in which multiple filters are to be called (lowest to highest).

JBossESB ships with:

which add the following meta-data to the Message as Properties with the indicated property names and the returned String values.

More meta-data can be added to the message by creating and registering suitable filters. Your filter can determine whether or not it is running within a gateway node through the presence (or absence) of the following named entries within the additional parameters.

JBossESB does not impose restrictions on what constitutes a service. As we discussed earlier in this document, the ideal SOA infrastructure encourages a loosely coupled interaction pattern between clients and services, where the message is of critical importance and implementation specific details are hidden behind an abstract interface. This allows for the implementations to change without requiring clients/users to change. Only changes to the message definitions necessitate updates to the clients.

As such and as we have seen, JBossESB uses a message driven pattern for service definitions and structures: clients send Messages to services and the basic service interface is essentially a single process method that operates on the Message received. Internally a service is structured from one or more Actions, that can be chained together to process incoming the incoming Message. What an Action does is implementation dependent, e.g., update a database table entry, or call an EJB.

When developing your services, you first need to determine the conceptual interface/contract that it exposes to users/consumers. This contract should be defined in terms of Messages, e.g., what the payload looks like, what type of response Message will be generated (if any) etc.

Clients can then use the service as long as they do so according to the published contract. How your service processes the Message and performs the work necessary, is an implementation choice. It could be done within a single Action, or within multiple Actions. There will be the usual trade-offs to make, e.g., manageability versus re-useability.

From a clients perspective, the Courier interface and its various implementations can be used to interact with services. However, this is still a relatively low-level approach, requiring developer code to contact the registry and deal with failures. Furthermore, since JBossESB has fail-over capabilities for stateless services, this would again have to be managed by the application. See the Advanced chapter for more details on fail-over.

In JBossESB 4.2, the ServiceInvoker was introduced to help simplify the development effort. The ServiceInvoker hides much of the lower level details and opaquely works with the stateless service fail-over mechanisms. As such, ServiceInvoker is the recommended client-side interface for using services within JBossESB.

public class ServiceInvoker

        public ServiceInvoker(Service service) throws MessageDeliverException;
        public ServiceInvoker(String serviceCategory, String serviceName) throws MessageDeliverException;
             public ServiceInvoker(Service service, List<PortReference.Extension> extensions);
        public Message deliverSync(Message message, long timeoutMillis) throws MessageDeliverException, RegistryException, FaultMessageException;
        public void deliverAsync(Message message) throws MessageDeliverException;
            public Service getService();
            public String getServiceCategory();

An instance of ServiceInvoker can be created for each service with which the client requires interactions. Once created, the instance contacts the registry where appropriate to determine the primary EPR and, in the case of fail-overs, any alternative EPRs.

Once created, the client can determine how to send Messages to the service: synchronously (via deliverSync) or asynchronously (via deliverAsync). In the synchronous case, a timeout must be specified which represents how long the client will wait for a response. If no response is received within this period, a MessageDeliverException is thrown.

Failures to contact the Registry or to successfully look up the service are indicated by throwing a RegistryException from deliverSync. Timeout values may indicate that the service has failed, simply overloaded and cannot respond in the time or that the work requested takes longer than the timeout allowed. In some cases the problem will be transient and trying again later may be sufficient.

Any other type of failure during communication with the service cause a FaultMessageException to be thrown.

As mentioned earlier in this document, when sending a Message it is possible to specify values for To, ReplyTo, FaultTo etc. within the Message header. When using the ServiceInvoker, because it has already contacted the registry at construction time, the To field is unnecessary. In fact, when sending a Message through ServiceInvoker, the To field will be ignored in both the synchronous and asynchronous delivery modes. In a future release of JBossESB it may be possible to use any supplied To field as an alternate delivery destination should the EPRs returned by the registry fail to resolve to an active service.

We will discuss the fail-over properties of JBossESB in the Advanced section and how ServiceInvoker can opaquely mask failures of individual service instances if multiple copies appear in the registry. However, in some cases it may be desired to prevent automatic fail-over and inform the application immediately that a failure occurs. This can be set at the global level by setting the org.jboss.soa.esb.exceptionOnDeliverFailure property to true in the JBossESB property file. Alternatively this can be configured on a per message basis by setting the same property in the specific Message property to true. In both cases the default is false.

The InVM transport is a new feature since JBossESB 4.3 that provides communication between services running on the same JVM. This means that instances of ServiceInvoker can invoke a service from within the same JVM without any networking or message serialization overhead.

Earlier versions of the ESB did not support this transport and required every service to be configured with at least one Message Aware listener. This is not longer a requirement; Services can now be configured without any <listeners> configuration and still be invokable from within their VM e.g.

<service category="ServiceCat" name="ServiceName" description="Test Service">
    <actions mep="RequestResponse">
        <action name="action" class="org.jboss.soa.esb.listeners.SetPayloadAction">
            <property name="payload" value="Tom Fennelly" />

This makes Service configuration a little more straightforward.

The InVM transport in JBossESB is not transactional and the message queue is held only in volatile memory. This means that the Message Queue for this transport will be lost in the case of system failure or shutdown.

When using InVM within a transaction, the message will not appear on the receiver's queue until the transaction commits, although the sender will get an immediate acknowledgement that the message has been accepted to be later queued. If a receiver attempts to pull a message from the queue within the scope of a transaction, then the message will be automatically placed back on the queue if that transaction subsequently rolls back. If either a sender or receiver of a message needs to know the transaction outcome then they should either monitor the outcome of the transaction directly, or register a Synchronization with the transaction.

When a message is placed back on the queue by the transaction manager, it may not go back into the same location. This is a deliberate choice in order to maximize performance. If your application needs specific ordering of messages then you should consider a different transport or group related messages into a single “wrapper” message.

The InVM Transport delivers messages with low overhead to an in-memory message queue. This is very fast and the message queue can become overwhelmed if delivery is happening too quickly for the Service consuming the messages. To mitigate these situations the InVM transport provides a "Lock-Step" delivery mechanism.

The "Lock-Step" delivery method attempts to ensure that messages are not delivered to a service faster than the service is able to retreive them. It does this by blocking message delivery until the receiving Service picks up the message or a timeout period expires.

This is not a synchronous delivery method. It does not wait for a response or for the service to process the message. It only blocks until the message is removed from the queue by the service.

Lock Step delivery is disabled by default, but can be easily enabled for a service using its <property> settings on the <service>:

<service category="ServiceCat" name="Service2"
  description="Test Service">
  <property name="inVMLockStep" value="true" />
  <property name="inVMLockStepTimeout" value="4000" />

  <actions mep="RequestResponse">
    <action name="action" class="org.jboss.soa.esb.mock.MockAction" />

Declaration of the contract schemas will automatically enable the exposure of the ESB service through a webservice endpoint, the contract for which can be located through the contract web application. This functionality can modified by specifying the 'webservice' attribute, the values for which are as follows.

By default the webservice endpoint does not support WS-Addressing but this can be enabled through use of the 'addressing' attribute.

When support for addressing is enabled, the WS-Addressing Message Id, Relates To URIs and relationship types will be added as properties of the incoming messages.

The following example illustrates the declaration of a service which wishes to validate the request/response messages but without exposing the service through a webservice endpoint.

<service category="ServiceCat" name="ServiceName" description="Test Service">
    <actions mep="RequestResponse" inXsd="/request.xsd" outXsd="/response.xsd"
            webservice="false" validate="true">
        <!-- .... >

The following example illustrates the declaration of a service which wishes to validate the request/response messages and expose the service through a webservice endpoint. In addition the service expects the request to be provided in the named body location 'REQUEST' and will return its response in the named body location 'RESPONSE'.

<service category="ServiceCat" name="ServiceName" description="Test Service">
    <actions mep="RequestResponse" inXsd="/request.xsd" outXsd="/response.xsd"
            validate="true" requestLocation="REQUEST" responseLocation="RESPONSE">
        <!-- .... -->

In this Chapter we shall look at other infrastructural components and services within JBossESB. Several of these services have their own documentation which you should also read: the aim of this Chapter is to simply give an overview of what else is available to developers.

The Message is a critical component in the SOA development approach. In contains application specific data sent from clients to services and vice versa. In some cases that data may be as simple as “turn on the light”, or as complex as “search this start chart for any anomalous data that may indicate a planet.” What goes into a Message is entirely application specific and represents an important aspect of the contract between a service and its clients. In this section we shall describe some best practices around the Message and how to use it.

Let's consider the following example which uses a Flight Reservation service. This service supports the following operations:

When developing this service, it will likely use technologies such as EJB3, Hibernate etc. to implement the business logic. In this example we shall ignore how the business logic is implemented and concentrate on the service.

The role of the service is to plug the logic into the bus. In order to do this, we must determine how the service is exposed on to the bus, i.e., what contract it defines for clients. In the current version of JBossESB, that contract takes the form of the Messages that clients and services can exchange. There is no formal specification for this contract within the ESB, i.e., at present it is something that the developer defines and must communicate to clients out-of-band from the ESB. This will be rectified in subsequent releases.

From a service perspective, of all the components within a Message, the Body is probably the most important, since it is used to convey information specific to the business logic. In order to interact, both client and service must understand each other. This takes the form of agreeing on the transport (e.g., JMS or HTTP), as well as agreeing on the dialect (e.g., where in the Message data will appear and what format it will take).

If we take the simple case of a client sending a Message directly to our Flight Reservation service, then we need to determine how the service can determine which of the operations the Message concerns. In this case the developer decides that the opcode (operation code) will appear within the Body as a String (“reserve”, “query”, “upgrade”) at the location “org.example.flight.opcode”. Any other String value (or the absence of any value) will be considered an illegal Message.

The Message Body is the primary way in which data should be exchanged between clients and services. It is flexible enough to contain any number of arbitrary data type. The other parameters necessary for carrying out the business logic associated with each operation would also be suitably encoded.

As we have mentioned, all of these operations return information to the client. Such information will likewise be encapsulated within a Message. The determination of the format of such response Messages will go through the same processes as we are currently describing. For simplification purposes we shall not consider the response Messages further.

From a JBossESB Action perspective, the service may be built using one or more Actions. For example, one Action may pre-process the incoming Message and transform the content in some way, before passing it on to the Action which is responsible for the main business logic. Each of these Actions may have been written in isolation (possibly by different groups within the same organization or by completely different organizations). In such an architecture it is important that each Action has its own unique view of where the Message data resides that is of interest only to that Action or it is entirely possible for chained Actions to overwrite or interfere with one another.

As you can see, the process method is only the start. Now we must provide methods to decode the incoming Message payload (the Body):

public void reserveSeat (Message message) throws Exception

    int seatNumber = message.getBody().get(org.example.flight.seatnumber);
    String flight =
    boolean success =
        airlineReservationSystem.reserveSeat(seatNumber, flight);
    // now create a response Message
    Message responseMessage = ...
    // now deliver the response Message

What this method illustrates is how the information within the Body is extracted and then used to invoke a method on some business logic. In the case of reserveSeat, a response is expected by the client. This response Message is constructed using any information returned by the business logic as well as delivery information obtained from the original received Message. In this example, we need the To address for the response, which we take from the ReplyTo field of the incoming Message. We also need to relate the response with the original request and we accomplish this through the RelatesTo field of the response and the MessageID of the request.

All of the other operations supported by the service will be similarly coded.

As soon as we have the Message definitions supported by the service, we can construct the client code. The business logic used to support the service is never exposed directly by the service (that would break one of the important principles of SOA: encapsulation). This is essentially the inverse of the service code:

ServiceInvoker flightService = new ServiceInvoker(...);

Message request = // create new Message of desired type
request.getBody().add(org.example.flight.seatnumber, 1);
request.getBody().add( org.example.flight.flightnumber, BA1234);
Message response = null;
    response = flightService.deliverSync(request, 1000);
    if (response.getHeader().getCall().getRelatesTo() == 1234)
    // it's out response!
    response = null;  // and keep looping
} while maximumRetriesNotExceeded;

Using the ServiceInvoker from within actions in the ESB does not require any additional configuration and will work out of the box. But using the ServiceInvoker from a remote JVM, such as from a stand-alone Java application, a servlet, an EJB etc, will require the following jars need to be available:

jbossall-client.jar jboss-messaging-client.jar
scout-1.2.aop.jar jboss-remoting.jar

The following configuration file is also required to be available on the classpath:

In this Chapter we shall look at some more advanced concepts within JBossESB.

In mission critical systems it is important to design with redundancy in mind. JBossESB 4.2.GA is the first version with built-in fail-over, load balancing and delayed message redelivery to help you build a robust architecture. When you use SOA it is implied that the Service has become the building unit. JBossESB allows you to replicate identical services across many nodes. Where each node can be a virtual or physical machine running an instance of JBossESB. The collective of all these JBossESB instances is called "The Bus". Services within the bus use different delivery channels to exchange messages. In ESB terminology one such channel maybe JMS, FTP, HTTP, etc. These different "protocols" are provided by systems external to the ESB; the JMS-provider, the FTP server, etc. Services can be configured to listen to one or more protocols. For each protocol that it is configured to listen on, it creates an End Point Reference (EPR) in the Registry.

As we have discussed previously, within the jboss-esb.xml each service element consists of one or more listeners and one or more actions. Let's take a look at the JBossESBHelloworld example. The configuration fragment below is loosely based on the configuration of the JBossESBHelloworld example. When the service initializes it registers the category, name and description to the UDDI registry. Also for each listener element it will register a ServiceBinding to UDDI, in which it stores an EPR. In this case it will register a JMSEPR for this service, as it is a jms-listener. The jms specific like queue name etc are not shown, but appeared at the top of the jboss-esb.xml where you can find the 'provider' section. In the jms-listener we can simply reference the "quickstartEsbChannel" in the busidref attribute.

<service category="FirstServiceESB" name="SimpleListener" description="Hello World">
        <jms-listener name="helloWorld" busidref="quickstartEsbChannel" maxThreads="1"/>
        <action name="action1" class="org.jboss.soa.esb.actions.SystemPrintln"/>

Given the category and service name, another service can send a message to our Hello World Service by looking up the Service in the Registry. It will receive the JMSEPR and it can use that to send a message to. All this heavy lifting is done in the ServiceInvoker class. When our HelloWorld Service receives a message over the quickstartEsbChannel, it will hand this message to the process method of the first action in the ActionPipeline, which is the SystemPrintln action.

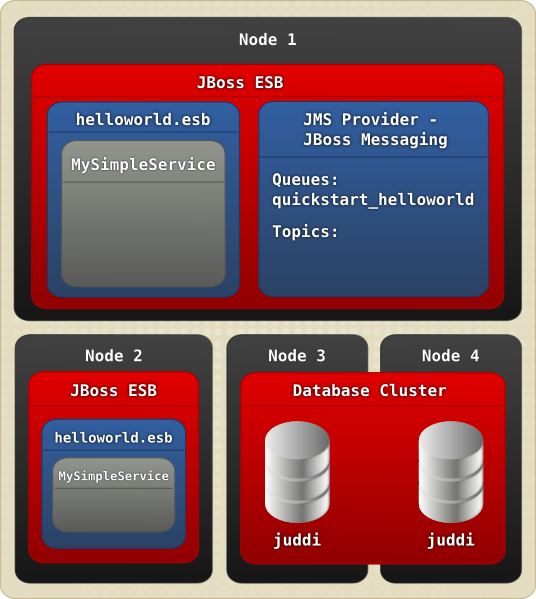

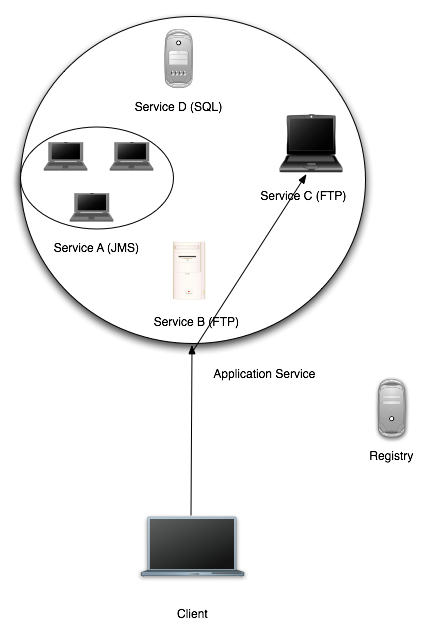

In our example we have this service running on let's say Node1. What happens if we simply take the helloworld.esb and deploy it to Node2 as well (see figure 7-2)? Let's say we're using jUDDI for our Registry and we have configured all our nodes to access one central jUDDI database (it is recommended to use a clustered database for that). Node2 will find that the FirstServiceESB - SimpleListener Service is already registered! It will simply add a second ServiceBinding to this service. So now we have 2 ServiceBindings for this Service. We now have our first replicated Service! If Node1 goes down, Node2 will keep on working.

You will get load balancing as both service instances listen to the same queue. However this means that we still have a single point of failure in our setup. This is where Protocol Clustering maybe an option, which we shall describe in the next section.

This type of replication can be used to increase the availability of a service or to provide load balancing. To further illustrate, consider the diagram below which has a logical service (Application Service) that is actually comprised of 4 individual services, each of which provides the same capabilities and conforms to the same service contract. They differ only in that they do not need to share the same transport protocol. However, as far as the users of Application Service are concerned they see only a single service, which is identified by the service name and category. The ServiceInvoker hides the fact that Application Service is actually composed of 4 other services from the clients. It masks failures of the individual services and will allow clients to make forward progress as long as at least one instance of the replicated service group remains available.


This type of replication should only be used for stateless services.

Replication of services may be defined by service providers outside of the control of service consumers. As such, there may be times when the sender of a message does not want to silently fail-over to using an alternative service if one is mentioned within the Registry. As such, if the Message property org.jboss.soa.esb.exceptionOnDeliverFailure is set to true then no retry attempt will be made by the ServiceInvoker and MessageDeliverException will be thrown. If you want to specify this approach for all Messages then the same property can be defined within the Core section of the JBossESB property file.

Some JMS providers can be clustered. JBossMessaging (http://community.jboss.org/wiki/JBossMessaging)is one of these providers, which is why we use this as our default JMS provider in JBossESB (http://community.jboss.org/wiki/jbossesb). When you cluster JMS you remove a single point of failure from your architecture.

Please read the documentation on Clustering for JBossMessaging (http://community.jboss.org/wiki/JBossMessaging) if you want to enable JMS clustering. Both JBossESB replication and JMS clustering can be used together, as illustrated in the following figure. In this example, Service A is identified in the registry by a single JMSEpr. However, opaquely to the client, that JMSEpr points to a clustered JMS queue, which has been separately configured (in an implementation manner) to support 3 services. This is a federated approach to availability and load balancing. In fact masking the replication of services from users (the client in the case of the JBossESB replication approach, and JBossESB in the case of the JMS clustering) is in line with SOA principles: hiding these implementation details behind the service endpoint and not exposing them at the contract level.


If using JMS clustering in this way you will obviously need to ensure that your configuration is correctly configured. For instance, if you place all of your ESB services within a JMS cluster then you cannot expect to benefit from ESB replication.

Other examples of Protocol Clustering would be a NAS for the FileSystem protocol, but what if your provider simply cannot provide any clustering? Well in that case you can add multiple listeners to your service, and use multiple (JMS) providers. However this will require fail-over and load-balancing across providers which leads us to the next section.

Our HelloWorld Service can listen to more then 1 protocol. Here we have added a JMS channel.

<service category="FirstServiceESB" name="SimpleListener" description="Hello World">
        <jms-listener name="helloWorld"  busidref="quickstartEsbChannel" maxThreads="1"/>
        <jms-listener name="helloWorld2" busidref="quickstartFtpChannel2" maxThreads="1"/>

Now our Service is simultaneously listening to two JMS queues. Now these queues can be provided by JMS providers on different physical boxes! So we now have a made a redundant JMS connection between two services. We can even mix protocols in this setup, so we can also add and ftp-listener to the mix.

<service category="FirstServiceESB" name="SimpleListener"
 description="Hello World">
  <jms-listener name="helloWorld" busidref="quickstartEsbChannel"
  <jms-listener name="helloWorld2" busidref="quickstartJmsChannel2"
  <ftp-listener name="helloWorld3" busidref="quickstartFtpChannel3"
  <ftp-listener name="helloWorld4" busidref="quickstartFtpChannel3"

When the ServiceInvoker tries to deliver a message to our Service it will get a choice of 8 EPRs now (4 EPRs from Node1 and 4 EPRs from Node2). How will it decide which one to use? For that you can configure a Policy. In the jbossesb-properties.xml you can set the 'org.jboss.soa.esb.loadbalancer.policy'. Right now three Policies are provided, or you can create your own.

  • First Available. If a healthy ServiceBinding is found it will be used unless it dies, and it will move to the next EPR in the list. This Policy does not provide any load balancing between the two service instances.

  • Round Robin. Typical Load Balance Policy where each EPR is hit in order of the list.

  • Random Robin. Like the other Robin but then random.

The EPR list the Policy works with may get smaller over time as dead EPRs will be removed from the (cached) list. When the list is exhausted or the time-to-live of the list cache is exceeded, the ServiceInvoker will obtain a fresh list of EPRs from the Registry. The 'org.jboss.soa.esb.registry.cache.life' can be set in the jbossesb-properties file, and is defaulted to 60,000 milliseconds. What if none of the EPRs work at the moment? This is where we may use Message Redelivery Service.

JBossESB 4.8 supports 2 types of providers:

Scheduling is new to 4.2 of the ESB and not all of the listeners have been migrated over to this model yet.

JBossESB 4.8 offers a <schedule-listener> as well as 2 <schedule-provider> types - <simple-schedule> and <cron-schedule>. The <schedule-listener> is configured with a “composer” class, which is an implementation of the org.jboss.soa.esb.listeners.ScheduledEventMessageComposer interface..

The Scheduling functionality in JBossESB is built on top of the Quartz Scheduler (http://www.quartz-scheduler.org/). The default Quartz Scheduler instance configuration used by JBossESB is as follows:

org.quartz.scheduler.instanceName = DefaultQuartzScheduler

org.quartz.scheduler.rmi.export = false
org.quartz.scheduler.rmi.proxy = false
org.quartz.scheduler.wrapJobExecutionInUserTransaction = false
org.quartz.threadPool.class = org.quartz.simpl.SimpleThreadPool
org.quartz.threadPool.threadCount = 2
org.quartz.threadPool.threadPriority = 5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread = true
org.quartz.jobStore.misfireThreshold = 60000
org.quartz.jobStore.class = org.quartz.simpl.RAMJobStore

Any of these Scheduler configurations can be overridden, or/and new ones can be added. You can do this by simply specifying the configuration directly on the <schedule-provider> configuration as a <property> element. For example, if you wish to increase the thread pool size to 5:

<schedule-provider name="schedule">

    <property name=org.quartz.threadPool.threadCount value=5/>
    <cron-schedule scheduleid="cron-trigger" cronExpression="0/1 * * * * ?" />

In this Chapter we shall look at the reliability characteristics of JBossESB. We shall examine what failure modes you should expect to be tolerated with this release and give advice on how to improve the fault tolerance of your applications. However, in order to proceed we need to define some important terms. If you wish to skip the following sections because you understand this topic already, you may go straight to the Reliability Guarantees section.

Dependability is defined as the trustworthiness of a component such that reliance can be justifiably placed on the service (the behavior as perceived by a user) it delivers. The reliability of a component is a measure of its continuous correct service delivery. A failure occurs when the service provided by the system no longer complies with its specification. An error is that part of a system state which is liable to lead to failure, and a fault is defined as the cause of an error.

A fault-tolerant system is one which is designed to fulfill its specified purpose despite the occurrence of component failures. Techniques for providing fault-tolerance usually require mechanisms for consistent state recovery mechanisms, and detecting errors produced by faulty components. A number of fault-tolerance techniques exist, including replication and transactions.

Given a (distributed) system, it would be useful if we were able to describe its behavior formally in a way that will help establish the correctness of the applications run on it. If this then imposes restrictions on the permissible behavior of the applications we will need to understand how these restrictions can be enforced and the implications in weakening or strengthening them. A useful method of building such a formal description with respect to fault-tolerance is to categorize the system components according to the types of faults they are assumed to exhibit.

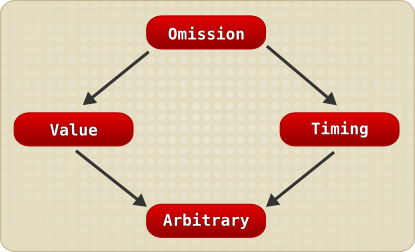

Four possible classifications of failures are: omission, value, timing, and arbitrary. Associated with each component in the system will be a specification of its correct behavior for a given set of inputs. A non-faulty component will produce an output that is in accordance with this specification. The response from a faulty component need not be as specified, i.e., it can be anything. The response from a given component for a given input will be considered to be correct if not only the output value is correct but also that the output is produced on time, i.e., produced within a specified time limit.

The classifications are:

An arbitrary fault causes any violation of a component’s specified behavior. All other fault types preclude certain types of fault behavior, the omission fault type being the most restrictive. Thus the omission and arbitrary faults represent two ends of a fault classification spectrum, with the other fault types placed in between. The latter failure classifications thus subsume the characteristics of those classes before them, e.g., omission faults (failures) can be treated as a special case of value, and timing faults (failures). Such ordering can be represented as a hierarchy:

Within JBossESB there is nothing that will allow it to tolerate Byzantine/arbitrary failures. As you can probably imagine, these are extremely difficult failures to detect due to their nature. Protocols do exist to allow systems to tolerate arbitrary failures, but they often require multi-phase coordination or digital signatures. Future releases of JBossESB may incorporate support for some of these approaches.

Because value, timing and omission failures often require semantic information concerning the application (or specific operations), there is only so much that JBossESB can do directly to assist with these types of faults. However, by correct use of JBossESB capabilities such as RelatesTo and MessageID within the Message header, it is possible for applications to determine whether or not a received Message is the one they are waiting for or a delayed Message, for example. Unfortunately Messages that are provided too soon by a service, e.g., asynchronous one-way responses to one-way requests, may be lost due to the underlying transport implementation. For instance, if using a protocol such as HTTP there is a finite buffer (set at the operating system level) within which responses can be held before they are passed to the application. If this buffer is exceeded then information within it may be lost in favor of new Messages. Transports such as FTP or SQL do not necessarily suffer from this specific limitation, but may exhibit other resource restrictions that can result in the same behavior.

Tolerating Messages that are delayed is sometimes easier than tolerating those that arrive too early. However, from an application perspective, if an early Message is lost (e.g., by buffer overflow) it is not possible to distinguish it from one that is infinitely delayed. Therefore, if you construct your applications (consumers and services) to use a retry mechanism in the case of lost Messages, timing and omission failures should be tolerated, with the following exception: your consumer picks up an early response out of order and incorrectly processes it (which then becomes a value failure). Fortunately if you use RelatesTo and MessageID within the Message header, you can spot incorrect Message sequences without having to process the entire payload (which is obviously another option available to you).

Within a synchronous request-response interaction pattern, many systems built upon RPC will automatically resend the request if a response has not been received within a finite period of time. Unfortunately at present JBossESB does not do this and you will have to used the timeout mechanism within Couriers or ServiceInvoker to determine when (and whether) to send the Message again. As we saw in the Advanced Chapter, it will retransmit the Message if it suspects a failure of the service has occurred that would affect Message delivery.

The use of transactions (such as those provided by JBossTS) and replication protocols (as provided by systems like JGroups) can help to tolerate many of these failure models. Furthermore, in the case where forward progress is not possible because of a failure, using transactions the application can then roll back and the underlying transaction system will guarantee data consistency such that it will appear as though the work was never attempted. At present JBossESB offers transactional support through JBossTS when deployed within the JBoss Application Server.

An ideal failure detector is one which can allow for the unambiguous determination of the liveliness of an entity, (where an entity may be a process, machine etc.,), within a distributed system. However, guaranteed detection of failures in a finite period of time is not possible because it is not possible to differentiate between a failed system and one which is simply slow in responding.

Current failure detectors use timeout values to determine the liveness of entities: for example, if a machine does not respond to an “are-you-alive?” message within a specified time period, it is assumed to have failed. If the values assigned to such timeouts are wrong (e.g., because of network congestion), incorrect failures may be assumed, potentially leading to inconsistencies when some machines “detect” the failure of another machine while others do not. Therefore, such timeouts are typically assigned given what can be assumed to be the worst case scenario within the distributed environment in which they are to be used, e.g., worst case network congestion and machine load. However, distributed systems and applications rarely perform exactly as expected from one execution to another. Therefore, fluctuations from the worst case assumptions are possible, and there is always a finite probability of making an incorrect failure detection decision.

Given that guaranteed failure detection based upon timeouts is not possible, there has been much work on failure suspectors: a failure suspector works by realising that although guaranteed failure detection is impossible, enforcing a decision that a given entity may have failed on to other, active entities is possible. Therefore, if one entity assumes another has failed, a protocol is executed between the remaining entities to either agree that it will be assumed to have failed (in which case it is excluded from the system and no further work by it will be accepted) or that it has not failed: the fact that one entity thinks it has failed does not mean that all entities will reach the same decision. If the entity has not failed and is excluded then it must eventually execute another protocol to be recognised as being alive.

The advantage of the failure suspector is that all correctly functioning entities within the distributed environment will agree upon the liveness of another suspected failed entity. The disadvantage is that such failure suspection protocols are heavy-weight, typically requiring several rounds of agreement. In addition, since suspected failure is still based upon timeout values, it is possible for non-failed entities to be excluded, thus reducing (possibly critical) resource utilisation and availability.

Some applications can tolerate the fact that failure detection mechanisms may occasionally return an incorrect answer. However, for other applications the incorrect determination of the liveliness of an entity may lead to problems such as data corruption, or in the case of mission critical applications (e.g., aircraft control systems or nuclear reactor monitoring) could result in loss of life.

At present JBossESB does not support failure detectors or failure suspectors. We hope to address this shortcoming in future releases. For now you should develop your consumers and services using the techniques previously mentioned (e.g., MessageID and time-out/retry) to attempt to determine whether or not a given service has failed. In some situations it is better and more efficient for the application to detect and deal with suspected failures.

As we have seen, there are a range of ways in which failures can happen within a distributed system. In this section we will translate those into concrete examples of how failures could affect JBossESB and applications deployed on it. In the section on Recommendations we shall cover ways in which you can configure JBossESB to better tolerate these faults, or how you should approach your application development.

There are many components and services within JBossESB. The failure of some of them may go unnoticed to some or all of your applications depending upon when the failure occurs. For example, if the Registry Service crashes after your consumer has successfully obtained all necessary EPR information for the services it needs in order to function, then it will have no adverse affect on your application. However, if it fails before this point, your application will not be able to make forward progress. Therefore, in any determination of reliability guarantees it is necessary to consider when failures occur as well as the types of those failures.

It is never possible to guarantee 100% reliability and fault tolerance. The laws of physics (namely thermodynamics and the always increasing nature of entropy) mean that hardware degrades and human error is inevitable. All we can ever do is offer a probabilistic approach: with a high degree of probability, a system will tolerate failures and ensure data consistency/make forward progress. Furthermore, proving fault-tolerance techniques such as transactions or replication comes at a price: performance. This trade-off between performance and fault-tolerance is best achieved with application knowledge: any attempts at opaquely imposing a specific approach will inevitably lead to poorer performance in situations where it is imply not necessary. As such, you will find that many of the fault-tolerance techniques supported by JBossESB are disabled by default. You should enable them when it makes sense to do so.

We have previously discussed how message loss or delay may adversely affect applications. We have also shown some examples of how messages could be lost within JBossESB. In this section we shall discuss message loss in more detail.

Many distributed systems support reliable message delivery, either point-to-point (one consumer and one provider) or group based (many consumers and one provider). Typically the semantics imposed on reliability are that the message will be delivered or the sender will be able to know with certainty that it did not get to the receiver, even in the presence of failures. It is frequently the case that systems employing reliable messaging implementations distinguish between a message being delivered to the recipient and it being processed by the recipient: for instance, simply getting the message to a service does not mean much if a subsequent crash of the service occurs before it has time to work on the contents of the message.

Within JBossESB, the only transport you can use which gives the above mentioned failure semantics on Message delivery and processing is JMS: with transacted sessions (an optional part of the JMSEpr), it is possible to guarantee that Messages are received and processed in the presence of failures. If a failure occurs during processing by the service, the Message will be placed back on to the JMS queue for later re-processing. However, this does have some important performance implications: transacted sessions can be significantly slower than non-transacted sessions so should be used with caution.

Because none of the other transports supported by JBossESB come with transactional or reliable delivery guarantees, it is possible for Messages to be lost. However, in most situations the likelihood of this occurring is small. Unless there is a simultaneous failure of both sender and receiver (possible but not probable), the sender will be informed by JBossESB about any failure to deliver the Message. If a failure of the receiver occurs whilst processing and a response was expected, then the receiver will eventually time-out and can retry.

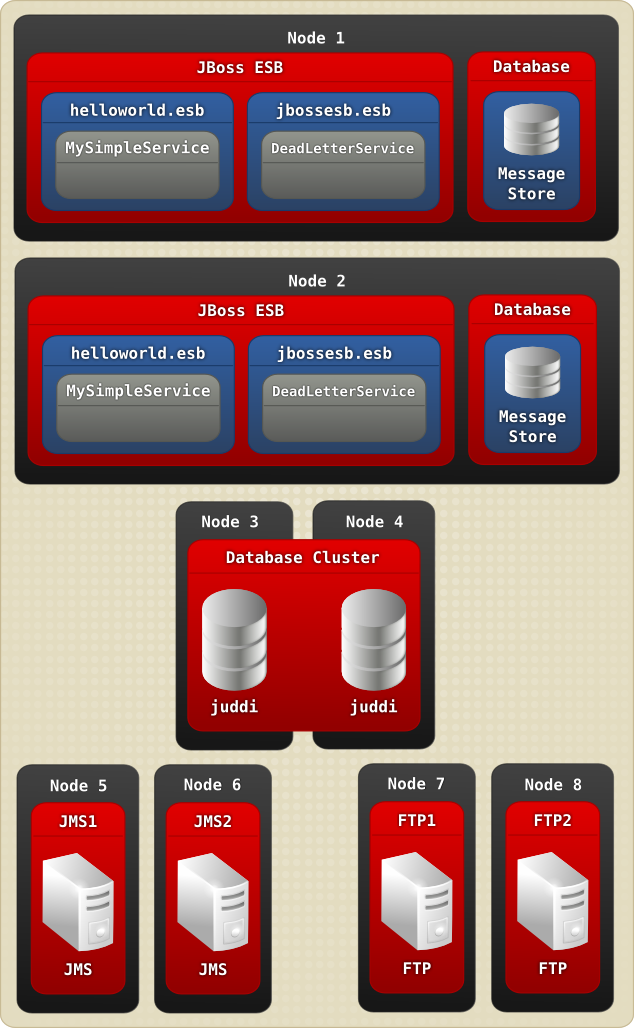

For these reasons, the Message fail-over and redelivery protocol that was described in the Advanced Chapter is a good best-effort approach. If a failure of the service is suspected then it will select an alternative EPR (assuming one is available) and use it. However, if this failure suspicion is wrong, then it is possible that multiple services will get to operate on the same Message concurrently. Therefore, although it offers a more robust approach to fail-over, it should be used with care. It works best where your services are stateless and idempotent, i.e., the execution of the same message multiple times is the same as executing it once.

For many services and applications this type of redelivery mechanism is fine. The robustness it provides over a single EPR can be a significant advantage. The failure modes where it does not work, i.e., where the client and service fails or the service is incorrectly assumed to have failed, are relatively uncommon. If your services cannot be idempotent, then until JBossESB supports transactional delivery of messages or some form of retained results, you should either use JMS or code your services to be able to detect retransmissions and cope with multiple services performing the same work concurrently.

In this section we shall look at specific components and services within JBossESB.

Given the previous overview of failure models and the capabilities within JBossESB to tolerate them, we arrive at the following recommendations:

Despite what you may have read in this Chapter, failures are uncommon. Over the years hardware reliability has improved significantly and good software development practices including the use of formal verification tools have reduced the chances of software problems. We have given the information within this Chapter to assist you in determining the right development and deployment strategies for your services and applications. Not all of them will require high levels of reliability and fault tolerance, with associated reducing in performance. However, some of them undoubtedly will.

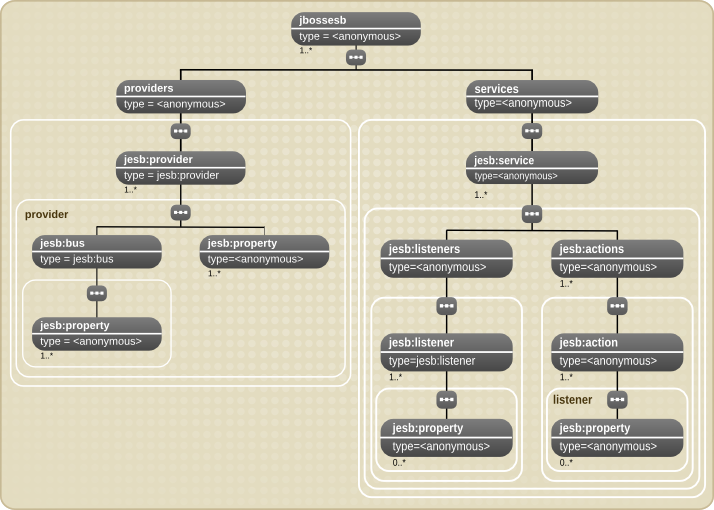

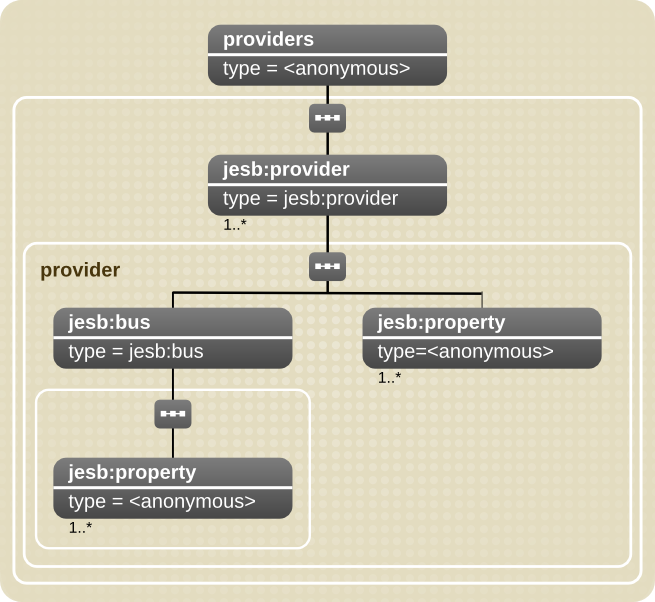

The <providers> part of the configuration defines all of the message <provider> instances for a single instance of the ESB. Two types of providers are currently supported:

  • Bus Providers: These specify provider details for “Event Driven” providers, that is, for listeners that are “pushed” messages. Examples of this provider type would be the <jms-provider>.

  • Schedule Provider: Provider configurations for schedule-driven listeners (that is, listeners that “pull” messages.)

A Bus Provider (e.g. <jms-provider>) can contain multiple <bus> definitions. The <provider> can also be decorated with <property> instances relating to provider specific properties that are common across all <bus> instances defined on that <provider> (e.g. for JMS - “connection-factory”, “jndi-context-factory” etc). Likewise, each <bus> instance can be decorated with <property> instances specific to that <bus> instance (e.g. for JMS - “destination-type”, “destination-name” etc).

As an example, a provider configuration for JMS would be as follows:

    <provider name="JBossMessaging" connection-factory="ConnectionFactory">
    <property name="connection-factory" value="ConnectionFactory" />
    <property name="jndi-URL" value="jnp://localhost:1099" />
    <property name="protocol" value="jms" />
    <property name="jndi-pkg-prefix" value="com.xyz"/>
    <bus busid="local-jms">
       <property name="destination-type" value="topic" />
       <property name="destination-name" value="queue/B" />
       <property name="message-selector" value="service='Reconciliation'"
       <property name=persistentvalue=true/>

The above example uses the “base” <provider> and <bus> types. This is perfectly legal, but we recommend use of the specialized extensions of these types for creating real configurations, namely <jms-provider> and <jms-bus> for JMS. The most important part of the above configuration is the busid attribute defined on the <bus> instance. This is a required attribute on the <bus> element/type (including all of its specializations - <jms-bus> etc). This attribute is used within the <listener> configurations to refer to the <bus> instance on which the listener receives its messages. More on this later.

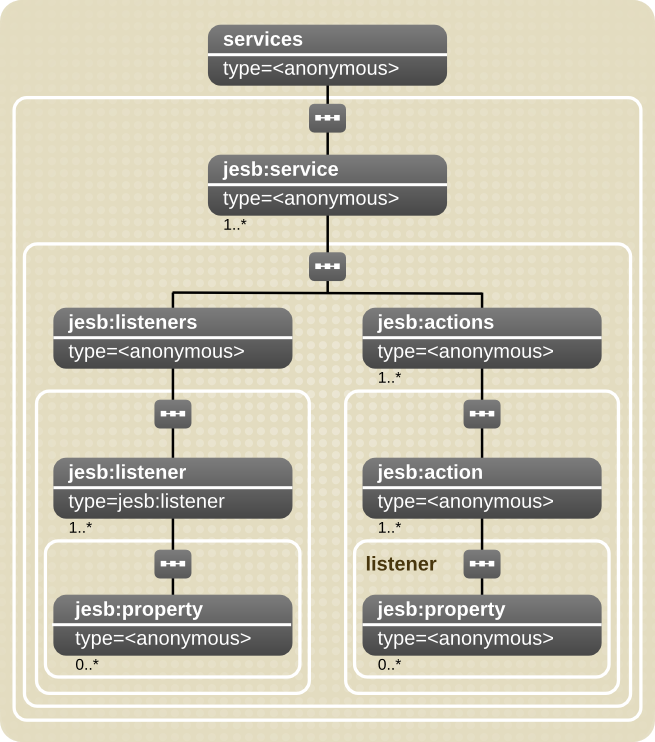

The <services> part of the configuration defines each of the Services under the management of this instance of the Enterprise Service Bus. It defines them as a series of <service> configurations. A <service> can also be decorated with the following attributes.

A <service> may define a set of <listeners> and a set of <actions>. The configuration model defines a “base” <listener> type, as well as specializations for each of the main supported transports (<jms-listener>, <sql-listener> etc.)

The “base” <listener> defines the following attribute. These attribute definitions are inherited by all <listener> extensions. As such, they can be set for all of the listeners and gateways supported by JBossESB, such as InVM.

Listeners can define a set of zero or more <property> elements (just like the <provider> and <bus> elements/types). These are used to define listener specific properties.


For each gateway listener defined in a service, an ESB-aware (or “native”) listener must also be defined. This is because gateway listeners do not define bidirectional endpoints but, rather, “startpoints” into the ESB. You cannot send a message to a Gateway from within the ESB. Also, note that, since a gateway is not an endpoint, it does not have an Endpoint Reference (EPR) persisted in the registry.

An example of a <listener> reference to a <bus> can be seen in the following illustration (using “base” types only).

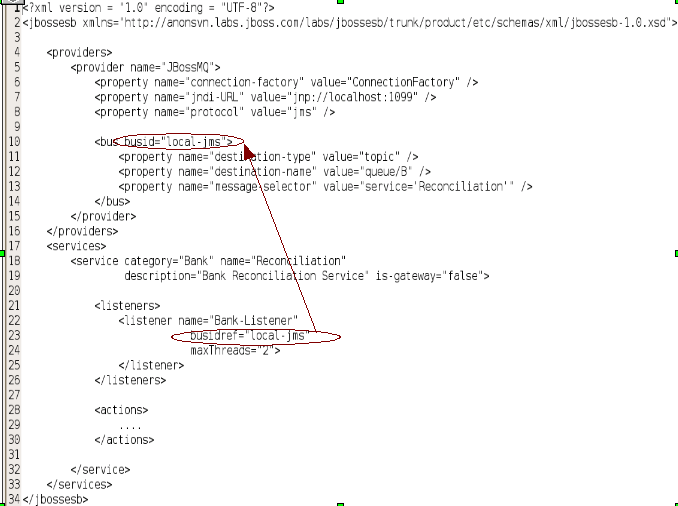

A Service will do little without a list of one or more <actions>. <action>s typically contain the logic for processing the payload of the messages received by the service (through its listeners). Alternatively, it may contain the transformation or routing logic for messages to be consumed by an external Service/entity.

The <action> element/type defines the following attributes.

In a list of <action> instances within an <actions> set, the actions are called (that is, their “process” method is called) in the order in which the <action> instances appear in the <actions> set. The message returned from each <action> is used as the input message to the next <action> in the list.

Like a number of other elements/types in this model, the <action> type can also contain zero or more <property> element instances. The <property> element/type can define a standard name-value-pair, or contain free form content (xsd:any). According to the XSD, this free form content is valid as child content for the <property> element/type, no matter where it is in the configuration (on any of <provider>, <bus>, <listener> and any of their derivatives). However, it is only on <action>- defined <property> instances that this free-form child content is used.

As stated in the <action> definition above, actions are implemented through implementing the org.jboss.soa.esb.actions.ActionProcessor class. All implementations of this interface must contain a public constructor of the following form:

public ActionZ(org.jboss.soa.esb.helpers.ConfigTree configuration);

It is through this constructor supplied ConfigTree instance that all of the action attributes are supplied, including the free form content from the action <property> instances. The free form content is supplied as child content on the ConfigTree instance.

So an example of an <actions> configuration might be as follows:

    <action name="MyAction-1" class="com.acme.MyAction1"/>
    <action name="MyAction-2" class="com.acme.MyAction2">
        <property name="propA" value="propAVal" />
    <action name="MyAction-3" class="com.acme.MyAction3">
        <property name="propB" value="propBVal" />
        <property name="propC">
            <!-- Free form child content... -->

The JBoss ESB configuration model defines transport specific specializations of the “base” types <provider>, <bus> and <listener> (JMS, SQL etc). This allows us to have stronger validation on the configuration, as well as making configuration easier for those that use an XSD aware XML Editor (e.g. the Eclipse XML Editor). These specializations explicitly define the configuration requirements for each of the transports supported by JBoss ESB out of the box. It is recommended to use these specialized types over the “base” types when creating JBoss ESB configurations, the only alternative being where a new transport is being supported outside an official JBoss ESB release.

The same basic principals that apply when creating configurations from the “base” types also apply when creating configurations from the transport specific alternatives:

The only rule that applies when using these transport-specific types is that you cannot cross-reference from a listener of one type, to a bus of another. In other words, you can only reference a <jms-bus> from a <jms-listener>. A runtime error will result where cross-references are made.

So the transport specific implementations that are in place in this release are:

  1. JMS: <jms-provider>, <jms-bus>, <jms-listener> and <jms-message-filter>: The <jms-message-filter> can be added to either the <jms-bus> or <jms-listener> elements. Where the <jms-provider> and <jms-bus> specify the JMS connection properties, the <jms-message-filter> specifies the actual message QUEUE/TOPIC and selector details.

  2. SQL: <sql-provider>, <sql-bus>, <sql-listener> and <sql-message-filter>: The <sql-message-filter> can be added to either the <sql-bus> or <sql-listener> elements. Where the <sql-provider> and <sql-bus> specify the JDBC connection properties, the <sql-message-filter> specifies the message/row selection and processing properties.

  3. FTP: <ftp-provider>, <ftp-bus>, <ftp-listener> and <ftp-message-filter>: The <ftp-message-filter> can be added to either the <ftp-bus> or <ftp-listener> elements. Where the <ftp-provider> and <ftp-bus> specify the FTP access properties, the <ftp-message-filter> specifies the message/file selection and processing properties

  4. Hibernate: <hibernate-provider>, <hibernate-bus>, <hibernate-listener> : The <hibernate-message-filter> can be added to either the <hibernate-bus> or <hibernate-listener> elements. Where the <hibernate-provider> specifies file system access properties like the location of the hibernate configuration property, the <hibernate-message-filter> specifies what classnames and events should be listened to.

  5. File system: <fs-provider>, <fs-bus>, <fs-listener> and <fs-message-filter> The <fs-message-filter> can be added to either the <fs-bus> or <fs-listener> elements. Where the <fs-provider> and <fs-bus> specify the File System access properties, the <fs-message-filter> specifies the message/file selection and processing properties.

  6. schedule: <schedule-provider>. This is a special type of provider and differs from the bus based providers listed above. See Scheduling for more.

  7. JMS/JCA Integration : <jms-jca-provider>: This provider can be used in place of the <jms-provider> to enable delivery of incoming messages using JCA inflow. This introduces a transacted flow to the action pipeline, and thereby encompasses actions within a JTA transaction.

As you'll notice, all of the currently implemented transport specific types include an additional type not present in the “base”, that being <*-message-filter>. This element/type can be added inside either the <*-bus> or <*-listener>. Allowing this type to be specified in both places means that you can specify message-filtering globally for the bus (for all listeners using that bus) or locally on a listener-by-listener basis.


In order to list and describe the attributes for each transport specific type, you can use the jbossesb-1.2.0 XSD (http://anonsvn.labs.jboss.com/labs/jbossesb/trunk/product/etc/schemas/xml/jbossesb-1.0.1.xsd), which is fully annotated with descriptions of each of the attributes. Using an XSD aware XML Editor such as the Eclipse XML Editor makes working with these types far easier.

Example configuration:

 <jms-bus busid="quickstartGwChannel">

Table 9.6. FTP Provider Configuration

hostname Can be a combination of <host:port> of just <host> which will use port 21. Yes
username Username that will be used for the FTP connection. Yes
password Password for the above user Yes
directory The FTP directory that is monitored for incoming new files Yes
input-suffix The file suffix used to filter files targeted for consumption by the ESB (note: add the dot, so something like '.esbIn'). This can also be specified as an empty string to specify that all files should be retrieved. Yes
work-suffix The file suffix used while the file is being process, so that another thread or process won't pick it up too. Defaults to .esbInProcess. No
post-delete If true, the file will be deleted after it is processed. Note that in that case post-directory and post-suffix have no effect. Defaults to true. No
post-directory The FTP directory to which the file will be moved after it is processed by the ESB. Defaults to the value of directory above. No
post-suffix The file suffix which will be added to the file name after it is processed. Defaults to .esbDone. No
error-delete If true, the file will be deleted if an error occurs during processing. Note that in that case error-directory and error-suffix have no effect. This defaults to "true." No
error-directory The FTP directory to which the file will be moved after when an error occurs during processing. This defaults to the value of directory above. No
error-suffix The suffix which will be added to the file name after an error occurs during processing. Defaults to .esbError. No
protocol The protocol, can be one of:
  • sftp (SSH File Transfer Protocol)

  • ftps (FTP over SSL)

  • ftp (default).

passiveIndicates that the FTP connection is in passive mode. Setting this to "true" means the FTP client will establish two connections to the ftpserver. Defaults to false, meaning that the client will tell the FTP Server the port to which it should connect. The FTP Server then establishes the connection to the client. No
read-only If true, the FTP Server does not permit write operations on files. Note that, in this case, the following properties have no effect: work-suffix, post-delete,post-directory, post-suffix, error-delete, error-directory, and error-suffix. Defaults to false. See section “Read-only FTP Listener for more information. No
certificate-url The URL to a public server certificate for FTPS server verification or to a private certificate for SFTP client verification. An SFTP certificate can be located as a resource embedded within a deployment artifact No
certificate-name The common name for a certificate for FTPS server verification No
certificate-passphraseThe pass-phrase of the private key for SFTP client verification.No

Schedule Listener that polls for remote files based on the configured schedule (scheduleidref). See Service Scheduling.

Setting the ftp-provider property “read-only” to true will tell the system that the remote file system does not allow write operations. This is often the case when the ftp server is running on a mainframe computer where permissions are given to a specific file.

The read-only implementation uses JBoss TreeCache to hold a list of the filenames that have been retrieved and only fetch those that have not previously been retrieved. The cache should be configured to use a cacheloader to persist the cache to stable storage.

Example configuration:

<ftp-listener name="FtpGateway"
    <property name="remoteFileSystemStrategy-configFile" value="./ftpfile-cache-config.xml"/>
     <property name="remoteFileSystemStrategy-cacheListener" value=


Example snippet from JBoss cache configuration:

<region name="/ftp/cache">
    <attribute name="maxNodes">5000</attribute>
    <attribute name="timeToLiveSeconds">1000</attribute>
    <attribute name="maxAgeSeconds">86400</attribute>

The helloworld_ftp_action quickstart demonstrates the readonly configuration. Run 'ant help' in the helloworld_ftp_action quickstart directory for instructions on running the quickstart. Please refer to the JBoss Cache documentation for more information about the configuration options available (http://labs.jboss.com/jbosscache/docs/index.html).

The JBoss Remoting Gateway hooks JBoss Remoting (http://www.jboss.org/jbossremoting/) into JBoss ESB as a transport option. It leverages support for HTTP(S) and Socket (+SSL) via JBR.

The basic configuration of the JBR Provider is as flows:

<jbr-provider name="socket_provider" protocol="socket" host="localhost">

    <jbr-bus busid="socket_bus" port="64111"/>

So the basic <jbr-provider> and <jbr-bus> configuration is very simple. The <jbr-bus> can then be referenced from a <service> configuration through the <jbr-listener>:


    <jbr-listener name="soc" busidref="socket_bus" is-gateway="true"/>

The <jbr-listener> is only supported as a gateway i.e. setting is-gateway to false will result in a Service deployment error.

The JBR Gateway supports a number of configuration properties that can be set on either the <jbr-provider>, <jbr-bus> or <jbr-listener> elements (as <property> elements).

Also note that the JBR Gateway supports setting of JBR specific configuration properties. This can be done by prefixing the property name with "jbr-". Consult the JBoss Remoting docs (http://www.jboss.org/jbossremoting/)for the JBR specific settings relevant to the configured protocol. The following is an example of a configuration that specifies JBR specific settings for configuring a Keystore and Client authentication mode for HTTPS:

<jbr-provider name="https_provider" protocol="https" host="localhost">

    <!-- Https/SSL settings -->
    <property name="jbr-KeyStoreURL" value="/keys/myKeystore" />
    <property name="jbr-KeyStorePassword" value="keys_ssl_pass" />
    <property name="jbr-TrustStoreURL" value="/keys/myKeystore" />
    <property name="jbr-TrustStorePassword" value="keys_ssl_pass" />
    <property name="jbr-ClientAuthMode" value="need" />
    <property name="serviceInvokerTimeout" value="20000" />
    <jbr-bus busid="https_bus" port="9433"/>

The JBR Gateway expects all response headers to be located in the Message.Properties as instances of org.jboss.soa.esb.message.ResponseHeader class. So if you require the JBR Gateway to set specific response headers, the ESB Message provided to the Gateway response decompose (e.g. after a synchronous invocation of the target service) must contains instances of the ResponseHeader class, set on the Message.Properties.

As it's name suggests, this gateway allows you to expose Message-Unaware HTTP endpoints on JBoss ESB.

This gateway uses the JBoss ESB/App Server HTTP Container for exposing HTTP endpoints, so many of the configurations are managed at the container level e.g. bind/port address, SSL etc.

The HTTP Request obviously contains a lot of information (aside from a data payload) that may be required by the Service i.e. not just a request payload (e.g. in the case of POST).  This information is stored, by the gateway, in a HttpRequest object instance on the Message.  Actions can access it as follows:

HttpRequest requestInfo = HttpRequest.getRequest(message);

HttpRequest exposes the following set of properties (via getter methods)

Table 9.11. Properties

queryParamsA java.util.Map<String, String[]> containing the query parameters.  Note the values are String[] so as to support multi valued parameters.
headersA java.util.List<HttpHeader> containing the request headers.
authTypeThe name of the authentication scheme used to protect the endpoint, or null if not authenticated. Same as the value of the CGI variable AUTH_TYPE.
characterEncodingThe name of the character encoding used in the body of this request, or null if the request does not specify a character encoding.
contentTypeContent Type (MIME Type) of the body of the request, or null if the type is not known.  Same as the value of the CGI variable CONTENT_TYPE.
contextPathThe portion of the request URI that indicates the context of the request.  The context path always comes first in a request URI.  The path starts with a "/" character but does not end with a "/" character.  For endpoints in the default (root) context, this returns "".  The container does not decode this string.  (See Servlet Spec)
pathInfoAny extra path information associated with the URL the client sent when it made this request. The extra path information follows the endpoint path but precedes the query string and will start with a "/" character. This method returns null if there was no extra path information. Same as the value of the CGI variable PATH_INFO. (See Servlet Spec)
pathInfoTokenA List<String> containing the tokens of the pathInfo.
queryStringQuery String (See Servlet Spec)
requestURIThe part of this request URL from the protocol name up to the query string. The web container does not decode this String. (See Servlet Spec)
requestPathThe part of this request URL that calls the endpoint. Does not include any additional path information or a query string. Same as the value of the CGI variable SCRIPT_NAME. This method will return just "http") if the urlPattern was "/*". (See Servlet Spec)
localAddrThe IP address of the interface on which the request  was received.
localNameThe host name of the IP interface on which the request was received.
methodHTTP Method
protocolName and version of the HTTP protocol
remoteAddrThe IP address of the client or last proxy that sent the request. Same as the value of the CGI variable REMOTE_ADDR.
remoteHostThe fully qualified name of the client or the last proxy that sent the request. If the engine cannot or chooses not to resolve the hostname (to improve performance), this will be the dotted-string form of the IP address. Same as the value of the CGI variable REMOTE_HOST.
remoteUserThe login of the user making this request, if the user has been authenticated, or null if the user has not been authenticated. Whether the user name is sent with each subsequent request depends on the client and type of authentication. Same as the value of the CGI variable REMOTE_USER.
contentLengthThe length, in bytes, of the request body and made available by the input stream, or -1 if the length is not known. For HTTP servlets, same as the value of the CGI variable CONTENT_LENGTH.
requestSessionIdThe session ID specified by the client, or null if non specified.
schemeScheme being used, whether it be “http” or “https.”.
serverNameThe host name of the server to which the request was sent. It is the value of the part before ":" in the “Host” header value, if any, or the resolved server name, or the server IP address.

This gateway always returns a synchronous response to a synchronous HTTP client, so it is never asynchronous in the absolute sense of the word.  By default, this gateway will synchronously invoke the service pipeline, returning the synchronous service response as the HTTP response from the gateway.

Asynchronous response behavior, from the point of view of this Gateway, simply means that the gateway returns a synchronous HTTP response after an asynchronous invocation of the action pipeline (i.e. not a synchronous service invocation).  Because it invokes the service asynchronously, it cannot return a service response as part of it's synchronous HTTP response.  Therefore, you need to configure the gateway, telling it how to make the asynchronous response.

Asynchronous behavior is configured by adding an <asyncResponse> element to the <http-gateway>, as follows:


    <http-gateway name="Http" urlPattern="esb-cars/*">
        <asyncResponse />

If configured as above, the gateway will return a zero length HTTP response payload, with a HTTP status of 200 (OK).

The asynchronous response HTTP status code can be configured (away from the default of 200) by simply setting the "statusCode" attribute on the <asyncResponse> element:


    <http-gateway name="Http" urlPattern="esb-cars/*">
        <asyncResponse statusCode="202" />

As stated above, a zero length payload is returned (by default) for asynchronous responses.  This can be overridden by specifying a <payload> element on the <asyncResponse> element:


    <http-gateway name="Http" urlPattern="esb-cars/*">
        <asyncResponse statusCode="202">
            <payload classpathResource="/202-static-response.xml"
                     characterEncoding="UTF-8" />

As it's name suggests, this gateway allows you to expose Message-Unaware Camel endpoints on JBossESB. This gateway leverages Apache Camel's input capabilities, translates the Camel Message to an ESB Message, and invokes the associated ESB Service.

The most apparent difference betweeen the CamelGateway and the other Gateways provided within JBossESB is that the CamelGateway is not specific to any one type of transport. This is because we want to leverage all the different transports that Camel supports, so the role of the CamelGateway is really all about integration. To see all the different transports Camel can handle, please visit the Camel Component list here: http://camel.apache.org/components.html


Different Camel Components have different library dependencies. JBossESB only contains the camel-core.jar. You will have to add any other dependencies (including other camel-* jars or third party jars) you require.

Within the <providers> section of JBoss ESB, a new <camel-provider> section is available if you declare the use of the updated schema (jbossesb-1.3.0.xsd) in your jboss-esb.xml file.

<camel-provider name="...">

<camel-bus busid="...">
    <from uri="..."/>
<from uri="..."/>

What is contained within the <camel-bus> element is the most interesting part, where you can have an unbounded number of <from uri=""/> elements. Those familiar with Camel XML configuration should be very comfortable with that element, as it does exactly what it does in native Camel XML configuration. There is also a new <camel-gateway> element, which can reference the aforementioned bus via the busidref attribute:

<camel-gateway name="..." busidref="..."/>

You can also define <from uri=""/> elements under the <camel-gateway> element, without requiring a <camel-provider> at all:

<camel-gateway name="...">

<from uri=""/>
<from uri=""/>

There is also a short-hand mechanism, where you can specify one Camel “from” URI as an XML attribute at either the gateway level:

<camel-gateway name="..." from-uri="..."/>

or at the bus level:

<camel-bus name="..." busid="..." from-uri="..."/>


It is important to understand that all Camel “from” URIs defined at both the <camel-bus> and <camel-gateway> level are cumulative, whether you use the element form and/or the short-hand form.

At this point, you might wonder where the <to uri=””/> elements are, because in Camel, you need to define at least one destination. In JBossESB, every Camel “from” URI translates to one route (added to all other routes in that gateway+bus), with an implicit Camel “to” URI which invokes the associated Service where you are assigning the <camel-gateway>. Under-the-hood, all routes in that gateway+bus will end up invoking that Service, and they are all run within the same CamelContext, whose lifecycle is tied to that CamelGateway's lifecycle.


It is important to be aware of the fact that this gateway only supports Camel routes that can be defined in a single "from" URI. The basic stanza supported by the gateway is from(endpointUri).to(esbService). The gateway does not support routes that would require intermediate routing to other Camel components.

Some Camel components perform scheduled routing tasks e.g. the HTTP component can be used to periodically poll a HTTP address, or the File component can poll a filesystem directory. Not all of these components support a URI option for configuring the poll frequency. The HTTP component is one such example. In these cases, you just need to prefix the component URI Scheme with "esbschedule:<frequency-in-millis>" e.g. <from uri="esbschedule:5000:http://www.jboss.org" /> would poll jboss.org every 5 seconds.

Finally, there are two other optional attributes that one can place at either the <camel-gateway> or <camel-bus> level (the gateway overriding the bus in these cases): async and timeout.

<camel-gateway name="..." from-uri="..." async="false" timeout="30000"/>
  • The async attribute (defaults to “false”) says whether the underlying ServiceInvoker should invoke the associated Service synchronously or asynchronously.

  • The timeout attribute (defaults to “30000”), defines how many milliseconds the ServiceInvoker should wait on a synchronous invocation before giving up.


For more detailed information, please visit this wiki page: http://community.jboss.org/wiki/CamelGateway

There is also a quickstart available in the distribution: .../samples/quickstarts/camel_helloworld/

For more information on Apache Camel, please visit this web page: http://camel.apache.org/

This section is aimed at developers who are familiar with the old JBoss ESB non-XSD based configuration model.

The old configuration model used a free form (non-validatable) XML configuration with ESB components receiving thier configurations via an instance of org.jboss.soa.esb.helpers.ConfigTree. The new configuration model is XSD based, however the underlying component configuration pattern is still via an instance of org.jboss.soa.esb.helpers.ConfigTree. This means that at the moment, the XSD based configurations are mapped/transformed into ConfigTree style configurations.

Developers that were used to using the old model now need to keep the following in mind:

  1. Read all of the docs on the new configuration model. Don't assume you can infer the new configurations based on your knowledge of the old.

  2. The only location where free-form markup is supported in the new configuration is on the <property> element/type. This type is allowed on <provider>, <bus> and <listener> types (and sub-types). However, the only location in which <property> based free form markup is mapped into the ConfigTree configurations is where the <property> exists on an <action>. In this case, the <property> content is mapped into the target ConfigTree <action>. Note however, if you have 1+ <property> elements with free form child content on an <action>, all this content will be concatenated together on the target ConfigTree <action>.

  3. When developing new Listener/Action components, you must ensure that the ConfigTree based configuration these components depend on can be mapped from the new XSD based configurations. An example of this is how in the ConfigTree configuration model, you could decide to supply the configuration to a listener component via attributes on the listener node, or you could decide to do it based on child nodes within the listener configuration – all depending on how you were feeling on the day. This type of free form configuration on <listener> components is not supports on the XSD to ConfigTree mapping i.e. the child content in the above example would not be mapped from the XSD configuration to the ConfigTree style configuration. In fact, the XSD configuration simply would not accept the arbitrary content, unless it was in a <property> and even in that case (on a <listener>), it would simply be ignored by the mapping code.

All JBossESB Gateways support the concept of a “Message Composer”, which is a class that implements the MessageComposer interface and is responsible for constructing an ESB Message instance and sending it to the associated ESB Service.

A Mime Decoder is a class that implements the MimeDecoder interface. It can be used by a MessageComposer implementation for “decoding” a binary array to a specific Java Object type, based on the “mime type” of the binary encoded data.

Examples of Gateways using this MimeDecoder mechanism are the File and FTP Gateway Listeners. These gateways can be configured with ”mimeType” or “mimeDecoder” properties, which trigger installation of the appropriate MimeDecoder implementation for the specified Mime Type.

The process is very easy:

Example (real):


public class TextPlainMimeDecoder implements MimeDecoder, Configurable {
    private Charset encodingCharset;
    public void setConfiguration(ConfigTree configTree) throws ConfigurationException {
        AssertArgument.isNotNull(configTree, "configTree");
        String encoding = configTree.getAttribute("encoding", "UTF-8");
        encodingCharset = Charset.forName(encoding);
    public Object decode(byte[] bytes) throws MimeDecodeException {
        try {
            return new String(bytes, encodingCharset.name());
        } catch (UnsupportedEncodingException e) {
            throw new MimeDecodeException("Unexpected character encoding error.", e);

This chapter provides a catalog of all Actions that are supplied out-of-the-box with JBoss ESB ("pre-packed").

Converters/Transformers are a classification of Action Processor which are responsible for transforming a message payload from one type to another.

Unless stated otherwise, all of these Actions use the MessagePayloadProxy for getting and setting the message payload.

Input TypeUser Object
Output Typejava.lang.String

Takes the Object bound as the Message payload and converts it into XML using the XStream processor. See http://xstream.codehaus.org/.

Example 12.5. Sample Configuration

<action name="transform" class="org.jboss.soa.esb.actions.converters.ObjectToXStream">
    <property name="class-alias" value="MyAlias" />
    <property name="exclude-package" value="true" />
    <property name="aliases">
        <alias name="alias1" class="com.acme.MyXXXClass1" />
        <alias name="alias2" class="com.acme.MyXXXClass2" />
        <alias name="xyz" class="com.acme.XyzValueObject"/>
        <alias name="x" class="com.acme.XValueObject"/>
    <property name="namespaces">
        <namespace namespace-uri="http://www.xyz.com" local-part="xyz"/>
        <namespace namespace-uri="http://www.xyz.com/x" local-part="x"/>
    <property name="fieldAliases">
        <field-alias alias="aliasName" definedIn="className" fieldName="fieldName"/>
        <field-alias alias="aliasName" definedIn="className" fieldName="fieldName"/>
    <property name="implicit-collections">
        <implicit-collection class="className" fieldName="fieldName"
            fieldType="fieldType" itemType="itemType"/>
    <property name="converters">
        <converter class="className" fieldName="fieldName" fieldType="fieldType"/>

Input Typejava.lang.String
Output TypeUser Object (specified by "incoming-type" property)

Takes the XML bound as the Message payload and converts it into an Object using the XStream processor. See http://xstream.codehaus.org/.

Example 12.6. Sample Configuration

<action name="transform" class="org.jboss.soa.esb.actions.converters.XStreamToObject">
    <property name="class-alias" value="MyAlias" />
    <property name="exclude-package" value="true" />
    <property name="incoming-type" value="com.acme.MyXXXClass" />
    <property name="root-node" value="/rootNode/MyAlias" />
    <property name="aliases">
        <alias name="alias1" class="com.acme.MyXXXClass1/>
        <alias name="alias2" class="com.acme.MyXXXClass2/>
    <property name="attribute-aliases">
        <attribute-alias name="alias1" class="com.acme.MyXXXClass1"/>
        <attribute-alias name="alias2" class="com.acme.MyXXXClass2"/>
    <property name="fieldAliases">
        <field-alias alias="aliasName" definedIn="className" fieldName="fieldName"/>
        <field-alias alias="aliasName" definedIn="className" fieldName="fieldName"/>
    <property name="implicit-collections">
        <implicit-colletion class="className" fieldName="fieldName" fieldType="fieldType"
    <property name="converters">
        <converter class="className" fieldName="fieldName" fieldType="fieldType"/>

This performs transformation on entire documents. If you need per-fragment transformations,

Table 12.6. XsltAction Properties



Message Body location containing the message payload.

If unspecified the Default Payload Location is used.



Message Body location where result payload is to be placed.

If unspecified the Default Payload Location is used.



Path to the XSL Template file. It can be defined with a file path within the deployed archive, or as a URL.



The type of Result to be set as the result Message payload.

This property controls the output result of the transformation.The following values are currently available:

  • STRING: will produce a String.

  • BYTES: will produce a array of bytes, byte[].

  • DOM: will produce a DOMResult.

  • SAX: will produce a SAXResult.

  • SOURCERESULT can be used to produce a customised result if the above do not suit your needs.

    When the message payload contains a SourceResult object (org.jboss.soa.esb.actions.transformation.xslt.SourceResult) this produces a result of the same type as the result attribute of the payload's SourceResult object.

When the message payload is a SourceResult object and resultType is not set to SOURCERESULT, the result is returned as the type specified in resultType. The developer is responsible for ensuring that the types are compatible.



If true will cause a transformation warning to cause an exception to be thrown. If false the failure will be logged.

Defaults to True.



Fully qualified class name of a class that implements URIResolver. This will be set on the tranformation factory.



Factory features that will be set for the tranformation factory. The feature name, which are fully qualified URIs will should be specified after the factory.feature. prefix. E.g. factory.feature.http://javax.xml.XMLConstants/feature/secure-processing



Factory attributes that will be set for the tranformation factory. The attribute name should be specified after the factory.attribute. prefix. E.g. factory.attribute.someVendorAttributename



If true will cause an invalid source document to cause an exception to be thrown. If false validation will not occur, although well-formed documents are enforced. Refer to Section, “XsltAction Validation”.

Default value is false


The input schema file (XSD) to use, located on the classpath. Refer to Section, “XsltAction Validation”.


The input schema language to use. Refer to Section, “XsltAction Validation”.


There are several different ways to configure the XsltAction validation. These are listed here with examples:

Depending on whether Validation is enabled there are several different outcomes to an XsltAction:


Message Transformation on JBossESB is supported by the SmooksTransformer component. This is an ESB Action component that allows the Smooks Data Transformation/Processing Framework to be plugged into an ESB Action Processing Pipeline.

A wide range of source (XML, CSV, EDI etc.) and target (XML, Java, CSV, EDI etc.) data formats are supported by the SmooksTransformer component. A wide range of Transformation Technologies are also supported, all within a single framework.

Refer to the Smooks website at http://www.smooks.org for more information.

All the above properties can be overridden by supplying them as properties to the message (Message.Properties).

Java objects are bound to the Message.Body under their beanId. Refer to http://community.jboss.org/wiki/MessageTransformation for more details.

The SmooksAction class (org.jboss.soa.esb.smooks.SmooksAction) is the second generation ESB action class for executing Smooks "processes" (it can do more than just transform messages – splitting etc). The SmooksTransformer action will be deprecated (and eventually removed) in a future release of the ESB.

The SmooksAction class can process (using Smooks PayloadProcessor) a wider range of ESB Message payloads e.g. Strings, byte arrays, InputStreams, Readers, POJOs and more (see the PayloadProcessor docs). As such, it can perform a wide range of transformations including Java to Java transforms. It can also perform other types of operations on a Source messages stream, including content based payload Splitting and Routing (not ESB Message routing). The SmooksAction enables the full range of Smooks capabilities from within JBoss ESB.

The Smooks User Guide (and other documentation) is available on the Smooks website. Also, check out the Smooks Tutorials.

The following illustrates the basic SmooksAction configuration:

The optional configuration properties are:

For more information on for Smooks Execution Report refer to http://www.smooks.org/mediawiki/index.php?title=V1.2:Smooks_v1.2_User_Guide#Checking_the_Smooks_Execution_Process.

Input Typeorg.jboss.soa.esb.message.Message generated by AbstractCommandVehicle.toCommandMessage()
Output TypeMessage – same as the input message

JBossESB can make calls into jBPM using the BpmProcessor action. Please also read the “jBPM Integration” chapter in the ServicesGuide to learn how to call JBossESB from jBPM. The BpmProcessor action uses the jBPM command API to make calls into jBPM.

The following jBPM commands have been implemented:

Table 12.11. BpmProcessor Properties


The jBPM command being invoked. Required Allowable values:

  • NewProcessInstanceCommand

  • StartProcessInstanceCommand

  • SignalCommand

  • CancelProcessInstanceCommand


Required property for the New- and Start-ProcessInstanceCommands if the process-definition-id property is not used. The value of this property should reference a process definition that is already deployed to jBPM and of which you want to create a new instance. This property does not apply to the Signal- and CancelProcessInstance-Commands.


Required property for the New- and Start-ProcessInstanceCommands if the processdefinition property is not used. The value of this property should reference a processdefintion id in jBPM of which you want to create a new instance. This property does not apply to the Signal- and CancelProcessInstanceCommands.


Optional property to specify the jBPM actor id, which applies to the New- and StartProcessInstanceCommands only.


Optional property to specify the value of the jBPM key. For example one can pass a unique invoice id as the value for this key. On the jBPM side this key is as the “business” key id field. The key is a string based business key property on the process instance. The combination of business key + process definition must be unique if a business key is supplied. The key value can hold an MVEL expression to extract the desired value from the EsbMessage. For example if you have a named parameter called “businessKey” in the body of your message you would use “body.businessKey”. Note that this property is used for the New- and StartProcessInstanceCommands only


Optional property. This property only applies to the StartProcessInstance- and Signal Commands, and is of use only if there are more then one transition out of the current node. If this property is not specified the default transition out of the node is taken. The default transition is the first transition in the list of transition defined for that node in the jBPM processdefinition.xml.


Optional property for the New- and StartProcessInstanceCommands and the SignalCommand. This property defines a list of variables that need to be extracted from the EsbMessage and set into jBPM context for the particular process instance. The list consists of mapping elements. Each mapping element can have the following attributes:

  • esb: required attribute which can contain an MVEL expression to extract a value anywhere from the EsbMessage.

  • bpm: optional attribute containing the name which be used on the jBPM side. If omitted the esb name is used.

  • default: optional attribute which can hold a default value if the esb MVEL expression does not find a value set in the EsbMessage.


Scripting Action Processors support definition of action processing logic using Scripting languages.

Class org.jboss.soa.esb.actions.scripting.ScriptingAction

Executes a script using the Bean Scripting Framework (BSF), receiving the message, payloadProxy, action configuration and logger as variable input.

Actions defined within the ESB Services.

Input TypeEJB method name and parameters
Output TypeEJB specific object

Takes an input Message and uses the contents to invoke a Stateless Session Bean. This action supports EJB2.x and EJB3.x.

Routing Actions support conditional routing of messages between two or more message exchange participants.


Message aggregation action.  An implementation of the Aggregator Enterprise Integration Pattern, see http://www.enterpriseintegrationpatterns.com/Aggregator.html.

This action relies on all messages having the correct correlation data. This data is set on the message as a property called "aggregatorTag" (Message.Properties). See the ContentBasedRouter and StaticRouter actions.

The data has the following format:

[UUID] ":" [message-number] ":" [message-count]

If all the messages have been received by the aggregator, it returns a new Message containing all the messages as part of the Message.Attachment list (unnamed), otherwise the action returns null.


This action allows invocation of external (ESB unaware) Http endpoints from an ESB action pipeline. This action uses Apache Commons HttpClient under the covers.


Routes the incoming message to a configured email account.

Table 12.20. EmailRouter Properties


true will extract the message payload from the Message object before sending. false (the default) will send the serialized Message object.


The host name of the SMTP server. If not specified will default to the property 'org.jboss.soa.esb.mail.smtp.host' in jbossesb-properties.xml.


The port for the SMTP server. If not specified will default to the property 'org.jboss.soa.esb.mail.smtp.port' in jbossesb-properties.xml.


The username for the SMTP server. If not specified will default to the property 'org.jboss.soa.esb.mail.smtp.user' in jbossesb-properties.xml.


The password for the above username on the SMTP server. If not specified will default to the property 'org.jboss.soa.esb.mail.smtp.password' in jbossesb-properties.xml.


If true will attempt to authenticate the user using the AUTH command. If not specified will default to the property 'org.jboss.soa.esb.mail.smtp.auth' in jbossesb-properties.xml


The from email address.


The destination email account.


The subject of the email.


filename of an attachment containing the message payload (optional). If not specified the message payload will be included in the message body.


a string to be prepended to the ESB message contents which make up the e-mail message (optional)


comma-separated list of email addresses (optional)


Child elements that contain file that will be added as attachments to the email sent.



Content based message routing action.

This action supports the following routing rule provider types:

Table 12.21. ContentBasedRouter Properties


Content Based Routing Provider alias. Supported values are "Drools" (default), "Xpath" "Regex".


Externally defined rule file. Will be a Drools DSL file if the Drools rule provider is in use. Will be a .properties rule file if the XPath or Regex provider is in use.


CBR evaluation Domain Specific Language (DSL) file. Only relevant for the Drools rule provider.


Flag indicating whether or not the rules file should be reloaded each time. Default is “false”.


Optional property to have Drools perform audit logging. The log can be read into the Drools Eclipse plugin and inspected. Valid values are CONSOLE, FILE and THREADED_FILE. The default is that no audit logging will be performed.


Optional property to define the filepath for audit logging. Only applies to FILE or THREADED_FILE ruleAuditType. The default is "event". Note that JBoss Drools will append ".log" for you. The default location for this file is "." - the current working directory (which for JBoss is in its bin/ directory).


Optional property to define how often to flush audit events to the audit log. Only applies to the THREADED_FILE ruleAuditType. The default is 1000 (milliseconds).


Container property for the <route-to> configurations. If the rules are defined externally, this configuration will have the following format:

<route-to destination-name="express"
    service-category="ExpressShipping" service-name="ExpressShippingService"/>

If the rules are defined inline in the configuration, this configuration will have the following format (not supported for the Drools provider):

<route-to service-category="ExpressShipping"
    service-name="ExpressShippingService" expression="/order[@statusCode='2']" />

Container property for the <namespace> configurations, where required e.g. for the XPath ruleprovider. The <namespace> configurations have the following format:

<namespace prefix="ord" uri="http://acme.com/order" />

Section 12.5.1, “Aggregator”.

Regex is configured in exactly the same way as XPath. The only difference being that the expressions are regex expressions (instead of XPath expressions).

See the "What is Content-Based Routing?" chapter in the Services Guide for more information on content-based routing.


Synchronous message routing action. This action makes a Synchronous invocation on the configured service and passes the invocation response back into the action pipeline for processing by subsequent actions (if there are any), or as the response to if the service is a RequestResponse service.



Sends a notification to a list of notification targets specified in configuration, based on the result of action pipeline processing.

The action pipeline works in two stages, normal processing followed by outcome processing. In the first stage, the pipeline calls the process method(s) on each action (by default it is called process) in sequence until the end of the pipeline has been reached or an error occurs. At this point the pipeline reverses (the second stage) and calls the outcome method on each preceding action (by default it is processException or processSuccess). It starts with the current action (the final one on success or the one which raised the exception) and travels backwards until it has reached the start of the pipeline. The Notifier is an action which does no processing of the message during the first stage (it is a no-op) but sends the specified notifications during the second stage.

The Notifier class configuration is used to define NotificationList elements, which can be used to specify a list of NotificationTargets. A NotificationList of type "ok" specifies targets which should receive notification upon successful action pipeline processsing; a NotificationList of type "err" specifies targets to receive notifications upon exceptional action pipeline processing, according to the action pipeline processing semantics mentioned earlier. Both "err" and "ok" are case insensitive.

The notification sent to the NotificationTarget is target-specific, but essentially consists of a copy of the ESB message undergoing action pipeline processing. A list of notification target types and their parameters appears at the end of this section.

If you wish the ability to notify of success or failure at each step of the action processing pipeline, use the "okMethod" and "exceptionMethod" attributes in each <action> element instead of having an <action> that uses the Notifier class.

Notifications can be sent to targets of various types. The sections below provides a list of the NotificationTarget types and their parameters.

PurposePerforms a notification by writing the contents of the ESB message to a specified set of files.
Child Attributes
  • append – if value is true, append the notification to an existing file

  • URI – any valid URI specifying a file

Purpose Performs a notification by inserting a record into an existing database table. The database record contains the ESB message contents and, optionally, other values specified using nested <column> elements.
  • driver-class

  • connection-url

  • user-name

  • password

  • table - table in which notification record is stored.

  • dataColumn - name of table column in which ESB message contents are stored.

Child Attributes
  • name – name of table column in which to store additional value

  • value – value to be stored

PurposePerforms a notification by translating the ESB message (including its attached properties) into a JMS message and sending the JMS message to a list of Queues. Additional properties may be attached using the <messageProp> element.
Child Attributes
  • jndiName – the JNDI name of the Queue. Required.

  • jndi-URL – the JNDI provider URL Optional.

  • jndi-context-factory - the JNDI initial context factory Optional.

  • jndi-pkg-prefix – the JNDI package prefixes Optional.

  • connection-factory - the JNDI name of the JMS connection factory. Optional, defaults to ConnectionFactory.

Child Attributes
  • name - name of the new property to be added

  • value - value of the new property

PurposePerforms a notification by translating the ESB message (including its attached properties) into a JMS message and publishing the JMS message to a list of Topics. Additional properties may be attached using the <messageProp> element.
Child Attributes
  • jndiName – the JNDI name of the Queue. Required

  • jndi-URL – the JNDI provider URL. Optional

  • jndi-context-factory - the JNDI initial context factory. Optional

  • jndi-pkg-prefix – the JNDI package prefixes. Optional

  • connection-factory - the JNDI name of the JMS connection factory. Optional, default is ConnectionFactory

Child Attributes
  • name - name of the new property to be added

  • value - value of the new property

PurposePerforms a notification by sending an email containing the ESB message content and, optionally, any file attachments.
Child Attributes
  • from – email address (javax.email.InternetAddress). Required

  • sendTo – comma-separated list of email addresses. required

  • ccTo - comma-separated list of email addresses. Optional

  • subject – email subject. Required

  • message - a string to be prepended to the ESB message contents which make up the e-mail message. Optional

ChildAttachment. Optional
Child Textthe name of the file to be attached

PurposePerforms a notification by creating a file containing the ESB message content and transferring it via FTP to a remote file system.
Child Attributes
  • URL – a valid FTP URL

  • filename – the name of the file to contain the ESB message content on the remote system


NotifyFTPList extends NotifyFTP and adds the ability to take a single file name or list of file names located in the ESB Message object.

The file(s) in the Message payload should contain a list of files (full paths). This list will be iterated over and every file in the list will be sent to the configured destination FTP server directory if the "listFiles" property is false. If "listFiles" is true, the file(s) are read line by line, with each line containing the name of a file to be transferred.

So, you can supply:

  1. A single file to be transferred (single String payload with listFiles = false)

  2. A list of files to be transferred (List<String> payload with listFiles = false)

  3. A single list file of files to be transferred (single String payload with listFiles = true)

  4. A list of list files of files to be transferred (List<String> payload with listFiles = true)

Child Attributes
  • URL – a valid FTP URL

  • filename – the name of the file to contain the ESB message content on the remote system

  • listFiles – true if the file(s) named in the message payload is/are list file(s), otherwise false. Default is false.

  • deletelistFile – true if the list file is to be deleted, otherwise false. Default is false.


Send message via TCP. Each connection is maintained only for the duration of the notification.

Only supports sending of String data payloads i.e. explicitly (as a String), or encoded as a byte array (byte[]).

Childdestination (supports multiple destinations)
Child Attributes
  • URI – The tcp address to which the data is to be written. Default port is 9090.

JBoss Webservices SOAP Processor

This action supports invocation of a JBossWS hosted webservice endpoint through any JBossESB hosted listener. This means the ESB can be used to expose Webservice endpoints for Services that don't already expose a Webservice endpoint. You can do this by writing a thin Service Wrapper Webservice (e.g. a JSR 181 implementation) that wraps calls to the target Service (that doesn't have a Webservice endpoint), exposing that Service via endpoints (listeners) running on the ESB. This also means that these Services are invocable over any transport channel supported by the ESB (http, ftp, jms etc.).

The SOAPClient action uses the Wise Client Service to generate a JAXWS client class and call the target service.

Example configuration:

<action name="soap-wise-client-action" class="org.jboss.soa.esb.actions.soap.wise.SOAPClient">
    <property name="wsdl" value="http://host:8080/OrderManagement?wsdl"/>
    <property name="SOAPAction" value="http://host/OrderMgmt/SalesOrder"/>

Table 12.29. SOAPClient Optional Properties


The WSDL to be used.


The name of the operation as specified in the webservice WSDL.


The endpoint operation, now superceded by operationName.


The EndPoint invoked. Webservices can have multiple endpoint. If it's not specified the first specified in wsdl will be used.


Specifies a smooks config file to define the java-to-java mapping defined for the request.


Specifies a smooks config file to define the java-to-java mapping defined for the response


A symbolic service name used by wise to cache object generation and/or use already generated object. If it isn't provided wise uses the servlet name of wsdl.


Username used if the webservice is protected by BASIC Authentication HTTP.


Password used if the webservice is protected by BASIC Authentication HTTP.


It's often necessary to be able to transform the SOAP request or response, especially in header. This may be to simply add some standard SOAP handlers. Wise support JAXWS Soap Handler, both custom or a predefined one based on smooks.

Transformation of the SOAP request (before sending) is supported by configuring the SOAPClient action with a Smooks transformation configuration property.


It's also possible to provide a set of custom standard JAXWS Soap Handler. The parameter accept a list of classes implementing SoapHandler interface. Classes have to provide full qualified name and be separated by semi-columns.


It's useful for debug purpose to view soap Message sent and response received. Wise achieve this goal using a JAX-WS handler printing all messages exchanged on System.out. Boolean value.

The SOAP operation parameters are supplied in one of 2 ways:

The parameter Map itself can also be populated in one of 2 ways:

The SOAP response object instance can be is attached to the ESB Message instance in one of the following ways:

The response object instance can also be populated (from the SOAP response) in one of 2 ways:

For examples of using the SOAPClient please refer to the following quickstarts:

More information about Wise can be found on their website at http://www.javalinuxlabs.org/drupal/.

SOAP Client action processor.

Uses the soapUI Client Service to construct and populate a message for the target service. This action then routes that message to that service. See http://www.soapui.org/.

The SOAP operation parameters are supplied in one of 2 ways:

The parameter Map itself can also be populated in one of 2 ways:

As stated above, OGNL is the mechanism we use for selecting the SOAP parameter values to be injected into the SOAP message from the supplied parameter Map. The OGNL expression for a specific parameter within the SOAP message depends on the position of that parameter within the SOAP body. In the following message the OGNL expression representing the customerNumber parameter is "customerOrder.header.customerNumber".

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

Once the OGNL expression has been calculated for a parameter, this class will check the supplied parameter map for an Object keyed off the full OGNL expression (Option 1 above). If no such parameter Object is present on the map, this class will then attempt to load the parameter by supplying the map and OGNL expression instances to the OGNL toolkit (Option 2 above). If this doesn't yield a value, this parameter location within the SOAP message will remain blank.

Taking the sample message above and using the "Option 1" approach to populating the "customerNumber" requires an object instance (e.g. an "Order" object instance) to be set on the parameters map under the key "customerOrder". The "customerOrder" object instance needs to contain a "header" property (e.g. a "Header" object instance). The object instance behind the "header" property (e.g. a "Header" object instance) should have a "customerNumber" property.

OGNL expressions associated with Collections are constructed in a slightly different way. This is easiest explained through an example:

<soapenv:Envelope xmlns:soapenv="http://schemas.xmlsoap.org/soap/envelope/"

                    <cus:description>Flat 16 feet 100 count</cus:description>
                    <cus:description>Round 8 feet 65 count</cus:description>

The above order message contains a collection of order "items". Each entry in the collection is represented by an "item" element. The OGNL expressions for the order item "partNumber" is constructed as "customerOrder.items[0].partnumber" and "customerOrder.items[1].partnumber". As you can see from this, the collection entry element (the "item" element) makes no explicit appearance in the OGNL expression. It is represented implicitly by the indexing notation. In terms of an Object Graph (Option 1 above), this could be represented by an Order object instance (keyed on the map as "customerOrder") containing an "items" list (List or array), with the list entries being "OrderItem" instances, which in turn contains "partNumber" etc properties.

Option 2 (above) provides a quick-and-dirty way to populate a SOAP message without having to create an Object model ala Option 1. The OGNL expressions that correspond with the SOAP operation parameters are exactly the same as for Option 1, except that there's not Object Graph Navigation involved. The OGNL expression is simply used as the key into the Map, with the corresponding key-value being the parameter.

To see the SOAP message template as it's being constructed and populated, add the "dumpSOAP" parameter to the parameter Map. This can be a very useful developer aid, but should not be left on outside of development.

The SOAP response object instance can be attached to the ESB Message instance in one of the following ways:

The response object instance can also be populated (from the SOAP response) in one of 3 ways:

Using XStream as a mechanism for populating an Object Graph (Option 1 above) is straightforward and works well, as long as the XML and Java object models are in line with each other.

The XStream approach (Option 1) is configured on the action as follows:

<action name="soapui-client-action"  class="org.jboss.soa.esb.actions.soap.SOAPClient">
    <property name="wsdl"  value="http://localhost:18080/acme/services/RetailerService?wsdl"/>
    <property name="operation" value="GetOrder"/>
    <property name="get-payload-location" value="get-order-params" />
    <property name="set-payload-location" value="get-order-response" />
    <property name="responseXStreamConfig">
        <alias name="customerOrder" class="com.acme.order.Order"
            namespace="http://schemas.acme.com/services/CustomerOrder.xsd" />
        <alias name="orderheader" class="com.acme.order.Header"
            namespace="http://schemas.acme.com/services/CustomerOrder.xsd" />
        <alias name="item" class="com.acme.order.OrderItem"
            namespace="http://schemas.acme.com/services/CustomerOrder.xsd" />

In the above example, we also include an example of how to specify non-default named locations for the request parameters Map and response object instance.

We also provide, in addition to the above XStream configuration options, the ability to specify field name mappings and XStream annotated classes.

<property name="responseXStreamConfig">
    <fieldAlias name="header" class="com.acme.order.Order" fieldName="headerFieldName" />
    <annotation class="com.acme.order.Order" />

Field mappings can be used to map XML elements onto Java fields on those occasions when the local name of the element does not correspond to the field name in the Java class.

To have the SOAP response data extracted into an OGNL keyed map (Option 2 above) and attached to the ESB Message, simply replace the "responseXStreamConfig" property with the "responseAsOgnlMap" property having a value of "true" as follows:

<action name="soapui-client-action" class="org.jboss.soa.esb.actions.soap.SOAPClient">
    <property name="wsdl" value="http://localhost:18080/acme/services/RetailerService?wsdl"/>
    <property name="operation" value="GetOrder"/>
    <property name="get-payload-location" value="get-order-params" />
    <property name="set-payload-location" value="get-order-response" />
    <property name="responseAsOgnlMap" value="true" />

To return the raw SOAP message as a String (Option 3), simply omit both the "responseXStreamConfig" and "responseAsOgnlMap" properties.

A SOAPProxy focuses on the consumption of an external WS endpoint (e.g. hosted on .NET, another external Java-based AS, LAMP) and re-publication of a WS endpoint via the ESB. The ESB sits between the ultimate consumer/client (e.g. .NET WinForm application) and the ultimate producer (e.g. RoR-hosted WS). The purpose of this intermediary is to provide an abstraction layer that solves the following problems:

Other mechanisms of doing this are inappropriate or inadequate:

  • SOAPClient is used to invoke external web services, not mirror them.

  • SOAPProducer only executes internally-deployed JBoss WS services.

  • HttpRouter requires too much by-hand configuration for easy WS proxying.

  • EBWS strips out the SOAP Envelope and only passes along the body.

With a SOAPProxy action:

  • It is both a producer and consumer of web services.

  • All that is required is a property pointing to the external wsdl.

  • The wsdl can be automatically transformed via the optional wsdlTransform property.

  • It is understood that SOAP is not tied to http. The wsdl is read, and if an http transport is defined, that will be used. Other transports (jms) will need future consideration.

  • If using http, any of the HttpRouter properties can also optionally be applied to as overrides.

If the wsdl specifies an http transport then any of the HttpRouter properties can be applied.

For other possible configuration properties, see the specific SOAPProxyTransport implementations themselves.

Table 12.30.


A <smooks-resource-list> xml config file allowing for flexible wsdl transformation.


The character set the original wsdl (and imported resources) is encoded in, if not UTF-8. It will be transformed to UTF-8 if it is a supported encoding by the underlying platform.


Example of an HttpRouter property, but useful when domain name matching is important for SSL certs.


Apache Commons HTTPClient properties file, useful when proxying to a web service via SSL


Whether the Basic Auth credentials are required to come from the end client, or if the credentials specified inside file can be used instead. Default is "true".


The original wsdl url whose WS endpoint will get re-written and exposed as new wsdl from the ESB. Depending upon the <definitions><service><port><soap:address location attribute's protocol (for example "http"), a protocol-specific SOAPProxyTransport implementation is used.

The value can reference a location based on five different schemes:

  • http://

    When you want to pull wsdl from an external web server.

    Example: http://host/foo/HelloWorldWS?wsdl

  • https://

    When you want to pull wsdl from an external web server over SSL.

    Example: https://host/foo/HelloWorldWS?wsdl

  • file://

    When your wsdl is located on disk, accessible by the ESB JVM.

    Example: file:///tmp/HelloWorldWS.wsdl

    Note: 3 slashes in the example above. This is so we can specify an absolute vs. relative file path.

  • classpath://

    When you want to package your wsdl inside your ESB archive.

    Example: classpath:///META-INF/HelloWorldWS.wsdl

    Note the three slashes in the example above. This is so we can specify an absolute vs. relative classloader resource path.

  • internal://

    When the wsdl is being provided by a JBossWS web service inside the same JVM as this ESB deployment.

    Example: internal://jboss.ws:context=foo,endpoint=HelloWorldWS

    Note: This scheme should be used instead of http or https in the usage described above. This is because on server restart, Tomcat may not yet be accepting incoming http/s requests, and thus cannot serve the wsdl.


Miscellaneous Action Processors.

Simple action for printing out the contents of a message (ala System.out.println).

Will attempt to format the message contents as XML.

Input Typejava.lang.String
  • message - A message prefix. Required

  • printfull - If true then the entire message is printed, otherwise just the byte array and attachments.

  • outputstream - if true then System.out is used, otherwise System.err.

This is a simple action for performing Schema (e.g. XSD or RELAX NG) based validation of XML messages.

Input Typejava.lang.String
  • schema - The classpath path of the validation schema file (e.g. .xsd).

  • schemaLanguage - (Optional) The schema type/language. Default: "http://www.w3.org/2001/XMLSchema" i.e. XSD.

The HttpClient configuration is achieved through the specification of a set of properties. The following is an example of these properties when specified as a java property file:

# Configurators

# HttpProtocol config...

# AuthBASIC config...
authscope-realm=ActiveBPEL security realm

The only property that the HttpClientFactory requires is the configurators property, which specifies a comma separated list of configurator implementations. Each configurator implementation configures different aspects of the HttpClient instance, extending the org.jboss.soa.esb.http.Configurator class and providing a configure(HttpClient, Properties) method.

Additional configurators can be created and configured by appending their class names to the list specified in the configurators property,

JBoss ESB allows custom actions to be developed in a number of ways, each of which has their own advantages. These can be split into

  • Lifecycle actions, implementing org.jboss.soa.esb.actions.ActionLifecycle or org.jboss.soa.esb.actions.ActionPipelineProcessor

  • Java bean actions, implementing org.jboss.soa.esb.actions.BeanConfiguredAction

  • Annotated actions

  • Legacy actions

In order to understand the differences between each implementation it is necessary to understand

  • How the actions are configured

  • When the actions are instantiated and the implications on thread safety

  • Whether they have visibility of lifecycle events

  • Whether the action methods are invoked directly or via reflection

Lifecycle actions are those which are derived from the lifecycle interfaces, org.jboss.soa.esb.actions.ActionLifecycle and org.jboss.soa.esb.actions.ActionPipelineProcessor. ActionLifecycle implements the pipeline lifecycle methods, initialise and destroy, with ActionPipelineProcessor extending this interface to include the message processing methods, process, processSuccess and processException.

This interface supports the implementation of managed life-cycle stateless actions. A single instance of a class implementing either of these interfaces is instantiated on a "per-pipeline" basis (in other words, per-action configuration) and must be thread safe. The initialise and destroy methods can be overridden to allow the action to perform resource management for the lifetime of the pipeline, e.g. caching resources needed in the initialise method, and then cleaning them up in the destroy method.

These actions must define a constructor which takes a single ConfigTree instance as a parameter, representing the configuration of the specific action within the pipeline.

The pipeline will invoke each method directly provided that the action has implemented the appropriate interface and that the method names are not overridden in the configuration. Any method invocations which are not implemented via the interfaces, or which have been overridden in the action configuration, will be invoked using reflection.

To simplify development there are two abstract base classes provided in the codebase, each implementing the appropriate interface and providing empty stub methods for all but the process method. These are org.jboss.soa.esb.actions.AbstractActionPipelineProcessor and org.jboss.soa.esb.actions.AbstractActionLifecycle and can be used as follows:

public class ActionXXXProcessor extends AbstractActionPipelineProcessor {

  public ActionXXXProcessor(final ConfigTree config) {
    // extract configuration
  public void initialise() throws ActionLifecycleException {
    // Initialize resources...
  public Message process(final Message message) throws ActionProcessingException {
    // Process messages in a stateless fashion...
  public void destroy() throws ActionLifecycleException {
    // Cleanup resources...

The JBoss Enterprise Service Bus has a set of action annotations that make it easier to create clean action implementations. This hides the complexity associated with implementing interfaces, abstract classes and dealing with the ConfigTree type (the configuration information provided in the jboss-esb.xml file). A single instance of annotated actions will be instantiated on a "per-pipeline" basis (in other words, per-action configuration) and must be thread safe. The pipeline will always invoke the action methods using reflection.

These are the annotations:

The simplest implementation involves creating an action with a a basic plain old Java object (POJO) with a single method, annotated with @Process:

public class MyLogAction {

            public void log(Message message) {
                // log the message...

The @Process annotation serves to identify the class as a valid ESB action.  In cases in which there are multiple methods in the class, it also identifies the method which is to be used for processing the message instance (or some part of the message. This is explained in more depth when the @BodyParam, @PropertyParam and @AttachmentParam annotations are discussed.)

To configure an instance of this action on a pipeline, use the same process as that for low/base level action implementations (these being those that extend AbstractActionPipelineProcessor or implement ActionLifecycle or one of its other sub-types or abstract implementations):

<service .....>
                <action name="logger" class="com.acme.actions.MyLogAction" />

In cases in which multiple methods annotated with @Process are associated with the action implementation, use the process attribute to specify which of them is to be used for processing the message instance:

<service .....>
                <action name="logger" class="com.acme.actions.MyLogAction"
                                           process="log" />

Use @Process methods to specify parameters in a range of different ways. One can:

An example of the first option was depicted above in the logger action.  Here is an example of the second option:

public class OrderPersister {

            public OrderAck storeOrder(OrderHeader orderHeader,
                                OrderItems orderItems) {
                // process the order parameters and return an ack...

In this example, the @Process method is relying on a previous action in the pipeline to create the OrderHeader and OrderItem object instances and attach them to the current message.  (Perhaps a more realistic implementation would have a generic action implementation that decodes an XML or EDI payload to an order instance, which it would then returns. The OrderPersister would then take an order instance as its sole parameter.) Here is an example:

public class OrderDecoder {

            public Order decodeOrder(String orderXML) {
                // decode the order XML to an ORder instance...
        public class OrderPersister {
            public OrderAck storeOrder(Order order) {
                // persist the order and return an ack...

Chain the two actions together in the service configuration:

    <action name="decode" class="com.acme.orders.OrderDecoder" />
    <action name="persist" class="com.acme.orders.OrderPersister" />

The code is easier to read in Option #2 because there are less annotations, but it carries a risk because the process of run-time "hunting" through the message for the appropriate parameter values is not completely deterministic.  Due to this, Red Hat supports the @BodyParam, @PropertyParam and @AttachmentParam annotations.

Use these @Process method parameter annotations to explicitly define from where in the message an individual parameter value for the @Process method is to be retrieved. As their names suggest, each of these annotations allow one to specify a named location (in the message body, properties or attachments) for a specific parameter:

public class OrderPersister {

            public OrderAck storeOrder(
                           @BodyParam("order-header") OrderHeader orderHeader,
                           @BodyParam("order-items") OrderItems orderItems) {
                // process the order parameters and return an ack...

If the message location specified does not contain a value, then null will be passed for this parameter (the @Process method instance can decide how to handle this.) If, on the other hand, the specified location contains a value of the wrong type, a MessageDeliverException will be thrown.

Most actions require some degree of custom configuration.  In the ESB action configuration, the properties are supplied as <property> sub-elements of the <action> element:

<action name="logger" class="com.acme.actions.MyLogAction">
    <property name="logFile" value="logs/my-log.log" />
    <property name="logLevel" value="DEBUG" />

In order to utilize these properties, one must use the low/base level action implementations (do so by extending AbstractActionPipelineProcessor or by implementing ActionLifecycle.) This involves working with the ConfigTree class, (which is supplied to the action via its constructor.) In order to implement an action, follow these steps:

Whilst the tasks above are generally not difficult to undertake, they can be laborious, error-prone and lead to inconsistencies across actions with regard to how configuration mistakes are handled.  One may also be required to add quite a lot of code, with a net result of less overall clarity.

The annotated action addresses these problems via @ConfigProperty. Expand the MyLogActions implementation, which has two mandatory configuration properties: logFile and logLevel:

public class MyLogAction {

            private File logFile;
            private LogLevel logLevel;
            public static enum LogLevel {
            public void log(Message message) {
                // log the message at the configured log level...

That is all that needs to be done. When the Enterprise Service Bus deploys the action, it examines both the implementation and the maps found within the decoded value (including any support for enums, as with the LogLevel enum above.) It finds the action fields possessing the @ConfigProperty annotation. The developer is not required to deal with the ConfigTree class at all or develop any extra code.

By default, every class field possessing the @ConfigProperty annotation is mandatory.  Non-mandatory fields are handled in one of these two ways:

To make the log action's properties optional only, implement the action like this:

public class MyLogAction {

            @ConfigProperty(defaultVal = "logs/my-log.log")
            private File logFile;
            @ConfigProperty(use = Use.OPTIONAL)
            private LogLevel logLevel;
            public static enum LogLevel {
            public void log(Message message) {
                // log the message...

The @ConfigProperty annotation supports two additional fields:

The name field might be used in various situations such as when migrating an old action (that uses the low/base level implementation type) to the newer annotation-based implementation, only to find that the old configuration name for a property (which cannot be changed for backward-compatibility reasons) does not map to a valid Java field name. Taking the log action as an example, imagine that this was the old configuration for the log action:

<action ...>
            <property name="log-file" value="logs/my-log.log" />
            <property name="log-level" value="DEBUG" />

The property names here do not map to valid Java field names, so specify the name on the @ConfigProperty annotation:

public class MyLogAction {

            @ConfigProperty(name = "log-file")
            private File logFile;
            @ConfigProperty(name = "log-level")
            private LogLevel logLevel;
            public static enum LogLevel {
            public void log(Message message) {
                // log the message...

Sometimes action implementations need to perform initialization tasks at deployment time. They may also need to perform a clean-up whilst being undeployed.  For these reasons, there are @Initialize and @Destroy method annotations.

To illustrate, here are some examples. At the time of deployment, the logging action may need to perform some checks (that, for example, files and directories exist.) It may also want to perform some initialization tasks (such as opening the log file for writing.) When it is undeployed, the action may need to perform some clean-up tasks (such as closing the file). Here is the code to perform these tasks:

public class MyLogAction {

            private File logFile;
            private LogLevel logLevel;
            public static enum LogLevel {
            public void initializeLogger() {
            // Check if file already exists& check if parent folder
            // exists etc...
            // Open the file for writing...
            public void cleanupLogger() {
                // Close the file...
            public void log(Message message) {
                // log the message...

Not all clients and services of JBossESB will be able to understand the protocols and Message formats it uses natively. As such there is a need to be able to bridge between ESB-aware endpoints (those that understand JBossESB) and ESB-unaware endpoints (those that do not understand JBossESB). Such bridging technologies have existed for many years in a variety of distributed systems and are often referred to as Connectors, Gateways or Adapters.

One of the aims of JBossESB is to allow a wide variety of clients and services to interact. JBossESB does not require that all such clients and services be written using JBossESB or any ESB for that matter. There is an abstract notion of an Interoperability Bus within JBossESB, such that endpoints that may not be JBossESB-aware can still be “plugged in to” the bus.

All JBossESB-aware clients and services communicate with one another using Messages, (these will be described later.) A Message is simply a standardized format for information exchange, containing a header, body (payload), attachments and other data. Additionally, all JBossESB-aware services are identified using Endpoint References (EPRs).

It is important for legacy interoperability scenarios that a SOA infrastructure such as JBossESB allow ESB-unaware clients to use ESB-aware services, or ESB-aware clients to use ESB-unaware services. The concept that JBossESB uses to facilitate this interoperability is through Gateways. A gateway is a service that can bridge between the ESB-aware and ESB-unaware worlds and translate to/from Message formats and to/from EPRs.

JBossESB currently supports Gateways and Connectors. In the following sections we shall examine both concepts and illustrate how they can be used.

Not all users of JBossESB will be ESB-aware. In order to facilitate those users interacting with services provided by the ESB, JBossESB has the concept of a "Gateway," which is a specialized server that can accept messages from non-ESB clients and services and route them to the required destination.

A Gateway is a specialized listener process, that behaves very similarly to an ESB-aware listener. There are some important differences however:

There are a few off the shelf composer classes: the default 'file' composer class will just package the file contents into the Message body; same idea for JMS messages. Default message composing class for a SQL table row is to package contents of all columns specified in configuration, into a java.util.Map.

Although these default composer classes will be adequate for most uses, it is relatively straightforward for users to provide their own. The only requirements are that, firstly, they must have a constructor that takes a single ConfigTree argument, and, secondly, they must provide a 'Message composing' method (whereby the default name is 'process' but this can be configured differently in the 'process' attribute of the <action> element within the ConfigTree provided at constructor time.) The processing method must take a single argument of type Object, and return a Message value.

From JBossESB 4.5 onwards, the FileGateway accepts the file-filter-class configuration attribute which allows you to define a FileFilter implementation that may be used to select the files used by the gateway in question. Initialisation of user defined FileFilter instances is performed by the gateway if the instance is also of type org.jboss.soa.esb.listeners.gateway.FileGatewayListener.FileFilterInit, in which case the init method will be called and passed the gateway ConfigTree instance.

By default the following FileFilter implementations are defined and used by the FileGateway: if an input suffix is defined in the configuration then files matching that suffix will be returned; alternatively if there is no input suffix then any file is accepted as long as it does not match the work suffix, error suffix and post suffix.

You can use JCA Message Inflow as an ESB Gateway. This integration does not use MDBs, but rather ESB's lightweight inflow integration. To enable a gateway for a service, you must first implement an endpoint class. This class is a Java class that must implement the org.jboss.soa.esb.listeners.jca.InflowGateway class:

public interface InflowGateway

  public void setServiceInvoker(ServiceInvoker invoker);

The endpoint class must either have a default constructor, or a constructor that takes a ConfigTree parameter. This Java class must also implement the messaging type of the JCA adapter you are binding to. Here's a simple endpoint class example that hooks up to a JMS adapter:

public class JmsEndpoint implements InflowGateway, MessageListener

  private ServiceInvoker service;
  private PackageJmsMessageContents transformer = new PackageJmsMessageContents();
  public void setServiceInvoker(ServiceInvoker invoker)
    this.service = invoker;
  public void onMessage(Message message)
      org.jboss.soa.esb.message.Message esbMessage = transformer.process(message);
    catch (Exception e)
      throw new RuntimeException(e);

One instance of the JmsEndpoint class will be created per gateway defined for this class. This is not like an MDB that is pooled. Only one instance of the class will service each and every incoming message, so you must write thread safe code.

At configuration time, the ESB creates a ServiceInvoker and invokes the setServiceInvoker method on the endpoint class. The ESB then activates the JCA endpoint and the endpoint class instance is ready to receive messages. In the JmsEndpoint example, the instance receives a JMS message and converts it to an ESB message type. Then it uses the ServiceInvoker instance to invoke on the target service.

A JCA inflow gateway is configured in a jboss-esb.xml file. Here's an example:

<service category="HelloWorld_ActionESB"
  description="Hello World">
    <jca-gateway name="JMS-JCA-Gateway"
     <property name="destinationType" value="javax.jms.Queue"/>
     <property name="destination" value="queue/esb_gateway_channel"/>

<service category="HelloWorld_ActionESB"
  description="Hello World">
    <jca-gateway name="JMS-JCA-Gateway"
     <property name="destinationType" value="javax.jms.Queue"/>
     <property name="destination" value="queue/esb_gateway_channel"/>

JCA gateways are defined in <jca-gateway> elements. These are the configurable attributes of this XML element.

You must define an <activation-config> element within <jca-gateway>. This element takes one or more <property> elements which have the same syntax as action properties. The properties under <activation-config> are used to create an activation for the JCA adapter that will be used to send messages to your endpoint class. This is really no different than using JCA with MDBs.

You may also have as many <property> elements as you want within <jca-gateway>. This option is provided so that you can pass additional configuration to your endpoint class. You can read these through the ConfigTree passed to your constructor.

A number of ESB properties are automatically mapped onto the activation configuration using an ActivationMapper. The properties, their location and their purpose are described in the following table

The mapping of these properties onto an activation specification can be overridden by specifying a class which implements the ActivationMapper interface and can be declared globally or within each ESB deployment configuration.

Specifying the ActivationMapper globally is done through the jbossesb-properties.xml file and defines the default mapper used for the specified JCA adapter The name of the property to be configured is “org.jboss.soa.esb.jca.activation.mapper.<adapter name>” and the value is the class name of the ActivationMapper.

The following snippet the configuration of the default ActivationMapper used to map the properties on the the activation specification for the JBoss JCA adapter, jms-ra.rar.

<properties name="jca">
       <property name="org.jboss.soa.esb.jca.activation.mapper.jms-ra.rar"

Specifying the ActivationMapper within the deployment will override any global setting. The mapper can be specified within the listener, the bus or the provider with the precedence being the same order.

The following snippet shows an example specifying the mapper configuration within the listener configuration.

<jms-listener name="listener" busidref="bus" maxThreads="100">
        <property name="jcaActivationMapper" value="TestActivationMapper"/>

The following snippet shows an example specifying the mapper configuration within the bus configuration:

<jms-bus busid="bus">
        <property name="jcaActivationMapper" value="TestActivationMapper"/>
        <jms-message-filter dest-type="TOPIC" dest-name="DestName"/>

The following snippet shows an example specifying the mapper configuration within the provider configuration.

<jms-jca-provider name="provider" connection-factory="ConnectionFactory">
        <property name="jcaActivationMapper" value="TestActivationMapper"/>
        <jms-bus busid="bus">
            <jms-message-filter dest-type="TOPIC" dest-name="DestName"/>

JAXB Annotation Introduction configurations are very easy to write. If you're already familiar with the JAXB Annotations, you'll have no problem writing a JAXB Annotation Introduction configuration.

The XSD for the configuration is available online at http://anonsvn.jboss.org/repos/jbossws/projects/jaxbintros/tags/1.0.0.GA/src/main/resources/jaxb-intros.xsd. In your IDE, register this XSD against the http://www.jboss.org/xsd/jaxb/intros namespace.

Only 3 annotations are currently supported:

The basic structure of the configuration file follows the basic structure of a Java class i.e. a “Class” containing “Fields” and “Methods”. The <Class>, <Field> and <Method> elements all require a “name” attribute for the name of the Class, Field or Method. The value of this name attribute supports regular expressions. This allows a single Annotation Introduction configuration to be targeted at more than one Class, Field or Member e.g. setting the namespace for a fields in a Class, or for all Classes in a package etc.

The Annotation Introduction configurations match exactly with the Annotation definitions themselves, with each annotation “element-value pair” represented by an attribute on the annotations introduction configuration. Use the XSD and your IDE to editing the configuration.

So here is an example:

<?xml version = "1.0" encoding = "UTF-8"?>
<jaxb-intros xmlns="http://www.jboss.org/xsd/jaxb/intros">

  The type namespaces on the customerOrder are
  different from the rest of the message...
  <Class name="com.activebpel.ordermanagement.CustomerOrder">
    <XmlType propOrder="orderDate,name,address,items" />
      <Field name="orderDate">
        <XmlAttribute name="date" required="true" />
      <Method name="getXYZ">
         nillable="true" />
  <!-- More general namespace config for the rest of the message... -->
  <Class name="com.activebpel.ordermanagement.*">
    <Method name="get.*">
      <XmlElement namespace="http://ordermanagement.activebpel.com/jaws" />


JBossESB is a Service Oriented Architecture (SOA) infrastructure. SOA represents a popular architectural paradigm [1] for applications, with Web Services as probably the most visible way of achieving an SOA. [2] Web Services implement capabilities that are available to other applications (or even other Web Services) via industry standard network and application interfaces and protocols. SOA advocates an approach in which a software component provides its functionality as a service that can be leveraged by other software components. Components (or services) represent reusable software building blocks.

SOA allows the integration of existing systems, applications and users into a flexible architecture that can easily accommodate changing needs. Integrated design, reuse of existing IT investments and above all, industry standards are the elements needed to create a robust SOA.

As enterprises slowly emerge from the mad rush of cost reduction into a more stable period of cost management, many of them find themselves in unfamiliar territory. Prior to the economic slow down, most firms understood the options they had for IT investment. Many embarked on major package implementations (e.g., Siebel, Peoplesoft and so on), while others built on the legacy systems they have trusted for years. Either way, most firms recognized the return promised and made the investment. Today, the appetite for such large investment is gone.

However, enterprises still need to make forward progress and keep ahead of the competition. SOA (and typically Web Services as a concrete implementation of those principles) make this possible. The result is dramatic improvements in collaboration between users, applications and technology components, generating significant value for any business creating competitive advantage.

Imagine a company that has existing software from a variety of different vendors, e.g., SAP, PeopleSoft. Some of these software packages may be useful to conduct business with other companies (customers, suppliers, etc.) and therefore what the company would like to do is to take those existing systems and make them available to other companies, by exposing them as services. A service here is some software component with a stable, published interface that can be invoked by clients (other software components). So, requesting and executing services involves software components owned by one company talking to components owned by another company, i.e., business-to-business (B2B) transactions.

Conventional distributed system infrastructures (middleware) are not sufficient for these cross-organizational exchanges. For instance

  • You would need agreement between the parties involved on the middleware platform.

  • There is an implicit (and sometimes explicit) lack of trust between the parties involved.

  • Business data is confidential and should only to be seen by the intended recipient.

  • Many assumptions of conventional middleware are invalid in cross-organizational interactions. Transactions, for instance, last longer, possibly for hours or days, so conventional transaction protocols such as "two phase commit" are not applicable.

So, in B2B exchanges, the lack of standardization across middleware platforms makes point-to-point solutions costly to realize in practice. The Internet alleviated some of these problems by providing standard interaction protocols (HTTP) and data formats (XML) but, by themselves, these standards are not enough to support application integration. They do not define interface definition languages, name and directory services, transaction protocols and so forth. It is the gap between that which the Web provides and what application integration requires that Web services are trying to fill.

However, whilst the ultimate goal of SOA is inter-company interactions, services do not need to be accessed using the Internet. They can be easily made available to clients residing on a local network. It is common for web services to be used in this context to provide integration between systems operating within a single company.

An example of how Web services can connect applications both intra-company and inter-company can be understood by considering a stand-alone inventory system. If you don't connect it to anything else, it's not as valuable as it could be. The system can track inventory, but not much more. Inventory information may have to be entered separately in the accounting and customer relationship management systems. The inventory system may be unable to automatically place orders to suppliers. The benefits of such an inventory system are diminished by high overhead costs.

However, if you connect your inventory system to your accounting system with XML, it gets more interesting. Now, whenever you buy or sell something, the implications for your inventory and your cash flow can be tracked in one step. If you go further, and connect your warehouse management system, customer ordering system, supplier ordering systems, and your shipping company with XML, suddenly that inventory management system is worth a lot. You can do end-to-end management of your business while dealing with each transaction only once, instead of once for every system it affects. A lot less work and a lot less opportunity for errors. These connections can be made easily using Web services.

Businesses are waking up to the benefits of SOA. These include:

  • opening the door to new business opportunities by making it easy to connect with partners;

  • saving time and money by cutting software development time and consuming a service created by others;

  • increasing revenue streams by easily making your own services available.

The problem space can be categorized by past IT investments in the area of eProcurement, eSourcing, Supply Chain Management, Customer Relationship Management (CRM) and, indeed, Internet computing in general. All of these investments were made in a "silo." The decisions made in this space, (along with the incremental growth of these systems to meet short-term tactical requirements), hurt the long-term viability of the applications and infrastructure.

The three key drivers for implementing an SOA approach are:

  1. Cost Reduction: Achieved by the ways services talk to each other. The direct cost effect is delivered through enhanced operations productivity, effective sourcing options, and a significantly enhanced ability to shift ongoing costs to a variable model.

  2. Delivering IT solutions faster and smarter: A standards based approach will allow organizations to connect and share information and business processes much faster and easier than before. IT delivery productivity is markedly improved through simplification of the developer’s role by providing standard frameworks and interfaces. Delivery timescales have been drastically reduced by easing the integration load of individual functionality, and applying accelerated delivery techniques within the environment.

  3. Maximizing return on investment: Web Services opens the way for new business opportunities by enabling new business models. Web Services present the ability to measure value and discrete return much differently than traditional functional-benefit methods. Typical Total Cost of Ownership (TCO) models do not take into account the lifetime value generated by historical investment. This cost centric view destroys many opportunities to exploit these past investments and most enterprises end up building redundancy into their architecture, not out of necessity, but of perceived need. These same organizations focus the value proposition of their IT investment on a portfolio of applications, balanced by the overhead of infrastructure. An approach based on Web Services takes into account the lifetime contribution of legacy IT investment and promotes an evolution of these investments rather than a planned replacement.

SOA/Web Services fundamentally changes the way enterprise software is developed and deployed. SOA has evolved to the point where new applications will not be developed using monolithic approaches but, instead, become a virtualized on-demand execution model that breaks the current economic and technological bottleneck that has been caused by traditional approaches.

Software-as-a-service has become a pervasive model for forward-looking enterprises wishing to streamline operations, as it leads to lower cost of ownership and provides competitive differentiation in the marketplace. Using Web Services gives enterprises a viable opportunity to drive significant costs out of software acquisitions, react to rapidly changing market conditions and conduct transactions with business partners at will. Loosely coupled, standards-based architectures are one approach to distributed computing. They allow software resources available on the network to be leveraged. Applications that provide separate business processes, presentation rules, business rules and data access in separate, loosely-coupled layers will not only assist in the construction of better software but also make it more adaptable to future change.

SOA will allow for combining existing functions with new development efforts, allowing the creation of composite applications. Leveraging what works lowers the risks in software development projects. By reusing existing functions, it leads to faster deliverables and better delivery quality.

Loose coupling helps preserve the future by allowing parts to change at their own pace without the risks linked to costly migrations using monolithic approaches. SOA allows business users to focus on business problems at hand without worrying about technical constraints. For the individuals who develop solutions, SOA helps in the following manner:

SOA provide several significant benefits for distributed enterprise systems. Some of the most notable benefits include: interoperability, efficiency, and standardization. We will briefly explore each of these in this section.

Interoperability is the ability of software on different systems to communicate by sharing data and functionality. SOA/Web Services are as much about interoperability as they are about the Web and Internet scale computing. Most companies will have numerous business partners throughout the life of the company. Instead of writing a new addition to your applications every time you gain a new partner, you can write one interface using Web service technologies like SOAP. So now your partners can dynamically find the services they need using UDDI and bind to them using SOAP. You can also extend the interoperability of your systems by implementing Web services within your corporate intranet. With the addition of Web services to your intranet systems and to your extranet, you can reduce the cost integration, increase communication and increase your customer base.

It is also important to note that the industry has even established the Web Services Interoperability Organization.

“The Web Services Interoperability Organization is an open industry effort chartered to promote Web Services interoperability across platforms, applications, and programming languages. The organization brings together a diverse community of Web services leaders to respond to customer needs by providing guidance, recommended practices, and supporting resources for developing interoperable Web services.” (http://www.ws-i.org)

The WS-I will actually determine whether a Web service conforms to WS-I standards as well as industry standards. In order to establish integrity and acceptance, companies will seek to build their Web services in compliance with the WS-I standards.
