About This Guide

What This Guide Contains

The Registry Service contains contain important information on changes to JBoss ESB 4.3 GA since the last release and information on any outstanding issues.

Audience

This guide is most relevant to engineers who are responsible for administering JBoss ESB 4.3 GA installations.

Prerequisites

None.

Organization

This guide contains the following chapters:

Chapter 1, What is the Registry: an overview of what the registry provides and how it is used in JBossESB.
Chapter 2, Configuration: this chapter contains information on how to configure the registry
Chapter 2, Example Configurations: this chapter illustrates some useful configurations..
Chapter 3, Troubleshooting: information covering how to diagnose and fix common problems.

Documentation Conventions

The following conventions are used in this guide:

Convention	Description
Italic	In paragraph text, italic identifies the titles of documents that are being referenced. When used in conjunction with the Code text described below, italics identify a variable that should be replaced by the user with an actual value.
Bold	Emphasizes items of particular importance.
Code	Text that represents programming code.
Function \| Function	A path to a function or dialog box within an interface. For example, “Select File \| Open.” indicates that you should select the Open function from the File menu.
( ) and \|	Parentheses enclose optional items in command syntax. The vertical bar separates syntax items in a list of choices. For example, any of the following three items can be entered in this syntax: persistPolicy (Never \| OnTimer \| OnUpdate \| NoMoreOftenThan)
Note: Caution:	A note highlights important supplemental information. A caution highlights procedures or information that is necessary to avoid damage to equipment, damage to software, loss of data, or invalid test results.

Table 1 Formatting Conventions

Additional Documentation

In addition to this guide, the following guides are available in the JBoss ESB 4.3 GA documentation set:

JBoss ESB 4.3 GA Trailblazer Guide: Provides guidance for using the trailblazer example.
JBoss ESB 4.3 GA Getting Started Guide: Provides a quick start reference to configuring and using the ESB.
JBoss ESB 4.3 GA Programmers Guide: How to use JBossESB.
JBoss ESB 4.3 GA Release Notes: Information on the differences between this release and previous releases.
JBoss ESB 4.3 GA Administration Guide: How to manage the ESB.

Contacting Us

Questions or comments about JBoss ESB 4.3 GA should be directed to our support team.

Chapter 1

What is the Registry?

Introduction

In the context of SOA, a registry provides applications and businesses a central point to store information about their services. It is expected to provide the same level of information and the same breadth of services to its clients as that of a conventional market place. Ideally a registry should also facilitate the automated discovery and execution of e-commerce transactions and enabling a dynamic environment for business transactions. Therefore, a registry is more than an “e-business directory”. It is an inherent component of the SOA infrastructure.

Why do I need it ?

It is not difficult to discover, manage and interface with business partners on a small scale, using manual or ad hoc techniques. However, this approach does not scale as the number of services, the frequency of interactions, the physical distributed nature of the environment, increases. A registry solution based on agreed upon standards provides a common way to publish and discover services. It offers a central place where you query whether a partner has a service that is compatible with in-house technologies or to find a list of companies that support shipping services on the other side of the globe.

Service registries are central to most service oriented architectures and at runtime act as a contact point to correlate service requests to concrete behaviors. A service registry has meta-data entries for all artifacts within the SOA that are used at both runtime and design time. Items inside a service registry may include service description artifacts (e.g., WSDL), Service Policy descriptions, various XML schema used by services, artifacts representing different versions of services, governance and security artifacts (e.g., certificates, audit trails), etc. During the design phase, business process designers may use the registry to link together calls to several services to create a workflow or business process.

The registry may be replicated or federated to improve performance and reliability. It need not be a single point of failure.

How do I use it ?

From a business analyst’s perspective, it is similar to an Internet search engine for business processes. From a developers perspective, they use the registry to publish services and query the registry to discover services matching various criteria.

Registry Vs Repository

A registry allows for the registration of services, discovery of metadata and classification of entities into predefined categories. Unlike a respository, it does not have the ability to store business process definitions or WSDL or any other documents that are required for trading agreements. A registry is essentially a catalogue of items, whereas a repository maintaines those items.

SOA components

As the W3C puts it: An SOA is a specific type of distributed system in which the agents are "services" (http://www.w3.org/TR/2003/WD-ws-arch-20030808/#id2617708).

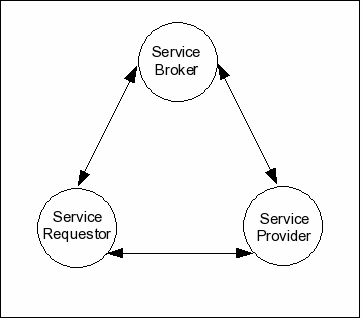

The key components of a Service Oriented Architecture are the messages that are exchanged, agents that act as service requesters and service providers, and shared transport mechanisms that allow the flow of messages. A description of a service that exists within an SOA is essentially just a description of the message exchange patter between itself and its users. Within an SOA there are thus three critical roles: requester, provider, and broker.

Service provider: allows access to services, creates a description of a service and publishes it to the service broker.
Service broker: hosts a registry of service descriptions. It is responsible for linking a requestor to a service provider.
Service requester: is responsible for discovering a service by searching through the service descriptions given by the service broker. A requestor is also responsible for binding to services provided by the service provider.

UDDI

The Universal Description, Discovery and Integration registry is a directory service for Web Services. It enables service discovery through queries to the UDDI registry at design time or at run time. It also allows providers to publish descriptions of their services to the registry. The registry typically contains a URL that locates the WSDL document for the web services and contact information for the service provider. Within UDDI information is classified into the following categories.

White pages: contain general information such as the name, address and other contact information about the company providing the service.
Yellow pages: categorize businesses based on the industry their services cater to.
Green pages: provide information that will enable a client to bind to the service that is being provided.

The Registry and JBossESB

The registry plays a central role within JBossESB. It is used to store endpoint references (EPRs) for the services deployed within the ESB. It may be updated dynamically when services first start-up, or statically by an external administrator.

As with all environments within which registries reside, it is not possible for the registry to determine the liveness of the entities its data represents, e.g., if an EPR is registered with the registry then there can be no guarantee that the EPR is valid (it may be malformed) or it may represent a services that is no longer active. At present JBossESB does not perform life-cycle monitoring of the services that are deployed within it. As such, if services fail or move elsewhere, their EPRs that may reside within the registry will remain until they are explicitly updated or removed by an administrator. Therefore, if you get warnings or errors related to EPRs obtained from the registry, you should consider removing any out-of-date items.

Chapter 2

Configuring the Registry

Introduction

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 				value="org.apache.juddi.registry.local.InquiryService#inquire"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="org.apache.juddi.registry.local.PublishService#publish"/>

    	<property name="org.jboss.soa.esb.registry.user" 	value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password"	value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.LocalTransport"/>
</properties>

Property	Description
org.jboss.soa.esb.registry.implementationClass	A class that implements the jbossesb Registry interface. We have provided one implementation (JAXRRegistry interface).
org.jboss.soa.esb.registry.factoryClass	The class name of the JAXR ConnectionFactory implementation.
org.jboss.soa.esb.registry.queryManagerURI	The URI used by JAXR to query.
org.jboss.soa.esb.registry.lifeCycleManagerURI	The URI used by JAXR to edit.
org.jboss.soa.esb.registry.user	The user used for edits.
org.jboss.soa.esb.registry.password	The password to go along with the user.
org.jboss.soa.esb.scout.proxy.transportClass	The name of the class used by scout to do the transport from scout to the UDDI.

The components involved

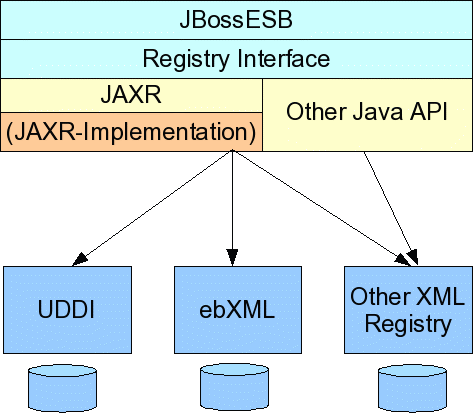

Figure 1. Blue print of the Registry component architecture.

The Registry Implementation Class

Property: org.jboss.soa.esb.registry.implementationClass

By default we use the JAXR API. The JAXR API is a convenient API since it allows us to connect any kind of XML based registry or repository. However, if for example you want to use Systinet's Java API you can do that by writing your own SystinetRegistryImplentation class and referencing it in this property.

Using JAXR

Propery: org.jboss.soa.esb.registry.factoryClass

If you decided to use JAXR then you will have to pick which JAXR implementation to use. This property is used to configure that class. By default we use Scout and therefore it is set to the scout factory 'org.apache.ws.scout.registry.ConnectionFactoryImpl'. The next step is to tell the JAXR implementation the location of the registry or repository for querying and updating, which is done by setting the org.jboss.soa.esb.registry.queryManagerURI, and org.jboss.soa.esb.registry.lifeCycleManagerURI respectively, along with the username (org.jboss.soa.esb.registry.user) and password (org.jboss.soa.esb.registry.password) for the UDDI.

Using Scout and jUDDI

SOAP
queryManagerURI	http://localhost:8080/juddi/inquiry
lifeCycleManagerURI	http://localhost:8080/juddi/publish
transportClass		org.apache.ws.scout.transport.AxisTransport

RMI
queryManagerURI 	jnp://localhost:1099/InquiryService?org.apache.juddi.registry.rmi.Inquiry#inquire
lifeCycleManagerURI 	jnp://localhost:1099/PublishService?org.apache.juddi.registry.rmi.Publish#publish
transportClass		org.apache.ws.scout.transport.RMITransport

Local
queryManagerURI	org.apache.juddi.registry.local.InquiryService#inquire
lifeCycleManagerURI	org.apache.juddi.registry.local.PublishService#publish
transportClass		org.apache.ws.scout.transport.LocalTransport

For jUDDI we have two requirements that need to be fulfilled:

access to the jUDDI database. You will need to create a schema in your database, and add the jbossesb publisher. The product/install/jUDDI-registry directory contains db create scripts for you favorite database.
esb.juddi.xml. The configuration of jUDDI itself. If you do not use a datasource you need to take special care to set the following properties:

	<entry key=”juddi.isUseDataSource”>false</entry>
	<entry key=”juddi.jdbcDriver”>com.mysql.jdbc.Driver</entry>
	<entry key=”juddi.jdbcUrl”>jdbc:mysql://localhost/juddi</entry>
	<entry key=”juddi.jdbcUsername”>juddi</entry>
	<entry key=”juddi.jdbcPassword”>juddi</entry>

if you do use a datasource you need something like

	<entry key=”juddi.isUseDataSource”>true</entry>
	<entry key=”juddi.dataSource”>java:comp/env/jdbc/juddiDB</entry>

The database can be automatically created if the user you have created has enough rights to create tables. Next make sure the isCreateDatabase flag is set to true, and that the sqlFiles parameter settings point to the database you are using. The jUDDI create scripts are located in the juddi.jar and jUDDI supports daffodildb, db2, derby, firebird, hsqldb, informix, jdatastore, mysql, oracle, postgresql, sybase (can be used for ms-sqlserver) and totalxml.

      <!-- <entry key=”juddi.tablePrefix”>JUDDI_</entry> -->
	<entry key=”juddi.isCreateDatabase”>true</entry>
	<entry key=”juddi.databaseExistsSql”>select * from ${prefix}BUSINESS_ENTITY
	</entry>
	<entry key=”juddi.sqlFiles”>
		juddi-sql/mysql/create_database.sql,
               juddi sql/mysql/insert_publishers.sql
	</entry>

Chapter 3

Configuration Examples

Introduction

As mentioned before, by default the JBossESB is configured to use the JAXR API using Scout as its implementation and jUDDI as the registry. Here are some examples of how you can deploy this combo.

Embedded

All ESB components (with components we really mean JVMs in this case) can embed the registry and they all can connect to the same database (or different once if that makes sense).

Figure 2. Embedded jUDDI. Properties example:

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 				value="org.apache.juddi.registry.local.InquiryService#inquire"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="org.apache.juddi.registry.local.PublishService#publish"/>

    	<property name="org.jboss.soa.esb.registry.user" value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password" value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.LocalTransport"/>
</properties>

RMI using the juddi.war or jbossesb.sar

Deploy a version of the jUDDI that brings up an RMI service. The JBossESB comes with a juddi.war in the product/install/jUDDI-registry directory. This war brings up the regular webservices but also an RMI service. Along with the juddi.war you need to deploy a datasource which points to your jUDDI database. An example file is supplied for MySQL.

The jbossesb.sar also registers a RMI service. So you would only need to deploy the juddi.war if you need webservice access.

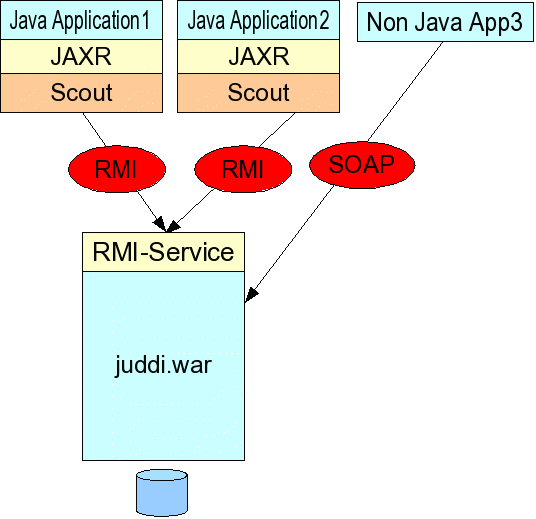

Figure 3. RMI using the juddi.war Properties example:

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 					value="jnp://localhost:1099/InquiryService?org.apache.juddi.registry.rmi.Inquiry#inquire"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="jnp://localhost:1099/PublishService?org.apache.juddi.registry.rmi.Publish#publish"/>

    	<property name="org.jboss.soa.esb.registry.user" value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password" value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.RMITransport"/>
</properties>

The juddi.war is configured to bring up a RMI Service, which is triggered by the following setting in the web.xml

<!--  uncomment if you want to enable making calls in juddi with rmi  -->
  <servlet>
  	<servlet-name>RegisterServicesWithJNDI</servlet-name>
  	<servlet-class>org.apache.juddi.registry.rmi.RegistrationService</servlet-class>
  	<load-on-startup>1</load-on-startup>
  </servlet>

Make sure to include, for example, the following JNDI settings in your juddi.properties:

# JNDI settings (used by RMITransport)
java.naming.factory.initial=org.jnp.interfaces.NamingContextFactory
java.naming.provider.url=jnp://localhost:1099
java.naming.factory.url.pkgs=org.jboss.naming

The RMI clients need to have the scout-client.jar in their classpath.

RMI using your own JNDI Registration of the RMI Service

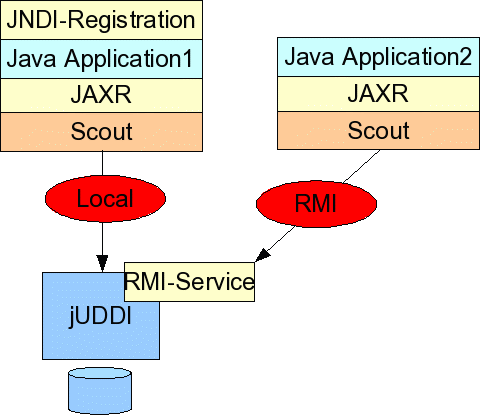

Figure 4. RMI using your own JNDI registration Properties example: For application 1 you need the Local settings:

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 				value="org.apache.juddi.registry.local.InquiryService#inquire"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="org.apache.juddi.registry.local.PublishService#publish"/>

    	<property name="org.jboss.soa.esb.registry.user" value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password" value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.LocalTransport"/>
</properties>

while for application2 you need the RMI settings:

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 				value="jnp://localhost:1099/InquiryService?org.apache.juddi.registry.rmi.Inquiry#inquire"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="jnp://localhost:1099/PublishService?org.apache.juddi.registry.rmi.Publish#publish"/>

    	<property name="org.jboss.soa.esb.registry.user" value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password" value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.RMITransport"/>
</properties>

//Getting the JNDI setting from the config
String factoryInitial = Config.getStringProperty(
Properties env = new Properties();
env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_INITIAL,factoryInitial);
env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_PROVIDER_URL, providerURL);
env.setProperty(RegistryEngine.PROPNAME_JAVA_NAMING_FACTORY_URL_PKGS, factoryURLPkgs);

InitialContext context = new InitialContext(env);
Inquiry inquiry = new InquiryService();
log.info("Setting " + INQUIRY_SERVICE + ", " + inquiry.getClass().getName());
mInquery = inquiry;
context.bind(INQUIRY_SERVICE, inquiry);
Publish publish = new PublishService();
log.info("Setting " + PUBLISH_SERVICE + ", " + publish.getClass().getName());
mPublish = publish;
context.bind(PUBLISH_SERVICE, publish);

2.4 SOAP

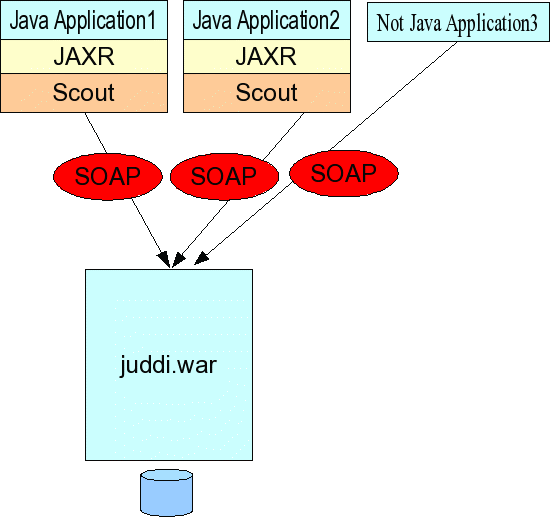

Figure 5. SOAP. Properties example:

<properties name="registry">
	<property name="org.jboss.soa.esb.registry.implementationClass" 				value="org.jboss.internal.soa.esb.services.registry.JAXRRegistryImpl"/>

	<property name="org.jboss.soa.esb.registry.factoryClass" 					value="org.apache.ws.scout.registry.ConnectionFactoryImpl"/>

    	<property name="org.jboss.soa.esb.registry.queryManagerURI" 				value="http://localhost:8080/juddi/inquiry"/>

    	<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" 				value="http://localhost:8080/juddi/publish"/>

    	<property name="org.jboss.soa.esb.registry.user" value="jbossesb"/>
    	<property name="org.jboss.soa.esb.registry.password" value="password"/>

    	<property name="org.jboss.soa.esb.scout.proxy.transportClass" 				value="org.apache.ws.scout.transport.AxisTransport"/>
</properties>

JBossAS 4.2 ships with older versions of Scout and jUDDI. It is recommended to remove the juddi.sar to prevent versioning issues.

Chapter 3

UDDI Browser

Introduction

We are looking for a good web based console for jUDDI. In the meantime you can browse the jUDDI registry using the uddibrowser. The uddibrowser 'ub' can be downloaded from http://www.uddibrowser.org. Before configuring the ub make sure the juddi.war is deployed to the jbossesb.sar, to enable WS communication to jUDDI.

UB setup

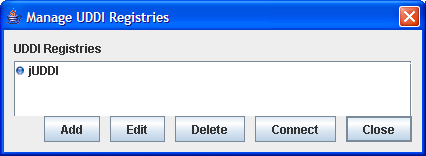

The ub is a standalone Java application. Start the ub and select Edit > UDDI Registries, and add an entry called jUDDI


Figure 6. Add a connection.

with settings

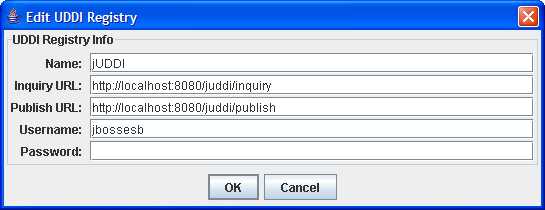

Figure 7. jUDDI connection settings

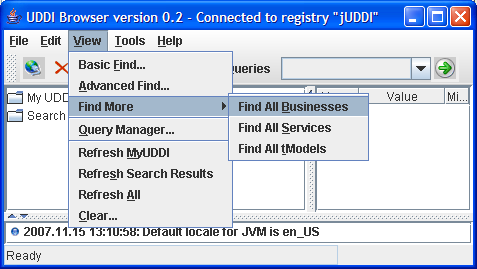

Click on 'connect' and select View > Find More > Find All Businesses




Figure 8. View all Businesses.

and in the left hand side you should see the Red Hat/JBossESB organization. You can navigate into the individual services and their ServiceBindings.


Figure 9. View Services and ServiceBindings.

Each ServiceBinding contains an EPR in its AccessPoint.

Some features of the uddibrowser may not work, but it should give enough functionality to maintain jUDDI. As mentioned before we are looking for a good web based console for jUDDI.

Chapter 4

Troubleshooting

Scout and jUDDI pitfalls

Make sure to put our version of the jaxr-api-1.0.jar, scout-0.7rc2-embedded.jar and the juddi-embedded.jar first. Other versions of these libraries are present in the JBossAS libraries and they are, for the time being, incompatible. This should get resolved in future release of the Application Server.
If you use RMI you need the juddi-client.jar.
Make sure the jbossesb-properties.xml file is on the classpath and read or else the registry will try to instantiate classes with the name of 'null'.
Make sure you have a juddi.properties file on your classpath for jUDDI to configure itself. JBossESB uses esb.juddi.xml, but generates the juddi.properties file for jUDDI to read.
Make sure to read the README in the product/install/jUDDI-registry directory, to prepopulate your own jUDDI database.
In the event that a service fails or does not shut down cleanly, it is possible that stale entries may persist within a registry. You will have to remove these manually.

More Information

For more information see the wiki http://labs.jboss.com/wiki/JudyEvaluation
JBossESB user forum: http://www.jboss.com/index.html?module=bb&op=viewforum&f=246
When you deploy the juddi.war that ship with our esb, you enable access through SOAP, which means that you can use any uddi brower. You can use http://uddibrowser.org

JBESB-RS-5/22/08
