Configuration




In order to communicate with the SOA Software registry, you will have to configure JBoss ESB to communicate with the SOA Software registry. In order to do this, the first thing you need to do is to point the JBoss ESB towards the SOA Software registry.


This text assumes you have a running JBoss Application/ESB Server, version 4.6.GA.

jbossesb-properties.xml

Edit server/<profile>/deploy/jbossesb.sar/jbossesb-properties.xml and change the following lines – if you are deploying to JBoss AS 5.1.0 or higher, this file is located in server/<profile>/deployers/esb.deployer/jbossesb-properties.xml :
<property name="org.jboss.soa.esb.registry.queryManagerURI" value="org.apache.juddi.registry.local.InquiryService#inquire"/>
<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" value="org.apache.juddi.registry.local.PublishService#publish"/>
To the following (and make sure to edit the queryManagerURI and the lifeCycleManagerURI to match the URLs from your installation of SOA Workbench) : <property name="org.jboss.soa.esb.registry.uddi.maxRows" value="100"/>
<property name="org.jboss.soa.esb.registry.queryManagerURI" value=
"http://stacks2:9901/uddi/inquiry_v2"/>
<property name="org.jboss.soa.esb.registry.lifeCycleManagerURI" value=
"http://stacks2:9901/uddi/publish_v2"/>
Change jbossesb-properties.xml:
<property name="org.jboss.soa.esb.scout.proxy.transportClass" value="org.apache.ws.scout.transport.LocalTransport"/> To
<property name="org.jboss.soa.esb.scout.proxy.transportClass" value="org.apache.ws.scout.transport.AxisTransport"/> Also, within jbossesb-properties.xml, change :
<property name="org.jboss.soa.esb.registry.user" value="administrator"/>
<property name="org.jboss.soa.esb.registry.password" value="password"/>

to match the SOA Workbench user and password you'll be using.

Add Axis and commons-discovery JARs

    Copy a recent version of Apache Axis and Apache Commons Discovery into server/<profile>/lib. The integration was tested using axis-1.4.jar and commons-discovery-0.2.jar. Download axis-bin-1_4.tar.gz from the Apache Axis site (http://ws.apache.org/axis/) to find these JARs.


SOA Workbench Configurations

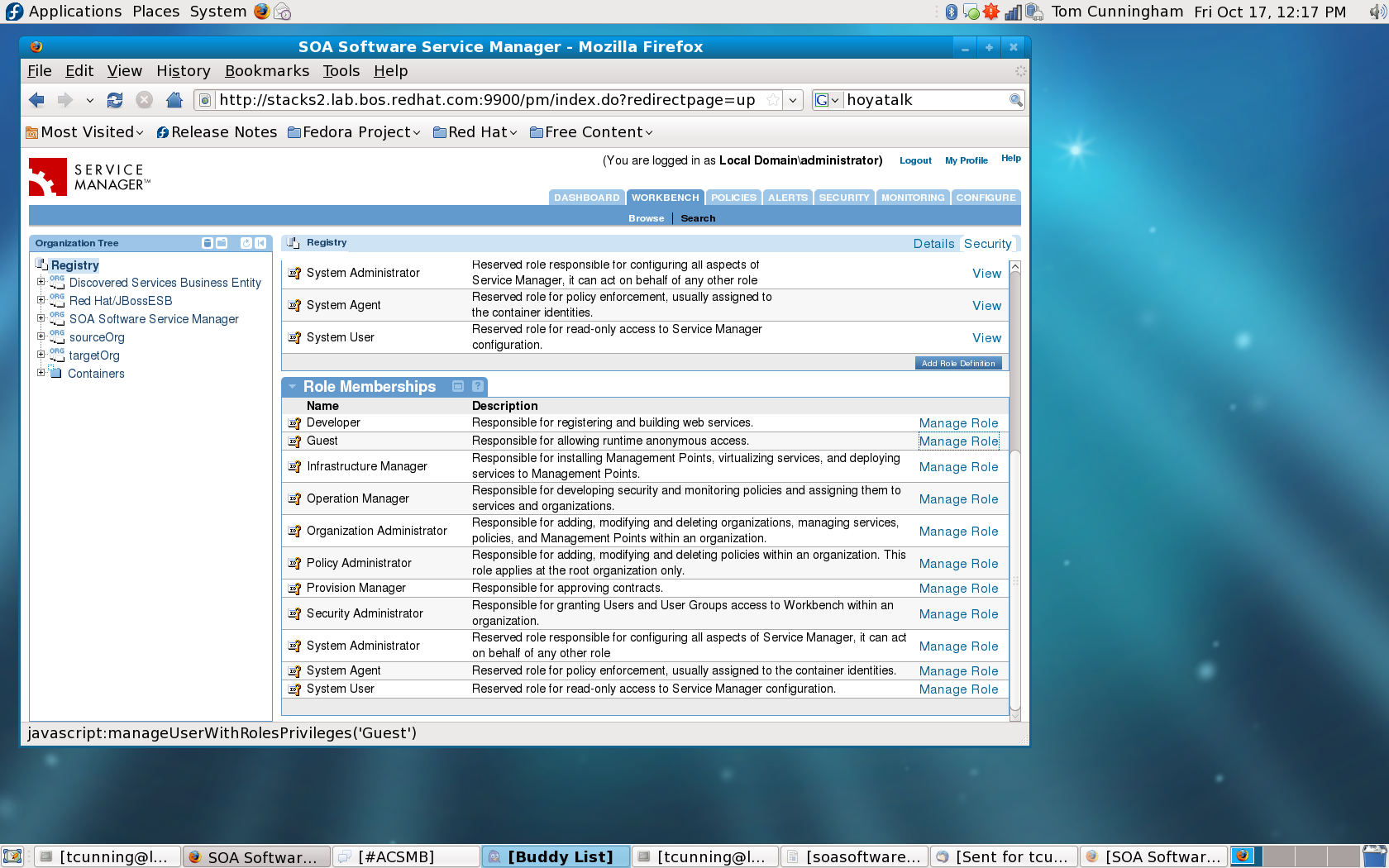

Configure the guest user in Workbench to the guest role. Click on the top level registry node in Workbench (in the Organization Tree) and click on the second-level “Security” tab (within the Workbench hierarchy). Click “Manage Role” for “Guest” under “Role Memberships :

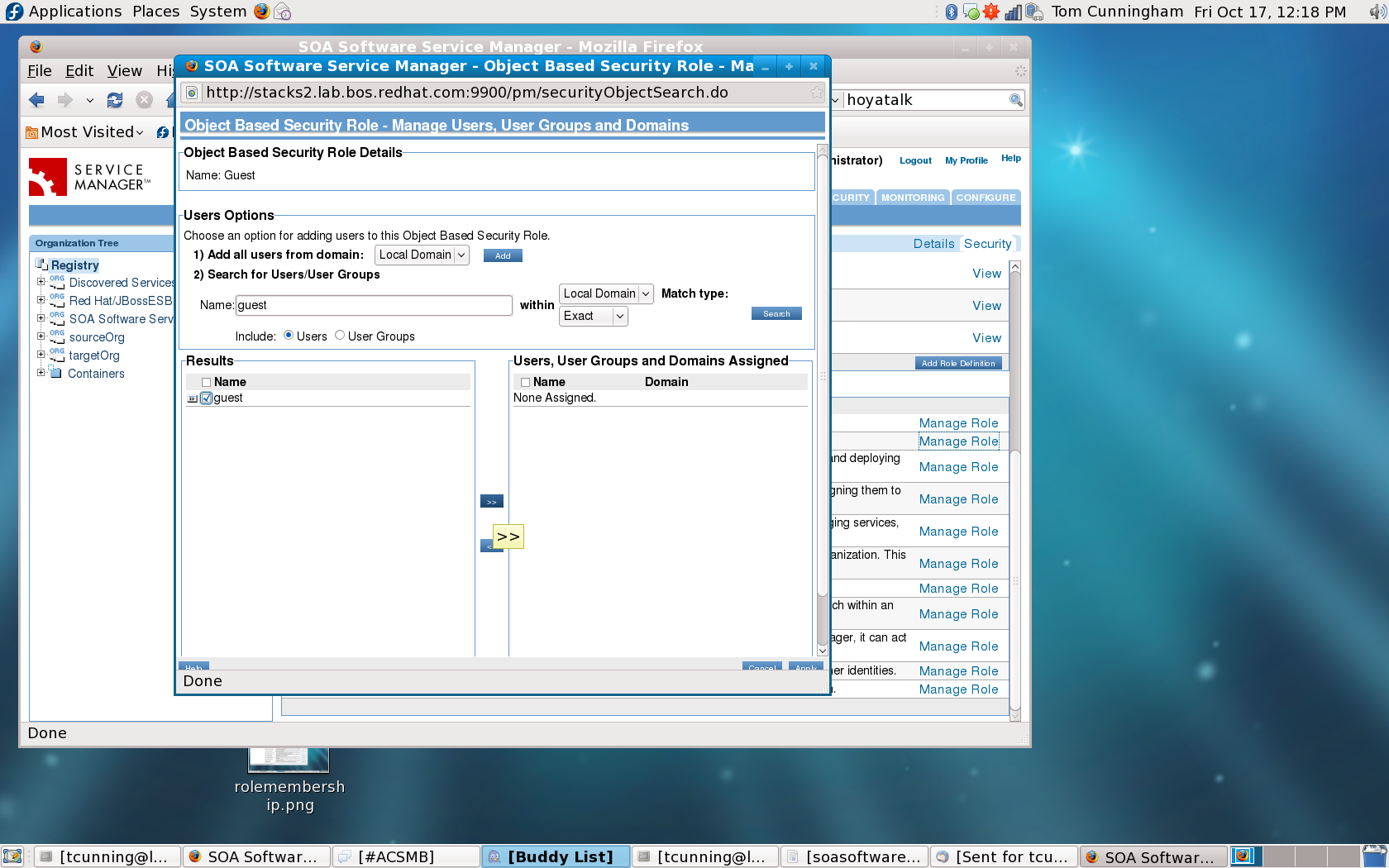

Search for the user “guest”, and add them to the Guest Role by selecting the checkbox next to “guest” clicking “Apply” :


Workflow Configurations

Change the Workflow so that ESB services are published upon creation. Click on the “Configure” tab and then select “Workflow”. View the Workflow Definition, save it to your local disk, and then change the function type line under @create to <function type="publish" /> and the step attribute to “100”. After saving, Update the Workflow to the local copy you have saved.



Before:

<action id="1" name="@create">

<results>

<unconditional-result old-status="Created" status="Draft" step="100" owner="${caller}"/>

</results>

<post-functions>

<function type="setLifecycleStage">

<arg name="stage">Design</arg>

</function>

</post-functions>

</action>



After:

<action id="1" name="@create">

<results>

<unconditional-result old-status="Created" status="Draft" step="100" owner="${caller}"/>

</results>

<post-functions>

<function type="publish" />

</post-functions>

</action>





Running

Start JBossESB :

cd bin
run.bat (if on Windows) or run.sh (on Unix)

Read product/docs/GettingStarted.pdf and follow the directions for running the Helloworld QS.




Managing Your Services

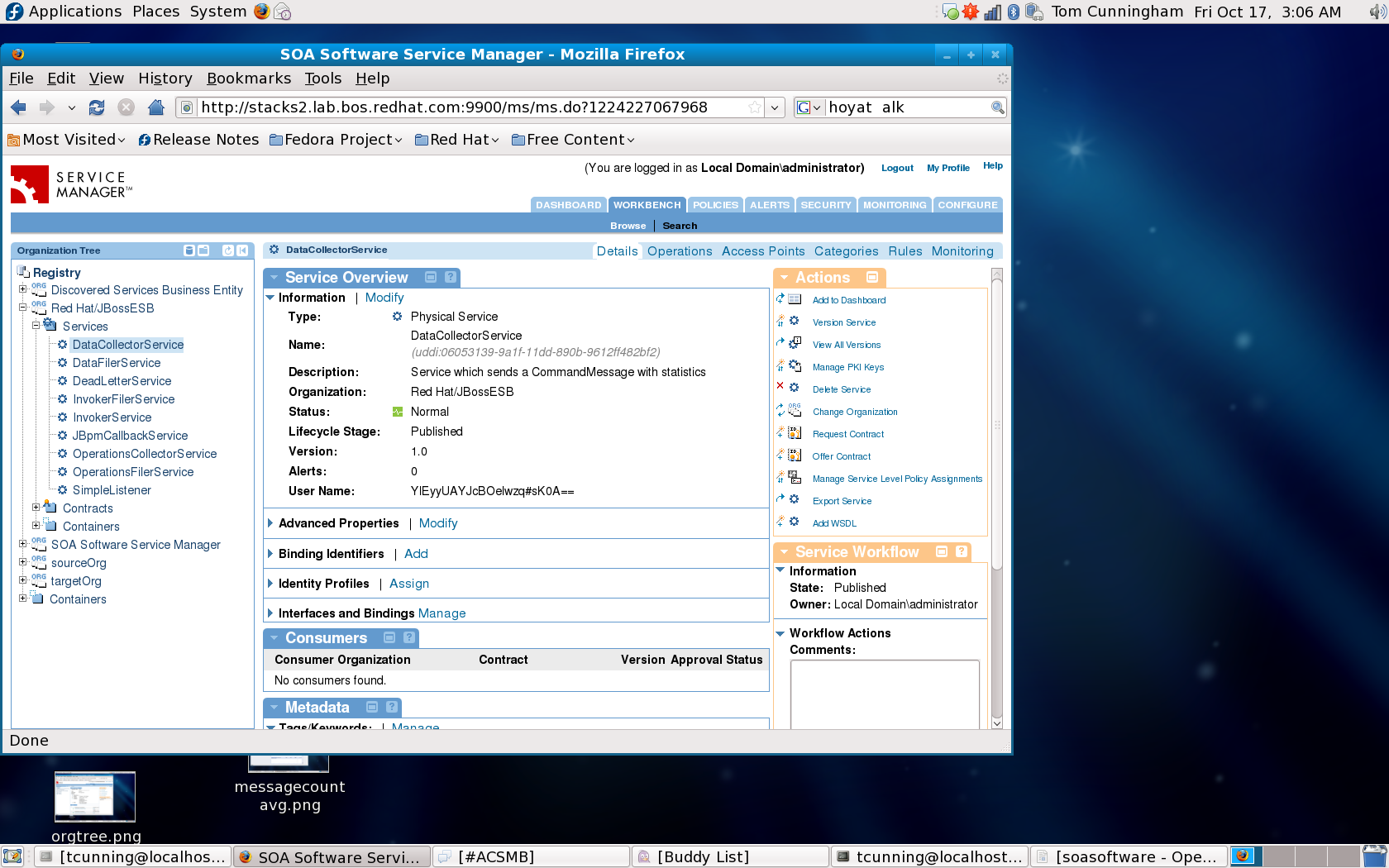

You can manage your services through Workbench – as you notice in the left frame of the screenshot below, services register with the SOA Software Workbench.

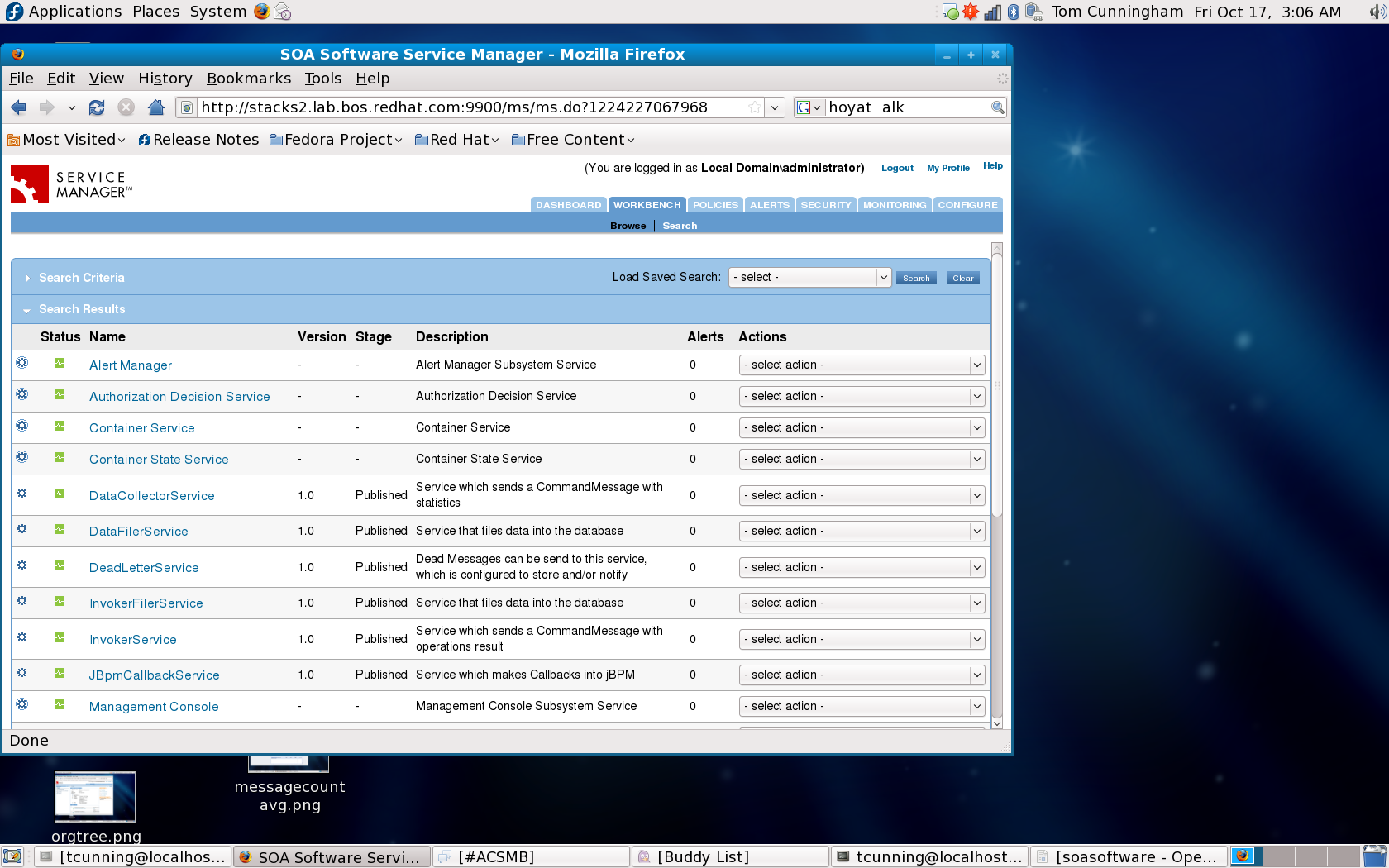

Search:


The “Search” option within Workbench allows the user to manage their services and shows the state, version, description, and number of alerts produced from those services.
