You can use these commands to checkout jbosside releng from jboss' anonymous cvs:
$ cvs -d:pserver:anonymous@anoncvs.forge.jboss.com:/cvsroot/jboss login
You will be prompted for a password, which you should just leave blank and press "Enter".
$ cvs -d:pserver:anonymous@anoncvs.forge.jboss.com:/cvsroot/jboss co jbosside/releng/org.jboss.ide.eclipse.releng
There are two targets in this script, depending on how you plan on running the JBossIDE Build system.
You will need to run the customizeBuild.xml with a recent version of Ant (tested w/ 1.6.5) like so:
ant -f customizeBuild.xml

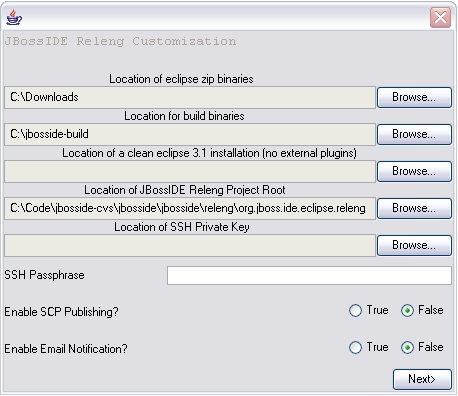

The dialog you receive should look something like this:
Here's a breakdown of the fields and what they mean:
Location of eclipse zip binaries This should be a directory where the various binary zip distributions of eclipse live. By default, the build system expects both win32 and linux-gtk builds to be in this directory. You can configure which eclipse builds are used as build targets / bundle targets in builders/product/build.properties, in the eclipse.builds property (available after customization). Location for build binaries The entire build output hierarchy will be placed in this directory (ZIPs, build logs, etc). It is recommended that this be a directory other than where you checked out the releng project. Location of a clean eclipse 3.1 installation (no external plugins) The top level directory where a fresh extract of eclipse 3.1 lives. Note that this eclipse extract should be completely clean of external plugins. Location of JBossIDE Releng Project Root This is the top level directory of the jbosside releng project. If you ran the customizeBuild.xml ant script correctly, this should be automatically set correctly for you. Location of SSH Private Key The location of a ssh private key for publishing build results. Unless you are a JBossIDE developer, you should ignore this. SSH Passphrase SSH passphrase for the selected private key. Unless you are a JBossIDE developer, you should ignore this. Enable SCP Publishing? Enable/Disable scp publishing of build zips and logs. Unless you are a JBossIDE developer, you should ignore this. Enable Emal Notification? Enable/Disable email notification. Unless you are a JBossIDE developer, you should ignore this. After filling out all the fields, you can click "Next>" and the customization process will finish.
Start by copying customize.properties.example to customize.properties. After it's copied, let's open it up and take a look at each property and what it means.
| eclipse.archive.path | This should be a directory where the various binary zip distributions of eclipse live. By default, the build system expects both win32 and linux-gtk builds to be in this directory. You can configure which eclipse builds are used as build targets / bundle targets in builders/product/build.properties, in the eclipse.builds property (available after customization). |
| build.output.directory | The entire build output hierarchy will be placed in this directory (ZIPs, build logs, etc). It is recommended that this be a directory other than where you checked out the releng project. |
| clean.eclipse.home | The top level directory where a fresh extract of eclipse 3.1 lives. Note that this eclipse extract should be completely clean of external plugins. |
| releng.root | This is the top level directory of the jbosside releng project. If you ran the customizeBuild.xml ant script correctly, this should be automatically set correctly for you. |
| ssh.key | The location of a ssh private key for publishing build results. Unless you are a JBossIDE developer, you should ignore this. |
| ssh.passphrase | SSH passphrase for the selected private key. Unless you are a JBossIDE developer, you should ignore this. |
| enable.publishing | Enable/Disable scp publishing of build zips and logs. Should be true or false. Unless you are a JBossIDE developer, you should ignore this. |
| enable.notification | Enable/Disable email notification. Should be true or false. Unless you are a JBossIDE developer, you should ignore this. |
| build.script.ext | Build script extension for this platform. Should be "bat" or "sh". (No quotes) |
After setting the properties, you will need to run the customizeBuild.xml ant script, and call the target "customize", like so:
ant -f customizeBuild.xml customize
The quickest way to get started is to try a nightly build of the entire JBossIDE product. Be warned though, this can take upwards of 20-30 minutes on slower machines, and even longer if publishing is enabled. To run a nightly build, from the builders directory, execute:
On Windows:
build-nightly.bat product
On Unix (or cygwin/mingw):
./build-nightly.sh product
After the build is complete, you should see various zip files in various folders in your build output directory.
The JBossIDE Build system breaks down builds into 3 seperate types. Integration, Nightly, and Release builds. Both integration and nightly builds will append the Ixxxx or Nxxxx string to the end of the current release version of each plugin and feature being built.
Nightly builds will by default pull everything from the "HEAD" of the corresponding CVS repository for each builder. The built archives will all look something like JBossIDE-Nxxxxxx.zip
An integration build is mainly used to do a final test of a release before it is deemed "release" quality. An integration build, like a release build, uses a properties file that follows the same syntax as below. Built archives will all look something like JBossIDE-Ixxxxxx.zip
When building an integration build, the build-integration script requires an extra argument; the name of the tag properties file, i.e:
./build-integration.sh product -tags product/versionTags/1.5RC2.tags
Release builds are special in that they have a "tags" file which maps each builder to a specific sub-version. The name of the tags file is ${release-name}.tags, and it lives under builders/product/versionTags. Here is an example from the JBossIDE 1.5RC2 release (1.5RC2.tags):
#component versions aop=1.1.0.RC2 ejb3=1.0.0.RC2 core=1.5.0.RC2 hibernate-tools=beta2 jbpm=3.0.5.2 tests=1.0.0 #cvs tags hibernate-tools.cvs=TOOLS_3_1_0_BETA1JBIDERC2 jbpm.cvs=jbpm_gpd_3_0_5_2 core.cvs=IDE_CORE_1_5_RC2 aop.cvs=IDE_AOP_DEVELOPER_1_1_0_RC2 ejb3.cvs=IDE_EJB3_TOOLS_1_0_RC2 tests.cvs=HEAD
When building a release build, the build-release script requires an extra argument; the release name. i.e:
./build-release.sh product 1.5RC2
The build system also supports building standalone builders seperately from the entire product. It should be noted that building seperately does not currently support scp publishing, or email notification. For example, to do an nightly build of Hibernate Tools:
./build-nightly.sh hibernate-tools
You can find a list of builders by looking at the directories under the builders directory (everything except common).
