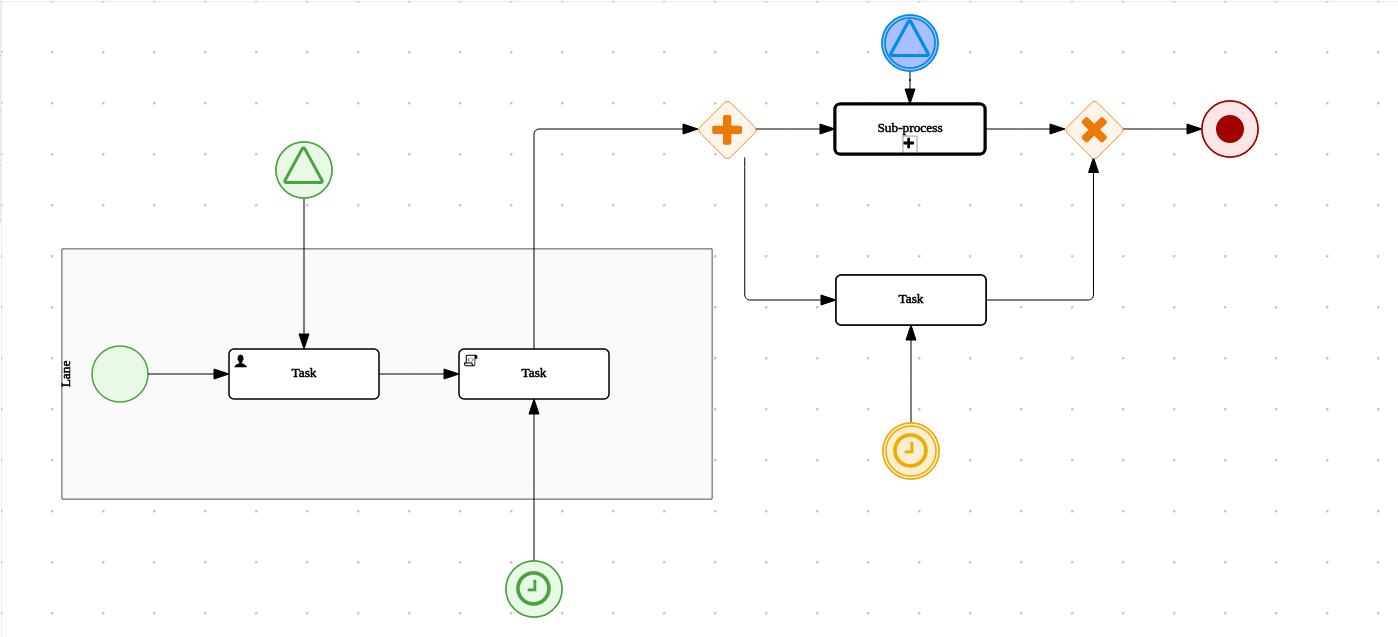

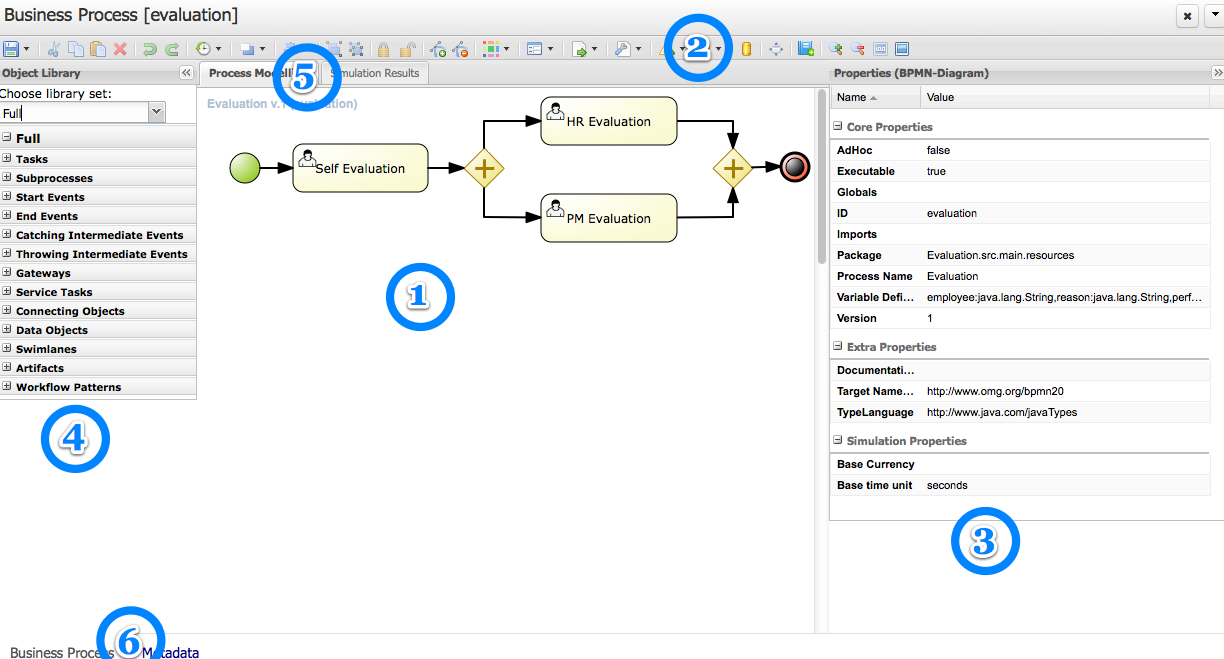

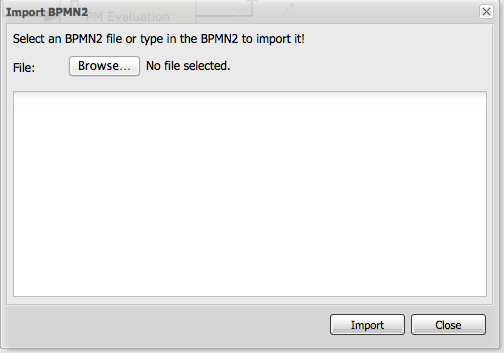

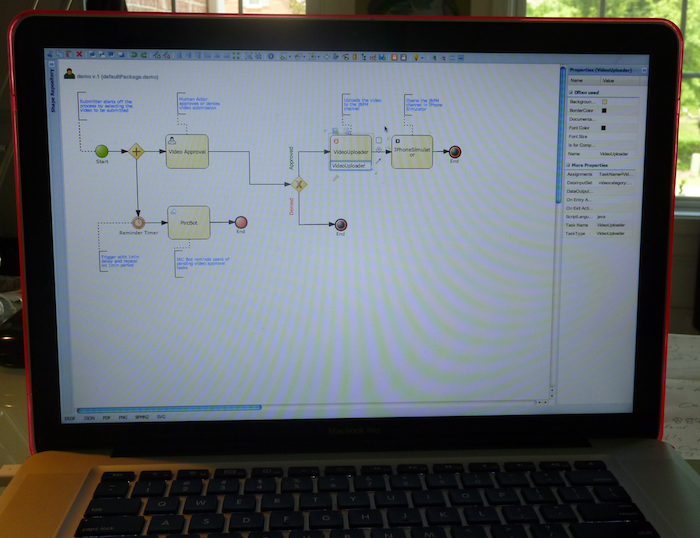

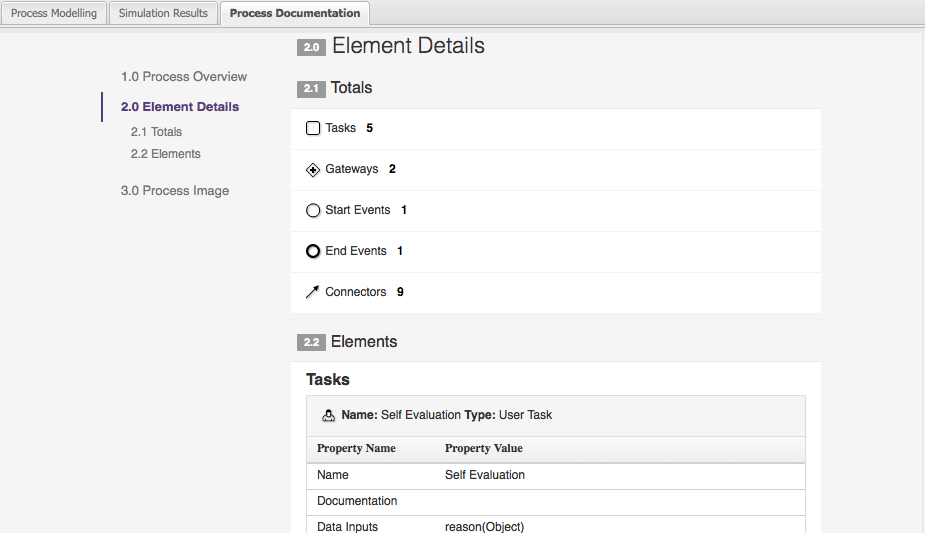

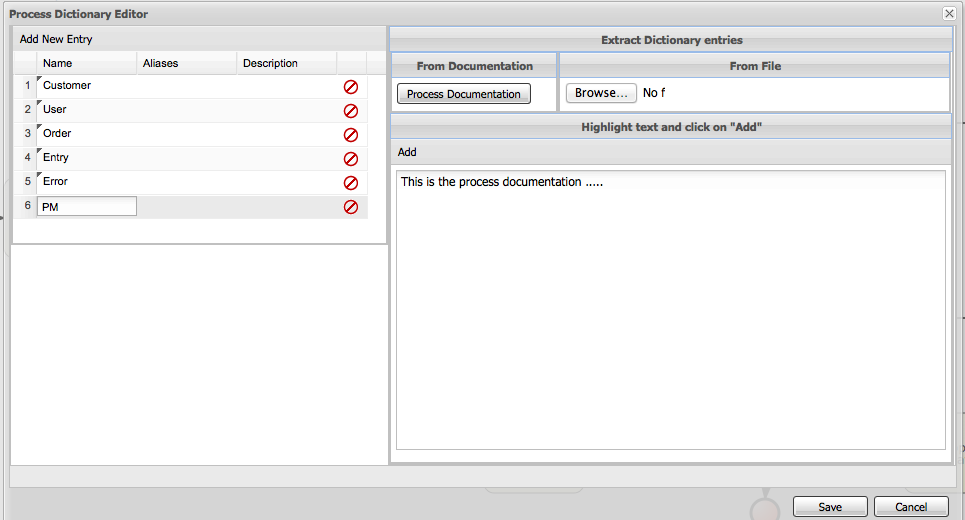

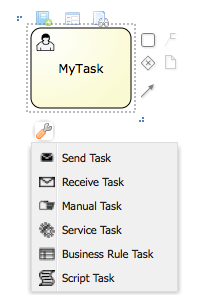

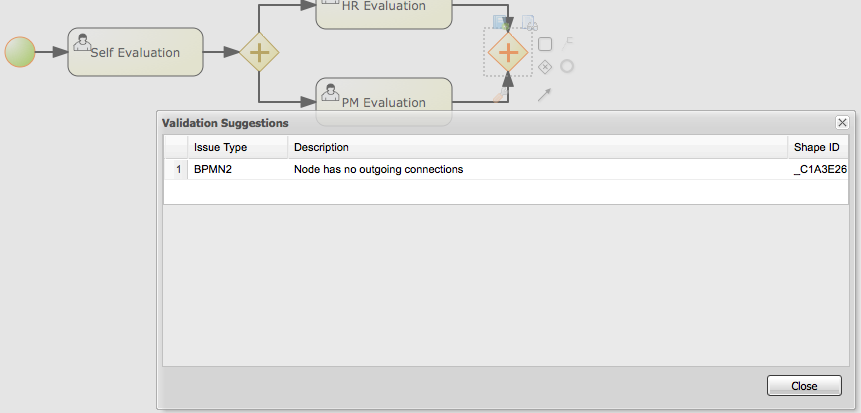

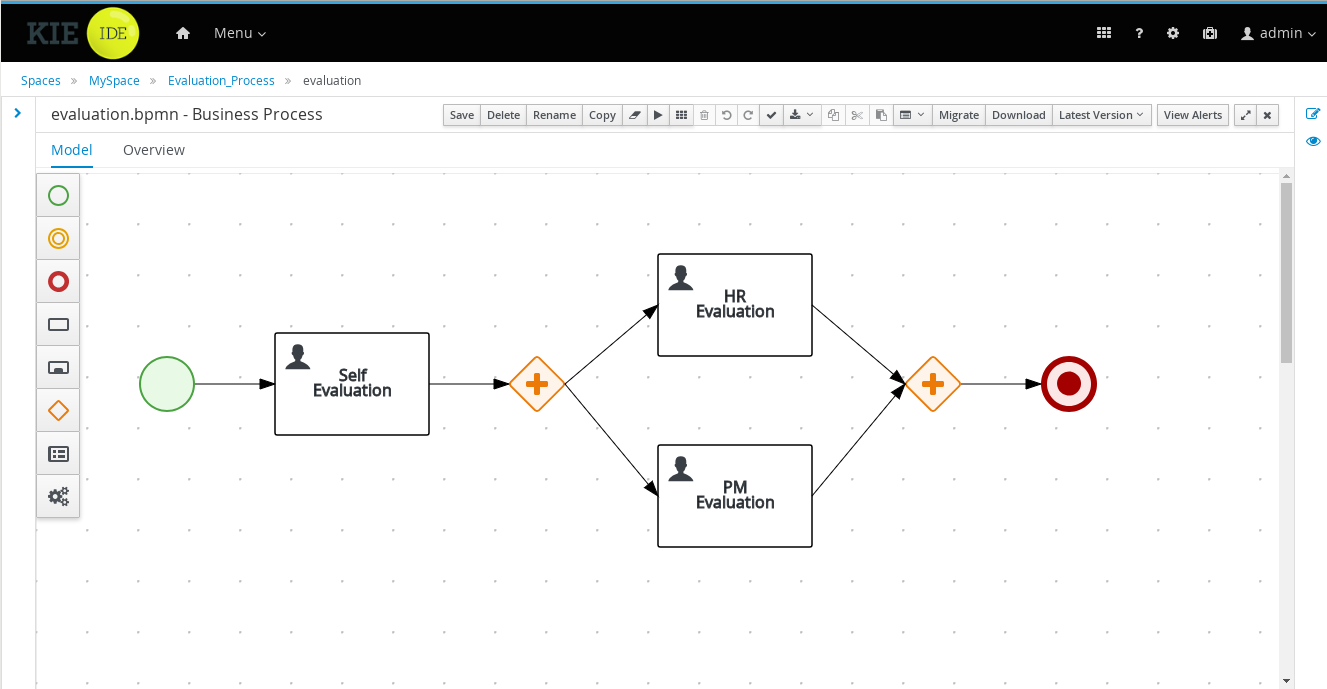

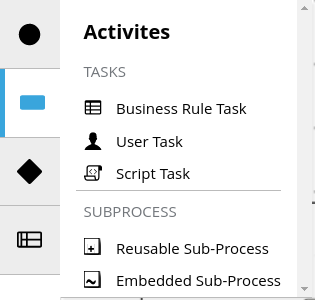

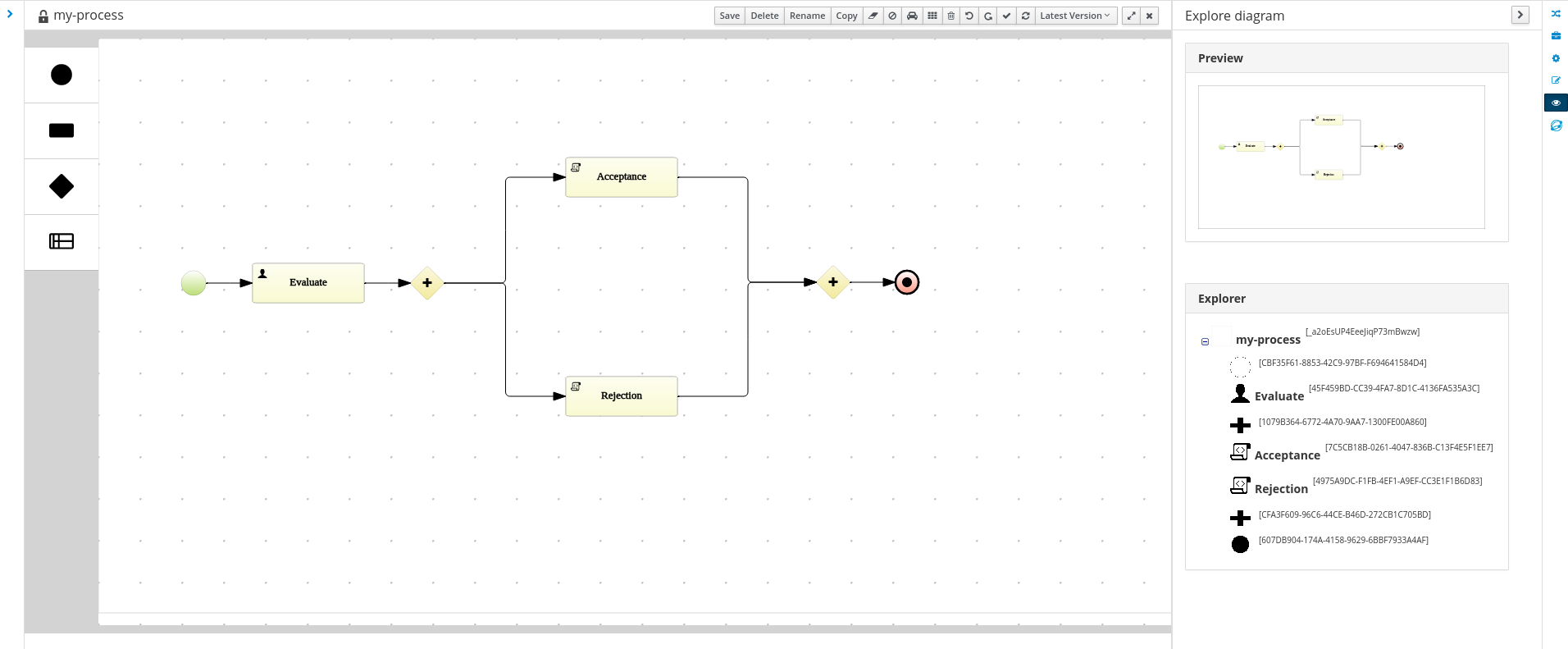

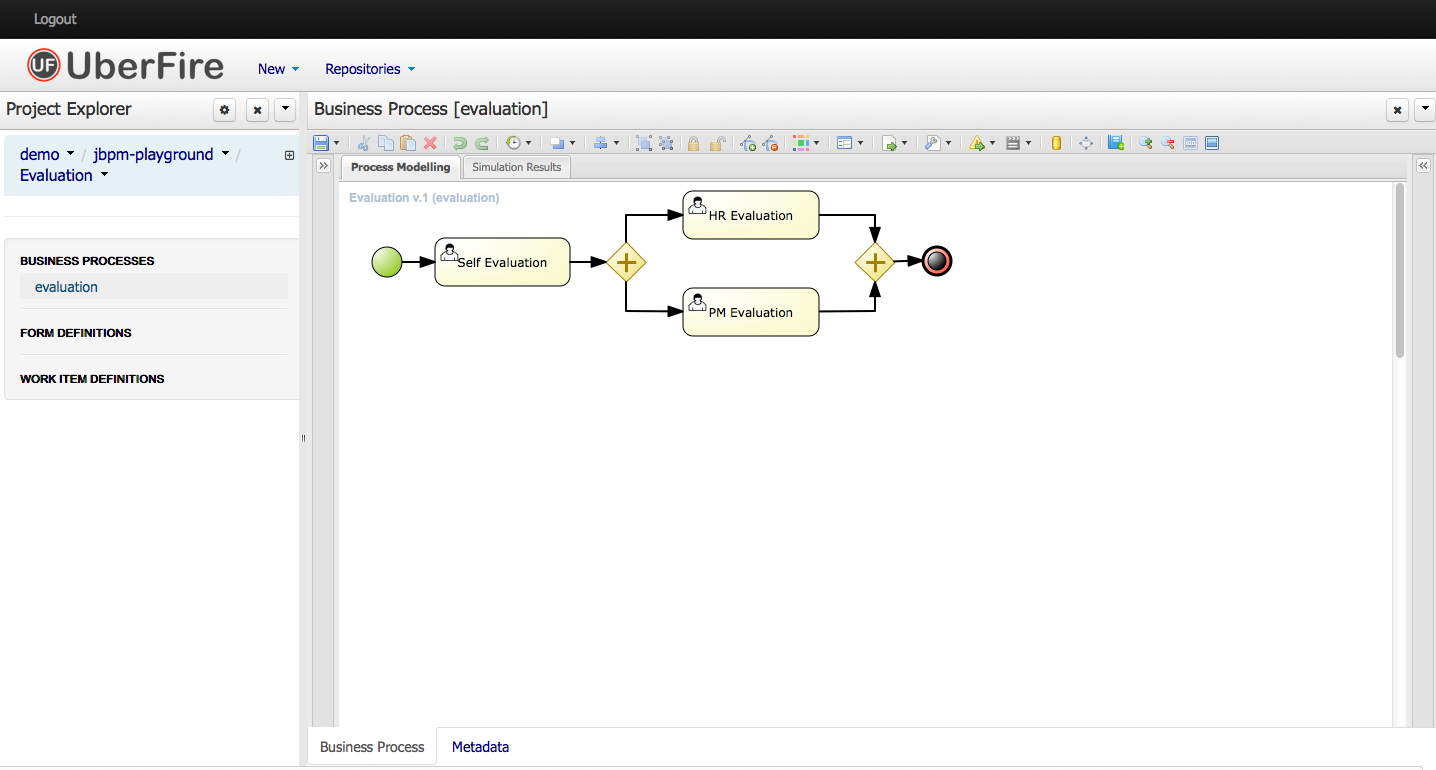

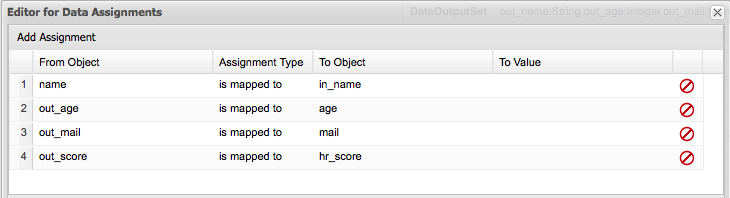

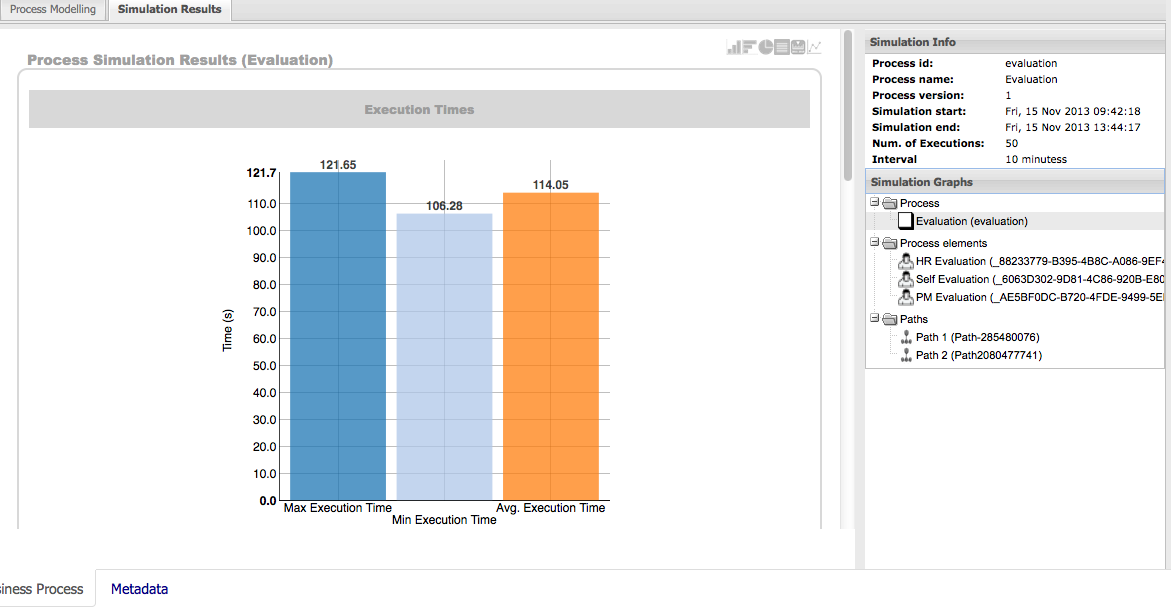

The web-based jBPM Designer allows you to model your business processes in a web-based environment. It is targeted towards business users and offers a graphical editor for viewing and editing your business processes (using drag and drop), similar to the Eclipse plugin. It supports round-tripping between the Eclipse editor and the web-based designer. It also supports simulation of processes.

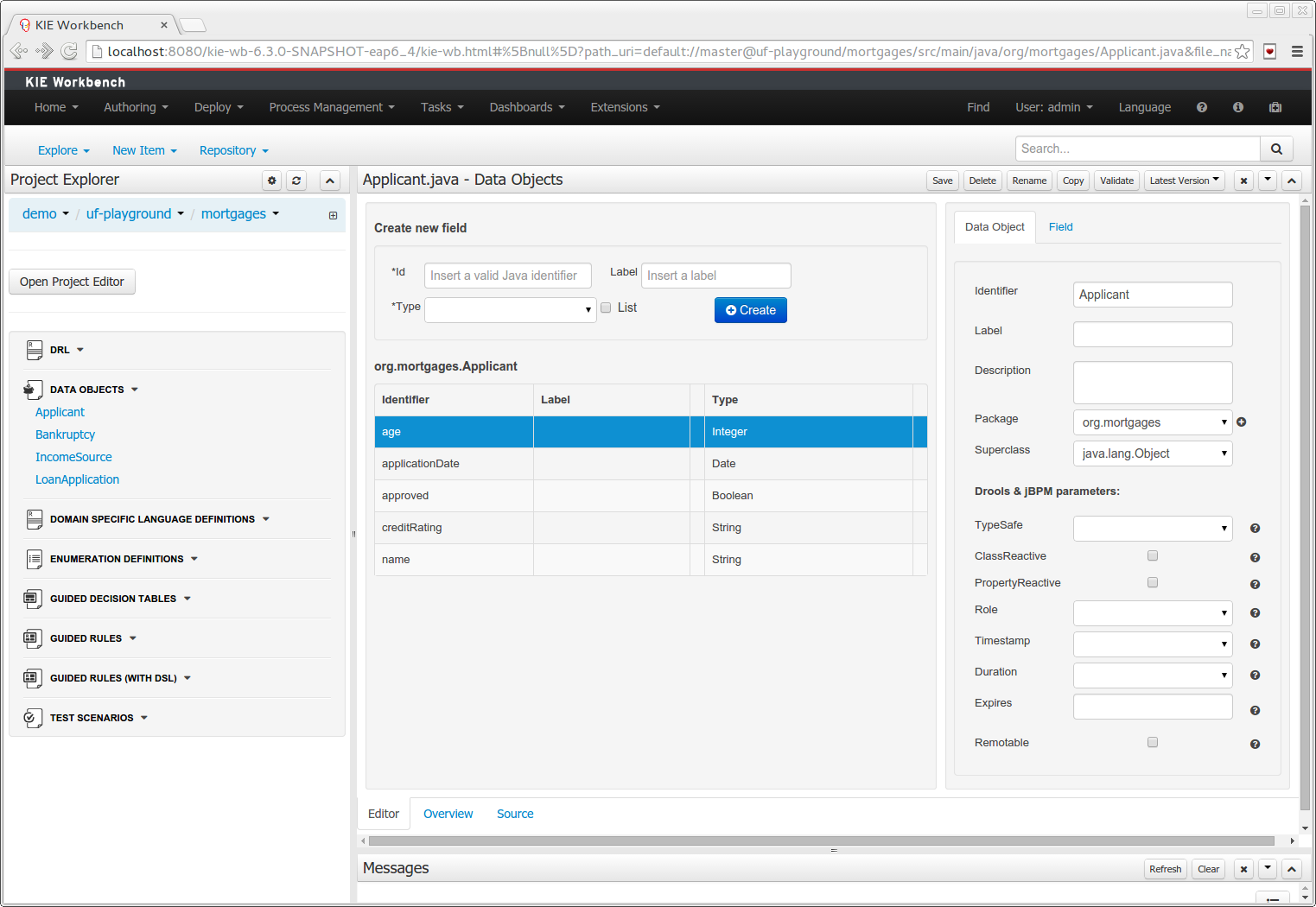

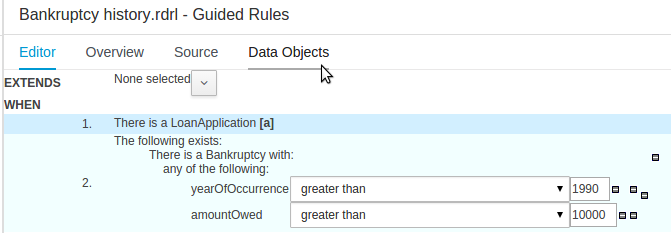

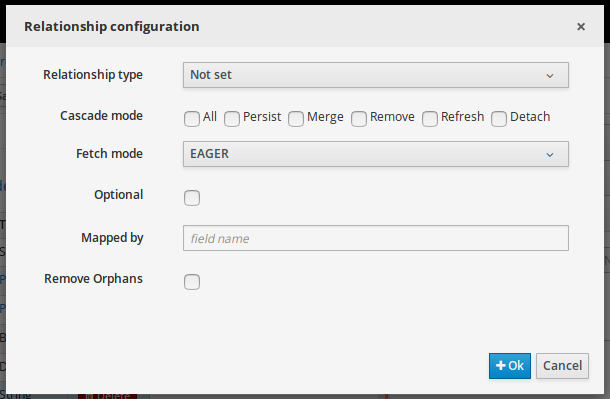

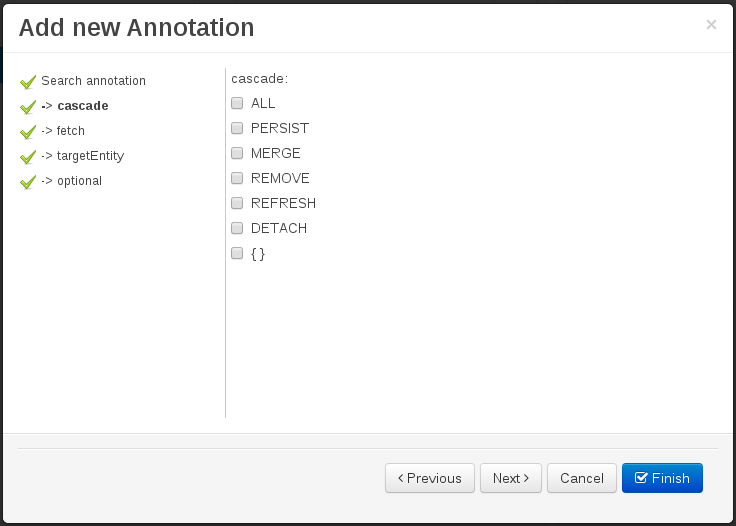

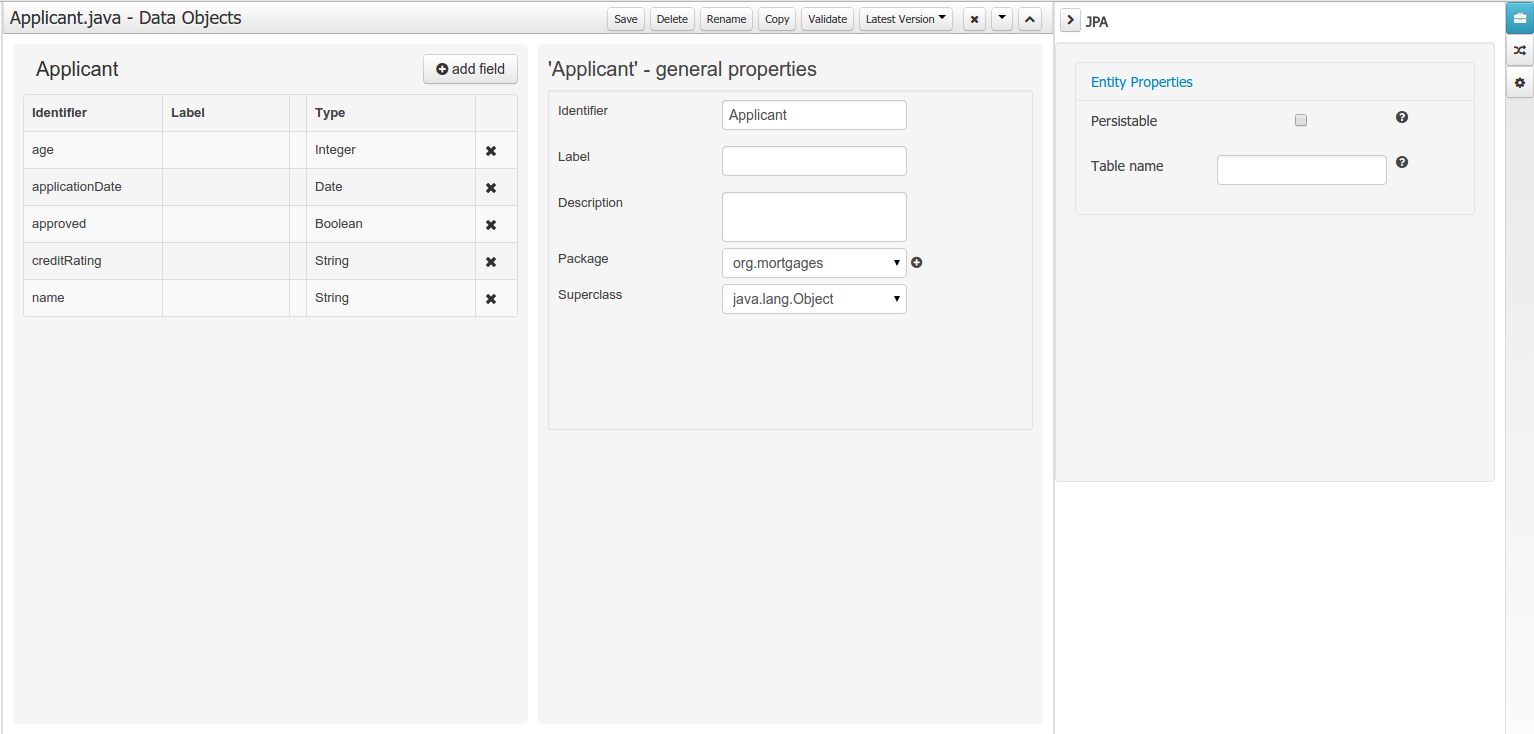

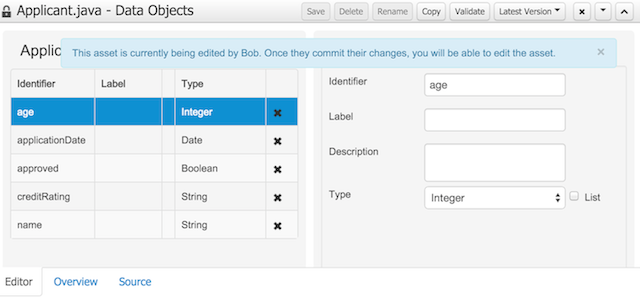

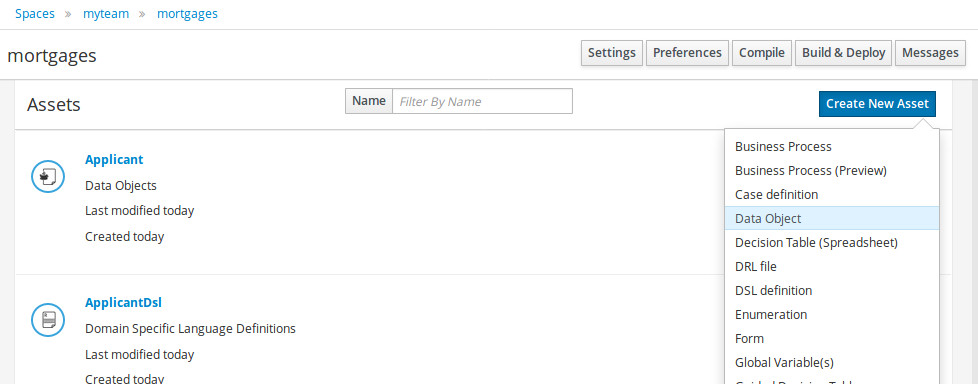

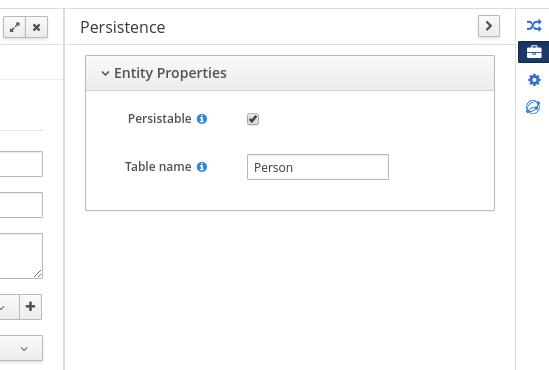

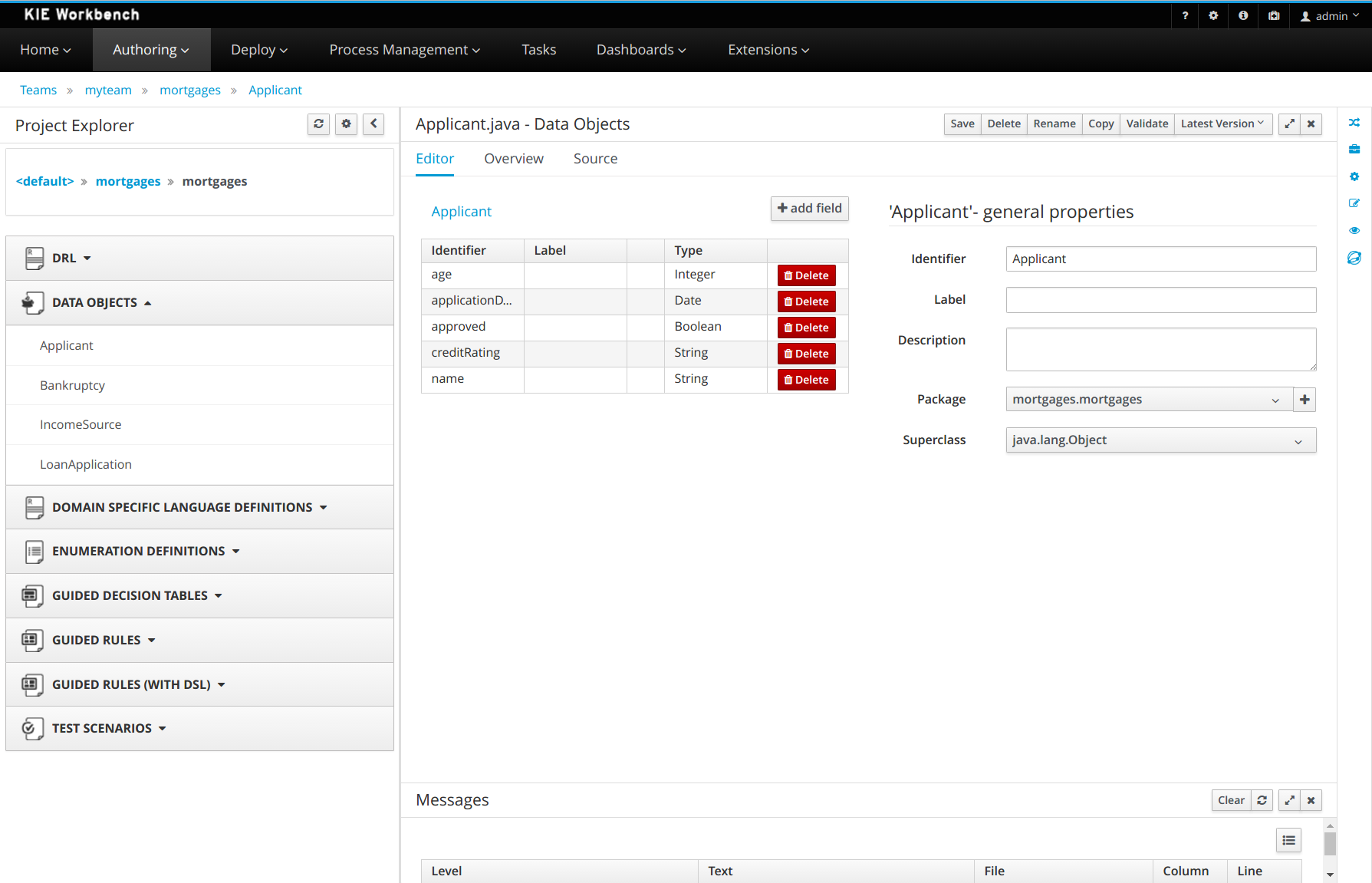

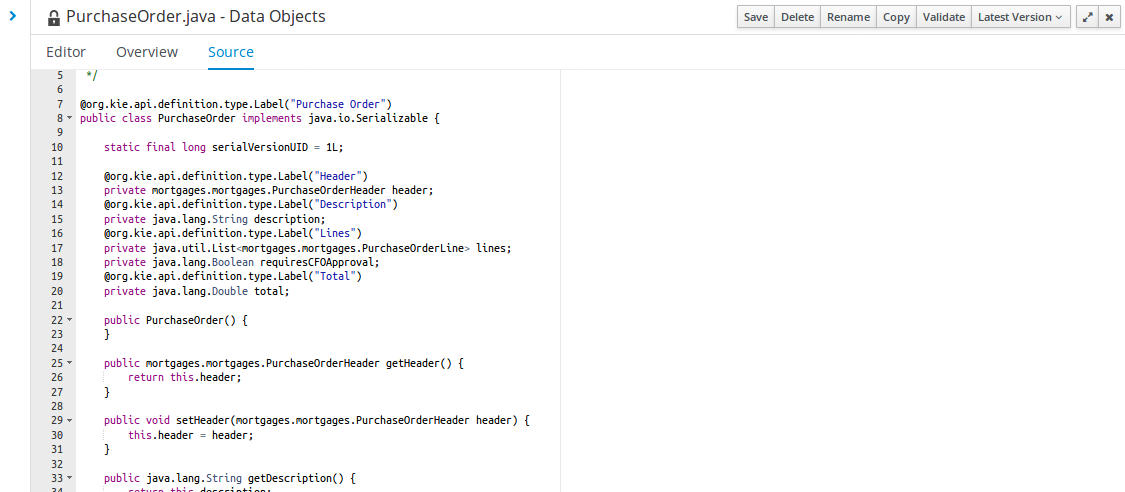

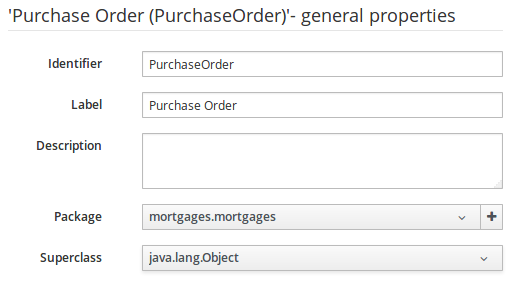

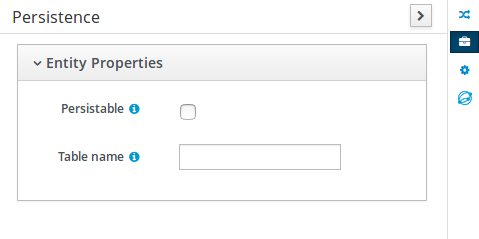

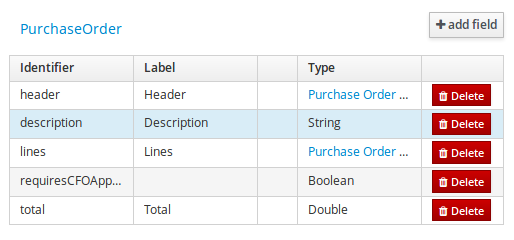

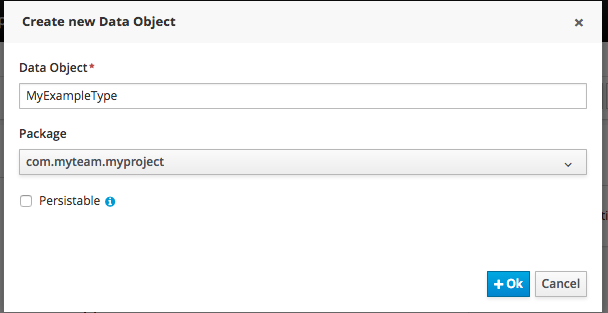

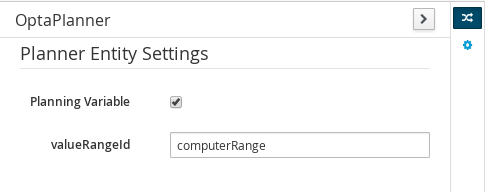

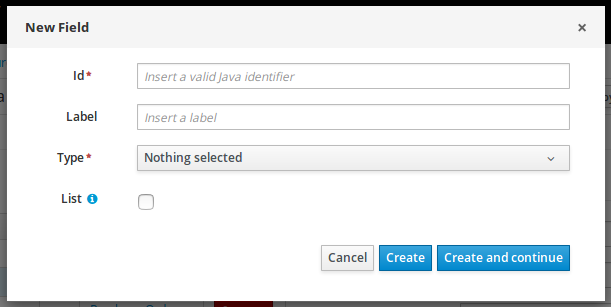

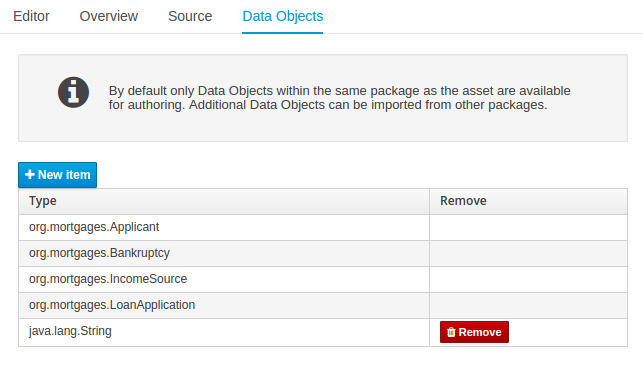

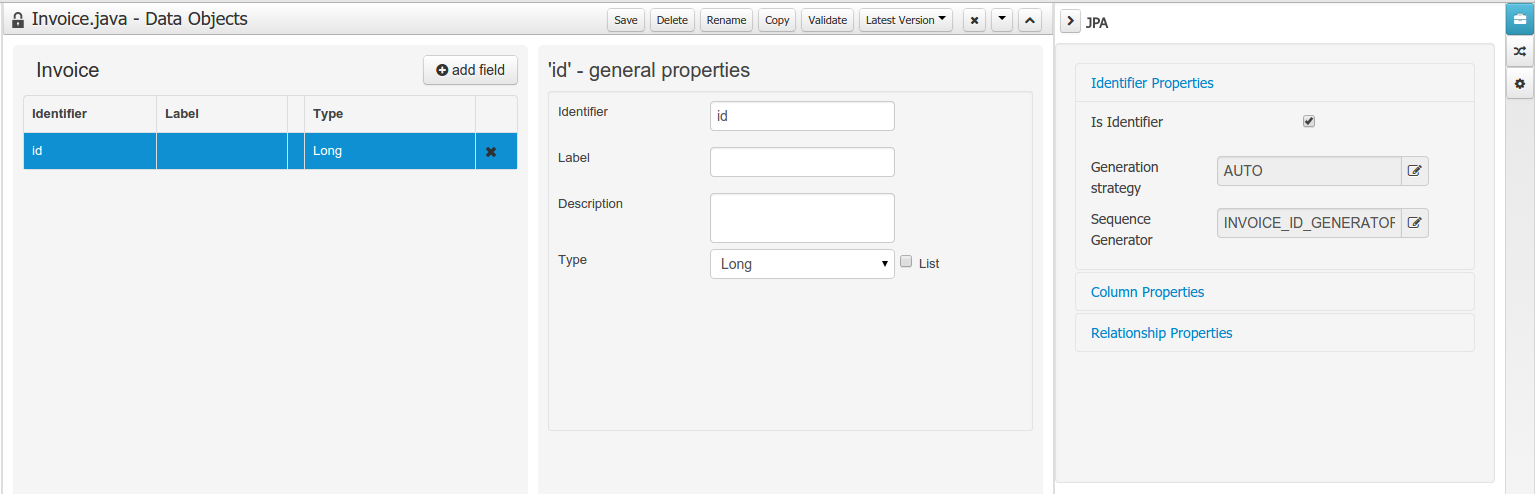

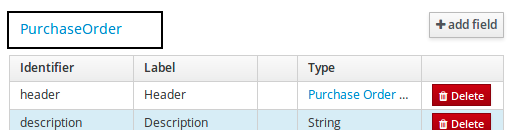

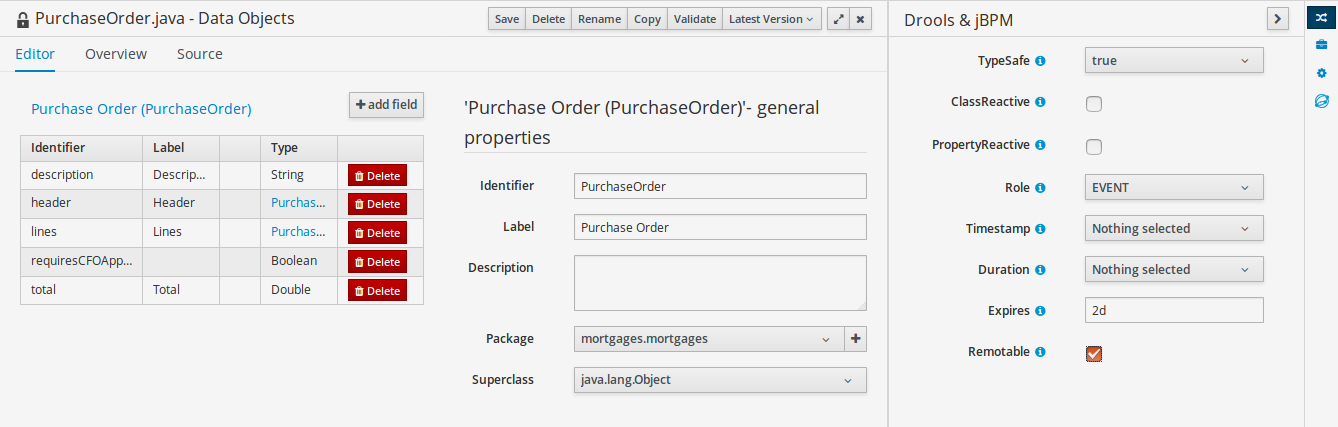

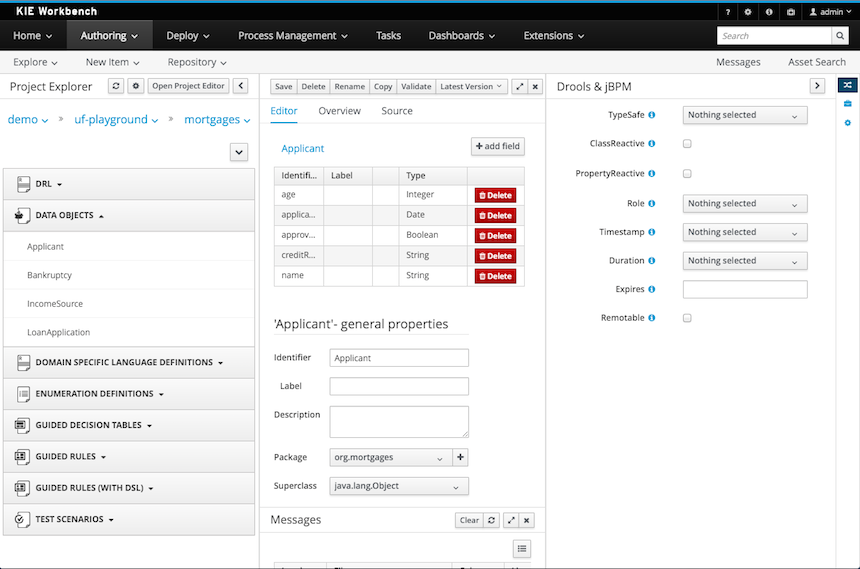

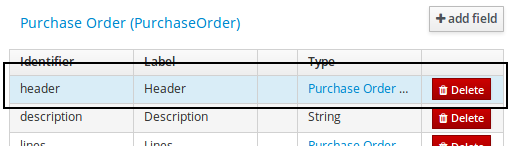

Processes almost always have some kind of data to work with. The data modeler allows non-technical users to view, edit or create these data models.

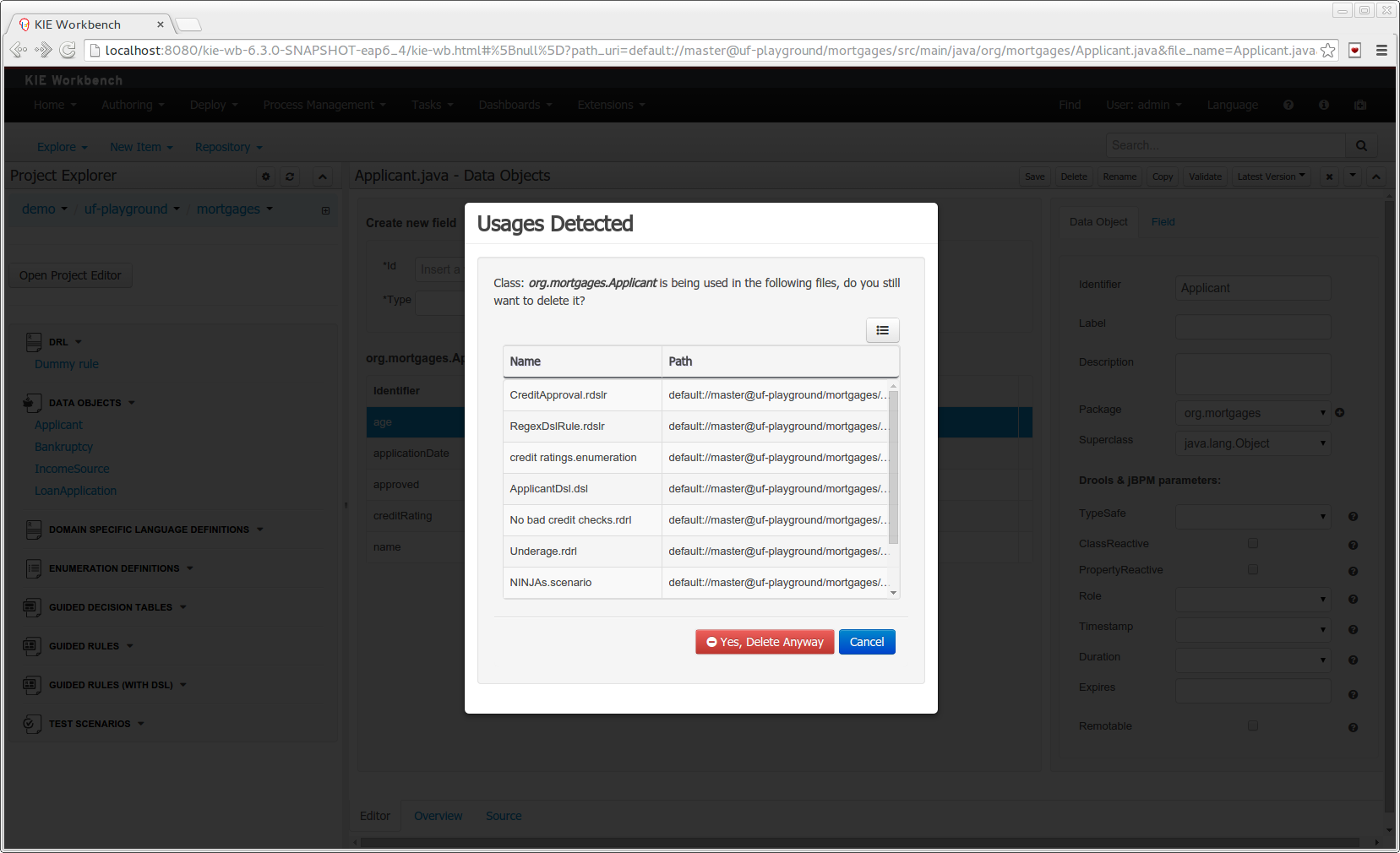

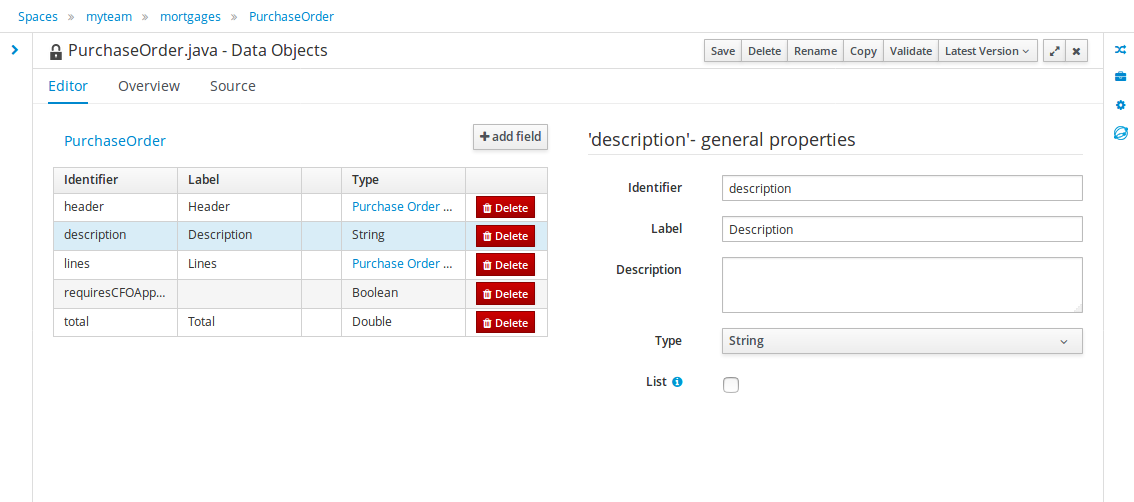

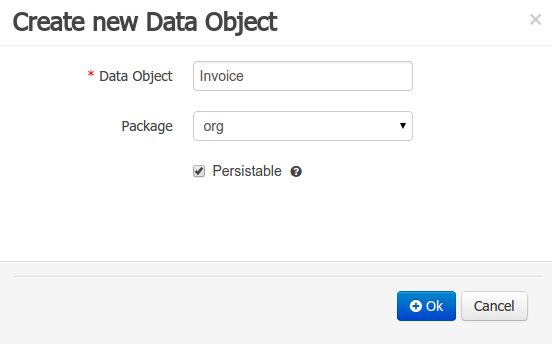

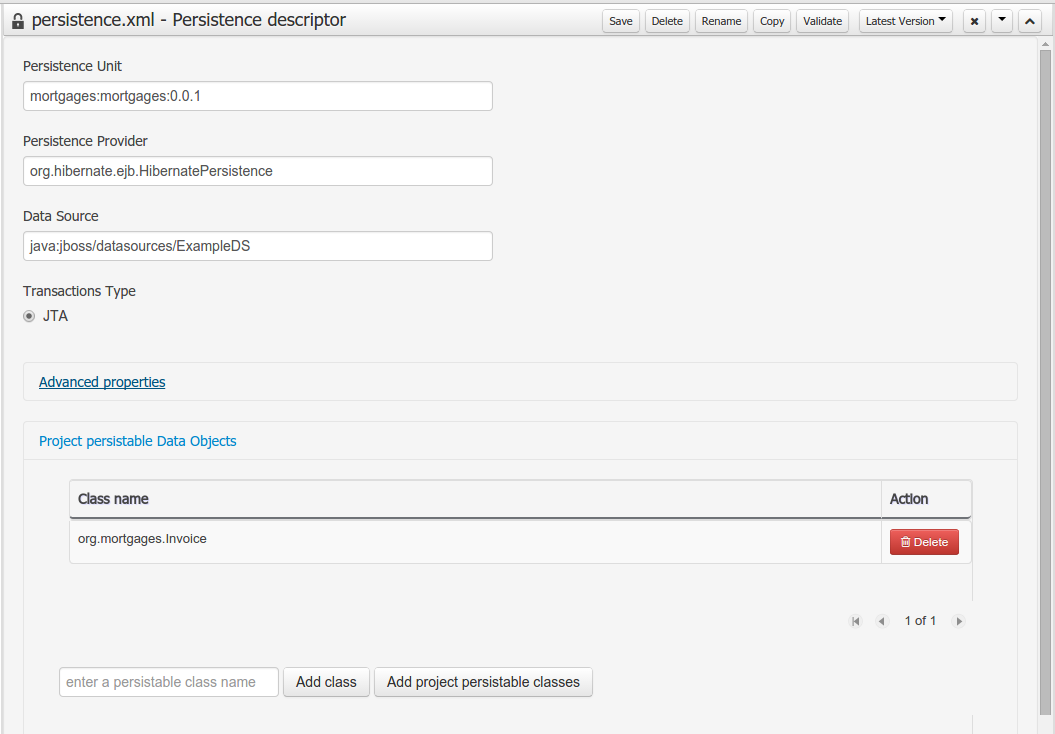

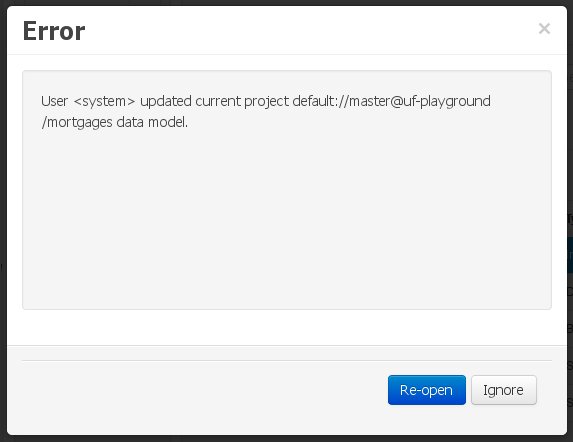

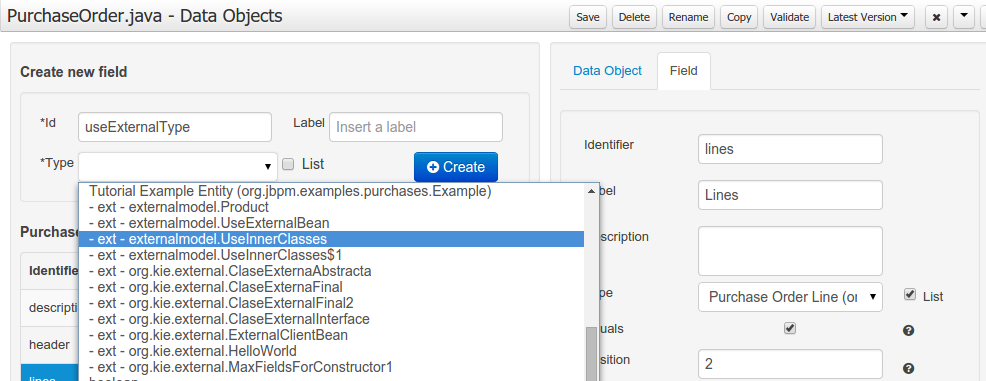

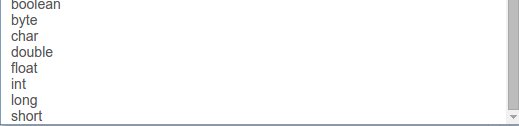

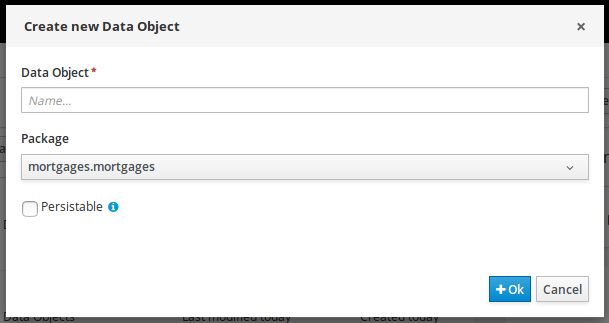

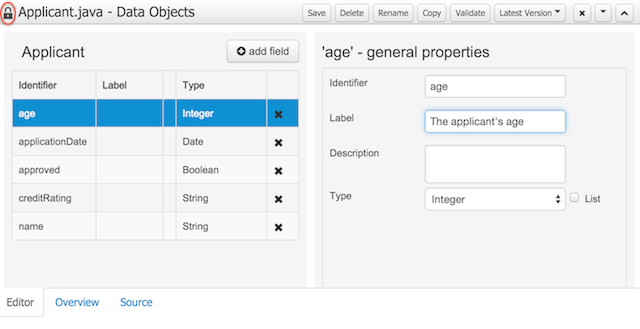

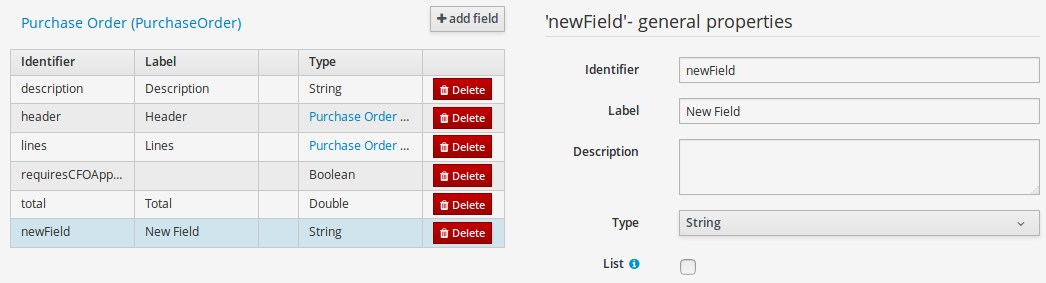

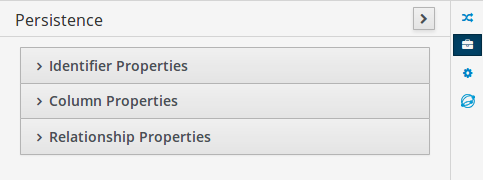

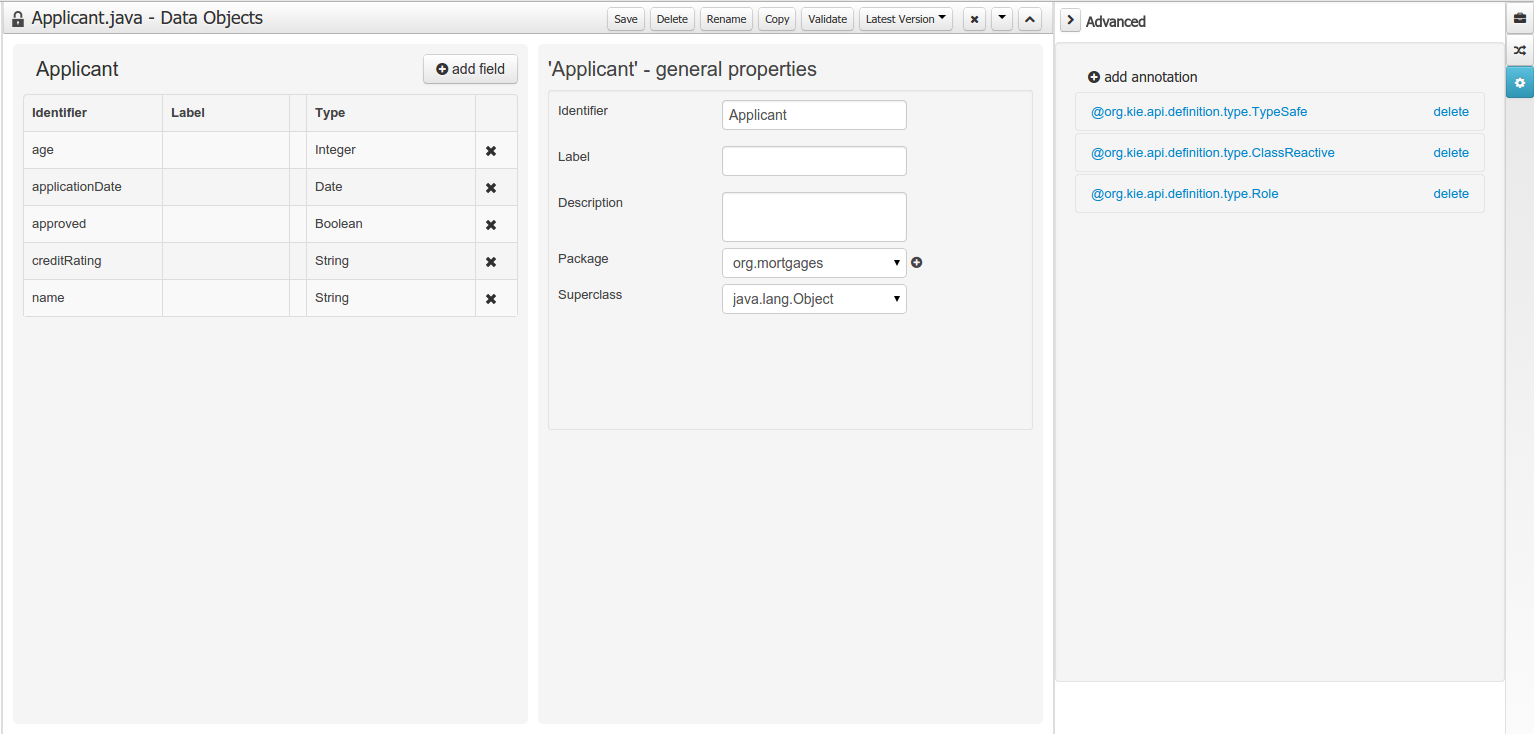

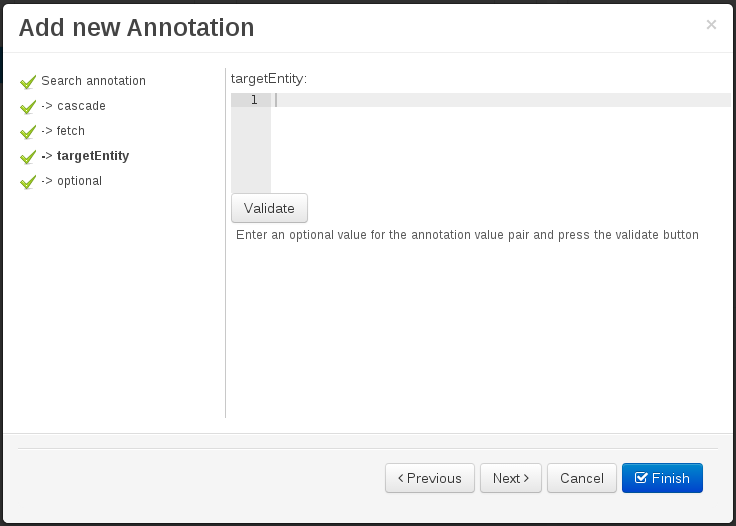

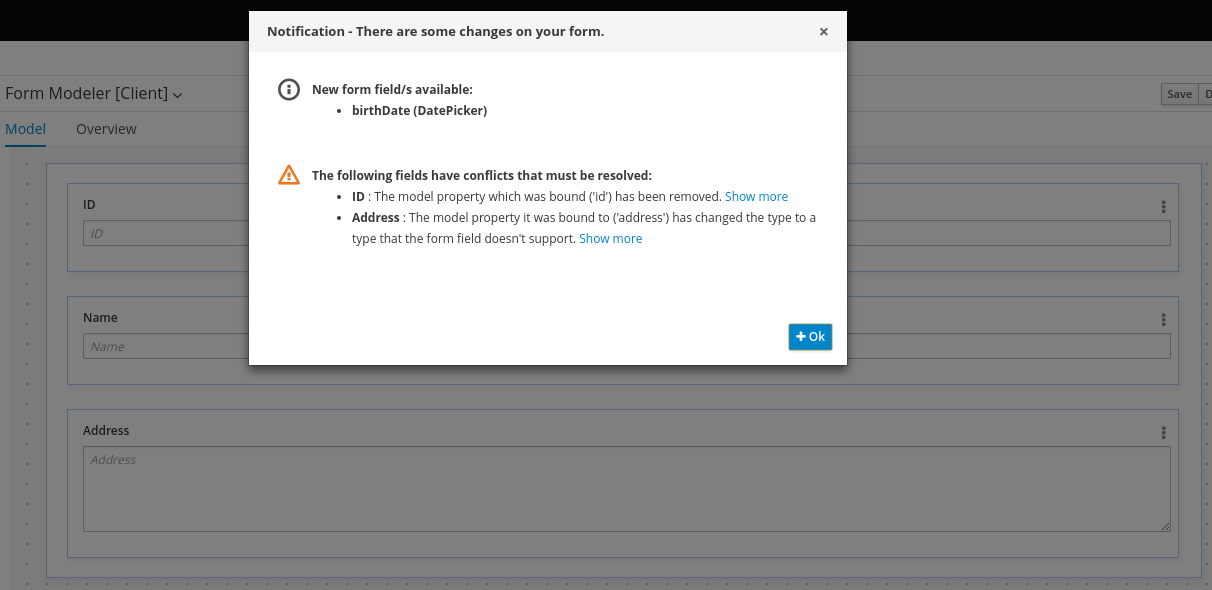

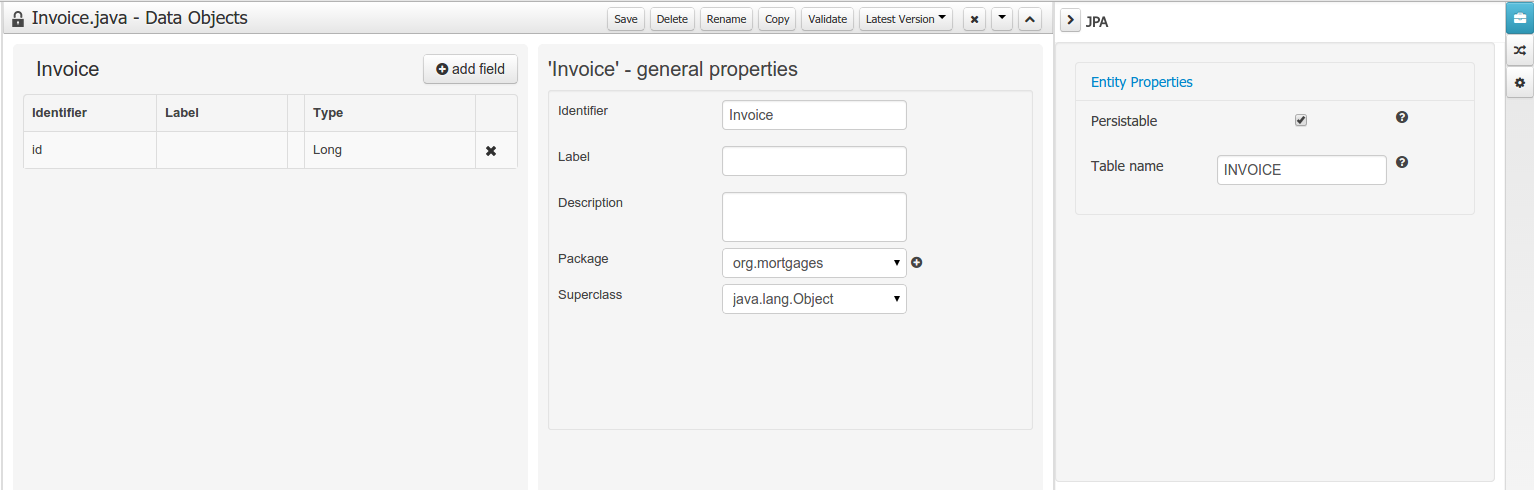

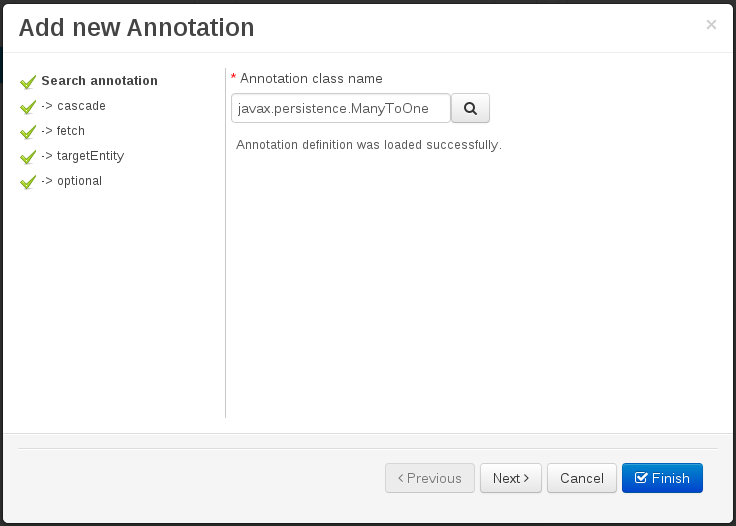

Typically, a business process analyst or data analyst will capture the requirements for a process or application and turn these into a formal set of interrelated data structures. The new Data Modeler tool provides an easy, straightforward and visual aid for building both logical and physical data models, without the need for advanced development skills or explicit coding. The data modeler is transparently integrated into Business Central. Its main goals are to make data models first class citizens in the process improvement cycle and allow for full process automation through the integrated use of data structures (and the forms that will be used to interact with them).

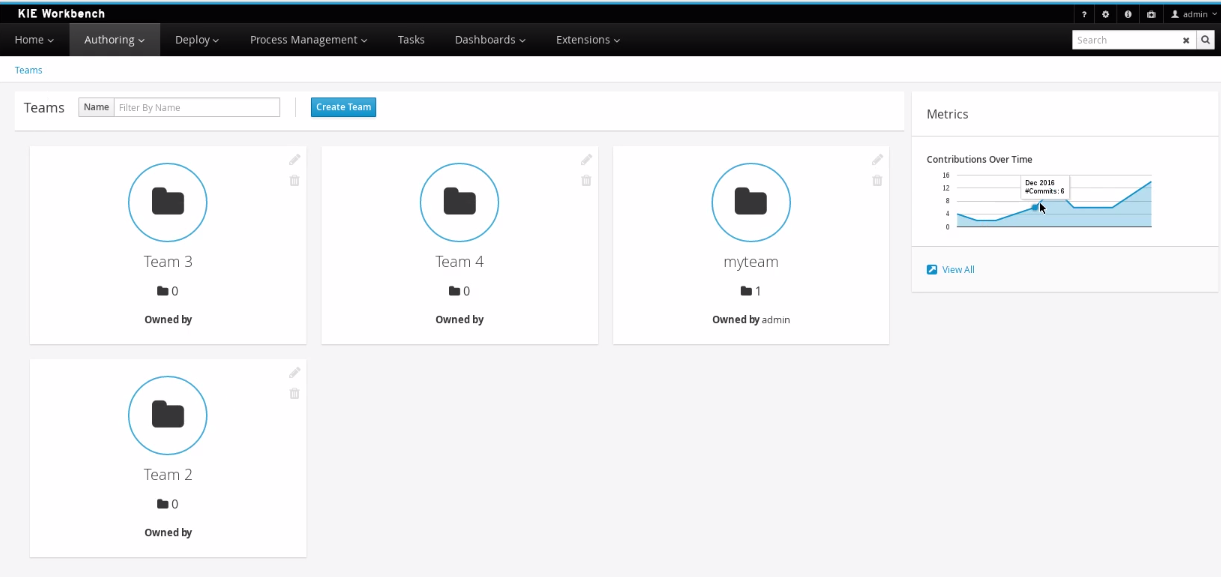

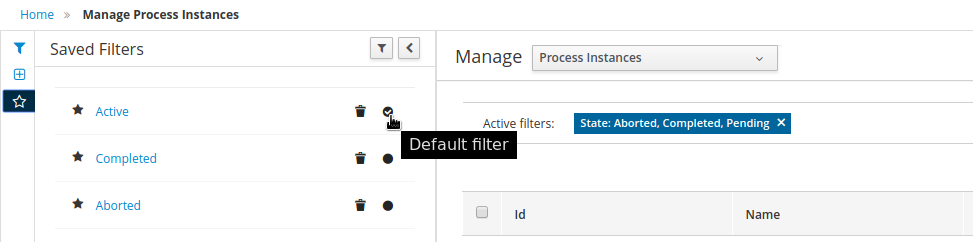

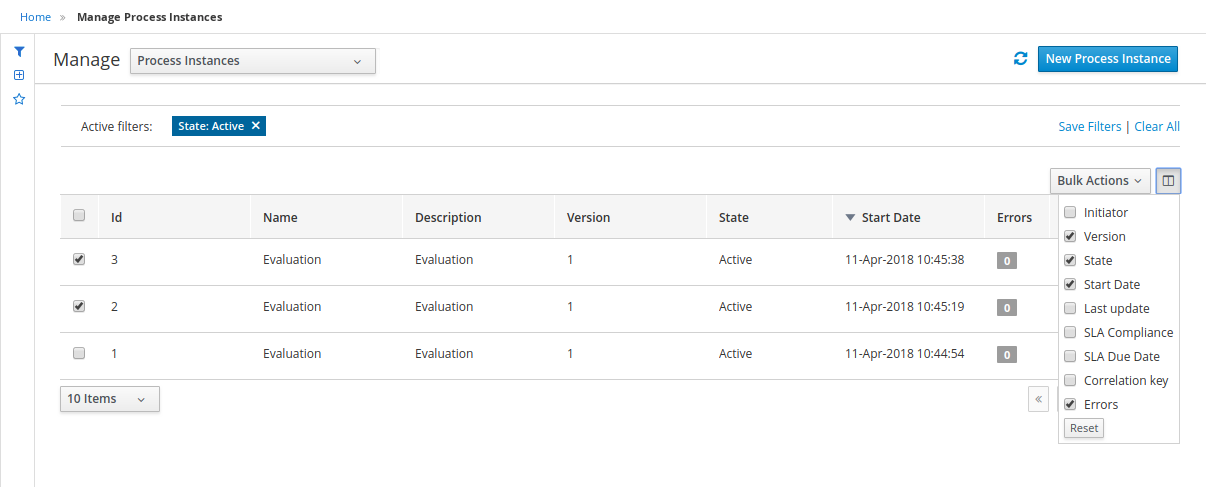

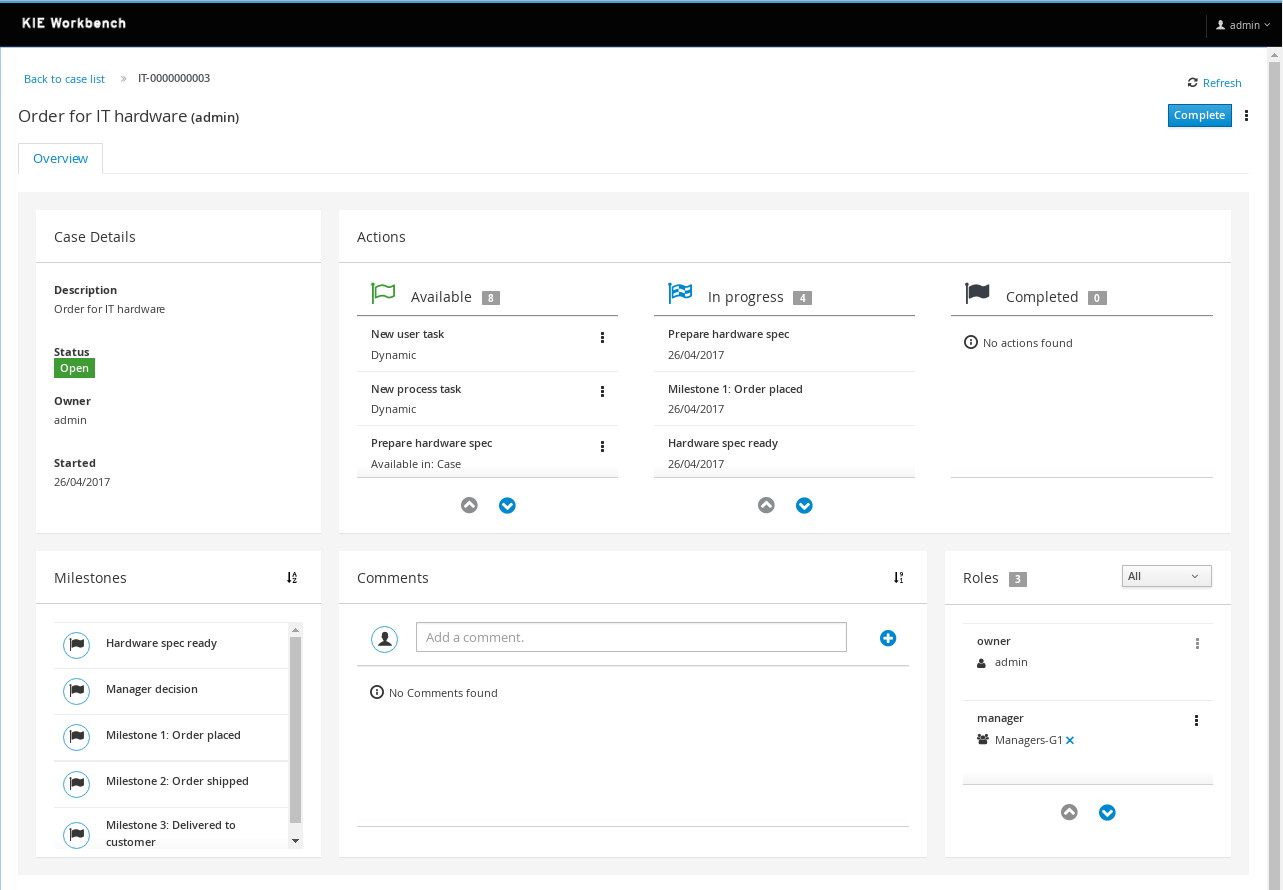

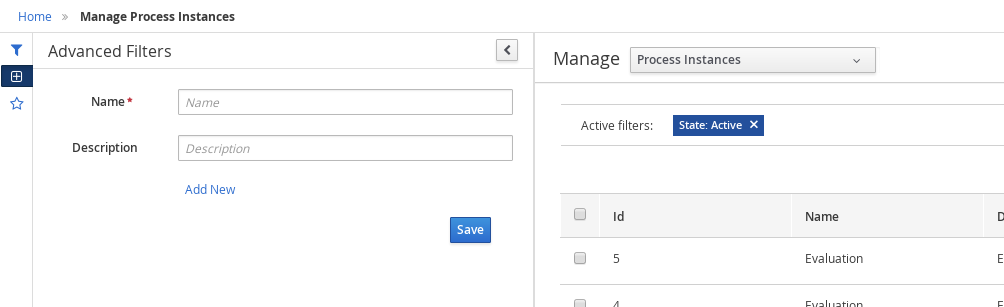

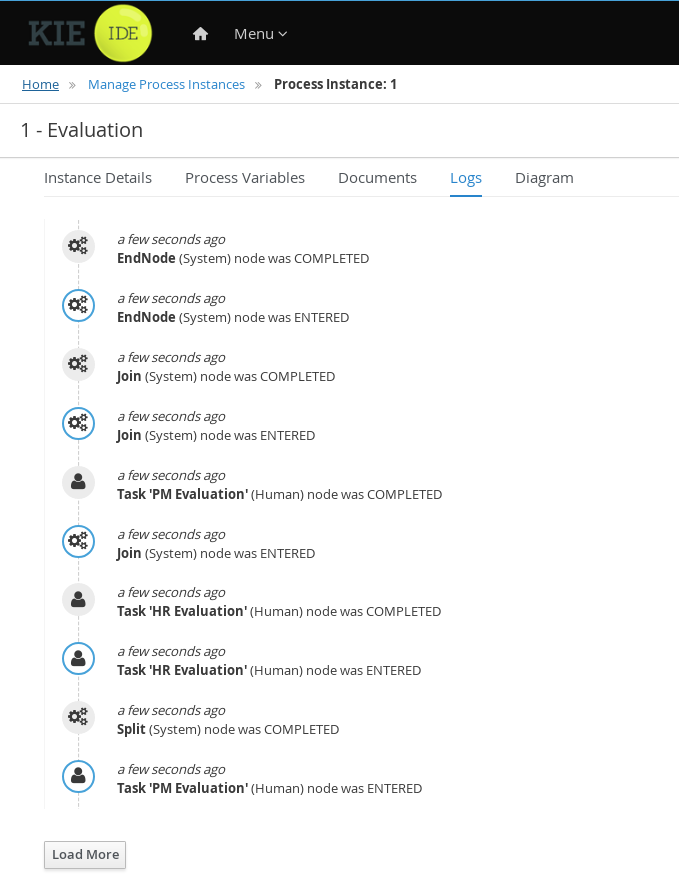

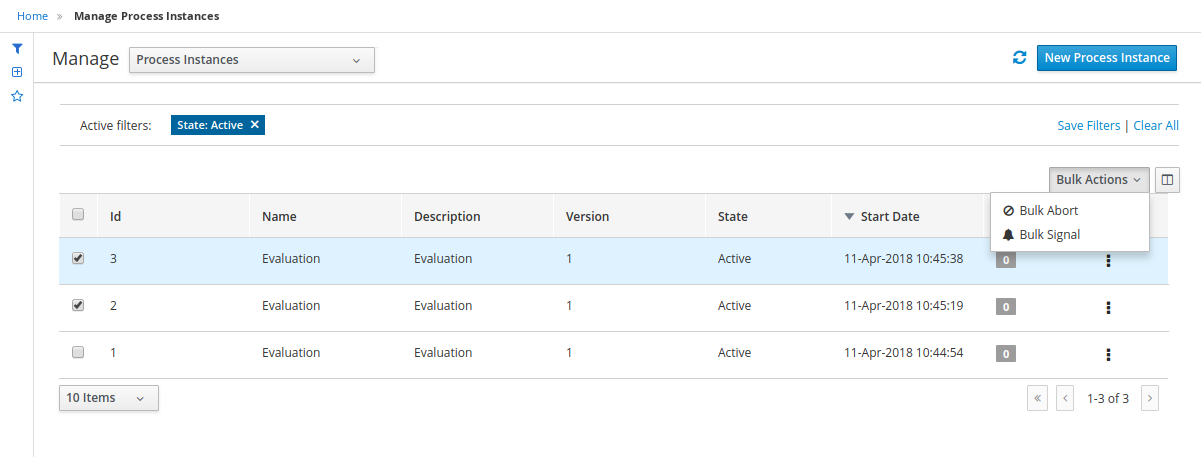

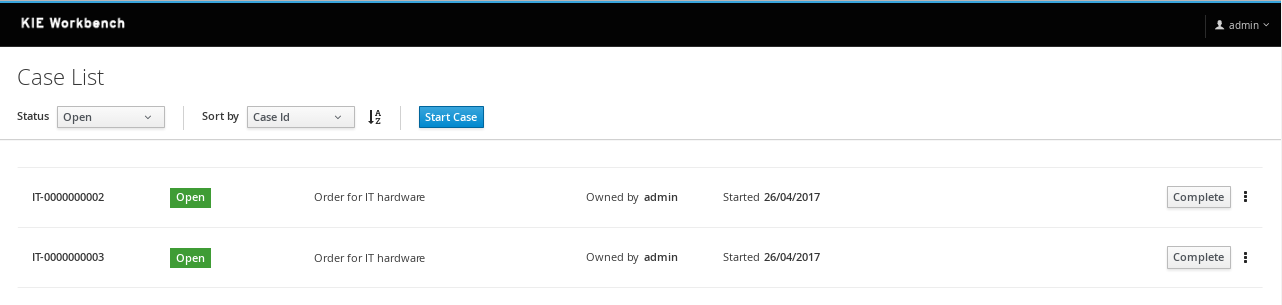

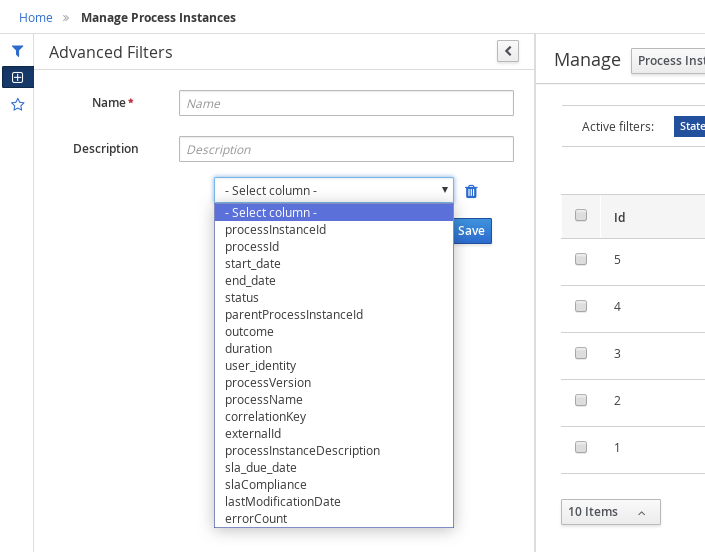

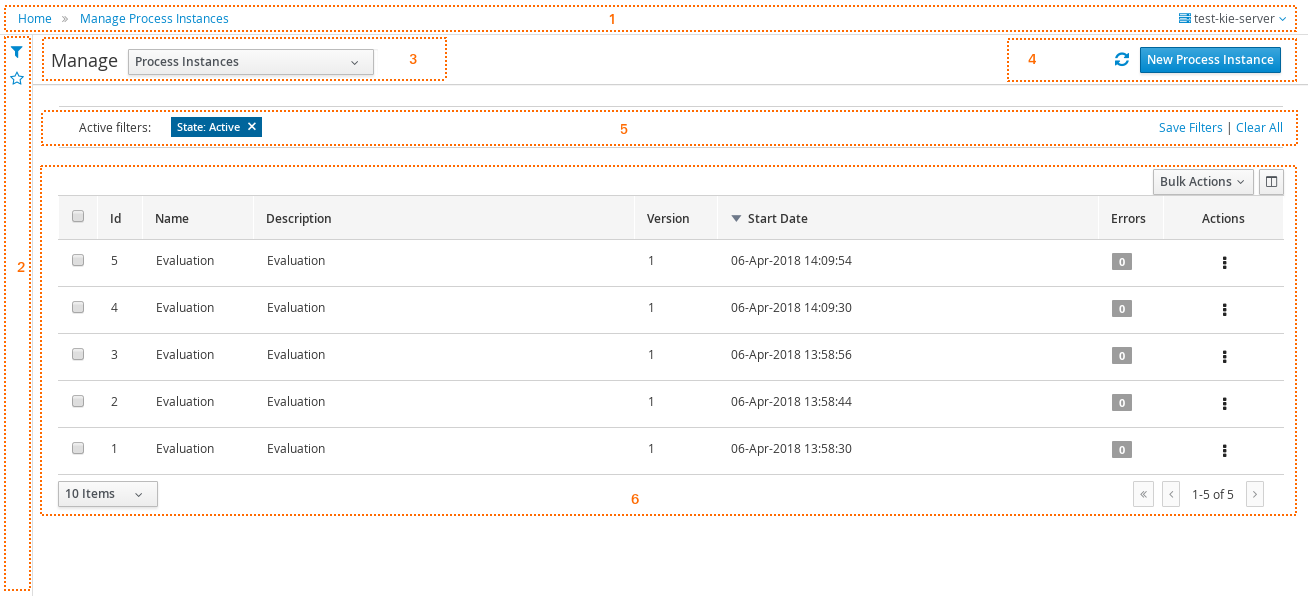

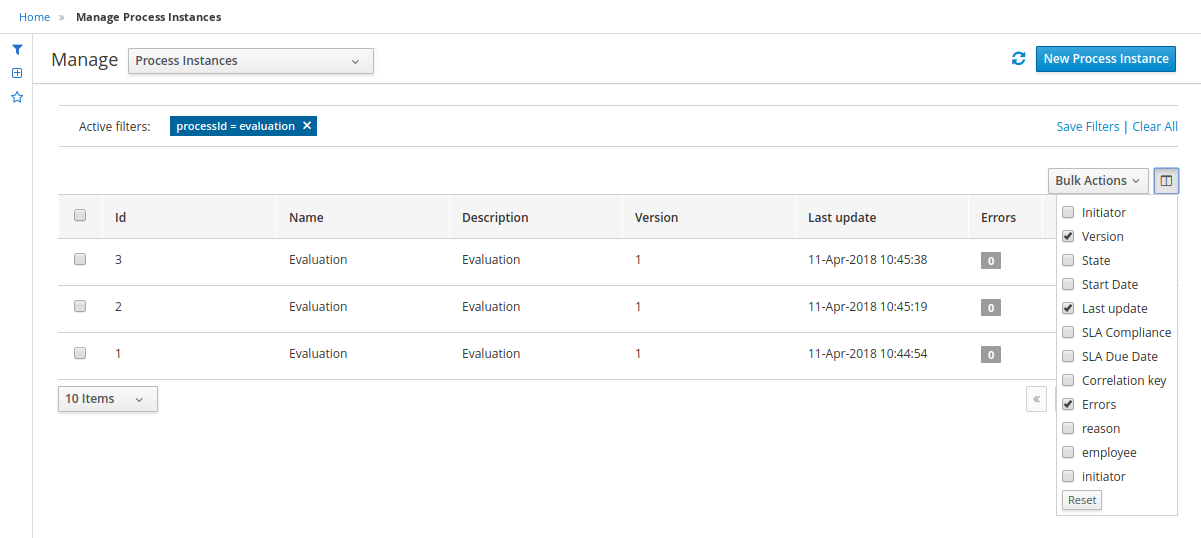

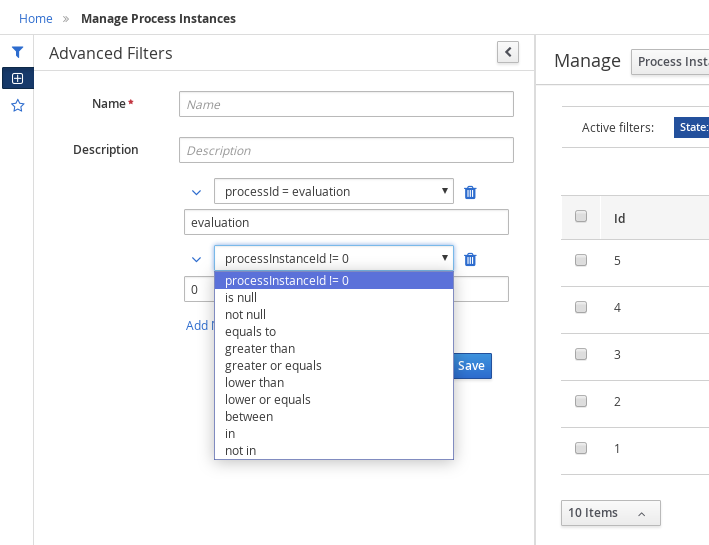

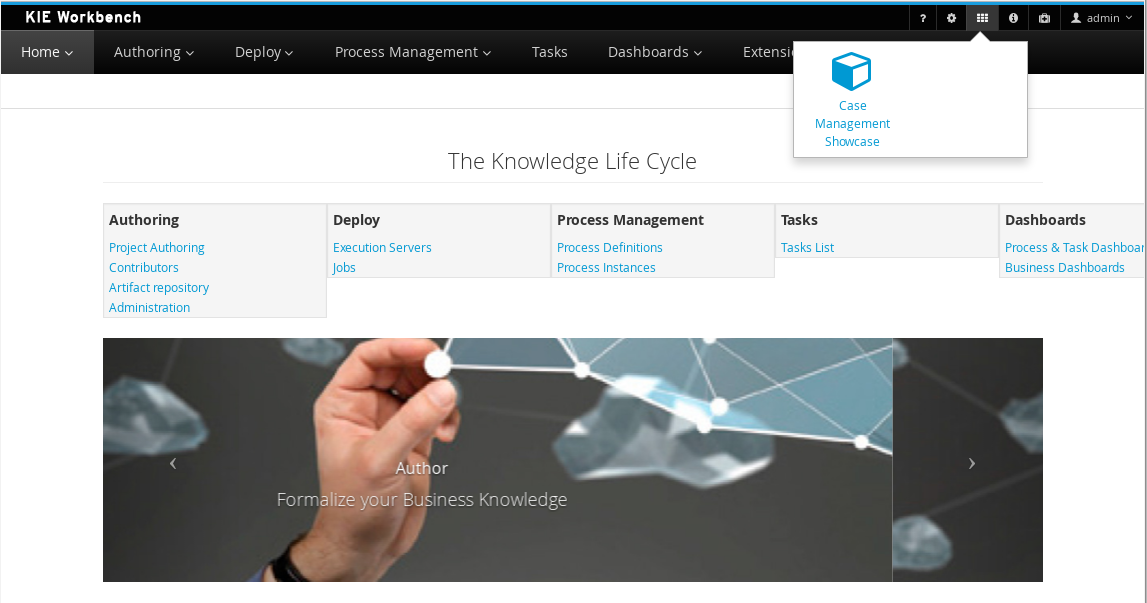

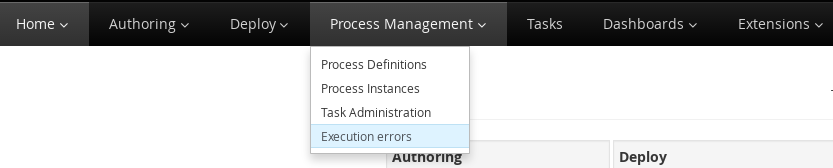

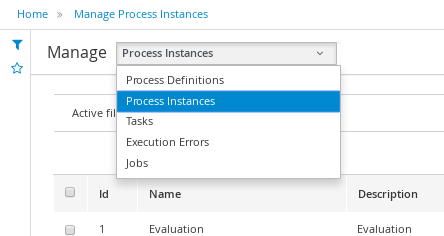

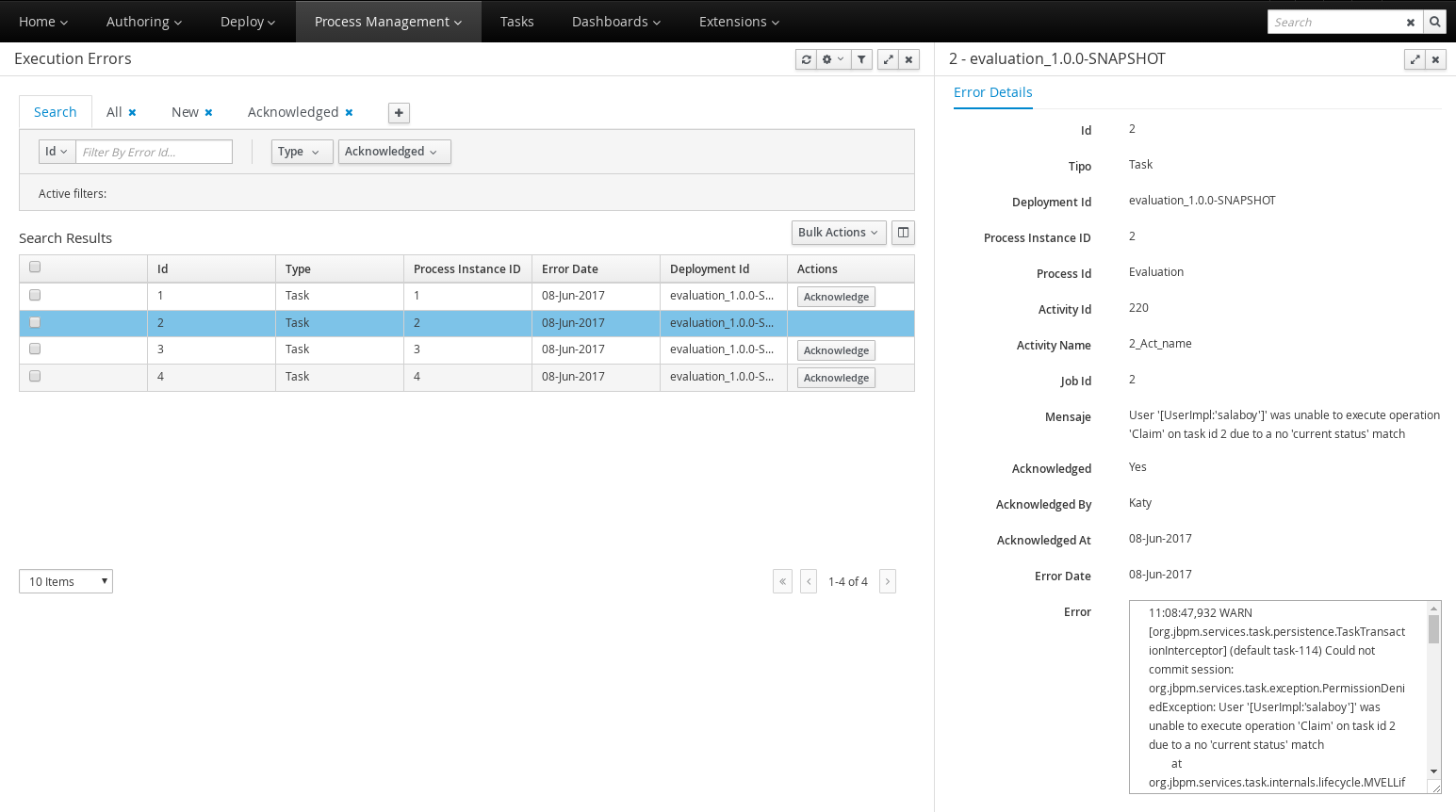

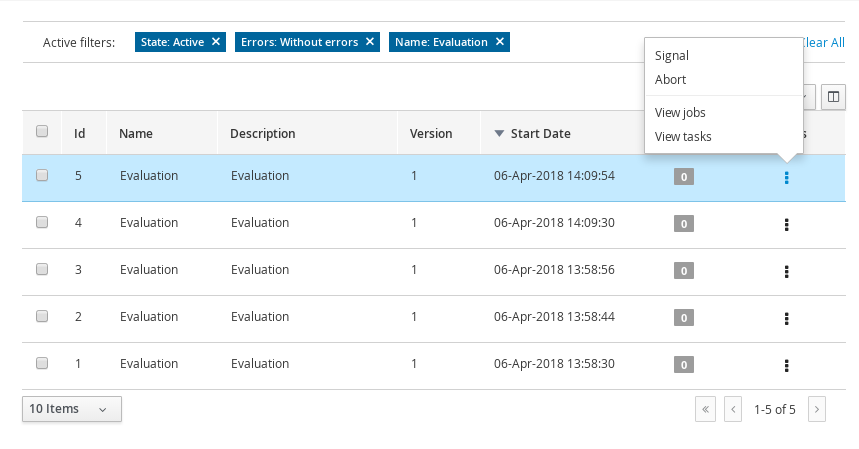

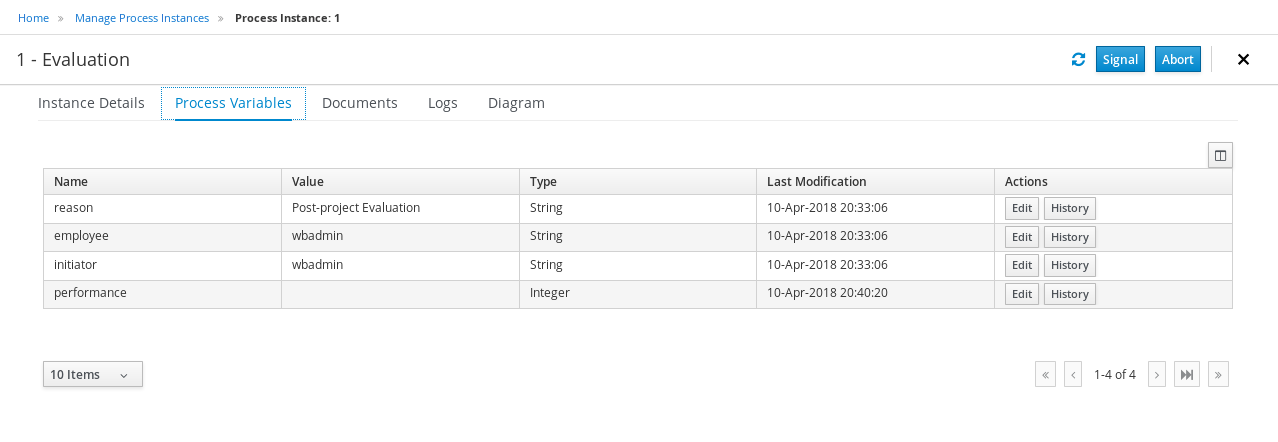

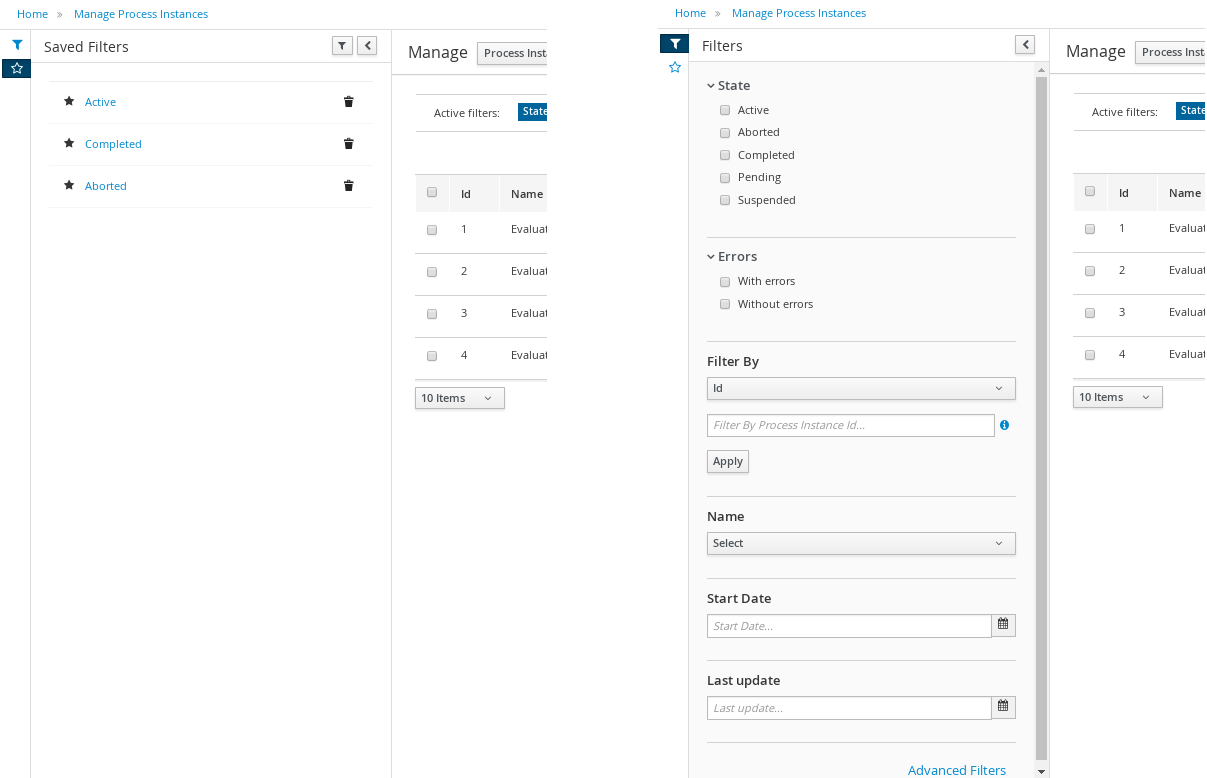

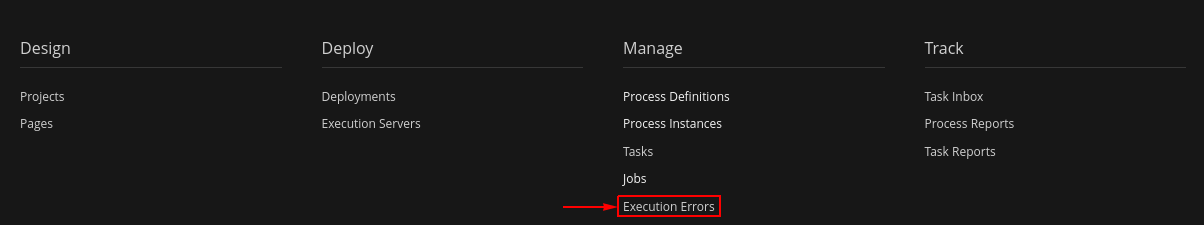

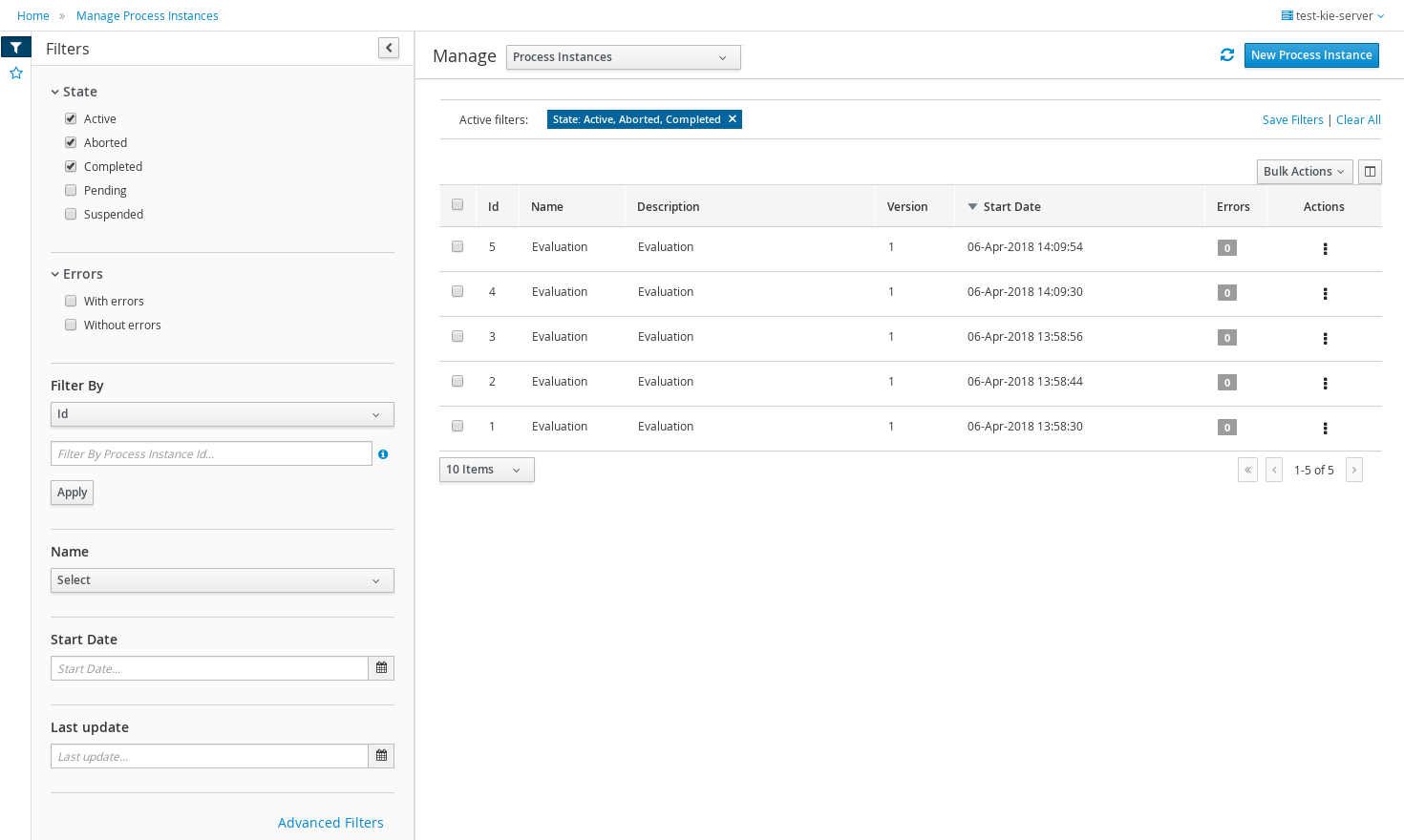

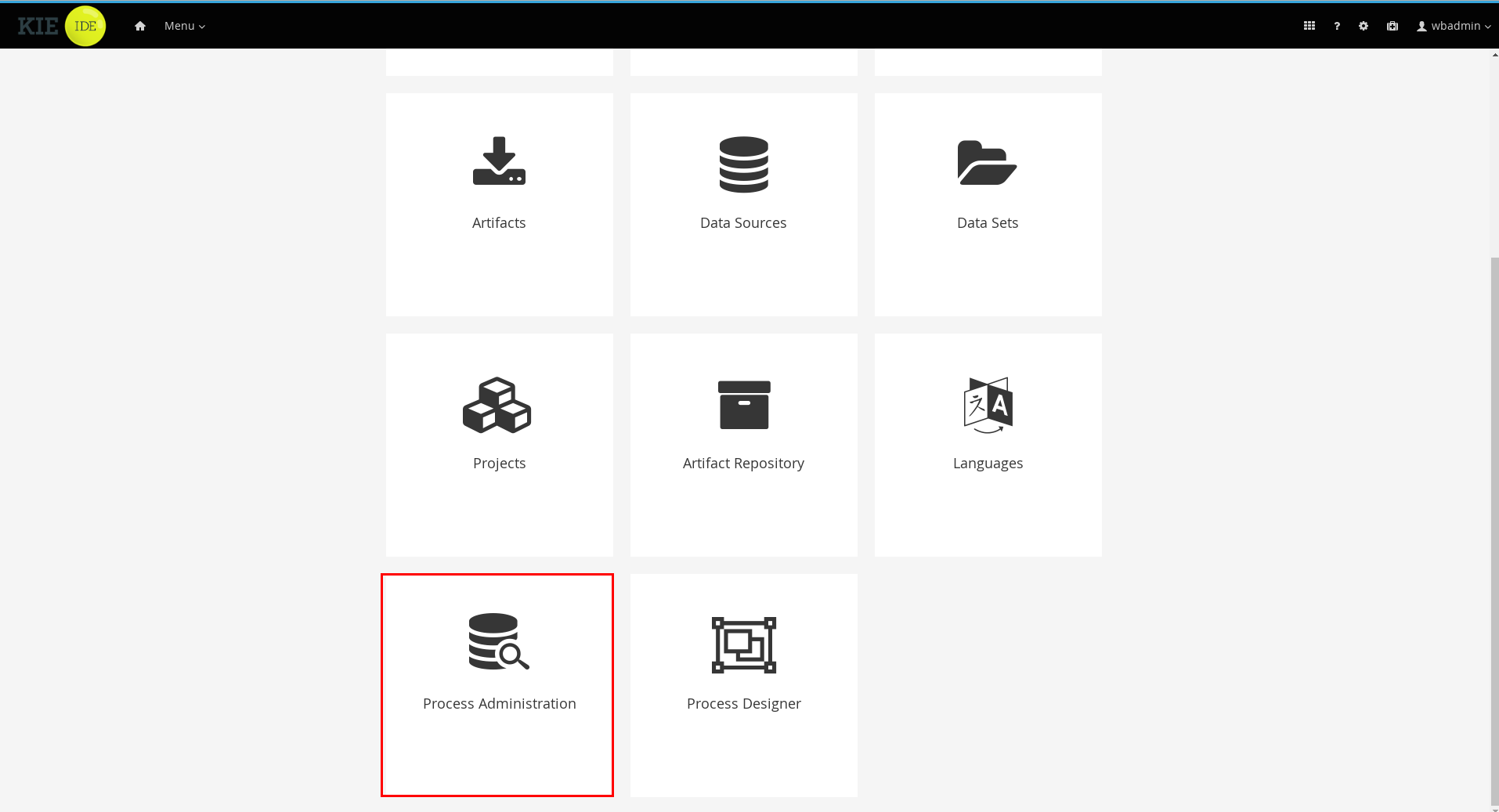

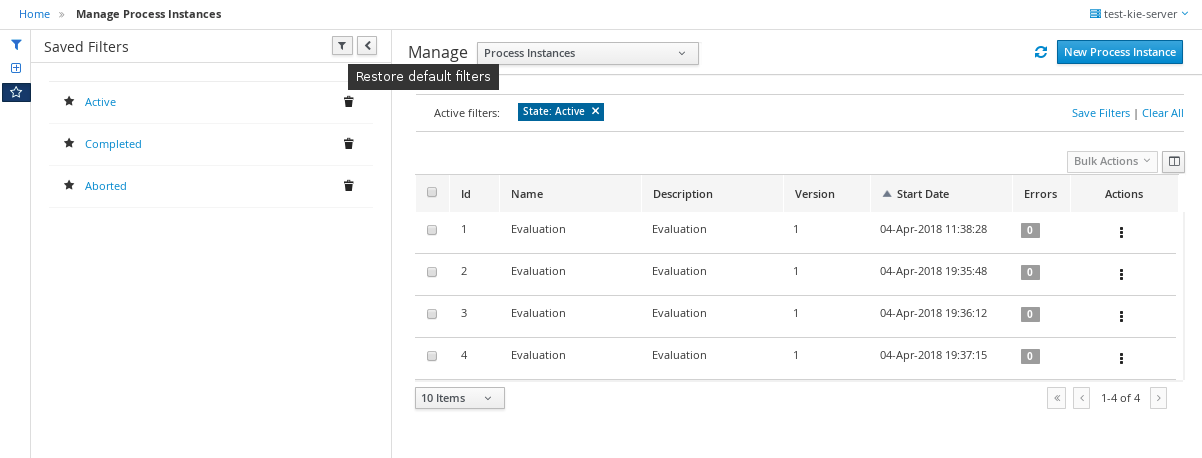

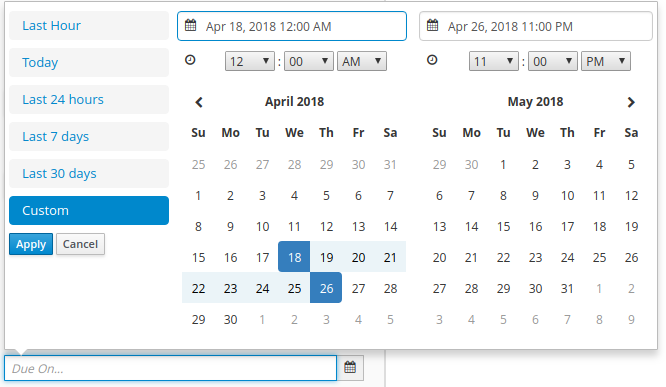

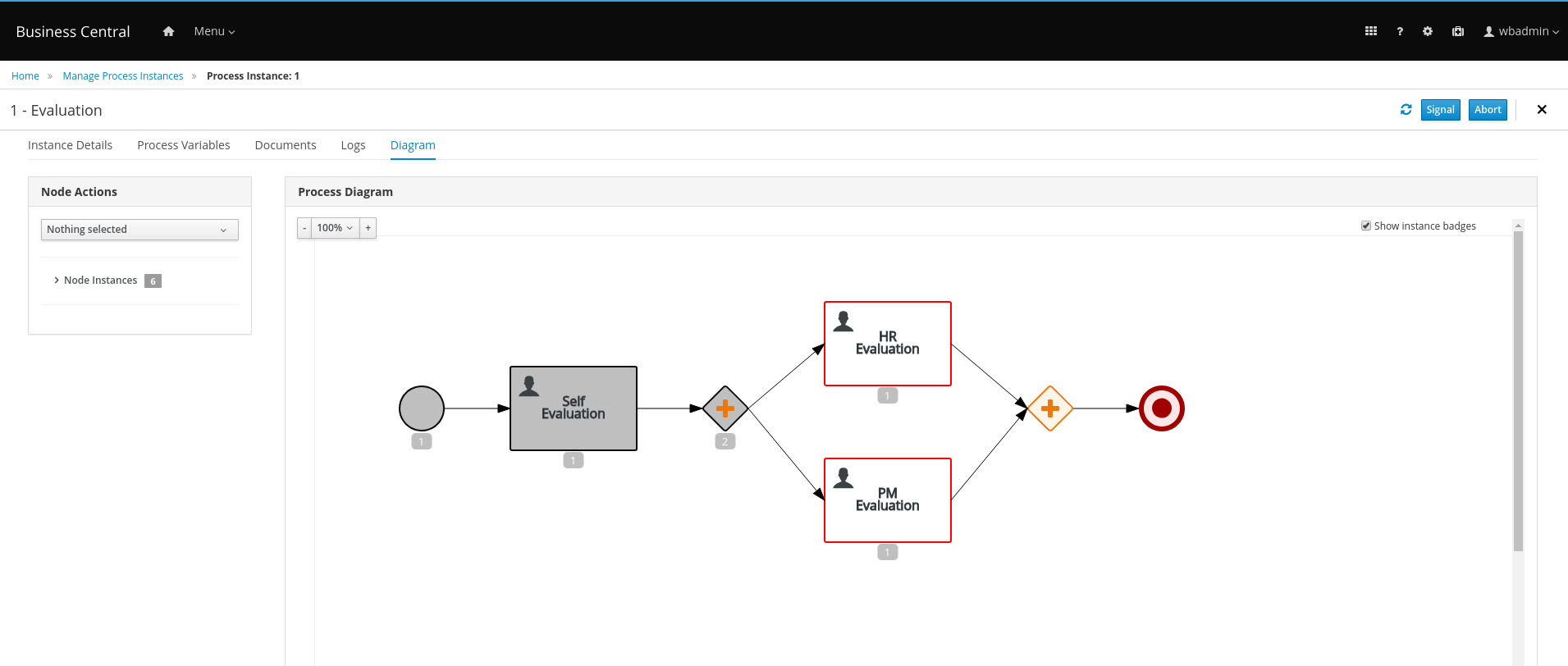

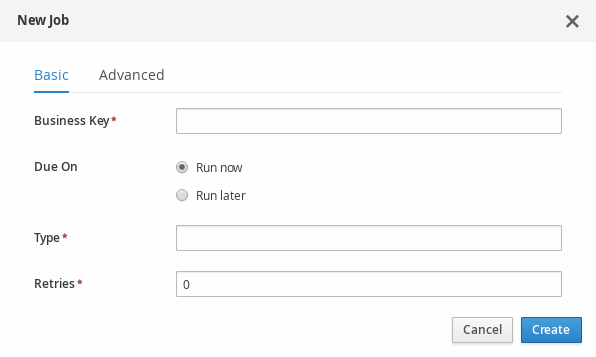

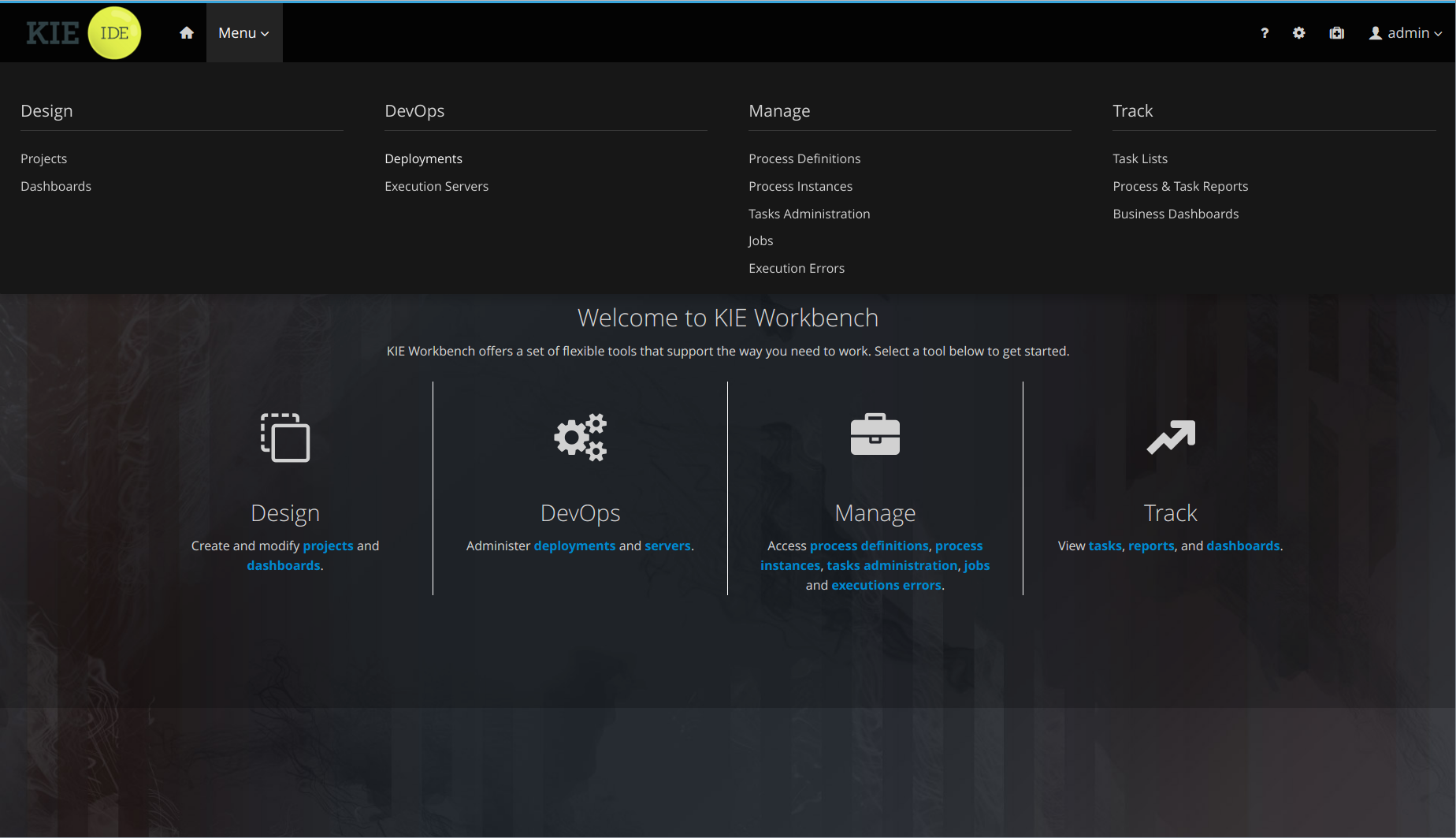

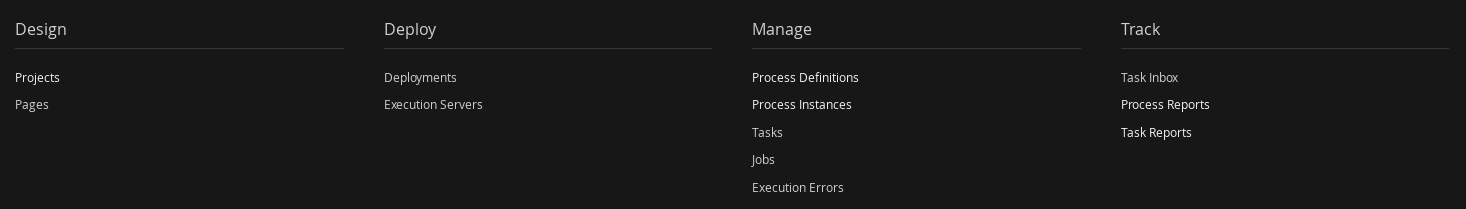

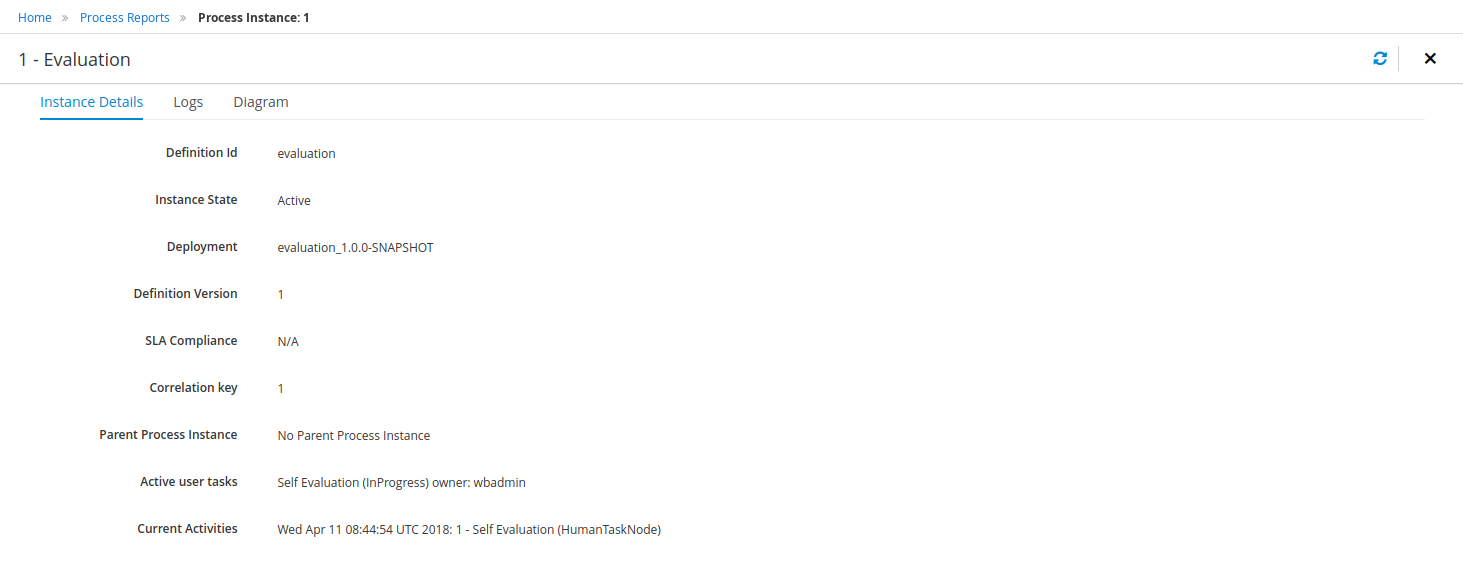

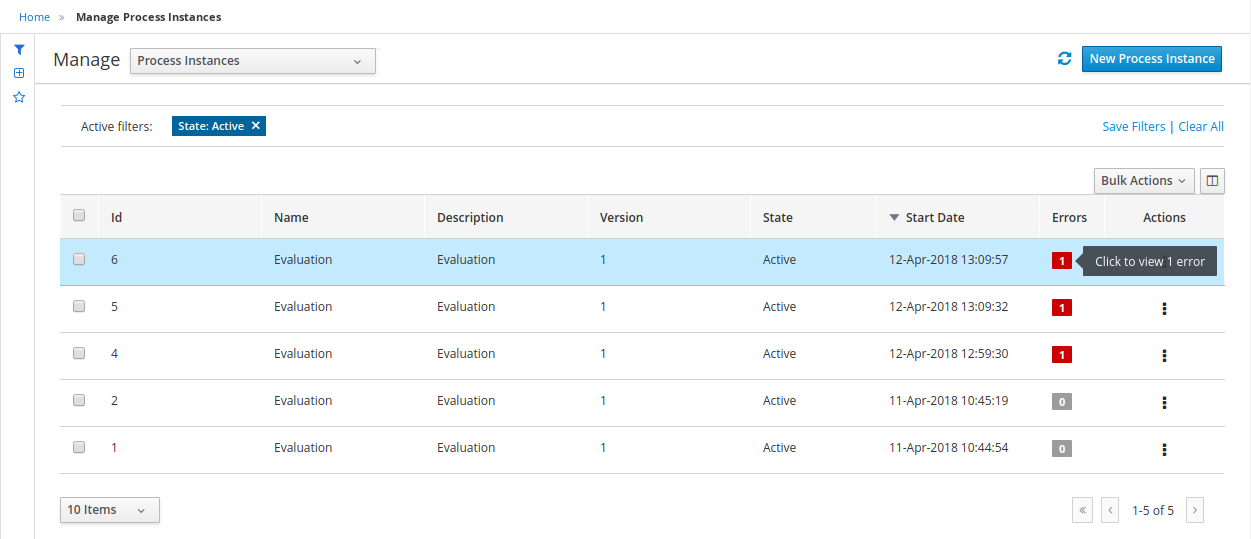

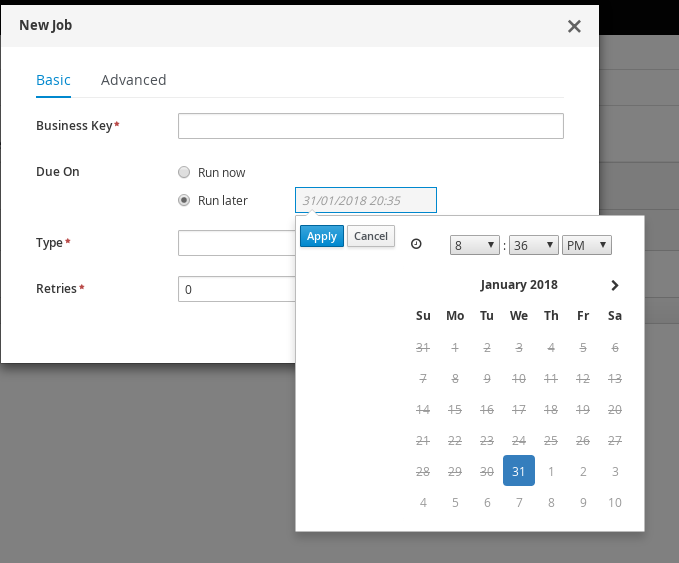

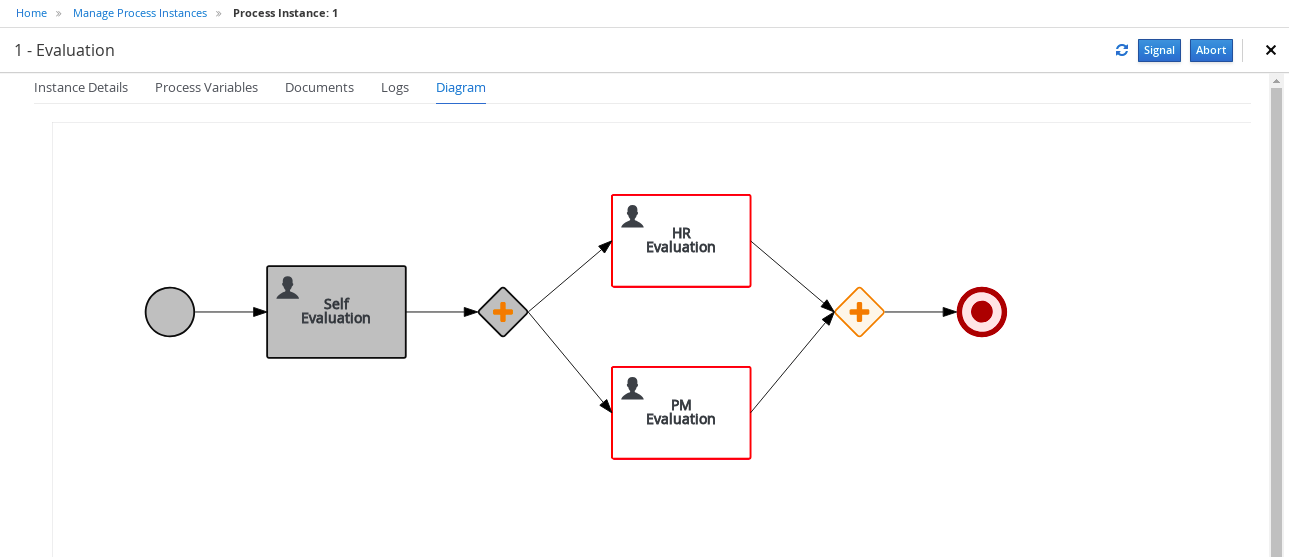

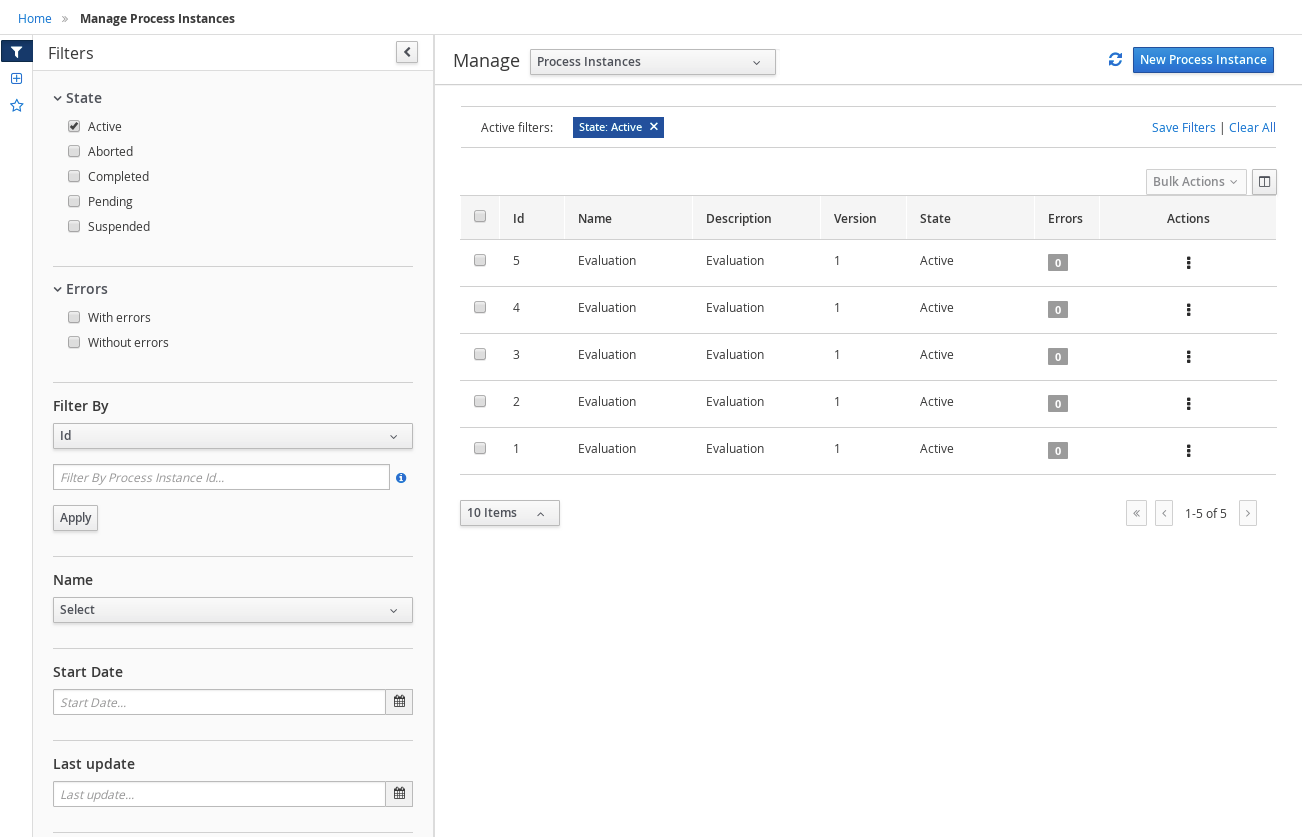

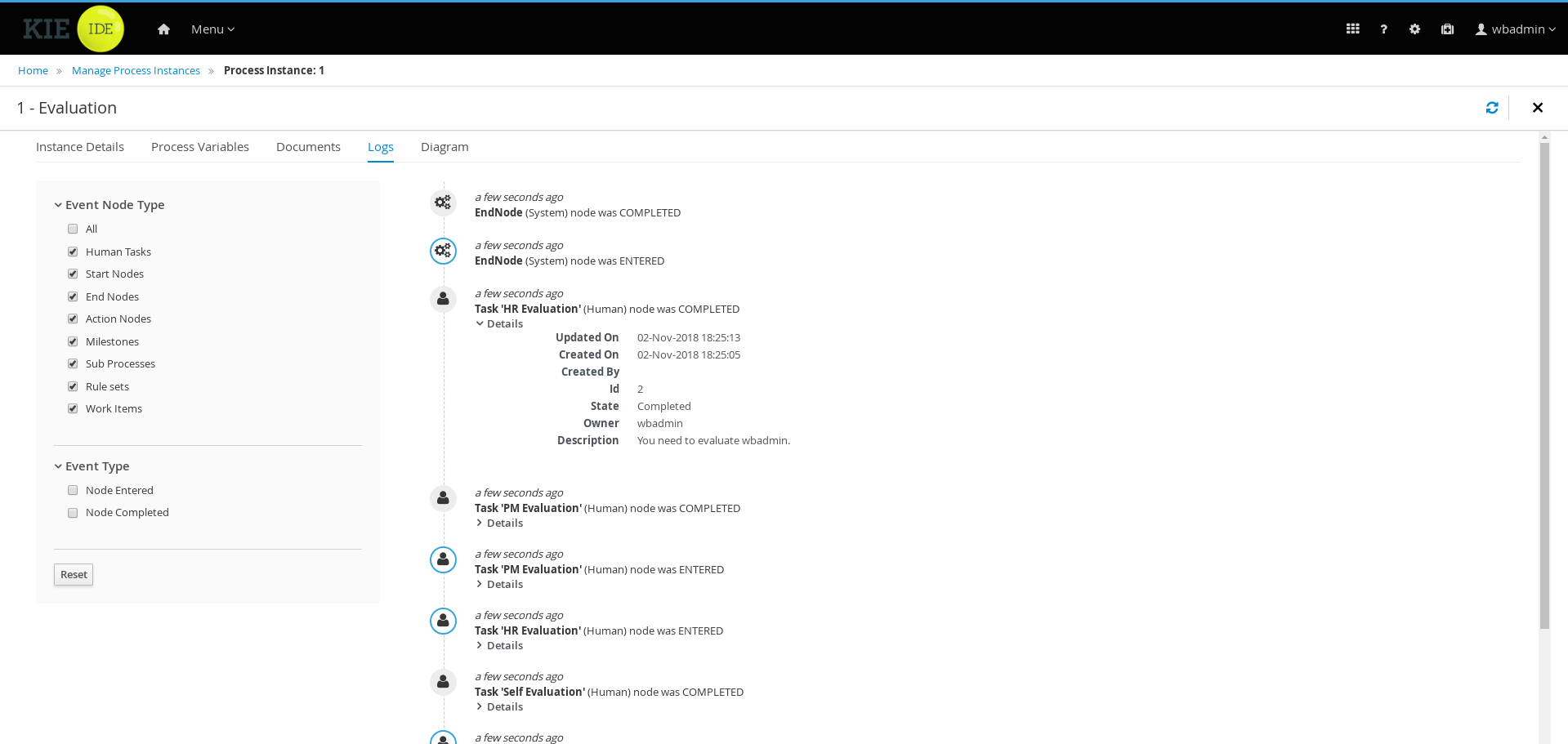

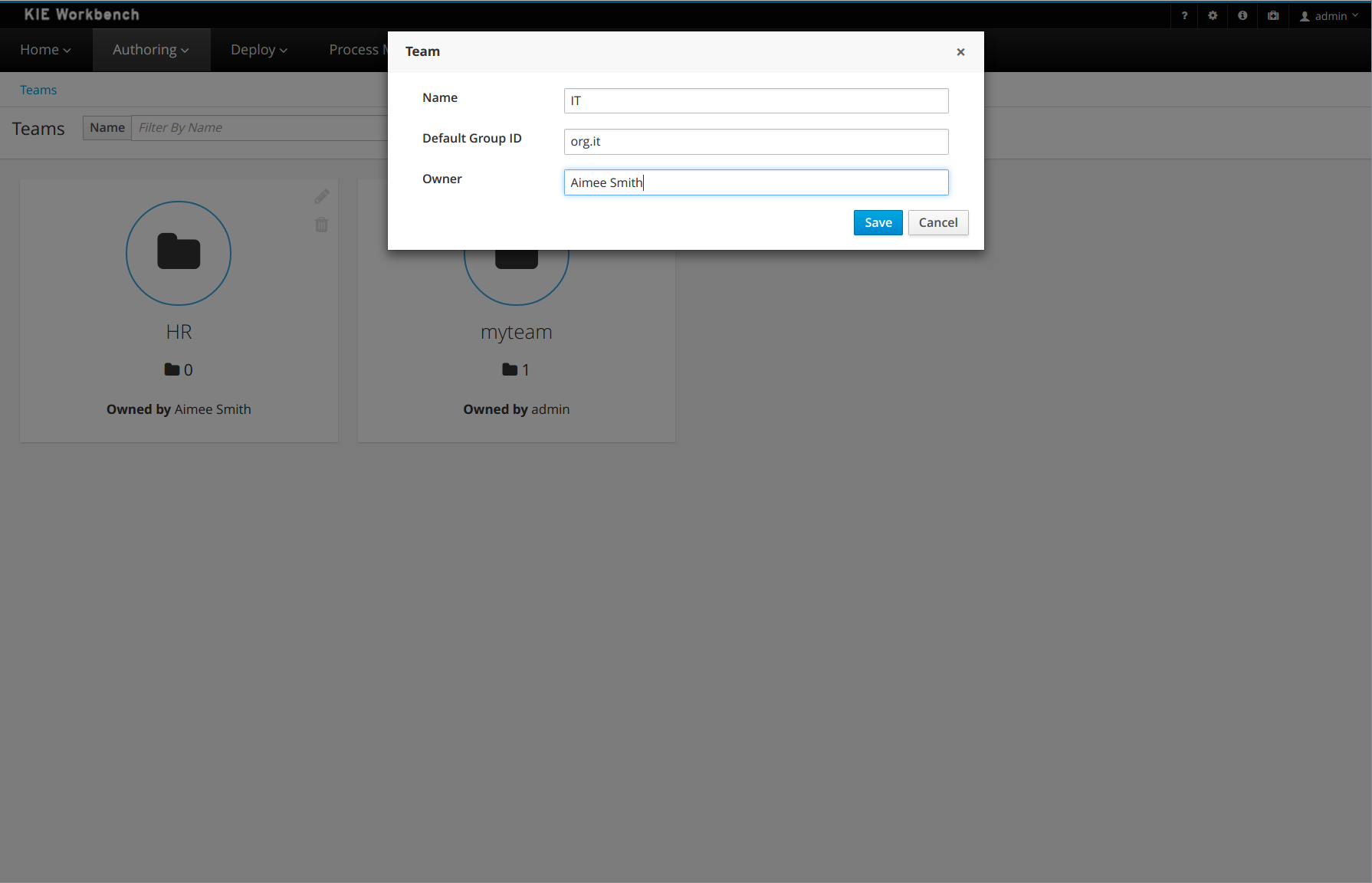

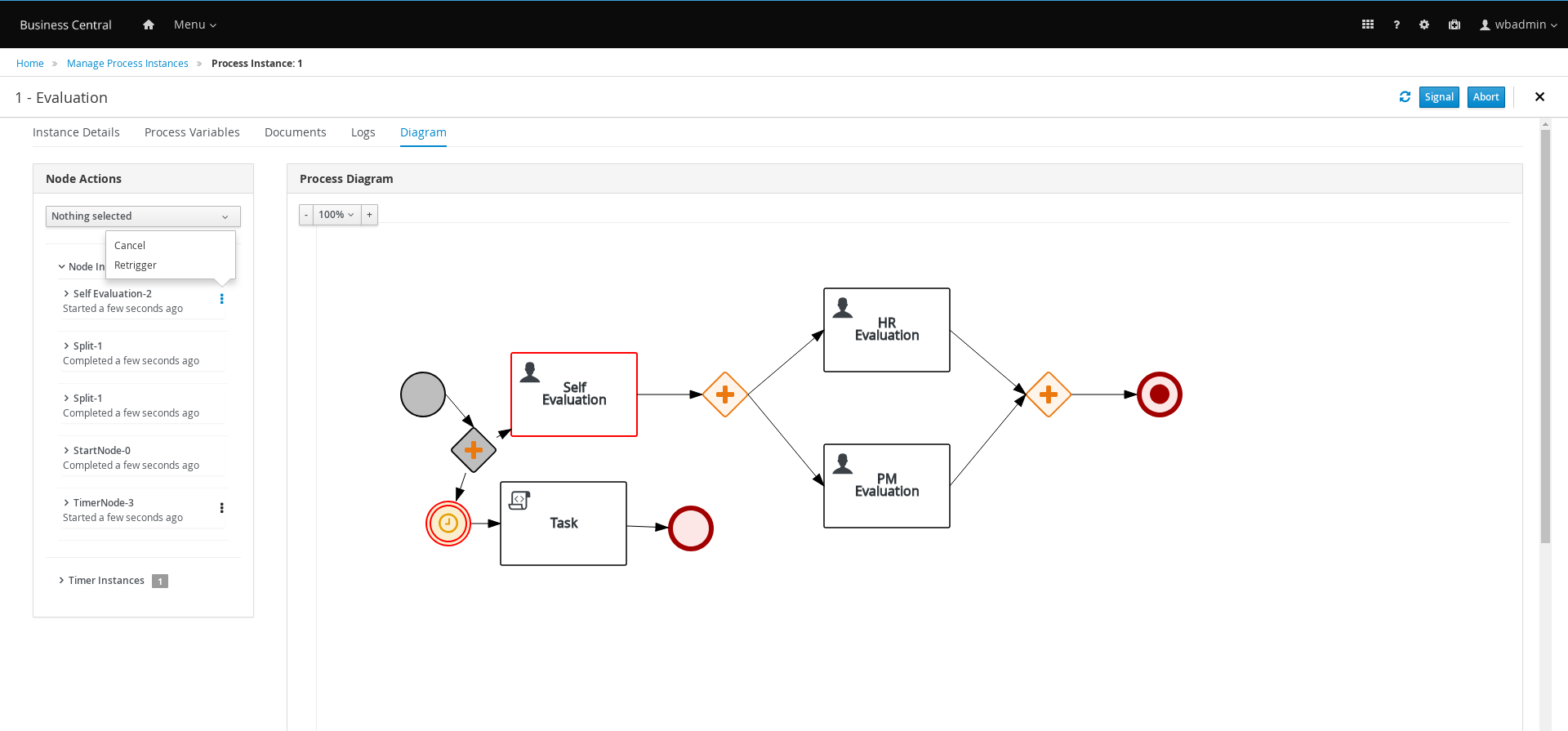

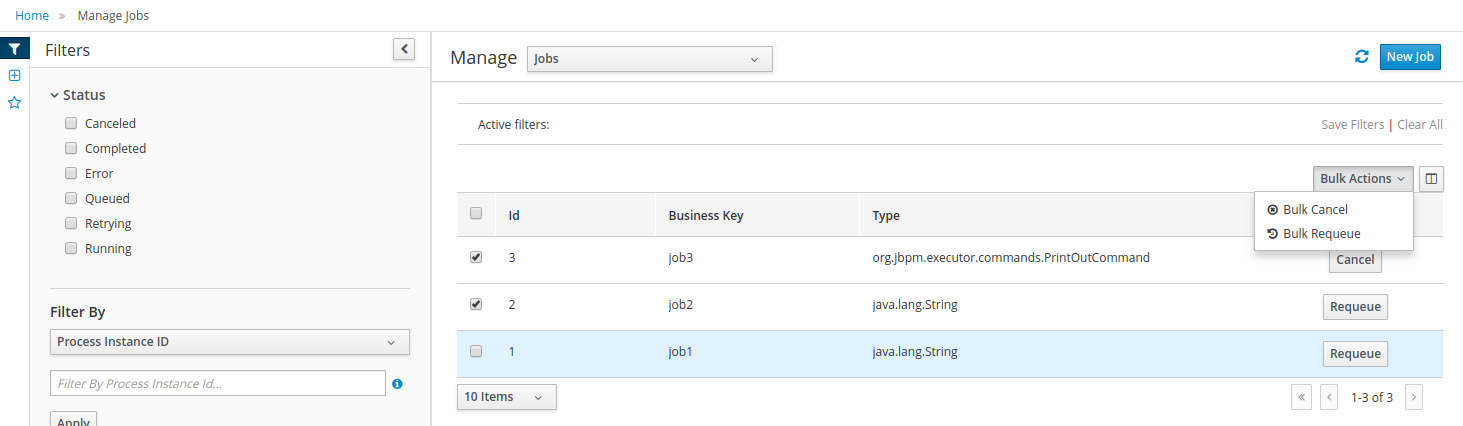

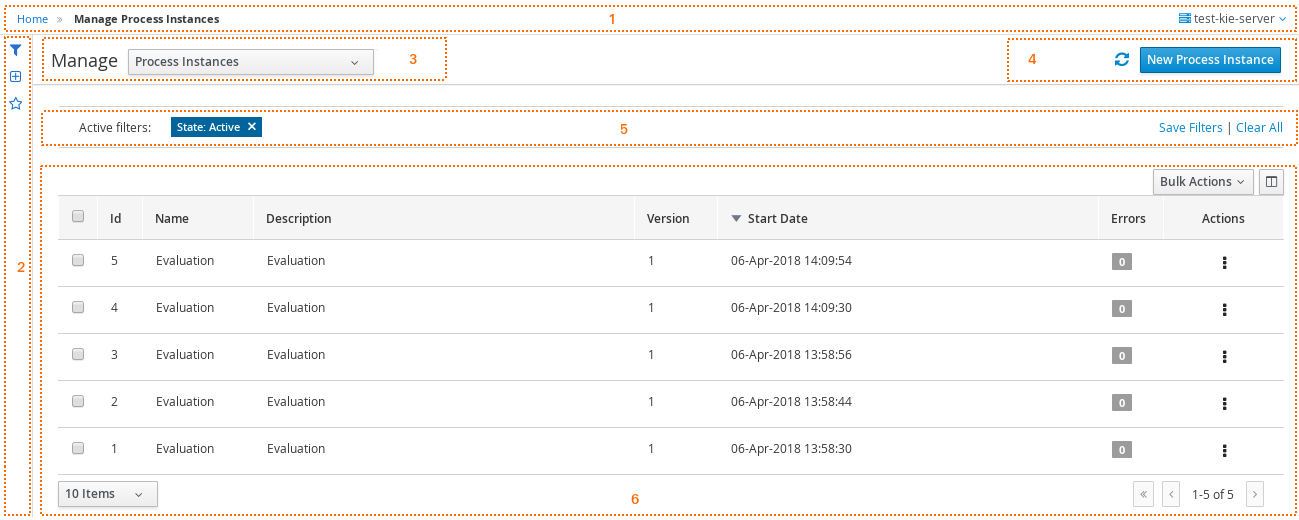

Business processes and all its related runtime information can be managed through Business Central. It is targeted towards process administrators users and its main features include:

For more details around the entire management section please read the process management chapter.

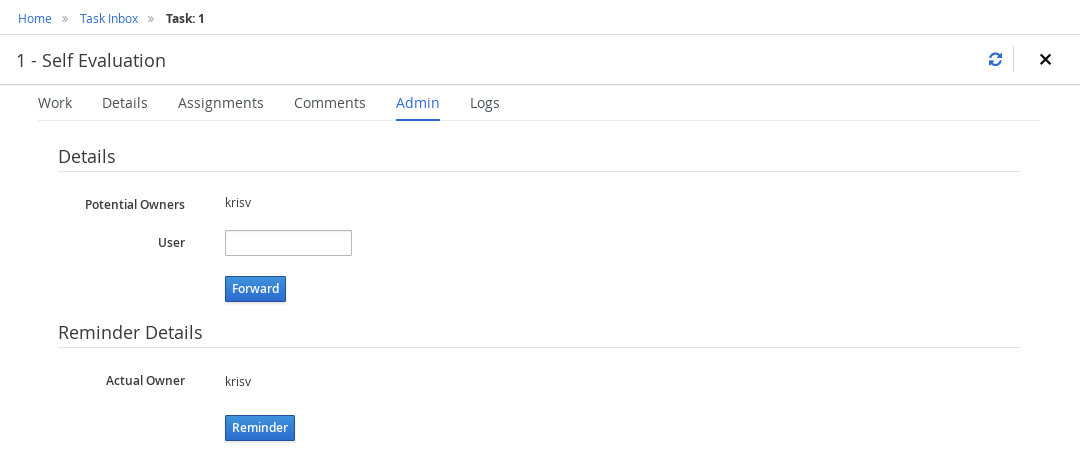

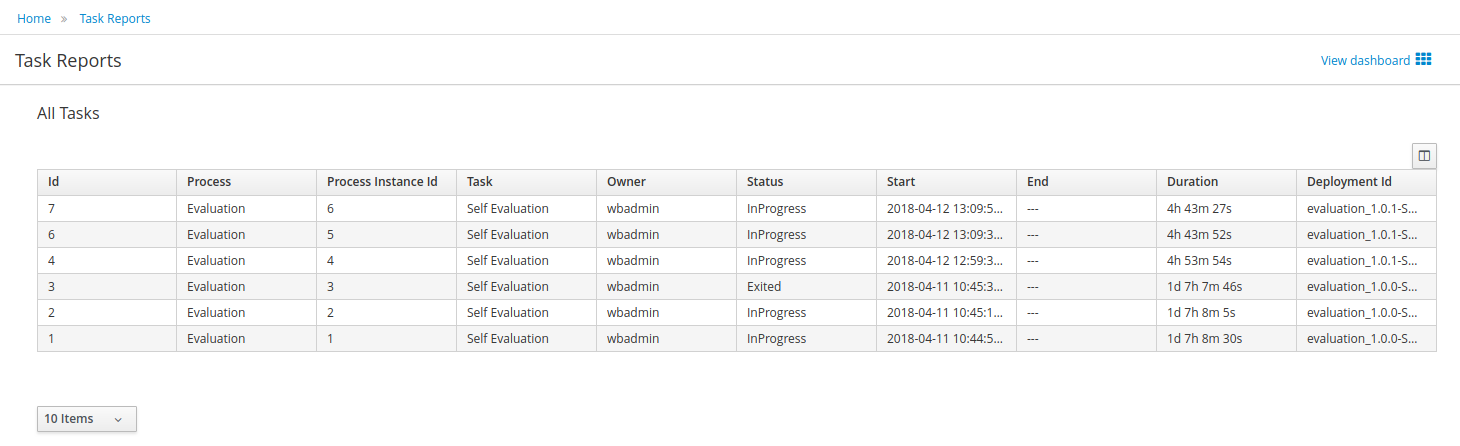

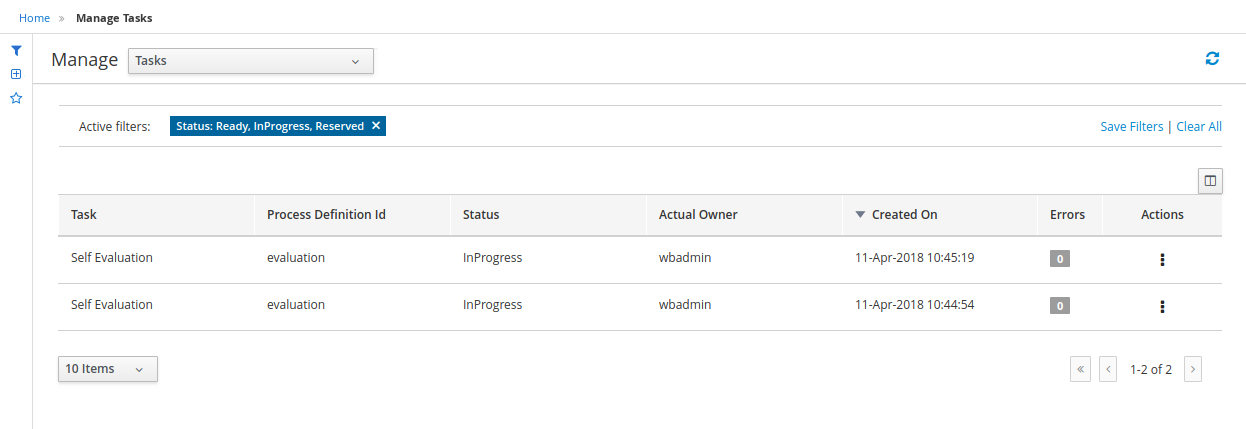

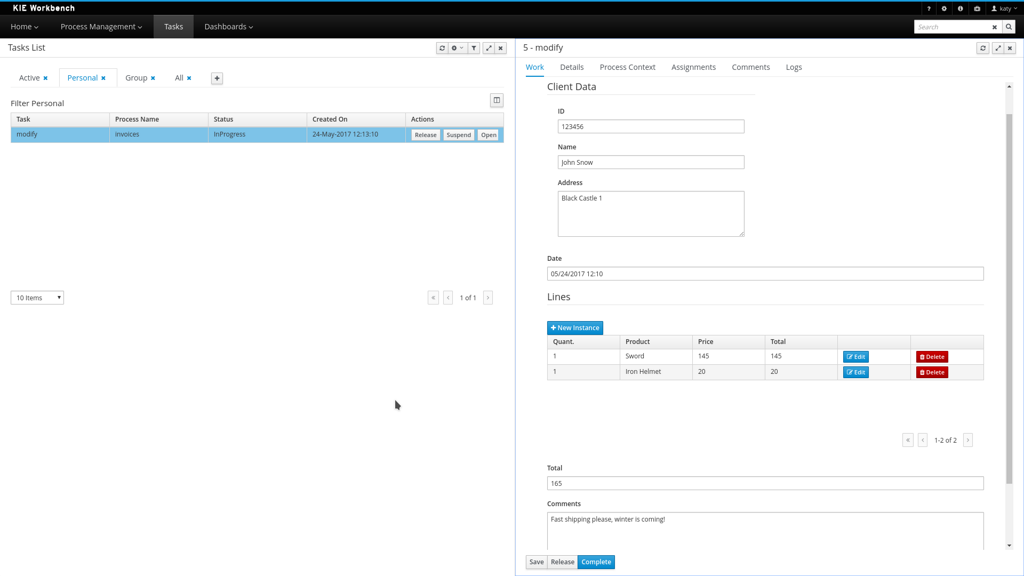

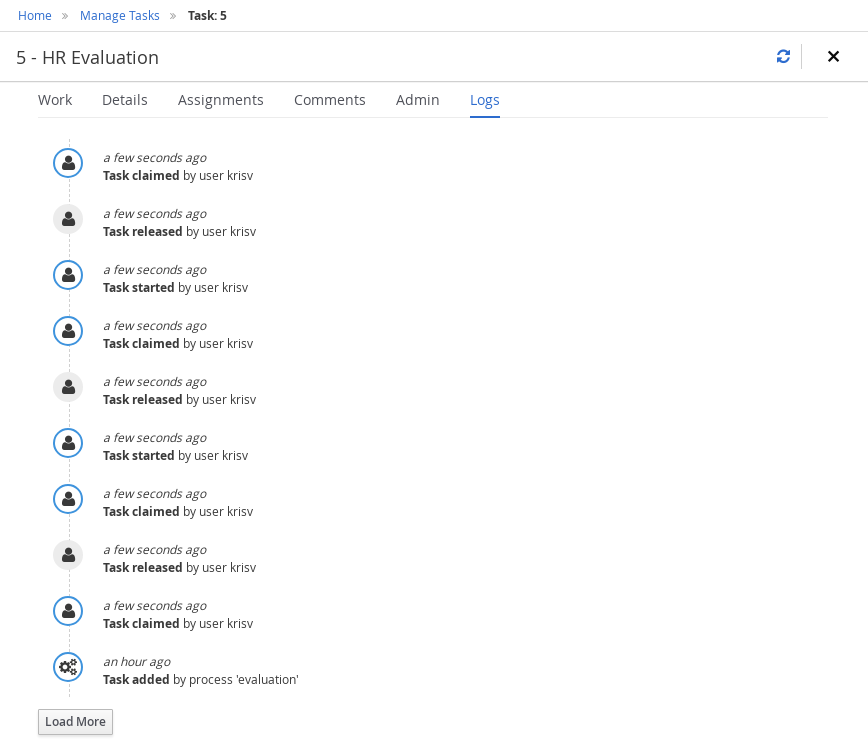

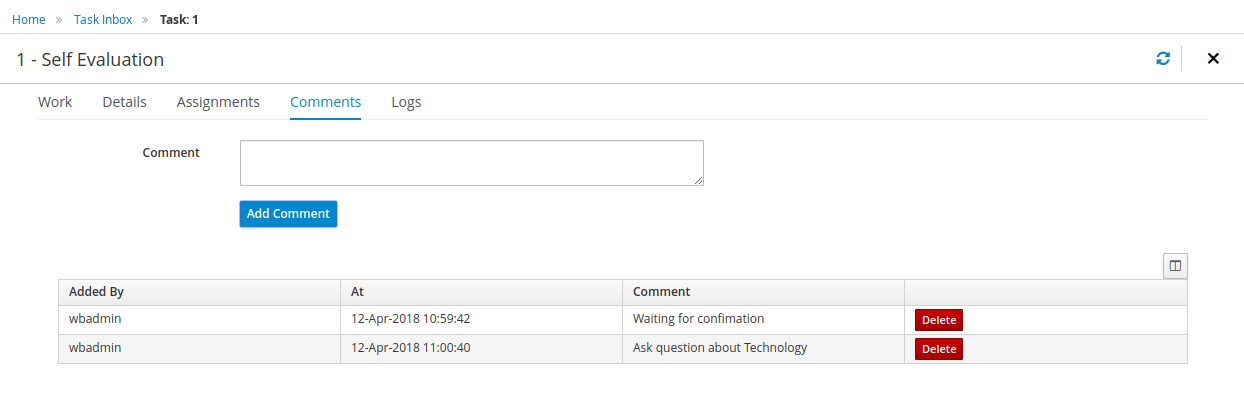

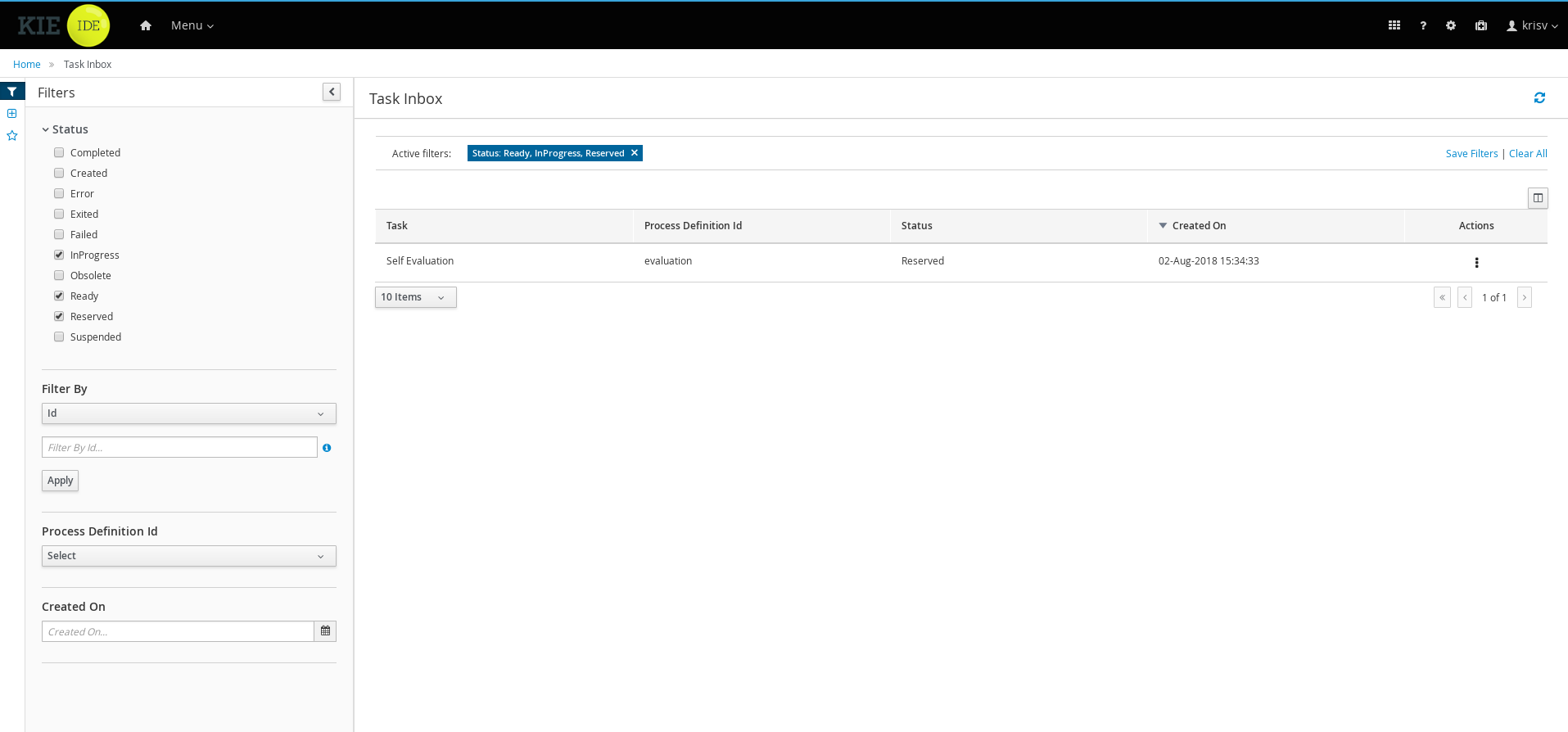

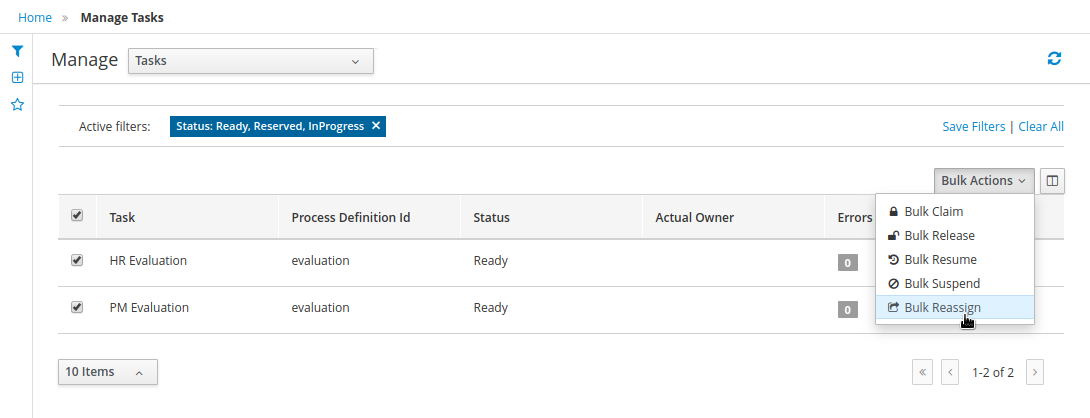

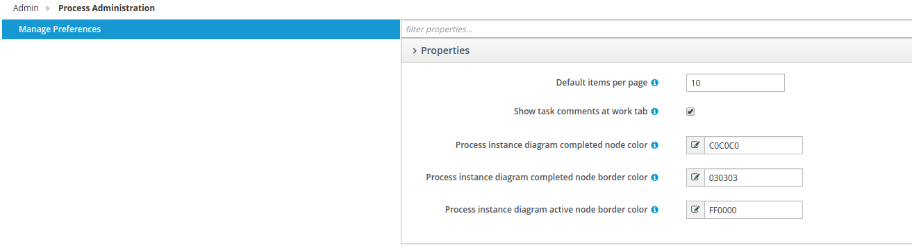

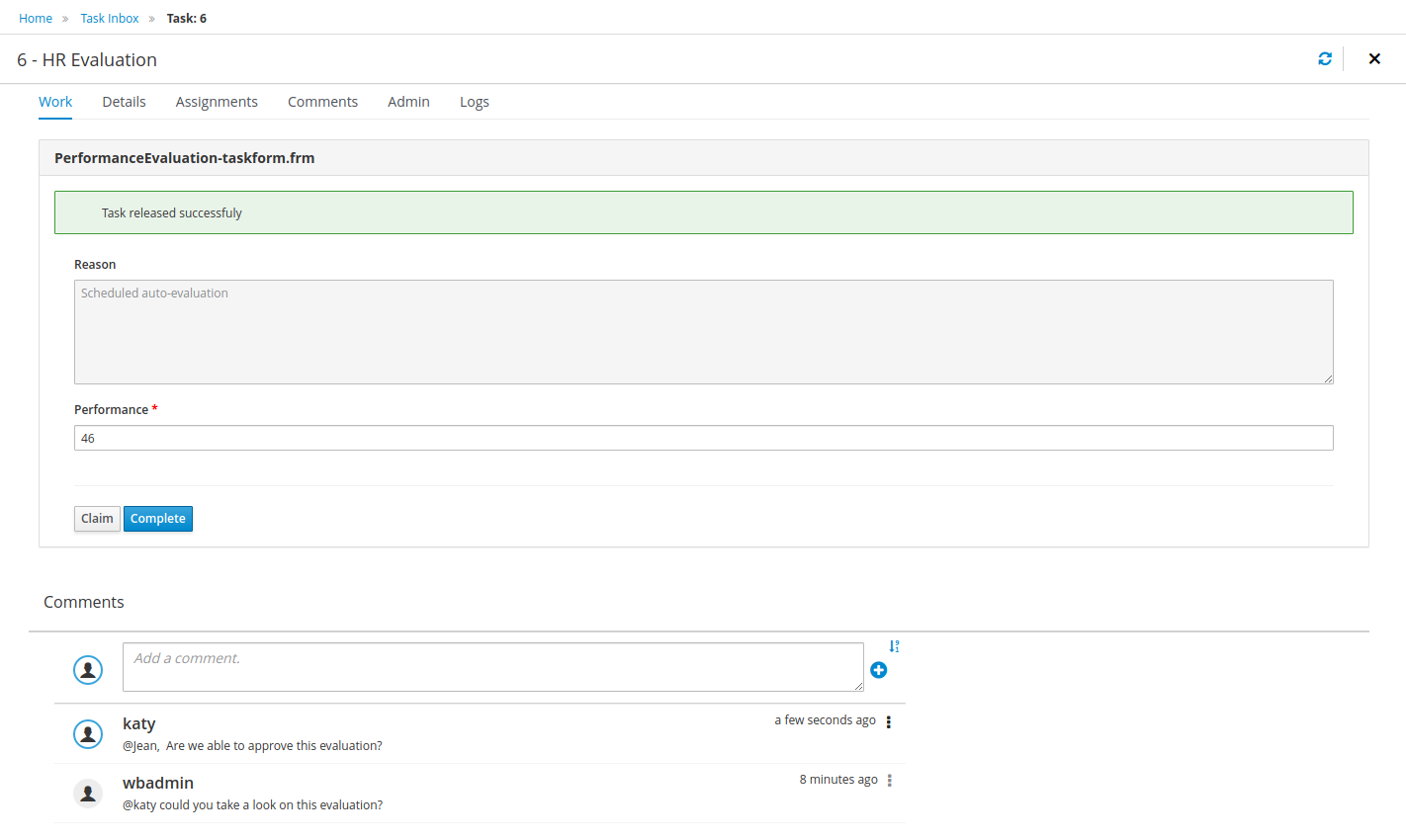

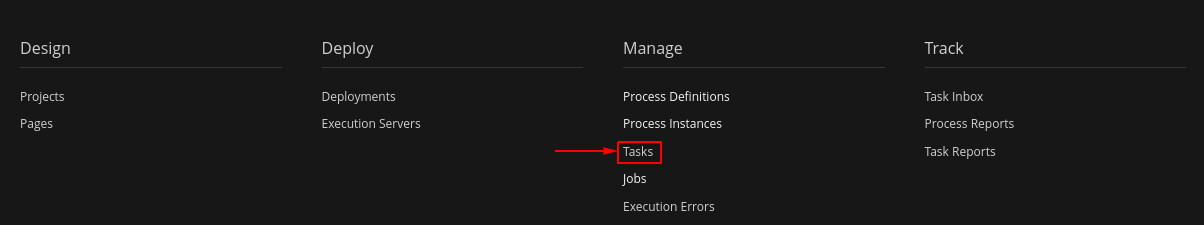

As often part of any process execution, human involvement is needed to review, approve or provide extra information. Business Central provides a Task Inbox section where any user potentially involved with these task can manage its workload. In there, users are able to get a list of all tasks, complete tasks using customizable task forms, collaborate using comments and more.

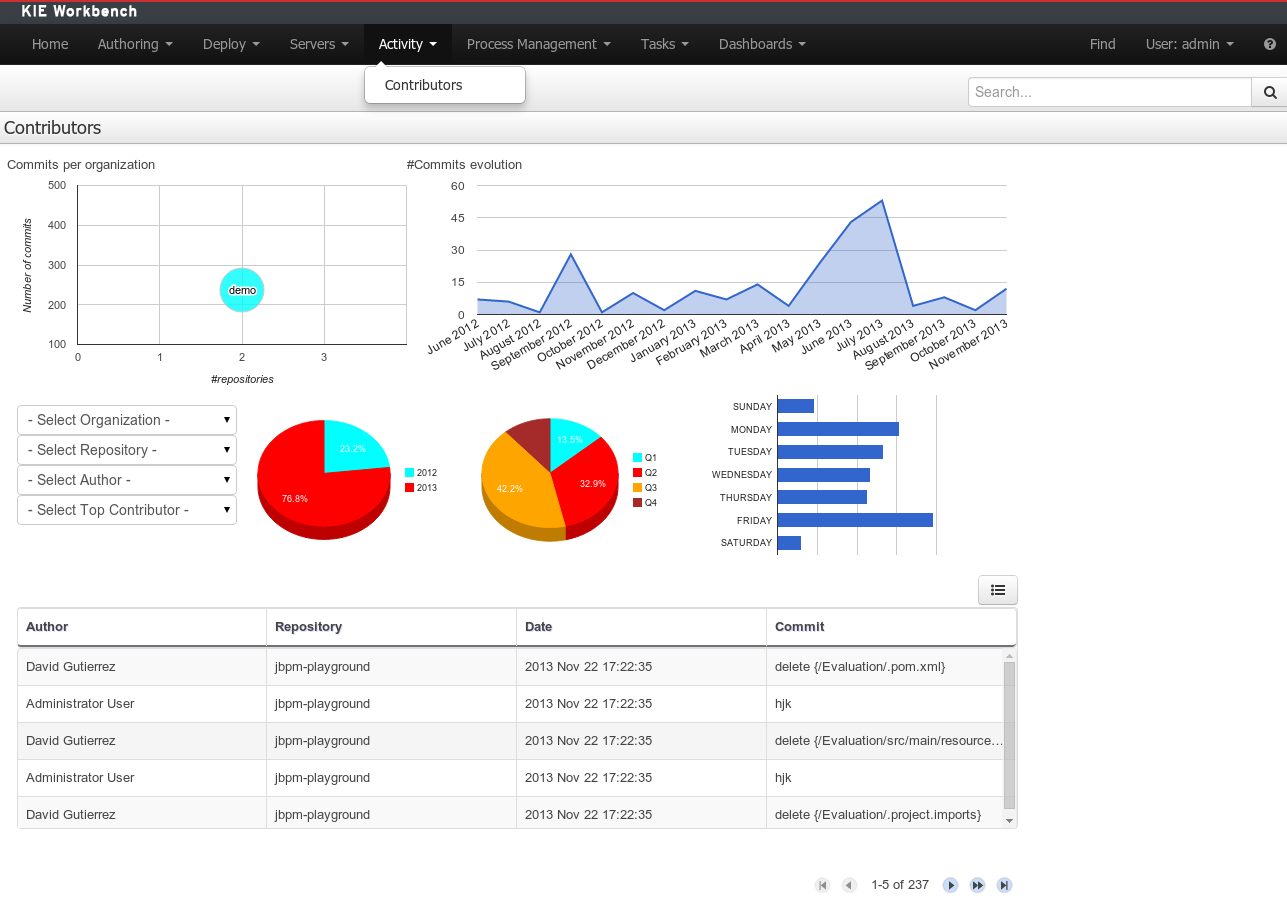

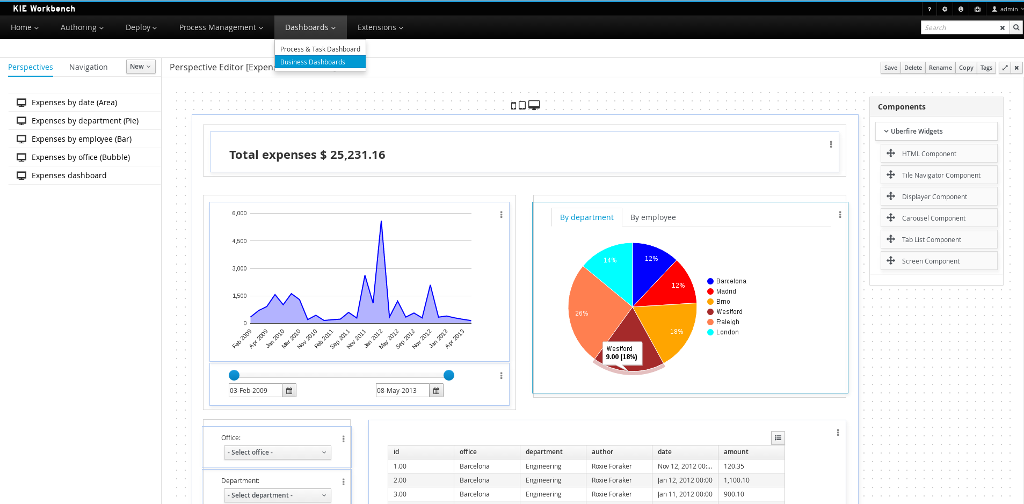

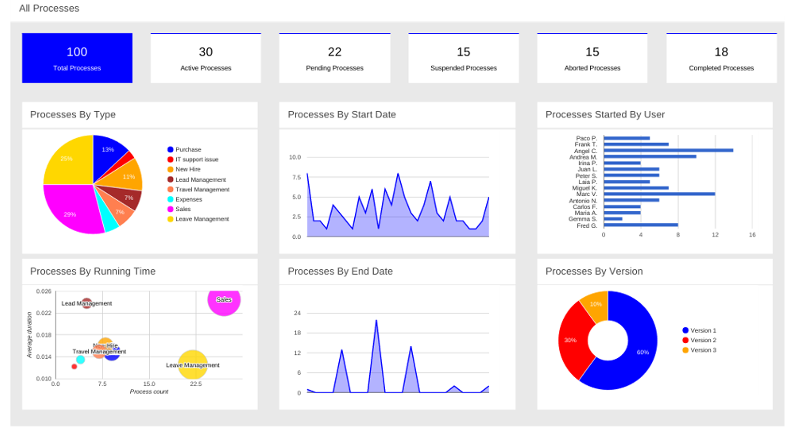

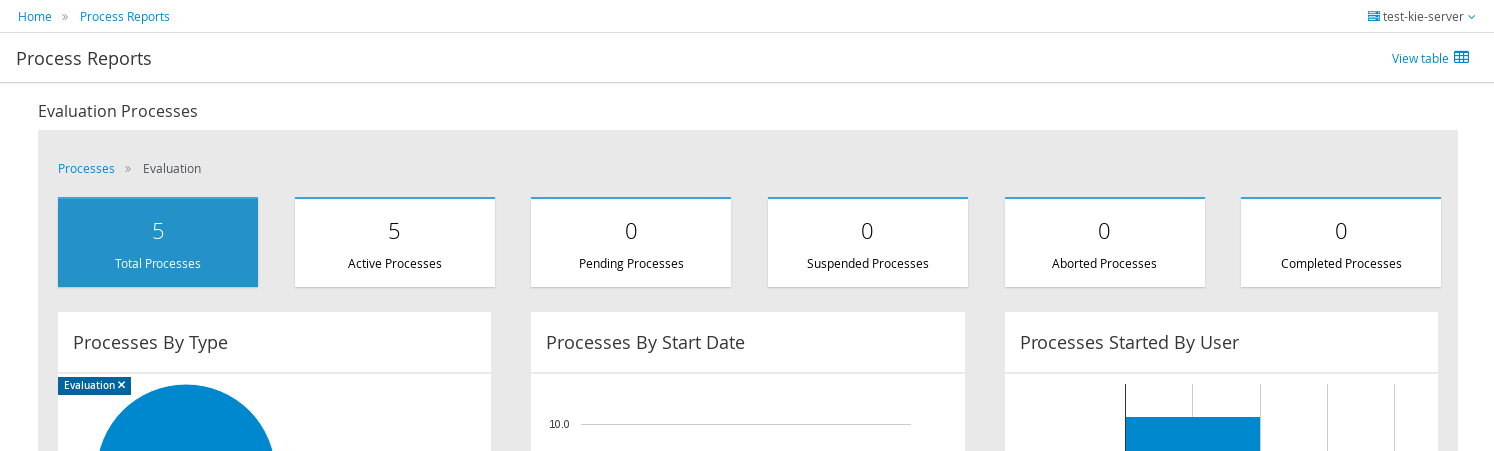

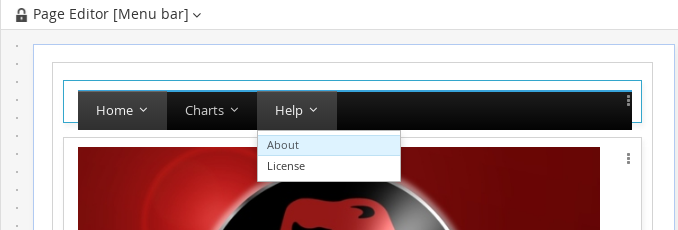

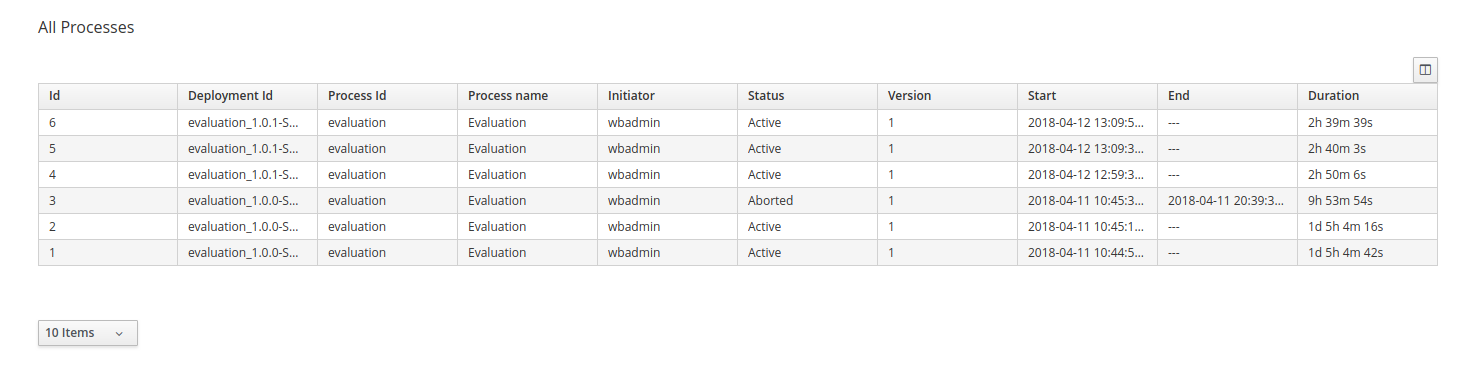

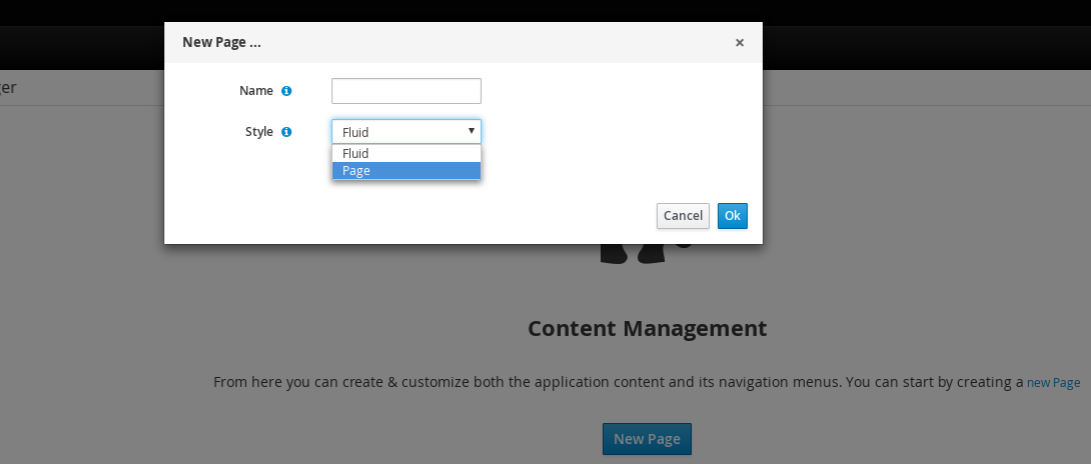

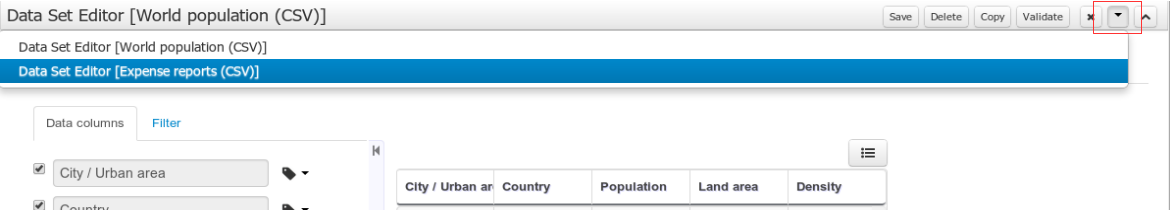

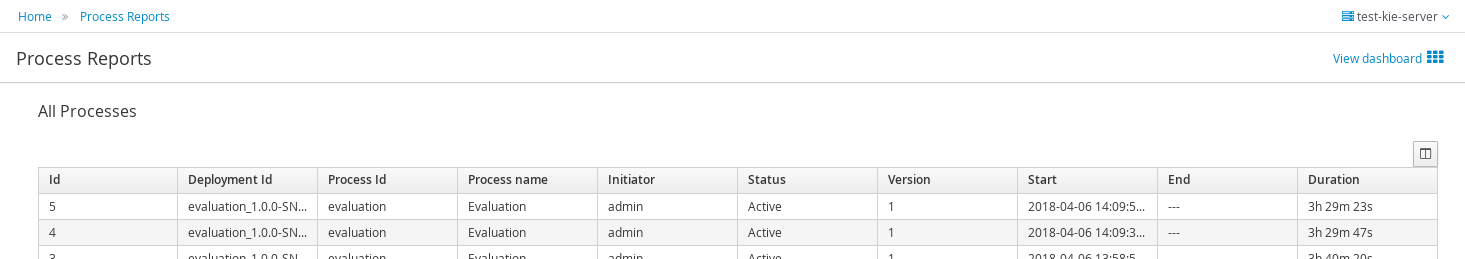

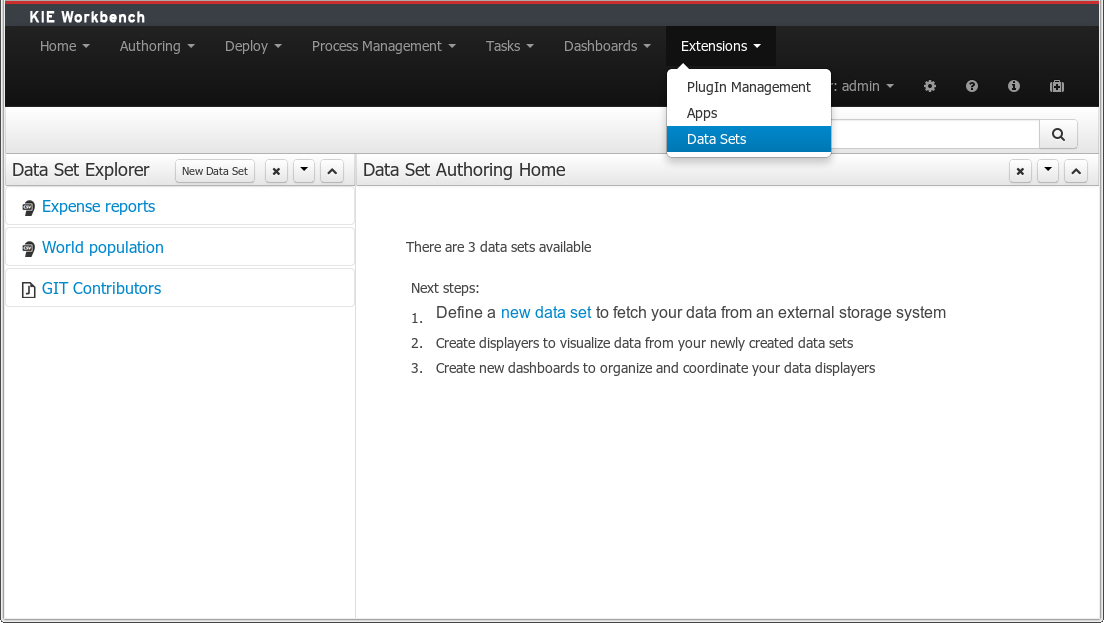

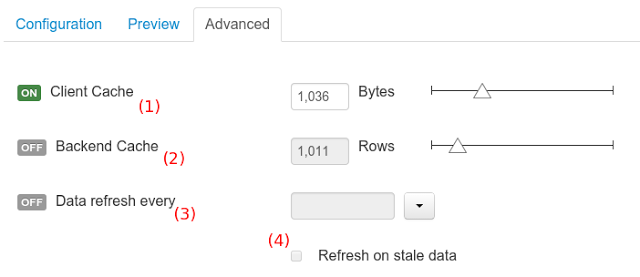

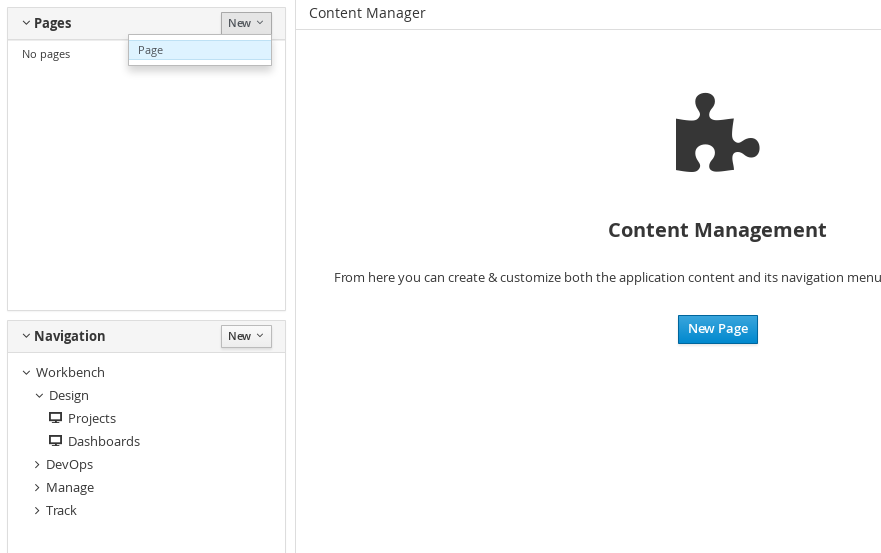

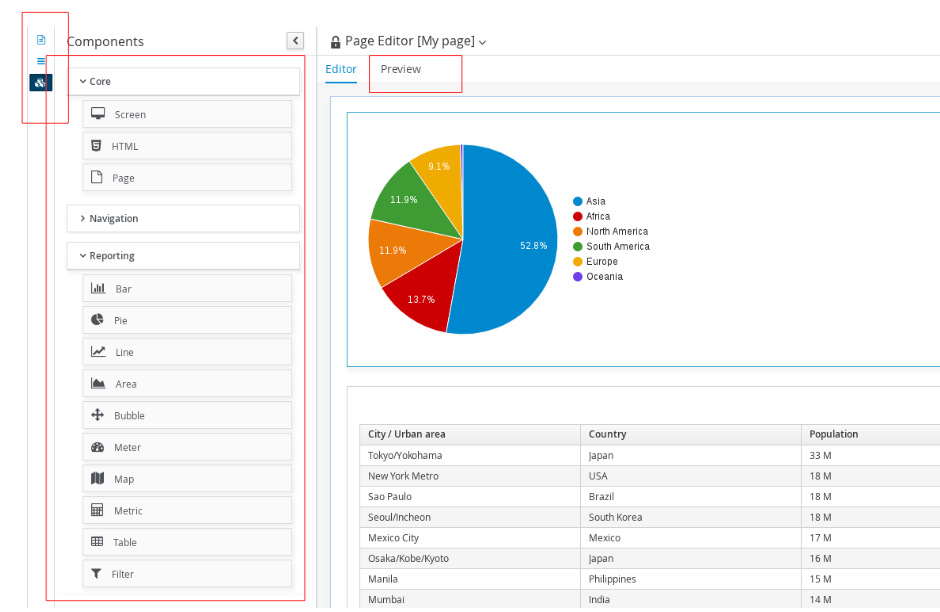

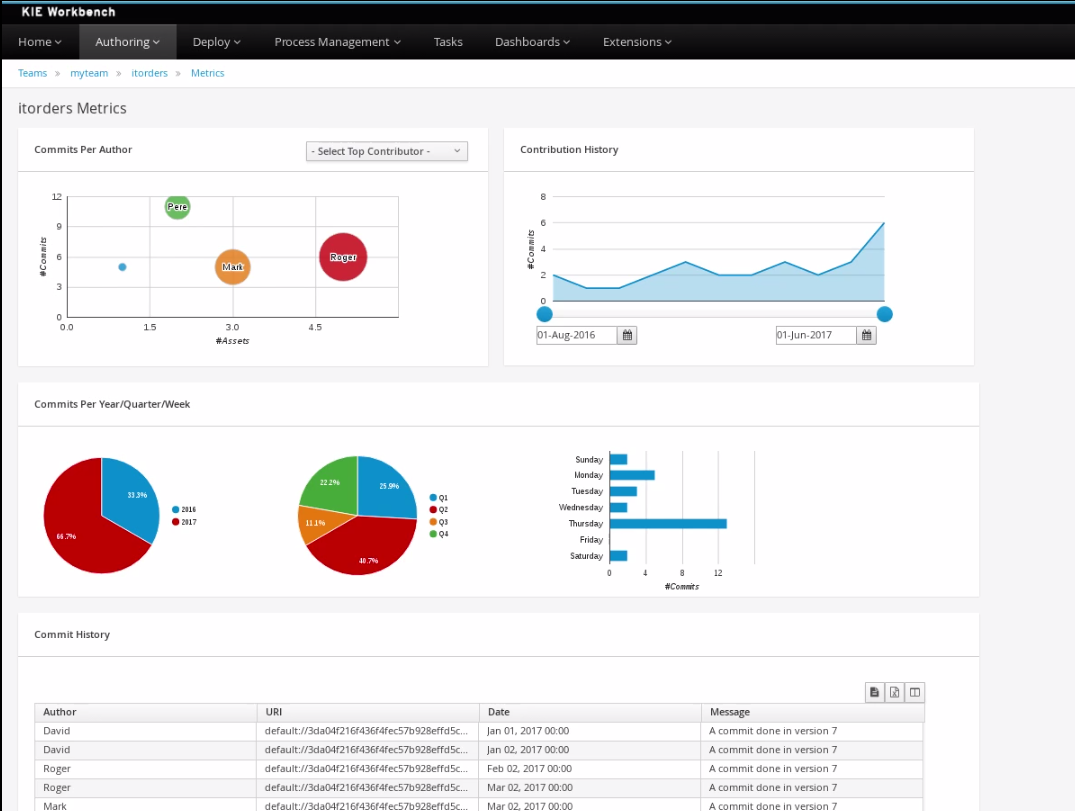

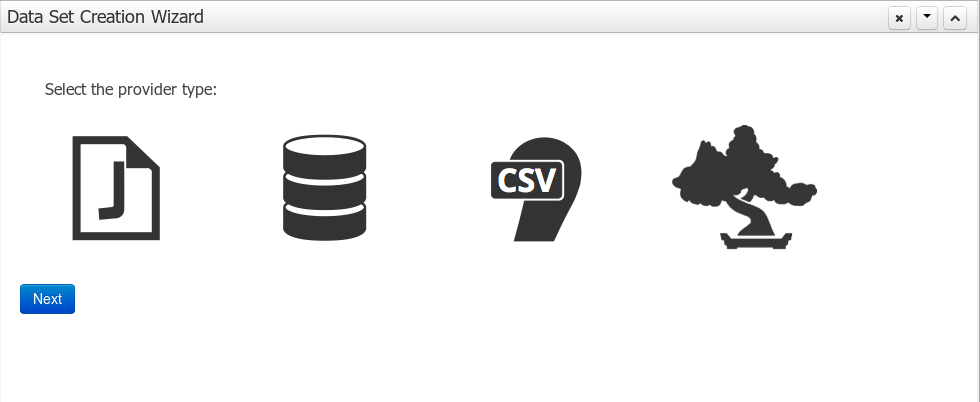

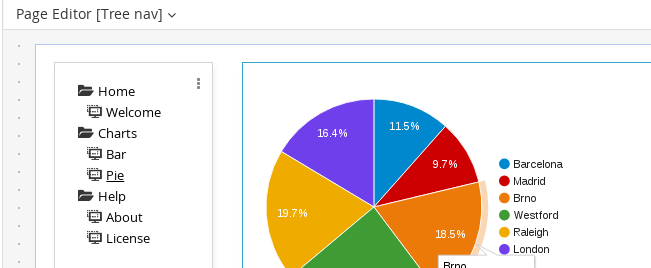

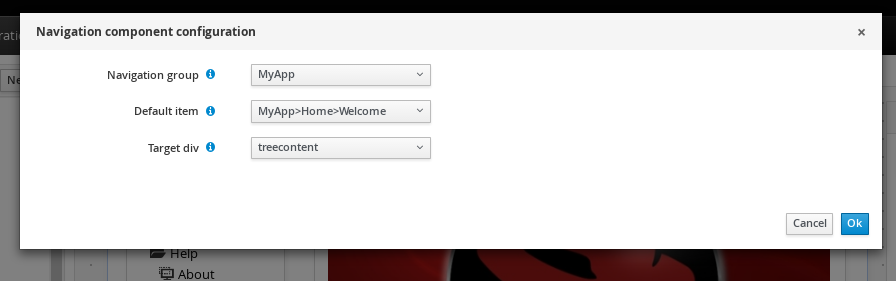

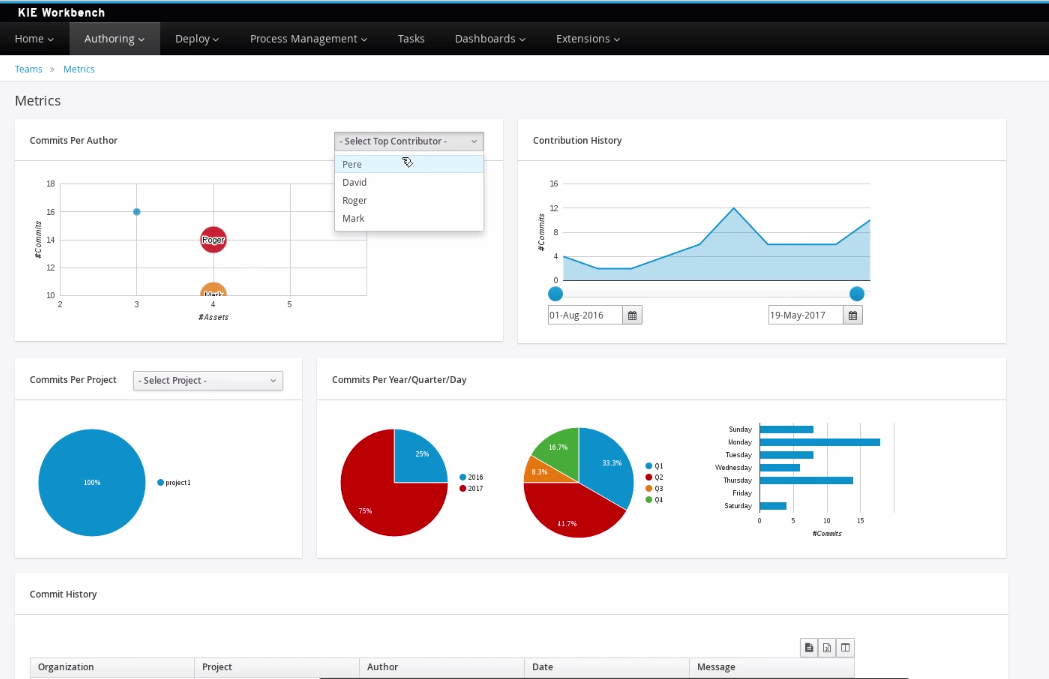

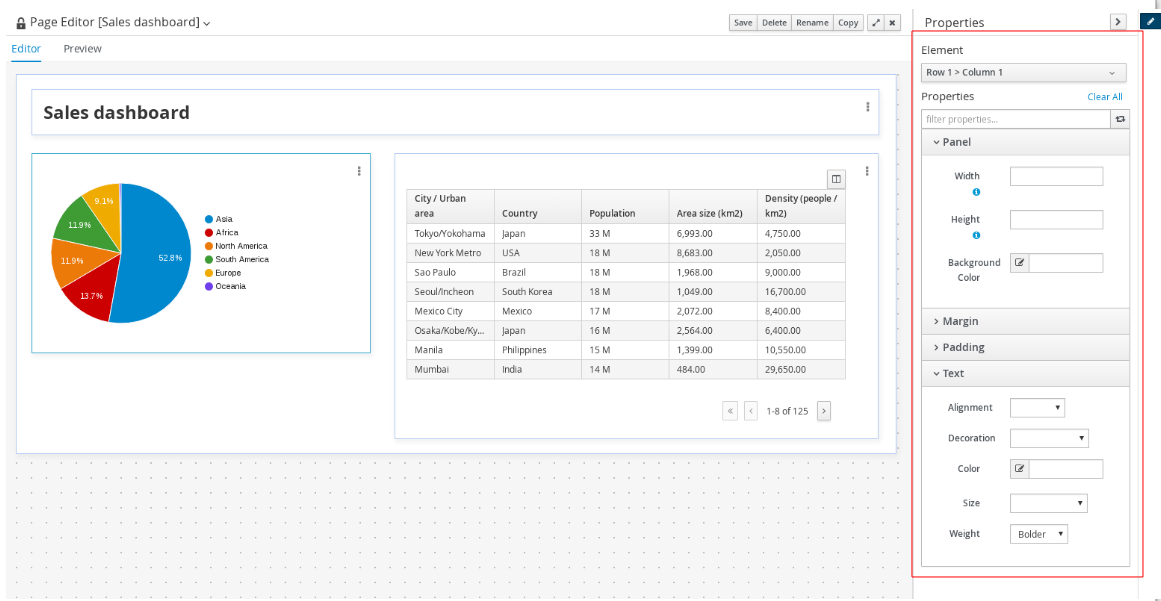

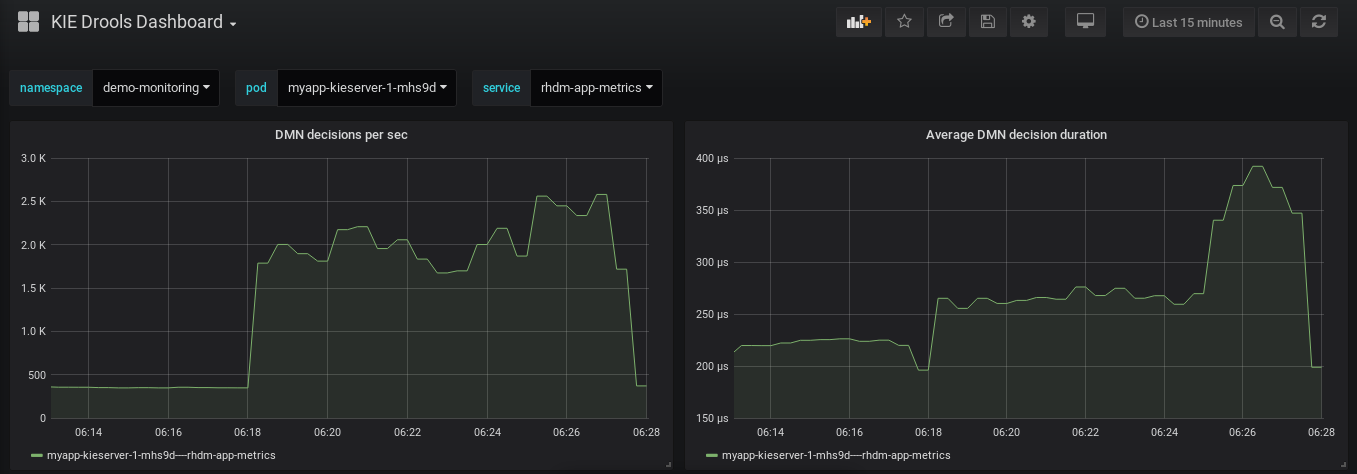

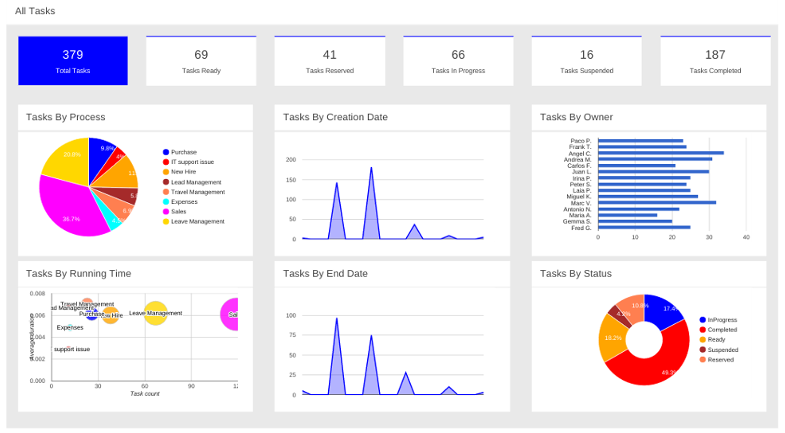

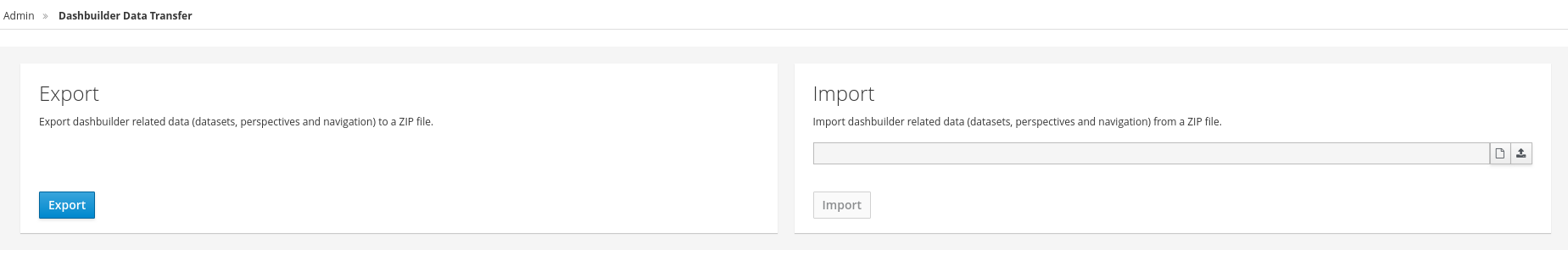

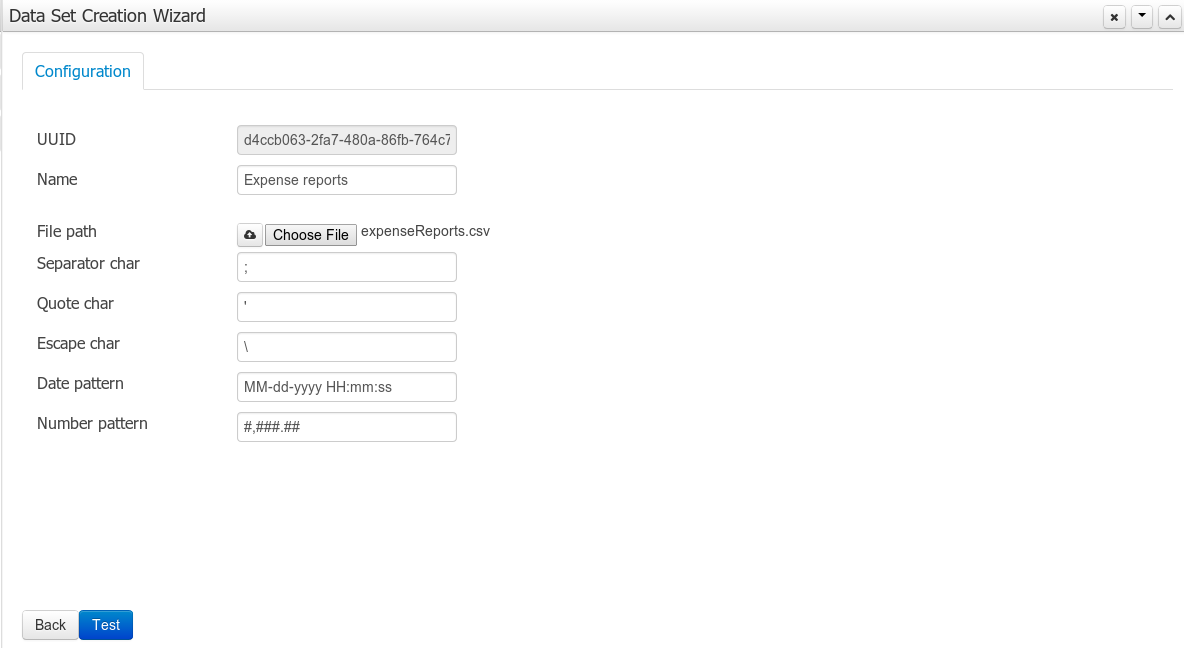

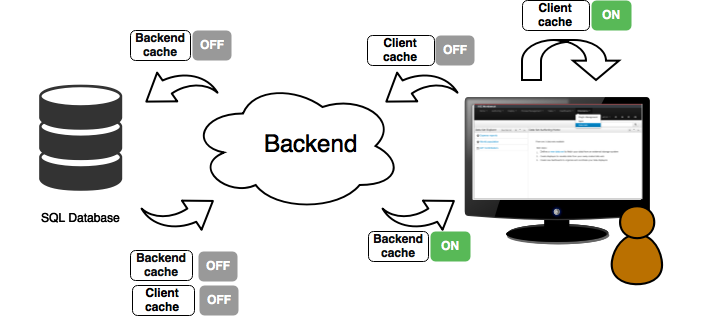

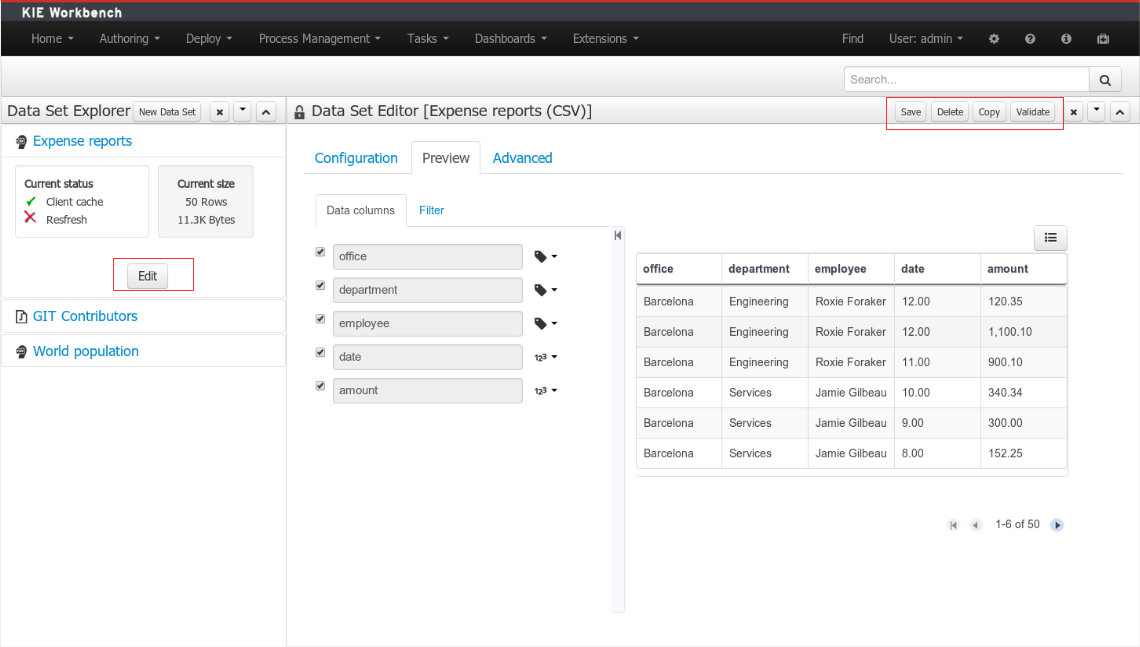

As of version 6.0, jBPM comes with a full-featured BAM tooling which allows non-technical users to visually compose business dashboards. With this brand new module, to develop business activity monitoring and reporting solutions on top of jBPM has never been so easy!

Key features:

Target users:

To get further information about the new and noteworthy BAM capabilities of jBPM please read the chapter Business Activity Monitoring.

The jBPM code itself is using the Apache License v2.0.

Some other components we integrate with have their own license:

jBPM now uses git for its source code version control system. The sources of the jBPM project can be found here (including all releases starting from jBPM 5.0-CR1):

https://github.com/kiegroup/jbpm

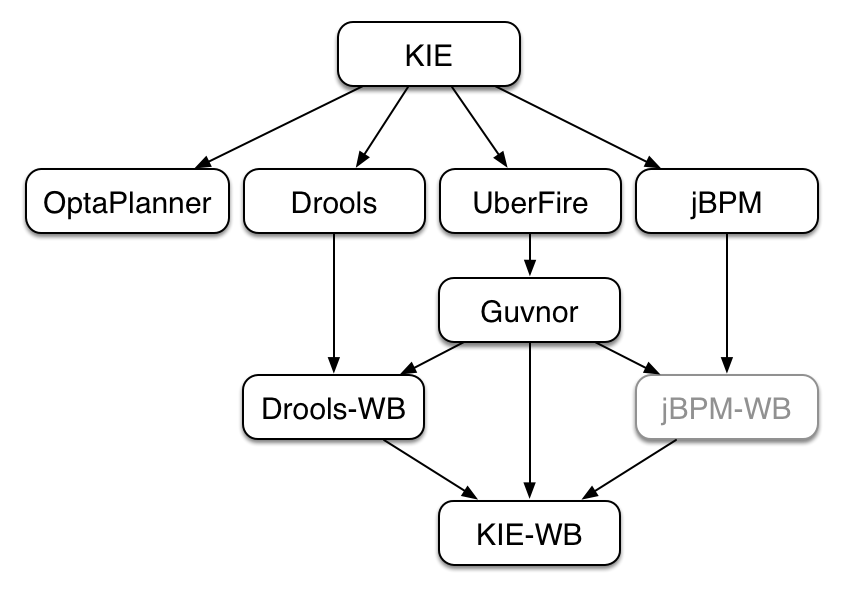

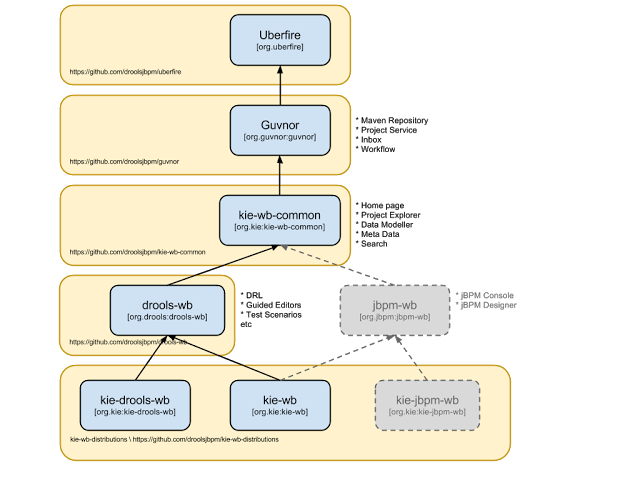

The source of some of the other components can be found here:

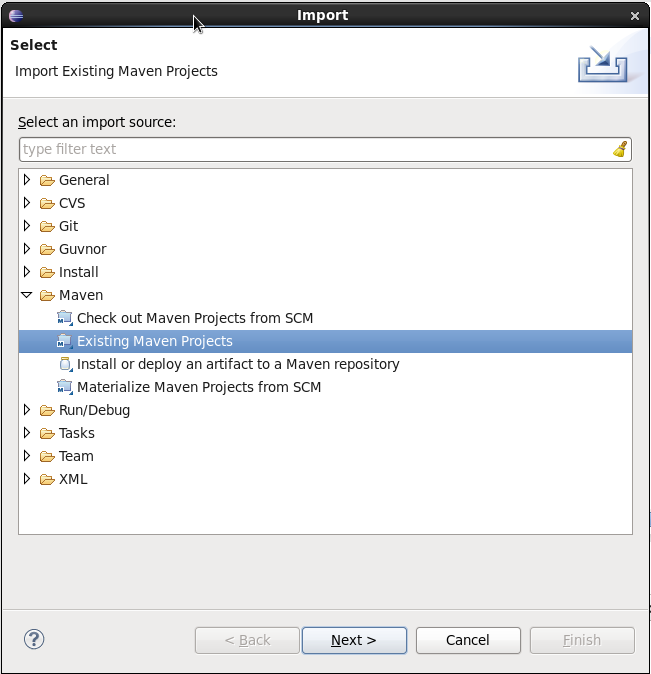

If you’re interested in building the source code, contributing, releasing, etc. make sure to read this README.

Signing to jboss.org will give you access to the JBoss wiki, forums and JIRA. Go to https://www.jboss.org/ and click "Register".

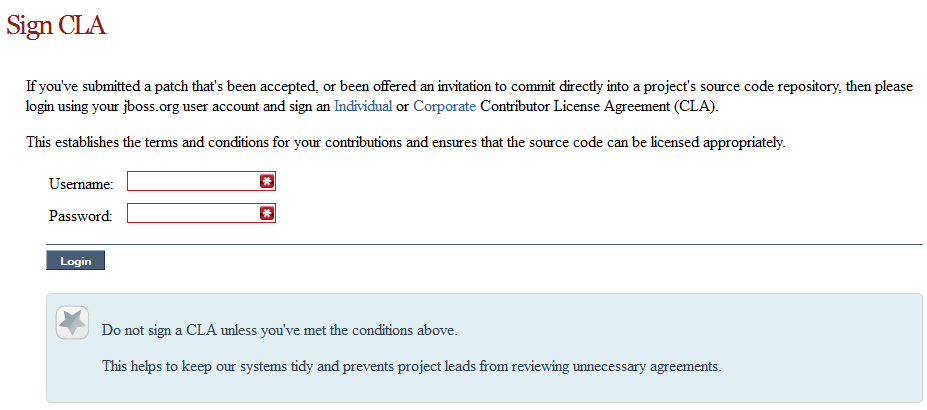

The only form you need to sign is the contributor agreement, which is fully automated via the web. As the image below says "This establishes the terms and conditions for your contributions and ensures that source code can be licensed appropriately"

https://cla.jboss.org/

To be able to interact with the core development team you will need to use JIRA, the issue tracker. This ensures that all requests are logged and allocated to a release schedule and all discussions captured in one place. Bug reports, bug fixes, feature requests and feature submissions should all go here. General questions should be undertaken at the mailing lists.

Minor code submissions, like format or documentation fixes do not need an associated JIRA issue created.

https://issues.jboss.org/browse/DROOLS

https://issues.jboss.org/browse/JBPM

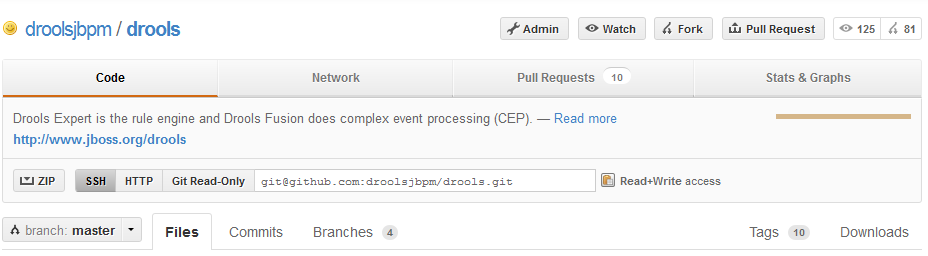

With the contributor agreement signed and your requests submitted to JIRA you should now be ready to code :) Create a GitHub account and fork any of the Drools, jBPM or Guvnor repositories. The fork will create a copy in your own GitHub space which you can work on at your own pace. If you make a mistake, don’t worry blow it away and fork again. Note each GitHub repository provides you the clone (checkout) URL, GitHub will provide you URLs specific to your fork.

https://github.com/kiegroup

When writing tests, try and keep them minimal and self contained. We prefer to keep the DRL fragments within the test, as it makes for quicker reviewing. If their are a large number of rules then using a String is not practical so then by all means place them in separate DRL files instead to be loaded from the classpath. If your tests need to use a model, please try to use those that already exist for other unit tests; such as Person, Cheese or Order. If no classes exist that have the fields you need, try and update fields of existing classes before adding a new class.

There are a vast number of tests to look over to get an idea, MiscTest is a good place to start.

https://github.com/kiegroup/drools/blob/master/drools-compiler/src/test/java/org/drools/integrationtests/MiscTest.java

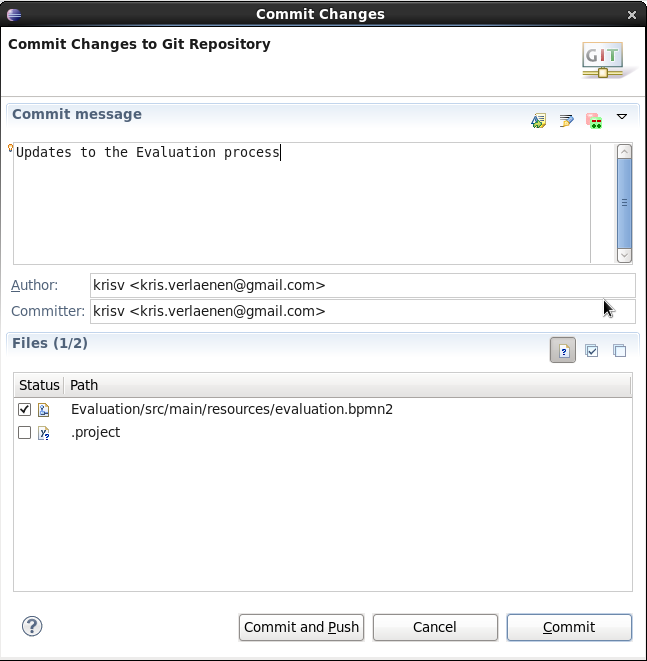

When you commit, make sure you use the correct conventions. The commit must start with the JIRA issue id, such as DROOLS-1946. This ensures the commits are cross referenced via JIRA, so we can see all commits for a given issue in the same place. After the id the title of the issue should come next. Then use a newline, indented with a dash, to provide additional information related to this commit. Use an additional new line and dash for each separate point you wish to make. You may add additional JIRA cross references to the same commit, if it’s appropriate. In general try to avoid combining unrelated issues in the same commit.

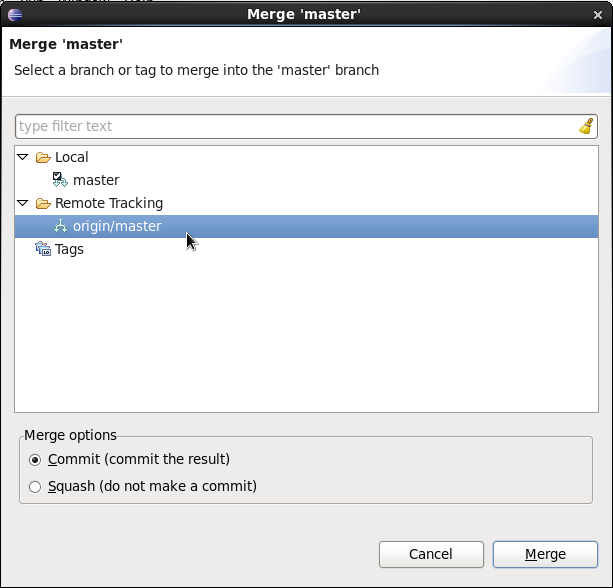

Don’t forget to rebase your local fork from the original master and then push your commits back to your fork.

With your code rebased from original master and pushed to your personal GitHub area, you can now submit your work as a pull request. If you look at the top of the page in GitHub for your work area their will be a "Pull Request" button. Selecting this will then provide a gui to automate the submission of your pull request.

The pull request then goes into a queue for everyone to see and comment on. Below you can see a typical pull request. The pull requests allow for discussions and it shows all associated commits and the diffs for each commit. The discussions typically involve code reviews which provide helpful suggestions for improvements, and allows for us to leave inline comments on specific parts of the code. Don’t be disheartened if we don’t merge straight away, it can often take several revisions before we accept a pull request. Luckily GitHub makes it very trivial to go back to your code, do some more commits and then update your pull request to your latest and greatest.

It can take time for us to get round to responding to pull requests, so please be patient. Submitted tests that come with a fix will generally be applied quite quickly, where as just tests will often way until we get time to also submit that with a fix. Don’t forget to rebase and resubmit your request from time to time, otherwise over time it will have merge conflicts and core developers will general ignore those.

The fastest and recommended way to quickly generate your business application is by using the jBPM online service: start.jbpm.org

With the online service you can:

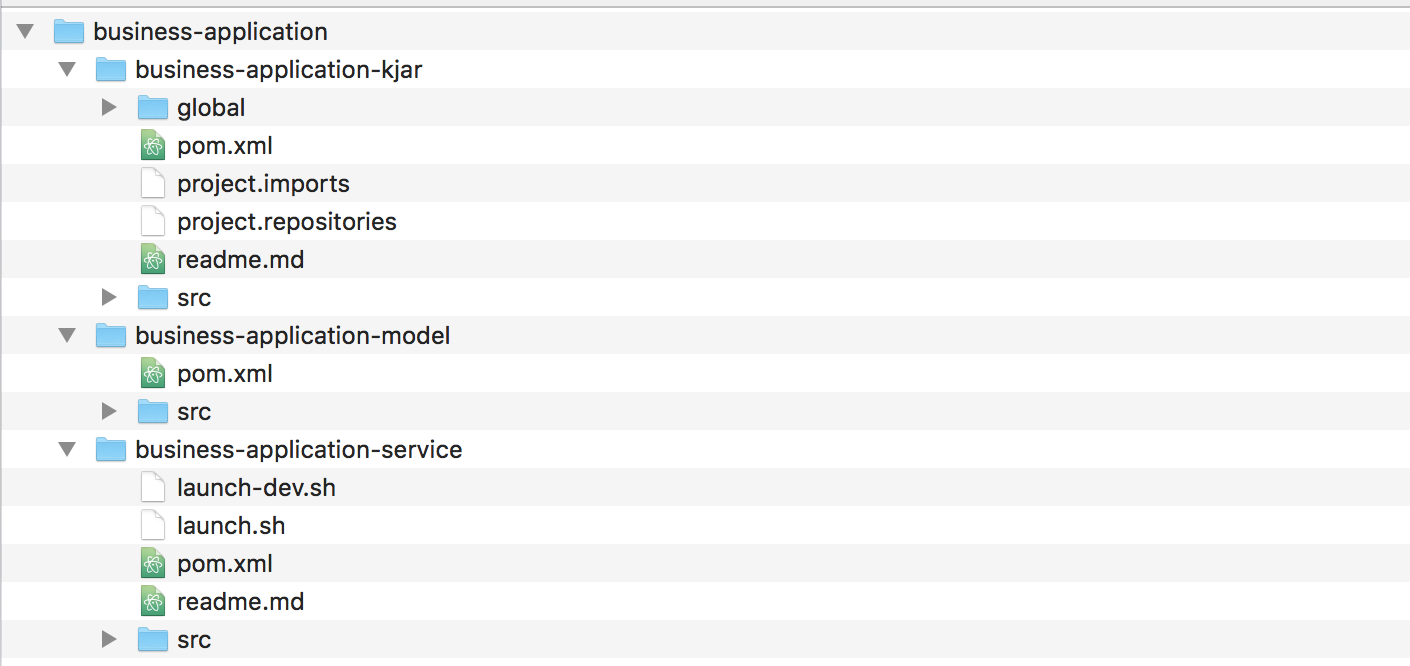

The generated application will be delivered as a zip archive will following structure

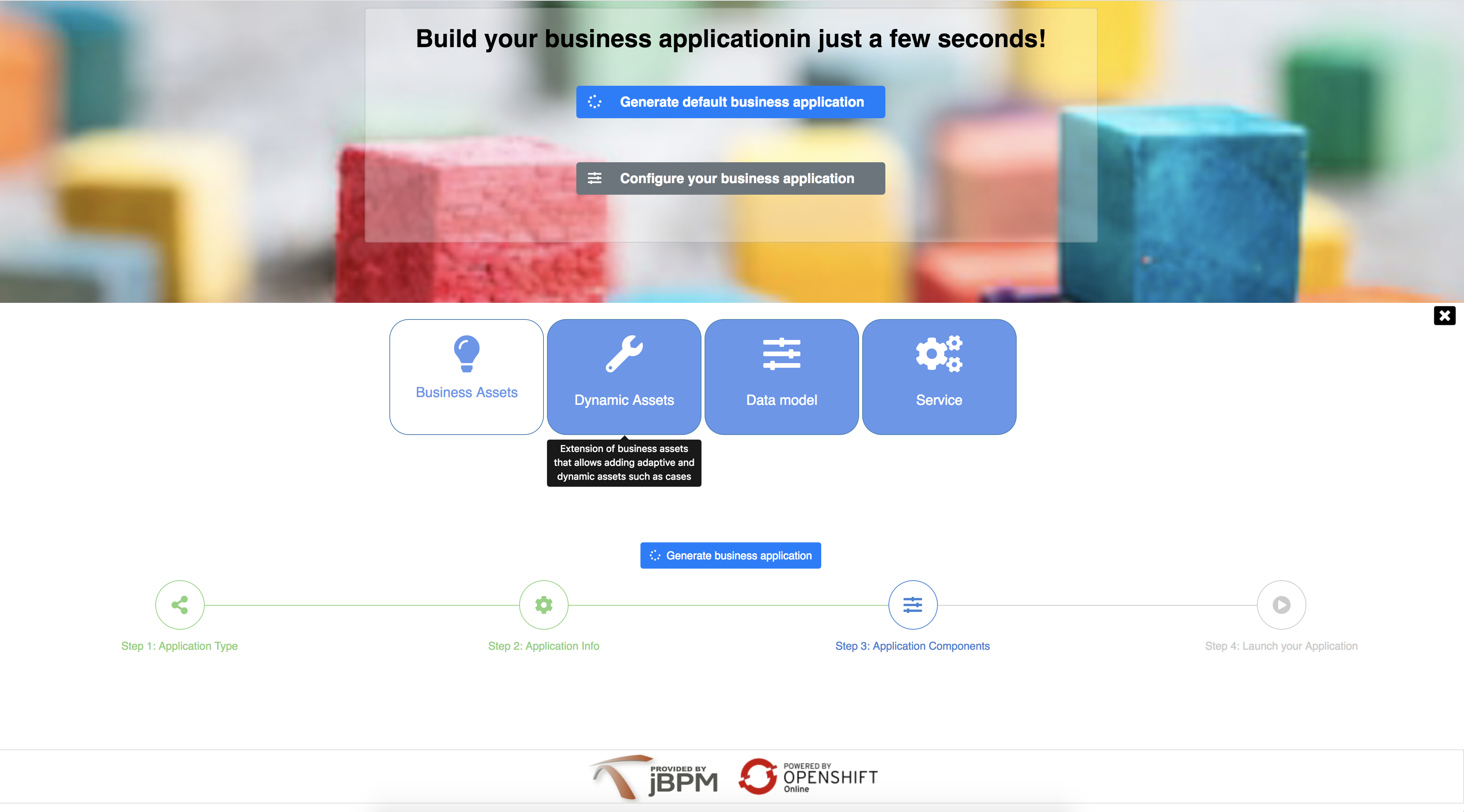

To provide more information about individual steps, let’s review different options that user can choose from

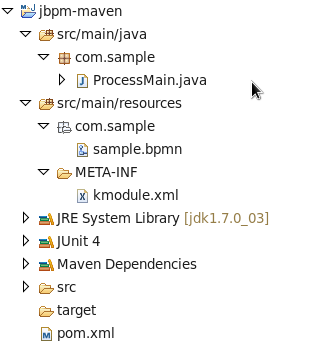

In case you can’t use jBPM online service to generate the application you can manually create individual projects. jBPM provides maven archetypes that can be easily used to generate the application. In fact jBPM online service uses these archetypes behind the scenes to generate business application.

Business assets project archetype

org.kie:kie-kjar-archetype:7.26.0.Final

Service project archetype

org.kie:kie-service-spring-boot-archetype:7.26.0.Final

Data model archetype

org.apache.maven.archetypes:maven-archetype-quickstart:1.3

Example that allows to generate all three types of projects

When generating projects from the archetypes in same directory you should end up with exactly the same structure as generated by jBPM online service.

By default business application has a single runnable project - that is the service project. The service project is equipped with two scripts (both for linux and windows)

the main difference between these two scripts is the target execution

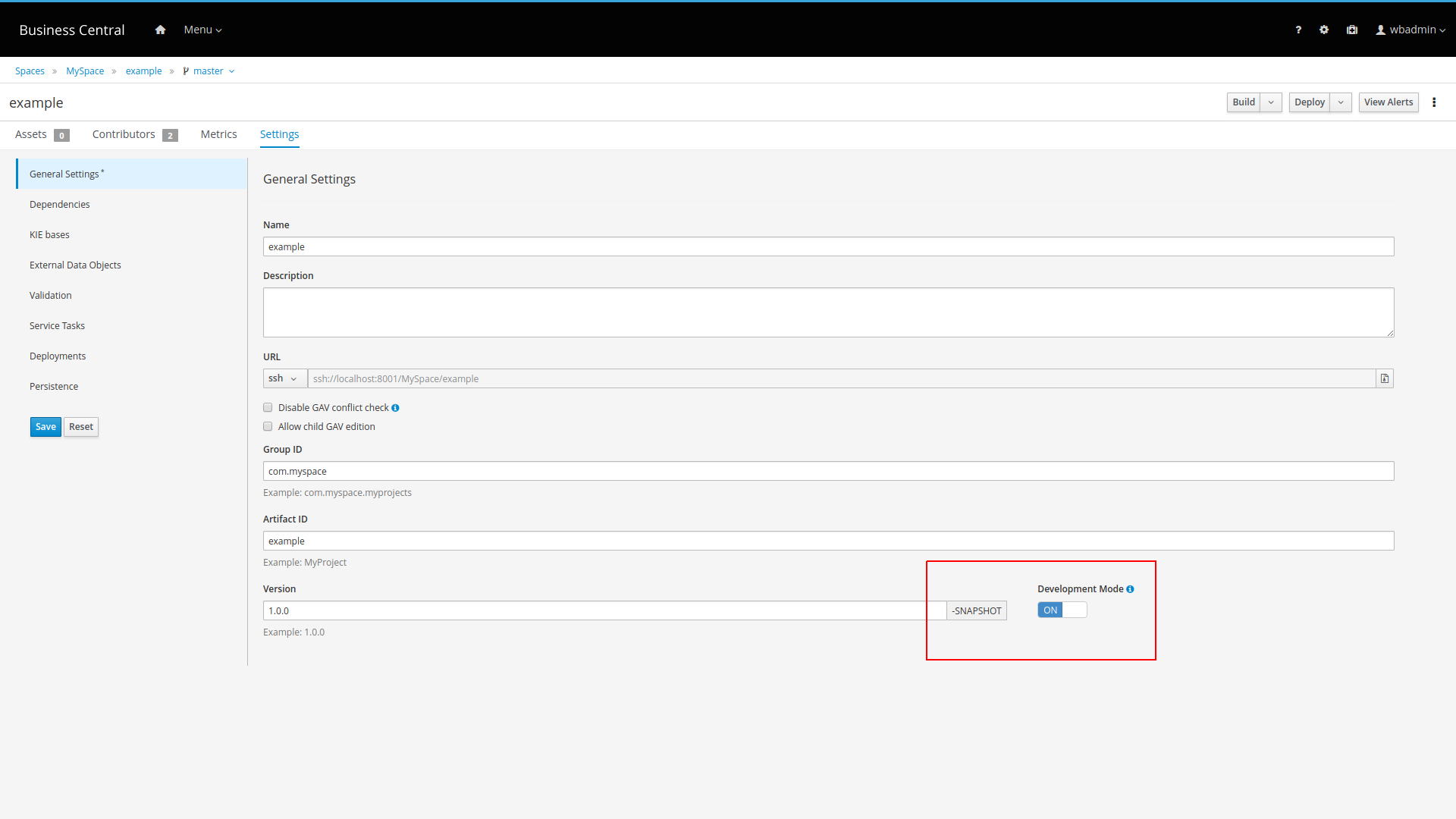

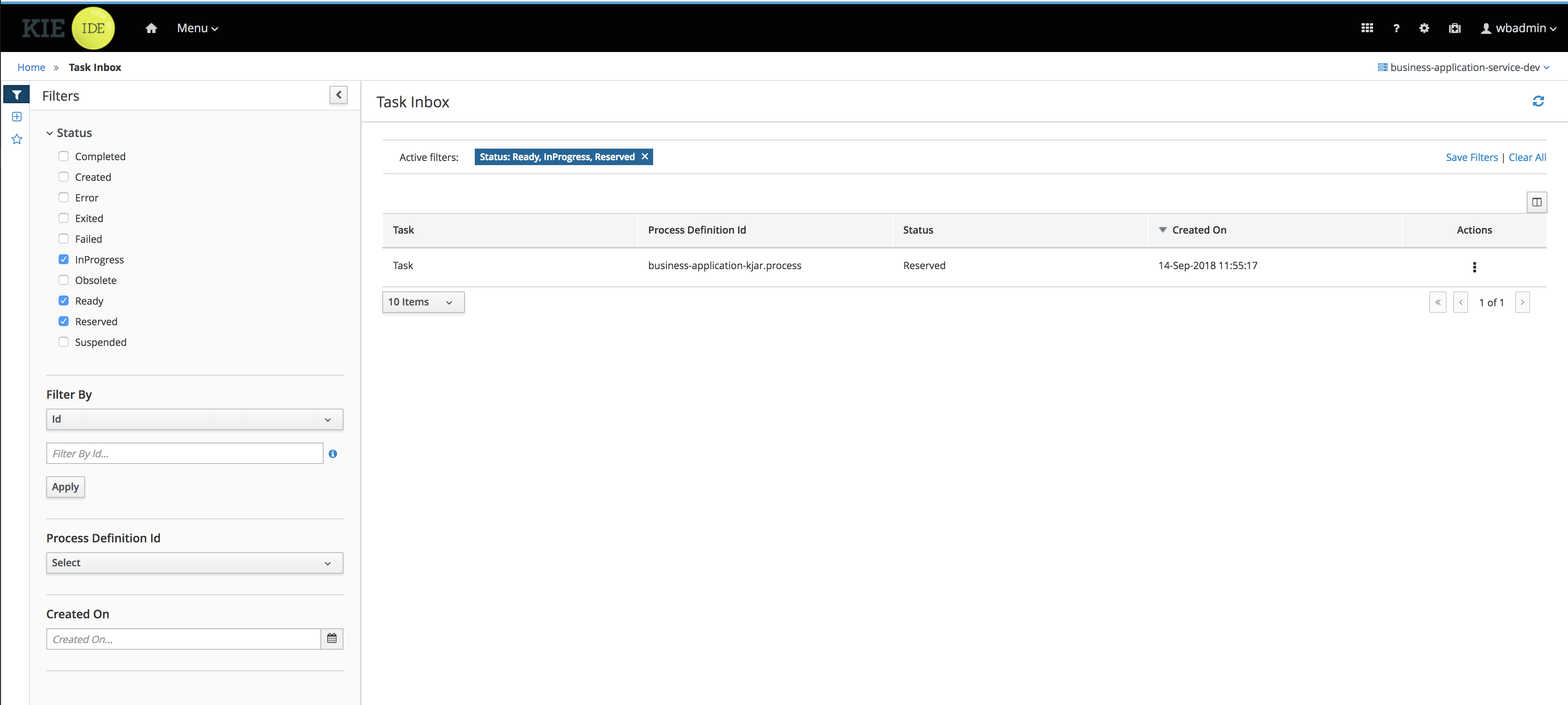

Development mode is meant to allow people to work on the business assets projects and dynamically deploy changes to the business application without the need to restart it. At the same time it provides a complete monitoring environment over business automation capabilities (process instances, tasks, jobs, etc).

To launch your application just go into service project ({your business application name}-service) and invoke

./launch.sh clean install for Linux/Unix

./launch.bat clean install for Windows

the clean install part of the command is to tell maven how to build. It will then build projects in following order

the first time it might take a while as it will download all dependencies of the project. At the end of the build it will start the application and after few seconds you should see output similar to following..,

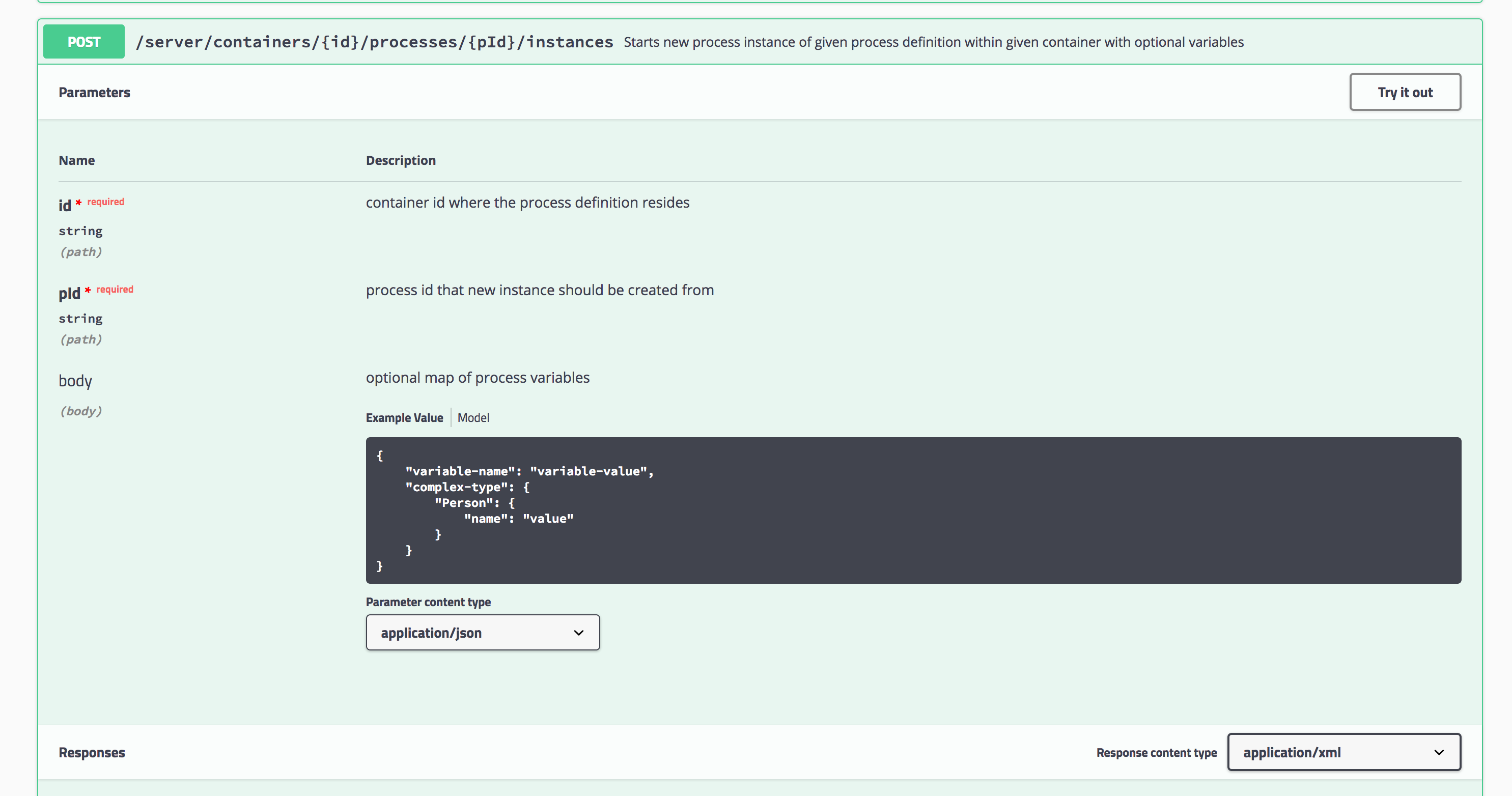

and you should be able to access your business application at http://localhost:8090/

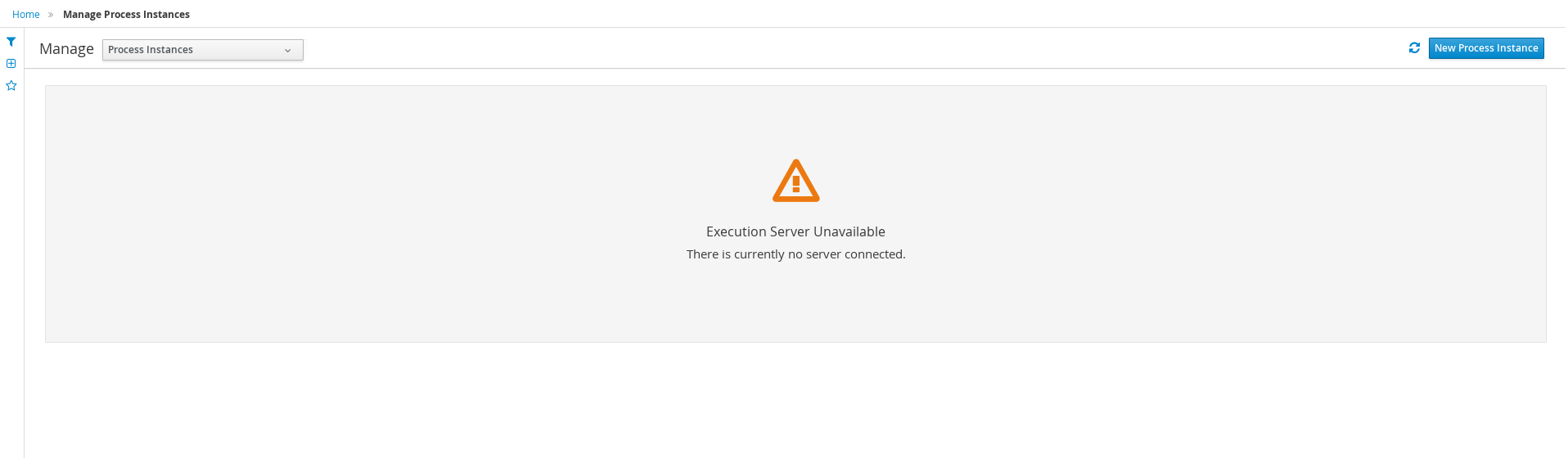

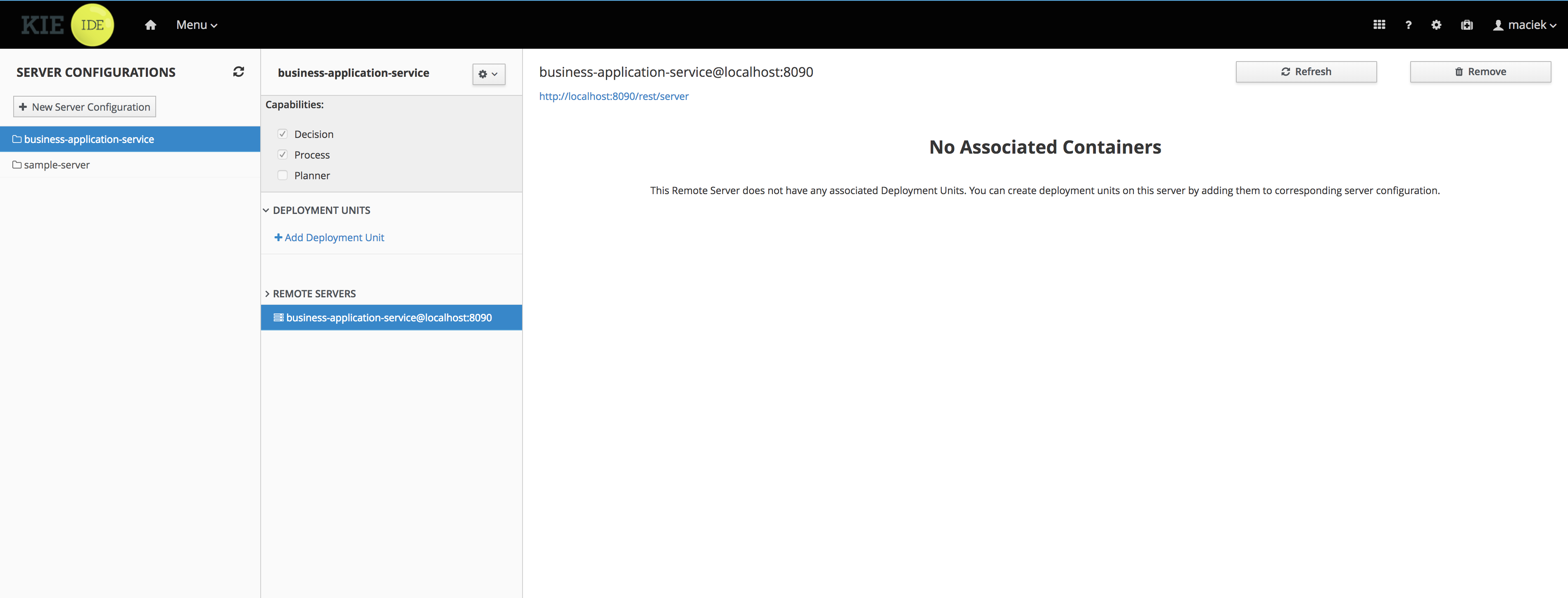

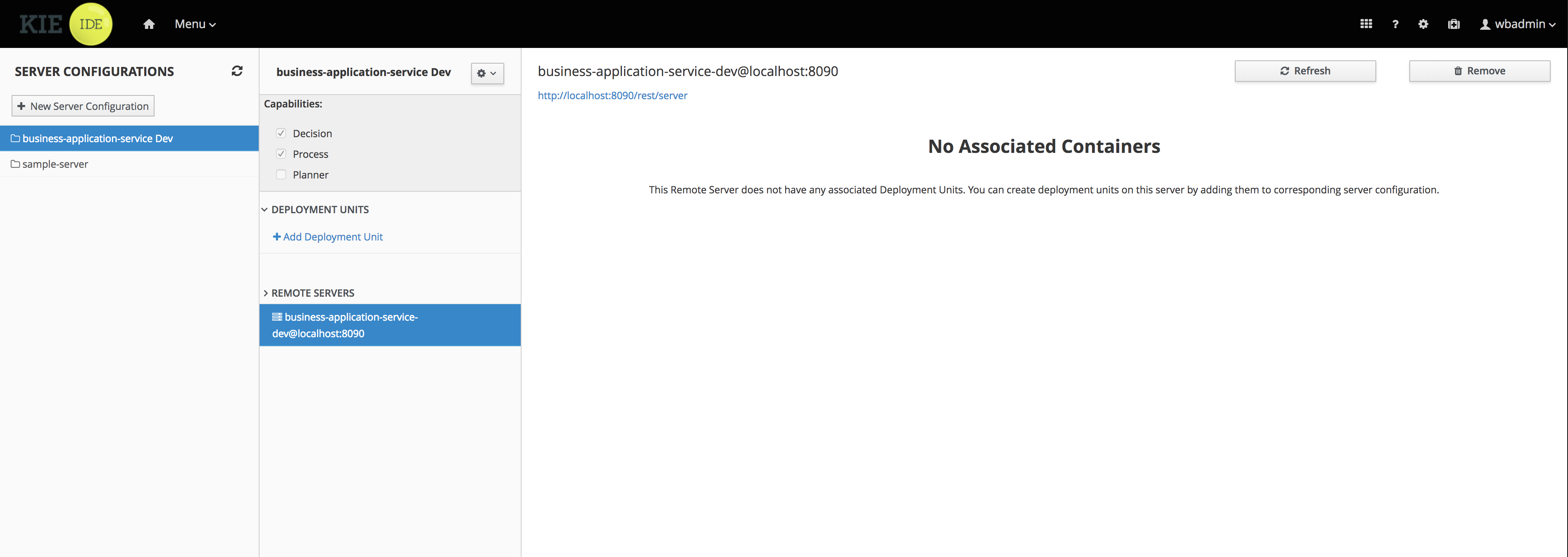

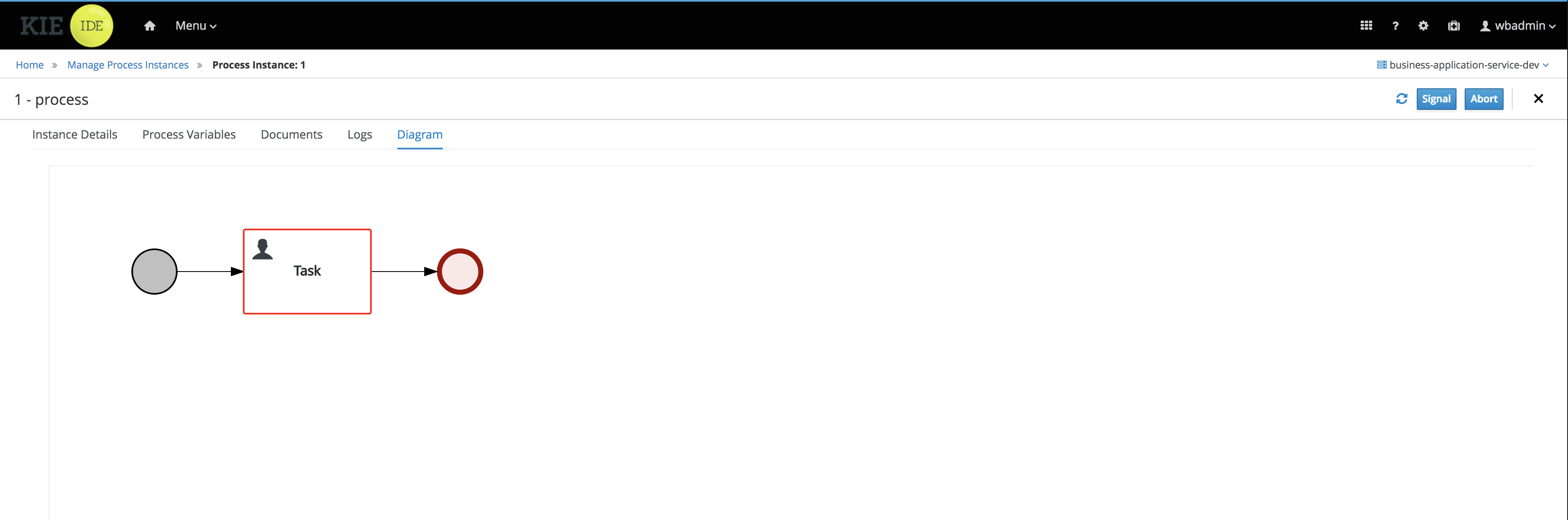

Make sure you have Business Central up and running before launching your business application in development mode.

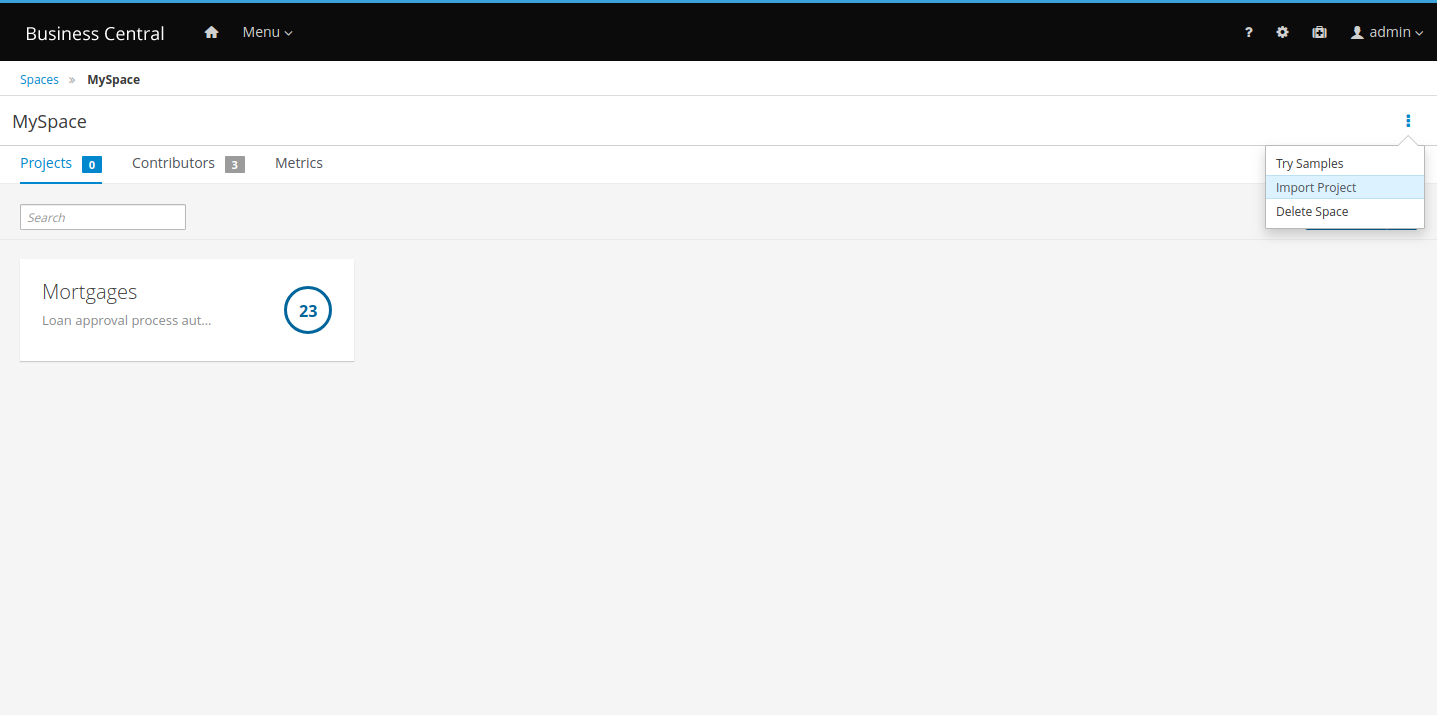

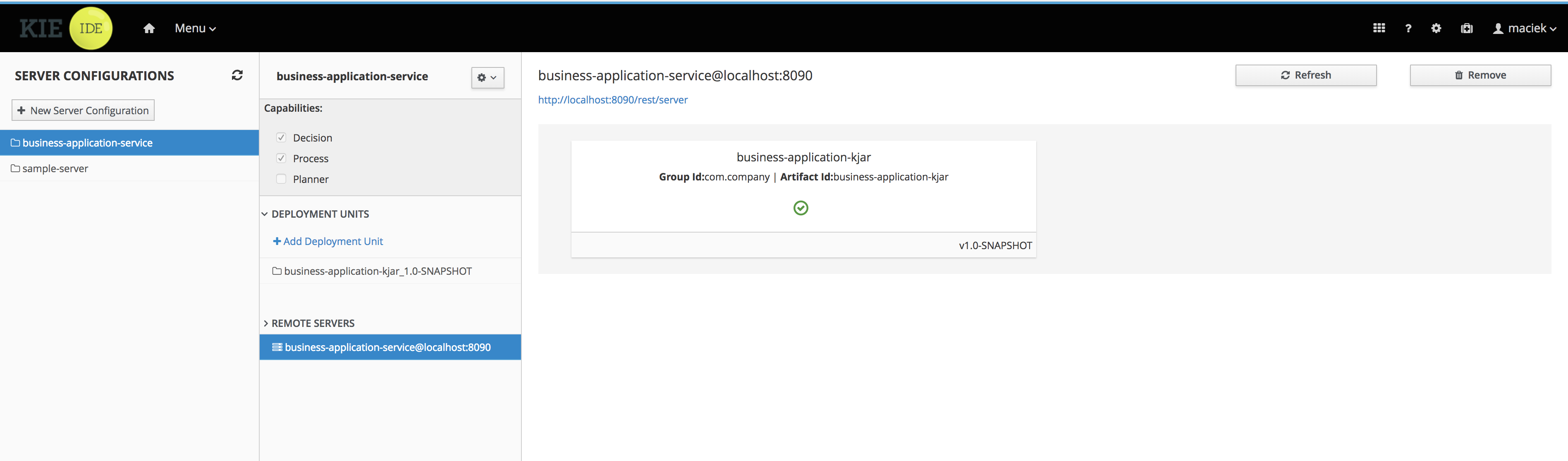

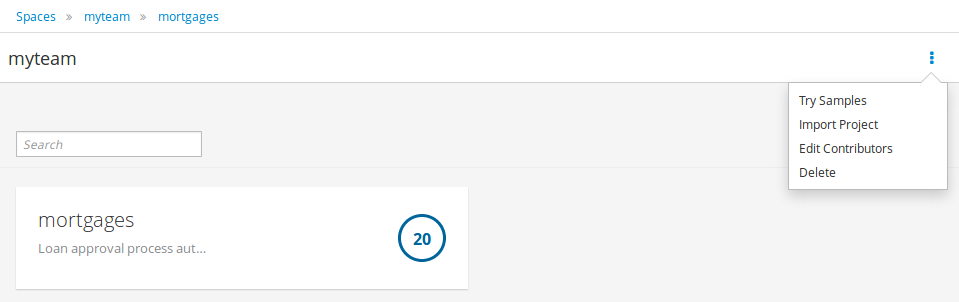

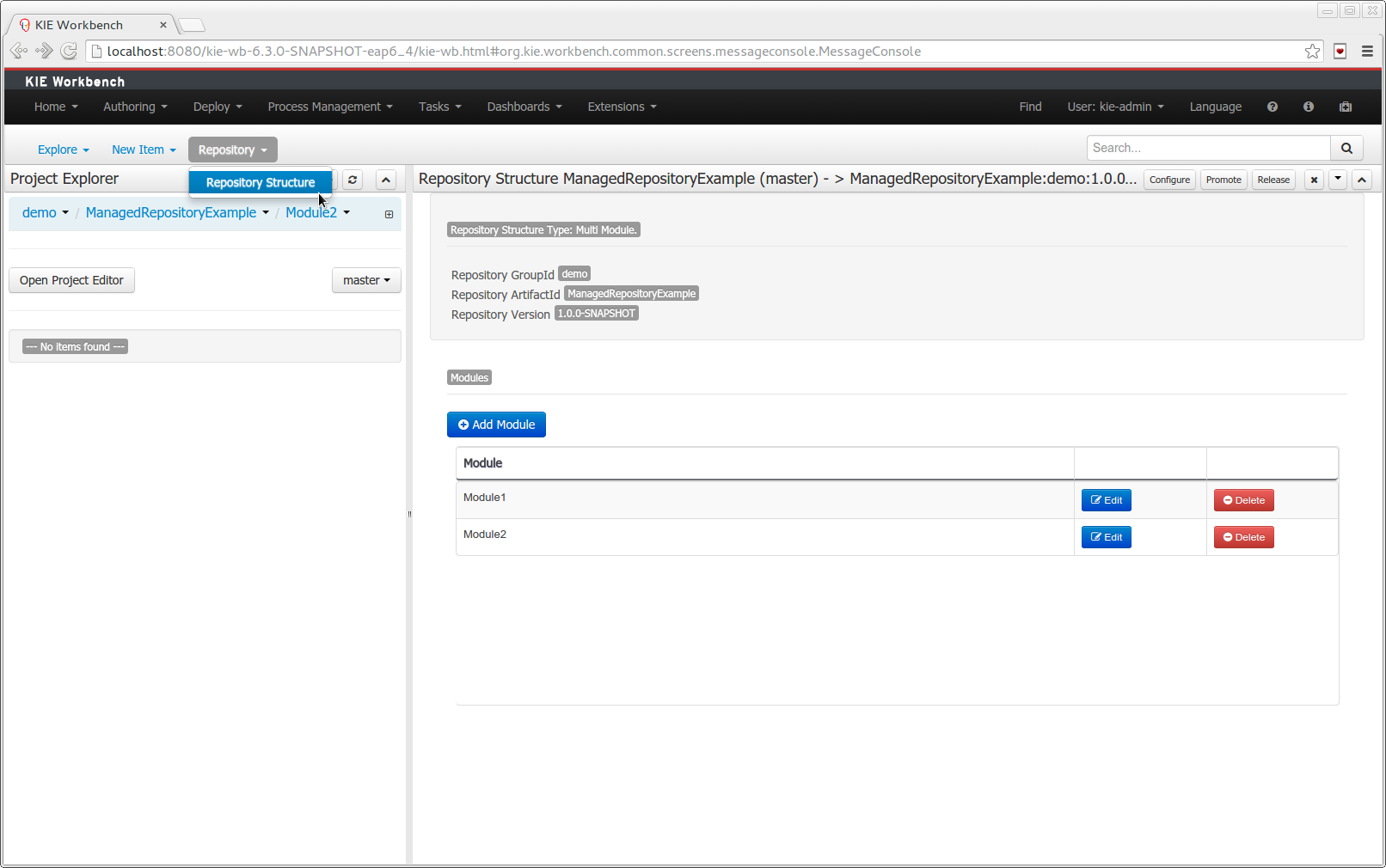

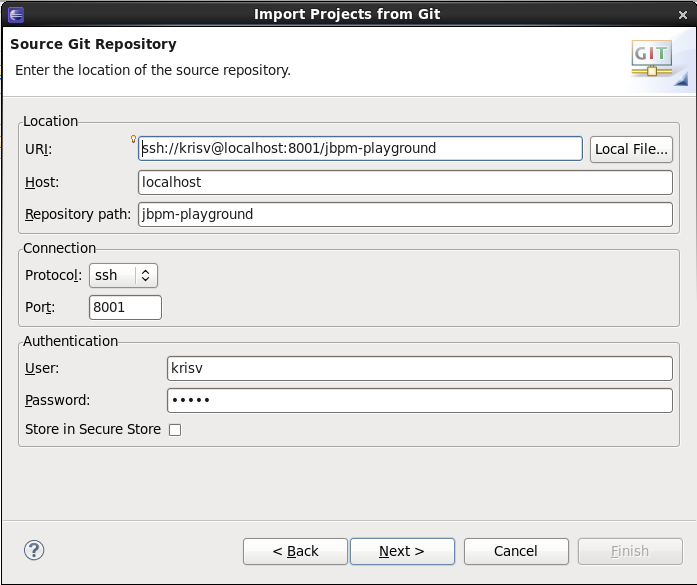

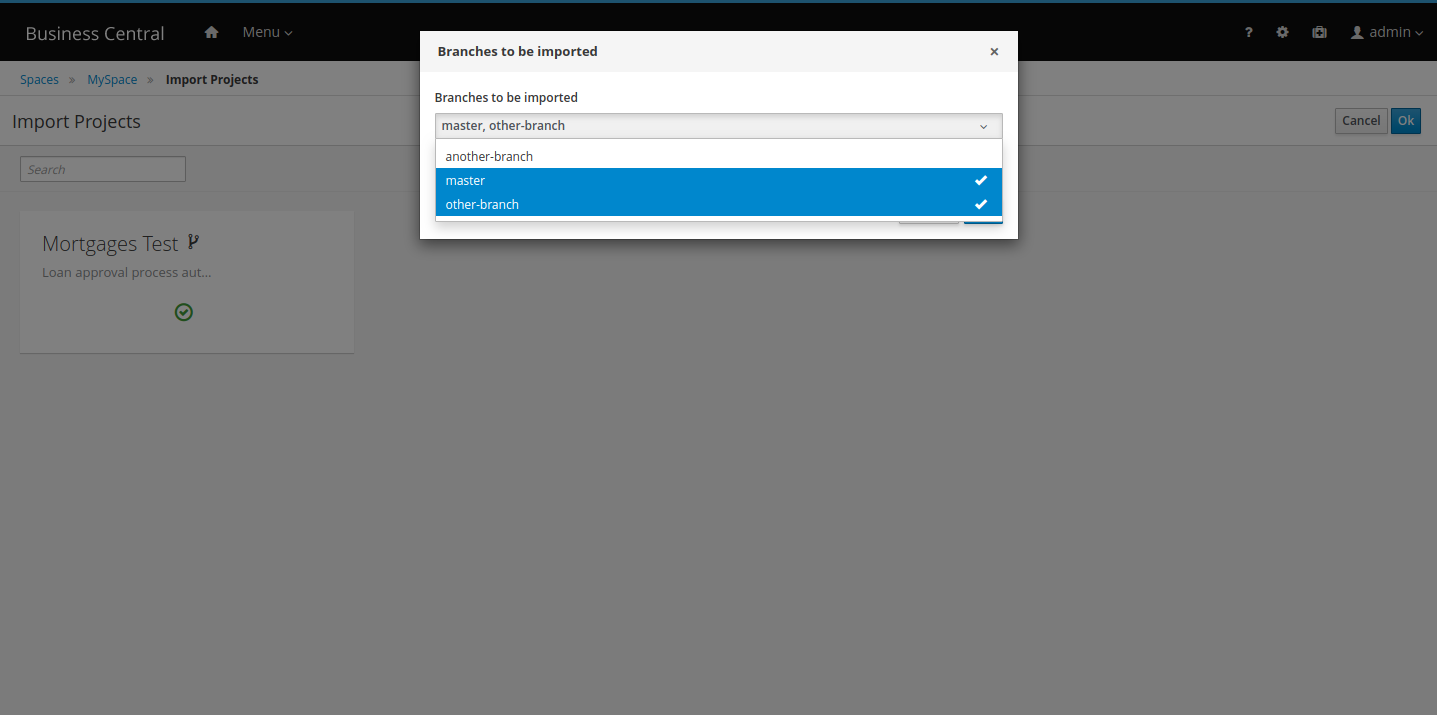

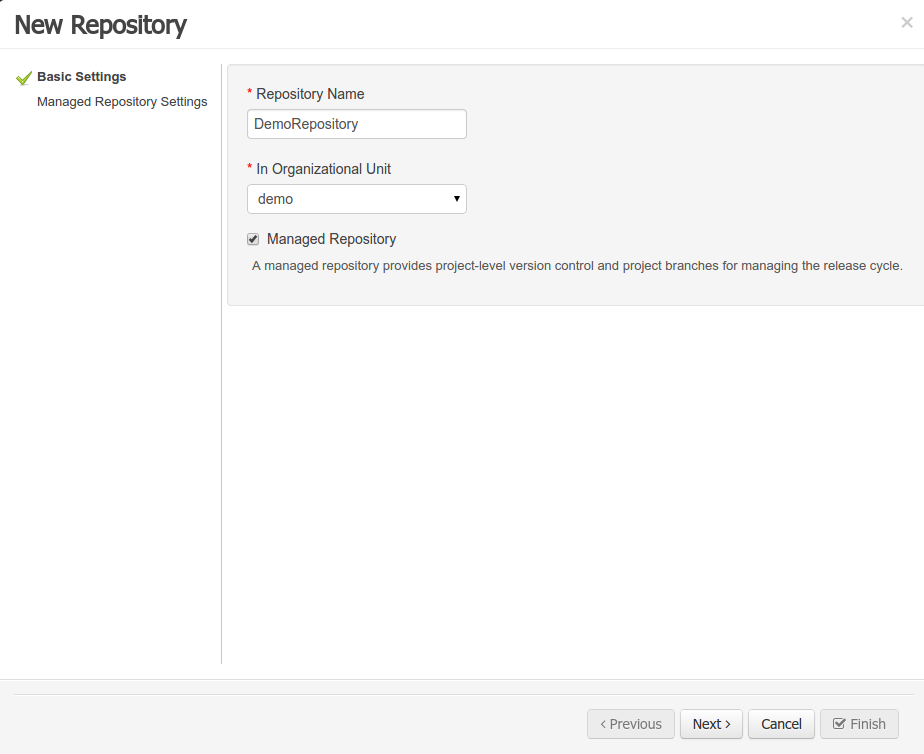

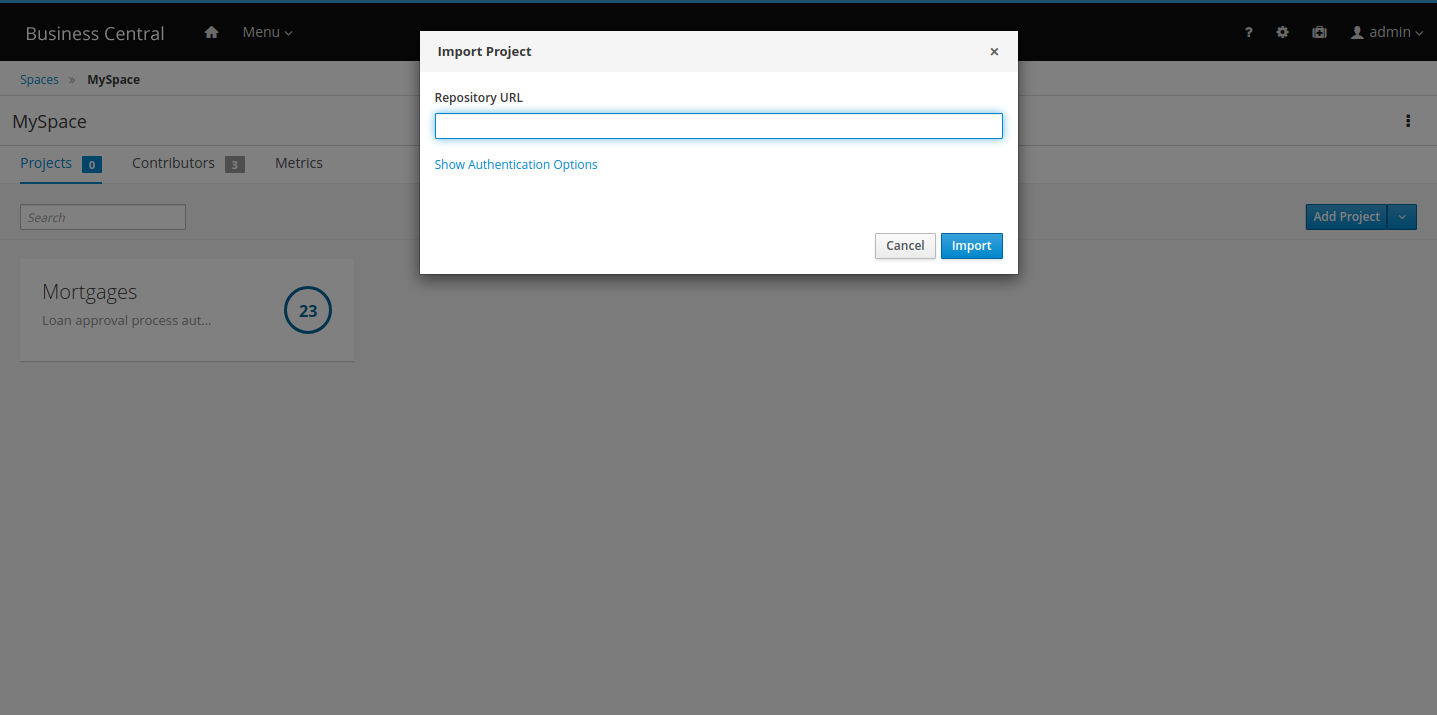

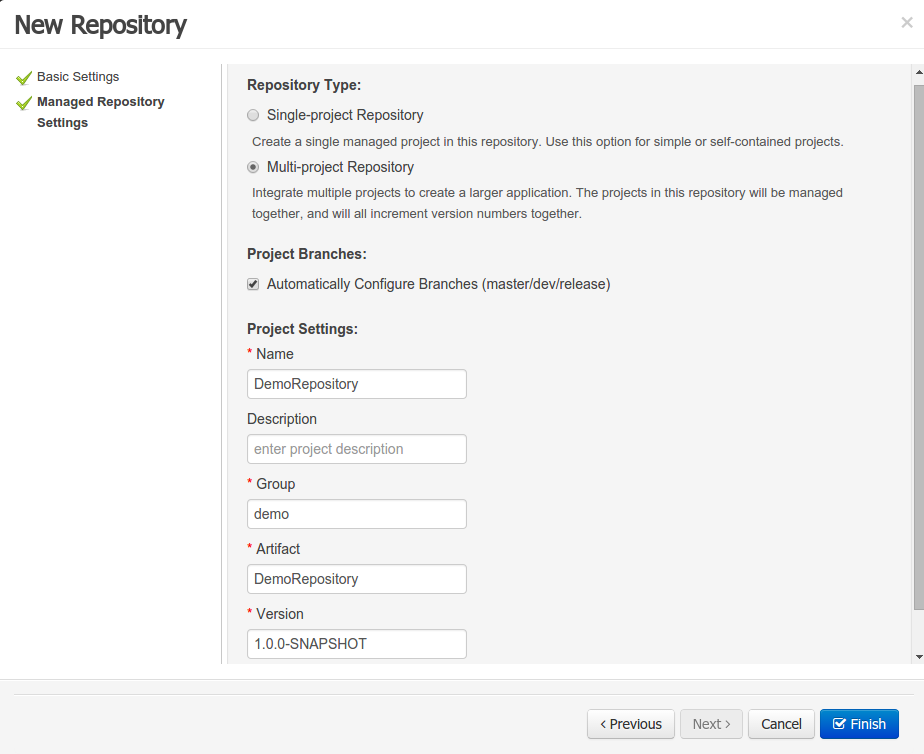

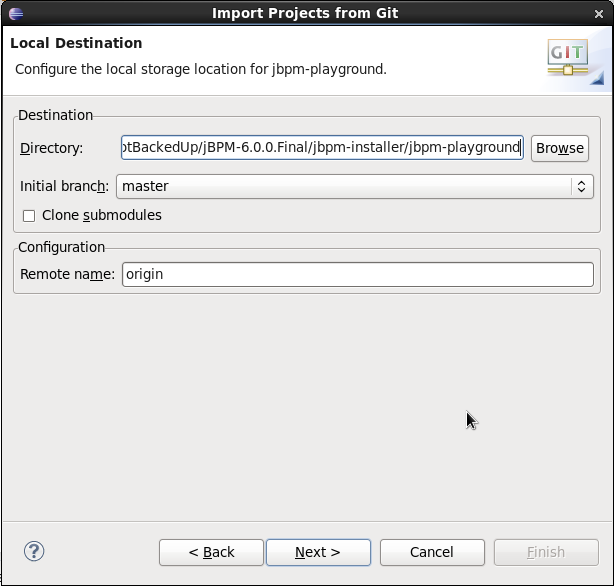

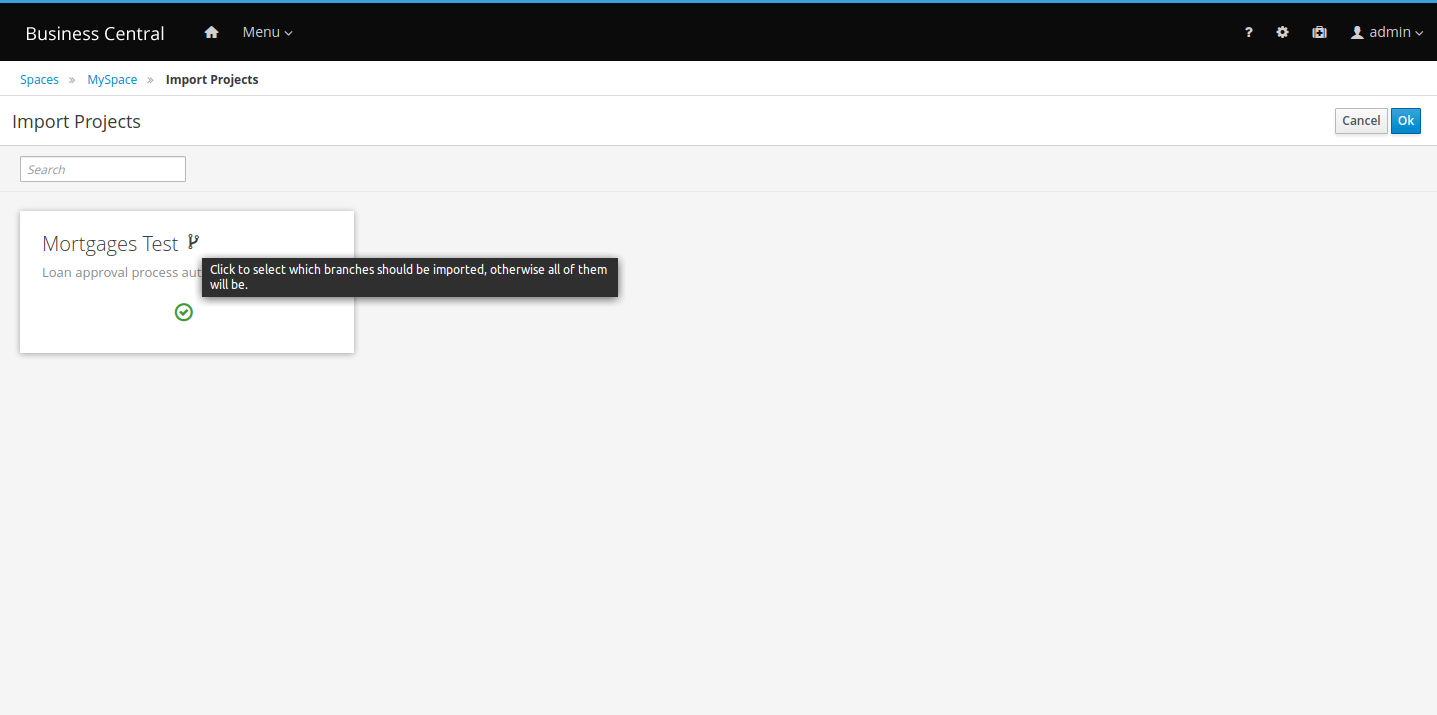

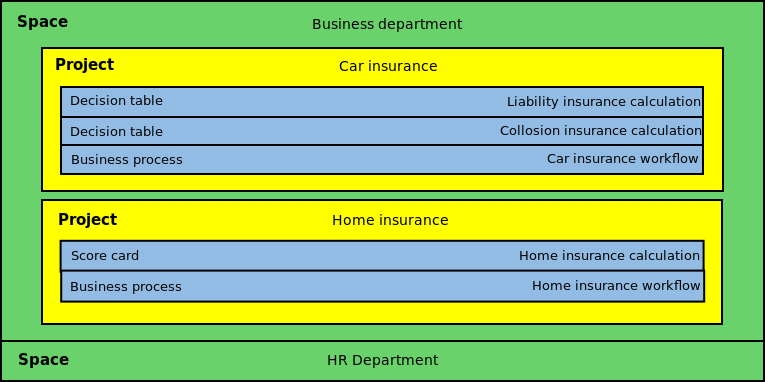

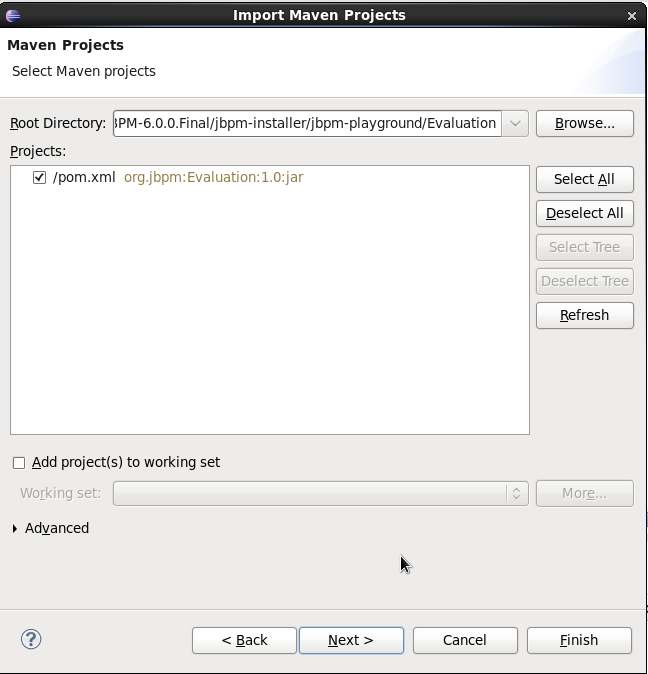

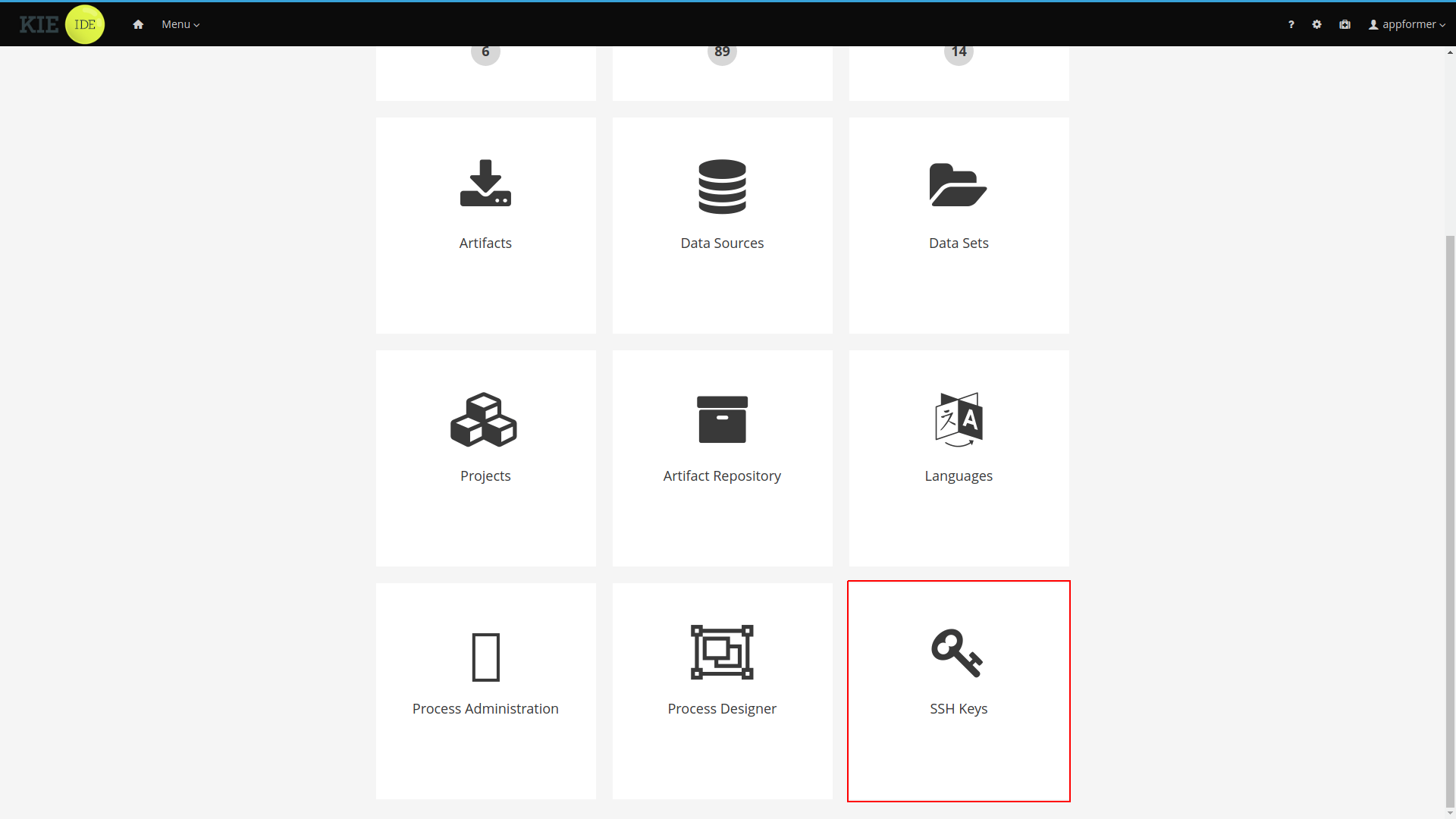

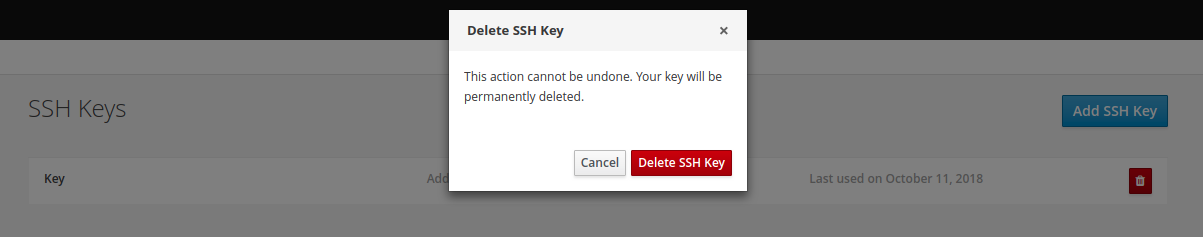

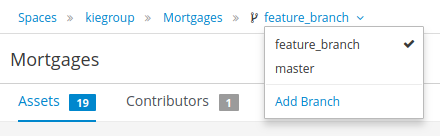

Business assets projects that was just created can be easily imported into Business Central as soon as it’s a valid git repository. To make it as such

The data model project in your generated business application promotes the idea (and best practice in fact) of designing data models with reuse in mind. At the same time it avoids putting too much in the model (which usually happens when model is colocated with the service itself).

Data model project should be seen as the API of the business application or one of the service. In case of application that is composed of several services it’s recommended that each service exposes its own data model (API).

That API then can be used by both service project and the business assets project.

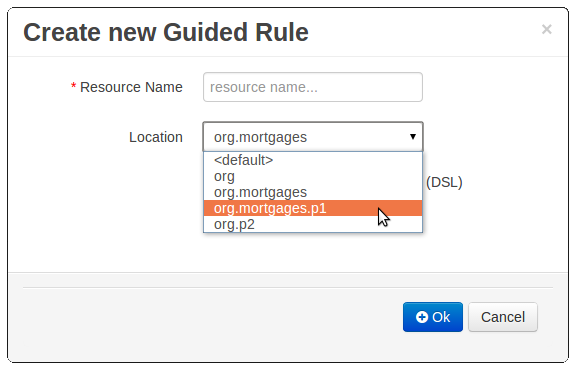

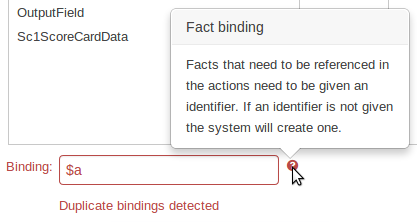

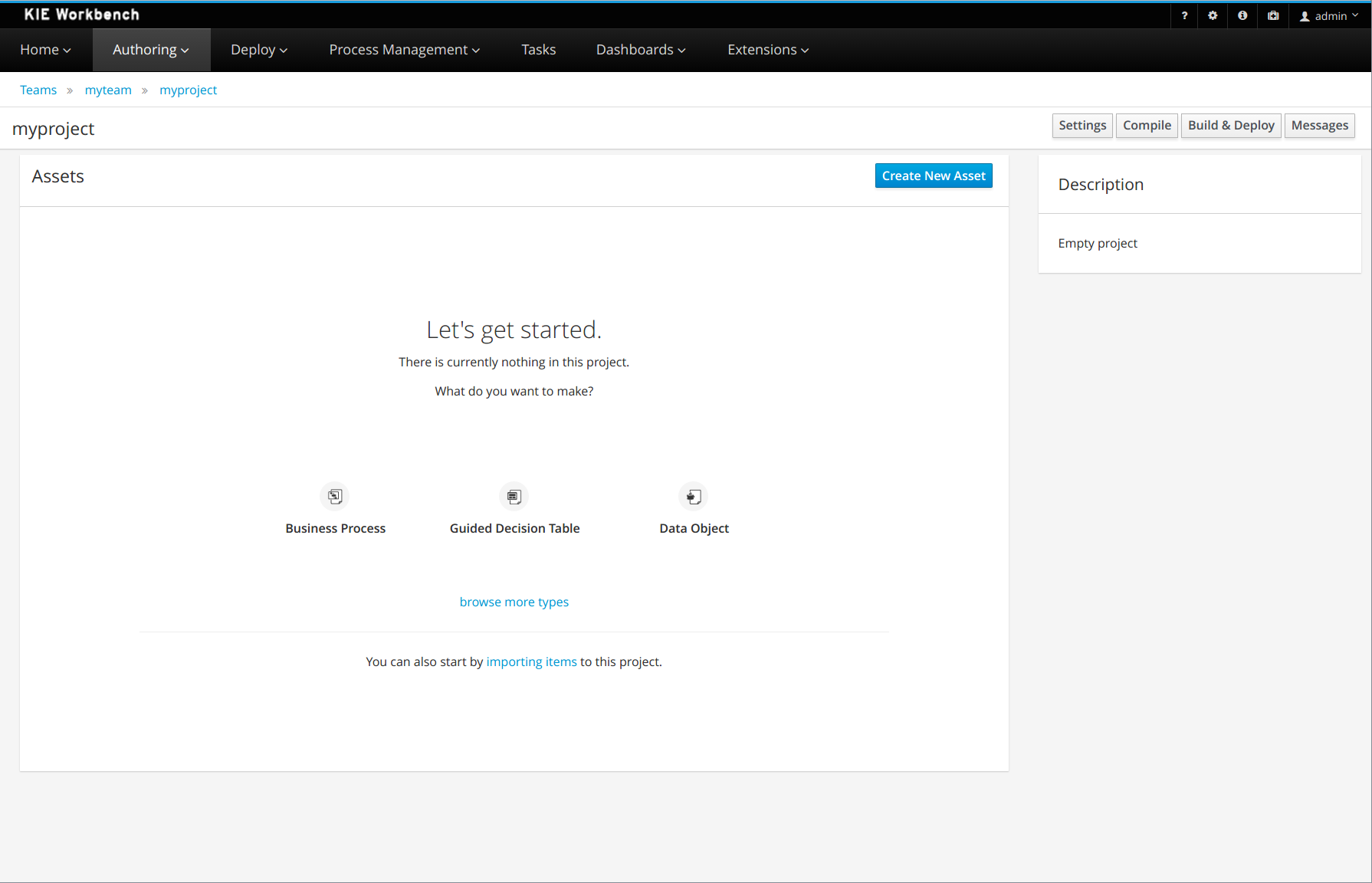

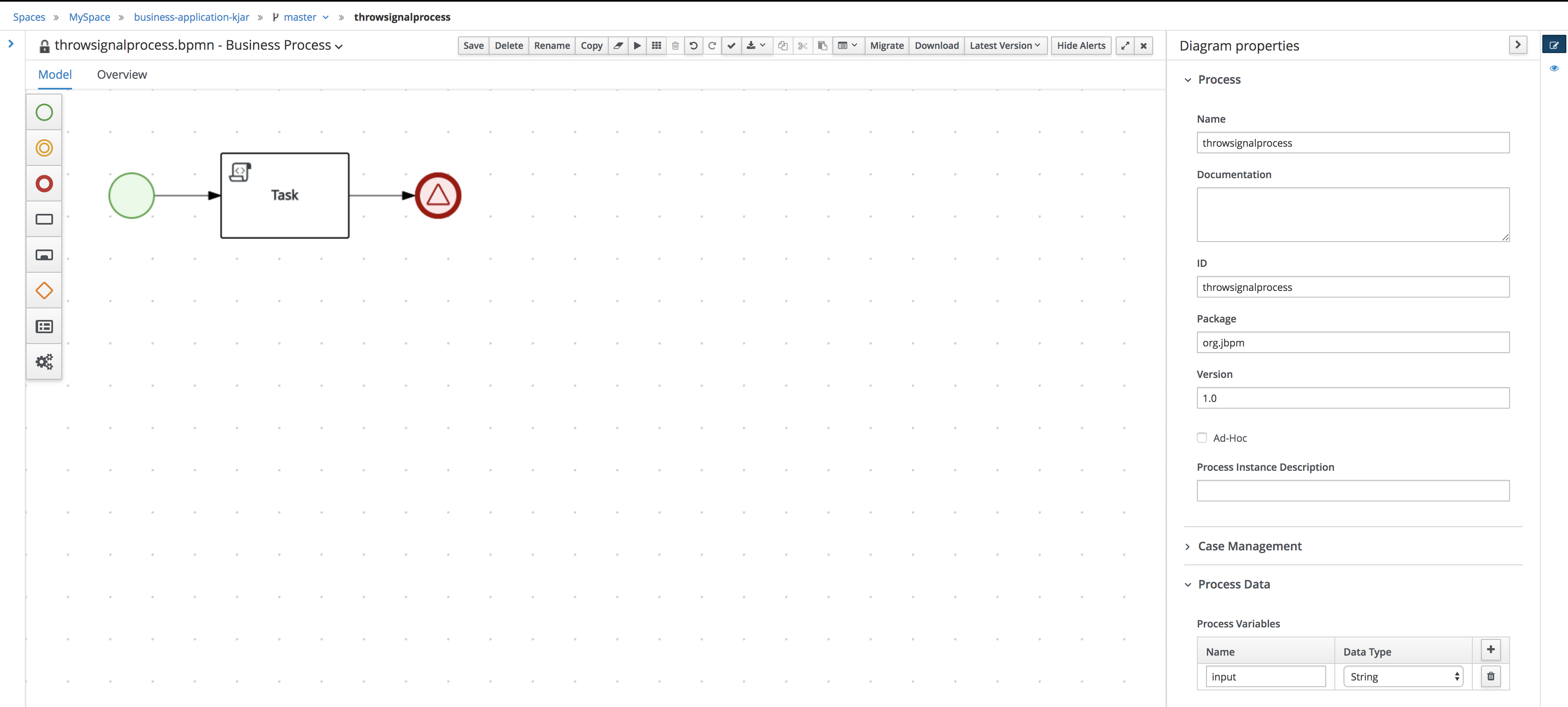

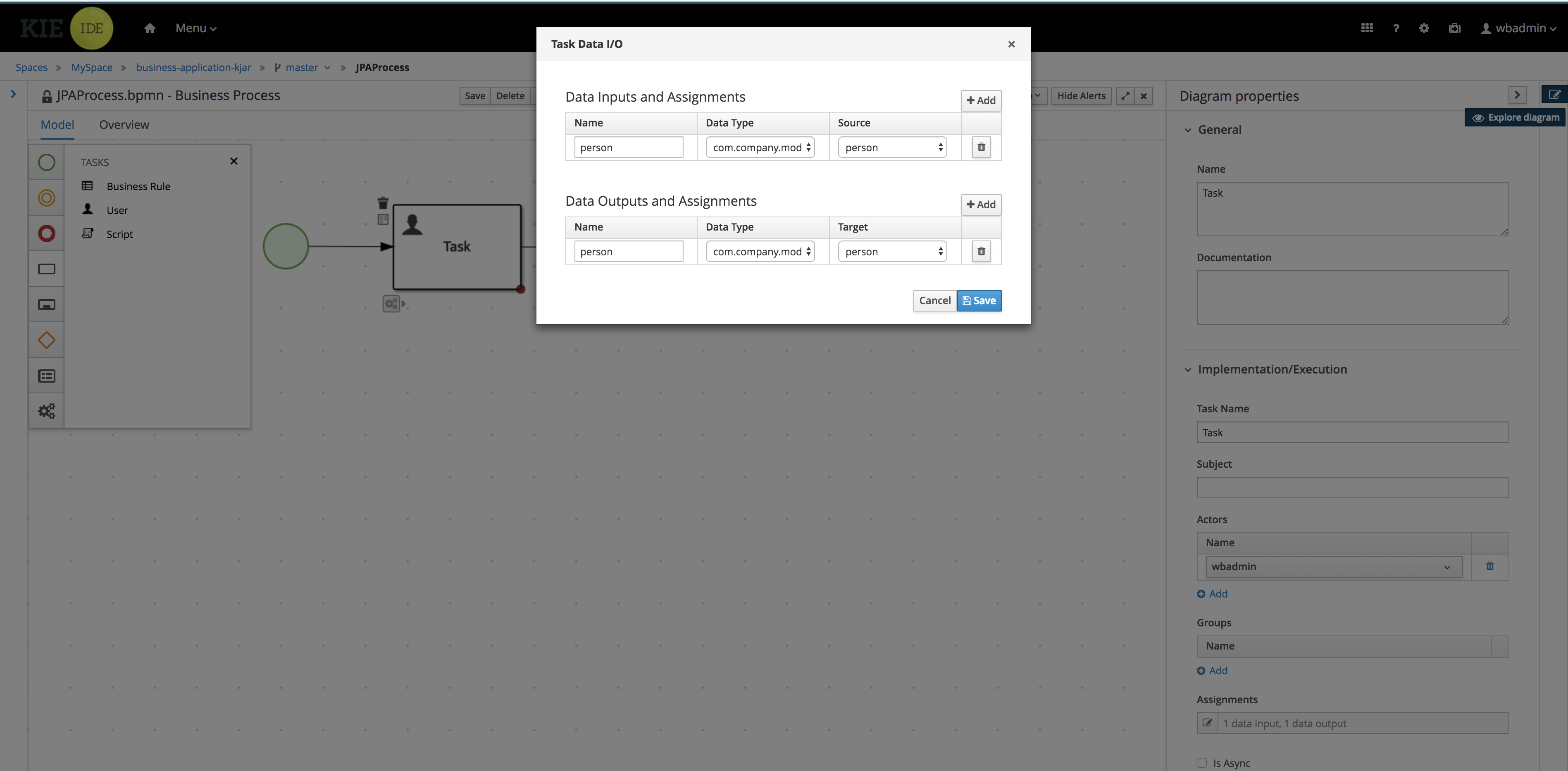

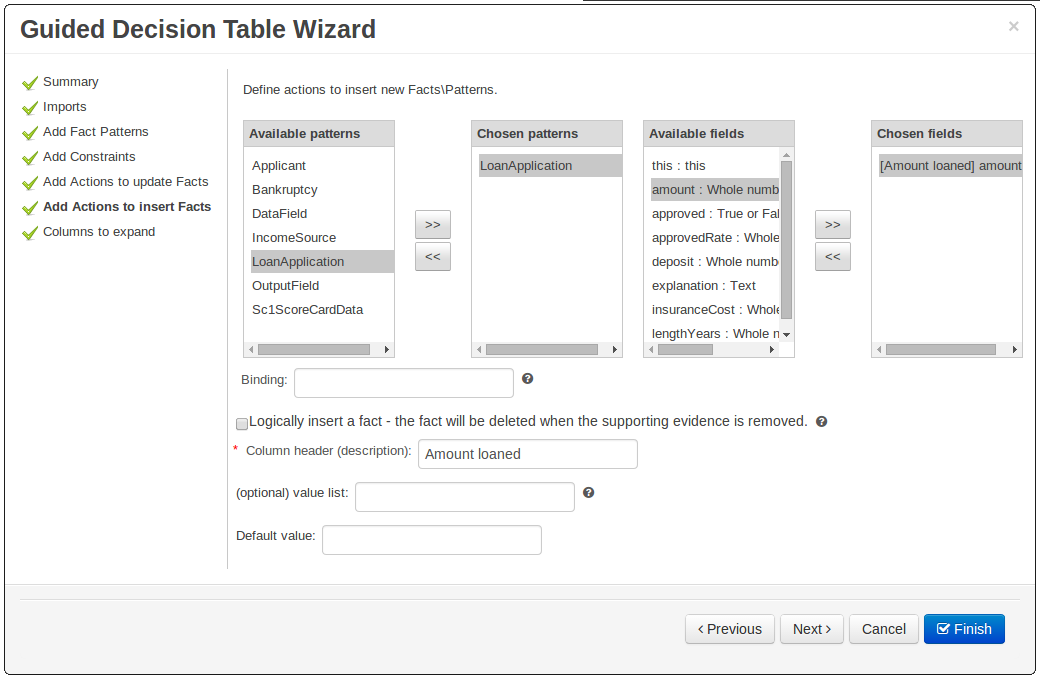

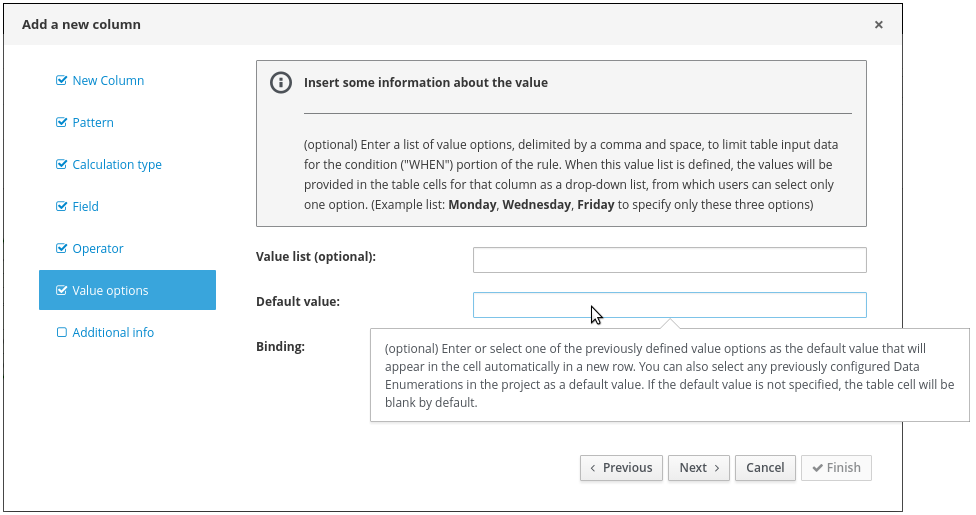

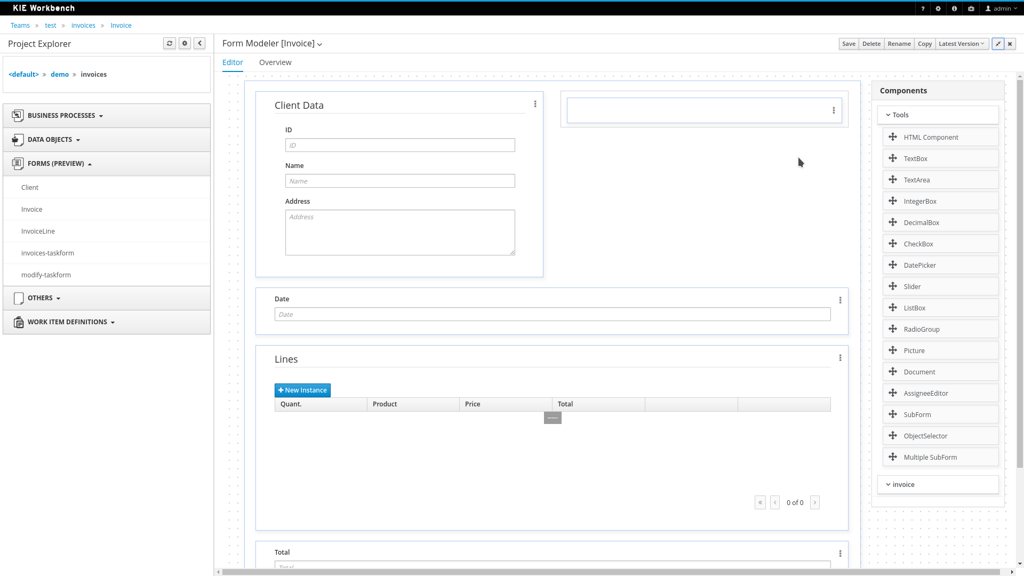

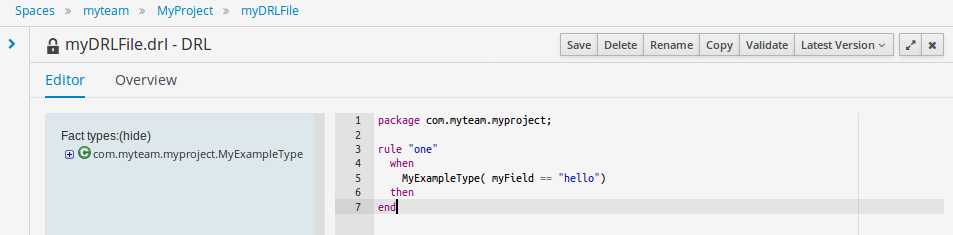

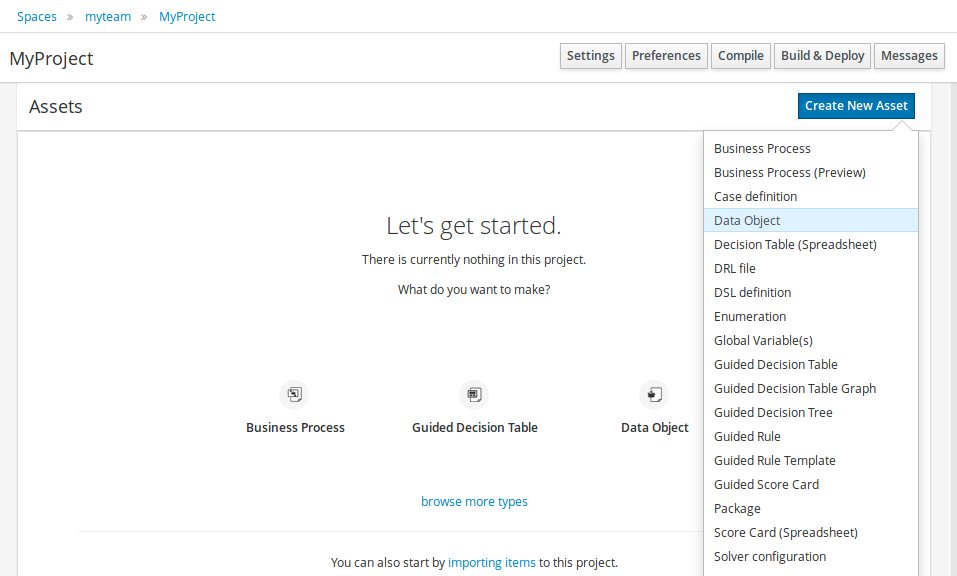

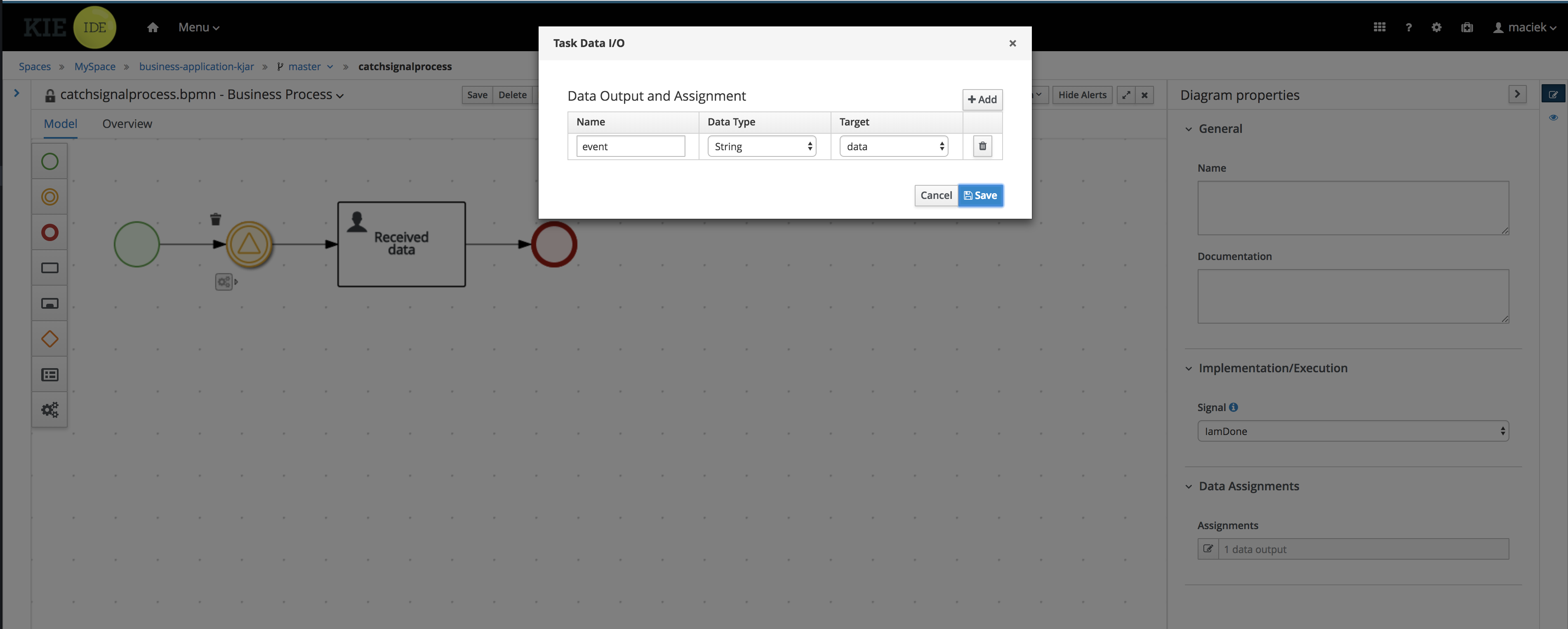

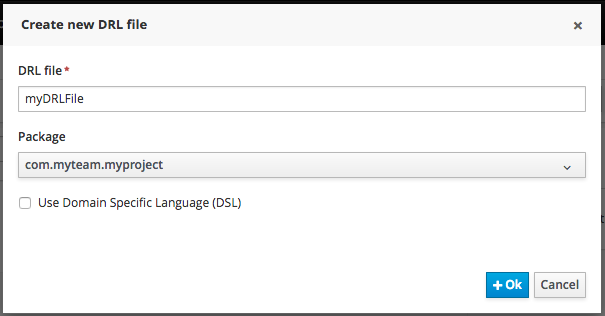

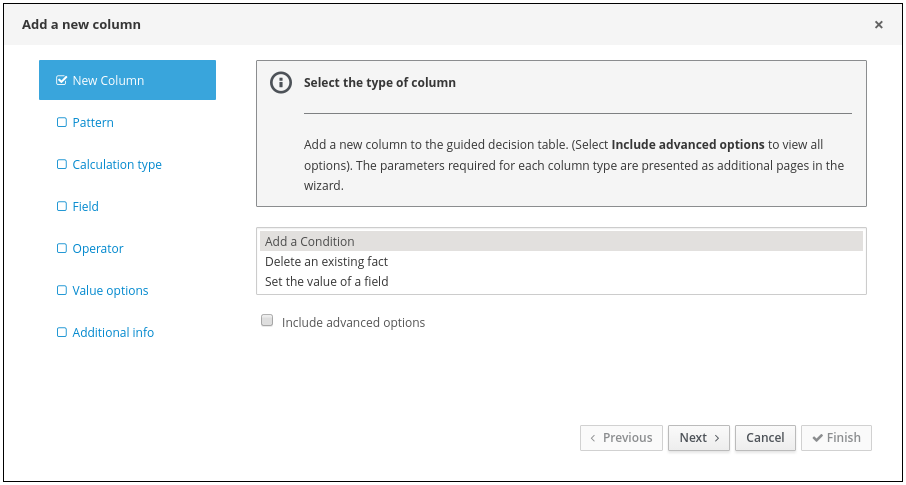

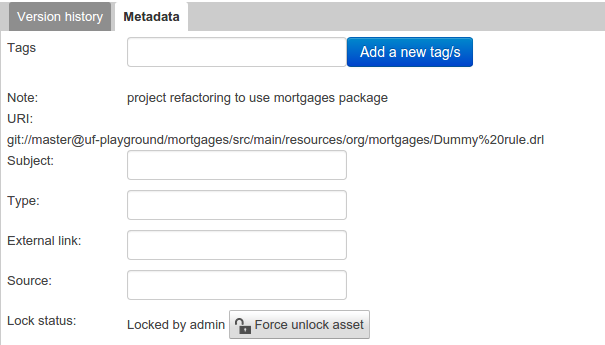

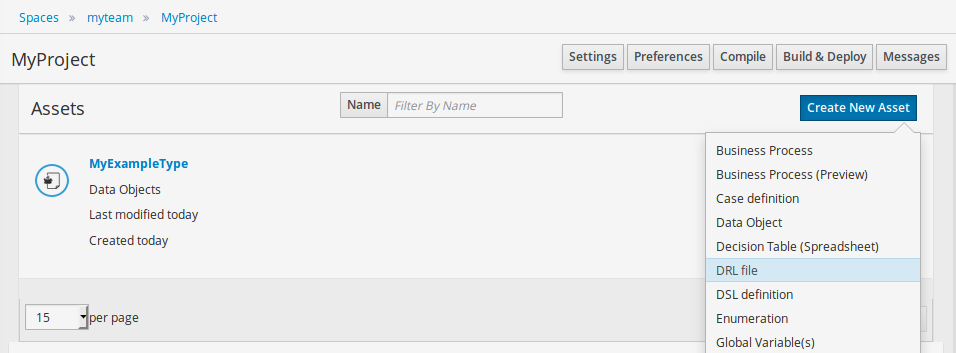

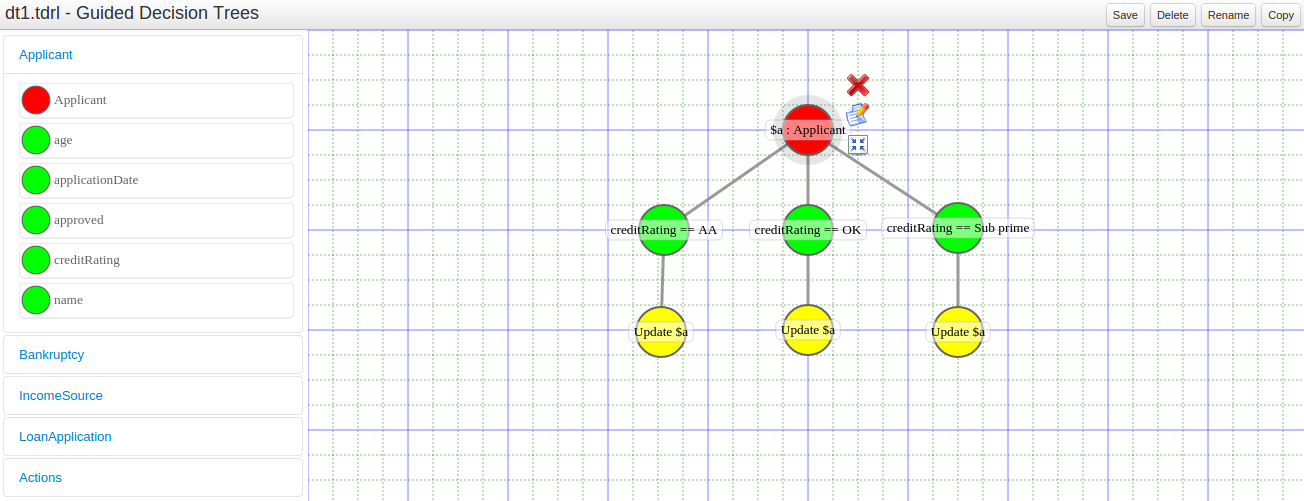

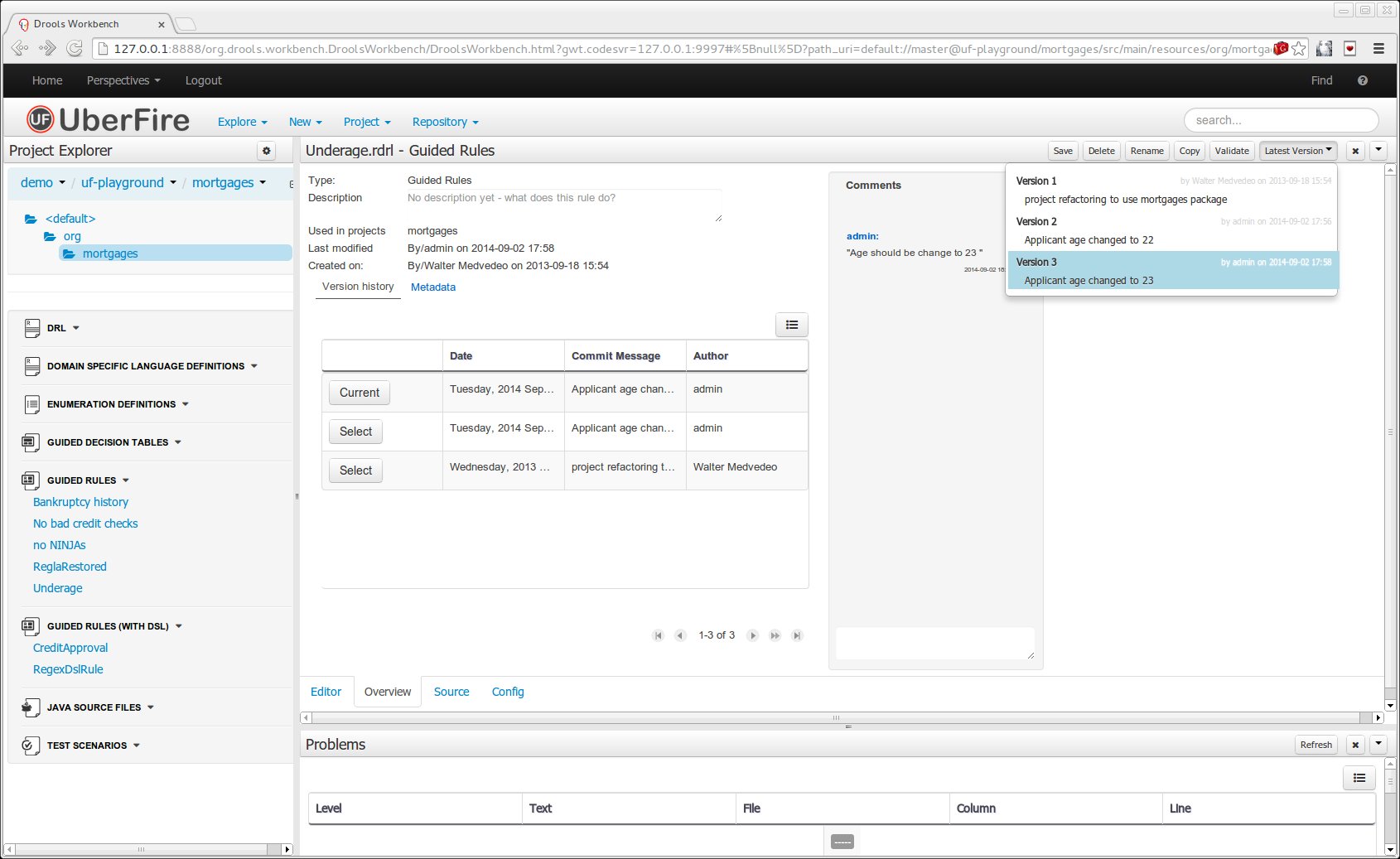

Business assets are usually developed in Business Central, where developers can create different assets types such as

Before these assets can be created the business assets project needs to be imported into Business Central as described in Import your business assets project into Business Central

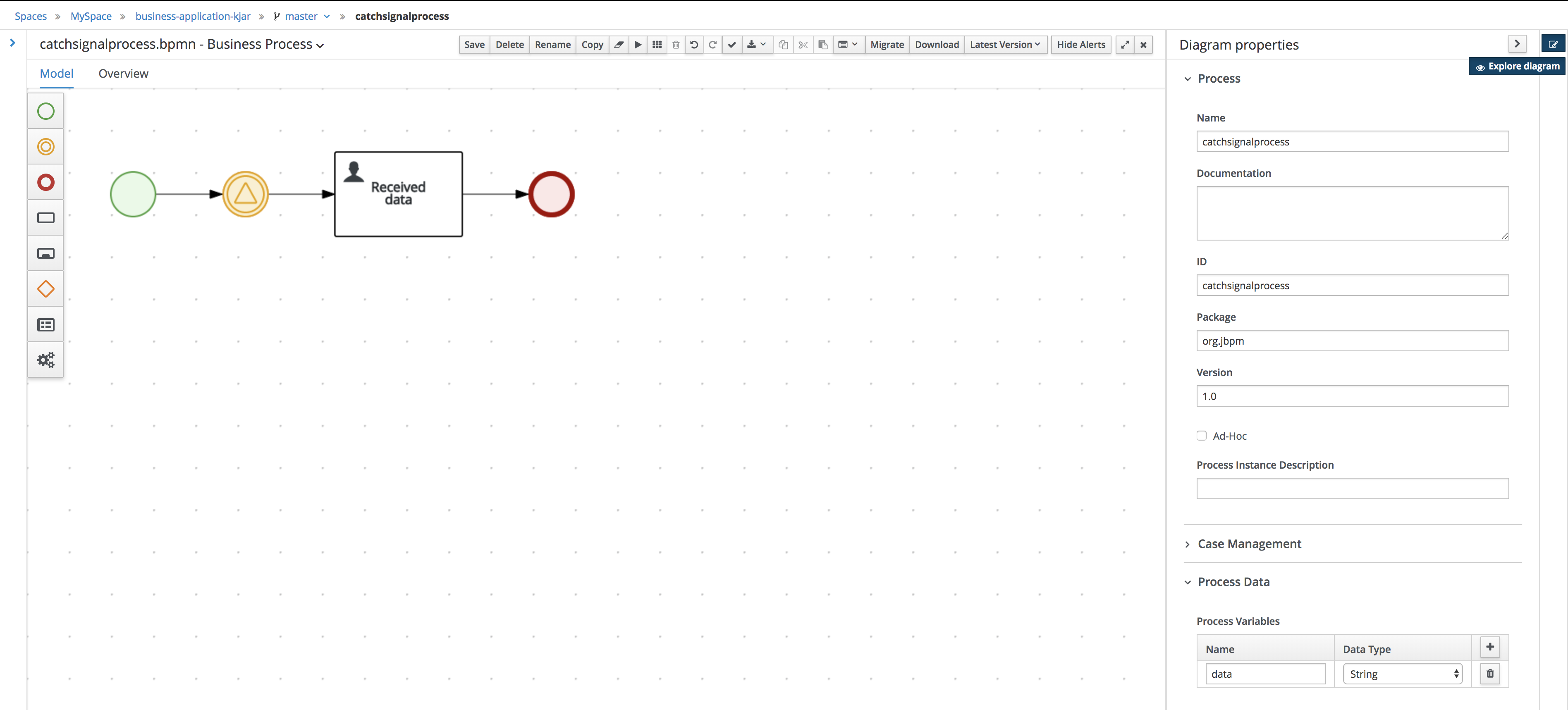

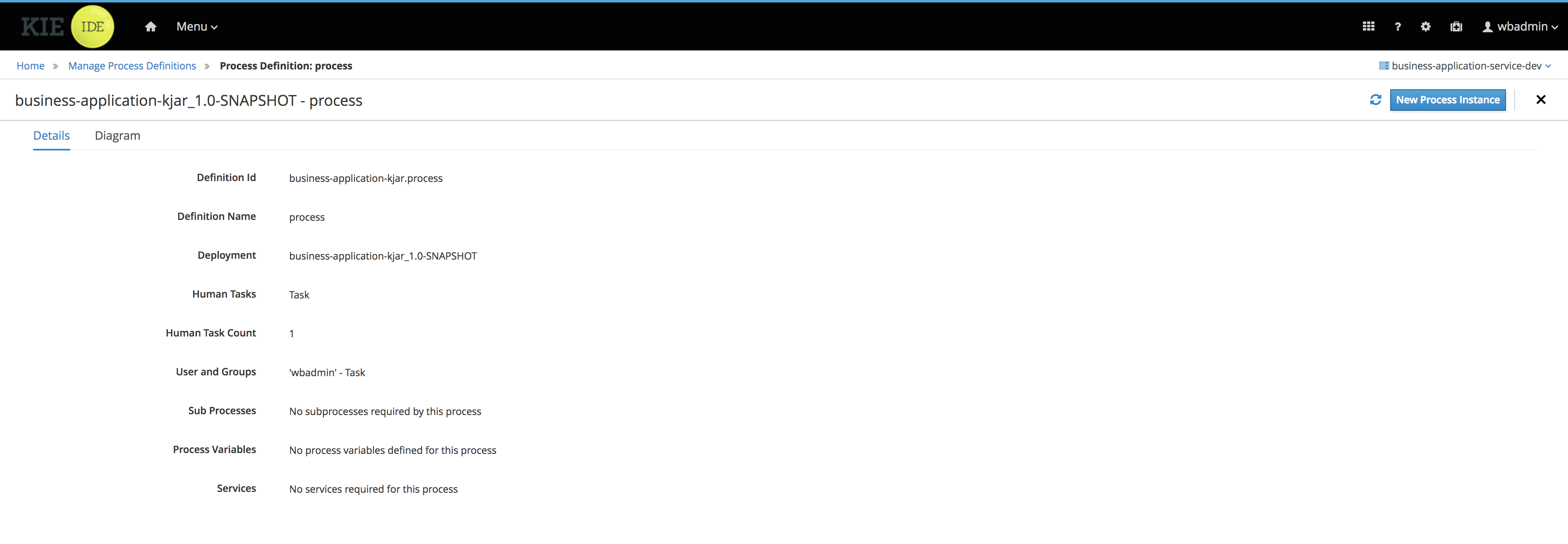

Whenever working with business assets you can easily try them out in your business application by running the application in development mode. That allows developer to build and deploy the assets project directly to a running application. Moreover Business Central can also be used to quickly interact with processes, tasks and cases. To learn more see Launch application in development mode

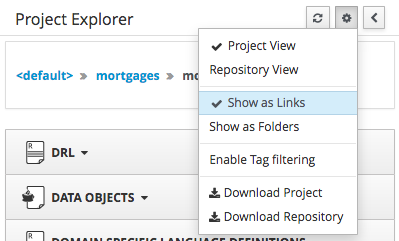

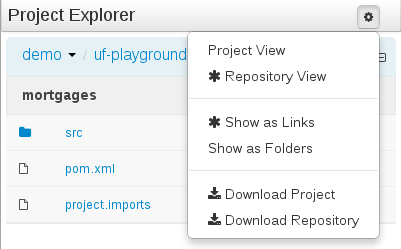

Once the work on business assets is finished it should be fetch back to your business application source.

With this your business assets are now part of the business application source tree and can be launched in standalone mode - without Business Central as jBPM controller.

To launch your application just go into service project ({your business application name}-service) and invoke

./launch.sh clean install for Linux/Unix

./launch.bat clean install for Windows

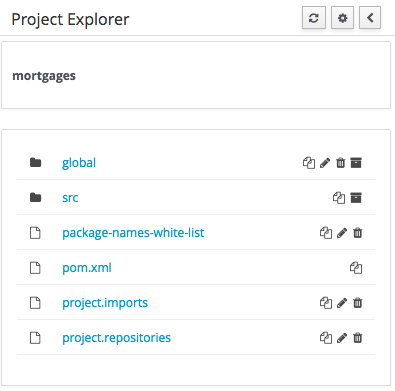

Business assets project has two special files

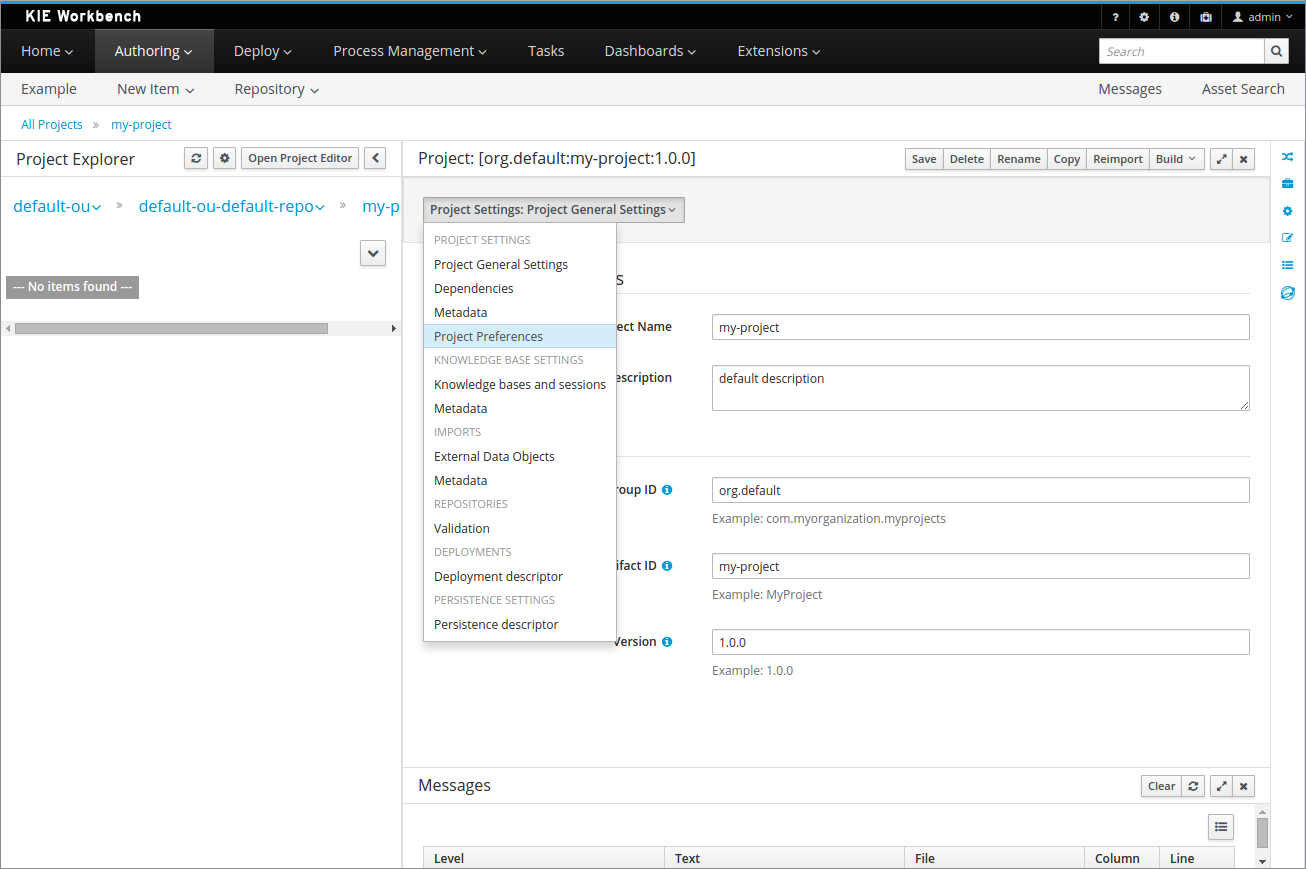

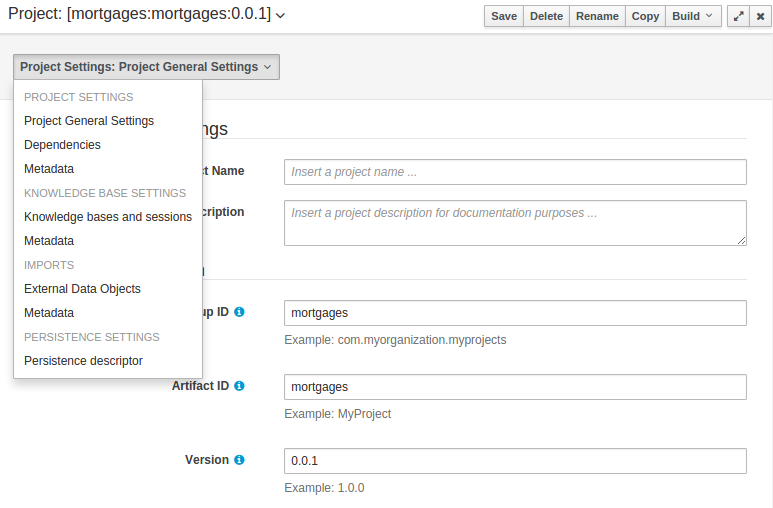

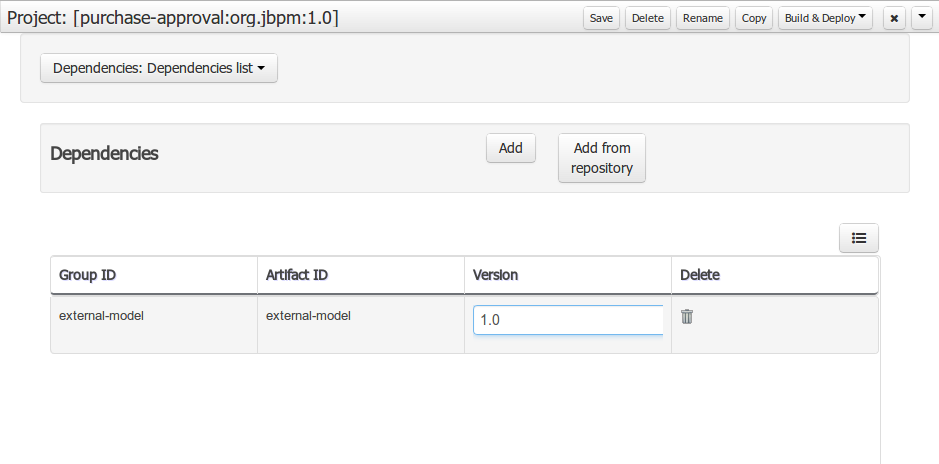

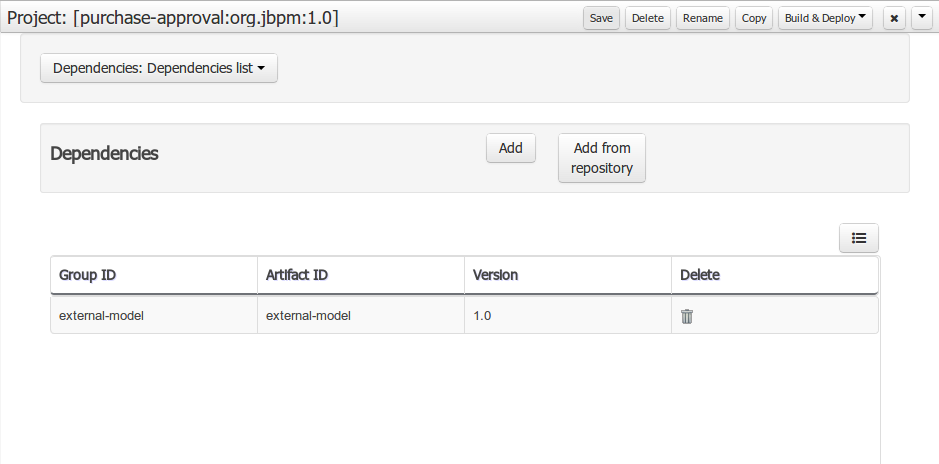

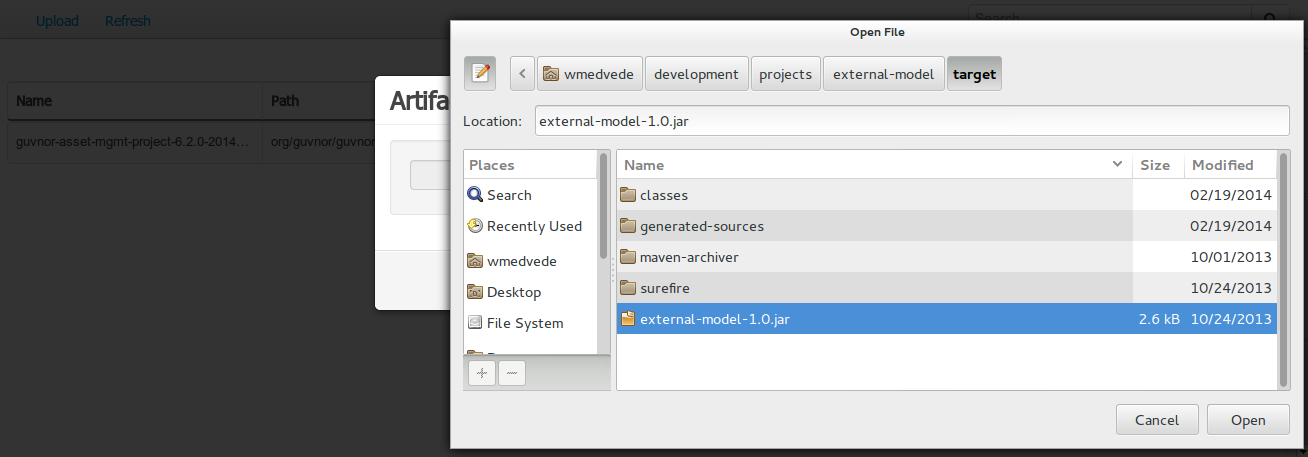

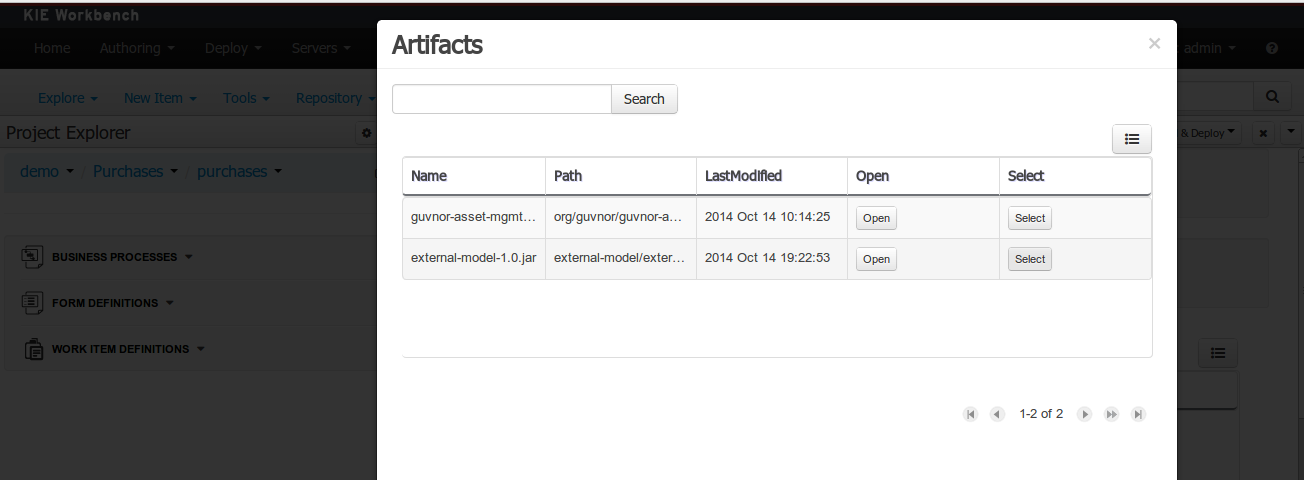

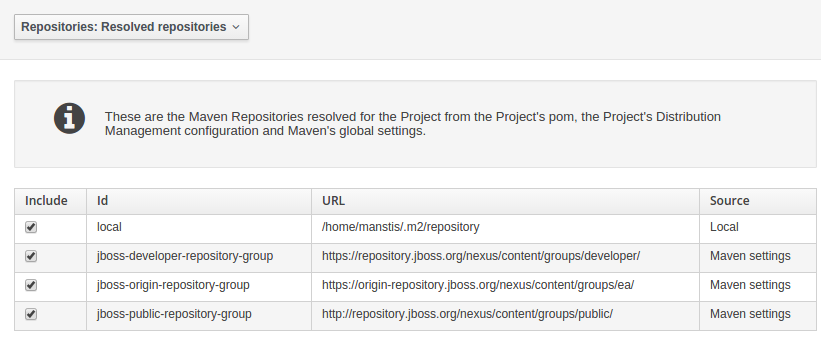

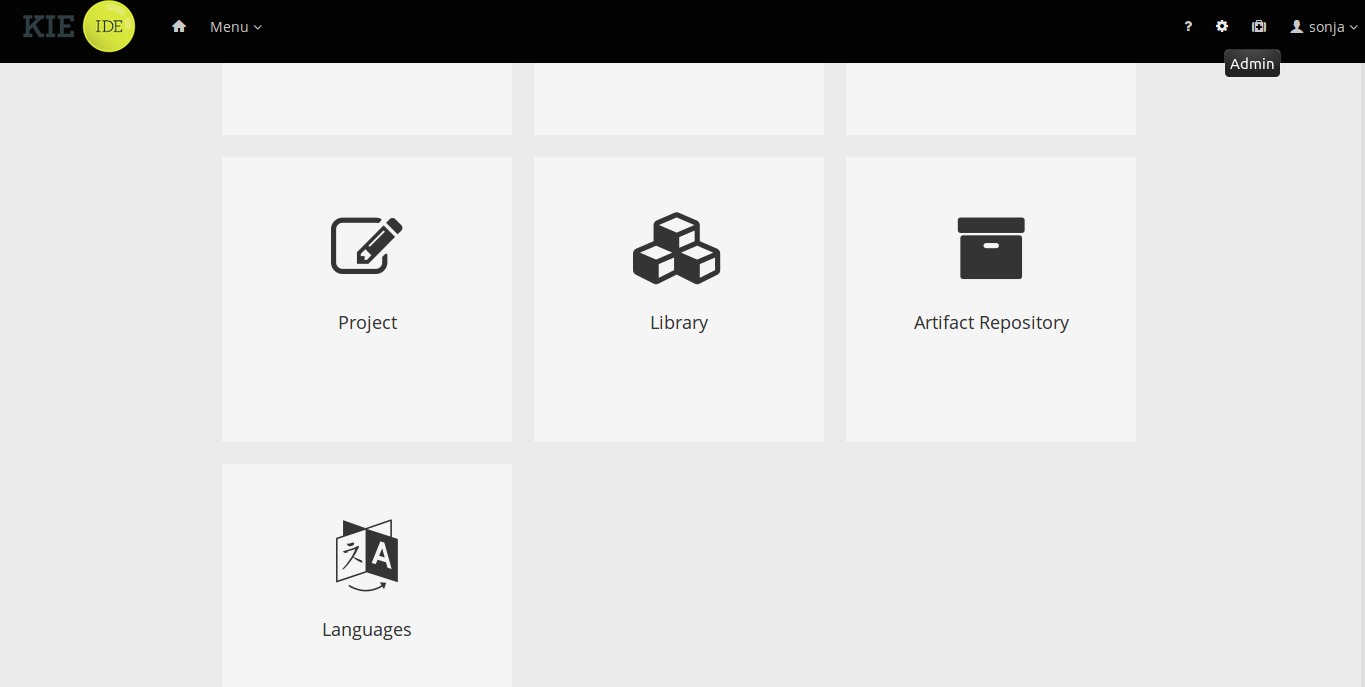

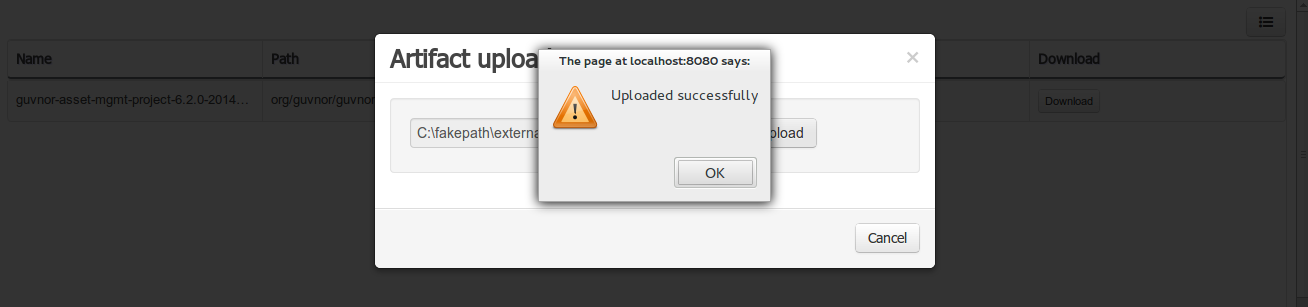

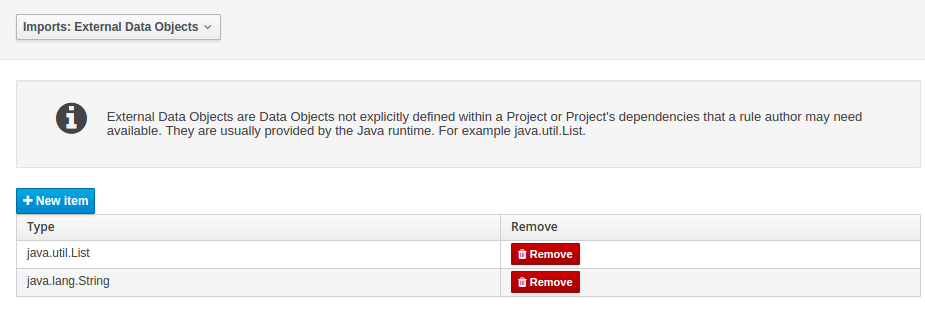

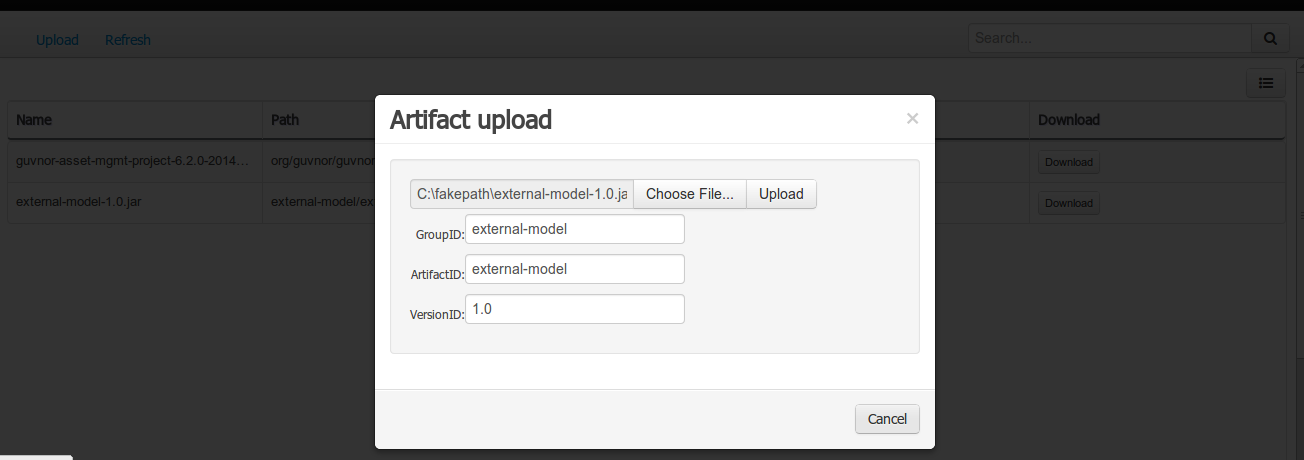

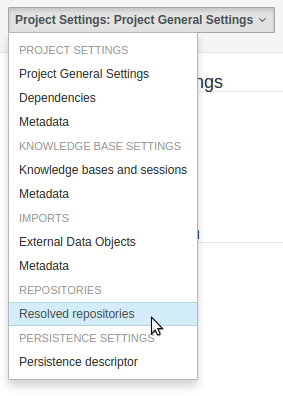

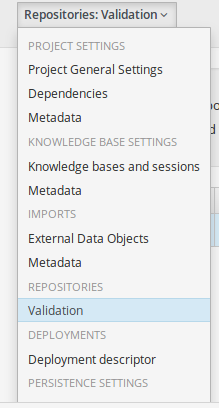

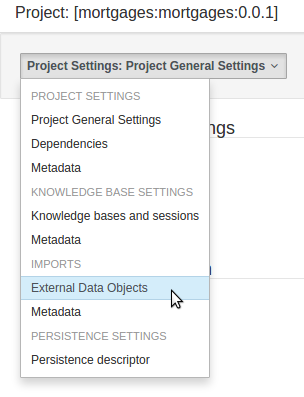

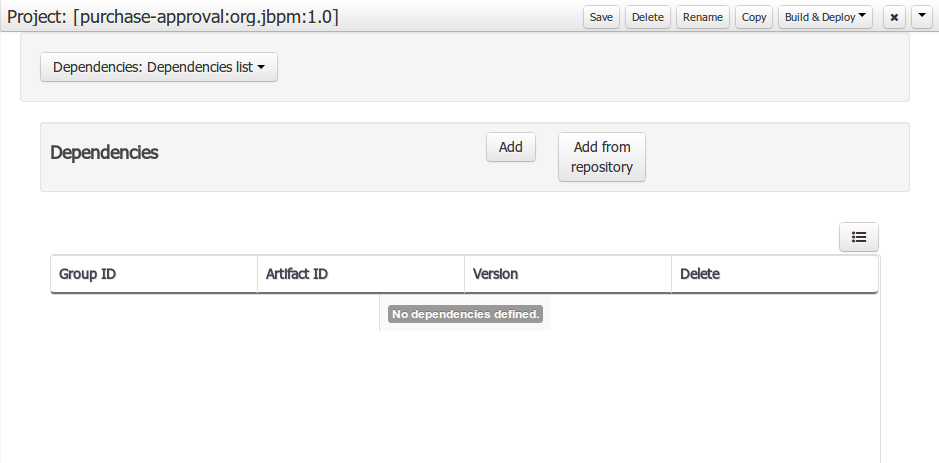

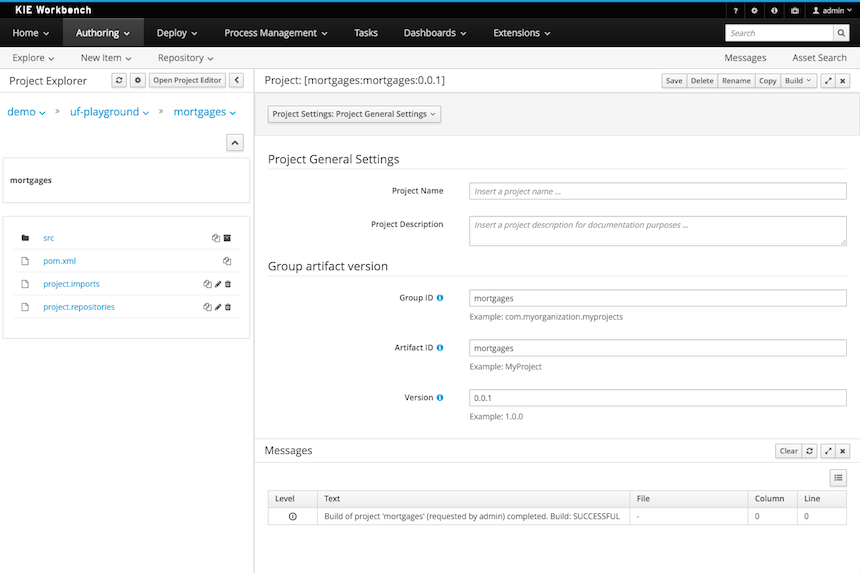

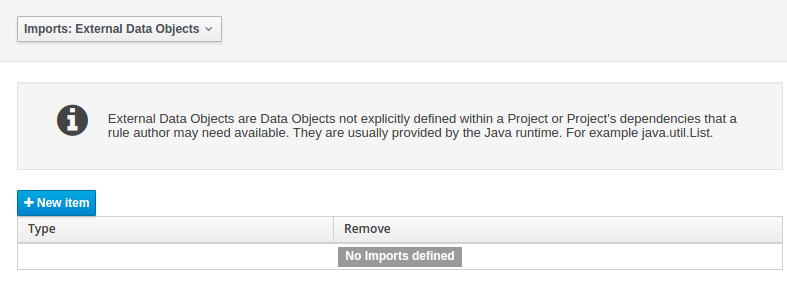

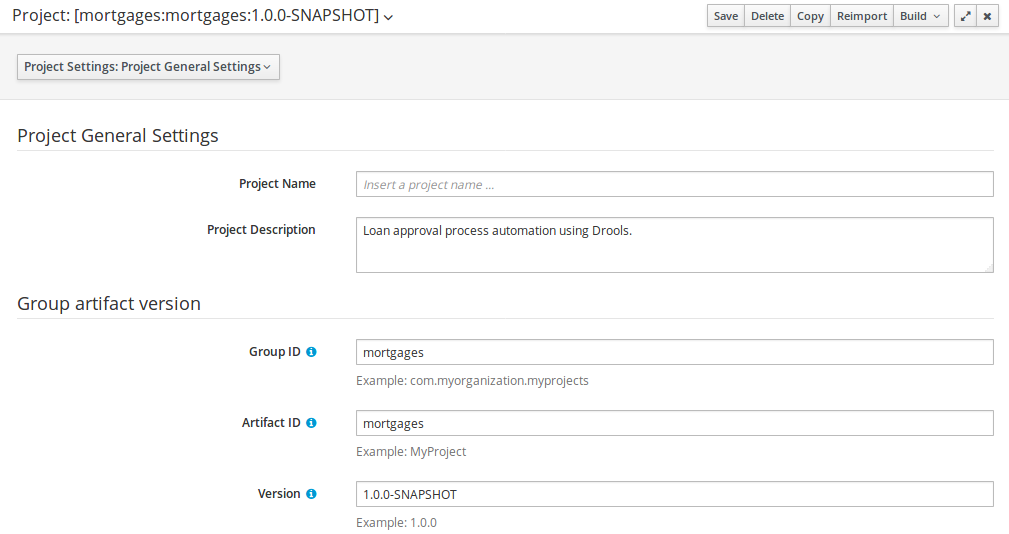

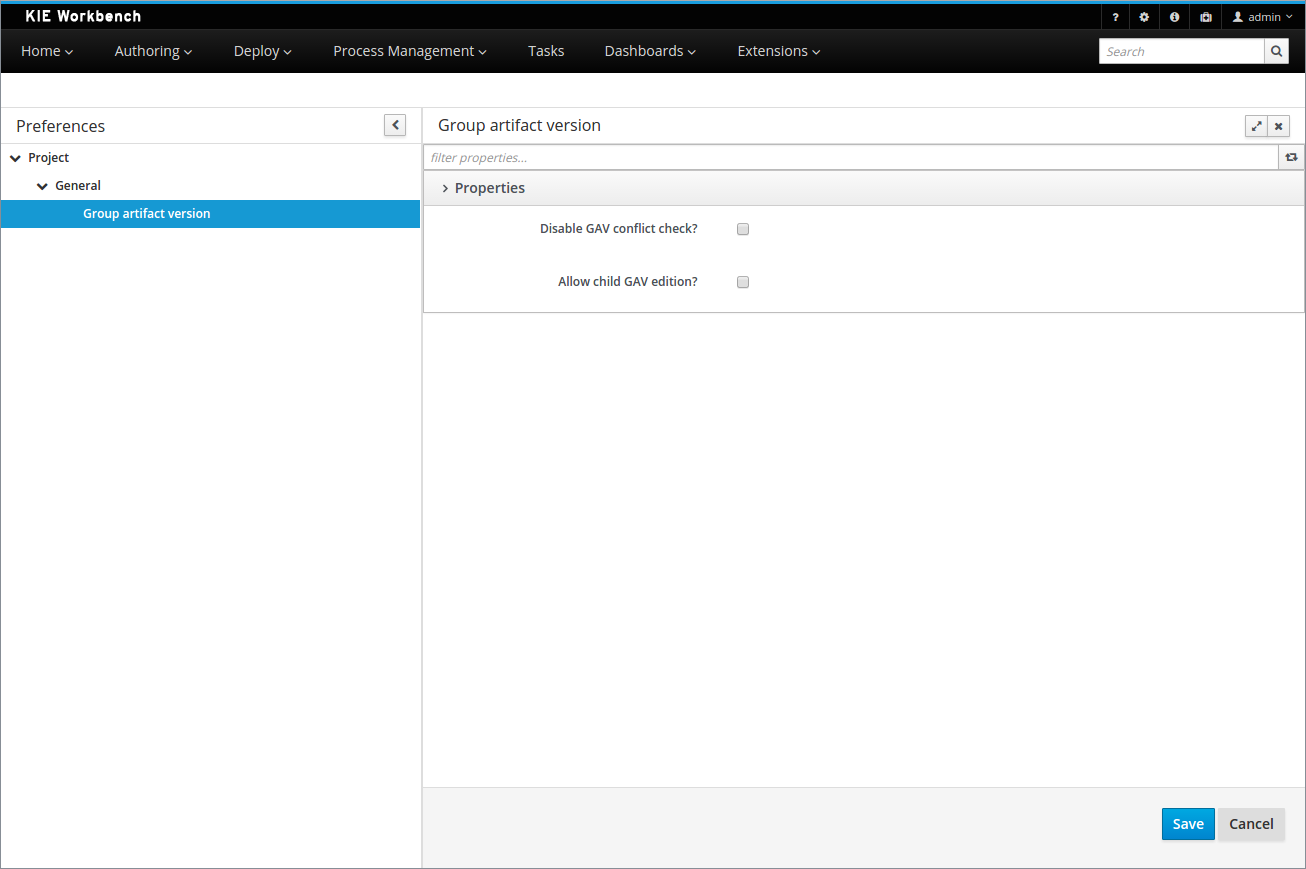

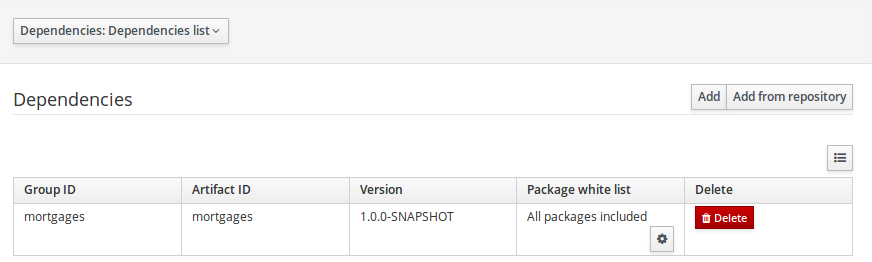

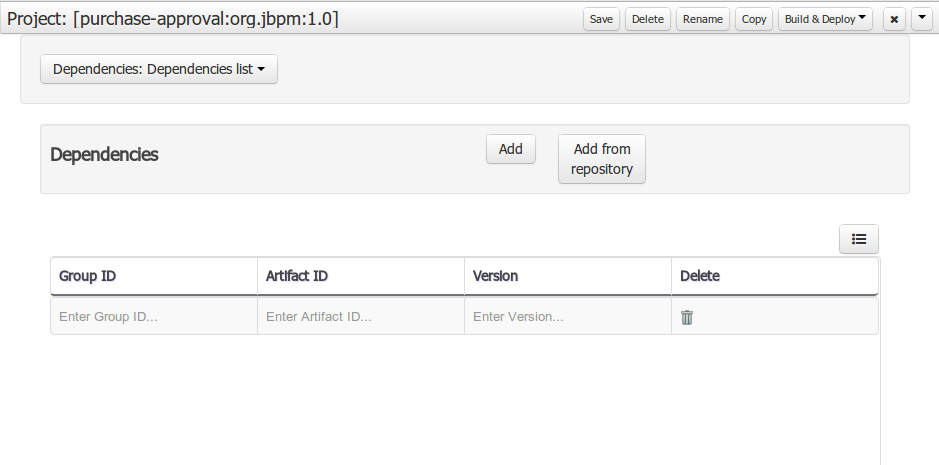

The first one is Apache Maven project file and is managed via Project Settings in Business Central. It allows to define project information (group id, artifact id, version, name, description). In addition it allows to define dependencies the project will have e.g. data model project.

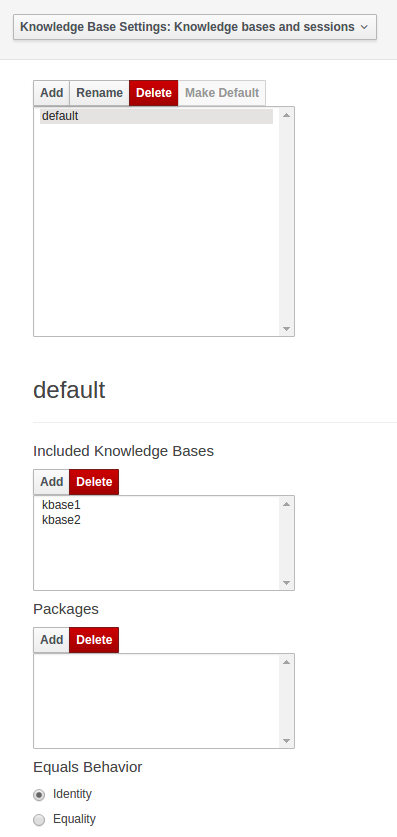

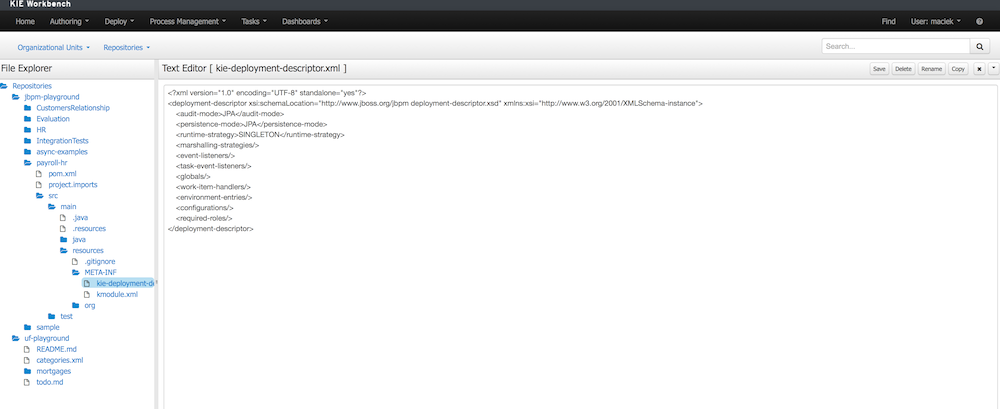

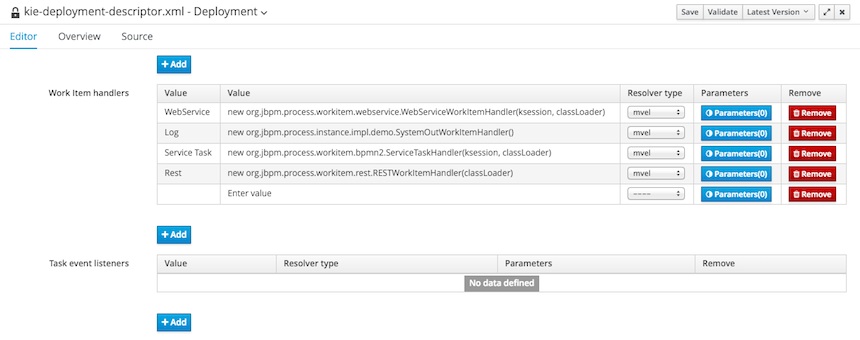

Deployment descriptor allows to configure various components of the business automation capability such as

for complete description of the deployment descriptor see Deployment descriptor

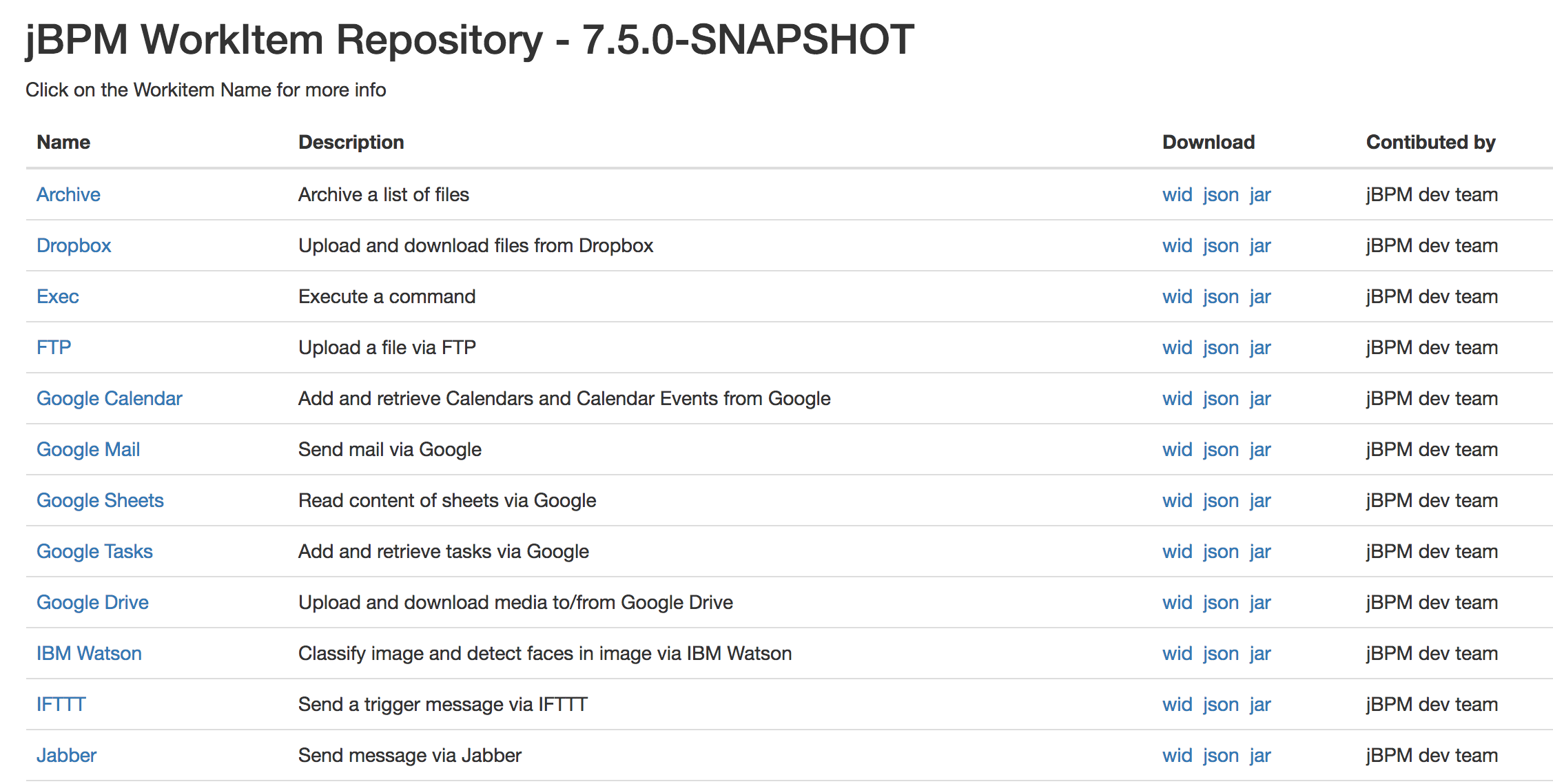

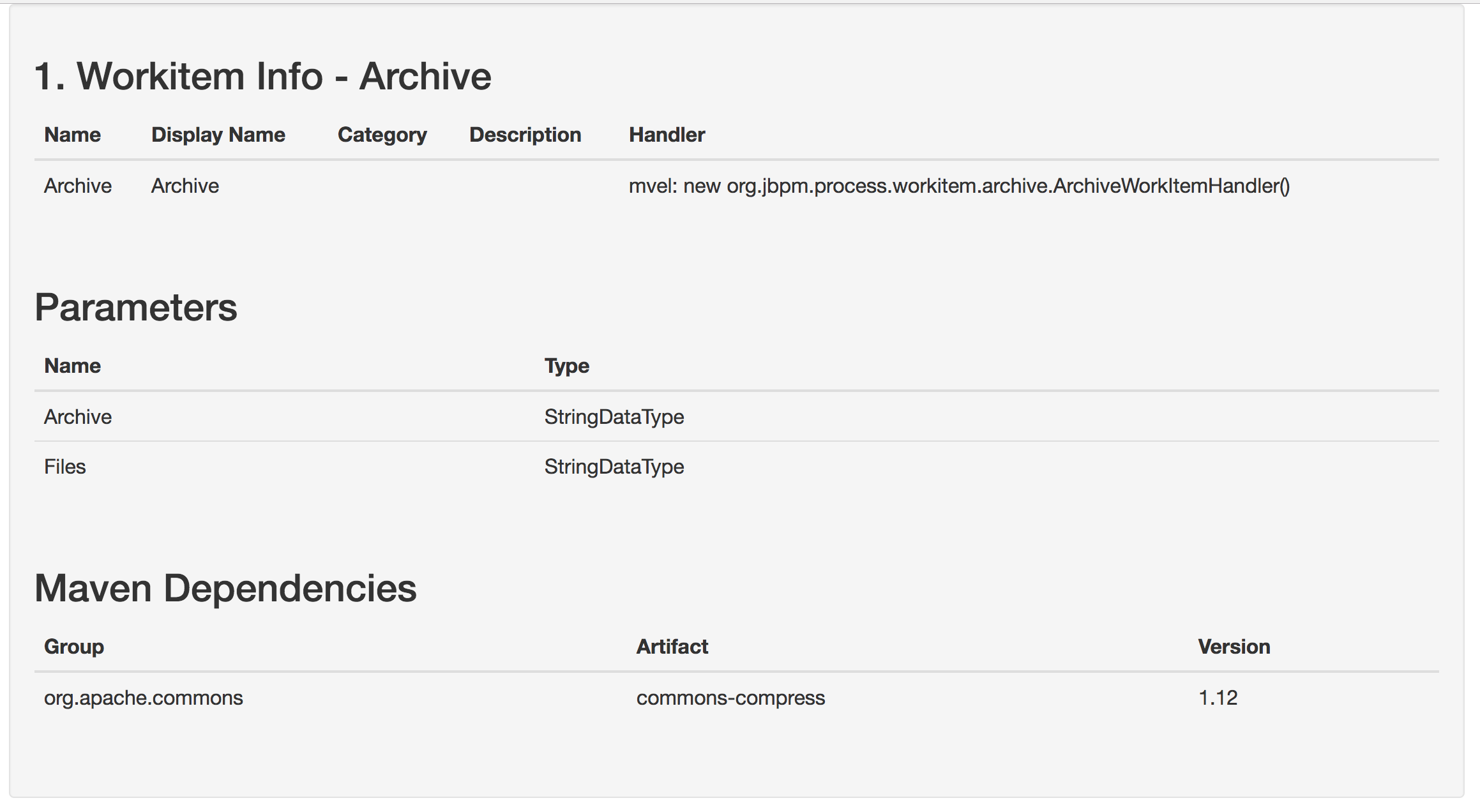

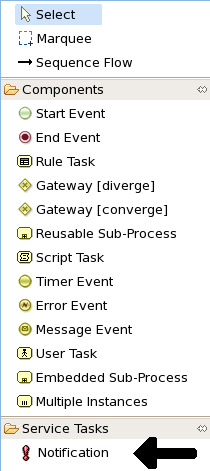

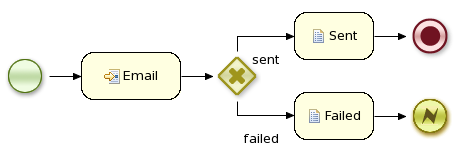

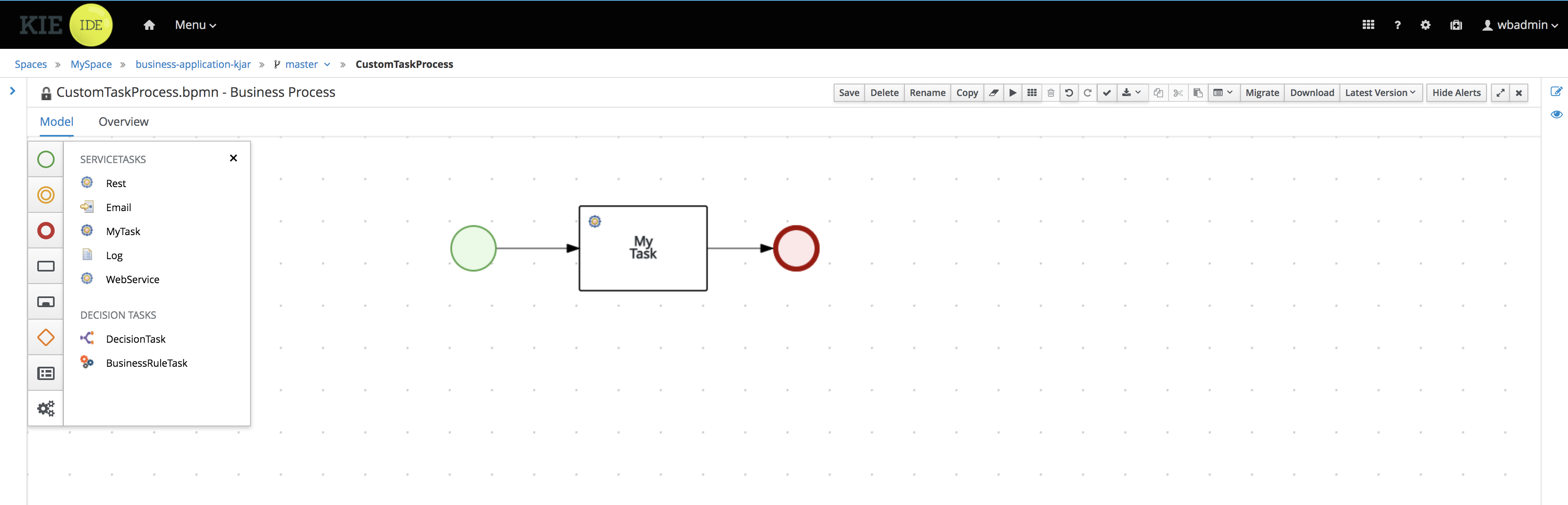

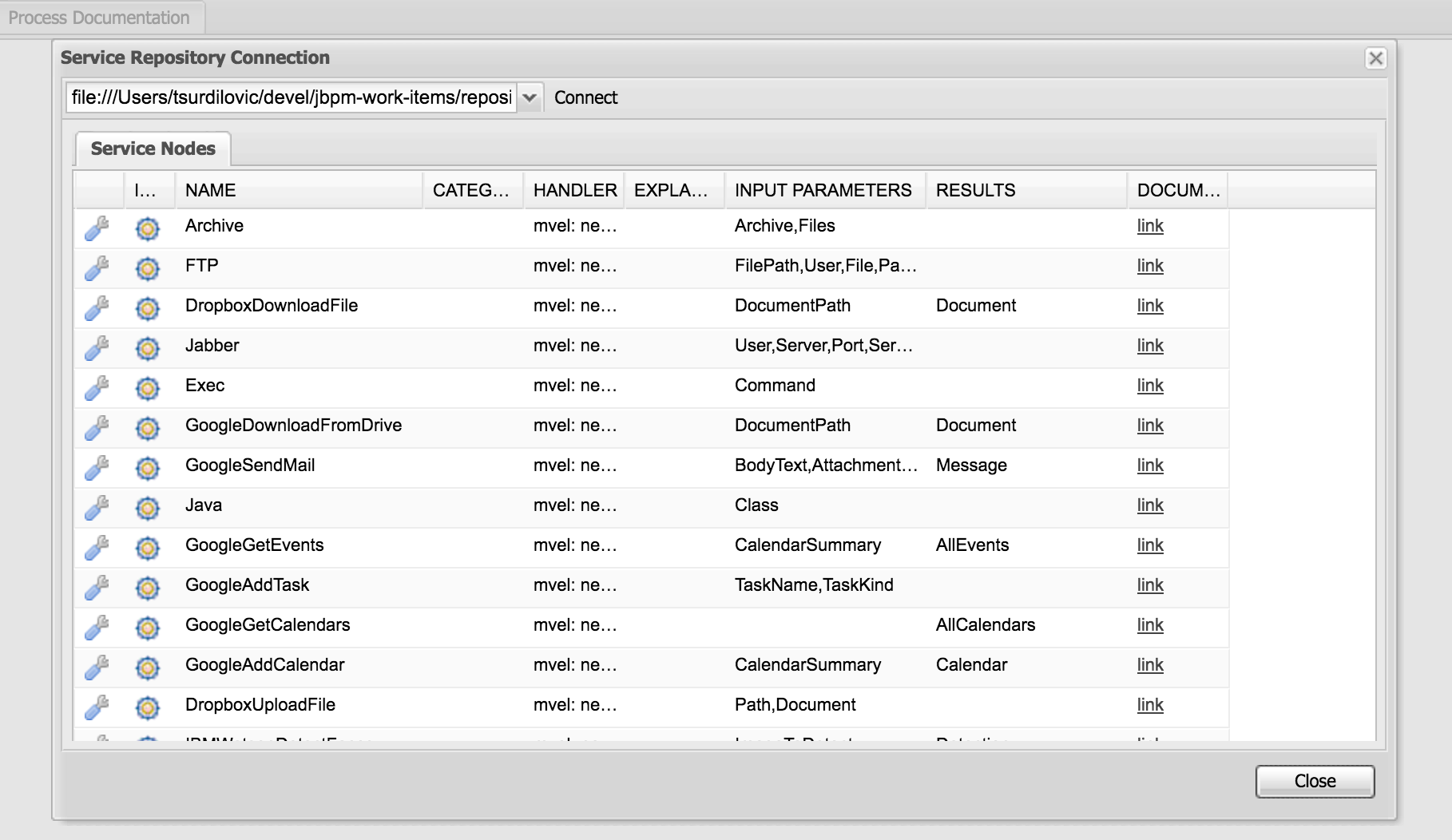

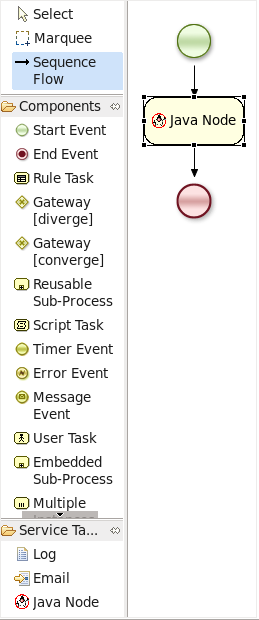

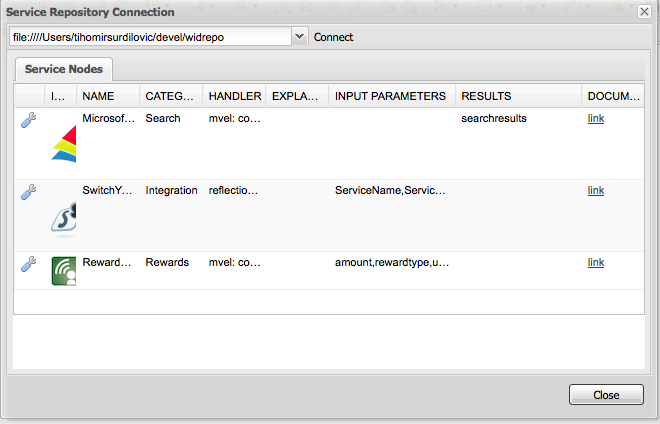

Business processes can take advantage of so called domain specific services which are implemented as work items and their actual execution is carried out by work item handlers. Work items defined in the process or case definition are linked by name with work item handler (the implementation).

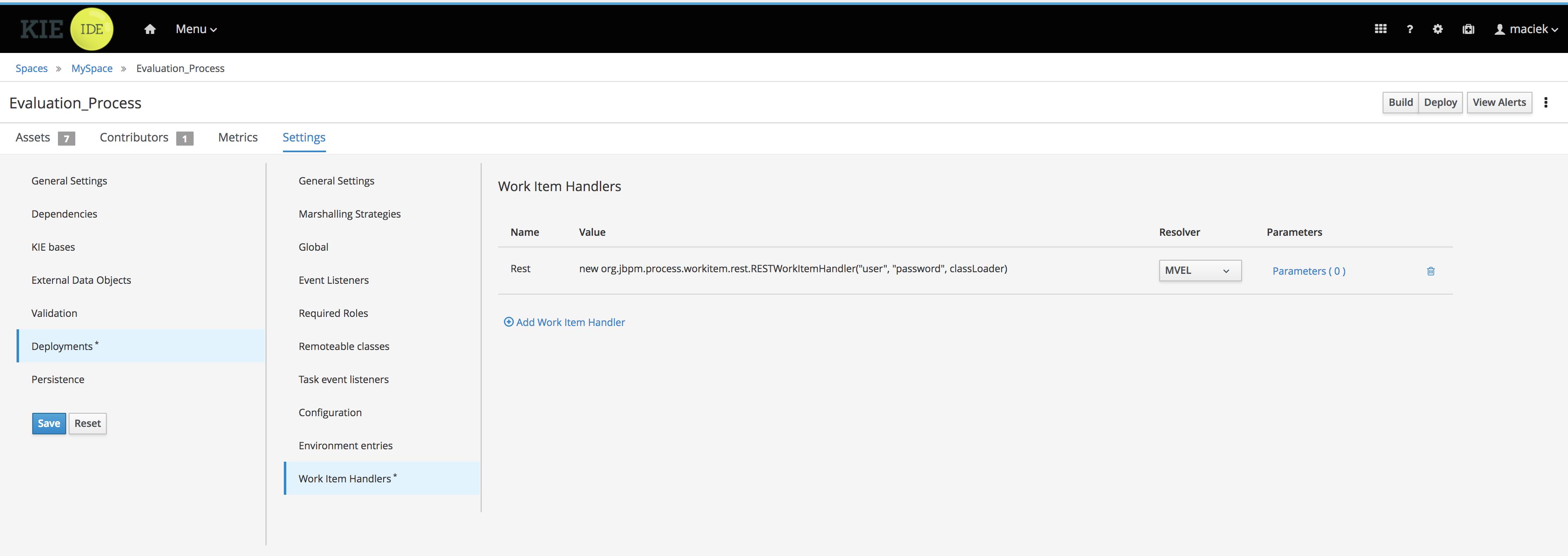

Work item handlers can be registered in three ways

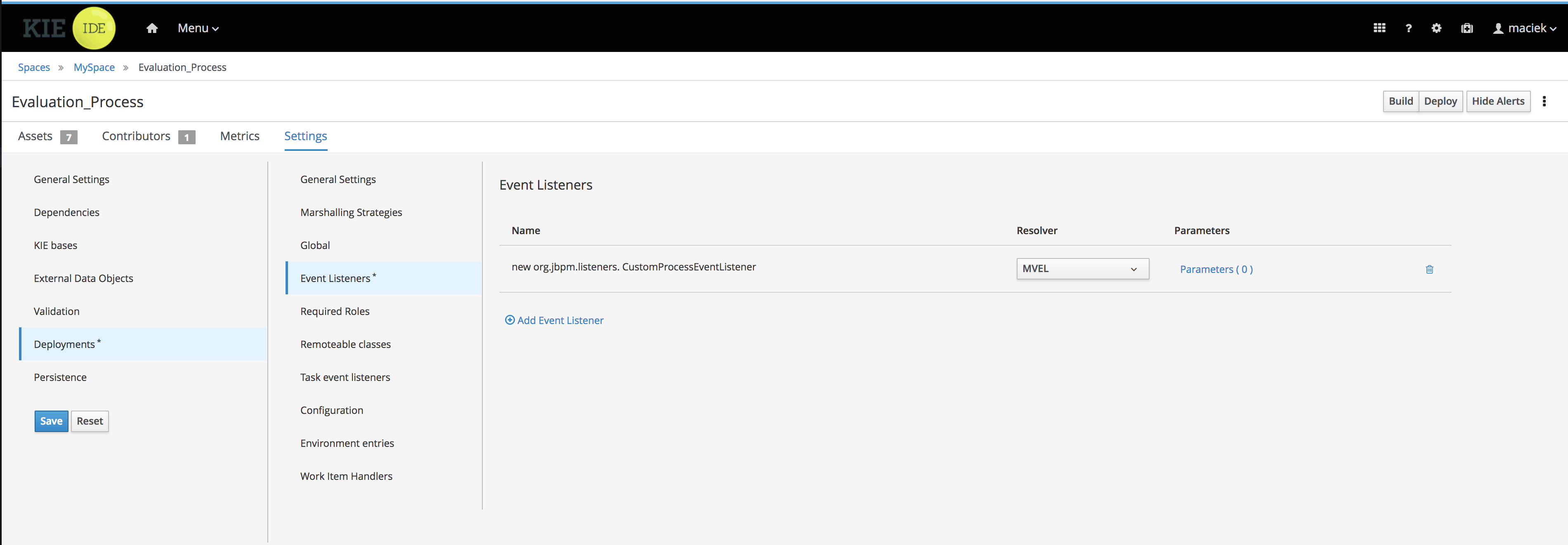

jBPM allows to register various event listeners that will be invoked upon various events triggered by the jBPM engine. Supported event listener types are

Similar to work item handlers, event listeners can be registered in three ways

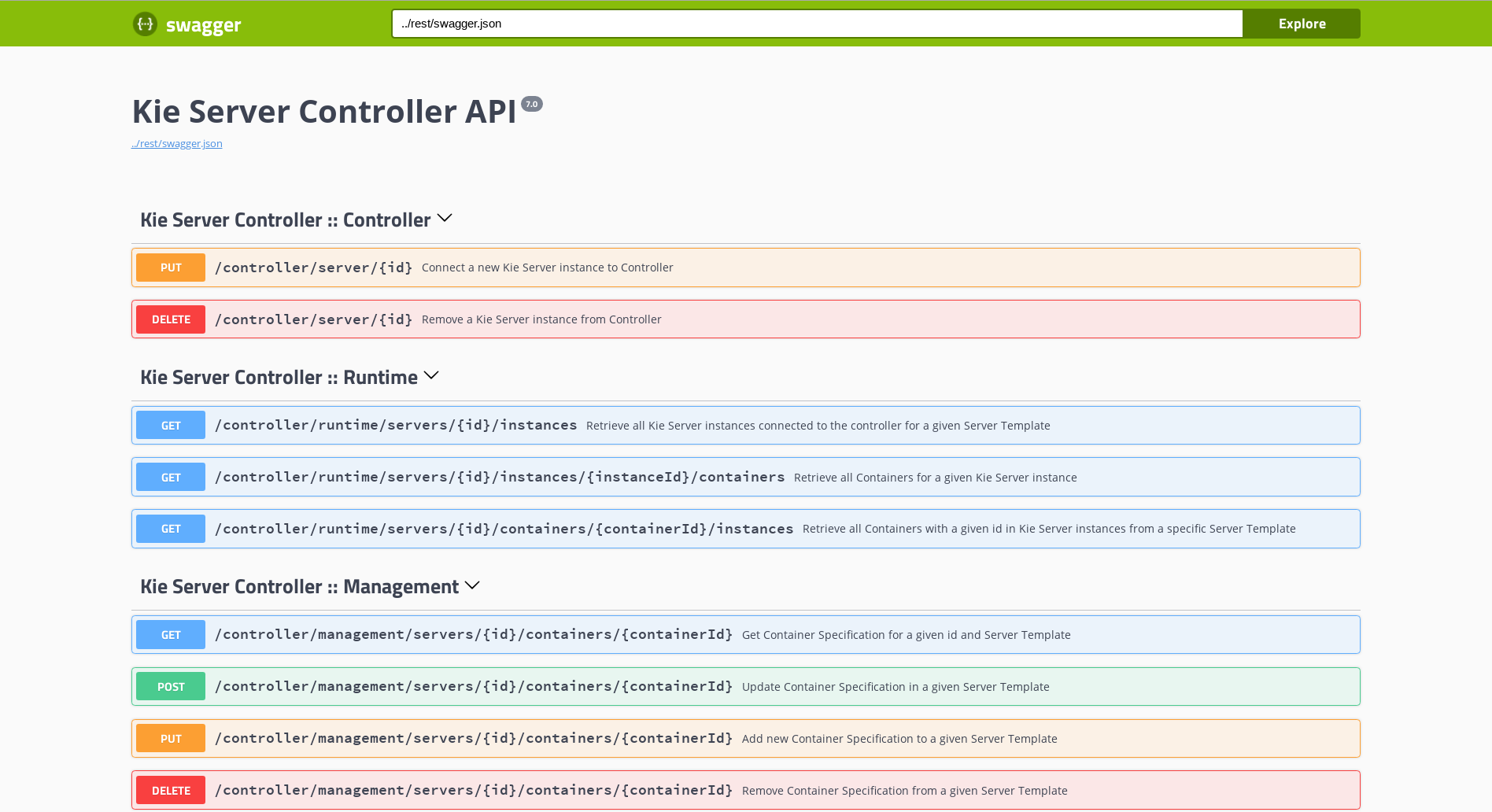

In many (if not all) cases there will be a need to expose additional REST endpoints for your business application (in your service project). This can be easily achieved by creating a JAX-RS compatible class (with JAX-RS annotations). It will automatically be registered with the running service when the following scanning option is configured in your apps application.properties config file:

The endpoint will be bound to the global REST api path defined in the cxf.path property.

An example of a custom endpoint can be found below

Business applications can be easily deployed to OpenShift Container Platform. It’s as easy as starting the application locally, meaning by using launch.sh/bat scripts.

So first of all login to OpenShift Cluster

once successfully logged in following output (or similar) should be displayed

To deploy your application as to OpenShift Container Platform just go into service project ({your business application name}-service) and invoke

./launch.sh clean install -Popenshift,h2 for Linux/Unix

./launch.bat clean install -Popenshift,h2 for Windows

The launch script will perform the build with openshift profile (see pom.xml in the business assets project and service project for details). The significant difference that is done for openshift is that the business assets project will generate an offline maven repository with the project itself and all its dependencies. Next this maven repository will be included in the image itself and maven (used by business automation capability) will work in offline mode - meaning no access to internet will be attempted.

You can then go to OpenShift Web Console and look at the Overview of your project (myproject by default)

By clicking on the route url (in this case http://business-application-service-myproject.192.168.64.2.nip.io) you can go to the application already deployed and running.

Business applications are by default configured with option to deploy service as docker container.

This is done in very similar way as launching the service locally - via launch.sh/bat script.

To deploy your application as docker container just go into service project ({your business application name}-service) and invoke

./launch.sh clean install -Pdocker,h2 for Linux/Unix

./launch.bat clean install -Pdocker,h2 for Windows

The launch script will perform the build with docker profile (see pom.xml in the business assets project and service project for details). The significant difference that is done for docker container is that the business assets project will generate an offline maven repository with the project itself and all its dependencies. Next this maven repository will be included in the docker image itself and maven (used by business automation capability) will work in offline mode - meaning no access to internet will be attempted.

Once the build is complete launch script will directly create container and start it, this should be done once the following line is printed to console

the second line is the container id that can be later on used to interact with the container, for instance to follow the logs

the business application will be accessible at the same port as configured by default that is 8090, simply go to http://localhost:8090 to see your application running as docker container.

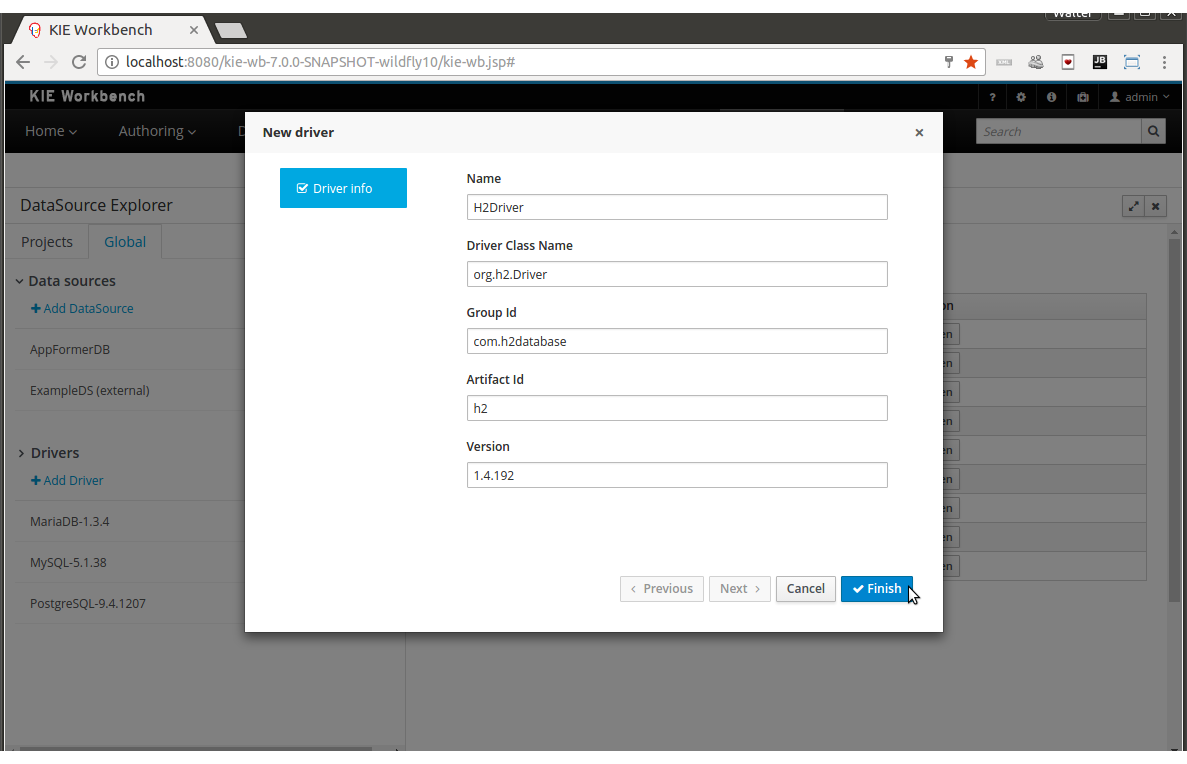

Currently business application that requires external data base needs to provide the data base in advance - before the application is launched and properly configured within the application configuration files.

Further releases will improve this by relying on docker compose/OpenShift templates.

The Business Central web application is using the pre-installed other security domain for authenticating and authorizing users (as specified in the WEB-INF/jboss-web.xml inside the WARs).

The application server uses by default property files based realms - Please note that this configuration is intended only for demo purposes (users, roles and passwords are stored in simple property files on the filesystem).

Authentication is configured in the standalone.xml file as follows:

These are the default users:

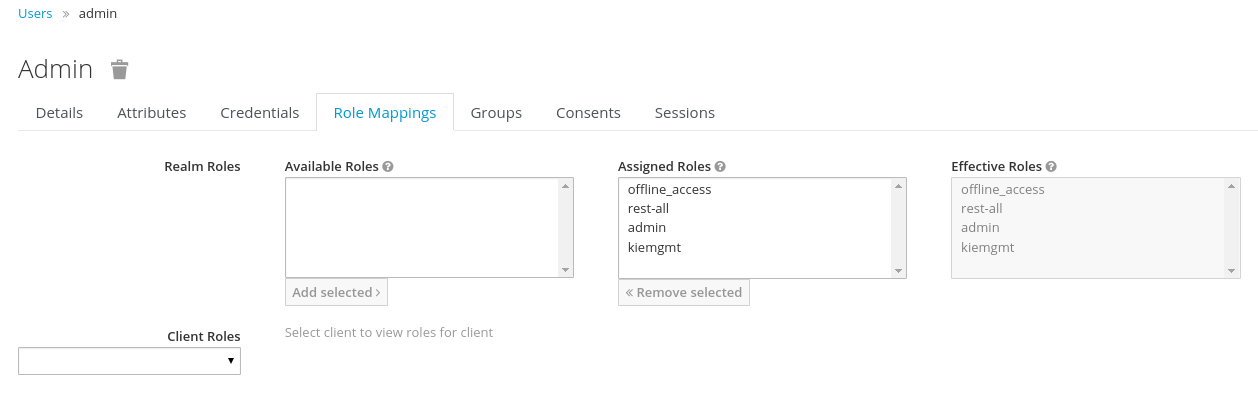

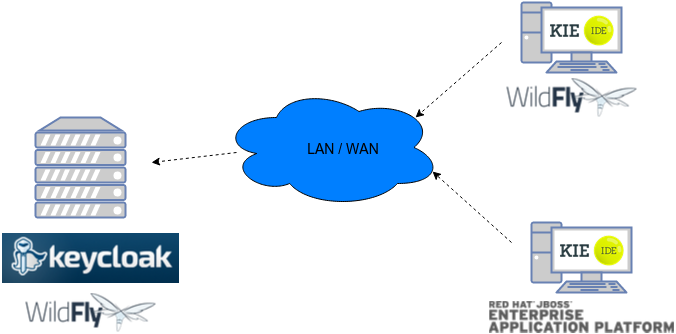

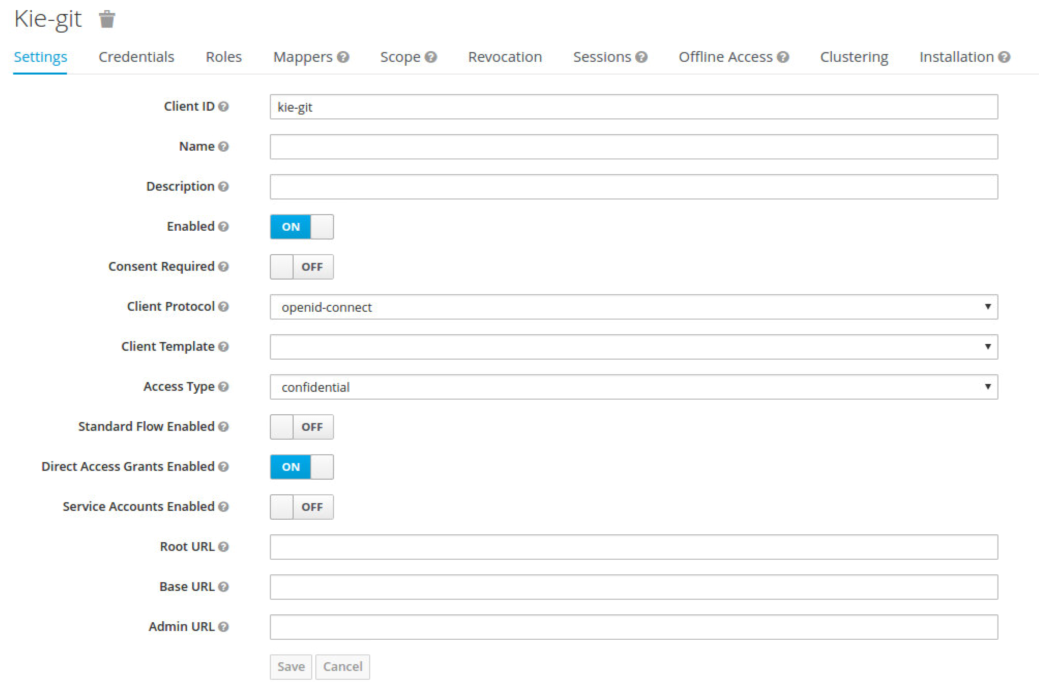

Authentication can be customized by using any of the following options:

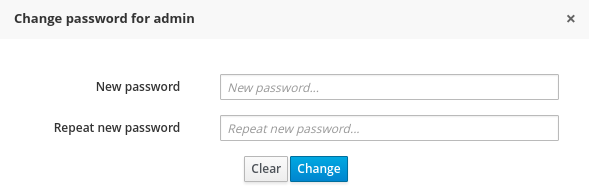

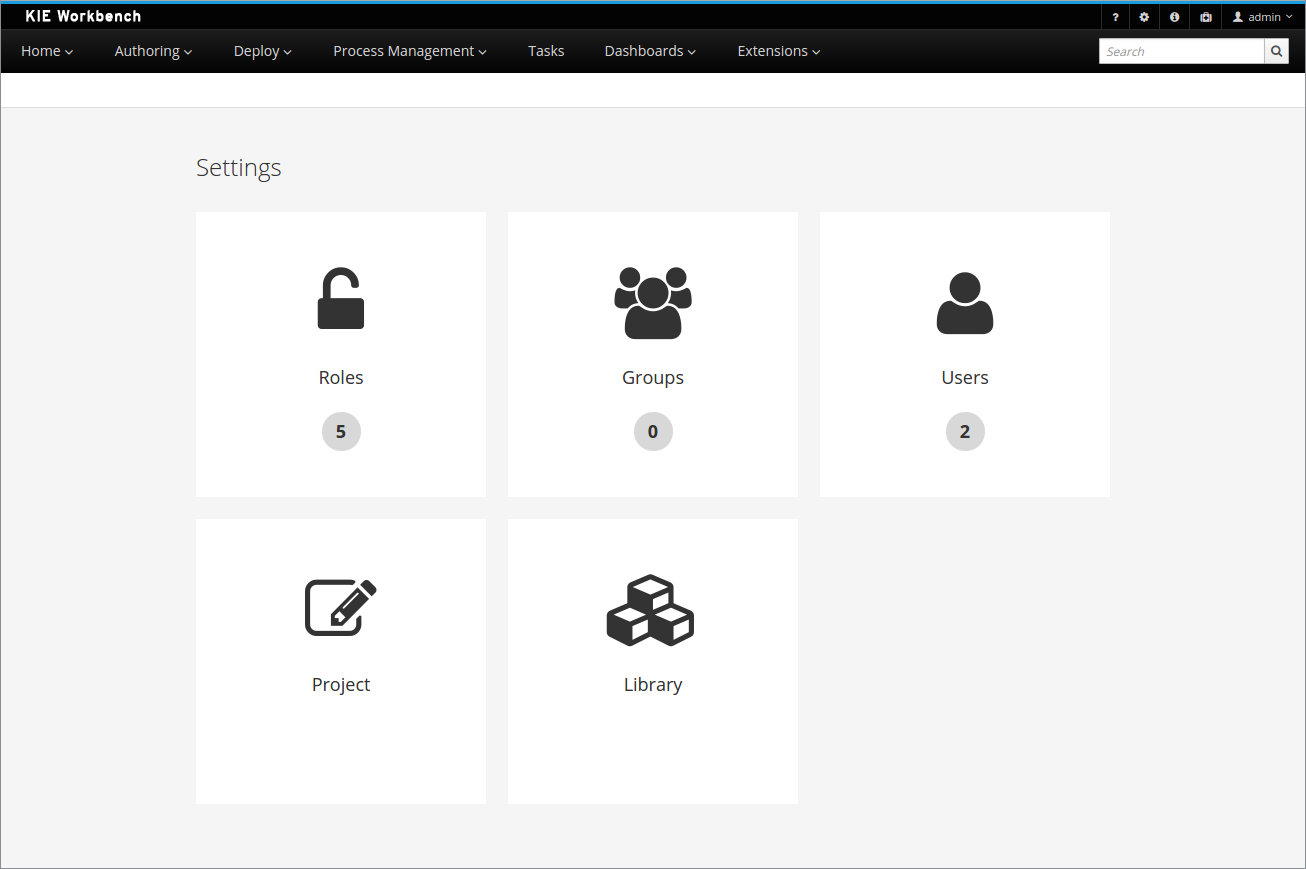

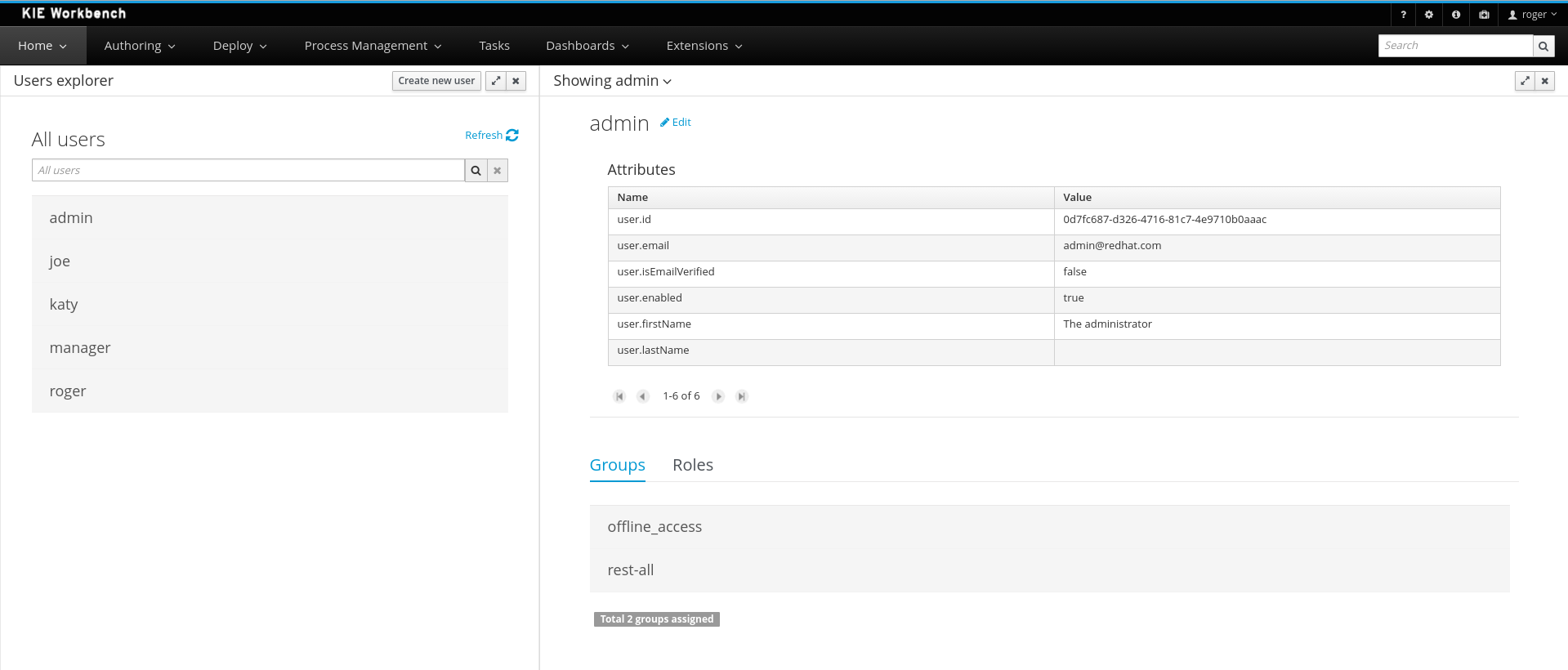

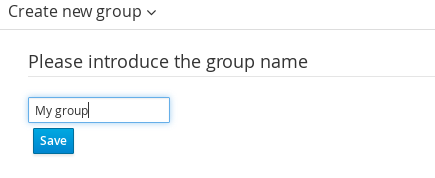

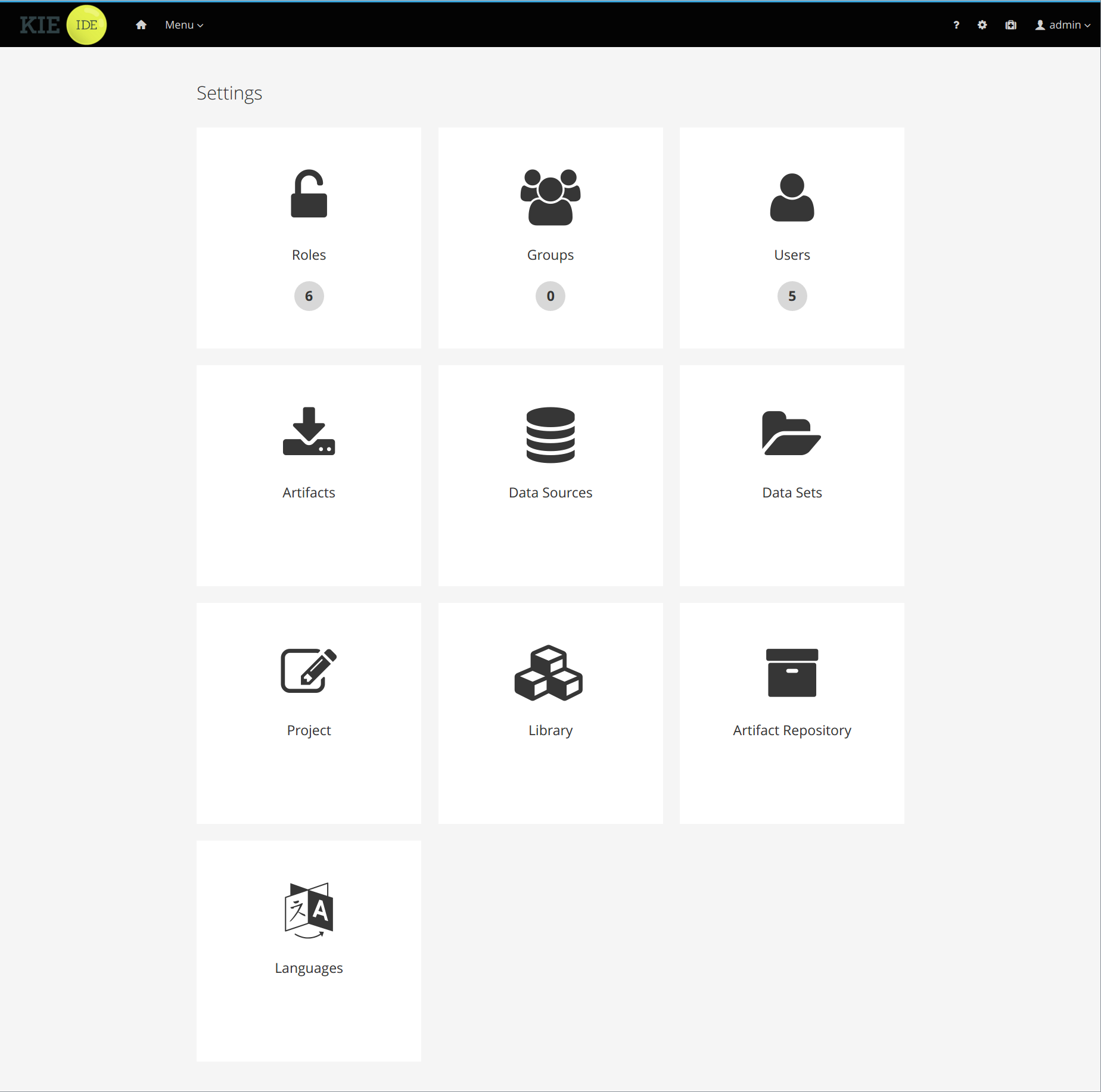

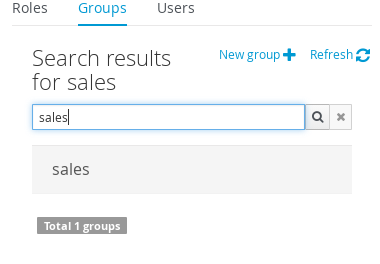

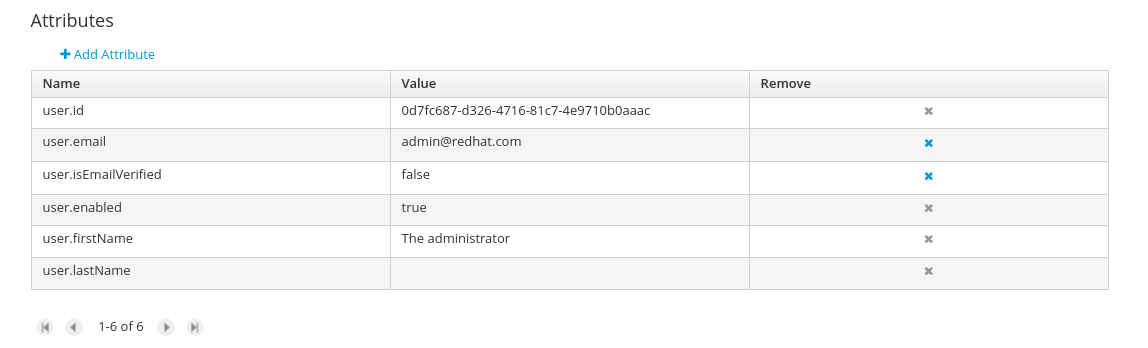

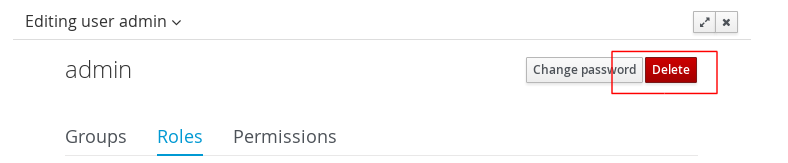

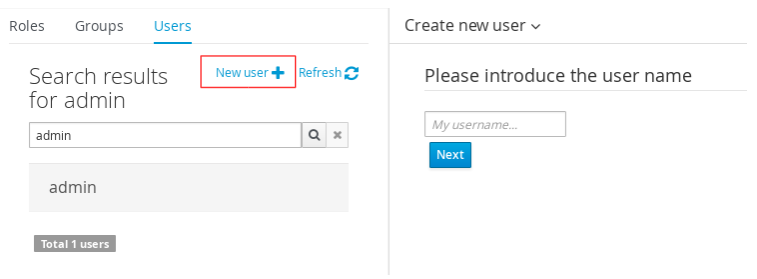

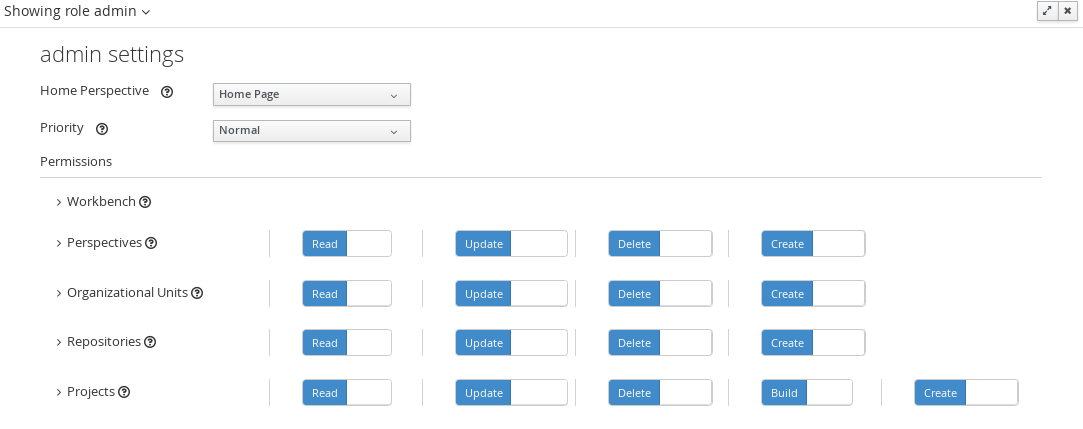

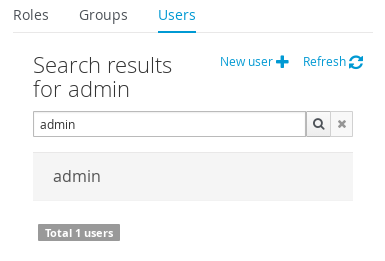

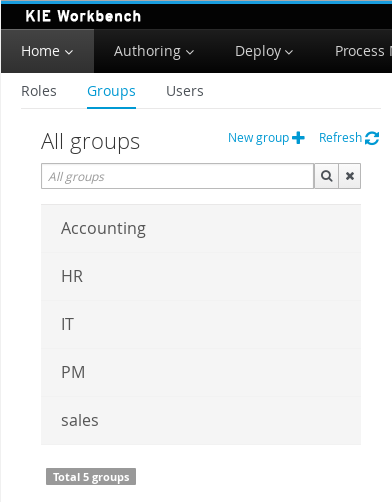

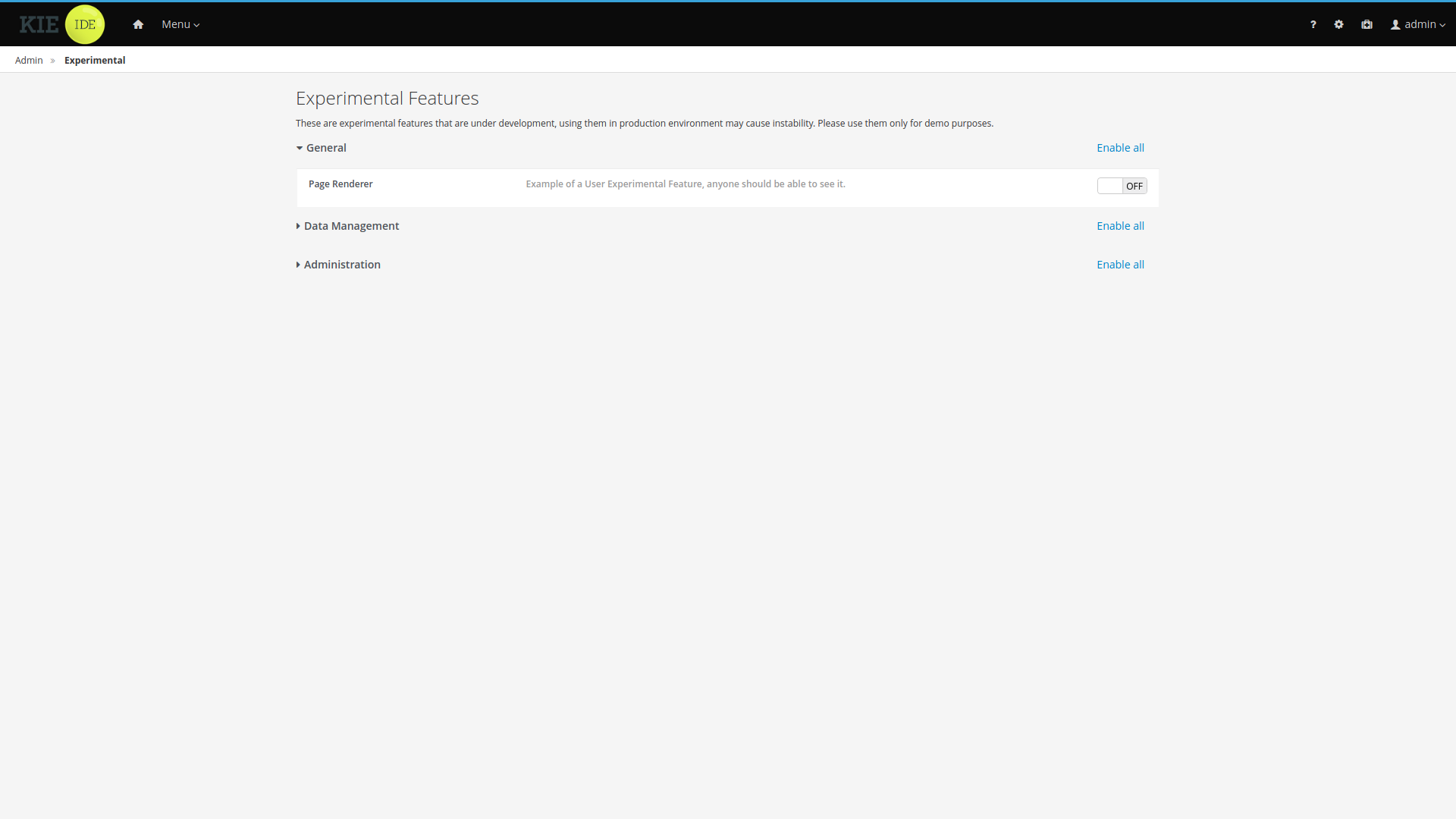

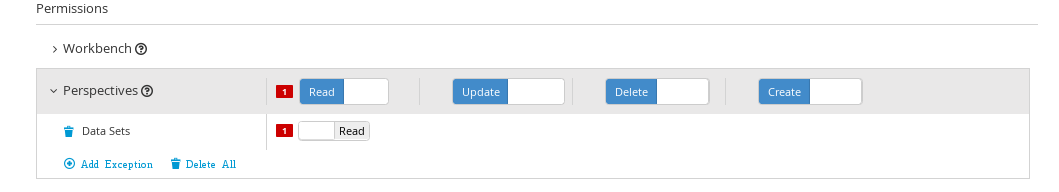

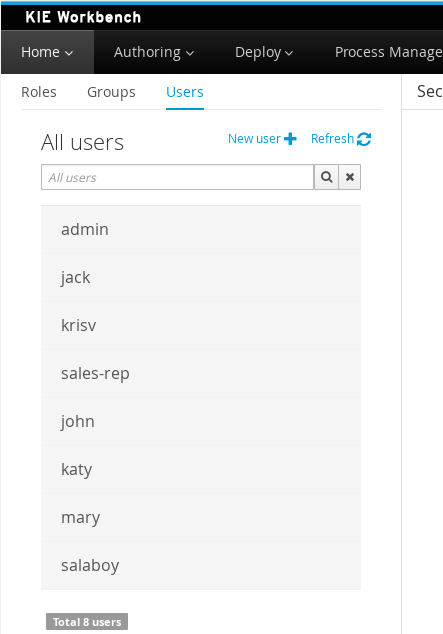

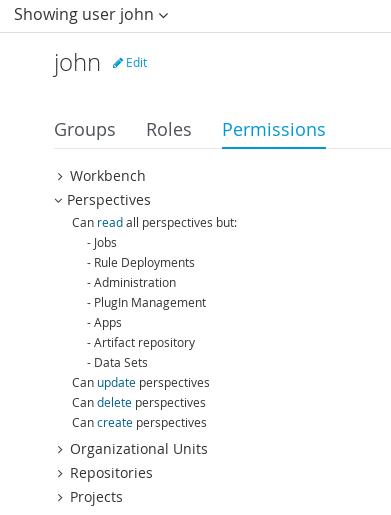

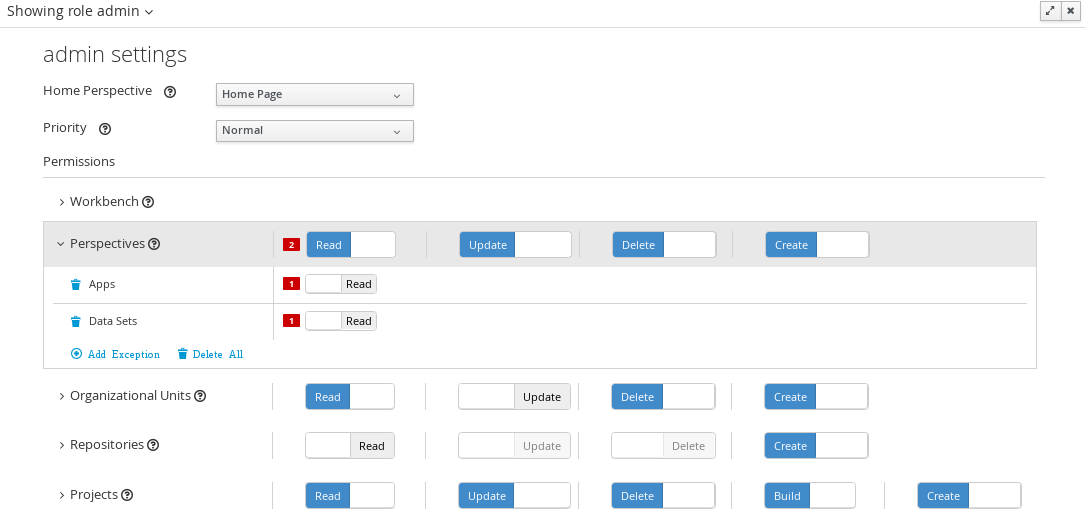

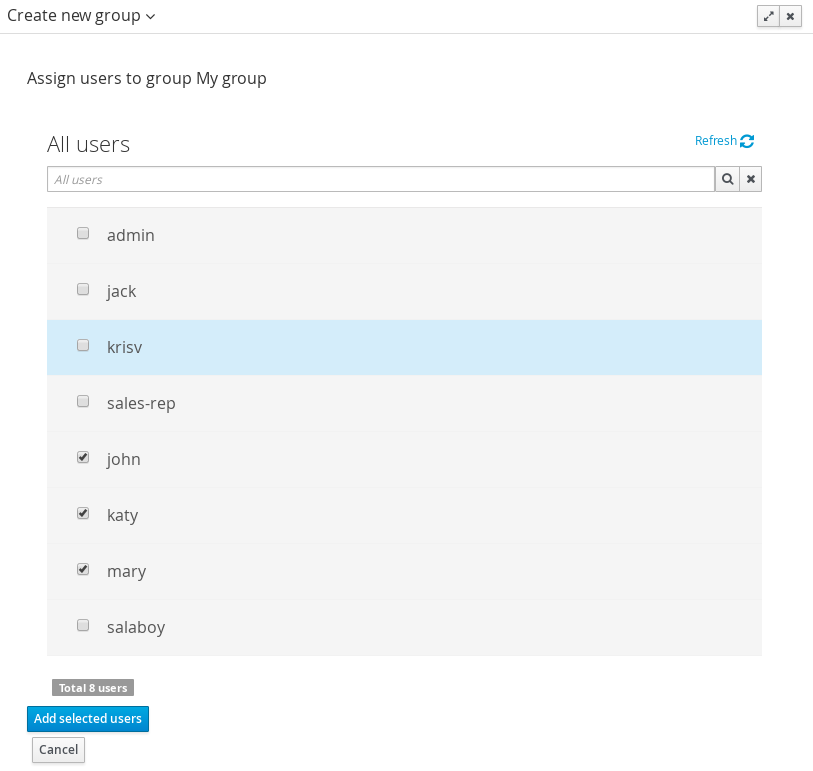

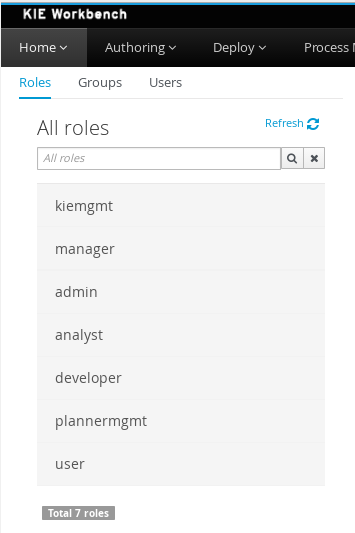

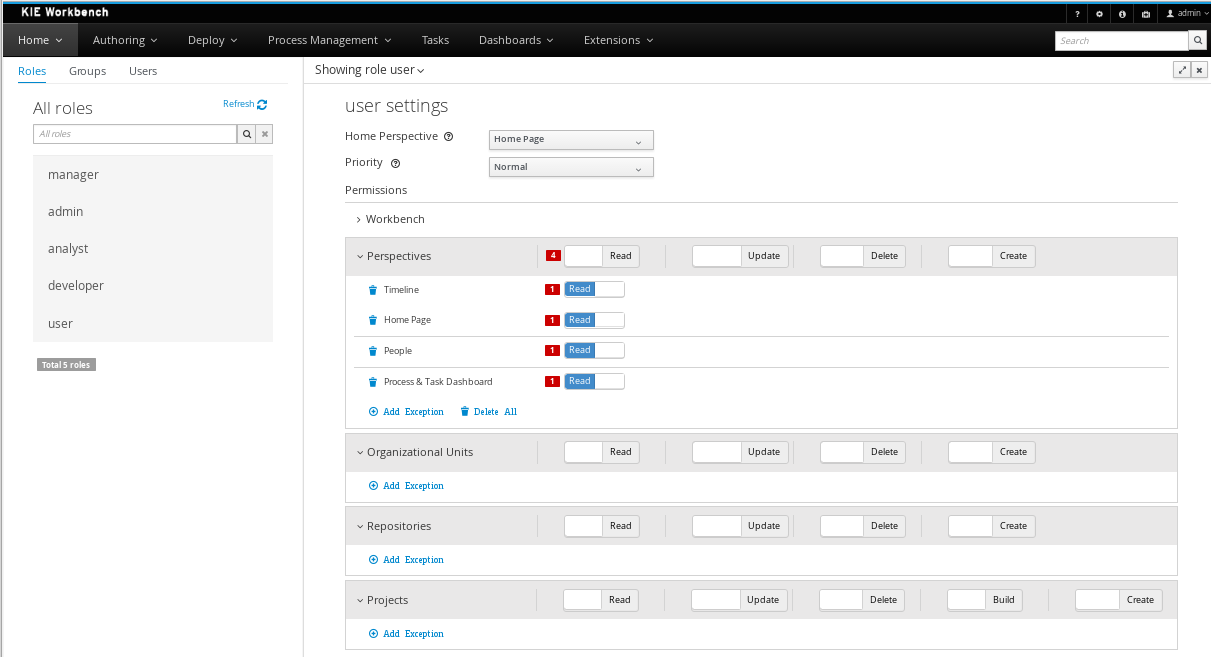

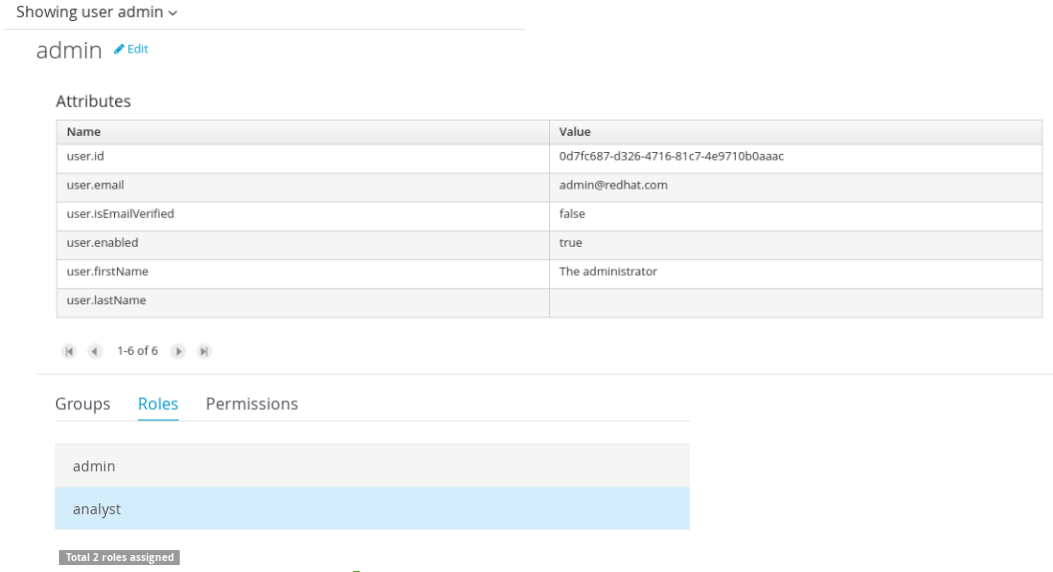

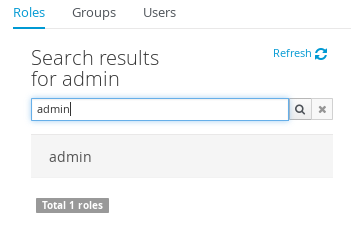

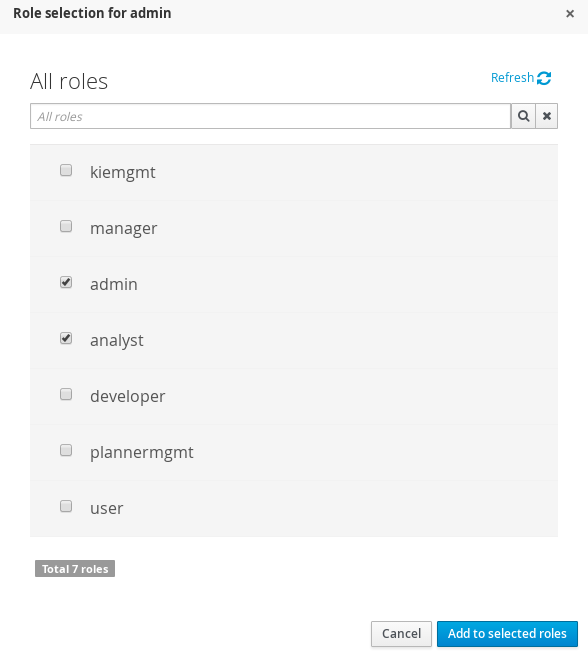

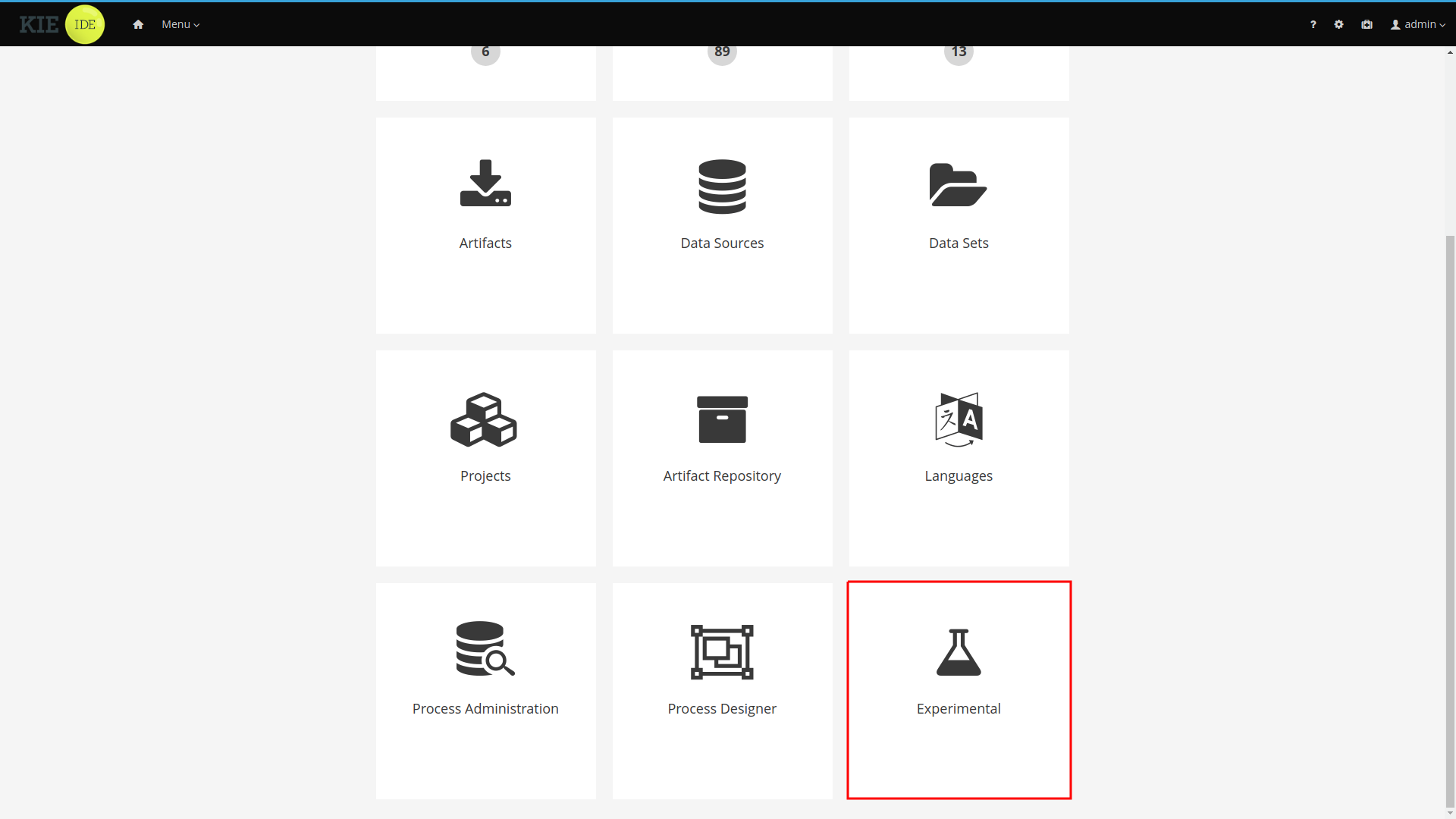

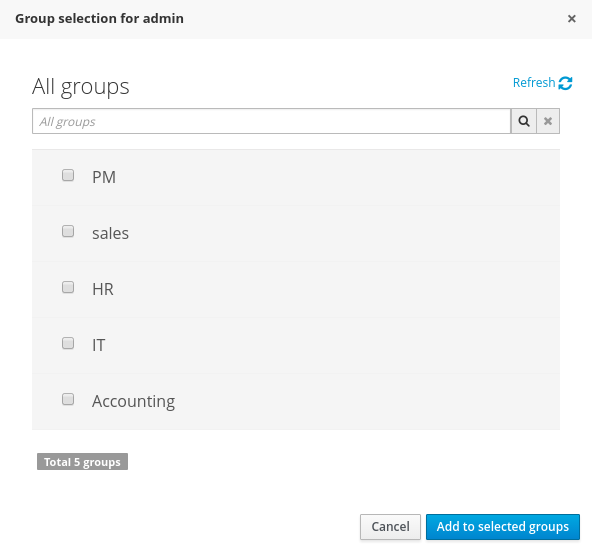

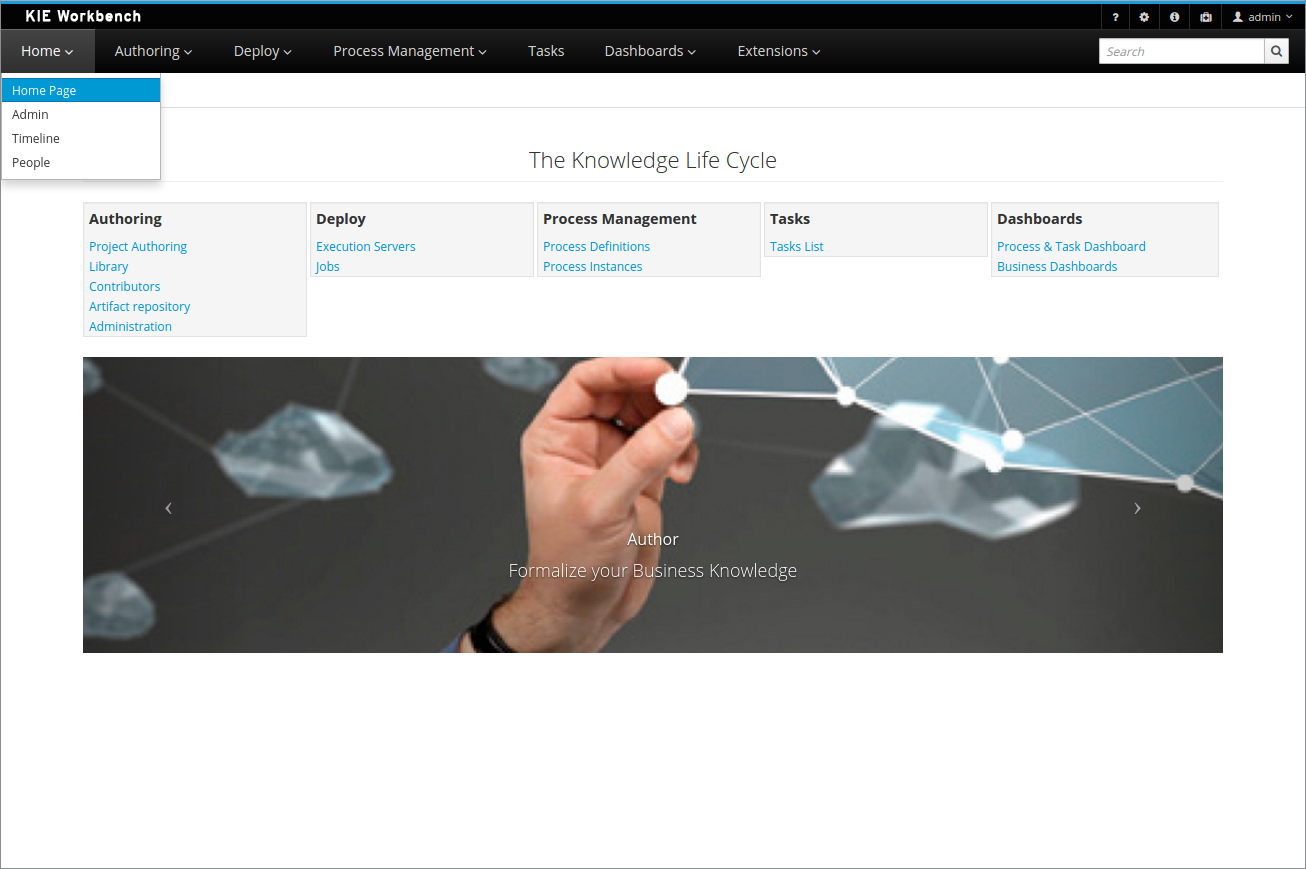

Navigate into the Business Central web application and click the menu Home → Admin and selecting Users.

Example for Linux platforms - run the following command and follow the script instructions:

By default the demo setup makes use of Hibernate auto DDL generation capabilities to build up the complete database schema, including all tables, sequences, etc. This might not always be welcomed (by your database administrator), and thus the installer provides DDL scripts for most popular databases.

DDL scripts are provided for both jBPM and Quartz schemas although Quartz schema DDL script is only required when the timer service should be configured with Quartz database job store. See the section on timers for additional details.

This can be used to initially create the database schema, but it can also serve as the basis for any\ optimization that needs to be applied - such as indexes, etc.

jBPM installer ant script performs most of the work automatically and usually does not require additional attention but in case it does, here is a list of available targets that might be needed to perform some of the steps manually.

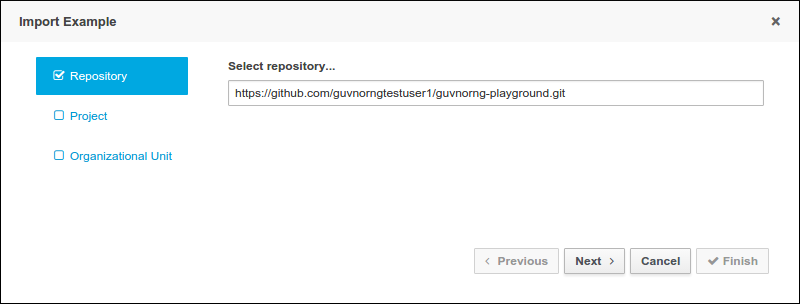

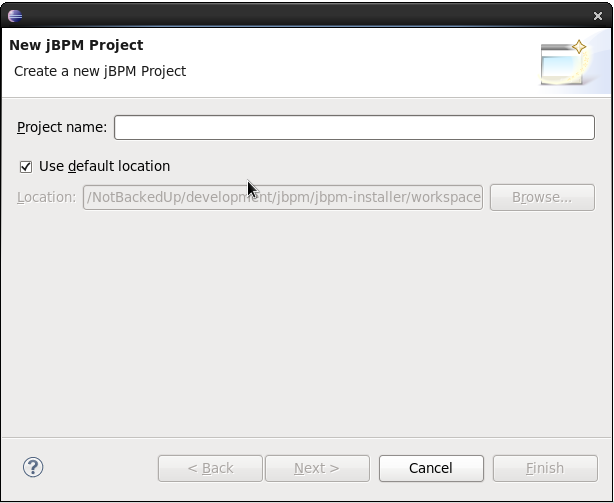

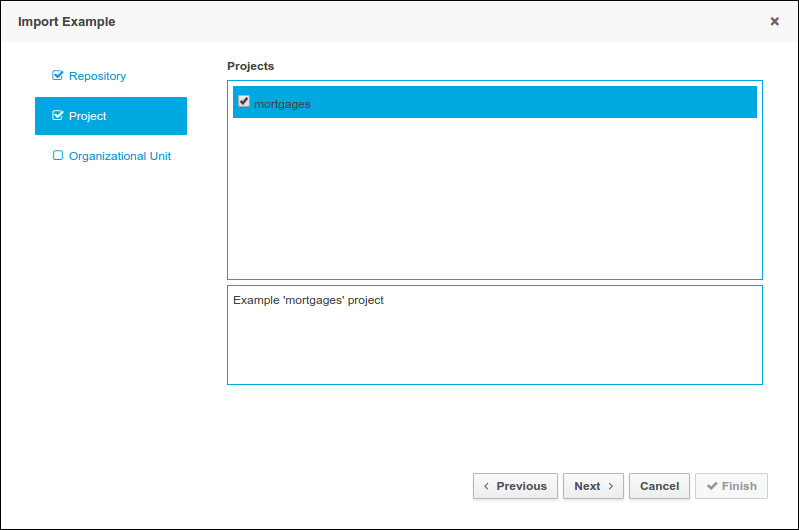

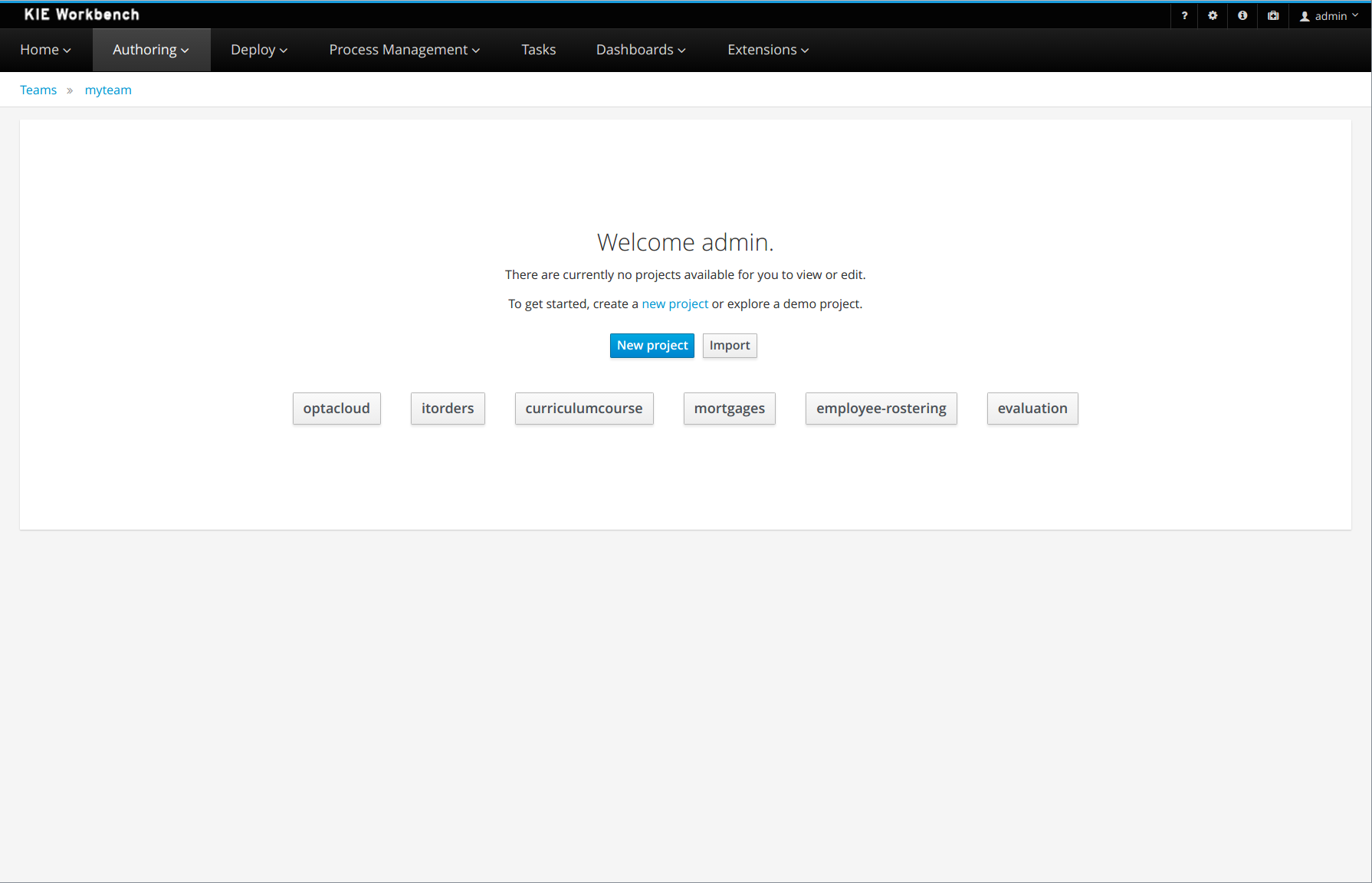

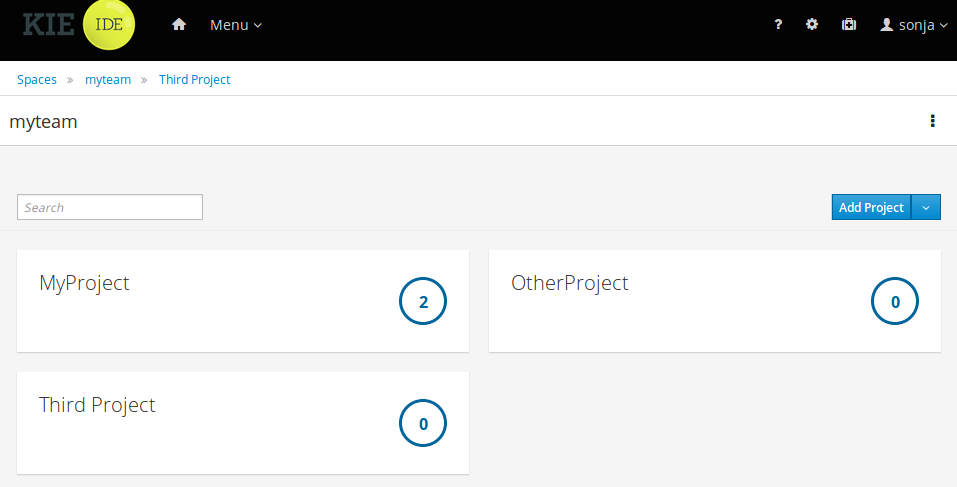

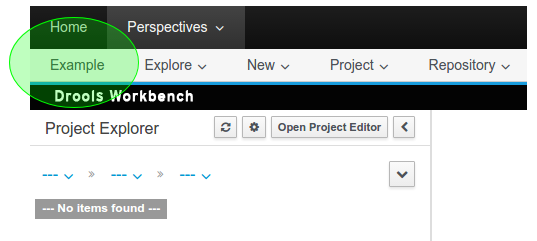

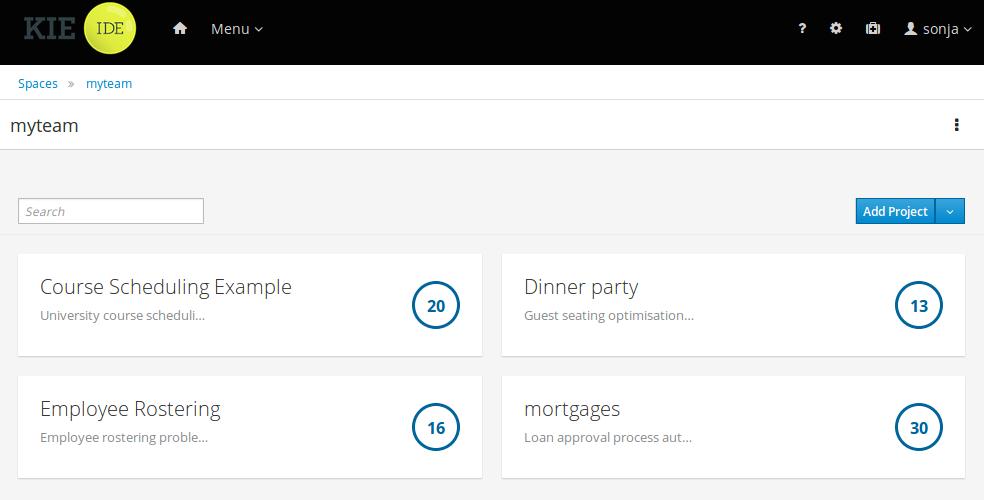

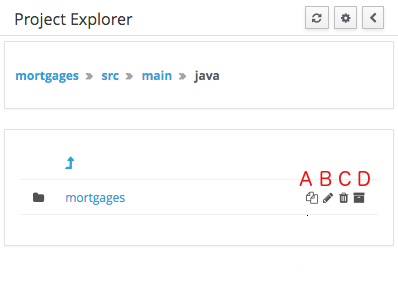

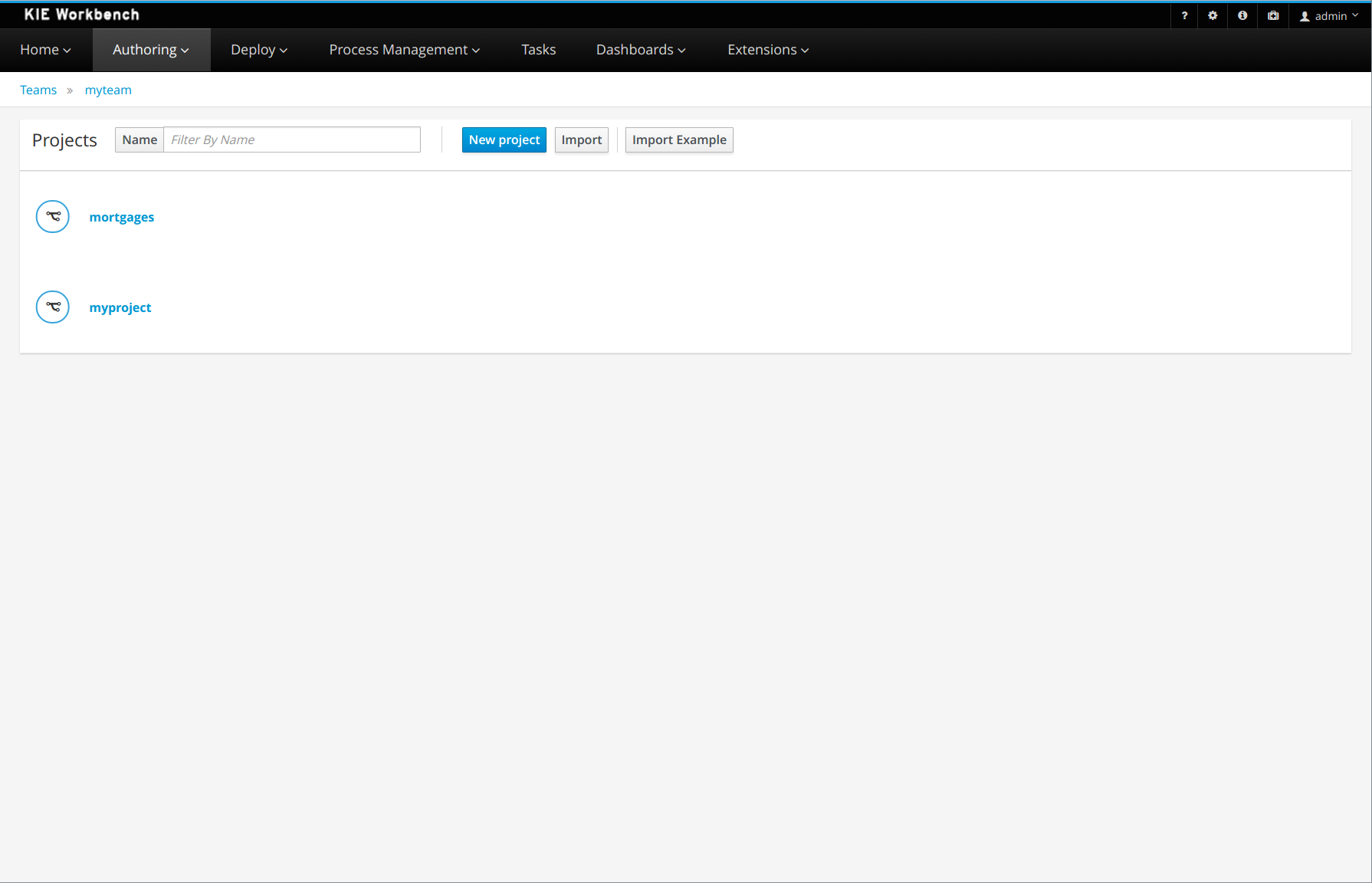

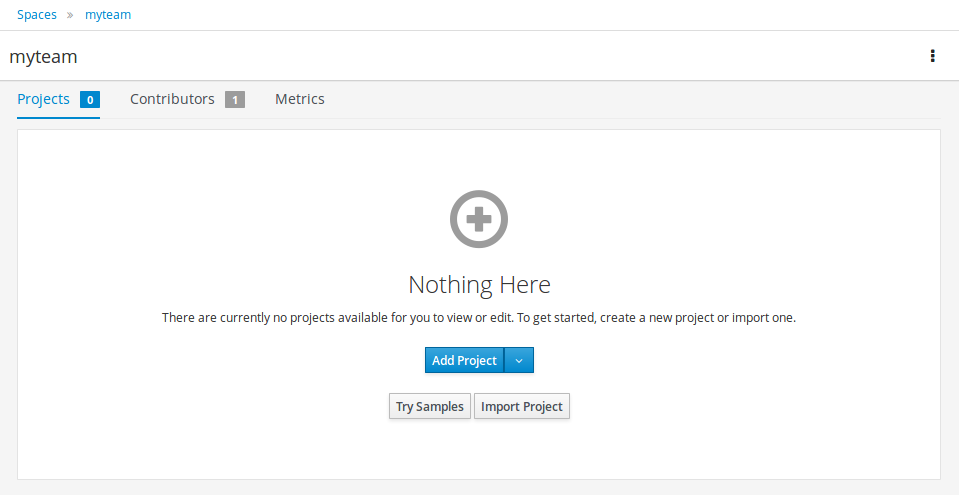

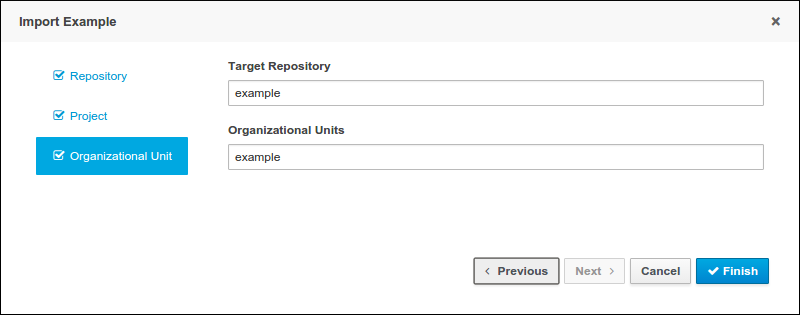

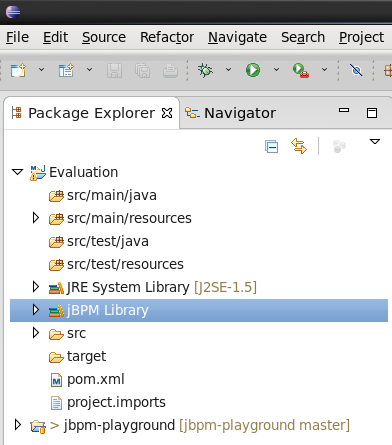

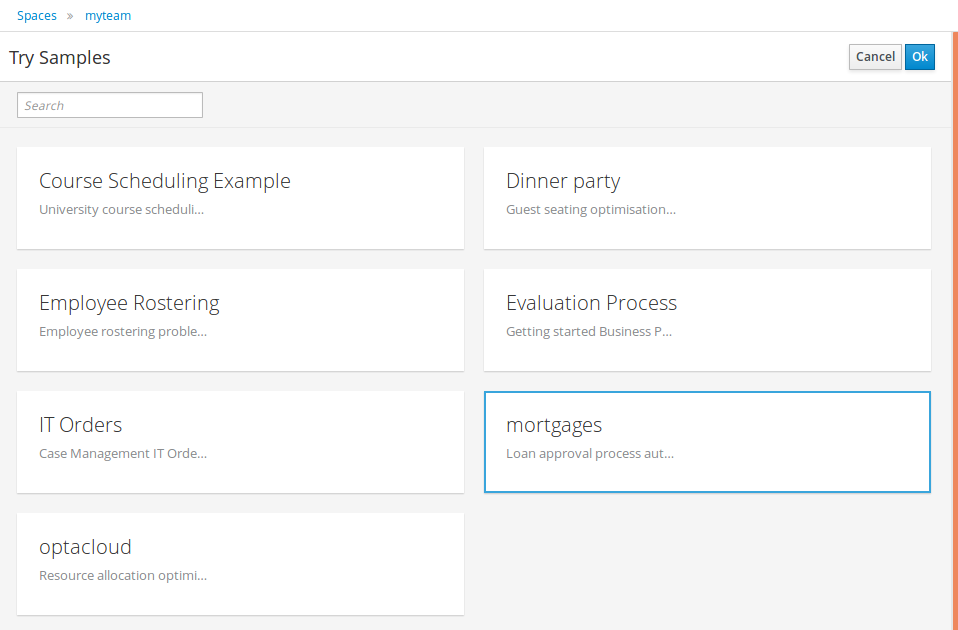

To start exploring the project:

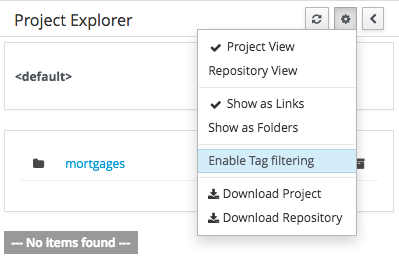

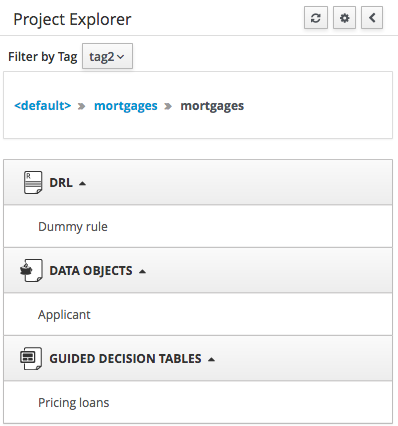

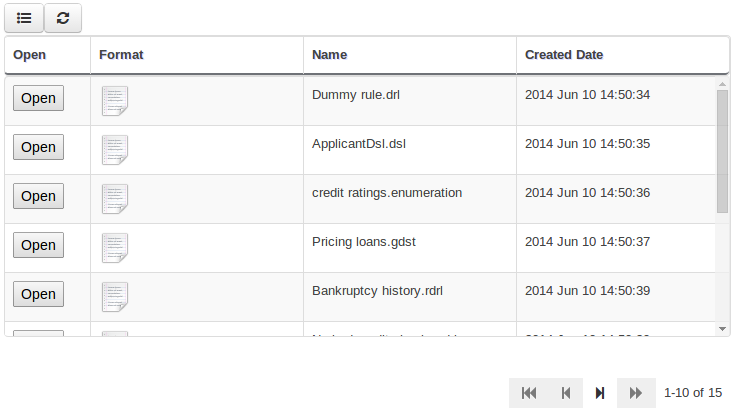

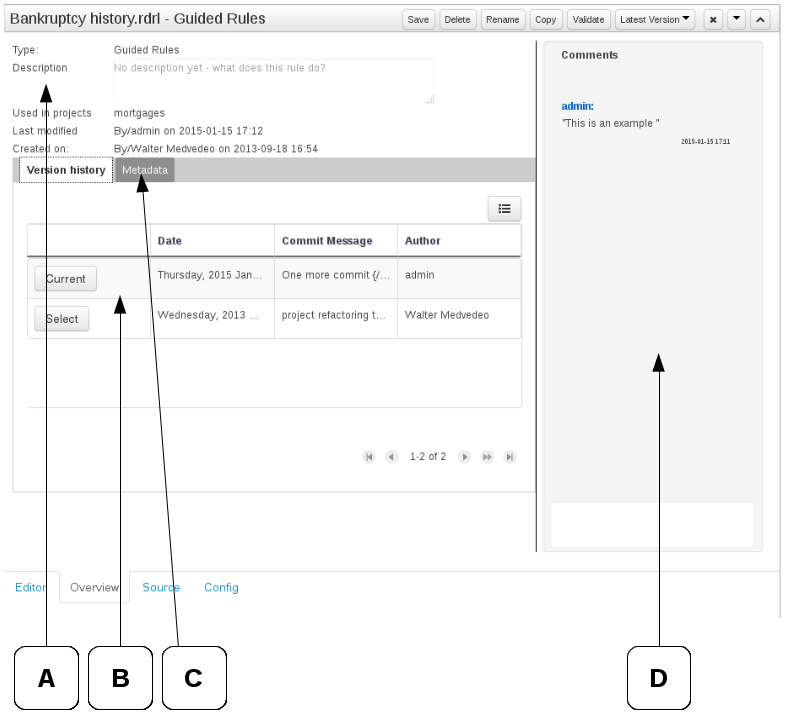

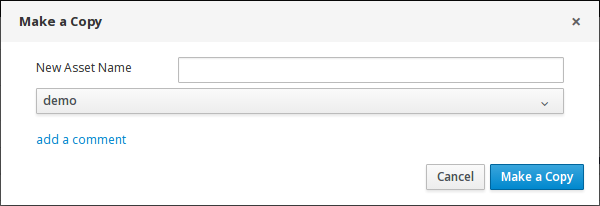

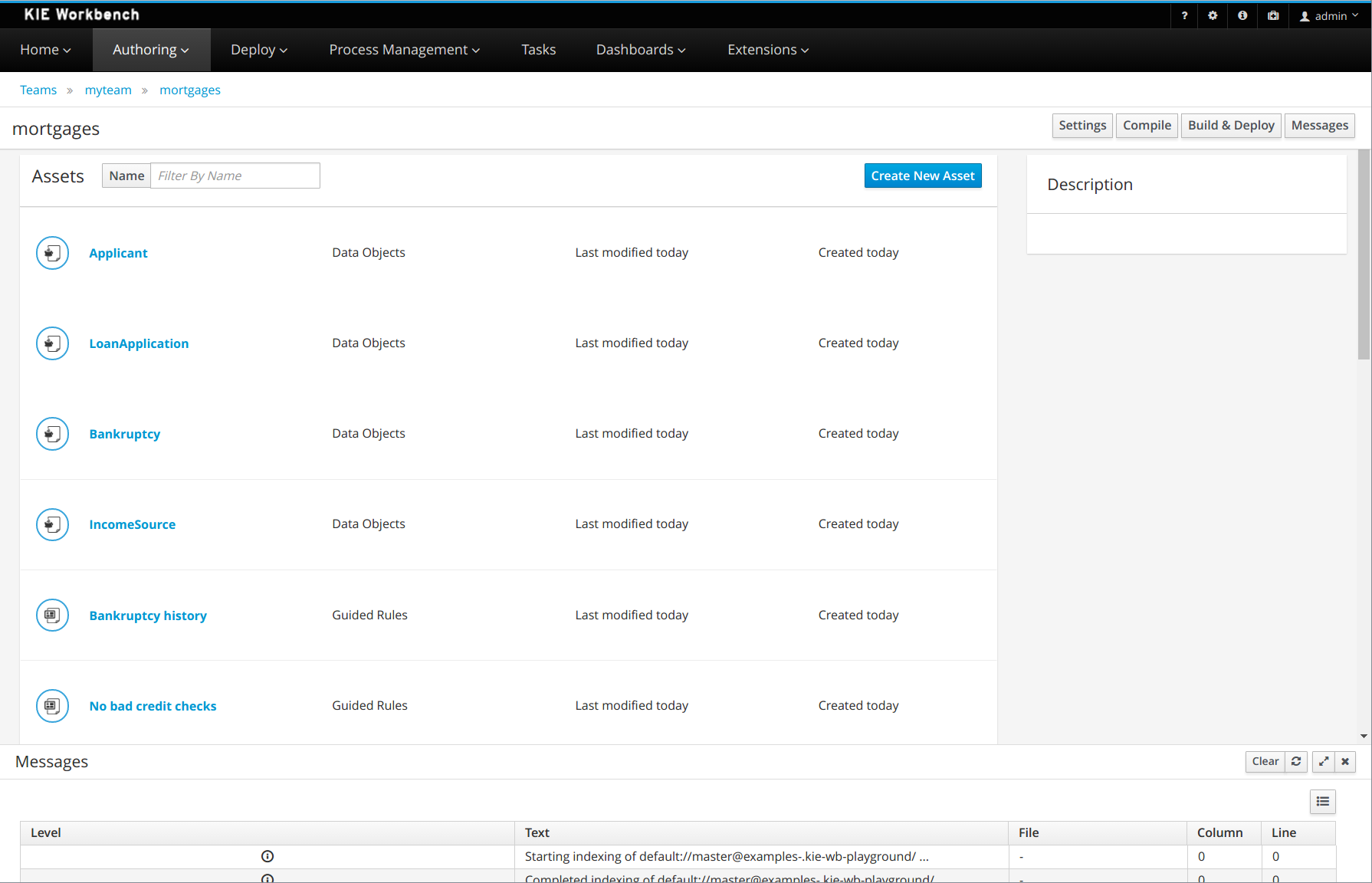

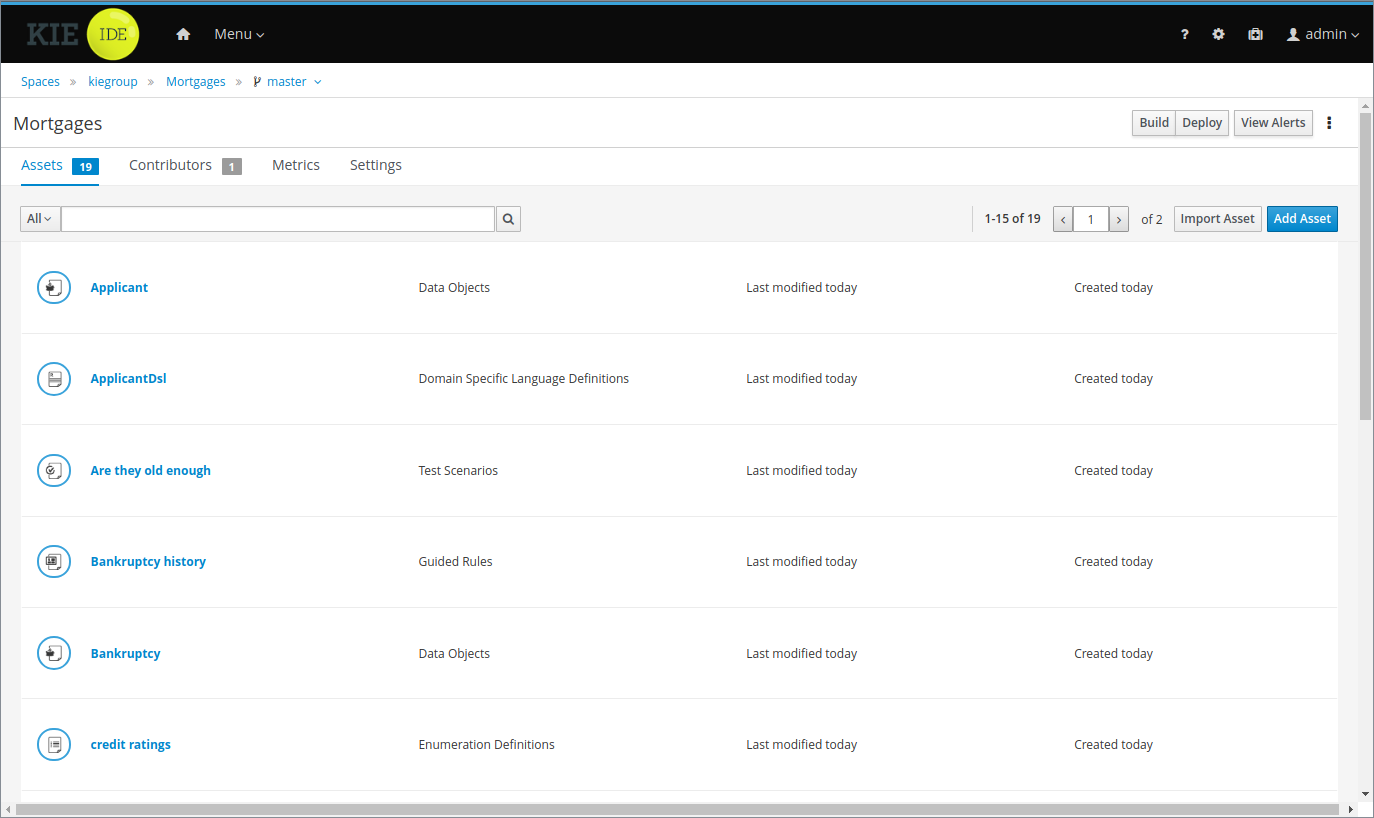

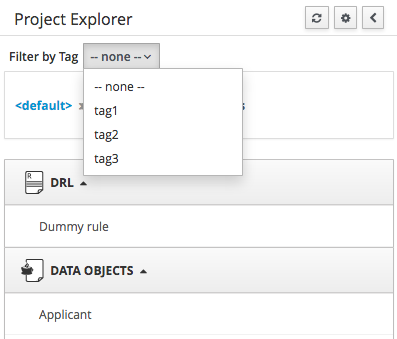

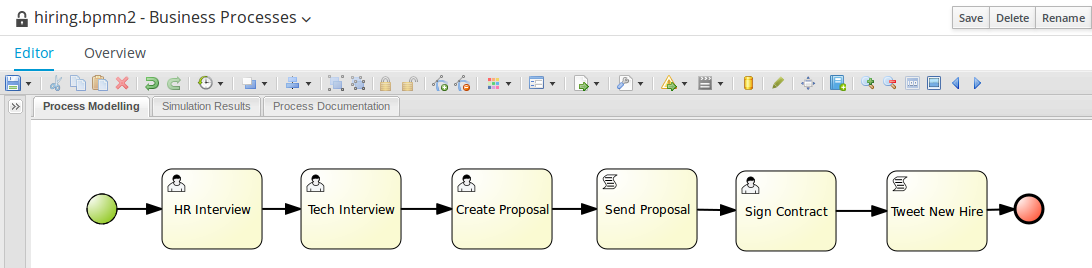

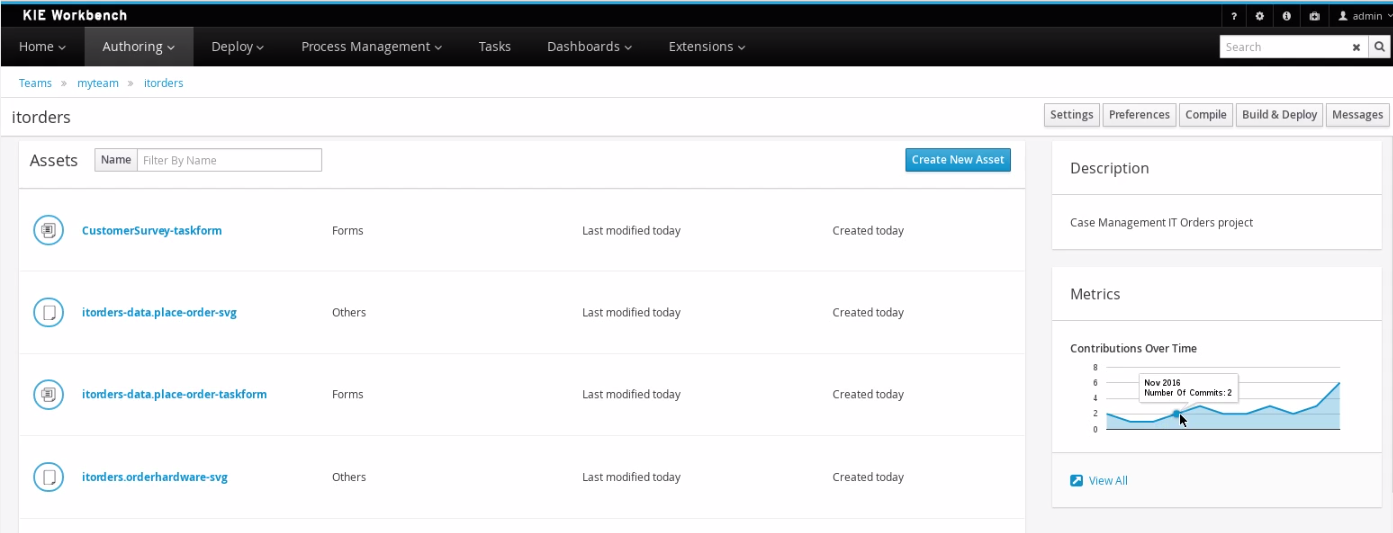

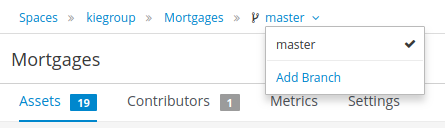

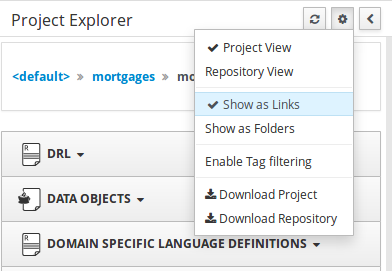

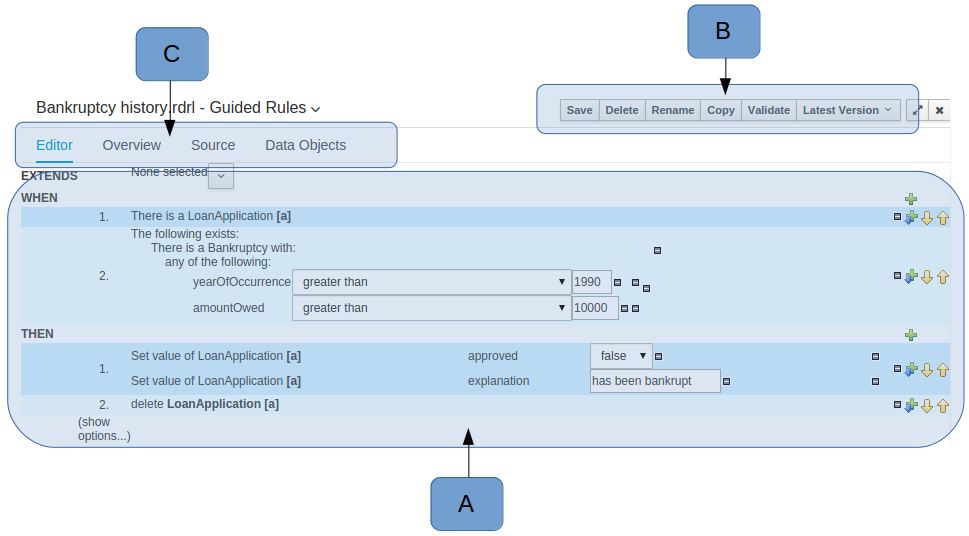

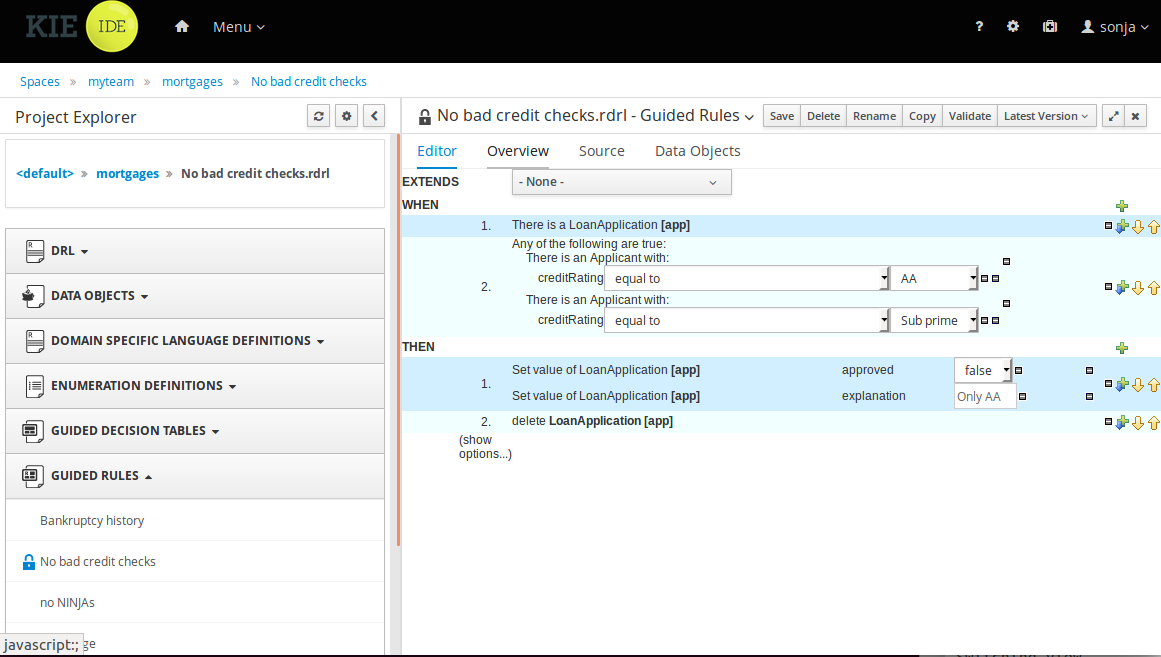

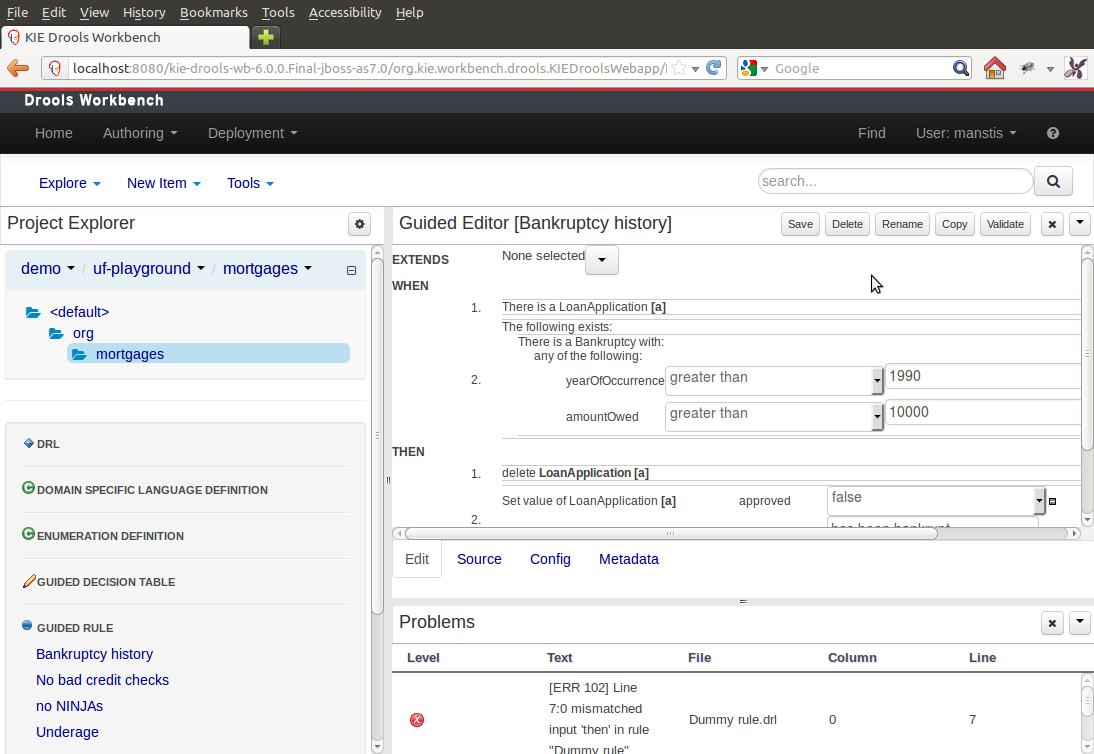

The asset list page contains the hiring.bpmn2 process and a set of forms for each human task. Click these assets to explore. Notice that different editors open for different types of assets.

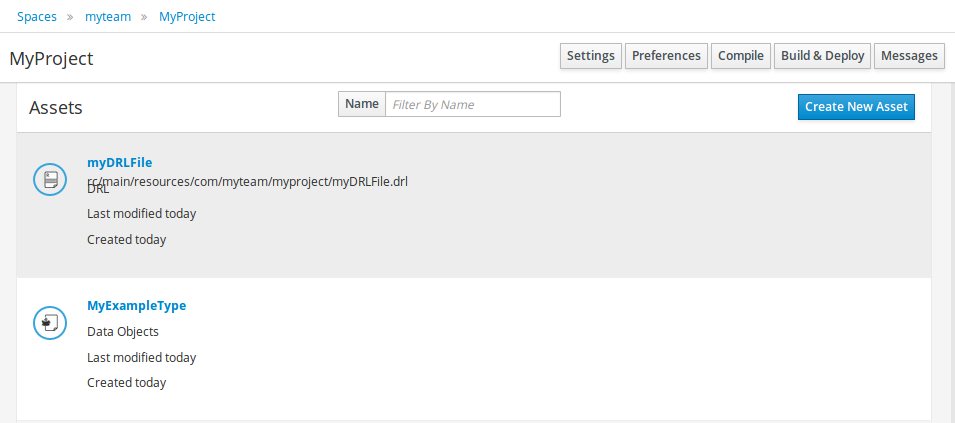

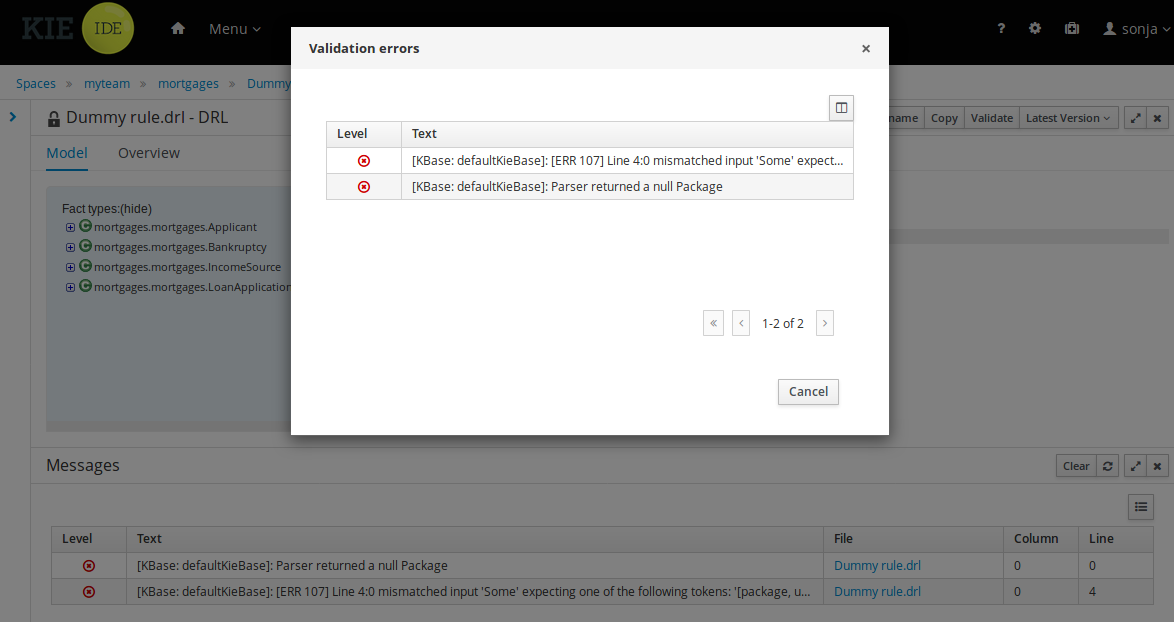

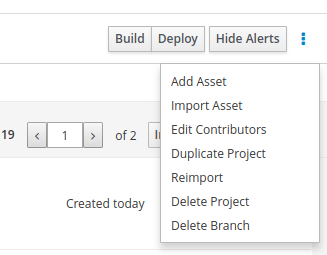

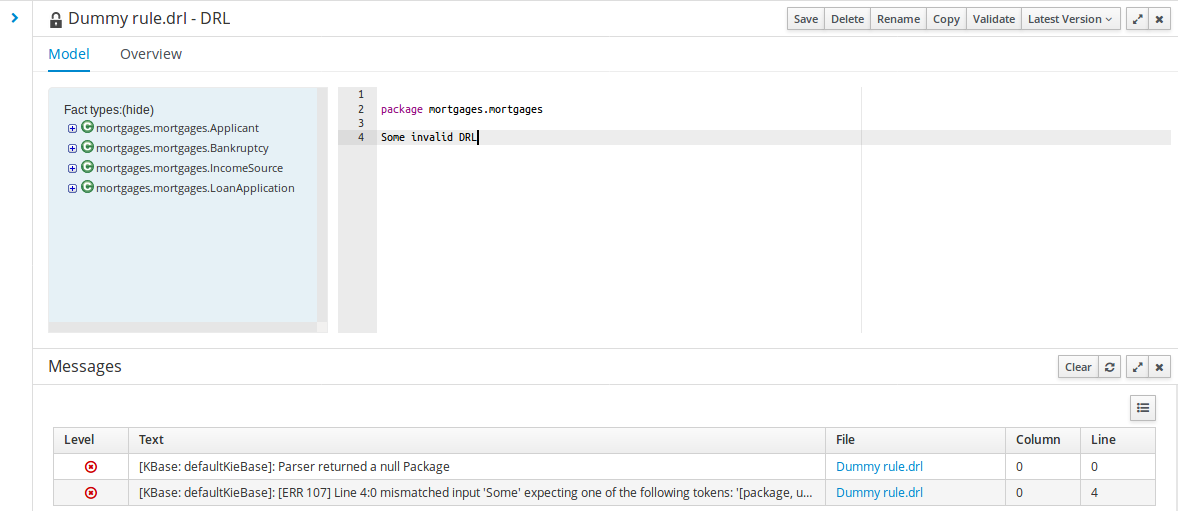

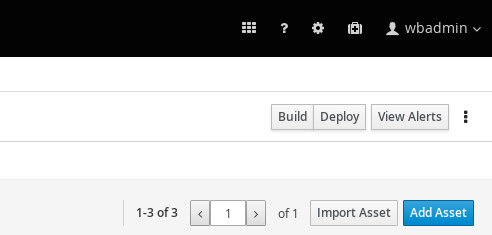

To build the Project:

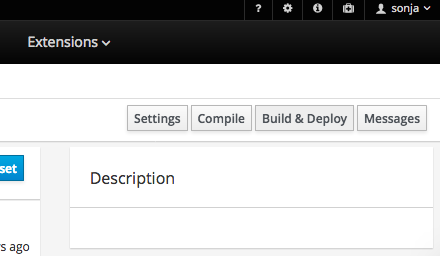

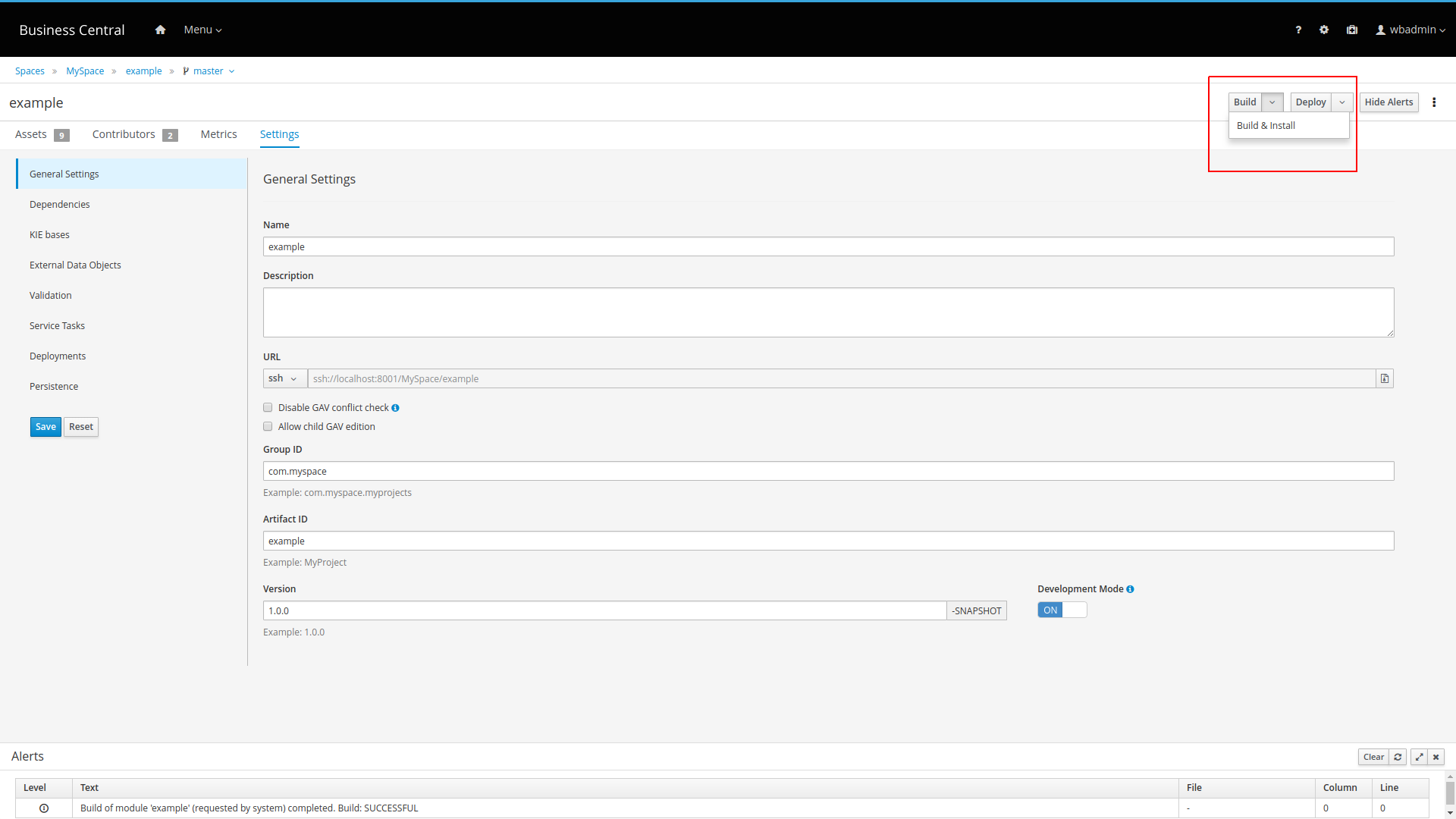

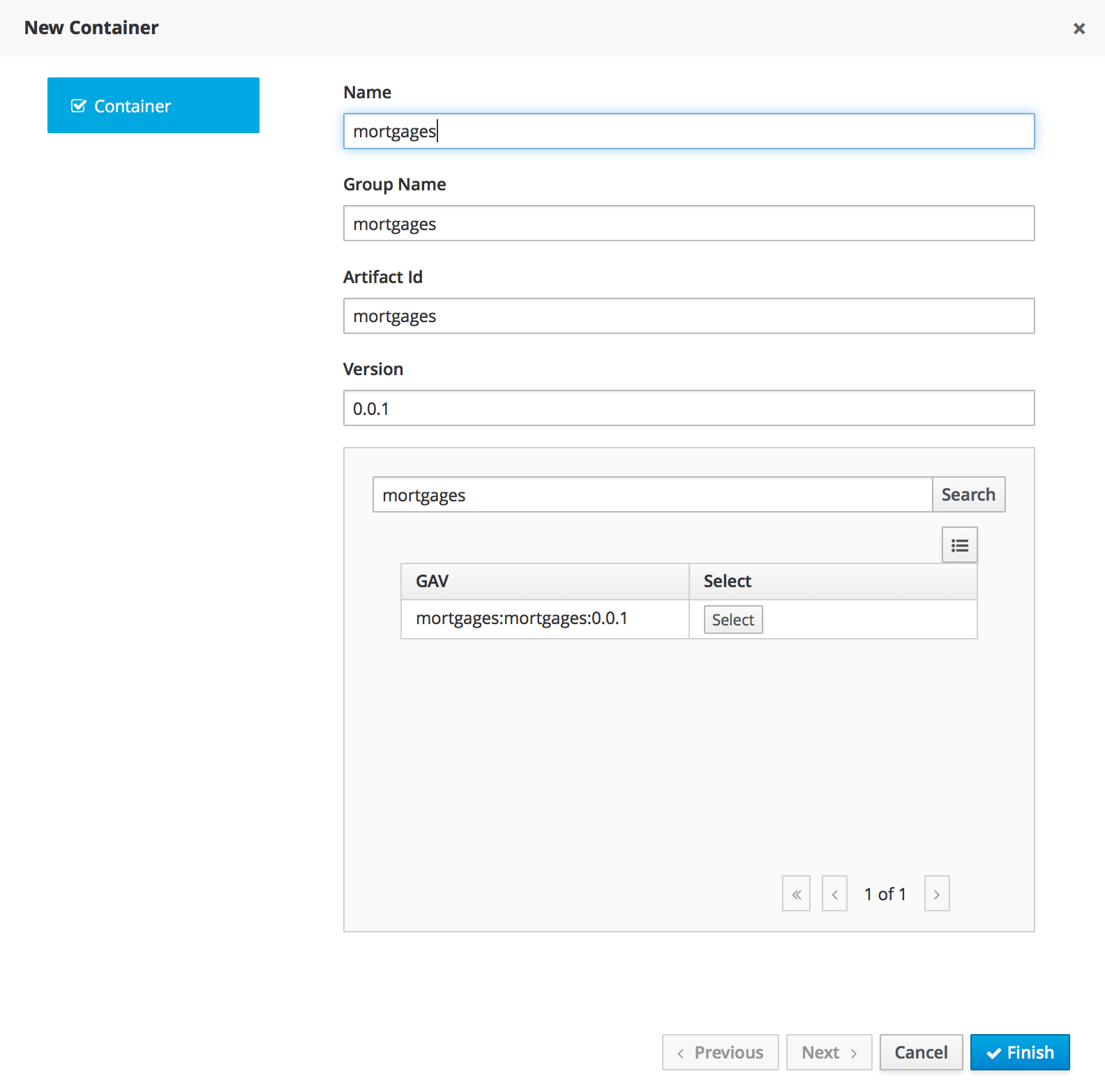

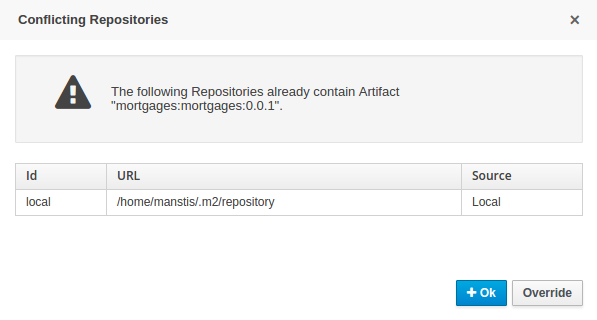

Deploy creates a new JAR artifact that is deployed to the runtime environment as a new deployment unit.

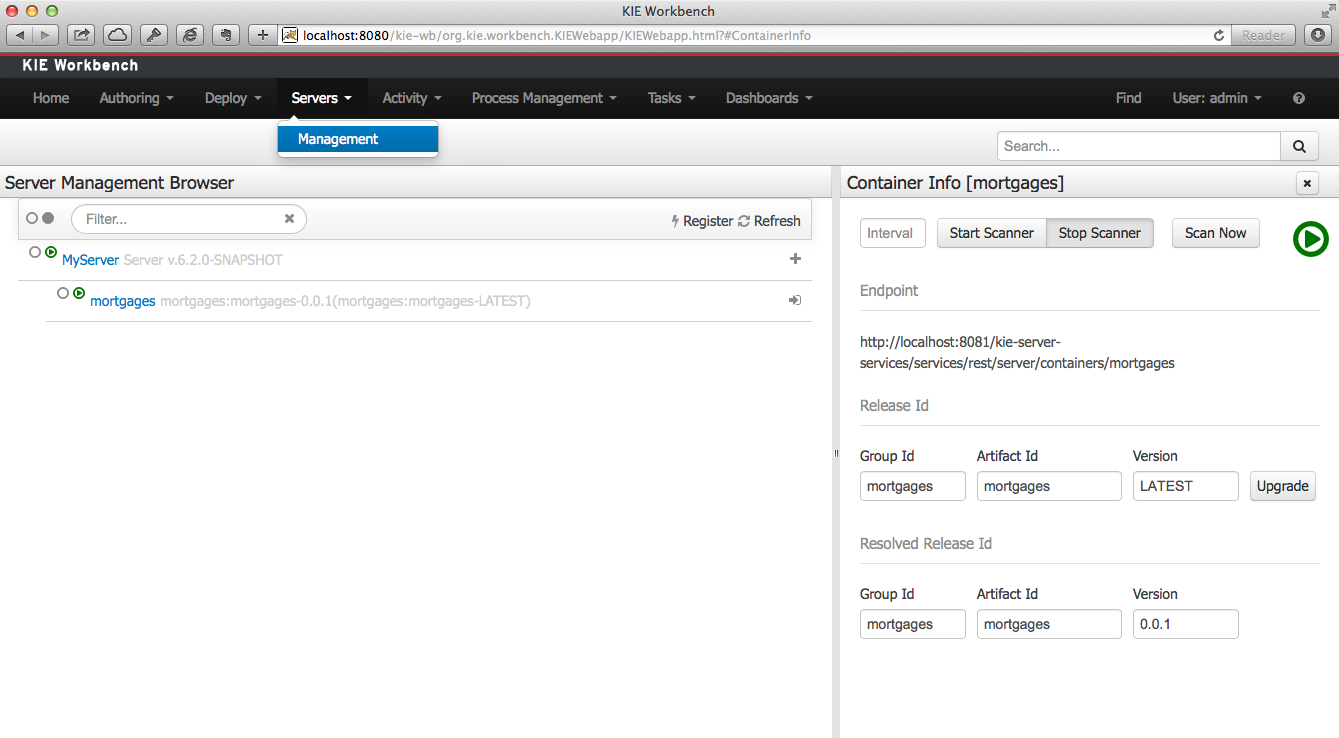

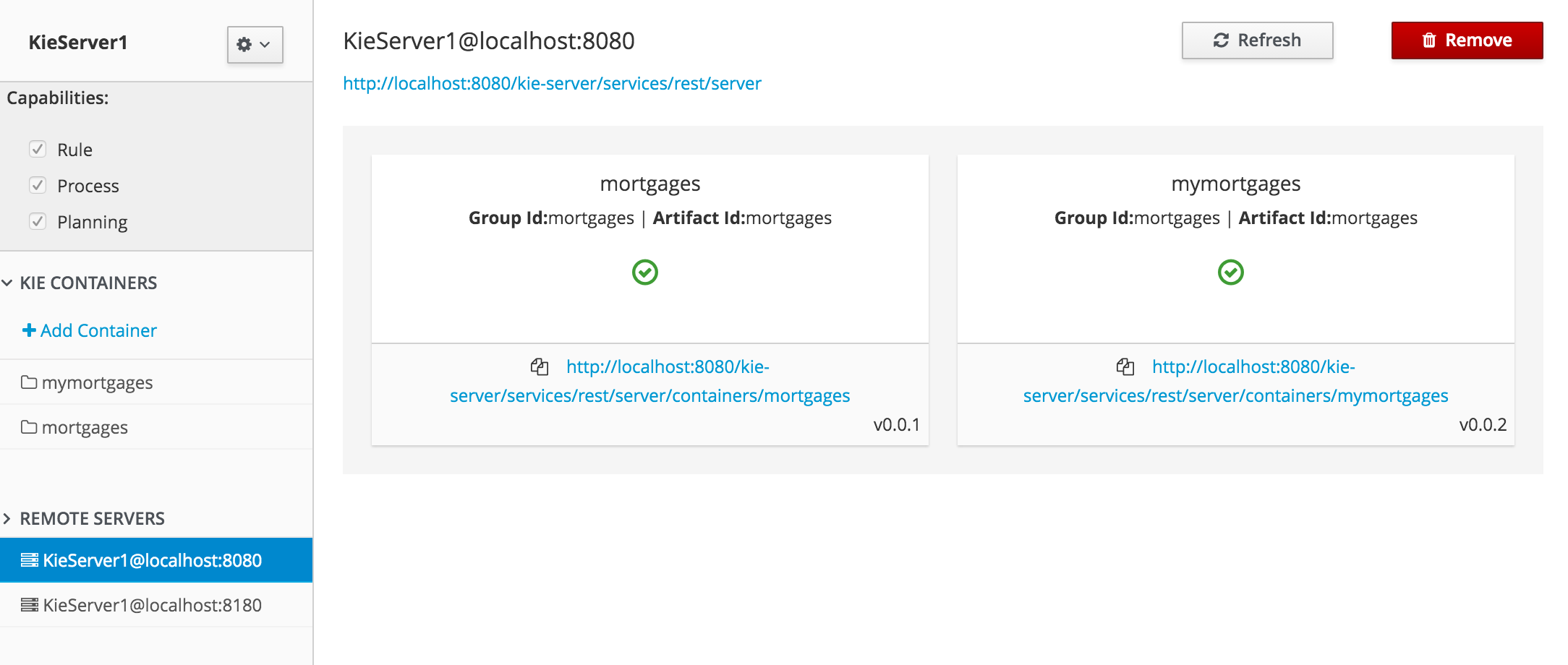

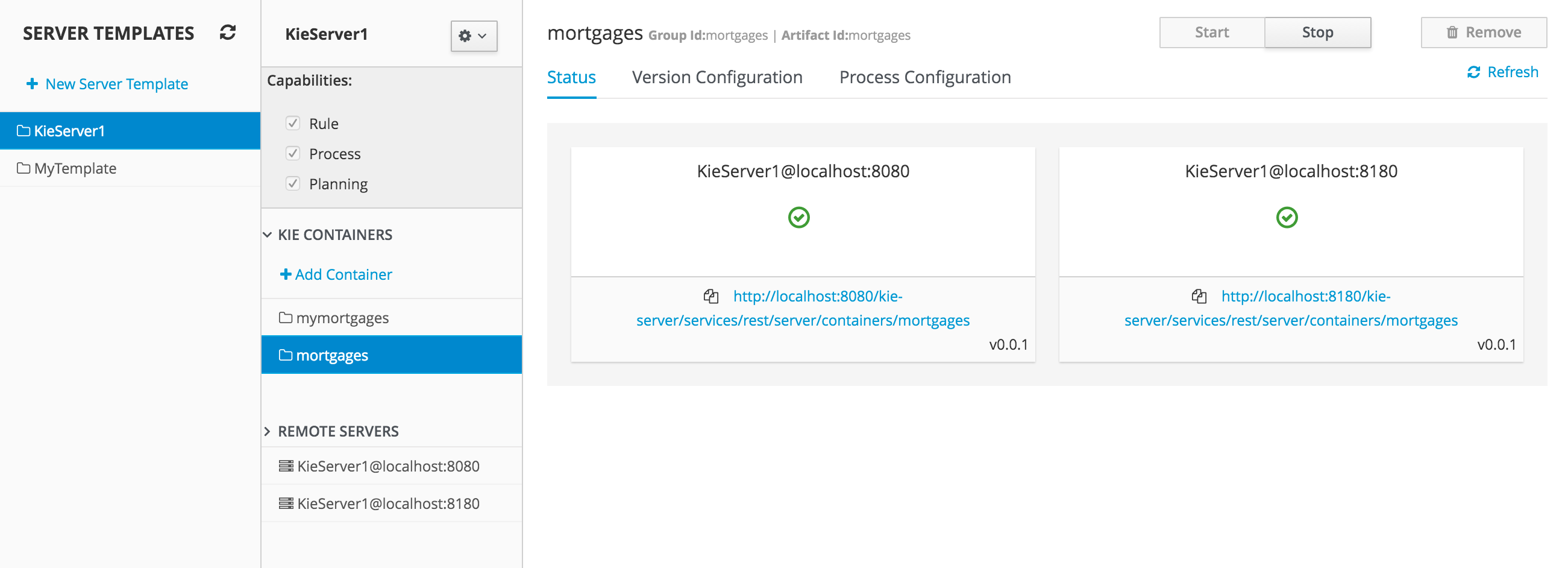

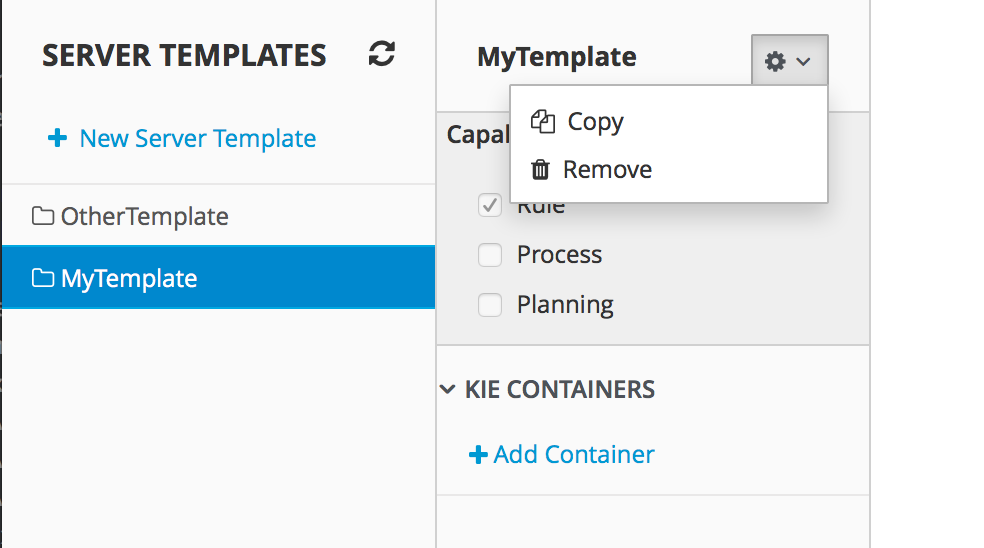

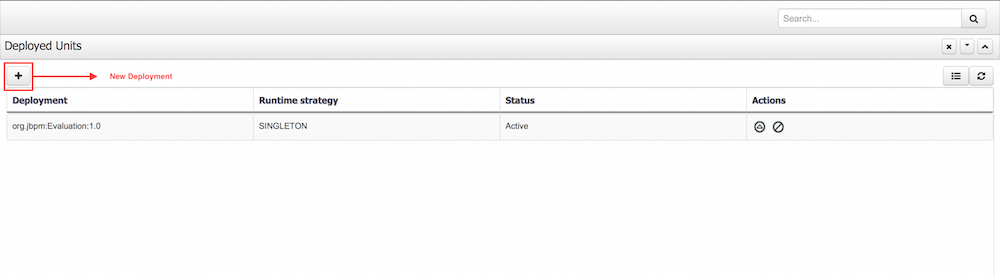

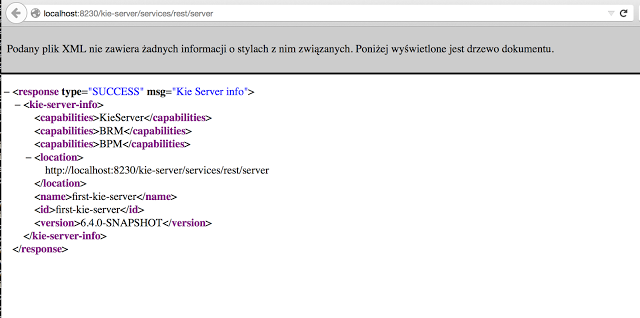

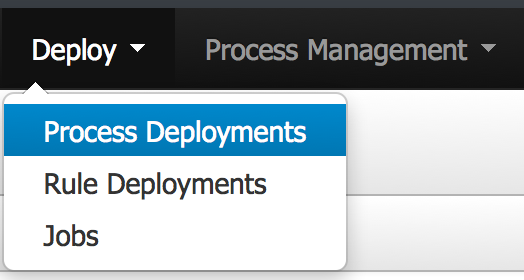

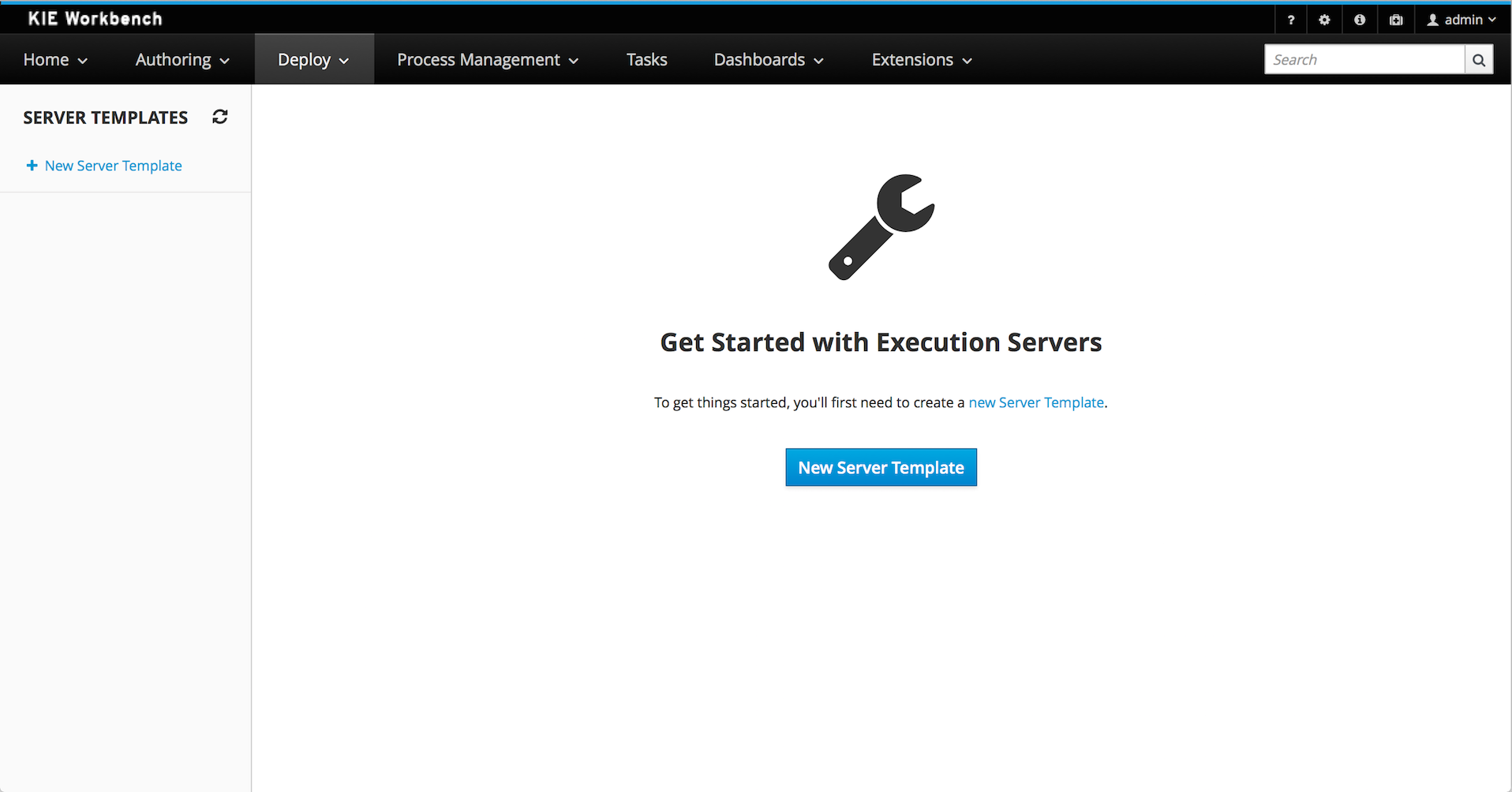

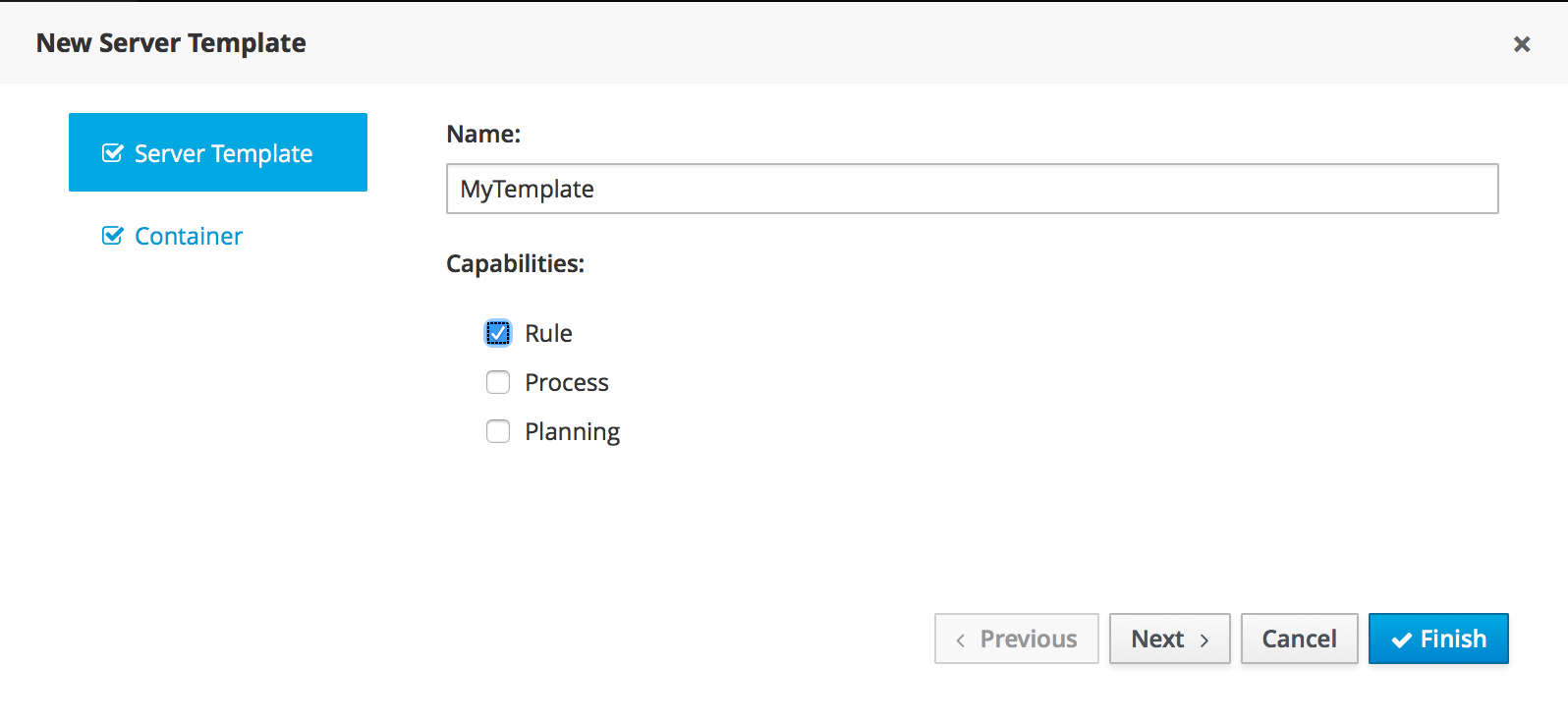

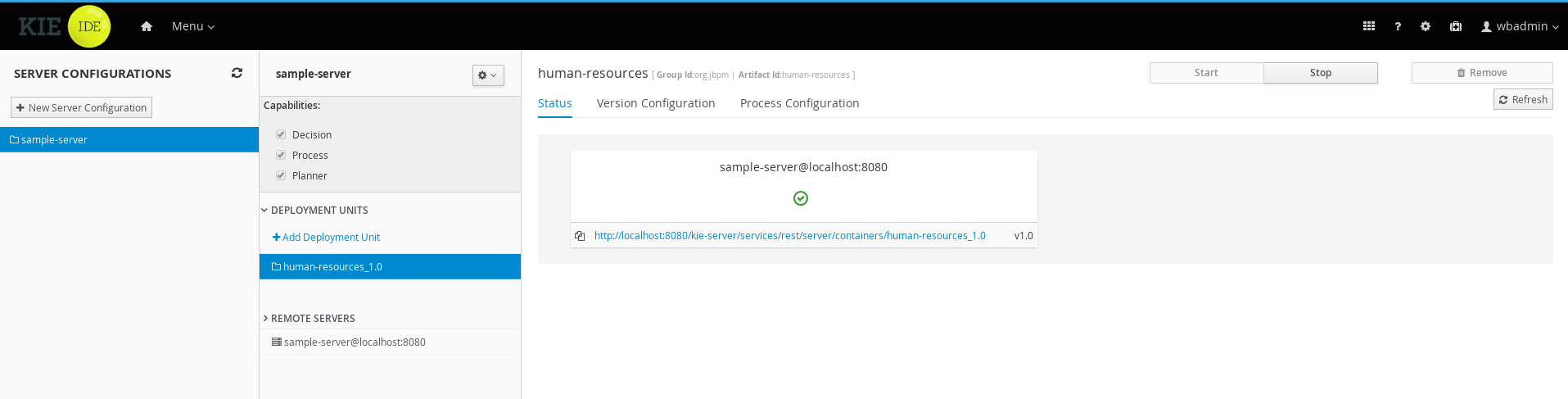

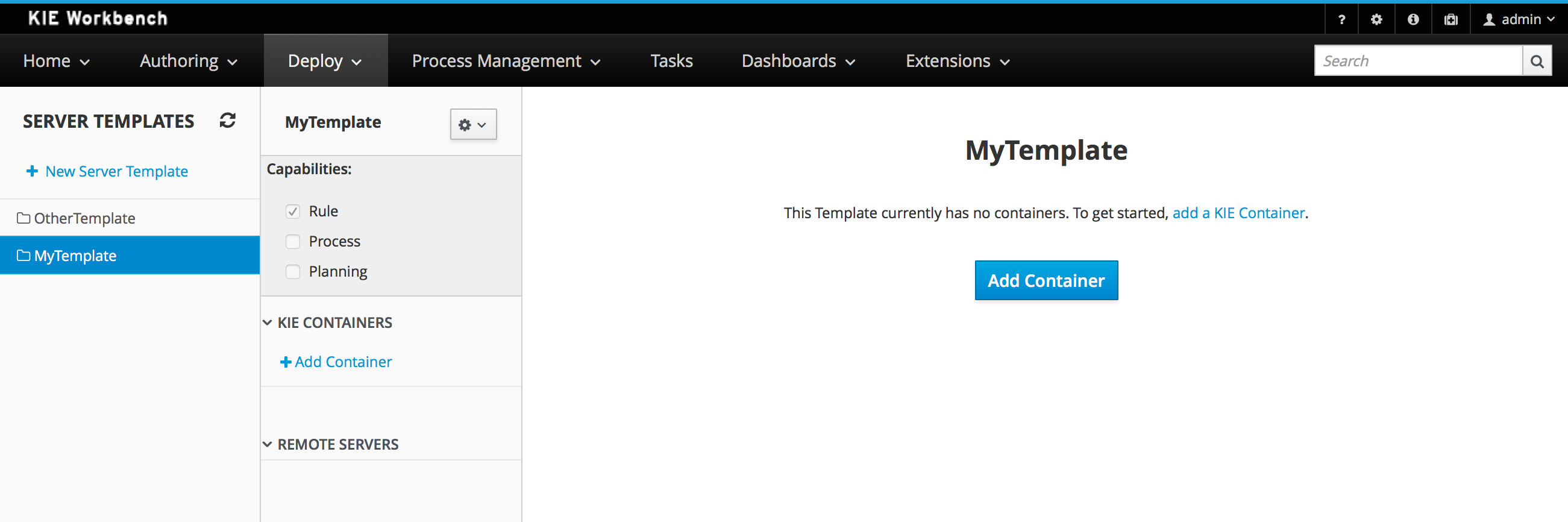

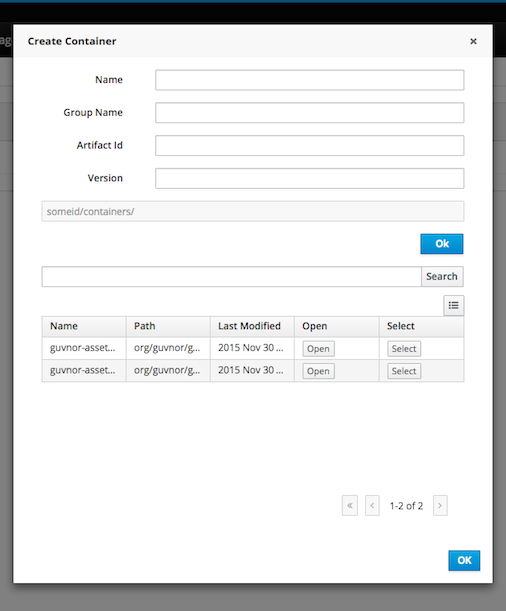

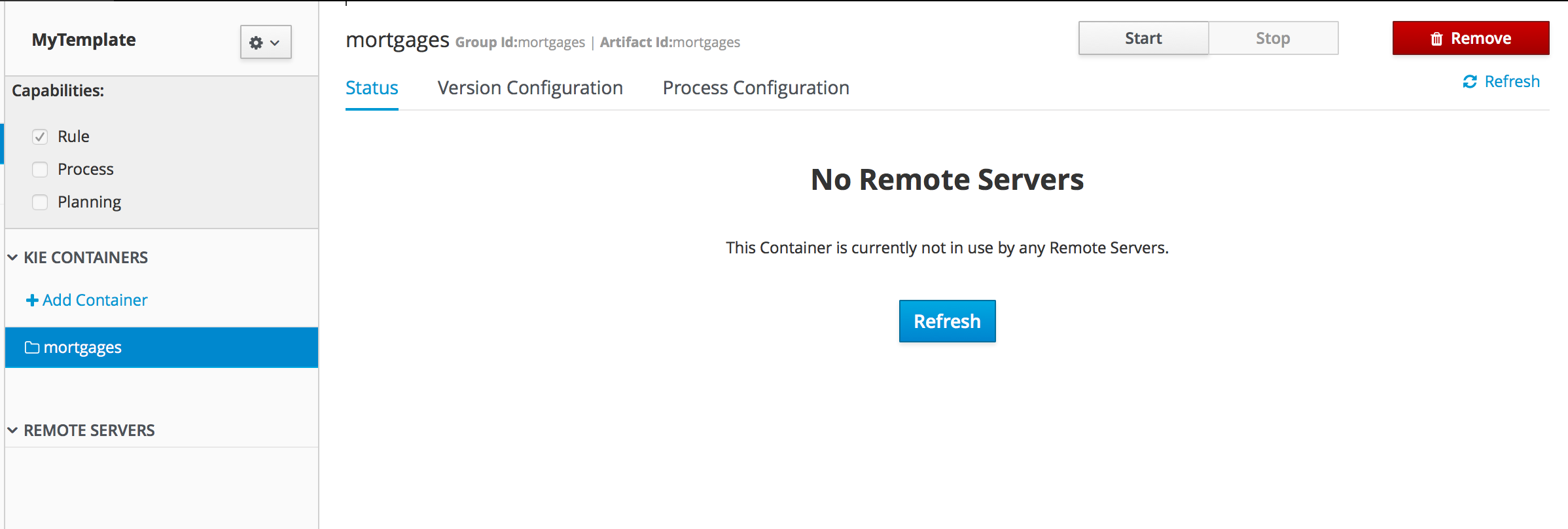

After successfully building and deploying your project, you can verify its presence in the Execution Servers tab. Click Deploy  Execution Servers to do so.

When you Deploy a project from the Project Editor, it is deployed using the default configuration which means using the Singleton strategy, the default Kie Base and the default Kie session.

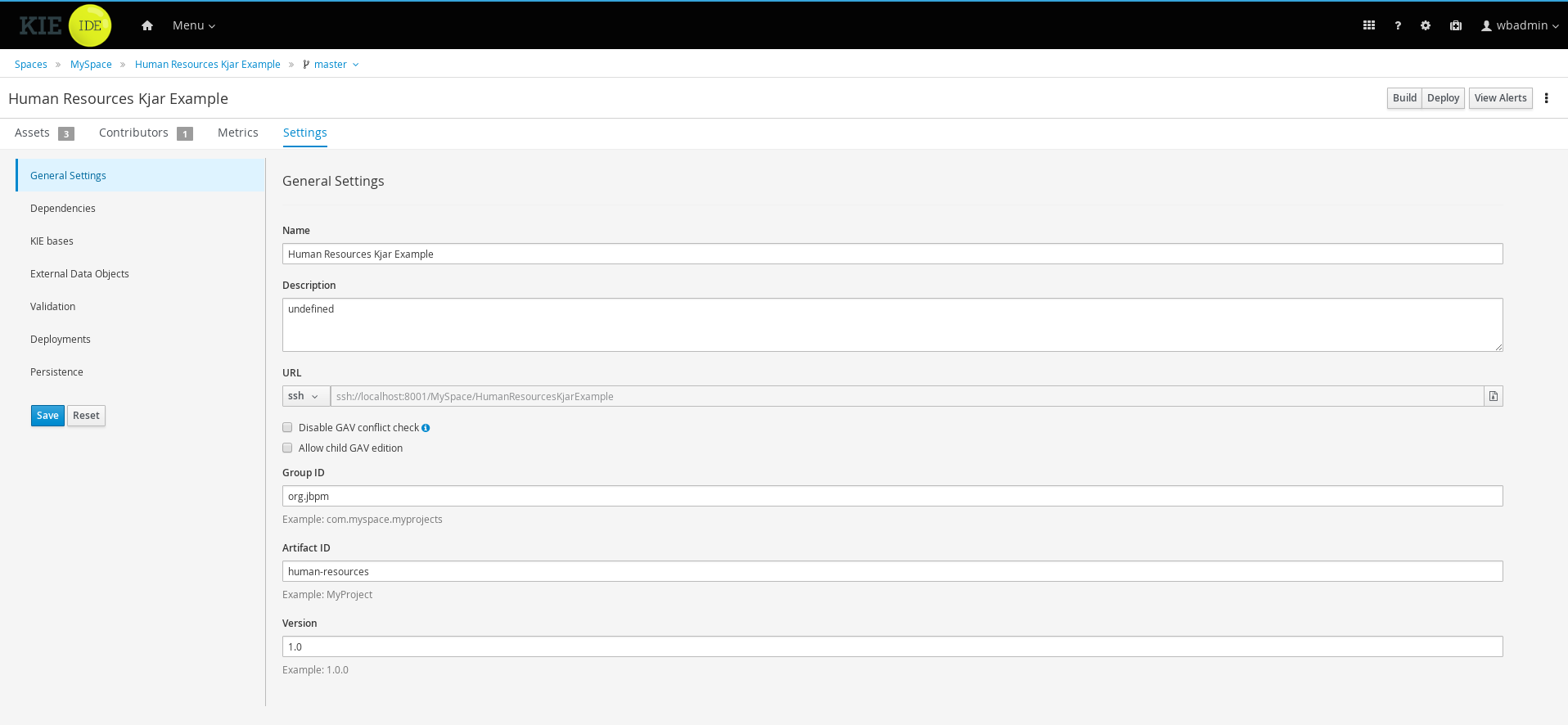

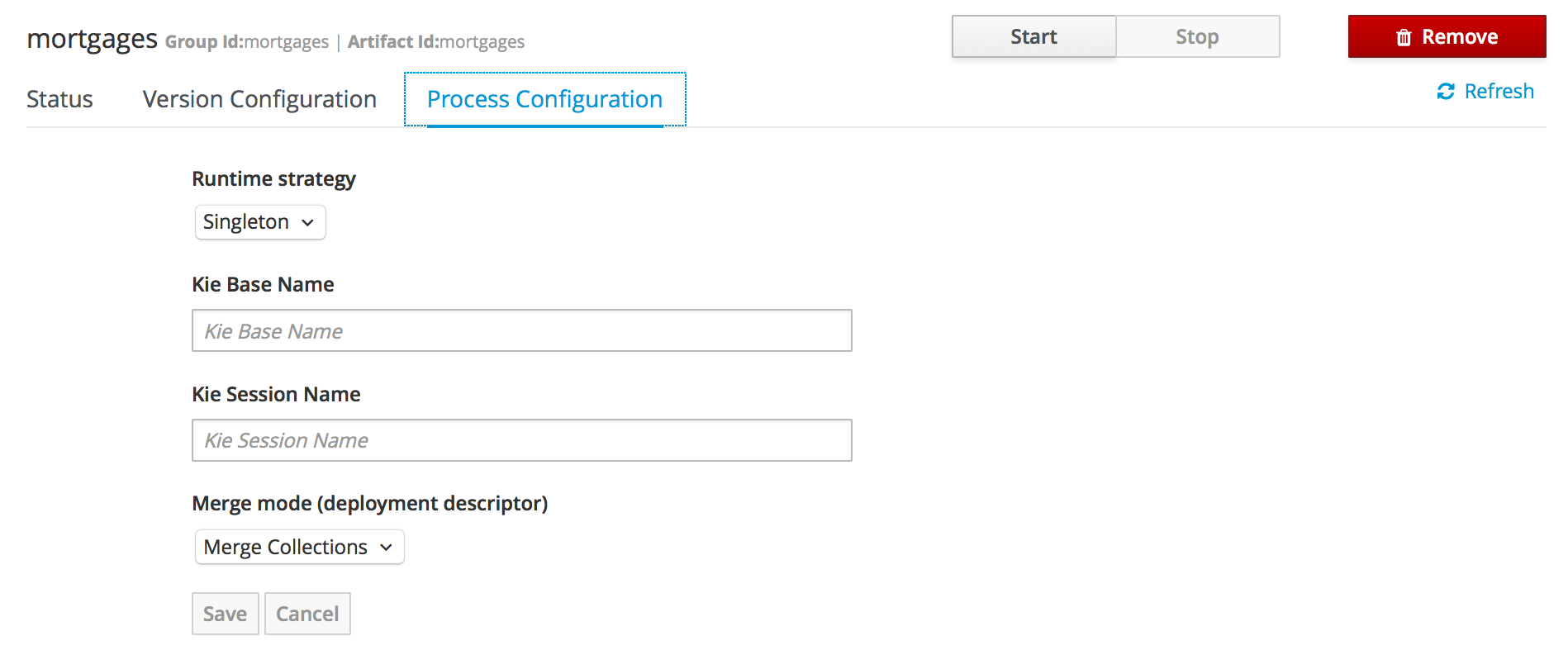

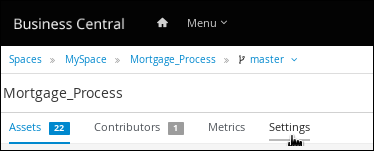

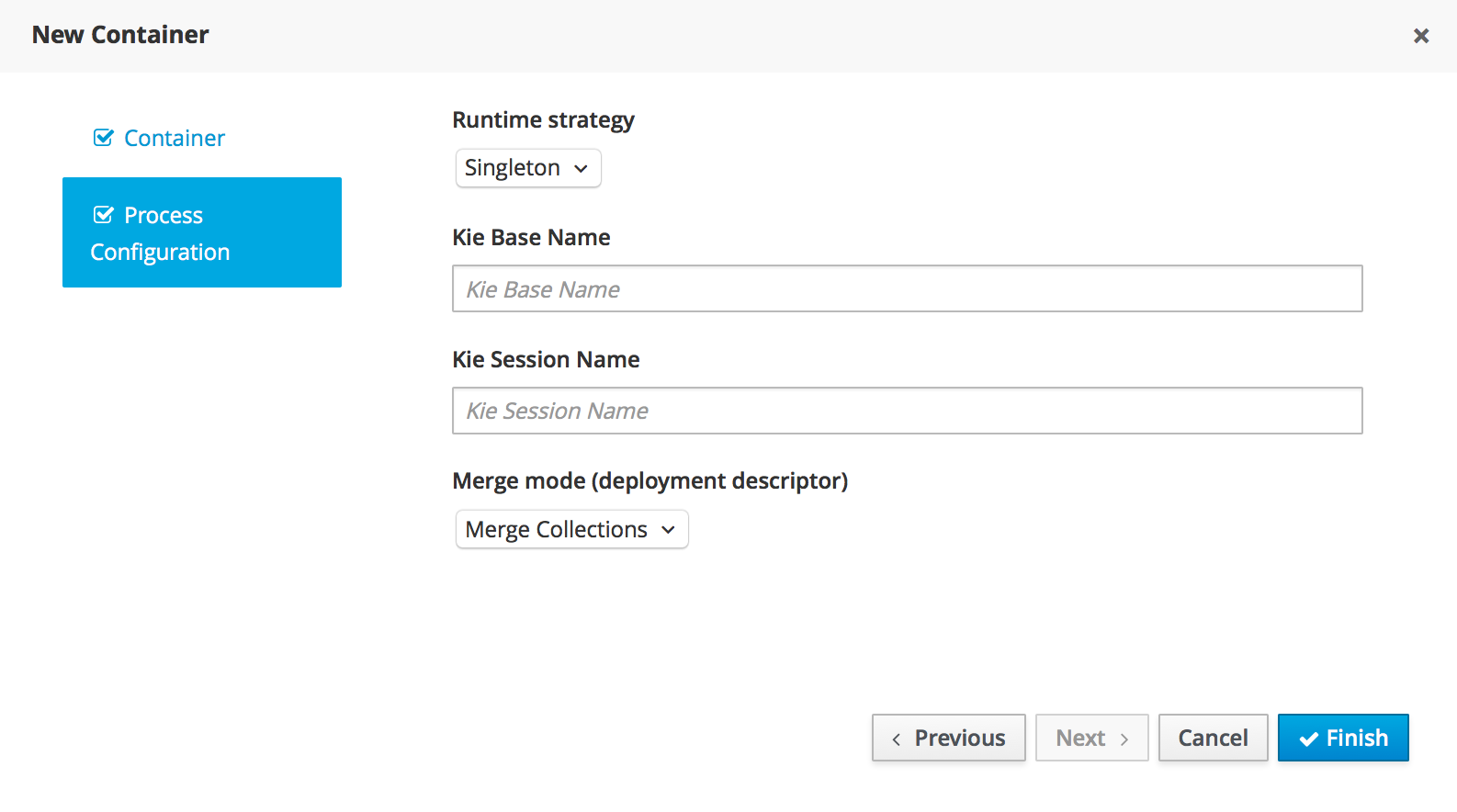

If you want to change these settings, you can make the necessary adjustments on the Settings tab for the specific project. Then, you will be able to set a different strategy, or use a non-default Kie Base or Kie Session. Once you saved your settings you can redeploy the project as a new Deployment Unit.

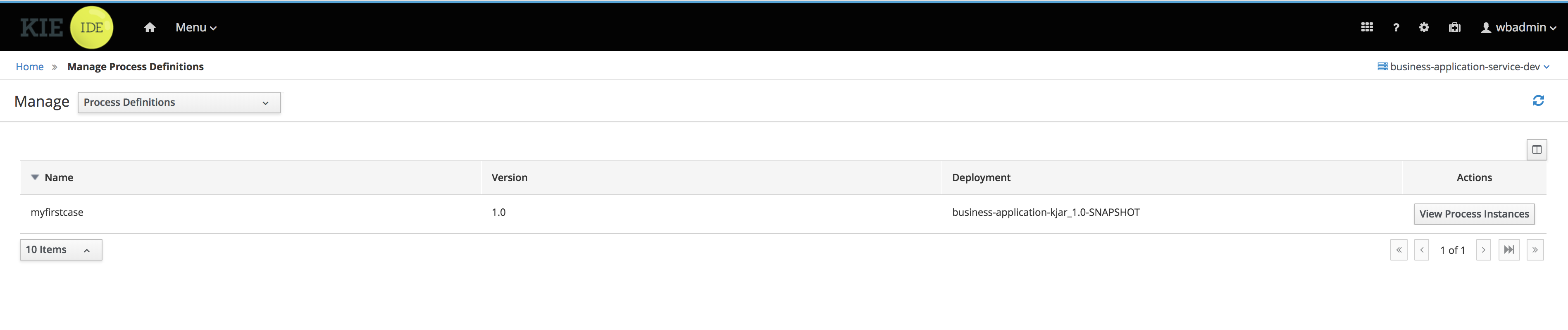

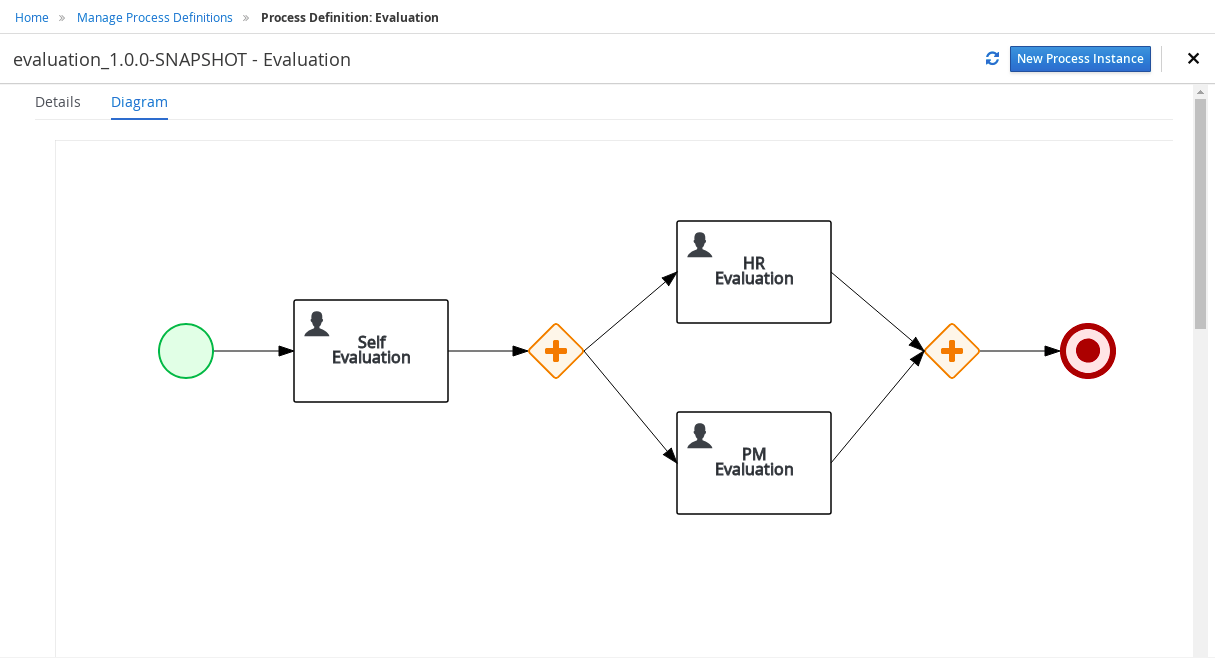

Once your artifact that contains the process definition is deployed, the Process Definition will become available in Manage  Process Definitions.

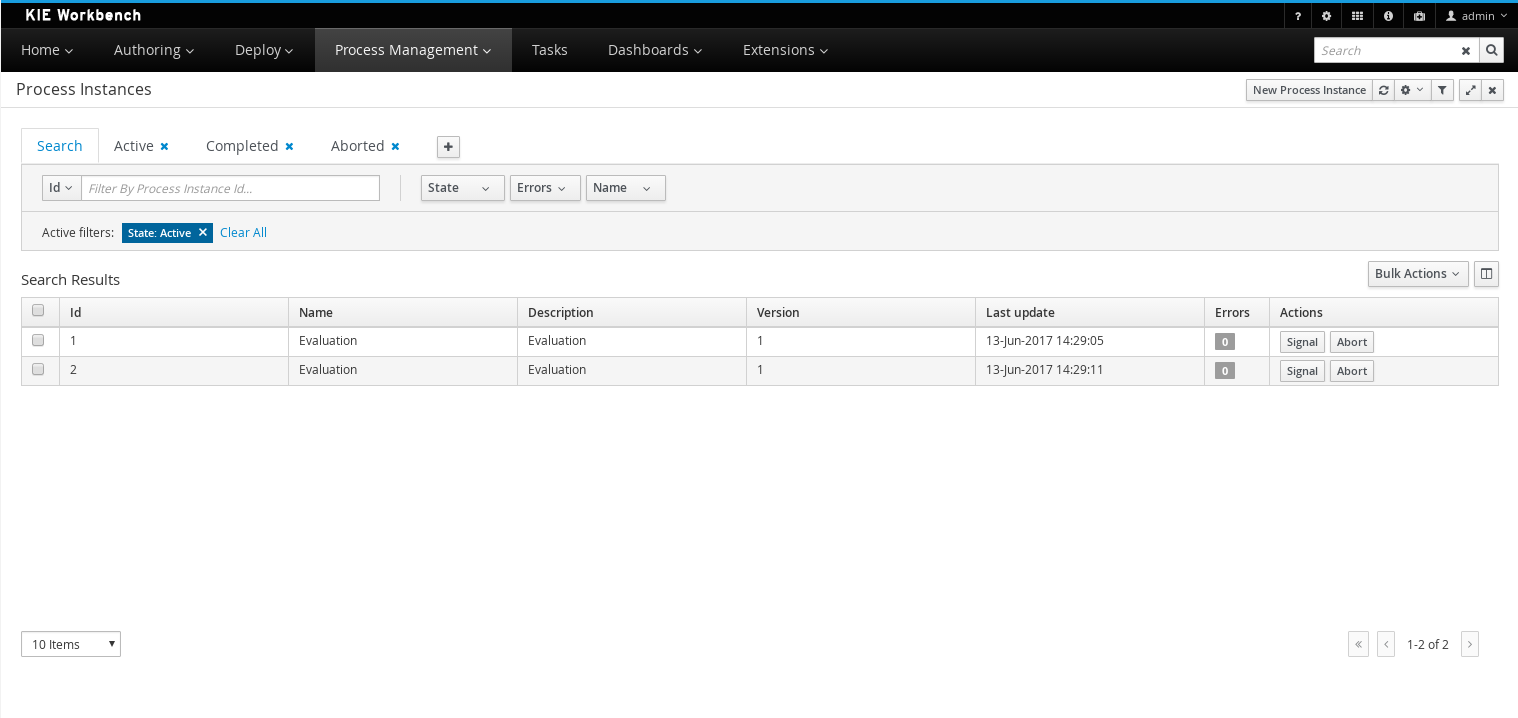

To create new process instances:

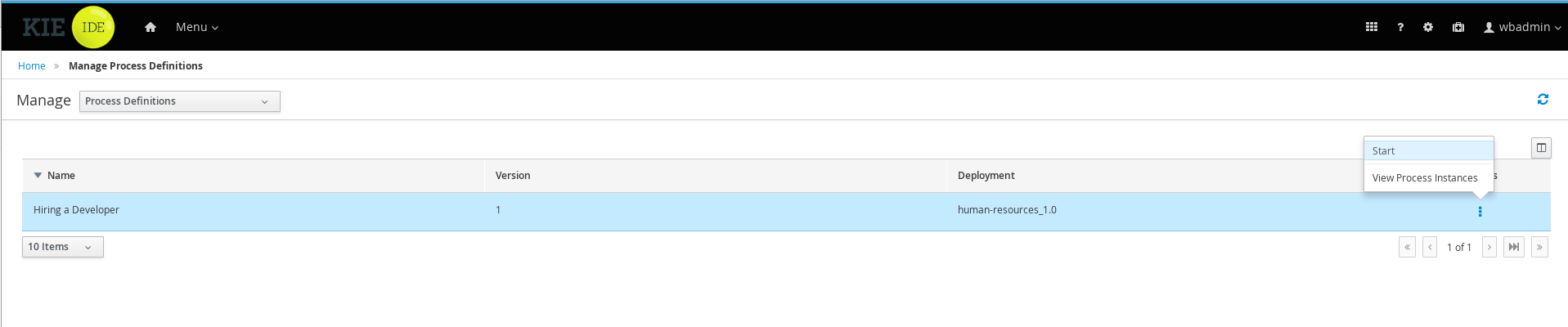

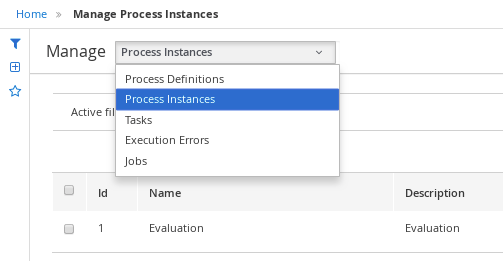

Click Manage  Process Definitions.

Start your instance:

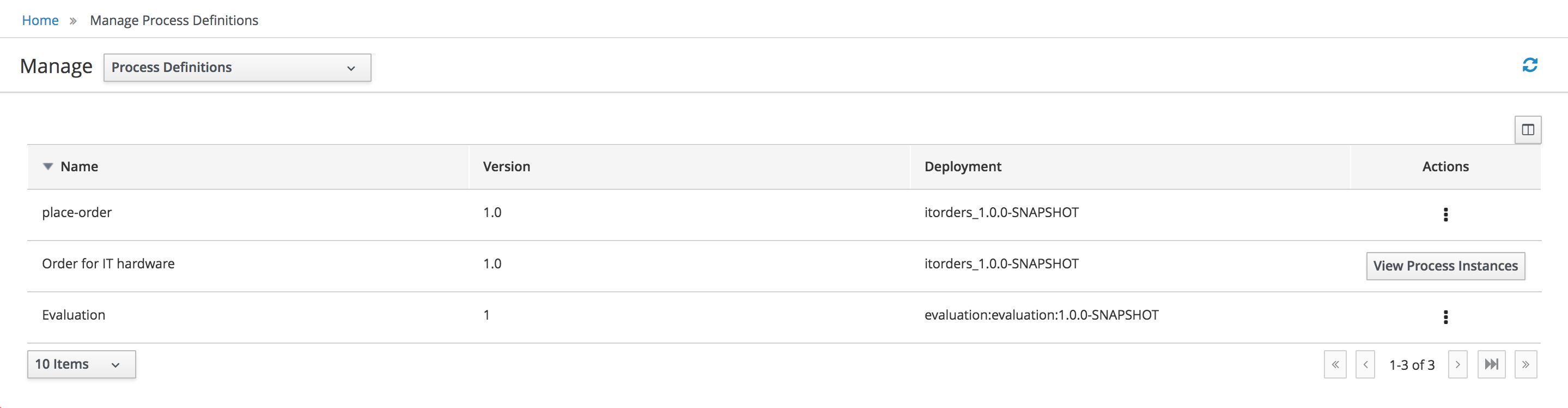

The Process Definitions section contains all the available process definitions in the runtime environment. In order to add new process definitions, build and deploy a new project.

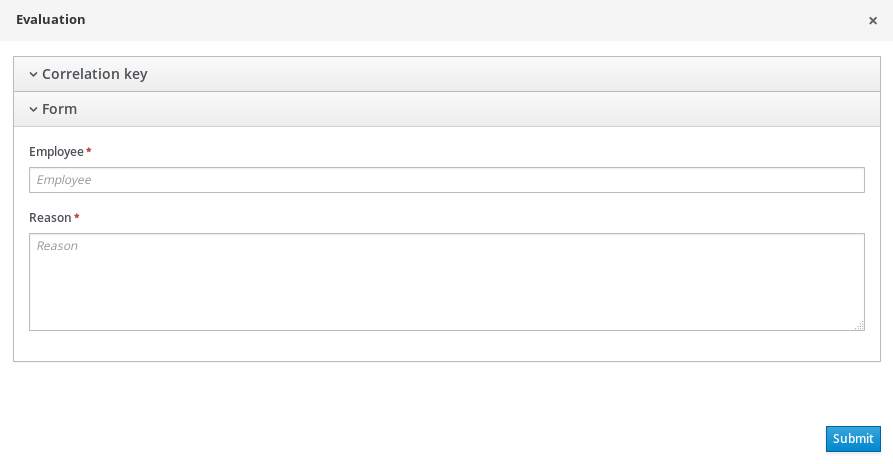

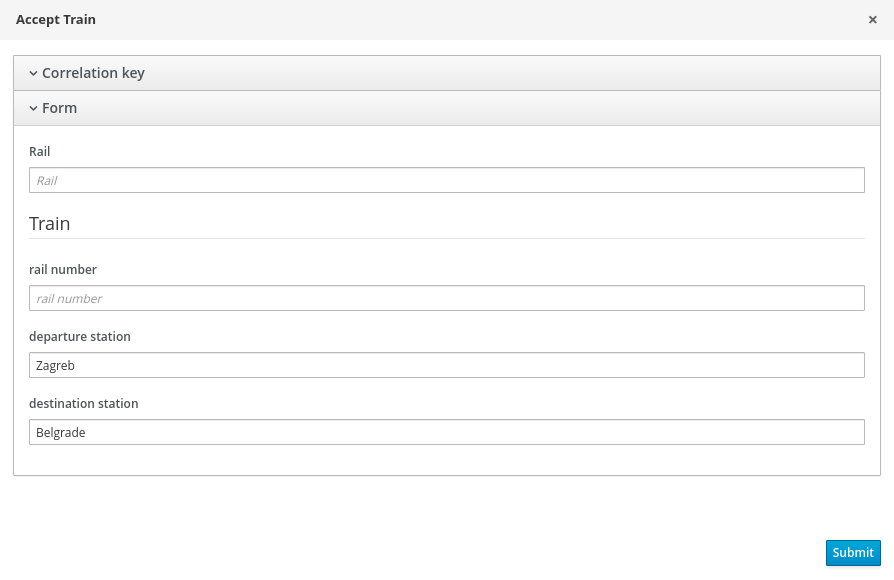

Most processes require additional information to create a new process instance. This is done through forms. For this project, fill in the name of the candidate that is to be interviewed.

When you click Submit, you create a new process instance. This creates the first task, that is available for the Human Resources team. To see the task, you need to logout and log in as a user with the appropriate role assigned, that is someone from the Human Resources.

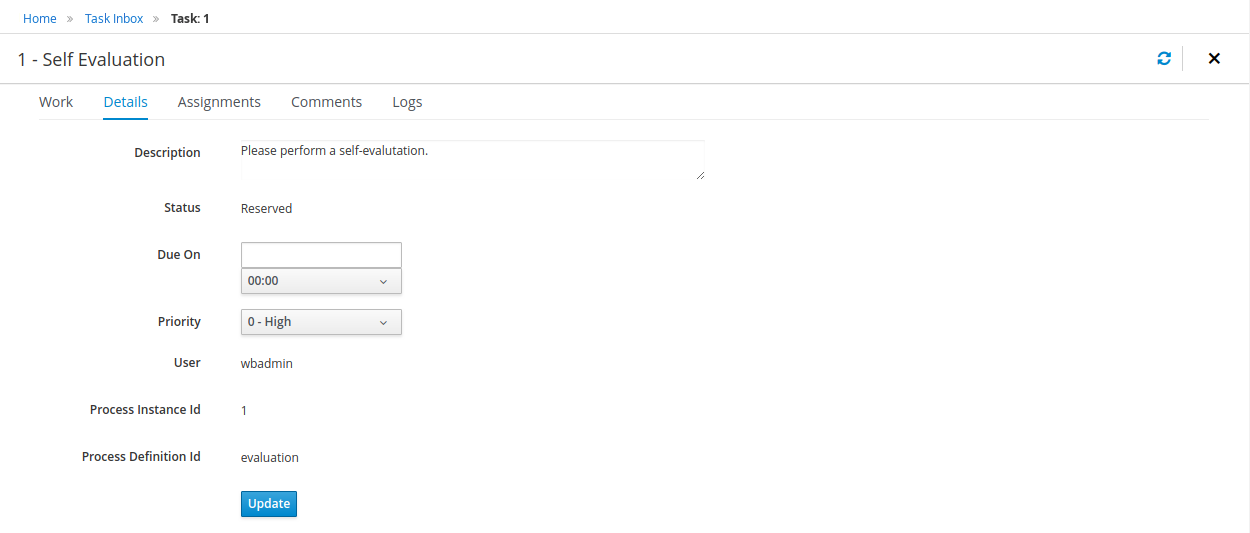

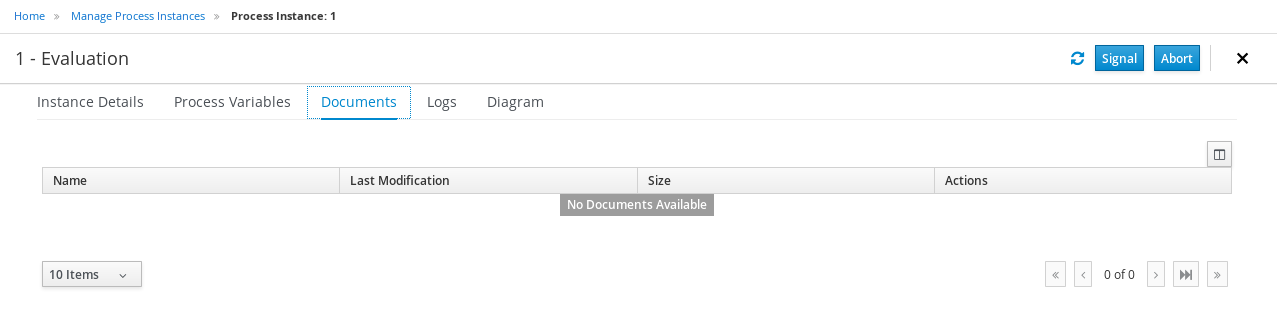

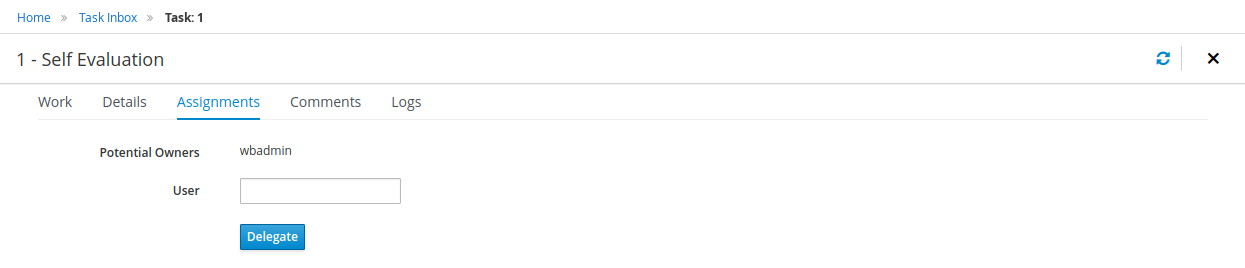

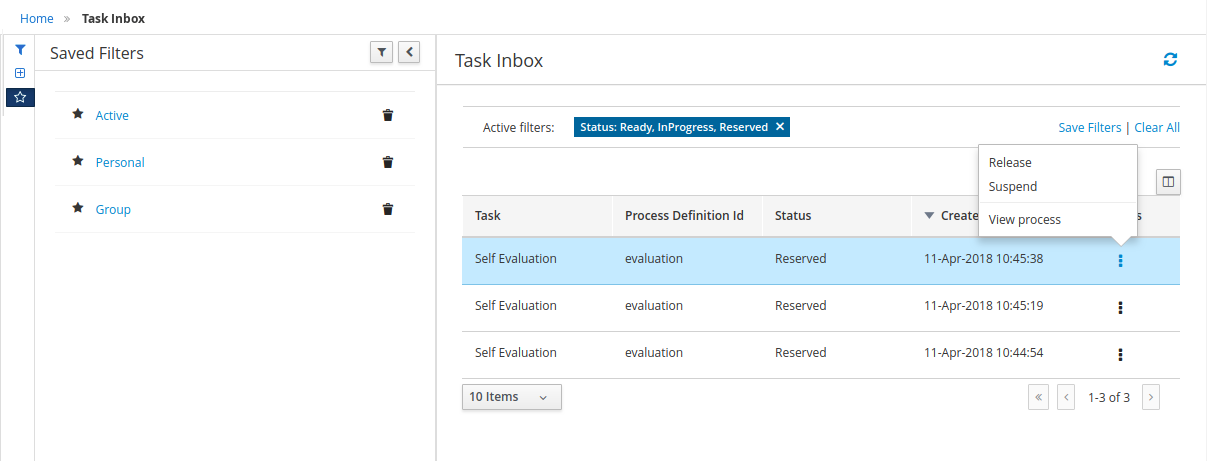

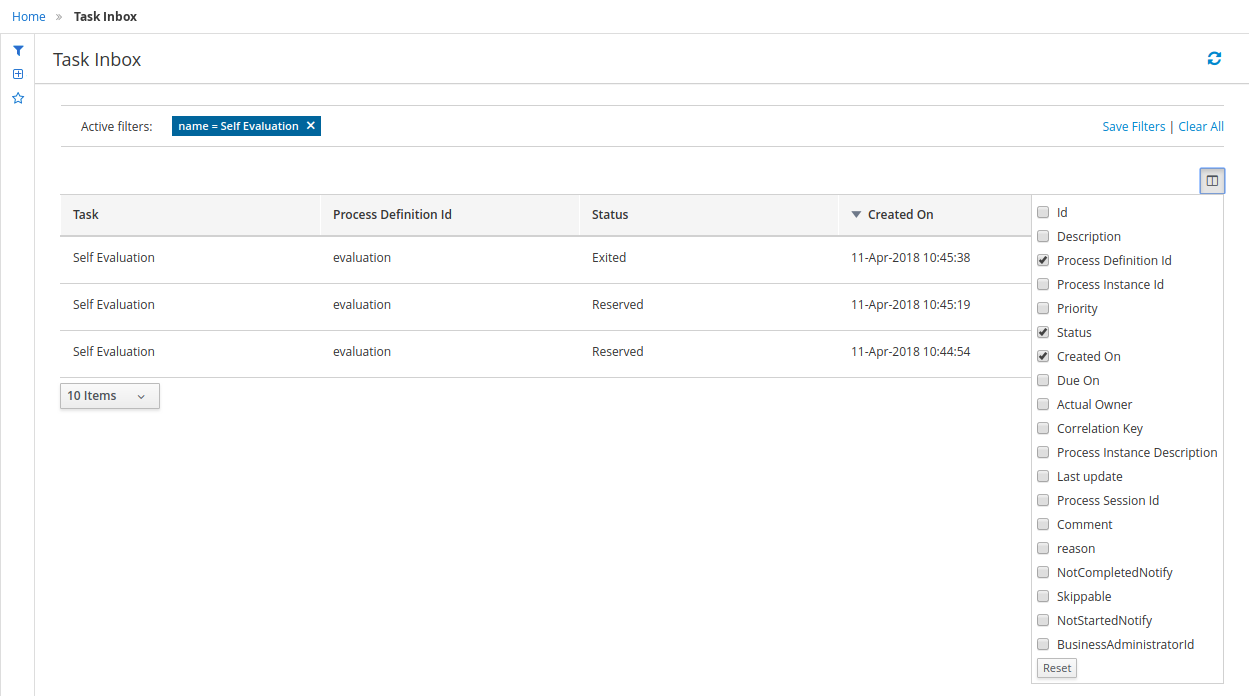

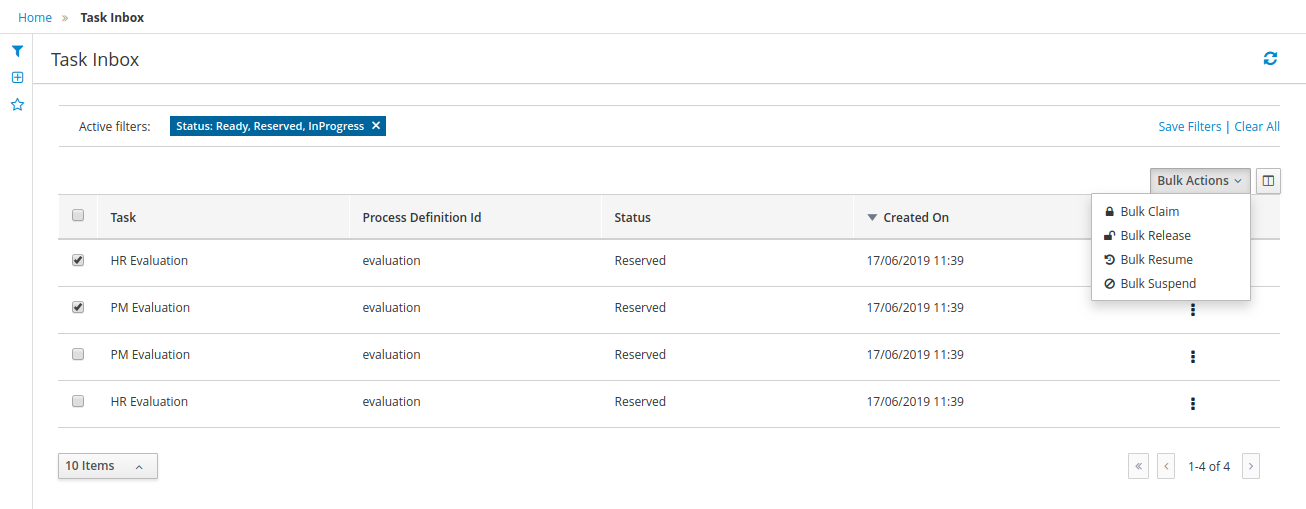

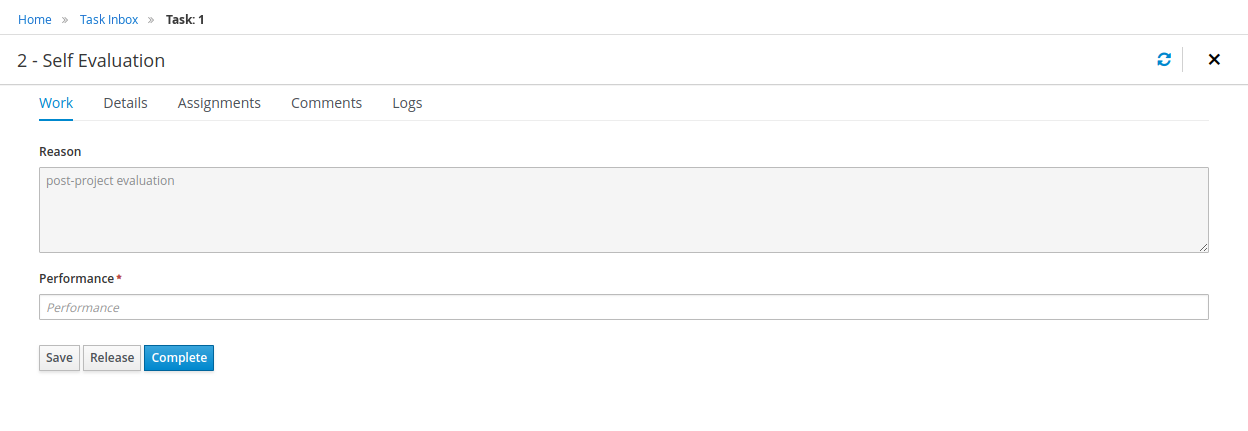

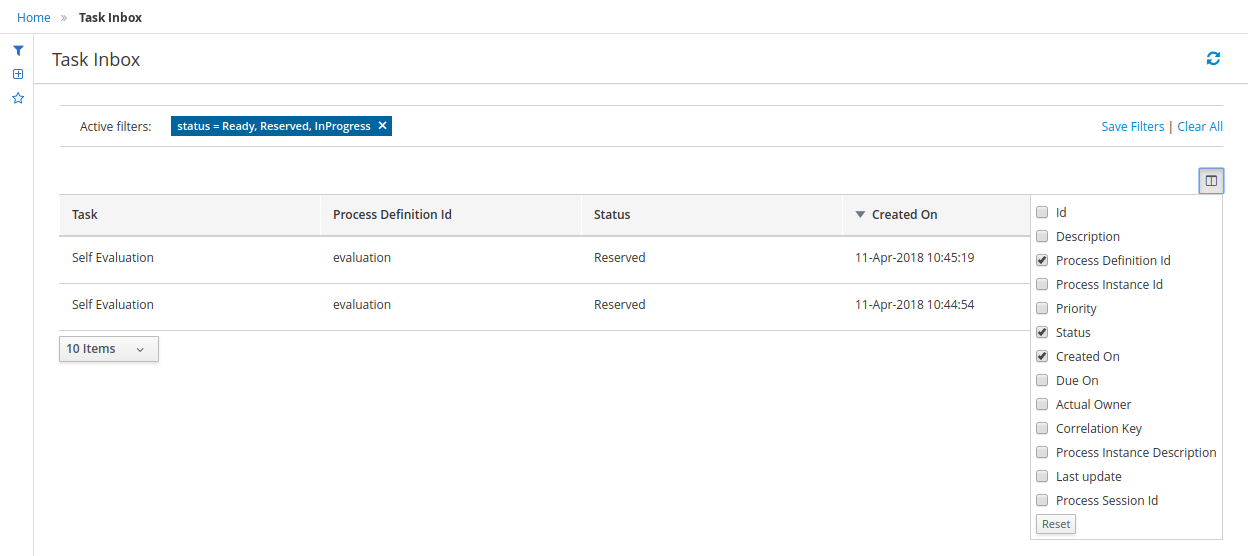

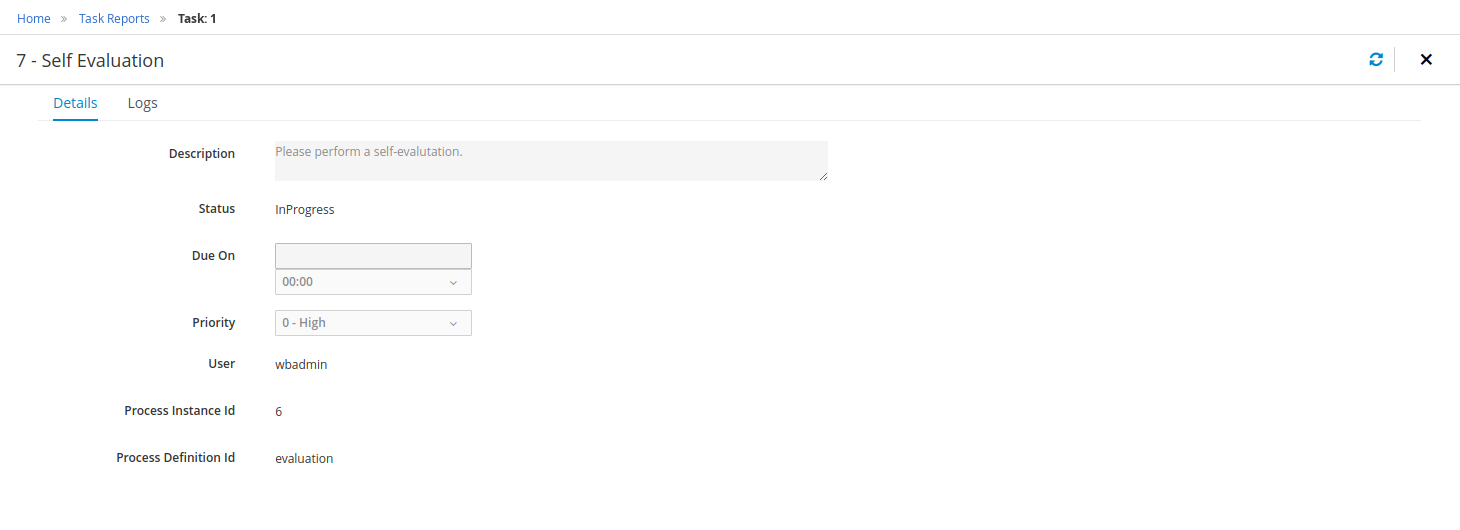

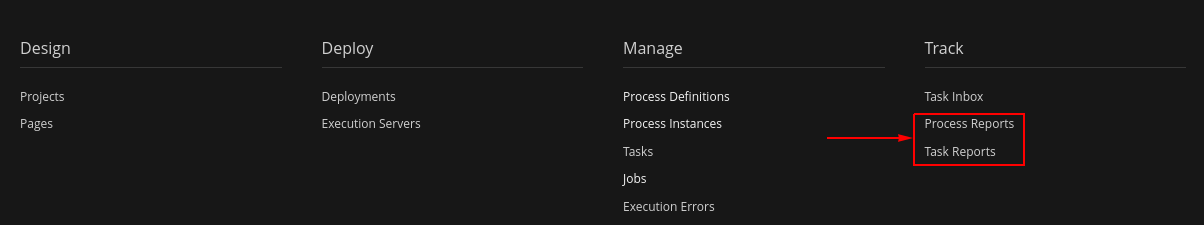

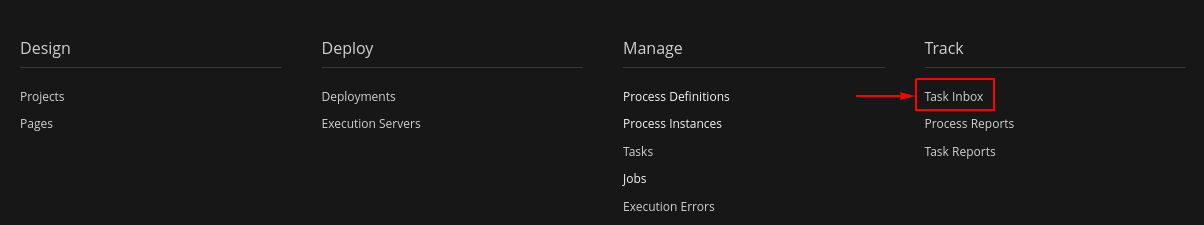

When you start the process, you can interact with the human tasks. To do so, click Track  Task Inbox.

Note that in order to see the tasks in the task list, you need to belong to specific user groups, for which the task is designed. For example, the HR Interview task is visible only for the members of the HR group, and the Tech Interview Task is visible only to the members of the IT group.

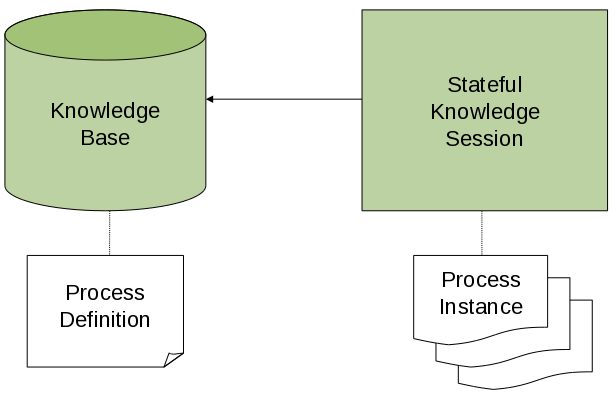

The ProcessRuntime interface defines all the session methods for interacting with processes, as shown below.

The session provides methods for registering and removing listeners. A ProcessEventListener can be used to listen to process-related events, like starting or completing a process, entering and leaving a node, etc. Below, the different methods of the ProcessEventListener class are shown. An event object provides access to related information, like the process instance and node instance linked to the event. You can use this API to register your own event listeners.

A note about before and after events: these events typically act like a stack, which means that any events that occur as a direct result of the previous event, will occur between the before and the after of that event. For example, if a subsequent node is triggered as result of leaving a node, the node triggered events will occur inbetween the beforeNodeLeftEvent and the afterNodeLeftEvent of the node that is left (as the triggering of the second node is a direct result of leaving the first node). Doing that allows us to derive cause relationships between events more easily. Similarly, all node triggered and node left events that are the direct result of starting a process will occur between the beforeProcessStarted and afterProcessStarted events. In general, if you just want to be notified when a particular event occurs, you should be looking at the before events only (as they occur immediately before the event actually occurs). When only looking at the after events, one might get the impression that the events are fired in the wrong order, but because the after events are triggered as a stack (after events will only fire when all events that were triggered as a result of this event have already fired). After events should only be used if you want to make sure that all processing related to this has ended (for example, when you want to be notified when starting of a particular process instance has ended.

Also note that not all nodes always generate node triggered and/or node left events. Depending on the type of node, some nodes might only generate node left events, others might only generate node triggered events. Catching intermediate events for example are not generating triggered events (they are only generating left events, as they are not really triggered by another node, rather activated from outside). Similarly, throwing intermediate events are not generating left events (they are only generating triggered events, as they are not really left, as they have no outgoing connection).

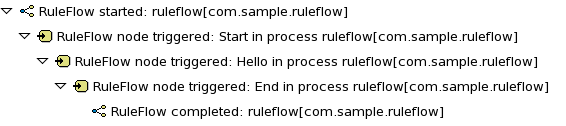

jBPM out-of-the-box provides a listener that can be used to create an audit log (either to the console or the a file on the file system). This audit log contains all the different events that occurred at runtime so it’s easy to figure out what happened. Note that these loggers should only be used for debugging purposes. The following logger implementations are supported by default:

The KieServices lets you add a KieRuntimeLogger to your session, as shown below. When creating a console logger, the KIE session for which the logger needs to be created must be passed as an argument. The file logger also requires the name of the log file to be created, and the threaded file logger requires the interval (in milliseconds) after which the events should be saved. You should always close the logger at the end of your application.

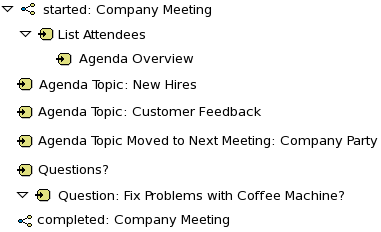

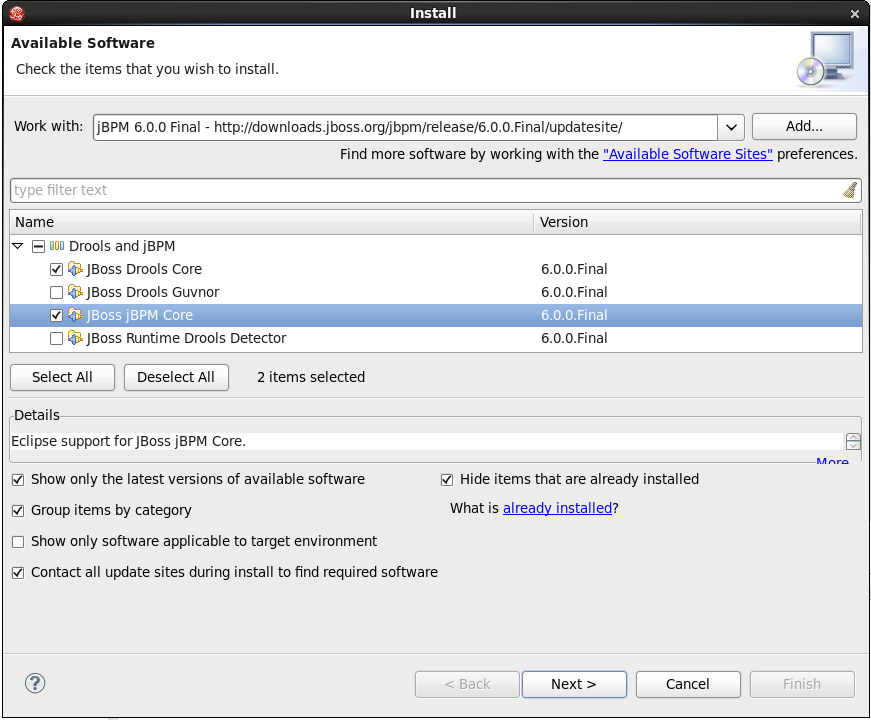

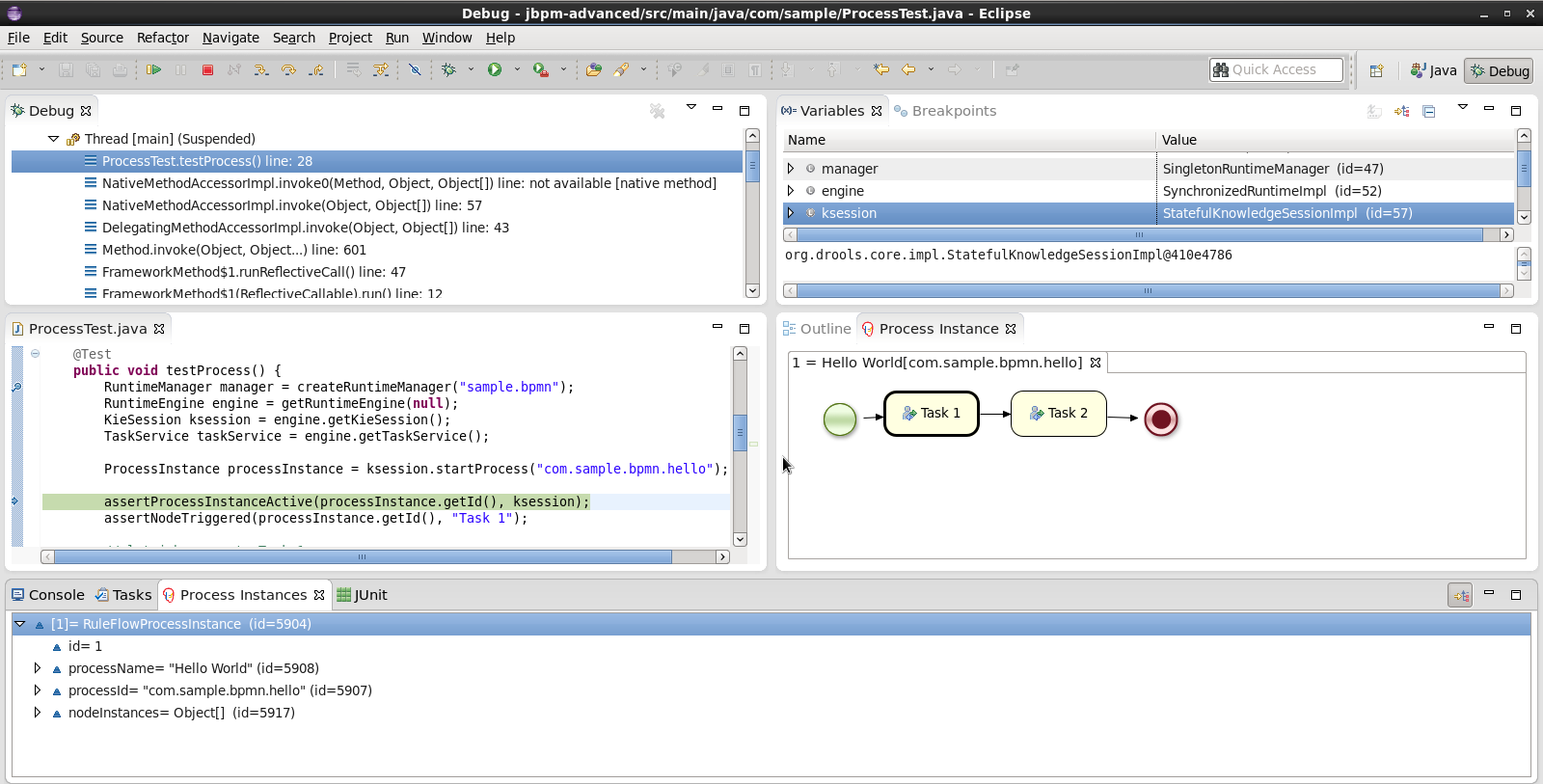

The log file that is created by the file-based loggers contains an XML-based overview of all the events that occurred at runtime. It can be opened in Eclipse, using the Audit View in the Drools Eclipse plugin, where the events are visualized as a tree. Events that occur between the before and after event are shown as children of that event. The following screenshot shows a simple example, where a process is started, resulting in the activation of the Start node, an Action node and an End node, after which the process was completed.

A common requirement when working with processes is ability to assign a given process instance some sort of business identifier that can be later on referenced without knowing the actual (generated) id of the process instance. To provide such capabilities, jBPM allows to use CorrelationKey that is composed of CorrelationProperties. CorrelationKey can have either single property describing it (which is in most cases) but it can be represented as multi valued properties set.

Correlation capabilities are provided as part of interface

that exposes following methods:

Correlation is usually used with long running processes and thus require persistence to be enabled to be able to permanently store correlation information.

In the following text, we will refer to two types of "multi-threading": logical and technical. Technical multi-threading is what happens when multiple threads or processes are started on a computer, for example by a Java or C program. Logical multi-threading is what we see in a BPM process after the process reaches a parallel gateway, for example. From a functional standpoint, the original process will then split into two processes that are executed in a parallel fashion.

Of course, the jBPM engine supports logical multi-threading: for example, processes that include a parallel gateway. We’ve chosen to implement logical multi-threading using one thread: a jBPM process that includes logical multi-threading will only be executed in one technical thread. The main reason for doing this is that multiple (technical) threads need to be be able to communicate state information with each other if they are working on the same process. This requirement brings with it a number of complications. While it might seem that multi-threading would bring performance benefits with it, the extra logic needed to make sure the different threads work together well means that this is not guaranteed. There is also the extra overhead incurred because we need to avoid race conditions and deadlocks.

In general, the jBPM engine executes actions in serial. For example, when the jBPM engine encounters a script task in a process, it will synchronously execute that script and wait for it to complete before continuing execution. Similarly, if a process encounters a parallel gateway, it will sequentially trigger each of the outgoing branches, one after the other. This is possible since execution is almost always instantaneous, meaning that it is extremely fast and produces almost no overhead. As a result, the user will usually not even notice this. Similarly, action scripts in a process are also synchronously executed, and the jBPM engine will wait for them to finish before continuing the process. For example, doing a Thread.sleep(…​) as part of a script will not make the jBPM engine continue execution elsewhere but will block the jBPM engine thread during that period.

The same principle applies to service tasks. When a service task is reached in a process, the jBPM engine will also invoke the handler of this service synchronously. The jBPM engine will wait for the completeWorkItem(…​) method to return before continuing execution. It is important that your service handler executes your service asynchronously if its execution is not instantaneous.

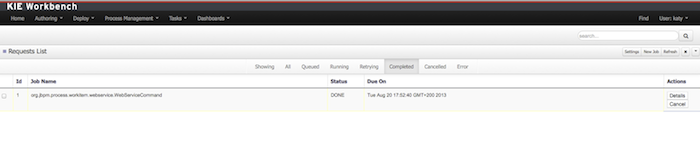

An example of this would be a service task that invokes an external service. Since the delay in invoking this service remotely and waiting for the results might be too long, it might be a good idea to invoke this service asynchronously. This means that the handler will only invoke the service and will notify the jBPM engine later when the results are available. In the mean time, the jBPM engine then continues execution of the process.

Human tasks are a typical example of a service that needs to be invoked asynchronously, as we don’t want the jBPM engine to wait until a human actor has responded to the request. The human task handler will only create a new task (on the task list of the assigned actor) when the human task node is triggered. The jBPM engine will then be able to continue execution on the rest of the process (if necessary) and the handler will notify the jBPM engine asynchronously when the user has completed the task.

RuntimeManager has been introduced to simplify and empower usage of knowledge API especially in context of processes. It provides configurable strategies that control actual runtime execution (how KieSessions are provided) and by default provides following:

Runtime Manager is primarily responsible for managing and delivering instances of RuntimeEngine to the caller. In turn, RuntimeEngine encapsulates two of the most important elements of the jBPM engine:

Both of these components are already configured to work with each other smoothly without additional configuration from end user. No more need to register human task handler or keeping track if it’s connected to the service or not.

RuntimeEngine interface provides the most important methods to get access to jBPM engine components:

RuntimeManager will ensure that regardless of the strategy it will provide same capabilities when it comes to initialization and configuration of the RuntimeEngine. That means

On the other hand, RuntimeManager maintains the jBPM engine disposal as well by providing dedicated methods to dispose RuntimeEngine when it’s no more needed to release any resources it might have acquired.

Singleton strategy - instructs RuntimeManager to maintain single instance of RuntimeEngine (and in turn single instance of KieSession and TaskService). Access to the RuntimeEngine is synchronized and by that thread safe although it comes with a performance penalty due to synchronization. This strategy is similar to what was available by default in jBPM version 5.x and it’s considered easiest strategy and recommended to start with.

It has following characteristics that are important to evaluate while considering it for given scenario:

Per request strategy - instructs RuntimeManager to provide new instance of RuntimeEngine for every request. As request RuntimeManager will consider one or more invocations within single transaction. It must return same instance of RuntimeEngine within single transaction to ensure correctness of state as otherwise operation done in one call would not be visible in the other. This is sort of "stateless" strategy that provides only request scope state and once request is completed RuntimeEngine will be permanently destroyed - KieSession information will be removed from the database in case persistence was used.

It has following characteristics:

Per process instance strategy - instructs RuntimeManager to maintain a strict relationship between KieSession and ProcessInstance. That means that KieSession will be available as long as the ProcessInstance that it belongs to is active. This strategy provides the most flexible approach to use advanced capabilities of the jBPM engine like rule evaluation in isolation (for given process instance only), maximum performance and reduction of potential bottlenecks intriduced by synchronization; and at the same time reduces number of KieSessions to the actual number of process instances rather than number of requests (in contrast to per request strategy).

It has following characteristics:

Regular usage scenario for RuntimeManager is:

The complexity of knowing when to create, dispose, register handlers, etc is taken away from the end user and moved to the runtime manager that knows when/how to perform such operations but still allows to have a fine grained control over this process by providing comprehensive configuration of the RuntimeEnvironment.

As the name suggest, its primary responsibility is to deploy (and undeploy) units. Deployment unit is kjar that brings in business assets (like processes, rules, forms, data model) for execution. Deployment services allow to query it to get hold of available deployment units and even their RuntimeManager instances.

So typical use case for this service is to provide dynamic behavior into your system so multiple kjars can be active at the same time and be executed simultaneously.

Complete DeploymentService interface is as follows:

Upon deployment, every process definition is scanned using definition service that parses the process and extracts valuable information out of it. These information can provide valuable input to the system to inform users about what is expected. Definition service provides information about:

So definition service can be seen as sort of supporting service that provides quite a few information about process definition that are extracted directly from BPMN2.

While it usually is used with combination of other services (like deployment service) it can be used standalone as well to get details about process definition that do not come from kjar. This can be achieved by using buildProcessDefinition method of definition service.

Process service is the one that usually is of the most interest. Once the deployment and definition service was already used to feed the system with something that can be executed. Process service provides access to execution environment that allows:

At the same time process service is a command executor so it allows to execute commands (essentially on ksession) to extend its capabilities.

Important to note is that process service is focused on runtime operations so use it whenever there is a need to alter (signal, change variables, etc) process instance and not for read operations like show available process instances by looping though given list and invoking getProcessInstance method. For that there is dedicated runtime data service that is described below.

An example on how to deploy and run process can be done as follows:

As you can see start process expects deploymentId as first argument. This is extremely powerful to enable service to easily work with various deployments, even with same processes but coming from different versions - kjar versions.

Runtime data service as name suggests, deals with all that refers to runtime information:

Use this service as main source of information whenever building list based UI - to show process definitions, process instances, tasks for given user, etc. This service was designed to be as efficient as possible and still provide all required information.

Some examples:

There are two important arguments that the runtime data service operations supports:

These provide capabilities for efficient management result set like pagination, sorting and ordering (QueryContext). Moreover additional filtering can be applied to task queries to provide more advanced capabilities when searching for user tasks.

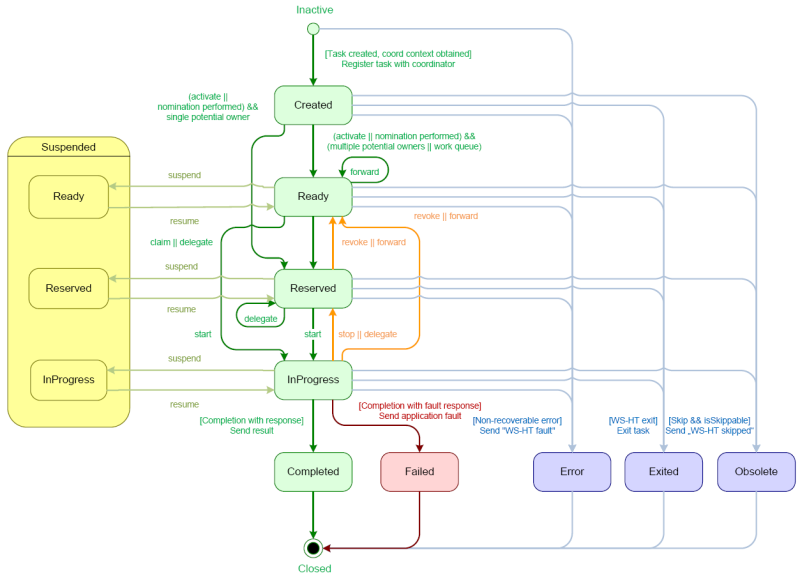

User task service covers complete life cycle of individual task so it can be managed from start to end. It explicitly eliminates queries from it to provide scoped execution and moves all query operations into runtime data service. Besides lifecycle operations user task service allows:

On top of that user task service is a command executor as well that allows to execute custom task commands.

Complete example with start process and complete user task done by services:

jBPM provides a cluster-ready timer service via Quartz, allowing you to dispose or load your KIE session at any time. In order to fire each timer appropriately, this service can be utilized to manage how long a kie session should be active.

A base Quartz configuration file in the case of a clustered environment is provided as an example below:

For more information on configuring a Quartz scheduler, please see the documentation for the 1.8.5 distribution archive.

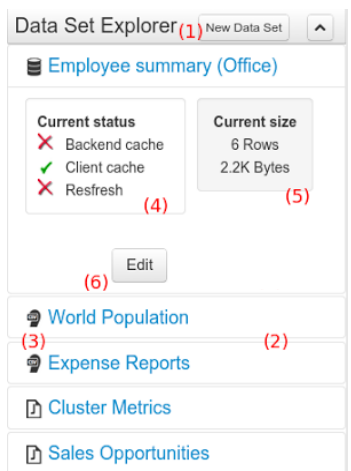

QueryService provides advanced search capabilities that are based on Dashbuilder DataSets. The concept behind it is that users are given control over how to retrieve data from underlying data store. This includes complex joins with external tables such as JPA entities tables, custom systems data base tables etc.

QueryService is build around two parts:

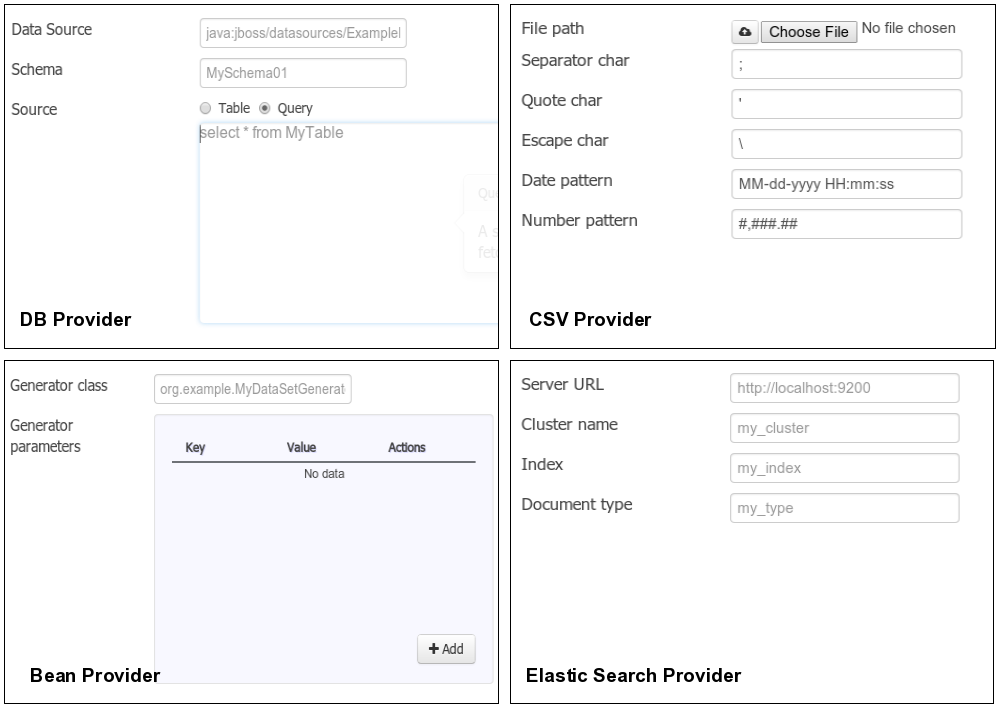

DashBuilder DataSets provide support for multiple data sources (CSV, SQL, elastic search, etc) while jBPM - since its backend is RDBMS based - focuses on SQL based data sets. So jBPM QueryService is a subset of DashBuilder DataSets capabilities to allow efficient queries with simple API.

Terminology

While QueryDefinition and QueryParam is rather straight forward, QueryParamBuilder and QueryResultMapper is bit more advanced and require slightly more attention to make use of it in right way, and by that take advantage of their capabilities.

QueryResultMapper

Mapper as the name suggest, maps data taken out from data base (from data set) into object representation. Much like ORM providers such as hibernate maps tables to entities. Obviously there might be many object types that could be used for representing data set results so it’s almost impossible to provide them out of the box. Mappers are rather powerful and thus are pluggable, you can implement your own that will transform the result into whatever type you like. jBPM comes with following mappers out of the box:

Each QueryResultMapper is registered under given name to allow simple look up by name instead of referencing its class name - especially important when using EJB remote flavor of services where we want to reduce number of dependencies and thus not relying on implementation on client side. So to be able to reference QueryResultMapper by name, NamedQueryMapper should be used which is part of jbpm-services-api. That acts as delegate (lazy delegate) as it will look up the actual mapper when the query is actually performed.

QueryParamBuilder

QueryParamBuilder that provides more advanced way of building filters for our data sets. By default when using query method of QueryService that accepts zero or more QueryParam instances (as we have seen in above examples) all of these params will be joined with AND operator meaning all of them must match. But that’s not always the case so that’s why QueryParamBuilder has been introduced for users to build their on builders which will provide filters at the time the query is issued.

There is one QueryParamBuilder available out of the box and it is used to cover default QueryParams that are based on so called core functions. These core functions are SQL based conditions and includes following

QueryParamBuilder is simple interface that is invoked as long as its build method returns non null value before query is performed. So you can build up a complex filter options that could not be simply expressed by list of QueryParams. Here is basic implementation of QueryParamBuilder to give you a jump start to implement your own - note that it relies on DashBuilder Dataset API.

Once you have query param builder implemented you simply use its instance when performing query via QueryService

Typical usage scenario

First thing user needs to do is to define data set - view of the data you want to work with - so called QueryDefinition in services api.

This is the simplest possible query definition as it can be:

Once we have the sql query definition we can register it so it can be used later for actual queries.

From now on, this query definition can be used to perform actual queries (or data look ups to use terminology from data sets). Following is the basic one that collects data as is, without any filtering

Above query was very simple and used defaults from QueryContext - paging and sorting. So let’s take a look at one that changes the defaults of the paging and sorting

Now let’s take a look at how to do data filtering

With that end user is put in driver seat to define what data and how they should be fetched. Not being limited by JPA provider nor anything else. Moreover this promotes use of tailored queries for your environment as in most of the case there will be single data base used and thus specific features of that data base can be used to increase performance.

Further examples can be found here.

The ProcessInstanceMigrationService service is a utility used to migrate given process instances from one deployment to another. Process or task variables are not affected by the migration. The ProcessInstanceMigrationService service enables you to change the process definition for the jBPM engine.

For process instance migrations, let active process instances finish and start new process instances in the new deployment. If this approach is not suitable to your needs, consider the following before starting process instance migration:

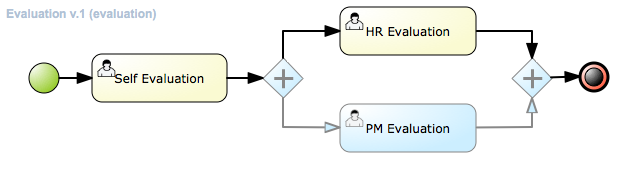

You should create backward compatible processes whenever possible, such as extending process definitions. For example, removing specific nodes from the process definition breaks compatibility. In such case, you must provide new node mapping in case an active process instance is in a node that has been removed.

A node map contains source node IDs from the old process definition mapped to target node IDs in the new process definition. You can map nodes of the same type only, such as a user task to a user task.

jBPM offers several implementations of the migration service:

To migrate process instances on the KIE Server, use the following implementations. These correspond with the implementations described in the previous code sample.

You can migrate a single process instance, or multiple process instances at once. If you migrate multiple process instances, each instance will be migrated in a separate transaction to ensure that the migrations do not affect each other.

After migration is done, the migrate method returns a MigrationReport object that contains the following information:

The following is an example process instance migration:

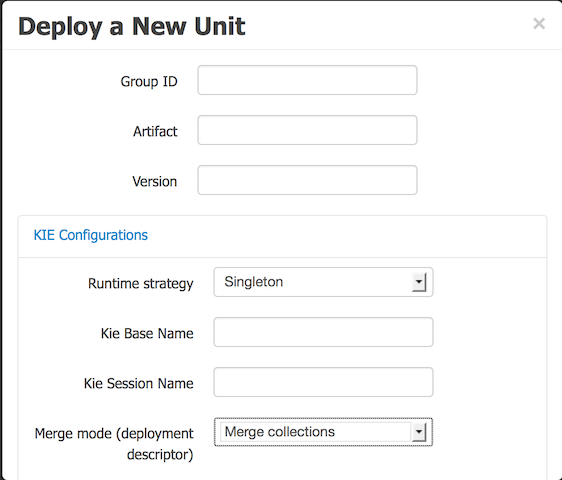

Deployment Service provides convinient way to put business assets to an execution environment but there are cases that requires some additional management to make them available in right context.

Activation and Deactivation of deployments

Imagine situation where there are number of processes already running of given deployment and then new version of these processes comes into the runtime environment. With that administrator can decide that new instances of given process definition should be using new version only while already active instances should continue with the previous version.

To help with that deployment service has been equipped with following methods:

This feature allows smooth transition between project versions whitout need of process instance migration.

Deployment synchronization

Prior to jBPM 6.2, jbpm services did not have deployment store by default. When embedded in jbpm-console/kie-wb they utilized sistem.git VFS repository to preserve deployed units across server restarts. While that works fine, it comes with some drawbacks:

With version 6.2 jbpm services come with deployment synchronizer that stores available deployments into data base, including its deployment descriptor. At the same time it constantly monitors that table to keep it in sync with other installations that might be using same data source. This is especially important when running in cluster or when Business Central runs next to custom application and both should be able to operate on the same artifacts.

By default synchronization must be configured (when runing as core services while it is automatically enabled for ejb and cdi extensions). To configure synchronization following needs to be configured:

With this, deployments will be synchronized every 3 seconds with initial delay of two seconds.

Invoking latest version of project’s processes

In case there is a need to always work with latest version of project’s process, services allow to interact with various operations using deployment id with latest keyword. Let’s go over an example to better understand the feature.

Initially deployed unit is org.jbpm:HR:1.0 which has the first version of an hiring process. After several weeks, new version is developed and deployed to the execution server - org.jbpm:HR.2.0 with version 2 of the hiring process.

To allow callers of the services to interact without being worried if they work with latest version, they can use following deployment id:

this will alwyas find out latest available version of project that is identified by:

version comparizon is based on Maven version numbers and relies on Maen based algorithm to find the latest one.

Here is a complete example with deployment of multiple versions and interacting always with the latest:

As illustrated this provides very powerful feature when interacting with frequently chaning environment that allows to always be up to date when it comes to use of process definitions.

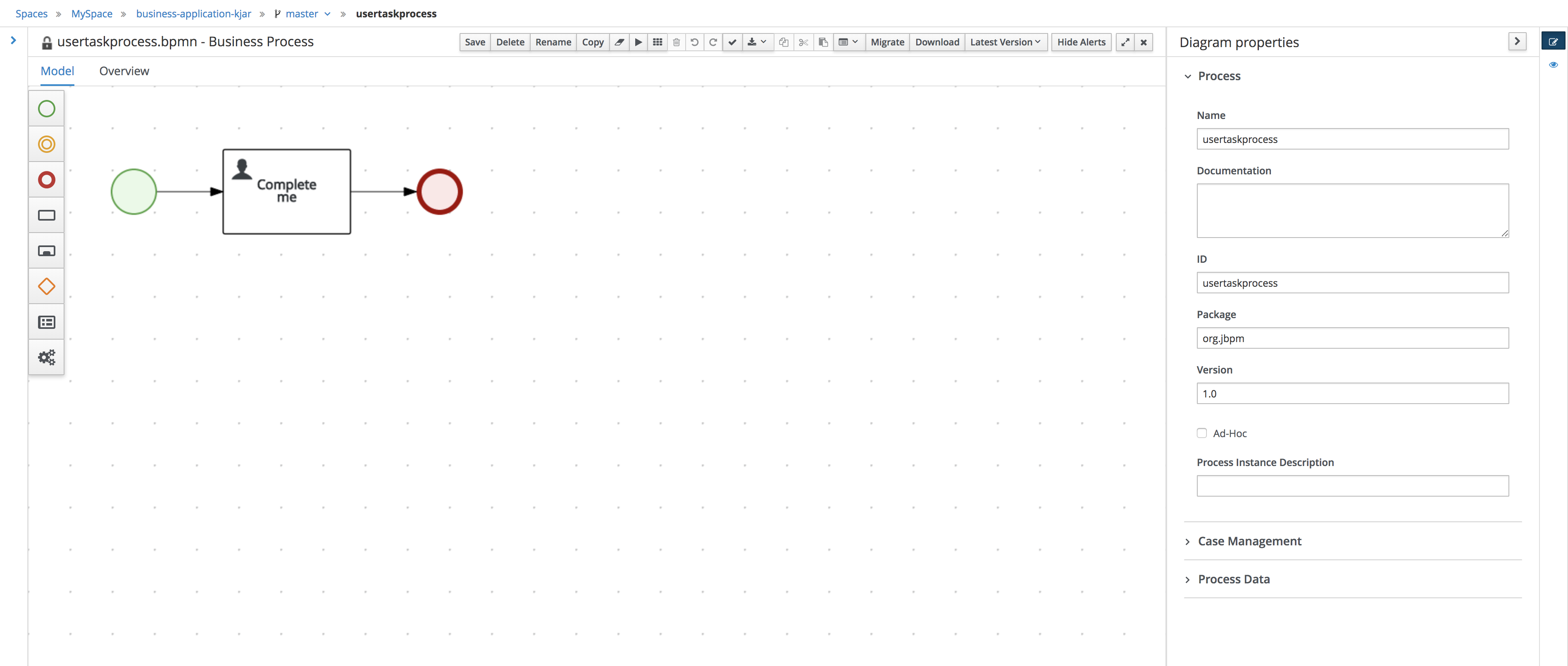

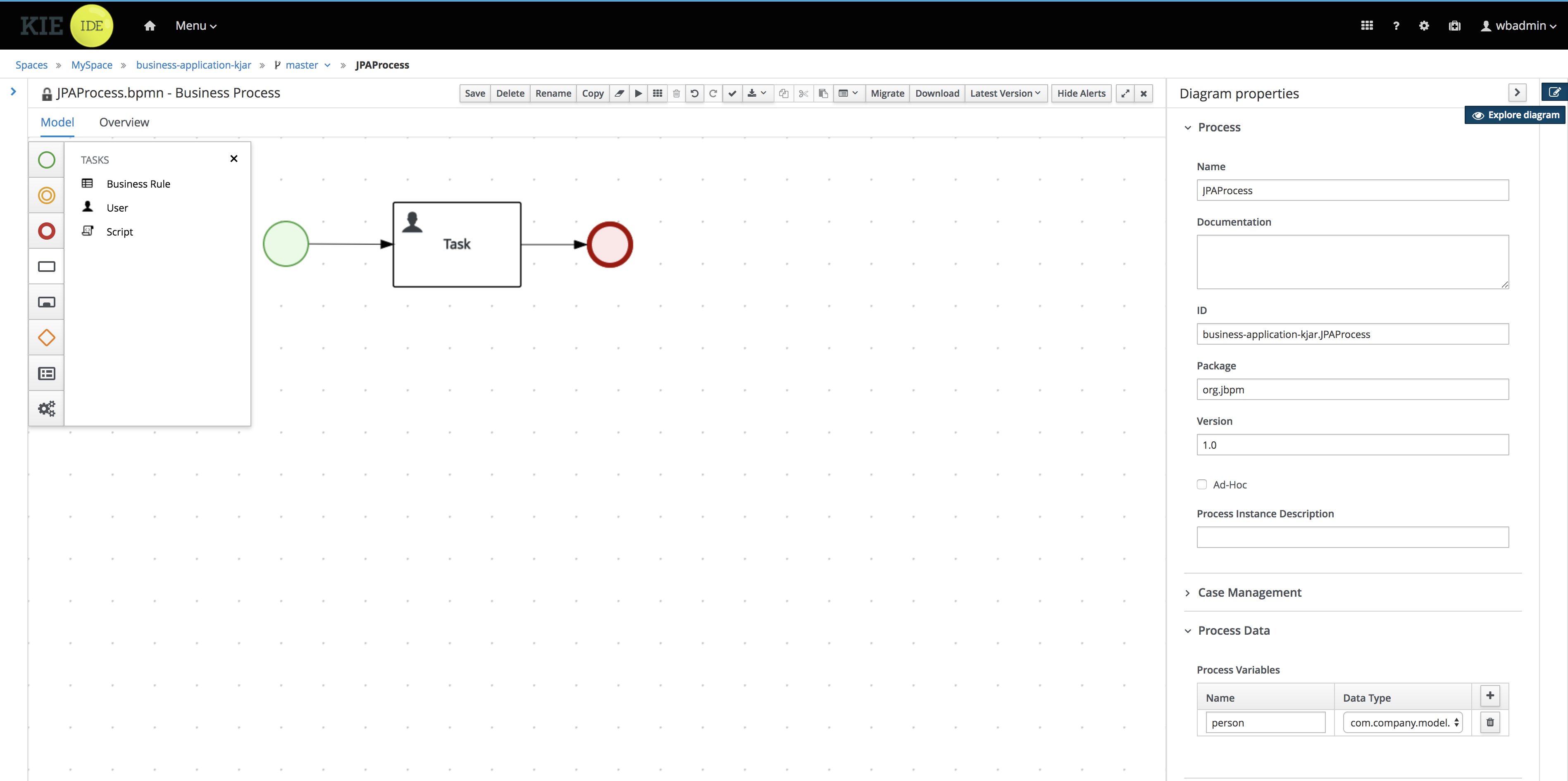

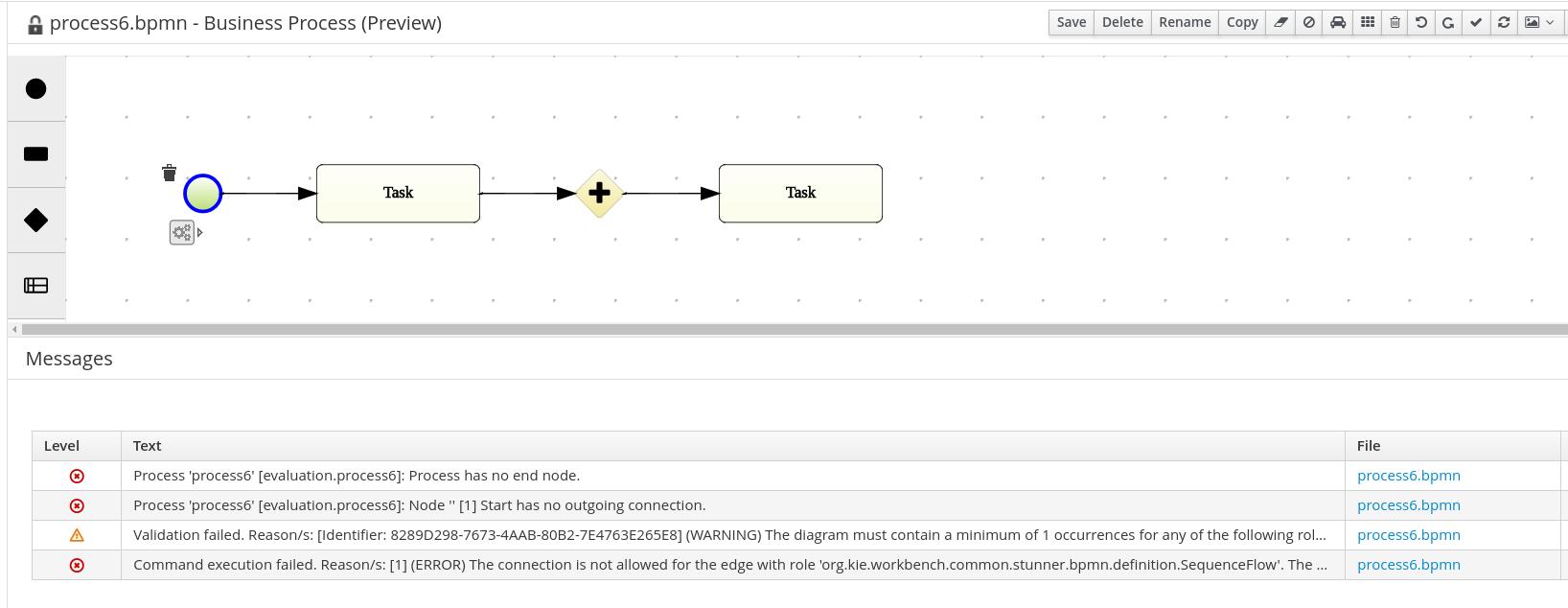

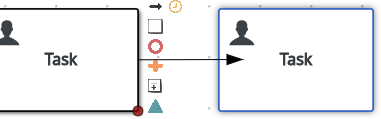

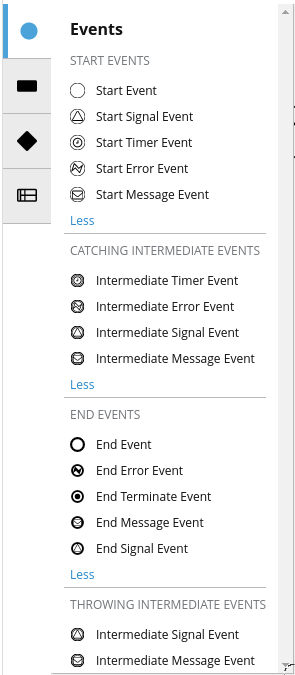

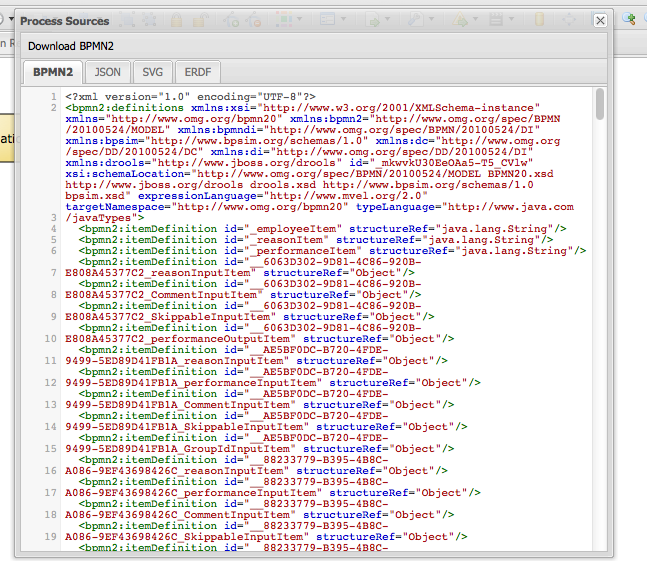

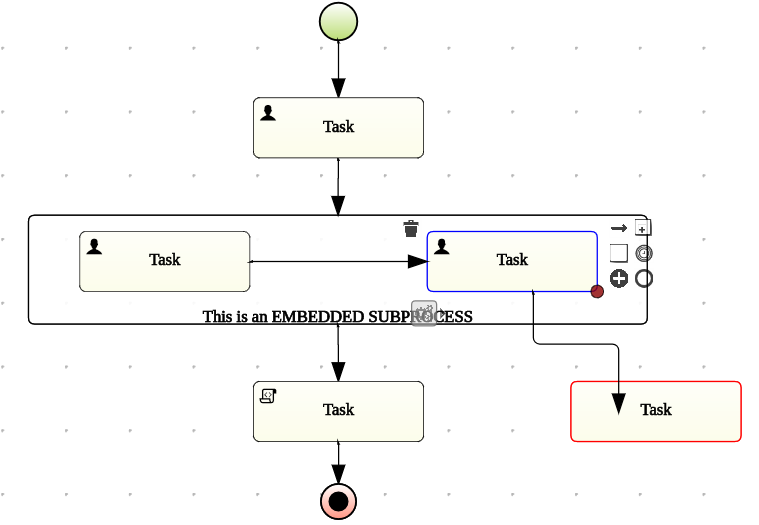

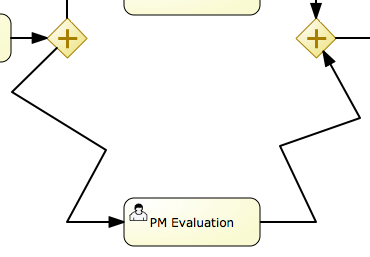

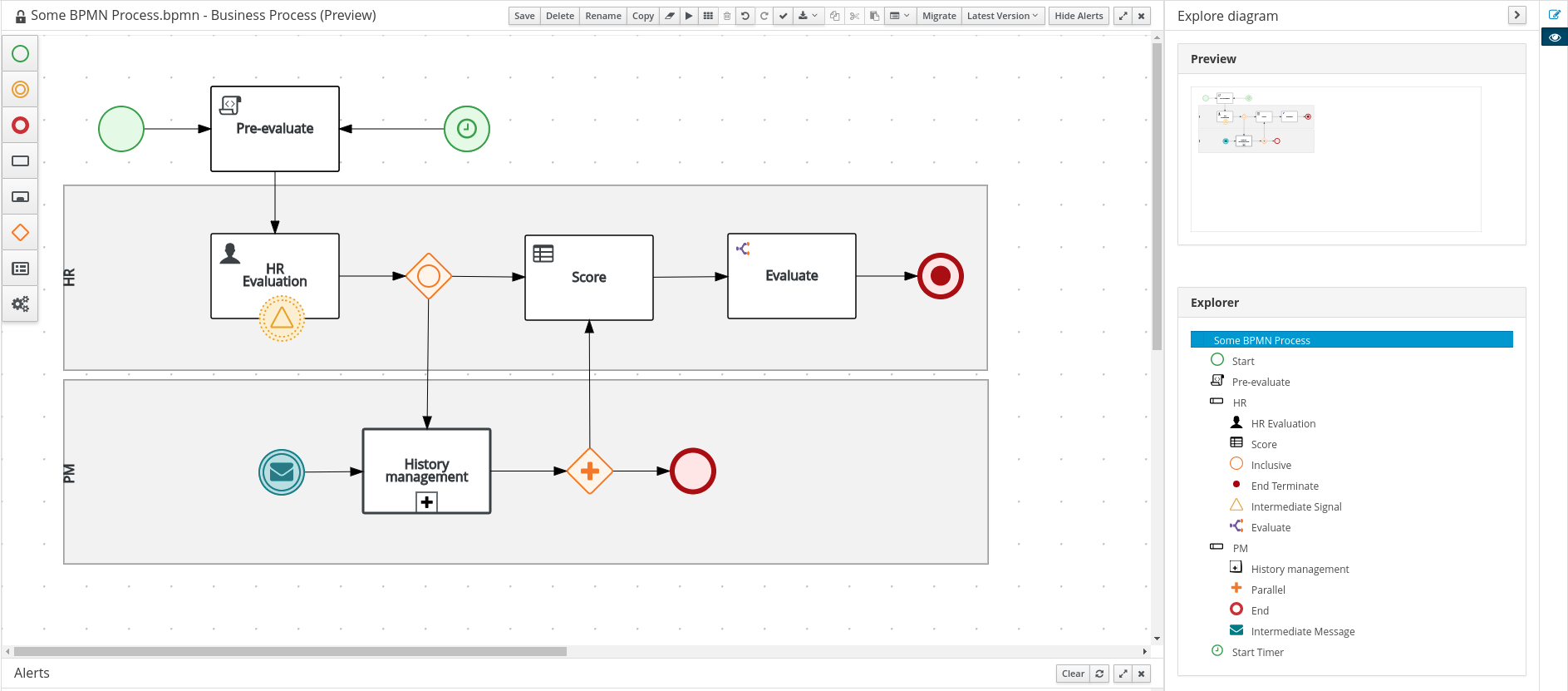

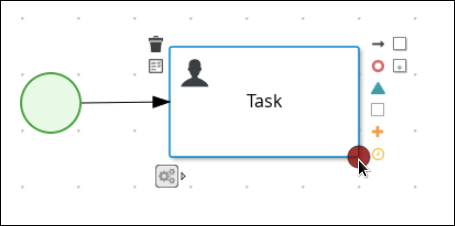

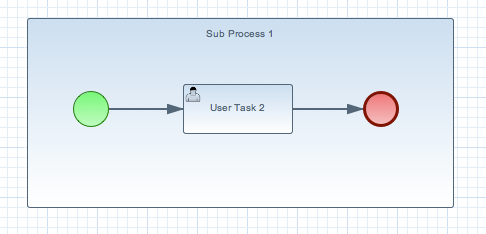

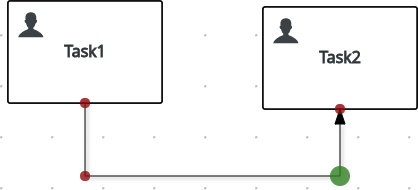

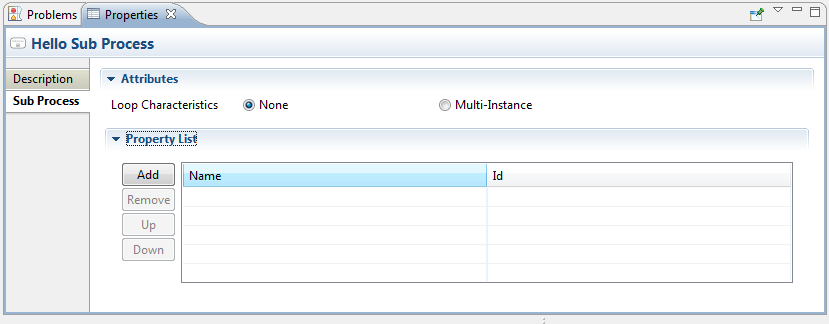

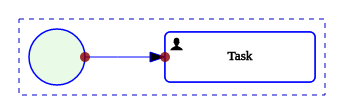

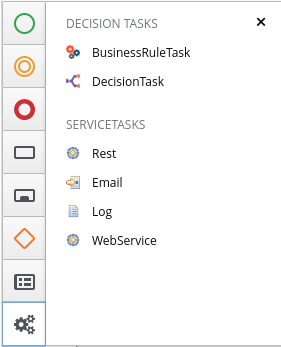

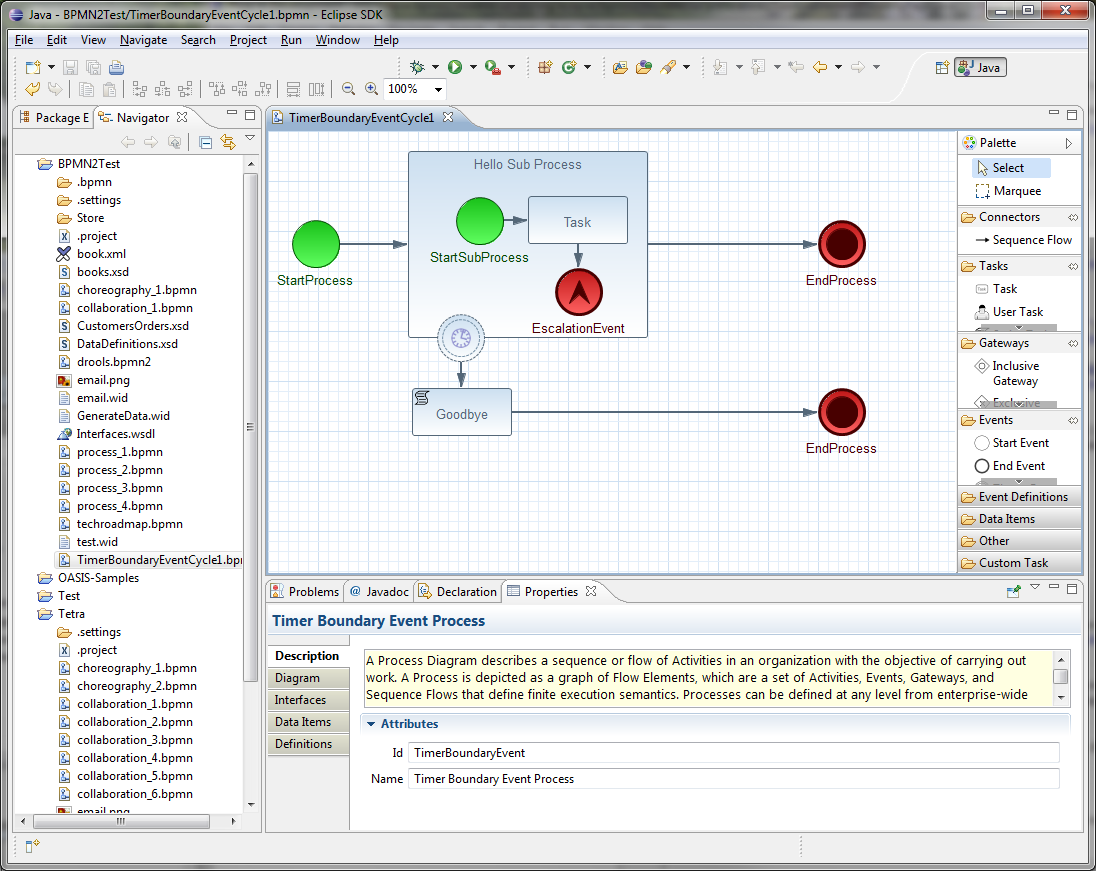

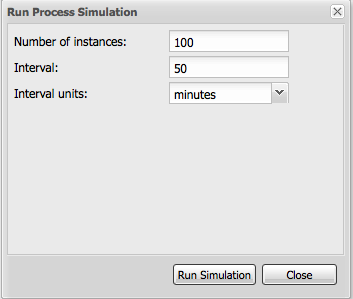

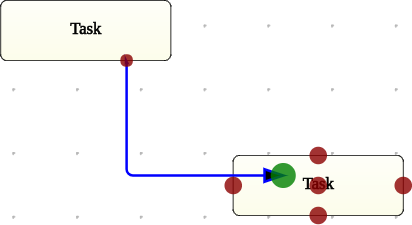

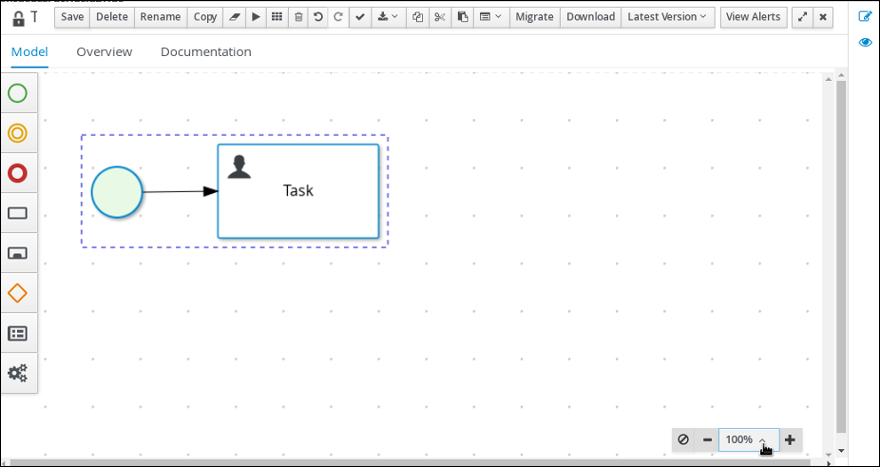

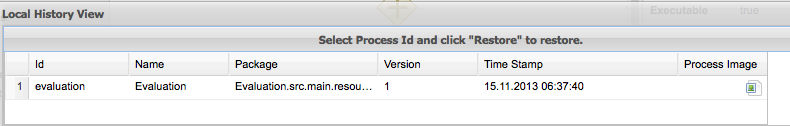

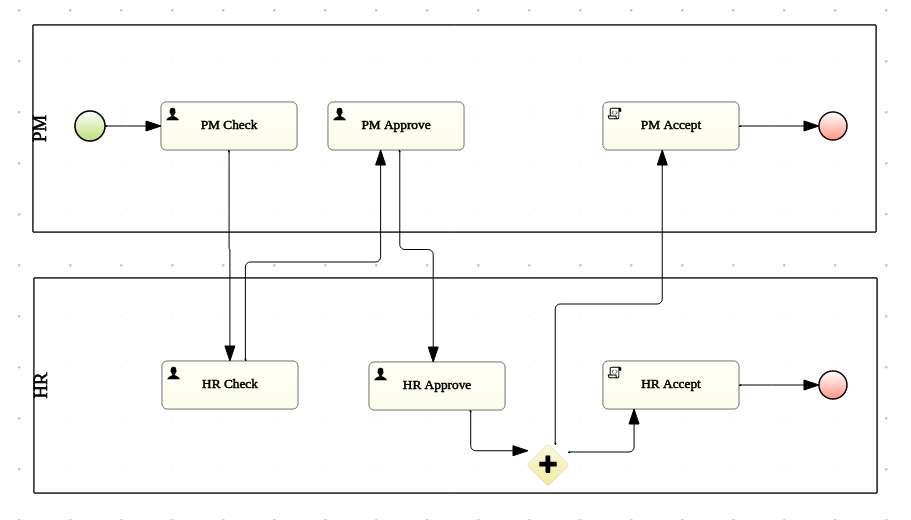

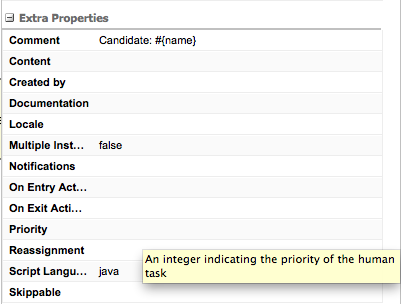

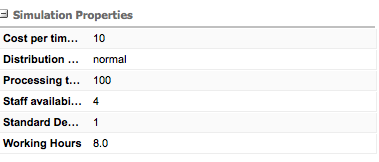

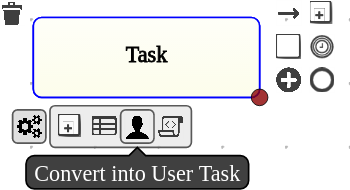

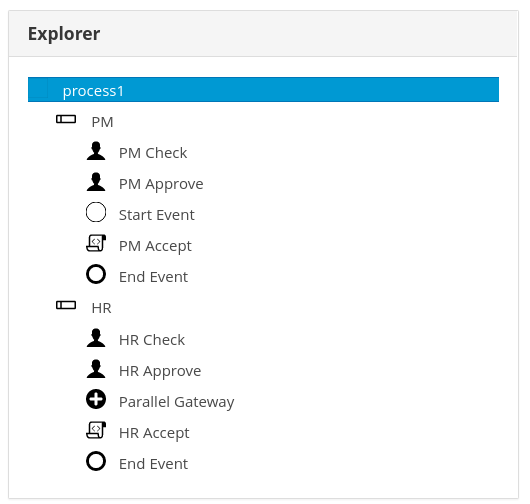

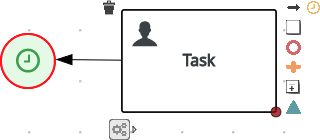

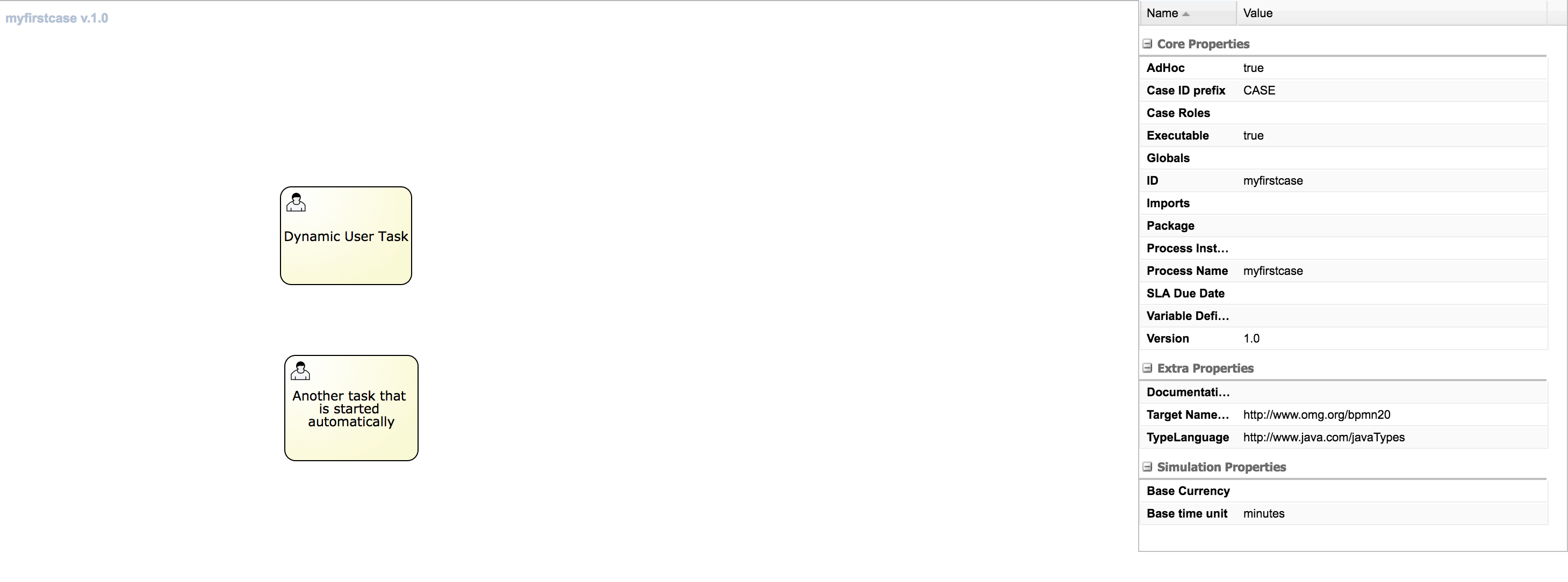

The process designer is the jBPM process modeler. The output of the modeler is a BPMN 2.0 process definition file. The definition is used as input for the jBPM jBPM engine, which creates a process instance based on the definition.

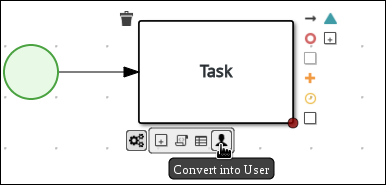

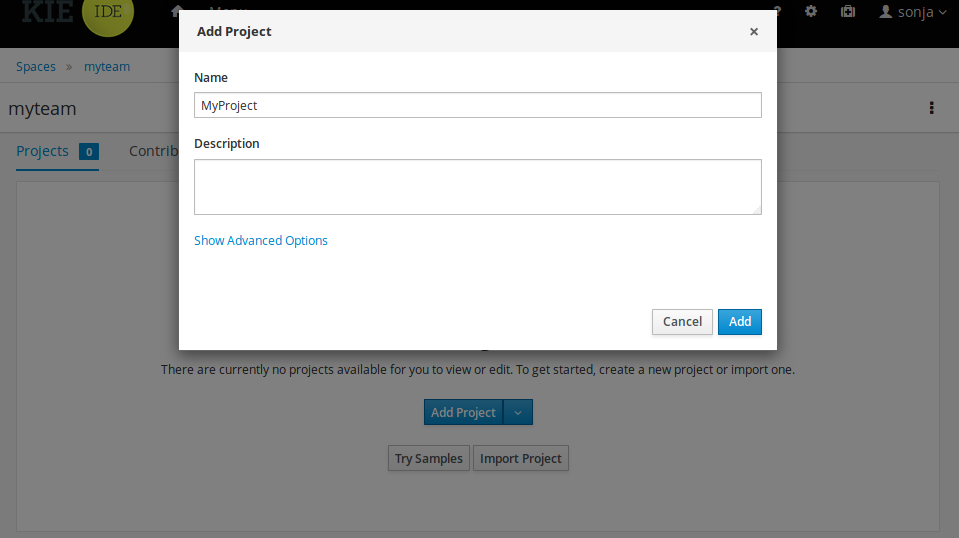

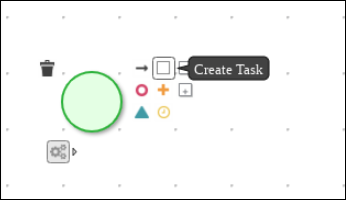

The procedures in this section provide a general overview of how to create a simple business process.
