JBoss jBPM - Workflow in Java

The core workflow and BPM functionality is packaged as a simple java library. This library includes a service to manage and execute processes in the jPDL database.

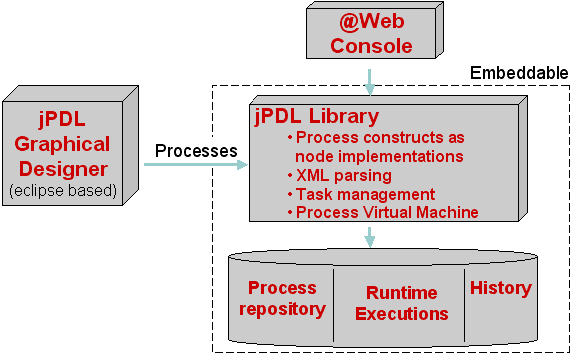

Figure 1.1. Overview of the jPDL components

The suite is a download that contains all the jBPM components bundled in one easy download. The download includes:

The preconfigured JBoss application server has the following components installed :

jPDL also includes a graphical designer tool. The designer is a graphical tool for authoring business processes. It's an eclipse plugin.

The most important feature of the graphical designer tool is that it includes support for both the business analyst as well as the technical developer. This enables a smooth transition from business process modelling to the practical implementation.

The plugin is available as a local update site (plain zip file) for installation via the standard eclipse software updates mechanism. The jPDL graphical process designer plugin is also included in JBossTools, JBoss Developer Studio and the SOA Platform. .

The jBPM console web application serves two purposes. First, it serves as a central user interface for interacting with runtime tasks generated by the process executions. Secondly, it is an administration and monitoring console that allows to inspect and manipulate runtime instances. The third functionality is Business Activity Monitoring. These are statistics about process executions. This is useful information for managers to find bottlenecks or other kinds of optimisations.

The JBoss jBPM core component is the plain java (J2SE) library for managing process definitions and the runtime environment for execution of process instances.

JBoss jBPM is a java library. As a consequence, it can be used in any java environment like e.g. a webapplication, a swing application, an EJB, a webservice,... The jBPM library can also be packaged and exposed as a stateless session EJB. This allows clustered deployment and scalability for extreme high throughput. The stateless session EJB will be written against the J2EE 1.4 specifications so that it is deployable on any application server.

Depending on the functionalities that you use, the library lib/jbpm-jpdl.jar has some dependencies on other third party libraries such as e.g. hibernate, dom4j and others. We have done great efforts to require only those dependent libraries that you actually use. The dependencies are further documented in Chapter 4, Deployment

For its persistence, jBPM uses hibernate internally. Apart from traditional O/R mapping, hibernate also resolves the SQL dialect differences between the different databases, making jBPM portable across all current databases.

The JBoss jBPM API can be accessed from any custom java software in your project, like e.g. your web application, your EJB's, your web service components, your message driven beans or any other java component.

JBoss jBPM can integrate with any company directory that contains users and other organisational information. But for projects where no organisational information component is readily available, JBoss jBPM includes this component. The model used in the identity component is richer then the traditional servlet-, ejb- and portlet models.

For more information, see the section called “The identity component”

The job executor is a component for monitoring and executing jobs in a standard Java environment. Jobs are used for timers and asynchronous messages. In an enterprise environment, JMS and the EJB Timer Service can be used for that purpose. Conversely, the job executor can be used in an environment where neither JMS nor EJB are available.

The job executor component is packaged in the core jbpm-jpdl library, but it needs to be deployed in one of the following ways: either register the JobExecutorLauncher servlet context listener in the web app deployment descriptor to start/stop the job executor during creation/destruction of the servlet context, or start up a separate JVM and start the job executor in there programatically.

To get the latest release jBPM 3 version, go to the jBPM jPDL 3 package on Sourceforge.net and download the latest installer.

The jBPM installer creates a runtime installation and it can also download and install the eclipse designer and a jboss server. You can use jBPM also without application server, but all of these components are preconfigured to interoperate out-of-the-box to get you started with jBPM quickly. To launch the installer, open a command line and go to the directory where you downloaded it. Then type:

java -jar jbpm-installer-{version}.jar

Step through the instructions. Any supported version of JBoss and the exact version of eclipse can optionally be downloaded by the installer.

When installing jBPM into JBoss, this will create a jBPM directory into a server configuration's deploy directory. All jBPM files are centralized inside this deploy/jbpm directory. No other files of your JBoss installation will be touched.

You can use your own eclipse (if it is version 3.4+) or you can use the eclipse that the installer downloaded. To install the graphical process designer in eclipse, just use the eclipse update mechanism (Help --> Software Updates --> ...) and point it to the file designer/jbpm-jpdl-designer-site.zip.

The jBPM Community Page provides all the details about where to find forums, wiki, issue tracker, downloads, mailing lists and the source repositories.

A process definition is a directed graph, made up of nodes and transitions. The hello world process has 3 nodes. To see how the pieces fit together, we're going to start with a simple process without the use of the designer tool. The following picture shows the graphical representation of the hello world process:

Figure 3.1. The hello world process graph

public void testHelloWorldProcess() {
  // This method shows a process definition and one execution
  // of the process definition.  The process definition has
  // 3 nodes: an unnamed start-state, a state 's' and an
  // end-state named 'end'.
  // The next line parses a piece of xml text into a
  // ProcessDefinition.  A ProcessDefinition is the formal
  // description of a process represented as a java object.
  ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
    "<process-definition>" +
    "  <start-state>" +
    "    <transition to='s' />" +
    "  </start-state>" +
    "  <state name='s'>" +
    "    <transition to='end' />" +
    "  </state>" +
    "  <end-state name='end' />" +
    "</process-definition>"
  );

  // The next line creates one execution of the process definition.
  // After construction, the process execution has one main path
  // of execution (=the root token) that is positioned in the
  // start-state.
  ProcessInstance processInstance =
      new ProcessInstance(processDefinition);

  // After construction, the process execution has one main path
  // of execution (=the root token).
  Token token = processInstance.getRootToken();

  // Also after construction, the main path of execution is positioned
  // in the start-state of the process definition.
  assertSame(processDefinition.getStartState(), token.getNode());

  // Let's start the process execution, leaving the start-state
  // over its default transition.
  token.signal();
  // The signal method will block until the process execution
  // enters a wait state.

  // The process execution will have entered the first wait state
  // in state 's'. So the main path of execution is now
  // positioned in state 's'
  assertSame(processDefinition.getNode("s"), token.getNode());

  // Let's send another signal.  This will resume execution by
  // leaving the state 's' over its default transition.
  token.signal();
  // Now the signal method returned because the process instance
  // has arrived in the end-state.

  assertSame(processDefinition.getNode("end"), token.getNode());
}

One of the basic features of jBPM is the ability to persist executions of processes in the database when they are in a wait state. The next example will show you how to store a process instance in the jBPM database. The example also suggests a context in which this might occur. Separate methods are created for different pieces of user code. E.g. an piece of user code in a webapplication starts a process and persists the execution in the database. Later, a message driven bean loads the process instance from the database and resumes its execution.

More about the jBPM persistence can be found in Chapter 6, Persistence.

public class HelloWorldDbTest extends TestCase {

  static JbpmConfiguration jbpmConfiguration = null;

  static {
    // An example configuration file such as this can be found in
    // 'src/config.files'.  Typically the configuration information is in the
    // resource file 'jbpm.cfg.xml', but here we pass in the configuration
    // information as an XML string.

    // First we create a JbpmConfiguration statically.  One JbpmConfiguration
    // can be used for all threads in the system, that is why we can safely
    // make it static.

    jbpmConfiguration = JbpmConfiguration.parseXmlString(
      "<jbpm-configuration>" +

      // A jbpm-context mechanism separates the jbpm core
      // engine from the services that jbpm uses from
      // the environment.

      "  <jbpm-context>" +
      "    <service name='persistence' " +
      "             factory='org.jbpm.persistence.db.DbPersistenceServiceFactory' />" +
      "  </jbpm-context>" +

      // Also all the resource files that are used by jbpm are
      // referenced from the jbpm.cfg.xml

      "  <string name='resource.hibernate.cfg.xml' " +
      "          value='hibernate.cfg.xml' />" +
      "  <string name='resource.business.calendar' " +
      "          value='org/jbpm/calendar/jbpm.business.calendar.properties' />" +
      "  <string name='resource.default.modules' " +
      "          value='org/jbpm/graph/def/jbpm.default.modules.properties' />" +
      "  <string name='resource.converter' " +
      "          value='org/jbpm/db/hibernate/jbpm.converter.properties' />" +
      "  <string name='resource.action.types' " +
      "          value='org/jbpm/graph/action/action.types.xml' />" +
      "  <string name='resource.node.types' " +
      "          value='org/jbpm/graph/node/node.types.xml' />" +
      "  <string name='resource.varmapping' " +
      "          value='org/jbpm/context/exe/jbpm.varmapping.xml' />" +
      "</jbpm-configuration>"
    );
  }

  public void setUp() {
    jbpmConfiguration.createSchema();
  }

  public void tearDown() {
    jbpmConfiguration.dropSchema();
  }

  public void testSimplePersistence() {
    // Between the 3 method calls below, all data is passed via the
    // database.  Here, in this unit test, these 3 methods are executed
    // right after each other because we want to test a complete process
    // scenario.  But in reality, these methods represent different
    // requests to a server.

    // Since we start with a clean, empty in-memory database, we have to
    // deploy the process first.  In reality, this is done once by the
    // process developer.
    deployProcessDefinition();

    // Suppose we want to start a process instance (=process execution)
    // when a user submits a form in a web application...
    processInstanceIsCreatedWhenUserSubmitsWebappForm();

    // Then, later, upon the arrival of an asynchronous message the
    // execution must continue.
    theProcessInstanceContinuesWhenAnAsyncMessageIsReceived();
  }

  public void deployProcessDefinition() {
    // This test shows a process definition and one execution
    // of the process definition.  The process definition has
    // 3 nodes: an unnamed start-state, a state 's' and an
    // end-state named 'end'.
    ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
      "<process-definition name='hello world'>" +
      "  <start-state name='start'>" +
      "    <transition to='s' />" +
      "  </start-state>" +
      "  <state name='s'>" +
      "    <transition to='end' />" +
      "  </state>" +
      "  <end-state name='end' />" +
      "</process-definition>"
    );

    // Lookup the pojo persistence context-builder that is configured above
    JbpmContext jbpmContext = jbpmConfiguration.createJbpmContext();
    try {
      // Deploy the process definition in the database
      jbpmContext.deployProcessDefinition(processDefinition);

    } finally {
      // Tear down the pojo persistence context.
      // This includes flush the SQL for inserting the process definition
      // to the database.
      jbpmContext.close();
    }
  }

  public void processInstanceIsCreatedWhenUserSubmitsWebappForm() {
    // The code in this method could be inside a struts-action
    // or a JSF managed bean.

    // Lookup the pojo persistence context-builder that is configured above
    JbpmContext jbpmContext = jbpmConfiguration.createJbpmContext();
    try {

      GraphSession graphSession = jbpmContext.getGraphSession();

      ProcessDefinition processDefinition =
          graphSession.findLatestProcessDefinition("hello world");

      // With the processDefinition that we retrieved from the database, we
      // can create an execution of the process definition just like in the
      // hello world example (which was without persistence).
      ProcessInstance processInstance =
          new ProcessInstance(processDefinition);

      Token token = processInstance.getRootToken();
      assertEquals("start", token.getNode().getName());
      // Let's start the process execution
      token.signal();
      // Now the process is in the state 's'.
      assertEquals("s", token.getNode().getName());

      // Now the processInstance is saved in the database.  So the
      // current state of the execution of the process is stored in the
      // database.
      jbpmContext.save(processInstance);
      // The method below will get the process instance back out
      // of the database and resume execution by providing another
      // external signal.

    } finally {
      // Tear down the pojo persistence context.
      jbpmContext.close();
    }
  }

  public void theProcessInstanceContinuesWhenAnAsyncMessageIsReceived() {
    // The code in this method could be the content of a message driven bean.

    // Lookup the pojo persistence context-builder that is configured above
    JbpmContext jbpmContext = jbpmConfiguration.createJbpmContext();
    try {

      GraphSession graphSession = jbpmContext.getGraphSession();
      // First, we need to get the process instance back out of the database.
      // There are several options to know what process instance we are dealing
      // with here.  The easiest in this simple test case is just to look for
      // the full list of process instances.  That should give us only one
      // result.  So let's look up the process definition.

      ProcessDefinition processDefinition =
          graphSession.findLatestProcessDefinition("hello world");

      // Now, we search for all process instances of this process definition.
      List processInstances =
          graphSession.findProcessInstances(processDefinition.getId());

      // Because we know that in the context of this unit test, there is
      // only one execution.  In real life, the processInstanceId can be
      // extracted from the content of the message that arrived or from
      // the user making a choice.
      ProcessInstance processInstance =
          (ProcessInstance) processInstances.get(0);

      // Now we can continue the execution.  Note that the processInstance
      // delegates signals to the main path of execution (=the root token).
      processInstance.signal();

      // After this signal, we know the process execution should have
      // arrived in the end-state.
      assertTrue(processInstance.hasEnded());

      // Now we can update the state of the execution in the database
      jbpmContext.save(processInstance);

    } finally {
      // Tear down the pojo persistence context.
      jbpmContext.close();
    }
  }
}

The process variables contain the context information during process executions. The process variables are similar to a java.util.Map that maps variable names to values, which are java objects. The process variables are persisted as a part of the process instance. To keep things simple, in this example we only show the API to work with variables, without persistence.

More information about variables can be found in Chapter 10, Context

// This example also starts from the hello world process.
// This time even without modification.
ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
  "<process-definition>" +
  "  <start-state>" +
  "    <transition to='s' />" +
  "  </start-state>" +
  "  <state name='s'>" +
  "    <transition to='end' />" +
  "  </state>" +
  "  <end-state name='end' />" +
  "</process-definition>"
);

ProcessInstance processInstance =
  new ProcessInstance(processDefinition);

// Fetch the context instance from the process instance
// for working with the process variables.
ContextInstance contextInstance =
  processInstance.getContextInstance();

// Before the process has left the start-state,
// we are going to set some process variables in the
// context of the process instance.
contextInstance.setVariable("amount", new Integer(500));
contextInstance.setVariable("reason", "i met my deadline");

// From now on, these variables are associated with the
// process instance.  The process variables are now accessible
// by user code via the API shown here, but also in the actions
// and node implementations.  The process variables are also
// stored into the database as a part of the process instance.

processInstance.signal();

// The variables are accessible via the contextInstance.

assertEquals(new Integer(500),
             contextInstance.getVariable("amount"));
assertEquals("i met my deadline",
             contextInstance.getVariable("reason"));

In the next example we'll show how you can assign a task to a user. Because of the separation between the jBPM workflow engine and the organisational model, an expression language for calculating actors would always be too limited. Therefore, you have to specify an implementation of AssignmentHandler for including the calculation of actors for tasks.

public void testTaskAssignment() {
  // The process shown below is based on the hello world process.
  // The state node is replaced by a task-node.  The task-node
  // is a node in JPDL that represents a wait state and generates
  // task(s) to be completed before the process can continue to
  // execute.
  ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
    "<process-definition name='the baby process'>" +
    "  <start-state>" +
    "    <transition name='baby cries' to='t' />" +
    "  </start-state>" +
    "  <task-node name='t'>" +
    "    <task name='change nappy'>" +
    "      <assignment class='org.jbpm.tutorial.taskmgmt.NappyAssignmentHandler' />" +
    "    </task>" +
    "    <transition to='end' />" +
    "  </task-node>" +
    "  <end-state name='end' />" +
    "</process-definition>"
  );

  // Create an execution of the process definition.
  ProcessInstance processInstance =
      new ProcessInstance(processDefinition);
  Token token = processInstance.getRootToken();

  // Let's start the process execution, leaving the start-state
  // over its default transition.
  token.signal();
  // The signal method will block until the process execution
  // enters a wait state.   In this case, that is the task-node.
  assertSame(processDefinition.getNode("t"), token.getNode());

  // When execution arrived in the task-node, a task 'change nappy'
  // was created and the NappyAssignmentHandler was called to determine
  // to whom the task should be assigned.  The NappyAssignmentHandler
  // returned 'papa'.

  // In a real environment, the tasks would be fetched from the
  // database with the methods in the org.jbpm.db.TaskMgmtSession.
  // Since we don't want to include the persistence complexity in
  // this example, we just take the first task-instance of this
  // process instance (we know there is only one in this test
  // scenario).
  TaskInstance taskInstance = (TaskInstance)
      processInstance
        .getTaskMgmtInstance()
        .getTaskInstances()
        .iterator().next();

  // Now, we check if the taskInstance was actually assigned to 'papa'.
  assertEquals("papa", taskInstance.getActorId() );

  // Now we suppose that 'papa' has done his duties and mark the task
  // as done.
  taskInstance.end();
  // Since this was the last (only) task to do, the completion of this
  // task triggered the continuation of the process instance execution.

  assertSame(processDefinition.getNode("end"), token.getNode());
}

Actions are a mechanism to bind your custom java code into a jBPM process. Actions can be associated with its own nodes (if they are relevant in the graphical representation of the process). Or actions can be placed on events like e.g. taking a transition, leaving a node or entering a node. In that case, the actions are not part of the graphical representation, but they are executed when execution fires the events in a runtime process execution.

We'll start with a look at the action implementation that we are going to use in our example : MyActionHandler. This action handler implementation does not do really spectacular things... it just sets the boolean variable isExecuted to true. The variable isExecuted is static so it can be accessed from within the action handler as well as from the action to verify it's value.

More information about actions can be found in the section called “Actions”

// MyActionHandler represents a class that could execute
// some user code during the execution of a jBPM process.
public class MyActionHandler implements ActionHandler {

  // Before each test (in the setUp), the isExecuted member
  // will be set to false.
  public static boolean isExecuted = false;

  // The action will set the isExecuted to true so the
  // unit test will be able to show when the action
  // is being executed.
  public void execute(ExecutionContext executionContext) {
    isExecuted = true;
  }
}

As mentioned before, before each test, we'll set the static field MyActionHandler.isExecuted to false;

  // Each test will start with setting the static isExecuted
  // member of MyActionHandler to false.
  public void setUp() {
    MyActionHandler.isExecuted = false;
  }

We'll start with an action on a transition.

public void testTransitionAction() {
    // The next process is a variant of the hello world process.
    // We have added an action on the transition from state 's'
    // to the end-state.  The purpose of this test is to show
    // how easy it is to integrate java code in a jBPM process.
    ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
      "<process-definition>" +
      "  <start-state>" +
      "    <transition to='s' />" +
      "  </start-state>" +
      "  <state name='s'>" +
      "    <transition to='end'>" +
      "      <action class='org.jbpm.tutorial.action.MyActionHandler' />" +
      "    </transition>" +
      "  </state>" +
      "  <end-state name='end' />" +
      "</process-definition>"
    );

    // Let's start a new execution for the process definition.
    ProcessInstance processInstance =
      new ProcessInstance(processDefinition);

    // The next signal will cause the execution to leave the start
    // state and enter the state 's'
    processInstance.signal();

    // Here we show that MyActionHandler was not yet executed.
    assertFalse(MyActionHandler.isExecuted);
    // ... and that the main path of execution is positioned in
    // the state 's'
    assertSame(processDefinition.getNode("s"),
               processInstance.getRootToken().getNode());

    // The next signal will trigger the execution of the root
    // token.  The token will take the transition with the
    // action and the action will be executed during the
    // call to the signal method.
    processInstance.signal();

    // Here we can see that MyActionHandler was executed during
    // the call to the signal method.
    assertTrue(MyActionHandler.isExecuted);
  }

The next example shows the same action, but now the actions are placed on the enter-node and leave-node events respectively. Note that a node has more than one event type in contrast to a transition, which has only one event. Therefore actions placed on a node should be put in an event element.

ProcessDefinition processDefinition = ProcessDefinition.parseXmlString(
  "<process-definition>" +
  "  <start-state>" +
  "    <transition to='s' />" +
  "  </start-state>" +
  "  <state name='s'>" +
  "    <event type='node-enter'>" +
  "      <action class='org.jbpm.tutorial.action.MyActionHandler' />" +
  "    </event>" +
  "    <event type='node-leave'>" +
  "      <action class='org.jbpm.tutorial.action.MyActionHandler' />" +
  "    </event>" +
  "    <transition to='end'/>" +
  "  </state>" +
  "  <end-state name='end' />" +
  "</process-definition>"
);

ProcessInstance processInstance =
  new ProcessInstance(processDefinition);

assertFalse(MyActionHandler.isExecuted);
// The next signal will cause the execution to leave the start
// state and enter the state 's'.  So the state 's' is entered
// and hence the action is executed.
processInstance.signal();
assertTrue(MyActionHandler.isExecuted);

// Let's reset the MyActionHandler.isExecuted
MyActionHandler.isExecuted = false;

// The next signal will trigger execution to leave the
// state 's'.  So the action will be executed again.
processInstance.signal();
// Voila.
assertTrue(MyActionHandler.isExecuted);

lib/jbpm-jpdl.jar is the library with the core jpdl functionality.

lib/jbpm-identity.jar is the (optional) library containing an identity component as described in the section called “The identity component”.

jBPM 3.3.x requires J2SE 1.5+

All the libraries on which jPDL might have a dependency, are located in the lib directory. The actual version of those libraries might depend on the JBoss server that you've selected in the installer.

In a minimal deployment, you can create and run processes with jBPM by putting only the commons-logging and dom4j library in your classpath. Beware that persisting processes to a database is not supported. The dom4j library can be removed if you don't use the process xml parsing, but instead build your object graph programatically.

A typical deployment for jBPM will include persistent storage of process definitions and process executions. In that case, jBPM does not have any dependencies outside hibernate and its dependent libraries.

Of course, hibernate's required libraries depend on the environment and what features you use. For details refer to the hibernate documentation. The next table gives an indication for a plain standalone POJO development environment.

The beanshell library is optional. If you don't include it, you won't be able to use the beanshell integration in the jBPM process language and you'll get a log message saying that jbpm couldn't load the Script class and hence, the script element won't be available.

The installer deploys jBPM into JBoss. This section walks you through the deployed components.

   <!-- ============================== -->
   <!-- Append messages to the console -->
   <!-- ============================== -->

   <appender name="CONSOLE" class="org.apache.log4j.ConsoleAppender">
      <errorHandler class="org.jboss.logging.util.OnlyOnceErrorHandler"/>
      <param name="Target" value="System.out"/>
      <param name="Threshold" value="INFO"/>

   <category name="org.hibernate">
      <priority value="INFO"/>
   </category>

   <category name="org.jboss">
      <priority value="INFO"/>
   </category>

rem set JAVA_OPTS=-Xdebug -Xrunjdwp:transport=dt_socket,address=8787,server=y,suspend=y %JAVA_OPTS%

rem set JAVA_OPTS=-Xdebug -Xrunjdwp:transport=dt_socket,address=8787,server=y,suspend=y %JAVA_OPTS%
set JAVA_OPTS=-Xdebug -Xrunjdwp:transport=dt_socket,address=8787,server=y,suspend=n %JAVA_OPTS%

A common mistake when customizing factories is to mix the short and the long notation. Examples of the short notation can be seen in the default configuration file and above: E.g.

  ...
  <service name='persistence' factory='org.jbpm.persistence.db.DbPersistenceServiceFactory' />

If specific properties on a service need to be specified, the short notation can't be used, but instead, the long notation has to be used like this: E.g.

  <service name="persistence">
    <factory>
      <bean class="org.jbpm.persistence.db.DbPersistenceServiceFactory">
        <field name="dataSourceJndiName"><string value="java:/myDataSource"/></field>
        <field name="isCurrentSessionEnabled"><true /></field>
        <field name="isTransactionEnabled"><false /></field>
      </bean>
    </factory>
  </service>

jbpm.byte.block.size: File attachments and binary variables are stored in the database. Not as blobs, but as a list of fixed sized binary objects. This is done to improve portability amongst different databases and improve overall embeddability of jBPM. This parameter controls the size of the fixed length chunks.

jbpm.task.instance.factory: To customize the way that task instances are created, specify a fully qualified class name in this property. This might be necessary when you want to customize the TaskInstance bean and add new properties to it. See also the section called “Customizing task instances” The specified class should implement org.jbpm.taskmgmt.TaskInstanceFactory.

jbpm.variable.resolver: To customize the way that jBPM will look for the first term in JSF-like expressions.

Here's a short description of all the configuration files that are customizable in jBPM.

When running in a cluster, jBPM synchronizes on the database. By default with optimistic locking. This means that each operation is performed in a transaction. And if at the end a collision is detected, then the transaction is rolled back and has to be handled. E.g. by a retry. So optimistic locking exceptions are usually part of the normal operation. Therefor, by default, the org.hibernate.StateObjectStateExceptions the that hibernate throws in that case are not logged with error and a stack trace, but instead a simple info message 'optimistic locking failed' is displayed.

Hibernate itself will log the StateObjectStateException including a stack trace. If you want to get rid of these stack traces, put the level of org.hibernate.event.def.AbstractFlushingEventListener to FATAL. If you use log4j following line of configuration can be used for that:

log4j.logger.org.hibernate.event.def.AbstractFlushingEventListener=FATAL

If you want to enable logging of the jBPM stack traces, add the following line to your jbpm.cfg.xml:

<boolean name="jbpm.hide.stale.object.exceptions" value="false" />

.

The object factory can create objects according to a beans-like xml configuration file. The configuration file specifies how objects should be created, configured and wired together to form a complete object graph. The object factory can inject the configurations and other beans into a bean.

In its simplest form, the object factory is able to create basic types and java beans from such a configuration:

<beans>
  <bean name="task" class="org.jbpm.taskmgmt.exe.TaskInstance"/>
  <string name="greeting">hello world</string>
  <int name="answer">42</int>
  <boolean name="javaisold">true</boolean>
  <float name="percentage">10.2</float>
  <double name="salary">100000000.32</double>
  <char name="java">j</char>
  <null name="dusttodust" />
</beans>

---------------------------------------------------------

ObjectFactory of = ObjectFactory.parseXmlFromAbove();
assertEquals(TaskInstance.class, of.getNewObject("task").getClass());
assertEquals("hello world", of.getNewObject("greeting"));
assertEquals(new Integer(42), of.getNewObject("answer"));
assertEquals(Boolean.TRUE, of.getNewObject("javaisold"));
assertEquals(new Float(10.2), of.getNewObject("percentage"));
assertEquals(new Double(100000000.32), of.getNewObject("salary"));
assertEquals(new Character('j'), of.getNewObject("java"));
assertNull(of.getNewObject("dusttodust"));

Also you can configure lists:

<beans>
  <list name="numbers">
    <string>one</string>
    <string>two</string>
    <string>three</string>
  </list>
</beans>

and maps

<beans>
  <map name="numbers">
    <entry><key><int>1</int></key><value><string>one</string></value></entry>
    <entry><key><int>2</int></key><value><string>two</string></value></entry>
    <entry><key><int>3</int></key><value><string>three</string></value></entry>
  </map>
</beans>

Beans can be configured with direct field injection and via property setters.

<beans>
  <bean name="task" class="org.jbpm.taskmgmt.exe.TaskInstance" >
    <field name="name"><string>do dishes</string></field>
    <property name="actorId"><string>theotherguy</string></property>
  </bean>
</beans>

Beans can be referenced. The referenced object doesn't have to be a bean, it can be a string, integer or any other object.

<beans>
  <bean name="a" class="org.jbpm.A" />
  <ref name="b" bean="a" />
</beans>

Beans can be constructed with any constructor

<beans>
  <bean name="task" class="org.jbpm.taskmgmt.exe.TaskInstance" >
    <constructor>
      <parameter class="java.lang.String">
        <string>do dishes</string>
      </parameter>
      <parameter class="java.lang.String">
        <string>theotherguy</string>
      </parameter>
    </constructor>
  </bean>
</beans>

... or with a factory method on a bean ...

<beans>
  <bean name="taskFactory"
         class="org.jbpm.UnexistingTaskInstanceFactory"
         singleton="true"/>

  <bean name="task" class="org.jbpm.taskmgmt.exe.TaskInstance" >
    <constructor factory="taskFactory" method="createTask" >
      <parameter class="java.lang.String">
        <string>do dishes</string>
      </parameter>
      <parameter class="java.lang.String">
        <string>theotherguy</string>
      </parameter>
    </constructor>
  </bean>
</beans>

... or with a static factory method on a class ...

<beans>
  <bean name="task" class="org.jbpm.taskmgmt.exe.TaskInstance" >
    <constructor factory-class="org.jbpm.UnexistingTaskInstanceFactory" method="createTask" >
      <parameter class="java.lang.String">
        <string>do dishes</string>
      </parameter>
      <parameter class="java.lang.String">
        <string>theotherguy</string>
      </parameter>
    </constructor>
  </bean>
</beans>

Each named object can be marked as singleton with the attribute singleton="true". That means that a given object factory will always return the same object for each request. Note that singletons are not shared between different object factories.

The singleton feature causes the differentiation between the methods getObject and getNewObject. Typical users of the object factory will use the getNewObject. This means that first the object factory's object cache is cleared before the new object graph is constructed. During construction of the object graph, the non-singleton objects are stored in the object factory's object cache to allow for shared references to one object. The singleton object cache is different from the plain object cache. The singleton cache is never cleared, while the plain object cache is cleared at the start of every getNewObject method.

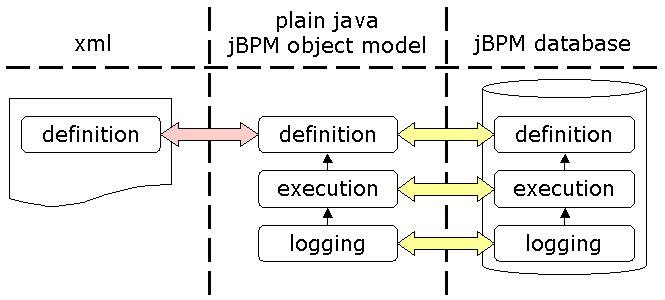

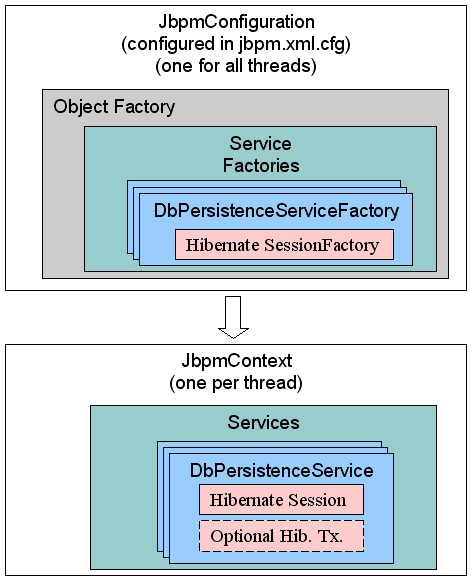

By default, jBPM will delegate transaction to hibernate and use the session per transaction pattern. jBPM will begin a hibernate transaction when a hibernate session is opened. This will happen the first time when a persistent operation is invoked on the jbpmContext. The transaction will be committed right before the hibernate session is closed. That will happen inside the jbpmContext.close().

Use jbpmContext.setRollbackOnly() to mark a transaction for rollback. In that case, the transaction will be rolled back right before the session is closed inside of the jbpmContext.close().

To prohibit jBPM from invoking any of the transaction methods on the hibernate API, set the isTransactionEnabled property to false as explained in the section called “The DbPersistenceServiceFactory” above.

The most common scenario for managed transactions is when using jBPM in a JEE application server like JBoss. The most common scenario to bind your transactions to JTA is the following:

  <jbpm-context>
    <service name="persistence">
      <factory>
        <bean class="org.jbpm.persistence.db.DbPersistenceServiceFactory">
          <field name="isTransactionEnabled"><false /></field>
          <field name="isCurrentSessionEnabled"><true /></field>
          <field name="sessionFactoryJndiName">
            <string value="java:/myHibSessFactJndiName" />
          </field>
        </bean>
      </factory>
    </service>
    ...
  </jbpm-context>

Then you should specify in your hibernate session factory to use a datasource and bind hibernate to the transaction manager. Make sure that you bind the datasource to an XA datasource in case you're using more then 1 resource. For more information about binding hibernate to your transaction manager, please, refer to paragraph 'Transaction strategy configuration' in the hibernate documentation.

<hibernate-configuration>
  <session-factory>

    <!-- hibernate dialect -->
    <property name="hibernate.dialect">org.hibernate.dialect.HSQLDialect</property>

    <!-- DataSource properties (begin) -->
    <property name="hibernate.connection.datasource">java:/JbpmDS</property>

    <!-- JTA transaction properties (begin) -->
    <property name="hibernate.transaction.factory_class">org.hibernate.transaction.JTATransactionFactory</property>
    <property name="hibernate.transaction.manager_lookup_class">org.hibernate.transaction.JBossTransactionManagerLookup</property>
    <property name="jta.UserTransaction">java:comp/UserTransaction</property>

    ...
  </session-factory>
</hibernate-configuration>

Then make sure that you have configured hibernate to use an XA datasource.

These configurations allow for the enterprise beans to use CMT and still allow the web console to use BMT. That is why the property 'jta.UserTransaction' is also specified.

All the HQL queries that jBPM uses are centralized in one configuration file. That resource file is referenced in the hibernate.cfg.xml configuration file like this:

<hibernate-configuration>
  ...
    <!-- hql queries and type defs -->
    <mapping resource="org/jbpm/db/hibernate.queries.hbm.xml" />
  ...
</hibernate-configuration>

To customize one or more of those queries, take a copy of the original file and put your customized version somewhere on the classpath. Then update the reference 'org/jbpm/db/hibernate.queries.hbm.xml' in the hibernate.cfg.xml to point to your customized version.

jBPM runs on any database that is supported by hibernate.

The example configuration files in jBPM (src/config.files) specify the use of the hypersonic in-memory database. That database is ideal during development and for testing. The hypersonic in-memory database keeps all its data in memory and doesn't store it on disk.

In your project, you might use hibernate for your persistence. Combining your persistent classes with the jBPM persistent classes is optional. There are two major benefits when combining your hibernate persistence with jBPM's hibernate persistence:

First, session, connection and transaction management become easier. By combining jBPM and your persistence into one hibernate session factory, there is one hibernate session, one jdbc connection that handles both yours and jBPM's persistence. So automatically the jBPM updates are in the same transaction as the updates to your own domain model. This can eliminates the need for using a transaction manager.

Secondly, this enable you to drop your hibernatable persistent object in to the process variables without any further hassle.

The easiest way to integrate your persistent classes with the jBPM persistent classes is by creating one central hibernate.cfg.xml. You can take the jBPM hibernate.cfg.xml as a starting point and add references to your own hibernate mapping files in there.

To customize any of the jBPM hibernate mapping files, you can proceed as follows:

jBPM uses hibernate's second level cache for keeping the process definitions in memory after loading them once. The process definition classes and collections are configured in the jBPM hibernate mapping files with the cache element like this:

<cache usage="nonstrict-read-write"/>

Since process definitions (should) never change, it is ok to keep them in the second level cache. See also the section called “Changing deployed process definitions”.

The second level cache is an important aspect of the JBoss jBPM implementation. If it weren't for this cache, JBoss jBPM could have a serious drawback in comparison to the other techniques to implement a BPM engine.

The default caching strategy is set to nonstrict-read-write. During runtime execution of processes, the process definitions are static. This way, we get the maximum caching during runtime execution of processes. In theory, caching strategy read-only would be even better for runtime execution. But in that case, deploying new process definitions would not be possible as that operation is not read-only.

Switching the JBoss jBPM database backend is reasonably straightforward. We will step through this process using PostgreSQL and MySQL as an example. The process is identical for all other supported databases. For a number of these supported databases, a number of JDBC drivers, Hibernate configuration files and Ant build files to generate the database creation scripts are present in the jBPM distribution in the DB subproject. If you cannot find these files for the database you wish to use, you should first make sure if Hibernate supports your database. If this is the case you can have a look at files for one of the databases present in the DB project and mimic this using your own database.

For this document, we will use the jBPM jPDL installer. Download and install as described in the section called “Downloading and installing jBPM”. We will assume that this installation was done to a location on your machine named ${jbpm-jpdl-home}. You will find the DB subproject of jBPM in the ${jbpm-jpdl-home}/db.

After installing the of your choice database, you will have to run the database creation scripts to create the jBPM tables. Note that in the hsqldb inside jboss this is done automatically during installation.

Installing the PostgreSQL Database Manager

To install PostgreSQL or any other database you may be using, we refer to the installation manual of these products. For Windows PostgreSQL installation is pretty straightforward. The installer creates a dedicated Windows user and allows to define the database administrator. PostgreSQL comes with an administration tool called pgAdmin III that we will use to create the jBPM database. A screenshot of this tool right after creating the JbpmDB database with it is shown in the figure below.

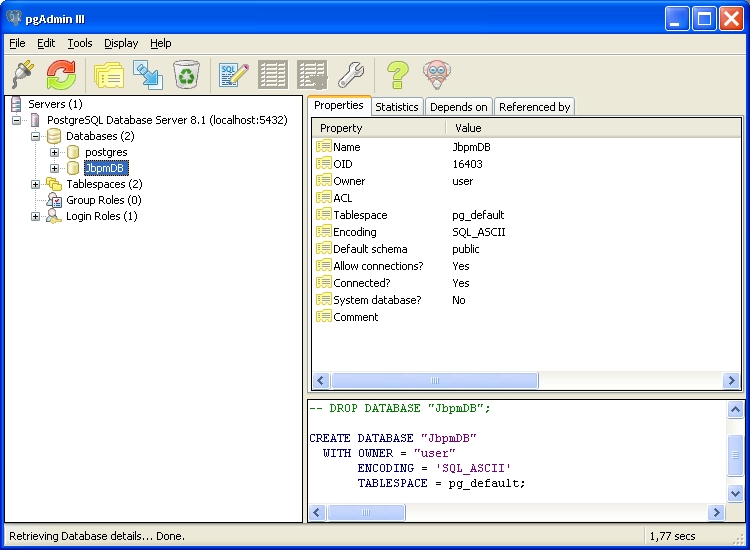

Figure 7.1. The PostgreSQL pgAdmin III tool after creating the JbpmDB database

After the installation of the database, we can use a database viewer tool like DBVisualizer to look at the contents of the database. Before you can define a database connection with DBVisualizer, you might have to add the PostgreSQL JDBC driver to the driver manager. Select 'Tools->Driver Manager...' to open the driver manager window. Look at the figure below for an example of how to add the PostgreSQL JDBC driver.

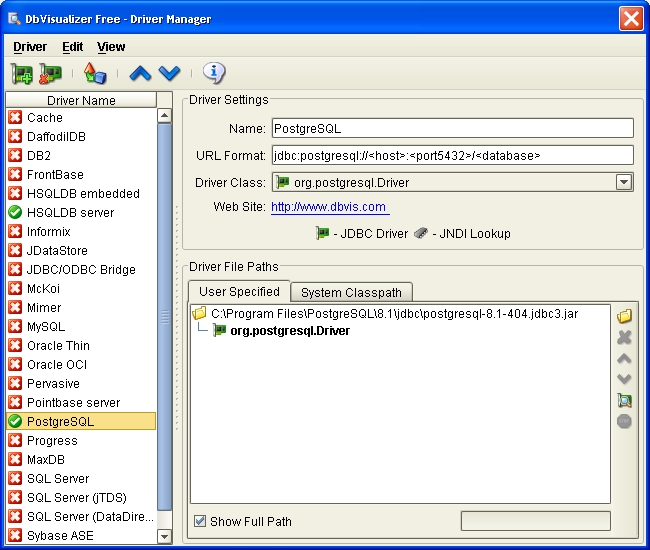

Figure 7.2. Adding the JDBC driver to the driver manager

Now everything is set to define a database connection in DBVisualizer to our newly created database. We will use this tool further in this document to make sure the creation scripts and process deployment are working as expected. For an example of creating the connection in DBVisualizer we refer to the following figure. As you can see, there are no tables present yet in this database. We will create them in the following section.

Figure 7.3. Create the connection to the jBPM database

Another thing worth mentioning is the Database URL above : 'jdbc:postgresql://localhost:5432/JbpmDB'. If you created the JbpmDB database with another name, or if PostgreSQL is not running on the localhost machine or on another port, you'll have to adapt your Database URL accordingly.

Installing the MySQL Database Manager

To install the MySQL database, please refer to the documentation provided by MySQL. The installation is very easy and straightforward and only takes a few minutes in windows. You will need to use the database Administration console provided by MySQL.

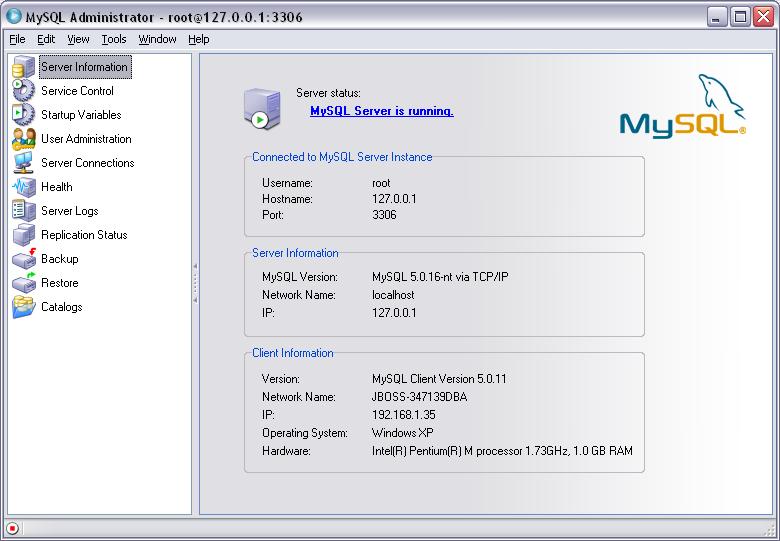

Figure 7.4. The MySQL Administrator

Creating the JBoss jBPM Database with your new PostGreSQL or MySQL

In order to get the proper database scripts for your database, you should look int the directory ${jbpm-jpdl-home}/db. Using your database admin console, navigate to the database and then open and execute the create script we just referenced. Below are screen shots doing this for PostGreSQL and MySQL under their respective admin consoles

Creating the JBoss jBPM Database with PostGreSQL

As already mentioned you will find the database scripts for a lot of the supported databases in the DB subproject. The database scripts for PostgreSQL are found in the folder '${jbpm-jpdl-home}/db. The creation script is called 'postgresql.create.sql'. Using DBVisualizer, you can load this script by switching to the 'SQL Commander' tab and then selecting 'File->Load...'. In the following dialog, navigate to the creation script file. The result of doing so is shown in the figure below.

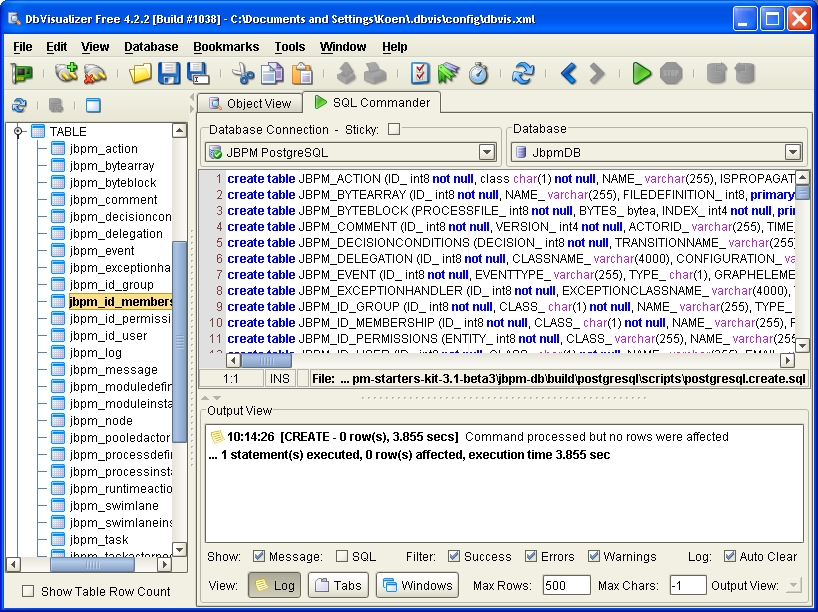

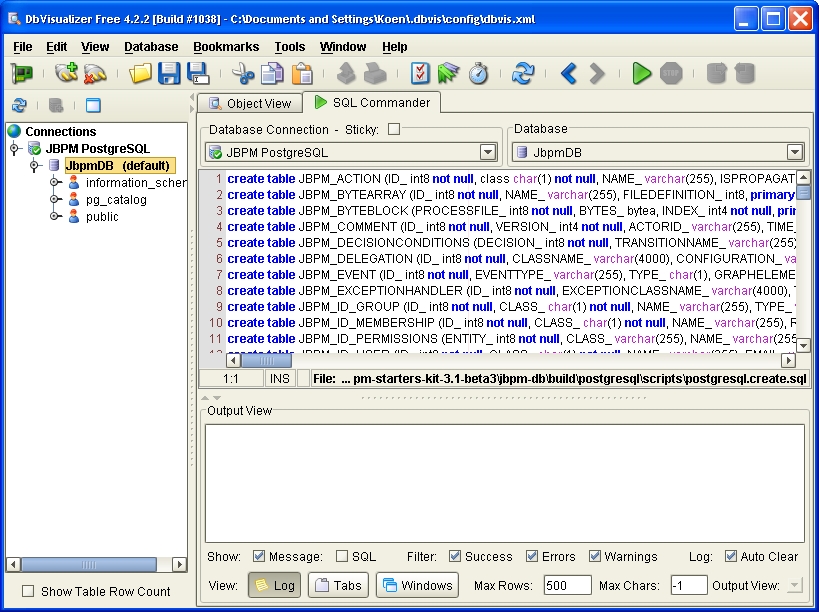

Figure 7.5. Load the database creation script

To execution this script with DBVisualizer, you select 'Database->Execute'. After this step all JBoss jBPM tables are created. The situation is illustrated in the figure below.

Figure 7.6. Running the database creation script

Creating the JBoss jBPM Database with your new MySQL

Once you have installed MySQL go ahead and create a jbpm database, use any name you like for this DB. In this example "jbpmdb" was used. A screenshot of the database is below.

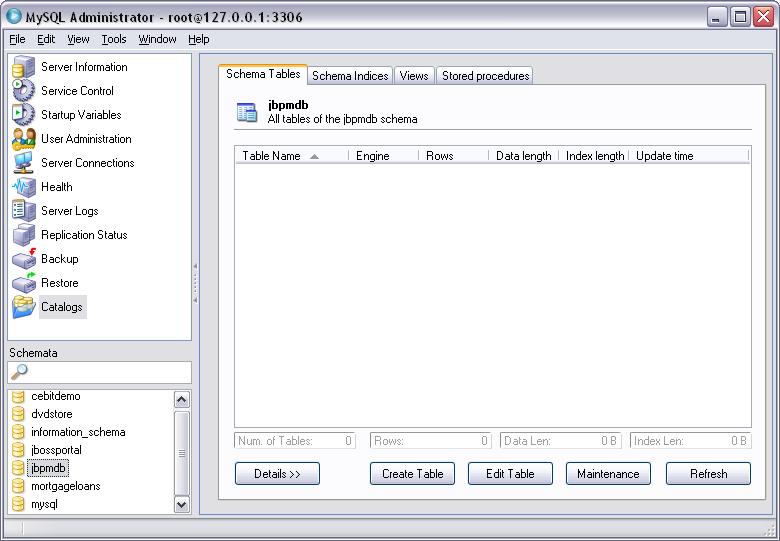

Figure 7.7. The MySQL Administrator after creating the jbpm database under MySQL

You will use the MySQL command line tool to load the database scripts. Open a DOS box or terminal window and type the following command:

 mysql -u root -p

You will be prompted for your MySQL password for the root account or whatever account you are using to modify this database. After logging in, type the following command to use the newly created jbpmdb:

use jbpmdb

Figure 7.8. Loading the database create scripts for MySQL

Now you can load the database script for jBPM by executing the following command:

source mysql.drop.create.sql

Once the script executes, you should have the folling output in the MySQL command window:

Figure 7.9. Loading the database create scripts for MySQL

insert into JBPM_ID_USER (ID_, CLASS_, NAME_, EMAIL_, PASSWORD_)
       values ('1', 'U', 'user', 'sample.user@sample.domain', 'user');
insert into JBPM_ID_USER (ID_,CLASS_, NAME_, EMAIL_, PASSWORD_)
       values ('2', 'U', 'manager', 'sample.manager@sample.domain', 'manager');
insert into JBPM_ID_USER (ID_,CLASS_, NAME_, EMAIL_, PASSWORD_)
       values ('3', 'U', 'shipper', 'sample.shipper@sample.domain', 'shipper');
insert into JBPM_ID_USER (ID_,CLASS_, NAME_, EMAIL_, PASSWORD_)
       values ('4', 'U', 'admin', 'sample.admin@sample.domain', 'admin');

<?xml version="1.0" encoding="UTF-8"?>

<datasources>
  <local-tx-datasource>
    <jndi-name>JbpmDS</jndi-name>
    <connection-url>jdbc:postgresql://localhost:5432/JbpmDB</connection-url>
    <driver-class>org.postgresql.Driver</driver-class>
    <user-name>user</user-name>
    <password>password</password>
    <metadata>
      <type-mapping>PostgreSQL 8.1</type-mapping>
    </metadata>
  </local-tx-datasource>
</datasources>

<?xml version="1.0" encoding="UTF-8"?>

<datasources>
  <local-tx-datasource>
    <jndi-name>JbpmDS</jndi-name>
    <connection-url>jdbc:mysql://localhost:3306/jbpmdb</connection-url>
    <driver-class>com.mysql.jdbc.Driver</driver-class>
    <user-name>root</user-name>
    <password>root</password>
    <metadata>
      <type-mapping>MySQL</type-mapping>
    </metadata>
  </local-tx-datasource>
</datasources>

<?xml version='1.0' encoding='utf-8'?>

<!DOCTYPE hibernate-configuration PUBLIC
          "-//Hibernate/Hibernate Configuration DTD 3.0//EN"
          "http://hibernate.sourceforge.net/hibernate-configuration-3.0.dtd">

<hibernate-configuration>
  <session-factory>

    <!-- jdbc connection properties -->
    <!-- comment out the dialect not needed! -->
    <property name="hibernate.dialect">org.hibernate.dialect.PostgreSQLDialect</property>
    <property name="hibernate.dialect">org.hibernate.dialect.MySQLDialect</property>
    <property name="hibernate.connection.datasource">java:/JbpmDS</property>

    <!-- other hibernate properties
    <property name="hibernate.show_sql">true</property>
    <property name="hibernate.format_sql">true</property>
    -->

    <!-- ############################################ -->
    <!-- # mapping files with external dependencies # -->
    <!-- ############################################ -->

    ...

  </session-factory>
</hibernate-configuration>

For database upgrades, please refer to the release.notes.html in the root of your installation directory.

Not really crucial for jBPM, but in some situations during development, it can be convenient to open the hypersonic database manager that gives you access to the data in the JBoss hypersonic database.

Start by opening a browser and navigating to the jBPM server JMX console. The URL you should use in your browser for doing this is : http://localhost:8080/jmx-console. Of course this will look slightly different if you are running jBPM on another machine or on another port than the default one. A screenshot of the resulting page is shown in the figure below.

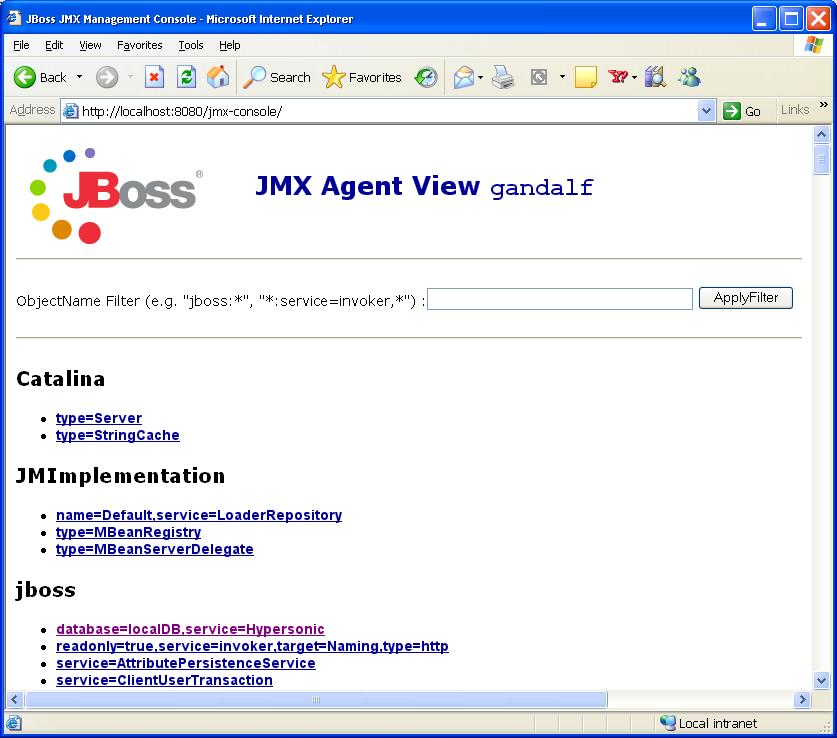

Figure 7.10. The JBoss JMX Console

If you click on the link 'database=jbpmDB,service=Hypersonic' under the JBoss entries, you will see the JMX MBean view of the HSQLDB database manager. Scrolling a bit down on this page, in the operations section, you will see the 'startDatabaseManager()' operation. This is illustrated in the screenshot below.

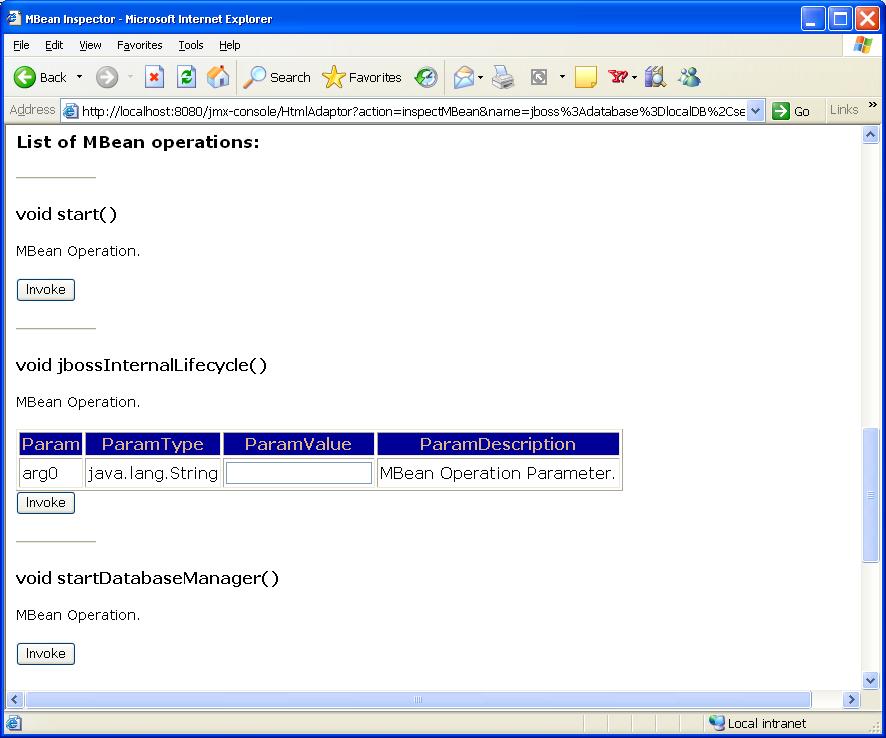

Figure 7.11. The HSQLDB MBean

Clicking the invoke button will start the HSQLDB Database Manager application. This is a rather harsh database client tool, but it works ok for our purposes of executing this generated script. You may have to ALT-TAB to get to view this application as it may be covered by another window. The figure below shows this application with the above script loaded and ready to execute. Pushing the 'Execute SQL' button will execute the script and effectively update your database.

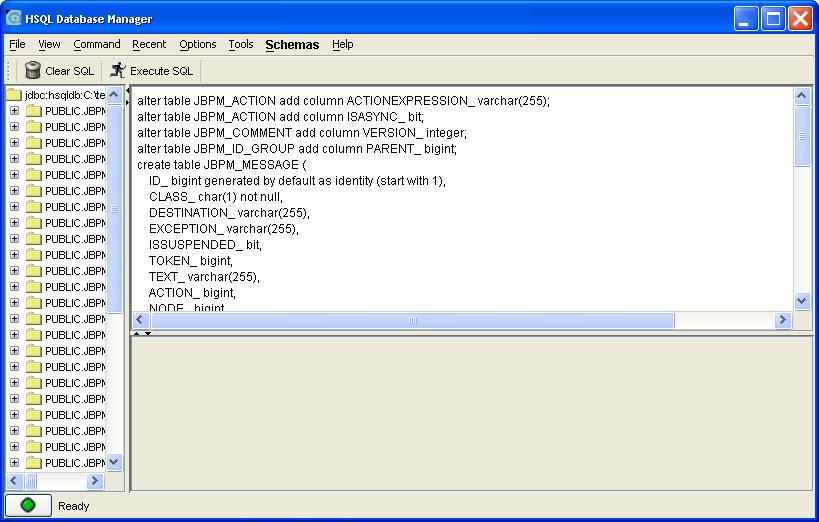

Figure 7.12. The HSQLDB Database Manager

CommandServiceBean is a stateless session bean that executes jBPM commands by calling it's execute method within a separate jBPM context. The environment entries and resources available for customization are summarized in the table below.

CommandListenerBean is a message-driven bean that listens on the CommandQueue for command messages. This bean delegates command execution to the CommandServiceBean.

The body of the message must be a Java object that implements the org.jbpm.Command interface. The message properties, if any, are ignored. If the message does not match the expected format, it is forwarded to the DeadLetterQueue. No further processing is done on the message. If the destination reference is absent, the message is rejected.

In case the received message specifies a replyTo destination, the result of the command execution is wrapped into an object message and sent there. The command connection factory environment reference indicates the resource manager that supplies JMS connections.

Conversely, JobListenerBean is a message-driven bean that listens on the JbpmJobQueue for job messages to support asynchronous continuations.

The message must have a property called jobId of type long which references a pending Job in the database. The message body, if any, is ignored.

This bean extends the CommandListenerBean and inherits its environment entries and resource references available for customization.

The TimerEntityBean interacts with the EJB timer service to schedule jBPM timers. Upon expiration, execution of the timer is actually delegated to the command service bean.

The timer entity bean requires access to the jBPM data source for reading timer data. The EJB deployment descriptor does not provide a way to define how an entity bean maps to a database. This is left off to the container provider. In JBoss AS, the jbosscmp-jdbc.xml descriptor defines the data source JNDI name and the relational mapping data (table and column names, among others). Note that the JBoss CMP descriptor uses a global JNDI name (java:JbpmDS), as opposed to a resource manager reference (java:comp/env/jdbc/JbpmDataSource).

Earlier versions of jBPM used a stateless session bean called TimerServiceBean to interact with the EJB timer service. The session approach had to be abandoned because there is an unavoidable bottleneck at the cancelation methods. Because session beans have no identity, the timer service is forced to iterate through all the timers for finding the ones it has to cancel. The bean is still around for backwards compatibility. It works under the same environment as the TimerEntityBean, so migration is easy.

jbpm.cfg.xml includes the following configuration items:

<jbpm-context>
  <service name="persistence"
           factory="org.jbpm.persistence.jta.JtaDbPersistenceServiceFactory" />
  <service name="message"
           factory="org.jbpm.msg.jms.JmsMessageServiceFactory" />
  <service name="scheduler"
           factory="org.jbpm.scheduler.ejbtimer.EntitySchedulerServiceFactory" />
</jbpm-context>

JtaDbPersistenceServiceFactory enables jBPM to participate in JTA transactions. If an existing transaction is underway, the JTA persistence service clings to it; otherwise it starts a new transaction. The jBPM enterprise beans are configured to delegate transaction management to the container. However, if you create a JbpmContext in an environment where no transaction is active (say, in a web application), one will be started automatically. The JTA persistence service factory has the configurable fields described below.

JmsMessageServiceFactory leverages the reliable communication infrastructure exposed through JMS interfaces to deliver asynchronous continuation messages to the JobListenerBean. The JMS message service factory exposes the following configurable fields.

EntitySchedulerServiceFactory builds on the transactional notification service for timed events provided by the EJB container to schedule business process timers. The EJB scheduler service factory has the configurable field described below.

hibernate.cfg.xml includes the following configuration items that may be modified to support other databases or application servers.

<!-- sql dialect -->
<property name="hibernate.dialect">org.hibernate.dialect.HSQLDialect</property>

<property name="hibernate.cache.provider_class">
  org.hibernate.cache.HashtableCacheProvider
</property>

<!-- DataSource properties (begin) -->
<property name="hibernate.connection.datasource">java:comp/env/jdbc/JbpmDataSource</property>
<!-- DataSource properties (end) -->

<!-- JTA transaction properties (begin) -->
<property name="hibernate.transaction.factory_class">
  org.hibernate.transaction.JTATransactionFactory
</property>
<property name="hibernate.transaction.manager_lookup_class">
  org.hibernate.transaction.JBossTransactionManagerLookup
</property>
<!-- JTA transaction properties (end) -->

<!-- CMT transaction properties (begin) ===
<property name="hibernate.transaction.factory_class">
  org.hibernate.transaction.CMTTransactionFactory
</property>
<property name="hibernate.transaction.manager_lookup_class">
  org.hibernate.transaction.JBossTransactionManagerLookup
</property>
==== CMT transaction properties (end) -->

You may replace the hibernate.dialect with one that corresponds to your database management system. The Hibernate reference guide enumerates the available database dialects in section 3.4.1 SQL dialects.

HashtableCacheProvider can be replaced with other supported cache providers. Refer to section 19.2 The second level cache of the Hibernate manual for a list of the supported cache providers.

The JBossTransactionManagerLookup may be replaced with a strategy appropriate to applications servers other than JBoss. See section 3.8.1 Transaction strategy configuration to find the lookup class that corresponds to each application server.

Note that the JNDI name used in hibernate.connection.datasource is, in fact, a resource manager reference, portable across application servers. Said reference is meant to be bound to an actual data source in the target application server at deployment time. In the included jboss.xml descriptor, the reference is bound to java:JbpmDS.

Out of the box, jBPM is configured to use the JTATransactionFactory. If an existing transaction is underway, the JTA transaction factory uses it; otherwise it creates a new transaction. The jBPM enterprise beans are configured to delegate transaction management to the container. However, if you use the jBPM APIs in a context where no transaction is active (say, in a web application), one will be started automatically.

If your own EJBs use container-managed transactions and you want to prevent unintended transaction creations, you can switch to the CMTTransactionFactory. With that setting, Hibernate will always look for an existing transaction and will report a problem if none is found.

Client components written directly against the jBPM APIs that wish to leverage the enterprise services must ensure that their deployment descriptors have the appropriate environment references in place. The descriptor below can be regarded as typical for a client session bean.

<session>

  <ejb-name>MyClientBean</ejb-name>
  <home>org.example.RemoteClientHome</home>
  <remote>org.example.RemoteClient</remote>
  <local-home>org.example.LocalClientHome</local-home>
  <local>org.example.LocalClient</local>
  <ejb-class>org.example.ClientBean</ejb-class>
  <session-type>Stateless</session-type>
  <transaction-type>Container</transaction-type>

  <ejb-local-ref>
    <ejb-ref-name>ejb/TimerEntityBean</ejb-ref-name>
    <ejb-ref-type>Entity</ejb-ref-type>
    <local-home>org.jbpm.ejb.LocalTimerEntityHome</local-home>
    <local>org.jbpm.ejb.LocalTimerEntity</local>
  </ejb-local-ref>

  <resource-ref>
    <res-ref-name>jdbc/JbpmDataSource</res-ref-name>
    <res-type>javax.sql.DataSource</res-type>
    <res-auth>Container</res-auth>
  </resource-ref>

  <resource-ref>
    <res-ref-name>jms/JbpmConnectionFactory</res-ref-name>
    <res-type>javax.jms.ConnnectionFactory</res-type>
    <res-auth>Container</res-auth>
  </resource-ref>

  <message-destination-ref>
    <message-destination-ref-name>jms/JobQueue</message-destination-ref-name>
    <message-destination-type>javax.jms.Queue</message-destination-type>
    <message-destination-usage>Produces</message-destination-usage>
  </message-destination-ref>

</session>

Provided the target application server was JBoss, the above environment references could be bound to resources in the target operational environment as follows. Note that the JNDI names match the values used by the jBPM enterprise beans.

<session>

  <ejb-name>MyClientBean</ejb-name>
  <jndi-name>ejb/MyClientBean</jndi-name>
  <local-jndi-name>java:ejb/MyClientBean</local-jndi-name>

  <ejb-local-ref>
    <ejb-ref-name>ejb/TimerEntityBean</ejb-ref-name>
    <local-jndi-name>java:ejb/TimerEntityBean</local-jndi-name>
  </ejb-local-ref>

  <resource-ref>
    <res-ref-name>jdbc/JbpmDataSource</res-ref-name>
    <jndi-name>java:JbpmDS</jndi-name>
  </resource-ref>

  <resource-ref>
    <res-ref-name>jms/JbpmConnectionFactory</res-ref-name>
    <jndi-name>java:JmsXA</jndi-name>
  </resource-ref>

  <message-destination-ref>
    <message-destination-ref-name>jms/JobQueue</message-destination-ref-name>
    <jndi-name>queue/JbpmJobQueue</jndi-name>
  </message-destination-ref>

</session>

In case the client component is a web application, as opposed to an enterprise bean, the deployment descriptor would look like this:

<web-app>

  <servlet>
    <servlet-name>MyClientServlet</servlet-name>
    <servlet-class>org.example.ClientServlet</servlet-class>
  </servlet>

  <servlet-mapping>
    <servlet-name>MyClientServlet</servlet-name>
    <url-pattern>/client/servlet</url-pattern>
  </servlet-mapping>

  <ejb-local-ref>
    <ejb-ref-name>ejb/TimerEntityBean</ejb-ref-name>
    <ejb-ref-type>Entity</ejb-ref-type>
    <local-home>org.jbpm.ejb.LocalTimerEntityHome</local-home>
    <local>org.jbpm.ejb.LocalTimerEntity</local>
    <ejb-link>TimerEntityBean</ejb-link>
  </ejb-local-ref>

  <resource-ref>
    <res-ref-name>jdbc/JbpmDataSource</res-ref-name>
    <res-type>javax.sql.DataSource</res-type>
    <res-auth>Container</res-auth>
  </resource-ref>

  <resource-ref>
    <res-ref-name>jms/JbpmConnectionFactory</res-ref-name>
    <res-type>javax.jms.ConnectionFactory</res-type>
    <res-auth>Container</res-auth>
  </resource-ref>

  <message-destination-ref>
    <message-destination-ref-name>jms/JobQueue</message-destination-ref-name>
    <message-destination-type>javax.jms.Queue</message-destination-type>
    <message-destination-usage>Produces</message-destination-usage>
    <message-destination-link>JobQueue</message-destination-link>
  </message-destination-ref>

</web-app>

The above environment references could be bound to resources in the target operational environment as follows, if the target application server was JBoss.

<jboss-web>

  <ejb-local-ref>
    <ejb-ref-name>ejb/TimerEntityBean</ejb-ref-name>
    <local-jndi-name>java:ejb/TimerEntityBean</local-jndi-name>
  </ejb-local-ref>

  <resource-ref>
    <res-ref-name>jdbc/JbpmDataSource</res-ref-name>
    <jndi-name>java:JbpmDS</jndi-name>
  </resource-ref>

  <resource-ref>
    <res-ref-name>jms/JbpmConnectionFactory</res-ref-name>
    <jndi-name>java:JmsXA</jndi-name>
  </resource-ref>

  <message-destination-ref>
    <message-destination-ref-name>jms/JobQueue</message-destination-ref-name>
    <jndi-name>queue/JbpmJobQueue</jndi-name>
  </message-destination-ref>

</jboss-web>

A process definition represents a formal specification of a business process and is based on a directed graph. The graph is composed of nodes and transitions. Every node in the graph is of a specific type. The type of the node defines the runtime behaviour. A process definition has exactly one start state.

A token is one path of execution. A token is the runtime concept that maintains a pointer to a node in the graph.

A process instance is one execution of a process definition. When a process instance is created, a token is created for the main path of execution. This token is called the root token of the process instance and it is positioned in the start state of the process definition.

A signal instructs a token to continue graph execution. When receiving an unnamed signal, the token will leave its current node over the default leaving transition. When a transition-name is specified in the signal, the token will leave its node over the specified transition. A signal given to the process instance is delegated to the root token.

After the token has entered a node, the node is executed. Nodes themselves are responsible for the continuation of the graph execution. Continuation of graph execution is done by making the token leave the node. Each node type can implement a different behaviour for the continuation of the graph execution. A node that does not propagate execution will behave as a state.

Actions are pieces of java code that are executed upon events in the process execution. The graph is an important instrument in the communication about software requirements. But the graph is just one view (projection) of the software being produced. It hides many technical details. Actions are a mechanism to add technical details outside of the graphical representation. Once the graph is put in place, it can be decorated with actions. The main event types are entering a node, leaving a node and taking a transition.

The basis of a process definition is a graph that is made up of nodes and transitions. That information is expressed in an xml file called processdefinition.xml. Each node has a type like e.g. state, decision, fork, join,... Each node has a set of leaving transitions. A name can be given to the transitions that leave a node in order to make them distinct. For example: The following diagram shows a process graph of the jBAY auction process.

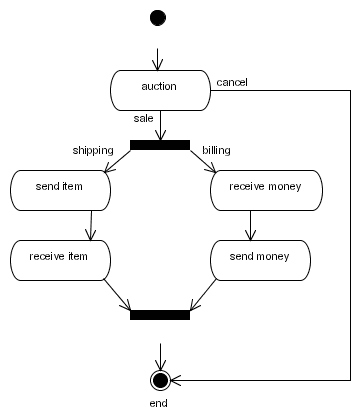

Figure 9.1. The auction process graph

Below is the process graph of the jBAY auction process represented as xml:

<process-definition>

  <start-state>
    <transition to="auction" />
  </start-state>

  <state name="auction">
    <transition name="auction ends" to="salefork" />
    <transition name="cancel" to="end" />
  </state>

  <fork name="salefork">
    <transition name="shipping" to="send item" />
    <transition name="billing" to="receive money" />
  </fork>

  <state name="send item">
    <transition to="receive item" />
  </state>

  <state name="receive item">
    <transition to="salejoin" />
  </state>

  <state name="receive money">
    <transition to="send money" />
  </state>

  <state name="send money">
    <transition to="salejoin" />
  </state>

  <join name="salejoin">
    <transition to="end" />
  </join>

  <end-state name="end" />

</process-definition>

A process graph is made up of nodes and transitions. For more information about the graph and its executional model, refer to ???.

Each node has a specific type. The node type determines what will happen when an execution arrives in the node at runtime. jBPM has a set of preimplemented node types that you can use. Alternatively, you can write custom code for implementing your own specific node behaviour.

Transitions have a source node and a destination node. The source node is represented with the property from and the destination node is represented by the property to.

A transition can optionally have a name. Note that most of the jBPM features depend on the uniqueness of the transition name. If more then one transition has the same name, the first transition with the given name is taken. In case duplicate transition names occur in a node, the method Map getLeavingTransitionsMap() will return less elements than List getLeavingTransitions().

The default transition is the first transition in the list.

Actions are pieces of java code that are executed upon events in the process execution. The graph is an important instrument in the communication about software requirements. But the graph is just one view (projection) of the software being produced. It hides many technical details. Actions are a mechanism to add technical details outside of the graphical representation. Once the graph is put in place, it can be decorated with actions. This means that java code can be associated with the graph without changing the structure of the graph. The main event types are entering a node, leaving a node and taking a transition.

Note the difference between an action that is placed in an event versus an action that is placed in a node. Actions that are put in an event are executed when the event fires. Actions on events have no way to influence the flow of control of the process. It is similar to the observer pattern. On the other hand, an action that is put on a node has the responsibility of propagating the execution.

Let's look at an example of an action on an event. Suppose we want to do a database update on a given transition. The database update is technically vital but it is not important to the business analyst.

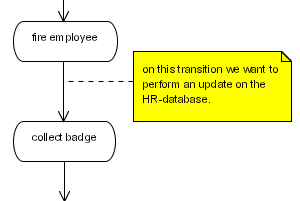

Figure 9.2. A database update action

public class RemoveEmployeeUpdate implements ActionHandler {
  public void execute(ExecutionContext ctx) throws Exception {
    // get the fired employee from the process variables.
    String firedEmployee = (String) ctx.getContextInstance().getVariable("fired employee");

    // by taking the same database connection as used for the jbpm updates, we
    // reuse the jbpm transaction for our database update.
    Connection connection = ctx.getProcessInstance().getJbpmSession().getSession().getConnection();
    Statement statement = connection.createStatement();
    statement.execute("DELETE FROM EMPLOYEE WHERE ...");
    statement.execute();
    statement.close();
  }
}

<process-definition name="yearly evaluation">

  ...
  <state name="fire employee">
    <transition to="collect badge">
      <action class="com.nomercy.hr.RemoveEmployeeUpdate" />
    </transition>
  </state>

  <state name="collect badge">
  ...

</process-definition>

<process-definition>
  <event type="node-enter">
    <script>
      System.out.println("this script is entering node "+node);
    </script>
  </event>
  ...
</process-definition>

<process-definition>
  <event type="process-end">
    <script>
      <expression>
        a = b + c;
      </expression>
      <variable name='XXX' access='write' mapped-name='a' />
      <variable name='YYY' access='read' mapped-name='b' />
      <variable name='ZZZ' access='read' mapped-name='c' />
    </script>
  </event>
  ...
</process-definition>

A Superstate is a group of nodes. Superstates can be nested recursively. Superstates can be used to bring some hierarchy in the process definition. For example, one application could be to group all the nodes of a process in phases. Actions can be associated with superstate events. A consequence is that a token can be in multiple nested nodes at a given time. This can be convenient to check wether a process execution is e.g. in the start-up phase. In the jBPM model, you are free to group any set of nodes in a superstate.

<process-definition>
  ...
  <state name="preparation">
    <transition to="phase one/invite murphy"/>
  </state>
  <super-state name="phase one">
    <state name="invite murphy"/>
  </super-state>
  ...
</process-definition>

<process-definition>
  ...
  <super-state name="phase one">
    <state name="preparation">
      <transition to="../phase two/invite murphy"/>
    </state>
  </super-state>
  <super-state name="phase two">
    <state name="invite murphy"/>
  </super-state>
  ...
</process-definition>

The exception handling mechanism of jBPM only applies to java exceptions. Graph execution on itself cannot result in problems. It is only the execution of delegation classes that can lead to exceptions.

On process-definitions, nodes and transitions, a list of exception-handlers can be specified. Each exception-handler has a list of actions. When an exception occurs in a delegation class, the process element parent hierarchy is serached for an appropriate exception-handler. When it is found, the actions of the exception-handler are executed.

Note that the exception handling mechanism of jBPM is not completely similar to the java exception handling. In java, a caught exception can have an influence on the control flow. In the case of jBPM, control flow cannot be changed by the jBPM exception handling mechanism. The exception is either caught or uncaught. Uncaught exceptions are thrown to the client (e.g. the client that called the token.signal()) or the exception is caught by a jBPM exception-handler. For caught exceptions, the graph execution continues as if no exception has occurred.

Note that in an action that handles an exception, it is possible to put the token in an arbitrary node in the graph with Token.setNode(Node node).

Process composition is supported in jBPM by means of the process-state. The process state is a state that is associated with another process definition. When graph execution arrives in the process state, a new process instance of the sub-process is created and it is associated with the path of execution that arrived in the process state. The path of execution of the super process will wait till the sub process instance has ended. When the sub process instance ends, the path of execution of the super process will leave the process state and continue graph execution in the super process.

<process-definition name="hire">
  <start-state>
    <transition to="initial interview" />
  </start-state>
  <process-state name="initial interview">
    <sub-process name="interview" />
    <variable name="a" access="read,write" mapped-name="aa" />
    <variable name="b" access="read" mapped-name="bb" />
    <transition to="..." />
  </process-state>
  ...
</process-definition>

This 'hire' process contains a process-state that spawns an 'interview' process. When execution arrives in the 'first interview', a new execution (=process instance) of the 'interview' process is created. If no explicit version is specified, the latest version of the sub process as known when deploying the 'hire' process is used. To make jBPM instantiate a specific version the optional version attribute can be specified. To postpone binding the specified or latest version until actually creating the sub process, the optional binding attribute should be set to late. Then variable 'a' from the hire process is copied into variable 'aa' from the interview process. The same way, hire variable 'b' is copied into interview variable 'bb'. When the interview process finishes, only variable 'aa' from the interview process is copied back into the 'a' variable of the hire process.

In general, When a subprocess is started, all variables with read access are read from the super process and fed into the newly created sub process before the signal is given to leave the start state. When the sub process instances is finished, all the variables with write access will be copied from the sub process to the super process. The mapped-name attribute of the variable element allows you to specify the variable name that should be used in the sub process.

In jBPM, it's quite easy to write your own custom nodes. For creating custom nodes, an implementation of the ActionHandler has to be written. The implementation can execute any business logic, but also has the responsibility to propagate the graph execution. Let's look at an example that will update an ERP-system. We'll read an amout from the ERP-system, add an amount that is stored in the process variables and store the result back in the ERP-system. Based on the size of the amount, we have to leave the node via the 'small amounts' or the 'large amounts' transition.

Figure 9.3. The update erp example process snippet

public class AmountUpdate implements ActionHandler {
  public void execute(ExecutionContext ctx) throws Exception {
    // business logic
    Float erpAmount = ...get amount from erp-system...;
    Float processAmount = (Float) ctx.getContextInstance().getVariable("amount");
    float result = erpAmount.floatValue() + processAmount.floatValue();
    ...update erp-system with the result...;

    // graph execution propagation
    if (result > 5000) {
      ctx.leaveNode(ctx, "big amounts");
    } else {
      ctx.leaveNode(ctx, "small amounts");
    }
  }
}

It is also possible to create and join tokens in custom node implementations. For an example on how to do this, check out the Fork and Join node implementation in the jbpm source code :-).

The graph execution model of jBPM is based on interpretation of the process definition and the chain of command pattern.

Interpretation of the process definition means that the process definition data is stored in the database. At runtime the process definition information is used during process execution. Note for the concerned : we use hibernate's second level cache to avoid loading of definition information at runtime. Since the process definitions don't change (see process versioning) hibernate can cache the process definitions in memory.

The chain of command pattern means that each node in the graph is responsible for propagating the process execution. If a node does not propagate execution, it behaves as a wait state.

The idea is to start execution on process instances and that the execution continues till it enters a wait state.

A token represents a path of execution. A token has a pointer to a node in the process graph. During waitstates, the tokens can be persisted in the database. Now we are going to look at the algorithm for calculating the execution of a token. Execution starts when a signal is sent to a token. The execution is then passed over the transitions and nodes via the chain of command pattern. These are the relevant methods in a class diagram.

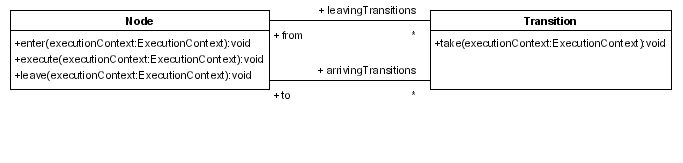

Figure 9.4. The graph execution related methods

When a token is in a node, signals can be sent to the token. Sending a signal is an instruction to start execution. A signal must therefore specify a leaving transition of the token's current node. The first transition is the default. In a signal to a token, the token takes its current node and calls the Node.leave(ExecutionContext,Transition) method. Think of the ExecutionContext as a Token because the main object in an ExecutionContext is a Token. The Node.leave(ExecutionContext,Transition) method will fire the node-leave event and call the Transition.take(ExecutionContext). That method will fire the transition event and call the Node.enter(ExecutionContext) on the destination node of the transition. That method will fire the node-enter event and call the Node.execute(ExecutionContext). Each type of node has its own behaviour that is implementated in the execute method. Each node is responsible for propagating graph execution by calling the Node.leave(ExecutionContext,Transition) again. In summary:

Note that the complete calculation of the next state, including the invocation of the actions is done in the thread of the client. A common misconception is that all calculations *must* be done in the thread of the client. As with any asynchronous invocation, you can use asynchronous messaging (JMS) for that. When the message is sent in the same transaction as the process instance update, all synchronization issues are taken care of. Some workflow systems use asynchronous messaging between all nodes in the graph. But in high throughput environments, this algorithm gives much more control and flexibility for tweaking performance of a business process.

As explained in the section called “Graph execution” and ???, jBPM runs the process in the thread of the client and is by nature synchronous. Meaning that the token.signal() or taskInstance.end() will only return when the process has entered a new wait state.

The jPDL feature that we describe here from a modelling perspective is Chapter 13, Asynchronous continuations.

In most situations this is the most straightforward approach because the process execution can easily be bound to server side transactions: the process moves from one state to the next in one transaction.

In some scenarios where in-process calculations take a lot of time, this behaviour might be undesirable. To cope with this, jBPM includes an asynchronous messaging system that allows to continue a process in an asynchronous manner. Of course, in a java enterprise environment, jBPM can be configured to use a JMS message broker instead of the built in messaging system.

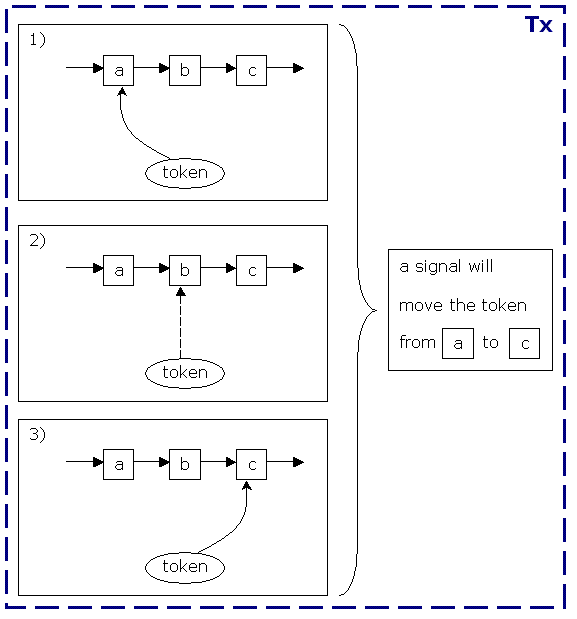

In any node, jPDL supports the attribute async="true". Asynchronous nodes will not be executed in the thread of the client. Instead, a message is sent over the asynschronous messaging system and the thread is returned to the client (meaning that the token.signal() or taskInstance.end() will return).

Note that the jbpm client code can now commit the transaction. The sending of the message should be done in the same transaction as the process updates. So the net result of the transaction is that the token has moved to the next node (which has not yet been executed) and a org.jbpm.command.ExecuteNodeCommand-message has been sent on the asynchronous messaging system to the jBPM Command Executor.

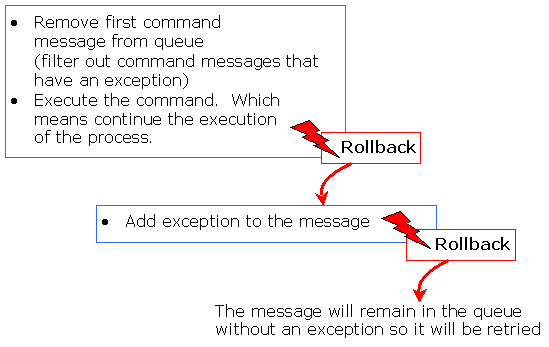

The jBPM Command Executor reads commands from the queue and executes them. In the case of the org.jbpm.command.ExecuteNodeCommand, the process will be continued with executing the node. Each command is executed in a separate transaction.

So in order for asynchronous processes to continue, a jBPM Command Executor needs to be running. The simplest way to do that is to configure the CommandExecutionServlet in your web application. Alternatively, you should make sure that the CommandExecutor thread is up and running in any other way.

As a process modeller, you should not really be concerned with all this asynchronous messaging. The main point to remember is transaction demarcation: By default jBPM will operate in the transaction of the client, doing the whole calculation until the process enters a wait state. Use async="true" to demarcate a transaction in the process.

Let's look at an example:

...
<start-state>
  <transition to="one" />
</start-state>
<node async="true" name="one">
  <action class="com...MyAutomaticAction" />
  <transition to="two" />
</node>
<node async="true" name="two">
  <action class="com...MyAutomaticAction" />
  <transition to="three" />
</node>
<node async="true" name="three">
  <action class="com...MyAutomaticAction" />
  <transition to="end" />
</node>
<end-state name="end" />
...

Client code to interact with process executions (starting and resuming) is exactly the same as with normal (synchronous) processes:

...start a transaction...
JbpmContext jbpmContext = jbpmConfiguration.createContext();
try {
  ProcessInstance processInstance = jbpmContext.newProcessInstance("my async process");
  processInstance.signal();
  jbpmContext.save(processInstance);
} finally {
  jbpmContext.close();
}

After this first transaction, the root token of the process instance will point to node one and a ExecuteNodeCommandmessage will have been sent to the command executor.

In a subsequent transaction, the command executor will read the message from the queue and execute node one. The action can decide to propagate the execution or enter a wait state. If the action decides to propagate the execution, the transaction will be ended when the execution arrives at node two. And so on, and so on...

org.jbpm.context.exe.ContextInstance serves as the central interface to work with process variables. You can obtain the ContextInstance from a ProcessInstance like this :

ProcessInstance processInstance = ...;
ContextInstance contextInstance = (ContextInstance) processInstance.getInstance(ContextInstance.class);

The most basic operations are

void ContextInstance.setVariable(String variableName, Object value);
void ContextInstance.setVariable(String variableName, Object value, Token token);
Object ContextInstance.getVariable(String variableName);
Object ContextInstance.getVariable(String variableName, Token token);

The variable names are java.lang.String. By default, jBPM supports the following value types:

Also an untyped null value can be stored persistently.

All other types can be stored in the process variables without any problem. But it will cause an exception when you try to save the process instance.

To configure jBPM for storing hibernate persistent objects in the variables, see Storing hibernate persistent objects.

Variables do not have to be declared in the process archive. At runtime, you can just put any java object in the variables. If that variable was not present, it will be created. Just the same as with a plain java.util.Map.

Variables can be deleted with

ContextInstance.deleteVariable(String variableName);
ContextInstance.deleteVariable(String variableName, Token token);

Automatic changing of types is now supported. This means that it is allowed to overwrite a variable with a value of a different type. Of course, you should try to limit the number of type changes since this creates a more db communication then a plain update of a column.

The variables are a part of the process instance. Saving the process instance in the database, brings the database in sync with the process instance. The variables are created, updated and deleted from the database as a result of saving (=updating) the process instance in the database. For more information, see Chapter 6, Persistence.

Each path of execution (read: token) has its own set of process variables. Requesting a variable is always done on a token. Process instances have a tree of tokens (see graph oriented programming). When requesting a variable without specifying a token, the default token is the root token.

The variable lookup is done recursively over the parents of the given token. The behaviour is similar to the scoping of variables in programming languages.

When a non-existing variable is set on a token, the variable is created on the root-token. This means that each variable has by default process scope. To make a variable token-local, you have to create it explicitely with:

ContextInstance.createVariable(String name, Object value, Token token);

When a process instance is persisted in the database, normal variables are also persisted as part of the process instance. In some situations you might want to use a variable in a delegation class, but you don't want to store it in the database. An example could be a database connection that you want to pass from outside of jBPM to a delegation class. This can be done with transient variables.

The lifetime of transient variables is the same as the ProcessInstance java object.

Because of their nature, transient variables are not related to a token. So there is only one map of transient variables for a process instance object.

The transient variables are accessable with their own set of methods in the context instance, and don't need to be declared in the processdefinition.xml

Object ContextInstance.getTransientVariable(String name);
void ContextInstance.setTransientVariable(String name, Object value);

Variables are stored in the database in a 2-step approach :

user-java-object <---> converter <---> variable instance

Variables are stored in VariableInstances. The members of VariableInstances are mapped to fields in the database with hibernate. In the default configuration of jBPM, 6 types of VariableInstances are used:

Converters convert between java-user-objects and the java objects that can be stored by the VariableInstances. So when a process variable is set with e.g. ContextInstance.setVariable(String variableName, Object value), the value will optionally be converted with a converter. Then the converted object will be stored in a VariableInstance. Converters are implementations of the following interface:

public interface Converter extends Serializable {
  boolean supports(Object value);
  Object convert(Object o);
  Object revert(Object o);
}

Converters are optional. Converters must be available to the jBPM class loader

The way that user-java-objects are converted and stored in variable instances is configured in the file org/jbpm/context/exe/jbpm.varmapping.properties. To customize this property file, put a modified version in the root of the classpath, as explained in the section called “Other configuration files” Each line of the properties file specifies 2 or 3 class-names separated by spaces : the classname of the user-java-object, optionally the classname of the converter and the classname of the variable instance. When you refer your custom converters, make sure they are in the jBPM class path. When you refer to your custom variable instances, they also have to be in the the jBPM class path and the hibernate mapping file for org/jbpm/context/exe/VariableInstance.hbm.xml has to be updated to include the custom subclass of VariableInstance.

For example, take a look at the following xml snippet in the file org/jbpm/context/exe/jbpm.varmapping.xml.

    <jbpm-type>
      <matcher>
        <bean class="org.jbpm.context.exe.matcher.ClassNameMatcher">
          <field name="className"><string value="java.lang.Boolean" /></field>
        </bean>
      </matcher>
      <converter class="org.jbpm.context.exe.converter.BooleanToStringConverter" />
      <variable-instance class="org.jbpm.context.exe.variableinstance.StringInstance" />
    </jbpm-type>

This snippet specifies that all objects of type java.lang.Boolean have to be converted with the converter BooleanToStringConverter and that the resulting object (a String) will be stored in a variable instance object of type StringInstance.

If no converter is specified as in

    <jbpm-type>
      <matcher>
        <bean class="org.jbpm.context.exe.matcher.ClassNameMatcher">
          <field name="className"><string value="java.lang.Long" /></field>
        </bean>
      </matcher>
      <variable-instance class="org.jbpm.context.exe.variableinstance.LongInstance" />
    </jbpm-type>

that means that the Long objects that are put in the variables are just stored in a variable instance of type LongInstance without being converted.

Tasks are part of the process definition and they define how task instances must be created and assigned during process executions.

Tasks can be defined in task-nodes and in the process-definition. The most common way is to define one or more tasks in a task-node. In that case the task-node represents a task to be done by the user and the process execution should wait until the actor completes the task. When the actor completes the task, process execution should continue. When more tasks are specified in a task-node, the default behaviour is to wait for all the tasks to complete.

Tasks can also be specified on the process-definition. Tasks specified on the process definition can be looked up by name and referenced from within task-nodes or used from inside actions. In fact, all tasks (also in task-nodes) that are given a name can be looked up by name in the process-definition.

Task names must be unique in the whole process definition. Tasks can be given a priority. This priority will be used as the initial priority for each task instance that is created for this task. TaskInstances can change this initial priority afterwards.

A task instance can be assigned to an actorId (java.lang.String). All task instances are stored in one table of the database (JBPM_TASKINSTANCE). By querying this table for all task instances for a given actorId, you get the task list for that perticular user.

The jBPM task list mechanism can combine jBPM tasks with other tasks, even when those tasks are unrelated to a process execution. That way jBPM developers can easily combine jBPM-process-tasks with tasks of other applications in one centralized task-list-repository.

public class CreateTasks implements ActionHandler {
  public void execute(ExecutionContext executionContext) throws Exception {
    Token token = executionContext.getToken();
    TaskMgmtInstance tmi = executionContext.getTaskMgmtInstance();

    TaskNode taskNode = (TaskNode) executionContext.getNode();
    Task changeNappy = taskNode.getTask("change nappy");

    // now, 2 task instances are created for the same task.
    tmi.createTaskInstance(changeNappy, token);
    tmi.createTaskInstance(changeNappy, token);
  }
}

A process definition contains task nodes. A task-node contains zero or more tasks. Tasks are a static description as part of the process definition. At runtime, tasks result in the creation of task instances. A task instance corresponds to one entry in a person's task list.

With jBPM, push (personal task list) and pull (group task list) model (see below) of task assignment can be applied in combination. The process can calculate the responsible for a task and push it in his/her tasklist. Or alternatively, a task can be assigned to a pool of actors, in which case each of the actors in the pool can pull the task and put it in the actor's personal tasklist.

public interface AssignmentHandler extends Serializable {
  void assign( Assignable assignable, ExecutionContext executionContext );
}

public interface Assignable {
  public void setActorId(String actorId);
  public void setPooledActors(String[] pooledActors);
}

The assignment data model

The datamodel for managing assignments of task instances and swimlane instances to actors is the following. Each TaskInstance has an actorId and a set of pooled actors.

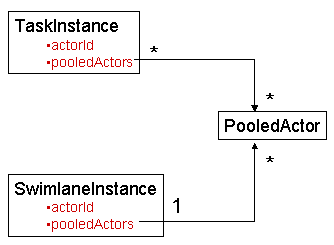

Figure 11.1. The assignment model class diagram

The actorId is the responsible for the task, while the set of pooled actors represents a collection of candidates that can become responsible if they would take the task. Both actorId and pooledActors are optional and can also be combined.

A task instance can have its own set of variables and a task instance can also 'see' the process variables. Task instances are usually created in an execution path (=token). This creates a parent-child relation between the token and the task instance similar to the parent-child relation between the tokens themselves. The normal scoping rules apply between the variables of a task instance and the process variables of the related token. More info about scoping can be found in the section called “Variables scopes”.

This means that a task instance can 'see' its own variables plus all the variables of its related token.

The controller can be used to create populate and submit variables between the task instance scope and the process scoped variables.

At creation of a task instance, the task controllers can populate the task instance variables and when the task instance is finished, the task controller can submit the data of the task instance into the process variables.

Note that you are not forced to use task controllers. Task instances also are able to 'see' the process variables related to its token. Use task controllers when you want to:

Tasks are intended to collect input from users. But there are many user interfaces which could be used to present the tasks to the users. E.g. a web application, a swing application, an instant messenger, an email form,... So the task controllers make the bridge between the process variables (=process context) and the user interface application. The task controllers provide a view of process variables to the user interface application.

The task controller makes the translation (if any) from the process variables to the task variables. When a task instance is created, the task controller is responsible for extracting information from the process variables and creating the task variables. The task variables serve as the input for the user interface form. And the user input can be stored in the task variables. When the user ends the task, the task controller is responsible for updating the process variables based on the task instance data.

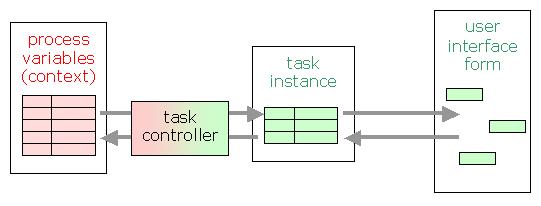

Figure 11.2. The task controllers

In a simple scenario, there is a one-on-one mapping between process variables and the form parameters. Task controllers are specified in a task element. In this case, the default jBPM task controller can be used and it takes a list of variable elements inside. The variable elements express how the process variables are copied in the task variables.

The next example shows how you can create separate task instance variable copies based on the process variables:

<task name="clean ceiling">
  <controller>
    <variable name="a" access="read" mapped-name="x" />
    <variable name="b" access="read,write,required" mapped-name="y" />
    <variable name="c" access="read,write" />
  </controller>
</task>

The name attribute refers to the name of the process variable. The mapped-name is optional and refers to the name of the task instance variable. If the mapped-name attribute is omitted, mapped-name defaults to the name. Note that the mapped-name also is used as the label for the fields in the task instance form of the web application.

The access attribute specifies if the variable is copied at task instance creation, will be written back to the process variables at task end and wether it is required. This information can be used by the user interface to generate the proper form controls. The access attribute is optional and the default access is 'read,write'.

A task-node can have many tasks and a start-state can have 1 task.

If the simple one-to-one mapping between process variables and form parameters is too limiting, you can also write your own TaskControllerHandler implementation. Here's the TaskControllerHandler interface:

public interface TaskControllerHandler extends Serializable {
  void initializeTaskVariables(TaskInstance taskInstance, ContextInstance contextInstance, Token token);
  void submitTaskVariables(TaskInstance taskInstance, ContextInstance contextInstance, Token token);
}

And here's how to configure your custom task controller implementation in a task:

<task name="clean ceiling">
  <controller class="com.yourcom.CleanCeilingTaskControllerHandler">
    -- here goes your task controller handler configuration --
  </controller>
</task>

A swimlane is a process role. It is a mechanism to specify that multiple tasks in the process should be done by the same actor. So after the first task instance is created for a given swimlane, the actor should be remembered in the process for all subsequent tasks that are in the same swimlane. A swimlane therefore has one assignment and all tasks that reference a swimlane should not specify an assignment.

When the first task in a given swimlane is created, the AssignmentHandler of the swimlane is called. The Assignable that is passed to the AssignmentHandler will be the SwimlaneInstance. Important to know is that all assignments that are done on the task instances in a given swimlane will propagate to the swimlane instance. This behaviour is implemented as the default because the person that takes a task to fulfilling a certain process role will have the knowledge of that perticular process. So all subsequent assignements of task instances to that swimlane are done automatically to that user.

Swimlane is a terminology borrowed from UML activity diagrams.

A swimlane can be associated with the start task to capture the process initiator.

A task can be specified in a start-state. That task be associated with a swimlane. When a new task instance is created for such a task, the current authenticated actor will be captured with Authentication.getAuthenticatedActorId() and that actor will be stored in the swimlane of the start task.

For example:

<process-definition>
  <swimlane name='initiator' />
  <start-state>
    <task swimlane='initiator' />
    <transition to='...' />
  </start-state>
  ...
</process-definition>

Also variables can be added to the start task as with any other task to define the form associated with the task. See the section called “Task controllers”

Tasks can have actions associated with them. There are 4 standard event types defined for tasks: task-create, task-assign, task-start and task-end.

task-create is fired when a task instance is created.

task-assign is fired when a task instance is being assigned. Note that in actions that are executed on this event, you can access the previous actor with executionContext.getTaskInstance().getPreviousActorId();

task-start is fired when TaskInstance.start() is called. This can be used to indicate that the user is actually starting to work on this task instance. Starting a task is optional.

task-end is fired when TaskInstance.end(...) is called. This marks the completion of the task. If the task is related to a process execution, this call might trigger the resuming of the process execution.

Since tasks can have events and actions associated with them, also exception handlers can be specified on a task. For more information about exception handling, see the section called “Exception handling”.

As on nodes, timers can be specified on tasks. See the section called “Timers”.

The special thing about timers for tasks is that the cancel-event for task timers can be customized. By default, a timer on a task will be cancelled when the task is ended (=completed). But with the cancel-event attribute on the timer, process developers can customize that to e.g. task-assign or task-start. The cancel-event supports multiple events. The cancel-event types can be combined by specifying them in a comma separated list in the attribute.

Task instances can be customized. The easiest way to do this is to create a subclass of TaskInstance. Then create a org.jbpm.taskmgmt.TaskInstanceFactory implementation and configure it by setting the configuration property jbpm.task.instance.factory to the fully qualified class name in the jbpm.cfg.xml. If you use a subclass of TaskInstance, also create a hibernate mapping file for the subclass (using the hibernate extends="org.jbpm.taskmgmt.exe.TaskInstance"). Then add that mapping file to the list of mapping files in the hibernate.cfg.xml

Management of users, groups and permissions is commonly known as identity management. jBPM includes an optional identity component that can be easily replaced by a company's own identity data store.

The jBPM identity management component includes knowledge of the organisational model. Task assignment is typically done with organisational knowledge. So this implies knowledge of an organisational model, describing the users, groups, systems and the relations between them. Optionally, permissions and roles can be included too in an organisational model. Various academic research attempts failed, proving that no generic organisational model can be created that fits every organisation.

The way jBPM handles this is by defining an actor as an actual participant in a process. An actor is identified by its ID called an actorId. jBPM has only knowledge about actorId's and they are represented as java.lang.Strings for maximum flexibility. So any knowledge about the organisational model and the structure of that data is outside the scope of the jBPM core engine.

As an extension to jBPM we will provide (in the future) a component to manage that simple user-roles model. This many to many relation between users and roles is the same model as is defined in the J2EE and the servlet specs and it could serve as a starting point in new developments. People interested in contributing should check the jboss jbpm jira issue tracker for more details.

Note that the user-roles model as it is used in the servlet, ejb and portlet specifications, is not sufficiently powerful for handling task assignments. That model is a many-to-many relation between users and roles. This doesn't include information about the teams and the organisational structure of users involved in a process.

The identity model

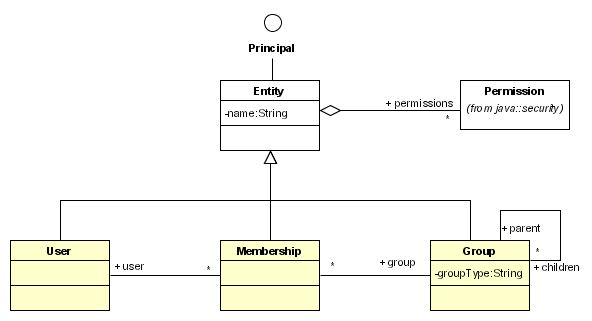

Figure 11.3. The identity model class diagram

The classes in yellow are the relevant classes for the expression assignment handler that is discussed next.

A User represents a user or a service. A Group is any kind of group of users. Groups can be nested to model the relation between a team, a business unit and the whole company. Groups have a type to differentiate between the hierarchical groups and e.g. haircolor groups. Memberships represent the many-to-many relation between users and groups. A membership can be used to represent a position in a company. The name of the membership can be used to indicate the role that the user fullfills in the group.

<process-definition>
  ...
  <task-node name='a'>
    <task name='laundry'>
      <assignment expression='previous --> group(hierarchy) --> member(boss)' />
    </task>
    <transition to='b' />
  </task-node>
  ...

first-term --> next-term --> next-term --> ... --> next-term

where

first-term ::= previous |
               swimlane(swimlane-name) |
               variable(variable-name) |
               user(user-name) |
               group(group-name)

and

next-term ::= group(group-type) |
              member(role-name)

<mapping resource="org/jbpm/identity/User.hbm.xml"/>
<mapping resource="org/jbpm/identity/Group.hbm.xml"/>
<mapping resource="org/jbpm/identity/Membership.hbm.xml"/>

protected ExpressionSession getExpressionSession(AssignmentContext assignmentContext);

The easiest way to specify a timer is by adding a timer element to the node.

<state name='catch crooks'>
  <timer name='reminder'
         duedate='3 business hours'
         repeat='10 business minutes'
         transition='time-out-transition' >
    <action class='the-remainder-action-class-name' />
  </timer>
  <transition name='time-out-transition' to='...' />
</state>

A timer that is specified on a node, is not executed after the node is left. Both the transition and the action are optional. When a timer is executed, the following events occur in sequence :

Every timer must have a unique name. If no name is specified in the timer element, the name of the node is taken as the name of the timer.

The timer action can be any supported action element like e.g. action or script.

Timers are created and cancelled by actions. The 2 action-elements are create-timer and cancel-timer. Actually, the timer element shown above is just a short notation for a create-timer action on node-enter and a cancel-timer action on node-leave.

Process executions create and cancel timers. The timers are stored in a timer store. A separate timer runner must check the timer store and execute the timers when they are due.

Figure 12.1. Scheduler components overview

jBPM is based on Graph Oriented Programming (GOP). Basically, GOP specifies a simple state machine that can handle concurrent paths of execution. But in the execution algorithm specified in GOP, all state transitions are done in a single operation in the thread of the client. If you're not familiar with the execution algorithm defined in ???, please read that first. By default, this performing state transitions in the thread of the client is a good approach cause it fits naturally with server side transactions. The process execution moves from one wait state to another wait state in one transaction.

But in some situations, a developer might want to fine-tune the transaction demarcation in the process definition. In jPDL, it is possible to specify that the process execution should continue asynchronously with the attribute async="true". async="true" can be specified on all node types and all action types.

Normally, a node is always executed after a token has entered the node. So the node is executed in the thread of the client. We'll explore asynchronous continuations by looking two examples. The first example is a part of a process with 3 nodes. Node 'a' is a wait state, node 'b' is an automated step and node 'c' is again a wait state. This process does not contain any asynchronous behaviour and it is represented in the picture below.

The first frame, shows the starting situation. The token points to node 'a', meaning that the path of execution is waiting for an external trigger. That trigger must be given by sending a signal to the token. When the signal arrives, the token will be passed from node 'a' over the transition to node 'b'. After the token arrived in node 'b', node 'b' is executed. Recall that node 'b' is an automated step that does not behave as a wait state (e.g. sending an email). So the second frame is a snapshot taken when node 'b' is being executed. Since node 'b' is an automated step in the process, the execute of node 'b' will include the propagation of the token over the transition to node 'c'. Node 'c' is a wait state so the third frame shows the final situation after the signal method returns.

Figure 13.1. Example 1: Process without asynchronous continuation

While persistence is not mandatory in jBPM, the most common scenario is that a signal is called within a transaction. Let's have a look at the updates of that transaction. First of all, the token is updated to point to node 'c'. These updates are generated by hibernate as a result of the GraphSession.saveProcessInstance on a JDBC connection. Second, in case the automated action would access and update some transactional resources, those transactional updates should be combined or part of the same transaction.

Now, we are going to look at the second example, the second example is a variant of the first example and introduces an asynchronous continuation in node 'b'. Nodes 'a' and 'c' behave the same as in the first example, namely they behave as wait states. In jPDL, a node is marked as asynchronous by setting the attribute async="true".

The result of adding async="true" to node 'b' is that the process execution will be split up into 2 parts. The first part will execute the process up to the point where node 'b' is to be executed. The second part will execute node 'b' and that execution will stop in wait state 'c'.

The transaction will hence be split up into 2 separate transactions. One transaction for each part. While it requires an external trigger (the invocation of the Token.signal method) to leave node 'a' in the first transaction, jBPM will automatically trigger and perform the second transaction.

Figure 13.2. Example 2: A process with asynchronous continuations

For actions, the principle is similar. Actions that are marked with the attribute async="true" are executed outside of the thread that executes the process. If persistence is configured (it is by default), the actions will be executed in a separate transaction.

In jBPM, asynchronous continuations are realized by using an asynchronous messaging system. When the process execution arrives at a point that should be executed asynchronously, jBPM will suspend the execution, produces a command message and send it to the command executor. The command executor is a separate component that, upon receipt of a message, will resume the execution of the process where it got suspended.

jBPM can be configured to use a JMS provider or its built-in asynchronous messaging system. The built-in messaging system is quite limited in functionality, but allowes this feature to be supported on environments where JMS is unavailable.

The job executor is the component that resumes process executions asynchronously. It waits for job messages to arrive over an asynchronous messaging system and executes them. The two job messages used for asynchronous continuations are ExecuteNodeJob and ExecuteActionJob.

These job messages are produced by the process execution. During process execution, for each node or action that has to be executed asynchronously, a Job (POJO) will be dispatched to the MessageService. The message service is associated with the JbpmContext and it just collects all the messages that have to be sent.

The messages will be sent as part of JbpmContext.close(). That method cascades the close() invocation to all of the associated services. The actual services can be configured in jbpm.cfg.xml. One of the services, DbMessageService, is configured by default and will notify the job executor that new job messages are available.

The graph execution mechanism uses the interfaces MessageServiceFactory and MessageService to send messages. This is to make the asynchronous messaging service configurable (also in jbpm.cfg.xml). In Java EE environments, the DbMessageService can be replaced with the JmsMessageService to leverage the application server's capabilities.

Here's how the job executor works in a nutshell:

Jobs are records in the database. Jobs are objects and can be executed, too. Both timers and async messages are jobs. For async messages, the dueDate is simply set to the current time when they are inserted. The job executor must execute the jobs. This is done in 2 phases: 1) a job executor thread must acquire a job and 2) the thread that acquired the job must execute it.

Acquiring a job and executing the job are done in 2 separate transactions. A thread acquires a job by putting its name into the owner field of the job. Each thread has a unique name based on ip-address and sequence number. Hibernate's optimistic locking is enabled on Job-objects. So if 2 threads try to acquire a job concurrently, one of them will get a StaleObjectException and rollback. Only the first one will succeed. The thread that succeeds in acquiring a job is now responsible for executing it in a separate transaction.

A thread could die between acquisition and execution of a job. To clean-up after those situations, there is one lock-monitor thread per job executor that checks the lock times. Jobs that are locked for more then 30 mins (by default) will be unlocked so that they can be executed by another job.

The required isolation level should be set to REPEATABLE_READ for hibernate's optimistic locking to work correctly. That isolation level will guarantee that

update JBPM_JOB job
set job.version = 2
    job.lockOwner = '192.168.1.3:2'
where
    job.version = 1

will only result in 1 row updated in exactly 1 of the competing transactions.

Non-Repeatable Reads means that the following anomaly can happen: A transaction re-reads data it has previously read and finds that data has been modified by another transaction, one that has been committed since the transaction's previous read.

Non-Repeatable reads are a problem for optimistic locking and therefore isolation level READ_COMMITTED is not enough cause it allows for Non-Repeatable reads to occur. So REPEATABLE_READ is required if you configure more than one job executor thread.

When using jBPM's built-in asynchronous messaging, job messages will be sent by persisting them to the database. This message persisting can be done in the same transaction/JDBC connection as the jBPM process updates.

The job messages will be stored in the JBPM_JOB table.

The POJO command executor (org.jbpm.msg.command.CommandExecutor) will read the messages from the database table and execute them. So the typical transaction of the POJO command executor looks like this: 1) read next command message 2) execute command message 3) delete command message.

If execution of a command message fails, the transaction will be rolled back. After that, a new transaction will be started that adds the error message to the message in the database. The command executor filters out all messages that contain an exception.

Figure 13.3. POJO command executor transactions

If for some reason or another, the transaction that adds the exception to the command message would fail, it is rolled back as well. In that case, the message remains in the queue without an exception so it will be retried later.

Limitation: beware that jBPM's built-in asynchronous messaging system does not support multinode locking. So you cannot just deploy the POJO command executor multiple times and have them configured to use the same database.

As mentioned the due date is composed of a duration and a base date. If this base date is ommitted, the duration is relative to the date (and time) at the moment of calculating the duedate. The format is:

duedate ::= [<basedate> +/-] <duration>

<timer name="daysBeforeHoliday" duedate="5 business days">...</timer>

<timer name="pensionDate" duedate="#{dateOfBirth} + 65 years" >...</timer>

<timer name="pensionReminder" duedate="#{dateOfPension} - 1 year" >...</timer>

<timer name="fireWorks" duedate="#{chineseNewYear} repeat="1 year" >...</timer>

<reminder name="hitBoss" duedate="#{payRaiseDay} + 3 days" repeat="1 week" />

The file org/jbpm/calendar/jbpm.business.calendar.properties specifies what business hours are. The configuration file can be customized and a modified copy can be placed in the root of the classpath.

This is the example business hour specification that is shipped by default in jbpm.business.calendar.properties:

hour.format=HH:mm
#weekday ::= [<daypart> [& <daypart>]*]
#daypart ::= <start-hour>-<to-hour>
#start-hour and to-hour must be in the hour.format
#dayparts have to be ordered
weekday.monday=    9:00-12:00 & 12:30-17:00
weekday.tuesday=   9:00-12:00 & 12:30-17:00
weekday.wednesday= 9:00-12:00 & 12:30-17:00
weekday.thursday=  9:00-12:00 & 12:30-17:00
weekday.friday=    9:00-12:00 & 12:30-17:00
weekday.saturday=
weekday.sunday=

day.format=dd/MM/yyyy
# holiday syntax: <holiday>
# holiday period syntax: <start-day>-<end-day>
# below are the belgian official holidays
holiday.1=  01/01/2005 # nieuwjaar
holiday.2=  27/3/2005  # pasen
holiday.3=  28/3/2005  # paasmaandag
holiday.4=  1/5/2005   # feest van de arbeid
holiday.5=  5/5/2005   # hemelvaart
holiday.6=  15/5/2005  # pinksteren
holiday.7=  16/5/2005  # pinkstermaandag
holiday.8=  21/7/2005  # my birthday
holiday.9=  15/8/2005  # moederkesdag
holiday.10= 1/11/2005  # allerheiligen
holiday.11= 11/11/2005 # wapenstilstand
holiday.12= 25/12/2005 # kerstmis

business.day.expressed.in.hours=             8
business.week.expressed.in.hours=           40
business.month.expressed.in.business.days=  21
business.year.expressed.in.business.days=  220

There are four ways of specifying when emails should be sent from a process.

<mail actors="#{president}" subject="readmylips" text="nomoretaxes" />

<mail actors="#{president}" >
  <subject>readmylips</subject>
  <text>nomoretaxes</text>
</mail>


<mail to='#{initiator}' subject='websale' text='your websale of #{quantity} #{item} was approved' />

<mail to='admin@mycompany.com' subject='urgent' text='the mailserver is down :-)' />

<mail template='sillystatement' actors="#{president}" />

<mail-node name="send email" to="#{president}" subject="readmylips" text="nomoretaxes">
  <transition to="the next node" />
</mail-node>

<task-node name='a'>
  <task name='laundry' swimlane="grandma" notify='yes' />
  <transition to='b' />
</task-node>

<task-node name='a'>
  <task name='laundry' swimlane="grandma" notify='yes'>
    <reminder duedate="2 business days" repeat="2 business hours"/>
  </task>
  <transition to='b' />
</task-node>

The fields to, recipients, subject and text can contain JSF-like expressions. For more information about expressions, see the section called “Expressions”

The variables in the expressions can be : swimlanes, process variables, transient variables beans configured in the jbpm.cfg.xml, ...

These expressions can be combined with the address resolving that is explained later in this chapter. For example, suppose that you have a swimlane called president in your process, then look at the following mail specification:

<mail actors="#{president}" subject="readmylips" text="nomoretaxes" />

That will send an email to to the person that acts as the president for that perticular process execution.

Instead of specifying mails in the processdefinition.xml, mails can be specified in a template file. When a template is used, each of the fields can still be overwritten in the processdefinition.xml. The mail templates should be specified in an XML file like this:

<mail-templates>

  <variable name="BaseTaskListURL" value="http://localhost:8080/jbpm/task?id=" />

  <mail-template name='task-assign'>
    <actors>#{taskInstance.actorId}</actors>
    <subject>Task '#{taskInstance.name}'</subject>
    <text><![CDATA[Hi,
Task '#{taskInstance.name}' has been assigned to you.
Go for it: #{BaseTaskListURL}#{taskInstance.id}
Thanks.
---powered by JBoss jBPM---]]></text>
  </mail-template>

  <mail-template name='task-reminder'>
    <actors>#{taskInstance.actorId}</actors>
    <subject>Task '#{taskInstance.name}' !</subject>
    <text><![CDATA[Hey,
Don't forget about #{BaseTaskListURL}#{taskInstance.id}
Get going !
---powered by JBoss jBPM---]]></text>
  </mail-template>

</mail-templates>


As you can see in this example (BaseTaskListURL), extra variables can be defined in the mail templates that will be availble in the expressions.

The resource that contains the templates should be configured in the jbpm.cfg.xml like this:

<jbpm-configuration>
  ...
  <string name="resource.mail.templates" value="jbpm.mail.templates.xml" />
</jbpm-configuration>

The simplest way to configure the mail server is with the configuration property jbpm.mail.smtp.host in the jbpm.cfg.xml like this:

<jbpm-configuration>
  ...
  <string name="jbpm.mail.smtp.host" value="localhost" />
</jbpm-configuration>

Alternatively, when more properties need to be specified, a resource reference to a properties file can be given with the key '' like this:

<jbpm-configuration>
  ...
  <string name='resource.mail.properties' value='jbpm.mail.properties' />
</jbpm-configuration>

The default value for the From address used in jPDL mails is jbpm@noreply. The from address of mails can be configured in the jBPM configuration file jbpm.xfg.xml with key 'jbpm.mail.from.address' like this:

<jbpm-configuration>
  ...
  <string name='jbpm.mail.from.address' value='jbpm@yourcompany.com' />
</jbpm-configuration>

All the mail support in jBPM is centralized in one class: org.jbpm.mail.Mail This is an ActionHandler implementation. Whenever an mail is specified in the process xml, this will result in a delegation to the mail class. It is possible to inherit from the Mail class and customize certain behaviour for your perticular needs. To configure your class to be used for mail delegations, specify a 'jbpm.mail.class.name' configuration string in the jbpm.cfg.xml like this:

<jbpm-configuration>
  ...
  <string name='jbpm.mail.class.name' value='com.your.specific.CustomMail' />
</jbpm-configuration>

The customized mail class will be read during parsing and actions will be configured in the process that reference the configured (or the default) mail classname. So if you change the property, all the processes that were already deployed will still refer to the old mail class name. But they can be easily updated with one simple update statement to the jbpm database.

If you need a mailserver that is easy to install, checkout JBossMail Server or Apache James

Logs are produced by jBPM modules while they are running process executions. But also users can insert process logs. A log entry is a java object that inherits from org.jbpm.logging.log.ProcessLog. Process log entries are added to the LoggingInstance. The LoggingInstance is an optional extension of the ProcessInstance.

Various kinds of logs are generated by jBPM : graph execution logs, context logs and task management logs. For more information about the specific data contained in those logs, we refer to the javadocs. A good starting point is the class org.jbpm.logging.log.ProcessLog since from that class you can navigate down the inheritance tree.

The LoggingInstance will collect all the log entries. When the ProcessInstance is saved, all the logs in the LoggingInstance will be flushed to the database. The logs-field of a ProcessInstance is not mapped with hibernate to avoid that logs are retrieved from the database in each transactions. Each ProcessLog is made in the context of a path of execution (Token) and hence, the ProcessLog refers to that token. The Token also serves as an index-sequence generator for the index of the ProcessLog in the Token. This will be important for log retrieval. That way, logs that are produced in subsequent transactions will have sequential sequence numbers. (wow, that a lot of seq's in there :-s ).

The API method for adding process logs is the following.

public class LoggingInstance extends ModuleInstance {
  ...
  public void addLog(ProcessLog processLog) {...}
  ...
}

The UML diagram for logging information looks like this:

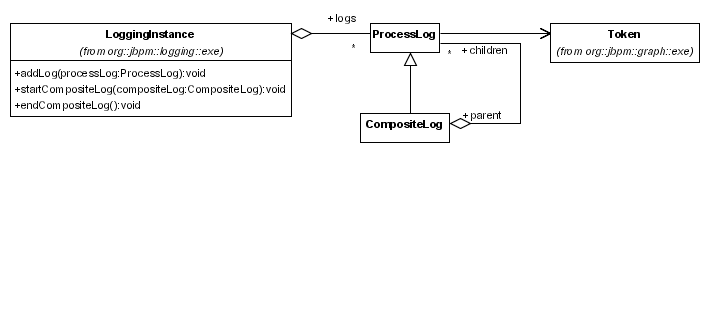

Figure 16.1. The jBPM logging information class diagram

A CompositeLog is a special kind of log entry. It serves as a parent log for a number of child logs, thereby creating the means for a hierarchical structure in the logs. The API for inserting a log is the following.

public class LoggingInstance extends ModuleInstance {
  ...
  public void startCompositeLog(CompositeLog compositeLog) {...}
  public void endCompositeLog() {...}
  ...
}

The CompositeLogs should always be called in a try-finally-block to make sure that the hierarchical structure of logs is consistent. For example:

startCompositeLog(new MyCompositeLog());
try {
  ...
} finally {
  endCompositeLog();
}

For deployments where logs are not important, it suffices to remove the logging line in the jbpm-context section of the jbpm.cfg.xml configuration file:

<service name='logging' factory='org.jbpm.logging.db.DbLoggingServiceFactory' />

In case you want to filter the logs, you need to write a custom implementation of the LoggingService that is a subclass of DbLoggingService. Also you need to create a custom logging ServiceFactory and specify that one in the factory attribute.

As said before, logs cannot be retrieved from the database by navigating the LoggingInstance to its logs. Instead, logs of a process instance should always be queried from the database. The LoggingSession has 2 methods that serve this purpose.

The first method retrieves all the logs for a process instance. These logs will be grouped by token in a Map. The map will associate a List of ProcessLogs with every Token in the process instance. The list will contain the ProcessLogs in the same ordered as they were created.

public class LoggingSession {
  ...
  public Map findLogsByProcessInstance(long processInstanceId) {...}
  ...
}

The second method retrieves the logs for a specific Token. The returned list will contain the ProcessLogs in the same ordered as they were created.

public class LoggingSession {
  public List findLogsByToken(long tokenId) {...}
  ...
}

Sometimes you may want to apply data warehousing techniques to the jbpm process logs. Data warehousing means that you create a separate database containing the process logs to be used for various purposes.

There may be many reasons why you want to create a data warehouse with the process log information. Sometimes it might be to offload heavy queryies from the 'live' production database. In other situations it might be to do some extensive analysis. Data warehousing even might be done on a modified database schema which is optimized for its purpose.

In this section, we only want to propose the technique of warehousing in the context of jBPM. The purposes are too diverse, preventing a generic solution to be included in jBPM that could cover all those requirements.

A process archive is a zip file. The central file in the process archive is processdefinition.xml. The main information in that file is the process graph. The processdefinition.xml also contains information about actions and tasks. A process archive can also contain other process related files such as classes, ui-forms for tasks, ...

<target name="deploy.par">
  <taskdef name="deploypar" classname="org.jbpm.ant.DeployProcessTask">
    <classpath --make sure the jbpm-[version].jar is in this classpath--/>
  </taskdef>
  <deploypar par="build/myprocess.par" />
</target>

Delegation is the mechanism used to include the users' custom code in the execution of processes.

public class MyAction implements ActionHandler {
  // access specifiers can be private, default, protected or public
  private String city;
  Integer rounds;
  ...
}

...
<action class="org.test.MyAction">
  <city>Atlanta</city>
  <rounds>5</rounds>
</action>
...

For some of the delegations, there is support for a JSP/JSF EL like expression language. In actions, assignments and decision conditions, you can write an expression like e.g. expression="#{myVar.handler[assignments].assign}"

The basics of this expression language can be found in the J2EE tutorial.

The jPDL expression language is similar to the JSF expression language. Meaning that jPDL EL is based on JSP EL, but it uses #{...} notation and that it includes support for method binding.

Depending on the context, the process variables or task instance variables can be used as starting variables along with the following implicit objects:

This feature becomes really powerfull in a JBoss SEAM environment. Because of the integration between jBPM and JBoss SEAM, all of your backed beans, EJB's and other one-kind-of-stuff becomes available right inside of your process definition. Thanks Gavin ! Absolutely awsome ! :-)

The jPDL schema is the schema used in the file processdefinition.xml in the process archive.

<process-definition xmlns="urn:jbpm.org:jpdl-3.2">
  ...
</process-definition>

On the framework part, we still need to define a set of permissions that are verified by the jbpm engine while a process is being executed. Currently you can check your own permissions, but there is not yet a jbpm default set of permissions.

Only one default authentication implementation is finished. Other authentication implementations are envisioned, but not yet implemented. Authorization is optional, and there is no authorization implementation yet. Also for authorization, there are a number of authorization implementations envisioned, but they are not yet worked out.

But for both authentication and authorization, the framework is there to plug in your own authentication and authorization mechanism.

Authentication is the process of knowing on who's behalf the code is running. In case of jBPM this information should be made available from the environment to jBPM. Cause jBPM is always executed in a specific environment like a webapp, an EJB, a swing application or some other environment, it is always the surrounding environment that should perform authentication.

In a few situations, jBPM needs to know who is running the code. E.g. to add authentication information in the process logs to know who did what and when. Another example is calculation of an actor based on the current authenticated actor.

In each situation where jBPM needs to know who is running the code, the central method org.jbpm.security.Authentication.getAuthenticatedActorId() is called. That method will delegate to an implementation of org.jbpm.security.authenticator.Authenticator. By specifying an implementation of the authenticator, you can configure how jBPM retrieves the currently authenticated actor from the environment.

The default authenticator is org.jbpm.security.authenticator.JbpmDefaultAuthenticator. That implementation will maintain a ThreadLocal stack of authenticated actorId's. Authenticated blocks can be marked with the methods JbpmDefaultAuthenticator.pushAuthenticatedActorId(String) and JbpmDefaultAuthenticator.popAuthenticatedActorId(). Be sure to always put these demarcations in a try-finally block. For the push and pop methods of this authenticator implementation, there are convenience methods supplied on the base Authentication class. The reason that the JbpmDefaultAuthenticator maintains a stack of actorIds instead of just one actorId is simple: it allows the jBPM code to distinct between code that is executed on behalf of the user and code that is executed on behalf of the jbpm engine.

See the javadocs for more information.

Authorization is validating if an authenticated user is allowed to perform a secured operation.

The jBPM engine and user code can verify if a user is allowed to perform a given operation with the API method org.jbpm.security.Authorization.checkPermission(Permission).

The Authorization class will also delegate that call to a configurable implementation. The interface for pluggin in different authorization strategies is org.jbpm.security.authorizer.Authorizer.

In the package org.jbpm.security.authorizer there are some examples that show intentions of authorizer implementations. Most are not fully implemented and none of them are tested.

Also still todo is the definition of a set of jBPM permissions and the verification of those permissions by the jBPM engine. An example could be verifying that the current authenticated user has sufficient privileges to end a task by calling Authorization.checkPermission(new TaskPermission("end", Long.toString(id))) in the TaskInstance.end() method.

Since developing process oriented software is no different from developing any other software, we believe that process definitions should be easily testable. This chapter shows how you can use plain JUnit without any extensions to unit test the process definitions that you author.

The development cycle should be kept as short as possible. Changes made to the sources of software should be immediately verifiable. Preferably, without any intermediate build steps. The examples given below will show you how to develop and test jBPM processes without intermediate steps.

Mostly the unit tests of process definitions are execution scenarios. Each scenario is executed in one JUnit testmethod and will feed in the external triggers (read: signals) into a process execution and verifies after each signal if the process is in the expected state.

Let's look at an example of such a test. We take a simplified version of the auction process with the following graphical representation:

Figure 19.1. The auction test process

Now, let's write a test that executes the main scenario:

public class AuctionTest extends TestCase {

  // parse the process definition
  static ProcessDefinition auctionProcess =
      ProcessDefinition.parseParResource("org/jbpm/tdd/auction.par");

  // get the nodes for easy asserting
  static StartState start = auctionProcess.getStartState();
  static State auction = (State) auctionProcess.getNode("auction");
  static EndState end = (EndState) auctionProcess.getNode("end");

  // the process instance
  ProcessInstance processInstance;

  // the main path of execution
  Token token;

  public void setUp() {
    // create a new process instance for the given process definition
    processInstance = new ProcessInstance(auctionProcess);

    // the main path of execution is the root token
    token = processInstance.getRootToken();
  }

  public void testMainScenario() {
    // after process instance creation, the main path of
    // execution is positioned in the start state.
    assertSame(start, token.getNode());

    token.signal();

    // after the signal, the main path of execution has
    // moved to the auction state
    assertSame(auction, token.getNode());

    token.signal();

    // after the signal, the main path of execution has
    // moved to the end state and the process has ended
    assertSame(end, token.getNode());
    assertTrue(processInstance.hasEnded());
  }
}

Before you can start writing execution scenario's, you need a ProcessDefinition. The easiest way to get a ProcessDefinition object is by parsing xml. If you have code completion, type ProcessDefinition.parse and activate code completion. Then you get the various parsing methods. There are basically 3 ways to write xml that can be parsed to a ProcessDefinition object:

...
static ProcessDefinition auctionProcess =
    ProcessDefinition.parseParResource("org/jbpm/tdd/auction.par");
...

...
static ProcessDefinition auctionProcess =
    ProcessDefinition.parseXmlResource("org/jbpm/tdd/auction.xml");
...

...
static ProcessDefinition auctionProcess =
    ProcessDefinition.parseXmlString(
  "<process-definition>" +
  "  <start-state name='start'>" +
  "    <transition to='auction'/>" +
  "  </start-state>" +
  "  <state name='auction'>" +
  "    <transition to='end'/>" +
  "  </state>" +
  "  <end-state name='end'/>" +
  "</process-definition>");
...

TODO (see test/java/org/jbpm/graph/exe/ProcessStateTest.java)
