Chapter 2, Incubation explains the features that are intended to move to the userguide eventually and become part of the supported offering. Do note that incubation features are not yet considered stable (ie. there could be major syntax or implementation changes in next versions).

Chapter 3, BPMN 2.0 shows how the BPMN 2.0 process language can be used with jBPM.

Chapter 5, The Process Virtual Machine through Chapter 9, Advanced graph execution explain the core of jBPM, the process virtual machine (PVM) and how activity and event listener can be build for it.

Chapter 10, Configuration through Chapter 18, Signavio web modeler explain advanced usage of the jBPM framework.

If you want to install/deploy jBPM into your own application, this is still as easy as it was before: just put the right libs in your application classpath. We didn't yet clean up the dependency description in the maven pom files. So we can't yet give the exact minimal set of libraries from the lib directory that you need to include in your application (See Jira issue JBPM-2556 and vote for it if you want to let us know that this issue has priority for you). The versions of the libraries that are in the lib directory are the ones that we tested with. So we recommend you to use those very versions of the libs. To help you on your way, here's the current maven dependency list for jPDL:

[INFO] ------------------------------------------------------------------------
[INFO] Building jBPM 4 - jPDL
[INFO]    task-segment: [dependency:tree]
[INFO] ------------------------------------------------------------------------
[INFO] [dependency:tree]
[INFO] org.jbpm.jbpm4:jbpm-jpdl:jar:4.0
[INFO] +- org.jbpm.jbpm4:jbpm-pvm:jar:4.0:compile
[INFO] |  +- org.jbpm.jbpm4:jbpm-api:jar:4.0:compile
[INFO] |  |  \- jboss:jboss-j2ee:jar:4.2.2.GA:compile
[INFO] |  +- org.jbpm.jbpm4:jbpm-log:jar:4.0:compile
[INFO] |  +- org.jbpm.jbpm4:jbpm-test-base:jar:4.0:compile
[INFO] |  |  \- org.hibernate:hibernate-core:jar:3.3.1.GA:compile
[INFO] |  |     +- antlr:antlr:jar:2.7.6:compile
[INFO] |  |     \- commons-collections:commons-collections:jar:3.1:compile
[INFO] |  +- org.apache.ant:ant:jar:1.7.0:compile
[INFO] |  |  \- org.apache.ant:ant-launcher:jar:1.7.0:compile
[INFO] |  +- log4j:log4j:jar:1.2.14:compile
[INFO] |  +- juel:juel:jar:2.1.0:compile
[INFO] |  +- juel:juel-impl:jar:2.1.0:compile
[INFO] |  +- juel:juel-engine:jar:2.1.0:compile
[INFO] |  +- org.slf4j:slf4j-api:jar:1.5.2:compile
[INFO] |  +- org.slf4j:slf4j-jdk14:jar:1.5.2:compile
[INFO] |  +- org.jboss.identity.idm:idm-core:jar:1.0.0.Beta1:compile
[INFO] |  |  +- org.jboss.identity.idm:idm-common:jar:1.0.0.Beta1:compile
[INFO] |  |  +- org.jboss.identity.idm:idm-api:jar:1.0.0.Beta1:compile
[INFO] |  |  +- org.jboss.identity.idm:idm-spi:jar:1.0.0.Beta1:compile
[INFO] |  |  \- com.sun.xml.bind:jaxb-impl:jar:2.1.8:compile
[INFO] |  |     \- javax.xml.bind:jaxb-api:jar:2.1:compile
[INFO] |  |        \- javax.xml.stream:stax-api:jar:1.0-2:compile
[INFO] |  +- org.jboss.identity.idm:idm-hibernate:jar:1.0.0.Beta1:compile
[INFO] |  |  +- javassist:javassist:jar:3.4.GA:compile
[INFO] |  |  +- org.hibernate:hibernate-cglib-repack:jar:2.1_3:compile
[INFO] |  |  \- org.slf4j:slf4j-log4j12:jar:1.5.2:compile
[INFO] |  +- org.hibernate:hibernate-entitymanager:jar:3.4.0.GA:compile
[INFO] |  |  +- org.hibernate:ejb3-persistence:jar:1.0.2.GA:compile
[INFO] |  |  +- org.hibernate:hibernate-commons-annotations:jar:3.1.0.GA:compile
[INFO] |  |  +- org.hibernate:hibernate-annotations:jar:3.4.0.GA:compile
[INFO] |  |  +- dom4j:dom4j:jar:1.6.1:compile
[INFO] |  |  |  \- xml-apis:xml-apis:jar:1.0.b2:compile
[INFO] |  |  \- javax.transaction:jta:jar:1.1:compile
[INFO] |  +- org.livetribe:livetribe-jsr223:jar:2.0.5:compile
[INFO] |  \- javax.mail:mail:jar:1.4.1:compile
[INFO] |     \- javax.activation:activation:jar:1.1:compile
[INFO] +- junit:junit:jar:3.8.1:compile
[INFO] \- hsqldb:hsqldb:jar:
[INFO] ------------------------------------------------------------------------

The jboss idm dependencies in sections org.jboss.identity.idm:* can be ignored, including the org.hibernate:hibernate-entitymanager

This list should already get you started to select a small subset of libs instead of including all the libs from the ${jbpm.home}/lib directory.

This section documents some of the more advanced activities and features of jPDL that are still in incubation. These features and activities are not supported yet, but they are available for you to try and use. There are no stability guarantees on these activities and features; use them at your own risk.

A timer can be specified in the transition element in wait state activities such as states, tasks, sub-processes and groups. When such a timer fires, that transition is taken.

A timer can also be specified in custom events in wait state activities such as states, tasks, sub-processes and groups. The timer element should then be the first element in the on element representing the event. In that case the event fires upon the duedate of the timer.

Timers are created when the activity is entered. The timer can fire when the execution remains in the activity until the duedate. When the execution leaves the activity, the timer is cancelled.

A duedate expression has the following syntax:

[<Base Date> {+|-}] quantity [business] {second | seconds | minute | minutes |
                     hour | hours | day | days | week |
                     weeks | month | months | year | years}

Where Base Date is specified as EL and where quantity is a positive integer.

And adding the optional indication business means that only business hours should be taken into account for this duration. Without the indication business, the duration will be interpreted as an absolute time period. How to configure business hours is explained in Section 2.1.2, “Business calendar” Note: 'business' is not supported when subtracting from a base date!

The default configuration will contain a reference to the file jbpm.business.calendar.xml. That contains a configuration of business hours in the following format:

<?xml version="1.0" encoding="UTF-8"?>

<jbpm-configuration xmlns="http://jbpm.org/xsd/cfg">

        <monday    hours="9:00-12:00 and 12:30-17:00"/>
        <tuesday   hours="9:00-12:00 and 12:30-17:00"/>
        <wednesday hours="9:00-12:00 and 12:30-17:00"/>
        <thursday  hours="9:00-12:00 and 12:30-17:00"/>
        <friday    hours="9:00-12:00 and 12:30-17:00"/>
        <holiday period="01/07/2008 - 31/08/2008"/>



If the default business calendar implementation is sufficient for you, you can simply adjust the timings in the xml configuration as shown above.

If the default implementation doesn't cover your use cases, you can easily write your own implementation by implementing the org.jbpm.pvm.internal.cal.BusinessCalendar interface.

For example:

public class CustomBusinessCalendar implements BusinessCalendar {
  public Date add(Date date, String duration) {
    if ("my next birthday".equals(duration)) {
      GregorianCalendar gregorianCalendar = new GregorianCalendar();
      gregorianCalendar.set(Calendar.MONTH, Calendar.JULY);
      gregorianCalendar.set(Calendar.DAY_OF_MONTH, 21);
      return gregorianCalendar.getTime();
    return null;

To configure the jBPM engine to use this custom business calendar, just add the following line to your jbpm.cfg.xml:

    <object class="org.jbpm.test.custombusinesscalendarimpl.CustomBusinessCalendar" />

Take a look at the org.jbpm.test.custombusinesscalendarimpl.CustomBusinessCalendarImplTest for more information.

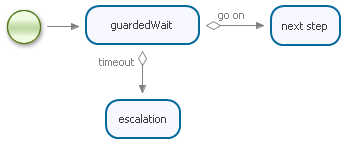

The example org.jbpm.examples.timer.transition.TimerTransitionTest shows how to put a timer on a transition.

<process name="TimerTransition" xmlns="http://jbpm.org/4.4/jpdl">

    <transition to="guardedWait" />

  <state name="guardedWait">
    <transition name="go on" to="next step" />
    <transition name="timeout" to="escalation">
      <timer duedate="10 minutes" />
  <state name="next step" />
  <state name="escalation" />


When an process instance for this process is started, it arrives immediately in the guardedWait state. At that time, a timer is created that will fire after 10 minutes.

Execution processInstance = executionService

With the following query, we can query for the timers related to the newly created processInstance. We know that there should be exactly one such timer.

Job job = managementService.createJobQuery()

In a unit test, we won't use the JobExecutor to execute the timer. Instead, we execute timers directly in the thread of the unit test. That way it is easy to simulate one scenario though an execution.

So as the next step, we assume that the timer will fire. We simulate this by executing the timer programmatically:


After that the process instance will have taken the timeout transition and moved to the escalation state.

processInstance = executionService.findExecutionById(processInstance.getId());
assertEquals("escalation", processInstance.getActivityName());

The second scenario in TimerTransitionTest shows that the timer is cancelled in case the signal go on is given before the timer fires. In that case the execution ends up in the next step.

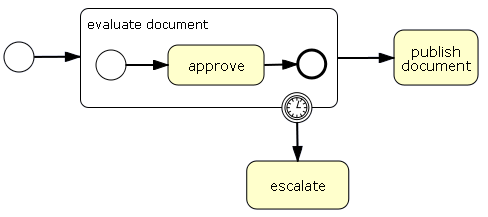

Groups a set of activities in a process together. Contained groups must be nested hierarchically. A group corresponds to a BPMN expanded sub process.

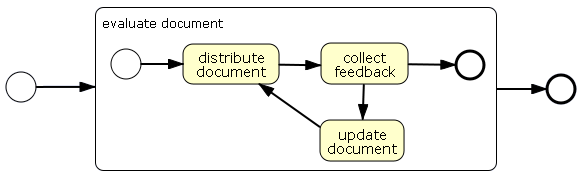

This example scenario shows the basic operations of a group.

<process name="GroupSimple" xmlns="http://jbpm.org/4.4/jpdl">

    <transition to="evaluate document" />
  <group name="evaluate document">
      <transition to="distribute document" />
    <state name="distribute document">
      <transition to="collect feedback" />
    <state name="collect feedback">
      <transition name="approved" to="done" />
      <transition name="rejected" to="update document" />
    <state name="update document">
      <transition to="distribute document" />
    <end name="done" />
    <transition to="publish document" />
  <state name="publish document" />


The next code snippet shows a test scenario that rejects a document when it comes in the collect feedback first time round. Then it goes through update document, distribute document and back to collect feedback. The second time, it will be approved. All activities involved are wait states.

ProcessInstance processInstance = executionService
String pid = processInstance.getId();
assertEquals("distribute document", processInstance.getActivityName());

processInstance = executionService.signalExecutionById(pid);
assertEquals("collect feedback", processInstance.getActivityName());

processInstance = executionService.signalExecutionById(pid, "rejected");
assertEquals("update document", processInstance.getActivityName());

processInstance = executionService.signalExecutionById(pid);
assertEquals("distribute document", processInstance.getActivityName());

processInstance = executionService.signalExecutionById(pid);
assertEquals("collect feedback", processInstance.getActivityName());

processInstance = executionService.signalExecutionById(pid, "approved");
assertEquals("publish document", processInstance.getActivityName());

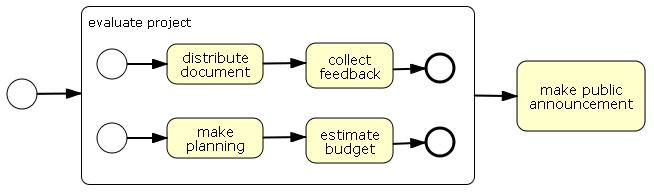

This scenario shows how a group can be used to create concurrent paths of execution. When an execution arrives in a group, each activity that doesn't have incoming transitions is started. So the first activities don't have to be start activities. The group takes the default transition out when all contained work is done.

<process name="GroupConcurrency" xmlns="http://jbpm.org/4.4/jpdl">

    <transition to="evaluate project" />
  <group name="evaluate project">
      <transition to="distribute document" />
    <state name="distribute document">
      <transition to="collect feedback" />
    <state name="collect feedback">
      <transition to="document finished" />
    <end name="document finished" />

      <transition to="make planning" />
    <state name="make planning">
      <transition to="estimate budget" />
    <state name="estimate budget">
      <transition to="planning finished" />
    <end name="planning finished" />

    <transition to="public project announcement" />
  <state name="public project announcement" />


The following scenario will show a scenario in which all wait state acitivities are signalled in some random order till all work is done:

ProcessInstance pi = executionService

String documentExecutionId = pi
    .findActiveExecutionIn("distribute document").getId();

String planningExecutionId = pi
    .findActiveExecutionIn("make planning").getId();

pi = executionService.signalExecutionById(documentExecutionId);
assertNotNull(pi.findActiveExecutionIn("collect feedback"));
assertNotNull(pi.findActiveExecutionIn("make planning"));

pi = executionService.signalExecutionById(planningExecutionId);
assertNotNull(pi.findActiveExecutionIn("collect feedback"));
assertNotNull(pi.findActiveExecutionIn("estimate budget"));

pi = executionService.signalExecutionById(planningExecutionId);
assertNotNull(pi.findActiveExecutionIn("collect feedback"));

pi = executionService.signalExecutionById(documentExecutionId);
assertNotNull(pi.findActiveExecutionIn("public project announcement"));

Activity foreach allows multiple paths of execution to be started over a single branch of the process. Its attributes are described in the table below.

In the example that follows, there is a need to collect reports from different departments. The same task is to be performed by different groups. This situation is easily modeled with foreach. Process variable departments provides the group names, whereas quota indicates how many tasks must be completed before execution leaves the join activity.

<process name="ForEach" xmlns="http://jbpm.org/4.4/jpdl">

   <start g="28,61,48,48" name="start1">
      <transition to="foreach1"/>

   <foreach var="department" in="#{departments}" g="111,60,48,48" name="foreach1">
      <transition to="Collect reports"/>

   <task candidate-groups="#{department}" g="201,58,92,52" name="Collect reports">
      <transition to="join1"/>

   <join g="343,59,48,48" multiplicity="#{quorum}" name="join1">
      <transition to="end1"/>

   <end g="433,60,48,48" name="end1"/>



When using foreach, the corresponding join must have the multiplicity attribute set. Without it, join continues execution based on its incoming transitions. In the preceding example, join has a single incoming transition. If multiplicity is not specified, the first execution that reaches the join activity will cause the parent execution to leave the join.

Here is how to initialize the iterative process variables.

Map<String, Object> variables = new HashMap<String, Object>();
variables.put("departments", new String[] { "sales-dept", "hr-dept", "finance-dept" });
variables.put("quorum", 3);
ProcessInstance processInstance = executionService.startProcessInstanceByKey("ForEach", variables);

The purpose of the java activity in general is to invoke a Java method as explained in the User Guide. This section in the Developer Guide is specifically about how to use the java activity to invoke a method of an ejb session bean.

Exactly for this purpose it is possible to use the ejb-jndi-name attribute. As its name indicates the attribute specifies the jndi name of the ejb of which the method needs to be invoked. Consider the following ejb:

package org.jbpm.test.enterprise.stateless.bean;

import javax.ejb.Stateless;

public class CalculatorBean implements CalculatorRemote, CalculatorLocal {

   public Integer add(Integer x, Integer y) {
      return x + y;

   public Integer subtract(Integer x, Integer y) {
      return x - y;

and the following process definition:

<process name="EJB">

    <transition to="calculate" />

  <java name="calculate"
    <arg><int value="25"/></arg>
    <arg><int value="38"/></arg>
    <transition to="wait" />
  <state name="wait" />


As you can expect, the execution of this node will invoke the add method of the ejb that is known under the jndi name CalculatorBean/local. The result will be stored in the variable answer. This is illustrated in the following test snippet.

public void testEjbInvocation() throws Exception {
  String executionId = executionService
  assertEquals(63, executionService.getVariable(executionId, "answer"));

The rules deployer is a convenience integration between jBPM and Drools. It creates a KnowledgeBase based on all .drl files that are included in a business archive deployment. That KnowledgeBase is then stored in the repository cache. So one KnowledgeBase is maintained in memory the process-engine-context. Activities like the rules decision leverage this KnowledgeBase.

A rules-decision is an automatic activity that will select a single outgoing transition based on the evaluation of rules.

Rules for a rules decision are to be deployed as part of the business archive. Those rules can use all process variables as globals in rule definitions. The rule-decision activity will use a stateless knowledge session on the knowledgebase. The execution arriving in the rules-decision is executed on the stateless drools knowledge session.

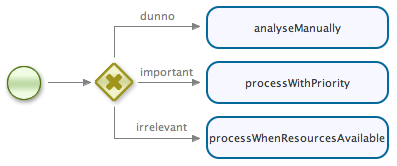

Let's look at the next example how that works in practice. We'll start with the RulesDecision process

<process name="RulesDecision">

    <transition to="isImportant" />

  <rules-decision name="isImportant">
    <transition name="dunno" to="analyseManually" />
    <transition name="important" to="processWithPriority" />
    <transition name="irrelevant" to="processWhenResourcesAvailable" />

  <state name="analyseManually" />
  <state name="processWithPriority" />
  <state name="processWhenResourcesAvailable" />


The following isImportant.drl is included in the business archive deployment.

global java.lang.Integer amount;
global java.lang.String product;
global org.jbpm.jpdl.internal.rules.Outcome outcome;

rule "LessThen3IsIrrelevant"
    eval(amount < 3)

rule "MoreThen24IsImportant"
    eval(amount > 24)

rule "TwelveTempranillosIsImportant"
    eval(product == "Tempranillo")
    eval(amount > 12)

First you see that amount and product are defined as globals. Those will resolve by the rules-decision to the process variables with those respective names.

outcome is a special global variable that is used to indicate the transition to take in the consequence. Also, if no outcome is specified by the rules, the default transition will be taken.

So let's start a new process instance and set 2 variables product and amount with respective values shoe and 32:

Map<String, Object> variables = new HashMap<String, Object>();
variables.put("amount", 32);
variables.put("product", "shoe");

ProcessInstance processInstance =
    executionService.startProcessInstanceByKey("RulesDecision", variables);

After starting the process instance method returns, the process instance will have arrived in the activity processWithPriority

In similar style, a new RulesDecision process instance with 2 missiles will go to activity processWhenResourcesAvailable

A RulesDecision process instance with 15 shoes will go to activity analyseManually

And a RulesDecision process instance with 13 Tempranillos will go to activity analyseManually

A rules is an automatic activity that will create a stateful knowledge session, feed a number of facts in it and fire all rules. The idea is that the rules will update or create process variables that will be used later in the process. Facts can be specified as sub elements of the rules activity.

If a rules activity has one outgoing transition, then that one is taken automatically. But multiple outgoing transitions can be specified with conditions on them, just like with the decision activity when using the conditions.

For example:

<process name="Rules">

    <transition to="evaluateStatus"/>

  <rules name="evaluateStatus">
    <fact var="room" />
    <transition to="checkForFires"/>

  <decision name="checkForFires">
    <transition to="getFireExtinguisher">
      <condition expr="#{room.onFire}" />
    <transition to="goToPub"/>

  <state name="getFireExtinguisher"/>
  <state name="goToPub"/>

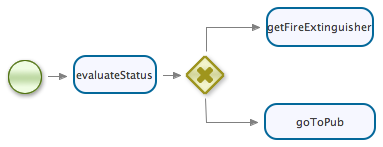

The process first checks with rules if the room is on fire. The Room class looks like this:

public class Room implements Serializable {

  int temperature = 21;
  boolean smoke = false;
  boolean isOnFire = false;
  public Room(int temperature, boolean smoke) {
    this.temperature = temperature;
    this.smoke = smoke;
  ...getters and setters...

Following rules are deployed in the same business archive:

rule "CheckRoomOnFire"
    room : org.jbpm.examples.rules.Room( temperature > 30, smoke == true )
    room.setOnFire( true );

So when a new Rules process instance is started like this:

Map<String, Object> variables = new HashMap<String, Object>();
variables.put("room", new Room(350, true));

ProcessInstance processInstance =
    executionService.startProcessInstanceByKey("Rules", variables);

Then the process will end up in the activity getFireExtinguisher

And when the process is started with a Room(21, false), it will end up in the activity goToPub

Disclaimer: this activity is not yet stable. Two aspects will be revisisted in following releases:

The jms activity provides users with convenience for sending JMS messages. At this moment the sending of three different types of JMS messages is possible: text, object and map. Specifying message properties is not yet supported.

There are 3 types of JMS messages that you can send to to the destination: text, object and map. The connection-factory and destination attributes are mandatory and respectively contain the names of the connection factory and destination (queue or topic) that will be used to lookup the corresponding objects in JNDI. The lookup is done like this:

InitialContext initialContext = new InitialContext();
Destination destination = (Destination) initialContext.lookup(destinationName);
Object connectionFactory = initialContext.lookup(connectionFactoryName);

The jms activity will use the JMS queue apis if the destination is an instanceof Queue. Analogue for topics.

The jms activity will use the XA JMS apis if the connectionFactory is an instanceof XAConnectionFactory. Analogue for plain ConnectionFactory's.

So if you're running inside an appserver, then the new InitialContext() will see the queue's and topics configured in the appserver.

When your're using the JMS mocking in standalone test mode, then the queues and topics that you created with JbpmTestCase.jmsCreateQueue and JbpmTestCase.jmsCreateTopic will be available.

When you're running as a remote application client, then you have to specify the jndi environment with system properties.

Exactly one of the elements text, object or map is mandatory. The presence of this element will determine the kind of message that will be sent to the queue obtained in the lookup mentioned above. This message will be a TextMessage, ObjectMessage or MapMessage respectively.

In the following subsections the different types of supported messages will be explained. The used process is in the three cases similar. The graphical representation of the process is shown below.

Apart from configuring a real JMS and making sure it is available in JNDI, a jms activity can also be tested with a mock JMS provider. That might be easier to perform scenario testing of your process.

Following test helper methods are based solely on plain JMS apis and hence they work in a standalone environment as well as in an appserver environment:

For example, after the process execution has executed the jms activity, messages can be asserted like this:

MapMessage mapMessage = (MapMessage)
  jmsConsumeMessageFromQueue("java:/JmsXA", "queue/ProductQueue");
assertEquals("shampoo", mapMessage.getString("product"));

The following jms helper methods are based on mockrunner and hence they only work in a standalone environment:

(we're collaborating with mockrunner people to have these methods also work in an appserver environment)

For example, a queue can be created and removed in the setup and tearDown methods of a test like this:

protected void setUp() throws Exception {
  jmsCreateQueue("java:/JmsXA", "queue/ProductQueue");

protected void tearDown() throws Exception {
  jmsRemoveQueue("java:/JmsXA", "queue/ProductQueue");

Human interaction happens nowadays most of the times through web interfaces using some kind of form to capture input of the user. Using jBPM task forms, a process designer can attach such input forms to a task activity or a start activity. When using the jBPM console, the forms will automatically be displayed for user input when a process instance is started or when a task is completed. An example process (VacationRequest) is shipped with the default examples of the distribution demo.

Task forms are plain text files containing arbitray content. However, when using the jBPM console, HTML pages containing a form element are required. The default form plugin of the console leverages the freemarker templating library. It builds on the following constraints:

  • Templates need to be suffixed *.ftl and be included with the deployment:
  • The action of the form must be "${form.action}"
  • HTML forms need to provide the correct enctype: "multipart/form-data"
  • Form field names become process variables names and vice versa
  • A reserved field name is available for signaling execution upon task completion: "outcome"

    <form action="${form.action}" method="POST" enctype="multipart/form-data">
      <h3>Your employee, ${employee_name} would like to go on vacation</h3>
      Number of days: ${number_of_days}<br/>
      In case you reject, please provide a reason:<br/>
      <input type="textarea" name="reason"/><br/>
      <#list outcome.values as transition>
          <input type="submit" name="outcome" value="${transition}">

In this example, the process variables employee_name and number_of_days is displayed on the screen using a variable reference expression. The value of the input field reason will be stored as a process variable.

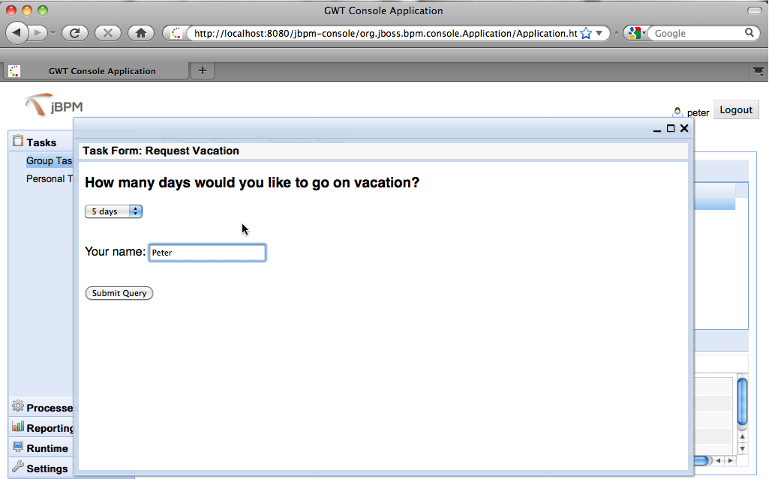

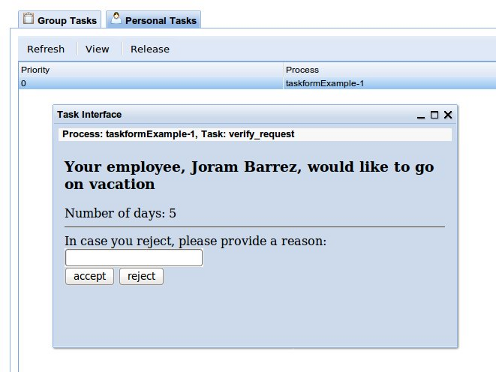

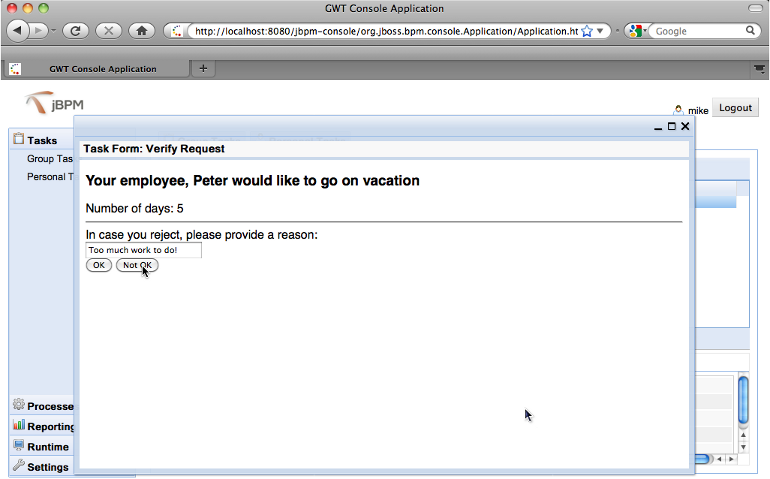

The jBPM console will render the taskforms automatically:

By default the behaviour of jBPM upon redeployment is to start new process instances with the newly deployed version. Also, it is possible to start new process instances using a specified older version if needed. The existing running process instances always keep running following the definition that they were started in. But what when a customer or some piece of legislation mandates that this behaviour is not enough? We could e.g. think of a situation where process instances do not make sense anymore when a new definition is deployed. In this case these instances should be ended. In another situation it might be needed that all (or even some particular) instances are migrated and moved to the newly deployed definition. jBPM contains a tool that exactly supports these use cases.

Before delving into the details of the instance migration tool, we have to warn the reader. Though we did a reasonable attempt at trying to understand the different use cases, there are certainly a number of situations that are not yet covered. For now we have concentrated on the limited case where the nodes that are involved in the migration are states. The goal is to expand this support to other nodes (e.g. human tasks) in the future. We welcome any feedback around these use cases very eagerly.

For all the examples that follow, we will start from the same original process definition:

<process name="foobar">
    <transition to="a"/>
  <state name="a">
    <transition to="b">
  <state name="b">
    <transition to="c"/>
  <state name="c">
    <transition to="end"/>
  <end name="end"/>

The first obvious use case that we wanted to cover is where a new version of a process is deployed for which one of the following statements is true:

This use case might be useful if for instance event handler names change between versions, if new processing has to be inserted or if new paths of execution have to be added. Consider the following modification of the above process definition to indicate that running instances have to be migrated:

<process name="foobar">
    <transition to="a"/>
  <state name="a">
    <transition to="b">
  <state name="b">
    <transition to="c"/>
  <state name="c">
    <transition to="end"/>
  <end name="end"/>

When this second process is deployed the running instances of the previous version - and only of the previous version - will be migrated to the new version. We"ll explain later what to do if you want more than only the instances of the previous version to be migrated. Assume that when deploying the second version there would be one process instance in the state "a" and one process instance in the state "b". The following snippet in a unit test would be valid:

    ProcessDefinition pd1 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi1 = startAndSignal(pd1, "a");
    ProcessInstance pi2 = startAndSignal(pd1, "b");
    ProcessDefinition pd2 = deployProcessDefinition("foobar", versionWithSimpleMigration);
    pi1 = executionService.findProcessInstanceById(pi1.getId());
    pi2 = executionService.findProcessInstanceById(pi2.getId());
    assertEquals(pd2.getId(), pi1.getProcessDefinitionId());
    assertEquals(pd2.getId(), pi2.getProcessDefinitionId());
    assertEquals(pi1, pi1.findActiveExecutionIn("a"));
    assertEquals(pi2, pi2.findActiveExecutionIn("b"));

So we've showed you how instances of the previously deployed version - and only that one - could be either migrated or ended. But what to do when you want to perform these actions on process instances of other already deployed versions. This can be done by making use of the versions attribute of the migrate-instances tag. This attribute lets you specify a range of versions that need to be migrated (or ended). Consider the following process definition:

<process name="foobar">
    <transition to="a"/>
  <state name="a">
    <transition to="b">
  <state name="b">
    <transition to="c"/>
  <state name="c">
    <transition to="end"/>
  <end name="end"/>
  <migrate-instances versions="2..3"/>

Imagine a situation where we would deploy the original process definition 4 times in a row and for each deployment start a process instance that waits in state "a". Then we deploy the above version of the process definition with instance migration. The result will be that instance 2 and instance 3 will be migrated while instance 1 and instance 4 will keep running following their original definition. This is shown in the snippet below:

    ProcessDefinition pd1 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi1 = startAndSignal(pd1, "a");
    ProcessDefinition pd2 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi2 = startAndSignal(pd2, "a");
    ProcessDefinition pd3 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi3 = startAndSignal(pd3, "a");
    ProcessDefinition pd4 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi4 = startAndSignal(pd4, "a");
    ProcessDefinition pd5 = deployProcessDefinition("foobar", versionWithAbsoluteVersionRange);
    pi1 = executionService.findProcessInstanceById(pi1.getId());
    pi2 = executionService.findProcessInstanceById(pi2.getId());
    pi3 = executionService.findProcessInstanceById(pi3.getId());
    pi4 = executionService.findProcessInstanceById(pi4.getId());
    assertEquals(pd1.getId(), pi1.getProcessDefinitionId());
    assertEquals(pd5.getId(), pi2.getProcessDefinitionId());
    assertEquals(pd5.getId(), pi3.getProcessDefinitionId());
    assertEquals(pd4.getId(), pi4.getProcessDefinitionId());

A number of variants exist for the versions attribute. The example above uses an absolute version range. It is also possible to use an expression of the form x-n to indicate a version number relative to the last deployed version. So if you want to only migrate instances from the last two versions you could use the following expression for the versions attribute:

<process name="foobar">
  <migrate-instances versions="x-2..x"/>

You can also mix and match the absolute and the relative specifications. E.g. if you would like to migrate all the instances of all the versions to the newly deployed version you can use the following:

<process name="foobar">
  <migrate-instances versions="1..x"/>

And for this last example you can also use the "*" wildcard notation:

<process name="foobar">
  <migrate-instances versions="*"/>

In some cases users will want to map nodes from the previously deployed process definition to nodes of the newly deployed process definition. This could be the case when in the newly deployed process definition some nodes are deleted or have been replaced by nodes with a different name. To support this use case it is possible to specify so-called activity-mapping elements. These elements have two attributes: the activity name in the old process definition and the activity name in the new process definition. Consider the following process definition:

<process name="foobar">
    <transition to="a"/>
  <state name="a">
    <transition to="b">
  <state name="b">
    <transition to="c"/>
  <state name="c">
    <transition to="d"/>
  <state name="d">
    <transition to="end"/>
  <end name="end"/>
    <activity-mapping old-name="b" new-name="a"/>
    <activity-mapping old-name="c" new-name="d"/>

Deploying this process will put all the instances of the previously deployed process that are waiting in the state "b" into the state "a" of the newly deployed process. Likewise all instances of the previously deployed process definition that are waiting in state "c" will be placed in the state "d". The following piece of code illustrates this:

    ProcessDefinition pd1 = deployProcessDefinition("foobar", originalVersion);
    ProcessInstance pi1 = startAndSignal(pd1, "a");
    ProcessInstance pi2 = startAndSignal(pd1, "b");
    ProcessInstance pi3 = startAndSignal(pd1, "c");
    ProcessDefinition pd2 = deployProcessDefinition("foobar", versionWithCorrectMappings);
    pi1 = executionService.findProcessInstanceById(pi1.getId());
    pi2 = executionService.findProcessInstanceById(pi2.getId());
    pi3 = executionService.findProcessInstanceById(pi3.getId());
    assertEquals(pd2.getId(), pi1.getProcessDefinitionId());
    assertEquals(pd2.getId(), pi2.getProcessDefinitionId());
    assertEquals(pd2.getId(), pi3.getProcessDefinitionId());
    assertEquals(pi1, pi1.findActiveExecutionIn("a"));
    assertEquals(pi2, pi2.findActiveExecutionIn("a"));
    assertEquals(pi3, pi3.findActiveExecutionIn("d"));
    pi1 = executionService.signalExecutionById(pi1.getId());
    pi2 = executionService.signalExecutionById(pi2.getId());
    pi2 = executionService.signalExecutionById(pi2.getId());
    pi3 = executionService.signalExecutionById(pi3.getId());
    assertEquals(pi1, pi1.findActiveExecutionIn("b"));
    assertEquals(pi2, pi2.findActiveExecutionIn("c"));

We already mentioned that there are a lot of use cases that we probably didn't think of or for which there was not enough time to build support. Exactly for this reason we provide the concept of a migration handler. This is a user defined piece of code that implements the interface "org.jbpm.pvm.internal.migration.MigrationHandler":

public interface MigrationHandler {

  void migrateInstance(
          ProcessDefinition newProcessDefinition,
          ProcessInstance processInstance,
          MigrationDescriptor migrationDescriptor);


This migration handler can be specified in the process definition xml and will be executed for each process instance that has to be migrated. Experienced users can use this to do all kinds of bookkeeping they need to do when migrating (or ending) process instances. To perform this bookkeeping, it gets of course a handle to the process instance that needs to be migrated, but also to the new process definition and to a so called migration descriptor that contains among others the migration mapping. Take e.g. the following example:

<process name="foobar">
    <migration-handler class="org.jbpm.test.migration.TestHandler"/>

In this case the specified migration handler will be executed for each process instance that needs to be migrated AFTER the default migration has been done. If the attribute action is set to "end" the migration handler will be called BEFORE the process instance is ended. If more than one migration handler is specified, they will be executed one after another.

One of the first questions that might, rightfully, come to mind is why BPMN2 is being implemented while there is jPDL. Both are languages have as goal to define executable business processes. From a high-level technical point of view, both languages are equivalent. The main distinction is that BPMN2 is as vendor-neutral as you can have with standards, while JPDL has always been tied to jBPM (although some might argue that a vendor lock-in for an open-source process language such as JPDL is less a lock-in than with closed-source products).

Within jBPM, both language implementations are built on top of the jBPM Process Virtual Machine (PVM). This means that both languages share a common foundation (persistence, transactions, configuration, but also basic process constructs, etc.). As a result, optimizations to the core of jBPM often benefits both languages. Leveraging the PVM, the BPMN2 implementation is built upon a foundation that has already proven itself in the past and has a large end-user community.

When evaluating the languages and comparing them which each other however, following points must be taken into consideration:

It is natural to the political level of BPMN2 specification process to go rather slow. JPDL on the other hand will be able to incorporate changes faster, integrate with new technologies when they are released and evolve generally at a quicker pace compared to BPMN2. Of course, since both are built on top of the same PVM, it is only logical that additions to JPDL can be ported to BPMN2 as an extension without much hassle.

The BPMN2 specification defines a very rich language for modeling and executing business processes. However, this also means that it is quite hard to get an overview of what's possible with BPMN2. To simplify this situation, we've decided to categorize the BPMN2 constructs into three 'levels'. The separation itself is primarily based on the book 'BPMN method and Style' by Bruce Silver (http://www.bpmnstyle.com/), the training material of Dr. Jim Arlow (http://www.slideshare.net/jimarlow/introductiontobpmn005), 'How much BPMN do you need' (http://www.bpm-research.com/2008/03/03/how-much-bpmn-do-you-need/), and also our own experience.

We define three categories of BPMN2 constructs:

  • Basic: constructs in this category are straight-forward and easy to grasp. Constructs in this category can be used to model simple business processes.
  • Advanced: contains more powerful or expressive constructs, but this comes with higher modeling and execution semantics learning curve. The majority of business processes are implementable with constructs from this and the previous category.
  • Complex: constructs in this category are used in specific and/or rare cases, or their semantics are difficult to understand.

The difference between a 'terminate' and a 'none' end event lies in the fact how a path of execution is treated (or a 'token' in BPMN 2.0 terminology). The 'terminate' end event will end the complete process instance, whereas the 'none' end event will only end the current path of execution. They both don't throw anything when the end event is reached.

A terminate end event is defined as follows. An id is required, a name is optional.

<endEvent id="terminateEnd" name="myTerminateEnd">

A terminate end event is depicted as an end event (circle with thick border), with a full circle as icon inside. In the following example, completing the 'task1' will end the process instance, while completing the 'task2' will only end the path of execution which enters the end event, leaving the task1 open.

See the examples shipped with the jBPM distribution for the unit test and XML counterpart of this business process.

A sequence flow is the connection between events, activities and gateways shown as a solid line with an arrow in a BPMN diagram (JPDL equivalent is the transition). Each sequence flow has exactly one source and exactly one target reference, that contains the id of an activity, event or gateway.

<sequenceFlow id="myFlow" name="My Flow"
        sourceRef="sourceId" targetRef="targetId" />

An important difference with JPDL is the behaviour of multiple outgoing sequence flows. In JPDL, only one transition is selected as outgoing transition, unless the activity is a fork (or a custom activity with fork behaviour). However, in BPMN, the standard behaviour of multiple outgoing sequence flow is to split the incoming token ('execution' in jBPM terminology) into a collection of tokens, one for each outgoing sequence flow. In the following situation, after completing the first task, there will be three tasks activated instead of one.

To avoid that a certain sequence flow is taken, one has to add a condition to the sequence flow. At runtime, only when the condition evaluates to true, that sequence flow will be taken.

To put a condition on a sequence flow, add a conditionExpression element to the sequence flow. Conditions are to be put between ${}.

<sequenceFlow id=....>
  <conditionExpression xsi:type="tFormalExpression">${amount >= 500}</conditionExpression>

Note that is currently is necessary to add the xsi:type="tFormalExpression" to the conditionExpression. A conditional sequence flow is visualized as a mini diamond shape at the beginning of the sequence flow. Keep in mind that conditions always can be defined on sequence flow, but some constructs will not interprete them (eg. parallel gateway).

Activities (such as the user task) and gateways (such as the exclusive gateway) can have a default sequence flow. This default sequence flow is taken only when all the other outgoing sequence flow from an activity or gateway have a condition that evaluate to false. A default sequence flow is graphically visualized as a sequence flow with a 'slash marker'.

The default sequence flow is specified by filling in the 'default' attribute of the activity or gateway.

Also note that an expression on a default sequence flow is ignored.

A gateway in BPMN is used to control the flow through the process. More specifically, when a token (the BPMN 2.0 conceptual notion of an execution) arrives in a gateway, it can be merged or split depending on the gateway type.

Gateways are depicted as a diamond shape, with an icon inside specifying the type (exclusive, inclusive, etc.).

On every gateway type, the attribute gatewayDirection can be set. following values are possible:

Take for example the following example: a parallel gateway that has as gatewayDirection 'converging', will have a join behaviour.

<parallelGateway id="myJoin" name="My synchronizing join" gatewayDirection="converging" />

Note: the 'gatewayDirection' attribute is optional according to the specification. This means that we cannot rely on this attribute at runtime to know which type of behaviour a certain gateway has (for example for a parallel gateway if we have joining of forking behaviour). However, the 'gatewayDirection' attribute is used at parsing time as a constraint check for the incoming/outgoing sequence flow. So using this attribute will lower the chance on errors when referencing sequence flow, but is not required.

An exclusive gateway represents an exclusive decision in the process. Exactly one outgoing sequence flow will be taken, depending on the conditions defined on the sequence flow.

The corresponding JPDL construct with the same semantics is the decision activity. The full technical name of the exclusive gateway is the 'exclusive data-based gateway', but it is also often called the XOR Gateway. The XOR gateway is depicted as a diamond with a 'X' icon inside. An empty diamond without a gateway also signifies an exclusive gateway.

The following diagram shows the usage of an exclusive gateway: depending on the value of the amount variable, one of the three outgoing sequence flow out of the exclusive gateway is chosen.

The corresponding executable XML of this process looks as follows. Note that the conditions are defined on the sequence flow. The exclusive gateway will select the single sequence flow for which its condition evaluates to true. If multiple conditions evaluate to true, the first one encountered will be taken (a log message will indicate this situation).

  <process id="exclusiveGateway" name="BPMN2 Example exclusive gateway">

    <startEvent id="start" />

   <sequenceFlow id="flow1" name="fromStartToExclusiveGateway"
      sourceRef="start" targetRef="decideBasedOnAmountGateway" />
   <exclusiveGateway id="decideBasedOnAmountGateway" name="decideBasedOnAmount" />
   <sequenceFlow id="flow2" name="fromGatewayToEndNotEnough"
      sourceRef="decideBasedOnAmountGateway" targetRef="endNotEnough">
      <conditionExpression xsi:type="tFormalExpression">
        ${amount < 100}
   <sequenceFlow id="flow3" name="fromGatewayToEnEnough"
      sourceRef="decideBasedOnAmountGateway" targetRef="endEnough">
      <conditionExpression xsi:type="tFormalExpression">
        ${amount <= 500 && amount >= 100}
   <sequenceFlow id="flow4" name="fromGatewayToMoreThanEnough"
      sourceRef="decideBasedOnAmountGateway" targetRef="endMoreThanEnough">
      <conditionExpression xsi:type="tFormalExpression">
        ${amount > 500}

   <endEvent id="endNotEnough" name="not enough" />
   <endEvent id="endEnough" name="enough" />
   <endEvent id="endMoreThanEnough" name="more than enough" />


This process needs a variable such that the expression can be evaluated at runtime. Variables can be provided when starting the process instance (similar to JPDL):

Map<String, Object> vars = new HashMap<String, Object>();
vars.put("amount", amount);
ProcessInstance processInstance = executionService.startProcessInstanceByKey("exclusiveGateway", vars);

The exclusive gateway requires that all outgoing sequence flow have conditions defined on them. An exception to this rule is the default sequence flow. Use the default attribute to reference an existing id of a sequence flow. This sequence flow will be taken when the conditions on the other outgoing sequence flow all evaluate to false.

<exclusiveGateway id="decision" name="decideBasedOnAmountAndBankType" default="myFlow"/>
<sequenceFlow id="myFlow" name="fromGatewayToStandard"
    sourceRef="decision" targetRef="standard">

An exclusive gateway can have both convering and diverging functionality. The logic is easy to grasp: for every execution that arrives at the gateway, one outgoing sequence flow is selected to continue the flow. The following diagram is completely legal in BPMN 2.0 (omitting names and conditions for clarity).

A parallel gateway is used to split or synchronize the respectively incoming or outgoing sequence flow.

A parallel gateway is defined as follows:

<parallelGateway id="myParallelGateway" name="My Parallel Gateway" />

Note that the 'gatewayDirection' attribute can be used to catch modeling errors at parsing time (see above).

The following diagram shows how a parallel gateway can be used. After process start, both the 'prepare shipment' and 'bill customer' user tasks will be active. The parallel gateway is depicted as a diamond shape with a plus icon inside, both for the splitting and joining behaviour.

The XML counterpart of this diagram looks as follows:

  <process id="parallelGateway" name="BPMN2 example parallel gatewar">
    <startEvent id="Start" />

    <sequenceFlow id="flow1" name="fromStartToSplit"
      targetRef="parallelGatewaySplit"  />

    <parallelGateway id="parallelGatewaySplit" name="Split"

    <sequenceFlow id="flow2a" name="Leg 1"
      targetRef="prepareShipment" />
    <userTask id="prepareShipment" name="Prepare shipment"
      implementation="other" />
    <sequenceFlow id="flow2b" name="fromPrepareShipmentToJoin"
      targetRef="parallelGatewayJoin"  />
    <sequenceFlow id="flow3a" name="Leg 2"
      targetRef="billCustomer" />
    <userTask id="billCustomer" name="Bill customer"
      implementation="other" />
    <sequenceFlow id="flow3b" name="fromLeg2ToJoin"
      targetRef="parallelGatewayJoin"  />

    <parallelGateway id="parallelGatewayJoin" name="Join"
    <sequenceFlow id="flow4"

    <endEvent id="End" name="End" />

A parallel gateway (as is the case for any gateway) can have both splitting and merging behaviour. The following diagram is completely legal BPMN 2.0. After process start, both task A and B will be active. When both A en B are completed, tasks C,D and E will be active.

An inclusive gateway - also called an OR-gateway - is used to 'conditionally' split or merge sequence flow. It basically behaves as a parallel gateway, but it also takes in account conditions on the outgoing sequence flow (split behaviour) and calculates if there are executions left that could reach the gateway (merge behaviour).

The inclusive gateway is depicted as a typical gateway shape with a circle inside (referring to 'OR' semantics). Unlike the exclusive gateway, all condition expressions are evaluated (diverging or 'split' behaviour). For every expression that evaluates to true, a new child execution is created. Sequence flow without a condition will always be taken (ie. a child execution will always be created in that case).

A converging inclusive gateway ('merge' behaviour) has a somewhat more difficult execution logic. When an execution (Token in BPMN 2.0 terminology) arrives at the merging inclusive gateway, the following is checked (quoting the specification literally):

For each empty incoming sequence flow, there is no
Token in the graph anywhere upstream of this sequence flow, i.e., there is no directed path
(formed by Sequence Flow)  from a Token to this sequence flow unless
a) the path visits the inclusive gateway or
b) the path visits a node that has a directed path to a non-empty
   incoming sequence flow of the inclusive gateway. "

In more simple words: when an execution arrives at the gateway, all active execution are checked if they can reach the inclusive gateway, by only taking in account the sequence flow (note: conditions are not evaluated!). When the inclusive gateway is used, it is usally used in a pair of splitting/merging inclusive gateways. In those cases, the execution behaviour is easy enough to grasph by just looking at the model.

Of course, it is not hard to imagine situations where the executions are split and merged in complex combinations using a variety of constructs including the inclusive gateway. In those cases, it could very well be that the actual execution behaviour might not be what the modelers' expects. So be careful when using the inclusive gateway and keep in mind that it is often the best practice to use inclusive gateways just in pairs.

The following diagram shows how the inclusive gateway can be used. (example taken from "BPMN method and style" by Bruce Silver)

We can distinguish following cases:

No matter how many tasks are active after going through the inclusive gateway, the converging inclusive gateway on the right will wait until all outgoing sequence flow of the inclusive gateway on the left have reached the merging gateway (sometimes only one, sometimes two). Take a look at org.jbpm.examples.bpmn.gateway.inclusive.InclusiveGatewayTest to see how this example reflects in a unit test.

The XML version of the example above looks as follows:

<process id="inclusiveGateway" name="BPMN2 Example inclusive gateway">

    <startEvent id="start" />

   <sequenceFlow id="flow1" sourceRef="start" targetRef="inclusiveGatewaySplit" />
   <inclusiveGateway id="inclusiveGatewaySplit" default="flow3"/>
   <sequenceFlow id="flow2" sourceRef="inclusiveGatewaySplit" targetRef="largeDeposit">
      <conditionExpression xsi:type="tFormalExpression">${cash > 10000}</conditionExpression>
   <sequenceFlow id="flow3" sourceRef="inclusiveGatewaySplit" targetRef="standardDeposit" />
   <sequenceFlow id="flow4" sourceRef="inclusiveGatewaySplit" targetRef="foreignDeposit">
      <conditionExpression xsi:type="tFormalExpression">${bank == 'foreign'}</conditionExpression>
   <userTask id="largeDeposit" name="Large deposit" />
   <sequenceFlow id="flow5" sourceRef="largeDeposit" targetRef="inclusiveGatewayMerge" />
   <userTask id="standardDeposit" name="Standard deposit" />
   <sequenceFlow id="flow6" sourceRef="standardDeposit" targetRef="inclusiveGatewayMerge" />
   <userTask id="foreignDeposit" name="Foreign deposit" />
   <sequenceFlow id="flow7" sourceRef="foreignDeposit" targetRef="inclusiveGatewayMerge" />
   <inclusiveGateway id="inclusiveGatewayMerge" />
    <sequenceFlow id="flow8" sourceRef="inclusiveGatewayMerge" targetRef="theEnd" />

   <endEvent id="theEnd" />


As with any gateway type, the inclusive gateway type can have both merging and splitting behaviour. In that case, the inclusive gateway will first wait until all executions have arrived, before splitting again for every sequence flow that has a condition that evauluates to true (or doesn't have a condition).

A User task is the typical 'human task' that is found in practically every workflow or BPM software out there. When process execution reaches such a user task, a new human task is created in task list for a given user.

The main difference with a manual task (which also signifies work for a human actor) is that the task is known to the process engine. The engine can track the completion, assignee, time, etc which is not the case for a manual task.

A user task is depicted as a rounded rectangle with a small user icon in the top left corner.

A user task is defined as follows in the BPMN 2.0 XML:

<userTask id="myTask" name="My task" />

According to the specification, multiple implementations are possible (Webservice, WS-humantask, etc.), as stated by using the implementation attribute. Currently, only the standard jBPM task mechanism is available, so there is no point (yet) in defining the 'implementation' attribute.

The BPMN 2.0 specification contains quite a few ways of assigning user tasks to user(s), group(s), role(s), etc. The current BPMN 2.0 jBPM implementation allows to assign tasks using a resourceAssignmentExpression, combined with the humanPerformer or PotentialOwner construct. It is to be expected that this area will evolve future releases.

A potentialOwner is used when you want to make a certain user, group, role, etc. a candidate for a certain task. Take the following example. Here the candidate group for the task 'My task' will be the 'management' group. Also note that a resource must be defined outside the process, such that the task assignment can reference the resource. In fact, any activity can reference one or more resource elements. Currently, only defining this resource is enough (since it is a required attribute by the spec), but this will be enhanced in a later release (eg. resources can have runtime parameters).

<resource id="manager" name="manager" />

<process ...>

<userTask id="myTask" name="My task">
  <potentialOwner resourceRef="manager" jbpm:type="group">

Note that we are using a specific extension here (jbpm:type="group"), to define this is a group assignment. If this attribute is removed, the group semantics will be used as default (which would be ok in this example). Now suppose that Peter and Mary are a member of the management group (here using the default identity service):

identityService.createUser("peter", "Peter", "Pan");
identityService.createMembership("peter", "management");
identityService.createUser("mary", "Mary", "Littlelamb");
identityService.createMembership("mary", "management");

Then both peter and mary can look in their task list for this task (code snippet from the example unit test):

// Peter and Mary are both part of management, so they both should see the task
List<Task> tasks = taskService.findGroupTasks("peter");
assertEquals(1, tasks.size());
 tasks = taskService.findGroupTasks("mary");
assertEquals(1, tasks.size());
// Mary claims the task
Task task = tasks.get(0);
taskService.takeTask(task.getId(), "mary");

When the assignment should be done to a candidate user, just use the jbpm:type="user" attribute.

<userTask id="myTask" name="My User task">
  <potentialOwner resourceRef="employee" jbpm:type="user">

In this example, peter will be able to find the task since he's a candidate user for the task.

List<Task> tasks = taskService.createTaskQuery().candidate("peter").list();

A human performer is used when you want to assign a task directly to a certain user, group, role, etc. The way to do this looks very much like that of the potential owner.

<resource id="employee" name="employee" />

<process ...>

<userTask id="myTask" name="My User task">
  <humanPerformer resourceRef="employee">

In this example, the task will be directly assigned to Mary. She can now find the task in her task list:

List<Task> tasks = taskService.findPersonalTasks("mary");

Since the task assignment is done through the use of a formalExpression, it's also possible to define expressions that are evaluated at runtime. The expressions itself need to be put inside a ${}, as usual in jBPM. For example, if a process variable 'user' is defined, then it can be used inside an expression. More complex expressions are of course possible.

<userTask id="myTask" name="My User task">
  <humanPerformer resourceRef="employee">

Note that it is not needed to use the 'jbpm:type' on a humanPerformer element, since only direct user assignments can be done. If a task needs to be assigned to a role or group, use the potentialOwner with a group type (when you assign a task to a group, all members of that group will always be candidate users for that group - hence the usage of potentialOwner).

A Service Task is an automatic activity that calls some sort of service, such as a web service, Java service, etc. Currently, only Java service invocations are supported by the jBPM engine, but Web service invocations are planned for a future release.

Defining a service task requires quite a few lines of XML (the BPEL influence is certainly visible here). Of course, in the near future, we expect that tooling will simplify this area a lot. A service task is defined as follows:

<serviceTask id="MyServiceTask" name="My service task"
  implementation="Other" operationRef="myOperation" />

The service task has a required id and an optional name. The implementation attribute is used to indicate what the type of the invoked service is. Possible values are WebService, Other or Unspecified. Since we've only implemented the Java invocation, only the Other choice will do something useful for the moment.

The service task will invoke a certain operation that is referenced by the operationRef attribute using the id of an operation. Such an operation is part of an interface as shown below. Every operation has at least one input message and at most one output message.

<interface id="myInterface"
    <operation id="myOperation2" name="myMethod">

For a Java service, the name of the interface is used to specificy the fully qualified classname of the Java class. The name of the operation is then used to specify the name of the method that must be called. The input/output message that represent the parameters/return value of the Java method are defined as follows:

<message id="inputMessage" name="input message" structureRef="myItemDefinition1" />

Several elements in BPMN are so-called 'item-aware', including this message construct. This means that they are involved in storing or reading items during process execution. The data structure to hold these elements is specified using a reference to an ItemDefinition. In this context, the message specifies its data structure by referencing an Itemdefinition in the structureRef attribute.

  <itemDefinition id="myItemDefinition1" >
      <jbpm:object expr="#{var1}" />
  <itemDefinition id="myItemDefinition2">
    <jbpm:var name="returnVar" />

Do note that this is not fully standard BPMN 2.0 as by the specification (hence the 'jbpm' prefix). In fact, according to the specification, the ItemDefinition shouldn't contain more than a data structure definition. The actual mapping between input paramaters, with a ceratin data structure, is done in the ioSpecification section of the serviceTask. However, the current jBPM BPMN 2.0 implementation hasn't implemented that construct yet. So, this means that the current usage as described above, will probably change in the near future.

Important note: Interfaces, ItemDefinitions and messages are defined outside a <process>. See the example ServiceTaskTest for a concrete process and unit test.

Subprocesses are in the first place a way of making a process "hierarchical", meaning that a modeller can create several 'levels' of detail. The top level view then explains the high-level way of doing things, while the lowest level focusses on the nitty gritty details.

Take for example the following diagram. In this model, only the high level steps are shown. The actual implementation of the "Check credit" step is hidden behind a collapsed subprocess, which may be the perfect level of detail to discuss business processes with end-users.

The second major use case for sub-processes is that the sub-process "container" acts as a scope for events. When an event is fired from within the sub-process, the catch events on the boundary of the sub-process will be the first to receive this event.

A sub-process that is defined within a top-level process is called an embeddable sub-process. All process data that is available in the parent process is also available in the sub-process. The following diagram shows the expanded version of the model above.

The XML counterpart of this model looks as follows:$

<process id="embeddedSubprocess">

    <startEvent id="theStart" />
    <sequenceFlow id="flow1" sourceRef="theStart" targetRef="receiveOrder" />
    <receiveTask name="Receive order" id="receiveOrder" />
    <sequenceFlow id="flow2" sourceRef="receiveOrder" targetRef="checkCreditSubProcess" />
    <subProcess id="checkCreditSubProcess" name="Credit check">

    <sequenceFlow id="flow9" sourceRef="checkCreditSubProcess" targetRef="theEnd" />
    <endEvent id="theEnd" />


Note that inside the sub-process, events, activities, tasks are defined as if it were a top-level process (hence the three "..." within the XML example above. Sub-processes are only allowed to have a none start event.

Conceptually an embedded sub-process works as follows: when an execution arrives at the subprocess, a child execution is created. The child execution can then later create other (sub-)child executions, for example when a parallel gateway is used whithin the sub-process. The sub-process however, is only completed when no executions are active anymore within the subprocess. In that case, the parent execution is taken for further continuation of the process.

For example, in the following diagram, the "Third task" will only be reached after both the "First task" and the "Second task" are completed. Completing one of the tasks in the sub-process, will not trigger the continuation of the sub-process, since one execution is still active within the sub-process.

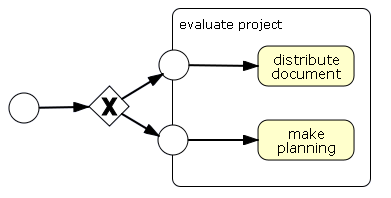

Sub-processes can have multiple start events. In that case, multiple parallel paths will exist within the sub-process. The rules for sub-process completion are unchanged: the sub-process will only be left when all the executions of the parallel paths are ended.

Nested sub-processes are also possible. This way, the process can be divided into several levels of detail. There is no limitation on the levels of nesting.

Implementation note: According to the BPMN 2 specification, an activity without ougoing sequence flow implicitly ends the current execution. However currently, it is necessary for a correct functioning to specifically use an end event within the sub-process to end a certain path. This will be enhanced in the future to be specification-compliant.

A timer start event is used to indicate that a process should be started when a given time condition is met. This could be a specific point in time (eg. October 10th, 2010 at 5am), but also and more typically a recurring time (eg. every Friday at midnight).

A timer start event is visualized as a circle with the clock icon inside.

Using a Timer Start event is done by adding a timerEventDefinition element below the startEvent element:

<startEvent name="Every Monday morning" id="myStart">

Following time definitions are possible:

The timer start event implementation in jBPM also has following features:

  • Process definitions that have a timer start event, can be started as if it also were a none start event. This means that calling for example executionService.startProcessInstanceByKey(key) just works.
  • The timer start event is internally implemented as a scheduled job. This means that a job executor has to be configured for the timer start event to work. The advantage of this implementation is that the timer start event firing is transactional (eg. if a service tasks right after the timer start event fails, the transaction will be rolled back and the timer start event will be retried later) and able to cope with a server crash (ie. the when the server comes back up, the timer start event will be picked up by the job executor just as if nothing has happened).
  • When a new version of a process definition with a timer start event is deployed, the old timer start event job is removed from the system. This means that only the latest version of the process definition will be used to create a new process instances.

An intermediate timer event is used to represent a delay in the process. Straightfoward use cases are for example polling of data, executing heavy logic only at night when nobody is working, etc.

Note that an intermediate timer only can be used as a catch event (throwing a timer event makes no sense). The following diagram shows how the intermediate timer event is visualized.

Defining an intermediate timer event is done in XML as follows:

<intermediateCatchEvent id="myTimer" name="Wait for an hour">
    <timeCycle>1 hour</timeCycle>

There are two ways to specify the delay, using either a timeCycle or a timeDate. In the example above, a timeCycle is used.

Following delay definitions are possible (similar to those for a Timer Start Event).

Prerequisites: to run the example, we assume that a working jBPM console has been installed on your JBoss server. If not, please run the 'demo.setup.jboss' install script first.

The business process we're implementing looks as follows:

You might recognize this example, since we’ve also implemented it in JPDL as an example in our distribution.

The business process is simple: an employee can start a new process and make a request for a certain amount of vacation days. After the request task has been completed, the manager will find a verification task in its tasklist. The Manager can now decide to accept or reject this request. Depending on the outcome (that’s the little rhombus on the outgoing sequence flow - it means there is a conditional expression on the sequence flow), a rejection message is send or the process ends. Do note that in fact we've used a shortcut here: instead of putting expressions on the outgoing sequence flow of the 'verify request' task, we've could have used an exclusive gateway after the user task to control the flow through the process. Also note that since we haven't implemented swimlanes yet (probably the next release), it's difficult to actually see who does what in the business process.

The XML version of this process looks as follows:

<process id="vacationRequestProcess" name="BPMN2 Example process using task forms">

    <startEvent id="start" />

    <sequenceFlow id="flow1" name="fromStartToRequestVacation"
      sourceRef="start" targetRef="requestVacation" />

    <userTask id="requestVacation" name="Request Vacation"
     <potentialOwner resourceRef="user" jbpm:type="group">
      <rendering id="requestForm">

    <sequenceFlow id="flow2"
      name="fromRequestVacationToVerifyRequest" sourceRef="requestVacation"
      targetRef="verifyRequest" />

    <userTask id="verifyRequest" name="Verify Request"
      <potentialOwner resourceRef="user" jbpm:type="group">
      <rendering id="verifyForm">

    <sequenceFlow id="flow3" name="fromVerifyRequestToEnd"
      sourceRef="verifyRequest" targetRef="theEnd">
      <conditionExpression xsi:type="tFormalExpression">
        ${verificationResult == 'OK'}

    <sequenceFlow id="flow4"
      name="fromVerifyRequestToSendRejectionMessage" sourceRef="verifyRequest"
      <conditionExpression xsi:type="tFormalExpression">
        ${verificationResult == 'Not OK'}

    <scriptTask id="sendRejectionMessage" name="Send rejection Message"
        <![CDATA[System.out.println("Vacation request refused!");]]>

    <sequenceFlow id="flow5"
      name="fromSendRejectionMessageToEnd" sourceRef="sendRejectionMessage"
      targetRef="theEnd" />

    <endEvent id="theEnd" name="End" />

Note: this example is already installed when you've used the demo setup. Also note that we're using a Script Task here, to quickly write something as output instead of sending a real message (the diagram is showing a Service Task). Also note that we've taken some shortcuts here regarding task assignment (will be fixed in the next release).

The constructs used in this implementation are all covered in the previous section. Also note that we're using the taskform functionality here, which is a custom jBPM extension for the rendering element of a User task.

<userTask id="verifyRequest" name="Verify Request"
  <potentialOwner resourceRef="user" jbpm:type="group">
  <rendering id="verifyForm">

The mechanism regarding task forms for BPMN 2.0 is complete equivalent to that of JPDL. The form itself is a Freemarker template file that needs to be incorporated in the deployment. For example, the 'verify_request.ftl' form looks like as follows.


    <form action="${form.action}" method="POST" enctype="multipart/form-data">
      <h3>Your employee, ${employee_name} would like to go on vacation</h3>
      Number of days: ${number_of_days}<br/>
      In case you reject, please provide a reason:<br/>
      <input type="textarea" name="reason"/><br/>
      <input type="submit" name="verificationResult" value="OK">
      <input type="submit" name="verificationResult" value="Not OK">

Note that process variables can be accessed using the ${my_process_variable} construct. Also note that named input controls (eg. input field, submit button) can be used to define new process variables. For example, the text input of the following field will be stored as the process variable 'reason'

<input type="textarea" name="reason"/>

Note that there are two submit buttons (which makes sense if you look at the 'OK' and 'Not OK' sequence flows going out the 'request vacation' task. By pressing one of these buttons, the process variable 'verificationResult' will be stored. It can then be used to evaluate the outgoing sequence flow:

<sequenceFlow id="flow3" name="fromVerifyRequestToEnd"
      sourceRef="verifyRequest" targetRef="theEnd">
  <conditionExpression xsi:type="tFormalExpression">
    ${verificationResult == 'OK'}

The process can now be deployed. You can use the ant deploy task for this (see examples), or you can point your jBPM configuration to the database of the console. To deploy your process programmatically, you need to add the task forms to your deployment:

NewDeployment deployment = repositoryService.createDeployment();

You can now embed (or run on a standalone server) this business process, by using the familiar jBPM API operations. For example, process instances can now be started using the key (ie. the process id for BPMN 2.0):

ProcessInstance pi = executionService.startProcessInstanceByKey("vacationRequestProcess");

Or tasks list can be retrieved:

Task requestTasktask = taskService.createTaskQuery().candidate("peter").uniqueResult();

When deploying to the jBPM console database, you should see our new business process popping up.

After you start a new process, a new task should be available in the employee's tasklist. When clicking on 'view', the task form will be displayed, requesting to fill in some variables for further use in the process.

After task completion, the manager will find a new verification task in his task list. He can now accept or reject the vacation request, based on the input of the employee.

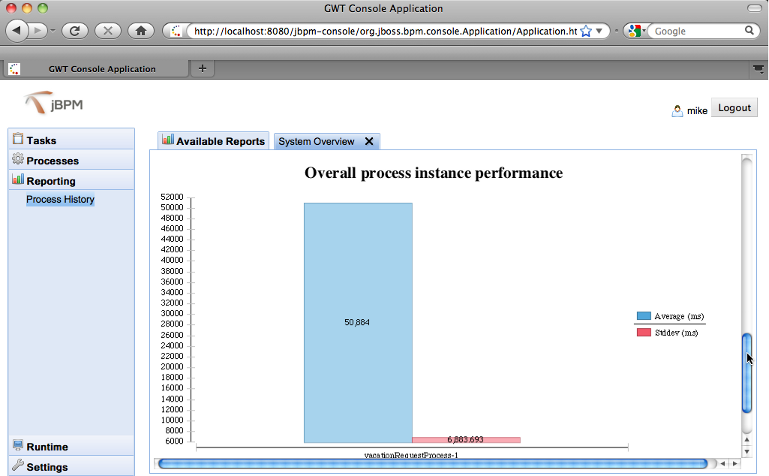

Since the database schema remains unchanged when we added BPMN 2.0 on top of the jBPM PVM, all existing reports can be applied to our new BPMN 2.0 processes.

In many cases, a lot of work has been put in the design of JPDL3 process definitions. To avoid a complete manual translation of these processes to the JPDL4 format, the jBPM distribution contains a subdirectory called migration, which contains a command-line tool for converting JPDL3 process definition files to JPDL process XML files.

Translated processes might not be executable any more. The jBPM 4 features might still be missing or the translation itself might not yet be implemented. But the tedious work of reformatting will be handled by the tool. It will also indicate the parts that it can't translate.

The tool itself uses only dom4j to do the translation between the two formats and should be easy extensible (the source code is also in the same directory). The design of the tool is deliberately kept very simple (ie most of the logic can be found in the Jpdl3Converter class). Note that this tool is experimental and tested only a small set of JPDL3 process files.

To accomodate multiple process languages and activity pluggability, jBPM is based on the Process Virtual Machine. In essence, the Process Virtual Machine is a framework specifying executable graphs. A process definition represents an execution flow and has a structure that be represented graphically as a diagram.

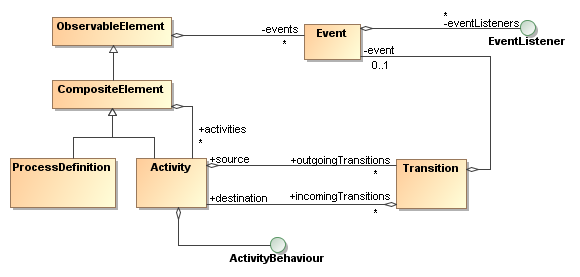

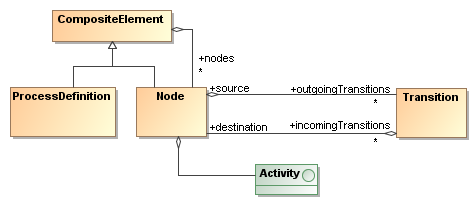

The Process Virtual Machine separates the structure from a process definition from the activity behaviours. The Process Virtual Machine takes the execution of a process from one activity to the next and delegates the behaviour of the activities to pluggable Java classes. There is an API (ActivityBehaviour) that serves as the interface between the Process Virtual Machine and the activity behaviour code. Languages like jPDL are merely a set of ActivityBehaviour implementations and a parser.

Typically, process definitions are static. A process definition is composed of activities and transitions. The runtime behaviour of a activity is encapsulated in a so called Activity and it's decoupled from the process graph structure.

The Process Virtual Machine doesn't contain any such activity implementations. It only provides the execution environment and an activity API to write ActivityBehaviour implementations as Java components. Activities can also be wait states. This means that the activity control flow goes outside the process system. For example a human task or invoking an service asynchronously. While the execution is waiting, the runtime state of that execution can be persisted in a DB.

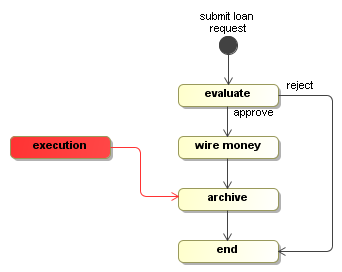

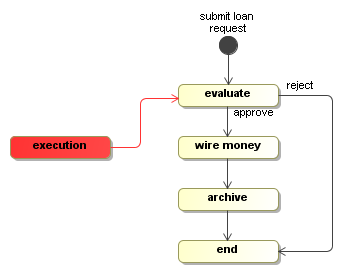

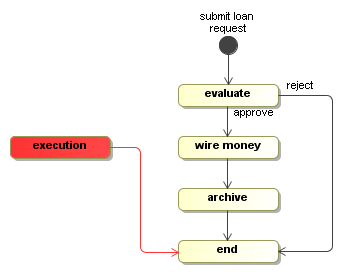

Many executions can be started for one process definition. An execution is a pointer that keeps track of the current activity.

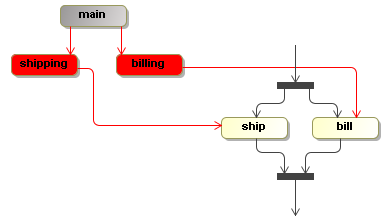

To represent concurrent paths of execution, there is a hierarchical parent-child relation between so that one process instance can cope with concurrent paths of execution.

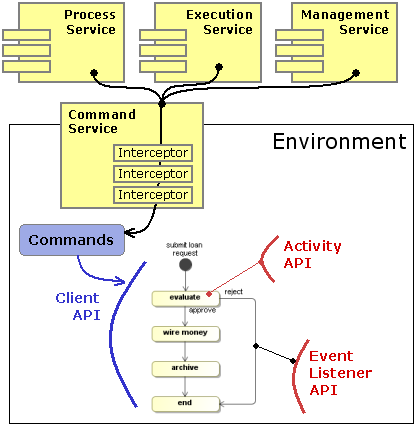

There are three main services: RepositoryService, ExecutionService and ManagementService. In general, services are session facades that expose methods for persistent usage of the PVM. The next fragments show the essential methods as example to illustrate those services.

The RepositoryService manages the repository of process definitions.

public interface RepositoryService {

  Deployment createDeployment();

  ProcessDefinitionQuery createProcessDefinitionQuery();


The ExecutionService manages the runtime executions.

public interface ExecutionService {

  ProcessInstance startProcessInstanceById(String processDefinitionId);

  ProcessInstance signalExecutionById(String executionId);


The ManagementService groups all management operations that are needed to keep the system up and running.

public interface ManagementService {

  JobQuery createJobQuery();

  void executeJob(long jobDbid);

The implementation of all these methods is encapsulated in Commands. And the three services all delegate the execution of the commands to a CommandService:

public interface CommandService {

  <T> T execute(Command<T> command);


The CommandService is configured in the environment. A chain of CommandServices can act as interceptors around a command. This is the core mechanism on how persistence and transactional support can be offered in a variety of environments.

The default configuration file jbpm.default.cfg.xml includes following section that configures the services


    <repository-service />
    <repository-cache />
    <execution-service />
    <history-service />
    <management-service />
    <identity-service />
    <task-service />

And the file jbpm.tx.hibernate.cfg.xml contains the following command service configuration:


      <retry-interceptor />
      <environment-interceptor />
      <standard-transaction-interceptor />


The services like e.g. repository-service, execution-service and management-service will look up the configured command-service by type. The command-service tag corresponds to the default command service that essentially does nothing else then just execute the command providing it the current environment.

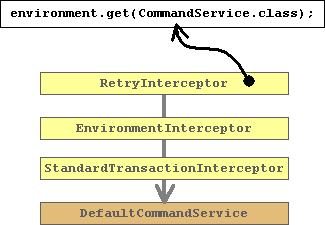

The configured command-service results into the following a chain of three interceptors followed by the default command executor.

The retry interceptor is the first in the chain and that one that will be exposed as the CommandService.class from the environment. So the retry interceptor will be given to the respective services repository-service, execution-service and management-service.

The retry-interceptor will catch hibernate StaleObjectExceptions (indicating optimistic locking failures) and retry to execute the command.

The environment-interceptor will put an environment block around the execution of the command.

The standard-transaction-interceptor will initialize a StandardTransaction. The hibernate session/transaction will be enlisted as a resource with this standard transaction.

Different configurations of this interceptor stack will also enable to

  • delegate execution to a local ejb command service so that an container managed transaction is started.
  • delegate to a remote ejb command service so that the command actually gets executed on a different JVM.
  • package the command as an asynchronous message so that the command gets executed asynchronously in a different transaction.

This chapter explains the basics of process definitions, the features offered by the Process Virtual Machine and how activity implementations can be build. At the same time the client API is shown to execute processes with those activity implementations.

We'll start with a very original hello world example. A Display activity will print a message to the console:

public class Display implements ActivityBehaviour {

  String message;

  public Display(String message) {
    this.message = message;

  public void execute(ActivityExecution execution) {

Let' build our first process definition with this activity:

TODO add ProcessBuilder example code

Now we can execute this process as follows:

Execution execution = processDefinition.startExecution();

The invocation of startExecution will print hello world to the console:


One thing already worth noticing is that activities can be configured with properties. In the Display example, you can see that the message property is configured differently in the two usages. With configuration properties it becomes possible to write reusable activities. They can then be configured differently each time they are used in a process. That is an essential part of how process languages can be build on top of the Process Virtual Machine.

The other part that needs explanation is that this activity implementation does not contain any instructions for the propagation of the execution. When a new process instance is started, the execution is positioned in the initial activity and that activity is executed. The method Display.execute makes use of what is called implicit propagation of execution. Concretely this means that the activity itself does not invoke any of the methods on the execution to propagate it. In that case implicit propagation kicks in. Implicit propagation will take the first transition if there is one. If not, it will end the execution. This explains why both activities a and b are executed and that the execution stops after activity b is executed.

More details about the implicit proceed behaviour can be found in Section 9.2, “Implicit proceed behaviour”

External activities are activities for which the responsibility for proceeding the execution is transferred externally, meaning outside the process system. This means that for the system that is executing the process, it's a wait state. The execution will wait until an external trigger is given.

For dealing with external triggers, ExternalActivityBehaviour adds one method to the ActivityBehaviour:

public interface ExternalActivity extends Activity {

  void signal(Execution execution,
              String signal,
              Map<String, Object> parameters) throws Exception;

Just like with plain activities, when an execution arrives in a activity, the execute-method of the external activity behaviour is invoked. In external activities, the execute method typically does something to transfer the responsibility to another system and then enters a wait state by invoking execution.waitForSignal(). For example in the execute method, responsibility could be transferred to a person by creating a task entry in a task management system and then wait until the person completes the task.

In case a activity behaves as a wait state, then the execution will wait in that activity until the execution's signal method is invoked. The execution will delegate that signal to the ExternalActivityBehaviour object associated to the current activity.

So the Activity's signal-method is invoked when the execution receives an external trigger during the wait state. With the signal method, responsibility is transferred back to the process execution. For example, when a person completes a task, the task management system calls the signal method on the execution.

A signal can optionally have a signal name and a map of parameters. Most common way on how activity behaviours interprete the signal and parameters is that the signal relates to the outgoing transition that needs to be taken and that the parameters are set as variables on the execution. But those are just examples, it is up to the activity to use the signal and the parameters as it pleases.

Here's a first example of a simple wait state implementation:

public class WaitState implements ExternalActivity {

  public void execute(ActivityExecution execution) {

  public void signal(ActivityExecution execution,
                     String signalName,
                     Map<String, Object> parameters) {

The execute-method calls execution.waitForSignal(). The invocation of execution.waitForSignal() will bring the process execution into a wait state until an external trigger is given.

signal-method takes the transition with the signal parameter as the transition name. So when an execution receives an external trigger, the signal name is interpreted as the name of an outgoing transition and the execution will be propagated over that transition.

Here's the same simple process that has a transition from a to b. This time, the behaviour of the two activities will be WaitState's.

ClientProcessDefinition processDefinition = ProcessFactory.build()
    .activity("a").initial().behaviour(new WaitState())
    .activity("b").behaviour(new WaitState())

Let's start a new process instance for this process definition:

ClientExecution execution = processDefinition.startProcessInstance();

Starting this process will execute the WaitState activity in activity a. WaitState.execute will invoke ActivityExecution.waitForSignal. So when the processDefinition.startProcessInstance() returns, the execution will still be positioned in activity a.

assertEquals("a", execution.getActivityName());

Then we provide the external trigger by calling the signal method.


The execution.signal() will delegate to the activity of the current activity. So in this case that is the WaitState activity in activity a. The WaitState.signal will invoke the ActivityExecution.take(String transitionName). Since we didn't supply a signalName, the first transition with name null will be taken. The only transition we specified out of activity a didn't get a name so that one will be taken. And that transition points to activity b. When the execution arrives in activity b, the WaitState in activity b is executed. Similar as we saw above, the execution will wait in activity b and this time the signal method will return, leaving the execution positioned in activity b.

assertEquals("b", execution.getActivityName());

In this next example, we'll combine automatic activities and wait states. This example builds upon the loan approval process with the WaitState and Display activities that we've just created. Graphically, the loan process looks like this:

Building process graphs in Java code can be tedious because you have to keep track of all the references in local variables. To resolve that, the Process Virtual Machine comes with a ProcessFactory. The ProcessFactory is a kind of domain specific language (DSL) that is embedded in Java and eases the construction of process graphs. This pattern is also known as a fluent interface.

ClientProcessDefinition processDefinition = ProcessFactory.build("loan")
  .activity("submit loan request").initial().behaviour(new Display("loan request submitted"))
  .activity("evaluate").behaviour(new WaitState())
    .transition("approve").to("wire money")
  .activity("wire money").behaviour(new Display("wire the money"))
  .activity("archive").behaviour(new WaitState())
  .activity("end").behaviour(new WaitState())

For more details about the ProcessFactory, see the api docs. An alternative for the ProcessFactory would be to create an XML language and an XML parser for expressing processes. The XML parser can then instantiate the classes of package org.jbpm.pvm.internal.model directly. That approach is typically taken by process languages.

The initial activity submit loan request and the activity wire the money are automatic activities. In this example, the Display implementation of activity wire the money uses the Java API's to just print a message to the console. But the witty reader can imagine an alternative Activity implementation that uses the Java API of a payment processing library to make a real automatic payment.

A new execution for the process above can be started like this

ClientExecution execution = processDefinition.startProcessInstance();

When the startExecution-method returns, the activity submit loan request will be executed and the execution will be positioned in the activity evaluate.

Now, the execution is at an interesting point. There are two transitions out of the state evaluate. One transition is called approve and one transition is called reject. As we explained above, the WaitState implementation will take the transition that corresponds to the signal that is given. Let's feed in the 'approve' signal like this:


The approve signal will cause the execution to take the approve transition and it will arrive in the activity wire money.

In activity wire money, the message will be printed to the console. Since, the Display activity didn't invoke the execution.waitForSignal(), nor any of the other execution propagation methods, the implicit proceed behaviour will just make the execution continue over the outgoing transition to activity archive, which is again a WaitState.

So only when the archive wait state is reached, the signal("approve") returns.

Another signal like this:


will bring the execution eventually in the end state.

Events are points in the process definition to which a list of EventListeners can be subscribed.

public interface EventListener extends Serializable {
  void notify(EventListenerExecution execution) throws Exception;


The motivation for events is to allow for developers to add programming logic to a process without changing the process diagram. This is a very valuable instrument in facilitating the collaboration between business analysts and developers. Business analysts are responsible for expressing the requirements. When they use a process graph to document those requirements, developers can take this diagram and make it executable. Events can be a very handy to insert technical details into a process (like e.g. some database insert) in which the business analyst is not interested.

Most common events are fired by the execution automatically:

TODO: explain events in userguide

Events are identified by the combination of a process element and an event name. Users and process languages can also fire events programmatically with the fire method on the Execution:

public interface Execution extends Serializable {
  void fire(String eventName, ProcessElement eventSource);

A list of EventListeners can be associated to an event. But event listeners can not influence the control flow of the execution since they are merely listeners to an execution which is already in progress. This is different from activities that serve as the behaviour for activities. Activity behaviour activities are responsible for propagating the execution.

We'll create a PrintLn event listener which is very similar to the Display activity from above.

public class PrintLn implements EventListener {
  String message;
  public PrintLn(String message) {
    this.message = message;

  public void notify(EventListenerExecution execution) throws Exception {

Several PrintLn listeners will be subscribed to events in the process.

ClientProcessDefinition processDefinition = ProcessFactory.build()
  .activity("a").initial().behaviour(new AutomaticActivity())
      .listener(new PrintLn("leaving a"))
      .listener(new PrintLn("second message while leaving a"))
      .listener(new PrintLn("taking transition"))
  .activity("b").behaviour(new WaitState())
      .listener(new PrintLn("entering b"))

The first event shows how to register multiple listeners to the same event. They will be notified in the order as they are specified.

Then, on the transition, there is only one type of event. So in that case, the event type must not be specified and the listeners can be added directly on the transition.

A listeners will be called each time an execution fires the event to which the listener is subscribed. The execution will be provided in the activity interface as a parameter and can be used by listeners except for the methods that control the propagation of execution.

Events are by default propagated to enclosing process elements. The motivation is to allow for listeners on process definitions or composite activities that get executed for all events that occur within that process element. For example this feature allows to register an event listener on a process definition or a composite activity on end events. Such action will be executed if that activity is left. And if that event listener is registered on a composite activity, it will also be executed for all activities that are left within that composite activity.

To show this clearly, we'll create a DisplaySource event listener that will print the message leaving and the source of the event to the console.

public class DisplaySource implements EventListener {
  public void execute(EventListenerExecution execution) {
    System.out.println("leaving "+execution.getEventSource());

Note that the purpose of event listeners is not to be visible, that's why the event listener itself should not be displayed in the diagram. A DisplaySource event listener will be added as a listener to the event end on the composite activity.

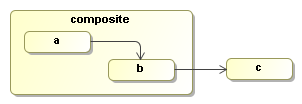

The next process shows how the DisplaySource event listener is registered as a listener to to the 'end' event on the composite activity:

TODO update code snippet

Next we'll start an execution.

ClientExecution execution = processDefinition.startProcessInstance();

After starting a new execution, the execution will be in activity a as that is the initial activity. No activities have been left so no message is logged. Next a signal will be given to the execution, causing it to take the transition from a to b.


When the signal method returns, the execution will have taken the transition and the end event will be fired on activity a. That event will be propagated to the composite activity and to the process definition. Since our DisplaySource event listener is placed on the composite activity, it will receive the event and print the following message on the console:

leaving activity(a)



will take the transition from b to c. That will fire two activity-leave events. One on activity b and one on activity composite. So the following lines will be appended to the console output:

leaving activity(b)
leaving activity(composite)

Event propagation is build on the hierarchical composition structure of the process definition. The top level element is always the process definition. The process definition contains a list of activities. Each activity can be a leaf activity or it can be a composite activity, which means that it contains a list of nested activities. Nested activities can be used for e.g. super states or composite activities in nested process languages like BPEL.

So the even model also works similarly for composite activities as it did for the process definition above. Suppose that 'Phase one' models a super state as in state machines. Then event propagation allows to subscribe to all events within that super state. The idea is that the hierarchical composition corresponds to diagram representation. If an element 'e' is drawn inside another element 'p', then p is the parent of e. A process definition has a set of top level activities. Every activity can have a set of nested activities. The parent of a transition is considered as the first common parent for it's source and destination.

If an event listener is not interested in propagated events, propagation can be disabled with propagationDisabled() while building the process with the ProcessFactory. The next process is the same process as above except that propagated events will be disabled on the event listener. The graph diagram remains the same.

Building the process with the process factory:

TODO update code snippet

So when the first signal is given for this process, again the end event will be fired on activity a, but now the event listener on the composite activity will not be executed cause propagated events have been disabled. Disabling propagation is a property on the individual event listener and doesn't influence the other listeners. The event will always be fired and propagated over the whole parent hierarchy.

ClientExecution execution = processDefinition.startProcessInstance();

The first signal will take the process from a to b. No messages will be printed to the console.


Next, the second signal will take the transition from b to c.


Again two end events are fired just like above on activities b and composite respectively. The first event is the end event on activity b. That will be propagated to the composite activity. So the event listener will not be executed for this event cause it has propagation disabled. But the event listener will be executed for the end event on the composite activity. That is not propagated, but fired directly on the composite activity. So the event listener will now be executed only once for the composite activity as shown in the following console output:

leaving activity(composite)

Above we already touched briefly on the two main process constructs: Activities, transitions and activity composition. This chapter explores in full all the possibilities of the process definition structures.

There are basically two forms of process languages: graph based and composite process languages. First of all, the process supports both. Even graph based execution and activity composition can be used in combination to implement something like UML super states. Furthermore, automatic functional activities can be implemented so that they can be used with transitions as well as with activity composition.

By separating the structure of a process from the behaviour of the activities, any process model can be formed in the PVM. It's up to the activity implementations to use this structure. Activities can also impose restrictions on the diagram structures they can support. Typically activities that control process concurrency will impose restrictions on the process model structures that they can support. Next we'll show a series of example diagram structures that can be formed with the PVM process model.

This section explains how the Process Virtual Machine boroughs the thread from the client to bring an execution from one wait state to another.

When a client invokes a method (like e.g. the signal method) on an execution, by default, the Process Virtual Machine will use that thread to progress the execution until it reached a wait state. Once the next wait state has been reached, the method returns and the client gets the thread back. This is the default way for the Process Virtual Machine to operate. Two more levels of asynchonous execution complement this default behaviour: Asynchronous continuations and in the future we'll also provide a way to invoke service methods asynchronously.

TODO: update the example that is now commented

The benefits of using this paradigm is that the same process definition can be executed in client execution mode (in-memory without persistence) as well as in persistent execution mode, depending on the application and on the environment.

When executing a process in persistent mode, this is how you typically want to bind that process execution to transactions of the database:

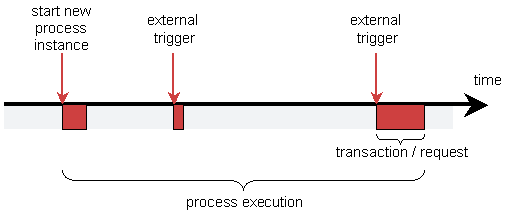

In most situations, the computational work that needs to be done as part of the process after an external trigger (the red pieces) is pretty minimal. Typically transactions combining the process execution and processing the request from the UI takes typically less then a second. Whereas the wait state in business processes typically can span for hours, days or even years. The clue is to clearly distinct when a wait state starts so that only the computational work done before the start of that wait state should be included in the transaction.

Think of it this way: "When an approval arrives, what are all the automated processing that needs to be done before the process system needs to wait for another external trigger?" Unless pdf's need to be generated or mass emails need to be send, the amount of time that this takes is usually neglectable. That is why in the default persistent execution mode, the process work is executed in the thread of the client.

This reasoning even holds in case of concurrent paths of execution. When a single path of execution splits into concurrent paths of execution, the process overhead of calculating that is neglectable. So that is why it makes sense for a fork or split activity implementation that targets persistent execution mode to spawn the concurrent paths sequentially in the same thread. Basically it's all just computational work as part of the same transaction. This can only be done because the fork/split knows that each concurrent path of execution will return whenever a wait state is encountered.

Since this is a difficult concept to grasp, I'll explain it again with other words. Look at it from the overhead that is produced by the process execution itself in persistent execution mode. If in a transaction, an execution is given an external trigger and that causes the execution to split into multiple concurrent paths of execution. Then the process overhead of calculating this is neglectable. Also the overhead of the generated SQL is neglectable. And since all the work done in the concurrent branches must be done inside that single transaction, there is typically no point in having fork/split implementations spawn the concurrent paths of execution in multiple threads.

To make executable processes, developers need to know exactly what the automatic activities are, what the wait states are and which threads will be allocated to the process execution. For business analysts that draw the analysis process, things are a bit simpler. For the activities they draw, they usually know whether it's a human or a system that is responsible. But they typically don't not how this translates to threads and transactions.

So for the developer, the first job is to analyse what needs to be executed within the thread of control of the process and what is outside. Looking for the external triggers can be a good start to find the wait states in a process, just like verbs and nouns can be the rule of thumb in building UML class diagrams.

To model process concurrency, there is a parent-child tree structure on the execution. The idea is that the main path of execution is the root of that tree. The main path of execution is also called the process instance. It is the execution that is created when starting or creating a new process instance for a given process definition.

Now, because the main path of execution is the same object as the process instance, this keeps the usage simple in case of simple processes without concurrency.

To establish multiple concurrent paths of execution, activity implementations like a fork or split can create child executions with method ActivityExecution.createExecution. Activity implementations like join or merge can stop these concurrent paths of execution by calling method stop on the concurrent execution.

Only leaf executions can be active. Non-leave executions should be inactive. This tree structure of executions doesn't enforce a particular type of concurrency or join behaviour. It's up to the forks or and-splits and to the joins or and-merges to use the execution tree structure in any way they want to define the wanted concurrency behaviour. Here you see an example of concurrent executions.

There is a billing and a shipping path of execution. In this case, the flat bar activities represent activities that fork and join. The execution shows a three executions. The main path of execution is inactive (represented as gray) and the billing and shipping paths of execution are active and point to the activity bill and ship respectively.

It's up to the activity behaviour implementations how they want to use this execution structure. Suppose that multiple tasks have to be completed before the execution is to proceed. The activity behaviour can spawn a series of child executions for this. Or alternatively, the task component could support task groups that are associated to one single execution. In that case, the task component becomes responsible for synchronizing the tasks, thereby moving this responsibility outside the scope of the execution tree structure.

In all the code that is associated to a process like Activitys, EventListeners and Conditions, it's possible to associate exception handlers. This can be thought of as including try-catch blocks in the method implementations of those implementations. But in order to build more reusable building blocks for both the delegation classes and the exception handling logic, exception handlers are added to the core process model.

An exception handler can be associated to any process element. When an exception occurs in a delegation class, a matching exception handler will be searched for. If such an exception handler is found, it will get a chance to handle the exception.

If an exception handler completes without problems, then the exception is considered handled and the execution resumes right after the delegation code that was called. For example, a transition has three actions and the second action throws an exception that is handled by an exception handler, then

Writing automatic activities that are exception handler aware is easy. The default is to proceed anyway. No method needs to be called on the execution. So if an automatic activity throws an exception that is handled by an exception handler, the execution will just proceed after that activity. It becomes a big more difficult for control flow activities. They might have to include try-finally blocks to invoke the proper methods on the execution before an exception handler gets a chance to handle the exception. For example, if an activity is a wait state and an exception occurs, then there is a risk that the thread jumps over the invocation of execution.waitForSignal(), causing the execution to proceed after the activity.

TODO: exceptionhandler.isRethrowMasked

TODO: transactional exception handlers

TODO: we never catch errors

The state of an execution is either active or locked. An active execution is either executing or waiting for an external trigger. If an execution is not in STATE_ACTIVE, then it is locked. A locked execution is read only and cannot receive any external triggers.

When a new execution is created, it is in STATE_ACTIVE. To change the state to a locked state, use lock(String). Some STATE_* constants are provided that represent the most commonly used locked states. But the state '...' in the picture indicates that any string can be provided as the state in the lock method.

If an execution is locked, methods that change the execution will throw a PvmException and the message will reference the actual locking state. Firing events, updating variables, updating priority and adding comments are not considered to change an execution. Also creation and removal of child executions are unchecked, which means that those methods can be invoked by external API clients and activity behaviour methods, even while the execution is in a locked state.

Make sure that comparisons between getState() and the STATE_* constants are done with .equals and not with '==' because if executions are loaded from persistent storage, a new string is created instead of the constants.

An execution implementation will be locked:

  • When it is ended
  • When it is suspended
  • During asynchronous continuations

Furthermore, locking can be used by Activity implementations to make executions read only during wait states hen responsibility for the execution is transferred to an external entity such as:

  • A human task
  • A service invocation
  • A wait state that ends when a scanner detects that a file appears

In these situations the strategy is that the external entity should get full control over the execution because it wants to control what is allowed and what not. To get that control, they lock the execution so that all interactions have to go through the external entity.

One of the main reasons to create external entities is that they can live on after the execution has already proceeded. For example, in case of a service invocation, a timer could cause the execution to take the timeout transition. When the response arrives after the timeout, the service invocation entity should make sure it doesn't signal the execution. So the service invocation can be seen as a activity instance (aka activity instance) and is unique for every execution of the activity.

External entities themselves are responsible for managing the execution lock. If the timers and client applications are consequent in addressing the external entities instead of the execution directly, then locking is in theory unnecessary. It's up to the activity behaviour implementations whether they want to take the overhead of locking and unlocking.

The userguide explains how to install jBPM into the most common runtime environments. That is the most simple and convenient way to get started with jBPM. Please use those instructions. These docs provide some background information for developers that want to understand more about the way how configurations are handled. Use at your own risk :-)

The jbpm.jar contains a number of default configuration files that can be imported by the user configuration file.

This way, it's easy to include or exclude features for users. And also the configuration details are kept in the implementation so users that only import those configuration files will not be affected when we release changes in those configuration files.

Configuration files that can be imported by the user's jbpm.cfg.xml:

jbpm.default.cfg.xml: Contains the default configurations like the services, the hibernate configuration (configured from resource jbpm.hibernate.cfg.xml), hibernate session factory, business calendar and so on.

A typical configuration for standard java would look like this:

<?xml version="1.0" encoding="UTF-8"?>
    <import resource="jbpm.default.cfg.xml" />
    <import resource="jbpm.businesscalendar.cfg.xml" />
    <import resource="jbpm.tx.hibernate.cfg.xml" />
    <import resource="jbpm.jpdl.cfg.xml" />
    <import resource="jbpm.identity.cfg.xml" />
    <import resource="jbpm.jobexecutor.cfg.xml" />

When you want to change the configuration, first consider to change an import with one of the other provided importable configuration files.

For example, in a JTA environment, replace the import of jbpm.tx.hibernate.cfg.xml with jbpm.tx.jta.cfg.xml

The second way to define a more customized configuration is to specify configuration items directly into the jbpm.cfg.xml. For an example, see Section 10.3, “Customizing the identity component” below. The more you customize, the more likely you are doing things we didn't anticipate.

The jbpm.jar contains also following hibernate mapping configuration files:


These all map the java domain model objects to a relational database.

Other various configuration files that are included in jbpm.jar:


Normally it is not necessary to dive into the parsing itself. It's most a matter of figuring out how to specify the configuration that you want :-) But just in case: To get started on the parsing for the configuration files, see

  • class org.jbpm.pvm.internal.env.JbpmConfigurationParser
  • resource modules/pvm/src/main/resources/jbpm.wire.bindings.xml
  • package modules/pvm/src/main/java/org/jbpm/pvm/internal/wire/binding

Currently jBPM's persistence is based on hibernate. But in the future we might switch to JPA. That is why we recommend to stick with the API as much as possible as the API will hide you from those changes.

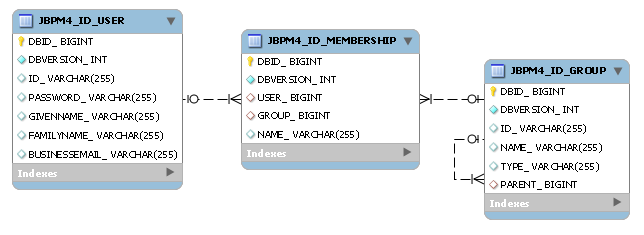

Here's the jBPM database schema in an ER diagram. Thanks to MySQL Workbench>.

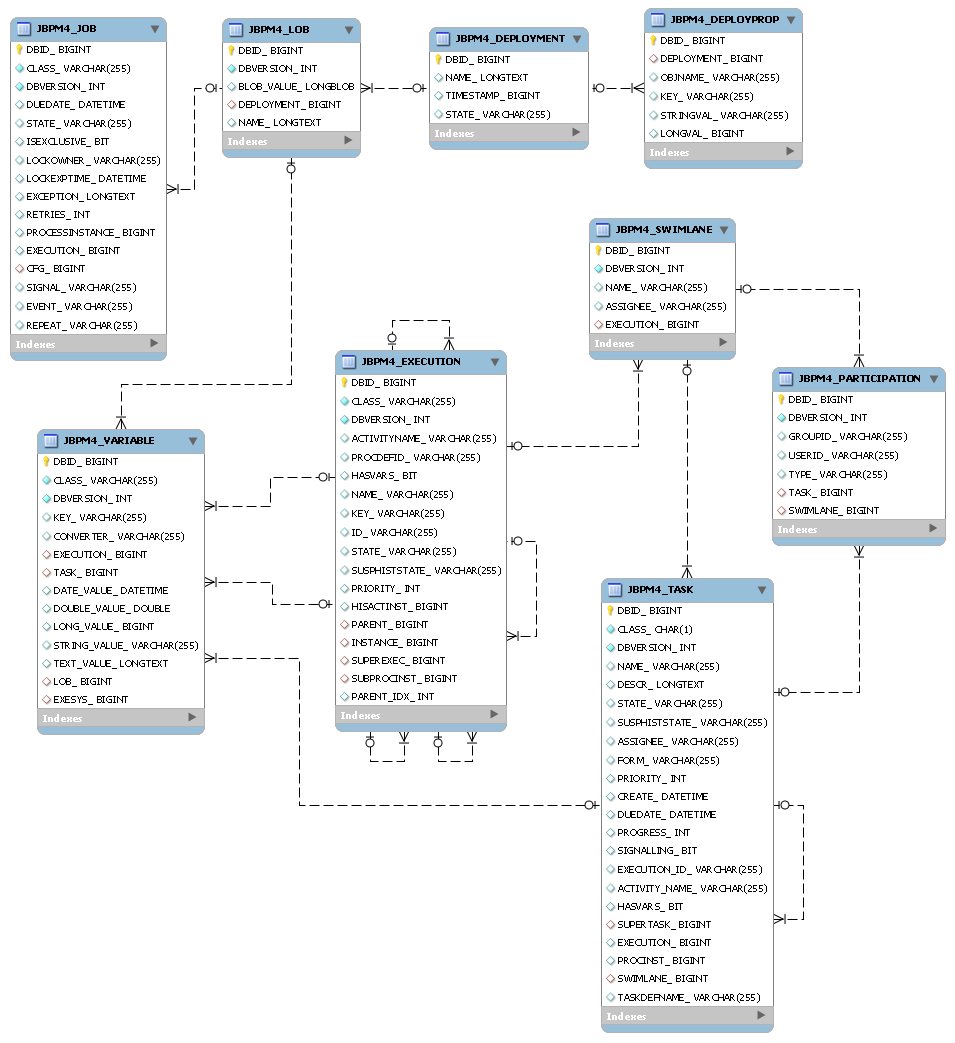

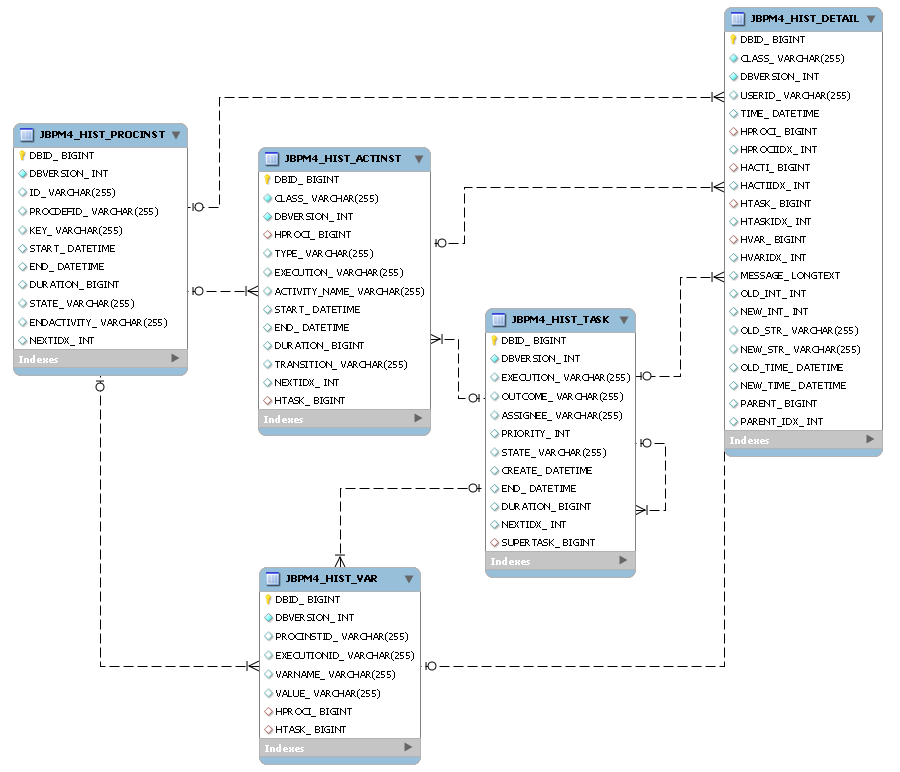

For jPDL features like asynchronous continuations and timers, jBPM relies on transactional asynchronous messaging and timers. Those are not available on the standard Java platform. Therefore, jBPM includes the JobExecutor component, which executes asynchronous messages and timers in any (potentially clustered) environment.

By default, when calling a jBPM service operation (eg. TaskService, ExecutionService, etc.), the jBPM logic is executed on the same thread as where the call came from. In most cases, this is sufficient since most steps in a process don't take much time. This means that signalling a process instance from one wait state to another, passing by several other steps in the business process, can be done in one transaction.

However, in some occasions business processes can be made more efficient by introducing asynchronous continuations. By marking an activity as asynchronous, the jBPM engine will take care that the logic encapsulated in the activity isn't executed on the thread of the caller, but on a separate dedicated thread. The same mechanism is used for timers and asynchronous mailing (which means mails will be sent later, in a separate thread). The following picture shows which components come into play when using this mechanism.

When using timers or asynchronous continuations in a business process, the jBPM engine will store a 'job' into the database (a job contains mainly a duedate and continuation logic). Do note that this mechanism is pluggable, which means that in the future other destinations could be used (JMS, JCR, etc).

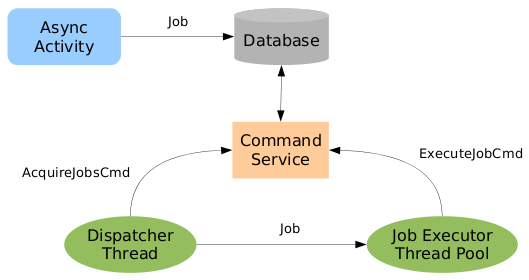

Now the JobExecutor comes in to play, which is in fact a manager for several subcomponents:

  • A shared BlockingQueue, which is used to temporary store job identifiers of jobs which are executable (e.g. due date is passed).
  • Every JobExecutor has one DispatcherThread. This thread will query the database for 'acquirable jobs' (e.g. timers which due date is passed), using a dedicated command through the CommandService. Since the dispatcher uses the CommandService, the command is automatically made transactional and wrapped by the configured interceptors. As long as jobs are available the dispatcher will put job identifiers on the shared queue, until the queue is either full (the thread will automatically be blocked by the JVM until a slot is free) or until no new jobs can be found in the database. If the latter case, the dispatcher will wait for a configured time (ie the 'idle time').
  • The JobExecutor also maintains a pool of job executor threads. The number of executor threads can be configured and influences the size of the shared queue used to transfer and hold submitted jobs. Each executor thread will take a job from the queue. The shared queue blocks the executor threads until a job is queued. The new job will be acquired by exactly one waiting executor thread. After taking a job from the queue, the job is transactionally executed using a dedicated command through the CommandService. Therefore, the job will be executed completely on the executor thread instead of the caller thread. In consequence, the order in which the jobs are executed is unknown since there are multiple competing executor threads. However, it is certain that only one job will be done per transaction, except for exclusive jobs. In this case, all exclusive jobs are sequentially executed.

jBPM 4 takes advantage of the JavaMail API to make high-level email services available to business process authors.

Mail producers are responsible for creating email messages within jBPM. Producers implement the org.jbpm.pvm.internal.email.spi.MailProducer interface. A default producer is available out of the box to address typical email needs.

The default mail producer is capable of creating email messages with text, HTML and attachments from a template. Templates can be provided inline or in the process-engine-context section of the jBPM configuration. Templates may contain expressions which are evaluated through the script manager.

The following listing presents a mail activity with an inline template.

<mail name="rectify" language="juel">                             (1)
  <from addresses='winston@minitrue' />                           (2)
  <to addresses='julia@minitrue, obrien@miniluv'/>                (3)
  <cc users='bigbrother'/>
  <bcc groups='thinkpol, innerparty'/>
  <subject>Part ${part} Chapter ${chapter}</subject>              (4)
  <text>times ${date} reporting bb dayorder doubleplusungood      (5)
    refs ${unpersons} rewrite fullwise upsub antefiling</text>
  <html><table><tr><td>times</td><td>${date}</td>                 (6)
    <td>reporting bb dayorder doubleplusungood
    refs ${unpersons} rewrite fullwise upsub antefiling</td>
  <attachments>                                                   (7)
    <attachment url='http://www.george-orwell.org/1984/3.html'/>
    <attachment resource='org/example/pic.jpg'/>
    <attachment file='${user.home}/.face'/>

Note that every section of the template is amenable to expression evaluation.

For complex emails or custom generation of attachments, see: custom mail producers.

Mail templates are available to externalize commonly used messages from process definitions. Templates are placed in the process-engine-context section of your configuration file. All elements available to inline templates, as described in the previous section are available to external templates. Consider the fragment below.

  <mail-template name="rectify-template">
    <!-- same elements as inline template -->

Each template must have an unique name. Mail activities may reference the template through the template attribute, as follows.

<mail name="rectify" template="rectify-template />

Mail servers are declared in the configuration file. The mail-server element describes an SMTP mail server capable of sending email messages. Because jBPM uses JavaMail to send mail, all properties supported by JavaMail are also exposed to jBPM. Within the session-properties child element, the SMTP properties must be provided as shown in the example below.

See the JavaMail documentation for details on the supported properties.

        <property name="mail.smtp.host" value="localhost" />
        <property name="mail.smtp.port" value="2525" />
        <property name="mail.from" value="noreply@jbpm.org" />

If the "From" attribute is not present in an outgoing message, the value of the mail.from property will be used instead.

Multiple SMTP server support has been added to jBPM 4 to accommodate a wider variety of organizational server structures. For example, this is useful for companies that have both internal and external SMTP servers.

To setup multiple SMTP mail servers, declare multiple mail servers within the configuration file, as described below. The tag address-filter exists to define which domains are serviced by each mail server. The address filter consists of regular expressions that determine whether an address will be processed by a given server.

See the Pattern API for more information about the allowable regular expressions.

        <property name="mail.smtp.host" value="internal.smtp.example.com" />
        <property name="mail.from" value="noreply@example.com" />
        <property name="mail.smtp.host" value="external.smtp.example.com" />
        <property name="mail.from" value="noreply@example.com" />

Address filters follow the logic below to accept an address.

  • Address is accepted if it is included and not excluded.

  • Absence of includes implies the address is included.

  • Absence of excludes implies the address is not excluded.

jBPM 4 allows the creation of custom mail producers to address the specific requirements of an organization. To do so, create a class that implements the org.jbpm.pvm.internal.email.spi.MailProducer interface. Method produce takes an Execution and returns a collection of Messages to be sent through the MailSession.

The underpinning of customized mail production is the ability to instantiate a class that implements the MailProducer interface. In the simplest scenario, the class will extend the default mail producer and make a small addition such as adding more recipients. The following process snippet shows a mail activity with a custom mail producer.

<mail name='send mail' class='org.example.AuditMailProducer'>
  <property name='template'>
    <object method='getTemplate'>
      <factory><ref type='org.jbpm.pvm.internal.email.impl.MailTemplateRegistry'/></factory>
      <arg><string value='rectify-template'/></arg>
  <property name='auditGroup'><string value='thinkpol'/></property>
  <transition to='end' />

The Java code for the AuditMailProducer comes next.

public class AuditMailProducer extends MailProducerImpl {
  private String auditGroup;

  public String getAuditGroup() {
    return auditGroup;
  public void setAuditGroup(String auditGroup) {
    this.auditGroup = auditGroup;

  protected void fillRecipients(Execution execution, Message email) throws MessagingException {
    // add recipients from template
    super.fillRecipients(execution, email);

    // load audit group from database
    EnvironmentImpl environment = EnvironmentImpl.getCurrent();
    IdentitySession identitySession = environment.get(IdentitySession.class);
    Group group = identitySession.findGroupById(auditGroup);

    // send a blind carbon copy of every message to the audit group
    AddressResolver addressResolver = environment.get(AddressResolver.class);
    email.addRecipients(RecipientType.BCC, addressResolver.resolveAddresses(group));

MailProducerImpl exposes a template property. To access a mail template, the mail producer descriptor references the MailTemplateRegistry object and invokes its getTemplate method. This method takes one string parameter, the name of the desired template.

AuditMailProducer adds an extra property, the identifier of the group that will receive blind carbon copies of the outgoing emails. The audit mail producer overrides the default fillRecipients implementation to add the extra BCC recipients.

History information is the information that will be maintained in the database for querying purposes. This information is kept in the database after the process or task has ended. But it is always up to date with the runtime information. History information is updated inside of the runtime transaction.

We maintain history information on 4 entities: process instance, activity instance task and variable. Each entity has a list of details associated to it. Preferably use the history queries to access this information through the API.

HistoryEvents are fired during process execution and dispatched to the configured HistorySession. (see HistoryEvent.fire) All the HistoryEvents are delegated to a HistorySession. The default HistorySessionImpl will invoke the process() method on the history events themselves.

The HistoryEvents are temporary events. In the process method, they build up the information in the history model. There is a HistoryProcessInstance and there is a whole class hierarchy starting with HistoryActivityInstance.

In the HistoryEvent.process methods, the history events create model entities or merge information into the history entities. For instance, a ProcessInstanceCreate history event will create a HistoryProcessInstance entity/record. And the ProcessInstanceEnd will set the endTime property in the existing HistoryProcessInstance entity/record.

Similar pattern for the activities. But for automatic activities, there is an optimisation so that only 1 event is created and all the information is stored in one single insert (as all this happens inside 1 transaction).

jBPM provides integration with JBoss 4.2.x and JBoss 5.0.0.GA. As part of the installation, the ProcessEngine and a deployer for jBPM archives will be installed as a JBoss service.

After a successful installation you should see that the ProcessEngine has been started and bound to JNDI:

    14:12:09,301 INFO  [JBPMService] jBPM 4 - Integration JBoss 4
    14:12:09,301 INFO  [JBPMService] 4.0.0.Beta1
    14:12:09,301 INFO  [JBPMService] ProcessEngine bound to: java:/ProcessEngine

As described above the ProcessEngine will be installed as JBoss service and bound to JNDI. This means that any EE component (i.e. servlet, ejb) can access it doing a JNDI lookup:

    private ProcessEngine processEngine;

      InitialContext ctx = new InitialContext();
      this.processEngine = (ProcessEngine)ctx.lookup("java:/ProcessEngine");
    catch (Exception e)
      throw new RuntimeException("Failed to lookup process engine");

Once you obtained an instance of the ProcessEngine you can invoke on it as described in chapter services

    UserTransaction tx = (UserTransaction)ctx.lookup("UserTransaction");        (1)
    Environment env = ((EnvironmentFactory)processEngine).openEnvironment();


      ExecutionService execService = (ExecutionService)

      // begin transaction

      // invoke on process engine

      // commit transaction
    catch (Exception e)
        catch (SystemException e1) {}

      throw new RuntimeException("...", e);


(1) Wrapping the call in a UserTransaction is not necessary if the invocation comes a CMT component, i.e. an EJB.

The embeddability of the jBPM engine in different environments has always been one of its core strengths, but often extra libraries to do the integration were required. Since jBPM4 however, it is now possible to natively integrate jBPM with Spring. This section will explain which steps are required for such an integration.

The Spring integration has started out as a community effort by Andries Inzé. Do note that Spring integration currently is in 'incubation', before it is moved to the user guide.

The easiest way to integrate Spring with jBPM is to import the jbpm.tx.spring.cfg.xml in your jbpm.cfg.xml file:

<import resource="jbpm.tx.spring.cfg.xml" />

This configuration uses the single transaction manager which is defined in the Spring configuration. Start from the content of this file if you need to tweak the jBPM-Spring integration configuration.

If you start from an existing configuration, replace the standard-transaction-interceptor with the spring-transaction-interceptor. The hibernate session needs the attribute current=”true”, depending if you are using the 'current Session' strategy in Spring. Also, the <transaction/> must be removed from the transaction-context if you want the transactions to be handled by Spring only. This forces jBPM to search for the current session, which will then be provided by Spring.

          <spring-transaction-interceptor />
        <hibernate-session current="true"/>

The spring-transaction-interceptor will look by default for a PlatformTransactionManager implementation by doing a search by type on the defined beans. In the case of multiple transaction managers, it is possible to specifically define the name of the transaction manager that must be used by the interceptor:

<spring-transaction-interceptor transaction-manager="myTransactionManager" />

The Spring integration provides a special context, which is added to the set of contexts where the jBPM engine will look for beans. Using this SpringContext, it is now possible to retrieve beans from the Spring Application Context. The jBPM process engine can be configured in a Spring applicationContext.xml as follows:

<bean id="springHelper" class="org.jbpm.pvm.internal.processengine.SpringHelper">
  <property name="jbpmCfg" value="org/jbpm/spring/jbpm.cfg.xml"></property>

  <bean id="processEngine" factory-bean="springHelper" factory-method="createProcessEngine" />

Note that the jbpmCfg property for the SpringHelper is optional. If a default jbpm.cfg.xml exists on the classpath (ie not in some package), this line can be removed.

The jBPM services can also be defined in the Spring applicationContext, as following:

<bean id="repositoryService" factory-bean="processEngine" factory-method="getRepositoryService" />
<bean id="executionService" factory-bean="processEngine" factory-method="getExecutionService" />

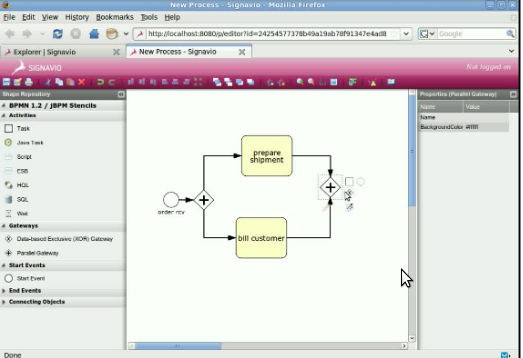

Since version 4.1, jBPM ships with a completely open-source web-based BPMN modeling tool called 'Signavio'. This Signavio web modeler is the result of a close collaboration between the JBoss jBPM team, the company also named 'Signavio' and the Hasso Plattner Instut (HPI) in Germany. Signavio is based on the web-based modeling tool Oryx, which was developed in open-source by HPI. Both HPI and Signavio have comitted themselves to continue investing in Oryx and Signavio. More information about the initiative can be found here.

Using the Signavio web-based BPMN modeler, it is possible to let business analyst model the business processes through their browser. The file format which is used to store the BPMN processes is actually jPDL. This means that the resulting processes can directly be imported into the Eclipse GPD and vice-versa. The process files will be stored on the hard disk, in $jbpm_home/signavio-repository if you've used the default installation scripts.

NOTE: The web-based BPMN modeling tool which ships with jBPM is 100% open-source (MIT-licence). The company Signavio also offers commercial versions of the same modeling tool, enhanced with additional features. Do note that new features, beneficial for the jBPM project, always will be comitted in the open-source repository of the modeling tool.
