Chapter 15. Process Repository

A process repository is an important part of your BPM architecture if you start using more and more business processes in your applications and especially if you want to have the ability to dynamically update them. The process repository is the location where you store and manage your business processes. Because they are not deployed as part of your application, they have their own life cycle, meaning you can update your business processes dynamically, without having to change the application code.

Note that a process repository is a lot more than simply a database to store your process definitions. It almost acts as a combination of a source code management system, content management system, collaboration suite and development and testing environment. These are the kind of features you can expect from a process repository:

Actually, it would be better to talk about a knowledge repository, as the repository will not only store your process definitions, but possibly also other related artefacts like task forms, your domain model, associated business rules, etc. Luckily, we don't have to reinvent the wheel for this, as the Guvnor project acts as a generic knowledge repository to store any type of artefacts and already supports most of these features.

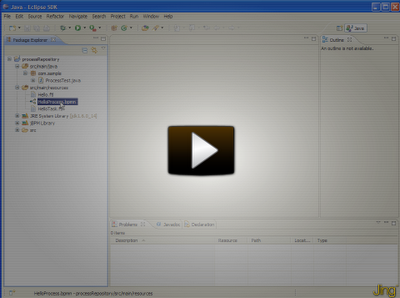

The following screencast shows how you can upload your process definition to Guvnor, along with the process form (that is used when you try to start a new instance of that process to collect the necessary data), task forms (for the human tasks inside the process), and the process image (that can be annotated to show runtime progress). The jBPM-console is configured to get all this information from Guvnor whenever necessary and show them in the console.

Figure 15.1.

If you use the installer, that should automatically download and install the latest version of Guvnor as well. So simply deploy your assets (for example using the Guvnor Eclipse integration as shown in the screencast, also automatically installed) to Guvnor (taking some naming conventions into account, as explained below), build the package and start up the console.

The current integration of jBPM-console with Guvnor uses the following conventions to find the artefacts it needs:

If you follow these rules, your processes, forms and images should show up without any issues in the jBPM-console.
