JBoss Portal 2.6.3

Displays hard-coded links to downloading JBoss Portal, downloading portlets from PortletSwap, and the live online JBoss Portal demo. It also contains default authentication information on loging in, as well as a link to the official Portal documentation.

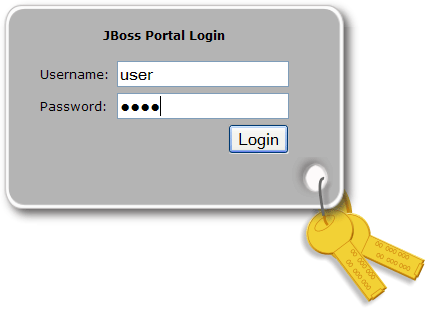

Once successfully logged in, the user will have additional functionality at his disposal, that is covered in the following sections.

The Identity User Portlet allows a user to:

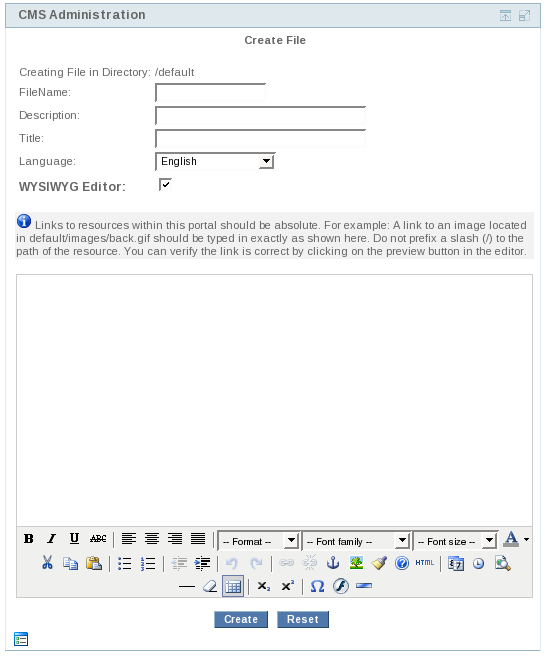

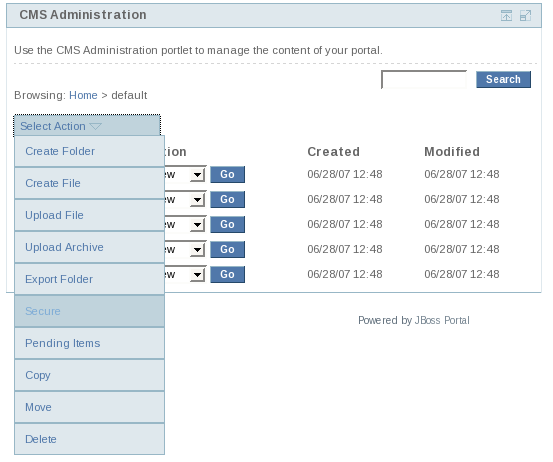

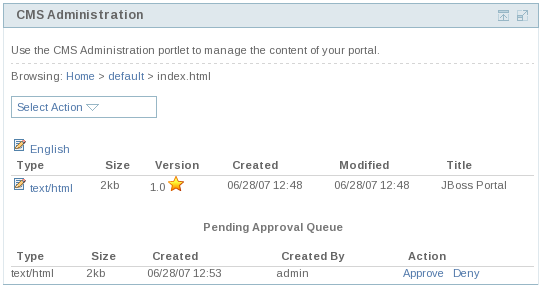

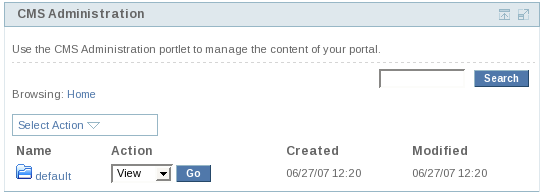

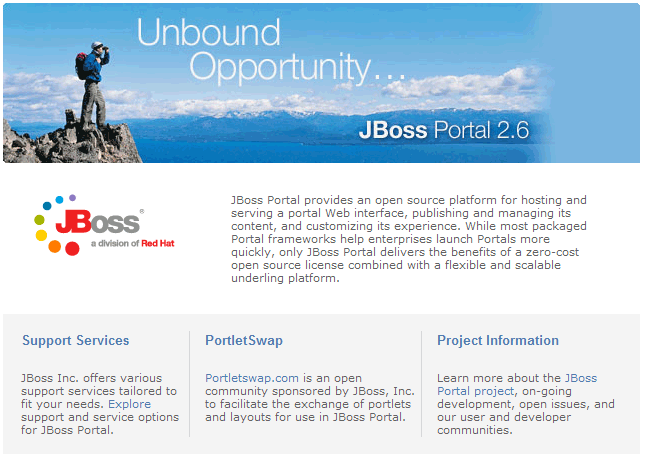

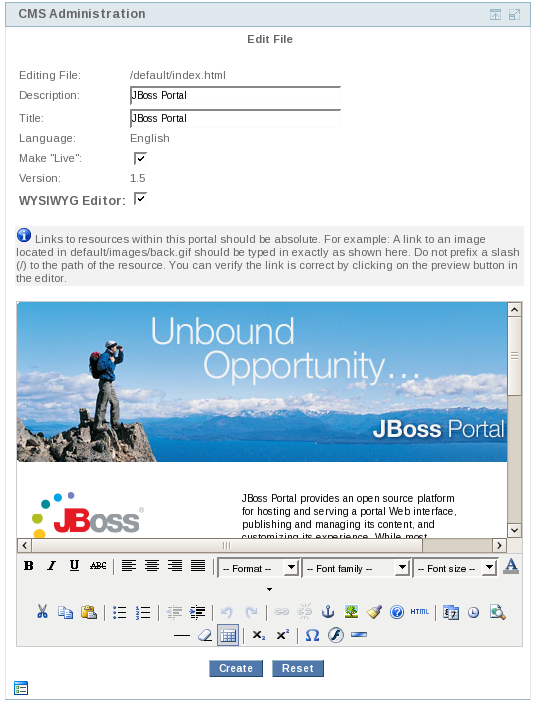

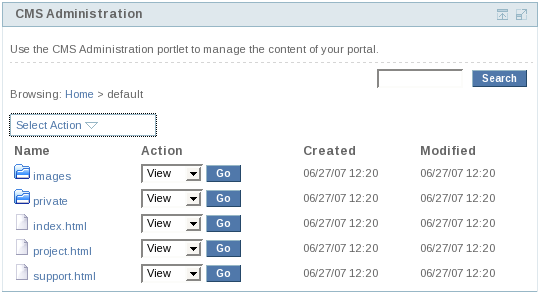

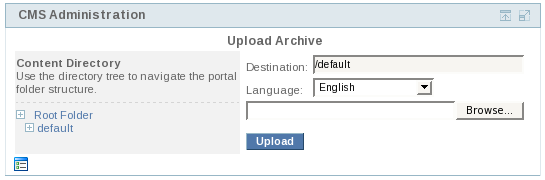

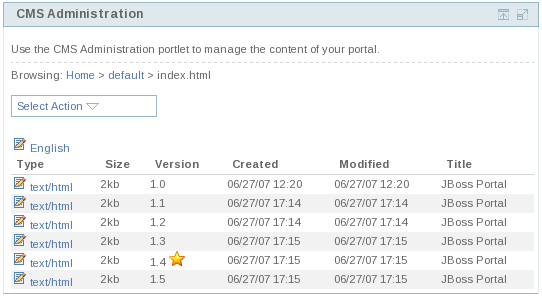

Portal includes a basic Content Management System (CMS). Portal provides a CMS portlet which allows users to navigate the CMS content (static html, images, binary files, etc.).

Displaying content is done by the portal using a path mapper. For example, if we wanted to display a zip file, located in /default/foo/bar.zip, we would type in the URL http://localhost:8080/content/default/foo/bar.zip. Notice how the path to the content, is prefixed with the '/content' term. Although in this example we are describing binary content retrieval, the same is to be said for text/html files. Keep in mind, however, that binary files are displayed outside of the portal pages, but text/html are displayed inside the CMSPortlet Window.

Serving Logic: The CMS Portlet now serves content based on the user's locale setting. For example: if a user's locale is set to Spanish in his browser, and he requests URL: default/index.html , the CMSPortlet will first try and retrieve the Spanish version of that file. If a Spanish version is not found, it will then try and retrieve the default language version set for the CMSPortlet (set to English, by default).

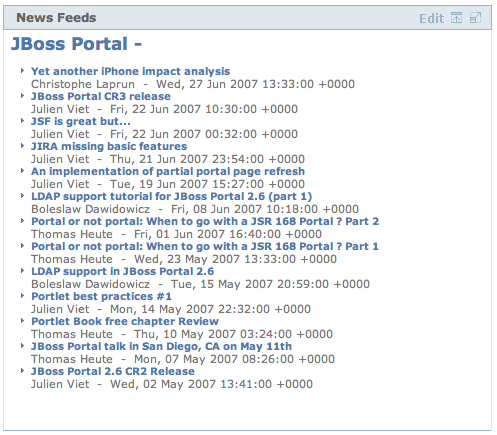

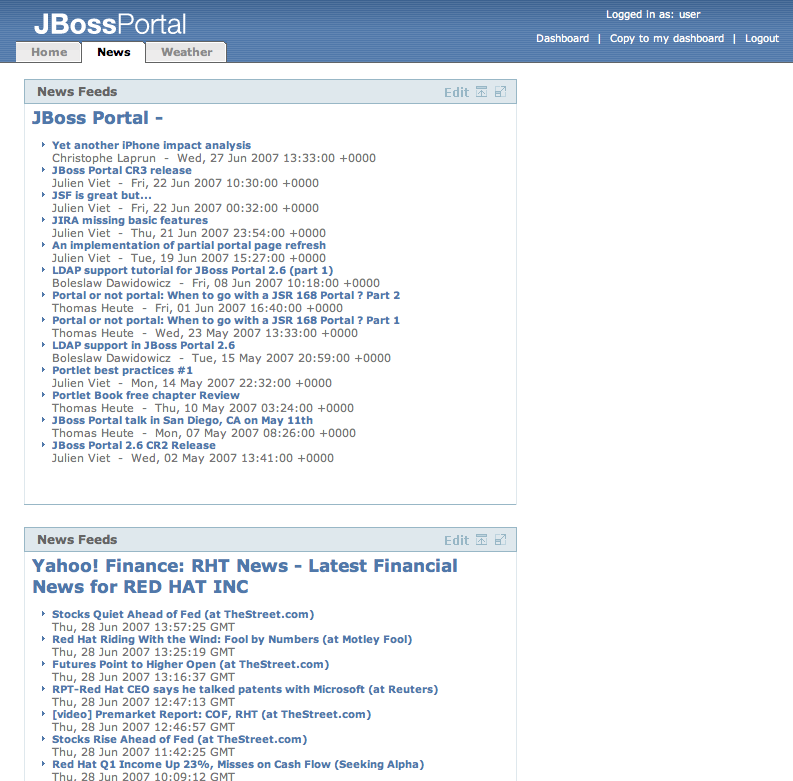

The News Portlet retrieves an RSS news feed from a URL and displays it as HTML to the user.

Additionally, a logged-in user is able to modify her preference in RSS feed source by using the Portlet's Edit Mode (click ). Once the form is submitted, this property will be saved in the user's preference, so she will always see the same news source, when logged in.

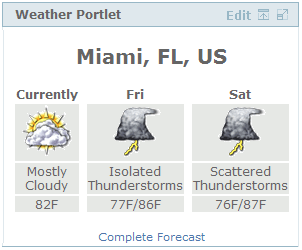

The Weather Portlet retrieves an RSS weather feed, based on a key (commonly a US Postal Code), and displays it as HTML to the user.

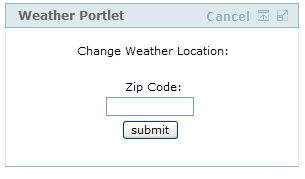

Additionally, a logged-in user is able to modify her preference in location by using the Portlet's Edit Mode (click ). Any valid US Postal Code can be input here. Once the form is submitted, this property will be saved in the user's preference, so she will always see the same weather data for her location, when logged in.

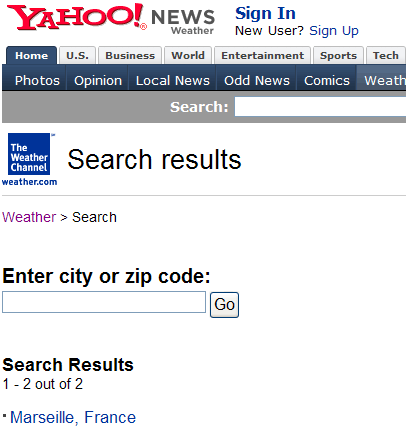

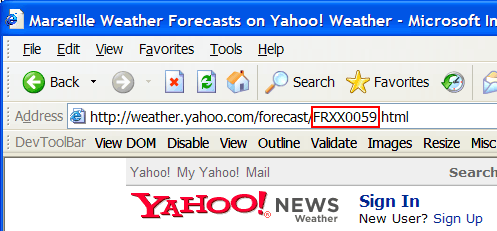

Not in the United States? Follow these steps to configure the Weather portlet to display information for your area.

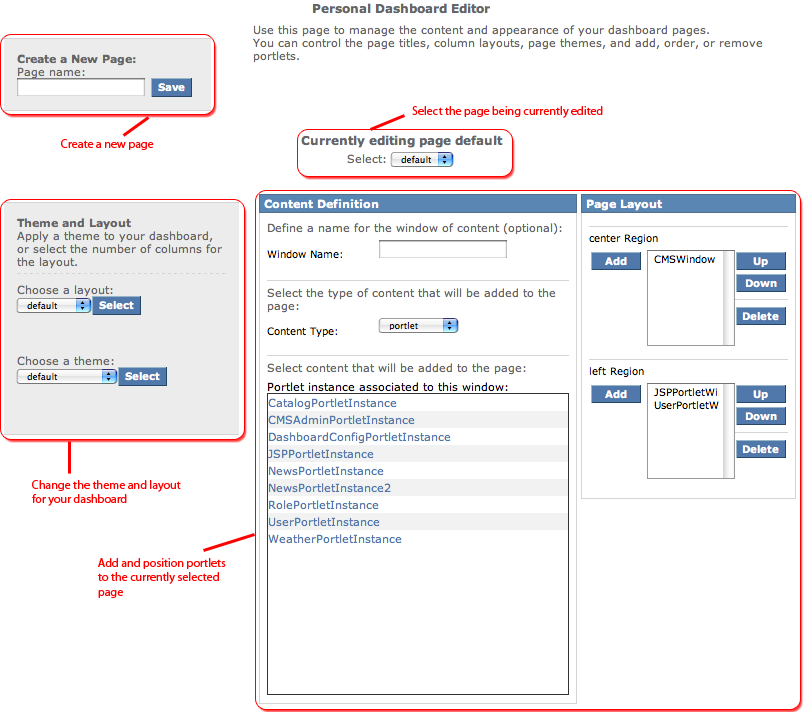

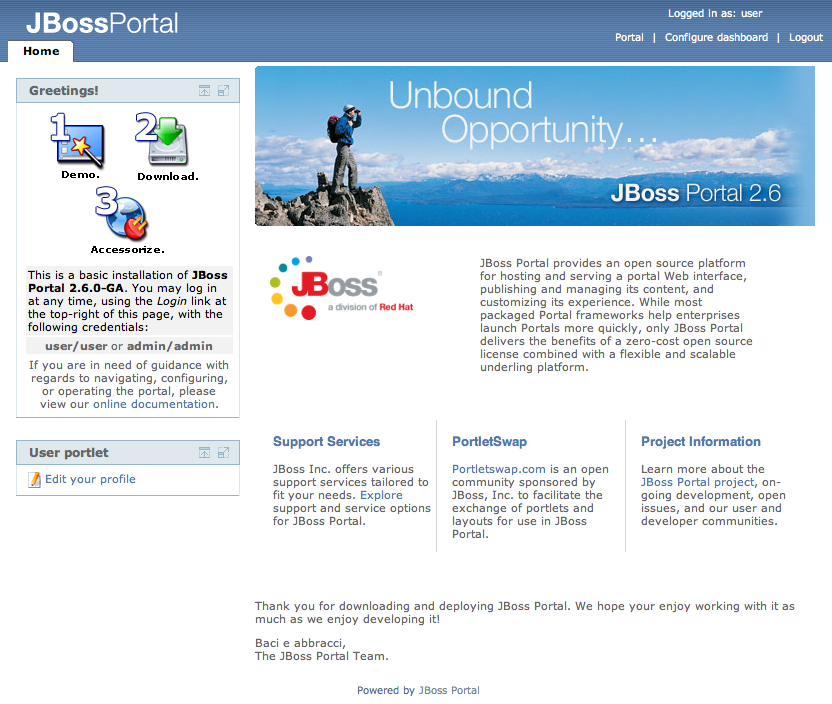

You can select a theme and layout for your dashboard by selecting from the available ones and then clicking on select in the Theme and Layout form.

You can also create new pages that will be added to your dashboard by simply entering the name of the new page in the Create New Page form at the top left of the screen.

Upon creating a new page, the screen will refresh and allow a user to customize the new page.

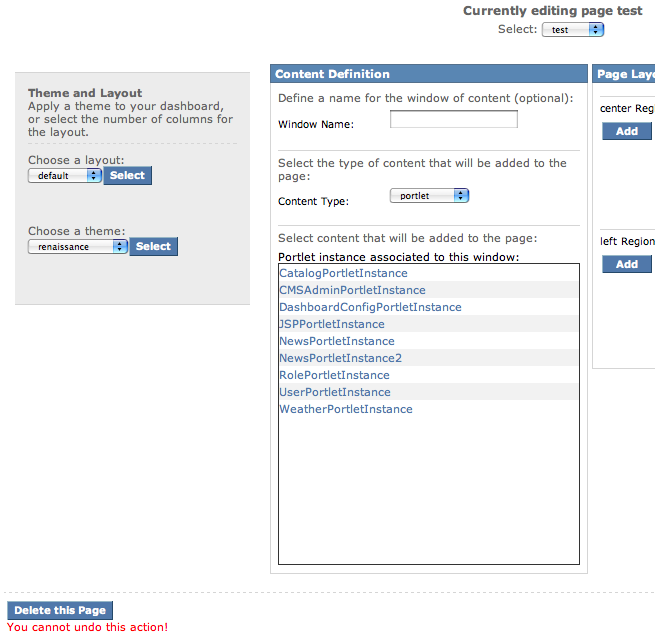

You may delete dashboard pages at any time, by first selecting the page you want to delete using the popup menu at the top of the screen and then clicking the Delete this page button at the bottom of the screen. We will note that users are not able to delete the default dashboard page.

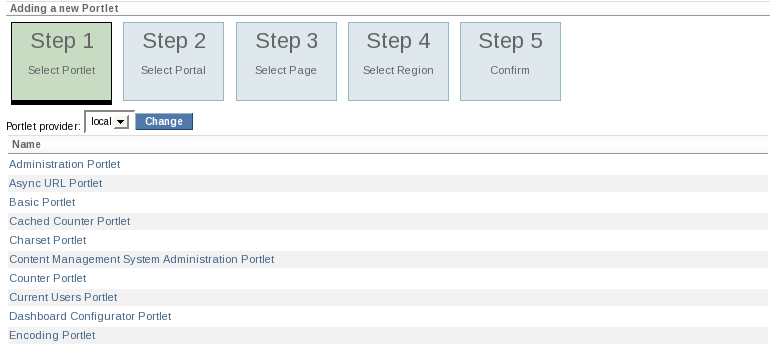

You can add, remove and reorder portlets on a dashboard page to adapt your environment to your liking. To do so, just select the page you want to modify using the page popup selector and use the portlet management form. We will not explain how to use it here as it is similar to the page layout functionality of the Admin portal, which we will look at in Section 2.2.1.3, “Looking at a page configuration”

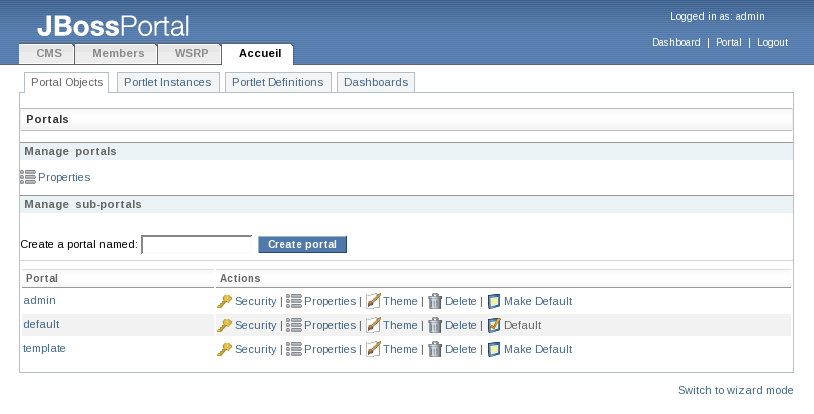

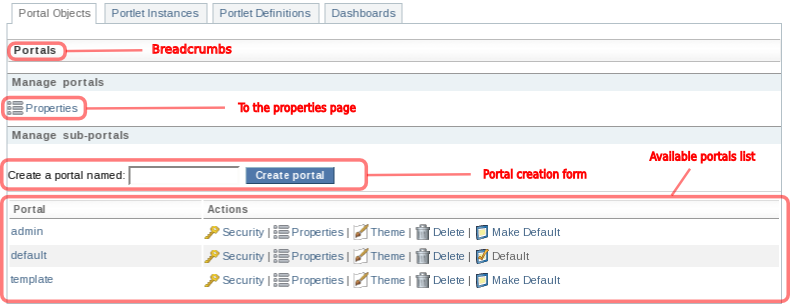

The Portal Objects brings the administrator to a page showing the list of the available portal instances defined for this Portal server. Several points are of particular interest. First, a navigation indicator or "breadcrumbs" is located right beneath the tabs. This provides context as to where in the hierarchy of portal objects the current screen is located as some of the screens can be found at several levels of the hierarchy. If you are lost, take a look at the breadcrumbs for context! When you first click on the Portal Objects tab, the context is the list of portals as shown in the picture above.

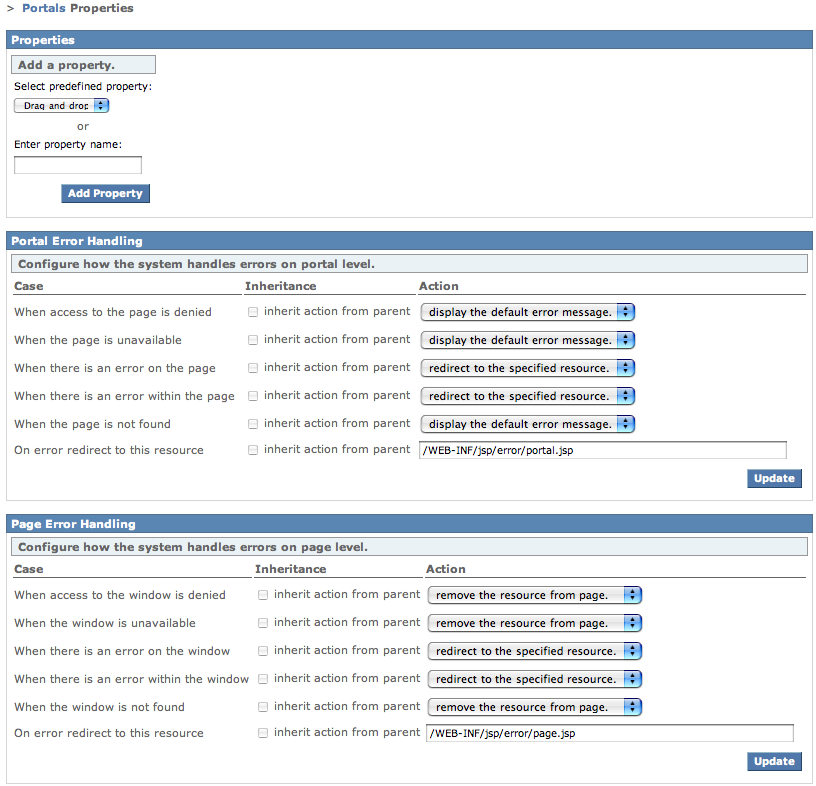

A link to access server-wide portal properties is located right beneath the breadcrumbs. This allows the administrator to set server-wide property and configure how errors should be handled:

Please refer to the Error handling chapter of the Reference Guide for more information on this point.

A form allowing administrator to create new portal instances is located beneath the Properties link. Enter the name of the new portal (which, of course, should be different from any of the already existing one) and click on Create portal and the portal instances list will be refreshed to display the newly created portal instance.

The last element at this level is a table listing all the available portal instances along with possible actions on them. Clicking on the portal name will display a screen showing the information for this given portal instance, thus drilling down the hierarchy of available portal objects. Clicking on an action name will execute the specified action on the associated portal instance. These actions are available on each individual portal screen as we shall see. The notable exception is the Make Default/Default action which is only available in this listing as it is more of an action across portals than specific to a portal thus benefiting from being seen at this level. This action allows users to specify which portal instance is displayed when Portal is first being accessed. Clicking on Make Default will specify that the associated portal will be displayed to users by default. The portal list will be refreshed and the selected portal status will be refreshed, its action now showing its Default status.

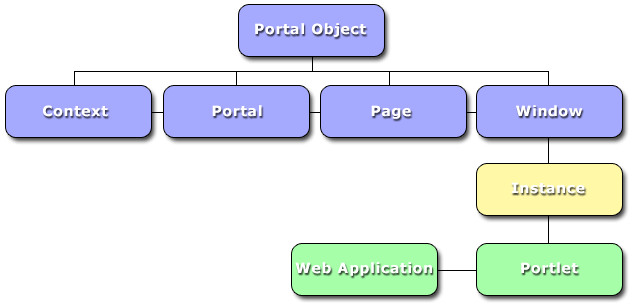

In the next sections we will demonstrate the functionality of the management portlet by drilling progressively further down this hierarchy to look at the default portal, one of its pages, show how to configure content on a page and, finally, look at a specific window information.

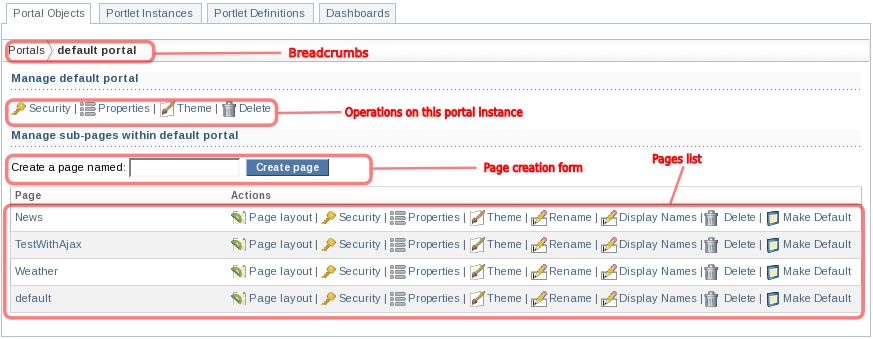

If you click on the default portal in the list of available portal instances on the top-level Portal Objects page, you'll be taken to a page showing the information for the portal instance named "default", as shown below:

Note the breadcrumbs at the top of the screen indicating where in the hierachy you currently are. In this case, we are looking at the default portal.

Links to more information and operations that affect this portal instance are located beneath the breadcrumbs. We will look at them in turn later, excluding the Destroy operation, which as its name implies, allows an administrator to destroy the current portal instance. Note that these links mirror the links that were available in the portal instances list on the top level page, Make Default/Default excepted.

It is possible to create new pages using the page creation form located under the portal-wide operation links. Enter the new page name and click on Create page and the new page will appear in the pages list, ready to be configured.

Finally, a table displaying the list of available pages for this portal instance is located at the bottom of this screen. The first column shows the page name, which you can click to drill down the hierachy and display the information specific to that particular page. The second column, on the other hand, provides a list of action links on the associated page. These links will be also appearing on individual page screens, as we shall see, just like portal action links appearing in the portal instances list also appeared on individual portal pages. Once again, the Make Default/Default action, which behaves as its portal counterpart, only appears in this list: this is where you specify which page should be the default one when users first access the portal instance.

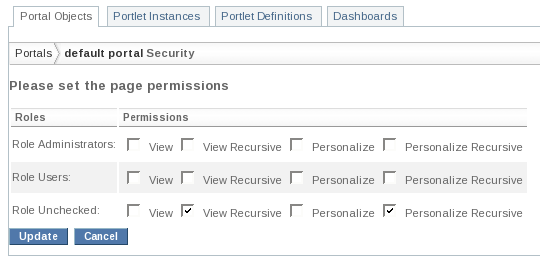

Let's now look at the default portal's Security information screen. This can be accessed by clicking the Security action link on the portal page. Here, an administrator can configure the default policy for security on objects for this portal instance:

Please refer to the Security chapter of the Reference Guide for more information about how to secure portal objects.

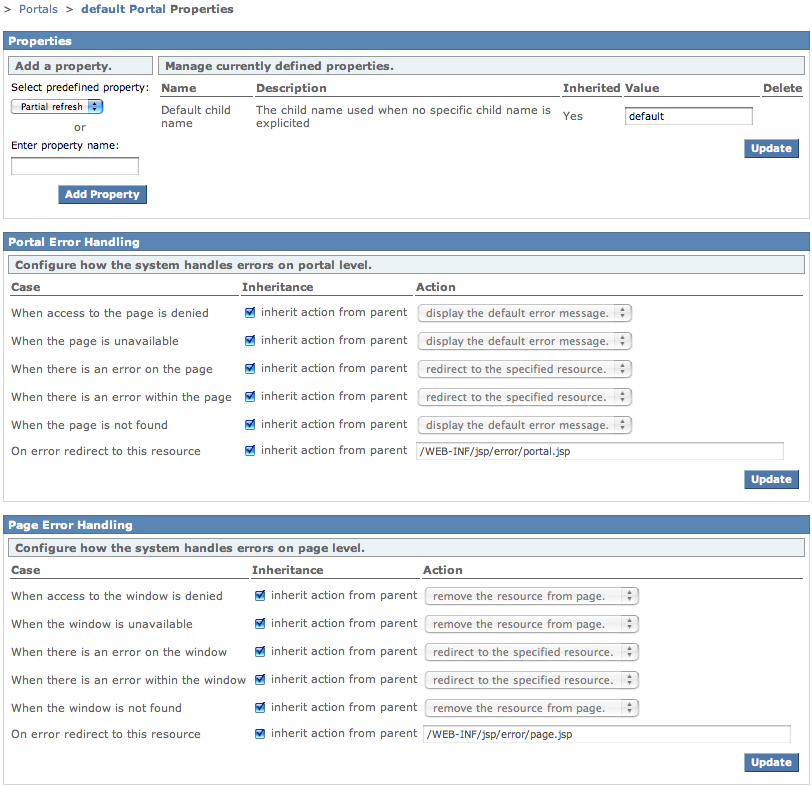

The Properties action link displays the currently configured properties for this portal instance and allows you to modify them, as well as configure the error handling strategy:

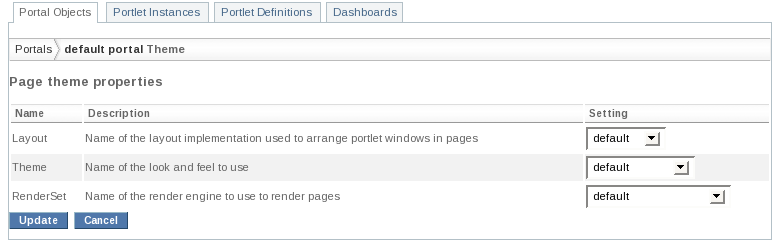

The Theme action link displays a screen where the administrator can configure theme, layout and render set for this portal instance:

Please refer to the Layouts and Themes chapter of the Reference Guide for more information about themes and layouts.

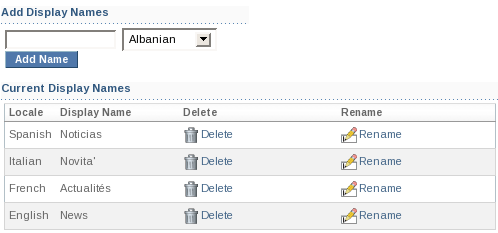

The Display Name action link displays a screen where the administrator can configure different names for different languages:

The different names will be used as page display names for the preferred locale of the logged-in user. This is used by the default tab navigation of the default layouts.

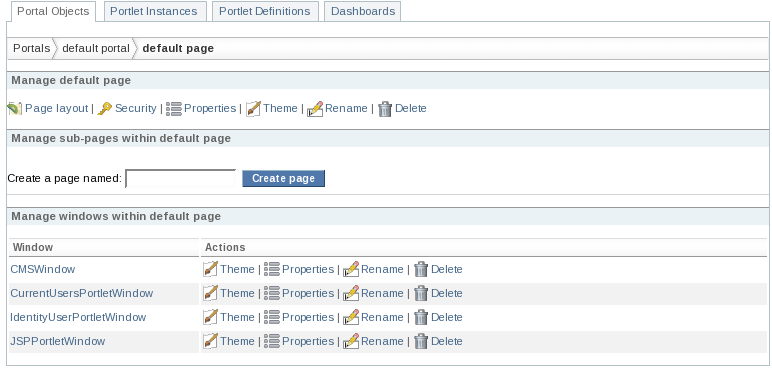

Now that we have looked at portal level information, let's drill down the hierachy again and look at a page, more precisely the default page, by clicking its name in the pages list.

The layout of this screen should start feeling familiar. The information for a page looks a lot like the information for a portal instance. Note the breadcrumbs indicating that you are indeed looking at a page. Again, we find the action links at the top of the page, mirroring the ones that were available for each page in the pages list of the portal instance screen. Once again, you can configure the page's security, theme and properties. You can also destroy it if so desired.

Similarly to other screens in the portal objects hierarchy, a page configuration screen also provides a list of all windows for that page. This list contains two columns: the first one contains the name of the window, while the second one provides a list of action links for that specific window. As usual, clicking on a window name will display information about that window.

Just like a portal instance can contain several pages, a page can contain several subpages. As such a page defines means to create subpages and set which subpage to display when a user is first directed to the page. These operations work similarly to the same operations at the portal instance level.

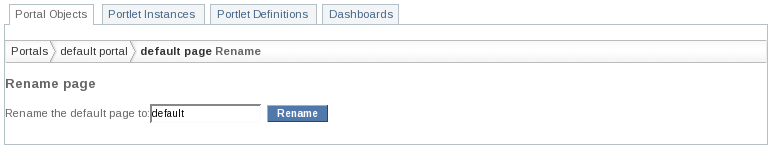

You can also rename the page if desired:

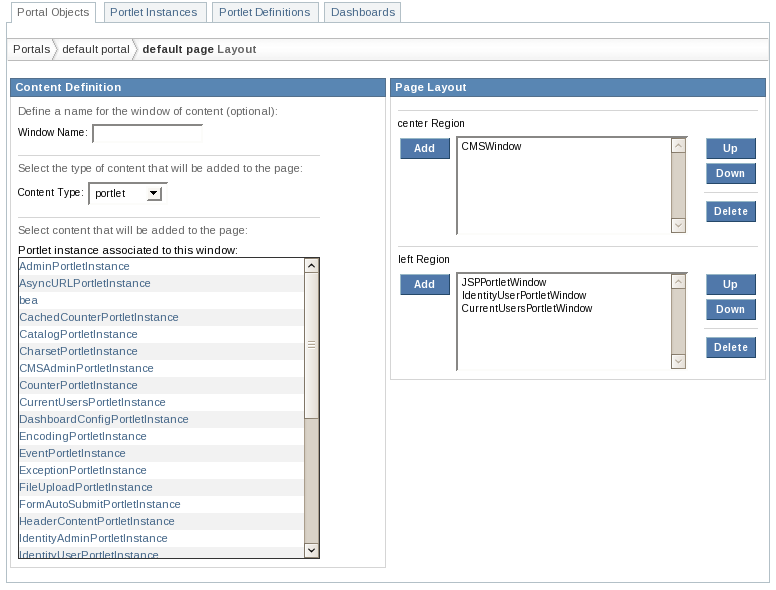

Of specific interest, though, is the Page Layout link. This is where you need to go to configure which portlet instance will be displayed in which window on which region on the page. Let's take a look at this screen and how it works:

This screen is structured in two parts, flowing from left to right, following the natural process involved in displaying content on a page. First, you need to identify which content you want to display: this is what the Content Definition section is for. Then, you need to figure out where on the page should this content be displayed, hence the Page Layout section.

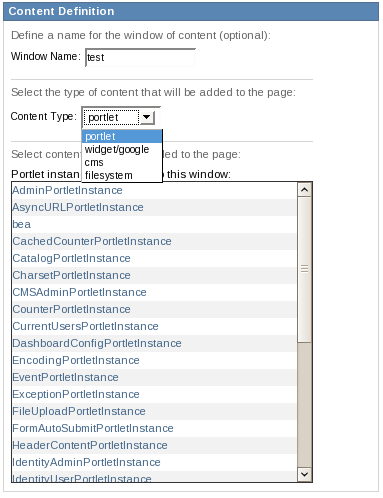

Let's add a window named test displaying the content of the portlet instance named NewsPortletInstance to the center region, beneath the already existing CMSWindow. First, we need to enter our new window name in the Window name field and select the portlet content type from the drop down menu:

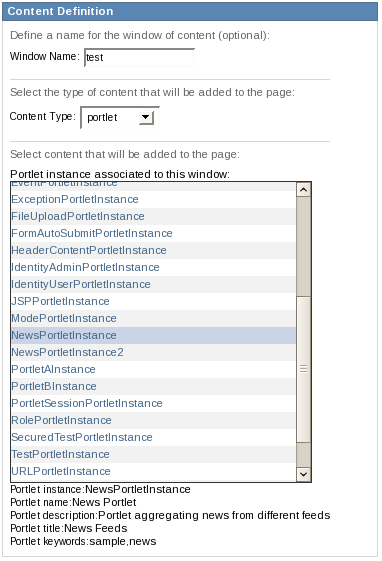

Once this is done, we can select the portlet instance by clicking its name in the instances list:

Note that this displays some information about the portlet instance. Finally, we can add our window to the center region of the page by clicking on Add button located left to the windows list for the region:

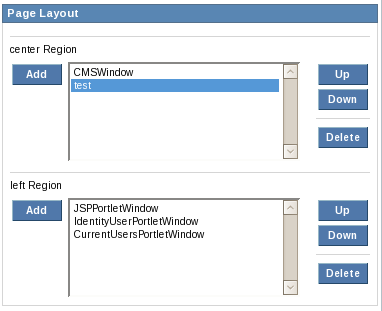

Note that we could move the window up or down in the region by selecting it in the list and using the button to the right of the list, or even destroy it if desired.

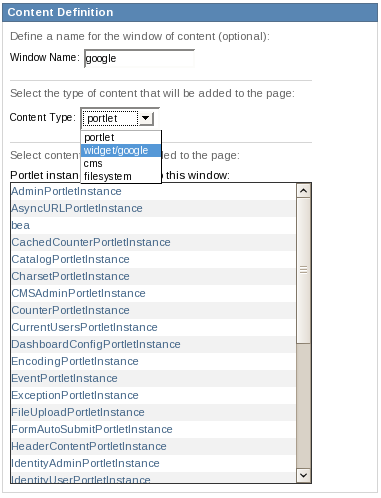

We can repeat this process to add content of different types. Let's add a window using a Google widget game. First, give a name to your window (we'll use "google" here) and select widget/google from the content type drop-down menu:

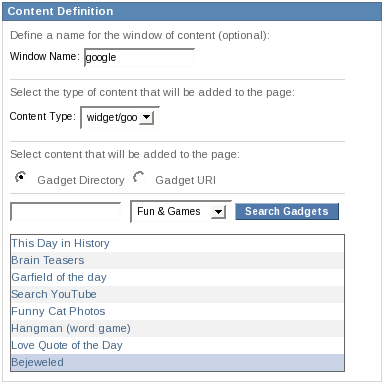

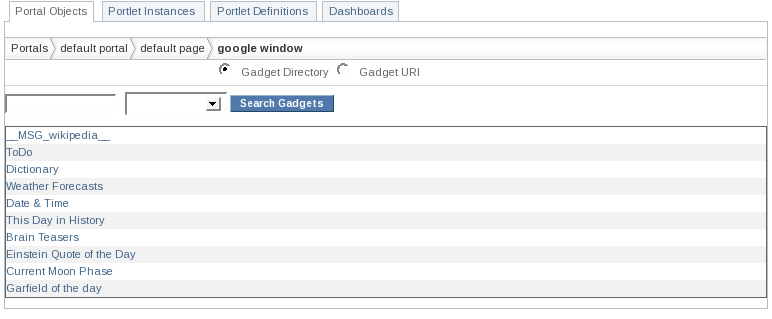

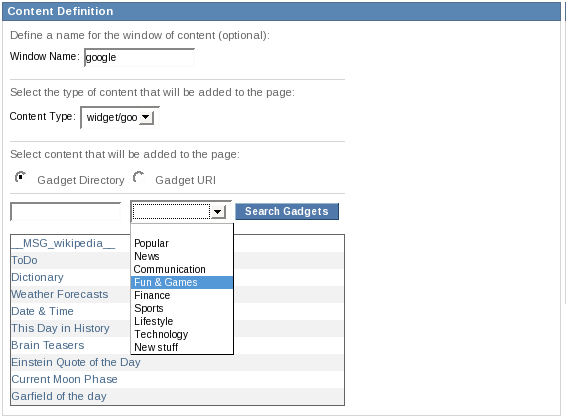

Note how the instances list is replaced by a list of Google widgets. The widget we want to use is located in the Fun & Games category, so select it from the category drop-down menu:

Press Search Gadgets and the widget list will be refreshed. The widget we want is Bejeweled:

You can now add the new window to the desired region.

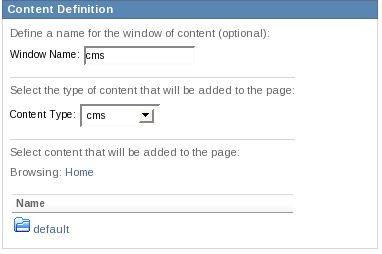

Let's repeat this process again, this time with content from CMS. Enter a new window name (we'll use "cms" here) and select cms from the content type drop-down menu:

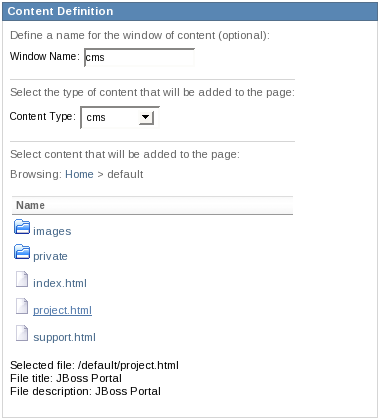

Once again, the instances list was replaced by a directory listing showing the available content roots. Click on default and select project.html:

You can now add the window to the desired region.

We've added three new windows to the default page using different content types. We added a window displaying the content of a portlet (displaying the content of an RSS feed in this case). Another one displaying a Google widget and yet another one some CMS-issued content. We decided to remove the existing CMSWindow, add the cms window below the test one in the center region, while the window showing the Google widget was added to the left region, below the existing content:

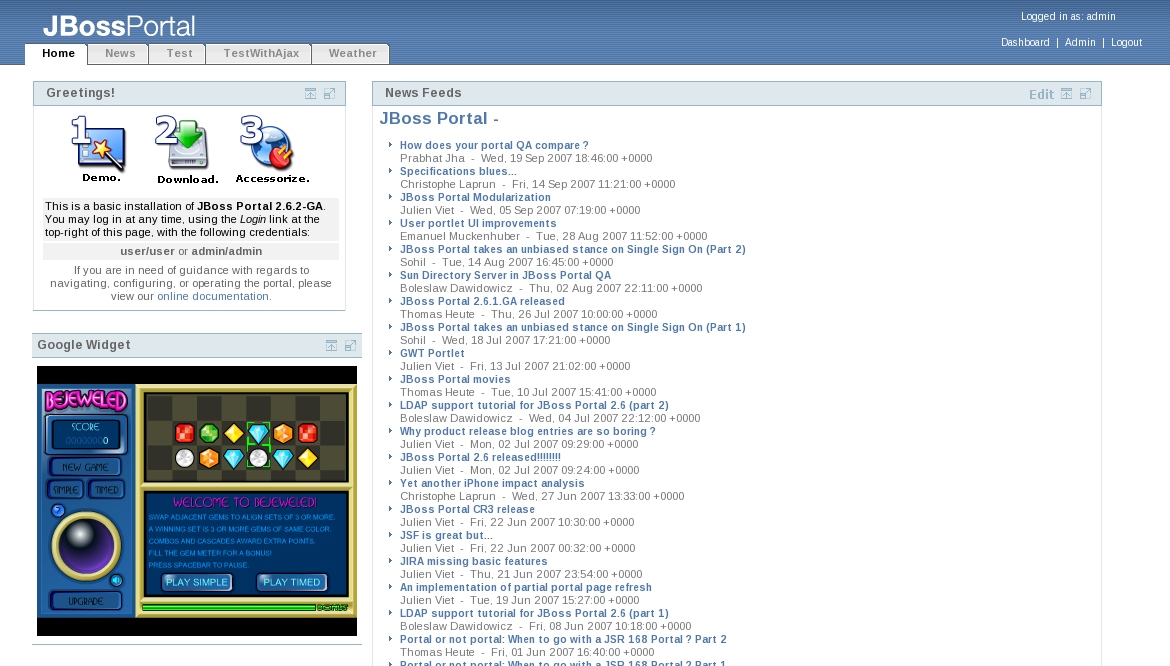

If all went well, logging out of the Admin portal, you should see:

You can read more about Content Integration in the Reference Guide. More details on how to setup content roots in CMS are available in Section 3.1, “Introduction”.

Window operations are similar to the same operations at other level of the hierachy of portal objects. The only information displayed when a window name is clicked in the windows list of a portal page information screen is information about the content, similar to the one that is displayed in the page layout screen. Thus, for the google window that we created in the previous section:

Note, once again, the breadcrumbs... :)

For searching users click on the link Search users and then type a partial username in the form text field, to search for usernames matching that criteria.

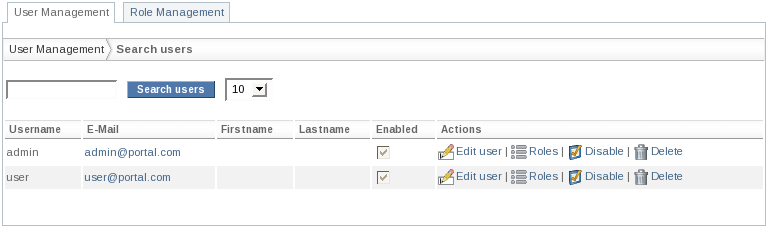

The search users page.

Clicking on the Edit user link on the search page will allow you to edit a user's profile data, and even reset his password.

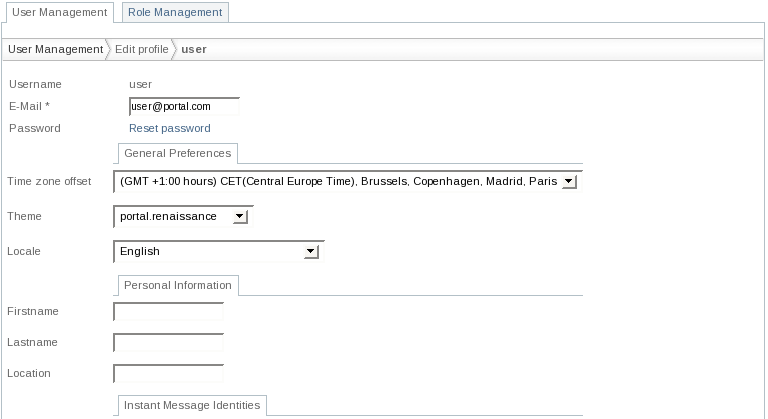

Editing a users profile.

Clicking on the Roles link in the search page allows you to modify the roles a specific user belongs to.

Assign roles to a user.

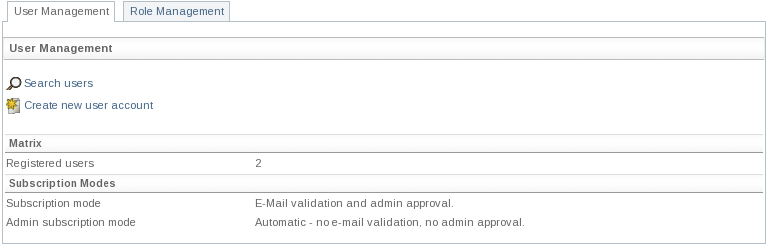

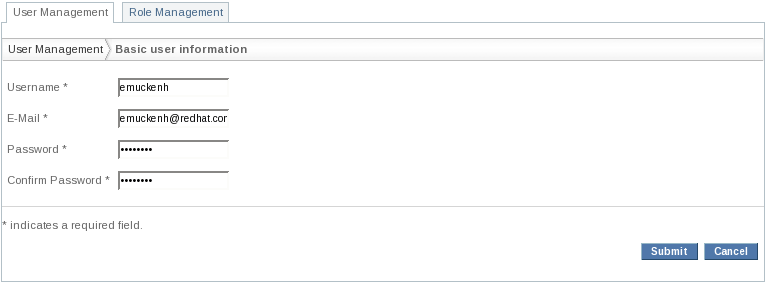

Clicking on the Create User Account link on the main UserPortlet view, allows administrators to instantly create new users.

Creating a user in the User management portlet.

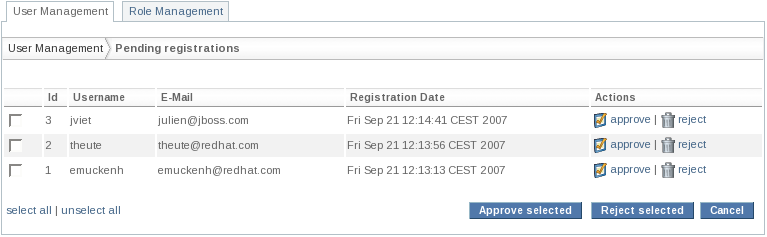

Click on the Show pending registrations link to show all registrations with validated e-mail addresses. You can approve or reject each user by clicking on the corresponding action or click on select all to approve or reject all selected users.

Approve or reject pending registrations.

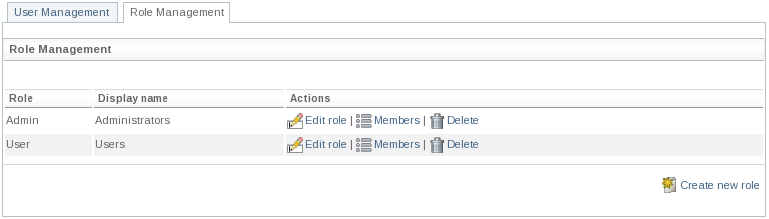

Creating new roles, is accomplished by first clicking on the Create new role link in the portlet.

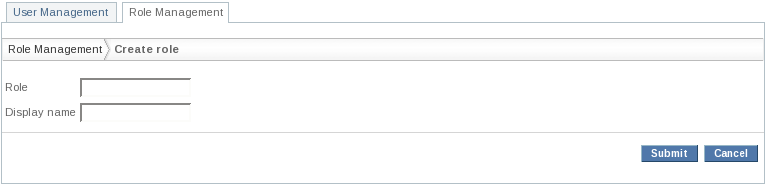

Create a new role.

To create a new role, you need to define a short name that will be used for reference, and a display name for displaying to the user, for example admin would be a good name for the display name Administrators , changing the display name will not affect the security rules.

Editing roles, is accomplished by clicking on Edit role in the row of the role you want to edit.

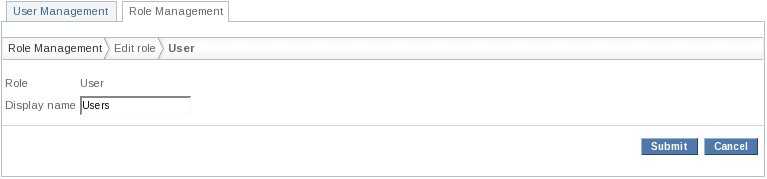

Edit an existing role.

While editing a role, you just need to pick an existing role then change the display name.

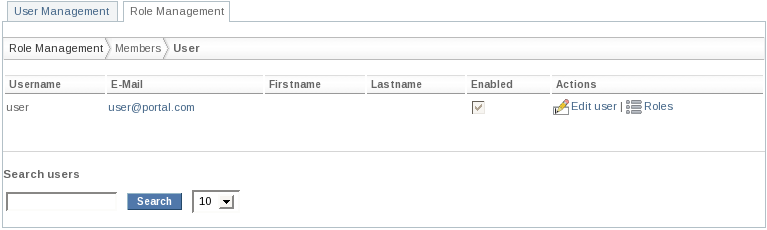

Editing role members, is accomplished by first clicking the Members link at the role management page for the role you would like to modify.

Show the members of an existing role.

Allows for an administrator to search and modify the members' assigned roles.

Deleting roles is accomplished by clicking the Delete link for the role you would like to remove.
