JBoss DNA

JBoss DNA is a repository and set of tools that make it easy to capture, version, analyze, and understand the fundamental building blocks of information. As models, service and process definitions, schemas, source code, and other artifacts are added to the repository, JBoss DNA "sequences" the makeup of these components and extracts their structure and interdependencies. The JBoss DNA web application allows end users to access, visualize, and edit this information in the terminology and structure they are familiar with. Such domain-specific solutions can be easily created with little or no programming.

JBoss DNA supports the Java Content Repository (JCR) standard and is able to provide a single integrated view of multiple repositories, external databases, services, and applications, ensuring that JBoss DNA has access to the latest and most reliable master data. For instance, DNA could provide in a single view valuable insight into the business processes and process-level services impacted by a change to in an intermediary web server operation defined via WSDL. Similarly, a user could quickly view and navigate the dependencies between the data source models and transformation information stored within a content repository, the code base stored within a version control system, and the database schemas used by an application.

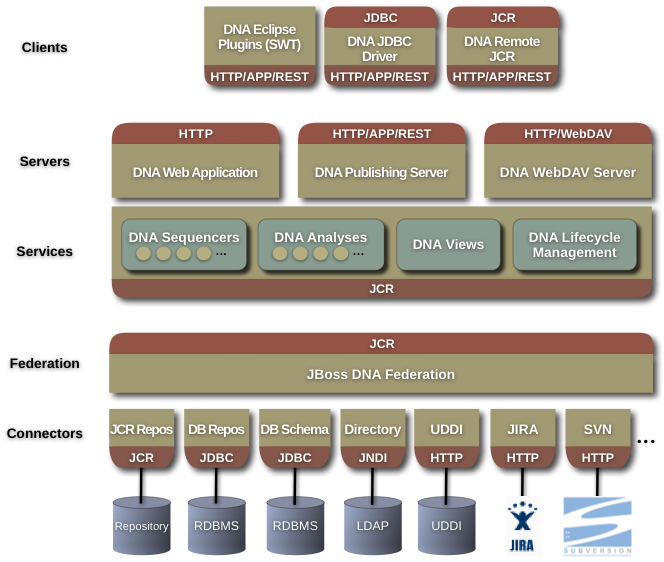

The architecture for JBoss DNA consists of several major components that will be built on top of standard APIs, including JCR, JDBC, JNDI and HTTP. The goal is to allow these components to be assembled as needed and add value on top of other DNA components or third-party systems that support these standard APIs.

As shown in the diagram above, the major components are (starting at the top):

The current JBoss DNA release contains a sequencing framework that is designed to sequence data (typically files) stored in a JCR repository to automatically extract meaningful and useful information. This additional information is then saved back into the repository, where it can be accessed and used.

In other words, you can just upload various kinds of files into a JCR repository, and DNA automatically processes those files to extract meaningful structured information. For example, load DDL files into the repository, and let sequencers extract the structure and metadata for the database schema. Load Hibernate configuration files into the repository, and let sequencers extract the schema and mapping information. Load Java source into the repository, and let sequencers extract the class structure, JavaDoc, and annotations. Load a PNG, JPEG, or other image into the repository, and let sequencers extract the metadata from the image and save it in the repository. The same with XSDs, WSDL, WS policies, UML, MetaMatrix models, etc.

JBoss DNA sequencers sit on top of existing JCR repositories (including federated repositories) - they basically extract more useful information from what's already stored in the repository. And they use the existing JCR versioning system. Each sequencer typically processes a single kind of file format or a single kind of content.

The following sequencers are included in JBoss DNA:

There is a lot of information stored in many of different places: databases, repositories, SCM systems, registries, file systems, services, etc. The purpose of the federation engine is to allow applications to use the JCR API to access that information as if it were all stored in a single JCR repository, but to really leave the information where it is.

Why not just move the information into a JCR repository? Most likely there are existing applications that rely upon that information being where it is. If we were to move it, then all those applications would break. Or they'd have to be changed to use JCR. If the information is being used, the most practical thing is to leave it where it is.

Then why not just copy the information into a JCR repository? Actually, there are times when it's perfectly reasonable to make a copy of the data. Perhaps the system managing the existing information cannot handle the additional load of more clients. Or, perhaps the information doesn't change, or it does change and we want snapshots that don't change. But more likely, the data does change. So if applications are to use the most current information and we make copies of the data, we have to keep the copies synchronized with the master. That's generally a lot of work.

The JBoss DNA federation engine lets us leave the information where it is, yet lets client applications use the JCR API to access all the information without caring where the information really exists. If the underlying information changes, client applications using JCR observation will be notified of the changes. If a JBoss DNA federated repository is configured to allow updates, client applications can change the information in the repository and JBoss DNA will propagate those changes down to the original source.

This example consists of a client application that sets up an in-memory JCR repository and that allows a user to upload files into that repository. The client also sets up the DNA services with two sequencers so that if any of the uploaded files are PNG, JPEG, GIF, BMP or other images, DNA will automatically extract the image's metadata (e.g., image format, physical size, pixel density, etc.) and store that in the repository. Alternatively, if the uploaded file is an MP3 audio file, DNA will extract some of the ID3 metadata (e.g., the author, title, album, year and comment) and store that in the repository.

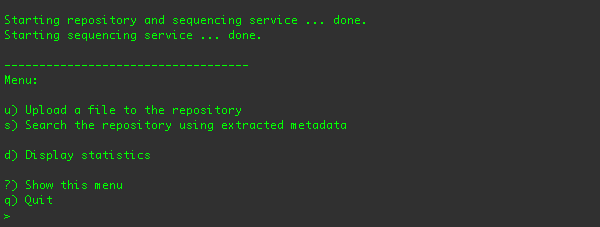

To run the client application, go to the examples/sequencers/target/dna-example-sequencers-basic.dir/ directory and type ./run.sh . You should see the command-line client and its menus in your terminal:

From this menu, you can upload a file into the repository, search for media in the repository, print sequencing statistics, or quit the application.

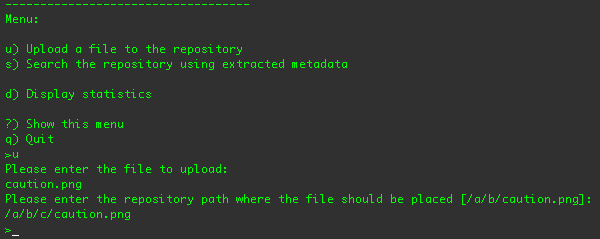

The first step is to upload one of the example images. If you type 'u' and press return, you'll be prompted to supply the path to the file you want to upload. Since the application is running from within the examples/sequencers/target/dna-example-sequencers-basic.dir/ directory, you can specify any of the files in that directory without specifying the path:

You can specify any fully-qualified or relative path. The application will notify you if it cannot find the file you specified. The example client configures JBoss DNA to sequence and MP3 audio files and image files with one of the following extensions (technically, nodes that have names ending in the following): jpg , jpeg , gif , bmp , pcx , png , iff , ras , pbm , pgm , ppm , and psd . Files with other extensions in the repository path will be ignored. For your convenience, the example provides several files that will be sequenced ( caution.png , caution.jpg , caution.gif , and sample1.mp3 ) and one image that will not be sequenced ( caution.pict ). Feel free to try other files.

After you have specified the file you want to upload, the example application asks you where in the repository you'd like to place the file. (If you want to use the suggested location, just press return .) The client application uses the JCR API to upload the file to that location in the repository, creating any nodes (of type nt:folder ) for any directories that don't exist, and creating a node (of type nt:file ) for the file. And, per the JCR specification, the application creates a jcr:content node (of type nt:resource ) under the file node. The file contents are placed on this jcr:content node in the jcr:data property. For example, if you specify /a/b/caution.png , the following structure will be created in the repository:

    /a   (nt:folder)
      /b   (nt:folder)
        /caution.png   (nt:file)
                    /jcr:content    (nt:resource)
                                @jcr:data = {contents of the file}
                                @jcr:mimeType = {mime type of the file}
                                @jcr:lastModified = {now}


Other kinds of files are treated in a similar way.

When the client uploads the file using the JCR API, DNA gets notified of the changes, consults the sequencers to see whether any of them are interested in the new or updated content, and if so runs those sequencers. The image sequencer processes image files for metadata, and any metadata found is stored under the /images branch of the repository. The MP3 sequencer processes MP3 audio files for metadata, and any metadata found is stored under the /mp3s branch of the repository. All of this happens asynchronously, so any DNA activity doesn't impede or slow down the client activities.

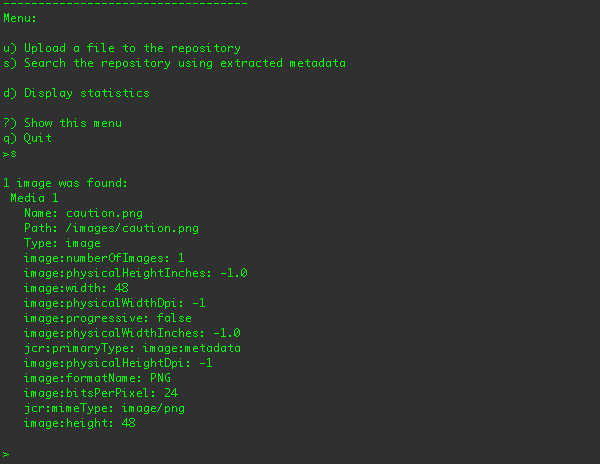

So, after the file is uploaded, you can search the repository for the image metadata using the "s" menu option:

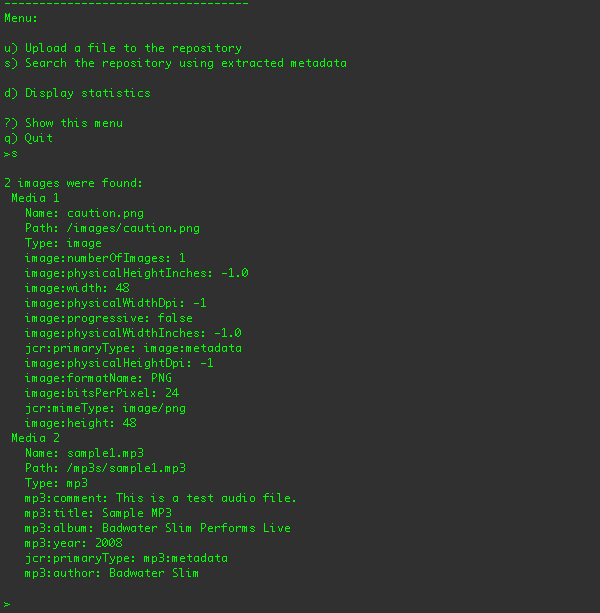

Here are the search results after the sample1.mp3 audio file has been uploaded (to the /a/b/sample1.mp3 location):

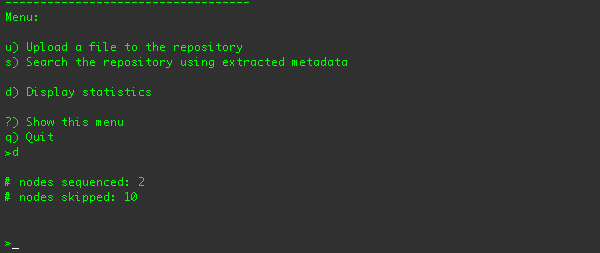

You can also display the sequencing statistics using the "d" menu option:

These stats show how many nodes were sequenced, and how many nodes were skipped because they didn't apply to the sequencer's criteria.

You can repeat this process with other files. Any file that isn't an image or MP3 files (as recognized by the sequencing configurations that we'll describe later) will not be sequenced.

In this chapter you downloaded and installed the example application and used it to upload files into a JCR repository. JBoss DNA automatically sequenced the image and/or MP3 files you uploaded, extracted the metadata from the files, and stored that metadata inside the repository. The application allowed you to see this metadata and the sequencing statistics.

This application was very simplistic. In fact, running through the example probably only took you a minute or two. So while this application won't win any awards, it does show the basics of what JBoss DNA can do.

The JBoss DNA sequencing service is the component that manages the sequencers and that reacts to changes in JCR repositories and then running the appropriate sequencers. This involves processing the changes on a node, determinine which (if any) sequencer should be run on that node, and for each sequencer constructing the execution environment, calling the sequencer, and saving the information generated by the sequencer.

To set up the sequencing service, an instance is created and dependent components are injected into the object. This includes among other things:

As mentioned above, the ExecutionContext provides access to a SessionFactory that is used by JBoss DNA to establish sessions to your JCR repositories. Two implementations are available:

You can use the SimpleExecutionContext implementation of ExecutionContext and supply a SessionFactory instance, or you can provide your own implementation.

Here's an example of how to instantiate and configure the SequencingService:

SimpleSessionFactory sessionFactory = new SimpleSessionFactory();
sessionFactory.registerRepository("Main Repository", this.repository);
Credentials credentials = new SimpleCredentials("jsmith", "secret".toCharArray());
sessionFactory.registerCredentials("Main Repository/Workspace1", credentials);
ExecutionContext executionContext = new SimpleExecutionContext(sessionFactory);

// Create the sequencing service, passing in the execution context ...
SequencingService sequencingService = new SequencingService();
sequencingService.setExecutionContext(executionContext);

After the sequencing service is created and configured, it must be started. The SequencingService has an administration object (that is an instance of ServiceAdministrator) with start(), pause(), and shutdown() methods. The latter method will close the queue for sequencing, but will allow sequencing operations already running to complete normally. To wait until all sequencing operations have completed, simply call the awaitTermination method and pass it the maximum amount of time you want to wait.

sequencingService.getAdministrator().start();

The sequencing service must also be configured with the sequencers that it will use. This is done using the addSequencer(SequencerConfig) method and passing a SequencerConfig instance that can create. Here's an example:

String name = "Image Sequencer";
String desc = "Sequences image files to extract the characteristics of the image";
String classname = "org.jboss.dna.sequencer.images.ImageMetadataSequencer";
String[] classpath = null; // Use the current classpath
String[] pathExpressions = {"//(*.(jpg|jpeg|gif|bmp|pcx|png))[*]/jcr:content[@jcr:data] => /images/$1"};
SequencerConfig imageSequencerConfig = new SequencerConfig(name, desc, classname, classpath, pathExpressions);
sequencingService.addSequencer(imageSequencerConfig);

name = "Mp3 Sequencer";
desc = "Sequences mp3 files to extract the id3 tags of the audio file";
classname = "org.jboss.dna.sequencer.mp3.Mp3MetadataSequencer";
String[] mp3PathExpressions = {"//(*.mp3)[*]/jcr:content[@jcr:data] => /mp3s/$1"};
SequencerConfig mp3SequencerConfig = new SequencerConfig(name, desc, classname, classpath, mp3PathExpressions);
sequencingService.addSequencer(mp3SequencerConfig);

This is pretty self-explanatory, except for the classpath and pathExpression parameters. The classpath parameter defines the classpath that is passed to the class loader factory mentioned above. Our sequencer is on the classpath, so we can simply use null here.

The path expression is more complicated. Sequencer path expressions are used by the sequencing service to determine whether a particular changed node should be sequenced. The expressions consist of two parts: a selection criteria and an output expression. Here's a simple example:

/a/b/c@title => /d/e/f

Here, the /a/b/c@title is the selection criteria that applies when the /a/b/c node has a title property that is added or changed. When the selection criteria matches a change event, the sequencer will be run and any generated output will be inserted into the repository described by the output expression. In this example, the generated output would be placed at the /d/e/f node.

//(*.(jpg|jpeg|gif|bmp|pcx|png))[*]/jcr:content[@jcr:data] => /images/$1

The JBoss DNA ObservationService is responsible for listening to one or more JCR repositories and multiplexing the events to its listeners. Unlike JCR events, this framework embeds in the events the name of the repository and workspace that can be passed to a SessionFactory to obtain a session to the repository in which the change occurred. This simple design makes it very easy for JBoss DNA to concurrently work with multiple JCR repositories.

Configuring an ObservationService is pretty easy, especially if you reuse the same SessionFactory supplied to the SequencingService. Here's an example:

this.observationService = new ObservationService(sessionFactory);
this.observationService.getAdministrator().start();

After the observation service is started, listeners can be added. The SequencingService implements the required interface, and so it may be registered directly:

observationService.addListener(sequencingService);

Finally, the observation service must be wired to monitor one or your JCR repositories. This is done with one of the monitor(...) methods:

int eventTypes = Event.NODE_ADDED | Event.PROPERTY_ADDED | Event.PROPERTY_CHANGED;
observationService.monitor("Main Repository/Workspace1", eventTypes);

At this point, the observation service is listening to a JCR repository, and forwarding the appropriate events to the sequencing service, which will asynchronously process the changes and sequence the information added to or changed in the repository.

The JBoss DNA services are utilizing resources and threads that must be released your application is ready to shut down. The safe way to do this is to simply obtain the ServiceAdministrator for each service (via the getServiceAdministrator() method) and call shutdown(). As previously mentioned, the shutdown method will simply prevent new work from being process and will not wait for existing work to be completed. If you want to wait until the service completes all its work, you must wait until the service terminates. Here's an example that shows how this is done:

// Shut down the service and wait until it's all shut down ...
sequencingService.getAdministrator().shutdown();
sequencingService.getAdministrator().awaitTermination(5, TimeUnit.SECONDS);

// Shut down the observation service ...
observationService.getAdministrator().shutdown();
observationService.getAdministrator().awaitTermination(5, TimeUnit.SECONDS);

Recall that the example application consists of a client application that sets up an in-memory JCR repository and that allows a user to upload files into that repository. The client also sets up the DNA services with an image sequencer so that if any of the uploaded files are PNG, JPEG, GIF, BMP or other images, DNA will automatically extract the image's metadata (e.g., image format, physical size, pixel density, etc.) and store that in the repository. Or, if the client uploads MP3 audio files, the title, author, album, year, and comment are extract from the audio file and stored in the repository.

The example is comprised of 3 classes and 1 interface, located in the src/main/java directory:

  org/jboss/example/dna/sequencers/ConsoleInput.java
                                  /MediaInfo.java
                                  /SequencingClient.java
                                  /UserInterface.java

SequencingClient is the class that contains the main application. MediaInfo is a simple Java object that encapsulates metadata about a media file (as generated by the sequencer), and used by the client to pass information to the UserInterface , which is an interface with methods that will be called at runtime to request data from the user. ConsoleInput is an implementation of this that creates a text user interface, allowing the user to operate the client from the command line. We can easily create a graphical implementation of UserInterface at a later date. We can also create a mock implementation for testing purposes that simulates a user entering data. This allows us to check the behaviour of the client automatically using conventional JUnit test cases, as demonstrated by the code in the src/test/java directory:

  org/jboss/example/dna/sequencers/SequencingClientTest.java
                                  /MockUserInterface.java

If we look at the SequencingClient code, there are a handful of methods that encapsulate the various activities.

The startRepository() method starts up an in-memory Jackrabbit JCR repository. The bulk of this method is simply gathering and passing the information required by Jackrabbit. Because Jackrabbit's TransientRepository implementation shuts down after the last session is closed, the application maintains a session to ensure that the repository remains open throughout the application's lifetime. And finally, the node type needed by the image sequencer is registered with Jackrabbit.

public void startRepository() throws Exception {
    if (this.repository == null) {
        try {

            // Load the Jackrabbit configuration ...
            File configFile = new File(this.jackrabbitConfigPath);
            String pathToConfig = configFile.getAbsolutePath();

            // Find the directory where the Jackrabbit repository data will be stored ...
            File workingDirectory = new File(this.workingDirectory);
            String workingDirectoryPath = workingDirectory.getAbsolutePath();

            // Get the Jackrabbit custom node definition (CND) file ...
            URL cndFile = Thread.currentThread().getContextClassLoader().getResource("jackrabbitNodeTypes.cnd");

            // Create the Jackrabbit repository instance and establish a session to keep the repository alive ...
            this.repository = new TransientRepository(pathToConfig, workingDirectoryPath);
            if (this.username != null) {
                Credentials credentials = new SimpleCredentials(this.username, this.password);
                this.keepAliveSession = this.repository.login(credentials, this.workspaceName);
            } else {
                this.keepAliveSession = this.repository.login();
            }

            try {
                // Register the node types (only valid the first time) ...
                JackrabbitNodeTypeManager mgr = (JackrabbitNodeTypeManager)this.keepAliveSession.getWorkspace().getNodeTypeManager();
                mgr.registerNodeTypes(cndFile.openStream(), JackrabbitNodeTypeManager.TEXT_X_JCR_CND);
            } catch (RepositoryException e) {
                if (!e.getMessage().contains("already exists")) throw e;
            }

        } catch (Exception e) {
            this.repository = null;
            this.keepAliveSession = null;
            throw e;
        }
    }
}

As you can see, this method really has nothing to do with JBoss DNA, other than setting up a JCR repository that JBoss DNA will use.

The shutdownRepository() method shuts down the Jackrabbit transient repository by closing the "keep alive session". Again, this method really does nothing specifically with JBoss DNA, but is needed to manage the JCR repository that JBoss DNA uses.

public void shutdownRepository() throws Exception {
    if (this.repository != null) {
        try {
            this.keepAliveSession.logout();
        } finally {
            this.repository = null;
            this.keepAliveSession = null;
        }
    }
}

In this chapter we covered the different JBoss DNA components and how they can be used in your application. Specifically, we described how the SequencingService and ObservationService can be configured and used. And we ended the chapter by reviewing the example application, which not only uses JBoss DNA, but also the repository via the JCR API.

After creating the project and setting up the dependencies, the next step is to create a Java class that implements the org.jboss.dna.spi.sequencers.StreamSequencer interface. This interface is very straightforward, and involves a single method:

public interface StreamSequencer {

    /**
     * Sequence the data found in the supplied stream, placing the output
     * information into the supplied map.
     *
     * @param stream the stream with the data to be sequenced; never null
     * @param output the output from the sequencing operation; never null
     * @param progressMonitor the progress monitor that should be kept
     *   updated with the sequencer's progress and that should be
     *   frequently consulted as to whether this operation has been cancelled.
     */
    void sequence( InputStream stream, SequencerOutput output,
                   ProgressMonitor progressMonitor );

The job of a stream sequencer is to process the data in the supplied stream, and place into the SequencerOutput any information that is to go into the JCR repository. JBoss DNA figures out when your sequencer should be called (of course using the sequencing configuration you'll add in a bit), and then makes sure the generated information is saved in the correct place in the repository.

The SequencerOutput class is fairly easy to use. There are basically two methods you need to call. One method sets the property values, while the other sets references to other nodes in the repository. Use these methods to describe the properties of the nodes you want to create, using relative paths for the nodes and valid JCR property names for properties and references. JBoss DNA will ensure that nodes are created or updated whenever they're needed.

public interface SequencerOutput {

  /**
   * Set the supplied property on the supplied node.  The allowable
   * values are any of the following:
   *   - primitives (which will be autoboxed)
   *   - String instances
   *   - String arrays
   *   - byte arrays
   *   - InputStream instances
   *   - Calendar instances
   *
   * @param nodePath the path to the node containing the property;
   * may not be null
   * @param property the name of the property to be set
   * @param values the value(s) for the property; may be empty if
   * any existing property is to be removed
   */
  void setProperty( String nodePath, String property,
                    Object... values );

  /**
   * Set the supplied reference on the supplied node.
   *
   * @param nodePath the path to the node containing the property;
   * may not be null
   * @param property the name of the property to be set
   * @param paths the paths to the referenced property, which may be
   * absolute paths or relative to the sequencer output node;
   * may be empty if any existing property is to be removed
   */
  void setReference( String nodePath, String property,
                     String... paths );
}

JBoss DNA will create nodes of type nt:unstructured unless you specify the value for the jcr:primaryType property. You can also specify the values for the jcr:mixinTypes property if you want to add mixins to any node.

For a complete example of a sequencer, let's look at the org.jboss.dna.sequencers.image.ImageMetadataSequencer implementation:

public class ImageMetadataSequencer implements StreamSequencer {

    public static final String METADATA_NODE = "image:metadata";
    public static final String IMAGE_PRIMARY_TYPE = "jcr:primaryType";
    public static final String IMAGE_MIXINS = "jcr:mixinTypes";
    public static final String IMAGE_MIME_TYPE = "jcr:mimeType";
    public static final String IMAGE_ENCODING = "jcr:encoding";
    public static final String IMAGE_FORMAT_NAME = "image:formatName";
    public static final String IMAGE_WIDTH = "image:width";
    public static final String IMAGE_HEIGHT = "image:height";
    public static final String IMAGE_BITS_PER_PIXEL = "image:bitsPerPixel";
    public static final String IMAGE_PROGRESSIVE = "image:progressive";
    public static final String IMAGE_NUMBER_OF_IMAGES = "image:numberOfImages";
    public static final String IMAGE_PHYSICAL_WIDTH_DPI = "image:physicalWidthDpi";
    public static final String IMAGE_PHYSICAL_HEIGHT_DPI = "image:physicalHeightDpi";
    public static final String IMAGE_PHYSICAL_WIDTH_INCHES = "image:physicalWidthInches";
    public static final String IMAGE_PHYSICAL_HEIGHT_INCHES = "image:physicalHeightInches";

    /**
     * {@inheritDoc}
     */
    public void sequence( InputStream stream, SequencerOutput output,
                          ProgressMonitor progressMonitor ) {
        progressMonitor.beginTask(10, ImageSequencerI18n.sequencerTaskName);

        ImageMetadata metadata = new ImageMetadata();
        metadata.setInput(stream);
        metadata.setDetermineImageNumber(true);
        metadata.setCollectComments(true);

        // Process the image stream and extract the metadata ...
        if (!metadata.check()) {
            metadata = null;
        }
        progressMonitor.worked(5);
        if (progressMonitor.isCancelled()) return;

        // Generate the output graph if we found useful metadata ...
        if (metadata != null) {
            // Place the image metadata into the output map ...
            output.setProperty(METADATA_NODE, IMAGE_PRIMARY_TYPE, "image:metadata");
            // output.psetProperty(METADATA_NODE, IMAGE_MIXINS, "");
            output.setProperty(METADATA_NODE, IMAGE_MIME_TYPE, metadata.getMimeType());
            // output.setProperty(METADATA_NODE, IMAGE_ENCODING, "");
            output.setProperty(METADATA_NODE, IMAGE_FORMAT_NAME, metadata.getFormatName());
            output.setProperty(METADATA_NODE, IMAGE_WIDTH, metadata.getWidth());
            output.setProperty(METADATA_NODE, IMAGE_HEIGHT, metadata.getHeight());
            output.setProperty(METADATA_NODE, IMAGE_BITS_PER_PIXEL, metadata.getBitsPerPixel());
            output.setProperty(METADATA_NODE, IMAGE_PROGRESSIVE, metadata.isProgressive());
            output.setProperty(METADATA_NODE, IMAGE_NUMBER_OF_IMAGES, metadata.getNumberOfImages());
            output.setProperty(METADATA_NODE, IMAGE_PHYSICAL_WIDTH_DPI, metadata.getPhysicalWidthDpi());
            output.setProperty(METADATA_NODE, IMAGE_PHYSICAL_HEIGHT_DPI, metadata.getPhysicalHeightDpi());
            output.setProperty(METADATA_NODE, IMAGE_PHYSICAL_WIDTH_INCHES, metadata.getPhysicalWidthInch());
            output.setProperty(METADATA_NODE, IMAGE_PHYSICAL_HEIGHT_INCHES, metadata.getPhysicalHeightInch());
        }

        progressMonitor.done();
    }
}

Notice how the image metadata is extracted, and the output graph is generated. A single node is created with the name image:metadata and with the image:metadata node type. No mixins are defined for the node, but several properties are set on the node using the values obtained from the image metadata. After this method returns, the constructed graph will be saved to the repository in all of the places defined by its configuration. (This is why only relative paths are used in the sequencer.)

Also note how the progress monitor is used. Reporting progress through the supplied ProgressMonitor is very easy, and it ensures that JBoss DNA can accurately monitor and report the status of sequencing activities to the users. At the beginning of the operation, call beginTask(...) with a meaningful message describing the operation and a total for the amount of work that will be done by this sequencer. Then perform the sequencing work, periodically reporting work by specifying the incremental amount of work with the worked(double) method, or by creating a subtask with the createSubtask(double) method and reporting work against that subtask monitor.

Your method should periodically use the ProgressMonitor's isCancelled() method to check whether the operation has been cancelled.. If this method returns true, the implementation should abort all work as soon as possible and close any resources that were acquired or opened.

Finally, when your sequencing operation is completed, it should call done() on the progress monitor.

The sequencing framework was designed to make testing sequencers much easier. In particular, the StreamSequencer interface does not make use of the JCR API. So instead of requiring a fully-configured JCR repository and JBoss DNA system, unit tests for a sequencer can focus on testing that the content is processed correctly and the desired output graph is generated.

The following code fragment shows one way of testing a sequencer, using JUnit 4.4 assertions and some of the classes made available by JBoss DNA. Of course, this example code does not do any error handling and does not make all the assertions a real test would.

Sequencer sequencer = new ImageMetadataSequencer();
MockSequencerOutput output = new MockSequencerOutput();
ProgressMonitor progress = new SimpleProgressMonitor("Test activity");
InputStream stream = null;
try {
    stream = this.getClass().getClassLoader().getResource("caution.gif").openStream();
    sequencer.sequence(stream,output,progress);   // writes to 'output'
    assertThat(output.getPropertyValues("image:metadata", "jcr:primaryType"),
               is(new Object[] {"image:metadata"}));
    assertThat(output.getPropertyValues("image:metadata", "jcr:mimeType"),
               is(new Object[] {"image/gif"}));
    // ... make more assertions here
    assertThat(output.hasReferences(), is(false));
} finally {
    stream.close();
}

It's also useful to test that a sequencer produces no output for something it should not understand:

Sequencer sequencer = new ImageMetadataSequencer();
MockSequencerOutput output = new MockSequencerOutput();
ProgressMonitor progress = new SimpleProgressMonitor("Test activity");
InputStream stream = null;
try {
    stream = this.getClass().getClassLoader().getResource("caution.pict").openStream();
    sequencer.sequence(stream,output,progress);   // writes to 'output'
    assertThat(output.hasProperties(), is(false));
    assertThat(output.hasReferences(), is(false));
} finally {
    stream.close();
}

These are just two simple tests that show ways of testing a sequencer. Some tests may get quite involved, especially if a lot of output data are produced.
