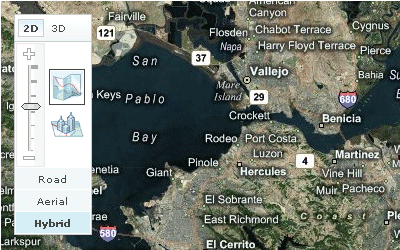

The component presents the Microsoft Virtual Earth map in the JSF applications.
Presents the Microsoft Virtual Earth map functionality
Highly customizable via attributes
No developers JavaScript writing is needed to use it on a pages
Here are the main settings of initial rendering performed with a component map that are accessible with the following attributes:
"zoom" defines an approximation size (boundary values 1-18)
"lat" specifies an initial latitude coordinate in degrees, as a number between -90 and +90
"lng" specifies an initial longitude coordinate in degrees, as a number between -180 and +180
"dashboardSize" specifies a type of a rendered map (Normal, Small, Tiny)

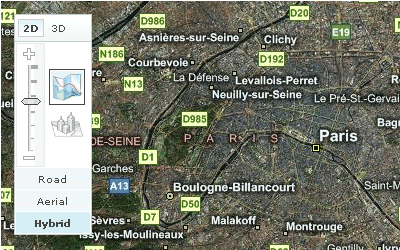

For example, the city of Paris is shown after rendering with
the following initial settings:
lat = "48.833"
,
lng = "2.40"
and
zoom = "11"
.
Code for this example is placed below:
Example:
...
<rich:virtualEarth style="width:800px;" id="vm" lat="48.833" lng="2.40"
dashboardSize="Normal" zoom="11" mapStyle="Hybrid" var="map" />
...
To set all these parameters and perform some activity (Zoom In/Out etc.) is possible with your JavaScript, i.e. declare a name of an object on a map in the "var" attribute and then call the object directly with API Microsoft Virtual Earth map .
For example, to approximate a map for
var = "map"
declared inside the component, call
map.ZoomIn()
on an event.
Moreover, to add e.g. some JavaScript effects, events defined on it are used.
"onmouseover"
"onclick"
"onmouseout"
etc.
Virtual Earth does not support XHTML format of the page. Thus, if you use Facelets and JSF 1.2, do not forget to put the following tags somewhere on the page:
...
<f:view contentType="text/html">...</f:view>
...
Table of <rich:virtualEarth> attributes.
Table 6.265. Component Identification Parameters
| Name | Value |
|---|---|
| component-type | org.richfaces.VirtualEarth |
| component-class | org.richfaces.component.html.HtmlVirtualEarth |
| component-family | org.richfaces.VirtualEarth |
| renderer-type | org.richfaces.VirtualEarthRenderer |
| tag-class | org.richfaces.taglib.VirtualEarthTag |
Table 6.266. Classes names that define a component appearance
| Class name | Description |
|---|---|
| rich-virtualEarth | Defines styles for a wrapper <div> element of a component |
Here you can found additional information about Microsoft Virtual Earth map.
Some additional information about usage of component can be found on its LiveDemo page.
