RichFaces Photo Album Application Guide

This section covers how the particular elements that govern page flow are implemented in the application.

...

<h:panelGroup rendered="#{!identity.loggedIn}"  styleClass="top-right-bottom-menu-item-link" layout="block">

  <h:form style="margin: 0px">

    <a4j:commandLink value="#{messages['login.register']}"actionListener="#{authenticator.goToRegister}" reRender="mainArea" />

  </h:form>

</h:panelGroup>

...

3.1.1.2. Navigation Between Pages

Technically, user does not browse between pages of the application: every content page is included into the content area of index.xhtml file after a certain action performed by user.

...

<h:panelGroup styleClass="content_box" layout="block">

  <ui:include src="#{model.mainArea.template}" />

</h:panelGroup>

...

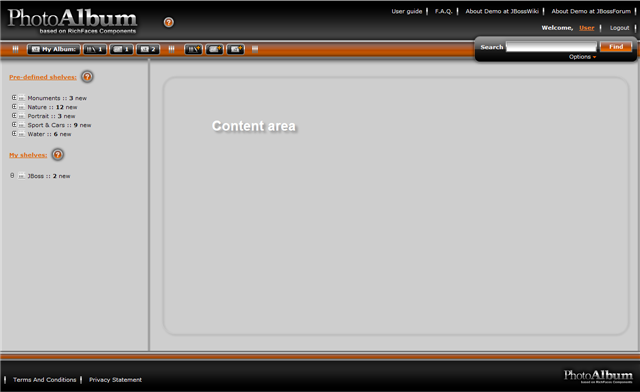

Figure 3.2. Content Area

The NavigationEnum enumeration encapsulated all possible states, that can be applied to content area ("mainArea") on the page.

...

 public enum NavigationEnum {

    ANONYM("includes/publicShelves.xhtml"),

    FILE_UPLOAD("includes/fileUpload.xhtml"),

    USER_PREFS("includes/userPrefs.xhtml"),

    REGISTER("includes/register.xhtml"),

    SEARCH("includes/search.xhtml"),

    ALBUM_PREVIEW("includes/album.xhtml"),

    ALBUM_IMAGE_PREVIEW("/includes/image.xhtml"),

    SHELF_PREVIEW("/includes/shelf.xhtml"),

    ALL_SHELFS("/includes/userShelves.xhtml"),

    TAGS("includes/tag.xhtml"),

    ALL_ALBUMS("/includes/userAlbums.xhtml"),

    ALL_IMAGES("/includes/userImages.xhtml"),

    ALBUM_IMAGE_EDIT("/includes/imageEdit.xhtml"),

    ALBUM_EDIT("/includes/albumEdit.xhtml"),

    SHELF_EDIT("/includes/shelfEdit.xhtml"),

    SHELF_UNVISITED("/includes/shelfUnvisited.xhtml"),

    USER_SHARED_ALBUMS("/includes/userSharedAlbums.xhtml"),

    USER_SHARED_IMAGES("/includes/userSharedImages.xhtml"),

    ALBUM_UNVISITED("/includes/albumUnvisited.xhtml");

...

}

This class specifies which file is included depending on some user action. The template to be loaded is identified according to some condition in the Controller (Controllor.java) class and is saved to the Model (Model.java). During index.xhtml page rendering the value is taken from the Model to define what should be rendered to the page.

The data model of the application has the following structure:

Figure 3.3. Photo Album Data Model

Navigation tree for a guest is represented as a simple <rich:tree> component.

There are several ways to implement the <rich:tree> on a page. In the current application the <rich:tree> is designed using a model tag <rich:treeNodesAdaptor>.

The <rich:treeNodesAdaptor> component has a "nodes" attribute that accepts a collection of elements, so <rich:treeNodesAdaptor> iterates over the collection and renders a hierarchical tree structure on a page.

According to the "Shelves - Albums" hierarchy we need two nested <rich:treeNodesAdaptor> components. The first one iterates over the Shelves collection that is returned from the getPredefinedShelves() method of ShelfManager.java class:

...

public List<Shelf> getPredefinedShelves() {

        if (shelves == null) {

            shelves = shelfAction.getPredefinedShelves();

        }

        return shelves;

    }

}

...

The second <rich:treeNodesAdaptor> component iterates over the Albums collection of the current Shelf which is available via "var" attribute. The "var" attribute is used to get access to the data object of the current collection element Shelf, so it is possible to output any necessary data. Let's see the src/main/webapp/includes/index/tree.xhtml file:

...

<rich:tree adviseNodeOpened="#{treeManager.adviseNodeSelected}"

            adviseNodeSelected="#{treeManager.adviseNodeSelected}"

            ajaxSubmitSelection="false" id="PreDefinedTree"

            treeNodeVar="treeNode" switchType="client"

            iconCollapsed="/img/shell/tree_icon_plus.png"

            iconExpanded="/img/shell/tree_icon_minus.png"

            showConnectingLines="false">

      <rich:treeNodesAdaptor nodes="#{shelfManager.getPredefinedShelves()}" var="shelf">

            <rich:treeNode style="cursor:pointer" reRender="treePanel,mainArea" selectedClass="tree-selected-node">

                  <f:facet name="icon">

                        <h:graphicImage style="border: none" value="/img/shell/tree_icon_shelf.png">

                              <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showShelf(shelf)}" similarityGroupingId="sel" />

                        </h:graphicImage>

                  </f:facet>

                  <a4j:outputPanel  >

                        <h:outputText style="cursor:pointer" value="#{shelf.name}" />

                        <h:outputText value=" :: " />

                        <strong>#{shelf.unvisitedImages.size()}</strong> new

                        <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showShelf(shelf)}" similarityGroupingId="sel" />

                  </a4j:outputPanel>

            </rich:treeNode>



            <rich:treeNodesAdaptor var="album" nodes="#{shelf.albums}">

                  <rich:treeNode style="cursor:pointer" reRender="treePanel,mainArea" selectedClass="tree-selected-node" icon="img/shell/tree_icon_album.png">

                        <f:facet name="iconLeaf">

                              <h:graphicImage style="border: none" value="img/shell/tree_icon_album.png">

                                    <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showAlbum(album)}" similarityGroupingId="sel" />

                              </h:graphicImage>

                        </f:facet>

                        <a4j:outputPanel>

                              <h:outputText style="cursor:pointer" value="#{album.name}" />

                              <h:outputText value=" :: " />

                              <strong>#{album.unvisitedImages.size()}</strong> new

                              <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showAlbum(album)}" similarityGroupingId="sel" />

                        </a4j:outputPanel>

                  </rich:treeNode>

            </rich:treeNodesAdaptor>

      </rich:treeNodesAdaptor>

</rich:tree>

...

The image below shows how the navigation tree for a guest is rendered on the page.

Figure 4.1. Shelves and albums nodes rendered with the help of the <rich:treeNodesAdaptor>

As it was mentioned before a navigation tree for a registered user has two main features: drag-and-drop and context menu. Context menu is described in the "Context menu" chapter.

Drag-and-drop feature supported in the Photo Album application is not so complicated as it may seem from the first view. In this application we can mark out two types of drag-and-drop: one type takes place only inside the tree (between tree nodes) and another one - between the watching area and the tree. The difference is not considerable enough to describe two types separately, but also not at all insignificant to be omitted here.

The tree related components (<rich:tree> and <rich:treeNode>) have their own attributes that provide drag-and-drop functionality. These attributes can be divided into two groups: those which provide drag (dragValue, dragListener, dragIndicator, dragType attributes) and those which provide drop operations (dropValue, dropListener, acceptedTypes, typeMapping).

Let's explore how drag-and-drop works for albums.

All albums, that are represented as TreeNodes, must be marked somehow for dragging. For this purpose we use previously mentioned "dragValue", "dragType" attributes. Let's have a look at the src/main/webapp/includes/index/tree.xhtml file:

<rich:treeNodesAdaptor var="album" nodes="#{shelf.albums}">

      <rich:treeNode style="cursor:pointer"

                        reRender="mainArea, treePanel"

                        dragType="album"

                        dragValue="#{album}"

                        dropValue="#{album}"

                        acceptedTypes="image"

                        selectedClass="tree-selected-node"

                        icon="img/shell/tree_icon_album.png">

            ...

            <rich:dndParam name="label" type="drag" value="#{album.name}" />

            ...

      </rich:treeNode>

</rich:treeNodesAdaptor>

To provide drop functionality for the marked albums, we should mark Shelves as drop zones in the application code too. For this purpose we add the "dropValue" and "acceptedTypes" attributes to the "Shelf" node in the same src/main/webapp/includes/index/tree.xhtml file:

<rich:treeNodesAdaptor nodes="#{shelfManager.getUserShelves()}" var="shelf">

      <rich:treeNode style="cursor:pointer" acceptedTypes="album" dropValue="#{shelf}" reRender="mainArea, treePanel" selectedClass="tree-selected-node">

            ...

      </rich:treeNode>

</rich:treeNodeAdaptor>

The "acceptedTypes" attribute tells the "Shelf" node what types of dragged zones (albums in this case) it can accept. We have specified "Album" node "dragType" as "album", so the "Shelf" node can accept it.

Finally in order to process drop on the server side we need to specify a listener for the <rich:tree> in the "dropListener" attribute (src/main/webapp/includes/index/tree.xhtml file):

<rich:tree adviseNodeOpened="#{treeManager.adviseNodeSelected}"

                  adviseNodeSelected="#{treeManager.adviseNodeSelected}"

                  ajaxSubmitSelection="false" dragIndicator="dragIndicator"

                  treeNodeVar="treeNode" switchType="client"

                  iconCollapsed="/img/shell/tree_icon_plus.png"

                  iconExpanded="/img/shell/tree_icon_minus.png"

                  dropListener="#{dndManager.processDrop}"

                  showConnectingLines="false">

            ...

</tree>

The code for the <rich:dragIndicator> looks like the following:

<rich:dragIndicator id="dragIndicator" />

The processDrop() method of DnDManager.java class is shown in the listing below:

...

public void processDrop(DropEvent dropEvent) {

      Dropzone dropzone = (Dropzone) dropEvent.getComponent();

      Object dragValue = dropEvent.getDragValue();

      Object dropValue = dropzone.getDropValue();

      if(dragValue instanceof Image){

            if(!((Album)dropValue).getOwner().getLogin().equals(user.getLogin())){

                  Events.instance().raiseEvent(Constants.ADD_ERROR_EVENT, Constants.DND_PHOTO_ERROR);

                  return;

            }

            handleImage((Image)dragValue, (Album)dropValue);

      }else if(dragValue instanceof Album){

            if(!((Shelf)dropValue).getOwner().getLogin().equals(user.getLogin())){

                  Events.instance().raiseEvent(Constants.ADD_ERROR_EVENT, Constants.DND_ALBUM_ERROR);

                  return;

            }

            handleAlbum((Album)dragValue, (Shelf)dropValue);

      }

}

...

Here is the whole example of the "Navigation tree for a registered user":

<h:panelGroup id="tree" rendered="#{identity.hasRole('admin')}" layout="block">

        <a4j:commandLink actionListener="#{controller.selectShelves()}" reRender="mainArea, treePanel"><h2><h:outputText  value="My shelves:"/></h2></a4j:commandLink><br/>

    <rich:dragIndicator

            id="dragIndicator" />

        <rich:tree

            adviseNodeOpened="#{treeManager.adviseNodeSelected}"

            adviseNodeSelected="#{treeManager.adviseNodeSelected}"

            ajaxSubmitSelection="false" dragIndicator="dragIndicator"

            treeNodeVar="treeNode" switchType="client"

            iconCollapsed="/img/shell/tree_icon_plus.png"

            iconExpanded="/img/shell/tree_icon_minus.png"

            dropListener="#{dndManager.processDrop}"

            showConnectingLines="false">



                <f:facet name="icon">

                    <h:graphicImage style="border: none" value="/img/shell/tree_icon_shelf.png">

                            <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showShelf(shelf)}" similarityGroupingId="sel" />

                    </h:graphicImage>

                </f:facet>

                <ui:include src="/includes/contextMenu/CMForShelf.xhtml" >

                    <ui:param name="shelf" value="#{shelf}" />

                </ui:include>

                <a4j:outputPanel>

                    <h:outputText style="cursor:pointer" value="#{shelf.name}" />

                    <h:outputText value=" :: " />

                    <strong>#{shelf.unvisitedImages.size()}</strong> new

                    <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showShelf(shelf)}" similarityGroupingId="sel" />

                </a4j:outputPanel>

                </rich:treeNode>



                <rich:treeNodesAdaptor var="album"

                    nodes="#{shelf.albums}">

                    <rich:treeNode style="cursor:pointer" reRender="mainArea, treePanel" dragType="album"

                        dragValue="#{album}" dropValue="#{album}"

                        acceptedTypes="image"

                        selectedClass="tree-selected-node"

                        icon="img/shell/tree_icon_album.png">

                        <f:facet name="iconLeaf">

                            <h:graphicImage style="border: none" value="img/shell/tree_icon_album.png">

                                    <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showAlbum(album)}" similarityGroupingId="sel" />

                            </h:graphicImage>

                        </f:facet>

                        <ui:include src="/includes/contextMenu/CMForAlbum.xhtml" >

                        <ui:param name="album" value="#{album}" />

                        </ui:include>

                        <rich:dndParam name="label" type="drag" value="#{album.name}" />

                        <a4j:outputPanel >

                            <h:outputText style="cursor:pointer" value="#{album.name}" />

                            <h:outputText value=" :: " />

                                <strong>#{album.unvisitedImages.size()}</strong> new

                        <a4j:support reRender="treePanel, mainArea" event="onclick" actionListener="#{controller.showAlbum(album)}" similarityGroupingId="sel" />

                        </a4j:outputPanel>

                </rich:treeNode>



                </rich:treeNodesAdaptor>

            </rich:treeNodesAdaptor>



        </rich:tree>

        </h:panelGroup>

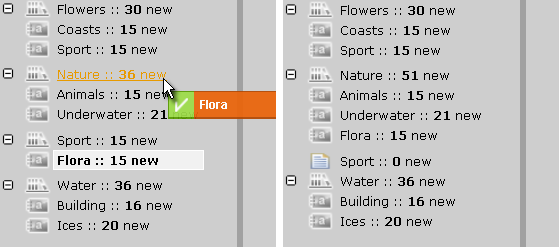

The image below shows how the described above drag-and-drop features are rendered in the Photo Album.

Figure 4.2. Dragging the "Flora" album from "Sport" shelf into the "Nature" (left) and the tree after drag-and-drop (right).

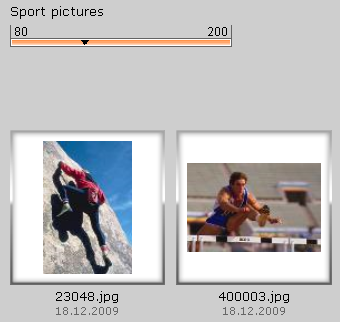

The <rich:inputNumberSlider/> component in the Photo Album Demo is used as a control that helps a user to change photos size while previewing an album. A handler position on the slider track corresponds to a particular value of an image size. The component is included into the page with the help of <ui:include/>:

...

<ui:include src="src/main/webapp/includes/image/inputNumberSlider.xhtml"/>

...

Now let's have a look at src/main/webapp/includes/image/inputNumberSlider.xhtml file:

...

<ui:composition ...>

      <div>

            <rich:inputNumberSlider value="#{imageSizeHelper.value}"

                        minValue="80"

                        maxValue="200"

                        step="40"

                        enableManualInput="false"

                        showArrows="false"

                        showBoundaryValues="true"

                        showInput="false">

                  <a4j:support event="onchange" reRender="userAlbumImages"/>

            </rich:inputNumberSlider>

      </div>

</ui:composition>

...

There is special Enumeration type that contains four predefined values for image size. Each type has a set of image related attributes such as CSS class for new photo size, postfix for a new file name, image background. The setValue method of the ImageSizeHelper.java class is triggered on each slider's position change. This method sets one of four predefined values for image size and corresponds to slider's position.

public void setValue(int value) {

            currentDimension = ImageDimension.getInstance(value);

            this.value = currentDimension.getX();

}

And here is the ImageDimension.java class:

...

 public enum ImageDimension {


    SIZE_80(80), SIZE_120(120), SIZE_160(160), SIZE_200(200), SIZE_MEDIUM(600), ORIGINAL(0);


    final static String CSS_CLASS = "preview_box_photo_";

    final static String FILE_POSTFIX = "_small";

    final static String IMAGE_BG = "/img/shell/frame_photo_%1$d.png";

    final static String IMAGE_BG_STYLE = "width: %1$dpx; height: %1$dpx";



    int x;

    String bgStyle;

    String cssClass;

    String imageBgSrc;

    String filePostfix;


    private ImageDimension(int x) {

        this.x = x;

        this.bgStyle = String.format(IMAGE_BG_STYLE, x + 20);

        cssClass = CSS_CLASS + x;

        imageBgSrc = String.format(IMAGE_BG, (x == 160) ? 200 : x);

        if(x == 600){

            filePostfix = "_medium";

        }else if(x == 0){

            filePostfix = "";

        }else{

            filePostfix = FILE_POSTFIX + x;

        }

    }

      ...

After the <a4j:support> finished its job user photos (more exactly, the h:panelGroup with userAlbumImages id that contains user photos) are rendered correspondingly to the new value. Here is web/src/main/webapp/includes/image/imageList.xhtml:

...

<h:panelGroup id="userAlbumImages">

    <a4j:repeat id="imageList" value="#{model.images}" var="image" rows="20">

        <h:panelGroup layout="block" styleClass="#{imageSizeHelper.currentDimension.cssClass}">

            <h:graphicImage styleClass="pr_photo_bg" style="#{imageSizeHelper.currentDimension.imageBgStyle}" value="#{imageSizeHelper.currentDimension.imageBg}" />

            <h:panelGrid cellpadding="0">

                <h:panelGroup>

                    <a4j:commandLink

                            actionListener="#{controller.showImage(image)}"

                            reRender="mainArea, treePanel">

                                <a4j:mediaOutput id="img"  element="img"

                                    createContent="#{imageLoader.paintImage}"

                                    style="border : 1px solid #FFFFFF;"

                                    value="#{fileManager.transformPath(image.fullPath, imageSizeHelper.currentDimension.filePostfix)}">

                                    <f:param value="#{imageSizeHelper.currentDimension.x}" name="x" />

                                    <rich:dragSupport rendered="#{controller.isUserImage(image)}" reRender="mainArea, treePanel" id="dragSource" dragIndicator="dragIndicator"

                                dragType="image" dragValue="#{image}">

                                <rich:dndParam id="dragParam" name="label" value="#{image.name}" />

                            </rich:dragSupport>

                            </a4j:mediaOutput>

                    </a4j:commandLink>

                    <br/>

                </h:panelGroup>

                <ui:include src="/includes/contextMenu/CMForImage.xhtml" >

                    <ui:param name="image" value="#{image}" />

                    <ui:param name="mediaOutput" value="#{rich:clientId('img')}"/>

                </ui:include>



            </h:panelGrid>

            <h:panelGroup layout="block" styleClass="photo_name">#{image.name}</h:panelGroup>

            <h:panelGroup layout="block" styleClass="photo_data">

                <h:outputText value="#{image.created}">

                    <f:convertDateTime />

                </h:outputText>

            </h:panelGroup>

        </h:panelGroup>

    </a4j:repeat>

    </h:panelGroup>

...

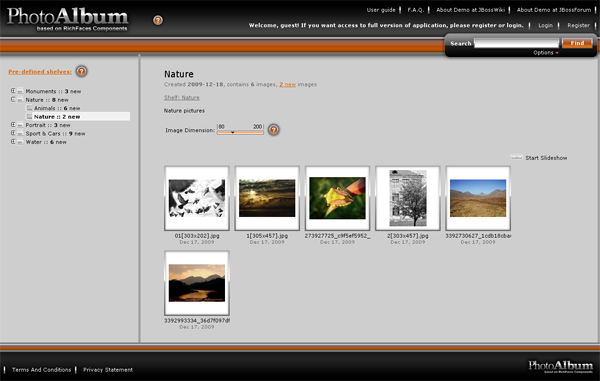

When the <rich:inputNumberSlider> is rendered, initially its default value for image size is 120 px.

Figure 4.4. Image size control

The slideshow feature in the Photo Album Demo can be enabled by clicking on "Start Slideshow" link from two different places in the application: 1) from user's album preview (/web/src/main/webapp/image/albumInfo.xhtml) and 2) from a particular photo preview (src/main/webapp/image/imageInfo.xhtml). Both of two mentioned XHTML files include slideshow with the help of Facelets <ui:include tag (for more information about <ui:include see Facelets Reference Guide — http://www.jsftoolbox.com/documentation/facelets/01-Introduction/index.jsf).

The components that implement the slideshow functionality are:

After activation, <a4j:poll> will send asynchronous requests to the server with some certain interval, as the result of these requests modal panel will display the next image in the row.

Now let's have a look at the details of the slideshow implementation.

The startSlideshow() method of SlideshowManager.java is invoked when no photo is selected in the current image list. The method iterates over all photos of a particular album starting from the first one in the list. Look at the SlideshowManager.java listing below:

...

  ...

public void startSlideshow(){

      active = true;

      this.slideshowIndex = 0;

      if(model.getImages() == null || model.getImages().size() < 1){

            stopSlideshow();

            Events.instance().raiseEvent(Constants.ADD_ERROR_EVENT, "No images for slideshow!");

            return;

      }

      this.selectedImage = model.getImages().get(this.slideshowIndex);

      this.selectedImage.getAlbum().visitImage(selectedImage, true);

}

...

The second variation of the startSlideshow() method is activated when a link to slide-show is clicked from a particular photo preview. This method iterates over the rest of photos starting from the current selected one:

...

 public void startSlideshow(Image selectedImage){

      active = true;

      if(model.getImages() == null || model.getImages().size() < 1){

            stopSlideshow();

            Events.instance().raiseEvent(Constants.ADD_ERROR_EVENT, "No images for slideshow!");

            return;

      }

      this.slideshowIndex = model.getImages().indexOf(selectedImage);

      this.selectedImage = selectedImage;

      this.selectedImage.getAlbum().visitImage(selectedImage, true);

}

...

Both variants of startSlideshow() method set the active property to "true" as a result the poller is activated and modal panel becomes visible.

The slideshow modal panel is kept in the web/src/main/webapp/includes/image/slideshow.xhtml file and referred from the corresponding pages with the help of <ui:include> Facelets tag:

...

<ui:include src="/includes/image/slideshow.xhtml"/>

...

Have a look at web/src/main/webapp/includes/image/slideshow.xhtml file:

...

<ui:composition xmlns="http://www.w3.org/1999/xhtml"...>



      <rich:modalPanel showWhenRendered="#{slideshow.active}"



                  domElementAttachment="parent"



                  id="slideShowModalPanel"



                  width="650"



                  onshow="showPictureEffect();"



                  height="650">



            <f:facet name="controls">



                  <h:panelGroup>



                        <h:graphicImage value="/img/modal/close.png" style="cursor:pointer" id="hidelink">



                              <a4j:support event="onclick" actionListener="#{slideshow.stopSlideshow}" reRender="slideShowForm, mainArea, tree" />



                        </h:graphicImage>



                  </h:panelGroup>



            </f:facet>



            ...



      </rich:modalPanel>



</ui:composition>



...

This is the source code of includes/misc/slideShowPooler.xhtml:

...

<!DOCTYPE composition PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<ui:composition xmlns="http://www.w3.org/1999/xhtml"

    xmlns:s="http://jboss.com/products/seam/taglib"

    xmlns:ui="http://java.sun.com/jsf/facelets"

    xmlns:f="http://java.sun.com/jsf/core"

    xmlns:h="http://java.sun.com/jsf/html"

    xmlns:rich="http://richfaces.org/rich"

    xmlns:a4j="http://richfaces.org/a4j"

    xmlns:richx="http://richfaces.org/richx">

      <a4j:form id="slideShowForm">

            <a4j:poll reRender="slideshowImage"

                              actionListener="#{slideshow.showNextImage()}"

                              interval="#{slideshow.interval}"

                              enabled="#{slideshow.active}"

                              onsubmit="hidePictureEffect()"

                              oncomplete="showPictureEffect();"/>

      </a4j:form>

</ui:composition>

...

The slideshow poller sends the request for the next image (showNextImage() method) each four seconds. The interval is defined in the interval property of the SlideshowManager.java and refers to a INITIAL.DELAY constant (constants.java).

The described above example implements a modal panel with photos that rotate them in the order they are stored in an album.

Figure 4.5. Image size control

...

@Observer("stopSlideshow")

      public void stopSlideshow(){

            active = false;

            this.selectedImage = null;

            this.slideshowIndex = 0;

      }

      ...

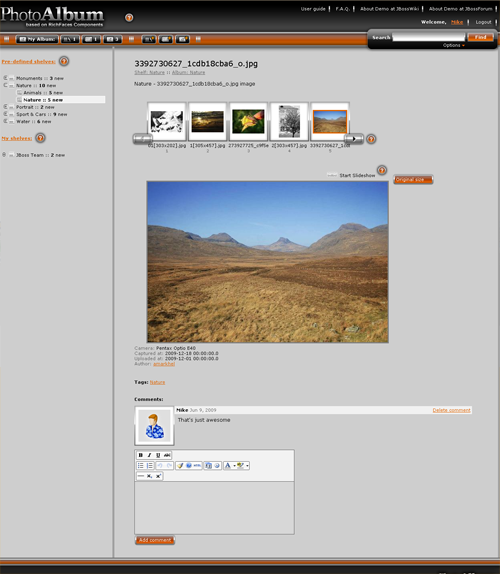

The Images Scroller implementation in the Photo Album application is basically <a4j:repeat> with the value attribute bound to #{model.selectedAlbum.images}, which is a collection of images of the selected album and the <rich:dataScroller> component tied to the <a4j:repeat> .

The source code you can find in the includes/images/imageScroller.xhtml file. Now let's go deeper into the details. The main component here is <a4j:repeat>:

...

<a4j:repeat value="#{model.selectedAlbum.images}" rows="5"

    var="img" id="repeat" rowKeyVar="rk">



    <a4j:outputPanel layout="block"

        styleClass="preview_box_photo_nav #{model.selectedImage == img ? 'preview_box_photo_current' : 'preview_box_photo_default'}">

        <h:panelGroup layout="block" styleClass="preview_box_photo_80">

            <h:graphicImage styleClass="pr_photo_bg"

                value="/img/shell/frame_photo_80.png" />

            <h:panelGrid cellpadding="0" cellspacing="2">

                <h:panelGroup layout="block">

                    <a4j:mediaOutput element="img"

                        createContent="#{imageLoader.paintImage}"

                        value="#{fileManager.transformPath(img.fullPath, '_small80')}">

                    </a4j:mediaOutput>

                    <br />

                </h:panelGroup>

            </h:panelGrid>

            <h:panelGroup layout="block" styleClass="photo_name">

                <h:outputText value="#{img.name}" />

            </h:panelGroup>

            <h:panelGroup layout="block" styleClass="photo_data">

                <h:outputText value="#{rk + 1}" />

            </h:panelGroup>

        </h:panelGroup>



        <a4j:support event="onclick" rendered="#{model.selectedImage != img}"

            reRender="mainArea,treePanel, imagesTable" action="#{controller.showImage(img)}" />

    </a4j:outputPanel>

</a4j:repeat>

...

Each element of the <a4j:repeat> has a corresponding <a4j:outputPanel> with the <a4j:mediaOutput> as a nested element. <a4j:mediaOutput> renders the thumbnail of the image. As the rows attribute is set to "5" (rows="5"), only 5 images are displayed on the page at a time.

As you've noticed, the currently selected image in the images scroller has different style, namely: a red frame around thumbnail, which is implemented with this code:

...

<a4j:outputPanel layout="block"

styleClass="preview_box_photo_nav #{model.selectedImage == img ? 'preview_box_photo_current' : 'preview_box_photo_default'}">

...

As you can see from the code snippet, identification of whether the currently selected image is the same image displayed by the <a4j:repeat> is performed in the styleClass, if it returns "true", different style is applied.

Each <a4j:repeat> has a corresponding <a4j:support> configured like this:

...

 <a4j:support event="onclick"

                    rendered="#{model.selectedImage != img}"

                    reRender="mainArea,treePanel, imagesTable"

                    action="#{controller.showImage(img)}" />



...

On every click <a4j:support> calls #{controller.showImage(img)} method that sets the current image, thumbnail of which has just been clicked on. For more details please see Controller.java class.

To implement thumbnails scrolling effect the <rich:datascroller> is attached to the <a4j:repeat>:

...

<rich:datascroller page="#{controller.getPage()}"

    styleClass="image-scroller" lastPageMode="full" for="repeat" reRender="imagesTable"

    boundaryControls="hide" stepControls="hide">

    <f:facet name="pages">

        <h:outputText />

    </f:facet>

    <f:facet name="fastforward">

        <h:graphicImage styleClass="image-scroller-right-arrow"

            value="img/shell/arr_right.png" />

    </f:facet>

    <f:facet name="fastforward_disabled">

        <h:graphicImage styleClass="image-scroller-right-arrow"

            value="img/shell/arr_right_dis.png" />

    </f:facet>

    <f:facet name="fastrewind">

        <h:graphicImage styleClass="image-scroller-left-arrow"

            value="img/shell/arr_left.png" />

    </f:facet>

    <f:facet name="fastrewind_disabled">

        <h:graphicImage styleClass="image-scroller-left-arrow"

            value="img/shell/arr_left_dis.png" />

    </f:facet>

</rich:datascroller>



...

The page attribute identifies which page should be displayed right now. For instance, if you have only 20 images and the current image has the 12^th index in the collection, then the 3^rd page will be displayed:

...

public Integer getPage(){

        final Integer index = model.getSelectedAlbum().getIndex(model.getSelectedImage());

        return index / 5 + 1;

    }



...

The lastPageMode="full" attribute ensures that 5 thumbnails are always shown on the page. If this attribute hadn't been configured like this, in case the 19th thumbnail out of 20 had been selected then only 2 last thumbnails would have been displayed.

As you can see, <rich:dataScroller> has a slightly different look-and-feel, the trick is in the redefinition of fastforward, fastforward_disabled, fastrewind and fastrewind_disabled facets on which places we display our images. We didn't redefine other facets because they are not rendered to the page which is achieved with boundaryControls="hide" and stepControls="hide attributes of <rich:dataSroller>.

vizit following pages at RichFaces Live Demo for more information, examples and sources on the components used in the application and described in this chapter:
