This book details each component in the RichFaces framework, including examples of their use in applications.
- 1. Introduction
- 2. Common Ajax attributes
- 3. Common features
- I. a4j tag library
- II. rich tag library
- A. Revision History
This book is a guide to the various components available in the RichFaces 4.0 framework. It includes descriptions of the role of the components, details on how best to use them, coded examples of their use, and basic references of their properties and attributes.
For full in-depth references for all component classes and properties, refer to the API Reference available from the RichFaces website.
The RichFaces framework is made up of two tag libraries: the a4j library and the rich library. The a4j tag library represents Ajax4jsf, which provides page-level Ajax support with core Ajax components. This allows developers to make use of custom Ajax behavior with existing components. The rich tag library provides Ajax support at the component level instead, and includes ready-made, self-contained components. These components don't require additional configuration in order to send requests or update.
Ajax support
All components in the a4j library feature built-in Ajax support, so it is unnecessary to add the <a4j:support> behavior.
The Ajax components in the a4j library share common attributes to perform similar functionality. Most RichFaces components in the rich library that feature built-in Ajax support share these common attributes as well.
Most attributes have default values, so they need not be explicitly set for the component to function in its default state. These attributes can be altered to customize the behavior of the component if necessary.
The render attribute provides a reference to one or more areas on the page that need updating after an Ajax interaction. It uses the UIComponent.findComponent() algorithm to find the components in the component tree using their id attributes as a reference. Components can be referenced by their id attribute alone, or by a hierarchy of components' id attributes to make locating components more efficient. Example 2.1, “render example” shows both ways of referencing components. Each command button will correctly render the referenced panel grids, but the second button locates the references more efficiently with explicit hierarchy paths.
Example 2.1. render example
<h:form id="form1">
<a4j:commandButton value="Basic reference" render="infoBlock, infoBlock2" />
<a4j:commandButton value="Specific reference" render=":infoBlock,:sv:infoBlock2" />
</h:form>
<h:panelGrid id="infoBlock">
...
</h:panelGrid>
<f:subview id="sv">
<h:panelGrid id="infoBlock2">
...
</h:panelGrid>
</f:subview>
The value of the render attribute can also be an expression written using JavaServer Faces' Expression Language (EL); this can either be a Set, Collection, Array, or String.
rendered attributes
A common problem with using render occurs when the referenced component has a rendered attribute. JSF does not mark the place in the browser's Document Object Model (DOM) where the rendered component would be placed in case the rendered attribute returns false. As such, when RichFaces sends the render code to the client, the page does not update as the place for the update is not known.
To work around this issue, wrap the component to be rendered in an <a4j:outputPanel> with layout="none". The <a4j:outputPanel> will receive the update and render the component as required.
A component with ajaxRendered="true" will be re-rendered with every Ajax request, even when not referenced by the requesting component's render attribute. This can be useful for updating a status display or error message without explicitly requesting it.
Rendering of components in this way can be repressed by adding limitRender="true" to the requesting component, as described in Section 2.1.3, “limitRender”.
A component with limitRender="true" specified will not cause components with ajaxRendered="true" to re-render, and only those components listed in the render attribute will be updated. This essentially overrides the ajaxRendered attribute in other components.
Example 2.3, “Data reference example” describes two command buttons, a panel grid rendered by the buttons, and an output panel showing error messages. When the first button is clicked, the output panel is rendered even though it is not explicitly referenced with the render attribute. The second button, however, uses limitRender="true" to override the output panel's rendering and only render the panel grid.
Example 2.2. Rendering example
<h:form id="form1">
<a4j:commandButton value="Normal rendering" render="infoBlock" />
<a4j:commandButton value="Limited rendering" render="infoBlock" limitRender="true" />
</h:form>
<h:panelGrid id="infoBlock">
...
</h:panelGrid>
<a4j:outputPanel ajaxRendered="true">
<h:messages />
</a4j:outputPanel>
The queue attribute defines the name of the queue that will be used to schedule upcoming Ajax requests. Typically RichFaces does not queue Ajax requests, so if events are produced simultaneously they will arrive at the server simultaneously. This can potentially lead to unpredictable results when the responses are returned. The queue attribute ensures that the requests are responded to in a set order.
A queue name is specified with the queue attribute, and each request added to the named queue is completed one at a time in the order they were sent. In addition, RichFaces intelligently removes similar requests produced by the same event from a queue to improve performance, protecting against unnecessary traffic flooding and
The requestDelay attribute specifies an amount of time in milliseconds for the request to wait in the queue before being sent to the server. If a similar request is added to the queue before the delay is over, the original request is removed from the queue and not sent.
When set to true, the ignoreDupResponses attribute causes responses from the server for the request to be ignored if there is another similar request in the queue. This avoids unnecessary updates on the client when another update is expected. The request is still processed on the server, but if another similar request has been queued then no updates are made on the client.
RichFaces uses a form-based approach for sending Ajax requests. As such, each time a request is sent the data from the requesting component's parent JSF form is submitted along with the XMLHTTPRequest object. The form data contains values from the input element and auxiliary information such as state-saving data.
The execute attribute allows JSF processing to be limited to defined components. To only process the requesting component, execute="@this" can be used.
If the immediate attribute is set to true, the default ActionListener is executed immediately during the Apply Request Values phase of the request processing lifecycle, rather than waitingfor the Invoke Application phase. This allows some data model values to be updated regardless of whether the Validation phase is successful or not.
The action and actionListener attributes can be used to invoke action methods and define action events.
The action attribute is a method binding that points to the application action to be invoked. The method can be activated during the Apply Request Values phase or the Invoke Application phase of the request processing lifecycle.
The method specified in the action attribute must return null for an Ajax response with a partial page update.
RichFaces allows for Ajax-enabled JSF applications to be developed without using any additional JavaScript code. However it is still possible to invoke custom JavaScript code through Ajax events.
The onsubmit attribute invokes the JavaScript code before the Ajax request is sent. The request is canceled if the JavaScript code defined for onsubmit returns false.
The onclick attribute functions similarly to the onsubmit attribute for those components that can be clicked, such as <a4j:commandButton> and <a4j:commandLink>. It invokes the defined JavaScript before the Ajax request, and the request will be canceled if the defined code returns false.
The onsuccess attribute invokes the JavaScript code after the Ajax response has been returned but before the DOM tree of the browser has been updated.
The oncomplete attribute invokes the JavaScript code after the Ajax response has been returned and the DOM tree of the browser has been updated.
Reference consistency
The code is registered for further invocation of the XMLHTTP request object before an Ajax request is sent. As such, using JSF Expression Language (EL) value binding means the code will not be changed during processing of the request on the server. Additionally the oncomplete attribute cannot use the this keyword as it will not point to the component from which the Ajax request was initiated.
The onerror attribute invokes the JavaScript code when an error has occurred during Ajax communications.
The data attribute allows the use of additional data during an Ajax call. JSF Expression Language (EL) can be used to reference the property of the managed bean, and its value will be serialized in JavaScript Object Notation (JSON) and returned to the client side. The property can then be referenced through the data variable in the event attribute definitions. Both primitive types and complex types such as arrays and collections can be serialized and used with data.
Example 2.3. Data reference example
<a4j:commandButton value="Update" data="#{userBean.name}" oncomplete="showTheName(data.name)" />
This chapter covers those attributes and features that are common to many of the components in the tag libraries.
A number of attributes relating to positioning and appearance are common to several components.
disabledSpecifies whether the component is disabled, which disallows user interaction.
focusReferences the
idof an element on which to focus after a request is completed on the client side.heightThe height of the component in pixels.
dirSpecifies the direction in which to display text that does not inherit its writing direction. Valid values are
LTR(left-to-right) andRTL(right-to-left).styleSpecifies Cascading Style Sheet (CSS) styles to apply to the component.
styleClassSpecifies one or more CSS class names to apply to the component.
widthThe width of the component in pixels.
Client-side JavaScript methods can be called using component events. These JavaScript methods are defined using the relevant event attribute for the component tag. Methods are referenced through typical Java syntax within the event attribute, while any parameters for the methods are obtained through the data attribute, and referenced using JSF Expression Language (EL). Example 2.3, “Data reference example” a simple reference to a JavaScript method with a single parameter.
Refer to Section 2.5, “Events and JavaScript interactions” or to event descriptions unique to each component for specific usage.
Table of Contents
This chapter details the basic components that respond to a user action and submit an Ajax request.
component-type:
org.ajax4jsf.ActionParametercomponent-class:
org.ajax4jsf.component.html.HTMLActionParameter
The <a4j:actionParam> behavior combines the functionality of the JavaServer Faces (JSF) components <f:param> and <f:actionListener>.
Basic usage of the <a4j:actionParam> requires three main attributes:
name, for the name of the parameter;value, for the initial value of the parameter; andassignTo, for defining the bean property. The property will be updated if the parent command component performs an action event during the Process Request phase.
Example 4.1, “<a4j:actionParam> example” shows a simple implementation along with the accompanying managed bean. When the button is pressed, the application sets the name parameter of the bean to Alex, and displays the name in the output field.
Example 4.1. <a4j:actionParam> example
<h:form id="form">
<a4j:commandButton value="Set name to Alex" reRender="rep">
<a4j:actionparam name="username" value="Alex" assignTo="#{actionparamBean.name}"/>
</a4j:commandButton>
<h:outputText id="rep" value="Name: #{actionparamBean.name}"/>
</h:form>
public class ActionparamBean {
private String name = "John";
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
}
The <a4j:actionParam> behavior can be used with non-Ajax components in addition to Ajax components. In this way, data model values can be updated without an JavaScript code on the server side.
The converter attribute can be used to specify how to convert the value before it is submitted to the data model. The property is assigned the new value during the Update Model phase.
Validation failure
If the validation of the form fails, the Update Model phase will be skipped and the property will not be updated.
Variables from JavaScript functions can be used for the value attribute. In such an implementation, the noEscape attribute should be set to true. Using noEscape="true", the value attribute can contain any JavaScript expression or JavaScript function invocation, and the result will be sent to the server as the value attribute.
component-type:
org.ajax4jsf.CommandButtoncomponent-family:
javax.faces.Commandcomponent-class:
org.ajax4jsf.component.html.HtmlAjaxCommandButtonrenderer-type:
org.ajax4jsf.components.AjaxCommandButtonRenderer
The <a4j:commandButton> is similar to the JavaServer Faces (JSF) component <h:commandButton>, but additionally includes Ajax support. When the command button is clicked it generates an Ajax form submit, and when a response is received the command button can be dynamically rendered.
The <a4j:commandButton> requires only the value and render attributes to function. The value attribute specifies the text of the button and the render attribute specifies which areas are to be updated. The <a4j:commandButton> uses the onclick event instead of the onsubmit event, but otherwise uses all common Ajax attributes as listed in Chapter 2, Common Ajax attributes.
Set disabledDefault="true"
When attaching a JavaScript function to a <a4j:commandButton> with the help of a <rich:componentControl>, do not use the attachTo attribute of <rich:componentControl>. The attribute adds event handlers using Event.observe but <a4j:commandButton> does not include this event.
component-type:
org.ajax4jsf.CommandLinkcomponent-family:
javax.faces.Commandcomponent-class:
org.ajax4jsf.component.html.HtmlAjaxCommandLinkrenderer-type:
org.ajax4jsf.components.AjaxCommandLinkRenderer
The <a4j:commandLink> is similar to the JavaServer Faces (JSF) component <h:commandLink>, but additionally includes Ajax support. When the command link is clicked it generates an Ajax form submit, and when a response is received the command link can be dynamically rendered.
The <a4j:commandLink> requires only the value and render attributes to function. The value attribute specifies the text of the link and the render attribute specifies which areas are to be updated. The <a4j:commandLink> uses the onclick event instead of the onsubmit event, but otherwise uses all common Ajax attributes as listed in Chapter 2, Common Ajax attributes.
The following reference data is taken from the old <rich:componentControl> reference. The details may be different now that the component is part of the a4j tag library.
component-type:
org.richfaces.ComponentControlcomponent-family:
org.richfaces.ComponentControlcomponent-class:
org.richfaces.component.html.HtmlComponentControlrenderer-type:
org.richfaces.ComponentControlRenderertag-class:
org.richfaces.taglib.ComponentControlTag
The <rich:componentControl> allows JavaScript API functions to be called on components after defined events. Initialization variants and activation events can be customized, and parameters can be passed to the target component.
The event, for, and operation attributes are all that is required to attach JavaScript functions to the parent component. The event attribute specifies the event that triggers the JavaScript API function call. The for attribute defines the target component, and the operation attribute specifies the JavaScript function to perform.
Example 4.2. rich:componentControl basic usage
<h:commandButton value="Show Modal Panel">
<!--componentControl is attached to the commandButton-->
<rich:componentControl for="ccModalPanelID" event="onclick" operation="show"/>
</h:commandButton>
The example contains a single command button, which when clicked shows the modal panel with the identifier ccModalPanelID.
The attachTo attribute can be used to attach the event to a component other than the parent component. If no attachTo attribute is supplied, the <rich:componentControl> component's parent is used, as in Example 4.2, “rich:componentControl basic usage”.
Example 4.3. Attaching <rich:componentControl> to a component
<rich:componentControl attachTo="doExpandCalendarID" event="onclick" operation="Expand" for="ccCalendarID" />
In the example, the onclick event of the component with the identifier ccCalendarID will trigger the Expand operation for the component with the identifier doExpandCalendarID.
The operation can receive parameters either through the params attribute, or by using <f:param> elements.
Example 4.4. Using parameters
- The
paramsattribute <rich:componentControl name="func" event="onRowClick" for="menu" operation="show" params="#{car.model}"/>
<f:param>elements<rich:componentControl event="onRowClick" for="menu" operation="show">
<f:param value="#{car.model}" name="model"/>
</rich:componentControl>
The name attribute can be used to define a normal JavaScript function that triggers the specified operation on the target component.
The attachTiming attribute can determine the page loading phase during which the <rich:componentControl> is attached to the source component:
immediateattached during execution of the script.
onavailableattached after the target component is initialized.
onloadattached after the page is loaded.
component-type:
org.ajax4jsf.Functioncomponent-family:
org.ajax4jsf.components.ajaxFunctioncomponent-class:
org.ajax4jsf.component.html.HtmlajaxFunctionrenderer-type:
org.ajax4jsf.components.ajaxFunctionRenderer
The <a4j:jsFunction> component allows Ajax requests to be performed directly from JavaScript code, and server-side data to be invoked and returned in JavaScript Object Notation (JSON) format to use in client-side JavaScript calls.
The <a4j:jsFunction> component has all the common Ajax action attributes as listed in Chapter 2, Common Ajax attributes; the action and actionListener attributes can be invoked and parts of the page can be re-rendered after a successful call to the JavaScript function. Example 4.5, “<a4j:jsFunction> example” shows how an Ajax request can be initiated from the JavaScript and a partial page update performed. The JavaScript function can be invoked with the data returned by the Ajax response.
Example 4.5. <a4j:jsFunction> example
<h:form>
...
<a4j:jsFunction name="callScript" data="#{bean.someProperty1}" reRender="someComponent" oncomplete="myScript(data.subProperty1, data.subProperty2)">
<a4j:actionParam name="param_name" assignTo="#{bean.someProperty2}"/>
</a4j:jsFunction>
...
</h:form>
The <a4j:jsFunction> component allows the use of the <a4j:actionParam> component or the JavaServer Faces <f:param> component to pass any number of parameters for the JavaScript function.
The <a4j:jsFunction> component is similar to the <a4j:commandButton> component, but it can be activated from the JavaScript code. This allows some server-side functionality to be invoked and the returned data to subsequently be used in a JavaScript function invoked by the oncomplete event attribute. In this way, the <a4j:jsFunction> component can be used instead of the <a4j:commandButton> component.
component-type:
org.ajax4jsf.Pollcomponent-family:
org.ajax4jsf.components.AjaxPollcomponent-class:
org.ajax4jsf.component.html.AjaxPollrenderer-type:
org.ajax4jsf.components.AjaxPollRenderer
The <a4j:poll> component allows periodical sending of Ajax requests to the server. It is used for repeatedly updating a page at specific time intervals.
The interval attribute specifies the time in milliseconds between requests. The default for this value is 1000 ms (1 second).
The timeout attribute defines the response waiting time in milliseconds. If a response isn't received within the timeout period, the connection is aborted and the next request is sent. By default, the timeout is not set.
The <a4j:poll> component can be enabled and disabled using the enabled attribute. Using Expression Language (EL), the enabled attribute can point to a bean property to apply a particular attribute value.
component-type:
org.ajax4jsf.Pushcomponent-family:
org.ajax4jsf.components.AjaxPushcomponent-class:
org.ajax4jsf.component.html.AjaxPushrenderer-type:
org.ajax4jsf.components.AjaxPushRenderer
The <a4j:push> component periodically performs an Ajax request to the server, simulating "push" functionality. While it is not strictly pushing updates, the request is made to minimal code only, not to the JSF tree, checking for the presence of new messages in the queue. The request registers EventListener, which receives messages about events, but does not poll registered beans. If a message exists, a complete request is performed. This is different from the <a4j:poll> component, which performs a full request at every interval.
The interval attribute specifies the time in milliseconds between checking for messages. The default for this value is 1000 ms (1 second). It is possible to set the interval value to 0, in which case it is constantly checking for new messages.
The timeout attribute defines the response waiting time in milliseconds. If a response isn't received within the timeout period, the connection is aborted and the next request is sent. By default, the timeout is not set. In combination with the interval attribute, checks for the queue state can short polls or long connections.
component-type:
org.ajax4jsf.Repeatcomponent-family:
javax.faces.Datacomponent-class:
org.ajax4jsf.component.html.HtmlAjaxRepeatrenderer-type:
org.ajax4jsf.components.RepeatRenderer
REVIEW COMMENT - a4j:repeat is not an action, should be moved. The <a4j:repeat> component is used to iterate changes through a repeated collection of components. It allows specific rows of items to be updated without sending Ajax requests for the entire collection. The <a4j:repeat> component forms the basis for many of the tabular components detailed in Chapter 8, Tables and grids.
The contents of the collection are determined using Expression Language (EL). The data model for the contents is specified with the value attribute. The var attribute names the object to use when iterating through the collection. This object is then referenced in the relevant child components. After an Ajax request, only the rows specified with the ajaxKeys attribute are updated rather than the entire collection. Example 4.6, “<a4j:repeat> example” shows how to use <a4j:repeat> to maintain a simple table.
Example 4.6. <a4j:repeat> example
<table>
<tbody>
<a4j:repeat value="#{repeatBean.items}" var="item" ajaxKeys="#{updateBean.updatedRow}">
<tr>
<td><h:outputText value="#{item.code}" id="item1" /></td>
<td><h:outputText value="#{item.price}" id="item2" /></td>
</tr>
</a4j:repeat>
</tbody>
</table>
Each row of a table contains two cells: one showing the item code, and the other showing the item price. The table is generated by iterating through items in the repeatBeans.items data model.
The <a4j:repeat> component uses other attributes common to iteration components, such as the first attribute for specifying the first item for iteration, and the rows attribute for specifying the number of rows of items to display.
component-type:
org.ajax4jsf.Ajaxcomponent-family:
org.ajax4jsf.Ajaxcomponent-class:
org.ajax4jsf.component.html.HtmlAjaxSupportrenderer-type:
org.ajax4jsf.components.AjaxSupportRenderer
REVIEW COMMENT: a4j:support is a4j:ajax in 4.0, paths need to be updated. The <a4j:ajax> component allows Ajax capability to be added to any non-Ajax component. It is placed as a direct child to the component that requires Ajax support. The <a4j:ajax> component uses the common attributes listed in Chapter 2, Common Ajax attributes.
Attaching JavaScript functions
When attaching the <a4j:ajax> component to non-Ajax JavaServer Faces command components, such as <h:commandButton> and <h:commandLink>, it is important to set disabledDefault="true". If this attribute is not set, a non-Ajax request is sent after the Ajax request and the page is refreshed unexpectedly.
Example 4.7. <a4j:ajax> example
<h:panelGrid columns="2">
<h:inputText id="myinput" value="#{userBean.name}">
<a4j:ajax event="onkeyup" reRender="outtext" />
</h:inputText>
<h:outputText id="outtext" value="#{userBean.name}" />
</h:panelGrid>
This chapter covers those components used to handle and manage resources and beans.
component-type:
org.ajax4jsf.Pushcomponent-family:
org.ajax4jsf.components.AjaxPushcomponent-class:
org.ajax4jsf.component.html.AjaxPushrenderer-type:
org.ajax4jsf.components.AjaxPushRenderer
The <a4j:mediaOutput> component is used for generating images, video, sounds, and other resources defined on the fly.
The createContent attribute points to the method used for generating the displayed content. If necessary, the value attribute can be used to pass input data to the content generation method specified with createContent. The cacheable attribute specifies whether the resulting content will be cached or not.
The mimeType attribute describes the type of output content, and corresponds to the type in the header of the HTTP request. The element attribute defines XHTML element used to display the content:
imgobjectappletscriptlinka
Example 5.1. <a4j:mediaOutput> example
This example uses the <a4j:mediaOutput> component to generate a JPEG image of verification digits. The code on the application page is a single element:
<a4j:mediaOutput element="img" cacheable="false" session="false" createContent="#{mediaBean.paint}" value="#{mediaData}" mimeType="image/jpeg" />
The <a4j:mediaOutput> component uses the MediaBean.paint method to create the image. The method generates a random number, which is then converted into an output stream and rendered to a JPEG image. The MediaBean class is as follows:
package demo;
import java.awt.Graphics2D;
import java.awt.image.BufferedImage;
import java.io.IOException;
import java.io.OutputStream;
import java.util.Random;
import javax.imageio.ImageIO;
public class MediaBean {
public void paint(OutputStream out, Object data) throws IOException {
Integer high = 9999;
Integer low = 1000;
Random generator = new Random();
Integer digits = generator.nextInt(high - low + 1) + low;
if (data instanceof MediaData) {
MediaData paintData = (MediaData) data;
BufferedImage img = new BufferedImage(paintData.getWidth(),paintData.getHeight(),BufferedImage.TYPE_INT_RGB);
Graphics2D graphics2D = img.createGraphics();
graphics2D.setBackground(paintData.getBackground());
graphics2D.setColor(paintData.getDrawColor());
graphics2D.clearRect(0,0,paintData.getWidth(),paintData.getHeight());
graphics2D.setFont(paintData.getFont());
graphics2D.drawString(digits.toString(), 20, 35);
ImageIO.write(img,"png",out);
}
}
}
Another class, MediaData is required by the value attribute for keeping data to be used as input for the content creation method. The MediaData class is as follows:
package demo;
import java.awt.Color;
import java.awt.Font;
import java.io.Serializable;
public class MediaData implements Serializable {
private static final long serialVersionUID = 1L;
Integer Width=110;
Integer Height=50;
Color Background=new Color(190, 214, 248);
Color DrawColor=new Color(0,0,0);
Font font = new Font("Serif", Font.TRUETYPE_FONT, 30);
/* Corresponding getters and setters */
...
}
The <a4j:mediaOutput> component uses the MediaBean and MediaData classes to generate a new image on each page refresh, which appears as shown in Figure 5.1, “<a4j:mediaOutput> example result”
Serializable interface
A bean class passed using the value attribute of <a4j:mediaOutput> should implement the Serializable interface so that it will be encoded to the URL of the resource.
This chapter details those components in the a4j tag library which define an area used as a container or wrapper for other components.
component-type:
org.ajax4jsf.OutputPanelcomponent-family:
javax.faces.Panelcomponent-class:
org.ajax4jsf.component.html.HtmlAjaxOutputPanelrenderer-type:
org.ajax4jsf.components.AjaxOutputPanelRenderer
The <a4j:outputPanel> component is used to group together components in to update them as a whole, rather than having to specify the components individually.
The layout attribute can be used to determine how the component is rendered in HTML:
layout="inline"is the default behavior, which will render the component as a pair of<span>tags containing the child components.layout="block"will render the component as a pair of<div>tags containing the child components, which will use any defined<div>element styles.layout="none"will render the component as a pair of<span>tags with an identifier equal to that of a child component. If the child component is rendered then the<span>are not included, leaving no markup representing the<a4j:outputPanel>in HTML.
Setting ajaxRendered="true" will cause the <a4j:outputPanel> to be updated with each Ajax response for the page, even when not listed explicitly by the requesting component. This can in turn be overridden by specific attributes on any requesting components.
This chapter covers those components that manage the processing of information, requests, and updates.
component-family:
org.ajax4jsf.Queuecomponent-class:
org.ajax4jsf.component.html.HtmlQueuerenderer-type:
org.ajax4jsf.QueueRenderertag-class:
org.ajax4jsf.taglib.html.jsp.QueueTag
The <a4j:queue> component manages a queue of Ajax requests to control message processing.
The queue can be disabled by setting the disabled attribute to true. The size attribute specifies the number of requests that can be stored in the queue at a time; smaller queue sizes help prevent server overloads. When the queue's size is exceeded, the sizeExceededBehavior determines the way in which the queue handles the requests:
dropNextdrops the next request currently in the queue.dropNewdrops the incoming request.fireNextimmediately sends the next request currently in the queue.fireNewimmediately sends the incoming request.
The <a4j:queue> component features several events relating to queuing actions:
The
oncompleteevent attribute is fired after a request is completed. The request object is passed as a parameter to the event handler, so the queue is accessible usingrequest.queueand the element which was the source of the request is accessible usingthis.The
onrequestqueueevent attribute is fired after a new request has been added to the queue.The
onrequestdequeueevent attribute is fired after a request has been removed from the queue.The
onsizeexceededevent attribute is fired when the queue has been exceeded.The
onsubmitevent attribute is fired before the request is sent.The
onsuccessevent attribute is fired after a successful request bu before the DOM is updated on the client side.
component-type:
org.ajax4jsf.Logcomponent-family:
org.ajax4jsf.Logcomponent-class:
org.ajax4jsf.component.html.AjaxLogrenderer-type:
org.ajax4jsf.LogRenderer
The <a4j:log> component generates JavaScript that opens a debug window, logging application information such as requests, responses, and DOM changes.
The popup attribute causes the logging data to appear in a new pop-up window if set to true, or in place on the current page if set to false. The window is set to be opened by pressing the key combination Ctrl+Shift+L; this can be partially reconfigured with the hotkey attribute, which specifies the letter key to use in combination with Ctrl+Shift instead of L.
The amount of data logged can be determined with the level attribute:
ERRORFATALINFOWARNALL, the default setting, logs all data.
Log renewal
The log is automatically renewed after each Ajax request. It does not need to be explicitly re-rendered.
component-type:
org.ajax4jsf.Statuscomponent-family:
javax.faces.Panelcomponent-class:
org.ajax4jsf.component.html.HtmlAjaxStatusrenderer-type:
org.ajax4jsf.components.AjaxStatusRenderer
The <a4j:status> component displays the status of current Ajax requests; the status can be either in progress or complete.
The startText attribute defines the text shown after the request has been started and is currently in progress. This text can be styled with the startStyle and startStyleClass attributes. Similarly, the stopText attribute defines the text shown once the request is complete, and text is styled with the stopStyle and stopStyleClass attributes. Alternatively, the text styles can be customized using facets, with the facet name set to either start or stop as required. If the stopText attribute is not defined, and no facet exists for the stopped state, the status is simply not shown; in this way only the progress of the request is displayed to the user.
The <a4j:status> component works for each Ajax component inside the local region. If no region is defined, every request made on the page will activate the <a4j:status> component. Alternatively, the <a4j:status> component can be linked to specific components in one of two ways:
The
forattribute can be used to specify the component for which the status is to be monitored.With an
ididentifier attribute specified for the<a4j:status>, individual components can have their statuses monitored by referencing the identifier with their ownstatusattributes.
Example 7.3. Updating a common <a4j:status> component
<a4j:region id="extr">
<h:form>
<h:outputText value="Status:" />
<a4j:status id="commonstatus" startText="In Progress...." stopText="" />
<a4j:region id="intr">
<h:panelGrid columns="2">
<h:outputText value="Name" />
<h:inputText id="name" value="#{userBean.name}">
<a4j:support event="onkeyup" reRender="out" status="commonstatus" />
</h:inputText>
<h:outputText value="Job" />
<h:inputText id="job" value="#{userBean.job}">
<a4j:support event="onkeyup" reRender="out" status="commonstatus" />
</h:inputText>
<h:panelGroup />
</h:panelGrid>
</a4j:region>
<a4j:region>
<br />
<rich:spacer height="5" />
<b><h:outputText id="out"
value="Name: #{userBean.name}, Job: #{userBean.job}" /></b>
<br />
<rich:spacer height="5" />
<br />
<a4j:commandButton ajaxSingle="true" value="Clean Up Form"
reRender="name, job, out" status="commonstatus">
<a4j:actionparam name="n" value="" assignTo="#{userBean.name}" />
<a4j:actionparam name="j" value="" assignTo="#{userBean.job}" />
</a4j:commandButton>
</a4j:region>
</h:form>
</a4j:region>
Table of Contents
This chapter covers all components related to the display of tables and grids.
component-type:
org.richfaces.Columncomponent-class:
org.richfaces.component.html.HtmlColumncomponent-family:
org.richfaces.Columnrenderer-type:
org.richfaces.renderkit.CellRenderertag-class:
org.richfaces.taglib.ColumnTag
The <rich:column> component facilitates columns in a table or other UIData component. It supports merging columns and rows, sorting, filtering, and customized skinning.
In general usage, the <rich:column> component is used in the same was as the JavaServer Faces (JSF) <h:column> component. It requires no extra attributes for basic usage, as shown in Example 8.1, “Basic column example”.
Example 8.1. Basic column example
<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">
<rich:column>
<f:facet name="header">State Flag</f:facet>
<h:graphicImage value="#{cap.stateFlag}"/>
</rich:column>
<rich:column>
<f:facet name="header">State Name</f:facet>
<h:outputText value="#{cap.state}"/>
</rich:column>
<rich:column >
<f:facet name="header">State Capital</f:facet>
<h:outputText value="#{cap.name}"/>
</rich:column>
<rich:column>
<f:facet name="header">Time Zone</f:facet>
<h:outputText value="#{cap.timeZone}"/>
</rich:column>
</rich:dataTable>

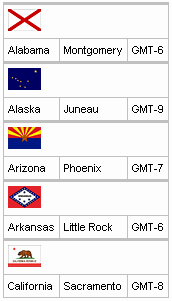

Columns can be merged by using the colspan attribute to specify how many normal columns to span. The colspan attribute is used in conjunction with the breakBefore attribute on the next column to determine how the merged columns are laid out. Example 8.2, “Column spanning example”.
Example 8.2. Column spanning example
<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">
<rich:column colspan="3">
<h:graphicImage value="#{cap.stateFlag}"/>
</rich:column>
<rich:column breakBefore="true">
<h:outputText value="#{cap.state}"/>
</rich:column>
<rich:column >
<h:outputText value="#{cap.name}"/>
</rich:column>
<rich:column>
<h:outputText value="#{cap.timeZone}"/>
</rich:column>
</rich:dataTable>

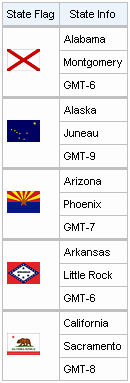

Similarly, the rowspan attribute can be used to merge and span rows. Again the breakBefore attribute needs to be used on related <rich:column> components to define the layout. Example 8.3, “Row spanning example” and the resulting Figure 8.4, “Complex headers using column groups” show the first column of the table spanning three rows.
Example 8.3. Row spanning example
<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5">
<rich:column rowspan="3">
<f:facet name="header">State Flag</f:facet>
<h:graphicImage value="#{cap.stateFlag}"/>
</rich:column>
<rich:column>
<f:facet name="header">State Info</f:facet>
<h:outputText value="#{cap.state}"/>
</rich:column>
<rich:column breakBefore="true">
<h:outputText value="#{cap.name}"/>
</rich:column>
<rich:column breakBefore="true">
<h:outputText value="#{cap.timeZone}"/>
</rich:column>
</rich:dataTable>
For details on filtering and sorting columns, refer to Section 8.7, “Table filtering” and Section 8.8, “Table sorting”.
component-type:
org.richfaces.ColumnGroupcomponent-class:
org.richfaces.component.html.HtmlColumnGroupcomponent-family:
org.richfaces.ColumnGrouprenderer-type:
org.richfaces.ColumnGroupRenderertag-class:
org.richfaces.taglib.ColumnGroupTag
The <rich:columnGroup> component combines multiple columns in a single row to organize complex parts of a table. The resulting effect is similar to using the breakBefore attribute of the <rich:column> component, but is clearer and easier to follow in the source code.
The <rich:columnGroup> can also be used to create complex headers in a table. Example 8.4, “Complex headers using column groups” and the resulting Figure 8.4, “Complex headers using column groups” demonstrate how complex headers can be achieved.
Example 8.4. Complex headers using column groups
<rich:dataTable value="#{capitalsBean.capitals}" var="cap" rows="5" id="sublist">
<f:facet name="header">
<rich:columnGroup>
<rich:column rowspan="2">
<h:outputText value="State Flag"/>
</rich:column>
<rich:column colspan="3">
<h:outputText value="State Info"/>
</rich:column>
<rich:column breakBefore="true">
<h:outputText value="State Name"/>
</rich:column>
<rich:column>
<h:outputText value="State Capital"/>
</rich:column>
<rich:column>
<h:outputText value="Time Zone"/>
</rich:column>
</rich:columnGroup>
</f:facet>
<rich:column>
<h:graphicImage value="#{cap.stateFlag}"/>
</rich:column>
<rich:column>
<h:outputText value="#{cap.state}"/>
</rich:column>
<rich:column>
<h:outputText value="#{cap.name}"/>
</rich:column>
<rich:column>
<h:outputText value="#{cap.timeZone}"/>
</rich:column>
</rich:dataTable>
Read this chapter for details on special functions for use with particular components. Using JavaServer Faces Expression Language (JSF EL), these functions can be accessed through the data attribute of components. Refer to Section 2.5.7, “data” for details on the data attribute.
The rich:clientId('id') function returns the client identifier related to the passed component identifier ('id'). If the specified component identifier is not found, null is returned instead.
The rich:component('id') function is a shortcut for the equivalent #{rich:clientId('id')}.component code. It returns the UIComponent instance from the client, based on the passed server-side component identifier ('id'). If the specified component identifier is not found, null is returned instead.
The rich:element('id') function is a shortcut for the equivalent document.getElementById(#{rich:clientId('id')}) code. It returns the element from the client, based on the passed server-side component identifier. If the specified component identifier is not found, null is returned instead.
The rich:findComponent('id') function returns the a UIComponent instance of the passed component identifier. If the specified component identifier is not found, null is returned instead.
Example 9.1. rich:findComponent example
<h:inputText id="myInput">
<a4j:support event="onkeyup" reRender="outtext"/>
</h:inputText>
<h:outputText id="outtext" value="#{rich:findComponent('myInput').value}" />
The rich:isUserInRole(Object) function checks whether the logged-in user belongs to a certain user role, such as being an administrator. User roles are defined in the web.xml settings file.
Example 9.2. rich:isUserInRole example
The rich:isUserInRole(Object) function can be used in conjunction with the rendered attribute of a component to only display certain controls to authorized users.
<rich:editor value="#{bean.text}" rendered="#{rich:isUserInRole('admin')}" />
| Revision History | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Revision 0.1 | Fri Nov 20 2009 | ||||||||||
| |||||||||||
| Revision 0.2 | Thu May 06 2010 | ||||||||||
| |||||||||||
