Note

Please read Federation Basics to understand different terminologies used, resources needed, and artifacts to be generated before developing a successful application. This example takes advantage of only a minimal set of features from Teiid for the sake of simplicity and time.

Commercial development support, production support, and training for Teiid is available through JBoss. Teiid is a Professional Open Source project and a critical component of the JBoss Enterprise Data Services Platform.

You need to download the binaries for Teiid . Note that there are three different artifacts are available for download.

  1. Teiid Source - contains all of the source code

  2. Teiid AdminShell - contains the admin client

  3. Teiid Runtime - contains the Teiid engine and required 3rd party dependencies

For this Quick Start, download and install JBoss AS 5.1.0. Then download the Teiid runtime and unzip the contents under any of the JBoss AS profiles, such as "default" or "all". The default profile is the typical installation location, for example "<jboss-install>/server/default". The Teiid runtime directory structure matches JBoss profiles directly - it is just an overlay.

In the "<jboss-install>/server/<profile>/lib" directory, you will find "teiid-7.3-client.jar", which is the main client binary jar file for Teiid. This jar file contains the Teiid's JDBC driver and data source classes.

Note

JBoss AS 5.1 requires Java 6 to run.

Access to physical data sources such as Oracle, MS-SQL Server, DB2, and Sybase through Teiid relies upon the user supplying their own JDBC drivers in the deployment. Copy the JDBC driver files into "<jboss-install>/server/<profile>/lib" before you create any data sources.

Note

Derby is used here since it is Open Source, easily obtained, and light-weight. You can substitute any other relational database, as long as you have a suitable JDBC driver. The schema file provided, and described below, is specific to Derby, but can be easily converted for use with other databases.

This example is written using "Derby" as the relational database. Download and install Derby on your machine. An existing local or remote instance can be used if it exists.

We need to start the Derby RDBMS and create the "accounts" database with the below schema. These commands are intended for a Linux environment. For starting the Derby instance on another platform, you will need to use commands appropriate to that platform.

Start a terminal session, and change directory to where Derby is installed and execute following commands

export DERBY_HOME=`pwd`
./bin/startNetworkServer


This starts the Derby in network mode. Now, start another terminal and we will use Derby''s 'ij' tool (like SQL*PLus for Oracle) to create the schema, using the "customer-schema.sql" file in "examples/dynamicvdb-portfolio" directory

export DERBY_HOME=`pwd`
./bin/ij /path/to/customer-schema.sql


This will create the accounts schema. It's abbreviated ddl is shown below.

--Contains the name and address of a Customer who owns portfolio account
CREATE TABLE CUSTOMER
...

--Contains Customer's account number and its current status
CREATE TABLE ACCOUNT
...

--Contains information about stock symbol, company name etc.
CREATE TABLE PRODUCT
...

--Contains each Account's holdings of Stocks
CREATE TABLE HOLDINGS
...

Make sure you did not have any issues when creating the schema as it is needed for going forward in this example. You can use 'ij' tool to verify the tables were created. As an alternative, you may use other tools like SQuirreL , or Eclipse's Data Tools plugin to connect to the Derby instance to check the schema and sample data.

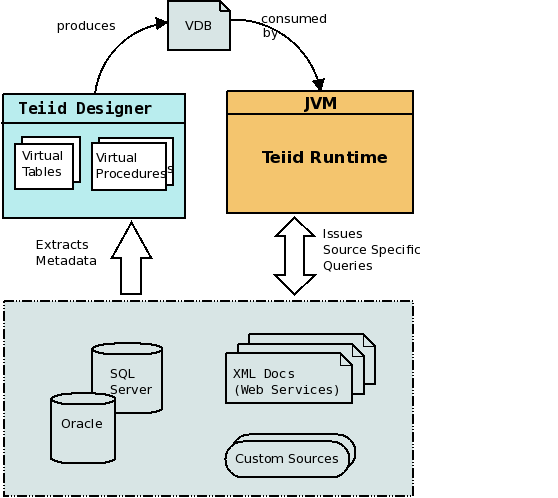

A VDB can be built with either the Designer tool or through a simple XML file called a dynamic VDB. See the "dyanmicvdb-portolio" for an example dynamic VDB. for this example purpose we will use the a dynamic VDB. If you would like to use the Designer to build your VDB, check out the Designer examples. If you need to build any view layers using your source, you must use Designer based approach to building the VDB. A sample Designer based VDB is available in the "teiid-examples/dynamicvdb-portfolio/PortfolioModel" directory.

This XML file is defines a set of sources that need to treated as single source by the client application. Dynamic VDB does not yet allow for the creation of view layers. Below XML file defines "dynamicvdb-portfolio" example vdb.

portfolio-vdb.xml (copy available in "teiid-examples/dynamicvdb-portfolio" directory)

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<vdb name="DynamicPortfolio" version="1">

    <description>A Dynamic VDB</description>

    <!--
      Setting to use connector supplied metadata. Can be "true" or "cached".
      "true" will obtain metadata once for every launch of Teiid.
      "cached" will save a file containing the metadata into
      the deploy/<vdb name>/<vdb version/META-INF directory
    -->
    <property name="UseConnectorMetadata" value="cached" />


    <!--
      Each model represents a access to one or more sources.
      The name of the model will be used as a top level schema name
      for all of the metadata imported from the connector.

      NOTE: Multiple model, with different import settings, can be bound to
      the same connector binding and will be treated as the same source at
      runtime.
    -->
    <model name="MarketData">
        <!--
            Each source represents a translator and data source. There are
            pre-defined translators, or you can create one. ConnectionFactories
            or DataSources in JBoss AS they are typically defined using "xxx-ds.xml" files.
        -->
        <source name="text-connector" translator-name="file" connection-jndi-name="java:marketdata-file"/>
    </model>

    <model name="Accounts">
        <!--
          JDBC Import settings

          importer.useFullSchemaName directs the importer to drop the source
          schema from the Teiid object name, so that the Teiid fully qualified name
          will be in the form of <model name>.<table name>
        -->
        <property name="importer.useFullSchemaName" value="false"/>

         <!--
            This connector is defined in the "derby-connector-ds.xml"
          -->
        <source name="derby-connector" translator-name="derby" connection-jndi-name="java:PortfolioDS"/>
    </model>

</vdb>


The XML file is explained below.

Having built the VDB, it must be deployed into Teiid server, so it can be accessed through a JDBC connection.

This example deploys Teiid within a JBoss AS. The sample deployment is shown below. You can find more details about deploying to application servers on the Teiid web-site

At this point you have deployed Teiid and your VDB. Now it's time to connect the sample application to this VDB, issue SQL queries, and view the returned, integrated data. Note that this process is no different than connecting to any other JDBC source like Oracle.

Before you can make a JDBC connection to the Teiid VDB, add the Teiid's driver jar file to your application's classpath

${jboss-install}/server/${profile}/lib/teiid-7.3-client.jar

For a Java application to connect to a JDBC source, it needs a URL, user-id, and password. To connect to your VDB all you need is a URL and any additional optional properties that you would like to set. Teiid defaults to allowing the "user" as user with password as "user". Additional user accounts can be added. A JDBC connection can be obtained through the Teiid driver "org.teiid.jdbc.TeiidDriver" with the URL syntax of

jdbc:teiid:<VDB-Name>@mm(s)://<host name>:<port>

You can add optional properties at the end of the URL using a semi-colon(;) name=value format. For example

jdbc:teiid:<VDB-Name>@mm(s)://<host name>:<port>;autoCommitTxn=DETECT

Check out Client Developer's guide for all the optional connection properties in your URL. Here is sample code showing how to make JDBC connection.

public void execute() throws SQLException {
    String url = "jdbc:teiid:Portfolio@mm://localhost:31000";
    String sql = "select firstname, lastname from customer";

    Class.forName("org.teiid.jdbc.TeiidDriver");

    Connection connection;
    try{
        connection = DriverManager.getConnection(url, "user", "user");
        Statement statement = connection.createStatement();
        ResultSet results = statement.executeQuery(sql);
        while(results.next()) {
          System.out.println(results.getString(1));
          System.out.println(results.getString(2));
          ...
        }
        results.close();
        statement.close();
    } catch (SQLException e){
        e.printStackTrace();
        throw e;
    } finally {
        try{
          connection.close();
        }catch(SQLException e1){
          // ignore
        }
    }
}

You can also use org.teiid.jdbc.TeiidDataSource to make connection in your Java application. For example, you can use following code fragment to make a connection to the VDB and issuing the query exactly same as in the above example

TeiidDataSource ds = new TeiidDataSource();
ds.setDatabaseName("Portfolio");
ds.setUser("user");
ds.setPassword("user");

Connection connection = ds.getConnection();
...

TeiidDataSource source also provides an option to set optional parameters using the "set" methods on the data source look. For all the allowable data source properties check out Client Developer's Guide.

The Teiid installation includes a simple Java class which demonstrates JDBC access of the deployed VDB. To execute this demonstration, follow these steps:

Depending on the VDB you deployed, see the relevant README file for example queries. If you are using a graphical client, such as SQuirreL, have a look at the metadata tree to see not only what is exposed by your VDB, but also the SYS schema tables.

If your application is Web based, you can create data source for your VDB using the above and treat it as any other JDBC source using org.teiid.jdbc.TeiidDataSource and assigning it a JNDI name. Refer to Client Developer's Guide deployment for more information on creating a DataSource.

Note

"embedded" mode is only available in versions of Teiid up to 6.2
