1. Introduction
1.1. Key Features Struts Tools
1.2. Other relevant resources on the topic
2. Creating a Simple Struts Application
2.1. Starting Up
2.2. Creating the Application Components
2.2.1. Creating JSP Page Placeholders
2.2.2. Creating an Action Mappings
2.2.3. Creating a Link
2.2.4. Creating a Forward
2.2.5. Creating a Global Forward
2.2.6. Creating a Form Bean
3. Generating Stub Coding
4. Coding the Various Files
4.1. Java Stub Classes
4.1.1. GetNameForm.java
4.1.2. GreetingAction.java
4.2. JSP Pages
4.2.1. inputname.jsp
4.2.2. greeting.jsp
4.2.3. index.jsp
5. Compiling the Classes and Running the Application
6. Struts Validation Examples
6.1. Starting Point
6.2. Defining the Validation Rule
6.3. Client-Side Validation
6.4. Server Side Validation
6.5. Editing the JSP File
6.6. Editing the Action
6.7. Editing the Form Bean
7. Other Relevant Resources on the topic

Chapter 1. Introduction

1.1. Key Features Struts Tools
1.2. Other relevant resources on the topic

The following chapters describe how to deal with classic/old style of Struts development. We recommend users to use JBoss Seam to simplify development, but until then you can read about classical Struts usage here.

We are going to show you how to create a simple Struts application using the JBoss Tools. The completed application will ask a user to enter a name and click a button. The resulting new page will display the familiar message, "Hello <name>!"

This document will show you how to create such an application from the beginning, along the way demonstrating some of the powerful features of JBoss Tools. With the help of our tutorial you will design the application, generate stub code for the application, fill in the stub coding, compile the application, and finally run it all from inside the Eclipse.

For a start, we propose you to look through the table of main features of Struts Tools:

Table 1.1. Key Functionality of Struts Tools

Feature Benefit

Struts Support

Step-by-step wizards for creating a new struts project with a number of predefined templates, importing existing ones and adding struts capabilities to non-struts web projects.

Support for Struts Configuration File

Working on file using three modes: diagram, tree and source. Synchronization between the modes and full control over the code. Easy moving around the diagram using the Diagram Navigator. Working with struts projects that have multiple modules. Possibility to use Struts configuration file debugger allowing to set break points on struts diagram and then launch the server in debug mode.

Support for Struts modules

A Struts module (struts-config.xml) is automatically created while creating a new project. There is also possibility to add new ones or edit already existing modules in your existing project or while importing Struts project.

Verification and Validation

All occurring errors will be immediately reported by verification feature, no matter in what view you are working. Constant validation and errors checking allows to catch many of the errors during development process that significantly reduces development time.


All JBoss Developer Studio/JBoss Tools release documentation you can find at http://docs.jboss.org/tools in the corresponding release directory.

The latest documentation builds are available at http://download.jboss.org/jbosstools/nightly-docs.

Chapter 2. Creating a Simple Struts Application

2.1. Starting Up
2.2. Creating the Application Components
2.2.1. Creating JSP Page Placeholders
2.2.2. Creating an Action Mappings
2.2.3. Creating a Link
2.2.4. Creating a Forward
2.2.5. Creating a Global Forward
2.2.6. Creating a Form Bean

Firstly, we assume that you have already launched Eclipse with JBoss Tools installed and also that the Web Development perspective is the current perspective. (If not, make it active by selecting Window → Open Perspective → Other → Web Development from the menu bar.)

We are first going to create a new project for the application.

A "StrutsHello" node should appear in the Package Explorer view.

At this point, its empty except for the background grid lines.

Now, we will design the application by creating the individual components as placeholders first. (We don't have to complete all of the details inside the components until afterwards.)

Next, let's create and place two JSP pages. We will not write anything more than basic template code for the files; they will serve only as placeholders so that we can create links to them in the diagram. We will write some custom code a little bit later.

The inputname.jsp file needs to be populated with some template code. Click on the inputname.jsp page in the Web Projects view, and then modify the file so it looks like this:

<%@ taglib uri="/WEB-INF/struts-html" prefix="html" %>
<html:html>
<head>
	<title></title>
</head>
<body>
    <html:form action="">
    </html:form>
</body>
</html:html>

Lets now place the two pages just created on the diagram.

You should now have two JSP pages in the diagram.

Using a context menu on the diagram, we are next going to create an Action mapping.

Table 2.1. Action values

path /greeting
name GetNameForm
scope request
type sample.GreetingAction
validate <leave blank>

("GetNameForm" is the name for a form bean that we will create later.)

  • Click Finish

The /greeting action should appear in four places, in the diagram, under the action-mappings node, under the struts-config.xml node in Tree view, in Web Projects view and in the Outline view. Also, note the asterisk to the right of the name, struts-config.xml, in the Outline view showing that the file has been changed, but not saved to disk.

Let's now create a link from the inputname.jsp page to the action.

A link will be created from the page to the action.

Next, we are going to create a forward for the action.

One last component that we need to create in the diagram is a global forward.

A forward object now appears on the diagram and also in the global-forwards folder in the Outline view.

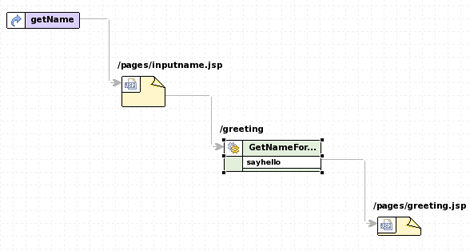

Diagram View

Figure 2.1. Diagram View


One last thing that we need to do is to create a form bean.

Note the disappearance of the asterisk next to the name, struts-config.xml.

Chapter 3. Generating Stub Coding

We are done with designing the application through the diagram. Now we need to write code for the action component. We also need to write an action class for the /greeting mapping along with a FormBean. To aid in the coding phase, JBoss Developer Studio can generate Java class stubs for all of the components shown in the diagram.

You should see a screen that says:

Generated classes: 2

Actions: 1

Form beans: 1

The Java files will be generated in a JavaSource → sample folder that you can see in the Package Explorer view under the "StrutsHello" node. One Action stub and one FormBean stub will have been generated.

Chapter 4. Coding the Various Files

4.1. Java Stub Classes
4.1.1. GetNameForm.java
4.1.2. GreetingAction.java
4.2. JSP Pages
4.2.1. inputname.jsp
4.2.2. greeting.jsp
4.2.3. index.jsp

We will now code both the Java stub classes just generated, the JSP files left in as placeholders from previous steps, and a new start JSP page we will have to create.

private String name = "";


this.name = "";


ActionErrors errors = new ActionErrors();
     return errors;

The final GetNameForm.java file should look like this:

package sample;
import javax.servlet.http.HttpServletRequest;
import org.apache.struts.action.ActionErrors;
import org.apache.struts.action.ActionMapping;

public class GetNameForm extends org.apache.struts.action.ActionForm
{

	private String name = "";

	public String getName()
	{
		return name;
	}
	public void setName(String name)
	{
		this.name = name;
	}

	public GetNameForm()
	{
	}

	public void reset(ActionMapping actionMapping, HttpServletRequest request)
	{
		this.name = "";
	}

	public ActionErrors validate(ActionMapping actionMapping,
	        HttpServletRequest request)
	{
		ActionErrors errors = new ActionErrors();
		return errors;
	}
}


String name = ((GetNameForm)form).getName();
String greeting = "Hello, "+name+"!";
((GetNameForm)form).setName(greeting);
return mapping.findForward(FORWARD_sayHello);

The final version of GreetingAction.java should look like this:

package sample;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.apache.struts.action.ActionForm;
import org.apache.struts.action.ActionForward;
import org.apache.struts.action.ActionMapping;

public class GreetingAction extends org.apache.struts.action.Action
{

	// Global Forwards
	public static final String GLOBAL_FORWARD_getName = "getName";

	// Local Forwards
	public static final String FORWARD_sayHello = "sayHello";

	public GreetingAction()
	{
	}
	public ActionForward execute(ActionMapping mapping, ActionForm form,
	HttpServletRequest request, HttpServletResponse response) throws Exception
	{
		String name = ((GetNameForm)form).getName();
		String greeting = "Hello, "+name+"!";
		((GetNameForm)form).setName(greeting);
		return mapping.findForward(FORWARD_sayHello);
	}
}

The last thing left to do is to code the JSP files whose editors should still be open from having been created as placeholders.

In this page, the user will enter any name and click the submit button. Then, the greeting action will be called through the form.

JBoss Tools Palette

Figure 4.1. JBoss Tools Palette


  • In the Insert Tag dialog box, type in name for property and select Finish

  • In the StrutsForm library in the JBoss Tools Palette, select submit , and drag it to right after the text box in the Visual pane of the editor

  • Right-click the submit button and select <html:submit> Attributes from the context menu

  • In the Attributes dialog box, select the value field and type in "Say Hello!" for its value

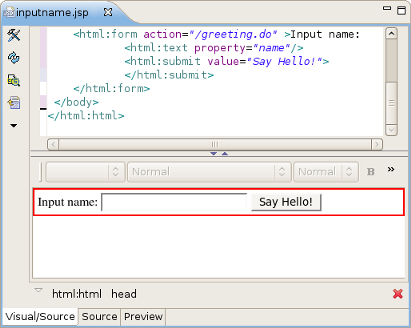

After tidying the page source, the Editor window for the file should look something like this:

Editor Window

Figure 4.2. Editor Window


Next, we will fill in the result page.

<html>
<head>
	<title>Greeting</title>
</head>
	<body>
		<p>
		</p>
	</body>
</html>

To complete editing of this file, we will use macros from the JBoss Tools Palette. This palette is a view that should be available to the right of the editing area.

This will insert the following line at the top of the file:


<%@ taglib uri="/WEB-INF/struts-bean.tld" prefix="bean" %>

The editor should now look like this:

Editor Window

Figure 4.3. Editor Window


Finally, we will need to create and edit an index.jsp page. This page will use a Struts forward to simply redirect us to the getName global forward.

The finished code for the page is shown below:

<%@ taglib uri="/WEB-INF/struts-logic.tld" prefix="logic" %>
<logic:redirect forward="getName"/>

Chapter 5. Compiling the Classes and Running the Application

As this is the Eclipse environment, no explicit compilation step is required. By default, Eclipse compiles as you go.

Thus at this point everything is ready for running our application without having to leave JBoss Developer Studio by using the JBoss Application Server engine that comes with the JBoss Developer Studio. For controlling JBoss AS within JBoss Developer Studio, there is Servers view.

Servers Panel

Figure 5.1. Servers Panel


  • Start up JBoss AS by clicking on the icon in Servers view. (If JBoss AS is already running, stop it by clicking on the red icon and then start it again. Remember, the Struts run-time requires restarting the servlet engine when any changes have been made.)

  • After the messages in the Console tabbed view stop scrolling, JBoss AS is available. At this point, right-click on the getName global forward in the struts-config.xml diagram view and select Run on Server.

The browser should appear with the application started.

Chapter 6. Struts Validation Examples

6.1. Starting Point
6.2. Defining the Validation Rule
6.3. Client-Side Validation
6.4. Server Side Validation
6.5. Editing the JSP File
6.6. Editing the Action
6.7. Editing the Form Bean

Validation of input is an important part of any Web application. All Apache Jakarta frameworks, including Struts, can use a common Jakarta Validation Framework for streamlining this aspect of Web application development. The Validation Framework allows you to define validation rules and then apply these rules on the client-side or the server-side.

JBoss Developer Studio makes using the Validation Framework in Struts even easier with the help of a specialized editor for the XML files that controls validation in a project. In this document, we'll show you how this all works by creating some simple client-side validation and server-side validation examples.

The example assumes that you have already created our sample "StrutsHello" application from the Getting Started Guide for Creating a Struts Application. You should have the JBoss Developer Studio perspective open on this StrutsHello project.

In these steps you will set up the validation that can be used for either client-side or server side validation. You need to enable validation as a part of the project, define an error message, and tie it into an appropriate part of the application.

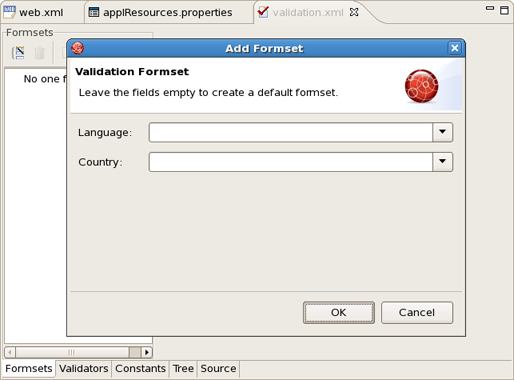

Create Formset

Figure 6.1. Create Formset


  • Expand the "form-beans" node under the StrutsHello → Configuration → default → struts-config.xml node. Then, drag the form bean "GetNameForm" and drop it onto a formset in the XML Editor

  • In the Validation Editor, expand the formset node, right-click GetNameForm, and select Create Field... from the context menu

  • Enter a name for Property in the dialog box. A new property will be created:

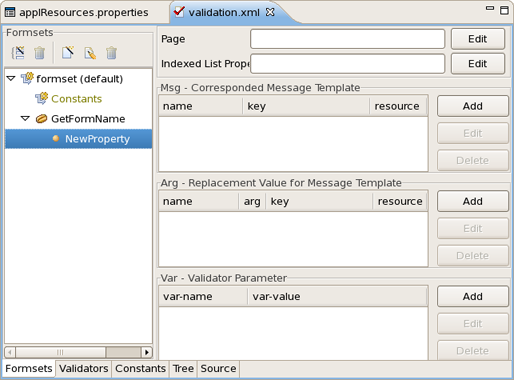

New Property Is Added

Figure 6.2. New Property Is Added


  • In the Properties view for the name field to the right of the "tree" for the validation.xml file, click on the Change...button next to the Depends entry field

  • In the displayed double list, select required from the left list and then click Add

  • Click Ok

  • Right-click name and select Add Arg... from the context menu

  • In the Add Arg dialog box, click on the Change...button next to the Key field

  • In the Key dialog box that appears now, click on the Add button

  • Enter "name.required" in the Name field, and enter a person's name in the Value field

  • Click Finish, then Ok, and then Ok again

  • Select File → Save All from the menu bar

Client-side validation uses a scripting language (like JavaScript) running in the client browser to actually do the validation. In a Struts application using the Validation Framework, however, you don't actually have to do any of the script coding. The Validation Framework handles this.

To see how this works in our application, you'll just need to make a couple of modifications to one of the JSP files.

onsubmit="return validateGetNameForm(this)"

The file should now look like this:


<%@ taglib uri="/WEB-INF/struts-html" prefix="html" %>

<html:html >
    <head>
        <html:javascript formName="GetNameForm"/>
	    <title></title>
    </head>
    <body>
        <html:form action="/greeting.do" onsubmit="return validateGetNameForm(this)">
            Input name:<html:text property="name"/><html:submit value="Say Hello!"/>
         </html:form>
    </body>
</html:html>

A JavaScript error message should be displayed in an alert box.

Server side validation does the validation inside the application on the server. In a Struts application using the Validation Framework, you still don't have to do any of the actual validation coding. The Validation Framework handles this. You will though have to make a few changes to the JSP file you modified for client-side validation along with a change to an action and a few changes to the form bean class.

The JSP file should now look like this:

<%@ taglib uri="/WEB-INF/struts-html" prefix="html" %>
<html:html >
<head>
    <html:javascript formName="GetNameForm"/>
    	<title></title>
    </head>
    <body>
        <html:form action="/greeting.do" >Input name:<html:text property="name"/>
            <html:submit value="Say Hello!"/>
        </html:form>
        <html:errors/>
    </body>
</html:html>

The file should now look like this:

package sample;
import javax.servlet.http.HttpServletRequest;
import org.apache.struts.action.ActionErrors;
import org.apache.struts.action.ActionMapping;
public class GetNameForm extends

org.apache.struts.validator.ValidatorForm
{

	private String name = "";

	/**
	* @return Returns the name.
	*/
	public String getName()
	{
		return name;
	}

	/**
	* @param name The name to set.
	*/
	public void setName(String name)
	{
		this.name = name;
	}

	public GetNameForm ()
	{
	}

	public void reset(ActionMapping actionMapping,
		HttpServletRequest request)
	{
		this.name = "";
	}

	// public ActionErrors validate(ActionMapping actionMapping,
	//	HttpServletRequest request)
	//{
	// ActionErrors errors = new ActionErrors();
	// return errors;
	// }
    }

The error message should appear in a refreshed version of the form.

Chapter 7. Other Relevant Resources on the topic

Our reference: Struts Tools Reference Guide

Apache Struts: Struts Technology

Struts 2: Apache Struts 2

Get Started: Struts Getting Started

Struts on IBM: Struts - An open-source MVC implementation

FAQ: Struts FAQ

Download: Release of Apache Struts

Thus, this tutorial should help you to execute the whole development circle for building a sample Struts-based Web application using JBoss Tools bundle of Eclipse plugins starting from organizing a new Struts project and ending with the running and deploying it onto the JBoss Server.

To find out all the features of JBoss Tools for working with Struts refer to our Struts Tools Reference Guide. If you still have questions you are always welcome on JBoss Tools Forum.
