To run your CRUD Application you should do the following steps:

On JBossServer View right click on the JBoss Application Server and select Start

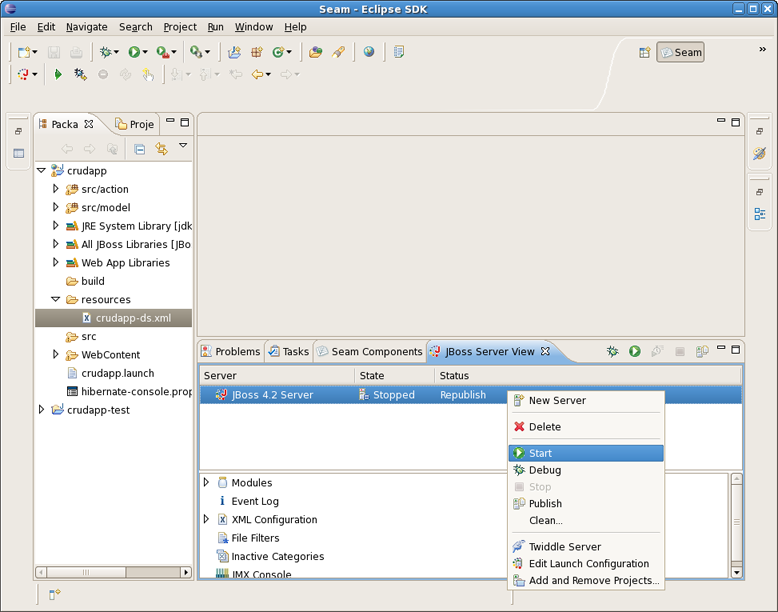

Figure 9.1. Start the Server

On Package Explorer View right click on the crudapp project, select Run As > Run on Server.

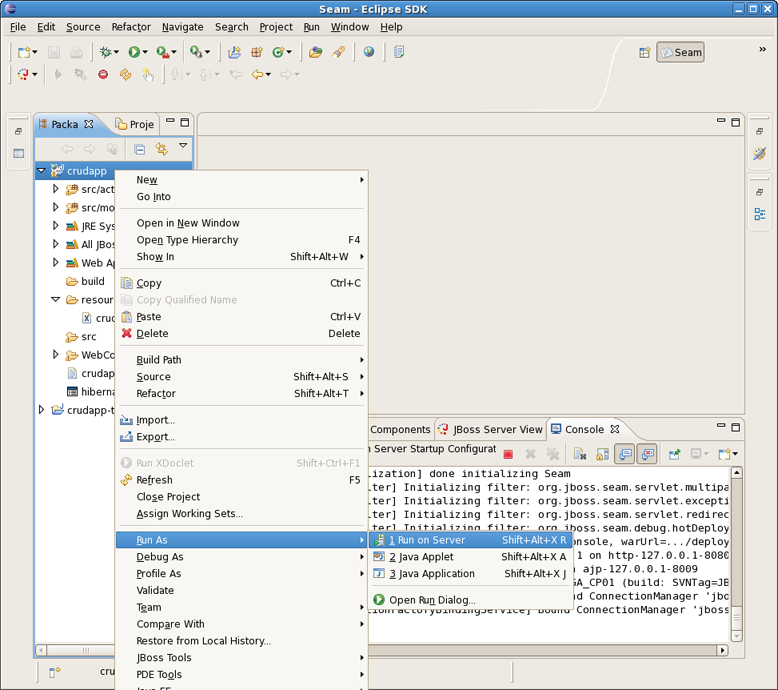

Figure 9.2. Run Project on Server

Select a Server and click Finish

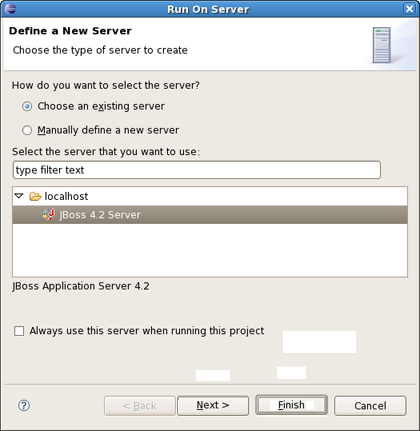

Figure 9.3. Select a Server

Home page of the crudapp project should appear in Web Browser.

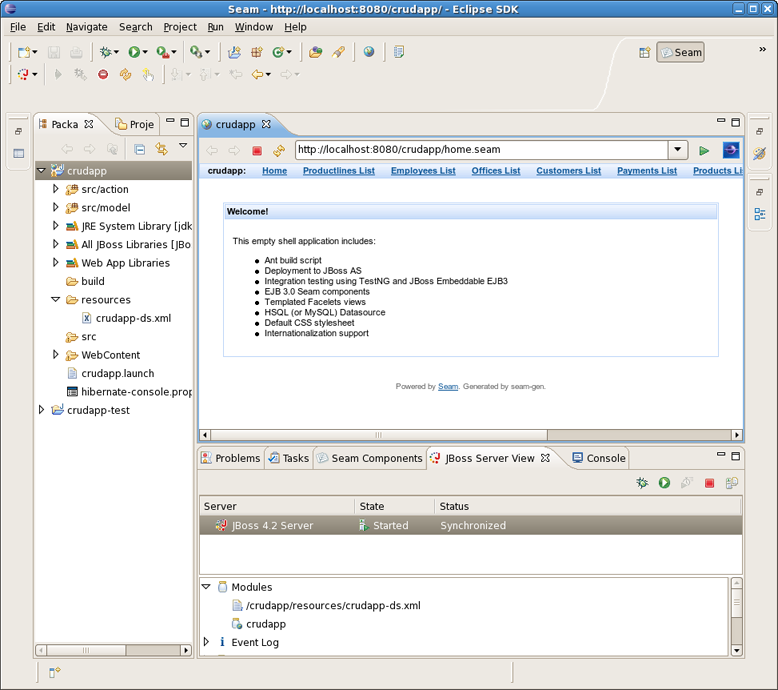

Figure 9.4. Home page

After that you can use CRUD application with "employee" database.

You can use internal JBDS Web Browser or your external Web Browser with the same link (http://localhost:8080/crudapp/home.seam).

Click on the Employees List link and observe that data from employee database is displayed.

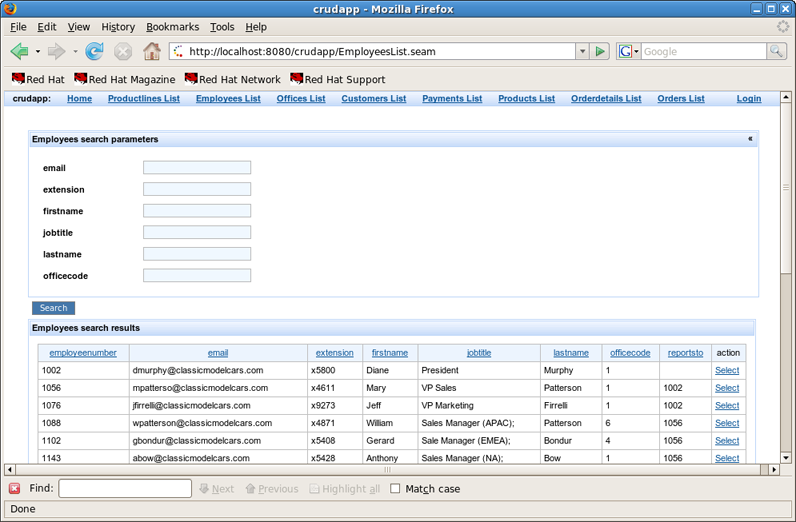

Figure 9.5. Employees List

Use Employees search parameters fields to filter the selected list.

Press Select opposite one of employees.

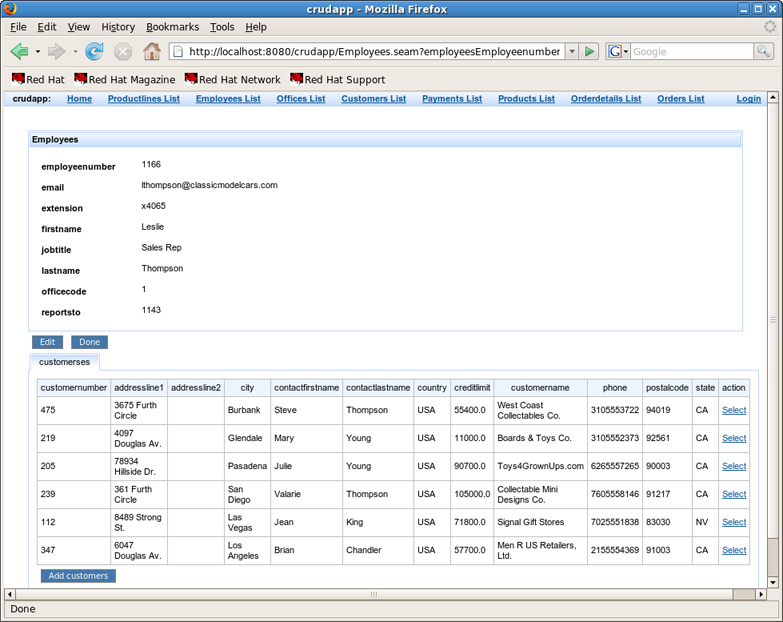

Figure 9.6. Employee details

Press Edit to edit employee fields.

Enter Login and Password to login. (Use "crudapp-user"/"secret" for example)

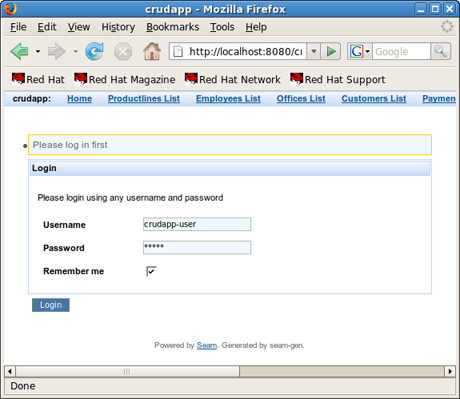

Figure 9.7. Login page

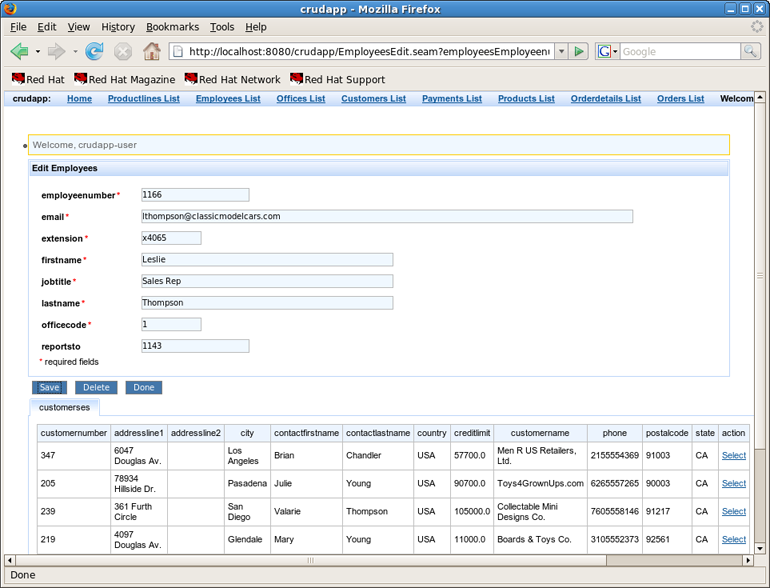

Figure 9.8. Edit Employee

Fill in firstname and press Update.

Database will be updated.
