Introducing a set of tools to access clouds
via the Deltacloud REST API.
The Deltacloud Tools provides
methods for viewing images, creating instances, performing
actions on instances, and connecting via ssh to an instance
via Eclipse Remote System Explorer, all using the Deltacloud
REST API.

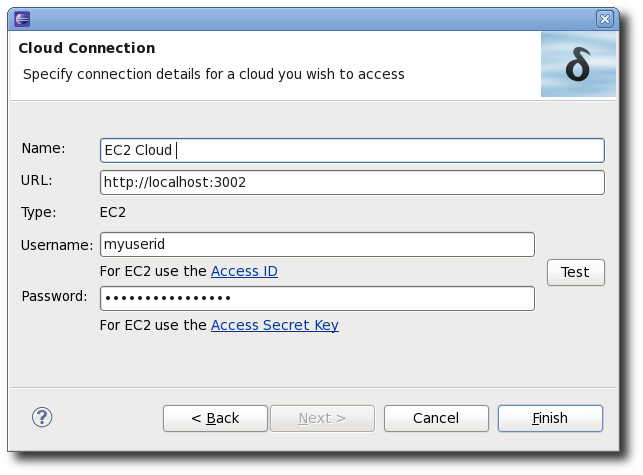

Simply connect to a deltacloud server via its URL (if
running DeltaCloud locally use http://localhost:3002)
and supply a userid and password and it will appear in the
Cloud Viewer which provides a tree view of the cloud with
Images and Instances shown.

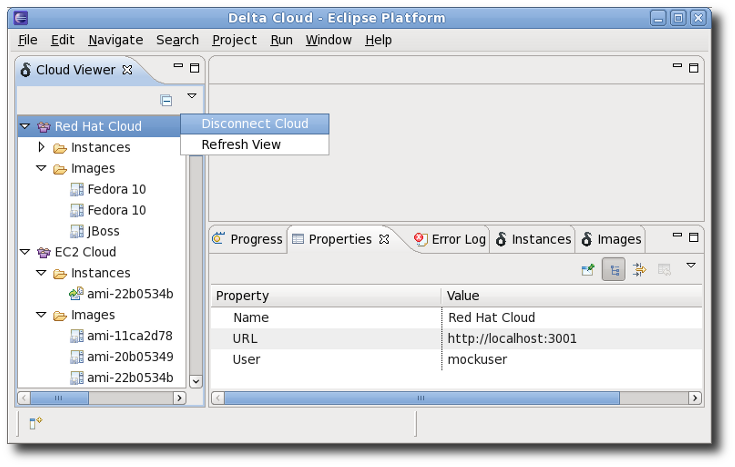

Clicking on an object in the
Cloud View causes details to be shown in the Eclipse
Properties Viewer. Note that multiple deltacloud servers can
be connected at one time.

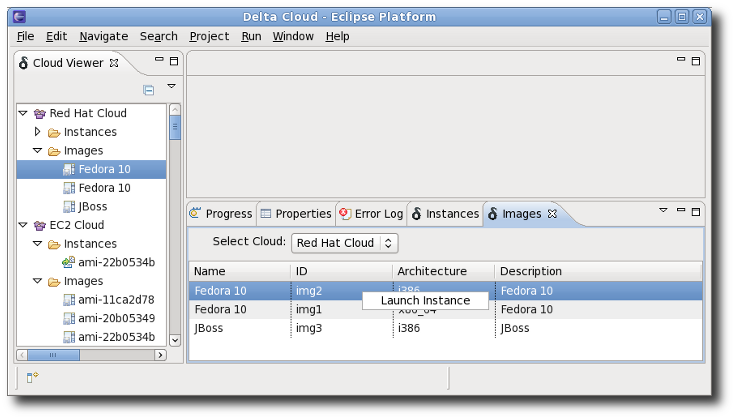

A separate Images View provides a
table view of all images in a specified cloud and allows

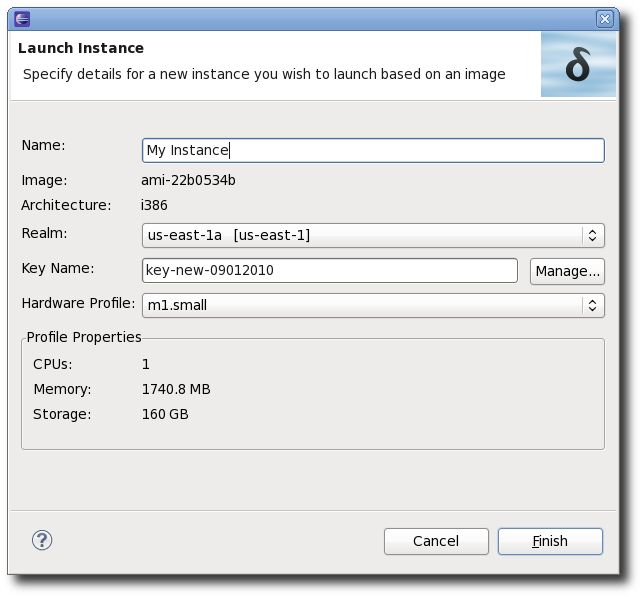

launching a new instance based on a particular image.

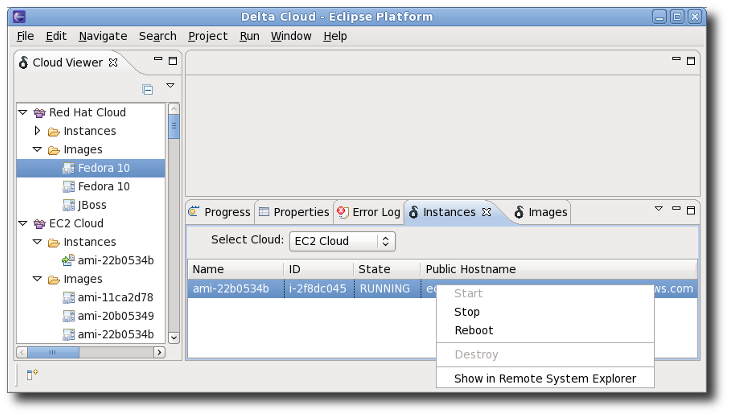

As well
there is an Instances View which provides a table of all
instances in the cloud and allows starting, stopping, and
rebooting of selected instances.

The Instances View also
provides support for connecting via ssh to a running Instance
using the Eclipse Remote System Explorer. From the Remote
System Explorer perspective one can view and manipulate files
on the external instance as if they were local files on the
current machine.
Accessing the remote Instance requires
authentication support such as an EC2 .pem key file. The
Deltacloud tools provides a dialog for managing such key files
though only one is necessary per user. Any key file must be
specified in the Eclipse SSH2 private keys list prior to
actually performing the ssh connection. This is easy to do
via the Network Preferences dialog found under General
Preferences.
