# Part I. Beans

The CDI specification defines a set of complementary services that help improve the structure of application code. CDI layers an enhanced lifecycle and interaction model over existing Java component types, including managed beans and Enterprise Java Beans. The CDI services provide:

• an improved lifecycle for stateful objects, bound to well-defined contexts,
• a typesafe approach to dependency injection,
• object interaction via an event notification facility,
• a better approach to binding interceptors to objects, along with a new kind of interceptor, called a decorator, that is more appropriate for use in solving business problems, and
• an SPI for developing portable extensions to the container.

The CDI services are a core aspect of the Java EE platform and include full support for Java EE modularity and the Java EE component architecture. But the specification does not limit the use of CDI to the Java EE environment. In the Java SE environment, the services might be provided by a standalone CDI implementation like Weld (see Section 18.4.1, “CDI SE Module”), or even by a container that also implements the subset of EJB defined for embedded usage by the EJB 3.2 specification. CDI is especially useful in the context of web application development, but the problems it solves are general development concerns and it is therefore applicable to a wide variety of application.

An object bound to a lifecycle context is called a bean. CDI includes built-in support for several different kinds of bean, including the following Java EE component types:

• managed beans, and
• EJB session beans.

Both managed beans and EJB session beans may inject other beans. But some other objects, which are not themselves beans in the sense used here, may also have beans injected via CDI. In the Java EE platform, the following kinds of component may have beans injected:

• message-driven beans,
• interceptors,
• servlets, servlet filters and servlet event listeners,
• JAX-WS service endpoints and handlers,
• JAX-RS resources, providers and javax.ws.rs.core.Application subclasses, and
• JSP tag handlers and tag library event listeners.

CDI relieves the user of an unfamiliar API of the need to answer the following questions:

• What is the lifecycle of this object?
• How many simultaneous clients can it have?
• Do I need to explicitly destroy it?
• Where should I keep the reference to it when I’m not currently using it?
• How can I define an alternative implementation, so that the implementation can vary at deployment time?
• How should I go about sharing this object between other objects?

CDI is more than a framework. It’s a whole, rich programming model. The theme of CDI is loose-coupling with strong typing. Let’s study what that phrase means.

A bean specifies only the type and semantics of other beans it depends upon. It need not be aware of the actual lifecycle, concrete implementation, threading model or other clients of any bean it interacts with. Even better, the concrete implementation, lifecycle and threading model of a bean may vary according to the deployment scenario, without affecting any client. This loose-coupling makes your code easier to maintain.

Events, interceptors and decorators enhance the loose-coupling inherent in this model:

• event notifications decouple event producers from event consumers,
• interceptors decouple technical concerns from business logic, and
• decorators allow business concerns to be compartmentalized.

What’s even more powerful (and comforting) is that CDI provides all these facilities in a typesafe way. CDI never relies on string-based identifiers to determine how collaborating objects fit together. Instead, CDI uses the typing information that is already available in the Java object model, augmented using a new programming pattern, called qualifier annotations, to wire together beans, their dependencies, their interceptors and decorators, and their event consumers. Usage of XML descriptors is minimized to truly deployment-specific information.

But CDI isn’t a restrictive programming model. It doesn’t tell you how you should to structure your application into layers, how you should handle persistence, or what web framework you have to use. You’ll have to decide those kinds of things for yourself.

CDI even provides a comprehensive SPI, allowing other kinds of object defined by future Java EE specifications or by third-party frameworks to be cleanly integrated with CDI, take advantage of the CDI services, and interact with any other kind of bean.

CDI was influenced by a number of existing Java frameworks, including Seam, Guice and Spring. However, CDI has its own, very distinct, character: more typesafe than Seam, more stateful and less XML-centric than Spring, more web and enterprise-application capable than Guice. But it couldn’t have been any of these without inspiration from the frameworks mentioned and lots of collaboration and hard work by the JSR-299 and JSR-346 Expert Groups (EG).

Finally, CDI is a Java Community Process (JCP) standard. Java EE 7 requires that all compliant application servers provide support for JSR-346 (even in the web profile).

## Chapter 2. More about beans

A bean is usually an application class that contains business logic. It may be called directly from Java code, or it may be invoked via the Unified EL. A bean may access transactional resources. Dependencies between beans are managed automatically by the container. Most beans are stateful and contextual. The lifecycle of a bean is managed by the container.

Let’s back up a second. What does it really mean to be contextual? Since beans may be stateful, it matters which bean instance I have. Unlike a stateless component model (for example, stateless session beans) or a singleton component model (such as servlets, or singleton beans), different clients of a bean see the bean in different states. The client-visible state depends upon which instance of the bean the client has a reference to.

However, like a stateless or singleton model, but unlike stateful session beans, the client does not control the lifecycle of the instance by explicitly creating and destroying it. Instead, the scope of the bean determines:

• the lifecycle of each instance of the bean and
• which clients share a reference to a particular instance of the bean.

For a given thread in a CDI application, there may be an active context associated with the scope of the bean. This context may be unique to the thread (for example, if the bean is request scoped), or it may be shared with certain other threads (for example, if the bean is session scoped) or even all other threads (if it is application scoped).

Clients (for example, other beans) executing in the same context will see the same instance of the bean. But clients in a different context may see a different instance (depending on the relationship between the contexts).

One great advantage of the contextual model is that it allows stateful beans to be treated like services! The client need not concern itself with managing the lifecycle of the bean it’s using, nor does it even need to know what that lifecycle is. Beans interact by passing messages, and the bean implementations define the lifecycle of their own state. The beans are loosely coupled because:

• they interact via well-defined public APIs
• their lifecycles are completely decoupled

We can replace one bean with another different bean that implements the same interface and has a different lifecycle (a different scope) without affecting the other bean implementation. In fact, CDI defines a simple facility for overriding bean implementations at deployment time, as we will see in Section 4.7, “Alternatives”.

Note that not all clients of a bean are beans themselves. Other objects such as servlets or message-driven beans—which are by nature not injectable, contextual objects—may also obtain references to beans by injection.

## 2.1. The anatomy of a bean

Enough hand-waving. More formally, the anatomy of a bean, according to the spec:

A bean comprises the following attributes:

• A (nonempty) set of bean types
• A (nonempty) set of qualifiers
• A scope
• Optionally, a bean EL name
• A set of interceptor bindings
• A bean implementation

Furthermore, a bean may or may not be an alternative.

Let’s see what all this new terminology means.

### 2.1.1. Bean types, qualifiers and dependency injection

Beans usually acquire references to other beans via dependency injection. Any injected attribute specifies a "contract" that must be satisfied by the bean to be injected. The contract is:

• a bean type, together with
• a set of qualifiers.

A bean type is a user-defined class or interface; a type that is client-visible. If the bean is an EJB session bean, the bean type is the @Local interface or bean-class local view. A bean may have multiple bean types. For example, the following bean has four bean types:

public class BookShop
implements Shop<Book> {
...
}

The bean types are BookShop, Business and Shop<Book>, as well as the implicit type java.lang.Object. (Notice that a parameterized type is a legal bean type).

Meanwhile, this session bean has only the local interfaces BookShop, Auditable and java.lang.Object as bean types, since the bean class, BookShopBean is not a client-visible type.

@Stateful
public class BookShopBean
implements BookShop, Auditable {
...
}

Bean types may be restricted to an explicit set by annotating the bean with the @Typed annotation and listing the classes that should be bean types. For instance, the bean types of this bean have been restricted to Shop<Book>, together with java.lang.Object:

@Typed(Shop.class)
public class BookShop
implements Shop<Book> {
...
}

Sometimes, a bean type alone does not provide enough information for the container to know which bean to inject. For instance, suppose we have two implementations of the PaymentProcessor interface: CreditCardPaymentProcessor and DebitPaymentProcessor. Injecting a field of type PaymentProcessor introduces an ambiguous condition. In these cases, the client must specify some additional quality of the implementation it is interested in. We model this kind of "quality" using a qualifier.

A qualifier is a user-defined annotation that is itself annotated @Qualifier. A qualifier annotation is an extension of the type system. It lets us disambiguate a type without having to fall back to string-based names. Here’s an example of a qualifier annotation:

@Qualifier
@Target({TYPE, METHOD, PARAMETER, FIELD})
@Retention(RUNTIME)
public @interface CreditCard {}

You may not be used to seeing the definition of an annotation. In fact, this might be the first time you’ve encountered one. With CDI, annotation definitions will become a familiar artifact as you’ll be creating them from time to time.

## Note

Pay attention to the names of the built-in annotations in CDI and EJB. You’ll notice that they are often adjectives. We encourage you to follow this convention when creating your custom annotations, since they serve to describe the behaviors and roles of the class.

Now that we have defined a qualifier annotation, we can use it to disambiguate an injection point. The following injection point has the bean type PaymentProcessor and qualifier @CreditCard:

@Inject @CreditCard PaymentProcessor paymentProcessor

For each injection point, the container searches for a bean which satisfies the contract, one which has the bean type and all the qualifiers. If it finds exactly one matching bean, it injects an instance of that bean. If it doesn’t, it reports an error to the user.

How do we specify that qualifiers of a bean? By annotating the bean class, of course! The following bean has the qualifier @CreditCard and implements the bean type PaymentProcessor. Therefore, it satisfies our qualified injection point:

@CreditCard
public class CreditCardPaymentProcessor
implements PaymentProcessor { ... }

## Note

If a bean or an injection point does not explicitly specify a qualifier, it has the default qualifier, @Default.

That’s not quite the end of the story. CDI also defines a simple resolution rule that helps the container decide what to do if there is more than one bean that satisfies a particular contract. We’ll get into the details in Chapter 4, Dependency injection and programmatic lookup.

Weld, the CDI Reference Implementation (RI), can be downloaded from the download page. Information about the Weld source code repository and instructions about how to obtain and build the source can be found on the same page.

Weld provides a complete SPI allowing Java EE containers such as WildFly, GlassFish and WebLogic to use Weld as their built-in CDI implementation. Weld also runs in servlet engines like Tomcat and Jetty, or even in a plain Java SE environment.

Weld comes with an extensive library of examples, which are a great starting point from which to learn CDI. In addition, a number of quickstarts featuring CDI can be found at the JBoss Developer site

## Chapter 6. Getting started with Weld

Weld comes with a number of examples. We recommend you start with examples/jsf/numberguess and examples/jsf/translator. Numberguess is a web (war) example containing only non-transactional managed beans. This example can be run on a wide range of servers, including WildFly , GlassFish, Apache Tomcat, Jetty, Google App Engine, and any compliant Java EE 7 container. Translator is an enterprise (ear) example that contains session beans. This example must be run on WildFly 8 or better, GlassFish 4 or better, or any compliant Java EE 7 container.

Both examples use JSF 2.2 as the web framework and, as such, can be found in the examples/jsf directory of the Weld distribution.

## 6.2. Deploying to WildFly

To deploy the examples to WildFly, you’ll need WildFly 8.0.0.Final or above. The good news is that there are no additional modifications you have to make to the server. It’s ready to go!

After you have downloaded WildFly, extract it. (We recommended renaming the folder to include the as qualifier so it’s clear that it’s the application server). You can move the extracted folder anywhere you like. Wherever it lays to rest, that’s what we’ll call the WildFly installation directory, or JBOSS_HOME.

$> unzip wildfly-8.0.0.Final.zip$> mv wildfly-8.*/ wildfly-8

In order for the build scripts to know where to deploy the example, you have to tell them where to find your WildFly installation. Set the JBOSS_HOME environment variable to point to the WildFly installation, e.g.:

$> export JBOSS_HOME=/path/to/wildfly-8 You’re now ready to run your first example! Switch to the examples/jsf/numberguess directory and execute the Maven deploy target: $> cd examples/jsf/numberguess
$> mvn jboss-as:run ## Note If you are using Eclipse, you should seriously consider installing the JBoss Tools add-ons, which include a wide variety of tooling for CDI and Java EE development, as well as an enhanced WildFly server view. Wait a few seconds for the application to deploy (or the application server to start) and see if you can determine the most efficient approach to pinpoint the random number at the local URL http://localhost:8080/weld-numberguess. ## Note The Maven WildFly plugin includes additional goals for WildFly to deploy and undeploy the archive. • mvn wildfly:deploy - deploy the example to a running WildFly instance • mvn wildfly:undeploy - undeploy the example from a running WildFly instance • mvn wildfly:redeploy - redeploys the example For more information on the WildFly Maven plugin see the plugin documentation. You can also run functional tests to verify that the example works as expected. Run: $> mvn verify -Darquillian=wildfly-managed-8

You should see the following output:

Tests run: 2, Failures: 0, Errors: 0, Skipped: 0

The second starter example, weld-translator, will translate your text into Latin. (Well, not really, but the stub is there for you to implement, at least. Good luck!) To try it out, switch to the translator example directory and execute the deploy target:

$> cd examples/jsf/translator/ear$> mvn jboss-as:run

## Note

The translator uses session beans, which are packaged in an EJB module within an ear. Java EE 7 allows session beans to be deployed in war modules, but that’s a topic for a later chapter.

Again, wait a few seconds for the application to deploy (if you’re really bored, read the log messages), and visit http://localhost:8080/weld-translator to begin pseudo-translating.

Again, functional tests can be running by executing:

$> cd examples/jsf/translator/ftest$> mvn verify -Darquillian=wildfly-managed-8

## 6.3. Deploying to GlassFish

Deploying to GlassFish should be easy and familiar, right? After all, it’s the Java EE 7 reference implementation and Weld is the CDI reference implementation, meaning Weld gets bundled with GlassFish. So yes, it’s all quite easy and familiar.

To deploy the examples to GlassFish, you’ll need a GlassFish 4.0 release. Select the release that ends in either -unix.sh or -windows.exe depending on your platform. After the download is complete, execute the installer. On Linux/Unix, you’ll need to first make the script executable.

$> chmod 755 glassfish-4.0-unix.sh$> ./glassfish-4.0-unix.sh

On Windows you can just click on the executable. Follow the instructions in the installer. It will create a single domain named domain1. You’ll use that domain to deploy the example. We recommend that you choose 7070 as the main HTTP port to avoid conflicts with a running instance of WildFly (or Apache Tomcat).

Next, make sure the GLASSFISH_HOME environment variable is set to point to the GlassFish installation.

Now switch to the example directory again and create a new GlassFish domain for the example.

$> cd examples/jsf/numberguess$> mvn glassfish:create-domain

You are now ready to deploy the example by running:

$> mvn package glassfish:deploy Once the command completes the application is available at http://localhost:7070/weld-numberguess The example is deployed using the maven-glassfish-plugin. For more information about the plugin see the plugin documentation There are alternative ways of,deploying applications to GlassFish either by using the GlassFish Admin Console or the asadmin command. The reason the same artifact can be deployed to both WildFly and GlassFish, without any modifications, is because all of the features being used are part of the standard platform. And what a capable platform it has become! ## 6.4. Deploying to Apache Tomcat Servlet containers are not required to support Java EE services like CDI. However, you can use CDI in a servlet container like Tomcat by embedding a standalone CDI implementation such as Weld. Weld comes with servlet integration extension which bootstraps the CDI environment and provides injection into servlets components. Basically, it emulates some of the work done by the Java EE container, but you don’t get the enterprise features such as session beans and container-managed transactions. Let’s give the Weld servlet extension a spin on Apache Tomcat. First, you’ll need to download Tomcat 7.0.50 or later from tomcat.apache.org and extract it. $> unzip apache-tomcat-7.0.53.zip

The Maven plugin communicates with Tomcat over HTTP, so it doesn’t care where you have installed Tomcat. However, the plugin configuration assumes you are running Tomcat in its default configuration, with a hostname of localhost and port 8080. The readme.txt file in the example directory has information about how to modify the Maven settings to accommodate a different setup.

To allow Maven to communicate with Tomcat over HTTP, edit the conf/tomcat-users.xml file in your Tomcat installation. For Tomcat 7 and higher add the following line:




Next, start Tomcat. You can either start Tomcat from a Linux shell:

$> cd /path/to/apache-tomcat-7$> ./bin/start.sh

a Windows command window:

$> cd c:\path\to\apache-tomcat-7\bin$> start

or you can start the server using an IDE, like Eclipse.

Now you’re ready to deploy the numberguess example to Tomcat!

Change to the examples/jsf/numberguess directory again and run the following Maven command:

$> cd examples/jsf/numberguess$> mvn clean compile war:exploded tomcat7:deploy -Ptomcat

Once the application is deployed, you can redeploy it using this command:

$> mvn tomcat7:redeploy -Ptomcat The -Ptomcat argument activates the tomcat profile defined in the Maven POM (pom.xml). Among other things, this profile activates the Tomcat plugin. Rather than shipping the container off to a standalone Tomcat installation, you can also execute the application in an embedded Tomcat 6 container: $> mvn war:inplace tomcat7:run -Ptomcat

The advantage of using the embedded server is that changes to assets in src/main/webapp take effect immediately. If a change to a webapp configuration file is made, the application may automatically redeploy (depending on the plugin configuration). If you make a change to a classpath resource, you need to execute a build:

$> mvn compile war:inplace -Ptomcat Finally, you can run the functional tests: $> mvn verify -Darquillian=tomcat-embedded-7 -Ptomcat

There are several other Maven goals that you can use if you are hacking on the example, which are documented in the example’s README.md file.

## Warning

Jetty Maven plugin is temporarily unsupported in Weld examples.

If you’ve read through the entire Tomcat section, then you’re all ready to go. The Maven build parallels the embedded Tomcat deployment. If not, don’t worry. We’ll still go over everything that you need to know again in this section.

The Maven POM (pom.xml) includes a profile named jetty that activates the Maven Jetty plugin, which you can use to start Jetty in embedded mode and deploy the application in place. You don’t need anything else installed except to have the Maven command (mvn) on your path. The rest will be downloaded from the internet when the build is run.

To run the weld-numberguess example on Jetty, switch to the example directory and execute the inplace goal of the Maven war plugin followed by the run goal of the Maven Jetty plugin with the jetty profile enabled, as follows:

$> cd examples/jsf/numberguess$> mvn war:inplace jetty:run -Pjetty

The log output of Jetty will be shown in the console. Once Jetty reports that the application has deployed, you can access it at the following local URL: http://localhost:9090/weld-numberguess. The port is defined in the Maven Jetty plugin configuration within the jetty profile.

Any changes to assets in src/main/webapp take effect immediately. If a change to a webapp configuration file is made, the application may automatically redeploy. The redeploy behavior can be fined-tuned in the plugin configuration. If you make a change to a classpath resource, you need to execute a build and the inplace goal of the Maven war plugin, again with the jetty profile enabled.

$> mvn compile war:inplace -Pjetty The war:inplace goal copies the compiled classes and jars inside src/main/webapp, under WEB-INF/classes and WEB-INF/lib, respectively, mixing source and compiled files. However, the build does work around these temporary files by excluding them from the packaged war and cleaning them during the Maven clean phase. Finally, you can run the functional tests: $> mvn verify -Darquillian=jetty-embedded-7 -Pjetty

Now that you have gotten the starter applications deployed on the server of your choice, you probably want to know a little bit about how they actually work.

## Chapter 7. Diving into the Weld examples

It’s time to pull the covers back and dive into the internals of Weld example applications. Let’s start with the simpler of the two examples, weld-numberguess.

## 7.2. The numberguess example for Java SE with Swing

This example shows how to use the Weld SE extension in a Java SE based Swing application with no EJB or servlet dependencies. This example can be found in the examples/se/numberguess folder of the Weld distribution.

### 7.2.1. Creating the Eclipse project

To use the Weld SE numberguess example in Eclipse, you can either import it as a Maven project if you have the m2eclipse plugin installed, or generate an Eclipse project and import it.

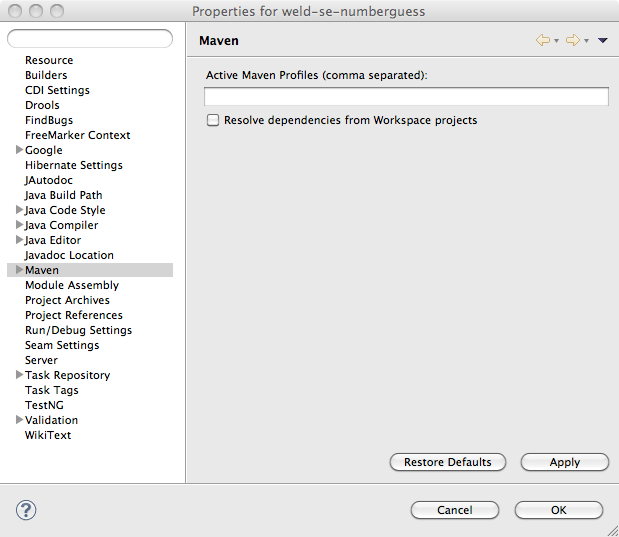

With m2eclipse installed, you can open any Maven project directly. From within Eclipse, select File -> Import…​ -> Existing Maven Projects. Then, browse to the location of the Weld SE numberguess example. You should see that Eclipse recognizes the Maven project.

Without m2eclipse plugin, you first have to generate an Eclipse project. Switch into the Weld SE numberguess example folder, then execute the Maven Eclipse plugin, as follows:

mvn eclipse:configure-workspace -Declipse.workspace=/path/to/your/eclipse/workspace

and then

mvn eclipse:eclipse

Then from within Eclipse, select File -> Import…​ -> Existing Projects into Workspace and browse to the location of the Weld SE numberguess example.

In both cases, you should now see a project in your workspace called weld-se-numberguess.

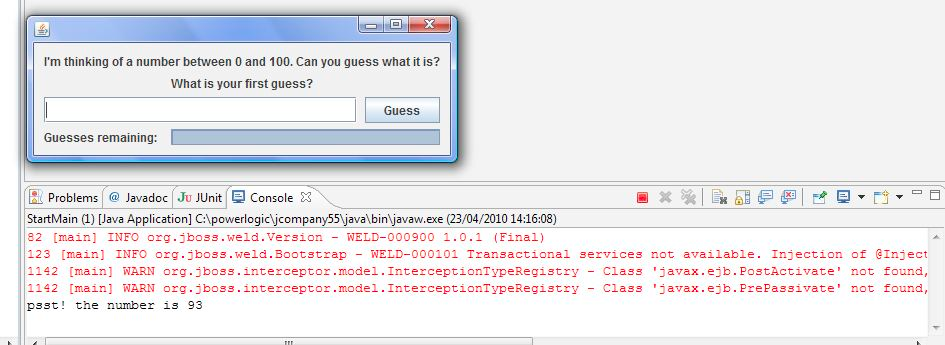

It’s time to get the example running!

### 7.2.4. Understanding the code

Let’s have a look at the significant code and configuration files that make up this example.

There is an empty beans.xml file in the root package (src/main/resources/META-INF/beans.xml), which marks this application as a CDI application.

The game’s main logic is located in Game.java. Here is the code for that class, highlighting the ways in which this differs from the web application version:

@ApplicationScoped
public class Game {
public static final int MAX_NUM_GUESSES = 10;

private Integer number;
private int guess = 0;
private int smallest = 0;

@Inject
@MaxNumber
private int maxNumber;

private int biggest;
private int remainingGuesses = MAX_NUM_GUESSES;
private boolean validNumberRange = true;

@Inject
Generator rndGenerator;

public Game() {
}

public int getNumber() {
return number;
}

public int getGuess() {
return guess;
}

public void setGuess(int guess) {
this.guess = guess;
}

public int getSmallest() {
return smallest;
}

public int getBiggest() {
return biggest;
}

public int getRemainingGuesses() {
return remainingGuesses;
}

public boolean isValidNumberRange() {
return validNumberRange;
}

public boolean isGameWon() {
return guess == number;
}

public boolean isGameLost() {
return guess != number && remainingGuesses <= 0;
}

public boolean check() {
boolean result = false;

if (checkNewNumberRangeIsValid()) {
if (guess > number) {
biggest = guess - 1;
}

if (guess < number) {
smallest = guess + 1;
}

if (guess == number) {
result = true;
}

remainingGuesses--;
}

return result;
}

private boolean checkNewNumberRangeIsValid() {
return validNumberRange = ((guess >= smallest) && (guess <= biggest));
}

@PostConstruct
public void reset() {
this.smallest = 0;
this.guess = 0;
this.remainingGuesses = 10;
this.biggest = maxNumber;
this.number = rndGenerator.next();
System.out.println("psst! the number is " + this.number);
}
}
 The bean is application scoped rather than session scoped, since an instance of a Swing application typically represents a single 'session'. Notice that the bean is not named, since it doesn’t need to be accessed via EL. In Java SE there is no JSF FacesContext to which messages can be added. Instead the Game class provides additional information about the state of the current game including: If the game has been won or lost If the most recent guess was invalid This allows the Swing UI to query the state of the game, which it does indirectly via a class called MessageGenerator, in order to determine the appropriate messages to display to the user during the game. Since there is no dedicated validation phase, validation of user input is performed during the check() method. The reset() method makes a call to the injected rndGenerator in order to get the random number at the start of each game. Note that it can’t use Instance.get() like the JSF example does because there will not be any active contexts like there are during a JSF request.

The MessageGenerator class depends on the current instance of Game and queries its state in order to determine the appropriate messages to provide as the prompt for the user’s next guess and the response to the previous guess. The code for MessageGenerator is as follows:

public class MessageGenerator {
@Inject
private Game game;

public String getChallengeMessage() {
StringBuilder challengeMsg = new StringBuilder("I'm thinking of a number between ");
challengeMsg.append(game.getSmallest());
challengeMsg.append(" and ");
challengeMsg.append(game.getBiggest());
challengeMsg.append(". Can you guess what it is?");

return challengeMsg.toString();
}

public String getResultMessage() {
if (game.isGameWon()) {
return "You guessed it! The number was " + game.getNumber();
} else if (game.isGameLost()) {
return "You are fail! The number was " + game.getNumber();
} else if (!game.isValidNumberRange()) {
return "Invalid number range!";
} else if (game.getRemainingGuesses() == Game.MAX_NUM_GUESSES) {
return "What is your first guess?";
} else {
String direction = null;

if (game.getGuess() < game.getNumber()) {
direction = "Higher";
} else {
direction = "Lower";
}

return direction + "! You have " + game.getRemainingGuesses() + " guesses left.";
}
}
}
 The instance of Game for the application is injected here. The Game’s state is interrogated to determine the appropriate challenge message …​ …​ and again to determine whether to congratulate, console or encourage the user to continue.

Finally we come to the NumberGuessFrame class which provides the Swing front end to our guessing game.

import javax.enterprise.event.Observes;

public class NumberGuessFrame extends javax.swing.JFrame {
@Inject
private Game game;

@Inject
private MessageGenerator msgGenerator;

public void start(@Observes ContainerInitialized event) {
java.awt.EventQueue.invokeLater(new Runnable() {
public void run() {
initComponents();
setVisible(true);
}
});
}

private void initComponents() {

borderPanel = new javax.swing.JPanel();
gamePanel = new javax.swing.JPanel();
inputsPanel = new javax.swing.JPanel();
buttonPanel = new javax.swing.JPanel();
guessButton = new javax.swing.JButton();
...
mainLabel.setText(msgGenerator.getChallengeMessage());

messageLabel.setText(msgGenerator.getResultMessage());
...
}

private void guessButtonActionPerformed(java.awt.event.ActionEvent evt) {
int guess = -1;

try {
guess = Integer.parseInt(guessText.getText());
} catch (NumberFormatException nfe) {
// noop
}

game.setGuess(guess);
game.check();
refreshUI();

if (game.isGameWon() || game.isGameLost()) {
switchButtons();
}
}

private void replayBtnActionPerformed(java.awt.event.ActionEvent evt) {
game.reset();
refreshUI();
switchButtons();
}

private void switchButtons() {
CardLayout buttonLyt = (CardLayout) buttonPanel.getLayout();
buttonLyt.next(buttonPanel);
}

private void refreshUI() {
mainLabel.setText(msgGenerator.getChallengeMessage());
messageLabel.setText(msgGenerator.getResultMessage());
guessText.setText("");
guessesLeftBar.setValue(game.getRemainingGuesses());
guessText.requestFocus();
}

// swing components
private javax.swing.JPanel borderPanel;
...
private javax.swing.JButton replayBtn;

}
 The injected instance of the game (logic and state). The injected message generator for UI messages. This application is started in the prescribed Weld SE way, by observing the ContainerInitialized event. This method initializes all of the Swing components. Note the use of the msgGenerator here. guessButtonActionPerformed is called when the 'Guess' button is clicked, and it does the following: Gets the guess entered by the user and sets it as the current guess in the Game Calls game.check() to validate and perform one 'turn' of the game Calls refreshUI. If there were validation errors with the input, this will have been captured during game.check() and as such will be reflected in the messages returned by MessageGenerator and subsequently presented to the user. If there are no validation errors then the user will be told to guess again (higher or lower) or that the game has ended either in a win (correct guess) or a loss (ran out of guesses). Sets the button’s label based on the game state. replayBtnActionPerformed simply calls game.reset() to start a new game, refreshes the messages in the UI and sets the button’s label based on the game state.

## 7.3. The translator example in depth

The translator example will take any sentences you enter, and translate them to Latin. (Well, not really, but the stub is there for you to implement, at least. Good luck!)

The translator example is built as an EAR and contains EJBs. As a result, it’s structure is more complex than the numberguess example.

## Note

Java EE 7, which bundles EJB 3.2, allows you to package EJBs in a WAR, which will make this structure much simpler! Still, there are other advantages of using an EAR.

First, let’s take a look at the EAR aggregator project, which is located in the example’s ear directory. Maven automatically generates the application.xml for us from this plugin configuration:


<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-ear-plugin</artifactId>
<configuration>
<modules>
<webModule>
<groupId>org.jboss.weld.examples.jsf.translator</groupId>
<artifactId>weld-jsf-translator-war</artifactId>
<contextRoot>/weld-translator</contextRoot>
</webModule>
</modules>
</configuration>
</plugin>


## Note

If you weren’t using Maven to generate these files, you would need META-INF/application.xml:


<application version="7"
xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="
http://xmlns.jcp.org/xml/ns/javaee
http://xmlns.jcp.org/xml/ns/javaee/application_7.xsd">

<display-name>weld-jsf-translator-ear</display-name>
<description>The Weld JSF translator example (ear)</description>

<module>
<web>
<web-uri>weld-translator.war</web-uri>
<context-root>/weld-translator</context-root>
</web>
</module>
<module>
<ejb>weld-translator.jar</ejb>
</module>
</application>


Next, let’s look at the WAR, which is located in the example’s war directory. Just as in the numberguess example, we have a faces-config.xml for JSF 2.2 and a web.xml (to activate JSF) under WEB-INF, both sourced from src/main/webapp/WEB-INF.

More interesting is the JSF view used to translate text. Just as in the numberguess example we have a template, which surrounds the form (omitted here for brevity):


<h:form id="TranslatorMain">

<table>
<tr align="center" style="font-weight: bold">
<td>
Your text
</td>
<td>
Translation
</td>
</tr>
<tr>
<td>
<h:inputTextarea id="text" value="#{translator.text}" required="true" rows="5" cols="80"/>
</td>
<td>
<h:outputText value="#{translator.translatedText}"/>
</td>
</tr>
</table>
<div>
<h:commandButton id="button" value="Translate" action="#{translator.translate}"/>
</div>

</h:form>


The user can enter some text in the left-hand text area, and hit the translate button to see the result to the right.

Finally, let’s look at the EJB module, which is located in the example’s ejb directory. In src/main/resources/META-INF there is just an empty beans.xml, used to mark the archive as containing beans.

## Note

The beans.xml file is no longer required for CDI enablement as of CDI 1.1. CDI is automatically enabled for archives which don’t contain beans.xml but contain one or more bean classes with a bean defining annotation, as described in section Section 15.6.2, “Implicit bean archive”.

We’ve saved the most interesting bit for last, the code! The project has two simple beans, SentenceParser and TextTranslator and two session beans, TranslatorControllerBean and SentenceTranslator. You should be getting quite familiar with what a bean looks like by now, so we’ll just highlight the most interesting bits here.

Both SentenceParser and TextTranslator are dependent beans, and TextTranslator uses constructor injection:

public class TextTranslator implements Serializable {

private SentenceParser sentenceParser;

@EJB private Translator translator;

@Inject public TextTranslator(SentenceParser sentenceParser) {
this.sentenceParser = sentenceParser;
}

public String translate(String text) {
StringBuilder sb = new StringBuilder();
for (String sentence: sentenceParser.parse(text)) {
sb.append(translator.translate(sentence)).append(". ");
}
return sb.toString().trim();
}

}

TextTranslator uses the simple bean (really just a plain Java class!) SentenceParser to parse the sentence and then calls on the stateless bean with the local business interface Translator to perform the translation. That’s where the magic happens. Of course, we couldn’t develop a full translator, but it’s convincing enough to anyone who doesn’t understand Latin!

@Stateless
public class SentenceTranslator implements Translator {

public String translate(String sentence) {
return "Lorem ipsum dolor sit amet";
}

}

Finally, there is UI orientated controller. This is a request scoped, named, stateful session bean, which injects the translator. It collects the text from the user and dispatches it to the translator. The bean also has getters and setters for all the fields on the page.

@Stateful
@RequestScoped
@Named("translator")
public class TranslatorControllerBean implements TranslatorController {

@Inject private TextTranslator translator;

private String inputText;

private String translatedText;

public void translate() {
translatedText = translator.translate(inputText);
}

public String getText() {
return inputText;
}

public void setText(String text) {
this.inputText = text;
}

public String getTranslatedText() {
return translatedText;
}

@Remove public void remove() {}

}

That concludes our short tour of the Weld starter examples. For more information on Weld, please visit http://weld.cdi-spec.org/.

# Part III. Loose coupling with strong typing

## Chapter 8. Producer methods

Producer methods let us overcome certain limitations that arise when a container, instead of the application, is responsible for instantiating objects. They’re also the easiest way to integrate objects which are not beans into the CDI environment.

According to the spec:

A producer method acts as a source of objects to be injected, where:

• the objects to be injected are not required to be instances of beans, or
• the concrete type of the objects to be injected may vary at runtime, or
• the objects require some custom initialization that is not performed by the bean constructor.

For example, producer methods let us:

• expose a JPA entity as a bean,
• expose any JDK class as a bean,
• define multiple beans, with different scopes or initialization, for the same implementation class, or
• vary the implementation of a bean type at runtime.

In particular, producer methods let us use runtime polymorphism with CDI. As we’ve seen, alternative beans are one solution to the problem of deployment-time polymorphism. But once the system is deployed, the CDI implementation is fixed. A producer method has no such limitation:

import javax.enterprise.inject.Produces;

@SessionScoped
public class Preferences implements Serializable {
private PaymentStrategyType paymentStrategy;
...
@Produces @Preferred
public PaymentStrategy getPaymentStrategy() {
switch (paymentStrategy) {
case CREDIT_CARD: return new CreditCardPaymentStrategy();
case CHECK: return new CheckPaymentStrategy();
case PAYPAL: return new PayPalPaymentStrategy();
default: return null;
}
}
}

Consider an injection point:

@Inject @Preferred PaymentStrategy paymentStrategy;

This injection point has the same type and qualifier annotations as the producer method, so it resolves to the producer method using the usual CDI injection rules. The producer method will be called by the container to obtain an instance to service this injection point.

## Chapter 10. Decorators

Interceptors are a powerful way to capture and separate concerns which are orthogonal to the application (and type system). Any interceptor is able to intercept invocations of any Java type. This makes them perfect for solving technical concerns such as transaction management, security and call logging. However, by nature, interceptors are unaware of the actual semantics of the events they intercept. Thus, interceptors aren’t an appropriate tool for separating business-related concerns.

The reverse is true of decorators. A decorator intercepts invocations only for a certain Java interface, and is therefore aware of all the semantics attached to that interface. Since decorators directly implement operations with business semantics, it makes them the perfect tool for modeling some kinds of business concerns. It also means that a decorator doesn’t have the generality of an interceptor. Decorators aren’t able to solve technical concerns that cut across many disparate types. Interceptors and decorators, though similar in many ways, are complementary. Let’s look at some cases where decorators fit the bill.

Suppose we have an interface that represents accounts:

public interface Account {
public BigDecimal getBalance();
public User getOwner();
public void withdraw(BigDecimal amount);
public void deposit(BigDecimal amount);
}

Several different beans in our system implement the Account interface. However, we have a common legal requirement that; for any kind of account, large transactions must be recorded by the system in a special log. This is a perfect job for a decorator.

A decorator is a bean (possibly even an abstract class) that implements the type it decorates and is annotated @Decorator.

@Decorator
public abstract class LargeTransactionDecorator
implements Account {
...
}

The decorator implements the methods of the decorated type that it wants to intercept.

@Decorator
public abstract class LargeTransactionDecorator
implements Account {
@Inject @Delegate @Any Account account;

@PersistenceContext EntityManager em;

public void withdraw(BigDecimal amount) {
...
}

public void deposit(BigDecimal amount);
...
}
}

Unlike other beans, a decorator may be an abstract class. Therefore, if there’s nothing special the decorator needs to do for a particular method of the decorated interface, you don’t need to implement that method.

Interceptors for a method are called before decorators that apply to the method.

## Chapter 12. Stereotypes

The CDI specification defines a stereotype as follows:

In many systems, use of architectural patterns produces a set of recurring bean roles. A stereotype allows a framework developer to identify such a role and declare some common metadata for beans with that role in a central place.

A stereotype encapsulates any combination of:

• a default scope, and
• a set of interceptor bindings.

A stereotype may also specify that:

• all beans with the stereotype have defaulted bean names, or that
• all beans with the stereotype are alternatives.

A bean may declare zero, one or multiple stereotypes. Stereotype annotations may be applied to a bean class or producer method or field.

A stereotype is an annotation, annotated @Stereotype, that packages several other annotations. For instance, the following stereotype identifies action classes in some MVC framework:

@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
...
public @interface Action {}

We use the stereotype by applying the annotation to a bean.

@Action
public class LoginAction { ... }

Of course, we need to apply some other annotations to our stereotype or else it wouldn’t be adding much value.

## Chapter 13. Specialization, inheritance and alternatives

When you first start developing with CDI, you’ll likely be dealing only with a single bean implementation for each bean type. In this case, it’s easy to understand how beans get selected for injection. As the complexity of your application grows, multiple occurrences of the same bean type start appearing, either because you have multiple implementations or two beans share a common (Java) inheritance. That’s when you have to begin studying the specialization, inheritance and alternative rules to work through unsatisfied or ambiguous dependencies or to avoid certain beans from being called.

The CDI specification recognizes two distinct scenarios in which one bean extends another:

• The second bean specializes the first bean in certain deployment scenarios. In these deployments, the second bean completely replaces the first, fulfilling the same role in the system.
• The second bean is simply reusing the Java implementation, and otherwise bears no relation to the first bean. The first bean may not even have been designed for use as a contextual object.

The second case is the default assumed by CDI. It’s possible to have two beans in the system with the same part bean type (interface or parent class). As you’ve learned, you select between the two implementations using qualifiers.

The first case is the exception, and also requires more care. In any given deployment, only one bean can fulfill a given role at a time. That means one bean needs to be enabled and the other disabled. There are a two modifiers involved: @Alternative and @Specializes. We’ll start by looking at alternatives and then show the guarantees that specialization adds.

## Chapter 14. Java EE component environment resources

Java EE 5 already introduced some limited support for dependency injection, in the form of component environment injection. A component environment resource is a Java EE component, for example a JDBC datasource, JMS queue or topic, JPA persistence context, remote EJB or web service.

Naturally, there is now a slight mismatch with the new style of dependency injection in CDI. Most notably, component environment injection relies on string-based names to qualify ambiguous types, and there is no real consistency as to the nature of the names (sometimes a JNDI name, sometimes a persistence unit name, sometimes an EJB link, sometimes a non-portable "mapped name"). Producer fields turned out to be an elegant adaptor to reduce all this complexity to a common model and get component environment resources to participate in the CDI system just like any other kind of bean.

Fields have a duality in that they can both be the target of Java EE component environment injection and be declared as a CDI producer field. Therefore, they can define a mapping from a string-based name in the component environment, to a combination of type and qualifiers used in the world of typesafe injection. We call a producer field that represents a reference to an object in the Java EE component environment a resource.

# Part V. Weld Reference Guide

## 18.3. Servlet containers (such as Tomcat or Jetty)

While CDI does not require support for servlet environments, Weld can be used in a servlet container, such as Tomcat or Jetty.

## Note

There is a major limitation to using a servlet container; Weld doesn’t support deploying session beans, injection using @EJB or @PersistenceContext, or using transactional events in servlet containers. For enterprise features such as these, you should really be looking at a Java EE application server.

Weld can be used as a library in an web application that is deployed to a Servlet container. You should add the weld-servlet-core as a dependency to your project:


<dependency>
<groupId>org.jboss.weld.servlet</groupId>
<artifactId>weld-servlet-core</artifactId>
<version>2.3.0.CR1</version>
</dependency>


All the necessary dependencies (CDI API, Weld core) will be fetched transitively.

Alternatively, there is a shaded version with all the dependencies in a single jar file which is available as:


<dependency>
<groupId>org.jboss.weld.servlet</groupId>
<version>2.3.0.CR1</version>
</dependency>


In general, weld-servlet uses ServletContainerInitializer mechanism to hook into the life cycle of Servlet 3.x compatible containers.

In special cases when your Servlet container does not support ServletContainerInitializer or you need more control over the ordering of listeners (e.g. move Weld’s listener) to the beginning of the list so that CDI context are active during invocation of other listeners) you can register Weld’s listener manually in the WEB-INF/web.xml file of the application:


<listener>
<listener-class>org.jboss.weld.environment.servlet.Listener</listener-class>
</listener>


## Note

There is quite a special use-case where one more special component must be involved. If you want the session context to be active during HttpSessionListener.sessionDestroyed() invocation when the session times out or when all the sessions are destroyed because the deployment is being removed then org.jboss.weld.servlet.WeldTerminalListener must be specified as the last one in your web.xml. This listener activates the session context before other listeners are invoked (note that the listeners are notified in reverse order when a session is being destroyed).

### 18.3.1. Tomcat

Tomcat 7 and 8 are supported. Context activation/deactivation and dependency injection into Servlets and Filters works out of the box. Injection into Servlet listeners works on Tomcat 7.0.50 and newer.

#### 18.3.1.2. Embedded Tomcat

With embedded Tomcat it is necessary to register Weld’s listener programmatically:

public class Main {

public static void main(String[] args) throws ServletException, LifecycleException {
Tomcat tomcat = new Tomcat();
Context ctx = tomcat.addContext("/", new File("src/main/resources").getAbsolutePath());

tomcat.start();
tomcat.getServer().await();
}

public static class HelloWorldServlet extends HttpServlet {

@Inject
private BeanManager manager;

@Override
protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.setContentType("text/plain");
resp.getWriter().append("Hello from " + manager);
}
}
}
 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically

### 18.3.2. Jetty

Jetty 7, 8 and 9 are supported. Context activation/deactivation and dependency injection into Servlets and Filters works out of the box. Injection into Servlet listeners works on Jetty 9.1.1 and newer.

No further configuration is needed when starting Jetty as an embedded webapp server from within another Java program. However, if you’re using a Jetty standalone instance one more configuration step is required.

The reason is that since Jetty 8 some internal classes are not visible from the web application. See also Setting Server Classes. Therefore, we have to tell Jetty not to hide the system classes which Weld integration code is using. Unfortunately, it’s not so simple. The only workaround is to use a Jetty Deployable Descriptor XML File (this is a Jetty 9 feature, in Jetty 8 a similar feature is incorporated - ContextProvider). For instance, if there is an application archive named weld-numberguess.war deployed in the webapps directory, an XML descriptor named weld-numberguess.xml should be created in the same directory (the file should have the same base name as the war - see alse the scanning rules described in Jetty docs):


<?xml version="1.0"?>
<!DOCTYPE Configure PUBLIC "-//Mort Bay Consulting//DTD Configure//EN" "http://www.eclipse.org/jetty/configure_9_0.dtd">
<Configure class="org.eclipse.jetty.webapp.WebAppContext">
<Set name="contextPath">/weld-numberguess</Set>
<Set name="war"><Property name="jetty.webapps" default="."/>/weld-numberguess.war</Set>
<Call name="prependServerClass">
<Arg>-org.eclipse.jetty.server.handler.ContextHandler,-org.eclipse.jetty.servlet.FilterHolder,-org.eclipse.jetty.servlet.ServletContextHandler,-org.eclipse.jetty.servlet.ServletHolder</Arg>
</Call>
</Configure>


## Tip

Jetty distributions (from version 9.2.4) contain a dedicated CDI/Weld module which allows to deploy a CDI application without bundling the Weld Servlet integration code.

#### 18.3.2.3. Embedded Jetty

When starting embedded Jetty programmatically from the main method it is necessary to register Weld’s listener:

public class Main {

public static void main(String[] args) throws Exception {
Server jetty = new Server(8080);
WebAppContext context = new WebAppContext();
context.setContextPath("/");
context.setResourceBase("src/main/resources");
jetty.setHandler(context);

jetty.start();
jetty.join();
}

public static class HelloWorldServlet extends HttpServlet {

@Inject BeanManager manager;

protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.setContentType("text/plain");
resp.getWriter().append("Hello from " + manager);
}
}
}
 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically:

### 18.3.3. Undertow

Weld supports context activation/deactivation and dependency injection into Servlets when running on Undertow. Injection into Filters and Servlet listeners is not currently supported. Weld’s listener needs to be registered programmatically:

public class Main {

public static void main(String[] args) throws ServletException {
DeploymentInfo servletBuilder = Servlets.deployment()
.setContextPath("/")
.setDeploymentName("test.war")

manager.deploy();

HttpHandler servletHandler = manager.start();
server.start();
}

public static class HelloWorldServlet extends HttpServlet {

@Inject BeanManager manager;

protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
resp.setContentType("text/plain");
resp.getWriter().append("Hello from " + manager);
}
}
}
 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically:

### 18.3.6. Implicit Bean Archive Support

CDI 1.1 introduced the bean discovery mode of annotated used for implicit bean archives (see also Section 15.6, “Packaging and deployment”). This mode may bring additional overhead during container bootstrap. Therefore, Weld Servlet supports the use of Jandex bytecode scanning library to speed up the scanning process. Simply put the jandex.jar on the classpath. If Jandex is not found on the classpath Weld will use the Java Reflection as a fallback.

In general, an implicit bean archive does not have to contain a beans.xml descriptor. However, such a bean archive is not supported by Weld Servlet, i.e. it’s excluded from discovery.

## Note

The bean discovery mode of annotated is supported from version 2.2.5.Final. Previous versions processed implicit bean archives in the same way as explicit bean archives.

## 18.5. OSGi

Weld supports OSGi environment through Pax CDI. For more information on using Weld in OSGi environment check Pax CDI documentation . In addition, Weld comes with a sample application called Paint which demonstrates how to use CDI with OSGi. Check examples/osgi/README.md for more information.

## Note

Weld still supports the original non-portable way of excluding classes from discovery. The formal specification can be found in the xsd, located at http://jboss.org/schema/weld/beans_1_1.xsd. Unlike Weld, the CDI specification does not support regular expression patterns and ! character to invert the activation condition.

All the configuration is done in the beans.xml file. For more information see Section 15.6, “Packaging and deployment”.


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://xmlns.jcp.org/xml/ns/javaee">

<scan>

<!-- Don't deploy the classes for the swing app! -->
<exclude name="com.acme.swing.**" />

<!-- Don't include GWT support if GWT is not installed -->
<exclude name="com.acme.gwt.**">
</exclude>

<!--
Exclude types from com.acme.verbose package if the system property verbosity is set to low
i.e.
java ... -Dverbosity=low
-->
<exclude name="com.acme.verbose.*">
<if-system-property name="verbosity" value="low"/>
</exclude>

<!--
Don't include JSF support if Wicket classes are present, and the viewlayer system
property is set
-->
<exclude name="com.acme.jsf.**">
<if-class-available name="org.apache.wicket.Wicket"/>
<if-system-property name="viewlayer"/>
</exclude>
</scan>

</beans>


In this example we show the most common use cases for exercising fine control over which classes Weld scans. The first filter excludes all types whose package name starts with com.acme.swing, and in most cases this will be sufficient for your needs.

However, sometimes it’s useful to be able to activate the filter depending on the environment used. In this case, Weld allows you to activate (or deactivate) a filter based on either system properties or whether a class is available. The second filter shows the use case of disabling scanning of certain classes depending on the capabilities of the environment you deploy to - in this case we are excluding GWT support (all types whose package name starts with com.acme.gwt) if GWT is not installed.

## Note

If you specify just a system property name, Weld will activate the filter if that system property has been set (with any value). If you also specify the system property value, then Weld will only activate the filter if the system property’s value matches exactly.

The third filter shows how to exclude all types from a specific package (note the name attribute has suffix ".*").

The fourth filter shows more a advanced configurations, where we use multiple activation conditions to decide whether to activate the filter.

You can combine as many activation conditions as you like (all must be true for the filter to be activated). If you want to a filter that is active if any of the activation conditions are true, then you need multiple identical filters, each with different activation conditions.

## Chapter 20. Logging

Weld is using JBoss Logging, an abstraction layer which provides support for the internationalization and localization of log messages and exception messages. However, JBoss Logging itself does not write any log messages. Instead, it only constructs a log message and delegates to one of the supported logging frameworks.

The supported "back-end" frameworks include:

A system property org.jboss.logging.provider may be used to specify the logging framework directly. Supported values are jboss, jdk, log4j and slf4j. If this system property is not set, JBoss Logging will attempt to find the logging frameworks from the above-mentioned list on the classpath - the first one found is taken.

## Chapter 21. Development Mode

Weld comes with a special mode for application development. When enabled, certain built-in tools which facilitate the development of CDI applications, are available.

## Note

The development mode should not be used in production as it may have negative impact on the performance of the application. Make sure to disable the development mode before deploying to production.

## Warning

Not all environments and containers may support the development mode and all tools. Check the tools details and the container documentation.

## 21.2. Development Tools

### 21.2.1. Probe

This tool allows to inspect the application CDI components at runtime. See also the demo application hosted on OpenShift. Currently, this tool is only available in a web application. JSON data are available through the REST API. However, a default HTML client (single-page application) is also available at {webappContextPath}/weld-probe, e.g. http://localhost:8080/weld-numberguess/weld-probe`.

Right now, the integration is provided for WildFly (unofficial patch), Tomcat and Jetty (Weld Servlet).

## Tip

There are some configuration properties which allow to tune or disable Probe features, e.g. to limit the set of components which will be monitored. See also Section 19.1.9, “Development Mode”.
