Beans

The CDI specification defines a set of complementary services that help improve the structure of application code. CDI layers an enhanced lifecycle and interaction model over existing Java component types, including managed beans and Enterprise Java Beans. The CDI services provide:

  • an improved lifecycle for stateful objects, bound to well-defined contexts,

  • a typesafe approach to dependency injection,

  • object interaction via an event notification facility,

  • a better approach to binding interceptors to objects, along with a new kind of interceptor, called a decorator, that is more appropriate for use in solving business problems, and

  • an SPI for developing portable extensions to the container.

The CDI services are a core aspect of the Jakarta EE platform and include full support for Jakarta EE modularity and the Jakarta EE component architecture. But the specification does not limit the use of CDI to the Jakarta EE environment. Starting with CDI 2.0, the specification covers the use of CDI in the Java SE environment as well. In Java SE, the services might be provided by a standalone CDI implementation like Weld (see CDI SE Module ), or even by a container that also implements the subset of EJB defined for embedded usage by the EJB 3.2 specification. CDI is especially useful in the context of web application development, but the problems it solves are general development concerns and it is therefore applicable to a wide variety of application.

An object bound to a lifecycle context is called a bean. CDI includes built-in support for several different kinds of bean, including the following Java EE component types:

  • managed beans, and

  • EJB session beans.

Both managed beans and EJB session beans may inject other beans. But some other objects, which are not themselves beans in the sense used here, may also have beans injected via CDI. In the Java EE platform, the following kinds of component may have beans injected:

  • message-driven beans,

  • interceptors,

  • servlets, servlet filters and servlet event listeners,

  • JAX-WS service endpoints and handlers,

  • JAX-RS resources, providers and jakarta.ws.rs.core.Application subclasses, and

  • JSP tag handlers and tag library event listeners.

CDI relieves the user of an unfamiliar API of the need to answer the following questions:

  • What is the lifecycle of this object?

  • How many simultaneous clients can it have?

  • Is it multithreaded?

  • How do I get access to it from a client?

  • Do I need to explicitly destroy it?

  • Where should I keep the reference to it when I’m not currently using it?

  • How can I define an alternative implementation, so that the implementation can vary at deployment time?

  • How should I go about sharing this object between other objects?

CDI is more than a framework. It’s a whole, rich programming model. The theme of CDI is loose-coupling with strong typing. Let’s study what that phrase means.

A bean specifies only the type and semantics of other beans it depends upon. It need not be aware of the actual lifecycle, concrete implementation, threading model or other clients of any bean it interacts with. Even better, the concrete implementation, lifecycle and threading model of a bean may vary according to the deployment scenario, without affecting any client. This loose-coupling makes your code easier to maintain.

Events, interceptors and decorators enhance the loose-coupling inherent in this model:

  • event notifications decouple event producers from event consumers,

  • interceptors decouple technical concerns from business logic, and

  • decorators allow business concerns to be compartmentalized.

What’s even more powerful (and comforting) is that CDI provides all these facilities in a typesafe way. CDI never relies on string-based identifiers to determine how collaborating objects fit together. Instead, CDI uses the typing information that is already available in the Java object model, augmented using a new programming pattern, called qualifier annotations, to wire together beans, their dependencies, their interceptors and decorators, and their event consumers. Usage of XML descriptors is minimized to truly deployment-specific information.

But CDI isn’t a restrictive programming model. It doesn’t tell you how you should to structure your application into layers, how you should handle persistence, or what web framework you have to use. You’ll have to decide those kinds of things for yourself.

CDI even provides a comprehensive SPI, allowing other kinds of object defined by future Jakarta EE specifications or by third-party frameworks to be cleanly integrated with CDI, take advantage of the CDI services, and interact with any other kind of bean.

1. Introduction

So you’re keen to get started writing your first bean? Or perhaps you’re skeptical, wondering what kinds of hoops the CDI specification will make you jump through! The good news is that you’ve probably already written and used hundreds, perhaps thousands of beans. CDI just makes it easier to actually use them to build an application!

1.1. What is a bean?

A bean is exactly what you think it is. Only now, it has a true identity in the container environment.

Prior to Java EE 6, there was no clear definition of the term "bean" in the Java EE platform. Of course, we’ve been calling Java classes used in web and enterprise applications "beans" for years. There were even a couple of different kinds of things called "beans" in EE specifications, including EJB beans and JSF managed beans. Meanwhile, other third-party frameworks such as Spring and Seam introduced their own ideas of what it meant to be a "bean". What we’ve been missing is a common definition.

Java EE 6 finally laid down that common definition in the Managed Beans specification. Managed Beans are defined as container-managed objects with minimal programming restrictions, otherwise known by the acronym POJO (Plain Old Java Object). They support a small set of basic services, such as resource injection, lifecycle callbacks and interceptors. Companion specifications, such as EJB and CDI, build on this basic model. But, at last, there’s a uniform concept of a bean and a lightweight component model that’s aligned across the Java EE platform.

With very few exceptions, almost every concrete Java class that has a constructor with no parameters (or a constructor designated with the annotation @Inject) is a bean. This includes every JavaBean and every EJB session bean. If you’ve already got some JavaBeans or session beans lying around, they’re already beans—you won’t need any additional special metadata.

The JavaBeans and EJBs you’ve been writing every day, up until now, have not been able to take advantage of the new services defined by the CDI specification. But you’ll be able to use every one of them with CDI—allowing the container to create and destroy instances of your beans and associate them with a designated context, injecting them into other beans, using them in EL expressions, specializing them with qualifier annotations, even adding interceptors and decorators to them—without modifying your existing code. At most, you’ll need to add some annotations.

Now let’s see how to create your first bean that actually uses CDI.

1.2. Getting our feet wet

Suppose that we have two existing Java classes that we’ve been using for years in various applications. The first class parses a string into a list of sentences:

public class SentenceParser {
   public List<String> parse(String text) { ... }
}

The second existing class is a stateless session bean front-end for an external system that is able to translate sentences from one language to another:

@Stateless
public class SentenceTranslator implements Translator {
   public String translate(String sentence) { ... }
}

Where Translator is the EJB local interface:

@Local
public interface Translator {
   public String translate(String sentence);
}

Unfortunately, we don’t have a class that translates whole text documents. So let’s write a bean for this job:

public class TextTranslator {
   private SentenceParser sentenceParser;
   private Translator sentenceTranslator;

   @Inject
   TextTranslator(SentenceParser sentenceParser, Translator sentenceTranslator) {
      this.sentenceParser = sentenceParser;
      this.sentenceTranslator = sentenceTranslator;
   }

   public String translate(String text) {
      StringBuilder sb = new StringBuilder();
      for (String sentence: sentenceParser.parse(text)) {
          sb.append(sentenceTranslator.translate(sentence));
      }
      return sb.toString();
   }
}

But wait! TextTranslator does not have a constructor with no parameters! Is it still a bean? If you remember, a class that does not have a constructor with no parameters can still be a bean if it has a constructor annotated @Inject.

As you’ve guessed, the @Inject annotation has something to do with dependency injection! @Inject may be applied to a constructor or method of a bean, and tells the container to call that constructor or method when instantiating the bean. The container will inject other beans into the parameters of the constructor or method.

We may obtain an instance of TextTranslator by injecting it into a constructor, method or field of a bean, or a field or method of a Java EE component class such as a servlet. The container chooses the object to be injected based on the type of the injection point, not the name of the field, method or parameter.

Let’s create a UI controller bean that uses field injection to obtain an instance of the TextTranslator, translating the text entered by a user:

@Named @RequestScoped
public class TranslateController {
   @Inject TextTranslator textTranslator; (1)

   private String inputText;
   private String translation;

   // JSF action method, perhaps
   public void translate() {
      translation = textTranslator.translate(inputText);
   }

   public String getInputText() {
      return inputText;
   }

   public void setInputText(String text) {
      this.inputText = text;
   }

   public String getTranslation() {
      return translation;
   }
}
1 Field injection of TextTranslator instance
Notice the controller bean is request-scoped and named. Since this combination is so common in web applications, there’s a built-in annotation for it in CDI that we could have used as a shorthand. When the (stereotype) annotation @Model is declared on a class, it creates a request-scoped and named bean.

Alternatively, we may obtain an instance of TextTranslator programmatically from an injected instance of Instance, parameterized with the bean type:

import jakarta.enterprise.inject.Instance;
import jakarta.inject.Inject;

....

@Inject Instance<TextTranslator> textTranslatorInstance;
...
public void translate() {
   textTranslatorInstance.get().translate(inputText);
}

Notice that it isn’t necessary to create a getter or setter method to inject one bean into another. CDI can access an injected field directly (even if it’s private!), which sometimes helps eliminate some wasteful code. The name of the field is arbitrary. It’s the field’s type that determines what is injected.

At system initialization time, the container must validate that exactly one bean exists which satisfies each injection point. In our example, if no implementation of Translator is available—if the SentenceTranslator EJB was not deployed—the container would inform us of an unsatisfied dependency. If more than one implementation of Translator were available, the container would inform us of the ambiguous dependency.

Before we get too deep in the details, let’s pause and examine a bean’s anatomy. What aspects of the bean are significant, and what gives it its identity? Instead of just giving examples of beans, we’re going to define what makes something a bean.

2. More about beans

A bean is usually an application class that contains business logic. It may be called directly from Java code, or it may be invoked via the Unified EL. A bean may access transactional resources. Dependencies between beans are managed automatically by the container. Most beans are stateful and contextual. The lifecycle of a bean is managed by the container.

Let’s back up a second. What does it really mean to be contextual? Since beans may be stateful, it matters which bean instance I have. Unlike a stateless component model (for example, stateless session beans) or a singleton component model (such as servlets, or singleton beans), different clients of a bean see the bean in different states. The client-visible state depends upon which instance of the bean the client has a reference to.

However, like a stateless or singleton model, but unlike stateful session beans, the client does not control the lifecycle of the instance by explicitly creating and destroying it. Instead, the scope of the bean determines:

  • the lifecycle of each instance of the bean and

  • which clients share a reference to a particular instance of the bean.

For a given thread in a CDI application, there may be an active context associated with the scope of the bean. This context may be unique to the thread (for example, if the bean is request scoped), or it may be shared with certain other threads (for example, if the bean is session scoped) or even all other threads (if it is application scoped).

Clients (for example, other beans) executing in the same context will see the same instance of the bean. But clients in a different context may see a different instance (depending on the relationship between the contexts).

One great advantage of the contextual model is that it allows stateful beans to be treated like services! The client need not concern itself with managing the lifecycle of the bean it’s using, nor does it even need to know what that lifecycle is. Beans interact by passing messages, and the bean implementations define the lifecycle of their own state. The beans are loosely coupled because:

  • they interact via well-defined public APIs

  • their lifecycles are completely decoupled

We can replace one bean with another different bean that implements the same interface and has a different lifecycle (a different scope) without affecting the other bean implementation. In fact, CDI defines a simple facility for overriding bean implementations at deployment time, as we will see in Alternatives .

Note that not all clients of a bean are beans themselves. Other objects such as servlets or message-driven beans—which are by nature not injectable, contextual objects—may also obtain references to beans by injection.

2.1. The anatomy of a bean

Enough hand-waving. More formally, the anatomy of a bean, according to the spec:

A bean comprises the following attributes:

  • A (nonempty) set of bean types

  • A (nonempty) set of qualifiers

  • A scope

  • Optionally, a bean EL name

  • A set of interceptor bindings

  • A bean implementation

Furthermore, a bean may or may not be an alternative.

Let’s see what all this new terminology means.

2.1.1. Bean types, qualifiers and dependency injection

Beans usually acquire references to other beans via dependency injection. Any injected attribute specifies a "contract" that must be satisfied by the bean to be injected. The contract is:

  • a bean type, together with

  • a set of qualifiers.

A bean type is a user-defined class or interface; a type that is client-visible. If the bean is an EJB session bean, the bean type is the @Local interface or bean-class local view. A bean may have multiple bean types. For example, the following bean has four bean types:

public class BookShop
      extends Business
      implements Shop<Book> {
   ...
}

The bean types are BookShop, Business and Shop<Book>, as well as the implicit type java.lang.Object. (Notice that a parameterized type is a legal bean type).

Meanwhile, this session bean has only the local interfaces BookShop, Auditable and java.lang.Object as bean types, since the bean class, BookShopBean is not a client-visible type.

@Stateful
public class BookShopBean
      extends Business
      implements BookShop, Auditable {
   ...
}
The bean types of a session bean include local interfaces and the bean class local view (if any). EJB remote interfaces are not considered bean types of a session bean. You can’t inject an EJB using its remote interface unless you define a resource, which we’ll meet in Java EE component environment resources .

Bean types may be restricted to an explicit set by annotating the bean with the @Typed annotation and listing the classes that should be bean types. For instance, the bean types of this bean have been restricted to Shop<Book>, together with java.lang.Object:

@Typed(Shop.class)
public class BookShop
      extends Business
      implements Shop<Book> {
   ...
}

Sometimes, a bean type alone does not provide enough information for the container to know which bean to inject. For instance, suppose we have two implementations of the PaymentProcessor interface: CreditCardPaymentProcessor and DebitPaymentProcessor. Injecting a field of type PaymentProcessor introduces an ambiguous condition. In these cases, the client must specify some additional quality of the implementation it is interested in. We model this kind of "quality" using a qualifier.

A qualifier is a user-defined annotation that is itself annotated @Qualifier. A qualifier annotation is an extension of the type system. It lets us disambiguate a type without having to fall back to string-based names. Here’s an example of a qualifier annotation:

@Qualifier
@Target({TYPE, METHOD, PARAMETER, FIELD})
@Retention(RUNTIME)
public @interface CreditCard {}

You may not be used to seeing the definition of an annotation. In fact, this might be the first time you’ve encountered one. With CDI, annotation definitions will become a familiar artifact as you’ll be creating them from time to time.

Pay attention to the names of the built-in annotations in CDI and EJB. You’ll notice that they are often adjectives. We encourage you to follow this convention when creating your custom annotations, since they serve to describe the behaviors and roles of the class.

Now that we have defined a qualifier annotation, we can use it to disambiguate an injection point. The following injection point has the bean type PaymentProcessor and qualifier @CreditCard:

@Inject @CreditCard PaymentProcessor paymentProcessor

For each injection point, the container searches for a bean which satisfies the contract, one which has the bean type and all the qualifiers. If it finds exactly one matching bean, it injects an instance of that bean. If it doesn’t, it reports an error to the user.

How do we specify that qualifiers of a bean? By annotating the bean class, of course! The following bean has the qualifier @CreditCard and implements the bean type PaymentProcessor. Therefore, it satisfies our qualified injection point:

@CreditCard
public class CreditCardPaymentProcessor
    implements PaymentProcessor { ... }
If a bean or an injection point does not explicitly specify a qualifier, it has the default qualifier, @Default.

That’s not quite the end of the story. CDI also defines a simple resolution rule that helps the container decide what to do if there is more than one bean that satisfies a particular contract. We’ll get into the details in Dependency injection and programmatic lookup .

2.1.2. Scope

The scope of a bean defines the lifecycle and visibility of its instances. The CDI context model is extensible, accommodating arbitrary scopes. However, certain important scopes are built into the specification, and provided by the container. Each scope is represented by an annotation type.

For example, any web application may have session scoped bean:

public @SessionScoped
class ShoppingCart implements Serializable { ... }

An instance of a session-scoped bean is bound to a user session and is shared by all requests that execute in the context of that session.

Keep in mind that once a bean is bound to a context, it remains in that context until the context is destroyed. There is no way to manually remove a bean from a context. If you don’t want the bean to sit in the session indefinitely, consider using another scope with a shorted lifespan, such as the request or conversation scope.

If a scope is not explicitly specified, then the bean belongs to a special scope called the dependent pseudo-scope. Beans with this scope live to serve the object into which they were injected, which means their lifecycle is bound to the lifecycle of that object.

We’ll talk more about scopes in Scopes and contexts .

2.1.3. EL name

If you want to reference a bean in non-Java code that supports Unified EL expressions, for example, in a JSP or JSF page, you must assign the bean an EL name.

The EL name is specified using the @Named annotation, as shown here:

public @SessionScoped @Named("cart")
class ShoppingCart implements Serializable { ... }

Now we can easily use the bean in any JSF or JSP page:

<h:dataTable value="#{cart.lineItems}" var="item">
   ...
</h:dataTable>
The @Named annotation is not what makes the class a bean. Most classes in a bean archive are already recognized as beans. The @Named annotation just makes it possible to reference the bean from the EL, most commonly from a JSF view.

We can let CDI choose a name for us by leaving off the value of the @Named annotation:

public @SessionScoped @Named
class ShoppingCart implements Serializable { ... }

The name defaults to the unqualified class name, decapitalized; in this case, shoppingCart.

2.1.4. Alternatives

We’ve already seen how qualifiers let us choose between multiple implementations of an interface at development time. But sometimes we have an interface (or other bean type) whose implementation varies depending upon the deployment environment. For example, we may want to use a mock implementation in a testing environment. An alternative may be declared by annotating the bean class with the @Alternative annotation.

public @Alternative
class MockPaymentProcessor extends PaymentProcessorImpl { ... }

We normally annotate a bean @Alternative only when there is some other implementation of an interface it implements (or of any of its bean types). We can choose between alternatives at deployment time by selecting an alternative in the CDI deployment descriptor META-INF/beans.xml of the jar or Java EE module that uses it. Different modules can specify that they use different alternatives. The other way to enable an alternative is to annotate the bean with @Priority annotation. This will enable it globally.

We cover alternatives in more detail in Alternatives .

2.1.5. Interceptor binding types

You might be familiar with the use of interceptors in EJB 3. Since Java EE 6, this functionality has been generalized to work with other managed beans. That’s right, you no longer have to make your bean an EJB just to intercept its methods. Holler. So what does CDI have to offer above and beyond that? Well, quite a lot actually. Let’s cover some background.

The way that interceptors were defined in Java EE 5 was counter-intuitive. You were required to specify the implementation of the interceptor directly on the implementation of the EJB, either in the @Interceptors annotation or in the XML descriptor. You might as well just put the interceptor code in the implementation! Furthermore, the order in which the interceptors are applied is taken from the order in which they are declared in the annotation or the XML descriptor. Perhaps this isn’t so bad if you’re applying the interceptors to a single bean. But, if you are applying them repeatedly, then there’s a good chance that you’ll inadvertently define a different order for different beans. Now that’s a problem.

CDI provides a new approach to binding interceptors to beans that introduces a level of indirection (and thus control). We must define an interceptor binding type to describe the behavior implemented by the interceptor.

An interceptor binding type is a user-defined annotation that is itself annotated @InterceptorBinding. It lets us bind interceptor classes to bean classes with no direct dependency between the two classes.

@InterceptorBinding
@Inherited
@Target( { TYPE, METHOD })
@Retention(RUNTIME)
public @interface Transactional {}

The interceptor that implements transaction management declares this annotation:

public @Transactional @Interceptor
class TransactionInterceptor { ... }

We can apply the interceptor to a bean by annotating the bean class with the same interceptor binding type:

public @SessionScoped @Transactional
class ShoppingCart implements Serializable { ... }

Notice that ShoppingCart and TransactionInterceptor don’t know anything about each other.

Interceptors are deployment-specific. (We don’t need a TransactionInterceptor in our unit tests!) By default, an interceptor is disabled. We can enable an interceptor using the CDI deployment descriptor META-INF/beans.xml of the jar or Java EE module. This is also where we specify the interceptor ordering. Better still, we can use @Priority annotation to enable the interceptor and define it’s ordering at the same time.

We’ll discuss interceptors, and their cousins, decorators, in Interceptors and Decorators .

2.2. What kinds of classes are beans?

We’ve already seen two types of beans: JavaBeans and EJB session beans. Is that the whole story? Actually, it’s just the beginning. Let’s explore the various kinds of beans that CDI implementations must support out-of-the-box.

2.2.1. Managed beans

A managed bean is a Java class. The basic lifecycle and semantics of a managed bean are defined by the Managed Beans specification. You can explicitly declare a managed bean by annotating the bean class @ManagedBean, but in CDI you don’t need to. According to the specification, the CDI container treats any class that satisfies the following conditions as a managed bean:

  • It is not a non-static inner class.

  • It is a concrete class, or is annotated @Decorator.

  • It is not annotated with an EJB component-defining annotation or declared as an EJB bean class in ejb-jar.xml.

  • It does not implement jakarta.enterprise.inject.spi.Extension.

  • It has an appropriate constructor—either:

    • the class has a constructor with no parameters, or

    • the class declares a constructor annotated @Inject.

According to this definition, JPA entities are technically managed beans. However, entities have their own special lifecycle, state and identity model and are usually instantiated by JPA or using new. Therefore we don’t recommend directly injecting an entity class. We especially recommend against assigning a scope other than @Dependent to an entity class, since JPA is not able to persist injected CDI proxies.

The unrestricted set of bean types for a managed bean contains the bean class, every superclass and all interfaces it implements directly or indirectly.

If a managed bean has a public field, it must have the default scope @Dependent.

Managed beans support the @PostConstruct and @PreDestroy lifecycle callbacks.

Session beans are also, technically, managed beans. However, since they have their own special lifecycle and take advantage of additional enterprise services, the CDI specification considers them to be a different kind of bean.

2.2.2. Session beans

Session beans belong to the EJB specification. They have a special lifecycle, state management and concurrency model that is different to other managed beans and non-managed Java objects. But session beans participate in CDI just like any other bean. You can inject one session bean into another session bean, a managed bean into a session bean, a session bean into a managed bean, have a managed bean observe an event raised by a session bean, and so on.

Message-driven and entity beans are by nature non-contextual objects and may not be injected into other objects. However, message-driven beans can take advantage of some CDI functionality, such as dependency injection, interceptors and decorators. In fact, CDI will perform injection into any session or message-driven bean, even those which are not contextual instances.

The unrestricted set of bean types for a session bean contains all local interfaces of the bean and their superinterfaces. If the session bean has a bean class local view, the unrestricted set of bean types contains the bean class and all superclasses. In addition, java.lang.Object is a bean type of every session bean. But remote interfaces are not included in the set of bean types.

There’s no reason to explicitly declare the scope of a stateless session bean or singleton session bean. The EJB container controls the lifecycle of these beans, according to the semantics of the @Stateless or @Singleton declaration. On the other hand, a stateful session bean may have any scope.

Stateful session beans may define a remove method, annotated @Remove, that is used by the application to indicate that an instance should be destroyed. However, for a contextual instance of the bean—an instance under the control of CDI—this method may only be called by the application if the bean has scope @Dependent. For beans with other scopes, the application must let the container destroy the bean.

So, when should we use a session bean instead of a plain managed bean? Whenever we need the advanced enterprise services offered by EJB, such as:

  • method-level transaction management and security,

  • concurrency management,

  • instance-level passivation for stateful session beans and instance-pooling for stateless session beans,

  • remote or web service invocation, or

  • timers and asynchronous methods,

When we don’t need any of these things, an ordinary managed bean will serve just fine.

Many beans (including any @SessionScoped or @ApplicationScoped beans) are available for concurrent access. Therefore, the concurrency management provided by EJB 3.2 is especially useful. Most session and application scoped beans should be EJBs.

Beans which hold references to heavy-weight resources, or hold a lot of internal state benefit from the advanced container-managed lifecycle defined by the EJB stateless/stateful/singleton model, with its support for passivation and instance pooling.

Finally, it’s usually obvious when method-level transaction management, method-level security, timers, remote methods or asynchronous methods are needed.

The point we’re trying to make is: use a session bean when you need the services it provides, not just because you want to use dependency injection, lifecycle management, or interceptors. Java EE 7 provides a graduated programming model. It’s usually easy to start with an ordinary managed bean, and later turn it into an EJB just by adding one of the following annotations: @Stateless, @Stateful or @Singleton.

On the other hand, don’t be scared to use session beans just because you’ve heard your friends say they’re "heavyweight". It’s nothing more than superstition to think that something is "heavier" just because it’s hosted natively within the Java EE container, instead of by a proprietary bean container or dependency injection framework that runs as an additional layer of obfuscation. And as a general principle, you should be skeptical of folks who use vaguely defined terminology like "heavyweight".

2.2.3. Producer methods

Not everything that needs to be injected can be boiled down to a bean class instantiated by the container using new. There are plenty of cases where we need additional control. What if we need to decide at runtime which implementation of a type to instantiate and inject? What if we need to inject an object that is obtained by querying a service or transactional resource, for example by executing a JPA query?

A producer method is a method that acts as a source of bean instances. The method declaration itself describes the bean and the container invokes the method to obtain an instance of the bean when no instance exists in the specified context. A producer method lets the application take full control of the bean instantiation process.

A producer method is declared by annotating a method of a bean class with the @Produces annotation.

import jakarta.enterprise.inject.Produces;

@ApplicationScoped
public class RandomNumberGenerator {

   private java.util.Random random = new java.util.Random(System.currentTimeMillis());

   @Produces @Named @Random int getRandomNumber() {
      return random.nextInt(100);
   }

}

We can’t write a bean class that is itself a random number. But we can certainly write a method that returns a random number. By making the method a producer method, we allow the return value of the method—in this case an Integer—to be injected. We can even specify a qualifier—in this case @Random, a scope—which in this case defaults to @Dependent, and an EL name—which in this case defaults to randomNumber according to the JavaBeans property name convention. Now we can get a random number anywhere:

@Inject @Random int randomNumber;

Even in a Unified EL expression:

<p>Your raffle number is #{randomNumber}.</p>

A producer method must be a non-abstract method of a managed bean class or session bean class. A producer method may be either static or non-static. If the bean is a session bean, the producer method must be either a business method of the EJB or a static method of the bean class.

The bean types of a producer method depend upon the method return type:

  • If the return type is an interface, the unrestricted set of bean types contains the return type, all interfaces it extends directly or indirectly and java.lang.Object.

  • If a return type is primitive or is a Java array type, the unrestricted set of bean types contains exactly two types: the method return type and java.lang.Object.

  • If the return type is a class, the unrestricted set of bean types contains the return type, every superclass and all interfaces it implements directly or indirectly.

Producer methods and fields may have a primitive bean type. For the purpose of resolving dependencies, primitive types are considered to be identical to their corresponding wrapper types in java.lang.

If the producer method has method parameters, the container will look for a bean that satisfies the type and qualifiers of each parameter and pass it to the method automatically—another form of dependency injection.

@Produces Set<Roles> getRoles(User user) {
   return user.getRoles();
}

We’ll talk much more about producer methods in Producer methods .

2.2.4. Producer fields

A producer field is a simpler alternative to a producer method. A producer field is declared by annotating a field of a bean class with the @Produces annotation—the same annotation used for producer methods.

import jakarta.enterprise.inject.Produces;

public class Shop {
   @Produces PaymentProcessor paymentProcessor = ....;
   @Produces @Catalog List<Product> products = ....;
}

The rules for determining the bean types of a producer field parallel the rules for producer methods.

A producer field is really just a shortcut that lets us avoid writing a useless getter method. However, in addition to convenience, producer fields serve a specific purpose as an adaptor for Java EE component environment injection, but to learn more about that, you’ll have to wait until Java EE component environment resources . Because we can’t wait to get to work on some examples.

3. JSF web application example

Let’s illustrate these ideas with a full example. We’re going to implement user login/logout for an application that uses JSF. First, we’ll define a request-scoped bean to hold the username and password entered during login, with constraints defined using annotations from the Bean Validation specification:

@Named @RequestScoped
public class Credentials {
    private String username;
    private String password;

    @NotNull @Length(min=3, max=25)
    public String getUsername() { return username; }
    public void setUsername(String username) { this.username = username; }

    @NotNull @Length(min=6, max=20)
    public String getPassword() { return password; }
    public void setPassword(String password) { this.password = password; }
}

This bean is bound to the login prompt in the following JSF form:

<h:form>
   <h:panelGrid columns="2" rendered="#{!login.loggedIn}">
      <f:validateBean>
         <h:outputLabel for="username">Username:</h:outputLabel>
         <h:inputText id="username" value="#{credentials.username}"/>
         <h:outputLabel for="password">Password:</h:outputLabel>
         <h:inputSecret id="password" value="#{credentials.password}"/>
      </f:validateBean>
   </h:panelGrid>
   <h:commandButton value="Login" action="#{login.login}" rendered="#{!login.loggedIn}"/>
   <h:commandButton value="Logout" action="#{login.logout}" rendered="#{login.loggedIn}"/>
</h:form>

Users are represented by a JPA entity:

@Entity
public class User {
   private @NotNull @Length(min=3, max=25) @Id String username;
   private @NotNull @Length(min=6, max=20) String password;

   public String getUsername() { return username; }
   public void setUsername(String username) { this.username = username; }
   public String setPassword(String password) { this.password = password; }
}

(Note that we’re also going to need a persistence.xml file to configure the JPA persistence unit containing User.)

The actual work is done by a session-scoped bean that maintains information about the currently logged-in user and exposes the User entity to other beans:

@SessionScoped @Named
public class Login implements Serializable {

   @Inject Credentials credentials;
   @Inject @UserDatabase EntityManager userDatabase;

   private User user;

   public void login() {
      List<User> results = userDatabase.createQuery(
         "select u from User u where u.username = :username and u.password = :password")
         .setParameter("username", credentials.getUsername())
         .setParameter("password", credentials.getPassword())
         .getResultList();

      if (!results.isEmpty()) {
         user = results.get(0);
      }
      else {
         // perhaps add code here to report a failed login
      }
   }

   public void logout() {
      user = null;
   }

   public boolean isLoggedIn() {
      return user != null;
   }

   @Produces @LoggedIn User getCurrentUser() {
      return user;
   }

}

@LoggedIn and @UserDatabase are custom qualifier annotations:

@Qualifier
@Retention(RUNTIME)
@Target({TYPE, METHOD, PARAMETER, FIELD})
public @interface LoggedIn {}
@Qualifier
@Retention(RUNTIME)
@Target({METHOD, PARAMETER, FIELD})
public @interface UserDatabase {}

We need an adaptor bean to expose our typesafe EntityManager:

class UserDatabaseProducer {
   @Produces @UserDatabase @PersistenceContext
   static EntityManager userDatabase;
}

Now DocumentEditor, or any other bean, can easily inject the current user:

public class DocumentEditor {
   @Inject Document document;
   @Inject @LoggedIn User currentUser;
   @Inject @DocumentDatabase EntityManager docDatabase;

   public void save() {
      document.setCreatedBy(currentUser);
      docDatabase.persist(document);
   }
}

Or we can reference the current user in a JSF view:

<h:panelGroup rendered="#{login.loggedIn}">
   signed in as #{currentUser.username}
</h:panelGroup>

Hopefully, this example gave you a taste of the CDI programming model. In the next chapter, we’ll explore dependency injection in greater depth.

4. Dependency injection and programmatic lookup

One of the most significant features of CDI—certainly the most recognized—is dependency injection; excuse me, typesafe dependency injection.

4.1. Injection points

The @Inject annotation lets us define an injection point that is injected during bean instantiation. Injection can occur via three different mechanisms.

Bean constructor parameter injection:

public class Checkout {

   private final ShoppingCart cart;

   @Inject
   public Checkout(ShoppingCart cart) {
      this.cart = cart;
   }

}

A bean can only have one injectable constructor.

Initializer method parameter injection:

public class Checkout {

   private ShoppingCart cart;

   @Inject
   void setShoppingCart(ShoppingCart cart) {
      this.cart = cart;
   }

}
A bean can have multiple initializer methods. If the bean is a session bean, the initializer method is not required to be a business method of the session bean.

And direct field injection:

public class Checkout {

   private @Inject ShoppingCart cart;

}
Getter and setter methods are not required for field injection to work (unlike with JSF managed beans).

Dependency injection always occurs when the bean instance is first instantiated by the container. Simplifying just a little, things happen in this order:

  • First, the container calls the bean constructor (the default constructor or the one annotated @Inject), to obtain an instance of the bean.

  • Next, the container initializes the values of all injected fields of the bean.

  • Next, the container calls all initializer methods of bean (the call order is not portable, don’t rely on it).

  • Finally, the @PostConstruct method, if any, is called.

(The only complication is that the container might call initializer methods declared by a superclass before initializing injected fields declared by a subclass.)

One major advantage of constructor injection is that it allows the bean to be immutable.

CDI also supports parameter injection for some other methods that are invoked by the container. For instance, parameter injection is supported for producer methods:

@Produces Checkout createCheckout(ShoppingCart cart) {
    return new Checkout(cart);
}

This is a case where the @Inject annotation is not required at the injection point. The same is true for observer methods (which we’ll meet in Events ) and disposer methods.

4.2. What gets injected

The CDI specification defines a procedure, called typesafe resolution, that the container follows when identifying the bean to inject to an injection point. This algorithm looks complex at first, but once you understand it, it’s really quite intuitive. Typesafe resolution is performed at system initialization time, which means that the container will inform the developer immediately if a bean’s dependencies cannot be satisfied.

The purpose of this algorithm is to allow multiple beans to implement the same bean type and either:

  • allow the client to select which implementation it requires using a qualifier or

  • allow the application deployer to select which implementation is appropriate for a particular deployment, without changes to the client, by enabling or disabling an alternative, or

  • allow the beans to be isolated into separate modules.

Obviously, if you have exactly one bean of a given type, and an injection point with that same type, then bean A is going to go into slot A. That’s the simplest possible scenario. When you first start your application, you’ll likely have lots of those.

But then, things start to get complicated. Let’s explore how the container determines which bean to inject in more advanced cases. We’ll start by taking a closer look at qualifiers.

4.3. Qualifier annotations

If we have more than one bean that implements a particular bean type, the injection point can specify exactly which bean should be injected using a qualifier annotation. For example, there might be two implementations of PaymentProcessor:

@Synchronous
public class SynchronousPaymentProcessor implements PaymentProcessor {
   public void process(Payment payment) { ... }
}
@Asynchronous
public class AsynchronousPaymentProcessor implements PaymentProcessor {
   public void process(Payment payment) { ... }
}

Where @Synchronous and @Asynchronous are qualifier annotations:

@Qualifier
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
public @interface Synchronous {}
@Qualifier
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
public @interface Asynchronous {}

A client bean developer uses the qualifier annotation to specify exactly which bean should be injected.

Using field injection:

@Inject @Synchronous PaymentProcessor syncPaymentProcessor;
@Inject @Asynchronous PaymentProcessor asyncPaymentProcessor;

Using initializer method injection:

@Inject
public void setPaymentProcessors(@Synchronous PaymentProcessor syncPaymentProcessor,
                                 @Asynchronous PaymentProcessor asyncPaymentProcessor) {
   this.syncPaymentProcessor = syncPaymentProcessor;
   this.asyncPaymentProcessor = asyncPaymentProcessor;
}

Using constructor injection:

@Inject
public Checkout(@Synchronous PaymentProcessor syncPaymentProcessor,
                @Asynchronous PaymentProcessor asyncPaymentProcessor) {
   this.syncPaymentProcessor = syncPaymentProcessor;
   this.asyncPaymentProcessor = asyncPaymentProcessor;
}

Qualifier annotations can also qualify method arguments of producer, disposer and observer methods. Combining qualified arguments with producer methods is a good way to have an implementation of a bean type selected at runtime based on the state of the system:

@Produces
PaymentProcessor getPaymentProcessor(@Synchronous PaymentProcessor syncPaymentProcessor,
                                     @Asynchronous PaymentProcessor asyncPaymentProcessor) {
   return isSynchronous() ? syncPaymentProcessor : asyncPaymentProcessor;
}

If an injected field or a parameter of a bean constructor or initializer method is not explicitly annotated with a qualifier, the default qualifier,@Default, is assumed.

Now, you may be thinking, "What’s the different between using a qualifier and just specifying the exact implementation class you want?" It’s important to understand that a qualifier is like an extension of the interface. It does not create a direct dependency to any particular implementation. There may be multiple alternative implementations of @Asynchronous PaymentProcessor!

4.4. The built-in qualifiers @Default and @Any

Whenever a bean or injection point does not explicitly declare a qualifier, the container assumes the qualifier @Default. From time to time, you’ll need to declare an injection point without specifying a qualifier. There’s a qualifier for that too. All beans have the qualifier @Any. Therefore, by explicitly specifying @Any at an injection point, you suppress the default qualifier, without otherwise restricting the beans that are eligible for injection.

This is especially useful if you want to iterate over all beans with a certain bean type. For example:

import jakarta.enterprise.inject.Instance;

...

@Inject
void initServices(@Any Instance<Service> services) {
   for (Service service: services) {
      service.init();
   }
}

4.5. Qualifiers with members

Java annotations can have members. We can use annotation members to further discriminate a qualifier. This prevents a potential explosion of new annotations. For example, instead of creating several qualifiers representing different payment methods, we could aggregate them into a single annotation with a member:

@Qualifier
@Retention(RUNTIME)
@Target({METHOD, FIELD, PARAMETER, TYPE})
public @interface PayBy {
   PaymentMethod value();
}

Then we select one of the possible member values when applying the qualifier:

private @Inject @PayBy(CHECK) PaymentProcessor checkPayment;

We can force the container to ignore a member of a qualifier type by annotating the member @Nonbinding.

@Qualifier
@Retention(RUNTIME)
@Target({METHOD, FIELD, PARAMETER, TYPE})
public @interface PayBy {
   PaymentMethod value();
   @Nonbinding String comment() default "";
}

4.6. Multiple qualifiers

An injection point may specify multiple qualifiers:

@Inject @Synchronous @Reliable PaymentProcessor syncPaymentProcessor;

Then only a bean which has both qualifier annotations would be eligible for injection.

@Synchronous @Reliable
public class SynchronousReliablePaymentProcessor implements PaymentProcessor {
   public void process(Payment payment) { ... }
}

4.7. Alternatives

Alternatives are beans whose implementation is specific to a particular client module or deployment scenario. This alternative defines a mock implementation of both @Synchronous PaymentProcessor and @Asynchronous PaymentProcessor, all in one:

@Alternative @Synchronous @Asynchronous
public class MockPaymentProcessor implements PaymentProcessor {
   public void process(Payment payment) { ... }
}

By default, @Alternative beans are disabled. We need to enable an alternative in the beans.xml descriptor of a bean archive to make it available for instantiation and injection. However, this activation only applies to the beans in that archive.

<beans
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd">
   <alternatives>
         <class>org.mycompany.mock.MockPaymentProcessor</class>
   </alternatives>
</beans>

From CDI 1.1 onwards the alternative can be enabled for the whole application using @Priority annotation.

@Priority(100) @Alternative @Synchronous @Asynchronous
public class MockPaymentProcessor implements PaymentProcessor {
   public void process(Payment payment) { ... }
}

When an ambiguous dependency exists at an injection point, the container attempts to resolve the ambiguity by looking for an enabled alternative among the beans that could be injected. If there is exactly one enabled alternative, that’s the bean that will be injected. If there are more beans with priority, the one with the highest priority value is selected.

4.8. Fixing unsatisfied and ambiguous dependencies

The typesafe resolution algorithm fails when, after considering the qualifier annotations on all beans that implement the bean type of an injection point and filtering out disabled beans (@Alternative beans which are not explicitly enabled), the container is unable to identify exactly one bean to inject. The container will abort deployment, informing us of the unsatisfied or ambiguous dependency.

During the course of your development, you’re going to encounter this situation. Let’s learn how to resolve it.

To fix an unsatisfied dependency, either:

  • create a bean which implements the bean type and has all the qualifier types of the injection point,

  • make sure that the bean you already have is in the classpath of the module with the injection point, or

  • explicitly enable an @Alternative bean that implements the bean type and has the appropriate qualifier types, using beans.xml.

  • enable an @Alternative bean that implements the bean type and has the appropriate qualifier types, using @Priority annotation.

To fix an ambiguous dependency, either:

  • introduce a qualifier to distinguish between the two implementations of the bean type,

  • exclude one of the beans from discovery (either by means of @Vetoed or beans.xml),

  • disable one of the beans by annotating it @Alternative,

  • move one of the implementations to a module that is not in the classpath of the module with the injection point, or

  • disable one of two @Alternative beans that are trying to occupy the same space, using beans.xml,

  • change priority value of one of two @Alternative beans with the @Priority if they have the same highest priority value.

Just remember: "There can be only one."

On the other hand, if you really do have an optional or multivalued injection point, you should change the type of your injection point to Instance, as we’ll see in Obtaining a contextual instance by programmatic lookup.

Now there’s one more issue you need to be aware of when using the dependency injection service.

4.9. Client proxies

Clients of an injected bean do not usually hold a direct reference to a bean instance, unless the bean is a dependent object (scope @Dependent).

Imagine that a bean bound to the application scope held a direct reference to a bean bound to the request scope. The application-scoped bean is shared between many different requests. However, each request should see a different instance of the request scoped bean—the current one!

Now imagine that a bean bound to the session scope holds a direct reference to a bean bound to the application scope. From time to time, the session context is serialized to disk in order to use memory more efficiently. However, the application scoped bean instance should not be serialized along with the session scoped bean! It can get that reference any time. No need to hoard it!

Therefore, unless a bean has the default scope @Dependent, the container must indirect all injected references to the bean through a proxy object. This client proxy is responsible for ensuring that the bean instance that receives a method invocation is the instance that is associated with the current context. The client proxy also allows beans bound to contexts such as the session context to be serialized to disk without recursively serializing other injected beans.

Unfortunately, due to limitations of the Java language, some Java types cannot be proxied by the container. If an injection point declared with one of these types resolves to a bean with any scope other than @Dependent, the container will abort deployment, informing us of the problem.

The following Java types cannot be proxied by the container:

  • classes which don’t have a non-private constructor with no parameters, and

  • classes which are declared final or have a final method,

  • arrays and primitive types.

It’s usually very easy to fix an unproxyable dependency problem. If an injection point of type X results in an unproxyable dependency, simply:

  • add a constructor with no parameters to X,

  • change the type of the injection point to`Instance<X>`,

  • introduce an interface Y, implemented by the injected bean, and change the type of the injection point to Y, or

  • if all else fails, change the scope of the injected bean to @Dependent.

Weld also supports a non-standard workaround for this limitation. See the Configuration chapter for more information.

4.10. Obtaining a contextual instance by programmatic lookup

In certain situations, injection is not the most convenient way to obtain a contextual reference. For example, it may not be used when:

  • the bean type or qualifiers vary dynamically at runtime, or

  • depending upon the deployment, there may be no bean which satisfies the type and qualifiers, or

  • we would like to iterate over all beans of a certain type.

In these situations, the application may obtain an instance of the interface Instance, parameterized for the bean type, by injection:

@Inject Instance<PaymentProcessor> paymentProcessorSource;

The get() method of Instance produces a contextual instance of the bean.

PaymentProcessor p = paymentProcessorSource.get();

Qualifiers can be specified in one of two ways:

  • by annotating the Instance injection point, or

  • by passing qualifiers to the select() of Event.

Specifying the qualifiers at the injection point is much, much easier:

@Inject @Asynchronous Instance<PaymentProcessor> paymentProcessorSource;

Now, the PaymentProcessor returned by get() will have the qualifier @Asynchronous.

Alternatively, we can specify the qualifier dynamically. First, we add the @Any qualifier to the injection point, to suppress the default qualifier. (All beans have the qualifier @Any .)

import jakarta.enterprise.inject.Instance;

...

@Inject @Any Instance<PaymentProcessor> paymentProcessorSource;

Next, we need to obtain an instance of our qualifier type. Since annotations are interfaces, we can’t just write new Asynchronous(). It’s also quite tedious to create a concrete implementation of an annotation type from scratch. Instead, CDI lets us obtain a qualifier instance by subclassing the helper class AnnotationLiteral.

class AsynchronousQualifier
extends AnnotationLiteral<Asynchronous> implements Asynchronous {}

In some cases, we can use an anonymous class:

PaymentProcessor p = paymentProcessorSource
   .select(new AnnotationLiteral<Asynchronous>() {});

However, we can’t use an anonymous class to implement a qualifier type with members.

Now, finally, we can pass the qualifier to the select() method of Instance.

Annotation qualifier = synchronously ?
      new SynchronousQualifier() : new AsynchronousQualifier();
PaymentProcessor p = anyPaymentProcessor.select(qualifier).get().process(payment);

Since CDI 2.0, most annotations from jakarta.enterprise package have their AnnotationLiteral implementations. Therefore, in order to programmatically obtain (for instance) @Any annotation, you can simply do Any.Literal.INSTANCE.

4.10.1. Enhanced version of jakarta.enterprise.inject.Instance

Weld also provides org.jboss.weld.inject.WeldInstance - an enhanced version of jakarta.enterprise.inject.Instance. There are three additional methods. The first one - getHandler() - allows to obtain a contextual reference handler which not only holds the contextual reference but also allows to inspect the metadata of the relevant bean and to destroy the underlying contextual instance. Moreover, the handler implements AutoCloseable:

import org.jboss.weld.inject.WeldInstance;

class Foo {

  @Inject
  WeldInstance<Bar> instance;

  void doWork() {
    try (Handler<Bar> barHandler = instance.getHandler()) {
        barHandler.get().doBusiness();
        // Note that Bar will be automatically destroyed at the end of the try-with-resources statement
    }
    Handler<Bar> barHandler = instance.getHandler()
    barHandler.get().doBusiness();
    // Calls Instance.destroy()
    barHandler.destroy();
  }

}

The next method - handlers() - returns an Iterable which allows to iterate over handlers for all the beans that have the required type and required qualifiers and are eligible for injection. This might be useful if you need more control inside the loop:

@ApplicationScoped
class OrderService {

  @Inject
  @Any
  WeldInstance<OrderProcessor> instance;

  void create(Order order) {
    for (Handler<OrderProcessor> handler : instance.handlers()) {
            handler.get().process(order);
            if (Dependent.class.equals(handler.getBean().getScope()) {
                // Destroy only dependent processors
                handler.destroy();
            }
        }
    }
  }

Third method is a twist on the select() method, but it accepts java.lang.reflect.Type as parameter and optionally qualifier(s). This allows for generic selection of instances which can be handy while dealing with third party beans through extensions. However, in order to stay type-safe, this method has a limitation - it can only be invoked on WeldInstance<Object>. Invocation on any other type than Object will result in an IllegalStateException. Please note that the return value if such select will always be WeldInstance<Object> unless you specify it further using <SomeType> before invoking this select(). Let’s look at actual code:

class MyCustomExtension implements Extension {

  @Inject
  @Any
  WeldInstance<Object> instance;

  private Set<Type> allTypes = new HashSet<>();

  public void observe(@Observes ProcessBean<?> bean) {
    // gather all bean types, even those that we do not own
    allTypes.add(bean.getAnnotated().getBaseType());
  }

  public void doWorkWithBeans(@Observes AfterDeploymentValidation adv) {
    for (Type t : allTypes) {
      // now we can select based on Type once we are sure all beans are initialized
      instance.select(t).isResolvable() ? logValidBeanFound(t) : logInvalidBeanFound(t);
    }
  }

WeldInstance is automatically available in Weld SE and Weld Servlet where the Weld API is always on the class path. It is also available in Weld-powered EE containers. In this case, users would have to compile their application against the Weld API and exclude the Weld API artifact from the deployment (e.g. use provided scope in Maven).

4.11. The InjectionPoint object

There are certain kinds of dependent objects (beans with scope @Dependent) that need to know something about the object or injection point into which they are injected in order to be able to do what they do. For example:

  • The log category for a Logger depends upon the class of the object that owns it.

  • Injection of a HTTP parameter or header value depends upon what parameter or header name was specified at the injection point.

  • Injection of the result of an EL expression evaluation depends upon the expression that was specified at the injection point.

A bean with scope @Dependent may inject an instance of InjectionPoint and access metadata relating to the injection point to which it belongs.

Let’s look at an example. The following code is verbose, and vulnerable to refactoring problems:

Logger log = Logger.getLogger(MyClass.class.getName());

This clever little producer method lets you inject a JDK Logger without explicitly specifying the log category:

import jakarta.enterprise.inject.spi.InjectionPoint;
import jakarta.enterprise.inject.Produces;

class LogFactory {

   @Produces Logger createLogger(InjectionPoint injectionPoint) {
      return Logger.getLogger(injectionPoint.getMember().getDeclaringClass().getName());
   }

}

We can now write:

@Inject Logger log;

Not convinced? Then here’s a second example. To inject HTTP parameters, we need to define a qualifier type:

@Qualifier
@Retention(RUNTIME)
@Target({TYPE, METHOD, FIELD, PARAMETER})
public @interface HttpParam {
   @Nonbinding public String value();
}

We would use this qualifier type at injection points as follows:

@HttpParam("username") @Inject String username;
@HttpParam("password") @Inject String password;

The following producer method does the work:

import jakarta.enterprise.inject.Produces;
import jakarta.enterprise.inject.spi.InjectionPoint;

class HttpParams

   @Produces @HttpParam("")
   String getParamValue(InjectionPoint ip) {
      ServletRequest request = (ServletRequest) FacesContext.getCurrentInstance().getExternalContext().getRequest();
      return request.getParameter(ip.getAnnotated().getAnnotation(HttpParam.class).value());
   }

}

Note that acquiring of the request in this example is JSF-centric. For a more generic solution you could write your own producer for the request and have it injected as a method parameter.

Note also that the value() member of the HttpParam annotation is ignored by the container since it is annotated @Nonbinding.

The container provides a built-in bean that implements the InjectionPoint interface:

public interface InjectionPoint {
   public Type getType();
   public Set<Annotation> getQualifiers();
   public Bean<?> getBean();
   public Member getMember();
   public Annotated getAnnotated();
   public boolean isDelegate();
   public boolean isTransient();
}

5. Scopes and contexts

So far, we’ve seen a few examples of scope type annotations. The scope of a bean determines the lifecycle of instances of the bean. The scope also determines which clients refer to which instances of the bean. According to the CDI specification, a scope determines:

  • When a new instance of any bean with that scope is created

  • When an existing instance of any bean with that scope is destroyed

  • Which injected references refer to any instance of a bean with that scope

For example, if we have a session-scoped bean, CurrentUser, all beans that are called in the context of the same HttpSession will see the same instance of CurrentUser. This instance will be automatically created the first time a CurrentUser is needed in that session, and automatically destroyed when the session ends.

JPA entities aren’t a great fit for this model. Entities have their whole own lifecycle and identity model which just doesn’t map naturally to the model used in CDI. Therefore, we recommend against treating entities as CDI beans. You’re certainly going to run into problems if you try to give an entity a scope other than the default scope @Dependent. The client proxy will get in the way if you try to pass an injected instance to the JPA EntityManager.

5.1. Scope types

CDI features an extensible context model. It’s possible to define new scopes by creating a new scope type annotation:

@ScopeType
@Retention(RUNTIME)
@Target({TYPE, METHOD})
public @interface ClusterScoped {}

Of course, that’s the easy part of the job. For this scope type to be useful, we will also need to define a Context object that implements the scope! Implementing a Context is usually a very technical task, intended for framework development only.

We can apply a scope type annotation to a bean implementation class to specify the scope of the bean:

@ClusterScoped
public class SecondLevelCache { ... }

Usually, you’ll use one of CDI’s built-in scopes.

5.2. Built-in scopes

CDI defines four built-in scopes:

  • @RequestScoped

  • @SessionScoped

  • @ApplicationScoped

  • @ConversationScoped

For a web application that uses CDI, any servlet request has access to active request, session and application scopes. Furthermore, since CDI 1.1 the conversation context is active during every servlet request.

The request and application scopes are also active:

  • during invocations of EJB remote methods,

  • during invocations of EJB asynchronous methods,

  • during EJB timeouts,

  • during message delivery to a message-driven bean,

  • during web service invocations, and

  • during @PostConstruct callback of any bean

If the application tries to invoke a bean with a scope that does not have an active context, a ContextNotActiveException is thrown by the container at runtime.

Managed beans with scope @SessionScoped or @ConversationScoped must be serializable, since the container passivates the HTTP session from time to time.

Three of the four built-in scopes should be extremely familiar to every Java EE developer, so let’s not waste time discussing them here. One of the scopes, however, is new.

5.3. The conversation scope

The conversation scope is a bit like the traditional session scope in that it holds state associated with a user of the system, and spans multiple requests to the server. However, unlike the session scope, the conversation scope:

  • is demarcated explicitly by the application, and

  • holds state associated with a particular web browser tab in a web application (browsers tend to share domain cookies, and hence the session cookie, between tabs, so this is not the case for the session scope).

A conversation represents a task—a unit of work from the point of view of the user. The conversation context holds state associated with what the user is currently working on. If the user is doing multiple things at the same time, there are multiple conversations.

The conversation context is active during any servlet request (since CDI 1.1). Most conversations are destroyed at the end of the request. If a conversation should hold state across multiple requests, it must be explicitly promoted to a long-running conversation.

5.3.1. Conversation demarcation

CDI provides a built-in bean for controlling the lifecycle of conversations in a CDI application. This bean may be obtained by injection:

@Inject Conversation conversation;

To promote the conversation associated with the current request to a long-running conversation, call the begin() method from application code. To schedule the current long-running conversation context for destruction at the end of the current request, call end().

In the following example, a conversation-scoped bean controls the conversation with which it is associated:

import jakarta.enterprise.inject.Produces;
import jakarta.inject.Inject;
import jakarta.persistence.PersistenceContextType.EXTENDED;

@ConversationScoped @Stateful
public class OrderBuilder {
   private Order order;
   private @Inject Conversation conversation;
   private @PersistenceContext(type = EXTENDED) EntityManager em;

   @Produces public Order getOrder() {
      return order;
   }

   public Order createOrder() {
      order = new Order();
      conversation.begin();
      return order;
   }

   public void addLineItem(Product product, int quantity) {
      order.add(new LineItem(product, quantity));
   }

   public void saveOrder(Order order) {
      em.persist(order);
      conversation.end();
   }

   @Remove
   public void destroy() {}
}

This bean is able to control its own lifecycle through use of the Conversation API. But some other beans have a lifecycle which depends completely upon another object.

5.3.2. Conversation propagation

The conversation context automatically propagates with any JSF faces request (JSF form submission) or redirect. It does not automatically propagate with non-faces requests, for example, navigation via a link.

We can force the conversation to propagate with a non-faces request by including the unique identifier of the conversation as a request parameter. The CDI specification reserves the request parameter named cid for this use. The unique identifier of the conversation may be obtained from the Conversation object, which has the EL bean name jakarta.enterprise.context.conversation.

Therefore, the following link propagates the conversation:

<a href="/addProduct.jsp?cid=#{jakarta.enterprise.context.conversation.id}">Add Product</a>

It’s probably better to use one of the link components in JSF 2:

<h:link outcome="/addProduct.xhtml" value="Add Product">
   <f:param name="cid" value="#{jakarta.enterprise.context.conversation.id}"/>
</h:link>
The conversation context propagates across redirects, making it very easy to implement the common POST-then-redirect pattern, without resort to fragile constructs such as a "flash" object. The container automatically adds the conversation id to the redirect URL as a request parameter.

In certain scenarios it may be desired to suppress propagation of a long-running conversation. The conversationPropagation request parameter (introduced in CDI 1.1) may be used for this purpose. If the conversationPropagation request parameter has the value none , the container will not reassociate the existing conversation but will instead associate the request with a new transient conversation even though the conversation id was propagated.

5.3.3. Conversation timeout

The container is permitted to destroy a conversation and all state held in its context at any time in order to conserve resources. A CDI implementation will normally do this on the basis of some kind of timeout—though this is not required by the specification. The timeout is the period of inactivity before the conversation is destroyed (as opposed to the amount of time the conversation is active).

The Conversation object provides a method to set the timeout. This is a hint to the container, which is free to ignore the setting.

conversation.setTimeout(timeoutInMillis);

Another option how to set conversation timeout is to provide configuration property defining the new time value. See Conversation timeout and Conversation concurrent access timeout . However note that any conversation might be destroyed any time sooner when HTTP session invalidation or timeout occurs.

5.3.4. CDI Conversation filter

The conversation management is not always smooth. For example, if the propagated conversation cannot be restored, the jakarta.enterprise.context.NonexistentConversationException is thrown. Or if there are concurrent requests for a one long-running conversation, `jakarta.enterprise.context.BusyConversationException ` is thrown. For such cases, developer has no opportunity to deal with the exception by default, as the conversation associated with a Servlet request is determined at the beginning of the request before calling any service() method of any servlet in the web application, even before calling any of the filters in the web application and before the container calls any ServletRequestListener or AsyncListener in the web application.

To be allowed to handle the exceptions, a filter defined in the CDI 1.1 with the name ` CDI Conversation Filter ` can be used. By mapping the ` CDI Conversation Filter ` in the web.xml just after some other filters, we are able to catch the exceptions in them since the ordering in the web.xml specifies the ordering in which the filters will be called (described in the servlet specification).

In the following example, a filter MyFilter checks for the BusyConversationException thrown during the conversation association. In the web.xml example, the filter is mapped before the CDI Conversation Filter.

public class MyFilter implements Filter {
...

@Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
      throws IOException, ServletException {
        try {
            chain.doFilter(request, response);
        } catch (BusyConversationException e) {
            response.setContentType("text/plain");
            response.getWriter().print("BusyConversationException");
        }
    }

...

To make it work, we need to map our MyFilter before the CDI Conversation Filter in the web.xml file.

<filter-mapping>
      <filter-name>My Filter</filter-name>
      <url-pattern>/*</url-pattern>
   </filter-mapping>

   <filter-mapping>
      <filter-name>CDI Conversation Filter</filter-name>
      <url-pattern>/*</url-pattern>
   </filter-mapping>
The mapping of the CDI Conversation Filter determines when Weld reads the cid request parameter. This process forces request body parsing. If your application relies on setting a custom character encoding for the request or parsing the request body itself by reading an InputStream or Reader, make sure that this is performed in a filter that executes before the CDI Conversation Filter is executed. See this FAQ page for details. Alternatively, the lazy conversation context initialization (see below) may be used.

5.3.5. Lazy and eager conversation context initialization

Conversation context may be initialized lazily or eagerly.

When initialized lazily, the conversation context (no matter if transient or long-running) is only initialized when a @ConversationScoped bean is accessed for the first time. At that point, the cid parameter is read and the conversation is restored. The conversation context may not be initialized at all throughout the request processing if no conversation state is accessed. Note that if a problem occurs during this delayed initialization, the conversation state access (bean method invocation) may result in BusyConversationException or NonexistentConversationException being thrown.

When initialized eagerly, the conversation context is initialized at a predefined time. Either at the beginning of the request processing before any listener, filter or servlet is invoked or, if the CDI Conversation Filter is mapped, during execution of this filter.

Conversation context initialization mode may be configured using the org.jboss.weld.context.conversation.lazy init parameter.

<context-param>
   <param-name>org.jboss.weld.context.conversation.lazy</param-name>
   <param-value>true</param-value>
</context-param>

If the init parameter is not set, the following default behavior applies:

  • If the CDI Conversation Filter is mapped, the conversation context is initialized eagerly within this filter

  • Otherwise, the conversation context is initialized lazily

5.4. The singleton pseudo-scope

In addition to the four built-in scopes, CDI also supports two pseudo-scopes. The first is the singleton pseudo-scope, which we specify using the annotation @Singleton.

Unlike the other scopes, which belong to the package jakarta.enterprise.context, the @Singleton annotation is defined in the package jakarta.inject.

You can guess what "singleton" means here. It means a bean that is instantiated once. Unfortunately, there’s a little problem with this pseudo-scope. Beans with scope @Singleton don’t have a proxy object. Clients hold a direct reference to the singleton instance. So we need to consider the case of a client that can be serialized, for example, any bean with scope @SessionScoped or @ConversationScoped, any dependent object of a bean with scope @SessionScoped or @ConversationScoped, or any stateful session bean.

Now, if the singleton instance is a simple, immutable, serializable object like a string, a number or a date, we probably don’t mind too much if it gets duplicated via serialization. However, that makes it stop being a true singleton, and we may as well have just declared it with the default scope.

There are several ways to ensure that the singleton bean remains a singleton when its client gets serialized:

  • have the singleton bean implement writeResolve() and readReplace() (as defined by the Java serialization specification),

  • make sure the client keeps only a transient reference to the singleton bean, or

  • give the client a reference of type Instance<X> where X is the bean type of the singleton bean.

A fourth, better solution is to instead use @ApplicationScoped, allowing the container to proxy the bean, and take care of serialization problems automatically.

5.5. The dependent pseudo-scope

Finally, CDI features the so-called dependent pseudo-scope. This is the default scope for a bean which does not explicitly declare a scope type.

For example, this bean has the scope type @Dependent:

public class Calculator { ... }

An instance of a dependent bean is never shared between different clients or different injection points. It is strictly a dependent object of some other object. It is instantiated when the object it belongs to is created, and destroyed when the object it belongs to is destroyed.

If a Unified EL expression refers to a dependent bean by EL name, an instance of the bean is instantiated every time the expression is evaluated. The instance is not reused during any other expression evaluation.

If you need to access a bean directly by EL name in a JSF page, you probably need to give it a scope other than @Dependent. Otherwise, any value that gets set to the bean by a JSF input will be lost immediately. That’s why CDI features the @Model stereotype; it lets you give a bean a name, and set its scope to @RequestScoped in one stroke. If you need to access a bean that really has to have the scope @Dependent from a JSF page, inject it into a different bean, and expose it to EL via a getter method.

Beans with scope @Dependent don’t need a proxy object. The client holds a direct reference to its instance.

CDI makes it easy to obtain a dependent instance of a bean, even if the bean is already declared as a bean with some other scope type.

Getting Start with Weld, the CDI Reference Implementation

Weld, the CDI Reference Implementation (RI), can be downloaded from the download page. Information about the Weld source code repository and instructions about how to obtain and build the source can be found on the same page.

Weld provides a complete SPI allowing Java EE containers such as WildFly, GlassFish and WebLogic to use Weld as their built-in CDI implementation. Weld also runs in servlet engines like Tomcat and Jetty, or even in a plain Java SE environment.

Weld comes with an extensive library of examples, which are a great starting point from which to learn CDI. In addition, a number of quickstarts featuring CDI can be found at the JBoss Developer site

6. Getting started with Weld

Weld comes with a number of examples. We recommend you start with examples/jsf/numberguess and examples/jsf/translator. Numberguess is a web (war) example containing only non-transactional managed beans. This example can be run on a wide range of servers, including WildFly, GlassFish, Apache Tomcat, Jetty, and any compliant Java EE 8 container. Translator is an enterprise (ear) example that contains session beans. This example must be run on WildFly 14 or better, GlassFish 5.1 or better, or any compliant Java EE 8 container.

Both examples use JSF 2.3 as the web framework and, as such, can be found in the examples/jsf directory of the Weld distribution.

6.1. Prerequisites

To run the examples with the provided build scripts, you’ll need the following:

  • the latest release of Weld, which contains the examples

  • Maven 3, to build and deploy the examples

  • optionally, a supported runtime environment (minimum versions shown)

    • WildFly 14 (14.0.1.Final recommended),

    • GlassFish 5.1.0 or better,

    • Apache Tomcat 9 or better (war example only), or

    • Jetty 9 or better (war example only)

In the next few sections, you’ll be using the Maven command (mvn) to invoke the Maven project file in each example to compile, assemble and deploy the example to WildFly and, for the war example, Apache Tomcat. You can also deploy the generated artifact (war or ear) to any other container that supports Java EE 8, such as GlassFish 5.

The sections below cover the steps for deploying with Maven in detail.

6.2. First try

If you simply want to run the numberguess example without the requirement of a specific runtime you can start with the following commands:

$> cd examples/jsf/numberguess
$> mvn wildfly:run

The Maven WildFly plugin will run WildFly and deploy the example and the server will be automatically downloaded in the target directory. The numberguess application is available at http://localhost:8080/weld-numberguess.

6.3. Deploying to WildFly

To deploy the examples to a WildFly instance, you’ll need to download WildFly first. The good news is that there are no additional modifications you have to make to the server. It’s ready to go!

After you have downloaded WildFly, extract it. You can move the extracted folder anywhere you like. Wherever it lays to rest, that’s what we’ll call the WildFly installation directory, or JBOSS_HOME.

$> unzip wildfly-14.0.1.Final.zip
$> mv wildfly-14.*/ wildfly-14

In order for the build scripts to know where to deploy the example, you have to tell them where to find your WildFly installation. Set the JBOSS_HOME environment variable to point to the WildFly installation, e.g.:

$> export JBOSS_HOME=/path/to/wildfly-14

You’re now ready to run your first example!

Switch to the examples/jsf/numberguess directory and execute the Maven deploy target:

$> cd examples/jsf/numberguess
$> mvn wildfly:deploy

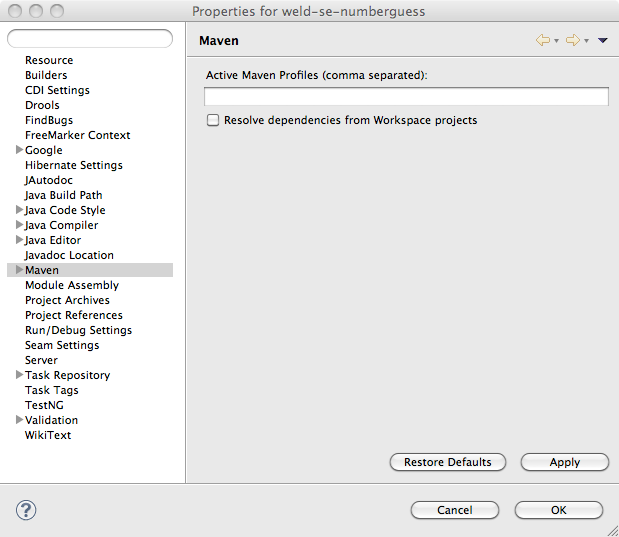

If you are using Eclipse, you should seriously consider installing the JBoss Tools add-ons, which include a wide variety of tooling for CDI and Java EE development, as well as an enhanced WildFly server view.

Wait a few seconds for the application to deploy (or the application server to start) and see if you can determine the most efficient approach to pinpoint the random number at the local URL http://localhost:8080/weld-numberguess.

The Maven WildFly plugin includes additional goals for WildFly to deploy and undeploy the archive.

  • mvn wildfly:deploy - deploy the example to a running WildFly instance

  • mvn wildfly:undeploy - undeploy the example from a running WildFly instance

  • mvn wildfly:redeploy - redeploys the example

For more information on the WildFly Maven plugin see the plugin documentation.

You can also run functional tests to verify that the example works as expected. Run:

$> mvn verify -Darquillian=wildfly-managed

You should see the following output:

Tests run: 2, Failures: 0, Errors: 0, Skipped: 0

The second starter example, weld-translator, will translate your text into Latin. (Well, not really, but the stub is there for you to implement, at least. Good luck!) To try it out, switch to the translator example directory and execute the deploy target:

$> cd examples/jsf/translator/ear
$> mvn wildfly:run
The translator uses session beans, which are packaged in an EJB module within an ear. Java EE 8 allows session beans to be deployed in war modules, but that’s a topic for a later chapter.

Again, wait a few seconds for the application to deploy (if you’re really bored, read the log messages), and visit http://localhost:8080/weld-translator to begin pseudo-translating.

Again, functional tests can be running by executing:

$> cd examples/jsf/translator/ftest
$> mvn verify -Darquillian=wildfly-managed

6.4. Deploying to GlassFish

Deploying to GlassFish should be easy and familiar, right? After all, it’s the Jakarta EE compatible implementation and Weld is the CDI compatible implementation, meaning Weld gets bundled with GlassFish. So yes, it’s all quite easy and familiar.

To deploy the examples to GlassFish, you’ll need a GlassFish 5.1.0 release. Extract the zip to a directory of your choice and set the GLASSFISH_HOME environment variable. Switch to the GLASSFISH_HOME directory and start the server:

$> ./bin/asadmin start-domain

Now you can deploy the example.

$> ./bin/asadmin deploy /path/examples/jsf/numberguess/target/weld-numberguess.war

Once the command completes the application is available at http://localhost:8080/weld-numberguess

The reason the same artifact can be deployed to both WildFly and GlassFish, without any modifications, is because all of the features being used are part of the standard platform. And what a capable platform it has become!

6.5. Deploying to Apache Tomcat

Servlet containers are not required to support Java EE services like CDI. However, you can use CDI in a servlet container like Tomcat by embedding a standalone CDI implementation such as Weld.

Weld comes with servlet integration extension which bootstraps the CDI environment and provides injection into servlets components. Basically, it emulates some of the work done by the Java EE container, but you don’t get the enterprise features such as session beans and container-managed transactions.

Note that due to limitations of servlet containers (e.g. read-only JNDI) your application might require some additional configuration as well (see Tomcat and Jetty for more info).

Let’s give the Weld servlet extension a spin on Apache Tomcat. First, you’ll need to download Tomcat 9.0.11 or later from tomcat.apache.org and extract it.

$> unzip apache-tomcat-9.0.11.zip

The Maven plugin communicates with Tomcat over HTTP, so it doesn’t care where you have installed Tomcat. However, the plugin configuration assumes you are running Tomcat in its default configuration, with a hostname of localhost and port 8080. The readme.txt file in the example directory has information about how to modify the Maven settings to accommodate a different setup.

You can either start Tomcat from a Linux shell:

$> cd /path/to/apache-tomcat-9
$> ./bin/startup.sh

a Windows command window:

$> cd c:\path\to\apache-tomcat-9\bin
$> start

or you can start the server using an IDE, like Eclipse.

Change to the examples/jsf/numberguess directory again and run the following Maven command:

$> cd examples/jsf/numberguess
$> mvn clean package -Ptomcat

Now you’re ready to deploy the numberguess example to Tomcat!

$> cp examples/jsf/numberguess/target/weld-numberguess.war apache-tomcat/webapps/

7. Diving into the Weld examples

It’s time to pull the covers back and dive into the internals of Weld example applications. Let’s start with the simpler of the two examples, weld-numberguess.

7.1. The numberguess example in depth

In the numberguess application you get 10 attempts to guess a number between 1 and 100. After each attempt, you’re told whether your guess was too high or too low.

The numberguess example is comprised of a number of beans, configuration files and Facelets (JSF) views, packaged as a war module. Let’s start by examining the configuration files.

All the configuration files for this example are located in WEB-INF/, which can be found in the src/main/webapp directory of the example. First, we have the JSF 2.2 version of faces-config.xml. A standardized version of Facelets is the default view handler in JSF 2.2, so there’s really nothing that we have to configure. Thus, the configuration consists of only the root element.

<faces-config version="2.2"
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/web-facesconfig_2_2.xsd">

      <name>numberguess</name>

</faces-config>

There’s also an empty beans.xml file, which tells the container to look for beans in this archive and to activate the CDI services.

Finally, some of the supported servers also need a web.xml which is located in src/main/webapp-[server]/WEB-INF.

This demo uses JSF 2 as the view framework, but you can use Weld with any servlet-based web framework, such as JSF 1.2 or Wicket.

Let’s take a look at the main JSF view, src/main/webapp/home.xhtml.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
   "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml"
   xmlns:ui="http://java.sun.com/jsf/facelets"
   xmlns:h="http://java.sun.com/jsf/html"
   xmlns:f="http://java.sun.com/jsf/core">

   <ui:composition template="/template.xhtml"> (1)
      <ui:define name="content">
         <h1>Guess a number...</h1>
         <h:form id="numberGuess">
            <div style="color: red">
               <h:messages id="messages" globalOnly="false"/> (2)
               <h:outputText id="Higher" value="Higher!" rendered="#{game.guessLower}"/>
               <h:outputText id="Lower" value="Lower!" rendered="#{game.guessHigher}"/>
            </div>

            <div>
               I'm thinking of a number between
               <span id="numberGuess:smallest">#{game.smallest}</span>
               and <span id="numberGuess:biggest">#{game.biggest}</span>.
               You have #{game.remainingGuesses} guesses remaining. (3)
            </div>

            <div>
               Your guess:
               <h:inputText id="inputGuess" value="#{game.guess}"
                  required="true" size="3" disabled="#{game.guessCorrect}"
                  validator="#{game.validateNumberRange}"/> (4) (5)
               <h:commandButton id="guessButton" value="Guess" action="#{game.check}"
               disabled="#{game.guessCorrect}"/> (6)
            </div>
            <div>
               <h:commandButton id="restartButton" value="Reset" action="#{game.reset}" immediate="true"/>
            </div>
         </h:form>
      </ui:define>
   </ui:composition>
</html>
1 Facelets is the built-in templating language for JSF. Here we are wrapping our page in a template which defines the layout.
2 There are a number of messages which can be sent to the user, "Higher!", "Lower!" and "Correct!"
3 As the user guesses, the range of numbers they can guess gets smaller - this sentence changes to make sure they know the number range of a valid guess.
4 This input field is bound to a bean property using a value expression.
5 A validator binding is used to make sure the user doesn’t accidentally input a number outside of the range in which they can guess - if the validator wasn’t here, the user might use up a guess on an out of bounds number.
6 And, of course, there must be a way for the user to send their guess to the server. Here we bind to an action method on the bean.

The example consists of 4 classes, the first two of which are qualifiers. First, there is the @Random qualifier, used for injecting a random number:

@Qualifier
@Target( { TYPE, METHOD, PARAMETER, FIELD })
@Retention(RUNTIME)
public @interface Random {}

There is also the @MaxNumber qualifier, used for injecting the maximum number that can be injected:

@Qualifier
@Target( { TYPE, METHOD, PARAMETER, FIELD })
@Retention(RUNTIME)
public @interface MaxNumber {}

The application-scoped Generator class is responsible for creating the random number, via a producer method. It also exposes the maximum possible number via a producer method:

@ApplicationScoped
public class Generator implements Serializable {

    private java.util.Random random = new java.util.Random(System.currentTimeMillis());

    private static final int MAX_NUMBER = 100;

    java.util.Random getRandom() {
        return random;
    }

    @Produces
    @Random
    int next() {
        //a number between 1 and 100
        return getRandom().nextInt(MAX_NUMBER - 1) + 1;
    }

    @Produces
    @MaxNumber
    int getMaxNumber() {
        return MAX_NUMBER;
    }
}

The Generator is application scoped, so we don’t get a different random each time.

The package declaration and imports have been excluded from these listings. The complete listing is available in the example source code.

The final bean in the application is the session-scoped Game class. This is the primary entry point of the application. It’s responsible for setting up or resetting the game, capturing and validating the user’s guess and providing feedback to the user with a FacesMessage. We’ve used the post-construct lifecycle method to initialize the game by retrieving a random number from the @Random Instance<Integer> bean.

You’ll notice that we’ve also added the @Named annotation to this class. This annotation is only required when you want to make the bean accessible to a JSF view via EL (i.e., #{game}).

import jakarta.enterprise.inject.Instance;

@Named
@SessionScoped
public class Game implements Serializable {

    private static final int DEFAULT_REMAINING_GUESSES = 10;

    private int number;
    private int guess;
    private int smallest;
    private int biggest;
    private int remainingGuesses;

    @Inject
    @MaxNumber
    private int maxNumber;

    @Inject
    @Random
    private Instance<Integer> randomNumber;

    public Game() {
    }

    public int getNumber() {
        return number;
    }

    public int getGuess() {
        return guess;
    }

    public void setGuess(int guess) {
        this.guess = guess;
    }

    public int getSmallest() {
        return smallest;
    }

    public int getBiggest() {
        return biggest;
    }

    public int getRemainingGuesses() {
        return remainingGuesses;
    }

    public void check() {
        if (guess > number) {
            biggest = guess - 1;
        } else if (guess < number) {
            smallest = guess + 1;
        } else if (guess == number) {
            FacesContext.getCurrentInstance().addMessage(null, new FacesMessage("Correct!"));
        }
        remainingGuesses--;
    }

    @PostConstruct
    public void reset() {
        this.smallest = 0;
        this.guess = 0;
        this.remainingGuesses = DEFAULT_REMAINING_GUESSES;
        this.biggest = maxNumber;
        this.number = randomNumber.get();
    }

    public void validateNumberRange(FacesContext context, UIComponent toValidate, Object value) {
        if (remainingGuesses <= 0) {
            FacesMessage message = new FacesMessage("No guesses left!");
            context.addMessage(toValidate.getClientId(context), message);
            ((UIInput) toValidate).setValid(false);
            return;
        }
        int input = (Integer) value;

        if (input < smallest || input > biggest) {
            ((UIInput) toValidate).setValid(false);

            FacesMessage message = new FacesMessage("Invalid guess");
            context.addMessage(toValidate.getClientId(context), message);
        }
    }

    public boolean isGuessHigher() {
        return guess != 0 && guess > number;
    }

    public boolean isGuessLower() {
        return guess != 0 && guess < number;
    }

    public boolean isGuessCorrect() {
        return guess == number;
    }
}

7.1.1. The numberguess example in Apache Tomcat or Jetty

A couple of modifications must be made to the numberguess artifact in order to deploy it to Tomcat or Jetty. First, Weld must be deployed as a Web Application library under WEB-INF/lib since the servlet container does not provide the CDI services. For your convenience we provide a single jar suitable for running Weld in any servlet container (including Jetty), weld-servlet-shaded.

You must also include the jars for JSF, EL, and the common annotations, all of which are provided by the Java EE platform (a Java EE application server).

Second, we need to explicitly specify the servlet listener in web.xml, again because the container isn’t doing this stuff for you. The servlet listener boots Weld and controls it’s interaction with requests.

<listener>
   <listener-class>org.jboss.weld.environment.servlet.Listener</listener-class>
</listener>

When Weld boots, it places the jakarta.enterprise.inject.spi.BeanManager, the portable SPI for obtaining bean instances, in the ServletContext under a variable name equal to the fully-qualified interface name. You generally don’t need to access this interface, but Weld makes use of it.

7.2. The numberguess example for Java SE with Swing

This example shows how to use the Weld SE extension in a Java SE based Swing application with no EJB or servlet dependencies. This example can be found in the examples/se/numberguess folder of the Weld distribution.

7.2.1. Creating the Eclipse project

To use the Weld SE numberguess example in Eclipse, you can either import it as a Maven project if you have the m2eclipse plugin installed, or generate an Eclipse project and import it.

With m2eclipse installed, you can open any Maven project directly. From within Eclipse, select File -> Import…​ -> Existing Maven Projects. Then, browse to the location of the Weld SE numberguess example. You should see that Eclipse recognizes the Maven project.

Without m2eclipse plugin, you first have to generate an Eclipse project. Switch into the Weld SE numberguess example folder, then execute the Maven Eclipse plugin, as follows:

mvn eclipse:configure-workspace -Declipse.workspace=/path/to/your/eclipse/workspace

and then

mvn eclipse:eclipse

Then from within Eclipse, select File -> Import…​ -> Existing Projects into Workspace and browse to the location of the Weld SE numberguess example.

In both cases, you should now see a project in your workspace called weld-se-numberguess.

It’s time to get the example running!

7.2.2. Running the example from Eclipse

Disable m2eclipse’s Workspace Resolution, to make sure that Eclipse can find StartMain. Right click on the project, and choose Properties -> Maven, and uncheck Resolve dependencies from Workspace projects:


Right click on the project, and choose Run As -> Java Application:


Locate the StartMain class:


The application should now launch!


7.2.3. Running the example from the command line

  • Ensure that Maven 3 is installed and in your PATH

  • Ensure that the JAVA_HOME environment variable is pointing to your JDK installation

  • Open a command line or terminal window in the examples/se/numberguess directory

  • Execute the following command

    mvn -Drun

7.2.4. Understanding the code

Let’s have a look at the significant code and configuration files that make up this example.

There is an empty beans.xml file in the root package (src/main/resources/META-INF/beans.xml), which marks this application as a CDI application.

The beans.xml file is no longer required for CDI enablement as of CDI 1.1. CDI is automatically enabled for archives which don’t contain beans.xml but contain one or more bean classes with a bean defining annotation, as described in section Implicit bean archive .

The game’s main logic is located in Game.java. Here is the code for that class, highlighting the ways in which this differs from the web application version:

@ApplicationScoped (1)
public class Game { (2)
    public static final int MAX_NUM_GUESSES = 10;

    private Integer number;
    private int guess = 0;
    private int smallest = 0;

    @Inject
    @MaxNumber
    private int maxNumber;

    private int biggest;
    private int remainingGuesses = MAX_NUM_GUESSES;
    private boolean validNumberRange = true;

    @Inject
    Generator rndGenerator;

    public Game() {
    }

    public int getNumber() {
        return number;
    }

    public int getGuess() {
        return guess;
    }

    public void setGuess(int guess) {
        this.guess = guess;
    }

    public int getSmallest() {
        return smallest;
    }

    public int getBiggest() {
        return biggest;
    }

    public int getRemainingGuesses() {
        return remainingGuesses;
    }

    public boolean isValidNumberRange() { (3)
        return validNumberRange;
    }

    public boolean isGameWon() {
        return guess == number;
    }

    public boolean isGameLost() {
        return guess != number && remainingGuesses <= 0;
    }

    public boolean check() { (4)
        boolean result = false;

        if (checkNewNumberRangeIsValid()) {
            if (guess > number) {
                biggest = guess - 1;
            }

            if (guess < number) {
                smallest = guess + 1;
            }

            if (guess == number) {
                result = true;
            }

            remainingGuesses--;
        }

        return result;
    }

    private boolean checkNewNumberRangeIsValid() {
        return validNumberRange = ((guess >= smallest) && (guess <= biggest));
    }

    @PostConstruct
    public void reset() { (5)
        this.smallest = 0;
        this.guess = 0;
        this.remainingGuesses = 10;
        this.biggest = maxNumber;
        this.number = rndGenerator.next();
        System.out.println("psst! the number is " + this.number);
    }
}
1 The bean is application scoped rather than session scoped, since an instance of a Swing application typically represents a single 'session'.
2 Notice that the bean is not named, since it doesn’t need to be accessed via EL.
3 In Java SE there is no JSF FacesContext to which messages can be added. Instead the Game class provides additional information about the state of the current game including:
  • If the game has been won or lost

  • If the most recent guess was invalid

    This allows the Swing UI to query the state of the game, which it does indirectly via a class called MessageGenerator, in order to determine the appropriate messages to display to the user during the game.

4 Since there is no dedicated validation phase, validation of user input is performed during the check() method.
5 The reset() method makes a call to the injected rndGenerator in order to get the random number at the start of each game. Note that it can’t use Instance.get() like the JSF example does because there will not be any active contexts like there are during a JSF request.

The MessageGenerator class depends on the current instance of Game and queries its state in order to determine the appropriate messages to provide as the prompt for the user’s next guess and the response to the previous guess. The code for MessageGenerator is as follows:

public class MessageGenerator {
    @Inject (1)
    private Game game;

    public String getChallengeMessage() { (2)
        StringBuilder challengeMsg = new StringBuilder("I'm thinking of a number between ");
        challengeMsg.append(game.getSmallest());
        challengeMsg.append(" and ");
        challengeMsg.append(game.getBiggest());
        challengeMsg.append(". Can you guess what it is?");

        return challengeMsg.toString();
    }

    public String getResultMessage() { (3)
        if (game.isGameWon()) {
            return "You guessed it! The number was " + game.getNumber();
        } else if (game.isGameLost()) {
            return "You are fail! The number was " + game.getNumber();
        } else if (!game.isValidNumberRange()) {
            return "Invalid number range!";
        } else if (game.getRemainingGuesses() == Game.MAX_NUM_GUESSES) {
            return "What is your first guess?";
        } else {
            String direction = null;

            if (game.getGuess() < game.getNumber()) {
                direction = "Higher";
            } else {
                direction = "Lower";
            }

            return direction + "! You have " + game.getRemainingGuesses() + " guesses left.";
        }
    }
}
1 The instance of Game for the application is injected here.
2 The `Game’s state is interrogated to determine the appropriate challenge message …​
3 …​ and again to determine whether to congratulate, console or encourage the user to continue.

Finally we come to the NumberGuessFrame class which provides the Swing front end to our guessing game.

import jakarta.enterprise.event.Observes;

public class NumberGuessFrame extends javax.swing.JFrame {
    @Inject
    private Game game; (1)

    @Inject
    private MessageGenerator msgGenerator; (2)

    public void start(@Observes ContainerInitialized event) { (3)
        java.awt.EventQueue.invokeLater(new Runnable() {
            public void run() {
                initComponents();
                setVisible(true);
            }
        });
    }

    private void initComponents() { (4)

        borderPanel = new javax.swing.JPanel();
        gamePanel = new javax.swing.JPanel();
        inputsPanel = new javax.swing.JPanel();
        buttonPanel = new javax.swing.JPanel();
        guessButton = new javax.swing.JButton();
        ...
        mainLabel.setText(msgGenerator.getChallengeMessage());
        mainMsgPanel.add(mainLabel);

        messageLabel.setText(msgGenerator.getResultMessage());
        mainMsgPanel.add(messageLabel);
        ...
    }

    private void guessButtonActionPerformed(java.awt.event.ActionEvent evt) { (5)
        int guess = -1;

        try {
            guess = Integer.parseInt(guessText.getText());
        } catch (NumberFormatException nfe) {
            // noop
        }

        game.setGuess(guess);
        game.check();
        refreshUI();

        if (game.isGameWon() || game.isGameLost()) {
            switchButtons();
        }
    }

    private void replayBtnActionPerformed(java.awt.event.ActionEvent evt) { (6)
        game.reset();
        refreshUI();
        switchButtons();
    }

    private void switchButtons() {
        CardLayout buttonLyt = (CardLayout) buttonPanel.getLayout();
        buttonLyt.next(buttonPanel);
    }

    private void refreshUI() {
        mainLabel.setText(msgGenerator.getChallengeMessage());
        messageLabel.setText(msgGenerator.getResultMessage());
        guessText.setText("");
        guessesLeftBar.setValue(game.getRemainingGuesses());
        guessText.requestFocus();
    }

    // swing components
    private javax.swing.JPanel borderPanel;
    ...
    private javax.swing.JButton replayBtn;

}
1 The injected instance of the game (logic and state).
2 The injected message generator for UI messages.
3 This application is started in the prescribed Weld SE way, by observing the ContainerInitialized event.
4 This method initializes all of the Swing components. Note the use of the msgGenerator here.
5 guessButtonActionPerformed is called when the 'Guess' button is clicked, and it does the following:
  • Gets the guess entered by the user and sets it as the current guess in the Game

  • Calls game.check() to validate and perform one 'turn' of the game

  • Calls refreshUI. If there were validation errors with the input, this will have been captured during game.check() and as such will be reflected in the messages returned by MessageGenerator and subsequently presented to the user. If there are no validation errors then the user will be told to guess again (higher or lower) or that the game has ended either in a win (correct guess) or a loss (ran out of guesses).

  • Sets the button’s label based on the game state.

6 replayBtnActionPerformed simply calls game.reset() to start a new game, refreshes the messages in the UI and sets the button’s label based on the game state.

7.3. The translator example in depth

The translator example will take any sentences you enter, and translate them to Latin. (Well, not really, but the stub is there for you to implement, at least. Good luck!)

The translator example is built as an EAR and contains EJBs. As a result, it’s structure is more complex than the numberguess example.

Java EE 7, which bundles EJB 3.2, allows you to package EJBs in a WAR, which will make this structure much simpler! Still, there are other advantages of using an EAR.

First, let’s take a look at the EAR aggregator project, which is located in the example’s ear directory. Maven automatically generates the application.xml for us from this plugin configuration:

<plugin>
   <groupId>org.apache.maven.plugins</groupId>
   <artifactId>maven-ear-plugin</artifactId>
   <configuration>
      <modules>
         <webModule>
            <groupId>org.jboss.weld.examples.jsf.translator</groupId>
            <artifactId>weld-jsf-translator-war</artifactId>
            <contextRoot>/weld-translator</contextRoot>
         </webModule>
      </modules>
   </configuration>
</plugin>

This configuration overrides the web context path, resulting in this application URL: http://localhost:8080/weld-translator.

If you weren’t using Maven to generate these files, you would need META-INF/application.xml:

<application version="7"
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/application_7.xsd">

  <display-name>weld-jsf-translator-ear</display-name>
  <description>The Weld JSF translator example (ear)</description>

  <module>
    <web>
      <web-uri>weld-translator.war</web-uri>
      <context-root>/weld-translator</context-root>
    </web>
  </module>
  <module>
    <ejb>weld-translator.jar</ejb>
  </module>
</application>

Next, let’s look at the WAR, which is located in the example’s war directory. Just as in the numberguess example, we have a faces-config.xml for JSF 2.2 and a web.xml (to activate JSF) under WEB-INF, both sourced from src/main/webapp/WEB-INF.

More interesting is the JSF view used to translate text. Just as in the numberguess example we have a template, which surrounds the form (omitted here for brevity):

<h:form id="TranslatorMain">

   <table>
      <tr align="center" style="font-weight: bold">
         <td>
            Your text
         </td>
         <td>
            Translation
         </td>
      </tr>
      <tr>
         <td>
            <h:inputTextarea id="text" value="#{translator.text}" required="true" rows="5" cols="80"/>
         </td>
         <td>
            <h:outputText value="#{translator.translatedText}"/>
         </td>
      </tr>
   </table>
   <div>
      <h:commandButton id="button" value="Translate" action="#{translator.translate}"/>
   </div>

</h:form>

The user can enter some text in the left-hand text area, and hit the translate button to see the result to the right.

Finally, let’s look at the EJB module, which is located in the example’s ejb directory. In src/main/resources/META-INF there is just an empty beans.xml, used to mark the archive as containing beans.

The beans.xml file is no longer required for CDI enablement as of CDI 1.1. CDI is automatically enabled for archives which don’t contain beans.xml but contain one or more bean classes with a bean defining annotation, as described in section Implicit bean archive .

We’ve saved the most interesting bit for last, the code! The project has two simple beans, SentenceParser and TextTranslator and two session beans, TranslatorControllerBean and SentenceTranslator. You should be getting quite familiar with what a bean looks like by now, so we’ll just highlight the most interesting bits here.

Both SentenceParser and TextTranslator are dependent beans, and TextTranslator uses constructor injection:

public class TextTranslator implements Serializable {

   private SentenceParser sentenceParser;

   @EJB private Translator translator;

   @Inject public TextTranslator(SentenceParser sentenceParser) {
      this.sentenceParser = sentenceParser;
   }

   public String translate(String text) {
      StringBuilder sb = new StringBuilder();
      for (String sentence: sentenceParser.parse(text)) {
         sb.append(translator.translate(sentence)).append(". ");
      }
      return sb.toString().trim();
   }

}

TextTranslator uses the simple bean (really just a plain Java class!) SentenceParser to parse the sentence and then calls on the stateless bean with the local business interface Translator to perform the translation. That’s where the magic happens. Of course, we couldn’t develop a full translator, but it’s convincing enough to anyone who doesn’t understand Latin!

@Stateless
public class SentenceTranslator implements Translator {

   public String translate(String sentence) {
      return "Lorem ipsum dolor sit amet";
   }

}

Finally, there is UI orientated controller. This is a request scoped, named, stateful session bean, which injects the translator. It collects the text from the user and dispatches it to the translator. The bean also has getters and setters for all the fields on the page.

@Stateful
@RequestScoped
@Named("translator")
public class TranslatorControllerBean implements TranslatorController {

   @Inject private TextTranslator translator;

   private String inputText;

   private String translatedText;

   public void translate() {
      translatedText = translator.translate(inputText);
   }

   public String getText() {
      return inputText;
   }

   public void setText(String text) {
      this.inputText = text;
   }

   public String getTranslatedText() {
      return translatedText;
   }

   @Remove public void remove() {}

}

That concludes our short tour of the Weld starter examples. For more information on Weld, please visit http://weld.cdi-spec.org/.

Loose coupling with strong typing

The first major theme of CDI is loose coupling. We’ve already seen three means of achieving loose coupling:

  • alternatives enable deployment time polymorphism,

  • producer methods enable runtime polymorphism, and

  • contextual lifecycle management decouples bean lifecycles.

These techniques serve to enable loose coupling of client and server. The client is no longer tightly bound to an implementation of an interface, nor is it required to manage the lifecycle of the implementation. This approach lets stateful objects interact as if they were services.

Loose coupling makes a system more dynamic. The system can respond to change in a well-defined manner. In the past, frameworks that attempted to provide the facilities listed above invariably did it by sacrificing type safety (most notably by using XML descriptors). CDI is the first technology, and certainly the first specification in the Java EE platform, that achieves this level of loose coupling in a typesafe way.

CDI provides three extra important facilities that further the goal of loose coupling:

  • interceptors decouple technical concerns from business logic,

  • decorators may be used to decouple some business concerns, and

  • event notifications decouple event producers from event consumers.

The second major theme of CDI is strong typing. The information about the dependencies, interceptors and decorators of a bean, and the information about event consumers for an event producer, is contained in typesafe Java constructs that may be validated by the compiler.

You don’t see string-based identifiers in CDI code, not because the framework is hiding them from you using clever defaulting rules—so-called "configuration by convention"—but because there are simply no strings there to begin with!

The obvious benefit of this approach is that any IDE can provide autocompletion, validation and refactoring without the need for special tooling. But there is a second, less-immediately-obvious, benefit. It turns out that when you start thinking of identifying objects, events or interceptors via annotations instead of names, you have an opportunity to lift the semantic level of your code.

CDI encourages you develop annotations that model concepts, for example,

  • @Asynchronous,

  • @Mock,

  • @Secure or

  • @Updated,

instead of using compound names like

  • asyncPaymentProcessor,

  • mockPaymentProcessor,

  • SecurityInterceptor or

  • DocumentUpdatedEvent.

The annotations are reusable. They help describe common qualities of disparate parts of the system. They help us categorize and understand our code. They help us deal with common concerns in a common way. They make our code more literate and more understandable.

CDI stereotypes take this idea a step further. A stereotype models a common role in your application architecture. It encapsulates various properties of the role, including scope, interceptor bindings, qualifiers, etc, into a single reusable package. (Of course, there is also the benefit of tucking some of those annotations away).

We’re now ready to meet some more advanced features of CDI. Bear in mind that these features exist to make our code both easier to validate and more understandable. Most of the time you don’t ever really need to use these features, but if you use them wisely, you’ll come to appreciate their power.

8. Producer methods

Producer methods let us overcome certain limitations that arise when a container, instead of the application, is responsible for instantiating objects. They’re also the easiest way to integrate objects which are not beans into the CDI environment.

According to the spec:

A producer method acts as a source of objects to be injected, where:

  • the objects to be injected are not required to be instances of beans, or

  • the concrete type of the objects to be injected may vary at runtime, or

  • the objects require some custom initialization that is not performed by the bean constructor.

For example, producer methods let us:

  • expose a JPA entity as a bean,

  • expose any JDK class as a bean,

  • define multiple beans, with different scopes or initialization, for the same implementation class, or

  • vary the implementation of a bean type at runtime.

In particular, producer methods let us use runtime polymorphism with CDI. As we’ve seen, alternative beans are one solution to the problem of deployment-time polymorphism. But once the system is deployed, the CDI implementation is fixed. A producer method has no such limitation:

import jakarta.enterprise.inject.Produces;

@SessionScoped
public class Preferences implements Serializable {
   private PaymentStrategyType paymentStrategy;
   ...
   @Produces @Preferred
   public PaymentStrategy getPaymentStrategy() {
       switch (paymentStrategy) {
           case CREDIT_CARD: return new CreditCardPaymentStrategy();
           case CHECK: return new CheckPaymentStrategy();
           case PAYPAL: return new PayPalPaymentStrategy();
           default: return null;
       }
   }
}

Consider an injection point:

@Inject @Preferred PaymentStrategy paymentStrategy;

This injection point has the same type and qualifier annotations as the producer method, so it resolves to the producer method using the usual CDI injection rules. The producer method will be called by the container to obtain an instance to service this injection point.

8.1. Scope of a producer method

The scope of the producer method defaults to @Dependent, and so it will be called every time the container injects this field or any other field that resolves to the same producer method. Thus, there could be multiple instances of the PaymentStrategy object for each user session.

To change this behavior, we can add a @SessionScoped annotation to the method.

@Produces @Preferred @SessionScoped
public PaymentStrategy getPaymentStrategy() {
   ...
}

Now, when the producer method is called, the returned PaymentStrategy will be bound to the session context. The producer method won’t be called again in the same session.

A producer method does not inherit the scope of the bean that declares the method. There are two different beans here: the producer method, and the bean which declares it. The scope of the producer method determines how often the method will be called, and the lifecycle of the objects returned by the method. The scope of the bean that declares the producer method determines the lifecycle of the object upon which the producer method is invoked.

8.2. Injection into producer methods

There’s one potential problem with the code above. The implementations of CreditCardPaymentStrategy are instantiated using the Java new operator. Objects instantiated directly by the application can’t take advantage of dependency injection and don’t have interceptors.

If this isn’t what we want, we can use dependency injection into the producer method to obtain bean instances:

@Produces @Preferred @SessionScoped
public PaymentStrategy getPaymentStrategy(CreditCardPaymentStrategy ccps,
                                          CheckPaymentStrategy cps,
                                          PayPalPaymentStrategy ppps) {
   switch (paymentStrategy) {
      case CREDIT_CARD: return ccps;
      case CHEQUE: return cps;
      case PAYPAL: return ppps;
      default: return null;
   }
}

Wait, what if CreditCardPaymentStrategy is a request-scoped bean? Then the producer method has the effect of "promoting" the current request scoped instance into session scope. This is almost certainly a bug! The request scoped object will be destroyed by the container before the session ends, but the reference to the object will be left "hanging" in the session scope. This error will not be detected by the container, so please take extra care when returning bean instances from producer methods!

There are at least two ways we could go to fix this bug. We could change the scope of the CreditCardPaymentStrategy implementation, but this would affect other clients of that bean. A better option would be to change the scope of the producer method to @Dependent or @RequestScoped.

8.3. Disposer methods

Some producer methods return objects that require explicit destruction. For example, somebody needs to close this JDBC connection:

@Produces @RequestScoped Connection connect(User user) {
   return createConnection(user.getId(), user.getPassword());
}

Destruction can be performed by a matching disposer method, defined by the same class as the producer method:

void close(@Disposes Connection connection) {
   connection.close();
}

The disposer method must have at least one parameter, annotated @Disposes, with the same type and qualifiers as the producer method. The disposer method is called automatically when the context ends (in this case, at the end of the request), and this parameter receives the object produced by the producer method. If the disposer method has additional method parameters, the container will look for a bean that satisfies the type and qualifiers of each parameter and pass it to the method automatically.

Since CDI 1.1 disposer methods may be used for destroying not only objects produced by producer methods but also objects producer by producer fields.

9. Interceptors

Interceptor functionality is defined in the Java Interceptors specification.

The Interceptors specification defines three kinds of interception points:

  • business method interception,

  • lifecycle callback interception, and

  • timeout method interception (EJB only).

A business method interceptor applies to invocations of methods of the bean by clients of the bean:

public class TransactionInterceptor {
   @AroundInvoke
   public Object manageTransaction(InvocationContext ctx) throws Exception { ... }
}

A lifecycle callback interceptor applies to invocations of lifecycle callbacks by the container:

public class DependencyInjectionInterceptor {
   @PostConstruct
   public void injectDependencies(InvocationContext ctx) { ... }
}

An interceptor class may intercept both lifecycle callbacks and business methods.

A timeout method interceptor applies to invocations of EJB timeout methods by the container:

public class TimeoutInterceptor {
   @AroundTimeout
   public Object manageTransaction(InvocationContext ctx) throws Exception { ... }
}

9.1. Interceptor bindings

Suppose we want to declare that some of our beans are transactional. The first thing we need is an interceptor binding type to specify exactly which beans we’re interested in:

@InterceptorBinding
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Transactional {}

Now we can easily specify that our ShoppingCart is a transactional object:

@Transactional
public class ShoppingCart { ... }

Or, if we prefer, we can specify that just one method is transactional:

public class ShoppingCart {
   @Transactional public void checkout() { ... }
}

9.2. Implementing interceptors

That’s great, but somewhere along the line we’re going to have to actually implement the interceptor that provides this transaction management aspect. All we need to do is create a standard interceptor, and annotate it @Interceptor and @Transactional.

@Transactional @Interceptor
public class TransactionInterceptor {
   @AroundInvoke
   public Object manageTransaction(InvocationContext ctx) throws Exception { ... }
}

Interceptors can take advantage of dependency injection:

@Transactional @Interceptor
public class TransactionInterceptor {

    @Resource UserTransaction transaction;

    @AroundInvoke
    public Object manageTransaction(InvocationContext ctx) throws Exception { ... }

}

Multiple interceptors may use the same interceptor binding type.

9.3. Enabling interceptors

By default, all interceptors are disabled. We need to enable our interceptor. We can do it using beans.xml descriptor of a bean archive. However, this activation only applies to the beans in that archive. From CDI 1.1 onwards the interceptor can be enabled for the whole application using @Priority annotation.

<beans
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd">
   <interceptors>
      <class>org.mycompany.myapp.TransactionInterceptor</class>
   </interceptors>
</beans>

Whoah! Why the angle bracket stew?

Well, having the XML declaration is actually a good thing. It solves two problems:

  • it enables us to specify an ordering for the interceptors in our system, ensuring deterministic behavior, and

  • it lets us enable or disable interceptor classes at deployment time.

Having two interceptors without @Priority, we could specify that our security interceptor runs before our transaction interceptor.

<beans
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd">
   <interceptors>
      <class>org.mycompany.myapp.SecurityInterceptor</class>
      <class>org.mycompany.myapp.TransactionInterceptor</class>
   </interceptors>
</beans>

Or we could turn them both off in our test environment by simply not mentioning them in beans.xml! Ah, so simple.

It gets quite tricky when used along with interceptors annotated with @Priority. Interceptors enabled using @Priority are called before interceptors enabled using beans.xml, the lower priority values are called first.

An interceptor enabled by @Priority and in the same time listed in beans.xml is only invoked once in the @Priority part of the invocation chain. E.g. the enablement via beans.xml will be ignored.

9.4. Interceptor bindings with members

Suppose we want to add some extra information to our @Transactional annotation:

@InterceptorBinding
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Transactional {
   boolean requiresNew() default false;
}

CDI will use the value of requiresNew to choose between two different interceptors, TransactionInterceptor and RequiresNewTransactionInterceptor.

@Transactional(requiresNew = true) @Interceptor
public class RequiresNewTransactionInterceptor {
   @AroundInvoke
   public Object manageTransaction(InvocationContext ctx) throws Exception { ... }
}

Now we can use RequiresNewTransactionInterceptor like this:

@Transactional(requiresNew = true)
public class ShoppingCart { ... }

But what if we only have one interceptor and we want the container to ignore the value of requiresNew when binding interceptors? Perhaps this information is only useful for the interceptor implementation. We can use the @Nonbinding annotation:

@InterceptorBinding
@Target({METHOD, TYPE})
@Retention(RUNTIME)
public @interface Secure {
   @Nonbinding String[] rolesAllowed() default {};
}

9.5. Multiple interceptor binding annotations

Usually we use combinations of interceptor bindings types to bind multiple interceptors to a bean. For example, the following declaration would be used to bind TransactionInterceptor and SecurityInterceptor to the same bean:

@Secure(rolesAllowed="admin") @Transactional
public class ShoppingCart { ... }

However, in very complex cases, an interceptor itself may specify some combination of interceptor binding types:

@Transactional @Secure @Interceptor
public class TransactionalSecureInterceptor { ... }

Then this interceptor could be bound to the checkout() method using any one of the following combinations:

public class ShoppingCart {
   @Transactional @Secure public void checkout() { ... }
}
@Secure
public class ShoppingCart {
   @Transactional public void checkout() { ... }
}
@Transactional
public class ShoppingCart {
   @Secure public void checkout() { ... }
}
@Transactional @Secure
public class ShoppingCart {
   public void checkout() { ... }
}

9.6. Interceptor binding type inheritance

One limitation of the Java language support for annotations is the lack of annotation inheritance. Really, annotations should have reuse built in, to allow this kind of thing to work:

public @interface Action extends Transactional, Secure { ... }

Well, fortunately, CDI works around this missing feature of Java. We may annotate one interceptor binding type with other interceptor binding types (termed a meta-annotation). The interceptor bindings are transitive — any bean with the first interceptor binding inherits the interceptor bindings declared as meta-annotations.

@Transactional @Secure
@InterceptorBinding
@Target(TYPE)
@Retention(RUNTIME)
public @interface Action { ... }

Now, any bean annotated @Action will be bound to both TransactionInterceptor and SecurityInterceptor. (And even TransactionalSecureInterceptor, if it exists.)

9.7. Use of @Interceptors

The @Interceptors annotation defined by the Interceptors specification (and used by the Managed Beans and EJB specifications) is still supported in CDI.

@Interceptors({TransactionInterceptor.class, SecurityInterceptor.class})
public class ShoppingCart {
   public void checkout() { ... }
}

However, this approach suffers the following drawbacks:

  • the interceptor implementation is hardcoded in business code,

  • interceptors may not be easily disabled at deployment time, and

  • the interceptor ordering is non-global — it is determined by the order in which interceptors are listed at the class level.

Therefore, we recommend the use of CDI-style interceptor bindings.

9.8. Enhanced version of jakarta.interceptor.InvocationContext

For even more control over interceptors, Weld offers enhanced version of jakarta.interceptor.InvocationContext - org.jboss.weld.interceptor.WeldInvocationContext. It comes with two additional methods - getInterceptorBindings and getInterceptorBindingsByType(Class<T> annotationType). You shouldn’t need this in most cases, but it comes handy when working with @Nonbinding values in interceptor binding annotations.

Assume you have the following interceptor binding:

@InterceptorBinding
@Inherited
@Target({ TYPE, METHOD, CONSTRUCTOR})
@Retention(RUNTIME)
public @interface FooBinding {

    @Nonbinding
    String secret() default "";

}

Then, in the interceptor class, you can retrieve the secret String in the following way:

@Priority(value = Interceptor.Priority.APPLICATION)
@Interceptor
@FooBinding(secret = "nonbinding")
public class AroundConstructInterceptor {

    @SuppressWarnings("unchecked")
    @AroundConstruct
    void intercept(InvocationContext ctx) throws Exception {
        if(ctx instanceof WeldInvocationContext) {
            Set<Annotation> bindings =  ((WeldInvocationContext)ctx).getInterceptorBindings();
	    for (Annotation annotation : bindings) {
                if (annotation.annotationType().equals(FooBinding.class)) {
                    FooBinding fooBinding = (FooBinding) annotation;
                    String secret = fooBinding.secret();
                }
            }
        }
        ctx.proceed();
    }
}

WeldInvocationContext can be used with the following interceptor types:

  • @AroundConstruct

  • @PostConstruct

  • @AroundInvoke

Alternatively, you can gain access to these binding directly from InvocationContext as we store them there using a key org.jboss.weld.interceptor.bindings. This key is easily accessible from WeldInvocationContext.INTERCEPTOR_BINDINGS_KEY. Let’s alter the previous example to demonstrate this:

@Priority(value = Interceptor.Priority.APPLICATION)
@Interceptor
@FooBinding(secret = "nonbinding")
public class AroundConstructInterceptor {

    @SuppressWarnings("unchecked")
    @AroundConstruct
    void intercept(InvocationContext ctx) throws Exception {
        // retrieve data directly from InvocationContext
        Set<Annotation> bindings = (Set<Annotation>) ctx.getContextData().get(WeldInvocationContext.INTERCEPTOR_BINDINGS_KEY);
	if (bindings != null) {
            for (Annotation annotation : bindings) {
                if (annotation.annotationType().equals(FooBinding.class)) {
                    FooBinding fooBinding = (FooBinding) annotation;
                    String secret = fooBinding.secret();
                }
            }
        }
        ctx.proceed();
    }
}

9.9. Loosening the limitations of InterceptionFactory

This is an experimental feature which goes beyond the scope of what CDI specification requires. While we aim to support this, the behaviour may slightly shift over time.

CDI 2.0 introduced the InterceptionFactory which can be used to intercept a bean created via producer method. The specification only allows users to operate on Java classes and when it comes to interfaces, it states that unportable behaviour results. Weld supports both ways as operating on interfaces effectively allows to bypass proxyability rules of implementation class. This however comes with a price - only annotations added programatically through InterceptionFactory.configure() will be taken into consideration.

Let’s have SomeImpl class that is an implementation of interface SomeInterface and InterceptThis is an InterceptorBinding. Let us also assume that we have secondary implementation of SomeInterface named SomeUnproxyableImpl that has a final method in it. All of the following producer methods will work:

    @Produces
    @ApplicationScoped
    // proxyable implementation which is also the InterceptionFactory paramater
    public SomeImpl produceBeanBasedOnImplClass(InterceptionFactory<SomeImpl> interceptionFactory) {
        interceptionFactory.configure().add(InterceptThis.Literal.INSTANCE);
        return interceptionFactory.createInterceptedInstance(new SomeImpl());
    }

    @Produces
    @ApplicationScoped
    // proxyable implementation but operating on an interface type as InterceptionFactory parameter
    public SomeInterface produceBeanBasedOnInterface(InterceptionFactory<SomeInterface> interceptionFactory) {
        interceptionFactory.configure().add(InterceptThis.Literal.INSTANCE);
        return interceptionFactory.createInterceptedInstance(new SomeImpl());
    }

    @Produces
    @ApplicationScoped
    // unproxyable implementation and operating on an interface type as InterceptionFactory parameter
    public SomeInterface produceBeanBasedOnInterfaceWithUnproxyableImpl(InterceptionFactory<SomeInterface> interceptionFactory) {
        interceptionFactory.configure().add(InterceptThis.Literal.INSTANCE);
        return interceptionFactory.createInterceptedInstance(new SomeUnproxyableImpl());
    }

10. Decorators

Interceptors are a powerful way to capture and separate concerns which are orthogonal to the application (and type system). Any interceptor is able to intercept invocations of any Java type. This makes them perfect for solving technical concerns such as transaction management, security and call logging. However, by nature, interceptors are unaware of the actual semantics of the events they intercept. Thus, interceptors aren’t an appropriate tool for separating business-related concerns.

The reverse is true of decorators. A decorator intercepts invocations only for a certain Java interface, and is therefore aware of all the semantics attached to that interface. Since decorators directly implement operations with business semantics, it makes them the perfect tool for modeling some kinds of business concerns. It also means that a decorator doesn’t have the generality of an interceptor. Decorators aren’t able to solve technical concerns that cut across many disparate types. Interceptors and decorators, though similar in many ways, are complementary. Let’s look at some cases where decorators fit the bill.

Suppose we have an interface that represents accounts:

public interface Account {
   public BigDecimal getBalance();
   public User getOwner();
   public void withdraw(BigDecimal amount);
   public void deposit(BigDecimal amount);
}

Several different beans in our system implement the Account interface. However, we have a common legal requirement that; for any kind of account, large transactions must be recorded by the system in a special log. This is a perfect job for a decorator.

A decorator is a bean (possibly even an abstract class) that implements the type it decorates and is annotated @Decorator.

@Decorator
public abstract class LargeTransactionDecorator
      implements Account {
   ...
}

The decorator implements the methods of the decorated type that it wants to intercept.

@Decorator
public abstract class LargeTransactionDecorator
      implements Account {
   @Inject @Delegate @Any Account account;

   @PersistenceContext EntityManager em;

   public void withdraw(BigDecimal amount) {
      ...
   }

   public void deposit(BigDecimal amount);
      ...
   }
}

Unlike other beans, a decorator may be an abstract class. Therefore, if there’s nothing special the decorator needs to do for a particular method of the decorated interface, you don’t need to implement that method.

Interceptors for a method are called before decorators that apply to the method.

10.1. Delegate object

Decorators have a special injection point, called the delegate injection point, with the same type as the beans they decorate, and the annotation @Delegate. There must be exactly one delegate injection point, which can be a constructor parameter, initializer method parameter or injected field.

@Decorator
public abstract class LargeTransactionDecorator
      implements Account {
   @Inject @Delegate @Any Account account;
   ...
}

A decorator is bound to any bean which:

  • has the type of the delegate injection point as a bean type, and

  • has all qualifiers that are declared at the delegate injection point.

This delegate injection point specifies that the decorator is bound to all beans that implement Account:

@Inject @Delegate @Any Account account;

A delegate injection point may specify any number of qualifier annotations. The decorator will only be bound to beans with the same qualifiers.

@Inject @Delegate @Foreign Account account;

The decorator may invoke the delegate object, which has much the same effect as calling InvocationContext.proceed() from an interceptor. The main difference is that the decorator can invoke any business method on the delegate object.

@Decorator
public abstract class LargeTransactionDecorator
      implements Account {
   @Inject @Delegate @Any Account account;

   @PersistenceContext EntityManager em;

   public void withdraw(BigDecimal amount) {
      account.withdraw(amount);
      if ( amount.compareTo(LARGE_AMOUNT)>0 ) {
         em.persist( new LoggedWithdrawl(amount) );
      }
   }

   public void deposit(BigDecimal amount);
      account.deposit(amount);
      if ( amount.compareTo(LARGE_AMOUNT)>0 ) {
         em.persist( new LoggedDeposit(amount) );
      }
   }
}

10.2. Enabling decorators

By default, all decorators are disabled. We need to enable our decorator. We can do it using beans.xml descriptor of a bean archive. However, this activation only applies to the beans in that archive. From CDI 1.1 onwards the decorator can be enabled for the whole application using @Priority annotation.

<beans
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd">
   <decorators>
         <class>org.mycompany.myapp.LargeTransactionDecorator</class>
   </decorators>
</beans>

This declaration serves the same purpose for decorators that the <interceptors> declaration serves for interceptors:

  • it enables us to specify an ordering for decorators in our system, ensuring deterministic behavior, and

  • it lets us enable or disable decorator classes at deployment time.

Decorators enabled using @Priority are called before decorators enabled using beans.xml, the lower priority values are called first.

A decorator enabled by @Priority and in the same time listed in beans.xml is only invoked once in the @Priority part of the invocation chain. E.g. the enablement via beans.xml will be ignored.

11. Events

Dependency injection enables loose-coupling by allowing the implementation of the injected bean type to vary, either at deployment time or runtime. Events go one step further, allowing beans to interact with no compile time dependency at all. Event producers raise events that are delivered to event observers by the container.

This basic schema might sound like the familiar observer/observable pattern, but there are a couple of twists:

  • not only are event producers decoupled from observers; observers are completely decoupled from producers,

  • observers can specify a combination of "selectors" to narrow the set of event notifications they will receive, and

  • observers can be notified immediately, or can specify that delivery of the event should be delayed until the end of the current transaction.

The CDI event notification facility uses more or less the same typesafe approach that we’ve already seen with the dependency injection service.

11.1. Event payload

The event object carries state from producer to consumer. The event object is nothing more than an instance of a concrete Java class. (The only restriction is that an event type may not contain type variables). An event may be assigned qualifiers, which allows observers to distinguish it from other events of the same type. The qualifiers function like topic selectors, allowing an observer to narrow the set of events it observes.

An event qualifier is just a normal qualifier, defined using @Qualifier. Here’s an example:

@Qualifier
@Target({METHOD, FIELD, PARAMETER, TYPE})
@Retention(RUNTIME)
public @interface Updated {}

11.2. Event observers

An observer method is a method of a bean with a parameter annotated @Observes or @ObservesAsync.

public void onAnyDocumentEvent(@Observes Document document) { ... }

or in asynchronous version

public void onAnyDocumentEvent(@ObservesAsync Document document) { ... }

The annotated parameter is called the event parameter. The type of the event parameter is the observed event type, in this case Document. The event parameter may also specify qualifiers.

public void afterDocumentUpdate(@Observes @Updated Document document) { ... }

An observer method need not specify any event qualifiers—in this case it is interested in every event whose type is assignable to the observed event type. Such observer will trigger on both events shown below:

@Inject @Any Event<Document> documentEvent;
@Inject @Updated Event<Document> anotherDocumentEvent;

If the observer does specify qualifiers, it will be notified of an event if the event object is assignable to the observed event type, and if the set of observed event qualifiers is a subset of all the event qualifiers of the event.

The observer method may have additional parameters, which are injection points:

public void afterDocumentUpdate(@Observes @Updated Document document, User user) { ... }

11.3. Event producers

Event producers fire events either synchronously or asynchronously using an instance of the parameterized Event interface. An instance of this interface is obtained by injection:

@Inject @Any Event<Document> documentEvent;

11.3.1. Synchronous event producers

A producer raises synchronous events by calling the fire() method of the Event interface, passing the event object:

documentEvent.fire(document);

This particular event will only be delivered to synchronous observer method that:

  • has an event parameter to which the event object (the Document) is assignable, and

  • specifies no qualifiers.

The container simply calls all the synchronous observer methods, passing the event object as the value of the event parameter. If any observer method throws an exception, the container stops calling observer methods, and the exception is rethrown by the fire() method.

11.3.2. Asynchronous event producers

A producer raises asynchronous events by calling the fireAsync() method of the Event interface, passing the event object:

documentEvent.fireAsync(document);

This particular event will only be delivered to asynchronous observer method that:

  • has an event parameter to which the event object (the Document) is assignable, and

  • specifies no qualifiers.

fireAsync method returns immediately and all the resolved asynchronous observers are notified in one or more different threads. If any observer method throws an exception, the container will suppress it and notify remaining observers. The resulting CompletionStage will then finish exceptionally with CompletionException containing all previously suppressed exceptions.

Notification options

The Event.fireAsync() method may be called with a NotificationOptions parameter to configure the notification of asynchronous observer methods , e.g. to specify an Executor object to be used for asynchronous delivery. Weld defines the following non-portable notification options (see WeldNotificationOptions):

Key Value type Description

weld.async.notification.mode

String

The notification mode. Possible values are: SERIAL (default), PARALLEL. See also Notification modes.

weld.async.notification.timeout

Long or String which can be parsed as a long

The notification timeout (in milliseconds) after which the returned completion stage must be completed. If the time expires the stage is completed exceptionally with a CompletionException holding the java.util.concurrent.TimeoutException as its cause. The expiration does not abort the notification of the observers.

It is also possible to use the key constants and static convenient methods declared on org.jboss.weld.events.WeldNotificationOptions from Weld API, e.g. WeldNotificationOptions.TIMEOUT or WeldNotificationOptions.withParallelMode().
Table 1. Notification modes
Mode Description

SERIAL

Asynchronous observers are notified serially in a single worker thread (default behavior).

PARALLEL

Asynchronous observers are notified in parallel assuming that the java.util.concurrent.Executor used supports parallel execution.

11.3.3. Applying qualifiers to event

Qualifiers can be applied to an event in one of two ways:

  • by annotating the Event injection point, or

  • by passing qualifiers to the select() of Event.

Specifying the qualifiers at the injection point is far simpler:

@Inject @Updated Event<Document> documentUpdatedEvent;

Then, every event fired via this instance of Event has the event qualifier @Updated. The event is delivered to every observer method that:

  • has an event parameter to which the event object is assignable, and

  • does not have any event qualifier except for the event qualifiers that match those specified at the Event injection point.

The downside of annotating the injection point is that we can’t specify the qualifier dynamically. CDI lets us obtain a qualifier instance by subclassing the helper class AnnotationLiteral. That way, we can pass the qualifier to the select() method of Event.

documentEvent.select(new AnnotationLiteral<Updated>(){}).fire(document);

Events can have multiple event qualifiers, assembled using any combination of annotations at the Event injection point and qualifier instances passed to the select() method.

11.4. Conditional observer methods

By default, if there is no instance of an observer in the current context, the container will instantiate the observer in order to deliver an event to it. This behavior isn’t always desirable. We may want to deliver events only to instances of the observer that already exist in the current contexts.

A conditional observer is specified by adding receive = IF_EXISTS to the @Observes annotation.

public void refreshOnDocumentUpdate(@Observes(receive = IF_EXISTS) @Updated Document d) { ... }
A bean with scope @Dependent cannot be a conditional observer, since it would never be called!

11.5. Event qualifiers with members

An event qualifier type may have annotation members:

@Qualifier
@Target({METHOD, FIELD, PARAMETER, TYPE})
@Retention(RUNTIME)
public @interface Role {
   RoleType value();
}

The member value is used to narrow the messages delivered to the observer:

public void adminLoggedIn(@Observes @Role(ADMIN) LoggedIn event) { ... }

Event qualifier type members may be specified statically by the event producer, via annotations at the event notifier injection point:

@Inject @Role(ADMIN) Event<LoggedIn> loggedInEvent;

Alternatively, the value of the event qualifier type member may be determined dynamically by the event producer. We start by writing an abstract subclass of AnnotationLiteral:

abstract class RoleBinding
   extends AnnotationLiteral<Role>
   implements Role {}

The event producer passes an instance of this class to select():

documentEvent.select(new RoleBinding() {
   public void value() { return user.getRole(); }
}).fire(document);

11.6. Multiple event qualifiers

Event qualifiers may be combined, for example:

@Inject @Blog Event<Document> blogEvent;
...
if (document.isBlog()) blogEvent.select(new AnnotationLiteral<Updated>(){}).fire(document);

The above shown event is fired with two qualifiers - @Blog and @Updated. An observer method is notified if the set of observer qualifiers is a subset of the fired event’s qualifiers. Assume the following observers in this example:

public void afterBlogUpdate(@Observes @Updated @Blog Document document) { ... }
public void afterDocumentUpdate(@Observes @Updated Document document) { ... }
public void onAnyBlogEvent(@Observes @Blog Document document) { ... }
public void onAnyDocumentEvent(@Observes Document document) { ... }}}

All of these observer methods will be notified.

However, if there were also an observer method:

public void afterPersonalBlogUpdate(@Observes @Updated @Personal @Blog Document document) { ... }

It would not be notified, as @Personal is not a qualifier of the event being fired. Or to put it more formally, @Updated and @Personal do not form a subset of @Blog and @Updated.

11.7. Transactional observers

Transactional observers receive their event notifications during the before or after completion phase of the transaction in which the event was raised. For example, the following observer method needs to refresh a query result set that is cached in the application context, but only when transactions that update the Category tree succeed:

public void refreshCategoryTree(@Observes(during = AFTER_SUCCESS) CategoryUpdateEvent event) { ... }

There are five kinds of transactional observers:

  • IN_PROGRESS observers are called immediately (default)

  • AFTER_SUCCESS observers are called during the after completion phase of the transaction, but only if the transaction completes successfully

  • AFTER_FAILURE observers are called during the after completion phase of the transaction, but only if the transaction fails to complete successfully

  • AFTER_COMPLETION observers are called during the after completion phase of the transaction

  • BEFORE_COMPLETION observers are called during the before completion phase of the transaction

Transactional observers are very important in a stateful object model because state is often held for longer than a single atomic transaction.

Imagine that we have cached a JPA query result set in the application scope:

import jakarta.ejb.Singleton;
import jakarta.enterprise.inject.Produces;

@ApplicationScoped @Singleton
public class Catalog {

   @PersistenceContext EntityManager em;

   List<Product> products;

   @Produces @Catalog
   List<Product> getCatalog() {
      if (products==null) {
         products = em.createQuery("select p from Product p where p.deleted = false")
            .getResultList();
      }
      return products;
   }

}

From time to time, a Product is created or deleted. When this occurs, we need to refresh the Product catalog. But we should wait until after the transaction completes successfully before performing this refresh!

The bean that creates and deletes `Product`s could raise events, for example:

import jakarta.enterprise.event.Event;

@Stateless
public class ProductManager {
   @PersistenceContext EntityManager em;
   @Inject @Any Event<Product> productEvent;

   public void delete(Product product) {
      em.delete(product);
      productEvent.select(new AnnotationLiteral<Deleted>(){}).fire(product);
   }

   public void persist(Product product) {
      em.persist(product);
      productEvent.select(new AnnotationLiteral<Created>(){}).fire(product);
   }
   ...
}

And now Catalog can observe the events after successful completion of the transaction:

import jakarta.ejb.Singleton;

@ApplicationScoped @Singleton
public class Catalog {
   ...
   void addProduct(@Observes(during = AFTER_SUCCESS) @Created Product product) {
      products.add(product);
   }

   void removeProduct(@Observes(during = AFTER_SUCCESS) @Deleted Product product) {
      products.remove(product);
   }
}

11.8. Enhanced version of jakarta.enterprise.event.Event

Weld API offers slight advantage when dealing with events - org.jboss.weld.events.WeldEvent, an augmented version of jakarta.enterprise.event.Event.

Currently there is only one additional method, select(Type type, Annotation…​ qualifiers). This method allows to perform well-known selection with java.lang.reflect.Type as parameter which means things can get pretty generic. While there are no limitations to what you can select, there are limitation to the WeldEvent instance you perform selection on. In order to preserve type-safety, you have to invoke this method on WeldInstance<Object>. Using any other parameter will result in IllegalStateException. Usage looks just as you would except:

@Inject
WeldEvent<Object> event;

public void selectAndFireEventForType(Type type) {
  event.select(type).fire(new Payload());
}

12. Stereotypes

The CDI specification defines a stereotype as follows:

In many systems, use of architectural patterns produces a set of recurring bean roles. A stereotype allows a framework developer to identify such a role and declare some common metadata for beans with that role in a central place.

A stereotype encapsulates any combination of:

  • a default scope, and

  • a set of interceptor bindings.

A stereotype may also specify that:

  • all beans with the stereotype have defaulted bean names, or that

  • all beans with the stereotype are alternatives.

A bean may declare zero, one or multiple stereotypes. Stereotype annotations may be applied to a bean class or producer method or field.

A stereotype is an annotation, annotated @Stereotype, that packages several other annotations. For instance, the following stereotype identifies action classes in some MVC framework:

@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
...
public @interface Action {}

We use the stereotype by applying the annotation to a bean.

@Action
public class LoginAction { ... }

Of course, we need to apply some other annotations to our stereotype or else it wouldn’t be adding much value.

12.1. Default scope for a stereotype

A stereotype may specify a default scope for beans annotated with the stereotype. For example:

@RequestScoped
@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
public @interface Action {}

A particular action may still override this default if necessary:

@Dependent @Action
public class DependentScopedLoginAction { ... }

Naturally, overriding a single default isn’t much use. But remember, stereotypes can define more than just the default scope.

12.2. Interceptor bindings for stereotypes

A stereotype may specify a set of interceptor bindings to be inherited by all beans with that stereotype.

@RequestScoped
@Transactional(requiresNew=true)
@Secure
@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
public @interface Action {}

This helps us get technical concerns, like transactions and security, even further away from the business code!

12.3. Name defaulting with stereotypes

We can specify that all beans with a certain stereotype have a defaulted EL name when a name is not explicitly defined for that bean. All we need to do is add an empty @Named annotation:

@RequestScoped
@Transactional(requiresNew=true)
@Secure
@Named
@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
public @interface Action {}

Now, the LoginAction bean will have the defaulted name loginAction.

12.4. Alternative stereotypes

A stereotype can indicate that all beans to which it is applied are `@Alternative`s. An alternative stereotype lets us classify beans by deployment scenario.

@Alternative
@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
public @interface Mock {}

We can apply an alternative stereotype to a whole set of beans, and activate them all with one line of code in beans.xml.

@Mock
public class MockLoginAction extends LoginAction { ... }
<beans>
   <alternatives>
      <stereotype>org.mycompany.testing.Mock</stereotype>
   </alternatives>
</beans>

12.5. Stereotypes with @Priority

A stereotype can declare a @Priority annotation which then affects enablement and ordering of beans. This is typically useful in combination with @Alternative to immediately mark a bean as a globally enabled alternative:

@Alternative
@Priority(Interceptor.Priority.APPLICATION + 5)
@Stereotype
@Target(TYPE)
@Retention(RUNTIME)
public @interface EnabledAlternativeStereotype {}

A @Priority annotation declared directly on the bean always precedes any @Priority annotation inherited via stereotypes.

12.6. Stereotype stacking

This may blow your mind a bit, but stereotypes may declare other stereotypes, which we’ll call stereotype stacking. You may want to do this if you have two distinct stereotypes which are meaningful on their own, but in other situation may be meaningful when combined.

Here’s an example that combines the @Action and @Auditable stereotypes:

@Auditable
@Action
@Stereotype
@Target(TYPE)
@Retention(RUNTIME)
public @interface AuditableAction {}

12.7. Built-in stereotypes

CDI defines one standard stereotype, @Model, which is expected to be used frequently in web applications:

@Named
@RequestScoped
@Stereotype
@Target({TYPE, METHOD, FIELD})
@Retention(RUNTIME)
public @interface Model {}

Instead of using JSF managed beans, just annotate a bean @Model, and use it directly in your JSF view!

13. Specialization, inheritance and alternatives

When you first start developing with CDI, you’ll likely be dealing only with a single bean implementation for each bean type. In this case, it’s easy to understand how beans get selected for injection. As the complexity of your application grows, multiple occurrences of the same bean type start appearing, either because you have multiple implementations or two beans share a common (Java) inheritance. That’s when you have to begin studying the specialization, inheritance and alternative rules to work through unsatisfied or ambiguous dependencies or to avoid certain beans from being called.

The CDI specification recognizes two distinct scenarios in which one bean extends another:

  • The second bean specializes the first bean in certain deployment scenarios. In these deployments, the second bean completely replaces the first, fulfilling the same role in the system.

  • The second bean is simply reusing the Java implementation, and otherwise bears no relation to the first bean. The first bean may not even have been designed for use as a contextual object.

The second case is the default assumed by CDI. It’s possible to have two beans in the system with the same part bean type (interface or parent class). As you’ve learned, you select between the two implementations using qualifiers.

The first case is the exception, and also requires more care. In any given deployment, only one bean can fulfill a given role at a time. That means one bean needs to be enabled and the other disabled. There are a two modifiers involved: @Alternative and @Specializes. We’ll start by looking at alternatives and then show the guarantees that specialization adds.

13.1. Using alternative stereotypes

CDI lets you override the implementation of a bean type at deployment time using an alternative. For example, the following bean provides a default implementation of the PaymentProcessor interface:

public class DefaultPaymentProcessor
      implements PaymentProcessor {
   ...
}

But in our staging environment, we don’t really want to submit payments to the external system, so we override that implementation of PaymentProcessor with a different bean:

public @Alternative
class StagingPaymentProcessor
      implements PaymentProcessor {
   ...
}

or

public @Alternative
class StagingPaymentProcessor
      extends DefaultPaymentProcessor {
   ...
}

We’ve already seen how we can enable this alternative by listing its class in the beans.xml descriptor.

But suppose we have many alternatives in the staging environment. It would be much more convenient to be able to enable them all at once. So let’s make @Staging an @Alternative stereotype and annotate the staging beans with this stereotype instead. You’ll see how this level of indirection pays off. First, we create the stereotype:

@Alternative
@Stereotype
@Retention(RUNTIME)
@Target(TYPE)
public @interface Staging {}

Then we replace the @Alternative annotation on our bean with @Staging:

@Staging
public class StagingPaymentProcessor
      implements PaymentProcessor {
   ...
}

Finally, we activate the @Staging stereotype in the beans.xml descriptor:

<beans
   xmlns="http://xmlns.jcp.org/xml/ns/javaee"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
   xsi:schemaLocation="
      http://xmlns.jcp.org/xml/ns/javaee
      http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd">
   <alternatives>
         <stereotype>org.mycompany.myapp.Staging</stereotype>
   </alternatives>
</beans>

Now, no matter how many staging beans we have, they will all be enabled at once.

13.2. A minor problem with alternatives

When we enable an alternative, does that mean the default implementation is disabled? Well, not exactly. If the default implementation has a qualifier, for instance @LargeTransaction, and the alternative does not, you could still inject the default implementation.

@Inject @LargeTransaction PaymentProcessor paymentProcessor;

So we haven’t completely replaced the default implementation in this deployment of the system. The only way one bean can completely override a second bean at all injection points is if it implements all the bean types and declares all the qualifiers of the second bean. However, if the second bean declares a producer method or observer method, then even this is not enough to ensure that the second bean is never called! We need something extra.

CDI provides a special feature, called specialization, that helps the developer avoid these traps. Specialization is a way of informing the system of your intent to completely replace and disable an implementation of a bean.

13.3. Using specialization

When the goal is to replace one bean implementation with a second, to help prevent developer error, the first bean may:

  • directly extend the bean class of the second bean, or

  • directly override the producer method, in the case that the second bean is a producer method, and then

explicitly declare that it specializes the second bean:

@Specializes
public class MockCreditCardPaymentProcessor
      extends CreditCardPaymentProcessor {
   ...
}

When an enabled bean specializes another bean, the other bean is never instantiated or called by the container. Even if the other bean defines a producer or observer method, the method will never be called.

So why does specialization work, and what does it have to do with inheritance?

Since we’re informing the container that our alternative bean is meant to stand in as a replacement for the default implementation, the alternative implementation automatically inherits all qualifiers of the default implementation. Thus, in our example, MockCreditCardPaymentProcessor inherits the qualifiers @Default and @CreditCard.

Furthermore, if the default implementation declares a bean EL name using @Named, the name is inherited by the specializing alternative bean.

14. Java EE component environment resources

Java EE 5 already introduced some limited support for dependency injection, in the form of component environment injection. A component environment resource is a Java EE component, for example a JDBC datasource, JMS queue or topic, JPA persistence context, remote EJB or web service.

Naturally, there is now a slight mismatch with the new style of dependency injection in CDI. Most notably, component environment injection relies on string-based names to qualify ambiguous types, and there is no real consistency as to the nature of the names (sometimes a JNDI name, sometimes a persistence unit name, sometimes an EJB link, sometimes a non-portable "mapped name"). Producer fields turned out to be an elegant adaptor to reduce all this complexity to a common model and get component environment resources to participate in the CDI system just like any other kind of bean.

Fields have a duality in that they can both be the target of Java EE component environment injection and be declared as a CDI producer field. Therefore, they can define a mapping from a string-based name in the component environment, to a combination of type and qualifiers used in the world of typesafe injection. We call a producer field that represents a reference to an object in the Java EE component environment a resource.

14.1. Defining a resource

The CDI specification uses the term resource to refer, generically, to any of the following kinds of object which might be available in the Java EE component environment:

  • JDBC `Datasource`s, JMS `Queue`s, `Topic`s and `ConnectionFactory`s, JavaMail `Session`s and other transactional resources including JCA connectors,

  • JPA `EntityManager`s and `EntityManagerFactory`s,

  • remote EJBs, and

  • web services.

We declare a resource by annotating a producer field with a component environment injection annotation: @Resource, @EJB, @PersistenceContext, @PersistenceUnit or @WebServiceRef.

@Produces @WebServiceRef(lookup="java:app/service/Catalog")
Catalog catalog;
@Produces @Resource(lookup="java:global/env/jdbc/CustomerDatasource")
@CustomerDatabase Datasource customerDatabase;
@Produces @PersistenceContext(unitName="CustomerDatabase")
@CustomerDatabase EntityManager customerDatabasePersistenceContext;
@Produces @PersistenceUnit(unitName="CustomerDatabase")
@CustomerDatabase EntityManagerFactory customerDatabasePersistenceUnit;
@Produces @EJB(ejbLink="../their.jar#PaymentService")
PaymentService paymentService;

The field may be static (but not final).

A resource declaration really contains two pieces of information:

  • the JNDI name, EJB link, persistence unit name, or other metadata needed to obtain a reference to the resource from the component environment, and

  • the type and qualifiers that we will use to inject the reference into our beans.

It might feel strange to be declaring resources in Java code. Isn’t this stuff that might be deployment-specific? Certainly, and that’s why it makes sense to declare your resources in a class annotated @Alternative.

14.2. Typesafe resource injection

These resources can now be injected in the usual way.

@Inject Catalog catalog;
@Inject @CustomerDatabase Datasource customerDatabase;
@Inject @CustomerDatabase EntityManager customerDatabaseEntityManager;
@Inject @CustomerDatabase EntityManagerFactory customerDatabaseEntityManagerFactory;
@Inject PaymentService paymentService;

The bean type and qualifiers of the resource are determined by the producer field declaration.

It might seem like a pain to have to write these extra producer field declarations, just to gain an additional level of indirection. You could just as well use component environment injection directly, right? But remember that you’re going to be using resources like the EntityManager in several different beans. Isn’t it nicer and more typesafe to write

@Inject @CustomerDatabase EntityManager

instead of

@PersistenceContext(unitName="CustomerDatabase") EntityManager

all over the place?

CDI and the Java EE ecosystem

The third theme of CDI is integration. We’ve already seen how CDI helps integrate EJB and JSF, allowing EJBs to be bound directly to JSF pages. That’s just the beginning. The CDI services are integrated into the very core of the Java EE platform. Even EJB session beans can take advantage of the dependency injection, event bus, and contextual lifecycle management that CDI provides.

CDI is also designed to work in concert with technologies outside of the platform by providing integration points into the Java EE platform via an SPI. This SPI positions CDI as the foundation for a new ecosystem of portable extensions and integration with existing frameworks and technologies. The CDI services will be able to reach a diverse collection of technologies, such as business process management (BPM) engines, existing web frameworks and de facto standard component models. Of course, The Java EE platform will never be able to standardize all the interesting technologies that are used in the world of Java application development, but CDI makes it easier to use the technologies which are not yet part of the platform seamlessly within the Java EE environment.

We’re about to see how to take full advantage of the Java EE platform in an application that uses CDI. We’ll also briefly meet a set of SPIs that are provided to support portable extensions to CDI. You might not ever need to use these SPIs directly, but don’t take them for granted. You will likely be using them indirectly, every time you use a third-party extension, such as DeltaSpike.

15. Java EE integration

CDI is fully integrated into the Java EE environment. Beans have access to Java EE resources and JPA persistence contexts. They may be used in Unified EL expressions in JSF and JSP pages. They may even be injected into other platform components, such as servlets and message-driven Beans, which are not beans themselves.

15.1. Built-in beans

In the Java EE environment, the container provides the following built-in beans, all with the qualifier @Default:

  • the current JTA UserTransaction,

  • a Principal representing the current caller identity,

  • the default Bean Validation ValidationFactory,

  • a Validator for the default ValidationFactory,

  • HttpServletRequest, HttpSession and ServletContext

The FacesContext is not injectable. You can get at it by calling FacesContext.getCurrentInstance(). Alternatively you may define the following producer method:

import jakarta.enterprise.inject.Produces;

class FacesContextProducer {
   @Produces @RequestScoped FacesContext getFacesContext() {
      return FacesContext.getCurrentInstance();
   }
}

15.2. Injecting Java EE resources into a bean

All managed beans may take advantage of Java EE component environment injection using @Resource, @EJB, @PersistenceContext, @PersistenceUnit and @WebServiceRef. We’ve already seen a couple of examples of this, though we didn’t pay much attention at the time:

@Transactional @Interceptor
public class TransactionInterceptor {
   @Resource UserTransaction transaction;

   @AroundInvoke public Object manageTransaction(InvocationContext ctx) throws Exception { ... }
}
@SessionScoped
public class Login implements Serializable {
   @Inject Credentials credentials;
   @PersistenceContext EntityManager userDatabase;
    ...
}

The Java EE @PostConstruct and @PreDestroy callbacks are also supported for all managed beans. The @PostConstruct method is called after all injection has been performed.

Of course, we advise that component environment injection be used to define CDI resources, and that typesafe injection be used in application code.

15.3. Calling a bean from a servlet

It’s easy to use a bean from a servlet in Java EE. Simply inject the bean using field or initializer method injection.

public class LoginServlet extends HttpServlet {
   @Inject Credentials credentials;
   @Inject Login login;

   @Override
   public void service(HttpServletRequest request, HttpServletResponse response)
      throws ServletException, IOException {
      credentials.setUsername(request.getParameter("username")):
      credentials.setPassword(request.getParameter("password")):
      login.login();
      if ( login.isLoggedIn() ) {
         response.sendRedirect("/home.jsp");
      }
      else {
         response.sendRedirect("/loginError.jsp");
      }
   }

}

Since instances of servlets are shared across all incoming threads, the bean client proxy takes care of routing method invocations from the servlet to the correct instances of Credentials and Login for the current request and HTTP session.

15.4. Calling a bean from a message-driven bean

CDI injection applies to all EJBs, even when they aren’t CDI beans. In particular, you can use CDI injection in message-driven beans, which are by nature not contextual objects.

You can even use interceptor bindings for message-driven Beans.

@Transactional @MessageDriven
public class ProcessOrder implements MessageListener {
   @Inject Inventory inventory;
   @PersistenceContext EntityManager em;

   public void onMessage(Message message) {
      ...
   }
}

Please note that there is no session or conversation context available when a message is delivered to a message-driven bean. Only @RequestScoped and @ApplicationScoped beans are available.

But how about beans which send JMS messages?

15.5. JMS endpoints

Sending messages using JMS can be quite complex, because of the number of different objects you need to deal with. For queues we have Queue, QueueConnectionFactory, QueueConnection, QueueSession and QueueSender. For topics we have Topic, TopicConnectionFactory, TopicConnection, TopicSession and TopicPublisher. Each of these objects has its own lifecycle and threading model that we need to worry about.

You can use producer fields and methods to prepare all of these resources for injection into a bean:

import jakarta.jms.ConnectionFactory;
import jakarta.jms.Queue;

public class OrderResources {
   @Resource(name="jms/ConnectionFactory")
   private ConnectionFactory connectionFactory;

   @Resource(name="jms/OrderQueue")
   private Queue orderQueue;

   @Produces @Order
   public Connection createOrderConnection() throws JMSException {
    return connectionFactory.createConnection();
   }

   public void closeOrderConnection(@Disposes @Order Connection connection)
         throws JMSException {
      connection.close();
   }

   @Produces @Order
   public Session createOrderSession(@Order Connection connection)
         throws JMSException {
      return connection.createSession(true, Session.AUTO_ACKNOWLEDGE);
   }

   public void closeOrderSession(@Disposes @Order Session session)
         throws JMSException {
      session.close();
   }

   @Produces @Order
   public MessageProducer createOrderMessageProducer(@Order Session session)
         throws JMSException {
      return session.createProducer(orderQueue);
   }

   public void closeOrderMessageProducer(@Disposes @Order MessageProducer producer)
         throws JMSException {
      producer.close();
   }
}

In this example, we can just inject the prepared MessageProducer, Connection or QueueSession:

@Inject Order order;
@Inject @Order MessageProducer producer;
@Inject @Order Session orderSession;

public void sendMessage() {
   MapMessage msg = orderSession.createMapMessage();
   msg.setLong("orderId", order.getId());
   ...
   producer.send(msg);
}

The lifecycle of the injected JMS objects is completely controlled by the container.

15.6. Packaging and deployment

CDI doesn’t define any special deployment archive. You can package CDI beans in JARs, EJB JARs or WARs—any deployment location in the application classpath. However, the archive must be a "bean archive".

Unlike CDI 1.0, the CDI 1.1 specification recognizes two types of bean archives. The type determines the way the container discovers CDI beans in the archive.

CDI 1.1 makes use of a new XSD file for beans.xml descriptor: http://xmlns.jcp.org/xml/ns/javaee/beans_1_1.xsd

15.6.1. Explicit bean archive

An explicit bean archive is an archive which contains a beans.xml file:

  • with a version number of 1.1 (or later), with the bean-discovery-mode of all, or,

  • like in CDI 1.0 – with no version number, or, that is an empty file.

It behaves just like a CDI 1.0 bean archive – i.e. Weld discovers each Java class, interface or enum in such an archive.

The beans.xml file must be located at:

  • META-INF/beans.xml (for jar archives), or,

  • WEB-INF/beans.xml or WEB-INF/classes/META-INF/beans.xml (for WAR archives).

You should never place a beans.xml file in both of the WEB-INF and the WEB-INF/classes/META-INF directories. Otherwise your application would not be portable.

Trimmed bean archive

Optionally beans.xml file in explicit bean archive can include simple trim element. This trimmed bean archive means that ProcessAnnotatedType event is fired for every AnnotatedType, but only types which are annotated with a bean defining annotation or any scope annotation will become beans.

15.6.2. Implicit bean archive

An implicit bean archive is an archive which contains one or more bean classes with a bean defining annotation, or one or more session beans. It can also contain a beans.xml file with a version number of 1.1 (or later), with the bean-discovery-mode of annotated. Weld only discovers Java classes with a bean defining annotation within an implicit bean archive.

The set of bean defining annotations contains:

  • @ApplicationScoped, @SessionScoped, @ConversationScoped and @RequestScoped annotations,

  • all other normal scope types,

  • @Interceptor and @Decorator annotations,

  • all stereotype annotations (i.e. annotations annotated with @Stereotype),

  • and the @Dependent scope annotation.

However, @Singleton is not a bean defining annotation. See 2.5.1. Bean defining annotations to learn more.

15.6.3. Which archive is not a bean archive

Although quite obvious, let’s sum it up:

  • an archive which contains neither a beans.xml file nor any bean class with a bean defining annotation,

  • an archive which contains a beans.xml file with the bean-discovery-mode of none.

Actually, there is one more special rule (designed to retain backward compatibility): an archive which contains a portable extension and no beans.xml is not a bean archive either. However, this is not a very common use case.

For compatibility with CDI 1.0, each Java EE product (WildFly, GlassFish, etc.) must contain an option to cause an archive to be ignored by the container when no beans.xml is present. Consult specific Java EE product documentation to learn more about such option.

15.6.4. Embeddable EJB container

In an embeddable EJB container, beans may be deployed in any location in which EJBs may be deployed.

16. Portable extensions

CDI is intended to be a foundation for frameworks, extensions and integration with other technologies. Therefore, CDI exposes a set of SPIs for the use of developers of portable extensions to CDI. For example, the following kinds of extensions were envisaged by the designers of CDI:

  • integration with Business Process Management engines,

  • integration with third-party frameworks such as Spring, Seam, GWT or Wicket, and

  • new technology based upon the CDI programming model.

More formally, according to the spec:

A portable extension may integrate with the container by:

  • Providing its own beans, interceptors and decorators to the container

  • Injecting dependencies into its own objects using the dependency injection service

  • Providing a context implementation for a custom scope

  • Augmenting or overriding the annotation-based metadata with metadata from some other source

16.1. Creating an Extension

The first step in creating a portable extension is to write a class that implements Extension. This marker interface does not define any methods, but it’s needed to satisfy the requirements of Java SE’s service provider architecture.

 import jakarta.enterprise.inject.spi.Extension;

class MyExtension implements Extension { ... }

Next, we need to register our extension as a service provider by creating a file named META-INF/services/jakarta.enterprise.inject.spi.Extension, which contains the name of our extension class:

org.mydomain.extension.MyExtension

An extension is not a bean, exactly, since it is instantiated by the container during the initialization process, before any beans or contexts exist. However, it can be injected into other beans once the initialization process is complete.

@Inject
MyBean(MyExtension myExtension) {
   myExtension.doSomething();
}

And, like beans, extensions can have observer methods. Usually, the observer methods observe container lifecycle events.

Weld SE allows to define so called synthetic container lifecycle event observers. Such observers do not belong to a particular extension. See also org.jboss.weld.environment.se.ContainerLifecycleObserver and Weld.addContainerLifecycleObserver().

16.2. Container lifecycle events

During the initialization process, the container fires a series of events, including:

  • BeforeBeanDiscovery

  • ProcessAnnotatedType and ProcessSyntheticAnnotatedType

  • AfterTypeDiscovery

  • ProcessInjectionTarget and ProcessProducer

  • ProcessInjectionPoint

  • ProcessBeanAttributes

  • ProcessBean, ProcessManagedBean, ProcessSessionBean, ProcessProducerMethod, ProcessProducerField and ProcessSyntheticBean

  • ProcessObserverMethod and ProcessSyntheticObserverMethod

  • AfterBeanDiscovery

  • AfterDeploymentValidation

Extensions may observe these events:

import jakarta.enterprise.inject.spi.Extension;

class MyExtension implements Extension {

   void beforeBeanDiscovery(@Observes BeforeBeanDiscovery bbd) {
      Logger.global.debug("beginning the scanning process");
   }

   <T> void processAnnotatedType(@Observes ProcessAnnotatedType<T> pat) {
      Logger.global.debug("scanning type: " + pat.getAnnotatedType().getJavaClass().getName());
   }

   void afterBeanDiscovery(@Observes AfterBeanDiscovery abd) {
      Logger.global.debug("finished the scanning process");
   }

}

In fact, the extension can do a lot more than just observe. The extension is permitted to modify the container’s metamodel and more. Here’s a very simple example:

import jakarta.enterprise.inject.spi.Extension;

class MyExtension implements Extension {

   <T> void processAnnotatedType(@Observes @WithAnnotations({Ignore.class}) ProcessAnnotatedType<T> pat) {
      /* tell the container to ignore the type if it is annotated @Ignore */
      if ( pat.getAnnotatedType().isAnnotationPresent(Ignore.class) ) pat.veto();
   }

}
The @WithAnnotations annotation causes the container to deliver the ProcessAnnotatedType events only for the types which contain the specified annotation.

Container lifecycle event observer methods may inject a BeanManager:

<T> void processAnnotatedType(@Observes ProcessAnnotatedType<T> pat, BeanManager beanManager) { ... }

An extension observer method is not allowed to inject any other object.

16.2.1. Configurators

CDI 2.0 introduced the Configurators API - a new way to easily configure some parts of the SPI during container lifecycle event notification. E.g. to add a qualifier to a bean, an extension can observe ProcessBeanAttributes, then obtain a configurator instance through ProcessBeanAttributes.configureBeanAttributes() and finally use BeanAttributesConfigurator.addQualifier(Annotation). No need to wrap/delegate to the original BeanAttributes. See also chapter Configurators interfaces of the CDI specification.

16.2.2. Weld-enriched container lifecycle events

Apart from CDI-defined lifecycle events, Weld also offers enriched observable container lifecycle event - WeldAfterBeanDiscovery. Compared to jakarta.enterprise.inject.spi.AfterBeanDiscovery, it adds one extra method - addInterceptor(). This method works in the same way as the aforementioned Configurators; you get back an InterceptorConfigurator instance, where you can set all the desired data. The interceptor is created automatically, once the methods exits and the configurator instance is not reusable. But if you need to create several interceptors, you can simply request several configurator instances. Here is a code snippet to demonstrate the idea:

public void afterBeanDiscovery(@Observes WeldAfterBeanDiscovery event) {

        // type level interceptor
        event.addInterceptor().intercept(InterceptionType.AROUND_INVOKE, (invocationContext) -> {
            try {
                getAnswerToLifeTheUniverseAndEverything();
                return invocationContext.proceed();
            } catch (Exception e) {
                e.printStackTrace();
            }
            return null;
        }).priority(2500).addBinding(MyTypeBinding.MyTypeBindingLiteral.INSTANCE);
}

The sample presents a simple interception use case where you supply java.util.function.Function as the interceptor body method. For more complex cases, you may also choose to use interceptWithMetadata method which accepts java.util.function.BiFunction instead. The second parameter of the BiFunction emulates @Inject @Intercepted Bean<?> allowing access to metadata.

16.3. The BeanManager object

The nerve center for extending CDI is the BeanManager object. The BeanManager interface provides operations useful for portable extensions, e.g. lets us obtain beans, interceptors, decorators, observers and contexts programmatically. Note that some of the methods may not be called before the AfterBeanDiscovery event is fired, e.g. BeanManager.getBeans(). Furthermore, the BeanManager.getReference() and BeanManager.getInjectableReference() methods may not be called before the AfterDeploymentValidation event is fired. See also the javadoc for more details.

As already stated in Container lifecycle events, any container lifecycle event observer method can obtain an injected BeanManager reference:

void afterBeanDiscovery(@Observes AfterBeanDiscovery event, BeanManager beanManager) { ... }

Furthermore, any bean or other Java EE component which supports injection can obtain an instance of BeanManager via injection:

@Inject BeanManager beanManager;

Alternatively, a BeanManager reference may be obtained from CDI via a static method call.

CDI.current().getBeanManager()

Java EE components may obtain an instance of BeanManager from JNDI by looking up the name java:comp/BeanManager. Any operation of BeanManager may be called at any time during the execution of the application.

Let’s study some of the interfaces exposed by the BeanManager.

16.4. The CDI class

Application components which cannot obtain a BeanManager reference via injection nor JNDI lookup can get the reference from the jakarta.enterprise.inject.spi.CDI class via a static method call:

BeanManager manager = CDI.current().getBeanManager();

The CDI class can be used directly to programmatically lookup CDI beans as described in Obtaining a contextual instance by programmatic lookup .

CDI.select(Foo.class).get()

16.5. The InjectionTarget interface

The first thing that a framework developer is going to look for in the portable extension SPI is a way to inject CDI beans into objects which are not under the control of CDI. The InjectionTarget interface makes this very easy.

We recommend that frameworks let CDI take over the job of actually instantiating the framework-controlled objects. That way, the framework-controlled objects can take advantage of constructor injection. However, if the framework requires use of a constructor with a special signature, the framework will need to instantiate the object itself, and so only method and field injection will be supported.
import jakarta.enterprise.inject.spi.CDI;

...

//get the BeanManager
BeanManager beanManager = CDI.current().getBeanManager();

//CDI uses an AnnotatedType object to read the annotations of a class
AnnotatedType<SomeFrameworkComponent> type = beanManager.createAnnotatedType(SomeFrameworkComponent.class);

//The extension uses an InjectionTarget to delegate instantiation, dependency injection
//and lifecycle callbacks to the CDI container
InjectionTarget<SomeFrameworkComponent> it = beanManager.createInjectionTarget(type);

//each instance needs its own CDI CreationalContext
CreationalContext ctx = beanManager.createCreationalContext(null);

//instantiate the framework component and inject its dependencies
SomeFrameworkComponent instance = it.produce(ctx);  //call the constructor
it.inject(instance, ctx);  //call initializer methods and perform field injection
it.postConstruct(instance);  //call the @PostConstruct method

...

//destroy the framework component instance and clean up dependent objects
it.preDestroy(instance);  //call the @PreDestroy method
it.dispose(instance);  //it is now safe to discard the instance
ctx.release();  //clean up dependent objects

16.6. The Bean interface

Instances of the interface Bean represent beans. There is an instance of Bean registered with the BeanManager object for every bean in the application. There are even Bean objects representing interceptors, decorators and producer methods.

The BeanAttributes interface exposes all the interesting things we discussed in The anatomy of a bean .

public interface BeanAttributes<T> {
   public Set<Type> getTypes();
   public Set<Annotation> getQualifiers();
   public Class<? extends Annotation> getScope();
   public String getName();
   public Set<Class<? extends Annotation>> getStereotypes();
   public boolean isAlternative();
}

The Bean interface extends the BeanAttributes interface and defines everything the container needs to manage instances of a certain bean.

public interface Bean<T> extends Contextual<T>, BeanAttributes<T> {
   public Class<?> getBeanClass();
   public Set<InjectionPoint> getInjectionPoints();
   public boolean isNullable();
}

There’s an easy way to find out what beans exist in the application:

Set<Bean<?>> allBeans = beanManager.getBeans(Object.class, new AnnotationLiteral<Any>() {});

The Bean interface makes it possible for a portable extension to provide support for new kinds of beans, beyond those defined by the CDI specification. For example, we could use the Bean interface to allow objects managed by another framework to be injected into beans.

16.7. Registering a Bean

The most common kind of CDI portable extension registers a bean (or beans) with the container.

In this example, we make a framework class, SecurityManager available for injection. To make things a bit more interesting, we’re going to delegate back to the container’s InjectionTarget to perform instantiation and injection upon the SecurityManager instance.

import jakarta.enterprise.inject.spi.Extension;
import jakarta.enterprise.event.Observes;
import java.lang.annotation.Annotation;
import java.lang.reflect.Type;
import jakarta.enterprise.inject.spi.InjectionPoint;
...

public class SecurityManagerExtension implements Extension {

    void afterBeanDiscovery(@Observes AfterBeanDiscovery event, BeanManager bm) {
        event.addBean()
           /* read annotations of the class and create an InjectionTarget used to instantiate the class and inject dependencies */
           .read(bm.createAnnotatedType(SecurityManager.class))
           .beanClass(SecurityManager.class)
           .scope(ApplicationScoped.class)
           .name("securityManager");
    }

}

But a portable extension can also mess with beans that are discovered automatically by the container.

16.8. Configuring an AnnotatedType

One of the most interesting things that an extension class can do is process the annotations of a bean class before the container builds its metamodel.

Let’s start with an example of an extension that provides support for the use of @Named at the package level. The package-level name is used to qualify the EL names of all beans defined in that package. The portable extension uses the ProcessAnnotatedType event to configure the AnnotatedType object and override the value() of the @Named annotation.

import java.lang.reflect.Type;
import jakarta.enterprise.inject.spi.Extension;
import java.lang.annotation.Annotation;
...

public class QualifiedNameExtension implements Extension {

    <X> void processAnnotatedType(@Observes ProcessAnnotatedType<X> event) {

        /* wrap this to override the annotations of the class */
        final AnnotatedType<X> at = event.getAnnotatedType();

        /* Only wrap AnnotatedTypes for classes with @Named packages */
        Package pkg = at.getJavaClass().getPackage();
        if (pkg == null || !pkg.isAnnotationPresent(Named.class) ) {
            return;
        }

        String unqualifiedName = "";
        if (at.isAnnotationPresent(Named.class)) {
            unqualifiedName = at.getAnnotation(Named.class).value();
        }
        if (unqualifiedName.isEmpty()) {
            unqualifiedName = Introspector.decapitalize(at.getJavaClass().getSimpleName());
        }
        final String qualifiedName = pkg.getAnnotation(Named.class).value()
                            + '_' + unqualifiedName;

        event.configureAnnotatedType().remove((a) -> a.annotationType().equals(Named.class)).add(NamedLiteral.of(qualifiedName));
    }

}

Here’s a second example, which adds the @Alternative annotation to any class which implements a certain Service interface.

import jakarta.enterprise.inject.spi.Extension;
import jakarta.enterprise.inject.Alternative;
...

class ServiceAlternativeExtension implements Extension {

   <T extends Service> void processAnnotatedType(@Observes ProcessAnnotatedType<T> event) {
      event.configureAnnotatedType().add(Alternative.Literal.INSTANCE);
   }
}

The AnnotatedType is not the only thing that can be configured/wrapped by an extension.

16.9. Overriding attributes of a bean

Configuring an AnnotatedType is a low-level approach to overriding CDI metadata by adding, removing or replacing annotations. Since version 1.1, CDI provides a higher-level facility for overriding attributes of beans discovered by the CDI container.

public interface BeanAttributes<T> {

   public Set<Type> getTypes();

   public Set<Annotation> getQualifiers();

   public Class<? extends Annotation> getScope();

   public String getName();

   public Set<Class<? extends Annotation>> getStereotypes();

   public boolean isAlternative();

}

The BeanAttributes interface exposes attributes of a bean. The container fires a ProcessBeanAttributes event for each enabled bean, interceptor and decorator before this object is registered. Similarly to the ProcessAnnotatedType, this event allows an extension to modify attributes of a bean or to veto the bean entirely.

public interface ProcessBeanAttributes<T> {

    public Annotated getAnnotated();

    public BeanAttributes<T> getBeanAttributes();

    public BeanAttributesConfigurator<T> configureBeanAttributes();

    public void setBeanAttributes(BeanAttributes<T> beanAttributes);

    public void addDefinitionError(Throwable t);

    public void veto();

}

The BeanManager also provides two utility methods for creating the BeanAttributes object from scratch:

public <T> BeanAttributes<T> createBeanAttributes(AnnotatedType<T> type);

public BeanAttributes<?> createBeanAttributes(AnnotatedMember<?> type);

16.10. Wrapping an InjectionTarget

The InjectionTarget interface exposes operations for producing and disposing an instance of a component, injecting its dependencies and invoking its lifecycle callbacks. A portable extension may wrap the InjectionTarget for any Java EE component that supports injection, allowing it to intercept any of these operations when they are invoked by the container.

Here’s a CDI portable extension that reads values from properties files and configures fields of Java EE components, including servlets, EJBs, managed beans, interceptors and more. In this example, properties for a class such as org.mydomain.blog.Blogger go in a resource named org/mydomain/blog/Blogger.properties, and the name of a property must match the name of the field to be configured. So Blogger.properties could contain:

firstName=Gavin
lastName=King

The portable extension works by wrapping the containers InjectionTarget and setting field values from the inject() method.

import jakarta.enterprise.event.Observes;
import jakarta.enterprise.inject.spi.Extension;
import jakarta.enterprise.inject.spi.InjectionPoint;

public class ConfigExtension implements Extension {

    <X> void processInjectionTarget(@Observes ProcessInjectionTarget<X> pit) {

          /* wrap this to intercept the component lifecycle */
         final InjectionTarget<X> it = pit.getInjectionTarget();

        final Map<Field, Object> configuredValues = new HashMap<Field, Object>();

        /* use this to read annotations of the class and its members */
        AnnotatedType<X> at = pit.getAnnotatedType();

        /* read the properties file */
        String propsFileName = at.getJavaClass().getSimpleName() + ".properties";
        InputStream stream = at.getJavaClass().getResourceAsStream(propsFileName);
        if (stream!=null) {

            try {
                Properties props = new Properties();
                props.load(stream);
                for (Map.Entry<Object, Object> property : props.entrySet()) {
                    String fieldName = property.getKey().toString();
                    Object value = property.getValue();
                    try {
                        Field field = at.getJavaClass().getDeclaredField(fieldName);
                        field.setAccessible(true);
                        if ( field.getType().isAssignableFrom( value.getClass() ) ) {
                            configuredValues.put(field, value);
                        }
                        else {
                            /* TODO: do type conversion automatically */
                            pit.addDefinitionError( new InjectionException(
                                   "field is not of type String: " + field ) );
                        }
                    }
                    catch (NoSuchFieldException nsfe) {
                        pit.addDefinitionError(nsfe);
                    }
                    finally {
                        stream.close();
                    }
                }
            }
            catch (IOException ioe) {
                pit.addDefinitionError(ioe);
            }
        }

        InjectionTarget<X> wrapped = new InjectionTarget<X>() {

            @Override
            public void inject(X instance, CreationalContext<X> ctx) {
                it.inject(instance, ctx);

                /* set the values onto the new instance of the component */
                for (Map.Entry<Field, Object> configuredValue: configuredValues.entrySet()) {
                    try {
                        configuredValue.getKey().set(instance, configuredValue.getValue());
                    }
                    catch (Exception e) {
                        throw new InjectionException(e);
                    }
                }
            }

            @Override
            public void postConstruct(X instance) {
                it.postConstruct(instance);
            }

            @Override
            public void preDestroy(X instance) {
                it.dispose(instance);
            }

            @Override
            public void dispose(X instance) {
                it.dispose(instance);
            }

            @Override
            public Set<InjectionPoint> getInjectionPoints() {
                return it.getInjectionPoints();
            }

            @Override
            public X produce(CreationalContext<X> ctx) {
                return it.produce(ctx);
            }

        };

        pit.setInjectionTarget(wrapped);

    }

}

16.11. Overriding InjectionPoint

CDI provides a way to override the metadata of an InjectionPoint. This works similarly to how metadata of a bean may be overridden using BeanAttributes.

For every injection point of each component supporting injection Weld fires an event of type jakarta.enterprise.inject.spi.ProcessInjectionPoint

public interface ProcessInjectionPoint<T, X> {
    public InjectionPoint getInjectionPoint();
    public InjectionPointConfigurator configureInjectionPoint();
    public void setInjectionPoint(InjectionPoint injectionPoint);
    public void addDefinitionError(Throwable t);
}

An extension may either completely override the injection point metadata or alter it by wrapping the InjectionPoint object obtained from ProcessInjectionPoint.getInjectionPoint()

There’s a lot more to the portable extension SPI than what we’ve discussed here. Check out the CDI spec or Javadoc for more information. For now, we’ll just mention one more extension point.

16.12. Manipulating interceptors, decorators and alternatives enabled for an application

An event of type jakarta.enterprise.inject.spi.AfterTypeDiscovery is fired when the container has fully completed the type discovery process and before it begins the bean discovery process.

public interface AfterTypeDiscovery {
    public List<Class<?>> getAlternatives();
    public List<Class<?>> getInterceptors();
    public List<Class<?>> getDecorators();
    public void addAnnotatedType(AnnotatedType<?> type, String id);
}

This event exposes a list of enabled alternatives, interceptors and decorators. Extensions may manipulate these collections directly to add, remove or change the order of the enabled records.

In addition, an AnnotatedType can be added to the types which will be scanned during bean discovery, with an identifier, which allows multiple annotated types, based on the same underlying type, to be defined.

16.13. The Context and AlterableContext interfaces

The Context and AlterableContext interface support addition of new scopes to CDI, or extension of the built-in scopes to new environments.

public interface Context {
   public Class<? extends Annotation> getScope();
   public <T> T get(Contextual<T> contextual, CreationalContext<T> creationalContext);
   public <T> T get(Contextual<T> contextual);
   boolean isActive();
}

For example, we might implement Context to add a business process scope to CDI, or to add support for the conversation scope to an application that uses Wicket.

import jakarta.enterprise.context.spi.Context;

public interface AlterableContext extends Context {
    public void destroy(Contextual<?> contextual);
}

AlterableContext was introduced in CDI 1.1. The destroy method allows an application to remove instances of contextual objects from a context.

For more information on implementing a custom context see this blog post or the Command context example.

17. Build Compatible extensions

Since CDI 4, users can leverage Build Compatible extensions as an alternative to Portable extensions. Both extension models are targeting the same set of use cases and can users can choose either model or even combine both.

As name suggests, Build Compatible extensions are tailored to run in more constrained environments and as such have to sacrifice some functionality and user-friendliness in order to retain portability across very different environments. For example, Build Compatible extension cannot be injected as a bean at runtime and therefore cannot be used to carry information gathered during CDI bootstrap into later stages of your application. Another notable difference is that unlike Portable extensions and their reflection-heavy model (for instance AnnotatedType), Build Compatible extensions use an entirely different language model, that has a reflection-free API.

Weld supports Build Compatible extensions and their language model but does so through usage of reflection and executes these extensions by binding their lifecycle calls to a specialized Portable extension. Since Weld is a CDI Full implementation, it is recommended to keep using Portable extensions over Build Compatible extensions.

The support works out of the box for Weld SE and Weld Servlet but for any other environments and custom integrations, it is up to integrators to make sure the support is included. Take a look at org.jboss.weld.lite.extension.translator.LiteExtensionTranslator and org.jboss.weld.lite.extension.translator.BuildCompatibleExtensionLoader in case you want to learn more about this topic.

Users can also choose to provide the same functionality in both variants - a Portable extension and a Build Compatible extension. It is then possible to annotate the Build Compatible variant with @jakarta.enterprise.inject.build.compatible.spi.SkipIfPortableExtensionPresent which will automatically disable the Build Compatible variant in favor of Portable extension variant in CDI Full environments.

Build Compatible extension have an extensive Javadoc describing how to use them; a good starting point is the jakarta.enterprise.inject.build.compatible.spi.BuildCompatibleExtension interface. Further documentation is available in dedicated CDI specification chapter.

18. Next steps

A lot of additional information on CDI can be found online. Regardless, the CDI specification remains the authority for information on CDI. The spec is fairly readable and it covers many details we’ve skipped over here.It is available on the at the Jakarta website (CDI 4.0).

The CDI compatible implementation, Weld, is being developed by the Weld team.

We encourage you to follow the weld-dev mailing list and to get involved in development. If you are reading this guide, you likely have something to offer.

Weld Reference Guide

Weld is compatible implementation of CDI, and is used by WildFly, GlassFish, Liberty, and WebLogic to provide CDI services for Jakarta EE applications. Weld also goes beyond the environments and APIs defined by the CDI specification by providing support for a number of other environments (for instance servlet container such as Tomcat, or Java SE).

If you want to get started quickly using Weld (and, in turn, CDI) with WildFly, GlassFish or Tomcat and experiment with one of the examples, take a look at Getting started with Weld . Otherwise, read on for an exhaustive description of using Weld in all the environments and application servers it supports as well as various Weld extensions going beyond what specification requires.

19. Application servers and environments supported by Weld

19.1. Using Weld with WildFly

WildFly comes with pre-configured Weld. There is no configuration needed to use Weld (or CDI for that matter). You may still want to fine-tune Weld with additional configuration settings .

19.2. GlassFish

Weld is also built into GlassFish from V3 onwards. Since GlassFish is the Jakarta EE compatible implementation, it supports all features of CDI. What better way for GlassFish to support these features than to use Weld, the CDI compatible implementation? Just package up your CDI application and deploy.

19.3. Servlet containers (such as Tomcat or Jetty)

While CDI does not require support for servlet environments, Weld can be used in a servlet container, such as Tomcat or Jetty.

There is a major limitation to using a servlet container; Weld doesn’t support deploying session beans, injection using @EJB or @PersistenceContext, or using transactional events in servlet containers. For enterprise features such as these, you should really be looking at a Java EE application server.

Weld can be used as a library in an web application that is deployed to a Servlet container. You should add the weld-servlet-core as a dependency to your project:

<dependency>
    <groupId>org.jboss.weld.servlet</groupId>
    <artifactId>weld-servlet-core</artifactId>
    <version>5.0.0.SP2</version>
</dependency>

All the necessary dependencies (CDI API, Weld core) will be fetched transitively.

Alternatively, there is a shaded version with all the dependencies in a single jar file which is available as:

<dependency>
    <groupId>org.jboss.weld.servlet</groupId>
    <artifactId>weld-servlet-shaded</artifactId>
    <version>5.0.0.SP2</version>
</dependency>

In general, weld-servlet uses ServletContainerInitializer mechanism to hook into the life cycle of Servlet 3.x compatible containers.

In special cases when your Servlet container does not support ServletContainerInitializer or you need more control over the ordering of listeners (e.g. move Weld’s listener) to the beginning of the list so that CDI context are active during invocation of other listeners) you can register Weld’s listener manually in the WEB-INF/web.xml file of the application:

<listener>
   <listener-class>org.jboss.weld.environment.servlet.Listener</listener-class>
</listener>
There is quite a special use-case where one more special component must be involved. If you want the session context to be active during HttpSessionListener.sessionDestroyed() invocation when the session times out or when all the sessions are destroyed because the deployment is being removed then org.jboss.weld.module.web.servlet.WeldTerminalListener must be specified as the last one in your web.xml. This listener activates the session context before other listeners are invoked (note that the listeners are notified in reverse order when a session is being destroyed).

When working with multiple deployments in servlet environment, Weld Servlet allows to define context identifier per application deployed. Each different context identifier will create a new Weld container instance. If not specified, Weld falls back to the default value - STATIC_INSTANCE. While using custom identifiers is neither required nor commonly used, it certainly has some use-cases. For instance managing several deployments with Arquillian Tomcat container. Setting the identifier is as simple as adding one context parameter into web.xml:

<context-param>
   <param-name>WELD_CONTEXT_ID_KEY</param-name>
   <param-value>customValue</param-value>
</context-param>

19.3.1. Tomcat

Tomcat 9, which implements Servlet 4.0 specification, is supported.

Binding BeanManager to JNDI

Binding BeanManager to JNDI does not work out of the box. Tomcat has a read-only JNDI, so Weld can’t automatically bind the BeanManager extension SPI. To bind the BeanManager into JNDI, you should populate META-INF/context.xml in the web root with the following contents:

<Context>
   <Resource name="BeanManager"
      auth="Container"
      type="jakarta.enterprise.inject.spi.BeanManager"
      factory="org.jboss.weld.resources.ManagerObjectFactory"/>
</Context>

and make it available to your deployment by adding this to the bottom of web.xml:

<resource-env-ref>
   <resource-env-ref-name>BeanManager</resource-env-ref-name>
   <resource-env-ref-type>
     jakarta.enterprise.inject.spi.BeanManager
   </resource-env-ref-type>
</resource-env-ref>

Tomcat only allows you to bind entries to java:comp/env, so the BeanManager will be available at java:comp/env/BeanManager

Embedded Tomcat

With embedded Tomcat it is necessary to register Weld’s listener programmatically:

public class Main {

    public static void main(String[] args) throws ServletException, LifecycleException {
        Tomcat tomcat = new Tomcat();
        Context ctx = tomcat.addContext("/", new File("src/main/resources").getAbsolutePath());

        Tomcat.addServlet(ctx, "hello", HelloWorldServlet.class.getName());
        ctx.addServletMapping("/*", "hello");

        // ctx.addApplicationListener(Listener.class.getName()); (1)

        tomcat.start();
        tomcat.getServer().await();
    }

    public static class HelloWorldServlet extends HttpServlet {

        @Inject
        private BeanManager manager;

        @Override
        protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
            resp.setContentType("text/plain");
            resp.getWriter().append("Hello from " + manager);
        }
    }
}
1 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically

19.3.2. Jetty

Jetty 9.4.14 and newer are supported. Context activation/deactivation and dependency injection into Servlets and Filters works out of the box. Injection into Servlet listeners works on Jetty 9.1.1 and newer.

No further configuration is needed when starting Jetty as an embedded webapp server from within another Java program. However, if you’re using a Jetty standalone instance one more configuration step is required, one of the jetty modules listed below needs to be enabled.

Jetty cdi-decorate Module

Since Jetty-9.4.20 and Weld 3.1.2.Final, the Weld/Jetty integration uses the jetty cdi-decorate module. To activate this module in jetty the argument --module=cdi-decorate needs to be added to the command line, which can be done for a standard distribution by running the commands:

cd $JETTY_BASE
java -jar $JETTY_HOME/start.jar --add-to-start=cdi-decorate
Jetty cdi2 Module

Prior to Jetty-9.4.20 and Weld 3.1.2, the Weld/Jetty integration required some internal jetty APIs to be made visible to the web application. This can be done using the deprecated cdi2 module either by including --module=cdi2 on the command line or by running the commands:

cd $JETTY_BASE
java -jar $JETTY_HOME/start.jar --add-to-start=cdi2

If this module is not available in the jetty distribution you are using, then equivalent behaviour can be achieved by creating a jetty-web.xml descriptor (see also Jetty XML Reference):

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE Configure PUBLIC "-//Jetty//Configure//EN" "http://www.eclipse.org/jetty/configure.dtd">
<Configure class="org.eclipse.jetty.webapp.WebAppContext">
   <Call name="prependServerClass">
      <Arg>-org.eclipse.jetty.util.Decorator</Arg>
   </Call>
   <Call name="prependServerClass">
      <Arg>-org.eclipse.jetty.util.DecoratedObjectFactory</Arg>
   </Call>
   <Call name="prependServerClass">
      <Arg>-org.eclipse.jetty.server.handler.ContextHandler.</Arg>
   </Call>
   <Call name="prependServerClass">
      <Arg>-org.eclipse.jetty.server.handler.ContextHandler</Arg>
   </Call>
   <Call name="prependServerClass">
      <Arg>-org.eclipse.jetty.servlet.ServletContextHandler</Arg>
   </Call>
</Configure>
Directly modifying the web application classpath via jetty-web.xml will not work for Jetty-10.0.0 and later.
Jetty cdi-spi Module

Since Jetty-9.4.20 the Jetty cdi-spi module has been available that integrates any compliant CDI implementation by directly calling the CDI SPI. Since Weld support specific Jetty integration, it is not recommended to use this module with Weld.

Binding BeanManager to Jetty JNDI

To bind the BeanManager into JNDI, you should either populate WEB-INF/jetty-env.xml with the following contents:

<!DOCTYPE Configure PUBLIC "-//Mort Bay Consulting//DTD Configure//EN"
   "http://www.eclipse.org/jetty/configure.dtd">

<Configure id="webAppCtx" class="org.eclipse.jetty.webapp.WebAppContext">
    <New id="BeanManager" class="org.eclipse.jetty.plus.jndi.Resource">
        <Arg> <Ref id="webAppCtx"/> </Arg>
        <Arg>BeanManager</Arg>
        <Arg>
            <New class="javax.naming.Reference">
                <Arg>jakarta.enterprise.inject.spi.BeanManager</Arg>
                <Arg>org.jboss.weld.resources.ManagerObjectFactory</Arg>
                <Arg/>
            </New>
        </Arg>
    </New>
</Configure>

Or you can configure a special Servlet listener to bind the BeanManager automatically:

<listener>
   <listener-class>org.jboss.weld.environment.servlet.BeanManagerResourceBindingListener</listener-class>
</listener>

You also need to make the BeanManager available to your deployment by adding this to the bottom of web.xml:

<resource-env-ref>
   <resource-env-ref-name>BeanManager</resource-env-ref-name>
   <resource-env-ref-type>
     jakarta.enterprise.inject.spi.BeanManager
   </resource-env-ref-type>
</resource-env-ref>

Jetty only allows you to bind entries to java:comp/env, so the BeanManager will be available at java:comp/env/BeanManager.

Embedded Jetty

When starting embedded Jetty programmatically from the main method it is necessary to register Weld’s listener:

public class Main {

    public static void main(String[] args) throws Exception {
        Server jetty = new Server(8080);
        WebAppContext context = new WebAppContext();
        context.setContextPath("/");
        context.setResourceBase("src/main/resources");
        jetty.setHandler(context);
        context.addServlet(HelloWorldServlet.class, "/*");

        context.addEventListener(new DecoratingListener()); (1)
        context.addEventListener(new Listener()); (2)

        jetty.start();
        jetty.join();
    }

    public static class HelloWorldServlet extends HttpServlet {

        @Inject BeanManager manager;

        protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
            resp.setContentType("text/plain");
            resp.getWriter().append("Hello from " + manager);
        }
    }
}
1 Jetty’s org.eclipse.jetty.webapp.DecoratingListener registered programmatically (since Jetty-9.4.20)
2 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically

19.3.3. Undertow

Weld supports context activation/deactivation and dependency injection into Servlets when running on Undertow. Injection into Filters and Servlet listeners is not currently supported. Weld’s listener needs to be registered programmatically:

public class Main {

    public static void main(String[] args) throws ServletException {
        DeploymentInfo servletBuilder = Servlets.deployment()
                .setClassLoader(Main.class.getClassLoader())
                .setResourceManager(new ClassPathResourceManager(Main.class.getClassLoader()))
                .setContextPath("/")
                .setDeploymentName("test.war")
                .addServlet(Servlets.servlet("hello", HelloWorldServlet.class).addMapping("/*"))

                .addListener(Servlets.listener(Listener.class)); (1)

        DeploymentManager manager = Servlets.defaultContainer().addDeployment(servletBuilder);
        manager.deploy();

        HttpHandler servletHandler = manager.start();
        PathHandler path = Handlers.path(Handlers.redirect("/")).addPrefixPath("/", servletHandler);
        Undertow server = Undertow.builder().addHttpListener(8080, "localhost").setHandler(path).build();
        server.start();
    }

    public static class HelloWorldServlet extends HttpServlet {

        @Inject BeanManager manager;

        protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
            resp.setContentType("text/plain");
            resp.getWriter().append("Hello from " + manager);
        }
    }
}
1 Weld’s org.jboss.weld.environment.servlet.Listener registered programmatically:

19.3.4. WildFly Web

WildFly Web is a lightweight Servlet container that uses Undertow. Weld supports context activation/deactivation and dependency injection into Servlets. Injection into Filters and Servlet listeners is not currently supported. Weld integration is started automatically when weld-servlet is part of your application.

19.3.5. Bean Archive Isolation

By default, bean archive isolation is enabled. It means that alternatives, interceptors and decorators can be selected/enabled for a bean archive by using a beans.xml descriptor.

This behaviour can be changed by setting the servlet initialization parameter org.jboss.weld.environment.servlet.archive.isolation to false. In this case, Weld will use a "flat" deployment structure - all bean classes share the same bean archive and all beans.xml descriptors are automatically merged into one. Thus alternatives, interceptors and decorators selected/enabled for a bean archive will be enabled for the whole application.

Bean archive isolation is supported (and enabled by default) from version 2.2.5.Final. Previous versions only operated with the "flat" deployment structure.

19.3.6. Implicit Bean Archive Support

CDI 1.1 introduced the bean discovery mode of annotated used for implicit bean archives (see also Packaging and deployment . This mode may bring additional overhead during container bootstrap. Therefore, Weld Servlet supports the use of Jandex bytecode scanning library to speed up the scanning process. Simply put the jandex.jar on the classpath. If Jandex is not found on the classpath Weld will use the Java Reflection as a fallback.

In general, an implicit bean archive does not have to contain a beans.xml descriptor. However, such a bean archive is not supported by Weld Servlet, i.e. it’s excluded from discovery.

The bean discovery mode of annotated is supported from version 2.2.5.Final. Previous versions processed implicit bean archives in the same way as explicit bean archives.

19.3.7. Servlet Container Detection

Weld servlet container integration is delivered as a single artifact, so that it’s possible to include this artifact in a war and deploy the application to any of the suported servlet containers. This approach has advantages but also drawbacks. One of them is the fact that Weld attempts to detect the servlet container automatically. While this works most of the time, there are few rare cases, when it might be necessary to specify the container manually by setting the servlet initialization parameter org.jboss.weld.environment.container.class to:

  • org.jboss.weld.environment.tomcat.TomcatContainer

  • org.jboss.weld.environment.jetty.JettyContainer

  • org.jboss.weld.environment.undertow.UndertowContainer

  • or any custom org.jboss.weld.environment.Container implementation

19.4. Java SE

In addition to improved integration of the Enterprise Java stack, the "Contexts and Dependency Injection for the Java EE platform" specification also defines a state of the art typesafe, stateful dependency injection framework, which can prove useful in a wide range of application types. To help developers take advantage of this, Weld provides a simple means for being executed in the Java Standard Edition (SE) environment independently of any Java EE APIs.

When executing in the SE environment the following features of Weld are available:

  • Managed beans with @PostConstruct and @PreDestroy lifecycle callbacks

  • Dependency injection with qualifiers and alternatives

  • @Application, @Dependent and @Singleton scopes

  • Interceptors and decorators

  • Stereotypes

  • Events

  • Portable extension support

EJB beans are not supported.

19.4.1. CDI SE Module

Weld provides an extension which will boot a CDI bean manager in Java SE, automatically registering all simple beans found on the classpath. The command line parameters can be injected using either of the following:

@Inject @Parameters List<String> params;
@Inject @Parameters String[] paramsArray;

The second form is useful for compatibility with existing classes.

The command line parameters do not become available for injection until the ContainerInitialized event is fired. If you need access to the parameters during initialization you can do so via the public static String[] getParameters() method in StartMain.

Here’s an example of a simple CDI SE application:

import jakarta.inject.Singleton;

@Singleton
public class HelloWorld
{
   public void printHello(@Observes ContainerInitialized event, @Parameters List<String> parameters) {
       System.out.println("Hello " + parameters.get(0));
   }
}
Weld automatically registers shutdown hook during initialization in order to properly terminate all running containers should the VM be terminated or program exited. Even though it’s possible to change this behavior (either by setting a system property org.jboss.weld.se.shutdownHook to false or through the Weld.property() method) and register an alternative hook and implement the logic, it is not recommended. The behavior across OS platforms may differ and specifically on Windows it proves to be problematic.

19.4.2. Bootstrapping CDI SE

CDI SE applications can be bootstrapped in the following ways.

The ContainerInitialized Event

Thanks to the power of CDI’s typesafe event model, application developers need not write any bootstrapping code. The Weld SE module comes with a built-in main method which will bootstrap CDI for you and then fire a ContainerInitialized event. The entry point for your application code would therefore be a simple bean which observes the ContainerInitialized event, as in the previous example.

In this case your application can be started by calling the provided main method like so:

java org.jboss.weld.environment.se.StartMain <args>
Programmatic Bootstrap API

For added flexibility, CDI SE also comes with a bootstrap API which can be called from within your application in order to initialize CDI and obtain references to your application’s beans and events. The API consists of two classes: Weld and WeldContainer.

/** A builder used to bootsrap a Weld SE container. */
public class Weld extends SeContainerInitializer implements ContainerInstanceFactory
{

   /** Boots Weld and creates and returns a WeldContainer instance, through which
    * beans and events can be accesed. */
   public WeldContainer initialize() {...}

   /** Convenience method for shutting down all the containers initialized by a specific builder instance. */
   public void shutdown() {...}

}
/** Represents a Weld SE container. */
public class WeldContainer extends AbstractCDI<Object> implements AutoCloseable, ContainerInstance, SeContainer
{

   /** Provides access to all events within the application. */
   public Event<Object> event() {...}

   /** Provides direct access to the BeanManager. */
   public BeanManager getBeanManager() {...}

   /** Returns the identifier of the container */
   String getId() {...}

   /** Shuts down the container. */
   public void shutdown() {...}

   /** Returns the running container with the specified identifier or null if no such container exists */
   public static WeldContainer instance(String id) {...}

}

Here’s an example application main method which uses this API to bootsrap a Wedl SE container and call a business method of a bean MyApplicationBean.

import org.jboss.weld.environment.se.Weld;

public static void main(String[] args) {
   Weld weld = new Weld();
   WeldContainer container = weld.initialize();
   container.select(MyApplicationBean.class).get().callBusinessMethod();
   container.shutdown();
}

Alternatively the application could be started by firing a custom event which would then be observed by another simple bean. The following example fires MyEvent on startup.

org.jboss.weld.environment.se.Weld;

public static void main(String[] args) {
   Weld weld = new Weld();
   WeldContainer container = weld.initialize();
   container.event().select(MyEvent.class).fire( new MyEvent() );
   // When all observer methods are notified the container shuts down
   container.shutdown();
}

Because WeldContainer implements AutoCloseable, it can be used within a try-with-resources block. Should the execution get out of the code block, the Weld instance is shut down and all managed instances are safely destroyed. Here is an example using the above code but leaving out the shutdown() method:

org.jboss.weld.environment.se.Weld;

public static void main(String[] args) {
   Weld weld = new Weld();
   try (WeldContainer container = weld.initialize()) {
      container.select(MyApplicationBean.class).get().callBusinessMethod();
   }
}

In case of more complex scenarios, it might be handy to gain higher level of control over the bootstraping process. Using the builder, it is possible to disable automatic scanning and to explicitly select classes/packages which will be managed by Weld. Interceptors, decorators and extensions can be defined in the very same manner. Last but not least, builder can be used to set Weld-specific configuration. Following example demonstrates these features:

Weld weld = new Weld()
    .disableDiscovery()
    .packages(Main.class, Utils.class)
    .interceptors(TransactionalInterceptor.class)
    .property("org.jboss.weld.construction.relaxed", true);

try (WeldContainer container = weld.initialize()) {
    MyBean bean = container.select(MyBean.class).get();
    System.out.println(bean.computeResult());
}

Furthermore, it is also possible to create several independent Weld instances. Code snippet below shows how to achieve that:

Weld weld = new Weld()
    .disableDiscovery();

weld.containerId("one").beanClasses(MyBean.class).initialize();
weld.containerId("two").beanClasses(OtherBean.class).initialize();

MyBean bean = WeldContainer.instance("one").select(MyBean.class).get();
System.out.println(bean.computeResult());

// Shutdown the first container
WeldContainer.instance("one").shutdown();

// Shutdown all the containers initialized by the builder instance
weld.shutdown();

19.4.3. Request Context

Weld introduces an @ActivateRequestContext interceptor binding which enables you to explicitly activate the request context and use @RequestScoped beans in Java SE. The following example shows how to achieve that:

public class Foo {

  @Inject
  MyRequestScopedBean bean;

  @ActivateRequestContext
  public void executeInRequestContext() {
    bean.ping()
  }

}

19.4.4. Thread Context

In contrast to Java EE applications, Java SE applications place no restrictions on developers regarding the creation and usage of threads. Therefore Weld SE provides a custom scope annotation, @ThreadScoped, and corresponding context implementation which can be used to bind bean instances to the current thread. It is intended to be used in scenarios where you might otherwise use ThreadLocal, and does in fact use ThreadLocal under the hood.

To use the @ThreadScoped annotation you need to enable the RunnableDecorator which 'listens' for all executions of Runnable.run() and decorates them by setting up the thread context beforehand, bound to the current thread, and destroying the context afterwards.

<beans>
  <decorators>
     <class>org.jboss.weld.environment.se.threading.RunnableDecorator</class>
  </decorator>
</beans>

Another option how to use thread context is to enable it at class or method level by @ActivateThreadScope interceptor binding and related ActivateThreadScopeInterceptor.

public class Foo {

  @Inject
  MyThreadScopedBean bean;

  @ActivateThreadScope
  public void executeInThreadContext() {
    bean.ping()
  }

}
It is not necessary to use @ThreadScoped in all multithreaded applications. The thread context is not intended as a replacement for defining your own application-specific contexts. It is generally only useful in situations where you would otherwise have used ThreadLocal directly, which are typically rare.

19.4.5. Setting the Classpath

Weld SE comes packaged as a 'shaded' jar which includes the CDI API, Weld Core and all dependent classes bundled into a single jar. Therefore the only Weld jar you need on the classpath, in addition to your application’s classes and dependent jars, is the Weld SE jar. If you are working with a pure Java SE application you launch using java, this may be simpler for you.

If you prefer to work with individual dependencies, then you can use the weld-se-core jar which just contains the Weld SE classes. Of course in this mode you will need to assemble the classpath yourself.

If you work with a dependency management solution such as Maven you can declare a dependency such as:

<dependency>
   <groupId>org.jboss.weld.se</groupId>
   <artifactId>weld-se-shaded</artifactId>
</dependency>

19.4.6. Bean Archive Isolation

By default, bean archive isolation is enabled. It means that alternatives, interceptors and decorators can be selected/enabled for a bean archive by using a beans.xml descriptor.

This behaviour can be changed by setting a system property org.jboss.weld.se.archive.isolation to false or through the Weld.property() method. In this case, Weld will use a "flat" deployment structure - all bean classes share the same bean archive and all beans.xml descriptors are automatically merged into one. Thus alternatives, interceptors and decorators selected/enabled for a bean archive will be enabled for the whole application.

Bean archive isolation is supported (and enabled by default) from version 2.2.0.Final. Previous versions only operated with the "flat" deployment structure.
All Weld SE specific configuration properties could be also set through CDI 2.0 API, i.e. using SeContainerInitializer.addProperty() and SeContainerInitializer.setProperties() methods.

19.4.7. Implicit Bean Archive Support

CDI 1.1 introduced the bean discovery mode of annotated used for implicit bean archives (see also Packaging and deployment . This mode may bring additional overhead during container bootstrap. Therefore, Weld Servlet supports the use of Jandex bytecode scanning library to speed up the scanning process. Simply put the jandex.jar on the classpath. If Jandex is not found on the classpath Weld will use the Java Reflection as a fallback.

By default, an implicit bean archive that does not contain a beans.xml descriptor is excluded from discovery. However, it is possible to instruct Weld to scan all class path entries and discover such archive. You can do so by setting Weld system property org.jboss.weld.se.scan.classpath.entries or CDI 2.0 system property jakarta.enterprise.inject.scan.implicit to true. Another approach is to use Weld.property() and SeContainerInitializer.addProperty() methods.

The bean discovery mode of annotated is supported from version 2.2.0.Final. Previous versions processed implicit bean archives in the same way as explicit bean archives.

19.4.8. Extending Bean Defining Annotations

If you are running with discovery mode annotated, then only classes with bean defining annotations will be picked up as beans. The set of these annotations is given by CDI but Weld SE allows you to expand it via Weld.addBeanDefiningAnnotations(Class<? extends Annotation>…​ annotations). Any annotation added this way will be considered a bean defining annotation when performing discovery.

Just note that added annotations are ignored if you are also using <trim/> option or Weld configuration key org.jboss.weld.bootstrap.vetoTypesWithoutBeanDefiningAnnotation.

19.5. Weld SE and Weld Servlet cooperation

Sometimes it could be convenient to start Servlet container programmatically. In this case a cooperation with Weld SE might come handy. This cooperation is based on passing Weld, WeldContainer or BeanManager instance to ServletContextHandler (in case of Jetty). You can either set a context attribute or use org.jboss.weld.environment.servlet.Listener. Check following examples.

Adding WeldContainer instance as a context attribute:

        try (WeldContainer weld = new Weld().disableDiscovery().beanClasses(Cat.class).initialize()) {
              ServletContextHandler context = new ServletContextHandler(ServletContextHandler.SESSIONS);
              context.addEventListener(new Listener());
              context.setAttribute(Listener.CONTAINER_ATTRIBUTE_NAME, weld);

              Server server = new Server(8080);
              context.setContextPath("/");
              server.setHandler(context);
              context.addServlet(TestServlet.class, "/test");
              server.start();
        }

Adding BeanManager instance as a context attribute:

        Weld weld = new Weld();
        WeldContainer container = weld.initialize();

        Server server = new Server(8080);
        context.setContextPath("/");
        server.setHandler(context);
        context.addServlet(TestServlet.class, "/test");
        context.setAttribute(WeldServletLifecycle.BEAN_MANAGER_ATTRIBUTE_NAME, container.getBeanManager());
        server.start();

Adding Weld instance as event listener with usage of org.jboss.weld.environment.servlet.Listener:

        Weld builder = new Weld().disableDiscovery().beanClasses(Cat.class);
        ServletContextHandler context = new ServletContextHandler(ServletContextHandler.SESSIONS);
        context.addEventListener(Listener.using(builder));

        Server server = new Server(8080);
        context.setContextPath("/");
        server.setHandler(context);
        context.addServlet(TestServlet.class, "/test");
        server.start();

19.6. OSGi

Weld supports OSGi environment through Pax CDI. For more information on using Weld in OSGi environment check Pax CDI documentation. If you wish to see some examples, there is plenty of them in Pax CDI repository.

20. Configuration

20.1. Weld configuration

Weld can be configured per application through the set of properties. All the supported configuration properties are described in the following subsections.

Each configuration property can be specified (by priority in descending order):

  1. In a properties file named weld.properties

  2. As a system property

  3. By a bootstrap configuration provided by an integrator

If a configuration key is set in multiple sources (e.g. as a system property and in a properties file), the value from the source with higher priority is taken, other values are ignored. Unsupported configuration keys are ignored. If an invalid configuration property value is set, the container automatically detects the problem and treats it as a deployment problem.

20.1.1. Relaxed construction

CDI requires that beans that are normal-scoped, intercepted or decorated always define a no-argument constructor. This requirement applies even if the bean already defines an @Inject annotated constructor with parameters. This is purely a technical requirement implied by how Java allocates class instances.

Weld is however able to operate fine even if this requirement is not met. Weld uses special non-portable JVM APIs that allow it to allocate proxy instances without calling proxy’s constructor. This mode is not enabled by default. It can be enabled using the following configuration option:

Table 2. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.construction.relaxed

false (true in weld-se)

If set to true, then requirements on bean constructors are relaxed.

Note that relaxed construction is enabled by default in Weld SE .

20.1.2. Concurrent deployment configuration

By default Weld supports concurrent loading and deploying of beans. However, in certain deployment scenarios the default setup may not be appropriate.

Table 3. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.bootstrap.concurrentDeployment

true

If set to false, ConcurrentDeployer and ConcurrentValidator will not be used.

org.jboss.weld.bootstrap.preloaderThreadPoolSize

Math.max(1, Runtime.getRuntime().availableProcessors() - 1)

Weld is capable of resolving observer methods for container lifecycle events in advance while bean deployer threads are blocked waiting for I/O operations (such as classloading). This process is called preloading and leads to better CPU utilization and faster application startup time. This configuration option specifies the number of threads used for preloading. If set to 0, preloading is disabled.

The bootstrap configuration may be altered using the deprecated org.jboss.weld.bootstrap.properties file located on the classpath (e.g. WEB-INF/classes/org.jboss.weld.bootstrap.properties in a web archive). The keys are concurrentDeployment and preloaderThreadPoolSize.

20.1.3. Thread pool configuration

For certain types of tasks Weld uses its own thread pool. The thread pool is represented by the ExecutorServices service.

First of all, let’s see what types of thread pools are available:

Thread pool type Description

FIXED

Uses a fixed number of threads. The number of threads remains the same throughout the application.

FIXED_TIMEOUT

Uses a fixed number of threads. A thread will be stopped after a configured period of inactivity.

SINGLE_THREAD

A single-threaded thread pool

NONE

No executor is used by Weld

COMMON

The default ForkJoinPool.commonPool() is used by Weld. See link for more details

Now let’s see how to configure Weld to use a particular thread pool type:

An integrator may choose to use custom implementation of org.jboss.weld.manager.api.ExecutorServices. If that’s the case, all configuration described in this section might be ignored. An example of such integrator is WildFly.
Table 4. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.executor.threadPoolType

FIXED (COMMON in Weld SE)

The type of the thread pool. Possible values are: FIXED, FIXED_TIMEOUT, NONE, SINGLE_THREAD and COMMON

org.jboss.weld.executor.threadPoolSize

Runtime.getRuntime().availableProcessors()

The number of threads to be used for bean loading and deployment. Only used by FIXED and FIXED_TIMEOUT.

org.jboss.weld.executor.threadPoolKeepAliveTime

60 seconds

Passed to the constructor of the ThreadPoolExecutor class, maximum time that excess idle threads will wait for new tasks before terminating. Only used by FIXED_TIMEOUT.

org.jboss.weld.executor.threadPoolDebug

false

If set to true, debug timing information is printed to the standard output.

It’s possible to alter the thread pool configuration using the deprecated org.jboss.weld.executor.properties file located on the classpath. The keys are threadPoolType, threadPoolSize, threadPoolKeepAliveTime and threadPoolDebug.

20.1.4. Non-portable mode during application initialization

By default the application initialization is performed in the portable mode which denotes specification-compliant behaviour. However it’s also possible to enable the non-portable mode, in which some definition errors and deployment problems do not cause application initialization to abort. Currently the non-portable mode allows extension developers to call all the BeanManager’s methods before the `AfterDeploymentValidation event is fired.

Table 5. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.nonPortableMode

false

If set to true, the non-portable mode is enabled.

The main purpose of the non-portable mode is to support some legacy extensions. It’s highly recommended to use the portable mode whenever possible - non-portable mode may lead to unexpected behaviour during initialization process.

20.1.5. Proxying classes with final methods

Weld offers a non-standard way to create proxies for non-private, non-static final methods. When using this option, such final method will be ignored during proxy generation and the Java type will be proxied (as opposed to classical behavior when there would be an exception thrown). Since the method was ignored during proxy creation, it should never be invoked.

In order to make this work, use the below shown configuration key and pass it a regular expression. When Weld finds an unproxyable type which matches this pattern, the final methods will be ignored and the type will be proxied.

Table 6. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.proxy.ignoreFinalMethods

If defined, matching classes will be proxied and final methods ignored.

20.1.6. Bounding the cache size for resolved injection points

Weld caches already resolved injection points in order to resolve them faster in the future. A separate type-safe resolver exists for beans, decorators, disposers, interceptors and observers. Each of them stores resolved injection points in its cache, which maximum size is bounded by a default value (common to all of them).

Table 7. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.resolution.cacheSize

65536

The upper bound of the cache.

20.1.7. Debugging generated bytecode

For debugging purposes, it’s possible to dump the generated bytecode of client proxies and enhanced subclasses to the filesystem.

Table 8. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.proxy.dump

The file path where the files should be stored.

20.1.8. Injectable reference lookup optimization

For certain combinations of scopes, the container is permitted to optimize an injectable reference lookup. Enabling this feature brings some performance boost but causes jakarta.enterprise.context.spi.AlterableContext.destroy() not to work properly for @ApplicationScoped and @RequestScoped beans. Therefore, the optimization is disabled by default.

Table 9. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.injection.injectableReferenceOptimization

false

If set to true, the optimization is enabled.

20.1.9. Bean identifier index optimization

This optimization is used to reduce the HTTP session replication overhead. However, the inconsistency detection mechanism may cause problems in some development environments. It’s recommended to disable this optimization during the development phase.

Table 10. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.serialization.beanIdentifierIndexOptimization

true (false in weld-servlet)

If set to true, the optimization is enabled.

This optimization is disabled by default in Servlet containers .

20.1.10. Rolling upgrades ID delimiter

This configuration property should only be used if experiencing problems with rolling upgrades.

The delimiter is used to abbreviate a bean archive identifier (which is usually derived from the archive name) before used as a part of an identifier of an internal component (such as bean).

The abbreviation proceeds as follows:

  • Try to find the first occurrence of the specified delimiter

  • If not found, the identifier is not abbreviated

  • If found, try to extract the archive suffix (.war, .ear, etc.) and the final value consists of the part before the delimiter and the archive suffix (if extracted)

Note that the delimiter is used for all bean archives forming the application.

An example: Given an application with two versions going by the names test__1-1.war and test__1-2.war. Weld normally cannot support replication of @SessionScoped beans between these two deployments. Using this configuration option with delimiter "__" will allow Weld to see both applications simply as test.war, hence allowing for session replication.

Table 11. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.clustering.rollingUpgradesIdDelimiter

The delimiter used during ID generation.

Bean archive identifiers are provided by integrators. Therefore, the abbreviation algorithm may not always function properly.

20.1.11. Development Mode

Some features of the development mode may have negative impact on the performance and/or functionality of the application. The following configuration properties allow to tune or disable these features, e.g. to specify the set of components which will be monitored.

Table 12. Supported configuration properties
Configuration key Tool Default value Description

org.jboss.weld.probe.invocationMonitor.excludeType

Probe

''

A regular expression. If a non-empty string and the base type for an AnnotatedType or a declaring type for an AnnotatedMember matches this pattern the type is excluded from monitoring.

org.jboss.weld.probe.invocationMonitor.skipJavaBeanProperties

Probe

'true'

If set to true, the JavaBean accessor methods are not monitored.

org.jboss.weld.probe.eventMonitor.excludeType

Probe

''

A regular expression. If a non-empty string and the runtime class of the event object matches this pattern the event is excluded from monitoring.

org.jboss.weld.probe.eventMonitor.containerLifecycleEvents

Probe

'false'

If set to true all the container lifecycle events are monitored during bootstrap.

org.jboss.weld.probe.embedInfoSnippet

Probe

'true'

If set to true an informative HTML snippet will be added to every HTTP response with Content-Type of value text/html.

org.jboss.weld.probe.jmxSupport

Probe

'false'

If set to true one or more MBean components may be registered so that it’s possible to use JMX to access the Probe development tool data.

org.jboss.weld.probe.exportDataAfterDeployment

Probe

''

If a non-empty string the Probe data will be automatically exported after deployment validation. The value represents the path of the directory where to export the data file.

To disable the monitoring entirely set org.jboss.weld.probe.invocationMonitor.excludeType and org.jboss.weld.probe.eventMonitor.excludeType properties to .*.

20.1.12. Conversation timeout and Conversation concurrent access timeout

Weld provides configuration properties to override values for default conversation timeout and default conversation concurrent access timeout which represents the maximum time to wait on the conversation concurrent lock.

Table 13. Supported configuration properties
Configuration key Default value (ms) Description

org.jboss.weld.conversation.timeout

600000

Conversation timeout represent the maximum time during which is the conversation active.

org.jboss.weld.conversation.concurrentAccessTimeout

1000

Conversation concurrent access timeout represent the maximum time to wait on the conversation concurrent lock.

20.1.13. Veto types without bean defining annotation

Sometimes it might be useful to process all types during bootstrap, i.e. fire/observe ProcessAnnotatedType event for each Java class discovered, but veto types which are not annotated with a bean defining annotation. The main reason is that not all classes that meet all of the necessary conditions are intended to become beans. And so vetoing such types helps to conserve memory used by the container. Note that if you use bean-discovey-mode=annotated (implicit bean archive) then no ProcessAnnotatedType will be fired for any such type because it’s not discovered at all. And there might be portable extensions which use ProcessAnnotatedType to extract some important information from classes which are not beans.

Therefore, Weld allows to use bean-discovey-mode=all (explicit bean archive) and veto types without a bean defining annotation whose AnnotatedType#getJavaClass().getName() matches a regular expression. In other words, a type is vetoed if its name matches a regular expression and at the same time is not annotated with a bean defining annotation. The functionality is implemented as a built-in portable extension processing all types from all bean archives.

Table 14. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.bootstrap.vetoTypesWithoutBeanDefiningAnnotation

A regular expression. If a non-empty string, then all annotated types whose AnnotatedType#getJavaClass().getName() matches this pattern are vetoed if not annotated with a bean defining annotation.

20.1.14. Memory consumption optimization - removing unused beans

CDI applications consist of user-defined beans implementing the business logic, but also beans coming from libraries (e.g. DeltaSpike) and integrations (e.g. various Java EE technologies - JSF, Bean Validation, Batch). Most applications actually use only a small part of the beans provided by libraries and integrations. Still, Weld has to retain the metadata for all the beans in memory which can be considerably vast footprint, depending on the application. If Optimized cleanup after bootstrap is allowed, Weld can remove unused beans after bootstrap.

An unused bean:

  • is not excluded by the configuration properties described below,

  • is not a built-in bean, session bean, extension, interceptor or decorator,

  • does not have a name

  • does not declare an observer

  • is not eligible for injection to any injection point,

  • does not declare a producer which is eligible for injection to any injection point,

  • is not eligible for injection into any Instance<X> injection point.

If you run Probe and list all the beans in your application, you will almost certainly notice some of them coming from 3rd party libraries which you never use (marked with a trash icon). Those are candidates for unused beans as you can be sure you are not using them.
As usual, there is a trade-off between memory consumption and bootstrap time. The results may vary depending on the application, but you should always expect (most probably negligible) increase of the bootstrap time.

The following properties can be used to restrict the set of beans Weld is going to remove, e.g. to eliminate the false positives.

Table 15. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.bootstrap.unusedBeans.excludeType

ALL

A regular expression. A bean whose Bean#getBeanClass() matches this pattern is never removed. Two special values are considered. ALL (default value) means that all beans are excluded. NONE means no beans are excluded.

org.jboss.weld.bootstrap.unusedBeans.excludeAnnotation

javax\\.ws\\.rs.*

A regular expression. A bean is not removed if the corresponding AnnotatedType, or any member, is annotated with an annotation which matches this pattern. By default, a type annotated with any JAX-RS annotation is excluded from removal.

20.1.15. Legacy mode for treatment of empty beans.xml files

Starting with CDI 4.0, bean archives with empty beans.xml have discovery mode annotated. However, CDI mandates that there is a compatibility configuration option that users can leverage to switch this back to all discovery mode. Since this option is temporary and serves to ease the migration process to new CDI version, users are strongly encouraged to adapt their bean archives accordingly.

Every platform and container needs to provide their own way to configure this and users should look into their respective documentation for guidance.

For Weld SE, users can start Weld container with following property:

try (WeldContainer container = new Weld()
    // LEGACY_EMPTY_BEANS_XML_TREATMENT = "org.jboss.weld.se.discovery.emptyBeansXmlModeAll"
    .property(Weld.LEGACY_EMPTY_BEANS_XML_TREATMENT, true)
    .initialize()) {
      performAppLogic();
}

For Weld Servlet, there is a ServletContext parameter with String key org.jboss.weld.environment.servlet.emptyBeansXmlModeAll that, if set to true, triggers this legacy behavior.

Since this configuration has to be known prior to Weld discovery, it cannot be defined through standard means! Furthermore, this option will act as a global configuration affecting all of your bean archives in the deployed application!

20.2. Defining external configuration

Weld allows integrators to provide an external configuration - a class which implements org.jboss.weld.configuration.spi.ExternalConfiguration interface. This interface has getConfigurationProperties method which returns a Map with provided configuration and also inherits a cleanup method because it extends org.jboss.weld.bootstrap.api.Service. Below is a short example of ExternalConfiguration implementation:

public class MyExternalConfiguration implements ExternalConfiguration {
    @Override
    public void cleanup() {
	// cleanup code
    }

    @Override
    public Map<String, Object> getConfigurationProperties() {
        Map<String, Object> properties = new HashMap<String, Object>();
        properties.put(ConfigurationKey.CONCURRENT_DEPLOYMENT.get(), false);
        properties.put(ConfigurationKey.PRELOADER_THREAD_POOL_SIZE.get(), 200);
        properties.put(ConfigurationKey.PROXY_DUMP.get(), "/home/weld");
        return properties;
    }
}

Bear in mind that because ExternalConfiguration extends a Service it is required that any custom external configuration implementation is explicitly registered. See The Weld SPI for more information.

Last but not least external configuration is considered a source with the lowest priority which means that the properties specified there can be overriden by other sources such as system properties. For information on supported configuration keys, see Weld configuration. Also note that entries with unsupported properties will be ignored while invalid property values will lead to deployment problem.

20.3. Excluding classes from scanning and deployment

CDI 1.1 allows you to exclude classes in your archive from being scanned, having container lifecycle events fired, and being deployed as beans. See also 12.4.2 Exclude filters.

Weld still supports the original non-portable way of excluding classes from discovery. The formal specification can be found in the xsd, located at http://jboss.org/schema/weld/beans_1_1.xsd. Unlike Weld, the CDI specification does not support regular expression patterns and ! character to invert the activation condition.

All the configuration is done in the beans.xml file. For more information see Packaging and deployment .

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://xmlns.jcp.org/xml/ns/javaee">

    <scan>

        <!-- Don't deploy the classes for the swing app! -->
        <exclude name="com.acme.swing.**" />

        <!-- Don't include GWT support if GWT is not installed -->
        <exclude name="com.acme.gwt.**">
            <if-class-not-available name="com.google.GWT"/>
        </exclude>

        <!--
            Exclude types from com.acme.verbose package if the system property verbosity is set to low
            i.e.
              java ... -Dverbosity=low
        -->
        <exclude name="com.acme.verbose.*">
            <if-system-property name="verbosity" value="low"/>
        </exclude>

        <!--
             Don't include JSF support if Wicket classes are present, and the viewlayer system
             property is set
        -->
        <exclude name="com.acme.jsf.**">
            <if-class-available name="org.apache.wicket.Wicket"/>
            <if-system-property name="viewlayer"/>
        </exclude>
    </scan>

</beans>

In this example we show the most common use cases for exercising fine control over which classes Weld scans. The first filter excludes all types whose package name starts with com.acme.swing, and in most cases this will be sufficient for your needs.

However, sometimes it’s useful to be able to activate the filter depending on the environment used. In this case, Weld allows you to activate (or deactivate) a filter based on either system properties or whether a class is available. The second filter shows the use case of disabling scanning of certain classes depending on the capabilities of the environment you deploy to - in this case we are excluding GWT support (all types whose package name starts with com.acme.gwt) if GWT is not installed.

If you specify just a system property name, Weld will activate the filter if that system property has been set (with any value). If you also specify the system property value, then Weld will only activate the filter if the system property’s value matches exactly.

The third filter shows how to exclude all types from a specific package (note the name attribute has suffix ".*").

The fourth filter shows more a advanced configurations, where we use multiple activation conditions to decide whether to activate the filter.

You can combine as many activation conditions as you like (all must be true for the filter to be activated). If you want to a filter that is active if any of the activation conditions are true, then you need multiple identical filters, each with different activation conditions.

20.4. Mapping CDI contexts to HTTP requests

By default, CDI contexts are activated at the beginning of an HTTP request processing and deactivated once the processing finishes. This may represent an unnecessary overhead in certain situations, for example static resource serving.

Weld allows CDI context support to be mapped to a certain subset of requests only. A regular expression may be used for filtering HTTP requests that should have CDI contexts active during their processing.

<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee/"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">

    <context-param>
        <param-name>org.jboss.weld.context.mapping</param-name>
        <param-value>.*\.html</param-value>
    </context-param>

</web-app>

21. Logging

Weld is using JBoss Logging, an abstraction layer which provides support for the internationalization and localization of log messages and exception messages. However, JBoss Logging itself does not write any log messages. Instead, it only constructs a log message and delegates to one of the supported logging frameworks.

The supported "back-end" frameworks include:

A system property org.jboss.logging.provider may be used to specify the logging framework directly. Supported values are jboss, jdk, log4j and slf4j. If this system property is not set, JBoss Logging will attempt to find the logging frameworks from the above-mentioned list on the classpath - the first one found is taken.

21.1. Java EE containers

If using Weld with a Java EE container (e.g. WildFly) the logging configuration is under the direction of the container. You should follow the container-specific guides to change the configuration (e.g. WildFly Admin Guide - Logging Configuration).

21.2. Servlet containers

Unlike the case of Java EE containers a web application deployed to a servlet container usually bundles a logging framework and possibly some configuration file. In this case, the configuration is in hands of the application developer (provided the bundled framework is supported by JBoss Logging).

If no logging framework is bundled follow the container-specific guides to change the configuration (e.g. Logging in Tomcat).

21.3. Weld SE

This is very similar to servlet containers except the class loading is usually even less complicated.

If you just want to see the debug log messages as quickly as possible in Weld SE try this:

  1. add org.slf4j:slf4j-simple on the classpath and remove other SLF4J bindings,

  2. set the "back-end" framework to slf4j,

  3. and change the level for org.jboss.weld, e.g.:

    mvn clean test -Dtest=MyWeldSETest -Dorg.jboss.logging.provider=slf4j -Dorg.slf4j.simpleLogger.log.org.jboss.weld=debug

22. WeldManager interface

WeldManager is an enhanced version of BeanManager which contains several additional methods. While some of them are designed to be used by integrators such as WildFly, others can be handy for users writing their CDI applications. Beginning with 3.1.0.Final, there is a built-in bean provided so that you can easily obtain it via @Inject WeldManager.

Here is a list of methods that this interface offers on top of what you can find in BeanManager:

public interface WeldManager extends BeanManager {

    <T> InjectionTarget<T> createInjectionTarget(EjbDescriptor<T> descriptor);
    <T> Bean<T> getBean(EjbDescriptor<T> descriptor);
    <T> EjbDescriptor<T> getEjbDescriptor(String ejbName);
    ServiceRegistry getServices();
    <X> InjectionTarget<X> fireProcessInjectionTarget(AnnotatedType<X> type);
    <X> InjectionTarget<X> fireProcessInjectionTarget(AnnotatedType<X> annotatedType, InjectionTarget<X> injectionTarget);
    String getId();
    Instance<Object> instance();
    <T> WeldInjectionTargetFactory<T> getInjectionTargetFactory(AnnotatedType<T> type);
    <T> WeldCreationalContext<T> createCreationalContext(Contextual<T> contextual);
    Bean<?> getPassivationCapableBean(BeanIdentifier identifier);
    <T> WeldInjectionTargetBuilder<T> createInjectionTargetBuilder(AnnotatedType<T> type);
    WeldManager unwrap();
    <T> AnnotatedType<T> createAnnotatedType(Class<T> type, String id);
    <T> void disposeAnnotatedType(Class<T> type, String id);
    boolean isContextActive(Class<? extends Annotation> scopeType);
    Collection<Class<? extends Annotation>> getScopes();
    Collection<Context> getActiveContexts();
    Collection<WeldAlterableContext> getActiveWeldAlterableContexts();
}

Please refer to the JavaDoc in the API to see what each method does.

23. Development Mode

Weld comes with a special mode for application development. When enabled, certain built-in tools which facilitate the development of CDI applications, are available.

The development mode should not be used in production as it may have negative impact on the performance of the application. Make sure to disable the development mode before deploying to production.
Not all environments and containers may support the development mode and all tools. Check the tools details and the container documentation.

23.1. How to enable the development mode

23.1.1. Web application

For a web application, set the Servlet initialization parameter org.jboss.weld.development to true:

<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee/"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">

    <context-param>
        <param-name>org.jboss.weld.development</param-name>
        <param-value>true</param-value>
    </context-param>

</web-app>
An integrator is allowed to specify an alternative way of enabling the development mode. See for example WildFly Documentation.

23.1.2. Weld SE

For a Java SE application, set the system property org.jboss.weld.development to true:

java -cp myCoolApp.jar -Dorg.jboss.weld.development=true com.foo.MyMain

or use the Weld.enableDevMode() method:

org.jboss.weld.environment.se.Weld;

public static void main(String[] args) {
   try (WeldContainer container = new Weld().enableDevMode().initialize()) {
      ...
   }
}

23.1.3. Is The Development Mode Enabled?

You should see the following log message during initialization of your application:

=====================================
 Weld Development Mode: ENABLED
 ------------------------------------
 Disable this mode in production - it may have negative impact on performance and/or represent a potential security risk
=====================================

23.2. Development Tools

23.2.1. Probe

This tool allows you to inspect the application CDI components at runtime. There is a default UI - HTML client (single-page application), which is only available in web applications. Just point your browser to protocol://host:port/webappContextPath/weld-probe, e.g. http://localhost:8080/weld-numberguess/weld-probe. However, it’s also posible to obtain the JSON data through the REST API, eventually (if JMX support is enabled ) through the MXBean of name org.jboss.weld.probe:type=JsonData,context=ID where ID should be replaced with an idenfitier of an application. Right now, Probe integration is provided for WildFly, Tomcat and Jetty (Weld Servlet), and Weld SE.

There are some configuration properties which allow to tune or disable Probe features, e.g. to restrict the set of components which will be monitored. See also Development Mode .

23.2.2. Validation Report

If a deployment validation fails and the development mode is enabled a simple HTML report is generated. The report contains a lot of useful information such as Weld version, list of enabled beans, list of bean archives, Weld configuration, etc. By default, the report is generated to the user’s current working directory, ie. user.dir. However, it is also possible to specify a path to the target directory using the org.jboss.weld.probe.exportDataAfterDeployment configuration property - see also Development Mode .

You should see a similar log message which contains the path to the report file:

=====================================
 Weld - Deployment Validation: FAILED
 ------------------------------------
 HTML report generated to:

 file:///path/to/report/weld-validation-report.html
=====================================
We encourage you to always attach this report when asking a question on the mailing list or any other communication channel.

24. Context Management

24.1. Managing the built in contexts

Weld allows you to easily manage the built in contexts by injecting them and calling lifecycle methods. Weld defines two types of context, managed and unmanaged. Managed contexts can be activated (allowing bean instances to be retrieved from the context), invalidated (scheduling bean instances for destruction) and deactivated (stopping bean instances from being retrieved, and if the context has been invalidated, causing the bean instances to be destroyed). Unmanaged contexts are always active; some may offer the ability to destroy instances.

Managed contexts can either be bound or unbound. An unbound context is scoped to the thread in which it is activated (instances placed in the context in one thread are not visible in other threads), and is destroyed upon invalidation and deactivation. Bound contexts are attached to some external data store (such as the HTTP Session or a manually propagated map) by associating the data store with the context before calling activate, and dissociating the data store after calling activate.

Weld automatically controls context lifecycle in many scenarios such as HTTP requests, EJB remote invocations, and MDB invocations. Many of the extensions for CDI offer context lifecycle for other environments, it’s worth checking to see if there is a suitable extension before deciding to manage the context yourself.

Weld provides a number of built in contexts, which are shown in Available Contexts in Weld.

Table 16. Available Contexts in Weld
Scope Qualifiers Context Notes

@Dependent

@Default

DependentContext

The dependent context is unbound and unmanaged

@RequestScoped

@Unbound

RequestContext

An unbound request context, useful for testing

@RequestScoped

@Bound

@Default

RequestContext

BoundRequestContext

A request context bound to a manually propagated map, useful for testing or non-Servlet environments

@RequestScoped

@Http

@Default

RequestContext

HttpRequestContext

A request context bound to a Servlet request, used for any Servlet based request context

@RequestScoped

@Ejb

@Default

RequestContext

EjbRequestContext

A request context bound to a an interceptor’s invocation context, used for EJB invocations outside of Servlet requests

@ConversationScoped

@Bound

@Default

ConversationContext

BoundConversationContext

A conversation context bound to two manually propagated maps (one which represents the request and one which represents the session), useful for testing or non-Servlet environments

@ConversationScoped

@Http

@Default

ConversationContext

HttpConversationContext

A conversation context bound to a Servlet request, used for any Servlet based conversation context

@SessionScoped

@Bound

@Default

SessionContext

BoundSessionContext

A session context bound to a manually propagated map, useful for testing or non-Servlet environments

@SessionScoped

@Http

@Default

SessionContext

HttpSessionContext

A session context bound to a Servlet request, used for any Servlet based session context

@ApplicationScoped

@Default

ApplicationContext

An application context backed by an application scoped singleton, it is unmanaged and unbound but does offer an option to destroy all entries

@SingletonScoped

@Default

SingletonContext

A singleton context backed by an application scoped singleton, it is unmanaged and unbound but does offer an option to destroy all entries

Unmanaged contexts offer little of interest in a discussion about managing context lifecycles, so from here on in we will concentrate on the managed contexts (unmanaged contexts of course play a vital role in the functioning of your application and Weld!). As you can see from the table above, the managed contexts offer a number of different implementations for the same scope; in general, each flavor of context for a scope has the same API. We’ll walk through a number of common lifecycle management scenarios below; armed with this knowledge, and the Javadoc, you should be able to work with any of the context implementations Weld offers.

We’ll start simple with the BoundRequestContext, which you might use to provide the request scope outside of a Servlet request or EJB Invocation.

   /* Inject the BoundRequestContext. */
   /* Alternatively, you could look this up from the BeanManager */
   @Inject BoundRequestContext requestContext;

   ...

   /* Start the request, providing a data store which will last the lifetime of the request */
   public void startRequest(Map<String, Object> requestDataStore) {
      // Associate the store with the context and activate the context
      requestContext.associate(requestDataStore);
      requestContext.activate();
   }

   /* End the request, providing the same data store as was used to start the request */
   public void endRequest(Map<String, Object> requestDataStore) {
      try {
         /* Invalidate the request (all bean instances will be scheduled for destruction) */
         requestContext.invalidate();
         /* Deactivate the request, causing all bean instances to be destroyed (as the context is invalid) */
         requestContext.deactivate();
      } finally {
         /* Ensure that whatever happens we dissociate to prevent any memory leaks */
         requestContext.dissociate(requestDataStore);
      }
   }

The bound session context works in much the same way, excepting that invalidating and deactivating the session context causes the any conversations in the session to be destroyed as well. The HTTP session context and HTTP request context also work similarly, and might be of use if you find yourself creating threads from an HTTP request). The HTTP session context additionally offers a method which can immediately destroy the context.

Weld’s session contexts are "lazy" and don’t require a session to actually exist until a bean instance must be written.

The conversation context offers a few more options, which we will walk through here.

   @Inject BoundConversationContext conversationContext;

   ...

   /* Start a transient conversation */
   /* Provide a data store which will last the lifetime of the request */
   /* and one that will last the lifetime of the session */
   public void startTransientConversation(Map<String, Object> requestDataStore,
                                          Map<String, Object> sessionDataStore) {
      resumeOrStartConversation(requestDataStore, sessionDataStore, null);
   }

   /* Start a transient conversation (if cid is null) or resume a non-transient */
   /* conversation. Provide a data store which will last the lifetime of the request */
   /* and one that will last the lifetime of the session */
   public void resumeOrStartConversation(Map<String, Object> requestDataStore,
                                         Map<String, Object> sessionDataStore,
                                         String cid) {
      /* Associate the stores with the context and activate the context */
      * BoundRequest just wraps the two datastores */
      conversationContext.associate(new MutableBoundRequest(requestDataStore, sessionDataStore));
      // Pass the cid in
      conversationContext.activate(cid);
   }

   /* End the conversations, providing the same data store as was used to start */
   /* the request. Any transient conversations will be destroyed, any newly-promoted */
   /* conversations will be placed into the session */
   public void endOrPassivateConversation(Map<String, Object> requestDataStore,
                                          Map<String, Object> sessionDataStore) {
      try {
         /* Invalidate the conversation (all transient conversations will be scheduled for destruction) */
         conversationContext.invalidate();
         /* Deactivate the conversation, causing all transient conversations to be destroyed */
         conversationContext.deactivate();
      } finally {
        /* Ensure that whatever happens we dissociate to prevent memory leaks*/
         conversationContext.dissociate(new MutableBoundRequest(requestDataStore, sessionDataStore));
      }
   }

The conversation context also offers a number of properties which control the behavior of conversation expiration (after this period of inactivity the conversation will be ended and destroyed by the container), and the duration of lock timeouts (the conversation context ensures that a single thread is accessing any bean instances by locking access, if a lock can’t be obtained after a certain time Weld will error rather than continue to wait for the lock). Additionally, you can alter the name of the parameter used to transfer the conversation id (by default, cid).

Weld also introduces the notion of a ManagedConversation, which extends the Conversation interface with the ability to lock, unlock and touch (update the last used timestamp) a conversation. Finally, all non-transient conversations in a session can be obtained from the conversation context, as can the current conversation.

Weld’s conversations are not assigned ids until they become non-transient.

24.2. Propagating built-in contexts

By context propagation we understand a scenario in which you want to capture a collection of contextual instances bound to certain context in one thread and provide them as context state in another thread. Starting with Weld 3.1.0.Final, this kind of context propagation is possible.

Context propagation comes with some additional requirements on user code and may not work for every scenario!

First of all, what contexts are affected and how:

  • Application context

    • Works out of the box, no propagation needed

  • Singleton context

    • Works out of the box, no propagation needed

  • Dependent context

    • By nature of this context, this cannot be propagated

  • Request, session, conversation contexts

    • These can be manually propagated if desired

In order to achieve context propagation you generally need the following steps:

  • Obtain collection of contextual instances from current thread

  • In another thread, obtain a reference to given context and activate it

  • Feed this newly activated context the instances you previously obtained

  • Perform your tasks

  • Clean up the context by deactivating it

24.2.1. New API methods supporting context propagation

There are several new things in Weld API allowing for this. Firstly, all contexts supporting propagation now implement org.jboss.weld.context.WeldAlterableContext, an interface extending jakarta.enterprise.context.spi.AlterableContext. Methods on WeldAlterableContext allow to capture current context state, returning a collection of all contextual instances, as well as clear and set the context state by feeding it a collection of contextual instances.

public interface WeldAlterableContext extends AlterableContext {
    default <T> Collection<ContextualInstance<T>> getAllContextualInstances();
    default <T> void clearAndSet(Collection<ContextualInstance<T>> setOfInstances);
}

In order to get hold of these contexts, the best approach is to use WeldManager, an injectable bean providing some capabilities on top of what BeanManager has. Following WeldManager methods are useful for context propagation:

public interface WeldManager extends BeanManager {

    // excerpt of interface methods is shortened here
    boolean isContextActive(Class<? extends Annotation> scopeType);
    Collection<Class<? extends Annotation>> getScopes();
    default Collection<Context> getActiveContexts() {
        return getScopes().stream()
            .filter(this::isContextActive)
            .map(this::getContext)
            .collect(Collectors.toSet());
    }
    default Collection<WeldAlterableContext> getActiveWeldAlterableContexts() {
        return getScopes().stream()
            .filter(this::isContextActive)
            .map(this::getContext)
            .filter(t -> t instanceof WeldAlterableContext)
            .map(t -> (WeldAlterableContext) t)
            .collect(Collectors.toSet());
    }
}

24.2.2. Example of context propagation

There is a concise example in a form of a test in our code showing how to propagate all built-in contexts. This doc only contains an excerpt from it, you can look here to get the full picture.

Following code shows a service that provides an extra thread onto which you offload a Callable<T> that uses beans from currently active context. The service activates contexts, propagates state from original thread, executes task and cleans up. Bound versions of Weld context implementations are used as on this new thread there is no actual HTTP request or session existing.

public class ContextPropagationService {

    private static final ExecutorService executor = Executors.newFixedThreadPool(1);

    public static <T> Future<T> propagateContextsAndSubmitTask(Callable<T> task) {
        // gather all the contexts we want to propagate and the instances in them
        Map<Class<? extends Annotation>, Collection<ContextualInstance<Object>>> scopeToContextualInstances = new HashMap<>();
        WeldManager get = CDI.current().select(WeldManager.class).get();
        for (WeldAlterableContext context : CDI.current().select(WeldManager.class).get().getActiveWeldAlterableContexts()) {
            scopeToContextualInstances.put(context.getScope(), context.getAllContextualInstances());
        }
        // We create a task wrapper which will make sure we have contexts propagated
        Callable<T> wrappedTask = new Callable<T>() {

            @Override
            public T call() throws Exception {
                // Get WeldManager,get instances of @Bound contexts for request, session and conversation scopes
                WeldManager weldManager = CDI.current().select(WeldManager.class).get();
                BoundRequestContext requestContext = weldManager.instance().select(BoundRequestContext.class, BoundLiteral.INSTANCE).get();
                BoundSessionContext sessionContext = weldManager.instance().select(BoundSessionContext.class, BoundLiteral.INSTANCE).get();
                BoundConversationContext conversationContext = weldManager.instance().select(BoundConversationContext.class, BoundLiteral.INSTANCE).get();

                // We will be using bound contexts, prepare backing structures for contexts
                Map<String, Object> sessionMap = new HashMap<>();
                Map<String, Object> requestMap = new HashMap<>();
                BoundRequest boundRequest = new MutableBoundRequest(requestMap, sessionMap);

                // activate contexts
                requestContext.associate(requestMap);
                requestContext.activate();
                sessionContext.associate(sessionMap);
                sessionContext.activate();
                conversationContext.associate(boundRequest);
                conversationContext.activate();

                // propagate all contexts that have some bean in them
                if (scopeToContextualInstances.get(requestContext.getScope()) != null) {
                    requestContext.clearAndSet(scopeToContextualInstances.get(requestContext.getScope()));
                }
                if (scopeToContextualInstances.get(sessionContext.getScope()) != null) {
                    sessionContext.clearAndSet(scopeToContextualInstances.get(sessionContext.getScope()));
                }
                if (scopeToContextualInstances.get(conversationContext.getScope()) != null) {
                    conversationContext.clearAndSet(scopeToContextualInstances.get(conversationContext.getScope()));
                }

                // now execute the actual original task
                T result = task.call();

                // cleanup, context deactivation, do not trigger @PreDestroy/@Disposes
                requestContext.deactivate();
                conversationContext.deactivate();
                sessionContext.deactivate();

                // all done, return
                return result;
            }
        };
        return executor.submit(wrappedTask);
    }
}

24.2.3. Pitfalls and drawbacks

There are several things that can possibly go wrong when propagating contexts. User code needs to be aware that propagation can happen and prepare their beans accordingly. For instance request scoped beans could now theoretically be accessed concurrently which wasn’t the case before.

@PreDestroy and @Disposes on your beans could cause inconsistent state based on how you perform the propagation. Since the same bean is now used in several threads, all of them can, in invalidating and deactivating contexts, trigger these methods but the bean will still exist in yet another thread. The example given above avoids calling context.invalidate() and only performs context.deactivate() - this avoids invoking @PreDestroy/@Disposes methods but could possibly lead to never invoking them if no thread does it. Note that this problem only concerns request, session and conversation beans where you manually need to activate/deactivate contexts. Application/singleton scoped bean would still work and their cleanup callbacks will only be invoked once during container shutdown.

There is currently no way to propagate any other contexts than those mentioned here. Custom scopes as well as scopes from other EE specifications have no support for this feature. The reason is that while technically any context implementing WeldAlterableContext can be used to obtain/set collection of contextual instances, there is no way of knowing how to activate custom contexts in different threads.

Last but not least, context propagator needs to be aware of context implementations existing in Weld, see Available Contexts in Weld. However, in a new thread some extra knowledge is required to activate the contexts. Bound versions (backed by a provided storage; a map in our case) were used, and those need to have a storage associated before activating them, hence the code such as requestContext.associate(requestMap). There is no need to use bound version though; propagators are free to choose from other context implementations.

Appendix A: Integrating Weld into other environments

If you want to use Weld in another environment, you will need to provide certain information to Weld via the integration SPI. In this Appendix we will briefly discuss the steps needed.

If you just want to use managed beans, and not take advantage of enterprise services (EE resource injection, CDI injection into EE component classes, transactional events, support for CDI services in EJBs) and non-flat deployments, then the generic servlet support provided by the "Weld: Servlets" extension will be sufficient, and will work in any container supporting the Servlet API.

All SPIs and APIs described have extensive JavaDoc, which spell out the detailed contract between the container and Weld.

A.1. The Weld SPI

The Weld SPI is located in the weld-spi module, and packaged as weld-spi.jar. Some SPIs are optional, and should only be implemented if you need to override the default behavior; others are required.

All interfaces in the SPI support the decorator pattern and provide a Forwarding class located in the helpers sub package. Additional, commonly used, utility classes, and standard implementations are also located in the helpers sub package.

Weld supports multiple environments. An environment is defined by an implementation of the Environment interface. A number of standard environments are built in, and described by the Environments enumeration. Different environments require different services to be present. For example a Servlet container doesn’t require transaction, EJB or JPA services.

Weld uses services to communicate with its environment. A service is a java class that implements the org.jboss.weld.bootstrap.api.Service interface and is explicitly registered. A service may be BDA-specific or may be shared across the entire application.

public interface Service {
   public void cleanup();
}

Certain services are only used at bootstrap and need to be cleaned up afterwards in order not to consume memory. A service that implements the specialized org.jboss.weld.bootstrap.api.BootstrapService interface receives a cleanupAfterBoot() method invocation once Weld initialization is finished but before the deployment is put into service.

public interface BootstrapService extends Service {
    void cleanupAfterBoot();
}

Weld uses a generic-typed service registry to allow services to be registered. All services implement the Service interface. The service registry allows services to be added and retrieved.

A.1.1. Deployment structure

An application is often comprised of a number of modules. For example, a Java EE deployment may contain a number of EJB modules (containing business logic) and war modules (containing the user interface). A container may enforce certain accessibility rules which limit the visibility of classes between modules. CDI allows these same rules to apply to bean and observer method resolution. As the accessibility rules vary between containers, Weld requires the container to describe the deployment structure, via the Deployment SPI.

The CDI specification discusses Bean Archives (BAs)—archives which are marked as containing beans which should be deployed to the CDI container, and made available for injection and resolution. Weld reuses this description and uses Bean Deployment Archives (BDA) in its deployment structure SPI.

Each deployment exposes the containing BDAs that form a graph. A node in the graph represents a BDA. Directed edges between nodes designate visibility. Visibility is not transitive (i.e. a bean from BDA A can only see beans in BDAs with which A is directly connected by a properly oriented edge).

To describe the deployment structure to Weld, the container should provide an implementation of Deployment. Deployment.getBeanDeploymentArchives() allows Weld to discover the modules which make up the application. The CDI specification also allows beans to be specified programmatically as part of the bean deployment. These beans may, or may not, be in an existing BDA. For this reason, Weld will call Deployment.loadBeanDeploymentArchive(Class clazz) for each programmatically described bean.

As programmatically described beans may result in additional BDAs being added to the graph, Weld will discover the BDA structure every time an unknown BDA is returned by Deployment.loadBeanDeploymentArchive.

In a strict container, each BDA might have to explicitly specify which other BDAs it can access. However many containers will allow an easy mechanism to make BDAs bi-directionally accessible (such as a library directory). In this case, it is allowable (and reasonable) to describe all such archives as a single, 'virtual' BeanDeploymentArchive.

A container, might, for example, use a flat accessibility structure for the application. In this case, a single BeanDeploymentArchive would be attached to the Deployment.

BeanDeploymentArchive provides three methods which allow it’s contents to be discovered by Weld—BeanDeploymentArchive.getBeanClasses() must return all the classes in the BDA, BeanDeploymentArchive.getBeansXml() must return a data structure representing the beans.xml deployment descriptor for the archive, and BeanDeploymentArchive.getEjbs() must provide an EJB descriptor for every EJB in the BDA, or an empty list if it is not an EJB archive.

To aid container integrator, Weld provides a built-in beans.xml parser. To parse a beans.xml into the data-structure required by BeanDeploymentArchive, the container should call Bootstrap.parse(URL). Weld can also parse multiple beans.xml files, merging them to become a single data-structure. This can be achieved by calling Bootstrap.parse(Iterable<URL>).

When multiple beans.xml files are merged, Weld keeps duplicate enabled entries (interceptors, decorators or alternatives). This may cause validation problems when multiple physical archives which define an overlapping enabled entries are merged. A version of the Bootstrap.parse() method that provides control over whether duplicate enabled entries are remove or not is provided: Bootstrap.parse(Iterable<URL> urls, boolean removeDuplicates).

BDA X may also reference another BDA Y whose beans can be resolved by, and injected into, any bean in BDA X. These are the accessible BDAs, and every BDA that is directly accessible by BDA X should be returned. A BDA will also have BDAs which are accessible transitively, and the transitive closure of the sub-graph of BDA X describes all the beans resolvable by BDA X.

In practice, you can regard the deployment structure represented by Deployment, and the virtual BDA graph as a mirror of the classloader structure for a deployment. If a class can from BDA X can be loaded by another in BDA Y, it is accessible, and therefore BDA Y’s accessible BDAs should include BDA X.

To specify the directly accessible BDAs, the container should provide an implementation of BeanDeploymentArchive.getBeanDeploymentArchives().

Weld allows the container to describe a circular graph, and will convert a graph to a tree as part of the deployment process.

Certain services are provided for the whole deployment, whilst some are provided per-BDA. BDA services are provided using BeanDeploymentArchive.getServices() and only apply to the BDA on which they are provided.

The contract for Deployment requires the container to specify the portable extensions (see chapter Packaging and deployment of the CDI specification) which should be loaded by the application. To aid the container integrator, Weld provides the method Bootstrap.loadExtensions(ClassLoader) which will load the extensions for the specified classloader.

EE Modules

In Java EE environment, description of each Java EE module that contains bean archives deployment should be provided. This applies to:

  • web modules (wars)

  • EJB modules

  • connector modules (rar)

  • application client modules

  • enterprise archive libraries (ear/lib)

For each such module the integrator should create an instance of the EEModuleDescriptor which describes the module. EEModuleDescriptorImpl is provided for convenience.

An EEModuleDescriptor instance that represents a given module should be registered as a per bean archive service in each BeanDeploymentArchive that belongs to the given module. This applies both to physical bean archives deployed within the given module and also to logical bean archives that belong to the module. Bean archives that are not part of a Java EE module (e.g. built-in server libraries) are not required to have a EEModuleDescriptor service registered.

A.1.2. EJB descriptors

Weld delegates EJB 3 bean discovery to the container so that it doesn’t duplicate the work done by the EJB container, and respects any vendor-extensions to the EJB definition.

The EjbDescriptor should return the relevant metadata as defined in the EJB specification. Each business interface of a session bean should be described using a BusinessInterfaceDescriptor.

By default, Weld uses the EJB component class when creating new EJB instances. This may not always be desired especially if the EJB container uses subclassing internally. In such scenario, the EJB container requires that the subclass it generated is used for creating instances instead of the component class. An integrator can communicate such layout to Weld by additionally implementing the optional SubclassedComponentDescriptor interface in the EjbDescriptor implementation. The return value of the SubclassedComponentDescriptor.getComponentSubclass() method determines which class will be used by Weld when creating new EJB instances.

A.1.3. EE resource injection and resolution services

All the EE resource services are per-BDA services, and may be provided using one of two methods. Which method to use is at the discretion of the integrator.

The integrator may choose to provide all EE resource injection services themselves, using another library or framework. In this case the integrator should use the EE environment, and implement the Injection Services SPI.

Alternatively, the integrator may choose to use CDI to provide EE resource injection. In this case, the EE_INJECT environment should be used, and the integrator should implement the EJB services, Resource Services and JPA services.

CDI only provides annotation-based EE resource injection; if you wish to provide deployment descriptor (e.g. ejb-jar.xml) injection, you must use Injection Services.

If the container performs EE resource injection, the injected resources must be serializable. If EE resource injection is provided by Weld, the resolved resource must be serializable.

If you use a non-EE environment then you may implement any of the EE service SPIs, and Weld will provide the associated functionality. There is no need to implement those services you don’t need!

Weld registers resource injection points with EjbInjectionServices, JpaInjectionServices, ResourceInjectionServices and JaxwsInjectionServices implementations upfront (at bootstrap). This allows validation of resource injection points to be performed at boot time rather than runtime. For each resource injection point Weld obtains a ResourceReferenceFactory which it then uses at runtime for creating resource references.

public interface ResourceReferenceFactory<T> {
    ResourceReference<T> createResource();
}

A ResourceReference provides access to the resource reference to be injected. Furthermore, ResourceReference allows resource to be release once the bean that received resource injection is destroyed.

public interface ResourceReference<T> {
    T getInstance();
    void release();
}

A.1.4. EJB services

EJB services are split between two interfaces which are both per-BDA.

EjbServices is used to resolve local EJBs used to back session beans, and must always be provided in an EE environment. EjbServices.resolveEjb(EjbDescriptor ejbDescriptor) returns a wrapper—SessionObjectReference—around the EJB reference. This wrapper allows Weld to request a reference that implements the given business interface, and, in the case of SFSBs, both request the removal of the EJB from the container and query whether the EJB has been previously removed.

EjbInjectionServices.registerEjbInjectionPoint(InjectionPoint injectionPoint) registers an @EJB injection point (on a managed bean) and returns a ResourceReferenceFactory as explained above. This service is not required if the implementation of Injection Services takes care of @EJB injection.

EJBInjectionServices.resolveEjb(InjectionPoint ij), which allows @EJB injection point to be resolved without prior registration was deprecated in Weld 2 and should no longer be used. An injection point should be registered properly using EjbInjectionServices.registerEjbInjectionPoint(InjectionPoint injectionPoint) instead.

A.1.5. JPA services

Just as EJB resolution is delegated to the container, resolution of @PersistenceContext for injection into managed beans (with the InjectionPoint provided), is delegated to the container.

To allow JPA integration, the org.jboss.weld.injection.spi.JpaInjectionServices interface should be implemented. This service is not required if the implementation of Injection Services takes care of @PersistenceContext injection.

The following methods were deprecated in Weld 2:

* JpaInjectionServices.resolvePersistenceContext(InjectionPoint injectionPoint)

* JpaInjectionServices.resolvePersistenceUnit(InjectionPoint injectionPoint)

An injection point should instead be registered properly using the following methods:

* JpaInjectionServices.registerPersistenceContextInjectionPoint(InjectionPoint injectionPoint) * JpaInjectionServices.registerPersistenceUnitInjectionPoint(InjectionPoint injectionPoint)

A.1.6. Transaction Services

Weld delegates JTA activities to the container. The SPI provides a couple hooks to easily achieve this with the TransactionServices interface.

Any jakarta.transaction.Synchronization implementation may be passed to the registerSynchronization() method and the SPI implementation should immediately register the synchronization with the JTA transaction manager used for the EJBs.

To make it easier to determine whether or not a transaction is currently active for the requesting thread, the isTransactionActive() method can be used. The SPI implementation should query the same JTA transaction manager used for the EJBs.

A.1.7. Resource Services

The resolution of @Resource (for injection into managed beans) is delegated to the container. You must provide an implementation of ResourceInjectionServices which provides these operations. This service is not required if the implementation of Injection Services takes care of @Resource injection.

The following methods were deprecated in Weld 2:

* ResourceInjectionServices.resolveResource(InjectionPoint injectionPoint)

* ResourceInjectionServices.resolveResource(String jndiName, String mappedName)

An injection point should instead be registered properly using the following methods:

* ResourceInjectionServices.registerResourceInjectionPoint(InjectionPoint injectionPoint)

* ResourceInjectionServices.registerResourceInjectionPoint(String jndiName, String mappedName)

A.1.8. Web Service Injection Services

The resolution of @WebServiceRef (for injection into managed beans) is delegated to the container. An integrator must provide an implementation of JaxwsInjectionServices. This service is not required if the implementation of Injection Services takes care of @WebServiceRef injection.

A.1.9. Injection Services

An integrator may wish to use InjectionServices to provide additional field or method injection over-and-above that provided by Weld. An integration into a Java EE environment may use InjectionServices to provide EE resource injection for managed beans.

InjectionServices provides a very simple contract, the InjectionServices.aroundInject(InjectionContext ic); interceptor will be called for every instance that CDI injects, whether it is a contextual instance, or a non-contextual instance injected by InjectionTarget.inject().

The InjectionContext can be used to discover additional information about the injection being performed, including the target being injected. ic.proceed() should be called to perform CDI-style injection, and call initializer methods.

Resource injection point validation

For each

  • @Resource injection point

  • @PersistenceContext injection point

  • @PersistenceUnit injection point

  • @EJB injection point

  • @WebServiceRef injection point

Weld calls the InjectionServices.registerInjectionTarget() method. That allows the integrator to validate resource injection points before the application is deployed.

A.1.10. Security Services

In order to obtain the Principal representing the current caller identity, the container should provide an implementation of SecurityServices.

A.1.11. Initialization and shutdown

The org.jboss.weld.bootstrap.api.Bootstrap interface defines the initialization for Weld, bean deployment and bean validation. To boot Weld, you must create an instance of org.jboss.weld.bootstrap.WeldBootstrap which implements org.jboss.weld.bootstrap.api.CDI11Bootstrap which extends the above mentioned Bootstrap. Then you need to tell it about the services in use, and finally request the container start.

public interface Bootstrap {
    public Bootstrap startContainer(Environment environment, Deployment deployment);
    public Bootstrap startInitialization();
    public Bootstrap deployBeans();
    public Bootstrap validateBeans();
    public Bootstrap endInitialization();
    public void shutdown();
    public WeldManager getManager(BeanDeploymentArchive beanDeploymentArchive);
    public BeansXml parse(URL url);
    public BeansXml parse(Iterable<URL> urls);
    public BeansXml parse(Iterable<URL> urls, boolean removeDuplicates);
    public Iterable<Metadata<Extension>> loadExtensions(ClassLoader classLoader);
}

The bootstrap is split into phases, container initialization, bean deployment, bean validation and shutdown. Initialization will create a manager, and add the built-in contexts, and examine the deployment structure. Bean deployment will deploy any beans (defined using annotations, programmatically, or built in). Bean validation will validate all beans.

To initialize the container, you call Bootstrap.startInitialization(). Before calling startInitialization(), you must register any services required by the environment. You can do this by calling, for example, bootstrap.getManager().getServices().add(JpaServices.class, new MyJpaServices()).

Having called startInitialization(), the org.jboss.weld.manager.api.WeldManager for each BDA can be obtained by calling Bootstrap.getManager(BeanDeploymentArchive bda).

To deploy the discovered beans, call Bootstrap.deployBeans().

To validate the deployed beans, call Bootstrap.validateBeans().

To place the container into a state where it can service requests, call Bootstrap.endInitialization()

Integrators can set org.jboss.weld.bootstrap.allowOptimizedCleanup configuration property using Defining external configuration to allow to perform efficient cleanup and further optimizations after bootstrap. In this case, Bootstrap.endInitialization() must be called after all EE components which support injection are installed (that means all relevant ProcessInjectionTarget events were already fired).

To shutdown the container you call Bootstrap.shutdown(). This allows the container to perform any cleanup operations needed.

A.1.12. Resource loading

Weld needs to load classes and resources from the classpath at various times. By default, they are loaded from the Thread Context ClassLoader if available, if not the same classloader that was used to load Weld, however this may not be correct for some environments. If this is case, you can implement org.jboss.weld.resources.spi.ResourceLoader.

import org.jboss.weld.bootstrap.api.Service;

public interface ResourceLoader extends Service {
    public Class<?> classForName(String name);
    public URL getResource(String name);
    public Collection<URL> getResources(String name);
}

A.1.13. ClassFileServices

Integrators with bytecode-scanning capabilities may implement an optional ClassFileServices service.

Bytecode-scanning is used by some application servers to speed up deployment. Compared to loading a class using ClassLoader, bytecode-scanning allows to obtain only a subset of the Java class file metadata (e.g. annotations, class hierarchy, etc.) which is usually loaded much faster. This allows the container to scan all classes initially by a bytecode scanner and then use this limited information to decide which classes need to be fully loaded using ClassLoader. Jandex is an example of a bytecode-scanning utility.

ClassFileServices may be used by an integrator to provide container’s bytecode-scanning capabilities to Weld. If present, Weld will try to use the service to avoid loading of classes that do not need to be loaded. These are classes that:

  • are not CDI managed beans and

  • are not assignable to any ProcessAnnotatedType observer

This usually yields improved bootstrap performance especially in large deployments with a lot of classes in explicit bean archives.

public interface ClassFileServices extends BootstrapService {
    ClassFileInfo getClassFileInfo(String className);
}
public interface ClassFileInfo {
    String getClassName();
    String getSuperclassName();
    boolean isAnnotationDeclared(Class<? extends Annotation> annotationType);
    boolean containsAnnotation(Class<? extends Annotation> annotationType);
    int getModifiers();
    boolean hasCdiConstructor();
    boolean isAssignableFrom(Class<?> javaClass);
    boolean isAssignableTo(Class<?> javaClass);
    boolean isVetoed();
    boolean isTopLevelClass();
    NestingType getNestingType();

See the JavaDoc for more details.

A.1.14. Registering services

The standard way for an integrator to provide Service implementations is via the deployment structure. Alternatively, services may be registered using the ServiceLoader mechanism. This is useful e.g. for a library running in weld-servlet environment. Such library may provide TransactionServices implementation which would not otherwise be provided by weld-servlet.

A service implementation should be listed in a file named META-INF/services/org.jboss.weld.bootstrap.api.Service

A service implementation can override another service implementation. The priority of a service implementation is determined from the jakarta.annotation.Priority annotation. Service implementations with higher priority have precedence. A service implementation that does not define priority explicitly is given implicit priority of 4500.

A.2. The contract with the container

There are a number of requirements that Weld places on the container for correct functioning that fall outside implementation of APIs.

A.2.1. Classloader isolation

If you are integrating Weld into an environment that supports deployment of multiple applications, you must enable, automatically, or through user configuration, classloader isolation for each CDI application.

A.2.2. Servlet

If you are integrating Weld into a Servlet environment you must register org.jboss.weld.servlet.WeldInitialListener and org.jboss.weld.servlet.WeldTerminalListener as Servlet listeners, either automatically, or through user configuration, for each CDI application which uses Servlet.

You must ensure that WeldInitialListener is called before any other application-defined listener is called and that WeldTerminalListener is called only after all application-defined listeners have been called.

You must ensure that WeldInitialListener.contextInitialized() is called after beans are deployed is complete (Bootstrap.deployBeans() has been called).

A.2.3. CDI Conversation Filter

A CDI implementation is required to provide a Servlet filter named ``CDI Conversation Filter''. The filter may be mapped by an application in the web descriptor. That allows application to place another filter around the CDI filter for dealing with exceptions.

Weld provides this filter with a fully qualified class name of`org.jboss.weld.servlet.ConversationFilter`.

If the application contains a filter mapping for a filter named CDI Conversation Filter'', the integrator is required to register org.jboss.weld.servlet.ConversationFilter as a filter with CDI Conversation Filter'' as its filter name. If no such mapping exists in the application, the integrator is not required to register the filter. In that case, WeldInitialListener will take care of conversation context activation/deactivation at the beginning of HTTP request processing.

A.2.4. JSF

If you are integrating Weld into a JSF environment you must register org.jboss.weld.el.WeldELContextListener as an EL Context listener.

If you are integrating Weld into a JSF environment you must register org.jboss.weld.jsf.ConversationAwareViewHandler as a delegating view handler.

If you are integrating Weld into a JSF environment you must obtain the bean manager for the module and then call BeanManager.wrapExpressionFactory(), passing Application.getExpressionFactory() as the argument. The wrapped expression factory must be used in all EL expression evaluations performed by JSF in this web application.

If you are integrating Weld into a JSF environment you must obtain the bean manager for the module and then call BeanManager.getELResolver(), The returned EL resolver should be registered with JSF for this web application.

There are a number of ways you can obtain the bean manager for the module. You could call Bootstrap.getManager(), passing in the BDA for this module. Alternatively, you could use the injection into Java EE component classes, or look up the bean manager in JNDI.

If you are integrating Weld into a JSF environment you must register org.jboss.weld.servlet.ConversationPropagationFilter as a Servlet listener, either automatically, or through user configuration, for each CDI application which uses JSF. This filter can be registered for all Servlet deployment safely.

Weld 3 only supports JSF 2.2 and above.
org.jboss.weld.servlet.ConversationPropagationFilter was deprecated and should no longer be used.

A.2.5. JSP

If you are integrating Weld into a JSP environment you must register org.jboss.weld.el.WeldELContextListener as an EL Context listener.

If you are integrating Weld into a JSP environment you must obtain the bean manager for the module and then call BeanManager.wrapExpressionFactory(), passing Application.getExpressionFactory() as the argument. The wrapped expression factory must be used in all EL expression evaluations performed by JSP.

If you are integrating Weld into a JSP environment you must obtain the bean manager for the module and then call BeanManager.getELResolver(), The returned EL resolver should be registered with JSP for this web application.

There are a number of ways you can obtain the bean manager for the module. You could call Bootstrap.getManager(), passing in the BDA for this module. Alternatively, you could use the injection into Java EE component classes, or look up the bean manager in JNDI.

A.2.6. Session Bean Interceptor

org.jboss.weld.ejb.SessionBeanInterceptor takes care of activating the request scope around EJB method invocations in a non-servlet environment, such as message-driven bean invocation, @Asynchronous invocation or @Timeout. If you are integrating Weld into an EJB environment you must register the aroundInvoke method of SessionBeanInterceptor as a EJB around-invoke interceptor for all EJBs in the application, either automatically, or through user configuration, for each CDI application which uses enterprise beans.

If you are running in a EJB 3.2 environment, you should register this as an around-timeout interceptor as well.

In addition, since CDI 1.1 the aroundInvoke method of SessionBeanInterceptor should be invoked around @PostConstruct callbacks of EJBs.

You must register the SessionBeanInterceptor as the outer most interceptor in the stack for all EJBs.

A.2.7. The weld-core.jar

Weld can reside on an isolated classloader, or on a shared classloader. If you choose to use an isolated classloader, the default SingletonProvider, IsolatedStaticSingletonProvider, can be used. If you choose to use a shared classloader, then you will need to choose another strategy.

You can provide your own implementation of Singleton and SingletonProvider and register it for use using SingletonProvider.initialize(SingletonProvider provider).

Weld also provides an implementation of Thread Context Classloader per application strategy, via the TCCLSingletonProvider.

A.2.8. Binding the manager in JNDI

You should bind the bean manager for the bean deployment archive into JNDI at java:comp/BeanManager. The type should be jakarta.enterprise.inject.spi.BeanManager. To obtain the correct bean manager for the bean deployment archive, you may call bootstrap.getBeanManager(beanDeploymentArchive)

A.2.9. CDIProvider

CDI 1.1 provides a simplified approach to accessing the BeanManager / CDI container from components that do not support injection. This is done by the CDI class API. The integrating part can either use org.jboss.weld.AbstractCDI or org.jboss.weld.SimpleCDI provided by Weld core and register it using jakarta.enterprise.inject.spi.CDIProvider file that is visible to the CDI API classes or use the CDI.setCDIProvider(CDIProvider provider) method method early in the deployment.

Alternatively, an integrating part may provide a specialized implementation such as the one provided by WildFly integration.

A.2.10. Performing CDI injection on Java EE component classes

The CDI specification requires the container to provide injection into non-contextual resources for all Java EE component classes. Weld delegates this responsibility to the container. This can be achieved using the CDI defined InjectionTarget SPI. Furthermore, you must perform this operation on the correct bean manager for the bean deployment archive containing the EE component class.

The CDI specification also requires that a ProcessInjectionTarget event is fired for every Java EE component class. Furthermore, if an observer calls ProcessInjectionTarget.setInjectionTarget() the container must use the specified injection target to perform injection.

To help the integrator, Weld provides WeldManager.fireProcessInjectionTarget() which returns the InjectionTarget to use.

// Fire ProcessInjectionTarget, returning the InjectionTarget
// to use
AnnotatedType<?> at = weldBeanManager.createAnnotatedType(clazz);
InjectionTarget it = weldBeanManager.fireProcessInjectionTarget(at);

// Per instance required, create the creational context
CreationalContext<?> cc = beanManager.createCreationalContext(null);

// Produce the instance, performing any constructor injection required
Object instance = it.produce();

// Perform injection and call initializers
it.inject(instance, cc);

// Call the post-construct callback
it.postConstruct(instance);

// Call the pre-destroy callback
it.preDestroy(instance);

// Clean up the instance
it.dispose(instance);
cc.release();

The container may intersperse other operations between these calls. Further, the integrator may choose to implement any of these calls in another manner, assuming the contract is fulfilled.

When performing injections on EJBs you must use the Weld-defined SPI, WeldManager. Furthermore, you must perform this operation on the correct bean manager for the bean deployment archive containing the EJB.

// Obtain the EjbDescriptor for the EJB
// You may choose to use this utility method to get the descriptor
EjbDescriptor<T> ejbDescriptor = beanManager.<T>getEjbDescriptor(ejbName);

// Get the Bean object
Bean<T> bean = beanManager.getBean(ejbDescriptor);

// Create AnnotatedType from the implementation class of the EJB descriptor
AnnotatedType<T> at = beanManager.createAnnotatedType(descriptorImplClazz);

// Create the injection target
InjectionTarget<T> it = beanManager.createInjectionTarget(ejbDescriptor);

// Fire ProcessInjectionTarget event and store new IT as it can be modified by extensions
it = beanManager.fireProcessInjectionTarget(at, it);

// Per instance required, create the creational context
WeldCreationalContext<T> cc = beanManager.createCreationalContext(bean);

// register an AroundConstructCallback if needed
cc.setConstructorInterceptionSuppressed(true);
cc.registerAroundConstructCallback(new AroundConstructCallback<T>() {
    public T aroundConstruct(ConstructionHandle<T> handle, AnnotatedConstructor<T> constructor, Object[] parameters,
            Map<String, Object> data) throws Exception {
        // TODO: invoke @AroundConstruct interceptors
        return handle.proceed(parameters, data);
    }
});

// Produce the instance, performing any constructor injection required
T instance = it.produce(cc);

// Perform injection and call initializers
it.inject(instance, cc);

// You may choose to have CDI call the post construct and pre destroy
// lifecycle callbacks
// Call the post-construct callback
it.postConstruct(instance);

// Call the pre-destroy callback
it.preDestroy(instance);

// Clean up the instance
it.dispose(instance);
cc.release();

A.2.11. Around-construct interception

Weld implements support for constructor call interception and invokes interceptors that are associated with the particular component either using an interceptor binding or the @Interceptors annotation.

This can be suppressed by calling WeldCreationalContext.setConstructorInterceptionSuppressed(true)

In addition, an integrator may register a callback in which it performs additional operations around the constructor call. This way an integrator may for example implement support for additional interceptors (e.g. those bound using the deployment descriptor).

A.2.12. Probe Development Tool (Optional)

Optionally, an integrator may register the following Probe Development Tool components in order to enable its functionality. Note that these components should only be registered if the development mode is enabled - see also How to enable the development mode .

Table 17. Probe components
Class Type Description

org.jboss.weld.probe.ProbeFilter

Servlet filter

An integrator is required to register this filter for every web application which should be a subject of inspection. The filter should only be mapped to a single URL pattern of value /*.

org.jboss.weld.probe.ProbeExtension

CDI extension

An integrator is required to register this extension for every application which should be a subject of inspection.

Probe classes reside in a separate module with the following coordinates: org.jboss.weld.probe:weld-probe-core. This module is a dependency of a Weld Servlet integration module and it’s also a part of the weld-servlet-shaded artifact and Weld OSGi bundle.
Probe REST API is implemented using a servlet filter. However, not all servlet containers trigger filters when recieving a request to a path which is not mapped to any servlet (although most of them define a "default" servlet for each application). In this case, an integrator should register a "dummy" servlet (its methods will never be invoked) mapped to the URL pattern /weld-probe/*.

A.2.13. Optimized cleanup after bootstrap

Weld can perfom additional cleanup operations after bootstrap, in order to conserve resources. See for example Memory consumption optimization - removing unused beans .

However, this feature is disabled by default. An integrator may enable this feature provided the following requirements are met:

  • org.jboss.weld.bootstrap.api.Bootstrap#endInitialization() must be called after all EE components which support injection are installed (that means all relevant ProcessInjectionTarget events were already fired)

Table 18. Supported configuration properties
Configuration key Default value Description

org.jboss.weld.bootstrap.allowOptimizedCleanup

false

If set to true Weld is allowed to perform efficient cleanup and further optimizations after bootstrap

This property can only be set by integrators through Defining external configuration .

A.3. Migration notes

This part of the appendix documents the changes in Weld from previous major version and the changes in current minor releases that an integrator should be aware of. These changes mostly touch changes in the SPI or in the container contract. For information on migration to older Weld versions, please consult their respective documentation.

A.3.1. Migration from Weld 4.0 to 5.0

Weld 5 is a compatible implementation of Jakarta CDI 4.0 which is a major version bump that brings new APIs, removal of deprecated API, breaking changes and the introduction of CDI Lite.

Java 11

Both, Weld 5.0 and CDI 4.0 require at least Java 11 for compile time and runtime but both are made to run with JDK 17 as well.

CDI Lite and CDI Full

By far the biggest change in CDI 4.0 is the introduction of CDI Lite. In short, CDI Lite is a feature subset of CDI Full that broadens the amount of environments in which CDI can execute; more precisely, it enables CDI in build time oriented frameworks such as Micronaut or Quarkus. What does that means for Weld users? Nothing much, Weld is and will be a runtime oriented implementation and you can keep using CDI as you did up until now. To be exact, Weld is so called CDI Full implementation meaning it provides each and every CDI feature and while there were some deprecations and removals, the rest stays the same.

Empty beans.xml discovery mode

CDI 4 changes the default discovery mode used for empty beans.xml - it is now annotated mode. This aligns nicely with recommendations from the past and saves memory and boot times by discovering only annotated beans as opposed to scanning everything.

For existing applications with empty beans.xml, this might be a breaking change. This can typically be fixed via:

  • Making sure all needed beans have required annotations. This mostly boils down to adding bean defining annotations to classes that are supposed to be beans but have none of them.

    • Typically, you will see a lot of unsatisfied dependency injections which should give you a hint at which beans are most likely missing an annotation

  • Changing beans.xml to non-empty and adding <beans> element with attribute bean-discovery-mode="all". This will revert the discovery mode to previously used all mode.

  • In EE servers, CDI specification requires integrators to provide a compatibility switch that triggers previous behavior

    • Note that this is a temporary measure to ensure backward compatibility and it will be removed in the future. Applications are encouraged to eventually apply one of the above solutions.

    • Consult the documentation of each integrator (such as WildFly) to learn how to enable this option.

Notes for integrators

If you are an integrator looking to implement this switch with Weld, here are a few leads. Depending on how exactly you integrate Weld, you are likely using one of the following ways to parse beans.xml:

  • Directly invoking parser via org.jboss.weld.xml.BeansXmlStreamParser.

    • BeansXmlStreamParser now has new constructor methods which allow passing a BeanDiscoveryMode parameter telling Weld how to interpret empty beans.xml.

    • All former constructors were retained and default to BeanDiscoveryMode.ANNOTATED .

  • Indirectly invoking it via an implementation of org.jboss.weld.bootstrap.api.Bootstrap and its parse methods.

    • New variantions of the parse methods were added and accept BeanDiscoveryMode parameter telling Weld how to interpret empty beans.xml.

    • All former variations of parse methods were retained and default to BeanDiscoveryMode.ANNOTATED.

Build Compatible Extensions

With the addition of CDI Lite, the one big new feature are so-called Build Compatible Extensions (BCE). Their purpose is very similar to that of Portable Extensions (PE) - synthetic alteration of the bean model. Unlike PE which are inherently runtime oriented, BCE can be used in more restricted environments while retaining portability. If you want to learn more, take a look at this article.

How to make Weld understand Build Compatible Extensions?

Since BCE use a different language model but are otherwise similar, Weld internally maps their execution to a special Portable Extension named LiteExtensionTranslator. This extension is inside a newly added Maven module - weld-lite-extension-translator. The GAV of this artifact is org.jboss.weld:weld-lite-extension-translator:5.0.0.Final.

Just like any Portable Extension, it needs an entry in META-INF or an instance of this extensions has to be added programmaticaly during Weld bootstrap. This is where it gets tricky; it doesn’t work out of the box in all environments!

  • Weld SE - works out of the box, the extension is automagically added

  • Weld Servlet - works out of the box, the extensions is automagically added

  • EE - doesn’t work without integrator registering the extension

  • Any other custom integration - doesn’t work without integrator registering the extension

In complex/custom environments, Weld doesn’t have enough information to decide when and how to register the extension, hence it instead lets the integrator decide.

Registering LiteExtensionTranslator

Registering the LiteExtensionTranslator can be as easy as adding a META-INF entry with it into some archive in the deployment. An example of this would be arquillian-container-weld, a test container for Weld applications. As you can see from this pull request, it basically adds a META-INF entry which is sufficient to support new extension model. Since it a test tool, the extension is always registered without any attempt to optimize it.

The above solution is nice and clean, but won’t cut it for any EE integrators. Instead, EE integrators will want to register this extension very similarly to how they currently register ProbeExtension - add it programmatically as part of the CDI deployment. This extension should to be registered at most once per deployment. It is therefore recommended to put it directly into org.jboss.weld.bootstrap.spi.CDI11Deployment implementation.

Lastly, this process can and should be optimized so that the extension is only registered when there is at least one BCE detected. The reason being that the extension monitors a wide variety of generic events, such ProcessAnnotatedType<?>, which can be time consuming for bigger applications. There is a utility class to help with this - org.jboss.weld.lite.extension.translator.BuildCompatibleExtensionLoader - which allows performing a standard service discovery process with given ClassLoader and returns the set of discovered BCE classes. Integrators can then instantiate LiteExtensionTranslator via a constructor that takes this set as an input; or skip registering it if there are no BCE at all.

Deprecations and removals

This section mostly focuses on removals in Weld itself. If you are looking for deprecation removals in CDI API, take a look at this GH issue.

  • Multiple methods from org.jboss.weld.serialization.spi.ProxyServices were removed.

    • If you are an integrator, you probably implemented this interface at some point in time; these methods weren’t used by Weld anyway, so they are now gone for good.

    • Here is a JIRA issue with more details and PR link.

  • Any integrators making use of Jandex likely implemented ClassFileInfo; its isTopLevelClass() has been removed.

    • Note that this method was redundant and can be replaced by getClassNestingType().

  • WeldInstance.Handler class is now deprecated and so are multiple methods returning this type from WeldInstance

    • The reason for this removal is that the very same feature was accepted into CDI specification so you can now use CDI API interfaces to achieve the same.

    • For more information, take a look at Instance.Handle class from CDI API.
