Chapter 5. Reporting

5.1. CDI TCK Coverage Metrics
5.2. CDI TCK Coverage Report
5.2.1. CDK TCK Assertions
5.2.2. Producing the Coverage Report
5.2.3. TestNG Reports

This chapter covers the two types of reports that can be generated from the TCK, an assertion coverage report and the test execution results. The chapter also justifies why the TCK is good indicator of how accurately an implementation conforms to the JSR-299 specification.

The CDI TCK coverage has been measured as follows:

A specification can be distilled into a collection of assertions that define the behavior of the software. This section introduces the CDI TCK coverage report, which documents the relationship between the assertions that have been identified in the JSR-299 specification document and the tests in the TCK test suite.

The structure of this report is controlled by the assertion document, so we'll start there.

The CDI TCK developers have analyzed the JSR-299 specification document and identified the assertions that are present in each chapter. Here's an example of one such assertion found in section 2.3.3:

The assertions are listed in the XML file impl/src/main/resources/tck-audit.xml in the CDI TCK distribution. Each assertion is identified by the section of the specification document in which it resides and assigned a unique paragraph identifier to narrow down the location of the assertion further. To continue with the example, the assertion shown above is listed in the tck-audit.xml file using this XML fragment:


<section id="2.3.3" title="Declare the bindings of a bean">
  ...
  <assertion id="d">
     <text>A bean may declare multiple binding types.</type>
  </assertion>
  ...
</section>

The strategy of the CDI TCK is to write a test which validates this assertion when run against an implementation. A test case (a method annotated with @Test in an @Artifact class) is correlated with an assertion using the @org.jboss.test.audit.annotations.SpecAssertion annotation as follows:

@Test

@SpecAssertion(section = "2.3.3", id = "d")
public void testMultipleBindings()
{
  Bean<?> model = getBeans(Cod.class, new ChunkyBinding(true), new WhitefishBinding()).iterator().next();
  assert model.getBindings().size() == 3;
}

To help evaluate the distribution of coverage for these assertions, the TCK provides a detailed coverage report. This report is also useful to help implementors match tests with the language in the specification that supports the behavior being tested.

The coverage report is an HTML report generated as part of the TCK project build. Specifically, it is generated by an annotation processor that attaches to the compilation of the classes in the TCK test suite, another tool from the JBoss Test Utils project. You can enable this report by setting the commandline property tck-audit to true when running the Maven 2 build in the tck directory.

mvn clean install -Dtck-audit=true

The report is written to the file target/coverage.html in the same project. The report has five sections:

The coverage report is color coded to indicate the status of an assertion, or group of assertions. The status codes are as follows:

For reasons provided in the tck-audit.xml document and presented in the coverage report, some assertions are not testable.

The coverage report does not give any indication as to whether the tests are passing. That's where the TestNG reports come in.

As you by now, the CDI TCK test suite is really just a TestNG test suite. That means an execution of the CDI TCK test suite produces all the same reports that TestNG produces. This section will go over those reports and show you were to go to find each of them.

When the CDI TCK test suite is executed during the Maven 2 test phase of the TCK runner project, TestNG is invoked indirectly through the Maven Surefire plugin. Surefire is a test execution abstraction layer capable of executing a mix of tests written for JUnit, TestNG, and other supported test frameworks.

Why is this relevant? It means two things. First, it means that you are going to get a summary of the test run on the commandline. Here's the output generated when the tests are run using standalone mode.

-------------------------------------------------------
 T E S T S
-------------------------------------------------------
Running TestSuite
[XmlMethodSelector] CLASSNAME:org.jboss.testharness.impl.testng.DisableIntegrationTestsMethodSelector
[XmlMethodSelector] SETTING PRIORITY:0
[XmlMethodSelector] CLASSNAME:org.jboss.testharness.impl.testng.ExcludeIncontainerUnderInvestigationMethodSelector
[XmlMethodSelector] SETTING PRIORITY:0
Tests run: 441, Failures: 0, Errors: 0, Skipped: 0, Time elapsed: 22.816 sec

Results :

Tests run: 441, Failures: 0, Errors: 0, Skipped: 0

If the Maven reporting plugin that compliments Surefire is configured properly, Maven will also generate a generic HTML test result report. That report is written to the file test-report.html in the target/surefire-reports directory of the TCK runner project. It shows how many tests were run, how many failed and the success rate of the test run.

The one drawback of the Maven Surefire report plugin is that it buffers the test failures and puts them in the HTML report rather than outputting them to the commandline. If you are running the test suite to determine if there are any failures, it may be more useful to get this information in the foreground. You can prevent the failures from being redirected to the report using the following commandline switch:

mvn test -Dsurefire.useFile=false

The information that the Surefire provides is fairly basic and the detail pales in comparison to what the native TestNG reports provide.

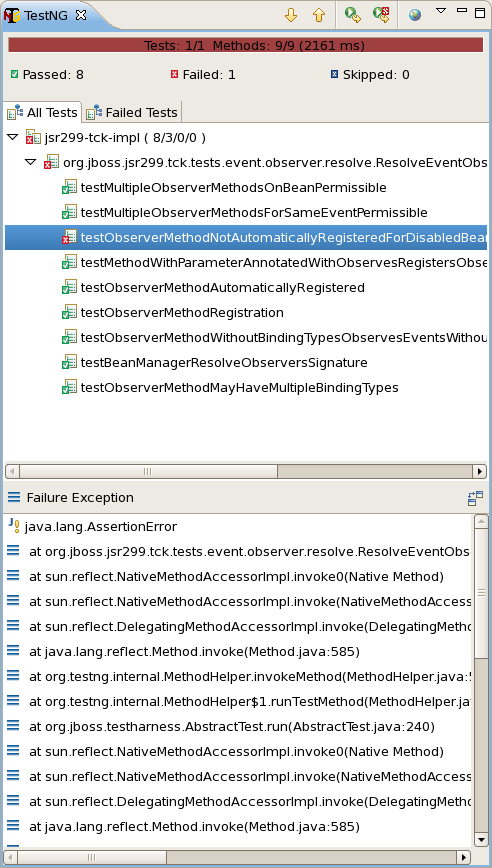

Aftering running a test in Eclipse, as described in <xhref></xhref> and Section 7.4, “Running integration tests”, the test results are displayed in the TestNG plugin view, as shown below.

The view offers two lists. The first is a list of all methods (tests) in the class flagged as either passed or failed. The second is a list of methods (tests) in the class that failed. If there is a test failure, you can click on the method name to get the stacktrace leading up to the failure to display in the lower frame.

You can also find the raw output of the TestNG execution in the IDE console view. In that view, you can click on a test in the stacktrace to open it in the editor pane.

One of the nice features of TestNG is that it can keep track of which tests failed and offer to run only those tests again. You can also rerun the entire class. Buttons are available for both functions at the top of the view.
