Chapter 43. Access Control

43.1. Standard Action Permissions
43.2. eXo Access Control
43.2.1. Principal and Identity
43.2.2. ACL
43.2.3. Notes
43.2.4. Example
43.2.5. Java API

eXo JCR is a complete implementation of the standard JSR 170: Content Repository for Java TM Technology API, including Level 1, Level 2 and Additional Features specified in the JCR Specification.

The JCR specification (JSR 170) does not have many requirements about Access Control. It only requires the implementation of the Session.checkPermission(String absPath, String actions) method. This method checks if a current session has permissions to perform some actions on absPath:

For example :

The JSR170 specification does not define how permissions are managed or checked. So eXo JCR has implemented its own proprietary extension to manage and check permissions on nodes. In essence, this extension uses an Access Control List (ACL) policy model applied to eXo Organization model (see eXo Platform Organization Service).

An access control list (ACL) is a list of permissions attached to an object. An ACL specifies which users, groups or system processes are granted access to JCR nodes, as well as what operations are allowed to be performed on given objects.

eXo JCR Access Control is based on two facets applied to nodes :

Access Control nodetypes are not extendible: The access control mechanism works for exo:owneable and exo:privilegeable nodetypes only, not for their subtypes! So you cannot extend those nodetypes.

Autocreation: By default, newly created nodes are neither exo:privilegeable nor exo:owneable but it is possible to configure the repository to auto-create exo:privilegeable or/and exo:owneable thanks to eXo's JCR interceptors extension (see JCR Extensions)

OR-based Privilege Inheritance: Note, that eXo's Access Control implementation supports a privilege inheritance that follows a strategy of either...or/ and has only an ALLOW privilege mechanism (there is no DENY feature). This means that a session is allowed to perform some operations on some nodes if its identity has an appropriate permission assigned to this node. Only if there is no exo:permission property assigned to the node itself, the permissions of the node's ancestors are used.

In the following example, you see a node named "Politics" which contains two nodes named "Cats" and "Dogs".

<Politics  jcr:primaryType="nt:unstructured" jcr:mixinTypes="exo:owneable exo:datetime exo:privilegeable" exo:dateCreated="2009-10-08T18:02:43.687+02:00"
exo:permissions="any_x0020_read *:/platform/administrators_x0020_read *:/platform/administrators_x0020_add_node *:/platform/administrators_x0020_set_property *:/platform/administrators_x0020_remove">

<Cats jcr:primaryType="exo:article"
exo:text="" exo:title="Cats_x0020_rule_x0020_the_x0020_world" />

<Dogs jcr:primaryType="exo:article"
exo:permissions="manager:/organization_x0020_read manager:/organization_x0020_set_property"
exo:text="" exo:title="Dogs_x0020_are_x0020_friends" />


The "Politics" node is exo:owneable and exo:privilegeable. It has both an exo:owner property and an exo:permissions property. There is an exo:owner="root" property so that the user root is the owner. In the exo:permissions value, you can see the ACL that is a list of access controls. In this example, the group *:/platform/administrators has all rights on this node (remember that the "*" means any kind of membership). any means that any users also have the read permission.s

As you see in the jcr:mixinTypes property, the "Cats" node is exo:owneable and there is an exo:owner="marry" property so that the user marry is the owner. The "Cats" node is not exo:privilegeable and has no exo:permissions. In this case, we can see the inheritance mechanism here is that the "Cats" node has the same permissions as "Politics" node.

Finally, the "Dogs" node is also a child node of "Politics". This node is not exo:owneable and inherits the owner of the "Politics" node (which is the user root). Otherwise, "Dogs" is exo:privilegeable and therefore, it has its own exo:permissions. That means only the users having a "manager" role in the group "/organization" and the user "root" have the rights to access this node.

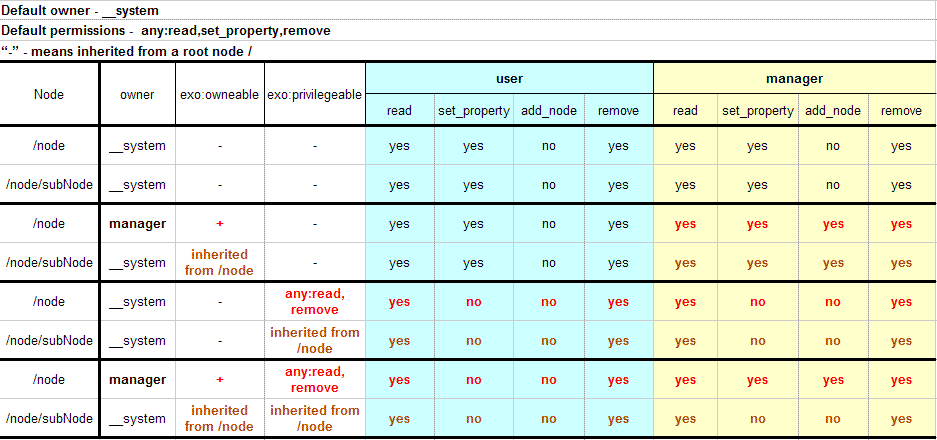

This session describes how permission is validated for different JCR actions.
