Chapter 3. Portal Development


<portal-config>

                <portal-name>classic</portal-name>

                <locale>en</locale>

                <access-permissions>Everyone</access-permissions>

                <edit-permission>*:/platform/administrators</edit-permission>

                <skin>MySkin</skin>

                ...

3.1.4. Skins in Page Markups

A GateIn 3.2 skin contains css styles for the portal's components but also shares components that may be reused in portlets. When GateIn 3.2 generates a portal page markup, it inserts stylesheet links in the page's head tag.

There are two main types of css links that will appear in the head tag: a link to the portal skin css file and a link to the portlet skin css files.

Portal Skin: The portal skin will appear as a single link to a css file. This link will contain contents from all the portal skin classes merged into one file. This allow for the portal skin to be transfered more quickly as a single file instead of many multiple smaller files. Included with every page render.
Portlet Skin: Each portlet on a page may contribute its own style. The link to the portlet skin will only appear on the page if that portlet is loaded on the current page. A page may contain many portlet skin css links or none.

In the code fragment below you can see the two types of links:


<head>

...

<!-- The portal skin -->

<link id="CoreSkin" rel="stylesheet" type="text/css" href="/eXoResources/skin/Stylesheet.css" />



<!-- The portlet skins -->

<link id="web_FooterPortlet" rel="stylesheet" type="text/css" href= "/web/skin/portal/webui/component/UIFooterPortlet/DefaultStylesheet.css" />

<link id="web_NavigationPortlet" rel="stylesheet" type="text/css" href= "/web/skin/portal/webui/component/UINavigationPortlet/DefaultStylesheet.css" />

<link id="web_HomePagePortlet" rel="stylesheet" type="text/css" href= "/portal/templates/skin/webui/component/UIHomePagePortlet/DefaultStylesheet.css" />

<link id="web_BannerPortlet" rel="stylesheet" type="text/css" href= "/web/skin/portal/webui/component/UIBannerPortlet/DefaultStylesheet.css" />

...

</head>

Note

Window styles and the portlet specification CSS classes are included within the portal skin.

3.1.5. The Skin Service

The skin service is a GateIn 3.2 service which manages the various types of skins. It is reponsible for discovering and deploying the skins into the portal.

3.1.5.1. Skin configuration

GateIn 3.2 automatically discovers web archives that contain a file descriptor for skins (WEB-INF/gatein-resources.xml). This file is reponsible for specifying the portal, portlet and window decorators to be deployed into the skin service.

The full schema can be found in lib directory:

exo.portal.component.portal.jar/gatein_resources_1_0.xsd

Here is an example where we define a skin (MySkin) with its CSS location, and specify a few window decorator skins:


<gatein-resources>

  <portal-skin>

    <skin-name>MySkin</skin-name>

    <css-path>/skin/myskin.css</css-path>

    <overwrite>false</overwrite>

  </portal-skin>

</gatein-resources>



  <!-- window style -->

  <window-style>

    <style-name>MyThemeCategory</style-name>

    <style-theme>

      <theme-name>MyThemeBlue</theme-name>

    </style-theme>

    <style-theme>

      <theme-name>MyThemeRed</theme-name>

    </style-theme>

    ...

3.1.5.2. Resource Request Filter

Because of the Right-To-Left support all CSS files need to be retrieved through a Servlet filter and the web application needs to be configured to activate this filter. This is already done for 01eXoResources.war web application which contains the default skin.

Any new web applications containing skinning css files will need to have the following added to their web.xml :


<filter>

      <filter-name>ResourceRequestFilter</filter-name>

      <filter-class>org.exoplatform.portal.application.ResourceRequestFilter</filter-class>

      </filter>



      <filter-mapping>

      <filter-name>ResourceRequestFilter</filter-name>

      <url-pattern>*.css</url-pattern>

      </filter-mapping>

Note

The display-name element will also need to be specified in the web.xml for the skinning service to work properly with the web application.

3.1.6. The Default Skin

The default skin for GateIn 3.2 is located as part of the 01eXoResource.war. The main files associated with the skin is show below:

WEB-INF/gatein-resources.xml
WEB-INF/web.xml
skin/Stylesheet.css

	gatein-resources.xml: defines the skin setup to use
	web.xml: contains the resource filer and has the display-name set
	Stylesheet.css: contains the CSS class definitions for this skin.

gatein-resources.xml

For the default portal skin, this file contains definitions for the portal skin, the window decorations that this skin provides and well as defining some javascript resources which are not related to the skin. The default portal skin doesn't directly define portlet skins, these should be provided by the portlets themeselves.

web.xml

For the default portal skin, the web.xml of the eXoResources.war will contains a lot of information which is mostly irrelevant to the portal skining. The areas of interest in this file is the resourcerequestfilter and the fact that the display-name is set.

Stylesheet.css

The main portal skin stylesheet. The file is the main entry point to the css class definitions for the skin. Below is shown the contents of this file:

@import url(DefaultSkin/portal/webui/component/UIPortalApplicationSkin.css);
@import url(DefaultSkin/webui/component/Stylesheet.css);
@import url(PortletThemes/Stylesheet.css);
@import url(Portlet/Stylesheet.css);

	Skin for the main portal page.
	Skins for various portal components.
	Window decoration skins.
	The portlet specificiation css classes.

Instead of defining all the CSS classes in this one file we are instead importing other css stylesheet files, some of which may also import other CSS stylesheets. The css classes are split up between multiple files to make it easier for new skins to reuse parts of the default skin.

To reuse a CSS stylesheet from the default portal skin you would need to reference the default skin from eXoResources. For example, to include the window decorators from the default skin within a new portal skin you would need to use this import:

@import url(/eXoResources/skin/Portlet/Stylesheet.css);

Note

When the portal skin is added to the page, it merge all the css stylesheets into a single file.

3.1.7. Creating New Skins

3.1.7.1. Creating a New Portal Skin

A new portal will need to be added to the portal through the skin service. As such the web application which contains the skin will need to be properly configured for the skin service to discover them. This means properly configuring the ResourceRequestFilter and gatein-resources.xml.

3.1.7.1.1. Portal Skin Configuration

The gatein-resources.xml will need to specify the new portal skin. This will include specifying the name of the new skin, where to locate its css stylesheet file and whether to overwrite an existing portal theme with the same name.


<gatein-resources>

  <portal-skin>

    <skin-name>MySkin</skin-name>

    <css-path>/skin/myskin.css</css-path>

    <overwrite>false</overwrite>

  </portal-skin>

</gatein-resources>

The default portal skin and window styles are defined in 01eXoResources.war/WEB-INF/gatein-resources.xml.

Note

The css for the portal skin needs to contain the css for all the window decorations and the portlet specification css classes.

3.1.7.1.2. Portal Skin Preview Icon

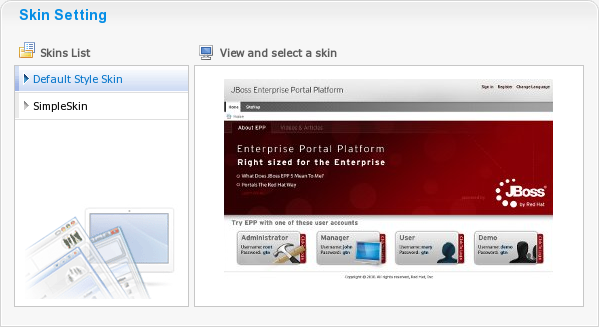

When selecting a skin it is possible to see a preview of what the skin will look like. The current skin needs to know about the skin icons for all the available skins, otherwise it will not be able to show the previews. When creating a new portal it is recommended to include the preview icons of the other skins and to update the other skins with your new portal skin preview.

The portal skin preview icon is specified through the CSS of the portal skin. In order for the current portal skin to be able to display the preview it must specify a specific CSS class and set the icon as the background.

For a portal named MySkin in must define the following CSS class:

.UIChangeSkinForm .UIItemSelector .TemplateContainer .MySkinImage

In order for the default skin to know about the skin icon for a new portal skin, the preview screenshot needs to be place in:

01eXoResources.war:/skin/DefaultSkin/portal/webui/component/customization/UIChangeSkinForm/background

The CSS stylesheet for the default portal needs to have the following updated with the preview icon css class. For a skin named MySkin then the following needs to be updated:

01eXoResources.war:/skin/DefaultSkin/portal/webui/component/customization/UIChangeSkinForm/Stylesheet.css

.UIChangeSkinForm .UIItemSelector .TemplateContainer .MySkinImage {
  margin: auto;
  width: 329px; height:204px;
  background: url('background/MySkin.jpg') no-repeat top;
  cursor: pointer ;
}

3.1.7.2. Creating a New Window Style

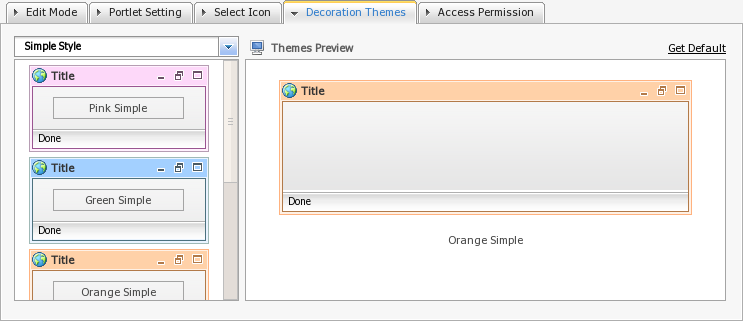

Window styles are the CSS applied to window decoration. When an administrator choose a new application to add on a page he can decide which style of decoration would go around the window if any.

3.1.7.2.1. Window Style Configuration

Window Styles are defined within a gatein-resources.xml file which is used by the skin service to deploy the window style into the portal. Window styles can belong in with a window style category, this category and the window styles will need to be specified in resources file.

The following gatein-resource.xml fragment will add MyThemeBlue and MyThemeRed to the MyTheme category.


<window-style>

  <style-name>MyTheme</style-name>

  <style-theme>

    <theme-name>MyThemeBlue</theme-name>

  </style-theme>

  <style-theme>

    <theme-name>MyThemeRed</theme-name>

  </style-theme>

</window-style>

The windows style configuration for the default skin is configured in:

01eXoResources.war/WEB-INF/gatein-resources.xml

Note

When a window style is defined in gatein-resources.xml file, it will be available to all portlets regardless if the current portal skin support the window decorator or not. It is recommended that when a new window decorator is added that it is added to all portal skins or that portal skins share a common stylesheet for window decorators.

3.1.7.2.2. Window Style CSS

In order for the skin service to display the window decorators, it must have CSS classes with specific naming in relation to the window style name. The service will try and display css based on this naming. The css class must be included as part of the current portal skin for the window decorators to be displayed.

The location of the window decorator css classes for the default portal theme is located at:

01eXoResources.war/skin/PortletThemes/Stylesheet.css

Create the CSS file:

/*---- MyTheme ----*/
.MyTheme .WindowBarCenter .WindowPortletInfo {
	margin-right: 80px; /* orientation=lt */
	margin-left: 80px; /* orientation=rt */
}

.MyTheme .WindowBarCenter .ControlIcon {
	float: right; /* orientation=lt */
	float: left; /* orientation=rt */
	width: 24px;
	height: 17px;
	cursor: pointer;
	background-image: url('background/MyTheme.png');
}

.MyTheme .ArrowDownIcon {
	background-position: center 20px;
}

.MyTheme .OverArrowDownIcon {
	background-position: center 116px;
}

.MyTheme .MinimizedIcon {
	background-position: center 44px;
}

.MyTheme .OverMinimizedIcon {
	background-position: center 140px;
}

.MyTheme .MaximizedIcon {
	background-position: center 68px;
}

.MyTheme .OverMaximizedIcon {
	background-position: center 164px;
}

.MyTheme .RestoreIcon {
	background-position: center 92px;
}

.MyTheme .OverRestoreIcon {
	background-position: center 188px;
}

.MyTheme .NormalIcon {
	background-position: center 92px;
}

.MyTheme .OverNormalIcon {
	background-position: center 188px;
}

.MyTheme .Information {
	height: 18px; line-height: 18px;
	vertical-align: middle; font-size: 10px;
	padding-left: 5px; /* orientation=lt */
	padding-right: 5px; /* orientation=rt */
	margin-right: 18px; /* orientation=lt */
	margin-left: 18px; /* orientation=rt */
}

.MyTheme .WindowBarCenter .WindowPortletIcon {
	background-position: left top; /* orientation=lt */
	background-position: right top; /* orientation=rt */
	padding-left: 20px; /* orientation=lt */
	padding-right: 20px; /* orientation=rt */
	height: 16px;
	line-height: 16px;
}

.MyTheme .WindowBarCenter .PortletName {
	font-weight: bold;
	color: #333333;
	overflow: hidden;
	white-space: nowrap;
}

.MyTheme .WindowBarLeft {
	padding-left: 12px;
	background-image: url('background/MyTheme.png');
	background-repeat: no-repeat;
	background-position: left -148px;
}

.MyTheme .WindowBarRight {
	padding-right: 11px;
	background-image: url('background/MyTheme.png');
	background-repeat: no-repeat;
	background-position: right -119px;
}

.MyTheme .WindowBarCenter {
	background-image: url('background/MyTheme.png');
	background-repeat: repeat-x;
	background-position: left -90px;
	height: 21px;
	padding-top: 8px;
}

.MyTheme .MiddleDecoratorLeft {
	padding-left: 12px;
	background: url('background/MMyTheme.png') repeat-y left;
}

.MyTheme .MiddleDecoratorRight {
	padding-right: 11px;
	background: url('background/MMyTheme.png') repeat-y right;
}

.MyTheme .MiddleDecoratorCenter {
	background: #ffffff;
}

.MyTheme .BottomDecoratorLeft {
	padding-left: 12px;
	background-image: url('background/MyTheme.png');
	background-repeat: no-repeat;
	background-position: left -60px;
}

.MyTheme .BottomDecoratorRight {
	padding-right: 11px;
	background-image: url('background/MyTheme.png');
	background-repeat: no-repeat;
	background-position: right -30px;
}

.MyTheme .BottomDecoratorCenter {
	background-image: url('background/MyTheme.png');
	background-repeat: repeat-x;
	background-position: left top;
	height: 30px;
}

3.1.7.2.3. How to Set the Default Window Style

To set the default window style to be used for a portal, you will to specify the css classes for a theme called DefaultTheme.

Note

You do not need to specify the DefaultTheme in gatein-resources.xml

3.1.7.3. How to Create New Portlet skins

Portlets often require additional styles that may not be defined by the portal skin. GateIn 3.2 allows portlets to define additional stylesheets for each portlet and will append the corresponding link tags to the head.

The link ID will be of the form {portletAppName}{PortletName}. For example: ContentPortlet in content.war, will give id="contentContentPortlet"

To define a new CSS file to include whenever a portlet is available on a portal page, the following fragment needs to be added in gatein-resources.xml

<portlet-skin>
  <application-name>portletAppName</application-name>
  <portlet-name>PortletName</portlet-name>
  <skin-name>Default</skin-name>
  <css-path>/skin/DefaultStylesheet.css</css-path>
</portlet-skin>

<portlet-skin>
  <application-name>portletAppName</application-name>
  <portlet-name>PortletName</portlet-name>
  <skin-name>OtherSkin</skin-name>
  <css-path>/skin/OtherSkinStylesheet.css</css-path>
</portlet-skin>

This will load the DefaultStylesheet.css when the Default skin is used and the OtherSkinStylesheet.css when the OtherSkin is used.

Note

If the current portal skin is not defined as part of the supported skins, then the portlet css class will not be loaded. It is recommended to update portlet skins whenever a new portal skin is created.

3.1.7.3.1. Change portlet icons

Each portlet can be represented by an unique icon that you can see in the portlet registry or page editor. This icon can be changed by adding an image to the directory of the portlet webapplication:

skin/DefaultSkin/portletIcons/icon_name.png.

To be used correctly the icon must be named after the portlet.

For example, the icon for an account portlet named AccountPortlet would be located at:

skin/DefaultSkin/portletIcons/AccountPortlet.png

Note

You must use skin/DefaultSkin/portletIcons/ for the directory to store the portlet icon regardless of what skin is going to be used.

3.1.7.4. How to create a new Portlet Specification CSS Classes

The portlet specification defines a set of default css classes that should be available for portlets. These classes are included as part of the portal skin. Please see the portlet specification for a list of the default classes that should be available.

For the default portal skin, the portlet specification CSS classes are defined in :

eXoResources.war/skin/Portlet/Stylesheet.css

3.1.8. Tips and Tricks

3.1.8.1. Easier css debugging

By default, CSS files are cached and their imports are merged into a single CSS file at the server side. This reduces the number of HTTP requests from the browser to the server.

The optimization code is quite simple as all the CSS files are parsed at the server startup time and all the @import and url(...) references are rewritten to support a single flat file. The result is stored in a cache directly used from the ResourceRequestFilter.

Although the optimization is useful for a production environments, it may be easier to deactivate this optimization while debugging stylesheets. To do so, set the java system property exo.product.developing to true.

For example, the property can be passed as a JVM parameter with -D option when running GateIn.

sh $JBOSS_HOME/bin/run.sh -Dexo.product.developing=true

warning("This option may cause display bugs with certain browsers like Internet Explorer")

3.1.8.2. Some CSS techniques

GateIn 3.2 relies heavily on CSS to create the layout and effects for the UI. Some common techniques for customizing GateIn 3.2 CSS are explained below.

3.1.8.2.1. Decorator pattern

The decorator is a pattern to create a contour or a curve around an area. In order to achieve this effect you need to create 9 cells. The BODY is the central area that you want to decorate. The other 8 cells are distributed around the BODY cell. You can use the width, height and background image properties to achieve any decoration effect that you want.

<div class="Parent">
  <div class="TopLeft">
    <div class="TopRight">
      <div class="TopCenter"><span></span></div>
    </div>
  </div>
  <div class="CenterLeft">
    <div class="CenterRight">
      <div class="CenterCenter">BODY</div>
    </div>
  </div>
  <div class="BottomLeft">
    <div class="BottomRight">
      <div class="BottomCenter"><span></span></div>
    </div>
  <div>
</div>

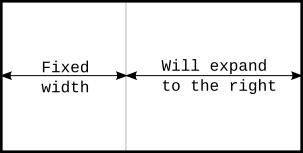

3.1.8.2.2. Left margin left pattern

Left margin left pattern is a technique to create 2 blocks side by side. The left block will have a fixed size and the right block will take the rest of the available space. When the user resizes the browser the added or removed space will be taken from the right block.

<div class="Parent">
  <div style="float: left; width: 100px">
  </div>
  <div style="margin-left: 105px;">
  <div>
  <div style="clear: left"><span></span></div>
</div>

3.2. Portal Lifecycle

Note

As the servlet is already configured this example is for information only.




<servlet>

  <servlet-name>TomcatGateInServlet</servlet-name>

  <servlet-class>org.gatein.wci.command.CommandServlet</servlet-class>

  <load-on-startup>0</load-on-startup>

</servlet>



<servlet-mapping>

  <servlet-name>TomcatGateInServlet</servlet-name>

  <url-pattern>/tomcatgateinservlet</url-pattern>

</servlet-mapping>

It is possible to filter on the CommandServlet by filtering the URL pattern used by the Servlet mapping.

The example below would create a servlet filter that calculates the time of execution of a portlet request.

The filter class:



package org.example;


import java.io.IOException;


import javax.servlet.FilterChain;

import javax.servlet.FilterConfig;

import javax.servlet.ServletException;

import javax.servlet.ServletRequest;

import javax.servlet.ServletResponse;


public class MyFilter implements javax.servlet.Filter {


  public void doFilter(ServletRequest request, ServletResponse response,

      FilterChain chain) throws IOException, ServletException

  {

    long beforeTime = System.currentTimeMillis();

    chain.doFilter(request, response);

    long afterTime = System.currentTimeMillis();

    System.out.println("Time to execute the portlet request (in ms): " + (afterTime - beforeTime));

  }


  public void init(FilterConfig config) throws ServletException

  {

  }


  public void destroy()

  {

  }


}

The Java EE web application configuration file (web.xml) of the portlet on which we want to know the time to serve a portlet request. As mentioned above nothing specific to GateIn 3.2 needs to be included, only the URL pattern to set has to be known.




<?xml version="1.0"?>

<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"

    version="2.5">



  <filter>

    <filter-name>MyFilter</filter-name>

    <filter-class>org.example.MyFilter</filter-class>

  </filter>



  <filter-mapping>

    <filter-name>MyFilter</filter-name>

    <url-pattern>/tomcatgateinservlet</url-pattern>

    <dispatcher>INCLUDE</dispatcher>

  </filter-mapping>



</web-app>

INCLUDE dispatcher

It is important to set INCLUDE as dispatcher as the portal will always hit the CommandServlet through a request dispatcher. Without this, the filter will not be triggered, unless direct access to a resource (such as an image).

3.3. Default Portal Configuration

3.3.1. Overview

GateIn 3.2 default home page URL is http://{hostname}:{port}/portal/. There may be multiple independent portals deployed in parallel at any given time, each of which has its root context (i.e.: http://{hostname}:{port}/sample-portal/). Each portal is internally composed of one or more, what we again call 'portals'. There needs to be at least one such portal - the default one is called 'classic'. When accessing GateIn 3.2 default home page URL, you are automatically redirected to 'classic' portal. The default portal performs another important task. When starting up GateIn 3.2 for the first time, its JCR database will be empty (that's where portals keep their runtime-configurable settings). It's the default portal that's used to detect this, and to trigger automatic data initialization.

3.3.2. Configuration

The following example configuration can be found at: "02portal.war:/WEB-INF/conf/portal/portal-configuration.xml".


<component>

    <key>org.exoplatform.portal.config.UserPortalConfigService</key>

    <type>org.exoplatform.portal.config.UserPortalConfigService</type>

    <component-plugins>

     <component-plugin>

       <name>new.portal.config.user.listener</name>

       <set-method>initListener</set-method>

       <type>org.exoplatform.portal.config.NewPortalConfigListener</type>

       <description>this listener init the portal configuration</description>

       <init-params>

         <value-param>

           <name>default.portal</name>

           <description>The default portal for checking db is empty or not</description>

           <value>classic</value>

         </value-param>

         ...

       </init-params>

     </component-plugin>

    </component-plugins>

  </component>

In this example the classic portal has been set as the default.

Note

Components, component-plugins, and init-params are explained in Foundations chapter. For now just note how NewPortalConfigListener component-plugin is used to add configuration to UserPortalConfigService, which is designed in this way to allow other components to add configuration to it.

3.4. Portal Default Permission Configuration

3.4.1. Overview

The default permission configuration for the portal is defined through org.exoplatform.portal.config.UserACL component configuration in the file 02portal.war:/WEB-INF/conf/portal/portal-configuration.xml.

It defines 8 permissions types:

super.user: The super user has all the rights on the platform, this user is referred to as root.
portal.administrator.groups: Any member of those groups are considered administrators. Default value is /platform/administrators.
portal.administrator.mstype: Any user with that membership type would be considered administrator or the associated group. Default value is manager.
portal.creator.groups: This list defines all groups that will be able to manage the different portals. Members of this group also have the permission to create new portals. The format is membership:/group/subgroup.
navigation.creator.membership.type: Defines the membership type of group managers. The group managers have the permission to create and edit group pages and they can modify the group navigation.
guests.group: Any anonymous user automatically becomes a member of this group when they enter the public pages.
mandatory.groups: Groups that can't be deleted.
mandatory.mstypes: Membership types that can't be deleted.


<component>

  <key>org.exoplatform.portal.config.UserACL</key>

  <type>org.exoplatform.portal.config.UserACL</type>

  <init-params>

    <value-param>

      <name>super.user</name>

      <description>administrator</description>

      <value>root</value>

    </value-param>



    <value-param>

      <name>portal.creator.groups</name>

      <description>groups with membership type have permission to manage portal</description>

      <value>*:/platform/administrators,*:/organization/management/executive-board</value>

    </value-param>



    <value-param>

      <name>navigation.creator.membership.type</name>

      <description>specific membership type have full permission with group navigation</description>

      <value>manager</value>

    </value-param>

    <value-param>

      <name>guests.group</name>

      <description>guests group</description>

      <value>/platform/guests</value>

    </value-param>

    <value-param>

      <name>access.control.workspace</name>

      <description>groups with memberships that have the right to access the User Control Workspace</description>

      <value>*:/platform/administrators,*:/organization/management/executive-board</value>

    </value-param>

  </init-params>

</component>

3.4.2. Overwrite Portal Default Permissions

When creating custom portals and portal extensions it's possible to override the default configuration by using org.exoplatform.portal.config.PortalACLPlugin, configuring it as an external-plugin of org.exoplatform.portal.config.UserACL service:


<external-component-plugins>

    <target-component>org.exoplatform.portal.config.UserACL</target-component>

    <component-plugin>

      <name>addPortalACLPlugin</name>

      <set-method>addPortalACLPlugin</set-method>

      <type>org.exoplatform.portal.config.PortalACLPlugin</type>

      <description>setting some permission for portal</description>

      <init-params>

        <values-param>

          <name>access.control.workspace.roles</name>

          <value>*:/platform/administrators</value>

          <value>*:/organization/management/executive-board</value>

        </values-param>

        <values-param>

          <name>portal.creation.roles</name>

          <value>*:/platform/administrators</value>

          <value>*:/organization/management/executive-board</value>

        </values-param>

      </init-params>

    </component-plugin>

  </external-component-plugins>

3.5. Portal Navigation Configuration

3.5.1. Overview

There are three navigation types available to portal users:

These navigations are configured using the standard XML syntax in the file; "02portal.war:/WEB-INF/conf/portal/portal-configuration.xml".


<component>

   <key>org.exoplatform.portal.config.UserPortalConfigService</key>

   <type>org.exoplatform.portal.config.UserPortalConfigService</type>

   <component-plugins>

      <component-plugin>

         <name>new.portal.config.user.listener</name>

         <set-method>initListener</set-method>

         <type>org.exoplatform.portal.config.NewPortalConfigListener

      </type>

         <description>this listener init the portal configuration

      </description>

         <init-params>

            <value-param>

               <name>default.portal</name>

               <description>The default portal for checking db is empty or not</description>

               <value>classic</value>

            </value-param>

            <value-param>

               <name>page.templates.location</name>

               <description>the path to the location that contains Page templates</description>

               <value>war:/conf/portal/template/pages</value>

            </value-param>

            <value-param>

               <name>override</name>

               <description>The flag parameter to decide if portal metadata is overriden on restarting server

            </description>

               <value>false</value>

            </value-param>

            <object-param>

               <name>site.templates.location</name>

               <description>description</description>

               <object type="org.exoplatform.portal.config.SiteConfigTemplates">

                  <field name="location">

                     <string>war:/conf/portal</string>

                  </field>

                  <field name="portalTemplates">

                     <collection type="java.util.HashSet">

                        <value><string>basic</string></value>

                        <value><string>classic</string></value>

                     </collection>

                  </field>

                  <field name="groupTemplates">

                     <collection type="java.util.HashSet">

                        <value><string>group</string></value>

                     </collection>

                  </field>

                  <field name="userTemplates">

                     <collection type="java.util.HashSet">

                        <value><string>user</string></value>

                     </collection>

                  </field>

               </object>

            </object-param>

            <object-param>

               <name>portal.configuration</name>

               <description>description</description>

               <object type="org.exoplatform.portal.config.NewPortalConfig">

                  <field name="predefinedOwner">

                     <collection type="java.util.HashSet">

                        <value><string>classic</string></value>

                     </collection>

                  </field>

                  <field name="ownerType">

                     <string>portal</string>

                  </field>

                  <field name="templateLocation">

                     <string>war:/conf/portal/</string>

                  </field>

                  <field name="importMode">

                     <string>conserve</string>

                  </field>

               </object>

            </object-param>

            <object-param>

               <name>group.configuration</name>

               <description>description</description>

               <object type="org.exoplatform.portal.config.NewPortalConfig">

                  <field name="predefinedOwner">

                     <collection type="java.util.HashSet">

                        <value><string>/platform/administrators</string></value>

                        <value><string>/platform/users</string></value>

                        <value><string>/platform/guests</string></value>

                        <value><string>/organization/management/executive-board</string></value>

                     </collection>

                  </field>

                  <field name="ownerType">

                     <string>group</string>

                  </field>

                  <field name="templateLocation">

                     <string>war:/conf/portal</string>

                  </field>

                  <field name="importMode">

                     <string>conserve</string>

                  </field>

               </object>

            </object-param>

            <object-param>

               <name>user.configuration</name>

               <description>description</description>

               <object type="org.exoplatform.portal.config.NewPortalConfig">

                  <field name="predefinedOwner">

                     <collection type="java.util.HashSet">

                        <value><string>root</string></value>

                        <value><string>john</string></value>

                        <value><string>mary</string></value>

                        <value><string>demo</string></value>

                        <value><string>user</string></value>

                     </collection>

                  </field>

                  <field name="ownerType">

                     <string>user</string>

                  </field>

                  <field name="templateLocation">

                     <string>war:/conf/portal</string>

                  </field>

                  <field name="importMode">

                     <string>conserve</string>

                  </field>

               </object>

            </object-param>

         </init-params>

      </component-plugin>

   </component-plugins>

</component>

This XML configuration defines where in the portal's war to look for configuration, and which portals, groups, and user specific views to include in portal/group/user navigation. Those files will be used to create an initial navigation when the portal is launched in the first time. That information will then be stored in the JCR content repository, and can then be modified and managed from the portal UI.

Each portal, groups and users navigation is indicated by a configuration paragraph, for example:

<object-param>
   <name>portal.configuration</name>
   <description>description</description>
   <object type="org.exoplatform.portal.config.NewPortalConfig">
      <field name="predefinedOwner">
         <collection type="java.util.HashSet">
            <value><string>classic</string></value>
         </collection>
      </field>
      <field name="ownerType">
         <string>portal</string>
      </field>
      <field name="templateLocation">
         <string>war:/conf/portal/</string>
      </field>
      <field name="importMode">
         <string>conserve</string>
      </field>
   </object>
</object-param>

	predefinedOwner define the navigation owner, portal will look for the configuration files in folder with this name, if there is no suiable folder, a default portal will be created with name is this value.
	ownerType define the type of portal navigation. It may be a portal, group or user
	templateLocation the classpath where contains all portal configuration files

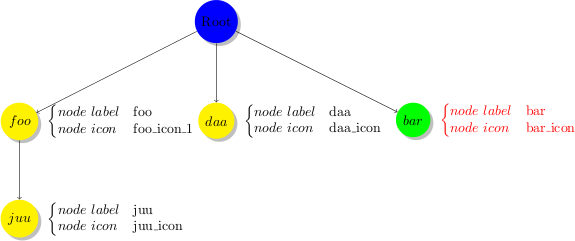

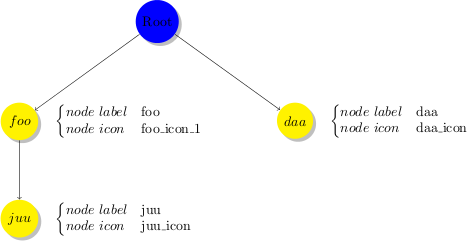

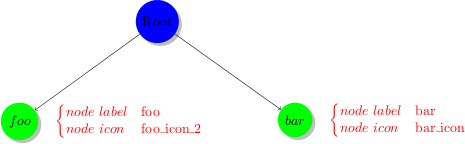

	importMode The mode for navigation import. There are 4 types of import mode: conserve: Import data when it does not exist, otherwise do nothing. insert: Import data when it does not exist, otherwise performs a strategy that adds new data only. merge: Import data when it does not exist, update data when it exists. rewrite: Overwrite data whatsoever.

Base on these parameters, portal will look for the configuration files and create a relevant portal navigation, pages and data import strategy. The portal configuration files will be stored in folders with path look like {templateLocation}/{ownerType}/{predefinedOwner}, all navigations are defined in the navigation.xml file, pages are defined in pages.xml and portal configuration is defined in {ownerType}.xml. For example, with the above configuration, prtal will look for all configuration files from war:/conf/portal/portal/classic path.

3.5.2. Portal Navigation

The portal navigation incorporates the pages that can be accessed even when the user is not logged in assuming the applicable permissions allow the public access). For example, several portal navigations are used when a company owns multiple trademarks, and sets up a website for each of them.

The classic portal is configured by four XML files in the 02portal.war:/WEB-INF/conf/portal/portal/classic directory:

portal.xml

This file describes the layout and portlets that will be shown on all pages. The layout usually contains the banner, footer, menu and breadcrumbs portlets. GateIn 3.2 is extremely configurable as every view element (even the banner and footer) is a portlet.


<portal-config

   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

   xsi:schemaLocation="http://www.gatein.org/xml/ns/gatein_objects_1_2 http://www.gatein.org/xml/ns/gatein_objects_1_2"

   xmlns="http://www.gatein.org/xml/ns/gatein_objects_1_2">

   <portal-name>classic</portal-name>

   <locale>en</locale>

   <access-permissions>Everyone</access-permissions>

   <edit-permission>*:/platform/administrators</edit-permission>

   <properties>

      <entry key="sessionAlive">onDemand</entry>

      <entry key="showPortletInfo">1</entry>

   </properties>



   <portal-layout>

      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>BannerPortlet</portlet-ref>

            <preferences>

               <preference>

                  <name>template</name>

                  <value>par:/groovy/groovy/webui/component/UIBannerPortlet.gtmpl</value>

                  <read-only>false</read-only>

               </preference>

            </preferences>

         </portlet>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

      </portlet-application>



      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>NavigationPortlet</portlet-ref>

         </portlet>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

      </portlet-application>



      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>BreadcumbsPortlet</portlet-ref>

         </portlet>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

      </portlet-application>



      <page-body> </page-body>



      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>FooterPortlet</portlet-ref>

            <preferences>

               <preference>

                  <name>template</name>

                  <value>par:/groovy/groovy/webui/component/UIFooterPortlet.gtmpl</value>

                  <read-only>false</read-only>

               </preference>

            </preferences>

         </portlet>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

      </portlet-application>



   </portal-layout>



</portal-config>

It is also possible to apply a nested container that can also contain portlets. Row, column or tab containers are then responsible for the layout of their child portlets.

Each application references a portlet using the id portal#{portalName}:/{portletWarName}/{portletName}/{uniqueId}

Use the page-body tag to define where GateIn 3.2 should render the current page.

The defined classic portal is accessible to "Everyone" (at /portal/public/classic) but only members of the group /platform/administrators can edit it.

navigation.xml

This file defines all the navigation nodes of the portal. The syntax is simple using the nested node tags. Each node refers to a page defined in the pages.xml file (explained next).

If the administrator want to create node labels for each language, they will have to use xml:lang attribute in the label tag with value of xml:lang is the relevant locale.

Otherwise, if they want the node label is localized by resource bundle files, the #{...} syntax will be used, the enclosed property name serves as a key that is automatically passed to the internationalization mechanism. Thus the literal property name is replaced by a localized value taken from the associated properties file matching the current locale.

For example:


<node-navigation

   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

   xsi:schemaLocation="http://www.gatein.org/xml/ns/gatein_objects_1_2 http://www.gatein.org/xml/ns/gatein_objects_1_2"

   xmlns="http://www.gatein.org/xml/ns/gatein_objects_1_2">

   <priority>1</priority>

   <page-nodes>

      <node>

         <name>home</name>

         <label xml:lang="en">Home</label>

         <page-reference>portal::classic::homepage</page-reference>

      </node>

      <node>

         <name>sitemap</name>

         <label xml:lang="en">SiteMap</label>

         <visibility>DISPLAYED</visibility>

         <page-reference>portal::classic::sitemap</page-reference>

      </node>

      ..........

   </page-nodes>

</node-navigation>

This navigation tree can have multiple views inside portlets (such as the breadcrumbs portlet) that render the current view node, the site map or the menu portlets.

pages.xml

This configuration file structure is very similar to portal.xml and it can also contain container tags. Each application can decide whether to render the portlet border, the window state, the icons or portlet's mode.


<page-set

   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

   xsi:schemaLocation="http://www.gatein.org/xml/ns/gatein_objects_1_2 http://www.gatein.org/xml/ns/gatein_objects_1_2"

   xmlns="http://www.gatein.org/xml/ns/gatein_objects_1_2">



   <page>

      <name>homepage</name>

      <title>Home Page</title>

      <access-permissions>Everyone</access-permissions>

      <edit-permission>*:/platform/administrators</edit-permission>

      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>HomePagePortlet</portlet-ref>

            <preferences>

               <preference>

                  <name>template</name>

                  <value>system:/templates/groovy/webui/component/UIHomePagePortlet.gtmpl</value>

                  <read-only>false</read-only>

               </preference>

            </preferences>

         </portlet>

         <title>Home Page portlet</title>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

         <show-application-state>false</show-application-state>

         <show-application-mode>false</show-application-mode>

      </portlet-application>

   </page>



   <page>

      <name>sitemap</name>

      <title>Site Map</title>

      <access-permissions>Everyone</access-permissions>

      <edit-permission>*:/platform/administrators</edit-permission>

      <portlet-application>

         <portlet>

            <application-ref>web</application-ref>

            <portlet-ref>SiteMapPortlet</portlet-ref>

         </portlet>

         <title>SiteMap</title>

         <access-permissions>Everyone</access-permissions>

         <show-info-bar>false</show-info-bar>

      </portlet-application>

   </page>

   .......

</page-set>

3.5.3. Group Navigation

Group navigations are dynamically added to the user navigation at login. This allows users to see the menu of all pages assigned to any groups they belong to.

The group navigation menu is configured by three XML files (navigation.xml, pages.xml and portlet-preferences.xml). The syntax used in these files is the same as those covered in Section 3.5.2, “Portal Navigation”.

They are also located in the {templateLocation}/{ownerType}/{predefinedOwner} directory with ownerType is group and predefinedOwner is the path to the group. For example, portal.war/WEB-INF/conf/portal/group/platform/administrators/.

3.5.4. User Navigation

User navigation is the set of nodes and pages that are owned by the user. They are part of the user's dashboard.

Three files configure the user navigation (navigation.xml, pages.xml and portlet-preferences.xml). They are located in the {templateLocation}/{ownerType}/{predefinedOwner} directory with ownerType is user and predefinedOwner is username that want to create the navigation. For example, if administrator want to create navigation for user root, he has to locate the configuration files in portal.war/WEB-INF/conf/portal/user/root

3.6. Data Import Strategy

3.6.1. Introduction

In the Portal extension mechanism, developers can define an extension that Portal data can be customized by configurations in the extension. There are several cases which an extension developer wants to define how to customize the Portal data, for example modifying, overwriting or just inserting a bit into the data defined by the portal. Therefore, GateIn also defines several modes for each case and the only thing which a developer has to do is to clarify the usecase and reasonably configure extensions.

This section shows you how data are changes in each mode.

3.6.2. Import Mode

In this section, the following modes for the import strategy are introduced:

CONSERVE
MERGE
INSERT
OVERWRITE

Each mode indicates how the Portal data are imported. The import mode value is set whenever NewPortalConfigListener is initiated. If the mode is not set, the default value will be used in this case. The default value is configurable as a UserPortalConfigService initial param. For example, the bellow configuration means that default value is MERGE




<component>

  <key>org.exoplatform.portal.config.UserPortalConfigService</key>

  <type>org.exoplatform.portal.config.UserPortalConfigService</type>

  <component-plugins>

  ............

  </component-plugins>

  <init-params>

    <value-param>

      <name>default.import.mode</name>

      <value>merge</value>

    </value-param>

  </init-params>

</component>

The way that the import strategy works with the import mode will be clearly demonstrated in next sections for each type of data.

3.6.3. Data Import Strategy

The 'Portal Data' term which has been referred in the previous sections can be classified into three types of object data: Portal Config, Page Data and Navigation Data; each of which has some differences in the import strategy.

3.6.3.1. Navigation Data

The navigation data import strategy will be processed to the import mode level as the followings:

CONSERVE: If the navigation exists, leave it untouched. Otherwise, import data.
INSERT: Insert the missing description data, but add only new nodes. Other modifications remains untouched.
MERGE: Merge the description data, add missing nodes and update same name nodes.
OVERWRITE: Always destroy the previous data and recreate it.

In the GateIn navigation structure, each navigation can be referred to a tree which each node links to a page content. Each node contains some description data, such as label, icon, page reference, and more. Therefore, GateIn provides a way to insert or merge new data to the initiated navigation tree or a sub-tree.

The merge strategy performs the recursive comparison of child nodes between the existing persistent nodes of a navigation and the transient nodes provided by a descriptor:

Start with the root nodes (which is the effective root node or another node if the parent URI is specified).
Compare the set of child nodes and insert the missing nodes in the persistent nodes.
Proceed recursively for each child having the same name.

Let's see the example with two navigation nodes in each import mode. In this case, there are 2 navigation definitions:


<node-navigation>

  <page-nodes>

    <node>

      <name>foo</name>

      <icon>foo_icon_1</icon>

      <node>

        <name>juu</name>

        <icon>juu_icon</icon>

      </node>

    </node>

    <node>

      <name>daa</name>

      <icon>daa_icon</icon>

    </node>

  </page-nodes>

</node-navigation>

Navigation node tree hierarchy


<node-navigation>

  <page-nodes>

    <node>

      <name>foo</name>

      <icon>foo_icon_2</icon>

    </node>

    <node>

      <name>bar</name>

      <icon>bar_icon</icon>

    </node>

  </page-nodes>

</node-navigation>

Navigation node tree hierarchy

For example, the navigation1 is loaded before navigation2. The Navigation Importer processes on two navigation definitions, depending on the Import Mode defined in portal configuration.

Case 1: Import mode is CONSERVE.
With the CONSERVE mode, data are only imported when they do not exist. So, if the navigation has been created by the navigation1 definition, the navigation2 definition does not affect anything on it. We have the result as following
Case 2: Import mode is INSERT.
If a node does not exist, the importer will add new nodes to the navigation tree. You will see the following result:
Hereafter, the node 'bar' is added to the navigation tree, because it does not exist in the initiated data. Other nodes are kept in the import process.
Case 3: Import mode is MERGE.
The MERGE mode indicates that a new node is added to the navigation tree, and updates the node data (such node label and node icon in the example) if it exists.
Case 4: Import mode is OVERWRITE.
Everything will be destroyed and replaced with new data if the OVERWRITE mode is used.

3.6.3.2. Portal Config

PortalConfig defines the portal name, permission, layout and some properties of a site. These information are configured in the portal.xml, group.xml or user.xml, depending on the site type. The PortalConfig importer performs a strategy that is based on the mode defined in NewPortalConfigListener, including CONSERVE, INSERT, MERGE or OVERWRITE. Let's see how the import mode affects in the process of portal data performance:

CONSERVE: There is nothing to be imported. The existing data will be kept without any changes.
INSERT: When the portal config does not exist, create the new portal defined by the portal config definition. Otherwise, do nothing.
MERGE and OVERWRITE have the same behavior. The new portal config will be created if it does not exist or update portal properties defined by the portal config definition.

3.6.3.3. Page Data

The import mode affects the page data import as the same as Portal Config.

Note

If the Import mode is CONSERVE or INSERT, the data import strategy always performs as the MERGE mode in the first data initialization of the Portal.

3.7. Internationalization Configuration

3.7.1. Overview

Assumed Knowledge

GateIn 3.2 is fully configurable for internationalization, however users should have a general knowledge of Internationalization in Java products before attempting these configurations.

Sun Java hosts a comprehensive guide to internationalizing java products at http://java.sun.com/docs/books/tutorial/i18n/TOC.html.

All GateIn 3.2 applications contain property files for various languages. They are packaged with the portlets applications in a WEB-INF/classes/locale/ directory.

These files are located in the classes folder of the WEB-INF directory, so as to be loaded by the ClassLoader.

All resource files are in a subfolder named locale.

For instance; the translations for the NavigationPortlet are located in web.war/WEB-INF/classes/locale/portlet/portal

NavigationPortlet_de.properties
NavigationPortlet_en.properties
NavigationPortlet_es.properties
NavigationPortlet_fr.properties
NavigationPortlet_nl.properties
NavigationPortlet_ru.properties
NavigationPortlet_uk.properties
NavigationPortlet_ar.xml

Inside those file are typical key=value Java EE properties. For example the French one:

javax.portlet.title=Portlet Navigation

There are also properties files in the portal itself. They form the portal resource bundle.

From a portlet you can then access translations from the portlet itself or shared at the portal level, both are aggregated when you need them.

Translation in XML format

It is also possible to use a proprietary XML format to define translations. This is a more convenient way to translate a document for some languages such as Japanese, Arabic or Russian. Property files have te be ASCII encoded, while the XML file can define its encoding. As a result it's easier for a human being to read (and fix) a translation in XML instead of having to decode and encode the property file.

For more information refer to: Section 3.10, “XML Resources Bundles”

3.7.2. Locales configuration

Various languages are available in the portal package. The configuration below will define which languages are shown in the "Change Language" section and made available to users.

The 02portal.war:/WEB-INF/conf/common/common-configuration.xml file of your installation contains the following section:


<component>

  <key>org.exoplatform.services.resources.LocaleConfigService</key>

  <type>org.exoplatform.services.resources.impl.LocaleConfigServiceImpl</type>

  <init-params>

    <value-param>

      <name>locale.config.file</name>

      <value>war:/conf/common/locales-config.xml</value>

    </value-param>

  </init-params>

</component>

This configuration points to the locale configuration file.

The locale configuration file (02portal.war:/WEB-INF/conf/common/locales-config.xml) contains the following code:

<?xml version="1.0" encoding="UTF-8"?>
<locales-config>
  <locale-config>
    <locale>en</locale>
    <output-encoding>UTF-8</output-encoding>
    <input-encoding>UTF-8</input-encoding>
    <description>Default configuration for english locale</description>
  </locale-config>

  <locale-config>
    <locale>fr</locale>
    <output-encoding>UTF-8</output-encoding>
    <input-encoding>UTF-8</input-encoding>
    <description>Default configuration for the french locale</description>
  </locale-config>

  <locale-config>
    <locale>ar</locale>
    <output-encoding>UTF-8</output-encoding>
    <input-encoding>UTF-8</input-encoding>
    <description>Default configuration for the arabic locale</description>
    <orientation>rt</orientation>
  </locale-config>
</locales-config>

	locale The locale has to be defined such as defined here http://ftp.ics.uci.edu-pub-ietf-http-related-iso639.txt. In this example "ar" is Arabic.
	output-encoding deals with character encoding. It is recommended that UTF-8 be used.
	input-encoding In the java implementation, the encoding parameters will be used for the request response stream. The input-encoding parameter will be used for request setCharacterEncoding(..).
	description Description for the language
	orientation The default orientation of text and images is Left-To-Right. GateIn 3.2 supports Right-To-Left orientation. Modifying text orientation is explained in Section 3.9, “RTL (Right To Left) Framework”.

3.7.3. ResourceBundleService

The resource bundle service is configured in: 02portal.war:/WEB-INF/conf/common/common-configuration.xml:

<component>
  <key>org.exoplatform.services.resources.ResourceBundleService</key>
  <type>org.exoplatform.services.resources.impl.SimpleResourceBundleService</type>
  <init-params>
    <values-param>
      <name>classpath.resources</name>
      <description>The resources  that start with the following package name should be load from file system</description>
      <value>locale.portlet</value>
    </values-param>
    <values-param>
      <name>init.resources</name>
      <description>Initiate the following resources during the first launch</description>
      <value>locale.portal.expression</value>
      <value>locale.portal.services</value>
      <value>locale.portal.webui</value>
      <value>locale.portal.custom</value>
      <value>locale.navigation.portal.classic</value>
      <value>locale.navigation.group.platform.administrators</value>
      <value>locale.navigation.group.platform.users</value>
      <value>locale.navigation.group.platform.guests</value>
      <value>locale.navigation.group.organization.management.executive-board</value>
    </values-param>
    <values-param>
      <name>portal.resource.names</name>
      <description>The properties files of  the portal ,  those file will be merged
        into one ResoruceBundle properties </description>
      <value>locale.portal.expression</value>
      <value>locale.portal.services</value>
      <value>locale.portal.webui</value>
      <value>locale.portal.custom</value>
    </values-param>
  </init-params>
</component>

classpath.resources are discussed in a later section.

init.resources TODO

portal.resource.names Defines all resources that belong to the Portal Resource Bundle.

These resources are merged to a single resource bundle which is accessible from anywhere in GateIn 3.2. All these keys are located in the same bundle, which is separated from the navigation resource bundles.

3.7.4. Navigation Resource Bundles

There is a resource bundle for each navigation. A navigation can exist for user, groups, and portal.

The previous example shows bundle definitions for the navigation of the classic portal and of four different groups. Each of these resource bundles occupies a different sphere, they are independent of each other and they are not included in the portal.resource.names parameter.

The properties for a group must be in the WEB-INF/classes/locale/navigation/group/ folder. /WEB-INF/classes/locale/navigation/group/organization/management/executive-board_en.properties, for example.

The folder and file names must correspond to the group hierarchy. The group name "executive-board" is followed by the iso 639 code.

For each language defined in LocalesConfig must have a resource file defined. If the name of a group is changed the name of the folder and/or files of the correspondent navigation resource bundles must also be changed.

Content of executive-board_en.properties:

organization.title=Organization
organization.newstaff=New Staff
organization.management=Management

This resource bundle is only accessible for the navigation of the organization.management.executive-board group.

3.7.5. Portlets

Portlets are independent applications and deliver their own resource files.

All shipped portlet resources are located in the locale/portlet subfolder. The ResourceBundleService parameter classpath.resources defines this subfolder.

Procedure 3.1. Example

To add a Spanish translation to the GadgetPortlet.
Create the file GadgetPortlet_es.properties in: WEB-INF/classes/locale/portlet/gadget/GadgetPortlet.
In portlet.xml, add Spanish as a supported-locale ('es' is the 2 letters code for Spanish), the resource-bundle is already declared and is the same for all languages :
```
<supported-locale>en</supported-locale>

<supported-locale>es</supported-locale>

<resource-bundle>locale.portlet.gadget.GadgetPortlet</resource-bundle>
```

See the portlet specification for more details about portlet internationalization.

3.7.5.1. Standard portlet resource keys

The portlet specifications defines three standard keys: Title, Short Title and Keywords. Keywords is formatted as a comma-separated list of tags.

 javax.portlet.title=Breadcrumbs Portlet
 javax.portlet.short-title=Breadcrumbs
 javax.portlet.keywords=Breadcrumbs, Breadcrumb

3.7.5.2. Debugging resource bundle usage

When translating an application it can sometimes be difficult to find the right key for a given property.

Execute the portal in debug mode and select, from the available languages, select the special language; Magic locale.

This feature translates a key to the same key value.

For example, the translated value for the key "organization.title" is simply the value "organization.title". Selecting that language allows use of the portal and its applications with all the keys visible. This makes it easier to find out the correct key for a given label in the portal page.

3.7.6. Translating the language selection form

When choosing a language as on the screenshot above, the user is presented with a list of languages on the left side in the current chosen language and on the right side, the same language translated into its own language. Those texts are obtained from the JDK API java.util.Locale.getDisplayedLanguage() and java.util.Locale.getDisplayedCountry() (if needed) and all languages may not be translated and can also depend on the JVM currently used. It is still possible to override those values by editing the locale.portal.webui resource bundle, to do so edit the file gatein.ear/02portal.war/WEB-INF/classes/locale/portal/webui_xx_yy.properties where xx_yy represents the country code of the language in which you want to translate a particular language. In that file, add or modify a key such as Locale.xx_yy with the value being the translated string.

Example 3.1. Changing the displayed text for Traditional Chinese in French

First edit gatein.ear/02portal.war/WEB-INF/classes/locale/portal/webui_fr.properties where ne is the country code for French, and add the following key into it:

              Locale.zh_TW=Chinois traditionnel

After a restart the language will be updated in the user interface when a user is trying to change the current language.

3.8. Pluggable Locale Policy

Every request processed by every portlet is invoked within a context of current Locale. Current Locale can be retrieved by calling getLocale() method of javax.portlet.PortletRequest interface.

The exact algorithm for determining the current Locale is not specified by Portlet Specification, and is left to portlet containers to implement the way they deem most appropriate.

In GateIn 3.2 each portal instance has a default language which can be used to present content for new users. Another option is to use each user’s browser language preference, provided it matches one of the available localizations that GateIn 3.2 supports, and only fallback to portal default language if no match is found. Every user, while visiting a portal, has an option to change the language of the user interface by using a Language chooser. The choice can be remembered for the duration of the session, or it can be remembered for a longer period using a browser cookie, or - for registered and logged-in users - it can be saved into user’s profile.

So, we can see that there is more than one way to determine the Locale to be used for displaying a portal page to the user. For this reason the mechanism for determining the current Locale of the request is pluggable in GateIn 3.2, so the exact algorithm can be customized.

3.8.1. LocalePolicy API

Customization is achieved by using LocalePolicy API, which is a simple API consisting of one interface, and one class:

org.exoplatform.services.resources.LocalePolicy interface
org.exoplatform.services.resources.LocaleContextInfo class

LocalePolicy interface defines a single method that’s invoked on the installed LocalePolicy service implementation:

public interface LocalePolicy
{
   public Locale determineLocale(LocaleContextInfo localeContext);
}

Locale returned by determineLocale() method is the Locale that will be returned to portlets when they call javax.portlet.PortletRequest.getLocale() method.

The returned Locale has to be one of the locales supported by portal, otherwise it will fallback to portal-default Locale.

The supported locales are listed in gatein.ear/02portal.war/WEB-INF/conf/common/locales-config.xml file as described in Section 3.7.2, “Locales configuration” .

The determineLocale() method takes a parameter of type LocaleContextInfo, which represents a compilation of preferred locales from different sources - user’s profile, portal default, browser language settings, current session, browser cookie … All these different sources of Locale configuration or preference are used as input to LocalePolicy implementation that decides which Locale should be used.

3.8.2. Default `LocalePolicy`

By default, org.exoplatform.portal.application.localization.DefaultLocalePolicyService - an implementation of LocalePolicy - is installed to provide the default behaviour. This, however, can easily be extended and overriden. A completely new implementation can also be written from scratch.

DefaultLocalePolicyService treats logged-in users slightly differently than anonymous users. Logged-in users have a profile that can contain language preference, while anonymous users don't.

Here is an algorithm used for anonymous users.

Procedure 3.2. An algorithm for anonymous users

Iterate over LocaleContextInfo properties in the following order:
- cookieLocales
- sessionLocale
- browserLocales
- portalLocale
Get each property's value - if it's a collection, get the first value.
If value is one of the supported locales return it as a result.
If value is not in the supported locales set, try to remove country information, and check if a language matching locale is in the list of supported locales. If so, return it as a result.
Otherwise, continue with the next property.

If no supported locale is found the return locale eventually defaults to portalLocale.

The algorithm for logged-in users is virtually the same except that the first Locale source checked is user's profile.

Procedure 3.3. An algorithm for logged-in users

Iterate over LocaleContextInfo properties in the following order:
- userProfile
- cookieLocales
- sessionLocale
- browserLocales
- portalLocale
The rest is the same as for anonymous users ...

3.8.3. Custom `LocalePolicy`

The easiest way to customize the LocalePolicy is to extend DefaultLocalePolicyService. The study of its source code will be required. There is ample JavaDoc that provides thorough information. Most customizations will involve simply overriding one or more of its protected methods.

An example of a customization is an already provided NoBrowserLocalePolicyService. By overriding just one method, it skips any use of browser language preference.

public class NoBrowserLocalePolicyService extends DefaultLocalePolicyService
{
   /**
    * Override super method with no-op.
    *
    * @param context locale context info available to implementations in order to determine appropriate Locale
    * @return null
    */
   @Override
   protected Locale getLocaleConfigFromBrowser(LocaleContextInfo context)
   {
      return null;
   }
}

3.8.4. LocalePolicy Configuration

The LocalePolicy framework is enabled for portlets by configuring LocalizationLifecycle class in portal's webui configuration file: gatein.ear/02portal.war/WEB-INF/webui-configuration.xml:


    <application-lifecycle-listeners>

      ...

      <listener>org.exoplatform.portal.application.localization.LocalizationLifecycle</listener>

    </application-lifecycle-listeners>

The default LocalePolicy implementation is installed as GateIn Kernel portal service via gatein.ear/02portal.war/WEB-INF/conf/portal/web-configuration.xml. So here you can change it to different value according to your needs.

The following fragment is responsible for installing the service:


    <component>

       <key>org.exoplatform.services.resources.LocalePolicy</key>

       <type>org.exoplatform.portal.application.localization.DefaultLocalePolicyService</type>

   </component>

Besides implementing LocalePolicy, the service class also needs to implement org.picocontainer.Startable interface in order to get installed.

3.8.5. Keeping non-bridged resources in sync with current Locale

In portals all the resources that are not portlets themselves but are accessed through portlets - reading data through PortletRequest, and writing to PortletResponse - are referred to as 'bridged'. Any resources that are accessed directly, bypassing portal filters and servlets, are referred to as 'non-bridged'.

Non-bridged servlets, and .jsps have no access to PortalRequest. They don't use PortletRequest.getLocale() to determine current Locale. Instead, they use ServletRequest.getLocale() which is subject to precise semantics defined by Servlet specification - it reflects browser's language preference.

In other words, non-bridged resources don't have a notion of current Locale in the same sense that portlets do. The result is that when mixing portlets and non-bridged resources there may be a localization mismatch - an inconsistency in the language used by different resources composing your portal page.

This problem is addressed by LocalizationFilter. This is a filter that changes the behaviour of ServletRequest.getLocale() method so that it behaves the same way as PortletRequest.getLocale(). That way even localization of servlets, and .jsps accessed in a non-bridged manner can stay in sync with portlet localization.

LocalizationFilter is installed through portal's web.xml file: gatein.ear/02portal.war/WEB-INF/web.xml


   <filter>

        <filter-name>LocalizationFilter</filter-name>

        <filter-class>org.exoplatform.portal.application.localization.LocalizationFilter</filter-class>

    </filter>



    ...



    <filter-mapping>

       <filter-name>LocalizationFilter</filter-name>

       <url-pattern>*.jsp</url-pattern>

       <dispatcher>INCLUDE</dispatcher>

       <dispatcher>FORWARD</dispatcher>

       <dispatcher>REQUEST</dispatcher>

       <dispatcher>ERROR</dispatcher>

   </filter-mapping>

There is a tiny limitation with this mechanism in that it is unable to determine the current portal, and consequently its default language. As a result the portalLocale defaults to English, but can be configured to something else by using filter's PortalLocale init param. For example:


   <filter>

        <filter-name>LocalizationFilter</filter-name>

        <filter-class>org.exoplatform.portal.application.localization.LocalizationFilter</filter-class>

        <init-param>

           <param-name>PortalLocale</param-name>

           <param-value>fr_FR</param-value>

        </init-param>

    </filter>

By default, LocalizationFilter is applied to *.jsp, which is considered the minimum required by GateIn 3.2 to properly keep its non-bridged resources in sync with the rest of the portal. Additionally deployed portlets, and portal applications, may need broader mapping to cover their non-bridged resources.

Avoid using /*, /public/*, /private/*, and similar broad mappings as LocalizationFilter sometimes adversely interacts with the processing of portlet requests. Use multiple filter-mappings instead to specifically target non-bridged resources.

Keeping the mapping limited to only non-bridged resources will minimize any impact on performance as well.

3.9. RTL (Right To Left) Framework

The text orientation depends on the current locale setting. The orientation is a Java 5 enum that provides a set of functionalities:

   LT, // Western Europe
   RT, // Middle East (Arabic, Hebrew)
   TL, // Japanese, Chinese, Korean
   TR; // Mongolian
   public boolean isLT() { ... }
   public boolean isRT() { ... }
   public boolean isTL() { ... }
   public boolean isTR() { ... }

The object defining the Orientation for the current request is the UIPortalApplication. However it should be accessed at runtime using the RequestContext that delegates to the UIPortalApplication.

In the case of a PortalRequestContext it is a direct delegate as the PortalRequestContext has a reference to the current UIPortalApplication.

In the case of a different context such as the PortletRequestContext, it delegates to the parent context given the fact that the root RequestContext is always a PortalRequestContext.

3.9.1. Groovy templates

Orientation is defined by implicit variables in the groovy binding context:

Orientation: The current orientation as an Orientation
isLT: The value of orientation.isLT()
isRT: The value of orientation.isRT()
dir: The string 'ltr' if the orientation is LT or the string 'rtl' if the orientation is RT.

3.9.2. Stylesheet

The skin service handles stylesheet rewriting to accommodate the orientation. It works by appending -lt or -rt to the stylesheet name.

For instance: /web/skin/portal/webui/component/UIFooterPortlet/DefaultStylesheet-rt.css will return the same stylesheet as /web/skin/portal/webui/component/UIFooterPortlet/DefaultStylesheet.css but processed for the RT orientation. The -lt suffix is optional.

Stylesheet authors can annotate their stylesheet to create content that depends on the orientation.

Example 1

In the example we need to use the orientation to modify the float attribute that will make the horizontal tabs either float on left or on right:

float: left; /* orientation=lt */
float: right; /* orientation=rt */
font-weight: bold;
text-align: center;
white-space: nowrap;

The LT produced output will be:

float: left; /* orientation=lt */
font-weight: bold;
text-align: center;
white-space: nowrap;

The RT produced output will be:


float: right; /* orientation=rt */
font-weight: bold;
text-align: center;
white-space: nowrap;

Example 2

In this example we need to modify the padding according to the orientation:

color: white;
line-height: 24px;
padding: 0px 5px 0px 0px; /* orientation=lt */
padding: 0px 0px 0px 5px; /* >orientation=rt */

The LT produced output will be:


color: white;
line-height: 24px;
padding: 0px 5px 0px 0px; /* orientation=lt */

The RT produced output will be:


color: white;
line-height: 24px;
padding: 0px 0px 0px 5px; /* orientation=rt */

3.9.3. Images

Sometimes it is necessary to create an RT version of an image that will be used from a template or from a stylesheet. However symmetric images can be automatically generated avoiding the necessity to create a mirrored version of an image and furthermore avoiding maintenance cost.

The web resource filter uses the same naming pattern as the skin service. When an image ends with the -rt suffix the portal will attempt to locate the original image and create a mirror of it.

For instance: requesting the image /GateInResources/skin/DefaultSkin/webui/component/UITabSystem/UITabs/background/NormalTabStyle-rt.gif returns a mirror of the image /GateInResources/skin/DefaultSkin/webui/component/UITabSystem/UITabs/background/NormalTabStyle.gif.

Note

It is important to consider whether the image to be mirrored is symmetrical as this will impact it's final appearance.

Here is an example combining stylesheet and images:

line-height: 24px;
background: url('background/NavigationTab.gif') no-repeat right top; /* orientation=lt */
background: url('background/NavigationTab-rt.gif') no-repeat left top; /* orientation=rt */
padding-right: 2px; /* orientation=lt */
padding-left: 2px; /* orientation=rt */

3.9.4. Client side JavaScript

The eXo.core.I18n object provides the following parameters for orientation:

getOrientation(): Returns either the string lt or rt
getDir(): Returns either the string ltr or rtl
isLT(): Returns true for LT
isRT(): Returns true of RT

3.10. XML Resources Bundles

3.10.1. Motivation

Resource bundles are usually stored in property files. However, as property files are plain files, issues with the encoding of the file may arise. The XML resource bundle format has been developed to provide an alternative to property files.

The XML format declares the encoding of the file. This avoids use of the native2ascii program which can interfere with encoding.
Property files generally use ISO 8859-1 character encoding which does not cover the full unicode charset. As a result, languages such as Arabic would not be natively supported.
Tooling for XML files is better supported than the tooling for Java property files and thus the XML editor copes well with the file encoding.

3.10.2. XML format

The XML format is very simple and has been developed based on the DRY (Don't Repeat Yourself) principle. Usually resource bundle keys are hierarchically defined and we can leverage the hierarchic nature of the XML for that purpose. Here is an example of turning a property file into an XML resource bundle file:

UIAccountForm.tab.label.AccountInputSet = ...
UIAccountForm.tab.label.UIUserProfileInputSet = ...
UIAccountForm.label.Profile = ...
UIAccountForm.label.HomeInfo= ...
UIAccountForm.label.BusinessInfo= ...
UIAccountForm.label.password= ...
UIAccountForm.label.Confirmpassword= ...
UIAccountForm.label.email= ...
UIAccountForm.action.Reset= ...


<?xml version="1.0" encoding="UTF-8"?>

<bundle>

  <UIAccountForm>

    <tab>

      <label>

        <AccountInputSet>...</AccountInputSet>

        <UIUserProfileInputSet>...</UIUserProfileInputSet>

      </label>

    </tab>

    <label>

      <Profile>...</Profile>

      <HomeInfo>...</HomeInfo>

      <BusinessInfo>...</BusinessInfo>

      <password>...</password>

      <Confirmpassword>...</Confirmpassword>

      <email>...</email>

    </label>

    <action>

      <Reset>...</Reset>

    </action>

  </UIAccountForm>

</bundle>

Subscribe.
Publish.
Unsubscribe.

A subscription to a topic will receive any subtopic messages. For example; An application subscribed to "/eXo/application" will receive messages sent on the "/eXo/application/map" topic. A message sent on "/eXo", however, would not be received.

Subscription Topics

/eXo: This topic contains all the events generated by the platform.
/eXo/portal/notification: A message is sent on this topic will prompt a popup notification in the top right of the screen.

3.11.2. Library

The Inter Application Communication library is found in 01eXoResources.war:/javascript/eXo/core/Topic.js

/**
 * publish is used to publish an event to the other subscribers to the given channels
 * @param {Object} senderId is a string that identify the sender
 * @param {String} topic is the topic that the message will be published
 * @param {Object} message is the message that's going to be delivered to the subscribers to the topic
 */
Topic.prototype.publish = function(/*Object*/ senderId, /*String*/ topicName, /*Object*/ message ) { ... }

/**
 * isSubscribed is used to check if a function receive the events from a topic
 * @param {String} topic The topic.
 * @param {Function} func is the name of the function of obj to call when a message is received on the topic
 */
Topic.prototype.isSubscribed = function(/*String*/ topic, /*Function*/ func) { ... }

/**
 * subscribe is used to subscribe a callback to a topic
 * @param {String} topic is the topic that will be listened
 * @param {Function} func is the name of the function of obj to call when a message is received on the topic
 *
 * func is a function that take a Object in parameter. the event received have this format:
 * {senderId:senderId, message:message, topic: topic}
 *
 */
Topic.prototype.subscribe = function(/*String*/ topic, /*Function*/ func) { ... }

/**
 * unsubscribe is used to unsubscribe a callback to a topic
 * @param {String} topic is the topic
 * @param {Object} id is the id of the listener we want to unsubscribe
 */
Topic.prototype.unsubscribe = function(/*String*/ topic, /*Object*/ id) { ... }

Topic.prototype.initCometdBridge = function() { ... }

3.11.3. Syntax

The three messaging functions require particular objects and definitions in their syntax:

Subscribe

The subscribe function is used to subscribe a callback to a topic. It uses the following parameters:

topic

The topic that will be listened for.

func

The name of the object function to call when a message is received on the topic. It has to be a function that takes an Object parameter. The event received will have this format:

{
  senderId:senderId,
  message:message,
  topic: topic
}

Publish

The publish function is used to publish an event to the other subscribered applications through the given channels. Its parameters are:

senderId: This is a string that identifies the sender.
topicName: The topic that the message will be published.
message: This is the message body to be delivered to the subscribers to the topic.

Unsubscribe

The unsubscribe function is used to unsubscribe a callback to a topic. The required parameters are:

topic: The topic that will is to be unsubscribed from.
id: This is the context object.

3.11.4. Example of Javascript events usage

<%@ taglib uri="http://java.sun.com/portlet" prefix="portlet" %>
<portlet:defineObjects/>
<div>
  <p>
    Received messages:
    <div id="received_<portlet:namespace/>">

    </div>
  </p>

  <p>
    Send message:
    <input type="text" id="msg_<portlet:namespace/>"/> <a href="#" onclick="send_<portlet:namespace/>();">send</a>
  </p>
</div>

<script type="text/javascript">

  Function.prototype.bind = function(object) {
    var method = this;
      return function() {
      method.apply(object, arguments);
    }
  }

  function send_<portlet:namespace/>() {
    var msg = document.getElementById("msg_<portlet:namespace/>").value;
    eXo.core.Topic.publish("<portlet:namespace/>", "/demo", msg);
  }

  function Listener_<portlet:namespace/>(){

  }

  Listener_<portlet:namespace/>.prototype.receiveMsg = function(event) {
    document.getElementById("received_<portlet:namespace/>").innerHTML =
      document.getElementById("received_<portlet:namespace/>").innerHTML + "<br />* " +
      event.senderId + ": " + event.message;
  }

  function init_<portlet:namespace/>() {
    var listener_<portlet:namespace/> = new Listener_<portlet:namespace/>();
    eXo.core.Topic.subscribe("/demo", listener_<portlet:namespace/>.receiveMsg.bind(listener_<portlet:namespace/>));
  }

  init_<portlet:namespace/>();
</script>

3.12. Upload Component

3.12.1. Upload Service

The service is defined by the class: org.exoplatform.upload.UploadService;

This can be configured with the following xml code:


<component>

   <type>org.exoplatform.upload.UploadService</type>

     <init-params>

       <value-param>

        <name>upload.limit.size</name>

        <description>Maximum size of the file to upload in MB</description>

        <value>10</value>

      </value-param>

    </init-params>

  </component>

This code allows for a default upload size limit for the service to be configured. The value unit is in MegaBytes.

This limit will be used by default by all applications if no application-specific limit is set. Setting a different limit for applications is discussed in a later section.

If the value is set at 0 the upload size is unlimited.

Procedure 3.4. How to use the upload component

Create an object type org.exoplatform.webui.form.UIFormUploadInput.

Two constructors are available for this:

public UIFormUploadInput(String name, String bindingExpression)

or:

public UIFormUploadInput(String name, String bindingExpression, int limit)

This is an example using the second form :

PortletRequestContext pcontext = (PortletRequestContext)WebuiRequestContext.getCurrentInstance();

PortletPreferences portletPref = pcontext.getRequest().getPreferences();

int limitMB = Integer.parseInt(portletPref.getValue("uploadFileSizeLimitMB", "").trim());

UIFormUploadInput uiInput = new UIFormUploadInput("upload", "upload", limitMB);

To obtain the limit from the xml configuration, this piece of code can be added to the either portlet.xml or portlet-preferences.xml :
```
<preference>

  <name>uploadFileSizeLimitMB</name>

  <value>30</value>

  <read-only>false</read-only>

</preference>
```
Again, a 0 value means an unlimited upload size, and the value unit is set in MegaBytes.

Use the getUploadDataAsStream() method to get the uploaded data:

UIFormUploadInput input = (UIFormUploadInput)uiForm.getUIInput("upload");

InputStream inputStream = input.getUploadDataAsStream();

...

jcrData.setValue(inputStream);

The upload service stores a temporary file on the filesystem during the upload process. When the upload is finished, the service must be cleaned in order to:
1. Delete the temporary file.
2. Delete the classes used for the upload.
Use theremoveUpload() method defined in the upload service to purge the file:
```
UploadService uploadService = uiForm.getApplicationComponent(UploadService.class) ;

UIFormUploadInput uiChild = uiForm.getChild(UIFormUploadInput.class) ;

uploadService.removeUpload(uiChild.getUploadId()) ;
```
Saving the uploaded file
Ensure the file is saved before the service is cleaned.

3.13. Deactivation of the Ajax Loading Mask Layer

3.13.1. Purpose

The loading mask layer is deployed after an ajax-call. Its purpose is to block the GUI in order to prevent further user actions until the the ajax-request has been completed.

However, the mask layer may need to be deactivated in instances where the portal requires user instructions before previous instructions have been carried out.

Procedure 3.5. How to deactivate the ajax-loading mask

Generate a script to make an asynchronous ajax-call. Use the uicomponent.doAsync() method rather than the uicomponent.event() method.
For example:
```
<a href="<%=uicomponent.doAsync(action, beanId, params)%>" alt="">Asynchronous</a>
```
The doAsync() method automatically adds the following new parameter into the parameters list; asyncparam = new Parameter(AJAX ASYNC,"true"); (AJAX ASYNC == "ajax async")
This request is asynchronous and the ajax-loading mask will not deployed.
Note
An asynchronous request can still be made using the uicomponent.event(). When using this method, however, the asyncparam must be added manually.

The GUI will be blocked to ensure a user can only request one action at a time and while the request seems to be synchronous, all ajax requests are, in fact always asynchronous. For further information refer to Section 3.13.2, “Synchronous issue”.

3.13.2. Synchronous issue

Most web browsers support ajax requests in two modes: Synchronous and Asynchronous. This mode is specified with a boolean bAsync parameter.

var bAsync = false; // Synchronous
request.open(instance.method, instance.url, bAsync);

However, in order to work with browsers that do not support Synchronous requests, bAsync is set to always be true (Ajax request will always be asynchronous).

// Asynchronous request
request.open(instance.method, instance.url, true);

3.14. Javascript Configuration

Managing Javascript scripts in an application like GateIn 3.2 is a critical part of the configuration work. Configuring the scripts correctly will result in a faster response time from the portal.

Every portlet can have its own javscript code but in many cases it is more convenient to reuse some existing shared libraries. For that reason, GateIn 3.2 has a mechanism to easily register the libraries that will be loaded when the first page will be rendered.

To do so, every WAR deployed in GateIn 3.2 can register the .js files with the groovy script WEB-INF/conf/script/groovy/JavascriptScript.groovy. (TODO: this file doesn't seem to exist)

The example file below is found in the 01eXoResources.war

JavascriptService.addJavascript("eXo", "/javascript/eXo.js", ServletContext);

/* Animation Javascripts */

JavascriptService.addJavascript("eXo.animation.ImplodeExplode", "/javascript/eXo/animation/ImplodeExplode.js", ServletContext);

/* Application descriptor */

JavascriptService.addJavascript("eXo.application.ApplicationDescriptor", "/javascript/eXo/application/ApplicationDescriptor.js", ServletContext);

/* CORE Javascripts */

JavascriptService.addJavascript("eXo.core.Utils", "/javascript/eXo/core/Util.js", ServletContext);

JavascriptService.addJavascript("eXo.core.DOMUtil", "/javascript/eXo/core/DOMUtil.js", ServletContext);

JavascriptService.addJavascript("eXo.core.Browser", "/javascript/eXo/core/Browser.js", ServletContext);

JavascriptService.addJavascript("eXo.core.MouseEventManager", "/javascript/eXo/core/MouseEventManager.js", ServletContext);

JavascriptService.addJavascript("eXo.core.UIMaskLayer", "/javascript/eXo/core/UIMaskLayer.js", ServletContext);

JavascriptService.addJavascript("eXo.core.Skin", "/javascript/eXo/core/Skin.js", ServletContext);

JavascriptService.addJavascript("eXo.core.DragDrop", "/javascript/eXo/core/DragDrop.js", ServletContext);

JavascriptService.addJavascript("eXo.core.TemplateEngine", "/javascript/eXo/core/TemplateEngine.js", ServletContext);

/* Widget Javascripts */

JavascriptService.addJavascript("eXo.widget.UIWidget", "/javascript/eXo/widget/UIWidget.js", ServletContext);

JavascriptService.addJavascript("eXo.widget.UIAddWidget", "/javascript/eXo/widget/UIAddWidget.js", ServletContext);

JavascriptService.addJavascript("eXo.widget.UIExoWidget", "/javascript/eXo/widget/UIExoWidget.js", ServletContext);

/* Desktop Javascripts */

JavascriptService.addJavascript("eXo.desktop.UIDockbar", "/javascript/eXo/desktop/UIDockbar.js", ServletContext);

JavascriptService.addJavascript("eXo.desktop.UIDesktop", "/javascript/eXo/desktop/UIDesktop.js", ServletContext);

/* WebUI Javascripts */

JavascriptService.addJavascript("eXo.webui.UIItemSelector", "/javascript/eXo/webui/UIItemSelector.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIForm", "/javascript/eXo/webui/UIForm.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIPopup", "/javascript/eXo/webui/UIPopup.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIPopupSelectCategory", "/javascript/eXo/webui/UIPopupSelectCategory.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIPopupWindow", "/javascript/eXo/webui/UIPopupWindow.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIVerticalScroller", "/javascript/eXo/webui/UIVerticalScroller.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIHorizontalTabs", "/javascript/eXo/webui/UIHorizontalTabs.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIPopupMenu", "/javascript/eXo/webui/UIPopupMenu.js", ServletContext);

JavascriptService.addJavascript("eXo.webui.UIDropDownControl", "/javascript/eXo/webui/UIDropDownControl.js", ServletContext);

/* Portal Javascripts */

JavascriptService.addJavascript("eXo.portal.PortalHttpRequest", "/javascript/eXo/portal/PortalHttpRequest.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIPortal", "/javascript/eXo/portal/UIPortal.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIWorkspace", "/javascript/eXo/portal/UIWorkspace.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIPortalControl", "/javascript/eXo/portal/UIPortalControl.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.PortalDragDrop", "/javascript/eXo/portal/PortalDragDrop.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIPortalNavigation", "/javascript/eXo/portal/UIPortalNavigation.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIMaskWorkspace", "/javascript/eXo/portal/UIMaskWorkspace.js", ServletContext);

JavascriptService.addJavascript("eXo.portal.UIExoStartMenu", "/javascript/eXo/portal/UIExoStartMenu.js", ServletContext);

/* Desktop Javascripts 2 */

JavascriptService.addJavascript("eXo.desktop.UIWindow", "/javascript/eXo/desktop/UIWindow.js", ServletContext);

Note that even registered dedicated javascripts will be merged into a single merged.js file when the server loads. This reduces the number of HTTP calls as seen in the home page source code:


<script type="text/javascript" src="/portal/javascript/merged.js"></script>

Although this optimization is useful for a production environment, it may be easier to deactivate this optimization while debugging javascript problems.

To do this, set the java system property exo.product.developing to true.

To see or use the merged file set this property to false.

The property can be passed as a JVM parameter with the -D option in your GateIn.sh or GateIn.bat startup script.

Every javascript file is associated with a module name which acts as a namespace. The module name is passed as a first parameter to JavascriptService.addJavascript() function as in the following example:



JavascriptService.addJavascript("eXo.core.DragDrop",

      "/javascript/eXo/core/DragDrop.js", ServletContext);

Inside the associated javascript files, functions are exposed as global javascript function variables using the module name.

For example:



eXo.core.DragDrop = new DragDrop();

It is also possible to use eXo.require() javascript method to lazy load and evaluate some javascript code. This is quite useful for the portlet or widget applications that will use this javascript only once. Otherwise, if the library is reusable in several places it is better to reference it in the groovy file.

3.15. Navigation Controller

3.15.1. Description

The navigation controller is a major enhancement of GateIn that has several goals

Provide non ambiguous urls for portal managed resources such as navigation. Previously different resources were possible for a single url, even worse, the set of resources available for an url was depending on one's private navigation (groups and dashboard)
Decouple the http request from the portal request. Previously both were tightly coupled, for instance the url for a site had to begin with /public/{sitename} or /private/{sitename} .The navigation controller provides a flexible and configurable mapping.
Provide more friendly url and give a degree of freedom for the portal administrator by letting him configure how http request should look like.

3.15.2. Controller in Action

3.15.2.1. Controller

The WebAppController is the component of GateIn that process http invocations and transforms them into a portal request. It has been improved with the addition of a request mapping engine (controller) whose role is to make the decoupling of the http request and create a portal request. The mapping engine makes two essential tasks

Create a Map<QualifiedName, String> from an incoming http request
Render a Map<QualifiedName, String> as an http URL

The goal of the controller (mapping engine) is to decouple the request processed by GateIn from the incoming HTTP request. Indeed a request contain data that determine how the request will be processed and such data can be encoded in various places in the request such as the request path or a query parameter. The controller allows GateIn route a request according to a set of parameters (a map) instead of the servlet request.

The controller configuration is declarative in an XML file, allowing easy reconfiguration of the routing table and it is processed into an internal data structure that is used to perform resolution (routing or rendering)

3.15.2.2. Building controller

The controller configuration that contains the routing rules is loaded from a file named controller.xml that is retrieved in the GateIn configuration directory. Its location is determined by the gatein.controller.config property.

WebAppController loads and initializes the mapping engine

<!-- conf/portal/controller-configuration.xml of portal.war -->
<component>
  <type>org.exoplatform.web.WebAppController</type>
    <init-params>
      <value-param>
        <name>controller.config</name>
        <value>${gatein.portal.controller.config}</value>
      </value-param>
    </init-params>
</component>

GateIn's extension project can define their own routing table, thanks to the extension mechanism.

The controller.xml can be changed and reloaded at runtime, this help the testing of different configurations easily (configuration loading operations) and provide more insight into the routing engine (the findRoutes operation). see Rebuiding controller for more detail

ReBuilding controller

The WebAppController is annotated with @Managed annotations and is bound under the view=portal,service=controller JMX name and under the "portalcontroller" REST name.

It provides the following attributes and operations

Attribute configurationPath : the read only the configuration path of the controller xml file
Operation loadConfiguration : load a new configuration file from a specified xml path
Operation reloadConfiguration : reload the configuration file
Operation findRoutes : route the request argument through the controller and returns a list of all parameter map resolution. The argument is a request uri such as "/groups/:platform:administrators/administration/registry". It returns a string representation (List<Map>) of the matched routes.

3.15.2.3. Controller Configuration (controller.xml)

Most of the controller configuration cares about defining rules (Routing table - contains routes object) that will drive the resolution. Routes are processed during the controller initialization to give a tree of node. Each node

is related to its parent with a matching rule that can either be an exact string matching or a regular expression matching
is associated with a set of parameters

A parameter is defined by a qualified name and there are three kind of parameters

3.15.2.3.1. Route parameters

Route parameters defines a fixed value associate with a qualified name.

Routing: route parameters allow the controller to distinguish branches easily and route the request accordingly.
Rendering: selection occurs when always.

Example:

<route path="/foo">
  <route-param qname="gtn:handler">
    <value>portal</value>
  </route-param>
</route>

This configuration matches the request path "/foo" to the map (gtn:handler=portal). Conversely it renders the (gtn:handler=portal) map as the "/foo" url. In this example we see two concepts

exact path matching ("/foo")
route parameters ("gtn:handler")

3.15.2.3.2. Path parameters - Regular expression support

Path parameters allow to associate a portion of the request path with a parameter. Such parameter will match any non empty portion of text except the / character (that is the [^/]+ regular expression) otherwise they can be associated with a regular expression for matching specific patterns. Path parameters are mandatory for matching since they are part of the request path, however it is allowed to write regular expression matching an empty value.

Routing: route is accepted if the regular expression is matched.
Rendering: selection occurs when the regular expression matches the parameter.

Encoding

Path parameters may contain '/' character which is a reserved char for URI path. This case is specially handled by the navigation controller by using a special character to replace '/' literals. By default the character is the semi colon : and can be changed to other possible values (see controller XML schema for possible values) to give a greater amount of flexibility.

This encoding is applied only when the encoding performed for parameter having a mode set to the default-form value, for instance it does not happen for navigation node URI (for which / are encoded literally). The separator escape char can still be used but under it's percent escaped form, so by default a path parameter value containing : would be encoded as %3A and conversely the %3A value will be decoded as :.

Example:

<route path="/{gtn:path}">
</route>

No pattern defined, used the default one [^/]+

Routing and Rendering
Path "/foo"      <--> the map (gtn:path=foo)

Path "/foo:bar"  <--> the map (gtn:path=foo/bar)

If the request path contains another "/" char it will not work,default encoding mode is : default-form. For example:"/foo/bar" --> not matched, return empty parameter map

However this could be solved with the following configuration:

<route path="/{gtn:path}">
  <path-param encoding="preserve-path" qname="gtn:path">
    <pattern>.*</pattern>
  </path-param>
</route>

The .* declaration allows to match any char sequence.
The preserve-path encoding tells the engine that the "/" chars should be handled by the path parameter itself as they have a special meaning for the router. Without this special encoding, "/" would be rendered as the ":" character and conversely the ":" character would be matched as the "/" character.

3.15.2.3.3. Request parameters

Request parameters are matched from the request parameters (GET or POST). The match can be optional as their representation in the request allows it.

Routing
- route is accepted when a required parameter is present and matched in the request.
- route is accepted when an optional parameter is absent or matched in the request.
Rendering:
- selection occurs for required parameters when is the parameter is present and matched in the map.
- selection occurs for optional parameters when is the parameter is absent or matched in the map.

Example:

<route path="/">
  <request-param name="path" qname="gtn:path"/>
</route>

Request parameters are declared by a request-param element and by default will match any value. A request like "/?path=foo" is mapped to the (gtn:path=foo) map. The name attribute of the request-param tag defines the request parameter value. This element accepts more configuration

a value or a pattern element a child element to match a constant or a pattern
a control-mode attribute with the value optional or required to indicate if matching is mandatory or not
a value-mapping attribute with the possible values canonical, never-empty, never-null can be used to filter filter values after matching is done. For instance a parameter configured with value-mapping="never-empty" and matching the empty string value will not put the empty string in the map.

3.15.2.3.4. Route precedence

The order of route declaration is important as it influence how rules are matched. Sometimes the same request could be matched by several routes and the routing table is ambiguous.

<route path="/foo">
  <route-param qname="gtn:handler">
    <value>portal</value>
  </route-param>
</route>
<route path="/{gtn:path}">
  <path-param encoding="preserve-path" qname="gtn:path">
    <pattern>.*</pattern>
  </path-param>
</route>

In that case, the request path "/foo" will always be matched by the first rule before the second rule. This can be misleading since the map (gtn:path=foo) would be rendered as "/foo" as well and would not be matched by the first rule. Such ambiguit can happen, it can be desirable or not.

3.15.2.3.5. Route nesting

Route nesting is possible and often desirable as it helps to

factor common parameters in a common rule
perform more efficient matching as the match of the common rule is done once for all the sub routes

<route path="/foo">
  <route-param qname="gtn:handler">
    <value>portal</value>
  </route-param>
  <route path="/bar">
    <route-param qname="gtn:path">
      <value>bar</value>
    </route-param>
  </route>
  <route path="/juu">
    <route-param qname="gtn:path">
      <value>juu</value>
    </route-param>
  </route>
</route>

The request path "/foo/bar" is mapped to the (gtn:handler=portal,gtn:path=bar) map
The request path "/foo/juu" is mapped to the (gtn:handler=portal,gtn:path=juu) map
The request path "/foo" is not mapped as non leaf routes do not perform matches.

3.15.3. Integrate to GateIn WebUI framework

3.15.3.1. Routing

GateIn defines a set of parameters in its routing table, for each client request, the mapping engine processes the request path and return the defined parameters with their values as a Map<QualifiedName, String>

gtn:handler

The gtn:handler names is one of the most important qualified name as it determines which handler will take care of the request processing just after the controller has determined the parameter map. The handler value is used to make a lookup in the handler map of the controller. An handler is a class that extends the WebRequestHandler class and implements the execute(ControllerContext) method. Several handlers are available by default:

portal : process aggregated portal requests
upload / download : process file upload and file download
legacy : handle legacy URL redirection (see Legacy handler section)
default : http redirection to the default portal of the container
staticResource: serve static resources like image, css or javascript... files in portal.war (see Static Resource Handler section)

gtn:sitetype / gtn:sitename / gtn:path

Those qualified names drives a request for the portal handler. They are used to determine which site to show and which path to resolve against a navigation. For instance the (gtn:sitetype=portal,gtn:sitename=classic,gtn:path=home) instruct the portal handler to show the home page of the classic portal site.

gtn:lang

The language in the url for the portal handler. This is a new feature offered, now language can be specified on URL. that mean user can bookmark that URL (with the information about language) or he can changed language simply by modifying the URL address

gtn:componentid / gtn:action / gtn:objectid

The webui parameters used by the portal handler for managing webui component URLs for portal applications (and not for portlet applications).

3.15.3.2. Rendering

The controller is designed to render a Map<QualifiedName, String> as an http URL according to its routing table. But to integrate it for using easily in WebUI Framework of GateIn, we need some more components

3.15.3.2.1. PortalURL

PortalURL play a similar role at the portal level, its main role is to abstract the creation of an URL for a resource managed by the portal.

public abstract class PortalURL<R, U extends PortalURL<U>>
{
   ...
}

The PortalURL declaration may seem a bit strange at first sight with two generic types U and R and the circular recursion of the U generic parameter, but it's because most of the time you will not use the PortalURL object but instead subclasses.

The R generic type represents the type of the resource managed by the portal
The U generic type is also described as self bound generic type. This design pattern allows a class to return subtypes of itself in the class declaring the generic type. Java Enums are based on this principle (class Enum<E extends Enum<E>>)

A portal URL has various methods but certainly the most important method is the toString() method that generates an URL representing that will target the resource associated with the url. The remaining methods are getter and setter for mutating the url configuration, those options will affect the URL representation when it is generated.

resource : the mandatory resource associated with the url
locale : the optional locale used in the URL allowing the creation of bookmarkable URL containing a language
confirm : the optional confirm message displayed by the portal in the context of the portal UI
ajax : the optional ajax option allowing an ajax invocation of the URL

Obtaining a PortalURL

PortalURL objects are obtained from RequestContext instance such as the PortalRequestContext or the PortletRequestContext. Usually those are obtained thanks to getCurrentInstance method of the RequestContext class:

RequestContext ctx = RequestContext.getCurrentInstance();

PortalURL are created via to the createURL method that takes as input a resource type. A resource type is usually a constant and is a type safe object that allow to retrieve PortalURL subclasses:

RequestContext ctx = RequestContext.getCurrentInstance();
PortalURL<R, U> url = ctx.createURL(type);

In reality you will use a concrete type constant and have instead more concrete code like:

RequestContext ctx = RequestContext.getCurrentInstance();
NodeURL url = ctx.createURL(NodeURL.TYPE);

Note

The NodeURL.TYPE is actually declared as new ResourceType<NavigationResource, NodeURL>() that can be described as a type literal object emulated by a Java anonymous inner class. Such literal were introduced by Neil Gafter as Super Type Token and popularized by Google Guice as Type Literal. It's an interesting way to create a literal representing a kind of Java type.

3.15.3.2.2. Node URL

The class NodeURL is one of the subclass of PortalURL that is specialized for navigation node resources:

public class NodeURL extends PortalURL<NavigationResource, NodeURL>
{
   ...
}

The good news is that the NodeURL does not carry any generic type of its super class, which means that a NodeURL is type safe and one does not have to worry about generic types.

Using a NodeURL is pretty straightforward:

NodeURL url = RequestContext.getCurrentInstance().createURL(NodeURL.TYPE);
url.setResource(new NavigationResource("portal", "classic, "home"));
String s = url.toString();

The NodeURL subclass contains specialized setter to make its usage even easier:

UserNode node = ...;
NodeURL url = RequestContext.getCurrentInstance().createURL(NodeURL.TYPE);
url.setNode(node);
String s = url.toString();

3.15.3.2.3. Component URL

The ComponentURL subclass is another specialization of PortalURL that allows the creation of WebUI components URLs. ComponentURL is commonly used to trigger WebUI events from client side:

<% def componentURL = uicomponent.event(...); /*or uicomponent.url(...) */ %>
  <a href=$componentURL>Click me</a>

Normally you should not have to deal with it as the WebUI framework has already an abstraction for managing URL known as URLBuilder. The URLBuilder implementation delegates URL creation to ComponentURL objects.

3.15.3.2.4. Portlet URLs

Portlet URLs API implementation delegates to the portal ComponentURL (via the portlet container SPI). It is possible to control the language in the URL from a PortletURL object by setting a property named gtn:lang:

when the property value is set to a value returned by Locale#toString() method for locale objects having a non null language value and a null variant value, the url generated by the PortletURL#toString() method will contain the locale in the url.
when the property value is set to an empty string, the generated URL will not contain a language. If the incoming URL was carrying a language, this language will be erased.
when the property value is not set, it will not affect the generated URL.

PortletURL url = resp.createRenderURL();
url.setProperty("gtn:lang", "fr");
writer.print("<a href='" + url + "'>French</a>");

3.15.3.2.5. Webui `URLBuilder`

This internal API for creating URL works as before and delegates to the PortletURL API when the framework is executed in a portlet and to a ComponentURL API when the framework is executed in the portal context. The API has been modified to take in account the language in URL with two properties on the builder:

locale : a locale for setting on the URL
removeLocale : a boolean for removing the locale present on the URL

3.15.3.2.6. Groovy Templates

Within a Groovy template the mechanism is the same, however a splash of integration has been done to make creation of NodeURL simpler. A closure is bound under the nodeurl name and is available for invocation anytime. It will simply create a NodeURL object and return it:

UserNode node = ...;
NodeURL url = nodeurl();
url.setNode(node);
String s = url.toString();

The closure nodeurl is bound to Groovy template in WebuiBindingContext

// Closure nodeurl()
put("nodeurl", new Closure(this)
{
  @Override
  public Object call(Object[] args)
  {
    return context.createURL(NodeURL.TYPE);
  }
});

3.15.4. Changes and migration from GateIn 3.1.x

The navication controller implies a migration of the client code that is coupled to several internal APIs of GateIn. As far as we know the major impact is related to anything dealing with URL:

Creation of an URL representing a resource managed by the portal: navigation node or ui component.
Using http request related information

There are also changes in the configuration, because there is a change of how things are internally.

3.15.4.1. Migration of navigation node URL

Using free form node

Previously code for creating navigation node was like:

String uri = Util.getPortalRequestContext().getPortalURI() + "home";

The new code will look like

PortalURL nodeURL = nodeurl();
NavigationResource resource = new NavigationResource(SiteType.PORTAL, pcontext.getPortalOwner(), "home");
String uri = nodeURL.setResource(resource).toString();

Using UserNode object

UserNode node = ...;
String uri = Util.getPortalRequestContext().getPortalURI() + node.getURI()";

The new code will look like

UserNode node = ...;
PortalURL nodeURL = nodeurl();
String uri = nodeURL.setNode(node).toString();

3.15.4.2. Security changes

Security configuration change in order to keep with the flexibility added by the navigation controller. In particular the authentication does not depend anymore on path specified in web.xml but instead rely on the security mandated by the underlying resource. Here are the noticeable changes for security

Authentication is now triggered on the /login URL when it does not have a username or a password specified. Therefore the URL /login?initialURI=/classic/home is (more or less) equivalent to /private/classic/home
When a resource cannot be viewed due to security constraint
- If the user is not logged, the authentication will be triggered
- Otherwise a special page (the usual one) will be displayed instead

3.15.4.3. Default handler

Redirection to the default portal used to be done by the index.jsp JSP page. This is not the case anymore, the index.jsp has been removed and the welcome file in web.xml was removed too. Instead a specific handler in the routing table has been configured, the sole role of this handler is to redirect the request to default portal when no other request has been matched previously:

<controller>
  ...
  <route path="/">
    <route-param qname="gtn:handler">
      <value>default</value>
    </route-param>
  </route>
</controller>

3.15.4.4. Legacy handler

Legacy urls such as /public/... and /private/... are now emulated to determine the best resource with the same resolution algorithm than before but instead of displaying the page, will make an http 302 redirection to the correct URL. This handler is present in the controller configuration. There is a noticeable difference between the two routes

The public redirection attempt to find a node with the legacy resolution algorithm without authentication, which means that secured nodes will not be resolved and the redirection of a secured node will likely redirect to another page. For instance resolving the URL /public/classic/administration/registry path will likely resolve to another node if the user is not authenticated and is not part of the platform administrator group.
The private redirection performs first an authentication before doing the redirection. In that case the /private/classic/administration/registry path will resolve be redirected to the /portal/groups/:platform:administrators/administration/registry page if the user has the sufficient security rights.

3.15.4.5. Static resource handler

The "/" mapping for "default" servlet is now replaced by mapping for org.exoplatform.portal.application.PortalController servlet, that mean we need a handler (org.exoplatform.portal.application.StaticResourceRequestHandler) to serve static resources like image, css or javascript... files in portal.war. And it should be configured, and extended easily. Thanks to the controller.xml. This file can be overridden and can be changed and reloaded at runtime (WebAppController is MBean with some operations such as : reloadConfiguration() ...)

Declare StaticResourceHandler in controller.xml

<route path="/{gtn:path}">
  <route-param qname="gtn:handler">
    <value>staticResource</value>
  </route-param>
  <path-param encoding="preserve-path" qname="gtn:path">
    <pattern>.*\.(jpg|png|gif|ico|css)</pattern>
  </path-param>
</route>

And we don't need these kind of following mapping in portal.war's web.xml anymore :

<servlet-mapping>
  <servlet-name>default</servlet-name>
  <url-pattern>*.jpg</url-pattern>
</servlet-mapping>
...

3.15.4.6. portal.war's web.xml changes

DoLoginServlet declaration

<servlet>
  <servlet-name>DoLoginServlet</servlet-name>
  <servlet-class>org.exoplatform.web.login.DoLoginServlet</servlet-class>
</servlet>
<servlet-mapping>
  <servlet-name>DoLoginServlet</servlet-name>
  <url-pattern>/dologin</url-pattern>
</servlet-mapping>

Delare portal servlet as default servlet

<servlet-mapping>
   <servlet-name>portal</servlet-name>
   <url-pattern>/</url-pattern>
</servlet-mapping>

So there are some mapping declaration for portal servlet are unused, we should also remove them: /private/* /public/* /admin/* /upload/* /download/*

Add some security constraints

<security-constraint>
  <web-resource-collection>
    <web-resource-name>user authentication</web-resource-name>
      <url-pattern>/dologin</url-pattern>
      <url-pattern>/groups/*</url-pattern>
      <url-pattern>/users/*</url-pattern>
...
  </web-resource-collection>
</security-constraint>

We can remove the index.jsp, and its declaration in web.xml now, thank to the Default request handler

<welcome-file-list>
  <welcome-file>/index.jsp</welcome-file>
</welcome-file-list>

3.15.4.7. Dashboard changes

There are several important changes to take in account

dashboard are now bound to a single URL (/users/root by default) and dashboard pages are leaf of this path
dashboard life cycle can be decoupled (create / destroy) from the identity creation in a configurable manner in UserPortalConfigService and exposed in configuration.properties under gatein.portal.idm.createuserportal and gatein.portal.idm.destroyuserportal.
by default dashboard are not created when a user is registered
a dashboard is created when the user access his dashboard URL

3.15.4.8. Remove unused files

1/ portal-unavailable.jsp: this file was presented before if user goes to a non-available portal. Now the server sends a 404 status code instead.

2/ portal-warning.jsp: this file is not used in any place

Note

Note

Translation in XML format

Saving the uploaded file

Note
